Hi!
I’m Cubetto, the little wooden robot who
loves to explore and play, but I need your
help!
Will you be my friend and help me nd my
way?
Let’s get started!
In my box you will nd:
1. Me! - Cubetto the wooden robot
2. Interface Board - My control panel
3. 16 Blocks - My commands
4. World Map - My playground for adventure!
3
Cubetto
I’m always ready for adventure. Take
me out of the box so we can meet!
As you can see, I have two wheels.
Each wheel has one motor.
My shell is wood, my bones are plastic,
and my brain is a computer.
All that’s missing is you to give me
directions.
1
4
5
Queue
Board
My Board is very
important. It’s how you
talk to me.
Use it with my colourful blocks
and tell me where to go.

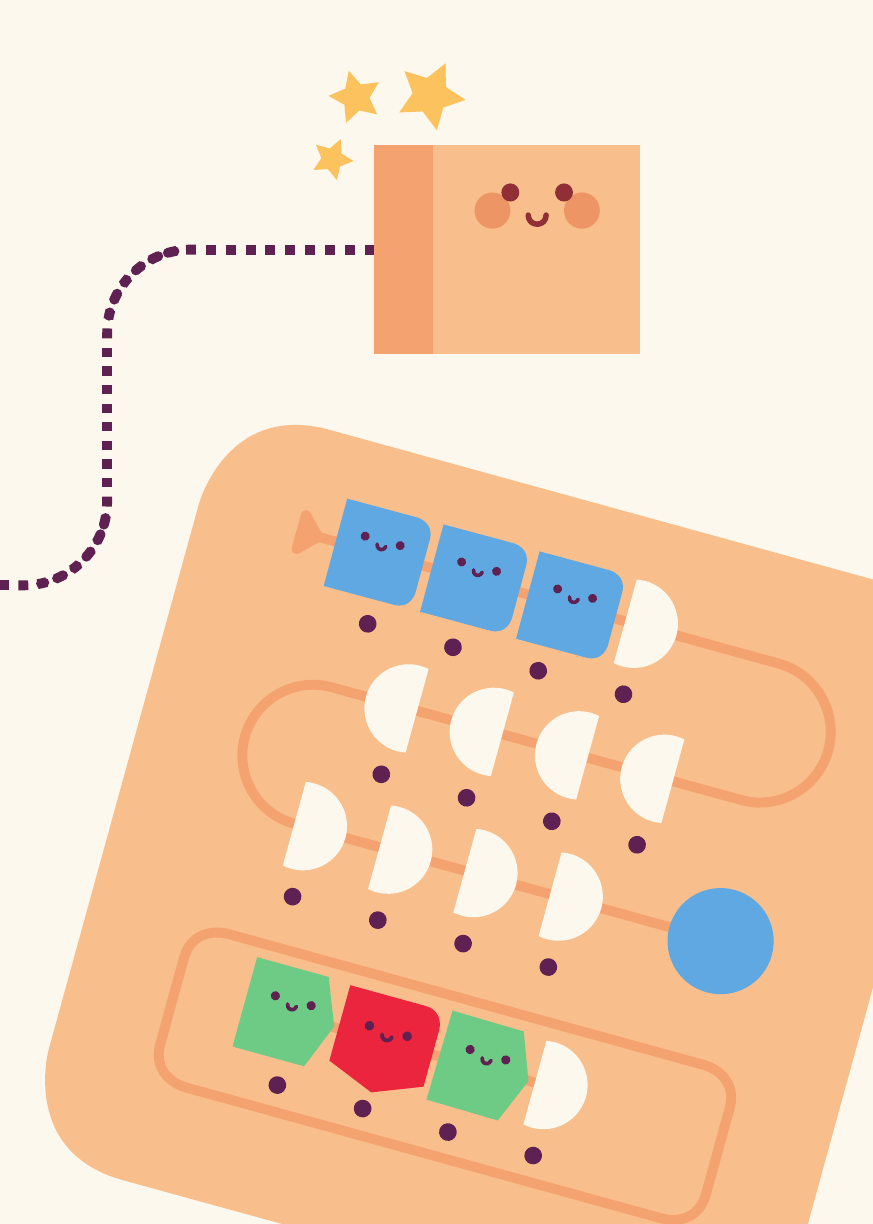

On my Board are my Queue, my
Function Line, and a Go button.
2
6
Function Line
Go
7
Blocks
My blocks come in different shapes and
colours. Each one gives me a different
instruction.
When you place a block into my Board
and hit Go I will make my move.
A series of blocks in a row is called a
program.

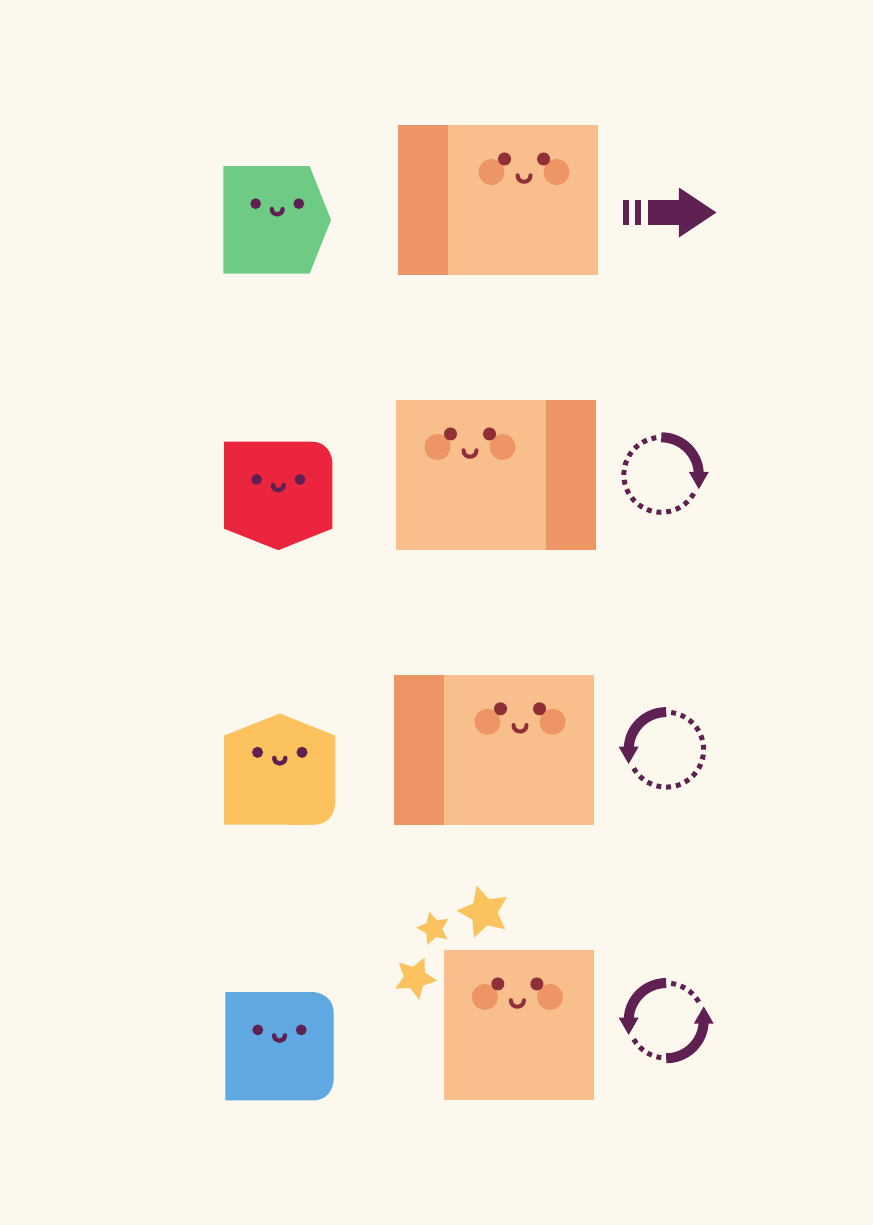

These are my basic commands:
Green - moves me forward 15 cm
Red - turns me right 90º
Yellow - turns me left 90º
Blue - executes a function
3
8
Forward
Function
90°
90°
Left
Right
9
N
WE
S
World Map
My maps are playgrounds for our
adventures. There are many exciting
places we can go explore together.
Do you see how it is made up of lots of
squares? This is called a grid. It will
help you see where I can go.
I love new experiences and have several
maps to collect. Whenever you’re ready
for something new, just grab a new
map!
4
10
11
12
Power and pair
To get me started I need six AA
batteries, three for me, and three for
my Board.
Flip us upside down and insert the
batteries. Once done, switch us both
ON. I will beep and my Board’s lights
will ash.
5

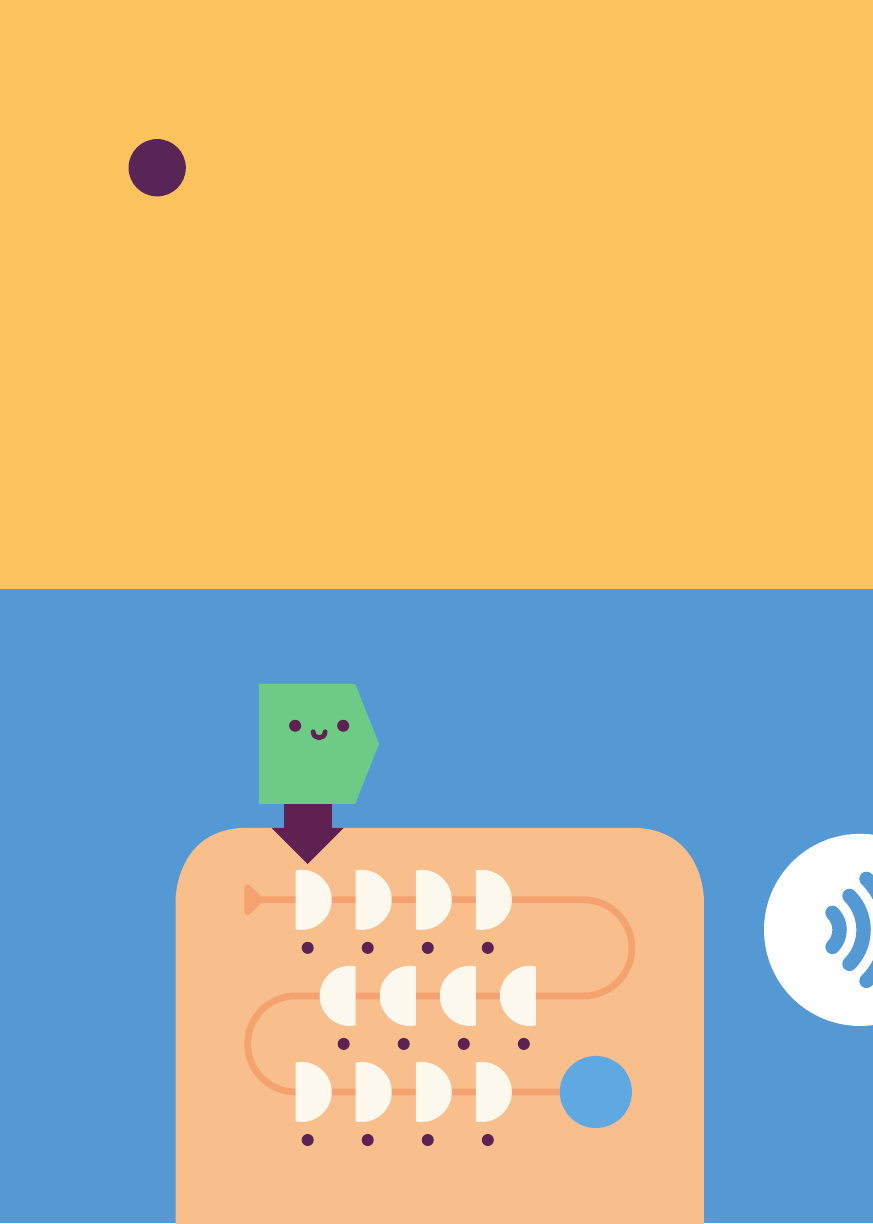

Next, we need to be paired. Do this
by placing one green block on the rst
space of the board and hit Go.
I should move forward. If I don’t, turn us
both off, then try again.
13
Programming Cubetto

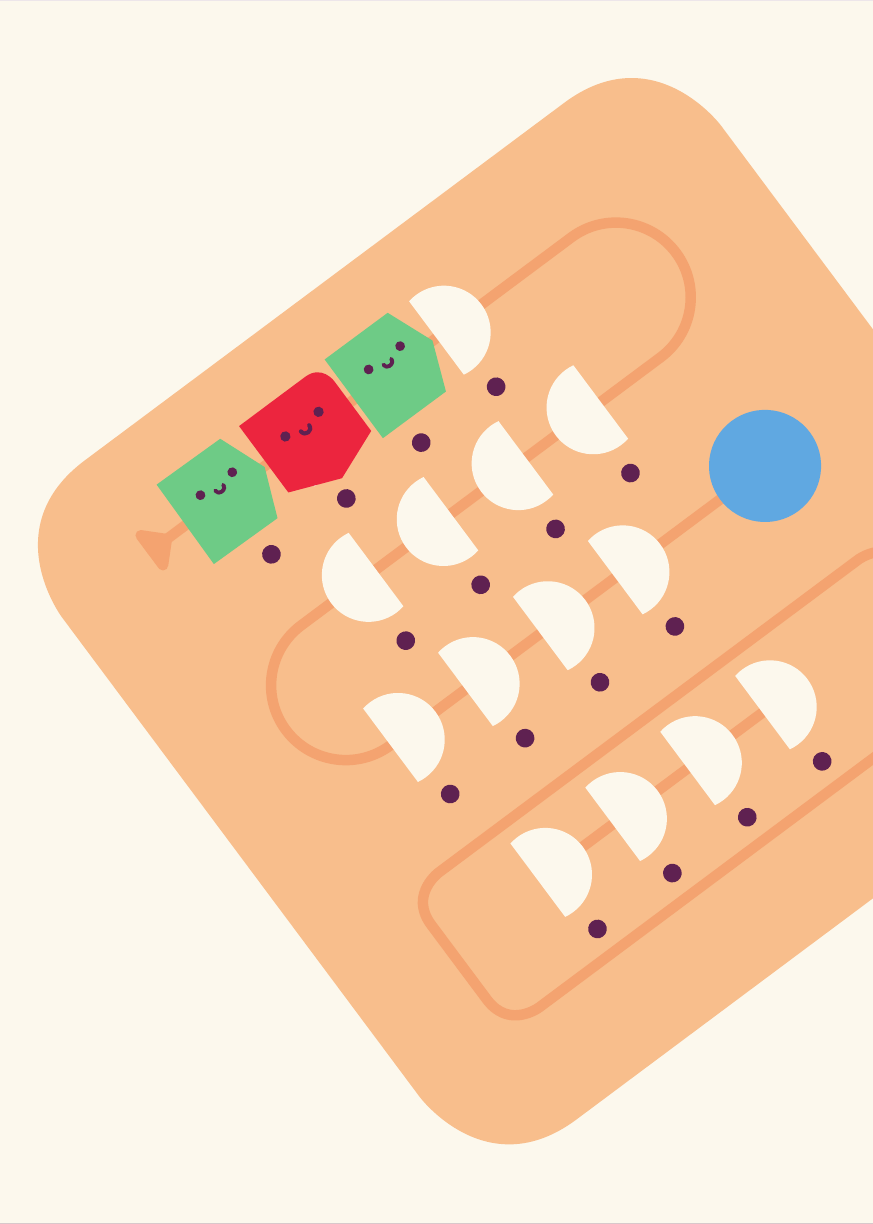

To write a program, place the blocks in
a sequence on my Board.
Notice how my Queue curves like a
snake? This is the order you must
follow.
Once you’ve written your program, hit
the Go button and watch me head off.
6
14
15
Function Line
Remember the Function Line? It can do
some really cool things.
Let me teach you...
If you want to give the same set of
directions more than once, put that
sequence in the Function Line.
Now you can use the blue block in the
Queue every time you want to recall
that sequence.
This is called a subroutine..
7
16
17
Now that you know all about me, let’s play!
When you are ready, open Cubetto’s First Day
to learn a little more and see if you’re up to
some challenges!
