The Aurora mini RITE-T radio model contains two radio transceivers running at 3.84 MHz and 2.4 GHz and both implemented on a single hardware platform.
The radio model is implemented in an engine module mounted on the
main PCB with connections to the antennas, the microphones, the speaker

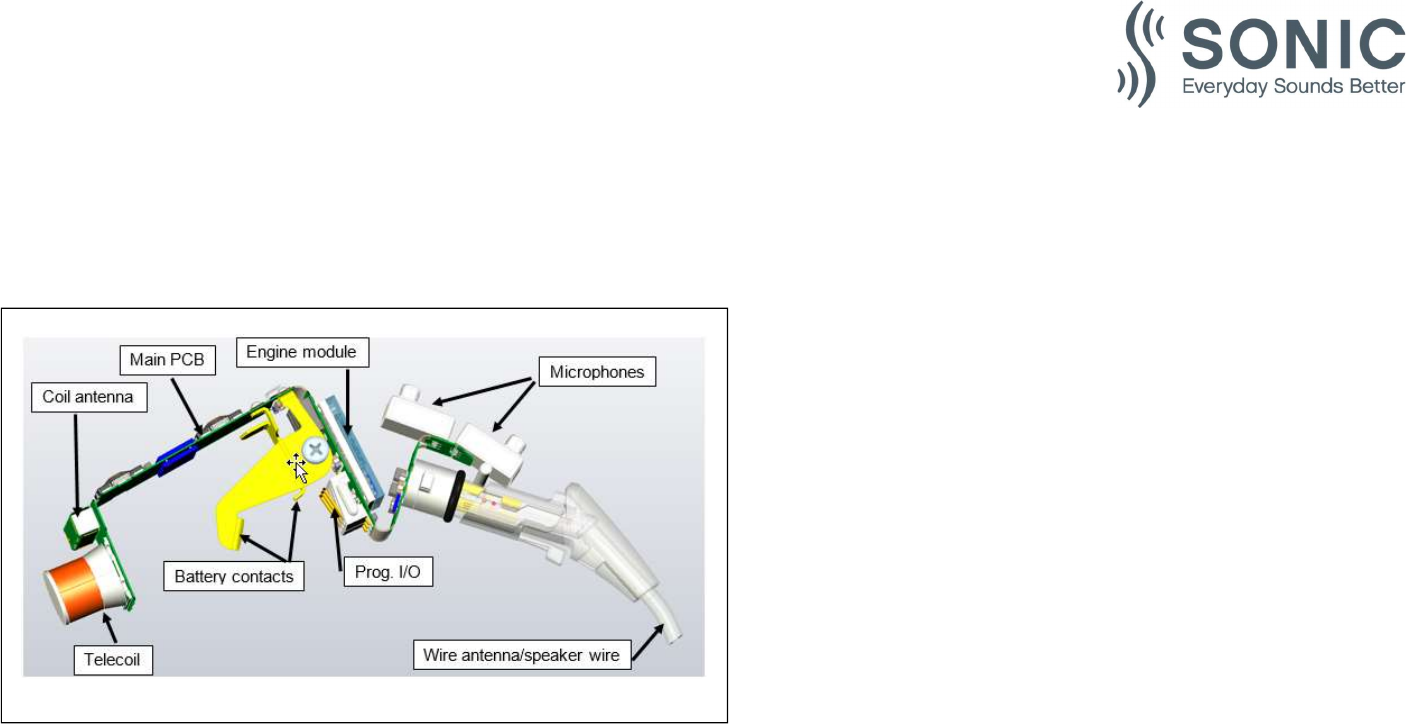

and the battery terminals. The radio model can be seen in 3D overview to
the left:
The 3.84 MHz radio is a low power, short range, inductive radio
transceiver working at a single channel at 3.84 MHz using MSK
modulation with 320 kbit/s data rate and connected to a small coil antenna.
The 2.4 GHz radio is a Bluetooth Low Energy (BLE) transceiver using
GFSK modulation with 1 Mbit/s data rate also capable of proprietary
modes with higher data rates and connected to a short wire antenna.
Aurora mini RITE-T Radio Model – 3D overview
![](/img.php?id=3711715&img=bg2.png)
Oticon
Radio
Model
-
Quick
Installation
Guide
Radio
Model
Name:
Aurora
mini
RITE
-
T
Sonic Innovation Inc.
United States of America
2501 Cottontail Lane Phone: +41 31 560 2125
Somerset, NJ 08873 www.sonici.com
2

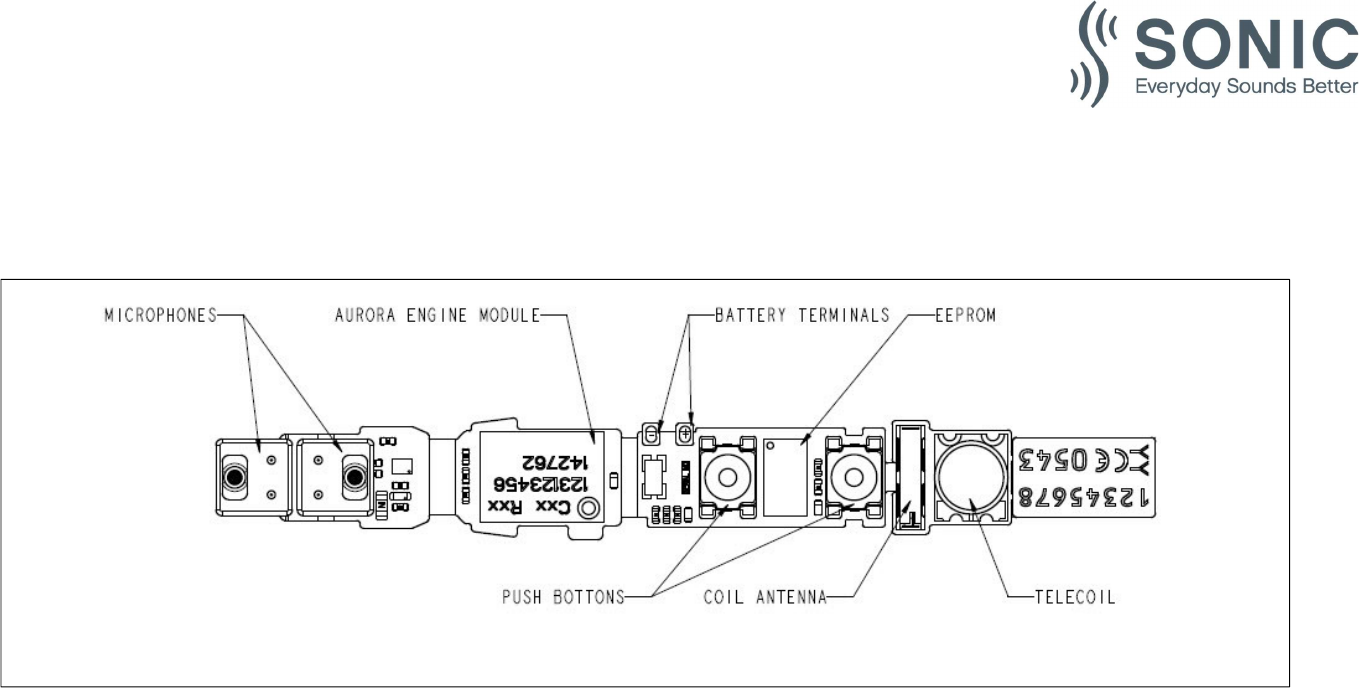

Below the main flex PCB of the Aurora mini RITE-T radio model with the most important electrical and electro-mechanical components can be seen:
The most important part of the radio model is the Engine Module mounted on the main flex PCB, which connects it to both the EEPROM memory and all external
connections: On the top side these are the microphones, the battery terminals and the push button.
The Aurora mini RITE-T radio model requires only a single cell battery and an external speaker (also incl. the wire antenna for the Bluetooth radio part) to
be attached and plastic shells, defining the industrial design of a hearing aid end product and holding everything together, in order to be operational.
Aurora mini RITE-T Radio Model – Main PCB – Top side
![](/img.php?id=3711715&img=bg3.png)
Oticon
Radio
Model
-
Quick
Installation
Guide
Radio
Model
Name:
Aurora
mini
RITE
-
T
Sonic Innovation Inc.
United States of America
2501 Cottontail Lane Phone: +41 31 560 2125
Somerset, NJ 08873 www.sonici.com
3
On the bottom side of the main PCB of the Aurora mini RITE-T radio model the connector for the speaker unit assembly (where the wire antenna for the Bluetooth
radio is an integrated part), the programming connector, EEPROM memory and coil antenna for the 3.84 MHz radio can be seen:
The most important parts inside the Engine module are a Digital-Signal-Processor (DSP), a radio Front-End (FE) chip for the 3.84 MHz radio part and an RF chip
for the Bluetooth radio part – all mounted on a small rigid PCB again mounted on the main flex PCB. The Aurora mini RITE-T radio model also includes all voltage
regulators and buffered data programming inputs on board. The DSP is the main processor controlling the functionality of both radios in the Aurora mini RITE-
T radio model.
The Aurora mini RITE-T radio model is intended to be installed in Oticon, Bernafon, Sonic and affiliated wireless hearing aid devices of the mini RITE-T (Receiver-
In-The-Ear) wearing style.
Aurora
mini
RITE
-
T
Radio
Model
–
Main
PCB
–
Bottom
side
![](/img.php?id=3711715&img=bg4.png)
Sonic Innovation Inc.
United States of America
2501 Cottontail Lane Phone: +41 31 560 2125
Somerset, NJ 08873 www.sonici.com
4
Oticon Radio Model - Regulatory Label Information for USA & Canada
Radio Model Name: Aurora mini RITE-T
Contains: FCC ID: ZTOAUMRTE
IC:
9799A
-
AUMRTE
NOTICE:
This device complies with Part 15 of the FCC Rules and with RSS-210 and RSS-247 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications made to this equipment not expressly approved by Oticon A/S may void the FCC authorization to operate this equipment.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
![](/img.php?id=3711715&img=bg5.png)
Sonic Innovation Inc.
United States of America
2501 Cottontail Lane Phone: +41 31 560 2125
Somerset, NJ 08873 www.sonici.com
5
Oticon Radio Model - Regulatory Label Information for Japan
Radio Model Name: Aurora mini RITE-T
Description: Radio module with 2.4 GHz low power transceiver to be integrated into Oticon, Bernafon, Sonic
hearing instruments and associated devices.
Regulatory label:
This device is granted pursuant to the Japanese Radio Law (電波法) and the Japanese Telecommunications Business
Law (電気通信事業法) under the grant ID n° 認証番号: 202-LSF003
This device should not be modified (otherwise the granted designation number will become invalid)
本製品の改造は禁止されています。(適合証明番号などが無効となります。)

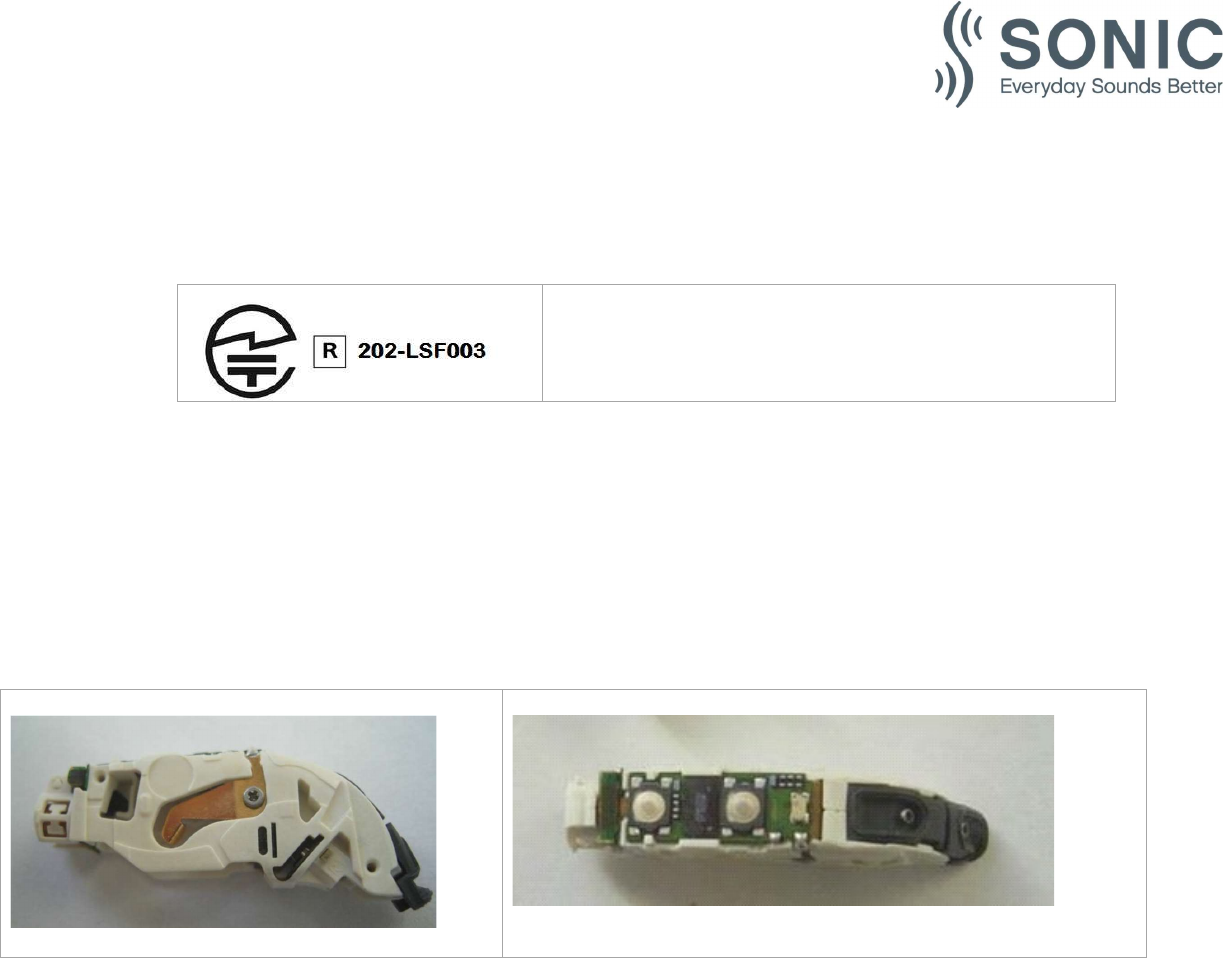

NB: The regulatory label is not shown on the radio module itself or any end products with it, since they are too small for
the label to be readable without any optical aids or magnification. Below the radio module is shown, indicating a size of
about 6x10x29 mm.
Radio module from the side
Radio module from the top side (button side)
NB: The regulatory label for Japan is also
included in the IFU for Japan.
