Installation Guide
Sonic Radio Model - Quick Installation Guide
Radio Model Name: CIC WL Fusion 2
Sonic Innovations, Inc. 2501 Cottontail Lane – Somerset, NJ 08873 – United States of America Page 1
Main +1 888 423 7834 www.sonici.com
The CIC WL Fusion 2 radio model is a low power, short range, inductive radio transceiver working at 3.84 MHz. It can be seen below:

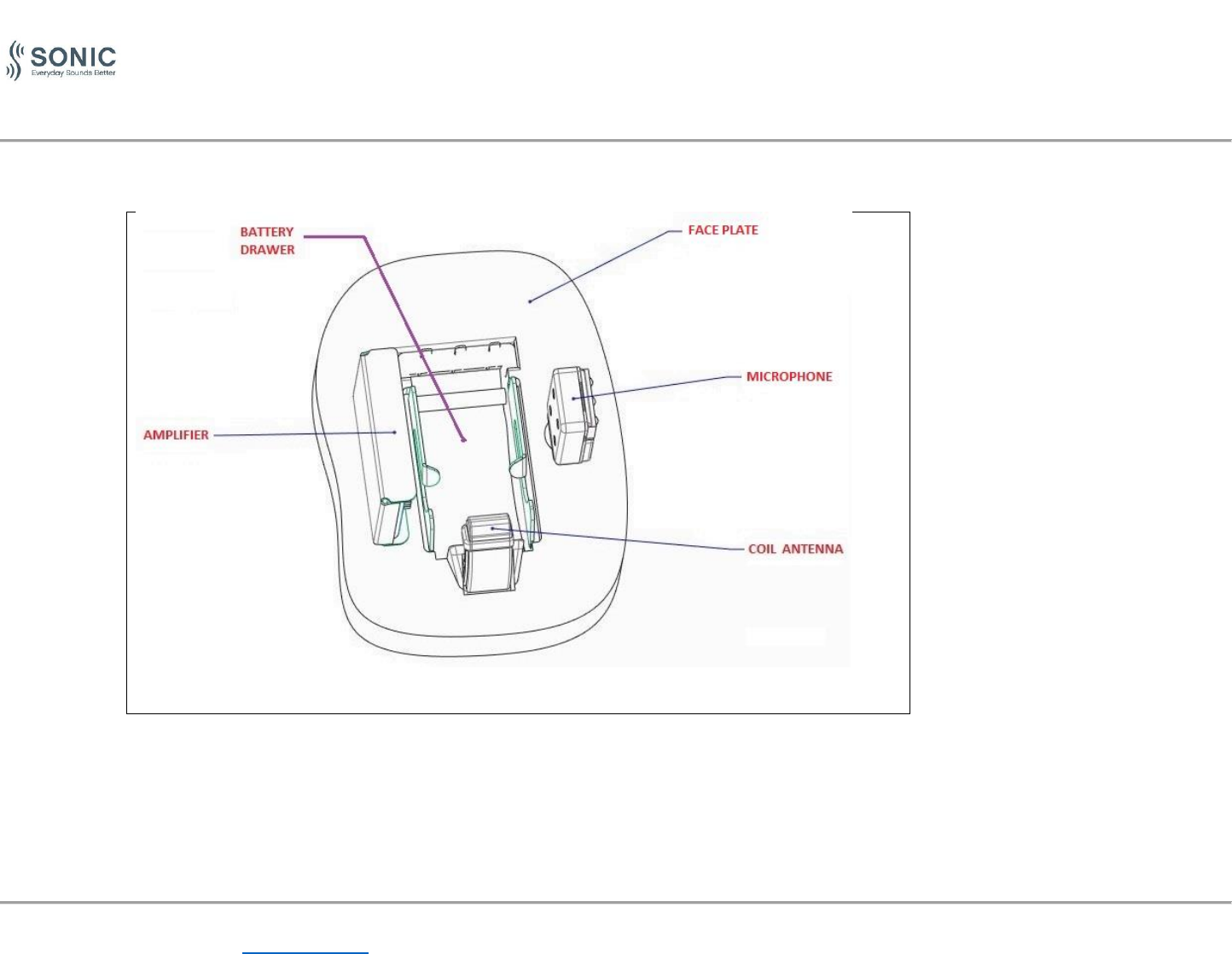

CIC WL Fusion 2 - Typical Radio Model Assembly
The most important parts of the module are an amplifier (containing a Digital-Signal-Processor (DSP), a radio Front-End (FE), memory and smaller components), a
battery and a coil antenna, all mounted on a plastic faceplate. The microphone is also mounted on the faceplate and externally to it there is normally also an audio
receiver/speaker and some optional push buttons, but they are not part of the radio model. The radio model is intended to be installed in Sonic and affiliated wireless
hearing aid devices of CIC WL (Completely-In-the Canal, with Wireless option) and IIC WL (Invisible-In-the Canal, with Wireless option) wearing styles.
Sonic Radio Model - Quick Installation Guide
Radio Model Name: CIC WL Fusion 2
Sonic Innovations, Inc. 2501 Cottontail Lane – Somerset, NJ 08873 – United States of America Page 2
Main +1 888 423 7834 www.sonici.com
The DSP, FE, memory and smaller components in the amplifier are all mounted on a flexible Printed-Circuit-Board (PCB), which is connected to the antenna through
two short wires. The DSP is the main processor controlling the amplifiers functionality and the FE is a complete radio transceiver, including both transmitter, receiver
and local oscillators. The module also includes all voltage regulators inside the DSP and FE and buffered data programming inputs (PC_DATA and PC_CLOCK)
on board.

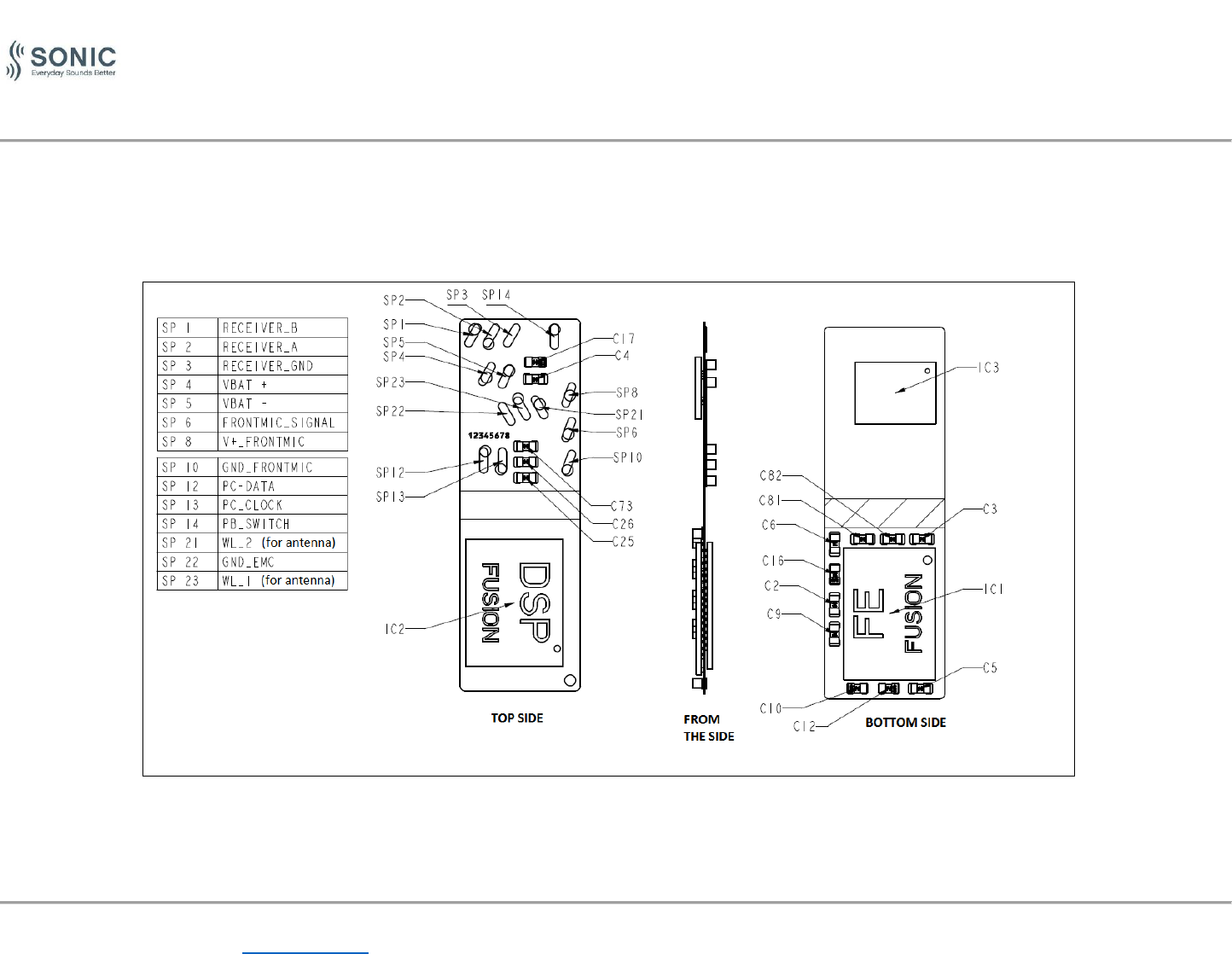

CIC WL Fusion 2 – Amplifier Assembly in 2D
The module only requires a battery, an external microphone and speaker to be attached in order to run. All components are kept in place by the face plate as mechanical
carrier for the radio model.
Sonic Radio Model - Quick Installation Guide
Radio Model Name: CIC WL Fusion 2
Sonic Innovations, Inc. 2501 Cottontail Lane – Somerset, NJ 08873 – United States of America Page 3
Main +1 888 423 7834 www.sonici.com
1. End product labelling requirements
For an end product using the module “CIC WL Fusion 2”, there MUST be a label containing, at least, the following information:
This device contains
FCC ID: ZTOF2CIC01
IC: 9799A-F2CIC01
The label must be affixed on an exterior surface of the end product such that it will be visible upon inspection in compliance with the
modular approval guidelines developed by the FCC.
OEM Integrator must ensure that the end user manual may not contain any information about the way to install or remove the module
from the final product. Any notification to the end user of installation or removal instructions about the integrated radio module is NOT
allowed.
Depending on the final host device additional authorization requirements for the non-transmitter functions of the transmitter module may
be required (i.e., Verification, or Declaration of Conformity) The OEM integrator is responsible for ensuring that after the module is
installed and operational the host continues to be compliant with the Part 15B unintentional radiator requirements.
The module must be installed and used in strict accordance with instructions provided by Sonic Innovations, Inc.
When the final host product operating with this transmitter deviate from instructions provided by Sonic Innovations, Inc, installation of
this module into specific final hosts may require the submission of a Class II permissive change application containing data pertinent to RF
Exposure, spurious emissions, RP/EIRP, and host/module authentication, or new application if appropriate.
1.1. FCC end product labelling
In accordance with 47 CFR § 15.19 the end product shall bear the following statement in a conspicuous location on the device:
"This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
this device may not cause harmful interference, and
this device must accept any interference received, including interference that may cause undesired operation."
Sonic Radio Model - Quick Installation Guide
Radio Model Name: CIC WL Fusion 2
Sonic Innovations, Inc. 2501 Cottontail Lane – Somerset, NJ 08873 – United States of America Page 4
Main +1 888 423 7834 www.sonici.com
When the device is so small or for such use that it is not practicable to place the statement above on it, the information shall be placed in a
prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which
the device is marketed. However, the FCC ID label must be displayed on the device.
In case, where the final product will be installed in locations where the end-consumer is not able to see the FCC ID and/or this statement,
the FCC ID and the statement shall also be included in the end-product manual.
1.2. IC end product labelling
User manuals for licence-exempt LPDs shall contain the following or equivalent statements in a conspicuous position:
“Operation is subject to the following two conditions:
this device may not cause harmful interference, and
this device must accept any interference received, including interference that may cause undesired operation of the device.”
1.3. Étiquetage du produit final conforme à IC
Les manuels d’utilisation d’appareils de faible puissance, sans licence, feront figurer à un endroit bien visible les mentions suivantes ou
équivalentes :
« Son utilisation est soumise aux deux conditions suivantes :
Cet appareil ne doit pas causer d’interférences et
il doit accepter toutes interférences reçues, y compris celles susceptibles d’avoir des effets indésirables sur son fonctionnement. »
2. Antenna
Our module CIC WL Fusion 2 is for OEM integrations only.
The module must in the end-product be installed in such manner that only the authorized antennas can be used. The antennas may not be
modified. The antenna must not be co-located or operating in conjunction with any other antenna or transmitter. No additional antenna
must be used.
Sonic Radio Model - Quick Installation Guide
Radio Model Name: CIC WL Fusion 2
Sonic Innovations, Inc. 2501 Cottontail Lane – Somerset, NJ 08873 – United States of America Page 5
Main +1 888 423 7834 www.sonici.com
3. Caution
Any changes or modifications NOT explicitly APPROVED by Sonic Innovations, inc. may void the FCC / IC authorization to operate this
equipment.
4. RF-exposure statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20 cm between the radiator & your body.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20 cm between the radiator & your body.
Cet équipement est conforme aux limites d'exposition de rayonnement d'IC RSS-102 déterminées pour un environnement non contrôlé.
Cet équipement devrait être installé et actionné avec la distance minimum 20 cm entre le radiateur et votre corps.
