Charm Specification Guide
Simply
natural
2 Sonic · Charm Simply natural
Simply natural
Effortless
enjoyment
Charm pairs sophisticated sound
processing technologies with
simple operations. So the natural
sound Sonic is known for is easy for
your patients to experience. Plus
Charm is easy for you to fit.
An emphasis on speech clarity
Speech Variable Processing
preserves the nuances of speech –
the soft and loud sounds that occur
in every word. These small details
enhance overall speech clarity and
create rich, full, natural sound.
No more whistle and squeal
The Adaptive Feedback Canceller
eliminates feedback before
it starts. Charm removes offending
signals – often before they are
even heard – for squeal-free,
easy listening.
Technologies to remove
unwanted noise
Charm uses multiple systems
to identify and reduce sounds
that could be noisy distractions.
• Directional systems reduce
unwanted noise so patients can
stay engaged in their surroundings.
• Speech Priority Noise Reduction
separates speech from
surrounding noise, making
conversations comfortable
and clear.
• Soft Noise Reduction reduces
the annoyance of low-level
sounds like the whir of a fan
or hum of a refrigerator.
• Wind Noise Reduction makes
time spent outdoors more
enjoyable by preventing wind
sounds from being amplified.
Programmed to please
Charm is not only easy for your
patients to use, it’s equally simple
for you to program with the
EXPRESSfit fitting software.
Pre-defined environments make
it simple to configure listening
programs for common situations.
• Data Logging makes it simple
to fine-tune Charm based on
actual wear data.
• EXPRESSfit includes support
for common fitting algorithms,
including NAL-NL2, DSL v5.0
m[i/o], and our exclusive Best Fit
Fast system.
Simple, natural, and easy-going. Charm has an
appeal patients find hard to resist. It’s refreshingly
straightforward, with just the right amount of
features to please. But don’t let its simplicity fool
you. Charm has all the essentials your patients
need. Rich, natural sound. Noise-eliminating
technologies. Intuitive operation. Even wireless
connectivity. It’s the kind of solution you – and your
patients – will love. Pure and simple.
Sonic · Charm Simply natural 3
2 Sonic · Charm Simply natural
Charm60 Charm40
Sound Quality
Signal Processing 3······················· Speech Variable Processing ·······················4
Frequency Bandwidth 8 kHz 8 kHz
Noise Management
Adaptive Feedback Canceller n n
Wind Noise Reduction1n n
Soft Noise Reduction 3 levels 3 levels
Speech Priority Noise Reduction 3 levels 2 levels
Directionality1
Fixed Directionality n n
Adaptive Directionality n
Binaural Coordination
Volume & Program Change2n
Non-Telephone Ear Control (Manual) n
Programming Options
Universal Environment n n
Manual Listening Programs34 3
Environments 10 5
Auto Telephone Program1n
Data Logging n n
nEARcom Wireless Programming2l
Patient Conveniences
Audible Performance Indicators n n
Start-Up Delay n n
Auto Telephone Detection1n
n STANDARD l OPTIONAL
(1) BTE, miniBTE, ITEPDW, ITCPDW, ITED, ITCD models
(2) BTE, miniBTE, ITEPDW, ITCPDW models
(3) models with Program Button
Model overview
IIC* CIC CICP ITCD ITCPDW* ITED ITEPDW* Nano RITE miniBTE BTE
Battery Size 10 10 10 312 312 13 13 312 13 13
Program Button l l l l l n n n
Volume Control l l ** n
Telecoil l l l l n n
Auto Telephone* l l l l n n n
Wireless Accessories* l l l l l
DAI/FM n n
Earhook n n
Thin Tube n n
Power Receiver l
n STANDARD l OPTIONAL * CHARM 60 ONLY
Charm BTEs will be delivered with an Earhook attached and a separate Thin Tube Adapter.
Charm miniBTEs will be delivered with a Thin Tube Adapter attached and a separate Earhook.
Feature overview
** Program Button can be programmed for volume control use
4 Sonic · Charm Simply natural

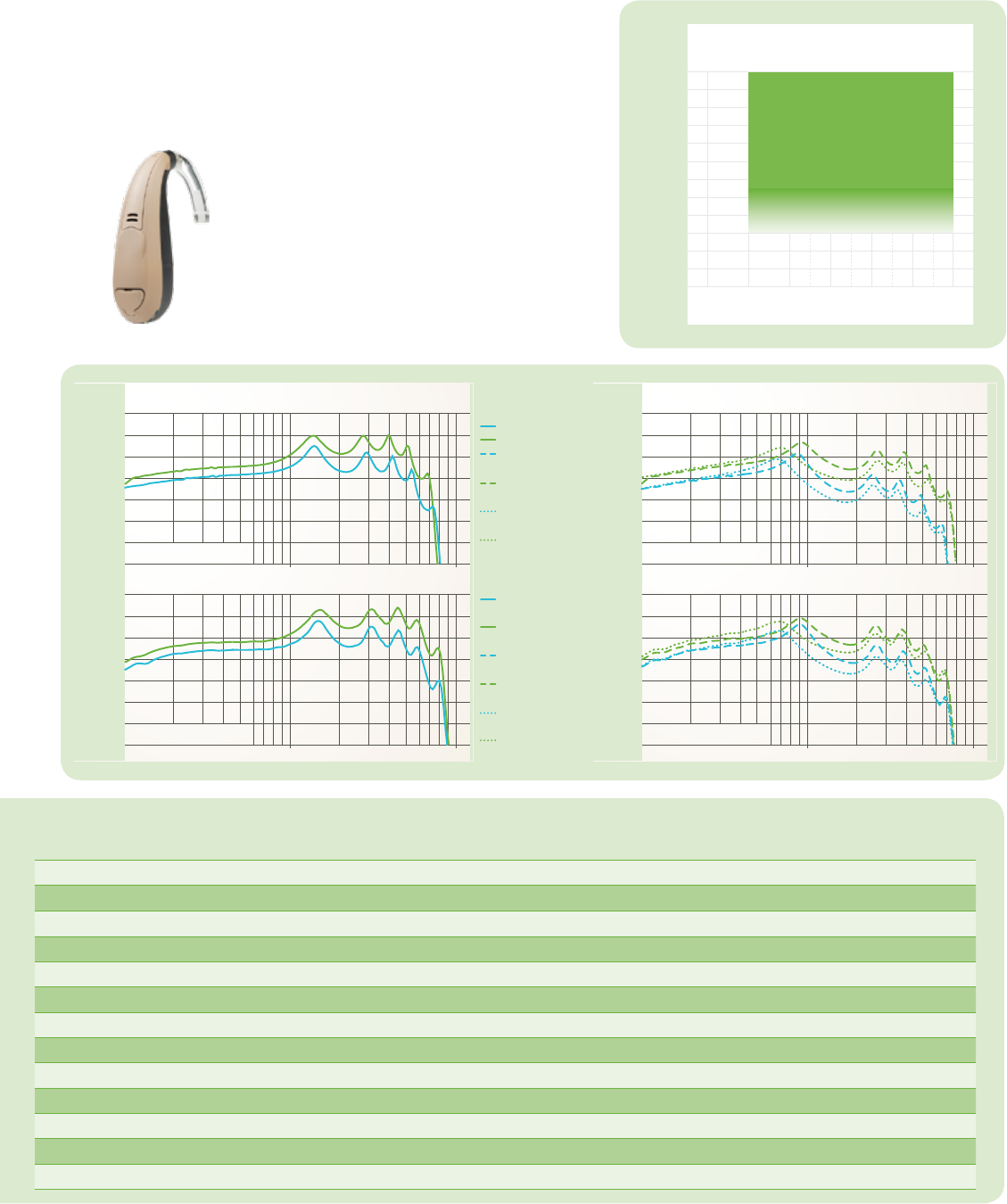

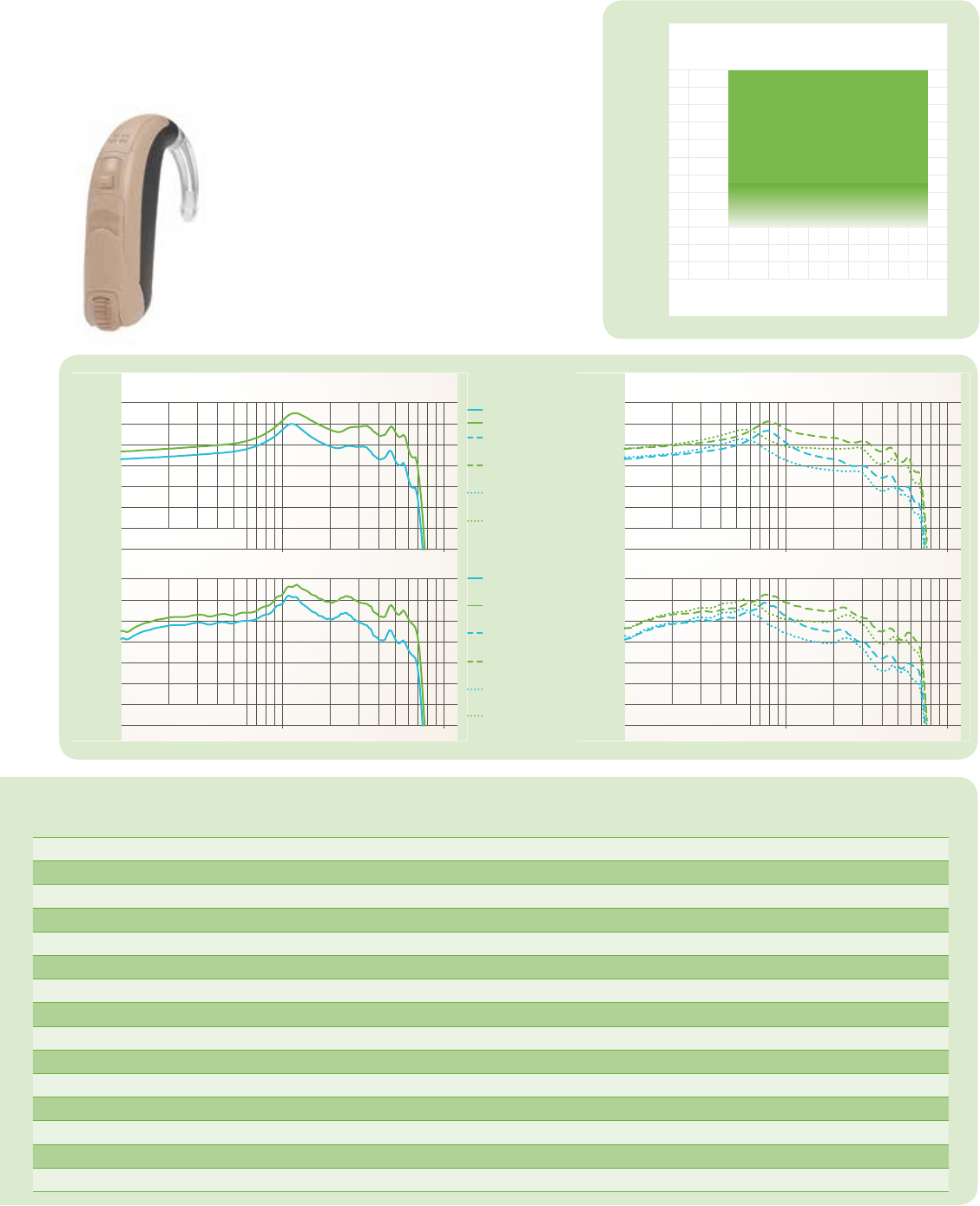

Charm 60
BTE
BTE with Earhook BTE with Thin Tube 1.3 BTE with Thin Tube 0.9
2cc Coupler Ear Simulator 2cc Coupler Ear Simulator 2cc Coupler Ear Simulator
OSPL 90, peak dB SPL 130 135 1) 127 131 123 127
OSPL 90, 1600 Hz dB SPL 123 131 114 124 109 118
HFA OSPL 90 dB SPL 123 –115 –110 –
Full-on gain, peak dB 63 68 59 63 56 60
Full-on gain, 1600 Hz dB 54 63 46 55 40 50
HFA full-on gain dB 55 –47 –42 –
Reference test gain dB 46 56 37 49 32 43
Quiescent current mA 1.1 1.1 1.1 1.1 1.1 1.1
Operating current mA 1.2 1.1 1.2 1.1 1.2 1.1
Battery size 13 13 13 13 13 13
Distortion 500 / 800 / 1600 Hz %<2/<2/<2 <3/<2/<2 <2/<2/<2 <2/<2/<3 <2/<2/<2 <2/<2/<4
Frequency range Hz 100-6100 –100-5200 –100-6100 –
Equivalent input noise 2) dB SPL 14 14 16 16 19 17
Telecoil 1 mA/m 1600 Hz, IEC 82 90 74 84 68 78
Telecoil HFA SPLITS, ANSI 87 –74 –73 –
500
250
125
750
1000
1500
2000
3000
4000
6000
8000
0
10
20
30
40
50
60
70
80
90
100
110
120
Fitting Range BTE
Frequency in Hertz (Hz)
Hearing Level
in decibels (dB)
* Measurements are taken with undamped earhook ** FOG with 50 dB SPL input
1) Special care should be taken when fitting and using a hearing instrument with maximum sound pressure capability in excess of
132 dB SPL (IEC 60318-4) since there may be a risk of impairing the remaining hearing of the hearing instrument user.
2) “Equivalent input noise A-weighted. Technical data measured with expansion, corresponding to the test box measurement settings.”
“2cc” refers to a coupler according to IEC 60318-5. “Ear simulator” refers to a coupler according to IEC 60318-4.Applied versions: IEC 60118-7:2005, IEC 60118-0:1994 and ANSI S3.22:2009.
140
130
120
110
100
90
80
70
100 1000 10000
120
110
100
90
80
70
60
50
100 1000 10000
140
130
120
110
100
90
80
70
100 1000 10000
120
110
100
90
80
70
60
50
100 1000 10000
Earhook
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
Thin Tube
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
2cc Coupler Earhook*
Ear Simulator Earhook*
2cc Coupler
Thin Tube 1.3
Ear Simulator
Thin Tube 1.3
2cc Coupler
Thin Tube 0.9
Ear Simulator
Thin Tube 0.9
2cc Coupler FOG**
Earhook*
Ear Simulator FOG**
Earhook*
2cc Coupler FOG**
Thin Tube 1.3
Ear Simulator FOG**
Thin Tube 1.3
2cc Coupler FOG**
Thin Tube 0.9
Ear Simulator FOG**
Thin Tube 0.9
Sonic · Charm Simply natural 5
4 Sonic · Charm Simply natural
Charm 40
BTE
500
250
125
750
1000
1500
2000
3000
4000
6000
8000
0
10
20
30
40
50
60
70
80
90
100
110
120
Fitting Range BTE
Frequency in Hertz (Hz)
Hearing Level
in decibels (dB)
BTE with Earhook BTE with Thin Tube 1.3 BTE with Thin Tube 0.9
2cc Coupler Ear Simulator 2cc Coupler Ear Simulator 2cc Coupler Ear Simulator
OSPL 90, peak dB SPL 130 135 1) 127 131 123 127
OSPL 90, 1600 Hz dB SPL 123 131 114 124 109 118
HFA OSPL 90 dB SPL 123 –115 –110 –
Full-on gain, peak dB 63 68 59 63 56 60
Full-on gain, 1600 Hz dB 54 63 46 55 40 50
HFA full-on gain dB 55 –47 –42 –
Reference test gain dB 46 56 37 49 32 43
Quiescent current mA 1.1 1.1 1.1 1.1 1.1 1.1
Operating current mA 1.2 1.1 1.2 1.1 1.2 1.1
Battery size 13 13 13 13 13 13
Distortion 500 / 800 / 1600 Hz %<2/<2/<2 <3/<2/<2 <2/<2/<2 <2/<2/<3 <2/<2/<2 <2/<2/<4
Frequency range Hz 100-6100 –100-5200 –100-6100 –
Equivalent input noise 2) dB SPL 14 14 16 16 19 17
Telecoil 1 mA/m 1600 Hz, IEC 82 90 74 84 68 78
Telecoil HFA SPLITS, ANSI 87 –74 –73 –
140
130
120
110
100
90
80
70
100 1000 10000
120
110
100
90
80
70
60
50
100 1000 10000
140
130
120
110
100
90
80
70
100 1000 10000
120
110
100
90
80
70
60
50
100 1000 10000
Earhook
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
Thin Tube
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
2cc Coupler Earhook*
Ear Simulator Earhook*
2cc Coupler
Thin Tube 1.3
Ear Simulator
Thin Tube 1.3
2cc Coupler
Thin Tube 0.9
Ear Simulator
Thin Tube 0.9
2cc Coupler FOG**
Earhook*
Ear Simulator FOG**
Earhook*
2cc Coupler FOG**
Thin Tube 1.3
Ear Simulator FOG**
Thin Tube 1.3
2cc Coupler FOG**
Thin Tube 0.9
Ear Simulator FOG**
Thin Tube 0.9
* Measurements are taken with undamped earhook ** FOG with 50 dB SPL input
1) Special care should be taken when fitting and using a hearing instrument with maximum sound pressure capability in excess of
132 dB SPL (IEC 60318-4) since there may be a risk of impairing the remaining hearing of the hearing instrument user.
2) “Equivalent input noise A-weighted. Technical data measured with expansion, corresponding to the test box measurement settings.”
“2cc” refers to a coupler according to IEC 60318-5. “Ear simulator” refers to a coupler according to IEC 60318-4.Applied versions: IEC 60118-7:2005, IEC 60118-0:1994 and ANSI S3.22:2009.
6 Sonic · Charm Simply natural

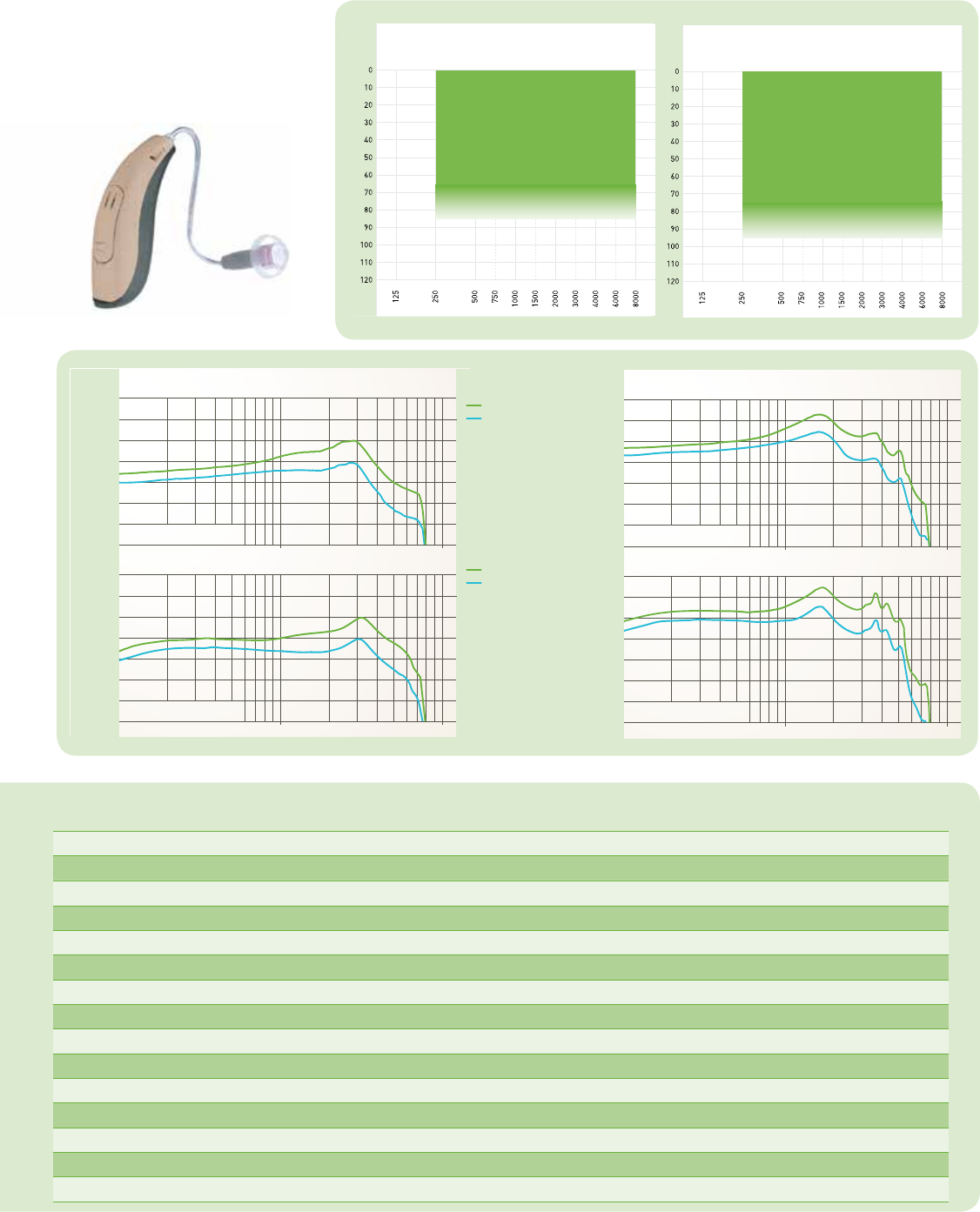

Charm 60
miniBTE
miniBTE with Earhook miniBTE with Thin Tube 1.3 miniBTE with Thin Tube 0.9
2cc Coupler Ear Simulator 2cc Coupler Ear Simulator 2cc Coupler Ear Simulator
OSPL 90, peak dB SPL 125 130 123 127 120 124
OSPL 90, 1600 Hz dB SPL 117 125 106 115 100 109
HFA OSPL 90 dB SPL 117 –113 –106 –
Full-on gain, peak dB 58 63 56 59 53 57
Full-on gain, 1600 Hz dB 51 59 39 47 33 43
HFA full-on gain dB 50 –46 –39 –
Reference test gain dB 40 50 36 39 28 34
Quiescent current mA 1.0 1.0 1.0 1.0 1.0 1.0
Operating current mA 1.1 1.1 1.1 1.1 1.1 1.1
Battery size 13 13 13 13 13 13
Distortion 500 / 800 / 1600 Hz %<2 /<1/<1 <2/<2/<1 <1/<1/<1 <1/<1/<1 <1/<1/<1 <1/<1/<1
Frequency range Hz 100–5790 –100–5620 –100–6130 –
Equivalent input noise 1) dB SPL 18 18 16 18 19 24
500
250
125
750
1000
1500
2000
3000
4000
6000
8000
0
10
20
30
40
50
60
70
80
90
100
110
120
Fitting Range miniBTE
Frequency in Hertz (Hz)
Hearing Level
in decibels (dB)
* Measurements are taken with undamped earhook
** FOG with 50 dB SPL input
1) “Equivalent input noise A-weighted. Technical data measured with expansion, corresponding to the test box measurement settings.”
“2cc” refers to a coupler according to IEC 60318-5. “Ear simulator” refers to a coupler according to IEC 60318-4.Applied versions: IEC 60118-7:2005, IEC 60118-0:1994 and ANSI S3.22:2009.
140
130
120
110
100
90
80
70
100 1000 10000
120
110
100
90
80
70
60
50
100 1000 10000
140
130
120
110
100
90
80
70
100 1000 10000
120
110
100
90
80
70
60
50
100 1000 10000
Earhook
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
Thin Tube
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
2cc Coupler Earhook*
Ear Simulator Earhook*
2cc Coupler
Thin Tube 1.3
Ear Simulator
Thin Tube 1.3
2cc Coupler
Thin Tube 0.9
Ear Simulator
Thin Tube 0.9
2cc Coupler FOG**
Earhook*
Ear Simulator FOG**
Earhook*
2cc Coupler FOG**
Thin Tube 1.3
Ear Simulator FOG**
Thin Tube 1.3
2cc Coupler FOG**
Thin Tube 0.9
Ear Simulator FOG**
Thin Tube 0.9
Sonic · Charm Simply natural 7
6 Sonic · Charm Simply natural
Charm 40
miniBTE
500
250
125
750
1000
1500
2000
3000
4000
6000
8000
0
10
20
30
40
50
60
70
80
90
100
110
120
Fitting Range miniBTE
Frequency in Hertz (Hz)
Hearing Level
in decibels (dB)
miniBTE with Earhook miniBTE with Thin Tube 1.3 miniBTE with Thin Tube 0.9
2cc Coupler Ear Simulator 2cc Coupler Ear Simulator 2cc Coupler Ear Simulator
OSPL 90, peak dB SPL 125 130 123 127 120 124
OSPL 90, 1600 Hz dB SPL 117 125 106 115 100 109
HFA OSPL 90 dB SPL 117 –113 –106 –
Full-on gain, peak dB 58 63 56 59 53 57
Full-on gain, 1600 Hz dB 51 59 39 47 33 43
HFA full-on gain dB 50 –46 –39 –
Reference test gain dB 40 50 36 39 28 34
Quiescent current mA 1.0 1.0 1.0 1.0 1.0 1.0
Operating current mA 1.1 1.1 1.1 1.1 1.1 1.1
Battery size 13 13 13 13 13 13
Distortion 500 / 800 / 1600 Hz %<2 /<1/<1 <2/<2/<1 <1/<1/<1 <1/<1/<1 <1/<1/<1 <1/<1/<1
Frequency range Hz 100–5790 –100–5620 –100–6130 –
Equivalent input noise 1) dB SPL 18 18 16 18 19 24
140
130
120
110
100
90
80
70
100 1000 10000
120
110
100
90
80
70
60
50
100 1000 10000
140
130
120
110
100
90
80
70
100 1000 10000
120
110
100
90
80
70
60
50
100 1000 10000
Earhook
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
Thin Tube
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
* Measurements are taken with undamped earhook
** FOG with 50 dB SPL input
1) “Equivalent input noise A-weighted. Technical data measured with expansion, corresponding to the test box measurement settings.”
“2cc” refers to a coupler according to IEC 60318-5. “Ear simulator” refers to a coupler according to IEC 60318-4.Applied versions: IEC 60118-7:2005, IEC 60118-0:1994 and ANSI S3.22:2009.
2cc Coupler Earhook*
Ear Simulator Earhook*
2cc Coupler
Thin Tube 1.3
Ear Simulator
Thin Tube 1.3
2cc Coupler
Thin Tube 0.9
Ear Simulator
Thin Tube 0.9
2cc Coupler FOG**
Earhook*
Ear Simulator FOG**
Earhook*
2cc Coupler FOG**
Thin Tube 1.3
Ear Simulator FOG**
Thin Tube 1.3
2cc Coupler FOG**
Thin Tube 0.9
Ear Simulator FOG**
Thin Tube 0.9
8 Sonic · Charm Simply natural
Charm 60
Nano RITE
M-Speaker P-Speaker
2cc Coupler Ear Simulator 2cc Coupler Ear Simulator
OSPL 90, peak dB SPL 109 121 124 133*
OSPL 90, 1600 Hz dB SPL 106 115 122 131
HFA OSPL 90 dB SPL 106 –119 –
Full-on gain, peak dB 50 61 65 75
Full-on gain, 1600 Hz dB 43 53 61 70
HFA full-on gain dB 45 –59 –
Reference test gain dB 29 37 43 55
Quiescent current mA 1.1 1.1 1.1 1.1
Operating current mA 1.1 1.1 1.4 1.2
Battery size 312 312 312 312
Distortion 500 / 800 / 1600 Hz %<2/<2/<2 <3/<3/<2 <2/<2/<2 <2/<3/<2
Frequency rangei Hz 100–6700 –100–6900 –
Equivalent input noise 1) dB (A) 18 20 17 14
Telecoil 1 mA/m 1600 Hz, IEC dB SPL 70 80 88 97
Telecoil HFA SPLITS dB SPL 74 -89 -
Hearing Level in decibels (dB)
Fitting Range M-Speaker
Frequency in Hertz (Hz)
140
130
120
110
100
90
80
70
100 1000 10000
80
70
60
50
40
30
20
10
100 1000 10000
140
130
120
110
100
90
80
70
100 1000 10000
80
70
60
50
40
30
20
10
100 1000 10000
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
* Special care should be taken when fitting and using a hearing instrument with maximum sound pressure capability in excess of 132 dB SPL (IEC 60318-4) since there may be risk of impairing
the remaining hearing of the hearing inatrument user.
** FOG with 50 dB SPL input
1) “Equivalent input noise A-weighted. Technical data measured with expansion, corresponding to the test box measurement settings.”
“2cc” refers to a coupler according to IEC 60318-5. “Ear simulator” refers to a coupler according to IEC 60318-4.Applied versions: IEC 60118-7:2005, IEC 60118-0:1994 and ANSI S3.22:2009.
Ear Simulator
2cc Coupler
Hearing Level in decibels (dB)
Fitting Range P-Speaker
Frequency in Hertz (Hz)
Ear Simulator FOG**
2cc Coupler FOG**
Sonic · Charm Simply natural 9
8 Sonic · Charm Simply natural
Charm 40
Nano RITE
Hearing Level in decibels (dB)
Fitting Range M-Speaker
Frequency in Hertz (Hz)
140
130
120
110
100
90
80
70
100 1000 10000
80
70
60
50
40
30
20
10
100 1000 10000
140
130
120
110
100
90
80
70
100 1000 10000
80
70
60
50
40
30
20
10
100 1000 10000
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)

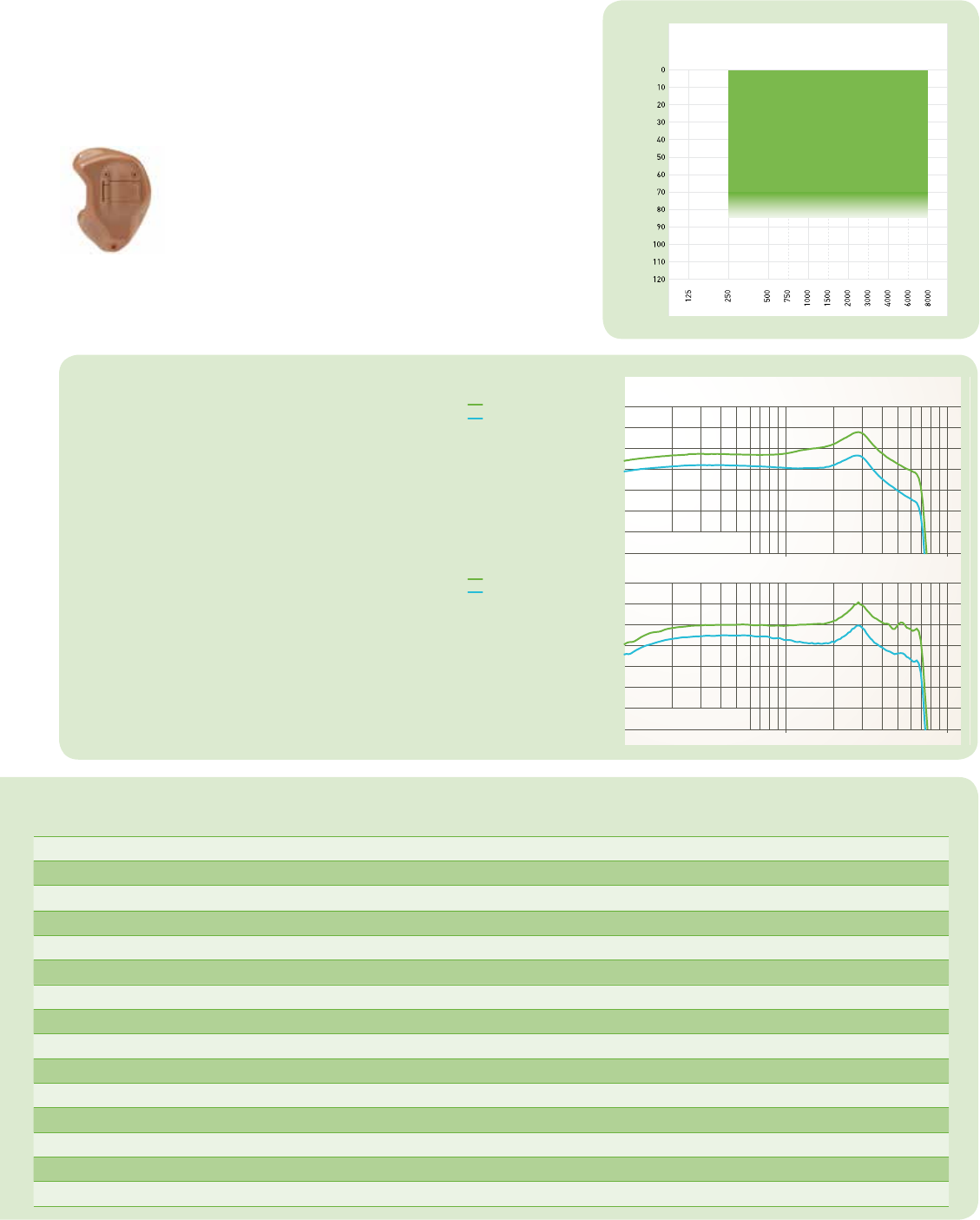

Frequency in Hertz (Hz)
Ear Simulator
2cc Coupler
Hearing Level in decibels (dB)
Fitting Range P-Speaker
Frequency in Hertz (Hz)
Ear Simulator FOG**
2cc Coupler FOG**
M-Speaker P-Speaker
2cc Coupler Ear Simulator 2cc Coupler Ear Simulator
OSPL 90, peak dB SPL 109 120 123 132*
OSPL 90, 1600 Hz dB SPL 105 114 122 131
HFA OSPL 90 dB SPL 106 –119 –
Full-on gain, peak dB 49 60 64 73
Full-on gain, 1600 Hz dB 44 52 61 69
HFA full-on gain dB 44 -58 –
Reference test gain dB 29 37 43 54
Quiescent current mA 1.1 1.1 1.1 1.1
Operating current mA 1.1 1.1 1.4 1.2
Battery size 312 312 312 312
Distortion 500 / 800 / 1600 Hz %<2/<2/<2 <3/<3/<2 <2/<2/<2 <2/<2/<2
Frequency rangei Hz 100–6700 –100–6900 –
Equivalent input noise 1) dB (A) 17 19 16 14
Telecoil 1 mA/m 1600 Hz, IEC dB SPL 70 79 88 95
Telecoil HFA SPLITS dB SPL 74 -89 -
* Special care should be taken when fitting and using a hearing instrument with maximum sound pressure capability in excess of 132 dB SPL (IEC 60318-4) since there may be risk of impairing
the remaining hearing of the hearing inatrument user.
** FOG with 50 dB SPL input
1) “Equivalent input noise A-weighted. Technical data measured with expansion, corresponding to the test box measurement settings.”
“2cc” refers to a coupler according to IEC 60318-5. “Ear simulator” refers to a coupler according to IEC 60318-4.Applied versions: IEC 60118-7:2005, IEC 60118-0:1994 and ANSI S3.22:2009.
10 Sonic · Charm Simply natural
Charm 60
ITEPDW | ITED
ITEPDW ITED
2cc Coupler Ear Simulator 2cc Coupler Ear Simulator
OSPL 90, peak dB SPL 121 130 117 128
OSPL 90, 1600 Hz dB SPL 115 122 111 120
HFA OSPL 90 dB SPL 116 –112 –
Full-on gain, peak dB 52 62 50 63
Full-on gain, 1600 Hz dB 48 56 41 50
HFA full-on gain dB 48 –43 –
Reference test gain dB 36 46 36 44
Quiescent current mA 1.1 1.1 0.9 0.9
Operating current mA 1.1 1.1 1.0 0.9
Battery size 13 13 13 13
Distortion 500 / 800 / 1600 Hz %<1/<1/<1 <1/<1/<1 <2/<2/<2 <2/<2/<2
Frequency range Hz 100–6880 –100–7100 –
Equivalent input noise 1) dB SPL 17 18 19 22
Telecoil 1 mA/m 1600 Hz, IEC dB SPL 78 87 72 81
Telecoil HFA SPLITS, ANSI dB SPL 93 –94 –
** FOG with 50 dB SPL input
1) “Equivalent input noise A-weighted. Technical data measured with expansion, corresponding to the test box measurement settings.”
“2cc” refers to a coupler according to IEC 60318-5. “Ear simulator” refers to a coupler according to IEC 60318-4.Applied versions: IEC 60118-7:2005, IEC 60118-0:1994 and ANSI S3.22:2009.
Hearing Level in decibels (dB)
Fitting Range ITEPDW
Frequency in Hertz (Hz)
Hearing Level in decibels (dB)
Fitting Range ITED
Frequency in Hertz (Hz)
140
130
120
110
100
90
80
70
100 1000 10000
120
110
100
90
80
70
60
50
100 1000 10000
ITEPDW
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
140
130
120
110
100
90
80
70
100 1000 10000
120
110
100
90
80
70
60
50
100 1000 10000
ITED
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
Ear Simulator
2cc Coupler
Ear Simulator FOG**
2cc Coupler FOG**
Sonic · Charm Simply natural 11
10 Sonic · Charm Simply natural
Charm 40
ITED
ITEPDW ITED
2cc Coupler Ear Simulator 2cc Coupler Ear Simulator
OSPL 90, peak dB SPL 121 130 117 128
OSPL 90, 1600 Hz dB SPL 115 122 111 120
HFA OSPL 90 dB SPL 116 –112 –
Full-on gain, peak dB 52 62 50 63
Full-on gain, 1600 Hz dB 48 56 41 50
HFA full-on gain dB 48 –43 –
Reference test gain dB 36 46 36 44
Quiescent current mA 1.1 1.1 0.9 0.9
Operating current mA 1.1 1.1 1.0 0.9
Battery size 13 13 13 13
Distortion 500 / 800 / 1600 Hz %<1/<1/<1 <1/<1/<1 <2/<2/<2 <2/<2/<2
Frequency range Hz 100–6880 –100–7100 –
Equivalent input noise 1) dB SPL 17 18 19 22
Telecoil 1 mA/m 1600 Hz, IEC dB SPL 78 87 72 81
Telecoil HFA SPLITS, ANSI dB SPL 93 –94 –
ITED
2cc Coupler Ear Simulator
OSPL 90, peak dB SPL 117 128
OSPL 90, 1600 Hz dB SPL 111 120
HFA OSPL 90 dB SPL 112 –
Full-on gain, peak dB 50 63
Full-on gain, 1600 Hz dB 41 50
HFA full-on gain dB 43 –
Reference test gain dB 36 44
Quiescent current mA 0.9 0.9
Operating current mA 1.0 0.9
Battery size 13 13
Distortion 500 / 800 / 1600 Hz %<2/<2/<2 <2/<2/<2
Frequency range Hz 100–7100 –
Equivalent input noise 1) dB SPL 19 22
Telecoil 1 mA/m 1600 Hz, IEC dB SPL 72 81
Telecoil HFA SPLITS, ANSI dB SPL 94 –
Ear Simulator
2cc Coupler
** FOG with 50 dB SPL input
1) “Equivalent input noise A-weighted. Technical data measured with expansion, corresponding to the test box measurement settings.”
“2cc” refers to a coupler according to IEC 60318-5. “Ear simulator” refers to a coupler according to IEC 60318-4.Applied versions: IEC 60118-7:2005, IEC 60118-0:1994 and ANSI S3.22:2009.
140
130
120
110
100
90
80
70
100 1000 10000
120
110
100
90
80
70
60
50
100 1000 10000
ITED
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
Ear Simulator FOG**
2cc Coupler FOG**
Hearing Level
in decibels (dB)
Fitting Range ITED
Frequency in Hertz (Hz)
12 Sonic · Charm Simply natural
Charm 60
ITCPDW | ITCD
ITCPDW ITCD
2cc Coupler Ear Simulator 2cc Coupler Ear Simulator
OSPL 90, peak dB SPL 121 130 117 128
OSPL 90, 1600 Hz dB SPL 115 122 111 120
HFA OSPL 90 dB SPL 116 –112 –
Full-on gain, peak dB 52 62 50 63
Full-on gain, 1600 Hz dB 48 56 41 50
HFA full-on gain dB 48 –43 –
Reference test gain dB 36 46 36 44
Quiescent current mA 1.1 1.1 0.9 0.9
Operating current mA 1.1 1.1 1.0 0.9
Battery size 312 312 312 312
Distortion 500 / 800 / 1600 Hz %<1/<1/<1 <1/<1/<1 <2/<2/<2 <2/<2/<2
Frequency range Hz 100–6880 –100-7100 –
Equivalent input noise 1) dB SPL 17 18 19 22
Telecoil 1 mA/m 1600 Hz, IEC dB SPL 78 87 72 81
Telecoil HFA SPLITS, ANSI dB SPL 93 –94 –
** FOG with 50 dB SPL input
1) “Equivalent input noise A-weighted. Technical data measured with expansion, corresponding to the test box measurement settings.”
“2cc” refers to a coupler according to IEC 60318-5. “Ear simulator” refers to a coupler according to IEC 60318-4.Applied versions: IEC 60118-7:2005, IEC 60118-0:1994 and ANSI S3.22:2009.
Hearing Level in decibels (dB)
Fitting Range ITCPDW
Frequency in Hertz (Hz)
Hearing Level in decibels (dB)
Fitting Range ITCD
Frequency in Hertz (Hz)
140
130
120
110
100
90
80
70
100 1000 10000
120
110
100
90
80
70
60
50
100 1000 10000
ITCPDW
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
140
130
120
110
100
90
80
70
100 1000 10000
120
110
100
90
80
70
60
50
100 1000 10000
ITCD
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
Ear Simulator
2cc Coupler
Ear Simulator FOG**
2cc Coupler FOG**
Sonic · Charm Simply natural 13
12 Sonic · Charm Simply natural
Charm 40
ITCD
ITCD
2cc Coupler Ear Simulator
OSPL 90, peak dB SPL 117 128
OSPL 90, 1600 Hz dB SPL 111 120
HFA OSPL 90 dB SPL 112 –
Full-on gain, peak dB 50 63
Full-on gain, 1600 Hz dB 41 50
HFA full-on gain dB 43 –
Reference test gain dB 36 44
Quiescent current mA 0.9 0.9
Operating current mA 1.0 0.9
Battery size 312 312
Distortion 500 / 800 / 1600 Hz %<2/<2/<2 <2/<2/<2
Frequency range Hz 100-7100 –
Equivalent input noise 1) dB SPL 19 22
Telecoil 1 mA/m 1600 Hz, IEC dB SPL 72 81
Telecoil HFA SPLITS, ANSI dB SPL 94 –
Ear Simulator
2cc Coupler
Ear Simulator FOG**
2cc Coupler FOG**
140
130
120
110
100
90
80
70
100 1000 10000
120
110
100
90
80
70
60
50
100 1000 10000
ITCD
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
** FOG with 50 dB SPL input
1) “Equivalent input noise A-weighted. Technical data measured with expansion, corresponding to the test box measurement settings.”
“2cc” refers to a coupler according to IEC 60318-5. “Ear simulator” refers to a coupler according to IEC 60318-4.Applied versions: IEC 60118-7:2005, IEC 60118-0:1994 and ANSI S3.22:2009.
Hearing Level
in decibels (dB)
Fitting Range ITCD
Frequency in Hertz (Hz)
14 Sonic · Charm Simply natural
Charm 60

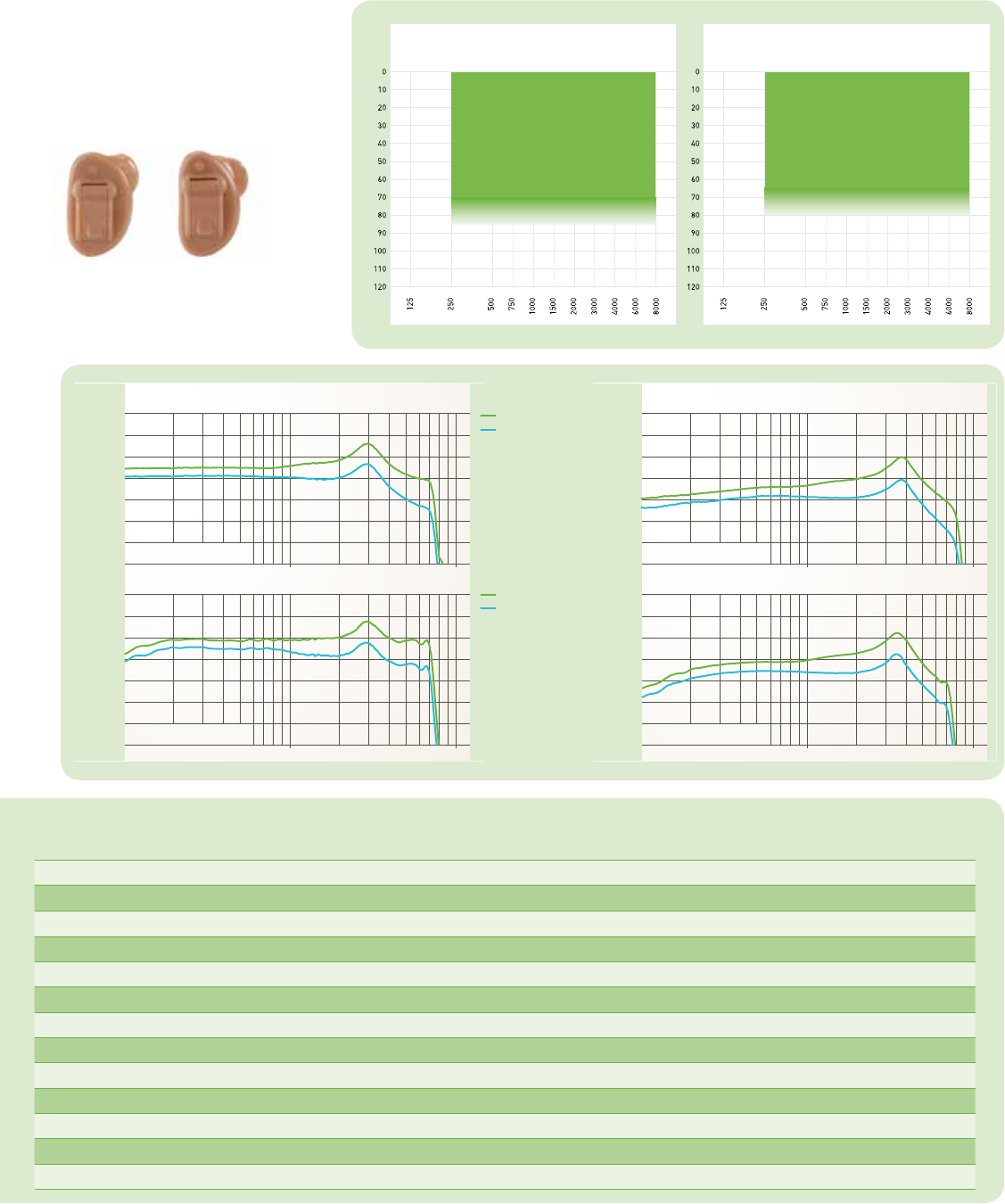

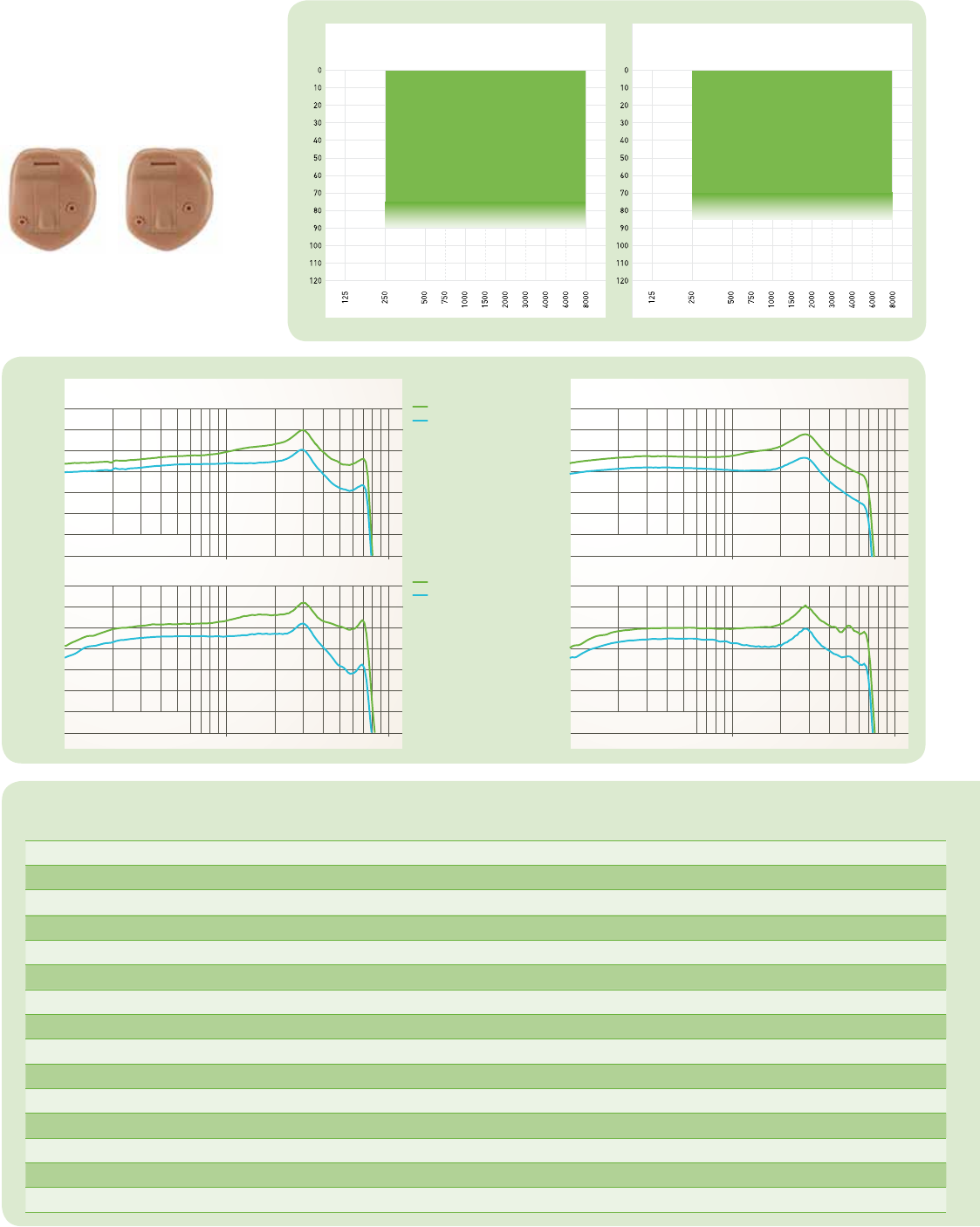

CICP | CIC
CICP CIC
2cc Coupler Ear Simulator 2cc Coupler Ear Simulator
OSPL 90, peak dB SPL 116 127 109 120
OSPL 90, 1600 Hz dB SPL 108 117 101 109
HFA OSPL 90 dB SPL 110 –102 –
Full-on gain, peak dB 48 59 42 52
Full-on gain, 1600 Hz dB 42 51 34 42
HFA full-on gain dB 42 –35 –
Reference test gain dB 33 44 24 34
Quiescent current mA 0.9 0.9 0.7 0.7
Operating current mA 1.0 1.0 0.8 0.7
Battery size 10 10 10 10
Distortion 500 / 800 / 1600 Hz %<1/<1/<1 <2/<2/<2 <1/<1/<1 <2/<2/<2
Frequency range Hz 100–7290 –100–6879 –
Equivalent input noise 1) dB SPL 22 23 21 24
** FOG with 50 dB SPL input
1) “Equivalent input noise A-weighted. Technical data measured with expansion, corresponding to the test box measurement settings.”
“2cc” refers to a coupler according to IEC 60318-5. “Ear simulator” refers to a coupler according to IEC 60318-4.Applied versions: IEC 60118-7:2005, IEC 60118-0:1994 and ANSI S3.22:2009.
Hearing Level in decibels (dB)
Fitting Range CICP
Frequency in Hertz (Hz)
Hearing Level in decibels (dB)
Fitting Range CIC
Frequency in Hertz (Hz)
140
130
120
110
100
90
80
70
100 1000 10000
120
110
100
90
80
70
60
50
100 1000 10000
140
130
120
110
100
90
80
70
100 1000 10000
120
110
100
90
80
70
60
50
100 1000 10000
CICP
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
CIC
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
Ear Simulator
2cc Coupler
Ear Simulator FOG**
2cc Coupler FOG**
Sonic · Charm Simply natural 15
14 Sonic · Charm Simply natural
Charm 40
CICP | CIC
CICP CIC
2cc Coupler Ear Simulator 2cc Coupler Ear Simulator
OSPL 90, peak dB SPL 116 127 109 120
OSPL 90, 1600 Hz dB SPL 108 117 101 109
HFA OSPL 90 dB SPL 110 –102 –
Full-on gain, peak dB 48 59 42 52
Full-on gain, 1600 Hz dB 42 51 34 42
HFA full-on gain dB 42 –35 –
Reference test gain dB 33 44 24 34
Quiescent current mA 0.9 0.9 0.7 0.7
Operating current mA 1.0 1.0 0.8 0.7
Battery size 10 10 10 10
Distortion 500 / 800 / 1600 Hz %<1/<1/<1 <2/<2/<2 <1/<1/<1 <2/<2/<2
Frequency range Hz 100–7290 –100–6879 –
Equivalent input noise 1) dB SPL 22 23 21 24
140
130
120
110
100
90
80
70
100 1000 10000
120
110
100
90
80
70
60
50
100 1000 10000
140
130
120
110
100
90
80
70
100 1000 10000
120
110
100
90
80
70
60
50
100 1000 10000
Ear Simulator
2cc Coupler
CICP
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
CIC
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
** FOG with 50 dB SPL input
1) “Equivalent input noise A-weighted. Technical data measured with expansion, corresponding to the test box measurement settings.”
“2cc” refers to a coupler according to IEC 60318-5. “Ear simulator” refers to a coupler according to IEC 60318-4.Applied versions: IEC 60118-7:2005, IEC 60118-0:1994 and ANSI S3.22:2009.
Hearing Level in decibels (dB)
Fitting Range CICP
Frequency in Hertz (Hz)
Hearing Level in decibels (dB)
Fitting Range CIC
Frequency in Hertz (Hz)
Ear Simulator FOG**
2cc Coupler FOG**
16 Sonic · Charm Simply natural
Charm 60

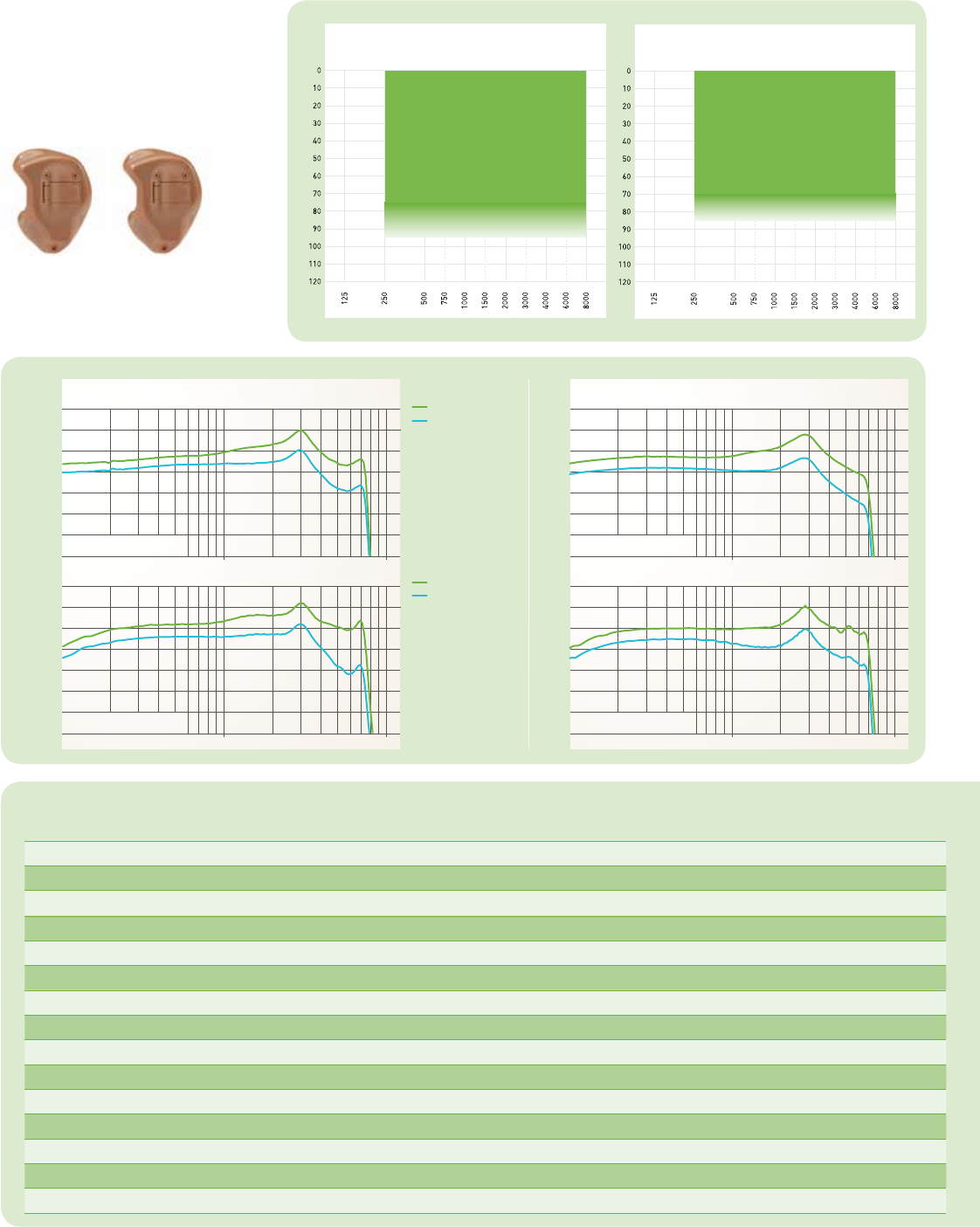

IIC
Hearing Level
in decibels (dB)
Fitting Range IIC
Frequency in Hertz (Hz)
140
130
120
110
100
90
80
70
100 1000 10000
120
110
100
90
80
70
60
50
100 1000 10000
IIC
2cc Coupler Ear Simulator
OSPL 90, peak dB SPL 108 119
OSPL 90, 1600 Hz dB SPL 99 108
HFA OSPL 90 dB SPL 100 –
Full-on gain, peak dB 35 46
Full-on gain, 1600 Hz dB 31 40
HFA full-on gain dB 32 –
Reference test gain dB 23 33
Quiescent current mA 0.8 0.8
Operating current mA 0.8 0.8
Battery size 10 10
Distortion 500 / 800 / 1600 Hz %<2/<2/<2 <2/<2/<2
Frequency range Hz 100-7300 –
Equivalent input noise 1) dB SPL 20 22
Ear Simulator
2cc Coupler
Ear Simulator FOG**
2cc Coupler FOG**
IIC
OSPL 90
Output in dB SPL
Frequency Response Curves
Output in dB SPL
Frequency in Hertz (Hz)
Frequency in Hertz (Hz)
** FOG with 50 dB SPL input
1) “Equivalent input noise A-weighted. Technical data measured with expansion, corresponding to the test box measurement settings.”
“2cc” refers to a coupler according to IEC 60318-5. “Ear simulator” refers to a coupler according to IEC 60318-4.Applied versions: IEC 60118-7:2005, IEC 60118-0:1994 and ANSI S3.22:2009.
Sonic · Charm Simply natural 17
16 Sonic · Charm Simply natural

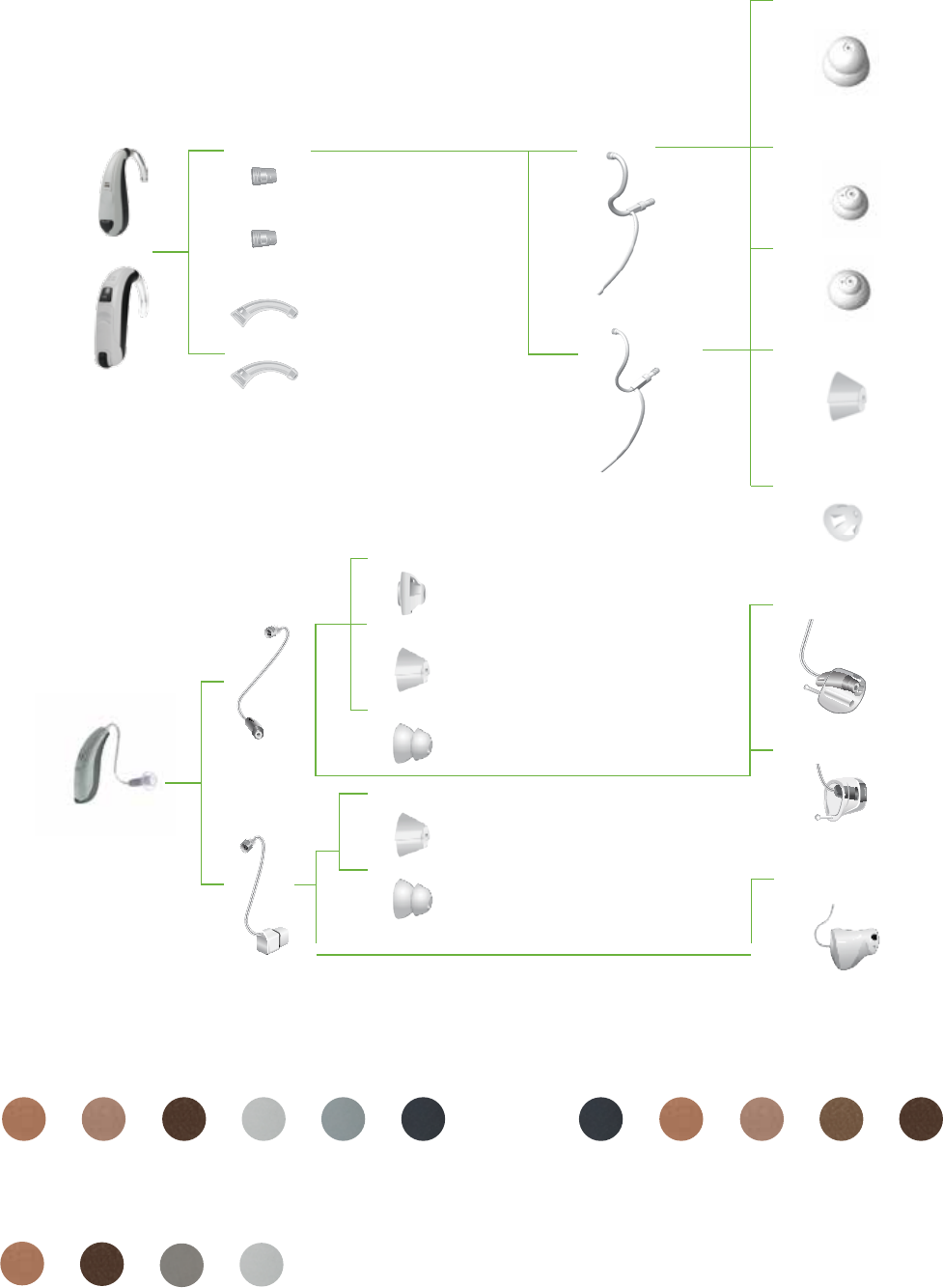

Acoustic Options
Color Options
Charm BTE and miniBTE Charm custom instruments
taupebeige dark
brown
grey dark
grey
black black
(IIC Only)
dark
brown
light
brown
beige medium
brown
Thin Tube 0.9
Thin Tube 1.3
Thin Tube Adapter
Earhook
Dome, Large Vent
Dome, Small Vent
Power Dome
Tulip Dome
Open Dome
BL_ILLU_BTE_ThinTubeAdapter_BW_HI
11
BL_ILLU_BTE_ThinTubeAdapter_BW_HI
11
BTE
miniBTE
miniBTE
BTE
Open Dome
Tulip Dome
Power Dome
Tulip Dome
Power Dome Power Mold
Lite Tip
Micro Mold
M-Speaker
P-Speaker
beige dark
brown
grey
grey
brown
Charm Nano RITE
03.14 | 136044 | US
www.sonici.com
