SonicWALL SSL-VPN 2000 Configuration Steps
Before You Begin
Selecting a SonicWALL Recommended Deployment Scenario
Applying Power to the SonicWALL SSL-VPN 2000
Accessing the Management Interface
- If You Cannot Login to the SSL-VPN
Configuring Your SonicWALL SSL-VPN 2000
Connecting the SonicWALL SSL-VPN 2000
Configuring Your Gateway Device
Testing Your SSL-VPN Connection
- Verifying a User Connection from the Internet
Registering Your SonicWALL SSL-VPN 2000
Mounting Guidelines
Glossary of Networking Terms

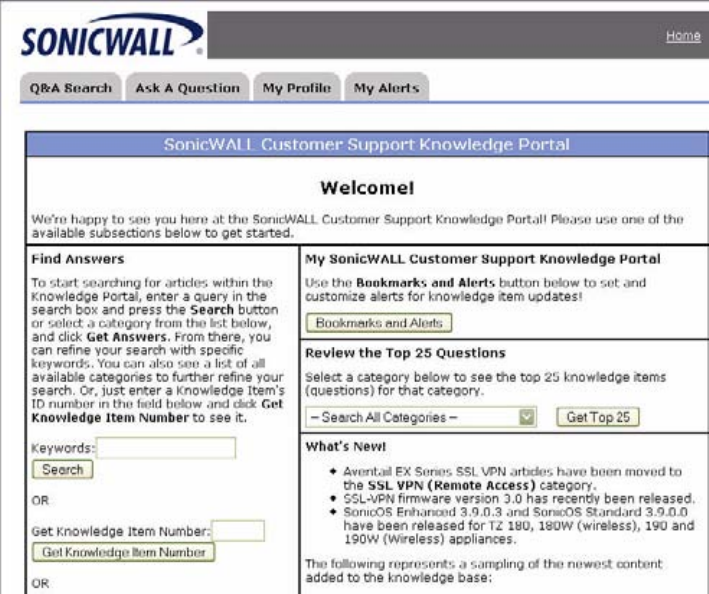

SonicWALL Global Support Services
SonicWALL SSL-VPN 2000 Regulatory Statement and Safety Instructions
Copyright Notice
Trademarks

Secure Remote Access Solutions

APPLIANCES SonicWALL SSL-VPN Series

SSL-VPN 2000

Getting Started Guide

SonicWALL SSL-VPN 2000 Getting Started Guide Page 1

SonicWALL SSL-VPN 2000 Appliance

Getting Started Guide

Thank you for your purchase of the SonicWALL SSL-VPN 2000, the solution for secure

remote access to mission-critical resources from virtually any end point—including

desktops, laptops, PDAs and smartphones.

The SonicWALL SSL-VPN 2000 appliance provides organizations of all sizes with an

affordable, simple and secure remote network and application access solution that

requires no pre-installed client software. Utilizing only a standard Web browser, users

can easily and securely access email, files, intranets, applications and other resources

on the corporate LAN from any location.

Note: To ensure optimal performance, please visit <https://www.mysonicwall.com>

to register your new appliance, download the latest version of SonicOS SSL-VPN

firmware, and view complete product documentation.

This Getting Started Guide contains installation procedures and configuration guidelines

for deploying a SonicWALL SSL-VPN 2000 appliance into an existing or new network.

This document addresses the most common use-case scenarios and network topologies

in which the SonicWALL SSL-VPN 2000 appliance can be deployed.

For complete documentation, refer to the SonicWALL SSL-VPN Administrator’s Guide at:

<http://www.sonicwall.com/us/Support.html>.

SonicWALL SSL-VPN 2000 Configuration Steps

“Selecting a SonicWALL Recommended Deployment Scenario” on page 3

“Applying Power to the SonicWALL SSL-VPN 2000” on page 4

“Accessing the Management Interface” on page 5

“Configuring Your SonicWALL SSL-VPN 2000” on page 7

“Connecting the SonicWALL SSL-VPN 2000” on page 15

“Configuring Your Gateway Device” on page 20

“Testing Your SSL-VPN Connection” on page 54

“Registering Your SonicWALL SSL-VPN 2000” on page 56

“Mounting Guidelines” on page 64

Page 2

Before You Begin

Check Package Contents

• One SonicWALL SSL-VPN 2000

appliance

• One SonicWALL SSL-VPN 2000

Getting Started Guide

• One SonicWALL SSL-VPN

Release Notes

• One straight-through Ethernet cable

• One rack-mount kit

• One power cord*

* A power cord is included only with units shipped to North America.

What You Need to Begin

• Administrative access to your network’s gateway device, such as your SonicWALL

Unified Threat Management (UTM) appliance, or your perimeter firewall

• A Windows, Linux, or MacOS computer to use as a management station for initial

configuration of the SonicWALL SSL-VPN 2000

• A Web browser supporting Java (version 1.4 or higher), and HTTP uploads, such as

Internet Explorer 6.5 or higher, Firefox 1.0 or higher, Opera 7.0 or higher, or Safari

1.2 or higher is recommended**

• An Internet connection

** While these browsers are acceptable for use in configuring your SonicWALL SSL-

VPN 2000, end users will need to use IE 6.5 or higher, Firefox 1.5 or higher, Opera 9.0

or higher, or Safari 2.0 or higher for supporting JavaScript, Java, cookies, SSL and

ActiveX in order to take advantage of the full suite of applications.

Network Configuration Information

Collect the following information about your current network configuration:

Primary DNS:

Secondary DNS (optional):

DNS Domain:

WINS server(s) (optional):

Other Information

These are the default settings for accessing your SonicWALL SSL-VPN management

interface:

User Name: admin

Password: (default: password)

Any Items Missing?

If any items are missing from your package,

contact:

SonicWALL Support

Web: http://www.sonicwall.com/us/Support.html

Email: customer_service@sonicwall.com

SonicWALL SSL-VPN 2000 Getting Started Guide Page 3

Selecting a SonicWALL Recommended

Deployment Scenario

The deployment scenarios described in this section are based on actual customer

deployments and are SonicWALL-recommended deployment best practices. This section

describes three common deployments of the SonicWALL SSL-VPN 2000.

In Table 1, select the scenario that most closely matches your deployment.



Table 1: SonicWALL SSL-VPN 2000 Deployment Scenarios

Gateway Device SonicWALL Recommended

Deployment Scenarios Conditions or Requirements

SonicOS Enhanced 3.1 or higher:

TZ 170 Series

TZ 180 Series

TZ 190 Series

PRO Series

NSA E-Class (SonicOS 5.0+)

NSA Series (SonicOS 5.0+)

Scenario A: SSL-VPN on a New DMZ • OPT or unused interface

• A new DMZ configured for either NAT or

Transparent Mode operation.

Scenario B: SSL-VPN on Existing DMZ • No unused interfaces

• One dedicated interface in use as an

existing DMZ

Scenario C: SSL-VPN on the LAN • No unused interfaces

• No dedicated interface for a DMZ

SonicOS Standard 3.1 or higher:

TZ 170

TZ 180 Series

PRO 1260

PRO 2040

PRO 3060

Scenario A: SSL-VPN on a New DMZ • OPT or X2 interface is unused

• A new DMZ configured for either NAT or

Transparent Mode operation.

• (Optional) Plan to provide SonicWALL deep

packet inspection security services such as

GAV, IPS, and Anti-Spyware.

Scenario B: SSL-VPN on Existing DMZ • OPT or X2 interface is in use with an

existing DMZ

• (Optional) Plan to provide SonicWALL deep

packet inspection security services such as

GAV, IPS, and Anti-Spyware.

SonicOS Standard 3.1 or higher:

TZ 150 Series

TZ 170 Wireless

TZ 170 SP

TZ 180 Series

PRO 1260 / 2040 / 3060

SonicWALLs with legacy firmware

Third-Party Gateway Device

Scenario C: SSL-VPN on the LAN • Not planning to use SonicWALL deep

packet inspection security services such as

GAV, IPS, and Anti-Spyware.

• Interoperability with a third-party gateway

device

Gateway

Device Switch/

Hub

SonicWALL

SSL-VPN 2000

on LAN

Remote Users

in Internet Zone

SonicWALL

SSL-VPN 2000

on Existing DMZ

SonicWALL

UTM Appliance

LAN

Resources

Router

Switch/

Hub

Switch/

Hub

Remote Users

in Internet Zone

SonicWALL

UTM Appliance

SonicWALL

SSL-VPN 2000

on DMZ LAN

Resources

Router

Switch/

Hub

Remote Users

in Internet Zone

Scenario A

SSL-VPN on a New DMZ Scenario B Scenario C

SSL-VPN on an Existing DMZ SSL-VPN on the LAN

Page 4

Applying Power to the SonicWALL SSL-VPN 2000

1. Plug the power cord into the SonicWALL SSL-VPN 2000 and into an appropriate

power outlet.

2. Turn on the power switch on the rear of the appliance next to the power cord.

The Power LED on the front panel lights up green when you turn on the

SonicWALL SSL-VPN 2000. The Test LED lights up yellow and may blink for up

to a minute while the appliance performs a series of diagnostic tests. When the Test

light is no longer lit, the SonicWALL SSL-VPN 2000 is ready for configuration.

If the Test or Alarm LEDs remain lit or if the Test LED blinks red after the

SonicWALL SSL-VPN 2000 has booted, restart the SonicWALL SSL-VPN 2000. For

more troubleshooting information, refer to the SonicWALL SSL-VPN Administrator’s

Guide.

Continue to Step



X0:

Default management port.

Provides connectivity between

the SSL-VPN and your gateway.

Console Port: Provides access

to command line interface.

(for future use)

Power LED

Test LED

Alarm LED

X2:

10/100 Ethernet

X1:

10/100 Ethernet

X3:

10/100 Ethernet

Power plug Power switch

Exhaust fans

SonicWALL SSL-VPN 2000 Getting Started Guide Page 5

Accessing the Management Interface

To access the Web-based management interface of the SonicWALL SSL-VPN 2000:

1. Connect one end of an Ethernet cable into the X0 port of your SonicWALL SSL-

VPN 2000. Connect the other end of the cable into the computer you are using to

manage the SonicWALL SSL-VPN 2000.

2. Set the computer you use to manage the SonicWALL SSL-VPN 2000 to have a static

IP address in the 192.168.200.x/24 subnet, such as 192.168.200.20. For help with

setting up a static IP address on your computer, refer to “Configuring a Static IP

Address” on page 62.

Alert: A Web browser supporting Java and HTTP uploads, such as Internet Explorer

6.5 or higher, Firefox 1.0 or higher, Opera 7.0 or higher, or Safari 1.2 or higher

is recommended.*

3. Open a Web browser and enter http://192.168.200.1 (the default X0 management IP

address) in the Location or Address field.

4. A security warning may appear. Click Continue to this website or the OK button to

accept the certificate and continue.

* While these browsers are acceptable for use in configuring your SonicWALL SSL-

VPN 2000, end users will need to use IE 6.5 or higher, Firefox 1.5 or higher, Opera 9.0

or higher, or Safari 2.0 or higher in order to take advantage of the full suite of applica-

tions.



SonicWALL SSL VPN 2000

Management Station

Page 6

5. The SonicWALL SSL-VPN management interface displays and prompts you to

enter your user name and password. Enter “admin” in the User Name field,

“password” in the Password field, select LocalDomain from the Domain drop-down

list and click the Login button.

Continue to Step

If You Cannot Login to the SSL-VPN

If you cannot connect to the SonicWALL SSL-VPN 2000, verify the

following configurations:

• Did you plug your management workstation into the interface X0 on the

SonicWALL SSL-VPN appliance?

Management can only be performed through X0.

• Is the link light lit on both the management station and the SonicWALL SSL-VPN

appliance?

• Did you correctly enter the SonicWALL SSL-VPN 2000 management IP address

in your Web browser?

• Is your computer set to a static IP address of 192.168.200.20? Refer to

“Configuring a Static IP Address” on page 62 for instructions on setting your IP

address.

• Is your Domain set to LocalDomain on the login screen?

SonicWALL SSL-VPN 2000 Getting Started Guide Page 7

Configuring Your SonicWALL SSL-VPN 2000

Once your SonicWALL SSL-VPN 2000 is connected to a computer through the

management port (X0), it can be configured through the Web-based management

interface.

This section includes the following subsections:

• “Setting Your Administrator Password” on page 7

• “Adding a Local User” on page 8

• “Setting Time Zone” on page 9

• “Configuring SSL-VPN Network Settings” on page 9

• “Configuring DNS / WINS” on page 9

• “Configuring the X0 IP address for Scenario B and Scenario C” on page 10

• “Configuring a Default Route” on page 11

• “Adding a NetExtender Client Route” on page 12

Setting Your Administrator Password

1. Navigate to the Users > Local Users page

2. Click the Configure button corresponding to the “admin” account.

Note: Changing your password from the factory default is optional but strongly

recommended. If you do change your password, be sure to keep it in a safe place. If you

lose your password, you will have to reset the SonicWALL SSL-VPN 2000 to factory

settings, losing your configuration.



Page 8

3. Enter a password for the “admin” account in the Password field. Re-enter the

password in the Confirm Password field.

4. Click the OK button to apply changes.

Adding a Local User

1. Navigate to the Users > Local Users page.

2. Click the Add User button.

3. Enter the desired user name in the User Name field.

4. Select LocalDomain from the GroupDomain drop-down menu.

5. Supply a password for the user in the Password field. Confirm the new password.

6. Select User from the User Type drop-down menu.

7. Click the Add button.

SonicWALL SSL-VPN 2000 Getting Started Guide Page 9

Setting Time Zone

1. Navigate to the System > Time page.

2. Select the appropriate time zone from the drop-down menu.

3. Click the Accept button.

Note: Setting the time correctly is essential to many of the operations of the

SonicWALL SSL-VPN 2000. Be sure to set the time-zone correctly. Automatic

synchronization with an NTP server (default setting) is encouraged to ensure accuracy.

Configuring SSL-VPN Network Settings

You will now configure your SSL-VPN 2000 network settings. Refer to the notes you took

in “Network Configuration Information” on page 2 to complete this section.

Configuring DNS / WINS

1. Navigate to the Network > DNS page.

2. Enter a unique name for your SonicWALL SSL-VPN 2000 in the SSL-VPN Gateway

Hostname field.

3. Enter your primary DNS server information in the Primary DNS Server field.

Page 10

4. (Optional) Enter a secondary DNS server in the Secondary DNS Server field.

5. (Optional) Enter your DNS Domain in the DNS Domain Field.

6. (Optional) Enter your WINS servers in the Primary WINS Server and Secondary

WINS Server fields.

7. Click the Accept button.

Configuring the X0 IP address for Scenario B and Scenario C

If you are deploying the SSL-VPN in either Scenario B, SSL-VPN on an Existing DMZ

or Scenario C, SSL-VPN on the LAN, you need to reset the IP address of the X0

interface on the SSL-VPN to an address within the range of the existing DMZ or the

existing LAN.

1. Navigate to the Network > Interfaces page.

2. In the Interfaces table, click the Configure icon for the X0 interface.

SonicWALL SSL-VPN 2000 Getting Started Guide Page 11

3. In the Interface Settings dialog box, set the IP address and netmask to:

4. Click OK. When you click OK, you will lose your connection to the SSL-VPN.

5. Reset the computer you use to manage the SonicWALL SSL-VPN 2000 to have a

static IP address in the range you just set for the X0 interface, for example, 10.1.1.20

or 192.168.200.20.

For help with setting up a static IP address on your computer, refer to “Configuring a

Static IP Address” on page 62.

6. Log into the SSL-VPN management interface again, using the IP address you just

configured for the X0 interface. For example, point your browser to

http://192.168.168.200.

Configuring a Default Route

Refer to the following table to correctly configure your default route. If you do not know

your scenario, refer to “Selecting a SonicWALL Recommended Deployment Scenario” on

page 3.

1. Navigate to the Network > Routes page.

2. Enter the IP address of your upstream gateway device in the Default Gateway field.

If you are using scenario: Set the X0 interface to:

B - SSL-VPN on an Existing

DMZ IP Address: An unused address within your DMZ subnet,

for example: 10.1.1.240.

Subnet Mask: Must match your DMZ subnet mask.

C - SSL-VPN on the LAN IP Address: An unused address within your LAN subnet, for

example: 192.168.168.200.

Subnet Mask: Must match your LAN subnet mask.

If you are using scenario: Your upstream gateway device will be:

A - SSL-VPN on a New DMZ The DMZ you will create (for example, 192.168.200.2).

B - SSL-VPN on an Existing DMZ Your existing DMZ interface.

C - SSL-VPN on the LAN Your LAN gateway.

Page 12

3. Select X0 in the Interfaces drop down list.

4. Click the Accept button.

Adding a NetExtender Client Route

NetExtender allows remote clients to have seamless access to resources on your local

network.

1. Navigate to the NetExtender > Client Routes page.

2. Click the Add Client Route button.

3. Enter the IP address of the trusted network to which you would like to provide access

with NetExtender in the Destination Network field. (For example, if you are

connecting to an existing DMZ with the network 192.168.50.0/24 and you want to

provide access to your LAN network 192.168.168.0/24, you would enter

192.168.168.0).

Note: You can optionally tunnel-all SSL-VPN client traffic through the NetExtender

connection by entering 0.0.0.0 for the Destination Network and Subnet Mask.

Some operating systems or system environments do not correctly apply the 0.0.0.0

default route. If this is the case, you may also specify tunnel-all operation by using

two more specific routes as follows:

4. Enter your subnet mask in the Subnet Mask field.

5. Click the Add button to add this client route.

Route 1 Destination Network: 0.0.0.0

Subnet Mask: 128.0.0.0

Route 2 Destination Network: 128.0.0.0

Subnet Mask: 128.0.0.0

SonicWALL SSL-VPN 2000 Getting Started Guide Page 13

Setting your NetExtender Address Range

The NetExtender IP range defines the IP address pool from which addresses will be

assigned to remote users during NetExtender sessions. The range needs to be large

enough to accommodate the maximum number of concurrent NetExtender users you

wish to support.

The range should fall within the same subnet as the interface to which the SonicWALL

SSL-VPN appliance is connected, and in cases where there are other hosts on the same

segment as the SonicWALL SSL-VPN appliance, it must not overlap or collide with any

assigned addresses. You can determine the correct subnet based on your network

scenario selection:

Scenario A Use the default NetExtender range:

192.168.200.100 to 192.168.200.200

Scenario B Select a range that falls within your existing DMZ subnet. For

example, if your DMZ uses the 192.168.50.0/24 subnet, and

you want to support up to 30 concurrent NetExtender sessions,

you could use 192.168.50.220 to 192.168.50.249, providing

they are not already in use.

Scenario C Select a range that falls within your existing LAN subnet. For

example, if your LAN uses the 192.168.168.0/24 subnet, and

you want to support up to 10 concurrent NetExtender sessions,

you could use 192.168.168.240 to 192.168.168.249, providing

they are not already in use.

Page 14

To set your NetExtender address range, perform the following steps:

1. Navigate to the NetExtender > Client Settings page.

2. Enter an address range for your clients in the Client Address Range Begin and

Client Address Range End fields.

If you have too few available addresses to support your desired number of concurrent

NetExtender users you may use a new subnet for NetExtender. This condition might

occur if your existing DMZ or LAN is configured in NAT mode with a small subnet space,

such as 255.255.255.224, or more commonly if your DMZ or LAN is configured in

Transparent mode and you have a limited number of public addresses from your ISP.

In either case, you may assign a new, unallocated IP range to NetExtender (such as

192.168.10.100 to 192.168.10.200) and configure a route to this range on your gateway

appliance.

For example, if your current Transparent range is 67.115.118.75 through 67.115.118.80,

and you wish to support 50 concurrent NetExtender clients, configure your SSL-VPN X0

interface with an available IP address in the Transparent range, such as 67.115.118.80,

and configure your NetExtender range as 192.168.10.100 to 192.168.10.200. Then, on

your gateway device, configure a static route to 192.168.10.0/255.255.255.0 using

67.115.118.80.

Continue to Step

Scenario A 192.168.200.100 to

192.168.200.200

(default range)

Scenario B An unused range within

your DMZ subnet.

Scenario C An unused range within

your LAN subnet.

SonicWALL SSL-VPN 2000 Getting Started Guide Page 15

Connecting the SonicWALL SSL-VPN 2000

Before continuing, reference the diagrams on the following pages to connect the

SonicWALL SSL-VPN 2000 to your network. Refer to the table in “Selecting a

SonicWALL Recommended Deployment Scenario” on page 3 to determine the proper

scenario for your network configuration.

• “Scenario A: Connecting the SonicWALL SSL-VPN 2000” on page 15

• “Scenario B: Configuring Your Network Interface” on page 16

• “Scenario B: Connecting the SonicWALL SSL-VPN 2000” on page 17

• “Scenario C: Configuring Your Network Interface” on page 18

• “Scenario C: Connecting the SonicWALL SSL-VPN 2000” on page 19

Scenario A: Connecting the SonicWALL SSL-VPN 2000

To connect the SonicWALL SSL-VPN 2000 using Scenario A, perform the following

steps:

1. Connect one end of an Ethernet cable to the OPT, X2, or other unused port on your

existing SonicWALL UTM appliance.

Scenario A: SSL-VPN on a New DMZ

2. Connect the other end of the Ethernet cable to the X0 port on the front of your

SonicWALL SSL-VPN 2000. The X0 Port LED lights up green indicating an active

connection.

Continue to Step



SonicWALL UTM Appliance

DMZ

X1 X0

OPT, X2, etc.

SonicWALL SSL-VPN 2000

Router Switch/

Hub

Remote Users Network Nodes

Internet Zone LAN

Page 16

Scenario B: Configuring Your Network Interface

Configure your SonicWALL SSL-VPN 2000 to connect with your SonicWALL UTM

appliance under network configurations given in Scenario B.

On your SonicWALL SSL-VPN 2000:

1. Navigate to the Network > Interfaces page.

2. Click the Configure button for the X0 port.

3. If configuring with Scenario B, enter an unused IP address in your DMZ subnet in

the IP Address field.

4. Enter your subnet mask in the Subnet Mask field.

5. Click the OK button to apply changes.

SonicWALL SSL-VPN 2000 Getting Started Guide Page 17

Scenario B: Connecting the SonicWALL SSL-VPN 2000

To connect the SonicWALL SSL-VPN 2000 using Scenario B, perform the following

steps:

1. Connect one end of an Ethernet cable to an unused port on your DMZ, either directly

to the OPT or X2 on your existing SonicWALL UTM appliance or to a hub or switch

on your DMZ.

Scenario B: SSL-VPN on an Existing DMZ

2. Connect the other end of the Ethernet cable to the X0 port on the front of your

SonicWALL SSL-VPN 2000. The X0 Port LED lights up green indicating an active

connection.

Continue to Step

SonicWALL UTM Appliance

Existing DMZ

X1 X0

SonicWALL SSL VPN 2000

Router

Switch/

Hub

Remote Users Network Nodes

Network Node

Internet Zone LAN

Switch/

Hub

Page 18

Scenario C: Configuring Your Network Interface

Configure your SonicWALL SSL-VPN 2000 to connect to your SonicWALL UTM

appliance under network configurations given in Scenario C.

On the SonicWALL SSL-VPN 2000:

1. Navigate to the Network > Interfaces page.

2. Click the Configure button for the X0 port.

3. Enter an unused IP address in your LAN in the IP Address field.

4. Enter your subnet mask in the Subnet Mask field.

5. Click the OK button to apply changes.

SonicWALL SSL-VPN 2000 Getting Started Guide Page 19

Scenario C: Connecting the SonicWALL SSL-VPN 2000

To connect the SonicWALL SSL-VPN 2000 using Scenario C, perform the following

steps:

1. Connect one end of an Ethernet cable to an unused port on your LAN hub

or switch.

Scenario C: SSL-VPN on the LAN

2. Connect the other end of the Ethernet cable to the X0 port on the front of your

SonicWALL SSL-VPN 2000. The X0 Port LED lights up green indicating an active

connection.

Continue to Step

Gateway Device

Internet connection LAN port

SonicWALL SSL VPN 2000

Remote Users Network Nodes

Internet Zone LAN

Switch/

Hub

Page 20

Configuring Your Gateway Device

Now that you have set up your SonicWALL SSL-VPN 2000, you need to configure your

gateway device to work with the SonicWALL SSL-VPN 2000. Refer to the table in

“Selecting a SonicWALL Recommended Deployment Scenario” on page 3 to determine

the proper scenario for your network configuration.

This section contains the following subsections:

• “Scenario A: SSL-VPN on a New DMZ” on page 20

• “Scenario B: SSL-VPN on Existing DMZ” on page 35

• “Scenario C: SSL-VPN on the LAN” on page 47

Scenario A: SSL-VPN on a New DMZ

This section provides procedures to configure your gateway appliance based on

Scenario A. This section contains the following subsections:

• “Scenario A: Connecting to the SonicWALL UTM Appliance” on page 20

• “Scenario A: Configuring a DMZ or OPT Port in SonicOS Standard” on page 21

• “Scenario A: Allowing WAN -> DMZ Connection in SonicOS Standard” on page 21

• “Scenario A: Allowing DMZ -> LAN Connection in SonicOS Standard” on page 23

• “Scenario A: Adding a New SSL-VPN Custom Zone in SonicOS Enhanced” on

page 27

• “Scenario A: Allowing WAN -> SSL-VPN Connection in SonicOS Enhanced” on

page 28

• “Scenario A: Allowing SSL-VPN -> LAN Connection in SonicOS Enhanced” on

page 31

Scenario A: Connecting to the SonicWALL UTM Appliance

1. Using a computer connected to your LAN, launch your Web browser and enter the IP

address of your existing SonicWALL UTM appliance in the Location or Address

field.

2. When the management interface displays, enter your user name and password in

the appropriate fields and press the Login button.

Note: Remember that you are logging into your SonicWALL UTM appliance, not the

SonicWALL SSL-VPN 2000. Your user name and password combination may be

different from the user name and password you recorded for your SonicWALL SSL-VPN

2000.



SonicWALL SSL-VPN 2000 Getting Started Guide Page 21

Scenario A: Configuring a DMZ or OPT Port in SonicOS Standard

1. Navigate to the Network > Settings page.

2. Click the Configure button for the DMZ or OPT interface.

3. Select the DMZ in NAT Mode radio button.

4. Enter 192.168.200.2 in the DMZ Private Address field.

5. Enter 255.255.255.0 in the DMZ Subnet Mask field.

6. Click the OK button.

Scenario A: Allowing WAN -> DMZ Connection in SonicOS Standard

Follow this procedure if you are connecting the SonicWALL SSL-VPN 2000 to a

SonicWALL UTM appliance running SonicOS Standard. If your SonicWALL UTM

appliance is running SonicOS Enhanced, skip to “Scenario A: Allowing WAN -> SSL-

VPN Connection in SonicOS Enhanced” on page 28

9Tip: Leave the default rule to deny any access from WAN to DMZ in place, and use the

Public Server Rule Wizard to create an access rule to allow HTTP and HTTPS

specifically to the SonicWALL SSL-VPN appliance. As you add different servers to the

DMZ, you can use the wizard to create access to the new servers while still restricting all

other traffic.

Note: If you are allowing HTTP access to your SonicWALL SSL-VPN appliance as well

as HTTPS access, you need to run the wizard twice to create public server access rules

for both HTTP and HTTPS.

Create a public server access rule for HTTPS traffic:

1. Navigate to the Firewall > Access Rules page.

2. Click .

3. In the Welcome to the SonicWALL Network Access Rules Wizard page,

click Next.

Page 22

4. In the Step 1: Access Rule Type page, select Public Server Rule and then click

Next.

5. In the Step 2: Public Server page, perform the following selections and then click

6. In the Congratulations page, click Apply to create the rules and allow access from

the WAN to the SonicWALL SSL-VPN appliance on the DMZ.

Service HTTPS

Server IP Address The X0 IP address of the SonicWALL SSL-VPN appliance,

192.168.200.1 by default

Destination Interface DMZ

SonicWALL SSL-VPN 2000 Getting Started Guide Page 23

If you are allowing HTTP access to the SonicWALL SSL-VPN appliance, create a public

server access rule for HTTP:

1. In the Firewall > Access Rules page, click .

2. In the Welcome to the Network Access Rules Wizard page, click Next.

3. In the Step 1: Access Rule Type page, select Public Server Rule. Click Next.

4. In the Step 2: Public Server page, perform the following selections and click Next:

5. In the Congratulations page, click Apply to create the rules and allow access from

the WAN to the SonicWALL SSL-VPN appliance on the DMZ.

Scenario A: Allowing DMZ -> LAN Connection in SonicOS Standard

When users have connected to the SSL-VPN, they need to be able to connect to

resources on the LAN. You need to create two rules--one to allow traffic from the

SonicWALL SSL-VPN appliances X0 interface to your LAN, and one to allow traffic from

NetExtender to your LAN.

Note: This procedure uses the Access Rule Wizard to create the rules. You can add

the rules manually by clicking Add at the bottom of the Firewall > Access Rules page.

Create access to the LAN for the SSL-VPN X0 interface:

1. In the Firewall > Access Rules page, click .

2. In the Welcome to the SonicWALL Network Access Rules Wizard page,

click Next.

3. In the Step 1: Access Rule Type page, select General Rule. Click Next.

4. In the Step 2: Access Rule Service page, select Any. Click Next.

5. In the Step 3: Access Rule Action page configure the following:

6. Click Next.

Service Web (HTTP)

Server IP Address The X0 IP address of the SonicWALL SSL-VPN appliance,

192.168.200.1 by default

Destination Interface DMZ

Select Action for this

Rule Allow

TCP Connection

Inactivity Timeout 30 minutes

Page 24

7. In the Step 4: Access Rule Source Interface and Address page, perform the

following selections and then click Next:

Interface DMZ

IP Address Begin The X0 IP address of the SonicWALL SSL-VPN appliance,

192.168.200.1 by default

IP Address End The X0 IP address of the SonicWALL SSL-VPN appliance,

192.168.200.1 by default

SonicWALL SSL-VPN 2000 Getting Started Guide Page 25

8. In the Step 5: Access Rule Destination Interface and Address page, perform the

following selections and then click Next:

9. In the Step 6: Access Rule Time page, leave Time Active set to Always Active

unless you want to limit when you want SSL-VPN clients to have access to the LAN.

10. In the Congratulations page, click Apply to create the access rule.

Interface LAN

IP Address Begin *

IP Address End Leave blank

Page 26

Create access to the LAN for NetExtender:

1. In the Firewall > Access Rules page, click .

2. In the Welcome to the SonicWALL Network Access Rules page, click Next.

3. In the Step 1: Access Rule Type page, select General Rule. Click Next.

4. In the Step 2: Access Rule Service page, select Any. Click Next.

5. In the Step 3: Access Rule Action page, configure:

Click Next.

6. In the Step 4: Access Rule Source Interface and Address page, perform the

following selections and then click Next:

7. In the Step 5: Access Rule Destination Interface and Address page, perform the

following selections and then click Next:

8. In the Step 6: Access Rule Time page, leave Time Active set to Always Active

unless you want to limit when you want SSL-VPN clients to have access to the LAN.

9. In the Congratulations page, click Apply to create the access rule.

Continue to Step

Select Action for this

Rule Allow

TCP Connection

Inactivity TImeout 30 minutes

Interface DMZ

IP Address Begin The beginning of the NetExtender range, default,

192.168.200.100

IP Address End The end of the NetExtender range, default, 192.168.200.200

Interface LAN

IP Address Begin *

IP Address End Leave blank

SonicWALL SSL-VPN 2000 Getting Started Guide Page 27

Scenario A: Adding a New SSL-VPN Custom Zone in SonicOS Enhanced

1. Navigate to the Network > Interfaces page.

2. Click Configure button for the X2 interface (or any other available interface).

3. Select Create New Zone in Zone field. The Add Zone window opens.

4. Type SSLVPN in the Name field.

5. Select Public from the Security Type drop-down menu.

6. Un-check the Allow Interface Trust checkbox.

7. Select the Gateway AV, Intrusion Prevention Service and Anti-Spyware

checkboxes.

8. Click OK.

9. In the Edit Interface window, enter the IP address for this interface in the IP

Address field. (For example “192.168.200.2”. This should be the same address you

created in “Configuring the X0 IP address for Scenario B and Scenario C” on

page 10).

10. Enter your subnet mask in the Subnet Mask field.

11. In the Management area, enable the desired management options.

12. Click the OK button to apply changes.

Page 28

Scenario A: Allowing WAN -> SSL-VPN Connection in SonicOS Enhanced

Follow this procedure if you are connecting your SonicWALL SSL-VPN 2000 to a

SonicWALL UTM appliance running SonicOS Enhanced. If your SonicWALL UTM

appliance is running SonicOS Standard, refer to “Scenario A: Allowing WAN -> DMZ

Connection in SonicOS Standard” on page 21.

Create a public server access rule for HTTP and HTTPS traffic:

1. In the top right corner of the management interface, click the Wizards icon.

2. In the Welcome page, select the Public Server Wizard, and then click Next.

3. In the Public Server Type page, select:.

The Add Service Group dialog box appears.

Server Type Other

Services Create new group

SonicWALL SSL-VPN 2000 Getting Started Guide Page 29

4. In the Add Service Group dialog box, create a service group for HTTP and HTTPS:

• Enter a name for the service.

• Select both HTTP and HTTPS and click the right arrow button .

• Click OK when both HTTP and HTTPS are in the right column.

5. In the Server Private Network Configuration page, enter:

6. Click Next.

Server Name A name for your SonicWALL SSL-VPN 2000

Server Private

IP Address The X0 IP address of the SonicWALL SSL-VPN appliance,

192.168.200.1 by default

Server Comment A brief description of the server

Page 30

7. In the Server Public Information page, either accept the default IP address or enter

an IP address in your allowed public IP range.

Note: The default IP address is the WAN IP address of your SonicWALL UTM

appliance. If you accept this default, all HTTP and HTTPS traffic to this IP address will be

routed to your SonicWALL SSL-VPN 2000.

8. Click Next.

9. The Public Server Configuration Summary page displays all the configuration

actions that will be performed to create the public server.

Click Apply to create the configuration and allow access from the WAN to the

SonicWALL SSL-VPN 2000 on the DMZ.

SonicWALL SSL-VPN 2000 Getting Started Guide Page 31

Scenario A: Allowing SSL-VPN -> LAN Connection in SonicOS Enhanced

When users have connected to the SSL-VPN, they need to be able to connect to

resources on the LAN.

1. In the administration interface, navigate to the Network > Address Objects page.

2. In the Address Objects section, click .

3. In the Add Object dialog box, create an address object for the X0 interface IP

address of your SonicWALL SSL-VPN 2000:

Click OK to create the object.

4. Click again to create an address object for the NetExtender range.

Name Enter a name for the SonicWALL SSL-VPN 2000

Zone Assignment SSLVPN

Type Host

IP Address The SonicWALL SSL-VPN 2000’s X0 IP address,

192.168.200.1 by default

Page 32

5. In the Add Object dialog box, create an address object for the X0 interface IP

address of your SonicWALL SSL-VPN 2000:

Click OK to create the object.

6. On the Network > Address Objects page, in the Address Groups section, click

7. In the Add Address Object Group dialog box, create a group for the X0 interface IP

address of your SonicWALL SSL-VPN 2000 and the NetExtender IP range:

• Enter a name for the group.

• In the left column, select the two groups you created and click the arrow button

• Click OK to create the group when both objects are in the right column.

8. In the administrative interface, navigate to the Firewall > Access Rules page.

Name Enter a name for NetExtender

Zone Assignment SSLVPN

Type Range

Starting IP Address The start of the NetExtender IP address range,

192.168.200.100 by default

Ending IP Address The end of the NetExtender IP address range,

192.168.200.200 by default

SonicWALL SSL-VPN 2000 Getting Started Guide Page 33

9. On the Firewall > Access Rules page in the matrix view, click the SSLVPN > LAN

icon.

10. On the resulting Firewall > Access Rules page, click .

Page 34

11. In the Add Rule window, create a rule to allow access to the LAN for the address

group you just created:

Click OK to create the rule.

Continue to Step

Action Allow

From Zone SSLVPN

To Zone LAN

Service Any

Source The address group you just created, such as

SonicWALL_SSLVPN_Group

Destination Any

Users Allowed All

Schedule Always on

Enable Logging Selected

Allow Fragmented Packets Selected

SonicWALL SSL-VPN 2000 Getting Started Guide Page 35

Scenario B: SSL-VPN on Existing DMZ

This section provides procedures to configure your gateway appliance based on

Scenario B. This section contains the following subsections:

• “Scenario B: Connecting to the SonicWALL UTM Appliance” on page 35

• “Scenario B: Allowing WAN -> DMZ Connection in SonicOS Standard” on page 35

• “Scenario B: Allowing DMZ -> LAN Connection in SonicOS Standard” on page 37

• “Scenario B: Allowing WAN -> DMZ Connection in SonicOS Enhanced” on page 41

• “Scenario B: Allowing DMZ -> LAN Connection in SonicOS Enhanced” on page 43

Scenario B: Connecting to the SonicWALL UTM Appliance

1. Using a computer connected to your LAN, launch your Web browser and enter the IP

address of your existing SonicWALL UTM appliance in the Location or Address

field.

2. When the management interface displays, enter your user name and password in

the appropriate fields and press the Login button.

Note: Remember that you are logging into your SonicWALL UTM appliance, not the

SSL-VPN. Your user name and password combination may be different from the user

name and password you recorded for your SSL-VPN 2000.

Scenario B: Allowing WAN -> DMZ Connection in SonicOS Standard

Follow this procedure if you are connecting the SonicWALL SSL-VPN 2000 to a

SonicWALL UTM appliance running SonicOS Standard. If your SonicWALL UTM

appliance is running SonicOS Enhanced, skip to “Scenario A: Allowing WAN -> SSL-

VPN Connection in SonicOS Enhanced” on page 28.

Note: If you are allowing HTTP access to your SonicWALL SSL-VPN appliance as well

as HTTPS access, you need to run the wizard twice to create public server access rules

for both HTTP and HTTPS.

Create a public server access rule for HTTPS traffic:

1. Navigate to the Firewall > Access Rules page.

2. Click .

3. In the Welcome to the SonicWALL Network Access Rules Wizard page,

click Next.

Page 36

4. In the Step 1: Access Rule Type page, select Public Server Rule and then click

Next.

5. In the Step 2: Public Server page, perform the following selections and then click

6. In the Congratulations page, click Apply to create the rules and allow access from

the WAN to the SonicWALL SSL-VPN appliance on the DMZ.

Service HTTPS

Server IP Address The X0 IP address of the SonicWALL SSL-VPN appliance

within your DMZ range, for example 10.1.1.200.

Destination Interface DMZ

SonicWALL SSL-VPN 2000 Getting Started Guide Page 37

If you are allowing HTTP access to the SonicWALL SSL-VPN appliance, create a public

server access rule for HTTP:

1. In the Firewall > Access Rules page, click .

2. In the Welcome to the Network Access Rules Wizard page, click Next.

3. In the Step 1: Access Rule Type page, select Public Server Rule. Click Next.

4. In the Step 2: Public Server page, perform the following selections and click Next:

5. In the Congratulations page, click Apply to create the rules and allow access from

the WAN to the SonicWALL SSL-VPN appliance on the DMZ.

Scenario B: Allowing DMZ -> LAN Connection in SonicOS Standard

When users have connected to the SSL-VPN, they need to be able to connect to

resources on the LAN. You need to create two rules--one to allow traffic from the

SonicWALL SSL-VPN appliance’s X0 interface to your LAN, and one to allow traffic from

NetExtender to your LAN.

Note: This procedure uses the Access Rule Wizard to create the rules. You can add

the rules manually by clicking Add at the bottom of the Firewall > Access Rules page.

Create access to the LAN for the SSL-VPN X0 interface:

1. In the Firewall > Access Rules page, click .

2. In the Welcome to the SonicWALL Network Access Rules Wizard page,

click Next.

3. In the Step 1: Access Rule Type page, select General Rule. Click Next.

4. In the Step 2: Access Rule Service page, select Any. Click Next.

5. In the Step 3: Access Rule Action page, perform the following selections and then

click Next:

Service Web (HTTP)

Server IP Address The X0 IP address of the SonicWALL SSL-VPN appliance

within your DMZ range, for example 10.1.1.200.

Destination Interface DMZ

Select Action for this

Rule Allow

TCP Connection

Inactivity Timeout 30 minutes

Page 38

6. In the Step 4: Access Rule Source Interface and Address page, perform the

following selections and then click Next:

Interface DMZ

IP Address Begin The X0 IP address of the SonicWALL SSL-VPN appliance

within your DMZ range, for example 10.1.1.200.

IP Address End The X0 IP address of the SonicWALL SSL-VPN appliance,

the same as above, for example 10.1.1.200.

SonicWALL SSL-VPN 2000 Getting Started Guide Page 39

7. In the Step 5: Access Rule Destination Interface and Address page, perform the

following selections and then click Next:

8. In the Step 6: Access Rule Time page, leave Time Active set to Always Active

unless you want to limit when you want SSL-VPN clients to have access to the LAN.

9. In the Congratulations page, click Apply to create the access rule.

Interface LAN

IP Address Begin *

IP Address End Leave blank

Page 40

Create access to the LAN for NetExtender:

1. In the Firewall > Access Rules page, click .

2. In the Welcome to the SonicWALL Network Access Rules page, click Next.

3. In the Step 1: Access Rule Type page, select General Rule. Click Next.

4. In the Step 2: Access Rule Service page, select Any. Click Next.

5. In the Step 3: Access Rule Action page, perform the following selections and then

click Next:

6. In the Step 4: Access Rule Source Interface and Address page, perform the

following selections and then click Next:

7. In the Step 5: Access Rule Destination Interface and Address page, perform the

following selections and then click Next:

8. In the Step 6: Access Rule Time page, leave Time Active set to Always Active

unless you want to limit when you want SSL-VPN clients to have access to the LAN.

9. In the Congratulations page, click Apply to create the access rule.

Continue to Step

Select Action for this

Rule Allow

TCP Connection

Inactivity Timeout 30 minutes

Interface DMZ

IP Address Begin The beginning of the NetExtender range within your DMZ

range, for example, 10.1.1.220

IP Address End The end of the NetExtender range within your DMZ range, for

example, 10.1.1.250

Interface LAN

IP Address Begin *

IP Address End Leave blank

SonicWALL SSL-VPN 2000 Getting Started Guide Page 41

Scenario B: Allowing WAN -> DMZ Connection in SonicOS Enhanced

Follow this procedure if you are connecting your SonicWALL SSL-VPN 2000 to a

SonicWALL UTM appliance running SonicOS Enhanced. If your SonicWALL UTM

appliance is running SonicOS Standard, refer to “Scenario A: Allowing WAN -> DMZ

Connection in SonicOS Standard” on page 21.

Create a public server access rule for HTTP and HTTPS traffic:

Note: If you are already forwarding HTTP or HTTPS to an internal server, and you only

have a single public IP address, you will need to select different (unique) ports of

operation for either the existing servers or for the SonicWALL SSL-VPN appliance,

because both cannot concurrently use the same IP address and port combinations.

1. In the SonicOS Enhanced management interface, click the Wizards icon at the top

right of the window.

2. On the Welcome page, select the Public Server Wizard and then click Next.

3. In the Public Server Type page, select:.

The Add Service Group dialog box is displayed.

Server Type Other

Services Create new group

Page 42

4. In the Add Service Group dialog box, create a service group for HTTP and HTTPS:

• Enter a name for the service.

• Select both HTTP and HTTPS and click .

• Click OK when both HTTP and HTTPS are in the right column.

5. In the Public Server Type page, click Next.

6. In the Server Private Network Configuration page, enter the following and then

click Next:

Server Name A name for your SonicWALL SSL-VPN 2000

Server Private

IP Address The X0 IP address of the SonicWALL SSL-VPN appliance

within your DMZ range, for example, 10.1.1.200

Server Comment A brief description of the server

SonicWALL SSL-VPN 2000 Getting Started Guide Page 43

7. In the Server Public Information page, either accept the default IP address or enter

an IP address in your allowed public IP range.

Note: The default IP address is the WAN IP address of your SonicWALL UTM

appliance. If you accept this default, all HTTP and HTTPS traffic to this IP address will be

routed to your SonicWALL SSL-VPN 2000.

8. Click Next.

9. The Public Server Configuration Summary page displays all the configuration

actions that will be performed to create the public server.

Click Apply to create the configuration and allow access from the WAN to the

SonicWALL SSL-VPN 2000 on the DMZ.

Scenario B: Allowing DMZ -> LAN Connection in SonicOS Enhanced

When users have connected to the SSL-VPN, they need to be able to connect to

resources on the LAN.

1. In the SonicOS Enhanced management interface, navigate to the Network >

Address Objects page.

2. In the Address Objects section, click .

Page 44

3. In the Add Object dialog box, create an address object for the X0 interface IP

address of your SonicWALL SSL-VPN 2000:

Click OK to create the object.

4. Click again to create an address object for the NetExtender range.

5. In the Add Object dialog box, create an address object for the X0 interface IP

address of your SonicWALL SSL-VPN 2000:

Click OK to create the object.

6. In the Address Groups section, click .

Name Enter a name for the SonicWALL SSL-VPN 2000

Zone Assignment DMZ

Type Host

IP Address The SonicWALL SSL-VPN 2000’s X0 interface IP address

within your DMZ range, for example, 10.1.1.200

Name Enter a name for NetExtender

Zone Assignment DMZ

Type Range

Starting IP Address The start of the NetExtender IP address range within your

existing DMZ range, for example, 10.1.1.220

Ending IP Address The end of the NetExtender IP address range within your

existing DMZ range, for example, 10.1.1.250

SonicWALL SSL-VPN 2000 Getting Started Guide Page 45

7. In the Add Address Object Group dialog box, create a group for the X0 interface IP

address of your SonicWALL SSL-VPN 2000 and the NetExtender IP range:

• Enter a name for the group.

• In the left column, select the two groups you created and click the arrow button

• Click OK when both objects are in the right column to create the group.

8. In the administrative interface, navigate to the Firewall > Access Rules page.

9. On the Firewall > Access Rules page in the matrix view, click the DMZ > LAN icon.

10. On the resulting Firewall > Access Rules page, click .

Page 46

11. In the Add Rule window, create a rule to allow access to the LAN for the address

group you just created:

Click OK to create the rule.

Continue to Step

Action Allow

From Zone DMZ

To Zone LAN

Service Any

Source The address group you just created, such as

SonicWALL_SSLVPN_Group

Destination Any

Users Allowed All

Schedule Always on

Enable Logging Selected

Allow Fragmented Packets Selected

SonicWALL SSL-VPN 2000 Getting Started Guide Page 47

Scenario C: SSL-VPN on the LAN

This section provides procedures to configure your gateway appliance based on

Scenario C. This section contains the following subsections:

• “Scenario C: Connecting to the SonicWALL UTM Appliance” on page 47

• “Scenario C: Configuring SSL-VPN -> LAN Connectivity in SonicOS Enhanced” on

page 47

• “Scenario C: Setting Public Server Access in SonicOS Standard” on page 51

• “Scenario C: Setting Public Server Access in SonicOS Enhanced” on page 52

Scenario C: Connecting to the SonicWALL UTM Appliance

1. Using a computer connected to your LAN, launch your Web browser and enter the IP

address of your existing SonicWALL UTM appliance in the Location or Address

field.

2. When the management interface displays, enter your user name and password in

the appropriate fields and press the Login button.

Note: Remember that you are logging into your SonicWALL UTM appliance, not the

SonicWALL SSL-VPN 2000. Your user name and password combination may be

different from the user name and password you recorded for your SonicWALL SSL-VPN

2000.

Scenario C: Configuring SSL-VPN -> LAN Connectivity in SonicOS

Enhanced

In order for users to access local resources through the SonicWALL SSL-VPN 2000, you

must configure your gateway device to allow an outside connection through the

SSL-VPN into your LAN.

1. In the administration interface, navigate to the Network > Address Objects page.

2. In the Address Objects section, click .

Page 48

3. In the Add Object dialog box, create an address object for the X0 interface IP

address of your SonicWALL SSL-VPN 2000:

Click OK to create the object.

4. Click again to create an address object for the NetExtender range.

5. In the Add Object dialog box, create an address object for the X0 interface IP

address of your SonicWALL SSL-VPN 2000:

Click OK to create the object.

6. On the Network > Address Objects page, in the Address Groups section, click

Name Enter a name for the SonicWALL SSL-VPN 2000

Zone Assignment SSLVPN

Type Host

IP Address The SonicWALL SSL-VPN 2000’s X0 IP address,

192.168.200.1 by default

Name Enter a name for NetExtender

Zone Assignment SSLVPN

Type Range

Starting IP Address The start of the NetExtender IP address range,

192.168.200.100 by default

Ending IP Address The end of the NetExtender IP address range,

192.168.200.200 by default

SonicWALL SSL-VPN 2000 Getting Started Guide Page 49

7. In the Add Address Object Group dialog box, create a group for the X0 interface IP

address of your SonicWALL SSL-VPN 2000 and the NetExtender IP range:

• Enter a name for the group.

• In the left column, select the two groups you created and click the arrow button

• Click OK to create the group when both objects are in the right column.

8. In the administrative interface, navigate to the Firewall > Access Rules page.

9. On the Firewall > Access Rules page in the matrix view, click the SSLVPN > LAN

icon.

10. On the resulting Firewall > Access Rules page, click .

Page 50

11. In the Add Rule window, create a rule to allow access to the LAN for the address

group you just created:

Click OK to create the rule.

Action Allow

From Zone SSLVPN

To Zone LAN

Service Any

Source The address group you just created, such as

SonicWALL_SSLVPN_Group

Destination Any

Users Allowed All

Schedule Always on

Enable Logging Selected

Allow Fragmented Packets Selected

SonicWALL SSL-VPN 2000 Getting Started Guide Page 51

Scenario C: Setting Public Server Access in SonicOS Standard

1. Select Wizards in the left navigation bar.

2. Click the Network Access Rules Wizard option and press the Next button.

3. Select Public Server Rule.

4. Enter a comment, such as “WAN to SSL-VPN” to describe your connection.

5. Click the Next button to continue the Wizard.

6. Select HTTPS from the Service drop-down list.

7. Enter 192.168.168.200 (or the IP address to which you have configured your X0

interface on your SonicWALL SSL-VPN appliance) in the Private IP field.

8. Select LAN or DMZ in the Destination Interface drop-down list. The destination

interface will depend on your deployment configuration.

9. Click the Next button.

10. Click the Apply button to save changes.

9Tip: If you wish to support automatic redirection of your SSL-VPN users from HTTP to

HTTPS, you should repeat the Public Server Rule Wizard process for the HTTP service.

Continue to Step

Page 52

Scenario C: Setting Public Server Access in SonicOS Enhanced

1. Click the Wizards icon in the top right corner of the SonicOS Enhanced

management interface.

2. Select the Public Server Wizard option and then click Next.

3. Select Web Server from the Server Type drop-down menu.

4. Select the HTTP and HTTPS checkboxes.

5. Click the Next button to continue the Wizard.

6. Enter SSLVPN in the Server Name field.

7. Enter 192.168.168.200 (or the address to which you have configured your X0

interface on your SonicWALL SSL-VPN appliance) in the Private IP field.

SonicWALL SSL-VPN 2000 Getting Started Guide Page 53

8. Enter a comment, such as “WAN to SSL-VPN” to describe your connection.

9. Click the Next button to continue the Wizard.

10. Verify that the Public Server field contains the correct IP address (You can generally

leave this at the default setting).

11. Click the Next button.

12. Click the Apply button.

Continue to Step

Page 54

Testing Your SSL-VPN Connection

Now you have configured your SonicWALL UTM appliance and SonicWALL SSL-

VPN 2000 for secure SSL VPN remote access.This section provides instructions to

verify your SSL-VPN connection using a remote client on the WAN.

Verifying a User Connection from the Internet

1. From a WAN connection outside of your corporate network, launch a Web browser

and enter the following:

https:// <WAN_IP_address_of_gateway_device>______________________

Note: It will be easier for your remote users to access the SonicWALL SSL-VPN

appliance using an FQDN (fully qualified domain name) rather than an IP address. For

example, browsing to “http://www.sonicwall.com” is simpler than browsing to

“http://64.41.140.167”. It is therefore recommended, if you have not already done so, that

you create a DNS record to allow for FQDN access to your SonicWALL SSL-VPN

appliance. If you do not manage your own public DNS servers, contact your Internet

Service Provider for assistance.

For configurations where your ISP provides dynamic IP addressing rather than a static IP

address, refer to the steps in “Configuring Dynamic DNS” on page 51 to set up DDNS for

your remote users.

2. When prompted, enter the User Name and Password created in “Adding a Local

User” on page 8 of this guide.

3. Select LocalDomain from the drop-down menu and click the Login button. The

SonicWALL Virtual Office screen appears in your Web browser.

4. Click NetExtender to start the NetExtender client installation.



SonicWALL SSL-VPN 2000 Getting Started Guide Page 55

5. Click the NetExtender button and complete the client installation. When

complete, the following message is displayed:

6. Ping a host on your corporate LAN to verify your SSL-VPN remote connection.

Congratulations! You have successfully set up your SonicWALL SSL-VPN 2000.

Continue to Step

Page 56

Registering Your SonicWALL SSL-VPN 2000

Before You Register

Verify that the time, DNS, and default route settings on your SonicWALL SSL-VPN are

correct before you register your appliance. To verify or configure the time settings,

navigate to the System > Time page. To verify or configure the DNS setting, navigate to

the Network > DNS page. To verify or configure the default route, navigate to the

Network > Routes page.

You need a MySonicWALL account to register the SonicWALL SSL-VPN 2000. You can

create a new MySonicWALL account directly from the SonicWALL management

interface.

Note: mySonicWALL.com registration information is not sold or shared with any other

company.

Creating a MySonicWALL Account from System > Licenses

1. On the System > Licenses page, click Activate, Upgrade, or Renew services.

The License Management page is displayed.

2. If you do not have a MySonicWALL account or if you forgot your user name or

password, click the https://www.mysonicwall.com link at the bottom of the page.

The MySonicWALL User Login page is displayed.

Do one of the following:

• If you forgot your user name, click the Forgot Username? link.

• If you forgot your password, click the Forgot Password? link.

• If you do not have a MySonicWALL account, click the Not a registered user?

link.

3. Follow the instructions to activate your MySonicWALL account.

Registering with MySonicWALL

On a new SonicWALL SSL-VPN appliance or after upgrading to SonicWALL SSL-VPN

3.0 firmware from an earlier release, you can register your appliance from the

System > Licenses page.

1. If you are not logged into the SonicWALL SSL-VPN 2000 management interface, log

in with the username admin and the administrative password you set in the Setup

Wizard.

2. To navigate to the System > Licenses page, click System in the left-navigation

menu, and then click Licenses.



SonicWALL SSL-VPN 2000 Getting Started Guide Page 57

3. On the System > Licenses page, click Activate, Upgrade, or Renew services.

The License Management page is displayed.

4. If you have a mySonicWALL.com account, enter your mySonicWALL.com user name

and password into the fields and then click Submit. The display changes.

5. Enter a descriptive name for your SonicWALL SSL-VPN in the Friendly Name field.

Page 58

6. Under Product Survey, fill in the requested information and then click Submit. The

display changes to inform you that your SonicWALL SSL-VPN 2000 is registered.

7. Click Continue.

8. In the License Management page, your latest license information is displayed.

Congratulations

Your SonicWALL SSL-VPN 2000 is now fully operational.

After registration, some network environments require the SSL-VPN appliance to be

offline so that it is unable to connect to the SonicWALL licensing server. In this mode, the

appliance will still honor the valid licenses; however, timed-based licenses may not be

valid.

SonicWALL SSL-VPN 2000 Getting Started Guide Page 59

Configuring Dynamic DNS

To begin using Dynamic DNS, you must first set up an account with one of the four free

service providers listed below:

• DynDNS.org

• changeip.com

• No-IP.com

•yi.org

It is possible to use multiple providers simultaneously. The registration process normally

involves a confirmation email from the provider, with a final acknowledgment performed

by visiting a unique URL embedded in the confirmation email.

After logging in to the selected provider's page, you should visit the administrative link

(typically 'add' or 'manage'), and create your host entries. This must be performed prior to

attempting to use the dynamic DNS client on SonicOS.

The Network > Dynamic DNS page provides the settings for configuring the SonicWALL

UTM appliance to use your DDNS service.

Page 60

To configure Dynamic DNS on the SonicWALL UTM appliance, perform these steps:

1. On the Network > Dynamic DNS page, click the Add button. The Add DDNS

Profile window is displayed.

2. If Enable this DDNS Profile is selected, the profile is administratively enabled, and

the SonicWALL UTM appliance takes the actions defined in the Online Settings

section on the Advanced tab.

3. If Use Online Settings is selected, the profile is administratively online.

4. Enter a name to assign to the DDNS entry in the Profile Name field. This can be any

value used to identify the entry in the Dynamic DNS Settings table.

5. In the Profile page, select the Provider from the drop-down list at the top of the

page. This example uses DynDNS.org. Dyndns.org requires the selection of a

service. This example assumes you have created a dynamic service record with

dyndns.org.

6. Enter your dyndns.org username and password in the User Name and Password

fields.

SonicWALL SSL-VPN 2000 Getting Started Guide Page 61

7. Enter the fully qualified domain name (FQDN) of the hostname you registered with

dyndns.org. Make sure you provide the same hostname and domain as you

configured.

8. You may optionally select Enable Wildcard and/or configure an MX entry in the Mail

Exchanger field.

9. Click the Advanced tab. You can typically leave the default settings on this page.

10. The On-line Settings section provides control over what address is registered with

the dynamic DNS provider. The options are:

Let the server detect IP Address - The dynamic DNS provider determines the IP

address based upon the source address of the connection. This is the most common

setting.

Automatically set IP Address to the Primary WAN Interface IP Address - This

will cause the SonicWALL device to assert its WAN IP address as the registered IP

address, overriding auto-detection by the dynamic DNS server. Useful if detection is

not working correctly.

Specify IP Address manually - Allows for the IP address to be registered to be

manually specified and asserted.

11. The Off-line Settings section controls what IP Address is registered with the

dynamic DNS service provider if the dynamic DNS entry is taken off-line locally

(disabled) on the SonicWALL. The options are:

Do nothing - the default setting. This allows the previously registered address to

remain current with the dynamic DNS provider.

Use the Off-Line IP Address previously configured at Provider’s site - If your provider

supports manual configuration of Off-Line Settings, you can select this option to use

those settings when this profile is taken administratively offline.

12. Click the OK button.

Page 62

Configuring a Static IP Address

If you did not enable the SonicWALL UTM appliance DHCP server, you must configure

each computer with a static IP address from your LAN or WLAN IP address range. After

the SonicWALL SSL-VPN 2000 has restarted, follow the steps below for configuring your

network clients running any of the following Microsoft Windows operating systems on

your LAN/WLAN:

Windows Vista

1. From the Start menu, right-click Network and select Properties.

2. In the Tasks menu, click Manage network connections. The Network

Connections window displays.

3. Right-click on Local Area Connection and select Properties.

4. In the list, double-click Internet Protocol Version 4 (TCP/IP).

5. Select Use the following IP address and type an IP address from your LAN IP

range in the IP address field.

6. Type the appropriate subnet mask (for example, 255.255.255.0) in the Subnet Mask

field.

7. Type the SonicWALL SSL-VPN 2000 LAN IP Address into the Default Gateway

field.

8. Type the DNS IP address in the Preferred DNS Server field. If you have more than

one address, type the second one in the Alternate DNS server field.

9. Click OK, and then click OK again for the settings to take effect.

Windows XP

1. Open the Local Area Connection Properties window.

2. Double-click Internet Protocol (TCP/IP) to open the Internet Protocol (TCP/IP)

Properties window.

3. Select Use the following IP address and type an IP address from your LAN IP

range in the IP address field.

4. Type the appropriate subnet mask (for example, 255.255.255.0) in the Subnet Mask

field.

5. Type the SonicWALL SSL-VPN 2000 LAN IP Address into the Default Gateway

field.

6. Type the DNS IP address in the Preferred DNS Server field. If you have more than

one address, type the second one in the Alternate DNS server field.

7. Click OK, and then click OK again for the settings to take effect.

SonicWALL SSL-VPN 2000 Getting Started Guide Page 63

Windows 2000

1. From your Windows Start menu, select Settings.

2. Open Network and Dial-up Connections.

3. Click Properties.

4. Highlight Internet Protocol (TCP/IP) and click Properties.

5. Select Use the following IP address.

6. Type an IP address from your LAN IP range IP address field.

7. Type the appropriate subnet mask (for example, 255.255.255.0) in the Subnet Mask

field.

8. Type the SonicWALL SSL-VPN 2000 LAN IP Address into the Default Gateway

field.

9. If you have a DNS Server IP address from your ISP, enter it in the Preferred DNS

Server field.

10. Click OK for the settings to take effect.

Windows NT

1. From the Start menu, highlight Settings and then select Control Panel.

2. Open Network.

3. Double-click TCP/IP in the TCP/IP Properties window.

4. Select Specify an IP Address.

5. Type an IP address from your LAN IP range in the IP Address field.

6. Type the appropriate subnet mask (for example, 255.255.255.0) in the Subnet Mask

field.

7. Type the SonicWALL SSL-VPN 2000 LAN IP Address in the Default Gateway field.

8. Click DNS at the top of the window.

9. Type the DNS IP address in the Preferred DNS Server field. If you have more than

one address, enter the second one in the Alternate DNS server field.

10. Click OK, and then click OK again.

11. Restart the computer for changes to take effect.

Page 64

Mounting Guidelines

The SonicWALL SSL-VPN 2000 is designed to be mounted in a standard 19-inch rack

mount cabinet. The following conditions are required for proper installation:

• Use the mounting hardware recommended by the rack manufacturer and ensure

that the rack is adequate for the application. SonicWALL includes a rack

mounting kit with the SonicWALL SSL-VPN appliance that is compatible with

most computer equipment racks.

• Four mounting screws, compatible with the rack design, must be used and hand

tightened to ensure secure installation. Select a mounting location where all four

mounting holes line up with those of the mounting bars of the 19-inch rack mount

cabinet.

• Mount in a location away from direct sunlight and sources of heat. A maximum

ambient temperature of 104º F (40º C) is recommended.

• Route cables away from power lines, fluorescent lighting fixtures, and sources of

noise such as radios, transmitters, and broadband amplifiers

• Ensure that no water or excessive moisture can enter the unit.

• Allow unrestricted airflow around the unit and through the vents on the side of

the unit. A minimum of 1 inch (25.44mm) clearance is recommended.

• Mount the SonicWALL appliances evenly in the rack in order to prevent a

hazardous condition caused by uneven mechanical loading.

• Consideration must be given to the connection of the equipment to the supply

circuit and the effect of overloading the circuits has minimal impact on

overcurrent protection and supply wiring. Appropriate consideration of

equipment nameplate ratings must be used when addressing this concern.

• Reliable grounding of rack-mounted equipment must be maintained. Particular

attention must be given to power supply connections other than direct

connections to the branch circuits such as using power strips.



SonicWALL SSL-VPN 2000 Getting Started Guide Page 65

Glossary of Networking Terms

ActiveX - A technology that allows the sharing of applications and data across the Web. For

example, Active X allows you to view Microsoft Word and Adobe Acrobat documents

within the Internet Explorer Web browser without downloading the files and launching the

appropriate application. The SonicWALL SSL VPN network client, NetExtender, uses an

ActiveX control when launched or installed from Internet Explorer on Windows. With

Firefox, XPCOM is used, which is similar to ActiveX. On Linux or MacOS systems, Java

is used with NetExtender.

Default Gateway - A device on an internetwork that forwards packets to another network.

DHCP - Dynamic Host Configuration Protocol allocates IP addresses to computers on the

network automatically without assigning a computer a static (fixed) IP address.

DMZ - A network zone segregated from the LAN, typically used for servers accessible from

the Internet. Traffic between the Internet and the DMZ and between the DMZ and the

LAN can be carefully monitored and controlled. DMZ comes from “Demilitarized Zone”.

DNS - Domain Name System, a hierarchical naming system that resolves a domain name

with its associated IP address. A DNS server looks up the name of a computer and finds

the corresponding IP address. This allows users to access hosts using friendly text-based

names instead of IP addresses. These names are called fully qualified domain names

(FQDN).

IP Address - Internet Protocol Address, a thirty-two bit number that identifies a computer or

other resource on the Internet or on any TCP/IP network. The number is usually

expressed as four numbers from 0 to 255 separated by periods, for example,

172.16.31.254.

LAN - A Local Area Network is typically a group of computers located at a single location, and

is commonly based on the Ethernet architecture.

NetExtender - A network client that allows Windows users to connect to a network through

the SonicWALL SSL-VPN 2000. When using NetExtender, users have access to files and

network resources as if they were physically within the network.

Portal - A gateway, usually through the Internet to network resources or services. The

SonicWALL SSL-VPN 2000 provides a Portal as the user interface for remote access to

protected LAN resources such as Web and FTP servers, files shares, and remote

desktops.

PPPoE - The Point to Point Protocol over Ethernet supports the transmission of network

packets over an analog phone line.

Private IP Address - An IP address for a resource in your network that is not known or

published outside the zone (for example LAN) where it is located.

Public IP Address - An IP address for a resource in your network that is published outside

your network to the WAN.

Router - A device that routes data between networks through IP address information in the

header of the IP packet. A router forwards packets to other routers until the packets reach

their destination. The Internet is the largest example of a routed network.

Page 66

SSL VPN - Secure Socket Layer Virtual Private Networking. A secured private

communications network usually used within a company, or by several different

companies or organizations, communicating over a public network. SSL technology is

used either for tunneling the entire network stack, or for securing what is essentially a

Web proxy.

Subnet - A portion of a network. Each subnet within a network shares a common network

address and is uniquely identified by a subnetwork number.

Subnet Mask - A 32-bit number used to separate the network and host sections of an IP

address. A subnet mask subdivides an IP network into smaller pieces. An example of a

subnet mask might be 255.255.255.248 for subnet with only eight IP addresses.

TCP/IP - Transmission Control Protocol/Internet Protocol is the basic communication protocol

of the Internet. It supports sending information in packets, and identifies each device with

a unique numeric IP address.

VPN - A Virtual Private Network is a virtual network that encrypts data and sends it privately

over the Internet to protect sensitive information.

WAN - A Wide Area Network is a geographically distributed network composed of multiple

networks joined into a single large network. The Internet is a global WAN.

SonicWALL SSL-VPN 2000 Getting Started Guide Page 67

SonicWALL Global Support Services

On your appliance, on the Web, and on the phone, we make it easy and fast to find the

information you need to keep your SonicWALL solution, and your network, running

smoothly and efficiently.

Use the Online Help. Every SonicWALL security appliance includes Web-based online

help available from the management interface. Clicking the question mark button on the

top-right corner of every page accesses the context-sensitive help for that page. Once

you’ve established an Internet connection, online help can get you the latest answers to

frequently asked questions. Access to online help requires an Internet connection; fees

may apply.

Visit SonicWALL online. Select your product, service, or operating system from the

drop-down menus. Read the Getting Started Guide and the Administrator Guide

available on the website. Search the SonicWALL Knowledge Base, check for new

downloads, or get help from the SonicWALL user community through the Discussion

Forum. SonicWALL’s support website covers all aspects of support, from basic set-up

and how-to information to more detailed technical notes and FAQs.

Explore training options. To meet your network security educational needs,

SonicWALL offers a comprehensive sales and technical training curriculum. Our self-

paced e*Briefings and instructor-led classes are designed for network administrators and

security experts who need to enhance their knowledge and maximize their investment in

SonicWALL solutions and security applications.

Need more help? Our technical support specialists are available by phone to help you

with basic configuration and troubleshooting. Just call the support center in your region.

The first 90 days of support are included with your warranty!1

See the following sections for more information:

• “Customer Support” on page 68

• “Extend Your Support Coverage.” on page 69

• “Knowledge Portal” on page 70

• “User Forums” on page 71

• “Training” on page 72

• “Related Documentation” on page 73

• “SonicWALL Live Product Demos” on page 74

• “SonicWALL Secure Wireless Network Integrated Solutions Guide” on page 75

• “SonicWALL Global Technical Assistance Center Contact Information” on page 76

1. Warranty support and hardware warranty begin on the date of product registration.

Telephone fees may apply for phone assistance. Telephone numbers and hours of

operation vary by geographic region and are subject to change.

Page 68

Customer Support

SonicWALL offers Web-based and telephone support to customers who have a valid

Warranty or who purchased a Support Contract. Please review our Warranty Support

Policy for product coverage. SonicWALL also offers a full range of consulting services to

meet your needs, from our innovative implementation services to traditional statement of

work-based services. For telephone support, please have the serial number of your

registered hardware solution ready when you call.

For further information, visit:

<http://www.sonicwall.com/us/support/contact.html>

SonicWALL SSL-VPN 2000 Getting Started Guide Page 69

Extend Your Support Coverage.

SonicWALL Dynamic Support Services extend the support coverage on your SonicWALL

solution beyond the warranty period. Our 8x51 and 24x7 support services include critical

software and firmware updates, expert telephone and Web-based support, Advance

Exchange hardware replacement, and access to electronic self-help tools — all for one

low price.

• Take advantage of the latest features through software and firmware updates and

upgrades.

• Speak with a SonicWALL Technical Support Specialist or contact us via the Web

should you require assistance.

• If a replacement unit is required, SonicWALL will provide an Advance Exchange

replacement via next-day air shipment.

• SonicWALL security appliances also ship with a one-year hardware warranty that

can be extended up to three years!

To purchase a one-, two-, or three-year Dynamic Support contract, contact your local

SonicWALL reseller or call SonicWALL at

+1 888.557.6642 or +1 408.745.9600.

1. 8:00 am-5:00 pm local time is defined as follows: In North America: 8:00 am-5:00 pm

Mountain Standard Time (MST); In Latin America: 8:00 am-5:00 pm Local Standard Time in

the country where the product is deployed; In Europe, the Middle East and Africa:

9:00 am-6:00 pm GMT +1; In Asia Pacific: 8:00 am-5:00 pm Local Standard Time in the

country where the product is deployed; In Japan: 5:00 pm-2:00 am UTC/GMT.

Support for SonicWALL security services is limited to the subscription and does not include

issues related to the operation of the appliance, firmware or software updates/upgrades, or

hardware replacement.

Page 70

Knowledge Portal

The Knowledge Portal allows users to search for SonicWALL documents based on the

following types of search tools:

•Browse

• Search for keywords

• Full-text search

For further information, navigate to the Support > Knowledge Portal page at:

<http://www.mysonicwall.com/>

SonicWALL SSL-VPN 2000 Getting Started Guide Page 71

User Forums

The SonicWALL User Forums is a resource that provides users the ability to

communicate and discuss a variety of security and appliance subject matters. In this

forum, the following categories are available for users:

• Content Security Manager topics

• Continuous Data Protection topics

• Email Security topics

• Firewall topics

• Network Anti-Virus topics

• Security Services and Content Filtering topics

• SonicWALL GMS and Viewpoint topics

• SonicPoint and Wireless topics

• SSL VPN topics

• NSA 240 / Wireless WAN - 3G Capability topics

• VPN Client topics

• VPN site-to-site and interoperability topics

For further information, visit:

<https://forum.sonicwall.com/>

Page 72

Training

SonicWALL offers an extensive sales and technical training curriculum for Network

Administrators, Security Experts and SonicWALL Medallion Partners who need to

enhance their knowledge and maximize their investment in SonicWALL Products and

Security Applications. SonicWALL Training provides the following resources for its

customers:

• E-Training

• Instructor-Led Training

• Custom Training

• Technical Certification

• Authorized Training Partners

For further information, visit:

<http://www.sonicwall.com/us/support/training.html>

SonicWALL SSL-VPN 2000 Getting Started Guide Page 73

Sonicwall Secure Remote Access Solutions Ssl Vpn 2000 Users Manual Getting Started Guide

SSL-VPN 2000 to the manual a17b1fce-ea79-45b2-90b8-604e5021a619

Navigation menu

Versions of this User Manual:

Views

Navigation
