Sonim Technologies P23C001AA Tri-band GSM/GPRS 850/1800/1900 Mobile Phone with Bluetooth; Type: P23C001AA User Manual
Sonim Technologies, Inc. Tri-band GSM/GPRS 850/1800/1900 Mobile Phone with Bluetooth; Type: P23C001AA
User Manual
USER
GUIDE
XP3.20 QUEST
English
2
Copyright © 200 Sonim Technologies, Inc.
SONIM, Sonim Xperience, Sonim Xtend and the Sonim
logo are trademarks of Sonim Technologies, Inc. Other
company and product names may be trademarks or
registered trade- marks of the respective owners with
whom they are associated.
Disposal of old electrical & electronic equipment
The symbol of the crossed-out wheeled
bin indicates that within the countries
in the European Union, this product,
and any enhancements marked with
this symbol, can not be disposed as
unsorted waste but must be taken to
separate collection at their end- of-life.
Disposal of battery
Please check local regulations for
disposal of batteries. The battery should
never be placed in municipal waste. Use a
battery disposal facility if available.
3
Contents
General Information————————6
Network Services
Sonim Support Information
Use the guide effectively
Options commonly used across menu items
Phone Models Covered
Your Safety Guidelines————————8
Battery Performance
Battery Replacement
Avoid Short Circuit
Avoid High Temperatures
Battery Disposal
Personal Medical Devices
Child Safety
Emergency Calls
SAR Certication
Getting Started————————12
Battery Usage
Inserting the Battery
Removing the Battery
Charging the Battery
Set Battery Alert
Your SIM Card
Inserting the SIM card
Removing the SIM card
Home screen
Operations in Home Screen
Basic Settings
Keypad Functions
Your XP3.20 Phone————————24
Your XP3.20 Phone
Main Menu
Main Menu icons
Home Screen Indicators
Key Operations Without Your SIM Card
Phone Settings————————28
Phone Settings
General Settings
Display Settings
Sounds Settings
Connectivity Settings
Calls————————33
Calls
Dial a Number
Dial an International Number
Dial a Number via Contacts
Dial a Number Via the Calls List
Managing Call List
Fixed Number Dialing
Speed Dial
Receive a call
Any Key Answer
Call Forwarding
Call Barring
Call Waiting
Auto Redial
Auto Answer
Filter Calls
Add to Black list
Other Call Settings
Review Call Cost Information
Recording a Call
Managing Contacts————————38
Managing Contacts
Add a New Contact
Dialing a Number From Contacts
Sending a Message From Contacts
Add a New Contact in Group
Group Settings
Special Numbers
Default Contact List
Default Contact Location
Sending Contact
Delete Contacts
Copy or Move Numbers to Other Lists
Adding a Contact to Blacklist
Adding a Contact to Whitelist
4
Contents
Searching Contacts
Messages————————41
Messages
Advanced Settings
Text Input Mode
Write Messages
Send a Message Via Contacts
Call Or Save a Number Embedded in a Received
Message
Manage your Messages
Inbox
Outbox
Draft Messages
Sent Messages
Predened Messages
View SMS Memory
Voice mail
SIM Card Menu
Hardcoded Shortcuts————————45
Hardcoded shortcuts
WAP Browser————————46
WAP Browser
Opera Mini————————47
Opera Mini
Conguration of APN (Access Point Name) for Opera
Mini
Conguration of Opera Mini as Key Shortcut
Java————————48
Java
Launch Application
Tools————————49
Tools
Alarm
Bluetooth
Calendar
Calculator
Voice recorder
Audio Playback
Stopwatch
Unit Converter
Countdown Timer
GPS
USB function
FM Radio————————55
FM Radio
Camera————————56
Camera
Camera Options
Flashlight————————57
Flashlight
Sonim XperienceTM————————58
Sonim XperienceTM
Starting With Sonim XperienceTM
Settings
Set Quick Access
Wallpaper
GPS Information
Weather Report
Current Weather
4 hour Forecast
3 day Forecast
3 day Detailed Forecast
Weather at Stations
Lightning Information
Marine Bulletin
Help
About
Exit
Micro SD Card————————64
Micro SD (secure digital) Card
Inserting Micro SD Card Into the Phone
Managing Your Files————————65
Managing Your Files
6
UNCONDITIONAL
3 YEAR GUARANTEE
7
Congratulations on the purchase of a Sonim XP3.20™
mobile phone. This phone is a GSM/GPRS/EDGE enabled
handset with tri-band capabilities and has an intuitive,
feature-rich user interface, which allows you to make the
best use of the offered functions.
Phone Models Covered
This user guide covers two Sonim XP3.20™ phone
models: XP3.20-E and XP3.20-A. These two models
contain an identical scope of features and differ only in the
supported set of radio frequencies:
• Sonim XP3.20-E Quest (GSM 900/1800/1900 MHz)
• Sonim XP3.20-A Quest (GSM 850/1800/1900 MHz)
The model name can be read on the phone label under
the battery. In this User Guide, both models are referred
to as XP3.20, except for the few places where information
corresponding to a specific model (that is, XP3.20-A or
XP3.20-E) can be found.
Network Services
These are additional services that you can avail through
your network service provider. To make the best of these
services, you must subscribe to them through your service
provider and obtain instructions for their use from your
service provider.
Sonim Support Information
For additional product and support information,
visit www.sonimtech.com.
Use the Guide Effectively
Acquaint yourself with the terminology and symbols used
in the guide to help you use your phone effectively.
PRESS Means to press and release a
key immediately. For example,
Press 2 means that you press
the key on the keypad that is
labelled with the numeral 2
and the alphabets “ABC”.
SELECT Means to either press the
Left or Right Selection Key to
apply the command indicated
at the bottom of the screen.
The Center navigation key
can also be used to select
options. For example, if this
guide says Select Menu
> Messages > Create
message, you must press the
Left Selection Key to select
Menu, scroll to Messages
and press the Left Selection
Key, scroll to Create message
and press the Left Selection
Key. To return to the previous
screen, press the Right
Selection Key.
General Information
8
PRESS & HOLD Means to press and
hold a key for 2 seconds
before releasing the key.
This action is typically
used when trying to
switch on/off the phone or
when using shortkeys to
access specic functions.
For example: press
and hold 1 to access
voicemail.
MENU OPTIONS These options are
displayed at the bottom
of the screen. The
selection keys are used to
accomplish the indicated
option.
SELECT MENU Means to press the Left
Selection Key to select
the Menu option or press
the Menu key (centre) for
the same result.
A MENU ITEM SUFFIXED
WITH THREE DOTS (…)
Means more options are
available but only one has
been mentioned in the
guide.
Signies a Note.
Options Commonly Used Across Menu Items
The following are common actions used across various
menu items:
EXIT Displays the previous
screen. Use the Right
Selection key to perform
this function.
CLEAR Deletes data character by
character. Use the Right
selection key to perform
this function.
OK Conrms an action. Use
the Left Selection Key or
the Menu key to perform
this function.
General Information
9
Please read and understand the following safety guidelines before you use the phone. These guidelines provide details
to enable you to operate your phone safely and conform to any legal requirements regarding the use of cellular phones.
Do not to use the phone at a refuelling point. Observe restrictions when using radio equipment at fuel
depots, chemical plants or where blasting operations are in progress.
Electrical interference may obstruct the use of your phone. Observe restrictions in hospitals and near
medical equipment.
Switch off your cellular phone when in an aircraft. Wireless phones can cause interference or danger
to an aircraft. In an aircraft, the phone can be used in flight mode.
Do not expose the battery to high temperatures (in excess of 60°C).
Adhere to road safety laws. Do not hold/use a phone while you are driving; find a safe place to stop
first. Do not speak into a hands-free microphone while you are driving.
Avoid using the phone in close proximity to personal medical devices,
such as pacemakers and hearing aids.
Use only Sonim XP3.20 approved charging equipment to charge your phone and avoid damage to
your phone.
The symbol of the crossed-out wheeled bin indicates that within the countries in the European Union,
this product, and any enhancements marked with this symbol, can not be disposed as unsorted
waste but must be taken to separate collection at their end-of-life.
Your Safety Guidelines
10
Ensure that only qualied personnel install or repair your phone.
The Sonim XP3.20 is water-proof and can be submerged to 1metre for 30 minutes. It can work for
30 minutes if immersed. However, it is not waterproof in deeper water, during charging or when
the system connector cover on bottom of the phone is open or compromised.
• To keep your phone waterproof, make sure that the connector cover located at the bottom is
rmly plugged in every time it is open for charging or use of a wired headset
• Water droplets may form on the connector cover when it is opened soon after immersion.
This does not indicate water leakage. The connector cover is sealed and waterproof.
• Water droplets may condense under the display cover if the phone is immersed in water
with signicant drop in temperature. This does not indicate water leakage. The droplets will
disappear at room temperature.
The Sonim XP3.20 is dust-resistant, rugged and shock-resistant. However, it is not dust-proof
or un-breakable if subjected to overwhelming impact. For best results and long product life, one
should protect the XP3.20 from salt water, dust and strong impacts.
Make back-up copies of important information stored in your phone or maintain a written record.
Your Safety Guidelines
11
Battery Performance
A rechargeable battery powers your device.Use the battery
only for its intended purpose. Never use any charger
or battery that is damaged. If the battery is completely
discharged, it may take a few minutes before the charging
indicator appears on the display or before any calls can be
made. The full performance of a new battery is achieved
only after two or three complete charge and discharge
cycles. The battery can be charged and discharged
hundreds of times but it will eventually wear out. Unplug
the charger from the electrical plug and the device
when not in use. Do not leave the fully charged battery
connected to a charger, since overcharging may shorten
its lifetime. If left unused, a fully charged battery will lose
its charge over time.
Battery Replacement
When the talk and standby times are noticeably shorter
than normal, replace the battery with an original Sonim
battery.If a replacement battery is being used for the rst
time or if the battery has not been used for a prolonged
period, it may be necessary to connect the charger and
then disconnect and reconnect it to begin charging the
battery.
Avoid Short Circuit
Do not short-circuit the battery. An accidental short-circuit
can occur when a metallic object such as a coin, clip,
or pen causes direct connection of the positive (+) and
negative (-) terminals of the battery. (These look like metal
strips on the battery.) This might happen, for example,
when you carry a spare battery in your pocket or purse. A
short-circuit at the terminals may damage the battery or
the connecting object.
Avoid High Temperatures
Leaving the battery in hot or cold places, such as in a
closed car in summer or winter conditions, will reduce the
capacity and lifetime of the battery. Always try to keep the
battery between 15°C and 25°C (59°F and 77°F). A device
with a hot or cold battery may not work temporarily, even
when the battery is fully charged. Battery performance is
particularly limited in temperatures well below freezing.
Battery Disposal
Do not dispose off batteries in a re as they may explode.
Batteries may also explode if damaged. Dispose of
batteries according to local regulations and recycle when
possible. Do not dispose as household waste. Do not
dismantle, open or shred cells or batteries. In the event of
a battery leak, do not allow the liquid to come in contact
with the skin or eyes. In the event of leak or a hazard seek
medical help immediately.
Personal Medical Devices
Mobile phones may affect the operation of cardiac
pacemakers and other implanted equipment. Please
avoid placing the mobile phone over the pacemaker, for
example. in your breast pocket. When using the mobile
phone, place it at the ear opposite the pacemaker. If a
minimum distance of 15 cm (6 inches) is kept between the
mobile phone and the pacemaker, the risk of interference
is limited. If you suspect that interference is taking place,
immediately turn off your mobile phone. Contact your
cardiologist for more information. For other medical
devices, consult your physician and the manufacturer
of the device. Comply with instructions to switch off
the device or deactivate the RF transmitter function
when required, especially when posted in hospitals and
aeroplanes. Equipment used in these places may be
sensitive to radio waves emitted from the device and
Your Safety Guidelines
12
your Safety Guidelines
adversely affect their operation. Also, observe restrictions
at gas stations or other areas with ammable atmosphere
or when close to electro-explosive devices.
Child Safety
Do not allow children to play with your mobile phone or
its accessories. Keep it out of their reach. They could
hurt themselves or others, or could accidentally damage
the mobile phone or accessories. Your mobile phone and
its accessories may contain small parts, which could be
detached and create a choking hazard.
Emergency Calls
Mobile phones operate using radio signals, which cannot
guarantee connection under all conditions. Therefore
you should never rely solely upon any mobile phone for
essential communications (e.g. medical emergencies).
Emergency calls may not be possible in all areas, on all
cellular networks, or when certain network services and/
or mobile phone features are in use. Check with your local
service provider.
SAR Information
XP3.20 has been certified in compliance with the
Government’s requirements for exposure to Radio
Waves.
When communicating over the wireless network, the
mobile phone emits low radio waves known as radio
frequency energy or RF. The Specic Absorption Rate
or SAR is the unit used to measure the amount of RF
energy absorbed by the body while using the phone and is
expressed in watts/kilogram (W/kg).
Governments around the world have adopted
comprehensive international safety guidelines, developed
by scientic organizations, for example, ICNIRP
(International Commission on Non-Ionizing Radiation
Protection) and IEEE (The Institute of Electrical and
Electronics Engineers Inc.), through periodic and thorough
evaluation of scientic studies. These guidelines establish
permitted levels of radio wave exposure for the general
population.
Tests for SAR are conducted using standardized methods
with the phone transmitting at its highest certied power
level in all used frequency bands.
SAR Data Information for residents in countries that
have adopted the SAR limit recommended by the
International Commission on Non-Ionizing Radiation
Protection (ICNIRP). For example, European Union,
Japan, Brazil and New Zealand.
The limit recommended by ICNIRP is 2 W/kg averaged
over ten (10) gram of tissue.
The highest SAR value for the XP3.20-E phone when
tested by Sonim for use at the ear is 0.582 W/kg (10g).
The highest SAR value for the XP3.20-A phone when
tested by Sonim for use at the ear is 0.253 W/kg (10g).
SAR Data Information for residents in the United States
and Canada.
In the United States and Canada, the SAR limit for mobile
phones used by the public is 1.6 watts/kilogram averaged
over one gram of tissue. The standard incorporates a
margin of safety to give additional protection for the public
and to account for any variations in measurements.
13
your Safety Guidelines
Before a phone model is available for sale to the public
in the US, it must be tested and certied by the Federal
Communications Commission (FCC) that it does not
exceed the limit established by the government-adopted
requirement for safe exposure. The tests are performed
in positions and locations (that is, by the ear and worn
on the body) as required by the FCC for each model. The
FCC has granted an Equipment Authorization for XP3.20
with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. While there may be
differences between the SAR levels of various phones, all
mobile phones granted an FCC equipment authorization
meet the government requirement for safe exposure.
The highest SAR value for the XP3.20-A phone when
tested by Sonim for use:
• By the ear is 0.557 W/kg (1 g),
• When worn on the body is 0.532 W/kg (1 g) for
speech and 0.519 W/kg (1 g) for data calls.
The highest SAR value for the XP3.20-E phone when
tested by Sonim for use:
• By the ear is 0.204 W/kg (1 g),
• When worn on the body is 0.153 W/kg (1 g) for
speech and 0.275 W/kg (1 g) for data calls.
For body-worn operation, this phone meets FCC RF
exposure guidelines provided that it is used with a non-
metallic accessory with the handset at least 1.5 cm from
the body, or with the original Sonim accessory intended for
this phone and worn on the body. Use of other accessories
may not ensure compliance with FCC RF exposure
guidelines.
14
Getting Started
Battery Usage
• Use only an XP3.20 certied battery that is designed
for this phone model.
• The use of other batteries may void the warranty
terms of your phone and cause damage.
• Do not subject the battery to extreme temperature
environments and protect it from moisture.
• Please keep the battery out of the reach of children.
Inserting the Battery
1 Unscrew Cover
To open the battery cover,
rotate both the battery cover
screws in an anti-clockwise
direction (as shown in the
gure). Sometimes, the battery
cover may be tight and some
extra effort is required to open
it.
2 Lift Cover
Lift the ap that covers
the battery.
3 Insert Battery
Insert the battery ush into the
battery slot such that the three
metallic contacts at the top of
the battery are aligned with the
metallic contacts within the
battery compartment.
4 Close Cover
Close the battery cover. Rotate
the battery cover screws in
clockwise direction.
Removing the Battery
Follow steps 1 and 2 of “Inserting the Battery” on page 14.
To remove the battery, lift the ap behind the phone and
raise the upper end of the battery from the slot.
The battery can now be removed.
Follow step 4 of “Inserting the Battery” on page 14 to close
the cover.
Charging the Battery
The battery delivered with your mobile phone is not fully
charged. We recommend that you charge your mobile for
three hours before you use your mobile phone for the rst
time.
If the battery is deeply discharged, it can
take several minutes for the charging icon
to appear when the charger is connected.
15
Getting Started
1 Insert Charger
Insert the charger plug into a power outlet.
2 Align
Align the charger connector
with the USB socket at the
bottom of the phone and insert it.
3 Charging
If the battery is being charged when
the phone is switched off,only the
battery icon is displayed (as
shown in the adjacent gure).
4 Charging Icon
If the battery is being charged while
the phone is switched on, you will
notice that the bars in the battery
charge icon (visible on the home
screen) show movement indicating
that the battery is being charged.
After the phone is fully charged the
battery bars on the display stop
scrolling. You can disconnect the
charger from the phone.
5 Charging Process
After the charging process has begun, the only way
to stop charging is to disconnect the charger.
CAUTION: There is a risk of explosion while
charging if the battery has been replaced by an
incorrect type.
Set Battery Alert
When you set the battery alert, every time the battery
charge is low you hear an alarm. To set the battery alert
select Menu > Settings > Sounds tab > Battery alert.
Select On to activate the alert.
Your SIM Card
Purchase a SIM card from your mobile operator. The SIM
card can be used in any GSM phone. Your phone number
and user registration information always remain the same.
Inserting the SIM card
1 Switch Off Phone
Ensure that the phone
is switched off.
16
Getting Started
2 Lift Cover
Lift the battery cover and remove the battery. For
instructions refer “Inserting the Battery” on page 14.
3 Place SIM Card
Place the SIM card by pushing
it upward in the designated
slot located under the battery.
4 Lock Cover
Replace the battery and the cover. Turn the battery
cover screws clockwise to lock the battery cover.
Removing the SIM card
1 Close Phone
Ensure the phone is switched off.
2 Lift Cover
Lift the battery cover and remove the battery. For
instructions refer “Inserting the Battery” on page 14.
3 Remove SIM Card
Remove the SIM card by pushing it downward from
the slot.
4 Lock Cover
Replace the battery and the cover.
Parts of the XP3.20 Phone
The XP3.20 keypad has 9 function keys
and 12 alphanumeric keys. The left side of
the phone has one key and the right side
of the phone has three keys.
Getting Started
Charger
port
Microphone and
Headset port
Function keys
Ear piece
Display screen
Alpha-numeric keys
18
Getting Started
Parts of the XP3.20 Phone
Torch (Long
press)/
Camera
(press)
Volume
keys
Easy
call
key
Battery
cover
Battery cover
screws
Loud
speaker
Camera
Flash
19
Getting Started
Navigation arrow keys
(Up/Down/Left/Right)
Press and hold for voicemail
Press and hold to lock/ unlock the
keypad
Press and hold to turn
on/off silent mode
Press and hold to display+ (before
dialing an international number)
Right Selection Key (RSK)
Menu key
Power On/Off/End call
Call accept/Send
Left Selection Key (LSK)
Sonim XP3.20 Keypad
The various keypad keys and their corresponding functionsare described in the following gure. Based on customization request, some
of the keys may be mapped to other shortcuts than those represented above. You can also change many of the shortcuts via Menu >
Settings > General tab > Shortcuts. Select the key and select Options > Activate.
*Features in grey must be
enabled.
20
Getting Started
The alpha-numeric keys comprise numbers from one to
zero, alphabets from A-Z, plus [*] and [#] keys. By pressing
the designated key you can input numbers or characters.
Choose the appropriate text input option to enable you
to use these keys efciently. For more information on text
input modes refer “Set Quick Access” on page 61.
Home screen
Certain information is displayed when the phone is in
standby mode, for example, the name of the service
provider, date and time, battery charge status, GPRS
connectivity. Other indicators may be displayed (if the
feature is activated), like the alarm, call forward etc. The
device with a fully-charged battery can remain in the
standby mode for a duration of XXX hours.
Operations in Home Screen
The following can be accessed from the home screen.
Press To Access
Up Arrow Java Applications List
Down Arrow Sonim Xperience
Right Arrow SMS Inbox
Left Arrow FM Radio
Menu Key Main Menu
Left Selection Key Calendar
Right Selection Key Phonebook
Pickup/Send Key All Calls List
The four functions that are performed using
the arrow keys are set as factory defaults,
however they can be changed. Select
Menu > Settings > General tab >
Shortcuts. Go to the second tab. Select
the arrow key and select Options >
Change.
You can also change many of the
shortcuts. Select Menu > Settings >
General tab > Shortcuts. Select the key
and select Options > Change.
GPRS connectivity
Signal strength
indicator
Display
icons
LSK command RSK command
Service
provider
Battery charge
indicator
21
Getting Started
Basic Settings
When you have switched on your phone the name of the
service provider is displayed.
Security Settings
To prevent unauthorised use of your phone, you can set a
PIN code. The PIN is operator dependent.
1. Select Menu > Settings > General tab > Security
settings > PIN code > On. Enter the PIN. Select OK.
After this is set, every time you power on the phone,
you will be requested to enter the PIN. If the PIN code
is wrong you cannot access the phone.
2. To change the PIN code select Menu > Settings
> General tab > Security settings > Change
password. You can change codes for PIN, PIN2, Call
barring, Safeguard and Phonelock password.
Date and Time
To set the Date and Time, select Menu > Settings >
General tab > Date & Time.
Auto Keypad Lock
To lock the keypad, select Menu > Settings > General tab
> Auto keypad lock. You can choose to switch it off or
enable the feature by setting time.
Alternatively press and hold the ‘*’ key to lock and unlock
the keypad.
Silent Mode
In the silent mode, the alerts for Calls, Organizer, SMS and
battery status are disabled.
Select Menu > Settings > Sounds tab > Alert type >
Silent OR long press the # key.
Safeguard Mode
In the safeguard mode, the Call list, Contacts, Messages
and Quick call can be accessed only by entering a
password.
To enter the safeguard password, select Menu > Settings
> General tab > Security settings > Safeguard. Enter
the password. After entering the password, the private
information screen is displayed. Press the menu key to
select the required features to be safeguarded and select
OK to enable.
Phonelock Mode
In the phonelock mode, the phone can be unlocked only
by entering a password.
To enter the phonelock password, select Menu > Settings
> General tab > Security settings > Phonelock > On.
Enter the password. Select OK.
The default password for phonelock is 1234.
To change the safeguard or phonelock
password, select Menu > Settings
> General tab > Security settings >
Change password > Change phonelock
pw / Change safeguard pw. Enter the
password. Select OK.
22
Getting Started
Keypad Functions
The following table displays the various keys and the corresponding functions they perform:
Keypad key Operations
POWER ON/OFF/END CALL
• Press to end a call (GSM).
• Press and hold for > 5secs to switch on or switch off the mobile phone.
• Press when in Menu or Edit modes to return to Standby mode.
• Press to reject an incoming call.
ACCEPT/SEND
• Press to answer an incoming call.
• After entering a phone number, press to make a call.
• Press while in Standby mode to access All calls list.
LSK/RSK
These keys are present immediately below the display screen.
• Press the Left Selection Key (LSK) or Right Selection Key (RSK) to select the
function indicated at the bottom of the screen. The indicated functions can
vary according to different program denitions.
• Press LSK to access the main menu in standby mode.
• Press RSK to access the Contacts in standby mode.
MENU KEY (CENTRE)
Present at the centre of the navigation keys.
• Press while in standby mode to enter the main menu.
• Press when required to be used as a toggle key to select or clear a checkbox.
• Press to perform similar tasks as the Left Selection Key.
• Press to select the OK command.
23
Getting Started
Keypad key Operations
NAVIGATION KEYS
The Left and Right Selection keys and Power On/Off keys surround this key group.
There are arrows on the key that denote the direction to scroll for information
displayed on the screen.
UP/DOWN
• Press to view the pages in the text editor.
• Press to browse menus/lists at the same level.
• Press to view the previous or next picture when previewing pictures.
• Press to browse the main menu.
LEFT/RIGHT
• Press to move the cursor left or right in the text editor.
• Press to browse the main menu.
NUMERIC KEYS
• Press the required keys to enter the desired phone number and press to make
a call. Alternatively, enter the number and select Options to dial the number.
• Press and hold any numeric key to create shortcuts from the available options.
• Press and hold in standby mode to access your Voice mail.
• When entering text, press to enter space.
• Press and hold to display the Ringtones.
24
Getting Started
Keypad key Operations
• Press and hold to display Call alert type.
• Press and hold to set the Alarm.
• Press and hold to display the Calculator.
• Press and hold to display Bluetooth.
• Press and hold to display WAP.
• Press and hold to display Opera mini.
• Press and hold to display the Languages.
• Press and hold to display ‘+’ used for dialing an international number.
• When entering text, press to enter a dot (.).
25
Getting Started
Keypad key Operations
• Press and hold to lock the keypad. Use it as a toggle key to lock and unlock
the keypad.
• When entering text, press to display special characters, for example,
period, comma, and so on. Press and hold to display the text input
languages.
• Press and hold in standby mode to switch between Silent on/off modes.
• When entering text, press to switch between lower case, upper case or
numeric. Press and hold to enable T9 mode.
26
Your XP3.20 Phone
Your XP3.20 Phone
This model is a bar type phone with a single LCD screen.
The graphic eld of the screen is 176 (w) and 220 (h)
pixels. The CSTN technology used displays 64K colours.

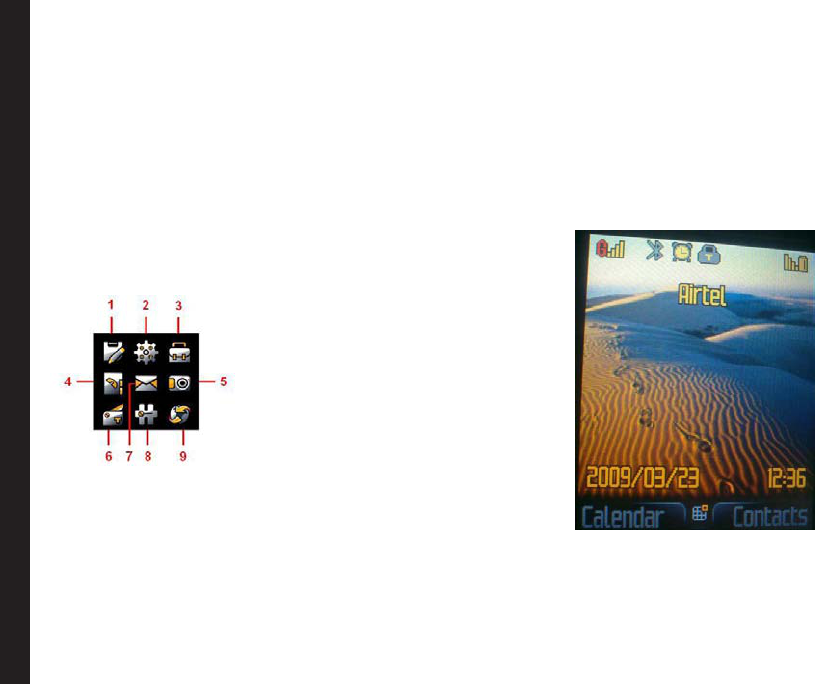

Main Menu
To access the phone menu, press the menu key to display
the main menu which comprises the following nine items:
Main Menu icons
1. CALLS
2. SETTINGS
3. MY FILES
4. CONTACTS
5. CAMERA
6. TOOLS
7. MESSAGES
8. APPLICATIONS
9. BROWSER
Home Screen Indicators
The home screen indicators are visible when the phone is
in standby mode. Some icons indicate the status of certain
functionalities of the phone, for example, the battery
charge indicator, the network status indicator, the date
and time etc. Some icons are displayed only if the specic
service is activated.
27
Your XP3.20 Phone
The following table describes the display indicators on the
top bar of the home screen in the XP3.20 phone. These
icons depend on the selected theme.
Display
Indicators Name Description
Battery
Four clear bars indicate
maximum battery charge.
Opaque bars indicate
decline in battery charge
Roaming
This icon is only displayed
when your phone is
registered with a nonhome
network.
GPRS
G displayed in green
indicates that GPRS is
active.
G displayed in red
indicates that GPRS is
inactive.
Alarm
Clock
Indicates that the alarm
clock has been set.
Meeting Indicates that the phone is
on meeting mode.
Display
Indicators Name Description
Call
Forward
Indicates that the
call forward function is
enabled.
Missed
Appointment
Indicates a missed
appointment.
Unread
Message
Indicates that there are
unread messages in the
inbox.
SMS
Memory Full
Indicates that the SMS
memory is full.
Voice
Message
Indicates a new voice
message.
Auto Answer Indicates that auto
answer has been set.
Keypad Lock Indicates that the
keypad is locked.
28
Your XP3.20 Phone
Display
Indicators Name Description
Firewall
Indicates that the black
list/white list has been
enabled.
Bluetooth
Connec-
tivity
Indicates that bluetooth is
active.
Bluetooth
CarKit/
Headset
Connec-
tivity
Indicates that your device
is paired and connected
to a carkit or headset with
bluetooth connectivity.
SD Card Indicates that an SD card
is inserted.
WAP
Push
Message
Indicates a new WAP
push message.
Wired
Headset
Indicates that a wired
headset is connected.
Display
Indicators Name Description
Vibrate Then
Ring
Indicates that the
phone will rst vibrate
then ring.
EDGE Indicates that the EDGE
network is active.
GPRS
Indicates that the GPRS
is attached and EDGE
network is inactive.
The following table describes the display indicators on the
GSM call screen in the XP3.20 phone:
Display
indicators Name Description
Active Call Indicates an active call.
Call on Hold Indicates a call on hold.
Call on Mute Indicates a call on mute.
Handsfree
Call
Indicates a handsfree
call.
Active
Conference
Call
Indicates an active
conference call.
29
Your XP3.20 Phone
The following table describes the display indicators on the
home screen in the XP3.20 phone:
Display
Indicators Name Description
Incoming
Call
Indicates an incoming
call.
Outgoing
Call
Indicates an outgoing
call.
Missed Call Indicates a missed
call.
Key Operations Without Your SIM Card
Making SOS Call
Select SOS. A message appears SOS Call? Select OK to
make the emergency call.
Menus Accessible
The following menus can be accessed on the phone
without the SIM card:
• Settings
• General settings
• Display settings
• Sounds settings
• My les
• Camera
• Tools
• Applications
30
Phone Settings
You can create and modify various settings on your XP3.20
phone. On the Standby screen, select Menu > Settings to
display the options.
General Settings
Select Menu > Settings > General tab. The following
general settings are displayed.
Profiles
You can customise the proles to use features such as
ring volume, ringtones, alert type, key sound and back-
light level. There are seven environment proles present in
this phone. Personal is the default prole, while the other
proles are Car, Flight, Home, Meetings, Outdoor and
Silent.
You cannot change the parameters for the
Flight and Silent modes.
• Personal: This is the default prole where all sounds
are enabled. Parameters in this mode can be
changed. Select Menu > Settings > General tab
> Profiles > Personal > Options > Personalize to
open the Personalize screen. You can use this screen
to choose ring volume, ringtones, alert type, key
sound or backlight level. Select Menu > Settings
> General tab > Profiles > Personal > Options >
Activate to activate this prole.
• Car: Parameters in this mode can be changed. Select
Menu > Settings > General tab > Profiles > Car
> Options > Personalize to open the Personalize
screen. You can use this screen to choose ring
volume, ringtones, alert type, key sound or backlight
level. Select Menu > Settings > General tab >
Profiles > Car > Options > Activate to activate this
prole.
• Flight: Here all sounds are kept in mute. Select
Menu > Settings > General tab > Profiles > Flight
> Options > View to open the View screen. Select
Menu > Settings > General tab > Profiles > Flight >
Options > Activate to activate this prole.
• Home: Parameters in this mode can be changed.
Select Menu > Settings > General tab > Profiles
> Home > Options > Personalize to open the
Personalize screen. You can use this screen to
choose ring volume, ringtones, alert type, key sound
or backlight level. Select Menu > Settings > General
tab > Profiles > Home > Options > Activate to
activate this prole.
• Meetings: Here only the vibrate mode is enabled.
Parameters in this mode can be changed. Select
Menu > Settings > General tab > Profiles >
Meetings > Options > Personalize to open the
Personalize screen. You can use this screen to
choose ring volume, ringtones, alert type, key sound
or backlight level. Select Menu > Settings > General
tab > Profiles > Meetings > Options > Activate to
activate this prole.
• Outdoors: Here both the vibrate and ring modes are
enabled. Parameters in this mode can be changed.
Select Menu > Settings > General tab > Profiles
> Outdoors > Options > Personalize to open the
Personalize screen. You can use this screen to
choose ring volume, ringtones, alert type, key sound
or backlight level. Select Menu > Settings > General
tab > Profiles > Outdoors > Options > Activate to
activate this prole.
• Silent: Here all sounds are kept in mute. Select
Menu > Settings > General tab > Profiles > Silent >
Options > View to open the View screen. Select
Phone Settings
31
Phone Settings
Menu > Settings > Profiles > General tab > Silent >
Options > Activate to activate this prole.
Languages
You can display all the phone menu options and text in the
selected language. For example, choose English to display
all menu items, text messages, and so on, in English.
Select the language and select OK.
Time and Date
You can set and display the date and time on the phone.
You can also select the display format. The time zone can
also be set for local settings and foreign settings.
The date formats supported are YYYY/MM/
DD, YYYY.MM.DD, DD.MM.YYYY, YYYY-
MM-DD, DD-MM-YYYY or MM-DD-YYYY.
The time formats supported are 24 hr and
12 hr.
You can view the time of major cities in different time
zones using this function and set the time on your phone
to a selected time zone. You also have the option to use
Daylight Saving Time (DST).
The local time or the international time is displayed in the
lower half of the screen. Use the navigation keys to view
various time zones.
1. To view the international clock, select Menu
> Settings > General tab > Date and Time >
International clock > Clock status > On. The
international clock is displayed on the idle screen.
2. To set your local time, select Menu > Settings >
General tab > Date and Time > International clock
> Local settings > Option > Set time > Change
time. Enter the time and select OK. To set the local
date, select Option > Set time > Change date. Enter
the date and select OK.
3. To set Daylight Saving Time (DST), select Menu
> Settings > General tab > Date and Time >
International clock > Local settings OR Foreign
settings > Option > Daylight saving > On. The
symbol of the sun is displayed beside the name of the
city signifying that the DST option is on.
4. To switch between local and foreign settings, select
Menu > Settings > General tab > Date and Time >
International clock > Switch local/foreign > OK.
5. To view the city list, select Menu > Settings >
General tab > Date and Time > International clock
> Local settings OR Foreign settings > Option >
City list.
Security Settings
To prevent unauthorised use of your phone, you can set
PIN protection, safeguard and phonelock. To enable PIN
protection or phonelock, select On. To enable safeguard,
enter the password. To change any security related
password, select Change Password and change the
particular password.
Shortcuts
Shortcut keys have been set for specic functions. To
activate a shortcut, select the shortcut and select Options
> Activate. To change any shortcut, select the shortcut
and select Options > Change. Select the new function.
Default Storage
The individual default storage location for Camera, Voice
recorder, WAP download or Bluetooth can be set as Phone
memory or Memory card.
32
Phone Settings
Memory Status
The memory status for Contacts, Messages and My les is
displayed.
Auto Power On
To enable this feature, select On. Select the time after
which the phone will be automatically switched on. Select
OK. Select Off to disable this feature.
Auto Power Off
To enable this feature, select On. Select the time after
which the phone will be automatically switched off. Select
OK. Select Off to disable this feature.
Firewall
You can avoid unwanted calls or messages by entering
such numbers in the Black list and enabling the Black list.
You can make calls or send messages only to specic
numbers by entering such numbers in the White list and
enabling the White list. You can enable either the Black list
or White list at a time.
1. To enable the Black list or White list, select Menu >
Settings > General tab > Firewall > Enable > Black
list OR White list > SMS OR Incoming call OR SMS
and Incoming call > OK.
2. To disable the Black list or White list, select Menu >
Settings > General tab > Firewall > Enable > Off.
3. To enter a number in Black list or White list, select
Menu > Settings > General tab > Firewall > Black
list OR White list > Add new > New number (enter
the number) OR Contacts (select the number from
Contacts) > OK.
Auto Keypad Lock
Select the time after which the keypad will be
automatically locked. Select Off to disable this feature. The
keypad will be locked automatically when the phone is in
idle state on home screen.
Default Settings
Select to reset the settings to the original factory settings.
Display Settings
Select Menu > Settings > Display tab . The following
display settings are displayed:
1. Wallpaper: Allows you to set the background screen
display using the embedded pictures available in
your phone or from your own pictures that you
have downloaded on to your phone or SD card.
The selected wallpaper is displayed on the standby
screen only if you select On.
2. Themes: Allows you to set the colour theme and
icons for the main menu and other screens. There
are two themes available. Select Menu > Settings >
Display tab > Themes > Theme 1 OR Theme 2 >
OK.
3. Backlight Level: Select the backlight level of the
screen display as maximum, high, medium or low.
33
Phone Settings
4. Backlight Duration: Keeps the screen display active
for the period chosen by you. Select the screen
display active time as 10 sec, 30 sec or 60 sec.
5. Greeting: Select On. Enter the greeting and Save to
make it appear on the screen while powering on the
phone.
6. Screensaver: Select On to make the screen saver
appear on the idle screen.
Sounds Settings
Select Menu > Settings > Sounds tab . Changing it
effects the current set prole.The following sound settings
are displayed:
1. Alert Type: You can set the alert type for incoming
calls and SMS alerts. You can select from Ring only,
Vibrate only, Vibrate then ring or Silent.
2. Ringtone: You can set different ringtones for your
incoming calls., SMS alerts and alarms. This helps
you to identify callers of a specic group. You can
select from Default sounds (pre-recorded factory
tunes) OR Phone memory (downloaded via WAP,
personal recordings or les transferred via Bluetooth)
OR SD card.
You can download and store ring tones
over Bluetooth, WAP or PC software. The
ringtone formats are MIDI, MP3, AAC and
AMR.
3. Ring Volume: You can set the ringer volume for GSM
calls, alarms and alerts.
4. Key Tone: You can set the keypad sound as Off, Low,
Medium or High.
5. Shutter Sound: You can set the camera shutter
sound.
6. Battery Alert: Select On to get any low battery alert.
Connectivity Settings
Select Menu > Settings > Connectivity tab. The following
connectivity settings are displayed:
1. Network Settings: This relates to various network
related settings. You can select your network, specify
the network account, indicate whether GPRS is
required at all times, and so on.
• Select Network: Your phone will select the
network automatically or you can do it manually.
• Search Mode: You can select Auto to set the
phone to automatically select a cellular network
available in your area, or select Manual to set
the network manually. If manual mode is set,
the user has to invoke Select Network to do
network selection.
• Preferred Networks: You have a list of options
which will enable you to view a list of preferred
networks, allows you to add a new network or
delete an existing network. This list is made to
use while the user is roaming.
34
Phone Settings
• Attach GPRS: You can access GPRS network.
When Always attached is selected, the
phone always remains registered with the
GPRS network.
When Attached during PDP session is
selected, the phone gets registered with
the GPRS network only when data transfer
is required. .
2. Connections: You can set the GPRS prole and view
the GPRS information.
• GPRS Profiles: You can view or edit the proles.
There are ve proles present. You can edit
the following information in the proles: Prole
name, APN, Login and Password. Make the
changes and select Save.
• GPRS Info: You can view the GPRS information
such as data received.
35
Calls
Calls
Before making a call you must ensure the following:
• Keypad is not locked.
• A valid SIM card is installed.
• Phone battery is charged.
• Phone is switched on and the network operator’s
name or number is displayed.
Dial a Number
1. Use the numeric keys to enter the number and press
.
2. Alternatively you can enter the desired phone number
and select Options > Dial > Dial > Select.
Dial an International Number
Press and hold the numeric key 0 till the + symbol is
displayed. Enter the Country code, Area code (without
prededing 0) and the phone number and press or
select Options > Dial > Dial > Select.
Dial a Number via Contacts
You can dial a number directly from the Contacts.
To Locate a Phone Number
1. On the home screen, select Contacts. Scroll to the
phone number.
2. Press to dial the number OR select Options
> Dial > Dial > Select OR press the easy call key.
Press or Select End to disconnect.
Dial a Number Via the Calls List
This Calls list comprises separate lists for All calls, Missed
calls, Answered calls and Outgoing calls.
1. To access the Calls list, press OR select Menu
> Calls > Call list. All the available call lists are
displayed.
2. Select a list, scroll to the number and press to
dial the number.
Managing Call List
Contacts within the call list have the following options:
• Save: You can save the number in Contacts (if it is
not saved).
• Send messages: You can send an SMS to the
number. Enter the SMS and select Options to view
the SMS options and send it accordingly.
• Send phone number: You can send the name and
phone number of a contact to the recipient via SMS.
• Delete: You can delete the number from the Call list.
• Dial: displays dial options from which to choose.
Dial Dials the selected number.
Handsfree
Dial
You can talk using the speaker.
• Add to blacklist: You can add the number to
blacklist.
• Edit number before dialing: You can edit the number
before dialing.
36
Calls
Fixed Number Dialing
A xed set of numbers are stored as xed numbers and
only those numbers can be dialed from the phone. User(s)
can make calls from Contacts or dial the number if the
selected number is stored in xed numbers list. User(s)
can however receive calls from any number. User(s) cannot
make calls to the numbers which are not stored in xed
numbers list.
1. Select Menu > Calls > Call settings > Fixed Dial
>Mode > On. Enter the PIN2 to activate xed number
dialing.
2. Enter the PIN2 to activate xed number dialing.
Select Add new to add a new number to the list or
select Fixed numbers list to view the list.
Speed Dial
This option enables you to dial a number quickly via a
shortcut.
1. If shortcut is not set for Speed dial, select Menu >
Settings > General tab > Shortcuts > scroll to a
key > Options > Change. Select Speed dial from the
list. The shortcut is set.
2. Press and hold the shortcut designated for Speed dial
from home screen. The Speed dial screen appears.
3. To add a new contact, scroll to an empty slot, select
Add. Select the contact. Select Yes to add a picture
or No to not add picture. Select the picture from
Default pictures OR Phone memory OR SD card. The
Speed dial is set.
4. To make a call, press . The other options
available for a contact are View, Replace, Delete and
Send message.
Receive a call
1. To receive a call, press the Accept key OR press
Left Selection key. Select Accept.
2. To reject a call press the Power on/off key OR
press Left Selection key. Select Accept.
3. To receive another call while you are already
speaking, enable the call waiting feature for GSM
calls. Select Menu > Calls > Call settings > Call
services > Call waiting > Enable. For details on how
to enable Call waiting facility, refer “Call Waiting” on
page 38.
Any Key Answer
When enabled, you can press any key except to
answer a call.
To activate this feature, select Menu > Calls > Call
settings > Anykey answer > On.
Long pressing the Power on/off key
during a GSM call will only end the call and
not switch off the phone.
37
Calls
Call Forwarding
You can forward your incoming calls to a new number or
an existing number in the Contacts, provided your network
operator supports this service. To access call forward
settings, select Menu > Calls > Call settings > Call
forward. The Call forward options are mentioned below:
Call Forward
Option Function
All calls Forward all incoming calls to a
pre-designated number.
If no reply Forward calls when you do not
answer incoming calls.
If unreachable Forward calls when you have
switched off your phone or you
are out of your coverage area.
If busy Forward calls when your
phone is busy.
Status Check the current Call forward
status.
Cancel all Withdraws the call forward
option.
When All calls divert is enabled, the icon
is displayed at the top of the screen
when the phone is in standby mode.
Call Barring
You can set Call barring facility for all outgoing calls, all
international calls, only here & home, all incoming calls or
incoming if abroad.
1. To set call barring settings, select Menu > Calls >
Call settings > Call barring.
2. Enter a restriction password. (Your network operator
provides this before you use this function). This
password will be sent to the network for verication.
The Call barring options are mentioned below:
Call Barring Option Function
Outgoing calls All outgoing calls are barred.
International calls All international calls are
barred.
Local calls only All calls except from the
current country and the home
country are barred.
All incoming All incoming calls are barred.
Roaming incoming All incoming calls from
abroad are barred.
Barring status Checks the current call
barring status.
Cancel barring Withdraws call barring.
38
Calls
Call Waiting
When call waiting is enabled and your phone is in
conversation, the message Call waiting and the number is
displayed when you receive an incoming call.
1. To enable this facility, select Menu > Calls > Call
settings > Call services > Call waiting > Enable.
2. To cancel this facility, select Menu > Calls > Call
settings > Call services > Call waiting > Cancel.
You will not be prompted when you receive an
incoming call while your phone is busy. The caller will
receive a busy signal.
3. To verify the call waiting status, select Menu > Calls
> Call settings > Call services > Call waiting >
Status.
Auto Redial
When auto redial is enabled, your phone will automatically
redial within a set interval, if a call does not connect.
1. To enable this function select Menu > Calls > Call
settings > Auto redial > On.
2. When you redial a number, you are prompted with
the message Auto redial? Select OK to redial. Select
Back to return to home screen.
Auto Answer
When auto answer is enabled, your incoming calls will
automatically be answered.
Select Menu > Calls > Call settings > Auto answer > On.
Filter Calls
This function enables you to avoid receiving unnecessary
calls OR messages. Users can select SMS/Calls/Both
SMS and Calls to go to the black list/white list.
At any point of time, you can enable either
black list or white list. If white list is enabled,
only the contacts in the white list can reach
you. When black list is enabled, all other
contacts except the ones in the black list
can reach you.
To enable this function, select Menu > Settings > General
tab > Firewall > Enable > Black list or White list > SMS
or Incoming call or SMS and Incoming call > OK.
If the black list or white list is empty, it
cannot be enabled.
• Enable Black list: Rejects all incoming calls and
messages from numbers in the black list.
• Enable White list: Allows incoming calls and
messages from numbers in the white list and rejects
incoming calls and messages from numbers that are
not in the white list.
• Off: Disallows ltering of incoming calls and
messages.
39
Calls
Add to Black list
To add a number to the black list, select Menu > Settings
> General tab > Firewall > Black list > Add new. Two
options are displayed:
• New number: You can enter a new number to be
stored in the black list.
• Contacts: You can open the Contacts list to select
and transfer a number to the black list.
Add to White list
To add a number to the white list, select Menu > Settings
> General tab > Firewall > White list > Add new. Two
options are displayed:
• New number: You can enter a new number to be
stored in the white list.
• Contacts: You can open the Contacts list to select
and transfer a number to the white list.
Other Call Settings
• Minute reminder: When enabled, you receive a
prompt at the 50th second of every minute during a
conversation. Select Menu > Calls > Call settings >
Minute reminder > On.
• Own ID: When enabled, your ID is displayed to the
recipient when you call or send a message. However
this service must be supported by your network.
1. To enable this option, select Menu > Calls > Call
settings > Call services > Own ID > Show ID.
2. To disable this option, select Menu > Calls > Call
settings > Call services > Own ID > Hide ID.
3. To request the network to set this option, select
Menu > Calls > Call settings > Call services > Own
ID > Set by network.
• Caller ID: When enabled, you can view the ID of the
caller. To enable this option, select Menu > Calls >
Call settings > Call services > Caller ID.
Review Call Cost Information
Select Menu > Calls > Call settings > Call services >
Cost settings. The following options are available:
• Currency: Displays the currency balance.
• Personal rate: Displays the personal rate per call
unit.
• Maximum cost: Displays the maximum cost.
• Auto display: Displays the Cost or Duration or Both
after a call.
Recording a Call
1. After making a call or receiving a call, select Option >
Record > Record own voice OR Record opposite
party OR Record both. You can also long press the
menu key to record or stop.
2. A square button at the bottom indicates that
recording is going on.
3. Select Option > Stop recording to stop the recording.
4. The recorded le is saved in the location My files >
Sounds.
Depending on the settings, the storage location can be
phone or SD card.
40
Managing Contacts
Managing Contacts
You can use the Contacts list to maintain phone numbers
of your contacts. This feature enables you to add, delete,
dial phone numbers and send SMS messages. To access
the contacts, select Menu > Phonebook > Contacts. The
contacts are displayed.
You can use the volume keys to scroll
through the contacts.
Add a New Contact
To add a new contact, select Menu > Phonebook >
Contacts > Add new. Press the menu key. Enter the name
and phone number and select Save. Alternatively, you can
directly enter a number and select Option > Save. Enter
the name of the contact and select Save. The new number
is updated in the Contacts list.
Dialing a Number From Contacts
On the home screen, select Menu > Phonebook >
Contacts. Select the contact. Select Option > Dial OR
press the easy call key.
Sending a Message From Contacts
1. On the home screen, select Menu > Phonebook >
Contacts. Select the contact. Select Option > Send
message.
2. Enter the message and select Option > Continue.
3. Select Send to send your message.
Add a New Contact in Group
On the home screen, select Menu > Phonebook >
Groups. Select the group. Select Add. The phone
numbers in Contacts are displayed. Select the phone
numbers to be added to the group.
On the contacts stored in phone memory
can be added to the group.
Group Settings
To view or change the group settings, select Menu >
Phonebook > Groups. Select the group. Select Options.
The following options are displayed:
• View: You can view the contacts in the group.
• Rename: You can rename the group. Enter the new
group name. Select OK to save.
• Send message: You can send a message to the
contacts in the group.
• Reset: You can reset the group settings.
Special Numbers
You can store some special purpose phone numbers in
this location. It has four categories:
• Own Info: You can manage your own information.
Select Menu > Phonebook > Special numbers >
Own info. The following sub-menus are present.
41
Managing Contacts
• Edit own info: Enter your Name and other
personal details such as Mobile number, Ofce
number, Home number, Fax number, Pager
number, Email, Postal address and Postal code.
Select Save.
• Delete own info: You can delete your
information.
• Send own info: You can send your information
to any number via SMS.
• Display own info: You can view your own
information.
• Service Numbers: Contains the service numbers
provided by the operator.
• Voice Mail Number: You can enter and save your
voicemail number.
• SOS: You can call the SOS number already provided.
Default Contact List
1. Select Menu > Phonebook > Advanced > Choose
contact list > Default contact list.
2. Select Phone or SIM or All to indicate the location of
the default contact list displayed.
Default Contact Location
1. Select Menu > Phonebook > Advanced > Choose
contact list > Default contact location.
2. Select either Phone or SIM as the memory location to
store the new numbers.
Sending Contact
You can send contact information by SMS or by Bluetooth.
Send Contact by SMS
1. Select Menu > Phonebook > Contacts.
2. Select the contact and select Options > Send
contact > via SMS.
3. Enter the message and select Options > Continue.
4. Select Contacts to add existing phone numbers OR
Select Select multiple to send the message more
than one number OR Select Phone number to enter
the number.
5. Select Send to send the contact in your message.
Send Contact by Bluetooth
1. Select Menu > Phonebook > Contacts.
2. Select the contact and select Options > Send
contact > via Bluetooth.
3. Select the paired device to which you want to send
the namecard.
4. If the device is not paired, select Search more... and
then select the device.
5. When the other device accepts the contact, Object
sent message will be displayed.
42
Managing Contacts
Delete Contacts
• To delete a contact, select Menu > Phonebook >
Contacts. Select the contact to delete and select
Delete.
• To delete all contacts, select Menu > Phonebook
> Advanced > Delete all contacts > Delete SIM
entries OR Delete phone entries.
Copy or Move Numbers to Other Lists
• To copy all records from Phone memory to SIM card,
select Menu > Phonebook > Advanced > Copy to
SIM > select > OK.
• To copy all records from SIM card to Phone memory,
select Menu > Phonebook > Advanced > Copy to
phone > select > OK.
• To move all records from Phone memory to SIM card,
select Menu > Phonebook > Advanced > Move to
SIM > select > OK. Moved records get deleted from
the source location. All the records moved from the
Phone memory will not be available in the Phone
memory thereafter.
• To move all records from SIM card to Phone memory,
select Menu > Phonebook > Advanced > Move to
phone > select > OK. Moved records get deleted
from the source location. All the records moved from
the SIM card will not be available in the SIM card
thereafter.
Adding a Contact to Blacklist
1. Select Menu > Phonebook > Contacts.
2. Select the contact and select Options > Add to
blacklist.
Adding a Contact to Whitelist
1. Select Menu > Phonebook > Contacts.
2. Select the contact and select Options > Add to
whitelist.
Searching Contacts
1. Select Menu > Phonebook > Contacts.
2. Enter the contact name.
3. The contact will be displayed.
43
Messages
Messages
SMS is a convenient and inexpensive means of
communication. You can send a text message to other
people via this service. You can use the Messages menu
in your phone to send an SMS message to other mobile
phones or any other equipment that can receive SMS. To
access the SMS function select Menu > Messages. The
list of options are displayed.
Advanced Settings
To view or dene settings for your messages select
Menu > Messages > Advanced.
• Cell info: You can select to receive broadcast
messages.
• Reception: Select On to get information about
the reception tower.
• Topics: Select Topics > Add new to add the
channel number of the topic to get information.
• Message settings: You can set the SMS account.
Select SMS Account > Options > Activate to set
selected account. Select SMS Account > Options >
Edit to edit the following settings:
Settings Function
Service Center
No
The message centre number, provided
by your service provider, via which
your messages are sent and received.
Validity period Select the period for which your
messages will be stored in the
message centre.
Delivery report Select On to get a conrmation report
whether message has been delivered
or not.
Signature Select On to set a signature that will
be attached along with your sent
messages.
Storage
location
Select SIM or Mobile phone as the
storage location of messages.
Send & save Select On to save the sent messages.
• Memory status: You can number of messages stored
in the SIM and the mobile phone.
• My favourites: You can view the messages stored in
this location.
• SIM archive: You can view the messages stored in
the SIM.
• SMS timer: You can add a timer to an SMS and
mention the time in which it is to be sent. Select SMS
timer > Add > Enter the text > Save > Contacts or
Phone number > Enter date > OK > Enter time >
OK.
Text Input Mode
When you enter text, the input mode is displayed at the
top left of the screen. Press and release the # key to view
the different text input modes, that is conventional (Abc/
ABC/abc) and numeric (123). Long press the # key to
enable the T9 mode.
In conventional mode, you can enter a letter by repeatedly
pressing a key until the letter you want appears. Numeric
mode is used to input numbers.
44
Messages
In T9 mode, when you press a key, the alphabets or letters
are displayed. Scroll to the alphabet or letter and press the
menu key to select.
1. To switch between upper case (ABC), lower
case (abc) or sentence case (Abc), use key #.
When the sentence case is used, the letter which
comes immediately after the characters full stop
(.), exclamation mark (!) and question mark (?)
automatically becomes capital.
2. To enter a character, press the numeric key
repeatedly until the desired character appears on
the screen. For example, to enter GOOD, in the text
mode, press 4 once to display G, press 6 thrice to
display O, and again press 6 thrice to display O and
press 3 once to display D.
OR
If you are in T9 mode, press 4, scroll to G. Press 6,
scroll to GO. Press 6, scroll to GOO. Press 3, scroll to
and select GOOD.
3. When editing text, to insert a space between
characters or words, press 1.
4. To erase a character select Clear.
To insert special characters, press * to display the special
characters. Press the navigation keys to scroll through
the special characters. Select the character to appear in
the text.
Long press * to display the text input in different
languages. Press the menu key to select the language.
Select Done to change the text input language.
Write Messages
1. To create a message select Menu > Messages >
Create message OR press the Right navigation key
as a shortcut to the Write message screen.
2. Enter the message in the text pane. The text input
mode is displayed at the top left of the screen. Press
and release * to select the appropriate text input
mode.
3. Enter the message and select Option. The following
options are present:
Option Function
Contacts You can select the number from
Contacts.
Select multiple You can select more than one
number from Contacts. Use the
menu key to select.
Phone number You can enter the phone number.
Group You can send the message to a
group.
Use template You can use a message template
stored in Templates folder.
Save as draft You can save the message as a
draft in Draft folder.
Save as template You can save the message as a
template in Template folder.
4. Select OK. Select Send message to send the
message OR select Add recipient to add another
recipient.
45
Messages
Send a Message Via Contacts
You can send an SMS from the Contacts.
1. On the home screen, select Menu > Contacts >
Phonebook. Select the contact. Select Options >
Send message.
2. Enter the message and select Options > Continue.
3. Select Contacts to add existing phone numbers OR
Select Group to send the message to a group OR
Select Phone number to enter the number.
4. Press the menu key to send your message.
Call Or Save a Number Embedded in a Received Message
It is possible to call a number embedded in a received
SMS.
1. Select Menu > Messages > Inbox > open the
message.
2. Select Options > Extract numbers. The number is
displayed.
3. Select Options > Dial OR Select Options > Save.
Manage your Messages
The inbox, outbox, sent and draft folders displays the
number of stored messages in parenthesis.
Inbox
The Inbox stores and displays all the incoming messages.
1. To access the Inbox, select Menu > Messages
> Inbox > Select. The Inbox displays a list of
messages.
2. To delete a message or all the messages, select
Options > Delete or Options > Delete all
respectively.
3. To open a message, scroll to a message and press
the menu key.
4. After a message is opened other functions can be
performed. Select Options to list the options.
• Reply: You can send a message to the sender of that
message.
• Forward: You can send the message to another
recipient.
• Delete: You can delete the message after reading it.
• Extract numbers: You can save the numbers present
in the message. You can also dial or send a message
to the numbers.
• Archive to SIM: You can save the message in your
SIM card memory.
• Move to my favourites: You can save the message in
My favourites folder. These will be stored in the phone
memory.
• Details: You can view the details about the message
such as storage location and time of receipt.
• Dial: You can call the sender of the message.
Outbox
Messages that were undelivered to the recipient due to
some reason are stored in in Outbox.
1. To access undelivered messages, select Menu >
Messages > Outbox.
2. Select Options to display the outbox options.
3. Press the menu key to view the message.
4. Press Options > Resend to send the message.
You can also forward an undelivered message.
46
Messages
Draft Messages
Messages that have been saved to be sent later are stored
in Draft.
1. To access unsent messages, select Menu >
Messages > Draft.
2. Select Options to display the draft options.
3. Press the menu key to view the message.
4. Press Options > Send to send the message.
Sent Messages
Messages that have been sent and delivered are stored in
Sent.
1. To access sent messages, select Menu > Messages
> Sent.
2. Select Options to display the sent options.
3. Press the menu key to view the message.
4. Press Options > Send to resend the message.
5. You can also forward a sent message.
Predefined Messages
You can customise and store up to a maximum of 10
messages in Templates.
1. Select Menu > Messages > Templates > Select >
OK.
2. Enter a message and select Options > Save
Templates.
View SMS Memory
To view the memory capacity for messages, select Menu >
Messages > Advanced > Memory status.
Voice mail
Your incoming calls can be forwarded to your voice mail.
Callers will be prompted to leave a message for you. This
feature requires you to enter a voice mail number which is
provided by your service provider.
1. To set voice mail number, select Menu > Messages
> Voice mail > Voice mail number > OK. Enter
the number provided by your service provider. This
number should be used when you want to listen to
your stored voice mail messages.
2. When you need to listen to your incoming voice mail
messages, select Menu > Messages > Voice mail >
Call voice mail > OK. Enter your voice mail number
and select Call. You are connected to your mailbox
where you can hear the stored voice mails messages.
If your voice mail number is already stored, select
Menu > Messages > Voice mail > Call voice mail
> Call.
For quick access to voice mail, press and
hold 1.
SIM Card Menu
You can access certain services provided by the operator
using this menu.This feature can be accessed via Menu >
Messages > Operator service.
47
Hardcoded Shortcuts
Hardcoded shortcuts
The following is the list of hardcoded shortcuts.
• Press the green dial button From idle screen - Get the
All calls list.
• Enter 0 followed by SEND - releases all held calls or
sets User Determined User Busy (UDUB) for a waiting
call.
• Enter 1 followed by SEND - Releases all active calls (if
any exist) and accepts the other (held or waiting) call.
• Enter 1X followed by SEND - Releases a specic
active call X.
• Enter 2 followed by SEND - Places all active calls (if
any exists) on hold and accepts the other (held or
waiting) call.
• Enter 2X followed by SEND - Places all active calls on
hold except call X with which communication shall be
supported.
• Enter 3 followed by SEND - Adds a held call to the
conversation.
• Enter 4 followed by SEND - Connects two calls and
disconnects the subscriber from both calls (ECT).
• Enter 4 * “Directory Number” followed by SEND
- Redirects an incoming or a waiting call to the
specied directory number.
• Enter 5 followed by SEND - Activates the completion
of calls to busy subscriber request.
• Enter “Directory Number” followed by SEND - Places
all active calls (if any exists) on hold and sets up a
new call to the specied directory number.
• Enter END - Releases the subscriber from all calls
(except a possible waiting call).
• Press LEFT and RIGHT key in Outgoing/Answered/
Missed calls list - Allows to scroll between these 3
screens.
“X” is the numbering (starting with 1) of
the call given by the sequence of setting
up or receiving the calls (active, held or
waiting) as seen by the served subscriber.
Calls hold their number until they are
released. New calls take the lowest
available number.
Where both a held and a waiting call exist,
the above procedures shall apply to the
waiting call (that is, not to the held call) in
conicting situation.
48
WAP Browser
WAP Browser
This mobile phone has an internal WAP browser that
allows you to browse contents of various WAP websites
on the Internet. This facility is made available only if you
subscribe to a data service from your network operator for
Internet access. You need to consult your local operator
for more details. Congure the WAP when you use it
for the rst time. Some WAP parameters on your phone
have already been set to a specic network operator. If
you utilize the services of the same network operator you
can directly operate the WAP service with the available
conguration. If not, you need to recongure the settings.
If you are unable to view WAP web pages
because your network operator changed
its WAP parameters or the Internet content
Provider (ICP) changed its WAP web address
or contents, please consult your network
operator and ICP for updates.
Select Menu > Browser > Select. The following sub
menus are displayed:
• Load Homepage: This is the page that is displayed
rst when you open the WAP browser.
• Bookmarks: You can use this menu to add and
manage your bookmarks and go directly to the
corresponding web address. You can also edit or
delete bookmarks via this menu.
• History: You can view web pages which you have
viewed previously. Click on them to open the pages.
• Enter address: You can enter a web address directly
and browse.
• Settings: The following congurations can be set via
this menu:
• Edit homepage: You can edit the web address
of your homepage. Specify a title and the web
address.
• Select profile: In this menu, existing proles
are listed on the display. Scroll to the required
prole and select OK.
• Connection: Specify the connection details for
WAP. The following details are present:
1.Network account: Select the prole which
you had selected in Settings > Connectivity >
Connections > GPRS profiles.
2.Connection type: Select the connection type.
3.Timeout: Enter the time (in seconds) after
which your connection will be timed out.
4. Proxy address: Enter the proxy address as
125.63.77.141.
5.Proxy port: Enter the proxy port as 8888 (for
HTTP) OR 9201 (for WSP).
• Browser options: You can enable the refresh
option to refresh the web pages, you can select
to display or not display images in the web
pages and you can enable or clear cookies.
• Rename profile: You can specify a name for
the selected prole in this menu. The maximum
length of the name is 40 characters.
• Push settings: You can decide to receive or not
receive push messages from operators and web
portals.
• Resume: You can view web pages from where you
last left off. Access the web pages you visited last via
this menu. Select the Back and Forward options to
move between web pages.
• Push inbox: This is the inbox for WAP push
messages.
49
Opera Mini
Opera Mini
Opera Mini is a web browser designed for mobile phones.
It uses the Java ME platform and consequently requires
that the mobile device be capable of running Java ME
applications. Opera Mini is offered free of charge. This
mobile phone has a copy of Opera Mini pre-installed.
Configuration of APN (Access Point Name) for Opera Mini
Set the network account for the Opera Mini.
1. Select Menu > Settings > Connectivity tab >
Connections > GPRS profiles > Select > Profile 5.
Select Edit to enter the prole details.
2. The following details are to be entered.
• Profile name: Enter the name of the prole.
• APN: Enter the access point name.
• Login: Enter the login name.
• Password: Enter the password.
3. Select Save to save the details.
Always use Prole 5 for Opera Mini and other
Java applications.
Configuration of Opera Mini as Key Shortcut
A shortcut can be assigned for launching Opera Mini.
Select Menu > Settings > General tab > Shortcuts >
select an empty key. Select Set. Select Opera Mini and
select OK. The shortcut is set.
Press the particular shortcut to launch Opera Mini.
50
Java
Java
Sonim XP3.20 has a collection of Java applications that
are saved in the phone as default. You can also download
more Java application via WAP or Bluetooth.
Launch Application
Select Menu > Applications > Java.
The list of the downloaded Java applications is shown.
Scroll to the desired application and select using the
menu key.
Java applications can also be uploaded from
the SD card.
51
Tools
Tools
Tools are used to organize and manage your daily tasks
systematically.
Alarm
You can set alarm for a particular time. Select Menu >
Tools > Alarm.
1. To set a simple alarm, select Menu > Tools > Alarm
> Simple alarm. Enter the time and select OK.
2. To set a recurrent alarm, select Menu > Tools >
Alarm > Recurrent alarm. Enter the time and day,
and select OK.
3. To set the alarm tone, select Menu > Tools > Alarm
> Alarm tone > Default sounds or Phone memory.
Select the alarm tone.
4. To enable snooze, select Menu > Tools > Alarm >
Snooze. Use the menu key to toggle between on
and off.
The alarm will work even if the phone is in
Silent mode.
Bluetooth
Bluetooth is a wireless connection that enables devices to
exchange information. Devices within a range of 10 meters
can be connected wirelessly using Bluetooth technology.
Sonim XP3.20 is compliant with Bluetooth specication
2.0 supporting the following proles: Headset prole,
Hands free prole, Object push prole, Dial up networking
prole, Serial port prole. This device can send images
and audio les using Bluetooth connection.
There may be restrictions on using
Bluetooth technology in some locations.
Check with your local authorities or
service providers.
Activate Bluetooth
Select Menu > Tools > Bluetooth > Activate. Use
the menu key to toggle between on and off. When the
Bluetooth is activated, the Bluetooth icon is displayed on
the home screen.
Deactivate Bluetooth
Select Menu > Tools > Bluetooth > Activate. Use the
menu key to toggle between on and off.
Bluetooth Settings
Type Function
My name Select this option to change the
name of your device.
Visibility Select On to show your presence
to other devices. Select Off to hide
your presence from other devices.
My profiles Use this option to view the
Bluetooth service list.
52
Tools
Pairing Devices
1. Select Menu > Tools > Bluetooth > Search for
devices.
2. Select Search more... to view the list of devices
within a range of 10 metres with Bluetooth
connectivity.
3. Select the device of your choice.
4. Enter the passcode (for example, 0000) in the Enter
passcode screen. The same passcode must be
entered for the other devices also.
5. Select OK.
6. When the other device accepts your request the
message Pairing Done is displayed on the screen.
7. When the other device rejects your request the
message Pairing Failed is displayed on the screen.
Do not pair with an unknown device for
security reasons.
Connecting a Bluetooth Headset
You can connect a bluetooth headset after pairing it with
your phone.
1. Select Menu > Tools > Bluetooth > My devices.
2. Select the paired Bluetooth headset.
3. Select Options > Connect.
For more details, refer the user manual of
the Bluetooth headset.
Rename Paired Device
1. Select Menu > Tools > Bluetooth > My devices.
2. Select the paired device.
3. Select Options > Rename.
4. Enter the new name.
5. Select OK.
Delete Paired Device
1. Select Menu > Tools > Bluetooth > My devices.
2. Select the paired device.
3. Select Options > Delete.
If you cancel the pairing with a device
that is connected, pairing is removed
and the connection is switched off
immediately.
Sending Data via Bluetooth
You can connect several Bluetooth devices at a time. You
can also transfer les to another compatible device.
1. Select Menu > My files.
2. To send an image le, select Pictures > select the le
OR To send an audio le, select Sounds > select the
le OR To send any other le, select Others > select
the le.
53
Tools
3. Select Option > Send > via Bluetooth.
4. Select the paired device to which you want to send
the le.
My devices screen normally displays the
paired devices as well as devices which
are not paired currently. Re-pairing may
be required. To send a data to an unpaired
device, Select Search more.... Select the
unpaired device of your choice. Enter the
pin code when you are asked to enter.
5. When the other device accepts your le, the
message Object sent is displayed on the screen.
6. When the other device rejects the le, the message
Connection failed is displayed on the screen.
Receiving Data via Bluetooth
To receive data using Bluetooth, your device should be
Bluetooth activated and must be visible to other devices.
1. When you receive a data, you are asked if you want
to accept it.
2. Select Accept to receive data OR select Reject to
refuse the data.
3. If you accept, the data will be stored in My files >
Pictures or Sounds or Others.
Calendar
The calendar enables you to set appointments, create
appropriate notes, schedule reminders when required, set
alerts and repeat specic settings. Tasks can be viewed
on a daily, weekly and monthly basis.
1. To access the Organizer and its associated functions,
select Menu > Tools > Calendar. The calendar for
the current month is displayed. Use the navigation
keys to navigate across months.
2. Select Option to view the list of options available.
• View day: You can view the list of events for the day.
• View week: You can view the list of events for the
week.
• New event: You can enter a new event.
• Go to date: You can go to a particular date and view
the events for that date.
• Advanced: You can nd any event, delete all events
or check for reminders.
Edit Events
Select Menu > Tools > Calendar > Option > View day.
Select the event. Select Option > Edit. Make the changes.
Select Save.
Delete Events
Select Menu > Tools > Calendar > Option > View day.
Select the event. Select Option > Delete. Select OK.
54
Tools
Calculator
The calculator in this phone is designed to perform simple
mathematical calculations.
1. Select Menu > Tools > Calculator.
2. To enter the numbers, press the numeric keys.
3. To use mathematical operators use the navigation
keys.
Navigation Key Operation
Up + (Addition)
Down - (Subtraction)
Left / (Division)
Right * (Multiplication)
4. After performing the calculations, press the menu
key for the nal result.
5. Select Option to display the following options.
Option Function
Calculate Performing calculations
Percentage Percentage calculations
Modular Modular division
MC Clears number from memory
MR Reads the number from memory
MS Stores the entered number in
memory
M+ Adds a number to the number in
memory and stores the result in
memory
This phone accepts numbers up to a
maximum of 9 digits per entry.
Voice recorder
Select Menu > Tools > Voice recorder.
1. To record an audio le, select Option > New
episode.
2. To temporarily stop the recording, select Pause.
3. To continue with the recording, select Resume.
4. To end the recording, select Stop.
5. To select the storage location of the recorded le,
select Option > Select memory > Phone memory
or Memory card.
The recorded audio le is stored under My les. For more
information refer “Managing Your Files” on page 67.
Audio Playback
The user can do instant playback of the recorded audio
within the voice recorder. To listen to an recorded audio
le, select Menu > My files > Sounds. Select the le.
55
Tools
Stopwatch
Select Menu > Tools > Stopwatch.
1. To trigger the timer, select Start. The counter starts
running.
2. To temporarily stop the counter, select Pause.
3. To resume running the counter, select Go.
4. To stop the counter, select Stop.
Unit Converter
You can convert one type of physical units to another
type. Select Menu > Tools > Unit converter.
1. Select the type of physical unit. Use the Right or Left
navigation keys to scroll. For example, Temperature.
2. Scroll down and select the Unit 1 for Temperature, for
example, Fahrenheit.
3. Scroll down and enter the amount for Fahrenheit in
Amount 1, for example, 80.
4. Scroll down and select the Unit 2 for Temperature, for
example, Celsius.
5. The Temperature in Celsius is displayed in Amount 2.
Countdown Timer
This function is helpful when you need to be reminded of a
specic event or you want to time a particular task.
1. Select Menu > Tools > Countdown.
2. Specify the time for the reminder in terms of hours
and minutes. The maximum time you can set is 23
hours, 59 minutes and 59 minutes (23:59:59) and the
minimum is one second (00:00:01).
3. When the countdown is completed, the alarm rings.
GPS
The Global Positioning System (GPS) is a Global
Navigation Satellite System. It uses satellites that transmit
precise microwave signals, which enable GPS receivers to
determine their current location and time.
1. To enable GPS, select Menu > Tools > GPS > GPS
> On.
2. To set the time interval to receive the current location
and time, select Menu > Tools > GPS > Frequency
> select the time.
3. To enter the IP address of the instant x server from
which the related le will be received, select Menu
> Tools > GPS > Instant fix server > Instant fix
server > enter the IP address > Save.
4. To set the time interval to receive the le from the
server, select Menu > Tools > GPS > Instant fix
server > Frequency. Select the time.
56
Tools
USB function
You can transfer and synchronize data between the
XP3.20 phone and your computer using either USB drive
or PC Sync. Select Menu > Tools > USB Function > USB
Drive OR PC Sync.
If you select USB drive, the SD Card should
be present in the phone and the phone
should be connected to the computer via
USB cable. The SD card will be dispalyed as
a separate drive in the computer.
Select PC Sync if you want to use the PC
Tools software on your computer to transfer
data.
57
FM Radio
FM Radio
The FM radio is built-in and
offers instant and easy access
to FM radio channels in your
phone. A wired headset must be
attached to the phone, as the
wire works as an antenna for the
radio. You can then listen to
the radio via the wired headset.
Select Menu > Applications > FM Radio. The radio starts
playing. Select Option to display the following options.
• Preset station: You can view the radio stations that
have already been saved. Select a radio station to
play.
• Search and save: You can automatically save the
radio channels.
• Off: You can switch off the radio.
• Handsfree: To play FM radio in the phone speaker,
select Option > Handsfree > On.
• Play in background: You can play the radio in
background. An icon at the bottom half of the screen
indicates that radio is playing in background.
58
Camera
Camera
The Sonim XP3.20 phone provides a 2 MP (megapixel)
camera. You can use the camera to take pictures. The
pictures can then be saved in your phone.
Select Menu > Camera OR press the camera key. The
camera is switched on. Select the menu key to shoot the
picture. A message appears Save photo? Select Yes to
save. The picture is saved in Menu > My files > Pictures.
After shooting is complete, select Option to display the
following options:
• Send: You can send the picture to a phone number
via Bluetooth.
• Delete: You can delete the selected le.
• Capture: You can capture a new picture.
• Set as contact picture: You can set the captured
picture as the picture against a contact.
• Set as wallpaper: You can set the captured picture
as the phone screen wallpaper.
Camera Options
To view the camera options, select Menu > Camera >
Option. The following options are displayed:
• Picture resolution: Select the picture resolution
from the following options: 1600*1200, 1280*1024,
1024*768, 640*480 or 176*220.
• Picture quality: Select the picture quality from the
following options: Superne, Fine or Normal.
• View picture: This option takes the user to the
Pictures folder.
• Camera Mode: You can set the color effects,
self-timer and multishot.
• The color effects available are black and white,
sepia and blue.
• If you switch on self-timer, the picture will be
shot only after a certain amount of time after
pressing the menu key.
• If you switch on multishot, you can shoot three
pictures with a single press of the menu key.
• Flash: Select On to turn on the flash or select Off to
turn off the flash.
• Advanced: The advanced options available are.
• Storage location: You can set the default
location of pictures as Phone memory OR
Memory card.
• Default name: You can set the default name of
the picture.
• Frequency: You can set the frequency of the
power as 50 Hz OR 60 Hz.
• Full screen preview: You can turn on the full
screen preview during shooting.
59
Flashlight
Flashlight
You can use the camera ash as a ashlight. To turn on
the ash, press and hold (long press) the lowest button on
the right side of the phone. Press and hold (long press)
the button again to turn off the ash. The ashlight can be
turned ON/OFF from the following screens:
• Idle screen.
• Keypad locked screen.
• Main menu screen.
• GSM call screen.
• Menu screens: Contacts, Messages, Create
message, Settings, Call list and My les.
• Tools screen.
• Without SIM screen and when keypad locked without
SIM screen.
The ashlight does not works if you are
using WAP or any Java applications.
60
Sonim XperienceTM
Sonim XperienceTM
Sonim XperienceTM enables the user of the Sonim XP 3.20
phone to access a variety of information.
This application uses data network service
provided by the operator. The operator
may collect service charges depending on
the contract with the operator.
Starting With Sonim XperienceTM
To access the application, select Menu > Applications
> Sonim Xperience > press Agree for the Sonim
Agreement.
The screen Sonim Agreement appears
only once. Once you accept the
agreement, this option will not appear
again.
Settings
To provide information to the user in a familiar format, the
user can congure the units to be displayed. The behavior
of the applications may also be tuned according to user
requirement.
Network Settings
The following information can be set via network settings.
• To enable or disable GPS (if GPS is disabled, the
user should enter a default location to be used for
current location).
• The data network prole to be used by Sonim
Xperience on the phone.
• To enable or disable data network usage when
roaming (only GPS information is available when data
network is not available).
To enable GPS, select Menu > Applications > Sonim
Xperience > Options > Settings > Network settings >
GPS > Enable.
To select the data network prole 4, select Menu >
Applications > Sonim Xperience > Options > Settings >
Network settings > Network account > Profile 4.
To enable data network usage while roaming, select Menu
> Applications > Sonim Xperience > Options > Settings
> Network settings > Allow while roaming > Enable.
Refer “Configuration of APN (Access Point Name) for
Opera Mini” on page 49 for setting the APN. Use Profile 4.
In the Network settings, the Attach GPRS
settings should be Always attached for
Sonim XperienceTM to work consistently.
Check that the icon on the phone is
green before accessing Sonim XperienceTM.
Display Settings
The following information can be set via display settings.
• The preferred format can be set as image or text.
• The distance unit can be set as miles, kilometers or
nautical miles.
61
Sonim XperienceTM
• The temperature unit can be set as fahrenheit or
celsius.
• The coordinate unit can be set as decimal or degree-
minute-second.
To set the preferred format, select Menu > Applications
> Sonim Xperience > Options > Settings > Display
settings > Preferred format > Image OR Text.
Only the reports that support image format
will be displayed as images. Other reports will
be displayed as text even if image is set as
the preferred format.
A green arrow at the top or bottom of a
report in image format indicates there is a
previous or next page, which can be viewed
by pressing the up or down navigation key
respectively.
To set the distance unit, select Menu > Applications
> Sonim Xperience > Options > Settings > Display
settings > Distance units > Miles OR Kilometers OR
Nautical miles.
To set the temperature unit, select Menu > Applications
> Sonim Xperience > Options > Settings > Display
settings > Temperature units > Fahrenheit OR Celsius.
To set the coordinate unit, select Menu > Applications
> Sonim Xperience > Options > Settings > Display
settings > Coordinate units > Decimal OR Degree-
Minute-Second.
Wallpaper Settings
The following information can be set via wallpaper
settings.
• The GPS check interval.
• The distance threshold.
The current location of the phone is checked using the
GPS regularly based on the specied interval. If the phone
has moved beyond the specied distance threshold since
the last refresh of the wallpaper, it is refreshed again. The
units of the distance threshold is the same as the unit
specied for distance in the Display settings.
To set the GPS check interval, select Menu >
Applications > Sonim Xperience > Options > Settings >
Wallpaper settings > GPS check interval.
To set the distance threshold, select Menu > Applications
> Sonim Xperience > Options > Settings > Wallpaper
settings > Distance threshold.
Set Quick Access
You can set a quick access for Sonim XperienceTM. Select
Menu > Applications > Sonim Xperience > Options >
Set quick access.
The Set quick access option appears
only on selecting GPS information OR
the individual items within the Weather
reports folder.
Press and hold the easy call key on idle screen to start
Sonim XperienceTM on the screen that is set as quick
access.
62
Sonim XperienceTM
Wallpaper
The user can select one of the following dynamic
wallpapers:
• Current weather
• 4 hour forecast
• 3 day forecast
The wallpaper is updated periodically. The current
weather and 4 hour forecast wallpapers are updated
every 3 hours. The 3 day forecast wallpaper is updated
every day.
• To display the default wallpaper, select Menu >
Applications > Sonim Xperience > Options >
Wallpaper > Phone default.
• To display the current weather condition as
wallpaper, select Menu > Applications > Sonim
Xperience > Options > Wallpaper > Current
weather.
• To display the 4 hour forecast as wallpaper, select
Menu > Applications > Sonim Xperience > Options
> Wallpaper > 4 hour forecast.
• To display the 3 day forecast as wallpaper, select
Menu > Applications > Sonim Xperience > Options
> Wallpaper > 3 day forecast.
The wallpaper gets refreshed based on
Distance threshold and GPS check interval.
GPS Information
The following information is displayed from GPS:
• Latitude, longitude, altitude and accuracy.
• Speed and direction of movement.
• Current time in UTC.
• Position and signal strength of satellites within the
range.
To view the GPS information, select Menu > Applications
> Sonim Xperience > GPS Information. Select Satellite
to view satellite information.
Weather Report
Weather information can be obtained for the following
locations:
• Current location from GPS.
• A new location whose name or coordinates may be
entered. The name of a location can be the name of a
city or city followed by state or/and country. Different
elds have to be separated by comma. Coordinates
can be entered in decimal or degree:minute:second
format. You can use + or – or use N, S, E or W
in coordinates. Here are some examples of valid
location entries:
• San Mateo
• San Mateo, CA
• New Delhi, India
• 13,18
• 13N,18E
• 13:30:0,18:10:0
• 37.6,-122.3
63
Sonim XperienceTM
• A location that was queried in the recent past.
To view the weather reports, select Menu > Applications
> Sonim Xperience > Weather reports. Now select the
type of report and location for which the weather needs to
be displayed.
The location list contains the 6 recently
queried locations.
Current Weather
The following current weather conditions are displayed.
• Air temperature.
• Wind speed and direction.
• Cloud cover (in percentage).
• Relative humidity (in percentage).
• Barometric pressure.
• Weather summary (For example: partly cloudy).
• Weather icon is shown if image format is selected.
• Sunrise and sunset times.
• Phase of moon.
The following information is given if the location is within
200km of the coastline.
• Low tide and high tide times.
• Wave height and period.
To view the current weather information, follow these
steps.
• To view the weather information for the current
location, select Weather report > Current weather
> My location.
• To view weather information for a new location,
select Weather report > Current weather > New
location. Enter the new location. Select OK.
If GPS is disabled, the default location
congured is used as the current location.
4 hour Forecast
The following current weather conditions are displayed.
• Air temperature.
• Wind speed and direction.
• Cloud cover (in percentage).
• Relative humidity (in percentage).
• Barometric pressure.
• Weather summary (For example: partly cloudy).
• Weather icon is shown if image format is selected.
To view the 4 hour forecast, follow these steps.
• To view the 4 hour forecast for the current location,
select Weather report > 4 hour forecast > My
location.
• To view the 4 hour forecast for a new location, select
Weather report > 4 hour forecast > New location.
Enter the new location. Select OK.
64
Sonim XperienceTM
3 day Forecast
The following current weather conditions are displayed.
• Minimum and maximum air temperature.
• Maximum wind speed.
• Maximum probability of precipitation (in percentage).
• Maximum relative humidity (in percentage).
• Maximum barometric pressure.
• Weather summary is shown if text format is selected.
• Weather icon is shown if image format is selected.
To view the 3 day forecast, follow these steps.
• To view the 3 day forecast for the current location,
select Weather report > 3 day forecast > My
location.
• To view the 3 day forecast for a new location, select
Weather report > 3 day forecast > New location.
Enter the new location. Select OK.
3 day Detailed Forecast
The following current weather conditions are displayed.
• Minimum and maximum air temperature.
• Maximum wind speed.
• Maximum probability of precipitation (in percentage).
• Maximum relative humidity (in percentage).
• Maximum barometric pressure.
• Weather summary (For example: partly cloudy).
• Weather icon is shown if image format is selected.
• Sunrise and sunset times.
• Phase of moon.
The following information is given if the location is within
200km of the coastline.
• Low tide and high tide times.
• Maximum wave height and period.
To view the 3 day detailed forecast, follow these steps.
• To view the 3 day detailed forecast for the current
location, select Weather report > 3 day detailed
forecast > My location.
• To view the 3 day detailed forecast for a new
location, select Weather report > 3 day detailed
forecast > New location. Enter the new location.
Select OK.
Weather at Stations
The following current weather conditions are reported
from each weather station within 100km of the requested
location. The reports from the 10 nearest weather stations
that are sending information to our meteorological network
are displayed.
• Station id, location and type.
• Latitude and longitude of the station.
• Air temperature.
• Wind speed and direction.
• Cloud cover (in percentage).
• Relative humidity (in percentage).
• Barometric pressure.
65
Sonim XperienceTM
• Weather summary (For example: partly cloudy).
• Weather icon is shown if image format is selected.
• Sunrise and sunset times.
The following information is given if the location is within
200km of coastline
• Low tide and high tide times.
• Wave height and period.
To view the weather at stations, follow these steps.
• To view the weather at stations for the current
location, select Weather report > Weather at
stations > My location.
• To view the weather at stations for a new location,
select Weather report > Weather at stations > New
location. Enter the new location. Select OK.
Lightning Information
A list of locations (up to 10), within 100 km of the
requested location, which recently observed lightning
strikes in the past 30 minutes is displayed.
To view the lightning information, follow these steps.
• To view the lightning information for the current
location, select Weather report > Lightning
information > My location.
• To view the lightning information for a new location,
select Weather report > Lightning information >
New location. Enter the new location. Select OK.
Marine Bulletin
Any marine warnings (in English text), within 100km of the
requested location, in effect for the closest marine zone is
displayed.
To view the marine bulletin, follow these steps.
• To view the marine bulletin for the current location,
select Weather report > Marine bulletin > My
location.
• To view the marine bulletin for a new location, select
Weather report > Lightning information > New
location. Enter the new location. Select OK.
Help
To view the help for any item, highlight the item via
Menu > Applications > Sonim Xperience OR Menu >
Applications > Sonim Xperience > Weather reports.
Then, select Options > Help.
About
To view the Sonim XperienceTM version, select Menu >
Applications > Sonim Xperience > Options > About.
Exit
To view the Sonim XperienceTM version, select Menu >
Applications > Sonim Xperience > Options > Exit.
66
Micro SD Card
Micro SD (secure digital) Card
In XP3.20 phone, you can insert a removable Micro
SD Card to increase the storage capacity. This card is
inserted into the slot inside the phone. You can perform
the following functions on the SD card.
• Formatting of the SD card.
• Viewing memory details such as free space, used
space and total space.
• Setting the images in the SD card as wallpaper.
• Setting the audio les in the SD card as ringtones.
Inserting Micro SD Card Into the Phone
1. Ensure the phone is switched off.
2. Lift the battery cover and remove the battery. For
instructions refer Inserting the Battery.
3. Lift the silver clip over the designated slot located at
the top left end of the phone.
4. Place the SD card in the designated slot and close
the silver clip.
5. Replace the battery and the cover. Turn the battery
cover screws clockwise to lock the battery cover.
When the XP3.20 phone is connected to
a computer using USB, the Micro SD card
is displayed as a separate drive in the
computer.
67
Managing Your Files
Managing Your Files
Using the My files menu, you can store and manage
audio les, picture les, .jar les and .txt les. You can
preview the les, view their details and delete les. The
internal storage capacity is approximately 25 MB.
1. To view your les select Menu > My files.
2. Scroll to a category and select either Pictures OR
Sounds OR Others and select OK.
3. For pictures, select the pictures that you would have
downloaded via WAP or Bluetooth. For sounds select
the audio files that you would have downloaded or
recorded.
4. Scroll to le from the displayed list and select Option
to display further options.
For a picture le, the following options are present.
Option Function
View You can view the picture in full
screen mode.
Send You can send the picture to a phone
number via Bluetooth.
Advanced You can cut or copy the picture
to another location. You can also
rename the picture or view the
details.
Use You can use the picture as contact
id or wallpaper.
Delete You can delete the picture.
Slide show You can view the pictures as a slide
show.
Change view You can view the pictures as a list or
as a grid.
Sort You can sort the pictures by name,
date or size.
Select multiple You can select all the pictures or
select one by one.
For an audio le, the following options are present.
Option Function
Play You can play the audio le.
Send You can send the audio le to a
phone number via Bluetooth.
Advanced You can cut or copy the audio le
to another location. You can also
rename the audio le or view the
details.
Use You can use the audio le as
contact id or ringtone.
Delete You can delete the audio le.
Change view You can view the audio les as a
list or as a grid.
Sort You can sort the audio les by
name, date or size.
Select multiple You can select all the audio les
or select one by one.
68
Wired Headset
Wired Headset
A wired headset is supplied along with the XP3.20 phone.
This wired headset enables you to talk on the phone
without holding the phone. The wired headset also acts as
an antenna for FM radio.
During Calls
1. To accept a call, press headset button to accept a
call.
2. To end a call, press and hold the headset button.
3. To record the conversation, press the headset button
during a call.
69
End User License Agreement
This wireless device, (the “Device”) contains software
owned by Sonim Technologies, Inc. (“Sonim”) and its third
party suppliers and licensors (collectively, the “Software”).
As user of this Device, Sonim grants you a non-exclusive,
non-transferable, non-assignable license to use the
software solely in conjunction with the Device on which
it is installed and/or delivered with. Nothing herein shall
be construed as a sale of the Software to a user of this
Device.
You shall not reproduce, modify, distribute, reverse
engineer, decompile, otherwise alter or use any other
means to discover the source code of the Software or any
component of the Software. For avoidance of doubt, you
are at all times entitled to transfer all rights and obligations
to the Software to a third party, solely together with the
Device with which you received the Software, provided
always that such third party agrees in writing to be bound
by these rules.
You are granted this license for a term of the useful life of
this Device. You can terminate this license by transferring
all your rights to the Device on which you have received
the Software to a third party in writing. If you fail to
comply with any of the terms and conditions set out in
this license, it will terminate with immediate effect Sonim
and its third party suppliers and licensors are the sole and
exclusive owner of and retain all rights, title and interest
in and to the Software. Sonim, and, to the extent that the
Software contains material or code of a third party, such
third party, shall be entitled third party beneciaries of
these terms. The validity, construction and performance
of this license shall be governed by the laws of Delaware,
United States.
Unconditional 3 year Guarantee
Sonim provides this Unconditional three year Guarantee
for your mobile phone (hereinafter referred to as Product”).
Should your Product need guaranty service, please return
it to the dealer from whom it was purchased, or contact
Sonim Customer Care at: support@sonimtech.com.
Our Guarantee
Subject to the conditions of this Unlimited 3 year
Guarantee Sonim warrants this product to be free from
major defects in design, material and workmanship at
the time of its original purchase by a consumer, and for a
subsequent period of Three (3) years.
What We Will Do
If during the guarantee period, this product fails to operate
under normal use and service, due to defects in design,
material or workmanship, Sonim’s authorised distributors
or service partners, in the country/region where you
purchased the product, will replace with the same or
better model in the same or better condition. Sonim and
its service partners reserve the right to charge a handling
fee if a returned Product is found not to be under warranty
according to the conditions below.
Please note that some of your personal settings,
downloads or other information may be lost when your
Sonim Product is repaired or replaced. Sonim does not
take any responsibility for any lost information of any kind
and will not reimburse you for any such loss. You should
always make backup copies of all the information stored
on your Sonim Product such as downloads, calendar and
contacts before handing in your Sonim Product for repair
or replacement.
70
Phone Care
The Sonim XP3.20 is designated class IP57 for dust and
water protection, according to the IEC Ingress Protection
(IP) Standard 60529. This means that the phone is dust
protected and can be submerged into 1.0m deep water for
up to 30 minutes. Immersion in deeper water can damage
it and must be avoided. The phone is not water-proof or
water resistant during charging, use of a plug-in headset,
or any other use when the system connector cover on the
bottom of the phone is not tightly enclosed.
The Sonim XP3.20 is solid and built for heavy duty use.
Its design protects against disassembly or mechanical
damage when subjected to forces equal to free fall from
the high of an average adult. Subjecting the phone to
stronger impact and forces can damage it and must be
avoided.
Conditions
1. The warranty is valid only if the original proof of
purchase issued to the original purchaser by a Sonim
authorised dealer, specifying the date of purchase
and serial number for this Product, is presented
with the Product to be repaired or replaced. Sonim
reserves the right to refuse warranty service if this
information has been removed or changed after the
original purchase of the Product from the dealer.
2. If Sonim repairs or replaces the Product, the repaired
or replaced Product shall be warranted for the
remaining time of the original warranty period or for
ninety (90) days from the date of repair, whichever is
longer. Repair or replacement may involve the use of
functionally equivalent reconditioned units. Replaced
parts or components will become the property of
Sonim.
3. This warranty does not cover any failure of the
Product due to normal wear and tear, or due to
misuse, including but not limited to use in other than
the normal and customary manner, in accordance
with the Sonim instructions for use and maintenance
of the Product. Nor does this warranty cover any
failure of the Product due to accident, software or
hardware modication or adjustment, acts of God
or damage resulting from liquid interacting with the
product beyond what is described as acceptable
in the user guide for the product. A rechargeable
battery can be charged and discharged hundreds of
times. However, it will eventually wear out - this is
not a defect. When the talk-time or standby time is
noticeably shorter, it is time to replace your battery.
Sonim recommends that you use only batteries and
chargers approved by Sonim. Minor variations in
display brightness and colour may occur between
phones. There may be tiny bright or dark dots on the
display. These are called defective pixels and occur
when individual dots have malfunctioned and can
not be adjusted. Several defective pixels are deemed
acceptable.
4. This warranty does not cover Product failures caused
by installations, modications, or repair or opening
of the Product performed by a non-Sonim authorised
person. Tampering with any of the seals on the
Product will void the warranty.
5. The warranty does not cover Product failures which
have been caused by use of accessories or other
peripheral devices which are not Sonim branded
original accessories intended for use with the
Product.
End User License Agreement
71
6. THERE ARE NO EXPRESS WARRANTIES,
WHETHER WRITTEN OR ORAL, OTHER THAN
THIS PRINTED LIMITED WARRANTY. ALL IMPLIED
WARRANTIES, INCLUDING WITHOUT LIMITATION
THE IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO THE DURATION OF THIS LIMITED
WARRANTY. IN NO EVENT SHALL SONIM OR ITS
LICENSORS BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY NATURE
WHATSOEVER, INCLUDING BUT NOT LIMITED
TO LOST PROFITS OR COMMERCIAL LOSS; TO
THE FULL EXTENT THOSE DAMAGES CAN BE
DISCLAIMED BY LAW. DURATION OF THIS LIMITED
WARRANTY. IN NO EVENT SHALL SONIM OR ITS
LICENSORS BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY NATURE
WHATSOEVER, INCLUDING BUT NOT LIMITED
TO LOST PROFITS OR COMMERCIAL LOSS; TO
THE FULL EXTENT THOSE DAMAGES CAN BE
DISCLAIMED BY LAW.
End User License Agreement
72
Declaration of Conformity
WARNING: Changes or modications made to
this equipment not expressly approved by Sonim
Technologies, Inc. for compliance could void the user’s
authority to operate the equipment.
FCC Statement
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
73
Declaration of Conformity
Sonim Technologies Inc, declares that the mobile phone
Sonim XP3.20™ is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC.
74
A
Access Point Name (APN) 47, 48
Alarm clock 49
Alpha-numeric 18
Audio
Playback 52
Recorder 52
Auto-power ON/OFF 30
B
Bar calls
Cancel 35
Status 35
Battery
Alert 13
Bars 13
Charge 13, 18
Usage 12
Bluetooth
Activate 49
Deactivate 49
Headset 50
Pair devices 50
Receive data 51
Send data 50
Settings 49
Bookmarks 46
C
Calculator 52
Calendar 51
Call accept/Send key 17
Call cost details 37
Call list 33
Calls on hold/waiting 36
Camera 55
Flash 56
Options 56
Car mode 28
Connectivity settings 31
Contacts 38
Add 38
Delete 40
Group 38
Move or copy 40
Send 39
Send message 38
Count-down timer 53
Create messages 42
D
Display settings 30
F
Filter calls 36
Firewall
Black list 30
White list 30
Fixed number dialing 34
Flashlight 57
Flight mode 28
FM radio 55
Forward calls 35
G
General settings 28
GPRS 36
GPS 53
GSM
Dial 33
Send phone number 33
H
Handsfree dial 33
Hardcoded shortcuts 44
Home mode 28
Homepage 46
I
International clock
Daylight saving time 29
Local settings 29
International number dialling 33
Index
75
K
Keypad
Accept/Send 20
End call 20
Function keys 15
LSK/RSK 20
Navigation keys 17, 21
Power On/Off 20
XP3.2 17
L
Left Selection Key 17
M
Managing your les 65
Meeting mode 28
Memory 41
Memory status 30
Menu
Call list 24, 33
Key 18, 20
Main 24
Messages 24, 41
My les 24, 65
Phone book 24, 38
Quick settings 24
Settings 24, 28
SIM toolkit 24, 44
Tools 24, 49
WAP 24, 46
Messages
Delete 43
Dial sender 43
Forward 43
Inbox 43
Predened SMS 43
Save sender’s number 43
Sent 43
SMS memory 44
Unsent 43
Write 42
Message settings 41
Memory 41
Reply path 41
Service number 41
Signature 41
Status report 41
Validity period 41
Micro SD card 64
Insert 64
My les 65
O
Opera Mini 47, 48
Access Point Name (APN) 47, 48
Language Selection 47
Network account 47
Organizer
Delete entries 50
Edit entries 50
Outdoor mode 28
P
Pair devices 50
Personal mode 28
Phone languages 29
Predened message 44
Predened SMS 43
Proles 28
Car 28
Flight 28
Home 28
Meeting 28
Outdoor 28
Personal 28
Silent 28
R
Recording a call 37
S
Security settings 29
Silent mode 28
SMS memory 44
Sonim xperience
GPS information 60
Quick access 59
Settings 58
Weather information 60
Sonim Xperience 58
Sound settings 31
Speed dial 34
Standby mode duration 18
Index
76
Index
Stopwatch 53
T
Text input mode
Conventional 41
Predictive 41
Themes 30
Tools
Alarm clock 49
Audio playback 52
Audio recorder 52
Bluetooth 49
Calculator 52
Calendar 51
Camera 55
Count-down timer 53
Flashlight 57
FM radio 55
GPS 53
opera mini 47, 48
Stopwatch 53
Unit converter 53
USB function 54
U
Unit converter 53
USB function 54
V
Voicemail 17
W
WAP 46
Address 46
Bookmarks 46
Cache 46
Homepage 46
Push inbox 46
Settings 46
Weather forecast 60
Write Messages 42
