Ford Solenoid Strategies

Welcome to the

6F35 • 6F50 • 6F55 • 6R80 • 6R140

WELCOME

•Connections

•Handout

•Questions

•steve.garrett@sonnax.com

•Sonnax Tech Resources available free of

charge at www.sonnax.com

•Call for Tech Assistance: 1-800-843-2600

Vehicle Certification Code

Axle

Ratio

6R140

2 = TR4050

P = 6R140 Gas

T = 5R110

W = 6R140 Diesel

6 = 6R80

Q = 4R75

5 = ZF S6-650

7 = ZF M6 HD-Diesel

B = 5R110W

Transmission ID

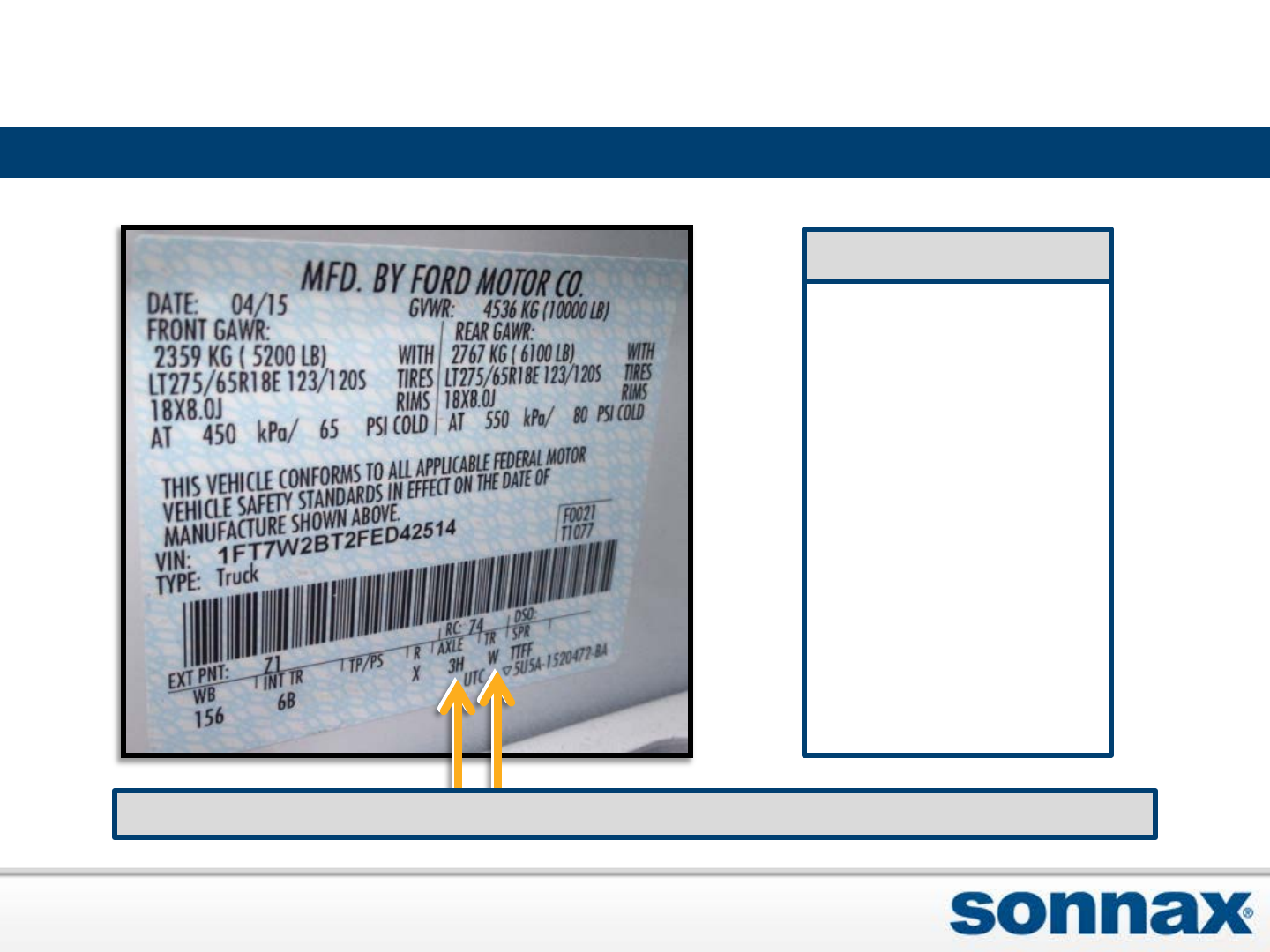

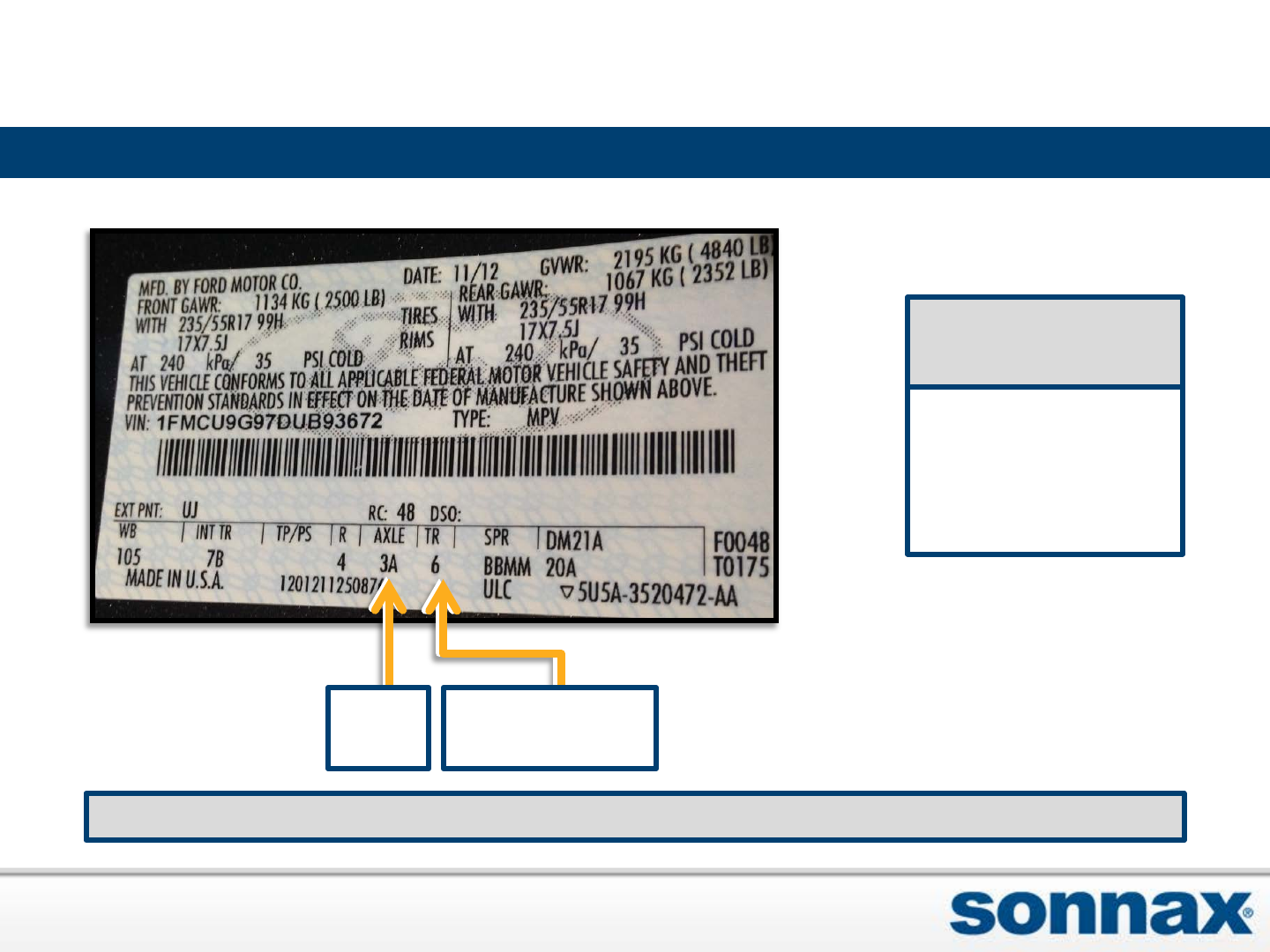

Vehicle Certification Code (VCC) label located driver’s side door, “B” Pillar.

6F35

Vehicle Certification Code

6 = 6F35

C = 6F55

J = 6F50

Transmission

Type ID

Vehicle Certification Code (VCC) label located on driver’s side door, “B” Pillar.

Axle

Ratio Transmission

Type ID

Solenoid Strategy

•Ford measures the flow rate for all of their solenoids used in the 6F30,

6F50, 6R80 and 6R140 applications.

• Transmission calibration software is then loaded, taking into consideration

the individual solenoid flow characteristics and their position in the valve

body.

•When a valve body is replaced it is likely that the solenoid strategy will

change, so Ford will include a tag which lists a new solenoid strategy code

and a valve body ID code.

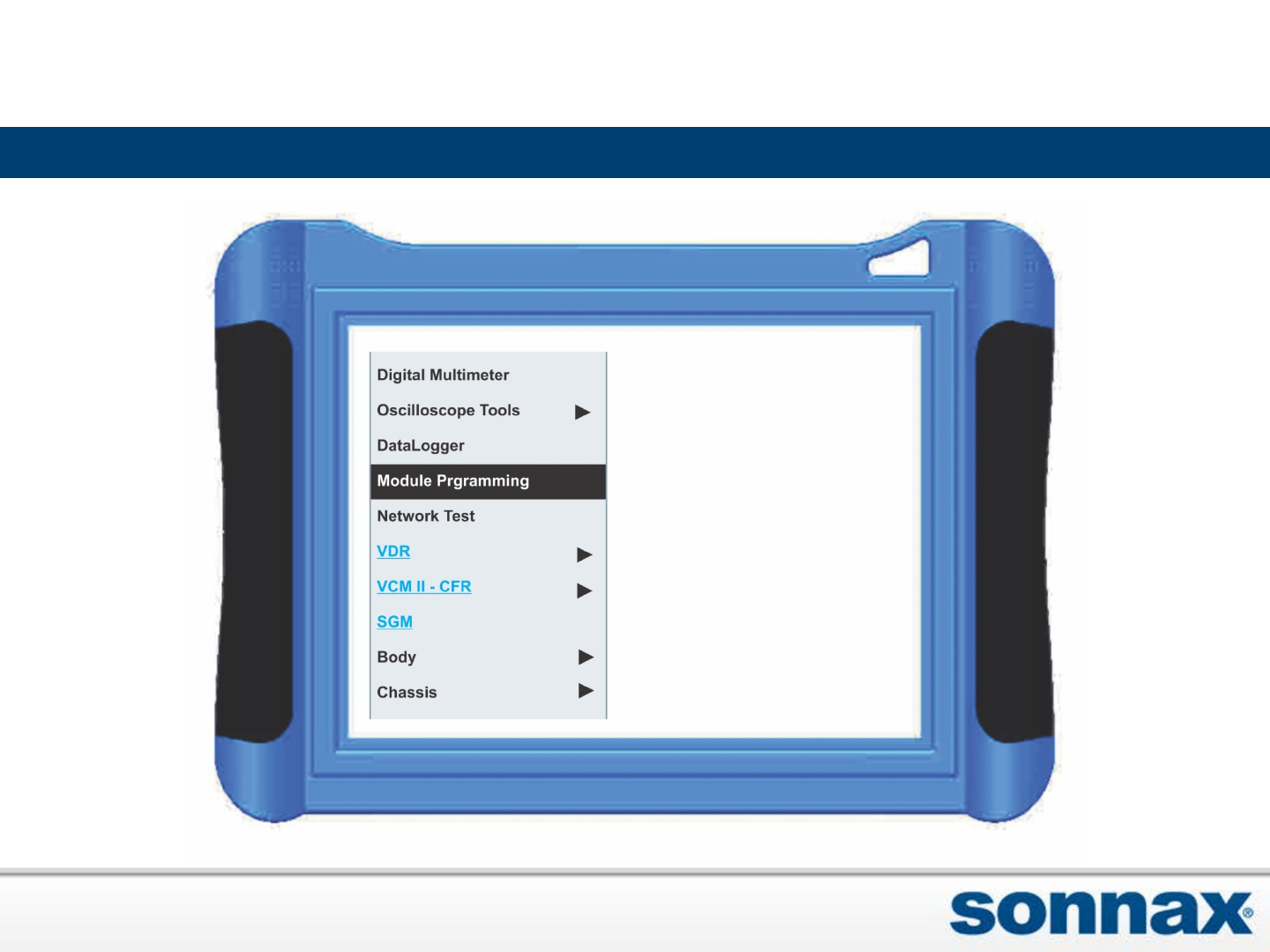

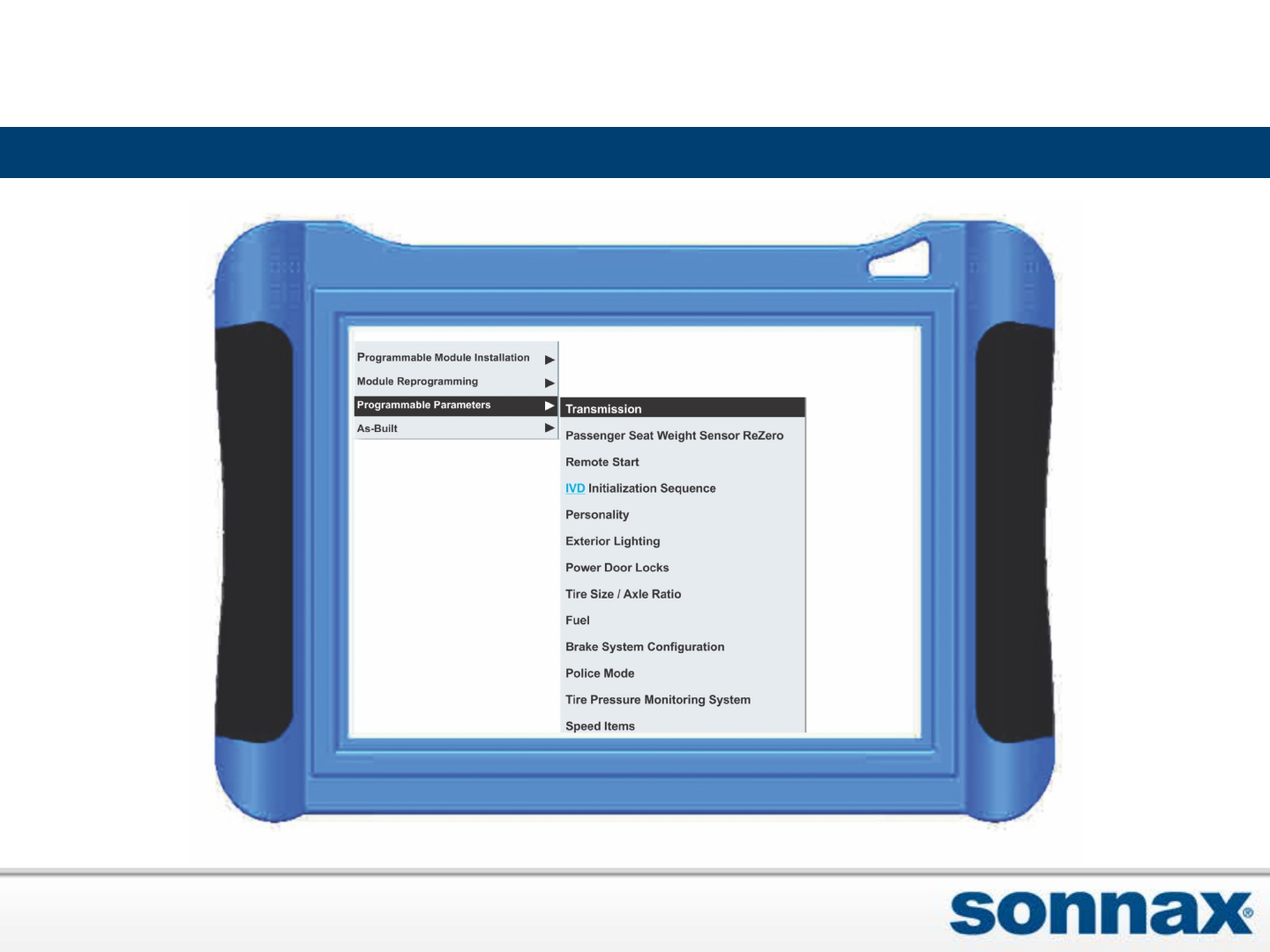

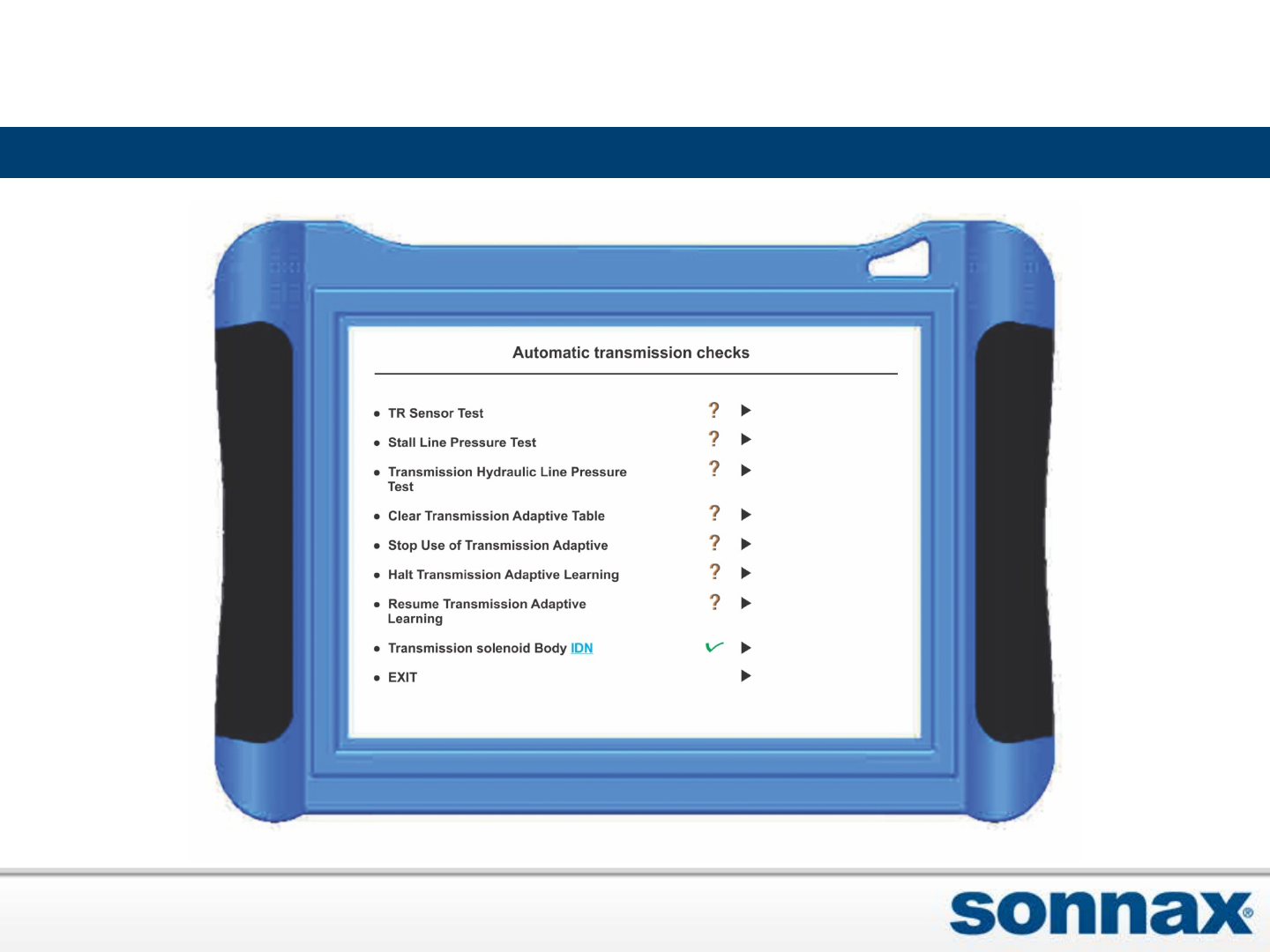

•By using your scan tool, update the transmission controller software to

match the new valve body and its solenoid configuration.

What is it? Who should be concerned?

NOTICE: If the solenoid body information does not match the module

information, transmission damage or drivability concerns can occur.

- Ford Motor Company

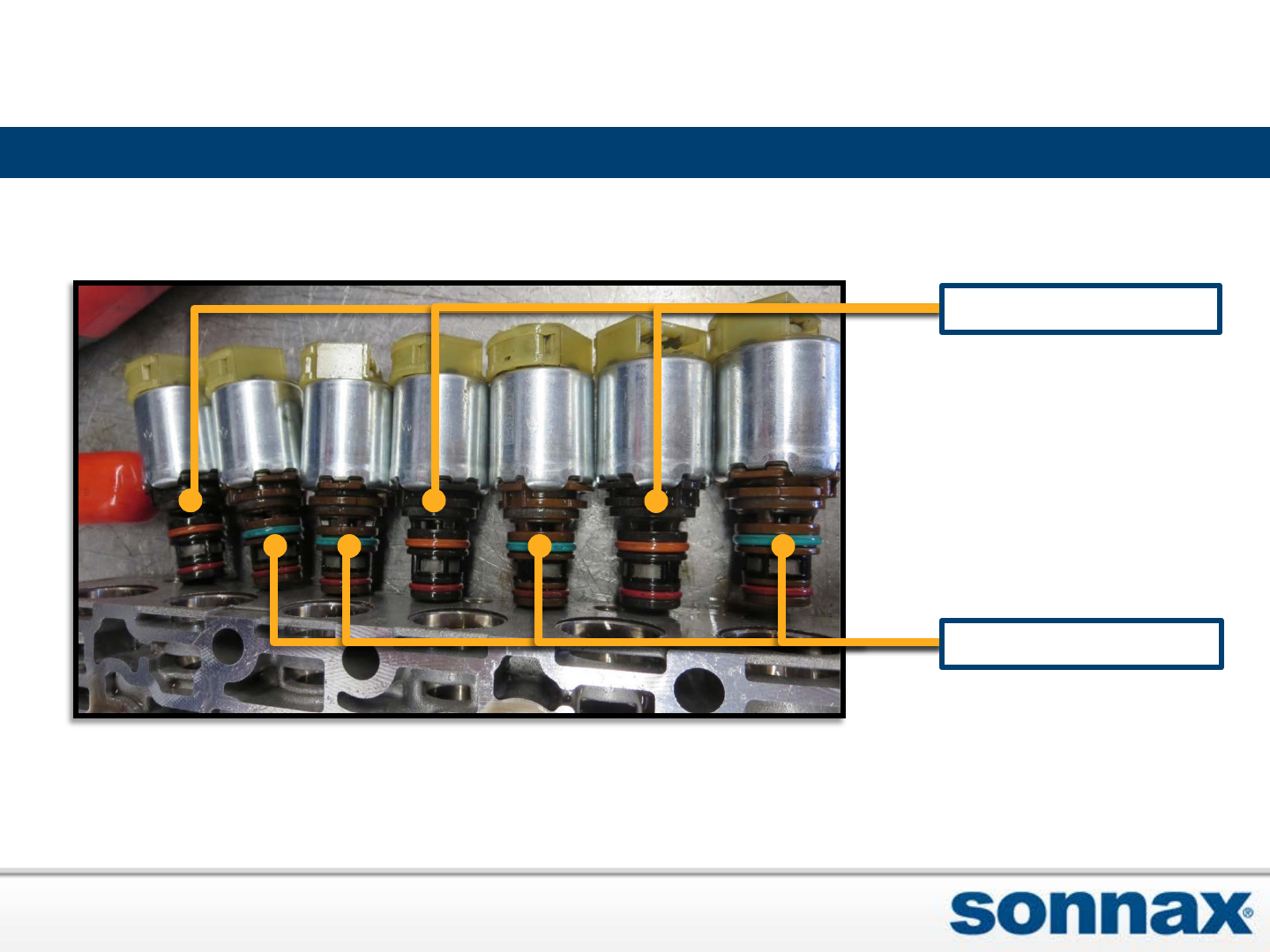

Normally High & Low Solenoid Position

6R140

Black Plastic (NH)

Brown Plastic (NL)

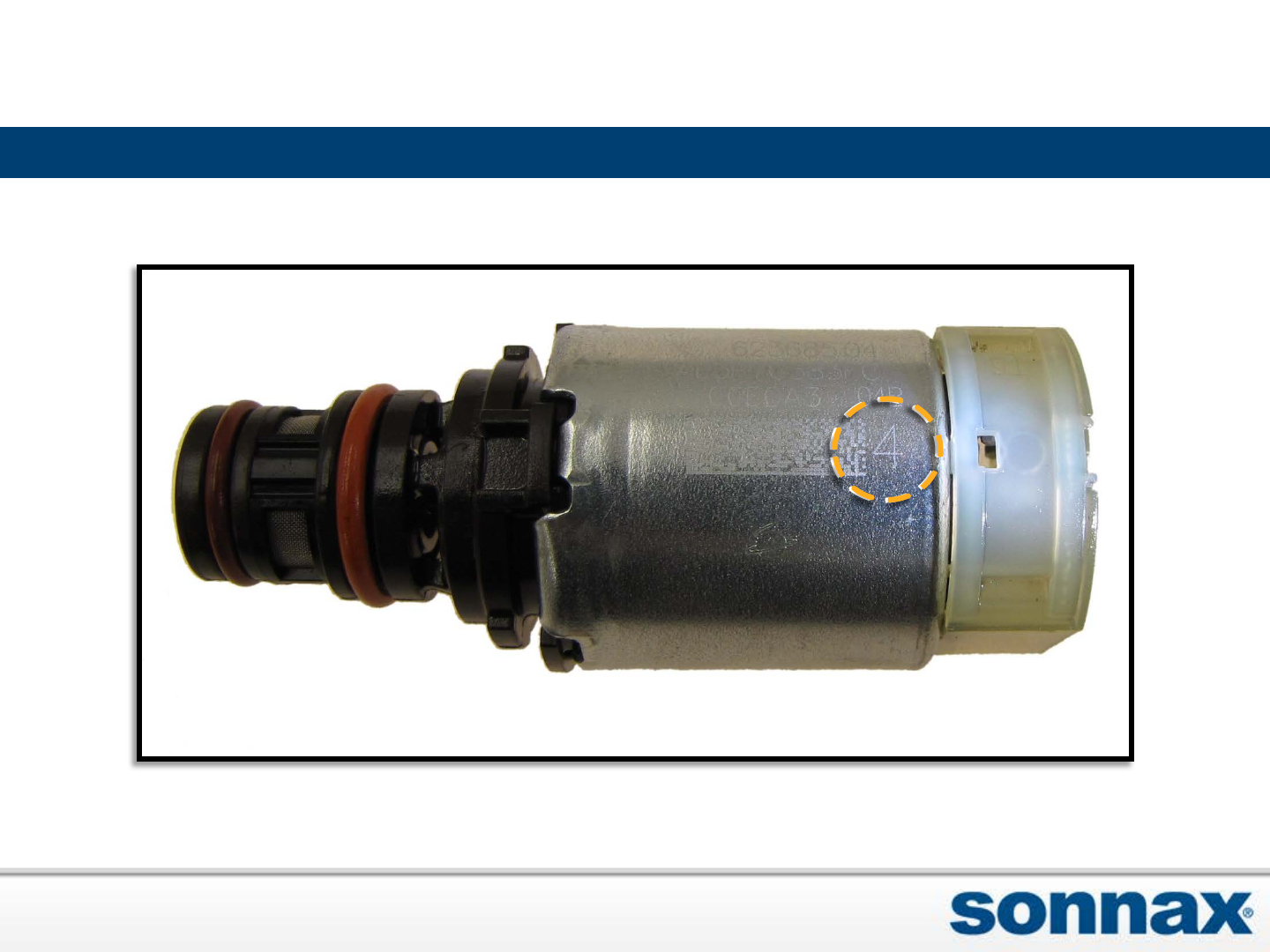

Solenoid Flow Rates

Number Stamping

Remanufactured Valve Bodies

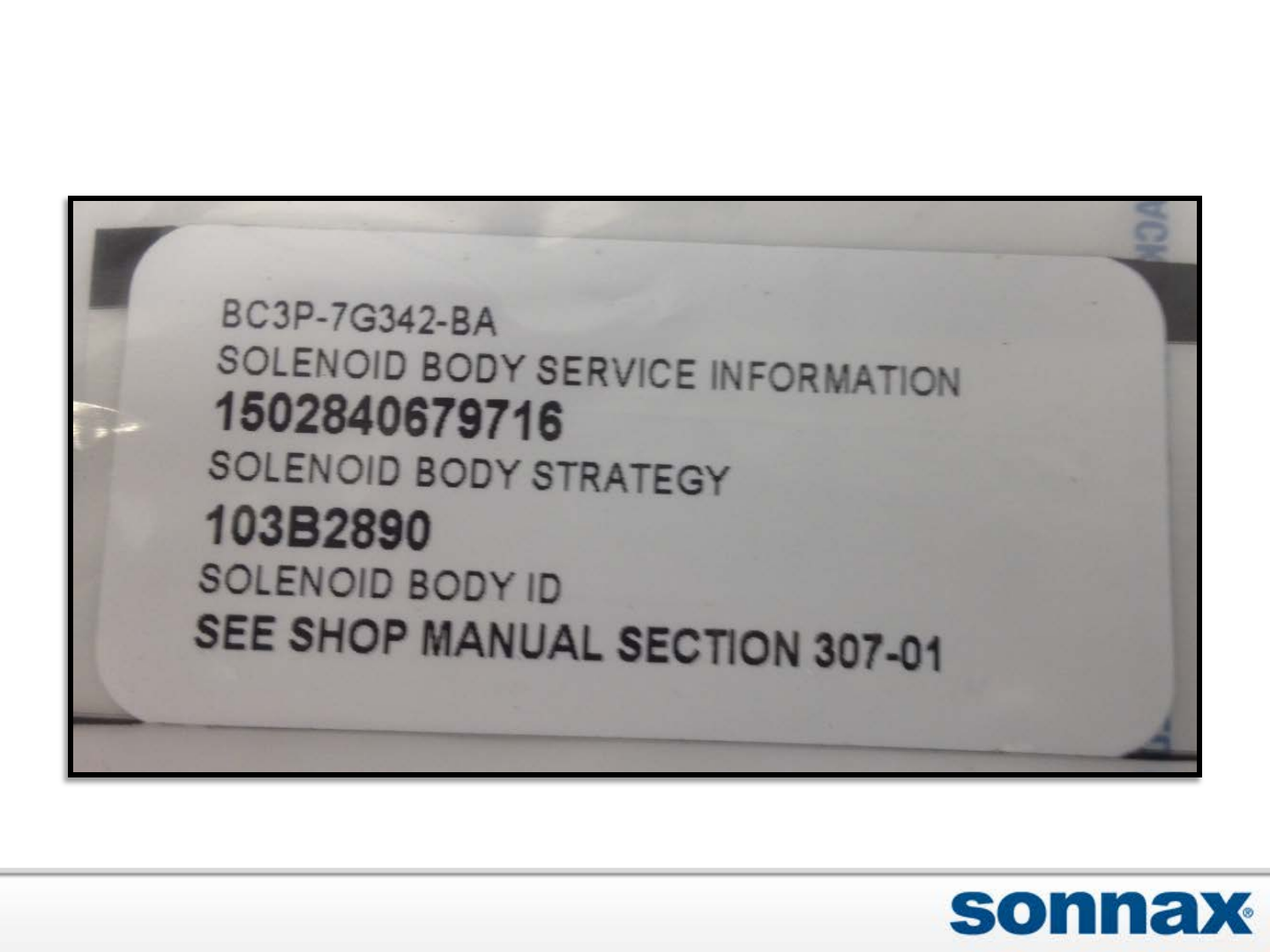

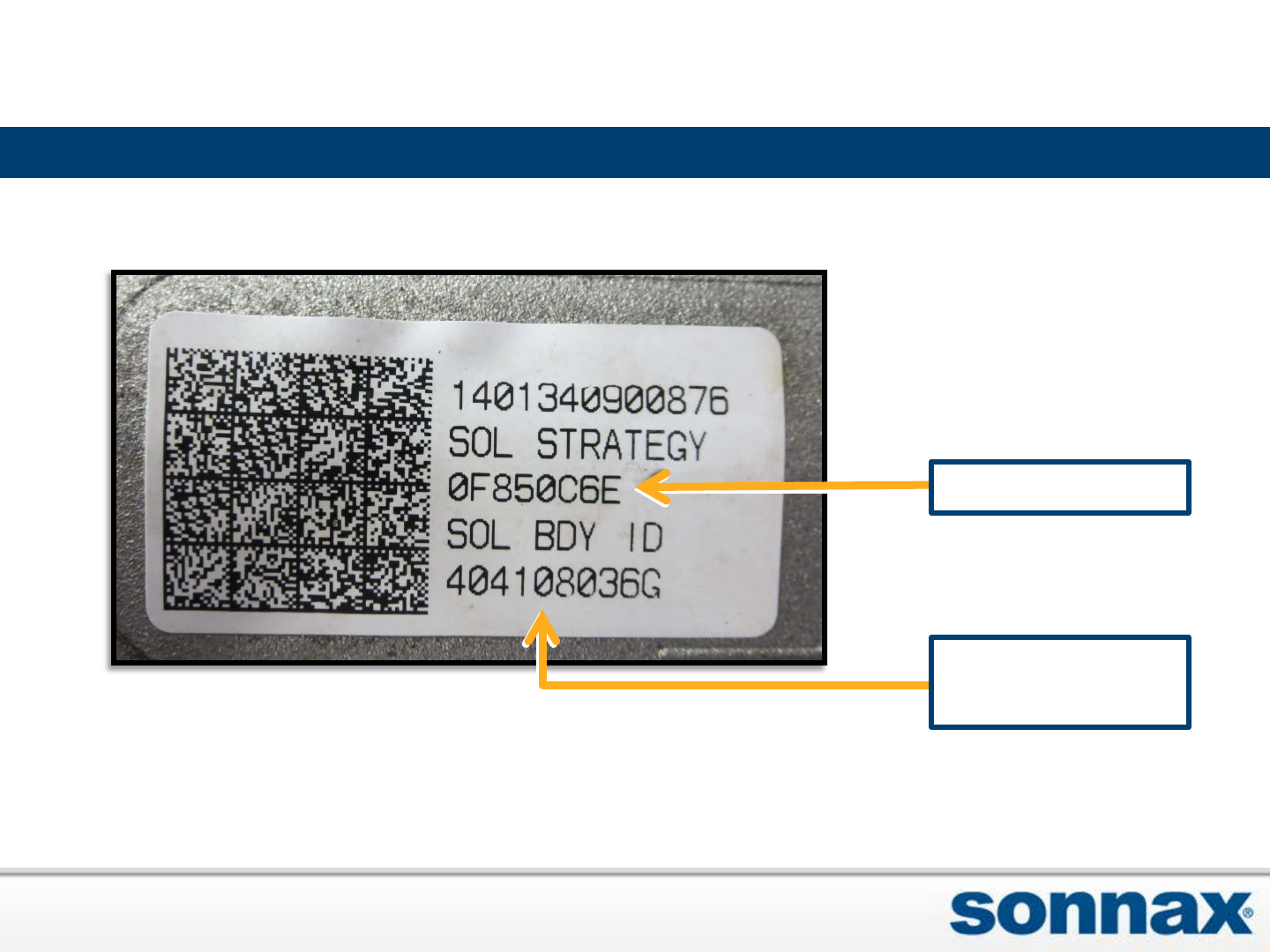

Solenoid Strategy Tag Codes

Valve Body Tags

6F30/35

Solenoid Body

ID Code

Strategy Code

Solenoid Strategy Tag Codes

Valve Body Tags

6F50/55

Solenoid Body

ID Code

Strategy Code

Solenoid Strategy Tag Codes

Valve Body Tags

6R80, 6R140

Strategy Code

Solenoid Body

ID Code

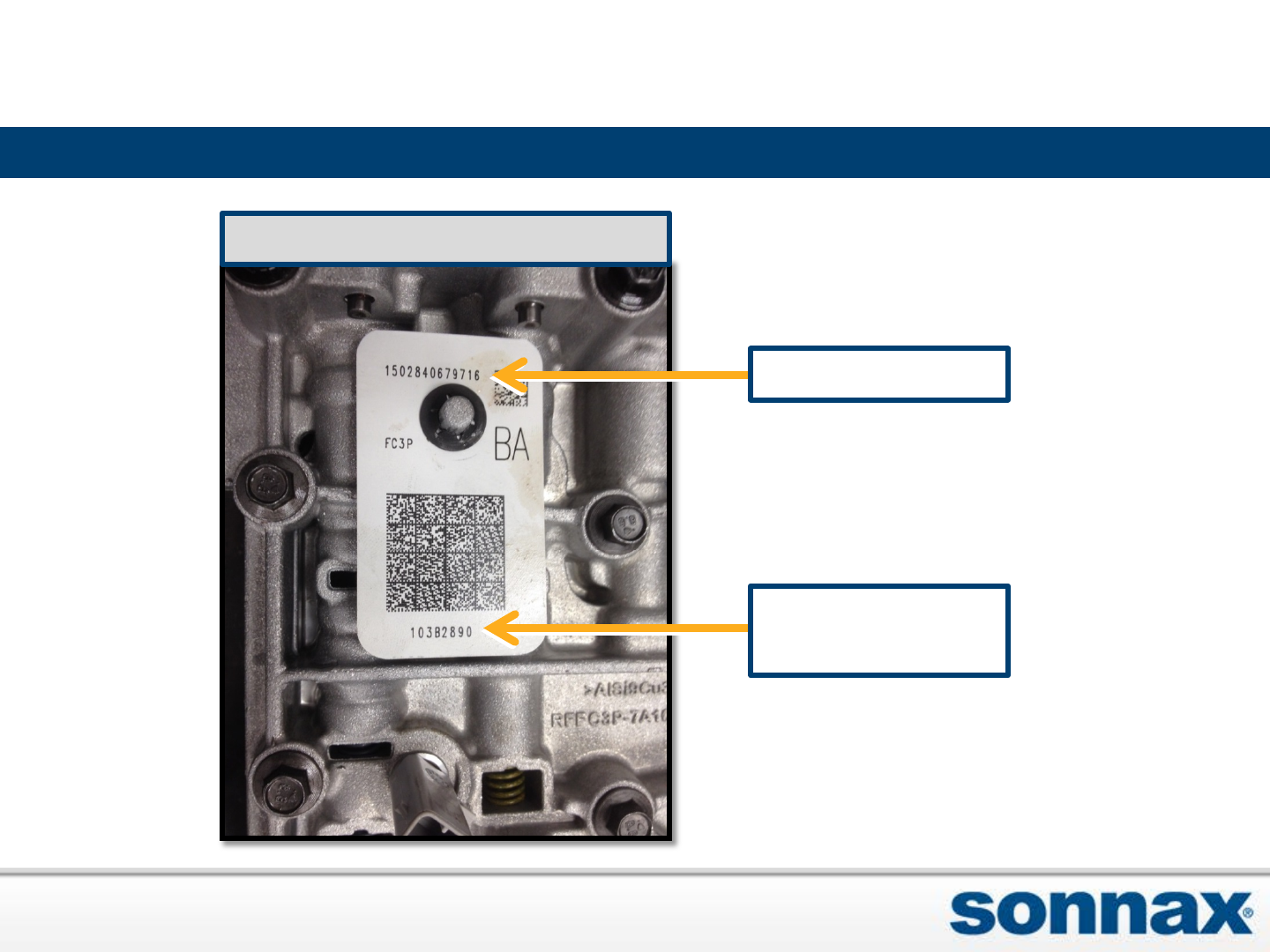

Solenoid Strategy Tag Codes

6R140

Strategy Code

Solenoid Body

ID Code

6F50 Shown

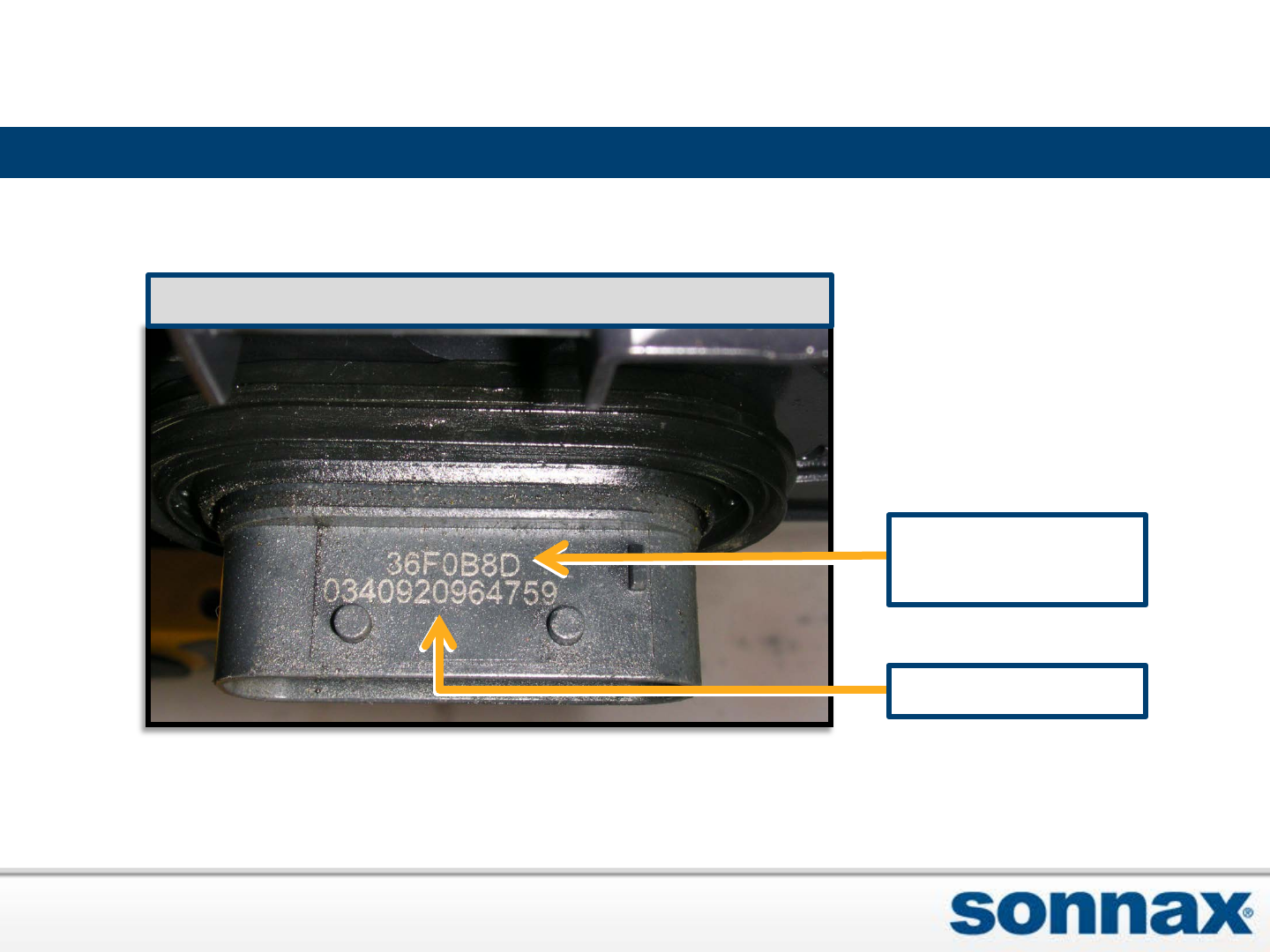

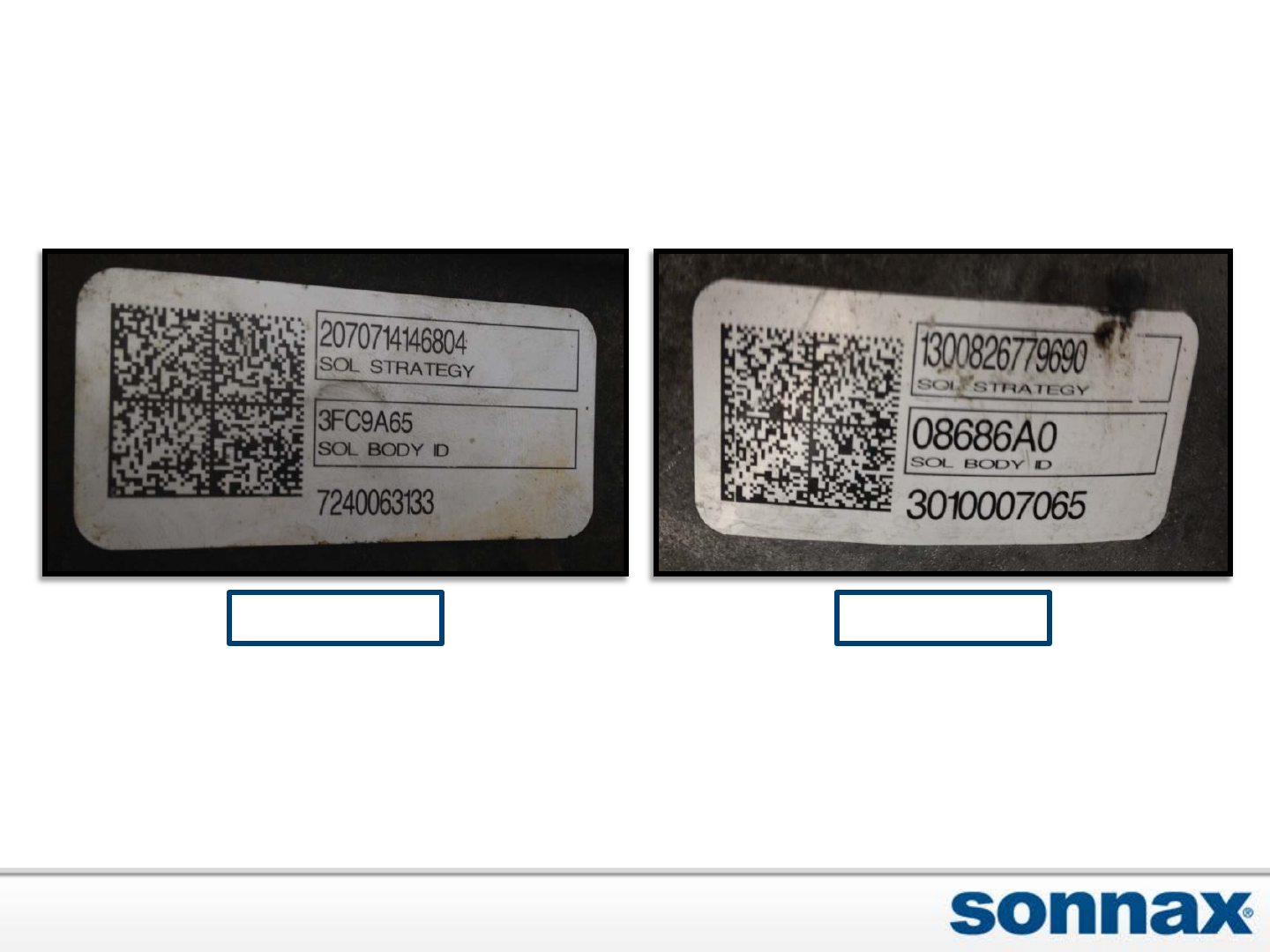

Solenoid Strategy Case Codes

6F35 Shown

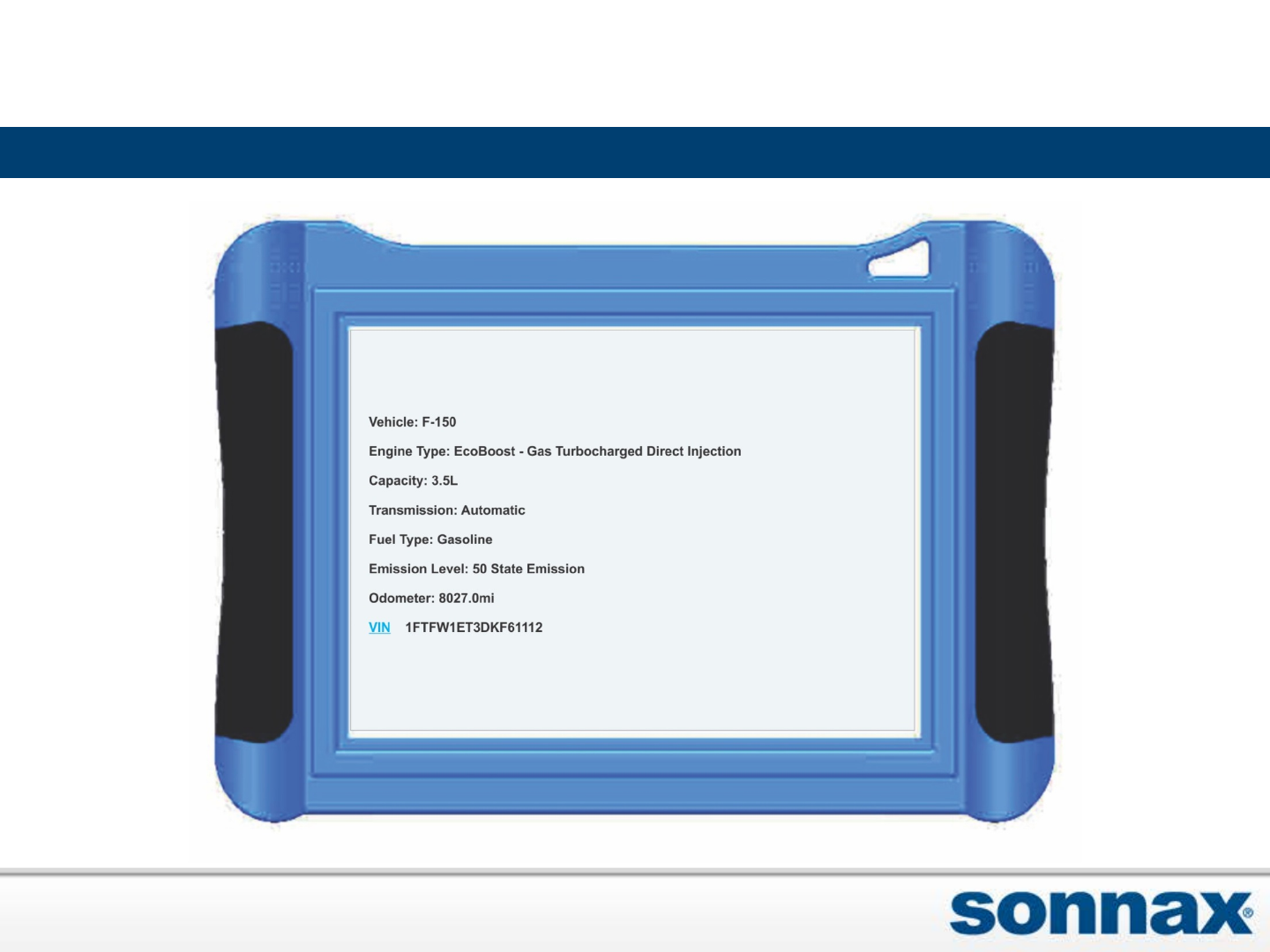

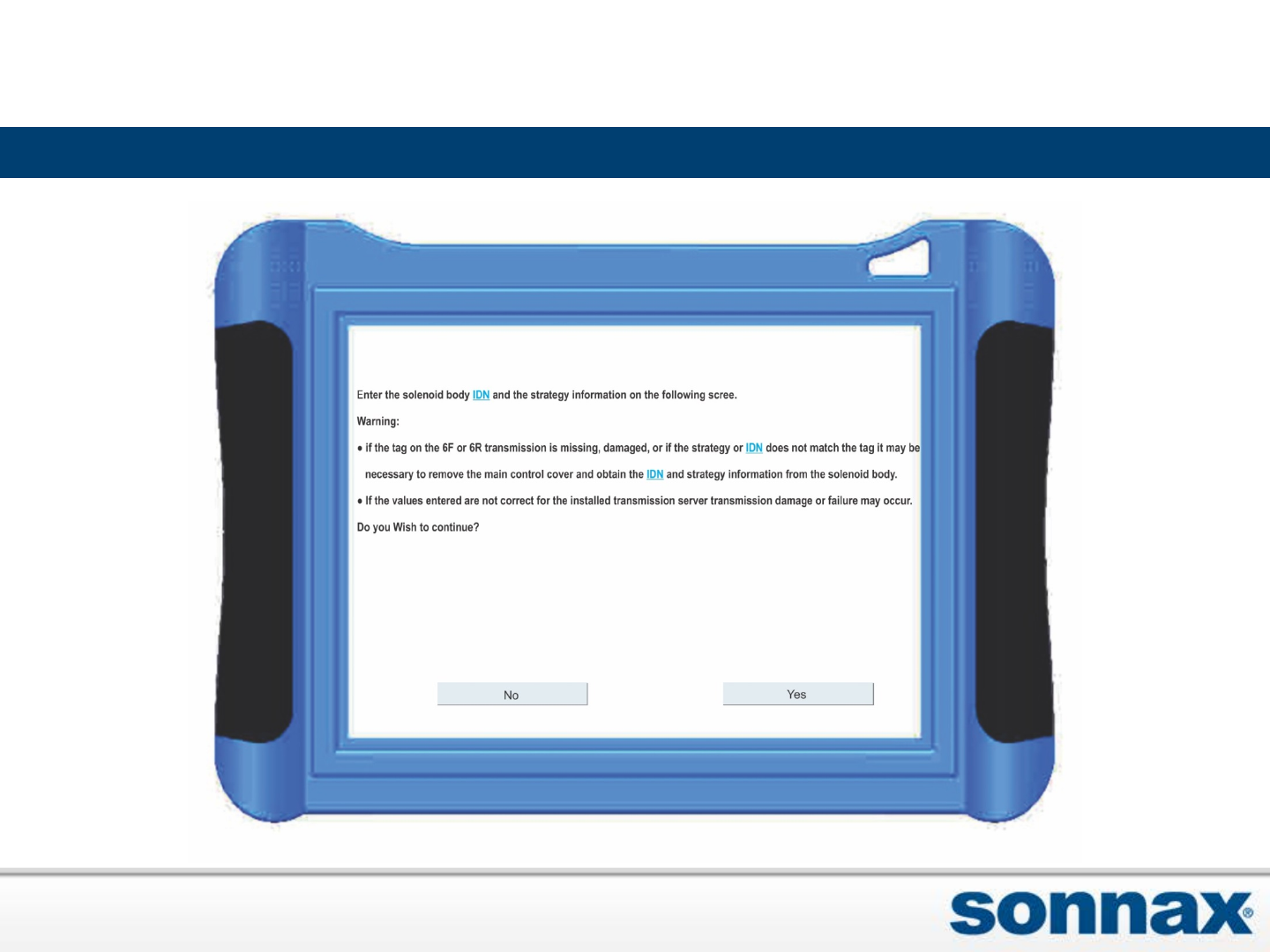

Ford Solenoid

Strategy Process

6F35/6F50/6F55

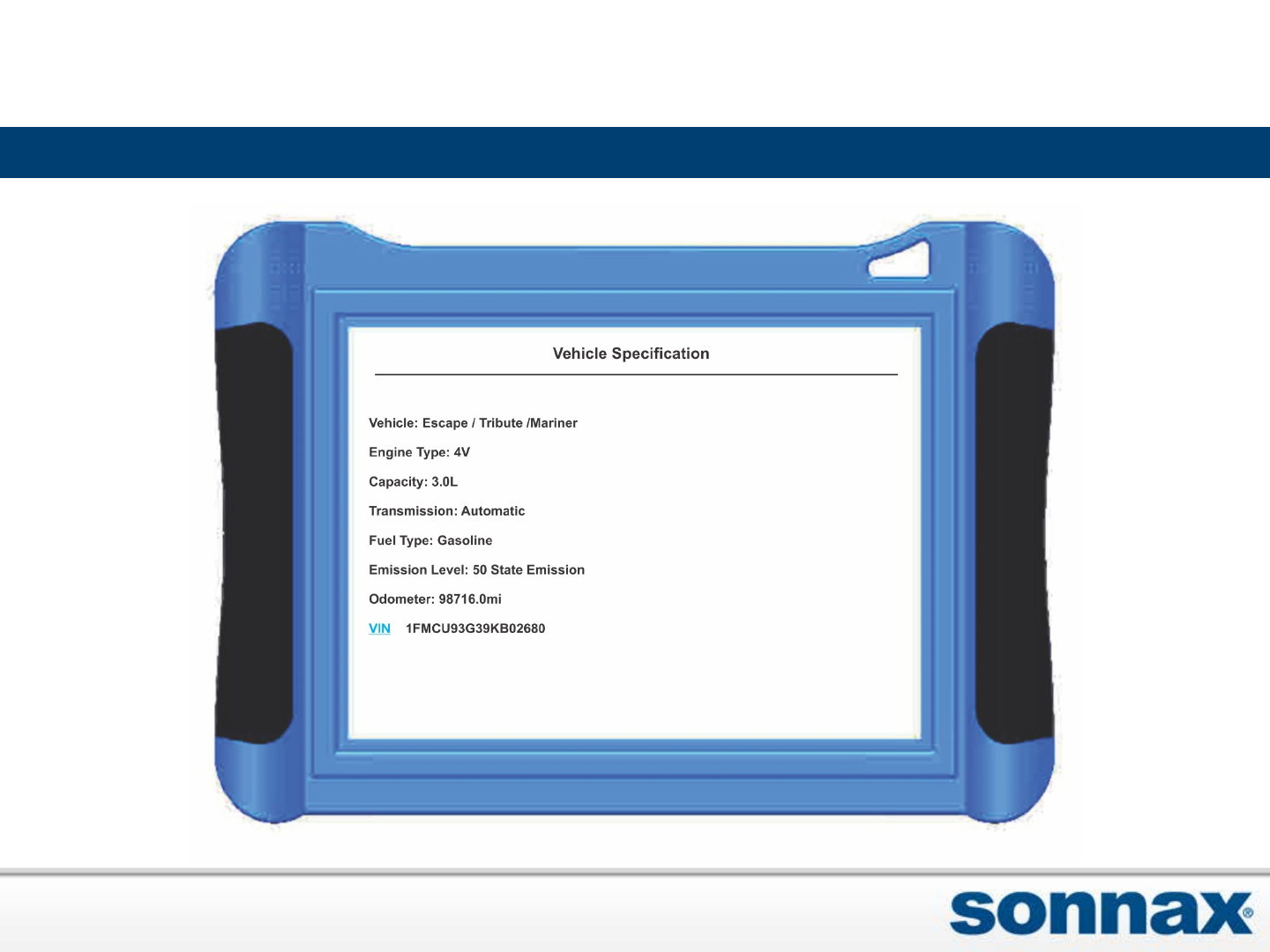

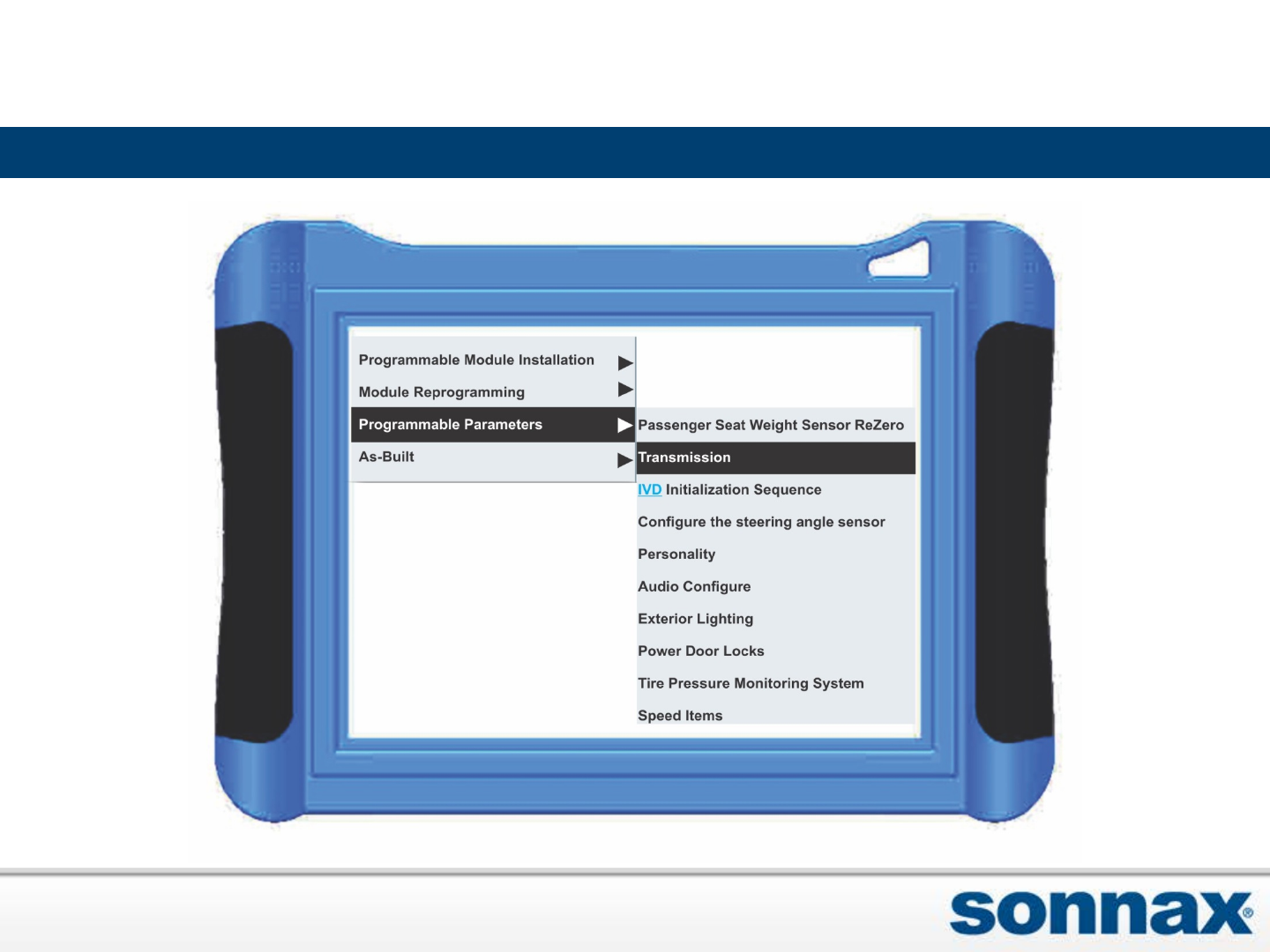

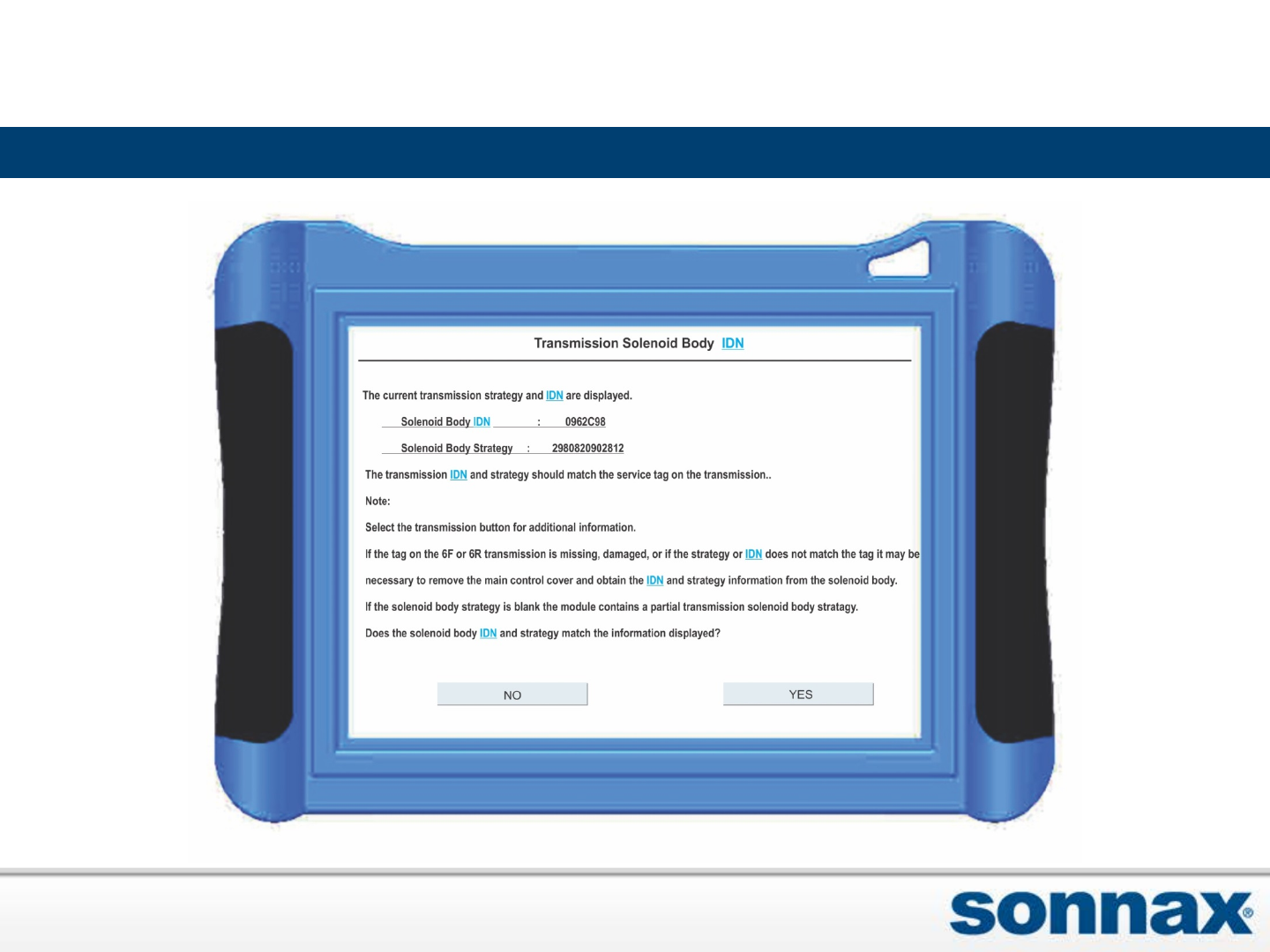

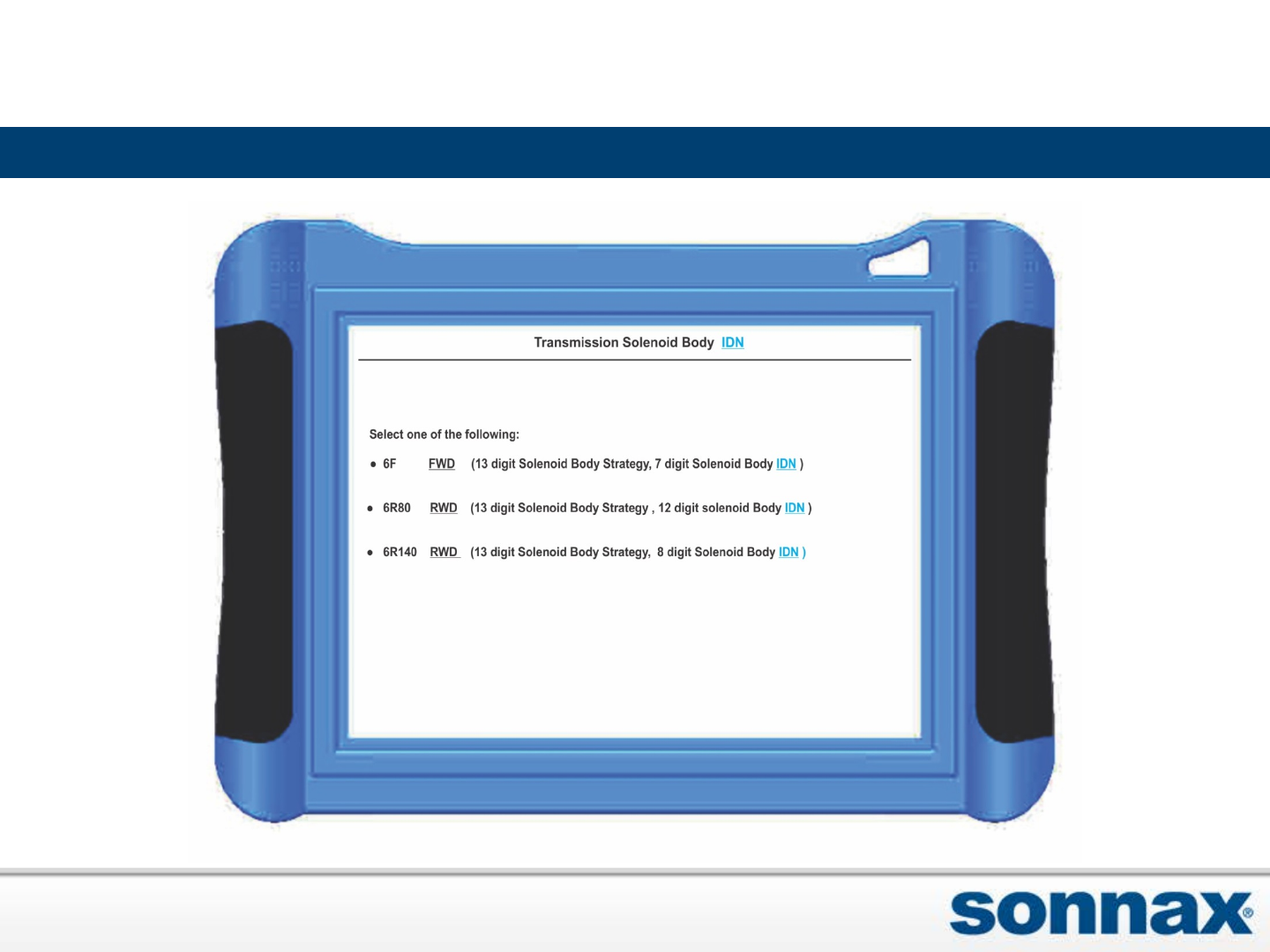

Ford Solenoid Strategy Process

6F35/6F50/6F55

Ford Solenoid Strategy Process

6F35/6F50/6F55

Ford Solenoid Strategy Process

6F35/6F50/6F55

Ford Solenoid Strategy Process

6F35/6F50/6F55

Ford Solenoid Strategy Process

6F35/6F50/6F55

Ford Solenoid Strategy Process

6F35/6F50/6F55

Ford Solenoid Strategy Process

6F35/6F50/6F55

Ford Solenoid Strategy Process

6F35/6F50/6F55

Ford Solenoid Strategy Process

6F35/6F50/6F55

Ford Solenoid

Strategy Process

6R80/6R140

Ford Solenoid Strategy Process

6R80/6R140

Ford Solenoid Strategy Process

6R80/6R140

Ford Solenoid Strategy Process

6R80/6R140

Ford Solenoid Strategy Process

6R80/6R140

Ford Solenoid Strategy Process

6R80/6R140

Ford Solenoid Strategy Process

6R80/6R140

Ford Solenoid Strategy Process

6R80/6R140

Performing a Drive Cycle

After downloading the solenoid strategy file, a drive cycle should be

performed to relearn the transmission adaptive values.

 Engine running, operating temperature.

Move the shift selector between Neutral and Reverse, Neutral and Drive

pausing between each position for 4 seconds. Repeat the pattern at least 2

more times or until the shift quality is acceptable.

Place the transmission into Drive, accelerate at moderate throttle up to

50mph, brake lightly to a stop. Repeat the pattern at least 2 more times or

until the shift quality is acceptable.

Repeat step 1.

Accelerate from a stop to 25 mph, release the throttle, shift the transmission

to L range and coast to less than 10 mph. Repeat the pattern at least 2 more

times or until shift quality is acceptable.

6F35

Locating Solenoid

Banding Numbers

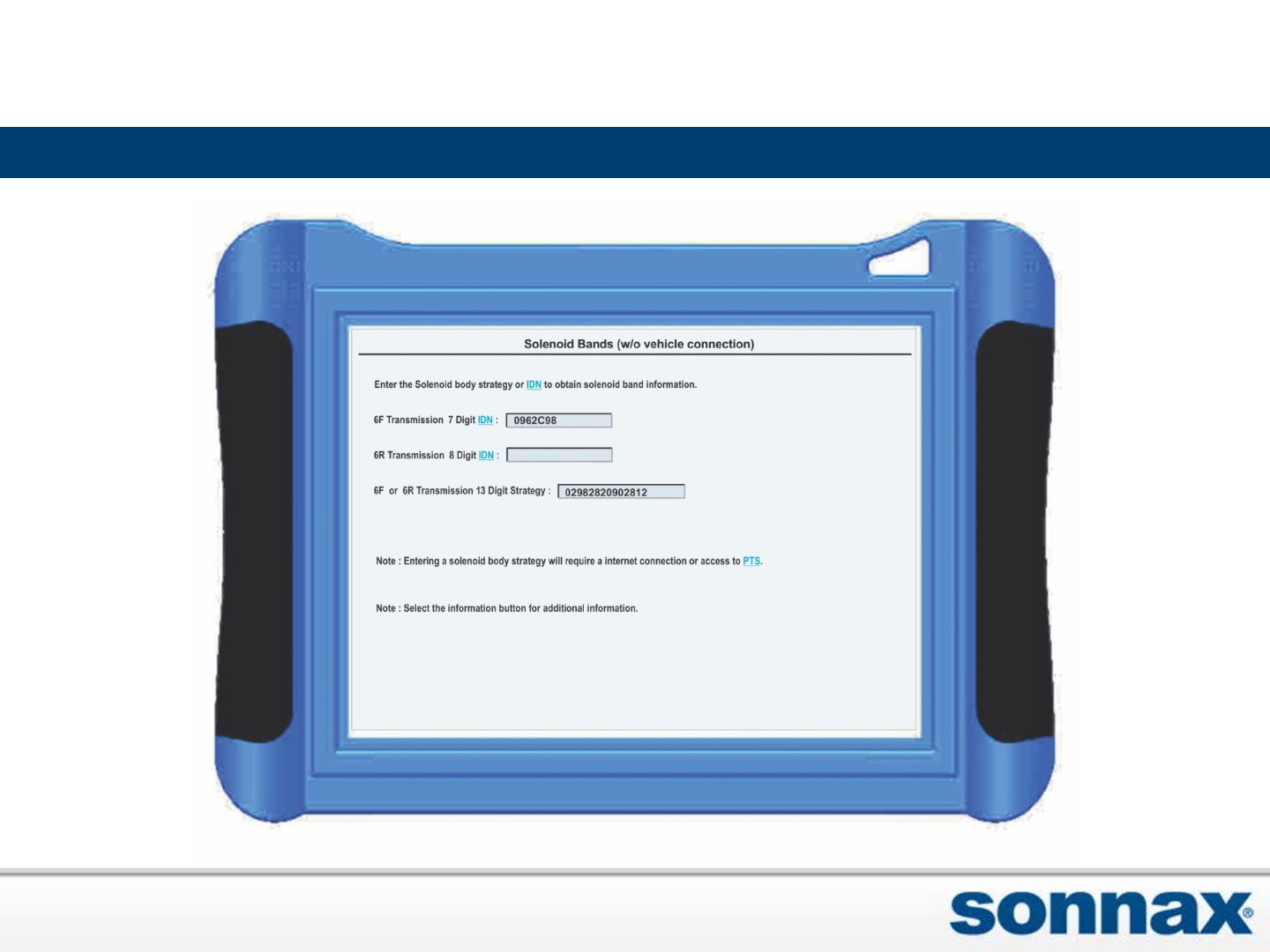

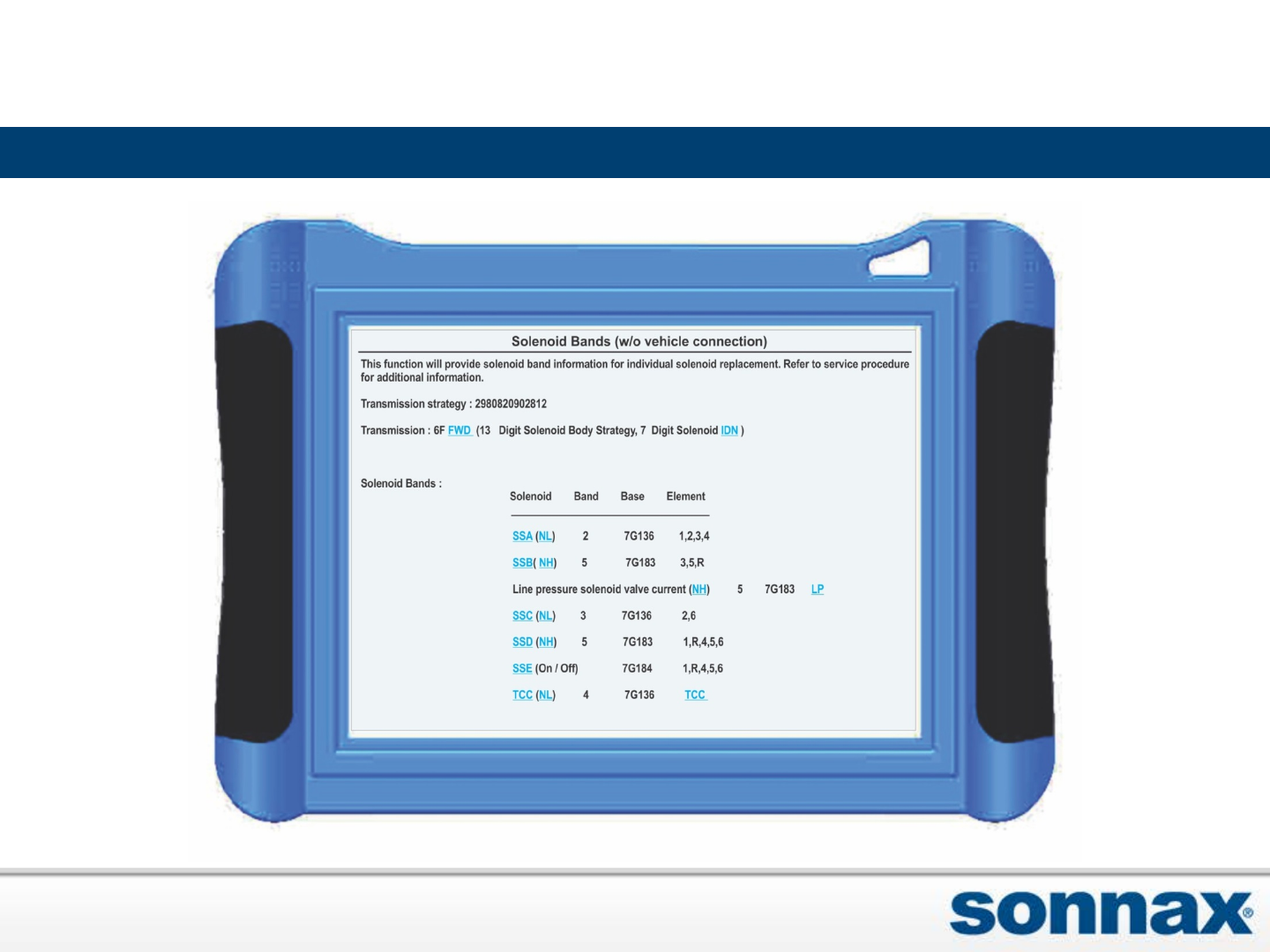

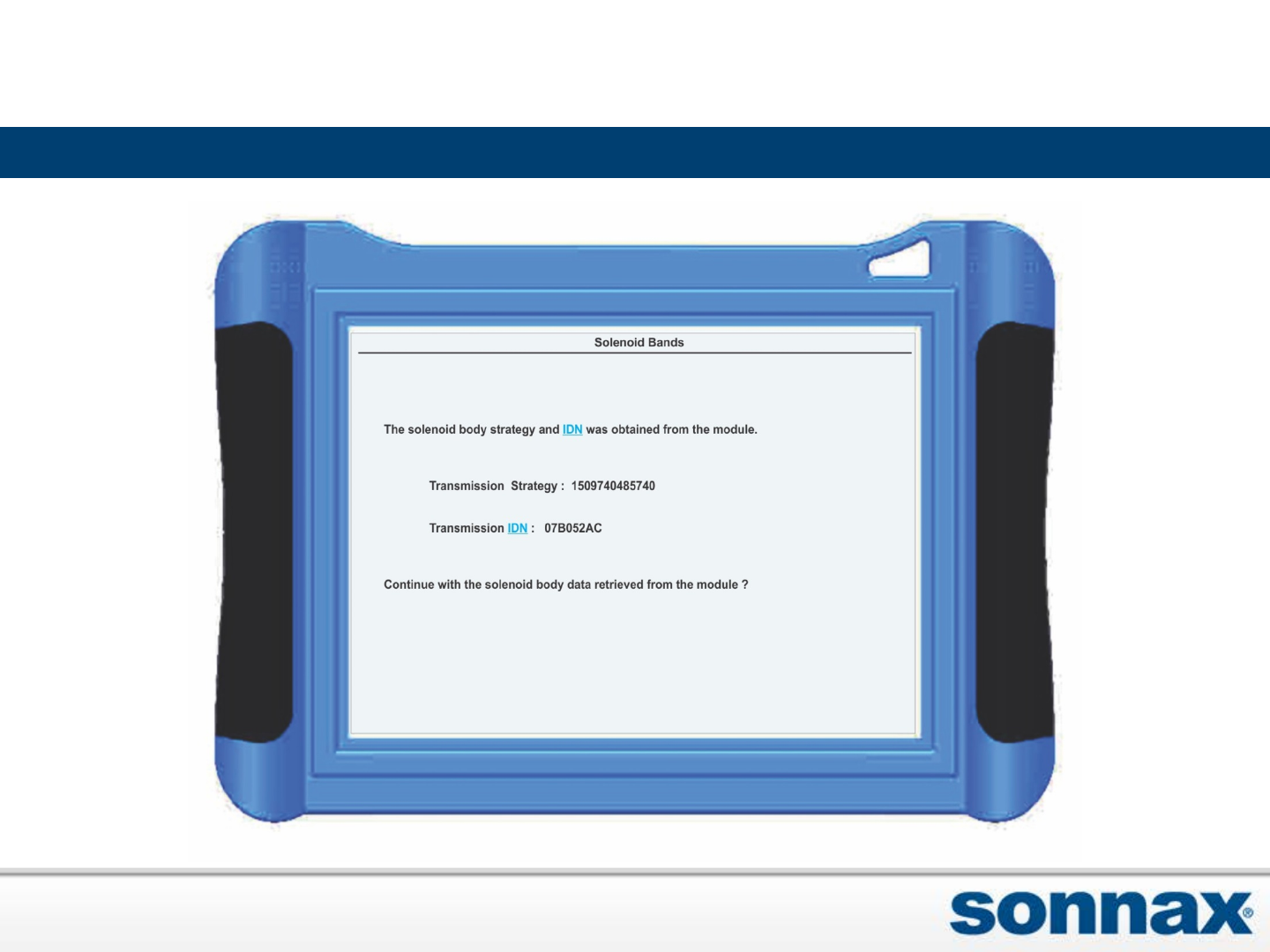

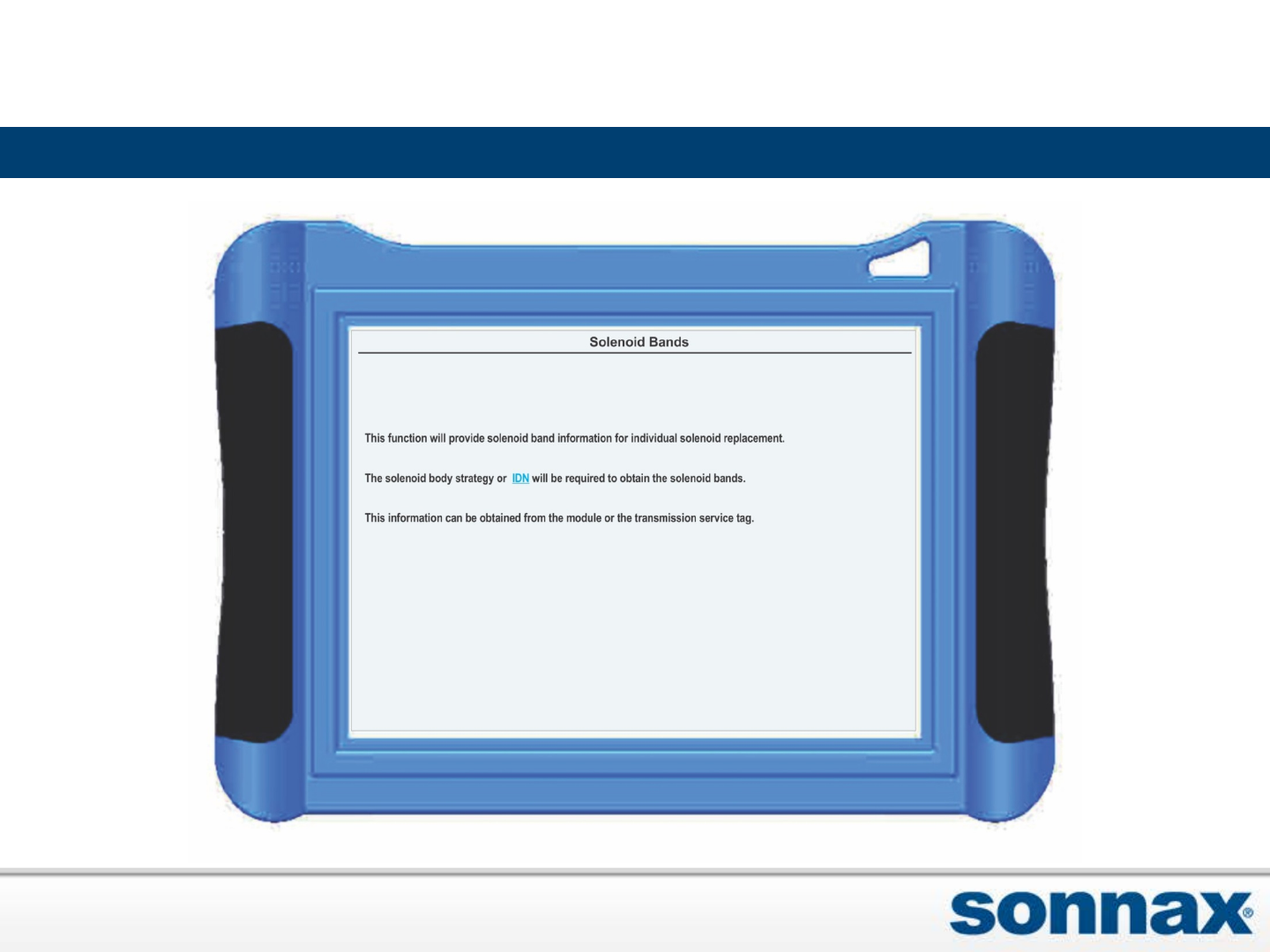

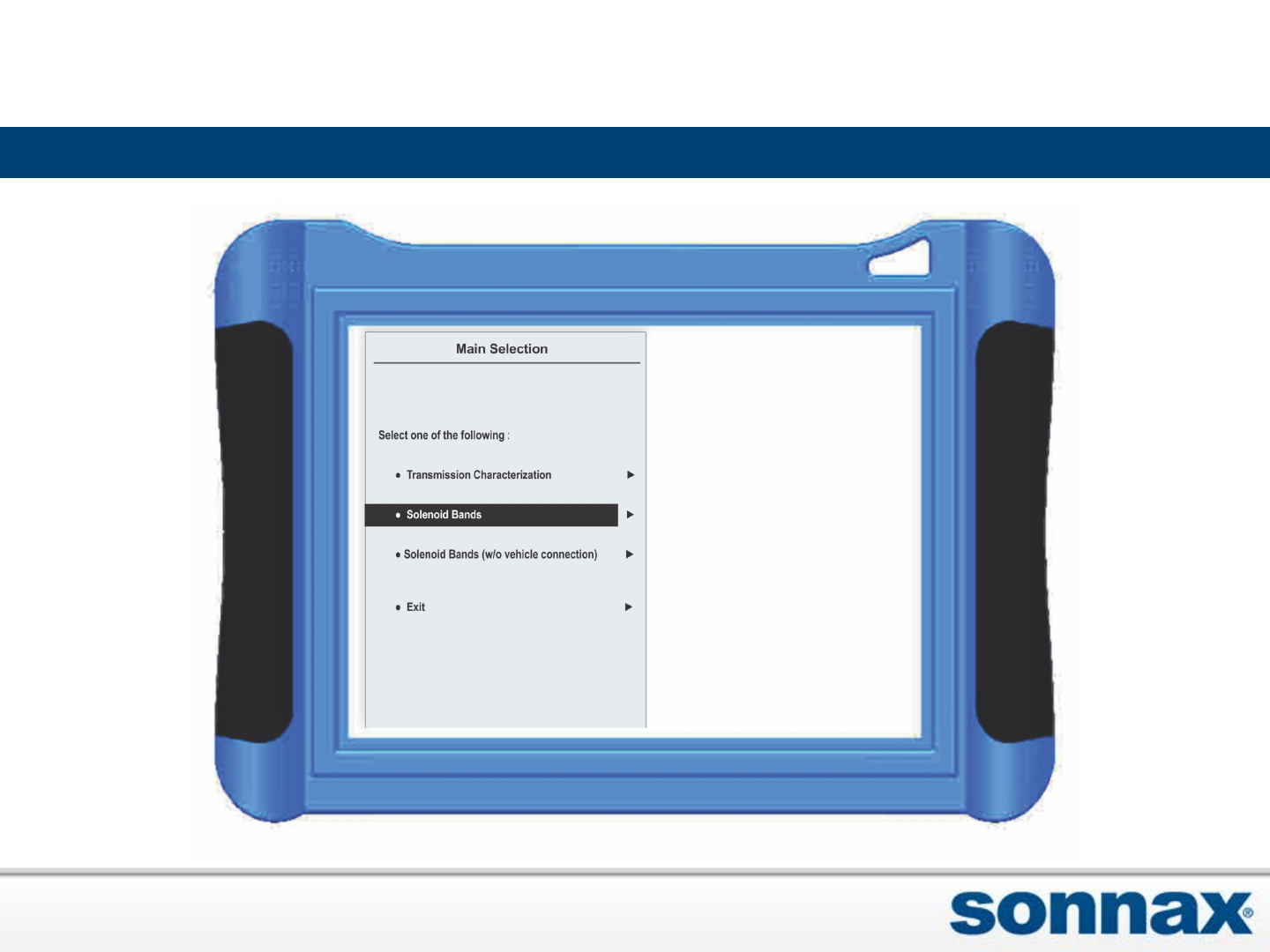

Locating Solenoid Banding Numbers

6R80/6R140

Solenoid Banding Numbers

6R140

Solenoid Banding Numbers

6R140

Solenoid Banding Numbers

6R140

Solenoid Banding Numbers

6R140

Solenoid Banding Numbers

6R140

Solenoid Banding Numbers

6R140

Solenoid Banding Numbers

6F35

Solenoid Banding Numbers

6F35

Solenoid Banding Numbers

6F35

Solenoid Banding Numbers

6F35

Solenoid Banding Numbers

6F35

Misleading Solenoid Issues

 Solenoid Regulator/AFL

 Clutch Regulator and Clutch Control Valves

 Clutch Latching Valves

Some valves can mislead you into thinking the problem is solenoid related

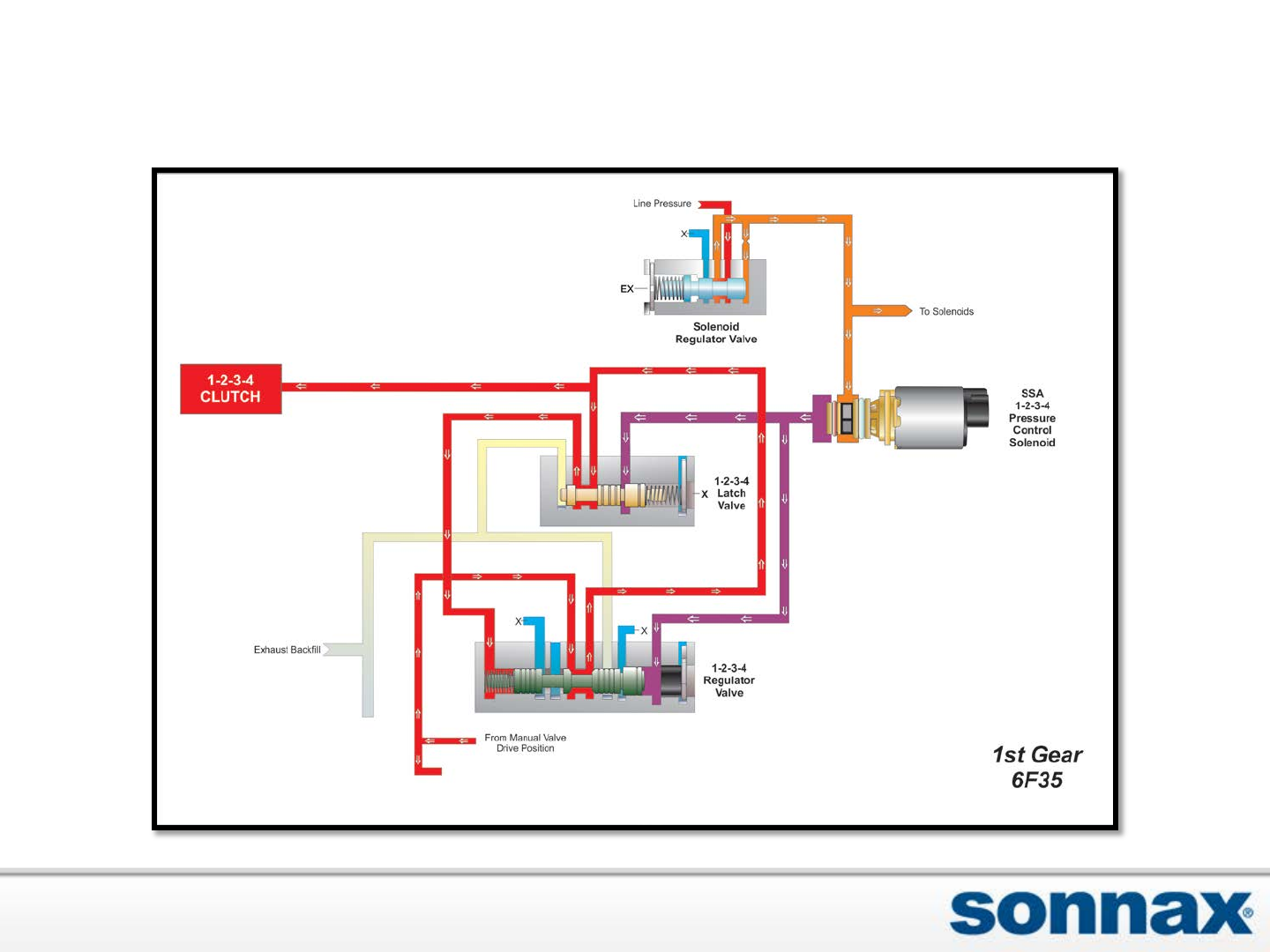

Ford Solenoid Regulator/AFL

6F35 AFL Valve

Part No. 144740A-01

Requires Tool Kit

144740-TL

Note: Download or print complete vacuum test guides at www.sonnax.com.

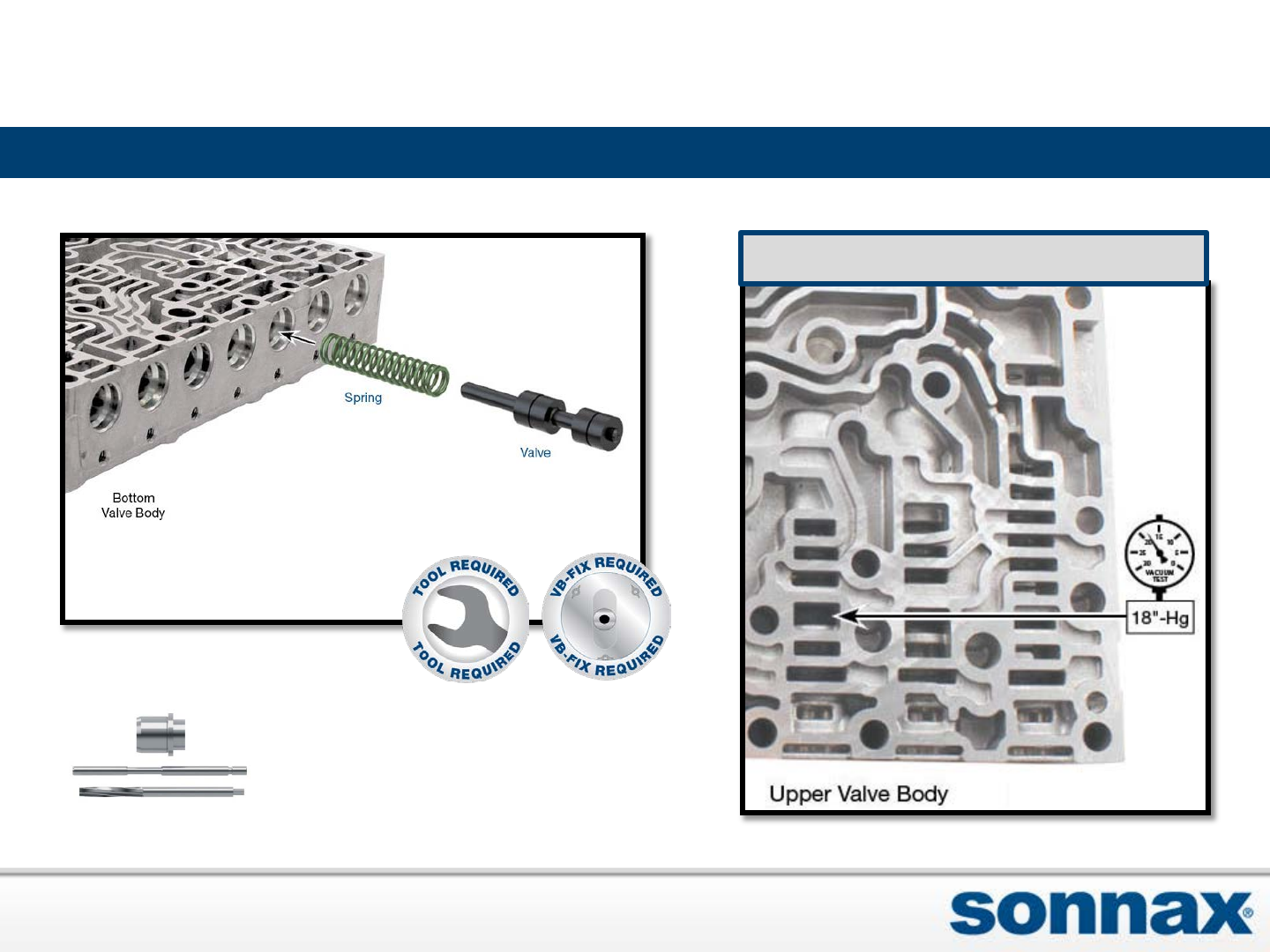

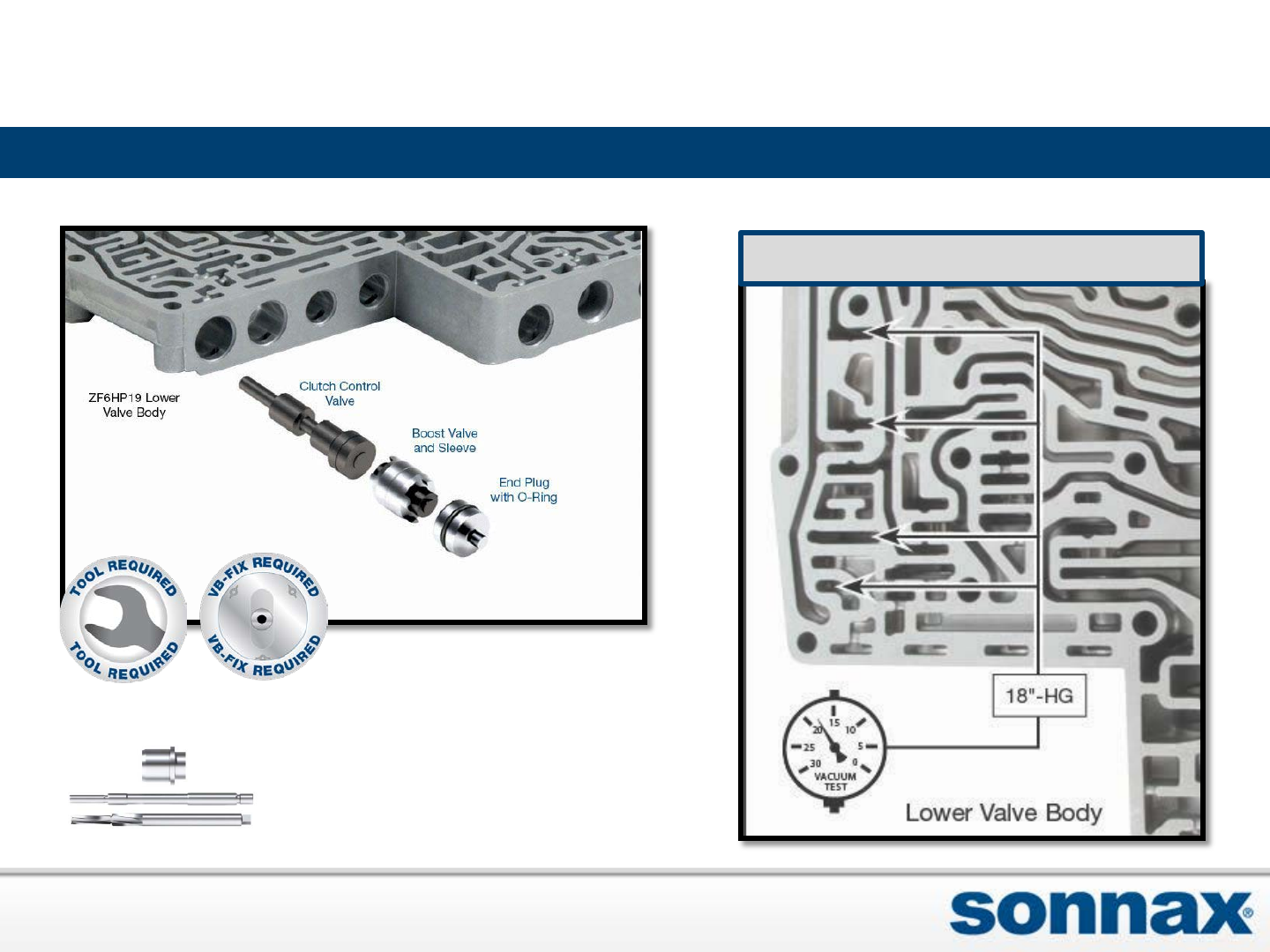

Vacuum Testing Location

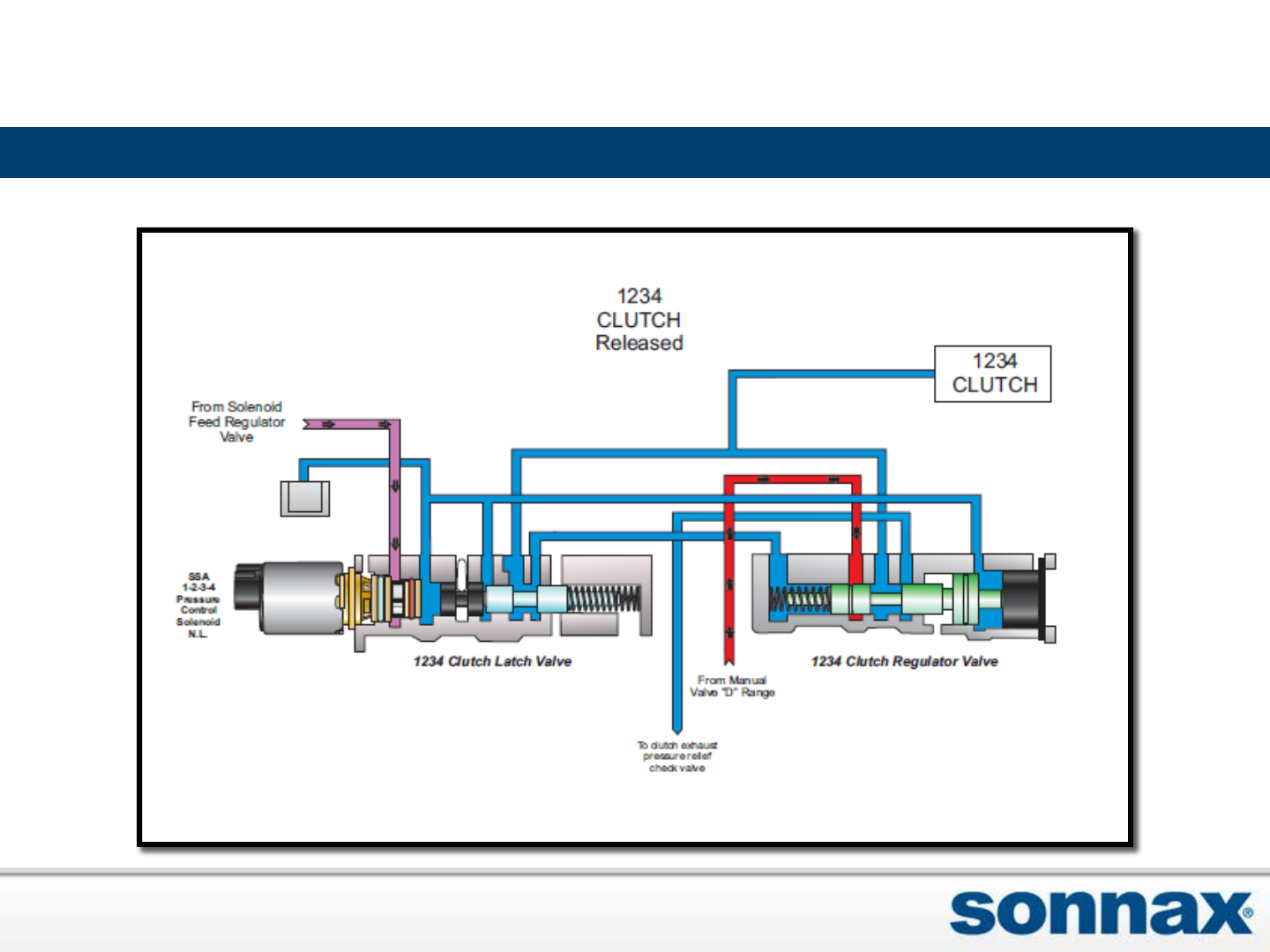

6R140 Forward Clutch Latch Valve

Part No. 126740-06K

Requires Tool Kit

F-126740-TL6

Vacuum Testing Location

Forward Clutch Latch Valve

6R60

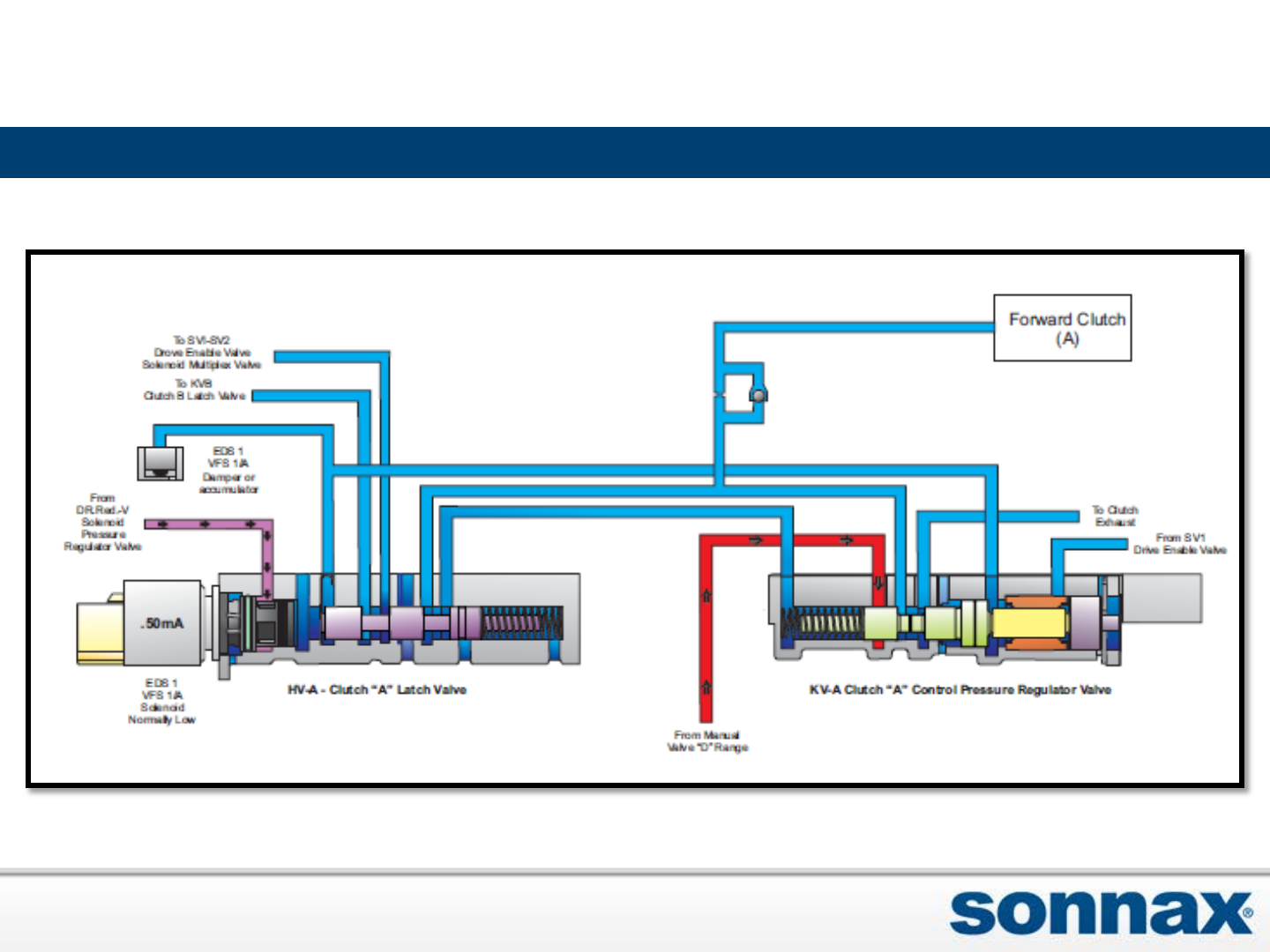

6R80 Clutch A Control Valve

Part No. 95740-09K

Requires Tool Kit

F-95740-TL8

Vacuum Testing Location

Clutch Regulator Control Valve

6R140

124740-01

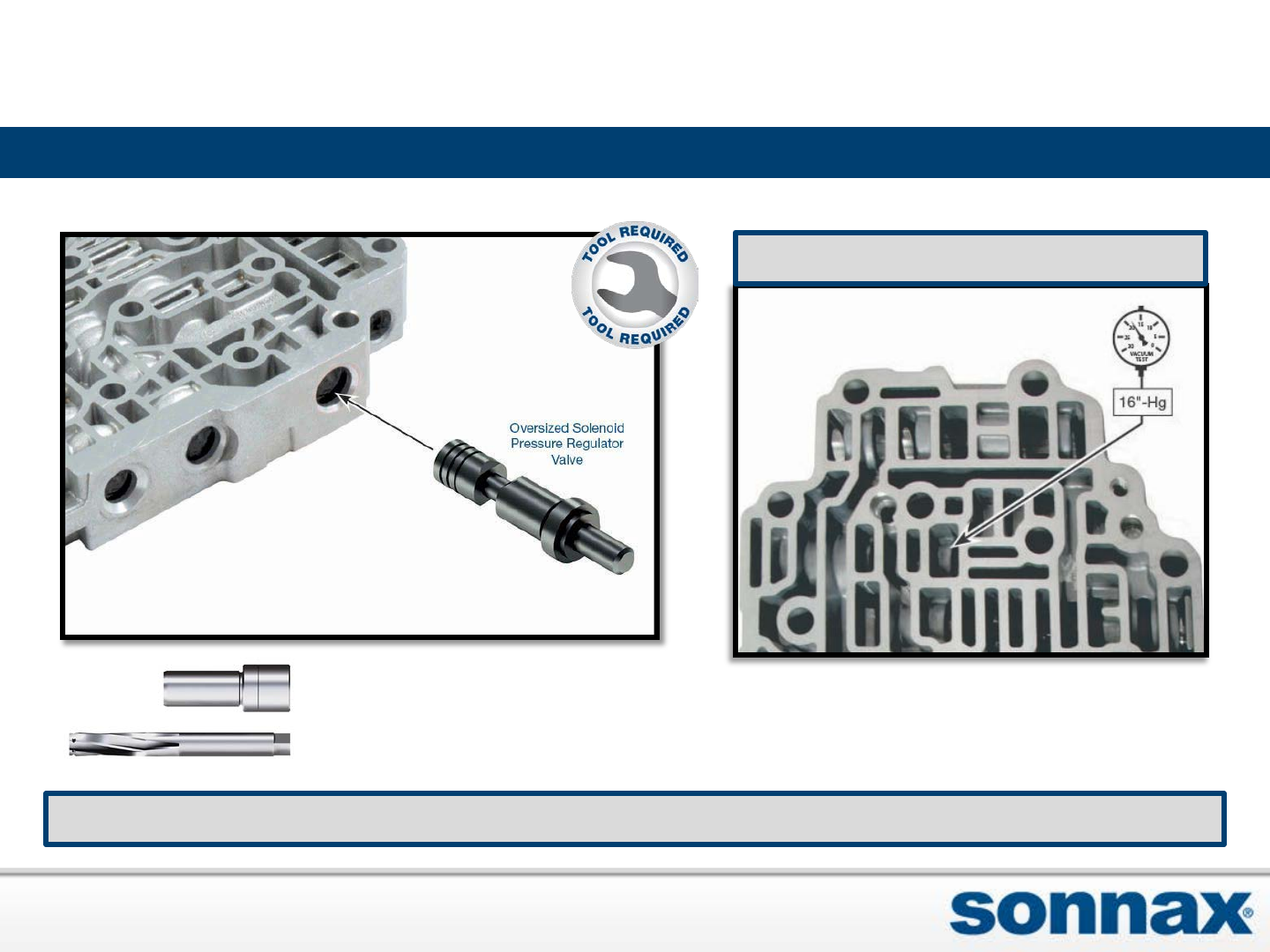

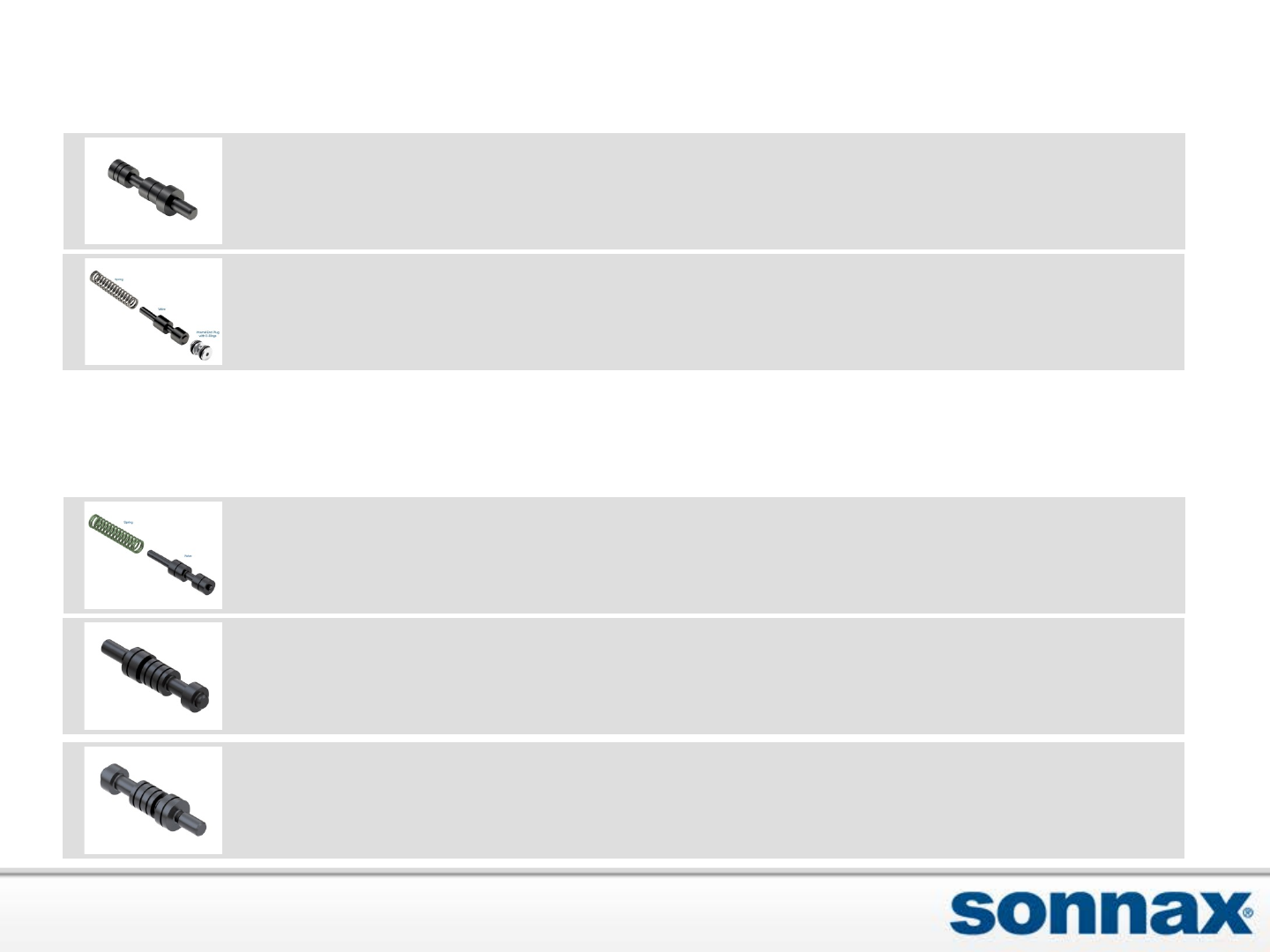

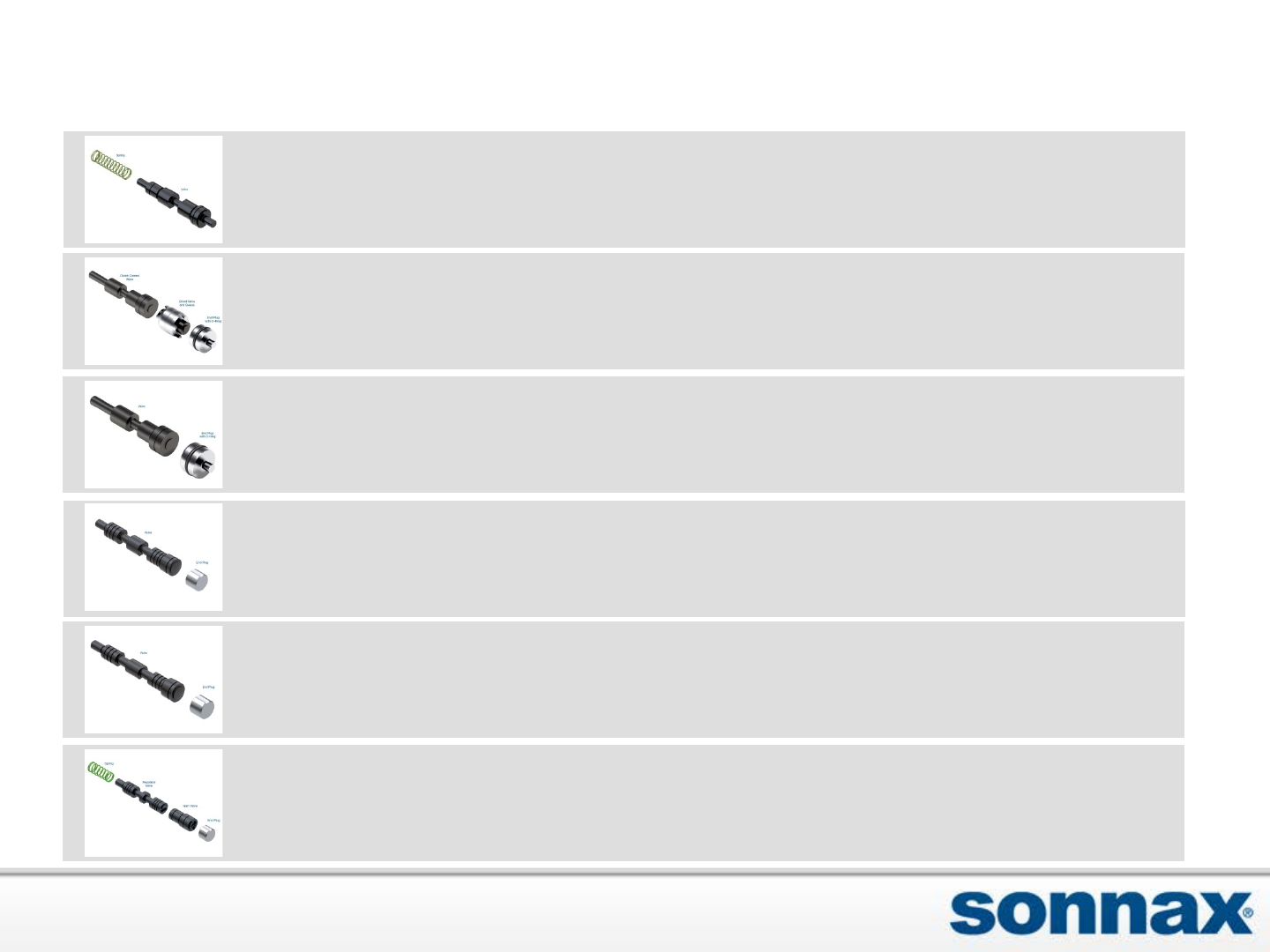

Oversized AFL/Solenoid

Pressure Regulator Valve 6F50/55 F-104740-TL12

95740-17K

Oversized AFL/Solenoid

Pressure Regulator Valve 6R60/80 F-95740-TL17

AFL/Solenoid Regulator Valves

126740-06K

Oversized Forward

Clutch Latch Valve Kit 6R140 F-126740-TL6

144740-23

Oversized Clutch

Boost/Latch Valve 6F50 F-144740-TL22

Latching Valves

144740-21

Oversized Clutch

Latch Valve 6F35 F-144740-TL21

126740-11K

Oversized Direct Clutch

Regulator Valve Kit 6R140 F-126740-TL1

95740-09K

Oversized Clutch A

Control Valve Kit 6R80 F-95740-TL8

Clutch Control Valves

95740-08K

Oversized Clutch D1/E

Control Valve Kit 6R80 F-95740-TL8

124740-26K

Oversized 3-5-R Clutch

Regulator Valve Kit 1.35 Ratio 6F50 F-124740-TL26

124740-21K

Oversized 3-5-R Clutch

Regulator Valve Kit 1.83 Ratio

6F50 F-124740-TL21

124740-17K

Oversized 2-6 Clutch

Regulator Valve Kit 6F50 F-124740-TL17

Additional Resources

•FREE Online Sonnax Tech Resources

www.sonnax.com

•Sonnax Tech Support

(800) 843-2600 or

(802) 463-9722 ext. 398

8:30 a.m. to 7:00 p.m. ET, Mon - Fri

sonnaxtechsupport@sonnax.com

Thank You

QUESTIONS?

Become a Sonnax Insider Today!

Get the scoop on all new Sonnax products.

•Whether it’s a high-demand part, all-inclusive kit, or innovative tool, you’ll be the first to

know when it’s available.

Discover expert Sonnax technical resources.

•Learn cutting-edge rebuilding tips and tricks from the pros, find out how to solve everyday

transmission problems and hone your troubleshooting skills.

Stay up-to-date on industry trends and events.

•From essential news and industry trends to special upcoming tradeshows and seminars,

trust Sonnax to keep you in the loop.

Viewer Questions, Comments

& Answers

•Q: What do the terms ‘NL’ and ‘NH’ mean?

A: They refer to the flow from the solenoid with it in the off position: NL=Low PSI

Output and NH=High PSI Output.

•Q: Can I identify the solenoid strategy without the tag?

A: Yes, with the use of your scan tool.

•C: 6R80 does not have scan tool (IDS) ability to identify solenoid banding and

location, like 6R140, due to production camera installation.

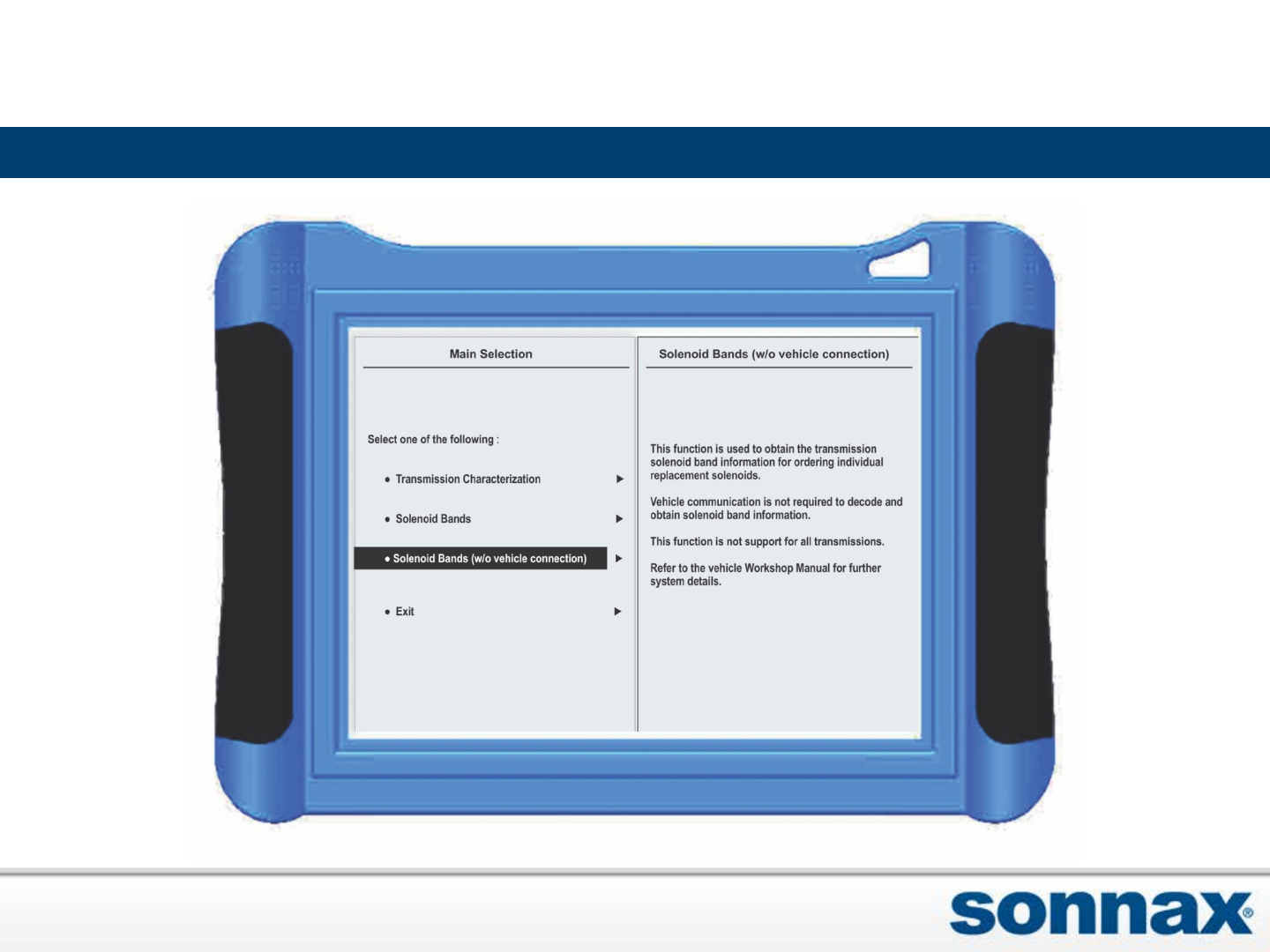

A: That used to be the case, but as of last month, the software was updated to allow

you to access the solenoid banding numbers with your scan tool.

•C: 6R60 and 6R75 do not offer individual solenoid sale; you must get the entire

control mechatronic. Only the 7G484 on/off is sold (2010 and earlier).

A: Good-to-know information.
