Users Manual
![](/img.php?id=3837041&img=bg1.png)
Hi, welcome to use 4 channel with rf control intelligent switch is a 4 channel (4-way) din rail mounting 433MHz RF remote
WiFi switch that can independently control the 4 home appliances. It supports switching among 3 working modes:
inching/interlock/self-locking mode.
Power supply: 90-250v AC(50/60Hz)/5-24v DC. Max current: 10A/gang.
1. Download “eWeLink” app.
Search “eWeLink” in APP Store for iOS version or Google play for Android version.

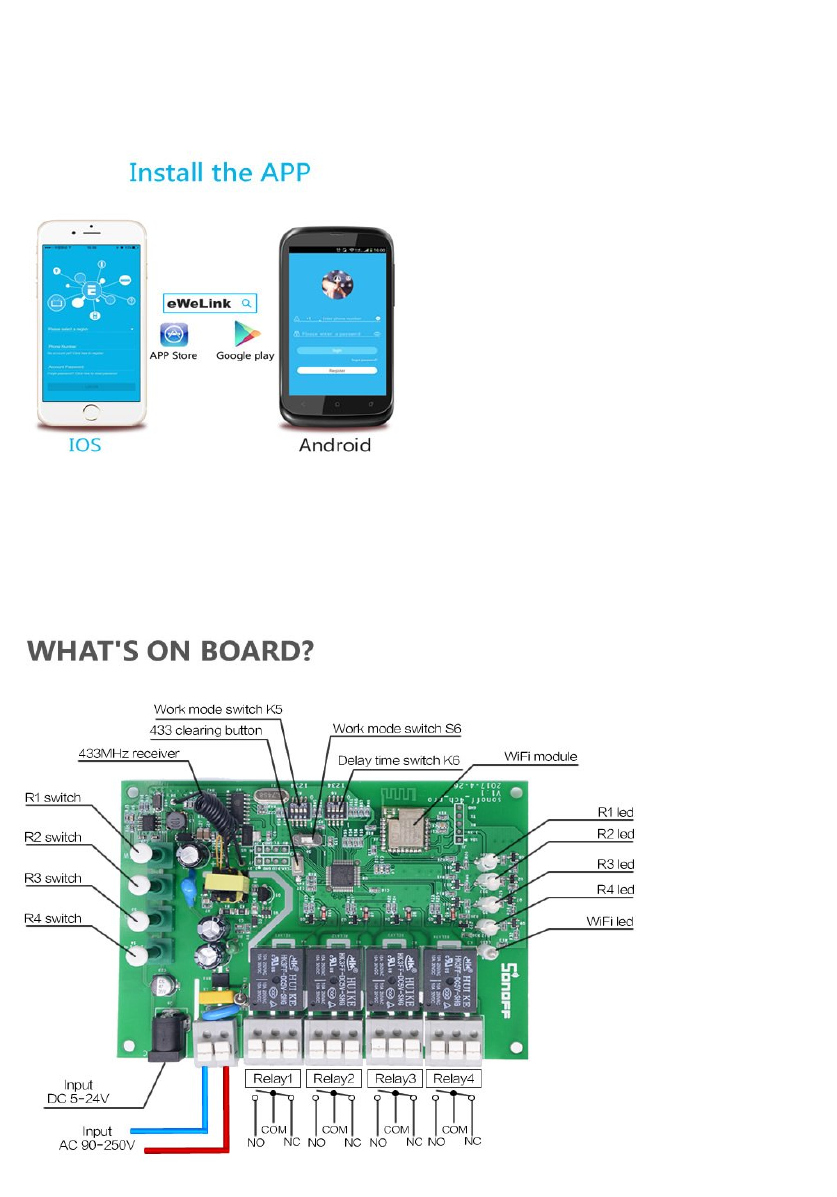

2. Wiring instruction
If you want to connect the Sonoff 4CH Pro with lights or appliances. Please strictly follow the wiring diagram as shown below:
![](/img.php?id=3837041&img=bg2.png)
You may choose to power up by 5-24V DC or by 90-250V AC. Each relay without voltage output.

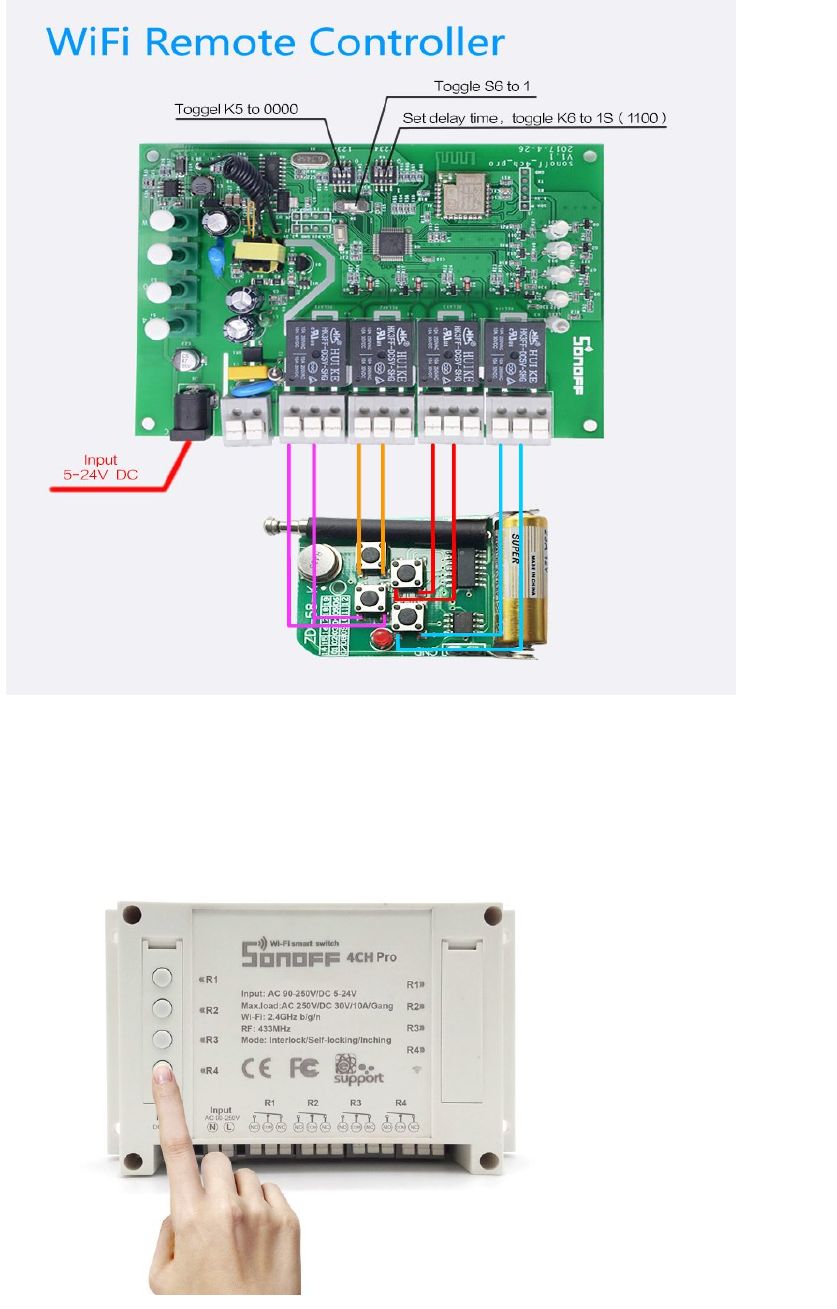

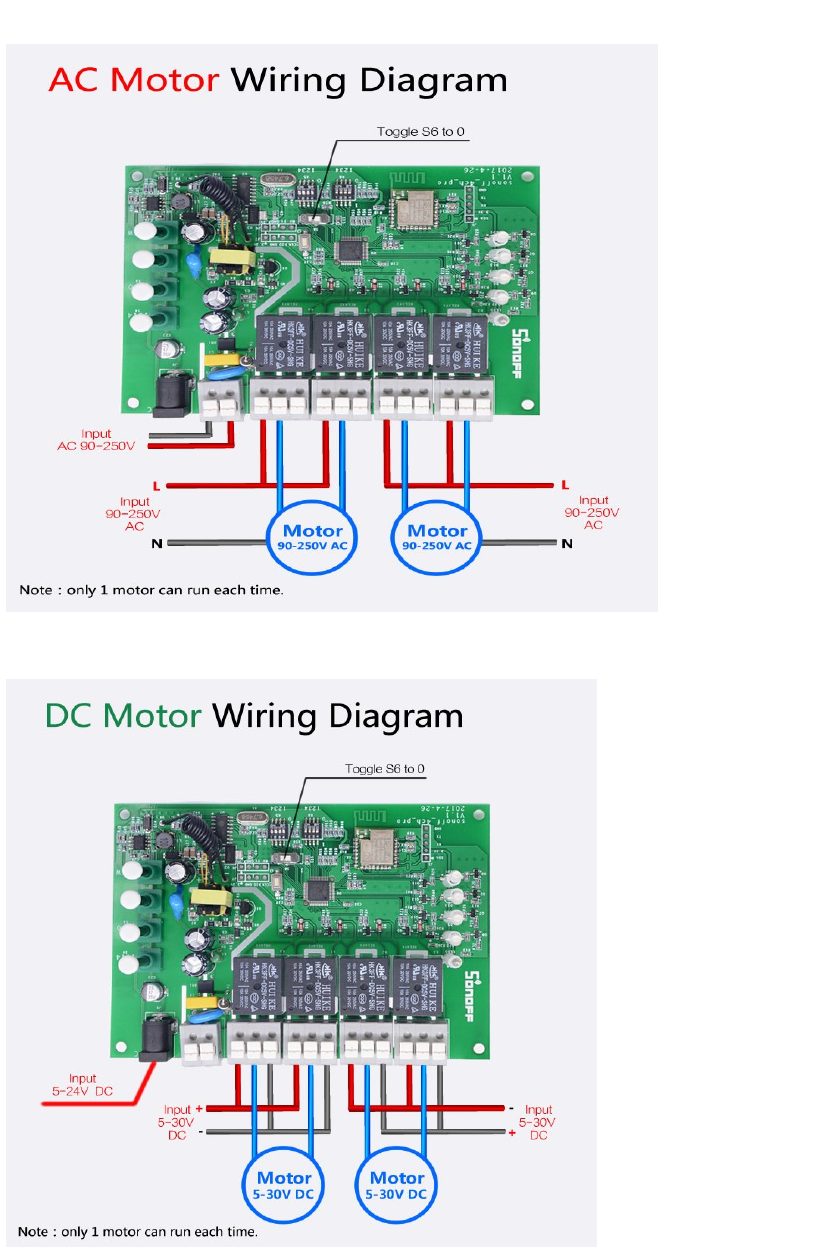

If you connect the Sonoff 4CH Pro with a motor, the wiring instruction is as below:
![](/img.php?id=3837041&img=bg3.png)
3. Add Device
1. Power up your device through 90-250v AC(50/60Hz) or 5-24v DC.
![](/img.php?id=3837041&img=bg4.png)
2. Press and hold one of the 4 ON/OFF buttons for 7 seconds until the wifi LED fast blinks 3 times and repeat.
3. Click the “+” icon on eWeLink to search device, click next.
For iOS users, they will see two pairing method icons to select, here please select the 2nd icon.
The App will auto-search the device.
4. Enter your home SSID & password:
4.1 If your WiFi doesn’t have a password, keep it blank.
4.2 Now eWeLink only support 2.4G wifi communication protocol, 5G-WiFi-router is not supported
5. Next, the device will be registered by eWelink and add it to your account,it takes 1-3 minutes.
6. Name the device to complete.
7. Maybe the device is “Offline” on eWeLink, for the device needs 1 minute to connect to your router and server. When the
wifi LED is on, the device is “Online”.
3. Working Mode Settings
You can set the switch among 3 working modes: inching/interlock/self-locking mode.
1. In self-locking mode, you can turn on/off the 4 connected devices independently. For example, if you turn on CH1,
connected device keeps on. If you turn off CH2, connected device keeps off.
![](/img.php?id=3837041&img=bg5.png)

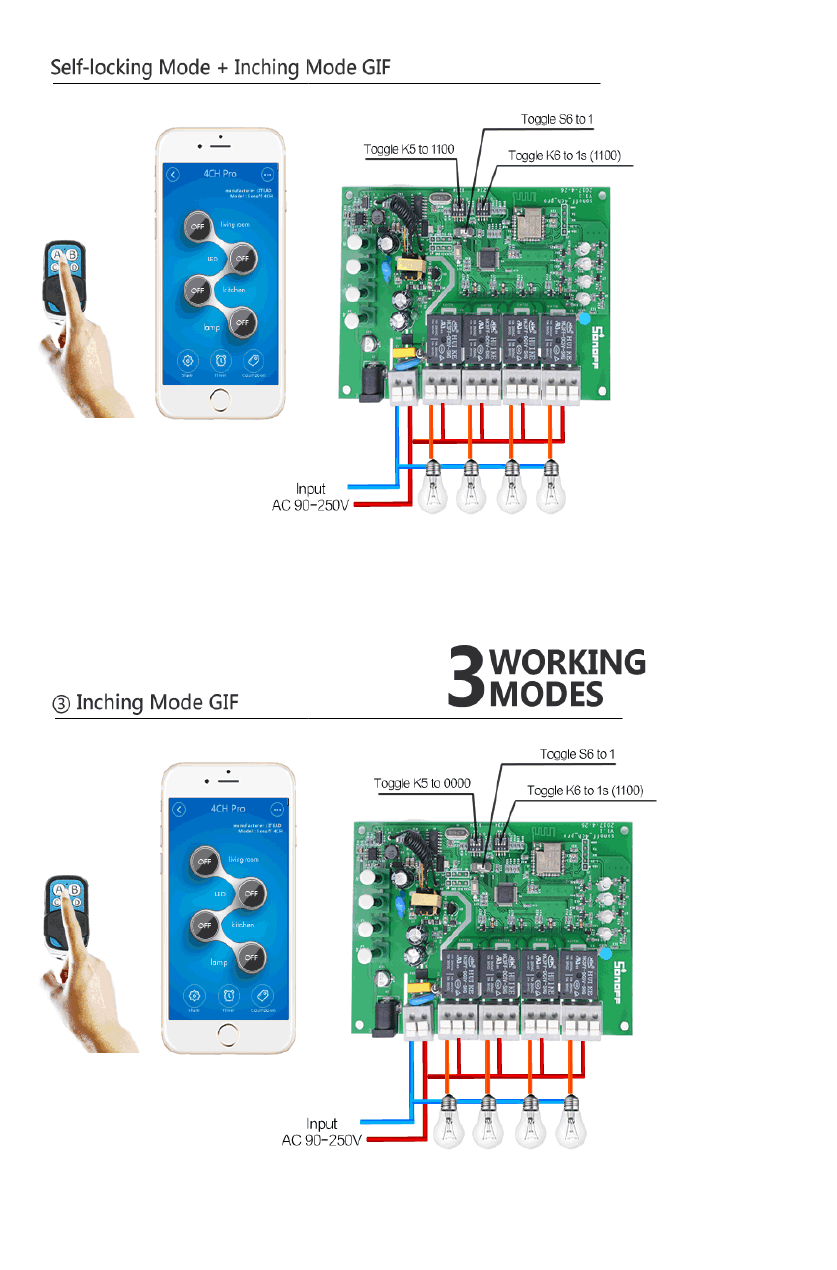

2. In inching mode, you can turn on the connected devices for 0.25
for 1s, then auto-off.

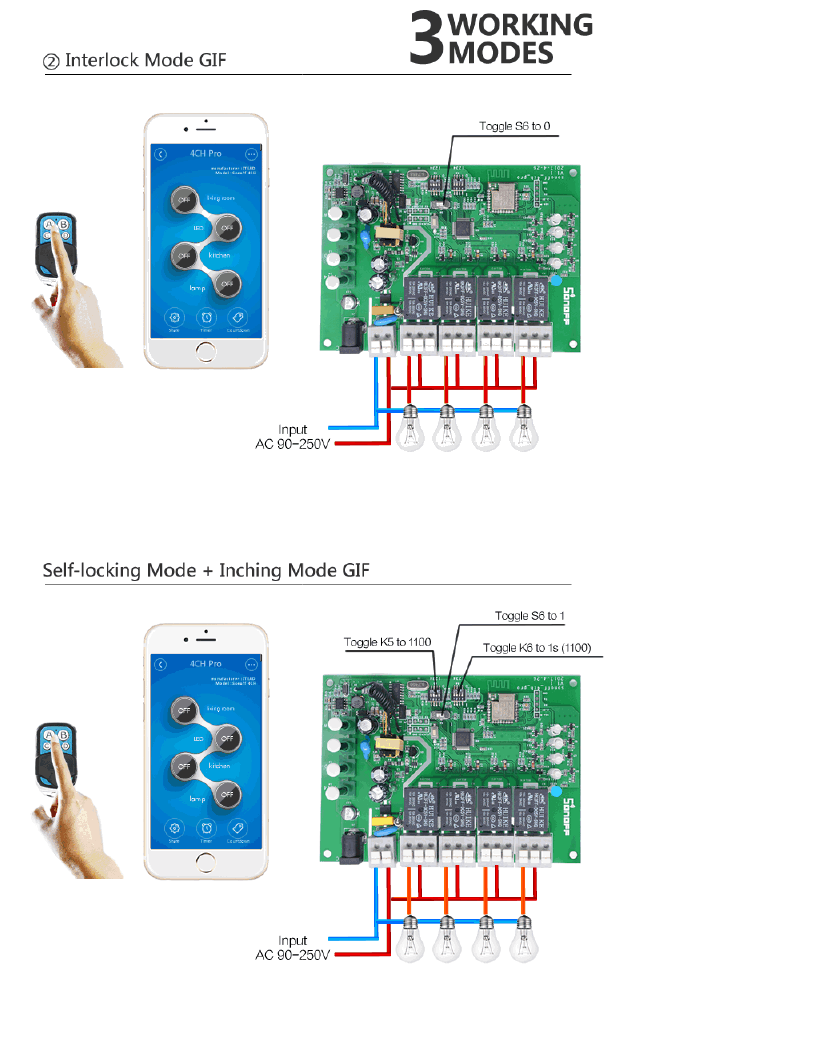

3. In interlock mode, you can turn on 1 device every time, and turn off other devices at the same time. For example, if you
have turned on CH2, then when you turn on CH3, CH2 will be auto
2. In inching mode, you can turn on the connected devices for 0.25
-4s. For example, you can
turn on CH1 connected device
3. In interlock mode, you can turn on 1 device every time, and turn off other devices at the same time. For example, if you
have turned on CH2, then when you turn on CH3, CH2 will be auto
-turned off at the same time.
turn on CH1 connected device
3. In interlock mode, you can turn on 1 device every time, and turn off other devices at the same time. For example, if you
![](/img.php?id=3837041&img=bg6.png)
We will introduce how to switch among the 3 modes below:
We will introduce how to switch among the 3 modes below:
![](/img.php?id=3837041&img=bg7.png)

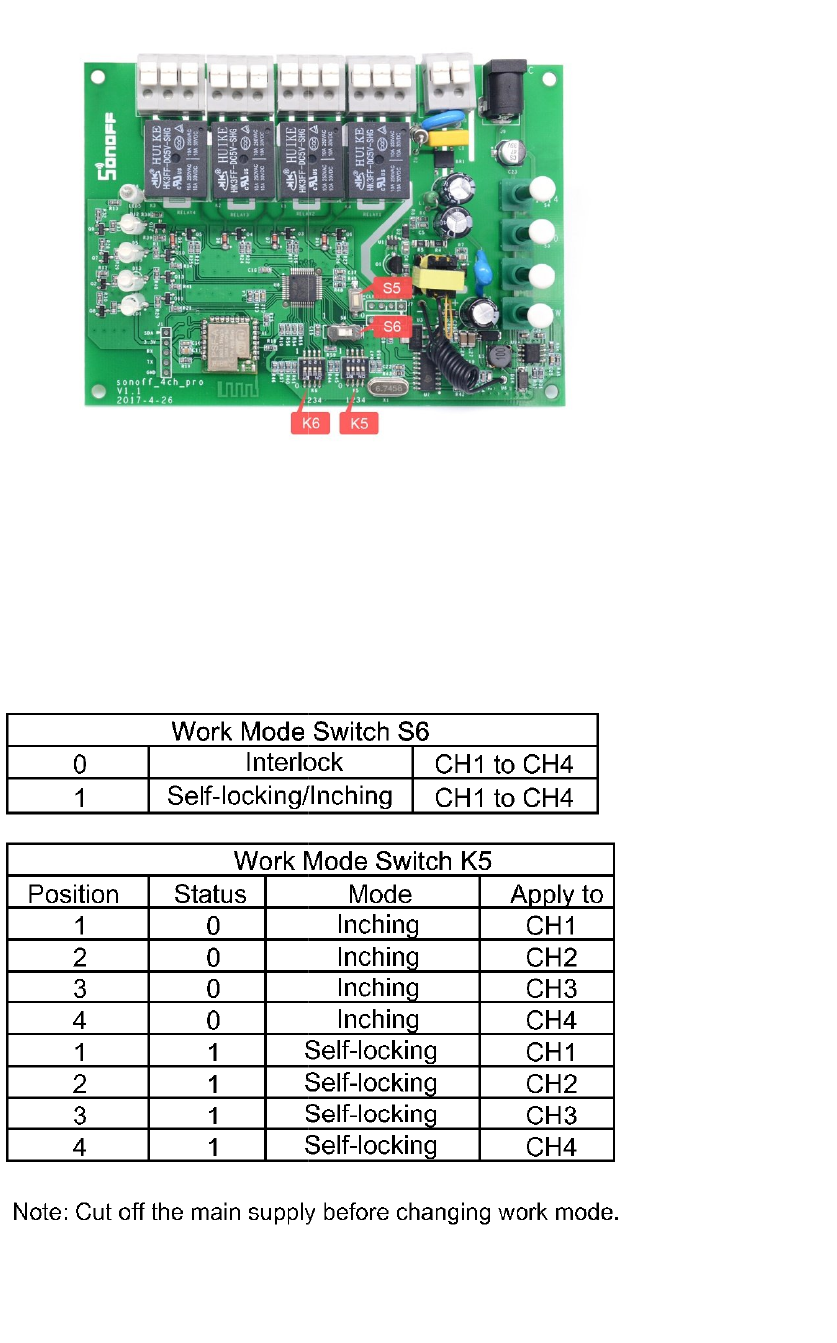

As you can see from the image, there are S5, S6, K6 and K5.
CAUTION: Please cut off the
power supply before switching S5, S6, K5, K6. Whether you use DC or AC input, make sure y
have unplugged the power plug every time!!!
It’s very dangerous if you don’t cut off the power supply, and the new settings
can not be activated.
As you can see from the image, there are S5, S6, K6 and K5.
power supply before switching S5, S6, K5, K6. Whether you use DC or AC input, make sure y
It’s very dangerous if you don’t cut off the power supply, and the new settings
power supply before switching S5, S6, K5, K6. Whether you use DC or AC input, make sure y
ou
It’s very dangerous if you don’t cut off the power supply, and the new settings
![](/img.php?id=3837041&img=bg8.png)
S6 is interlock /inching&self-locking switch
: Toggle to the right(0), it enters into interlock mode; Togg
enters into inching &self-locking mode.
K5 is inching/self-locking switches
: From left to right, there are 1, 2, 3, 4, correspondingly for channel 1 (CH1), channel 2
(CH2), channel 3 (CH3), channel 4 (CH4). Toggle the switch down (0),
Toggle the switch up (1), the corresponding channel enters into self
Please note that if S6 is toggled to the right(0), your 4CH Pro is in interlock mode, it’s invalid to set K5.
K6 is used
to set the delay time for inching mode
CH4. Toggle all switches down (0000), the inching time will delay for 4s; Toggle all switches up (1111), the inching time wil
delay for 0.25s.

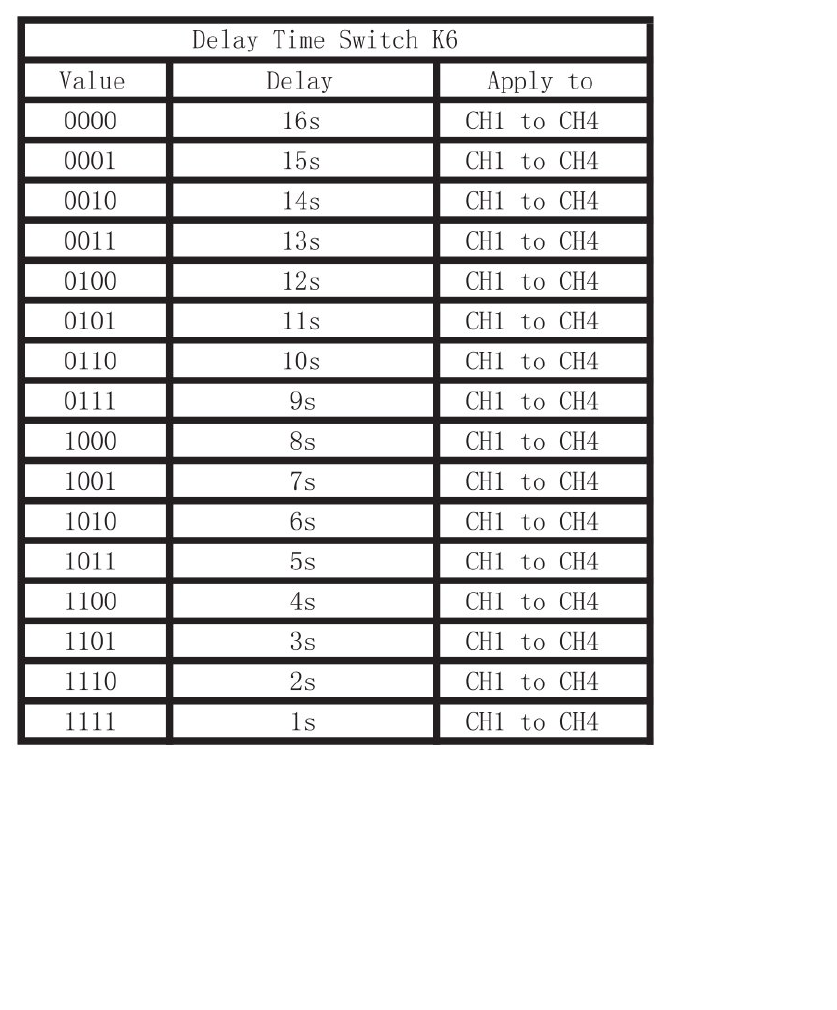

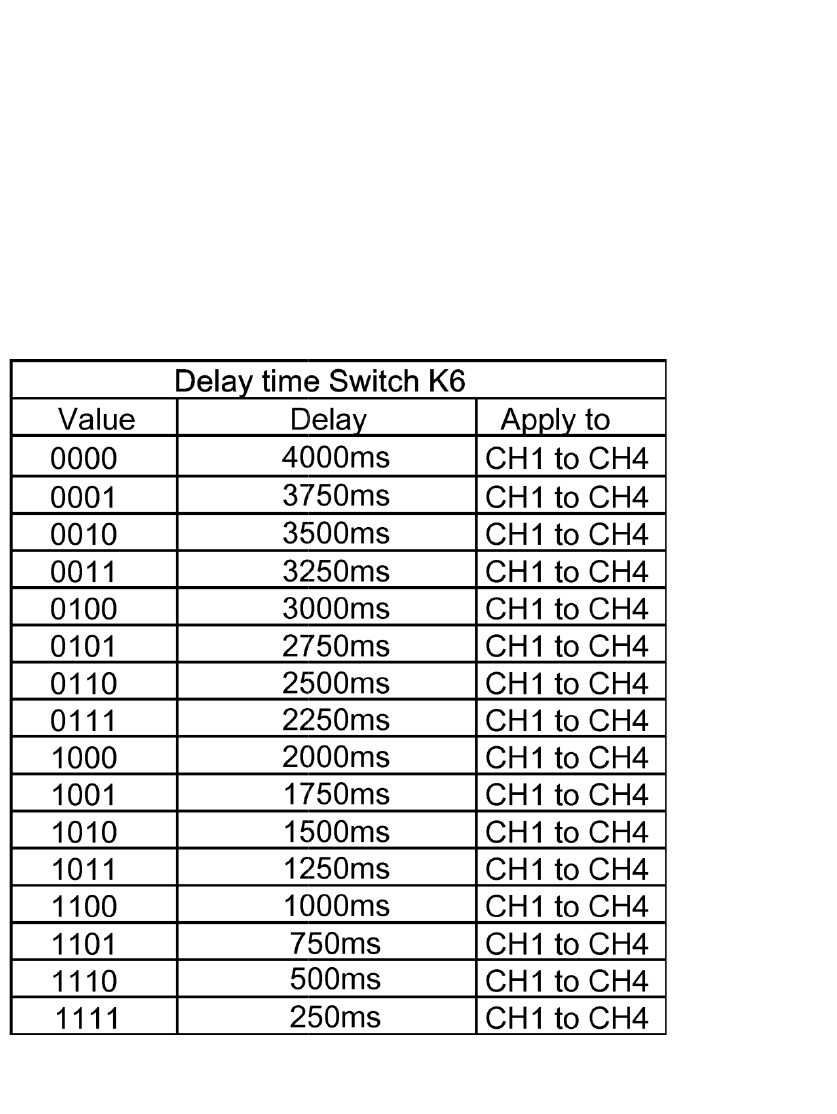

Please refer to the delay time setting list below:
Please refer to the Sonoff 4CH Pro R2
’
s delay time setting list below:
: Toggle to the right(0), it enters into interlock mode; Togg
le to the left(1), it
: From left to right, there are 1, 2, 3, 4, correspondingly for channel 1 (CH1), channel 2
(CH2), channel 3 (CH3), channel 4 (CH4). Toggle the switch down (0),
the corresponding channel enters into inching mode;
Toggle the switch up (1), the corresponding channel enters into self
-locking mode.
Please note that if S6 is toggled to the right(0), your 4CH Pro is in interlock mode, it’s invalid to set K5.
to set the delay time for inching mode
. From left to right there are 1, 2, 3, 4, correspondingly for CH1, CH2, CH3,
CH4. Toggle all switches down (0000), the inching time will delay for 4s; Toggle all switches up (1111), the inching time wil
Please refer to the delay time setting list below:
s delay time setting list below:
le to the left(1), it
: From left to right, there are 1, 2, 3, 4, correspondingly for channel 1 (CH1), channel 2
the corresponding channel enters into inching mode;
. From left to right there are 1, 2, 3, 4, correspondingly for CH1, CH2, CH3,
CH4. Toggle all switches down (0000), the inching time will delay for 4s; Toggle all switches up (1111), the inching time wil
l
![](/img.php?id=3837041&img=bg9.png)
4. RF Remote Settings
Pairing with 433MHz RF Remote:Quickly press twice one of the switches below, then press one of the ABCD buttons on your
RF Remote. If paired successfully, the button will lit up in red, and the corresponding status LED will blink in green for 4
times. You can press the button to turn on or turn off the related channel.
![](/img.php?id=3837041&img=bga.png)
Clear 433MHz Coding: S5 is 433MHz code clearing button, please press and hold it until the 4 LEDs lit up green and off.
5. APP Features
1. Use WiFi to remote control 4 devices separately.
Turn on/off by tapping on device icon. Device status will simultaneously display on the interface.
2. Share Control
The owner can share the devices to other eWeLink accounts. While sharing devices, both should stay online on eWeLink.
Because if the account you want to share is not online, he/she will not receive the invitation message.
How to make it possible? Firstly click Share, input the eWeLink account (phone number or email address) you want to share,
tick the timer permissions (edit/delete/change/enable) you want to give, then click Next. The other account will receive an
invitation message. Click Accept, the device has shared successfully. The other account will have access to control
your device.
3. Timing
![](/img.php?id=3837041&img=bgb.png)
Supports max 8 enabled single/repeat/countdown timer to auto-turn on/off connected appliances. Preset timers can work
even WiFi is unavailable, but the device must keep power on.
4. Scene
Scene allows triggering on/off your devices automatically. Scene Settings is in the upper right corner of Device List. You can
set up scenes or smart scenes to trigger on/off Sonoff 4CH Pro.
Users should select “Click to execute” in the condition, add different existing devices, name the scene and save it.
4. Problems and Solutions
Read the detailed FAQ on Itead Smart Home Forum. If below answers can’t solve your problem, please submit a feedback on
eWeLink.
1. My device has added successfully but stays “Offline”.
Answers: The newly added device need 1-2 min to connect to your router and the Internet. If it stays offline for a long time,
please judge the problem by the wifi led status:
1.1. Wifi led quickly blinks one time and repeats, which means device failed to connect to the router. The reason may be you
have entered wrong WiFi password or your device is too far away from the router, which causes a weak WiFi signal. The
device can not be added to the 5G-wifi-router, only the 2.4G-wifi is OK. At last, make sure that your router is MAC-open.
1.2. Wifi led slowly blinks one time and repeats, which means the device has connected to router and server but failed to
be added to device list. Then power on the device again, if it still not working, just add the device again.
1.3. Wifi led quickly blinks twice and repeats, this means the device has connected to the router but failed to connect to the
server. Then please confirm your WiFi router works normally.
2. Why the APP can not find the device in pairing status?
Answers: That’s because of your phone’s cache. Please close the WLAN of your phone then open it after a minute. At the same
time, please power off the device if you can, then power up to try again.
3. My WiFi is expired, can I connect the devices to LAN? Can my phone be directly connected to device hotspot?
Answers: Currently this product does not support LAN or directly connect to hotspot. It must connect to the WiFi router.
4. The wifi led keeps off, even if the device is powered on. Press the button but the device does not work.
Answers: The circuit may be broken, please send it back for testing. Return shipping postage and packaging will be at buyer’s
expense, if the device is damaged by the buyer, and the buyer should bear extra repair cost.
