The SONOS PLAY:1
The SONOS PLAY:1 is the newest wireless music player that lets you use any Sonos controller to control and enjoy all the
music you want all over your house (see "Sonos Controllers" on page 2 for more information).
• Surprisingly big sound from the smallest player in the Sonos lineup
• Small footprint fits on more shelves, more counters, and more places to bring music to your room
• Works seamlessly with the complete range of Sonos products
New to Sonos?
It takes just a few steps to get your Sonos system up and running— simply follow the setup instructions packaged with your
PLAY:1. Once you’ve got it set up, you can add additional Sonos components any time.
Adding to an existing Sonos system?
Sonos can be easily expanded room by room. If you are adding this PLAY:1 to an existing Sonos system, you can turn directly
to "Adding to an Existing Sonos System" on page 5.
![](/img.php?id=2061461&img=bg4.png)
Product Guide
2
Your Home Network
To access Internet music services, Internet radio, and any digital music stored on your computer or Network-Attached
Storage (NAS) device, your home network must meet the following requirements:
Home network requirements
• High-speed DSL/Cable modem, or fiber-to-the-home broadband connection for proper playback of Internet-based
music services. (If your Internet service provider only offers Satellite Internet access, you may experience playback
issues due to fluctuating download rates.)
• If your modem is not a modem/router combination and you want to take advantage of Sonos' automatic online
updates, or stream music from an Internet-based music service, you must install a router in your home network. If
you do not have a router, purchase and install one before proceeding.
• If you are going to use a Sonos application on an Android™ smartphone, iPhone®, iPod Touch®, iPad® or other tablet,
you may need a wireless router in your home network. For more information, please visit our Web site at
http://faq.sonos.com/apps.
• Connect at least one Sonos component to your home network router using an Ethernet cable, and then you can add
other Sonos components wirelessly.
• For best results, you should connect the computer or NAS drive that contains your personal music library collection to
your home network router using an Ethernet cable.
System requirements
• Windows® XP SP3 and higher
• Macintosh® OS X 10.6 and higher
• IOS 4.0 and higher, compatible with iPhone, iPod touch, and iPad
•Android: 2.1 and higher, certain features may require higher versions of Android
Sonos Controllers
You can use any Sonos controller with the SONOS PLAY:1, including:
• The Sonos Controller for Android — Touch the Play Store or Market button on your Android phone or tablet to down-
load the free Sonos application from Google Play.
• The Sonos Controller for iPhone or the Sonos Controller for iPad — Tap the App Store button on your iPhone, iPod touch
or iPad to download the free Sonos application, or you can download the application from iTunes
®
.
Note: Your network must have a high-speed Internet connection, as the Sonos system is
designed to provide you with online software updates. Your Sonos system must be registered
to receive these updates, so be sure to register during the setup process. We do not share
your e-mail address with other companies.
Note: For the latest system requirements, including supported operating system versions,
please visit our Web site at http://faq.sonos.com/specs.
![](/img.php?id=2061461&img=bg5.png)
SONOS PLAY:1 3
(If you download from iTunes, you will need to sync before you see the Sonos logo display on your device)
•The Sonos Controller for Mac or PC. Download from our Website at: www.sonos.com/support/downloads.
• The SONOS CONTROL
Sonos is always working on new ways to help you control the music any way you want. For the latest list of Sonos controllers,
please visit our Web site at www.sonos.com/products.

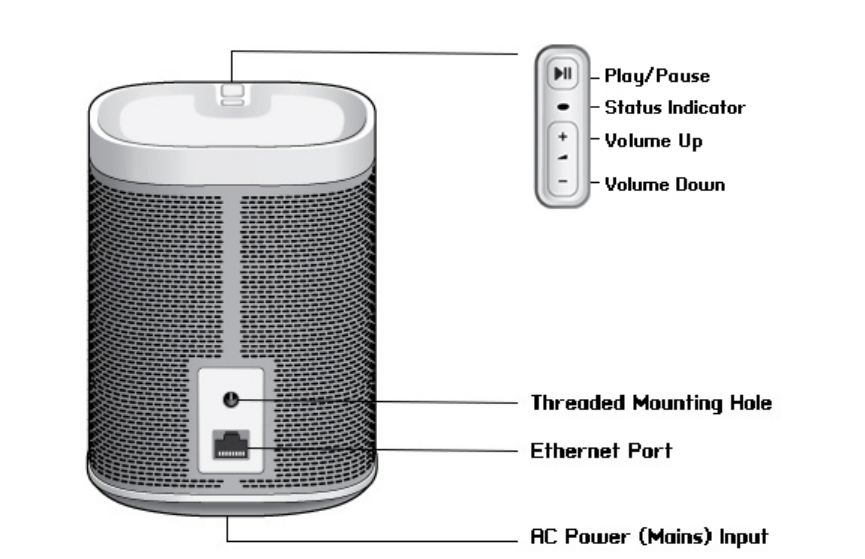

SONOS PLAY:1 FRONT/BACK
On/Off
Your Sonos system is designed to be always on; the
system uses minimal electricity whenever it is not
playing music.
To quickly stop streaming music in every room, select Pause All from the ROOMS menu
on a Sonos controller.
Play/Pause Toggles between playing and pausing the audio in this room (defaults to restarting the
same music source unless a different one is selected).
Press once to start or stop streaming audio; press twice to skip to the next track (if
applicable to the selected music source).
Status indicator
• Flashes white when powering up or connecting to
your Sonos music system.
• Solid white when powered up and connected to
your Sonos music system (normal operation).
Indicates the current status of the PLAY:1. When the PLAY:1 is in normal operation, you
can turn the white status indicator light on and off.
For a complete list of status indications, please go to http://faq.sonos.com/led.
Volume up (+)
Volume down (-)
Press these buttons to adjust the volume up and down. Press and hold the Volume Down
button to rapidly reduce the volume.
![](/img.php?id=2061461&img=bg6.png)
Product Guide
4
Selecting a Location for Your PLAY:1
You can locate a SONOS PLAY:1 just about anywhere. For maximum enjoyment, we have a few guidelines:
• The PLAY:1 is designed to work well even when placed next to a wall or other surface. For optimum performance,
maintaining more than 1 inch (2.5 cm) clearance around the back of the unit is recommended.
• Care should be taken if placing the PLAY:1 close to an older CRT television. If you notice any discoloration or
distortion of your picture quality, simply move the PLAY:1 further from the television.
• The PLAY:1 is humidity-resistant so you can use it in the bathroom; however it is not water-resistant so don’t position
it near water or leave it outside during a rain storm.
Wall Mounting the PLAY:1
The SONOS PLAY:1 has a 1/4 inch (6.75mm) integrated, threaded (20 threads per inch) mounting hole. If desired, you can
easily wall mount your PLAY:1 using a suitable mounting bracket (not included). Simply choose a location that’s close to an
electrical outlet, taking care to avoid heat, steam, dripping water or hidden wiring, and follow the instructions included with
the wall mount kit.
Threaded mounting hole
1/4 inch (6.75mm) /
20-thread
The SONOS PLAY:1 has an integrated mounting hole on the back of the unit so it can be
wall-mounted if desired (mounting bracket not included.) See "Wall Mounting the PLAY:1"
on page 4 for more information.
Ethernet switch connector Use Category 5 Ethernet cable to connect to a router, computer, or additional network
device such as a network-attached storage (NAS) device.
AC power (mains) input
(~100-240 V, 50-60 Hz)
Use the supplied power cord to connect to a power outlet.
Insert the power cord firmly into the PLAY:1 until it is flush with the bottom of the unit.
Note: Be sure the wall mount bracket you purchase will support at least 10lbs. (4.5 kgs).
![](/img.php?id=2061461&img=bg7.png)
SONOS PLAY:1 5
Adding to an Existing Sonos System
Once you’ve got your Sonos music system set up, you can easily add more Sonos components any time (up to 32 rooms).
1.
Select a location for your SONOS PLAY:1 (see "Selecting a Location for Your PLAY:1" on page 4 for optimal placement
guidelines.)
2.
Attach the power cord to the SONOS PLAY:1, and apply power. Be sure to push the power cord firmly into the bottom of
the PLAY:1 until it is flush with the bottom of the unit.
3.
Choose one of the following options:
• Using a handheld Sonos controller: Select Add a Sonos Component from the Settings menu and follow the on-screen
prompts to add this component to your Sonos system.
• Using the Sonos Controller for Mac or PC: Select Add a Sonos Component from the Manage menu and follow the
prompts to add this component to your Sonos system.
Creating a Stereo Pair
The Stereo Pair setting allows you to group two PLAY:1s, PLAY:3s or PLAY:5s in the same room to create a wider stereo
experience. In this configuration, one unit serves as the left channel and the other serves as the right channel. You cannot
create a mixed stereo pair—the Sonos components in the stereo pair must be the same.

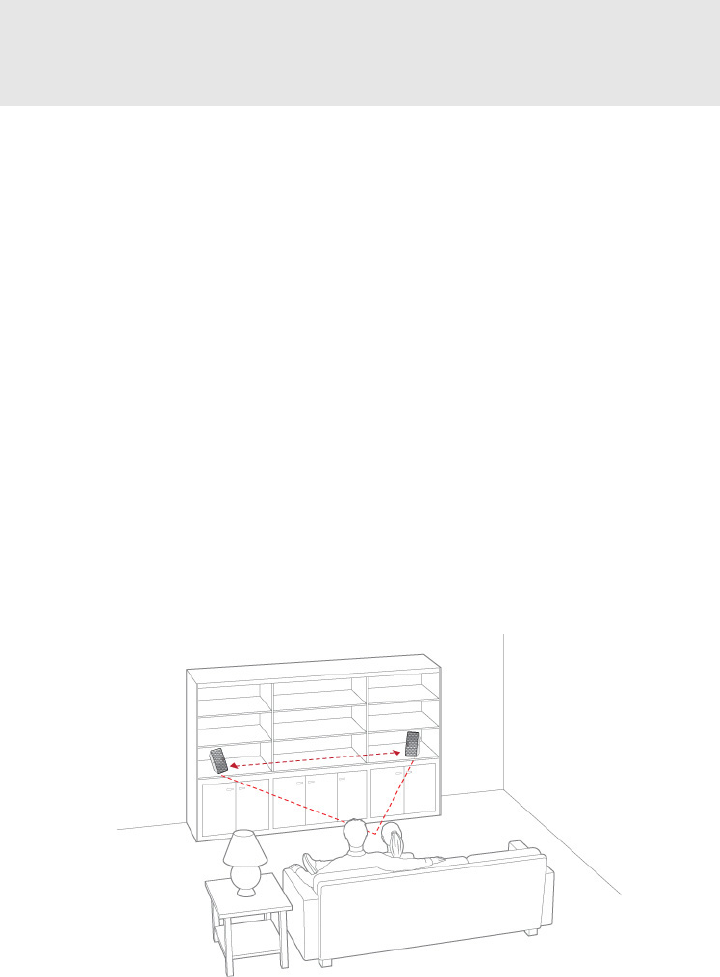

Optimum placement information
• When creating a stereo pair, it is best to place the two Sonos components 8 to 10 feet away from each other.
• Your favorite listening position should be 8 to 12 feet from the paired Sonos components. Less distance will increase
bass, more distance will improve stereo imaging.
Note:

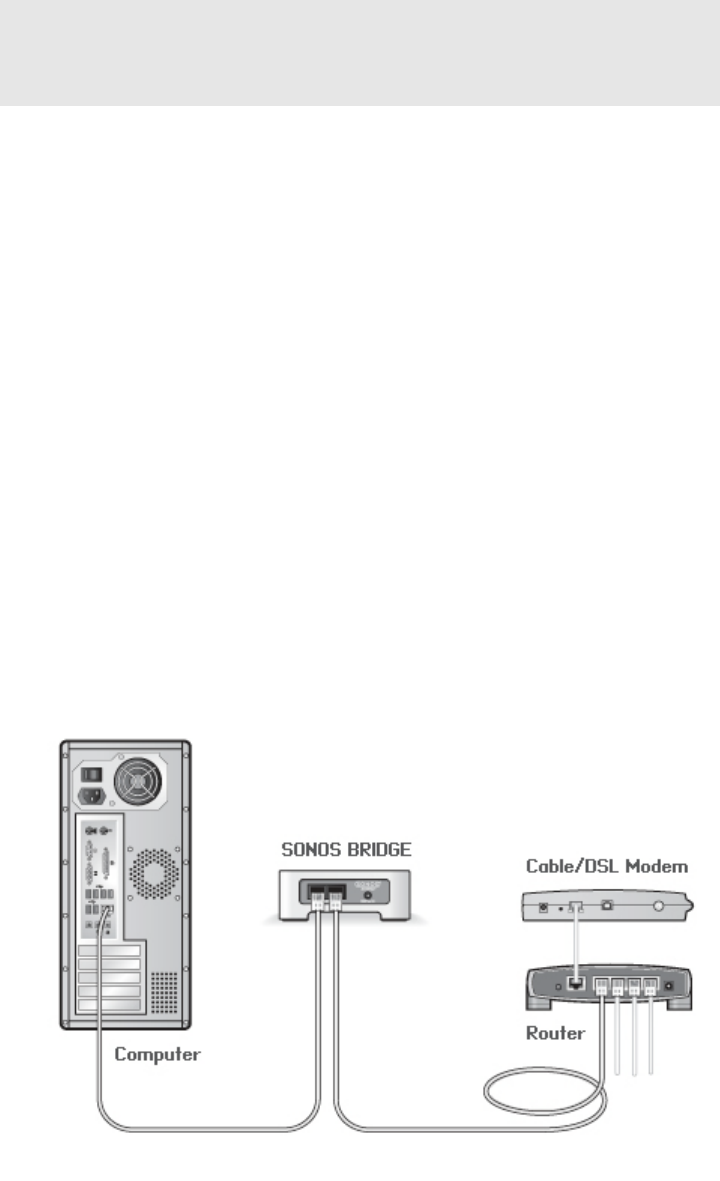

If you want to make a wired connection, connect a standard Ethernet cable
from your router or another Sonos component (or a live network wall plate if you have
built-in wiring) to an Ethernet switch connection on the back of the new Sonos
component.
![](/img.php?id=2061461&img=bg8.png)
Product Guide
6
Using a handheld Sonos controller
1.
Select Settings -> Room Settings.
2.
Select one of the Sonos products (PLAY:1, PLAY:3 or PLAY:5) you wish to pair.
3.
Select Create Stereo Pair, and touch Next.
4.
Select the other similar product you wish to pair.
5.
Press the Mute button on the Sonos component you wish to become the left channel.
The units automatically connect to form a stereo pair.
To separate a stereo pair:
1.
Select Settings -> Room Settings.
2.
Select the stereo pair you wish to separate (the stereo pair appears with L + R in the Room name.)
3.
Select Separate Stereo Pair, and touch Separate to confirm.
Using the Sonos Controller for Mac or PC
1.
Choose one of the following:
• Using the Sonos Controller for PC: Select Settings from the Manage menu.
• Using the Sonos Controller for Mac: Select Preferences -> Room Settings from the Sonos menu.
2.
Select one of the Sonos products (PLAY:1, PLAY:3 or PLAY:5) you wish to pair from the Room Settings for drop-down list.
3.
On the Basic tab, click Create Stereo Pair and then click Next.
4.
Select the other unit you want to pair, and then click Next.
5.
Press the Mute button on the Sonos component that will become the left channel.
To separate a stereo pair:
1.
Choose one of the following:
• Using the Sonos Controller for PC: Select Settings from the Manage menu.
• Using the Sonos Controller for Mac: Select Preferences -> Room Settings from the Sonos menu.
2.
Select the Sonos stereo pair you wish to separate from the Room Settings for drop-down (the stereo pair will appear
with L + R in the room name).
3.
On the Basic tab, click Separate Stereo Pair.
4.
Click Separate.
Note: The Stereo Pair setting is for use with PLAY:1, PLAY:3 and PLAY:5 units only. You cannot
create a mixed stereo pair—both Sonos components in the stereo pair must be the same.
![](/img.php?id=2061461&img=bg9.png)
SONOS PLAY:1 7
Surround Speakers
Adding surround speakers
You can easily add two PLAY:1 or PLAY:3 speakers to function as left and right surround channels in your Sonos surround
sound experience.
• Make sure the Sonos products are the same—you cannot combine a PLAY:1 and a PLAY:3 to function as surround
speakers.
• Do not create a room group or stereo pair as these will not achieve the left and right surround channel functionality.
Using a handheld Sonos controller
1.
From the Settings menu, select Room Settings.
2.
Select the room the PLAYBAR is located in.
3.
Select Add Surround Speakers.
4.
Follow the prompts to add first a left and then a right surround speaker.
Using the Sonos Controller for Mac or PC
1.
Select Manage -> Settings (PC) or Sonos -> Preferences (Mac).
2.
Select Room Settings if it is not already highlighted on the left.
3.
From the Basic tab, select Add Surround Speakers.
Follow the prompts to add first a left and then a right surround speaker.
Surround settings
The default audio settings are determined by the calibration process. If you wish to make a change, you can follow the steps
below.
Using a handheld Sonos controller
1.
From the Settings menu, select Room Settings.
2.
Select the room the PLAYBAR and surround speakers are located in. It appears as Room (+LS+RS) on the Room Settings
menu.
3.
Select Advanced Audio -> Surround Settings.
4.
Choose one of the following:
•SURROUNDS: Choose On or Off to turn the sound from the surround speakers on and off.
• Drag your finger across the slider to increase or decrease the volume of the surround speakers.
Note: If these are newly purchased Sonos components, be sure to add them to your Sonos
system before attempting to set them up as surround speakers. See "Adding to an Existing
Sonos System" for help with this step.
Product Guide
8
Using the Sonos Controller for Mac or PC
1.
Select Manage -> Settings (PC) or Sonos -> Preferences (Mac).
2.
Select Room Settings if it is not already highlighted on the left.
3.
Choose the room the PLAYBAR and surround speakers are located in from the Room Settings for drop-down.
4.
Select the Surrounds tab.
5.
Choose one of the following:
•SURROUNDS: Check to turn the sound from the surround speakers on; uncheck to turn it off.
• Click and drag the slider to increase or decrease the volume of the surround speakers.
6.
Close the Settings window when changes are complete.
Removing surround speakers
Using a handheld Sonos controller
1.
From the Settings menu, select Room Settings.
2.
Select the room the surround speakers are associated with. The room name appears as Room (+LS+RS) on the Room
Settings menu.
3.
Select Remove Surround Speakers.
4.
Select Next to drop the surround sound speakers from your surround system. If these were newly purchased PLAY:1s
they will appear as Unused on the Rooms menu. If these PLAY:1s existed in your household previously, they revert back
to their previous state.
You can now move them to another room for individual use. If you want to add them back as surround speakers, see
"Surround Speakers" on page 7 for help.
Using the Sonos Controller for Mac or PC
1.
Select Manage -> Settings (PC) or Sonos -> Preferences (Mac).
2.
Select Room Settings if it is not already highlighted on the left.
3.
Choose the room the PLAYBAR is located in from the Room Settings for drop-down list. The room name appears as Room
(+LS+RS).
4.
From the Basic tab, click Remove Surround Speakers. If these were newly purchased PLAY:1s, they will appear as
Unused in the Rooms pane. If these PLAY:1s existed in your household previously, they revert back to their previous
state.
SONOS PLAY:1 9
Playing Music
You can use any SONOS controller to select music— simply touch to select from the Music menu on a handheld controller, or
click to select from the MUSIC pane within the Sonos Controller for Mac or PC.
Radio
Sonos includes a radio guide that provides immediate access to thousands of free Internet radio stations and broadcast
programs. You can easily find Internet radio stations from all over the world— music, news, and variety programming,
including archived shows and podcasts.
To select an Internet radio station, simply select Radio and choose a station.
Music services
A music service is an online music store or online service that sells audio on a per-song, per audiobook, or subscription basis.
Sonos is compatible with several music services - you can visit our Web site at
www.sonos.com/howitworks/music/partners for the latest list. (Some music services may not be available in your country.
Please check the individual music service’s Web site for more information.)
If you are currently subscribed to a music service that’s compatible with Sonos, simply add your music service user name and
password information to Sonos as needed and you’ll have instant access to the music service from your Sonos system.
1.
To add a music service, touch More Music from the Music menu on your handheld controller.
2.
Select the Sonos-compatible music service you would like to add.
3.
Select I already have an account. Type your music service user name and password, and then touch OK. Your user
name and password will be verified with the music service.
As soon as your credentials have been verified, the music service displays on the Music menu.
Free music service trials are available in some countries. (Please check the individual music service’s Web site for more
information.) If there is a music service trial visible on your More Music menu, simply touch it to select. Touch I’m new to
[music service], and then follow the prompts to activate the music trial. After the trial period is up, you will need to
subscribe to the music service to keep the music playing.
Local music library
The Sonos system can play music from any computer or network-attached storage (NAS) device on your home network
where you have shared music folders. During the setup process, you are guided through the process of accessing your local
music library (such as your iTunes library). Over time, you may wish to add or remove folders from this list.
To make changes to your local music library, select the Settings menu from a handheld Sonos controller and then choose
one of the following options:
• To add a new music folder to Sonos, select Manage Music Library -> Music Library Setup -> Add New Share.
• To remove a music folder, select Manage Music Library -> Music Library Setup. Touch the share you wish to remove
and then select Remove Share.
![](/img.php?id=2061461&img=bgc.png)
Product Guide
10
The Sonos system indexes your local music so you can view your music collection by categories (such as artists, albums,
composers, genres, or tracks.) If you add new music, simply update your music index to add this music to your Sonos music
library.
•To update your music index, select Manage Music Library -> Update Music Index Now. If you’d like your music index
to update automatically each day, select Schedule Music Index Updates and then select a music index update time.
Wireless iTunes playback
You can select and play music and podcasts stored on any iPad, iPhone, or iPod touch that’s on the same network as your
Sonos components. Playback is perfectly synchronized, in any or every room of your home. Simply use your iPad, iPhone, or
iPod touch to make audio selections and then you can use any Sonos controller to control playback.
Wireless iTunes playback is compatible with:
• iPod touch, 4th generation or later (running iOS 6 or later)
• iPhone 3GS or later (running iOS 6 or later
• iPad 2 (running iOS 6 or later)
• iPad, 3rd generation or later (running iOS 6 or later)
•iPad mini
Equalization Settings
The SONOS PLAY:1 ships with the equalization settings preset to provide the optimal playback experience. If desired, you can
change the sound settings (bass, treble, balance, or loudness) to suit your personal preferences.
1.
Using a handheld controller, select Settings -> Room Settings.
2.
Touch to select a room.
3.
Select Music Equalization, and then drag your finger across the sliders to make adjustments.
4.
To change the Loudness setting, touch On or Off. (The loudness setting boosts certain frequencies, including bass, to
improve the sound at low volume.)
Note:
Balance is only adjustable when the PLAY:1 is used in a stereo pair
.
![](/img.php?id=2061461&img=bgd.png)
SONOS PLAY:1 11
Basic Troubleshooting
If a problem occurs, you can try the troubleshooting suggestions listed below. If one of these doesn’t remedy the problem, or
you are not sure how to proceed, please contact the Sonos Customer Support team and we’ll be happy to help.
SONOS PLAY:1 not detected during setup
A network issue may be preventing the PLAY:1 from connecting to your Sonos system. If this is a wireless PLAY:1, try moving
the Sonos components closer together, or wire the PLAY:1 temporarily to see if the problem is related to wireless
interference.
If you encounter this message while a Sonos component is connected to your router, you can try the steps below to resolve
this issue. If you are still experiencing problems, please contact Sonos Customer Support.
1.
Check the firewall
If you are using a computer, firewall software may be blocking the ports that Sonos uses to operate. First, disable all your
firewalls and try to connect again. If this resolves the problem, you should configure your firewall to work with the Sonos
Controller for Mac or PC. Please go to our Web site at http://faq.sonos.com/firewall for additional information. If this does not
resolve the problem, you can try step 2 below.
2.
Check the router
You can bypass your router’s switch to determine whether there are any router configuration issues by connecting a BRIDGE
(or other Sonos component) as depicted in the following illustration (note that the BRIDGE and the computer still have
Internet access in this configuration):
Note: Do not open the device as there is a risk of electric shock. Under no circumstances
should the product be repaired by anyone other than an authorized Sonos repair center, as
this will invalidate the warranty. Please contact Sonos Customer Support for more
information.
Product Guide
12
• Be sure that your cable/DSL modem is connected to the router’s WAN (Internet) port.
• Temporarily remove any other components that are wired to your network.
• Connect an Ethernet cable from the computer directly to the back of the Sonos component, and then connect another
Ethernet cable from the Sonos component directly to one of the LAN ports on your router.
• When you make a change to your network configuration, you may need to power cycle the Sonos component by
unplugging the power cord, and then plugging it back in.
• If you are not using a router, you can visit our Web site at http://faq.sonos.com/norouter for more information.
3.
Check the wiring
Check the link/activity lights on both the router and the Sonos component. The link lights should be lit solid and the activity
lights should be blinking.
• If the link lights are not lit, try connecting to a different port on your router.
• If the link lights still do not light, try connecting a different Ethernet cable.
Not all rooms are visible
You are probably experiencing wireless interference. Change the wireless channel your Sonos system is operating on by
following the steps below.
• Using a handheld Sonos controller: From the Settings menu, touch Advanced Settings, and then Wireless Channel.
Choose another wireless channel from the list.
• Using the Sonos Controller for PC: Select Settings -> Advanced Settings from the Manage menu. On the General tab,
select another wireless channel from the list.
• Using the Sonos Controller for Mac: Select Preferences -> Advanced Settings from the Sonos menu. On the General
tab, select another wireless channel from the list.
It may take several seconds for the switch to take effect. If you have music playing, a short music dropout may occur during
the wireless channel change.
SONOS PLAY:1 13
Indicator Light Explanations
PLAY:1 Status Indicator State Additional Information
Solid white Powered up and
associated with a Sonos
system
Solid green Volume set to zero
Flashing white Powering up
Flashing green and white Not associated with a
Sonos system
Slow flashing green Surround audio is off When PLAY:1 used as a PLAYBAR surround speaker
Rapid flashing amber Playback / Next Track
failed
Play/Pause LED flashes amber rapidly if either playback or next track fails
Solid amber Warning mode The PLAY:1 is beginning to experience a fault condition and will reduce to
75% volume.
•Check the vent slot for adequate cooling
• Check for speaker short circuit
• Check the room temperature to make sure it’s less than 104°F/ 40° C
• If the PLAY:1 is in direct sunlight, provide shade
Mute and then unmute the Sonos component
Unplug the PLAY:1 for several minutes to allow it to cool
Flashing amber and then white Fault mode If the fault condition (above) is not remedied, the Sonos component will
automatically mute itself to prevent damage.
Product Guide
14
Important Safety Information
1.
Read these instructions.
2.
Keep these instructions.
3.
Heed all warnings.
4.
Follow all instructions.
5.
Do not use this apparatus near water.
6.
Clean only with dry soft cloth. Household cleaners or solvents can damage the finish on your Sonos components.
7.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
8.
Protect the power cable from being walked on or pinched, particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
9.
Only use attachments/accessories specified by the manufacturer.
10.
Unplug this apparatus during lightning storms or when unused for long periods of time.
11.
Refer all servicing to Sonos qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power-supply cable or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
12.
The Mains plug should be readily available to disconnect the equipment.
13.
Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
14.
Do not expose apparatus to dripping or splashing and do not place objects filled with liquids, such as vases, on the
apparatus.
