PLAYBASE
THIS DOCUMENT CONTAINS INFORMATION THAT IS SUBJECT TO CHANGE WITHOUT NOTICE.
No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including but not
limited to photocopying, recording, information retrieval systems, or computer network without the written permission of Sonos, Inc.
Sonos and all other Sonos product names and slogans are trademarks or registered trademarks of Sonos, Inc. Sonos Reg. U.S. Pat. &
Tm. Off.
Sonos products may be protected by one or more patents. Our patent-to-product information can be found here:
sonos.com/legal/patents
iPhone®, iPod®, iPad®, Airplay®, iTunes®, OS X® and Apple Music™ are trademarks of Apple Inc., registered in the U.S. and other
countries.
Windows® is a registered trademark of Microsoft Corporation in the United States and other countries.
Android™ is a trademark of Google, Inc.
Amazon, Kindle, Kindle Fire, the Amazon Kindle logo and the Kindle Fire logo are trademarks of Amazon.com, Inc. or its affiliates.
Sonos uses MSNTP software, which was developed by N.M. Maclaren at the University of Cambridge.
© Copyright, N.M. Maclaren, 1996, 1997, 2000; © Copyright, University of Cambridge, 1996, 1997, 2000.
All other products and services mentioned may be trademarks or service marks of their respective owners.
May 2016
©2004-2016 by Sonos, Inc. All rights reserved.
![](/img.php?id=3272193&img=bg3.png)
Sonos PLAYBASE®
Flood any room with epic, full-theater HiFi sound and wirelessly stream all the music on earth through one
easy-to-use player.
• Sophisticated 10-speaker design
• Connects to your TV using a single optical cable and plays everything that's connected to the TV,
including cable boxes and game consoles
• Compatible with Dolby® Digital and stereo
It takes just a few minutes to get your PLAYBASE up and running. Once you’ve got it set up, you can add
more Sonos speakers any time.
What’s in the Box
• Sonos PLAYBASE
•Power cord
• 5 ft. /1.5m TOSLINK optical audio cable
• Ethernet cable
•Quick Start Guide
• Important Product Information booklet
What Do You Need?
Television requirements
The PLAYBASE is compatible with any TV that has an optical digital audio output.
Home network requirements
• High-speed DSL/Cable modem, or fiber-to-the-home broadband connection for proper playback of
Internet-based music services. (If your Internet service provider only offers Satellite Internet access, you
may experience playback issues due to fluctuating download rates.)
Note: One Sonos product must be connected to your broadband router. If the
PLAYBASE will not be located near your router, you can connect a Sonos
BRIDGE™ or any Sonos player (purchased separately) to the router instead.
Note: Your network must have a high-speed Internet connection, as the Sonos
system is designed to provide you with free, online software updates. Your Sonos
system must be registered to receive these updates so be sure to register during
the setup process. We do not share your e-mail address with other companies.
![](/img.php?id=3272193&img=bg4.png)
Product Guide
2
• If your modem is not a modem/router combination and you want to take advantage of Sonos' automatic
online updates, or stream music from an Internet-based music service, you must install a router in your
home network. If you do not have a router, purchase and install one before proceeding. If you are going
to use the Sonos Controller App on an Android™ or iOS device, or you are setting up Sonos wirelessly,
you will need a wireless router. Please visit our website at http://faq.sonos.com/apps for more
information.
• Connect a Sonos BRIDGE, BOOST™ or player to your router if:
• You have a larger home where the WiFi performance isn’t reliable and you want to strengthen the
wireless performance of your Sonos system.
• Your WiFi network is already in high demand with streaming video and web surfing and you want to
create a separate wireless network exclusively for your Sonos speakers.
• Your home network is 5GHz only (not switchable to 2.4GHz).
• For best results, you should connect the computer or NAS drive that contains your personal music library
collection to your home network router using an Ethernet cable.
Before You Get Started

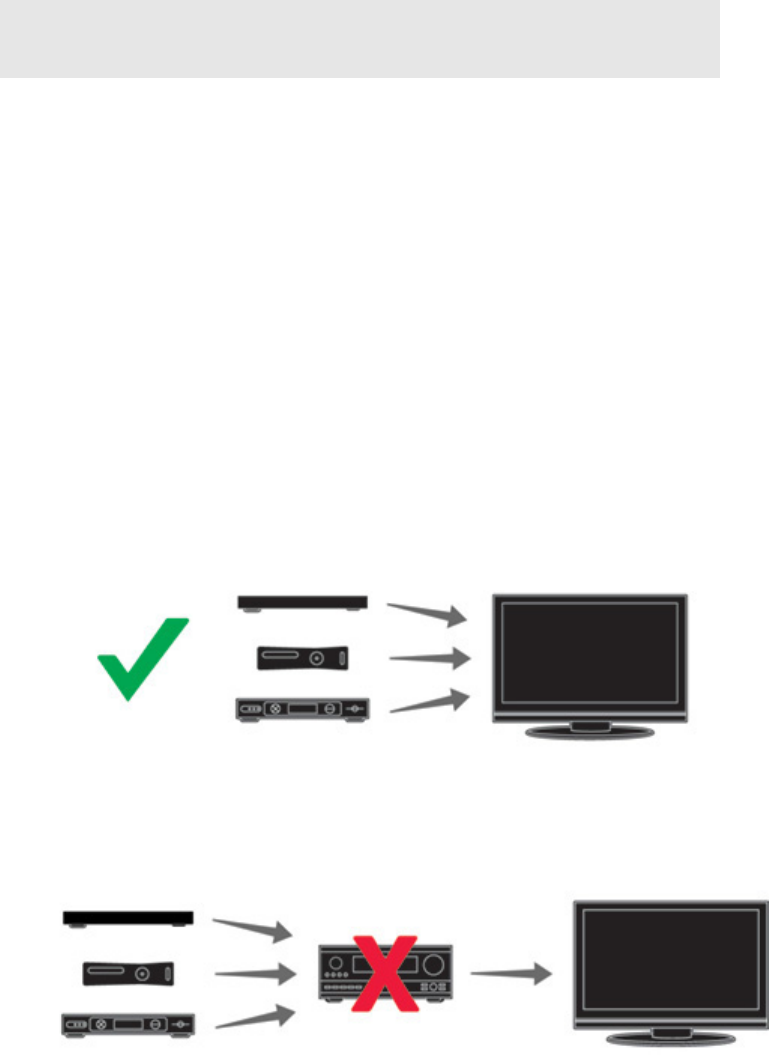

Prior to installing the Sonos PLAYBASE, make sure all external components, such as your cable box, DVD
player, etc. are connected directly to your TV.
If you have any existing home theater or surround sound equipment, disconnect it from your television.
Note: Sonos communicates over a 2.4GHz home network supporting 802.11
b/g/n wireless technology. 5GHz networks are not supported in a completely
wireless Sonos setup.
![](/img.php?id=3272193&img=bg5.png)
Sonos PLAYBASE 3

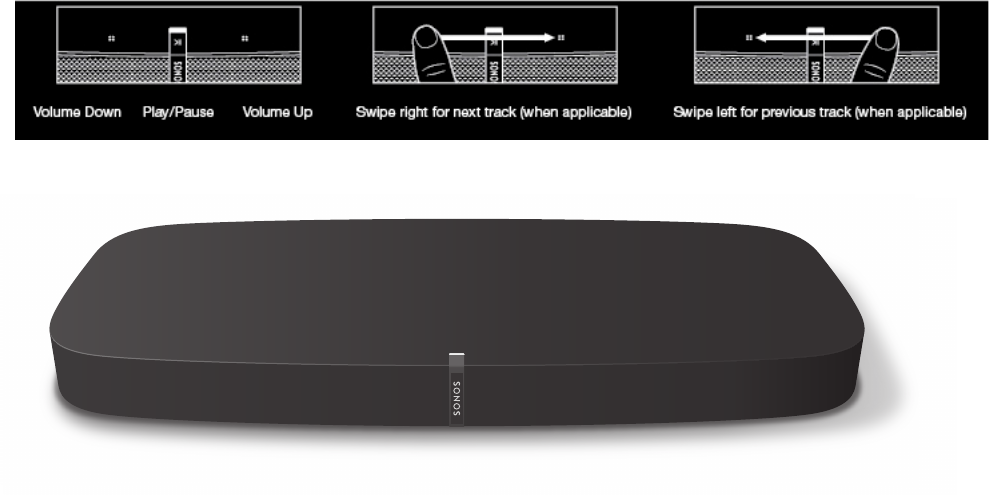

Controls and Buttons
Front with Touch Controls
On/Off Your Sonos system is designed to stay on; when you’re not using it,
Sonos uses minimal electricity.
• To quickly stop the music everywhere, touch Pause All from the
Rooms menu in the Sonos app.
• To stop the audio in just one room, you can touch the Play/Pause
button on the speaker.
Play/Pause Toggles between playing and pausing audio.
• When the TV is on, touch once to mute the sound.
• When the TV is off, touch once to restart the music that was
playing before the TV was turned on.
Status Indicator Light Indicates the current status. During normal operation the white light is
dimly lit, brightening when touch controls are activated. If you don’t
want to see it, you can turn the white light off from Room Settings.
Volume Up (+)
Volume Down (-)
The Volume Up touch control is on the right; Volume Down on the left.
To change th volume quickly you can touch and hold.
![](/img.php?id=3272193&img=bg6.png)
Product Guide
4
Back
Next track
Previous track
Swipe left to right between the touch controls to get to the next track;
swipe right to left to hear the previous track.
When placed vertically, swipe down to go to the next track.
(Next/Previous touch controls don’t work when you’re listening to a
radio station.)
IR (InfraRed) Sensors / Signal Lights The IR sensor receives the signals sent by a remote control.
When the PLAYBASE receives a volume or mute command, the IR
signal light displays momentarily. If desired, you can adjust this setting
so the light never displays. See “IR signal light” for more information.
Ethernet Ports (2) You can use an Ethernet cable to connect the PLAYBASE to your home
network.

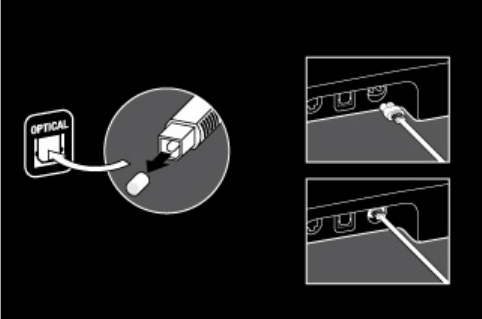

Digital Audio In (Optical) Use an audio optical cable (supplied) to connect the Sonos
PLAYBASE’s digital audio input to the optical digital output on your
television. Take care not to bend or twist the cable.
The PLAYBASE’s digital audio in
and the optical cable end are ’D-
shaped’—be sure to align for proper
insertion.
![](/img.php?id=3272193&img=bg7.png)
Sonos PLAYBASE 5
Where Should I Put It?
The PLAYBASE is designed to be put under your TV.
• If your TV is too big to sit on top of the PLAYBASE, you can put the PLAYBASE on a nearby shelf or wall
mount your TV.
• Allow at least 1” between the PLAYBASE and any walls or surfaces.
• The PLAYBASE should sit near the front edge of your TV cabinet or shelf to get the best sound quality.
How to Set It Up
The PLAYBASE is compatible with Sonos software versions 6.7 and later. If you are adding the PLAYBASE to
an existing Sonos system, be sure to check for software updates before adding the PLAYBASE to your Sonos
system.
1. Carefully unpack the package contents.
2. Choose a location for the PLAYBASE. Refer to “Where Should I Put It?” for help with this step.
3. Remove the protective cap from each end of the optical audio cable.
4. Connect the optical audio cable (supplied) from your TV’s digital audio out (optical) to the PLAYBASE’s
digital audio in (optical) being careful not to twist or bend the cable. The PLAYBASE digital audio in and
the optical cable are ’D-shaped’—make sure they align for proper insertion.
AC Power (Mains) Input Use only the supplied power cord to connect to a power outlet (using a
third party power cord will void your warranty). Be sure to use the
proper power adapter for your country. Push the power cord firmly into
the PLAYBASE until it is flush with the surface.
IR Repeater Allows the commands from your remote control to reach your TV if the
PLAYBASE is positioned in front of the TV. This setting is on by default,
but can be turned off. See “IR repeater” for more information.
IMPORTANT: Be sure to
remove the protective
caps from each end of
the supplied optical
audio cable.
![](/img.php?id=3272193&img=bg8.png)
Product Guide
6
5. Attach the power adapter to the PLAYBASE and plug it in, making sure to push the power cord all the way
into the PLAYBASE.
The status indicator light on top will begin to flash.
6. (OPTIONAL) If you are setting up your PLAYBASE with a SUB and/or surround speakers, put them where
you want them and plug them in.
(You’ll be prompted to add these once the PLAYBASE is set up.)
7. Open the Sonos app on a mobile device and follow the setup instructions.
If you don’t have the free Sonos app installed, download it from the application store on your device.
If you are setting up a new Sonos system, when prompted, add your Sonos products in the
following order:
a. If you have a Sonos product connected to your router, add it first.
b. Add the PLAYBASE.
c. Add any additional Sonos products you purchased.
If you are adding to an existing Sonos system:
a. First check for software updates—the PLAYBASE is compatible with Sonos software versions 4.0 and
later.
Note: Expandable PLAYBASE home theater setup
For a 3.1 home theater experience, pair a SUB with your PLAYBASE.
For a 5.0 home theatre experience, bond a pair of PLAY:1, PLAY:3 or PLAY:5
(gen2) speakers with your PLAYBASE.
For a 5.1 home theater experience, pair a SUB and a pair of PLAY:1, PLAY:3 or
PLAY:5 (gen2) speakers with your PLAYBASE.
Note: Sonos does not recommend using the Sonos app on a computer to set up
your PLAYBASE.
If you purchased Sonos PLAY:1, PLAY:3 or PLAY:5 (gen2)
surround speakers, place the speakers to the left and right of
your main viewing position, level with or behind the main
viewing position. They can be placed either horizontally or
vertically, but make sure both speakers have the same
If you purchased a Sonos SUB, place the SUB
wherever it best fits your room—standing up
or lying flat. You can place it in a corner,
against the wall, behind, under, or next to any
piece of furniture on any kind of floor surface.
Sonos PLAYBASE 7
b. Add the PLAYBASE to your Sonos system by selecting Add a Player or SUB from the Settings menu
on a handheld controller.
c. Add any additional Sonos products you purchased.
You may be prompted to update the new Sonos product(s) after you add them to your Sonos system.
Thick walls, 2.4 GHz cordless telephones, or the presence of other wireless devices can interfere with or
block the wireless network signals from your Sonos system. If you experience difficulty after positioning a
Sonos product, try one or more of the following resolutions—relocate the Sonos product; change the
wireless channel your music system is operating on; connect a Sonos product to your router if your setup
is currently wireless.
If you’d like additional assistance:
•If you need help turning off your TV speakers, see page 20 for more information.
•If you need help configuring a remote control to work with your PLAYBASE, see page 7 for more
information.
•If a message appears on the TV whenever you adjust the volume up and down, it may be possible to
eliminate it. If you are using a cable remote, see page 18. If you are using a universal remote, see page
19 for additional help.
•If you want to play music through the PLAYBASE, see page 16 for more information.
PLAYBASE Settings
Follow the steps below if you wish to make changes to any PLAYBASE settings or the way the PLAYBASE
works with your television.
•Remote Control Setup
• Equalization
• Recalibrating the Audio
• TV Dialog Settings
• Speech Enhancement
• Night Sound
•TV Autoplay
•IR Signal Light
• IR Repeater
• White Indicator Light
• Room Name
• Add SUB / Remove SUB (if SUB is present)
• Add / Remove Surround Speakers (if surround speakers are present)
Setting Up a remote control
During PLAYBASE setup, you were guided through the process of configuring a remote control. If you did not
configure one then, or wish to use a different remote control with your PLAYBASE, follow the steps below.
If you are configuring a new remote because a distracting message appears on the television whenever you
adjust the volume, please go to “Eliminating annoying messages on your TV when using a cable, satellite, or
set top box remote”, or “Eliminating annoying messages on your TV when using a universal remote” for
additional information.
Product Guide
8
Using the Sonos app on a mobile device
1. Select Room Settings from the Settings menu.
2. Select the room your PLAYBASE is located in.
3. Select TV Setup and Control -> Remote Control Setup.
If a remote control is already configured for use with your PLAYBASE you will be asked if you want to
replace it.
4. Pick up the remote control you wish to begin using with the PLAYBASE.
5. Point the remote at the PLAYBASE and press the Volume Up button on the remote control.
• If the remote control is recognized, click Done. You can now use that remote to control the volume and
mute settings on your PLAYBASE.
• If the remote control is not recognized, you will be prompted to make additional button presses to
complete the setup process.
Using the Sonos app on a Mac or PC
1. Select Manage -> Settings (PC) or Sonos -> Preferences (Mac).
2. Select Room Settings if it is not already highlighted on the left.
3. Choose the room the PLAYBASE is located in from the Room Settings for drop-down.
4. Select the TV Setup tab.
5. Click Remote Control Setup.
6. Pick up the remote control you wish to begin using with the PLAYBASE, and then click Next.
7. Point the remote at the PLAYBASE and press the Volume Up button on the remote control.
• If the remote control is recognized, click Done. You can now use that remote to control the volume and
mute settings on your PLAYBASE.
• If the remote control is not recognized, you will be prompted to make additional button presses to
complete the setup process.
If a message appears on the television whenever you adjust the volume up and down, please see “Eliminating
annoying messages on your TV when using a cable, satellite, or set top box remote” or “Eliminating annoying
messages on your TV when using a universal remote” for additional information.
Equalization (EQ)
During the PLAYBASE setup process you were guided through the audio calibration process. If desired, you
can change the sound settings (bass, treble or loudness) for the Sonos PLAYBASE. Bass boosts lower
frequencies, treble boosts higher frequencies, while loudness boosts certain frequencies, including bass, to
improve the sound at low volume.
Any manual EQ changes you make will be reset whenever you go through the audio recalibration process (see
page 9 for more information).
Using a Sonos app on a mobile device
1. From the Settings menu, select Room Settings.
2. Select the room you want to adjust.
3. Select Equalization.
4. Choose one of the following options:
• Drag your finger across the bass or treble sliders to make adjustments.
![](/img.php?id=3272193&img=bgb.png)
Sonos PLAYBASE 9
• Select On or Off to adjust the Loudness setting.
Using the Sonos app on a Mac or PC
1. Select Manage -> Settings (PC) or Sonos -> Preferences (Mac).
2. Select Room Settings if it is not already highlighted on the left.
3. Choose the room the PLAYBASE is located in from the Room Settings for list, and then select the EQ
tab.
4. Choose one of the following options:
• Click and drag the bass or treble sliders to make adjustments.
• Click the Loudness checkbox to turn the loudness setting on or off.
5. Close the Settings window when changes are complete.
Recalibrating the audio
If you have a SUB and/or Sonos surround speakers associated with your PLAYBASE, you may wish to make
some adjustments after initial setup. You will likely wish to recalibrate the audio if you move any Sonos
products in the room.
If you made any manual adjustments to EQ settings, these will be reset during the recalibration process.
Using the Sonos app on a mobile device
1. From the Settings menu, select Room Settings.
2. Select the room that is associated with the surround components. It appears as Room (+SUB) or Room
(+LS+RS) or Room (+SUB+LS+RS) on the Room Settings menu.
3. Select Advanced Audio -> Recalibrate Audio.
4. Follow the prompts to optimize your audio performance.
• If you have a SUB associated with your PLAYBASE, you will be asked to choose between 2 test sounds:
• Press Play to compare the volume of two test sounds, A and B, and then select No Difference,
A is louder or B is louder. If you don’t hear a noticeable difference, select No Difference.
• Press Play to listen to a test sound, and then select the level you prefer.
• If you have surround speakers associated with your PLAYBASE, you will be asked to answer some room
configuration questions.
Using the Sonos app on a computer
1. Select Manage -> Settings (PC) or Sonos -> Preferences (Mac).
2. Select Room Settings.
3. Select the room that is associated with the surround components. It appears as Room (+SUB) or Room
(+LS+RS) or Room (+SUB+LS+RS) on the Room Settings menu.
4. Select the Basic tab, and then select Recalibrate Audio.
5. Follow the prompts to optimize your audio performance:
• If you have a SUB associated with your PLAYBASE, you will be asked to choose between 2 test sounds:
• Press Play to compare the volume of two test sounds, A and B, and then select No Difference,
A is louder or B is louder. If you don’t hear a noticeable difference, select No Difference.
• Press Play to listen to a test sound, and then select the level you prefer.
• If you have surround speakers associated with your PLAYBASE, you will be asked to answer some room
![](/img.php?id=3272193&img=bgc.png)
Product Guide
10
configuration questions.
TV dialog settings
Using the Sonos app on a mobile device
1. From the Settings menu, select Room Settings.
2. Select the room the PLAYBASE is located in.
3. Select Advanced Audio -> TV Dialog Settings.
4. Audio Delay (Lip Sync). Drag your finger across the slider to increase or decrease the sound delay if the
image and the sound are not in sync.
Using the Sonos app on a computer
1. Select Manage -> Settings (PC) or Sonos -> Preferences (Mac).
2. Select Room Settings if it is not already highlighted on the left.
3. Choose the room the PLAYBASE is located in from the Room Settings for drop-down.
4. Select the TV Dialog tab.
5. Click and drag the Audio Delay (Lip Sync) slider to increase or decrease the sound delay if the image and
the audio are not in sync.
6. Close the Settings window when changes are complete.
Additional TV sound options
Speech Enhancement
The Speech Enhancement setting makes the TV dialog easier to hear. Touch the icon on your Sonos
controller’s Now Playing screen to turn this setting on or off. (If the setting isn’t visible, make sure the room
with the PLAYBASE is selected.)
Night Sound
The Night Sound setting adjusts the audio for night time viewing so you can reduce the volume and still
experience proper balance and range. At lower volumes, quiet sounds are enhanced and the intensity of loud
sounds is reduced. Touch the icon on your Sonos controller’s Now Playing screen to turn this setting on or
off. (If the setting isn’t visible, make sure the room with the PLAYBASE is selected.)
TV autoplay
When TV Autoplay is set to On, TV audio automatically plays through the PLAYBASE when you turn on your
television—if music is playing when the TV is turned on, the music immediately stops and the PLAYBASE
switches to TV audio. Additionally, if the PLAYBASE is in a room group when the TV is turned on, it
automatically drops from the group. This setting is On by default.
Using the Sonos app on a mobile device
1. From the Settings menu, select Room Settings.
2. Select the room the PLAYBASE is located in.
3. Select TV Setup and Control -> TV Autoplay.
4. Select On or Off.
Sonos PLAYBASE 11
Using the Sonos app on a computer
1. Select Manage -> Settings (PC) or Sonos -> Preferences (Mac).
2. Select Room Settings if it is not already highlighted on the left.
3. Choose the room the PLAYBASE is located in from the Room Settings for drop-down.
4. Select the TV Setup tab.
5. Check the TV Autoplay checkbox to turn this setting on, uncheck to turn it off.
6. Close the Settings window when changes are complete.
Ungroup on autoplay
As with any Sonos player, you can group and ungroup the PLAYBASE with other rooms. If ungroup on
autoplay is checked, any Sonos rooms that are grouped with the PLAYBASE when the TV is turned on will
automatically drop from the group. This setting is Yes by default.
Using the Sonos app on a mobile device
1. From the Settings menu, select Room Settings.
2. Select the room the PLAYBASE is located in.
3. Select TV Setup and Control -> Ungroup on Autoplay.
4. Select Yes or No.
Using the Sonos app on a computer
1. Select Manage -> Settings (PC) or Sonos -> Preferences (Mac).
2. Select Room Settings if it is not already highlighted on the left.
3. Choose the room the PLAYBASE is located in from the Room Settings for drop-down.
4. Select the TV Setup tab.
5. Check the Ungroup on Autoplay checkbox to turn this setting on, uncheck to turn it off.
6. Close the Settings window when changes are complete.
IR signal light
A light displays on the PLAYBASE when an IR signal is being sent. If desired, you can adjust this setting so the
IR light never displays. This setting is On by default.
Using the Sonos app on a mobile device
1. From the Settings menu, select Room Settings.
2. Select the room the PLAYBASE is located in.
3. Select TV Setup and Control -> IR Signal Light.
4. Select On or Off.
Using the Sonos app on a computer
1. Select Manage -> Settings (PC) or Sonos -> Preferences (Mac).
2. Select Room Settings if it is not already highlighted on the left.
3. Choose the room the PLAYBASE is located in from the Room Settings for drop-down.
4. Select the TV Setup tab.
5. Check the IR Signal Light checkbox to turn this setting on, uncheck to turn it off.
Product Guide
12
6. Close the Settings window when changes are complete.
IR repeater
When the PLAYBASE is placed in front of your TV on a tabletop, it may block the IR sensor on your TV. The IR
repeater setting allows the PLAYBASE to repeat the signal to your TV. This setting is On by default.
Using the Sonos app on a mobile device
1. From the Settings menu, select Room Settings.
2. Select the room the PLAYBASE is located in.
3. Select TV Setup and Control -> IR Repeater.
4. Select On or Off.
Using the Sonos app on a computer
1. Select Manage -> Settings (PC) or Sonos -> Preferences (Mac).
2. Select Room Settings if it is not already highlighted on the left.
3. Choose the room the PLAYBASE is located in from the Room Settings for drop-down.
4. Select the TV Setup tab.
5. Check the IR Repeater checkbox to turn this setting on, uncheck to turn it off.
6. Close the Settings window when changes are complete.
White status light
A white light displays on the side of the PLAYBASE to indicate that the unit is functioning in normal operation.
If desired, you can turn this indicator light off so that when the PLAYBASE is in normal operation the white light
does not display. This setting is On by default.
If the Status indicator light begins to flash orange, go to http://faq.sonos.com/led for additional information.
Using the Sonos app on a mobile device
1. From the Settings menu, select Room Settings.
2. Select the room you want to change.
3. Select White Status Light.
4. Select On or Off.
Using the Sonos app on a computer
1. Select Manage -> Settings (PC) or Sonos -> Preferences (Mac).
2. Select Room Settings if it is not already highlighted on the left.
3. Choose the room you want to change from the Room Settings for drop-down.
4. From the Basic tab, click the White Status Light On checkbox to turn the light on or uncheck to turn it off.
Changing room names
Using the Sonos app on a mobile device
1. From the Settings menu, select Room Settings.
2. Select the room you wish to change.
3. Select Room Name.
Sonos PLAYBASE 13
4. Select a new name from the list and touch OK, or select Enter New to type a unique name.
Using the Sonos app on a computer
1. Select Manage -> Settings (PC) or Sonos -> Preferences (Mac).
2. Select Room Settings if it is not already highlighted on the left.
3. Choose the room you wish to change from the Room Settings for drop-down list.
4. Choose a new name from the Room Name list.
Sonos SUB
Adding a Sonos SUB
You can pair a SUB with the PLAYBASE to add to your cinematic experience.
Using the Sonos app on a mobile device
1. From the Settings menu, select Room Settings.
2. Select the room the PLAYBASE is located in.
3. Select Add SUB.
4. Follow the prompts to add the SUB to your Sonos system.
Using the Sonos app on a computer
1. Select Manage -> Settings (PC) or Sonos -> Preferences (Mac).
2. Select Room Settings if it is not already highlighted on the left.
3. From the Basic tab, select Add SUB.
4. Follow the prompts to add the SUB to your Sonos system.
SUB settings
Follow the steps below if you wish to make any changes to the SUB settings.
Using the Sonos app on a mobile device
1. From the Settings menu, select Room Settings.
2. Select the room the PLAYBASE and SUB are located in. It appears as Room (+SUB) on the Room
Settings menu.
3. Select Advanced Audio -> SUB Settings.
4. Choose one of the following:
•SUB: Choose On or Off to turn the sound from the SUB on and off.
•SUB Level Adjustment: Drag your finger across the slider to increase or decrease the volume of the
SUB. (You can use this setting to match the subwoofer level to the level of your main speakers.)
•Placement Adjustment (phase): Select On or Off.
Using the Sonos app on a computer
1. Select Manage -> Settings (PC) or Sonos -> Preferences (Mac).
2. Select Room Settings if it is not already highlighted on the left.
Product Guide
14
3. Choose the room the PLAYBASE and SUB are located in from the Room Settings for drop-down. It
appears as Room (+SUB).
4. Select the SUB tab.
5. Choose one of the following:
•SUB: Check to turn the sound from the SUB on; uncheck to turn it off.
•SUB Level Adjustment: Click and drag the slider to increase or decrease the volume of the SUB. (You
can use this setting to match the subwoofer level to the level of your main speakers.)
•Placement Adjustment (phase): Check to turn on; uncheck to turn it off.
Removing a SUB
Using the Sonos app on a mobile device
1. From the Settings menu, select Room Settings.
2. Select the room the SUB is associated with. It appears as Room (+SUB) on the Room Settings menu.
3. Select Remove SUB.
4. Choose one of the following settings:
• If you want to associate the SUB with a different Sonos player, select Choose Room for SUB and then
select another room.
• If you are not going to use the SUB right now, select Don’t use SUB. It will appear on the Rooms menu
as SUB (unused) until you select it and associate it with another Sonos player.
Using the Sonos app on a computer
1. Select Manage -> Settings (PC) or Sonos -> Preferences (Mac).
2. Select Room Settings if it is not already highlighted on the left.
3. Choose the room the PLAYBASE is located in from the Room Settings for drop-down list.
4. From the Basic tab, click Remove SUB.
Adding Surround Speakers
You can easily pair two PLAY:1, PLAY:3 or PLAY:5 (gen2) speakers with a PLAYBASE to function as left and
right surround channels in your Sonos surround sound experience. You can either configure surround
speakers during the setup process, or follow the steps below to add them.
• Make sure the Sonos products are the same—you cannot combine a PLAY:1 and a PLAY:3 to function
as surround speakers.
• Be sure to follow these instructions to set up your surround speakers. Do not create a room group or
stereo pair as these will not achieve the left and right surround channel functionality.
Sonos PLAYBASE 15
Using the Sonos app on a mobile device
1. From the Settings menu, select Room Settings.
2. Select the room the PLAYBASE is located in.
3. Select Add Surround Speakers.
4. Follow the prompts to add first a left and then a right surround speaker.
Removing surround speakers
1. From the Settings menu, select Room Settings.
2. Select the room the surround speakers are associated with. The room name appears as Room (+LS+RS)
on the Room Settings menu.
3. Select Remove Surround Speakers.
4. Select Next to drop the surround sound speakers from your surround system. If these were newly
purchased players they will appear as Unused on the Rooms menu. If these players existed in your
household previously, they revert back to their previous state.
You can now move them to another room for individual use.
Changing the surround settings
The default setting is determined by the calibration process. If you wish to make a change, you can follow the
steps below.
1. From the Settings menu, select Room Settings.
2. Select the room the PLAYBASE and surround speakers are located in. It appears as Room (+LS+RS) on
the Room Settings menu.
3. Select Advanced Audio -> Surround Settings.
4. Choose one of the following:
•Surrounds: Choose On or Off to turn the sound from the surround speakers on and off.
•Surround Level Adjustment: Drag your finger across the slider to increase or decrease the volume of
the surround speakers.
•Music Playback: Choose Ambient (default; subtle, ambient sound) or Full (enables louder, full range
sound). This setting applies only to music playback, not TV audio.
Using the Sonos app on a Mac or PC
1. Select Manage -> Settings (PC) or Sonos -> Preferences (Mac).
2. Select Room Settings if it is not already highlighted on the left.
3. From the Basic tab, select Add Surround Speakers.
4. Follow the prompts to add first a left and then a right surround speaker.
Removing surround speakers
1. Select Manage -> Settings (PC) or Sonos -> Preferences (Mac).
2. Select Room Settings if it is not already highlighted on the left.
3. Choose the room the PLAYBASE is located in from the Room Settings for drop-down list. The room
name appears as Room (+LS+RS).
![](/img.php?id=3272193&img=bg12.png)
Product Guide
16
4. From the Basic tab, click Remove Surround Speakers. If these were newly purchased players, they will
appear as Unused in the Rooms pane. If these players existed in your household previously, they revert
back to their previous state.
Changing the surround settings
The default setting is determined by the calibration process. If you wish to make a change, you can follow the
steps below.
1. Select Manage -> Settings (PC) or Sonos -> Preferences (Mac).
2. Select Room Settings if it is not already highlighted on the left.
3. Choose the room the PLAYBASE and surround speakers are located in from the Room Settings for drop-
down.
4. Select the Surrounds tab.
5. Choose one of the following:
•Surrounds: Check to turn the sound from the surround speakers on; uncheck to turn it off.
•Surround Level Adjustment: Click and drag the slider to increase or decrease the volume of the
surround speakers.
•Music Playback: Choose Ambient (default; subtle, ambient sound) or Full (enables louder, full range
sound). This setting applies only to music playback, not TV audio.
Can I Play Music Too?
The PLAYBASE doubles as an all-in-one Sonos player that allows you to stream all the music on earth. Make
a selection from the Sonos music menu on your mobile device or from the MUSIC pane on a Mac or PC.
Radio
Sonos includes a radio guide that provides immediate access to thousands of free Internet radio stations and
broadcast programs. You can easily find radio stations from all over the world—music, news, and variety
programming, including archived shows and podcasts.
To select a radio station, simply select Radio and choose a station.
Music services
A music service is an online music store or online service that sells audio on a per-song, per audiobook, or
subscription basis. Sonos is compatible with several music services - you can visit our website at
www.sonos.com/music for the latest list. (Some music services may not be available in your country. Please
check the individual music service’s website for more information.)
If you are currently subscribed to a music service that’s compatible with Sonos, simply add your music service
user name and password information to Sonos as needed and you’ll have instant access to the music service
from your Sonos system.
1. To add a music service, touch Add Music Services from the Sonos music menu.
Note: If TV Autoplay is set to On, the PLAYBASE automatically stops playing
music and switches to TV audio whenever the TV is turned on. See “TV autoplay”
for more information.
![](/img.php?id=3272193&img=bg13.png)
Sonos PLAYBASE 17
2. Select the Sonos-compatible music service you would like to add.
3. Select Add Account, and then follow the on-screen prompts. Your login and password will be verified
with the music service. As soon as your credentials have been verified, the music service displays on the
Sonos music menu.
Free music service trials are available in some countries. (Please check the individual music service’s website
for more information.) If there is a music service trial visible on the Music Services menu, simply touch it to
select. Touch Add Account -> I’m new to [music service], and then follow the prompts to activate the music
trial. After the trial period is up, you will need to subscribe to the music service to keep the music playing.
Local music library
The Sonos system can play music from any computer or network-attached storage (NAS) device on your
home network where you have shared music folders. During the setup process, you are guided through the
process of accessing your local music library (such as your iTunes library). Over time, you may wish to add or
remove folders from this list.
To make changes to your local music library, select the Settings menu from the Sonos app on a mobile
device and then choose one of the following options:
• To add a new music folder, select Manage Music Library-> Music Library Setup -> Add New Share.
• To remove a music folders, select Manage Music Library -> Music Library Setup. Touch the share you
wish to remove and then select Remove.
The Sonos system indexes your local music so you can view your music collection by categories (such as
artists, albums, composers, genres, or tracks.) If you add new music, simply update your music index to add
this music to your Sonos music library.
• To update your music library, select Manage Music Library -> Update Music Index Now. If you’d like
your music library to update automatically each day, select Schedule Music Index Updates and then
select an update time.
Wireless iTunes playback
You can select and play music and podcasts stored on any iOS device that’s on the same wireless network as
your Sonos products. Playback is perfectly synchronized, in any or every room of your home. Simply choose
On this iPad, On this iPhone, or On this iPod touch from the Sonos app on your iOS device to make audio
selections.
Wireless playback from Android devices
You can select and play music stored on any Android device that’s on the same wireless network as your
Sonos products. Playback is perfectly synchronized, in any or every room of your home. Simply choose On
this Mobile Device from the Sonos app on your Android smartphone or tablet to make audio selections.
Google Play Music (Android devices)
You can play music to your Sonos system directly from the Google Play Music app on any Android device.
This feature is available for both Standard and All Access Google Play Music customers.
Note: We recommend using the Sonos app on a computer to add shared folders.
For more information, please visit our website at http://faq.sonos.com/manage.
![](/img.php?id=3272193&img=bg14.png)
Product Guide
18
To play music directly from the Google Play Music app to your Sonos system, you must have both the Google
Play Music app and the Sonos app installed on your mobile device.
Simply open the Google Play Music app and connect to a Sonos room or room group to start the music.
Basic Troubleshooting
If a problem occurs, you can try the troubleshooting suggestions listed below. If one of these doesn’t remedy
the problem, or you are not sure how to proceed, please contact the Sonos Customer Support team and we’ll
be happy to help.
• Customer Support
• Visit our PLAYBASE reference section at http://moreinfo.sonos.com/PLAYBASE
•Visit our website at www.sonos.com/support
•Email us at support@sonos.com
PLAYBASE not detected during setup
• Did you allow Sonos to check for updates? The Sonos PLAYBASE requires software version 4.0 or later.
• Is the power cord properly seated? Be sure to push the power cord firmly into the PLAYBASE until it is
flush with the surface.
• If either of these is not the problem, a network issue may be preventing the PLAYBASE from connecting
to your Sonos system. Try moving the Sonos products closer together.
Eliminating annoying messages on your TV when using a cable, satellite, or set
top box remote
After you disable your TV speakers, your television might display an annoying or confusing message when
you adjust the volume on the PLAYBASE. This could be a message reminding you that your TV speakers are
off, or a volume indicator unrelated to the sound from your PLAYBASE. If you have a programmable remote
control, you can try the steps below. These steps will configure your remote control to send volume
commands that are only recognized by the PLAYBASE so the message no longer appears when you increase
or decrease the volume.
You will need to refer to the printed instructions that came with your remote control, or browse the on-screen
help menu on your cable/satellite/set-top box as the specific details will vary. If you can’t find what you’re
looking for, please contact your cable service provider for additional help.
Identify an unused device key
Your remote control can likely control a variety of devices. The device keys are usually located at the top of the
remote and labeled TV/Cable/CBL/STB/DVD/AUX. Identify a device key that is not currently being used (for
example, the AUX key).
Warning:Do not open the product as there is a risk of electric shock. Under no
circumstances should the product be repaired by anyone other than an authorized
Sonos repair center, as this will invalidate the warranty. Please contact Sonos
Customer Support for more information.
The grill cloth is not removable. Tampering with the cloth may damage your
PLAYBASE.
![](/img.php?id=3272193&img=bg15.png)
Sonos PLAYBASE 19
If your remote will not allow additional devices to be programmed, you might wish to purchase a universal
remote to make it easier to control all your devices. Sonos recommends a Logitech® Harmony® universal
remote. See page 19 for more information.
Program the unused device key
Programming the unused device key will add new volume commands to your remote control.
To perform this step you will need to refer to the printed instructions that came with your remote control or
browse the on-screen help menu on your cable/satellite/set-top box as the specific details will vary by
manufacturer. If you cannot locate the instructions, contact your cable service provider for additional help.
• From the list of codes that can be programmed, select a Sonos code if it appears in the list.
• If Sonos does not appear in the list, select a code for any manufacturer brand other than your TV or
other devices connected to the TV. For example if you own a Vizio TV and a Samsung Blu-ray player,
choose a Panasonic code from the list.
• DO NOT initiate an automated search for a code.
Lock your remote control to the new volume commands
Locking volume control to the new device will ensure your remote always sends the new volume commands.
This feature is likely referred to as volume lock or volume punch through in the instructions that accompanied
your remote control.
Configure your PLAYBASE to work with these new volume commands
See “Setting Up a remote control” for help with this step.
Verify that the problem is solved
If the problem persists, try repeating the steps above, choosing a different manufacturer brand when
programming the unused device key.
Eliminating annoying messages on your TV when using a universal remote
After you disable your TV speakers, your television might display an annoying or confusing message
whenever you adjust the volume on the PLAYBASE. This could be a message reminding you that your TV
speakers are off, or a volume indicator unrelated to the sound from your PLAYBASE. Try the steps below to
configure your universal remote so this message no longer appears when you increase or decrease the
PLAYBASE’s volume.
If you do not own a universal remote, Sonos recommends you purchase a Logitech® Harmony® remote.
If you are using a Logitech universal remote
If this remote is a new purchase, you will first need to set up a Logitech user account and install the Harmony
Remote software. Then follow the steps below to add the PLAYBASE as a new device.
1. Use the USB cable provided by Logitech to connect your Harmony remote to your computer.
2. Launch the Logitech Harmony Remote software or go to www.logitech.com\myharmony and login to
your account. (Where you are directed depends on the Logitech universal remote model you purchased.)
3. Select the Add Device setting.
Note: If this remote is a new purchase, you will need to set up a Logitech user
account and install the Harmony Remote software before proceeding.
![](/img.php?id=3272193&img=bg16.png)
Product Guide
20
4. Choose one of the following options:
• If you are using Logitech Harmony Remote software:
• Select Sonos as the manufacturer, and enter PLAYBASE as the model name/number. If the Sonos
PLAYBASE is not in their database, you will be asked to add it.
• Confirm that you've entered the information correctly, and then save your changes.
• If you are using My Harmony website:
•Type Sonos as the manufacturer and PLAYBASE as the model name. If the Sonos PLAYBASE is not
in their database, you will be asked to confirm your entry or make another choice.
• Confirm that you've entered the information correctly, and then save your changes.
If you are using another universal remote
Please follow the instructions on page 18, “Eliminating annoying messages on your TV when using a cable,
satellite, or set top box remote”.
Turning Off Your Television’s Speakers
During the setup process you are prompted to turn off your TV speakers so the sound comes only through the
PLAYBASE. While Sonos cannot provide instructions for every television model, please try the steps below.
If you cannot find the correct setting to turn off your TV speakers, please consult the owner’s guide that was
packaged with your television.
1. Select the Menu or Setup button on your television’s remote control (not your cable remote control).
An on-screen menu will appear.
2. Select the menu option that controls your television’s audio functions.
3. Select the appropriate setting to turn off your TV speakers. Depending on your TV make and model,
choices may include:
•Off / On
•External Speaker / Television Speaker
•Audio System / Television Speaker
The choice in bold will turn the TV speakers off.
• If none of these are applicable to your television, look for a setting that switches your TV output between
variable and fixed and try switching the setting.
Can’t turn off TV speakers
You should make every effort to turn off your TV’s internal speakers. However some brands, including Toshiba
and Dynex, may not include this setting. If you are unable to turn off the TV speakers, follow the steps below.
1. Using the volume control buttons on your television, turn the TV volume all the way down. Do not use the
Mute button.
2. From this point forward use only the volume buttons on your Sonos controller to adjust the PLAYBASE’s
volume.
Note: This menu selection is most often labeled Audio, Sound, Tools , or Options
or may display as a musical note icon.
![](/img.php?id=3272193&img=bg17.png)
Sonos PLAYBASE 21
Indicator Light Explanations
Indicator Lights Player State Sonos Product Additional Information
Flashing white Powering up BRIDGE, BOOST,
CONNECT, SUB,
CONNECT:AMP,
DOCK, PLAY:1,
PLAY:3, PLAY:5,
PLAYBAR,
PLAYBASE
Solid white
(dimly lit)
Powered up and associated
with a Sonos system (normal
operation)
BRIDGE, BOOST,
CONNECT, SUB,
CONNECT:AMP,
DOCK, PLAY:1,
PLAY:3, PLAY:5,
PLAYBAR,
PLAYBASE
If desired, when the product is in normal
operation, you can turn the white status
indicator light on or off from Room
Settings. (The SUB and any players set to
surround reflect the same setting as the
player they are paired with.)
Solid white
(brightly lit)
Touch control(s) active PLAY:5 (gen2) Brightens when touch controls are
activated and remains at full brightness for
the duration of contact.
Flashing green Powered up, not yet
associated with a Sonos
system
Or,
WAC (wireless access
configuration) join ready
BRIDGE, BOOST,
CONNECT, SUB,
CONNECT:AMP,
DOCK, PLAY:1,
PLAY:3, PLAY:5,
PLAYBAR,
PLAYBASE
For a SUB, this may indicate the SUB is
not yet paired with a player.
Slowly flashing
green
Surround audio is off or
SUB audio is off
PLAY:1, PLAY:3,
PLAY:5 (gen2),
SUB
Applicable for player configured as a
PLAYBASE surround speaker, or for a
SUB paired with a PLAYBASE
Solid green Volume set to zero or muted CONNECT,
CONNECT:AMP,
PLAY:1, PLAY:3,
PLAY:5,
PLAYBAR,
PLAYBASE
Flashing orange During SonosNet setup, this
occurs after a button press
while the product is
searching for a household to
join.
BRIDGE, BOOST,
CONNECT, SUB,
CONNECT:AMP,
DOCK, PLAY:1,
PLAY:3, PLAY:5,
PLAYBAR,
PLAYBASE
![](/img.php?id=3272193&img=bg18.png)
Product Guide
22
Important Safety Information
Please read these instructions and heed all warnings. Keep them in a convenient location and make sure
everyone in the household is aware of them.
Location
• Do not place the unit where it will be exposed to excessive heat (e.g., radiators, heat registers, stoves),
direct sunlight, or a dusty environment (e.g., woodworking shop.)
• Do not place the unit where it will be exposed to flammable liquids and/or fumes.
• Allow at least 1” between the PLAYBASE and any walls or surfaces.
• Protect the power cable from being walked on or pinched, particularly at plugs, convenience receptacles,
and the point where it exits the product. The mains cord should be readily available to disconnect the
power.
• The product should not be used near water—avoid close proximity to a bathtub, kitchen sink, laundry
tub, wet basement, swimming pool, etc.
• The PLAYBASE is for indoor use only. Do not expose to rain or snow.
Proper Ventilation
• Leave one inch of open space around the sides and above the unit to ensure proper ventilation.
• Ventilation should not be impeded by covering the ventilation openings with items such as tablecloths,
curtains, or papers.
Rapidly flashing
orange
Playback / Next Track failed CONNECT,
CONNECT:AMP,
PLAY:1, PLAY:3,
PLAY:5,
PLAYBAR,
PLAYBASE
Indicates either playback or next track
was not possible
Solid orange During wireless setup, this
occurs while the Sonos open
access point is temporarily
active.
If you are not setting up your
Sonos system, this may
indicate warning mode.
CONNECT, SUB,
CONNECT:AMP,
PLAY:1, PLAY:3,
PLAY:5,
PLAYBAR,
PLAYBASE
If the orange light is on AND the player’s
volume level automatically reduces, this
indicates the player is in warning mode.
• Press the Pause button to stop the
audio
• For Sonos products with a vent
opening (SUB, CONNECT:AMP),
check to make sure it’s not blocked
• Check the room temperature to make
sure it’s less than 104°F/ 40° C
• If the player is in direct sunlight,
provide shade
• Allow the player to cool for several
minutes and then press Play to restart
the audio
• If the problem does not resolve,
please contact Customer Support
Indicator Lights Player State Sonos Product Additional Information
![](/img.php?id=3272193&img=bg19.png)
Sonos PLAYBASE 23
• Do not let foreign objects into the unit. If a foreign object should get into the unit, unplug the unit and
contact Sonos for servicing guidance.
Usage
• Do not operate or handle the product with wet hands.
• Only use attachment/accessories specified by Sonos.
• Unplug the power cord during lightning storms or when unused for long periods of time.
• Never disassemble or modify the product in any way.
Cleaning & Maintenance
• Clean the PLAYBASE only with a dry, soft cloth. Household cleaners or solvents may damage the finish
on your Sonos products.
• Do not use chemical solvents (e.g. alcohol, benzene, paint thinner) or other flammable cleaning liquids.
• Refer all servicing to Sonos qualified service personnel. Servicing is required when the unit or the power
cord has been damaged in any way, if liquid or other foreign matter has fallen into the ventilation
openings, or the unit has been exposed to rain or moisture.
Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture.
![](/img.php?id=3272193&img=bg1a.png)
Product Guide
24
PLAYBASE Specs
Feature Description
Audio
Amplifier Ten Class-D digital amplifiers perfectly tuned to match the speakers and
acoustic architecture.
Speakers Ten amplified speakers—six midrange and three tweeters and one woofer.
PLAYBASE’s automatic equalization means the system self-adjusts for rich,
seamless performance.
3.0 Home Theater PLAYBASE’s ten-speaker design plunges you into the cinematic action with
huge waves of sound that capture every whisper and footfall. The player
connects to your TV with a single cable and plays all sources, including
satellite boxes and game consoles.
3.1 Home Theater Pair the PLAYBASE with a SUB, and with the push of a button you can add
spine-curling bass to your cinematic experience—wirelessly.
5.1 Home Theater Add PLAY:1, PLAY:3 or PLAY:5 (gen2) speakers to your PLAYBASE and
SUB for a true surround sound experience. Sleek and understated with
wireless control, this deeply immersive home theater experience wraps you
in crystal-clear, state-of-the-art Sonos sound.
System Requirements TV with optical audio output, broadband Internet, one Sonos product wired
to router, and the Sonos app.
Music
Microphones Two built-in microphones to enable future enhancements of Trueplay tuning.
(Microphones are currently non-functional. Users will be alerted when
microphones are functional and active.)
Operating systems (for stored files) Windows® XP SP3 and higher; Mac OS X v10.6 and higher; NAS (Network
Attached Storage) devices supporting CIFS
Music Services Supported Sonos works seamlessly with most music services, including Apple
Music™, Google Play Music, Pandora, Spotify and Radio by TuneIn, as well
as downloads from any service offering DRM-free tracks. Service availability
varies by region. For a complete list, see
http://www.sonos.com/music.
Internet Radio Supported Streaming MP3, HLS/AAC, WMA
![](/img.php?id=3272193&img=bg1b.png)
Sonos PLAYBASE 25
Audio Formats Supported Support for compressed MP3, AAC (without DRM), WMA without DRM
(including purchased Windows Media downloads), AAC (MPEG4), AAC+,
Ogg Vorbis, Apple Lossless, Flac (lossless) music files, as well as
uncompressed WAV and AIFF files.
Native support for 44.1kHz sample rates. Additional support for 48kHz,
32kHz, 24kHz, 22kHz, 16kHz, 11kHz, and 8kHz sample rates. MP3 supports
all rates except 11kHz and 8kHz.
Note: Apple “Fairplay”, WMA DRM and WMA Lossless formats not currently
supported. Previously purchased Apple “Fairplay” DRM-protected songs
may be upgraded.
Album Art Supported JPEG, PNG, BMP, GIF
Playback Modes Crossfade, shuffle, repeat
Playlists Supported Rhapsody, iTunes, WinAmp, and Windows Media Player (.m3u, .pls, .wpl)
Networking
Ethernet Port A single Ethernet port can connect PLAYBASE to a wired home network.
Wireless Connectivity Connects to your home WiFi network with any 802.11 b/g/n, 3x3 MIMO,
dual-band (2.4GHz/5GHz) router.
SonosNet™ Extender Functions to extend and enhance the power of SonosNet, a secure AES
encrypted, peer-to-peer wireless mesh network dedicated exclusively for
your Sonos system to reduce WiFi interference.
General
Controls Volume +/-, Play/Pause, Next Track, Previous Track; swipe horizontally
across the touch controls to skip to next track or previous track.
Top Panel L E D s Indicates PLAYBASE status
Power Supply 100 - 240 VAC, 50/60 Hz, auto-switchable
Dimensions (H x W x D) 2.20 x 28.35 x 14.17 in. (56 x 720 x 380 mm)
Weight 21.5 lbs. (9.8 kg)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature 4°F to 158°F (-20°C to 70°C)
Package Contents PLAYBASE, AC power cord, flat Ethernet cable, optical audio cable,
quickstart guide and legal booklet.
Control Touch Controls: Volume +/-, Play/Pause, Next Track, Previous Track; swipe
horizontally across the touch controls to skip to next track or previous track.
You can also control PLAYBASE volume and mute with your existing TV,
cable or universal remote or download the free Sonos app to control
PLAYBASE from your smartphone, tablet, PC or Mac.
Feature Description
Product Guide
26
* Specifications subject to change without notice.
Supported Devices PLAYBASE works with all amplified and non-amplified Sonos products.
PLAYBASE connects to your TV using a single optical cable and plays all
sources connected to the TV, including cable boxes and game consoles.
Feature Description
