User Manual R1
![](/img.php?id=3339523&img=bg1.png)
THIS DOCUMENT CONTAINS INFORMATION THAT IS SUBJECT TO CHANGE WITHOUT NOTICE.
No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including but not
limited to photocopying, recording, information retrieval systems, or computer network without the written permission of Sonos, Inc.
Sonos and all other Sonos product names and slogans are trademarks or registered trademarks of Sonos, Inc. Sonos Reg. U.S. Pat. &
Tm. Off.
Sonos products may be protected by one or more patents. Our patent-to-product information can be found here:
sonos.com/legal/patents
AirPlay®, Apple Music™, FairPlay®, iPad®, iPhone®, iPod®, Tunes®, and OS X®, are trademarks of Apple Inc., registered in the U.S.
and other countries.
"Made for iPod", "Made for iPhone", and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to
iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not
responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this
accessory with iPod, iPhone, or iPad may affect wireless performance.
Windows® is a registered trademark of Microsoft Corporation in the United States and other countries.
Android™ is a trademark of Google, Inc.
Amazon, Kindle, Kindle Fire, the Amazon Kindle logo and the Kindle Fire logo are trademarks of Amazon.com, Inc. or its affiliates.
Sonos uses MSNTP software, which was developed by N.M. Maclaren at the University of Cambridge.
© Copyright, N.M. Maclaren, 1996, 1997, 2000; © Copyright, University of Cambridge, 1996, 1997, 2000.
All other products and services mentioned may be trademarks or service marks of their respective owners.
March 2017
©2004-2017 by Sonos, Inc. All rights reserved.
![](/img.php?id=3339523&img=bg3.png)
Sonos CONNECT
The Sonos CONNECT™ is designed to be used with an external amplifier. It contains both analog and digital
outputs so you can easily connect it to your existing audio equipment.
• Use a CONNECT to listen to music in a room where you already have an amplifier, such as your home
theater system or the stereo system in your family room.
• Use a CONNECT to listen to music in your home office where you already have a computer or a pair of
powered speakers.
• Use a CONNECT if you have a distributed audio system that is driven from an amplifier in one central
location with speaker wires home-run to this central location.
New to Sonos?
It takes just a few steps to get Sonos up and running—simply follow the setup instructions packaged with
your CONNECT. Once you’ve got it set up, you can add additional Sonos products any time.
Adding to an existing Sonos system?
Sonos can be easily expanded room by room. You can turn directly to Adding to an Existing Sonos System
if you are adding this CONNECT to an existing Sonos system.
![](/img.php?id=3339523&img=bg4.png)
Product Guide
2
Your Home Network
To use the Sonos app, your device must be on the same network as Sonos. If you need help, please go to
http://faq.sonos.com/searching.
Requirements
To access music services, Internet radio, and music stored on your computer or Network-Attached Storage
(NAS) device, make sure your network meets these requirements.
• High-speed DSL/cable modem, or fiber-to-the-home broadband connection for proper playback of
music services. (If your Internet service provider only offers satellite Internet access, you may experience
playback issues due to fluctuating download rates.)
• If your modem isn’t a modem/router combination and you want to take advantage of Sonos’ automatic
online updates or use a streaming music service, you’ll need to install a wireless router before setting up
Sonos.
• Connect a Sonos BOOST or speaker to your router if:
• You have a larger home where the WiFi performance isn’t reliable and you want to strengthen the
wireless performance of your Sonos system.
• Your WiFi network is already in high demand with streaming video and web surfing and you want to
create a separate wireless network exclusively for your Sonos speakers.
• Your network is 5GHz only (not switchable to 2.4GHz).
• You have configured your router to support only 802.11n and can’t change the settings to support
802.11 b/g/n.
• For best results, you should connect the computer or NAS drive that contains your personal music library
collection to your network router using an Ethernet cable.
The Sonos App
You can use the free Sonos app with any compatible device, including:
•Sonos app (Android)—Android 4.0 and higher; certain features require later versions.
Touch t h e Play Store or Market button on your Android device to download the free Sonos app from
Google Play.
Note: Make sure your network has a high-speed Internet connection because
Sonos is designed to provide you with free, online software updates. Your Sonos
system must be registered to receive these updates so be sure to register during
the setup process. We do not share your e-mail address with other companies.
Note: Sonos communicates over a 2.4GHz home network supporting 802.11
b/g/n wireless technology. 802.11n only network configurations are not
supported—you can either change the router settings to 802.11 b/g/n or connect a
Sonos product to your router.
![](/img.php?id=3339523&img=bg5.png)
Sonos CONNECT 3
•Sonos app (iOS)—iPhone, iPad and iPod touch running iOS 8.0 or later; certain features may require
later versions.
Touch t h e App Store button on your iPhone, iPod touch or iPad to download the free Sonos app, or
download the application from iTunes®. (If you download from iTunes, you will need to sync before you
see the Sonos logo display on your device.)
•Sonos app (PC)—Windows® 7 and higher; certain features require later versions.
Download from our website at www.sonos.com/support/downloads.
•Sonos app (Mac)—Macintosh® OS X 10.9 or later
Download from our website at www.sonos.com/support/downloads.

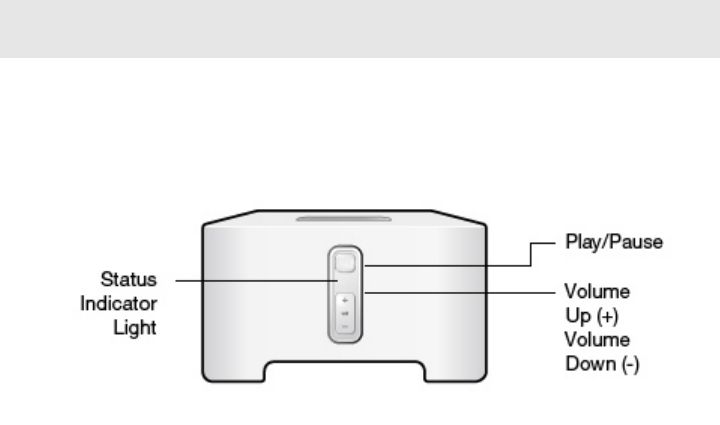

CONNECT Front
Note: Sonos CONTROL has been discontinued, but it’s compatible with your new
Sonos product.
On/Off Sonos is designed to be always on; the system uses minimal electricity
whenever it is not playing music. To quickly stop streaming audio in all
rooms, select Pause All from Rooms. To stop streaming audio in one
room, press the Play/Pause button on the CONNECT.
Status indicator Indicates the current status. During normal operation the white light is
dimly lit. If desired, you can turn off the white light from Room Settings.
See Player Status Indicators for a complete list of status indications.
Play/Pause Toggles between playing and pausing the audio in this room (defaults to
restarting the same music source when pressed unless a different
source is selected).
• Press once to start or stop streaming audio
• Press twice to skip to the next track (if applicable to the selected
music source)
• Press three times to skip to the previous track (if applicable to the
selected music source)
Volume up (+)
Volume down (-)
Press these buttons to adjust the volume up and down.
![](/img.php?id=3339523&img=bg6.png)
Product Guide
4

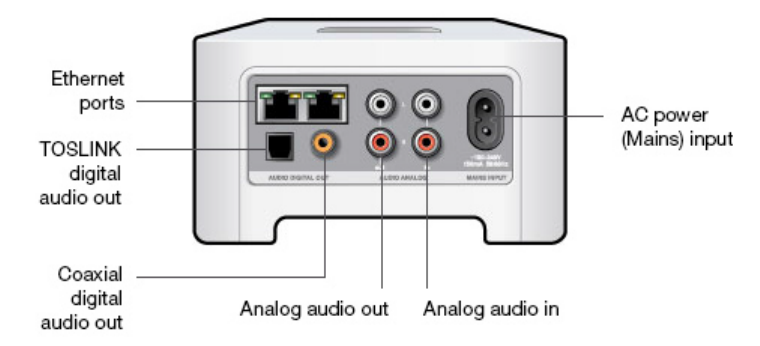

CONNECT Back
Ethernet ports (2) You can use an Ethernet cable (supplied) to connect to a router,
computer, or additional network device such as a network-attached
storage (NAS) device.
LED indicators:
• Flashing Green (network activity)
• Yellow (link connection)
AC power (mains) input
(100 - 240 VAC, 50/60 Hz)
Use only the supplied power cord to connect to a power outlet (using a
third party power cord will void your warranty).
Analog audio in Use a standard RCA audio cable to connect the audio outputs from a
separate audio component such as a CD player, to the Sonos
CONNECT’s analog audio inputs.
Analog audio out Use a standard RCA audio cable to connect the Sonos product’s
analog audio outputs to the audio inputs on a separate audio
component, such as an amplifier or your home theater receiver.
TOSLINK® digital audio out You can use a TOSLINK optical audio cable to connect the Sonos
CONNECT’s TOSLINK digital audio output to the audio inputs on a
separate audio component, such as an amplifier or your home theater
receiver.
Coaxial digital audio out You can use a digital coaxial cable to connect the Sonos product’s
coaxial digital audio output to the audio inputs on a separate audio
component, such as an amplifier or your home theater receiver.
![](/img.php?id=3339523&img=bg7.png)
Sonos CONNECT 5
Adding to an Existing Sonos System
Once you’ve got your Sonos system set up, you can easily add more Sonos products any time (up to 32). Use
the Sonos CONNECT’s audio outputs to connect it to a home theater, computer, powered speakers, or
amplifier.
If your house has structured (built-in) wiring, you can make a wired connection to the additional Sonos
products. If you don’t have structured wiring, our built-in wireless technology is ideal for you.
1. Attach the power cord and plug in the Sonos CONNECT.
The Audio indicator (green) and the Player status indicator (white) will begin to flash.
2. Choose one of the following options:

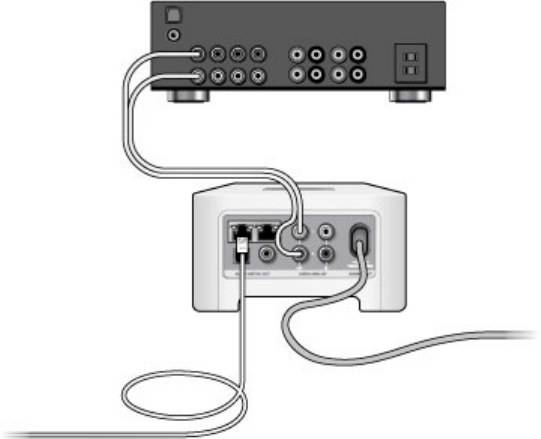

Connect to a home theater or amplifier
• If you have digital inputs on your home theater or amplifier, you can use either a TOSLINK® optical audio
cable or a digital coaxial cable to connect the Sonos CONNECT’s digital output to the digital input on the
receiver.
• If you have analog inputs on your home theater or amplifier, use a standard RCA audio cable to connect
the Sonos CONNECT’s analog audio output to the audio inputs on the receiver.
• Select the proper input channel on the receiver. See Controlling the volume from your home theater or
amplifier to adjust volume settings.
Connect to a computer or powered speakers
•If you are connecting to your computer: You will need a stereo mini to RCA Y-adapter audio cable (one
1/8-inch stereo miniplug to dual RCA male connectors) to connect the Sonos product’s analog audio
output to the computer’s audio input.
•If you are connecting to powered speakers: You may need a Y-adapter audio cable (one 1/8-inch
stereo miniplug to dual RCA male connectors) to connect the computer’s speakers to the audio outputs
on the Sonos product. If your speakers have a male 1/8-inch stereo plug, you will need to attach a
female-to-female coupler between the speaker plug and the Y-adapter audio cable.
![](/img.php?id=3339523&img=bg8.png)
Product Guide
6
3. If you are making a wireless connection, skip this step and continue on to step 4. If you are making a wired
connection, connect a standard Ethernet cable from your router or another Sonos product (or a live
network wall plate if you have built-in wiring) to one of the Ethernet switch connections on the back of the
new Sonos product.
4. Choose one of the following options:
• Using the Sonos app on a mobile device: Select Add a Player or SUB from Settings and follow the on-
screen prompts to add this product to Sonos.
• Using the Sonos app on a Mac or PC: Select Add a Player or SUB from the Manage menu and follow
the prompts to add the new product to Sonos.
Thick walls, 2.4 GHz cordless telephones, or the presence of other wireless devices can interfere with or block
the wireless network signals from Sonos. If you experience difficulty after positioning a Sonos product, try one
or more of the following resolutions—relocate the Sonos product; change the wireless channel your music
system is operating on; connect a Sonos product to your router if your setup is currently wireless.
Using Line-In
You can connect an external source like a portable music player to any Sonos player that has a line-in
connection. The source will be automatically detected as soon as you plug it in.
To a portable music player: Use a 1/8 inch mini-stereo to RCA audio cable—plug the mini-stereo end into
the portable device and the RCA end into the Audio In connection on the Sonos player.
To an external source like a CD player: Plug a standard RCA cable into the analog Audio In connections on
the back of your Sonos player.
Playing music
Using a mobile device: Touch Line-In from the Menu and choose the line-in device.
Using a Mac or PC: Choose Line-In from the MUSIC pane. Click next to the music source and choose
Play Now.
Changing the settings
Using a mobile device: Go to Settings and choose Room Settings. Choose the Sonos speaker the source
is connected to and touch Line-In.
Using a Mac or PC: Go to Manage -> Settings (PC) or Sonos -> Preferences -> Room Settings (Mac).
Choose the Sonos speaker the source is connected to from the Room Settings for drop-down and click the
Line-In tab.
Settings:
•Line-In Source Name: Choose a name from the list.
•Line-In Source Level: A default (typical) line-in source level is automatically assigned for each source. If
the volume sounds too low, you can choose a higher line level. (You may experience clipping at higher
volume levels if you set the level too high.)
•Autoplay Room: Choose the room you want this line-in source to play in whenever it’s connected to
Sonos.
•Include Grouped Rooms: Turn on if you want the line-in source to play in rooms that are grouped with
the autoplay room.
![](/img.php?id=3339523&img=bg9.png)
Sonos CONNECT 7
•Use Autoplay Volume: Click the Use Autoplay Volume box if you want to use the external source to
adjust the volume in the autoplay room. Use the slider to set a default volume.
Line-in encoding settings
When you have line-in music sources attached to a Sonos product, line-in encoding determines how Sonos
will encode the data coming in from these sources. Your Sonos system defaults to automatic in order to
provide the optimal playback experience. Sonos recommends you do not change this default. However, if you
decide to make a change, we recommend the following usage guidelines:
Use Uncompressed if:
• You want optimal performance with home theaters.
• You want to produce the highest quality sound for your Sonos system (this selection requires more
network bandwidth than compressed audio.)
Use Compressed if:
• You are connecting more than 4 rooms wirelessly.
• You are in an environment with heavy wireless interference and are experiencing dropouts.
To change the line-in encoding setting, select one of the following options:
• Using the Sonos app on a mobile device: From Settings, select Advanced Settings -> Audio
Compression.
• Using the Sonos app on a PC: Select Manage -> Settings -> Advanced.
• Using the Sonos app on a Mac: Select Sonos -> Preferences -> Advanced.
Line-Out
Controlling the volume from your home theater or amplifier
To control the volume exclusively from your home theater or amplifier, you can change the line-out level on the
Sonos CONNECT to Fixed by selecting one of the following options:
• Using the Sonos app on a mobile device: Select Room Settings from Settings. Select the Sonos
product attached to the receiver. Select Line-Out Level, and choose Fixed.
• Using the Sonos app on a PC: Select Manage -> Settings. Select the Sonos product attached to the
receiver. Choose Fixed from the Line-Out Level drop-down on the Basic tab.
• Using the Sonos app on a Mac: Select Sonos -> Preferences -> Rooms Settings. Select the Sonos
product attached to the receiver, and then choose Fixed from the Line-Out Level drop-down on the
Basic tab.
Note: When you change the line-out level to Fixed on your Sonos CONNECT you
will not be able to adjust the volume or the equalization settings using a Sonos app.
Product Guide
8
Controlling the volume from Sonos
1. Adjust your home theater or amplifier’s volume to typical listening volume.
2. If the line-out level is not currently set to Variable, you will need to change it:
• Using the Sonos app on a mobile device: Select Room Settings from Settings. Select the Sonos
product attached to the receiver. Select Line-Out Level and choose Variable.
• Using the Sonos app on a PC: Select Manage -> Settings. Select the Sonos product attached to the
receiver, and then choose Variable from the Line-Out Level drop-down on the Basic tab.
• Using the Sonos app on a Mac: Select Sonos -> Preferences -> Rooms Settings. Select the Sonos
product attached to the receiver, and then choose Variable from the Line-Out Level drop-down on the
Basic tab.
3. Use the Sonos app to adjust the volume on your Sonos system so you can hear music. This may be at the
high end of the volume scale.
4. If desired, you can readjust the volume on your home theater system or amplifier so that the volume range
for the app falls within your typical listening range.
Playing Music
Make a selection from the Menu on your mobile device or from the MUSIC pane on a Mac or PC.
Radio
Sonos includes a radio guide that provides immediate access to thousands of free Internet radio stations and
broadcast programs. You can easily find radio from all over the world—music, news, and variety
programming, including archived shows and podcasts.
To select an Internet radio station, simply select Radio by TuneIn and choose a station.
Music services
A music service is an online music store or online service that sells audio on a per-song, per audiobook, or
subscription basis. Sonos is compatible with several music services - you can visit our website at
www.sonos.com/music for the latest list. (Some music services may not be available in your country. Please
check the individual music service’s website for more information.)
If you are currently subscribed to a music service that’s compatible with Sonos, simply add your music service
user name and password information to Sonos as needed and you’ll have instant access to the music service
from your Sonos system.
1. To add a music service, touch Add Music Services from the Menu.
2. Select the Sonos-compatible music service you would like to add.
3. Select Add to Sonos, and then follow the on-screen prompts. Your login and password will be verified
with the music service. As soon as your credentials have been verified, the music service displays on the
Menu.
Free music service trials are available in some countries. (Please check the individual music service’s website
for more information.) If there is a music service trial visible on the Music Services menu, simply touch it to
select. Touch Add to Sonos -> I’m new to [music service], and then follow the prompts to activate the
music trial. After the trial period is up, you will need to subscribe to the music service to keep the music
playing.
![](/img.php?id=3339523&img=bgb.png)
Sonos CONNECT 9
Local music library
Sonos can play music from any computer or network-attached storage (NAS) device on your home network
where you have shared music folders (up to 65,000 songs). During the setup process, you are guided through
the process of accessing your local music library (such as your iTunes library). Over time, you may wish to add
or remove folders from this list.
To make changes to your local library using a mobile device, go to Settings and choose one of the following
options:
• To add a music folder, select Music Library Setup and:
•Touch -> Add New Share (iOS).
•Touch Add New Share (Android).
• To remove a music folder, select Music Library Setup and:
•Touch next to the folder you wish to remove (iOS).
• Touch the folder and select Remove Share (Android).
Sonos indexes your local music so you can view your music collection by categories (such as artists, albums,
composers, genres, or songs.) If you add new music, simply update your music index to add this music to
your Sonos music library.
• To update your music library, select Manage Music Library -> Update Music Index Now. If you’d like
your music library to update automatically each day, select Schedule Music Index Updates and then
select an update time.
Playing music from your mobile device
You can play music and podcasts stored on any mobile device that’s on the same network as Sonos. Just
choose On this [mobile device] from the Menu.
Google Play Music (Android devices)
You can play music to Sonos directly from the Google Play Music app on any Android device. This feature is
available for both Standard and All Access Google Play Music customers.
To play music directly from the Google Play Music app to Sonos , you must have both the Google Play Music
app and the Sonos app installed on your mobile device.
Simply open the Google Play Music app and connect to a Sonos room or room group to start the music.
Control Sonos from your Spotify app
You can always play Spotify from the Sonos app. Now you can control Sonos directly from your Spotify app
too (Spotify premium subscribers only).
While you’re listening to music in the Spotify app, select DEVICES AVAILABLE to connect to a Sonos room
or room group.
Note: We recommend using the Sonos app for Mac or PC to add shared folders.
For more information, please visit our website at http://faq.sonos.com/manage.
![](/img.php?id=3339523&img=bgc.png)
Product Guide
10
To use this feature you need to have a Sonos account. If you don’t have one, choose one of the following
options:
• On a mobile device: Go to Settings -> Advanced Settings and choose Control Sonos from Spotify.
•On a PC: Go to Manage -> Settings and choose Advanced. From the Music Sources tab, choose
Control Sonos from Spotify.
• On a Mac: Go to Sonos -> Preferences and select Advanced. From the Music Sources tab, choose
Control Sonos from Spotify.
I have a new router
If you purchase a new router or change your ISP (Internet service provider), you will need to restart all your
Sonos products after the router is installed.
1. Disconnect the power cord from all of your Sonos products for at least 5 seconds.
2. Reconnect them one at a time, starting with the Sonos product that is connected to your router (if one is
usually connected).
Wait for your Sonos products to restart. The status indicator light will change to solid white on each
product when the restart is complete.
If your Sonos setup is completely wireless (you don’t keep a Sonos product connected to your router), you
will also need to change your wireless network password. Follow the steps below:
1. Temporarily connect one of your Sonos players to the new router with an Ethernet cable.
2. Select Advanced Settings -> Wireless Setup from the Settings menu.
Sonos will detect your network.
3. Enter the password for your wireless network.
4. Once the password is accepted, unplug the player from your router and move it back to its original
location.
I want to change my wireless network password
If your Sonos system is set up wirelessly and you change your wireless network password, you will also need
to change it on your Sonos system.
1. Temporarily connect one of your Sonos players to your router with an Ethernet cable.
2. Choose one of the following options:
• Using the Sonos app on a mobile device, select Settings -> Advanced Settings -> Wireless Setup.
• Using the Sonos app on a PC, select Settings -> Advanced from the Manage menu. On the General
tab, select Wireless Setup.
• Using the Sonos app on a Mac, select Preferences -> Advanced from the Sonos menu. On the General
tab, select Wireless Setup.
3. Enter the new wireless network password when prompted.
4. Once the password is accepted, you can unplug the player from your router and move it back to its
original location.
Note: If the ISP technician connects a Sonos product to the new router, you only
need to restart your wireless Sonos products.
![](/img.php?id=3339523&img=bgd.png)
Sonos CONNECT 11
Player Status Indicators
Indicator Lights Status Sonos Product Additional Information
Flashing white Powering up BRIDGE, BOOST,
CONNECT, SUB,
CONNECT:AMP,
DOCK, PLAY:1,
PLAY:3, PLAY:5,
PLAYBAR
Solid white
(dimly lit)
Powered up and associated
with a Sonos system (normal
operation)
BRIDGE, BOOST,
CONNECT, SUB,
CONNECT:AMP,
DOCK, PLAY:1,
PLAY:3, PLAY:5,
PLAYBAR
You can turn the white status indicator
light on or off from Room Settings.
(Sonos products that are paired together
share the same setting.)
Solid white
(brightly lit)
Touch control(s) active PLAY:5 (gen2) Brightens when touch controls are
activated.
Flashing green Powered up, not yet
associated with a Sonos
system
Or,
WAC (wireless access
configuration) join ready
BRIDGE, BOOST,
CONNECT, SUB,
CONNECT:AMP,
DOCK, PLAY:1,
PLAY:3, PLAY:5,
PLAYBAR
For a SUB, this may indicate the SUB is
not yet paired with a speaker.
Slowly flashing
green
Surround audio is off or
SUB audio is off
PLAY:1, PLAY:3,
PLAY:5 (gen2),
SUB
Applicable for speaker configured as a
surround speaker, or for a SUB paired
with a PLAYBAR.
Solid green Volume set to zero or muted CONNECT,
CONNECT:AMP,
PLAY:1, PLAY:3,
PLAY:5,
PLAYBAR
Flashing orange During SonosNet setup, this
occurs after a button press
while the product is
searching for a household to
join.
BRIDGE, BOOST,
CONNECT, SUB,
CONNECT:AMP,
DOCK, PLAY:1,
PLAY:3, PLAY:5,
PLAYBAR
Rapidly flashing
orange
Playback / Next Song failed CONNECT,
CONNECT:AMP,
PLAY:1, PLAY:3,
PLAY:5,
PLAYBAR
Indicates either playback or next song
was not possible.
![](/img.php?id=3339523&img=bge.png)
Product Guide
12
Solid orange During wireless setup, this
occurs while the Sonos open
access point is temporarily
active.
If you are not setting up
Sonos, this may indicate
warning mode.
CONNECT, SUB,
CONNECT:AMP,
PLAY:1, PLAY:3,
PLAY:5,
PLAYBAR
If the orange light is on AND the speaker’s
volume level automatically reduces, this
indicates the speaker is in warning mode.
• Press the Pause button to stop the
audio.
• For Sonos products with a vent
opening (SUB, CONNECT:AMP),
check to make sure it’s not blocked.
• Check the room temperature to make
sure it’s less than 104°F/ 40° C.
• If the speaker is in direct sunlight,
provide shade.
• Allow the speaker to cool for several
minutes and then press Play to
restart the audio.
• If the problem does not resolve,
please contact Customer Care.
Flashing green
and white
Speakers are being linked to
your Sonos account.
BRIDGE, BOOST,
CONNECT, SUB,
CONNECT:AMP,
DOCK, PLAY:1,
PLAY:3, PLAY:5,
PLAYBAR
Link the speaker(s) to your account. For
more information, see
http://faq.sonos.com/accountlink.
Flashing red and
white
Speaker repartitioning failed. BRIDGE, BOOST,
CONNECT, SUB,
CONNECT:AMP,
DOCK, PLAY:1,
PLAY:3, PLAY:5,
PLAYBAR
Please contact Customer Care.
Flashing red Speaker setup timed out.
This happens if a speaker is
plugged in for 30 minutes
without being set up.
CONNECT,
PLAY:1
Unplug the speaker, wait 10 seconds,
plug it back in, and set it up.
Indicator Lights Status Sonos Product Additional Information
![](/img.php?id=3339523&img=bgf.png)
Sonos CONNECT 13
Important Safety Information
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry soft cloth. Household cleaners or solvents can damage the finish on your Sonos
products.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that
produce heat.
8. Protect the power cable from being walked on or pinched, particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
9. Only use attachments/accessories specified by the manufacturer.
10. Unplug this apparatus during lightning storms or when unused for long periods of time.
11. Refer all servicing to Sonos qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cable or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
12. The Mains plug should be readily available to disconnect the equipment.
13. Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
14. Do not expose apparatus to dripping or splashing and do not place objects filled with liquids, such as
vases, on the apparatus.
Warning: Do not open Sonos products as there is a risk of electric shock. Under
no circumstances should Sonos products be repaired by anyone other than an
authorized Sonos repair center, as this will invalidate the warranty. Please contact
Sonos Customer Support for more information.
Caution: To avoid damage to speakers, turn off the external amplifier before
unplugging your Sonos CONNECT.
![](/img.php?id=3339523&img=bg10.png)
Specifications
Feature Description
Audio
Sound Quality THD+N<0.009%, 20Hz-20kHz
Line In Analog (RCA), auto-detecting
Line Out Analog (RCA), digital (optical and coaxial)
Music Access
Audio Formats Supported Support for compressed MP3, AAC (without DRM), WMA without DRM
(including purchased Windows Media downloads), AAC (MPEG4), AAC+,
Ogg Vorbis, Apple Lossless, Flac (lossless) music files, as well as
uncompressed WAV and AIFF files.
Native support for 44.1kHz sample rates. Additional support for 48kHz,
32kHz, 24kHz, 22kHz, 16kHz, 11kHz, and 8kHz sample rates. MP3 supports
all rates except 11kHz and 8kHz.
Note: Apple “FairPlay”, WMA DRM and WMA Lossless formats not currently
supported. Previously purchased Apple “FairPlay” DRM-protected songs
may be upgraded.
Music Services Supported Sonos works seamlessly with most music services, including Apple
Music™, Deezer, Google Play Music, Pandora, Spotify and Radio by TuneIn,
as well as downloads from any service offering DRM-free tracks. Service
availability varies by region. For a complete list, see
http://www.sonos.com/music.
Internet Radio Supported Streaming MP3, HLS/AAC, WMA
Album Art Supported JPEG, PNG, BMP, GIF
Playlists Supported Napster, iTunes, WinAmp, and Windows Media Player (.m3u, .pls, .wpl)
Networking
Wireless Connectivity Connects to your home WiFi network with any 802.11 b/g/n router.
802.11n only network configurations are not supported—you can either
change the router settings to 802.11 b/g/n or connect a Sonos product to
your router.
SonosNet™ Extender Functions to extend and enhance the power of SonosNet, a secure AES
encrypted, peer-to-peer wireless mesh network dedicated exclusively for
Sonos to reduce WiFi interference.
Network Bridging 2-port switch allows Ethernet devices to connect through SonosNet
Internet connectivity Internet connection required for access to Internet radio stations, online
music services and software updates. (DSL, cable modem or LAN-based
high-speed Internet connection required.) Internet functionality may require
payment of separate fee to a service provider; local and/or long distance
telephone charges may apply.
![](/img.php?id=3339523&img=bg11.png)
Sonos CONNECT 15
* Specifications subject to change without notice.
Need More Help?
• Visit our Frequently Asked Questions (FAQ) pages at www.sonos.com/support.
• Ask us a question at http://www.sonos.com/emailsupport.
Product Guide Feedback?
We’d love to hear from you! We’ll read your feedback carefully and use it to help us improve our product
guides. Write to us at: docfeedback@sonos.com
If you’re having a problem with your Sonos system, please contact Customer Care so they can help. Email
them at http://www.sonos.com/emailsupport.
General
Power Supply 100 - 240 VAC, 50/60 Hz, auto-switchable
Front Panel Buttons Volume and Play/Pause
Front Panel LED Indicators Audio and player status indicators
Dimensions (H x W x D) 2.91 x 5.35 x 5.51 in (74 x 136 x 140 mm)
Weight 1.5 lbs. (.69 kg)
Operating Temperature 32º to 104º F (0º to 40º C)
Storage Temperature 4º to 158º F (-20º to 70º C)
Finish Light gray/high quality polycarbonate material
Feature Description
