User Manual

User Guide

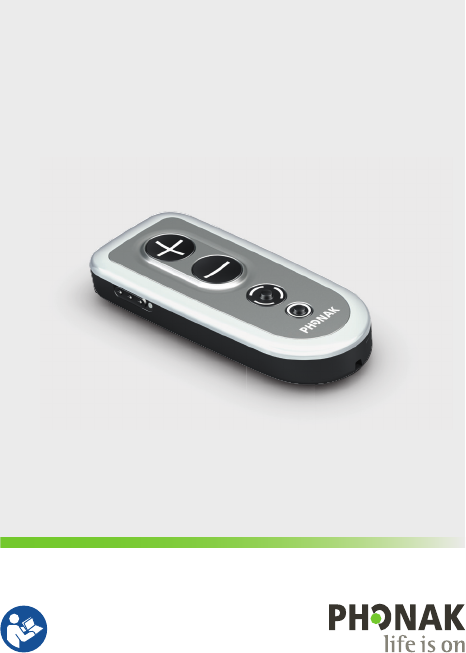

PilotOne II
2
1. Welcome 4
2. Description 5
3. Using Phonak PilotOne II 6
3.1 Inserting a new battery 6
3.2 Switching On / O 7
3.3 Holding correctly 7
3.4 Changing hearing aid volume 8
3.5 Changing hearing program 8
3.6 Using the “Home” button 9
3.7 Understanding the status light 10
3.8 Attach keyring lanyard 10
4. Troubleshooting 11
5. Compliance information 12
Contents
3
6. Service and Warranty 14
6.1 International warranty 14
6.2 Warranty limitation 14
7. Information and explanation of symbols 15
4
Your new PilotOne II is a Swiss quality product developed
by Phonak, one of the world�s leading companies in
hearing technology.
Read the user instructions thoroughly in order to bene t
from all the possibilities your hearing system o ers.
If you have any questions, please consult your hearing
care professional.
Phonak – life is on www.phonak.com
1. Welcome
5
The PilotOne II remote control enables easy change of
your hearing aid programs and volume.
The PilotOne II needs to be congured for your
hearing aids by the hearing care professional before
you can use it.
2. Description
On / Off
Volume up
Status light
Eyelet for keyring
lanyard
“Home”-Button
Program change
Volume down
Battery door
6
3. Using Phonak PilotOne II
3.1 Inserting a new battery
Slide battery cover in
direction of the arrow
to remove it.
Insert new battery with
correct +/– position
(Alkaline 1.5 V, type AAA,
LR03 or AM4).
Secure battery cover by
sliding it back into place.
The mini-USB port cannot be used for battery
charging. Do not use rechargeable batteries.
7
3.2 Switching On / Off
Use the slider to switch on or o.
3.3 Holding correctly
Hold PilotOne II so that the
buttons are facing you.
Operating distance
is max. 1 meter /40"
between hearing
aids and PilotOne II.
On
O
8
3.4 Changing hearing aid volume
Press “+” to increase volume
Press “–” to decrease volume
If set as such by your hearing
care professional, a long-press
of the “–“ will mute your
hearing aids. Unmute hearing
aids by a long-press of the
“+” button.
3.5 Changing hearing program
Each press of the program button
will switch your hearing aids to
the next available hearing program.
3. Using Phonak PilotOne II
9
3.6 Using the “Home” button
Briefly push the “Home” button
to return to the startup hearing
program and default volume levels
of your hearing aids.
Press and hold the “Home” button (>2 sec) to jump to
your favorite hearing program configured by the hearing
care professional.
Hearing aids may beep to conrm chosen selection.
Changes on the PilotOne II are applied to both
hearing aids at the same time.
Available hearing programs and volume levels are set
by your hearing care professional.
For information about your personal settings, ask your
hearing care professional to print your PilotOne II
report.
10
3.7 Understanding the status light
When switching PilotOne II on,
the status light will flash
for two seconds indicating that
PilotOne II is ready to use.
Status light always remains on
as long as a button is pressed.
The light indicator either green,
orange or red depending on the
battery status.
Green: Battery ok
Orange: 20 % left. Replace the battery
Red: <10 % left. Replace the battery immediately
3.8 Attach keyring lanyard
3. Using Phonak PilotOne II
Important safety information
Please read the information on the following pages
before using your device.
1. Hazard warnings
Keep this device out of reach of children and
mentally challenged people or pets.
For persons with active implantable medical devices
(i.e. pacemakers, defi brillators, etc.) the use of
this device is not permitted. Ask your hearing care
professional for details.
Only use hearing aids that have been specially
programmed for you by your hearing care
professional.
Changes or modifi cations to the device that were
not explicitly approved by Phonak are not permitted.
Batteries are toxic. Do not swallow them! Keep
out of reach of children and pets. If batteries are
swallowed, consult your physician immediately!
Remove the battery if you are not using PilotOne
II
for a long period of time.
Always use a high quality, long-life alkaline battery
as a replacement and dispose of the old one in an
environmentally-friendly way. Do not use rechargeable
batteries.
Dispose of electrical components in accordance with
your local regulations by Phonak AG.
External devices may only be connected if they have
been tested in accordance with corresponding
IECXXXXX standards.
Using the device cables in any way contradictory to
their intended purpose (e.g., wearing the USB cable
around the neck) can cause injury.
The mini-USB port is to be used for the described
purpose only.
Important safety information
Do not use the device in explosive areas (mines or
industrial areas with danger of explosions) or where
electronic is prohibited.
2. Information on product safety
I
Protect the device from excessive moisture (bathing,
swimming), heat (radiator, car dashboard) or direct
skin contact when sweating (workout, fi tness, sport).
Do not drop the device. Dropping onto a hard
surface can damage your device.
I
Special medical or dental examination including
radiation described below, may adversely affect the
correct functioning of your device. Remove and
keep it outside the examination room/area before
undergoing:
J
Medical or dental examination with X-ray
(also CT scan).
J
Medical examinations with MRI/NMRI scans,
generating magnetic fi elds.
I
Protect the PilotOne
II
plugs and Battery slot from
dirt and debris.
I
Clean the device using a damp cloth. Never use
household cleaning products (washing powder, soap,
etc.) or alcohol to clean the device. Never use a
microwave or other heating devices to dry the device.
I
The digitally-coded, inductive transmission technology
used in the device is highly reliable and experiences
virtually no interference from other devices. It
should be noted, however, that when operating the
hearing system near computer equipment, larger
electronic installation or other strong electromagnetic
elds, it may be necessary to be at least 60 cm (24”)
away from the interfering device to ensure proper
operation. Keep the device in distance of at least
10 cm to any kind of magnets.
Important safety information
I
Do not connect an USB or audio cable exceeding
3 meters (9 ft) in length to the device.
I
When the device is not in use, turn it OFF and store
it safely.
3. Other important information
I
High-powered electronic equipment, larger electronic
installations and metallic structures may impair and
signifi cantly reduce the operating range.
I
If the hearing aids do not respond to the device
because of an unusual fi eld disturbance, move away
from the disturbing fi eld.
11
No light indication when a button is pressed:
J Switch on PilotOne II
If the status light still does not ash while
switching on, replace the battery (see chapter 3.1).
Hearing aids do not respond to the PilotOne II
commands:
J Make sure your hearing aids are switched on and
worn correctly
J Make sure PilotOne II is switched on
J If status light does not flash or flashes red while
pressing a button, replace the battery
J Hold the PilotOne II closer to your hearing aids
If your hearing aids still do not react, ask your
hearing care professional to re-program your
PilotOne II.
4. Troubleshooting
12
Declaration of conformity
Hereby Phonak AG declares that this Phonak product is in
compliance with the essential requirements of the
Medical Devices Directive 93/42/EEC as well as the Radio
and Telecommunications Terminal Equipment Directive
1999/5/EC. The full text of the declaration of conformity
can be obtained from the manufacturer or the local
Phonak representative whose address can be taken from
the list on http://www.phonak.com (worldwide locations).
Notice 1:
This Phonak PilotOne II is certied under:
USA FCC ID: KWC-PILOTONE2
Canada IC: 2262A-PILOTONE2
This remote control complies with Part 15 of the FCC
Rules and with RSS-210 of Industry Canada. Operation is
subject to the following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received,
including interference that may cause undesired
operation.
5. Compliance information
13
Notice 2:
Changes or modications made to this PilotOne II
not expressly approved by Phonak may void the FCC
authorization to operate this device.
Australia N15398
New Zealand Z1285
14
6. Service and Warranty
6.1 International warranty
Phonak offers a one year limited international warranty,
valid as of the date of purchase. This limited warranty
covers manufacturing and material defects. The warranty
only comes into force if proof of purchase is shown.
The international warranty does not affect any legal rights
that you might have under applicable national legislation
governing sale of consumer goods.
6.2 Warranty limitation
This warranty does not cover damage from improper
handling or care, exposure to chemicals, immersion
in water or undue stress. Damage caused by third parties
or non-authorized service centers renders the warranty
null and void.
Serial number:
Date of purchase:
15
7. Information and explanation of
symbols
With the CE symbol, Phonak AG
conrms that this Phonak product
meets the requirements of the
Medical Devices Directive 93/42/EEC as
well as the R&TTE Directive 1999/5/EC
on radio and telecommunications
equipment.
This symbol indicates that the products
described in these user instructions
adhere to the requirements for an
application part of Type B of
EN 60601-1. The surface of the device
is specied as an applied part of Type B.
This symbol indicates that it is
important for the user to read and
take into account the relevant
information in this user guide.
xxxx
16
The device is designed such that
it functions without problems or
restrictions if used as intended, unless
otherwise noted in these user guides.
0°–45° Celsius and relative humidity
of <95% (non condensing).
Operating
conditions
Important information for handling
and product safety.
This symbol indicates that it is
important for the user to pay attention
to the relevant warning notices in
these user guides.
EMC and radio communications
compliance label Australia.
7. Information and explanation of symbols
17
Temperature: –20° to +60° Celsius
(–4° to +140° Fahrenheit).
Humidity transportation: Up to 90%
(non condensing).
Humidity storage: 0% to 70%, if not
in use.
Atmospheric pressure: 200 hPA to
1500 hPA.
Transport and
storage
conditions
The symbol with the crossed-out
garbage bin is to make you aware
that this device may not be thrown
away as normal household waste.
Please dispose of old or unused device,
at waste disposal sites intended for
electronic waste, or give your device
to your hearing care professional
for disposal. Proper disposal protects
the environment and health.
www.phonak.com
Manufacturer:
Phonak AG
Laubisrütistrasse 28
CH-8712 Stäfa
Switzerland
EU Representative:
Phonak GmbH
Max-Eyth-Strasse 20
DE-70736 Fellbach-Oe ngen
Germany
029-0311-02/2014-03/A+W © Phonak AG All rights reserved

Navigation menu
