Sonova USA TX10 Auditory Assistance Device User Manual DynaMic
Phonak Inc Auditory Assistance Device DynaMic
Users Manual
1
User Guide
DynaMic
2
Contents
Welcome
DynaMic and accessories
Important DynaMic figures
Controls
Getting starting
Charging DynaMic
Battery status indication
Vibration alarm indication
Switch on DynaMic
Using DynaMic
User cases
Pass around microphone
Talking
Colored rings
DynaMic Data Logging
Programming
The MultiTalker Network
Initiating a MultiTalker Network
How to use a MultiTalker Network
Leaving a MultiTalker Network
Practical tips
Troubleshooting
Important notices
Service and warranty
Declaration of conformity
3
Welcome
DynaMic FM transmitter is ideally suited to the needs of teachers and suitable for use in
regular schools as well as special schools.
DynaMic, the inspiro’s passaround microphone is designed to work exclusively alongside
inspiro in the MultiTalker Network. With its simple, robust and childproof design DynaMic
integrates insprio’s high performance FM technology.
Please read this manual carefully to benefit from all the features of your DynaMic FM
transmitters. Ask your hearing care professional if you have any questions.
With proper care and usage, your DynaMic will support your communication needs for
many years.
DynaMic is a quality product developed by Phonak.
Phonak is the world leader in FM technology, innovation and reliability based in
Switzerland.
Further resources:
To find out more about DynaMic, as well as about Phonak FM in general, we recommend
visiting the following websites:
www.eSchoolDesk.com
This is a special website specifically dedicated to providing support to teachers,
but also to parents and other DynaMic users. Short movies available present for
example farious functions and trouble shooting for FM systems aim to provide
assistance in daily life.
www.phonak.com
This is Phonak home page. Go on the product section and click on the FM
systems. You can find useful information about inspiro and DynaMic as well as
FM receivers.
www.FMLibrary.com
This is an online scientific library about FM systems.
4

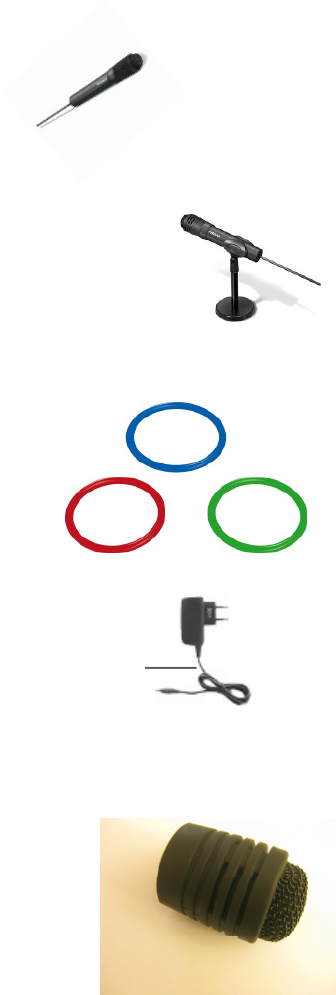

DynaMic and accessories
DynaMic is delivered with:
• Desk stand
• Clamp
3/8”, 5/8”
• Colored rings
All the accessories can also be ordered separately.
1 DynaMic microphone
2. Desk stand (base and legg) with clamp
3. Colored rings: red, yellow, green
4. Charging unit
5. Replacement microphone head
5
Important DynaMic figures
General:
Operates only with inspiro in MultiTalker Network
Length : 21 cm
Antenna length: 15 cm
Weight: 110g
Operating time and charging:
• Operating time if the battery is fully charged: up to 10 hours
• Charging time for an 80% charge approx. 1 hour
• Charging time for an 100% charge approx. 2 hours
Operating range (FM transmission):
• Operating range to initiator inspiro :
- inside 8 m
- outside 15 m
6
Controls
1. Slider Off/Mute/On
The slider puts the DynaMic in one of the three mode.
2. Reset button
This button gives the possibility to reset the DynaMic. The parameters stored in the flash
are not affected by this operation. Use a pen to press the button.
3. Built-in vibrator
The vibration alarm provides information on the status of the battery and operation.
4. FM Antenna
It emits FM to the receivers in the hearing instruments.
5. Mini USB interface
Interface for charging and programming
6. The LED indicates the following functionalities:
• battery status,
• charging,
• error states
1
2
3
4
5
6
7
Getting starting
Charging DynaMic
DynaMic contains the same re-chargeable built-in state-of-the-art lithium polymer battery
with fast-charge capability as inspiro. The operating time of the battery is up to 10 hours
depending on how much you speak into the microphone.
A fully-discharged battery takes one hour for an 80% charge and two hours for a 100%
charge.
Use only the original Phonak charging unit for inspiro/DynaMic.
To simultaneously charge your inspiro and DynaMic we recommend the twin
charger.

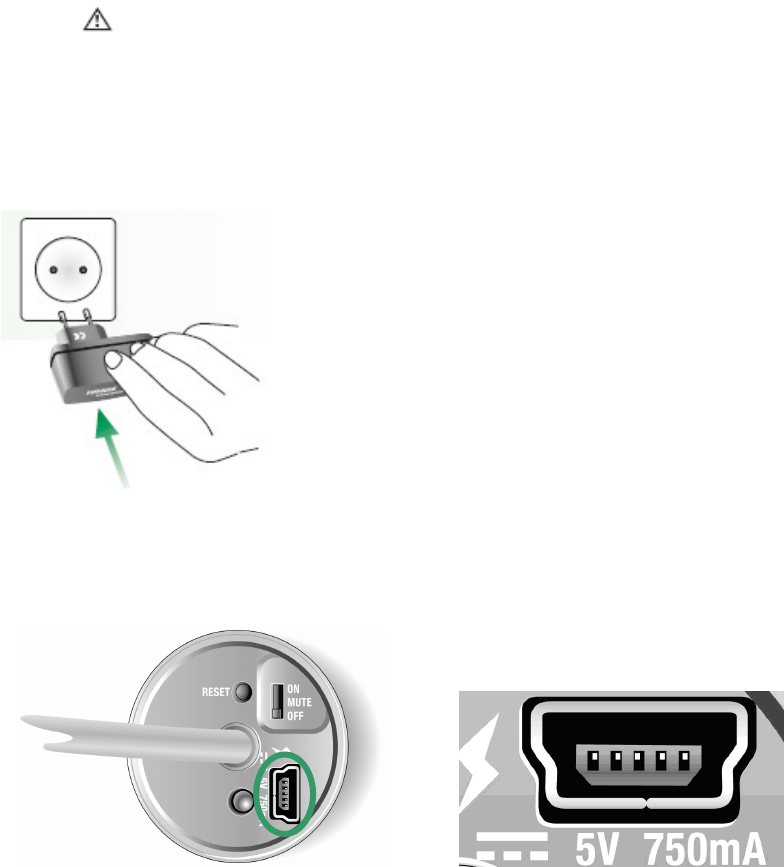

Select an easily accessible socket outlet and plug the charging unit into the socket outlet.
Connect the Mini USB plug from the charging unit to the DynaMic.
During charging the LED flashes two short green pulses every 5 sec.
When the charging is completed the LED shows continuous green light.
8
We recommend you are fully charging the DynaMic. The battery cannot be over-
charged.
Battery status indication
DynaMic provides as inspiro an automatic vibra alarm if the battery is low.
Ca. 1 hour before the battery is empty: It needs to be charged within one hour.
The LED indicates 3 orange flashes repeated every 60 seconds and the vibra alarm starts
vibrating.
Ca. 15 min before battery is empty: It needs to charge DynaMic immediately.
The LED indicates 10 orange flashes and the vibra alarm starts vibrating.
If the battery is not being charged at that time, DynaMic switches off automatically after
flashing 10 flashes.
Vibration alarm indication
The transmitter provides a vibration alarm, if
• The battery is low,
• The device is out the range of the initiator of the MultiTalker Network,
• DynaMic is muted for more than 15 minutes,
• There is no FM transmission , DynaMic is not paired,
• The distance in the MultiTalker Network is higher than 8m,
• System problem, which are transformed in fast blinking orange LED signals and a
vibration alarm.
In case of system problem one need to press the Reset button
Switch on DynaMic
DynaMic is a pass- around microphone to transmit with inspire in the MultiTalker Network .
It is not a standalone FM transmitter.

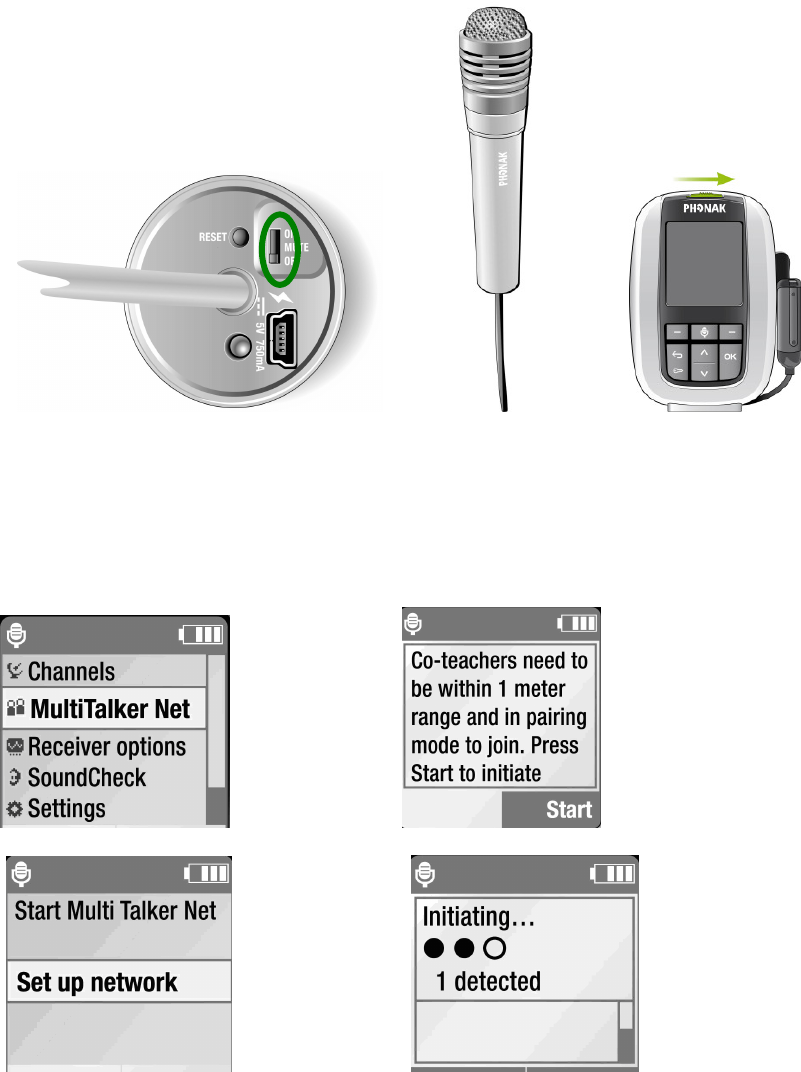

To switch DynaMic follow the steps below.
• inspiro and DynaMic are both off
9
• Switch on inspiro: push the slider to the left until the green mark appears and the
LCD starts up.
• Set-up the MultiTalker Network. Initiate your Multitalker Network by pressing “OK”.
• Start your DynaMic by pushing the slider from Off to On.
10

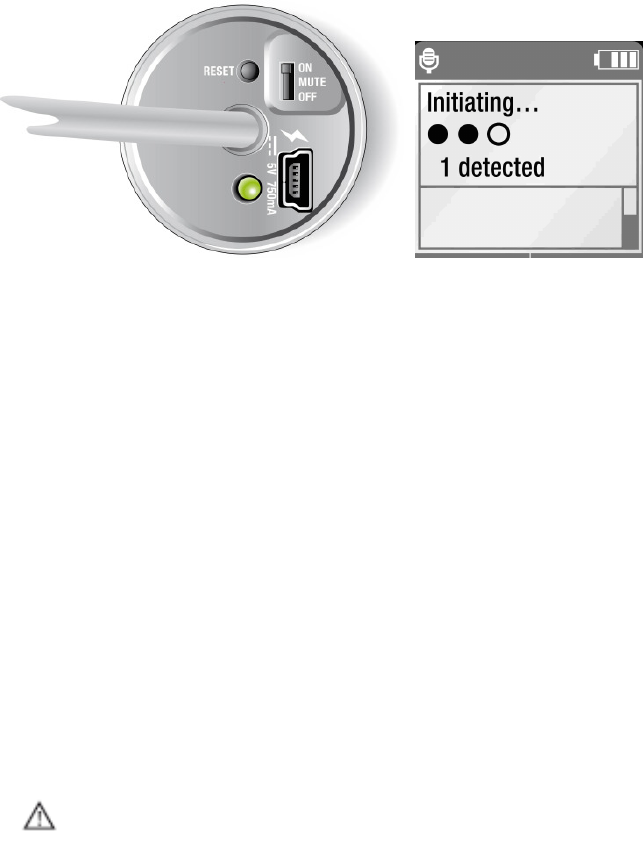

• After the initiation was completed, the name of the DynaMic appears, press
OK.During the auto pairing time window of 8sec. DynaMic joins the MultiTalker
Network as secondary. If it is paired as secondary, it starts working as FM
transmitter,
After switching On the microphone the LED turns off to save power.
On the list of participants the microphone can be recognized.
As described earlier in the chapter “Switching on inspiro” pg 25, it is recommended to
activate the key pad lock whenever possible.
Mute: If the DynaMic is On, it is possible to mute the microphone. Switch the slider from
On to Mute.
If DynaMic is not paired in the MultiTalker Network it does not start to
emit FM.
11
Using DynaMic
User cases

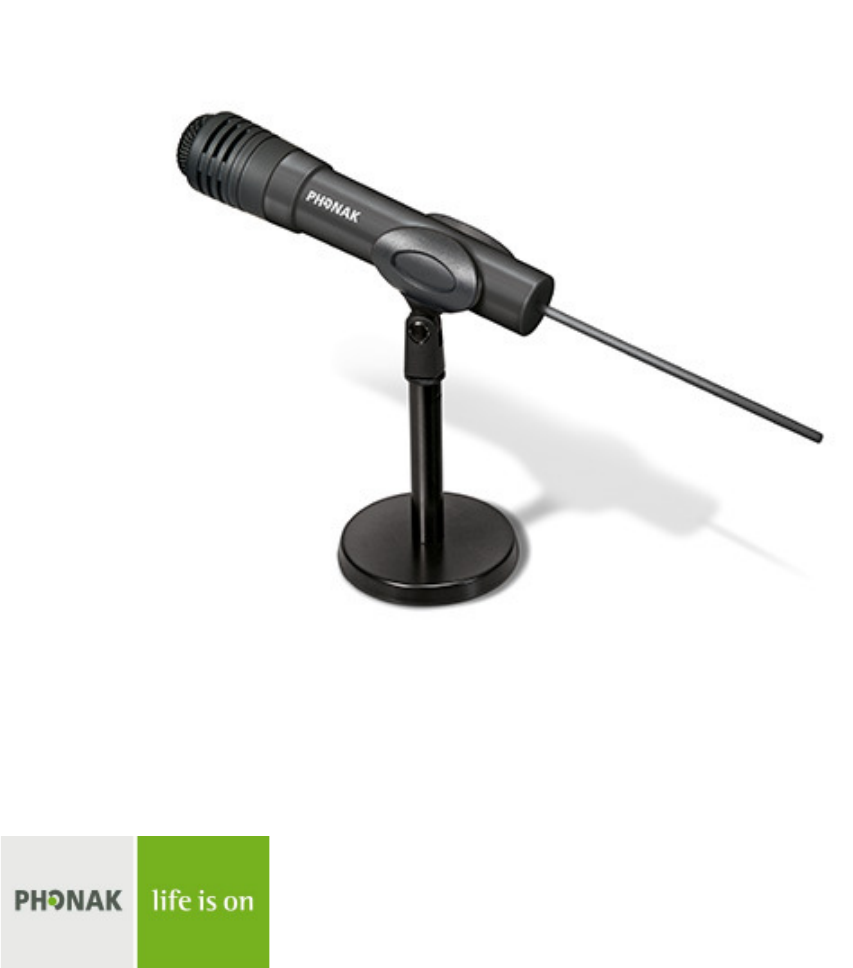

• On a child’s desk using the supplied table stand
• Holding the DynaMic in the hand
• Wearing the remote mic with a lavalier* - not supplied by Phonak
• Using the floor stand*- not supplied by Phonak
Pass- around microphone
DynaMic can be passed from one child to the next.
Talking
Inspiro : Follow all the steps described in the chapter “Talking” under inspiro chapter pg.
28.
DynaMic
Make sure DynaMic:
• is recognized into the MultiTalker Network by the initiator inspiro. You can check
this on the inspiro’s LCD.
• is within the right distance in the MultiTalker Network
• is turned on
• is not in the muted mode
Speak into the microphone at relatively close range.
When speaking do not cover:
• the head of the microphone
• the antenna

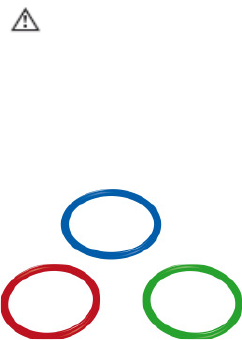

Colored rings
12
With the rings you can personalize your DynaMic transmitters.
In case you are stepping out of your class the personalize rings will help you immediately
recognize your Dynamics.
You may put only 2 rings at the time. Do not place them on the opening of the
microphones head.
DynaMic Data Logging
DynaMic logs automatically the usage time. It is stored every 15 minutes. The first log
entry is stored after the transmitter has worked for 15 minutes.
A usage data log contains e.g. name, timestamp, MTN mode, average noise level.
Dynamic can store up to 800 data log, which covers approx. 20 days of usage.
Programming
Programming is optional – the frequency is automatically selected by the initiating inspiro
in the MultiTalker Network.
The following parameters could be programmed with FM SuccessWare 4.3 or higher
• Name, school, date (for DataLogging FM purposes)
• Updating the firmware
• Reading and erasing logged data
13
The MultiTalker Network
One or more inspiro and one or more DynaMic transmitters can participate in a MultiTalker
Network.
A maximum of nine DynaMic microphones can take part into a MultiTalker Network.
• The MultiTalker Network is available in the inspiro’s Extended operating mode.
• The Network operating range, i.e. the distance between the initiating inspiro and each
inspiro/DynaMic joining the network is 8 m / 25 feet.
If a user should unintentionally leave the network, an alarm signal of the inspiro/
DynaMic alerts the user.

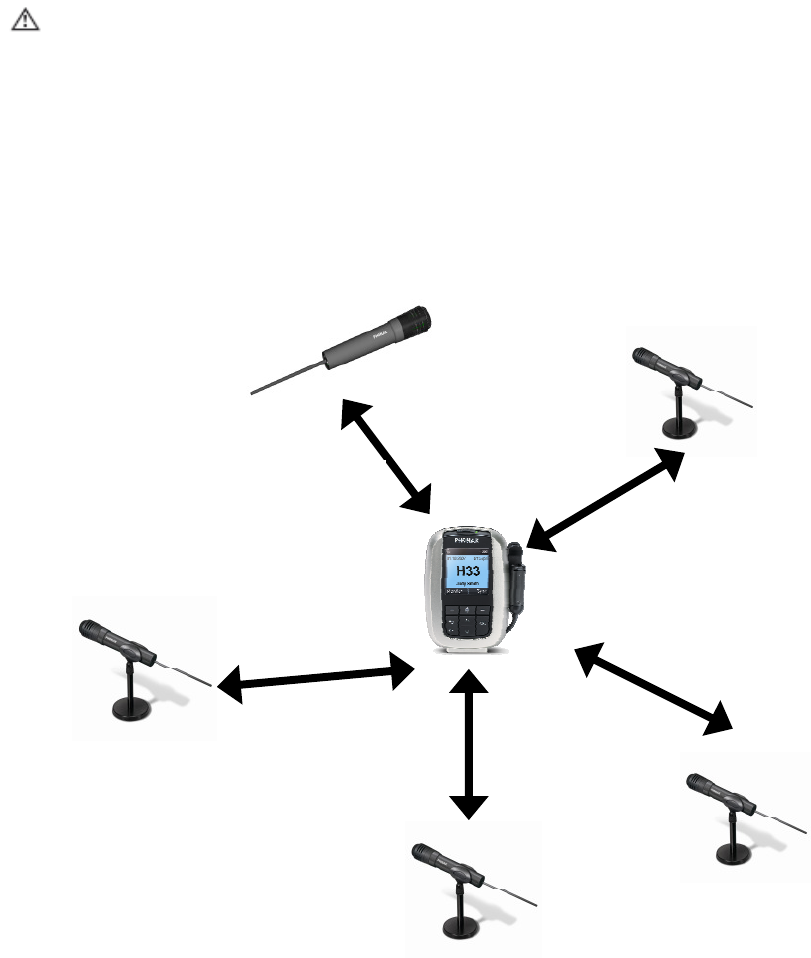

Diagram of the MultiTalker Network
• The initiating inspiro displays a list of the other transmitters in the MultiTalker Network.
8 m
8 m
8 m
8 m
8 m
14
Initiating a MultiTalker Network
Initiating or setting up a MultiTalker Network should be performed before the lesson begins
in the classroom. The procedure to follow is straightforward and the inspiro menu guides
you through the necessary steps. See the chapter “Switch on DynaMic”.
• Make sure that you have on the desk all the inspiro and DynaMic transmitters you plan
to include in the network. Ensure that all inspiro/ DynaMic transmitters are switched off.
• Take the main teacher’s or main speaker’s inspiro and switch it on. In this inspiro,
select MultiTalker Network and then Set up network. This inspiro is known as the
initiator.
• Read the information on the LCD display and then press the Start soft key.
• Then switch on all of the other inspiro and DynaMic transmitters.
• A list of the inspiro and DynaMic transmitters that have joined the network should now
be displayed on the initiating inspiro. If all of the transmitters are listed, press the
Continue soft key.
You have successfully created the network!
All inspiro and DynaMic transmitters are synchronized by the initiator inspiro.
Begin talking as usual.
How to use a MultiTalker Network
• The inspiro that has set-up (initiated) the network has first priority; all other
transmitters inspiro/DynaMic that joined the network have second priority. The
teacher with first priority can interrupt any teacher or student that has second
priority; a second priority teacher or student can only take over during the speech
pauses of the first priority teacher.
• All devices transmit on the same FM channel, but they do not transmit at the same
time
• No user action is required; if the first priority inspiro does not detect speech, any
second priority teacher or student can ‘get the microphone’ just by starting to talk
• The listening FM receivers only receive one voice at a time
15
Leaving a MultiTalker Network
The MultiTalker Network cannot exist without the presence of your initiating inspiro in the
network. If you decide to end the MultiTalker Network, the entire network will cease and all
of the inspiro and DynaMic transmitters will activate an alarm.
If you are using an inspiro that just joined a network, you can always leave the network by
selecting Stop MultiTalker Network.
Your inspiro will then be set to single teaching mode, but all of the other inspiro
transmitters in the MultiTalker Network will remain in MultiTalker Network mode.
If you are switching off one of the DynaMic, it will be deleted from your participants list.
The MultiTalker Network could continue with all other DynaMic and inspiro transmitters.
Should you unintentionally be outside the distance range of the MultiTalker Network, you
will be alerted by an alarm. You can then choose to either return to the operating range of
a maximum 8m / 25 feet from the initiating inspiro, or to leave the network.
Practical tips
• The MultiTalker network setting is stored in the inspiro transmitters. If the inspiro and
DynaMic transmitters have been switched off in MultiTalker Network mode, e.g. before
lunch, when decided to then switched back on again after lunch, the MultiTalker
Network mode can be selected by simply pressing a key in the inspiro. In this case,
there is no need to re-initiate the network. However, start the inspiro first. All the
DynaMic transmitters will join the network in the pairing window of 8 sec after the
initiator inspiro was switched on.
• If you have set up a MultiTalker Network with for instance two inspiro transmitters and
then a third person needs to subsequently join the network with inspiro or DynaMic, it is
necessary to set up a new network (to initiate a new MultiTalker Network).
• inspiro and Dynamic transmitters joining a network automatically use the FM channel of
the initiating inspiro in the MultiTalker Network.
• If an inspiro reverts to single teaching mode, it automatically applies the FM channel
used previously.
• If the initiating inspiro alters the FM channel in MultiTalker Network mode for any
reason, the new channel will automatically be sent to the other inspiro and DynaMic
transmitters in the network and then activated.
16
Troubleshooting
Inspiro
Problem Most likely cause Solution
The inspiro cannot be
switched on.
The battery is run down. Charge the inspiro for at least
two hours.
Poor speech
intelligibility
The microphone has not been
positioned properly.
Move the microphone closer to
the speaker’s mouth.
Activate the SoundCheck
feature.
Speaker’s voice is
inaudible even though
the inspiro is turned on.
The microphone mute has been
activated or the hearing device has
not been set to the right programme.
Check the inspiro’s LCD
display and press the
microphone mute key in order
to activate the microphone.
Also check whether the hearing
devices are turned on and set to
the right programme.
Activate the Monitoring
function on the inspiro to
check the receivers.
Insufficient operating
range
Microphone cable has not been
unwound.
Unwind the microphone cable.
Radio interference External cause:
radio antenna or similar interfering
devices nearby.
Change the FM channel. Use
the ChannelFinder to locate an
unused and interference-free
FM channel.
A second person’s
voice can also be heard.
Another FM user is using the same
FM channel nearby.
Change the FM channel. Use
the ChannelFinder to locate an
unused and interference-free
FM channel.
Inspiro does not
respond to command
Software issue Reboot your inspiro by
pressing the 4 side buttons in
the same time.
17
DynaMic
Problem Most likely cause Solution
The DynaMic cannot
be switched on.
The battery is run down. Charge the DynaMic for at
least two hours.
Poor speech
intelligibility
The microphone is not been
positioned properly.
DynaMic’s antenna or head are
partially covered.
The colored rings are covering the
acoustic part.
Move the DynaMic closer to
the speaker’s mouth.
Leave free the DynaMic’s
antenna and head.
Placed only 2 colored rings to
personalize your DynaMic.
Speaker’s voice is
inaudible even though
the DynaMic is turned
on.
DynaMic is muted or the hearing
device has not been set to the right
programme
Often drops
Check the DynaMic is not
muted.
Also check whether the hearing
devices are turned on and set to
the right program.
The acoustic part is deteched
Insufficient operating
range
DynaMic’s antenna or head are
partially covered.
The colored rings are covering the
acoustic part.
Leave free the DynaMic’s
antenna and head.
Placed only 2 colored rings to
personalize your DynaMic
Radio interference External cause:
radio antenna or similar interfering
devices nearby.
Proceed as for inspiro
A second person’s
voice can also be heard.
Another FM user is using the same
FM channel nearby.
Proceed as for inspiro.
DynaMic is not
responding to
commands
Reset DynaMic using the reset
button.
Before resetting make sure
DynaMic is on.
18
Important notices
Inspiro and DynaMic transmitters collect and store internal technical data.
The data may be read by a hearing care professional in order to check the transmitters, as
well as to support you in being able to use inspiro and DynaMic in the ideal manner.
Do not use your inspiro and DynaMic in a place where it is prohibited to use electronic
devices. If in doubt, please ask the person in charge.
Persons with pacemakers or other medical devices should ALWAYS consult their
physician, the manufacturer of their pacemaker, or other medical device BEFORE using
inspiro and DynaMic. The use of inspiro with a pacemaker or other medical devices should
ALWAYS be in accordance with the safety recommendations of the physician responsible
for your pacemaker or the pacemaker manufacturer.
Do not use two or more inspiro transmitters on the same FM channel, except in the case of
transmitters in a MultiTalker Network.
Please note that radio signals might also be picked up and overheard by other receivers.
Before using the inspiro in another country, contact your hearing care professional to make
sure the use of your radio channels is permitted in that country.
Do not use water or other liquids to clean the inspiro and DynaMic.
Use only original Phonak accessories.
Use only the original Phonak charger for inspiro and DynaMic.
Your inspiro and DynaMic may only be repaired by an authorized service center.
Dropping your inspiro and DynaMic could damage your equipment.
Do not place the rings to personalize your DynaMic over the openings of the microphone’s
cap.
Do not cover the antenna or the microphone’s cap, while speaking.
The microphone cap should be opened only for replacements reasons.
Please note that with inspiro you can adjust the volume of the iSense micro.
Your hearing care professional must program your inspiro by selecting iSense Micro as
FM receiver. This can be done with FM Successware 4.2.1 or higher.
19
Service and warranty
Phonak provides a manufacturer’s limited warranty for your inspiro and DynaMic. This
covers all manufacturing and material defects. Problems with inspire and DynaMic arising
from improper handling or care and repairs made by an unauthorized party are not
covered by the warranty.
Please ask at the point of sale for full details of this warranty. The salesperson will note the
serial number of your inspiro/DynaMic below. It will be needed in the event
of a warranty repair.
Serial number
inspiro:
Date of purchase:
Serial number FM receivers:
Serial number
DynaMic:
Date of purchase:
Declaration of conformity
Hereby, Phonak Communications AG, declares that the inspiro and DynaMic are in
compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC.
To obtain a copy of the Declaration of conformity, please contact the local Phonak AG
representative whose address can be taken from the list of Phonak distributors worldwide.
This device complies with part 15 and part 95 of the FCC rules and with RSS 210 of
Industry Canada.
Operation is subject to the following two conditions:
(1) These devices do not cause harmful interference and (2) must accept any interference
received, including interference that may cause undesired operation.
These transmitters are authorized by rule under the Low Power Radio Service (47 C.F.R.
Part 95)
and must not cause harmful interference to TV reception or United States Navy
SPASUR installations.
You do not need an FCC license to operate these transmitters. The transmitters may only
be used to provide: auditory assistance to persons with disabilities, persons who require
language translation, or persons in educational settings; health care services to the ill; law
enforcement tracking services under agreement with a law enforcement agency; or
automated maritime telecommunications system (AMTS) network control communications.
Two way voice communications and all other types of uses not mentioned above are
expressly prohibited. Aug<
20
Warning: Changes or modifications made to this equipment not expressly approved
by Phonak may void the user’s authority to operate the equipment.
Your hearing care professional
www.phonak.com
029-3042/V1.002/2009-01 Printed in Switzerland
Phonak AG, All rights reserved
