inspiro is an FM transmitter ideally suited to the
needs of teachers and suitable for use in regular
schools as well as special schools.
The outstanding design with its large color display
makes this transmitter unique. Soft keys, an alarm
clock, wearing options to suit different types of
clothing and a wealth of other details reflect Phonaks
passion for user friendliness.
Please read this manual carefully to benefit from all
the features of your inspiro FM transmitter. Ask your
hearing care professional if you have any questions.
Inspiro is a quality product developed by the Swiss
company Phonak, the world leader in FM technology,
innovation and reliability. With proper care and
usage, your inspiro will support your hearing and
communication needs for many years.
Phonak – life is on
Further resources:
• Please check www.eSchoolDesk.com, a very
detailed website dedicated to supporting
teachers especially, but also parents in their
use of the inspiro.
• There is a dedicated brochure available for
parents and teachers with many useful and
practical tips.
• inspiro also provides integrated online help
instructions on the large LCD display.
The following symbol appears in this user guide:
Important notes for all users.
Welcome
!
GA_Inspiro_GB_2.qxp 29.1.2008 16:01 Uhr Seite 5
8
7

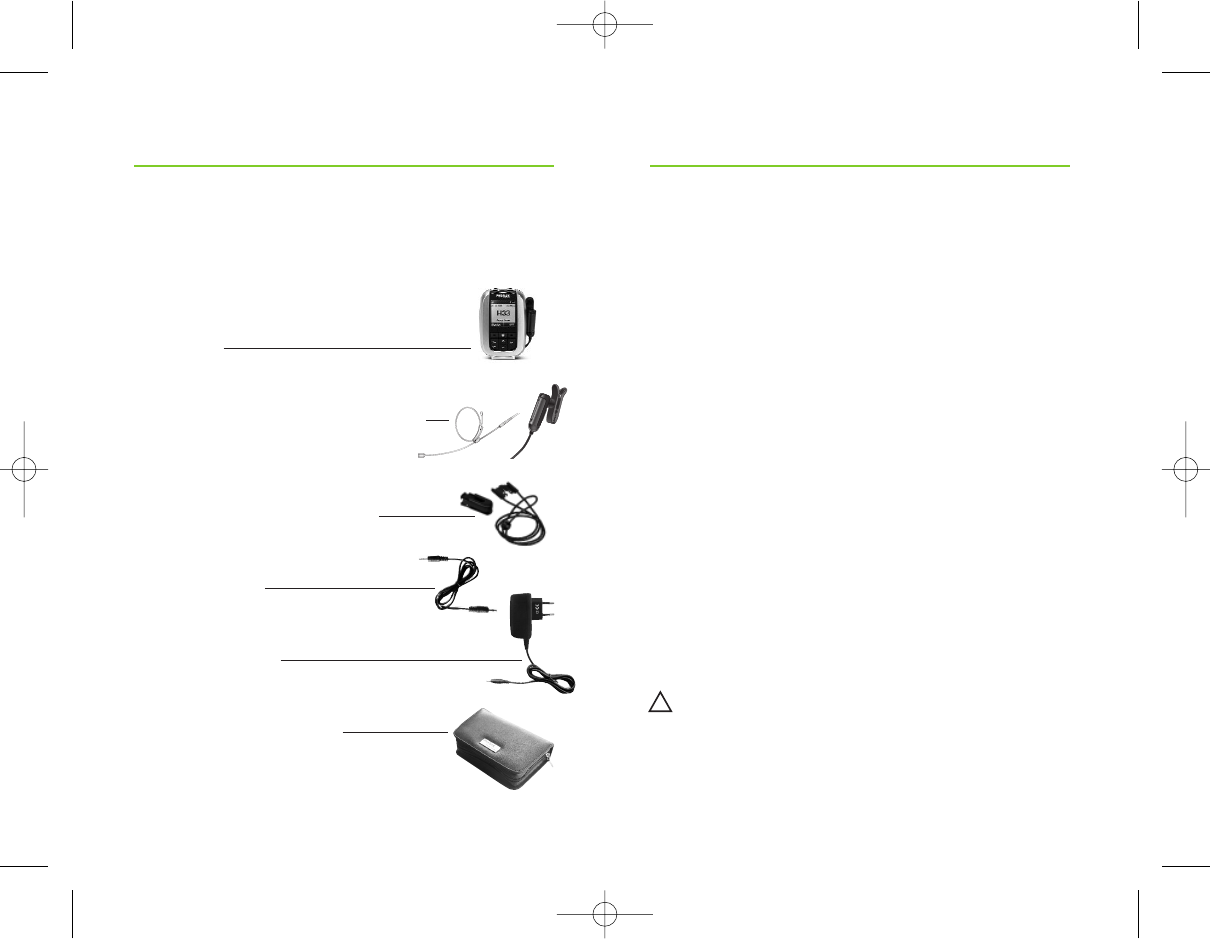

inspiro is delivered with either the iBoom or the
iLapel microphone, depending on the customer wish.
All the accessories can also be ordered separately.
ቢinspiro
ባMicrophones: iLapel and iBoom
ቤinspiro wearing options:
Belt clip and lavalier cord
ብAudio cable
ቦCharging unit
ቧHome and travel case
inspiro and accessories
Operating time and charging:
• Operating time if the battery is fully charged:
୴ approx. 12 hours
• Charging time for an 80% charge:
୴ approx. 1 hour
• Charging time for a 100% charge:
୴ approx. 2 hours
Operating range:
• Inside a building:
୴ approx. 50 feet (15 meters)
• Outside:
୴ approx. 130–170 feet (40-50 meters)
High-powered electronic equipment, larger
electronic installations and metallic structures
may impair and significantly reduce the
operating range.
inspiro key figures
!
GA_Inspiro_GB_2.qxp 29.1.2008 16:01 Uhr Seite 7
9

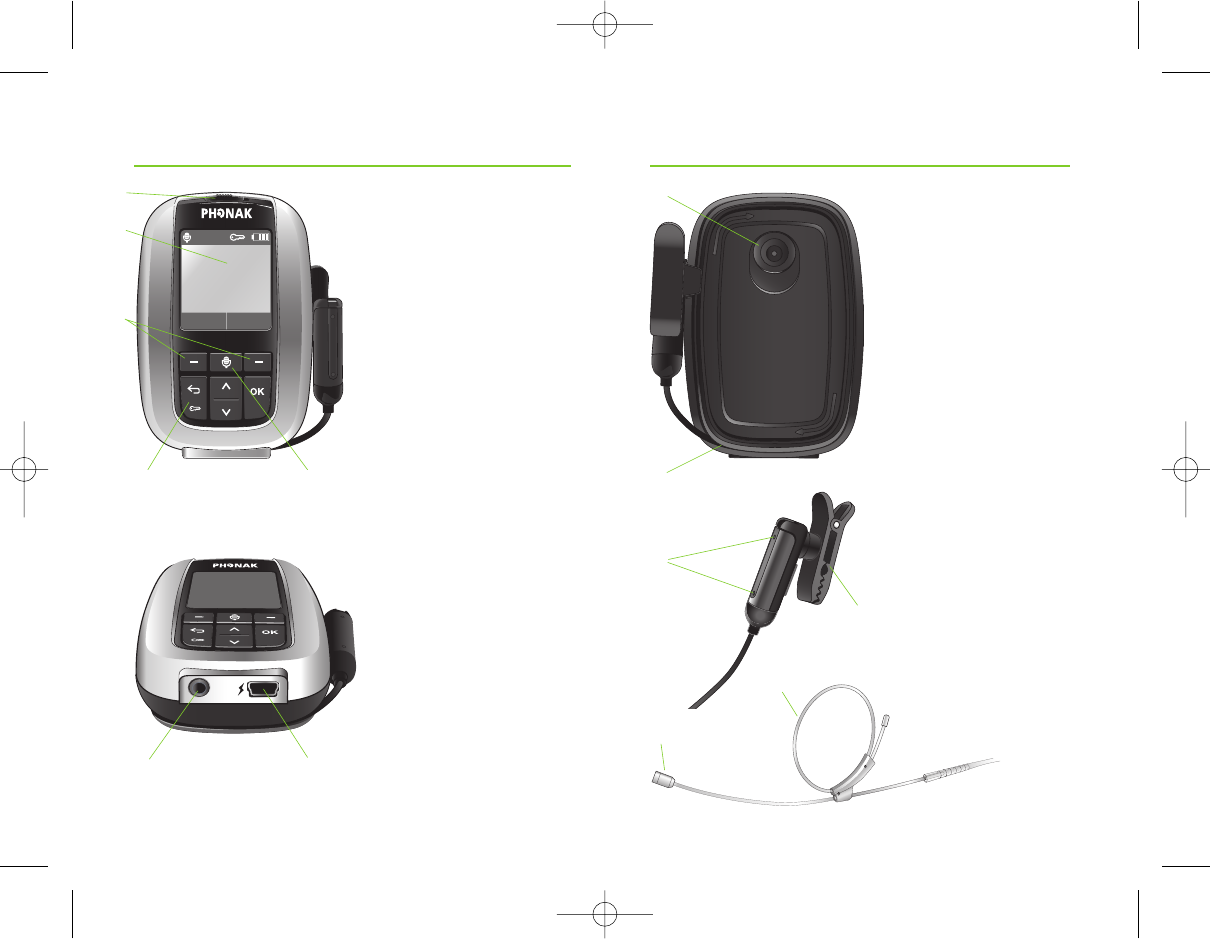

Controls
Jenny Jones
Monitor
01.10.2008 01:57pm
Sync
H33
ቢ
ቤ
ብ
ቧቨ
ባ
ቦ
10
inspiro
ቢOn/Off slider
ባColor LCD
ቤSoft Keys
ብKeypad lock key
ቦMicrophone
mute key
ቧ3.5mm audio
input
ቨMini USB
for charging
ቩButton to attach
the belt clip
and the lavalier
ቪCable wrapper
iLapel microphon
ቫMicrophone
openings
(do not cover!)
ቭWearing clip
iBoom microphon
ቮAdjustable ear loop
ቯMicrophone
(do not cover!)
ቩ
ቪ
ቫ
ቭ
ቮ
ቯ
GA_Inspiro_GB_2.qxp 29.1.2008 16:01 Uhr Seite 9
11

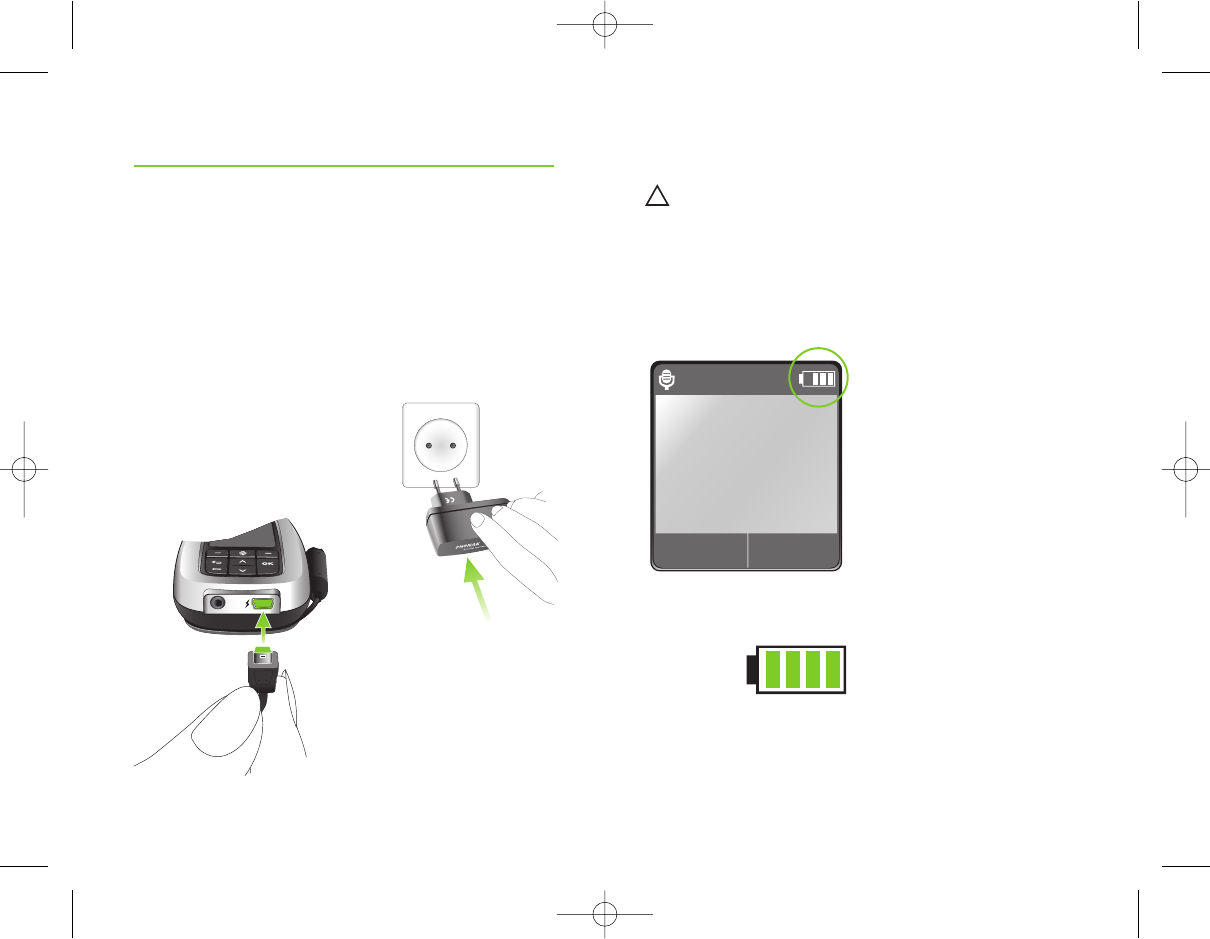

Charging inspiro
inspiro contains a re-chargeable built-in state-of-the-
art lithium polymer battery with fast-charge capability.
A fully-discharged battery takes one hour for an 80%
charge and two hours for a 100% charge.
Select an easily accessible
socket outlet and plug
the charging unit into the
socket outlet.
Connect the MiniUSB plug
from the charging unit to
the inspiro.
Use only the original Phonak charging unit
for insprio.
The segments in the battery symbol flash during
charging. The battery cannot be over-charged.
If the charging unit is
removed from the inspiro,
the segments in the
battery symbol show the
actual capacity.
If the battery is fully
charged, the battery
symbol in the LCD
shows four segments.
Getting Started
12
!
Jenny Jones
Monitor
01.10.2008 01:57pm
Sync
H33
GA_Inspiro_GB_2.qxp 29.1.2008 16:01 Uhr Seite 11
14
13
Low battery alarms
inspiro provides an automatic vibra alarm if the
battery is low.
•Approximately 1 hour before battery is empty:
A vibra alarm appears. Check the message
on the LCD and follow the instructions.
•Approximately 15 minutes before battery is
empty:
If inspiro has not been charged after the first
alarm, the second vibra alarm is automatically
activated before the battery is completely
exhausted. Check the message on the LCD and
follow the instructions. If the battery is not
being charged at that time, inspiro switches off
automatically after approx. 15 minutes.
If the battery is completely exhausted, there are
no segments in the battery symbol anymore and the
battery symbol in the LCD changes its color from
white to red.
Getting Started
Wearing inspiro

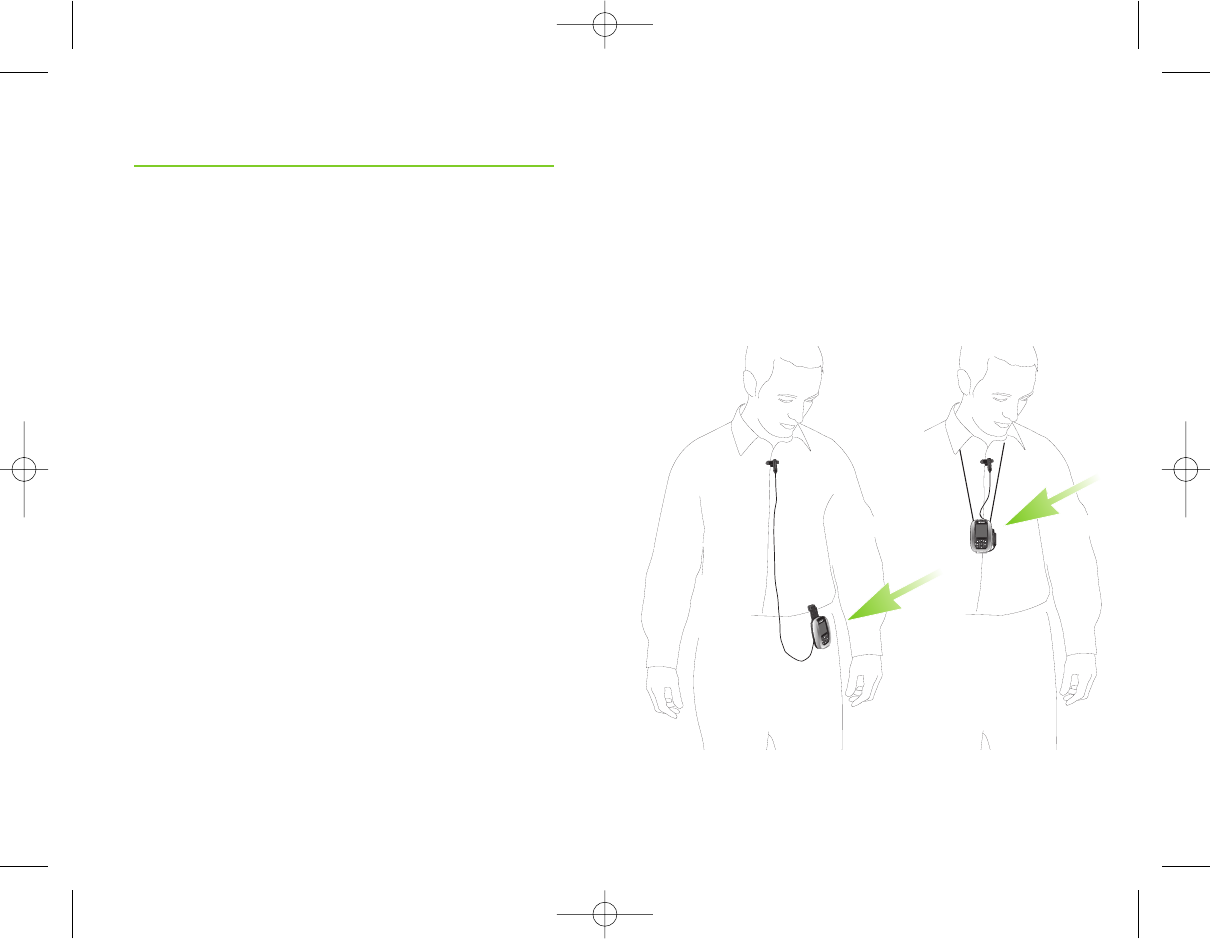

inspiro can either
be worn on the belt
by using the clip…
(
see page 18)
…or around the neck
by using the lavalier
(see page 20)
GA_Inspiro_GB_2.qxp 29.1.2008 16:01 Uhr Seite 13
16
15
Getting Started

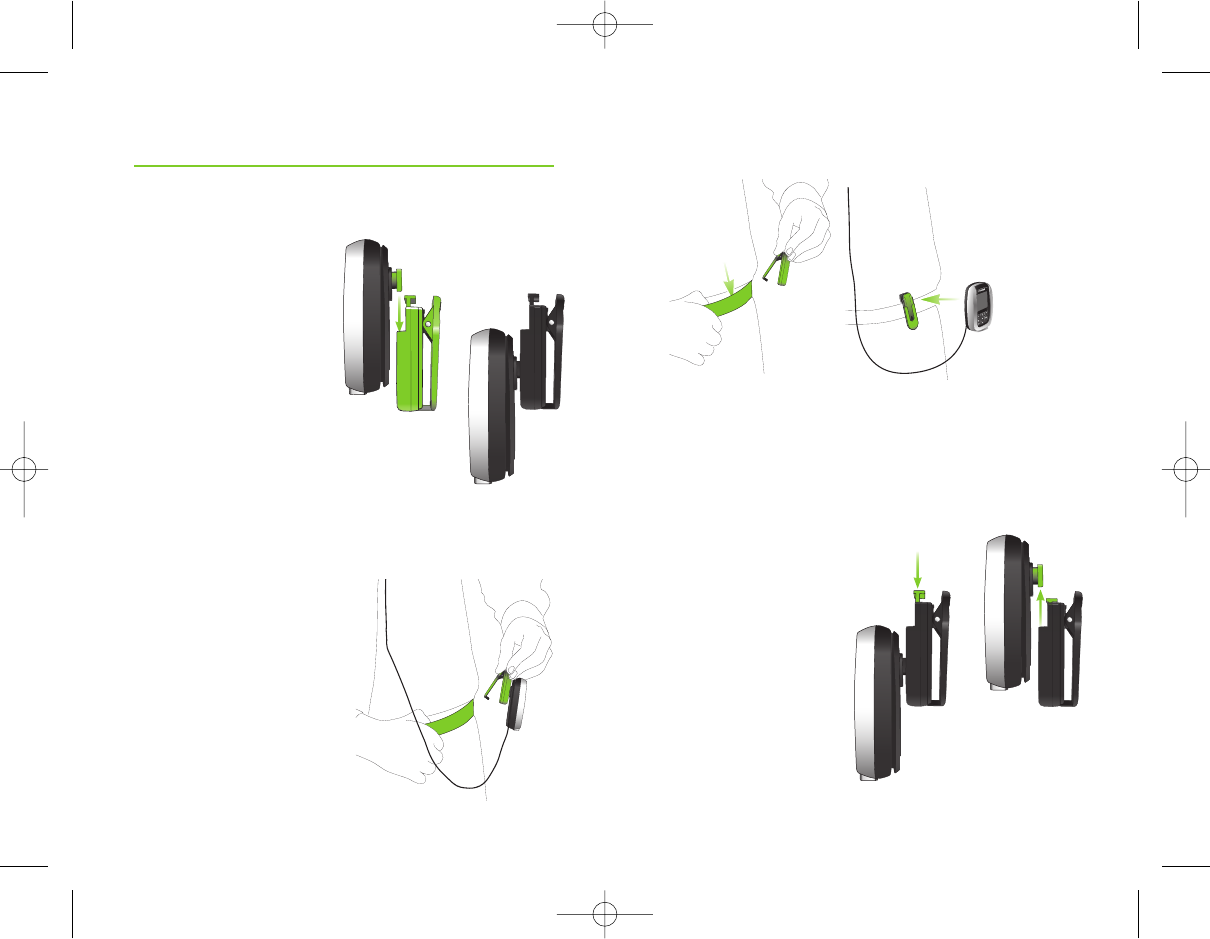

Attaching the clip to the inspiro:
Attach the clip to the button on the
backside of the insiro. Make sure
the clip holds securely on the inspiro.
Fixe the clip on the belt
or trousers. Make sure
the clip holds securely on
the inspiro.
ቢ
ባ
The clip can also be fixed on the belt or trousers
before the inspiro is attached.
Make sure the clip holds securely on the inspiro.
To remove the clip
from the inspiro,
press the button on
the clip and carefully
remove the clip
from the inspiro.
ቢ
ቢ
ባ
ባ
“klick”
GA_Inspiro_GB_2.qxp 29.1.2008 16:01 Uhr Seite 15
18
17

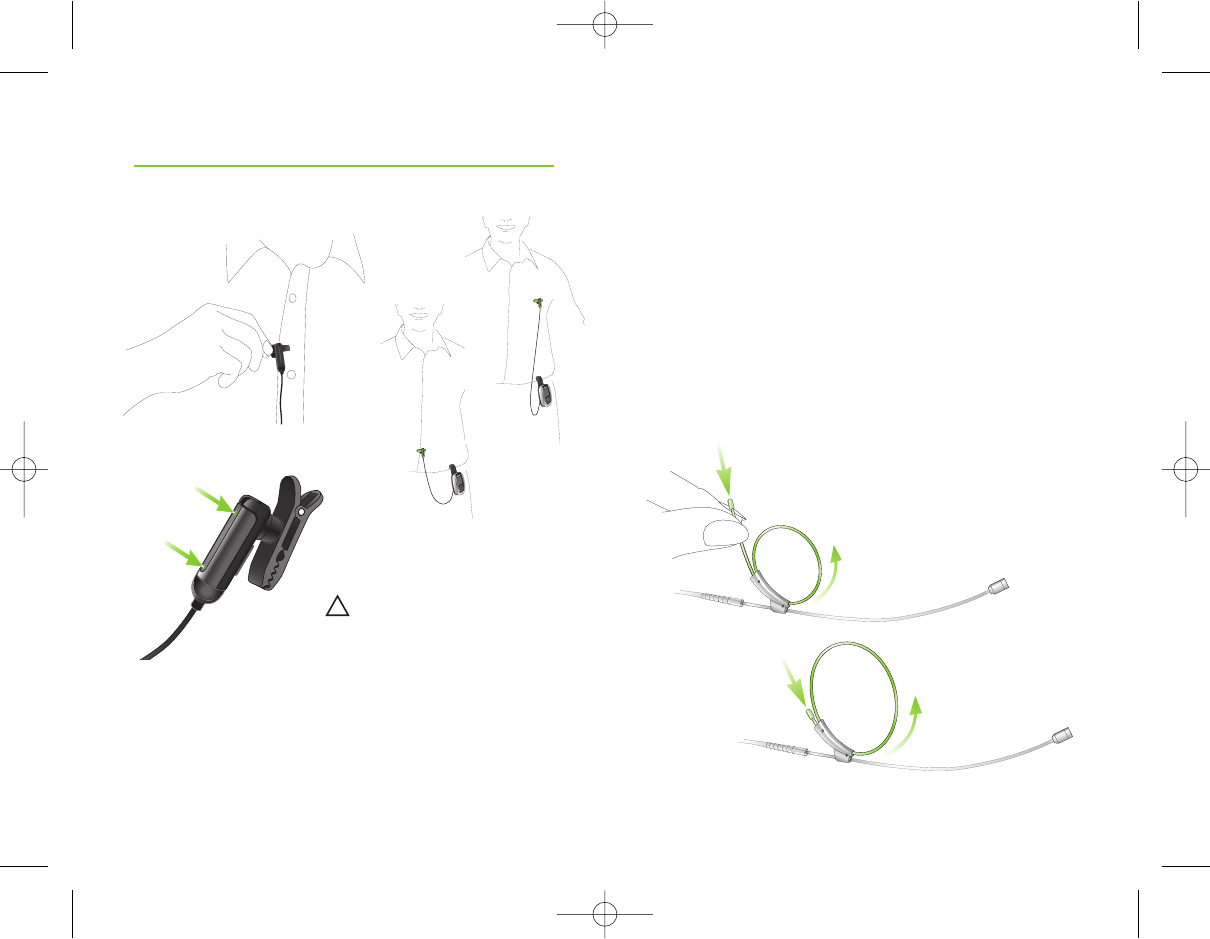

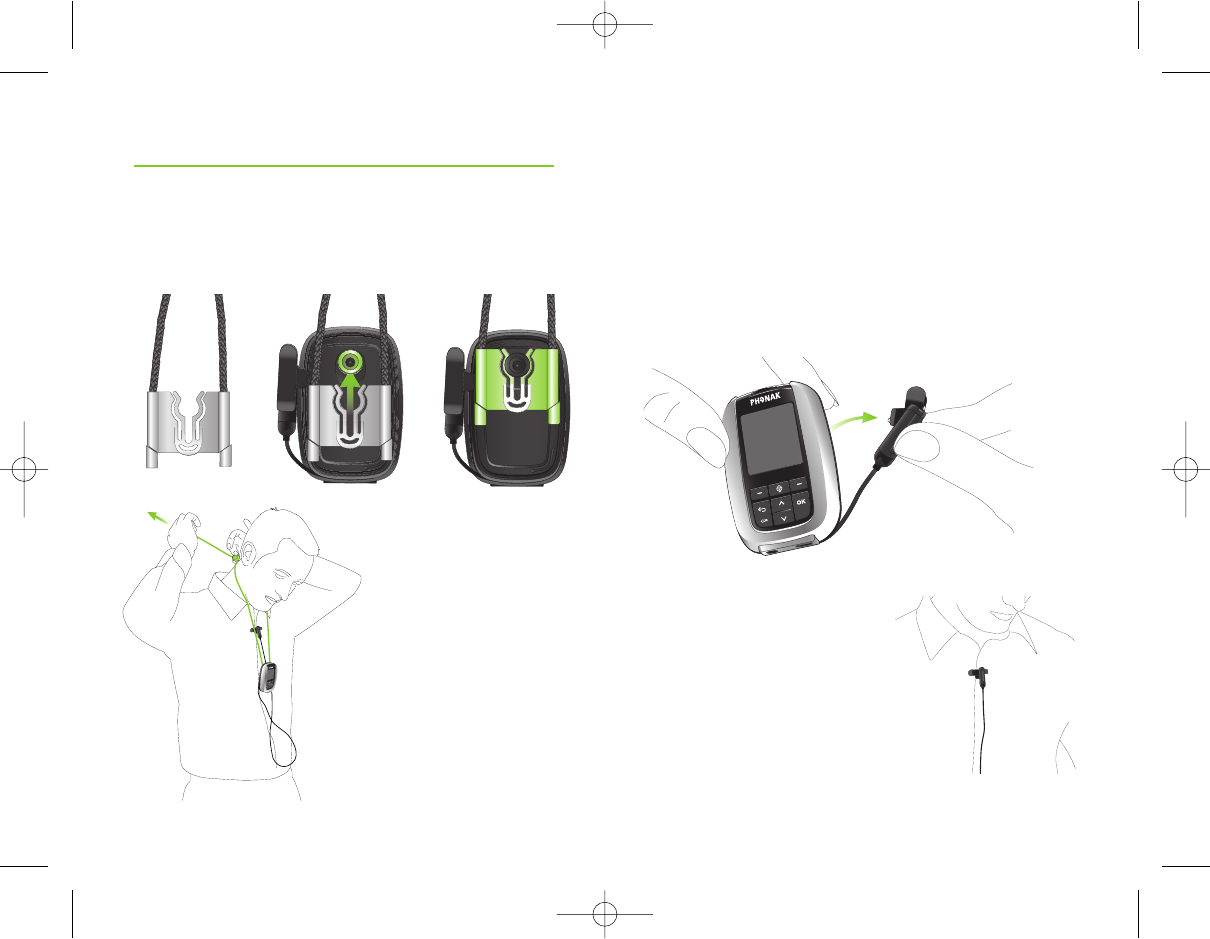

Wearing iLapel
iLapel is an easy-to-use directional lapel
microphone which provides excellent sound quality.
a) Unwind the iLapel from the inspiro.
b) Fix the iLapel on your
shirt and make sure
the distance between the
microphone and your
mouth is approximately
8 inches (20 cm).
Getting Started
ቢባ ቤ
Attaching the lavalier to the inspiro:
Attach the lavalier to the button
Adjust the lavalier length
Make sure the microphone
cable is unwinded.
GA_Inspiro_GB_2.qxp 29.1.2008 16:01 Uhr Seite 17
20
19
iLapel wearing position:
OK!
Do not cover the two
microphone openings!
If you are uncertain whether the iLapel is positioned
well, activate the Sound check feature in inspiro.
Sound check helps to position the iLapel correctly.

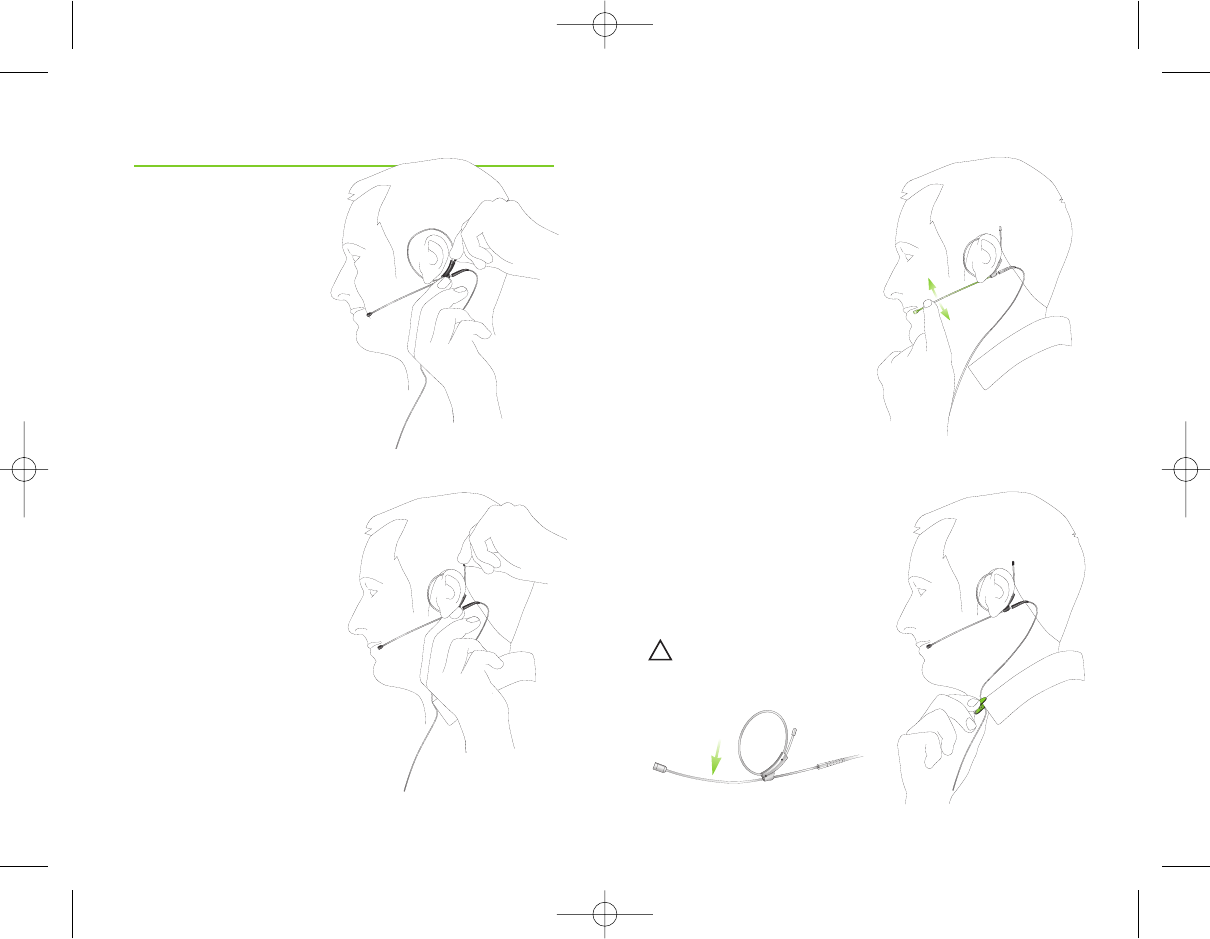

Wearing iBoom
iBoom is an ultra-lightweight boom microphone.
Extremely comfortable in wear, it can be worn on the
left or right ear and adjusts easily to fit all ear and
head sizes.
How to fix the iBoom on the ear:
a) Slightly enlarge the diameter of the ear loop.
Getting Started
!
Wrong!
ቢ
ባ
GA_Inspiro_GB_2.qxp 29.1.2008 16:01 Uhr Seite 19
22
21
b) Open the loop carefully
and attach the iBoom
to the left or right ear.
c) Hold the iBoom with
one hand and slightly
pull the black nipple
with the other hand to
reduce the diameter
of the ear loop until the
iBoom holds securely.
d) Adjust the boom
arm in order to
bring the microphone
as close to the mouth
as possible.
e) Fix the clip on your
clothes as depicted
and make sure the
cable is not stretched
between the clip and
the ear.
Do not bend
the boom arm!
Getting Started
!
GA_Inspiro_GB_2.qxp 29.1.2008 16:01 Uhr Seite 21
24
23

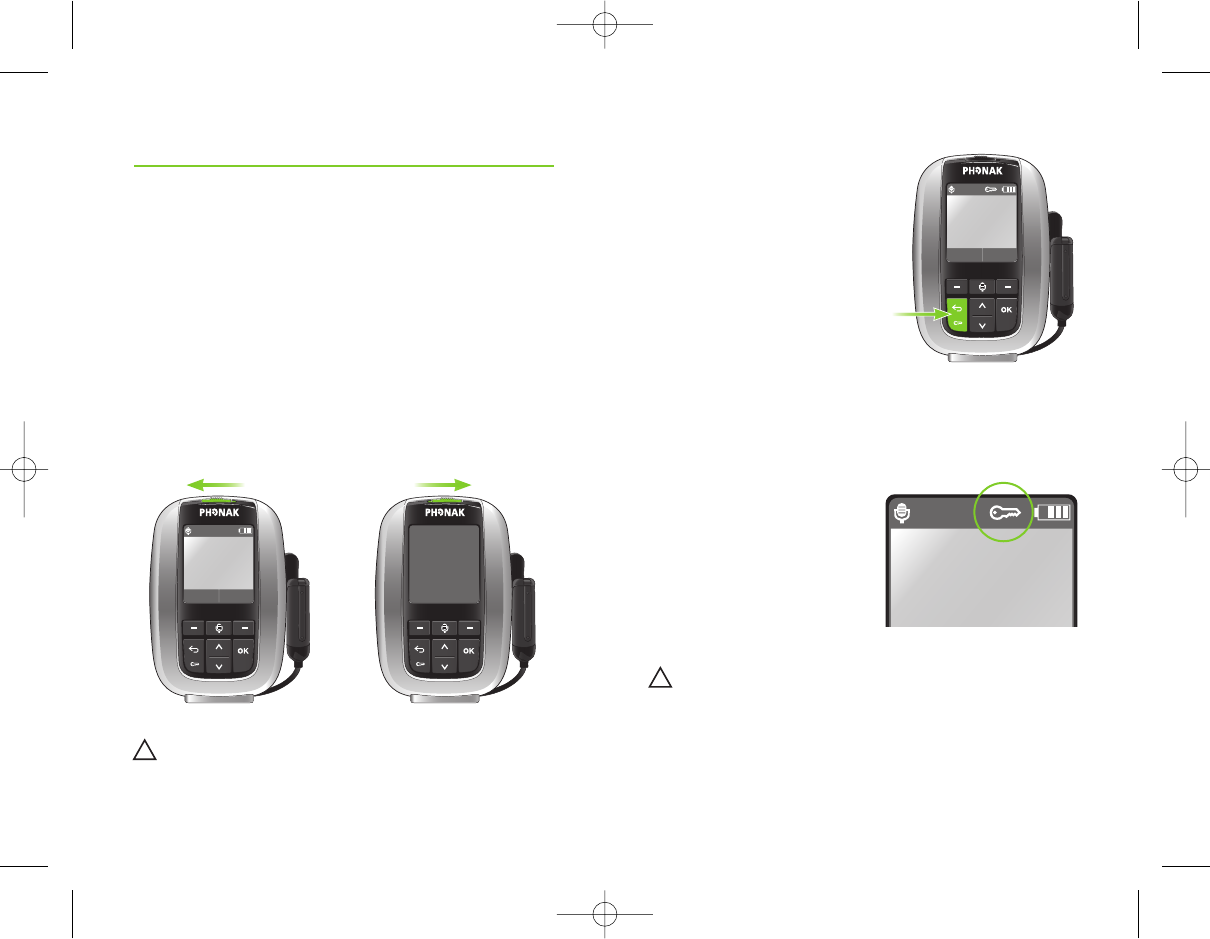

Switch on inspiro
To switch on, push the slider to the left until the
green mark appears and the LCD starts up.
To save power, the backlight of the inspiro LCD is
switched off after a certain time. Press any button
to activate the LCD backlight.
To switch off inspiro, push the slider to the right.
The inspiro can also be switched off if
the keypad is locked!
Getting Started
!
Jenny Jones
Monitor
01.10.2008 01:57pm
Sync
H33
ON OFF
!
Activate the key pad lock
It is recommended to
activate the key pad lock
whenever possible.
To activate the key pad lock,
go to the highest menu
level as shown above and
press the key showing
the key symbol, then press
OK. A key symbol appears
in the status bar.
If the key pad lock is activated, the six keys
are locked. Please note that the on/off slider
is never locked and can always be used!
To unlock the keys, proceed the same way.
01.10.2008 01:57pm
H33
Jenny Jones
Monitor
01.10.2008 01:57pm
Sync
H33
GA_Inspiro_GB_2.qxp 29.1.2008 16:01 Uhr Seite 23
26
25
Phonak provides a manufacturer’s limited warranty
for your
inspiro
. This covers all manufacturing and
material defects. Problems with
inspiro
arising from
improper handling or care and repairs made by an
unauthorized party are not covered by the warranty.
Please ask at the point of sale for full details of this
warranty. The salesperson will note the serial number
of your
inspiro
below. It will be needed in the event
of a warranty repair.
Serial number
inspiro:
Date of purchase:
Serial number FM receivers:
Hereby, Phonak Communications AG, declares that
the inspiro is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC. To obtain a copy of the Declaration
of conformity, please contact the local Phonak AG
representative whose address can be taken from
the list of Phonak distributors worldwide.
This device complies with part 15 and part 95 of the
FCC rules and with RSS 210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device does not cause harmful interference,
and (2) this device must accept any interference received,
including interference that may cause undesired
operation.
Warning: Changes or modifications made to
this equipment not expressly approved by Phonak
may void the user’s authority to operate the
equipment.
Declaration of conformityService and Warranty
!
GA_Inspiro_GB_2.qxp 29.1.2008 16:01 Uhr Seite 25
28
27
Spain Phonak Ibérica S.A., 03008 Alicante
Sweden Phonak AB, 117 43 Stockholm
Switzerland Phonak AG, Phonak Schweiz, 8712 Stäfa
United Kingdom Phonak UK Limited
Warrington, Cheshire WA1 1PP
USA Phonak LLC, Warrenville, IL 60555-3927
Independent general A complete list of Phonak distributors
distributors: is available at Phonak's Internet site:
www.phonak.com. Please visit us or
ask your hearing care professional for
information.
Manufacturer: Phonak AG, Laubisrütistrasse 28
CH-8712 Stäfa, Switzerland
Group companies: (detailed information on
www.phonak.com)
Australia Phonak Australasia Pty. Ltd.
Baulkham Hills N. S. W. 2153
Austria Hansaton Akustische Geräte GmbH
5020 Salzburg
Belgium Ets Lapperre B.H.A.C. NV
B-1702 Groot-Bijgaarden
Phonak Belgium NV, B-1700 Dilbeek
Brazil CAS Produtos Médicos
São Paulo – SP 04363-100
Canada Phonak Canada Limited
Mississauga, Ontario L5W OB3
China Phonak (Shanghai) Co. Ltd.,
Shanghai City 200233
Denmark Phonak Danmark A/S, Nitivej 10
2000 Frederiksberg
France Phonak France SA, 69500 Bron
Germany Phonak GmbH, 70736 Fellbach-Oeffingen
EC Representative
Italy Phonak Italia S.r.l., 20159 Milano
Japan Phonak Japan Co., Ltd., Tokyo 101-0044
Jordan Phonak Middle East, 11181 Amman
Mexico Phonak Mexicana, S.A. de C.V. 03920
México, D.F.MEXICO
Netherlands Phonak B.V., 3439 ME Nieuwegein
New Zealand Phonak New Zealand Ltd., Takapuna
Auckland 9
Norway Phonak AS, 0105 Oslo
Poland Phonak Polska Sp. z o.o., 00-567 Warszawa
Russian Federation Phonak CIS Ltd., Moscow, 115114
Phonak distributors worldwide
GA_Inspiro_GB_2.qxp 29.1.2008 16:01 Uhr Seite 27
30
29
The CE symbol is confirmation by Phonak AG that
this Phonak product meets the requirements
of the R&TTE Directive 1999/5/EC on Radio and
Telecommunication Terminal Equipment.
The alert sign means that potential restrictions on
its use are applicable in one or more European
countries.
This symbol indicates that it is important that the user
refers to associated warnings given in this user guide.
The symbol with the crossed out disposal bin indicates
that this product shall not be treated as household
waste. Please hand over your old or unused product to
the applicable collection point for the recycling of
electrical and electronic equipment or bring your old
product to your hearing care professional for
appropriate disposal. By ensuring this product is
disposed of correctly, you will help prevent potential
negative effects on the environment and human
health.
Operating This product has been designed for trouble-free
conditions operation without restrictions when used as intended,
unless otherwise stated in this user guide.
Transportation Temperature should not exceed limits of –20°/60°
and storage Celsius at a relative air humidity of 65% for extended
conditions periods during transportation and storage.
Air pressure between 500 and 1100 hPa is not
detrimental to this device.
!
!
GA_Inspiro_GB_2.qxp 29.1.2008 16:01 Uhr Seite 29
