User Manual Exelia
Exélia™BTE
User Guide
029-0175-02/V1.00/2007-11/A+W Printed in Switzerland © Phonak AG All rights reserved
www.phonak.com
Your hearing care professional
0459
0682 !
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 201
3
2
Selecting a hearing program 28
Controlling two hearing instruments 29
Telecoil (optional) 30
EasyPhone (optional) 31
myPilot (optional) 34
iCom (optional) 36
FM communication (optional) 38
Attaching and removing FM receivers 41
Manual selection of an FM program 44
Maintenance
Wind and Weather Protector 45
Fit’nGo slim tube 48
Important points 52
Warning 55
Service and Warranty 56
Phonak distributors worldwide 60
Contents
Welcome 5
Description Exélia 6
Short introduction
Inserting the battery 8
Switching ON/OFF 8
Controlling the volume 9
Selecting a hearing program 9
Preparation
Replacing the battery 10
Tamper proof battery compartment 13
Identifying left and right instruments 15
Inserting Exélia hearing system with
earmold into your ear 16
Inserting Exélia hearing system
with Fit’nGo slim tube into your ear 20
Fine tuning your Exélia hearing system 24
Operation
Switching ON/OFF 25
Controlling the volume 26
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 2
5
4
Your new Exélia hearing system uses the very latest
advances in digital wireless hearing technology.
Exélia offers you, automatically, the highest sound quality,
speech understanding and listening comfort in all
your hearing situations. High-tech has turned highly
sophisticated hearing systems into convenient
devices that are easy to use.
Please read this manual carefully to benefit from
all the features of your new hearing system. Ask your
hearing care professional if you have any questions.
Exélia is a quality product developed by the Swiss
company Phonak, a world leader in hearing technology,
innovation and reliability. With proper care and
usage, your hearing system will support your hearing
and communication needs for many years.
For further information, please visit the Phonak website
www.phonak.com.
Phonak – life is on
Welcome
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 4
7
6
Hearing system
with Fit’nGo
slim tube and dome
ቢ–ብsee page 6
ቦSlim tube /
sound output
ቧDome
ቨRetention
Hearing system
with Fit’nGo
slim tube and SlimTip
ቢ–ብsee page 6
ቦSlim tube /
sound output
ቧIndividual SlimTip
ቨRemoval handle
ቦ
ቨ
ቧ

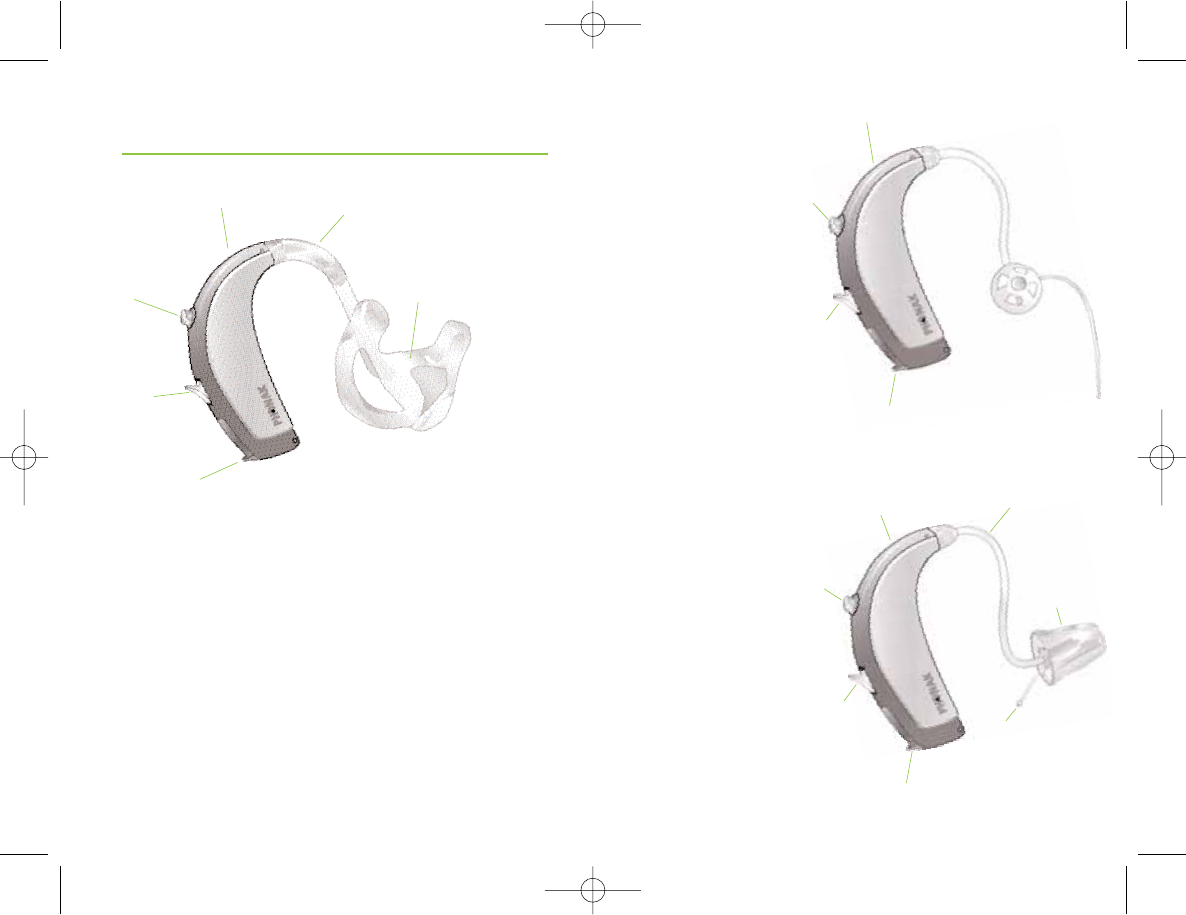

Description
Hearing system with earmold
ቢMicrophone inputs with
Wind and Weather Protector
ባProgram switch
ቤVolume control
ብBattery compartment with
ON/OFF switch
ቦHook/sound output
ቧIndividual earmold
ቢቦ
ቧ
ባ
ቤ
ብ
ቢ
ባ
ቤ
ብ
ቤ
ብ
ቦ
ቧ
ቨ
ቢ
ባ
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 6
89
Controlling the volume
Details see page 26
Volume up Volume down
Selecting a hearing program
Details see page 28
Short introduction
Inserting the battery
Details see page 11
Switching ON/OFF
Details see page 25
ON OFF ON
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 8
11
Replacing the battery
The advanced performance features of your Exélia
instruments require specially designed high performance
batteries (called GenX batteries). Therefore please
only use these GenX batteries (size 13). The use of other
batteries could lead to reduced battery life and the
optimum performance of your Exélia hearing systems
can not be guaranteed.

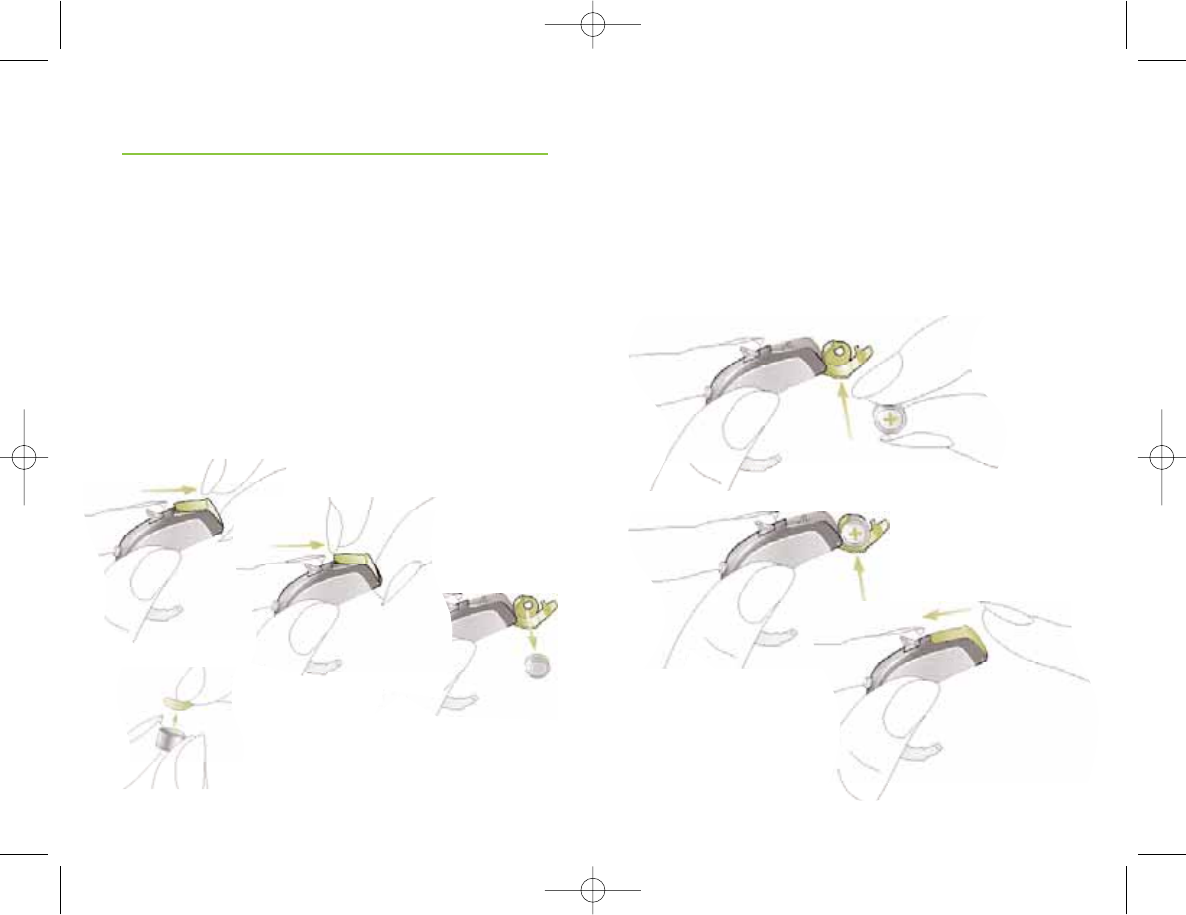

Using the nail grip, open the battery compartment
completely and remove the old battery.
Remove the
protective foil from
the new battery.
Insert the new battery with the “+” sign (flat side
of the battery) in line with the “+” marked on
the battery compartment and close it. The correct
battery orientation can also be seen on the inside
of the battery compartment.
10
Preparation
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 10
13
12
Please only use GenX batteries for your Exélia
instruments.
Handle the battery compartment with care and
do not use excessive force.
If there is any resistance when closing the
compartment, ensure that the battery is
inserted correctly. The compartment may not
close properly if the battery is upside down,
and the instrument will not work.
When your hearing system is not in use, leave
the battery compartment open to allow any
moisture to evaporate.
Low battery warning
An acoustic signal gives you an early warning that
the battery is approaching exhaustion. You have
approximately 30 minutes to replace the battery after
hearing the signal. This reserve may be higher
and the hearing system will repeat the low battery
warning approximately every 30 minutes.
Please note that the battery consumption increases
with regular use of the myPilot command center
or the iCom communication interface.

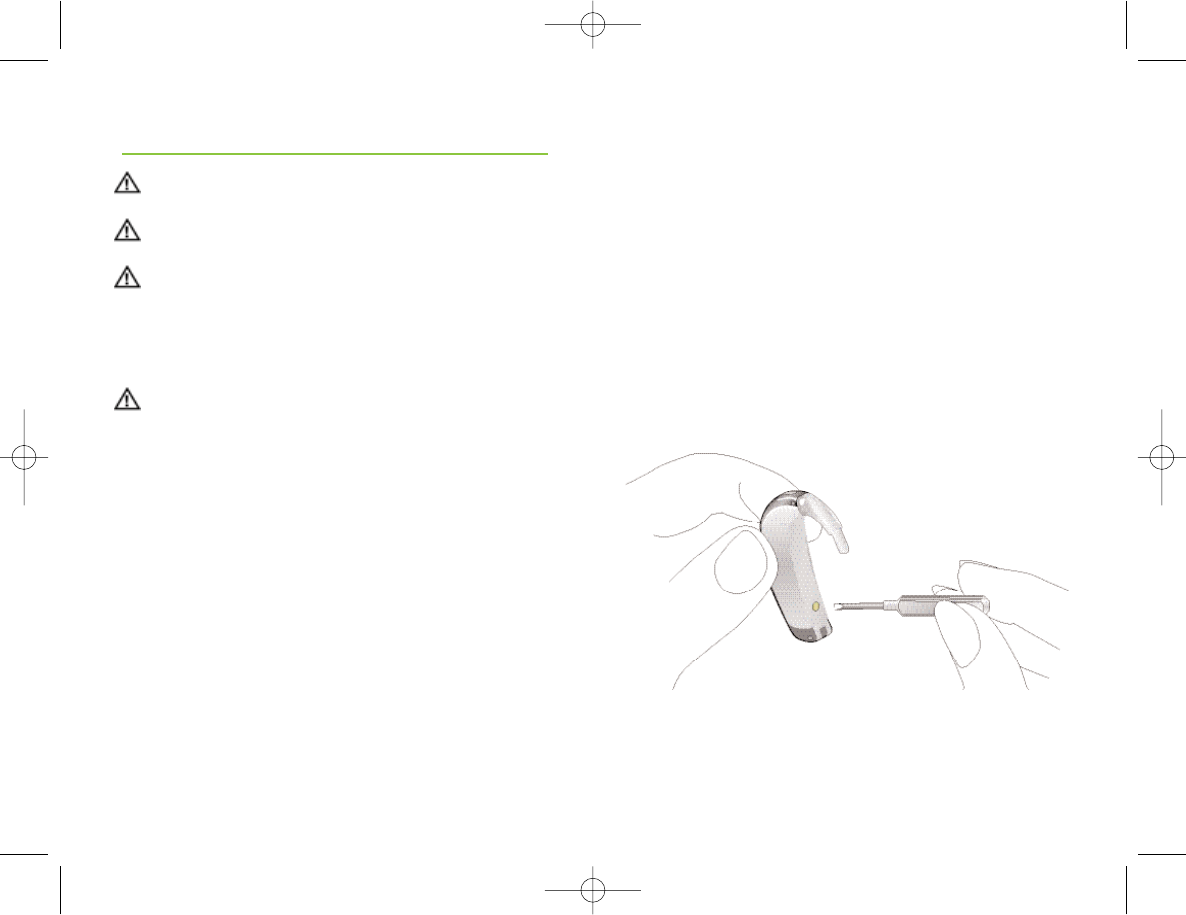

Tamper proof battery compartment
To protect children from the dangers of playing with
batteries, a special locking system may be mounted on
the instruments. This locking system can also be used
for identifying left and right instruments (see page 15).

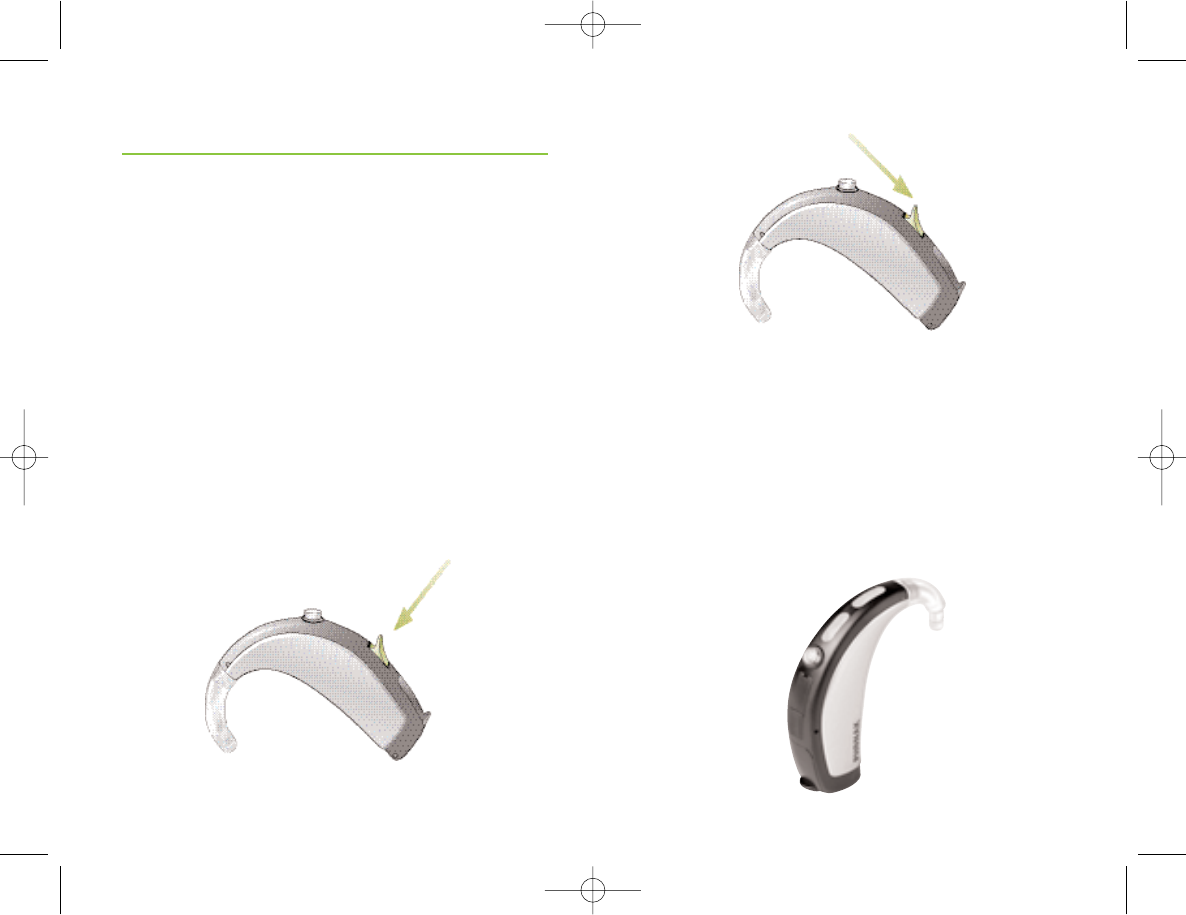

To lock the battery compartment, after it is closed:

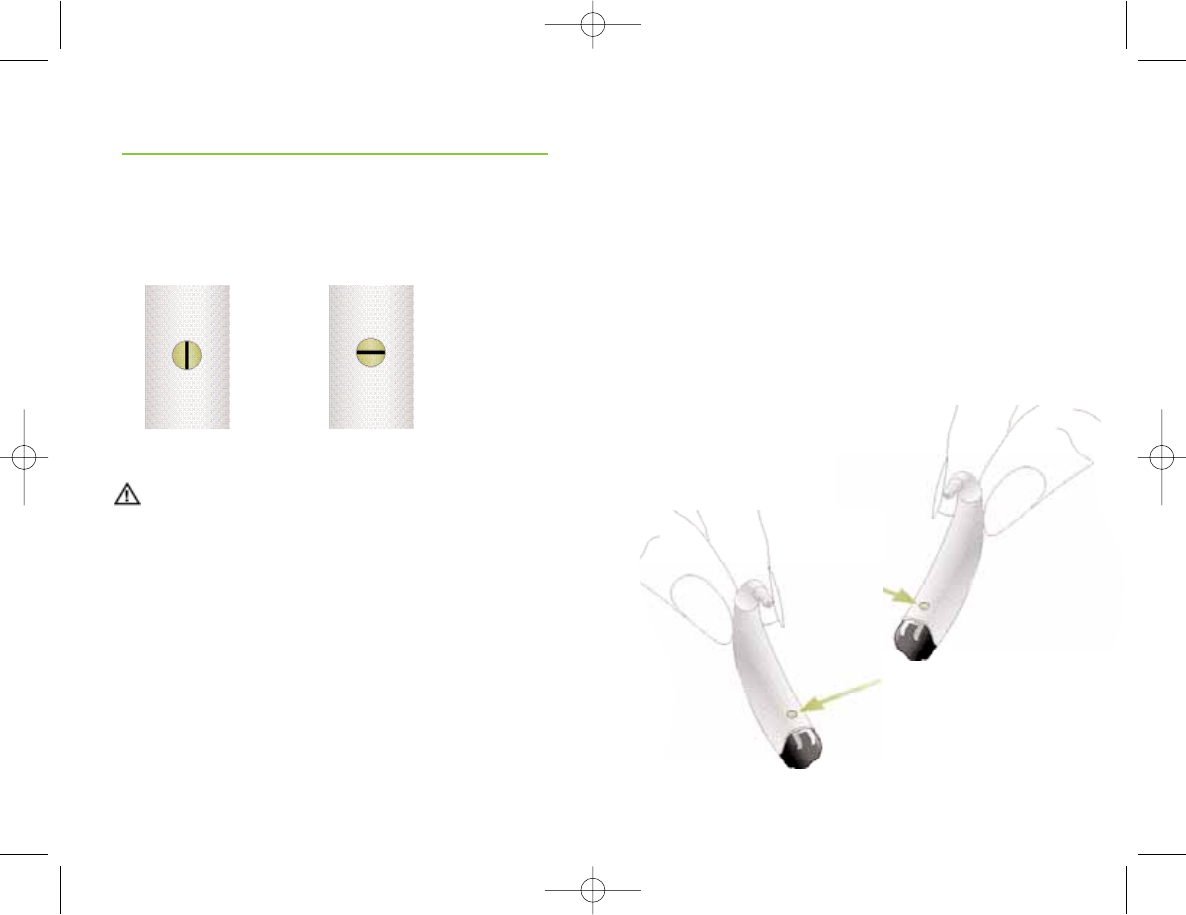

Use a small screwdriver and turn the screw to its
middle position (slot vertical).
To unlock the battery compartment: Turn the screw to
its horizontal position.
Preparation
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 12
15
14

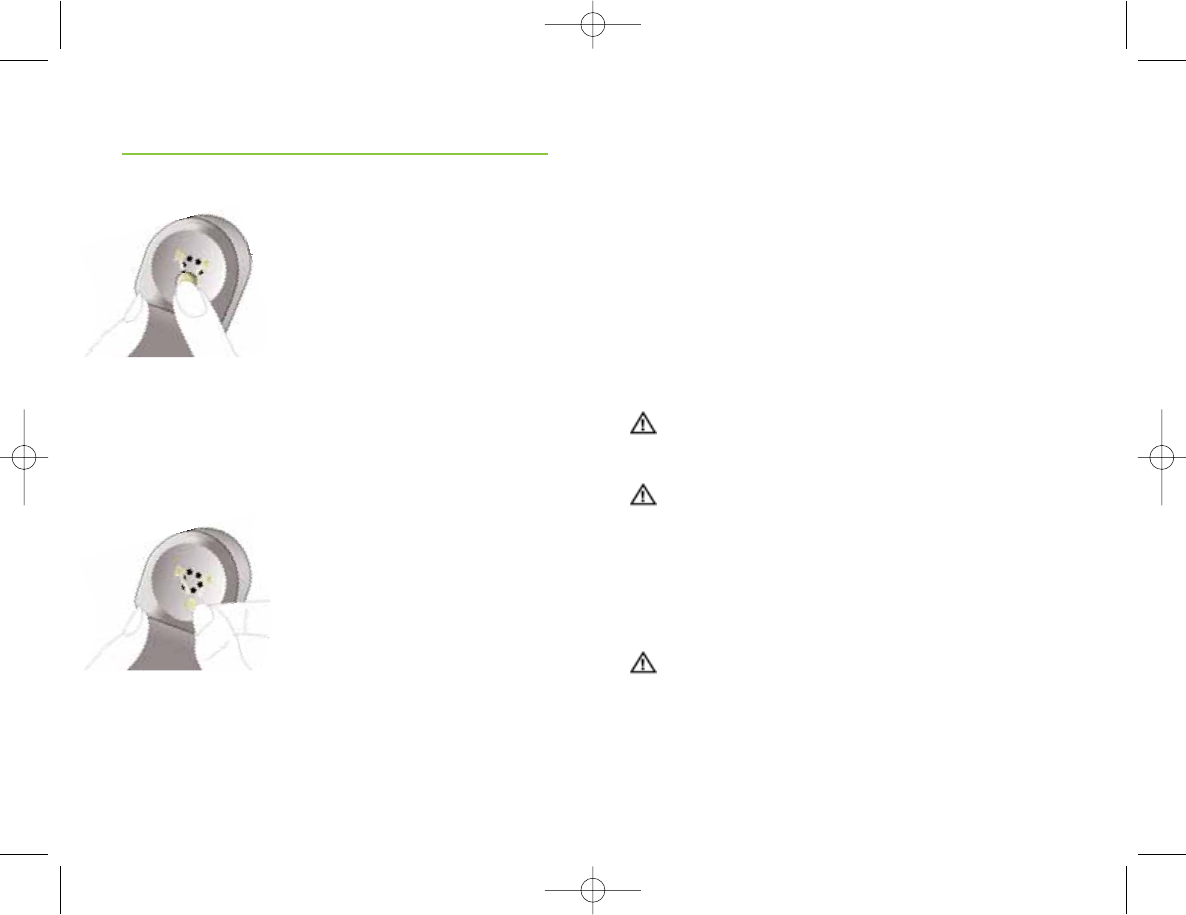

Please make sure that the screw is in the unlocked
position when you close the battery compartment.
Locked Unlocked
The ON/OFF switch is not available when the
battery compartment is locked.
To switch the hearing system OFF, it is necessary
to unlock the tamper proof battery compartment.
Identifying left and right instruments
It is important to use the correct hearing system for
each ear.
Your hearing care professional can mark the hearing
systems for you. The color code on the housing will
identify left and right hearing systems.
The color code is as follows:
red = right
blue = left
Preparation
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 14
17
16

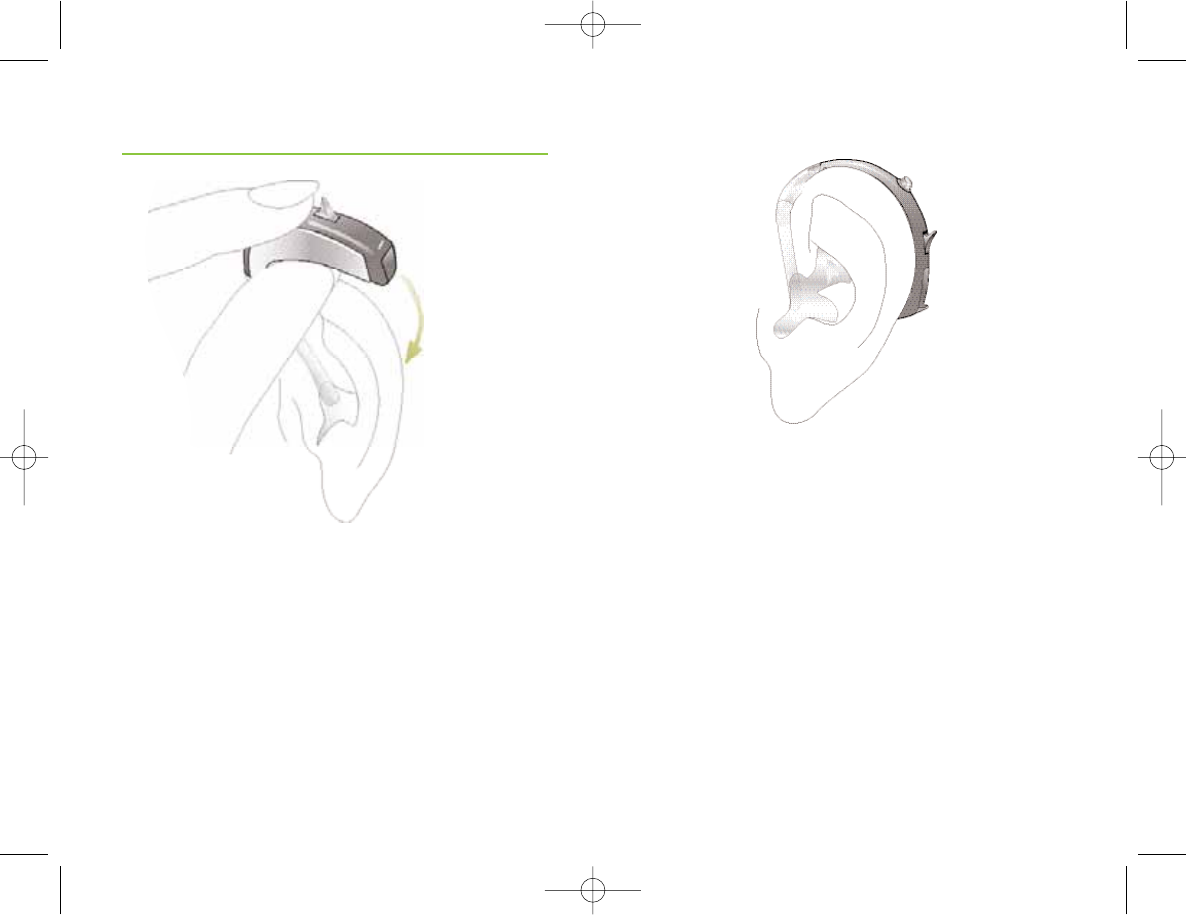

Place the canal portion of the earmold inside your ear
canal. If it is difficult to get it into place, stretch your ear
by pulling it gently backwards and upwards with your
other hand. When the canal portion is in place, twist the
earmold backwards so that it fits into the concha and
the helix portion is under the fold.

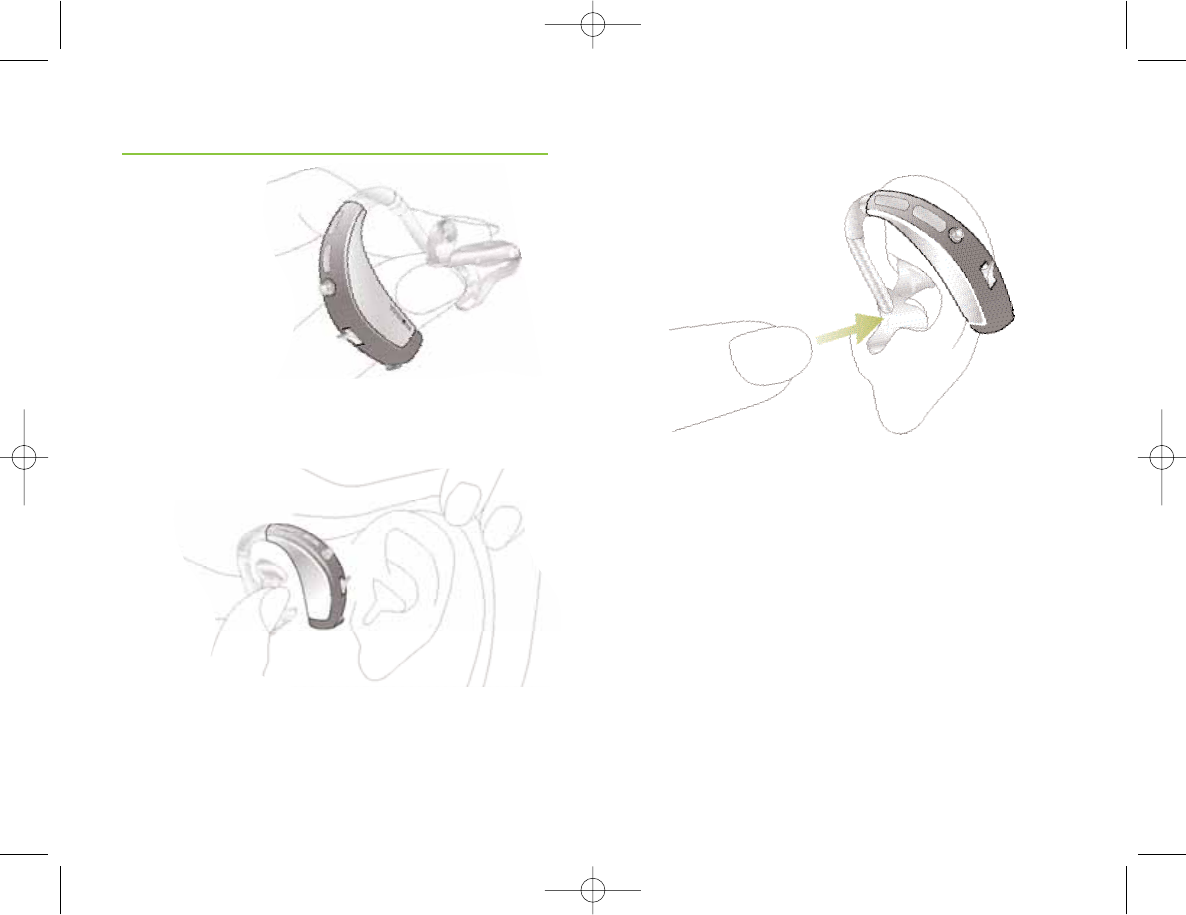

Inserting your
hearing system
with earmold into
your ear
Using the hand on the same side you wear your hearing
system, grasp the earmold between the thumb and
index finger.
Raise your hand to your ear making sure the canal
portion of the earmold faces your ear. Tilt your hand
slightly forward.
Preparation
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 16
19
18
Now position the hearing system behind the ear.
Be careful not to twist the tubing.
Check the placement of the earmold by tracing the
contour of the ear with your finger.
To remove your hearing system, grasp the earmold,
not the tubing, and pull it out of your ear gently but
firmly.
Preparation
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 18
21
20

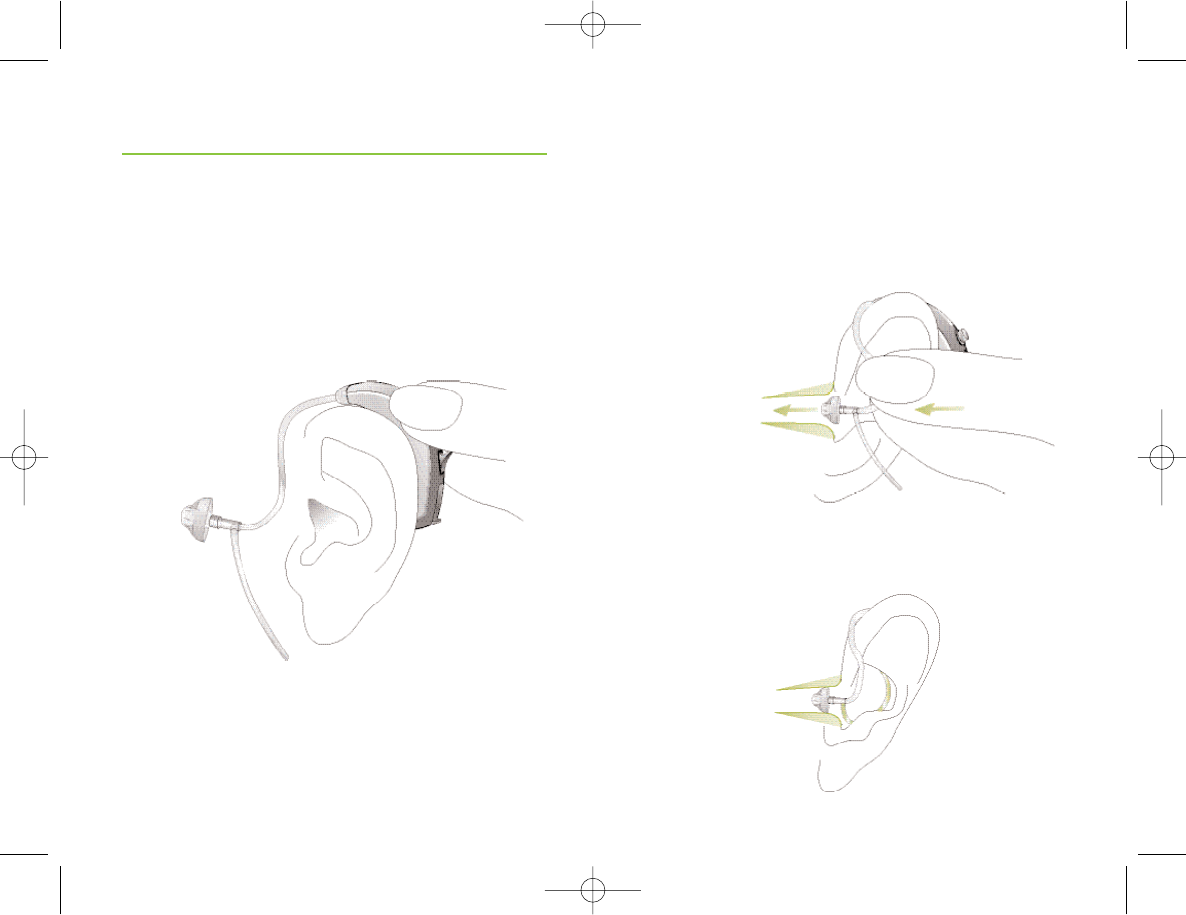

The dome or SlimTip should be placed far enough
into the ear so that the slim tube lies flush with your
head.
Place the retention tail (if available) of the slim tube
into the bowl of your concha ቤ.
ቢ
ባ
ቤ
Preparation
Inserting your hearing system with Fit’nGo
slim tube into your ear
Open domes and SlimTip
Place the hearing instrument over the top
of your ear ቢ.
Hold the slimtube where it attaches to the dome
or SlimTip ባand gently push the dome or SlimTip
into your ear canal.
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 20
23
22

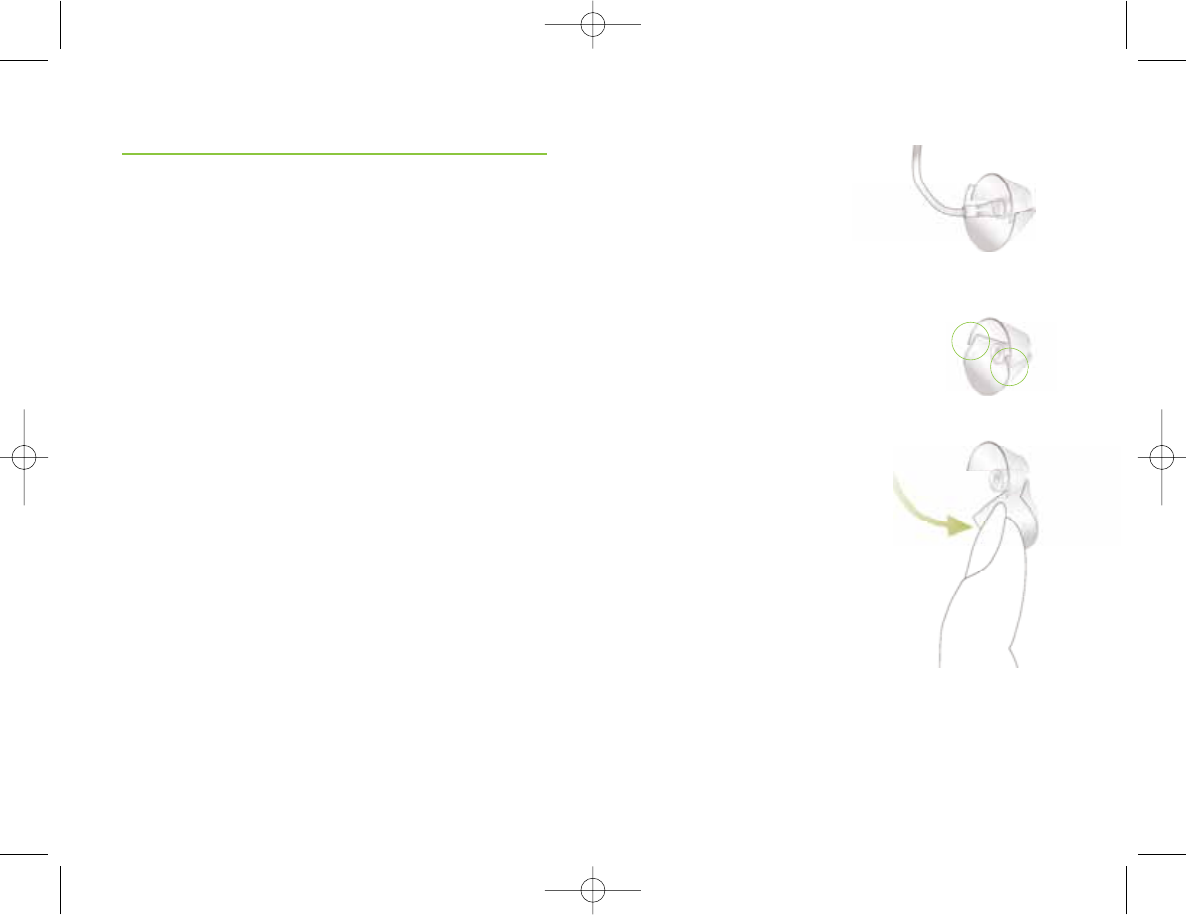

Closed domes
The closed dome has a different design than other
domes (refer to picture). The closed dome consists of
two fins overlapping each other. Before inserting the
closed dome into the ear canal it is important to check
the position of these fins. The larger fin must be
positioned over the smaller fin, see picture ብ. If the
position is incorrect ቦ, you can easily adjust it. With
one finger, gently bend the bigger fin forwards and
then back again so that it overlaps the smaller one, see
picture ቧ. Make also sure that the slit of the closed
dome is in a horizontal position on the tube unit, as
shown in picture ብ. Your closed dome is now ready
to be inserted into the ear.
Correct position ብ
Wrong position ቦ
Moving the fins ቧ
Preparation
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 22
25
24
Fine tuning based on your personal preferences
The fitting process has limited capabilities of reproducing
the full spectrum of your personal sound environments.
This limitation is overcome by the ability of Exélia hearing
systems to learn from your real life volume adjustments.
Exélia offers a unique functionality called “Self Learning”.
In every environment, it logs your personal volume
changes within the hearing instrument. This means that
every time you change the volume of your Exélia hearing
system, this correction is taken into account to apply
your preferred volume automatically when you are in a
similar environment next time.
Self Learning cleverly ensures that your volume
corrections in each environment contribute to a fully
personalized volume setting.
Switching ON/OFF
Switching OFF

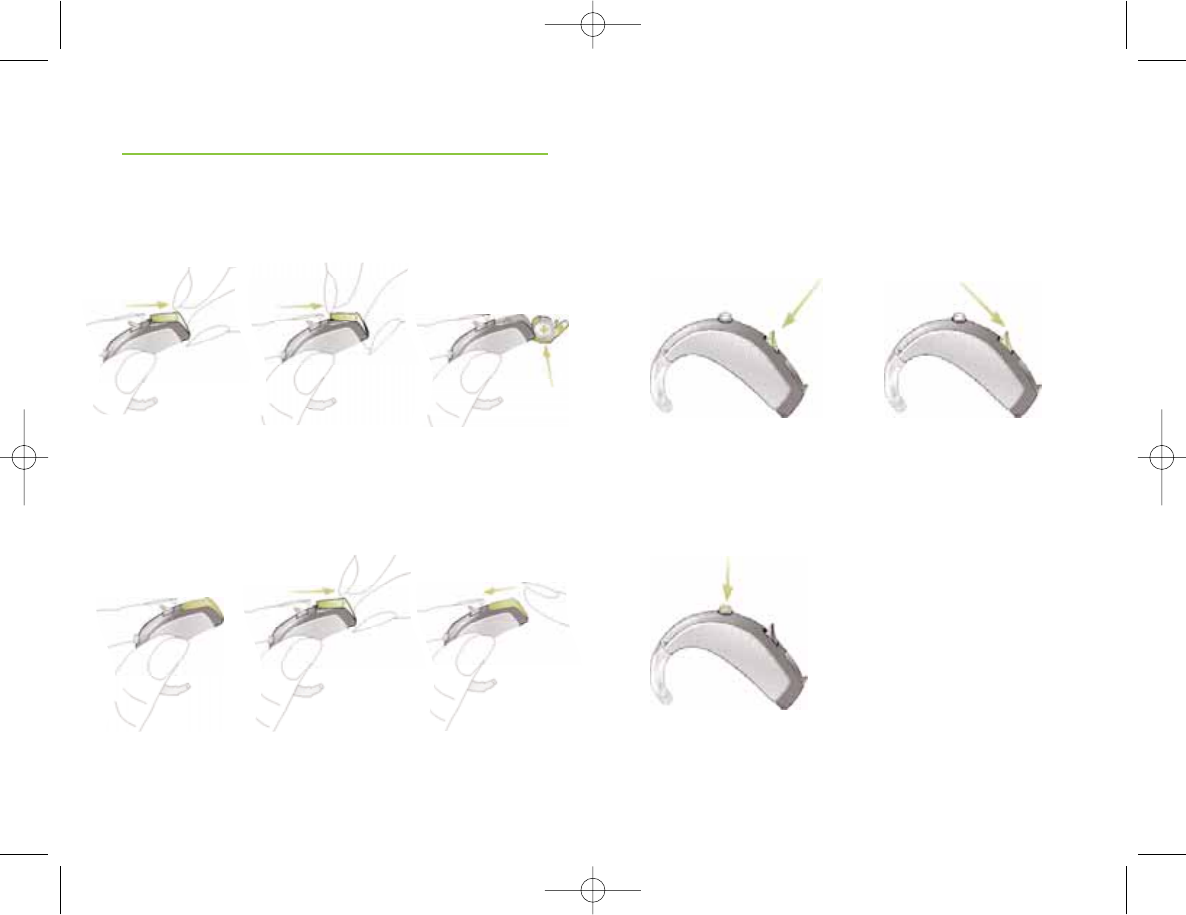

Using the nail grip, slightly open
the battery compartment until it
snaps to its OFF position.
Switching ON
Close the battery compartment.
Your hearing systems are always
working in the default hearing
program and at your preferred
volume when turned ON.
Preparation Operation
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 24
27
26
Delayed activation
Your hearing care professional may have activated
a delayed activation timer. This function delays the
activation of the hearing system (for 9 or 15 seconds)
after the battery door is closed in order to avoid any
disturbance while placing it into your ear.
An acoustic signal confirms when your hearing system
is switched on.
Controlling the volume
The volume of your hearing system can be
adjusted above or below the preset volume.
Volume up
Operation
Volume down
Note
• A beep confirms each action on the volume
control. A double beep indicates that you have
reached the limit of your volume control range.
• If not required, your hearing care professional
can remove or disable the volume control switch.

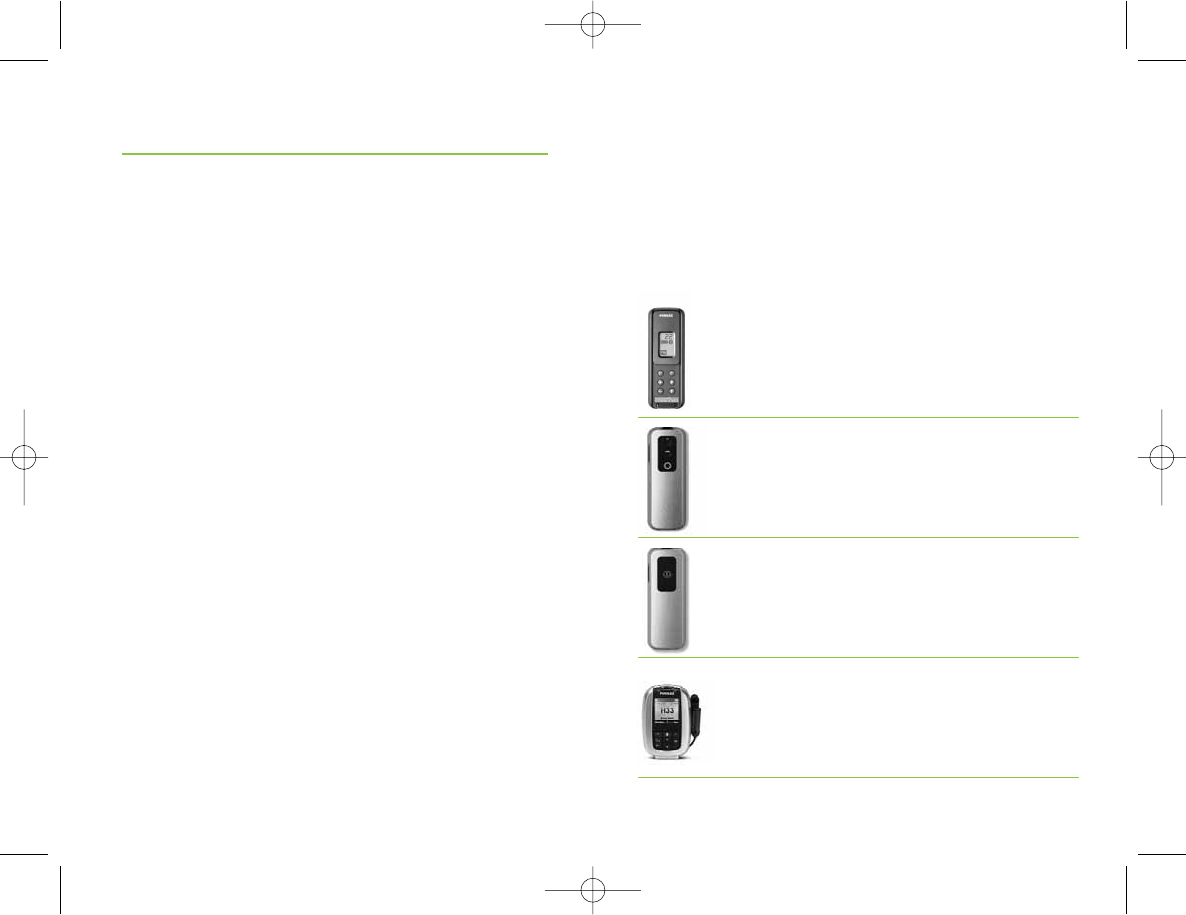

• Phonak’s myPilot command center (see page 34)
can also control the volume of all Exélia BTEs.
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 26
29
28
Operation
Selecting a hearing program
Automatic program selection
The program selection is fully automatic. Exélia is
able to recognize different hearing environments and
to automatically select the most appropriate hearing
program.
Additional program selection
Upon request, your hearing care professional can program
for you additional individual hearing programs dedicated
to specific hearing situations or FM use. Additional
programs are accessed via the myPilot command center
and/or the program switch.

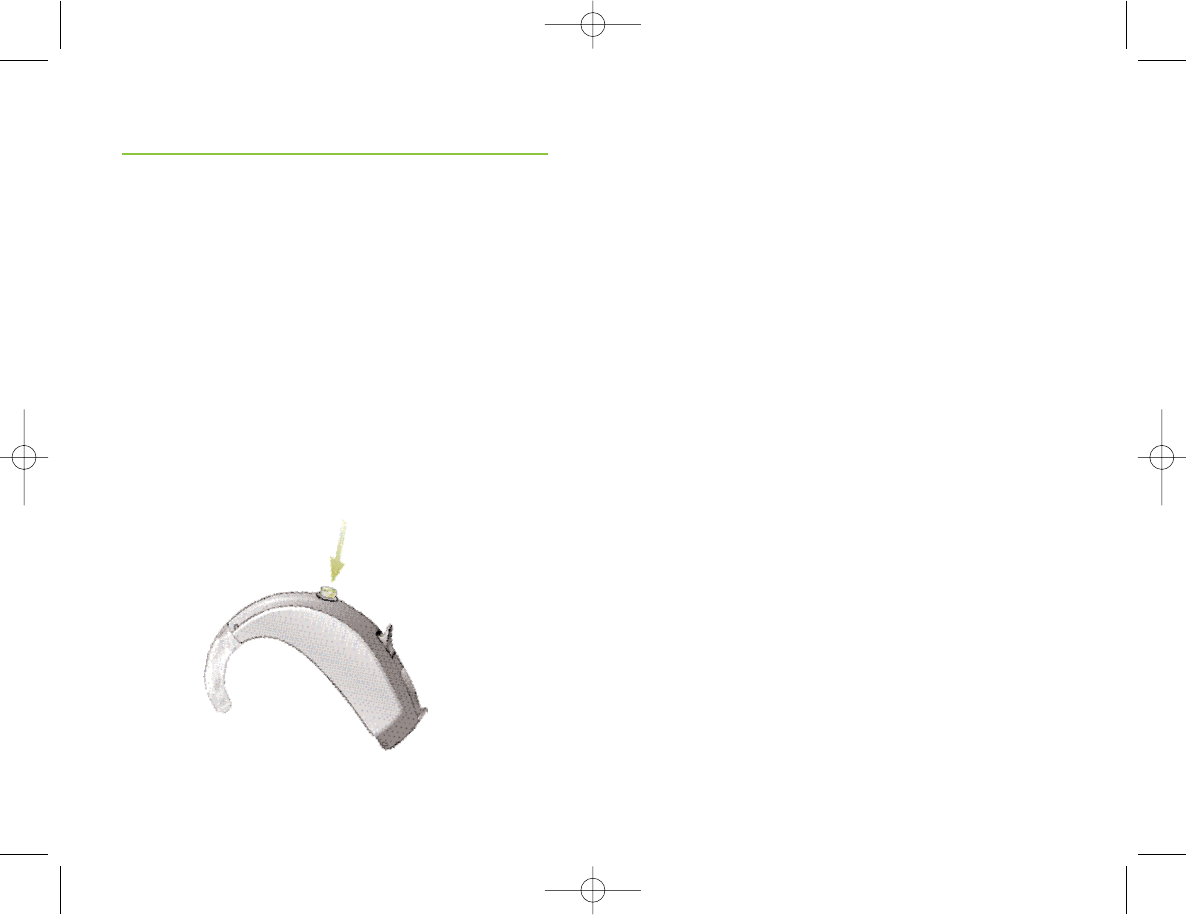

Program switch
The program switch allows manual toggling between
the “Automatic Mode”, the “Mute Mode” and
individual hearing programs. A short melody confirms
the selection of the “Automatic Mode”.

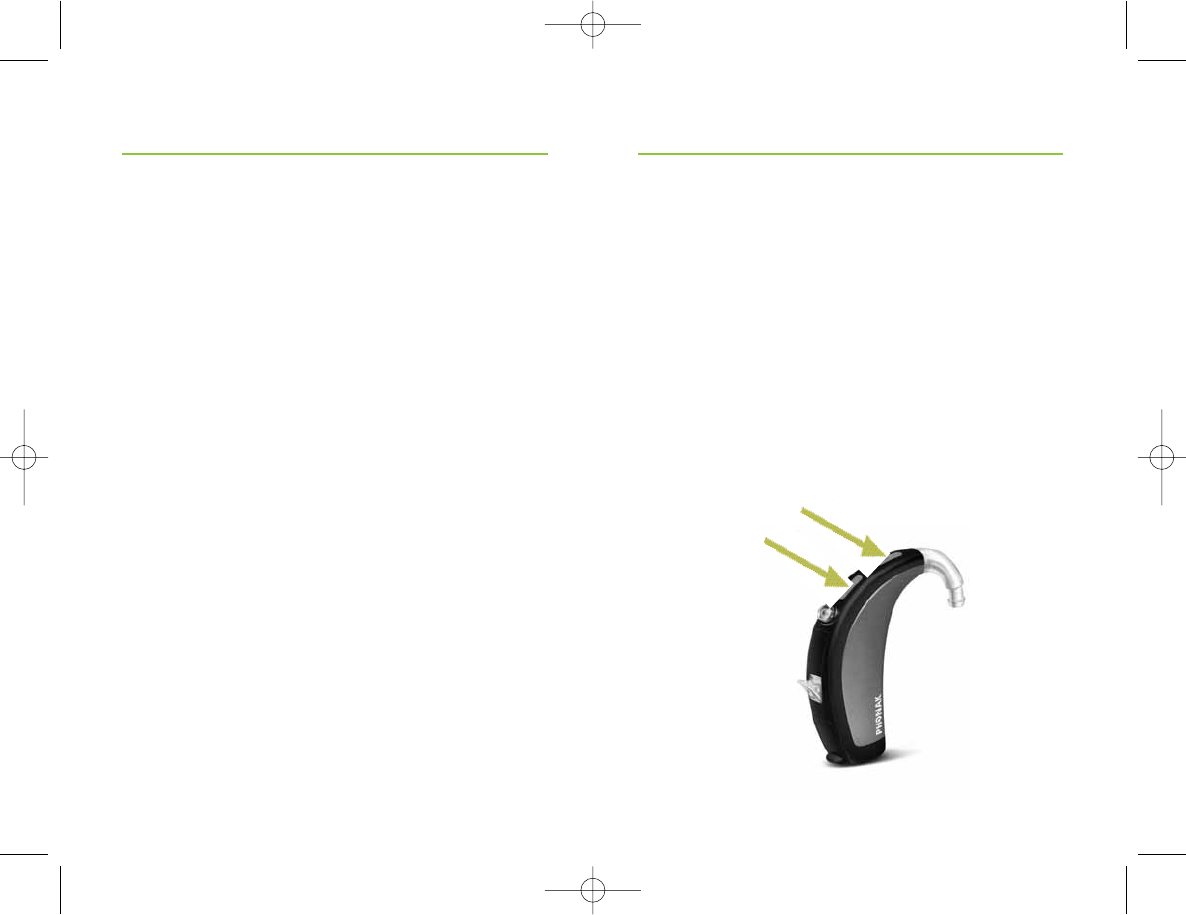

Controlling two hearing instruments
An automatic synchronisation for volume adjustments
and program selection, called QuickSync, is integrated
in your hearing systems. Users wearing two hearing
instruments just have to activate the functionality on
one instrument; the other instrument will be adjusted
automatically.
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 28
31
30
EasyPhone (optional)
The EasyPhone function enables your Exélia hearing
system to automatically select your telephone program
when the telephone handset is held close to your ear.
An acoustic signal confirms the switch.
It automatically returns to the previous hearing program
when the telephone handset is removed from your ear.
Some telephones produce a magnetic field strong enough
to activate your EasyPhone function. Most types of
telephones require an additional magnet fixed on the
receiver to activate this function.

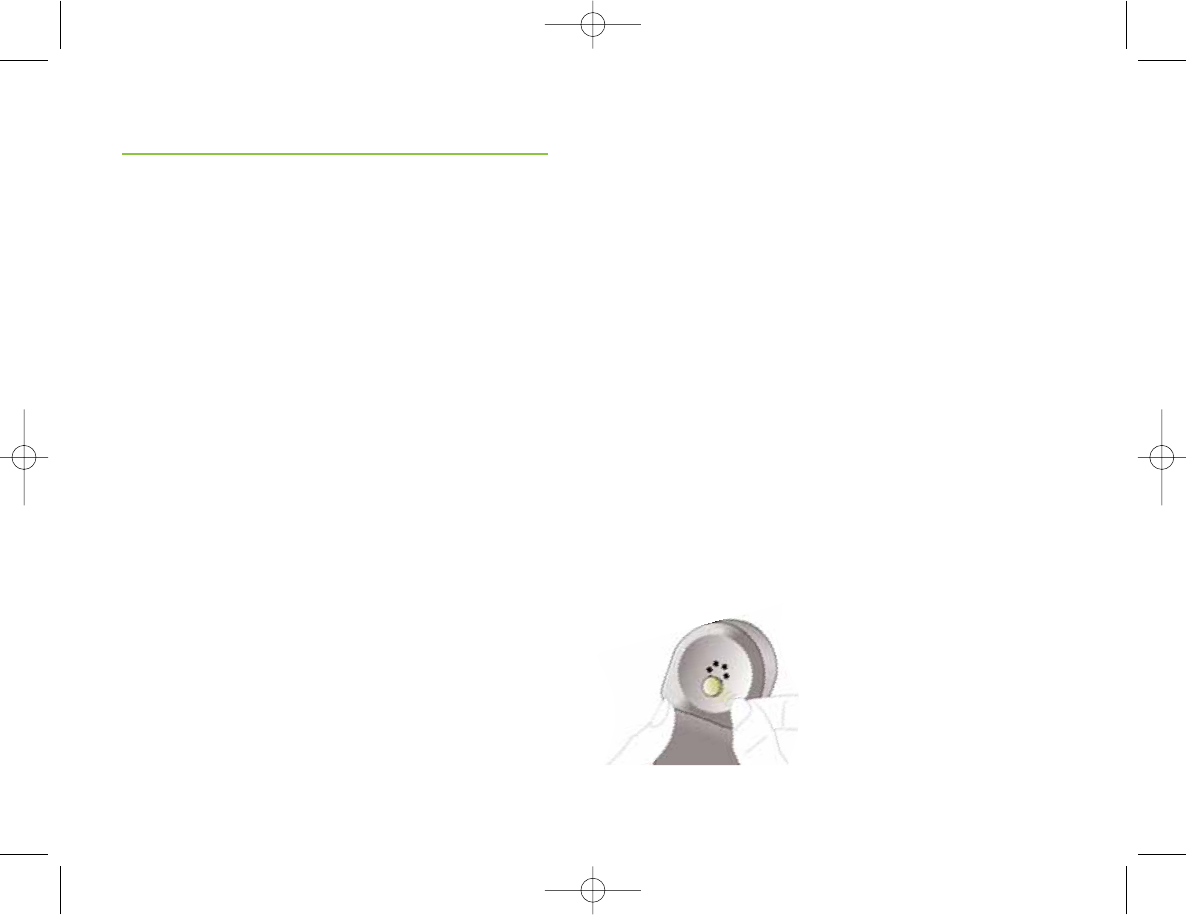

Fixing the EasyPhone magnet
Clean the telephone handset
thoroughly. Hold the telephone
handset nearly vertically, similar
to making a telephone call. Hold
the magnet near to the “listening
end” of your telephone handset
and release it. The magnet will
automatically flip to the correct
side.
ZoomControl
This special hearing program allows you to choose
from four directions in which to focus your hearing
systems (front, back, left or right). This special
program can be accessed via the myPilot command
center only.
Telecoil (optional)
Your hearing care professional may have activated
a Telecoil in your hearing systems. The programs with
Telecoil can be used with hearing system compatible
phones or via inductive loop systems (present in some
school settings, theaters, churches etc.).
Ask your hearing care professional to print out the
complete description of your individual hearing
programs and how to access them with your myPilot
command center and/or program switch.
Operation
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 30
33
32
Use of EasyPhone
Use the telephone in a normal manner. An acoustic
signal indicates the activation of the EasyPhone
program. At the beginning, you may need to move
the handset slightly to find the optimum position
for a reliable switch and comfortable hearing.
If necessary, move the magnet to another position on
the handset to increase your comfort of use.
Keep magnets out of reach of children and pets.
If a magnet is swallowed, please seek the advice
of a medical practitioner.
The magnet used to strengthen the magnetic
field of your phone may affect some medical
devices or electronic systems.
Always keep the magnet (or the telephone equipped
with the magnet) at least 30 cm (12”) away
from pacemakers, credit cards, floppy disks or
other magnetically sensitive devices.
High distortion during dialing or phoning may
mean that the phone receiver is stressed by
the magnet. To avoid any damage, please move
the magnet to another place on the telephone
receiver.
If you hold the telephone
receiver in your right hand
when making telephone
calls, position the magnet in
the upper right half of the
receiver.
If you hold the telephone
receiver in your left hand
when making telephone
calls, position the magnet
in the upper left half of
the receiver.
Use the double-sided adhesive
tape to stick the magnet to
the location described above.
Do not cover the sound
openings of your handset.
Operation
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 32
35
34
The myPilot command center is an optional accessory
for Exélia BTE instruments. It allows a convenient,
user-friendly and discrete control of all the functions
of your hearing system and additional benefits.
• Volume Control
• Program selection
• Automatic mode selection
• Access to ZoomControl program
• Clock and Alarm
• Battery status
For detailed information on the use of your myPilot,
please refer to its user guide or ask your hearing
care professional.
myPilot:
available in two
stylish colors,
high-tech grey or
white.
myPilot (optional)

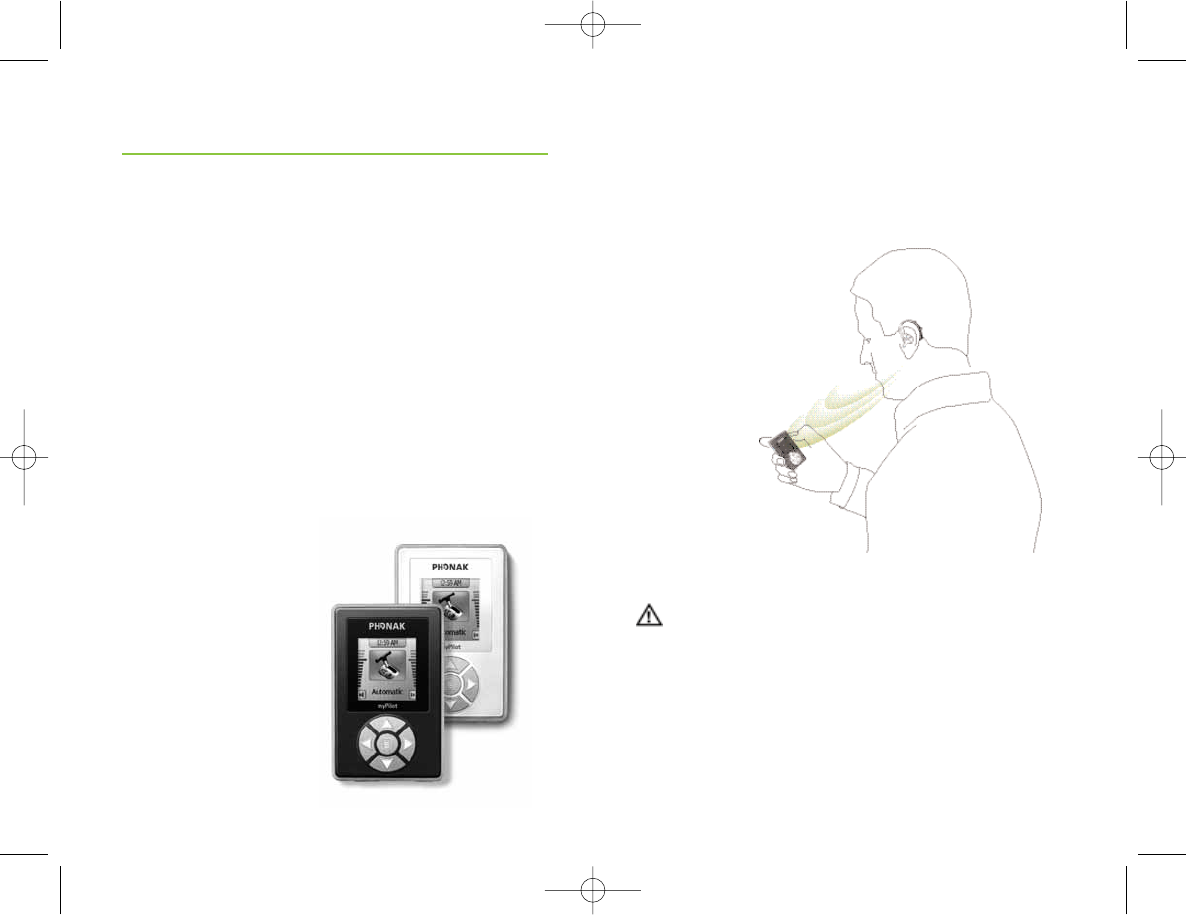

For optimum results, position your myPilot as shown
in the drawing.
Do not use your myPilot in locations where
it is forbidden to use electronic devices, for
instance on airplanes.
Operating range
max. 50 cm (20”)
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 34
37
36

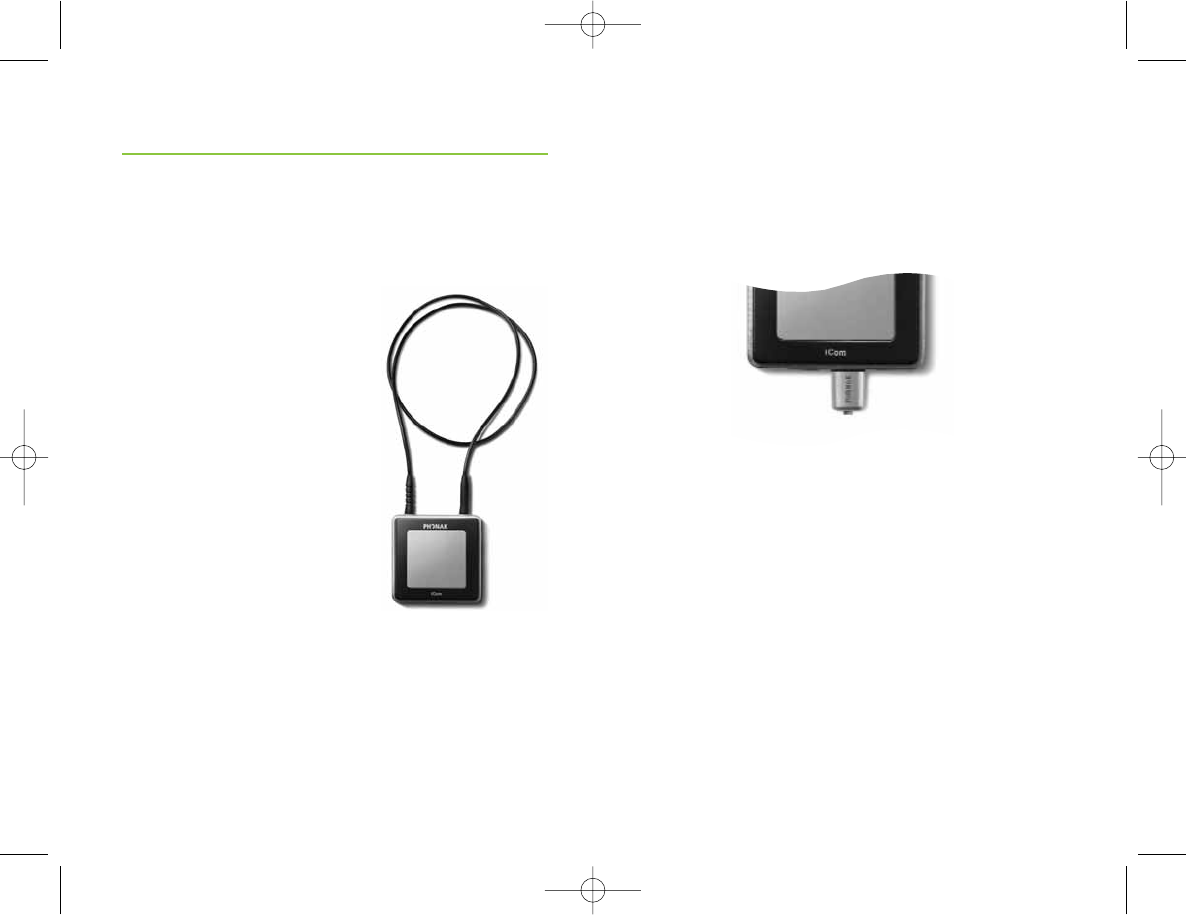

iCom is an optional accessory available for Exélia
instruments. With the push of a single button, iCom
connects your hearing system with the technology
around you (mobile phones, audio equipment, FM, etc.).
Bluetooth connections
iCom offers a simple way to connect your mobile
phone via Bluetooth to your hearing system.
iCom is also capable of transmitting a stereo
audio signal from any Bluetooth enabled device
(built-in or via an adapter) such as MP3 players,
laptop, computers and televisions.
iCom (optional)
FM compatibility
iCom also offers FM accessibility when a Phonak FM
receiver is connected, refer to picture below.
EasyAudio and EasyPhone Bluetooth
Your Exélia hearing systems contain two special audio
programs: EasyAudio and EasyPhone Bluetooth.
These programs are automatically selected in your
hearing systems when an audio or Bluetooth signal
is received from iCom. EasyAudio and EasyPhone
Bluetooth ensure that you have the optimum program
for audio and mobile phone use. An acoustic signal
in your Exélia hearing instrument confirms the switch
to both Easy programs.
Please refer to the iCom user guide to get more
information on the numerous applications iCom
provides.
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 36
39
38
FM communication (optional)
Your hearing system is equipped with Direct Audio
Input (DAI). It allows you to fully benefit from the
high-end FM systems from Phonak.
When noise, distance or reverberation is a problem,
FM systems greatly improve communication. A wireless
FM communication system consists of a transmitter
and a receiver. The transmitter is placed near, or directly
connected to the sound source (e.g. TV or radio).
It transmits the signal via radio to the FM receivers
attached either to your hearing instruments or to
an iCom.
For more information on the use of your FM system,
please refer to the appropriate FM transmitter or
receiver user guide or ask your hearing care professional.
Multi-frequency FM transmitter
Phonak offers a wide range of different
FM transmitters:
SmartLink – flexible multifunctional
transmitter with Bluetooth
ZoomLink – convenient transmitter
with three microphone settings
EasyLink – the easy-to-use transmitter
inspiro – the transmitter for a range
of educational applications
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 38
41
Multi-frequency FM receivers
Phonak recommends the following FM receivers
with your Exélia hearing system.

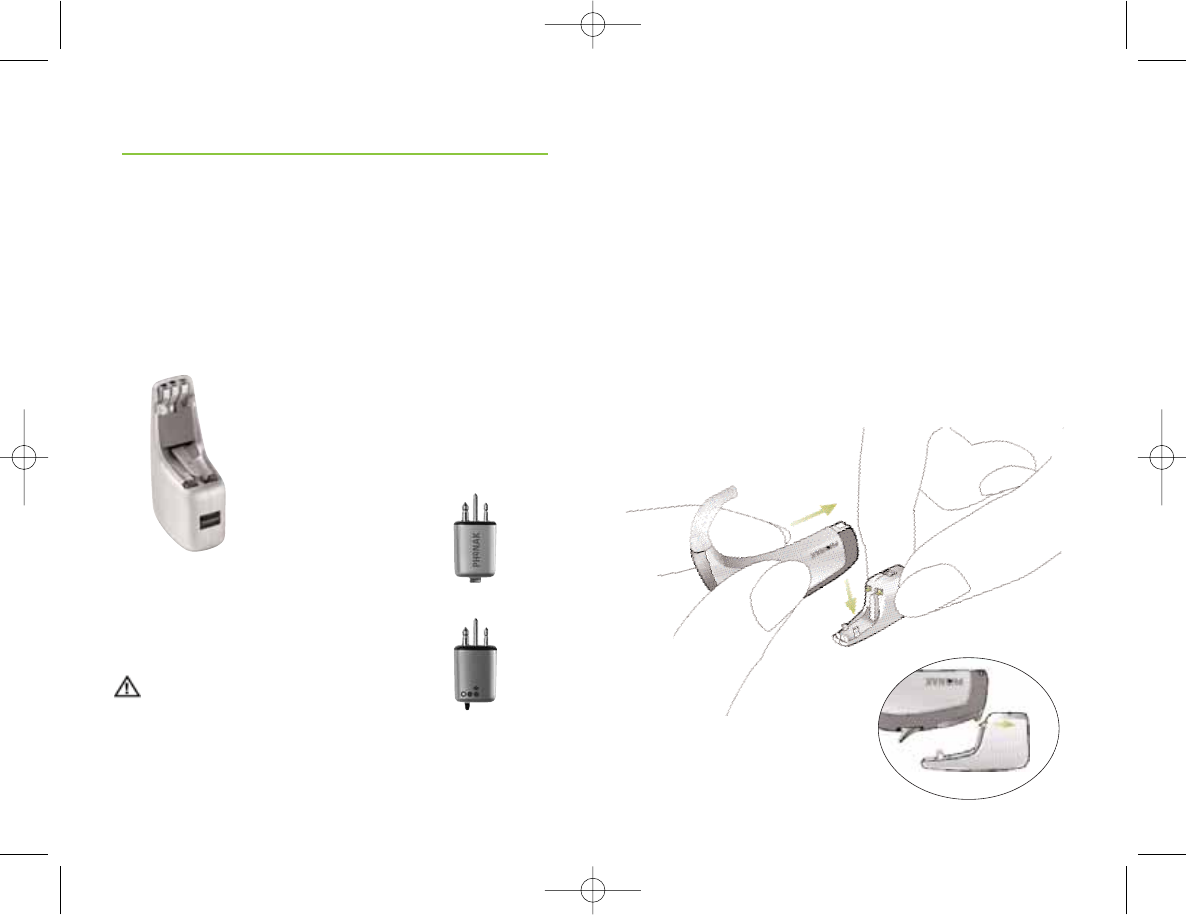

MicroLink ML9S: Perfectly integrated in
the Exélia design.
Universal MicroLink:
MLxi or MicroMLxS together with
the AS9-MLxS audio shoe interface.
If you use a MicroMLxS or
FM receiver, set the MicroMLxS
switch to the position “•”
40
FM communication (optional)
ቢ
ቢ
ባ

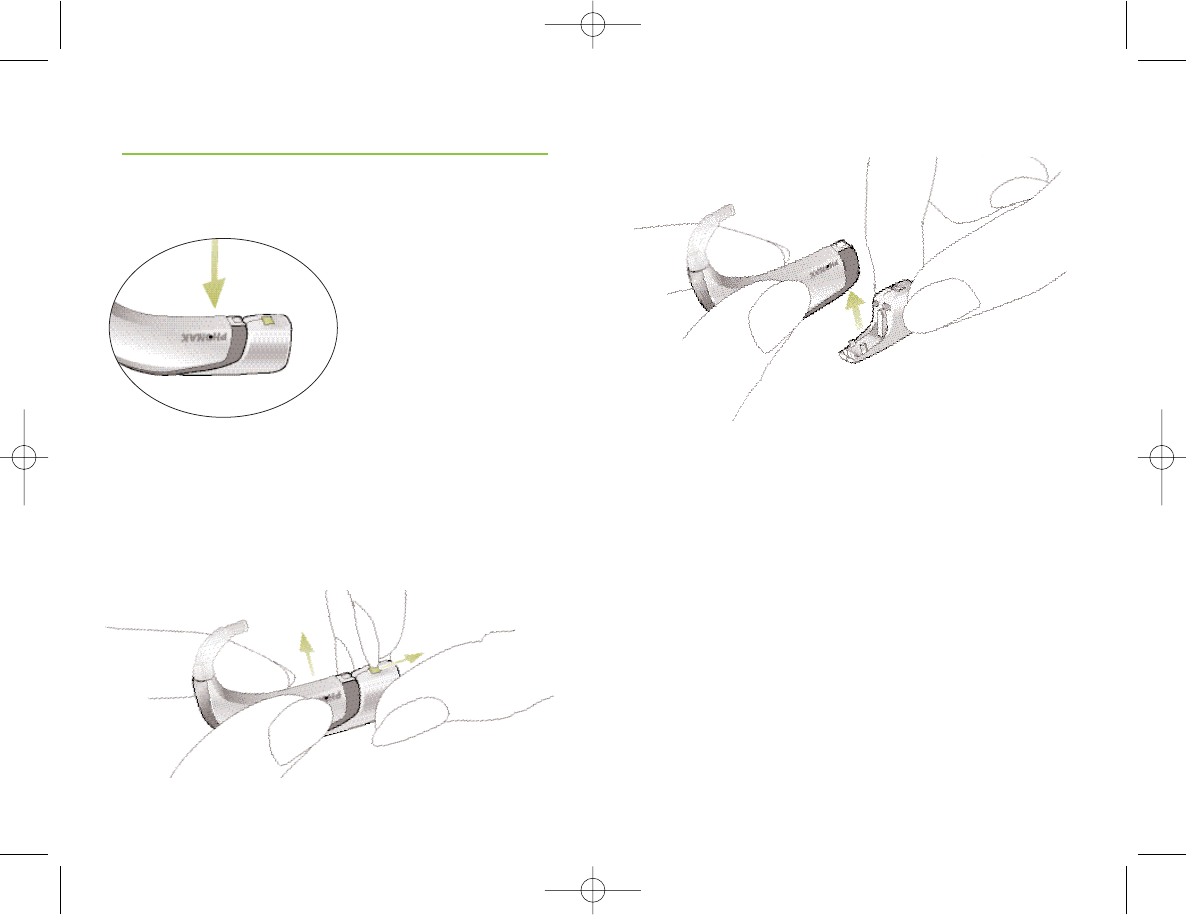

Attaching and removing MicroLink FM receiver
ML9S and AS9 audio shoe
Your hearing care professional has already prepared
your hearing system for use with an FM receiver.
To attach the MicroLink receiver ML9S or the AS9 audio
shoe, firmly hold it in your hand and push the small
black locking systems together with the bottom of the
hearing system ቢ.
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 40
43
42
ባቢ
Push the hearing system down until it snaps in place.
To remove the MicroLink ML9S or audio shoe, place the
hearing system on a firm surface, hold the MicroLink/
audio shoe firmly and slide the locking system ቢ.
Pull the hearing system upwards with the other hand ባ.
ባ
When not in use, the MicroLink receivers automatically
switch to a low power stand-by mode.
Note
With the audio shoe, a universal MLxi or another
audio signal source can be connected to your hearing
system.
FM communication (optional)
click
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 42
44
EasyFM
The EasyFM function automatically selects your FM
program when an FM receiver is connected to your
hearing system in automatic mode and an FM signal
is detected. An acoustic signal confirms the switch.
The hearing system switches back to the automatic
mode when the FM signal is turned off.
You can always manually override the EasyFM function
with the program switch or a remote control.
Manual selection of an FM program
• myPilot command center: choose your desired
FM program. The selection is confirmed by an
acoustic signal.
• Program switch: toggle until you reach the desired
FM program, identified by the appropriate acoustic
signal.
45
Wind and Weather Protector
Important: The Wind and Weather Protector is an
exclusive Phonak system designed to protect the
high-tech microphones from dust and humidity – as
a result they last much longer, reducing the service
costs of your hearing systems. The life span of the Wind
and Weather Protector should be up to several
months, depending on the environment (humidity, dust,
perspiration etc.). The Wind and Weather Protector
should not be cleaned but replaced regularly. Your
hearing systems should never be used without the Wind
and Weather Protector.
MaintenanceFM communication (optional)
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 44
47
46
The following care and maintenance tips will help
extend the life span and ensure the efficiency of your
Wind and Weather Protector:
Never wipe or clean the Wind and Weather
Protector – it may lose its special acoustic and
protection properties.
The Wind and Weather Protector is made of two
identical parts. Always replace both protectors
together.
Hair spray, make-up etc. may damage the Wind
and Weather Protector. Remove your hearing
system before applying cosmetics.
Avoid touching the Wind and Weather Protector
when you place an instrument on your ear or
press the program switch.
Important: Consult your hearing care professional
about changing the Wind and Weather Protector if
you experience any of the following:
• The hearing system sounds quieter than usual
• There is a reduction in sound quality
• Understanding in noise becomes more difficult
• It becomes more difficult to determine the direction
of sounds.
After some experience, you will get to know when the
Wind and Weather Protector needs to be replaced.
It is advisable to have it replaced before the hearing
system performance is affected.
Maintenance
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 46
49
48
Fit’nGo slim tube
The following care and maintenance instructions
will help extend the life span and ensure the quality
and comfort of your hearing instrument fit with
slim tube.
The slim tube feeds the amplified sound from the
hearing instrument into the ear. It is important that the
slim tube, the dome or SlimTip fit correctly into your
ear. If the slim tube, the dome or SlimTip irritate your
ear in any way and prevent you from wearing your
hearing instrument, please contact your hearing care
professional. You should never attempt to modify
the shape of the slim tube yourself. The slim tube, the
dome or SlimTip should be cleaned regularly.
ቢ

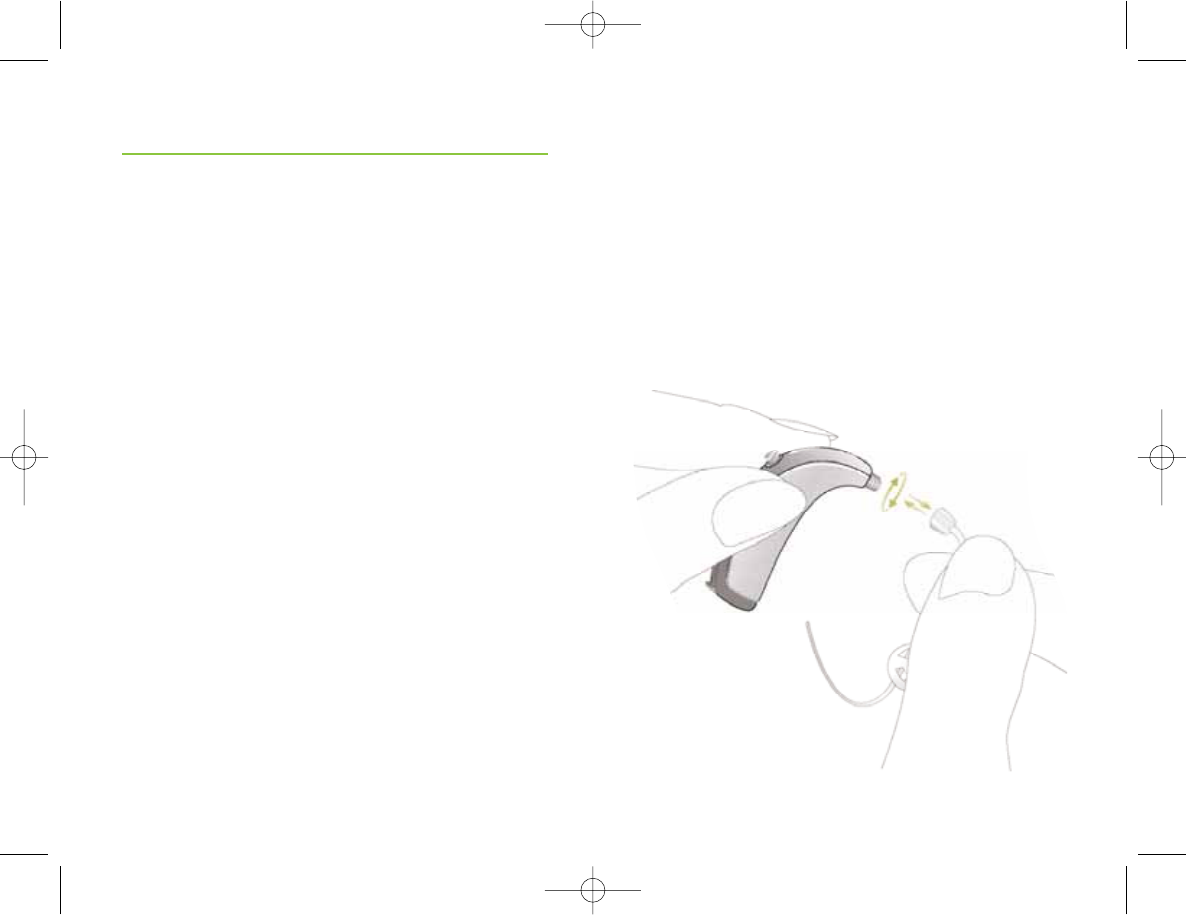

To clean, remove the slim tube from the hearing
instrument by unscrewing and taking it off ቢ. Use
a damp cloth to clean the slim tube, the dome or
SlimTip on the outside and use the black cleaning rod
to “push” any debris out of the sound tube.
Maintenance
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 48
50 51
ባ
Insert the cleaning rod where the slim tube attaches
to the hearing instrument and push it all the way
through the slim tube and out through the dome or
SlimTip ባ. After cleaning it is important to remove
the cleaning rod. It is not recommended to submerge
or rinse the slim tube, the dome or SlimTip in water,
as there is a risk that a water drop may become lodged
in the slim tube.
If this should occur, it will prevent sound going
through the slim tube, and may be harmful to the
hearing instrument’s electronics.
The slim tube and dome should be changed every third
month, or sooner if the slim tube becomes stiff or brittle.
Only your hearing care professional should change the
dome or SlimTip. This is to ensure a secure & safe fit of
the dome or SlimTip to the slim tube.
Maintenance
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 50
52 53
Important points
1) Always use new GenX batteries for your Exélia BTE
instrument. You can return empty batteries to your
hearing care professional.
2) When your hearing system is not in use, leave the
battery compartment open to allow any moisture
to evaporate.
3) If you will not be using your hearing systems for a
long period of time, store them in their protective
case. Remove the batteries and leave the battery
compartments open. Make sure your hearing
systems are completely dry before closing the case.
4) Protect your hearing systems from excessive moisture
and heat. Always remove your hearing systems
before showering, bathing or swimming. Do not leave
hearing systems near windows or in a car. Avoid
strong jolts and vibration.
5) Daily cleaning and the use of a drying system is
highly recommended. "C&C line" from Phonak is a
complete set of cleaning products. Your hearing
care professional will be glad to advise you.
Never use household cleaning products (washing
powder, soap, etc.) to clean your hearing systems.
6) Hair spray, face creams and make-up can damage
hearing systems. Remove the hearing systems
before applying cosmetics.
7) If you experience any soreness or inflammation in
or behind your ear, contact your hearing care
professional.
8) If your hearing system fails to operate after you
have correctly inserted new batteries, contact your
hearing care professional for advice. Please
remember to bring your accessories (e.g. myPilot,
iCom) together with your hearing
system(s) for service enquiries.
Maintenance
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 52
55
The symbol with the crossed out disposal bin
indicates that this hearing system shall not be
treated as household waste. Please hand over
your old or unused hearing system to the
applicable collection point for the recycling of
electrical and electronic equipment or bring
it to your hearing care professional for appropri
ate disposal.
By ensuring this product is disposed of correctly,
you will help prevent potential negative effects
on the environment and human health.
54
Maintenance Warning
Hearing system batteries are toxic when swallowed!
Keep them out of reach of children and pets. If
batteries are swallowed, please seek the advice of
a medical practitioner!
Use only hearing systems that have been specially
programmed for you by a hearing care professional.
Other instruments may be ineffective and may, in
certain cases, even damage your hearing.
X-ray radiation (e.g. CT scans, MRI scans) may
adversely affect the correct functioning of your
hearing systems. We recommend that you remove
them before undergoing X-ray procedures and keep
them outside the room.
Hearing systems in directional microphone
mode reduce mainly background sounds. Warning
signals coming from behind and vehicles’ horns
approaching from behind are partially or completely
suppressed.
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 54
56 57
Phonak offers you a comprehensive global warranty
which becomes effective on the date of purchase. Please
ask your hearing care professional about the details and
duration. This warranty covers any repairs due to defects
in material and/or workmanship. The warranty does not
cover damage from improper handling or care, exposure
to chemicals, immersion in water or undue stress.
Damage caused by third parties or non-authorized service
centers renders the Phonak warranty null and void. This
warranty does not include any services performed by
a hearing care professional in their office. This warranty
applies to the Phonak products listed below:
Serial number Serial number
instrument – right: instrument – left:
Serial number Serial number
FM receiver – right: FM receiver – left:
Date of purchase: Date of purchase:
Service and Warranty
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 56
59
58
Notice 3
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment
and receiver
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV
technician for help
Notices
Notice 1
This instrument is certified under:
FCC ID: KWC-WHSBTE
IC: 2262A-WHS
This device complies with Part 15 of the FCC Rules
and with RSS-210 of Industry Canada. Operation is
subject to the following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received,
including interference that may cause undesired
operation.
Changes or modifications made to this equipment
not expressly approved by Phonak may void the FCC
authorization to operate this equipment.
Notice 2
This Class B digital apparatus complies with Canadian
ICES-003.
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 58
60 61
Russian Federation Phonak CIS Ltd., Moscow, 115114
Spain Phonak Ibérica S.A., 03008 Alicante
Sweden Phonak AB, 117 43 Stockholm
Switzerland Phonak AG, Phonak Schweiz, 8712 Stäfa
United Kingdom Phonak UK Limited
Warrington, Cheshire WA1 1PP
USA Phonak LLC, Warrenville, IL 60555-3927
Independent general A complete list of Phonak distributors
distributors: is available at Phonak's Internet site:
www.phonak.com. Please visit us or
ask your hearing care professional for
information.
Manufacturer: Phonak AG, Laubisrütistrasse 28
CH-8712 Stäfa, Switzerland
Group companies: (detailed information on
www.phonak.com)
Australia Phonak Australasia Pty. Ltd.
Baulkham Hills N.S.W 2153
Austria Hansaton Akustische Geräte GmbH
5020 Salzburg
Belgium Ets Lapperre B.H.A.C. NV
B-1702 Groot-Bijgaarden
Phonak Belgium NV, B-1700 Dilbeek
Brazil CAS Produtos Médicos
São Paulo – SP 04363-100
Canada Phonak Canada Limited
Mississauga, Ontario L5S 1V9
China Phonak (Shanghai) Co. Ltd.
Shanghai City 200233
Denmark Phonak Danmark A/S, Nitivej 10
2000 Frederiksberg
France Phonak France SA, 69500 Bron
Germany Phonak GmbH, 70736 Fellbach-Oeffingen
EC Representative
Italy Phonak Italia S.r.l., 20159 Milano
Japan Phonak Japan Co., Ltd., Tokyo 101-0044
Jordan Phonak Middle East, 11181 Amman
Mexico Phonak Mexicana, S.A. de C.V. 03920
México, D.F.MEXICO
Netherlands Phonak B.V., 3439 ME Nieuwegein
New Zealand Phonak New Zealand Ltd., Takapuna
Auckland 9
Norway Phonak AS, 0105 Oslo
Poland Phonak Polska SP Z.0.0 00-567 Warszawa
Phonak distributors worldwide
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 60
63
62
SSaaffeettyy nnoottiiccee
OOppeerraattiinngg
ccoonnddiittiioonnss
TTrraannssppoorrttaattiioonn
aanndd ssttoorraaggee
ccoonnddiittiioonnss
The CE symbol is a confirmation by Phonak AG
that Exélia products and accessories meet the
requirements of directive 93/42/EEC on medical
devices and the R&TTE Directive 1999/5/EC on
Radio and Telecommunication Terminal
Equipment.
The numbers after the CE symbol are the
numbers of consulted certified bodies under the
above mentioned directives. The alert sign
means that potential restrictions on its use are
applicable in one or more EU Member States.
This symbol indicates that Exélia products
comply with requirements for a BF type applied
part according to EN 60601-1.
External devices may only be connected if
they have been tested in accordance with
corresponding IECXXXXX standards. Only use
accessories approved by Phonak AG.
The hearing system has been designed for
trouble-free operation under all ordinary
climatic conditions.
Temperature should not exceed limits of –20°/60°
Celsius at a relative air humidity of 65% for
extended periods during transportation and
storage. Air pressurebetween 500 and 1100 hPa
is not detrimental to the instrument.
XXXX
!
0459
0682 !
Australia & New Zealand
Brazil
China
Japan
South Korea
P57736_Pho_GB_Exelia_BTE.qxp 30.11.2007 15:09 Uhr Seite 62
