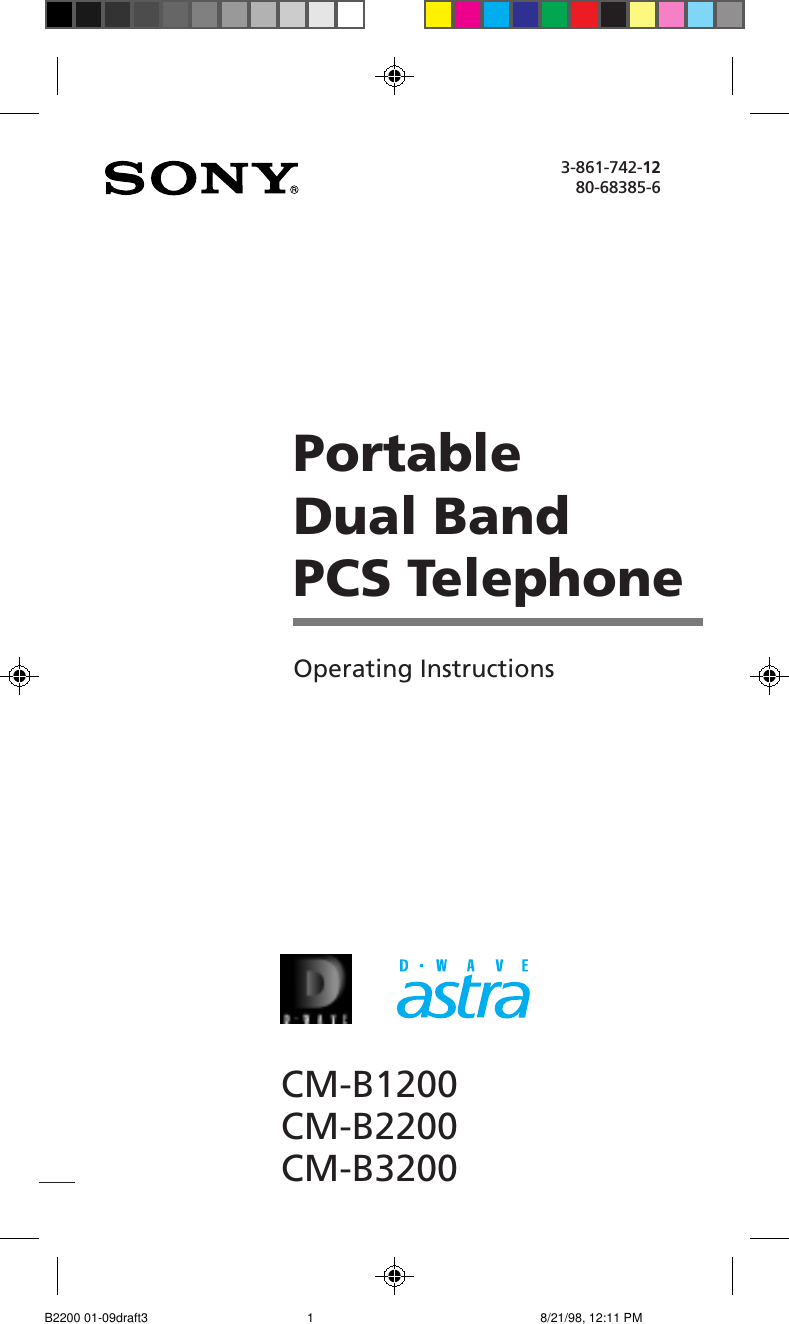

Operating InstructionsCM-B1200CM-B2200CM-B3200PortableDual BandPCS Telephone3-861-742-1280-68385-6B2200 01-09draft3 8/21/98, 12:11 PM1
2Before operating your portable dual band telephone, please read thismanual thoroughly and retain it for future reference.If your usage includes in-vehicle operation, it is recommended that yourefer to the Installation/Connections/Operation manual for the optionalaccessory kits.WARNINGTo prevent fire or shock hazard, do not expose the unit to rain or moisture.FCC CAUTION STATEMENTYou are cautioned that any changes or modifications not expressly approvedin this manual could void your authority to operate this equipment.®©1998 Sony Electronics Inc. All rights reserved. Reproduction without written consentexpressly prohibited. Sony, Jog Dial, D-WAVE logo and D-WAVE Astra are trademarksof Sony. Third party trademarks are the property of their respective holders. Design andspecifications are subject to change without notice. Talk and standby times are subject tochange.DISPOSAL OF LITHIUM ION BATTERYLITHIUM ION BATTERY.DISPOSE OF PROPERLY.You can return your unwanted lithium ion batteries to your nearestSony Service Center or Factory Service Center.Note: In some areas the disposal of lithium ion batteries inhousehold or business trash may be prohibited.For the Sony Service Center nearest you call 1-800-222-SONY(United States only).For the Sony Factory Service Center nearest you call 416-499-SONY(Canada only).Owner’s recordThe model number, regulatory number, and serial number are located on anameplate inside the battery compartment. Record the serial number in thespace provided below. Refer to these numbers whenever you call yourdealer regarding this product.Model No.: ____________________ Serial No.: ___________________B2200 01-09draft3 8/21/98, 12:11 PM2

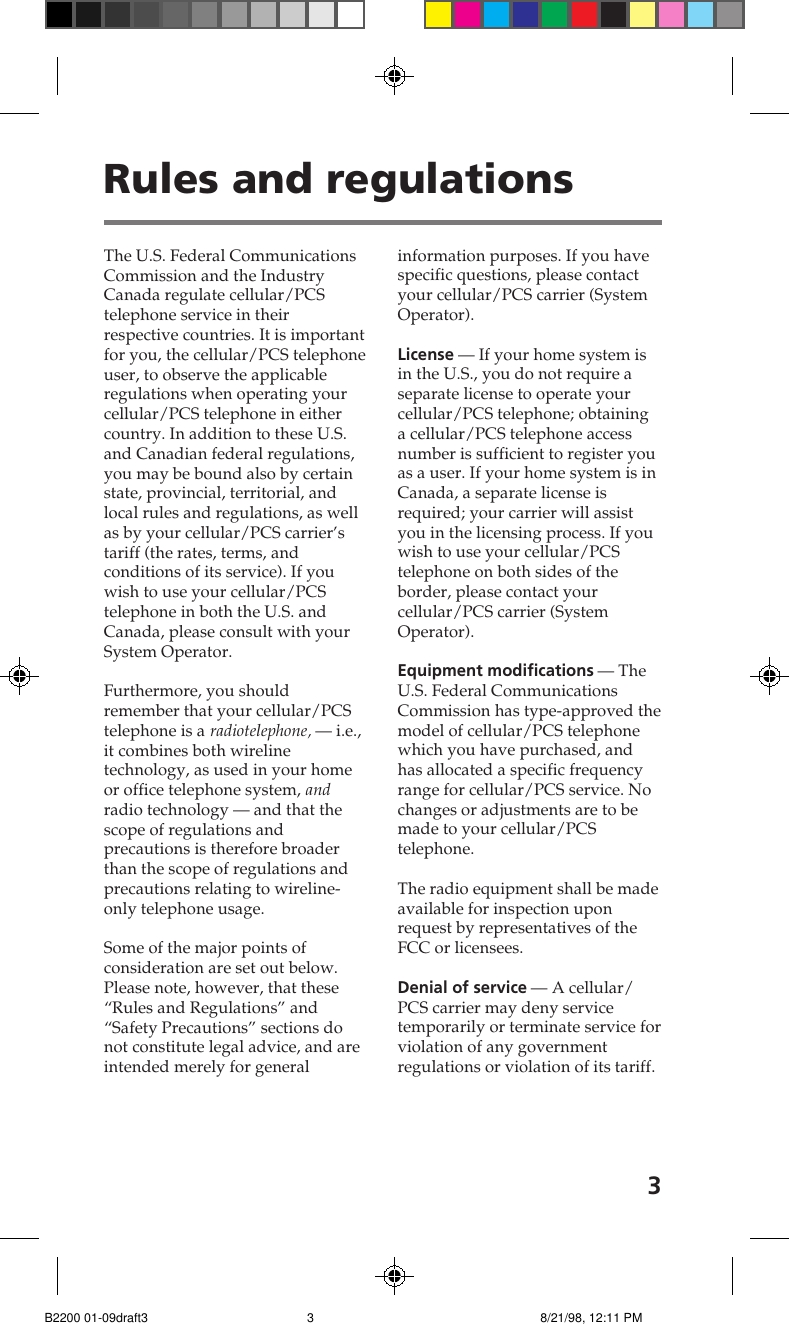

3Rules and regulationsThe U.S. Federal CommunicationsCommission and the IndustryCanada regulate cellular/PCStelephone service in theirrespective countries. It is importantfor you, the cellular/PCS telephoneuser, to observe the applicableregulations when operating yourcellular/PCS telephone in eithercountry. In addition to these U.S.and Canadian federal regulations,you may be bound also by certainstate, provincial, territorial, andlocal rules and regulations, as wellas by your cellular/PCS carrier’stariff (the rates, terms, andconditions of its service). If youwish to use your cellular/PCStelephone in both the U.S. andCanada, please consult with yourSystem Operator.Furthermore, you shouldremember that your cellular/PCStelephone is a radiotelephone, — i.e.,it combines both wirelinetechnology, as used in your homeor office telephone system, andradio technology — and that thescope of regulations andprecautions is therefore broaderthan the scope of regulations andprecautions relating to wireline-only telephone usage.Some of the major points ofconsideration are set out below.Please note, however, that these“Rules and Regulations” and“Safety Precautions” sections donot constitute legal advice, and areintended merely for generalinformation purposes. If you havespecific questions, please contactyour cellular/PCS carrier (SystemOperator).License — If your home system isin the U.S., you do not require aseparate license to operate yourcellular/PCS telephone; obtaininga cellular/PCS telephone accessnumber is sufficient to register youas a user. If your home system is inCanada, a separate license isrequired; your carrier will assistyou in the licensing process. If youwish to use your cellular/PCStelephone on both sides of theborder, please contact yourcellular/PCS carrier (SystemOperator).Equipment modifications — TheU.S. Federal CommunicationsCommission has type-approved themodel of cellular/PCS telephonewhich you have purchased, andhas allocated a specific frequencyrange for cellular/PCS service. Nochanges or adjustments are to bemade to your cellular/PCStelephone.The radio equipment shall be madeavailable for inspection uponrequest by representatives of theFCC or licensees.Denial of service — A cellular/PCS carrier may deny servicetemporarily or terminate service forviolation of any governmentregulations or violation of its tariff.B2200 01-09draft3 8/21/98, 12:11 PM3
4Privacy — As a telephone user, youhave come to assume a certainstandard of privacy when youplace or receive a telephone call viathe traditional wireline systems.However, because cellular/PCStelephones utilize radiotransmissions to effect calls, thesame standard cannot always beassured. While it is unlawful forany unauthorized person todivulge or use any informationobtained from intercepting or“listening in on” conversationsintended for others, you should notassume that your conversation iscompletely secure. Commerciallyavailable scanning equipment canpermit a third party to monitor theradio channels used for cellular/PCS telephone calls.Interference — No person shallinterfere with, or cause interferenceto, any radio communication orsignal.B2200 01-09draft3 8/21/98, 12:11 PM4
5Exposure to radiofrequency energyResearch on health effects from RFenergy has focused for many yearson FM radio technology. Thatresearch and studies regardingnewer radio technologies, such asCDMA, have found no crediblescientific evidence that adversehealth effects result from the use ofcellular/PCS telephones.The Institute of Electrical andElectronics Engineers (IEEE) in1991, and The American NationalStandards Institute (ANSI) in 1992,updated the 1982 ANSI Standardfor safety levels with respect tohuman exposure to RF energy.Over 120 scientists, engineers, andphysicians from universities,government health agencies, andindustry, reviewed the availableresearch and developed thisupdated Standard. In March 1993,the U.S. Federal CommunicationsCommission (FCC) proposed theadoption of this updated Standard.The design of your phone complieswith this updated Standard. Ofcourse, if you want to limit RFexposure even further than theupdated ANSI Standard, you maychoose to control the duration ofyour calls and operate your phonein the most power efficient manner.Safety precautionsIMPORTANTFor safe and efficientoperation of your phone,observe these guidelines.Your dual band (analog/digitalCDMA) hand-held portablecellular/PCS telephone uses bothanalog frequency modulation (FM)technology and digital CodeDivision Multiple Access (CDMA)technology. CDMA is a newerradio frequency (RF) technologythan the FM technology that hasbeen used for radiocommunications for decades.Your dual band portable cellular/PCS telephone is a radiotransmitter and receiver. When thephone is ON, it receives and sendsout radio frequency (RF) energy.The phone operates in thefrequency range of 824 MHz to 894MHz in analog mode, and 1851MHz to 1989 MHz in digitalCDMA mode. When you use yourphone, the cellular/PCS systemhandling your call controls themode of operation (analog ordigital CDMA) and the power levelat which your phone transmits. Inthe analog mode, the power iscontinuously transmitted at a levelthat can range from about 6 mW toabout 600 mW. In the digitalCDMA mode, the power istransmitted as a digitally codedwaveform at a rate varying from100 Hz to 800 Hz. The averagepower can range from about 0.01µW to about 300 mW.B2200 01-09draft3 8/21/98, 12:11 PM5

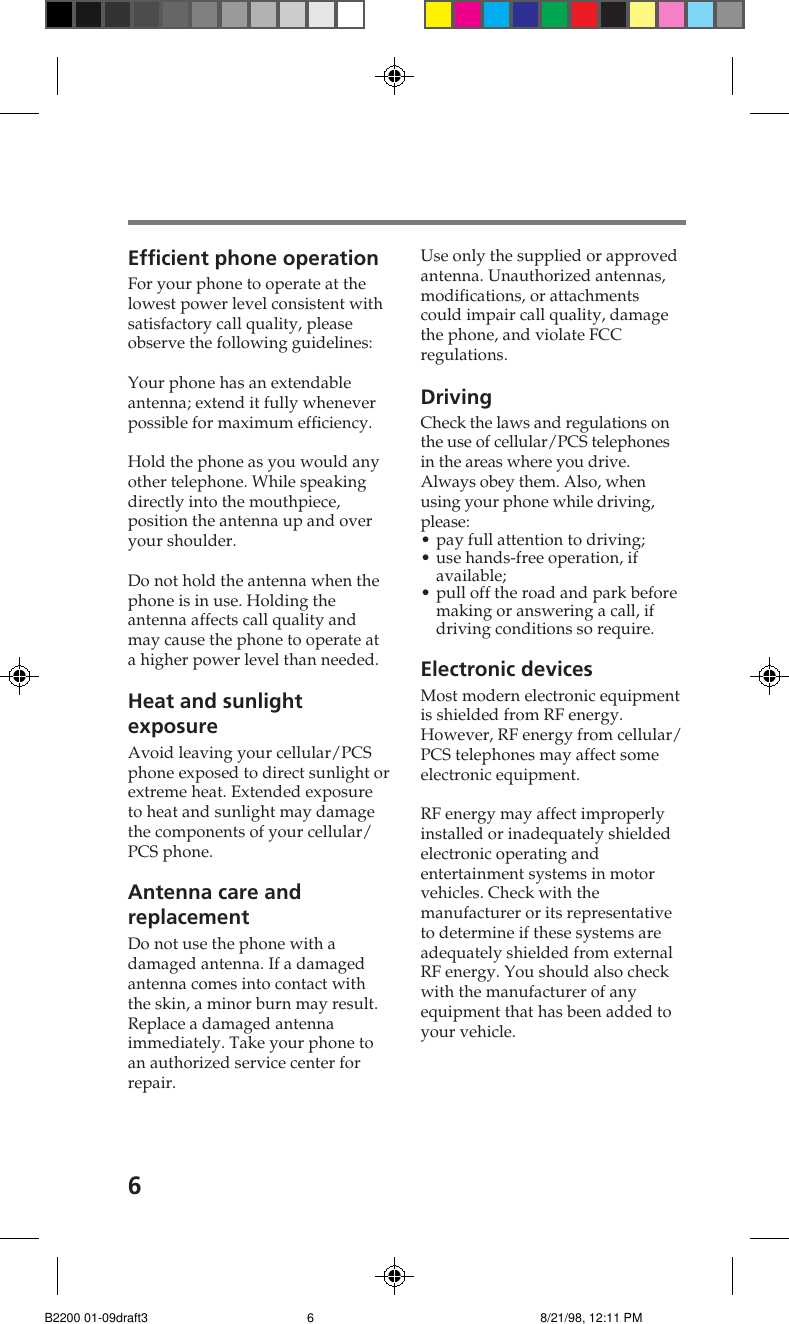

6Efficient phone operationFor your phone to operate at thelowest power level consistent withsatisfactory call quality, pleaseobserve the following guidelines:Your phone has an extendableantenna; extend it fully wheneverpossible for maximum efficiency.Hold the phone as you would anyother telephone. While speakingdirectly into the mouthpiece,position the antenna up and overyour shoulder.Do not hold the antenna when thephone is in use. Holding theantenna affects call quality andmay cause the phone to operate ata higher power level than needed.Heat and sunlightexposureAvoid leaving your cellular/PCSphone exposed to direct sunlight orextreme heat. Extended exposureto heat and sunlight may damagethe components of your cellular/PCS phone.Antenna care andreplacementDo not use the phone with adamaged antenna. If a damagedantenna comes into contact withthe skin, a minor burn may result.Replace a damaged antennaimmediately. Take your phone toan authorized service center forrepair.Use only the supplied or approvedantenna. Unauthorized antennas,modifications, or attachmentscould impair call quality, damagethe phone, and violate FCCregulations.DrivingCheck the laws and regulations onthe use of cellular/PCS telephonesin the areas where you drive.Always obey them. Also, whenusing your phone while driving,please:• pay full attention to driving;• use hands-free operation, ifavailable;• pull off the road and park beforemaking or answering a call, ifdriving conditions so require.Electronic devicesMost modern electronic equipmentis shielded from RF energy.However, RF energy from cellular/PCS telephones may affect someelectronic equipment.RF energy may affect improperlyinstalled or inadequately shieldedelectronic operating andentertainment systems in motorvehicles. Check with themanufacturer or its representativeto determine if these systems areadequately shielded from externalRF energy. You should also checkwith the manufacturer of anyequipment that has been added toyour vehicle.B2200 01-09draft3 8/21/98, 12:11 PM6

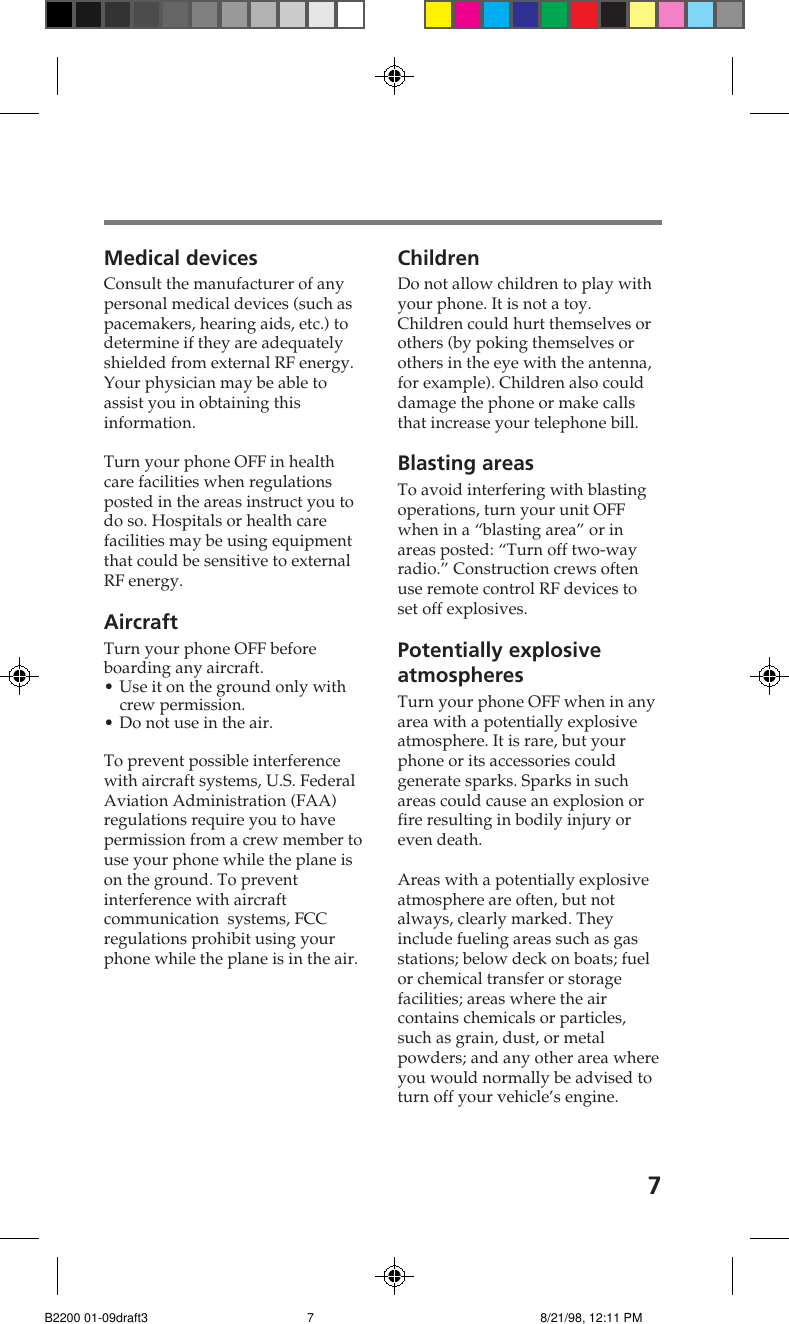

7Medical devicesConsult the manufacturer of anypersonal medical devices (such aspacemakers, hearing aids, etc.) todetermine if they are adequatelyshielded from external RF energy.Your physician may be able toassist you in obtaining thisinformation.Turn your phone OFF in healthcare facilities when regulationsposted in the areas instruct you todo so. Hospitals or health carefacilities may be using equipmentthat could be sensitive to externalRF energy.AircraftTurn your phone OFF beforeboarding any aircraft.• Use it on the ground only withcrew permission.• Do not use in the air.To prevent possible interferencewith aircraft systems, U.S. FederalAviation Administration (FAA)regulations require you to havepermission from a crew member touse your phone while the plane ison the ground. To preventinterference with aircraftcommunication systems, FCCregulations prohibit using yourphone while the plane is in the air.ChildrenDo not allow children to play withyour phone. It is not a toy.Children could hurt themselves orothers (by poking themselves orothers in the eye with the antenna,for example). Children also coulddamage the phone or make callsthat increase your telephone bill.Blasting areasTo avoid interfering with blastingoperations, turn your unit OFFwhen in a “blasting area” or inareas posted: “Turn off two-wayradio.” Construction crews oftenuse remote control RF devices toset off explosives.Potentially explosiveatmospheresTurn your phone OFF when in anyarea with a potentially explosiveatmosphere. It is rare, but yourphone or its accessories couldgenerate sparks. Sparks in suchareas could cause an explosion orfire resulting in bodily injury oreven death.Areas with a potentially explosiveatmosphere are often, but notalways, clearly marked. Theyinclude fueling areas such as gasstations; below deck on boats; fuelor chemical transfer or storagefacilities; areas where the aircontains chemicals or particles,such as grain, dust, or metalpowders; and any other area whereyou would normally be advised toturn off your vehicle’s engine.B2200 01-09draft3 8/21/98, 12:11 PM7
8Do not transport or storeflammable gas, liquid, orexplosives in the compartment ofyour vehicle which contains yourphone or accessories.In the United States, vehicles usingliquefied petroleum gas (such aspropane or butane) must complywith the National Fire ProtectionStandard (NFPA-58). For a copy ofthis standard, contact the NationalFire Protection Association, OneBatterymarch Park, Quincy, MA02269, Attn: Publication SalesDivision.In Canada, vehicles using liquefiedpetroleum gas (such as propane orbutane) must comply with theCanadian Gas Association (CAN/CGS-B149.2). For a copy of thisstandard, contact the CanadianStandards Association, 178 RexdaleBlvd., Etobicoke, ON M9W 1R3,Attn.: Standard Sales Department.B2200 01-09draft3 8/21/98, 12:11 PM8

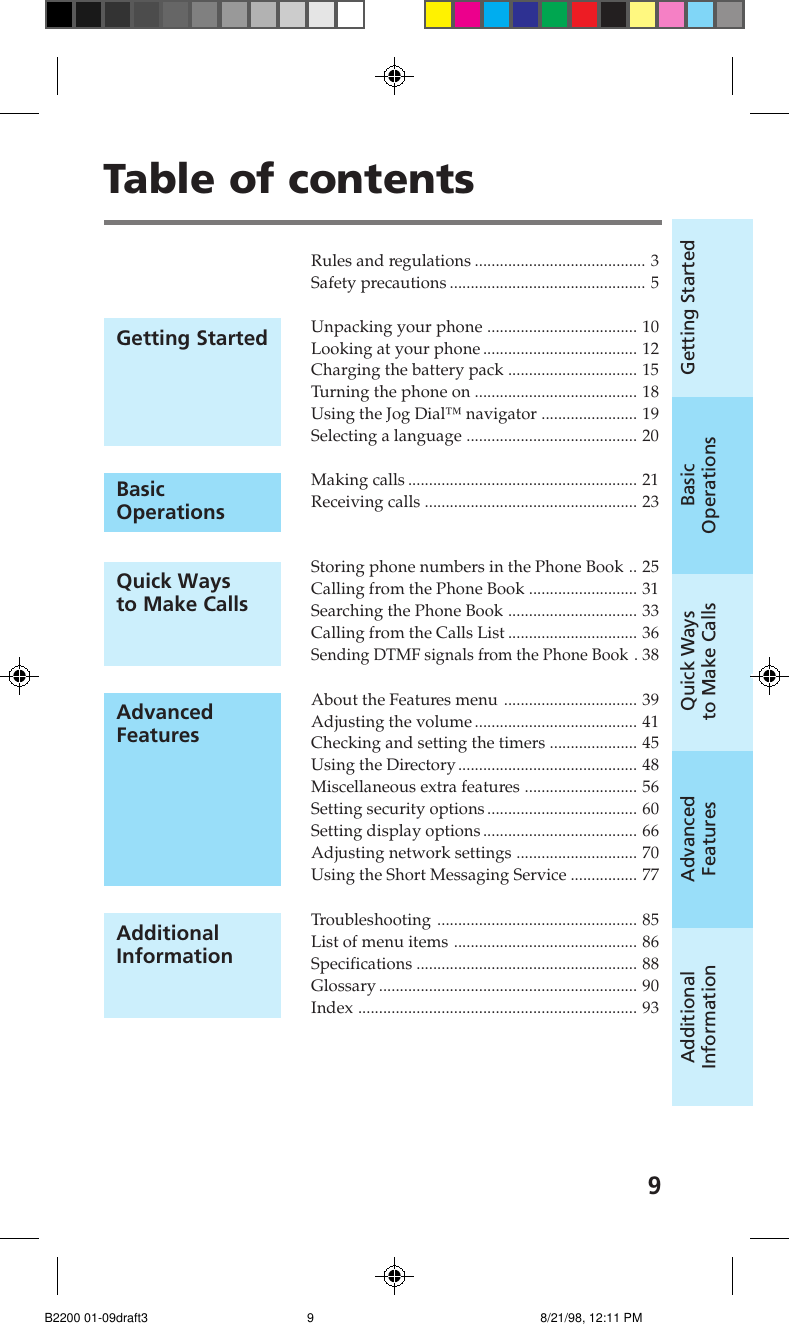

9Table of contentsRules and regulations ......................................... 3Safety precautions............................................... 5Unpacking your phone .................................... 10Looking at your phone ..................................... 12Charging the battery pack ............................... 15Turning the phone on ....................................... 18Using the Jog Dial™ navigator ....................... 19Selecting a language ......................................... 20Making calls ....................................................... 21Receiving calls ................................................... 23Storing phone numbers in the Phone Book .. 25Calling from the Phone Book .......................... 31Searching the Phone Book ............................... 33Calling from the Calls List ............................... 36Sending DTMF signals from the Phone Book .38About the Features menu ................................ 39Adjusting the volume ....................................... 41Checking and setting the timers ..................... 45Using the Directory ........................................... 48Miscellaneous extra features ........................... 56Setting security options.................................... 60Setting display options..................................... 66Adjusting network settings ............................. 70Using the Short Messaging Service ................ 77Troubleshooting ................................................ 85List of menu items ............................................ 86Specifications ..................................................... 88Glossary .............................................................. 90Index ................................................................... 93Getting StartedBasicOperationsQuick Waysto Make CallsAdvancedFeaturesAdditionalInformationBasicOperations Getting StartedQuick Waysto Make CallsAdvancedFeaturesAdditionalInformationB2200 01-09draft3 8/21/98, 12:11 PM9

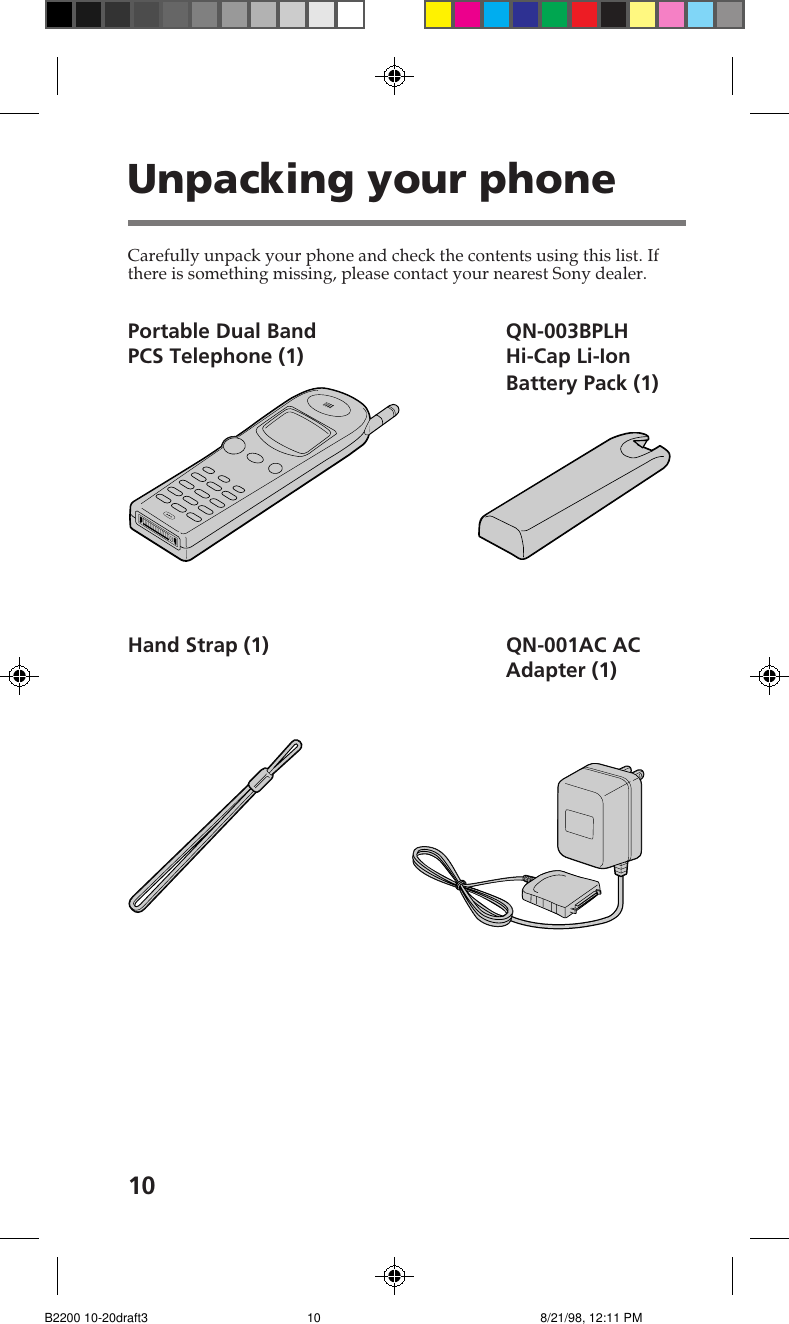

10Carefully unpack your phone and check the contents using this list. Ifthere is something missing, please contact your nearest Sony dealer.Portable Dual Band QN-003BPLHPCS Telephone (1) Hi-Cap Li-IonBattery Pack (1)Hand Strap (1) QN-001AC ACAdapter (1)Unpacking your phoneB2200 10-20draft3 8/21/98, 12:11 PM10
11Getting StartedAttaching the hand strap12B2200 10-20draft3 8/21/98, 12:11 PM11

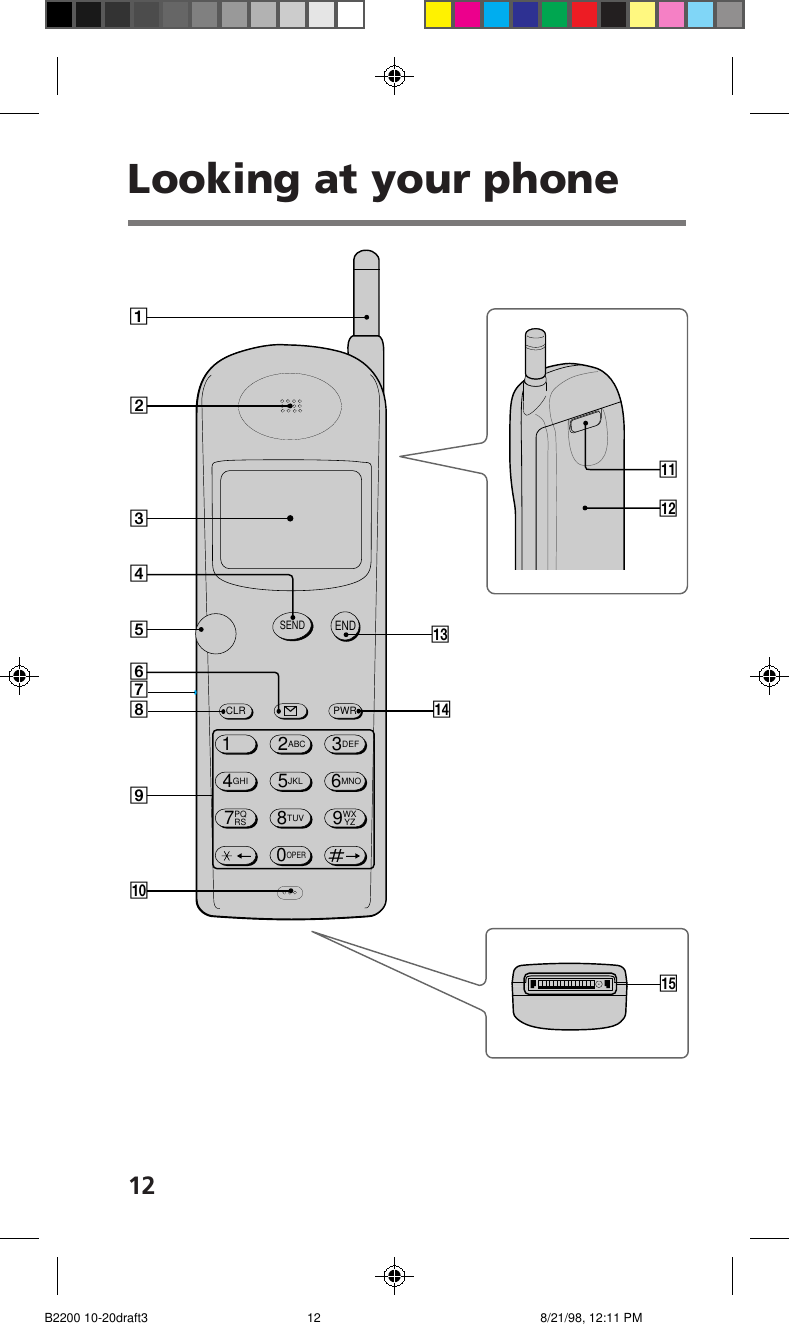

12Looking at your phone1!¢!∞!™!¡2ABC3DEF5JKL6MNO8TUV0OPER4GHI7PQ RS9WX YZ1PWRCLRSEND!º2968END!£5347B2200 10-20draft3 8/21/98, 12:11 PM12

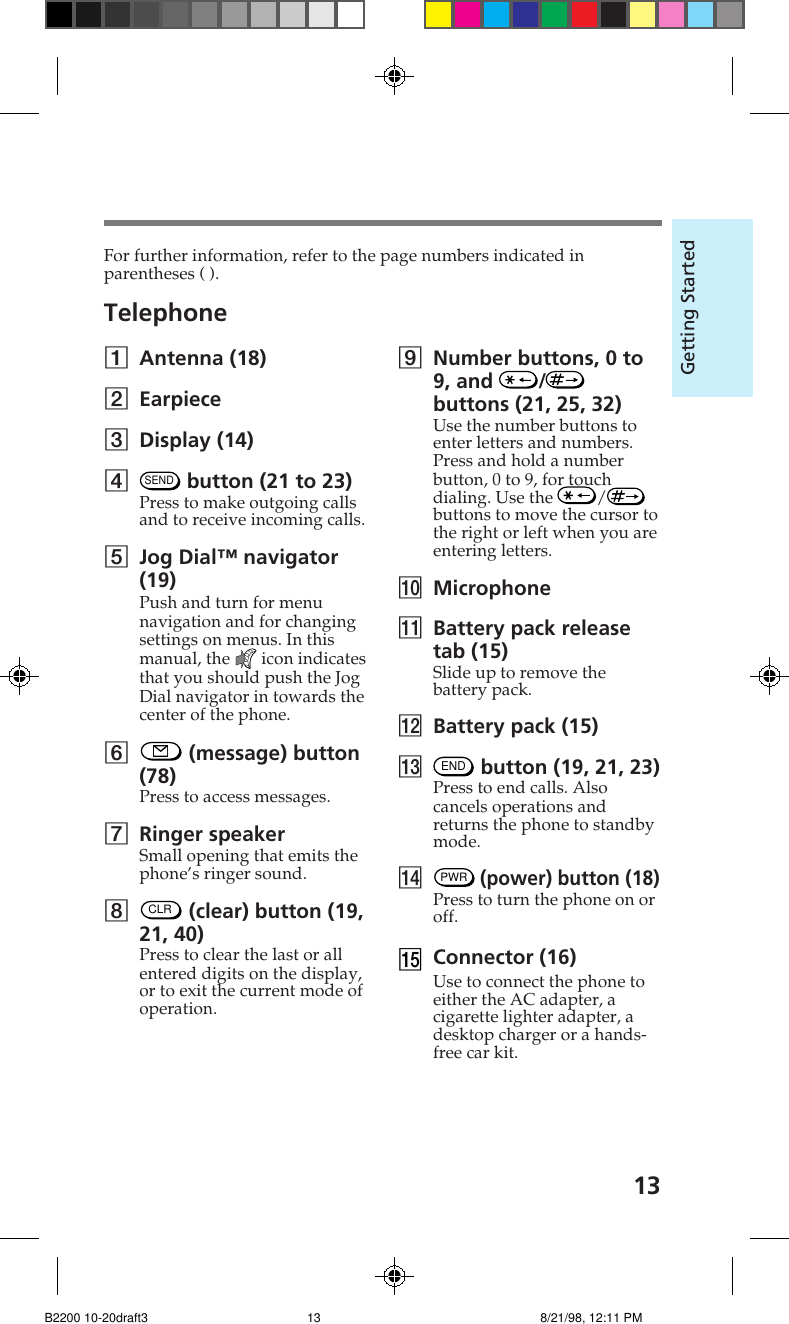

13Getting StartedFor further information, refer to the page numbers indicated inparentheses ( ).Telephone9Number buttons, 0 to9, and /buttons (21, 25, 32)Use the number buttons toenter letters and numbers.Press and hold a numberbutton, 0 to 9, for touchdialing. Use the /buttons to move the cursor tothe right or left when you areentering letters.!º Microphone!¡ Battery pack releasetab (15)Slide up to remove thebattery pack.!™ Battery pack (15)!£END button (19, 21, 23)Press to end calls. Alsocancels operations andreturns the phone to standbymode.!¢PWR (power) button (18)Press to turn the phone on oroff.!∞Connector (16)Use to connect the phone toeither the AC adapter, acigarette lighter adapter, adesktop charger or a hands-free car kit.1Antenna (18)2Earpiece3Display (14)4SEND button (21 to 23)Press to make outgoing callsand to receive incoming calls.5Jog Dial™ navigator(19)Push and turn for menunavigation and for changingsettings on menus. In thismanual, the icon indicatesthat you should push the JogDial navigator in towards thecenter of the phone.6 (message) button(78)Press to access messages.7Ringer speakerSmall opening that emits thephone’s ringer sound.8CLR (clear) button (19,21, 40)Press to clear the last or allentered digits on the display,or to exit the current mode ofoperation.B2200 10-20draft3 8/21/98, 12:11 PM13
145 (roam) icon (71)Appears when you areroaming outside your homeservice area.6 (message) icon (77)Appears when you have newtext or voice mail messagespending. The icon flashes ifthe new message is urgent.7 (battery) icon (16,17)Shows the approximateamount of charge powerremaining in the batterypack. Recharge the batterypack before it is fullydischarged.8Character displayPrompts various actions, andthen displays the results. Italso shows phone numbersand names.8881 2 3 4 5 6 78DisplayThe top row of the display contains icons that inform you of the currentstatus of your phone. The bottom four rows of the display are for textsuch as phone numbers, names and operational prompts. Each rowdisplays a maximum of 12 characters.1Short character displayShows settings such as thenumber of the currentlydisplayed Features menu, aswell as Phone Book and CallsList memory locations.2 (in-use) / (out-of-service) icon (18, 21,23, 71)The in-use icon appearsduring a call. A slash throughthe in-use icon appears whenno signal is received. Youcannot make or receive callswhen the out-of-service iconis visible.3 (digital) iconAppears when your phone isoperating in digital (CDMA)mode.4 (signal strength)icon (18)Indicates the approximatestrength of the signal beingreceived.B2200 10-20draft3 8/21/98, 12:11 PM14

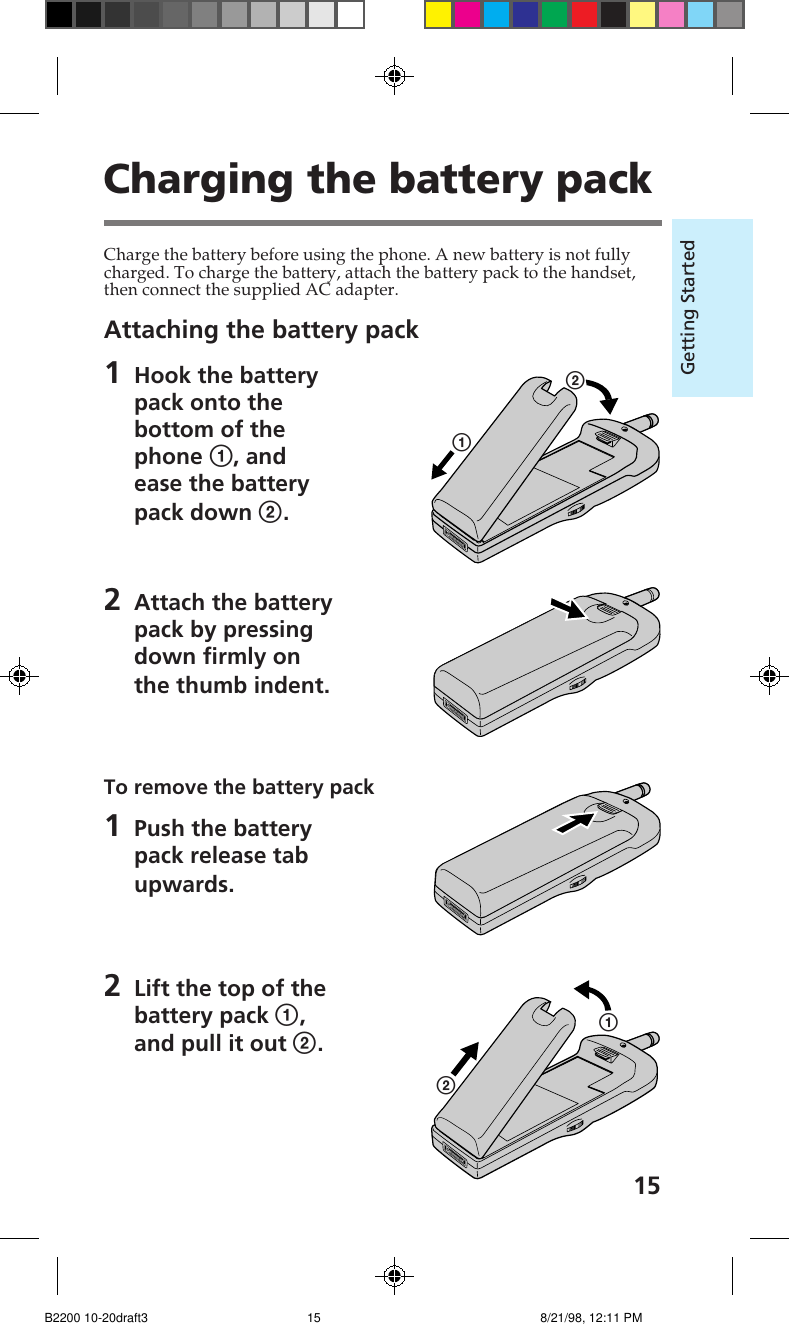

15Getting StartedCharge the battery before using the phone. A new battery is not fullycharged. To charge the battery, attach the battery pack to the handset,then connect the supplied AC adapter.Attaching the battery pack1Hook the batterypack onto thebottom of thephone 1, andease the batterypack down 2.2Attach the batterypack by pressingdown firmly onthe thumb indent.To remove the battery pack1Push the batterypack release tabupwards.2Lift the top of thebattery pack 1,and pull it out 2.Charging the battery pack1221B2200 10-20draft3 8/21/98, 12:11 PM15

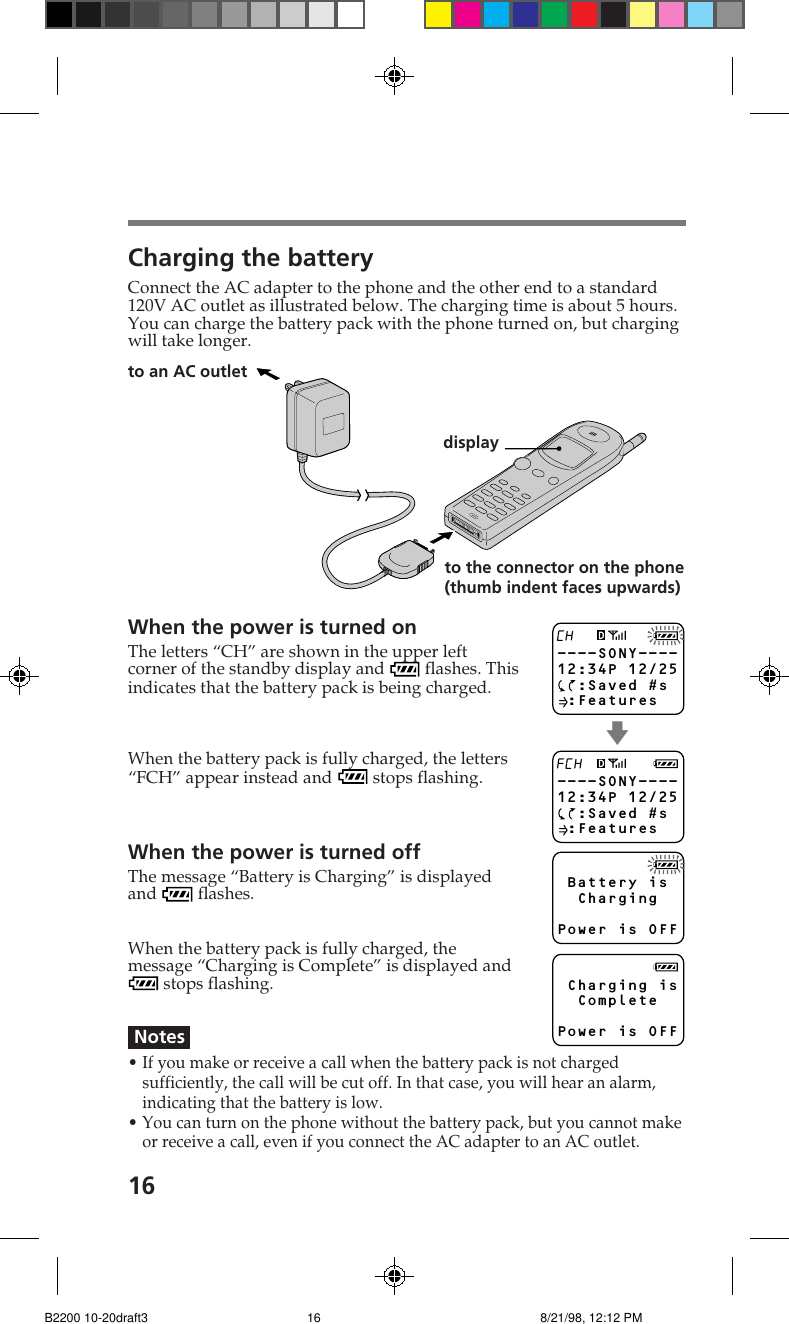

16 Charging is Complete Power is OFF Battery is Charging Power is OFFCharging the batteryConnect the AC adapter to the phone and the other end to a standard120V AC outlet as illustrated below. The charging time is about 5 hours.You can charge the battery pack with the phone turned on, but chargingwill take longer.When the power is turned onThe letters “CH” are shown in the upper leftcorner of the standby display and flashes. Thisindicates that the battery pack is being charged.When the battery pack is fully charged, the letters“FCH” appear instead and stops flashing.When the power is turned offThe message “Battery is Charging” is displayedand flashes.When the battery pack is fully charged, themessage “Charging is Complete” is displayed and stops flashing.Notes• If you make or receive a call when the battery pack is not chargedsufficiently, the call will be cut off. In that case, you will hear an alarm,indicating that the battery is low.• You can turn on the phone without the battery pack, but you cannot makeor receive a call, even if you connect the AC adapter to an AC outlet.----SONY----12:34P 12/25 :Saved #s :FeaturesCHv----SONY----12:34P 12/25 :Saved #s :FeaturesFCHto an AC outletdisplayto the connector on the phone(thumb indent faces upwards)B2200 10-20draft3 8/21/98, 12:12 PM16

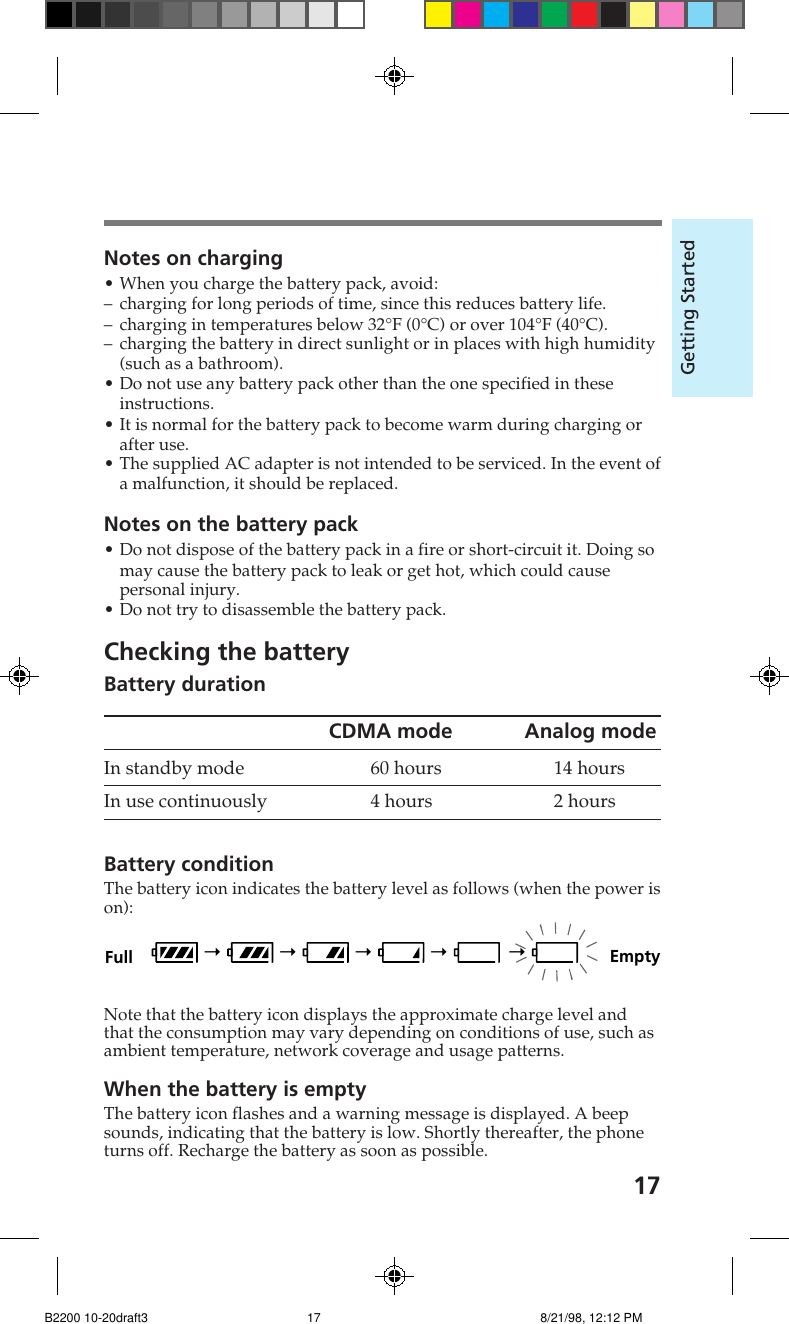

17Getting StartedNotes on charging• When you charge the battery pack, avoid:– charging for long periods of time, since this reduces battery life.– charging in temperatures below 32°F (0°C) or over 104°F (40°C).– charging the battery in direct sunlight or in places with high humidity(such as a bathroom).• Do not use any battery pack other than the one specified in theseinstructions.• It is normal for the battery pack to become warm during charging orafter use.• The supplied AC adapter is not intended to be serviced. In the event ofa malfunction, it should be replaced.Notes on the battery pack• Do not dispose of the battery pack in a fire or short-circuit it. Doing somay cause the battery pack to leak or get hot, which could causepersonal injury.• Do not try to disassemble the battery pack.Checking the batteryBattery durationCDMA mode Analog modeIn standby mode 60 hours 14 hoursIn use continuously 4 hours 2 hoursBattery conditionThe battery icon indicates the battery level as follows (when the power ison):Note that the battery icon displays the approximate charge level andthat the consumption may vary depending on conditions of use, such asambient temperature, network coverage and usage patterns.When the battery is emptyThe battery icon flashes and a warning message is displayed. A beepsounds, indicating that the battery is low. Shortly thereafter, the phoneturns off. Recharge the battery as soon as possible.nnnFulln nEmptyB2200 10-20draft3 8/21/98, 12:12 PM17

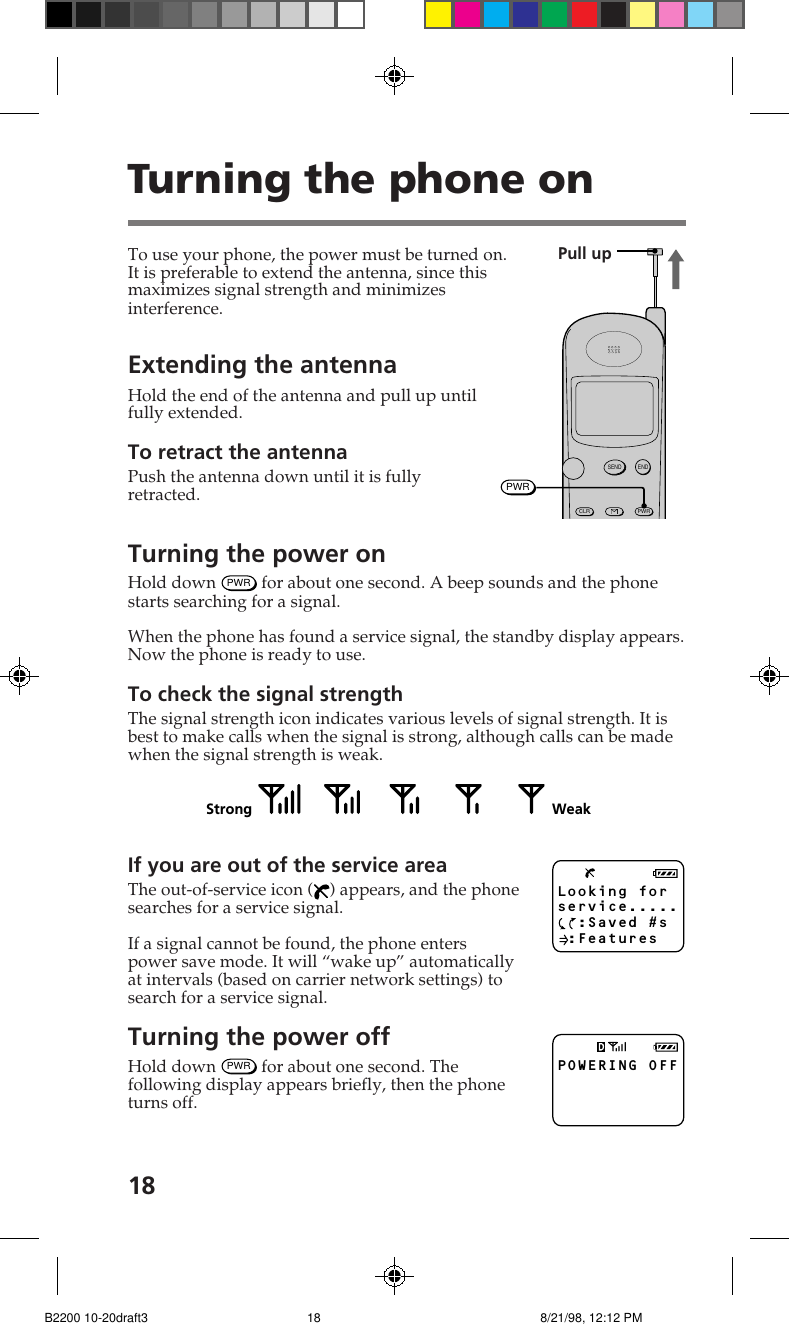

18Looking for service..... :Saved #s :FeaturesPOWERING OFFTo use your phone, the power must be turned on.It is preferable to extend the antenna, since thismaximizes signal strength and minimizesinterference.Extending the antennaHold the end of the antenna and pull up untilfully extended.To retract the antennaPush the antenna down until it is fullyretracted.Turning the power onHold down PWR for about one second. A beep sounds and the phonestarts searching for a signal.When the phone has found a service signal, the standby display appears.Now the phone is ready to use.To check the signal strengthThe signal strength icon indicates various levels of signal strength. It isbest to make calls when the signal is strong, although calls can be madewhen the signal strength is weak.If you are out of the service areaThe out-of-service icon ( ) appears, and the phonesearches for a service signal.If a signal cannot be found, the phone enterspower save mode. It will “wake up” automaticallyat intervals (based on carrier network settings) tosearch for a service signal.Turning the power offHold down PWR for about one second. Thefollowing display appears briefly, then the phoneturns off.Turning the phone onPWRCLRSEND ENDStrong WeakPull upPWRB2200 10-20draft3 8/21/98, 12:12 PM18

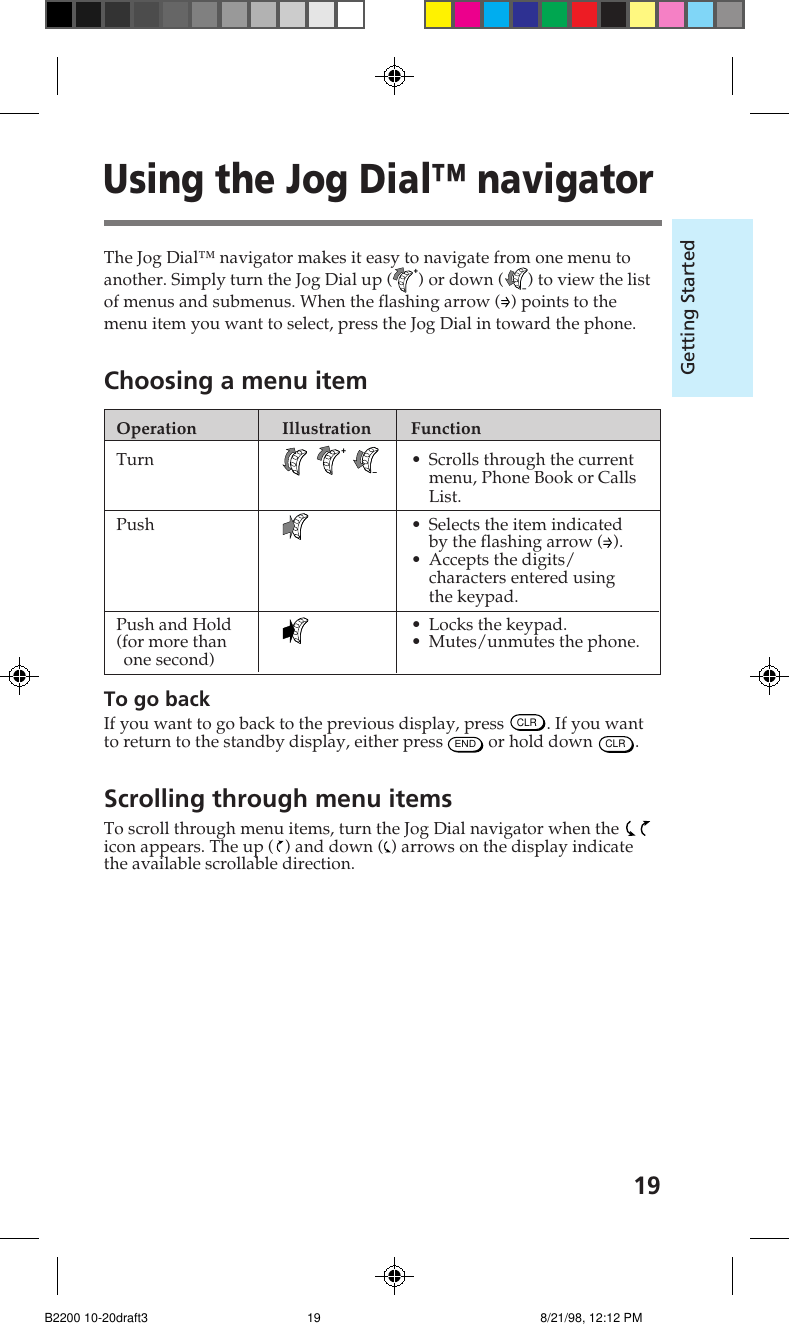

19Getting StartedUsing the Jog Dial™ navigatorThe Jog Dial™ navigator makes it easy to navigate from one menu toanother. Simply turn the Jog Dial up (+) or down (–) to view the listof menus and submenus. When the flashing arrow ( ) points to themenu item you want to select, press the Jog Dial in toward the phone.Choosing a menu itemOperation Illustration FunctionTurn + –• Scrolls through the currentmenu, Phone Book or CallsList.Push • Selects the item indicatedby the flashing arrow ( ).• Accepts the digits/characters entered usingthe keypad.Push and Hold • Locks the keypad.(for more than • Mutes/unmutes the phone.To go backIf you want to go back to the previous display, press CLR. If you wantto return to the standby display, either press END or hold down CLR.Scrolling through menu itemsTo scroll through menu items, turn the Jog Dial navigator when the icon appears. The up ( ) and down ( ) arrows on the display indicatethe available scrollable direction.one second)B2200 10-20draft3 8/21/98, 12:12 PM19

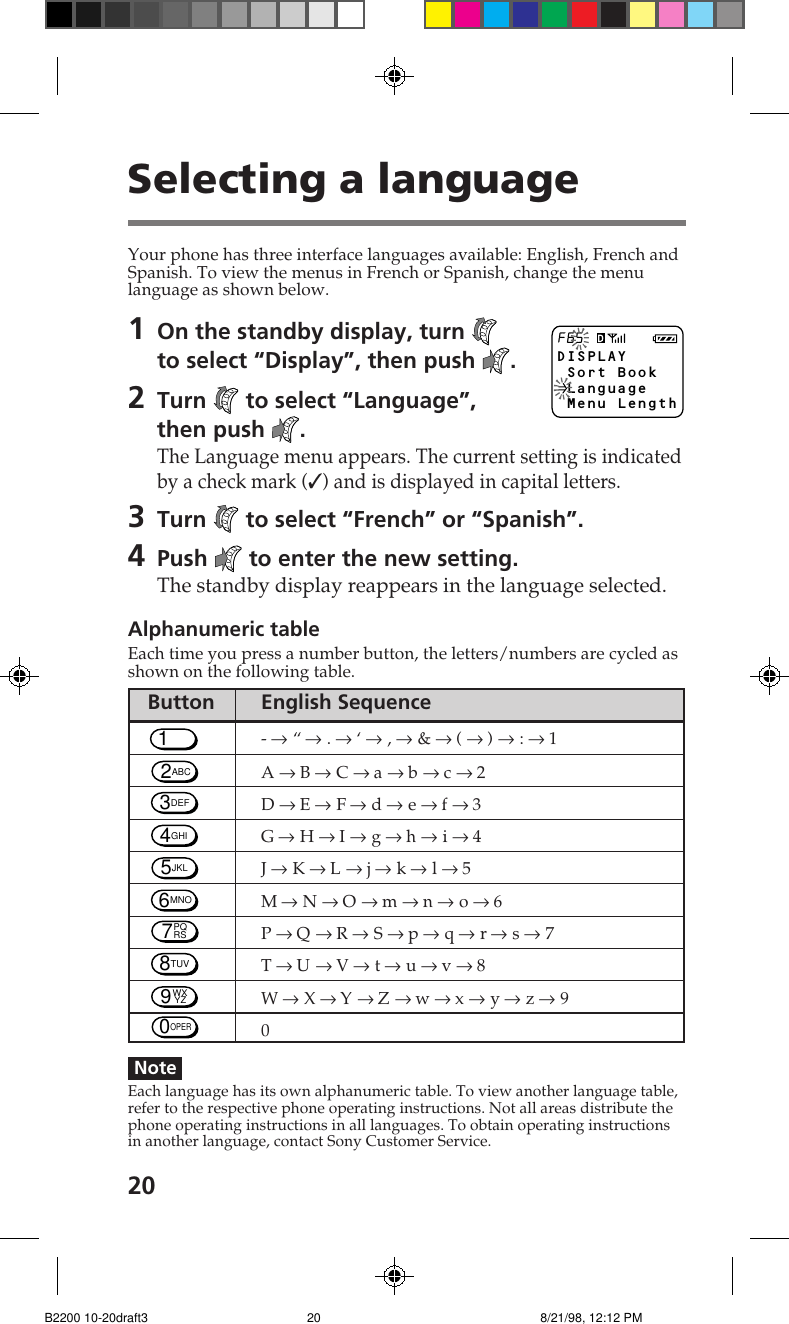

20Selecting a languageDISPLAY Sort Book Language Menu LengthF65Your phone has three interface languages available: English, French andSpanish. To view the menus in French or Spanish, change the menulanguage as shown below.1On the standby display, turn to select “Display”, then push .2Turn to select “Language”,then push .The Language menu appears. The current setting is indicatedby a check mark (✓) and is displayed in capital letters.3Turn to select “French” or “Spanish”.4Push to enter the new setting.The standby display reappears in the language selected.Alphanumeric tableEach time you press a number button, the letters/numbers are cycled asshown on the following table.NoteEach language has its own alphanumeric table. To view another language table,refer to the respective phone operating instructions. Not all areas distribute thephone operating instructions in all languages. To obtain operating instructionsin another language, contact Sony Customer Service.Button English Sequence- → “ → . → ‘ → , → & → ( → ) → : → 1A → B → C → a → b → c → 2D → E → F → d → e → f → 3G → H → I → g → h → i → 4J → K → L → j → k → l → 5M → N → O → m → n → o → 6P → Q → R → S → p → q → r → s → 7T → U → V → t → u → v → 8W → X → Y → Z → w → x → y → z → 909YZWX8TUV7RSPQ6MNO5JKL4GHI3DEF2ABC10OPERB2200 10-20draft3 8/21/98, 12:12 PM20

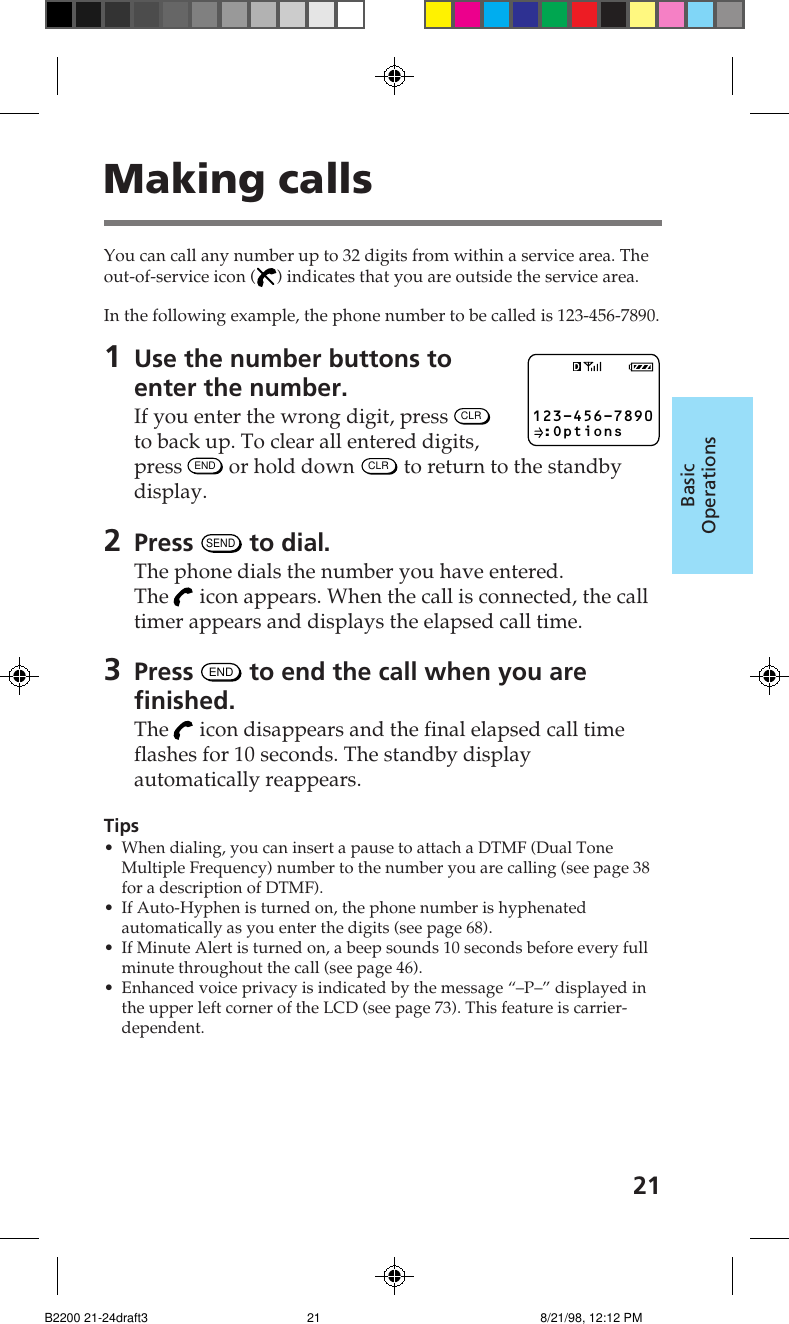

21BasicOperationsYou can call any number up to 32 digits from within a service area. Theout-of-service icon ( ) indicates that you are outside the service area.In the following example, the phone number to be called is 123-456-7890.1Use the number buttons toenter the number.If you enter the wrong digit, press CLRto back up. To clear all entered digits,press END or hold down CLR to return to the standbydisplay.2Press SEND to dial.The phone dials the number you have entered.The icon appears. When the call is connected, the calltimer appears and displays the elapsed call time.3Press END to end the call when you arefinished.The icon disappears and the final elapsed call timeflashes for 10 seconds. The standby displayautomatically reappears.Tips• When dialing, you can insert a pause to attach a DTMF (Dual ToneMultiple Frequency) number to the number you are calling (see page 38for a description of DTMF).• If Auto-Hyphen is turned on, the phone number is hyphenatedautomatically as you enter the digits (see page 68).• If Minute Alert is turned on, a beep sounds 10 seconds before every fullminute throughout the call (see page 46).• Enhanced voice privacy is indicated by the message “–P–” displayed inthe upper left corner of the LCD (see page 73). This feature is carrier-dependent.Making calls 123-456-7890 :OptionsB2200 21-24draft3 8/21/98, 12:12 PM21

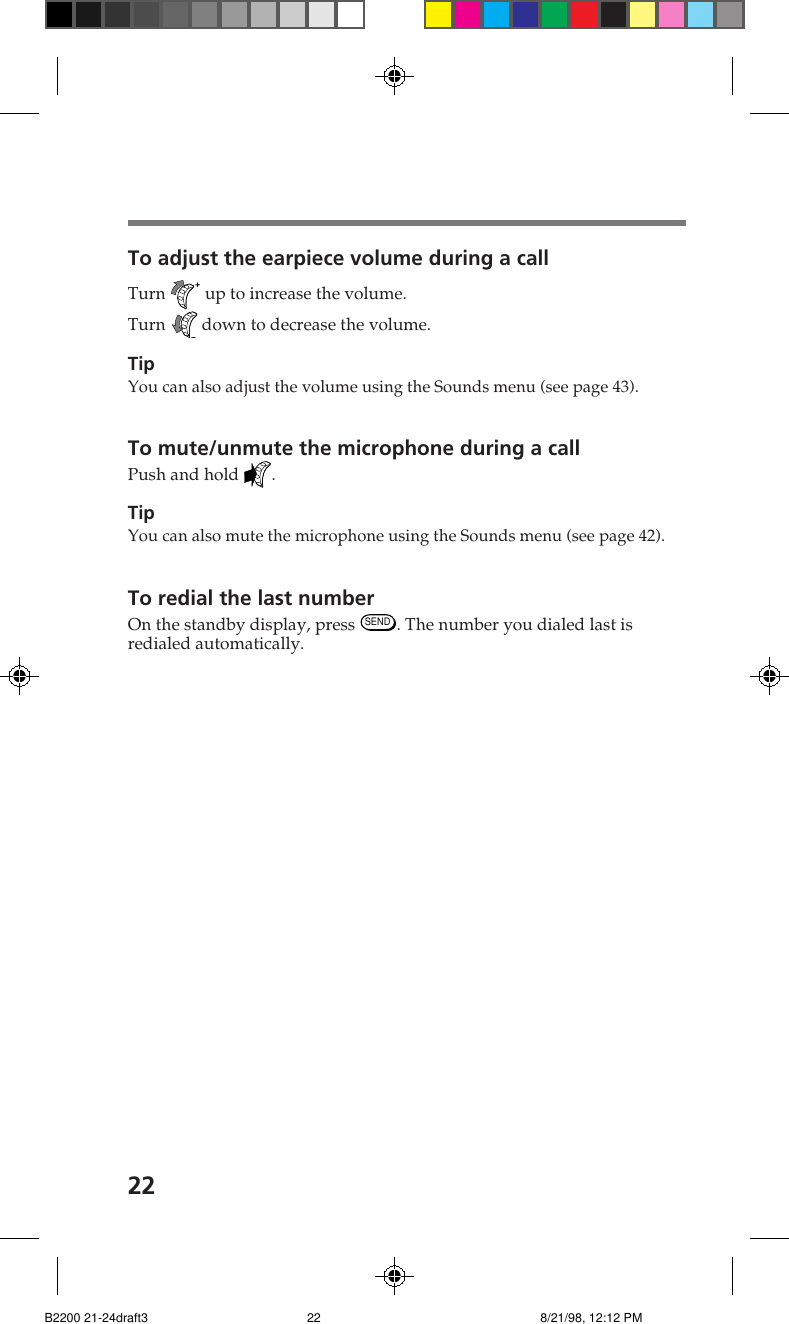

22To adjust the earpiece volume during a callTurn + up to increase the volume.Turn – down to decrease the volume.TipYou can also adjust the volume using the Sounds menu (see page 43).To mute/unmute the microphone during a callPush and hold .TipYou can also mute the microphone using the Sounds menu (see page 42).To redial the last numberOn the standby display, press SEND. The number you dialed last isredialed automatically.B2200 21-24draft3 8/21/98, 12:12 PM22

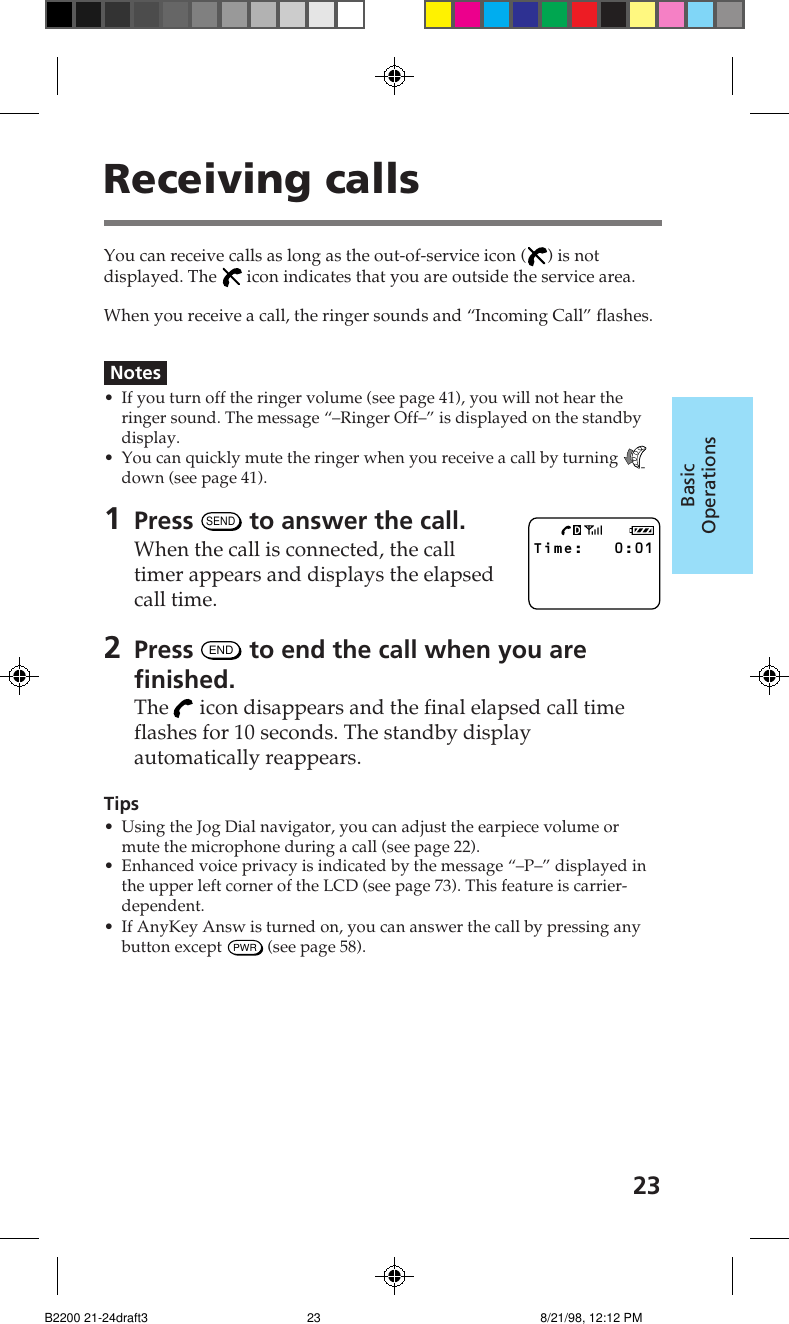

23BasicOperationsYou can receive calls as long as the out-of-service icon ( ) is notdisplayed. The icon indicates that you are outside the service area.When you receive a call, the ringer sounds and “Incoming Call” flashes.Notes• If you turn off the ringer volume (see page 41), you will not hear theringer sound. The message “–Ringer Off–” is displayed on the standbydisplay.• You can quickly mute the ringer when you receive a call by turning –down (see page 41).1Press SEND to answer the call.When the call is connected, the calltimer appears and displays the elapsedcall time.2Press END to end the call when you arefinished.The icon disappears and the final elapsed call timeflashes for 10 seconds. The standby displayautomatically reappears.Tips• Using the Jog Dial navigator, you can adjust the earpiece volume ormute the microphone during a call (see page 22).• Enhanced voice privacy is indicated by the message “–P–” displayed inthe upper left corner of the LCD (see page 73). This feature is carrier-dependent.• If AnyKey Answ is turned on, you can answer the call by pressing anybutton except PWR (see page 58).Receiving callsTime: 0:01B2200 21-24draft3 8/21/98, 12:12 PM23

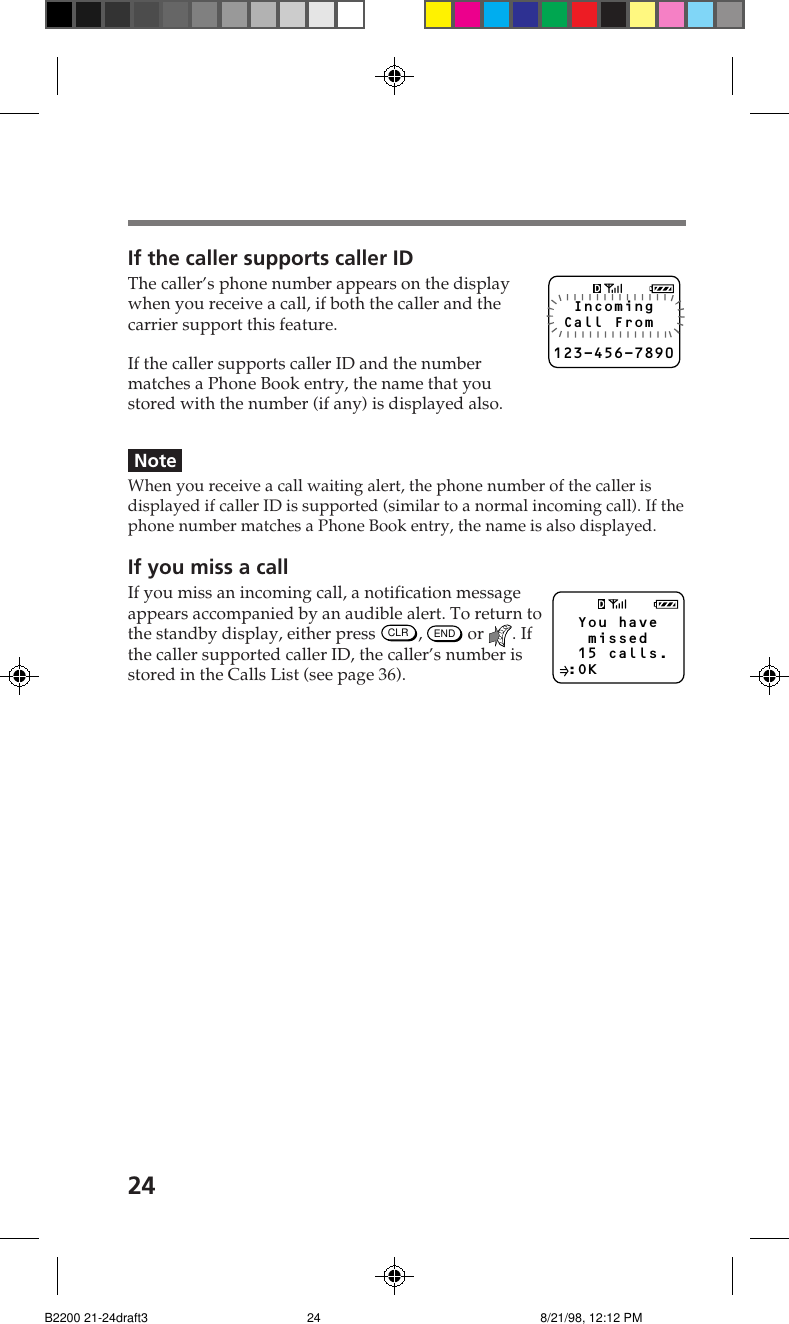

24If the caller supports caller IDThe caller’s phone number appears on the displaywhen you receive a call, if both the caller and thecarrier support this feature.If the caller supports caller ID and the numbermatches a Phone Book entry, the name that youstored with the number (if any) is displayed also.NoteWhen you receive a call waiting alert, the phone number of the caller isdisplayed if caller ID is supported (similar to a normal incoming call). If thephone number matches a Phone Book entry, the name is also displayed.If you miss a callIf you miss an incoming call, a notification messageappears accompanied by an audible alert. To return tothe standby display, either press CLR, END or . Ifthe caller supported caller ID, the caller’s number isstored in the Calls List (see page 36). Incoming Call From123-456-7890 You have missed 15 calls. :OKB2200 21-24draft3 8/21/98, 12:12 PM24

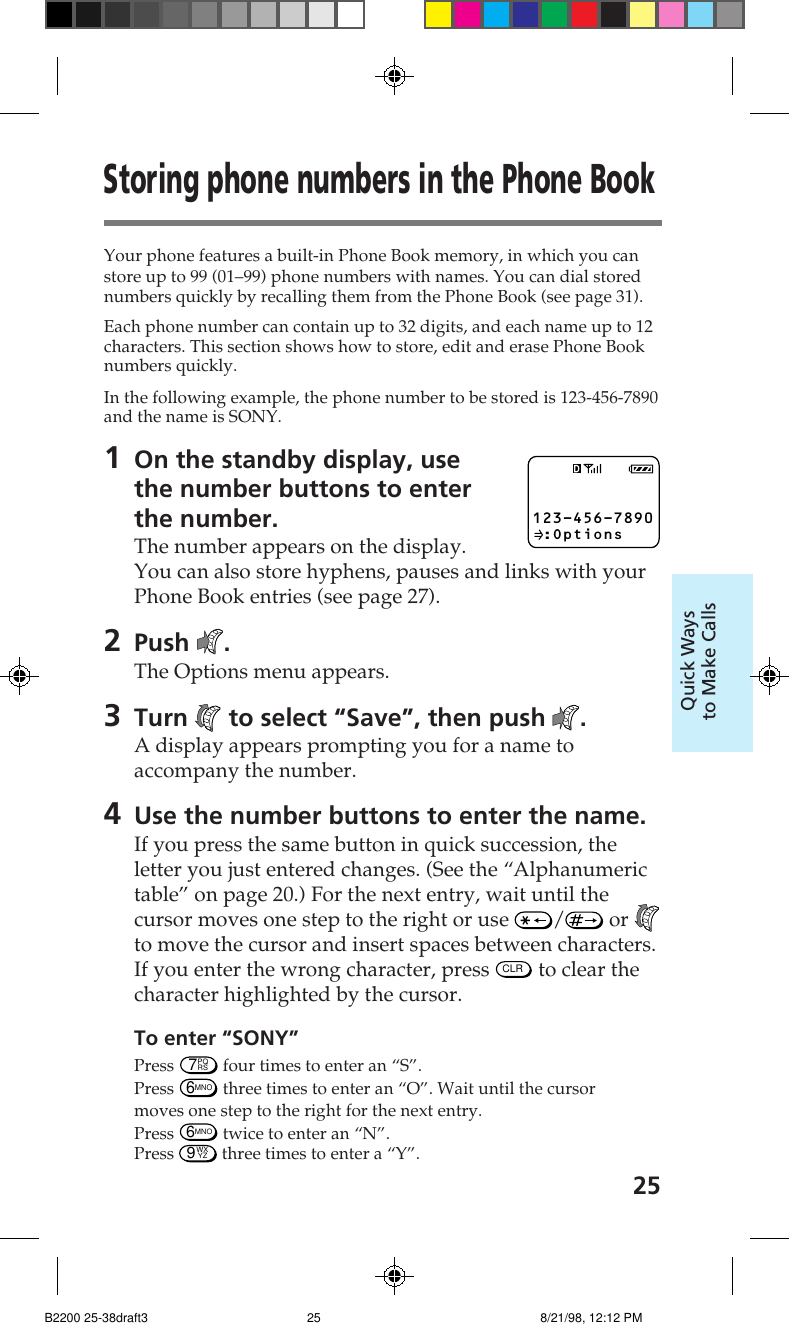

25Quick Waysto Make CallsYour phone features a built-in Phone Book memory, in which you canstore up to 99 (01–99) phone numbers with names. You can dial storednumbers quickly by recalling them from the Phone Book (see page 31).Each phone number can contain up to 32 digits, and each name up to 12characters. This section shows how to store, edit and erase Phone Booknumbers quickly.In the following example, the phone number to be stored is 123-456-7890and the name is SONY.1On the standby display, usethe number buttons to enterthe number.The number appears on the display.You can also store hyphens, pauses and links with yourPhone Book entries (see page 27).2Push .The Options menu appears.3Turn to select “Save”, then push .A display appears prompting you for a name toaccompany the number.4Use the number buttons to enter the name.If you press the same button in quick succession, theletter you just entered changes. (See the “Alphanumerictable” on page 20.) For the next entry, wait until thecursor moves one step to the right or use / or to move the cursor and insert spaces between characters.If you enter the wrong character, press CLR to clear thecharacter highlighted by the cursor.To enter “SONY”Press 7RSPQ four times to enter an “S”.Press 6MNO three times to enter an “O”. Wait until the cursormoves one step to the right for the next entry.Press 6MNO twice to enter an “N”.Press 9YZWX three times to enter a “Y”.Storing phone numbers in the Phone Book 123-456-7890 :OptionsB2200 25-38draft3 8/21/98, 12:12 PM25

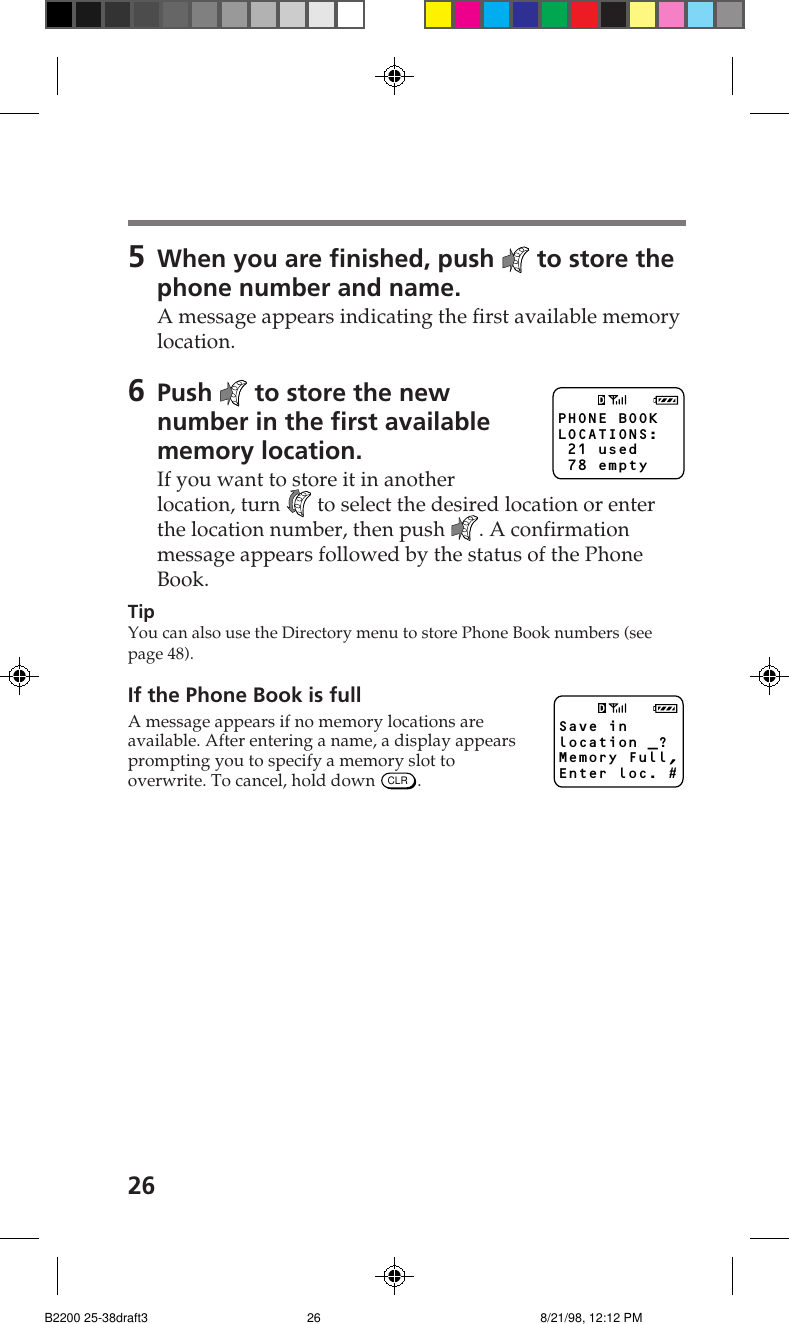

265When you are finished, push to store thephone number and name.A message appears indicating the first available memorylocation.6Push to store the newnumber in the first availablememory location.If you want to store it in anotherlocation, turn to select the desired location or enterthe location number, then push . A confirmationmessage appears followed by the status of the PhoneBook.TipYou can also use the Directory menu to store Phone Book numbers (seepage 48).If the Phone Book is fullA message appears if no memory locations areavailable. After entering a name, a display appearsprompting you to specify a memory slot tooverwrite. To cancel, hold down CLR.PHONE BOOK LOCATIONS: 21 used 78 emptySave inlocation _?Memory Full,Enter loc. #B2200 25-38draft3 8/21/98, 12:12 PM26

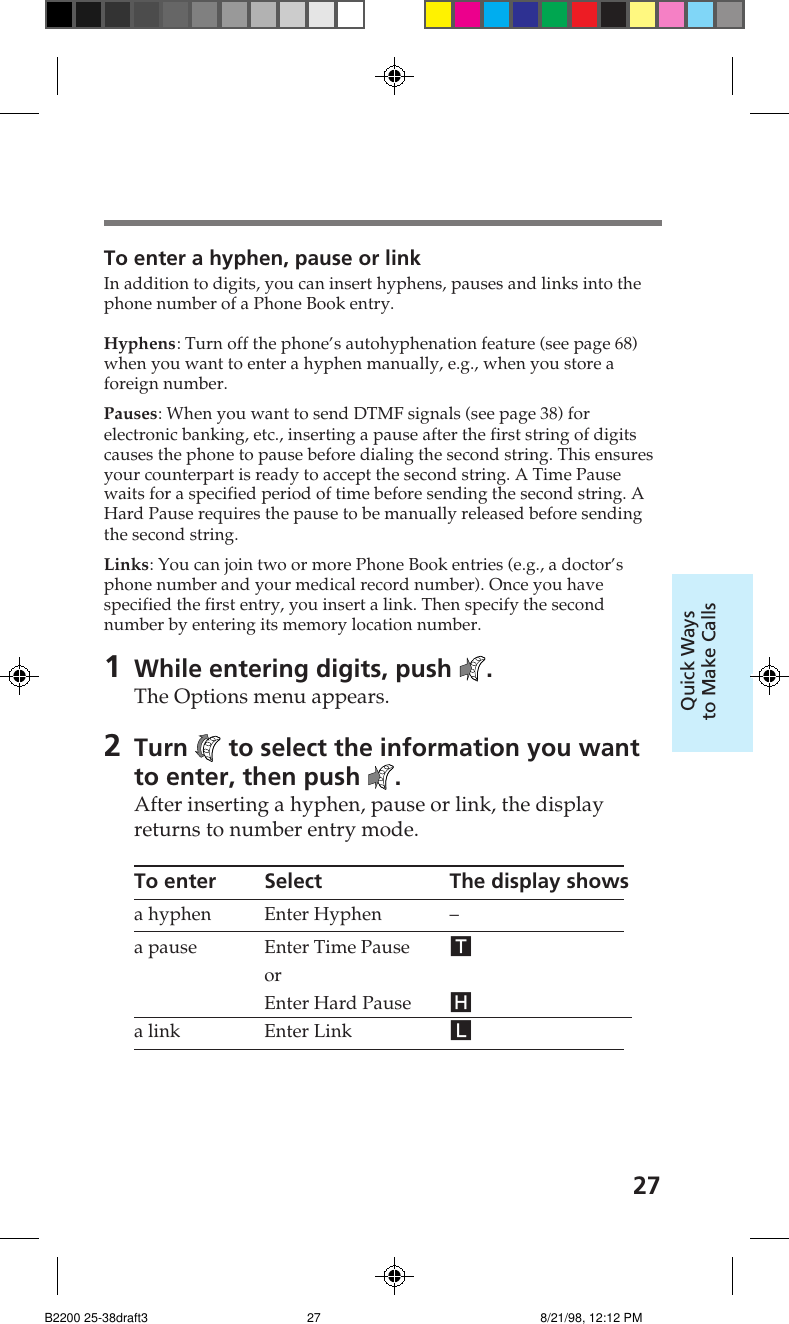

27Quick Waysto Make CallsTo enter a hyphen, pause or linkIn addition to digits, you can insert hyphens, pauses and links into thephone number of a Phone Book entry.Hyphens: Turn off the phone’s autohyphenation feature (see page 68)when you want to enter a hyphen manually, e.g., when you store aforeign number.Pauses: When you want to send DTMF signals (see page 38) forelectronic banking, etc., inserting a pause after the first string of digitscauses the phone to pause before dialing the second string. This ensuresyour counterpart is ready to accept the second string. A Time Pausewaits for a specified period of time before sending the second string. AHard Pause requires the pause to be manually released before sendingthe second string.Links: You can join two or more Phone Book entries (e.g., a doctor’sphone number and your medical record number). Once you havespecified the first entry, you insert a link. Then specify the secondnumber by entering its memory location number.1While entering digits, push .The Options menu appears.2Turn to select the information you wantto enter, then push .After inserting a hyphen, pause or link, the displayreturns to number entry mode.To enter Select The display showsa hyphen Enter Hyphen –a pause Enter Time Pause TorEnter Hard Pause Ha link Enter Link LB2200 25-38draft3 8/21/98, 12:12 PM27

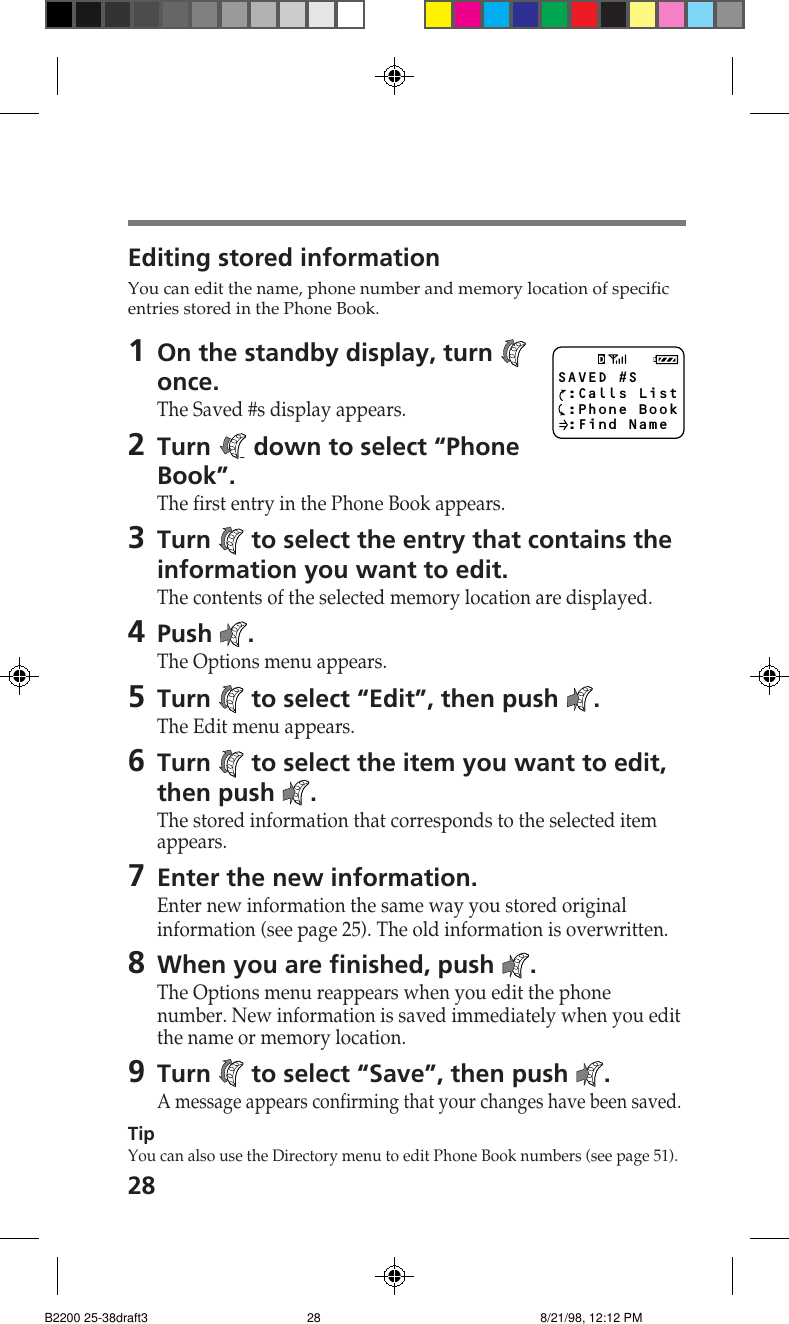

28Editing stored informationYou can edit the name, phone number and memory location of specificentries stored in the Phone Book.1On the standby display, turn once.The Saved #s display appears.2Turn – down to select “PhoneBook”.The first entry in the Phone Book appears.3Turn to select the entry that contains theinformation you want to edit.The contents of the selected memory location are displayed.4Push .The Options menu appears.5Turn to select “Edit”, then push .The Edit menu appears.6Turn to select the item you want to edit,then push .The stored information that corresponds to the selected itemappears.7Enter the new information.Enter new information the same way you stored originalinformation (see page 25). The old information is overwritten.8When you are finished, push .The Options menu reappears when you edit the phonenumber. New information is saved immediately when you editthe name or memory location.9Turn to select “Save”, then push .A message appears confirming that your changes have been saved.TipYou can also use the Directory menu to edit Phone Book numbers (see page 51).SAVED #S :Calls List :Phone Book :Find NameB2200 25-38draft3 8/21/98, 12:12 PM28

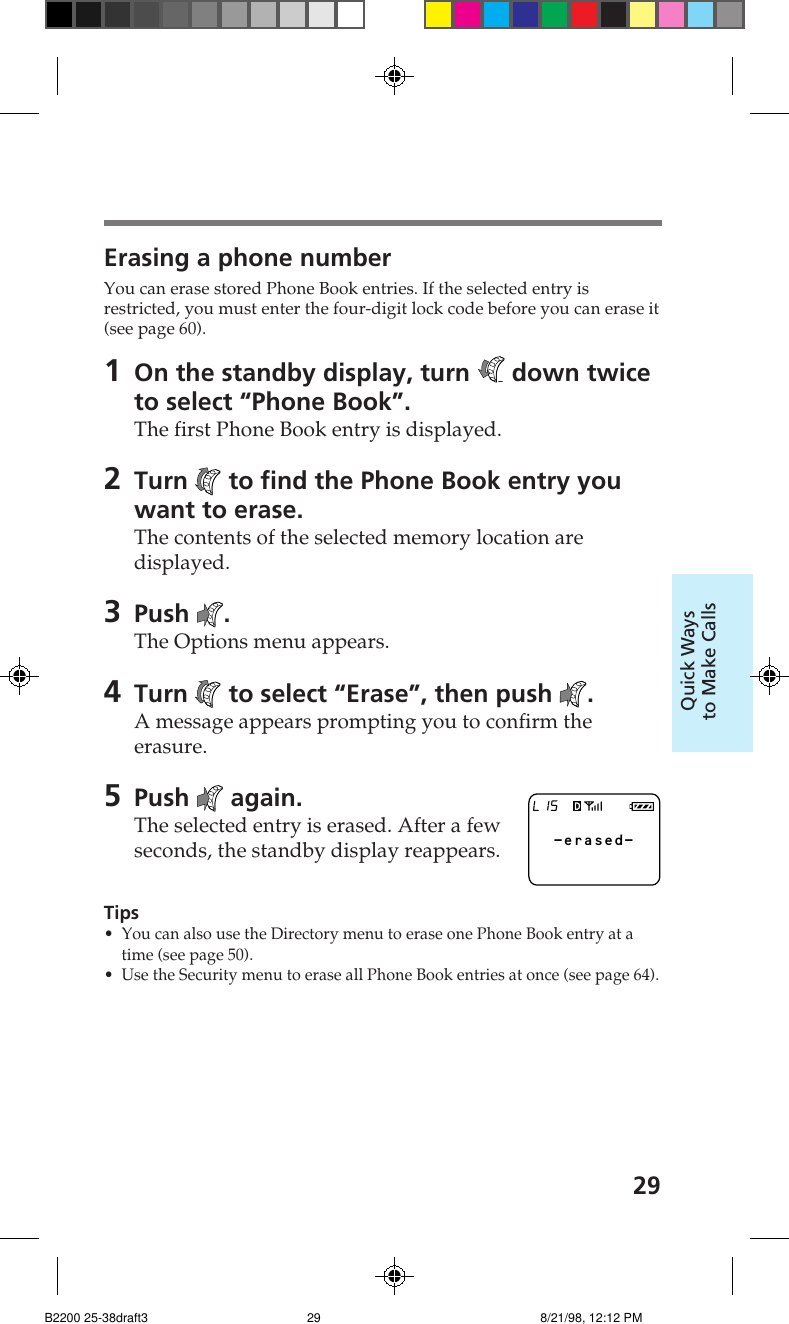

29Quick Waysto Make CallsErasing a phone numberYou can erase stored Phone Book entries. If the selected entry isrestricted, you must enter the four-digit lock code before you can erase it(see page 60).1On the standby display, turn – down twiceto select “Phone Book”.The first Phone Book entry is displayed.2Turn to find the Phone Book entry youwant to erase.The contents of the selected memory location aredisplayed.3Push .The Options menu appears.4Turn to select “Erase”, then push .A message appears prompting you to confirm theerasure.5Push again.The selected entry is erased. After a fewseconds, the standby display reappears.Tips• You can also use the Directory menu to erase one Phone Book entry at atime (see page 50).• Use the Security menu to erase all Phone Book entries at once (see page 64). -erased- L15B2200 25-38draft3 8/21/98, 12:12 PM29

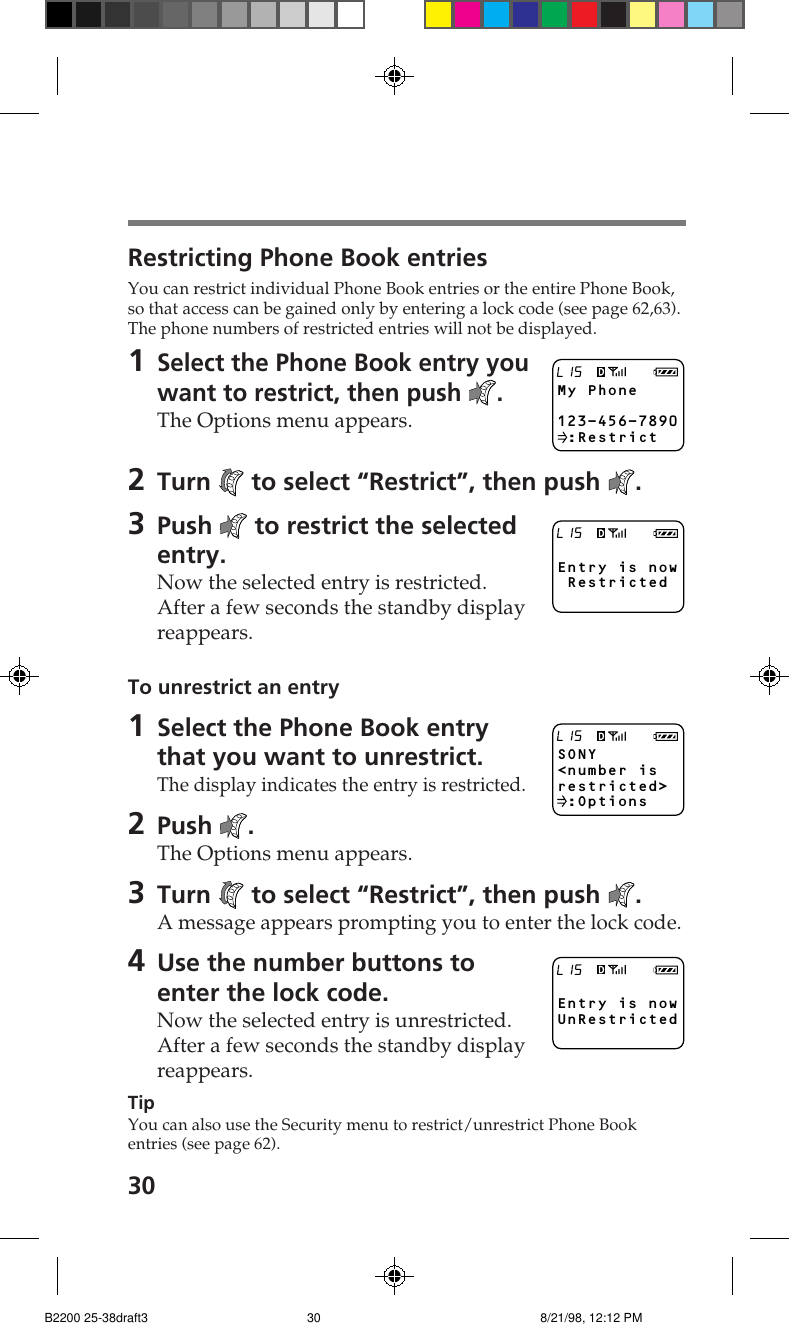

30My Phone123-456-7890 :RestrictL15Entry is now RestrictedL15Restricting Phone Book entriesYou can restrict individual Phone Book entries or the entire Phone Book,so that access can be gained only by entering a lock code (see page 62,63).The phone numbers of restricted entries will not be displayed.1Select the Phone Book entry youwant to restrict, then push .The Options menu appears.2Turn to select “Restrict”, then push .3Push to restrict the selectedentry.Now the selected entry is restricted.After a few seconds the standby displayreappears.To unrestrict an entry1Select the Phone Book entrythat you want to unrestrict.The display indicates the entry is restricted.2Push .The Options menu appears.3Turn to select “Restrict”, then push .A message appears prompting you to enter the lock code.4Use the number buttons toenter the lock code.Now the selected entry is unrestricted.After a few seconds the standby displayreappears.TipYou can also use the Security menu to restrict/unrestrict Phone Bookentries (see page 62).SONY<number is restricted> :OptionsL15Entry is nowUnRestrictedL15B2200 25-38draft3 8/21/98, 12:12 PM30

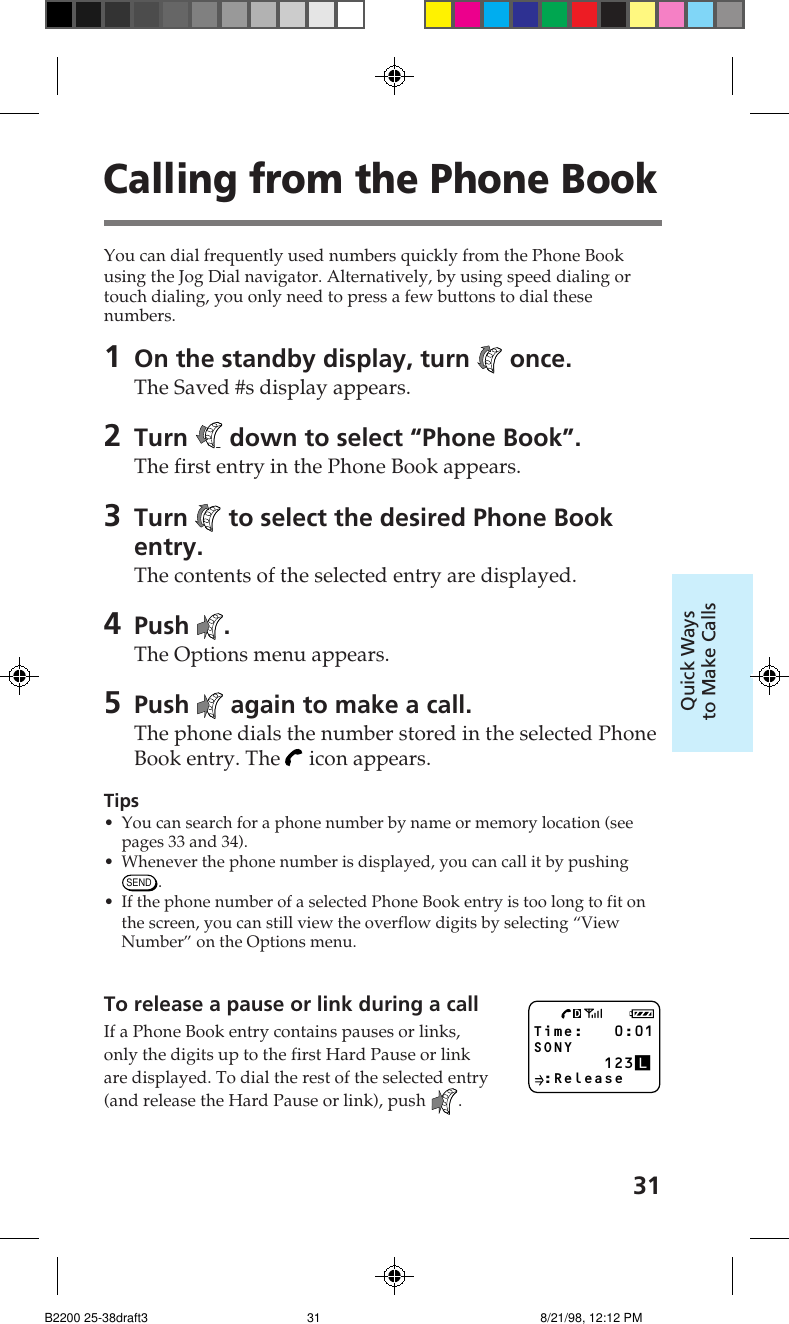

31Quick Waysto Make CallsYou can dial frequently used numbers quickly from the Phone Bookusing the Jog Dial navigator. Alternatively, by using speed dialing ortouch dialing, you only need to press a few buttons to dial thesenumbers.1On the standby display, turn once.The Saved #s display appears.2Turn – down to select “Phone Book”.The first entry in the Phone Book appears.3Turn to select the desired Phone Bookentry.The contents of the selected entry are displayed.4Push .The Options menu appears.5Push again to make a call.The phone dials the number stored in the selected PhoneBook entry. The icon appears.Tips• You can search for a phone number by name or memory location (seepages 33 and 34).• Whenever the phone number is displayed, you can call it by pushingSEND.• If the phone number of a selected Phone Book entry is too long to fit onthe screen, you can still view the overflow digits by selecting “ViewNumber” on the Options menu.To release a pause or link during a callIf a Phone Book entry contains pauses or links,only the digits up to the first Hard Pause or linkare displayed. To dial the rest of the selected entry(and release the Hard Pause or link), push .Calling from the Phone BookTime: 0:01SONY 123L :Release B2200 25-38draft3 8/21/98, 12:12 PM31

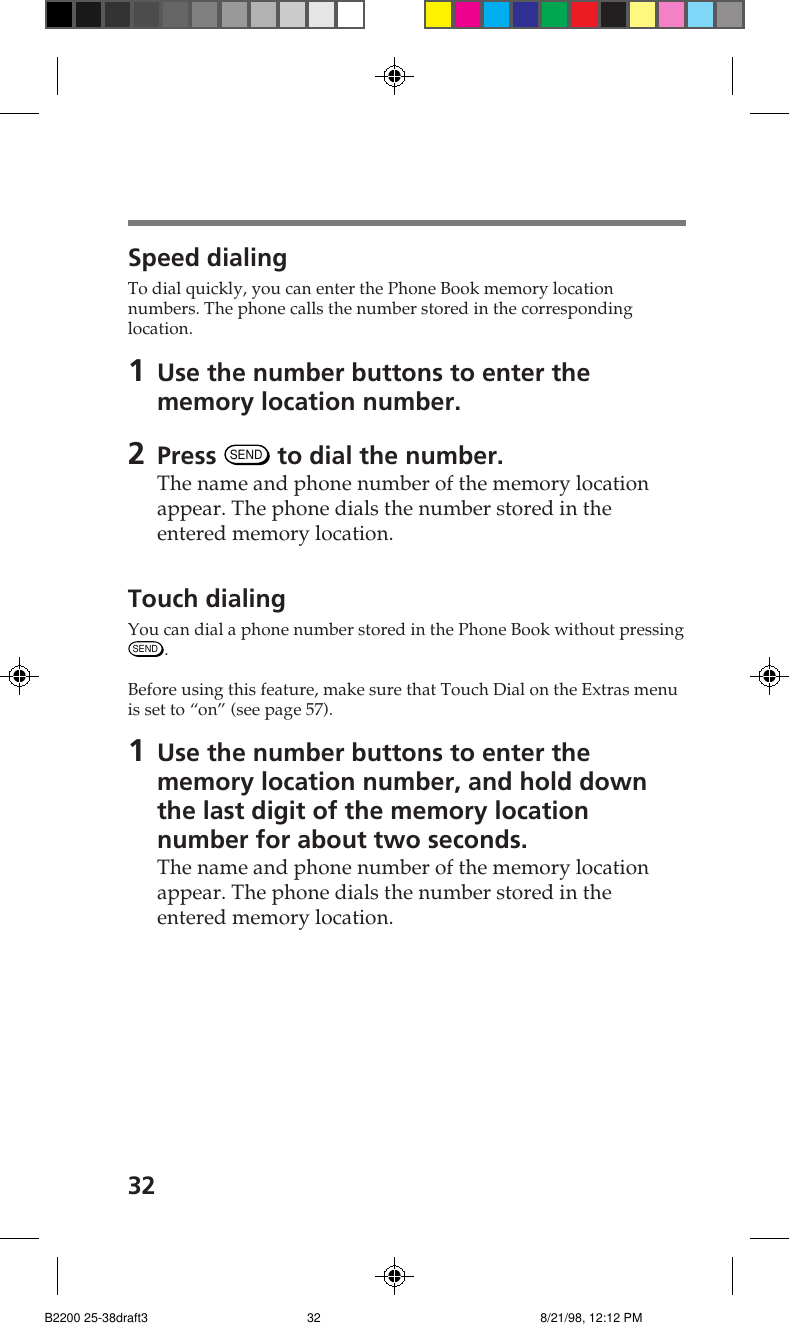

32Speed dialingTo dial quickly, you can enter the Phone Book memory locationnumbers. The phone calls the number stored in the correspondinglocation.1Use the number buttons to enter thememory location number.2Press SEND to dial the number.The name and phone number of the memory locationappear. The phone dials the number stored in theentered memory location.Touch dialingYou can dial a phone number stored in the Phone Book without pressingSEND.Before using this feature, make sure that Touch Dial on the Extras menuis set to “on” (see page 57).1Use the number buttons to enter thememory location number, and hold downthe last digit of the memory locationnumber for about two seconds.The name and phone number of the memory locationappear. The phone dials the number stored in theentered memory location.B2200 25-38draft3 8/21/98, 12:12 PM32

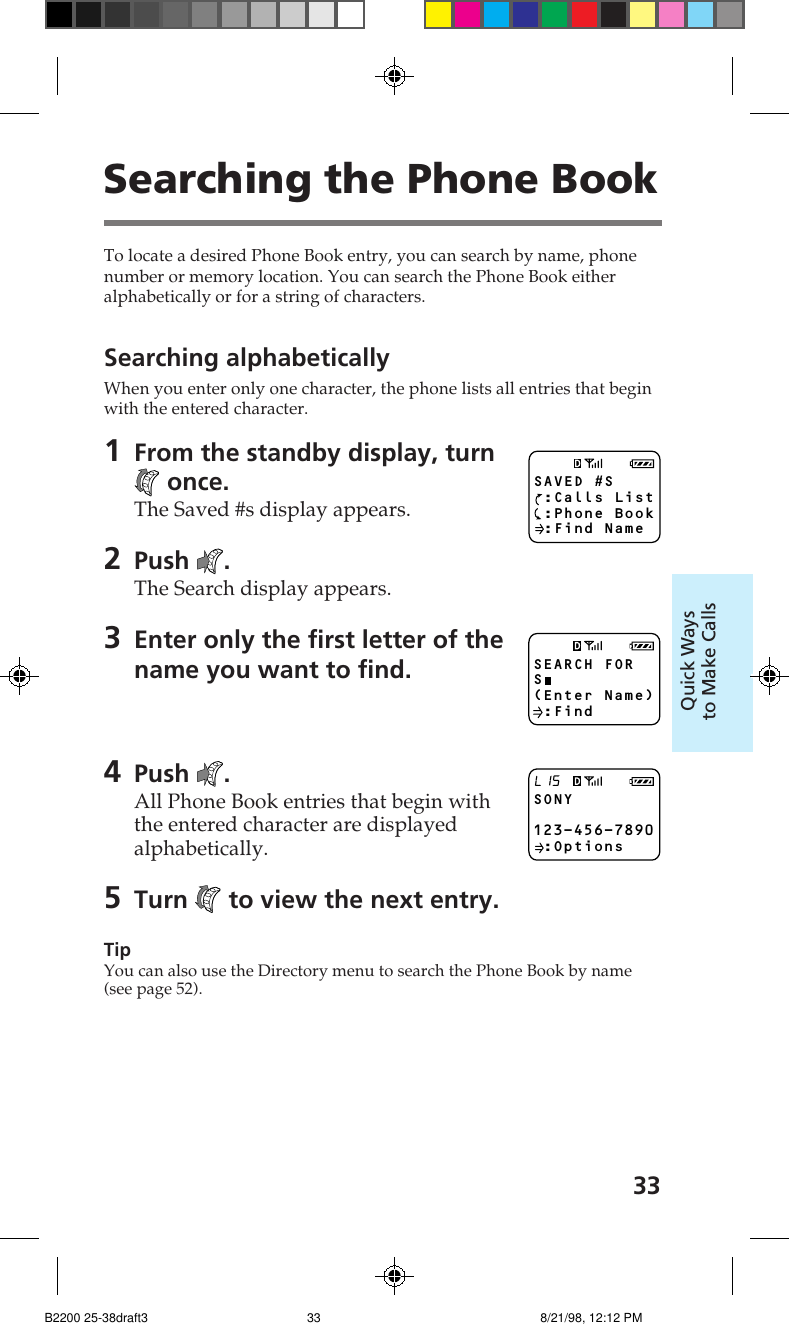

33Quick Waysto Make CallsTo locate a desired Phone Book entry, you can search by name, phonenumber or memory location. You can search the Phone Book eitheralphabetically or for a string of characters.Searching alphabeticallyWhen you enter only one character, the phone lists all entries that beginwith the entered character.1From the standby display, turn once.The Saved #s display appears.2Push .The Search display appears.3Enter only the first letter of thename you want to find.4Push .All Phone Book entries that begin withthe entered character are displayedalphabetically.5Turn to view the next entry.TipYou can also use the Directory menu to search the Phone Book by name(see page 52).SEARCH FORS (Enter Name) :FindSONY 123-456-7890 :OptionsL15SAVED #S :Calls List :Phone Book :Find NameSearching the Phone BookB2200 25-38draft3 8/21/98, 12:12 PM33
34SEARCH FORNY (Enter Name) :FindSONY 123-456-7890 :OptionsL15SAVED #S :Calls List :Phone Book :Find NameSearching for a string of charactersWhen you enter two or more characters, the phone searches for entriesthat contain those characters. The results are displayed starting from thelowest memory location number.1From the standby display, turn once.The Saved #s display appears.2Push .The Search display appears.3Enter at least two characters.4Push .The entries containing the selectedstring are displayed starting from thelowest memory location number.5Turn to view the next entry that containsthe search string.Searching by memory locationThe phone searches for a memory location that matches the entereddigit(s), and displays a list of options.1On the standby display, enter the memorylocation (a maximum of two digits).2Push .The Options menu appears.B2200 25-38draft3 8/21/98, 12:12 PM34

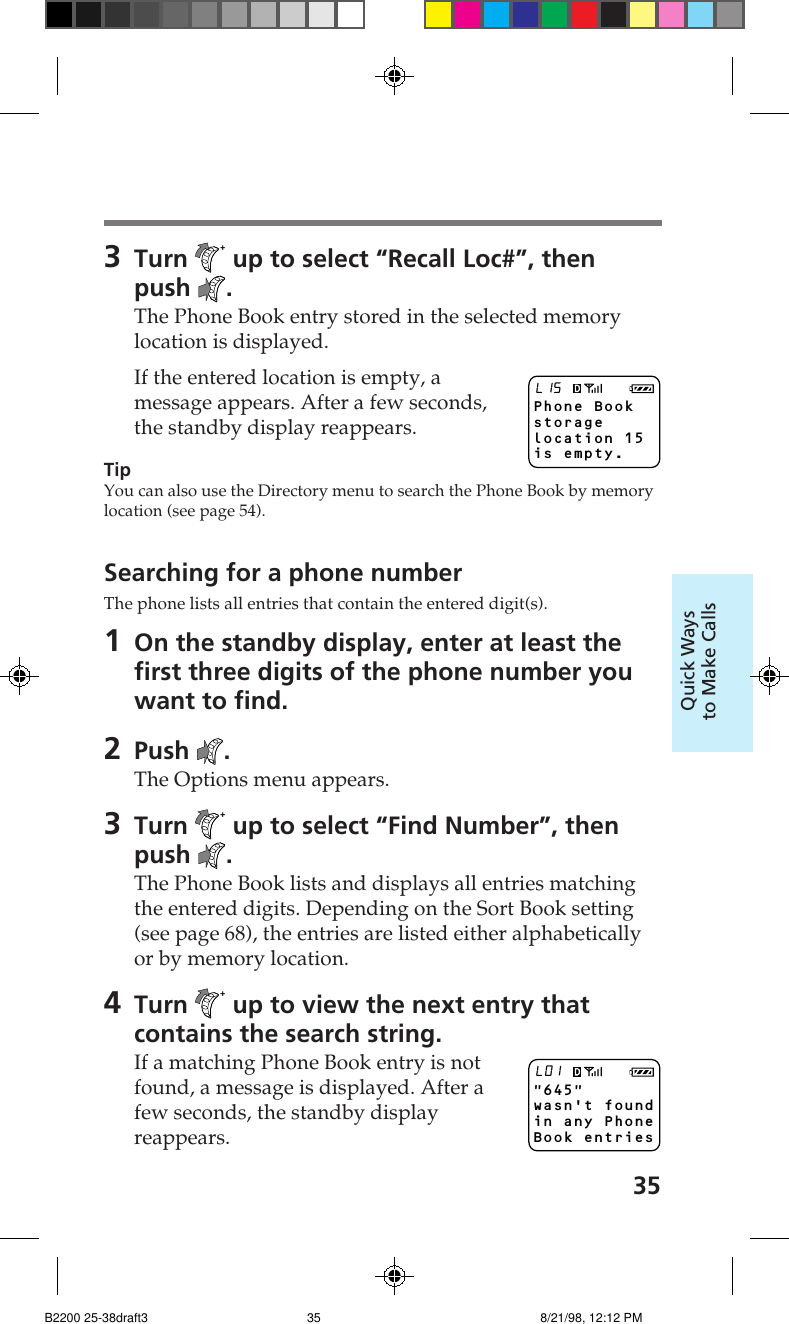

35Quick Waysto Make CallsPhone Bookstoragelocation 15is empty.L15"645"wasn't foundin any PhoneBook entriesL013Turn + up to select “Recall Loc#”, thenpush .The Phone Book entry stored in the selected memorylocation is displayed.If the entered location is empty, amessage appears. After a few seconds,the standby display reappears.TipYou can also use the Directory menu to search the Phone Book by memorylocation (see page 54).Searching for a phone numberThe phone lists all entries that contain the entered digit(s).1On the standby display, enter at least thefirst three digits of the phone number youwant to find.2Push .The Options menu appears.3Turn + up to select “Find Number”, thenpush .The Phone Book lists and displays all entries matchingthe entered digits. Depending on the Sort Book setting(see page 68), the entries are listed either alphabeticallyor by memory location.4Turn + up to view the next entry thatcontains the search string.If a matching Phone Book entry is notfound, a message is displayed. After afew seconds, the standby displayreappears.B2200 25-38draft3 8/21/98, 12:12 PM35
36Calling from the Calls ListInformation on the ten most recent outgoing calls, incoming calls,scratch pad entries and missed calls are stored in the phone’s Calls List.If you call the same number twice in a row, only the most recent call isstored in the Calls List.1On the standby display, turn once.The Saved #s display appears.2Turn + up to select “Calls List”.Information on the most recent call appears. “Calls Listis empty” is displayed if there are no entries.3Turn to select the entry you want.The contents of the selected entry are displayed.4Push .The Options menu appears.5Push again to call the selected entry.The phone dials the selected Calls List entry. The iconappears.Tips• You can also dial by pressing SEND after selecting the entry in step 3 onpage 35.• If the selected entry contains a pause or a link, only the digits up to thepause or link are dialed. To release pauses and links, see page 31.• You can also use the Directory menu to view the Calls List (see page 55).B2200 25-38draft3 8/21/98, 12:12 PM36

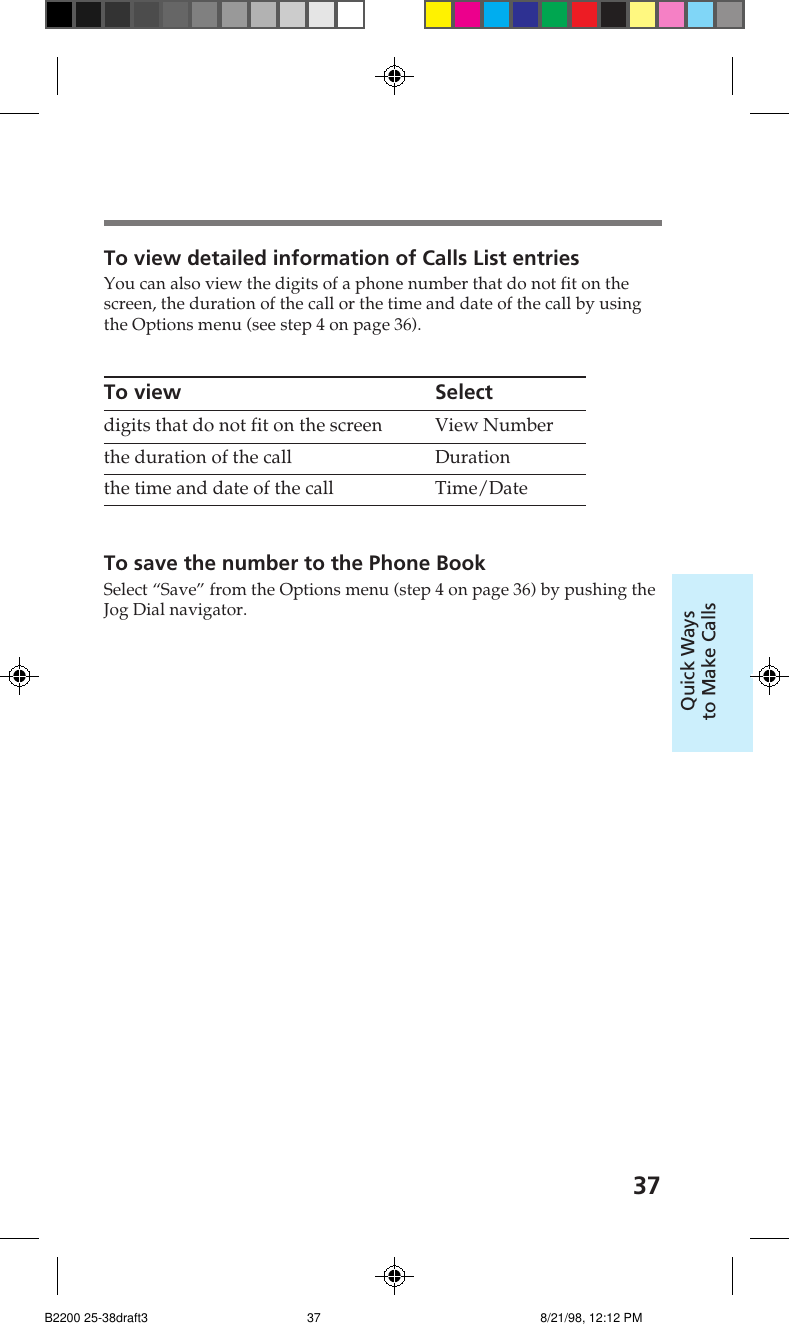

37Quick Waysto Make CallsTo view detailed information of Calls List entriesYou can also view the digits of a phone number that do not fit on thescreen, the duration of the call or the time and date of the call by usingthe Options menu (see step 4 on page 36).To view Selectdigits that do not fit on the screen View Numberthe duration of the call Durationthe time and date of the call Time/DateTo save the number to the Phone BookSelect “Save” from the Options menu (step 4 on page 36) by pushing theJog Dial navigator.B2200 25-38draft3 8/21/98, 12:12 PM37

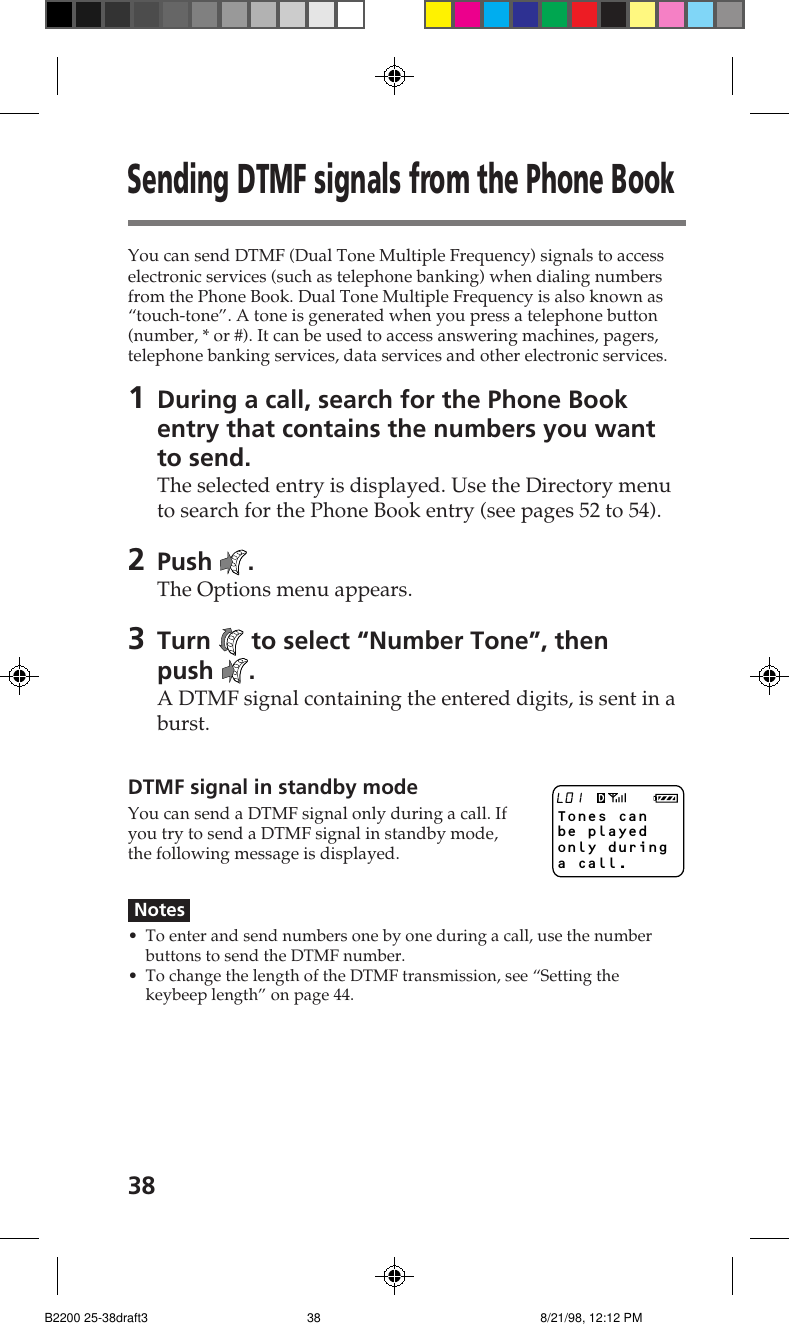

38You can send DTMF (Dual Tone Multiple Frequency) signals to accesselectronic services (such as telephone banking) when dialing numbersfrom the Phone Book. Dual Tone Multiple Frequency is also known as“touch-tone”. A tone is generated when you press a telephone button(number, * or #). It can be used to access answering machines, pagers,telephone banking services, data services and other electronic services.1During a call, search for the Phone Bookentry that contains the numbers you wantto send.The selected entry is displayed. Use the Directory menuto search for the Phone Book entry (see pages 52 to 54).2Push .The Options menu appears.3Turn to select “Number Tone”, thenpush .A DTMF signal containing the entered digits, is sent in aburst.DTMF signal in standby modeYou can send a DTMF signal only during a call. Ifyou try to send a DTMF signal in standby mode,the following message is displayed.Notes• To enter and send numbers one by one during a call, use the numberbuttons to send the DTMF number.• To change the length of the DTMF transmission, see “Setting thekeybeep length” on page 44.Sending DTMF signals from the Phone BookTones canbe playedonly duringa call.L01B2200 25-38draft3 8/21/98, 12:12 PM38

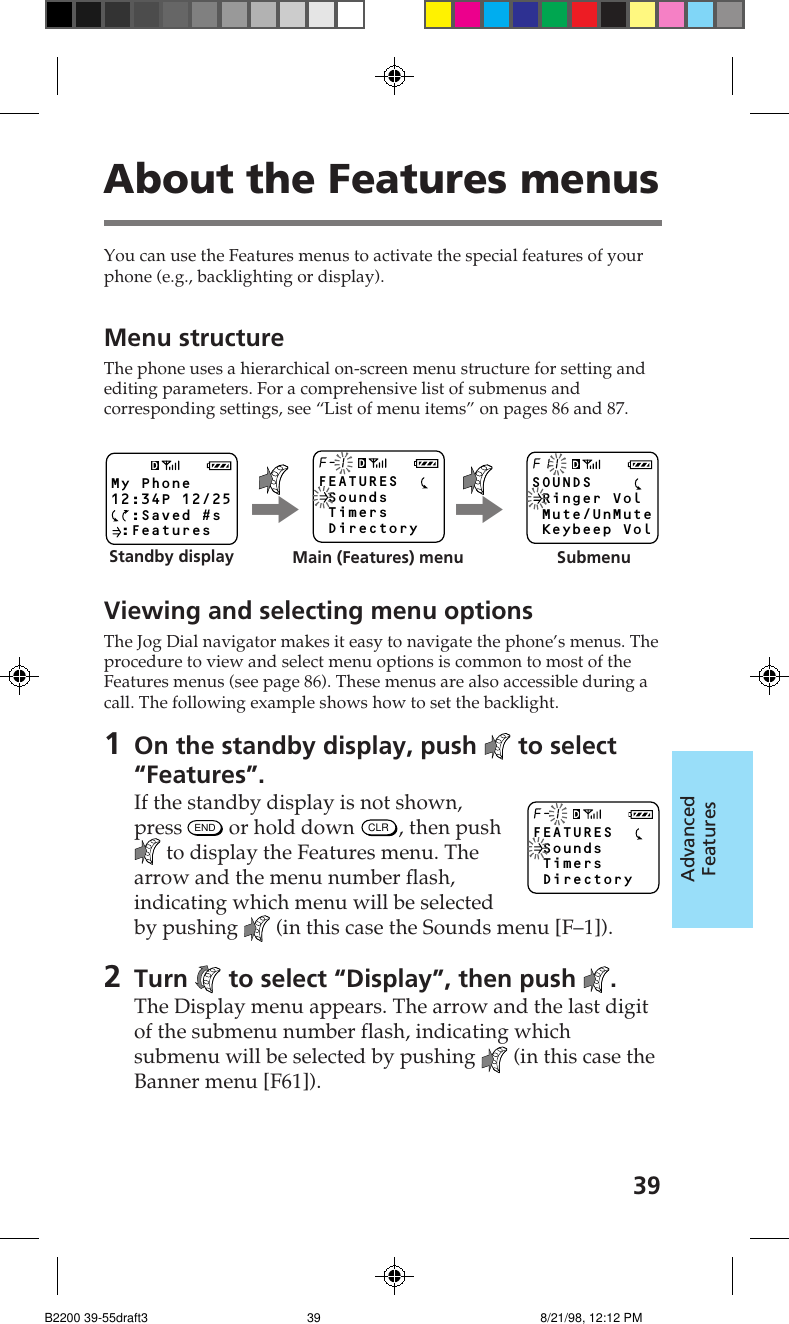

39AdvancedFeaturesYou can use the Features menus to activate the special features of yourphone (e.g., backlighting or display).Menu structureThe phone uses a hierarchical on-screen menu structure for setting andediting parameters. For a comprehensive list of submenus andcorresponding settings, see “List of menu items” on pages 86 and 87.Viewing and selecting menu optionsThe Jog Dial navigator makes it easy to navigate the phone’s menus. Theprocedure to view and select menu options is common to most of theFeatures menus (see page 86). These menus are also accessible during acall. The following example shows how to set the backlight.1On the standby display, push to select“Features”.If the standby display is not shown,press END or hold down CLR, then push to display the Features menu. Thearrow and the menu number flash,indicating which menu will be selectedby pushing (in this case the Sounds menu [F–1]).2Turn to select “Display”, then push .The Display menu appears. The arrow and the last digitof the submenu number flash, indicating whichsubmenu will be selected by pushing (in this case theBanner menu [F61]).About the Features menusMy Phone12:34P 12/25 :Saved #s :FeaturesFEATURES Sounds Timers DirectoryF-1SOUNDS Ringer Vol Mute/UnMute Keybeep VolF11Standby display Main (Features) menu SubmenuFEATURES Sounds Timers DirectoryF-1/ /B2200 39-55draft3 8/21/98, 12:12 PM39
403Turn to select “Backlight”, then push .The Backlight menu appears. The current setting isindicated by a check mark (✓) and is displayed in capitalletters. (See page 67 for an additional description onsetting the backlight.)4Turn to select the setting.The available options appear in a cyclic manner as youturn .5Push to enter the new setting.The standby display reappears.To exit from the Features menuPress END or hold down CLR to return to the standby display.To return to the previous displayPress CLR. To go back further, press CLR again.Notes• If you reach the last menu item and try to turn further, a beepindicates that you have reached the end of the menu. To view othermenu items, turn in the opposite direction.• The standby display automatically reappears after 30 seconds ofinactivity.TipEach menu item can be accessed quickly from the standby display bypushing and then pushing the number of the menu item. The itemnumber then appears in the upper left corner of the display in step 3. Forexample, you can access the backlight setting by pushing followed by6MNO and 2ABC .B2200 39-55draft3 8/21/98, 12:13 PM40

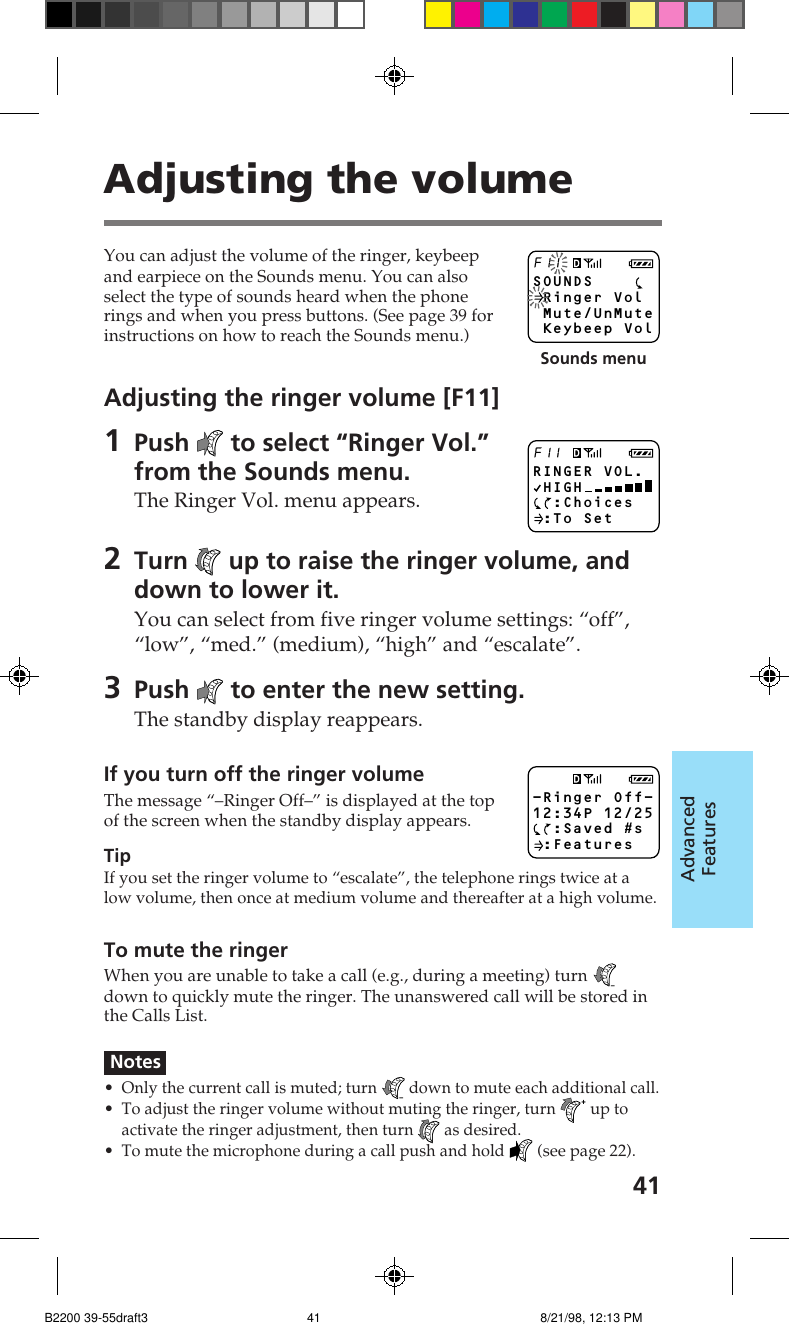

41AdvancedFeaturesYou can adjust the volume of the ringer, keybeepand earpiece on the Sounds menu. You can alsoselect the type of sounds heard when the phonerings and when you press buttons. (See page 39 forinstructions on how to reach the Sounds menu.)Adjusting the ringer volume [F11]1Push to select “Ringer Vol.”from the Sounds menu.The Ringer Vol. menu appears.2Turn up to raise the ringer volume, anddown to lower it.You can select from five ringer volume settings: “off”,“low”, “med.” (medium), “high” and “escalate”.3Push to enter the new setting.The standby display reappears.If you turn off the ringer volumeThe message “–Ringer Off–” is displayed at the topof the screen when the standby display appears.TipIf you set the ringer volume to “escalate”, the telephone rings twice at alow volume, then once at medium volume and thereafter at a high volume.To mute the ringerWhen you are unable to take a call (e.g., during a meeting) turn –down to quickly mute the ringer. The unanswered call will be stored inthe Calls List.Notes•Only the current call is muted; turn – down to mute each additional call.•To adjust the ringer volume without muting the ringer, turn + up toactivate the ringer adjustment, then turn as desired.•To mute the microphone during a call push and hold (see page 22).Adjusting the volume-Ringer Off-12:34P 12/25 :Saved #s :FeaturesSOUNDS Ringer Vol Mute/UnMute Keybeep VolF11RINGER VOL. HIGH :Choices :To SetF11Sounds menuB2200 39-55draft3 8/21/98, 12:13 PM41

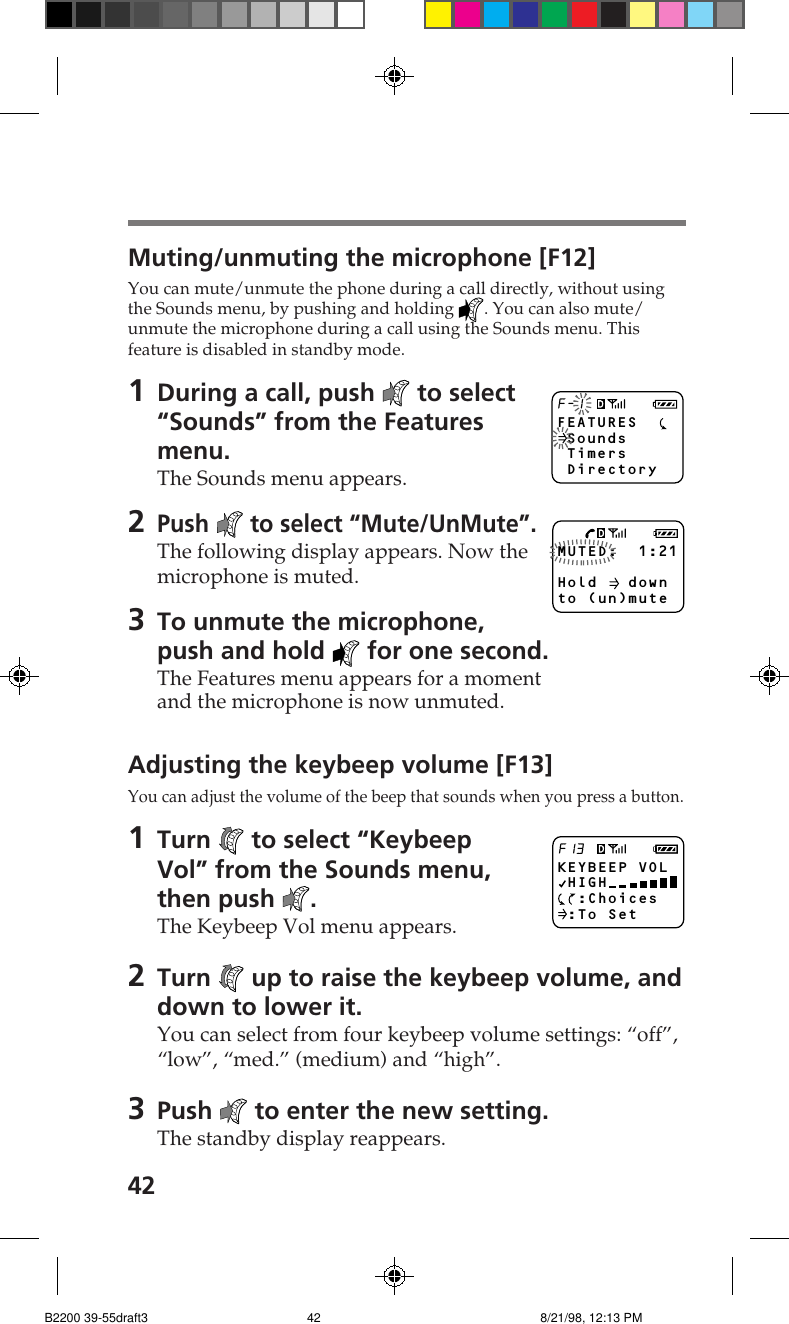

42Muting/unmuting the microphone [F12]You can mute/unmute the phone during a call directly, without usingthe Sounds menu, by pushing and holding . You can also mute/unmute the microphone during a call using the Sounds menu. Thisfeature is disabled in standby mode.1During a call, push to select“Sounds” from the Featuresmenu.The Sounds menu appears.2Push to select “Mute/UnMute”.The following display appears. Now themicrophone is muted.3To unmute the microphone,push and hold for one second.The Features menu appears for a momentand the microphone is now unmuted.Adjusting the keybeep volume [F13]You can adjust the volume of the beep that sounds when you press a button.1Turn to select “KeybeepVol” from the Sounds menu,then push .The Keybeep Vol menu appears.2Turn up to raise the keybeep volume, anddown to lower it.You can select from four keybeep volume settings: “off”,“low”, “med.” (medium) and “high”.3Push to enter the new setting.The standby display reappears.MUTED: 1:21Hold downto (un)muteFEATURES Sounds Timers DirectoryF-1KEYBEEP VOL HIGH :Choices :To SetF13B2200 39-55draft3 8/21/98, 12:13 PM42
43AdvancedFeaturesAdjusting the earpiece volume [F14]You can adjust the earpiece volume during a call by turning . Youcan also adjust the speaker volume using the Sounds menu.1Turn to select “Earpiece Vol”from the Sounds menu, thenpush .The Earpiece Vol menu appears.2Turn up to raise the earpiece volume,and down to lower it.You can select from seven earpiece volume settings, from“1” to “7”. A higher number indicates higher volume.3Push to enter the new setting.The standby display reappears.Setting the ringer type [F15]You can set the type of beep that sounds for an incoming call.1Turn to select “Ringer Type”from the Sounds menu, thenpush .The Ringer Type menu appears.2Turn to select the ringer type.You can select from five different ringer settings.The ringer sounds every time you turn .3Push to enter the new setting.The standby display reappears.RINGER TYPE STANDARD :Choices :To SetF15EARPIECE VOL 7 :Choices To SetF14B2200 39-55draft3 8/21/98, 12:13 PM43

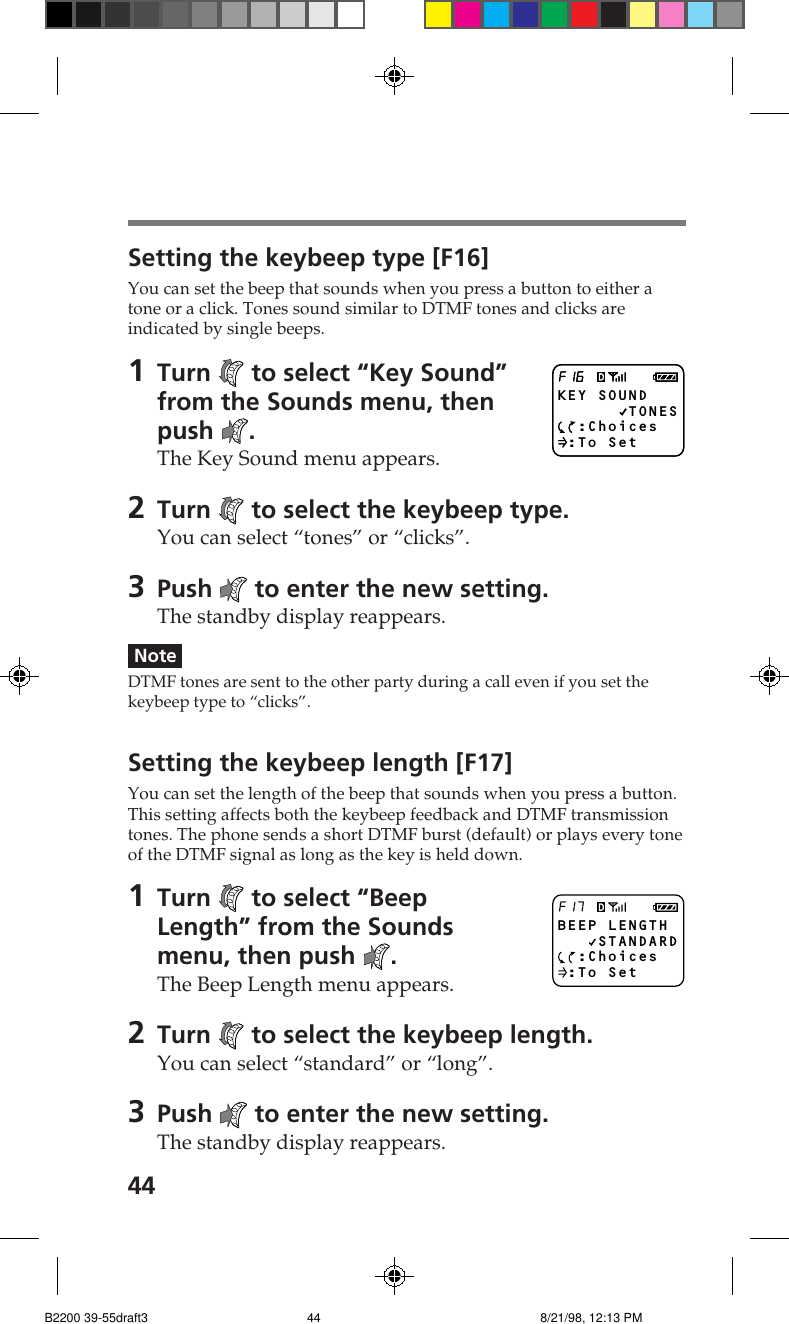

44Setting the keybeep type [F16]You can set the beep that sounds when you press a button to either atone or a click. Tones sound similar to DTMF tones and clicks areindicated by single beeps.1Turn to select “Key Sound”from the Sounds menu, thenpush .The Key Sound menu appears.2Turn to select the keybeep type.You can select “tones” or “clicks”.3Push to enter the new setting.The standby display reappears.NoteDTMF tones are sent to the other party during a call even if you set thekeybeep type to “clicks”.Setting the keybeep length [F17]You can set the length of the beep that sounds when you press a button.This setting affects both the keybeep feedback and DTMF transmissiontones. The phone sends a short DTMF burst (default) or plays every toneof the DTMF signal as long as the key is held down.1Turn to select “BeepLength” from the Soundsmenu, then push .The Beep Length menu appears.2Turn to select the keybeep length.You can select “standard” or “long”.3Push to enter the new setting.The standby display reappears.F16KEY SOUND TONES :Choices :To SetF16BEEP LENGTH STANDARD :Choices :To SetF17B2200 39-55draft3 8/21/98, 12:13 PM44

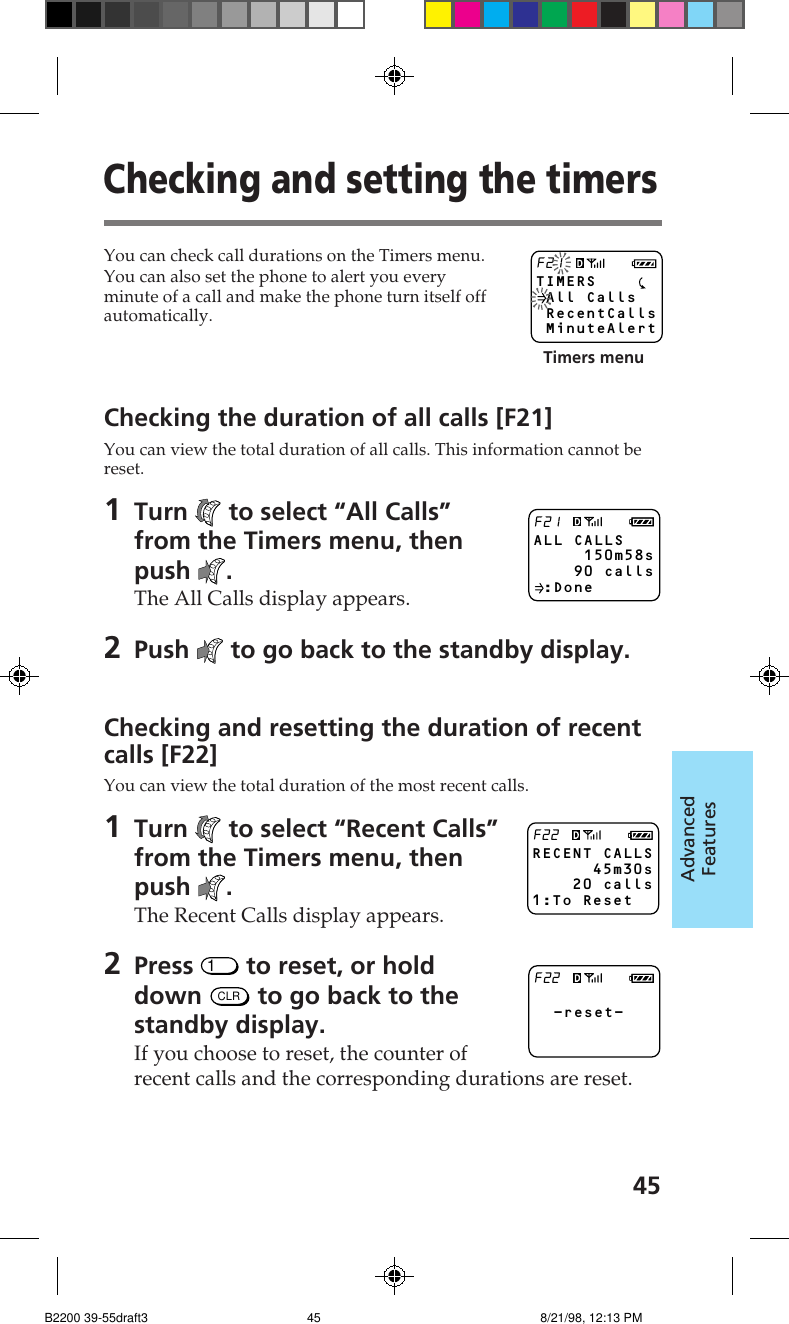

45AdvancedFeaturesYou can check call durations on the Timers menu.You can also set the phone to alert you everyminute of a call and make the phone turn itself offautomatically.Checking the duration of all calls [F21]You can view the total duration of all calls. This information cannot bereset.1Turn to select “All Calls”from the Timers menu, thenpush .The All Calls display appears.2Push to go back to the standby display.Checking and resetting the duration of recentcalls [F22]You can view the total duration of the most recent calls.1Turn to select “Recent Calls”from the Timers menu, thenpush .The Recent Calls display appears.2Press 1 to reset, or holddown CLR to go back to thestandby display.If you choose to reset, the counter ofrecent calls and the corresponding durations are reset.Checking and setting the timersTIMERS All Calls RecentCalls MinuteAlertF21ALL CALLS 150m58s 90 calls :DoneF21RECENT CALLS 45m30s 20 calls1:To ResetF22 -reset- F22Timers menuB2200 39-55draft3 8/21/98, 12:13 PM45

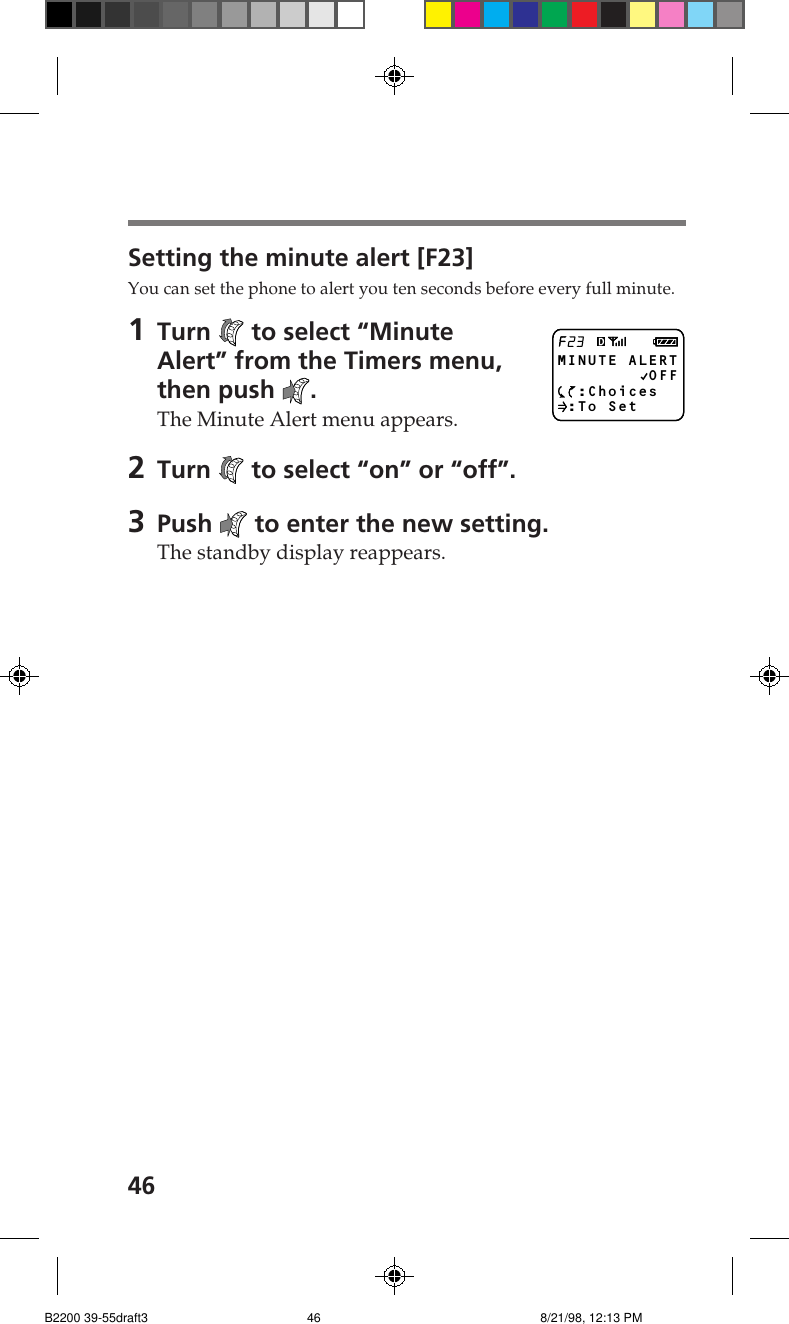

46Setting the minute alert [F23]You can set the phone to alert you ten seconds before every full minute.1Turn to select “MinuteAlert” from the Timers menu,then push .The Minute Alert menu appears.2Turn to select “on” or “off”.3Push to enter the new setting.The standby display reappears.MINUTE ALERT OFF :Choices :To SetF23FB2200 39-55draft3 8/21/98, 12:13 PM46

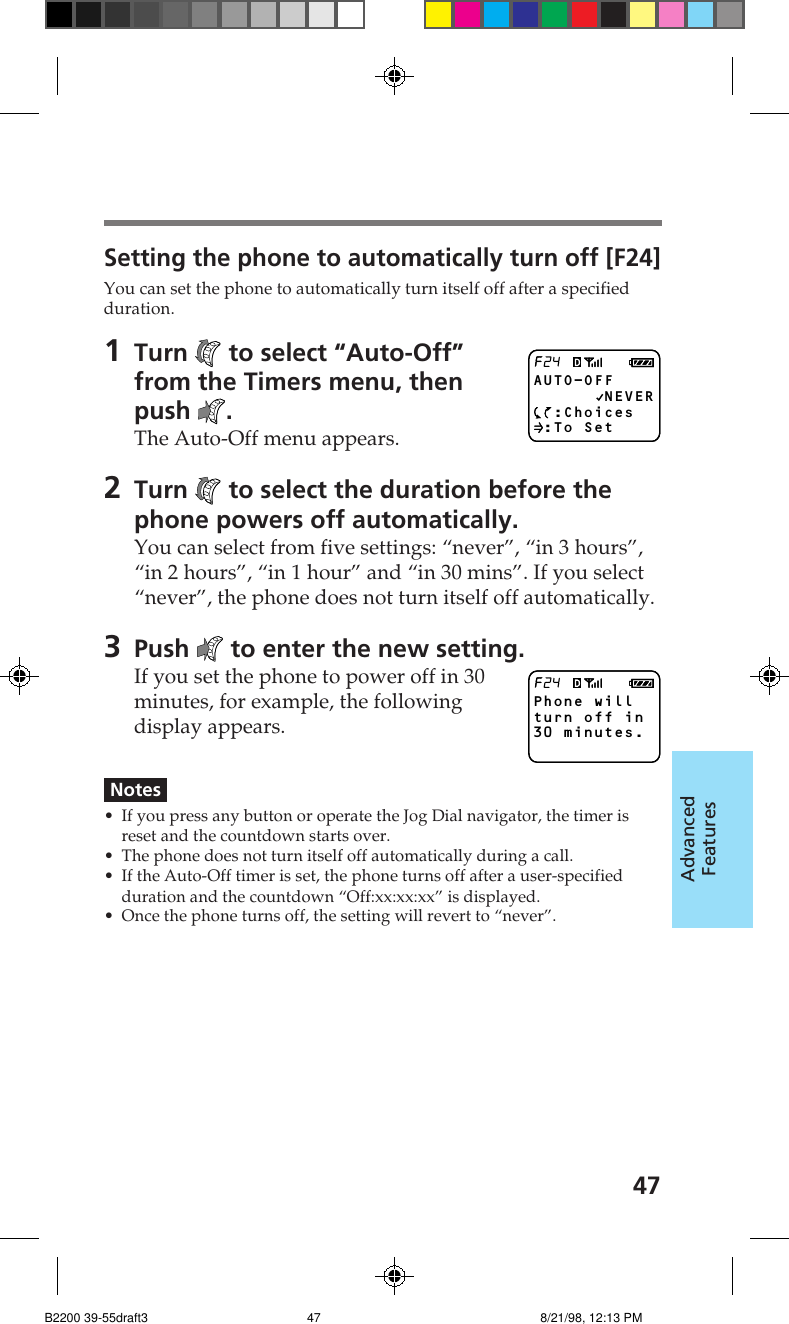

47AdvancedFeaturesSetting the phone to automatically turn off [F24]You can set the phone to automatically turn itself off after a specifiedduration.1Turn to select “Auto-Off”from the Timers menu, thenpush .The Auto-Off menu appears.2Turn to select the duration before thephone powers off automatically.You can select from five settings: “never”, “in 3 hours”,“in 2 hours”, “in 1 hour” and “in 30 mins”. If you select“never”, the phone does not turn itself off automatically.3Push to enter the new setting.If you set the phone to power off in 30minutes, for example, the followingdisplay appears.Notes• If you press any button or operate the Jog Dial navigator, the timer isreset and the countdown starts over.• The phone does not turn itself off automatically during a call.• If the Auto-Off timer is set, the phone turns off after a user-specifiedduration and the countdown “Off:xx:xx:xx” is displayed.• Once the phone turns off, the setting will revert to “never”.Phone will turn off in 30 minutes.F24FAUTO-OFF NEVER :Choices :To SetF24FB2200 39-55draft3 8/21/98, 12:13 PM47

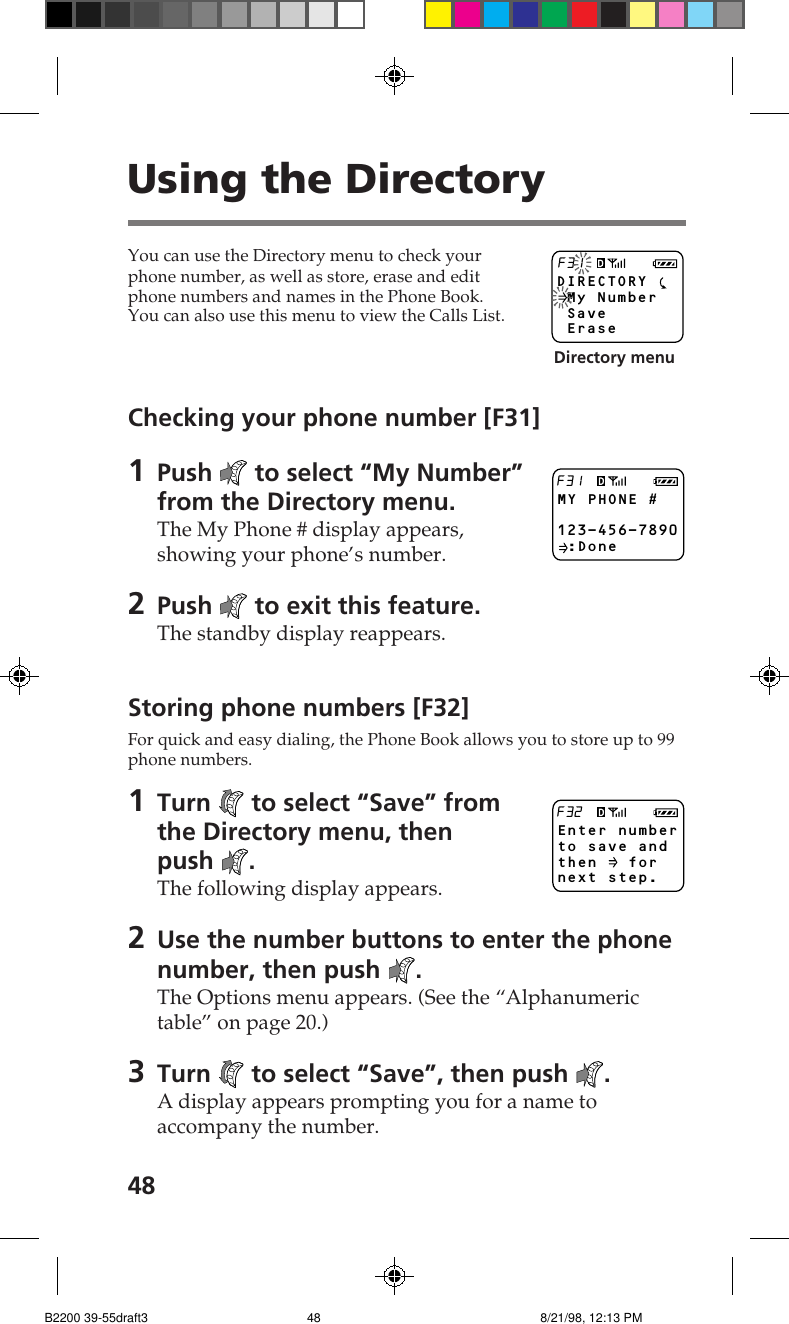

48You can use the Directory menu to check yourphone number, as well as store, erase and editphone numbers and names in the Phone Book.You can also use this menu to view the Calls List.Checking your phone number [F31]1Push to select “My Number”from the Directory menu.The My Phone # display appears,showing your phone’s number.2Push to exit this feature.The standby display reappears.Storing phone numbers [F32]For quick and easy dialing, the Phone Book allows you to store up to 99phone numbers.1Turn to select “Save” fromthe Directory menu, thenpush .The following display appears.2Use the number buttons to enter the phonenumber, then push .The Options menu appears. (See the “Alphanumerictable” on page 20.)3Turn to select “Save”, then push .A display appears prompting you for a name toaccompany the number.Enter number to save and then for next step.F32Using the DirectoryDIRECTORY My Number Save EraseF31MY PHONE #123-456-7890 :DoneF31Directory menuB2200 39-55draft3 8/21/98, 12:13 PM48

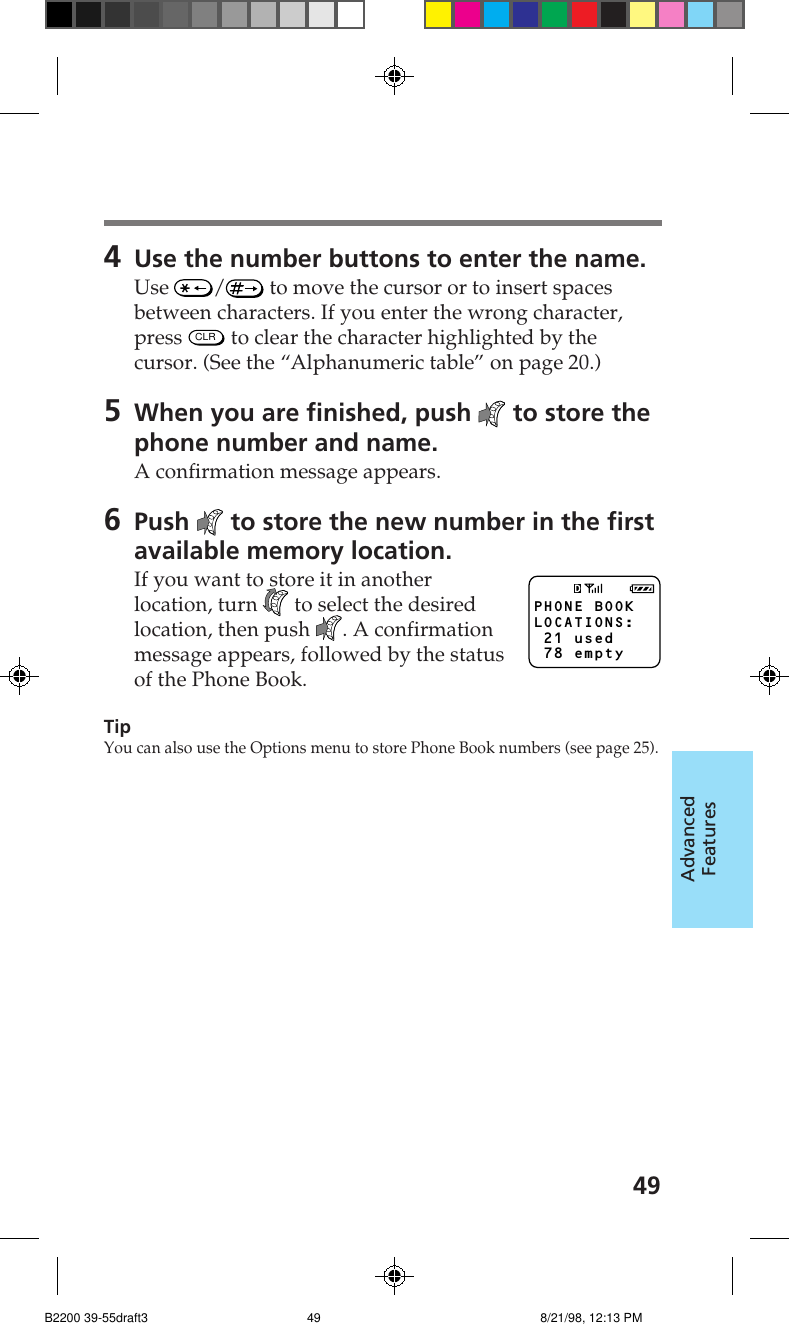

49AdvancedFeatures4Use the number buttons to enter the name.Use / to move the cursor or to insert spacesbetween characters. If you enter the wrong character,press CLR to clear the character highlighted by thecursor. (See the “Alphanumeric table” on page 20.)5When you are finished, push to store thephone number and name.A confirmation message appears.6Push to store the new number in the firstavailable memory location.If you want to store it in anotherlocation, turn to select the desiredlocation, then push . A confirmationmessage appears, followed by the statusof the Phone Book.TipYou can also use the Options menu to store Phone Book numbers (see page 25).PHONE BOOK LOCATIONS: 21 used 78 emptyB2200 39-55draft3 8/21/98, 12:13 PM49

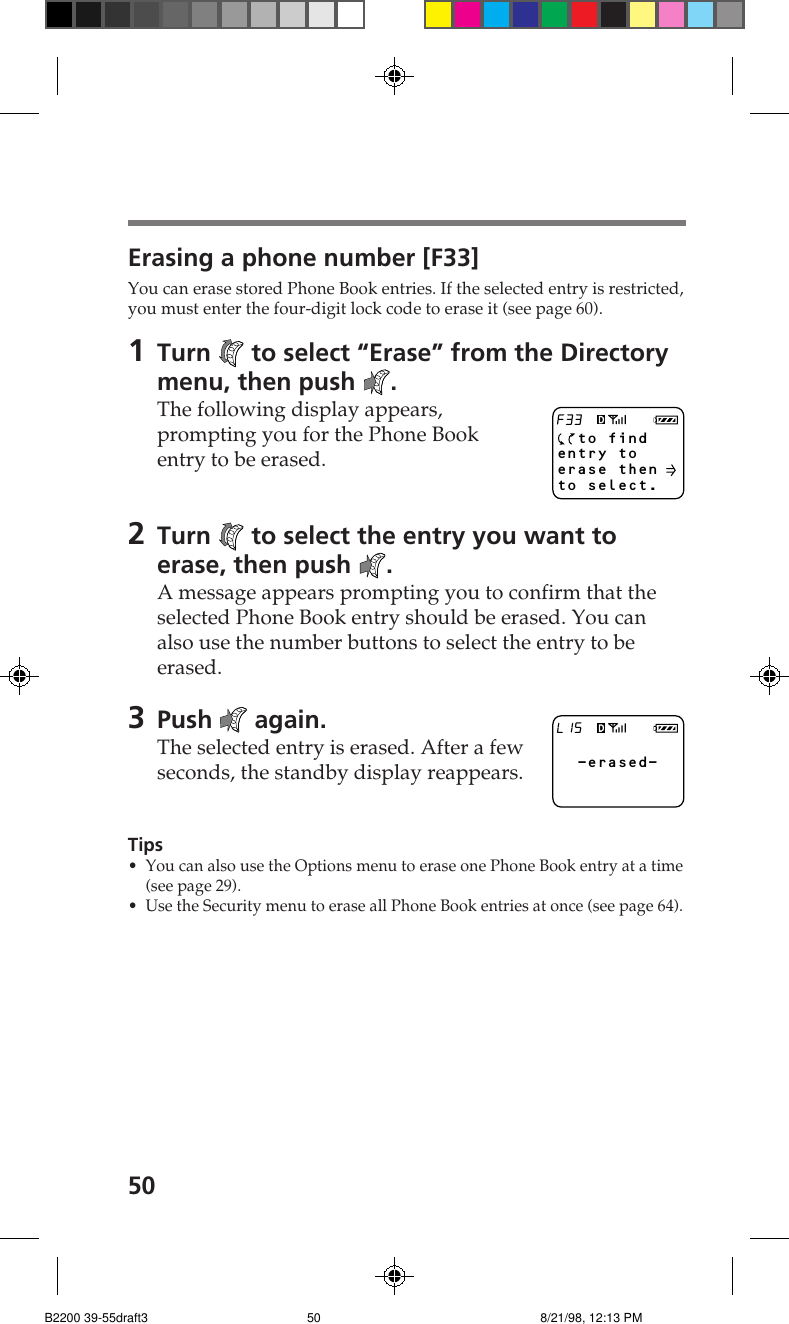

50 -erased- L15 to findentry toerase thento select.F33Erasing a phone number [F33]You can erase stored Phone Book entries. If the selected entry is restricted,you must enter the four-digit lock code to erase it (see page 60).1Turn to select “Erase” from the Directorymenu, then push .The following display appears,prompting you for the Phone Bookentry to be erased.2Turn to select the entry you want toerase, then push .A message appears prompting you to confirm that theselected Phone Book entry should be erased. You canalso use the number buttons to select the entry to beerased.3Push again.The selected entry is erased. After a fewseconds, the standby display reappears.Tips• You can also use the Options menu to erase one Phone Book entry at a time(see page 29).• Use the Security menu to erase all Phone Book entries at once (see page 64).B2200 39-55draft3 8/21/98, 12:13 PM50

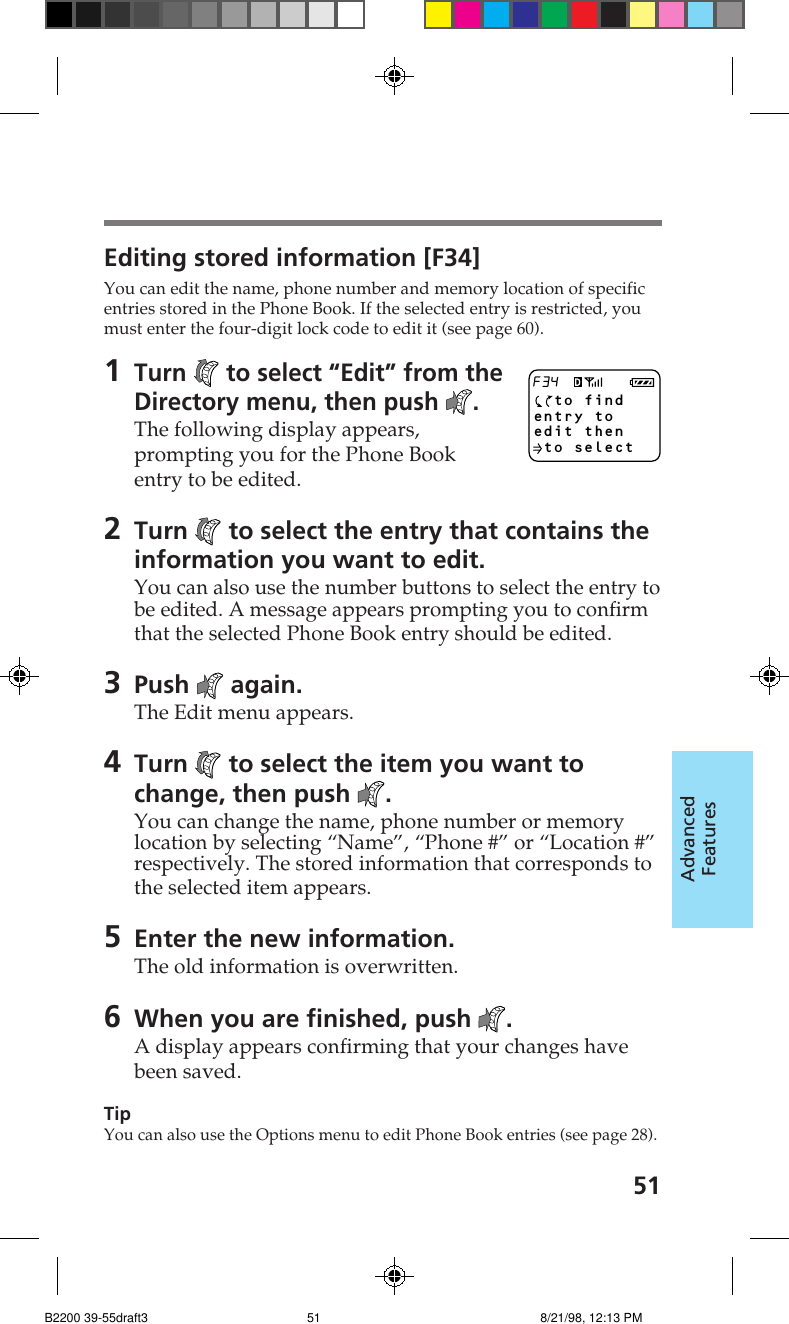

51AdvancedFeaturesEditing stored information [F34]You can edit the name, phone number and memory location of specificentries stored in the Phone Book. If the selected entry is restricted, youmust enter the four-digit lock code to edit it (see page 60).1Turn to select “Edit” from theDirectory menu, then push .The following display appears,prompting you for the Phone Bookentry to be edited.2Turn to select the entry that contains theinformation you want to edit.You can also use the number buttons to select the entry tobe edited. A message appears prompting you to confirmthat the selected Phone Book entry should be edited.3Push again.The Edit menu appears.4Turn to select the item you want tochange, then push .You can change the name, phone number or memorylocation by selecting “Name”, “Phone #” or “Location #”respectively. The stored information that corresponds tothe selected item appears.5Enter the new information.The old information is overwritten.6When you are finished, push .A display appears confirming that your changes havebeen saved.TipYou can also use the Options menu to edit Phone Book entries (see page 28). to findentry to edit then to selectF34B2200 39-55draft3 8/21/98, 12:13 PM51

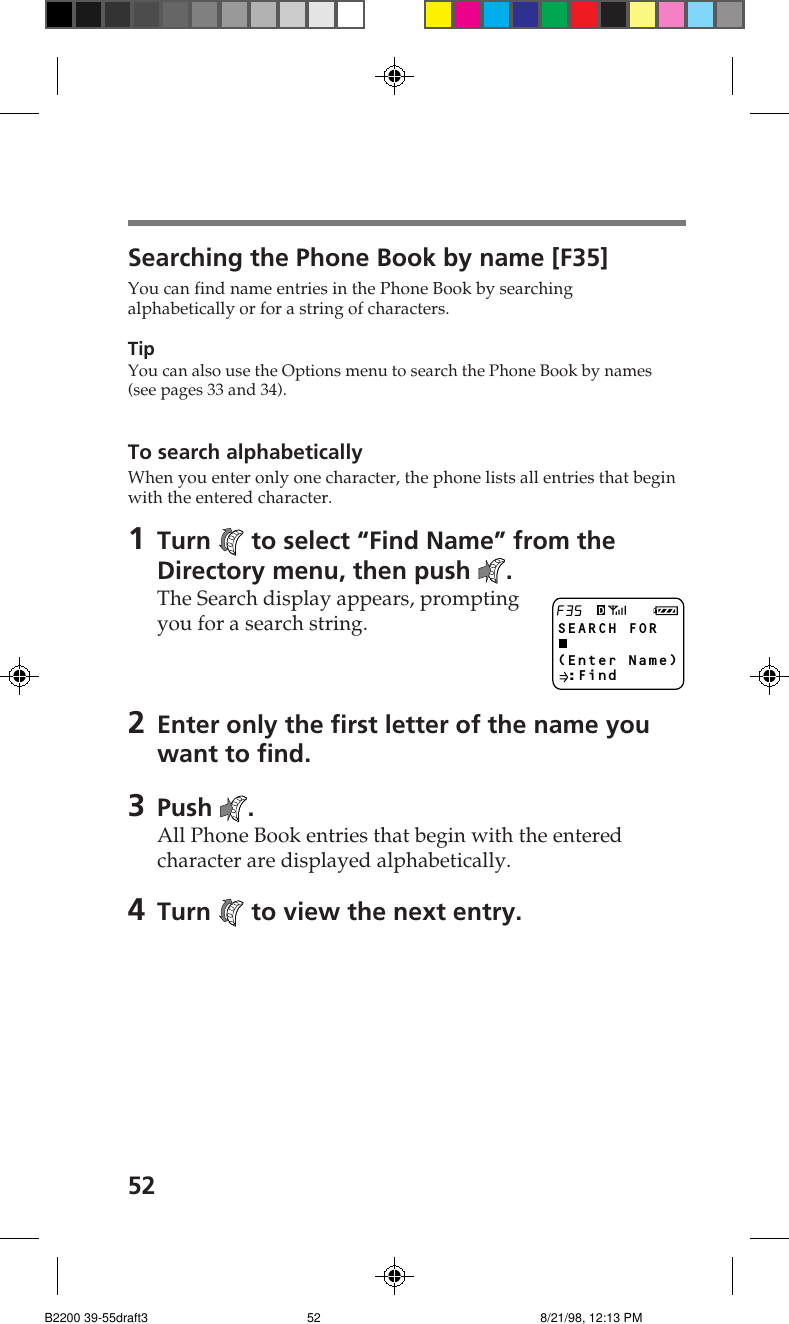

52Searching the Phone Book by name [F35]You can find name entries in the Phone Book by searchingalphabetically or for a string of characters.TipYou can also use the Options menu to search the Phone Book by names(see pages 33 and 34).To search alphabeticallyWhen you enter only one character, the phone lists all entries that beginwith the entered character.1Turn to select “Find Name” from theDirectory menu, then push .The Search display appears, promptingyou for a search string.2Enter only the first letter of the name youwant to find.3Push .All Phone Book entries that begin with the enteredcharacter are displayed alphabetically.4Turn to view the next entry.SEARCH FOR(Enter Name) :FindF35B2200 39-55draft3 8/21/98, 12:13 PM52
53AdvancedFeaturesTo search for a string of charactersWhen you enter two or more characters, the phone searches for entriesthat contain the entered string. The results are displayed starting fromthe lowest memory location number.1Turn to select “Find Name” from theDirectory menu, then push .The Search display appears, promptingyou for a search string.2Enter at least two characters.3Push .The entries containing the selected string are displayedstarting from the lowest memory location number.4Turn to view the next entry.SEARCH FOR(Enter Name) :FindF35B2200 39-55draft3 8/21/98, 12:13 PM53

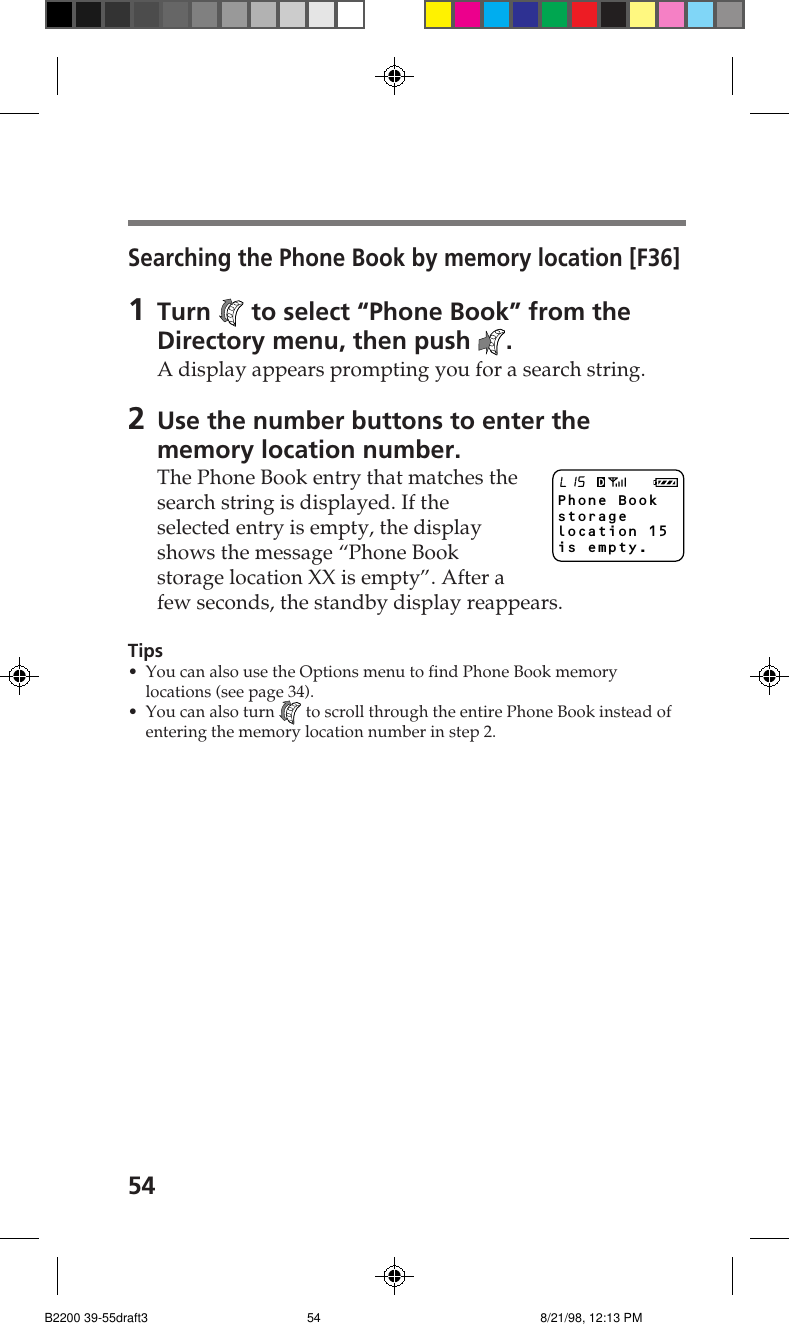

54Searching the Phone Book by memory location [F36]1Turn to select “Phone Book” from theDirectory menu, then push .A display appears prompting you for a search string.2Use the number buttons to enter thememory location number.The Phone Book entry that matches thesearch string is displayed. If theselected entry is empty, the displayshows the message “Phone Bookstorage location XX is empty”. After afew seconds, the standby display reappears.Tips• You can also use the Options menu to find Phone Book memorylocations (see page 34).• You can also turn to scroll through the entire Phone Book instead ofentering the memory location number in step 2.Phone Bookstoragelocation 15is empty.L15B2200 39-55draft3 8/21/98, 12:13 PM54

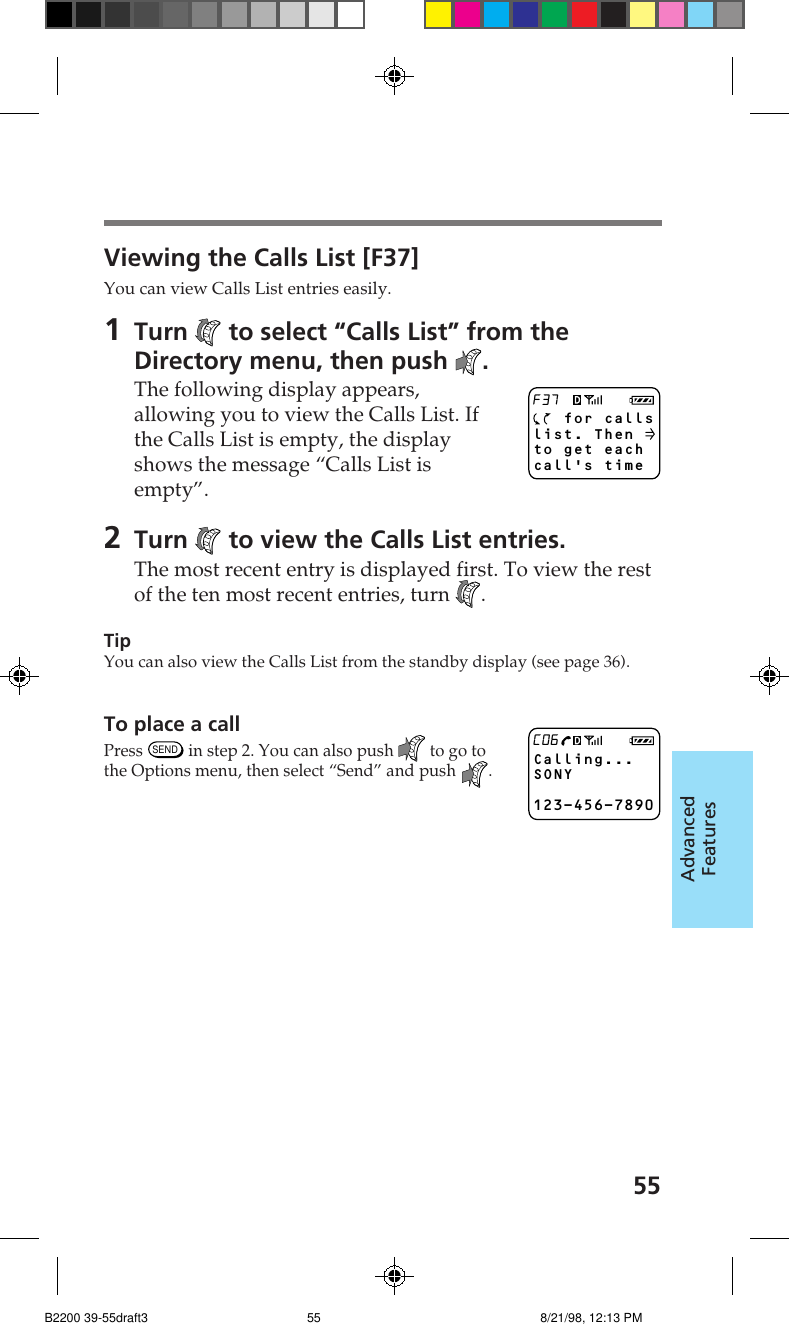

55AdvancedFeatures for calls list. Then to get each call's timeF37Calling...SONY123-456-7890C06Viewing the Calls List [F37]You can view Calls List entries easily.1Turn to select “Calls List” from theDirectory menu, then push .The following display appears,allowing you to view the Calls List. Ifthe Calls List is empty, the displayshows the message “Calls List isempty”.2Turn to view the Calls List entries.The most recent entry is displayed first. To view the restof the ten most recent entries, turn .TipYou can also view the Calls List from the standby display (see page 36).To place a callPress SEND in step 2. You can also push to go tothe Options menu, then select “Send” and push .B2200 39-55draft3 8/21/98, 12:13 PM55

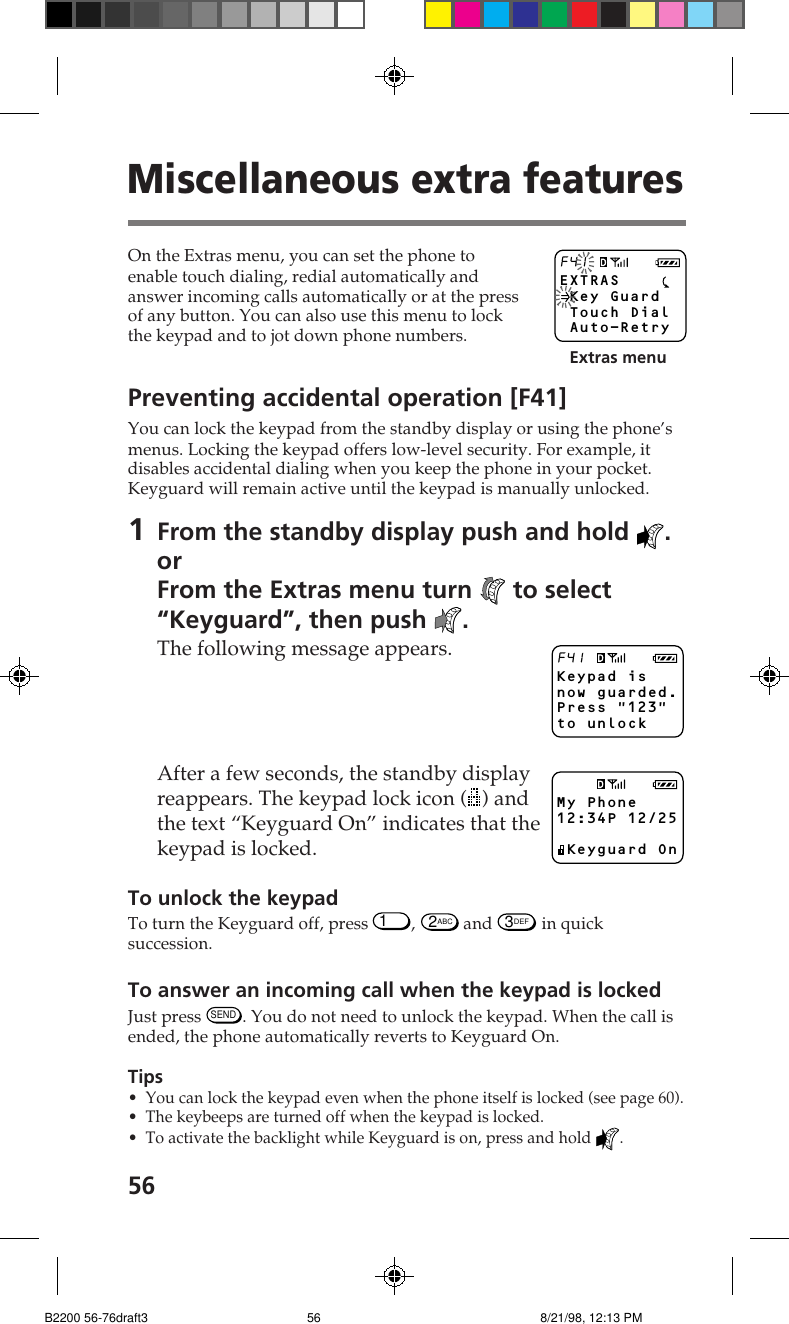

56Miscellaneous extra featuresOn the Extras menu, you can set the phone toenable touch dialing, redial automatically andanswer incoming calls automatically or at the pressof any button. You can also use this menu to lockthe keypad and to jot down phone numbers.Preventing accidental operation [F41]You can lock the keypad from the standby display or using the phone’smenus. Locking the keypad offers low-level security. For example, itdisables accidental dialing when you keep the phone in your pocket.Keyguard will remain active until the keypad is manually unlocked.1From the standby display push and hold .orFrom the Extras menu turn to select“Keyguard”, then push .The following message appears.After a few seconds, the standby displayreappears. The keypad lock icon ( ) andthe text “Keyguard On” indicates that thekeypad is locked.To unlock the keypadTo turn the Keyguard off, press 1, 2ABC and 3DEF in quicksuccession.To answer an incoming call when the keypad is lockedJust press SEND. You do not need to unlock the keypad. When the call isended, the phone automatically reverts to Keyguard On.Tips• You can lock the keypad even when the phone itself is locked (see page 60).• The keybeeps are turned off when the keypad is locked.• To activate the backlight while Keyguard is on, press and hold .Keypad is now guarded. Press "123" to unlockF41My Phone 12:34P 12/25 Keyguard OnEXTRAS Key Guard Touch Dial Auto-RetryF41Extras menuB2200 56-76draft3 8/21/98, 12:13 PM56

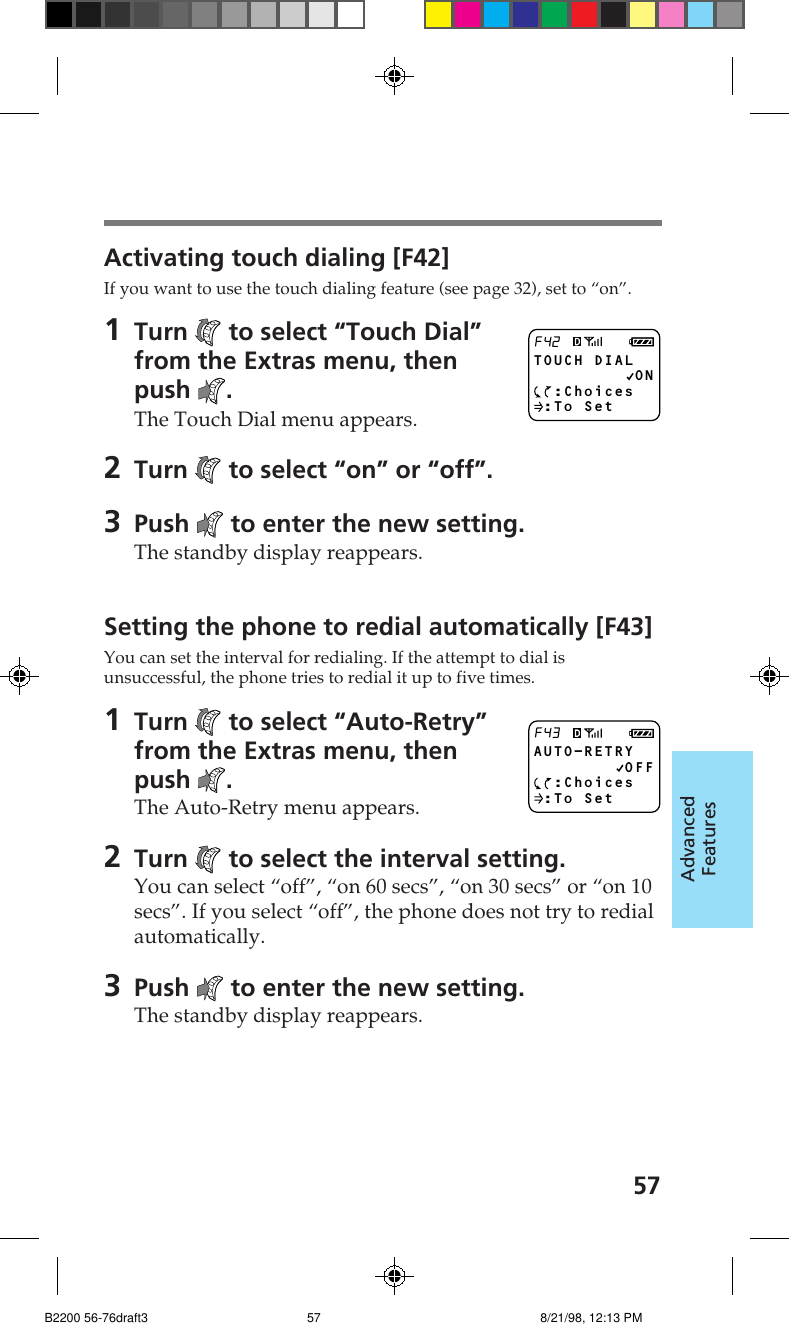

57AdvancedFeaturesActivating touch dialing [F42]If you want to use the touch dialing feature (see page 32), set to “on”.1Turn to select “Touch Dial”from the Extras menu, thenpush .The Touch Dial menu appears.2Turn to select “on” or “off”.3Push to enter the new setting.The standby display reappears.Setting the phone to redial automatically [F43]You can set the interval for redialing. If the attempt to dial isunsuccessful, the phone tries to redial it up to five times.1Turn to select “Auto-Retry”from the Extras menu, thenpush .The Auto-Retry menu appears.2Turn to select the interval setting.You can select “off”, “on 60 secs”, “on 30 secs” or “on 10secs”. If you select “off”, the phone does not try to redialautomatically.3Push to enter the new setting.The standby display reappears.AUTO-RETRY OFF :Choices :To SetF43TOUCH DIAL ON :Choices :To SetF42B2200 56-76draft3 8/21/98, 12:13 PM57

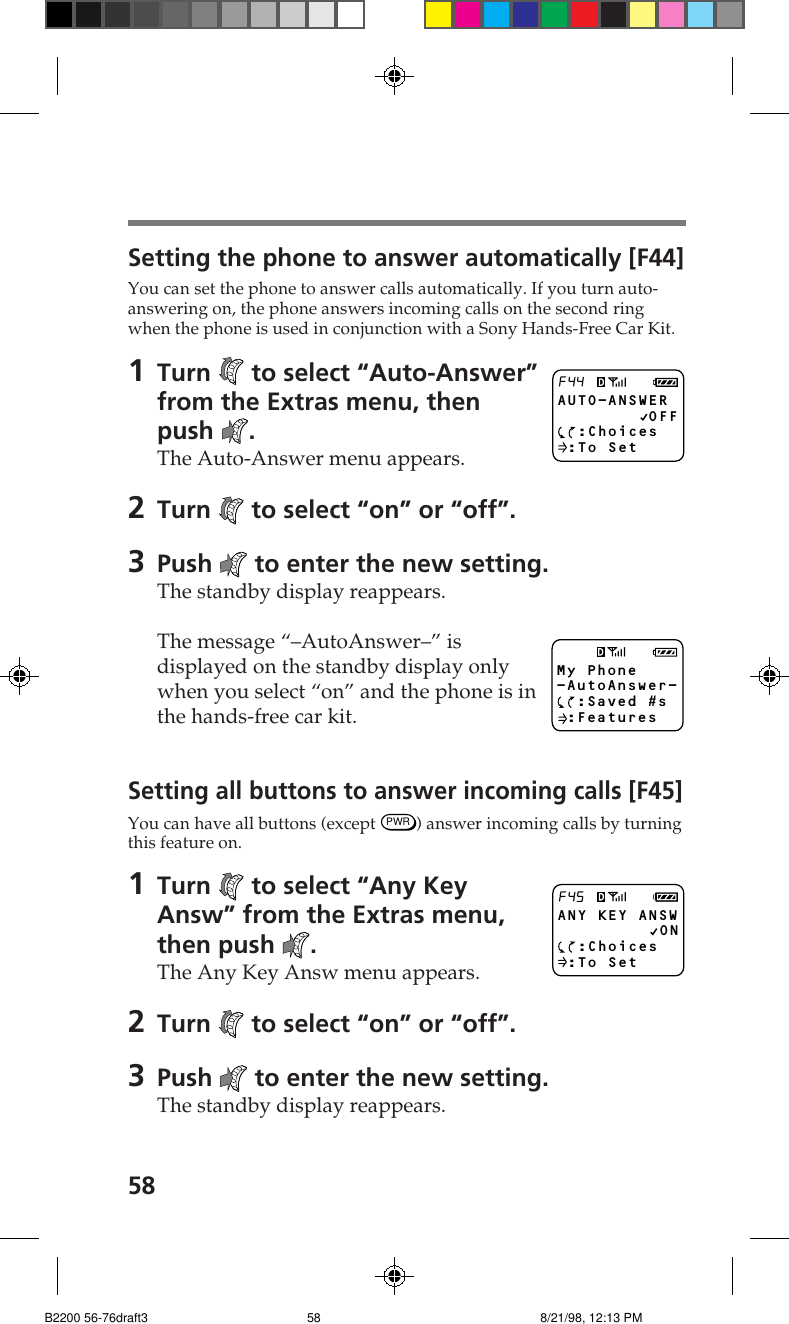

58Setting the phone to answer automatically [F44]You can set the phone to answer calls automatically. If you turn auto-answering on, the phone answers incoming calls on the second ringwhen the phone is used in conjunction with a Sony Hands-Free Car Kit.1Turn to select “Auto-Answer”from the Extras menu, thenpush .The Auto-Answer menu appears.2Turn to select “on” or “off”.3Push to enter the new setting.The standby display reappears.The message “–AutoAnswer–” isdisplayed on the standby display onlywhen you select “on” and the phone is inthe hands-free car kit.Setting all buttons to answer incoming calls [F45]You can have all buttons (except PWR) answer incoming calls by turningthis feature on.1Turn to select “Any KeyAnsw” from the Extras menu,then push .The Any Key Answ menu appears.2Turn to select “on” or “off”.3Push to enter the new setting.The standby display reappears.ANY KEY ANSW ON :Choices :To SetF45AUTO-ANSWER OFF :Choices :To SetF44My Phone-AutoAnswer- :Saved #s :FeaturesB2200 56-76draft3 8/21/98, 12:13 PM58

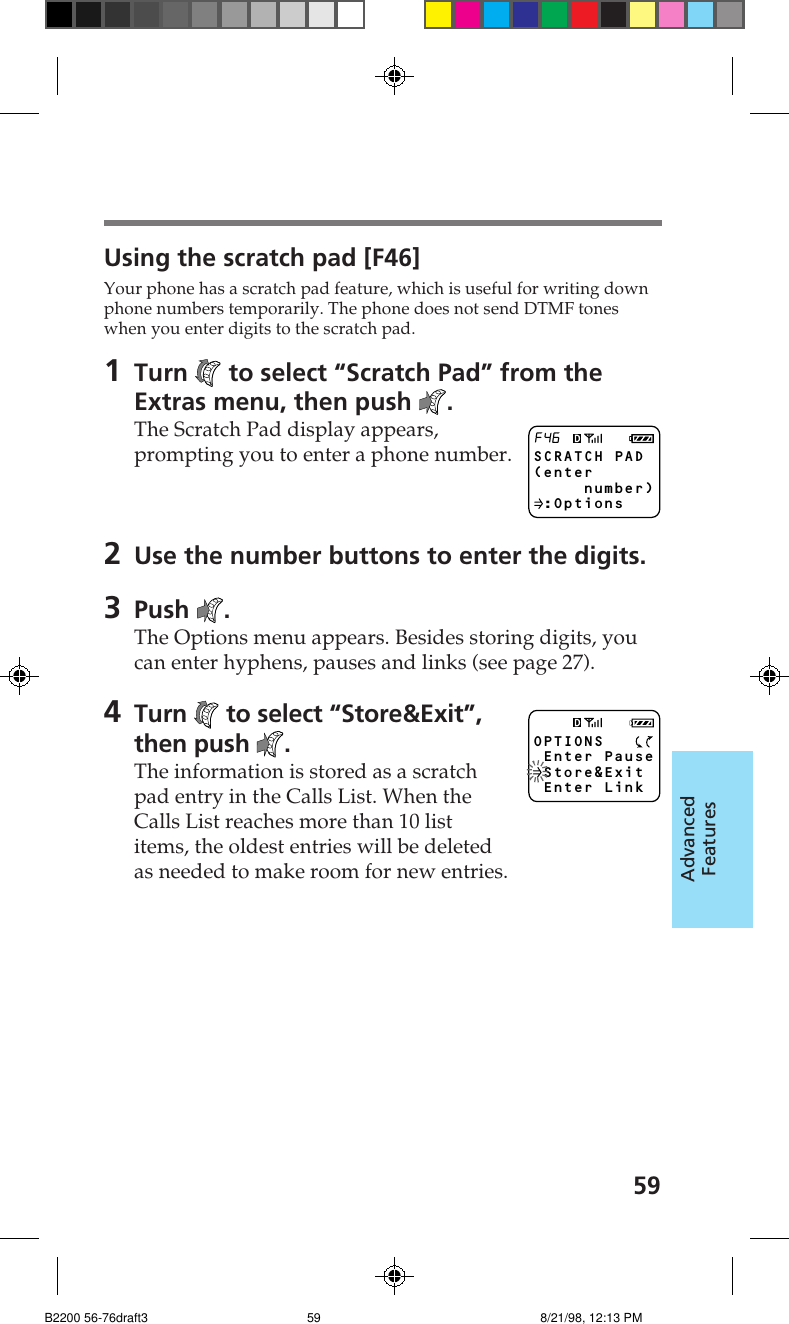

59AdvancedFeaturesSCRATCH PAD (enter number) :OptionsF46OPTIONS Enter Pause Store&Exit Enter LinkUsing the scratch pad [F46]Your phone has a scratch pad feature, which is useful for writing downphone numbers temporarily. The phone does not send DTMF toneswhen you enter digits to the scratch pad.1Turn to select “Scratch Pad” from theExtras menu, then push .The Scratch Pad display appears,prompting you to enter a phone number.2Use the number buttons to enter the digits.3Push .The Options menu appears. Besides storing digits, youcan enter hyphens, pauses and links (see page 27).4Turn to select “Store&Exit”,then push .The information is stored as a scratchpad entry in the Calls List. When theCalls List reaches more than 10 listitems, the oldest entries will be deletedas needed to make room for new entries.B2200 56-76draft3 8/21/98, 12:13 PM59

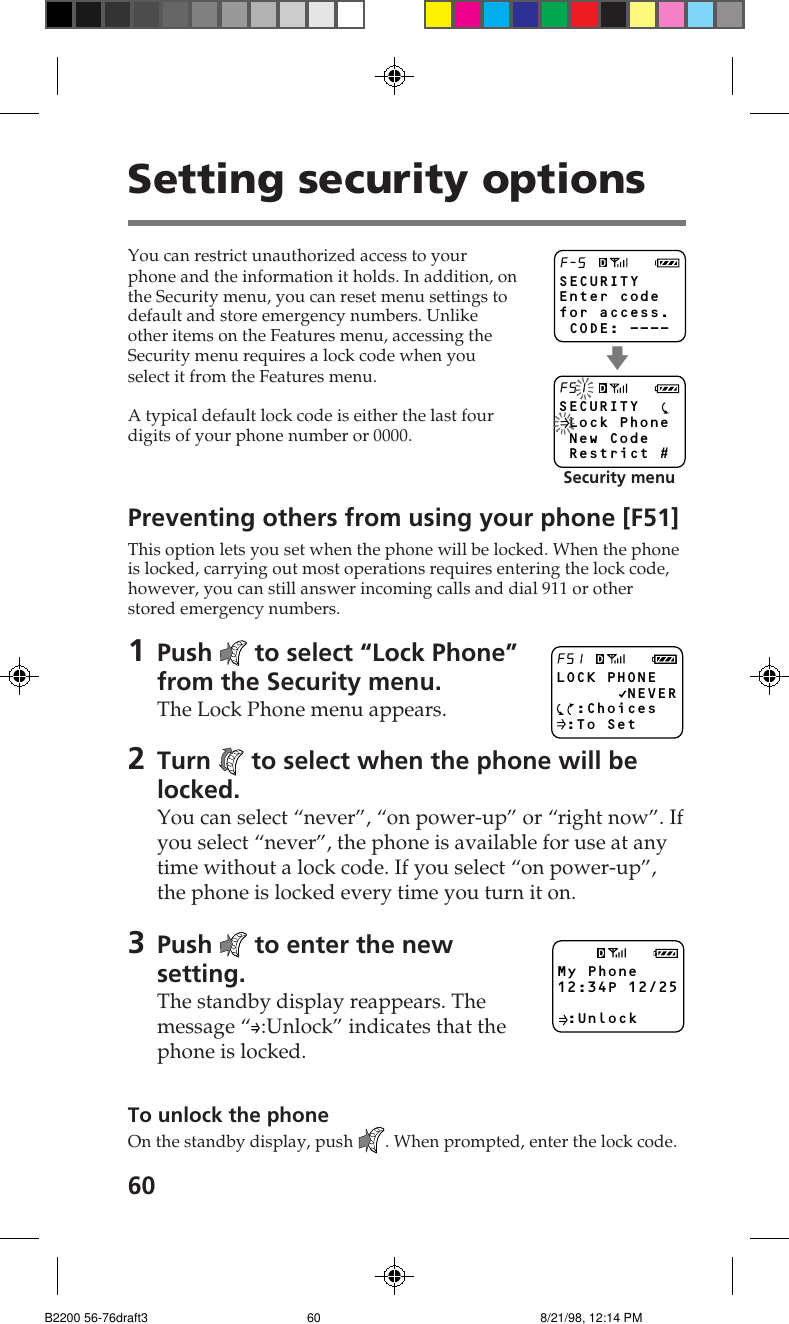

60You can restrict unauthorized access to yourphone and the information it holds. In addition, onthe Security menu, you can reset menu settings todefault and store emergency numbers. Unlikeother items on the Features menu, accessing theSecurity menu requires a lock code when youselect it from the Features menu.A typical default lock code is either the last fourdigits of your phone number or 0000.Preventing others from using your phone [F51]This option lets you set when the phone will be locked. When the phoneis locked, carrying out most operations requires entering the lock code,however, you can still answer incoming calls and dial 911 or otherstored emergency numbers.1Push to select “Lock Phone”from the Security menu.The Lock Phone menu appears.2Turn to select when the phone will belocked.You can select “never”, “on power-up” or “right now”. Ifyou select “never”, the phone is available for use at anytime without a lock code. If you select “on power-up”,the phone is locked every time you turn it on.3Push to enter the newsetting.The standby display reappears. Themessage “ :Unlock” indicates that thephone is locked.To unlock the phoneOn the standby display, push . When prompted, enter the lock code.SECURITY Lock Phone New Code Restrict #F51LOCK PHONE NEVER :Choices :To SetF51My Phone12:34P 12/25 :UnlockSecurity menuSECURITYEnter codefor access. CODE: ----F-5Setting security optionsvB2200 56-76draft3 8/21/98, 12:14 PM60

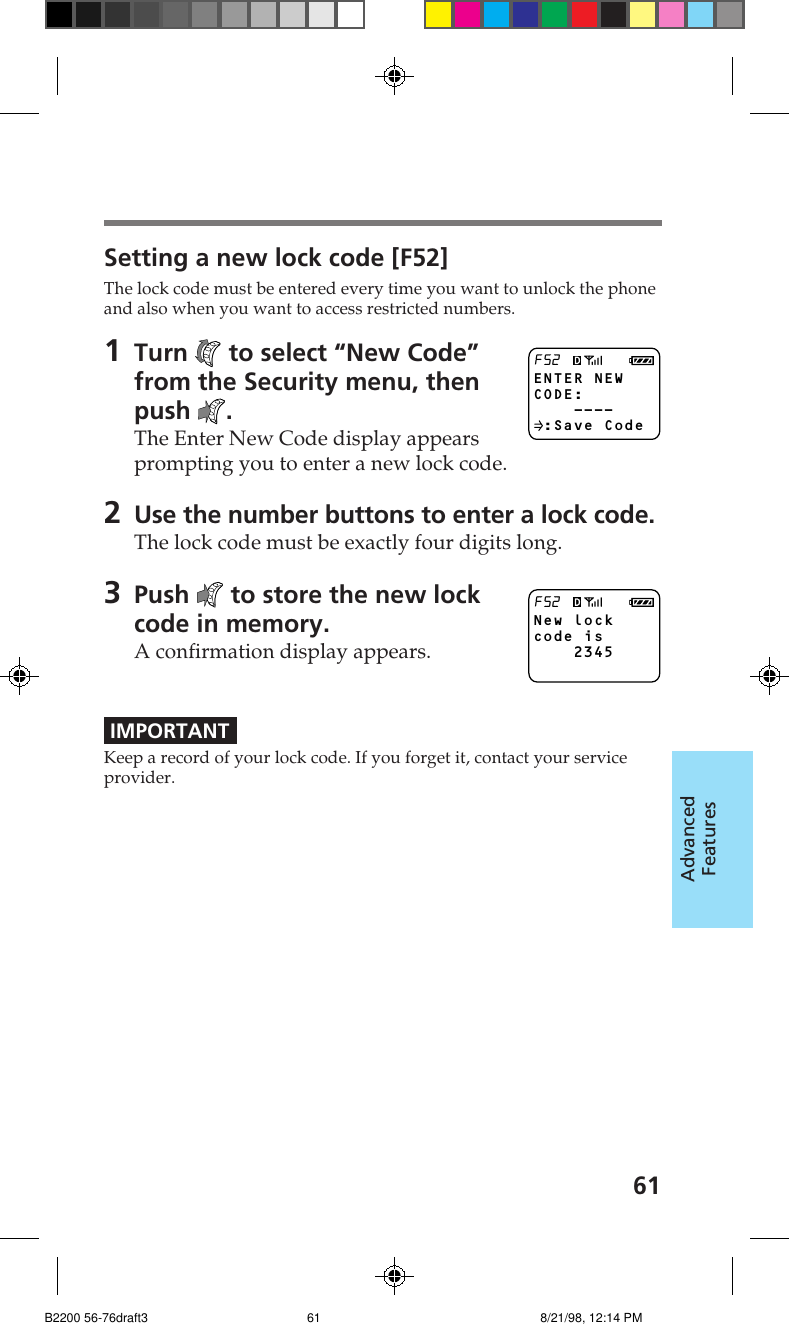

61AdvancedFeaturesSetting a new lock code [F52]The lock code must be entered every time you want to unlock the phoneand also when you want to access restricted numbers.1Turn to select “New Code”from the Security menu, thenpush .The Enter New Code display appearsprompting you to enter a new lock code.2Use the number buttons to enter a lock code.The lock code must be exactly four digits long.3Push to store the new lockcode in memory.A confirmation display appears.IMPORTANTKeep a record of your lock code. If you forget it, contact your serviceprovider.New lock code is 2345F52ENTER NEW CODE: ---- :Save CodeF52B2200 56-76draft3 8/21/98, 12:14 PM61

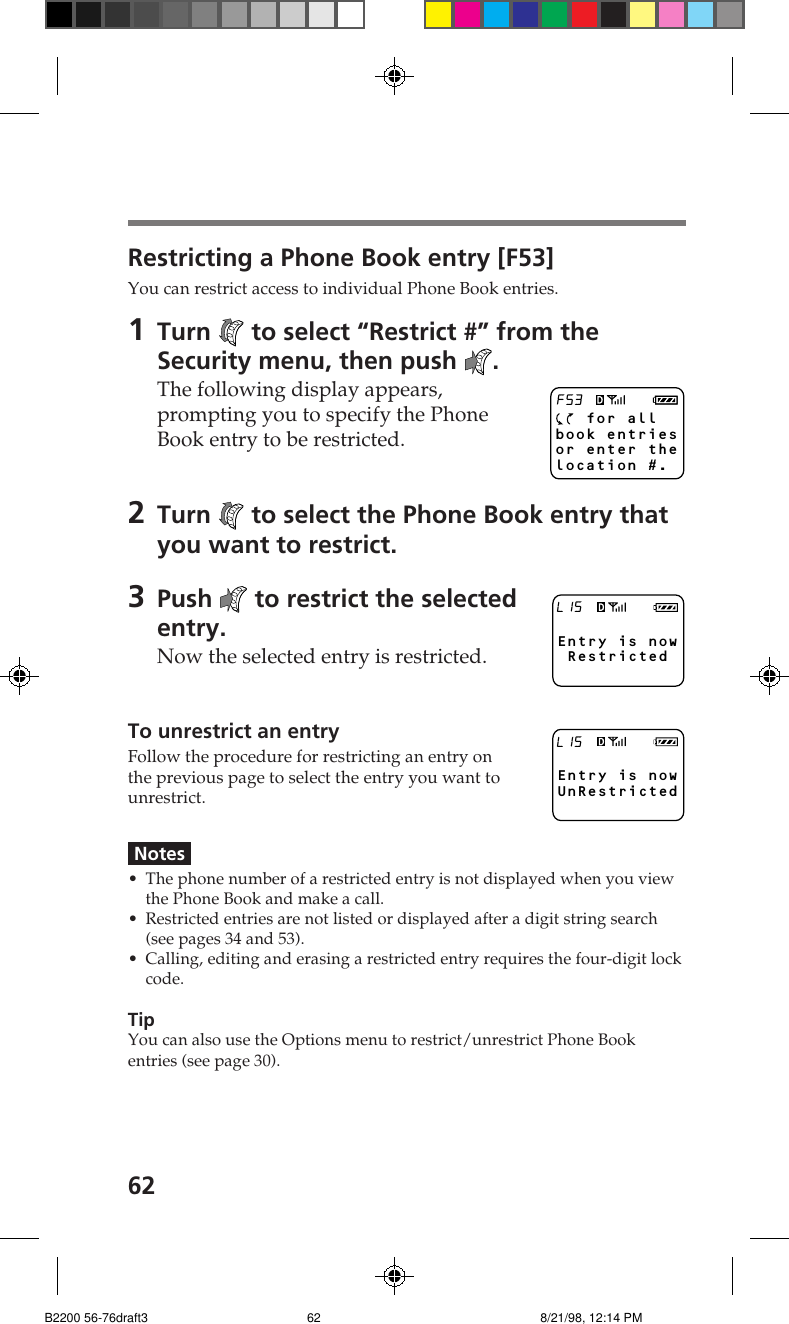

62Entry is nowUnRestrictedL15Restricting a Phone Book entry [F53]You can restrict access to individual Phone Book entries.1Turn to select “Restrict #” from theSecurity menu, then push .The following display appears,prompting you to specify the PhoneBook entry to be restricted.2Turn to select the Phone Book entry thatyou want to restrict.3Push to restrict the selectedentry.Now the selected entry is restricted.To unrestrict an entryFollow the procedure for restricting an entry onthe previous page to select the entry you want tounrestrict.Notes• The phone number of a restricted entry is not displayed when you viewthe Phone Book and make a call.• Restricted entries are not listed or displayed after a digit string search(see pages 34 and 53).• Calling, editing and erasing a restricted entry requires the four-digit lockcode.TipYou can also use the Options menu to restrict/unrestrict Phone Bookentries (see page 30). for all book entries or enter the location #.F53Entry is now RestrictedL15B2200 56-76draft3 8/21/98, 12:14 PM62
63AdvancedFeaturesRESTRICT ALL OFF :Choices :To SetF54Restricting all Phone Book entries [F54]You can restrict access to all Phone Book entries. All operations thatinvolve Phone Book entries require the four-digit lock code (see page 60).1Turn to select “Restrict All”from the Security menu, thenpush .The Restrict All menu appears.2Turn to set restriction of all Phone Bookentries on or off.3Push to enter the new setting.The standby display reappears.NoteIf you restricted some entries by using “Restrict #”, they are still restrictedwhen you turn off “Restrict All”.B2200 56-76draft3 8/21/98, 12:14 PM63

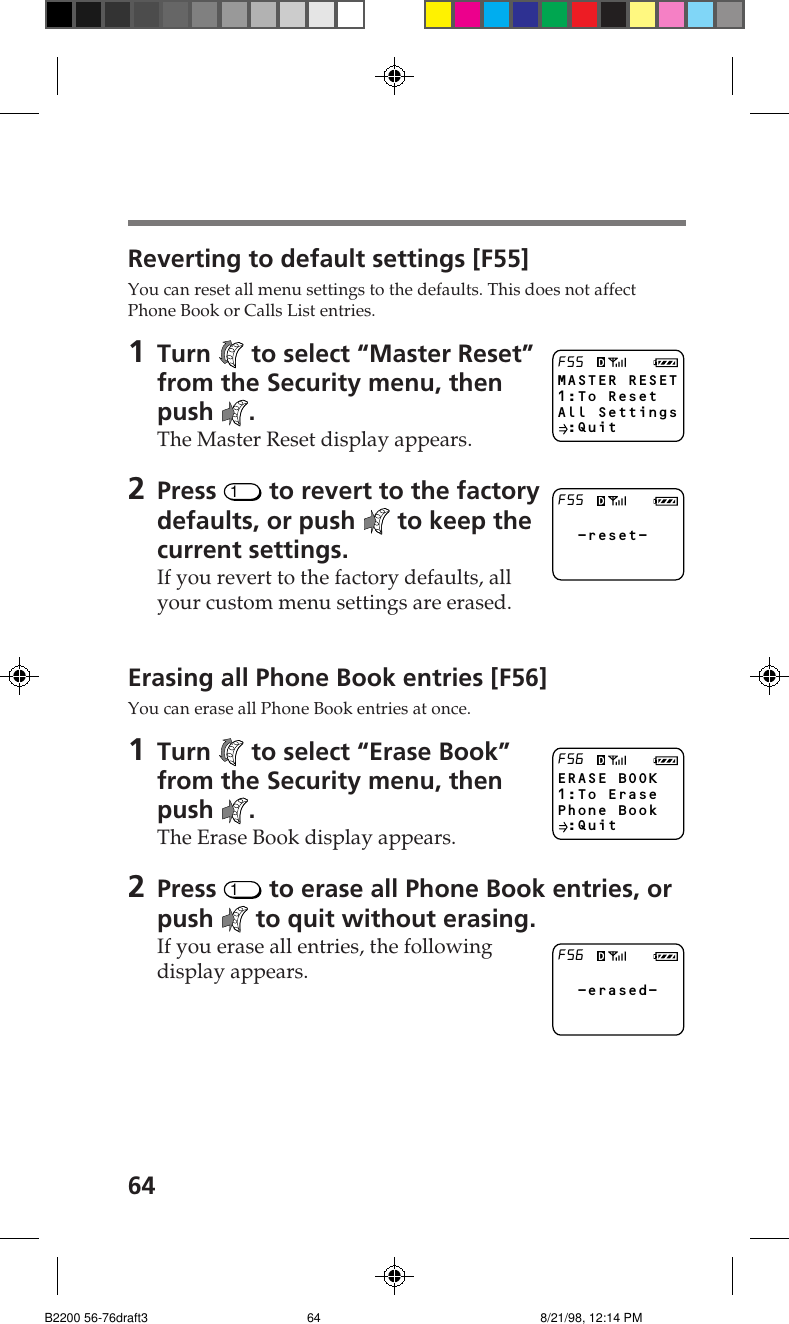

64Reverting to default settings [F55]You can reset all menu settings to the defaults. This does not affectPhone Book or Calls List entries.1Turn to select “Master Reset”from the Security menu, thenpush .The Master Reset display appears.2Press 1 to revert to the factorydefaults, or push to keep thecurrent settings.If you revert to the factory defaults, allyour custom menu settings are erased.Erasing all Phone Book entries [F56]You can erase all Phone Book entries at once.1Turn to select “Erase Book”from the Security menu, thenpush .The Erase Book display appears.2Press 1 to erase all Phone Book entries, orpush to quit without erasing.If you erase all entries, the followingdisplay appears.ERASE BOOK1:To ErasePhone Book :QuitF56 -erased-F56MASTER RESET1:To ResetAll Settings :QuitF55 -reset- F55B2200 56-76draft3 8/21/98, 12:14 PM64

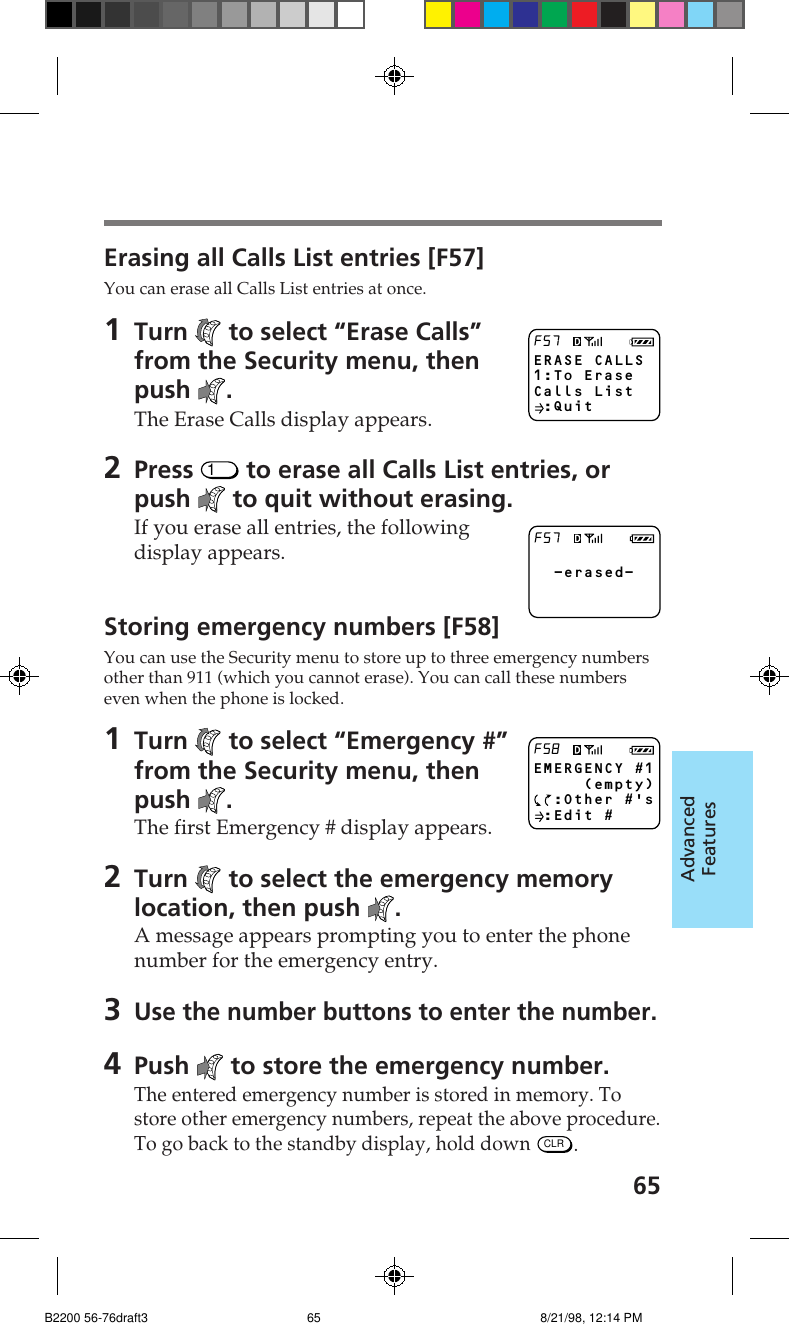

65AdvancedFeaturesEMERGENCY #1 (empty) :Other #'s :Edit #F58Erasing all Calls List entries [F57]You can erase all Calls List entries at once.1Turn to select “Erase Calls”from the Security menu, thenpush .The Erase Calls display appears.2Press 1 to erase all Calls List entries, orpush to quit without erasing.If you erase all entries, the followingdisplay appears.Storing emergency numbers [F58]You can use the Security menu to store up to three emergency numbersother than 911 (which you cannot erase). You can call these numberseven when the phone is locked.1Turn to select “Emergency #”from the Security menu, thenpush .The first Emergency # display appears.2Turn to select the emergency memorylocation, then push .A message appears prompting you to enter the phonenumber for the emergency entry.3Use the number buttons to enter the number.4Push to store the emergency number.The entered emergency number is stored in memory. Tostore other emergency numbers, repeat the above procedure.To go back to the standby display, hold down CLR. -erased-F57ERASE CALLS1:To EraseCalls List :QuitF57B2200 56-76draft3 8/21/98, 12:14 PM65

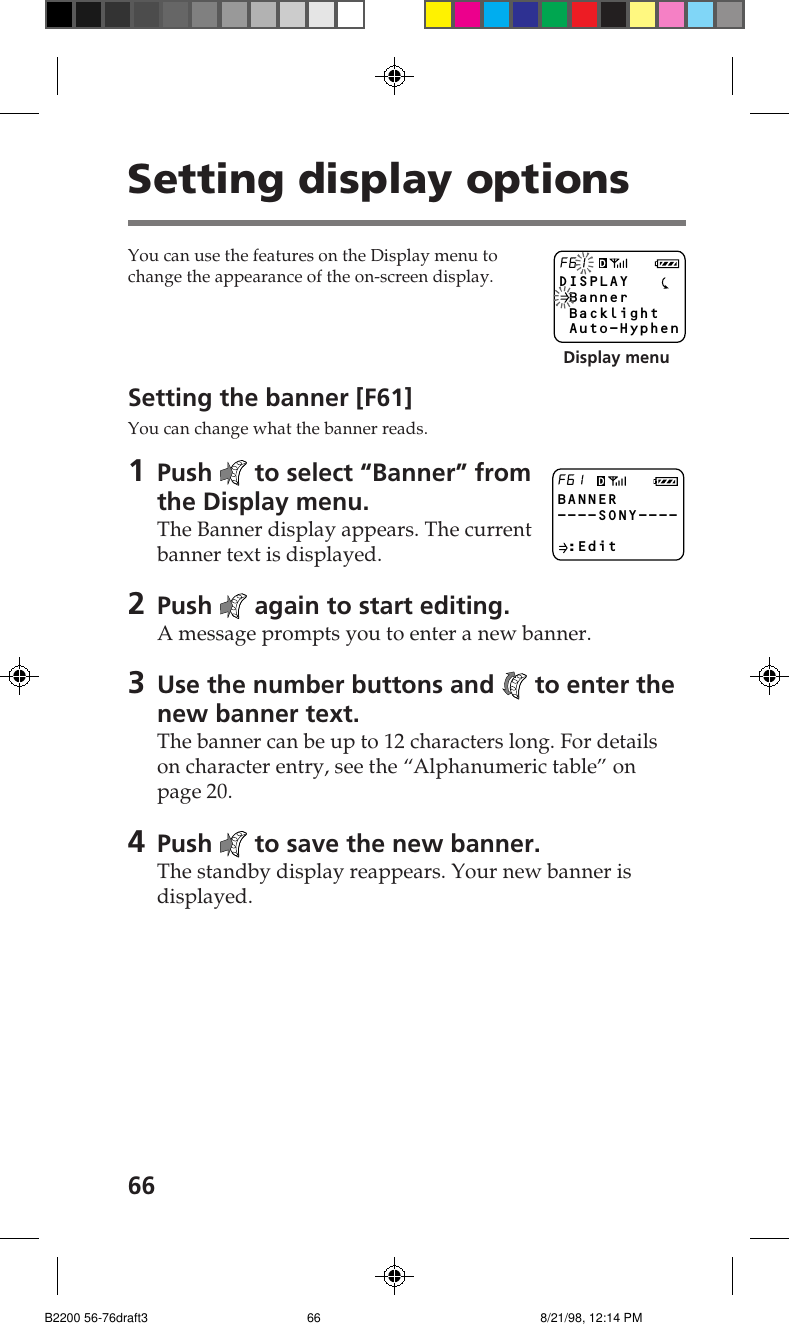

66Setting display optionsYou can use the features on the Display menu tochange the appearance of the on-screen display.Setting the banner [F61]You can change what the banner reads.1Push to select “Banner” fromthe Display menu.The Banner display appears. The currentbanner text is displayed.2Push again to start editing.A message prompts you to enter a new banner.3Use the number buttons and to enter thenew banner text.The banner can be up to 12 characters long. For detailson character entry, see the “Alphanumeric table” onpage 20.4Push to save the new banner.The standby display reappears. Your new banner isdisplayed.DISPLAY Banner Backlight Auto-HyphenF61BANNER----SONY---- :EditF61Display menuB2200 56-76draft3 8/21/98, 12:14 PM66

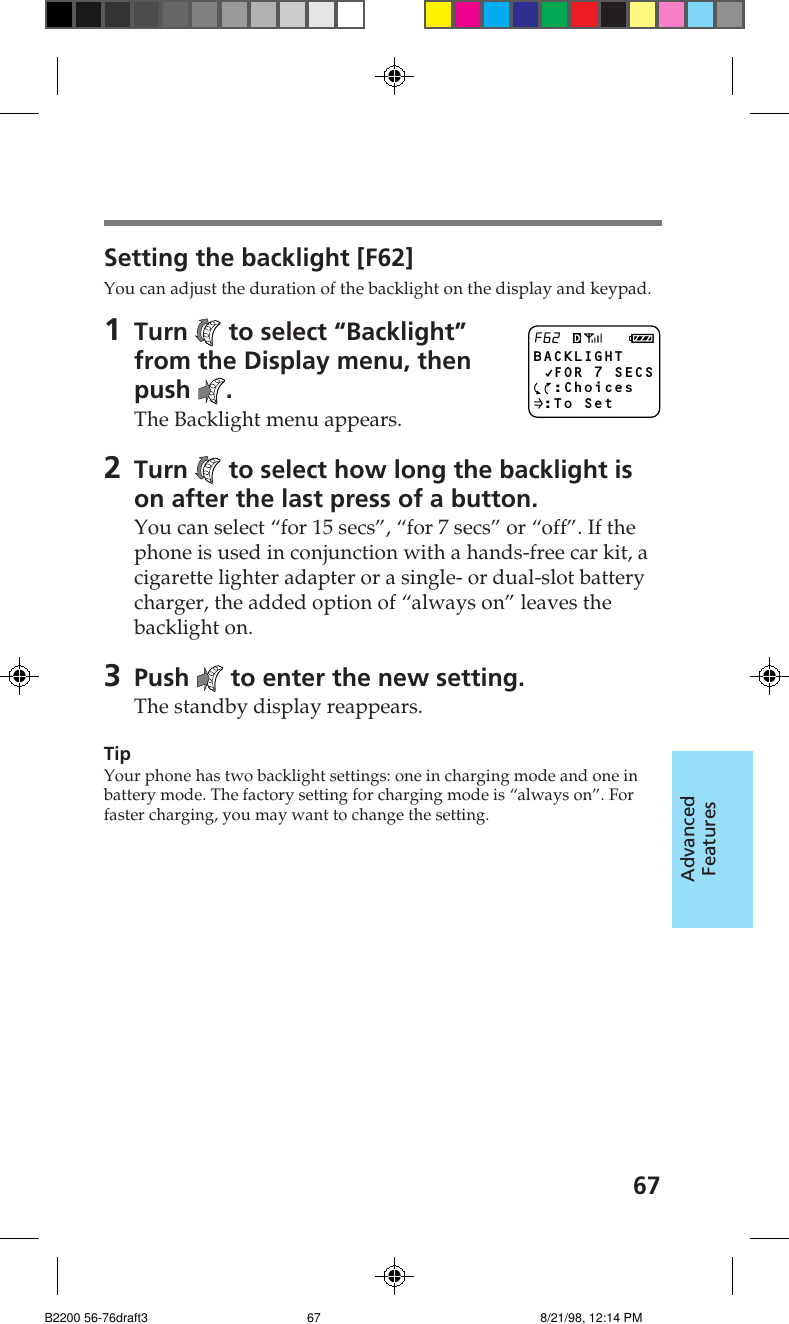

67AdvancedFeaturesSetting the backlight [F62]You can adjust the duration of the backlight on the display and keypad.1Turn to select “Backlight”from the Display menu, thenpush .The Backlight menu appears.2Turn to select how long the backlight ison after the last press of a button.You can select “for 15 secs”, “for 7 secs” or “off”. If thephone is used in conjunction with a hands-free car kit, acigarette lighter adapter or a single- or dual-slot batterycharger, the added option of “always on” leaves thebacklight on.3Push to enter the new setting.The standby display reappears.TipYour phone has two backlight settings: one in charging mode and one inbattery mode. The factory setting for charging mode is “always on”. Forfaster charging, you may want to change the setting.BACKLIGHT FOR 7 SECS :Choices :To SetF62B2200 56-76draft3 8/21/98, 12:14 PM67
68Setting autohyphenation [F63]You can turn the autohyphenation feature on and off. If you turn it on,entered numbers are hyphenated according to the North AmericanNumbering Plan (eleven digits which include a long distance identifier,a three-digit area code, a three-digit community code and a four-digitlocation code, e.g., 9-999-999-9999).1Turn to select “Auto-Hyphen”from the Display menu, thenpush .The Auto-Hyphen menu appears.2Turn to select “on” or “off”.3Push to enter the new setting.The standby display reappears.Sorting the Phone Book [F64]You can determine how the Phone Book will be displayed and also setthe phone to sort the entries either alphabetically or by memory location.1Turn to select “Sort Book”from the Display menu, thenpush .The Sort Book menu appears.2Turn to set the sorting preferences.You can choose to sort the Phone Book “by Loc. #” (bylocation) or “alphabetic” (alphabetically).3Push to enter the new setting.The standby display reappears.SORT BOOK BY LOC. # :Choices :To SetF64AUTO-HYPHEN ON :Choices :To SetF63B2200 56-76draft3 8/21/98, 12:14 PM68

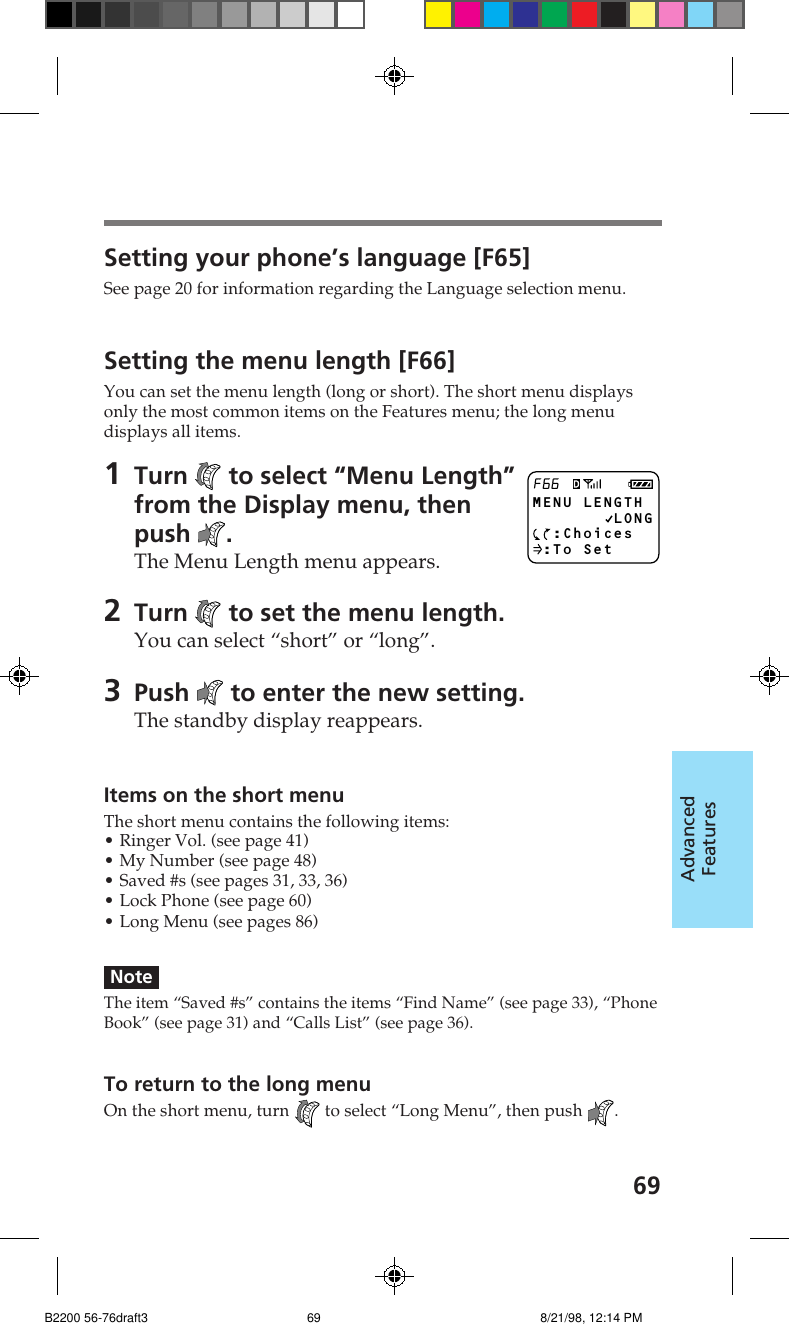

69AdvancedFeaturesMENU LENGTH LONG :Choices :To SetF66Setting your phone’s language [F65]See page 20 for information regarding the Language selection menu.Setting the menu length [F66]You can set the menu length (long or short). The short menu displaysonly the most common items on the Features menu; the long menudisplays all items.1Turn to select “Menu Length”from the Display menu, thenpush .The Menu Length menu appears.2Turn to set the menu length.You can select “short” or “long”.3Push to enter the new setting.The standby display reappears.Items on the short menuThe short menu contains the following items:• Ringer Vol. (see page 41)• My Number (see page 48)• Saved #s (see pages 31, 33, 36)• Lock Phone (see page 60)• Long Menu (see pages 86)NoteThe item “Saved #s” contains the items “Find Name” (see page 33), “PhoneBook” (see page 31) and “Calls List” (see page 36).To return to the long menuOn the short menu, turn to select “Long Menu”, then push .B2200 56-76draft3 8/21/98, 12:14 PM69

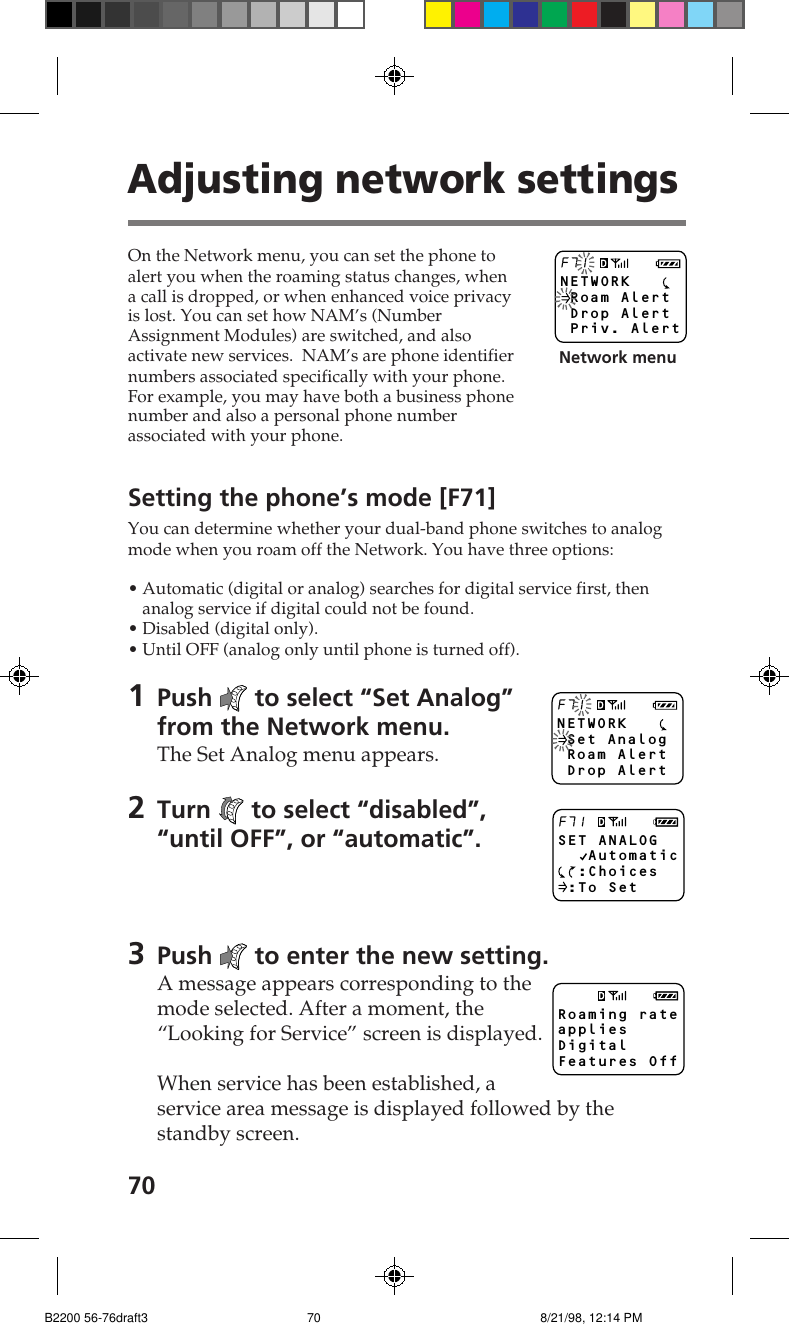

70NETWORK Roam Alert Drop Alert Priv. AlertF71Network menuNETWORK Set Analog Roam Alert Drop AlertF71SET ANALOG Automatic :Choices :To SetF71Roaming rate appliesDigitalFeatures OffAdjusting network settingsOn the Network menu, you can set the phone toalert you when the roaming status changes, whena call is dropped, or when enhanced voice privacyis lost. You can set how NAM’s (NumberAssignment Modules) are switched, and alsoactivate new services. NAM’s are phone identifiernumbers associated specifically with your phone.For example, you may have both a business phonenumber and also a personal phone numberassociated with your phone.Setting the phone’s mode [F71]You can determine whether your dual-band phone switches to analogmode when you roam off the Network. You have three options:• Automatic (digital or analog) searches for digital service first, thenanalog service if digital could not be found.• Disabled (digital only).• Until OFF (analog only until phone is turned off).1Push to select “Set Analog”from the Network menu.The Set Analog menu appears.2Turn to select “disabled”,“until OFF”, or “automatic”.3Push to enter the new setting.A message appears corresponding to themode selected. After a moment, the“Looking for Service” screen is displayed.When service has been established, aservice area message is displayed followed by thestandby screen.B2200 56-76draft3 8/21/98, 12:14 PM70

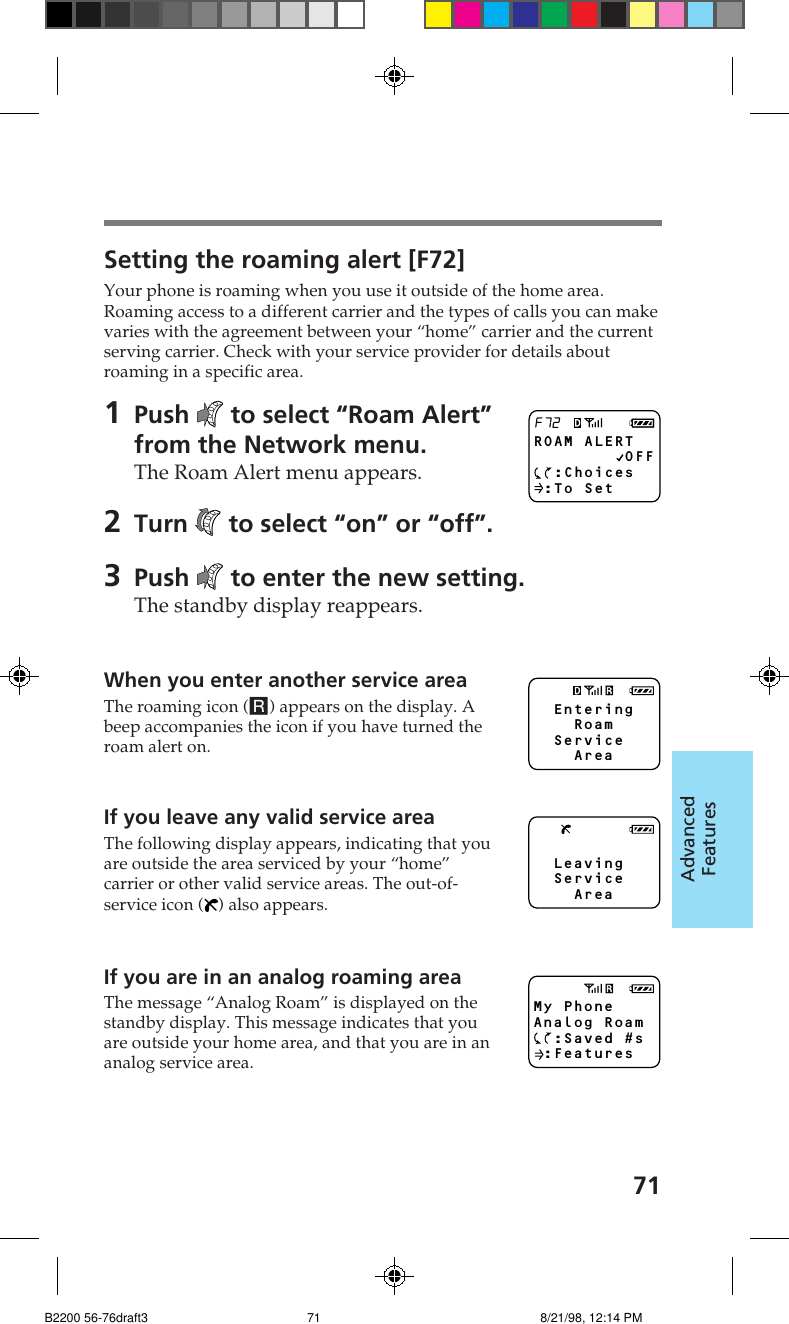

71AdvancedFeaturesROAM ALERT OFF :Choices :To SetF72 Entering Roam Service Area Leaving Service AreaMy PhoneAnalog Roam :Saved #s :FeaturesSetting the roaming alert [F72]Your phone is roaming when you use it outside of the home area.Roaming access to a different carrier and the types of calls you can makevaries with the agreement between your “home” carrier and the currentserving carrier. Check with your service provider for details aboutroaming in a specific area.1Push to select “Roam Alert”from the Network menu.The Roam Alert menu appears.2Turn to select “on” or “off”.3Push to enter the new setting.The standby display reappears.When you enter another service areaThe roaming icon (R) appears on the display. Abeep accompanies the icon if you have turned theroam alert on.If you leave any valid service areaThe following display appears, indicating that youare outside the area serviced by your “home”carrier or other valid service areas. The out-of-service icon ( ) also appears.If you are in an analog roaming areaThe message “Analog Roam” is displayed on thestandby display. This message indicates that youare outside your home area, and that you are in ananalog service area.B2200 56-76draft3 8/21/98, 12:14 PM71

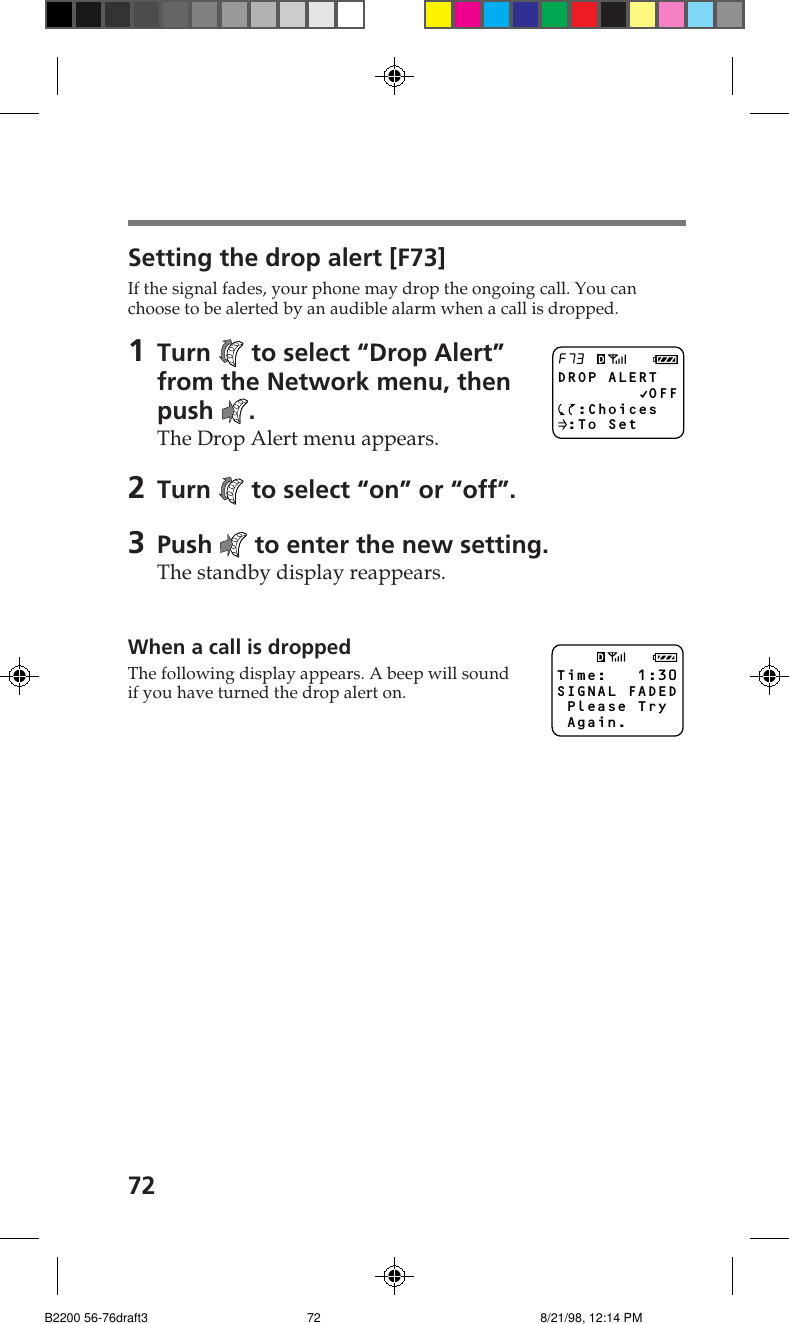

72DROP ALERT OFF :Choices :To SetF73Time: 1:30SIGNAL FADED Please Try Again.Setting the drop alert [F73]If the signal fades, your phone may drop the ongoing call. You canchoose to be alerted by an audible alarm when a call is dropped.1Turn to select “Drop Alert”from the Network menu, thenpush .The Drop Alert menu appears.2Turn to select “on” or “off”.3Push to enter the new setting.The standby display reappears.When a call is droppedThe following display appears. A beep will soundif you have turned the drop alert on.B2200 56-76draft3 8/21/98, 12:14 PM72

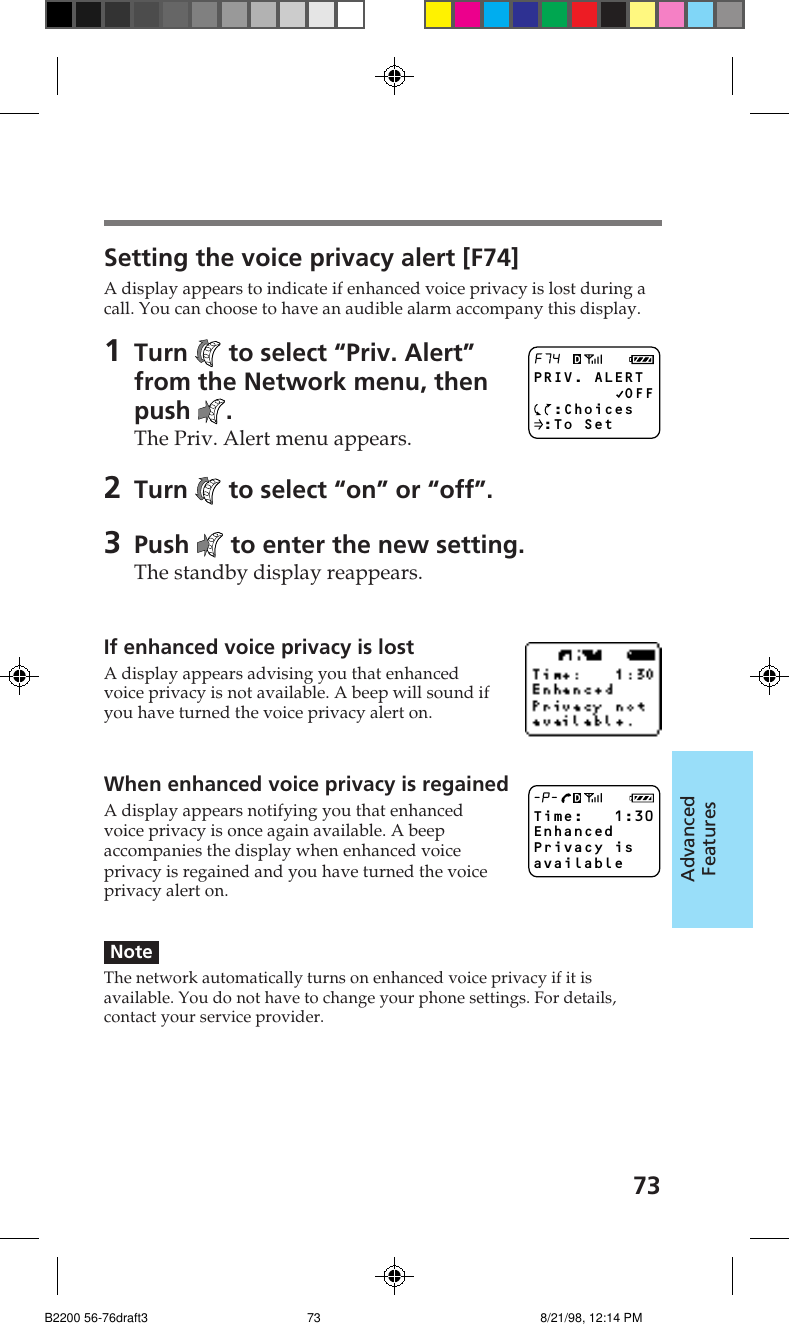

73AdvancedFeaturesSetting the voice privacy alert [F74]A display appears to indicate if enhanced voice privacy is lost during acall. You can choose to have an audible alarm accompany this display.1Turn to select “Priv. Alert”from the Network menu, thenpush .The Priv. Alert menu appears.2Turn to select “on” or “off”.3Push to enter the new setting.The standby display reappears.If enhanced voice privacy is lostA display appears advising you that enhancedvoice privacy is not available. A beep will sound ifyou have turned the voice privacy alert on.When enhanced voice privacy is regainedA display appears notifying you that enhancedvoice privacy is once again available. A beepaccompanies the display when enhanced voiceprivacy is regained and you have turned the voiceprivacy alert on.NoteThe network automatically turns on enhanced voice privacy if it isavailable. You do not have to change your phone settings. For details,contact your service provider.PRIV. ALERT OFF :Choices :To SetF74Time: 1:30Enhanced Privacy is available-P-B2200 56-76draft3 8/21/98, 12:14 PM73

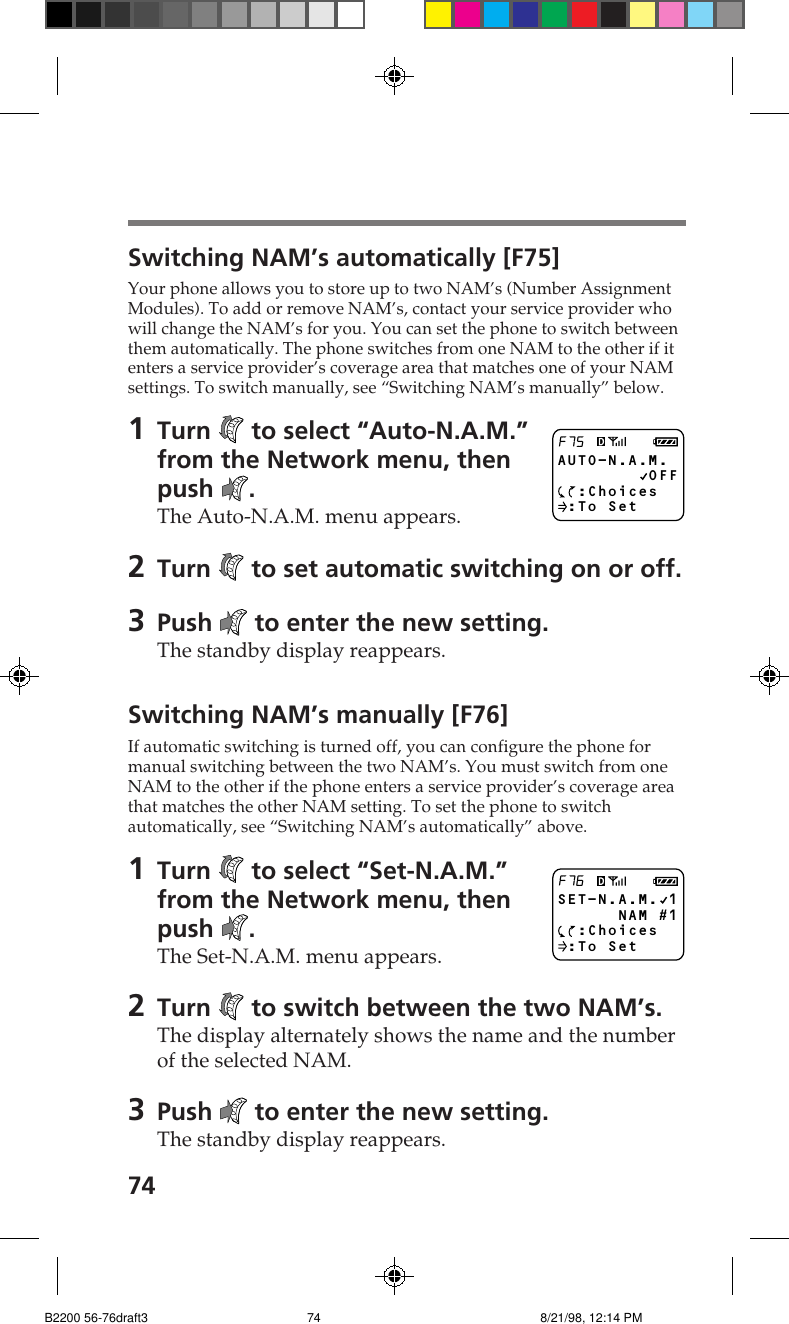

74AUTO-N.A.M. OFF :Choices :To SetF75SET-N.A.M. 1 NAM #1 :Choices :To SetF76Switching NAM’s automatically [F75]Your phone allows you to store up to two NAM’s (Number AssignmentModules). To add or remove NAM’s, contact your service provider whowill change the NAM’s for you. You can set the phone to switch betweenthem automatically. The phone switches from one NAM to the other if itenters a service provider’s coverage area that matches one of your NAMsettings. To switch manually, see “Switching NAM’s manually” below.1Turn to select “Auto-N.A.M.”from the Network menu, thenpush .The Auto-N.A.M. menu appears.2Turn to set automatic switching on or off.3Push to enter the new setting.The standby display reappears.Switching NAM’s manually [F76]If automatic switching is turned off, you can configure the phone formanual switching between the two NAM’s. You must switch from oneNAM to the other if the phone enters a service provider’s coverage areathat matches the other NAM setting. To set the phone to switchautomatically, see “Switching NAM’s automatically” above.1Turn to select “Set-N.A.M.”from the Network menu, thenpush .The Set-N.A.M. menu appears.2Turn to switch between the two NAM’s.The display alternately shows the name and the numberof the selected NAM.3Push to enter the new setting.The standby display reappears.B2200 56-76draft3 8/21/98, 12:14 PM74
75AdvancedFeaturesTime: 0:01 Activation <star code>Time: 4:20 Activationhas failed :RetryAttempt to activate Block A?1:YesF77ACTIVATION on Block A :Choices :To SetF77Searching...Activation <star code>F77Activating phone services (OTASP) [F77]You can use the OTASP (Over-The-Air Service Provisioning) activationfeature to self-activate your phone with a new service. Contact yourservice provider to see if this service is available in your area.1Turn to select “Activation”from the Network menu, thenpush .The Activation menu appears.2Turn to select which system block toactivate the service on, then push .The following display appears,prompting you for confirmation. To goback one step, press CLR. To cancelactivation and return to the standbydisplay, press END.3Press 1 to confirm.The phone calls up a service provider.When a service provider is contacted, thefollowing display appears, and you areconnected to an operator. Whenactivation is complete, the confirmationdisplay appears followed by the standbydisplay.If activation failsThe following display appears. Push to retry,or press END to return to the standby display.B2200 56-76draft3 8/21/98, 12:14 PM75

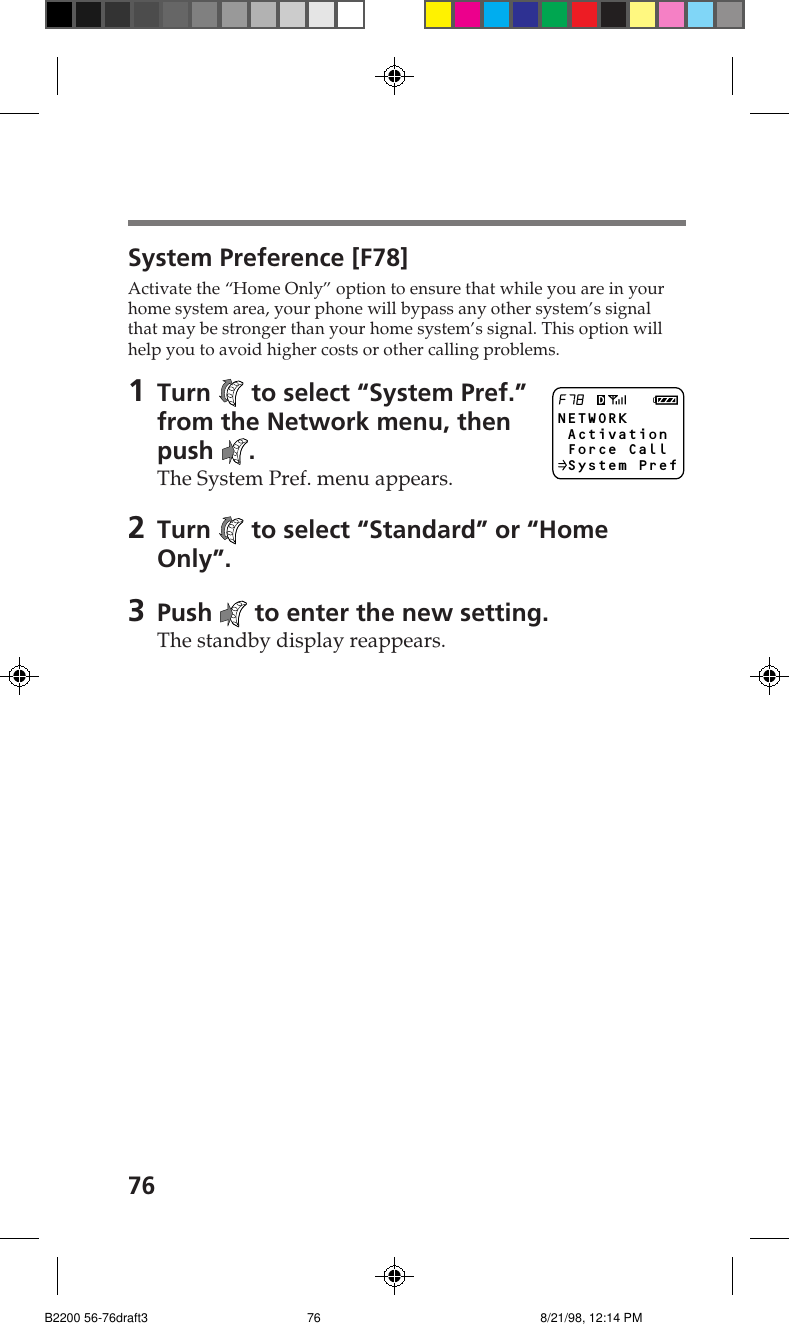

76System Preference [F78]Activate the “Home Only” option to ensure that while you are in yourhome system area, your phone will bypass any other system’s signalthat may be stronger than your home system’s signal. This option willhelp you to avoid higher costs or other calling problems.1Turn to select “System Pref.”from the Network menu, thenpush .The System Pref. menu appears.2Turn to select “Standard” or “HomeOnly”.3Push to enter the new setting.The standby display reappears.NETWORK Activation Force Call System PrefF78B2200 56-76draft3 8/21/98, 12:14 PM76

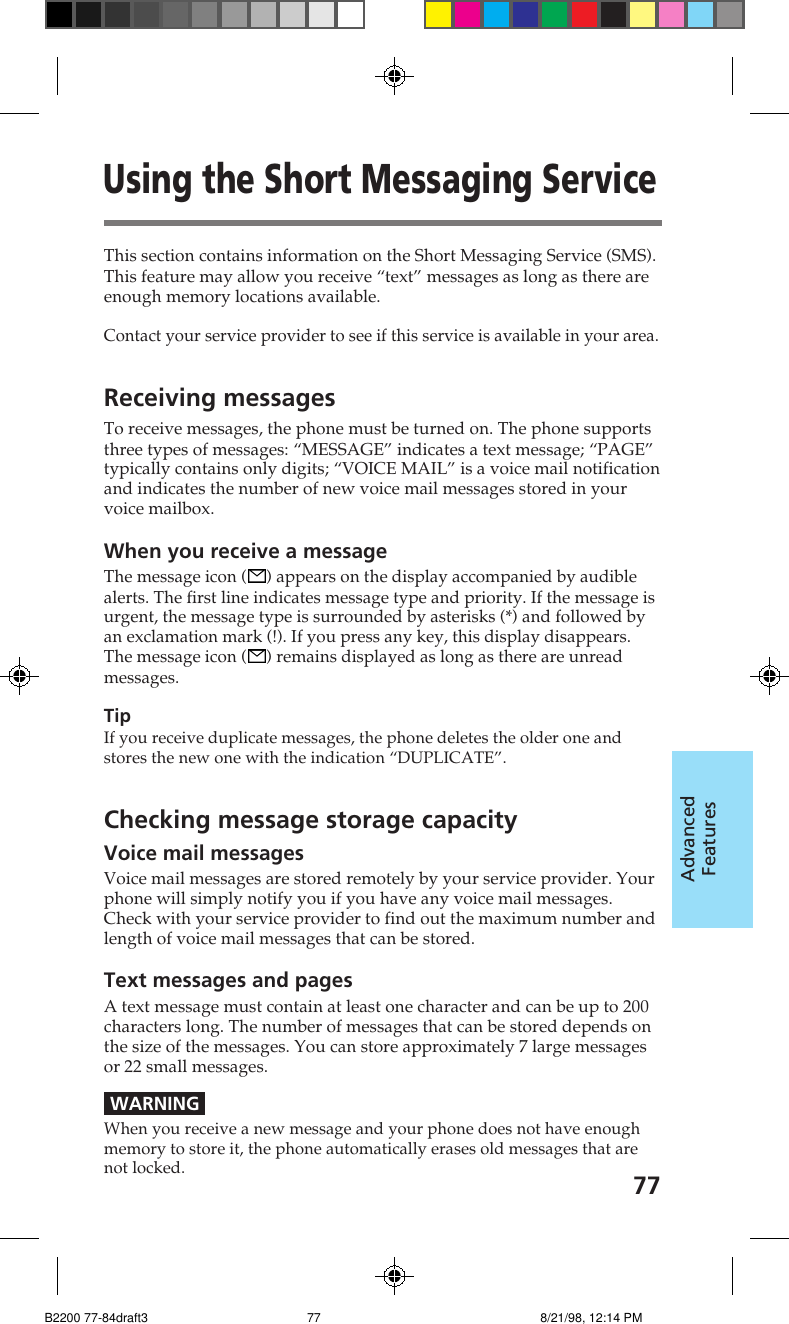

77AdvancedFeaturesThis section contains information on the Short Messaging Service (SMS).This feature may allow you receive “text” messages as long as there areenough memory locations available.Contact your service provider to see if this service is available in your area.Receiving messagesTo receive messages, the phone must be turned on. The phone supportsthree types of messages: “MESSAGE” indicates a text message; “PAGE”typically contains only digits; “VOICE MAIL” is a voice mail notificationand indicates the number of new voice mail messages stored in yourvoice mailbox.When you receive a messageThe message icon ( ) appears on the display accompanied by audiblealerts. The first line indicates message type and priority. If the message isurgent, the message type is surrounded by asterisks (*) and followed byan exclamation mark (!). If you press any key, this display disappears.The message icon ( ) remains displayed as long as there are unreadmessages.TipIf you receive duplicate messages, the phone deletes the older one andstores the new one with the indication “DUPLICATE”.Checking message storage capacityVoice mail messagesVoice mail messages are stored remotely by your service provider. Yourphone will simply notify you if you have any voice mail messages.Check with your service provider to find out the maximum number andlength of voice mail messages that can be stored.Text messages and pagesA text message must contain at least one character and can be up to 200characters long. The number of messages that can be stored depends onthe size of the messages. You can store approximately 7 large messagesor 22 small messages.WARNINGWhen you receive a new message and your phone does not have enoughmemory to store it, the phone automatically erases old messages that arenot locked.Using the Short Messaging ServiceB2200 77-84draft3 8/21/98, 12:14 PM77
78If the memory becomes fullThe phone issues a warning when the memory isapproximately 75% full. At this point, you shoulderase expendable messages (see page 82).If the memory becomes completely full or yourphone does not have enough memory to receive anincoming message, new messages are rejected andthe following display appears.Accessing messages1Press from the standby display.The Messages display appears indicating the number ofthe following types of messages, respectively:• Voice mail messages (see page 83).• Unread text messages and pagings (see the next section).• Text messages and pagings that you have already readbut are still stored in memory (see page 79).Reading text messagesYou can read both new and old messages stored in memory. Afterreading messages, you can protect or erase them.To read new messages1From the Messages display, turn to select“New Text”, then push .The first message is displayed. If thereare no new messages, the followingdisplay appears. Push to return to theMessages display.2Turn to scroll through the message.If you do not scroll, the display automatically scrollsdown. A hollow box ( ) indicates the end of the message.MESSAGES 15 Voice 5 New Text 5 Old TextMemory is almost full.Please read new messagesMsg Memory is full.Last Msg(s)rejected.B2200 77-84draft3 8/21/98, 12:14 PM78
79AdvancedFeatures3To proceed to the next message, push when you reach the end of the message.The Options menu appears. To return to the standbydisplay, press END.4Turn to select “Next Msg”, then push .The next message is displayed. If thereare no more messages, the Messagesdisplay reappears.To read old messages1From the Messages display, turn to select“Old Text”, then push .A list of old messages is displayed. An asterisk (*)indicates an urgent message. A lock icon ( ) indicatesthat the message is locked (see page 80). If a number istoo long to fit, an ellipsis (...) is used.2Turn to scroll through the list of oldmessages.3To read the selected message, push .The selected message is displayed.4Turn to scroll through the message.If you do not scroll, the display automatically scrollsdown to the end of the message, which is indicated witha hollow box ( ).5When you have read the message, press CLRto return to the list of old messages.To return to the Messages display, press .To read the next message, push to go to the Optionsmenu, then select “Next Msg”.There are no new text messages. :OKB2200 77-84draft3 8/21/98, 12:14 PM79

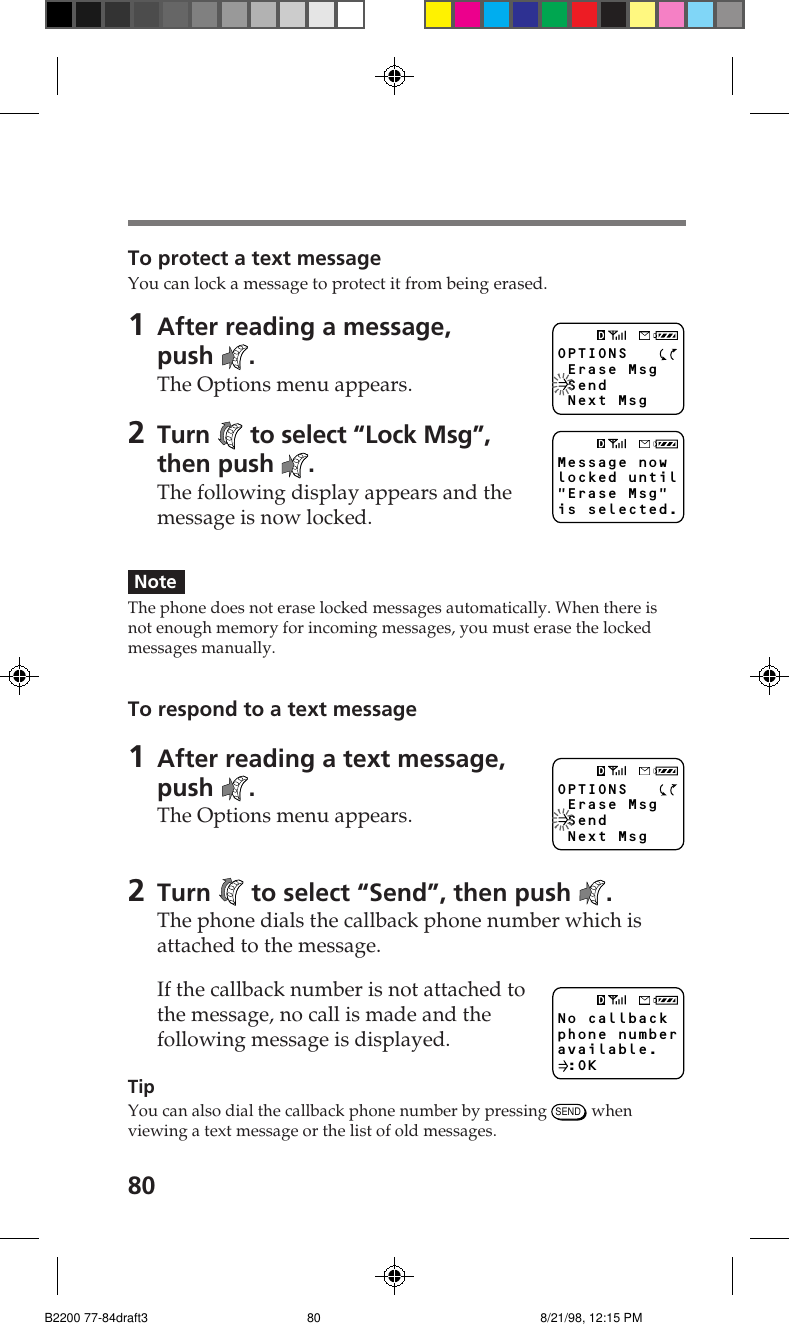

80No callback phone number available. :OKOPTIONS Erase Msg Send Next MsgTo protect a text messageYou can lock a message to protect it from being erased.1After reading a message,push .The Options menu appears.2Turn to select “Lock Msg”,then push .The following display appears and themessage is now locked.NoteThe phone does not erase locked messages automatically. When there isnot enough memory for incoming messages, you must erase the lockedmessages manually.To respond to a text message1After reading a text message,push .The Options menu appears.2Turn to select “Send”, then push .The phone dials the callback phone number which isattached to the message.If the callback number is not attached tothe message, no call is made and thefollowing message is displayed.TipYou can also dial the callback phone number by pressing SEND whenviewing a text message or the list of old messages.OPTIONS Erase Msg Send Next MsgMessage now locked until "Erase Msg" is selected.B2200 77-84draft3 8/21/98, 12:15 PM80

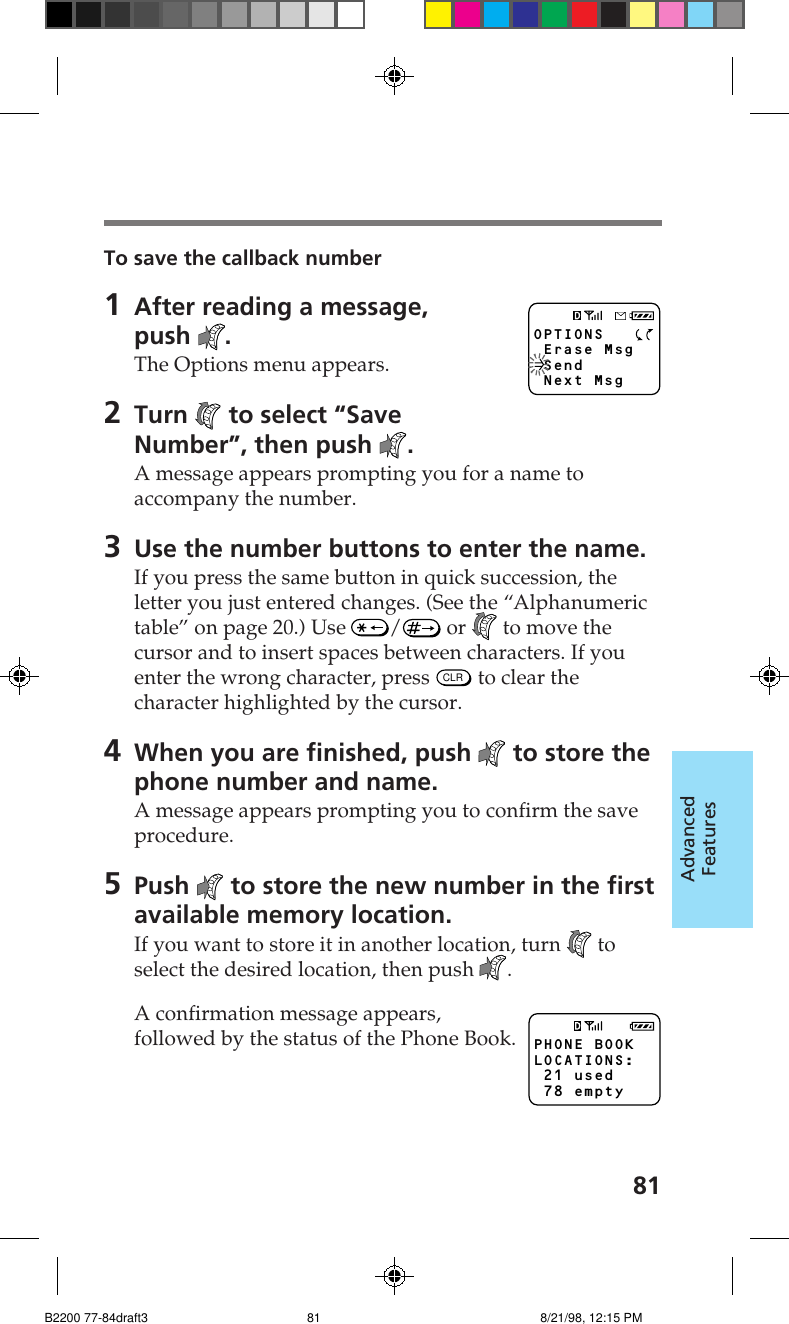

81AdvancedFeaturesTo save the callback number1After reading a message,push .The Options menu appears.2Turn to select “SaveNumber”, then push .A message appears prompting you for a name toaccompany the number.3Use the number buttons to enter the name.If you press the same button in quick succession, theletter you just entered changes. (See the “Alphanumerictable” on page 20.) Use / or to move thecursor and to insert spaces between characters. If youenter the wrong character, press CLR to clear thecharacter highlighted by the cursor.4When you are finished, push to store thephone number and name.A message appears prompting you to confirm the saveprocedure.5Push to store the new number in the firstavailable memory location.If you want to store it in another location, turn toselect the desired location, then push .A confirmation message appears,followed by the status of the Phone Book.OPTIONS Erase Msg Send Next MsgPHONE BOOK LOCATIONS: 21 used 78 emptyB2200 77-84draft3 8/21/98, 12:15 PM81

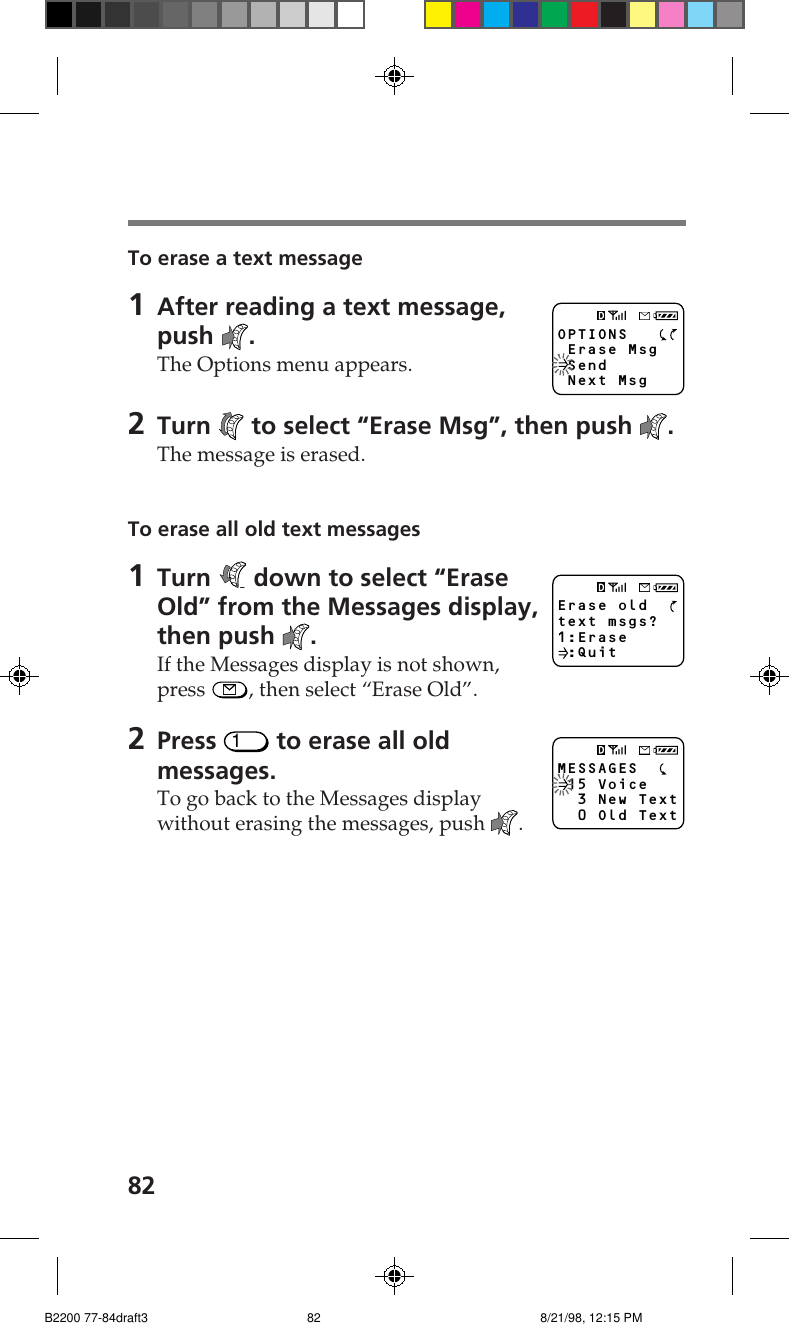

82To erase a text message1After reading a text message,push .The Options menu appears.2Turn to select “Erase Msg”, then push .The message is erased.To erase all old text messages1Turn – down to select “EraseOld” from the Messages display,then push .If the Messages display is not shown,press , then select “Erase Old”.2Press 1 to erase all oldmessages.To go back to the Messages displaywithout erasing the messages, push .Erase oldtext msgs?1:Erase :QuitMESSAGES 15 Voice 3 New Text 0 Old TextOPTIONS Erase Msg Send Next MsgB2200 77-84draft3 8/21/98, 12:15 PM82
83AdvancedFeaturesYou have 15 new messages at123-456-7890OPTIONS Erase Msg Send Save NumberReading voice mail notification messages1From the Messages display, turn to select“Voice”, then push .A message appears indicating thenumber of voice messages stored inyour voice mailbox. Press CLR to goback to the Messages display.2Turn to scroll through the message.A hollow box ( ) indicates the end of the message.To dial a callback number1After reading a voice mailnotification message, push .The Options menu appears.2Turn to select “Send”, then push .The phone dials the callback phone number which isattached to the message.TipYou can also dial the callback phone number by pressing SEND from theMessages display or when reading a voice mail notification message.B2200 77-84draft3 8/21/98, 12:15 PM83
84MESSAGES 0 Voice 8 New Text 3 Old TextOPTIONS Erase Msg Send Save NumberTo erase a voice message1After reading a voice mailnotification message, push .The Options menu appears.2Turn to select “Erase Msg”, then push .The voice mail notification message iserased. The Messages display reappears,indicating that there are currently novoice mail notification messages storedin memory.B2200 77-84draft3 8/21/98, 12:15 PM84

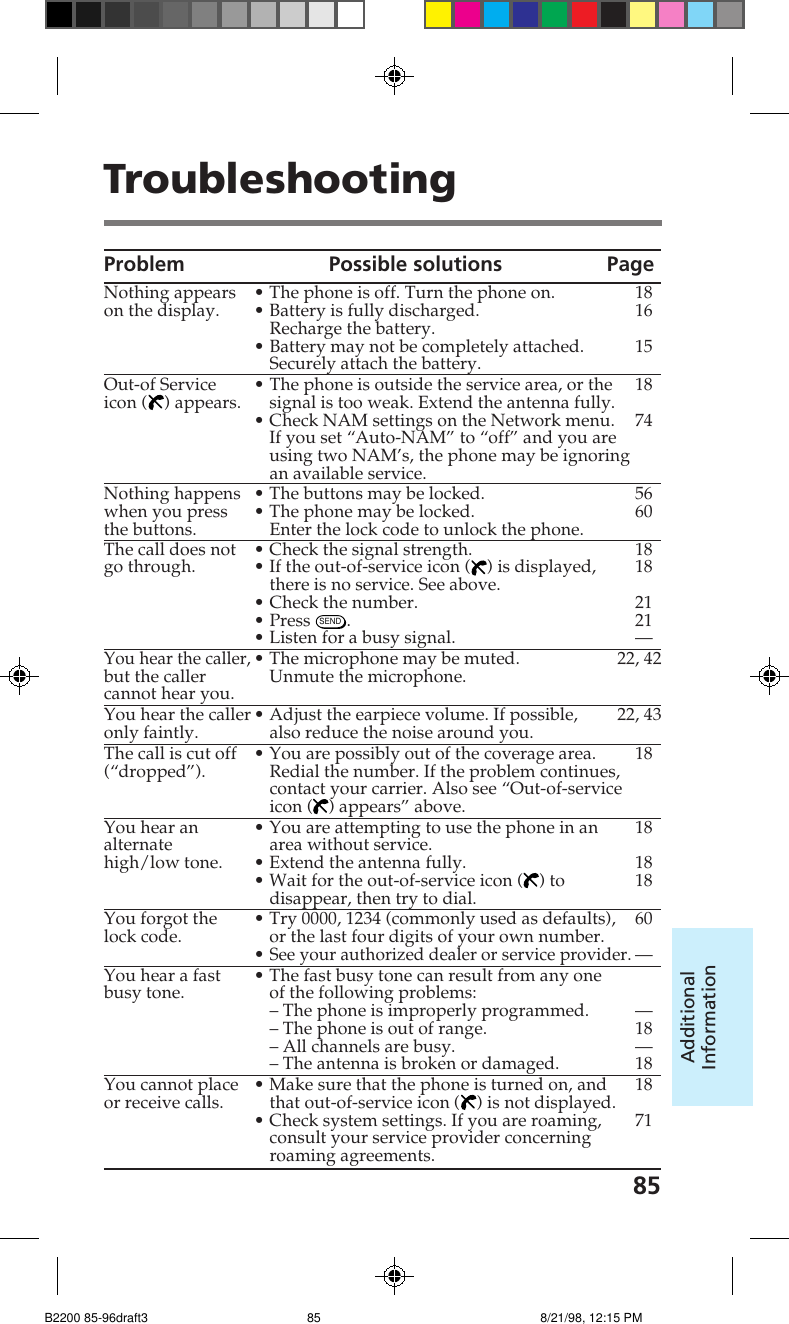

85AdditionalInformationTroubleshootingProblem Possible solutions PageNothing appears • The phone is off. Turn the phone on. 18on the display. • Battery is fully discharged. 16Recharge the battery.• Battery may not be completely attached. 15Securely attach the battery.Out-of Service • The phone is outside the service area, or the 18icon ( ) appears. signal is too weak. Extend the antenna fully.• Check NAM settings on the Network menu. 74If you set “Auto-NAM” to “off” and you areusing two NAM’s, the phone may be ignoringan available service.Nothing happens • The buttons may be locked. 56when you press • The phone may be locked. 60the buttons. Enter the lock code to unlock the phone.The call does not • Check the signal strength. 18go through. • If the out-of-service icon ( ) is displayed, 18there is no service. See above.• Check the number. 21• Press SEND.21• Listen for a busy signal. —You hear the caller,• The microphone may be muted. 22, 42but the caller Unmute the microphone.cannot hear you.You hear the caller • Adjust the earpiece volume. If possible, 22, 43only faintly. also reduce the noise around you.The call is cut off • You are possibly out of the coverage area. 18(“dropped”). Redial the number. If the problem continues,contact your carrier. Also see “Out-of-serviceicon ( ) appears” above.You hear an • You are attempting to use the phone in an 18alternate area without service.high/low tone. • Extend the antenna fully. 18• Wait for the out-of-service icon ( ) to 18disappear, then try to dial.You forgot the • Try 0000, 1234 (commonly used as defaults), 60lock code. or the last four digits of your own number.•See your authorized dealer or service provider.—You hear a fast • The fast busy tone can result from any onebusy tone. of the following problems:– The phone is improperly programmed. —– The phone is out of range. 18– All channels are busy. —– The antenna is broken or damaged. 18You cannot place • Make sure that the phone is turned on, and 18or receive calls. that out-of-service icon ( ) is not displayed.• Check system settings. If you are roaming, 71consult your service provider concerningroaming agreements.B2200 85-96draft3 8/21/98, 12:15 PM85

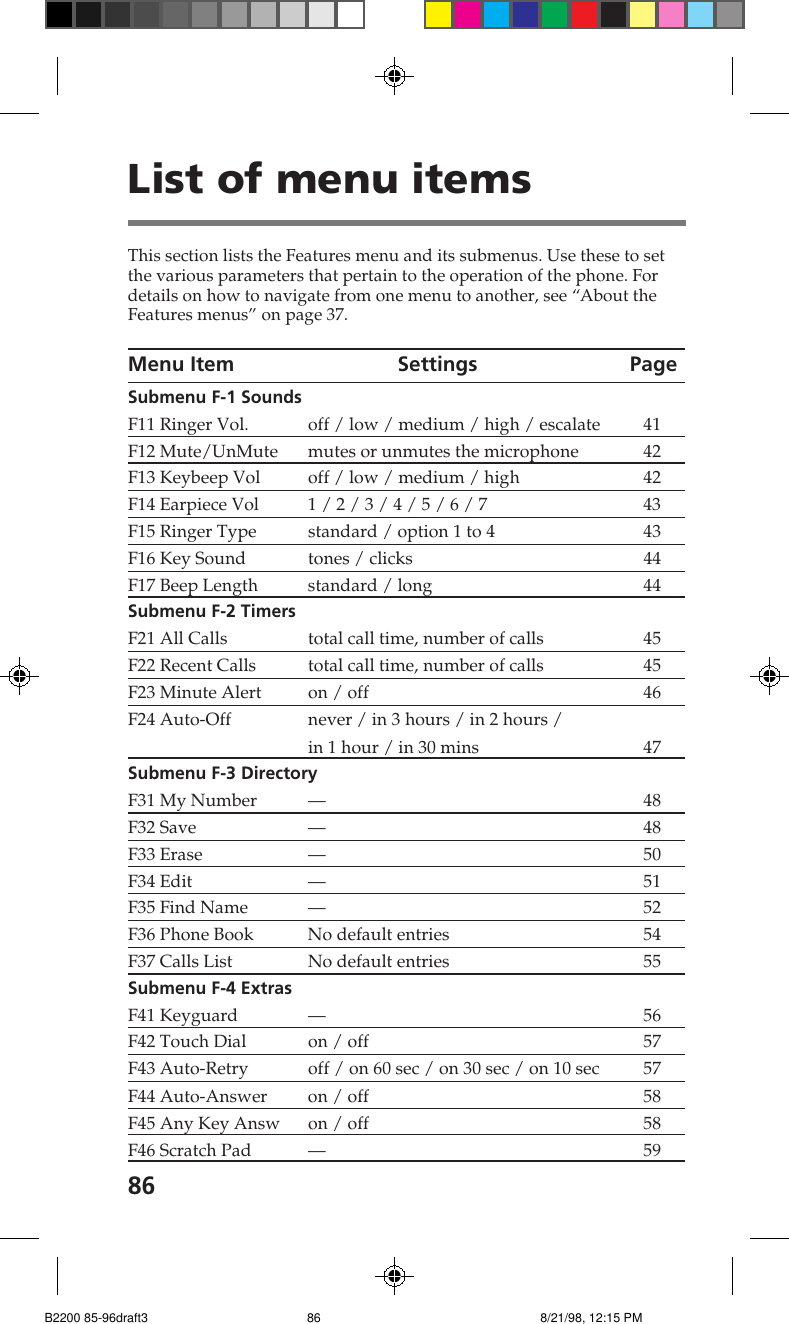

86This section lists the Features menu and its submenus. Use these to setthe various parameters that pertain to the operation of the phone. Fordetails on how to navigate from one menu to another, see “About theFeatures menus” on page 37.Menu Item Settings PageSubmenu F-1 SoundsF11 Ringer Vol. off / low / medium / high / escalate 41F12 Mute/UnMute mutes or unmutes the microphone 42F13 Keybeep Vol off / low / medium / high 42F14 Earpiece Vol 1 / 2 / 3 / 4 / 5 / 6 / 7 43F15 Ringer Type standard / option 1 to 4 43F16 Key Sound tones / clicks 44F17 Beep Length standard / long 44Submenu F-2 TimersF21 All Calls total call time, number of calls 45F22 Recent Calls total call time, number of calls 45F23 Minute Alert on / off 46F24 Auto-Off never / in 3 hours / in 2 hours /in 1 hour / in 30 mins 47Submenu F-3 DirectoryF31 My Number — 48F32 Save — 48F33 Erase — 50F34 Edit — 51F35 Find Name — 52F36 Phone Book No default entries 54F37 Calls List No default entries 55Submenu F-4 ExtrasF41 Keyguard — 56F42 Touch Dial on / off 57F43 Auto-Retry off / on 60 sec / on 30 sec / on 10 sec 57F44 Auto-Answer on / off 58F45 Any Key Answ on / off 58F46 Scratch Pad — 59List of menu itemsB2200 85-96draft3 8/21/98, 12:15 PM86
87AdditionalInformationMenu Item Settings PageSubmenu F-5 SecurityF51 Lock Phone never / on power-up / right now 60F52 New Code 0000 61F53 Restrict # No default restricted numbers 62F54 Restrict All on / off 63F55 Master Reset — 64F56 Erase Book — 64F57 Erase Calls — 65F58 Emergency # No default numbers for #1 to #3 65Submenu F-6 DisplayF61 Banner No default banner 66F62 Backlight off / for 7 secs / for 15 secs / always on 67F63 Auto-hyphen on / off 68F64 Sort Book by loc. # / alphabetic 68F65 Language English / French / Spanish 20F66 Menu Length long / short 69Submenu F-7 NetworkF71 Set Analog disabled / until off / automatic 70F72 Roam Alert on / off 71F73 Drop Alert on / off 72F74 Priv. Alert on / off 73F75 Auto-N.A.M. on / off 74F76 Set-N.A.M. N.A.M. 1 / N.A.M. 2 74F77 Activation — 75F78 System Pref. standard / home only 76B2200 85-96draft3 8/21/98, 12:15 PM87

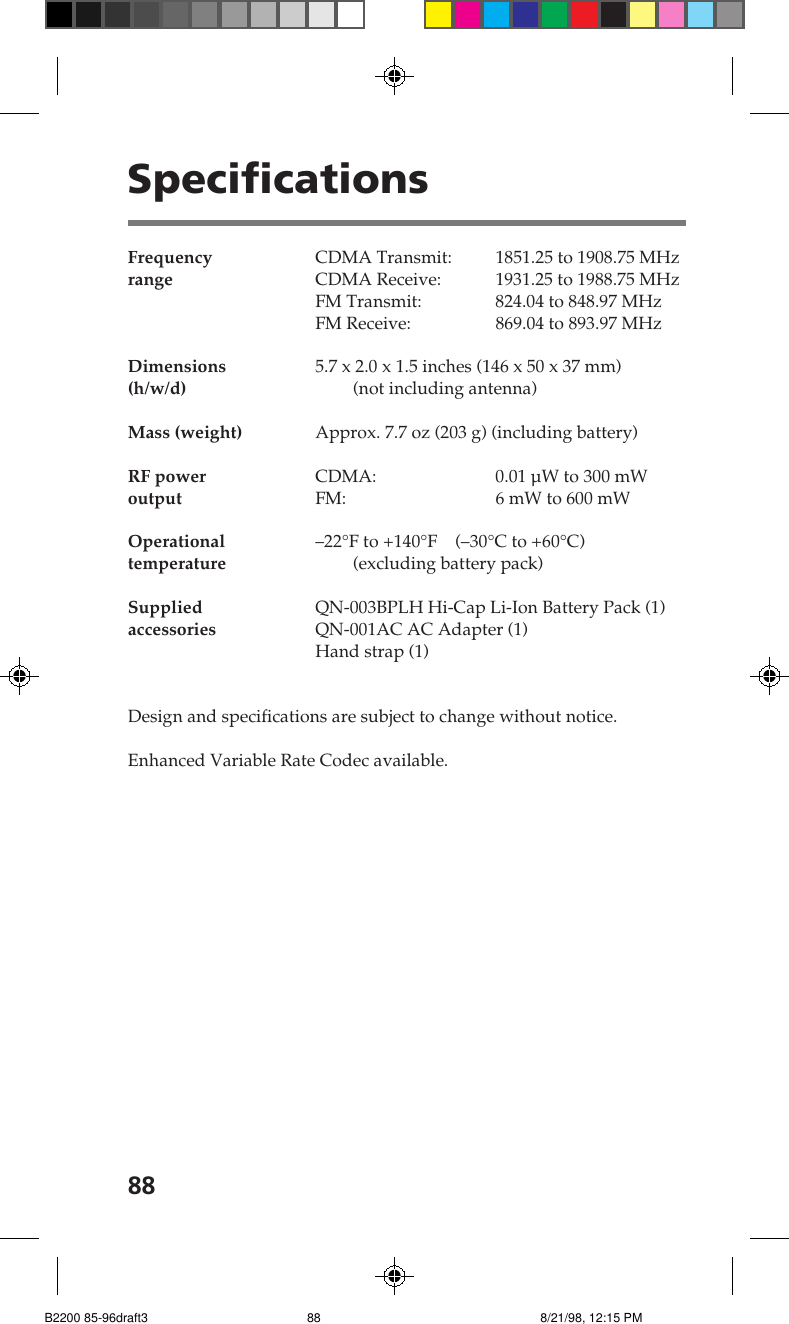

88SpecificationsFrequency CDMA Transmit: 1851.25 to 1908.75 MHzrange CDMA Receive: 1931.25 to 1988.75 MHzFM Transmit: 824.04 to 848.97 MHzFM Receive: 869.04 to 893.97 MHzDimensions 5.7 x 2.0 x 1.5 inches (146 x 50 x 37 mm)(h/w/d) (not including antenna)Mass (weight) Approx. 7.7 oz (203 g) (including battery)RF power CDMA: 0.01 µW to 300 mWoutput FM: 6 mW to 600 mWOperational –22°F to +140°F (–30°C to +60°C)temperature (excluding battery pack)Supplied QN-003BPLH Hi-Cap Li-Ion Battery Pack (1)accessories QN-001AC AC Adapter (1)Hand strap (1)Design and specifications are subject to change without notice.Enhanced Variable Rate Codec available.B2200 85-96draft3 8/21/98, 12:15 PM88

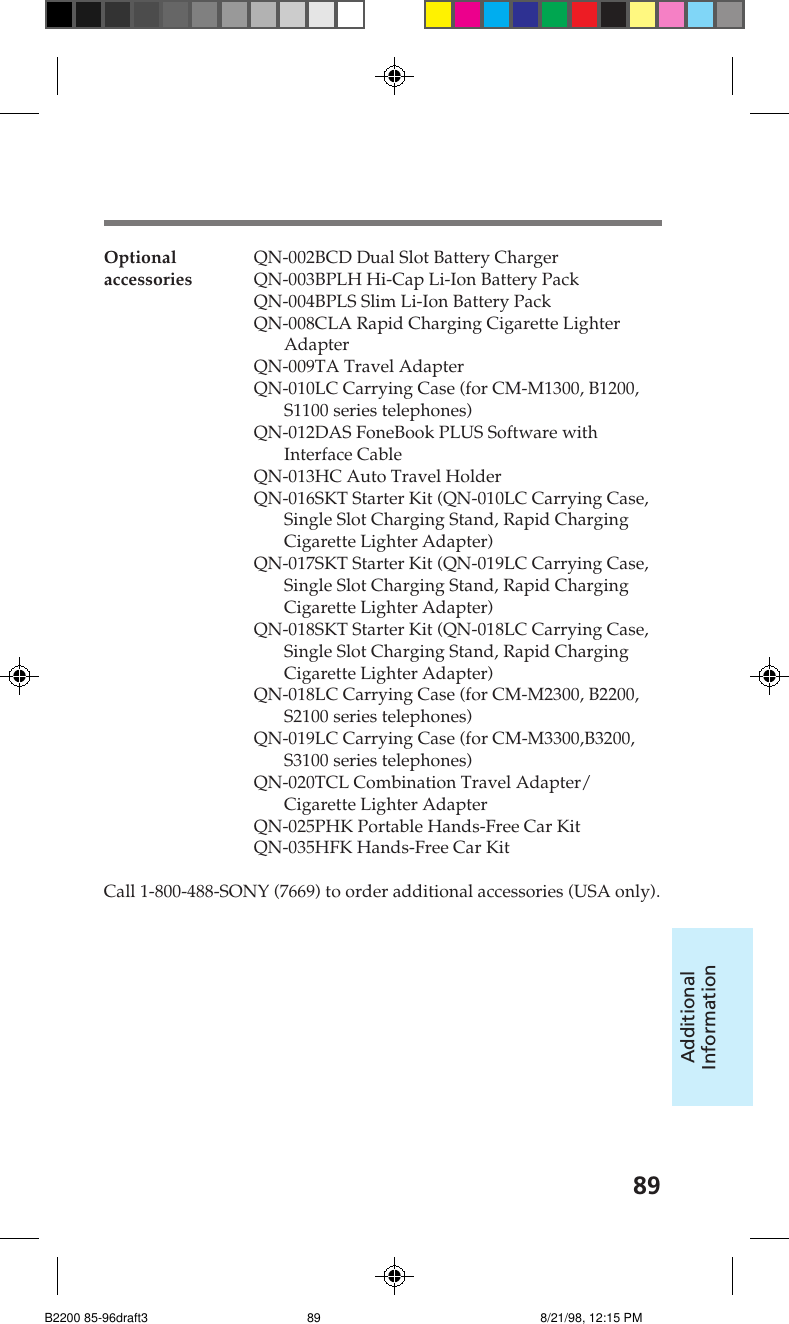

89AdditionalInformationOptional QN-002BCD Dual Slot Battery Chargeraccessories QN-003BPLH Hi-Cap Li-Ion Battery PackQN-004BPLS Slim Li-Ion Battery PackQN-008CLA Rapid Charging Cigarette LighterAdapterQN-009TA Travel AdapterQN-010LC Carrying Case (for CM-M1300, B1200,S1100 series telephones)QN-012DAS FoneBook PLUS Software withInterface CableQN-013HC Auto Travel HolderQN-016SKT Starter Kit (QN-010LC Carrying Case,Single Slot Charging Stand, Rapid ChargingCigarette Lighter Adapter)QN-017SKT Starter Kit (QN-019LC Carrying Case,Single Slot Charging Stand, Rapid ChargingCigarette Lighter Adapter)QN-018SKT Starter Kit (QN-018LC Carrying Case,Single Slot Charging Stand, Rapid ChargingCigarette Lighter Adapter)QN-018LC Carrying Case (for CM-M2300, B2200,S2100 series telephones)QN-019LC Carrying Case (for CM-M3300,B3200,S3100 series telephones)QN-020TCL Combination Travel Adapter/Cigarette Lighter AdapterQN-025PHK Portable Hands-Free Car KitQN-035HFK Hands-Free Car KitCall 1-800-488-SONY (7669) to order additional accessories (USA only).B2200 85-96draft3 8/21/98, 12:15 PM89

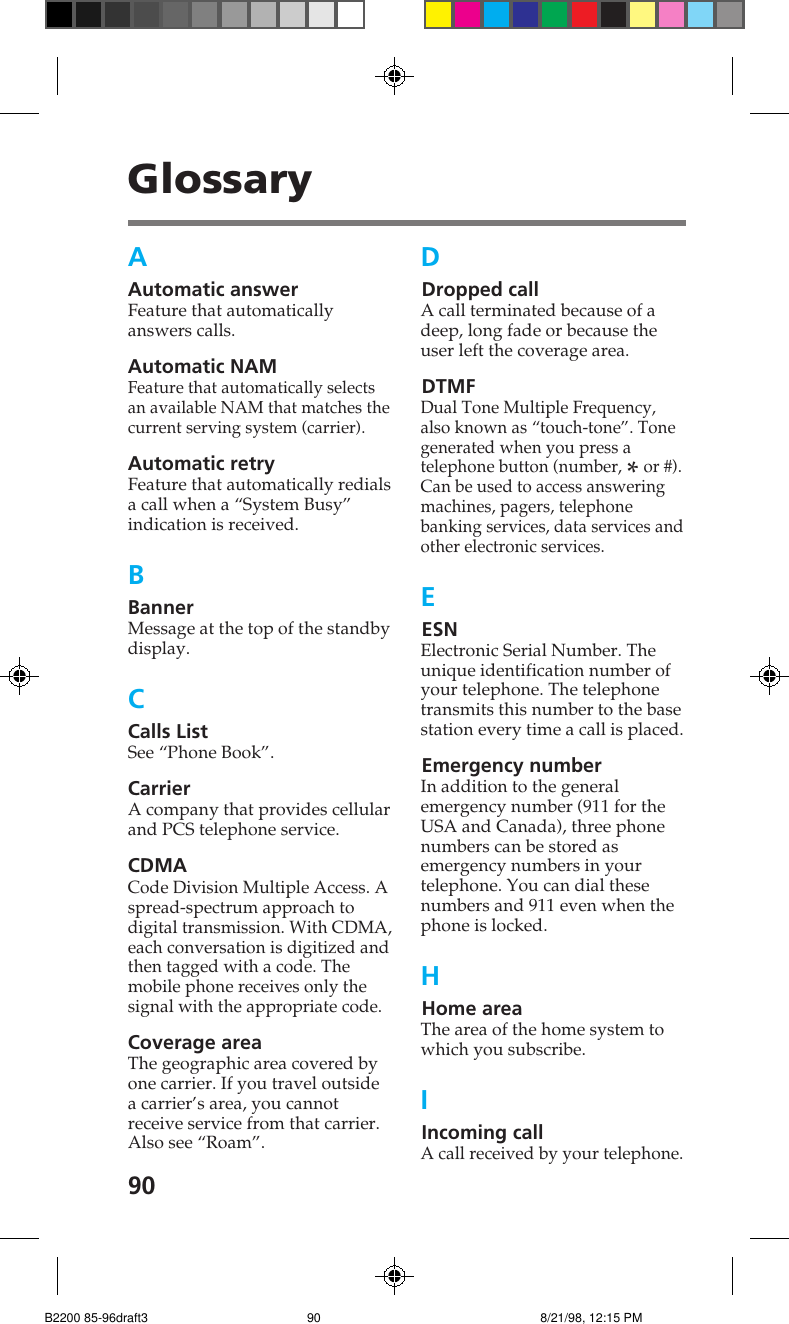

90AAutomatic answerFeature that automaticallyanswers calls.Automatic NAMFeature that automatically selectsan available NAM that matches thecurrent serving system (carrier).Automatic retryFeature that automatically redialsa call when a “System Busy”indication is received.BBannerMessage at the top of the standbydisplay.CCalls ListSee “Phone Book”.CarrierA company that provides cellularand PCS telephone service.CDMACode Division Multiple Access. Aspread-spectrum approach todigital transmission. With CDMA,each conversation is digitized andthen tagged with a code. Themobile phone receives only thesignal with the appropriate code.Coverage areaThe geographic area covered byone carrier. If you travel outsidea carrier’s area, you cannotreceive service from that carrier.Also see “Roam”.DDropped callA call terminated because of adeep, long fade or because theuser left the coverage area.DTMFDual Tone Multiple Frequency,also known as “touch-tone”. Tonegenerated when you press atelephone button (number, * or #).Can be used to access answeringmachines, pagers, telephonebanking services, data services andother electronic services.EESNElectronic Serial Number. Theunique identification number ofyour telephone. The telephonetransmits this number to the basestation every time a call is placed.Emergency numberIn addition to the generalemergency number (911 for theUSA and Canada), three phonenumbers can be stored asemergency numbers in yourtelephone. You can dial thesenumbers and 911 even when thephone is locked.HHome areaThe area of the home system towhich you subscribe.IIncoming callA call received by your telephone.GlossaryB2200 85-96draft3 8/21/98, 12:15 PM90
91AdditionalInformationKKeyguardA feature that allows you to lockthe phone’s keypad for low levelsecurity.LLockPrevents unauthorized calls byrequiring the user to enter a codeto use the phone. Even if thephone is locked, you can call anyof the emergency numbers oranswer incoming calls.MMemoryA storage area for names andphone numbers. Also see “PhoneBook”.MenuThe menu allows you to changeor see the settings of your phone.You can access it from thestandby display or during a call.See “List of menu items” on page86 for an overview of this feature.Minute alertThis alert beeps periodicallyduring a call to help you keeptrack of the length of the call.Multiple NAM registrationRegistering your phone in morethan one carrier. A cheaperalternative to roaming. If youtravel frequently to a specific area,registering the local carrier inyour phone’s NAM’s may be aneconomical alternative to roamingand long distance charges.NNAMNumber Assignment Module.Portion of your telephone’smemory programmed to containinformation about yoursubscription to the carrier. Yourtelephone can have up to twoNAM’s.PPauseYou can insert a Time Pause orHard Pause in the phone numbermemory data. A pause causes thephone to wait (either for aspecified time or until manuallyreleased) before sending a secondstring of digits, ensuring yourcounterpart (e.g., answeringmachine, voice mail system,electronic banking system, etc.) isready to accept the string.Phone BookYou can store up to 99 numbersin Phone Book memory, locationnumber 01 to number 99. Anadditional recent numbermemory (Calls List) stores thelast ten used phone numbers.RRoamYour phone is roaming when youuse it outside of the home area.Availability of roaming access toa different carrier and types ofcalls you can make varies with theagreement between your homecarrier and serving carrier. Checkwith your carrier for details aboutroaming in a specific area.B2200 85-96draft3 8/21/98, 12:15 PM91

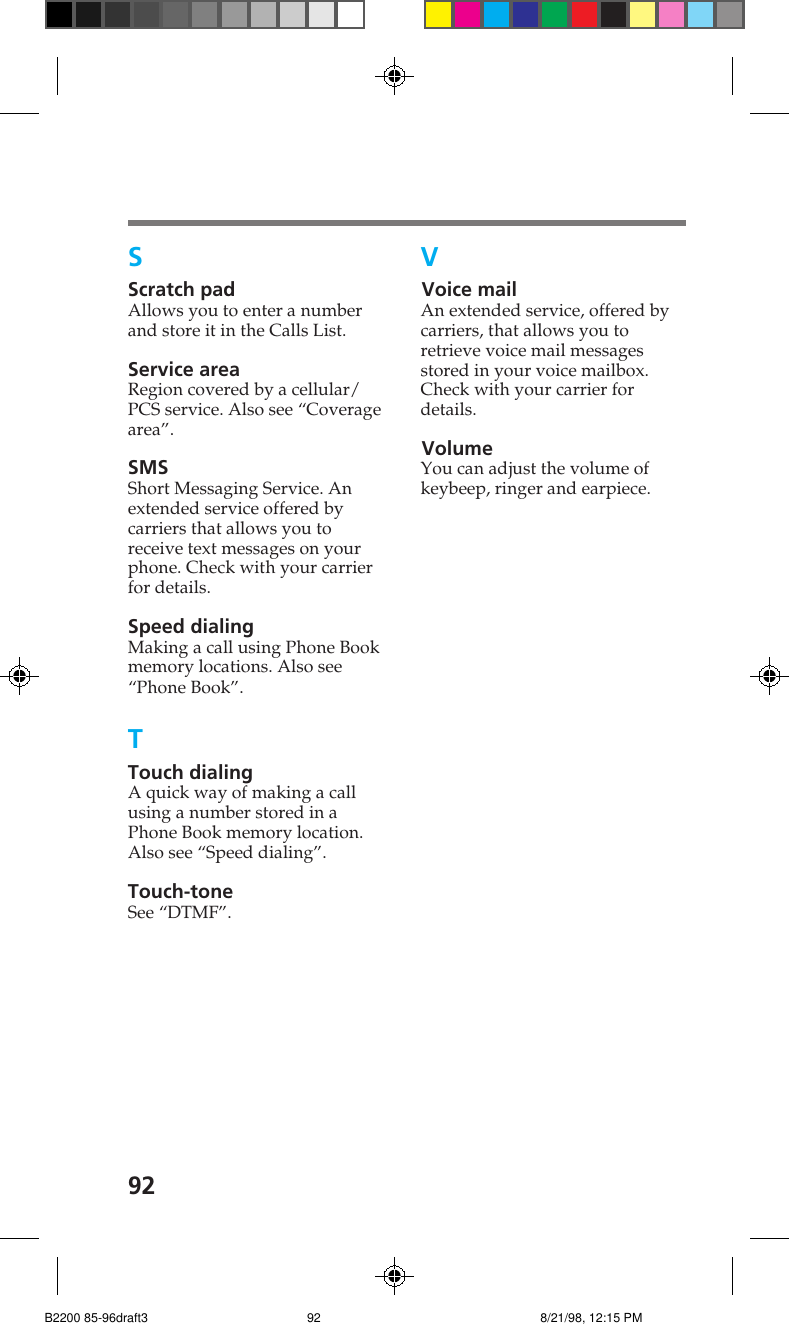

92SScratch padAllows you to enter a numberand store it in the Calls List.Service areaRegion covered by a cellular/PCS service. Also see “Coveragearea”.SMSShort Messaging Service. Anextended service offered bycarriers that allows you toreceive text messages on yourphone. Check with your carrierfor details.Speed dialingMaking a call using Phone Bookmemory locations. Also see“Phone Book”.TTouch dialingA quick way of making a callusing a number stored in aPhone Book memory location.Also see “Speed dialing”.Touch-toneSee “DTMF”.VVoice mailAn extended service, offered bycarriers, that allows you toretrieve voice mail messagesstored in your voice mailbox.Check with your carrier fordetails.VolumeYou can adjust the volume ofkeybeep, ringer and earpiece.B2200 85-96draft3 8/21/98, 12:15 PM92

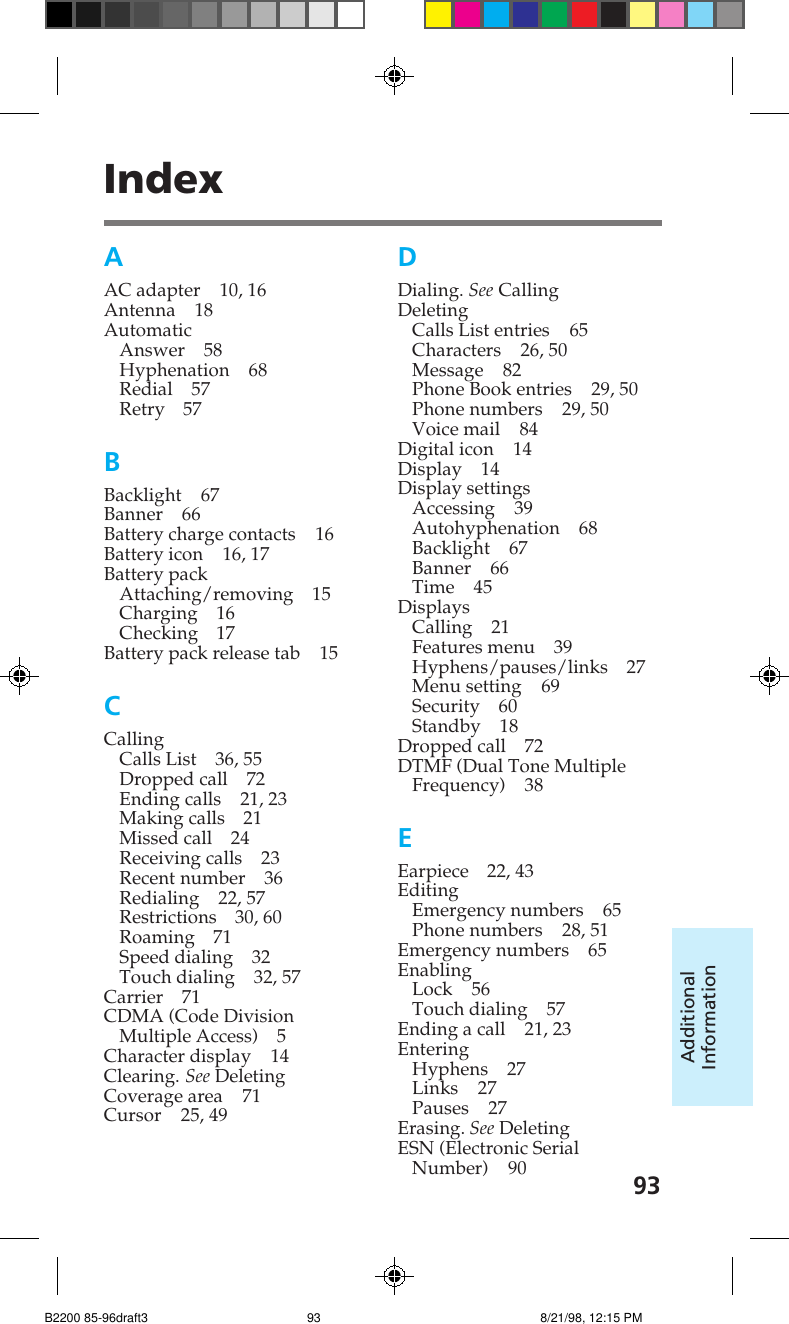

93AdditionalInformationAAC adapter 10, 16Antenna 18AutomaticAnswer 58Hyphenation 68Redial 57Retry 57BBacklight 67Banner 66Battery charge contacts 16Battery icon 16, 17Battery packAttaching/removing 15Charging 16Checking 17Battery pack release tab 15CCallingCalls List 36, 55Dropped call 72Ending calls 21, 23Making calls 21Missed call 24Receiving calls 23Recent number 36Redialing 22, 57Restrictions 30, 60Roaming 71Speed dialing 32Touch dialing 32, 57Carrier 71CDMA (Code DivisionMultiple Access) 5Character display 14Clearing. See DeletingCoverage area 71Cursor 25, 49IndexDDialing. See CallingDeletingCalls List entries 65Characters 26, 50Message 82Phone Book entries 29, 50Phone numbers 29, 50Voice mail 84Digital icon 14Display 14Display settingsAccessing 39Autohyphenation 68Backlight 67Banner 66Time 45DisplaysCalling 21Features menu 39Hyphens/pauses/links 27Menu setting 69Security 60Standby 18Dropped call 72DTMF (Dual Tone MultipleFrequency) 38EEarpiece 22, 43EditingEmergency numbers 65Phone numbers 28, 51Emergency numbers 65EnablingLock 56Touch dialing 57Ending a call 21, 23EnteringHyphens 27Links 27Pauses 27Erasing. See DeletingESN (Electronic SerialNumber) 90B2200 85-96draft3 8/21/98, 12:15 PM93

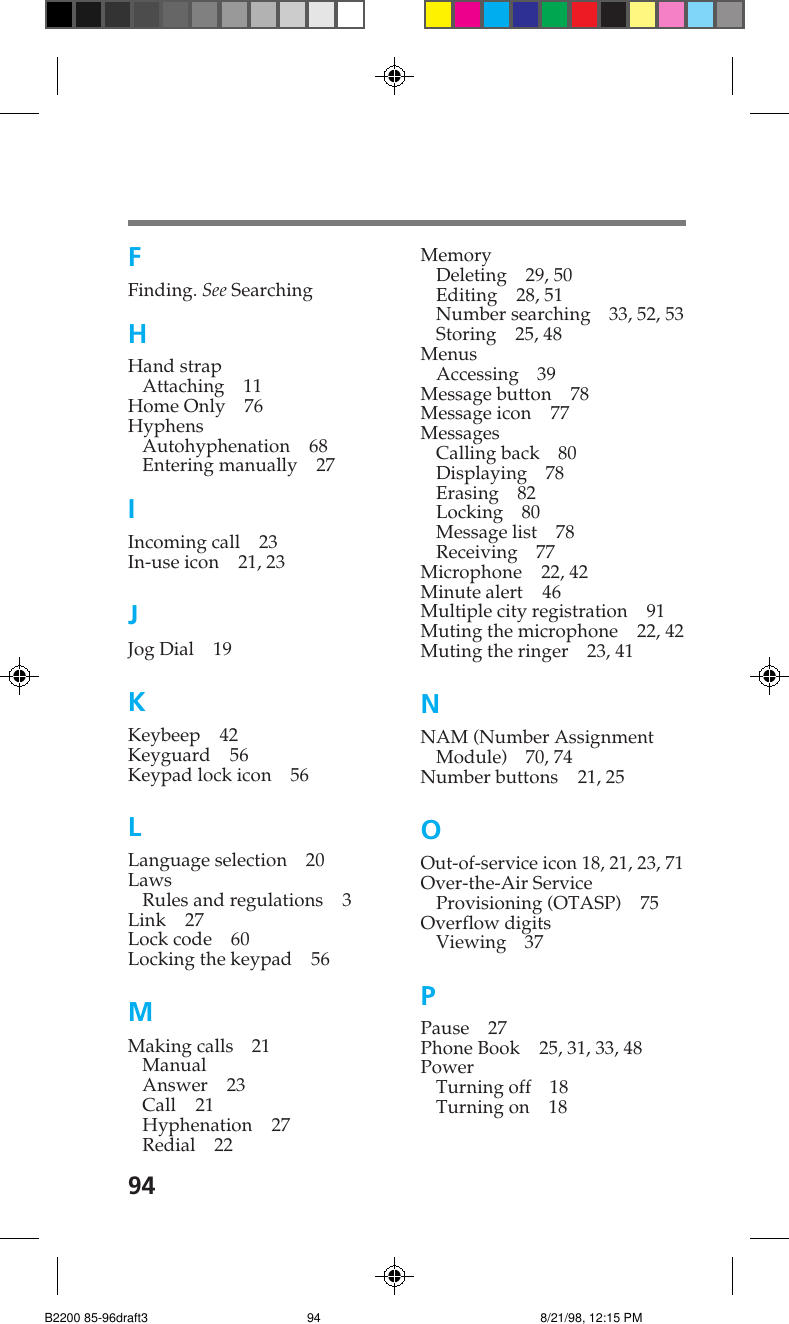

94FFinding. See SearchingHHand strapAttaching 11Home Only 76HyphensAutohyphenation 68Entering manually 27IIncoming call 23In-use icon 21, 23JJog Dial 19KKeybeep 42Keyguard 56Keypad lock icon 56LLanguage selection 20LawsRules and regulations 3Link 27Lock code 60Locking the keypad 56MMaking calls 21ManualAnswer 23Call 21Hyphenation 27Redial 22MemoryDeleting 29, 50Editing 28, 51Number searching 33, 52, 53Storing 25, 48MenusAccessing 39Message button 78Message icon 77MessagesCalling back 80Displaying 78Erasing 82Locking 80Message list 78Receiving 77Microphone 22, 42Minute alert 46Multiple city registration 91Muting the microphone 22, 42Muting the ringer 23, 41NNAM (Number AssignmentModule) 70, 74Number buttons 21, 25OOut-of-service icon 18, 21, 23, 71Over-the-Air ServiceProvisioning (OTASP) 75Overflow digitsViewing 37PPause 27Phone Book 25, 31, 33, 48PowerTurning off 18Turning on 18B2200 85-96draft3 8/21/98, 12:15 PM94

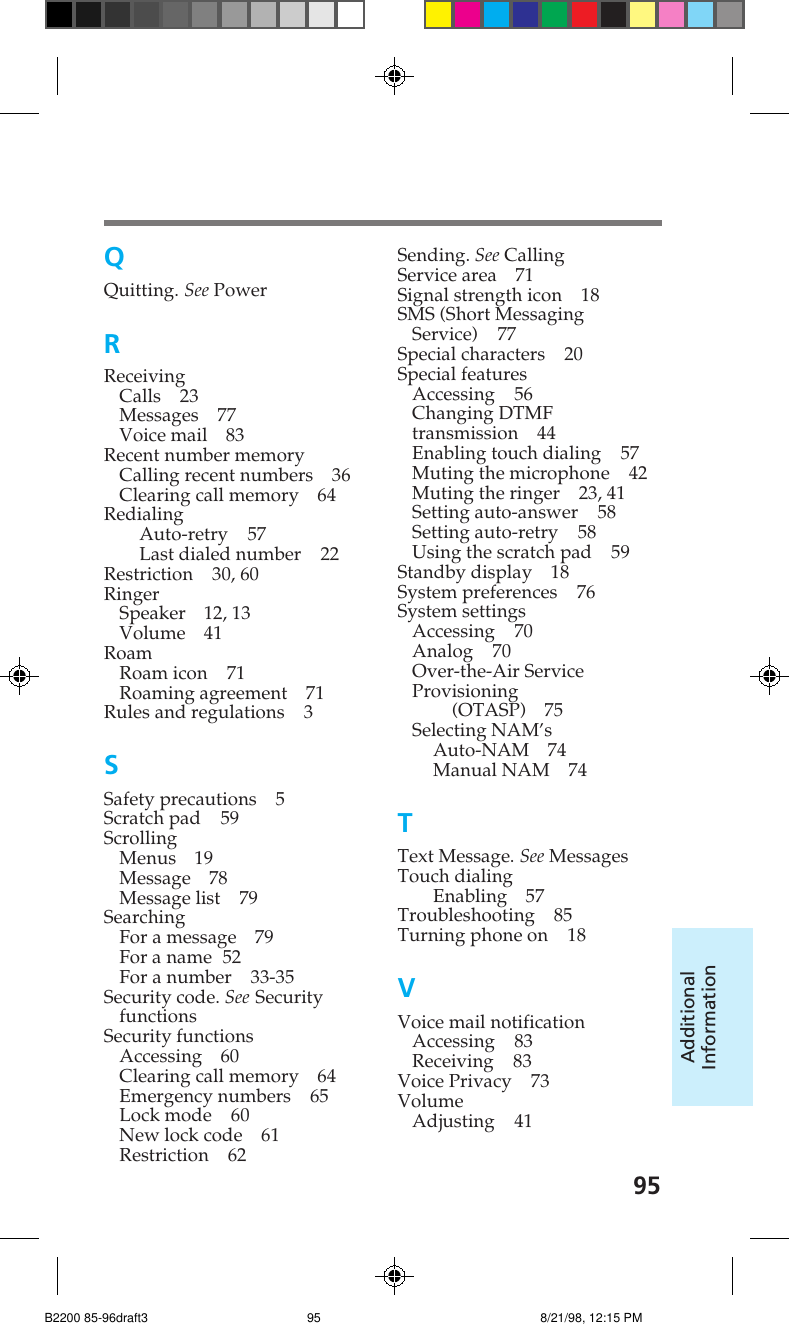

95AdditionalInformationQQuitting. See PowerRReceivingCalls 23Messages 77Voice mail 83Recent number memoryCalling recent numbers 36Clearing call memory 64RedialingAuto-retry 57Last dialed number 22Restriction 30, 60RingerSpeaker 12, 13Volume 41RoamRoam icon 71Roaming agreement 71Rules and regulations 3SSafety precautions 5Scratch pad 59ScrollingMenus 19Message 78Message list 79SearchingFor a message 79For a name 52For a number 33-35Security code. See SecurityfunctionsSecurity functionsAccessing 60Clearing call memory 64Emergency numbers 65Lock mode 60New lock code 61Restriction 62Sending. See CallingService area 71Signal strength icon 18SMS (Short MessagingService) 77Special characters 20Special featuresAccessing 56Changing DTMFtransmission 44Enabling touch dialing 57Muting the microphone 42Muting the ringer 23, 41Setting auto-answer 58Setting auto-retry 58Using the scratch pad 59Standby display 18System preferences 76System settingsAccessing 70Analog 70Over-the-Air ServiceProvisioning(OTASP) 75Selecting NAM’sAuto-NAM 74Manual NAM 74TText Message. See MessagesTouch dialingEnabling 57Troubleshooting 85Turning phone on 18VVoice mail notificationAccessing 83Receiving 83Voice Privacy 73VolumeAdjusting 41B2200 85-96draft3 8/21/98, 12:15 PM95
96SONY Wireless Hotline Number (USA only)If you have any questions or comments, please call:SONY WIRELESS HOTLINE1-800-578-SONY (7669)Visit our website at www.sony.com/wirelessto register your product online andfind out about additional Sony technologyPrinted in USAB2200 85-96draft3 8/21/98, 12:15 PM96
