Sony Ericsson Mobile Communications Inc. Dual Band GSM Cellular Phone T62u

Manual

Mobile Phone T306

Contents

Getting started 3

Make and receive the first call.

Getting to know your phone 6

Key functions, quick keys, entering letters and characters.

Personalizing your phone 14

Choose ring signal, theme and other settings.

Calling 23

Use the phone book, call options.

Setting up mobile Internet 34

Set up WAP and e-mail.

Messaging 40

Chat, e-mail, text and pictures.

Using mobile Internet 47

WAP browser, bookmarks.

More features 51

Data, events, alarm clock, stopwatch, timer, games.

Security 55

SIM card lock, phone lock.

Troubleshooting 56

Why doesn’t the phone work the way I want?

Additional information 59

Sony Ericsson Consumer web site, safe and efficient use,

warranty, declaration of conformity.

Icons 69

What do the icons mean?

Index 73

Sony Ericsson

First edition (September 2002)

This manual is published by Sony Ericsson Mobile

Communications AB, without any warranty.

Improvements and changes to this manual

necessitated by typographical errors, inaccuracies

of current information, or improvements to

programs and/or equipment, may be made by Sony

Ericsson Mobile Communications AB at any time

and without notice. Such changes will, however, be

incorporated into new editions of this manual.

Publication number: AE/LZT 123 1701 P1A

Please note:

Some of the services in this manual are not

supported by all networks. This also applies to the

GSM International Emergency Number 112.

Please contact your network operator or service

provider if you are not sure whether you can use a

particular service or not.

Please read the Guidelines for safe and efficient

use and the Limited warranty chapters before you

use your mobile phone.

The marble logo is a trademark of Sony Ericsson

Mobile Communications AB. Sony is a trademark of

Sony Corporation and Ericsson is a trademark of

Telefonaktiebolaget L M Ericsson.

T9™ Text Input is a trademark or a registered

trademark of Tegic Communications.

T9™ Text Input is licensed under one or more of

the following: U.S. Pat. Nos. 5,818,437, 5,953,541,

5,187,480, 5,945,928, and 6,011,554; Canadian

Pat. No. 1,331,057, United Kingdom Pat. No.

2238414B; Hong Kong Standard Pat. No.

HK0940329; Republic of Singapore Pat. No.

51383; Euro.Pat. No. 0 842 463(96927260.8) DE/

DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional

patents are pending worldwide.

Getting started 3

Getting started

About this user’s guide

For ease of reference, the “Getting to know your

phone” chapter gives a quick overview of the main

functions of the phone, shortcuts and general

information.

More information and downloads are available at

www.SonyEricsson.com/ or wap.SonyEricsson.com/.

Available services

Some services and functions described in this user’s

guide are network- or subscription-dependent. Because

of this, some menus may not be available in your

phone.

This symbol indicates that a service or

function is network or subscription-

dependent.

Please consult your network operator for

more information about your subscription.

The SIM card

When you register as a subscriber with a network

operator, you get a SIM (Subscriber Identity Module)

card. The SIM card contains a computer chip that

keeps track of your phone number, the services

included in your subscription, and your phone book

information, among other things.

Tip: Check if your information is saved to the SIM

card before you remove it from another phone. For

example, phone book entries may be saved in the

phone memory.

Assembly

Before you can use your phone you need to:

• Insert the SIM card.

• Attach and charge the battery. See “SIM card and

battery information” on page 4.

Note: Always turn off the phone and detach the

charger before you insert or remove a SIM card.

4 Getting started

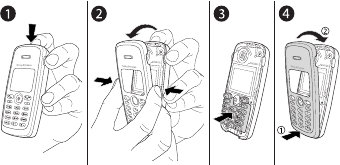

SIM card and battery information

It may take up to 30 minutes before an icon

appears when charging.

1. Insert the SIM card. Make sure the SIM card is placed

under the silvery holders.

2. Place the battery on the back of the phone with the

connectors facing each other.

3. Place the back cover into the bottom of the phone and

push the top until it clicks into place.

4. Connect the charger to the phone at the flash symbol.

The flash symbol on the charger plug must face

upwards.

5. It may take up to 30 minutes before the battery

charging icon appears in the display.

6. Wait approximately 4 hours or until the icon indicates

that the battery is fully charged. If you do not see the

battery icon after this time, press any key or the

joystick to activate the display.

7. Remove the charger by tilting the plug upwards.

Note: You have to insert the SIM card and charge the

battery before you can use the phone.

≈ 30 min.

≈ 4 h.

Getting started 5

Making and receiving calls

To turn on the phone

• Press and hold NO until you hear a tone.

• Enter your PIN (Personal Identity Number), if you

have one for your SIM card.

Your PIN is provided by your network operator.

If you make a mistake while entering your PIN, delete

the wrong number by pressing .

If your PIN starts with the same digits as an

emergency number, for example 911, the digits are

not hidden with an * when you enter them. This is

so that you can see and call an emergency number

without entering a PIN. See “Emergency calls” on

page 24 for more information.

Note: If you enter the wrong PIN three times in a row,

the SIM card is blocked and the message PIN blocked

appears. To unblock it, you need to enter your PUK

(Personal Unblocking Key). Your PUK is provided by

your network operator.

To make and receive calls

• Enter the area code and phone number, and press YES

to make the call.

• Press NO to end the call.

• When the phone rings, press YES to answer the call.

On/off

My Network

12:18

Welcome

PIN:

6 Getting to know your phone

Getting to know your phone

Key functions

Vo lu m e

key

Increase/decrease the earpiece

volume during a call. Scroll

through menus, lists and text.

Enter the Status menu in

standby. Slide twice to reject

an incoming call. Slide once to

turn off the ring signal when

receiving a call.

Make and answer calls. Select

a menu, submenu or an option.

Press for options, help.

Press and hold for WAP.

1–9, 0 Enter digits, 0–9, and letters.

Press and hold to enter

the international prefix +.

Move through menus using

shortcuts.

Enter *. Shift between lower/

upper case.

Press the joystick up, down,

left or right to move through

the menus, lists and texts.

Press the joystick as an

alternative to .

Press and hold to turn the

phone on or off (in standby)

or to go back to standby mode

from menus. Press to end or

reject a call, go back one level

in the menus or leave an

option unchanged.

(clear)

Delete numbers, letters or

an item from a list. Press

and hold to turn off the

microphone (during calls)

or turn off sound or lock

the keypad (standby menu).

Enter # or a space.

Getting to know your phone 7

Quick keys

Useful key combinations are described below.

To... When in standby:

make an emergency call enter the international

emergency number and

press YES

enter and move through

the main menus

press or

enter Call contact press or

enter Call list press YES

call your voice mail press and hold

enter the + sign press and hold

turn off the ring signal

when receiving a call

press , or slide the

volume key up or down

once

set the phone to silent or

lock the keypad

press and hold

reach a contact beginning

with a specific letter press and hold any of the

keys -

reach a phone number at a

specific position. press the position number

and

speed dial press any of the number

keys - and YES

find a contact in the Call

contact list

press and hold

enter the first submenu of

the My shortcuts menu

press and hold

enter the Status menu to

see today’s date, the

profile in use and the

model name of the phone

slide the volume key up

or down

change the language to

Automatic

press 8888

change the language to

English

press 0000

reject a call quickly slide the volume

key up or down twice

when receiving a call or

press NO

To... When in standby:

8 Getting to know your phone

To... During a call:

put a call on hold press YES

answer a call press YES again

turn off the microphone press and hold

To... When in the menus:

move through menus or

lists

slide (and hold) the

volume key up or down

or use the joystick

enter a quick options menu

or help, if available.

press

delete an item press and hold when

in lists

go back to standby press and hold NO

To... When entering letters

using multitap text input:

reach the second letter or

character of a key

slide the volume key up

and press any of the

number keys

reach the third letter or

character of a key

slide the volume key down

and press any of the

number keys

shift between capital and

lower-case letters

press , then the letter

enter numbers press and hold any of the

number keys

enter a question mark slide the volume key up

and press

enter the @-sign slide the volume key down

and press

enter a space press

delete letters and numbers press

shift between multitap or

T9 Text input methods

press and hold

shift between input

languages and other

character or numeric input

methods

press and hold

To... When entering letters

using multitap text input:

Getting to know your phone 9

Help texts

More information, explanations or tips about selected

menus or functions are available in your phone.

To get help

1. Select the menu or function and press .

2. Select Help (if available), YES.

Delete, edit and rename

If you add items, for example, a contact, an event or a

WAP bookmark, it can be deleted, edited or renamed.

There are two ways to delete items:

• Select an item and press .

• Select an item, press , select Delete or Delete all.

There are two ways to edit items:

• Select an item, press , select Edit.

• Scroll to the item you want to edit and press YES twice,

select Edit.

Tip: You can rename an item in the same way.

To... When entering letters

using T9 Text Input:

view alternative words press or

accept a word and add

aspace

press

enter a period press

view alternative

punctuation marks

press , then

repeatedly

shift between capital and

lower-case letters

press , then the letter

enter numbers press and hold any of the

number keys

delete letters and numbers press

shift between multitap or

T9 Text input methods

press and hold

shift between input

languages and other

character or numeric

input methods

press and hold

To... When entering numbers:

enter a p (pause) press and hold when

entering numbers or

saving codes

10 Getting to know your phone

Menu overview

(1) Phone book (2) Messages (3) Calls or Ongoing call*

1 Call contact

2 Add contact

3 Manage contact

4 Pictures

5 Personal rings

6 Special numbers

7 Advanced

8 Options

Find and send*

1 Text

2 Picture

3 Call voice mail

4 E-mail

5 Chat

6 Area info

7 Options

1 Missed calls

2 Call list

3 Manage calls

4 Time & cost

5 Next call

6 Options

Calling local**

Switch to line 1**

Switch to line 2**

1 Record*

2 Turn off tones*

3 Hold call*

4 Switch calls*

5 Release active*

6 Join calls*

7 Transfer call*

8 Release all*

Extract part*

Release part*

Parties in conf.*

Calls*

(4) Fun & Games (5) Settings (6) WAP Services (7) Organizer (8) Connect (9) My shortcuts

1 Games

2 My pictures

3 My sounds

4 Themes

5 Composer

6 Sound recorder

7 CommuniCam

1 Sounds & alerts

2 Profiles

3 Display

4 Language

5 Time & date

6 Locks

7 Handsfree

8 Master reset

1 Mobile Internet

2 Bookmarks

3 Push inbox

4 Enter address

5 Resume

6 Select profile

7 Advanced

8 Options

1 Events

2 Alarms

3 Timer

4 Stopwatch

5 Calculator

1 Infrared port

2 GSM Networks

3 Data comm.

4 Accessories

Online services**

1 Select profile

2 Ring volume

3 Switch to line 1**

4 My numbers

5 Edit shortcuts

Note:

(1) Main menu numbering

does not appear.

1 Menu numbering may

change with certain functions

or services.

*Only available during a call

or conference call.

**Network- and subscription-

dependent.

Getting to know your phone 11

Entering letters and characters

You can enter letters, for example, when you add names

to the phone book, write text messages or enter WAP

addresses.

In addition to the way you normally enter letters in

your phone, using multitap text input, you can use

T9™ Text Input to enter text messages and

e-mail, for example, if the input language you select

supports this. T9 Text Input is a predictive input

method and is a quicker way to write texts.

Input languages

Before you start entering letters, you need to select the

input languages that you want to use when writing.

To select input languages

1. Scroll to Settings, YES, Language, YES, Input, YES.

2. Scroll to the language or alphabet that you want to use

for entering letters and press for each language

you want.

3. Press YES to exit the menu.

When writing, you can switch to one of your selected

input languages by pressing and then selecting

Language. See “The list of options” on page 13.

Multitap text input

When saving names in the phone book or when writing

WAP addresses, you enter letters using multitap text

input. You press each key as many times as needed to

show the letter you want. The following example shows

how to write a name in the Phone book.

To enter letters using multitap text input

1. Scroll to Phone book, YES, Add contact, YES, YES again.

2. Press the appropriate key, – , or ,

repeatedly until the character you want appears.

You can view the characters in the row that appears

briefly at the top of the display when you press a key.

Note: Your selection of input languages and character

or numeric input methods determines what you can see

or enter.

See the Latin alphabet, abc, table below:

Press… to see/enter…

- ? ! ‚ . : ; " ’ < = > ( ) _ 1

A B C Å Ä Æ à Ç 2 Γ

D E F è É 3 ∆ Φ

G H I ì 4

12 Getting to know your phone

Example:

• To enter an ‘A’, press once.

• To enter a ‘B’, quickly press twice.

• To shift between capital and lower-case letters, press

, then enter the letter.

Tip: You can also use the volume key as a shortcut to

certain letters:

To enter a ‘B’, slide the volume key up and press .

To enter a ‘C’, slide down and press .

T9™ Text Input

You can use T9 Text Input when writing, for example,

text messages and e-mail. The T9 Text Input method

uses a built-in dictionary to recognize the most commonly

used word for each sequence of key presses. This way,

you press each key only once, even if the letter you

want is not the first letter on the key.

Note: A language must be selected to be able to use

the T9 Text Input method.

The following example shows how to start writing a

text message:

To enter letters using T9 Text Input

1. Scroll to Messages, YES, Text, YES, Write new, YES.

2. For example, if you want to write “Jane”, press ,

, , .

3. Press or repeatedly to view alternative words

(candidates).

4. If the word shown is the one you want:

• press to accept and add a space

J K L 5 Λ

M N O Ñ Ö Ø ò 6

P Q R S ß 7 Π Σ

T U V Ü ù 8

W X Y Z 9

+ & @ / ¤ % $ € £ ¥ \ § ¿ ¡ 0 Θ Ξ Ψ Ω

Space # * ↵ ¶

to delete letters and numbers

to shift between capital and lower-case

letters

- press and hold to enter numbers

Press… to see/enter…

Getting to know your phone 13

• press or YES to accept without a space.

If the candidates do not include a word you want,

you can add a new word to the list during selection.

To add a word to candidates

1. Scroll to a similar candidate to the word you want to

add, press , select Edit word, YES.

2. Press repeatedly to delete one letter at a time.

Write the new word using multitap text input, YES.

The word is added to the dictionary. The next time

you enter the word you just added to the dictionary,

it appears as one of the alternative words.

3. Continue writing your message. See also “Sending text

messages” on page 40.

Tip: Press to enter a period. To enter other

punctuation marks, press and then or

repeatedly. Press to accept and add a space.

Press and hold to select an input method for

the text you are currently writing.

The list of options

Press when writing to enter a list of options:

•Add symbol – Symbols and punctuation marks such as

? and , are shown. Move between the symbols by using

the joystick.

•Insert item – Add a picture, sound effect, melody or

animation to a message.

•Edit word – For T9 Text Input only

Edit the suggested word by using multitap text input.

•Text for mat – Edit size, style, alignment or start a new

paragraph.

•Language – Show the input language selected earlier.

•Input method – A list of input methods available for

the current input language is shown.

•Candidates – For T9 Text Input only

A list of alternative words is shown.

•Help.

To turn T9 Text Input on or off

• Scroll to Settings/Language/T9 input or press and hold

when writing.

Note: Changing Settings/Language/T9 input is valid

for all input of texts – not only for the text you are

currently writing.

14 Personalizing your phone

Personalizing your phone

You can adjust the phone settings to suit your own

requirements.

Master reset

You can reset all the settings in the phone to the way

they were when you bought your phone by selecting

Reset settings.

If you also want to delete all contacts, messages and

other personal data, select Reset all instead.

Note: If you select Reset all, some pictures, melodies

and templates which came with your phone are

deleted.

To reset the phone

1. Scroll to Settings, YES, Master reset, YES.

2. Select Reset settings or Reset all, YES.

3. Enter the phone lock code (0000 or the new code if you

have changed it) and press YES.

The infrared (IR) port

The infrared port can be used to transfer and exchange

information with another device equipped with an

infrared port. When used with certain functions, such

as sending a picture, it is automatically activated for

10 minutes. Infrared can be activated in the following

ways:

• Press from standby, scroll to Activate IR, YES.

• Scroll to Connect, YES, Infrared port, YES, select an

option, YES.

• When selecting a transfer method, for example when

sending a picture.

Note: Infrared ports must face each other at a distance

of up to 7.5 in. when used.

To turn infrared off

• Scroll to Connect, YES, Infrared port, YES, Off, YES.

Themes

You can change the appearance of the display, for

example, the colors and background picture, by using

themes. Your phone comes with some pre-set themes.

You cannot delete these, but you can create new themes

on Sony Ericsson Mobile Internet and download them

to your phone. For more information, visit

wap.SonyEricsson.com/.

Personalizing your phone 15

To select a theme

• Scroll to Fun & Games/Themes.

Note: If you need to adjust the display contrast, scroll

to Settings/Display/Contrast.

Exchanging themes

You can send and receive a theme via IR and MMS or

download it via WAP. For more information on sending

themes in messages, see “Messaging” on page 40.

To send a theme

1. Scroll to Fun & Games, YES, Themes, YES.

2. Select a theme, press .

3. Select Send, YES.

4. Select a transfer method, YES.

Note: You are not allowed to exchange copyright-

protected material.

To receive and save a theme

1. From standby, press , scroll to Activate IR, YES.

2. When you receive the theme, press YES to save it in

Themes.

Pictures

Your phone comes with a number of pictures. You can:

• Set a picture as background when in standby mode.

• Set a picture as a screen saver.

• Assign a picture to a contact in the phone book. When

that person calls, the picture appears in the display

(provided your subscription supports the Calling Line

Identification service). See “To add a picture to a

phone book contact” on page 25.

• Enclose a picture in a text message.

• Send a picture via IR, Multimedia Messaging or

e-mail.

All pictures and are saved in Fun & Games/My pictures.

Handling pictures

You can also add, delete or rename pictures in My

pictures. The number of pictures that can be saved

depends on the size of the pictures. File types supported

are GIF, JPEG and WBMP.

To view your pictures

• Scroll to Fun & Games, YES, My pictures, YES.

The pictures are shown in thumbnail view. To get a full

view, press YES.

16 Personalizing your phone

Note: Animations for multimedia messages can be

viewed in My pictures. Animations for text messages

can only be viewed when inserting an item in a text

message. See “To insert an item in a text message” on

page 41.

To view your camera pictures (if connected)

• Scroll to Fun & Games, YES, CommuniCam, YES or

• Scroll to Connect, YES, Accessories, YES.

To select a picture as background

1. Scroll to Settings, YES, Display, YES, Background, YES.

2. Select Select picture, YES.

3. Select a picture, YES.

Tip: When viewing your pictures, you can set a

background by pressing .

To turn the background picture On or Off

• Scroll to Settings/Display/Background/Activate.

Exchanging pictures

You can send pictures via IR, Multimedia Messaging

or e-mail and receive via IR or Multimedia Messaging.

For more information on sending pictures in messages,

see “Messaging” on page 40.

Note: You are not allowed to exchange copyright-

protected material.

To send a picture

1. Scroll to Fun & Games, YES, My pictures or

CommuniCam, YES.

2. Select a picture, YES. Press .

3. Select Send, YES.

4. Select a transfer method.

To receive and save a picture

1. From standby, press , scroll to Activate IR, YES.

2. When you receive the picture, press YES to save it in

My pictures.

• When you receive a picture via a text message or a

multimedia message, a new message appears in your

Inbox. Highlight the picture in the message, press

and select Save to save in My pictures.

Personalizing your phone 17

Screen saver

The phone has a screen saver, which is activated

automatically when the phone has been in idle mode

for a few seconds. After a short period of time the

screen saver changes to sleep mode, to save power.

To turn the screen saver On or Off

• Scroll to Settings/Display/Screen saver/Activate.

To use a picture as the screen saver

You can select a picture, saved in the phone, and use it

as the screen saver.

1. Scroll to Settings, YES, Display, YES, Screen saver, YES.

2. Scroll to Select picture, YES.

3. Scroll to the picture you want to use as the screen

saver, YES.

4. Press YES to save.

Ring signals and melodies

Your phone comes with a number of standard and

polyphonic melodies which can be used as ring

signals. See “Icons” on page 69 for more information.

You can create and edit standard melodies, and send

them to a friend in a text or multimedia message. You

can also exchange standard melodies via IR or download

them via WAP.

Note: You are not allowed to exchange copyright-

protected material.

To select a ring signal

• Scroll to Settings/Sounds & alerts/Ring signals.

To set the ring signal volume

1. Scroll to Settings, YES, Sounds & alerts, YES, Ring

volume, YES.

2. Press or to increase or decrease the volume.

3. Press YES to save the setting.

Warning! Exposure to excessive ring volume may

damage hearing. Answer the call or lower the volume

before placing the phone at your ear.

To turn the ring signal on or off

• Press and hold from standby and select Turn on

silent or Turn off silent.

All signals except the alarm and timer signals are

turned off.

18 Personalizing your phone

To compose a ring signal or melody

1. Scroll to Fun & Games, YES, Composer, YES.

• Press a key to enter a note.

• Press or to make

the note shorter or longer.

There are six different lengths

of notes.

• Press to change octave.

• Press once to raise the

note one semitone.

• Press twice to lower the note one semitone.

•Press to add a melody effect, and to set the

tempo, volume, style and duration.

• Press to remove notes.

2. To listen to your melody, press YES.

3. Press YES again to save and name it, or press NO to

continue composing.

Note: To edit a melody, scroll to Fun & Games/My

sounds, select the melody and press .

To use the piano

1. In the Composer, slide the

volume key up to activate

the piano.

2. Use the joystick to move

between the keys.

3. Press YES to select a note.

4. Slide the volume key

down to deactivate the piano.

Exchanging melodies

You can send and receive a sound or melody via IR,

SMS or MMS, or download it via WAP.

Note: You cannot exchange a polyphonic melody

via SMS.

To send a melody

1. Scroll to Fun & Games, YES, My sounds, YES.

2. Select a melody and press .

3. Select Send, YES.

4. Select a transfer method.

See “Icons” on page 69.

Personalizing your phone 19

Note: To send a ring signal or melody in a text

message, see “To insert an item in a text message” on

page 41.

To receive a sound or melody

1. From standby, press , scroll to Activate IR, YES.

2. When you receive the sound or melody, press YES to

save it in My sounds.

Increasing ring

You can choose a ring signal that rises in steps from

the lowest volume to the highest.

To turn increasing ring On or Off

• Scroll to Settings/Sounds & alerts/Increasing ring.

Specific ring signals for personal calls

If you subscribe to the Two Line Service, you

can set different ring signals for the two voice

lines. Line 1 and Line 2 are displayed instead

of Voice calls.

If your subscription includes the Calling Line

Identification (CLI) service, you can assign a personal

ring signal to numerous callers.

To set a specific ring signal for a caller

1. Scroll to Phone book, YES, Personal rings, YES,

Add new?, YES.

2. Enter the first letter of the contact name, YES.

3. Select a contact, YES.

4. Select a ring signal, YES.

Sounds & alerts

You can choose to be notified of an incoming call by

the buzzing of the vibrating alert. You can set the

phone’s vibrating alert to one of the following:

•On – all the time.

•On if silent – on when the ring volume is turned off or

when you have set the phone to silent.

•Off – all the time.

To set the vibrating alert

1. Scroll to Settings, YES, Sounds & alerts, YES, Vibrating

alert, YES.

2. Select the setting you want, YES.

From Settings/Sounds & alerts, you can also select:

• Message alert when messages are received.

•Key sound when using the keypad.

•Minute minder to beep after every minute during calls.

20 Personalizing your phone

Menu language

Most SIM cards automatically set the menu language

to the language of the country where you bought your

SIM card. If this is not the case, the preset language is

English.

To change the menu language

1. Scroll to Settings, YES, Language, YES, Menus, YES.

2. Select a language, YES.

Note: You can always choose Automatic by pressing

8888 in standby.

You can always choose English by pressing

0000 in standby.

Display light

The display light can be set to automatic, off, or on. In

automatic mode, the display light is turned off a few

seconds after you press the last key.

Note: The display light, if set to On, consumes extra

battery power and reduces standby time.

To set the display light

• Scroll to Settings/Display/Light.

To set the display contrast

• Scroll to Settings/Display/Contrast.

Time settings

The time is always displayed in standby.

To set the time

• Scroll to Settings/Time & date/Set time.

You can choose a 12-hour clock or a 24-hour clock.

To set the time format

• Scroll to Settings/Time & date/Time format.

Note: If you select the 12-hour clock, you can

alternate between am and pm by pressing

when setting the time.

Date

When the phone is in standby mode, you can slide

the volume key up or down to see today’s date in the

Status menu.

To set the date and/or date format

• Scroll to Settings/Time & date.

Personalizing your phone 21

Advanced time settings

Under Advanced in the Settings/Time & date

menu, you can set time zone and daylight

savings time. Changing these changes the time

accordingly, if your network operator supports this

service.

When your phone changes networks, and the time

sent out from the network operator deviates from the

time in your phone, you are asked whether you want to

update the time, if you have turned on Auto time zone.

If you press YES, the time is updated automatically.

Note: Contact your network operator for more

information.

Answering mode

When using a portable handsfree kit, you can choose to

answer a call by pressing any key (except the NO key)

or set the phone to answer the call automatically.

To select answering mode

• Scroll to Settings/Handsfree/Answering mode.

User greeting

When you turn your phone on or off, the Sony Ericsson

greeting appears. Your network operator’s own greeting

may be shown instead.

To select a greeting

1. Scroll to Settings, YES, Display, YES, User greeting,

YES.

2. Select a greeting, YES.

My phone numbers

You can check your own phone number(s).

To check your phone number

• Scroll to Phone book/Special numbers/My numbers.

If your number is not saved on your SIM card, you can

enter it yourself.

Keypad lock

You can lock the keypad to avoid dialing a number by

accident.

Note: Calls to emergency numbers can still be made,

even when the keypad is locked.

22 Personalizing your phone

Automatic keylock

Automatic keylock means the keypad is locked

25 seconds after you last press a key.

To turn automatic keylock On or Off

• Scroll to Settings/Locks/Auto keylock.

To lock the keypad manually

• Press and hold in standby, and select Lock

keypad, YES.

The keypad remains locked until you answer an

incoming call or until you unlock the keypad manually.

To unlock the keypad

• Press and select Turn off keylock?, YES.

My shortcuts

You can place your favourite functions that you want

to reach quickly and easily in the My shortcuts menu.

To add a function to my shortcuts

1. Scroll to My shortcuts, YES, Edit shortcuts, YES.

2. Select a function from the list by pressing .

3. Enter the position number you want for this function in

your menu and press YES.

4. Press YES to exit the list.

Calling 23

Calling

Before you can make or receive any calls, you must

turn on the phone and be within range of a network.

See “Making and receiving calls” on page 5.

Making calls

1. Enter the area code and the phone number.

2. Press YES to make the call.

3. Press NO to end the call.

Tip: You can call numbers from the call list and the

phone book. See “Call list” on page 24 and “Phone

book” on page 25.

To change the earpiece volume during a call

• Slide the volume key on the side of the phone upp. or

down to increase or decrease the earpiece volume.

To turn off the microphone during a call

• Press and hold until the display shows Muted.

Press again to resume the conversation.

Automatic redialing

If the connection of the call failed and the display

shows Retry?, press YES.

Note: Do not hold the phone to your ear while waiting.

When the call is connected, the phone gives a loud

signal.

The phone redials the number (up to ten times) or until:

• The call is connected.

• You press a key or receive a call.

Note: Automatic redialing is not available for data

calls.

Making international calls

1. Press and hold until a + sign appears in the display.

The + replaces the international prefix number of the

country from which you are calling.

2. Enter the country code, area code (without the leading

zero) and phone number, YES.

Tip: It is useful to enter the + sign and country code

for all numbers in the phone book as they can then

be easily used whether home or abroad.

24 Calling

Emergency calls

To make an emergency call

• Enter 911, YES.

Your phone supports the international emergency

numbers, 112, 911 and 08. This means that these

numbers can normally be used to make an emergency

call in any country, with or without a SIM card

inserted, if a GSM network is within range.

Note: Some network operators may require that a

SIM card be inserted, and in some cases that the PIN

has been entered as well.

In some countries, other emergency numbers may also

be promoted. Your operator may therefore have saved

additional local emergency numbers on the SIM card.

To view your local emergency numbers

• Scroll to Phone book/Special numbers/Emergency

nos..

Receiving calls

When you receive a call, the phone rings and Answer?

appears. If the number is a restricted number, Withheld

appears.

To answer a call

• Press YES.

To rejec t a c all

• Press NO.

Missed calls

If you have missed a call, Missed calls:1 appears in

standby, indicating the number of missed calls.

To check your missed calls

1. When Missed calls:1 is displayed, press YES to display

the missed calls.

2. To call a number from the list, scroll to the number, YES.

Call list

The numbers of the last calls that you have made or

received are saved in the call list. If your subscription

includes the Calling Line Identification service, and

Calling 25

the caller’s number is identified, you will also find the

numbers of answered and missed calls in the call list.

To call a number from the call list

1. To enter the call list, press YES from standby.

2. Scroll to the number you want to call, YES.

To clear the call list

• Scroll to Calls, YES, Options, YES, Clear call list, YES.

To turn the call list on or off

• Scroll to Calls, YES, Options, YES, Call listing, YES.

Phone book

In the Phone book you can save all the information

needed to contact people.

To add a contact

1. Scroll to Phone book, YES, Add contact, YES.

2. Scroll to the field you want to fill in, press YES.

3. Enter the information, YES.

4. When you have entered the information, scroll to Save

and exit?, YES.

Tip: To enter an unsaved number, when you are in a

number field, press YES, and select a number from

the unsaved numbers list.

Pictures and personal rings

You can add a picture and personal ring signal to a

contact.

To add a picture to a phone book contact

1. Scroll to Phone book, YES, Pictures, YES.

2. Enter the first letters of the contact, YES.

3. When the contact is highlighted, press YES.

This takes you to My pictures. Select a picture and

press YES twice.

• Select Personal rings to add a personal ring signal.

To call a contact

1. From standby, press and hold one of the number keys

2-9 to find a contact beginning with the first letter on

that key (or closest following).

• For example, press and hold 5 to go to the first

contact beginning with “J”. To go to a contact

beginning with “L” press 5 three times after you

have entered the list of contacts.

26 Calling

2. When the contact you want to call is highlighted,

press YES.

3. Select the number you want to call, YES.

If only one number is linked to the contact, press

and hold YES at step 2.

Tip: You can also use the Call contact option in

the Phone book menu to call a contact.

Updating the phone book

When needed, you can easily update or delete any

contact information.

To edit a contact

1. Scroll to Phone book, YES, Manage contact, YES,

Edit contact, YES.

2. Enter the first letters of the contact, YES.

3. When the contact is highlighted, press YES.

4. Select Edit info, YES.

5. Scroll to the field you want to fill in, YES.

6. Enter the information, YES.

7. When you have entered the information, scroll down to

Save and exit?, YES.

To delete a contact

• Scroll to Phone book/Manage contact/Delete contact.

Then select the contact and press YES twice.

To delete all contacts

• Scroll to Phone book/Advanced/Delete all?.

Note: Contacts that are saved on the SIM card are not

deleted.

Default (standard) number

Each contact has a default phone number. The first

phone number you link to a contact automatically

becomes the default number. If you scroll to a certain

contact in the Call contact list and then press and hold

YES, the default number is dialed.

To set the default number

1. Scroll to Phone book, YES, Manage contact, YES,

Edit contact, YES.

2. Enter the first letter of the contact, YES.

3. When the contact is highlighted, press YES.

4. Select Default number, YES. Select the number you

want as default, YES.

Calling 27

Groups

You can create a group of contacts. By doing so you

can send text messages to several recipients at the

same time. See “Sending text messages” on page 40.

To create a group of contacts

1. Scroll to Phone book, YES, Manage contact, YES,

Groups, YES, Add group?, YES.

2. Enter a name for the group, YES.

3. Select Add member?, YES.

4. Enter the first letters of the contact you want to add,

press YES.

5. Press YES to select the contact.

6. Select a phone number, press YES.

7. Repeat steps 3-6 to add more members.

Business cards

You can add your own business card to the phone

book.

To add your own business card

• Scroll to Phone book, YES, Manage contact, YES,

My card, YES. Select Add, YES.

Exchanging business cards

You can exchange business cards via IR, SMS or

MMS.

To send your business card

1. Scroll to Phone book, YES, Manage contact, YES,

My card, YES, Send, YES.

2. Select a transfer method, YES.

To receive a business card via IR

1. From standby, press , scroll to Activate IR, YES.

When you receive the business card, press YES.

2. Press YES again to save the card in the phone book.

To save a business card in a multimedia message

1. Scroll to Messages, YES, Picture, YES.

2. Scroll to Inbox, YES, select the message, YES.

3. Scroll to the business card item, press YES to accept it.

To send a contact

1. Scroll to Phone book, YES, Manage contact, YES, Send

contact, YES,

2. Enter the first letters of the contact you want to send, YES.

3. Press YES to select the contact.

4. Select transfer method, YES.

28 Calling

To send all contacts (via IR only)

• Scroll to Phone book/Advanced/Send all, YES.

Copy contacts

You can copy the names and numbers in your phone

book between your phone’s memory and the SIM card.

The number of phone numbers that can be saved

depends on the type of SIM card.

Note: Be careful not to replace details by mistake

when copying contacts.

To copy names and phone numbers to the

SIM card

• Scroll to Phone book/Advanced/Copy to SIM.

If you insert a SIM card with saved names and phone

numbers in your phone, you can call a person by

selecting Phone book/Advanced/Call from SIM. If you

want to edit a name or phone number saved on the SIM

card, you first need to copy it to the phone.

To copy names and phone numbers to the phone

• Scroll to Phone book/Advanced/Copy from SIM.

Tip: When you have selected a name in the Call from

SIM menu, you can copy name and phone number to

the phone by pressing and then selecting Copy to

phone.

Speed dialing

You can save the phone numbers that you want to

reach easily in positions 1-9 on your SIM card.

To call any of these phone numbers from standby

• Enter the position number and press YES.

To change position numbers

1. Scroll to Phone book, YES, Advanced, YES, Position

list, YES.

2. Select the phone number you want to move, YES.

3. Select the position to which you want to move the

phone number, press YES.

4. When finished press NO to exit, YES to save to SIM.

Voice mail

If your subscription includes an answering

service, callers can leave a voice mail

message when you cannot answer a call.

Calling 29

Receiving a voice mail message

Depending on your network operator, you are

informed that someone has left a message by a text

message (SMS) or by a voice mail indication. Press

YES to listen to the message.

Calling your voice mail service

You can easily call your voice mail service by pressing

and holding , if you have saved your voice mail

number in the phone. You get the number from your

service provider.

To enter a voice mail number

• Scroll to Messages/Options/Voice mail no.

Call time

During a call, the duration of the call is shown in the

display.

You can check the duration of your last call, outgoing

calls and the total time.

To check the call time and reset

• Scroll to Calls/Time & cost/Call timers and select

an option.

• Select Reset timers to reset the call time meter.

Forwarding calls

If you cannot answer incoming voice or data

calls, you can forward them to another

number: for example, your answering service.

For voice calls, you can choose between the

following forward alternatives:

•Always forward – forward all voice calls.

•When busy – forward calls if you are already on

the phone.

•Not reachable – forward calls if your phone is

turned off or if you are unreachable.

•No reply – forward calls that you do not answer

within a specified time limit (operator-dependent).

Note: When the Restrict calls function is on, some

Forward calls options cannot be activated.

To turn on call forwarding

1. Scroll to Calls, YES, Manage calls, YES, Forward calls,

YES.

2. Select a call category and then a forward alternative,

YES.

3. Select Activate, YES.

30 Calling

4. Enter the phone number to which you want your calls

to be forwarded and press YES, or retrieve it from the

phone book.

To turn off a call forwarding option

• Select a forwarding option and select Cancel.

To check status

1. Scroll to Calls, YES, Manage calls, YES, Forward calls,

YES.

2. Select a call type, YES.

3. Scroll to the forwarding you want to check, YES. Select

Get status, YES.

To check the status of all call forwarding

•Select Check all in the Forward calls menu.

More than one call

You can handle more than one call

simultaneously. For example, you can put an

ongoing call on hold, while you make or answer

a second call, and then switch between the two calls.

Note: During a call, the Ongoing call menu replaces

the Calls menu.

Call waiting service

If the call waiting service is activated, you hear a beep

in the earpiece if you receive a second call during an

ongoing call.

To activate or deactivate the call waiting service

• Scroll to Calls/Manage calls/Call waiting.

To make a second call

1. Press YES to put the ongoing call on hold.

2. Enter the number you want to call and press YES, or

retrieve a number from the phone book.

Note: You can only put one call on hold.

You can also reach different options by pressing .

Receiving a second call

• To answer the second call and put the ongoing call on

hold, press YES.

• To reject the second call and continue the ongoing call,

press , select Busy.

• To answer the second call and to end the ongoing call,

press , select Release&answer.

Calling 31

Handling two calls

When you have one ongoing call and one call on hold,

you can do the following:

•Press

YES to switch between the two calls.

• Press , then select Join calls to join the two calls

into a conference call.

• Press , then select Transfer call, to connect the

two calls. You are disconnected from both calls.

•Press

NO to end the ongoing call, then press YES to

retrieve the held call.

•Press

NO twice to end both calls.

Note: You cannot answer a third call without ending

one of the first two calls.

Conference calls

In a conference call, you can have a joint

conversation with up to four other people.

You can also put a conference on hold and

make another call.

Creating a conference call

To create a conference call, you must first have one

ongoing call and one call on hold.

To join the two calls into a conference call

• Scroll to Ongoing call, YES, Join calls, YES.

To add a new participant

1. Press YES to put the conference call on hold.

2. Call the next person you wish to include in the

conference call.

3. Press , select Join calls, YES.

Repeat steps 1 to 3 to include more participants.

To release a participant

1. Press , select Release part, YES.

2. Select the participant, YES.

To end the conference call

• Press NO.

Having a private conversation

You can have a private conversation with one of the

participants and put the other participants on hold.

• Press , then select Extract part to select the

participant that you want to talk with.

• Select Join calls to resume the conference call, again.

32 Calling

Restricted dialing

You can use the restrict calls service to restrict

outgoing and incoming calls. This may be

useful, for example, when you are abroad. To

use this service, you need a password which you get

from your service provider.

Note: If you forward incoming calls, you cannot

activate some Restrict calls options.

The following calls can be restricted:

• All outgoing calls – All outgoing.

• All outgoing international calls – Outgoing Intl.

• All outgoing international calls except to your home

country – Outg. intl roam.

• All incoming calls – All incoming.

• All incoming calls when you are abroad (when

roaming) – Inc. when roam.

To turn a call restriction on or off

1. Scroll to Calls, YES, Manage calls, YES, Restrict calls,

YES.

2. Select an option, YES.

3. Select Activate or Cancel, YES.

4. Enter your password, YES.

• To turn off all call restrictions, select Cancel all.

• To change the password, select Change passwd.

Fixed dialing

The fixed dialing function allows calls to be

made only to certain numbers saved on the

SIM card. Fixed dialing requires a SIM card

that allows fixed numbers to be saved. The fixed

numbers are protected by your PIN2.

Note: Calls to emergency numbers can still be made,

even when the fixed dialing function is on.

• Partial numbers can be saved. For example, saving

0123456 allows calls to be made to all numbers

starting with 0123456.

• Numbers with question marks can be saved. For

example, saving 01234567?0, allows calls to be made

to numbers from 0123456700 to 0123456790. To enter

a question mark, press and hold .

To turn fixed dialing on or off

1. Scroll to Phone book, YES, Options, YES, Fixed dialing,

YES.

2. Enter your PIN2, YES.

3. Select On or Off, YES.

Calling 33

To save a fixed number

• Scroll to Phone book/Special numbers/Fixed numbers.

Select Add new? and enter the number.

Closed user groups

The Closed User Group function is a way of lowering

call costs. On some networks it is cheaper to make

calls within a call group. You can save ten groups.

To add a group

1. Scroll to Calls, YES, Manage calls, YES, Closed groups,

YES, Edit list, YES.

2. Scroll to Add new?, YES.

3. Enter the name of the user group, YES.

4. Enter the index number, YES.

You get the index number from your operator.

To activate a group

1. Scroll to Calls, YES, Manage calls, YES, Closed groups,

YES, Edit list, YES.

2. Select a group, YES.

3. Select Activate, YES.

Calls can only be made within the selected group.

To call outside a Closed User Group

• Select Open calls and then select On.

Accept calls

With the accept calls service, you can choose to

receive calls only from certain numbers. Other calls

are automatically rejected by a busy tone. The phone

numbers of calls you have rejected are saved in the

Call List.

To add numbers to the accepted callers list

1. Scroll to Calls, YES, Manage calls, YES, Accept calls,

YES, Accepted list, YES.

2. Scroll to Add new?, YES.

This takes you to the phone book.

3. Select an entry, YES.

To select an accept option

• Scroll to Calls/Manage calls/Accept calls/Accept

options.

34 Setting up mobile Internet

Showing or hiding your number

If your subscription supports the Calling Line

Identification Restriction (CLIR) service, you

can hide your phone number when making

acall.

To show or hide your phone number

1. Enter the phone number you want to call.

2. Scroll to Calls, YES, Next call, YES.

3. Select Hide my number or Show my numb. and press

YES to make the call.

Setting up mobile Internet

In order to use the Internet, browse via WAP

services or send and receive multimedia and

e-mail messages, the following are required:

1. A phone subscription that supports data

transmission.

2. Settings entered in your phone.

• Settings may already be entered when you buy your

phone.

• You can receive settings in a text message from your

network operator or service provider.

• Settings are also available at www.SonyEricsson.com/

3. You may also have to register as a WAP/e-mail user

with your service provider or network operator.

Set up with the wizard

If your phone is not set up for WAP, you can ask your

network operator or service provider to provide you

with WAP settings information. Then you can simply

use the wizard in your phone to help guide you through

the relevant settings.

Setting up mobile Internet 35

To use the wizard for setting up WAP

1. Scroll to WAP Services, YES, homepage (for example

Mobile Internet), YES. The wizard now starts if no

WAP settings exist.

2. Enter and save settings when asked, press YES to

confirm.

Advanced setting information

To use the WAP browser, via a WAP service provider,

you need settings for:

• a specific data account for WAP, and a WA P p ro fi l e .

To use e-mail messaging, via an Internet service

provider, you need settings for:

• a specific data account for e-mail, and an e-mail

account.

To send a text message (SMS) to an e-mail address via

your network operator, you need to set:

• an e-mail gateway phone number.

Note: Some advanced settings that are described in the

following texts are not necessarily mandatory, please

consult your network operator or service provider for

more information.

A data account includes connection settings for

access to a server at your service provider, for example

via WAP (Mobile Internet) or via e-mail (Internet).

A WAP profile includes user settings that allow WAP

browsing and multimedia messaging.

An e-mail account includes user settings that allow

e-mail messaging direct from your phone, such as

those provided by your Internet service provider.

Alternatively, E-mail via WAP includes user settings

that also allow e-mail messaging, such as those

provided by your Internet service provider. However

this is set up on your service provider’s WAP site.

Note: Check with your WAP service provider if their

site supports e-mail.

Data account settings

You can have several data accounts saved in

your phone, with different settings for

different purposes. The main setting for a data

account is the Account type (connection method).

Tip: If there are no data account or WAP profile

settings in your phone, you can enter data account

settings when you enter WAP profile settings. See WAP

36 Setting up mobile Internet

Services/Options/WAP profiles/Add profile?/Enter a

name/ Connect using:/Add account?/.

You can choose from GPRS data or GSM data account

types.

Note: Please contact your network operator for

charging details.

GPRS (General Packet Radio Service) allows

fast and efficient access where you can

always be online.

Note: You need a subscription that supports GPRS.

GPRS settings that are available:

•APN (Access point name address) – the address of

the external data network you want to connect to,

either an IP address or a text string.

•User id – your user id to log on to the external data

network.

•Password – your password to log on to the external

data network.

•Passwd. request (Password request) – if this setting

is on, you are asked for a password each time you

log on to the external data network.

•Allow calls (Preferred service) – if you want to be

able to accept incoming calls during a GPRS

session, select Automatic. If not, select GPRS only.

•IP address – the IP address that the phone uses

when communicating with the network. If you do

not enter an address, the network provides you with

a temporary IP address.

•DNS address – if the network does not provide the

IP address to the DNS server automatically, you

may enter it here.

•Advan. settings (Advanced settings) – these are

optional. Consult your network operator.

GSM settings include some settings that are

similar to GPRS settings and some that are

GSM-specific as follows:

•Phone number – the phone number of your

Internet service provider.

•Data rate – select the speed you want for the

connection.

•Dial type – select analog or ISDN connection.

Note: If you want to change access type, you have to

create a new data account and select the access type

you want to use.

Setting up mobile Internet 37

To create a data account manually

1. Scroll to Connect, YES, Data comm., YES, Data

accounts, YES, Add account?, YES.

2. Select an account type for access.

3. Enter a name for the data account.

4. Enter the settings that you have received from your

network operator or service provider.

Confirm each setting by pressing YES.

5. Scroll to Save?, YES.

To edit a data account

1. Scroll to Connect, YES, Data comm., YES, Data

accounts, YES.

2. Select a data account, YES.

3. Select Edit.

4. Select the setting you want to edit, YES. Edit the

setting, YES.

5. Repeat step 4 for other settings you want to edit.

Preferred service

You can set GPRS or GSM as the preferred service.

To select preferred mode

• Scroll to Connect/Data comm./Pref. service and select

GPRS and GSM or GSM only.

Note: To see the status of GPRS coverage and

connection, slide the volume key up or down from

standby to enter the Status menu and then scroll to

GPRS.

WAP profile settings

The WAP settings are stored in a WAP profile. In most

cases you only need to use one profile to access the

Internet.

You set up and use additional WAP profiles, for

example, when accessing secure Internet sites, such as

a banking site or a corporate intranet. You then simply

switch between profiles when you need to change the

network connection.

Tip: If there are no data account or WAP profile

settings in your phone, you can enter data account

settings when you enter WAP profile settings. See WAP

Services/Options/WAP profiles/Add profile?/Enter a

name/ Connect using:/Add account?/.

To enter WAP profile settings manually

1. Make sure you have a data account set up between

your phone and the Internet server, as described in

“Data account settings” on page 35.

38 Setting up mobile Internet

2. Scroll to WAP Services, YES, Options, YES, WAP

profiles, YES.

3. Select Add profile? to add a new profile or select an

existing profile that you want to edit, YES.

When selecting Add profile? enter a name for the

profile, YES, Connect using:, YES, select the data

account to be used, YES and enter the IP address:, YES.

A list appears. Scroll to Save?, YES.

When selecting an existing profile, you can do the

following:

•Rename – Change the name of the profile.

•Connect using – Select data account.

•IP address – WAP gateway server address.

•Advanced – More profile settings, see below.

•Delete – Remove the profile.

If you select Advanced you can also do the following:

•Chg homepage – Enter the address of the WAP site

you want as the homepage.

•Second account – Select an alternative data account,

if the first in Connect using fails.

•User id – Enter your user id for the WAP gateway.

•Password – Enter your password for the WAP

gateway.

•Security – Ensure the security of your WAP

connection.

•Show pictures – View pictures while browsing.

E-mail account settings

An e-mail account specifies, for example, the server

that is used for your e-mail messages.

To create an e-mail account

1. Scroll to Messages, YES, E-mail, YES, Options, YES.

2. Select Edit account, YES.

3. Select Add new?, YES.

4. Enter a name for the account, for example Home or

Office.

5. Select Connect using, YES.

A list appears with the data accounts that you have

saved in your phone.

6. Select the data account you want to use with this e-

mail account, YES.

7. Enter the rest of the settings in the list, some of which

are optional. To enter the settings, scroll to the setting,

press YES and enter the information. Press YES to

confirm. Repeat this for each required setting. You use

Setting up mobile Internet 39

the same e-mail settings in your phone as in your PC

e-mail program. If you do not have an e-mail service,

contact your operator to get all the necessary settings.

•Protocol – select POP3 or IMAP4.

•Incoming serv. (Incoming server)– enter the name or IP

address of the service provider for incoming e-mail

messages. For example, mail.server.com or 10.1.1.1.

•Incoming port – if needed, change the number of the

port used by the protocol you are using.

•Mailbox – enter a user name for your e-mail account.

•Password – enter a password for your e-mail account.

Your service provider may alternatively request a

password on connection.

•Outgoing server – enter the name or IP address of the

SMTP server to be able to send e-mail messages.

•Outgoing port – if needed, change the number of the

port used by the SMTP protocol.

•Email address – enter your e-mail address.

•Download – select whether to receive headers and text

or headers only.

•From name – enter your name.

•Signature – select if you want to add your business

card to your e-mail messages.

•Copy outgoing – Select On, if you want e-mail

messages sent from your phone also to be sent to an

e-mail address of your choice. This way, your sent

messages are copied and can be saved for future

reference.

•Check interval – Select how often you want the phone

to connect to your e-mail server and check for

incoming e-mail messages.

If you have both an office and a home e-mail account,

you can set one of them as default:

• Select Set account from the Messages/E-mail/Options

menu and select the account.

See “E-mail” on page 45 for information about how to

use e-mail.

40 Messaging

Messaging

Your phone supports various messaging

services - text messages, chat messages,

multimedia messages and e-mail. Please

contact your service provider for details on

which services you can use.

Text messages

Text messages are sent via SMS (Short Message

Service). They can be sent to one person or to a

number of recipients, for example, that you may have

saved in the phone book.

You can add pictures, animations, melodies, and

sound effects to a text message, and format the text,

using EMS (Enhanced Messaging Service). You can

also send picture messages.

Note: Text messages with EMS functionality can

only be sent to other compatible phones supporting

the EMS standard.

Before you start

First make sure that the number of your service center

is set. The number is supplied by your service provider

and is usually saved on the SIM card.

To set the service centre number

1. Scroll to Messages, YES, Text, YES, Options, YES,

Service centers, YES.

The service center number appears if it is saved on the

SIM card.

2. If there is no number in the list, select Add new?, YES.

3. Enter the number, including the international “+” sign

and country code, YES.

Sending text messages

For information about entering letters, see “Entering

letters and characters” on page 11.

To write and send a text message

1. Scroll to Messages, YES, Text, YES, Write new, YES.

2. Write your message, YES.

3. Enter a recipient or more as follows:

• Enter a recipient’s phone number, YES.

• For more recipients, scroll to Add recipient, YES,

enter the number, YES.

• Press to retrieve a number from the phone book

or other options.

4. Select Send, YES.

Messaging 41

Note: If you send a text message to more than one

recipient, you are charged per recipient.

To insert an item in a text message

1. Scroll to Messages, YES, Text, YES, Write new, YES.

2. While writing your message press .

3. Select Insert item, YES.

4. Select Picture, Sound effect, Melody, Animation or

My anim. or Picture msg, YES.

5. Select an item, YES. Then press YES again to confirm.

After inserting an item, press to select, delete or

replace options.

Note: Options to insert other items such as sounds and

melodies are available only for Sony Ericsson picture

formats, not for picture messages.

E-mail gateway

Your network operator may have a phone number to an

e-mail gateway that allows you to send a text message

to an e-mail address.

To set up an e-mail gateway

1. Scroll to Messages, YES, Text, YES, Options, YES,

E-mail gateways, YES.

2. If there is no number in the list, select Add new?, YES.

3. Enter the number, including the international “+” sign

and country code, YES.

You can activate, edit or delete e-mail gateways.

Text formatting

You can change the style, size and alignment of the

text, and create new paragraphs, in a text message.

To format the text in a text message

1. Scroll to Messages, YES, Text, YES, Write new, YES.

2. Write the text message. Highlight the text you want to

format by sliding the volume key down while scrolling

back with the joystick.

3. Press .

4. Select Text fo rm at, YES. Then select Text style, Text

size, Alignment or New paragr., YES.

5. Select a text format, YES.

Tip: You can also select text formats before you start

writing the text message.

Receiving text messages

When you receive a text message, the phone beeps and

the message New messages Read now? appears in the

42 Messaging

display. If you receive a text message from someone

you have saved as a contact in your phone book, the

name of that contact appears in the display along with

the text message.

To read the text message

Press YES to read the text message, or NO if you want to

read the message later. The message is saved in Inbox

in the Text menu. You may not receive all parts of a

long message at the same time.

While reading the text message you can, for example,

start a chat session with the sender or go to a WAP

address found in the text message.

When you have read the text message, press YES to

select one of the following options, for example, Reply,

Forward or Delete the text message. Press NO to close

the text message.

Saving incoming text messages

Incoming text messages are saved in the phone

memory. When the phone memory is full, incoming

text messages are saved on the SIM card. Messages

that you have saved on the SIM card remain there until

you delete them.

To save from a text message

When the melody, phone number, WAP address,

picture or animation is highlighted, press YES. Then

select to save the item and press .

• A melody is saved in My sounds.

• A phone number is saved in Phone book.

• A WAP address is saved in Bookmarks.

• All pictures are saved in My pictures.

Note: Animations can only be viewed when inserting

an item in a text message. See “To insert an item in a

text message” on page 41.

Long messages

A single text message can contain up to 160 characters.

You can send a longer message where two or more

messages are linked together.

Note: You are charged for the number of linked

messages.

To turn long messages off

• Scroll to Messages, YES, Text , YES, Options, YES, Long

messages, YES, select Off, YES.

Messaging 43

Templates

If you have one or more messages that you send often,

you can save these as templates. Your service provider

may also have saved some templates in your phone.

To create a template

1. Scroll to Messages, YES, Text, YES, Templates, YES,

Add new?, YES.

2. Write the message, YES.

3. Press YES if you want to send the message now. Press

NO to save the template.

Multimedia messages

Multimedia messages can be sent to a mobile phone

and an e-mail account via MMS (Multimedia

Messaging Service). A multimedia message can

contain text, pictures, animations, melodies and sound.

You can also send contacts, event entries and sound

recordings as attachments.

Before you start

Make sure you have the following settings:

• An address to your service center.

• A specific WAP profile for multimedia messages.

Note: Contact your network operator to automatically

download settings or for more information.

To enter the service centre address

• Scroll to Messages/Picture/Options/Message server.

To select or enter settings for MMS

• Scroll to Messages/Picture/Options/WAP profile and

select Select or Create new. See “To enter WAP profile

settings manually” on page 37 for information how to

create a WAP profile.

More Options

You can set different options for sending and receiving

multimedia messages.

To edit an option

• Scroll to Messages/Picture/Options.

To compose and send a new multimedia

message

1. Scroll to Messages YES, Picture, YES, Write new, YES.

2. Select from the submenus, press YES.

3. Enter the information you want to send, press YES.

Press YES again to continue.

44 Messaging

4. Select , YES to add other items or more options.

5. Scroll to Send message, YES.

6. Enter the recipients phone number or press to

retrieve a phone number or e-mail address from the

phone book.

7. Press YES to send the message.

Tip: Highlight a part of the message and press

if you are not satisfied and want to delete a part while

writing.

To use a pre-defined template for a multimedia

message

• Scroll to Messages, YES, Picture, YES, Temp late s, YES.

To edit the message before sending it

• To edit an item, select it and press YES.

• Pictures – Add or replace an existing picture with

one from My pictures.

• Text – Add or edit existing text. To change text size,

select the text and press . Select Text size, YES.

• Sound – Add or replace an existing sound with an

alternative from My sounds.

• Page – Insert a new page.

• Timing – To set how many seconds you want an item

to be displayed, select the item and press .

Select Item timing, YES. To set the timing for the

page, select the cursor icon in the message, press

YES and select Page timing, YES.

• Delete page – Remove a page.

• Preview page – View a page before sending.

• Preview – View the message.

Receiving multimedia messages

When you receive a multimedia message, the phone

beeps and the message Read now? appears. Press YES

to read the message.

Note: Memory capacity is limited. You may have to

delete old messages before you can receive new ones.

Automatic download options

From the Messages/Picture/Options/Auto download

menu select one of the following:

•On – Messages are automatically downloaded to your

phone by default.

•Confirm – Press YES to download or NO to save it on

your network operator’s server.

Messaging 45

•Off – A new message icon appears in the inbox. Select

the message and press YES to download.

Note: Check with your network operator regarding

how many messages can be saved or the space

available on the network server.

To view a multimedia message

1. Press YES. The message is automatically played.

2. Press any key to stop.

When you have viewed a multimedia message, you can

use the joystick to scroll through the message again.

When an item is highlighted, press to save it in

your phone.

When you have read the message, select Proceed

to select one of the following options such as: Reply,

Forward, Save template or Delete the message. Press

NO to close the message.

Tip: You can also select a message from the list of

messages and press to delete the entire message.

E-mail

You can use your phone to send and receive e-mail

messages via the Internet, as you would from a PC.

Before you start

First make sure that you have:

• A subscription that supports data transmission. For

more information, consult your service provider.

• Set up a data account. See “Data account settings” on

page 35.

• Set up and selected an e-mail account. See “E-mail

account settings” on page 38.

Sending and receiving e-mail messages

The Send & receive option offers the fastest way to

send e-mail messages saved in the Outbox and check

for new e-mail messages.

To write and send an e-mail message

1. Scroll to Messages, YES, E-mail, YES, Write new, YES.

2. Select:

•To: – Then add name, enter an e-mail address, or

retrieve an e-mail address from the phone book. You

can also retrieve a saved address from received

messages in your inbox.

•Cc: – If you want to send a copy of the message

to someone.

•Priority: – Set the message priority.

•Subject: – Write a title, YES.

•Text : – Write your message, YES.

46 Messaging

•Attachments – Add up to five pictures to a message.

3. Select one of the following:

•Send now – The e-mail message is sent.

•Send w/attach. – You can attach a picture from

My pictures or from a digital camera connected via

IR. Select a picture and press YES to send.

•Save to outbox – The e-mail message is saved in

the Outbox.

•Save to drafts – The e-mail message is saved in the

Drafts folder

4. Send & receive in the E-mail menu – All e-mail

messages in the Outbox are sent and any new e-mail

messages are received in the Inbox.

To receive and read e-mail messages

1. Scroll to Messages, YES, E-mail, YES, Send & receive,

YES.

2. When the e-mail messages have been downloaded to the

phone, scroll to Messages/E-mail/Inbox to read them.

Note: The phone can save up to six complete e-mail

messages depending on the size. You can modify

settings to download headers only, see “E-mail

account settings” on page 38. All e-mail messages are

also saved on your e-mail server.

More messages on the server are indicated by:

• Arrows in the top or bottom left corners.

• Numbers in brackets for the previous and following

messages in the list.

Note: If you select a WAP address when reading an

e-mail message, e-mail disconnects and WAP starts.

To retrieve more messages

• Scroll to the arrow and press YES.

To reply to an e-mail message

1. Open the e-mail message.

2. Place the cursor in the text and press .

3. Select Reply or Reply all, YES.

4. Select Write new or Include this msg to include the

message you received, press YES.

5. Write a message, YES.

To save an e-mail address or a phone number

• When the e-mail address or phone number is

highlighted, press YES. Select Save, YES.

Using mobile Internet 47

Archiving

You can archive an e-mail message in order to read it

later, or if you want to save important information. You

can archive only as much text as the display shows.

To archive an e-mail message

1. Open the e-mail message.

2. Make sure that the text you want to archive is visible in

the display.

3. Place the cursor in the text and press .

4. Select Copy to arch., YES. The text can be found in

Archive in the E-mail menu.

To delete an e-mail message (POP3 users)

1. Scroll to Messages, YES, E-mail, YES, Inbox, YES.

2. Scroll to the message and press .

3. Select Mark f.deletion, YES.

The message is deleted the next time you connect to

your e-mail server by selecting Send & receive.

To delete e-mail messages (IMAP4 users)

1. Scroll to Messages, YES, E-mail, YES, Options, YES.

2. Select Purge inbox, YES.

3. Select whether to delete with Send & receive or not.

Using mobile Internet

Your phone has a WAP (Wireless Application

Protocol) browser and e-mail messaging which

are designed to bring a modified Internet to your

mobile phone. A wide range of services are available,

including news, entertainment, timetables,

reservations, banking, e-commerce, positioning and

e-mail.

Before you start

First make sure that you have:

• A phone subscription that supports data transmission.

• Correct settings in your phone for mobile Internet,

WAP and/or e-mail messaging. See “Setting up mobile

Internet” on page 34.

• Registered as a WAP/E-mail user with your network

operator or service provider.

Note: See “E-mail account settings” on page 38 or

“E-mail” on page 45 for more information about e-

mail set-up and messaging.

48 Using mobile Internet

Using the WAP browser

To start browsing

1. First select the WAP profile you want to use. Scroll to

WAP Services, YES, Select profile, YES.

2. Then select one of the following:

• Open your homepage (Sony Ericsson Mobile Internet

is default).

• Go to one of your bookmarks. Select Bookmarks, YES.

• Enter the address of a WAP site. Select Enter address,

YES, New address? to enter a new WAP address or

select one of the 10 latest entered addresses.

Tip: When you enter a WAP address, the normal

http:// prefix is not needed.

To exit WAP and disconnect

• Press and hold NO or

• Press , select Exit WAP.

Options when browsing

When you have started browsing, you can reach

different browsing options by pressing .

The options menu is dynamic. Its content may vary

depending on which WAP site you are visiting.

The options menu always contains the following:

• Go to the homepage set for the current WAP profile.

•Bookmarks – Add the site you are currently browsing

to your list of bookmarks, or see the list of bookmarks

for the current profile.

•Enter address – Enter the WAP address of a site you

want to visit.

•Save picture – Save a picture from the site.

•Send via SMS – Send a text message with a link to the

current WAP page to another phone.

•Send link – Send a link to the current site to another

phone via infrared.

•Reload – Refresh the contents of the WAP page.

•Exit WAP – Disconnect and go to standby.

•Status – Display current status information, for

example, profile, access type, connection time, data

rate, security, address.

•Set as homepg – Set the current site as the homepage

of the WAP profile you are using.

Note: If you select an e-mail address when browsing

a WAP site, you can reply with a text message.

Using mobile Internet 49

Using bookmarks

You use bookmarks in your mobile phone just as you

do with a PC Internet browser. You can have up to a

maximum of 25 bookmarks.

To work with bookmarks

1. Scroll to WAP Services, YES, Bookmarks, YES.

2. Select the bookmark you want to work with, .

3. Select one of the following options and press YES:

•Go to – Go to the marked WAP address.

•Edit – Edit the name and/or the WAP address of

the bookmark. See “Options when browsing” on

page 48 for more information.

•Delete – Delete the bookmark.

•Send via SMS – Send a link to the WAP address in

a text message.

•Send – Send a link to the current WAP address via

infrared.

•Set as homepg – Set the WAP address as the

homepage.

Downloading

You can download, for example, pictures, themes,

games and ring signals, from WAP sites directly to

your phone.

To download from wap.sonyericsson.com

1. Scroll to WAP Services, YES, Bookmarks, YES, Mobile

Internet, YES.

2. Select what you want to download and follow the

instructions that appear, YES.

Note: Make sure the file sizes do not exceed the free

memory in your phone, see “Memory status” on

page 58 for more information.

WAP push messages

You can receive push messages via WAP Services.

This means that a service provider sends WAP content

(information) to your phone without you having to do

anything. You can, for example, get updated news or

new WAP settings from your service provider.

There are two kinds of push messages:

• Text messages that inform you about WAP services,

by sending a link. To go to the WAP service, click the

link and select Load.

• Updated information from a WAP service is sent to

appear in the WAP browser.

50 Using mobile Internet

Receiving a push message

You can set your phone to either accept or reject push

messages. This is valid for all your WAP profiles.

To set push message acceptance

1. Scroll to WAP Services, YES, Options, YES, Common,

YES, Push access, YES.

2. Select one of the following settings:

•On – You allow push messages to be automatically

loaded.

•Prompt – You allow push messages, but only when

you confirm.

•Off – You do not allow push messages.

To respond to a push message

• Scroll to WAP Services, YES, Push inbox, YES, scroll to

any push message, YES and select one of the following:

•Load – The browser starts and loads the WAP site so

that you can see the push content.

•Delete – Deletes the push message.

•Postpone – Save the message, to be loaded later.

Stored information

The following information can be saved in your phone:

• Cache – improves memory efficiency.

• Passwords – improves server access efficiency.

• Cookies – improves site access efficiency.

To allow mobile Internet information in your phone

1. Scroll to WAP Services, YES, Options, YES, Common,

YES.

2. Select the information to allow, YES.

It is advisable to clear any sensitive information about

previously visited WAP services. This is to avoid a

security risk if your phone is misplaced, lost or stolen.

To clear cache, password list, cookies or

push inbox

1. Scroll to WAP Services, YES, Advanced, YES.

2. Select the information to be cleared.

3. Press YES to confirm.

More features 51

More features

Alarm clock

The alarm can be set to ring at a specific time within

24 hours, or recurrently at a specific time on several

days. You can have both these alarms set at the same

time. Even if you have set your phone to silent, the alarm

and timer signals ring. The alarm clock also rings if the

phone is turned off.

To set an alarm

1. Scroll to Organizer, YES, Alarms, YES, Alarm or

Recurrent alarm, YES.

2. Enter the time, YES and day, if recurrent, by scrolling

and pressing , YES.

• To change the alarm time, scroll to Organizer/Alarms/

Alarm/New time.

• Press any key to turn the alarm signal off when it rings.

If you do not want the alarm to be repeated, press YES.

• To cancel the alarm, scroll to Organizer/Alarms/Alarm

or Recurrent alarm/Cancel.

• To select an alarm signal, scroll to Settings/Sounds &

alerts/Alarm signal.

Stopwatch

Scroll to Organizer, YES, Stopwatch, YES.

• To start, stop or re-start the stopwatch, press YES.

• To save up to nine lap times, press .

• To check saved lap times, scroll using the joystick.

• To reset the stopwatch, press or NO.

Note: The stopwatch is turned off when you answer an

incoming call or when you exit the stopwatch menu.

Timer

The phone has a built-in 24-hour timer.

To set the timer

• Scroll to Organizer/Timer. When the signal rings,

press any key to turn it off.

Calculator

The phone has a built-in calculator, which can add,

subtract, divide and multiply.

To use the calculator

• Scroll to Organizer, YES, Calculator, YES.

You can enter digits with the keypad and the following:

• Press to get +, -, x, /.

52 More features

• Press to delete the figure.

• Press to enter a decimal point or %.

•Press

YES to calculate a result, equals to (=).

• Press to save to memory.

• Press to retrieve from memory.

Events

Keep track of important things that you need to do.

You can choose to add, reschedule, edit, send or delete

events.

To add a new event

1. Scroll to Organizer, YES, Events, YES, New?, YES.

2. Enter the appropriate information: date, time, subject,

icon, reminder.

Confirm each entry with YES.

To view or edit your events

• Scroll to Organizer, YES, Events, YES and then select an

event, YES:

Events options

• Scroll to an event, press and then select one of the

options to reschedule, edit, send, delete or delete all.

Exchanging events

You can send and receive an event via IR.

To send an event

1. Scroll to the item you want to send and press .

2. Scroll to Send, YES.

3. Align the receiving device.

To receive an event

1. From standby, press , scroll to Activate IR, YES.

2. Press YES to save.

Note: If the events list is full, you must remove events

before you can save any new ones.

Sound recorder

With the Sound recorder function, you can record

either your own memos or calls. All participants in the

call are automatically recorded. The recording is

terminated if any party hangs up.

The recordings are saved in your mobile phone and

can be accessed even if you change your SIM card.

More features 53

Note: In some countries or states it is required by

law that you inform the other person before recording

the call.

To start a sound recording

•Scroll to Fun & Games, YES, Sound recorder, YES.

Recording starts and the display shows Recording

together with the time of the current recording

(increasing).

Note: Recordings are saved in Fun & Games/My

sounds.

To end the recording

•Press

NO.

The recording stops automatically if you receive an

incoming call or when the call ends. You hear a tone

a few seconds before the memory is full.

Listening to recordings

You can listen to your recordings at any time, even

during a call, and both persons will hear them.

To listen to your recordings

1. Scroll to Fun & Games, YES, My sounds, YES.

2. Scroll to Recording or go to next or previous by

moving the joystick up or down, respectively.

3. Press NO to stop playback.

Note: You can also send, delete, rename, check sound

information and memory status.

To send a recording

1. Scroll to Fun & Games, YES, My sounds, YES.

2. Scroll to the recording you wish to send.

3. Press and select the transfer method.

To erase or rename a sound recording

1. Scroll to Fun & Games, YES, My sounds, YES.

2. Scroll to the recording you wish to erase or rename.

3. Press when the recording is highlighted.

4. Select Delete or Rename, YES.

Games

Your phone has games and you can download games.

To start a game

1. Scroll to Fun & Games, YES, Games, YES.

2. Select a game, YES.

3. Select New game or Resume game, YES.

54 More features

4. Start the game.

Note: Press to manage downloaded games.

Game controls:

Use the joystick to move up, down, left or right and to

select an item, or use the keys as follows:

To download a new game

1. Make sure you have entered WAP settings, see

“Setting up mobile Internet” on page 34.

2. Scroll to Fun & Games, YES, Games, YES, New games,

YES.

3. Press YES to download a new game via WAP.

A WAP session starts.

4. Select a game from the WAP site, YES.

The game is downloaded and saved in Fun & Games/

Games.

Note: See “To download from wap.sonyericsson.com”

on page 49 for more information.

= confirm/re-start = save and quit

= up = down

= left = right

= select/deselect = pause

= reset = undo

Security 55

Security

SIM card lock

The SIM card lock protects your subscription, but not

your phone itself, from unauthorized use. If you

change SIM cards, the phone still works with the new

SIM card.

Most SIM cards are locked at the time of purchase.

If the SIM card lock is on, you have to enter a “PIN”

(Personal Identity Number) every time you turn on

your phone.

If you enter your PIN incorrectly three times in a

row, the SIM card is blocked. This is indicated by the

message PIN blocked. To unblock it you need to enter

your “PUK” (Personal Unblocking Key). Your PIN

and PUK are supplied by your operator.

To unblock your SIM card

1. PIN blocked appears.

2. Enter your PUK and press YES.

3. Enter a new four- to eight-digit PIN and press YES.

4. Re-enter the new PIN to confirm and press YES.

To edit your PIN

• Scroll to Settings/Locks/SIM lock/Change PIN.

Note: If the message “Codes do not match” appears,

you entered the new PIN incorrectly. If the message

“Wrong PIN” appears, followed by “Old PIN:”, you

entered your old PIN incorrectly.

PIN2

Certain services are protected by a second PIN.

To edit your PIN2

• Scroll to Settings/Locks/SIM lock/Change PIN2.

To turn the SIM card lock on or off

1. Scroll to Settings, YES, Locks, YES, SIM lock,

YES, Protection, YES.

2. Select On or Off, and press YES.

3. Enter your PIN and press YES.

Phone lock

The phone lock protects the phone against

unauthorized use if it is stolen and the SIM card is

exchanged. It is not on when you buy the phone. You

can change the phone lock code (0000) to any four- to

eight-digit personal code. The phone lock can be set to

on, automatic or off.

56 Troubleshooting

Phone lock on

If the phone lock is on, the message Phone locked

appears each time you turn on the phone. You have to

enter your code followed by YES to use your phone.

Automatic

If the phone lock is set to automatic, you do not need to

enter your phone lock code until a different SIM card

is inserted in the phone.

To edit your phone lock code

• Scroll to Settings/Locks/Phone lock/Change code.

Note: It is important that you remember your new

code. If you should forget it, you will have to hand in

your phone to your local Sony Ericsson retailer.

To set the phone lock

1. Scroll to Settings, YES, Locks, YES, Phone lock, YES,

Protection, YES.

2. Select an alternative and press YES.

3. Enter the phone lock code and press YES.

Troubleshooting

This chapter lists some problems that you might

encounter while using your phone. Some problems

require that you call your service provider, but most

of the problems you can easily correct yourself.

The phone cannot be switched on

Recharge or replace the battery. See “SIM card and

battery information” on page 4.

No indication of charging

When you start charging a battery that is empty or a

battery that has not been used for a long time, it may

take up to 30 minutes before the battery icon appears

in the display.

Menu language

If the display shows a language that you do not

understand, you can always set the following from

standby:

• Press 0000 for English menus.

• Press 8888 for automatic, local menus.

Note: Themes are also set to factory default.

Troubleshooting 57

Grey menu options

Grey text indicates a function that is temporarily

unavailable, for example, due to your

subscription or due to a certain setting which

has not been turned on.

Since you cannot send themes, pictures and sounds

that are copyright-protected, the Send menu is

sometimes unavailable.

Error messages

Insert SIM

There is no SIM card in the phone or you may have

inserted it incorrectly. See “SIM card and battery

information” on page 4.

Insert correct SIM card

The phone is set to work only with certain SIM cards.

Insert the correct SIM card.

Emergency only

You are within range of a network, but you are not

allowed to use it. However, in an emergency, some

operators allow you to call the international emergency

number 112. See “Emergency calls” on page 24.

No network

There is no network within range or the received signal

is too weak. You have to move to get a signal that is

strong enough.

Wrong PIN/Wrong PIN2

You have entered your PIN or PIN2 incorrectly.

• Enter the correct PIN or PIN2, and press YES. See

“SIM card lock” on page 55.

Codes do not match

When you want to change a security code (for example

your PIN) you have to confirm the new code by

entering it again. The two codes that you have entered

do not match. See “SIM card lock” on page 55.

PIN blocked/PIN2 blocked

You have entered your PIN or PIN2 incorrectly three

times in a row. To unblock, see “SIM card lock” on

page 55.

PUK blocked- contact operator

You entered your personal unblocking key code (PUK)

incorrectly 10 times in a row. Contact your network

operator or service provider.

58 Troubleshooting

Phone locked

The phone is locked. To unlock the phone, see “Phone

lock” on page 55.

Phone lock code:

Your phone comes with the phone lock code, 0000.

You can change it to any four- to eight-digit code. See

“Phone lock” on page 55.

Number not permitted

The Fixed Dialing function is on and the number you

have dialed is not on your fixed numbers list. See

“Fixed dialing” on page 32.

Charging, alien battery

The battery you are using is not a Sony Ericsson-

approved battery and is charging slowly for safety

reasons.

Cannot connect to server

If your settings have previously worked, try again later

as the network server may be temporarily busy or

experiencing problems.

Memory status

Check for example, how many positions are left in

your phone book or how much memory is used.

To check the memory for the phone book

• Scroll to Phone book/Advanced/Memory status.

To check the memory for themes, pictures,

sounds, games (and multimedia messages)

• Scroll to Fun & Games, YES, select one of the menus,

YES, , select Memory status, YES.

To check memory for text/multimedia messages

• Scroll to Messages, YES, select one of the menus, YES,

Memory status, YES.

Memory full

Free memory by deleting unused files or information.

To delete saved files or information

• Select a file or information, press , YES.

• Select a submenu option or advanced option to delete.

Note: Some factory default files and information

cannot be deleted.

Additional information 59

Additional information

Sony Ericsson Consumer web site

On www.SonyEricsson.com/ there is a support section

where help and tips are only a few clicks away. Here

you find the latest software updates, tips on how to use

your product more efficiently, function guides for some

of the products and additional help when you require it.

Exchangeable front covers

You can replace the front cover with an accessory.

To replace the front cover

1. Press and hold the release button on the top of the

phone.

2. Pull the front cover away at the sides.

3. Put the keypad in place.

4. Place the bottom of the new front cover on the phone

and push the top until it clicks into place.

Note: See “Guidelines for Safe and Efficient Use” on

page 60 for more information.

60 Additional information

Guidelines for Safe and Efficient Use

Please read this information before using

your mobile phone.

When exchanging the cover please note

that the product may contain substances

that could create an allergic reaction.

RECOMMENDATIONS

• Always treat your product with care and keep it in a clean

and dust-free place.

• Do not expose your product to liquid or moisture or

humidity.

• Do not expose your product to extreme high

or low temperatures.

• Do not expose your product to open flames

or lit tobacco products.

• Do not drop, throw or try to bend your

product.

• Do not paint your product.

• Do not use your product near medical equipment without

requesting permission.

• Do not use your product when in, or around aircraft,

or areas posted “turn off two-way radio”.

• Do not use your product in an area where a

potentially explosive atmosphere exists.

• Do not place your product or install wireless

equipment in the area above your car’s air

bag.

• Do not attempt to disassemble your

product. Only Sony Ericsson authorized

personnel should perform service.

• Do not direct the infrared ray at anyone's

eye and make sure that it does not disturb

any other infrared units.

• To avoid hearing impairment, accept the call before

holding your product (or portable handsfree device)

to your ear.

Additional information 61

ANTENNA

Only use an antenna that has been specifically designed

by Sony Ericsson for your mobile phone. Use of

unauthorized or modified antennas could damage your

mobile phone and may violate regulations, causing loss

of performance and SAR levels above the recommended

limits (see below).

EFFICIENT USE

Hold your mobile phone as you would any other phone.

Do not cover the top of the phone when in use, as this

affects call quality and may cause the phone to operate

at a higher power level than needed, thus shortening talk

and standby times.

RADIO FREQUENCY (RF) EXPOSURE AND SAR

Your mobile phone is a low-power radio transmitter and

receiver. When it is turned on, it emits low levels of radio

frequency energy (also known as radio waves or radio

frequency fields).

Governments around the world have adopted

comprehensive international safety guidelines,

developed by scientific organizations, e.g. ICNIRP

(International Commission on Non-Ionizing Radiation

Protection), through periodic and thorough evaluation of

scientific studies. These guidelines establish permitted

levels of radio wave exposure for the general population.

All Sony Ericsson mobile phone models are designed to

operate within these stringent levels. The levels include a

safety margin designed to assure the safety of all

persons, regardless of age and health, and to account for

any variations in measurements.

Accessories can significantly affect a mobile phone's

compliance with the radio frequency exposure

guidelines. To avoid causing loss of performance or radio

frequency exposure levels above the permissible limits, it

is recommended that you only use Sony Ericsson or

Ericsson original accessories intended for use with the

mobile phone. If you wear the mobile phone on your

body while it is transmitting, and you do not use a Sony

Ericsson or Ericsson original body-worn accessory,

please ensure that the mobile phone is positioned a

minimum of 1.5 cm (0.6 in.) from your body and that you

are not using an accessory that contains any metal.

Specific Absorption Rate (SAR) is the unit of

measurement for the amount of radio frequency energy

absorbed by the body when using a mobile phone. The

SAR value is determined at the highest certified power

level in laboratory conditions, but the actual SAR level of

the mobile phone while operating can be well below this

value.

This is because the mobile phone is designed to use

the minimum power required to reach the network.

Therefore, the closer you are to a base station, the more

likely it is that the actual SAR level will decrease.

Variations in SAR below the radio frequency exposure

guidelines do not mean that there are variations in safety.

While there may be differences in SAR levels among

62 Additional information

various mobile phones, all Sony Ericsson mobile phone

models are designed to meet radio frequency exposure

guidelines.

A separate leaflet with SAR information for this mobile

phone model is included with the material that comes

with this mobile phone. This information can also be

found, together with more information on radio frequency

exposure and SAR, on www.SonyEricsson.com/.

DRIVING

Please check if local laws and regulations restrict the use

of mobile phones while driving or require drivers to use

handsfree solutions. We recommend that you use only

Ericsson or Sony Ericsson handsfree solutions intended

for use with your product. Please note that because of

possible interference to electronic equipment, some

vehicle manufacturers forbid the use of mobile phones in

their vehicles unless a handsfree kit with an external

antenna supports the installation.

Always give full attention to driving and pull off the road

and park before making or answering a call if driving

conditions so require.

PERSONAL MEDICAL DEVICES

Mobile phones may affect the operation of cardiac

pacemakers and other implanted equipment. Please

avoid placing the mobile phone over the pacemaker, for

example, in your breast pocket. When using the mobile

phone, place it at the ear opposite the pacemaker. If a

minimum distance of 6 inches (15 cm) is kept between

the mobile phone and the pacemaker, the risk of

interference is limited. If you have any reason to suspect

that interference is taking place, immediately turn off your

mobile phone. Contact your cardiologist for more

information.

For other medical devices, please consult the

manufacturer of the device.

CHILDREN

DO NOT ALLOW CHILDREN TO PLAY

WITH YOUR MOBILE PHONE OR ITS

ACCESSORIES. THEY COULD HURT

THEMSELVES OR OTHERS, OR COULD

ACCIDENTALLY DAMAGE THE MOBILE PHONE OR

ACCESSORY. YOUR MOBILE PHONE OR ITS

ACCESSORY MAY CONTAIN SMALL PARTS THAT

COULD BE DETACHED AND CREATE A CHOKING

HAZARD.

DISPOSING OF THE PRODUCT

Your mobile phone should not be placed

in municipal waste. Please check local

regulations for disposal of electronic

products.

Additional information 63

POWER SUPPLY

Connect the AC power adapter only to designated power

sources as marked on the product. Make sure the cord is

positioned so that it will not be subjected to damage or

stress. To reduce risk of electric shock, unplug the unit

from any power source before attempting to clean it. The

AC power adapter must not be used outdoors or in damp

areas. Never alter the cord or plug. If the plug will not fit

into the outlet, have a proper outlet installed by a

qualified electrician.

EMERGENCY CALLS

Mobile phones operate using radio signals, which cannot

guarantee connection under all conditions. Therefore you

should never rely solely upon any mobile phone for

essential communications (for example, medical

emergencies).

Emergency calls may not be possible on all cellular

networks or when certain network services and/or mobile

phone features are in use. Check with your local service

provider.

Emergency Response Center Location

Technology

Using wireless technology to help find you in case of

an emergency is a goal shared by the entire wireless

industry, local phone companies and the emergency

response centers. Your phone may support an

emergency positioning system being implemented by

some service providers. But the complexity of mobile

communication technology, combined with related

implementation technologies, means that your wireless

carrier, the local phone companies, and emergency

response centers all have a role to play in implementing

this capability.

So even if your phone supports this technology and

even if the locating features works in one area there is no

guarantee that it will work in all areas for all calls to

emergency response centers. Always review with an

emergency response center all location data you have,

including intersecting streets, as well as any landmarks,

to assist in locating you.

Sony Ericsson is committed to continuing to work with

the entire communications industry to improve location

features for emergency response.

Sony Ericsson is not liable for any service(s) including

operation, coverage, or range of the network services

provided by network carriers independent of Sony

Ericsson.

BATTERY USE AND CARE

We recommend that you fully charge the battery before

you use your mobile phone for the first time. The battery

can only be charged in temperatures between +41°F

(+5°C) and +113°F (+45°C).

A new battery or one that has not been used for a long

time could have reduced capacity the first few times it is

used.

64 Additional information

The talk and standby times depend on the actual

transmission conditions when using the mobile phone. If

the mobile phone is used near a base station, less power

is required and talk and standby times are prolonged.

•Warning! May explode if disposed of in fire.

• Use only Ericsson or Sony Ericsson branded original

batteries and chargers intended for use with your mobile

phone. Other chargers may not charge sufficiently or

may produce excessive heat. Using other batteries and

chargers could be dangerous.

• Do not expose the battery to liquid.

• Do not let the metal contacts on the battery touch another

metal object. This could short-circuit and damage the

battery.

• Do not disassemble or modify the battery.

• Do not expose the battery to extreme

temperatures, never above +140°F (+60°C).

For maximum battery capacity, use the

battery at room temperature.

• Turn off your mobile phone before removing

the battery.

• Keep out of children’s reach.

• Use the battery for the intended purpose

only.

• Do not allow the battery to be put into the

mouth. Battery electrolytes may be toxic if swallowed.

DISPOSING OF THE BATTERY

Please check local regulations for disposal

of batteries or call your local Sony Ericsson

Customer Care Center for information.

The battery should never be placed in

municipal waste. Use a battery disposal

facility if available.

Limited Warranty

Sony Ericsson Mobile Communications AB, S-221 88

Lund, Sweden, (Sony Ericsson), provides this Limited

Warranty for your mobile phone and original accessory

delivered with your mobile phone (hereinafter referred to

as “Product”).

Should your Product need warranty service, please

return it to the dealer from whom it was purchased, or

contact your local Sony Ericsson Customer Care Center

(national rates may apply) or visit

www.SonyEricsson.com to get further information.

Additional information 65

OUR WARRANTY

Subject to the conditions of this Limited Warranty, Sony

Ericsson warrants this Product to be free from defects in

design, material and workmanship at the time of its

original purchase by a consumer, and for a subsequent

period of one (1) year.

WHAT WE WILL DO

If, during the warranty period, this Product fails to

operate under normal use and service, due to defects in

design, materials or workmanship, Sony Ericsson

authorized distributors or service partners, in the country/

region* where you purchased the Product, will, at their

option, either repair or replace the Product in accordance

with the terms and conditions stipulated herein.

Sony Ericsson and its service partners reserve the

right to charge a handling fee if a returned Product is

found not to be under warranty according to the

conditions below.

CONDITIONS

1. The warranty is valid only if the original proof of purchase

issued to the original purchaser by the dealer, specifying

the date of purchase and serial number**, is presented

with the Product to be repaired or replaced. Sony

Ericsson reserves the right to refuse warranty service if

this information has been removed or changed after the

original purchase of the Product from the dealer.

2. If Sony Ericsson repairs or replaces the Product, the

repaired or replaced Product shall be warranted for the

remaining time of the original warranty period or for

ninety (90) days from the date of repair, whichever is

longer. Repair or replacement may involve the use of

functionally equivalent reconditioned units. Replaced

parts or components will become the property of Sony

Ericsson.

3. This warranty does not cover any failure of the Product

due to normal wear and tear, or due to misuse, including

but not limited to use in other than the normal and

customary manner, in accordance with the Sony

Ericsson instructions for use and maintenance of the

Product. Nor does this warranty cover any failure of the

Product due to accident, modification or adjustment, acts

of God or damage resulting from liquid.

66 Additional information

4. Since the cellular system on which the Product is to

operate is provided by a carrier independent from Sony

Ericsson, Sony Ericsson will not be responsible for the

operation, availability, coverage, services or range of that

system.

5. This warranty does not cover Product failures caused by

installations, modifications, or repair or opening of the

Product performed by a non-Sony Ericsson authorized

person.

6. The warranty does not cover Product failures which have

been caused by use of accessories or other peripheral

devices which are not Ericsson or Sony Ericsson

branded original accessories intended for use with the

Product.

7. Tampering with any of the seals on the Product will void

the warranty.

8. THERE ARE NO EXPRESS WARRANTIES, WHETHER

WRITTEN OR ORAL, OTHER THAN THIS PRINTED

LIMITED WARRANTY. ALL IMPLIED WARRANTIES,

INCLUDING WITHOUT LIMITATION THE IMPLIED

WARRANTIES OF MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE, ARE LIMITED TO

THE DURATION OF THIS LIMITED WARRANTY. IN NO

EVENT SHALL SONY ERICSSON OR ITS LICENSORS

BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL

DAMAGES OF ANY NATURE WHATSOEVER,

INCLUDING BUT NOT LIMITED TO LOST PROFITS OR

COMMERCIAL LOSS, TO THE FULL EXTENT THOSE

DAMAGES CAN BE DISCLAIMED BY LAW.

Some countries/states do not allow the exclusion or

limitation of incidental or consequential damages, or

limitation of the duration of implied warranties, so the

preceding limitations or exclusions may not apply to you.

The warranty provided does not affect the consumer's

statutory rights under applicable legislation in force, nor

the consumer's rights against the dealer arising from

their sales/ purchase contract.

* EUROPEAN UNION (EU)

If you have purchased your Product in an EU country you

can have your Product serviced, under the conditions set

out above, within the warranty period in any EU country

where an identical Product is sold by an authorized Sony

Ericsson distributor. To find out if your Product is sold in

the EU country you are in, please call the local Sony

Ericsson Customer Care Center. Please observe that

certain services may not be possible elsewhere than in

the country of original purchase, for example due to the

fact that your Product may have an interior or exterior

which is different from equivalent models sold in other

EU countries. It may not be possible to repair SIM-locked

Products.

** In some countries/regions additional information is

requested. If so, this is clearly shown on the valid proof of

purchase.

Additional information 67

Declaration of Conformity

We, Sony Ericsson Mobile Communications AB of

Nya Vattentornet

S-221 88 Lund, Sweden.

declare under our sole responsibility that our product

Sony Ericsson type 113 0601-BV

and in combination with our accessories, to which this

declaration relates is in conformity with the appropriate

standards 3GPP TS 51.010-1, EN 301489-7,

EN 300328, EN 300826 and EN 60950, following the

provisions of, Radio Equipment and Telecommunication

Terminal Equipment directive 99/5/EC with requirements

covering EMC directive 89/336/EEC, and Low Voltage

directive 73/23/EEC.

We fulfil the requirements of the R&TTE Directive

(99/5/EC).

FCC Statement

Before a phone model is available for sale to

the public, it must be tested and certified to

the FCC that it does not exceed the limit

established by the government-adopted requirement for

safe exposure. The tests are performed in positions and

locations (that is, at the ear and worn on the body) as

required by the FCC for each model. Body worn

measurements are made while the phone is in use and

worn on the body with an Ericsson or Sony Ericsson

branded original accessory intended for use with the

phone. The design and composition of an accessory can

affect the body worn SAR (Specific Absorption Rate)

levels for the phone. Sony Ericsson has not measured,

and makes no representation about, the body worn SAR

levels when the phone is used with non-Ericsson or non-

Sony Ericsson branded original accessories intended for

use with the phone.

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received,

including interference that may cause undesired

operation.

Lund, May 2002

Place & date of issue 0682

Kentaro Odaka, Head of Product Business Unit GSM/UMTS

68 Additional information

For Canadian customers

The term “IC” before the radio certification number

signifies that industry Canada technical specifications

were met.

Icons 69

Icons

The table below shows icons which may appear in

standby or in the menus.

Icon Description

Main menus

Your personal phone book.

Handling of text (SMS), multimedia (MMS),

e-mail and voice messages.

Handling of outgoing/incoming calls, call time

and cost information.

Handling of ongoing calls. Alternates with the

Calls menu, that is only available during calls.

Handling of pictures, sounds and themes. Play

games.

Personal settings including profiles, display,

language, time and locks.

Gives you access to WAP services on the

Internet.

Events, alarm clock and other extras.

Receive items via infrared, networks, data

communications settings and accessories.

Create your own menu for the functions you

use most often.

Standby

Tells you the strength of the GSM network

signal.

GPRS is within range.

GPRS is within range and can be used.

Tells you the status of the battery.

You cannot receive any incoming calls.

You have missed an incoming call.

All incoming calls are forwarded to a defined

number.

No calls or only certain calls from numbers in

a list are received.

All signals are off, except the alarm and timer.

The alarm clock has been set and is on.

Icon Description

70 Icons

The timer has been set and is on.

A profile other than Normal has been chosen.

The keypad is locked.

The card lock or phone lock is on.

A secure WAP connection is established.

You have received a text message.

You have received an e-mail message.

You have received a multimedia message.

You have received a voice message.

You have received a WAP push message.

The infrared port is on.

Infrared communication is in progress.

A GPRS session is in progress.

Line 1 is in use for outgoing calls.

Icon Description

Line 2 is in use for outgoing calls.

Encoding is currently not being provided by

the network.

The network is preferred and can be used.

The network is forbidden and cannot be used.

Your home network is within range and can

be used.

An ongoing call.

A chat session is in progress.

Phone book

A group of contacts in the phone book.

You can enter the phone book by pressing .

A home number in the phone book.

A work number in the phone book.

A mobile number in the phone book.

Icon Description

Icons 71

An e-mail address in the phone book.

A picture is connected to the contact.

Messages

A text message is saved on the SIM card.

A voice message has not been checked.

A message has not been read.

A message has been read.

Only part of a read e-mail or a multimedia

message is saved in the phone.

Only part of an unread e-mail or a multimedia

message is saved in the phone.

A read message will be deleted the next time

you connect to the server.

An unread message will be deleted the next

time you connect to the server.

A damaged message.

A read picture message.

Icon Description

An unread picture message.

The message has not been sent.

The message has been sent.

A message has been delivered or read by the

recipient.

A sent message that has expired or been

rejected by the recipient.

Pre-defined message template (not editable).

User-defined message template.

A multimedia message is playing.

A multimedia message has been stopped.

A multimedia message has been paused.

Picture could not be shown.

A business card is attached to a multimedia

message.

Icon Description

72 Icons

An event is attached to a multimedia message.

A theme is attached to a multimedia message.

A multimedia message contains a melody.

A multimedia message contains a recorded

sound.

Cursor in a multimedia message.

More message options.

Chat message prompt.

Calls

A missed call in the call list.

An answered call in the call list.

A dialed number in the call list.

Icon Description

Fun & Games

A standard melody saved in My sounds.

A polyphonic melody saved in My sounds.

Fun & Games/Composer

Turns the indicator light on and off.

Turns backlight on and off.

Turns vibrating alert on and off.

Starts and stops a melody loop.

Increases and decreases the volume one step.

A volume between 0 and 15 has been selected.

Whole note, half note, 1/4 note.

1/8 note, 1/16 note, 1/32 note.

Icon Description

Index

Alarm clock 51

Animations 15

Answering mode 21

Battery 4

Business cards 27

Calculator 51

Call costs 29

minute minder 19

Call time 29

Calls

accept 33

answer 5,24

automatic redialing 23

call list 24

emergency 24

fixed dialing 32

forward 29

groups 27

international 23

make 5,23

missed 24

put on hold 30

receive 5,24

reject 24

restrict 32

speed dialing 28

Charging (battery) 4

Conference calls 31

Contacts 25

Contrast (display) 20

Declaration of conformity 67

Display

contrast 20

greeting 21

help texts 9

icons 69

light 20

Downloading 49

E-mail 45

gateway 35,41

settings 35,38

Emergency calls 24

Error messages 57

Events 52

Fixed dialing 32

Forwarding calls 29

Front cover replacement 59

Games 53

memory status 58

GPRS 36

Greeting 21

Groups 27

closed user groups 33

conference calls 31

Handsfree 21

Help texts 9

Icons (display) 69

Infrared port 14

International

calls 23

emergency number 24

Key functions 6

Key sound 19

Keypad lock 21

Language (display) 20

Locks

keypad 21

phone 55

SIM card 55

Melodies, see Ring signals 17

Memory

full 58

status 58

Menu language 20

Menu overview 10

Minute Minder 19

Missed calls 24

MMS, see Multimedia messages 43

Mobile Internet 47

bookmarks 48

downloading 49

e-mail settings 35,38

options 48

settings 34

Multimedia messages 43

memory status 58

Multitap text input 11

My numbers 21

My shortcuts 22

Networks 5

Own number 21

Pause 9

Personal ring signal 19

Phone book 25

memory status 58

Phone lock 55

Picture messages 41

Pictures 15

animations 15

background picture 16

exchange 16

memory status 58

change 55

enter 5

PIN2 55

PUK 55

Quick keys 7

Redialing 23

Reset 14

Ring signals 17

Screen saver 16

Security

phone lock 55

SIM card 55

Shortcuts 7,22

Silent ring signal 17

SIM card 4

copy contacts 28

lock 55

unblock 55

SMS, see Text messages 40

Sony Ericsson

Mobile Internet 14

web site 59

Sound recorder 52

Sounds

memory status 58

Speed dialing 28

Stopwatch 51

T9 Text input 12

Text messages 40

E-mail gateway 35,41

memory status 58

Themes 14

memory status 58

Time settings 20

Timer 51

Turning the phone on/off 5

Vibrating alert 19

Voice mail 28

WAP, see Mobile Internet 47

Warranty 64

www.SonyEricsson.com

AE/LZT 123 1701 P1A

Sony Ericsson Mobile Communications TR-G0702 Dual Band GSM Cellular Phone User Manual T62u

Sony Ericsson Mobile Communications Inc. Dual Band GSM Cellular Phone T62u

Contents

Manual

Navigation menu

Namespaces

Views

Navigation
