User Manual
CBK-WA01
WIFI ADAPTER
User manual
Version 1.0
1
Contents
1. Package Contents........................................................................................................... 3
2. WLAN Adapter Quick installation Guide.......................................................................... 4
3. Network Card Installation................................................................................................ 4
4. Connect to Wireless Access Point .................................................................................. 8
5. WPS Function................................................................................................................11
2
Copyright statement
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, whether electronic, mechanical, photocopying, recording, or
otherwise without the prior writing of the publisher.
JULY 2008
3
1. Package Contents
Before you starting to use this wireless network card, please check if there’s anything missing
in the package, and contact your dealer of purchase to claim for missing items:
Package Contents

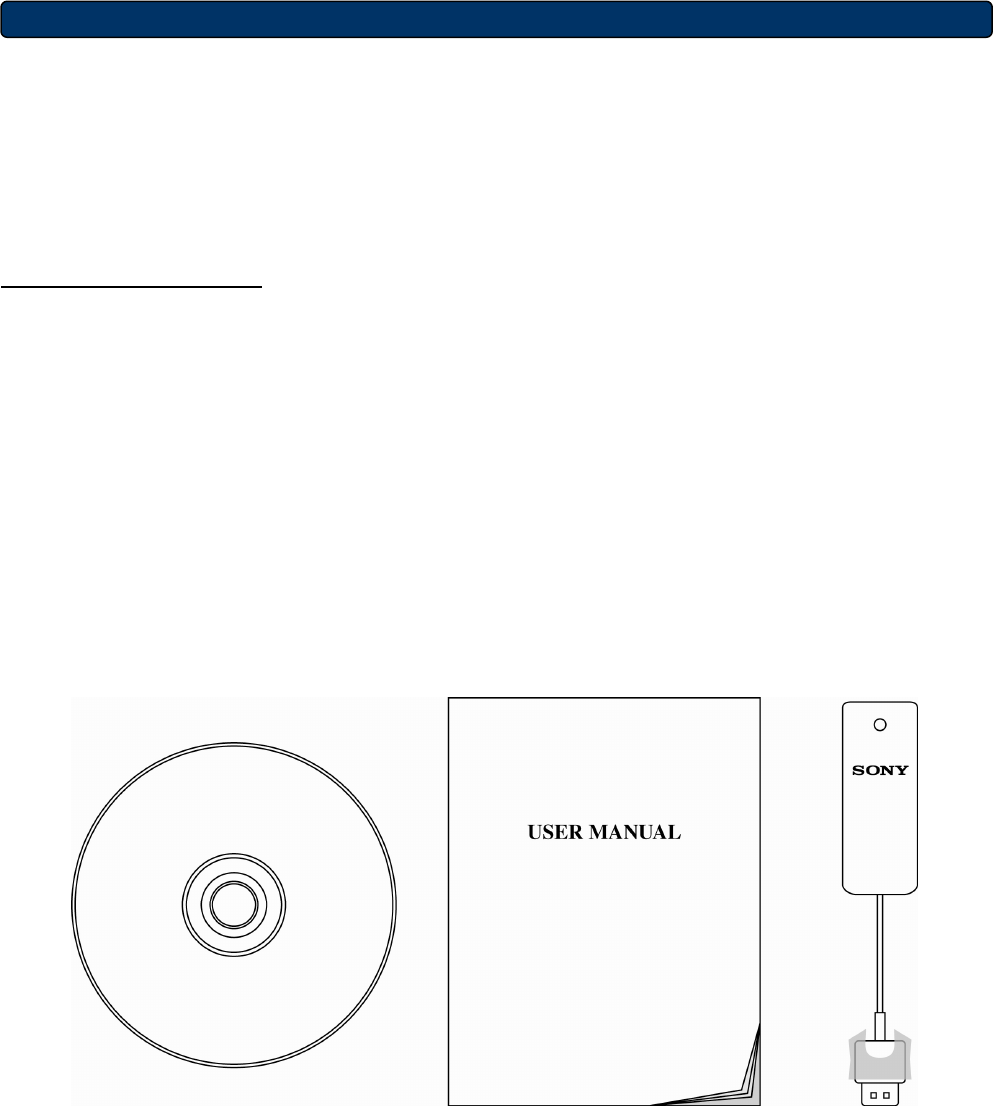

Please make sure you have the following in the box:
♦ Wireless-GN USB Dongle
♦ Protection Cap
♦ Quick installation guide
♦ User manual / device driver CDROM
Note: if anything is missing, please contact your vendor
4
2. WLAN Adapter Quick installation Guide
Please follow the following instructions to use Ralink configuration utility to connect to
wireless access point.
3. Network Card Installation

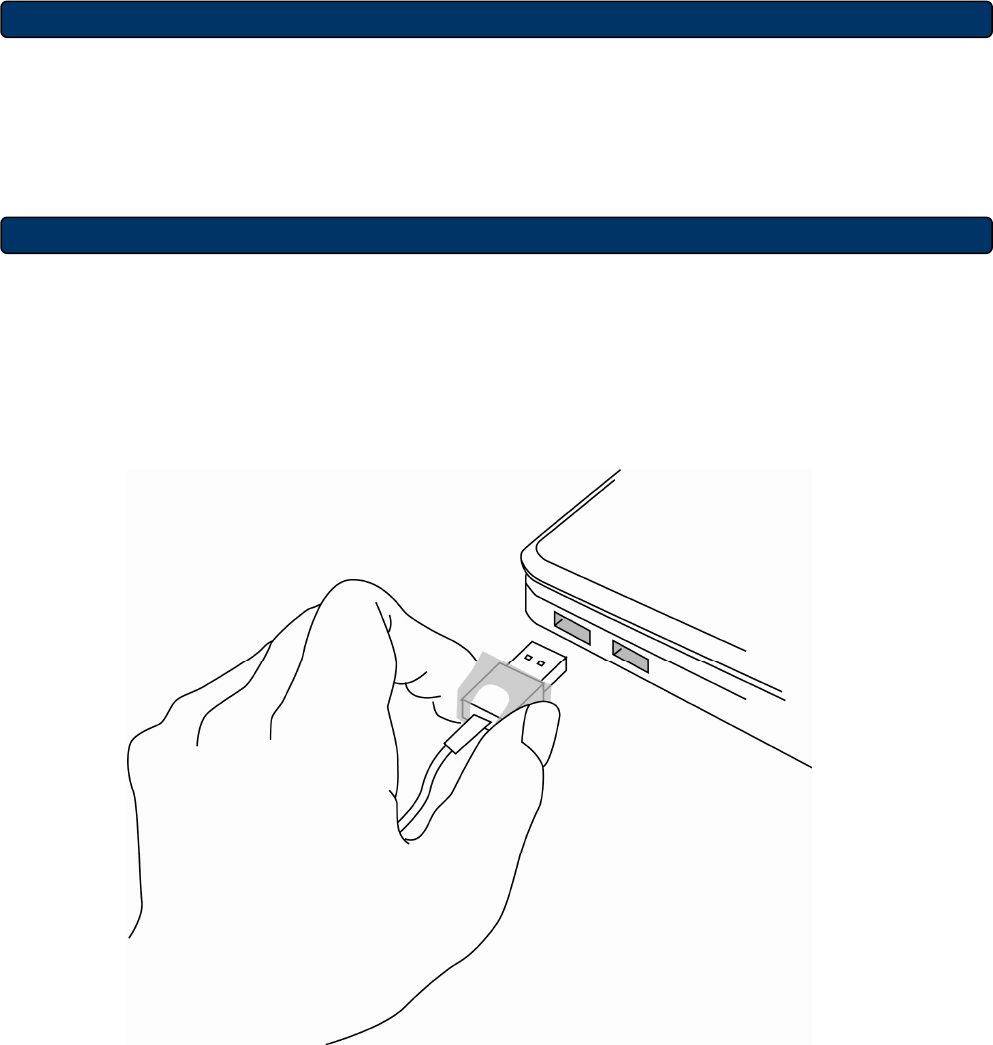

1. Insert the USB wireless network card into an empty USB 2.0 port of your computer when
computer is switched on.
Never use force to insert the card, if you feel it’s stuck, flip the card over and try again.

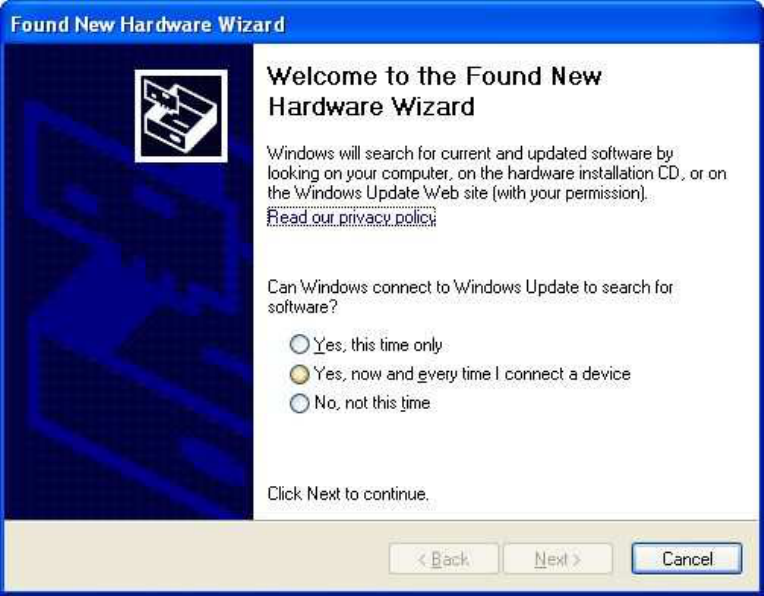

2. The following message will appear on your computer, click ‘Cancel’.
5
3. Turn “On” your computer. Insert the Driver CD then wait for the Autorun prompt.
4. If Autorun does not work, please browse the CD content and double click the
“ Autorun.exe ”.
5. Click the “Driver” for beginning the installation.

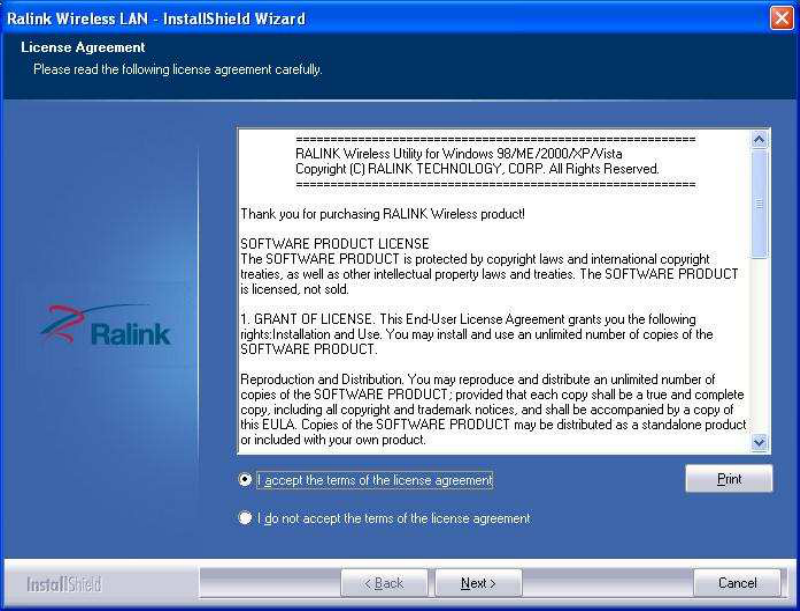

6. Click “Next” and then follow the instructions on the screen to continue the installation.
6

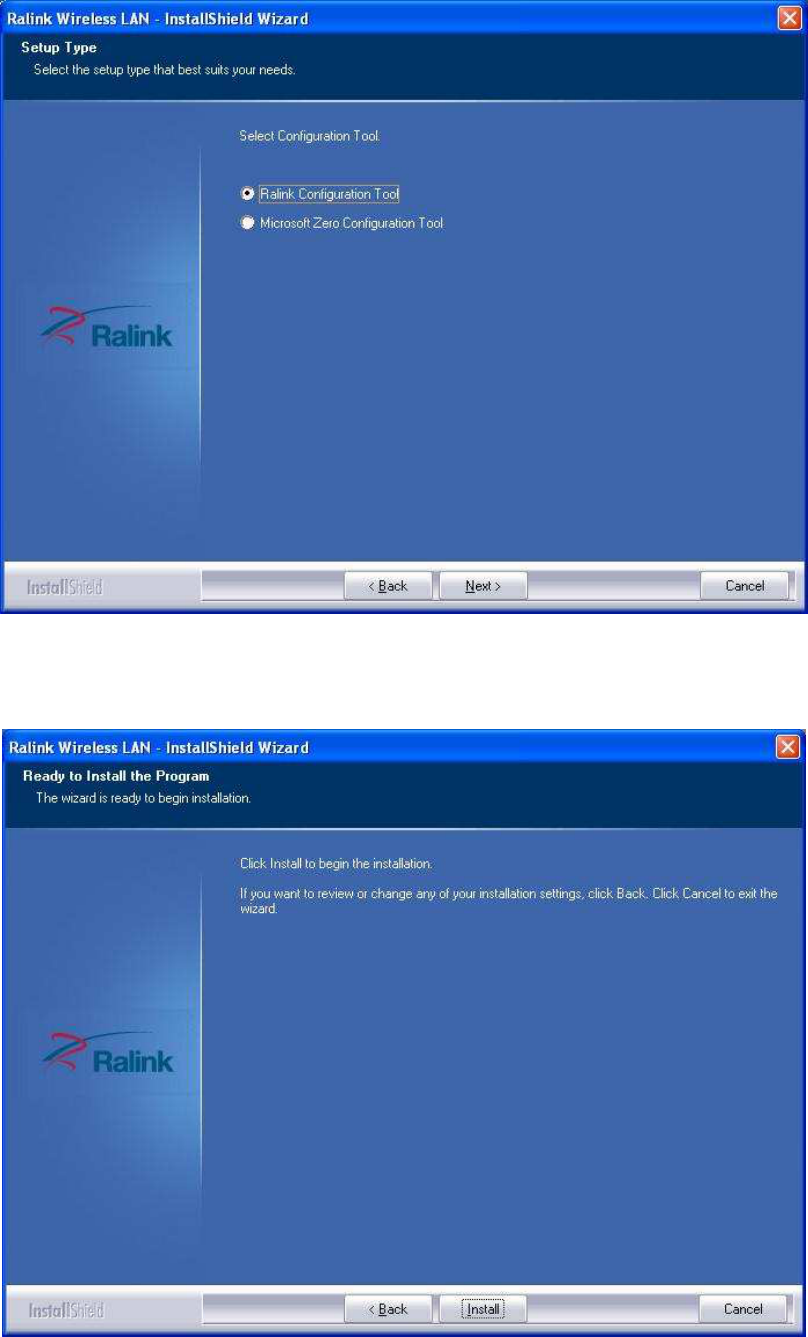

7. You can choose the configuration tool used to configure the wireless network card here.
It’s recommended to select ‘Ralink Configuration Tool’, which provides fully access to all
function of this wireless network card. If you prefer to use the wireless configuration tool
provided by Windows XP or Vista, please select ‘Microsoft Zero Configuration Tool’,then
click ‘Next’.
If you see ‘Found New Hardware’ message again, please ignore it and wait.
7
8. When you see this message, please click ‘Finish’ to complete the driver installation
process.
8
4. Connect to Wireless Access Point

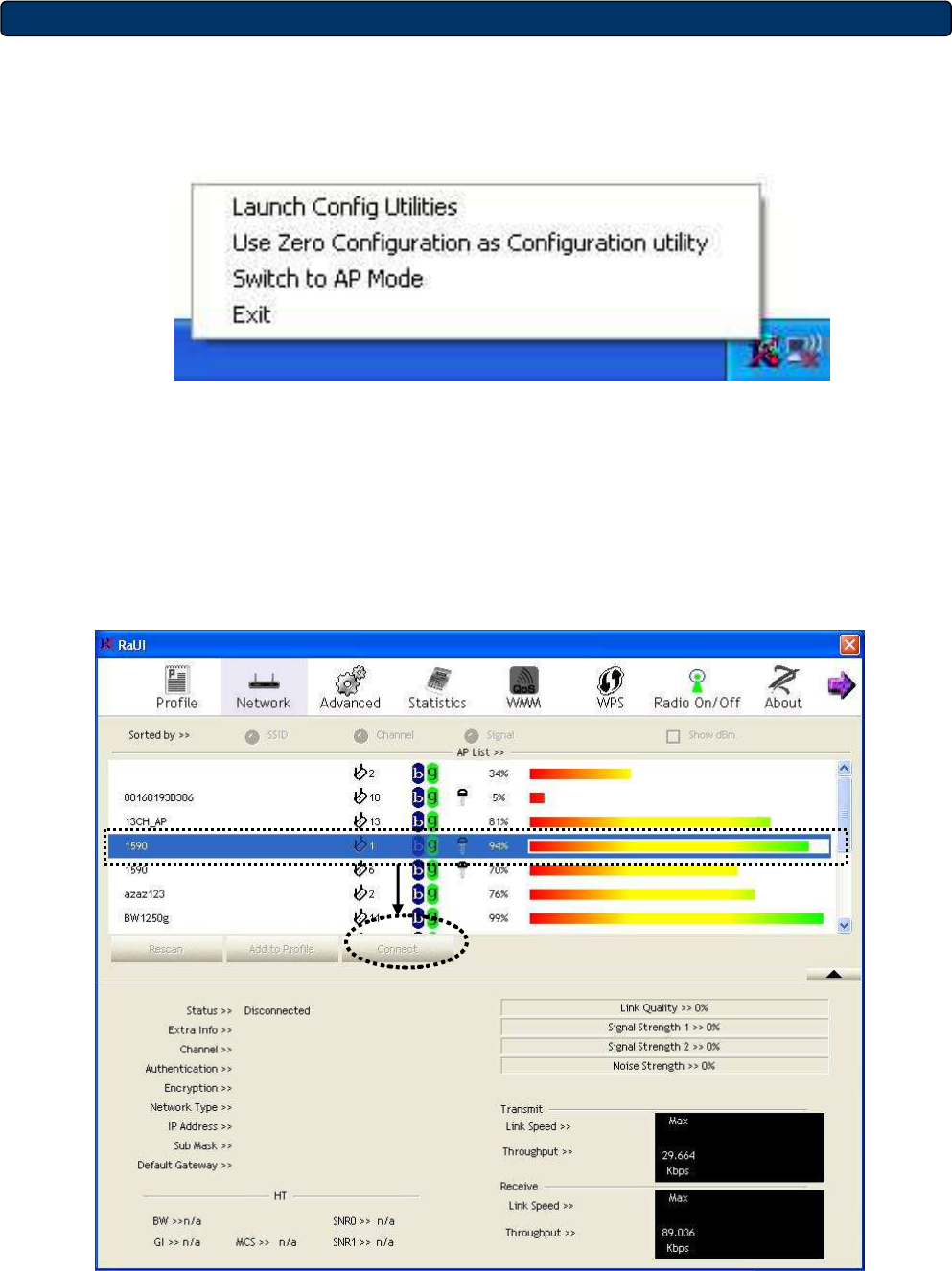

1. After installation is complete, wireless configuration utility will be shown as an icon at
the lower-right corner of your windows desktop. Please click the icon by right mouse
key, and select ‘Launch Config Utilities’.
2. Configuration utility will scan for wireless access points automatically, and all found
access points will be displayed. Please select an access point you wish to connect,
and click ‘Connect’.
If the wireless access point you want to connect does not show here, please click ‘Rescan’
9

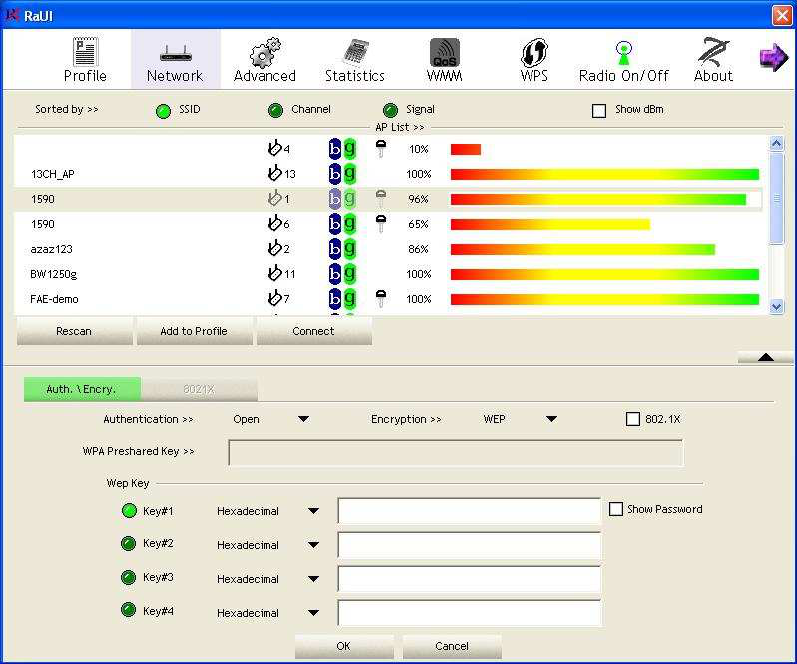

3. If the wireless access point uses encryption, you have to input WEP passphrase or
WPA preshared key. Please ask the owner of the wireless access point you want to
connect, and input the correct passphrase / preshared key here, then click ‘OK’. If the
value you inputted here is wrong, you will not be able to connect to wireless access
point.
Authentication type is selected automatically, please don’t change it.
10

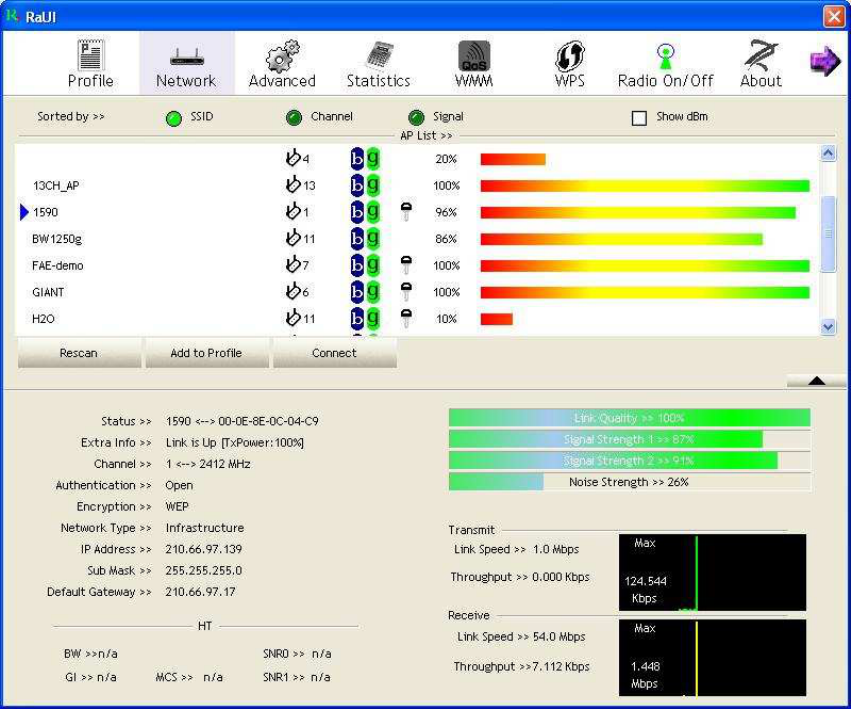

4. If the wireless access point is successfully connected, you’ll see a ‘‘Status’ (SSID and
MAC address of the wireless access point or wireless device you connected to)
message displayed at the lower-left corner of wireless configuration utility window.
Click ‘X’ to exit.
11
5. WPS Function
Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of a
wireless home network, created by the Wi-Fi Alliance. The goal of the WPS protocol is to
simplify the process of connecting any home device to the wireless network.
To secure your wireless network, you could push the “WPS” button under user interface as
below:
There are two ways to enable WPS connection:

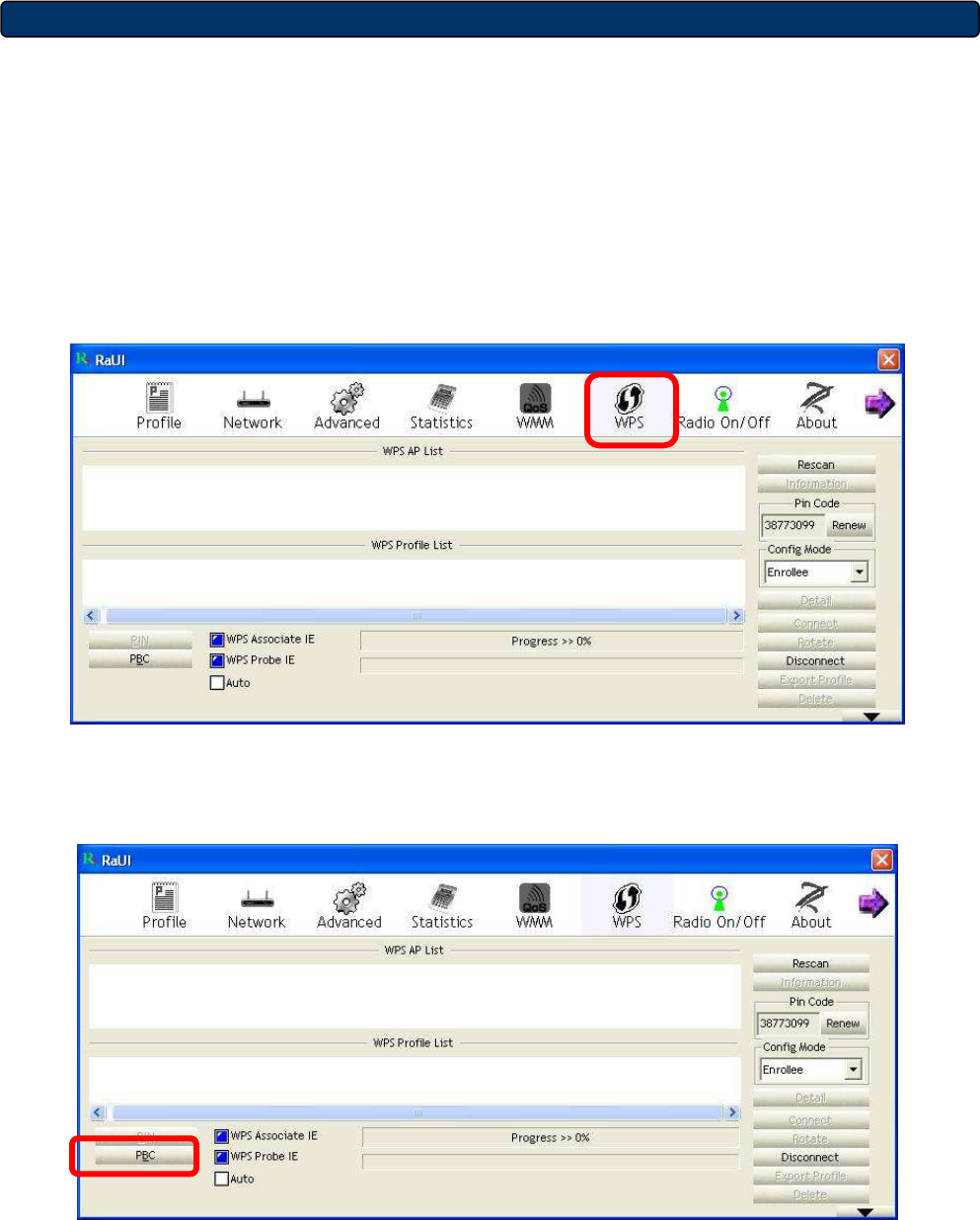

1. PBC mode: Choose a Router in the list then click “PBC” button.
12

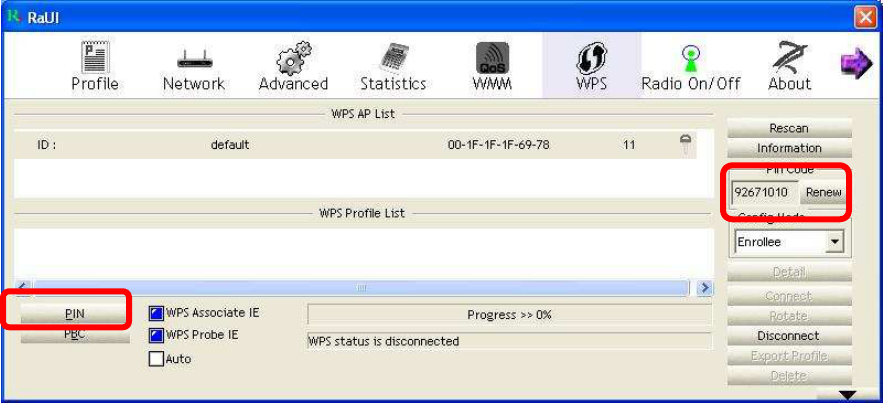

2. PIN mode: Choose a Router in the list and check the PIN codes are the same between
Router and Client then click “PIN” button.
13
Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. To maintain compliance with FCC RF exposure compliance
requirements, please follow operation instruction as documented in this manual.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
SAR compliance has been established in typical laptop computer(s) with USB slot, and
product could be used in typical laptop computer with USB slot. Other application like
handheld PC or similar device has not been verified and may not compliance with related RF
14
exposure rule and such use shall be prohibited.
The availability of some specific channels and/or operational frequency bands are country
dependent and are firmware programmed at the factory to match the intended destination.
The firmware setting is not accessible by the end user.
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. To maintain compliance with Canada RF exposure compliance
requirements, please follow operation instruction as documented in this manual.
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The
following test methods have been applied in order to prove presumption of conformity with the
essential requirements of the R&TTE Directive 1999/5/EC:
EN60950:2006
Safety of Information Technology Equipment
EN 300 328 V1.7.1: (2006-10)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission
systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread
spectrum modulation techniques; Harmonized EN covering essential requirements under
article 3.2 of the R&TTE Directive
EN 62311 : (2008)
15
Assessment of electronic and electrical equipment related to human exposure restrictions for
electromagnetic fields (0 Hz – 300 GHz)
EN 301 489-1 V1.8.1: (2008-04)
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical
requirements
EN 301 489-17 V1.3.2 (2008-04)
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment; Part 17: Specific conditions for 2,4 GHz
wideband transmission systems, 5 GHz high performance RLAN equipment and 5,8 GHz
Broadband Data Transmitting Systems
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all
EU member states and EFTA countries, except in France and Italy where restrictive use
applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to
obtain authorization to use the device for setting up outdoor radio links and/or for supplying
public access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas
the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5
MHz. For detailed information the end-user should contact the national spectrum authority in
France.
