Digital Wireless

Microphone

Operating Instructions

DWM-02N

4-585-174-01 (1)

Table of Contents

Features ...................................................................... 3

Parts Identification ................................................... 4

Power Supply ............................................................. 5

Installing the Batteries ........................................... 5

Attaching the Supplied Accessories ......................... 6

Replacing the Identification Ring .......................... 6

Setting the Transmission Channel ........................... 7

Selecting the Group/Channel ................................. 7

Using the Cross Remote ............................................ 8

Pairing With a Receiver ......................................... 8

Using the Encrypted Transmission Function ......... 9

Using Secure Key Mode (SECURE KEY) ............ 9

Using Password Mode (PASSWORD) ................ 10

Using a USB Keyboard ........................................... 11

Basic Menu Operations .......................................... 11

Setting Menus .......................................................... 12

Naming of Microphone (NAME) ........................ 12

Selecting the Frequency Band (BAND) .............. 12

Selecting the Group/Channel (GP/CH) ............... 12

Setting the RF Output Power (RF POWER) ....... 12

Setting the Audio Input Level (INPUT

LEVEL) ............................................................. 12

Low-cut Filter Setting (LCF) ............................... 13

Power Save Setting (POWER SAVE) ................. 13

Setting the Battery Type (BATTERY TYPE) ..... 13

Displaying the Accumulated Use Time

(TIME) ............................................................... 13

Setting the Encrypted Transmission Function

(ENCRYPTION) ............................................... 13

Setting the audio codec mode (CODEC

MODE) .............................................................. 13

Setting the maximum RF output power

(MAX RF POWER) .......................................... 14

Generating an Internal Signal (INTERNAL

SG) ..................................................................... 14

Locking the POWER Switch (POWER SW

LOCK) ............................................................... 14

Cross Remote (RF REMOTE) ............................. 14

Setting the Brightness of the Display

(BRIGHTNESS) ................................................ 14

Automatic Dimming of the Display (DIMMER

MODE) .............................................................. 15

Resetting Parameters to Their Factory Settings

(FACTORY PRESET) ...................................... 15

Displaying the Software Version (VERSION) .... 15

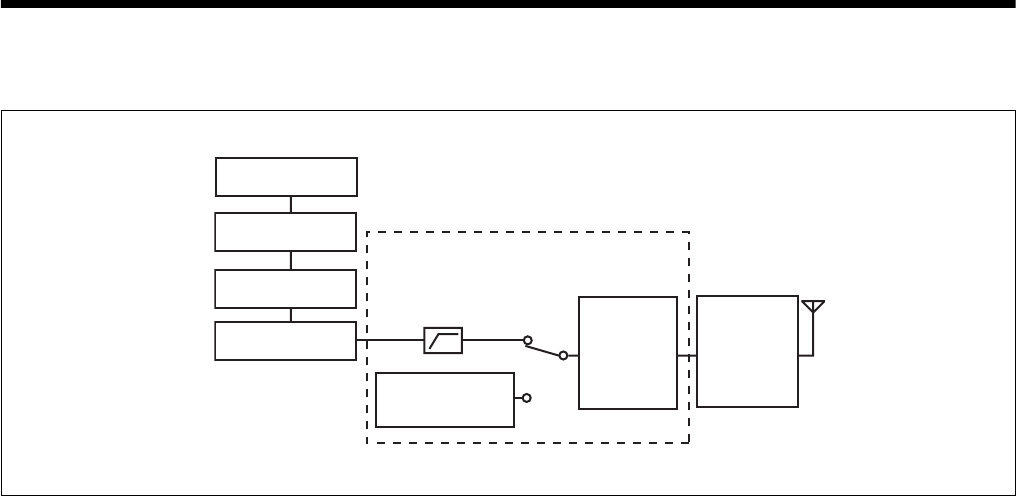

Block Diagram ......................................................... 16

Troubleshooting ....................................................... 17

Important Notes on Operation .............................. 18

Notes on Using the Microphone .......................... 18

On Cleaning ......................................................... 18

Specifications ........................................................... 19

Carrier Frequencies and Channel Steps ............... 20

Features

The DWM-02N is a digital wireless microphone that

features an interchangeable microphone capsule unit

design, and is intended for use in UHF synthesized

wireless microphone systems. The DWM-02N can be used

in vocal performances, interviews, speeches, and a variety

of other applications.

What is DWX?

DWX refers to Sony’s new digital wireless microphone

system. The DWX series reflects Sony’s extensive

expertise in professional microphones and sound design. It

represents a successful blend of Sony know-how, wireless

technology renowned for stability, and cutting-edge digital

audio technology.

In addition to realizing the high sound quality possible

with a digital system, the DWX series supports multi-

channel simultaneous operation, encrypted transmission,

and metadata transmission for monitoring the status of

multiple transmitters. Using a main link and a separate

additional link, remote control of transmitters from the

receiver is also possible. With its many advanced features,

the system has the potential to revolutionize the workflow

of professional applications.

What is WiDIF-HP?

WiDIF-HP (WiDIF: Wireless Digital Interface Format,

HP: High Profile) is a wireless digital audio interface

format developed by Sony.

It enables highly secure transmission with high sound

quality and low system latency, and supports simultaneous

multi-channel operation.

What is Cross Remote?

Cross Remote is a system that allows transmitters to be

monitored and controlled from a receiver and the Wireless

Studio control software installed on a computer connected

to the receiver.

For example, the settings of a transmitter worn under

clothing can be easily changed over the wireless link.

Wide RF carrier frequency range

The DWM-02N microphone covers an extremely wide RF

carrier frequency range. Depending on the model, the

transmitter can cover bandwidths between 48-MHz and

72-MHz (e.g., 72-MHz with the CE42 1)) — much wider

than 24-MHz of the analog wireless microphone system.

This remarkably wide coverage on a single model offers

cost efficiency and operational convenience, because it

allows one microphone to be operated in many different

areas.

1) Carrier frequencies differ depending on the model.

Interchangeable microphone capsule

Coupled with a Sony microphone capsule unit (not

supplied), the DWM-02N can be used in vocal

performances, interviews, speeches, and a variety of other

applications. You can mount a microphone capsule unit by

simply screwing it onto the capsule mounting area at the

top of the DWM-02N. The capsule mounting area has

standard dimensions with a diameter of 31.3 mm and a

pitch of 1.0 mm (1.25"/28 thread pitch).

Capability of accepting wide range of

sound pressure level

For details, see “Setting the Audio Input Level (INPUT

LEVEL)” on page 12.

Three audio codec modes

Switch between audio codec modes based on your

operational needs.

For details, see “Setting the audio codec mode (CODEC

MODE)” on page 13.

Switchable RF output power

For details, see “Setting the RF Output Power (RF

POWER)” on page 12 and “Setting the maximum RF

output power (MAX RF POWER)” on page 14.

Digital low-cut filter

For details, see “Low-cut Filter Setting (LCF)” on

page 13.

Power sleep mode

For details, see “Power Save Setting (POWER SAVE)” on

page 13.

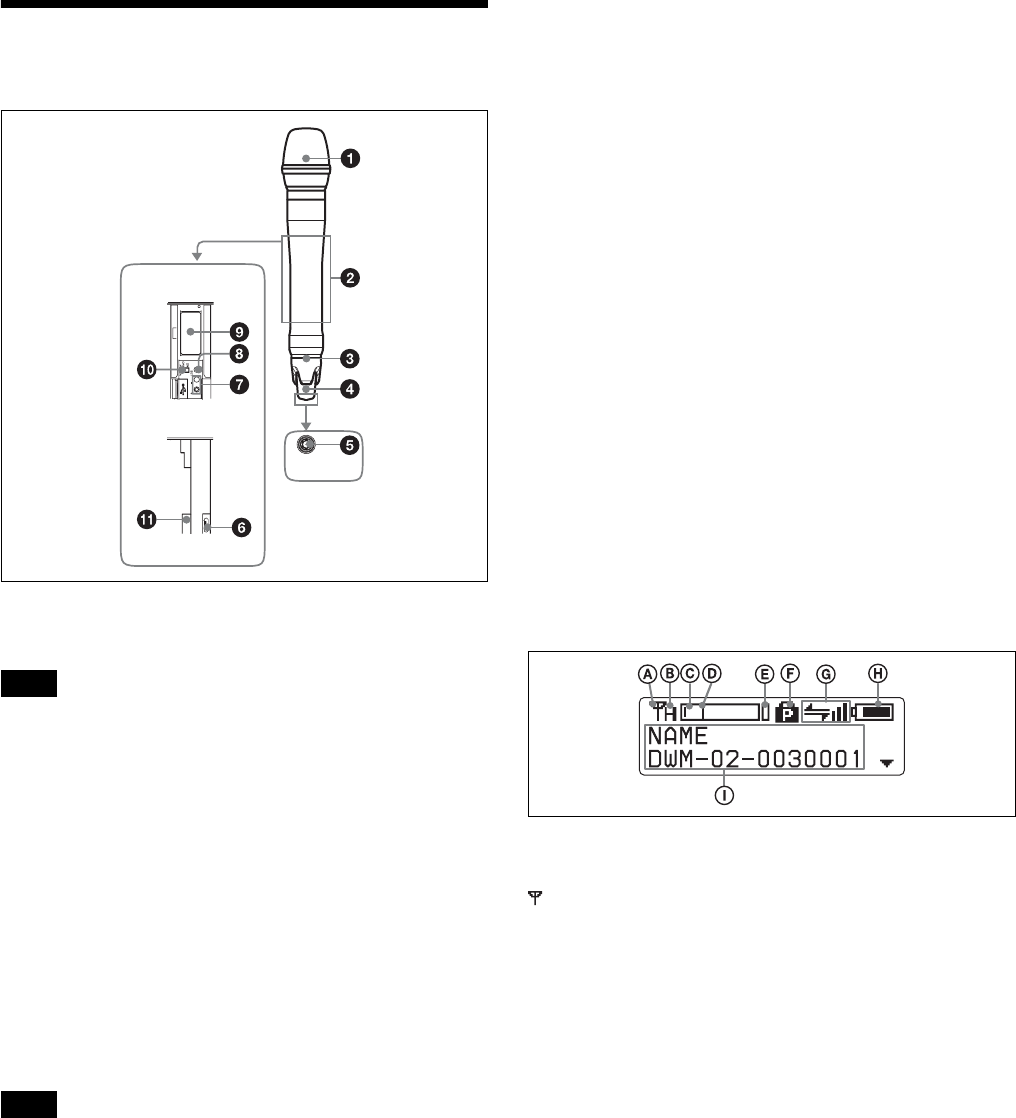

Parts Identification

aMicrophone capsule unit (not supplied)

Mount the microphone capsule unit securely.

Make sure that the wireless microphone is turned off

before mounting or removing the microphone capsule unit.

Mounting or removing the unit while the wireless

microphone is turned on may result in malfunctions.

For details on mounting, refer to the operating

instructions supplied with your microphone capsule unit.

bGrip

Contains operation buttons, display section, and the

battery holder.

Open the grip to make settings or install the batteries.

For details on how to open the grip, see “Installing the

Batteries” on page 5.

When the grip is open, the metal part of the grip obstructs

the antenna for RF transmission and wireless remote

control system. To transmit the signal or to use the wireless

remote control function with this microphone, be sure to

close the grip.

cIdentification ring

The ring can be replaced with the ones supplied.

This is useful when multiple microphones are used in the

system.

For details on how to replace the identification ring, see

“Replacing the Identification Ring” on page 6.

dAntenna cover

Holds the antenna for RF transmission and wireless remote

control function.

ePOWER indicator

Lights up green when the microphone is turned on. When

the battery is exhausted, the indicator starts flashing.

fUSB connector (Micro USB)

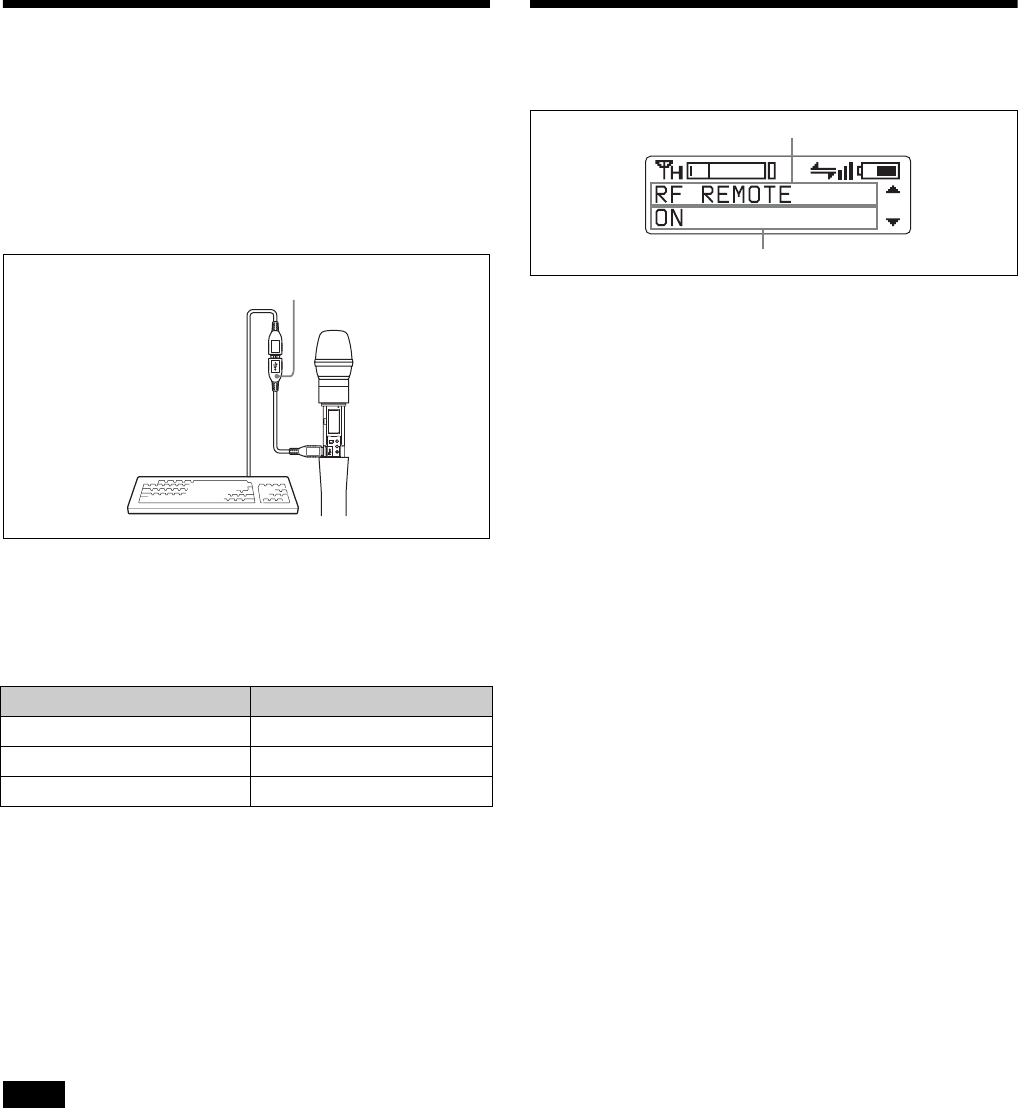

Use this connector to connect an optional USB keyboard to

carry out menu functions using key operations.

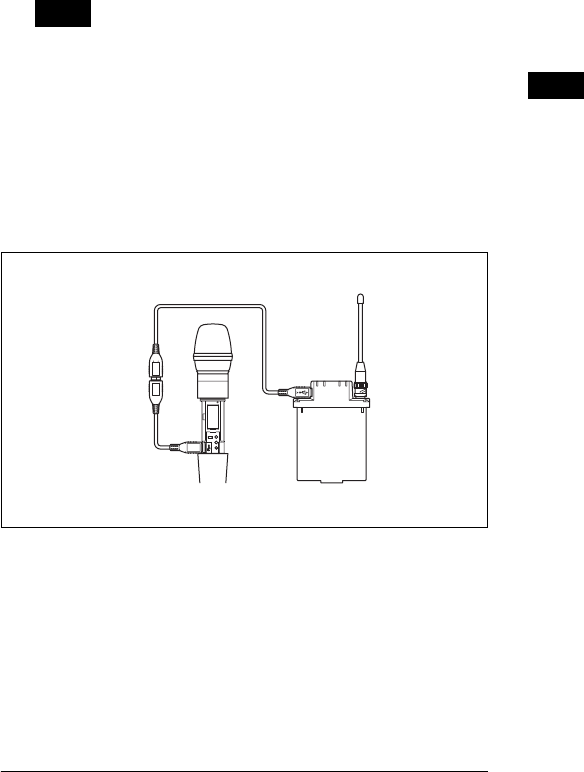

By connecting the digital wireless receiver to this

connector with the supplied USB cable, you can exchange

the encryption key for encrypted transmission function.

g + or – button

Selects functions or values shown on the display.

Holding down the – button while switching on the

microphone activates the pairing operation for the wireless

remote control function.

hSET button

Adjusts displayed function settings and enters the value.

Holding down the SET button while switching on the

power turns the microphone on without sending a signal.

iDisplay section

ARF transmission indication

Indicates the current transmission status.

:Currently transmitting

—:Transmission stopped

BRF (radio frequency) transmission power

indication

Indicates the current transmission power setting. You can

change the setting with the RF transmission power setting

function.

H: transmitting at 50 mW

M: transmitting at 10 mW

L: transmitting at 1 mW

CAudio input level meter

Indicates the signal input level.

DReference level gauge

Indicates the reference input level. When the attenuation is

0 dB, 94 dBSPL is indicated.

EPeak indicator

Warns of excessive input by lighting up when the signal is

3 dB below the level at which distortion begins.

Note

Inside the

grip

Front

Side

Bottom of

the antenna

cover

FPOWER switch lock indicator

Indicates that the POWER switch is locked, preventing the

microphone from being accidentally turned off or on.

For details, see “Locking the POWER Switch (POWER

SW LOCK)” on page 14.

GCross Remote condition indication

Indicates the signal transmission condition of the wireless

remote control function (4 levels).

: Good transmission

: Somewhat good transmission

: Somewhat poor transmission

: Poor transmission

: Unable to communicate with paired receiver

When the wireless remote control function is off, this

indication does not appear.

HBattery indication

Shows the battery condition.

For details, see “Battery indication” on page 5.

IMenu display section

The status of 17 different functions are displayed here. To

select the function, press the + or – button repeatedly.

For details, See “Setting Menus” on page 12.

jPOWER switch

Turns the microphone ON or OFF.

kBattery compartment

Accommodates two LR6 (size AA) alkaline batteries.

For details on how to insert the batteries, see “Power

Supply” on page 5.

Power Supply

The microphone can operate on two LR6 (size AA)

alkaline batteries continuously for about 5 hours at 25 °C

(77 °F).

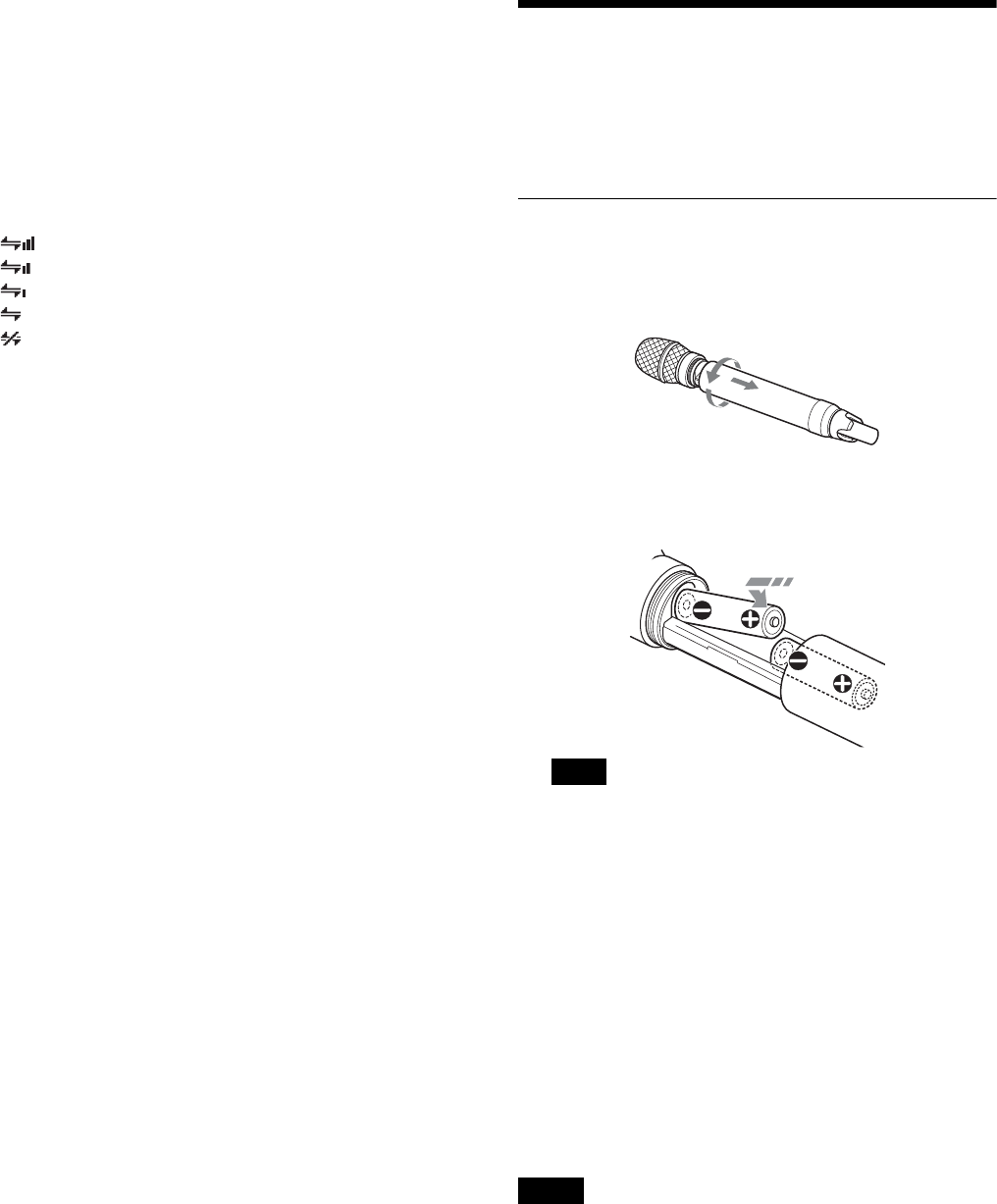

Installing the Batteries

Turn the grip in the direction of the arrow, and pull

down the grip until the battery compartment is shown.

Insert two new LR6 (size AA) alkaline batteries,

making sure the polarities are correct.

To prevent the batteries from touching each other,

push in the second battery against the spring tension.

Squeezing the batteries into the compartment while

two batteries are touching may damage the battery

packages.

Close the grip and turn it in the reverse direction in the

step 1 above.

Battery indication

The power status is indicated by eight level indications.

Replace both batteries when the battery indication starts to

flash.

Be sure to check the expiration date printed on the new

batteries before using them.

• When BATTERY TYPE is set to TYPE1, the power

status is indicated based on the use of new LR6 (size

AA) Sony Alkaline batteries. An incorrect indication

may result when a different kind of batteries, a different

brand of batteries or old batteries are used. If you plan to

use other kind of batteries than alkaline, set the

BATTERY TYPE function according to the type of

batteries to be used.

Note

Notes

• If you plan to use the microphone for a long period of

time, it is recommended that you replace the batteries

with brand new ones.

For details on BATTERY TYPE setting, see “Setting the

Battery Type (BATTERY TYPE)” on page 13.

Attaching the Supplied

Accessories

Replacing the Identification Ring

A black ring is attached at the factory.

When multiple microphones are used in the system,

identification rings with different colors are useful to

distinguish a microphone from another.

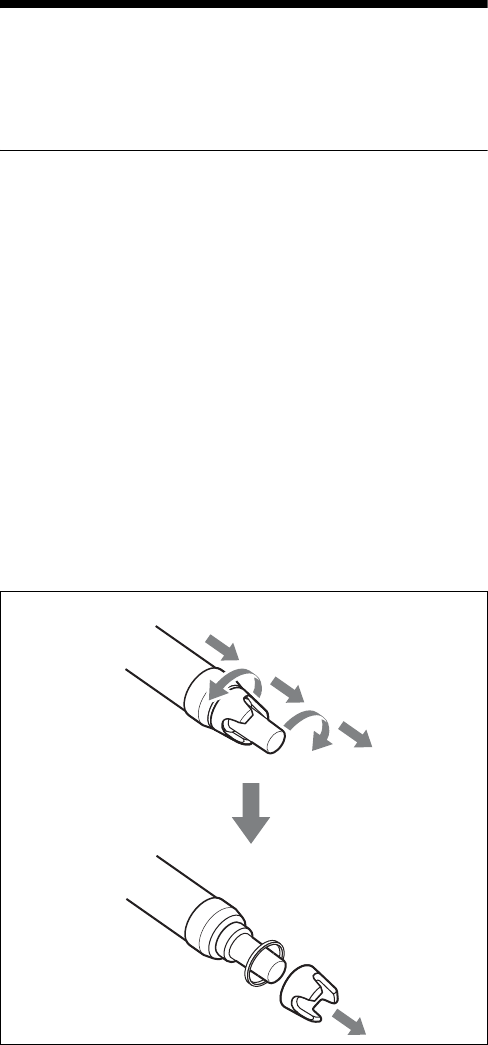

Move the ring holder as follows to remove it.

Pull it down.

Turn it left.

Pull it down.

Turn it right.

Pull it down.

Rotate and remove

the ring holder to

replace the

identification ring.

Setting the Transmission

Channel

The microphone provides groups of interference-free

channels. When using multiple microphones and

transmitters at the same time (simultaneous multi-channel

operations) within the same area, selecting the same group

and using a channel within that group can prevent signal

interference.

To set the transmission channel on the microphone, first

you select the group and channel using the RF indicator

and scanning functions on the receiver. Next you set the

group and channel parameters to match the setting on the

receiver.

• Certain transmission channels cannot be used with the

wireless remote control function.

• “(INCOMPATIBLE WITH RF REMOTE)” will slide

across the display during group/channel selection for

transmission channels that cannot be used with the

wireless remote control function.

• When a transmission channel that cannot be used with

the wireless remote control function is selected,

“RESTRICTED BY GP/CH SETTING” appears on the

RF REMOTE screen and the wireless remote control

function cannot be used. When using the wireless remote

control function, select transmission channels for which

“(INCOMPATIBLE WITH RF REMOTE)” does not

appear during group/channel selection.

Selecting the Group/Channel

• Before doing this procedure, use the BAND function

(see page 12) to set the microphone to the bandwidth of

the receiver you are using.

• The setting for this function cannot be changed during

actual signal transmission.

Set the microphone group (GP) and channel (CH) as

follows:

For details on groups and channels, refer to “Sony Digital

Wireless Microphone System Frequency Lists” on the

supplied CD-ROM.

For details on menu operation, see “Basic Menu

Operations” on page 11.

Turn off the power, and then while holding down the

SET button, turn the power on.

The signal transmission stops.

Press the + or – button repeatedly until the GP/CH

indication is displayed.

Hold down the SET button until the item to be set

flashes.

Press the + or – button repeatedly to select a group.

Press the SET button to enter the group.

The channel indication starts flashing.

Press the + or – button repeatedly to select a channel.

Press the SET button to enter the channel.

To start signal transmission with the selected channel, turn

off the power and then turn it on again.

To set the group/channel using the pairing

mode of the Cross Remote

When the microphone is paired with the receiver, the

transmission channel of the microphone is set to the

receiving channel on the receiver automatically.

For details, see“Pairing With a Receiver” on page 8.

Notes

Note

Using the Cross Remote

This microphone is equipped with a wireless remote

control function that can be used to set the parameters

(low-cut filter, attenuation operation, power save mode,

etc.) of the microphone through the receiver or other

devices. This function makes it easier to operate and

manage the microphone system while in the field.

This wireless control is 2.4 GHz IEEE802.15.4 compliant

and has no effect on the RF band of digital wireless audio.

This function is activated when pairing is established

between the microphone and the receiver using the RF

REMOTE function.

Pairing must be done first before the wireless remote

control function can be used.

If “RESTRICTED BY GP/CH SETTING” appears on the

RF REMOTE screen, the wireless remote control function

cannot be used. To use the wireless remote control

function, select a different transmission channel.

For details on how to change the transmission channel, see

“Setting the Transmission Channel” on page 7.

Pairing With a Receiver

Pairing links the microphone with the receiver which the

wireless remote control function is to be used.

When the microphone has been paired with a receiver

through the receiver operation, turning on the microphone

while holding down the – button establishes the pairing

immediately.

To carry out pairing through menu operations on the

microphone, do the following.

Set the receiver to be used for controlling the

microphone to pairing mode.

For details, refer to the operating instructions

supplied with the receiver.

Press the + or – button repeatedly until the RF

REMOTE indication is displayed.

Hold down the SET button until the item to be set

flashes.

Press the + or – button repeatedly to select PAIRING.

Press the SET button to enter.

The microphone sends a pairing request to the receiver

which is on pairing mode.

Before established pairing, if you press any operation

key on the microphone, pairing mode will be

cancelled.

When pairing has been established, the wireless

remote control condition level (indicated by )

goes up, RF REMOTE turns on, and the remote

control function becomes operative.

When “Pairing fail” is displayed

• Successful communication between the microphone and

the receiver did not occur within a given amount of time.

Perform pairing again.

• Pairing has been performed with the grip open. When the

internal antenna is covered with the grip, pairing may not

be carried out. After setting the microphone ready for

pairing in step 5 above, be sure to close the grip.

To use the Cross Remote with a previous

pairing

In the RF REMOTE indication, select ON.

• When you set RF REMOTE to ON, the microphone will

communicate with the receiver to which it was

previously paired. To use the wireless remote control

function with another receiver, you must perform the

pairing procedure for that receiver.

• Multiple microphones/transmitters cannot be paired

with the same receiver.

• If you reset all parameters by using the FACTORY

PRESET function (see page 15), the pairing setting of

the microphone is also cleared.

The following microphone settings can be done

from the remote control:

• Microphone name setting

• Frequency band/group/channel selection

• RF transmission power setting

• Attenuator for the audio input setting

• Low-cut filter setting

• Power save setting

• Resetting accumulated use time

• Audio codec mode setting

• Internal signal setting

• POWER switch lock setting

For details on menu operation, see “Setting Menus” on

page 12.

To perform remote control, the receiver must be equipped

with a control function for the setting you want to control.

For details, refer to the operating instructions supplied

with the receiver.

To cancel the Cross Remote

In the RF REMOTE indication, select OFF.

Notes on the Cross Remote

The wireless remote control function on the microphone

uses the 2.4-GHz band and may thus be subject to

interference from other devices.

Note

Notes

• When pairing fails (“Pairing fail” is displayed),

successful communication between the microphone and

the receiver has not occurred within a given amount of

time. Pairing may be harder to do when another receiver

is engaged in pairing nearby.

•When it becomes hard to use the remote control, the

remote control may be improved by switching the

wireless remote control function off, then on again in the

RF REMOTE display, then re-pairing with the

microphone (change to a channel with less interference).

Using the Encrypted

Transmission Function

To prevent hacking of the signal, the microphone

scrambles the signal during transmission. To use this

function, select one of the following encrypted

transmission modes:

Secure key mode: An encryption key that is

automatically generated by the microphone is used by both

the microphone and receiver in this one-to-one encrypted

transmission method.

Password mode: You choose a password of up to eight

characters that can be set for multiple microphones/

transmitters and receivers. This enables encrypted

transmission within a group.

Make sure the same mode is set on the microphone/

transmitter and receiver.

Using Secure Key Mode (SECURE KEY)

Use this mode for one-to-one encrypted transmission

between one microphone and one receiver.

An encryption key that cannot be read from the outside is

automatically generated by the microphone. This key is

transmitted to the receiver through a USB connection or

the RF REMOTE function, enabling encrypted

transmission to take place.

The encryption key used by the microphone and receiver

is newly generated for each key transmission, resulting in

highly secure communication.

The encryption key used between the microphone and the

receiver is saved when the power is turned off, so the

encrypted transmission can be resumed the next time the

power is turned on.

Preparing the microphone (this unit)

1Hold down the SET button until the item to be set

flashes in ENCRYPTION indication on the

microphone.

2Press the + or – button repeatedly to select

SECURE KEY, and then press the SET button.

Preparing the receiver

Select SECURE KEY on the receiver that receives the

encryption key.

For details on receiver operations, refer to the

operating instructions supplied with the receiver.

Exchanging the encryption key

On the receiver, select USB or REMOTE (wireless

remote) as the method for encryption key exchange.

When the RF REMOTE function is off, REMOTE

cannot be selected.

Note

When the receiver does not support encryption key

exchange through USB connection, select REMOTE.

For details on the receiver, refer to the operating

instructions supplied with the receiver.

When you select USB:

Connect the microphone to the receiver with the USB

cable (not supplied) and USB adapter cable (supplied).

For details on receiver operations, refer to the

operating instructions supplied with the receiver.

When you select REMOTE:

The microphone searches for a receiver that it has been

paired with. After the microphone detects the receiver,

the microphone exchanges the encryption key with

receiver and encrypted transmission begins.

Using Password Mode (PASSWORD)

Set this mode when multiple microphones/transmitters are

paired with multiple receivers for encrypted transmission.

If both microphones/transmitters and receivers are set with

the same user-designated password, the audio signal can

be decoded. This mode is useful when multiple

microphones/transmitters and receivers are used as a

single group, or when the audio signal from one

microphone/transmitter is received by multiple receivers

at the same time.

Hold down the SET button until the item to be set

flashes in the ENCRYPTION indication on the

microphone.

Press the + or – button repeatedly to select

PASSWORD, and then press the SET button.

Input a password of up to eight characters on the

microphone.

To enter a password, use the procedure described in

“Naming of Microphone (NAME)” on page 12.

Set the encrypted transmission function setting on the

receiver to PASSWORD.

Set the same password that was set on the microphone.

For details on receiver operations, refer to the

operating instructions supplied with the receiver.

It is recommended that you change the password

periodically.

Note

USB cable (not supplied)

USB adapter

cable

(supplied)

Note

Using a USB Keyboard

Connecting an optional USB keyboard to the microphone

allows you to perform menu operations and enter your

name and password for the encrypted transmission

function from the keyboard.

A Micro USB connector is used on the microphone. For

this reason, use the supplied USB adapter cable.

Menu operations with a USB keyboard

You can use a USB keyboard to perform the same menu

operations that you do on the microphone.

The microphone buttons correspond to the following keys

on a USB keyboard:

To enter a text

With a USB keyboard, you can enter names and passwords

for encrypted transmissions.

Characters that can be entered from a USB

keyboard: (space), 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D,

E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X,

Y, Z, !, #, &, $, @, +, -, =, _, (, ), [, ]

(Passwords may consist of the numbers 0 to 9 and letters A

to Z only.)

Special key: Backspace (BS) and Delete (DEL) keys.

• The number keys on the keyboard cannot be used.

• This microphone is compatible with English-language

keyboards only.

• USB keyboards with multiple functions, such as USB

hub and pointing device, cannot be used.

• Power to the connected keyboard is supplied by the USB

connector on the microphone. The power rating is 100

mA. Keyboards that consume more power than that

cannot be used.

• Do not leave the microphone connected to the keyboard

when not in use. If you do, the batteries in the

microphone will be drained more quickly.

• Text editing should be done with the alphabet, BS, DEL,

and Enter keys.

Basic Menu Operations

Press the + or – button repeatedly until the function to

be set appears.

Hold down the SET button until the item to be set

flashes.

Press the + or – button to change the setting.

Press the SET button to enter the setting.

Types of menu:

• NAME (microphone name) setting

• BAND (frequency band) selection

• GP/CH (group/channel) selection

• RF POWER (RF transmission power) setting

• INPUT LEVEL (audio input level) setting

• LCF (low-cut filter) setting

• POWER SAVE setting

• BATTERY TYPE (battery type) setting

• TIME (accumulated use time) indication

• ENCRYPTION (encrypted transmission function)

setting

• CODEC MODE (audio codec mode) setting

• MAX RF POWER (maximum RF output power) setting

• INTERNAL SG (internal signal generator) function

• POWER SW LOCK (POWER switch lock) function

• RF REMOTE (wireless remote control) function

• BRIGHTNESS (display brightness) setting

• DIMMER MODE (automatic dimming of the display)

setting

• FACTORY PRESET (factory setting) function

• VERSION (software version) indication

Buttons on the microphone USB keyboard

SET ENTER

–r

Notes

USB adapter cable (supplied)

Function name

Item to be set

Setting Menus

The functions and parameters of the settings menu are

explained here. Underlined items are the factory setting.

Naming of Microphone (NAME)

You can specify a microphone name of up to 16 characters.

The factory setting for the microphone name is the model

name and serial number. The microphone name is sent to

the receiver as metadata and is used by the receiver to

distinguish between different microphones/transmitters.

+: The first press on the + button displays the character set.

You can then use the + and – buttons to select the desired

character. And then, pressing the SET button adds the

selected character to the end of the current name.

– : Deletes the last character in the current name.

SET: Enters the character or edited name.

You cannot insert or delete a character in the middle of the

name.

Using wireless remote control, this function can be

controlled from the receiver and other devices.

For details on wireless remote control function, see

“Using the Cross Remote” on page 8.

To edit with a keyboard

You can enter data from an optional keyboard connected to

the USB connector.

For details, see “Using a USB Keyboard” on page 11.

Selecting the Frequency Band (BAND)

Match the frequency range on this microphone to that of

the Sony digital wireless receiver.

See “Carrier Frequencies and Channel Steps” on page 20

for differences in frequency ranges that can be set for

optional receivers combined with this transmitter.

For details about the frequency range of each band, refer

to “Sony Digital Wireless Microphone System Frequency

Lists” on the supplied CD-ROM.

Using wireless remote control, this function can be

controlled from the receiver and other devices.

For details on wireless remote control function, see

“Using the Cross Remote” on page 8.

• The setting for this function cannot be changed during

actual signal transmission. To change the setting, turn

off the microphone first. Then, while holding down the

SET button, turn the power on. Then change the setting

after the signal transmission has stopped.

• Be sure to select the group/channel right after selecting

the frequency band. To start signal transmission with the

selected frequency band/group/channel, turn off the

power and then turn it on again.

Selecting the Group/Channel (GP/CH)

See “Carrier Frequencies and Channel Steps” on page 20

for factory settings.

For details, see “Selecting the Group/Channel” on

page 7.

Using wireless remote control, this function can be

controlled from the receiver and other devices.

For details on wireless remote control function, see

“Using the Cross Remote” on page 8.

Setting the RF Output Power (RF

POWER)

You can set the RF output power.

1 mW (LOW): transmitted by 1 mW

10 mW (MID): transmitted by 10 mW

50 mW (HIGH): transmitted by 50 mW

• The setting for this function cannot be changed during

actual signal transmission. To change the setting, turn

off the microphone first. Then, while holding down the

SET button, turn the power on. And then, change the

setting after the signal transmission has stopped.

• To start signal transmission with the selected RF output

power setting, turn off the power and then turn it on

again.

Using wireless remote control, this function can be

controlled from the receiver and other devices.

For details on wireless remote control function, see

“Using the Cross Remote” on page 8.

The maximum RF output power can be configured on the

unit.

For details, see “Setting the maximum RF output power

(MAX RF POWER)” on page 14.

Setting the Audio Input Level (INPUT

LEVEL)

You can set the input level to the analog head amp.

Press the + or – button repeatedly to select the appropriate

attenuation level.

The reference levels for the various settings are as follows:

Note

Notes

Using wireless remote control, this function can be

controlled from the receiver and other devices.

For details on wireless remote control function, see

“Using the Cross Remote” on page 8.

Low-cut Filter Setting (LCF)

The frequency of the low-cut filter can be set.

OFF: Turns off the low-cut filter.

20 30 40 50 60 70 80 90 100

120 140 160 180 200 220 (Hz): Low-cut filter is set

according to the selected frequency.

Using wireless remote control, this function can be

controlled from the receiver and other devices.

For details on wireless remote control function, see

“Using the Cross Remote” on page 8.

Power Save Setting (POWER SAVE)

To conserve power, this setting allows you to put all

microphone functions to sleep.

ACTIVE: The microphone operates normally.

SLEEP: The sleep function is on. During sleep, the

POWER indicator flashes at 2-second intervals.

To change back to normal operation

During sleep, press the SET, +, or – button.

You can also use the wireless remote control to change the

receiver back to normal operation.

For details on wireless remote control function, see

“Using the Cross Remote” on page 8.

If the microphone is turned off while power save setting is

set to “SLEEP”, the setting will change to “ACTIVE”

automatically.

Setting the Battery Type (BATTERY

TYPE)

Set this item according to the type of batteries you use to

obtain accurate battery power status indication.

TYPE1: The power status is indicated based on

characteristics of new LR6 (size AA) Sony Alkaline

batteries. Select this for LR6 (size AA) alkaline batteries.

TYPE2: Select this for rechargeable nickel-metal-hydride

batteries.

TYPE3: Select this for lithium batteries.

The characteristics of batteries change according to battery

type and environmental conditions. It is recommended that

you learn the characteristics of batteries you use before

using them.

Displaying the Accumulated Use

Time (TIME)

You can display the accumulated battery use time as a

rough estimate of total microphone usage.

The factory setting is “00:00”.

To reset the accumulated time indication

Hold down the SET button until the time indication

flashes.

Press the – button so “00:00 RESET” appears, and

then press the SET button.

Using wireless remote control, this function can be

controlled from the receiver and other devices.

For details on wireless remote control function, see

“Using the Cross Remote” on page 8.

Setting the Encrypted Transmission

Function (ENCRYPTION)

You can set the encrypted transmission function.

SECURE KEY: Sets the secure key method.

PASSWORD: Sets the password method.

OFF: The encrypted transmission function is not used.

For details, see “Using the Encrypted Transmission

Function” on page 9.

Setting the audio codec mode

(CODEC MODE)

MODE1: This audio codec mode is compatible with the

first generation DWX series.

Input Attenuation

(dB)

Reference

input level

(dBu)

Maximum

input level

(dBu)

Headroom

(dB)

MIC 0 –52 –16 36

3 –49 –13

6 –46 –10

9 –43 –7

3 dB steps 3 dB steps 3 dB steps

45 –7 +2

48 –4 +5

Note

MODE2: Delay times are reduced in this audio codec

mode. Audio quality is also improved when compared to

MODE1. We recommend using this mode under normal

circumstances.

MODE3: This audio codec mode prioritizes stable

transmission performance. Additional signal processing is

used to suppress noise and audio interruptions caused by

unexpected interference, resulting in more reliable

transmission.

The audio delay durations that occur when transmitting

and receiving with each mode will differ depending on the

receiver’s operating environment.

For details, refer to the operating instructions supplied

with the receiver.

The audio codec mode setting can be configured via the

wireless remote control function from the the receiver, for

example.

For details, see “Using the Cross Remote” on page 8.

Setting the maximum RF output

power (MAX RF POWER)

You can set the maximum RF output power of the unit.

1mW MAX: Sets the maximum to 1 mW.

10mW MAX: Sets the maximum to 10 mW.

50mW MAX: Sets the maximum to 50 mW.

• The setting for this function cannot be changed during

actual signal transmission. To change the setting, turn

off the transmitter first. Then, while holding down the

SET button, turn the power on. And then, change the

setting after the signal transmission has stopped.

• To start signal transmission with the selected RF output

power setting, turn off the power and then turn it on

again.

• Always perform pairing after changing the maximum

RF output power setting for a transmitter. If you fail to

do so, configuration of RF output power settings via the

wireless remote control function may become

impossible.

For details on pairing, see “Using the Cross Remote” on

page 8.

Generating an Internal Signal

(INTERNAL SG)

This microphone generates a 1-kHz reference level sine

wave that can be used to adjust or check the audio level of

the receiver or the system that you are using. This internal

signal is outside the control of the attenuator.

1kHz: A 1-kHz internal signal is generated.

OFF: An internal signal is not generated.

If the microphone is turned off while the reference signal

function is on, the function will turn off automatically.

Using wireless remote control, this function can be

controlled from the receiver and other devices.

For details on wireless remote control function, see

“Using the Cross Remote” on page 8.

Locking the POWER Switch (POWER

SW LOCK)

The POWER switch can be locked to prevent the

microphone from being accidentally turned off or on.

Even when the POWER switch is locked, all parts of the

microphone other than the POWER switch remain

functional.

UNLOCK: The POWER switch is not locked.

LOCK: The POWER switch is locked.

When LOCK is selected, the POWER switch lock icon

appears in the display.

Using wireless remote control, this function can be

controlled from the receiver and other devices.

For details on wireless remote control function, see

“Using the Cross Remote” on page 8.

Cross Remote (RF REMOTE)

This function must be set to allow the wireless remote

control function to be used between the microphone and

receiver.

OFF: Stops the wireless remote control function.

ON: Starts the wireless remote control function with the

previously paired receiver.

PAIRING: Executes a new pairing.

For details, see “Pairing With a Receiver” on page 8.

If “RESTRICTED BY GP/CH SETTING” appears on the

RF REMOTE screen, the wireless remote control function

cannot be used. To use the wireless remote control

function, select a different transmission channel.

For details on how to change the transmission channel, see

“Setting the Transmission Channel” on page 7.

Setting the Brightness of the Display

(BRIGHTNESS)

Ten levels of brightness can be selected for the organic

light-emitting diode display.

The selectable settings are the following:

(Dark) 1 2 3 4 5 6 7 8 9 10 (Bright)

Notes

Note

Automatic Dimming of the Display

(DIMMER MODE)

The organic light-emitting diode display can be set to dim

or turn off after a certain amount of time.

AUTO OFF: The display turns off after 30 seconds. The

display goes on again when you press the SET, +, or –

button.

AUTO DIMMER: The display dims after 30 seconds. The

display becomes bright again when you press the SET, +,

or – button.

ALWAYS ON: The display stays on at the brightness

level set with the BRIGHTNESS function.

Resetting Parameters to Their

Factory Settings (FACTORY PRESET)

All parameter settings can be returned to their factory

settings.

Holding down the SET button until a message appears

asking for confirmation. Press the + or – button repeatedly

to select YES, and then press the SET button to enter. The

microphone parameters are reset to their factory settings.

• The setting for this function cannot be changed during

actual signal transmission. To change the setting, turn

off the power first. Then while holding down the SET

button, turn the power on. Then change the setting after

the signal transmission has stopped.

• To start signal transmission with the factory parameter

settings, turn off the power and then turn it on again.

Displaying the Software Version

(VERSION)

The version of the microphone software can be displayed.

Notes

Block Diagram

Attenuator

Head amp.

A/D converter

Internal SG

Audio codec

modulator

High-

frequency

circuit

Low-cut filter

Digital signal processor

Microphone

capsule

Troubleshooting

If you encounter a problem using this microphone, use the following checklist to find a solution. For any problems with

the receiver, refer to the operating instructions supplied with the receiver. If the problem persists, consult your Sony dealer.

Symptom Meanings Remedy

The microphone does

not turn on.

The batteries are inserted backwards in the

battery compartment.

Reinsert the batteries with the correct orientation

(see page 5).

The batteries are exhausted. Replace the batteries with new ones.

The batteries drain

quickly.

Manganese batteries are being used. Use alkaline batteries.

The microphone is being used under cold

conditions.

The batteries drain quickly under cold conditions.

Interruptions in the

reception occurs.

The microphone is too far from the receiver. Decrease the distance to the receiver and check

the reception.

The transmission power setting is set to “L:

1mW”.

Increase the transmission power (see page 12).

There is no sound. The channel setting on the microphone is

different from that on the receiver.

Use the same channel setting on both the

microphone and receiver.

The setting of the encrypted transmission

function on the receiver is different from that on

the microphone.

Confirm that the setting of the encrypted

transmission function is the same on both the

microphone and the receiver (see page 9).

The audio codec mode settings on the receiver

and transmitter do not match.

Configure the same audio codec mode setting for

both the receiver and transmitter (see page 13).

The sound is weak. The attenuator is set too high for the audio input

level of the microphone.

While monitoring the audio input level meter on the

microphone or the receiver, set the attenuator to an

appropriate level (see page 12).

There is distortion in the

sound.

The attenuator is set too low for the audio input

level of the microphone.

The bass is weak. The frequency of the low-cut filter is set too

high.

While monitoring the sound, decrease the low-cut

filter frequency to a level that produces the proper

sound quality (see page 13).

There is too much bass. The microphone produces excessive bass

because the frequency response of the

microphone extends into the low range.

Use the low-cut filter to cut the bass (see page 13).

The power does not turn

off even though the

POWER switch is turned

to OFF.

The POWER switch is locked. Turn off the POWER SW LOCK function (see page

14).

Wireless remote control

is not possible.

Pairing has not been established between the

microphone and receiver.

Carry out pairing (see page 8).

The receiver is too far from the microphone for

communication to occur.

Check the wireless remote control condition level.

If it is low, decrease the distance between the

microphone and the receiver (see page 5).

The microphone that was paired with the

receiver has been paired with another receiver.

On the receiver, carry out pairing again with the

microphone that you want to control.

The USB keyboard does

not work.

You are using a USB keyboard that is not

compatible with the microphone.

Check the conditions for using a USB keyboard

with the microphone (see page 11).

The display is too dark. The display brightness is set to low. Adjust the brightness of the display (see page 14).

Important Notes on

Operation

Notes on Using the Microphone

• The digital wireless microphone system product must be

used within a temperature range of 0 °C to 50 °C (32 °F

to 122 °F).

• Operating the microphone near electrical equipment

(motors, transformers, or dimmers) may cause it to be

affected by electromagnetic induction. Keep the

microphone as far from such equipment as possible.

• The presence of the lighting equipment may produce

electrical interference over the entire frequency range.

Position the microphone so that interference is

minimized.

• To avoid degradation of the signal-to-noise ratio, do not

use the microphone in noisy places or in locations

subject to vibration, such as the following:

- near electrical equipment, such as motors,

transformers or dimmers

- near air conditioning equipment or places subject to

direct air flow from an air conditioner

- near public address loudspeakers

- where adjacent equipment might knock against the

tuner

Keep the microphone as far from such equipment as

possible or use buffering material.

On Cleaning

• If the microphone is used in a very humid or dusty place

or in a place subject to an active gas, clean its surface as

well as the connectors with a dry, soft cloth soon after

use. Lengthy use of the microphone in such places or not

cleaning it after its use in such places may shorten its

life.

• Clean the surface and the connectors of the microphone

with a dry, soft cloth. Never use thinner, benzene,

alcohol or any other chemicals, since these may mar the

finish.

Notes on Simultaneous Multi-Channel

Operation

• Keep the microphone at least 30 cm (11

inches) away

from another transmitter/microphone.

When the distances between transmitters and microphones

need to be closer than the distances above, use a grouping

system for multi-channel systems that include both digital

wireless and analog wireless devices.

For details, refer to “Sony Digital Wireless Microphone

System Frequency Lists” on the supplied CD-ROM.

• When only digital wireless microphones are being used,

keep the microphone at least 4 m (13 feet) away from the

antenna of a receiver for up to 10 channels, and at least

6 m (20 feet) away for 11 or more channels.

• When a mixture of digital and analog wireless

microphones/transmitters is being used, keep the

microphone at least 6 m (20 feet) away from the antenna

of a receiver.

• This system should be kept at least 100 m (328 feet)

away from any analog wireless systems using the same

frequency when both are being used in a wide area with

no walls or obstructions.

• If you experience noise, increase the distance between

the microphone and receiver or decrease the

transmission power on the microphone.

To prevent electromagnetic interference from portable

communication devices

The use of portable telephones and other communication

devices near the DWM-02N may result in malfunction and

interference with audio signals. It is recommended that

portable communication devices near the DWM-02N be

turned off.

Specifications

Transmitting section

Oscillator type Crystal-controlled PLL synthesizer

RF power output

1 mW/10 mW/50 mW (e.r.p) selectable

Antenna type Helical antenna

Occupied RF bandwidth

192 kHz or less

Audio delay MODE1: 1.5 ms

MODE2: 1.0 ms

MODE3: 2.1 ms

Allowable deviation of transmission frequency

±6.5 ppm

Type of emission

G1E or G1D

Modulation method

π/4 Shift QPSK

Audio section

Maximum input level

–16 dBu (with 0 dB attenuator)

Audio attenuator adjustment range (pad)

0 to 48 dB (3 dB steps)

Input impedance

4.7 kΩ or more

Frequency response

20 Hz to 22 kHz

General

Operating voltage

3 V DC, with two LR6 (AA) alkaline

batteries

Battery life Continuous operating time

5 hours (at 25 °C (77 °F), 10-mW output

using Sony LR6 (AA)-size alkaline

batteries with the CODEC MODE set

to MODE1 and the wireless remote

control function off and DIMMER

MODE set to AUTO OFF, and with

the CU-C31 Sony capsule unit

mounted)

Operating temperature

0 °C to 50 °C (32 °F to 122 °F)

Storage temperature

–20°C to +60°C (–4°F to +140°F)

Wireless remote control

2.4-GHz IEEE802.15.4 compliant

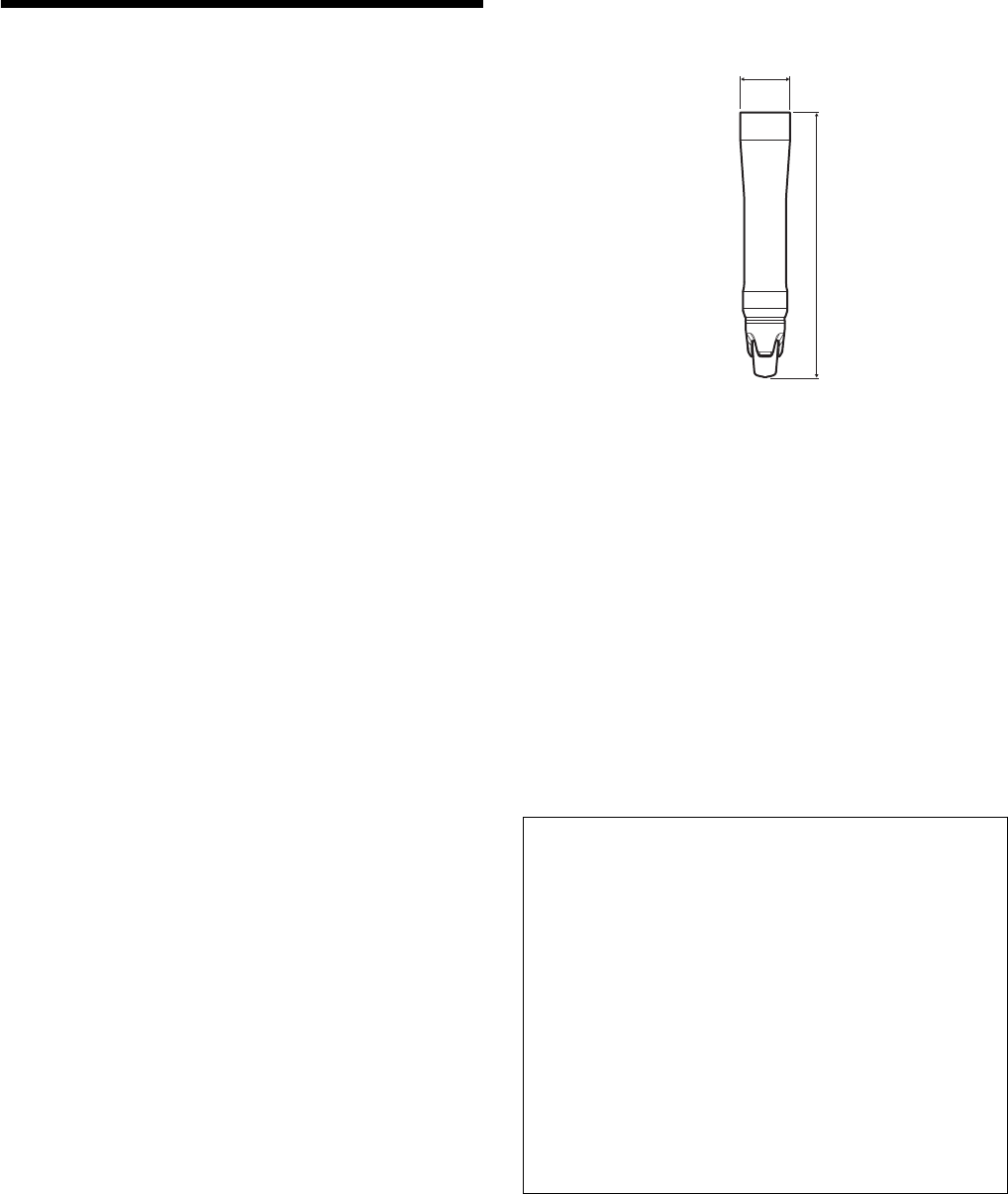

Dimensions (unit: mm (inches))

Mass approx. 235 g (8 oz)

including batteries

Supplied accessories

Identification ring (1 set)

Microphone holder (1)

USB adapter cable (1)

Carrying case (1)

Stand adaptor (1)

For the model available in the U.S.A.:

PF1/2 to W5/8 type

For the model available in Europe.:

PF1/2 to W3/8 type

Before Using this Unit (3)

CD-ROM (1)

Design and specifications are subject to change without

notice.

Notes

• Always verify that the unit is operating properly before

use. SONY WILL NOT BE LIABLE FOR DAMAGES OF

ANY KIND INCLUDING, BUT NOT LIMITED TO,

COMPENSATION OR REIMBURSEMENT ON

ACCOUNT OF THE LOSS OF PRESENT OR

PROSPECTIVE PROFITS DUE TO FAILURE OF THIS

UNIT, EITHER DURING THE WARRANTY PERIOD OR

AFTER EXPIRATION OF THE WARRANTY, OR FOR

ANY OTHER REASON WHATSOEVER.

• SONY WILL NOT BE LIABLE FOR CLAIMS OF ANY

KIND MADE BY USERS OF THIS UNIT OR MADE BY

THIRD PARTIES.

• SONY WILL NOT BE LIABLE FOR THE TERMINATION

OR DISCONTINUATION OF ANY SERVICES RELATED

TO THIS UNIT THAT MAY RESULT DUE TO

CIRCUMSTANCES OF ANY KIND.

ø37.1

(1 1/2)

194

(7 3/4)

Carrier Frequencies and Channel Steps

Underlined items are the factory setting.

US models

Channel step: 25 kHz

European models

Channel step: 25 kHz

Model No. Frequency band Frequency Group/channel

(factory setting)

U14 (TV14-25)

TV14-17 470.125 - 493.875 MHz

00 1801 494.125 MHzTV18-21 494.125 - 517.875 MHz

TV22-25 518.125 - 541.875 MHz

U30 (TV30-36)

TV30-33 566.125 - 589.875 MHz

00 3001 566.125 MHz

TV34-36 590.125 - 607.875 MHz

Model No. Frequency band Frequency Group/channel

(factory setting)

CE21 (TV21-29)

TV21-23 470.025 - 494.000 MHz

00 2101 470.125 MHz

TV24-26 494.025 - 518.000 MHz

TV27-29 518.025 - 542.000 MHz

CE33 (TV33-40)

TV33-35 566.025 - 590.000 MHz

00 3301 566.125 MHz

TV36-37 590.025 - 606.000 MHz

TV38-40 606.025 - 630.000 MHz

CE42 (TV42-50)

TV42-44 638.025 - 662.000 MHz

00 4201 638.125 MHz

TV45-47 662.025 - 686.000 MHz

TV48-50 686.025 - 710.000 MHz

Sony Corporation

Sony Group DWM02N Digital Wireless Microphone User Manual DWM 02N

Sony Corporation Digital Wireless Microphone DWM 02N

Contents

User manual 2

Navigation menu

Namespaces

Views

Navigation
