Caution ‐ Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.
Please read the following instructions carefully before use.

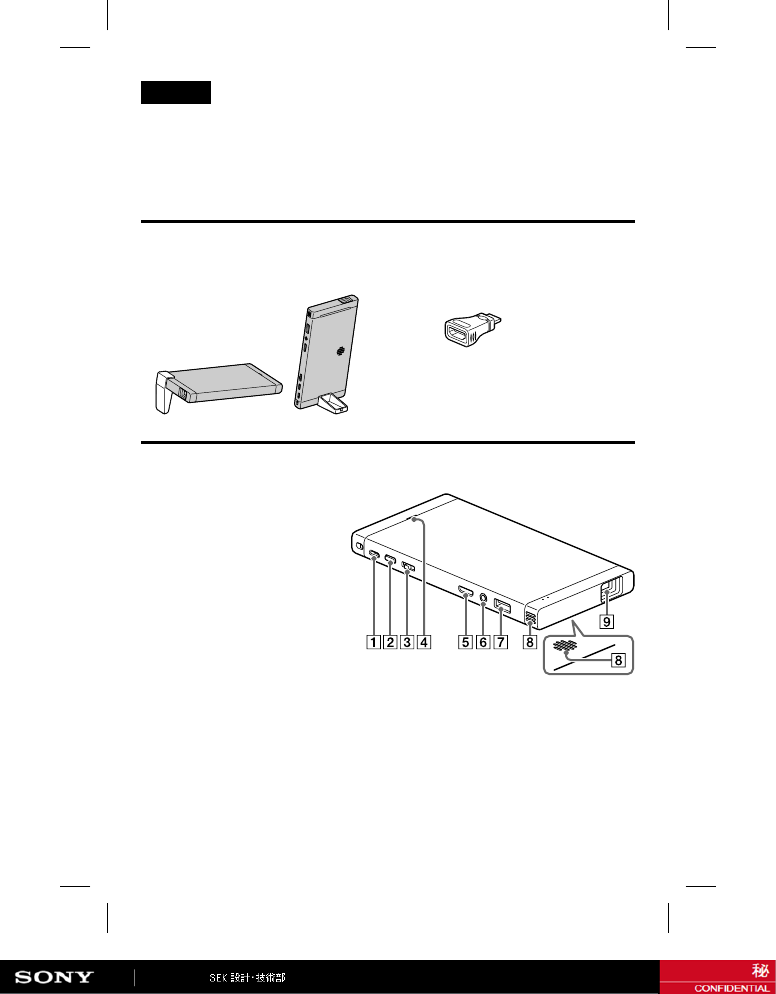

Checking the supplied items
•2 Way Stand (1) •HDMI to Mini HDMI
converter adaptor (1)
•USB cable (1)
•Startup Guide
(this manual, 1)
Parts and controls
CAUTION
Do not point the laser light
directly at eyes or people,
nor look into it. Doing so may
cause serious injuries such as
loss of eyesight.
Micro USB jack
(only for charging this product)
(power) button
Jog lever (−/ENTER/+)
Speaker
Mini HDMI/MHL IN jack
AUDIO OUT jack
USB OUT jack
(for power supply)
Ventilation holes
Lens
Laser radiates from this aperture
4
MP-CL1 3-MP0-106-01
Connecting the device
(Windows 8.1
or later)
Tablet
PC
Smartphone
MP-CL1
Wi-Fi
Screen mirroring
TabletSmartphone
MP-CL1
MHL
GAMEPC
Various HDMI
devices
MP-CL1
HDMI
**
* Cable is not supplied. Use the supplied converter adaptor as necessary.
1
2
3 •HDMI or MHL:
[ Input change]
[ HDMI/MHL]
•Screen mirroring:
[ Input change]
[ Screen mirroring]
More information
Refer to “Help guide” in the menu for details.
[ information] [ Help guide]
“Help guide” is also available on the Internet (http://www.sony.net/
SonyInfo/Support/).
5
MP-CL1 3-MP0-106-01
Troubleshooting
The power does not turn on.
• If the remaining battery power
is low or insufficient, charge the
battery.
• Use this product in a location
with an ambient temperature of
between 0 °C and 35 °C.
• Try turning the power off and on
again.
This product automatically shuts
down during use.
• The battery may be depleted.
Charge the battery.
• Check that the sleep timer is not
turned on in the [Sleep timer]
menu.
• This product automatically shuts
down when it overheats. Let it
cool down before you operate it
again.
The (power) and (charge)
lamps blink in white and red
respectively at the same time.
• An internal error may have
occurred. Try turning the power
off and on again.
The (charge) lamp blinks in
orange.
• The battery is almost depleted.
Charge the battery.
Specifications
Design and specifications are
subject to change without notice.
Dimensions (W/H/L): Approx. 77.0
mm x 149.5 mm x 13.0 mm (3 3/64
inches × 5 57/64 inches × 33/64
inches)
Mass: Approx. 210 g (7.4 oz.)
Operation guarantee temperature:
0 °C to 35 °C (32 °F to 95 °F)
Wi-Fi standards supported (Indoor
use only in India): IEEE 802.11
a/b/g/n (2.4 GHz/5 GHz)
Output resolution: 1,920 × 720 p
Audio output: Ф3.5 Audio Jack
Speaker output: 1.0 W
HDMI/MHL input: Mini HDMI (HDMI
1.4b, HDCP1.4/MHL 2.2)
Diagonal projection image size:
40 inches at projection distance of
1.15 m
Brightness: Average: 32 lumens/
Maximum: 37 lumens (100% White)
Color reproducibility: Full color
(16,770,000 colors)
Aspect ratio: 16:9
Contrast ratio: 80,000:1
Continuous projecting time (Full
charge): Approx. 120 minutes
Light source/light source life: Laser
diode/Approx. 2,000 hours (2 hours
of use per day, 4 days every 50
weeks, for 3 years)
Laser class: Class 3R
Wavelength: 445 nm to 639 nm
Beam divergence: 4.5 mrad.
Pulse Frequency: 60 Hz
Output : 206 mW
FOV (horizontal): 42.1°
Rated input: DC5 V/1.5 A
Li-ion Battery: DC3.8 V/3400 mAh
Charging time: Via AC power
adaptor (not supplied): Approx.
3.3 hours
Via USB Type A port:
Approx. 6.3 hours
Rated output: DC5 V/1.5 A, 1 port
6
MP-CL1 3-MP0-106-01
Notes on use
• Do not point the laser light at a
mirror, etc. as the reflected laser light
may be harmful to eyes.
• Do not use this product in
areas where the use of wireless
communications devices is
prohibited, such as on airplanes or
in hospitals. This product emits radio
wave and may affect electronic and
medical appliances (pacemakers,
etc.).
• Magnetic or electric noise may
cause the noise from this product to
become louder or interfere with its
wireless communications.
• While using, TV, radio or tuner
interference may occur. Use this
product away from these products.
• Access points may not be discovered
correctly when there are multiple
Wi-Fi access points that use the
same channel.
• Children should only use this
product under adult supervision.
Keep this product out of reach of
infants.
• Do not block the ventilation holes
with hands, etc. When using this
product, be sure to use the stand
(supplied) to prevent the ventilation
holes from being blocked. Failure to
do so would be dangerous as it may
result in overheat of this product.
• Do not put any foreign objects in the
ventilation holes.
• Do not insert your fingernails into
the ventilation holes and other slots,
nor hook your fingernails on the
gaps while using this product.
• Do not short-circuit this product.
Do not allow metal objects such as
hairpins to come into contact with
this product or its terminals.
• Do not disassemble or modify this
product.
• The battery is built-in with this
product and cannot be removed.
• Do not place this product in fire nor
heat it in a microwave oven or oven.
• Do not allow this product to get wet
with fresh water, sea water, milk, soft
drinks or soap water. Do not use this
product while wet.
• Do not use or store this product
in a place where temperature is
extremely high, such as near a fire,
under direct sunlight, near a heater
or in a car parked in the sun. Do not
use this product in a place with poor
ventilation, such as while wrapped in
a quilt/blanket or in a bag.
• Do not apply a strong impact to
this product. Avoid hitting it with a
hammer, putting any heavy object
on top, stepping on it or dropping it.
• Avoid continuous contact between
your skin and this product while
charging or in use. Doing so may
cause low-temperature burns. Be
careful of heat transmitted through
clothes as it may also cause low-
temperature burns.
• Before connecting a portable device
to this product, attach the portable
device’s battery pack. Connecting a
portable device while its battery is
removed may cause loss of data or
damage to the portable device.
• It has been reported that some
portable devices may incur sudden
loss of data recorded to memory
whether or not they are used with
this product (for details, refer to
the user manual supplied with the
portable device). Before using this
7
MP-CL1 3-MP0-106-01
product, be sure to back up data
recorded to memory. Sony is not
liable for loss of data.
• Do not touch or stick your finger into
the connection parts.
• Refer also to the manual of the
device that you use in conjunction
with this product as you may need
to operate the device in order to use
it with this product.
Precautions
This device complies with part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) this device
must accept any interference
received, including interference that
may cause undesired operation.
Any changes or modifications
(including the antennas) to this
device that are not expressly
approved by the manufacturer may
void the user's authority to operate
the equipment.
FCC RF Radiation Exposure
Statement: FCC RF Radiation
Exposure Statement: This
equipment complies with FCC RF
Radiation exposure limits set forth
for an uncontrolled environment.
This device and its antenna must
not be co-located or operating in
conjunction with any other antenna
or transmitter. This equipment
should be installed and operated
with a minimum distance of 20
centimeters between the radiator
and your body.
Note : This equipment has been
tested and found to comply with
the limits for a Class B digital
device, pursuant to part 15 of
the FCC Rules. These limits are
designed to provide reasonable
protection against harmful
interference in a residential
installation This equipment
generates, uses and can radiate
radio frequency energy and, if not
installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications, However, there
is no guarantee that interference
will not occur in a particular
installation. If this equipment does
cause harmful interference to radio
or television reception, which can
be determined by turning the
equipment off and on, the user is
encouraged to try to correct the
interference by one or more of the
following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between
the equipment and receiver.
• Connect the equipment into an
outlet on a circuit different from
that to which the receiver is
connected.
• Consult the dealer or an
experienced radio/TV technician
for help.
Modifications not expressly
approved by the manufacturer
could void your authority to operate
the equipment under FCC rules.
8
MP-CL1 3-MP0-106-01
LASER ENERGY - EXPOSURE NEAR
APERTURE MAY CAUSE BURNS
RECYCLING LITHIUM-ION
BATTERIES
USA and Canada Only
Lithium-Ion batteries are
recyclable.
You can help preserve our
environment by returning your
used rechargeable batteries
to the collection and recycling
location nearest you.
For more information regarding
recycling of rechargeable
batteries, call toll free 1-800-822-
8837, or visit
http://www.call2recycle.org
Caution: Do not handle damaged
or leaking Lithium-Ion batteries.
The year and month of manufacture
is printed on the bottom of this
product at the left. The first four
digits stand for the year and the
last two stand for the month.
*For USA only.
Customer Service
Phone: (956) 795-4552 U.S.A.
e-mail: snl.service@am.sony.com
INTERNET: http://www.sony.com/
battery
