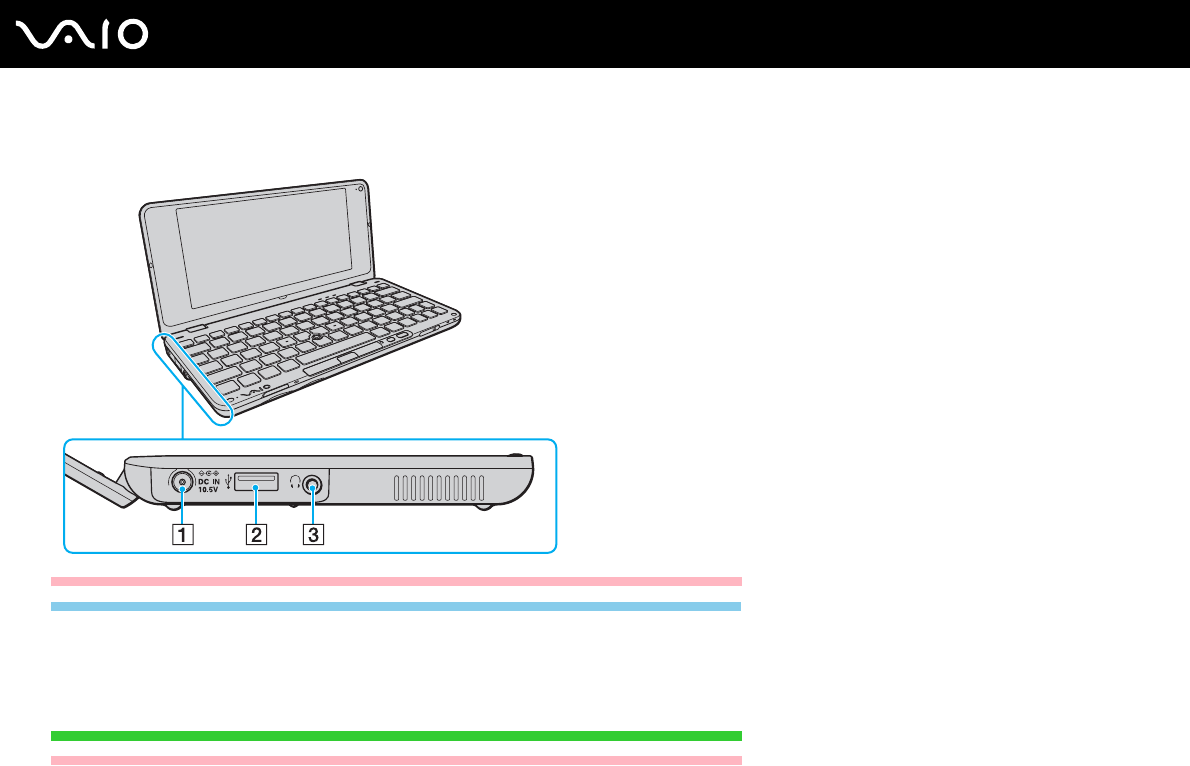

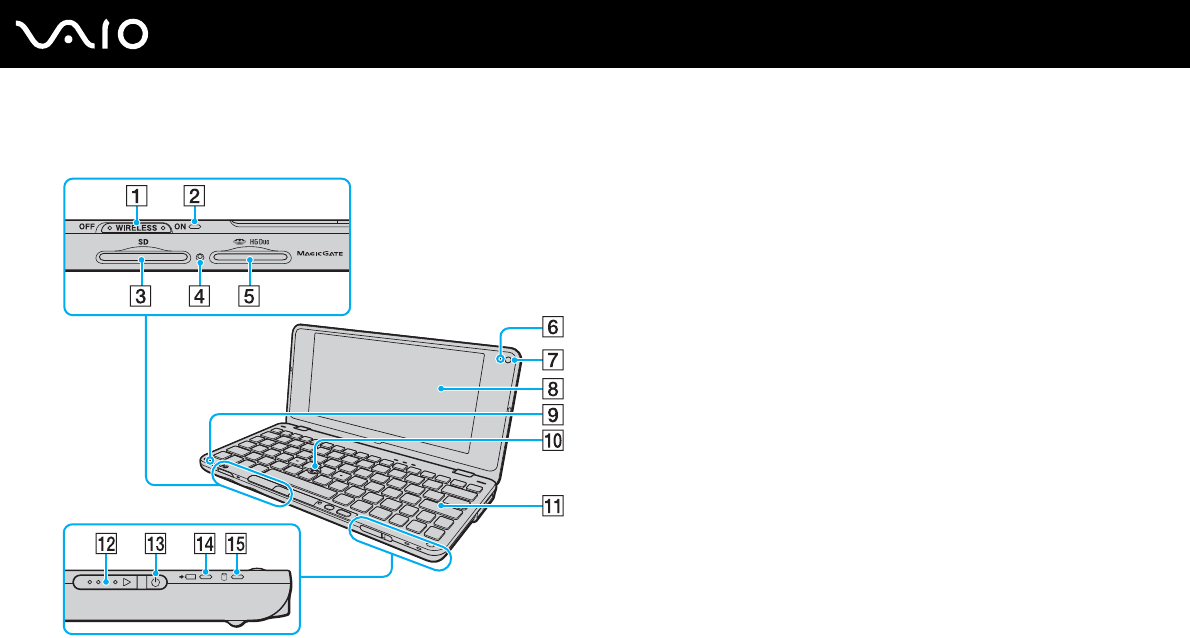

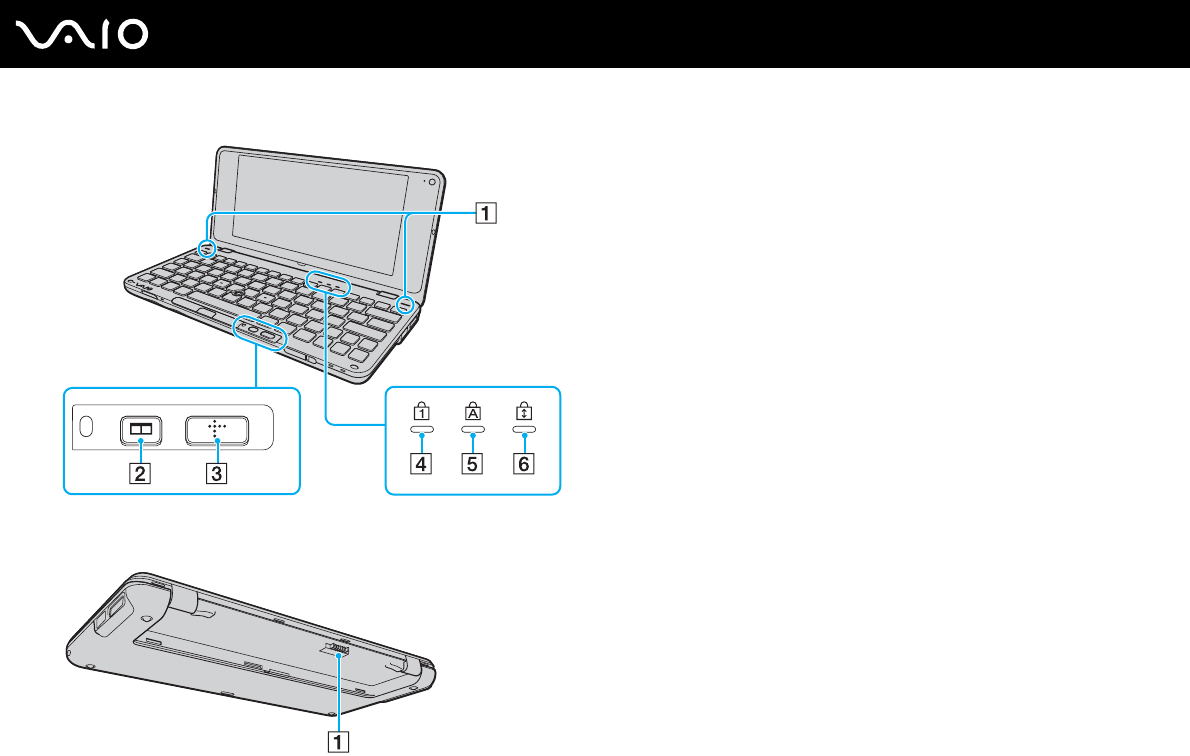

Locating Controls and Ports.......................................................................................................................................17
About the Indicator Lights ..........................................................................................................................................21
Connecting a Power Source ......................................................................................................................................24

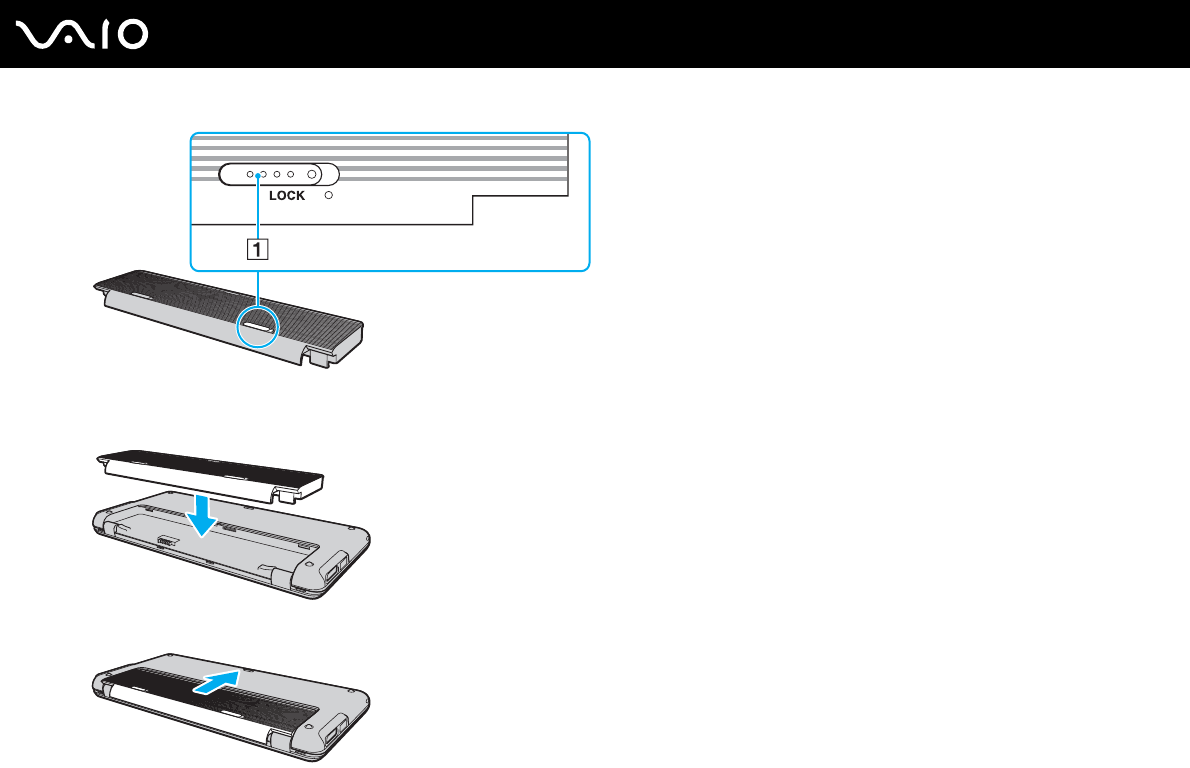

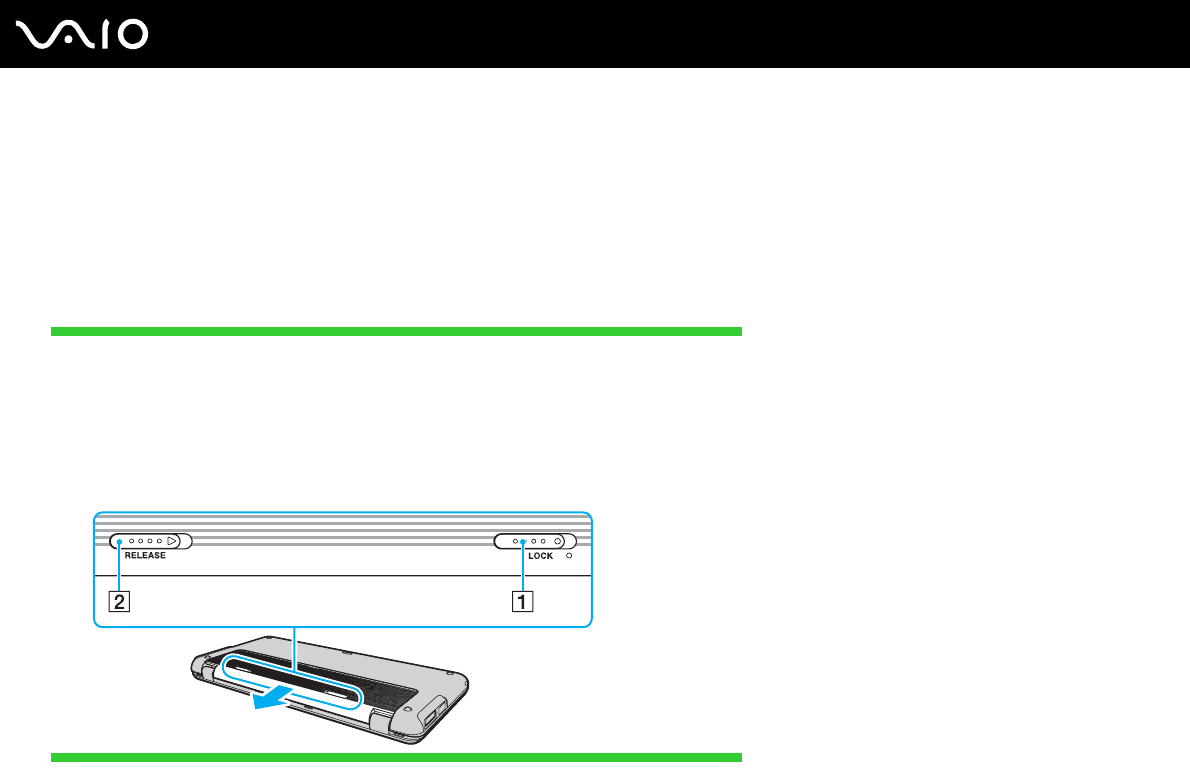

Using the Battery Pack ..............................................................................................................................................25
Shutting Down Your Computer Safely .......................................................................................................................32
Using Your VAIO Computer .............................................................................................................................................33
Using the Keyboard ...................................................................................................................................................34

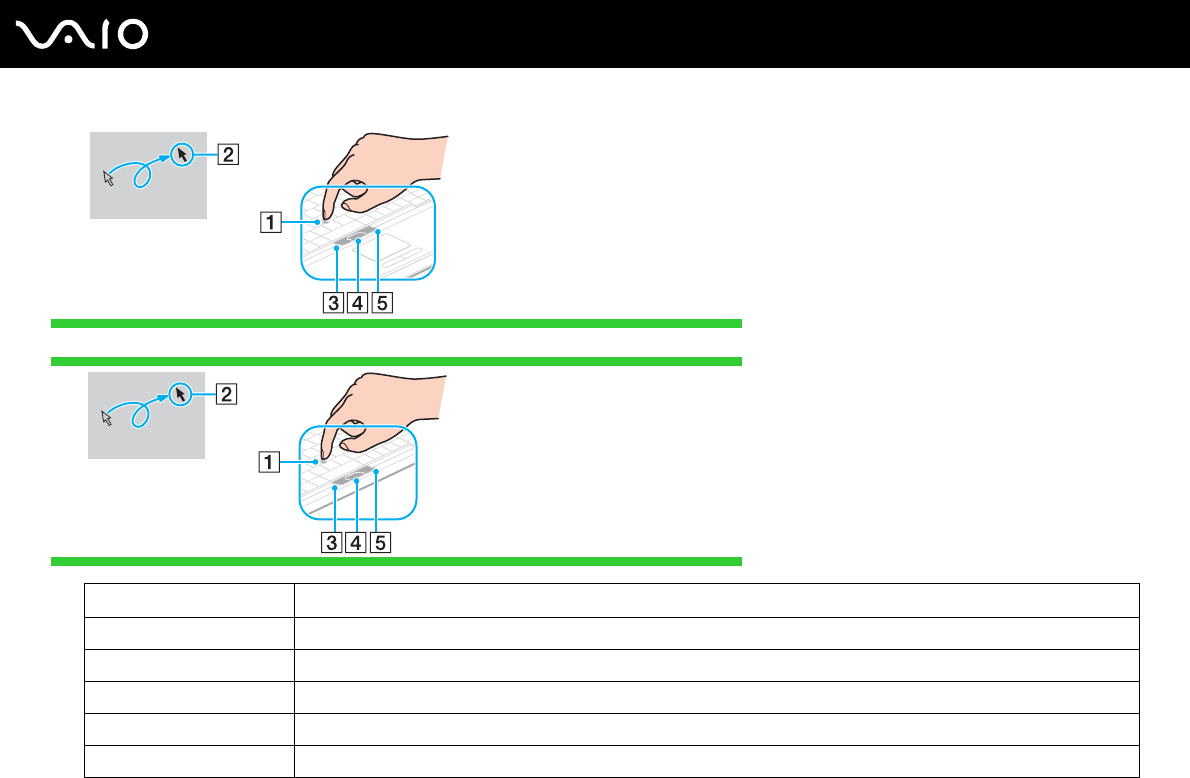

Using the Pointing Device ..........................................................................................................................................37
Using Special-function Buttons ..................................................................................................................................39
Using the Built-in MOTION EYE Camera...................................................................................................................40

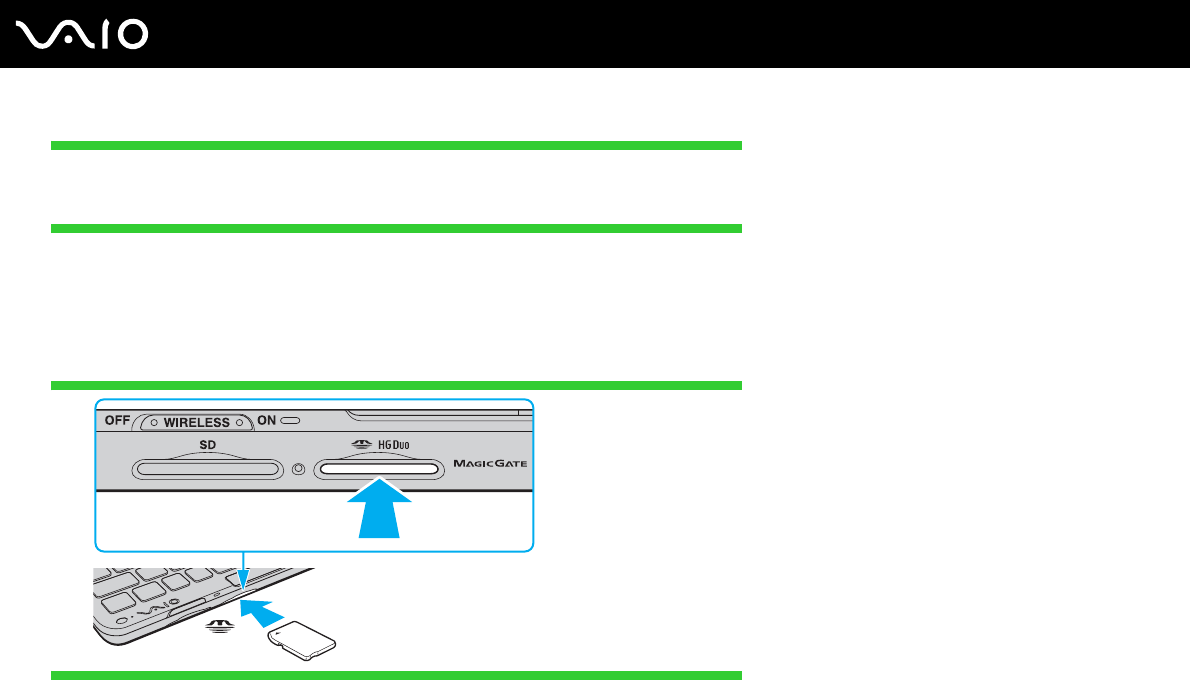

Using the Memory Stick .............................................................................................................................................42

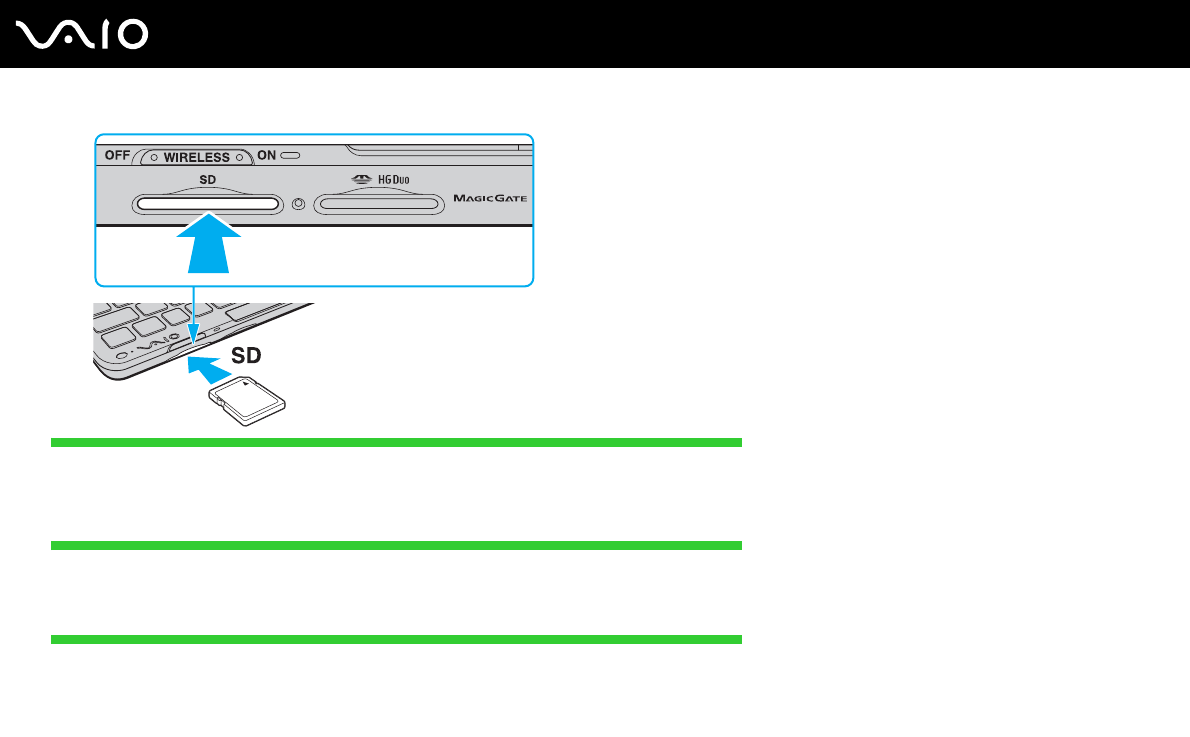

Using the SD Memory Card .......................................................................................................................................47
Using the Internet.......................................................................................................................................................50
Using the Network (LAN) ...........................................................................................................................................52

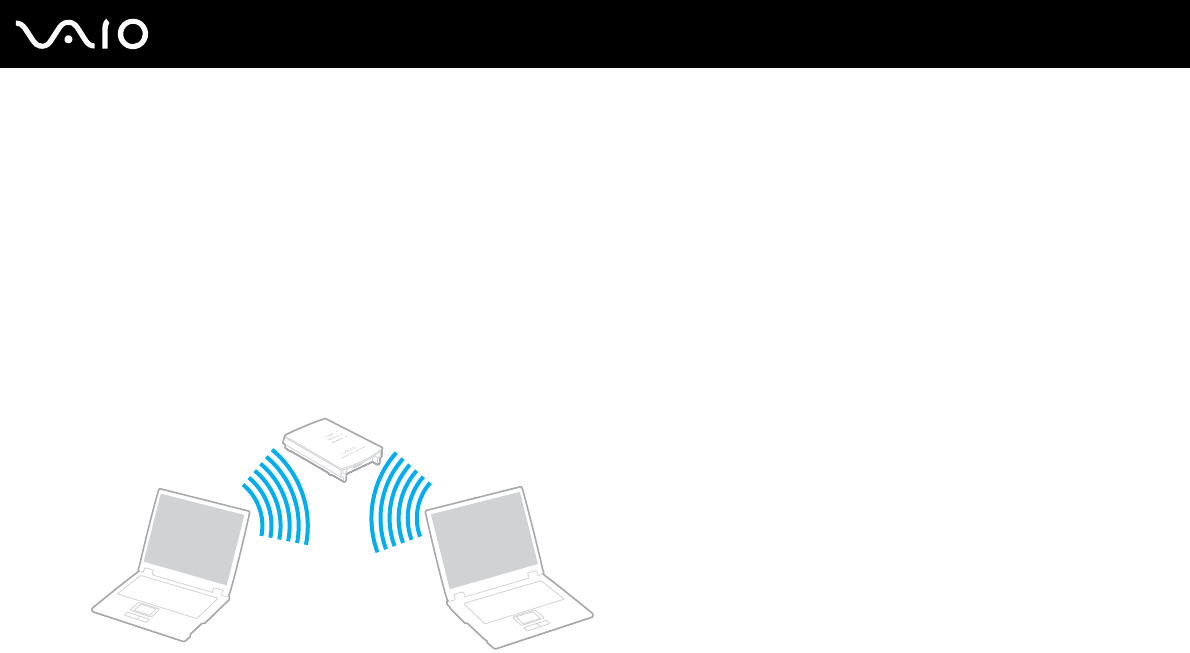

Using the Wireless LAN (WLAN) ...............................................................................................................................54
4
nN

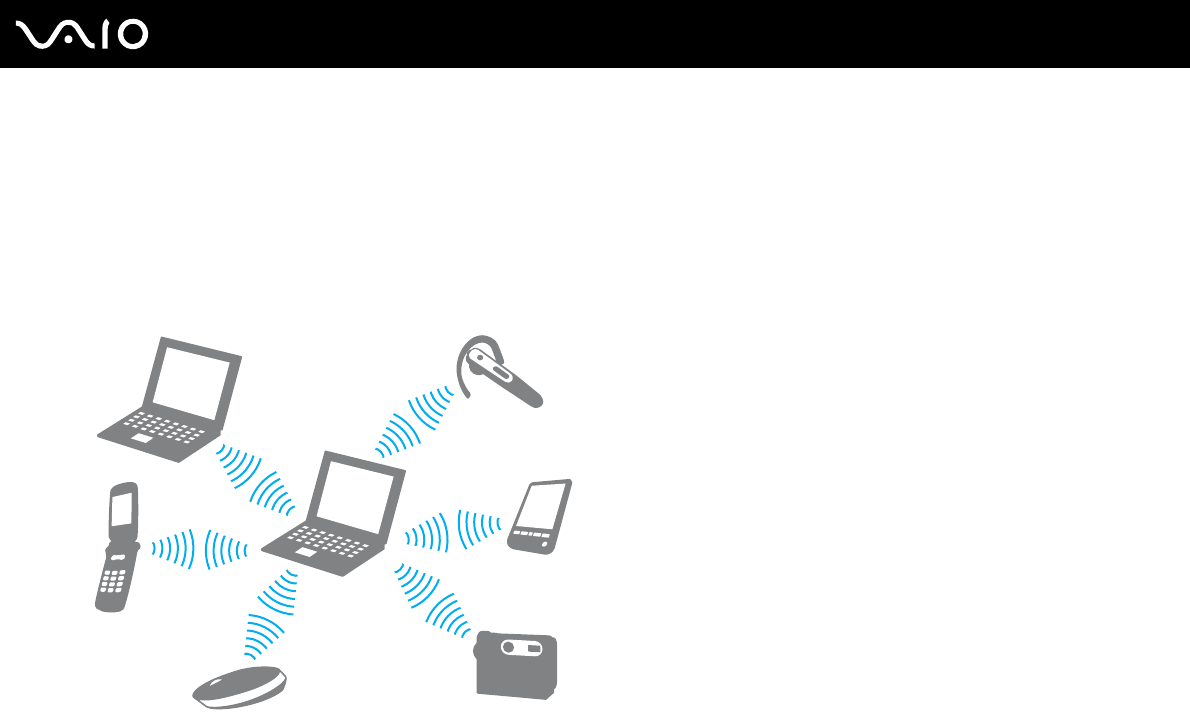

Using the Bluetooth Function.....................................................................................................................................61
Using the Bluetooth® Function ..................................................................................................................................62
Using the Global Positioning System (GPS) Function ...............................................................................................67
Using Peripheral Devices.................................................................................................................................................69

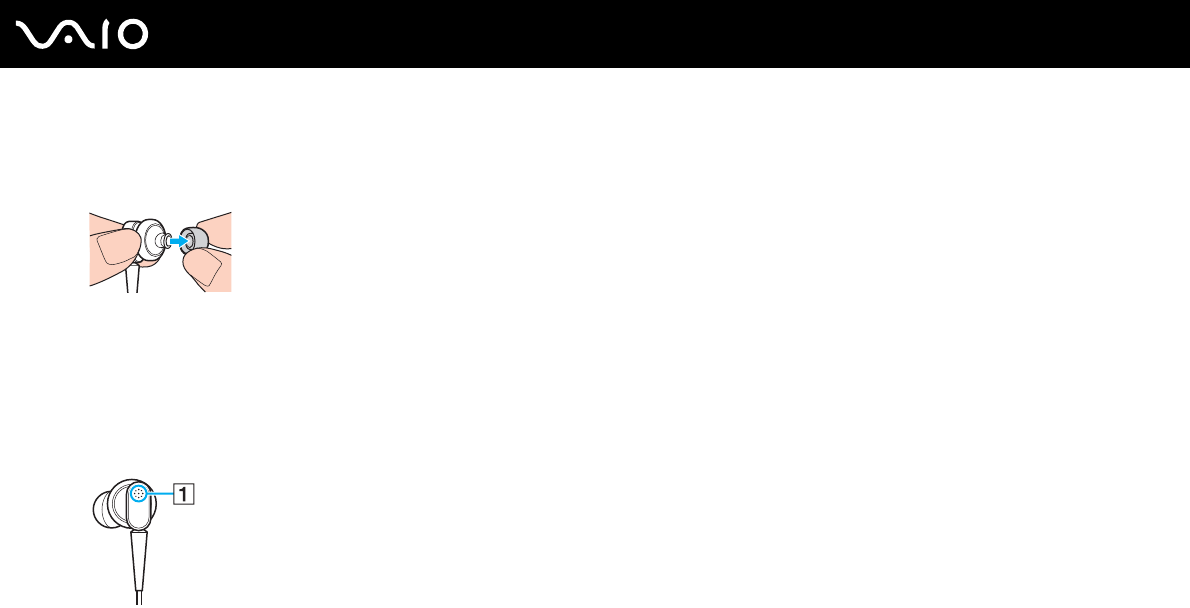

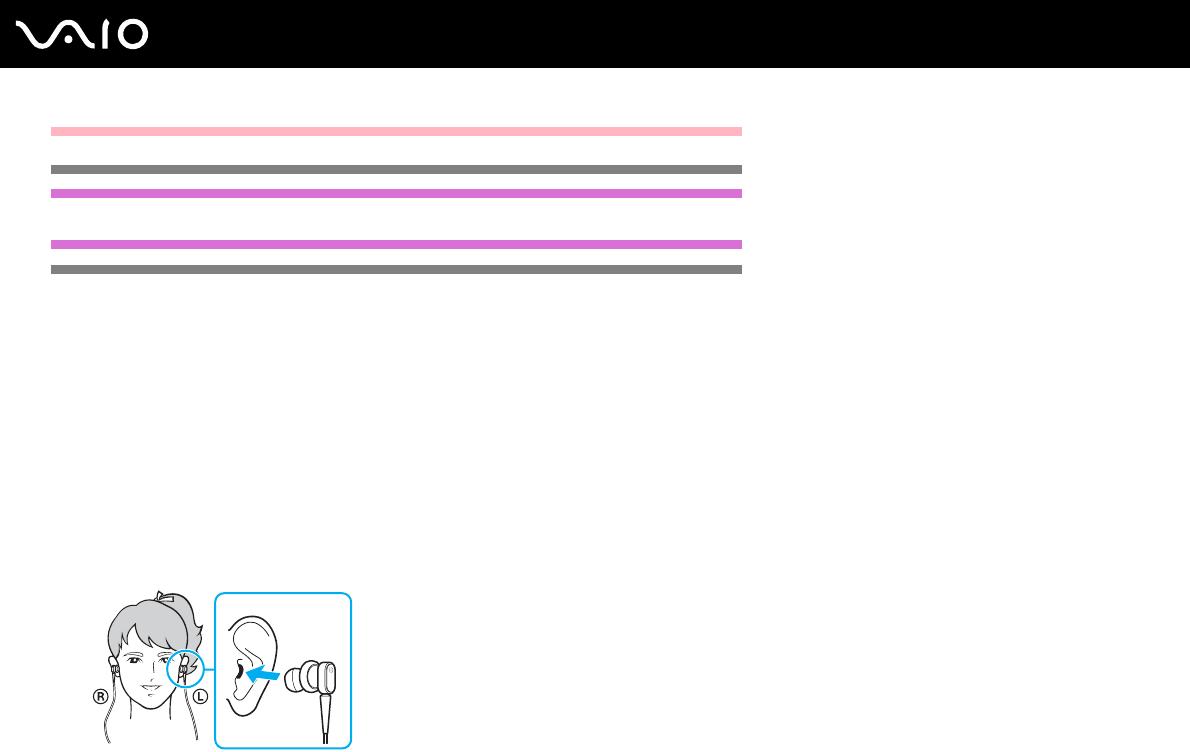

Using the Noise Canceling Headphones ...................................................................................................................69

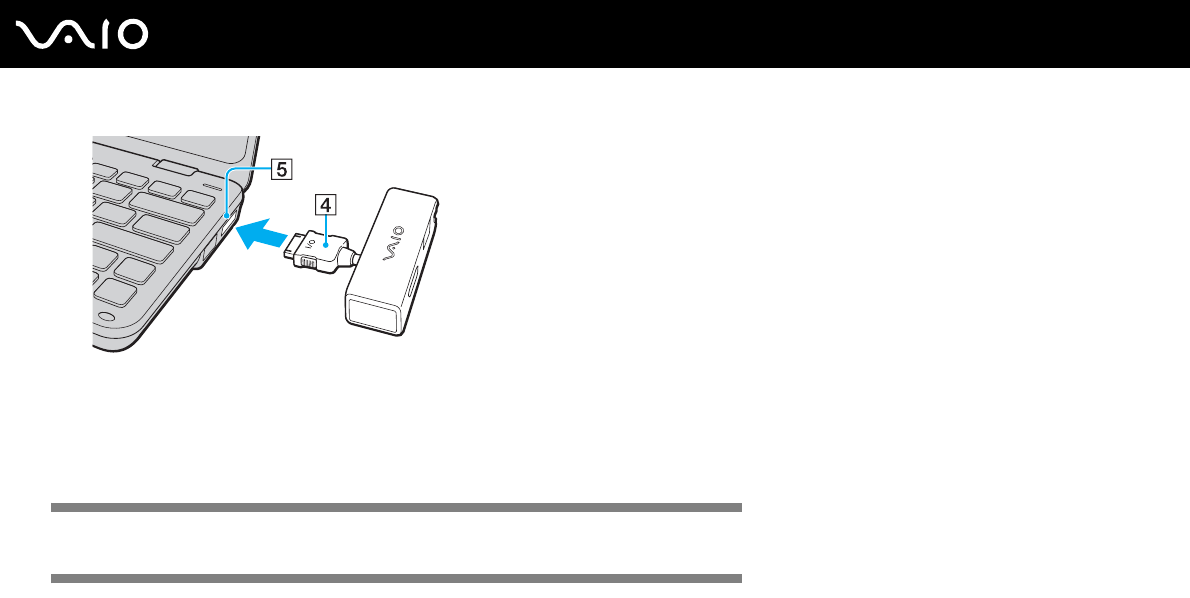

Connecting a Display/LAN Adapter ...........................................................................................................................74
Connecting an Optical Disc Drive ..............................................................................................................................77

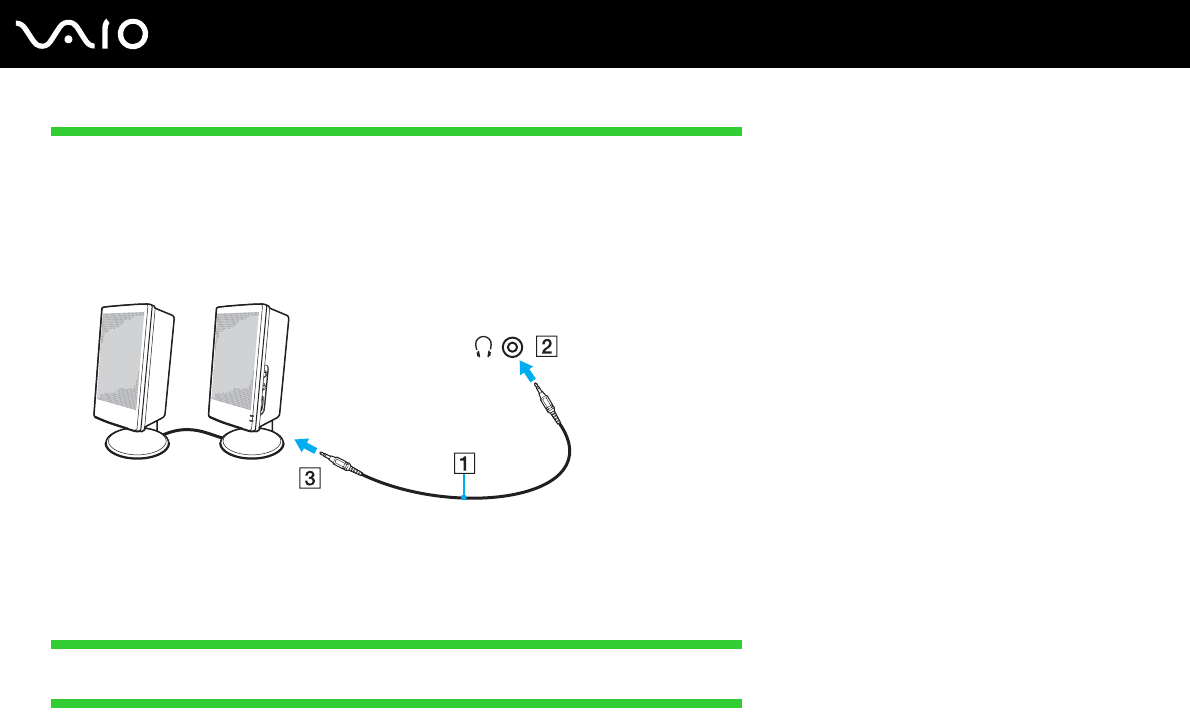

Connecting External Speakers ..................................................................................................................................79
Connecting an External Display.................................................................................................................................81
Selecting Display Modes............................................................................................................................................84
Using the Multiple Monitors Function.........................................................................................................................86
Connecting a Universal Serial Bus (USB) Device......................................................................................................87

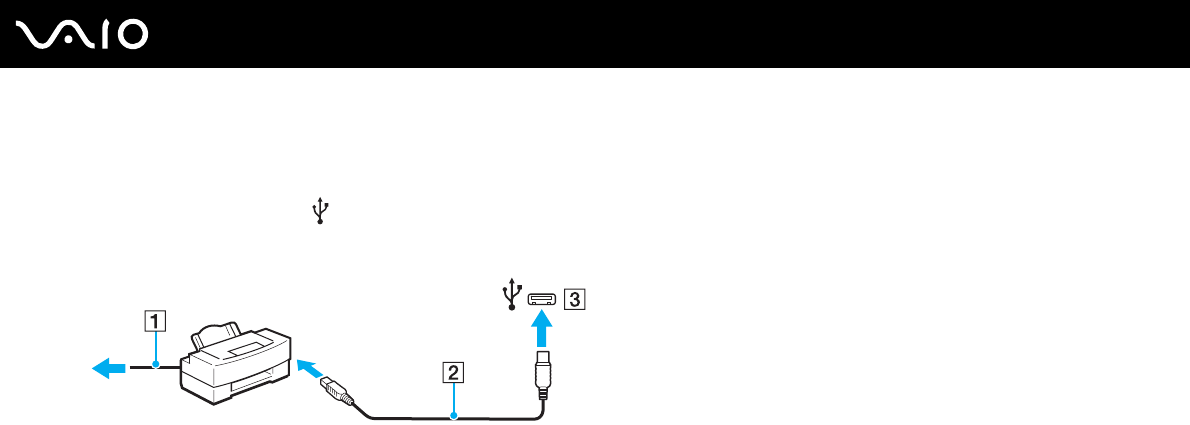

Connecting a Printer ..................................................................................................................................................89
Customizing Your VAIO Computer ..................................................................................................................................91
Setting the Password .................................................................................................................................................91
Setting Up Your Computer with the VAIO Control Center........................................................................................102
Using the Power Saving Modes...............................................................................................................................103
Managing Power with the VAIO Power Management..............................................................................................108
Protecting the Hard Disk ..........................................................................................................................................109
Precautions ....................................................................................................................................................................112
Handling the LCD Screen ........................................................................................................................................112
Using the Power Source ..........................................................................................................................................113
Handling Your Computer .........................................................................................................................................114
Handling the Built-in MOTION EYE Camera............................................................................................................118
5
nN
Handling Floppy Disks .............................................................................................................................................118
Handling Discs .........................................................................................................................................................118
Using the Battery Pack ............................................................................................................................................119
Using Headphones ..................................................................................................................................................122
Handling the Memory Stick ......................................................................................................................................122
Handling the Hard Disk ............................................................................................................................................123
Updating Your Computer .........................................................................................................................................124
Troubleshooting .............................................................................................................................................................126
Computer .................................................................................................................................................................127
System Security .......................................................................................................................................................138
Battery......................................................................................................................................................................140
Built-in MOTION EYE Camera.................................................................................................................................141
Networking ...............................................................................................................................................................144
Bluetooth Technology ..............................................................................................................................................148
GPS .........................................................................................................................................................................152
Optical Discs ............................................................................................................................................................153
Display .....................................................................................................................................................................155
Printing.....................................................................................................................................................................158
Microphone ..............................................................................................................................................................159
Mouse ......................................................................................................................................................................160
Speakers..................................................................................................................................................................161
Pointing Device ........................................................................................................................................................162
Keyboard..................................................................................................................................................................163
Floppy Disks ............................................................................................................................................................164
6
nN
Audio/Video..............................................................................................................................................................165
Memory Card ...........................................................................................................................................................166
Peripherals...............................................................................................................................................................168
Support Options .............................................................................................................................................................169
Sony Support Information ........................................................................................................................................169
Program Support Information...................................................................................................................................174
e-Support .................................................................................................................................................................175
Trademarks ....................................................................................................................................................................177
7
nN
Before Use
Before Use
Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal
computing experience.
!
External views illustrated in this manual may look slightly different from those of your computer.
Information in the supplied manuals including this User Guide is intended for users of the VAIO computers with the Microsoft® Windows Vista®
32-bit operating system. You may find differences in the information when your computer comes preinstalled with the 64-bit operating system.
Except US model_BGN
Notice
© 2009 Sony Corporation. All rights reserved.
This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any
machine-readable form without prior written approval.
Sony Corporation provides no warranty with regard to this manual, the software, or other information contained herein and
hereby expressly disclaims any implied warranties or merchantability or fitness for any particular purpose with regard to this
manual, the software, or such other information. In no event shall Sony Corporation be liable for any incidental, consequential,
or special damages, whether based on tort, contract, or otherwise, arising out of or in connection with this manual, the
software, or other information contained herein or the use thereof.
In the manual, the ™ or ® marks are not specified.
Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time
without notice. The software described herein is governed by the terms of a separate user license agreement.
Except US model_END
8
nN
Before Use
Except IRX-4300_BGN
ENERGY STAR
As an ENERGY STAR Partner, Sony has determined that this product meets the ENERGY STAR guidelines for energy
efficiency.
The International ENERGY STAR Office Equipment Program is an international program that promotes energy saving
through the use of computers and office equipment. The program backs the development and dissemination of products with
functions that effectively reduce energy consumption.
For detailed information on the ENERGY STAR Program, visit the following web sites:
❑http://www.energystar.gov (USA)
❑http://www.eu-energystar.org (Europe)
This computer is designed in compliance with the ENERGY STAR standards and delivered with the following power saving
settings:
❑The LCD backlight is turned off automatically after about 15 minutes of inactivity.
❑The computer enters Sleep mode automatically after about 30 minutes of inactivity.
Press any key to bring the computer back into Normal mode.
9
nN
Before Use
For detailed information on power saving modes, see Using the Power Saving Modes (page 103).
Except IRX-4300_END
Documentation
Your documentation includes printed information and user guides to read on your VAIO computer.
Printed Documentation
US model_BGN
❑Quick Start Guide — Contains an overview of components connection, set-up information, etc.
❑Safety Information — Contains safety guidelines and owner information.
IRX-4300_BGN
❑Instant Mode — Provides a guide to use Instant Mode.
IRX-4300_END
US model_END
Euro model_BGN
❑Quick Start Guide — Describes the process from unpacking to starting up your VAIO.
❑Troubleshooting and Recovery Guide — Contains solutions to problems other than those you encounter during normal
operation.
❑Regulations, Guarantee, EULA and Service Support — Contains Sony guarantee conditions,
safety / regulations, modem regulations, wireless LAN regulations, wireless WAN regulations,
Bluetooth® regulations, end user software license agreement, and Sony support services information.
IRX-4300_BGN
❑Instant Mode — Provides a guide to use Instant Mode.
10
nN
Before Use
IRX-4300_END
Euro model_END
GVD model_BGN
❑Specifications sheet — Contains a table of specifications, etc.
❑Troubleshooting and Recovery Guide — Contains solutions to problems other than those you encounter during normal
operation.
❑Safety Regulations
IRX-4300_BGN
❑Instant Mode — Provides a guide to use Instant Mode.
IRX-4300_END
GVD model_END
China model_BGN
❑Specifications sheet (1) — Contains a table of specifications, etc.
❑Troubleshooting and Recovery Guide (1) — Contains solutions to problems other than those you encounter during
normal operation.
❑Safety Regulations (1)
❑Warranty Card (1)
❑Approval sheet (1), etc.
IRX-4300_BGN
❑Instant Mode — Provides a guide to use Instant Mode.
IRX-4300_END
China model_END
11
nN
Before Use
Non-printed Documentation
US model_BGN
❑User Guide (this manual) — Explains features of your computer. It also includes information about the software programs
included with your computer, as well as information on solving common problems.
✍
To go to web sites described in this manual by clicking their respective URLs beginning with http://, your computer must be connected to the Internet.
❑Specifications — The online specifications describe the hardware and software configurations of your VAIO computer.
To view the online specifications:
1Connect to the Internet.
2Go to the Sony online support web site at the following URLs:
http://esupport.sony.com/EN/VAIO/ for customers in USA
http://www.sony.ca/support/ for customers in Canada
http://esupport.sony.com/LA/ for customers in Spanish-speaking Latin American countries or areas
http://esupport.sony.com/BR/ for customers in Brazil
Except IRX-4300_BGN
❑VAIO Recovery Center User Guide — Provides information about restoring individual software programs, hardware
drivers, and drive partition(s) or your entire hard disk drive to the original factory settings.
Except IRX-4300_END
IRX-4300_BGN
❑VAIO Recovery Center User Guide — Provides information about restoring individual software programs, hardware
drivers, and drive partition(s) or your entire built-in storage device* to the original factory settings.
* See the online specifications to find out about your storage device configuration.
12
nN
Before Use
IRX-4300_END
To access this on-screen guide:
1Click Start and Help and Support.
2Click Use my VAIO.
3Click VAIO Recovery Center User Guide.
IRX-4300_BGN
❑SmartWi™ Connection Utility Help (Selected models only) — Provides information about setting up Bluetooth®,
wireless LAN, GPS*, and wireless WAN* functions.
To access this on-screen guide:
1Click Start, All Programs, and SmartWi Connection Utility.
2Click SmartWi Connection Utility Help.
* The GPS and wireless WAN functions are available on selected models only. See the online specifications to find out whether your model supports
the functions.
IRX-4300_END
Help and Support
Help and Support is easy to access and provides a single location for general information and technical assistance for your
VAIO computer. Choose from the following categories to find the answers you need.
To access Help and Support, click Start and Help and Support.
❑Get started with my VAIO
Get help with Internet and wireless setup, security setup, personalizing your VAIO computer, and creating recovery DVDs
and more.
13
nN
Before Use
❑Use my VAIO
Access your VAIO user guide, interactive help in the form of VAIO tutorials, how-to articles, the VAIO technology page,
specifications, and system and software information.
❑Troubleshoot my VAIO
Maintain and troubleshoot your VAIO computer with VAIO Care, system restore, backup and recovery, and contact Sony
support.
US model_END
Euro model_BGN
❑User Guide (this manual) — Explains features of your computer. It also includes information on solving common
problems. The User Guide is provided in PDF format for easy browsing and printing.
To view this on-screen guide:
1Double-click the Me&My VAIO icon on the desktop.
2Click Menu, Me&My VAIO, I Need Help, and VAIO User Guide.
3Open the folder for your language.
4Select the guide you want to read.
✍
You can manually browse to the user guides by going to Computer > VAIO (C:) (your C drive) > Documentation > Documentation and opening the
folder for your language.
To go to web sites described in this manual by clicking their respective URLs beginning with http://, your computer must be connected to the Internet.
❑Specifications — The online specifications describe the hardware and software configurations of your VAIO computer.
To view the online specifications:
1Connect to the Internet.
2Go to the Sony online support web site at http://www.vaio-link.com.
14
nN
Before Use
✍
You may have a separate disc that includes documentation for the bundled accessories.
Windows Help and Support
Windows Help and Support is a comprehensive resource for practical advice, tutorials, and demonstrations to help you
learn to use your computer.
Use the search feature, index, or table of contents to view all Windows Help resources, including those on the Internet.
To access Windows Help and Support, click Start and Help and Support. Or go to Windows Help and Support by
pressing and holding the Microsoft Windows key and pressing the F1 key.
Euro model_END
Except Euro_BGN
Except US model_BGN
❑Hardware Guide (this manual) — Explains features of your computer. It also includes information on solving common
problems. The Hardware Guide is provided in PDF format for easy browsing and printing.
✍
To go to web sites described in this manual by clicking their respective URLs beginning with http://, your computer must be connected to the Internet.
❑Software Guide — Provides specific information on certain preinstalled software on your computer.
❑Important Notice — Provides information on specific items concerning your computer.
Except US model_END
Except Euro_END
Euro model_BGN
Further Sources
❑Consult the help files included with the software you are using for detailed information on features and troubleshooting.
15
nN
Before Use
❑Go to http://www.club-vaio.com to find online tutorials about your favorite VAIO software.
Euro model_END

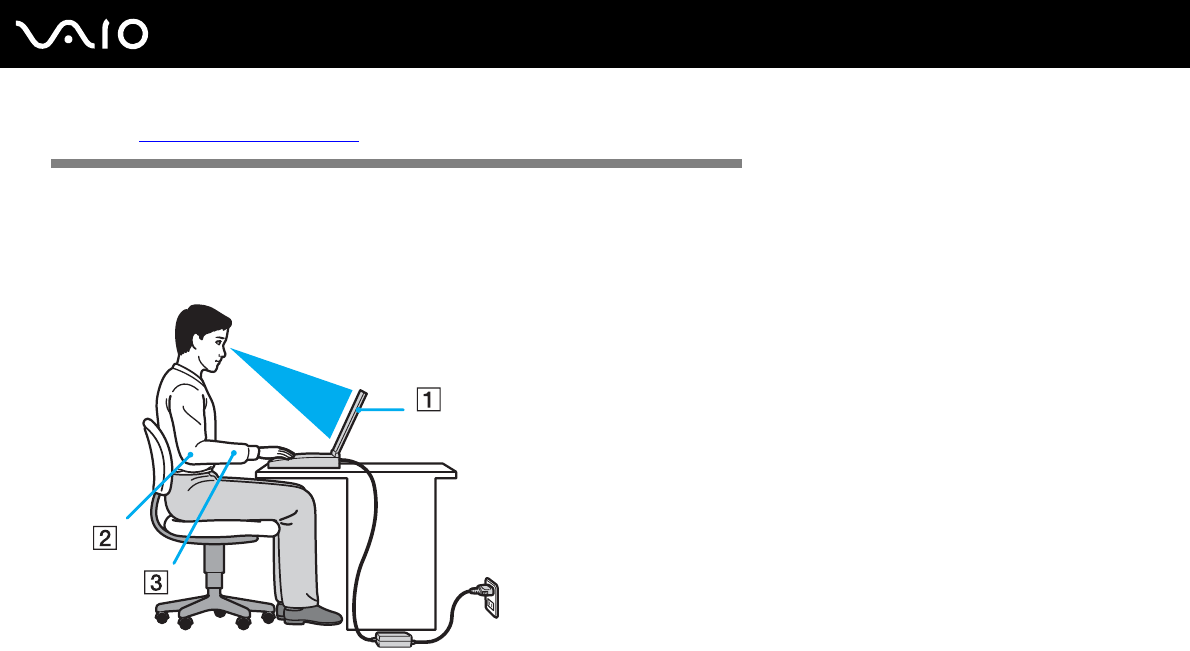

Ergonomic Considerations
You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt
to take account of the following ergonomic considerations for both stationary and portable environments:
❑Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your
wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse. Let your upper arms
hang naturally at your sides. Take frequent breaks while using your computer. Excessive use of the computer may strain
eyes, muscles, or tendons.
16
nN
Before Use
❑Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the
floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.
❑Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye
strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display
as well.
❑Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect
lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.
❑Positioning an external display – When using an external display, set the display at a comfortable viewing distance.
Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.
17
nN
Getting Started
Getting Started
This section describes how to get started using your VAIO computer.
US model_BGN
!
Before starting your computer for the first time, do not connect any other hardware that did not originally come with your computer. Be sure to start
up your computer with only the supplied accessories connected and set up your system. Upon completion, connect one device (for example, a printer,
an external hard disk drive, a scanner, and so on) at a time, following the manufacturers' instructions.
US model_END
Except GVD model_BGN
Except China_BGN
❑Locating Controls and Ports (page 17)
Except China_END
Except GVD model_END
❑About the Indicator Lights (page 21)
❑Connecting a Power Source (page 24)
❑Using the Battery Pack (page 25)
❑Shutting Down Your Computer Safely (page 32)
Except GVD model_BGN
Except China_BGN
Locating Controls and Ports
Take a moment to identify the controls and ports shown on the following pages.
18
nN
Getting Started
Front
AWIRELESS switch (page 54)
BWIRELESS indicator (page 21)
CSD memory card slot (page 47)
DMedia Access indicator (page 21)
EMemory Stick slot*1 (page 42)
FBuilt-in MOTION EYE camera indicator (page 21)
GBuilt-in MOTION EYE camera (page 40)
HLCD screen (page 112)
IBuilt-in microphone (monaural)
JPointing stick (page 37)
KKeyboard (page 34)
LPower switch
MPower indicator (page 21)
NCharge indicator (page 21)
OHard disk drive*2 indicator (page 21)
*1 Your computer supports only Duo-size Memory Stick.
*2 The storage device configuration of your computer may include a built-in
flash memory storage drive depending on the model you purchased. See the
online specifications to find out about your configuration.
21
nN
Getting Started
Left
Except China_END
Except GVD model_END
About the Indicator Lights
Your computer is equipped with the following indicator lights:
IRX-4300_BGN
Except China_BGN
ADC IN port (page 24)
BHi-Speed USB (USB 2.0) port* (page 87)
CHeadphones jack (page 69), (page 79)
* Supports high-/full-/low- speeds.
22
nN
Getting Started
Indicator Functions
Power 1Illuminates in green when the computer is on, blinks slowly in orange while the computer is in Sleep mode, and
turns off when the computer is off or in Hibernate mode.
Charge Illuminates while the battery pack is charging. See Charging the Battery Pack (page 27) for more information.
Built-in MOTION EYE camera Illuminates while the built-in MOTION EYE camera is in use.
Media Access Illuminates while data is being read from or written to a memory card. (Do not place the computer into Sleep
mode or turn it off when this indicator is lit.) When the indicator is unlit, the memory card is not in use.
Hard disk drive* Illuminates while the drive is reading or writing data. Do not place the computer into Sleep mode or turn it off
when this indicator is lit.
Num lock Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad.
The numeric keypad is not active when the indicator is unlit.
Caps lock Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key
while the indicator is lit. Press the key a second time to turn off the indicator. Normal typing resumes when the
Caps lock indicator is unlit.
Scroll lock Press the Scr Lk key to change how you scroll the display. Normal scrolling resumes when the Scroll lock
indicator is unlit. The Scr Lk key functions differently depending on the program you are using and does not
work with all programs.
WIRELESS Except US model_BGN
Illuminates when the WIRELESS switch is turned on, provided that one or more wireless options are enabled
in the VAIO Smart Network window.
Except US model_END
US model_BGN
Illuminates when the WIRELESS switch is turned on.
US model_END
23
nN
Getting Started
Except China_END
China model_BGN
* The storage device configuration of your computer may include a built-in flash memory storage drive depending on the model you purchased. See the online
specifications to find out about your configuration.
Indicator Functions
Power 1Illuminates in green when the computer is on, blinks slowly in orange while the computer is in Sleep mode, and
turns off when the computer is off or in Hibernate mode.
Charge Illuminates while the battery pack is charging. See Charging the Battery Pack (page 27) for more information.
Built-in MOTION EYE camera Illuminates while the built-in MOTION EYE camera is in use.
Media Access Illuminates while data is being read from or written to a memory card. (Do not place the computer into Sleep
mode or turn it off when this indicator is lit.) When the indicator is unlit, the memory card is not in use.
Hard disk drive Illuminates while the drive is reading or writing data. Do not place the computer into Sleep mode or turn it off
when this indicator is lit.
Num lock Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad.
The numeric keypad is not active when the indicator is unlit.
Caps lock Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key
while the indicator is lit. Press the key a second time to turn off the indicator. Normal typing resumes when the
Caps lock indicator is unlit.
Scroll lock Press the Scr Lk key to change how you scroll the display. Normal scrolling resumes when the Scroll lock
indicator is unlit. The Scr Lk key functions differently depending on the program you are using and does not
work with all programs.
WIRELESS Illuminates when the WIRELESS switch is turned on, provided that one or more wireless options are enabled
in the VAIO Smart Network window.
Indicator Functions
24
nN
Getting Started
China model_END
IRX-4300_END
Connecting a Power Source
You can use either an AC adapter or a rechargeable battery pack for supplying power to your computer.
Using the AC Adapter
✍
Use only the supplied AC adapter for your computer.

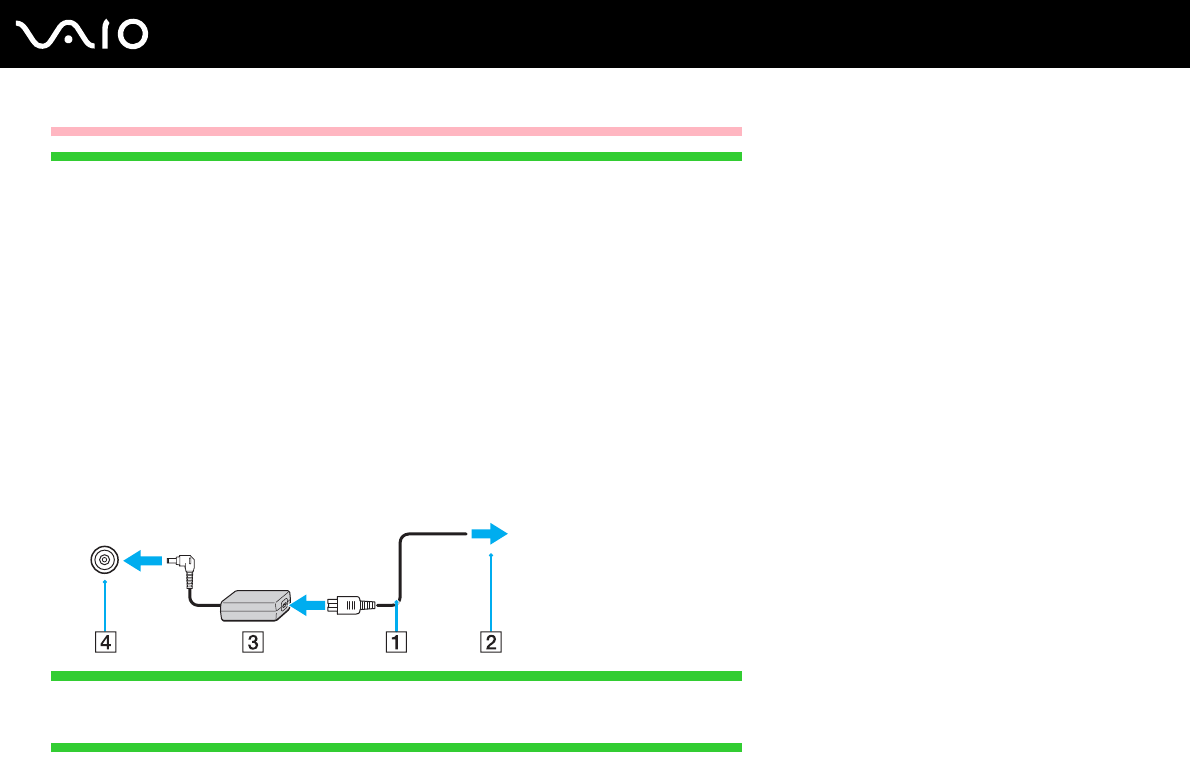

To use the AC adapter
1Plug one end of the power cord (1) into the AC adapter (3).
2Plug the other end of the power cord into an AC outlet (2).
3Plug the cable connected to the AC adapter (3) into the DC IN port (4) on the computer.
Except IRX-4300_BGN
!
The shape of the DC In plug varies depending on the AC adapter.
Except IRX-4300_END
25
nN
Getting Started
✍
To disconnect your computer completely from AC power, unplug the AC adapter.
Make sure that the AC outlet is easily accessible.
If you do not intend to use your computer for a long period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page 105).
This power saving mode saves the time of shutting down and resuming.
Using the Battery Pack
The battery pack supplied with your computer is not fully charged at the time of delivery.
Installing the Battery Pack
IRX-4300_BGN
To install the battery pack
1Turn off the computer and close the LCD screen lid.
2Slide the battery LOCK switch (1) inward.
26
nN
Getting Started
3Fit the battery pack into the battery compartment.
The battery pack should be level with the bottom of the computer.
4Slide the battery pack toward the front of the computer until it clicks into place.
5Slide the battery LOCK switch outward to secure the battery pack on the computer.
27
nN
Getting Started
IRX-4300_END
✍
When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.
US model_BGN
!
This computer is designed to operate only with genuine Sony battery packs.
US model_END
Euro model_BGN
!
Certain rechargeable batteries do not meet Sony quality and safety standards. For safety reasons this computer only functions with genuine Sony
battery packs designed for this model. If an unauthorized battery pack is installed, the battery will not be charged and the computer will not function.
Euro model_END
GVD model_BGN
!
For your safety, it is highly recommended that you use genuine Sony rechargeable battery packs and AC adapters that meet the quality assurance
standards and supplied by Sony for your VAIO computer. Some VAIO computers may operate only with genuine Sony battery packs.
GVD model_END
China model_BGN
!
For your safety, Sony recommends only using the genuine Sony battery packs that are designed to this model.
China model_END
Charging the Battery Pack
The battery pack supplied with your computer is not fully charged at the time of delivery.
28
nN
Getting Started
To charge the battery pack
1Install the battery pack.
2Connect the AC adapter to the computer.
The charge indicator light turns on while the battery pack is charging. When the battery pack charges close to the
maximum charge level you selected with the battery charge functions, the charge indicator turns off. To select your desired
maximum charge level, see Using the Battery Charge Functions (page 29).
!
Charge the battery pack as described in this manual from your first battery charge.
✍
Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the
computer.
If the battery charge level falls below 10%, you should either connect the AC adapter to recharge the battery pack or shut down your computer and
install a fully charged battery pack.
Your computer is supplied with a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack does not affect
the life of battery.
Charge indicator status Meaning
Lit in orange The battery pack is charging.
Blinks along with the green power
indicator
The battery pack is running out of power. (Normal
mode)
Blinks along with the orange power
indicator
The battery pack is running out of power. (Sleep mode)
Blinks fast in orange A battery error has occurred due to a failed battery
pack or an unlocked battery pack.
29
nN
Getting Started
China model_BGN
IRX-4300_BGN
By default, your computer enters Sleep mode automatically after about 30 minutes of inactivity when running on AC power. Press any key to bring it
back into Normal mode. When running on battery power, it switches the power saving mode automatically from Sleep mode to Hibernate mode if the
computer is not used for a certain period of time. To bring it back from Hibernate mode to Normal mode, press the power button.
IRX-4300_END
China model_END
While some software applications or peripheral devices are in use, your computer may not enter Hibernate mode even when the remaining battery life
is short. To avoid loss of data when using battery power, you should save your data frequently and manually activate a power management mode, such
as Sleep or Hibernate.
If the battery pack wears out when the computer enters Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible.
To avoid loss of data, you should save your data frequently.
When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.
Using the Battery Charge Functions
You can select the battery charging method for your battery pack with the Battery Charge Functions. To make the life of
battery longer, enable the battery care function.
To enable the battery care function
Except US model_BGN
Except Euro_BGN
1Click Start , All Programs, and VAIO Control Center.
30
nN
Getting Started
Except Euro_END
Except US model_END
Except GVD model_BGN
Except China_BGN
1Click Start, All Programs, and VAIO Control Center.
Except China_END
Except GVD model_END
2Click Power Management and then Battery Charge Functions.
3Click Advanced.
4Click to select the Enable Battery Care Function check box in the right pane.
5Select the desired maximum charge level.
6Click OK.
To check the battery charge capacity
Follow steps 1 to 4 in To enable the battery care function above and check detailed information. If the battery charge
capacity is low, replace the battery pack with a new genuine Sony battery pack.
Using the Battery Life Conserving Wallpaper
You can conserve your battery life just by setting the specific wallpaper as your desktop background.
To set the battery life conserving wallpaper
1Click Start, All Programs, and VAIO Control Center.
2Click Display and then Long Battery Life Wallpaper Setting.
31
nN
Getting Started
3Click Set Long Battery Life Wallpaper.
At the confirmation prompt, click OK.
Removing the Battery Pack
!
You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack
while the computer is in Sleep mode.
IRX-4300_BGN
To remove the battery pack
1Turn off the computer and close the LCD screen lid.
2Slide the battery LOCK switch (1) inward.
3Slide and hold the battery RELEASE latch (2) inward and slide the battery pack in the direction of the arrow to take it
away from the computer.
IRX-4300_END
32
nN
Getting Started
Shutting Down Your Computer Safely
To avoid losing unsaved data, be sure to shut down your computer properly, as described below.
To shut down your computer
1Turn off any peripherals connected to the computer.
Except China_BGN
Except GVD model_BGN
2Click Start, the arrow next to the Lock button, and then Shut Down.
Except GVD model_END
Except China_END
Except US model_BGN
Except Euro_BGN
3Click Start, the arrow next to the Lock button, and then Shut Down.
Except Euro_END
Except US model_END
4Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off
automatically.
The power indicator light turns off.
33
nN
Using Your VAIO Computer
Using Your VAIO Computer
Except China_BGN
Except GVD model_BGN
This section describes how to get the most out of using your VAIO computer.
Except GVD model_END
Except China_END
Except Euro_BGN
Except US model_BGN
Once you have read and followed the information in the printed specifications sheet, you can start using your VAIO computer
safely and confidently.
Read on to get the most out of using your computer.
Except US model_END
Except Euro_END
❑Using the Keyboard (page 34)
❑Using the Pointing Device (page 37)
❑Using Special-function Buttons (page 39)
❑Using the Built-in MOTION EYE Camera (page 40)
❑Using the Memory Stick (page 42)
❑Using the SD Memory Card (page 47)
❑Using the Internet (page 50)

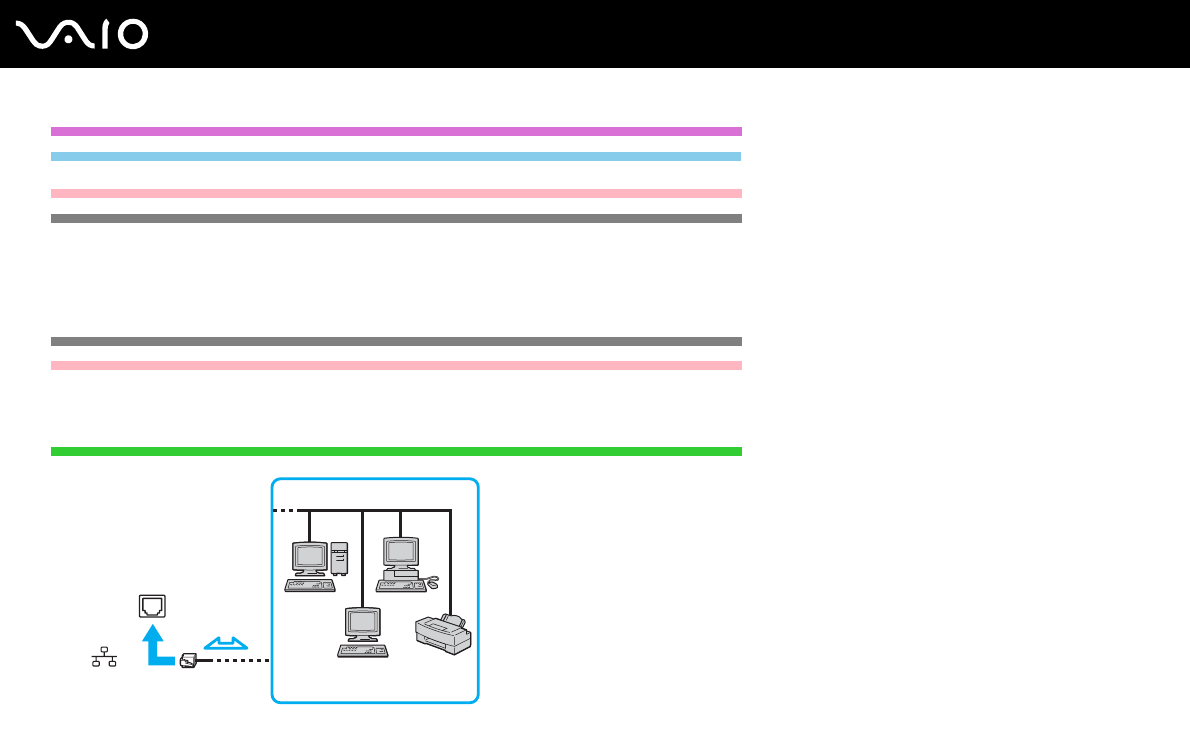

❑Using the Network (LAN) (page 52)
34
nN
Using Your VAIO Computer

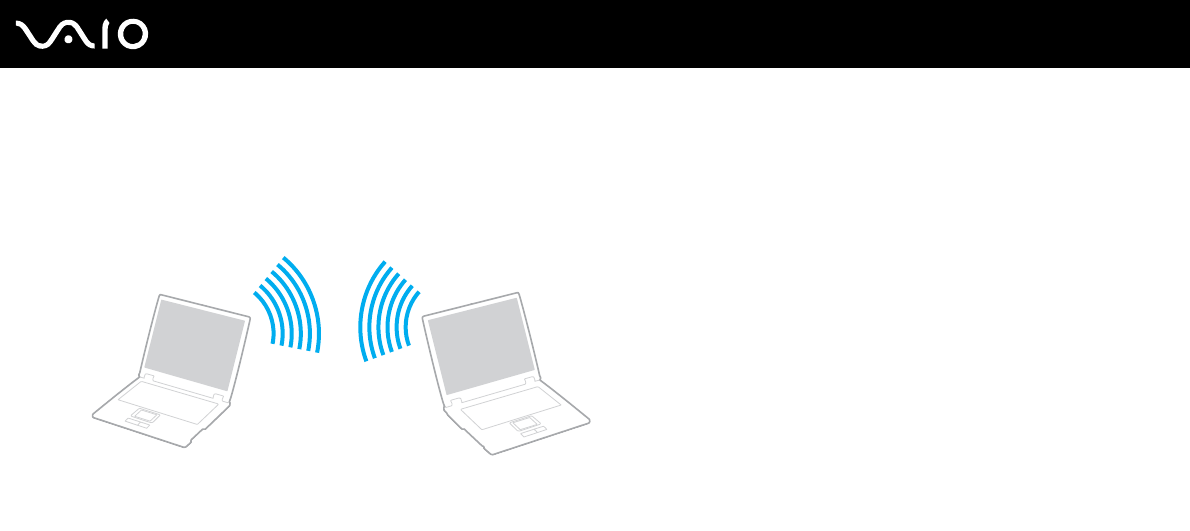

❑Using the Wireless LAN (WLAN) (page 54)
❑Using the Bluetooth Function (page 61)
Euro model_BGN

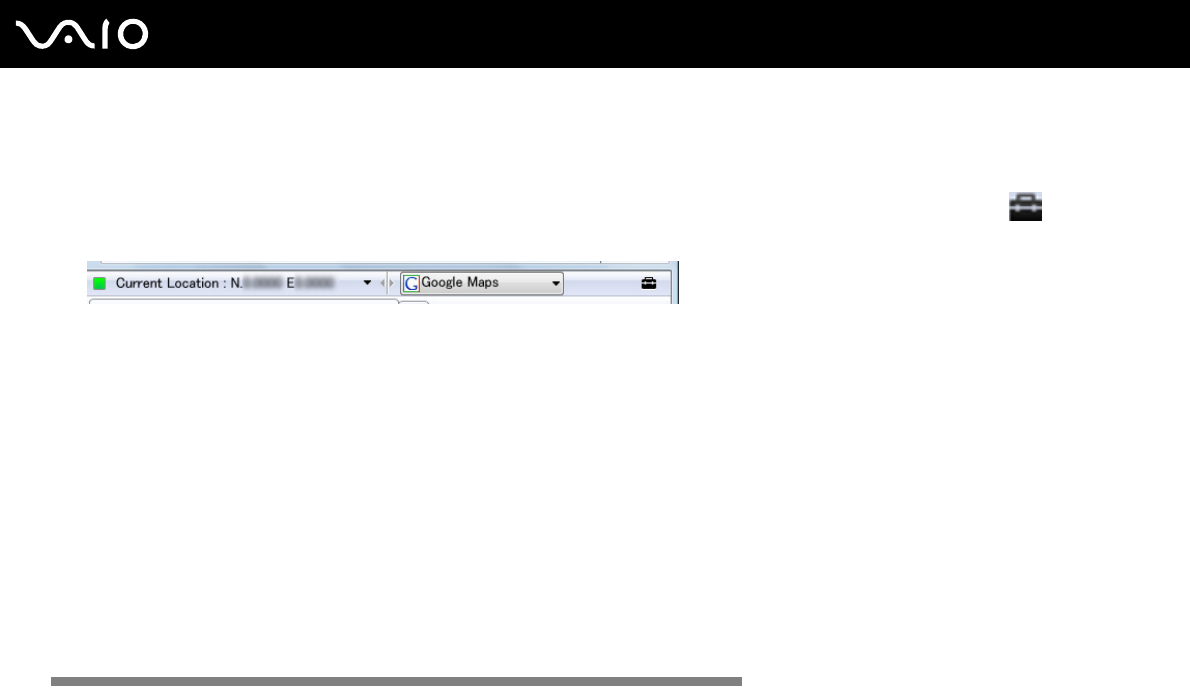

❑Using the Global Positioning System (GPS) Function (page 67)
Euro model_END
Using the Keyboard
Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks.
Euro model_BGN
The VAIO-Link web site (http://www.vaio-link.com) also contains glossary information to help you use the keyboard.
Euro model_END
Combinations and Functions with the Fn Key
✍
Some keyboard functions can be used only after the operating system is finished launching.
IRX-4300_BGN
Except China_BGN
Combinations/Feature Functions
Fn + % (F2): speaker switch Turns on and off the built-in speakers and the headphones.
35
nN
Using Your VAIO Computer
Fn + 2 (F3/F4): volume Changes the volume level.
To increase the volume, keep pressing the Fn+F4 keys or press the Fn+F4 keys and then the
M or , key.
To decrease the volume, keep pressing the Fn+F3 keys or press the Fn+F3 keys and then the
m or < key.
Fn + 8 (F5/F6): brightness control Changes the LCD brightness of your computer screen.
To increase lighting intensity, keep pressing the Fn+F6 keys or press the Fn+F6 keys and then
the M or , key.
To decrease lighting intensity, keep pressing the Fn+F5 keys or press the Fn+F5 keys and then
the m or < key.
Fn + /T (F7): display output Toggles among your computer screen, an external display, and simultaneous output to both.

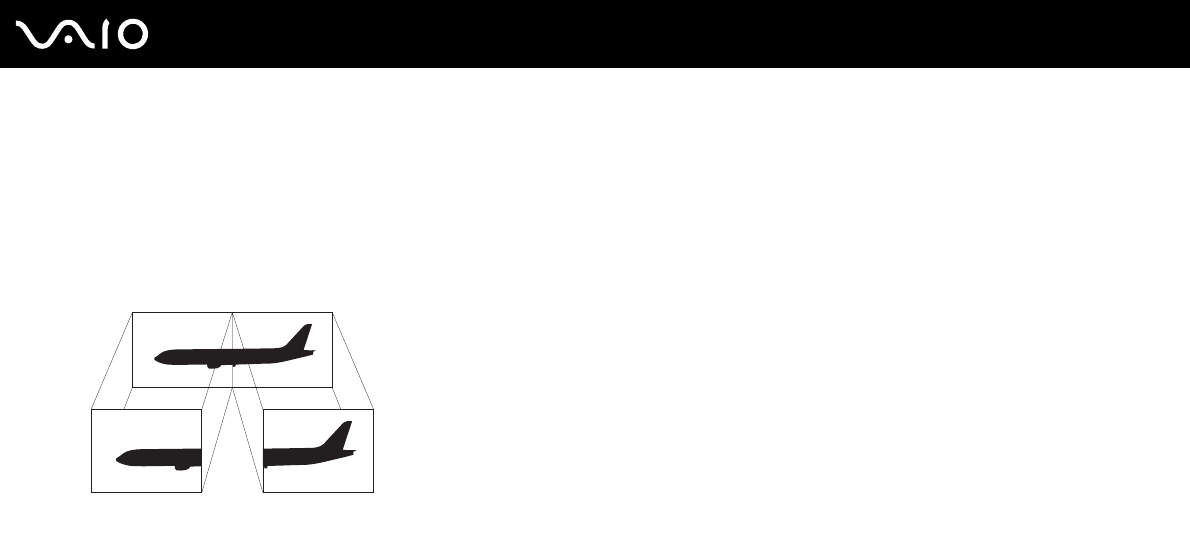

Fn + / (F9/F10): zoom Changes the view size of your screen.
To make the screen view look smaller and further away (zoom out), press the Fn+F9 keys.
To make the screen view look bigger and closer (zoom in), press the Fn+F10 keys.
See the help file included with the VAIO Control Center for more information.
Fn + (F12): hibernate Provides the lowest level of power consumption. When you execute this command, the states
of the system and the connected peripheral devices are saved to the built-in storage device*
and the system power is turned off. To return the system to its original state, use the power
switch to turn on the power.
For details on power management, see Using the Power Saving Modes (page 103).
Combinations/Feature Functions
36
nN
Using Your VAIO Computer
Except China_END
China model_BGN
Except GVD model_BGN
* See the online specifications to find out about your storage device configuration.
Except GVD model_END
GVD model_BGN
* See the printed specifications sheet to find out about your storage device configuration.
GVD model_END
Combinations/Feature Functions
Fn + % (F2): speaker switch Turns on and off the built-in speakers and the headphones.
Fn + 2 (F3/F4): volume Changes the volume level.
To increase the volume, keep pressing the Fn+F4 keys or press the Fn+F4 keys and then the
M or , key.
To decrease the volume, keep pressing the Fn+F3 keys or press the Fn+F3 keys and then the
m or < key.
Fn + 8 (F5/F6): brightness control Changes the LCD brightness of your computer screen.
To increase lighting intensity, keep pressing the Fn+F6 keys or press the Fn+F6 keys and then
the M or , key.
To decrease lighting intensity, keep pressing the Fn+F5 keys or press the Fn+F5 keys and then
the m or < key.
Fn + /T (F7): display output Toggles among your computer screen, an external display, and simultaneous output to both.
Combinations/Feature Functions
37
nN
Using Your VAIO Computer
China model_END
IRX-4300_END
Using the Pointing Device
The keyboard contains a cursor-pointing device, the pointing stick (1). You can point to, select, drag, and scroll objects on
the screen using the pointing stick in combination with the buttons located below the space bar.
The pointer (2) moves in the direction that you push the pointing stick. The stronger you push the pointing stick, the faster
moves the pointer.
Except IRX-4300_BGN
Fn + / (F9/F10): zoom Changes the view size of your screen.
To make the screen view look smaller and further away (zoom out), press the Fn+F9 keys.
To make the screen view look bigger and closer (zoom in), press the Fn+F10 keys.
See the help file included with the VAIO Control Center for more information.
Fn + (F12): hibernate Provides the lowest level of power consumption. When you execute this command, the states
of the system and the connected peripheral devices are saved to the hard disk drive and the
system power is turned off. To return the system to its original state, use the power switch to
turn on the power.
For details on power management, see Using the Power Saving Modes (page 103).
Combinations/Feature Functions
38
nN
Using Your VAIO Computer
Except IRX-4300_END
IRX-4300_BGN
IRX-4300_END
Action Description
Point Push the pointing stick to place the pointer on an item or object.
Click Press the left button (3) once.
Double-click Press the left button twice.
Right-click Press the right button (5) once. In many applications, this action displays a shortcut menu.
Drag Push the pointing stick while pressing the left button.
39
nN
Using Your VAIO Computer
✍
The tip on the pointing stick is a consumable. You can replace it with one of the supplied spare caps when necessary.
You can disable/enable the pointing stick while a mouse is connected to your computer. To change the pointing stick settings, click Start, All Programs,
VAIO Control Center, Keyboard and Mouse and Pointing Device.
!
Be sure to connect a mouse before disabling the pointing stick. If you disable the pointing stick before connecting a mouse, you will be able to use only
the keyboard for pointer operations.
Using Special-function Buttons
Your computer is equipped with special buttons to help you use specific functions of the computer.
IRX-4300_BGN
Scroll Push the pointing stick up and down or sideways while pressing the center button (4). (The scroll function is available
only with applications that support a pointing stick scroll feature.)
Special-function button Functions
Cross media (S1) button By default, the cross media (S1) button launches the Windows Media Plus when the computer is on. When
the computer is off or in Hibernate mode, pressing this button activates Instant Mode.
Window arrangement (S2) button By default, the window arrangement (S2) button tiles all windows on the desktop. To resume the previous
window state, press this button once again.
✍
The default button assignments may be different from the above. To change the S button assignments, press and hold either button or launch and navigate through the
VAIO Control Center to display the setup window. See the help file included with the VAIO Control Center for the S button assignments.
Action Description
40
nN
Using Your VAIO Computer
IRX-4300_END
Using the Built-in MOTION EYE Camera
Your computer is equipped with a built-in MOTION EYE camera.
The built-in MOTION EYE camera adds video functionality to instant messaging software and video editing software and
enables you to capture still images and movies with the preinstalled image capture software.
Turning on the computer activates the built-in MOTION EYE camera. Video conference is possible with the appropriate
software.
Note that launching or exiting your instant messaging or video editing software does not activate or deactivate the built-in
MOTION EYE camera, respectively.
✍
The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the
application before using the built-in MOTION EYE camera with your desired application.
!
The viewer window may show some noise, for example horizontal streaks, if you view a rapid-moving object. This is normal and does not indicate a
malfunction.
You cannot operate the built-in MOTION EYE camera with the Microsoft Windows Movie Maker software.
Capturing Still Images
To capture a still image
1Click Start, All Programs, ArcSoft WebCam Companion 2, and WebCam Companion 2 to launch the WebCam
Companion 2.
2Click the Capture icon in the main window.
3Frame your subject in the viewfinder.
41
nN
Using Your VAIO Computer
4Click the Capture button below the displayed image.
The current image in the viewfinder is captured and its thumbnail image is added as a the thumbnail in the left pane of
the main window.
✍
When capturing an image in a dark place, click the WebCam Settings icon after step 2 and select the low light or low light compensation option in the
properties window.
The WebCam Companion 2 provides many more features. See the help file included with the software for more information.
Capturing Movies
To capture a movie
1Click Start, All Programs, ArcSoft WebCam Companion 2, and WebCam Companion 2 to launch the WebCam
Companion 2.
2Click the Record icon in the main window.
3Frame your subject in the viewfinder.
4Click the Record Video button below the displayed image to start movie recording.
5When finished, click the Record Video button once again to stop movie recording.
The first scene of the captured movie is added as a thumbnail in the left pane of the main window.
✍
When capturing a movie in a dark place, click the WebCam Settings icon after step 2 and select the low light or low light compensation option in the
properties window.
The WebCam Companion 2 provides many more features. See the help file included with the software for more information.
42
nN
Using Your VAIO Computer
Using the Memory Stick
The Memory Stick is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing
digital data with compatible products, such as digital cameras, mobile phones, and other devices. Because it is removable,
it can be used for external data storage.
Before You Use the Memory Stick
Except IRX-4300_BGN
The Memory Stick slot on your computer can accommodate both standard- and Duo-size media and supports Memory Stick
PRO and Memory Stick PRO-HG Duo formats with high-speed data transfer and large data capacity capabilities.
✍
You can insert a Duo-size Memory Stick directly into the Memory Stick slot without using a Memory Stick Duo adaptor.
!
Before using a Memory Stick Micro (M2), be sure to insert it into an M2 Standard-size adaptor or M2 Duo adaptor. If you insert the media directly into
the Memory Stick slot without the adaptor, you may not be able to remove it from the slot.
Except IRX-4300_END
IRX-4300_BGN
The Memory Stick slot on your computer can accommodate only Duo-size media and supports Memory Stick PRO and
Memory Stick PRO-HG Duo formats with high-speed data transfer and large data capacity capabilities.
!
Before using a Memory Stick Micro (M2), be sure to insert it into an M2 Duo adaptor. If you insert the media directly into the Memory Stick slot without
the adaptor, you may not be able to remove it from the slot.
IRX-4300_END
For the latest information about the Memory Stick, visit the Memory Stick web site at http://www.memorystick.com/en/.
43
nN
Using Your VAIO Computer
!
Your computer has been tested and found compatible with Sony branded Memory Stick with capacity of up to 16 GB that are available as of September
2008. However, not all Memory Stick that meet the same specifications as the compatible media are guaranteed of compatibility.
Inserting a Memory Stick with multiple conversion adaptors is not guaranteed of compatibility.
MagicGate is the general name of the copyright protection technology developed by Sony. Use a Memory Stick with the MagicGate logo to use this
feature.
Except for your personal use, it is against the copyright law to use any audio and/or image data you recorded without prior consent from the respective
copyright holders. Accordingly, the Memory Stick with such copyrighted data can be used only within the law.
Except IRX-4300_BGN
The Memory Stick slot on your computer does not support 8-bit parallel data transfer (high-speed data transfer).
Except IRX-4300_END
Except IRX-4300_BGN
The Memory Stick Micro in an M2 Duo adaptor may not operate properly if it is additionally inserted into a Memory Stick Duo adaptor.
Except IRX-4300_END
Inserting a Memory Stick
IRX-4300_BGN
!
Your computer is supplied with a slot protector in the Memory Stick slot. Remove the slot protector before you use the slot.
IRX-4300_END
To insert a Memory Stick
1Locate the Memory Stick slot.
44
nN
Using Your VAIO Computer
IRX-4300_BGN
2Push the Memory Stick slot protector so that the protector pops out.
3Gently take hold of the Memory Stick slot protector and pull it out of the slot.
IRX-4300_END
4Hold the Memory Stick with the arrow facing upward and pointing toward the slot.
5Carefully slide the Memory Stick into the slot until it clicks into place.
The Memory Stick is automatically detected by your system and the contents on the Memory Stick are displayed. If
nothing appears on the desktop, click Start, Computer, and double-click the Memory Stick icon.
IRX-4300_BGN
IRX-4300_END
45
nN
Using Your VAIO Computer
!
Be sure to hold the Memory Stick with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer or the
Memory Stick, do not force the Memory Stick into the slot if you cannot insert it smoothly.
Do not insert more than one Memory Stick into the slot. Improper insertion of the media may damage both your computer and the media.
IRX-4300_BGN
Insert the Memory Stick slot protector to block any particles from entering the slot when not using the Memory Stick. Before moving your computer,
be sure to insert the Memory Stick slot protector into the slot.
IRX-4300_END
To view the contents on the Memory Stick
1Click Start and Computer to open the Computer window.
2Double-click the Memory Stick icon to view the list of data files saved in the Memory Stick.
To format a Memory Stick
The Memory Stick has been formatted in the factory default setting and is ready for use.
If you want to reformat the media with your computer, follow these steps.
!
Be sure to use the device that is designed to format the media and supports the Memory Stick when formatting the media.
Formatting the Memory Stick erases the entire data on the media. Before formatting the media, make sure that it does not contain your valuable data.
Do not remove the Memory Stick from the slot while formatting. This could cause a malfunction.
1Carefully slide the Memory Stick into the slot until it clicks into place.
2Click Start and Computer to open the Computer window.
3Right-click the Memory Stick icon and select Format.
46
nN
Using Your VAIO Computer
4Click Restore device defaults.
!
The size of the allocation unit and file system may change.
Do not select NTFS from the File system drop-down list as it may cause a malfunction.
✍
The formatting process will be completed more quickly if you select Quick Format in Format options.
5Click Start.
6Follow the on-screen instructions.
!
It may take time to format the Memory Stick depending on the media type.
Removing a Memory Stick
!
Do not remove the Memory Stick while the Media Access indicator light is lit. If you do, you may lose data. Large volumes of data may take time to
load, so make sure the indicator is unlit before removing the Memory Stick.
To remove a Memory Stick
1Check that the Media Access indicator light is unlit.
2Push in the Memory Stick toward the computer and release.
The Memory Stick ejects.
3Pull the Memory Stick out of the slot.
!
Always remove the Memory Stick gently, or it may pop out unexpectedly.
47
nN
Using Your VAIO Computer
Using the SD Memory Card
Your computer is equipped with an SD memory card slot. You can use this slot to transfer data among digital cameras,
camcorders, music players, and other audio/video devices.
Before You Use the SD Memory Card
The SD memory card slot on your computer supports the following memory cards:
❑SD memory card
❑SDHC memory card
❑MultiMediaCard (MMC)
For the latest information on compatible memory cards, see Sony Support Information (page 169) to visit the appropriate
support web site.
!
Your computer has been tested and found compatible only with major memory cards available as of September 2008. However, not all memory cards
that meet the same specifications as the compatible media are guaranteed of compatibility.
Always insert the correct memory card into the SD memory card slot.
SD memory cards with capacity of up to 2 GB and SDHC memory cards with capacity of up to 32 GB have been tested and found compatible with your
computer.
The SD memory card slot on your computer does not support the high-speed data transfer feature of the SD memory card and the SDHC memory card.
Do not attempt to insert an SD memory card or SD memory card adaptor of a different type into the SD memory card slot. An incompatible memory
card or memory card adaptor may cause difficulty in removing from the slot and can cause damage to your computer.
Use care when inserting or removing an SD memory card from the SD memory card slot. Do not force the SD memory card in or out of the slot.
48
nN
Using Your VAIO Computer
Inserting an SD Memory Card
IRX-4300_BGN
!
Your computer is supplied with a slot protector in the SD memory card slot. Remove the slot protector before you use the slot.
IRX-4300_END
To insert an SD memory card
1Locate the SD memory card slot.
IRX-4300_BGN
2Push the SD memory card slot protector so that the protector pops out.
3Gently take hold of the SD memory card slot protector and pull it out of the slot.
IRX-4300_END
4Hold the SD memory card with the arrow facing upward and pointing toward the slot.
5Carefully slide the SD memory card into the slot until it clicks into place.
Do not force the card into the slot.
IRX-4300_BGN
49
nN
Using Your VAIO Computer
IRX-4300_END
✍
If the SD memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.
IRX-4300_BGN
!
Insert the SD memory card slot protector to block any particles from entering the slot when not using the SD memory card. Before moving your
computer, be sure to insert the SD memory card slot protector into the slot.
IRX-4300_END
Removing an SD Memory Card
!
Do not remove an SD memory card while the Media Access indicator light is lit. If you do, the card or its data may become damaged.
50
nN
Using Your VAIO Computer
To remove an SD memory card
1Check that the Media Access indicator light is unlit.
2Push in the SD memory card toward the computer and release.
The SD memory card ejects.
3Pull the SD memory card out of the slot.
Using the Internet
Before using the Internet, you need to sign up with an Internet Service Provider (ISP) and set up devices required for
connecting your computer to the Internet.
The following types of Internet connection services may be available from your ISP:
❑Fiber to the Home (FTTH)
❑Digital Subscriber Line (DSL)
❑Cable modem
❑Satellite
❑Dial-up
For detailed information on devices required for the Internet and how to connect your computer to the Internet, ask your ISP.
✍
To connect your computer to the Internet using the wireless LAN function, you need to set up the wireless LAN network. See Using the Wireless LAN
(WLAN) (page 54) for more information.
!
When you connect your computer to the Internet, be sure to take appropriate security measures to protect the computer against online threats.
Except China_BGN
51
nN
Using Your VAIO Computer
Except GVD model_BGN
If your computer is not equipped with a built-in modem, you need to connect an external modem device, for example a USB telephone modem, a DSL
modem, or a cable modem, to your computer. For the detailed instructions on connection setups and modem configuration, see the manual that came
with your modem. To find out whether your computer is equipped with a built-in modem, see the online specifications.
Except GVD model_END
Except China_END
Except Euro_BGN
Except US model_BGN
If your computer is not equipped with a built-in modem, you need to connect an external modem device, for example a USB telephone modem, a DSL
modem, or a cable modem, to your computer. For the detailed instructions on connection setups and modem configuration, see the manual that came
with your modem. To find out whether your computer is equipped with a built-in modem, see the printed specifications sheet.
Except US model_END
Except Euro_END
The following procedures apply to models with a built-in modem only.

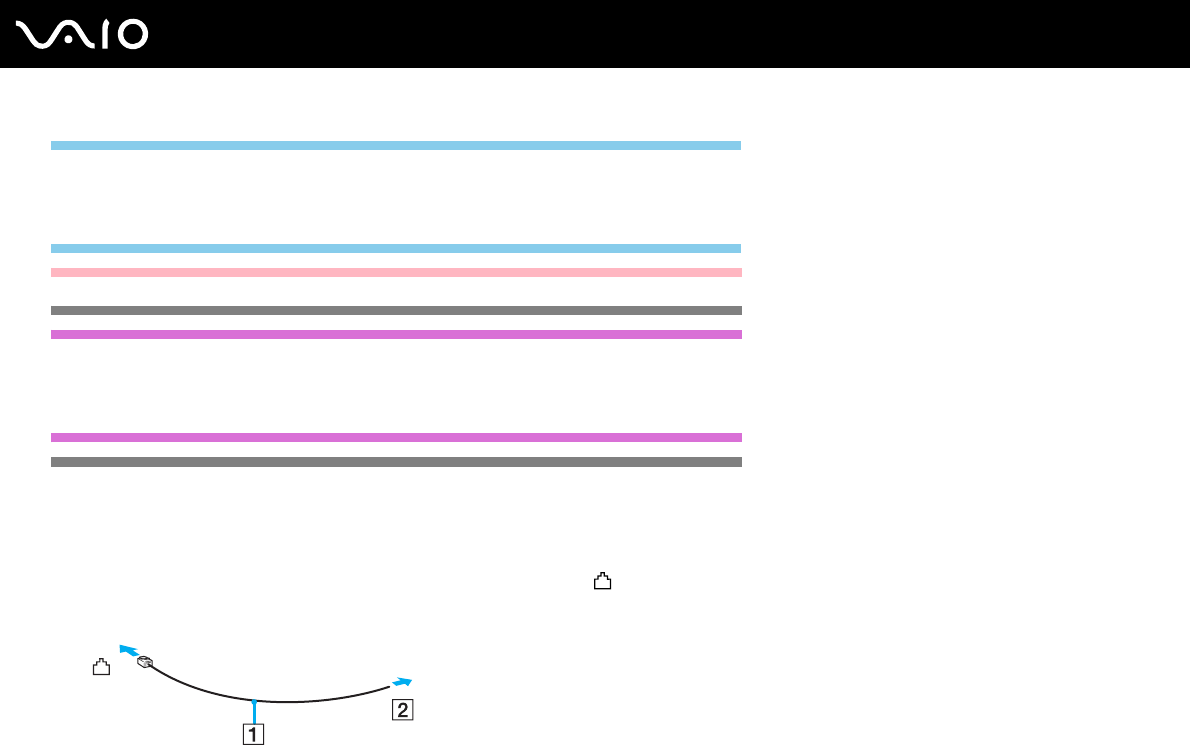

To connect a telephone cable
1Plug one end of the phone cable (1) into the modem port on the computer.
2Plug the other end into the wall jack (2).
52
nN
Using Your VAIO Computer
✍
Your computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or a
private branch exchange (PBX). Some of these connections may result in excess electrical current and could cause a malfunction in the built-in modem.
If you connect a telephone cable coming through a splitter, the modem or connected device may not work properly.
To set up a dial-up connection to the Internet
1Click Start and Control Panel.
2Click Connect to the Internet under Network and Internet.
The Connect to the Internet window appears.
3Click Dial-up.
4Follow the on-screen instructions.
Using the Network (LAN)
Except IRX-4300_BGN
You can connect your computer to 1000BASE-T/100BASE-TX/10BASE-T-type networks with an Ethernet network cable.
Connect one end of a network cable (not supplied) to the network (Ethernet) port on the computer and the other end to your
network. For detailed settings and devices needed to connect to the network, ask your network administrator.
Except IRX-4300_END
IRX-4300_BGN
Except GVD model_BGN
Except US model_BGN

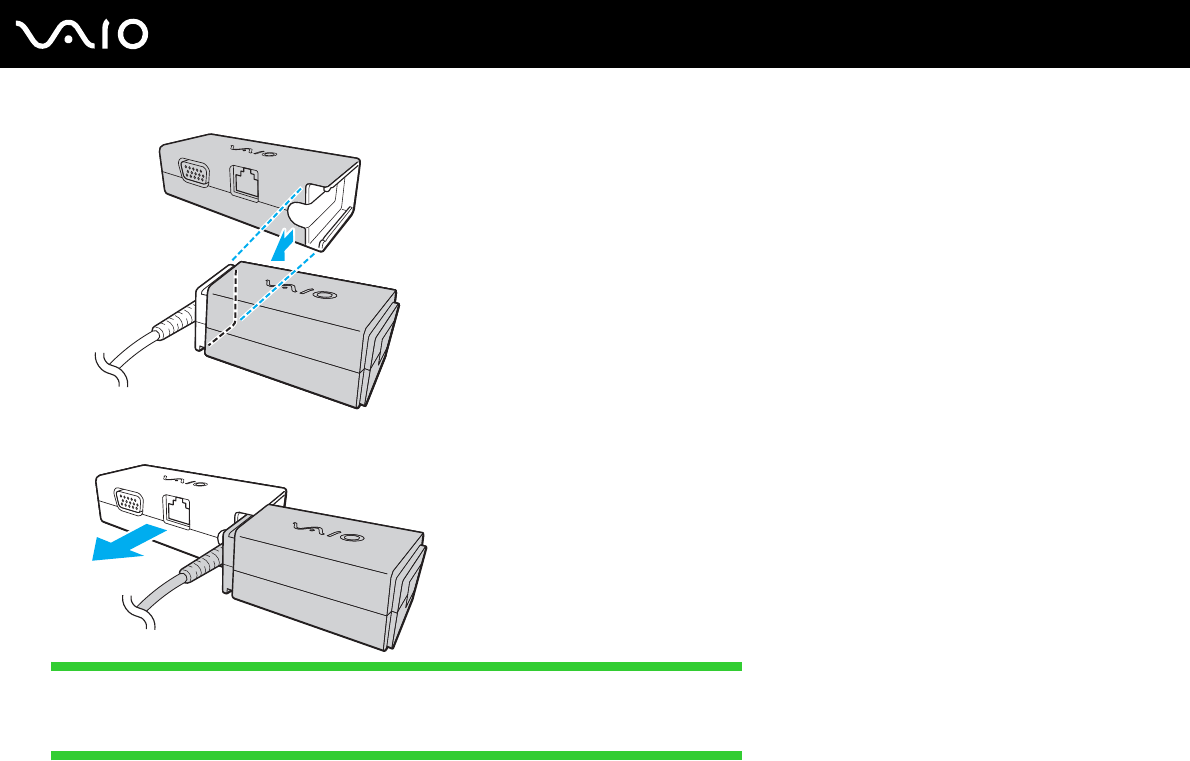

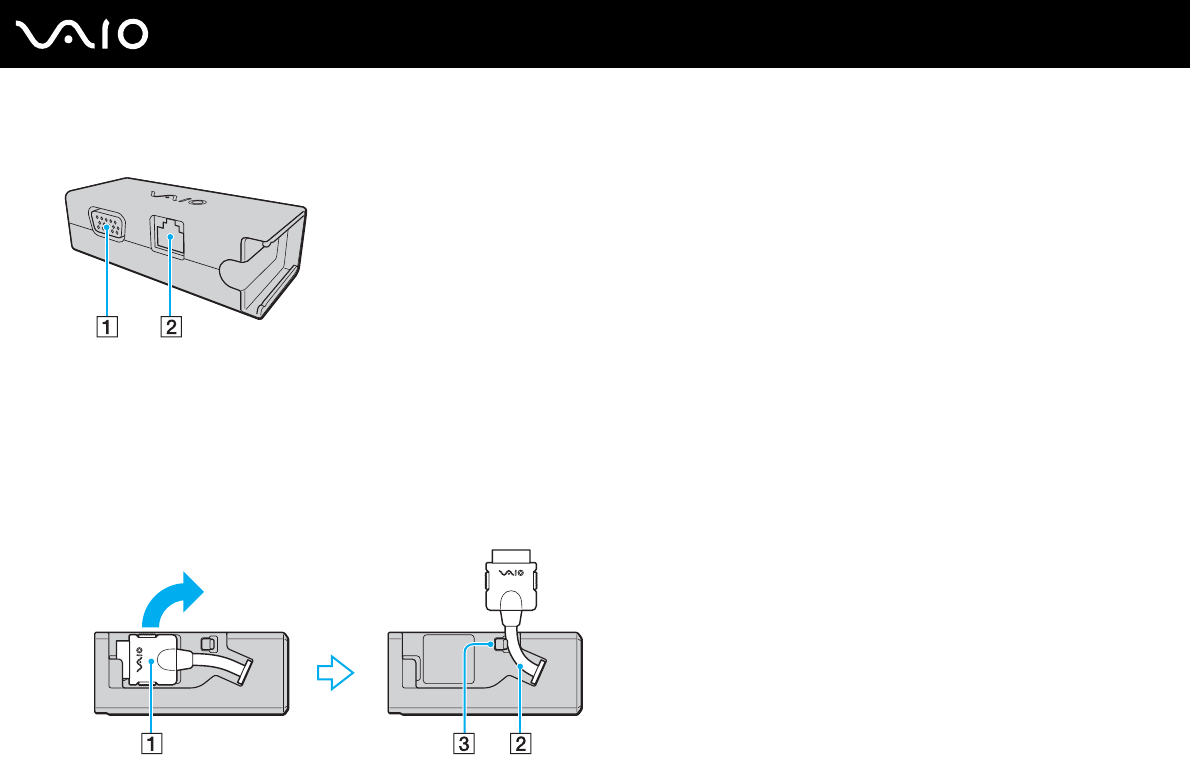

You need the display/LAN adapter (supplied) to connect your computer to 1000BASE-T/100BASE-TX/10BASE-T-type
networks with an Ethernet network cable. Connect one end of a network cable (not supplied) to the network (Ethernet) port
on the display/LAN adapter and the other end to your network. For detailed settings and devices needed to connect to the
network, ask your network administrator.
53
nN
Using Your VAIO Computer
Except US model_END
Except GVD model_END
Except China_BGN
Except Euro_BGN
You need the display/LAN adapter (supplied with selected models only) to connect your computer to 1000BASE-T/100BASE-
TX/10BASE-T-type networks with an Ethernet network cable. Connect one end of a network cable (not supplied) to the
network (Ethernet) port on the display/LAN adapter and the other end to your network. For detailed settings and devices
needed to connect to the network, ask your network administrator.
Except Euro_END
Except China_END
!
You cannot configure your network before connecting the display/LAN adapter to your computer.
IRX-4300_END
✍
Your computer can be connected to the network with the default settings.
54
nN
Using Your VAIO Computer
!
Do not plug a telephone cable into the network (Ethernet) port on your computer.
If the network (Ethernet) port is connected to one of the telephone lines mentioned below, high electric current to the port may cause damage,
overheating, or fire.
- Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone)
- Public telephone subscriber line
- PBX (private branch exchange)
Using the Wireless LAN (WLAN)
Using the Sony Wireless LAN (WLAN), all your digital devices with the built-in WLAN function communicate freely with each
other through a network. A WLAN is a network in which a user can connect to a Local Area Network (LAN) through a wireless
(radio) connection. This eliminates the need to pull cables or wires through walls and ceilings.
The Sony WLAN supports all normal Ethernet connectivity, but with the added benefits of mobility and roaming. You can still
access information, Internet/intranet and network resources, even in the middle of a meeting, or as you move from one place
to another.
You can communicate without an access point, which means that you can communicate with a limited number of computers
(ad-hoc). Or you can communicate through an access point, which allows you to create a full infrastructure network.
US model_BGN
IRX-4300_BGN
To use the wireless LAN function
To use the wireless LAN function, you first need to set up the wireless LAN function.
55
nN
Using Your VAIO Computer
❑For models with the wireless WAN function
Use the SmartWi Connection Utility to set up the wireless LAN function. See the SmartWi Connection Utility Help for
more information.
To access this on-screen guide:
1Click Start, All Programs, and SmartWi Connection Utility.
2Click SmartWi Connection Utility Help.
!
Be sure to turn on the WIRELESS switch before starting the wireless LAN function.
You cannot select the 5 GHz band, which is used for the IEEE 802.11a standard, on ad-hoc networks.
The IEEE 802.11n draft standard, using the 2.4 GHz or 5 GHz band, is not available on ad-hoc networks.
❑For models without the wireless WAN function
Search for wireless LAN information using Windows Help and Support to set up and use the wireless LAN function. To
open Windows Help and Support, click Start and Help and Support.
!
Be sure to turn on the WIRELESS switch before starting the wireless LAN function.
You cannot select the 5 GHz band, which is used for the IEEE 802.11a standard, on ad-hoc networks.
The IEEE 802.11n draft standard, using the 2.4 GHz or 5 GHz band, is not available on ad-hoc networks.
IRX-4300_END
Except IRX-4300_BGN
56
nN
Using Your VAIO Computer
To use the wireless LAN function
To use the wireless LAN function, you first need to set up the wireless LAN function. For setting up and using the wireless
LAN function, search for wireless LAN information using Windows Help and Support. To open Windows Help and
Support, click Start and Help and Support.
!
Be sure to turn on the WIRELESS switch before starting the wireless LAN function.
You cannot select the 5 GHz band, which is used for the IEEE 802.11a standard, on ad-hoc networks.
The IEEE 802.11n draft standard, using the 2.4 GHz or 5 GHz band, is not available on ad-hoc networks.
Except IRX-4300_END
US model_END
US model_BGN
✍
In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the
WLAN function, read the Safety Information carefully.
US model_END
Euro model_BGN
✍
In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the
WLAN function, read the wireless LAN regulations guide carefully.
Euro model_END
Except Euro_BGN
Except US model_BGN
57
nN
Using Your VAIO Computer
✍
In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the
WLAN function, read the Safety Regulations carefully.
Except US model_END
Except Euro_END
WLAN uses the IEEE 802.11a*/b/g standard or the IEEE 802.11n* draft standard, which specifies the used technology. The standard includes the
encryption methods: Wired Equivalent Privacy (WEP), which is a security protocol, Wi-Fi Protected Access 2 (WPA2), and Wi-Fi Protected Access
(WPA). Proposed jointly by the IEEE and Wi-Fi Alliance, both WPA2 and WPA are specifications of standards based on interoperable security
enhancements that increase the level of data protection and access control for existing Wi-Fi networks. WPA has been designed to be forward
compatible with the IEEE 802.11i specification. It utilizes the enhanced data encryption TKIP (Temporal Key Integrity Protocol) in addition to user
authentication using 802.1X and EAP (Extensible Authentication Protocol). Data encryption protects the vulnerable wireless link between clients and
access points. Besides that, there are other typical LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption,
virtual private networks, and authentication. WPA2, the second generation of WPA, provides stronger data protection and network access control and
is also designed to secure all versions of 802.11 devices, including 802.11b, 802.11a, 802.11g, and 802.11n draft standard, multi-band and multi-
mode. In addition, based on the ratified IEEE 802.11i standard, WPA2 provides government grade security by implementing the National Institute of
Standards and Technology (NIST) FIPS 140-2 compliant AES encryption algorithm and 802.1X-based authentication. WPA2 is backward compatible
with WPA.
Except China_BGN
Except GVD model_BGN
* See the online specifications to find out whether your model supports the IEEE 802.11a standard and/or the IEEE 802.11n draft standard.
Except GVD model_END
Except China_END
Except Euro_BGN
Except US model_BGN
* See the printed specifications sheet to find out whether your model supports the IEEE 802.11a standard and/or the IEEE 802.11n draft standard.
58
nN
Using Your VAIO Computer
Except US model_END
Except Euro_END
The IEEE 802.11b/g standard is a wireless LAN standard, using the 2.4 GHz band. The IEEE 802.11g standard provides high-speed communications,
faster than the IEEE 802.11b standard.
The IEEE 802.11a standard is a wireless LAN standard, using the 5 GHz band.
The IEEE 802.11n draft standard is a wireless LAN standard, using the 2.4 GHz or 5 GHz band.
Wireless LAN devices using the 2.4 GHz band cannot communicate with devices using the 5 GHz band because the frequencies are different.
The 2.4 GHz band used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference from
other devices that use the same band are employed on wireless LAN compatible devices, such interference may cause lower communication speed,
narrower communication range, or broken wireless connections.
The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device
configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.
The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the
radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.
Actual communication speed may not be as fast as the one displayed on your computer.
Deploying IEEE 802.11b and IEEE 802.11g products on the same wireless network may reduce the communication speed due to radio interference.
Taking this into consideration, the IEEE 802.11g products are designed to reduce the communication speed to ensure communications with
IEEE 802.11b products. When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase
the communication speed.
Except US model_BGN
59
nN
Using Your VAIO Computer
Communicating without an Access Point (Ad-hoc)
An ad-hoc network is a network in which a LAN is created only by the wireless devices themselves, with no other central
controller or access point. Each device communicates directly with other devices in the network. You can set up an ad-hoc
network easily at home.
To communicate without an access point (ad-hoc)
!
You cannot select the 5 GHz band, which is used for the IEEE 802.11a standard, on ad-hoc networks.
The IEEE 802.11n draft standard, using the 2.4 GHz or 5 GHz band, is not available on ad-hoc networks.
1Turn on the WIRELESS switch.
2Click the button next to or above your desired wireless option(s) in the VAIO Smart Network window.
Make sure the WIRELESS indicator light turns on.
3Click Start and Control Panel.
4Click View network status and tasks under Network and Internet.
5Click Set up a connection or network in the left pane.
The Set up a connection or network window appears.
60
nN
Using Your VAIO Computer
6Select an option to specify the ad-hoc network settings and click Next.
7Follow the on-screen instructions.
Communicating with an Access Point (Infrastructure)
An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access
point (not supplied). The access point bridges the wireless and wired LAN and acts as a central controller for the wireless
LAN network. The access point coordinates transmission and reception from multiple wireless devices within a specific range.
The access point will select which channel to use on an infrastructure network.
!
For details on how to select the channel that will be used by the access point, see the manual that came with your access point.
To connect to a wireless network
1Make sure an access point is set up.
See the manual that came with your access point for more information.
2Turn on the WIRELESS switch.
61
nN
Using Your VAIO Computer
3Click the button next to or above your desired wireless option(s) in the VAIO Smart Network window.
Make sure the WIRELESS indicator light turns on.
!
Wireless LAN communication (IEEE 802.11a standard) using only the 5 GHz band, available on selected models only, is disabled by default. To enable
5 GHz band communication, you need to select the option to use the 5 GHz band or both the 2.4 GHz and 5 GHz bands on the WLAN tab in the VAIO
Smart Network settings window.
4Right-click or on the taskbar and select Connect to a network.
5Select the desired access point and click Connect.
✍
For WPA-PSK or WPA2-PSK authentication, you must enter a passphrase. The passphrase is case sensitive and must be a text string between 8 and
63 characters in length or a hexadecimal string of 64 characters.
Stopping Wireless LAN Communication
To stop wireless LAN communication
Click the button next to or above the WLAN icon in the VAIO Smart Network window.
!
Turning off the wireless LAN function while accessing remote documents, files, or resources may result in data loss.
Except US model_END
Except China_BGN
Using the Bluetooth Function
Except China_END
China model_BGN
62
nN
Using Your VAIO Computer
Using the Bluetooth® Function
China model_END
US model_BGN
Except IRX-4300_BGN
You can establish wireless communication between your computer and other Bluetooth® devices such as another computer
or a mobile phone. You can transfer data between these devices without cables at a range of up to 33 feet (10 meters) in an
open area.
US model_END
Except IRX-4300_END
US model_BGN
IRX-4300_BGN
You can establish wireless communication between your computer and other Bluetooth devices such as another computer
or a mobile phone. You can transfer data between these devices without cables at a range of up to 33 feet (10 meters) in an
open area.
To use the Bluetooth function
To use the Bluetooth function, you first need to set up the Bluetooth function.
❑For models with the wireless WAN function
Use the SmartWi Connection Utility to set up the Bluetooth function. See the SmartWi Connection Utility Help for
more information.
To access this on-screen guide:
1Click Start, All Programs, and SmartWi Connection Utility.
2Click SmartWi Connection Utility Help.
!
Be sure to turn on the WIRELESS switch before starting the Bluetooth function.
63
nN
Using Your VAIO Computer
❑For models without the wireless WAN function
Search for Bluetooth information using Windows Help and Support to set up and use the Bluetooth function. To open
Windows Help and Support, click Start and Help and Support.
!
Be sure to turn on the WIRELESS switch before starting the Bluetooth function.
IRX-4300_END
Except IRX-4300_BGN
To use the Bluetooth function
To use the Bluetooth function, you first need to set up the Bluetooth function. For setting up and using the Bluetooth function,
search for Bluetooth information using Windows Help and Support. To open Windows Help and Support, click Start and
Help and Support.
!
Be sure to turn on the WIRELESS switch before starting the Bluetooth function.
Except IRX-4300_END
US model_END
Except US model_BGN
Except GVD model_BGN
You can establish wireless communication between your computer and other Bluetooth devices such as another computer
or a mobile phone. You can transfer data between these devices without cables at a range of up to 10 meters in an open area.
Except GVD model_END
GVD model_BGN
You can establish wireless communication between your computer and other Bluetooth® devices such as another computer
or a mobile phone. You can transfer data between these devices without cables at a range of up to 10 meters in an open area.
64
nN
Using Your VAIO Computer
GVD model_END
To start Bluetooth communications
1Turn on the WIRELESS switch.
2Click the button next to or above the Bluetooth icon in the VAIO Smart Network window.
Make sure the WIRELESS indicator light turns on.
Except US model_END
Notes on using the Bluetooth function
❑The data transfer rate varies, depending on the following conditions:
❑Obstacles, such as walls, located between devices
❑Distance between devices
❑Material used in walls
❑Proximity to microwaves and cordless telephones
❑Radio frequency interference and other environmental conditions
❑Device configuration
❑Type of software application
❑Type of operating system
❑Use of both wireless LAN and Bluetooth functions at the same time on your computer
❑Size of file being exchanged
❑Note that large files may occasionally be corrupted during continuous transfer due to limitations of the Bluetooth standard
and electromagnetic interference in the environment.
65
nN
Using Your VAIO Computer
❑All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if
standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may
not be possible in all situations.
❑Video and audio may not be synchronized if you play videos on your computer with audio output from a connected
Bluetooth device. This is a frequent occurrence with Bluetooth technology and is not a malfunction.
❑The 2.4 GHz band, with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth
devices use the technology to minimize the interference from other devices that use the same wave length. Simultaneous
use of the Bluetooth function and wireless communication devices, however, may cause radio interference and result in
reduced communication speeds and distances than the standard values.
Euro model_BGN
✍
Read the Bluetooth regulations guide before using the Bluetooth function.
Euro model_END
❑The Bluetooth function may not work with other devices, depending on the manufacturer or the software version employed
by the manufacturer.
❑Connecting multiple Bluetooth devices to your computer may cause channel congestion, resulting in poor performance
of the devices. This is normal with Bluetooth technology and is not a malfunction.
Bluetooth Security
The Bluetooth wireless technology has an authentication function, which allows you to determine with whom you choose to
communicate. With the authentication function, you can prevent any anonymous Bluetooth devices from accessing your
computer.
The first time two Bluetooth devices communicate, a common passkey (a password required for authentication) should be
determined for both devices to be registered. Once a device is registered, there is no need to re-enter the passkey.
66
nN
Using Your VAIO Computer
✍
The passkey can be different each time, but must be the same at both ends.
For certain devices, such as a mouse, no passkey can be entered.
Communicating with Another Bluetooth Device
You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a
mouse, or a digital camera without the use of any cables.
67
nN
Using Your VAIO Computer
To communicate with another Bluetooth device
To communicate with another Bluetooth device, you first need to set up the Bluetooth function. For setting up and using the
Bluetooth function, search for Bluetooth information using Windows Help and Support. To open Windows Help and
Support, click Start and Help and Support.
!
Be sure to turn on the WIRELESS switch before starting the Bluetooth function.
Except US model_BGN
Stopping Bluetooth Communications
To stop Bluetooth communications
1Turn off the Bluetooth device that is communicating with your computer.
2Click the button next to or above the Bluetooth icon in the VAIO Smart Network window.
Except US model_END
Euro model_BGN
Using the Global Positioning System (GPS) Function
You can obtain Global Positioning System (GPS) information, such as your current location and nearby area information,
using the VAIO Location Search, and view the information with the Internet Explorer.
To use the GPS function
1Turn on the WIRELESS switch.
2Click the button next to or above the GPS icon in the VAIO Smart Network window.
Make sure the WIRELESS indicator light turns on.
68
nN
Using Your VAIO Computer
Using the VAIO Location Search
The VAIO Location Search, by default, is configured to launch following the Windows startup. It will appear as a toolbar, as
shown below, in the Internet Explorer window. For detailed information on the VAIO Location Search, click (Settings/
Help) on the toolbar and select Help to display the help file.
!
Shown above is the English toolbar as an example.
Customizing the VAIO Location Search
You can change settings, such as location log file settings and security settings, to customize the VAIO Location Search.
To customize the VAIO Location Search
1Click Start, All Programs, and VAIO Control Center.
2Click Location Info/GPS and then VAIO Spot Search Settings.
3Select the desired tab in the right pane and change the settings.
4Once finished, click OK.
✍
Alternatively, you can click the Settings/Help icon on the VAIO Location Search toolbar and select Help to display the same setup window.
Euro model_END
69
nN
Using Peripheral Devices
Using Peripheral Devices
You can add functionality to your VAIO computer by using the various ports on the computer.
❑Using the Noise Canceling Headphones (page 69)
❑Connecting a Display/LAN Adapter (page 74)
❑Connecting an Optical Disc Drive (page 77)
❑Connecting External Speakers (page 79)
❑Connecting an External Display (page 81)
❑Selecting Display Modes (page 84)
❑Using the Multiple Monitors Function (page 86)
❑Connecting a Universal Serial Bus (USB) Device (page 87)
❑Connecting a Printer (page 89)
Using the Noise Canceling Headphones
A pair of noise canceling headphones may be supplied with your computer depending on the model you purchased.
The noise canceling headphones are equipped with a built-in microphone that catches ambient noise and outputs an
antiphase sound to reduce the noise.
Except China_BGN
Except GVD model_BGN
See the online specifications to find out whether the noise canceling headphones are supplied with your computer.
Except GVD model_END
70
nN
Using Peripheral Devices
Except China_END
Except Euro_BGN
Except US model_BGN
See the printed specifications sheet to find out whether the noise canceling headphones are supplied with your computer.
Except US model_END
Except Euro_END
Before You Use the Noise Canceling Headphones
❑You can enable the noise canceling function only when the supplied noise canceling headphones are connected to the
headphones jack that supports this function.
❑The noise canceling function does not work on sound output with the following devices:
❑External speakers
❑Headphones without the noise canceling function
❑Sound output devices connected to your computer via a Bluetooth connection
❑The noise canceling function cannot be in full effect unless you properly wear the headphones. Be sure to fit each
earpiece of the headphones tightly into your ears.
71
nN
Using Peripheral Devices
If you feel that the noise canceling function has little effect, adjust the earbud position in the earpieces of the noise
canceling headphones or replace the earbuds with a pair in another size. A pair of medium-size earbuds is attached to
the earpieces by default and there should be an extra pair in each small and large sizes supplied with the headphones.
❑The noise canceling function is to reduce low-frequency noise in the ambient environment but not high-frequency noise.
Nor is it to implement a 100% noise-free audio environment.
❑When the noise canceling function does not seem to be working, unplug the supplied noise canceling headphones
completely and then plug them back again.
❑Keep the built-in microphone (1) of the noise canceling headphones unblocked to ensure that the noise canceling function
can be in full effect.
❑You may hear a soft hissing noise while the noise canceling function is enabled. This is just operational noise that the
function generates and does not indicate a malfunction.
❑You may feel that the noise canceling function has little effect or ambient noise seems even louder, depending on the type
of noise or the degree of quietness in your environment. In such a case, disable the noise canceling function.
❑Use of a mobile phone may cause radio interference with the noise canceling headphones. When using the headphones,
keep mobile phones away from the headphones.
72
nN
Using Peripheral Devices
❑Plugging or unplugging the noise canceling headphones generates noise. This is normal and does not indicate a
malfunction. Be sure to take off the headphones from your ears before plugging or unplugging the headphones.
❑Enabling/disabling the noise canceling function or enabling/disabling sound with the Windows volume controls generates
noise. This is caused by switching the noise canceling circuit and does not indicate a malfunction.
❑Be sure to use the supplied noise canceling headphones. You can plug the headphones supplied with a Walkman® to
your computer but the noise canceling function of the computer will not work well with such headphones.
Connecting the Noise Canceling Headphones
To connect the noise canceling headphones
1Plug the headphones cable into the headphones jack i.
The icon appears on the taskbar to indicate that the noise canceling function is enabled and a balloon message
pops up from the icon.
✍
When the icon is on the taskbar, the noise canceling function is disabled. Right-click the icon and select Enable Noise Canceling Function from
the menu.
If no icon is on the taskbar, see What to do if the icon and the balloon do not appear (page 73) to change the settings.
Adjusting the Effect of the Noise Canceling Function
The noise canceling headphones supplied with your computer is configured to yield the optimum effect by default.
If you feel that the noise canceling function is not in full effect, you may be able to adjust the effect with the Noise Canceling
Control slider on the Noise Canceling Headphones window.
73
nN
Using Peripheral Devices
To adjust the effect of the noise canceling function
1Right-click the icon on the taskbar and select Settings.
The Noise Canceling Headphones window appears.
✍
If no icon is on the taskbar, see What to do if the icon and the balloon do not appear (page 73) to change the settings.
2Drag the Noise Canceling Control slider toward Mic+ or Mic- to select your desired noise canceling level.
✍
The slider should be at the center of the range to yield the optimum level. Dragging the slider all the way to Mic+ does not bring the noise canceling
function into full effect.
3Click Apply.
4Confirm that the noise canceling effect is satisfactory and then click OK.
What to do if the icon and the balloon do not appear
When the noise canceling function icon ( / ) is not on the taskbar and the balloon message does not pop up from
the icon, change the noise canceling function settings.
To display the balloon message and the icon
1Click Start and Control Panel.
2Click Hardware and Sound.
3Click Manage audio devices under Sound.
4On the Playback tab, double-click the speakers or headphones icon.
5Click the Enhancements tab.
6Click to select the Noise Canceling Function check box and click Modify Settings.
74
nN
Using Peripheral Devices
✍
If the Disable all enhancements check box is selected, click to cancel the check box.
7Click to select the Display an icon for the noise canceling headphones in the task tray or Display a message when
noise canceling headphones are connected check box.
8Click OK.
Connecting a Display/LAN Adapter
IRX-4300_BGN
Except GVD model_BGN
Except US model_BGN
Connecting a display/LAN adapter (supplied) expands connectivity to your computer.
Except US model_END
Except GVD model_END
Except China_BGN
Except Euro_BGN
Connecting a display/LAN adapter (supplied with selected models only) expands connectivity to your computer.
Except Euro_END
Except China_END
75
nN
Using Peripheral Devices
Locating Ports on the Display/LAN Adapter
Connecting the Display/LAN adapter to Your Computer
To connect the display/LAN adapter to your computer
!
Do not move your computer while the display/LAN adapter is connected, as it may disconnect the display/LAN adapter and cause damage to both units.
1Slide out the I/O plug (1) in the direction of the arrow and route the I/O plug cable (2) to the right of the tab (3).
2Connect the I/O plug (4) to the I/O port (5) on the computer.
AMonitor port (page 81)
BNetwork (Ethernet) port (page 52)
76
nN
Using Peripheral Devices
Attaching the Display/LAN adapter to the AC Adapter
The display/LAN adapter is designed to be attached to the AC adapter for carrying purposes.
To attach the display/LAN adapter to the AC adapter
Euro model_BGN
!
The appearance of your AC adapter may be different from those illustrated below in some countries or areas.
Euro model_END
1Fit the socket on the display/LAN adapter onto the attachment projection on the side of the AC adapter with the cable.
78
nN
Using Peripheral Devices
To use optical CDs and DVDs with your computer, you need to connect an external optical disc drive (not supplied) to your
computer.
IRX-4300_END
Connecting an Optical Disc Drive
!
Be sure to connect an external optical disc drive before you launch any preinstalled disc operation program.
To connect an optical disc drive
1Choose the USB port (1) you prefer to use.
2Plug one end of a USB cable (not supplied) (2) into the USB port, and the other end to an external optical disc drive (not
supplied) (3).
See the manual that came with your external optical disc drive for the detailed instructions on connecting the USB cable
to the drive.
79
nN
Using Peripheral Devices
Disconnecting an Optical Disc Drive
You can disconnect an optical disc drive when your computer is on or off. Disconnecting the drive when the computer is in a
power saving mode (Sleep or Hibernate) may cause the computer to malfunction.
To disconnect an optical disc drive
✍
To disconnect an optical disc drive when your computer is off, skip steps 1 to 5.
1Close all software applications accessing the optical disc drive.
2Double-click the Safely Remove Hardware icon on the taskbar.
3Select the optical disc drive you want to disconnect.
4Click Stop.
5Follow the on-screen instructions to disconnect the optical disc drive.
6Disconnect the optical disc drive from the computer.
Connecting External Speakers
You can connect external sound output devices (not supplied), such as speakers or headphones, to your computer.
Except IRX-4300_BGN
Since your computer is capable of outputting digital signals through the OPTICAL OUT port, you can connect an S/PDIF
device such as digital headphones or an AV amplifier to the port and enhance the sound quality of your computer. For more
information, see the manual that came with your S/PDIF device.
!
To hear sound from the S/PDIF device connected to the OPTICAL OUT port, you need to change the sound output device. For the detailed instructions,
see How do I change the sound output device? (page 165).
80
nN
Using Peripheral Devices
Except IRX-4300_END
To connect external speakers
1Plug the speaker cable (1) (not supplied) into the headphones jack (2) i.
2Plug the other end of the speaker cable to the external speaker (3).
3Turn down the volume of the speakers before you turn them on.
✍
Make sure your speakers are designed for computer use.
!
Do not place floppy disks on the speakers. Their magnetic field may damage the data on the disks.
IRX-4300_BGN
The noise canceling function does not work on sound output through external speakers.
IRX-4300_END
81
nN
Using Peripheral Devices
Connecting an External Display
You can connect an external display (not supplied) to your computer. For example, you can use the computer with a computer
display or a projector.
✍
Connect the power cord of your external display after connecting all other cables.
Connecting a Computer Display
Except IRX-4300_BGN
You can connect a computer display (monitor) to your computer.
Except IRX-4300_END
IRX-4300_BGN
Except GVD model_BGN
Except US model_BGN
You need a display/LAN adapter (supplied) to connect a computer display to your computer.
Except US model_END
Except GVD model_END
Except China_BGN
Except Euro_BGN
You need a display/LAN adapter (supplied with selected models only) to connect a computer display to your computer.
Except Euro_END
Except China_END
IRX-4300_END
82
nN
Using Peripheral Devices
To connect a computer display
IRX-4300_BGN
1If necessary, plug one end of the display's power cord (1) into your display, and the other end into an AC outlet.
2Plug the display cable (2) (not supplied) into the monitor port (3) a on the display/LAN adapter.
IRX-4300_END
Except IRX-4300_BGN
Except IRX-4300_END
Connecting a Projector
You can connect a projector (for example, the Sony LCD projector) to your computer.
IRX-4300_BGN
Except GVD model_BGN
83
nN
Using Peripheral Devices
Except US model_BGN
You need a display/LAN adapter (supplied) to connect a projector (for example, the Sony LCD projector) to your computer.
Except US model_END
Except GVD model_END
Except China_BGN
Except Euro_BGN
You need a display/LAN adapter (supplied) to connect a projector (for example, the Sony LCD projector) to your computer.
Except Euro_END
Except China_END
IRX-4300_END

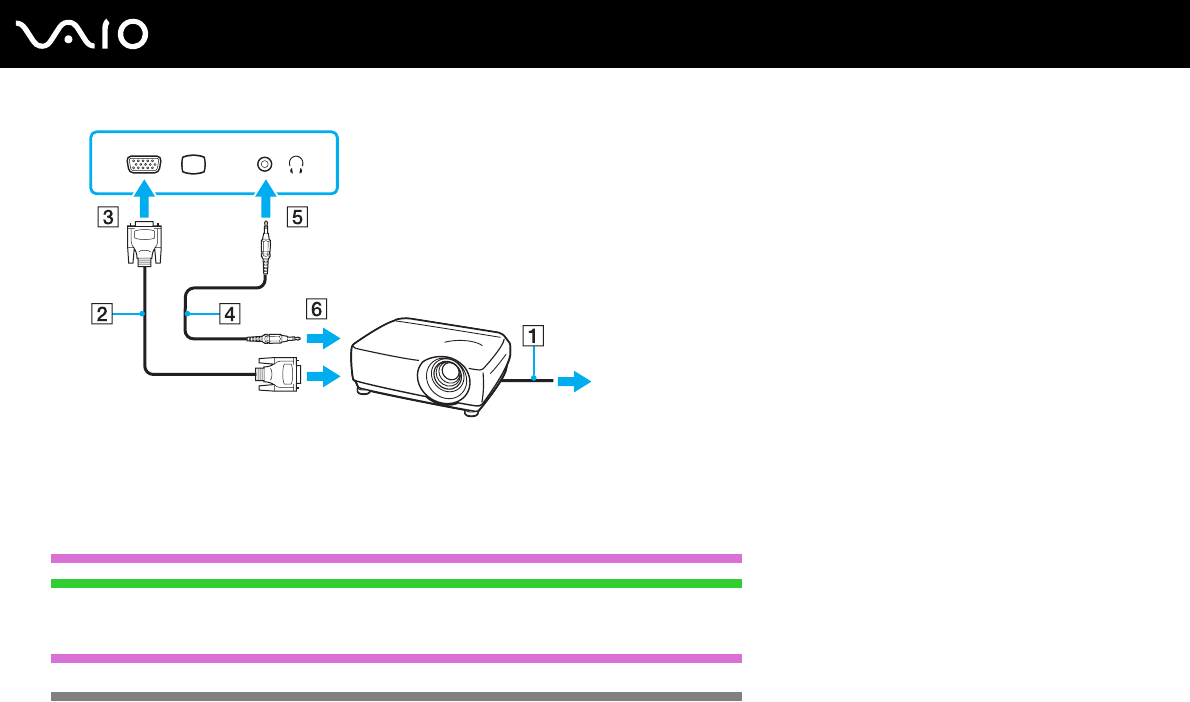

To connect a projector
1Connect the power cord (1) of your projector into an AC outlet.
Except IRX-4300_BGN
2Plug a display cable (2) (not supplied) into the monitor port (3) a on the computer.
Except IRX-4300_END
IRX-4300_BGN
3Plug a display cable (2) (not supplied) into the monitor port (3) a on the display/LAN adapter.
IRX-4300_END
4Plug an audio cable (4) (not supplied) into the headphones jack (5) i on the computer.
5Plug the display cable and the audio cable into the port and jack on the projector (6).
84
nN
Using Peripheral Devices
Selecting Display Modes
You can select which display to use as the primary monitor when an external display (desktop monitor, etc.) is connected to
your computer.
US model_BGN
Except IRX-4300_BGN
The procedure for selecting a display depends on the video controller used in the computer. See the online specifications for
detailed information on the video controller.
US model_END
Euro model_BGN
The procedure for selecting a display depends on the video controller used in the computer. See the online specifications for
detailed information on the video controller.
85
nN
Using Peripheral Devices
Euro model_END
GVD model_BGN
The procedure for selecting a display depends on the video controller used in the computer. See the printed specifications
sheet for detailed information on the video controller.
GVD model_END
China model_BGN
The procedure for selecting a display depends on the video controller used in the computer. See the printed specifications
sheet for detailed information on the video controller.
China model_END
Except IRX-4300_END
If you want to work on your computer screen and the external display at the same time, see Using the Multiple Monitors
Function (page 86) for more information.
To select a display
IRX-4300_BGN
1Right-click on the desktop and select Personalize.
2Click Display Settings.
3Follow the on-screen instructions to change the settings.
✍
You may not be able to display the same contents on your computer screen and the external display or projector at the same time, depending on the
type of your external display or projector.
Before turning on your computer, turn on the external display.
IRX-4300_END
86
nN
Using Peripheral Devices
Using the Multiple Monitors Function
The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you
have an external display connected to the monitor port, your computer screen and the external display can function as a
single desktop.
You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window
or a toolbar, from one display to the other.
✍
Your external display may not support the Multiple Monitors function.
Certain software applications may not be compatible with Multiple Monitors settings.
Make sure that your computer does not enter Sleep or Hibernate mode while you are using the Multiple Monitors function. Otherwise, the computer
may not return to Normal mode.
If you set different colors on each display, do not expand a single window across two displays. Otherwise, your software may not work properly.
Set fewer colors or a lower resolution for each display.
87
nN
Using Peripheral Devices
To use the Multiple Monitors function
IRX-4300_BGN
1Right-click on the desktop and select Personalize.
2Click Display Settings.
3Follow the on-screen instructions to change the settings.
✍
You can also change one of the S button assignments to activate the Multiple Monitors function with the corresponding S button. To change the S
button assignments, press and hold either S button to display the window for changing the assignment. For details on the S buttons, see Using Special-
function Buttons (page 39).
Additionally, you can set the display colors and resolution for each display and customize the Multiple Monitors function.
IRX-4300_END
Connecting a Universal Serial Bus (USB) Device
To protect your computer and/or USB devices from damage, observe the following:
❑When moving the computer with USB devices connected, avoid exposing the USB ports to shock or impact.
❑Do not put the computer into a bag or carrying case when it has USB devices connected.
Connecting a USB Mouse

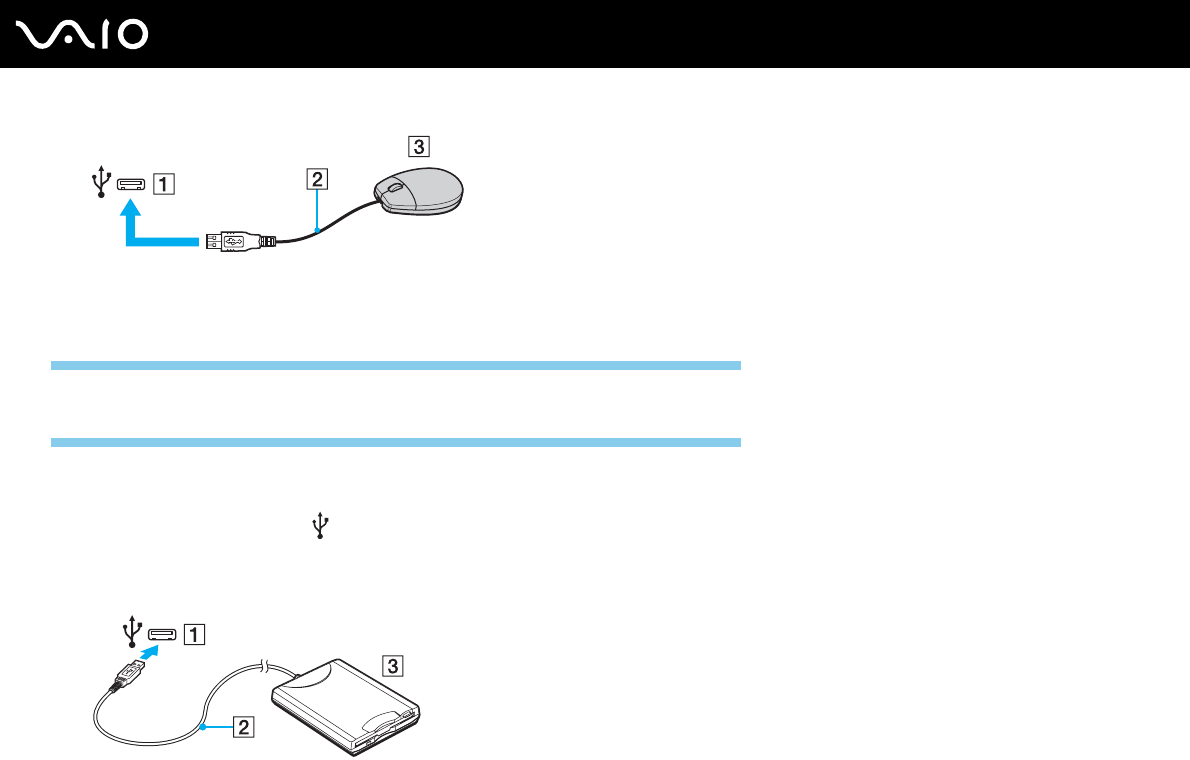

To connect a USB mouse
1Choose the USB port (1) you prefer to use.
2Plug the USB mouse cable (2) into the USB port.
You can now use your USB mouse (not supplied) (3).
88
nN
Using Peripheral Devices
Connecting a USB Floppy Disk Drive
You can purchase a USB floppy disk drive and connect it to your computer.
GVD model_BGN
✍
The optional USB floppy disk drive may not be available in some countries or regions.
GVD model_END
To connect a USB floppy disk drive
1Choose the USB port (1) you prefer to use.
2Plug the USB floppy disk drive cable (2) into the USB port.
Your USB floppy disk drive (3) is now ready for use.
89
nN
Using Peripheral Devices
!
When using a USB floppy disk drive, do not apply force to the USB port. This may cause a malfunction.
Disconnecting a USB floppy disk drive
You can disconnect a USB floppy disk drive when your computer is on or off. Disconnecting the drive when the computer is
in a power saving mode (Sleep or Hibernate) may cause the computer to malfunction.
To disconnect a USB floppy disk drive
✍
To disconnect a USB floppy disk drive when your computer is off, skip steps 1 to 5.
1Close all programs accessing the floppy disk drive.
2Double-click the Safely Remove Hardware icon on the taskbar.
3Select the floppy disk drive you want to unplug.
4Click Stop.
5Follow the on-screen instructions to remove the floppy disk drive.
6Disconnect the floppy disk drive from the computer.
Connecting a Printer
You can connect a Windows-compatible printer to your computer to print documents.
Connecting a Printer Using the USB Port
You can connect a USB printer compatible with your version of Windows to the computer.
91
nN
Customizing Your VAIO Computer
Customizing Your VAIO Computer
This section briefly describes how to change the main settings of your VAIO computer. Among other things, you will learn
how to use and customize the look of your Sony software and utilities.
❑Setting the Password (page 91)
❑Setting Up Your Computer with the VAIO Control Center (page 102)
❑Using the Power Saving Modes (page 103)
❑Managing Power with the VAIO Power Management (page 108)
❑Protecting the Hard Disk (page 109)
Setting the Password
China model_BGN
In addition to the Windows password, you can use BIOS functions to set two types of passwords to protect your computer:
the power-on password and the hard disk password.
Once you have set the power-on password, you will be prompted to enter the password after the VAIO logo appears to start
your computer. The power-on password allows you to protect your computer from unauthorized access.
The hard disk password provides additional security for the data stored on your hard disk drive. If you set the hard disk
password, other users will not be able to access the data without knowing the password, even if the password-protected flash
memory storage or hard disk drive is removed from your computer and is installed in another computer.
China model_END
Except China_BGN
In addition to the Windows password, you can use BIOS functions to set two types of passwords to protect your computer:
the power-on password and the hard disk password.
92
nN
Customizing Your VAIO Computer
Once you have set the power-on password, you will be prompted to enter the password after the VAIO logo appears to start
your computer. The power-on password allows you to protect your computer from unauthorized access.
The hard disk password provides additional security for the data stored on your built-in storage device*. If you set the hard
disk password, other users will not be able to access the data without knowing the password, even if the password-protected
built-in storage device is removed from your computer and is installed in another computer.
Except GVD model_BGN
* See the online specifications to find out about your storage device configuration.
Except GVD model_END
GVD model_BGN
* See the printed specifications sheet to find out about your storage device configuration.
GVD model_END
Except China_END
Adding the Power-on Password
The power-on password is provided to protect your computer from unauthorized access.
There are two types of the power-on passwords: the machine password and the user password. The machine password is
provided for users with administrative rights on the computer to change all the setup options in the BIOS setup screen, as
well as to start the computer. The user password is provided for the standard users to allow for changing some of the BIOS
setup options, as well as starting the computer. To set the user password, you must first set the machine password.
!
Once you have set the power-on password, you cannot start your computer without entering the password. Be sure not to forget the password. Write
down your password and keep it safe and private from other people.
If you forget the power-on password and need assistance to reset it, a password reset fee will be charged, and your computer may need to be sent in
for service to reset the password.
93
nN
Customizing Your VAIO Computer
To add the power-on password (machine password)
1Turn on the computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the
Enter key.
4On the password entry screen, enter the password twice and press the Enter key.
The password can be up to 32 alphanumeric characters (including spaces) long.
5Select Password when Power On under Security and press the Enter key.
6Change the setting from Disabled to Enabled.
7Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
To add the power-on password (user password)
!
Make sure you set the machine password before setting the user password.
1Turn on the computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3Enter the machine password and press the Enter key.
4Press the < or , key to select Security to display the Security tab, select Set User Password, and then press the
Enter key.
94
nN
Customizing Your VAIO Computer
5On the password entry screen, enter the password twice and press the Enter key.
The password can be up to 32 alphanumeric characters (including spaces) long.
6Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
Changing/Removing the Power-on Password
To change or remove the power-on password (machine password)
1Turn on the computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3Enter the machine password and press the Enter key.
4Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the
Enter key.
5On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.
To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter
key.
6Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
To change or remove the power-on password (user password)
1Turn on the computer.
95
nN
Customizing Your VAIO Computer
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3Enter the user password and press the Enter key.
4Press the < or , key to select Security to display the Security tab, select Set User Password, and then press the
Enter key.
5On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.
To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter
key.
6Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
Adding the Hard Disk Password
The hard disk password provides additional security for the data stored on your hard disk drive. If you enable the hard disk
password, this adds an extra level of security.
When adding the hard disk password, you must set both the master and user passwords. The master password is provided
for users with administrative rights on the computer to reset the user password in the BIOS setup screen. The user password
is provided to lock your hard disk drive. Once you set the user password, you will have to enter the password along with the
power-on password (if set), after the VAIO logo appears.
IRX-4300_BGN
China model_BGN
The hard disk password provides additional security for the data stored on your hard disk drive. If you enable the hard disk
password, this adds an extra level of security.
96
nN
Customizing Your VAIO Computer
When adding the hard disk password, you must set both the master and user passwords. The master password is provided
for users with administrative rights on the computer to reset the user password in the BIOS setup screen. The user password
is provided to lock your hard disk drive. Once you set the user password, you will have to enter the password along with the
power-on password (if set), after the VAIO logo appears.
China model_END
Except China_BGN
The hard disk password provides additional security for the data stored on your built-in storage device*. If you enable the hard
disk password, this adds an extra level of security.
Except GVD model_BGN
* See the online specifications to find out about your storage device configuration.
Except GVD model_END
GVD model_BGN
* See the printed specifications sheet to find out about your storage device configuration.
GVD model_END
When adding the hard disk password, you must set both the master and user passwords. The master password is provided
for users with administrative rights on the computer to reset the user password in the BIOS setup screen. The user password
is provided to lock your built-in storage device. Once you set the user password, you will have to enter the password along
with the power-on password (if set), after the VAIO logo appears.
Except China_END
IRX-4300_END
Except IRX-4300_BGN
97
nN
Customizing Your VAIO Computer
!
You cannot start your computer with the master password.
If you forget the master password or the keyboard fails, which is critical to password entry, no bypass is possible and the data stored on the hard disk
drive will not be accessible. There is NO RESET of this password. You will have to replace the hard disk drive at your own expense and lose all the data
originally stored on the hard disk drive. Be sure to write down the master password and keep it safe and private from other people.
Except IRX-4300_END
IRX-4300_BGN
!
You cannot start your computer with the master password.
China model_BGN
If you forget the master password or the keyboard fails, which is critical to password entry, no bypass is possible and the data stored on the hard disk
drive will not be accessible. There is NO RESET of this password. You will have to replace the hard disk drive at your own expense and lose all the data
originally stored on the hard disk drive. Be sure to write down the master password and keep it safe and private from other people.
China model_END
Except China_BGN
If you forget the master password or the keyboard fails, which is critical to password entry, no bypass is possible and the data stored on the built-in
storage device will not be accessible. There is NO RESET of this password. You will have to replace the built-in storage device at your own expense and
lose all the data originally stored on the device. Be sure to write down the master password and keep it safe and private from other people.
Except China_END
IRX-4300_END
Except IRX-4300_BGN
✍
If you have set the hard disk password in conjunction with the fingerprint authentication function, you can substitute fingerprint authentication for
password entry when turning on your computer. For more information, see Using Fingerprint Authentication .
98
nN
Customizing Your VAIO Computer
Except IRX-4300_END
To add the hard disk password
1Turn on the computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
✍
If you have set the power-on password, enter your power-on password.
3Press the < or , key to select Security to display the Security tab, select Hard Disk Password, and then press the
Enter key.
The Hard Disk Password entry screen appears.
4Select Enter Master and User Passwords and press the Enter key.
5Select Continue on the warning screen and press the Enter key.
6Enter the master password twice and press the Enter key.
The password should be up to 32 alphanumeric characters (including spaces) long.
7Enter the user password twice and press the Enter key.
The password should be up to 32 alphanumeric characters (including spaces) long.
8At the confirmation prompt, press the Enter key.
9Press the Esc key and then the < or , key to select the Exit tab.
10 Press the M or m key to select Exit Setup and press the Enter key.
At the confirmation prompt, press the Enter key.
99
nN
Customizing Your VAIO Computer
Changing/Removing the Hard Disk Password
To change the hard disk password
1Turn on the computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
✍
If you have set the power-on password, enter your power-on password.
3Press the < or , key to select Security to display the Security tab, select Hard Disk Password, and then press the
Enter key.
The Hard Disk Password entry screen appears.
4Select Change Master Password or Change User Password and press the Enter key.
5Enter the current password once and then a new password twice.
6Press the Enter key.
7Press the Enter key when the success message appears.
8Press the Esc key and then the < or , key to select the Exit tab.
9Press the M or m key to select Exit Setup and press the Enter key.
At the confirmation prompt, press the Enter key.
To remove the hard disk password
1Turn on the computer.
100
nN
Customizing Your VAIO Computer
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
✍
If you have set the power-on password, enter your power-on password.
3Press the < or , key to select Security to display the Security tab, select Hard Disk Password, and then press the
Enter key.
The Hard Disk Password entry screen appears.
4Select Enter Master and User Passwords and press the Enter key.
5Enter the current password for Enter Current Hard Disk Master Password and press the Enter key.
6Press the Enter key without entering any letter for the remaining fields.
7Press the Enter key when the success message appears.
8Press the Esc key and then the < or , key to select the Exit tab.
9Press the M or m key to select Exit Setup and press the Enter key.
At the confirmation prompt, press the Enter key.
Adding the Windows Password
The Windows password comes in handy when you have to share a single computer with other people. By setting the Windows
password, you can protect your user account from unauthorized access.
Entry of the Windows password will be prompted after you select your user account.
!
Be sure not to forget the password. Write down your password and keep it safe and private from other people.
Except IRX-4300_BGN
101
nN
Customizing Your VAIO Computer
✍
If you have set the Windows password in conjunction with the fingerprint authentication function, you can substitute fingerprint authentication for
password entry when turning on your computer. For more information, see Using Fingerprint Authentication .
Except IRX-4300_END
To add the Windows password
1Click Start and Control Panel.
2Click User Accounts and Family Safety or User Accounts.
3Click User Accounts.
4Click Create a password for your account under Make changes to your account.
5In the New password and Confirm new password fields, enter the password for your account.
6Click Create password.
✍
See Windows Help and Support for more information on the Windows password.
Changing/Removing the Windows Password
To change the Windows password
1Click Start and Control Panel.
2Click User Accounts and Family Safety or User Accounts.
3Click User Accounts.
4Click Change your password.
5In the Current password field, enter your current password.
102
nN
Customizing Your VAIO Computer
6In the New password and Confirm new password fields, enter a new password.
7Click Change password.
To remove the Windows password
1Click Start and Control Panel.
2Click User Accounts and Family Safety or User Accounts.
3Click User Accounts.
4Click Remove your password.
5In the Current password field, enter the current password that you want to remove.
6Click Remove password.
Setting Up Your Computer with the VAIO Control Center
The VAIO Control Center utility allows you to access system information and to specify preferences for system behavior.
To use the VAIO Control Center
1Click Start, All Programs, and VAIO Control Center.
2Select the desired control item and change the settings.
3Once finished, click OK.
The setting of the desired item has been changed.
✍
For more information about each option, see the help file included with the VAIO Control Center.
Some of the control items will not be visible if you open the VAIO Control Center as a standard user.
103
nN
Customizing Your VAIO Computer
Using the Power Saving Modes
You can take advantage of the power management settings to conserve battery life. In addition to the normal operating mode,
your computer has two distinct power saving modes: Sleep and Hibernate. When using battery power, you should be aware
that the computer will automatically enter Hibernate mode if the remaining battery life becomes short, regardless of the power
management setting you select.
!
If the battery charge level falls below 10%, you should either connect the AC adapter to recharge the battery pack or shut down your computer and
install a fully charged battery pack.
Using Normal Mode
This is the normal state of the computer when it is in use. The green power indicator light is lit in this mode.
Using Sleep Mode
Sleep mode turns off the LCD screen and places the storage device(s) and the CPU into a low power consumption mode.
The orange power indicator light blinks slowly in this mode.
!
If you do not intend to use your computer for a long period of time while it is disconnected from AC power, place the computer into Hibernate mode or
turn it off.
To activate Sleep mode
Click Start, the arrow next to the Lock button, and Sleep.
104
nN
Customizing Your VAIO Computer
✍
When your computer is in Sleep mode, you cannot insert a disc.
Your computer comes out of Sleep mode quicker than out of Hibernate mode.
Sleep mode uses more power than Hibernate mode.
!
If the battery runs down while your computer is in Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible. To
avoid loss of data, you should save your data frequently.
IRX-4300_BGN
✍
Your computer comes out of Sleep mode quicker than out of Hibernate mode.
Sleep mode uses more power than Hibernate mode.
!
If the battery runs down while your computer is in Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible. To
avoid loss of data, you should save your data frequently.
IRX-4300_END
To return to Normal mode
❑Press any key.
Except IRX-4300_BGN
❑Press the power button on your computer.
!
If you press and hold the power button for more than four seconds, your computer will turn off automatically. You will lose all unsaved data.
105
nN
Customizing Your VAIO Computer
Except IRX-4300_END
IRX-4300_BGN
Slide the power switch (in the direction of G on the switch).
!
If you slide (in the direction of G on the switch) and hold the power switch for more than four seconds, your computer will turn off automatically. You
will lose all unsaved data.
IRX-4300_END
IRX-4300_BGN
✍
You can use the VAIO Control Center to configure your computer to return to Normal mode when you open the LCD screen lid. This power resuming
preference will be lost if you remove both the AC adapter and the battery pack. See Setting Up Your Computer with the VAIO Control Center (page 102).
IRX-4300_END
If the computer is not used for a certain period of time, it will enter Sleep mode. To modify this, you can change the Sleep
mode settings.
To change the Sleep mode settings
1Right-click the power status icon on the taskbar and select Power Options.
2Click Change plan settings under the current power plan.
3Change the time to place the computer into Sleep mode and click Save Changes.
Using Hibernate Mode
Except IRX-4300_BGN
In Hibernate mode, the state of the system is saved on the hard disk drive and power is turned off. Even when the battery
runs down, no data will be lost. The power indicator light is unlit in this mode.
106
nN
Customizing Your VAIO Computer
Except IRX-4300_END
IRX-4300_BGN
China model_BGN
In Hibernate mode, the state of the system is saved on the hard disk drive and power is turned off. Even when the battery
runs down, no data will be lost. The power indicator light is unlit in this mode.
China model_END
Except China_BGN
In Hibernate mode, the state of the system is saved on the built-in storage device* and power is turned off. Even when the
battery runs down, no data will be lost. The power indicator light is unlit in this mode.
Except GVD model_BGN
* See the online specifications to find out about your storage device configuration.
Except GVD model_END
GVD model_BGN
* See the printed specifications sheet to find out about your storage device configuration.
GVD model_END
Except China_END
IRX-4300_END
✍
If you do not intend to use your computer for a long period of time, place the computer into Hibernate mode. This power saving mode saves you the
time of shutting down and resuming.
To activate Hibernate mode
Press the Fn+F12 keys.
The computer enters Hibernate mode.
107
nN
Customizing Your VAIO Computer
Alternatively, you can click Start, the arrow next to the Lock button, and Hibernate to place the computer into Hibernate
mode.
✍
When your computer is in Hibernate mode, you cannot insert a disc.
Hibernate mode requires more time than Sleep mode to be activated.
Hibernate mode uses less power than Sleep mode.
!
Do not move your computer before its power indicator light turns off.
To return to Normal mode
Except IRX-4300_BGN
Press the power button.
The computer returns to its normal state.
!
If you press and hold the power button for more than four seconds, your computer will turn off automatically.
Except IRX-4300_END
IRX-4300_BGN
Slide the power switch (in the direction of G on the switch).
The computer returns to its normal state.
!
If you slide (in the direction of G on the switch) and hold the power switch for more than four seconds, your computer will turn off automatically.
IRX-4300_END
108
nN
Customizing Your VAIO Computer
✍
It takes more time to return to Normal mode from Hibernate mode than from Sleep mode.
IRX-4300_BGN
You can use the VAIO Control Center to configure your computer to return to Normal mode when you open the LCD screen lid. This power resuming
preference will be lost if you remove both the AC adapter and the battery pack. See Setting Up Your Computer with the VAIO Control Center (page 102).
IRX-4300_END
Managing Power with the VAIO Power Management
Power management helps you set up power plans for running on AC or battery power to suit your requirements for power
consumption.
The VAIO Power Management is a software application developed exclusively for VAIO computers. With this software
application, you can enhance the Windows power management functions to ensure better operation of your computer and
longer battery life. See the help file included with the software for more information.
Selecting a Power Plan
When you start the computer, a power status icon appears on the taskbar. This icon indicates what kind of power source you
are using at that time, for example, AC power. Click this icon to display the window that shows your power status.
The VAIO Power Management function is added to the Windows Power Options.
To select a power plan
1Right-click the power status icon on the taskbar and select Power Options.
2Select your desired power plan.
109
nN
Customizing Your VAIO Computer
To change the power plan settings
1Click Change plan settings under your desired power plan in the Power Options window.
Change the Sleep mode and display settings as needed.
2If you need to change the advanced settings, click Change advanced power settings and go to step 3.
Otherwise, click Save changes.
3Click the VAIO Power Management tab.
Change the settings for each item.
4Click OK.
VAIO Power Management Viewer
You can view performance with the power plan that was modified with the VAIO Power Management.
To start the VAIO Power Management Viewer
1Click Start, All Programs, and VAIO Control Center.
2Click Power Management and VAIO Power Management Viewer.
Protecting the Hard Disk
Except IRX-4300_BGN
Your computer has the VAIO HDD Protection utility preinstalled for customizing your settings for protecting your hard disk
drive against shock hazards. You can select the sensitivity level of the built-in shock sensor to set the appropriate protection
level.
Except IRX-4300_END
IRX-4300_BGN
110
nN
Customizing Your VAIO Computer
China model_BGN
Your computer has the VAIO HDD Protection utility preinstalled for customizing your settings for protecting your hard disk
drive against shock hazards. You can select the sensitivity level of the built-in shock sensor to set the appropriate protection
level.
China model_END
Except China_BGN
If your computer is equipped with a built-in hard disk drive, then it has the VAIO HDD Protection utility preinstalled for
customizing your settings for protecting your hard disk drive against shock hazards. You can select the sensitivity level of the
built-in shock sensor to set the appropriate protection level.
Except GVD model_BGN
See the online specifications to find out find out about your storage device configuration.
Except GVD model_END
GVD model_BGN
See the printed specifications sheet to find out find out about your storage device configuration.
GVD model_END
!
Be aware that the built-in flash memory storage device is not included in the scope of the VAIO HDD Protection utility.
Except China_END
IRX-4300_END
Activating VAIO HDD Protection
To protect your hard disk drive against shock hazards, you must first activate the VAIO HDD Protection.
111
nN
Customizing Your VAIO Computer
To activate VAIO HDD Protection
1Click Start, All Programs, and VAIO Control Center.
2Click Security and Hard Disk Drive Protection Settings.
3Select the Activate hard disk drive protection check box.
4Select one of the desired sensitivity level.
5Click OK.
For more information, see the help file included with the software.
!
The VAIO HDD Protection is designed to minimize possibilities of damage to hard disk drives and user data. It does not ensure 100% data protection
under any circumstances.
Hard disk drive protection is disabled before Windows launches, and during a shift to Hibernate or Sleep mode, system recovery, and system shutdown.
112
nN
Precautions
Precautions
This section describes safety guidelines and precautions to help you protect your VAIO computer from potential damage.
❑Handling the LCD Screen (page 112)
❑Using the Power Source (page 113)
❑Handling Your Computer (page 114)
❑Handling the Built-in MOTION EYE Camera (page 118)
❑Handling Floppy Disks (page 118)
❑Handling Discs (page 118)
❑Using the Battery Pack (page 119)
❑Using Headphones (page 122)
❑Handling the Memory Stick (page 122)
❑Handling the Hard Disk (page 123)
❑Updating Your Computer (page 124)
Handling the LCD Screen
❑Do not leave the LCD screen facing the sun. This could damage the LCD screen. Be careful when using your computer
near a window.
❑Do not scratch the surface of the LCD screen or exert pressure on it. This could cause a malfunction.
❑Using your computer in low temperature conditions may produce a residual image on the LCD screen. This is not a
malfunction. When the computer returns to normal temperature, the screen returns to normal.
113
nN
Precautions
❑A residual image may appear on the LCD screen if the same image is displayed for a long period of time. The residual
image disappears after a while. You can use a screen saver to prevent residual images.
❑The LCD screen becomes warm during operation. This is normal and does not indicate a malfunction.
❑The LCD screen is manufactured using high-precision technology. You may, however, see tiny black points and/or bright
points (red, blue, or green) that continuously appear on the LCD screen. This is a normal result of the manufacturing
process and does not indicate a malfunction.
❑Avoid rubbing the LCD screen. This could damage the screen. Use a soft, dry cloth to wipe the surface of the LCD screen.
❑Do not change the LCD screen orientation setting in the Tablet PC Settings window even when there are change options
available for selection, as this may make your computer unstable. Sony assumes no liability for any malfunctions arising
from changes to the settings.
Using the Power Source
Except GVD model_BGN
Except China_BGN
❑See the online specifications to check the power operation of your model.
Except China_END
Except GVD model_END
Except US model_BGN
Except Euro_BGN
❑See the printed specifications sheet to check the power operation of your model.
Except Euro_END
Except US model_END
❑Do not share the AC outlet with other power-consuming equipment, such as a photocopier or a shredder.
114
nN
Precautions
❑You can purchase a power strip with a surge protector. This device helps prevent damage to your computer caused by
sudden power surges, in an electrical storm, for example.
❑Do not place heavy objects on the power cord.
❑To disconnect the cord, pull it out by holding the plug. Never pull the cord itself.
❑Unplug your computer from the AC outlet if you are not planning to use the computer for a long period of time.
❑Make sure that the AC outlet is easily accessible.
❑When the AC adapter is not used, unplug it from the AC outlet.
❑Use the AC adapter supplied with your computer or genuine Sony products. Do not use any other AC adapter as it may
cause a malfunction.
Handling Your Computer
❑Clean the cabinet with a soft cloth, which is dry or lightly moistened with a mild detergent solution. Do not use any type
of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your
computer.
❑If you drop a solid object or any liquid onto your computer, shut down the computer, unplug it, and remove the battery
pack. You may want to have the computer checked by qualified personnel before operating it again.
❑Do not drop your computer or place any objects on top of the computer.
❑Do not place your computer in a location subject to:
❑Heat sources, such as radiators or air ducts
❑Direct sunlight
❑Excessive dust
❑Moisture or rain
115
nN
Precautions
❑Mechanical vibration or shock
❑Strong magnets or speakers that are not magnetically shielded
US model_BGN
❑Ambient temperature of more than 95°F (35°C) or less than 41°F (5°C)
US model_END
Except US model_BGN
❑Ambient temperature of more than 35°C or less than 5°C
Except US model_END
❑High humidity
❑Do not place electronic equipment near your computer. The electromagnetic field of the equipment may cause the
computer to malfunction.
❑Use your computer on a solid, stable surface.
US model_BGN
❑Provide adequate air circulation to prevent internal overheating. Do not place your computer on porous surfaces such as
rugs, blankets, couches, or beds, or near materials such as curtains or draperies that may block its air vents. In case you
use the computer on your lap, make sure that the air vents are free for optimal cooling efficiency and performance.
US model_END
GVD model_BGN
❑Provide adequate air circulation to prevent internal overheating. Do not place your computer on porous surfaces such as
rugs, blankets, couches, or beds, or near materials such as curtains or draperies that may block its air vents.
❑Do not use your computer directly on your lap. The temperature of the base of the unit will rise during normal operation
and over time could result in discomfort or burns.
116
nN
Precautions
GVD model_END
China model_BGN
❑Provide adequate air circulation to prevent internal overheating. Do not place your computer on porous surfaces such as
rugs, blankets, couches, or beds, or near materials such as curtains or draperies that may block its air vents.
❑Do not use your computer on your lap for an extended period of time. Use of your computer for an extended period of time
will heat up the bottom of the computer and may cause low-temperature burns.
China model_END
Euro model_BGN
❑We advise not to use your computer directly on your lap. The temperature of the bottom of the unit may rise during normal
operation, and after an extended period of time, could cause discomfort or burns.
❑Provide adequate air circulation to prevent internal overheating. Do not place your computer on porous surfaces such as
rugs, blankets, couches, or beds, or near materials such as curtains or draperies that may block its air vents.
Euro model_END
❑Your computer uses high-frequency radio signals and may cause interference to radio or TV reception. If this occurs,
relocate the computer a suitable distance away from the set.
❑Use only specified peripheral equipment and interface cables. Otherwise, problems may occur.
❑Do not use cut or damaged connection cables.
US model_BGN
❑If your computer is brought directly from a cold location to a warm one, moisture may condense inside the computer. In
this case, allow at least one hour before turning on the computer. If any problems occur, unplug the computer and contact
an authorized Sony Service Center. To find the nearest center or agent, see Sony Support Information (page 169).
US model_END
Except US model_BGN
117
nN
Precautions
❑If your computer is brought directly from a cold location to a warm one, moisture may condense inside the computer. In
this case, allow at least one hour before turning on the computer. If any problems occur, unplug the computer and contact
VAIO HelpdeskVAIO-LinkVAIO HelpdeskSony Computing SupportVAIO HelpdeskVAIO-LinkVAIO-Link.
Except US model_END
❑Make sure you disconnect the AC adapter and remove the battery pack before cleaning your computer.
❑To avoid losing data when your computer is damaged, back up your data regularly.
US model_BGN

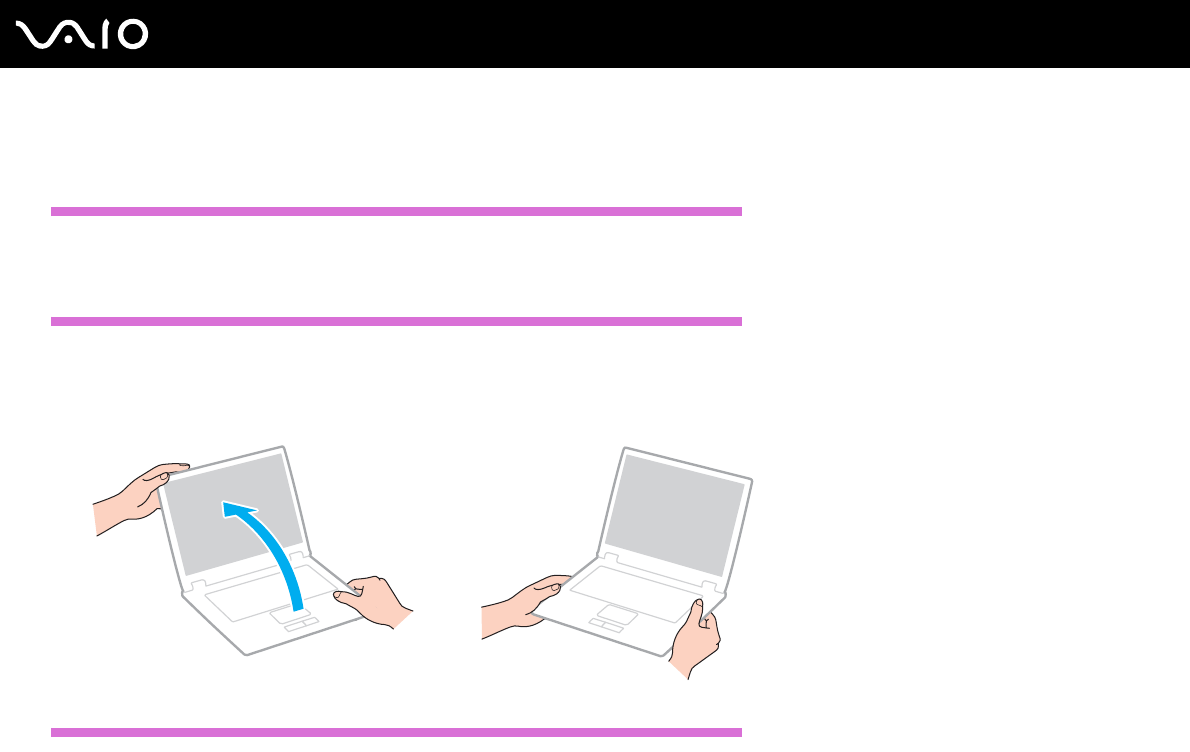

❑Do not exert pressure on the LCD screen or its edges when opening the LCD screen lid or lifting your computer. The LCD
screen may be sensitive to pressure or added stress, and exerting pressure may damage the screen or cause it to
malfunction. To open the computer, hold the base with one hand and gently lift the LCD screen lid with the other. To carry
the computer with the lid open, be sure to hold the computer with both hands.
❑Use a carrying case specially designed to carry your computer.
US model_END
118
nN
Precautions
Handling the Built-in MOTION EYE Camera
❑Do not touch the lens protection cover of the built-in MOTION EYE camera, as it may cause scratches on the cover and
such scratches will appear on the captured images.
❑Do not let the direct sunlight get into the lens of the built-in MOTION EYE camera regardless of your computer's power
state, as it may cause the camera to malfunction.
❑The built-in MOTION EYE camera is disabled while videos or still images are imported from an i.LINK-compatible device
connected to the i.LINK port.
❑Clean the lens protection cover of the built-in MOTION EYE camera with a blower brush or a soft brush. If the cover is
extremely dirty, wipe it off with a soft dry cloth. Do not rub the cover, as it is sensitive to pressure.
Handling Floppy Disks
❑Do not open the shutter manually and touch the internal components of the floppy disk.
❑Keep floppy disks away from magnets.
❑Keep floppy disks away from direct sunlight and other sources of heat.
❑Keep floppy disks away from any liquid. Do not let them get wet. When you are not using your floppy disk, always remove
it from the floppy disk drive and put it in a storage case.
❑If the floppy disk comes with a label, make sure that the label is properly affixed. If the edge of the label is curled up, the
label may stick to the inside of the floppy disk drive and cause a malfunction or damage your floppy disk.
Handling Discs
❑Do not touch the surface of the disc.
❑Fingerprints and dust on the surface of a disc may cause read errors. Always hold the disc by its edges and central hole,

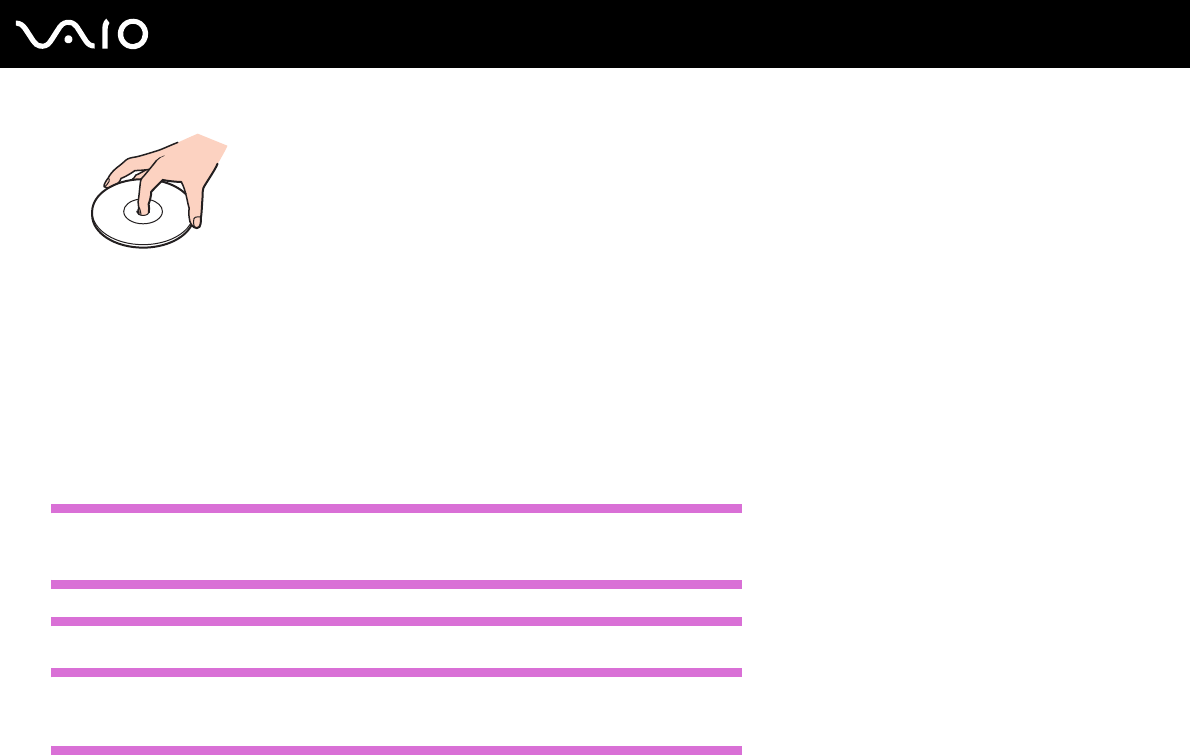

as shown below:
119
nN
Precautions
❑Proper care of the disc is essential to its continuous reliability. Do not use solvents (such as benzine, thinner, alcohol,
commercially available cleaners, or anti-static spray) which may cause damage to the disc.
❑For normal cleaning, hold the disc by its edges and use a soft cloth to wipe the surface from the center out.
❑If the disc is badly soiled, moisten a soft cloth with water, wring it out well, and use it to wipe the surface of the disc from
the center out. Wipe off any remaining moisture with a dry soft cloth.
❑Never affix an adhesive label to a disc. This will affect the use of the disc and may result in an irreparable problem.
Using the Battery Pack
US model_BGN
❑Do not leave battery packs in temperatures above 140°F (60°C), such as in a car parked in the sun or under direct
sunlight.
US model_END
Except US model_BGN
❑Do not leave battery packs in temperatures above 60°C, such as in a car parked in the sun or under direct sunlight.
Except US model_END
❑Battery life is shorter in a cold environment. This is due to decreased battery efficiency at low temperatures.
US model_BGN
120
nN
Precautions
❑Charge battery packs at temperatures between 50°F to 86°F (10°C to 30°C). Lower temperatures require longer charging
time.
US model_END
Except US model_BGN
❑Charge battery packs at temperatures between 10°C to 30°C. Lower temperatures require longer charging time.
Except US model_END
US model_BGN
❑Do not charge the battery pack in any way other than as described in this user guide or as designated by Sony in writing.
❑For your safety, Sony recommends using the genuine Sony battery pack and AC adapter that are provided with this
product. If either of these items needs to be replaced during the life of the product, be sure to use a compatible genuine
Sony battery pack or AC adapter. Information about compatible models can be found at the following URLs:
http://www.sony.com/vaio for customers in USA and Canada.
http://www.sony.net/ for customers in Latin American countries or areas.
❑Sony disclaims and shall assume no responsibility in case of any losses or damages arising from:
❑The use of non-genuine Sony battery packs or AC adapters with your VAIO computer.
❑The disassembly, alteration of, or tampering with any Sony battery pack.
US model_END
China model_BGN
❑Do not charge the battery pack in any way other than as described in this user guide or as designated by Sony in writing.
❑For your safety, Sony recommends using the genuine Sony battery pack and AC adapter that are provided with this
product.
❑Sony disclaims and shall assume no responsibility in case of any losses or damages arising from:
❑The use of non-genuine Sony battery packs or AC adapters with your VAIO computer.
121
nN
Precautions
❑The disassembly, alteration of, or tampering with any Sony battery pack.
China model_END
Euro model_BGN
❑Certain rechargeable battery packs do not meet Sony quality and safety standards. For safety reasons this computer only
functions with genuine Sony battery packs designed for this model. If an unauthorized battery pack is installed, the battery
pack will not be charged and the computer will not function.
Euro model_END
GVD model_BGN
❑For your safety, it is highly recommended that you use genuine Sony rechargeable battery packs and AC adapters that
meet the quality assurance standard, supplied by Sony for your VAIO computer. Some VAIO computers may only function
with a genuine Sony battery pack.
GVD model_END
❑While the battery pack is in use or being charged, heat builds up in the battery pack. This is normal and is not cause for
concern.
❑Keep the battery pack away from all sources of heat.
❑Keep the battery pack dry.
❑Do not open or try to disassemble the battery pack.
❑Do not expose the battery pack to any mechanical shock, such as dropping it on a hard surface.
❑If you are not using your computer for a long period of time, remove the battery pack from the computer to prevent damage
to the battery pack.
❑If you have not used the battery pack for a considerable amount of time, the remaining battery life may become short.
However, this is normal and does not indicate a malfunction, because the battery pack will gradually discharge over time
even when not in use. Connect the AC adapter to your computer and recharge the battery pack before using the computer
again.
122
nN
Precautions
❑You do not need to discharge the battery pack before recharging.
❑If the battery pack quickly runs out of power after fully charged, it may be reaching the end of its life and should be
replaced.
Using Headphones
❑Road safety – Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic
hazard and is illegal in some areas. It can also be potentially dangerous to play loud music while walking, especially at
pedestrian crossings.
❑Preventing hearing damage – Avoid using headphones at high volume. Hearing experts advise against continuous, loud
and extended play. If you experience a ringing in your ears, reduce the volume or discontinue use.
Handling the Memory Stick
❑Do not touch the Memory Stick connector with your finger or metallic objects.
❑Use only the adhesive label supplied with the Memory Stick as a label.
❑Do not bend, drop, or expose the Memory Stick.
❑Do not disassemble or modify the Memory Stick.
❑Do not let the Memory Stick get wet.
❑Do not use or store the Memory Stick in a location subject to:
❑Static electricity
❑Electrical noise
❑Extremely high temperatures, such as in a car parked in the sun
❑Direct sunlight
123
nN
Precautions
❑High humidity
❑Corrosive substances
❑Use the storage case supplied with the Memory Stick.
❑Be sure to make a backup copy of your valuable data.
❑Keep the Memory Stick and the Memory Stick adaptors out of reach of children. There is a risk of swallowing them.
❑When using the Memory Stick Duo, do not use a fine-tipped pen to write on the label adhered to the Memory Stick Duo.
Exerting pressure on the media may damage internal components.
Handling the Hard Disk
IRX-4300_BGN
Except China_BGN
Except GVD model_BGN
!
The following precautions apply to the models equipped with a hard disk drive. See the online specifications to find out whether your model is equipped
with the hard disk drive.
Except GVD model_END
GVD model_BGN
!
The following precautions apply to the models equipped with a hard disk drive. See the printed specifications sheet to find out whether your model is
equipped with the hard disk drive.
GVD model_END
Except China_END
IRX-4300_END
124
nN
Precautions
The hard disk drive has a high storage density and reads or writes data in a short time. However, it can be easily damaged
by mechanical vibration, shock, or dust.
Although the hard disk drive has the internal safety device to prevent losing data due to mechanical vibration, shock, or dust,
you should be careful when handling your computer.
To avoid damaging your hard disk drive
❑Do not subject your computer to sudden movements.
❑Keep your computer away from magnets.
❑Do not place your computer in a location subject to mechanical vibration or in an unstable position.
❑Do not move your computer while the power is on.
❑Do not turn off the power or restart your computer while reading or writing data to the hard disk drive.
❑Do not use your computer in a place subject to extreme changes in temperature.
China model_BGN
❑Do not use your computer in a place at 3,000 meters or higher above sea level. The hard disk drive may not work properly
under such an environment due to low air pressure.
China model_END
✍
If the hard disk drive is damaged, the data cannot be restored.
Updating Your Computer
Be sure to install the latest updates on your computer with the following software applications so that the computer can run
more efficiently.
125
nN
Precautions
❑Windows Update
Click Start, All Programs, and Windows Update and then follow the on-screen instructions.
❑VAIO Update 4
Click Start, All Programs, VAIO Update 4, and VAIO Update Options and then follow the on-screen instructions.
!
Your computer must be connected to the Internet to download the updates.
126
nN
Troubleshooting
Troubleshooting
US model_BGN
This section describes how to solve common problems you might encounter when using your VAIO computer. Many problems
have simple solutions. Try these suggestions before visiting the Sony online support web site
at the following URLs:
http://esupport.sony.com/EN/VAIO/ for
customers in USA
http://www.sony.ca/support/ for customers in Canada
http://esupport.sony.com/LA/ for customers in Spanish-speaking Latin American countries or areas
http://esupport.sony.com/BR/ for customers in Brazil
US model_END
Except US model_BGN
This section describes how to solve common problems you might encounter when using your VAIO computer. Many problems
have simple solutions. Try these suggestions before contacting VAIO HelpdeskVAIO-LinkVAIO HelpdeskSony Computing
SupportVAIO HelpdeskVAIO-LinkVAIO-Link.
Except US model_END
❑Computer (page 127)
❑System Security (page 138)
❑Battery (page 140)
❑Built-in MOTION EYE Camera (page 141)
❑Networking (page 144)
❑Bluetooth Technology (page 148)
Euro model_BGN
❑GPS (page 152)
127
nN
Troubleshooting
Euro model_END
❑Optical Discs (page 153)
❑Display (page 155)
❑Printing (page 158)
❑Microphone (page 159)
❑Mouse (page 160)
❑Speakers (page 161)
❑Pointing Device (page 162)
❑Keyboard (page 163)
❑Floppy Disks (page 164)
❑Audio/Video (page 165)
❑Memory Card (page 166)
❑Peripherals (page 168)
Computer
What should I do if my computer does not start?
❑Make sure your computer is securely plugged into a power source and turned on and the power indicator light is lit.
❑Make sure the battery pack is installed properly and charged.
❑Make sure the floppy disk drive (if applicable) is empty.
❑If your computer is plugged into a power strip or an uninterruptible power supply (UPS), make sure the power strip or UPS
is plugged into a power source and turned on.
128
nN
Troubleshooting
❑If you are using an external display, make sure it is plugged into a power source and turned on. Make sure the brightness
and contrast controls are adjusted correctly. See the manual that came with your display for more information.
Except IRX-4300_BGN
❑Unplug the AC adapter and remove the battery pack. Wait three to five minutes. Reinstall the battery pack, plug the AC
adapter, and then press the power button to turn on your computer.
Except IRX-4300_END
IRX-4300_BGN
❑Unplug the AC adapter and remove the battery pack. Wait three to five minutes. Reinstall the battery pack, plug the AC
adapter, and then slide the power switch (in the direction of G on the switch) to turn on your computer.
IRX-4300_END
❑Condensation may cause your computer to malfunction. If this occurs, do not use the computer for at least one hour.
Except IRX-4300_BGN
❑Remove any extra memory modules you may have installed since purchase.
Except IRX-4300_END
❑Check that you are using the supplied Sony AC adapter. For your safety, use only the genuine Sony rechargeable battery
pack and AC adapter, which are supplied by Sony for your VAIO computer.
What should I do if the green power indicator light turns on but my screen remains blank?
❑Press the Alt+F4 keys several times to close the application window. An application error may have occurred.
❑Press the Ctrl+Alt+Delete keys and click the arrow next to the Shut down button and Restart.
Except IRX-4300_BGN
❑Press and hold the power button for more than four seconds to shut down your computer. Unplug the AC adapter and
leave the computer for about five minutes. Then plug the AC adapter and turn on the computer again.
129
nN
Troubleshooting
Except IRX-4300_END
IRX-4300_BGN
❑Slide (in the direction of G on the switch) and hold the power switch for more than four seconds to shut down your
computer. Unplug the AC adapter and leave the computer for about five minutes. Then plug the AC adapter and turn on
the computer again.
IRX-4300_END
Except IRX-4300_BGN
!
Turning off your computer with the power button or the Ctrl+Alt+Delete keys may cause loss of unsaved data.
Except IRX-4300_END
IRX-4300_BGN
!
Turning off your computer with the power switch or the Ctrl+Alt+Delete keys may cause loss of unsaved data.
IRX-4300_END
What should I do if my computer or software stops responding?
❑If your computer stops responding while a software application is running, press the Alt+F4 keys to close the application
window.
❑If the Alt+F4 keys do not work, click Start, the arrow next to the Lock button, and Shut Down to turn off your computer.
❑If your computer does not turn off, press the Ctrl+Alt+Delete keys and click the arrow next to the Shut down button
and Shut Down.
If the Windows Security window appears, click Shut Down.
Except IRX-4300_BGN
130
nN
Troubleshooting
!
Turning off your computer with the Ctrl+Alt+Delete keys or the power button may cause loss of unsaved data.
❑If your computer still does not turn off, press and hold the power button until the computer turns off.
Except IRX-4300_END
IRX-4300_BGN
!
Turning off your computer with the Ctrl+Alt+Delete keys or the power switch may cause loss of unsaved data.
❑If your computer still does not turn off, slide (in the direction of G on the switch) and hold the power switch until the
computer turns off.
IRX-4300_END
❑Remove the AC adapter and battery pack.
❑Try reinstalling the software.
❑Contact the software publisher or designated provider for technical support.
Why doesn't my computer enter Sleep or Hibernate mode?
Your computer may become unstable if the operating mode is changed before the computer completely enters Sleep or
Hibernate mode.
To restore your computer to normal mode
1Close all open programs.
2Click Start, the arrow next to the Lock button, and Restart.
3If your computer does not restart, press the Ctrl+Alt+Delete keys and click the arrow next to the Shut down button and
Restart.
131
nN
Troubleshooting
Except IRX-4300_BGN
4If this procedure does not work, press and hold the power button until the computer turns off.
!
Turning off your computer with the power button may cause loss of unsaved data.
Except IRX-4300_END
IRX-4300_BGN
5If this procedure does not work, slide (in the direction of G on the switch) and hold the power switch until the computer
turns off.
!
Turning off your computer with the power switch may cause loss of unsaved data.
IRX-4300_END
What should I do if the battery indicator light is blinking and my computer does not start?
❑This issue could be due to the battery pack not being installed properly. To resolve this issue, turn off your computer and
remove the battery pack. Then install the battery pack to the computer again. For details, see Installing the Battery Pack
(page 25).
US model_BGN
❑If the issue persists after performing the above, it means the installed battery pack is not compatible. Remove the battery
pack and contact an authorized Sony Service Center. To find the nearest center or agent, see Sony Support Information
(page 169).
US model_END
Except US model_BGN
❑If the issue persists after performing the above, it means the installed battery pack is not compatible. Remove the battery
pack and contact VAIO HelpdeskVAIO-LinkVAIO HelpdeskSony Computing SupportVAIO HelpdeskVAIO-LinkVAIO-Link.
132
nN
Troubleshooting
Except US model_END
What should I do if a message window, notifying of incompatibility or improper installation
of the battery pack, appears and my computer enters Hibernate mode?
❑This problem could be due to the battery pack not being installed properly. To resolve this problem, turn off your computer
and remove the battery pack. Then reinstall the battery pack to the computer again. For details, see Installing the
Battery Pack (page 25).
US model_BGN
❑If the problem persists after performing the above, it means the installed battery pack is not compatible. Remove the
battery pack and contact an authorized Sony Service Center. To find the nearest center or agent, see Sony Support
Information (page 169).
US model_END
Except US model_BGN
❑If the problem persists after performing the above, it means the installed battery pack is not compatible. Remove the
battery pack and contact VAIO HelpdeskVAIO-LinkVAIO HelpdeskSony Computing SupportVAIO HelpdeskVAIO-
LinkVAIO-Link.
Except US model_END
Why does the System Properties window display a slower CPU speed than the
maximum?
This is normal. Because your computer's CPU utilizes a type of CPU speed controlling technology for power conservation
purposes, System Properties may display the current CPU speed instead of the maximum speed.
133
nN
Troubleshooting
What should I do if Windows does not start and a message appears, when I start my
computer?
Except IRX-4300_BGN
If you enter a wrong power-on password three times consecutively, the Enter Onetime Password message appears and
Windows will not start. Press and hold the power button for more than four seconds to check that the power indicator light
turns off. Wait for 10 or 15 seconds, then restart your computer and enter the correct password. When entering the password,
check that the Num lock and Caps lock indicators are unlit. If both or either of the lights is lit, press the Num Lk (or Num Lock)
key or the Caps Lock key to turn off the indicator before entering the password.
Except IRX-4300_END
IRX-4300_BGN
If you enter a wrong power-on password three times consecutively, the Enter Onetime Password message appears and
Windows will not start. Slide (in the direction of G on the switch) and hold the power switch for more than four seconds to
check that the power indicator light turns off. Wait for 10 or 15 seconds, then restart your computer and enter the correct
password. When entering the password, check that the Num lock and Caps lock indicators are unlit. If both or either of the
lights is lit, press and hold the Fn key and press the Num Lk key or simply press the Caps Lock key to turn off the indicator
before entering the password.
IRX-4300_END
What should I do if my game software does not work or it keeps crashing?
❑Check the web site of the game if there are any patches or updates to download.
❑Make sure you have installed the latest video driver.
❑On some VAIO models, the graphics memory is shared with the system. The optimal graphic performance in this case is
not guaranteed.
134
nN
Troubleshooting
What should I do if I cannot remember the power-on password?
US model_BGN
If you have forgotten the power-on password, contact an authorized Sony Service Center to reset it. A reset fee will be
charged. To find the nearest center or agent, see Sony Support Information (page 169).
US model_END
Except US model_BGN
If you have forgotten the power-on password, contact VAIO HelpdeskVAIO-LinkVAIO HelpdeskSony Computing
SupportVAIO HelpdeskVAIO-LinkVAIO-Link to reset it. A reset fee will be charged.
Except US model_END
How can I change the boot device order?
You can use one of the BIOS functions to change the boot device order. Follow these steps:
1Turn on your computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3Press the < or , key to select Boot.
IRX-4300_BGN
4Press the M or m key to select the drive whose boot device order you want to change.
5Press the F5 or F6 key to change the boot device order.
IRX-4300_END
Except IRX-4300_BGN
6Press the M or m key to select your desired priority under Boot Priority and press the Enter key.
135
nN
Troubleshooting
7Press the M or m key to select the device to which you want to assign the priority and press the Enter key.
Except IRX-4300_END
8Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
Why doesn't my screen turn off after the automatic turn-off time has passed?
The VAIO original screen saver disables the timer setting, which you can select using the Windows power options, for your
screen to turn off.
Select a screen saver other than the VAIO original screen saver.
What should I do if I cannot boot my computer from the external device connected to the
computer?
Except IRX-4300_BGN
To boot your computer from the external device, for example the USB floppy disk drive and the USB/i.LINK optical disc drive,
you need to change the boot device.
Except IRX-4300_END
IRX-4300_BGN
To boot your computer from the external device, for example the USB floppy disk drive and the USB optical disc drive, you
need to change the boot device.
IRX-4300_END
IRX-4300_BGN
Turn on your computer and press the F11 key when the VAIO logo appears.
IRX-4300_END
136
nN
Troubleshooting
Except China_BGN
How do I reduce the volume of the recovery partition?
Your built-in storage device* contains the recovery partition where data for the system recovery is stored. If your computer
includes a built-in flash memory storage drive, you might want to reduce the volume of the recovery partition by following
these steps:
Except China_BGN
Except GVD model_BGN
* See the online specifications to find out about your storage device configuration.
Except GVD model_END
Except China_END
Except Euro_BGN
Except US model_BGN
* See the printed specifications sheet to find out about your storage device configuration.
Except US model_END
Except Euro_END
Except IRX-4300_BGN
1Insert the recovery disc into the optical disc drive while your computer is on, turn off the computer, and then turn it on
once again.
Except IRX-4300_END
IRX-4300_BGN
1Insert the recovery disc into an external optical disc drive (not supplied) while your computer is on, turn off the computer,
and then turn it on once again.
2Press the F11 key when the VAIO logo appears during the startup process.
137
nN
Troubleshooting
IRX-4300_END
!
Use the recovery disc you created upon delivery of your computer.
3Select your keyboard layout from the drop-down list and click Next.
4Select your operating system and click Next.
5Click VAIO Recovery Center.
6Click Restore Complete System and Start.
7Select Skip and click Next.
You will be prompted to select whether or not to keep the VAIO Value-added contents.
8Select No and click Next.
9Follow the on-screen instructions.
!
The above procedure involves system recovery. Note that the applications and data you added on the storage drive before reducing the volume of the
recovery partition will all be lost.
Once you have reduced the volume of the recovery partition, you need the recovery disc for later system recovery.
Except China_END
How do I check the volume of the recovery partition?
Your built-in storage device* contains the recovery partition where data for the system recovery is stored. To check the
volume of the recovery partition, follow these steps:
Except China_BGN
Except GVD model_BGN
* See the online specifications to find out about your storage device configuration.
138
nN
Troubleshooting
Except GVD model_END
Except China_END
Except Euro_BGN
Except US model_BGN
* See the printed specifications sheet to find out about your storage device configuration.
Except US model_END
Except Euro_END
1Click Start, right-click Computer, and select Manage.
2Click Disk Management under Storage in the left pane.
The volume of the recovery partition and the total volume of the C drive are displayed in the Disk 0 row in the center pane.
System Security
How can I protect my computer against security threats, such as viruses?
The Microsoft Windows operating system is preinstalled on your computer. The best way to protect your computer against
security threats, such as viruses, is to download and install the latest Windows updates regularly.
You can get important Windows updates by doing the following:
!
Your computer must be connected to the Internet to download the updates.
1Connect to the Internet.
2Double-click the Windows Security Alerts icon on the taskbar.
3Follow the on-screen instructions to set up automatic or scheduled updates.
139
nN
Troubleshooting
How do I keep my antivirus software updated?
US model_BGN
You can keep the Microsoft Windows Live OneCare software program current with the latest updates from Microsoft
Corporation.
To download and install the latest security updates, follow these steps:
!
Your computer must be connected to the Internet to download the updates.
1Click Start, All Programs, and Windows Live OneCare.
2Click Check for Updates in the Protection Plus section.
3The Windows Live OneCare Updates balloon appears on the taskbar.
4Follow the on-screen instructions to download updates.
US model_END
Euro model_BGN
You can keep the McAfee Internet Security Suite software program current with the latest updates from McAfee, Inc.
To download and install the latest security updates, follow these steps:
1Click Start, All Programs, McAfee, and McAfee SecurityCenter.
2Click the button located at the upper left corner of the window to update the software.
3Follow the on-screen instructions to download updates.
See the help file included with your software program for more information.
Euro model_END
Except Euro_BGN
Except US model_BGN
140
nN
Troubleshooting
You can keep the McAfee PC SecurityCenter software program current with the latest updates from McAfee, Inc.
To download and install the latest security updates, follow these steps:
1Click Start, All Programs, McAfee, and McAfee SecurityCenter.
2Click the button located at the upper left corner of the window to update the software.
3Follow the on-screen instructions to download updates.
See the help file included with your software program for more information.
Except US model_END
Except Euro_END
Battery
How do I find the battery charging status?
See Charging the Battery Pack (page 27).
When is my computer using AC power?
When your computer is directly connected to the AC adapter, it uses AC power, even if the battery pack is installed.
When should I recharge the battery pack?
❑When the battery charge level falls below 10%.
❑When both the charge and power indicator lights blink.
❑When you have not used the battery pack for a long period of time.
141
nN
Troubleshooting
When should I replace the battery pack?
If the battery pack quickly runs out of power after fully charged, it may be reaching the end of its life and should be replaced.
To check the battery charge capacity, see To check the battery charge capacity (page 30).
Should I be concerned that the installed battery pack is warm?
No, it is normal for the battery pack to be warm when it is powering your computer.
Can my computer enter Hibernate mode while using battery power?
Your computer can enter Hibernate mode while using battery power, but some software programs and peripheral devices
prevent the system from entering Hibernate mode. If you are using a program that prevents the system from entering
Hibernate mode, save your data frequently to avoid losing data. See Using Hibernate Mode (page 105) for information on
how you can manually activate Hibernate mode.
Built-in MOTION EYE Camera
Why does the viewer window show no images or poor-quality images?
❑The built-in MOTION EYE camera cannot be shared by more than one software application. If another software
application is using the camera, exit the application before using the built-in MOTION EYE camera.
❑The video memory of your computer may be insufficient for displaying images from the built-in MOTION EYE camera.
Lowering the resolution or reducing the colors of the LCD screen might help.
❑The viewer window may show some noise, for example horizontal streaks, if you view a rapid-moving object. This is
normal and does not indicate a malfunction.
❑If the problem persists, restart your computer.
142
nN
Troubleshooting
Why are captured images poor in quality?
❑The images captured under the fluorescent light may show reflections of light.
❑A dark portion in captured images may appear as a noise.
❑If the lens protection cover is dirty, you cannot take a clear shot. Clean the cover. See Handling the Built-in MOTION
EYE Camera (page 118).
Why do captured images contain dropped frames and audio interruptions?
❑The effect settings on your software application may cause dropped frames. See the help file included with your software
application for more information.
❑There may be more software applications running than your computer can handle. Exit the applications that you are not
currently using.
❑The power management function of your computer may be active. Check the CPU performance.
Why does movie playback show dropped frames when my computer is running on the
battery?
The battery pack is running out of power. Connect your computer to an AC power source.
Why do the images captured by the built-in MOTION EYE camera flicker?
This problem occurs when you use the camera under fluorescent lights due to the mismatch between lighting output
frequency and shutter speed.
To reduce flicker noise, change the direction of the camera or the brightness of camera images. In some software
applications, you can set an appropriate value to one of the camera properties (e.g. light source, flicker, etc.) to eliminate
flicker noise.
143
nN
Troubleshooting
Why is the video input from the built-in MOTION EYE camera suspended for a few
seconds?
The video input may be suspended for a few seconds if:
❑a shortcut key with the Fn key is used.
❑the CPU load increases.
This is normal and does not indicate a malfunction.
Why can't I use the built-in MOTION EYE camera?
❑The built-in MOTION EYE camera cannot be shared by more than one software application. If another software
application is using the camera, exit the application before using the built-in MOTION EYE camera.
❑If the problem persists, you must reinstall the driver software for the camera. Follow these steps:
1Click Start, Control Panel, Hardware and Sound, and Device Manager.
2Double-click Imaging devices.
3Right-click the device name for your camera and click Update Driver Software.
What should I do if my computer becomes unstable when it enters a power saving mode
while the built-in MOTION EYE camera is in use?
❑Do not place your computer into Sleep or Hibernate mode while you are using the built-in MOTION EYE camera.
❑If your computer automatically enters Sleep or Hibernate mode, change the corresponding power saving mode setting.
To change the setting, see Using the Power Saving Modes (page 103).
144
nN
Troubleshooting
Networking
What should I do if my computer cannot connect to a wireless LAN access point?
IRX-4300_BGN
Except GVD model_BGN
Except US model_BGN
❑You need to connect the display/LAN adapter (supplied) to your computer before configuring or accessing your network.
Except US model_END
Except GVD model_END
Except China_BGN
Except Euro_BGN
❑You need to connect the display/LAN adapter (supplied with selected models only) to your computer before configuring
or accessing your network.
Except Euro_END
Except China_END
IRX-4300_END
❑Connection capability is affected by distance and obstructions. You may need to move your computer away from
obstructions or closer to any access point you may be using.
❑Make sure the WIRELESS switch is on and the WIRELESS indicator light is lit on your computer.
❑Make sure power to the access point is on.
Except US model_BGN
145
nN
Troubleshooting
❑If you want to connect your computer to a wireless LAN access point using the 5 GHz band, make sure the option to use
the 5 GHz band or both the 2.4 GHz and 5 GHz bands is selected on the WLAN tab in the VAIO Smart Network settings
window. Wireless LAN communication (IEEE 802.11a standard) using only the 5 GHz band, available on selected models
only, is disabled by default.
Except US model_END
❑Follow these steps to check the settings:
1Click Start and Control Panel.
2Click View network status and tasks under Network and Internet.
3Click Connect to a network to confirm that your access point is selected.
❑Make sure the encryption key is correct.
❑Make sure Maximum Performance is selected for Wireless Adapter Settings in the Power Options window. Selecting
any other option may result in a communication failure. To change the settings, follow these steps:
1Right-click the power status icon on the taskbar and select Power Options.
2Click Change plan settings under the current power plan.
3Click Change advanced power settings.
4Select the Advanced settings tab.
5Double-click Wireless Adapter Settings and Power Saving Mode.
6Select Maximum Performance from the drop-down list both for On battery and Plugged in.
What should I do if I cannot access the Internet?
❑Check the access point settings. See the manual that came with your access point for more information.
❑Make sure your computer and the access point are connected to one another.
146
nN
Troubleshooting
❑Move your computer away from obstacles or closer to any access point you may be using.
❑Make sure your computer is properly configured for Internet access.
❑Make sure Maximum Performance is selected for Wireless Adapter Settings in the Power Options window. Selecting
any other option may result in a communication failure. Follow the steps in What should I do if my computer cannot
connect to a wireless LAN access point? (page 144) to change the settings.
Why is the data transfer speed slow?
❑The wireless LAN data transfer speed is affected by distance and obstructions between devices and access points. Other
factors include device configurations, radio conditions, and software compatibility. To maximize the data transfer speed,
move your computer away from obstacles or closer to any access point you may be using.
❑If you are using a wireless LAN access point, the device may be temporarily overloaded depending on how many other
devices are communicating via the access point.
❑If your access point interferes with other access points, change the access point channel. See the manual that came with
your access point for more information.
❑Make sure Maximum Performance is selected for Wireless Adapter Settings in the Power Options window. Selecting
any other option may result in a communication failure. Follow the steps in What should I do if my computer cannot
connect to a wireless LAN access point? (page 144) to change the settings.
How do I avoid data transfer interruptions?
❑When your computer is connected to an access point, data transfer interruptions may occur if a large file is exchanged or
the computer is placed in close proximity to microwaves and cordless telephones.
❑Move your computer closer to the access point.
❑Make sure the access point connection is intact.
❑Change the access point channel. See the manual that came with your access point for more information.
147
nN
Troubleshooting
❑Make sure Maximum Performance is selected for Wireless Adapter Settings in the Power Options window. Selecting
any other option may result in a communication failure. Follow the steps in What should I do if my computer cannot
connect to a wireless LAN access point? (page 144) to change the settings.
What are channels?
❑Wireless LAN communication uses divided frequency bands known as channels. Third-party wireless LAN access point
channels may be preset to different channels from Sony devices.
❑If you are using a wireless LAN access point, see connectivity information contained in the manual that came with your
access point.
Why does the network connection stop when I change the encryption key?
Two computers with the wireless LAN function may lose a peer-to-peer network connection if the encryption key is changed.
You can either change the encryption key back to the original profile or re-enter the key on both computers so the key
matches.
Except US model_BGN
How do I display the VAIO Smart Network window?
To display the VAIO Smart Network window on the desktop, follow these steps:
1Click Start, All Programs, and VAIO Control Center.
2Click Network Connections and VAIO Smart Network.
3Click Advanced in the right pane.
✍
For information on the VAIO Smart Network software, see the help file included with the software.
148
nN
Troubleshooting
Except US model_END
Bluetooth Technology
What should I do if other Bluetooth devices cannot find my computer?
❑Make sure both devices have the Bluetooth function enabled.
❑If the WIRELESS indicator light is unlit, turn on the WIRELESS switch.
❑You cannot use the Bluetooth function when your computer is in a power saving mode. Bring the computer back to Normal
mode, then turn on the WIRELESS switch.
US model_BGN
❑Your computer and the device may be too far apart. Wireless Bluetooth technology works best when the devices are within
33 feet (10 meters) of each other.
US model_END
Except US model_BGN
❑Your computer and the device may be too far apart. Wireless Bluetooth technology works best when the devices are within
10 meters of each other.
Except US model_END
Why can't my computer find other Bluetooth devices?
If the connected device is also connected to other devices, it may not appear in the Bluetooth Devices window or you may
not be able to communicate with the device.
149
nN
Troubleshooting
What should I do if I cannot find the Bluetooth device I want to communicate with?
❑Check that the Bluetooth function of the device you want to communicate with is on. See the other device's manual for
more information.
❑If the device you want to communicate with is already communicating with another Bluetooth device, it may not be found
or it may not be able to communicate with your computer.
❑To allow other Bluetooth devices to communicate with your computer, follow these steps:
1Click Start, Control Panel, Hardware and Sound, Bluetooth Devices, and Bluetooth Settings.
2Click the Options tab and select the Allow Bluetooth devices to find this computer check box.
What should I do if other Bluetooth devices cannot connect to my computer?
❑Make sure the other devices are authenticated.
❑To allow other Bluetooth devices to communicate with your computer, follow these steps:
1Click Start, Control Panel, Hardware and Sound, Bluetooth Devices, and Bluetooth Settings.
2Click the Options tab and select the Allow Bluetooth devices to find this computer check box.
US model_BGN
❑The data transfer distance can be shorter than 33 feet (10 meters) depending on existing obstacles between the two
devices, on radio wave quality, and on the operating system or the software in use. Move your computer and Bluetooth
devices closer to each other.
US model_END
Except US model_BGN
❑The data transfer distance can be shorter than 10 meters depending on existing obstacles between the two devices, on
radio wave quality, and on the operating system or the software in use. Move your computer and Bluetooth devices closer
to each other.
150
nN
Troubleshooting
Except US model_END
❑If the device you want to communicate with is already communicating with another Bluetooth device, it may not be found
or it may not be able to communicate with your computer.
❑Check that the Bluetooth function of the device you want to communicate with is on. See the other device's manual for
more information.
Why is my Bluetooth connection slow?
❑The data transfer speed depends on the obstructions and/or the distance between the two devices, on the radio wave
quality, and on the operating system or the software in use. Move your computer and Bluetooth devices closer to each
other.
❑The 2.4 GHz radio frequency used by Bluetooth and wireless LAN devices is also used by other devices. Bluetooth
devices incorporate technology that minimizes interference from other devices using the same wavelength, however,
communication speed and connection range may be reduced. Interference from other devices may also stop
communications altogether.
❑Connection capability is affected by distance and obstructions. You may need to move your computer away from obstacles
or closer to the device to which it is connected.
❑Identify and remove obstacles between your computer and the device to which it is connected.
❑Note that large files may occasionally be corrupted during continuous transfer due to limitations of the Bluetooth standard
and electromagnetic interference in the environment.
Why can't I use the services supported by the connected Bluetooth device?
Connection is only possible for services also supported by the computer with the Bluetooth function. For more details, search
for Bluetooth information using Windows Help and Support. To open Windows Help and Support, click Start and Help
and Support.
151
nN
Troubleshooting
Can I use a device with Bluetooth technology on airplanes?
With Bluetooth technology, your computer transmits a radio frequency of 2.4 GHz. Sensitive locations, such as hospitals and
airplanes, may have restrictions on use of Bluetooth devices to avoid radio interference. Check with facility staff to see if use
of the Bluetooth function on the computer is permitted.
Except IRX-4300_BGN
Why can't I connect to a Bluetooth device by specifying its IP address on a Personal Area
Network (PAN)?
The Bluetooth utility software uses Dynamic Host Configuration Protocol (DHCP) to assign IP addresses to active wireless
devices. If you specify a fixed IP address for the device to which you want to connect, the utility cannot assign a dynamic IP
address to the device and connection fails. Do not specify IP addresses when using a PAN.
Except IRX-4300_END
Why can't I use the Bluetooth function when I log onto my computer as a user with a
standard user account?
The Bluetooth function may not be available to a user with a standard user account on your computer. Log onto the computer
as a user with administrative rights.
Except IRX-4300_BGN
Why can't I use the Bluetooth utility software when I switch users?
If you switch users without logging off your system, the Bluetooth utility software will not work. Be sure to log off before
switching users. To log off your system, click Start, the arrow next to the Lock button, and Log Off.
Except IRX-4300_END
152
nN
Troubleshooting
Why can't I use the Bluetooth devices when I switch users?
If you switch users without logging off your system, the Bluetooth devices will not work. Be sure to log off before switching
users. To log off your system, click Start, the arrow next to the Lock button, and Log Off.
Why can't I exchange business card data with a mobile phone?
The business card exchange function is not supported.
Euro model_BGN
GPS
!
The following Q & A entries apply to models with the GPS function only. See the online specifications to find out whether the GPS function is available
on your model.
What should I do if I cannot use the GPS function?
❑Make sure the WIRELESS switch is on and the WIRELESS indicator light is lit on your computer.
❑Make sure the GPS icon is selected in the VAIO Smart Network window.
What should I do if I cannot obtain location information or if the current location obtained
is incorrect?
❑Make sure the WIRELESS switch is on and the WIRELESS indicator light is lit on your computer.
❑Make sure the GPS icon or the WLAN icon is selected in the VAIO Smart Network window.
❑To successfully obtain location information, your current location must be free of obstacles. Move around to find an
optimum location for receiving GPS information.
153
nN
Troubleshooting
Euro model_END
Optical Discs
What should I do if I cannot play a disc properly on my computer?
Except IRX-4300_BGN
❑Make sure the disc is inserted into the optical disc drive with the label facing upward.
Except IRX-4300_END
❑Make sure the necessary program(s) is installed according to the manufacturer's instructions.
❑If a disc is dirty or damaged, your computer will stop responding. Follow these steps:
1Press the Ctrl+Alt+Delete keys and click the arrow next to the Shut down button and Restart to restart the computer.
2Remove the disc from the optical disc drive.
3Check the disc for dirt or damage. If you need to clean the disc, see Handling Discs (page 118) for instructions.
❑If you are playing a disc and cannot hear sound, do any of the following:
❑The volume may have been turned off by the Fn+F2 keys. Press them once again.
❑The volume may have been minimized by the Fn+F3 keys. Keep pressing the Fn+F4 keys to turn up the volume loud
enough to hear sound.
❑Right-click the volume icon on the taskbar and click Open Volume Mixer to check the settings.
❑Check the volume setting in the audio mixer.
❑If you are using external speakers, check the volume settings on the speakers and the connections between the
speakers and your computer.
❑Make sure the correct driver software is installed. Follow these steps:
1Click Start and Control Panel.
154
nN
Troubleshooting
2Click System and Maintenance.
3Click System.
4Click Device Manager in the left pane.
The Device Manager window appears with a listing of your computer's hardware devices.
If an "X" or an exclamation point appears on the listed device, you may need to enable the device or reinstall the
drivers.
5Double-click the optical disc drive device to open a list of the optical disc drives of your computer.
6Double-click the desired drive.
You can confirm the driver software by selecting the Driver tab, and clicking Driver Details.
7Click OK to close the window.
❑Make sure an adhesive label is not affixed to a disc. Adhesive labels can come off while the disc is in the optical disc drive
and damage the drive or cause it to malfunction.
❑If a region code warning appears, the disc may be incompatible with the optical disc drive. Check the package to make
sure the region code is compatible with the optical disc drive.
❑If you notice condensation on your computer, do not use the computer for at least one hour. Condensation can cause the
computer to malfunction.
❑Make sure your computer is running on the AC power supply and try the disc again.
What should I do if I cannot write data to CD media?
❑Make sure you neither launch any software application nor allow any to launch automatically, not even a screen saver.
❑Stop using the keyboard.
❑If you are using a CD-R/RW disc with an adhesive label affixed, replace it with one with no affixed adhesive label. Using
a disc with an affixed adhesive label could cause a write error or other damage.
155
nN
Troubleshooting
What should I do if I cannot write data to DVD media?
❑Make sure you are using the correct DVD recordable media.
Except IRX-4300_BGN
❑Check which DVD recordable format is compatible with your optical disc drive. Note the possibility that some brands of
DVD recordable media do not work.
Except IRX-4300_END
IRX-4300_BGN
❑Check which DVD recordable format is compatible with your external optical disc drive. Note the possibility that some
brands of DVD recordable media do not work.
IRX-4300_END
Display
Why did my screen go blank?
❑Your computer screen may go blank if the computer loses power or enters a power saving mode (Sleep or Hibernate). If
the computer is in LCD (Video) Sleep mode, press any key to bring the computer back into Normal mode. See Using the
Power Saving Modes (page 103) for more information.
❑Make sure your computer is securely plugged into a power source and turned on and the power indicator light is lit.
❑If your computer is using battery power, make sure the battery pack is installed properly and is charged. See Using the
Battery Pack (page 25) for more information.
❑If the display output is directed to the external display, press the Fn+F7 keys. See Combinations and Functions with
the Fn Key (page 34) for more information.
156
nN
Troubleshooting
Why doesn't my screen display a video?
❑If the display output is directed to the external display and the external display is disconnected, you cannot display a video
on your computer screen. Stop video playback, change the display output to the computer screen, and then restart video
playback. See Selecting Display Modes (page 84). Alternatively, you can press the Fn+F7 keys to change the display
output. See Combinations and Functions with the Fn Key (page 34) for more information.
❑The video memory of your computer may be insufficient for displaying high resolution videos. In this case, lower the
resolution of the LCD screen.
To change the screen resolution, follow these steps:
1Right-click on the desktop and select Personalize.
2Click Display Settings.
3Move the slider under Resolution to the left to reduce or to the right to increase the screen resolution.
✍
You can check the total amount of the graphics and video memory available. Right-click on the desktop, select Personalize, and click Display Settings,
Advanced Settings, and the Adaptor tab. The displayed value may be different from the actual amount of memory on your computer.
What should I do if my screen is dark?
Press the Fn+F6 keys to brighten your computer screen.
What should I do if the LCD brightness of my screen changes?
The LCD brightness setting, adjusted with the Fn+F5/F6 keys, is temporary and may be restored to the original setting when
your computer returns to Normal mode from Sleep or Hibernate mode. To save your preference for the brightness, follow
these steps:
1Right-click the power status icon on the taskbar and select Power Options.
157
nN
Troubleshooting
2Click Change plan settings under the current power plan.
3Click Change advanced power settings.
4Select the Advanced settings tab.
5Double-click Display.
6Adjust the LCD brightness setting in the item for brightness adjustment.
What should I do if the external display remains blank?
If you cannot change the display output with the Fn+F7 keys, you need to change the settings for the external display with
the VAIO Control Center. To change the settings, launch the VAIO Control Center, select the control item for the external
display, and then click to select the check box for changing the options to detect the external display. Then, use the Fn+F7
keys to change the display output.
How do I run Windows Aero?
Except IRX-4300_BGN
!
This Q & A entry applies to selected models only.
To run Windows Aero, follow these steps:
1Click Start and Control Panel.
2Click Customize colors under Appearance and Personalization.
3Click Open classic appearance properties for more color options.
4Select Windows Aero from the Color scheme options on the Appearance tab.
5Click OK.
For information about the Windows Aero features, such as Windows Flip 3D, see Windows Help and Support.
158
nN
Troubleshooting
Except IRX-4300_END
IRX-4300_BGN
The Windows Aero features are disabled by default on your computer. Performance of your computer will not be guaranteed
if you enable the features.
IRX-4300_END
Printing
What should I do if I cannot print a document?
❑Make sure your printer is on, and the printer cable is securely connected to the ports on the printer and your computer.
❑Make sure your printer is compatible with the Windows operating system installed on your computer.
❑You may need to install the printer driver software before you use your printer. See the manual that came with your printer
for more information.
❑If your printer is not functioning after your computer resumes from a power saving mode (Sleep or Hibernate), then restart
the computer.
❑If the bidirectional communication functions are provided with your printer, disabling the functions on your computer may
enable printing. Follow these steps:
1Click Start and Control Panel.
2Click Printer under Hardware and Sound.
3Right-click the printer icon and select Properties.
4Click the Ports tab.
5Click to cancel the Enable bidirectional support check box.
6Click OK.
159
nN
Troubleshooting
This disables the bidirectional communication functions of the printer, such as data transfer, status monitoring, and
remote panel.
Microphone
What should I do if my microphone does not work?
Except IRX-4300_BGN
If you are using an external microphone, make sure the microphone is turned on and is properly plugged into the microphone
jack on your computer.
Except IRX-4300_END
IRX-4300_BGN
Your sound input device may have been incorrectly configured. To configure the sound input device, follow these steps:
1Close all open programs.
2Click Start and Control Panel.
3Click Hardware and Sound.
4Click Manage audio devices under Sound.
5On the Recording tab, select the desired device for sound input and click Set Default.
IRX-4300_END
How can I prevent microphone feedback?
Microphone feedback occurs when the microphone receives the sound from a sound output device, such as a speaker.
To prevent this problem:
❑Keep the microphone away from a sound output device.
160
nN
Troubleshooting
❑Turn down the volume of the speakers and the microphone.
Mouse
What should I do if my computer does not recognize my mouse?
❑Make sure your mouse is securely plugged into the port.
❑Restart your computer with your mouse connected.
What should I do if the pointer does not move when I use my mouse?
❑Make sure another mouse is not connected.
❑If the pointer does not move while a software application is running, press the Alt+F4 keys to close the application window.
❑If the Alt+F4 keys do not work, press the Windows key once and then the , key several times, select Restart with the
M or m key, and press the Enter key to restart your computer.
❑If your computer does not restart, press the Ctrl+Alt+Delete keys, select the arrow next to the Shut down button with the
m and , keys and then Restart with the M or m key, and press the Enter key to restart your computer.
Except IRX-4300_BGN
❑If this procedure does not work, press and hold the power button until the computer turns off.
!
Turning off your computer with the power button may cause loss of unsaved data.
Except IRX-4300_END
IRX-4300_BGN
❑If this procedure does not work, slide (in the direction of G on the switch) and hold the power switch until the computer
turns off.
161
nN
Troubleshooting
!
Turning off your computer with the power switch may cause loss of unsaved data.
IRX-4300_END
Speakers
What should I do if my external speakers do not work?
❑If you are using a program that has its own volume control, make sure the volume control is properly set. See the
program's help file for more information.
❑Make sure your speakers are properly connected and the volume is turned up loud enough to hear sound.
❑Make sure your speakers are designed for computer use.
❑If your speakers have a muting button, set the button to off.
❑The volume may have been turned off by the Fn+F2 keys. Press them once again.
❑The volume may have been minimized by the Fn+F3 keys. Keep pressing the Fn+F4 keys to turn up the volume loud
enough to hear sound.
❑If your speakers require external power, make sure the speakers are connected to a power source. See the manual that
came with your speakers for more information.
❑Check the Windows volume controls by clicking the volume icon on the taskbar.
IRX-4300_BGN
❑Your sound output device may have been incorrectly configured. To change the sound output device, see How do I
change the sound output device? (page 165).
IRX-4300_END
162
nN
Troubleshooting
What should I do if I do not hear sound from the built-in speakers?
❑If you are using a program that has its own volume control, make sure the volume control is properly set. See the
program's help file for more information.
❑The volume may have been turned off by the Fn+F2 keys. Press them once again.
❑The volume may have been minimized by the Fn+F3 keys. Keep pressing the Fn+F4 keys to turn up the volume loud
enough to hear sound.
❑Check the Windows volume controls by clicking the volume icon on the taskbar.
IRX-4300_BGN
❑Your sound output device may have been incorrectly configured. To change the sound output device, see How do I
change the sound output device? (page 165).
IRX-4300_END
Pointing Device
What should I do if my pointing device does not work?
❑You may have disabled the pointing device without connecting a mouse to your computer. See Using the Pointing
Device (page 37).
❑Make sure that a mouse is not connected to your computer.
❑If the pointer does not move while a software application is running, press the Alt+F4 keys to close the application window.
❑If the Alt+F4 keys do not work, click Start, the arrow next to the Lock button, and Restart to restart your computer.
❑If your computer does not restart, press the Ctrl+Alt+Delete keys and click the arrow next to the Shut down button and
Restart.
If the Windows Security window appears, click Restart.
163
nN
Troubleshooting
Except IRX-4300_BGN
❑If this procedure does not work, press and hold the power button until the computer turns off.
!
Turning off your computer with the power button may cause loss of unsaved data.
Except IRX-4300_END
IRX-4300_BGN
❑If this procedure does not work, slide (in the direction of G on the switch) and hold the power switch until the computer
turns off.
!
Turning off your computer with the power switch may cause loss of unsaved data.
IRX-4300_END
Keyboard
What should I do if the keyboard configuration is wrong?
The language layout of your computer's keyboard is labeled on the packaging box. If you choose a different regional keyboard
when you complete the Windows setup, the key configuration will be mismatched.
To change the keyboard configuration, follow these steps:
1Click Start and Control Panel.
2Click Clock, Language, and Region, and click Regional and Language Options.
3Change the settings as desired.
164
nN
Troubleshooting
What should I do if I cannot enter certain characters with the keyboard?
If you cannot enter U, I, O, P, J, K, L, M, and so on, the Num Lk key may be activated. Check that the Num lock indicator
light is unlit. If the Num lock indicator is lit, press the Num Lk key to turn it off before entering these characters.
Floppy Disks
Why doesn't the Safely Remove Hardware icon appear on the taskbar when the drive is
connected?
Your computer does not recognize the floppy disk drive. First, make sure the USB cable is properly connected to the USB
port. If you need to secure the connection, wait a few moments for the computer to recognize the drive. If the icon still does
not appear, follow these steps:
1Close all programs that are accessing the floppy disk drive.
2Wait for the indicator light on the floppy disk drive to turn off.
3Push the eject button to remove the disk, and disconnect the USB floppy disk drive from your computer.
4Reconnect the floppy disk drive by plugging the USB cable into the USB port.
5Restart the computer by clicking Start, the arrow next to the Lock button, and Restart.
What should I do if I cannot write data to a floppy disk?
❑Make sure the floppy disk is properly inserted in the drive.
❑If the disk is inserted properly and you are still unable to write data to it, the disk may be full or write-protected. You can
either use a floppy disk that is not write-protected or disable the write-protect feature.
165
nN
Troubleshooting
Audio/Video
How do I turn off the Windows startup sound?
To turn off the Windows startup sound, follow these steps:
1Click Start and Control Panel.
2Click Hardware and Sound.
3Click Manage audio devices under Sound.
4On the Sounds tab, click to cancel the Play Windows Startup sound check box.
5Click OK.
How do I change the sound output device?
If you do not hear sound from the device connected to a port, such as the USB port, HDMI output port, optical output port, or
headphones jack, you need to change the device for sound output.
1Close all open programs.
2Click Start and Control Panel.
3Click Hardware and Sound.
4Click Manage audio devices under Sound.
5On the Playback tab, select the desired device for sound output and click Set Default.
166
nN
Troubleshooting
Why do sound interruptions and/or dropped frames occur when I play high-definition
videos, such as those recorded with the AVCHD digital video camcorder?
Playing high-definition videos requires substantial hardware resources, such as CPU, GPU, or system memory performance
on your computer. During the video playback, some operations and/or functions may become unavailable, and sound
interruptions, dropped frames, and playback failure may occur depending on your hardware specifications.
Memory Card
What should I do if I cannot find any memory card icons in the Computer window?
❑The Memory Stick Duo icon and the SD / MMC icon are not present in the Computer window before you insert either
of the media. Insert a Memory Stick or a memory card. Both icons will appear in the window. Although the drive letter
assignment varies depending on your hardware configuration, the preceding letter is always assigned to the Memory Stick
drive.
❑When you insert a Memory Stick or a memory card for the first time of the day, it will take some time before the icons
appear in the Computer window.
What should I do if I cannot use Memory Stick formatted on a VAIO computer on other
devices?
You may need to reformat your Memory Stick.
Formatting Memory Stick erases all data, including music data previously saved on it. Before you reformat Memory Stick,
back up important data and confirm that the media does not contain files you want to keep.
Except IRX-4300_BGN
1Copy the data from the Memory Stick onto your hard disk drive to save data or images.
167
nN
Troubleshooting
Except IRX-4300_END
IRX-4300_BGN
Except China_BGN
1Copy the data from the Memory Stick onto your built-in storage device* to save data or images.
Except China_END
China model_BGN
1Copy the data from the Memory Stick onto your hard disk drive to save data or images.
China model_END
IRX-4300_END
2Format the Memory Stick by following the steps in To format a Memory Stick (page 45).
IRX-4300_BGN
Except China_BGN
Except GVD model_BGN
* See the online specifications to find out about your storage device configuration.
Except GVD model_END
GVD model_BGN
* See the printed specifications sheet to find out about your storage device configuration.
GVD model_END
Except China_END
IRX-4300_END
Why can't I save music files onto my Memory Stick?
Copyright protected music can only be checked out to Memory Stick with the MagicGate logo.
168
nN
Troubleshooting
!
Use of recorded music requires permission from the copyright holders.
Sony is not responsible for music files that cannot be recorded from a CD or downloaded from other sources.
Can I copy images from a digital camera using Memory Stick?
Yes, and you can view video clips that you have recorded with Memory Stick-compatible digital cameras.
Why can't I write data to Memory Stick?
Some versions of Memory Stick are equipped with an erasure prevention switch to protect data from accidental erasure or
overwriting. Make sure the erasure prevention switch is off.
Peripherals
What should I do if I cannot connect a USB device?
❑If applicable, check the USB device is turned on and using its own power supply. For example, if you are using a digital
camera, check if the battery is charged. If you are using a printer, check if the power cable is connected properly to the
AC outlet.
❑Try using another USB port on your computer. The driver could be installed to the specific port you used the first time you
connected the device.
❑See the manual that came with your USB device for more information. You may need to install software before you connect
the device.
❑Try connecting a simple, low-powered device such as a mouse to test if the port is working at all.
❑USB hubs may prevent a device from working because of a power distribution failure. We recommend you connect the
device directly to your computer without a hub.
169
nN
Support Options
Support Options
US model_BGN
This section contains information on where to go for answers to questions about your VAIO computer and the preinstalled
software.
US model_END
Except US model_BGN
This section contains information on where to go for answers to questions about your VAIO computer.
Except US model_END
US model_BGN
❑Sony Support Information (page 169)
❑Program Support Information (page 174)
US model_END
Euro model_BGN
❑Sony Support Information (page 169)
❑e-Support (page 175)
Euro model_END
Sony Support Information
See the following sources for answers in the sequence listed below.
US model_BGN
1VAIO Computer Documentation
170
nN
Support Options
This on-screen User Guide (this manual) and the printed Quick Start Guide provide information on how to maximize
your computer's capabilities and solve common problems.
2Program Guides and Help Files
The preinstalled programs on your computer may be supplied with individual help guides. These guides are stored on the
hard disk drive as on-screen help files. You can find the help files from the help menu for the specific program.
3Operating System Online Support
Your computer comes preinstalled with a Microsoft Windows operating system. For operating system support, you can
visit Microsoft customer support at: http://support.microsoft.com/directory/.
4Sony Computing Support
This service provides instant access to information on commonly encountered problems. Type a description of the
problem and the Knowledge Database searches for the corresponding solutions online.
You can visit the Sony online support web site at the following URLs:
http://esupport.sony.com/EN/VAIO/ for customers in USA
http://www.sony.ca/support/ for customers in Canada
http://esupport.sony.com/LA/ for customers in Spanish-speaking Latin American countries or areas
http://esupport.sony.com/BR/ for customers in Brazil
5VAIO Update
When your computer is connected to the Internet, VAIO Update automatically notifies you when critical software and
security information is posted on the support web site. Click the VAIO Update notice to open the VAIO Support web site
and view the information.
171
nN
Support Options
For customers in Latin American countries or areas
Customer Information Center
If you do not find the information you are looking for at our site, you may call Sony directly. In order to receive the fastest and
most efficient services, have the following information readily available:
1Your VAIO computer model
You can find it at the lower right corner of the display on the computer.
2Your computer's serial number
You can find it on the back or bottom of the computer. The serial number is the last 7 digits of the number below the
barcode.
3The operating system on your computer
4The hardware component or the software program that is causing the problem
5A brief description of the problem
In order to contact a Sony technical support representative, call the following numbers:
❑Argentina:
(011) 6770-SONY (7669)
❑Bolivia:
800-10-0228
❑Brazil:
4003 SONY (7669) (In capital and metropolitan areas)
0800 880 SONY (7669) (In other areas)
172
nN
Support Options
❑Chile:
800-261-800
02-754-6333 (From mobile phones)
❑Colombia:
358-1251 (In Bogota)
01-8000-94-00-11 (In National)
❑Mexico:
5002-9819 (In Mexico City)
01-800-759-7669 (In the Mexican Republic)
❑Panama:
800-2050
800-7669 (800-SONY)
❑Peru:
0-801-1-7000
511-6100
❑Venezuela:
0-800-1-SONY-00 (0-800-1-7669-00)
US model_END
Except US model_BGN
See Documentation (page 9) for details on the printed and non-printed documentation supplied with your computer, as well
as further sources of reference.
❑Go to the help files that accompany your software for instructions on using the software.
173
nN
Support Options
Euro model_BGN
❑Use the search function in Windows Help and Support by pressing and holding the Microsoft Windows key and pressing
the F1 key.
❑VAIO-Link web site: If you have any problem with the computer, you can access the VAIO-Link web site for
troubleshooting. Go to http://www.vaio-link.com.
❑e-Support: This interactive part of our web site http://www.vaio-link.com allows you to get in contact with our dedicated
support team over the Internet. Using a personalized account, you can log your technical queries with ease.
Euro model_END
GVD model_BGN
❑VAIO online web site: If you have any problem with the computer, you can access the VAIO online web site for
troubleshooting.
Go to http://www.sony-asia.com/support/vaio/ (English), http://scs.sony.co.kr/ (Korean), or
http://service.sony.com.tw/ (Traditional Chinese).
GVD model_END
China model_BGN
❑VAIO online web site: If you have any problem with the computer, you can access the VAIO online web site for
troubleshooting. Go to http://service.sony.com.cn/vaio/.
China model_END
❑VAIO HelpdeskVAIO-LinkVAIO HelpdeskSony Computing SupportVAIO HelpdeskVAIO-LinkVAIO-Link help lines:
Before contacting VAIO HelpdeskVAIO-LinkVAIO HelpdeskSony Computing SupportVAIO HelpdeskVAIO-LinkVAIO-Link
by telephone, try to solve the problem by reading the printed and non-printed documentation.
❑Visit the other Sony web sites:
Euro model_BGN
❑http://www.club-vaio.com if you want to know more about VAIO and become part of the growing VAIO community.
174
nN
Support Options
❑http://www.sonystyle-europe.com for online purchases.
❑http://www.sony.net for other Sony products.
Euro model_END
GVD model_BGN
❑http://vaio-online.sony.com/ (English), http://vaio-online.sony.co.kr/ (Korean), or
http://www.sonystyle.com.tw/vaio/ (Traditional Chinese) for available optional accessories.
❑http://www.sony.net/ for other Sony products.
❑http://www.sonystyle.co.kr/ for additional information in Korean.
GVD model_END
China model_BGN
❑http://vaio-online.sony.com/cn/ for available optional accessories.
❑http://www.sony.net/ for other Sony products.
China model_END
✍
You need to set up an Internet connection before you can access the online features described here.
Except US model_END
US model_BGN
Program Support Information
You can view detailed information on the software products preinstalled on your computer through Help and Support. Click
Start, Help and Support, Use My VAIO, and Software Information.
US model_END
175
nN
Support Options
Euro model_BGN
e-Support
What is e-Support?
If you have searched our user guides and web site (http://www.vaio-link.com) but have not found an answer to your question
or issue, use e-Support to solve it.
Our e-Support Web Portal is an interactive web site on which you can submit any technical query you may have regarding
your computer and receive answers from our dedicated support team.
Every submitted query will result in a unique 'case number' to ensure smooth communication between yourself and the e-
Support Team.
Who can use e-Support?
All registered VAIO customers are entitled to unlimited access to the VAIO-Link e-Support Web Portal.
How can I access the e-Support portal?
When you register your computer, you will automatically receive an e-mail with the link to the e-Support Web Portal, your
Customer ID and a basic explanation within a few hours.
All you need to do is activate your account by clicking on the provided link in the e-mail.
You are now ready to create your first case.
You can access the e-Support Web Portal from any computer with an active Internet connection.
A complete help file is available on the e-Support Web Portal to help you use our e-Support Service.
176
nN
Support Options
Can I submit questions in my native language?
Since you are interacting with our e-Support Team through a portal, which connects you directly to our central database, e-
Support will only accept and deal with queries submitted in English, French or German.
Can I submit my questions at any time?
Yes, you can submit your questions 24/7, but keep in mind that our e-Support Team can only answer your queries from
Monday till Friday between 8 am and 6 pm.
Is there a cost involved for using e-Support?
No, this is a free of charge service offered to all registered VAIO customers.
How do I know when the e-Support Team has handled my query/case?
As soon as your case has been dealt with by our e-Support Team, you will receive an e-mail, notifying you that your case has
been updated.
Euro model_END
177
nN
Trademarks
Trademarks
US model_BGN
© 2009 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited.
Except IRX-4300_BGN
Sony, the Sony logo, VAIO, the VAIO logo, Memory Stick, Memory Stick Duo, MagicGate, OpenMG, OpenMG X, Memory
Stick PRO Duo, Memory Stick PRO, Memory Stick PRO-HG, Memory Stick Micro, M2, the Memory Stick logo, Memory Stick
Export, Memory Stick Import, Micro Vault, Micro Vault EX, MOTION EYE, Sony Style, DVgate, DVgate Plus, i.LINK, VAIO
DIGITAL STUDIO, VAIO Media, VAIO Media Music Server, VAIO Media Photo Server, VAIO Media Console, VAIO Sphere,
VAIO World, VAIO Zone, Vegas, VAIO Media Video Server, Click to BD, G-Sensor, like.no.other, CLIÉ, CLIÉ Files, CLIÉ
Launcher, CLIÉ Memo, Handycam, LocationFree, LocationFree Player, SonicStage, SonicFlow, SmartWi, ATRAC, and
ATRAC3plus are trademarks or registered trademarks of Sony Corporation.
Except IRX-4300_END
IRX-4300_BGN
Sony, the Sony logo, VAIO, the VAIO logo, Memory Stick, Memory Stick Duo, MagicGate, OpenMG, OpenMG X, Memory
Stick PRO Duo, Memory Stick PRO, Memory Stick PRO-HG, Memory Stick Micro, M2, the Memory Stick logo, Memory Stick
Export, Memory Stick Import, Micro Vault, Micro Vault EX, MOTION EYE, Sony Style, DVgate, DVgate Plus, i.LINK, VAIO
DIGITAL STUDIO, VAIO Media, VAIO Media Music Server, VAIO Media Photo Server, VAIO Media Console, VAIO Sphere,
VAIO World, VAIO Zone, Vegas, VAIO Media Video Server, Click to BD, G-Sensor, like.no.other, CLIÉ, CLIÉ Files, CLIÉ
Launcher, CLIÉ Memo, Handycam, LocationFree, LocationFree Player, SonicStage, SonicFlow, SmartWi, ATRAC,
ATRAC3plus, and Walkman are trademarks or registered trademarks of Sony Corporation.
IRX-4300_END
Intel, Centrino, Core, Celeron, Xenon, and Pentium are trademarks or registered trademarks of Intel Corporation in the United
States and/or other countries.
178
nN
Trademarks
Microsoft, Windows, Windows Media, Windows Mobile, Windows NT, Windows Vista, BitLocker, Outlook, Excel, MS-DOS,
PowerPoint, ReadyBoost, Internet Explorer, Aero, Windows Live, OneCare, and the Windows logo are trademarks or
registered trademarks of Microsoft Corporation in the United States and/or other countries.
PS/2 is a registered trademark of IBM Corporation.
Blu-ray Disc and the Blu-ray Disc logo are trademarks of the Blu-ray Disc Association.
IRX-4300_BGN
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.
SD Logo is a trademark.
SDHC Logo is a trademark.
MultiMediaCard is a trademark of MultiMediaCard Association.
IRX-4300_END
All other names of systems, products, and services are trademarks of their respective owners. In the manual, the ™ or ®
marks may not be specified.
Features and specifications are subject to change without notice. All other trademarks are trademarks of their respective
owners.
US model_END
Euro model_BGN
Sony, VAIO, the VAIO logo, VAIO Control Center, VAIO Power Management, VAIO Power Management Viewer,
VAIO Update, and "BRAVIA" are trademarks or registered trademarks of Sony Corporation.
179
nN
Trademarks
and "Memory Stick," "Memory Stick Duo," "MagicGate," "OpenMG," "MagicGate Memory Stick,"
"Memory Stick PRO," "Memory Stick PRO-HG," "Memory Stick Micro," "M2," and the Memory Stick logo are trademarks or
registered trademarks of Sony Corporation.
IRX-4300_BGN
Walkman is a registered trademark of Sony Corporation.
IRX-4300_END
Except IRX-4300_BGN
Blu-ray Disc™ and the Blu-ray Disc logo are trademarks of the Blu-ray Disc Association.
Except IRX-4300_END
Intel, Pentium, and Intel SpeedStep are trademarks or registered trademarks of Intel Corporation.
Microsoft Windows Vista, the Windows logo, and BitLocker are trademarks or registered trademarks of Microsoft Corporation
in the U.S. and other countries.
i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection.
Roxio Easy Media Creator is a trademark of Sonic Solutions.
WinDVD for VAIO and WinDVD BD for VAIO are trademarks of InterVideo, Inc.
ArcSoft and the ArcSoft logo are registered trademarks of ArcSoft, Inc. ArcSoft WebCam Companion is a trademark of
ArcSoft, Inc.
IRX-4300_BGN
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.
180
nN
Trademarks
SD Logo is a trademark.
SDHC Logo is a trademark.
MultiMediaCard™ is a trademark of MultiMediaCard Association.
IRX-4300_END
All other names of systems, products, and services are trademarks of their respective owners. In the manual, the ™ or ®
marks are not specified.
Specifications are subject to change without notice. All other trademarks are trademarks of their respective owners.
See the online specifications to find out what software is available for your model.
Euro model_END
Except Euro_BGN
Except US model_BGN
VAIO is a trademark of Sony Corporation.
and "Memory Stick," "Memory Stick Duo," "MagicGate," "OpenMG," "MagicGate Memory Stick,"
"Memory Stick PRO," "Memory Stick PRO-HG," "Memory Stick Micro," "M2," and the Memory Stick logo are trademarks or
registered trademarks of Sony Corporation.
IRX-4300_BGN
Walkman is a registered trademark of Sony Corporation.
IRX-4300_END
181
nN
Trademarks
Except IRX-4300_BGN
Blu-ray Disc™ and the Blu-ray Disc logo are trademarks of the Blu-ray Disc Association.
Except IRX-4300_END
i.LINK is a designation referring to IEEE 1394-1995 and IEEE 1394a-2000. i.LINK and the i.LINK logo " " are trademarks of
Sony Corporation.
Intel, Pentium, and Intel SpeedStep are trademarks or registered trademarks of Intel Corporation.
Microsoft, MS-DOS, Windows, and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation
in the United States and/or other countries.
IRX-4300_BGN
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.
SD Logo is a trademark.
SDHC Logo is a trademark.
MultiMediaCard™ is a trademark of MultiMediaCard Association.
IRX-4300_END
All other names of systems, products, and services are trademarks of their respective owners. In the manual, the ™ or ®
marks are not specified.
Specifications are subject to change without notice. All other trademarks are trademarks of their respective owners.
GVD model_BGN
See the printed specifications sheet to find out what software is available for your model.
