Before Use >
Before Use
Congratulations on your purchase of this Sony VAIO® computer and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide you with a state-of-the-art
computing experience.
!
External views illustrated in this manual may look slightly different from those of your computer.
How to find specifications
Some features, options, and supplied items may not be available on your computer.
To find out about the configuration of your computer, visit the Sony online support web site at the following URLs:
For customers in USA
http://esupport.sony.com/EN/VAIO/
For customers in Canada
http://sony.ca/support/
For customers in Spanish-speaking Latin American countries or areas
http://esupport.sony.com/ES/VAIO/LA
For customers in Brazil
http://esupport.sony.com/PT/VAIO/BR/
5
nN
Before Use >
Finding More about Your VAIO Computer
Finding More about Your VAIO Computer
This section provides support information about your VAIO computer.
1. Printed Documentation
Quick Start Guide — An overview of components connection, set-up information, etc.
Safety Information — Safety guidelines and owner information.
2. On-screen Documentation
Help and Support — General information and technical assistance for your VAIO computer.
To access Help and Support:
1Click Start and Help and Support.
2Choose from the following categories to find the answers you need.
Get started with my VAIO Get help with Internet and wireless setup, security setup, personalizing your VAIO computer, creating
recovery discs, and more.
Use my VAIO Access interactive help in the form of VAIO tutorials, how-to articles, the VAIO technology page,
specifications, and system and software information.
You can find useful documentation such as below:
- VAIO User Guide (This manual)
- VAIO Recovery Center User Guide - Information about restoring individual software programs,
hardware drivers, and drive partition(s) or your entire built-in storage device to the original factory settings
- Software Information
Troubleshoot my VAIO Maintain and troubleshoot your VAIO computer with VAIO Care, system restore, backup and recovery, and
contact Sony support.
6
nN
Before Use >
Finding More about Your VAIO Computer
Program help files — May be included with the preinstalled software programs on your computer. You may be able to
access the help files from the help menu on a specific program.
SmartWi Connection Utility Help — Information about setting up Bluetooth®, wireless LAN, GPS, and wireless WAN
functions.
Some features and options may not be available on your computer.
See the specifications to find out about the configuration of your computer.
To access this on-screen guide:
1Click Start, All Programs, and SmartWi Connection Utility.
2Click SmartWi Connection Utility Help.
7
nN
Before Use >
Finding More about Your VAIO Computer
3. Support Web Sites
Sony online support web site
The Sony online support web site provides instant access to information on commonly encountered problems. Type a
description of the problem and the Knowledge Database searches for the corresponding solutions online.
For customers in USA
http://esupport.sony.com/EN/VAIO/
For customers in Canada
http://sony.ca/support/
For customers in Spanish-speaking Latin American countries or areas
http://esupport.sony.com/ES/VAIO/LA
For customers in Brazil
http://esupport.sony.com/PT/VAIO/BR/
Operating system online support web site
Your computer comes preinstalled with a Microsoft Windows operating system. For operating system support, you can
visit Microsoft customer support at http://support.microsoft.com/directory/.
8
nN
Before Use >
Finding More about Your VAIO Computer
4. Customer Information Center
If you do not find the information you are looking for at our site, you may call Sony directly. You can find the contact numbers
on the Sony online support web site. In order to receive the fastest and most efficient services, have the following information
readily available:
1Your VAIO computer model
You can find it at the lower right corner of the display on the computer.
2Your computer's serial number
You can find it on the bottom, the back panel, or inside the battery compartment of your Sony VAIO computer. The serial
number is the last 7 digits of the number below the barcode.
3The operating system on your computer
4The hardware component or the software program that is causing the problem
5A brief description of the problem
5. In Store Service & Support (available in USA only)
Make an appointment with a Sony certified technician at a U.S. Sony Style store and get personalized service and support
for your VAIO PC. Sony Style Backstage Technicians can assist with the setup of your new VAIO PC, system optimization,
data rescue, and any repair service you might need.
Visit the web site at www.sonystyle.com/backstage to find the nearest location.
9
nN
Before Use >
Ergonomic Considerations
Ergonomic Considerations
You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt
to take account of the following ergonomic considerations for both stationary and portable environments:
Position of your computer – Place the computer directly in front of you. Keep your forearms horizontal, with your wrists
in a neutral, comfortable position while using the keyboard or the pointing device. Let your upper arms hang naturally at
your sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes, muscles, or
tendons.
Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the
floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.
10
nN
Before Use >
Ergonomic Considerations
Viewing angle of the computer display – Use the display tilting feature to find the best position. You can reduce eye
strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display
as well.
Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect
lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.
Positioning an external display – When using an external display, set the display at a comfortable viewing distance.
Make sure the display screen is at or slightly below eye level when you are sitting in front of the monitor.
11
nN
Getting Started >
Getting Started
This section describes how to get started with using your VAIO computer.
!
Before starting your computer for the first time, do not connect any other hardware that did not originally come with your computer. Upon completion,
connect one device (for example, a printer, an external hard disk drive, a scanner, and so on) at a time, following the manufacturer's instructions.
Locating Controls and Ports (page 12)
About the Indicator Lights (page 18)
Connecting a Power Source (page 19)
Using the Battery Pack (page 21)
Shutting Down Your Computer Safely (page 28)
Using the Power Saving Modes (page 29)
Updating Your Computer (page 31)
12
nN
Getting Started >
Locating Controls and Ports
Locating Controls and Ports
Take a moment to identify the controls and ports shown on the following pages.
!
The appearance of your computer may be different from those illustrated in this manual due to variations in specifications. It may also vary in some
countries or areas.
Front
ALCD screen (page 147)
BKeyboard (page 33)
CBuilt-in MOTION EYE camera (page 38)
DBuilt-in MOTION EYE camera indicator (page 18)
EBuilt-in speakers (stereo)
FAmbient light sensor (page 35), (page 188)
Measures ambient light intensity for automatically adjusting the
LCD brightness to an optimum level.
GNum lock indicator (page 18)
HCaps lock indicator (page 18)
IScroll lock indicator (page 18)
JWIRELESS indicator (page 18)
KCharge indicator (page 18)
LDisc drive indicator (page 18)
MTouch pad (page 36)
NLeft button (page 36)
OFingerprint sensor (page 72)
PRight button (page 36)
13
nN
Getting Started >
Locating Controls and Ports
AASSIST button (page 37)
BWindow arrangement button (page 37)
CVAIO button (page 37)
DDrive eject button (page 37), (page 39)
ESPEED mode indicator (page 18), (page 120)
FPerformance selector switch (page 120)
GAUTO mode indicator (page 18), (page 120)
HSTAMINA mode indicator (page 18), (page 120)
I"Memory Stick Duo" slot* (page 46)
JMedia Access indicator (page 18)
KSD memory card slot (page 57)
LWIRELESS switch (page 63), (page 67)
MBuilt-in microphone (monaural)
NHeadphones jack (page 105), (page 90)
OMicrophone jack (page 116)
* Your computer supports only Duo-size "Memory Stick".
14
nN
Getting Started >
Locating Controls and Ports

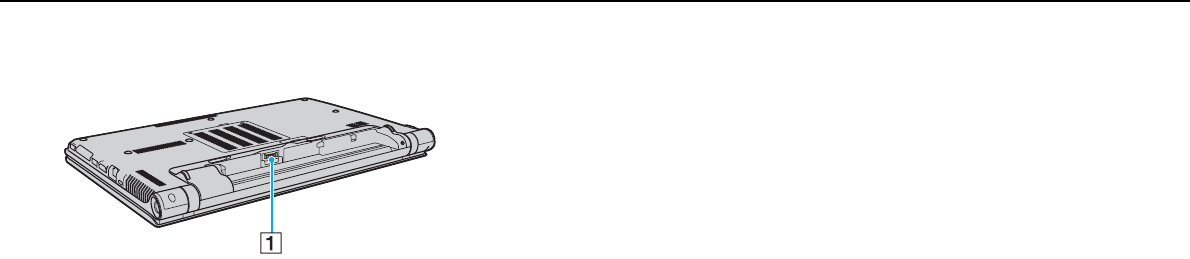

Back
ABattery connector (page 21)
15
nN
Getting Started >
Locating Controls and Ports
Right
AUSB port*1 (page 117)
BOptical disc drive (page 39)
CManual eject hole (page 181)
DMonitor port*2 (page 107)
EPower button/Power indicator (page 18)
*1 Compliant with the USB 2.0 standard and supports high-/full-/low- speeds.
*2 Not accessible when your computer is attached to the port replicator.
16
nN
Getting Started >
Locating Controls and Ports
Left
ADC IN port (page 19)
BAir vent
CSecurity slot
DNetwork (LAN) port*1 (page 62)
EHDMI output port*2 (page 110)
FUSB ports*3 (page 117)
GExpressCard/34 slot (page 53)
*1 Not accessible when your computer is attached to the port replicator.
*2 There may be no sound from an output device connected to the HDMI
output port for the first few seconds after playback starts. This is not a
malfunction.
*3 Compliant with the USB 2.0 standard and support high-/full-/low- speeds.
17
nN
Getting Started >
Locating Controls and Ports

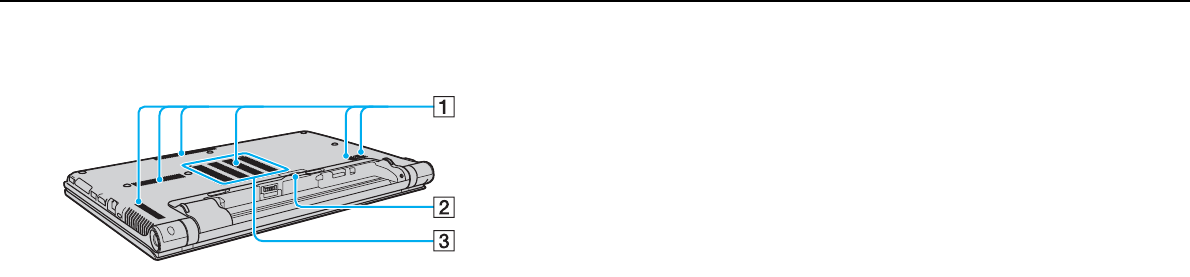

Bottom
AAir vents
BPort replicator connector cover (page 98)
CMemory module compartment cover (page 134)
18
nN
Getting Started >
About the Indicator Lights
About the Indicator Lights
Your computer is equipped with the following indicator lights:
Indicator Functions
Power 1Illuminates in green while the computer is on, blinks slowly in orange while the computer is in Sleep mode, and
turns off when the computer is turned off or enters Hibernate mode.
Charge Illuminates while the battery pack is charging. See Charging the Battery Pack (page 25) for more information.
Built-in MOTION EYE camera Illuminates while the built-in camera is in use.
Media Access Illuminates while data access to a memory card, such as "Memory Stick" and an SD memory card, is in
progress. (Do not place the computer into Sleep mode or turn it off while this indicator light is lit.) When the
indicator light is unlit, the memory card is not in use.
AUTO mode Illuminates while the computer is in AUTO mode to provide optimum performance.
STAMINA mode Illuminates while the computer is in STAMINA mode to conserve battery power.
SPEED mode Illuminates while the computer is in SPEED mode to provide faster performance.
Disc drive Illuminates while data access to the built-in storage device or the optical disc drive is in progress. Do not place
the computer into Sleep mode or turn it off while this indicator light is lit.
Num lock Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad.
The numeric keypad is not active when the indicator light is unlit.
Caps lock Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key
while the indicator light is lit. Press the key a second time to turn off the indicator light. Normal typing resumes
when the Caps lock indicator light is turned off.
Scroll lock Press the Fn+Scr Lk keys to change how you scroll the display. Normal scrolling resumes when the Scroll lock
indicator light is turned off. The Scr Lk key functions differently depending on the program you are using and
does not work with all programs.
WIRELESS Illuminates while one or more wireless options are enabled.
19
nN
Getting Started >
Connecting a Power Source
Connecting a Power Source
You can use either an AC adapter or a rechargeable battery pack for supplying power to your computer.
Using the AC Adapter
While your computer is directly connected to an AC power source and has a battery pack installed, it uses power from the
AC outlet.
Use only the supplied AC adapter for your computer.
To use the AC adapter
1Plug one end of the power cord (1) into the AC adapter (3).
2Plug the other end of the power cord into an AC outlet (2).
3Plug the cable from the AC adapter (3) into the DC IN port (4) on the computer or on the optional port replicator.
!
The shape of the DC In plug varies depending on the AC adapter.
20
nN
Getting Started >
Connecting a Power Source
To disconnect your computer completely from an AC power source, unplug the AC adapter from the AC outlet.
Make sure that the AC outlet is easily accessible.
If you do not intend to use your computer for an extended period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page
30).
21
nN
Getting Started >
Using the Battery Pack
Using the Battery Pack
The battery pack is already installed on your computer at the time of delivery but is not fully charged.
!
Do not use your computer without installing the battery pack as it may cause the computer to malfunction.
Installing/Removing the Battery Pack
To install the battery pack
1Turn off the computer and close the LCD screen lid.
2Slide the battery LOCK switch (1) outward.
22
nN
Getting Started >
Using the Battery Pack

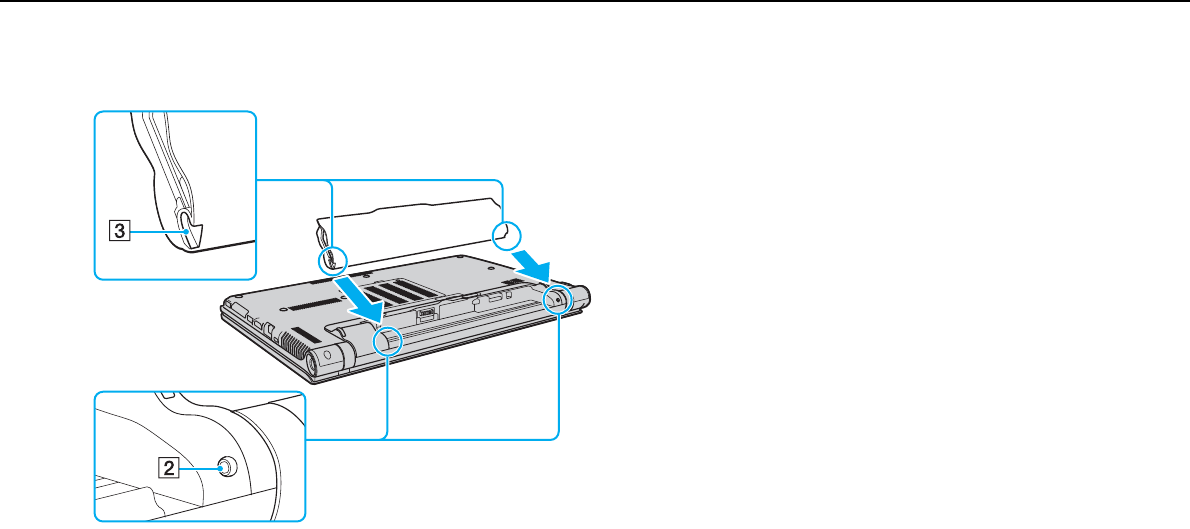

3Slide the battery pack diagonally into the battery compartment until the projection (2) on either side of the battery
compartment fits into the U-shaped cut (3) on either side of the battery pack.
23
nN
Getting Started >
Using the Battery Pack
4Push the battery pack down into the compartment until it clicks into place.
5Slide the battery LOCK switch inward to secure the battery pack on the computer.
24
nN
Getting Started >
Using the Battery Pack
To remove the battery pack
!
You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack
while the computer is in Sleep mode.
1Turn off the computer and close the LCD screen lid.
2Slide the battery LOCK switch (1) outward.

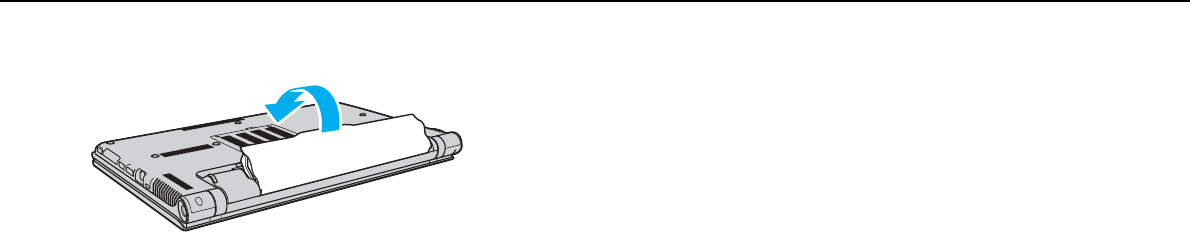

3Slide and hold the battery RELEASE latch (2) outward, put your fingertip underneath the tab (3) on the battery pack, and
lift the battery pack in the direction of the arrow, and then slide it away from the computer.
!
This computer is designed to operate only with genuine Sony battery packs.
25
nN
Getting Started >
Using the Battery Pack
Charging the Battery Pack
The battery pack supplied with your computer is not fully charged at the time of delivery.
To charge the battery pack
1Install the battery pack.
2Connect the computer to a power source with the AC adapter.
The charge indicator light is on while the battery pack is charging. When the battery pack charges close to the maximum
charge level you selected, the charge indicator turns off.
!
Charge the battery pack as described in this manual from your first battery charge.
Charge indicator status Meaning
Lit in orange The battery pack is charging.
Blinks along with the green
power indicator
The battery pack is running out of power.
(Normal mode)
Blinks along with the orange
power indicator
The battery pack is running out of power.
(Sleep mode)
Blinks fast in orange A battery error has occurred due to a failed battery
pack or an unlocked battery pack.
26
nN
Getting Started >
Using the Battery Pack
Keep the battery pack in your computer while it is directly connected to an AC power source. The battery pack continues to charge while you are using
the computer.
When the battery pack is running out of power and both the charge and power indicator lights blink, you should either connect the AC adapter to
recharge the battery pack or shut down your computer and install a fully charged battery pack.
Your computer is supplied with a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack does not affect
the life of battery.
While some software applications or peripheral devices are in use, your computer may not enter Hibernate mode even when the remaining battery life
becomes short. To avoid loss of data while the computer is running on the battery, you should save your data frequently and manually activate a power
management mode, such as Sleep or Hibernate.
If the battery pack runs out of power while the computer is in Sleep mode, you will lose all unsaved data. Going back to the previous work state is
impossible. To avoid loss of data, you should save your data frequently.
27
nN
Getting Started >
Using the Battery Pack
Checking the Battery Charge Capacity
The battery charge capacity gradually decreases as the number of battery charging increases or the duration of use of the
battery pack extends. To get the most out of the battery pack, check the battery charge capacity and change the battery
settings.
To check the battery charge capacity
1Click Start, All Programs, and VAIO Control Center.
2Click Power Management and Battery.
Additionally, you can enable the battery care function to extend the life of the battery pack.
Extending the Battery Life
When your computer is running on battery power, you can extend the battery life using the following methods.
Decrease the LCD brightness of your computer screen.
Use the power saving mode. See Using the Power Saving Modes (page 29) for more information.
Change the power saving settings on the Power Options. See Using the VAIO Power Management (page 132) for more
information.
Set the wallpaper in Long Battery Life Wallpaper Setting as your desktop background with the VAIO Control Center.
28
nN
Getting Started >
Shutting Down Your Computer Safely
Shutting Down Your Computer Safely
To avoid losing unsaved data, be sure to shut down your computer properly, as described below.
To shut down your computer
1Turn off any peripherals connected to the computer.
2Click Start and the Shut down button.
3Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off
automatically.
The power indicator light turns off.
29
nN
Getting Started >
Using the Power Saving Modes
Using the Power Saving Modes
You can take advantage of the power management settings to conserve battery life. In addition to the normal operating mode,
your computer has two distinct power saving modes to suit your preference: Sleep and Hibernate.
!
If you do not intend to use your computer for an extended period of time while it is disconnected from an AC power source, place the computer into
Hibernate mode or turn it off.
If the battery pack runs out of power while your computer is in Sleep mode, you will lose all unsaved data. Going back to the previous work state is
impossible. To avoid loss of data, you should save your data frequently.
Mode Description
Normal mode This is the normal state of your computer while it is in use. The green power indicator light is lit while the
computer is in this mode.
Sleep mode Sleep mode turns off the LCD screen and places the built-in storage device(s) and the CPU into a low power
consumption mode. The orange power indicator light blinks slowly while your computer is in this mode. Your
computer comes out of Sleep mode quicker than out of Hibernate mode. However, Sleep mode uses more
power than Hibernate mode.
Hibernate mode While your computer is in Hibernate mode, the state of the system is saved on the built-in storage device(s) and
power is turned off. Even when the battery pack runs out of power, no data will be lost. The power indicator light
is unlit while your computer is in this mode.
30
nN
Getting Started >
Using the Power Saving Modes
Using Sleep Mode
To activate Sleep mode
Click Start, the arrow next to the Shut down button, and Sleep.
To return to Normal mode
Press any key.
Press the power button on your computer.
!
If you press and hold the power button for more than four seconds, your computer will turn off automatically. You will lose all unsaved data.
Using Hibernate Mode
To activate Hibernate mode
Press the Fn+F12 keys.
Alternatively, you can click Start, the arrow next to the Shut down button, and Hibernate.
!
Do not move your computer before its power indicator light turns off.
To return to Normal mode
Press the power button.
!
If you press and hold the power button for more than four seconds, your computer will turn off automatically.
31
nN
Getting Started >
Updating Your Computer
Updating Your Computer
Be sure to update your VAIO computer with the following software applications so that the computer can run more efficiently
and securely.
The VAIO Update automatically notifies you of new updates for enhancing your computer's performance available on the
Internet, and downloads and installs them on the computer.
Windows Update
Click Start, All Programs, and Windows Update and then follow the on-screen instructions.
VAIO Update 5
Click Start, All Programs, and VAIO Update 5 and then follow the on-screen instructions.
!
Your computer must be connected to the Internet to download the updates.
32
nN
Using Your VAIO Computer >
Using Your VAIO Computer
This section describes how to get the most out of using your VAIO computer.
Using the Keyboard (page 33)
Using the Touch Pad (page 36)
Using Special-function Buttons (page 37)
Using the Built-in Camera (page 38)
Using the Optical Disc Drive (page 39)
Using "Memory Stick" (page 46)
Using Other Modules / Memory Cards (page 53)
Using the Internet (page 61)
Using the Network (LAN) (page 62)
Using the Wireless LAN (page 63)
Using the Bluetooth Function (page 67)
Using Fingerprint Authentication (page 72)
Using the TPM (page 79)
33
nN
Using Your VAIO Computer >
Using the Keyboard
Using the Keyboard
Your keyboard has additional keys that perform model-specific tasks.
Combinations and Functions with the Fn Key
Some keyboard functions can be used only after the operating system is finished launching.
Combination/Feature Function
Fn + % (F2): muting Turns on and off the built-in speakers or the headphones.
Fn + 2 (F3/F4): volume control Changes the volume level.
To increase the volume, press the Fn+F4 keys and then the M or , key, or keep pressing the
Fn+F4 keys.
To decrease the volume, press the Fn+F3 keys and then the m or < key, or keep pressing the
Fn+F3 keys.
Fn + 8 (F5/F6): brightness control Changes the LCD brightness of your computer screen.
To increase lighting intensity, keep pressing the Fn+F6 keys or press the Fn+F6 keys and then
the M or , key.
To decrease lighting intensity, keep pressing the Fn+F5 keys or press the Fn+F5 keys and then
the m or < key.
Fn + /T (F7): display output Switches the display output between your computer screen, an external display, simultaneous
output to both, and multiple displays with both that function as a single desktop. Press the Enter
key to select the display output.
!
If you disconnect a display cable from your computer while an external display is selected as the display
output destination, the computer screen goes blank. In such a case, press the F7 key twice while holding
down the Fn key, and then press the Enter key to switch the display output to the computer screen.
Multiple displays may not be supported depending on the operating system on your computer.
34
nN
Using Your VAIO Computer >
Using the Keyboard
Fn + / (F9/F10): zooming Changes the size of an image or a document displayed on some software.
To make the view look smaller and further away (zoom out), press the Fn+F9 keys.
To make the view look bigger and closer (zoom in), press the Fn+F10 keys.
See the help file included with the VAIO Control Center for more information.
Fn + (F12): hibernation Provides the lowest level of power consumption. When you execute this command, the states
of the system and the connected peripheral devices are saved to the built-in storage device and
the system power is turned off. To return the system to its original state, use the power button
to turn on the power.
For details on power management, see Using the Power Saving Modes (page 29).
Combination/Feature Function
35
nN
Using Your VAIO Computer >
Using the Keyboard
Changing the Backlit Keyboard Settings
Some features and options may not be available on your computer.
If your computer is equipped with a backlit keyboard, you can set the keyboard light to automatically turn on and off according
to ambient light intensity.
Additionally, you can set a time period to turn off the keyboard backlight after inactivity of keyboard operations.
To change the backlit keyboard settings
1Click Start, All Programs, and VAIO Control Center.
2Click Keyboard and Mouse and Backlit KB.
Ambient light intensity is measured by the ambient light sensor. Blocking the ambient light sensor may turn on the keyboard backlight.
36
nN
Using Your VAIO Computer >
Using the Touch Pad
Using the Touch Pad
You can point to, select, drag, and scroll objects on the screen using the touch pad.
You can disable/enable the touch pad while a mouse is connected to your computer. To change the touch pad settings, use the VAIO Control Center.
!
Be sure to connect a mouse before disabling the touch pad. If you disable the touch pad before connecting a mouse, you will be able to use only the
keyboard for pointer operations.
Action Description
Point Slide your finger on the touch pad (1) to place the pointer (2) on an item or object.
Click Press the left button (3) once.
Double-click Press the left button twice in a row.
Right-click Press the right button (4) once. With many applications, this action displays a context-sensitive shortcut menu (if any).
Drag Slide your finger on the touch pad while pressing the left button.
Scroll Slide your finger along the right edge of the touch pad to scroll vertically. Slide your finger along the bottom edge to scroll
horizontally. Once vertical or horizontal scrolling is engaged, you can move your finger in circles on the touch pad to
keep scrolling without taking the finger off the touch pad (the scroll function is available only with applications that
support a touch pad scroll feature).
Flick Slide two fingers linearly in quick motion on the touch pad. On web browser software or image viewer software, you can
flick left to move backward and flick right to move forward.
Pinch With some software applications, you can pinch on the touch pad with two fingers for zooming. Pinch open to zoom in
or pinch close to zoom out.
37
nN
Using Your VAIO Computer >
Using Special-function Buttons
Using Special-function Buttons
Your computer is equipped with special buttons to help you use specific functions of the computer.
Special-function button Functions
ASSIST button
Launches the VAIO Care while the computer is in Normal mode or Sleep mode.
While the computer is off or in Hibernate mode, the ASSIST button launches the VAIO Recovery Center.
Window arrangement button By default, the window arrangement button shows all open windows by resizing the windows so that they all
fit on the desktop. To resume the previous window state, press this button once again.
You can change the default assignment with the VAIO Control Center.
VAIO button Launches the Media Gallery or turns the volume on and off, depending on your model.
Drive eject button Ejects the optical disc drive tray.
38
nN
Using Your VAIO Computer >
Using the Built-in Camera
Using the Built-in Camera
Your computer is equipped with a built-in MOTION EYE camera.
With the preinstalled image capture software, you can perform the following:
Capture still images and movies
Sense and capture object movements for monitoring purposes
Edit captured data
Turning on the computer activates the built-in camera.
Video conferences are possible with the appropriate software.
!
Launching or exiting your instant messaging or video editing software does not activate or deactivate the built-in camera.
Do not place your computer into Sleep or Hibernate mode while you are using the built-in camera.
To use the preinstalled image capture software
1Click Start, All Programs, ArcSoft WebCam Companion 3, and WebCam Companion 3.
2Click your desired icon in the main window.
For detailed information on how to use the software, see the help file included with the software.
When capturing an image or a movie in a dark place, click the Capture icon in the main window, and then click the WebCam Settings icon and select
the low light or low light compensation option in the properties window.
39
nN
Using Your VAIO Computer >
Using the Optical Disc Drive
Using the Optical Disc Drive
Your computer is equipped with a built-in optical disc drive.
Some features and options in this section may not be available on your computer.
See the specifications to find out about the configuration of your computer.
To insert a disc
1Turn on the computer.
2Press the drive eject button (1) to open the drive.
The drive tray slides out.
3Place a disc in the middle of the drive tray with the label side facing upward and gently push it down until the disc clicks
into place.
!
Do not exert pressure on the drive tray. Be sure to hold the bottom of the drive tray when placing/removing a disc onto/from the tray.
40
nN
Using Your VAIO Computer >
Using the Optical Disc Drive
4Close the drive tray by pushing it in gently.
!
Do not remove the optical disc while your computer is in a power saving mode (Sleep or Hibernate). Be sure to bring the computer back into Normal
mode before removing the disc.
41
nN
Using Your VAIO Computer >
Using the Optical Disc Drive
Supported Disc Media
Your computer plays and records CDs, DVDs, and Blu-ray Disc media, depending on the model you purchased.
See the reference chart below to find out which type of optical disc drive supports which types of media.
PR: playable and recordable
P: playable but not recordable
–: not playable or recordable
CD-
ROM
Video
CD
Music
CD
CD
Extra
CD-R/
RW
DVD-
ROM
DVD-
Video
DVD-R/
RW
DVD+R/
RW
DVD+R DL
(Double
Layer)
DVD-R DL
(Dual
Layer)
DVD-
RAM*1 *2
BD-
ROM
BD-R/RE*3
DVD±RW/
±R DL/RAM
PPPPPR*5 P P PR PR PR PR PR
Blu-ray Disc P P P P PR*5 P P PR PR PR PR PR P PR*4
Blu-ray Disc
Combo
PPPPPR*5 P P PR PR PR PR PR P P
*1 The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with a removable cartridge.
*2 Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported.
DVD-RAM Version 2.2/12X-SPEED DVD-RAM Revision 5.0 disc is not supported.
*3 The Blu-ray Disc drive on your computer does not support BD-RE Disc media in Version 1.0 format and Blu-ray Disc media with a cartridge.
*4 Supports writing data to BD-R Part1 Version 1.1/1.2/1.3 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB) and BD-
RE Part1 Version 2.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB).
*5 Writing data to Ultra Speed CD-RW discs is not supported.
42
nN
Using Your VAIO Computer >
Using the Optical Disc Drive
!
This unit is designed to playback discs that conform to the Compact Disc (CD) standard. DualDiscs and some music discs encoded with copyright
protection technologies do not conform to the Compact Disc (CD) standard. Therefore, these discs may not be compatible with this unit.
When you buy pre-recorded or blank discs for use with your VAIO computer, be sure to read the notices on the disc package carefully to check both
playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO optical disc drives
with discs that are not compliant with the official "CD," "DVD," or "Blu-ray Disc" standard. USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE
TO YOUR VAIO PC OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING.
For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.
8 cm disc writing is not supported.
!
To play copyright protected Blu-ray Disc media continually, update the AACS key. The AACS key update requires Internet access.
As with other optical media devices, circumstances may limit compatibility or prevent Blu-ray Disc media playback. VAIO computers may not support
movie playback on packaged media recorded in AVC or VC1 formats at high bit rates.
Region settings are required for some contents of DVD and BD-ROM Disc media. If the region setting on the optical disc drive does not match the
region coding on the disc, playback is not possible.
Unless your external display is compliant with the High-bandwidth Digital Content Protection (HDCP) standard, you cannot play or view the contents
of copyright protected Blu-ray Disc media.
Some content may restrict video output to standard definition or prohibit analog video output. When you output video signals through digital
connections, such as an HDMI connection or a DVI connection, it is strongly recommended that a digital HDCP compliant environment be implemented
for optimum compatibility and viewing quality.
Exit all memory-resident utility software before playing or writing a disc as it may cause the computer to malfunction.
43
nN
Using Your VAIO Computer >
Using the Optical Disc Drive
Notes on Using the Optical Disc Drive
Notes on writing data to a disc
Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc
drive.
Do not strike or shake your computer while the optical disc drive is writing data to a disc.
Do not plug or unplug the power cord or the AC adapter while the optical disc drive is writing data to a disc.
Do not attach or disconnect your computer to or from the port replicator (optional) while the optical disc drive is writing
data to a disc.
Notes on playing discs
To achieve optimum performance of disc playback, you should follow these recommendations:
Some CD players and computer optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW
media.
Some DVD players and computer optical disc drives may not be able to play DVDs created with the DVD+R DL, DVD-R
DL, DVD+R, DVD+RW, DVD-R, DVD-RW, or DVD-RAM media.
You may not be able to play some Blu-ray Disc content on your computer, or the computer may become unstable during
Blu-ray Disc playback. To play content normally, download and install the latest updates for the WinDVD BD using the
VAIO Update.
For information on how to use the VAIO Update, see Updating Your Computer (page 31).
Video playback may be interrupted, depending on the type or bit rate of the video.
Depending on system environment, you may find sound interruptions and/or dropped frames during AVC HD playback.
Do not place your computer into either of the power saving modes while your computer is playing a disc.
44
nN
Using Your VAIO Computer >
Using the Optical Disc Drive
Notes on region codes
Region code indicators are labeled on the discs or packages to indicate in which region and on what type of player you can
play the disc. If the region code indicates "all," you can play this disc in most regions of the world. If the region code for your
residence area is different from the label, you cannot play the disc on your computer.
45
nN
Using Your VAIO Computer >
Using the Optical Disc Drive
Playing Discs
To play a disc
1Insert a disc into the optical disc drive.
!
Connect the AC adapter to the computer and close all running software applications before playing a disc.
2If nothing appears on the desktop, click Start, All Programs, and your desired software to play the disc.
For instructions on how to use the software, see the help file included with the software.
Copying Files to Discs
To copy files to a disc
1Insert a recordable disc into the optical disc drive.
!
Connect the AC adapter to the computer and close all running software applications before copying files to a disc.
2If nothing appears on the desktop, click Start, All Programs, and your desired disc burning software to copy files to the
disc.
For instructions on how to use the software, see the help file included with the software.
46
nN
Using Your VAIO Computer >
Using "Memory Stick"
Using "Memory Stick"
"Memory Stick" is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing
digital data with compatible products, such as digital cameras, mobile phones, and other devices. Because it is removable,
it can be used for external data storage.
Before You Use "Memory Stick"
The "Memory Stick Duo" slot on your computer can accommodate the following sizes and types of media:
"Memory Stick Duo"
"Memory Stick PRO Duo"
"Memory Stick PRO-HG Duo"
!
Your computer supports only Duo-size "Memory stick", and does not support standard-size "Memory Stick".
For the latest information about "Memory Stick", visit [memorystick.com] at http://www.memorystick.com/en/.
47
nN
Using Your VAIO Computer >
Using "Memory Stick"
Inserting and Removing "Memory Stick"
To insert "Memory Stick"
1Locate the "Memory Stick Duo" slot.
2Hold "Memory Stick" with the arrow facing upward and pointing toward the slot.
3Carefully slide "Memory Stick" into the slot until it clicks into place.
Do not force the media into the slot.
If "Memory Stick" does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.
"Memory Stick" is automatically detected by your system and the contents of "Memory Stick" are displayed. If nothing appears on the desktop, click
Start, Computer, and double-click the "Memory Stick" icon.
The "Memory Stick" icon will appear in the Computer window after you insert "Memory Stick" into the slot.
48
nN
Using Your VAIO Computer >
Using "Memory Stick"
!
Before using "Memory Stick Micro" ("M2"), be sure to insert it into an "M2" Duo adaptor. If you insert the media directly into the "Memory Stick Duo"
slot without the adaptor, you may not be able to remove it from the slot.
49
nN
Using Your VAIO Computer >
Using "Memory Stick"
To remove "Memory Stick"
!
Do not remove "Memory Stick" while the Media Access indicator light is lit. If you do, you may lose data. Large volumes of data may take time to load,
so make sure the indicator light is unlit before removing "Memory Stick".
1Locate the "Memory Stick Duo" slot.
2Check that the Media Access indicator light is unlit.
3Push in "Memory Stick" toward the computer and release.
"Memory Stick" ejects.
4Pull "Memory Stick" out of the slot.
!
Be sure to remove "Memory Stick" gently, or it may pop out unexpectedly.
50
nN
Using Your VAIO Computer >
Using "Memory Stick"
Formatting "Memory Stick"
To format "Memory Stick"
"Memory Stick" is formatted by default and is ready for use.
If you want to reformat the media with your computer, follow these steps.
!
Be sure to use the device that is designed to format the media and supports "Memory Stick" when formatting the media.
Formatting "Memory Stick" erases the entire data stored on the media. Before formatting the media, make sure that it does not contain your valuable
data.
Do not remove "Memory Stick" from the slot while formatting. This could cause a malfunction.
1Locate the "Memory Stick Duo" slot.
2Carefully slide "Memory Stick" into the slot until it clicks into place.
3Click Start and Computer.
4Right-click the "Memory Stick" icon and select Format.
5Click Restore device defaults.
!
The size of the allocation unit and file system may change.
Do not select NTFS from the File system drop-down list as it may cause a malfunction.
The formatting process will be completed more quickly if you select Quick Format in Format options.
51
nN
Using Your VAIO Computer >
Using "Memory Stick"
6Click Start.
7Follow the on-screen instructions.
!
It may take time to format "Memory Stick" depending on the media type.
52
nN
Using Your VAIO Computer >
Using "Memory Stick"
Notes on Using "Memory Stick"
Your computer has been tested and found compatible with Sony branded "Memory Stick" with capacity of up to 32 GB
that are available as of September 2009. However, not all "Memory Stick" are guaranteed of compatibility.
Be sure to hold "Memory Stick" with the arrow pointing in the correct direction as you insert it into the slot. To avoid
damaging your computer or the media, do not force "Memory Stick" into the slot if you cannot insert it smoothly.
Use care when inserting or removing "Memory Stick" from the slot. Do not force it in or out of the slot.
Inserting "Memory Stick" with multiple conversion adaptors is not guaranteed of compatibility.
"MagicGate" is the general name of the copyright protection technology developed by Sony. Use "Memory Stick" with the
"MagicGate" logo to take advantage of this technology.
Except for your personal use, it is against the copyright law to use any audio and/or image data you recorded without prior
consent from the respective copyright holders. Accordingly, "Memory Stick" with such copyrighted data can be used only
within the law.
Do not insert more than one "Memory Stick" into the slot. Improper insertion of the media may damage both your
computer and the media.
53
nN
Using Your VAIO Computer >
Using Other Modules / Memory Cards
Using Other Modules / Memory Cards
Using the ExpressCard Module
Your computer is equipped with an ExpressCard/34 slot* for transferring data among digital cameras, camcorders, music
players, and other audio/video devices. This slot can only accommodate an ExpressCard/34 (34 mm wide) module*.
* Referred to as the ExpressCard slot and the ExpressCard module in this manual.
54
nN
Using Your VAIO Computer >
Using Other Modules / Memory Cards
To insert an ExpressCard module
!
Your computer is supplied with a slot protector in the ExpressCard slot. Remove the slot protector before you use the slot.
1Locate the ExpressCard slot.
2Push the ExpressCard slot protector so that the protector pops out.
3Gently take hold of the ExpressCard slot protector and pull it out of the slot.
4Hold the ExpressCard module with the arrow facing upward and pointing toward the slot.
5Carefully slide the ExpressCard module into the slot until it clicks into place.
Do not force it into the slot.
55
nN
Using Your VAIO Computer >
Using Other Modules / Memory Cards
If the module does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.
Make sure you use the most recent driver software provided by the ExpressCard module manufacturer.
56
nN
Using Your VAIO Computer >
Using Other Modules / Memory Cards
To remove an ExpressCard module
!
Insert the ExpressCard slot protector to block any particles from entering the slot when not using an ExpressCard module. Before moving your
computer, be sure to insert the ExpressCard slot protector into the slot.
You can skip steps 1 to 4 when:
- your computer is off.
- the Safely Remove Hardware and Eject Media icon is not displayed on the taskbar.
- the hardware you want to unplug is not displayed in the Safely Remove Hardware and Eject Media window.
1Locate the ExpressCard slot.
2Click the Safely Remove Hardware and Eject Media icon on the taskbar.
3Select the hardware you want to unplug.
4Follow the on-screen instructions for removing the ExpressCard module.
5Push in the ExpressCard module toward the computer so that the module pops out.
6Gently take hold of the ExpressCard module and pull it out of the slot.
57
nN
Using Your VAIO Computer >
Using Other Modules / Memory Cards
Using the SD Memory Card
Your computer is equipped with an SD memory card slot. You can use this slot to transfer data among digital cameras,
camcorders, music players, and other audio/video devices.
Before you use the SD memory card
The SD memory card slot on your computer can accommodate the following memory cards:
SD memory card
SDHC memory card
For the latest information on compatible memory cards, see Finding More about Your VAIO Computer (page 5) to visit the
appropriate support web site.
58
nN
Using Your VAIO Computer >
Using Other Modules / Memory Cards
To insert an SD memory card

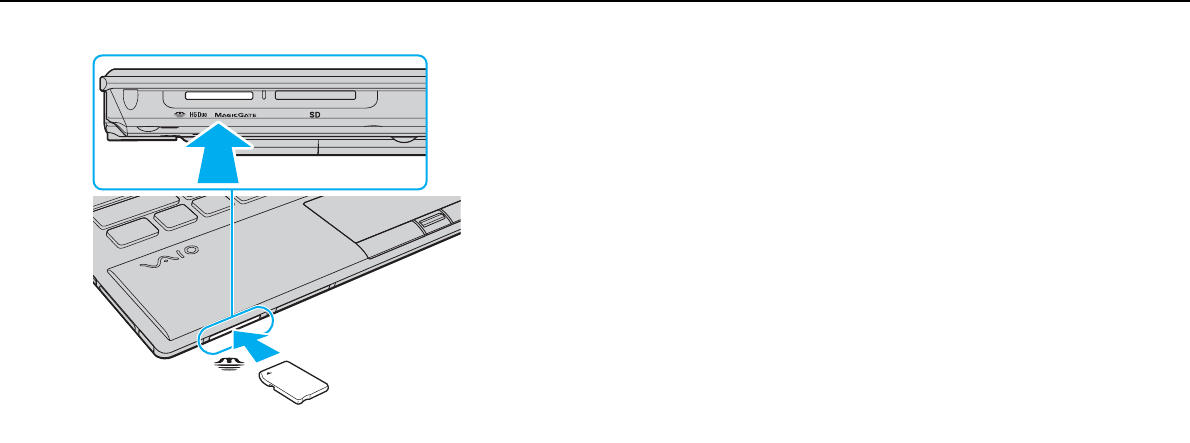

1Locate the SD memory card slot.
2Hold the SD memory card with the arrow facing upward and pointing toward the slot.
3Carefully slide the SD memory card into the slot until it clicks into place.
Do not force the card into the slot.
The SD memory card icon will appear in the Computer window after you insert the card into the slot.
59
nN
Using Your VAIO Computer >
Using Other Modules / Memory Cards
To remove an SD memory card
1Locate the SD memory card slot.
2Check that the Media Access indicator light is unlit.
3Push in the SD memory card toward the computer and release.
The SD memory card ejects.
4Pull the SD memory card out of the slot.
60
nN
Using Your VAIO Computer >
Using Other Modules / Memory Cards
Notes on Using Memory Cards
General notes on using the memory card
Be sure to use memory cards that are compliant with the standards supported by your computer.
Be sure to hold the memory card with the arrow pointing in the correct direction as you insert it into the slot. To avoid
damaging your computer or the media, do not force the memory card into the slot if you cannot insert it smoothly.
Use care when inserting or removing the memory card from the slot. Do not force it in or out of the slot.
Do not remove the memory card while the media access indicator light is lit. If you do, you may lose data.
Do not attempt to insert a memory card or memory card adaptor of a different type into the memory card slot. An
incompatible memory card or memory card adaptor may cause difficulty in removing from the slot and can cause damage
to your computer.
Notes on using the SD memory card
Your computer has been tested and found compatible only with major memory cards available as of September 2009.
However, not all memory cards are guaranteed of compatibility.
SD memory cards with capacity of up to 2 GB and SDHC memory cards with capacity of up to 32 GB have been tested
and found compatible with your computer.
61
nN
Using Your VAIO Computer >
Using the Internet
Using the Internet
Before using the Internet, you need to sign up with an Internet Service Provider (ISP) and set up devices required for
connecting your computer to the Internet.
The following types of Internet connection services may be available from your ISP:
Fiber to the Home (FTTH)
Digital Subscriber Line (DSL)
Cable modem
Satellite
Dial-up
For detailed information on devices required for Internet access and how to connect your computer to the Internet, ask your
ISP.
To connect your computer to the Internet using the wireless LAN function, you need to set up the wireless LAN network. See Using the Wireless LAN
(page 63) for more information.
!
When you connect your computer to the Internet, be sure to take appropriate security measures to protect the computer against online threats.
Depending on the service contract with your ISP, you may need to connect an external modem device, for example a USB telephone modem, a DSL
modem, or a cable modem, to your computer to connect to the Internet. For detailed instructions on connection setups and modem configuration, see
the manual that came with your modem.
62
nN
Using Your VAIO Computer >
Using the Network (LAN)
Using the Network (LAN)
You can connect your computer to 1000BASE-T/100BASE-TX/10BASE-T type networks with a LAN cable. Connect one end
of a LAN cable (not supplied) to the network (LAN) port on the computer or the optional port replicator and the other end to
your network. For detailed settings and devices required for LAN access, ask your network administrator.
!
The network (LAN) port on your computer is not accessible when the computer is attached to the optional port replicator.
You can connect your computer to any network without changing the default settings.
!
Do not plug a telephone cable into the network (LAN) port on your computer.
If the network (LAN) port is connected to one of the telephone lines mentioned below, high electric current to the port may cause damage, overheating,
or fire.
- Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone)
- Public telephone subscriber line
- Private branch exchange (PBX)
63
nN
Using Your VAIO Computer >
Using the Wireless LAN
Using the Wireless LAN
The Wireless LAN (WLAN) allows your computer to connect to a network through a wireless connection.
The WLAN uses the following IEEE 802.11a/b/g/n standard, which specifies the type of technology used.
See the specifications to find out about the configuration of your computer.
WLAN standard Frequency band Remarks
IEEE 802.11a 5 GHz -
IEEE 802.11b/g 2.4 GHz The IEEE 802.11g standard provides higher-speed communications than the IEEE 802.11b
standard.
IEEE 802.11n 5 GHz/2.4 GHz On models compliant with the IEEE 802.11b/g/n standard, only the 2.4 GHz band can be used.
64
nN
Using Your VAIO Computer >
Using the Wireless LAN
Notes on Using the Wireless LAN Function
General notes on using the wireless LAN function
In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels).
Before activating the WLAN function, read the Safety Information carefully.
The IEEE 802.11a standard and the IEEE 802.11n standard are not available on ad-hoc networks.
The 2.4 GHz band used by wireless LAN compatible devices is also used by other various devices. Although technologies
to minimize interference from other devices that use the same band are employed on wireless LAN compatible devices,
such interference may cause lower communication speed, narrower communication range, or broken wireless
connections.
The communication speed and range may vary depending on the following conditions:
Distance between communication devices
Existence of obstacles between devices
Device configuration
Radio conditions
Ambient environment that includes existence of walls and materials of such walls
Software in use
Communications may be cut off depending on radio conditions.
Actual communication speed may not be as fast as the one displayed on your computer.
Deploying WLAN products compliant with different standards that use the same band on the same wireless network may
reduce the communication speed due to radio interference. Taking this into consideration, WLAN products are designed
to reduce the communication speed to ensure communications with another WLAN product if it is compliant with a
different standard that uses the same band. When the communication speed is not as fast as expected, changing the
wireless channel on the access point may increase the communication speed.
65
nN
Using Your VAIO Computer >
Using the Wireless LAN
Note on the data encryption
The WLAN standard includes the encryption methods: Wired Equivalent Privacy (WEP), which is a security protocol, Wi-Fi
Protected Access 2 (WPA2), and Wi-Fi Protected Access (WPA). Proposed jointly by the IEEE and Wi-Fi Alliance, both WPA2
and WPA are specifications of standards based on interoperable security enhancements that increase the level of data
protection and access control for existing Wi-Fi networks. WPA is designed to be forward compatible with the IEEE 802.11i
specification. It utilizes the enhanced data encryption Temporal Key Integrity Protocol (TKIP) in addition to user authentication
using 802.1X and Extensible Authentication Protocol (EAP). Data encryption protects the vulnerable wireless link between
clients and access points. Besides that, there are other typical LAN security mechanisms to ensure privacy, such as:
password protection, end-to-end encryption, virtual private networks, and authentication. WPA2, the second generation of
WPA, provides stronger data protection and network access control and is also designed to secure all versions of 802.11
devices, including 802.11b, 802.11a, 802.11g, and 802.11n standards, multi-band and multi-mode. In addition, based on the
ratified IEEE 802.11i standard, WPA2 provides government grade security by implementing the National Institute of
Standards and Technology (NIST) FIPS 140-2 compliant AES encryption algorithm and 802.1X-based authentication. WPA2
is backward compatible with WPA.
66
nN
Using Your VAIO Computer >
Using the Wireless LAN
Using the Wireless LAN Function
!
Be sure to turn on the WIRELESS switch before starting the wireless LAN function.
To use the wireless LAN function, you first need to set up the wireless LAN function.
Use the SmartWi Connection Utility to set up the wireless LAN function. See the SmartWi Connection Utility Help for
more information.
To access this on-screen guide:
1Click Start, All Programs, and SmartWi Connection Utility.
2Click SmartWi Connection Utility Help.
67
nN
Using Your VAIO Computer >
Using the Bluetooth Function
Using the Bluetooth Function
You can establish wireless communications between your computer and other Bluetooth devices such as another computer
or a mobile phone. You can transfer data between these devices without cables at a range of up to 33 feet / 10 meters in an
open area.
To use the Bluetooth function
!
Be sure to turn on the WIRELESS switch before starting the Bluetooth function.
To use the Bluetooth function, you first need to set up the Bluetooth function.
Use the SmartWi Connection Utility to set up the Bluetooth function. See the SmartWi Connection Utility Help for more
information.
To access this on-screen guide:
1Click Start, All Programs, and SmartWi Connection Utility.
2Click SmartWi Connection Utility Help.
68
nN
Using Your VAIO Computer >
Using the Bluetooth Function
Bluetooth Security
The Bluetooth wireless technology has an authentication function, which allows you to determine with whom you choose to
communicate. With the authentication function, you can prevent any anonymous Bluetooth devices from accessing your
computer.
The first time two Bluetooth devices communicate, a common passkey (a password required for authentication) should be
determined for both devices to be registered. Once a device is registered, there is no need to re-enter the passkey.
The passkey can be different each time, but must be the same at both ends.
For certain devices, such as a mouse, no passkey can be entered.
69
nN
Using Your VAIO Computer >
Using the Bluetooth Function
Communicating with Another Bluetooth Device
You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a
mouse, or a digital camera without the use of any cables.
To communicate with another Bluetooth device
To communicate with another Bluetooth device, you first need to set up the Bluetooth function. For setting up and using the
Bluetooth function, search Windows Help and Support for Bluetooth information.
!
Be sure to turn on the WIRELESS switch before starting the Bluetooth function.
70
nN
Using Your VAIO Computer >
Using the Bluetooth Function
Notes on Using the Bluetooth Function
The data transfer rate varies, depending on the following conditions:
Obstacles, such as walls, located between devices
Distance between devices
Material used in walls
Proximity to microwaves and cordless telephones
Radio frequency interference and other environmental conditions
Device configuration
Type of software application
Type of operating system
Use of both wireless LAN and Bluetooth functions at the same time on your computer
Size of file being exchanged
Large files may occasionally be corrupted during continuous transfer due to limitations of the Bluetooth standard and
electromagnetic interference in the environment.
All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if
standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may
not be possible in all situations.
Video and audio may not be synchronized if you play videos on your computer with audio output from a connected
Bluetooth device. This is a frequent occurrence with Bluetooth technology and is not a malfunction.
The 2.4 GHz band, with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth
devices use the technology to minimize the interference from other devices that use the same wave length. Simultaneous
use of the Bluetooth function and wireless communication devices, however, may cause radio interference and result in
reduced communication speeds and distances than the standard values.
71
nN
Using Your VAIO Computer >
Using the Bluetooth Function
The Bluetooth function may not work with other devices, depending on the manufacturer or the software version employed
by the manufacturer.
Connecting multiple Bluetooth devices to your computer may cause channel congestion, resulting in poor performance
of the devices. This is normal with Bluetooth technology and is not a malfunction.
72
nN
Using Your VAIO Computer >
Using Fingerprint Authentication
Using Fingerprint Authentication
Your computer is equipped with a fingerprint sensor to provide you with additional convenience.
Once you have registered your fingerprint(s), the fingerprint authentication function offers:
A substitute for password entry
Logging onto Windows (page 77)
If you have registered your fingerprints for your user account, you can substitute fingerprint authentication for
password entry when logging onto Windows.
Power-on Security feature (page 77)
If you have set the power-on password (page 124), you can substitute fingerprint authentication for password entry
when starting your computer.
Password Bank for quick web site access
Once you have registered your user information (user accounts, passwords, etc.) for web sites in the Password Bank,
you can substitute fingerprint authentication for entering information required to access the password-protected web sites.
For detailed information, see the help file included with the Protector Suite.
!
You may not be able to use the Password Bank feature depending on the web site you access.
Archive encryption
File Safe feature to encrypt/decrypt data
With the File Safe feature, you can create an encrypted archive to include a file and/or folder for protection against
unauthorized access. The encrypted archive can be decrypted or unlocked for included file/folder access by swiping
your finger across the fingerprint sensor or entering the backup password you specified for encryption.
Personal Safe feature
With the Personal Safe feature, you can encrypt contents of any protected folder on the desktop or the built-in storage
device. The encrypted folder will be hidden from other users sharing your computer.
73
nN
Using Your VAIO Computer >
Using Fingerprint Authentication
Application launcher function for quick application access
The application launcher feature is available on your computer for launching your preferred application (executable file)
that is assigned to one of your fingers with a registered fingerprint. Once you have assigned an application to your finger,
you can launch the assigned application simply by swiping the finger across the fingerprint sensor.
Strong Password Generator function
The Strong Password Generator function allows you to enhance computer security by generating a strong password
resistant to dictionary attacks. The generated password can be registered in the Password Bank.
74
nN
Using Your VAIO Computer >
Using Fingerprint Authentication
Registering a Fingerprint
To use the fingerprint authentication function, you must register your fingerprint(s) in your computer.
Set the Windows password on your computer before registration. See Setting the Windows Password (page 128) for the detailed instructions.
To register a fingerprint
1Click Start, All Programs, Protector Suite, and Control Center.
2Read an end user license agreement thoroughly and click Accept.
3Follow the on-screen instructions.
For detailed information, see the help file.
75
nN
Using Your VAIO Computer >
Using Fingerprint Authentication
If you have failed to register a fingerprint, follow these steps to try again.

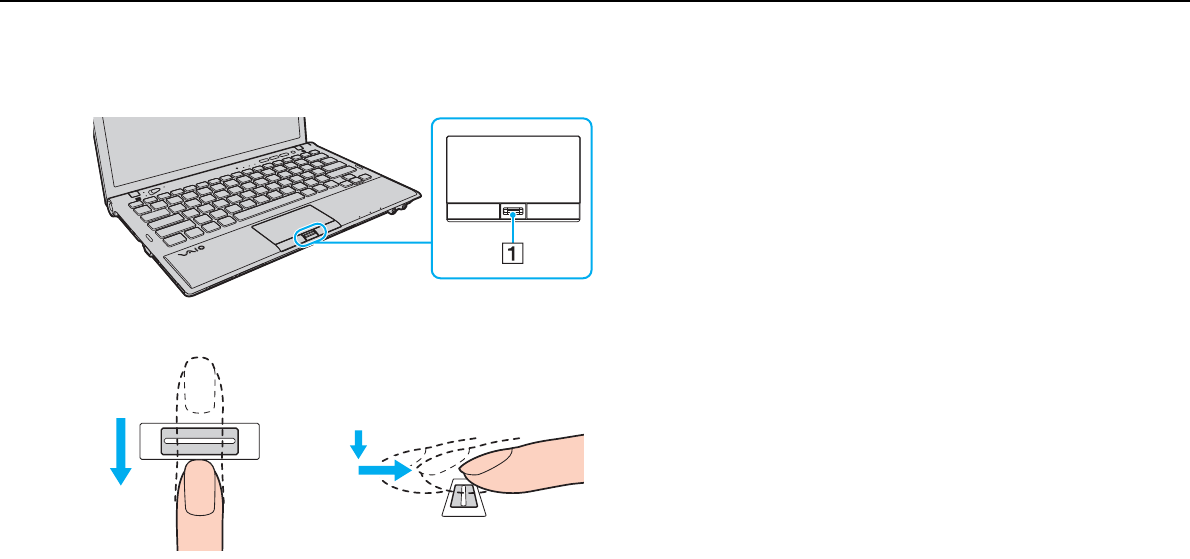

1Place the top joint of your finger on the fingerprint sensor (1).
2Swipe your finger perpendicularly across the fingerprint sensor.
76
nN
Using Your VAIO Computer >
Using Fingerprint Authentication
!
Place your fingertip flat in the center of the fingerprint sensor.
Scan your fingerprint from the top joint of the finger to the fingertip.
Keep your finger in contact with the fingerprint sensor while swiping.
Fingerprint registration may fail if you move your finger too quickly or too slowly. Let the fingerprint sensor take about one second to scan your
fingerprint.
You may not be able to register and/or have your fingerprint(s) recognized if your finger is too dry or wet, wrinkled, injured, dirty, etc.
Register more than one fingerprint in case that the fingerprint sensor fails to recognize the fingerprint.
Be sure to clean your fingertip(s) and the fingerprint sensor before swiping in order to keep good recognition performance.
You can register only the limited number of fingerprints for logging onto your system using the Power-on Security feature (page 77). The maximum
number of fingerprints you can register varies depending on the data amount of each fingerprint.
You can also select the fingerprint you want to use for the Power-on Security feature later.
77
nN
Using Your VAIO Computer >
Using Fingerprint Authentication
Logging Onto Your System
To use the fingerprint authentication function in place of a password entry to log onto your system, you need to set the power-
on and Windows passwords and configure your computer for fingerprint authentication.
For setting the power-on and Windows passwords, see Setting the Password (page 123).
For detailed information, see the help file included with the Protector Suite.
Logging onto Windows
If you have registered your fingerprints for your user account, you can substitute fingerprint authentication for Windows
password entry. To log onto Windows, swipe the registered finger across the fingerprint sensor when the Windows log-on
screen appears.
Power-on Security feature
If you have set the power-on password (page 124), you can substitute fingerprint authentication for password entry when
starting your computer.
78
nN
Using Your VAIO Computer >
Using Fingerprint Authentication
Erasing the Registered Fingerprints
Before disposing of your computer or transferring it to a third person, it is strongly recommended you erase the fingerprint
data registered on the fingerprint sensor after erasing the data stored on your built-in storage device.
To erase the registered fingerprints
1Turn on the computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If the screen does not appear, restart the computer and press the F2 key several times
when the VAIO logo appears.
3Press the < or , key to select Security to display the Security tab.
4Press the m key to select Clear Fingerprint Data and press the Enter key.
5At the confirmation prompt, select Continue and press the Enter key.
The fingerprint data registered on the fingerprint sensor is erased automatically after your system restarts.
79
nN
Using Your VAIO Computer >
Using the TPM
Using the TPM
The Trusted Platform Module (TPM) may be embedded in your computer to provide basic security functions. In combination
with the TPM, you can encrypt and decrypt your data to strengthen computer security against inappropriate access.
Some features and options in this section may not be available on your computer.
See the specifications to find out about the configuration of your computer.
TPMs are defined by Trusted Computing Group (TCG) and also called security chips.
80
nN
Using Your VAIO Computer >
Using the TPM
Important Notice
Notes on encrypting the operating system or program files
Encrypting files used by your operating system or any software application, using the Encrypting File System (EFS) with the
TPM, will disable you to launch or operate such software.
To avoid such problems, observe the following before using the EFS:
Be sure to save data you want to encrypt to the following destinations:
The Encrypted Data folder created with the default settings in the user initialization process
A new encrypted folder created in the My Documents folder or the Documents folder on your account
The Personal Secure Drive
The Personal Secure Drive is a virtual drive that is created by using the Personal Secure Drive feature and automatically encrypts data that is saved to it.
Do not change the following settings on the View tab in the Folder Options window displayed by clicking Folder and
search options from Organize in the menu of Windows Explorer.
Don't show hidden files, folders, or drives
Hide protected operating system files (Recommended)
Do not change the system attributes of the files, unless necessary.
Do not encrypt the Windows folder, the Program Files folder, and all files in each folder.
Do not encrypt the Users folder and all account folders in it.
81
nN
Using Your VAIO Computer >
Using the TPM
Notes on encrypting key files or files on the Personal Secure Drive
Encrypting files created in the following folders when your user account is initialized and the EFS is enabled will disable you
to launch your TPM software and decrypt the encrypted data.
With the default settings, the files in the folders below cannot be encrypted because they have system attributes.
Do not change the system attributes of the files in the folders below.
!
The following folders are hidden by default.
Folders containing key files
C:\ProgramData\Infineon
C:\Users\All Users\Infineon
(C:\Users\All Users is a shortcut to C:\ProgramData.)
C:\Users\<account>\AppData\Roaming\Infineon
Files on the Personal Secure Drive
C:\Security Platform\Personal Secure Drive\System Data\xxx.FSF
82
nN
Using Your VAIO Computer >
Using the TPM
Notes on encrypting backup files or other files
Encrypting backup archive files or emergency recovery token files will disable you to recover your computer system for
emergency, and encrypting password reset token files or secret files will disable you to reset the password.
Do not encrypt the following files or folders:
The default path for files below or displayed by clicking Browse is My Documents (or Documents)\Security Platform or Security Platform in removal
media.
Automatic backup archive file
Default file name: SPSystemBackup.xml or SPSystemBackup_<your computer name>.xml
Storage folder for automatic backup archive files
Folder name (Fixed):
SPSystemBackup (The folder is created as the subfolder for the SPSystemBackup.xml file.)
SPSystemBackup_<your computer name> (The folder is created as the subfolder for SPSystemBackup_<your
computer name>.xml file.)
Emergency recovery token file
Default file name: SPEmRecToken.xml
Password reset token file
Default file name: SPPwResetToken.xml
Token file for emergency recovery/password reset
Default file name: SPToken_<your computer name>.xml
Password reset secret file
Default file name: SPPwdResetSecret.xml or SPPwdResetSecret_<your computer name>_<user name>.<domain
name>.xml
83
nN
Using Your VAIO Computer >
Using the TPM
Key and certificate backup file
Default file name: SpBackupArchive.xml
PSD backup file
Default file name: <Drive name>-Personal Secure Drive.fsb
Owner password backup file
Default file name: SpOwner_<your computer name>.tpm
Protocol file
Default file name: SpProtocol_<your computer name>_<user name>.<domain name>.txt
84
nN
Using Your VAIO Computer >
Using the TPM
Configuring the TPM
To use the embedded TPM, you need to:
1Enable the TPM in the BIOS setup screen.
2Install the Infineon TPM Professional Package.
3Initialize and configure the TPM.
To enable the TPM in the BIOS setup screen
1Turn on your computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If the screen does not appear, restart the computer and press the F2 key several times
when the VAIO logo appears.
3Press the < or , key to select the Security tab, the M or m key to select Change TPM State, and then the Enter key.
4Press the M or m key to select Enable and then the Enter key.
5Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
6After your system restarts, select Execute in the confirmation window and then press the Enter key.
You can also disable the TPM and clear the TPM configuration in the BIOS setup screen.
!
Before enabling the TPM, be sure to set the power-on password to protect against unauthorized modification of the TPM configuration.
If the TPM is enabled, it will take longer before the VAIO logo appears due to security checks at computer startup.
You will not be able to access any TPM-protected data if you clear the TPM ownership. Before clearing the TPM configuration, be sure to make backup
copies of the TPM-protected data.
85
nN
Using Your VAIO Computer >
Using the TPM
To install the Infineon TPM Professional Package
Read the Readme.txt in the C:\Infineon\Readme folder. Then, double-click setup.exe in the C:\Infineon folder to install the
package.
To install this package, you must have administrative rights on the computer.
!
You need to set a few passwords while installing the Infineon TPM Professional Package. Without these passwords, you will not be able to restore
any TPM-protected data or backup files. Be sure to write down the passwords and keep them safe and private from other people.
To initialize and configure the TPM
See the on-screen documentation for detailed information. To open the documentation, click Start, All Programs, Infineon
Security Platform Solution, and Help.
!
The maintenance and management of TPM-protected data must be carried out at your own risk. Sony assumes no liability for any defects arising out
of your data maintenance and management.
86
nN
Using Your VAIO Computer >
Using the TPM
Using BitLocker Drive Encryption with the TPM
BitLocker Drive Encryption is a data encryption feature that is available on models with Windows 7 Ultimate. Enabling
BitLocker Drive Encryption in conjunction with the TPM encrypts all data on the built-in storage device.
For detailed information on how to use and configure BitLocker Drive Encryption, see Windows Help and Support.
See the specifications to find out about the configuration of your computer.
Notes on using BitLocker Drive Encryption
Be sure to initialize the TPM with the Infineon TPM Professional Package before enabling BitLocker Drive Encryption.
If you enable it without initializing the TPM, a TPM owner password is not generated, so you will not be able to configure
the Infineon TPM Professional Package.
The Infineon TPM Professional Package does not make a backup copy of a file (recovery password) for BitLocker
Drive Encryption.
An additional BitLocker system partition has been pre-configured. This system partition uses 100 MB of your total built-
in storage device volume.
You must enable the TPM in the BIOS setup screen in order to turn on BitLocker Drive Encryption.
Do not encrypt data on a storage device (such as a USB flash memory device) on which a recovery key is stored using
BitLocker Drive Encryption.
87
nN
Using Your VAIO Computer >
Using the TPM
To unlock the encrypted data with a recovery key stored on a USB flash memory device
To unlock the encrypted data with a recovery key stored on a USB flash memory device, your system needs to access the
USB flash memory device when you boot the computer. Follow these steps to configure the boot order in the BIOS setup
screen:
1Turn on your computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If the screen does not appear, restart the computer and press the F2 key several times
when the VAIO logo appears.
3Press the < or , key to select the Security tab, the M or m key to select Change TPM State, and then the Enter key.
4Press the M or m key to select Enable and then the Enter key.
5Press the < or , key to select Boot and then select Enabled for External Device Boot.
6Press the M or m key to select Boot Priority and then the Enter key.
7Press the F5 or F6 key to change the boot device order so that Internal Hard Disk is listed higher than External Device.
!
You need to move Internal Optical Drive to the top of the list to recover the computer system using your recovery discs.
8Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
9After your system restarts, select Execute in the confirmation window and then press the Enter key.
10 Follow the instructions in Windows Help and Support to enable BitLocker Drive Encryption.
11 Save the recovery password to the USB flash memory device in the window for saving the recovery password.
12 Follow the on-screen instructions.
The encryption process will start.
88
nN
Using Your VAIO Computer >
Using the TPM
!
Updating your BIOS with updating software, such as the VAIO Update, changes the BIOS settings back to the default. You need to repeat the steps
above again.
It takes several hours to complete the encryption process.
89
nN
Using Peripheral Devices >
Using Peripheral Devices
You can add functionality to your VAIO computer by using the various ports on the computer.
Using the Noise Canceling Headphones (page 90)
Connecting a Port Replicator (page 97)
Connecting External Speakers or Headphones (page 105)
Connecting an External Display (page 106)
Selecting Display Modes (page 113)
Using the Multiple Monitors Function (page 114)
Connecting an External Microphone (page 116)
Connecting a USB Device (page 117)
90
nN
Using Peripheral Devices >
Using the Noise Canceling Headphones
Using the Noise Canceling Headphones
A pair of noise canceling headphones is supplied with your computer.
The noise canceling headphones are equipped with a built-in microphone that picks up ambient noises and outputs an
antiphase sound to reduce the noises.
91
nN
Using Peripheral Devices >
Using the Noise Canceling Headphones
Before You Use the Noise Canceling Headphones
You can enable the noise canceling function only when the supplied noise canceling headphones are connected to the
headphones jack that supports this function.
The noise canceling function does not work on sound output with the following devices:
External speakers
Headphones without the noise canceling function
Sound output devices connected to your computer via a Bluetooth connection
The noise canceling function cannot be fully in effect unless you properly wear the headphones. Be sure to fit earpieces
of the headphones tightly into your ears.
If you feel that the noise canceling function has little effect, adjust the earbud position in the earpieces of the noise
canceling headphones or replace the earbuds with a pair in another size. A pair of medium-size earbuds is attached to
the earpieces by default and there should be an extra pair in each small and large sizes supplied with the headphones.
The noise canceling function is to reduce low-frequency noise in the ambient environment but not high-frequency noise.
Nor is it to implement a 100% noise-free audio environment.
92
nN
Using Peripheral Devices >
Using the Noise Canceling Headphones
When the noise canceling function does not seem to be working, unplug the supplied noise canceling headphones
completely and then plug them back again.
Keep the built-in microphone (1) of the noise canceling headphones unblocked to ensure that the noise canceling function
can be fully in effect.
You may hear a soft hissing noise while the noise canceling function is enabled. This is just operational noise that the
function generates and does not indicate a malfunction.
You may feel that the noise canceling function has little effect or ambient noises seem even louder, depending on the type
of noise or the degree of quietness in your environment. In such a case, disable the noise canceling function.
Use of a mobile phone may cause radio interference with the noise canceling headphones. When using the headphones,
keep mobile phones away from the headphones.
Plugging or unplugging the noise canceling headphones generates noise. This is normal and does not indicate a
malfunction. Be sure to take off the headphones from your ears before plugging or unplugging the headphones.
Enabling/disabling the noise canceling function or enabling/disabling sound with the Windows volume controls generates
noise. This is caused by switching the noise canceling circuit and does not indicate a malfunction.
Be sure to use the supplied noise canceling headphones. You can plug the headphones supplied with a Walkman® to
your computer but the noise canceling function of the computer will not work well with such headphones.
If you configure your noise canceling headphones to pick up sounds from its built-in microphone and output them through
the earpieces, the sounds will be amplified. Be careful about the volume when you change the configuration.
93
nN
Using Peripheral Devices >
Using the Noise Canceling Headphones
Connecting the Noise Canceling Headphones
To connect the noise canceling headphones
Plug the headphones cable into the headphones jack i.
The icon appears on the taskbar to indicate that the noise canceling function is enabled and a balloon message pops
up from the icon.
When the icon is on the taskbar, the noise canceling function is disabled. Right-click the icon and select Enable Noise Canceling Function from
the menu.
If no icon is on the taskbar, see What to do if the icon and the balloon do not appear (page 96) to change the settings.
94
nN
Using Peripheral Devices >
Using the Noise Canceling Headphones
Adjusting the Effect of the Noise Canceling Function
The noise canceling headphones supplied with your computer is configured to yield the optimum effect by default.
If you feel that the noise canceling function is not fully in effect, you may be able to adjust the effect with the Noise Canceling
Control slider on the Noise Canceling Headphones window.
To adjust the effect of the noise canceling function
1Right-click the icon on the taskbar and select Settings.
If no icon is on the taskbar, see What to do if the icon and the balloon do not appear (page 96) to change the settings.
2Drag the Noise Canceling Control slider toward Mic+ or Mic- to select your desired noise canceling level.
The slider should be at the center of the range to yield the optimum level. Dragging the slider all the way to Mic+ does not bring the noise canceling
function fully into effect.
3Click Apply.
4Confirm that the noise canceling effect is satisfactory and then click OK.
95
nN
Using Peripheral Devices >
Using the Noise Canceling Headphones
Using the microphone directivity function
Just like an ordinary microphone, the built-in microphone of the noise canceling headphones picks up ambient sounds coming
from all directions. The microphone directivity (beamforming) function, however, can reduce ambient noises and pick up
mainly your voice and sounds coming from your front and rear.
The microphone directivity function comes in handy when you want your voice to sound clearly while chatting or when you
want to use the headphones as a microphone to record your own voice or sounds coming from your front.
To enable the microphone directivity function
1Right-click the icon on the taskbar and select Settings.
If no icon is on the taskbar, see What to do if the icon and the balloon do not appear (page 96) to change the settings.
2Click the Microphone directivity tab and select the Enable the microphone directivity function check box.
3Click OK.
!
When ambient noises are extremely loud, the microphone directivity function may not become fully in effect or the volume level of the noises may
fluctuate at short intervals.
96
nN
Using Peripheral Devices >
Using the Noise Canceling Headphones
What to do if the icon and the balloon do not appear
When the noise canceling function icon ( / ) is not on the taskbar and the balloon message does not pop up from
the icon, change the noise canceling function settings.
To display the balloon message and the icon
1Click Start and Control Panel.
2Click Hardware and Sound.
3Click Manage audio devices under Sound.
4On the Playback tab, double-click the speakers or headphones icon.
5Click the Enhancements tab.
6Click to select the Noise Canceling Function check box and click Modify Settings.
If the Disable all enhancements check box is selected, click to cancel the check box.
7Click to select the Display an icon for the noise canceling headphones in the task tray or Display a message when
noise canceling headphones are connected check box.
8Click OK.
97
nN
Using Peripheral Devices >
Connecting a Port Replicator
Connecting a Port Replicator
Attaching an optional port replicator enables you to connect additional peripherals to your computer, such as a printer and an
external display.
Locating Ports on the Port Replicator
!
Simultaneous use of the following ports is not possible.
- HDMI output port on your computer
- DVI-D port on the port replicator
- MONITOR port on the port replicator
ADC IN indicator
Illuminates while the port replicator is powered.
BDC IN port (page 19)
CUSB ports*1 (page 117)
DDVI-D port (page 107)
EMONITOR port (page 107)
FNetwork (LAN) ports*2 (page 62)
GSecurity slot
*1 Compliant with the USB 2.0 standard and support high-/full-/low- speeds.
*2 The port replicator has a protective sticker covering each network
(LAN) port. Connect a 10BASE-T, 100BASE-TX, 1000BASE-T cable to the
network (LAN) port. Using an incorrect cable, such as a phone cable, may
result in an electric current overload that can cause a malfunction, excessive
heat, or fire in the network (LAN) port.
98
nN
Using Peripheral Devices >
Connecting a Port Replicator
Attaching Your Computer to the Port Replicator
!
Be sure to install the battery pack before attaching your computer to the port replicator.
To attach your computer to the port replicator
!
Be sure to use the AC adapter supplied with the port replicator.
To prevent loss of unsaved data, be sure to turn off your computer before attaching it to the port replicator.
Do not move your computer when it is attached to the port replicator. This may detach the port replicator and cause damage to both units.
The monitor port on your computer is not accessible when the computer is attached to the port replicator. Use the DVI-D or MONITOR port on the port
replicator for connecting an external display.
1Disconnect all peripherals and the AC adapter from the computer.
2Plug one end of the power cord (1) into the AC adapter (2) and the other end into an AC outlet.
3Plug the cable connected to the AC adapter (2) into the DC IN port (3) on the port replicator (4).
99
nN
Using Peripheral Devices >
Connecting a Port Replicator
!

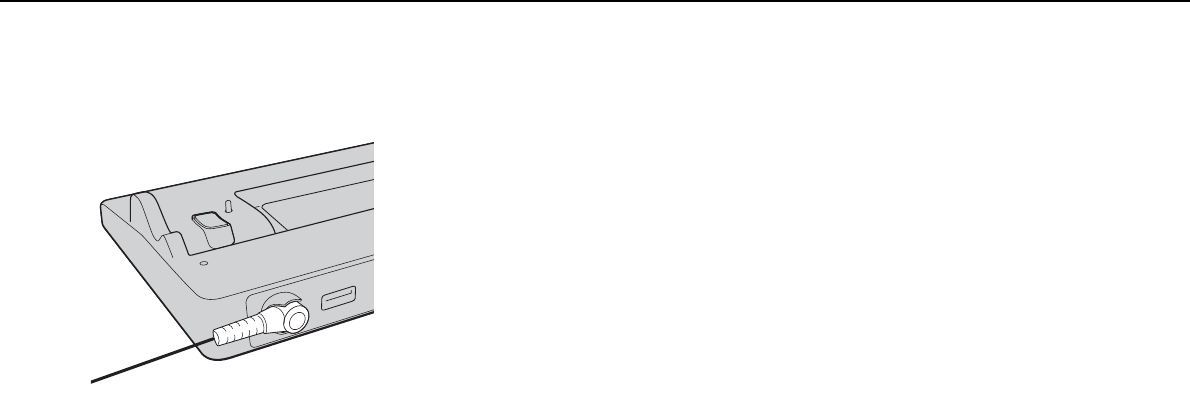

Be sure to plug the AC adapter cable as illustrated below:
100
nN
Using Peripheral Devices >
Connecting a Port Replicator
4Remove the port replicator connector cover from the bottom of the computer.
!
You may find it difficult to remove the port replicator connector cover, as it is tight in place on your computer. Do not exert extra pressure when removing
the cover so as not to damage the computer or the port replicator connector cover.
Once you have removed the port replicator connector cover, keep it in the designated space (5) on the port replicator.
101
nN
Using Peripheral Devices >
Connecting a Port Replicator

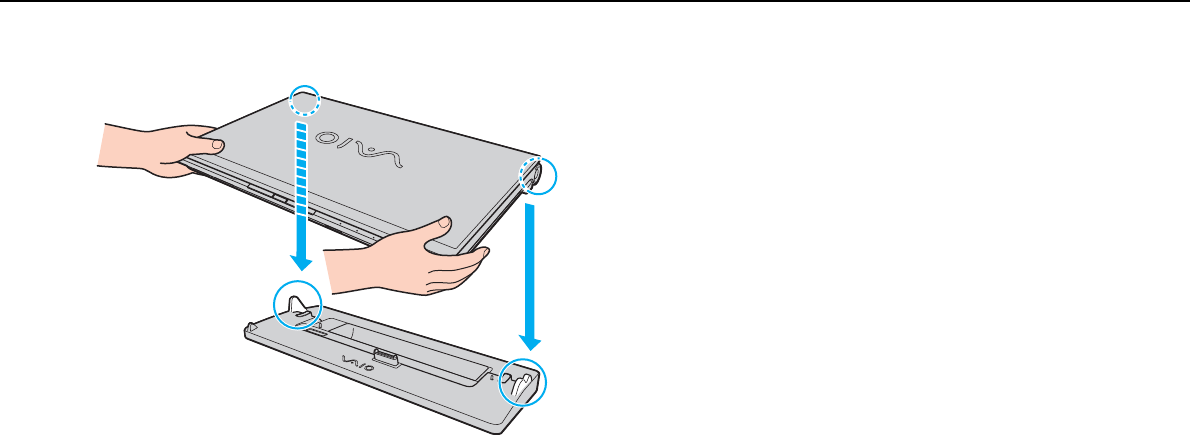

5Align the rear bottom corners of the computer with the guides on the port replicator.
102
nN
Using Peripheral Devices >
Connecting a Port Replicator

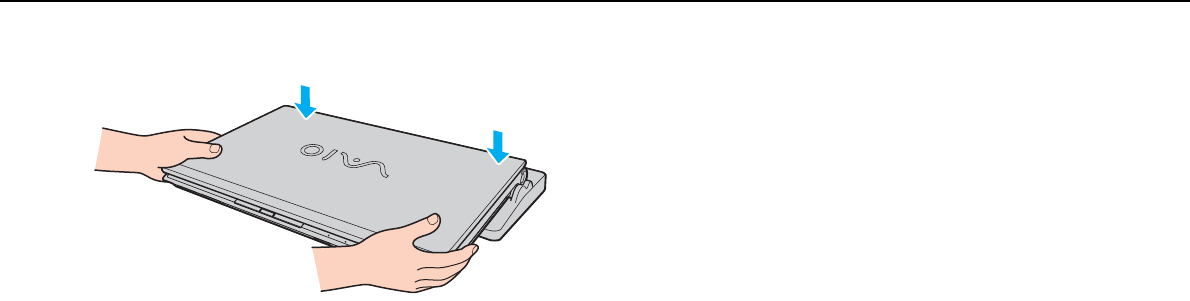

6Gently push down the computer until it clicks into place.
7Lift open the LCD screen lid and turn on the computer.
103
nN
Using Peripheral Devices >
Connecting a Port Replicator
Disconnecting Your Computer from the Port Replicator
!
To prevent loss of unsaved data, be sure to turn off your computer before disconnecting it from the port replicator.
When the battery pack is running out of power, disconnecting your computer from the port replicator may result in loss of unsaved data.
To disconnect your computer from the port replicator
1Lift the computer away from the port replicator.
104
nN
Using Peripheral Devices >
Connecting a Port Replicator
2Replace the port replicator connector cover on the bottom of the computer.
It is extremely important that you replace the port replicator connector cover after disconnecting your computer from the port replicator. If the connector
is left uncovered, dust may get inside and damage the computer.
To disconnect the port replicator completely from an AC power source, unplug the AC adapter.
105
nN
Using Peripheral Devices >
Connecting External Speakers or Headphones
Connecting External Speakers or Headphones
You can connect external sound output devices (not supplied), such as speakers or headphones, to your computer.
To connect external speakers
Make sure your speakers are designed for computer use.
!
Turn down the volume of the speakers before you turn them on.
The noise canceling function does not work on sound output through external speakers.
Connect external speakers (1) to the headphones jack (2) i with a speaker cable (3) (not supplied).
106
nN
Using Peripheral Devices >
Connecting an External Display
Connecting an External Display
Some features and options in this section may not be available on your computer.
!
Blu-ray Disc playback on a connected external display may be interrupted, depending on the type or bit rate of the video. You may be able to solve this
problem by lowering the screen resolution of the display. Follow the steps in Why doesn't my screen display a video? (page 188) to change the screen
resolution.
If disconnecting the external display from the optional port replicator does not automatically change the LCD resolution of your computer, change the
current display settings. To change the settings, see Selecting Display Modes (page 113).
107
nN
Using Peripheral Devices >
Connecting an External Display
Connecting a Computer Display or a Projector
You can connect an external display, such as a computer display or a projector, either directly to your computer or via the
optional port replicator.
To connect a computer display or a projector
!
The monitor port on your computer is not accessible when the computer is attached to the port replicator.
When you use the HDMI output port on your computer or the DVI-D port on the port replicator, select the SPEED or AUTO mode with the performance
selector switch. See Selecting Performance Modes (page 120) for mode selection.
1Plug the power cord (1) of your external display or the projector into the AC outlet.
2Connect the external display or the projector to the monitor port (2) on the computer or the port replicator with a display
cable (3).
108
nN
Using Peripheral Devices >
Connecting an External Display
If necessary, connect the headphones jack on the projector and the headphones jack (4) i on the computer with a speaker cable (5).
!
Your computer is compliant with the HDCP standard and capable of encrypting the transmission channel of digital video signals for the purpose of
copyright protection, which enables you to play and view a wide variety of copyright protected and high-quality content. To view the copyright protected
content, connect an HDCP-compliant monitor to the HDMI output port on your computer or the DVI-D port on the port replicator. If your computer has
a non-compliant monitor connected, you will not be able to play or view any copyright protected content.
109
nN
Using Peripheral Devices >
Connecting an External Display
If the external computer display is equipped with an HDMI input port, plug one end of an HDMI cable into the HDMI output port on the computer and
the other end into the HDMI input port on the computer display.
To connect a TFT/DVI monitor, use an HDMI to DVI-D adapter to connect it to the HDMI output port on the computer; or use a display cable to connect
it to the DVI-D port on the port replicator.
DVI-D stands for Digital Visual Interface - Digital. It is a type of DVI port that supports only digital video signals (no analog video signals). It has 24 pins.
A DVI-I (Digital Visual Interface - Integrated) port supports digital video and analog video signals. It has 29 pins.
The HDMI cable carries both video and audio signals.
110
nN
Using Peripheral Devices >
Connecting an External Display
Connecting a TV with an HDMI Input Port
You can connect a TV with an HDMI input port to your computer.
To connect a TV to your computer
!
To hear sound from the device connected to the HDMI output port, you need to change the device for sound output. For detailed instructions, see How
do I change the sound output device? (page 197).
When you use the HDMI output port on your computer, select the SPEED or AUTO mode with the performance selector switch. See Selecting
Performance Modes (page 120) for mode selection.
1Plug the power cord of your TV (1) into an AC outlet.
2Plug one end of an HDMI cable (2) to the HDMI output port (3) on the computer and the other end to the TV.
3Switch the input channel of the TV to external input.
4Set up the TV configuration system.
!
If a device driver other than the one provided by Sony is used, the image will not be displayed and the audio will not be heard. Always use the device
driver provided by Sony for updates.
111
nN
Using Peripheral Devices >
Connecting an External Display
See the manual that came with your TV for more information on installation and use.
The HDMI cable carries both video and audio signals.
112
nN
Using Peripheral Devices >
Connecting an External Display
To connect a high-quality digital sound output device between your computer and a TV
You can connect a high-quality home theater receiver or other surround sound decoder devices between your computer and
TV using an HDMI connection.
!
Before connecting the device to the computer, make sure the HDMI connection has been set up between the TV and the home theater receiver or
surround sound decoder device first.
To hear sound from the device connected to the HDMI output port, you need to change the device for sound output. For detailed instructions, see How
do I change the sound output device? (page 197).
When you use the HDMI output port on your computer, select the SPEED or AUTO mode with the performance selector switch. See Selecting
Performance Modes (page 120) for mode selection.
1Turn on the TV and set its input to the HDMI input.
2Turn on the home theater receiver or surround sound decoder device and set its input to the HDMI input.
3Plug one end of an HDMI cable to the HDMI input port on the home theater receiver or surround sound decoder device
and the other end to the HDMI output port on the computer.
You can adjust the screen resolution of the connected TV with your computer. See Why doesn't my screen display a video? (page 188) for more
information.
With the HDMI connection, the volume can be adjusted by the connected audio device only. Your computer has no control over the output volume of
any connected devices.
113
nN
Using Peripheral Devices >
Selecting Display Modes
Selecting Display Modes
When an external display is connected, you can select either your computer screen or the connected display to use as the
primary monitor.
!
The monitor port on your computer is not accessible when the computer is attached to the port replicator.
The screen resolution of your external display may change when you change the performance mode.
When you use the HDMI output port on your computer or the DVI-D port on the port replicator, select the SPEED or AUTO mode with the performance
selector switch. See Selecting Performance Modes (page 120) for mode selection.
You may not be able to display the same content on your computer screen and the external display or projector at the same time, depending on the
type of your external display or projector.
Turn on the external display before turning on your computer.
To select a display mode with the Fn+F7 keys
You can select a display mode with the Fn+F7 keys. See Combinations and Functions with the Fn Key (page 33) for more
information.
To select a display mode from the display settings
1Right-click on the desktop and select Screen resolution.
2Click the drop-down list next to Multiple Displays, select your desired setting, and then click OK.
114
nN
Using Peripheral Devices >
Using the Multiple Monitors Function
Using the Multiple Monitors Function
The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you
have an external display connected to the monitor port, your computer screen and the external display can function as a
single desktop.
You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window
or a toolbar, from one display to the other.
115
nN
Using Peripheral Devices >
Using the Multiple Monitors Function
To use the Multiple Monitors function
!
The monitor port on your computer is not accessible when the computer is attached to the port replicator.
The screen resolution of your external display may change when you change the performance mode.
When you use the HDMI output port on your computer or the DVI-D port on the port replicator, select the SPEED or AUTO mode with the performance
selector switch. See Selecting Performance Modes (page 120) for mode selection.
Your external display may not support the Multiple Monitors function.
Certain software applications may not be compatible with Multiple Monitors settings.
Make sure that your computer does not enter Sleep or Hibernate mode while you are using the Multiple Monitors function, or the computer may not
return to Normal mode.
If you set different colors on each display, do not expand a single window across two displays, or your software may not work properly.
1Right-click on the desktop and select Screen resolution.
2Click the drop-down list next to Multiple Displays, select Extend these displays, and then click OK.
You can set the display colors and resolution for each display and customize the Multiple Monitors function.
Set fewer colors or a lower resolution for each display.
116
nN
Using Peripheral Devices >
Connecting an External Microphone
Connecting an External Microphone
You can connect an external microphone (not supplied) to your computer.
To connect an external microphone
Plug the microphone cable (1) into the microphone jack (2) m.
Make sure your microphone is designed for computer use.
117
nN
Using Peripheral Devices >
Connecting a USB Device
Connecting a USB Device
You can connect a Universal Serial Bus (USB) device to your computer, such as a mouse, floppy disk drive, speaker, and
printer.
To connect a USB device
1Choose the USB port (1) you prefer to use.
2Plug the USB device cable (2) into the USB port.
118
nN
Using Peripheral Devices >
Connecting a USB Device
Notes on connecting a USB device
You may need to install the driver software supplied with your USB device before use. See the manual that came with the
USB device for more information.
Be sure to use a USB printer compatible with your version of Windows to print documents.
For information on how to remove a USB device, see the manual that came with the device.
To protect your computer and/or USB devices from damage, observe the following:
When moving the computer with USB devices connected, avoid exposing the USB ports to shock or impact.
Do not put the computer into a bag or carrying case when it has USB devices connected.
119
nN
Customizing Your VAIO Computer >
Customizing Your VAIO Computer
This section briefly describes how to change the main settings of your VAIO computer. Among other things, you will learn
how to use and customize the look of your Sony software and utilities.
Selecting Performance Modes (page 120)
Setting the Password (page 123)
Using Intel VT (page 130)
Using the VAIO Control Center (page 131)
Using the VAIO Power Management (page 132)
120
nN
Customizing Your VAIO Computer >
Selecting Performance Modes
Selecting Performance Modes
Your computer is equipped with the performance selector switch for changing the performance mode without restarting the
computer. With this switch, you can choose one out of three performance modes: two distinct modes that use a specific video
controller and another mode that automatically selects an optimum one between the two.
!
While any software application that prevents your computer from changing the performance mode is in use, selecting another mode with the
performance selector switch may not change the performance mode. In such a case, close the application. The selected mode will automatically be
activated. Changing the performance mode without closing the application may cause loss of unsaved data.
When you use the HDMI output port on your computer or the DVI-D port on the port replicator, select the SPEED or AUTO mode with the performance
selector switch.
121
nN
Customizing Your VAIO Computer >
Selecting Performance Modes
To select a performance mode
Slide the performance selector switch (1) in the direction of your desired mode.
Type of Mode Description
STAMINA mode Uses the Intel Graphics Media Accelerator and disables some hardware devices on your computer to conserve
battery power.
SPEED mode Uses the NVIDIA video controller to provide faster performance.
AUTO mode Automatically selects either STAMINA or SPEED mode to provide optimum performance when:
- The AC adapter is plugged or unplugged.
- An external device is connected to or disconnected from the HDMI output port on your computer or the DVI-D port
on the optional port replicator.
- Your computer is attached to or disconnected from the optional port replicator.
122
nN
Customizing Your VAIO Computer >
Selecting Performance Modes
To check the current performance mode
Find out which performance mode indicator light is lit: STAMINA, SPEED, or AUTO.
Find out which performance mode icon is on the Windows desktop notification area.
123
nN
Customizing Your VAIO Computer >
Setting the Password
Setting the Password
Setting the password allows you to protect your computer from unauthorized access by making the user enter the password
when the computer is turned on or returns to Normal mode from Sleep mode or Hibernate mode.
!
Do not to forget your password. Write down the password and keep it in a secure place.
Type of Password Description
Power-on password You can use BIOS functions to set two types of passwords:
- Machine password: Allows users with administrative rights to change all the setup options in the BIOS setup
screen, as well as to start the computer.
- User password: Allows the standard users to change some of the BIOS setup options, as well as to start the
computer. To set the user password, you must first set the machine password.
Entry of the power-on password will be prompted after the VAIO logo appears to start your computer.
!
If you forget the machine password, the password needs to be reset and a fee will be charged. To reset the password,
contact an authorized Sony service/support center. To find the nearest center or agent, see Finding More about Your VAIO
Computer (page 5).
You can reset the user password at the BIOS setup screen by entering the machine password.
Windows password Allows users to log onto your computer and protect each user account with its own password.
Entry of the Windows password will be prompted after you select your user account.
124
nN
Customizing Your VAIO Computer >
Setting the Password
Setting the Power-on Password
To add the power-on password (machine password)
1Turn on the computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If the screen does not appear, restart the computer and press the F2 key several times
when the VAIO logo appears.
3Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the
Enter key.
4On the password entry screen, enter the password twice and press the Enter key.
The password can be up to 32 alphanumeric characters long (including spaces).
5Select Password when Power On under Security and press the Enter key.
6Change the setting from Disabled to Enabled.
7Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
125
nN
Customizing Your VAIO Computer >
Setting the Password
To add the power-on password (user password)
!
Make sure you set the machine password before setting the user password.
1Turn on the computer.
2Press the F2 key when the VAIO logo appears.
The password entry screen appears. If the screen does not appear, restart the computer and press the F2 key several
times when the VAIO logo appears.
3Enter the machine password and press the Enter key.
4Press the < or , key to select Security to display the Security tab, select Set User Password, and then press the
Enter key.
5On the password entry screen, enter the password twice and press the Enter key.
The password can be up to 32 alphanumeric characters long (including spaces).
6Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
126
nN
Customizing Your VAIO Computer >
Setting the Password
To change or remove the power-on password (machine password)
1Turn on the computer.
2Press the F2 key when the VAIO logo appears.
The password entry screen appears. If the screen does not appear, restart the computer and press the F2 key several
times when the VAIO logo appears.
3Enter the machine password and press the Enter key.
4Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the
Enter key.
5On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.
To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter
key.
6Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
127
nN
Customizing Your VAIO Computer >
Setting the Password
To change or remove the power-on password (user password)
1Turn on the computer.
2Press the F2 key when the VAIO logo appears.
The password entry screen appears. If the screen does not appear, restart the computer and press the F2 key several
times when the VAIO logo appears.
3Enter the user password and press the Enter key.
4Press the < or , key to select Security to display the Security tab, select Set User Password, and then press the
Enter key.
5On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.
To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter
key.
6Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
128
nN
Customizing Your VAIO Computer >
Setting the Password
Setting the Windows Password
To add the Windows password
1Click Start and Control Panel.
2Click User Accounts and Family Safety or User Accounts.
3Click User Accounts.
4Click Create a password for your account under Make changes to your user account.
5In the New password and Confirm new password fields, enter the password for your account.
6Click Create password.
See Windows Help and Support for more information on the Windows password.
To change the Windows password
1Click Start and Control Panel.
2Click User Accounts and Family Safety or User Accounts.
3Click User Accounts.
4Click Change your password.
5In the Current password field, enter your current password.
6In the New password and Confirm new password fields, enter a new password.
7Click Change password.
129
nN
Customizing Your VAIO Computer >
Setting the Password
To remove the Windows password
1Click Start and Control Panel.
2Click User Accounts and Family Safety or User Accounts.
3Click User Accounts.
4Click Remove your password.
5In the Current password field, enter the current password that you want to remove.
6Click Remove password.
130
nN
Customizing Your VAIO Computer >
Using Intel(R) VT
Using Intel(R) VT
Intel(R) Virtualization Technology (VT) allows you to use hardware virtualization software for enhancing your computer's
performance.
!
Intel VT may not be available depending on the CPU installed on your computer.
For information on virtualization and how to use hardware virtualization software, contact the software publisher.
To enable Intel VT
1Turn on your computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If the screen does not appear, restart the computer and press the F2 key several times
when the VAIO logo appears.
3Press the < or , key to select Advanced.
4Press the M or m key to select Intel(R) Virtualization Technology or Intel(R) VT, press the Enter key, select Enabled,
and press the Enter key.
!
If the Advanced tab is not displayed in the BIOS setup window or you cannot select Intel(R) Virtualization Technology, Intel VT is not available on the
computer.
5Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
131
nN
Customizing Your VAIO Computer >
Using the VAIO Control Center
Using the VAIO Control Center
The VAIO Control Center utility allows you to access system information and to specify preferences for system behavior.
To use the VAIO Control Center
1Click Start, All Programs, and VAIO Control Center.
2Select your desired control item and change the settings.
3Once finished, click OK.
The setting of the desired item is changed.
For more information about each option, see the help file included with the VAIO Control Center.
Some of the control items will not be visible if you open the VAIO Control Center as a standard user.
132
nN
Customizing Your VAIO Computer >
Using the VAIO Power Management
Using the VAIO Power Management
Power management helps you set up power plans for running on AC or battery power to suit your requirements for power
consumption.
The VAIO Power Management function is added to the Windows Power Options. With this software application, you can
enhance the Windows power management functions to ensure better operation of your computer and longer battery life.
Selecting a Power Plan
When you start the computer, a power status icon appears on the taskbar. This icon indicates what kind of power source you
are currently using. Click this icon to display the window that shows your power status.
To select a power plan
1Right-click the power status icon on the taskbar and select Power Options.
2Select your desired power plan.
To change the power plan settings
1Click Change plan settings on the right of your desired power plan in the Power Options window.
Change the Sleep mode and display settings as needed.
2If you need to change the advanced settings, click Change advanced power settings and go to step 3.
Otherwise, click Save changes.
3Click the VAIO Power Management tab.
Change the settings for each item.
4Click OK.
You can check the current power plan settings with the VAIO Power Management Viewer in the VAIO Control Center.
133
nN
Upgrading Your VAIO Computer >
Upgrading Your VAIO Computer
Your VAIO computer and memory modules use high precision components and electronic connectors technology. To avoid
invalidation of the warranty during your product warranty period, we recommend that:
You should contact your dealer to install a new memory module.
You should not install it yourself, if you are not familiar with upgrading memory on a computer.
You should not touch the connectors or open the memory module compartment cover.
For assistance, contact an authorized Sony Service Center. To find the nearest center or agent, see Finding More about
Your VAIO Computer (page 5).
The type of module and the amount of memory installed on your computer may differ depending on the model you purchased.
See the specifications to find out about the configuration of your computer.
134
nN
Upgrading Your VAIO Computer >
Adding and Removing Memory
Adding and Removing Memory
If you want to expand the functionality of your computer, you can increase the amount of memory by replacing the installed
memory module. Before you upgrade your computer's memory, read the notes and procedures in the following pages.
Notes on adding memory modules
Be sure to place your computer on a flat surface before adding or removing memory modules.
Be careful when changing memory. Improper installation of memory modules may cause damage to your system. This
damage may void your manufacturer's warranty.
Only use memory modules that are compatible with your computer. If a memory module is not detected by the computer
or the Windows operating system becomes unstable, contact the sales dealer or the manufacturer of your memory module.
Electrostatic discharge (ESD) can damage electronic components. Before touching a memory module, ensure the
following:
The procedures described in this document assume user familiarity with the general terminology associated with
personal computers and with the safety practice and regulatory compliance requirements for using and modifying
electronic equipment.
Turn off your computer and disconnect it from its power sources (battery pack and AC adapter) and from any
telecommunication links or networks before you remove any cover or panel from the computer. Failure to do so may
result in personal injury or equipment damage.
ESD can damage memory modules and other components. Install the memory module only at an ESD workstation.
If such a station is not available, do not work in a carpeted area, and do not handle materials that produce or hold
static electricity (cellophane wrappers, for example). Ground yourself by maintaining contact with an unpainted metal
portion of the chassis while performing the procedure.
Do not open the memory module package before you are ready to change the module. The package protects the
module from ESD.
135
nN
Upgrading Your VAIO Computer >
Adding and Removing Memory
Use the special bag supplied with the memory module or wrap the module in aluminum foil to protect it from ESD.
Introducing any liquids, foreign substances, or objects into the memory module slots or other internal components of your
computer will result in damage to the computer and any repair costs will not be covered by the warranty.
Do not place the memory module in a location subject to:
Heat sources such as radiators or air ducts
Direct sunlight
Excessive dust
Mechanical vibration or shock
Strong magnets or speakers that are not magnetically shielded
Ambient temperature of more than 95°F / 35°C or less than 41°F / 5°C
High humidity
Handle the memory module with care. To avoid injuries to your hands and fingers, do not touch the edges of the
components and circuit boards inside your computer.
136
nN
Upgrading Your VAIO Computer >
Adding and Removing Memory
Removing and Installing a Memory Module
To change or add a memory module
1Shut down the computer and disconnect all peripheral devices.
2Unplug the computer and remove the battery pack.
3Wait about an hour until the computer cools down.
4Unscrew two screws (indicated by the arrows below) on the bottom of the computer and remove the memory module
compartment cover.
5Touch a metal object to discharge static electricity.
137
nN
Upgrading Your VAIO Computer >
Adding and Removing Memory
6Remove the currently installed memory module as follows:
Pull the latches in the direction of the arrows (1).
The memory module is released.
Make sure that the memory module tilts up and then pull it out in the direction of the arrow (2).
7Remove the new memory module from its packaging.
138
nN
Upgrading Your VAIO Computer >
Adding and Removing Memory
8Slide the memory module into the memory module slot and push it in until it clicks into place.
!
Do not touch any components on the motherboard other than the memory module.
Be sure to insert the connector edge of the memory module into the slot while aligning the notch on the module with the small projection in the open
slot. Do not force the memory module into the slot in a wrong orientation, as it may cause damage to the slot and the module.
9Replace the memory module compartment cover.
10 Tighten the screw son the bottom of the computer.
11 Reinstall the battery pack and turn on the computer.
139
nN
Upgrading Your VAIO Computer >
Adding and Removing Memory
Viewing the Amount of Memory
To view the amount of memory
1Turn on the computer.
2Click Start, All Programs, and VAIO Control Center.
3Click System Information and System Information.
You can view the amount of system memory in the right pane. If the additional memory does not appear, repeat the
installation procedure and restart the computer.
140
nN
Precautions >
Precautions
This section describes safety guidelines and precautions to help you protect your VAIO computer from potential damage.
Safety Information (page 141)
Care and Maintenance Information (page 144)
Handling Your Computer (page 145)
Handling the LCD Screen (page 147)
Using the Power Source (page 148)
Handling the Built-in Camera (page 149)
Handling Discs (page 150)
Using the Battery Pack (page 151)
Handling "Memory Stick" (page 152)
Handling the Built-in Storage Device (page 153)
Using Fingerprint Authentication (page 154)
Using the TPM (page 155)
141
nN
Precautions >
Safety Information
Safety Information
Computer
Use your computer on a solid, stable surface.
Provide adequate air circulation to prevent internal overheating. Do not place your computer on porous surfaces such as
rugs, blankets, couches, beds, or near draperies that may block its air vents.
Do not use your computer directly on your lap. The temperature of the base of the unit will rise during normal operation
and over time could result in discomfort or burns.
Use only specified peripheral equipment and interface cables.
Power Source
Do not place the AC adapter in contact with your skin. Remove the AC adapter away from your body if it becomes warm
and causes discomfort.
Do not place heavy objects on the power cord, or this could cause a fire.
To disconnect the cord, pull it out by holding the plug. Never pull the cord itself.
Unplug your computer from the AC outlet if you are not planning to use the computer for an extended period of time.
When the AC adapter is not used, unplug it from the AC outlet.
Make sure that the AC outlet is easily accessible.
142
nN
Precautions >
Safety Information
Battery Pack
Do not leave battery packs in temperatures above 140°F / 60°C, such as in a car parked in the sun or under direct sunlight.
For your safety, Sony recommends using the genuine Sony battery pack and AC adapter provided with this product. If
these items need to be replaced during the life of the product, be sure to use a compatible genuine Sony battery pack or
AC adapter. Information about compatible models can be found at the following URLs:
For customers in USA
http://www.sonystyle.com/vaio/
For customers in Canada
http://www.sonystyle.ca/vaio/
For customers in Latin American countries or areas
http://vaio.sony-latin.com/
Sony disclaims and shall assume no responsibility in case of any losses or damages arising from:
The use of non-genuine Sony battery packs or AC adapters with your VAIO computer.
The disassembly, alteration of, or tampering of any Sony battery pack.
Keep the battery pack away from all sources of heat.
Keep the battery pack dry.
Do not open or try to disassemble the battery pack.
Do not expose the battery pack to any mechanical shock, such as dropping it on a hard surface.
If you are not using your computer for an extended period of time, remove the battery pack from the computer to prevent
damage to the battery pack.
If you have not used the battery pack for a considerable amount of time, the remaining battery life may become short.
This is normal and does not indicate a malfunction. The battery pack will gradually discharge over time even while not in
use. Connect the AC adapter to your computer and recharge the battery pack before using the computer again.
143
nN
Precautions >
Safety Information
Headphones
Road safety – Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic
hazard and is illegal in some areas. It can also be potentially dangerous to play loud music while walking, especially at
pedestrian crossings.
Preventing hearing damage – Avoid using headphones at high volume. Hearing experts advise against continuous, loud
and extended play. If you experience a ringing in your ears, reduce the volume or discontinue use.
"Memory Stick"
Keep "Memory Stick" and "Memory Stick" adaptors out of reach of children. There is a risk of swallowing them.
144
nN
Precautions >
Care and Maintenance Information
Care and Maintenance Information
Computer
Clean the cabinet with a soft, dry or lightly moistened cloth with a mild detergent solution. Do not use an abrasive pad,
scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your computer.
Make sure you unplug the AC adapter and remove the battery pack before cleaning your computer.
LCD Screen
Use a soft, dry cloth to wipe the surface of the LCD screen. Rubbing the surface could damage the screen.
To protect the LCD screen and keyboard from damage, for example in the case of carrying the computer, spread out the
cleaning cloth with no wrinkles on the keyboard before closing the LCD screen lid.
Built-in Camera
Clean the lens protection cover of the built-in camera with a blower brush or a soft brush. If the cover is extremely dirty, wipe
it off with a soft dry cloth. Do not rub the cover, as it is sensitive to pressure.
Discs
Proper care of the disc is essential to its continuous reliability. Do not use solvents (such as benzine, thinner, alcohol,
commercially available cleaners, or anti-static spray) which may cause damage to the disc.
For normal cleaning, hold the disc by its edges and use a soft cloth to wipe the surface from the center out.
If the disc is badly soiled, moisten a soft cloth with water, wring it out well, and use it to wipe the surface of the disc from
the center out. Wipe off any remaining moisture with a dry soft cloth.
145
nN
Precautions >
Handling Your Computer
Handling Your Computer
If you drop a solid object or any liquid onto your computer, shut down the computer, unplug it, and remove the battery
pack. You may want to have the computer checked by qualified personnel before operating it again.
Do not drop your computer or place any objects on top of the computer.
Do not place your computer in a location subject to:
Heat sources, such as radiators or air ducts
Direct sunlight
Excessive dust
Moisture or rain
Mechanical vibration or shock
Strong magnets or speakers that are not magnetically shielded
Ambient temperature of more than 95°F / 35°C or less than 41°F / 5°C
High humidity
Do not place electronic equipment near your computer. The electromagnetic field of the equipment may cause the
computer to malfunction.
Your computer uses high-frequency radio signals and may cause interference to radio or TV reception. If this occurs,
relocate the computer a suitable distance away from the set.
Do not use cut or damaged connection cables.
If your computer is brought directly from a cold location to a warm one, moisture may condense inside the computer. In
such a case, allow at least one hour before turning on the computer. If any problems occur, unplug the computer and
contact an authorized Sony Service Center. To find the nearest center or agent, see Finding More about Your VAIO
Computer (page 5).
146
nN
Precautions >
Handling Your Computer
To avoid losing data when your computer is damaged, back up your data regularly.
Do not exert pressure on the LCD screen or its edges when opening the LCD screen lid or lifting your computer. The LCD
screen may be sensitive to pressure or added stress, and exerting pressure may damage the screen or cause it to
malfunction. To open the computer, hold the base with one hand and gently lift the LCD screen lid with the other. To carry
the computer with the lid open, be sure to hold the computer with both hands.
Use a carrying case specially designed to carry your computer.
147
nN
Precautions >
Handling the LCD Screen
Handling the LCD Screen
Do not leave the LCD screen facing the sun. This could damage the LCD screen. Be sure to block direct sunlight when
using your computer near a window.
Do not scratch the surface of the LCD screen or exert pressure on it. This could cause a damage.
Using your computer in low temperature conditions may produce a residual image on the LCD screen. This is not a
malfunction. When the computer returns to normal temperature, the screen returns to normal.
A residual image may appear on the LCD screen if the same image is displayed for an extended period of time. The
residual image disappears after a while. You can use a screen saver to prevent residual images.
The LCD screen becomes warm during operation. This is normal and does not indicate a malfunction.
The LCD screen is manufactured using high-precision technology. You may, however, see tiny black points and/or bright
points (red, blue, or green) that continuously appear on the LCD screen. This is a normal result of the manufacturing
process and does not indicate a malfunction.
Do not change the LCD screen orientation setting in the Tablet PC Settings window even when there are change options
available for selection, as this may make your computer unstable. Sony assumes no liability for any malfunctions arising
from changes to the settings.
Do not exert pressure on the LCD screen lid with the lid closed as it may scratch the LCD screen or soil it.
148
nN
Precautions >
Using the Power Source
Using the Power Source
See the specifications to find out about the configuration of your computer.
Do not share the AC outlet with other power-consuming equipment, such as a photocopier or a shredder.
You can purchase a power strip with a surge protector. This device helps prevent damage to your computer caused by
sudden power surges, in an electrical storm, for example.
Use the AC adapter supplied with your computer or genuine Sony products. Do not use any other AC adapter as it may
cause a malfunction.
149
nN
Precautions >
Handling the Built-in Camera
Handling the Built-in Camera
Do not touch the lens protection cover of the built-in camera, as it may cause scratches on the cover and such scratches
will appear on the captured images.
Do not let the direct sunlight get into the lens of the built-in camera regardless of your computer's power state, as it may
cause the camera to malfunction.
150
nN
Precautions >
Handling Discs
Handling Discs
Fingerprints and dust on the surface of a disc may cause read errors. Be sure to hold the disc by its edges and central
hole, as shown below:
Never affix an adhesive label to a disc. This will affect the use of the disc and may result in irreparable damage.
151
nN
Precautions >
Using the Battery Pack
Using the Battery Pack
Battery life is shorter in a cold environment. This is due to decreased battery efficiency at low temperatures.
Charge battery packs at temperatures between 50°F / 10°C to 86°F / 30°C. Lower temperatures require longer charging
time.
Do not charge the battery pack in any way other than as described in this user guide or as designated by Sony in writing.
While the battery pack is in use or being charged, heat builds up in the battery pack. This is normal and is not cause for
concern.
You do not need to discharge the battery pack before recharging.
If the battery pack quickly runs out of power after being fully charged, it may be reaching the end of its life and should be
replaced.
152
nN
Precautions >
Handling "Memory Stick"
Handling "Memory Stick"
Do not touch the "Memory Stick" connector with your finger or metallic objects.
Use only the adhesive label supplied with "Memory Stick".
Do not bend, drop, or expose "Memory Stick".
Do not disassemble or modify "Memory Stick".
Keep "Memory Stick" dry.
Do not use or store "Memory Stick" in a location subject to:
Static electricity
Electrical noise
Extremely high temperatures, such as in a car parked in the sun
Direct sunlight
High humidity
Corrosive substances
Use the storage case supplied with "Memory Stick".
Be sure to make a backup copy of your valuable data.
When using "Memory Stick Duo", do not use a fine-tipped pen to write on the label adhered to "Memory Stick Duo".
Exerting pressure on the media may damage internal components.
153
nN
Precautions >
Handling the Built-in Storage Device
Handling the Built-in Storage Device
The built-in storage device (hard disk drive or solid state drive) has a high storage density and reads or writes data in a short
time. However, it can be easily damaged if improperly used. If the built-in storage device is damaged, the data cannot be
restored. To prevent losing data, you should be careful when handling your computer.
Some features and options in this section may not be available on your computer.
See the specifications to find out about the configuration of your computer.
To avoid damaging your hard disk drive
Do not subject your computer to sudden movements.
Keep your computer away from magnets.
Do not place your computer in a location subject to mechanical vibration or in an unstable position.
Do not move your computer while the power is on.
Do not turn off the power or restart your computer while reading or writing data to the hard disk drive.
Do not use your computer in a place subject to extreme changes in temperature.
Do not remove the hard disk drive from your computer.
To avoid damaging your solid state drive
Do not turn off the power or restart your computer while reading or writing data to the solid state drive.
Do not remove the solid state drive from your computer.
154
nN
Precautions >
Using Fingerprint Authentication
Using Fingerprint Authentication
The fingerprint authentication technology does not ensure complete user authentication or complete protection of your
data and hardware.
Sony assumes no liability for any problems and damages arising out of your use of or inability to use the fingerprint sensor.
The fingerprint recognition rate depends on your operating conditions and varies among individuals as well.
Be sure to make a backup copy of the data stored on the built-in storage device, especially in the encrypted archives
created with the File Safe feature, before sending your computer for repair.
Sony assumes no liability for any loss or modification of your data that might have occurred during the course of repair.
In case the built-in storage device has to be initialized, for example after the repair work, the fingerprint templates will be
lost. You will have to register them all over again.
The maintenance and management of data concerning fingerprint authentication must be carried out at your own risk.
Sony assumes no liability for any defects arising out of your data maintenance and management.
Before disposing of your computer or transferring it to a third person, it is strongly recommended you erase the fingerprint
data registered on the fingerprint sensor after erasing the data stored on your built-in storage device. See Erasing the
Registered Fingerprints (page 78) for the detailed procedure.
A fingerprint sensor may malfunction or be damaged if you scratch its surface with:
a solid or sharp-pointed object
fine objects, for example swiping a finger covered with dirt across the fingerprint sensor
Discharge static electricity from your finger by touching a metallic object especially during dry seasons (e.g. winter) before
scanning your fingerprint. Static electricity may cause the fingerprint sensor to malfunction.
155
nN
Precautions >
Using the TPM
Using the TPM
Some features and options in this section may not be available on your computer.
See the specifications to find out about the configuration of your computer.
Although your computer is provided with the TPM security functions, these functions do not ensure complete protection
of your data and hardware. Sony assumes no liability for any problems and damages arising out of your use of the
functions.
After you have installed the Infineon TPM Professional Package, you need to set a few TPM passwords on your
computer. Without these passwords, you will not be able to restore any TPM-protected data. Be sure to write down the
passwords and keep them safe and private from other people.
Be sure to make backup copies of the latest emergency recovery archive file, emergency recovery token file, password
reset token file, and personal secret file and keep them safe and private from other people before sending your computer
for repair. The data stored in the TPM that is embedded on the motherboard may be lost or corrupted during the course
of repair.
During the course of repair, the TPM will also be replaced if the motherboard needs replacement. In such a case, use the
backup copies of the emergency recovery archive file, emergency recovery token file, password reset token file, and
personal secret file to restore the TPM configuration.
Be sure to make a backup copy of the data stored on the built-in storage device before sending your computer for repair.
The built-in storage device may be initialized and returned after the repair work and, in such a case, you will not be able
to restore the data on the device using the backup copies of the emergency recovery archive file, emergency recovery
token file, password reset token file, and personal secret file.
Make sure you set up the automatic backup operations after completing the TPM initialization wizard. If the window
containing the Run automatic backup now check box is displayed after the setup, select the check box and update the
backup files. The restore process using the backup files may fail if you do not set up the automatic backup operations.
156
nN
Precautions >
Using the TPM
The maintenance and management of TPM-protected data must be carried out at your own risk. Sony assumes no liability
for any defects arising out of your data maintenance and management.
157
nN
Troubleshooting >
Troubleshooting
This section describes how to solve common problems you might encounter when using your VAIO computer. Many problems
have simple solutions. Try these suggestions before visiting the Sony online support web site
at the following URLs:
For customers in USA
http://esupport.sony.com/EN/VAIO/
For customers in Canada
http://sony.ca/support/
For customers in Spanish-speaking Latin American countries or areas
http://esupport.sony.com/ES/VAIO/LA
For customers in Brazil
http://esupport.sony.com/PT/VAIO/BR/
Some features and options in this section may not be available on your computer.
Computer Operations (page 159)
System Update / Security (page 165)
Recovery (page 167)
Battery Pack (page 169)
Built-in Camera (page 172)
Networking (LAN/Wireless LAN) (page 174)
Bluetooth Technology (page 177)
Optical Discs (page 181)
158
nN
Troubleshooting >
Display (page 186)
Printing (page 190)
Microphone (page 191)
Speakers (page 192)
Touch Pad (page 194)
Keyboard (page 195)
Floppy Disks (page 196)
Audio/Video (page 197)
"Memory Stick" (page 199)
Peripherals (page 200)
Port Replicator (page 201)
159
nN
Troubleshooting >
Computer Operations
Computer Operations
What should I do if my computer does not start?
Make sure your computer is securely plugged into a power source and turned on and the power indicator light is lit.
Make sure the battery pack is installed properly and charged.
Disconnect all connected USB devices (if any), and then restart your computer.
Remove any extra memory modules you may have installed since purchase, and then restart your computer.
If your computer is plugged into a power strip or an uninterruptible power supply (UPS), make sure the power strip or UPS
is plugged into a power source and turned on.
If you are using an external display, make sure it is plugged into a power source and turned on. Make sure the brightness
and contrast controls are adjusted correctly. See the manual that came with your display for more information.
Unplug the AC adapter and remove the battery pack. Wait three to five minutes. Reinstall the battery pack, plug the AC
adapter, and then press the power button to turn on your computer.
Condensation may cause your computer to malfunction. If this occurs, do not use the computer for at least one hour.
Check that you are using the supplied Sony AC adapter. For your safety, use only the genuine Sony rechargeable battery
pack and AC adapter, which are supplied by Sony for your VAIO computer.
160
nN
Troubleshooting >
Computer Operations
What should I do if the green power indicator light turns on but my screen remains blank?
Press the Alt+F4 keys several times to close the application window. An application error may have occurred.
If the Alt+F4 keys do not work, click Start, the arrow next to the Shut down button, and Restart to restart your computer.
If your computer does not restart, press the Ctrl+Alt+Delete keys and click the arrow next to the Shut down
button and Restart.
If the Windows Security window appears, click Restart.
If this procedure does not work, press and hold the power button for more than four seconds to shut down your computer.
Unplug the AC adapter and leave the computer for about five minutes. Then plug the AC adapter and turn on the computer
again.
!
Turning off your computer with the Ctrl+Alt+Delete keys or the power button may cause loss of unsaved data.
161
nN
Troubleshooting >
Computer Operations
What should I do if my computer or software stops responding?
If your computer stops responding while a software application is running, press the Alt+F4 keys to close the application
window.
If the Alt+F4 keys do not work, click Start and the Shut down button to turn off your computer.
If your computer does not turn off, press the Ctrl+Alt+Delete keys and click the Shut down button.
If the Windows Security window appears, click Shut Down.
If this procedure does not work, press and hold the power button until the computer turns off.
!
Turning off your computer with the Ctrl+Alt+Delete keys or the power button may cause loss of unsaved data.
Unplug the AC adapter and remove the battery pack. Wait three to five minutes. Reinstall the battery pack, plug the AC
adapter, and then press the power button to turn on your computer.
Try reinstalling the software.
Contact the software publisher or designated provider for technical support.
162
nN
Troubleshooting >
Computer Operations
Why doesn't my computer enter Sleep or Hibernate mode?
Your computer may become unstable if the operating mode is changed before the computer completely enters Sleep or
Hibernate mode.
To restore your computer to Normal mode
1Close all open programs.
2Click Start, the arrow next to the Shut down button, and Restart.
3If your computer does not restart, press the Ctrl+Alt+Delete keys and click the arrow next to the Shut down button and
Restart.
If the Windows Security window appears, click Restart.
4If this procedure does not work, press and hold the power button until the computer turns off.
!
Turning off your computer with the Ctrl+Alt+Delete keys or the power button may cause loss of unsaved data.
What should I do if the charge indicator light is blinking fast and my computer does not
start?
This problem could be due to the battery pack not being installed properly. To solve this problem, turn off your computer
and remove the battery pack. Then reinstall the battery pack to the computer. For details, see Installing/Removing the
Battery Pack (page 21).
If the problem persists, it means the installed battery pack is not compatible. Remove the battery pack and contact an
authorized Sony Service Center. To find the nearest center or agent, see Finding More about Your VAIO Computer
(page 5).
163
nN
Troubleshooting >
Computer Operations
Why does the System Properties window display a slower CPU speed than the
maximum?
This is normal. Because your computer's CPU utilizes a type of CPU speed controlling technology for power conservation
purposes, System Properties may display the current CPU speed instead of the maximum speed.
What should I do if my computer does not accept my password and returns a message,
Enter Onetime Password?
If you enter a wrong power-on password three times consecutively, the Enter Onetime Password message appears and
Windows will not start. Press and hold the power button for more than four seconds to check that the power indicator light
turns off. Wait for 10 to 15 seconds, then restart your computer and enter the correct password. The password is case
sensitive, so be sure to check letters for the current case before you enter the password.
What should I do if my game software does not work or it keeps crashing?
Check the web site of the game if there are any patches or updates to download.
Make sure you have installed the latest video driver software.
On some VAIO models, the graphics memory is shared with the system. The optimal graphic performance in such a case
is not guaranteed.
Why doesn't my screen turn off after the automatic turn-off time has passed?
Some software applications or screen savers are designed to temporarily disable the feature of your operating system that
turns off the computer screen or places the computer into Sleep mode after a certain period of inactivity. To solve this
problem, exit the running software application(s) or change the current screen saver.
164
nN
Troubleshooting >
Computer Operations
How can I change the boot device order?
You can use one of the BIOS functions to change the boot device order. Follow these steps:
1Turn on your computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If the screen does not appear, restart the computer and press the F2 key several times
when the VAIO logo appears.
3Press the < or , key to select Boot.
4Press the M or m key to select the drive whose boot device order you want to change.
5Press the F5 or F6 key to change the boot device order.
6Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
What should I do if I cannot boot my computer from the USB floppy disk drive connected
to the computer?
To boot your computer from the USB floppy disk drive, you need to change the boot device.
Turn on your computer and press the F11 key when the VAIO logo appears.
165
nN
Troubleshooting >
System Update / Security
System Update / Security
How can I find important updates for my computer?
You can find and install the latest updates on your computer with the software applications: the Windows Update and the
VAIO Update. See Updating Your Computer (page 31) for more information.
How can I protect my computer against security threats, such as viruses?
The Microsoft Windows operating system is preinstalled on your computer. The best way to protect your computer against
security threats, such as viruses, is to download and install the latest Windows updates regularly.
You can get important Windows updates by doing the following:
!
Your computer must be connected to the Internet to download the updates.
1Click Start and Control Panel.
2Click System and Security.
3Click Action Center.
4Follow the on-screen instructions to set up automatic or scheduled updates.
166
nN
Troubleshooting >
System Update / Security
How do I keep my antivirus software updated?
You can keep the Norton Internet Security software program current with the latest updates from Symantec Corporation.
To download and install the latest security updates, follow these steps:
!
Your computer must be connected to the Internet to download the updates.
1Click Start, All Programs, Norton Internet Security, and LiveUpdate.
2Follow the on-screen instructions to complete the updates.
167
nN
Troubleshooting >
Recovery
Recovery
How can I create recovery discs?
You can create recovery discs using the VAIO Recovery Center. The discs are used to restore your computer system to its
factory default settings. For information on the VAIO Recovery Center, click VAIO Recovery Center User Guide under Use
my VAIO in Help and Support (page 5).
!
If your computer is not equipped with a built-in optical disc drive, you need to connect an external optical disc drive (not supplied).
How can I restore my computer system to its factory default settings?
There are two ways to recover your computer system: from recovery discs and from a recovery partition.
See the VAIO Recovery Center User Guide for more information. To access the VAIO Recovery Center User Guide, click
VAIO Recovery Center User Guide under Use my VAIO in Help and Support (page 5).
How can I reinstall the original software and drivers?
You can restore the preinstalled software and drivers using the VAIO Recovery Center. For information on the VAIO
Recovery Center, click VAIO Recovery Center User Guide under Use my VAIO in Help and Support (page 5).
How do I check the volume of the recovery partition?
Your built-in storage device contains the recovery partition where the data for the system recovery is stored. To check the
volume of the recovery partition, follow these steps:
1Click Start, right-click Computer, and select Manage.
2Click Disk Management under Storage in the left pane.
The volume of the recovery partition and the total volume of the C drive are displayed in the Disk 0 row in the center pane.
168
nN
Troubleshooting >
Recovery
How do I reduce the volume of the recovery partition?
Your built-in storage device contains the recovery partition where the data for the system recovery is stored. If your computer
includes a solid state drive, you might want to reduce the volume of the recovery partition by following these steps:
1Insert a recovery disc into the optical disc drive while your computer is on, turn off the computer, and then turn it on once
again.
!
Use recovery disc(s) you created upon delivery of your computer.
2Select your keyboard layout from the drop-down list and click Next.
3Select your operating system and click Next.
4Click VAIO Recovery Center.
5Click Restore Complete System and Start.
6Select Skip and click Next.
You will be prompted to select whether or not to keep the VAIO Value-added content.
7Select No and click Next.
8Follow the on-screen instructions.
!
The above procedure involves system recovery. The applications and data you added on the storage drive before reducing the volume of the recovery
partition will all be lost.
Once you have reduced the volume of the recovery partition, you need the recovery disc(s) for later system recovery.
169
nN
Troubleshooting >
Battery Pack
Battery Pack
How do I find the battery charging status?
You can check the charge indicator for the battery charging status. See Charging the Battery Pack (page 25) for more
information.
When is my computer using AC power?
When your computer is connected to an AC outlet with the AC adapter, it uses AC power, even if the battery pack is installed.
When should I recharge the battery pack?
Recharge the battery pack when:
The battery pack is running out of power and both the charge and power indicator lights blink.
You have not used the battery pack for an extended period of time.
When should I replace the battery pack?
A message prompting you to replace the battery pack appears when the battery pack reaches the end of its life. You can
check the battery charge capacity with the Battery function on the VAIO Control Center.
Should I be concerned that the installed battery pack is warm?
No, it is normal for the battery pack to be warm while it is powering your computer.
170
nN
Troubleshooting >
Battery Pack
Can my computer enter Hibernate mode while running on battery power?
Your computer can enter Hibernate mode while running on battery power, but some software programs and peripheral
devices prevent the system from entering Hibernate mode. If you are using a program that prevents the system from entering
Hibernate mode, save your data frequently to avoid losing data. See Using Hibernate Mode (page 30) for information on
how you can manually activate Hibernate mode.
How can I conserve battery power when my computer is in Sleep mode?
The wake function of the LAN controller on your computer is enabled at the time of delivery. To conserve battery power when
the computer is in Sleep mode, you need to disable this function. Follow these steps:
1Click Start, Control Panel, Hardware and Sound, and Device Manager.
2Double-click the network adapters and Gigabit Network Connection.
3Click the tab for the power management settings and cancel the check box that allows the device to wake the computer.
4Click OK.
Why can't I fully charge my battery pack?
The battery care function is enabled to extend the life of your battery pack on the VAIO Control Center. Check the settings
on the VAIO Control Center.
171
nN
Troubleshooting >
Battery Pack
What should I do if a message appears notifying of either incompatibility or the improper
installation of the battery pack and my computer then enters Hibernate mode?
This problem could be due to the battery pack not being installed properly. To solve this problem, turn off your computer
and remove the battery pack. Then reinstall the battery pack to the computer. For details, see Installing/Removing the
Battery Pack (page 21).
If the problem persists, it means the installed battery pack is not compatible. Remove the battery pack and contact an
authorized Sony Service Center. To find the nearest center or agent, see Finding More about Your VAIO Computer
(page 5).
172
nN
Troubleshooting >
Built-in Camera
Built-in Camera
Why does the viewfinder show no images or poor-quality images?
The built-in camera cannot be shared by more than one software application. Exit the current application before launching
another.
The viewfinder may show some noise, for example horizontal streaks, when you are viewing a rapid-moving object. This
is normal and does not indicate a malfunction.
If the problem persists, restart your computer.
Why are captured images poor in quality?
The images captured under the fluorescent light may show reflections of light.
A dark portion in captured images may appear as a noise.
If the lens protection cover is dirty, you cannot take a clear shot. Clean the cover. See Built-in Camera (page 144).
What should I do if captured images contain dropped frames and audio interruptions?
The effect settings on your software application may cause dropped frames. See the help file included with your software
application for more information.
There may be more software applications running than your computer can handle. Exit the applications that you are not
currently using.
The power management function of your computer may be active. Check the CPU performance.
173
nN
Troubleshooting >
Built-in Camera
What should I do if movie playback shows dropped frames while my computer is running
on battery power?
The battery pack is running out of power. Connect your computer to an AC outlet.
What should I do if captured images flicker?
This problem occurs when you use the camera under fluorescent lights due to a mismatch between the lighting output
frequency and the shutter speed.
To reduce flicker noise, change the direction of the camera or the brightness of camera images. In some software
applications, you can set an appropriate value to one of the camera properties (e.g. light source, flicker, etc.) to eliminate
flicker noise.
Why is the video input from the built-in camera suspended for a few seconds?
The video input may be suspended for a few seconds if:
a shortcut key with the Fn key is used.
the CPU load increases.
This is normal and does not indicate a malfunction.
What should I do if my computer becomes unstable when it enters a power saving mode
while the built-in camera is in use?
If your computer automatically enters Sleep or Hibernate mode, change the corresponding power saving mode setting. To
change the setting, see Using the Power Saving Modes (page 29).
174
nN
Troubleshooting >
Networking (LAN/Wireless LAN)
Networking (LAN/Wireless LAN)
What should I do if my computer cannot connect to a wireless LAN access point?
Connection capability is affected by distance and obstructions. You may need to move your computer away from
obstructions or closer to any access point you may be using.
Make sure the WIRELESS switch is on and the WIRELESS indicator light is lit on your computer.
Make sure power to the access point is on.
Follow these steps to check the settings:
1Click Start and Control Panel.
2Click View network status and tasks under Network and Internet.
3Click Connect to a network to confirm that your access point is selected.
Make sure the encryption key is correct.
Make sure Maximum Performance is selected for Wireless Adapter Settings in the Power Options window. Selecting
any other option may result in a communication failure. To change the settings, follow these steps:
1Right-click the power status icon on the taskbar and select Power Options.
2Click Change plan settings.
3Click Change advanced power settings.
4Select the Advanced settings tab.
5Double-click Wireless Adapter Settings and Power Saving Mode.
6Select Maximum Performance from the drop-down list both for On battery and Plugged in.
175
nN
Troubleshooting >
Networking (LAN/Wireless LAN)
What should I do if I cannot access the Internet?
Check the access point settings. See the manual that came with your access point for more information.
Make sure your computer and the access point are connected to one another.
Move your computer away from obstacles or closer to any access point you may be using.
Make sure your computer is properly configured for Internet access.
Make sure Maximum Performance is selected for Wireless Adapter Settings in the Power Options window. Selecting
any other option may result in a communication failure. Follow the steps in What should I do if my computer cannot
connect to a wireless LAN access point? (page 174) to change the settings.
Why is the data transfer speed slow?
The wireless LAN data transfer speed is affected by distance and obstructions between devices and access points. Other
factors include device configurations, radio conditions, and software compatibility. To maximize the data transfer speed,
move your computer away from obstacles or closer to any access point you may be using.
If you are using a wireless LAN access point, the device may be temporarily overloaded depending on how many other
devices are communicating via the access point.
If your access point interferes with other access points, change the access point channel. See the manual that came with
your access point for more information.
Make sure Maximum Performance is selected for Wireless Adapter Settings in the Power Options window. Selecting
any other option may result in a communication failure. Follow the steps in What should I do if my computer cannot
connect to a wireless LAN access point? (page 174) to change the settings.
176
nN
Troubleshooting >
Networking (LAN/Wireless LAN)
How do I avoid data transfer interruptions?
While your computer is connected to an access point, data transfer interruptions may occur if a large file is exchanged or
the computer is placed in close proximity to microwaves and cordless telephones.
Move your computer closer to the access point.
Make sure the access point connection is intact.
Change the access point channel. See the manual that came with your access point for more information.
Make sure Maximum Performance is selected for Wireless Adapter Settings in the Power Options window. Selecting
any other option may result in a communication failure. Follow the steps in What should I do if my computer cannot
connect to a wireless LAN access point? (page 174) to change the settings.
What are channels?
Wireless LAN communication uses divided frequency bands known as channels. Third-party wireless LAN access point
channels may be preset to different channels from Sony devices.
If you are using a wireless LAN access point, see connectivity information contained in the manual that came with your
access point.
Why does the network connection stop when I change the encryption key?
Two computers with the wireless LAN function may lose a peer-to-peer network connection if the encryption key is changed.
You can either change the encryption key back to the original profile or re-enter the key on both computers so the key
matches.
177
nN
Troubleshooting >
Bluetooth Technology
Bluetooth Technology
What should I do if other Bluetooth devices cannot find my computer?
Make sure both devices have the Bluetooth function enabled.
Make sure the WIRELESS switch is on and the WIRELESS indicator light is lit on your computer.
You cannot use the Bluetooth function while your computer is in a power saving mode. Bring the computer back to Normal
mode, then turn on the WIRELESS switch.
Your computer and the device may be too far apart. Wireless Bluetooth technology works best when the devices are within
33 feet / 10 meters of each other.
What should I do if I cannot find the Bluetooth device I want to communicate with?
Check that the Bluetooth function of the device you want to communicate with is on. See the other device's manual for
more information.
If the device you want to communicate with is already communicating with another Bluetooth device, it may not be found
or it may not be able to communicate with your computer.
To allow other Bluetooth devices to communicate with your computer, follow these steps:
1Click Start and Devices and Printers.
2Right-click the Bluetooth device icon and click Bluetooth settings.
3Click the Options tab and select the Allow Bluetooth devices to find this computer check box.
178
nN
Troubleshooting >
Bluetooth Technology
What should I do if other Bluetooth devices cannot connect to my computer?
Check the suggestions in What should I do if I cannot find the Bluetooth device I want to communicate with? (page
177).
Make sure the other devices are authenticated.
The data transfer distance can be shorter than 33 feet / 10 meters depending on existing obstacles between the two
devices, on radio wave quality, and on the operating system or the software in use. Move your computer and Bluetooth
devices closer to each other.
Why is my Bluetooth connection slow?
The data transfer speed depends on the obstructions and/or the distance between the two devices, on the radio wave
quality, and on the operating system or the software in use. Move your computer and Bluetooth devices closer to each
other.
The 2.4 GHz radio frequency used by Bluetooth and wireless LAN devices is also used by other devices. Bluetooth
devices incorporate technology that minimizes interference from other devices using the same wavelength, however,
communication speed and connection range may be reduced. Interference from other devices may also stop
communications altogether.
Connection capability is affected by distance and obstructions. You may need to move your computer away from obstacles
or closer to the device to which it is connected.
Identify and remove obstacles between your computer and the device to which it is connected.
Why can't I use the services supported by the connected Bluetooth device?
Connection is only possible for services also supported by the computer with the Bluetooth function. For more details, search
Windows Help and Support for Bluetooth information.
179
nN
Troubleshooting >
Bluetooth Technology
Can I use a device with Bluetooth technology on airplanes?
With Bluetooth technology, your computer transmits a radio frequency of 2.4 GHz. Sensitive locations, such as hospitals and
airplanes, may have restrictions on use of Bluetooth devices to avoid radio interference. Check with facility staff to see if use
of the Bluetooth function on the computer is permitted.
Why can't I use the Bluetooth function when I log onto my computer as a user with a
standard user account?
The Bluetooth function may not be available to a user with a standard user account on your computer. Log onto the computer
as a user with administrative rights.
Why can't I use the Bluetooth devices when I switch users?
If you switch users without logging off your system, the Bluetooth devices will not work. Be sure to log off before switching
users. To log off your system, click Start, the arrow next to the Shut down button, and Log off.
Why can't I exchange business card data with a mobile phone?
The business card exchange function is not supported.
180
nN
Troubleshooting >
Bluetooth Technology
What should I do if I do not hear sound from my headphones or audio/video controller?
Check the SCMS-T settings. If your headphones or audio/video controller does not support SCMS-T content protection, you
need to connect the device using the Advanced Audio Distribution Profile (A2DP). Follow these steps:
1Click Start and Devices and Printers.
2Right-click the icon for the device that you want to connect using the A2DP and select Control.
3Click SCMS-T Settings.
4Click to cancel the Connect to a device only if it supports SCMS-T content protection check box.
181
nN
Troubleshooting >
Optical Discs
Optical Discs
Why does my computer freeze when I try to read a disc?
The disc that your computer is trying to read may be dirty or damaged. Follow these steps:
1Press the Ctrl+Alt+Delete keys and click the arrow next to the Shut down button and Restart to restart the computer.
!
Turning off your computer with the Ctrl+Alt+Delete keys may cause loss of unsaved data.
2Remove the disc from the optical disc drive.
3Check the disc for dirt or damage. If you need to clean the disc, see Discs (page 144) for instructions.
What should I do if the drive tray does not open?
Make sure your computer is on.
Press the drive eject button.
If the drive eject button does not work, click Start and Computer, right-click the optical disc drive icon, and select Eject.
If none of the above options work, insert a thin, straight object (such as a paper clip) into the manual eject hole on the
optical disc drive.
Try restarting your computer.
182
nN
Troubleshooting >
Optical Discs
What should I do if I cannot play a disc properly on my computer?
Make sure the disc is inserted into the optical disc drive with the label facing upward.
Make sure the necessary program(s) is installed according to the manufacturer's instructions.
Blu-ray Disc playback on a connected external display may be interrupted, depending on the type or bit rate of the video.
You may be able to solve this problem by lowering the screen resolution of the display. Follow the steps in Why doesn't
my screen display a video? (page 188) to change the screen resolution.
If a disc is dirty or damaged, your computer will stop responding. Follow these steps:
1Press the Ctrl+Alt+Delete keys and click the arrow next to the Shut down button and Restart to restart the computer.
!
Turning off your computer with the Ctrl+Alt+Delete keys may cause loss of unsaved data.
2Remove the disc from the optical disc drive.
3Check the disc for dirt or damage. If you need to clean the disc, see Discs (page 144) for instructions.
If you are playing a disc and cannot hear sound, do any of the following:
The volume may have been turned off by the Fn+F2 keys. Press them once again.
The volume may have been minimized by the Fn+F3 keys. Keep pressing the Fn+F4 keys to turn up the volume loud
enough to hear sound.
Right-click the volume icon on the taskbar and click Open Volume Mixer to check the settings.
Check the volume setting in the audio mixer.
If you are using external speakers, check the volume settings on the speakers and the connections between the
speakers and your computer.
183
nN
Troubleshooting >
Optical Discs
Make sure the correct driver software is installed. Follow these steps:
1Click Start and Control Panel.
2Click System and Security.
3Click System.
4Click Device Manager in the left pane.
The Device Manager window appears with a listing of your computer's hardware devices.
If an "X" or an exclamation point appears on the listed device, you may need to enable the device or reinstall the driver
software.
5Double-click the optical disc drive device to open a list of the optical disc drives of your computer.
6Double-click your desired drive.
You can confirm the driver software by selecting the Driver tab, and clicking Driver Details.
7Click OK to close the window.
Make sure an adhesive label is not affixed to a disc. Adhesive labels can come off while the disc is in the optical disc drive
and damage the drive or cause it to malfunction.
If a region code warning appears, the disc may be incompatible with the optical disc drive. Check the package to make
sure the region code is compatible with the optical disc drive.
If you notice condensation on your computer, do not use the computer for at least one hour. Condensation can cause the
computer to malfunction.
Make sure your computer is running on AC power and try the disc again.
184
nN
Troubleshooting >
Optical Discs
What should I do if I cannot play Blu-ray Disc media or my computer becomes unstable
during Blu-ray Disc playback?
Check if your optical disc drive supports the Blu-ray Disc media.
You may not be able to play some Blu-ray Disc content on your computer, or the computer may become unstable during
Blu-ray Disc playback. To play content normally, download and install the latest updates for the WinDVD BD using the
VAIO Update.
For information on how to use the VAIO Update, see Updating Your Computer (page 31).
What should I do if I cannot write data to CD media?
Make sure you neither launch any software application nor allow any to launch automatically, not even a screen saver.
If you are using a CD-R/RW disc with an adhesive label affixed, replace it with one with no affixed adhesive label. Using
a disc with an affixed adhesive label could cause a write error or other damage.
What should I do if I cannot write data to DVD media?
Make sure you are using the correct DVD recordable media.
Check which DVD recordable format is compatible with your optical disc drive. Some brands of DVD recordable media do
not work.
Why can't I write data to Blu-ray Disc media?
Check if your optical disc drive supports the Blu-ray Disc writing function.
BD-R Disc media are not rewritable. You cannot add or erase data to or from the BD-R Disc media.
185
nN
Troubleshooting >
Optical Discs
What should I do if my external optical disc drive does not work properly?
Make sure that your external optical disc drive is connected to an AC power source and the USB port on your computer. If it
is not connected, the external optical disc drive may not work properly.
186
nN
Troubleshooting >
Display
Display
Why did my screen go blank?
Your computer screen may go blank if the computer loses power or enters a power saving mode (Sleep or Hibernate). If
the computer is in LCD (Video) Sleep mode, press any key to bring the computer back into Normal mode. See Using the
Power Saving Modes (page 29) for more information.
Make sure your computer is securely plugged into a power source and turned on and the power indicator light is lit.
If your computer is running on battery power, make sure the battery pack is installed properly and is charged. See Using
the Battery Pack (page 21) for more information.
If the display output is directed to the external display, press the Fn+F7 keys. See Combinations and Functions with
the Fn Key (page 33) for more information.
While a performance selection is in progress, your computer screen becomes dark and may temporarily show some noise
or flicker. This is normal and does not indicate a malfunction.
187
nN
Troubleshooting >
Display
What should I do if I do not see proper images or videos?
Be sure to select True Color (32 bit) for the display colors before using video/image software or starting DVD playback.
Selecting any other option may prevent such software from displaying images successfully. To change the display colors,
follow these steps:
1Right-click on the desktop and select Screen resolution.
2Click Advanced settings.
3Click the Monitor tab.
4Select True Color (32 bit) under Colors.
Do not change the display resolution or colors while using video/image software or playing DVDs, as it may cause
unsuccessful playback/display or unstable system operations.
Additionally, it is recommended you disable your screen saver before starting DVD playback. If the screen saver is
enabled, it may be activated during DVD playback and prevent the playback from running successfully. Some screen
savers have been found to even change the display resolution and colors.
What should I do if no image is displayed on my TV screen or external display connected
to the HDMI output port?
Make sure you are using an HDCP-compliant display. The copyright protected content is not displayed on a non-HDCP
compliant display. See Connecting a Computer Display or a Projector (page 107) for more information.
When you use the HDMI output port on your computer, select the SPEED or AUTO mode with the performance selector
switch before connecting an external device to the HDMI output port. See Selecting Performance Modes (page 120)
for mode selection.
Another external display may be connected to the monitor port on your computer. Press the Fn+F7 keys to change the
display output. See Connecting a TV with an HDMI Input Port (page 110) or Connecting a Computer Display or a
Projector (page 107) for more information.
188
nN
Troubleshooting >
Display
Why doesn't my screen display a video?
If the display output is directed to the external display and the external display is disconnected, you cannot display a video
on your computer screen. Stop video playback, change the display output to the computer screen, and then restart video
playback. See Selecting Display Modes (page 113) for changing the display output. Alternatively, you can press the
Fn+F7 keys to change the display output. See Combinations and Functions with the Fn Key (page 33) for more
information.
The video memory of your computer may be insufficient for displaying high resolution videos. In such a case, lower the
resolution of the LCD screen.
To change the screen resolution, follow these steps:
1Right-click on the desktop and select Screen resolution.
2Click the drop-down list next to Resolution.
3Move the slider up to increase or down to decrease the screen resolution.
You can check the total amount of the graphics and video memory available. Right-click on the desktop, select Screen resolution, and click Advanced
Settings and the Adapter tab. The displayed value may be different from the actual amount of memory on your computer.
What should I do if my screen is dark?
Press the Fn+F6 keys to brighten your computer screen.
Blocking the ambient light sensor turns your screen dark. Make sure that the sensor is unblocked.
What should I do if the external display remains blank?
Press the Fn+F7 keys to change the display output. See Combinations and Functions with the Fn Key (page 33) for more
information.
189
nN
Troubleshooting >
Display
How do I run Windows Aero?
To run Windows Aero, follow these steps:
1Right-click on the desktop and select Personalize.
2Select your desired theme from Aero Themes.
For information about the Windows Aero features, such as Windows Flip 3D, see Windows Help and Support.
190
nN
Troubleshooting >
Printing
Printing
What should I do if I cannot print a document?
Make sure your printer is on, and the printer cable is securely connected to the ports on the printer and your computer.
Make sure your printer is compatible with the Windows operating system installed on your computer.
You may need to install the printer driver software before you use your printer. See the manual that came with your printer
for more information.
If your printer is not functioning after your computer resumes from a power saving mode (Sleep or Hibernate), then restart
the computer.
If the bidirectional communication functions are provided with your printer, disabling the functions on your computer may
enable printing. Follow these steps:
1Click Start and Devices and Printers.
2Right-click the printer icon and select Properties.
3Click the Ports tab.
4Click to cancel the Enable bidirectional support check box.
5Click OK.
This disables the bidirectional communication functions of the printer, such as data transfer, status monitoring, and
remote panel.
When your printer is connected to the optional port replicator, check to see if the port replicator is connected to an AC
power source.
191
nN
Troubleshooting >
Microphone
Microphone
What should I do if my microphone does not work?
If you are using an external microphone, make sure the microphone is turned on and is properly plugged into the
microphone jack on your computer.
Your sound input device may have been incorrectly configured. To configure the sound input device, follow these steps:
1Close all open programs.
2Click Start and Control Panel.
3Click Hardware and Sound.
4Click Manage audio devices under Sound.
5On the Recording tab, select your desired device for sound input and click Set Default.
How can I prevent microphone feedback?
Microphone feedback occurs when the microphone receives the sound from a sound output device, such as a speaker.
To prevent this problem:
Keep the microphone away from a sound output device.
Turn down the volume of the speakers and the microphone.
192
nN
Troubleshooting >
Speakers
Speakers
What should I do if I do not hear sound from the built-in speakers?
If you are using a program that has its own volume control, make sure the volume control is properly set. See the
program's help file for more information.
The volume may have been turned off by the Fn+F2 keys. Press them once again.
The volume may have been minimized by the Fn+F3 keys. Keep pressing the Fn+F4 keys to turn up the volume loud
enough to hear sound.
Check the Windows volume controls by clicking the volume icon on the taskbar.
Your sound output device may have been incorrectly configured. To change the sound output device, see How do I
change the sound output device? (page 197).
193
nN
Troubleshooting >
Speakers
What should I do if my external speakers do not work?
Check the suggestions in What should I do if I do not hear sound from the built-in speakers? (page 192).
If you are using a program that has its own volume control, make sure the volume control is properly set. See the
program's help file for more information.
Make sure your speakers are properly connected and the volume is turned up loud enough to hear sound.
Make sure your speakers are designed for computer use.
If your speakers have a muting button, set the button to off.
If your speakers require external power, make sure the speakers are connected to a power source. See the manual that
came with your speakers for more information.
Check the Windows volume controls by clicking the volume icon on the taskbar.
Your sound output device may have been incorrectly configured. To change the sound output device, see How do I
change the sound output device? (page 197).
194
nN
Troubleshooting >
Touch Pad
Touch Pad
What should I do if the touch pad does not work?
You may have disabled the touch pad before connecting a mouse to your computer. See Using the Touch Pad (page 36).
Make sure that a mouse is not connected to your computer.
If the pointer does not move while a software application is running, press the Alt+F4 keys to close the application window.
If the Alt+F4 keys do not work, press the Windows key once and then the , key several times, select Restart with the
M or m key, and press the Enter key to restart your computer.
If your computer does not restart, press the Ctrl+Alt+Delete keys, select the arrow next to the Shut down button with the
m and , keys, press the Enter key, select Restart with the M or m key, and press the Enter key to restart your computer.
If this procedure does not work, press and hold the power button until the computer turns off.
!
Turning off your computer with the Ctrl+Alt+Delete keys or the power button may cause loss of unsaved data.
195
nN
Troubleshooting >
Keyboard
Keyboard
What should I do if the keyboard configuration is wrong?
The language layout of your computer's keyboard is labeled on the packaging box. If you choose a different regional keyboard
when you complete the Windows setup, the key configuration will be mismatched.
To change the keyboard configuration, follow these steps:
1Click Start and Control Panel.
2Click Clock, Language, and Region, and then Change keyboards or other input methods under Region and
Language.
3Click Change keyboards on the Keyboards and Languages tab.
4Change the settings as desired.
What should I do if I cannot enter certain characters with the keyboard?
If you cannot enter U, I, O, P, J, K, L, M, and so on, the Num Lk key may be activated. Check that the Num lock indicator
light is unlit. If the Num lock indicator is lit, press the Num Lk key to turn it off before entering these characters.
196
nN
Troubleshooting >
Floppy Disks
Floppy Disks
Why doesn't the Safely Remove Hardware and Eject Media icon appear on the taskbar
when the drive is connected?
Your computer does not recognize the floppy disk drive. First, make sure the USB cable is properly connected to the USB
port. If you need to secure the connection, wait a few moments for the computer to recognize the drive. If the icon still does
not appear, follow these steps:
1Close all programs that are accessing the floppy disk drive.
2Wait until the indicator light on the floppy disk drive turns off.
3Push the eject button to remove the disk, and unplug the USB floppy disk drive from your computer.
4Reconnect the floppy disk drive by plugging the USB cable into the USB port.
5Restart the computer by clicking Start, the arrow next to the Shut down button, and Restart.
What should I do if I cannot write data to a floppy disk?
Make sure the floppy disk is properly inserted in the drive.
If the disk is inserted properly and you are still unable to write data to it, the disk may be full or write-protected. You can
either use a floppy disk that is not write-protected or disable the write-protect feature.
197
nN
Troubleshooting >
Audio/Video
Audio/Video
How do I turn off the Windows startup sound?
To turn off the Windows startup sound, follow these steps:
1Click Start and Control Panel.
2Click Hardware and Sound.
3Click Manage audio devices under Sound.
4On the Sounds tab, click to cancel the Play Windows Startup sound check box.
5Click OK.
How do I change the sound output device?
If you do not hear sound from the device connected to a port, such as the USB port, HDMI output port, optical output port, or
headphones jack, you need to change the device for sound output.
!
When you use the HDMI output port on your computer, select the SPEED or AUTO mode with the performance selector switch. See Selecting
Performance Modes (page 120) for mode selection.
1Close all open programs.
2Click Start and Control Panel.
3Click Hardware and Sound.
4Click Manage audio devices under Sound.
5On the Playback tab, select your desired device for sound output and click Set Default.
198
nN
Troubleshooting >
Audio/Video
What should I do if I do not hear the sound from the sound output device connected to the
HDMI output port, optical output port, or headphones jack?
!
When you use the HDMI output port on your computer, select the SPEED or AUTO mode with the performance selector switch. See Selecting
Performance Modes (page 120) for mode selection.
You need to change the sound output device if you want to hear sound from the device connected to a port, such as the
HDMI output port, optical output port, or headphones jack. For the detailed procedure, see How do I change the sound
output device? (page 197).
If you still hear no sound from the sound output device, follow these steps:
1Follow steps 1 to 4 in How do I change the sound output device? (page 197).
2On the Playback tab, select the HDMI or S/PDIF icon and click Properties.
3Click the Advanced tab.
4Select the sample rate and bit depth (for example, 48000 Hz, 16 bit) which the device supports.
5Click OK.
Why do sound interruptions and/or dropped frames occur when I play high-definition
videos, such as those recorded with the AVCHD digital video camcorder?
Playing high-definition videos requires substantial hardware resources, such as CPU, GPU, or system memory performance
on your computer. During the video playback, some operations and/or functions may become unavailable, and sound
interruptions, dropped frames, and playback failure may occur depending on the configuration of your computer.
199
nN
Troubleshooting >
"Memory Stick"
"Memory Stick"
What should I do if I cannot use "Memory Stick" that was formatted on a VAIO computer
on other devices?
You may need to reformat your "Memory Stick".
Formatting "Memory Stick" erases all data, including music data previously saved on it. Before you reformat "Memory Stick",
back up important data and confirm that "Memory Stick" does not contain files you want to keep.
1Copy the data from "Memory Stick" onto your built-in storage device to save data or images.
2Format "Memory Stick" by following the steps in Formatting "Memory Stick" (page 50).
Can I copy images from a digital camera using "Memory Stick"?
Yes, and you can view video clips that you have recorded with digital cameras that are compatible with "Memory Stick".
Why can't I write data to "Memory Stick"?
Some versions of "Memory Stick" are equipped with an erasure prevention switch to protect data from unintentional erasure
or overwriting. Make sure the erasure prevention switch is off.
200
nN
Troubleshooting >
Peripherals
Peripherals
What should I do if I cannot connect a USB device?
If applicable, check the USB device is turned on and using its own power supply. For example, if you are using a digital
camera, check if the battery is charged. If you are using a printer, check if the power cable is connected properly to the
AC outlet.
Try using another USB port on your computer. The driver software could be installed to the specific port you used the first
time you connected the device.
See the manual that came with your USB device for more information. You may need to install software before you connect
the device.
Try connecting a simple, low-powered device such as a mouse to test if the port is working at all.
USB hubs may prevent a device from working because of a power distribution failure. We recommend you connect the
device directly to your computer without a hub.
201
nN
Troubleshooting >
Port Replicator
Port Replicator
Why can't I use my TFT/DVI monitor connected to the DVI-D port?
When you use the DVI-D port on the port replicator, select the SPEED or AUTO mode with the performance selector switch.
See Selecting Performance Modes (page 120) for mode selection.
202
nN
Trademarks >
Trademarks
© 2010 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited.
Sony, the Sony logo, "Memory Stick", "Memory Stick Duo", "MagicGate", "OpenMG", "Memory Stick PRO Duo", "Memory
Stick PRO", "Memory Stick PRO-HG Duo", "Memory Stick Micro", "M2", the "Memory Stick" logo, Micro Vault, Micro Vault
EX, MOTION EYE, Sony Style, i.LINK, VAIO Care, VAIO Media, Click to BD, G-Sensor, like.no.other, SmartWi, Walkman,
and "BRAVIA" are trademarks or registered trademarks of Sony Corporation.
VAIO, the VAIO logo, Backstage, VAIO DIGITAL STUDIO, HDNA, and the HDNA logo are trademarks or registered
trademarks of Sony Electronics Inc.
Intel, Centrino, Core, Celeron, Xeon, Pentium, and Atom are trademarks or registered trademarks of Intel Corporation in the
United States and/or other countries.
Microsoft, Windows, Windows Media, Windows Mobile, Windows NT, Windows Vista, BitLocker, Outlook, Excel, MS-DOS,
PowerPoint, ReadyBoost, Internet Explorer, Aero, Windows Live, and the Windows logo are trademarks or registered
trademarks of Microsoft Corporation in the United States and/or other countries.
Blu-ray Disc and the Blu-ray Disc logo are trademarks of the Blu-ray Disc Association.
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.
SD Logo is a trademark.
SDHC Logo is a trademark.
The ExpressCard word mark and logos are owned by the PCMCIA and any use of such marks by Sony Corporation is under
license.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing
LLC.
203
nN
Trademarks >
CompactFlash® is a trademark of SanDisk Corporation.
, "XMB," and "xross media bar" are trademarks of Sony Corporation and Sony Computer Entertainment Inc.
"TransferJet" and the "TransferJet" logo are trademarks of Sony Corporation.
AVCHD" is a trademark of Panasonic Corporation and Sony Corporation.
Dolby is a registered trademark of Dolby Laboratories.
Symantec, the Symantec Logo, and Norton Internet Security are trademarks or registered trademarks of Symantec
Corporation or its affiliates in the U.S. and other countries.
All other names of systems, products, and services are trademarks of their respective owners. In the manual, the ™ or ®
marks may not be specified.
Features and specifications are subject to change without notice.
All other trademarks are trademarks of their respective owners.
Not all the software listed above may be delivered with your model.
204
nN
Notice >
Notice
© 2010 Sony Corporation. All rights reserved.
This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any
machine-readable form without prior written approval.
Sony Corporation provides no warranty with regard to this manual, the software, or other information contained herein and
hereby expressly disclaims any implied warranties or merchantability or fitness for any particular purpose with regard to this
manual, the software, or such other information. In no event shall Sony Corporation be liable for any incidental, consequential,
or special damages, whether based on tort, contract, or otherwise, arising out of or in connection with this manual, the
software, or other information contained herein or the use thereof.
In the manual, the ™ or ® marks are not specified.
Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time
without notice. The software described herein is governed by the terms of a separate user license agreement.
Sony Corporation is not liable and will not compensate for any lost recordings made to your computer, external recording
media, or recording devices or any relevant losses, including when recordings are not made due to reasons including your
computer failure, or when the contents of a recording are lost or damaged as a result of your computer failure or repair
undertaken to your computer. Sony Corporation will not restore, recover, or replicate the recorded contents made to your
computer, external recording media, or recording devices under any circumstances.
© 2010 Sony Corporation
n

Navigation menu
