Before Use
Before Use
Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal
computing.
Documentation
Your documentation includes printed information and user guides to read on your VAIO computer.
Printed Documentation
❑Welcome mat — Contains an overview of connections, setting up information, etc.
❑Safety Information — Contains safety guidelines and owner information.
❑Instant Mode — Provides a guide to use Instant Mode.
Non-printed Documentation
❑User Guide (this manual) — Contains features of your computer. It also includes information about the software programs
included with your computer, as well as information on solving common problems.
❑Specifications — The online Specifications describe the hardware and software configuration of your VAIO computer.
To view the online Specifications:
1Connect to the Internet.
2Go to the Sony online support Web site at http://esupport.sony.com/EN/VAIO/ for customers in USA,
at http://www.sony.ca/support for customers in Canada, at http://esupport.sony.com/ES/VAIO/ for customers in Latin
American countries or areas, or at http://esupport.sony.com/ES/VAIO/BR/ for customers in Brazil.
7
nN
Before Use
❑VAIO Recovery Guide — Provides information about restoring individual software programs, software drivers, and drive
partition(s) or your entire hard disk drive to the original factory installed settings.
To access this on-screen guide:
1Click Start, point to All Programs, and click VAIO Support Central.
2Click VAIO Documentation.
3Click VAIO Recovery Guide.
❑SmartWi™ Connection Utility Guide (Selected models only) — Provides information about setting up Bluetooth,
Wireless LAN, and Wireless WAN functionalities.
To access this on-screen guide:
1Click Start, point to All Programs, and click VAIO Support Central.
2Click VAIO Documentation.
3Click SmartWi Connection Utility Guide.
Ergonomic Considerations
You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt
to take account of the following ergonomic considerations to both stationary and portable environments:
8
nN
Before Use
❑Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your
wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse. Let your upper arms
hang naturally at your sides. Have breaks during sessions with your computer. Excessive use of the computer may strain
muscles or tendons.
❑Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the
floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.
❑Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye
strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the
display as well.
9
nN
Before Use
❑Lighting – Choose a location where windows and lights do not create glare and reflection on the display. Use indirect
lighting to avoid bright spots on the display. You can also purchase accessories for your display that help reduce glare.
Proper lighting adds to your comfort and work effectiveness.
❑Positioning an external display – When using an external display, set the display at a comfortable viewing distance.
Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.
10
nN
Getting Started
Getting Started
This section describes how to get started with using your VAIO computer.
!
Before starting your computer for the first time, do not connect any new hardware that did not originally come with your computer. Make sure to start
up your computer with only the supplied accessories connected and set up your system. Upon completion, connect one device (for example, a printer,
an external hard disk drive, a scanner, and so on) at a time, following the manufacturer's instructions.
❑Locating Controls and Ports (page 10)
❑About the Indicator Lights (page 16)
❑Connecting a Power Source (page 17)
❑Using the Battery Pack (page 18)
❑Shutting Down Your Computer Safely (page 21)

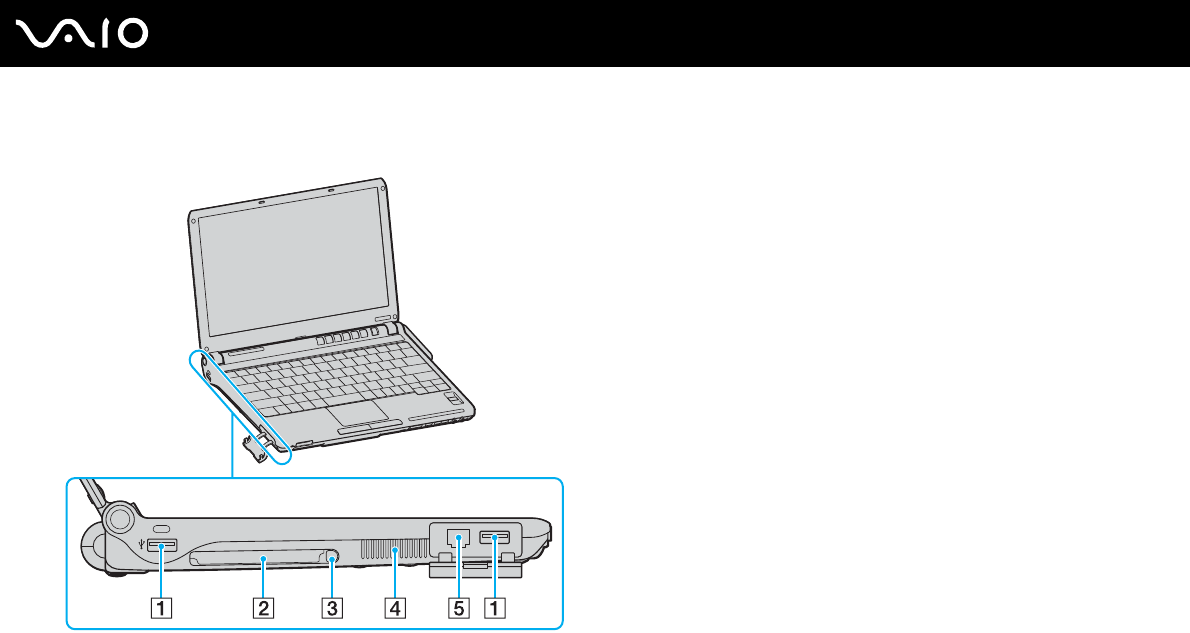

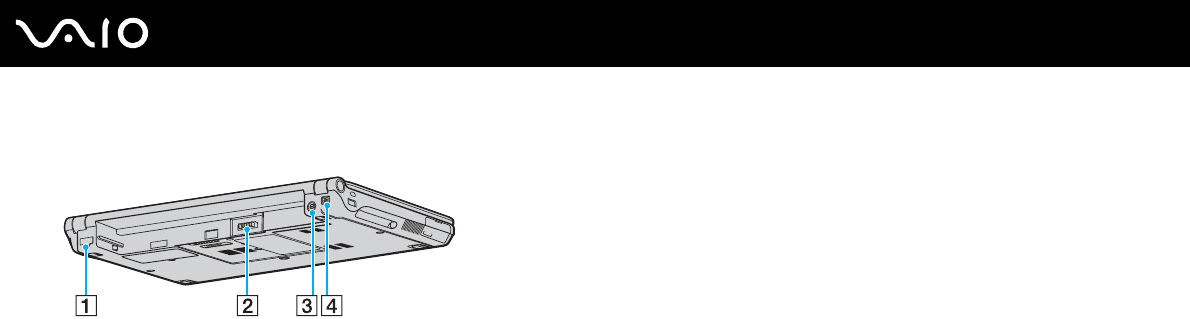

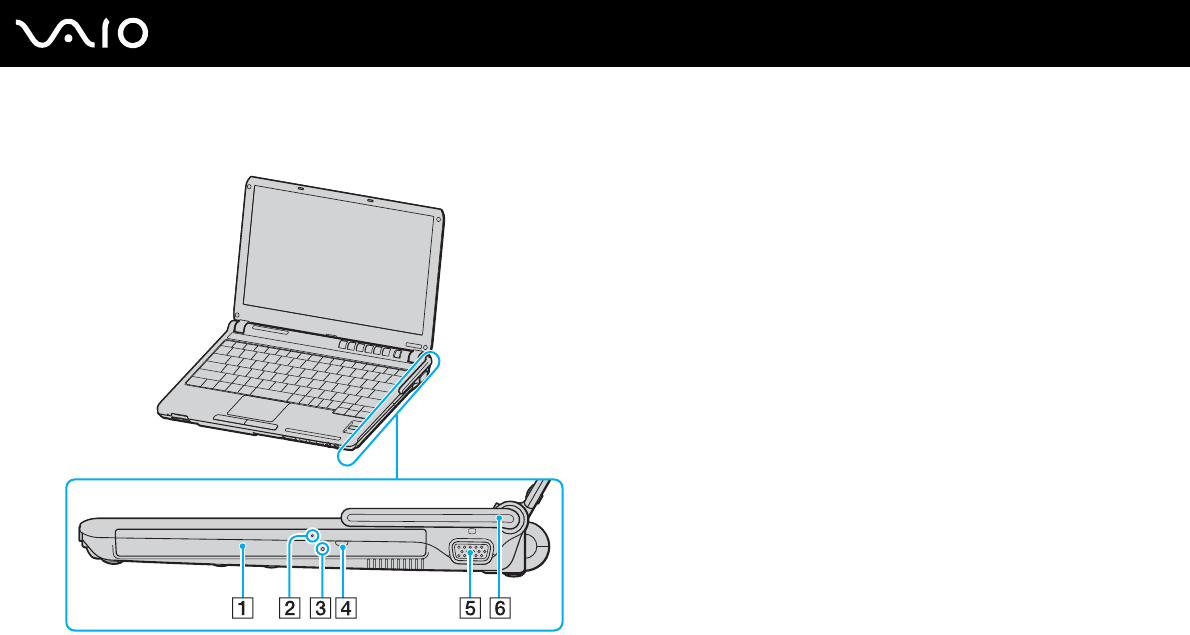

Locating Controls and Ports
Take a moment to identify the controls and ports shown on the following pages.
11
nN
Getting Started
Front
AMedia Access indicator (page 16)
BMemory Stick PRO/Duo media slot* (page 39)
CSD memory card/MultiMediaCard (MMC) slot (page 41)
DLCD screen (page 115)
EKeyboard (page 23)
FTouch pad (page 24)
GFingerprint sensor (page 83)
HWIRELESS switch (page 44)
IMuting button (page 25)
JVolume buttons (page 25)
KHeadphones jack (page 61)
LMicrophone jack (page 67)
* Your computer supports Memory Stick PRO media and Memory Stick Duo
media with high speed and high capacity capabilities.
12
nN
Getting Started
AAV MODE button (page 25)
BPlay/Pause button (page 25)
CStop button (page 25)
DPrevious track button (page 25)
ENext track button (page 25)
FDisc drive eject button (page 25)
GBattery indicator (page 16)
HHard disk drive indicator (page 16)
INum lock indicator (page 16)
JCaps lock indicator (page 16)
KScroll lock indicator (page 16)
LPower button
MBuilt-in speakers
NBluetooth indicator (page 16)
OWIRELESS LAN indicator (page 16)
PWWAN indicator* (page 16)
QMuting indicator (page 16)
* On selected models only.
16
nN
Getting Started
Bottom
About the Indicator Lights
Your computer is equipped with the following indicator lights.
AAir vents
BPort replicator connector (page 58)
CBattery release latch (page 21)
Indicator Functions
Power 1Illuminates when the power of the computer is on, blinks when the computer is in Standby mode, and turns off
when the computer is in Hibernate mode or off.
Battery eIlluminates when the computer is using battery power, blinks when the battery pack is running out of power, and
double-blinks when the battery pack is charging.
Media Access Illuminates when data is read from or written to a memory card. (Do not enter Standby mode or turn off the
computer when this indicator is on.) When the indicator is off, the memory card is not being used.
17
nN
Getting Started
Connecting a Power Source
You can use either an AC adapter or a rechargeable battery pack as a power source for your computer.
Optical disc drive Illuminates when data is read from or written to the optical disc. When the indicator is off, the optical disc is not
being used.
Muting %Illuminates when the volume is turned off.
Hard disk drive Illuminates when data is read from or written to the hard disk. Do not enter Standby mode or turn off the
computer when this indicator is on.
Num lock Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad.
The numeric keypad is not active when the indicator is off.
Caps lock Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key
while the indicator is on. Press the key a second time to turn off the indicator. Normal typing resumes when the
Caps lock indicator is off.
Scroll lock Press the Scr Lk key to change how you scroll the display. Normal scrolling resumes when the Scroll lock
indicator is off. The Scr Lk key functions differently depending on the program you are using and does not work
with all programs.
Bluetooth technology Illuminates when the WIRELESS switch is set to ON and Bluetooth technology is enabled.
WIRELESS LAN Illuminates when the wireless LAN function is running.
WIRELESS WAN*Illuminates when the wireless WAN function is enabled.
* On selected models only.
Indicator Functions
18
nN
Getting Started
Using the AC Adapter
✍
Use your computer only with the supplied AC adapter.
To use the AC adapter
1Plug one end of the power cord (1) into the AC adapter (3).
2Plug the other end of the power cord into an AC outlet (2).
3Plug the cable attached to the AC adapter (3) into the DC IN port (4) on the computer or on the (optional) port replicator.
!
The shape of the DC In plug varies depending on the AC adapter.
✍
To disconnect your computer completely from AC power, unplug the AC adapter.
Make sure that the AC outlet is easily accessible.
If you do not use your computer for a long period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page 104). This power
saving mode saves the time of shutting down or resuming.
Using the Battery Pack
The battery pack supplied with your computer is not fully charged at the time of purchase.
19
nN
Getting Started
Installing the Battery Pack
To install the battery pack
1Turn off the computer and close the LCD screen lid.
2Slide the battery pack into the battery compartment until it clicks into place.
✍
When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.
!
This computer is designed to operate only with genuine Sony batteries.
Charging the Battery Pack
The battery pack supplied with your computer is not fully charged at the time of purchase.
To charge the battery pack
1Install the battery pack.
2Connect the AC adapter to the computer.
The computer automatically charges the battery pack (the battery indicator light flashes in a double blink pattern as the
battery pack charges). When the battery pack is about 85% charged, the battery indicator turns off.
20
nN
Getting Started
✍
When the battery pack is running out of power, both the battery and power indicator lights blink.
Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the
computer.
If the battery level falls below 10%, you should either attach the AC adapter to recharge the battery pack or shut down your computer and install a fully
charged battery pack.
The battery pack supplied with your computer is a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack
does not affect battery life.
The battery indicator light is on while you use the battery pack as a power source. When battery life is nearly depleted, both the battery and power
indicator lights start flashing.
For some software applications and some peripheral devices, your computer may not enter Hibernate mode even when battery life is low. To avoid loss
of data when using battery power, you should save your data frequently and manually activate a power management mode, such as Standby or
Hibernate. If the battery pack wears out when the computer enters Standby mode, you will lose any unsaved data. Going back to the previous work
state is impossible. To avoid loss of data, you should save your data frequently.
When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.
Battery indicator light status Meaning
On The computer is using battery power.
Blinks The battery pack is running out of power.
Double blinks The battery pack is charging.
Off The computer is using AC power.
21
nN
Getting Started
Removing the Battery Pack
!
You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack
while the computer is in Standby mode.
To remove the battery pack
1Turn off the computer and close the LCD screen lid.
2Slide and hold the battery release latch (1) and slide the battery pack away from the computer.
✍
If the battery pack is stuck by the side spring locks, release one lock and then the other to remove the battery pack.
Shutting Down Your Computer Safely
To avoid losing unsaved data, be sure to shut down your computer properly, as described below.
To shut down your computer
1Turn off any peripherals connected to the computer.
23
nN
Using Your VAIO Computer
Using Your VAIO Computer
This section describes how to get the most out of using your computer.
❑Using the Keyboard (page 23)
❑Using the Touch Pad (page 24)
❑Using Special-function Buttons (page 25)
❑Using the Optical Disc Drive (page 27)
❑Using PC Cards (page 34)
❑Using the Memory Stick Media (page 37)
❑Using Other Memory Cards (page 41)
❑Using the Internet (page 43)
❑Using Wireless LAN (WLAN) (page 44)
❑Using the Bluetooth Functionality (page 51)
Using the Keyboard
Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks.
Combinations and Functions with the Fn Key
✍
Some functions are not available before Windows is launched.
24
nN
Using Your VAIO Computer
Using the Touch Pad
The keyboard contains a cursor-pointing device, the touch pad (1). You can point to, select, drag, and scroll objects on the
screen using the touch pad.
Combinations/Feature Functions
Fn + F1: wireless switching*Toggles among Bluetooth, Wireless LAN, and Wireless WAN functionalities.
Fn + 8 (F5/F6): brightness control Adjusts the LCD brightness of your computer screen.
To increase lightness intensity, press Fn+F6 and then M or ,, or keep pressing Fn+F6.
To decrease lightness intensity, press Fn+F5 and then m or <, or keep pressing Fn+F5.
Fn + /T (F7): display output Toggles among your computer screen, an external display, and simultaneous output to both.
Fn + (F10): zoom Changes the screen resolution to magnify/restore your computer's screen view.
✍
The magnified view is not as clear as the standard view, as it is implemented by applying a lower resolution
to the computer screen with a higher resolution.
This key combination may not work with graphic images as it magnifies the screen view by changing the
resolution.
The location and size of software windows may change when the screen view is magnified or the standard
view is restored because pressing this key combination changes the resolution.
When your computer's screen view is magnified, switching the view to the external display disables the
function and restores the standard view.
Fn + (F12): Hibernate Provides for the lowest level of power consumption. When you execute this command, the
states of the system and the peripheral devices are written to the hard disk and the system
power is turned off. To return the system to its original state, use the power button to turn on the
power.
For details on power management, see Using the Power Saving Modes (page 102).
* On selected models only.
25
nN
Using Your VAIO Computer
Using Special-function Buttons
Your computer is equipped with special buttons to help you use specific functions of the computer.
The AV MODE, Play/Pause, Stop, Previous track, Next track, and Disc drive eject buttons support Instant Mode. To activate
Instant Mode, the computer must be off. See the printed Instant Mode booklet for more information on the Instant Mode.
Action Description
Point Slide one finger on the touch pad to place the pointer (2) on an item or object.
Click Press the left button (3) once.
Double-click Press the left button twice.
Right-click Press the right button (4) once. In many applications, this action displays a shortcut menu.
Drag Slide one finger on the touch pad while pressing the left button.
Scroll Move your finger along the right edge of the touch pad to scroll vertically. Move your finger along the bottom to scroll
horizontally (the scroll function is available only with applications that support a touch pad scroll feature).
26
nN
Using Your VAIO Computer
Special-function button Functions
AV MODE button
When Windows is NOT launched:
Activates Instant Mode to enable you immediately to play CDs and DVDs without launching Windows. See
the printed Instant Mode booklet for more information.
When Windows is launched and running:
Launches the WinDVD or VAIO Zone* software by default. You can change this button assignment with the
AV Mode Button Settings utility. To start this utility, press and hold the AV MODE button. See the help file
on the AV Mode Button Settings utility for more information.
You need administrator rights on the computer to change the AV MODE button assignment.
Play/Pause button
This button is enabled in Instant Mode as well as when Windows is launched and running.
Starts or pauses DVD playback with the WinDVD or VAIO Zone software or CD playback with the
SonicStage software.
Stop button
This button is enabled in Instant Mode as well as when Windows is launched and running.
Stops DVD playback with the WinDVD or VAIO Zone software or CD playback with the SonicStage software.
Previous track button
This button is enabled in Instant Mode as well as when Windows is launched and running.
Plays the previous chapter/movie in the DVD during playback with the WinDVD or VAIO Zone software or the
previous song in the CD during playback with the SonicStage software.
Next track button
This button is enabled in Instant Mode as well as when Windows is launched and running.
Plays the next chapter/movie in the DVD during playback with the WinDVD or VAIO Zone software or the next
song in the CD during playback with the SonicStage software.
Disc drive eject button
Ejects the optical disc drive tray.
If this button does not work, try the substitute drive eject button on the optical disc drive.
Muting button Turns the speaker and microphone volume on and off.
Volume buttons
(Volume up and Volume down)
Increase and decrease the volume.
27
nN
Using Your VAIO Computer
Using the Optical Disc Drive
Your computer is equipped with an optical disc drive.
To insert a disc
1Turn on the computer.
2Press the disc drive eject button (1) to open the drive.
The tray slides out.
✍
If the disc drive eject button does not work, try the substitute drive eject button on the optical disc drive.
If power supply to the optical disc drive is disabled by VAIO Power Management, it will take a while to eject the drive tray. Note that the substitute drive
eject button is disabled when the optical disc drive is not powered.
When recovering your system, turn on your computer and press the substitute drive eject button on the optical disc drive. Insert your Recovery Disc
into the optical disc drive, turn off the computer, and then turn on the computer again to launch the VAIO Recovery utility.
3Place a disc in the middle of the tray with the label side facing upward and gently push it until the disc clicks into place.
* Launches the VAIO Zone software if the software is preinstalled on your computer.
Special-function button Functions
28
nN
Using Your VAIO Computer
4Close the tray by pushing it in gently.
!
Do not remove the optical disc when your computer is in a power saving mode (Standby or Hibernate). Doing so may cause the computer to
malfunction.
✍
If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled CD/DVD program.
Reading and Writing Optical Discs
Your computer plays and records CDs and DVDs, depending on the model you purchased. Check your specifications for the
type of optical disc drive installed on your model. Use the table below to see which types of media your optical disc drive
supports.
PR: playable and recordable
P: playable but not recordable
–: not playable nor recordable
29
nN
Using Your VAIO Computer
CD-
ROM
Video
CD
Music
CD
CD
Extra
CD-R/
RW
DVD-
ROM
DVD-
Video
DVD-R/
RW
DVD+R/
RW
DVD+R
DL
DVD-R
DL
DVD-
RAM
DVD±RW/±R DL/RAM PPPPPRPPPR*1 *2 PR PR*5 PR*6 PR*3 *4
DVD±RW/+R DL/RAMPPPPPRPPPR*1 *2 PR PR*5 PPR*3 *4
DVD±RW
(Supporting DVD±R DL)
PPPPPRPPPR*1 *2 PR PR*5 PR*6 –
DVD±RW
(Supporting DVD+R DL)
PPPPPRPPPR*1 *2 PR PR*5 P–
CD-RW/DVD-ROM PPPPPRPPPPPP–
DVD-ROM PPPPPPPPPPP–
*1 Supports writing data to DVD-R discs compliant with DVD-R for General Version 2.0/2.1.
*2 Supports writing data to DVD-RW discs compliant with DVD-RW Version 1.1/1.2.
*3 The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with removable cartridge.
*4 Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported.
DVD-RAM Version 2.2/12X-SPEED DVD-RAM Revision 5.0 disc is not supported.
*5 Writing data to DVD+R DL (Double Layer) discs is available only on discs supporting DVD+R DL (Double Layer) recording.
*6 Writing data to DVD-R DL (Dual Layer) discs is available only on discs supporting DVD-R DL (Dual Layer) recording.
PR: playable and recordable
P: playable but not recordable
–: not playable nor recordable
CD-
ROM
Video
CD
Music
CD
CD
Extra
CD-R/
RW
DVD-
ROM
DVD-
Video
BD-
ROM
DVD-R/
RW
DVD+R/
RW
DVD+R
DL
DVD-R
DL
DVD-
RAM BD-R*9/
RE*10
30
nN
Using Your VAIO Computer
!
This product is designed to playback discs that conform to the Compact Disc Digital Audio standard specifications (CD Standard). A DualDisc is a two
sided disc product which mates DVD recorded material on one side with digital audio material on the other side. Please be aware that the audio side
(non-DVD side) of a DualDisc may not play on this product because it does not conform to the CD Standard.
!
Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices
on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee
the compatibility of VAIO CD drives with discs that are not compliant with the official "CD" format standard (or "DVD" standard in relation to DVD drives).
USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE TO YOUR VAIO PC OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING.
For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.
✍
8cm disc writing is not supported.
Notes on writing data to a disc
❑To make data on a disc readable on the optical disc drive, you need to close the session before you eject it. To complete
this process, follow the instructions included with your software.
❑Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc
drive.
Blu-ray
Disc Drive
PPPPPR*8 PPPPR*1 *2 PR PR*5 PR*6 PR*6 PR*7
*7 Supports writing data to BD-R Version 1.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB) and BD-RE Version 2.1
discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB). The Blu-ray disc drive on your computer does not support BD-RE
Version 1.0 discs and Blu-ray cartridge discs.
*8 Writing data to Ultra Speed CD-RW discs is not supported.
*9 BD-R stands for Blu-ray Disc-Recordable in Version 1.1 format.
*10 BD-RE stands for Blu-ray Disc-Rewritable in Version 2.1 format.
31
nN
Using Your VAIO Computer
❑Do not strike or shake your computer while writing data to a disc.
❑Deactivate the screen saver and exit anti-virus software before writing data to a disc.
❑Do not use memory-resident utility software while writing data to a disc. This may cause your computer to malfunction.
❑When using your software application to burn discs, make sure you exit and close all other applications.
❑Never touch the surface of the disc. Fingerprints and dust on the surface of a disc may cause writing errors.
❑Do not switch power modes while using the preinstalled software and while using the CD burning software.
❑Never affix an adhesive label to discs. This will affect the use of the disc irreparably.
❑Connect and use the AC adapter to power your computer or make sure your battery pack is at least 50 percent charged.
❑Use only Sony Value-added software when writing to CD/DVD media. (Ex: Click to DVD)
Other software programs may not be fully compatible and errors may result.
Notes on playing DVDs
To achieve optimum performance when playing DVDs, you should follow these recommendations.
❑You can play DVDs using the optical disc drive and the DVD playback software, such as VAIO Zone or WinDVD. See the
help file on such software for details.
❑Close all open applications before playing a DVD movie.
❑Do not use memory-resident utility software to speed up disc access when playing a DVD. This may cause your computer
to malfunction.
❑Deactivate the screen saver and exit anti-virus software before playing a disc.
❑Some discs recorded at 20 or 24 bits may produce noise while playing. If you have audio devices connected, this may
damage your hearing and the speakers. Reduce the volume before playing a DVD.
❑Do not switch to power saving modes while your computer is playing a DVD.
32
nN
Using Your VAIO Computer
❑Region code indicators are labeled on the DVDs to indicate in which region and on what type of player you can play the
disc. If the DVD is labeled "all," this means that you can play this DVD in most regions of the world. If the region code of
your residence area is different from the label on the DVD disc or on the packaging, you cannot play the disc on your
computer.
!
You can change the DVD region code only a limited number of times. When you have exceeded this number, the drive's DVD region code is permanently
assigned and you will not be able to change it again. Reconfiguring your computer does not reset this count.
If you change the DVD region code while the WinDVD software is running, restart the software or eject the disc and re-insert it to make the new setting
effective.
❑If your computer has the Wireless LAN functionality and Wireless LAN is activated, playing DVDs may cause some
interruptions in audio and video.
❑When you are playing a DVD (video or audio) and you want to remove a USB device, such as USB-compatible speakers,
make sure you stop the DVD first. Removing a USB-compatible device during DVD (video or audio) playback may cause
a malfunction.
Playing CDs
To play an audio CD
1Insert a disc into the optical disc drive.
2If nothing appears on the desktop, then click Start, point to All Programs, and click to start the desired CD software, such
as the SonicStage software.
If the Audio CD window appears, click to select an option.
33
nN
Using Your VAIO Computer
Copying Files to CDs
To copy files to a disc
!
Do not strike or shake your computer while writing data to a disc.
1Insert a blank disc into the optical disc drive.
If the CD Drive window appears, click Take no action and then click OK.
2Right-click Start and then click Explore.
3In the Folders panel on the left, locate the file(s) or folder(s) you want to copy, right-click the file(s) or folder(s), point to
Send To, and then click the optical disc drive* name.
4Close the window.
5Click Start and then My Computer.
6Click the optical disc drive icon under Devices with Removable Storage. A new window appears with the file(s) or
folder(s) you want to copy listed under Files Ready to Be Written to the CD.
7In the CD Writing Tasks box, click Write these files to CD.
8Follow the instructions in the CD Writing Wizard.
* The read/write drive letter designation may vary, depending on your system's hardware configuration.
Playing DVDs
To play a DVD
1Close all running software applications.
2Insert a DVD into the optical disc drive.
34
nN
Using Your VAIO Computer
3If nothing appears on the desktop, then click Start, point to All Programs, and click to start the desired DVD software to
play the DVD.
For instructions on how to use the software, see the help file on your DVD software.
Copying Files to DVDs
To copy files to a disc
1Connect the AC adapter to the computer.
2Insert a disc into the optical disc drive.
3If nothing appears on the desktop, then click Start, point to All Programs, and click to start the DVD software you want
to use.
For instructions on how to use the software, see the help file on your DVD software.
Using PC Cards
PC Cards allow you to connect portable external devices to your computer.
Inserting a PC Card
!
Some PC Cards or their functions may not be compatible with your computer.
You do not need to shut down your computer before inserting or removing a PC Card.
To insert a PC Card
1Push the PC Card release button so that the release button pops out.
2Push the PC Card release button a second time so that the PC Card slot protector pops out.
35
nN
Using Your VAIO Computer
3Gently take hold of the protector and pull it out of the slot.
4Insert the PC Card into the PC Card slot with the front label facing upward.
5Gently push the PC Card into the slot.
The PC Card is automatically detected by your system.
The Safely Remove Hardware icon appears on the taskbar.
!
Insert the PC Card slot protector to protect against debris entering the slot when not using a PC Card. Before moving your computer, make sure to
insert the PC Card slot protector into the slot.
36
nN
Using Your VAIO Computer
✍
Some devices may not function properly if you continually switch to Normal mode from Standby mode or Hibernate mode. For some PC Cards, if you
alternate between Normal mode and Standby or Hibernate mode while the card is inserted, you may find that a device connected to your system is not
recognized. Restart your system to correct the problem. Restarting will restore the original state of your computer.
While the card is inserted, your computer may not enter Hibernate power management mode. It may enter Standby mode. We recommend that you
remove the card before the computer enters Hibernate mode.
Make sure you use the most recent software driver provided by the PC Card manufacturer.
If an "!" mark appears on the Device Manager tab in the System Properties window, remove the software driver and then reinstall it.
Do not force a PC Card into the slot. It may damage the connector pins. If you have difficulty inserting a PC Card, check that you are inserting the PC
Card in the correct direction. See the manual that came with your PC Card for more information.
Removing a PC Card
Follow the steps below to remove the PC Card while your computer is on. If it is not removed properly, your system may not
work properly.
To remove a PC Card
✍
To remove a PC Card when your computer is off, skip steps 1 to 6.
1Double-click the Safely Remove Hardware icon on the taskbar.
The Safely Remove Hardware window appears.
2Select the hardware you want to unplug.
3Click Stop.
The Stop a Hardware Device window appears.
37
nN
Using Your VAIO Computer
4Confirm that the device can be safely removed from the system.
5Click OK.
A window appears, explaining that it is safe to remove the device.
6Click Close.
7Push the PC Card release button so that the release button pops out.
8Push the PC Card release button a second time so that the PC Card pops out.
9Gently take hold of the Card and pull it out of the slot.
10 If the PC Card release button is still out, push it back in.
Using the Memory Stick Media
Your computer supports the Memory Stick media. Memory Stick media is a compact, portable, and versatile IC recording
media especially designed for exchanging and sharing digital data with compatible products, such as digital cameras, mobile
phones and other devices. Because it is removable, it can be used for external data storage.
For the latest information on Memory Stick media, visit the Sony online support Web site at:
http://esupport.sony.com/EN/VAIO/ for customers in USA,
http://www.sony.ca/support for customers in Canada,
http://esupport.sony.com/ES/VAIO/ for customers in Latin American countries or areas, or
http://esupport.sony.com/ES/VAIO/BR/ for customers in Brazil.
38
nN
Using Your VAIO Computer
!
Your computer has been tested and found compatible with the Sony branded Memory Stick media with capacity of up to 4 GB that are available as of
May 2006. However, not all Memory Stick media that meet the same conditions as the compatible media are guaranteed of compatibility.
Inserting a Memory Stick media with multiple conversion adapters is not guaranteed of compatibility.
MagicGate is the general name of the copyright protection technology developed by Sony. Use a Memory Stick media with the MagicGate logo to use
this feature.
Write-protecting a Memory Stick Media
Some versions of Memory Stick media are designed with an erasure prevention switch to protect valuable data from
accidental erasure or overwriting.
Move the tab horizontally or vertically to set or release write-protection. When the erasure prevention switch is off, data can
be saved on the Memory Stick media. When the erasure prevention switch is on, data can be read from but not saved on the
Memory Stick media.
!
Be sure to use a fine-tipped object to move the tab on the Memory Stick Duo media.
39
nN
Using Your VAIO Computer
Inserting a Memory Stick Media
To insert a Memory Stick media
1Hold the Memory Stick media with the arrow facing upward and pointing toward the Memory Stick PRO/Duo media slot.
2Carefully slide the Memory Stick media into the slot until it clicks into place.
The Memory Stick media is automatically detected by your system and appears in your My Computer window as a local
drive, under the appropriate letter (depending on the configuration of the computer).
!
Be sure to hold the Memory Stick media with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer
or the Memory Stick media, do not force the Memory Stick media into the slot if you cannot insert it smoothly.
Do not insert more than one Memory Stick media into the slot. Inserting the media improperly may damage your computer.
✍
Your computer supports Memory Stick Duo media and is equipped with the Memory Stick PRO/Duo slot that is compatible with both standard- and
duo-size media. For more information on the Memory Stick Duo media, visit the Memory Stick web site at http://www.memorystick.com/en/.
You can insert a Memory Stick Duo media directly into the slot.
40
nN
Using Your VAIO Computer
To view the contents of the Memory Stick media
1Click Start and then My Computer to open the My Computer window.
2Double-click the Memory Stick media icon to view the list of data files saved in the Memory Stick media.
To format a Memory Stick media
Use the Memory Stick Formatter software. See the help file on the Memory Stick Formatter software for details.
!
Formatting the Memory Stick media erases the entire data on the media. Avoid accidental erasure of your valuable data.
Do not remove the Memory Stick media from the slot while formatting the media. This could cause a malfunction.
Be sure to use the preinstalled Memory Stick Formatter software to format a Memory Stick media. In case the media is formatted with the formatting
function of the Windows operating system, the media cannot be recognized by other Memory Stick devices.
Removing a Memory Stick Media
To remove a Memory Stick media
1Check that the Media Access indicator is off.
2Push the Memory Stick media in toward the computer.
The Memory Stick media ejects.
3Pull the Memory Stick media out of the slot.
!
Always remove the Memory Stick media gently, or it may pop out unexpectedly.
Do not remove the Memory Stick media while the Media Access indicator is turned on. If you do, you may lose data. Large volumes of data may take
time to load, so be sure the indicator is off before removing the Memory Stick media.
41
nN
Using Your VAIO Computer
Using Other Memory Cards
In addition to the Memory Stick PRO/Duo media slot, your computer is equipped with an SD memory card/MultiMediaCard
(MMC) slot to accommodate other memory cards. You can use this slot to transfer data among digital cameras, camcorders,
music players, and other audio/video devices.
Before You Use Memory Cards
The SD memory card/MultiMediaCard (MMC) slot on your computer supports the following memory cards:
❑MultiMediaCard (MMC)
❑Secure Digital (SD)
For the latest information on compatible memory cards, visit the Sony online support Web site regularly.
!
Always insert the correct memory card into the SD memory card/MultiMediaCard (MMC) slot.
SDHC memory cards are not supported.
Do not attempt to insert a memory card or memory card adapter of a different type into the slot. An incompatible memory card or memory card adapter
may be difficult to remove from the slot and can cause damage to your computer.
Use care when inserting or removing a memory card from the slot. Do not force the memory card in or out of the slot.
The SD memory card/MultiMediaCard (MMC) slot on your computer does not support the high-speed data transfer feature of the SD memory card.
Your computer has been tested and found compatible only with major memory card media available as of May 2006. However, not all memory card
media that meet the same conditions as the compatible media are guaranteed of compatibility.
42
nN
Using Your VAIO Computer
Inserting a Memory Card
To insert a memory card
1Locate the SD memory card/MultiMediaCard (MMC) slot on the front of the computer.
2Hold the memory card with the arrow facing upward and pointing toward the memory card slot.
3Carefully slide the memory card into the slot until it clicks into place.
Do not force the card into the slot.
✍
If the memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.
Removing a Memory Card
!
Do not remove a memory card while the Media Access indicator light is on. The card or its data may become damaged.
To remove a memory card
1Check that the Media Access indicator is off.
2Press the extended part of the memory card, causing it to extend out from the slot.
3When the card extends, carefully pull it out of the slot.
43
nN
Using Your VAIO Computer
Using the Internet
Setting Up a Dial-up Internet Connection
Before you can connect to the Internet, you need to connect your computer to a telephone line with a telephone cable (may
not supplied). Once you have set up your telephone cable connection, you're ready to connect to the Internet.
To connect a telephone cable
1Plug one end of the phone cable (1) into the modem port on the computer.
2Plug the other end into the wall jack (2).
✍
Your computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or a
private branch exchange (PBX). Some of these connections may result in excess electrical current and could cause a malfunction in the internal modem.
If you connect a telephone cable coming through a splitter, the modem or connected device may not work properly.
To set up a dial-up connection to the Internet
1Click Start, point to All Programs, Accessories, Communications, and click New Connection Wizard.
The New Connection Wizard appears.
2Click Next. If the Location Information window appears, follow the on-screen instructions.
3If it is not already selected, click to select Connect to the Internet, and click Next.
4Follow the on-screen instructions.
44
nN
Using Your VAIO Computer
Using Wireless LAN (WLAN)
Using the Sony Wireless LAN (WLAN), all your digital devices with built-in WLAN functionality communicate freely with each
other through a powerful network. A WLAN is a network in which a user can connect to a local area network (LAN) through
a wireless (radio) connection. So there is no need anymore to pull cables or wires through walls and ceilings.
The Sony WLAN supports all normal Ethernet activities, but with the added benefits of mobility and roaming. You can still
access information, Internet/intranet and network resources, even in the middle of a meeting, or as you move from one place
to another.
You can communicate without an access point, which means that you can communicate between a limited number of
computers (ad-hoc). Or you can communicate through an access point, which allows you to create a full infrastructure
network (infrastructure).
❑Wireless WAN model users
Please see the SmartWi Connection Utility Guide for setting up Wireless LAN and Wireless WAN functionalities.
❑Other model users
Please see the following for setting up Wireless LAN functionality.
✍
In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the
WLAN functionality, read the Safety Information carefully.
WLAN uses the IEEE 802.11a*/b/g standard, which specifies the used technology. The standard includes the encryption methods: Wired Equivalent
Privacy (WEP), which is a security protocol, Wi-Fi Protected Access 2 (WPA2), and Wi-Fi Protected Access (WPA). Proposed jointly by the IEEE and
Wi-Fi Alliance, both WPA2 and WPA are specifications of standards based, interoperable security enhancements that increase the level of data
protection and access control for existing Wi-Fi networks. WPA has been designed to be forward compatible with the IEEE 802.11i specification. It
utilizes the enhanced data encryption TKIP (Temporal Key Integrity Protocol) in addition to user authentication using 802.1X and EAP (Extensible
Authentication Protocol). Data encryption protects the vulnerable wireless link between clients and access points. Besides that, there are other typical
LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption, virtual private networks, and authentication. WPA2,
the second generation of WPA, provides stronger data protection and network access control and is also designed to secure all versions of 802.11
45
nN
Using Your VAIO Computer
devices, including 802.11b, 802.11a, and 802.11g, multi-band and multi-mode. In addition, based on the ratified IEEE 802.11i standard, WPA2 provides
government grade security by implementing the National Institute of Standards and Technology (NIST) FIPS 140-2 compliant AES encryption algorithm
and 802.1X-based authentication. WPA2 is backward compatible with WPA.
* See the online Specifications to see whether your model supports the IEEE 802.11a standard.
Wireless LAN devices using the IEEE 802.11a standard and the ones using the IEEE 802.11b or g standard cannot communicate because the frequencies
are different.
IEEE 802.11b: The standard speed is 11 Mbps, or about 30 to 100 times faster than a standard dial up.
IEEE 802.11a/g: The standard speed is 54 Mbps, or about 5 times faster than a Wireless LAN device using the IEEE 802.11b standard.
The 2.4 GHz bandwidth used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference
from other devices that use the same bandwidth are employed on wireless LAN compatible devices, such interference may cause lower communication
speed, narrower communication range, or broken wireless connections.
The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device
configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.
The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the
radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.
Deploying IEEE 802.11b and IEEE 802.11g products on the same wireless network may reduce the communication speed due to radio interference.
Taking this into consideration, the IEEE 802.11g products are designed to reduce the communication speed to ensure communications with
IEEE 802.11b products.
When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase the communication speed.
46
nN
Using Your VAIO Computer
Communicating without an Access Point (Ad-hoc)
An ad-hoc network is a network in which a local network is created only by the wireless devices themselves, with no other
central controller or access point. Each device communicates directly with other devices in the network. You can set up an
ad-hoc network easily at home.
❑If the Wireless connection is initiated by the VAIO computer, channel 11 will be selected.
❑If the Wireless connection is initiated by peer Wireless LAN equipment, the Wireless LAN communication will make use
of the channel selected by the peer Wireless LAN equipment.
To communicate without an access point (ad-hoc)
1Turn on the WIRELESS or WIRELESS LAN switch.
The WIRELESS LAN indicator lights up.
Except in Peru and Venezuela, you cannot select the 5 GHz bandwidth, which is used for the IEEE 802.11a standard, on
ad-hoc networks.
On models that support the Bluetooth functionality*1 and/or the IEEE 802.11a/b/g standard*1, double-click ( / )
on the taskbar to display the Wireless Device Switch window. Select your desired wireless option(s) and click OK.
2Click Start and then Control Panel.
47
nN
Using Your VAIO Computer
3Click Network and Internet Connections.
4Click Network Connections.
The Network Connections window appears.
5Right-click Wireless Network Connection, then click Properties.
The Wireless Network Connection Properties window appears.
6Select the Wireless Networks tab.
7Click the Add… button.
The Wireless network properties window appears.
8Enter a network name (SSID)*2.
You can choose a 32-digit alphanumeric name.
9Select Open from the Network Authentication drop-down box.
10 Select WEP from the Data Encryption drop-down box.
11 Deselect the The key is provided for me automatically option button.
Some information becomes visible.
12 Enter the network key*2.
The network key should be 5 or 13 alphanumeric characters or 10 or 26 hexadecimal*3 characters long. You can choose
whichever you want.
13 Enter exactly the same network key again for confirmation.
14 Select the check box This is a computer-to-computer (ad hoc) network; wireless access points are not used at the
bottom of the window.
15 Click OK.
Your network name appears in the Preferred networks.
48
nN
Using Your VAIO Computer
16 Click Advanced.
The Advanced window appears.
17 Select the Computer-to-computer (ad hoc) networks only option button.
18 Click Close.
19 Click OK.
The computer is ready to communicate with another computer.
*1 See the online Specifications to see whether your model supports the Bluetooth functionality and/or the IEEE 802.11a/b/g standard.
*2 If you want to communicate between two or more computers, you need to configure all these computers in the exact same way. This means that you need to enter the
same network name and the same network key on all computers as on the first computer you configure.
*3 Hexadecimal: a number representation using the digits 0-9, with their usual meaning, and the letters A-F (or a-f) to represent hexadecimal digits with values of (decimal)
10 to 15.
✍
An ad-hoc network does not support WPA.
To disconnect from a computer-to-computer (ad-hoc) network
1Click Start and then Control Panel.
2Click Network and Internet Connections.
3Click Network Connections.
The Network Connections window appears.
4In the right panel under LAN or High-Speed Internet, right-click Wireless Network Connection.
5Click Properties.
The Wireless Network Connection Properties window appears.
6On the Wireless Networks tab, click Advanced.
The Advanced window appears.
49
nN
Using Your VAIO Computer
7Click to select Any available network (access point preferred), and click Close.
8Click OK.
9Close the Network Connections window.
10 Turn off the WIRELESS or WIRELESS LAN switch.
Communicating with an Access Point (Infrastructure)
An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access
point, for example the Sony Access Point. The access point bridges the wireless and wired LAN and acts as a central
controller for the Wireless LAN. The access point coordinates transmission and reception from multiple wireless devices
within a specific range.
The access point will select which channel to use on an infrastructure network.
!
For details on how to select the channel that will be used by the access point, see the manual that came with your access point.
50
nN
Using Your VAIO Computer
To connect to a wireless network
1Make sure an access point is set up.
See the manual that came with your access point for more information.
2Turn on the WIRELESS or WIRELESS LAN switch.
The WIRELESS LAN indicator lights up.
On models that support the Bluetooth functionality* and/or the IEEE 802.11a/b/g standard*, double-click ( / ) on
the taskbar to display the Wireless Device Switch window. Select your desired wireless option(s) and click OK.
3Click Start and then Control Panel.
4Click Network and Internet Connections.
5Click Network Connections.
6In the right panel under LAN or High-Speed Internet, double-click Wireless Network Connection.
The Wireless Network Connection window appears.
7Follow the on-screen instructions.
* See the online Specifications to see whether your model supports the Bluetooth functionality and/or the IEEE 802.11a/b/g standard.
To connect to a wireless network (models with the Wireless Setup Utility software only)
Use the Wireless Setup Utility software to guide you through the set up process and provide you with more detailed
information about wireless connections.
1Make sure an access point is set up.
See the manual that came with your access point for more information.
2Turn on the WIRELESS or WIRELESS LAN switch.
The WIRELESS LAN indicator lights up.
51
nN
Using Your VAIO Computer
On models that support the Bluetooth functionality* and/or the IEEE 802.11a/b/g standard*, double-click ( / ) on
the taskbar to display the Wireless Device Switch window. Select your desired wireless option(s) and click OK.
3Click Start, point to All Programs, and click Wireless Setup Utility.
The Wireless Setup Utility appears.
4Follow the on-screen instructions.
* See the online Specifications to see whether your model supports the Bluetooth functionality and/or the IEEE 802.11a/b/g standard.
To disconnect from a wireless network
Turn off the WIRELESS or WIRELESS LAN switch.
!
Turning off the wireless LAN functionality while accessing remote documents, files, or resources may result in data loss.
✍
For WPA-PSK or WPA2-PSK authentication, you must enter a network key of 8 to 64 alphanumeric characters long.
Using the Bluetooth Functionality
You can establish wireless communication between your computer and other Bluetooth devices such as another computer
or a mobile phone. You can transfer data between these devices without cables and up to 33 feet (10 meters) range in open
space.
❑Wireless WAN model users
Please see the SmartWi Connection Utility Guide for setting up Bluetooth functionality.
❑Other model users
Please see the following for setting up Bluetooth functionality.
To connect to a Bluetooth device
1Turn on the WIRELESS switch.
52
nN
Using Your VAIO Computer
2Double-click ( / ) on the taskbar to display the Wireless Device Switch window.
3Select the Enable Bluetooth Device option.
4Click OK.
Notes on using the Bluetooth functionality
❑The data transfer rate varies, depending on the following conditions:
❑Obstacles, such as walls, located between devices
❑Distance between devices
❑Material used in walls
❑Proximity to microwaves and cordless telephones
❑Radio frequency interference and other environmental conditions
❑Device configuration
❑Type of software application
❑Type of operating system
❑Use of both Wireless LAN and Bluetooth functionalities at the same time on your computer
❑Size of file being exchanged
❑Note that due to limitations of the Bluetooth standard, large files may occasionally be corrupted during continuous transfer
due to electromagnetic interference from the environment.
❑All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if
standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may
not be possible in all situations.
53
nN
Using Your VAIO Computer
❑As general characteristics of Bluetooth technology, video and audio may go out of synchronization if you play videos on
your computer with audio output from the connected Bluetooth device.
❑The 2.4 GHz band, with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth
devices use the technology to minimize the interference from other devices that use the same wave length. Simultaneous
use of the Bluetooth functionality and wireless communication devices, however, may cause radio interference and result
in poorer communication speeds and distances than the standard values.
❑The Bluetooth functionality may not work depending on the third party devices or the software version used by third party
companies.
❑As general characteristics of Bluetooth technology, connecting multiple Bluetooth devices to your computer may cause
bandwidth congestion, resulting in poor performance of the devices.
Bluetooth Security
The Bluetooth wireless technology has an authentication function, which allows you to determine with whom you choose to
communicate. With the authentication function, you can avoid any anonymous Bluetooth device to access your computer.
The first time two Bluetooth devices communicate, a common passkey (a password required for authentication) should be
determined for both devices to be registered. Once a device is registered, there is no need to re-enter the passkey.
✍
The passkey can be different each time, but must be the same at both ends.
For certain devices, such as a mouse, no passkey can be entered.
Communicating with Another Bluetooth Device
You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a
mouse, or a digital camera without the use of any cables.
54
nN
Using Your VAIO Computer
To communicate with another Bluetooth device
To communicate with another Bluetooth device, you need first to set up the Bluetooth functionality. For setting up and using
the Bluetooth functionality, see the help file on the Bluetooth utility software.
To see the help file
1Right-click the Bluetooth icon on the taskbar, and select Help from the menu.
Stopping the Bluetooth Connection
To stop the Bluetooth connection, turn off the WIRELESS switch. The Bluetooth indicator turns off.
55
nN
Using Your VAIO Computer
Using the Bluetooth Headset
The Bluetooth headset is available as an optional accessory. It will come in handy during a video conference over the Internet
using instant messaging software, for example Windows Messenger. For details on using the Bluetooth headset, see the
manual that came with your Bluetooth headset.
To connect the headset with your computer
1Press and hold the headset power button for at least five seconds to turn on the Bluetooth headset.
2Press and hold the volume buttons for at least five seconds until the indicator light blinks in red and green.
3Right-click the Bluetooth icon on the taskbar and select Bluetooth Settings from the menu.
The Bluetooth Settings window appears and Add New Connection Wizard automatically starts.
4If the Add New Connection Wizard window does not appear, click New Connection.
The Add New Connection Wizard window appears.
5Select Express Mode [Recommended] and then click Next.
The wizard searches for Bluetooth devices in range and lists available devices, if any.
6Select HBH-608 and then click Next.
The Bluetooth Manager-Bluetooth Security window appears when a connection is established.
7Enter "0000" for Bluetooth Passkey (PIN) and then click OK.
8Press the headset power button.
9Click Finish.
The headset icon appears in the Bluetooth Settings window.
10 Click the headset icon and then press the headset power button.
The computer should now be ready to communicate with the Bluetooth headset.
57
nN
Using Peripheral Devices
Using Peripheral Devices
You can add functionality to your computer by using the various ports on the computer.
❑Connecting a Port Replicator (page 57)
❑Connecting External Speakers (page 61)
❑Connecting an External Display (page 62)
❑Selecting Display Modes (page 65)
❑Using the Multiple Monitors Function (page 66)
❑Connecting an External Microphone (page 67)
❑Connecting a Universal Serial Bus (USB) Device (page 68)
❑Connecting a Printer (page 70)
❑Connecting an i.LINK Device (page 71)
❑Connecting to a Network (LAN) (page 73)
Connecting a Port Replicator
Attaching a port replicator enables you to connect additional peripherals to your computer, such as a printer and an external
display.
A port replicator may be supplied with your computer, depending on the model you purchased. If not, you can additionally
purchase an optional port replicator.
See the online Specifications to see whether your model is supplied with a port replicator.
58
nN
Using Peripheral Devices
Locating Ports on the Port Replicator
!
The port replicator can be powered only through the AC adapter supplied with your computer. Do not unplug the AC adapter from the port replicator
and the AC outlet while using the port replicator; this may cause data damage or hardware malfunctions.
Attaching Your Computer to the Port Replicator
To attach your computer to the port replicator
!
To prevent loss of unsaved data, be sure to turn off your computer before attaching it to the port replicator.
1Disconnect all peripherals from the computer.
2Plug the power cord (1) into the AC adapter (2) and an AC outlet.
3Plug the cable attached to the AC adapter (2) into the DC IN port (3) on the port replicator (4).
ADC IN port (page 17)
BNetwork (Ethernet) port (100BASE-TX / 10BASE-T) (page 73)
CMonitor (VGA) port (page 62)
DHi-Speed USB (USB 2.0) ports* (page 68)
* Supports high-/full-/low- speeds.
60
nN
Using Peripheral Devices
6Turn on the computer.
!
Use the AC adapter supplied with your computer.
Do not move your computer while attached to the port replicator; this may detach the port replicator and cause damage to the port replicator and the
computer.
Disconnecting Your Computer from the Port Replicator
!
To prevent loss of unsaved data, be sure to turn off your computer before disconnecting it from the port replicator.
To disconnect your computer from the port replicator
1Turn off the computer and the connected peripherals.
2Lift the computer away from the port replicator.
61
nN
Using Peripheral Devices
3Close the port replicator connector cover on the bottom of the computer.
✍
It is extremely important to close the port replicator connector cover after disconnecting your computer from the port replicator. If the cover is left open,
dust may get inside and damage the computer.
To disconnect the port replicator completely from AC power, unplug the AC adapter.
Connecting External Speakers
You can enhance the sound quality of your computer by connecting external speakers.
To connect external speakers
1Plug the speaker cable (1) into the headphones jack (2) i.
2Plug the other end of the speaker cable to the external speaker (3).
3Turn down the volume of the speakers before you turn them on.
62
nN
Using Peripheral Devices
✍
Make sure your speakers are designed for computer use.
!
Do not place floppy disks on the speakers; their magnetic field may damage the data on the disks.
Connecting an External Display
You can connect an external display to your computer. For example, you can use the computer with a computer display or a
projector.
✍
Connect the power cord after connecting all other cables.
Connected external displays are used as secondary screens.
On Windows systems only, you can also use an external display to set up multiple monitors.
Connecting a Computer Display
You can connect a computer display (monitor) either directly to your computer or via the (optional) port replicator.
63
nN
Using Peripheral Devices
To connect a computer display
1If necessary, plug one end of the display's power cord (1) into your display, and the other end into an AC outlet.
2If you want to connect a VGA monitor, plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the
computer or on the port replicator.
Connecting a Multimedia Computer Display
You can connect a multimedia computer display that includes built-in speakers and a microphone directly to your computer
or via the (optional) port replicator.
To connect a multimedia computer display
1Plug the power cord of your multimedia computer display (1) into an AC outlet.
2Plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer or on the port replicator.
3Plug the speaker cable (4) into the headphones jack (5) i on the computer.
4Plug the microphone cable (6) into the microphone jack (7) m on the computer.
64
nN
Using Peripheral Devices
Connecting a Projector
You can connect a projector (for example, the Sony LCD projector) directly to your computer or via the (optional) port
replicator.
To connect a projector
1Connect the power cord (1) of your projector into an AC outlet.
2Plug an RGB signal cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer or on the port replicator.
3Plug an audio cable (4) (not supplied) into the headphones jack (5) i.
4Plug the RGB signal cable and the audio cable into the jack and port on the projector (6).
65
nN
Using Peripheral Devices
Selecting Display Modes
You can select which display to be used as the primary monitor when an external display (desktop monitor, etc.) is connected
to your computer.
If you want to work on your computer screen and the external display at the same time, see Using the Multiple Monitors
Function (page 66) for more information.
To select a display
1Right-click on the desktop to display the context menu.
2Click the menu item for graphic properties.
66
nN
Using Peripheral Devices
3Follow the on-screen instructions to change the settings.
✍
You may not be able to display the same contents on your computer screen and the external display or projector at the same time, depending on the
type of your external display or projector.
Before turning on your computer, turn on the peripheral devices.
Using the Multiple Monitors Function
The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you
have an external display attached to the monitor (VGA) port, your computer screen and the external display can function as
a single desktop.
You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window
or a toolbar, from one display to the other.
67
nN
Using Peripheral Devices
✍
Your external display may not support the Multiple Monitors function.
Certain software applications may not be compatible with Multiple Monitors settings.
Make sure that your computer does not enter Standby or Hibernate mode while you are using Multiple Monitors mode; otherwise the computer may
not return to Normal mode.
If you set different colors on each display, do not divide one single window on two displays; otherwise your software may not work properly.
Set fewer colors or a lower resolution for each display.
To select the Multiple Monitors mode
1Right-click on the desktop to display the context menu.
2Click the menu item for graphic properties.
3Follow the on-screen instructions to change the settings.
✍
Additionally, you can set the display colors and resolution for each display and customize the Multiple Monitors mode.
Connecting an External Microphone
If you need to use a sound input device (for example, to chat over the Internet) you need to plug in an external microphone.
To connect an external microphone
Plug the microphone cable (1) into the microphone jack (2) m.
68
nN
Using Peripheral Devices
✍
Make sure your microphone is designed for computer use.
Connecting a Universal Serial Bus (USB) Device
To prevent your computer and/or USB devices from damage, observe the following:
❑When moving the computer with USB devices connected, avoid any shock or force to the USB ports.
❑Do not put the computer into a bag or carrying case when it has USB devices connected.
Connecting a USB Mouse
To connect a USB mouse
1Choose the USB port (1) you prefer to use.
2Plug the USB mouse cable (2) into the USB port.
You can now use your USB mouse (3).
69
nN
Using Peripheral Devices
✍
The VAIO USB mouse software driver is preinstalled on your computer. As a result, you only need to plug the USB mouse into the USB port and you
can start working.
Connecting a USB Floppy Disk Drive
You can purchase a USB floppy disk drive and connect it to your computer.
To connect a USB floppy disk drive
1Choose the USB port (1) you prefer to use.
2Plug the USB floppy disk drive cable (2) into the USB port.
Your USB floppy disk drive (3) is now ready for use.
!
When using a USB floppy disk drive, do not apply force on the USB port. This may cause a malfunction.
70
nN
Using Peripheral Devices
Disconnecting a USB floppy disk drive
You can disconnect a USB floppy disk drive when your computer is on or off. Disconnecting the drive when the computer is
in a power saving mode (Standby or Hibernate) may cause the computer to malfunction.
If the computer is off, you can unplug the USB cable directly from the computer.
To disconnect a USB floppy disk drive
1Close all programs accessing the floppy disk drive.
2Double-click the Safely Remove Hardware icon on the taskbar.
The Safely Remove Hardware window appears.
3Select the floppy disk drive you want to unplug.
4Click Stop.
The Stop a Hardware device window appears.
5Make sure the floppy disk drive is selected, and click OK.
A message appears stating it is now safe to remove the hardware device.
6Click Close to close the Safely Remove Hardware window.
7Disconnect the floppy disk drive from the computer.
Connecting a Printer
You can connect a Windows-compatible printer to your computer to print documents.
Connecting a Printer Using the USB Port
You can connect a USB printer compatible with your version of Windows to the computer.
71
nN
Using Peripheral Devices
To connect a printer using the USB port
1Plug the power cord (1) of your printer into an AC outlet.
2Choose the USB port (3) you prefer to use.
3Plug one end of a USB printer cable (2) (not supplied) into the USB port and the other end to your printer.
Connecting an i.LINK Device
Notes on connecting i.LINK devices
❑Your computer is equipped with an i.LINK port, which you can use to connect to an i.LINK device such as a digital video
camcorder or to connect two VAIO computers in order to copy, delete or edit files.
❑The i.LINK port on your computer does not supply power to external devices generally powered by i.LINK ports.
❑The i.LINK port supports transfer rates up to 400 Mbps; however, the actual transfer rate depends on the transfer rate of
the external device.
❑i.LINK cables compatible with your computer include cables with the following part numbers:
VMC-IL4415 (a 1.5 meter cable with a 4-pin connector at each end) and VMC-IL4408 Series (a 0.8 meter cable with a 4-
pin connector at each end).
❑The optional i.LINK cables may not be available, depending on the country or area of your residency.
72
nN
Using Peripheral Devices
❑An i.LINK connection with other compatible devices is not fully guaranteed.
❑The i.LINK connection varies depending on the software applications, operating system, and i.LINK-compatible devices
you use. See the manual that came with your software for more information.
❑Check the working conditions and OS compatibility of i.LINK-compatible PC peripherals (for example, an HDD or a CD-
RW drive) before you connect them to your computer.
Connecting a Digital Video Camcorder
To connect a digital video camcorder
1Plug one end of an i.LINK cable (1) (not supplied) into the i.LINK port (2) on the computer and the other end into the DV
In/Out ports (3) on the digital video camcorder.
2Launch the DVgate Plus software.
73
nN
Using Peripheral Devices
✍
On Sony digital video cameras, ports labeled DV Out, DV In/Out, or i.LINK are i.LINK-compatible.
The Sony digital video camcorder shown here is an example; your digital video camcorder may need to be connected differently.
You cannot access the pictures stored on a Memory Stick media when using an i.LINK connection.
Connecting to a Network (LAN)
You can connect your computer to 100BASE-TX/10BASE-T-type networks with an Ethernet network cable. Connect one end
of a network cable (not supplied) to the network (Ethernet) port on the computer or the (optional) port replicator and the other
end to your network. For detailed settings and devices needed to connect to the network, ask your network administrator.
✍
Your computer can be connected to the network with the default settings.
74
nN
Using Peripheral Devices
!
Telephone lines cannot be connected to the network (LAN) connector on your computer.
If the network (LAN) connector is connected to the telephone lines mentioned below, high electric current to the connector may cause damage,
overheating, or fire.
- Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone)
- Public telephone subscriber line
- PBX (private branch exchange)
!
Do not plug a telephone cable into the network port.
75
nN
Customizing Your VAIO Computer
Customizing Your VAIO Computer
This section briefly describes how to change the main settings of your computer. Among other things, you will learn how to
use and customize the look of your Sony software and utilities, etc.
❑Setting the Password (page 75)
❑Using Fingerprint Authentication (page 83)
❑Using Trusted Platform Module (TPM) (page 97)
❑Setting Up Your Computer with VAIO Central (page 101)
❑Using the Power Saving Modes (page 102)
❑Managing Power with VAIO Power Management (page 105)
❑Changing the Performance Setting (page 108)
❑Protecting the Hard Disk (page 108)
Setting the Password
In addition to the Windows password, you can use BIOS functions to set two types of passwords to protect your computer:
power-on password and hard disk password.
Once you have set the power-on password, you will have to enter the password after the VAIO logo appears to start your
computer. The power-on password will allow you to protect your computer from unauthorized access.
The hard disk password provides additional security for the data stored on your hard disk. If you set the hard disk password,
no other users will be able to access the data without knowing the password, even if the hard disk is installed in another
computer.
76
nN
Customizing Your VAIO Computer
Adding the Power-on Password
The power-on password is provided to protect your computer from unauthorized access.
There are two types of the power-on password: machine password and user password. The machine password is provided
for users with administrator rights on the computer to change all the setup options on the BIOS setup screen, as well as to
start the computer. The user password is provided for other ordinary users to allow for changing some of the BIOS setup
options, as well as starting the computer. To set the user password, you must first set the machine password.
!
Once you have set the power-on password, you cannot start your computer without entering the password. Make sure not to forget the password. Write
down your password and keep it safe and private from other people.
If you forget the power-on password and need assistance to reset it, a password reset fee will be charged, and your computer may need to be sent in
for depot service for password reset.
✍
If you have set the power-on password in conjunction with the fingerprint authentication functionality, you can substitute fingerprint recognition for
password entry when turning on your computer. For more information, see Using Fingerprint Authentication (page 83).
To add the power-on password
1Turn on the computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the
Enter key.
4On the password entry screen, enter the password twice and press the Enter key.
The password can be up to 32 alphanumeric characters (including spaces) long.
5At the confirmation prompt, press the Enter key.
77
nN
Customizing Your VAIO Computer
✍
The following is to configure your computer to prompt password entry when you turn it on or display the BIOS setup screen.
6Select Password when Power ON under Security.
Press the space bar to change the setting from Disabled to Enabled.
7Press the < or , key to select Exit, select Exit (Save Changes) or Exit Setup, and then press the Enter key.
On the Setup Confirmation screen, make sure that Yes is selected and then press the Enter key.
Changing/Removing the Power-on Password
To change or remove the power-on password
1Turn on the computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3Enter the current password for Enter Password and press the Enter key.
4Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the
Enter key.
5On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.
To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter
key.
When confirmation to save the changes is prompted, press the Enter key.
6Press the < or , key to select Exit, select Exit (Save Changes) or Exit Setup, and then press the Enter key.
On the Setup Confirmation screen, confirm that Yes is selected and then press the Enter key.
78
nN
Customizing Your VAIO Computer
Adding the Hard Disk Password
The hard disk password provides additional security for the data stored on your hard disk. If you enable the hard disk
password, this adds an extra level of security.
When adding the hard disk password, you must set both the master and user passwords. The master password is provided
for users with administrator rights on the computer to reset the user password on the BIOS setup screen. The user password
is provided to lock your hard disk. Once you set the user password, you will have to enter the password along with the power-
on password (if set), after the VAIO logo appears.
!
You cannot start your computer with the master password.
If you forget the master password or the keyboard fails, which is critical to password entry, no bypass is possible and the data stored in the hard disk
will not be accessible. There is NO RESET of this password. You will have to replace the hard disk at your own expense and lose all the data stored in
the original hard disk. Make sure to write down the master password and keep it safe and private from other people.
✍
If you have set the hard disk password in conjunction with the fingerprint authentication functionality, you can substitute fingerprint recognition for
password entry when turning on your computer. For more information, see Using Fingerprint Authentication (page 83).
To add the hard disk password
1Turn on the computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
✍
If you have set the power-on password, enter your power-on password.
79
nN
Customizing Your VAIO Computer
3Press the < or , key to select Security to display the Security tab, select Hard Disk Password, and then press the
Enter key.
The password entry screen appears.
4Select Enter Master and User Passwords and press the Enter key.
5Select Continue on the warning screen and press the Enter key.
6Enter the master password twice and press the Enter key.
The password should be up to 32 alphanumeric characters (including spaces) long.
7Enter the user password twice and press the Enter key.
The password should be up to 32 alphanumeric characters (including spaces) long.
8Press the Enter key when the Setup Notice message appears.
9Press the Esc key.
10 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
On the Setup Confirmation screen, make sure that Yes is selected and then press the Enter key.
Changing the Hard Disk Password
To change the hard disk password
1Turn on the computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
✍
If you have set the power-on password, enter your power-on password.
80
nN
Customizing Your VAIO Computer
3Press the < or , key to select Security to display the Security tab, select Hard Disk Password, and then press the
Enter key.
The password entry screen appears.
4Select Change Master Password or Change User Password and press the Enter key.
5Enter the current password once and then a new password twice.
6Press the Enter key.
7Press the Enter key when the success message appears.
8Press the Esc key.
9Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
On the Setup Confirmation screen, make sure that Yes is selected and then press the Enter key.
Removing the Hard Disk Password
To remove the hard disk password
1Turn on the computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
✍
If you have set the power-on password, enter your power-on password.
3Press the < or , key to select Security to display the Security tab, select Hard Disk Password, and then press the
Enter key.
The password entry screen appears.
4Select Enter Master and User Password and press the Enter key.
81
nN
Customizing Your VAIO Computer
5Enter the current password for Enter Current Hard Disk Master Password and press the Enter key, leaving everything
else blank.
6Press the Enter key when the success message appears.
7Press the Esc key.
8Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
On the Setup Confirmation screen, make sure that Yes is selected and then press the Enter key.
Adding the Windows Password
The Windows password comes in handy when you have to share a single computer with other people. By setting the Windows
password, you can protect your user account from unauthorized access.
Entry of the Windows password will be prompted after you select your user account.
!
Make sure not to forget the password. Write down your password and keep it safe and private from other people.
✍
If you have set the Windows password in conjunction with the fingerprint authentication functionality, you can substitute fingerprint recognition for
password entry when turning on your computer. For more information, see Using Fingerprint Authentication (page 83).
To add the Windows password
1Click Start and then Control Panel.
2Click the User Accounts icon.
3Click your user account under or pick an account to change.
4Click Create a password.
5In the Type a new password and Type the new password again to confirm fields, enter the password for your account.
6Click Create Password.
82
nN
Customizing Your VAIO Computer
✍
See Help and Support Center for more information on the Windows password.
Changing/Removing the Windows Password
To change the Windows password
1Click Start and then Control Panel.
2Click the User Accounts icon.
3Click your user account under or pick an account to change.
4Click Change my password.
5Enter the current password under Type your current password.
6Enter a new password under Type a new password and the same password under Type the new password again to
confirm.
7Click Change Password.
To remove the password
1Click Start and then Control Panel.
2Click the User Accounts icon.
3Click your user account under or pick an account to change.
4Click Remove my password.
5Enter the current password that you want to remove.
6Click Remove Password.
83
nN
Customizing Your VAIO Computer
Using Fingerprint Authentication
Your computer is equipped with a fingerprint sensor to provide you with additional convenience. A small horizontal bar located
at the lower right of the keyboard is the sensor of the fingerprint reader and will be referred to as the fingerprint sensor
hereinafter.
Once you have registered your fingerprint(s), the fingerprint authentication functionality offers:
❑A substitute for password entry
You can log onto your password-protected system without entering the power-on, hard disk, and Windows passwords. If
you share a computer with other people, you can skip user selection as well.
❑Quick web-site access
Once you have registered your user information (user accounts, passwords, etc.) for web sites in the password bank, you
can substitute fingerprint authentication for entering required information and access the password-protected web sites.
❑Access to the encrypted (locked) My Safe folder
The My Safe folder is provided to protect your data against unauthorized access. With the fingerprint authentication
functionality, you can decrypt (unlock) this folder to access your data.
❑Quick application access
Once you have assigned an application to your finger, you can then swipe the finger across the fingerprint sensor to
launch the assigned application.
Precautions on Using Fingerprint Authentication
❑The fingerprint authentication technology does not assure 100% verification.
Sony assumes no liabilities for any problems and damages arising out of your use of or inability to use the fingerprint
sensor.
❑The fingerprint authentication technology does not assure complete protection of your data and hardware.
Sony assumes no liabilities for any problems and damages arising out of your use of or inability to use the fingerprint
sensor.
84
nN
Customizing Your VAIO Computer
❑The fingerprint recognition rate depends on your operating conditions and varies among individuals as well.
❑Make sure to make a backup copy of the data stored on the hard disk, especially in the My Safe folder, before sending
your computer for repair.
Sony assumes no liabilities for any loss or modification of your data that might have occurred during the course of repair.
❑The hard disk may be initialized and returned after the repair work and, in such a case, you will not be able to restore your
fingerprint templates.
❑The maintenance and management of data concerning fingerprint authentication must be carried out at your own risk.
Sony assumes no liabilities for any defects arising out of your data maintenance and management.
❑When enrolling your fingerprint(s), keep the following in mind:
❑Enroll more than one fingerprint in case of inability to recognize the fingerprint due to injury.
❑You may not be able to enroll your fingerprint(s) due to some biological factors.
❑Up to 10 fingerprints can be enrolled per person.
Note that up to 21 fingerprints can be enrolled on a first-come, first-served basis for logging on to your system using
the Boot Security functionality. If you share your computer with other people, you may not be able to use your enrolled
fingerprint to log on to your system.
❑When swiping your finger across the fingerprint sensor, keep the following in mind:
❑Place your fingertip flat in the center of the fingerprint sensor.
❑Scan your fingerprint from the top joint of the finger to the fingertip.
❑Swipe your finger perpendicularly across the fingerprint sensor.
❑Keep your finger in contact with the fingerprint sensor while swiping.
❑Let the fingerprint sensor take about one second to scan your fingerprint.
❑It may be hard to enroll or recognize your fingerprint if your finger is:
❑dry or wet
85
nN
Customizing Your VAIO Computer
❑wrinkled
❑injured
❑dirty
❑The soiled fingerprint sensor may cause poor recognition performance.
❑Wipe off the fingerprint sensor regularly with a soft cloth.
❑Use a lens cleaning cloth when the fingerprint sensor is extremely soiled.
❑Blow off dust with an air blower or a soft brush.
Enrolling a Fingerprint
To use the fingerprint authentication functionality, you must enroll your fingerprint(s) in your computer.
✍
Set the Windows password on your computer before enrollment. See Adding the Windows Password (page 81) for the detailed instructions.
To enroll a fingerprint
!
Up to 21 fingerprints can be enrolled on a first-come, first-served basis for logging on to your system using the Boot Security functionality. If you share
your computer with other people, you may not be able to use your enrolled fingerprint to log on to your system.
1Click Start, point to All Programs and Protector Suite QL, and then click Welcome.
The Welcome window appears.
2Click Enroll now.
86
nN
Customizing Your VAIO Computer
✍
If the Windows password is not set on your computer, password registration will be prompted.
1 Click OK on the prompt window.
2 Click Yes for confirmation.
3 Enter your password twice and click OK.
3Click Next.
4Enter the Windows password and click Next.
5Select the Run interactive tutorial check box and click Next.
6Read the tutorial information and click Next.
7Swipe your finger across the fingerprint sensor four times to perform a swipe test, and then click Next.
The Enrollment window appears.
87
nN
Customizing Your VAIO Computer
✍
See To scan a fingerprint (page 87) for the scan procedure.
8Click on the finger of which fingerprint you want to enroll.
9Swipe the finger across the fingerprint sensor three times.
10 Click Finish.
✍
To enroll more fingerprints, repeat steps 7 and 8 above.
If enrollment scan fails in step 8 above, click Manual mode and follow the on-screen instructions to try manual mode enrollment.
To edit or add fingerprint templates, right-click the Protector Suite QL icon on the taskbar.
To scan a fingerprint
1Place the top joint of your finger on the fingerprint sensor (1).
✍
Place your fingertip flat in the center of the fingerprint sensor.
2Swipe your finger perpendicularly across the fingerprint sensor.
88
nN
Customizing Your VAIO Computer
!
Keep your finger in contact with the fingerprint sensor while swiping.
Fingerprint enrollment may fail if you move your finger too fast or too slow. Take about one second to swipe your finger across the sensor.
Logging Onto Your System
To use the fingerprint authentication functionality in place of password entry to log onto your system, you need to set the
power-on, hard disk, and Windows passwords and configure your computer for fingerprint authentication.
For setting the power-on, hard disk, and Windows passwords, see Setting the Password (page 75).
To log onto Windows
If your fingerprints are enrolled for your user account, you will be able to substitute fingerprint recognition for password entry
when logging on to Windows.
1Swipe the finger with the enrolled fingerprint across the fingerprint sensor when the Windows log-on window appears.
Window is launched.
✍
You can log onto to your user account just by swiping the finger with the enrolled fingerprint even if your computer is shared by multiple users.
89
nN
Customizing Your VAIO Computer
To configure the computer for fingerprint authentication
1Swipe the finger with the enrolled fingerprint across the fingerprint sensor to display the Protector Suite QL menu.
2Select Settings.
The Protector Suite QL window appears.
3 Click the Boot Security tab.
!
The Boot Security tab is not displayed if you have not set the power-on and hard disk passwords in advance.
4Select the Enable boot security check box and the Automatic logon after boot verification check box, and then click
OK.
✍
With the Automatic logon after boot verification check box selected, you can start your system and launch Windows by swiping your finger only once.
If only the Enable boot security check box has been selected, you will be prompted to swipe your finger or enter the password before Windows is
launched.
To log onto the system using the Boot Security functionality
1Turn on the computer.
The authentication window appears following the VAIO logo.
2Swipe the finger with the enrolled fingerprint across the fingerprint sensor.
Windows is launched.
✍
Alternatively, you can press the Esc key and enter your password.
If only the Enable boot security check box has been selected in step 4 in To configure the computer for fingerprint authentication (page 89), you will
be prompted to swipe your finger or enter the password before Windows is launched.
90
nN
Customizing Your VAIO Computer
!
Up to 21 fingerprints can be enrolled on a first-come, first-served basis for logging on to your system using the Boot Security functionality. If you share
your computer with other people, you may not be able to use your enrolled fingerprint to log on to your system.
Using the Password Bank
Once you have registered your user information (user accounts, passwords, etc.) for web sites in the password bank, you
can substitute fingerprint authentication for entering required information and access the password-protected web sites.
Adding an Entry to the Password Bank
To access a password-protected web site using the fingerprint authentication functionality, you need to add a password bank
entry for the web site.
To add an entry to the password bank
1Visit the desired password-protected web site to display the user account and password entry window.
2Enter your user information (user account, password, etc.).
3Swipe the finger with the enrolled fingerprint across the fingerprint sensor to display the Protector Suite QL menu.
4Select Register Window.
5Click Continue on the displayed window.
Upon completion, a message balloon appears at the title bar.
To view or edit the entry, click Registration Details on the message balloon.
!
Never add TPM passwords (see Using Trusted Platform Module (TPM) (page 97)) to the password bank.
91
nN
Customizing Your VAIO Computer
Using a Password Bank Entry to Access a Web Site
Once you have added an entry to the password bank, you can use it to access the corresponding password-protected web
site.
To access a password-protected web site
1Visit the desired password-protected web site to display the user account and password entry window.
A message balloon appears to indicate that you have a password bank entry for the site.
2Swipe the finger with the enrolled fingerprint across the fingerprint sensor.
3Click Yes on the confirmation window.
If a security warning window appears, click Yes or OK to proceed.
✍
You can always enter your user information that has been registered in the password bank to access password-protected web sites.
Importing/Exporting Password Bank Entries
You can export/import entries to/from the password bank for a backup or recovery purpose.
To export an entry
1Swipe the finger with the enrolled fingerprint across the fingerprint sensor to display the Protector Suite QL menu.
2Select Settings.
The Protector Suite QL window appears.
3Click the Registrations tab.
4Select the desired entry name from the list and click Export.
5Enter a file name and click Save.
6Enter a password twice and click OK.
92
nN
Customizing Your VAIO Computer
7Click OK.
To import an entry
1Swipe the finger with the enrolled fingerprint across the fingerprint sensor to display the Protector Suite QL menu.
2Select Settings.
The Protector Suite QL window appears.
3Click the Registrations tab.
4Click Import.
5Select an exported file and click Open.
6Enter the password that you used for export and click OK.
7Click OK.
Using the My Safe Folder
The encrypted My Safe folder is provided to protect your data against unauthorized access. With the fingerprint
authentication functionality, you can decrypt (unlock) this folder to access your data.
Note that you need to initialize and create the folder before you use the My Safe folder for the first time.
To show the My Safe icon on the desktop
1Swipe the finger with the enrolled fingerprint across the fingerprint sensor to display the Protector Suite QL menu.
2Select Settings.
The Protector Suite QL window appears.
3Click the My Safe tab.
4Click to select the Show My Safe icon on Desktop check box, and then click OK.
93
nN
Customizing Your VAIO Computer
To initialize the My Safe folder
1Double-click the My Safe icon on the desktop.
2Swipe the finger with the enrolled fingerprint across the fingerprint sensor.
3Click Next.
4Enter a backup password twice and click Next.
The password should be at least 8 alphanumeric characters long.
!
You will need the backup password if the fingerprint sensor fails. Without the backup password, you will not be able to restore your data in the My Safe
folder. Make sure to write down the backup password and keep it safe and private from other people.
5Specify the folder size and click Finish.
The My Safe folder opens.
!
The maximum size of the My Safe folder is 2 GB.
To lock the My Safe folder
Right-click the My Safe icon on the desktop and select Lock My Safe from the Protector Suite QL menu.
The My Safe folder is locked against unauthorized access.
To unlock the My Safe folder
1Right-click the My Safe icon on the desktop and select Unlock My Safe from the Protector Suite QL menu.
2Swipe the finger with the enrolled fingerprint across the fingerprint sensor.
The My Safe folder will stay unlocked until you lock it again or restart the computer.
94
nN
Customizing Your VAIO Computer
To resize the My Safe folder
✍
The maximum size of the My Safe folder is 2 GB.
1Swipe the finger with the enrolled fingerprint across the fingerprint sensor to display the Protector Suite QL menu.
2Select Settings.
The Protector Suite QL window appears.
3Click the My Safe tab.
4Click Change Size.
The window for changing the folder size appears.
✍
If the My Safe folder is unlocked when you click Change Size in step 4, the window for locking the folder will appear. Click OK to lock the My Safe
folder and close the window.
5Change the folder size and click OK.
6Click OK on the Protect Suite QL window.
Using the Application Launcher
The application launcher feature is available on your computer for launching your preferred application (executable file) that
is assigned to one of your fingers with the enrolled fingerprint. Once you have assigned an application to your finger, you can
then swipe the finger across the fingerprint sensor to launch the assigned application and eliminate tiresome menu selections.
Assigning an Application to Your Finger
To use the application launcher feature, you must assign an application to your individual fingers in advance.
95
nN
Customizing Your VAIO Computer
To assign an application to your finger
1Swipe the finger with the enrolled fingerprint across the fingerprint sensor to display the Protector Suite QL menu.
2Select Settings.
The Protector Suite QL window appears.
3Click the Applications tab.
4Click Add.
The Applications window appears.
!
To add an assignment, you need at least two enrolled fingers left unassigned.
To display the Protector Suite QL menu in Step 1 above, you need at least one enrolled finger kept unassigned.
5Select one of your enrolled fingers and assign an application, and then click OK.
The Protector Suite QL window appears.
6Click OK.
Launching an Application with Your Finger
Swipe your finger with your desired application assignment across the fingerprint sensor to launch the corresponding
application.
!
Swiping the finger with no application assignment across the fingerprint sensor will display the Protector Suite QL menu.
Changing an Application Assignment to Your Finger
To change an application assignment to your finger
1Swipe the finger with the enrolled fingerprint across the fingerprint sensor to display the Protector Suite QL menu.
96
nN
Customizing Your VAIO Computer
2Select Settings.
The Protector Suite QL window appears.
3Click the Applications tab.
4Select the desired finger and click Edit.
The Applications window appears.
5Change its assignment and click OK.
The Protector Suite QL window appears.
6Click OK.
Removing an Application Assignment to Your Finger
To remove an application assignment to your finger
1Swipe the finger with the enrolled fingerprint across the fingerprint sensor to display the Protector Suite QL menu.
2Select Settings.
The Protector Suite QL window appears.
3Click the Applications tab.
4Select the desired finger and click Delete.
Erasing the Enrolled Fingerprints
Before disposing of your computer or transferring it to a third person, it is strongly recommended you erase the fingerprints
data enrolled on the fingerprint sensor after erasing the data stored on your hard disk.
To erase the enrolled fingerprints
1Turn on the computer.
97
nN
Customizing Your VAIO Computer
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3Press the < or , key to select Security to display the Security tab.
4Press the m key to select Clear Fingerprint Data and press the Enter key.
The fingerprint data enrolled on the fingerprint sensor is erased automatically after your system restarts.
Using Trusted Platform Module (TPM)
The embedded Trusted Platform Module (TPM) provides your computer with basic security functions. In combination with the
TPM, you can encrypt and decrypt your data to strengthen computer security against inappropriate access.
TPMs are defined by Trusted Computing Group (TCG) and also called security chips.
Precautions on Using the TPM
❑Although your computer is provided with the latest TPM security functions, these functions do not assure complete
protection of your data and hardware. Sony Corporation assumes no liabilities for any problems and damages arising out
of your use of the functions.
❑After you have installed the Infineon TPM Professional Package, you need to set a few TPM passwords on your computer.
Without these passwords, you will not be able to restore any TPM-protected data. Make sure to write down the passwords
and keep them safe and private from other people.
❑Make sure to make backup copies of the latest emergency recovery archive file and the latest emergency recovery token
file and keep them safe and private from other people before sending your computer for repair. The data stored in the
TPM that are embedded on the motherboard may be lost or corrupted during the course of repair.
❑During the course of repair, the TPM may be replaced even if there are no problems with the modules. In such a case,
use the backup copies of the emergency recovery archive file and the emergency recovery token file to restore the TPM
configuration.
98
nN
Customizing Your VAIO Computer
❑Make sure to make a backup copy of the data stored on the hard disk before sending your computer for repair. The hard
disk may be initialized and returned after the repair work and, in such a case, you will not be able to restore the data on
the hard disk using the backup copies of the emergency recovery archive file and the emergency recovery token file.
❑The maintenance and management of TPM-protected data must be carried out at your own risk. Sony Corporation
assumes no liabilities for any defects arising out of your data maintenance and management.
Important Notice
❑Do not encrypt the Documents and Settings folder.
Encrypting the files in the folders containing basic user keys and others, which are listed later in this section, using the
Encrypting File System (EFS) will disable you to launch your TPM software successfully and decrypt the encrypted data if:
❑The TPM software has been installed.
❑The platform has been initialized.
❑The EFS functionality has been enabled in user initialization process.
With the default settings, the files in the folders below are prevented from encrypting by having system attributes.
Do not change the system attributes of the files in the folders below.
❑Folders containing basic user keys and others
C:\Documents and Settings\All Users\Application Data\Infineon\TPM Software 2.0\BackupData
C:\Documents and Settings\All Users\Application Data\Infineon\TPM Software 2.0\PlatformKeyData
C:\Documents and Settings\All Users\Application Data\Infineon\TPM Software 2.0\RestoreData
C:\Documents and Settings\<account>\Application Data\Infineon\TPM Software 2.0\UserKeyData
(All folders are invisible by default.)
In addition, encrypting the following folder will disable you to log onto your system.
C:\Documents and Settings\<account>\Local Settings (invisible by default)
❑Encrypting the archive, backup, and token files will disable emergency restoration.
Encrypting the password reset token and secret files will disable password reset.
99
nN
Customizing Your VAIO Computer
❑Do not encrypt the following folders and files. There will be no way to restore the following folders and files or the archive,
backup, token, password reset token and secret files of your TPM software if you carelessly encrypt them.
Sony Corporation assumes no liability for any troubles and damages arising out of your careless encryption of such
folders and files.
❑Automatic backup file
Default file name: SPSystemBackup.xml
Default path: None (Clicking Browse displays the My Documents\Security Platform window.)
❑Storage folder for automatic backup data
Default file name: SPSystemBackup
The folder is created as the subfolder for the SPSystemBackup.xml file.
❑Token file for decryption
Default file name: SPEmRecToken.xml
Default path: Removable media (FD, USB memory, etc.)
❑Password reset token file
Default file name: SPPwdResetToken.xml
Default path: Removable media (FD, USB memory, etc.)
❑Password reset secret file
Default file name: SPPwdResetSecret.xml
Default path: Removable media (FD, USB memory, etc.)
❑Key and certificate backup file
Default file name: SpBackupArchive.xml
Default path: None (Clicking Browse displays the My Documents\Security Platform window.)
❑PSD backup file
Default file name: SpPSDBackup.fsb
Default path: None (Clicking Browse displays the My Documents\Security Platform window.)
100
nN
Customizing Your VAIO Computer
Configuring the TPM
To use the embedded TPM, you need to:
1Enable the TPM on the BIOS setup screen.
2Install the Infineon TPM Professional Package.
3Initialize and configure the TPM.
Enabling the TPM on the BIOS setup screen
To enable the TPM
1Turn on your computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3Press the < or , key to select Security and then select Enabled for Trusted Platform Support on the Security tab.
4Press the < or , key to select Exit and then Exit Setup; and press the Enter key.
!
Before enabling the TPM, make sure to set the power-on and hard disk passwords to protect against unauthorized modification of the TPM
configuration.
If the TPM is enabled, it will take longer before the VAIO logo appears due to security checks at computer startup.
✍
You can also disable the TPM and clear the TPM configuration on the BIOS setup screen. Note that you will not be able to access any TPM-protected
data if you clear the TPM ownership. Before clearing the TPM configuration, make sure to make backup copies of the TPM-protected data.
101
nN
Customizing Your VAIO Computer
Installing the Infineon TPM Professional Package
Read the Readme.txt in the C:\infineon\Readme folder. Then, double-click C:\Infineon\setup.exe to install the package.
To install this package, you must have administrator rights on the computer.
Initializing and configuring the TPM
See the online documentation for detailed information. To open the documentation, click Start, point to All Programs and
Infineon Security Platform Solution, and click Help on Security Platform.
!
The maintenance and management of TPM-protected data must be carried out at your own risk. Sony Corporation assumes no liabilities for any defects
arising out of your data maintenance and management.
Setting Up Your Computer with VAIO Central
The VAIO Central utility allows you to consult system information and specify preferences for system behavior.
To use VAIO Central
1Click Start, point to All Programs, and click VAIO Central.
The VAIO Central window appears.
2Select the desired control item and change the settings.
3Once finished, click OK.
The setting of the desired item has been changed.
✍
Some of the control items will not be visible if you open VAIO Central as a limited user.
102
nN
Customizing Your VAIO Computer
Using the Power Saving Modes
When you use a battery pack as the power source for your computer, you can take advantage of power management settings
to conserve battery life. In addition to the normal operating mode, which allows you to turn off specific devices, your computer
has two distinct power saving modes: Standby and Hibernate. When using battery power, you should be aware that the
computer will automatically enter Hibernate mode if the remaining battery charge becomes short, regardless of the power
management setting you select.
To set the timer for the computer to automatically enter Standby or Hibernate mode after a certain period of time, click Start
and Control Panel. Click Performance and Maintenance and Power Options, and then change the settings under Power
Schemes.
!
If the battery level falls below 10 percent, you should either attach the AC adapter to recharge the battery pack or shut down your computer and install
a fully charged battery pack.
Using Normal Mode
This is the normal state of the computer when it is in use. The green power indicator light is on in this mode. To save power
while not working, you can turn off a specific device such as the LCD screen or the hard disk.
✍
You can change the memory configuration during Normal mode. See Changing the Performance Setting (page 108).
Using Standby Mode
Standby mode turns off the LCD screen and places the hard disk and the CPU into a low power consumption mode. The
umber power light flashes in this mode.
To activate Standby mode
1Click Start and then Turn Off Computer.
103
nN
Customizing Your VAIO Computer
2Click Stand By.
To return to Normal mode
Press any key.
!
If you press and hold the power button for more than four seconds, your computer will turn off automatically. You will lose any unsaved data.
✍
When your computer is in Standby mode, you cannot insert a disc.
Your computer comes out of Standby mode quicker than out of Hibernate mode.
Standby mode uses more power than Hibernate mode.
You can use VAIO Central to configure your computer to return to Normal mode when you open the LCD screen lid. This power resuming preference
will be lost if you remove both the AC adapter and the battery pack. See Setting Up Your Computer with VAIO Central (page 101).
!
If the battery runs down while your computer is in Standby mode, you will lose any unsaved data. Going back to the previous work state is impossible.
To avoid loss of data, you should save your data frequently.
If the computer is not used for 25 minutes, it will enter Standby mode. To avoid this, you can change the Standby mode
settings.
To change the Standby mode settings
1Click Start and then Control Panel.
2Click Performance and Maintenance.
3Click Power Options.
The Power Options Properties window appears.
4Select the Power Schemes tab.
104
nN
Customizing Your VAIO Computer
5Change the System Standby settings.
Using Hibernate Mode
In Hibernate mode, the state of the system is saved on the hard disk and power is turned off. Even when the battery runs
down, no data will be lost. The power indicator light is off in this mode.
To activate Hibernate mode
Press the Fn+F12 keys.
The Hibernating screen appears and the computer enters Hibernate mode.
Alternatively,
1Click Start and then Turn Off Computer.
2Click Hibernate.
To return to Normal mode
Press the power button.
The computer returns to its previous state.
!
If you press and hold the power button for more than four seconds, your computer will turn off automatically.
105
nN
Customizing Your VAIO Computer
✍
If you do not use your computer for a long period of time, place the computer into Hibernate mode. This power saving mode saves you the time of
shutting down or resuming.
When your computer is in Hibernate mode, you cannot insert a disc.
Hibernate mode requires more time than Standby mode to be activated.
It takes more time to return to Normal mode from Hibernate mode than from Standby mode.
Hibernate mode uses less power than Standby mode.
You can use VAIO Central to configure your computer to return to Normal mode when you open the LCD screen lid. This power resuming preference
will be lost if you remove both the AC adapter and the battery pack. See Setting Up Your Computer with VAIO Central (page 101).
!
Do not move your computer before its power indicator light turns off.
The alarm and timer settings do not work in Hibernate mode. They will not automatically bring your computer back into Normal mode.
Managing Power with VAIO Power Management
Power management helps you set up power schemes for running on AC power or batteries to suit your requirements for
power consumption.
VAIO Power Management is a software application developed exclusively for VAIO computers. With this software
application, you can enhance the Windows power management functions to ensure better operations of your computer and
longer battery life. For more information on VAIO Power Management, see the help file on the VAIO Power Management
software.
106
nN
Customizing Your VAIO Computer
Activating VAIO Power Management
When you start the computer, a power status icon appears on the taskbar. This icon indicates what kind of power source you
are using at that time, for example, AC power. Double-click this icon to display the window, showing your power status.
VAIO Power Management functionalities are added to the Windows Power Options Properties.
To activate VAIO Power Management
1Click Start and then Control Panel.
2Click Performance and Maintenance.
3Click Power Options.
The Power Options Properties window appears.
4Select the VAIO Power Management tab.
To restore the default settings
1On the VAIO Power Management tab, click Advanced.
The VAIO Power Management window appears.
2Follow the on-screen instructions to change the settings.
Activating VAIO Power Management Power Schemes
VAIO Power Management provides several predefined power schemes. Each power scheme consists of a group of power
management settings that are designed to meet specific power management goals, ranging from maximum power
management to no power management.
To activate a VAIO Power Management power scheme
1Click Start and then Control Panel.
2Click Performance and Maintenance.
107
nN
Customizing Your VAIO Computer
3Click Power Options.
The Power Options Properties window appears.
4Select the tab for power scheme settings.
5Select a power scheme from the drop-down list.
6If you now select the VAIO Power Management tab, you see that the selected power scheme appears on the tab.
7If necessary, you can change the items in the list, for example, the LCD brightness of your computer screen.
8Click OK.
The power scheme has been activated.
✍
You must have administrator rights on your computer to set up a power scheme.
VAIO Power Management Viewer
To start VAIO Power Management Viewer
Click on the VAIO Power Management tab.
Alternatively, you can use VAIO Central to start VAIO Power Management Viewer. Double-click the Power Management
folder on the System Information tab in the VAIO Central window, and then double-click the VAIO Power Management
Viewer icon. For launching VAIO Central, see Setting Up Your Computer with VAIO Central (page 101).
To change the power scheme
Select the desired power scheme from the drop-down list on VAIO Power Management Viewer.
108
nN
Customizing Your VAIO Computer
To view performance with the power scheme modified with VAIO Power Management
When both VAIO Power Management and VAIO Power Management Viewer are running, VAIO Power Management
Viewer shows performance with the power scheme that was modified with VAIO Power Management.
✍
Use VAIO Power Management to set up or modify the power scheme.
Changing the Performance Setting
You can change the memory configuration that affects power consumption during Normal mode.
To change the performance setting
1Click Start, point to All Programs, and click VAIO Central.
The VAIO Central window appears.
2Double-click Power Management on the System Information tab and then Performance.
3Select Memory bus: 400 MHz Priority is given to saving power.
By default, Memory bus: 400 MHz Priority is given to saving power is selected.
4Click OK.
5At the confirmation prompt, click Yes.
!
To activate the change, you must restart your computer.
Protecting the Hard Disk
Your computer has the VAIO HDD Protection utility preinstalled for customizing your settings for protecting your hard disk
drive against shock hazards. You can select the sensitivity level of the built-in shock sensor to set the appropriate protection
level.
109
nN
Customizing Your VAIO Computer
Activating VAIO HDD Protection
To protect your hard disk drive against shock hazards, you must first activate VAIO HDD Protection.
To activate VAIO HDD Protection
1Click Start, point to All Programs, and click VAIO Central.
2Double-click Security on the System Information tab and then Hard Disk Drive Protection Settings.
The setup window appears.
3Select the Activate hard disk drive protection check box.
4Select one of the desired sensitivity level.
5Click OK.
For more information, click Help on the setup window to open the help file.
!
VAIO HDD Protection is designed to minimize possibilities of damage to hard disk drives and user data. It does not assure 100% data protection under
any circumstances.
Hard disk drive protection is disabled before Windows launch and during a shift to Hibernate or Standby mode, system recovery, and system shutdown.
110
nN
Upgrading Your VAIO Computer
Upgrading Your VAIO Computer
Your computer and memory modules use high precision components and electronic connectors technology. To avoid the
invalidation of your guarantee due to mishandling, we recommend that:
❑You contact your dealer to install a new memory module.
❑You do not install it yourself, if you are not familiar with upgrading memory on a computer.
❑You do not touch the connectors or open the memory module compartment cover.
For the type of module and amount of memory installed on your model, refer to the online Specifications.
For assistance, contact an authorized Sony Service Center. To find the nearest center or agent, visit the Sony online support
Web site.
Adding and Removing Memory
If you want to expand the functionality of your computer, you can increase the memory by installing optional memory modules.
Before you upgrade your computer's memory, read the notes and procedures in the following pages. The number of available
slots depends on the configuration of your model.
Notes on adding/removing memory modules
❑Be careful when changing memory. Improper installation of memory modules may cause damage to your system. This
damage may void your manufacturer's warranty.
❑Only use memory modules that are compatible with your computer. If a memory module is not detected by the computer
or Windows becomes unstable, contact your sales dealer or the manufacturer of your memory module.
❑Electrostatic discharge can damage electronic components. Before touching a memory module, ensure the following:
111
nN
Upgrading Your VAIO Computer
❑The procedures described in this document assume familiarity with the general terminology associated with personal
computers and with the safety practices and regulatory compliance required for using and modifying electronic
equipment.
❑Turn off your computer and disconnect the system from its power source (that is, battery pack or AC adapter) and
from any telecommunication links, networks, or modems before you open the computer. Failure to do so may result
in personal injury or equipment damage.
❑Electrostatic Discharge (ESD) can damage memory modules and other components. Install the memory module only
at an ESD workstation. If such a station is not available, do not work in a carpeted area, and do not handle materials
that produce or hold static electricity (cellophane wrappers, for example). Ground yourself by maintaining contact with
an unpainted metal portion of the chassis while performing the procedure.
❑Do not open the memory module package before you are ready to change the module. The package protects the
module from ESD.
❑Use the special bag delivered with the memory module or wrap the module in aluminum foil to protect it from electrostatic
discharge.
❑Introducing any liquids, foreign substances, or objects into the memory module slots or other internal components of your
computer will result in damage to the computer and any repair costs will not be covered by the warranty.
❑Do not place the memory module in a location subject to:
❑Heat sources such as radiators or air ducts
❑Direct sunlight
❑Excessive dust
❑Mechanical vibration or shock
❑Strong magnets or speakers that are not magnetically shielded
❑Ambient temperature of more than 95°F (35°C) or less than 41°F (5°C)
❑High humidity
112
nN
Upgrading Your VAIO Computer
❑Handle the memory module with care. To avoid injuries to your hands and fingers, do not touch the edges of the
components and circuit boards inside your computer.
Removing and Installing a Memory Module
To change or add a memory module
1Shut down the computer and disconnect all peripheral devices.
2Unplug the computer and remove the battery pack.
3Wait until the computer cools down.
4Unscrew the screw (indicated by the arrow below) on the bottom of the computer and remove the memory module
compartment cover.
5Touch a metal object (such as the connector panel on the back of the computer) to discharge static electricity.
6Remove the memory module:

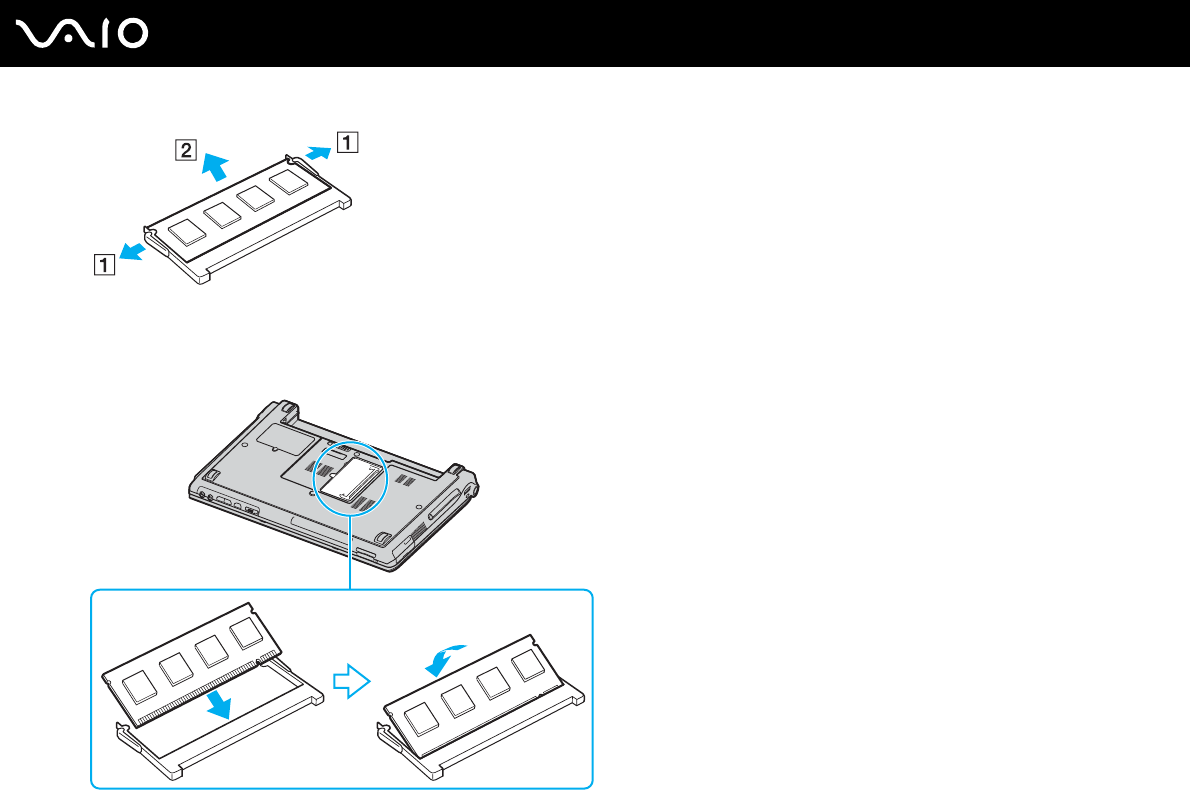

❑Pull the latches in the direction of the arrows (1).
The memory module is released.
114
nN
Upgrading Your VAIO Computer
!
Do not touch any other components on the motherboard.
Make sure to insert the memory module edge with a notch into the memory module slot.
9Replace the memory module compartment cover.
10 Tighten the screw on the bottom of the computer.
11 Reinstall the battery pack and turn on the computer.
Viewing the Amount of Memory
To view the amount of memory
1Turn on the computer.
2Click Start, point to All Programs, and click VAIO Central.
3Click the System Information tab in the VAIO Central window.
4Double-click the System Information folder.
5Double-click the System Information icon.
You can view the amount of system memory. If the additional memory does not appear, repeat the whole procedure and
restart the computer.
115
nN
Precautions
Precautions
This section describes safety guidelines and precautions to help you protect your computer from potential damage.
❑On Handling the LCD Screen (page 115)
❑On Using the Power Source (page 116)
❑On Handling Your Computer (page 116)
❑On Handling Floppy Disks (page 118)
❑On Handling Discs (page 119)
❑On Using the Battery Pack (page 119)
❑On Using Headphones (page 120)
❑On Handling Memory Stick Media (page 121)
❑On Handling the Hard Disk (page 121)
On Handling the LCD Screen
❑Do not leave the LCD screen facing the sun. This could damage the LCD screen. Be careful when using your computer
near a window.
❑Do not scratch the LCD screen or exert pressure on it. This could cause a malfunction.
❑Using your computer in low temperature conditions may produce a residual image on the LCD screen. This is not a
malfunction. When the computer returns to normal temperature, the screen returns to normal.
❑A residual image may appear on the LCD screen if the same image is displayed for a long period of time. The residual
image disappears in a while. You can use a screen saver to prevent residual images.
❑The LCD screen becomes warm during operation. This is normal and does not indicate a malfunction.
116
nN
Precautions
❑The LCD screen is manufactured using high-precision technology. You may, however, see tiny black points and/or bright
points (red, blue, or green) that continuously appear on the LCD screen. This is a normal result of the manufacturing
process and does not indicate a malfunction.
❑Avoid rubbing the LCD screen. This could damage the screen. Use a soft, dry cloth to wipe the LCD screen.
On Using the Power Source
❑See the online Specifications to check the power operation of your model.
❑Do not share the AC outlet with other power-consuming equipment, such as a photocopier or shredder.
❑You can purchase a power strip with a surge protector. This device prevents damage to your computer caused by sudden
power surges, in an electrical storm, for example.
❑Do not place heavy objects on the power cord.
❑To disconnect the cord, pull it out by the plug. Never pull the cord itself.
❑Unplug your computer from the AC outlet if you are not planning to use the computer for a long period of time.
❑Make sure that the AC outlet is easily accessible.
❑When the AC adapter is not used, unplug it from the AC outlet.
❑Use the AC adapter supplied with your computer or genuine Sony products. Do not use any other AC adapter as it may
cause a malfunction.
On Handling Your Computer
❑Clean the cabinet with a soft cloth, which is dry or lightly moistened with a mild detergent solution. Do not use any type
of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your
computer.
117
nN
Precautions
❑If you drop a solid object or any liquid onto your computer, shut down the computer and then unplug it. You may want to
have the computer checked by qualified personnel before operating it again.
❑Do not drop your computer or place any objects on top of the computer.
❑Do not place your computer in a location subject to:
❑Heat sources, such as radiators or air ducts
❑Direct sunlight
❑Excessive dust
❑Moisture or rain
❑Mechanical vibration or shock
❑Strong magnets or speakers that are not magnetically shielded
❑Ambient temperature of more than 95°F (35°C) or less than 41°F (5°C)
❑High humidity
❑Do not place electronic equipment near your computer. The electromagnetic field of the computer may cause a
malfunction.
❑Provide adequate air circulation to prevent internal heat from building up. Do not place your computer on porous surfaces
such as rugs or blankets, or near material such as curtains or draperies that may block its air vents.
❑Your computer uses high-frequency radio signals and may cause interference to radio or TV reception. If this occurs,
relocate the computer a suitable distance away from the set.
❑Use only specified peripheral equipment and interface cables; otherwise, problems may occur.
❑Do not use cut or damaged connection cables.
❑If your computer is brought directly from a cold location to a warm one, moisture may condense inside the computer. In
this case, allow at least one hour before turning on the computer. If any problems occur, unplug the computer and contact
an authorized Sony Service Center. To find the nearest center or agent, visit the Sony online support Web site.
118
nN
Precautions
❑Make sure you disconnect the power cord before cleaning your computer.
❑To avoid losing data if your computer is damaged, back up your data regularly.
❑Do not exert pressure on the LCD screen or its edges when opening the LCD screen lid or lifting your computer. The LCD
screen may be sensitive to pressure or added stress and exerting pressure may damage the screen or cause the screen
to malfunction. To open the computer, hold the base with one hand and gently lift the LCD screen lid with the other. To
carry the computer, make sure to hold the computer with both hands.
❑Use a carrying case specially designed to carry your computer.
On Handling Floppy Disks
❑Do not open the shutter manually or touch the surface of the floppy disk.
❑Keep floppy disks away from magnets.
❑Keep floppy disks away from direct sunlight and other sources of heat.
❑Keep floppy disks away from any liquid. Do not let them get wet. When you are not using your floppy disk, always remove
it from the floppy disk drive and use a storage case.
119
nN
Precautions
❑If the floppy disk comes with an adhesive label, make sure that the label is properly affixed. If the edge of the label is
curled up, the label may stick to the inside of the floppy disk drive and cause a malfunction or damage your floppy disk.
On Handling Discs
❑Do not touch the surface of the disc.
❑Do not drop or bend the disc.
❑Fingerprints and dust on the surface of a disc may cause read errors. Always hold the disc by its edges and central hole,
as shown below:
❑Proper care of the disc is essential to its continuous reliability. Do not use solvents (such as benzine, thinner, alcohol,
commercially available cleaners, or anti-static spray) which may cause damage to the disc.
❑For normal cleaning, hold the disc by its edge and use a soft cloth to wipe the surface from the center out.
❑If the disc is badly soiled, moisten a soft cloth with water, wring it out well, and use it to wipe the surface of the disc from
the center out. Wipe off any remaining moisture with a dry soft cloth.
❑Never affix an adhesive label on discs. This will affect the use of the disc irreparably.
On Using the Battery Pack
❑Do not leave battery packs in temperatures above 140°F (60°C), such as in a car parked in the sun or under direct
sunlight.
120
nN
Precautions
❑Battery life is shorter in a cold environment. This is due to decreased battery efficiency at low temperatures.
❑Charge battery packs at temperatures between 50°F to 86°F (10°C to 30°C). Lower temperatures require longer charging
time.
❑This computer is designed to operate only with genuine Sony batteries.
❑While the battery pack is in use or being charged, heat builds up in the battery pack. This is normal and is not cause for
concern.
❑Keep the battery pack away from all sources of heat.
❑Keep the battery pack dry.
❑Do not open or try to disassemble the battery pack.
❑Do not expose the battery pack to any mechanical shock.
❑If you are not using your computer for a long period of time, remove the battery pack from the computer to prevent damage
to the battery pack.
❑If, after fully charging the battery pack, the battery power is still low, the battery pack may be reaching the end of its life
and should be replaced.
❑You do not need to discharge the battery pack before recharging.
❑If you have not used the battery pack for a considerable amount of time, recharge the battery pack.
On Using Headphones
❑Road safety – Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic
hazard and is illegal in some areas. It can also be potentially dangerous to play loud music while walking, especially at
pedestrian crossings.
❑Preventing hearing damage – Avoid using headphones at high volume. Hearing experts advise against continuous, loud
and extended play. If you experience a ringing in your ears, reduce the volume or discontinue use.
121
nN
Precautions
On Handling Memory Stick Media
❑Do not use the media in a location subject to static electricity or electrical noise.
❑Do not touch the Memory Stick media connector with your finger or metallic objects.
❑Use only the adhesive label supplied with the Memory Stick media as a label.
❑Do not bend, drop, or apply strong shock to the Memory Stick media.
❑Do not disassemble or modify Memory Stick media.
❑Do not let Memory Stick media get wet.
❑Do not use or store Memory Stick media in a location subject to:
❑Extremely high temperatures, such as in a car parked in the sun
❑Direct sunlight
❑High humidity
❑Corrosive substances
❑Use the storage case supplied with the Memory Stick media.
❑Be sure to make a backup copy of your valuable data.
❑Keep the Memory Stick media out of reach of children. There is a risk of swallowing the media.
❑When using the Memory Stick Duo media, do not use a fine-tipped pen to write on the label adhered to the Memory Stick
Duo media. Exerting pressure on the media may damage internal components.
On Handling the Hard Disk
The hard disk has a high storage density and reads or writes data in a short time. However, it can be easily damaged by
mechanical vibration, shock, or dust.
122
nN
Precautions
Although the hard disk has the internal safety device to prevent losing data due to mechanical vibration, shock or dust, you
should be careful when handling your computer.
To avoid damaging your hard disk
❑Do not subject your computer to sudden movements.
❑Keep your computer away from magnets.
❑Do not place your computer in a location subject to mechanical vibration or in an unstable position.
❑Do not move your computer while the power is on.
❑Do not turn off the power or restart your computer while reading or writing data to the hard disk.
❑Do not use your computer in a place subject to extreme changes in temperature.
✍
If the hard disk is damaged, the data cannot be restored.
123
nN
Troubleshooting
Troubleshooting
This section describes how to solve common problems you might encounter when using your computer. Many problems have
simple solutions. Try these suggestions before visiting the Sony online support Web site
at http://esupport.sony.com/EN/VAIO/
for
customers in USA, at http://www.sony.ca/support for customers in Canada, at http://esupport.sony.com/ES/VAIO/ for
customers in Latin American countries or areas at http://esupport.sony.com/ES/VAIO/BR/ for customers in Brazil.
❑Computer (page 124)
❑System Security (page 130)
❑Battery (page 132)
❑Internet (page 133)
❑Networking (page 135)
❑Bluetooth Technology (page 137)
❑Optical Discs (page 141)
❑Display (page 144)
❑Printing (page 146)
❑Microphone (page 147)
❑Mouse (page 147)
❑Speakers (page 148)
❑Touch Pad (page 149)
❑Keyboard (page 150)
❑Floppy Disks (page 151)
❑PC Cards (page 151)
124
nN
Troubleshooting
❑Audio/Video (page 152)
❑Memory Stick Media (page 153)
❑Peripherals (page 154)
Computer
What should I do if my computer does not start?
❑Make sure your computer is securely plugged into a power source and turned on. Make sure the power indicator shows
the power is on.
❑Make sure the battery pack is installed properly and charged.
❑Make sure the floppy disk drive (if applicable) is empty.
❑If your computer is plugged into a power strip or uninterruptible power supply (UPS), make sure the power strip or UPS
is plugged into a power source and turned on.
❑If you are using an external display, make sure it is plugged into a power source and turned on. Make sure the brightness
and contrast controls are adjusted correctly. See the manual that came with your display for more information.
❑Disconnect the AC adapter and remove the battery pack. Wait three to five minutes. Reattach the AC adapter and reinstall
the battery pack, and press the power button to turn on your computer.
❑Condensation may cause your computer to malfunction. If this occurs, do not use the computer for at least one hour.
❑Remove any extra memory modules you may have inserted since purchase.
❑Check that you are using the supplied Sony AC adapter. For your safety, use only genuine Sony rechargeable battery
packs and AC adapter, which are supplied by Sony for your VAIO computer.
125
nN
Troubleshooting
What should I do if a BIOS error appears when I turn on my computer?
If the message "Press <F1> to resume, <F2> to setup" appears at the bottom of your computer screen, follow these steps:
1Press the F2 key.
The BIOS setup screen appears.
2Set the date (month/day/year). Press the Enter key.
3Press the m key to select System Time, and then set the time (hour: minute: second). Press the Enter key.
4Press the , key to select the Exit tab, and then press the F9 key.
The message Load default configuration now? appears.
5Select Yes, and press the Enter key.
6Select Exit (Save Changes) or Exit Setup, and press the Enter key.
The message Save configuration changes and exit now? appears.
7Select Yes, and press the Enter key.
Your computer restarts.
If this occurs frequently, contact an authorized Sony Service Center. To find the nearest center or agent, visit the Sony online
support Web site.
What should I do if the power indicator (Green) lights but my computer screen stays
blank?
Follow these steps:
1Press and hold the power button for more than four seconds to check that the power indicator goes out. Then turn on your
computer again.
2If your computer screen still stays blank, unplug the AC adapter, remove the battery pack, and leave the computer for
about a minute. Then plug in the AC adapter, install the battery pack, and turn on the computer again.
126
nN
Troubleshooting
What should I do if my computer or software stops responding?
❑It is best to turn off your computer using the Turn Off Computer option on the Microsoft Windows Start menu, located
on the taskbar. Using other methods, including those listed below, may result in loss of unsaved data.
❑Click Start, point to Turn Off Computer, and then click Turn Off.
❑If your computer does not turn off, press the Ctrl+Alt+Delete keys simultaneously. When the Windows Task Manager
window appears, click Turn Off from the Shut Down menu.
When the Windows Security window appears, click Shut Down.
❑If your computer still does not turn off, press and hold the power button until the computer turns off.
❑If your computer stops responding while playing a CD or DVD, press the Ctrl+Alt+Delete keys simultaneously. You can
turn off the computer from Windows Task Manager.
!
Pressing the Ctrl+Alt+Delete keys simultaneously or turning off your computer with the power button may cause loss of data.
❑Remove the AC adapter and battery pack.
❑Try reinstalling the software.
❑Contact the software publisher or designated provider for technical support.
Why doesn't my computer enter Standby or Hibernate mode?
Your computer may become unstable if the operating mode is changed before the computer completely enters Standby or
Hibernate.
To restore your computer to normal operating stability
1Close all open programs.
2Click Start, Turn Off Computer, and then Restart.
127
nN
Troubleshooting
3If your computer does not restart, press the Ctrl+Alt+Delete keys simultaneously.
In the Windows Task Manager window, select Restart from the Shut Down menu to restart the computer.
4If this procedure does not work, press and hold the power button until the computer turns off.
What should I do if the battery indicator is flashing and my computer does not start?
❑This symptom could be due to the battery pack not being installed properly. To resolve this symptom, turn off your
computer and remove the battery pack. Then install the battery pack to the computer again. For details, see Installing
the Battery Pack (page 19).
❑If the symptom persists after performing the above, it means the installed battery pack is not compatible. Remove the
battery pack and contact an authorized Sony Service Center. To find the nearest center or agent, visit the Sony online
support Web site.
What should I do if a message window, notifying of incompatibility or improper installation
of the battery pack, appears and my computer enters Hibernate mode?
❑This symptom could be due to the battery pack not being installed properly. To resolve this symptom, turn off your
computer and remove the battery pack. Then install the battery pack to the computer again. For details, see Installing
the Battery Pack (page 19).
❑If the symptom persists after performing the above, it means the installed battery pack is not compatible. Remove the
battery pack and contact an authorized Sony Service Center. To find the nearest center or agent, visit the Sony online
support Web site.
128
nN
Troubleshooting
Why does the System Properties window display a slower CPU speed than the
maximum?
This is normal. Because your computer's CPU utilizes a type of CPU speed controlling technology for power conservation
purposes, System Properties may display the CPU's current speed instead of the maximum speed.
What should I do if Windows does not start, showing a message, when I start my
computer?
If you enter a wrong power-on password three times consecutively, the Enter Onetime Password message appears. If you
enter a wrong power-on password three times consecutively again, the System Disabled message appears and Windows
will not start. Press and hold the power button for more than four seconds to check that the power indicator goes off. Wait for
10 or 15 seconds, then restart your computer and enter the correct password. When entering the password, check that the
Num lock indicator and Caps lock indicator are off. If any are lit, press the Num Lk key or the Caps Lock key to turn off the
indicator before entering the password.
What should I do if my game software does not work or it keeps crashing?
❑Check the web site of the game if there are any patches or updates to download.
❑Make sure you have installed the latest video driver.
❑On some VAIO models, the graphics memory is shared with the system. The optimal graphic performance in this case is
not guaranteed.
What should I do if I cannot remember the BIOS password?
If you have forgotten the BIOS password, contact an authorized Sony Service Center to reset it. A reset fee will be charged.
To find the nearest center or agent, visit the Sony online support Web site.
129
nN
Troubleshooting
Why does it take time before my computer starts?
❑If Norton Internet Security's Personal Firewall is active, it may take some time before the desktop screen appears due to
network security checkups.
❑If the TPM is enabled, it will take longer before the VAIO logo appears due to security checks at computer startup.
Why doesn't my computer screen turn off when the time selected for the automatic turn-
off action has passed?
The originally selected VAIO's screen saver disables the timer setting, which you can select using the Windows power
options, for your computer screen to turn off.
Change the originally selected VAIO's screen saver.
What should I do if I cannot boot my computer from the USB floppy disk drive connected
to the computer?
To boot your computer from the USB floppy disk drive, you need to change the boot device.
Turn on your computer and press the F11 key when the VAIO logo appears.
How can I change the volume of the startup sound?
To change the startup sound volume
1Press the F2 key.
The BIOS setup screen appears.
2Press the < or , key to select Advanced.
3Press the M or m key to select Speaker Volume and press the Enter key.
130
nN
Troubleshooting
4Press the M or m key to select the speaker volume at startup and press the Enter key.
5Press the < or , key to select Exit, select Exit (Save Changes) or Exit Setup, and then press the Enter key.
The message Save configuration changes and exit now? appears.
6Select Yes and press the Enter key.
Your computer restarts and you will hear the startup sound at the specified volume level.
✍
You can also show/hide the VAIO animation logo at startup. On the screen that is displayed after step 2 above, select VAIO Animation Logo or Show
VAIO Animation Logo and press the Enter key to proceed with the setting. Hiding the VAIO animation logo will also turn off the startup sound.
System Security
This section provides information about keeping your computer operating smoothly and protecting against potential threats
to the computer's security.
How can I protect my computer against security threats, such as viruses?
The Microsoft Windows operating system is preinstalled on your computer. The best way to protect your computer against
security threats, such as viruses, is to download and install the latest Windows updates regularly.
You can get important Windows updates by doing one of the following:
❑The Automatic Updates feature — This feature automatically searches for and delivers updates directly to your computer
whenever it is connected to the Internet.
❑The Windows Updates web site — This site enables you to download computer updates without turning on the Automatic
Updates feature.
!
Your computer must be connected to the Internet before you can receive updates.
131
nN
Troubleshooting
To use the Automatic Updates feature
1Connect to the Internet.
2Click the Automatic Updates icon on the taskbar.
3Follow the on-screen instructions to set up automatic or scheduled updates.
To visit the Windows Updates web site
1Connect to the Internet.
2Type http://windowsupdate.microsoft.com/ in the address bar of your browser.
The Microsoft Windows Update and Security Warning windows appear.
3In the Security Warning window, start installation and run Windows Update.
4In the Microsoft Windows Update window, select an installation type, and follow the on-screen instructions.
How do I keep my antivirus software updated?
You can keep the Norton Internet Security software program current with the latest updates from Symantec Corporation.
To download and install the latest security update
1Double-click the Norton Internet Security icon on the taskbar. If you have not previously registered the antivirus
software, a series of information wizards appears.
1Follow the on-screen instructions to complete each wizard.
2Double-click the Norton Internet Security icon again.
The Norton Internet Security window appears.
If you have previously registered this antivirus software, the Norton Internet Security window automatically appears.
2Follow the on-screen instructions to select and download updates.
132
nN
Troubleshooting
Battery
How do I find the battery charging status?
See Charging the Battery Pack (page 19).
When is my computer using AC power?
When your computer is directly connected to the AC adapter, it uses AC power, even if the battery pack is installed.
When should I recharge the battery pack?
❑When the battery level falls below 10 percent.
❑When both the battery and power indicators blink.
❑When you have not used the battery pack for a long period of time.
When should I replace the battery pack?
If the battery power is still low after charging it, the battery pack may be reaching the end of its life and should be replaced.
Should I be concerned that the installed battery pack is warm?
No, it is normal for the battery pack to be warm when it is powering your computer.
133
nN
Troubleshooting
Can my computer enter Hibernate mode while using battery power?
Your computer can enter Hibernate mode while using battery power, but some software programs and peripheral devices
prevent the system from entering Hibernate mode. If you are using a program that prevents the system from entering
Hibernate mode, save your data frequently to avoid losing data. See Using Hibernate Mode (page 104) for information on
how you can manually activate Hibernate mode.
Why doesn't my computer enter Hibernate mode?
You may first need to enable Hibernate mode. Follow these steps:
1Click Start and then Control Panel.
2Click Performance and Maintenance.
3Click Power Options.
The Power Options Properties window appears.
4Select the Hibernate tab.
5Click to check the box next to Enable hibernation.
Internet
What should I do if my modem does not work?
❑Make sure the telephone cable is securely plugged into the modem port on your computer and the wall jack.
❑Make sure the telephone cable is working. Plug the cable into an ordinary telephone and listen for a dial tone.
❑Make sure the telephone number the program is dialing is correct.
❑Make sure the software you are using is compatible with your computer's modem. (All preinstalled Sony programs are
compatible.)
134
nN
Troubleshooting
❑Make sure the modem is the only device connected to your telephone line.
❑Follow these steps to check the settings:
1Click Start and then Control Panel.
2Click Printers and Other Hardware.
3Click Phone and Modem Options.
4On the Modems tab, check that your modem is listed.
5On the Dialing Rules tab, check the location information is correct.
Why is my modem connection slow?
Your computer is equipped with a V.92/ V.90 compatible modem. Many factors may influence modem connection speed,
including telephone line noise or compatibility with telephone equipment, such as fax machines or other modems. If you think
your modem is not connecting properly to other PC-based modems, fax machines, or your Internet Service Provider (ISP),
do any of the following:
❑Ask your telephone company to verify your telephone line is free of any line noise.
❑If your problem is fax-related, make sure there are no problems with the fax machine you are calling and that it is
compatible with fax modems.
❑If you are having a problem connecting with your ISP, make sure the ISP is not experiencing technical problems.
❑If you have a second telephone line, try connecting the modem to that line.
135
nN
Troubleshooting
Networking
What should I do if my computer cannot connect to a wireless LAN access point?
❑Connection availability is affected by distance and obstructions. You may need to move your computer away from
obstructions or closer to any access point you may be using.
❑Make sure the WIRELESS or WIRELESS LAN switch is on and the WIRELESS LAN indicator is lit on your computer.
❑Make sure power to the access point is on.
❑Follow these steps to check the settings:
1Click Start and then Control Panel.
2Click Network and Internet Connections.
3Click Network Connections.
4Right-click Wireless Network Connection.
5Click Properties.
6Click the Wireless Networks tab.
7Click View Wireless Networks to see that your access point is selected.
❑Make sure the encryption key is correct.
What should I do if I cannot access the Internet?
❑Check the access point settings. See the manual that came with your access point for more information.
❑Make sure your computer and the access point are connected to one another.
❑Move your computer away from obstructions or closer to any access point you may be using.
❑Make sure your computer is properly configured for Internet access.
136
nN
Troubleshooting
Why is the data transfer speed slow?
❑The wireless LAN data transfer speed is affected by distance and obstructions between devices and access points. Other
factors include device configurations, radio conditions, and software compatibility. To maximize the data transfer speed,
move your computer away from obstructions or closer to any access point you may be using.
❑If you are using a wireless LAN access point, the device may be temporarily overloaded depending on how many other
devices are communicating via the access point.
❑If your access point interferes with other access points, change the access point channel. See the manual that came with
your access point for more information.
How do I avoid data transfer interruptions?
❑When your computer is connected to an access point, data transfer interruptions may occur when using large files or if
the computer is in close proximity to microwaves and cordless telephones.
❑Move your computer closer to the access point.
❑Make sure the access point connection is intact.
❑Change the access point channel. See the manual that came with your access point for more information.
What are channels?
❑Wireless LAN communication occurs on divided frequency bands known as channels. Third-party wireless LAN access
point channels may be preset to different channels from Sony devices.
❑If you are using a wireless LAN access point, see connectivity information contained in the manual that came with your
access point.
137
nN
Troubleshooting
Why does the network connection stop when I change the encryption key?
Two computers with built-in wireless LAN may lose a peer-to-peer network connection if the encryption key is changed. You
can either change the encryption key back to the original profile or re-enter the key on both computers so the key matches.
Bluetooth Technology
What should I do if other Bluetooth devices cannot discover my computer?
❑Make sure both devices have the Bluetooth functionality enabled.
❑If the Bluetooth indicator is off, turn on the WIRELESS switch.
❑You cannot use the Bluetooth functionality when your computer is in a power saving mode. Return to Normal mode, then
turn on the WIRELESS switch.
❑Your computer and the device may be too far apart. Wireless Bluetooth technology works best when the devices are within
33 feet (10 meters) of each other.
Why can't my computer discover other Bluetooth devices?
If the connected device is also connected to other devices, it may not appear in the Bluetooth utility software or you may not
be able to communicate with the device.
What should I do if I cannot find the Bluetooth device with which I want to communicate?
❑Check that the Bluetooth functionality of the device with which you want to communicate is on. See the other device's
manual for more information.
❑If the device with which you want to communicate is already communicating with another Bluetooth device, it may not be
found or it may not be able to communicate with your computer.
138
nN
Troubleshooting
❑To allow other Bluetooth devices to communicate with your computer, right-click the Bluetooth icon on the taskbar and
select Options from the menu to open the Options window. Then, check if proper security modes are selected on the
Security tab. For details on the security modes, see the help file on the Bluetooth utility software.
For more information on the Bluetooth Device window, see Communicating with Another Bluetooth Device (page 53).
What should I do if other Bluetooth devices cannot connect to my computer?
❑Make sure the other device is authenticated.
❑Your computer may not allow connections from other devices. To enable Bluetooth device connections, follow these steps:
1Right-click the Bluetooth icon on the taskbar.
2Select Options from the menu.
The Options window appears.
3Check if Standard or Low is selected for the Bluetooth security level on the Security tab.
If a custom Bluetooth security level is selected, click the Default level button.
4Click OK.
❑The data transfer distance can be shorter than 33 feet (10 meters) depending on existing obstacles between the two
devices, on radio wave quality, and on the operating system or the software in use. Move your computer and Bluetooth
devices closer to each other.
❑If the device with which you want to communicate is already communicating with another Bluetooth device, it may not be
found or it may not be able to communicate with your computer.
❑Check that the Bluetooth functionality of the device with which you want to communicate is on. See the other device's
manual for more information.
139
nN
Troubleshooting
Why is my Bluetooth connection slow?
❑The data transfer speed depends on the obstacles and/or the distance between the two devices, on the radio wave quality,
and on the operating system or the software in use. Move your computer and Bluetooth devices closer to each other.
❑The 2.4 GHz radio frequency used by Bluetooth and wireless LAN devices is also used by other devices. Bluetooth
devices incorporate technology that minimizes interference from other devices using the same wavelength, however,
communication speed and connection range may be reduced. Interference from other devices may also stop
communication altogether.
❑Connection availability is affected by distance and obstructions. You may need to move your computer away from
obstructions or closer to the device to which it is connected.
❑Identify and remove obstacles between your computer and the device to which it is connected.
❑Note that due to limitations of the Bluetooth standard, large files may occasionally be corrupted during continuous transfer
due to electromagnetic interference from the environment.
Why does the message requesting authentication appear?
The target Bluetooth-enabled device is requesting connection authentication. Mutual authentication is required to enable
Bluetooth communications with this device.
Why can't I connect to service supported by the target Bluetooth device?
Connection is only possible for services also supported by the computer with the Bluetooth functionality. For more details,
see the help file on the Bluetooth utility software.
140
nN
Troubleshooting
Can I use a device with Bluetooth technology on airplanes?
With Bluetooth technology, your computer transmits a radio frequency of 2.4 GHz. Sensitive locations, such as hospitals and
airplanes, may have restrictions on use of Bluetooth devices, due to radio interference. Check with facility staff to see if use
of the Bluetooth functionality on the computer is permitted.
Why can't I connect to a Bluetooth device by specifying its IP address on a Personal Area
Network (PAN)?
The Bluetooth utility software uses Dynamic Host Configuration Protocol (DHCP) to assign IP addresses to active wireless
devices. If you specify a fixed IP address for the device to which you want to connect, the utility cannot assign a dynamic IP
address to the device and fails. Do not specify IP addresses when using a PAN.
Why can't I use the Bluetooth functionality when I log on to my computer as a limited user?
The Bluetooth functionality may not be available to users with limited rights on your computer. Log on to the computer as a
user with administrator rights.
Why can't I connect to a Bluetooth device in Personal Area Network User mode?
If the device to which you want to connect supports Bluetooth communication in Personal Area Network User mode only, you
cannot establish a connection from your computer.
Why can't I use the Bluetooth utility software when I switch a user?
If you switch a user without logging off from your system, the Bluetooth utility software will not work successfully. Make sure
to log off before switching a user. To log off from your system, click Start and then Log Off.
141
nN
Troubleshooting
Optical Discs
Why does my computer freeze when I try to read a disc?
The disc that your computer is trying to read may be dirty or damaged. Follow these steps:
1Restart the computer by clicking Start, Turn Off Computer, and Restart.
2Eject the disc from the optical disc drive.
3Examine the disc for dirt or damage. If the disc is dirty, see On Handling Discs (page 119) for instructions on how to
clean it.
What should I do if the drive tray does not open?
❑Make sure your computer is on.
❑If power supply to the optical disc drive is disabled by VAIO Power Management, the substitute drive eject button on the
optical disc drive will not work. Use the disc drive eject button located above the keyboard. Note that it will take a while to
eject the drive tray if the optical disc drive is not powered.
❑If the disc drive eject button does not work, click Start and then My Computer. Right-click the optical disc drive icon, and
select Eject from the shortcut menu.
❑If none of the above options work, insert a thin, straight object (such as a paper clip) in the manual eject hole near the
substitute drive eject button.
❑Try restarting your computer.
What should I do if I cannot play a CD or DVD properly on my computer?
❑Make sure the disc was inserted into the optical disc drive with the label facing upward.
❑Make sure the necessary program(s) is installed according to the manufacturer's instructions.
142
nN
Troubleshooting
❑If a CD or DVD is dirty or damaged, your computer will stop responding. Follow these steps:
1Restart the computer by pressing the Ctrl+Alt+Delete keys, and selecting Restart from the Shut Down menu of the
Windows Task Manager window.
2Remove the CD or DVD from the optical disc drive.
3Check the disc for dirt or damage. If you need to clean the disc, see On Handling Discs (page 119) for instructions.
❑If you are playing a CD or DVD and cannot hear sound, do any of the following:
❑Double-click the Volume icon on the taskbar, and click to cancel the Master Volume Mute All and Wave Mute check
boxes.
❑Check the volume setting in the audio mixer.
❑If you are using external speakers, check the volume settings on the speakers and the connections between the
speakers and your computer.
❑Make sure the CD audio feature is enabled and the correct driver software is installed. Follow these steps:
1Click Start and then Control Panel.
2Click Performance and Maintenance.
3Click System.
The System Properties window appears.
4Select the Hardware tab, and click Device Manager in the Device Manager box.
A window with a listing of your computer's hardware devices appears.
If an "X" or an exclamation point appears on the listed device, you may need to enable the device or reinstall the
drivers.
5Double-click the optical disc drive device to open the submenu.
6Double-click the listed drive, and select the Properties tab.
143
nN
Troubleshooting
7Click to select the Enable digital CD audio for this CD-ROM device check box, if it is not selected.
You can confirm the driver software by selecting the Driver tab, and clicking Driver Details.
8Click OK to close the window.
❑Make sure an adhesive label is not affixed to a CD or DVD. Adhesive labels can come off while the disc is in the optical
disc drive and damage the drive or cause it to malfunction.
❑If a region code warning appears, the disc may be incompatible with the optical disc drive. Check the DVD package to
make sure the region code is compatible with the optical disc drive.
❑If you notice condensation on your computer, do not use the computer for at least one hour. Condensation can cause the
computer to malfunction.
❑Make sure your computer is running on AC power supply and try the disc again.
What should I do if I cannot write data to CD media?
❑Do not launch any software application or allow any to launch automatically, not even a screen saver.
❑Do not use the keyboard.
❑Do not use a CD-R/RW disc that has an adhesive label affixed to it. This could cause a write error or other damage.
What should I do if I cannot write data to DVD media?
❑Make sure you are using the correct DVD recordable media.
❑Check which DVD recordable format is compatible with your computer's built-in DVD recorder. Note the possibility that
some brands of DVD recordable media do not work.
144
nN
Troubleshooting
What should I do if I cannot write data to DVD-RAM media using Windows functions?
This Q & A entry applies to selected models only. See the online Specifications to find the type of your optical disc drive,
and then Reading and Writing Optical Discs (page 28) to find about the supported disc media.
Follow these steps to change the settings:
1Click Start and then My Computer.
2Right-click the optical disc drive icon and select Properties.
3Click the Recording tab.
4Click to cancel the Enable CD recording on this drive check box.
5Click OK.
!
Canceling the Enable CD recording on this drive check box disables writing data to CD-R and CD-RW discs. To write data to such discs, make sure to
select this check box.
You cannot add data to DVD-RAM discs with data already written by the Roxio DigitalMedia software due to difference in disc formatting. Attempt to
add data to such a disc will re-format the disc, resulting in loss of the entire written data.
Display
Why did my computer screen go blank?
❑Your computer screen may go blank if the computer has lost power or has entered a power saving mode (Standby or
Hibernate). If the computer is in LCD (Video) Standby mode, press any key to activate the computer screen. See Using
the Power Saving Modes (page 102) for more information.
❑Make sure your computer is securely plugged into a power source and turned on. Make sure the power indicator shows
the power is on.
145
nN
Troubleshooting
❑If your computer is using battery power, make sure the battery pack is installed properly and is charged. See Using the
Battery Pack (page 18) for more information.
❑If the display mode is set to external display, press the Fn+F7 keys. See Combinations and Functions with the Fn Key
(page 23) for more information.
Why doesn't my computer screen display a video?
If the external display is selected for the display output and the external display is disconnected, you cannot display a video
on your computer screen. Stop video playback, change the display output to the computer screen, and then restart video
playback. See Selecting Display Modes (page 65). Alternatively, you can press the Fn+F7 keys to change the display
output. See Combinations and Functions with the Fn Key (page 23) for more information.
What should I do if my computer screen is dark?
Press the Fn+F6 keys to brighten your computer screen.
What should I do if the LCD brightness of my computer screen changes?
The LCD brightness setting, adjusted with the Fn+F5/F6 keys, is temporary and this adjustment is overridden by the setting
on the VAIO Power Management tab when another power scheme is selected. To save this preference for the brightness,
follow these steps:
✍
To do the following procedure, you must have administrator rights on your computer.
1Click Start and then Control Panel.
2Click Performance and Maintenance.
3Click Power Options.
4Select the tab for power scheme settings.
146
nN
Troubleshooting
5Select the desired power scheme from the drop-down list.
6On the VAIO Power Management tab, select No change for LCD Brightness.
7Click OK.
The preference for the LCD brightness adjusted with the Fn+F5/F6 keys is saved and the brightness of your computer screen
remains unchanged regardless of operating conditions.
What should I do if the external display stays blank?
If you cannot change the display output with the Fn+F7 keys, you need to change the settings for the external display with
VAIO Central. To change the settings, launch the VAIO Central, select the control item for the external display, and then
cancel the check box for enabling the automatic function to select the external display for the output. Then, try the Fn+F7
keys to change the display output.
Printing
What should I do if I cannot print a document?
❑Make sure your printer is on, and the printer cable is securely connected to the ports on the printer and computer.
❑Make sure your printer is compatible with the Windows operating system installed on your computer.
❑You may need to install the printer driver software before you use your printer. See the manual that came with your printer
for more information.
❑If your printer is not functioning after your computer resumes from a power saving mode (Standby or Hibernate), then
restart the computer.
❑If the bidirectional communication functions are provided with your printer, disabling the functions on your computer may
enable printing. Follow these steps:
1Click Start and then Control Panel.
147
nN
Troubleshooting
2Click Printers and Other Hardware.
3Click Printers and Faxes.
4Right-click the printer icon and select Properties.
5Click the Ports tab.
6Click to cancel the Enable bidirectional support check box.
7Click OK.
This change to the settings disables the bidirectional communication functions of the printer, such as data transfer, status
monitoring, and remote panel.
When your printer is connected to the port replicator, check the port replicator to see if it is connected to an AC power
source.
Microphone
What should I do if my microphone does not work?
❑If you are using an external microphone, make sure the microphone is turned on and is properly plugged into the
microphone jack on your computer.
❑The muting button may have been pressed. Check to see if the muting indicator light is on. If it is, press the muting button
to turn on the volume.
Mouse
What should I do if my computer does not recognize my mouse?
❑Make sure your mouse is securely plugged into the port.
148
nN
Troubleshooting
❑Restart your computer with your mouse connected.
What should I do if the pointer does not move when I use my mouse?
❑Make sure another mouse is not connected.
❑If you are playing a disc, press the Ctrl+Alt+Delete keys simultaneously to stop playback and restart your computer.
❑If the pointer still does not move, do any of the following:
❑Press the Ctrl+Alt+Delete keys simultaneously.
In the Windows Task Manager window, select Restart from the Shut Down menu to restart your computer.
❑Press and hold the power button for more than four seconds. When your computer turns off, wait for 10 to 15 seconds
and then press the power button again to restart the computer.
Speakers
What should I do if my speakers do not work?
❑Make sure your speakers are properly connected and the volume is turned up loud enough to hear sound.
❑Make sure your speakers are designed for computer use.
❑If your speakers have a muting button, set the button to off.
❑The speaker volume may have been turned off. Press the muting button on your computer.
❑If you have connected an audio cable to the headphones jack, disconnect the cable and use the speaker cable supplied
with your speakers.
❑If you are using battery power, make sure the battery pack is installed properly and is charged.
❑If your speakers require external power, make sure the speakers are connected to a power source. See the manual that
came with your speakers for more information.
149
nN
Troubleshooting
What should I do if I cannot hear sound from my speakers?
❑If your computer is using battery power, make sure the battery pack is properly installed and is charged.
❑If you are using a program that has its own volume control, make sure the volume control is properly set. See the
program's help file for more information.
❑Make sure the speaker volume is turned up loud enough and the audio option is enabled.
❑The speaker volume may have been turned off. Press the muting button on your computer.
❑Check the volume controls in Windows.
Touch Pad
What should I do if the touch pad does not work?
❑You may have disabled the touch pad without connecting a mouse to your computer. See Using the Touch Pad (page
24).
❑Restart your computer.
Press the Ctrl+Alt+Delete keys simultaneously.
In the Windows Task Manager window, select Restart from the Shut Down menu to restart the computer.
❑If the pointer does not move while playing a disc, press the Ctrl+Alt+Delete keys simultaneously to stop playback and
restart your computer.
❑If the problem persists, make sure a mouse is not connected.
How do I change the left and right button assignments?
If your computer is interpreting a single-click as a double-click, you may want to change the button assignments. Follow these
steps:
150
nN
Troubleshooting
1Click Start and then Control Panel.
2Click Printers and Other Hardware.
3Click Mouse.
4Click the Buttons tab.
5Select your preferences in the Button Selection box, and then click Apply to apply your settings.
You may need to press the Tab key and the M and m keys to make your selections.
6Click OK to close the window.
Keyboard
What should I do if the keyboard configuration is wrong?
❑The language layout of your computer's keyboard is labeled on the packaging box. If you choose a different regional
keyboard when you complete the Windows setup, the key configuration will be mismatched.
❑To change the keyboard configuration, follow these steps:
1Click Start and then Control Panel
2Click Date, Time, Language and Regional Options, and click Regional and Language Options.
3Change the settings as desired.
What should I do if I cannot enter certain characters with the keyboard?
If you cannot enter U, I, O, P, J, K, L, M, and so on, the Num Lk key may be activated. Check that the Num lock indicator is
off. If the Num lock indicator is on, press the Num Lk key to turn it off before entering these characters.
151
nN
Troubleshooting
Floppy Disks
Why doesn't the Safely Remove Hardware icon appear on the taskbar when the drive is
connected?
Your computer does not recognize the floppy disk drive. First, make sure the USB cable is properly connected to the USB
port. If you need to secure the connection, wait a few moments for the computer to recognize the drive. If the icon still does
not appear, follow these steps:
1Close all programs that are accessing the floppy disk drive.
2Wait for the LED indicator on the floppy disk drive to turn off.
3Push the eject button to remove the disk, and disconnect the USB floppy disk drive from your computer.
4Reconnect the floppy disk drive by inserting the USB connector (with the USB icon facing upward) into the USB port.
5Restart the computer by clicking Start, Turn Off Computer, and then Restart.
What should I do if I cannot write data to a floppy disk?
❑Make sure the floppy disk is properly inserted in the drive.
❑If the disk is inserted properly and you are still unable to write data to it, the disk may be full or write-protected. You can
either use a floppy disk that is not write-protected or disable the write-protect feature.
PC Cards
What should I do if my PC Card does not work?
❑Make sure the PC Card is inserted properly. See Inserting a PC Card (page 34) for more information.
❑Make sure the PC Card is compatible with the Microsoft Windows operating system installed on your computer.
152
nN
Troubleshooting
❑See the manual that came with your PC Card for more information. You may need to install driver software if you are not
using a Sony PC Card.
Why doesn't my computer recognize attached devices?
For some PC Cards, if you alternate between Normal mode and Standby or Hibernate mode while the card is inserted into
the PC Card slot, your computer may not recognize the PC Card or the connected device. Restart the computer.
Why can't I insert my PC Card?
❑Make sure you are inserting the card correctly. See Inserting a PC Card (page 34) for more information.
❑You may not be able to use some PC Cards or some functions of the PC Card on your computer. See the manual that
came with your PC Card for more information.
Audio/Video
What should I do if I cannot use my DV camcorder?
If the message appears to indicate DV equipment seems to be disconnected or turned off, the i.LINK cable may not be
securely plugged into the ports on your computer or camcorder. Unplug the connectors, and plug them in again. See
Connecting an i.LINK Device (page 71) for more information.
✍
i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The procedure to establish an i.LINK connection
may vary, depending on a software application, an operating system, and a compatible i.LINK device. Not all products with an i.LINK connection can
communicate with each other. See the manual that came with your compatible i.LINK device for more information on operating conditions and proper
connection. Before connecting compatible i.LINK PC peripherals to your system, such as a CD-RW or hard disk drive, confirm their operating system
compatibility and required operating conditions.
153
nN
Troubleshooting
Memory Stick Media
What should I do if I cannot open my image files?
You may need to reformat your Memory Stick media.
Formatting Memory Stick media erases all data, including music data previously saved on it. Before you reformat Memory
Stick media, back up important data and confirm that the media does not contain files you want to keep.
1Copy the data from the Memory Stick media onto your computer's hard disk to save data or images.
2Format the Memory Stick media using the Memory Stick Formatter software preinstalled on your computer. For
instructions about formatting a Memory Stick media, see the help file on the Memory Stick Formatter software.
Why can't I save music files onto my Memory Stick media?
Copyright protected music cannot be checked out to any Memory Stick media other than those with the MagicGate logo.
!
Use of recorded music requires permission from the copyright holders.
Sony is not responsible for music files that cannot be recorded from a CD or downloaded from other sources.
Can I copy images from a digital camera using Memory Stick media?
Yes, and you can view video clips that you have recorded with Memory Stick media-compatible digital cameras.
154
nN
Troubleshooting
Peripherals
What should I do if I cannot connect a USB device?
❑If applicable, check the USB device is turned on and using its own power supply. For example, if you are using a digital
camera, check the battery is charged. If you are using a printer, check the power cable is connected properly to the AC
outlet.
❑Try using another USB port on your computer. The driver could be installed to the specific port you used the first time you
connected the device.
❑See the manual that came with your USB device for more information. You may need to install software before you connect
the device.
❑Try connecting a simple, low-powered device such as a mouse to test if the port is working at all.
❑USB hubs may prevent a device from working because of the distribution of power. We recommend you connect the
device directly to your computer without a hub.
155
nN
Support Options
Support Options
The section contains information on where to go for answers to questions about your computer and the preinstalled software.
Sony Support Information
See the following sources for answers in the sequence listed below.
1VAIO Computer Documentation
This on-screen User Guide (this manual) and the printed Welcome mat provide detailed information on how to maximize
your computer's capabilities and solve common problems.
2Program Guides and Help Files
The preinstalled programs on your computer may be supplied with individual help guides. These guides are stored on the
hard disk as on-screen help files. You can find the help files from the help menu under the specific program.
3Operating System Online Support
Your computer comes preinstalled with a Microsoft Windows operating system. For operating system support, you can
visit Microsoft customer support at: http://support.microsoft.com/directory/.
4Sony Computing Support
This service provides instant access to information on commonly encountered problems. Type a description of the
problem and the Knowledge Database searches for the corresponding solutions online. You can visit the Sony online
support Web site at http://esupport.sony.com/EN/VAIO/ for customers in USA, at http://www.sony.ca/support for
customers in Canada, at http://esupport.sony.com/ES/VAIO/ for customers in Latin American countries or areas, or at
http://esupport.sony.com/ES/VAIO/BR/ for customers in Brazil.
5VAIO Update
156
nN
Support Options
When your computer is connected to the Internet, VAIO Update automatically notifies you when critical software and
security information is posted on the support web site. Click the VAIO Update notice to open the VAIO Support web site
and view the information.
For users in Latin American countries or areas
Customer Information Center
If you do not find the information you are looking for at our site, you may call Sony directly. In order to receive the fastest and
most efficient services, please have the following information readily available:
1Your VAIO computer model
You can find it at the lower right corner of the display on the laptops, and in the same place on the front panel of the CPU
on the desktops.
2Your computer's serial number
You can find it on the back or bottom of the laptop or on the back of the desktop; the serial number is the last 7 digits of
the number below the barcode.
3The operating system on your computer
4The hardware component or the software program that is causing you the problem
5A brief description of the problem
In order to contact a Sony technical support representative, please call the following numbers:
❑In Argentina:
(011) 6770-SONY (7669)
❑In Mexico:
In Mexico City: 5002-9819
157
nN
Support Options
In the Mexican Republic: 01-800-759-7669
❑In Colombia:
01-800-550-7000
❑In Peru:
0-801-1-7000 or 511-6100
❑In Chile:
Sony answers: 800-261-800
From cellular phones: 02-754-6333
❑In Venezuela:
0-800-1-SONY-00 (0-800-1-7669-00)
❑In Panama:
800-2050
❑In Brazil:
(11) 3677-1080
Program Support Information
Depending on the computer model and particular configuration you purchased, your computer may not include all of the
software programs listed below.
Contacts for Sony software products are listed below:
❑For users in USA
Web Site http://esupport.sony.com/EN/VAIO/
Telephone 888-4-SONY-PC (888-476-6972)
158
nN
Support Options
❑For users in Canada
Web Site http://www.sony.ca/support
Telephone 888-4-SONY-PC (888-476-6972)
❑For users in Latin American countries or areas
Web Site http://esupport.sony.com/ES/VAIO/
❑For users in Brazil
Web Site http://esupport.sony.com/ES/VAIO/BR/
For contacts about third-party software products, see the following.
Adobe® Photoshop® Elements, Premiere®, Reader®
Adobe Systems Inc.
❑For users in USA and Canada
Web Site http://www.adobe.com/support
Telephone 800-685-3652
America Online® (Dial-Up)
America Online, Inc.
❑For users in USA and Canada
Web Site http://www.aol.com
AOL® Music Now
159
nN
Support Options
America Online, Inc.
❑For users in USA and Canada
Web Site http://www.premiumservices.aol.com
AOL® Explorer
America Online, Inc.
❑For users in USA and Canada
Web Site http://www.aol.com
AOL® Toolbar
America Online, Inc.
❑For users in USA and Canada
Web Site http://help.aol.com/help
AOL® Instant Messenger™
America Online, Inc.
❑For users in USA and Canada
Web Site http://www.aim.com
Ask Search Assistant
Ask Jeeves, Inc.
For contacts about the software, see Program Support Information (page 157).
160
nN
Support Options
Ask Toolbar
Ask Jeeves, Inc.
For contacts about the software, see Program Support Information (page 157).
Bluetooth® Utility
TOSHIBA Corporation
For contacts about the software, see Program Support Information (page 157).
Cingular Connection Manager
Cingular Wireless
For contacts about the software, see Program Support Information (page 157).
Click to DVD® software
Sony Electronics Inc.
At the touch of a button, Click to DVD software allows you to automatically burn DVDs from a digital video (DV) device.
Create DVDs by capturing video content straight from a DV device or by importing video from stored files — and you can
also edit the video. Create DVD photo albums and slide shows with picture files or by importing pictures from a digital still
camera. What's more, you can give a professional look to your DVDs by adding chapter menus, backgrounds, and menu
screens. You are only a few clicks away from your own DVDs!
For contacts about the software, see Program Support Information (page 157).
161
nN
Support Options
Digital Imaging Starter Edition
Microsoft Corp.
❑For users in USA and Canada
Web Site http://support.microsoft.com
DISCover™ My Games™
DISCover
❑For users in USA and Canada
Web Site http://www.discoverconsole.com
DVgate Plus™ software
Sony Electronics Inc.
Connect a compatible digital video camera to your computer's i.LINK port and capture video clips and still images. Edit
clips from your video, add new clips, and combine clips into new movie segments. Save your movies back to your digital
video camera or in a variety of popular file formats.
For contacts about the software, see Program Support Information (page 157).
Image Converter 2 Plus
Sony Electronics Inc.
Image Converter 2 Plus allows you to easily convert movie and picture files on your computer to your Memory Stick®
media.
For contacts about the software, see Program Support Information (page 157).
162
nN
Support Options
InstantOn
InterVideo, Inc.
❑For users in USA and Canada
Web Site http://www.intervideo.com/jsp/Support.jsp
Intel® PROSet
Intel Corporation
❑For users in USA and Canada
Web Site http://www.intel.com/network/connectivity/products/wireless/proset/proset_software.htm
Microsoft® Office Basic Edition, Office Professional Edition, Office Small Business Edition
Microsoft Corp.
❑For users in USA and Canada
Web Site http://support.microsoft.com
60-Day Trial Version of Microsoft® Office 2003
!
The Microsoft Office 2003 60-Day Trial software included with this computer system is intended for evaluation purposes only. The software has been
installed and you must activate the software before you can use it. Product activation procedures will be detailed during initial launch of the software;
activation requires Internet access. This software has an expiration date of 60 days from the date of first use, at which time the software will operate
under reduced-functionality mode, limiting end-user options and operations.
Microsoft Corp.
163
nN
Support Options
❑For users in USA and Canada
Web Site http://support.microsoft.com
Microsoft® Internet Explorer, Movie Maker, Media Player, Works
Microsoft Corp.
❑For users in USA and Canada
Web Site http://support.microsoft.com
MobiTV®
MobiTV, Inc.
❑For users in USA and Canada
Customer Support contact info:
Web Site www.mobitv.com/pctv/sv/faq
Telephone 877-795-5300
Netscape® Browser
America Online, Inc.
❑For users in USA and Canada
Web Site http://browser.netscape.com
Norton Internet Security™
164
nN
Support Options
Symantec Corporation
❑For users in USA and Canada
Web Site http://www.symantec.com/techsupp
PenPlus for VAIO®
Sony Electronics Inc.
PenPlus for VAIO will allow you to write or draw directly on the screen with the stylus or create "sticky note" reminders.
For contacts about the software, see Program Support Information (page 157).
Protector Suite QL
Sony Electronics Inc.
Protector Suite QL Edition allows you to easily setup your fingerprint sensor that comes with your computer. Protector
Suite QL supports fingerprint logon, fast user switching, file encryption, registering forms and more.
For contacts about the software, see Program Support Information (page 157).
Quicken® New User Edition
Intuit Inc.
❑For users in USA and Canada
Web Site http://www.intuit.com/support/quicken/
ROXIO DigitalMedia®
Sonic Solutions
165
nN
Support Options
❑For users in USA and Canada
Web Site http://support.sonic.com/
SmartDraw® Suite Edition 30 day trial
SmartDraw.com
❑For users in USA and Canada
Web Site http://www.smartdraw.com/support/index.htm
SmartWi™ Connection Utility
Sony Electronics Inc.
SmartWi Connection Utility allows you to easily switch between the various wireless components (Wireless LAN, Wireless
WAN, and Bluetooth technology connectivity) that came with your computer.
For contacts about the software, see Program Support Information (page 157).
SonicStage® software
Sony Electronics Inc.
The SonicStage jukebox software program gives you all the tools you need to manage music on your computer.
SonicStage software supports high-quality digital audio storage, a sleek player skin design, and audio CD burning
capability.
For contacts about the software, see Program Support Information (page 157).
SonicStage Mastering Studio™ software
166
nN
Support Options
Sony Electronics Inc.
Use SonicStage Mastering Studio software to record songs from analog records or cassette tapes into your computer
and output them to CDs, DVDs, or audio files in WAV format.
For contacts about the software, see Program Support Information (page 157).
System Mechanic® 6
iolo technologies®, LLC
❑For users in USA and Canada
Web Site http://www.iolo.com/contactus.cfm
Trend Micro™ Anti-Spyware
Trend Micro, Inc.
❑For users in USA and Canada
Web Site http://kb.trendmicro.com/search/default.asp
Ulead BD DiscRecorder for VAIO® computers
Ulead Systems, Inc.
For questions and technical assistance, please check the help and the readme files.
VAIO® Action Setup
Sony Electronics Inc.
167
nN
Support Options
VAIO Action Setup manages the settings for your computer's shortcut keys.
For contacts about the software, see Program Support Information (page 157).
VAIO® Back-up Utility
Sony Electronics Inc.
For contacts about the software, see Program Support Information (page 157).
VAIO® Camera Capture Utility
Sony Electronics Inc.
VAIO Camera Capture Utility is provided for capturing still images and movies with the external camera connected to a
USB port or an i.LINK port on your computer or with the built-in MOTION EYE camera on your computer.
For contacts about the software, see Program Support Information (page 157).
VAIO® Camera Utility
Sony Electronics Inc.
VAIO Camera Utility provides you with various video quality settings when using the internal camera.
For contacts about the software, see Program Support Information (page 157).
VAIO® Central
Sony Electronics Inc.
168
nN
Support Options
VAIO Central provides a central location that gathers resources to configure your VAIO computer and view your
computer's configuration and specifications.
For contacts about the software, see Program Support Information (page 157).
VAIO® Diagnostic
Sony Electronics Inc.
For contacts about the software, see Program Support Information (page 157).
VAIO® Edit Component
Sony Electronics Inc.
VAIO Edit Component provides enhanced editing functionality when using Adobe Premiere Pro or Adobe Premiere
Elements on your VAIO computer.
For contacts about the software, see Program Support Information (page 157).
VAIO® HDD Protection
Sony Electronics Inc.
VAIO HDD Protection allows you to customize your settings for protecting your hard disk against shock hazards.
For contacts about the software, see Program Support Information (page 157).
VAIO Media™ software
Sony Electronics Inc.
169
nN
Support Options
VAIO Media™ software brings multimedia to your network, enabling you to share music, video, and still image files
between your VAIO® computers. You can set up one or more VAIO computers as "media servers," which store your
multimedia files and make them available to other compatible VAIO computers on your wired or wireless network.
For contacts about the software, see Program Support Information (page 157).
VAIO® Security Center
Sony Electronics Inc.
Sony cares about your VAIO personal computer. The VAIO Security Center highlights some of the security features your
machine includes.
For contacts about the software, see Program Support Information (page 157).
VAIO® Support Central
Sony Electronics Inc.
VAIO Support Central provides an easy to navigate solution to common support needs, such as VAIO Documentation,
product specifications, serial number, model name, service tag information, survey, registration, etc.
For contacts about the software, see Program Support Information (page 157).
VAIO® Touch Launcher
Sony Electronics Inc.
VAIO Touch Launcher allows you to run an application program or change the sound/display settings with the buttons on
the launcher window.
For contacts about the software, see Program Support Information (page 157).
170
nN
Support Options
VAIO® Update
Sony Electronics Inc.
The VAIO Update utility helps you keep your VAIO® computer up to date by regularly checking the Sony online support
Web site for important software updates and information for your specific VAIO computer model.
For contacts about the software, see Program Support Information (page 157).
VAIO Zone™ software
Sony Electronics Inc.
VAIO Zone software provides an effortless way to browse and enjoy pictures, music, and video files on your computer,
all through an elegant, next-generation interface. You can even enjoy media content stored on other VAIO® computers
on your network. On VAIO computer models with a recordable DVD drive, VAIO Zone enables you to record video and
slide shows of pictures to DVD. On VAIO computer models with a built-in TV tuner, VAIO Zone includes a complete
personal video recorder, enabling you to record TV programs and burn them to DVD.
For contacts about the software, see Program Support Information (page 157).
WinDVD® software for VAIO® computers
InterVideo, Inc.
❑For users in USA and Canada
Web site http://www.intervideo.com/jsp/Support.jsp
Telephone 510-651-0888
171
nN
Support Options
Wireless Setup Utility
Sony Electronics Inc.
The Wireless Setup Utility walks you through setting up your wireless network connection and offers useful diagnostic
tests to help keep your wireless network running smoothly.
For contacts about the software, see Program Support Information (page 157).
Xdrive™
America Online, Inc.
❑For users in USA and Canada
Web Site http://www.xdrive.com/support
Zoom Utility
Sony Electronics Inc.
The Zoom Utility will allow you to magnify a portion of the screen.
For contacts about the software, see Program Support Information (page 157).
