Sony Group PCSRF1 Wireless Remote Commander User Manual
Sony Corporation Wireless Remote Commander
User Manual
RF Remote
Commander
User Manual (Version x.x)
Before operating the unit, please read this manual thoroughly and retain it for future
references
PCS-RF1
© 200x Sony Corporation
x-xxx-xxx-xx(x)
To reduce the risk of fire or electric shock, do not expose this apparatus
to rain or moisture
Installing batteries
Two R6 (size AA) batteries are supplied for
Remote Commander.
To avoid risk of explosion, use R6 (size AA)
manganese or alkaline batteries.
CAUTION
RISK OF EXPLOSION IF BATTERY IS
REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES
ACCORDING TO YOUR LOCAL REGULATIONS.
For the customers in the USA
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
You are cautioned that any changes or modifications not expressly approved in this
manual could void your authority to operate this equipment.
This device complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment.
The antenna used for this transmitter must be installed to provide a separation distance of
at least 20 cm from all persons and must not be co-located or operating in conjunction with
any other antenna or transmitter.
For the customers in Canada
This Class A digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
Pour les utilisateurs au Canada
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
L’utilisation doit répondre aux deux conditions suivantes : (1) ce matériel ne doit pas
provoquer de brouillage et (2) il doit accepter tout brouillage, même celui qui est
susceptible d’affecter son fonctionnement.
Déclaration d’exposition aux radiations des circuits intégrés :
Cet appareil est conforme aux limites d’exposition aux radiations des circuits intégrés
RSS-102 établies pour un environnement non contrôlé. Pour l’installation et l’utilisation de
cet appareil, il convient de prévoir une distance minimum de 20 cm entre le radiateur et
votre corps.

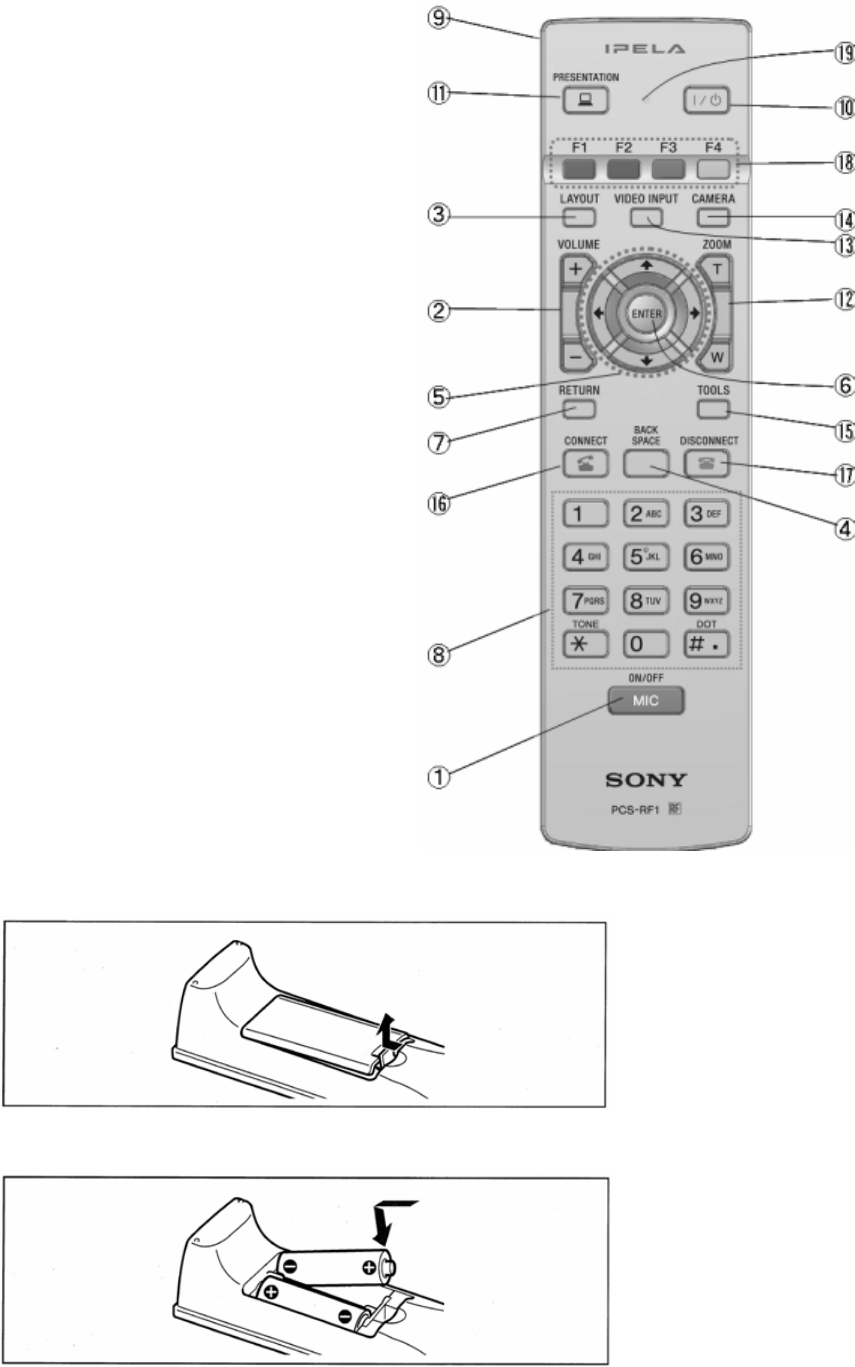

Location and Function of Each Part
1) MIC ON/OFF button
2) Volume +/- buttons
3) LAYOUT menu button
4) Back SPACE button
5) Arrow buttons
6) Enter button
7) Return button
8) Number (0-9, #, *) buttons
9) Battery compartment (rear)
10) Power on/off button
11) PRESENTATION button
12) ZOOM (T/W) button
T: zoom in
W: zoom out
13) VIDEO INPUT SELECT button
14) CAMERA menu button
15) TOOL button
16) CONNECT button
17) DISCONNECT button
18) Function button
19) Indicator
Battery Installation
1. Remove the cover
2. Install two AA type batteries. See below polarity of each battery.
3. Attach the cover.
SPECIFICTIONS
In accordance with IEEE 802.15.4
Middle band: 2405 – 2480MHz（ 11ch – 26ch）
Output Power: -2 ± 3 dBm
Operating Voltage: DC 3 V (2.2 - 3.6 V)
Power Supply: AA(R6) size batteries (2 pcs)
Dimensions 47 x 47 x 195 mm (W x H x D)
(not including projections)
http://www.sony.net/
Sony Corporation
