Sony Group RCS640IA Contactless IC Card Reader/Writer User Manual RC S640 IA Product Specifications
Sony Corporation Contactless IC Card Reader/Writer RC S640 IA Product Specifications
Users manual
Reader/Writer Module
RC-S640/IA
Product Specifications
Note: This document is subject to change without notice.
Page 3
RC-S640/IA Product Specifications
Introduction
This document describes the major features and specifications of Sony’s Reader/Writer module, RC-S640/IA.
For the purpose of this document, the terms below denote the products or equipment described to the right.
Card : A contactless IC card.
Reader/Writer : A device used to read and write contactless IC cards, tags and devices.
Controller : An external computer or an equivalent device that is directly connected to a
Reader/Writer via a specific cable.
RC-S640/IA satisfies the specifications mentioned with this document only when it connects with the specified
antenna.
Please confirm the specified antenna for RC-S640/IA. (Refer to Appendix A)
FeliCa is a contactless IC card technology developed by Sony Corporation.
FeliCa is a trademark of Sony Corporation.
All names of companies and products contained herein are trademarks or registered trademarks of the
respective companies.
No part of this document may be copied, or reproduced in any form, without the prior consent of Sony
Corporation.
Information in this document is subject to change without notice.
Sony Corporation assumes no liability for damages arising from, or in connection with, the use of this
document.
Page 4
RC-S640/IA Product Specifications
Safety Information and Caution
WARNING
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
For the customers in USA
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
WARNING
You are cautioned that any changes or modifications not expressly approved in this manual could void your
authority to operate this equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Page 5
RC-S640/IA Product Specifications
For the customers in Canada
This Class B digital apparatus complies with Canadian ICES-003.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications
were met.
Pour les clients au Canada
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L’utilisation doit répondre aux deux conditions suivantes: (1) ce matériel ne doit pas provoquer de
brouillage et (2) il doit accepter tout brouillage, même celui qui est susceptible d’affecter son fonctionnement.
La mention « IC: » devant le numéro de certification/ homologation signifie uniquement que les spécifications
techniques d’Industrie Canada sont remplies.
For the customers in Europe
Hereby, Sony Corporation, declares that this RC-S640/IA is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
For details, please access the following URL:
http://www.compliance.sony.de/
For use in following areas: residential, commercial and light industrial.
This product has been tested and found compliant with the limits set out in the EMC Directive for using
connection cables not longer than 3 meters (9.8 feet).
Emissions from this inductive device could cause interference to nearby receivers of other radio services.
The manufacturer of this product is Sony Corporation,
1-7-1 Konan, Minato-ku, Tokyo, Japan
The Authorized Representative for EMC and product safety is Sony Deutschland GmbH,
Hedelfinger Strasse 61, 70327 Stuttgart, Germany
Page 6
RC-S640/IA Product Specifications
Contents
1 Key functions and features ....................................................................................................... 8
2 Hardware specifications ............................................................................................................ 9
2.1 Major specifications ............................................................................................................................... 9
2.1.1 FeliCa or ISO/IEC 18092 (212 / 424 kbps) communication ........................................................ 9
2.1.2 ISO/IEC 14443 or ISO/IEC 18092 (106 kbps) communication .................................................... 9
2.1.3 Compatible cards, tags and devices*1,*2..................................................................................... 10
2.1.4 RF communication performance ............................................................................................... 10
2.2 Interface .............................................................................................................................................. 11
2.2.1 Connector .................................................................................................................................. 11
2.2.2 Pin assignment .......................................................................................................................... 11
2.3 Electrical specifications ....................................................................................................................... 12
2.3.1 Absolute maximum rating .......................................................................................................... 12
2.3.2 Electrical characteristics ............................................................................................................ 12
Others 13
2.4 Reliability specifications ...................................................................................................................... 13
2.5 External dimensions ............................................................................................................................ 14
2.5.1 Module ....................................................................................................................................... 14
3 Precautions .............................................................................................................................. 15
3.1 Handling precautions .......................................................................................................................... 15
3.2 Notes on external appearance ............................................................................................................ 16

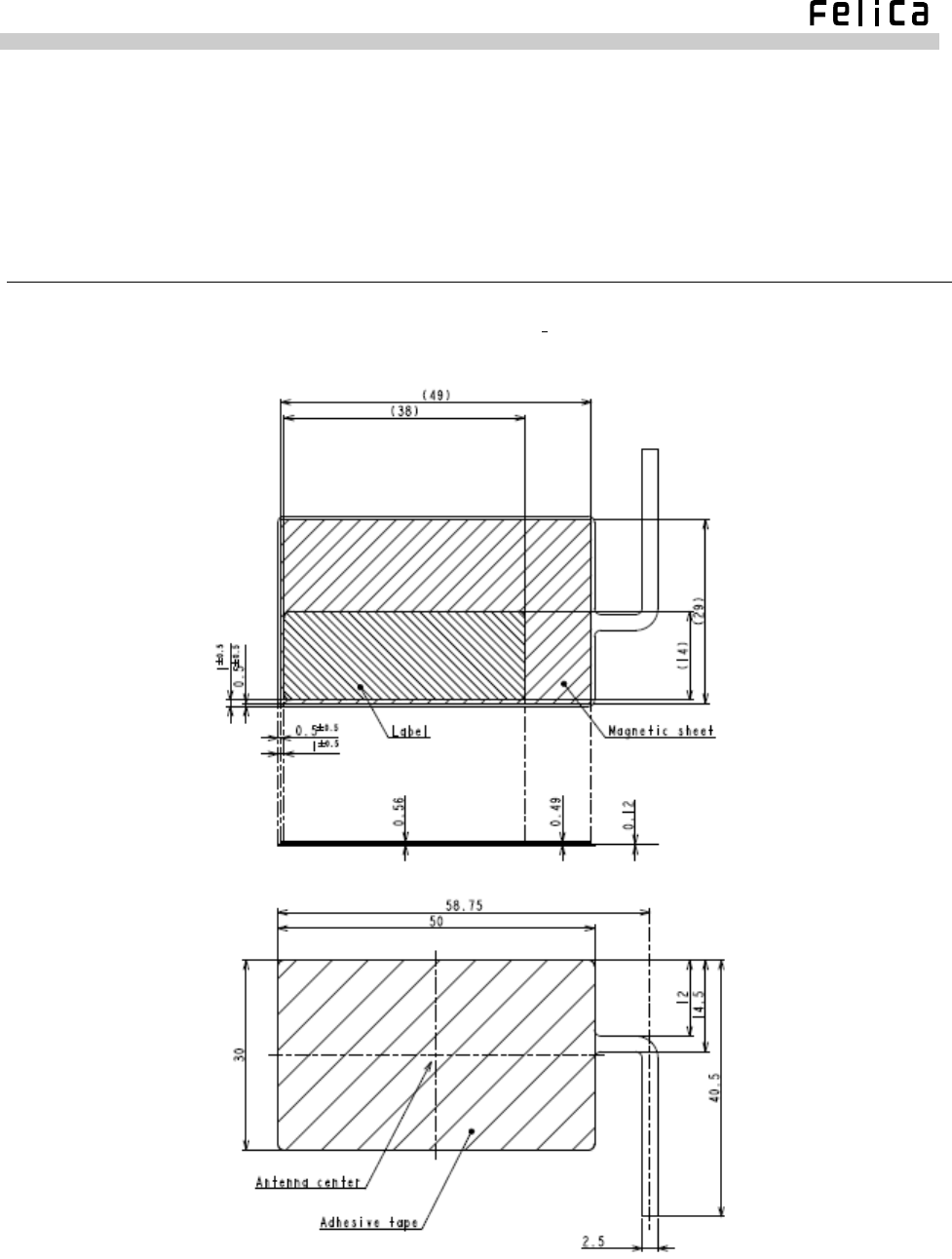

Appendix A About specified antenna ........................................................................................ 17
A.1 RC-S640/IAA ...................................................................................................................................... 17
Appendix B About installation ................................................................................................... 19

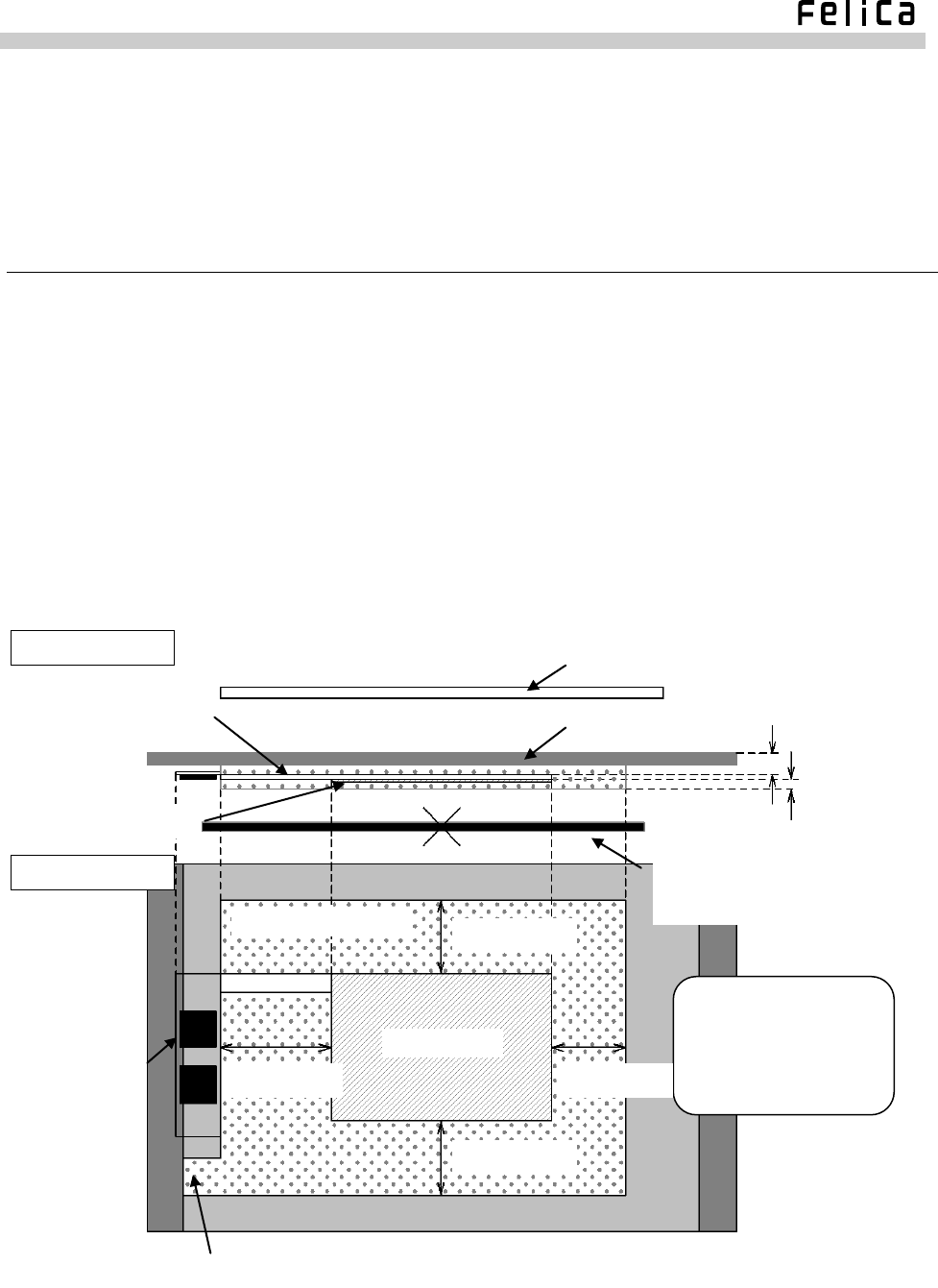

B.1 Installation requirements for RC-S640/IAA ......................................................................................... 19
B.2 Reduction of the impact of metal ........................................................................................................ 20
Page 7
RC-S640/IA Product Specifications
Page 8
RC-S640/IA Product Specifications
1 Key functions and features
RC-S640/IA (hereinafter called the module) is a Reader/Writer module certified by NFC Forum Certification
Program. The module can communicate with any devices that conform to the NFC Forum specification as well
as Sony’s FeliCa technology and other broadly adopted technologies supporting ISO/IEC 14443 Type A/B
contactless smart card standard including the T=CL transmission protocol.
Key functions and features of the module are detailed below. For more information, please contact our
distributors or sales representative.
Higher interoperability provided by the compliance with NFC Forum 1st Wave Certification with NFC
Forum 1 through 4 tags and other NFC-Forum-certified devices.
Compatible with a wide variety of ISO/IEC 14443 Type A/B contactless smart card including the T=CL
transmission protocol
Compatible with Sony’s FeliCa contactless smart card such as FeliCa Standard, FeliCa Plug, FeliCa Lite,
and mobile phones incorporating a Mobile FeliCa IC chip.
Based on an inductive read/write system type-certified by the Radio Law of Japan. It is also compliant
with the relevant standards in the United States, Canada, and Europe.
High versatility for installation by a really thin antenna.
NOTE Only at the time of combination with the specified antenna, RC-S640/IA acquires the safety
standard of each country. Please keep in mind that the combination of other antenna has a possibility of
becoming regulation infringement.
Page 9
RC-S640/IA Product Specifications
2 Hardware specifications
This chapter focuses on major hardware specifications.
2.1 Major specifications
The following describes the module’s major specifications.
2.1.1 FeliCa or ISO/IEC 18092 (212 / 424 kbps) communication
Carrier frequency (fc) : 13.56 MHz
Data transfer rate*1 : fc / 64 (212 kbps, approximately), fc / 32 (424 kbps, approximately)
Modulation system : Transmission – ASK, Reception – ASK
Bit coding : Transmission – Manchester coding, Reception – Manchester coding
Communication system : Half-duplex communication
*1 Available only when the card or the device to be used is also compatible with fc / 32.
2.1.2 ISO/IEC 14443 or ISO/IEC 18092 (106 kbps) communication
Carrier frequency (fc) : 13.56 MHz
Data transfer rate*2 : fc / 128 (106 kbps, approximately), fc / 64 (212 kbps, approximately),
fc / 32 (424 kbps, approximately)
Modulation system
o Type A (fc / 128) : Transmission – ASK, Reception – ASK
o Type A (fc / 64, fc / 32) : Transmission – ASK, Reception – BPSK
o Type B : Transmission – ASK, Reception – BPSK
Bit coding
o Type A (fc / 128) : Transmission – Modified Miller
Reception – Manchester coding with subcarrier
o Type A (fc / 64, fc / 32) : Transmission – Modified Miller, Reception – NRZ with subcarrier
o Type B : Transmission – NRZ, Reception – NRZ with subcarrier
Communication system : Half-duplex communication
*2 Available only when the card or the device to be used is also compatible with fc / 64 or fc / 32.
Page 10
RC-S640/IA Product Specifications
2.1.3 Compatible cards, tags and devices*1,*2
Card based on FeliCa
NFC Forum Tag
NFC-Forum-certified device
*1 Usable number of cards: One at a time.
*2 Operation is not necessarily guaranteed. Please consult us in advance when using a card or a device other than the
ones listed above.
2.1.4 RF communication performance
25 mm or more (No dead zones of 1 mm or more wide within the above range)
<Measurement conditions>
In a free space (temperature: 25 ºC, humidity: 50 %RH) that is potentially unaffected by nearby radio waves
and magnetic sources, a single RC-S888 card (operating at its center frequency) is polled by a standard
module. The card is placed so that its center aligns with the center of the module’s antenna along a vertical
axis perpendicular to the antenna surface, with its longitudinal edges maintained in parallel to those of the
antenna.
NOTE The communication performance may be different with the kind of the card, direction of the card
and data transfer rate, making it necessary to verify its performance.
Page 11
RC-S640/IA Product Specifications
2.2 Interface
Interfacing between the module and the controller utilizes the connector described below.
2.2.1 Connector
Model number: IMSA-9681S-15A-GF/Y901 made by IRISO ELECTRONICS CO., LTD.
Low-profile, 0.5mm pitch FFC/FPC connector
(Au plated / Bottom side terminal / SMT / Right angle / ZIF / 15 poles)

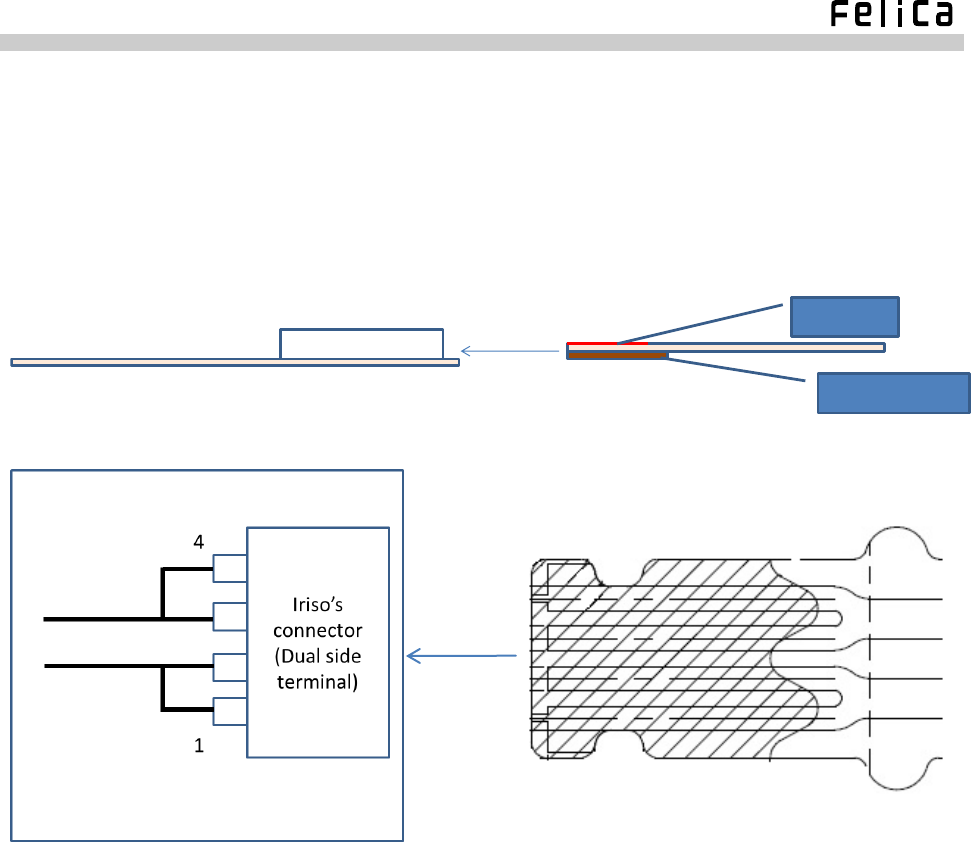

NOTE For applicable cable, refer to C.1 “Terminal requirements of FFC/FPC”.
2.2.2 Pin assignment
Table 2-1: Pin assignment
No.
Designation
Function
Remarks
1
MOD_VDD
Power supply
DC 3.3V
2
MOD_GND
Ground
3
SWP
Single wire protocol line to UICC/SIM
4
MOD_GND
Ground
5
IRQ
Interrupt request from module to platform
6
VDD_SIM
Power rail used to UICC/SIM
7
I2C_SDA
I2C Data
8
I2C_SCL
I2C Clock
9
MOD_GND
Ground
10
Reset/
Wake UP
Reset pin input from the host to wake up the
device from standby and also to reset the device
11
NC/Float
Floating / Not connected
12
SWP_PWR
Power supply to UICC/SIM or power supply
request to PMIC
13
MOD_VDD
Power supply
DC 3.3V
14
VDD_IO
Host IO reference voltage
DC 3.3V
15
MOD_GND
Ground
NOTE Please confirm the position of 1pin in external dimensions.
Page 12
RC-S640/IA Product Specifications
2.3 Electrical specifications
2.3.1 Absolute maximum rating
Observe the following ranges of operation in order to avoid irreparable damage to the module.
Table 2-2: Absolute maximum rating
Item
Rating
Unit
Power supply voltage
-0.3 ~ +4.0
V
Input voltage
-0.3 ~ VDD+0.3
V
2.3.2 Electrical characteristics
Table 2-3: Electrical characteristics
(Conditions) Temperature: 25 ºC, Humidity: 50 %RH
Pin
Item
Min
Max
Unit
Remarks
MOD_VDD
VDD IO
Power supply voltage*1
3.135
3.465
V
MOD_VDD
Current consumption(RF On)*2
150
mA
Current cunsumption(Standby)
120
A
I2C_SDA
I2C_SCL
H-level input voltage
0.75 x VDD
VDD
V
L-level input voltage
0
0.25 x VDD
V
L-level output voltage
0
0.25 x VDD
V
IOL=3mA
IRQ
H-level output voltage
0.8 x VDD
VDD
V
IOH=-2mA
L-level output voltage
0
0.2 x VDD
V
IOL=2mA
Reset / Wake UP
H-level input voltage
1.2
VDD
V
L-level input voltage
0
0.3
V
*1Fully verify to noise from power supply, other modules and cables, since noise exerts deleterious effects on
communication performance.
*2Current consumption changes by power supply voltage, the existence of cards, installation.
Page 13
RC-S640/IA Product Specifications
Others
Operating environment (no condensation or frost)
o Performance assurance temperature/humidity*1
o Function assurance temperature/humidity*2
*1 Guarantees section 2.1.4 “RF communication performance”.
*2 Guarantees normal operation of the RF communication processor, although the communication performance described
above cannot be assured in temperature extremes.
NOTE The module temperature inevitably rises if module is continually transmitting card access
commands (such as when polling a card). Make sure to design the enclosure so that the internal temperature
and humidity can be held within the specified ranges.
Storage environment (no condensation or frost)
Mass : T.B.D.
2.4 Reliability specifications
Shock : IEC60068-2-27 Test Ea
Vibration : IEC60068-2-64 Test Fh
0 ºC
70 ºC
60 %RH or less
-20 ºC
0 ºC
60 ºC
20～90 %RH
-10 ºC
50 %RH or less
40 ºC
0 ºC
50 ºC
20～90 %RH
50 %RH or less
40 ºC
Page 14
RC-S640/IA Product Specifications
2.5 External dimensions
The external dimensions are shown in the following figures.
2.5.1 Module
Tolerance:±0.2
Unit: mm
NOTE Perforations are not included in board size.

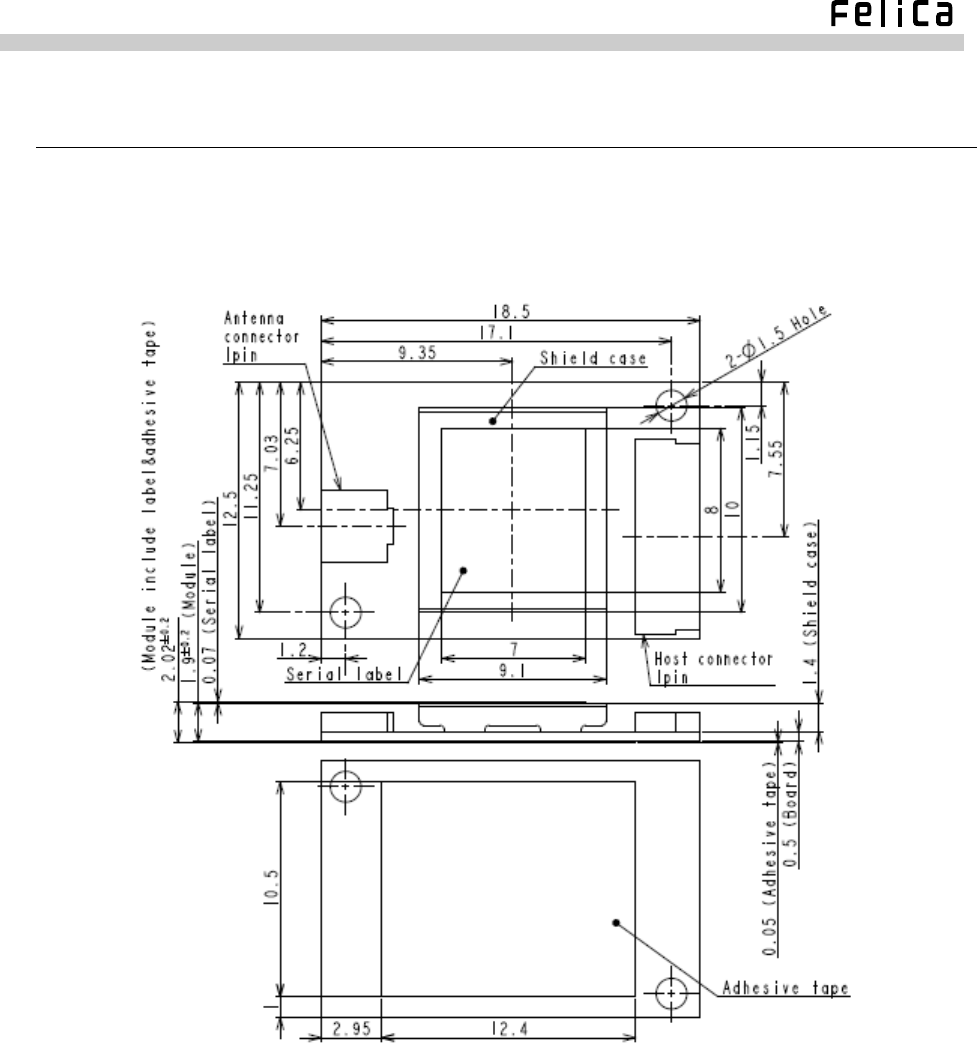

Figure 2-1 External dimensions of module
Page 15
RC-S640/IA Product Specifications
3 Precautions
3.1 Handling precautions
The module must be handled with special care, keeping the following precautions in mind.
The module is an inductive-type read/write communication device that is type-certified in compliance with
the Radio Law of Japan. The operating frequency is 13.56 MHz. Disassembly or modification of the
module, removal of the type number or similar acts are subject to penalties according to applicable laws.
Be sure to use a stable power supply so that the module can be protected from the effect of noise and
excessive voltage peaks, such as lightning, transmitted through the power supply connector.
Do not cause any chemical or physical damage to the module.
Do not subject the module surface to contaminated air or materials.
Tightly ground not only module after installation but all jigs, machines, workbenches and workers’ bodies
to prevent static electricity from affecting the module.
For safety’s sake, be sure to wear gloves when handling the module, although its surfaces are carefully
finished.
Protect the module from interference from other wireless machines.
Do not install the module in an environment where a strong electromagnetic field may exert deleterious
effects on communication performance. Take special note of the installation location so that interference
between the module and other equipment can be adequately controlled.
Communication performance may be affected by the harmonics of the 13.56 MHz carrier frequency
generated on the signal line.
Check in advance the compatibility between the module and your system. The module cannot handle part
of the processing sequences*1 provided by mobile phones and other portable devices incorporating
mobile FeliCa IC chips.
The interface cable (FFC / FPC) is not supplied, making it necessary to prepare the one appropriate for
your system. When selecting the cable, make sure to connect a cable in the right direction because the
connector has a double terminal.
Be sure to shut the cover of an antenna connector tightly. And the cover opens only to the angle of
approximately 90 degrees above when unlocked.
Measures for static noise and power line noise must be designed and incorporated on your own.
Especially, if the module is connected to two or more system ground ports which have a difference in
electric potential, it may depreciate communication performance and cause unexpected noise.
Treat an antenna carefully. Damage of an antenna or change of antenna characteristics may occur by
bending, pulling, twisting, press or brandishing it strongly. For the same reason, do not tear off the
antenna once stuck on adhesive tape or a cabinet.
*1 Among the processing sequences unique to mobile FeliCa compatible portable devices, the module cannot handle the
sequence which allows wireless communication from the Reader/Writer after the mobile FeliCa IC chip was activated by
the portable device via a wired interface. For more information, refer to the “Mobile FeliCa Technical Information”
(Japanese only) that explains Reader/Writer operation in mobile applications.
Page 16
RC-S640/IA Product Specifications
3.2 Notes on external appearance
Since the module is designed for embedded applications, please realize that flaws on the order described
below may occur.
Scratch or stain on the product surface, which has no effect on performance.
Change in the board color.
Page 17
RC-S640/IA Product Specifications
Appendix A About specified antenna
A.1 RC-S640/IAA
The following describes the specified antenna for RC-S640/IA.
Tolerance: ±0.3
Unit: mm
Figure A-1 External dimensions of antenna
Page 18
RC-S640/IA Product Specifications
NOTE1 Only at the time of combination with the specified antenna RC-S640/IAA, RC-S640/IA acquire the
safety standard of each country.
NOTE2 Please connect antenna (1pin) to antenna connector (1pin), as shown in below figure. By the
placement of a module, a recommended connection direction may change.
Terminal
Support tape
Figure A-2 Connection of a module and an antenna
FPC(Antenn
4
1
Module
Antenna
Page 19
RC-S640/IA Product Specifications
Appendix B About installation
B.1 Installation requirements for RC-S640/IAA
The following describes the points to remember when installing the antenna.
1. Do not use any metal or carbon compound as the material for the cabinet. The cabinet surface must be at
least 1.5 mm apart from the antenna surface.
2. Stick the antenna to a plane (modification of the antenna is subject to penalties according to applicable
laws or regulations). Do not place any metal in the forbidden area (dot-meshed area in Figure B-1)
secured around the antenna. Particularly, communication performance undoubtedly deteriorates if a
plate-like metal is put near the antenna. And to avoid damage to an antenna, do not place projections or
movable parts. Moreover, fix the positional relationship between a module and an antenna.
3. In order not to induce eddy current, make a cut in the metal plate surrounding the above forbidden zone.
4. If no performance improvement is achieved through the steps described above, attempt to add magnetic
sheet (90 mm × 70 mm or more), as shown in Figure B-2, to the metal surface that faces the card and
keep away the antenna from a metal plate at least 3 mm (d > 3).
Figure B-1: Installation requirements
Side view
Bottom view
Metal forbidden area
1.5 mm or more
Antenna area
Card direction
Card
Cabinet
FPC
When an antenna unit is surrounded with a metal plate,
make sure to make a cut.
IC
d mm
Do not place a metal plate
below metal forbidden zone
as much as possible.
20 mm or more
20 mm or more
30 mm or more
20 mm or more
Magnetic sheet
Page 20
RC-S640/IA Product Specifications
B.2 Reduction of the impact of metal
Deviation from the resonance point caused by bringing the card closer to the metal plate may result in a
change in the card’s original characteristics. The effect of metal plate could be reduced by adding magnetic
sheets to the positions illustrated above.
Figure B-2: Reduction of the impact of metal
Antenna
(FPC side)
Card
Cabinet
Magnetic sheet
Addition of magnetic sheet
Unavoidable metal in the cabinet
Reader/Writer Module
RC-S640/IA Product Specifications
Sony Corporation
© 2013 Sony Corporation
Printed in Japan
