Sony Group UTXP11 UHF Synthesized Transmitter User Manual 00UWPV1

Sony Corporation UHF Synthesized Transmitter 00UWPV1

Users Manual

Wireless
Microphone System
3-870-284-11 (1)
Operating Instructions
UWP-V1/V2/V6
UWP-X7/X8
©2008 Sony Corporation
The supplied CD-ROM includes the Operating Instructions for the UWP-V1/
V2/V6/X7/X8 Wireless Microphone System (English, French, German, Italian,
and Spanish versions). For more details, see “Using the CD-ROM Manual” on
page 20.
2
For the UTX-B2/H2/P1
Transmitters
Owner’s Record
The model and serial numbers are located at
the rear or on the bottom of the unit. Record
the model and serial numbers in the space
provided below.
Refer to these numbers whenever you call
upon your Sony dealer regarding this
product.
Model No. _____________________
Serial No. _____________________
IMPORTANT
The name plate is located on the bottom and
the serial number is located inside the
battery compartment (UTX-P1).
IMPORTANT
La plaquette signalétique est posée sur le
dessous de l’appareil et le numéro de série
dans le logement des piles (UTX-P1).
WICHTIG
Am Boden des Geräts befindet sich das
Typenschild und die Seriennummer
befindet sich innen im Batteriefach (UTX-
P1).
IMPORTANTE
La targhetta con il nome si trova sul fondo e
il numero di serie si trova all’interno del
vano pile (UTX-P1).
IMPORTANTE
La placa de caracteristicas se encuentra en
la parte inferior y el número de serie está en
el interior del compartimiento de pilas
(UTX-P1).
Notice for customers in the
U.S.A.
Use of Sony wireless devices is regulated
by the Federal Communications
Commission as described in Part 74 subpart
H of the FCC regulations and users
authorized thereby are required to obtain an
appropriate license.
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your authority to
operate this equipment.
IMPORTANT NOTE: To comply with
the FCC RF exposure compliance
requirements, no change to the antenna or
the device is permitted.
Any change to the antenna or the device
could result in the device exceeding the RF
exposure requirements and void user’s
authority to operate this device.
This device complies with FCC radiation
exposure limits set forth for uncontrolled
equipment and meets the FCC radio
frequency (RF) Exposure Guidelines in
Supplement C to OET65. This device has
very low levels of RF energy that it is
deemed to comply without testing of
specific absorption ratio (SAR).
Notice for customers in Canada:
Use of Sony wireless devices is regulated
by the Industry Canada as described in their
Radio Standard Specification RSS-123.
A licence is normally required. The local
district office of Industry Canada should
therefore be contacted. When the operation
of the device is within the broadcast band,
the licence is issued on no-interference,
noprotection basis with respect to broadcast
signals.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the
device.
The term “IC” before the radio certification
number only signifies that Industry Canada
technical specifications were met.
3
Remarque à l’intention des
utilisateurs au Canada:
L’usage des appareils sans fil Sony est
réglementé par l’Industrie Canada comme
décrit dans leur Cahier des Normes
Radioélectriques CNR-123.
Une licence est normalement requise.
Le bureau de l’Industrie Canada doit être
contacté. Lorsque le fonctionnement de
l’appareil respecte les limites de la bande de
radiodiffusion, la licence est accordée sur la
base d’une non-interférence, non-
protection pour les signaux de
radiodiffusion.
L’utilisation doit répondre aux deux
conditions suivantes : (1) ce matériel ne doit
pas provoquer de brouillage et (2) il doit
accepter tout brouillage, même celui qui est
susceptible d’affecter son fonctionnement.
La mention « IC: » devant le numéro de
certification/ homologation signifie
uniquement que les spécifications
techniques d’Industrie Canada sont
remplies.
Für Kunden in Deutshland (UTX-
B2/H2/P1)
Entsorgungshinweis: Bitte werfen Sie nur
entladene Batterien in die Sammelboxen
beim Handel oder den Kommunen.
Entladen sind Batterien in der Regel dann,
wenn das Gerät abschaltet und signalisiert
“Batterie leer” oder nach längerer
Gebrauchsdauer der Batterien “nicht mehr
einwandfrei funktioniert”. Um
sicherzugehen, kleben Sie die Batteriepole
z.B. mit einem Klebestreifen ab oder geben
Sie die Batterien einzeln in einen
Plastikbeutel.
Notice for customers in Europe
Notification aux clients
européens
Hinweis für die Kunden in
Europa
Avvertenza per gli utilizzatori in
Europa
Aviso para los clientes de
Europa
Nota para utilizadores da Europa
Mededeling voor de klanten in
Europa
Att observera för kunder i
Europa
Meddelelse til kunderne i Europa
Huomautus Euroopassa asuville
asiakkaillemme
Για τους πελάτες στην Eυρώπη
Hereby, Sony Corporation, declares that
this UTX-B2/H2/P1 is in compliance with
the essential requirements and other
relevant provisions of the Directive 1999/5/
EC.
U.K. 854.125 - 862 MHz
Germany 790 - 814 MHz
Norway 800 - 820 MHz
Luxembourg 800 - 830 MHz, 854.125
- 862 MHz
Belgium 854.125 - 862 MHz
Denmark 800.100 - 819.900 MHz
France 798 - 830 MHz
Italy 800 - 820 MHz
Sweden 800 - 820 MHz
Switzerland 800 - 820 MHz
Finland 800.100 - 819.900 MHz
Iceland 800 - 814 MHz
Turkey 470 - 862 MHz
15

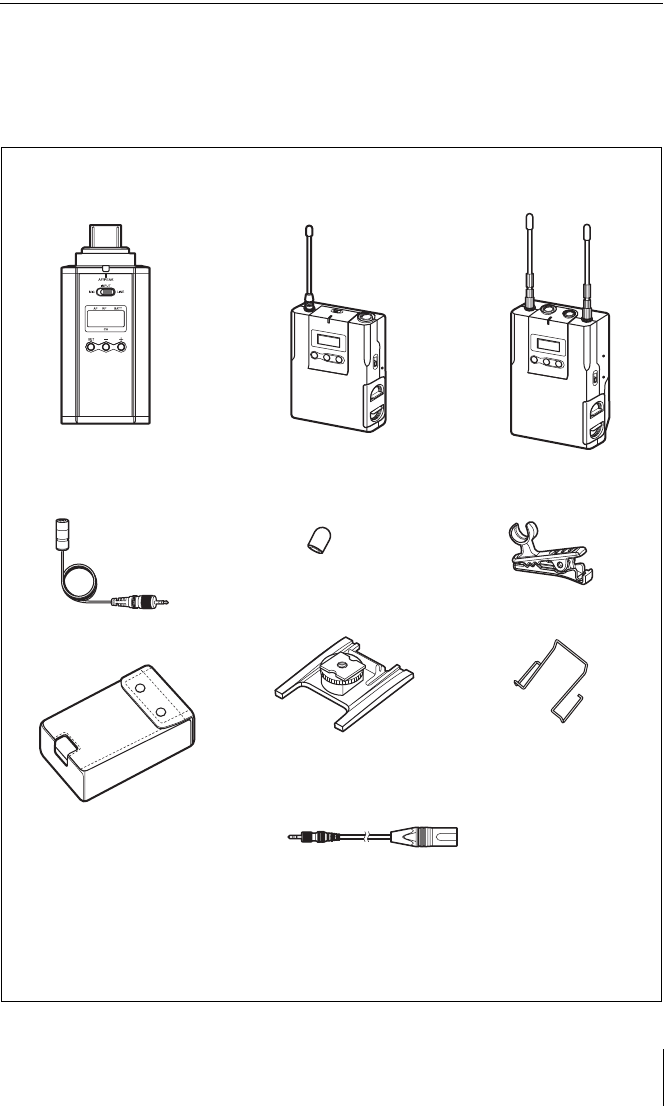

Configuration of the Packages
UWP-V6
The UWP-V6 consists of a plug-on transmitter (UTX-P1), a body-pack transmitter (UTX-
B2), a portable diversity tuner (URX-P2), and their accessories. When used in conjunction
with a compact camcorder, the UWP-V6 makes a mobile system for ENG (Electronic News
Gathering) or EFP (Electronic Field Production) purposes.
Body-pack transmitter
(UTX-B2) (1)
Portable diversity tuner
(URX-P2) (1)
Supplied accessories
Soft case (1)
Plug-on transmitter
(UTX-P1) (1)
Shoe mount adapter (1) Belt clip (2)
Wind screen (1) Holder clip (1)
Stereo mini plug-BMP
conversion cable (1)
Operating Instructions (1)
CD-ROM (1) (for U30, U42, CE62, and CE67 models)
Warranty card (1) (for U30 and U42 models)
XLR-BMP conversion output cable for the
URX-P2 (1)
Omni-directional lavalier
microphone (1)
20 Using the CD-ROM Manual
Using the CD-
ROM Manual
The supplied CD-ROM includes Operating
Instructions for the UWP series (English,
French, German, Italian, and Spanish
versions).
Preparations
The following program must be installed on
your computer in order to read the
Operating Instructions contained on the
CD-ROM.
Adobe Reader Version 6.0 or higher
If Adobe Reader is not installed, you can
download it from the following URL:
http://www.adobe.com/
Adobe and Adobe Reader are trademarks of
Adobe Systems Incorporated in the United States
and/or other countries.
Reading the CD-ROM
manual
To read the operation manuals contained on
the CD-ROM, do the following.
1Insert the CD-ROM in your CD-ROM
drive.
A cover page appears automatically in
your browser.
If it does not appear automatically in
the browser, double-click on the
index.htm file on the CD-ROM.
2Select and click on the Operating
Instructions that you want to read.
This opens the PDF file of the
operation manuals.
The files may not be displayed properly,
depending on the version of Acrobat
Reader. In such a case, install the latest
version you can download from the URL
mentioned in “Preparations” above.
If you have lost or damaged the CD-ROM,
you can purchase a new one to replace it.
Contact your Sony service representative.
Reading the Sony Wireless
Microphone System
Frequency List
The frequency lists for U30 and U42
models (for the U.S.A.) and CE62 and
CE67 models (for Europe) are contained in
the CD-ROM disc. To read the frequency
lists, do the following.
1Insert the CD-ROM in your CD-ROM
drive.
A cover page appears automatically in
your browser.
2Select and click on the frequency list
that you want to read.
This opens the PDF file of the
frequency list.
Note
51
Important Notes on Use
Important Notes
on Use
On usage and storage
The UWP series components must be
used within a temperature range of 0°C to
40°C (32°F to 104°F).
Operating the UWP series components
near electrical equipment (motors,
transformers, or dimmers) may cause it to
be affected by electromagnetic induction.
Keep the UWP series components as far
from such equipment as possible.
The presence of the lighting equipment
may produce electrical interference over
the entire frequency range. Position the
UWP series components so that
interference is minimized.
To avoid degradation of the signal to-
noise ratio, do not use the UWP series
components in noisy places or in
locations subject to vibration, such as the
following:
- near electrical equipment, such as
motors, transformers or dimmers
- near air conditioning equipment or
places subject to direct air flow from
an air conditioner
- near public address loudspeakers
- where adjacent equipment might
knock against the tuner
Keep the UWP series components as far
from such equipment as possible or use
buffering material.
On cleaning
Clean the surface and the connectors of the
UWP series components with a dry, soft
cloth. Never use thinner, benzene, alcohol
or any other chemicals, since these may mar
the finish.
To prevent electromagnetic
interference from portable
communication devices
The use of portable telephones and
other communication devices near
the UWP series components may
result in malfunction and interference
with audio signals. It is recommended
that portable communication devices
near the UWP series components be
turned off.
52 Specifications
Specifications
Design and specifications are subject to
change without notice.

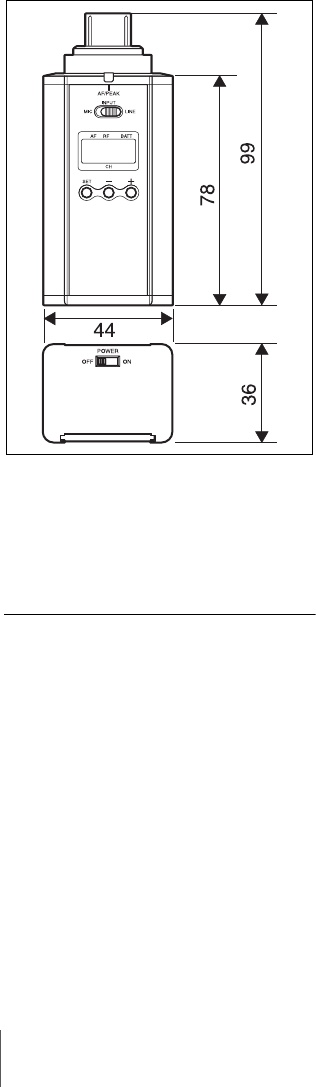

Transmitters (UTX-B2/H2/
P1)
Items common to all
transmitters
Oscillator type
Crystal-controlled PLL synthesizer
Carrier frequencies
Model available in USA: 758 to 806
MHz
Model available in Europe: 798 to
862 MHz
Model available in Australia: 792 to
806 MHz
Operating frequency band
Model available in USA and
Europe: 24 MHz BW
Model available in Australia: 14
MHz BW
Pre-emphasis
50 µs
Frequency characteristics
50 Hz to 18 kHz
Signal-to-noise ratio
60 dB or more
Tone signal
32 kHz
Attenuation
0 to 21 dB, in 3-dB steps
Display
Channel, frequency, audio level,
RF level, accumulated battery
use time
Power requirements
3.0 V DC (two LR6/AA size
alkaline batteries)
Battery life
Approx. 6 hours (measured with
two Sony LR6/AA size alkaline
batteries at 25°C (77°F), with
output power of 30 mW)

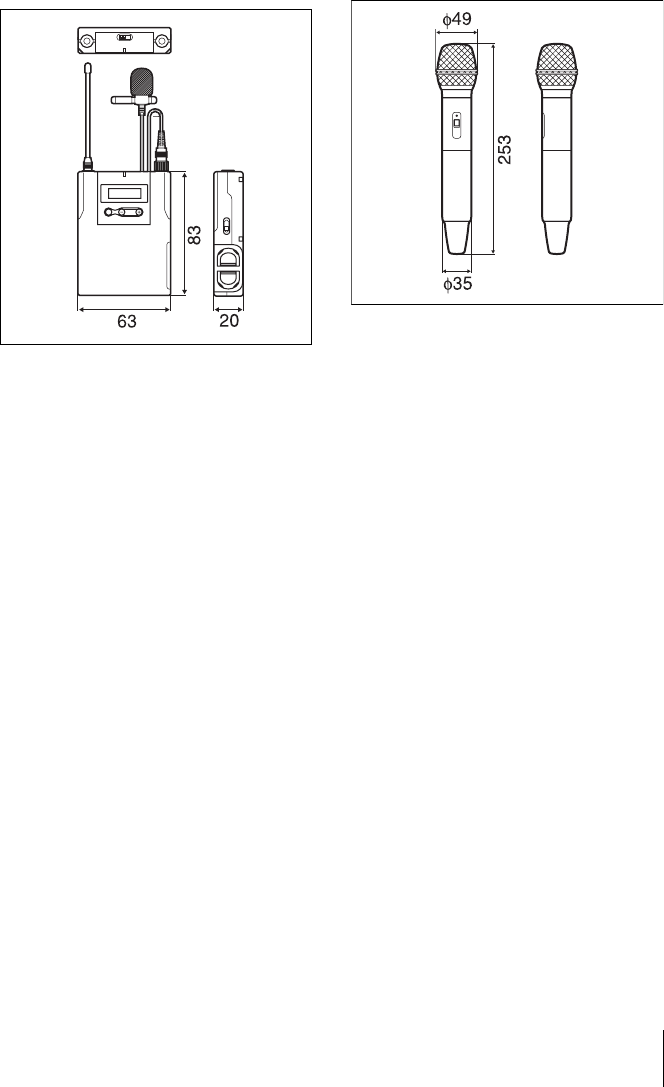

Body-pack transmitter (UTX-
B2)
Antenna
1/4λ wave length wire
Audio input connector
3.5-mm dia. mini jack
Audio input level
–60 dBV to –39 dBV
RF output level
30 mW/5 mW selectable
Reference deviation
±5 kHz
Distortion
1.0% or less
Indicator
Power on
Note
Always verify that the unit is operating
properly before use. SONY WILL NOT
BE LIABLE FOR DAMAGES OF ANY
KIND INCLUDING, BUT NOT
LIMITED TO, COMPENSATION OR
REIMBURSEMENT ON ACCOUNT
OF THE LOSS OF PRESENT OR
PROSPECTIVE PROFITS DUE TO
FAILURE OF THIS UNIT, EITHER
DURING THE WARRANTY PERIOD
OR AFTER EXPIRATION OF THE
WARRANTY, OR FOR ANY OTHER
REASON WHATSOEVER.
53
Specifications
Dimensions
63 × 83 × 20 mm (2 1/2 × 3 3/8 × 13/
16 inches) (w/h/d) (excluding
the antennas)
Mass Approx. 145 g (5.1 oz) including
batteries
Hand-held microphone (UTX-
H2)
Microphone unit
Dynamic
Directivity
Unidirectional
Antenna
1/4λ wave length wire (internal)
RF output level
30 mW/5 mW selectable
Reference deviation
±5 kHz
Distortion
1.0% or less
Indicator
Power on
Dimensions
φ 49 × 253 mm (1 15/16 × 10 inches)
(dia/length)
Mass Approx. 300 g (11 oz) including
batteries
Plug-in transmitter (UTX-P1)
RF output level
50 mW
Reference deviation
±10 kHz
Maximum deviation
±40 kHz
Distortion
1.0% or less at 1 kHz, –60 dBV
(MIC INPUT)
Audio reference level
Mic: –60 dBV
Line: +4 dBu
Audio input connector
XLR-3-11type
Indicator
AF/PEAK level
Dimensions
54 Specifications
44 × 99 × 36 mm (1 3/4 × 4 × 1 7/16
inches) (w/h/d) (including the
audio input connector)
Mass Approx. 185 g (6.5 oz) including
batteries
Tuners (URX-P2/M2)
Items common to all tuners
Type of reception
Space diversity
Oscillator type
Crystal-controlled PLL synthesizer
Reception frequencies
Model available in USA: 758 to 806
MHz
Model available in Europe: 798 to
862 MHz
Model available in Australia: 792 to
806 MHz
Operating frequency band
Model available in USA and
Europe: 24 MHz BW
Model available in Australia: 14
MHz BW
Signal-to-noise ratio
60 dB or more
De-emphasis
50 µs
Reference deviation
±5 kHz
Frequency characteristics
50 Hz to 18 kHz
Distortion
1.0% or less at 1 kHz modulation
Tone signal
32 kHz
Indicator
RF input level
Portable diversity tuner (URX-
P2)
Antenna
1/4λ wave length wire
Squelch level
25 d
Audio output level
–58 dBm
Audio output connector
3.5 mm dia. mini jack
Headphones output level
5 mW (16 ohms)
Display
Channel, frequency, audio level,
RF level,accumulated battery
use time, monitor level
Power requirements
3.0 V DC (two LR6/AA size
alkaline batteries)
Battery life
Approx. 6 hours (measuredwith
two Sony LR6/Assizealkaline
batteries at 25 °C (77°F))
Dimensions
Sony Corporation
Printed in Korea

Navigation menu
