User Manual

WI-1000X 4-696-993-11(1)

http://www.sony.net/hpc/

Sony Headphones Connect

WI-1000X

4-696-993-11(1)

Printed in Malaysia

WI-1000X

x 2

x 3

3RD CHECK

FROM YAMAGATA INTECH

WI-1000X 4-696-993-11(1)

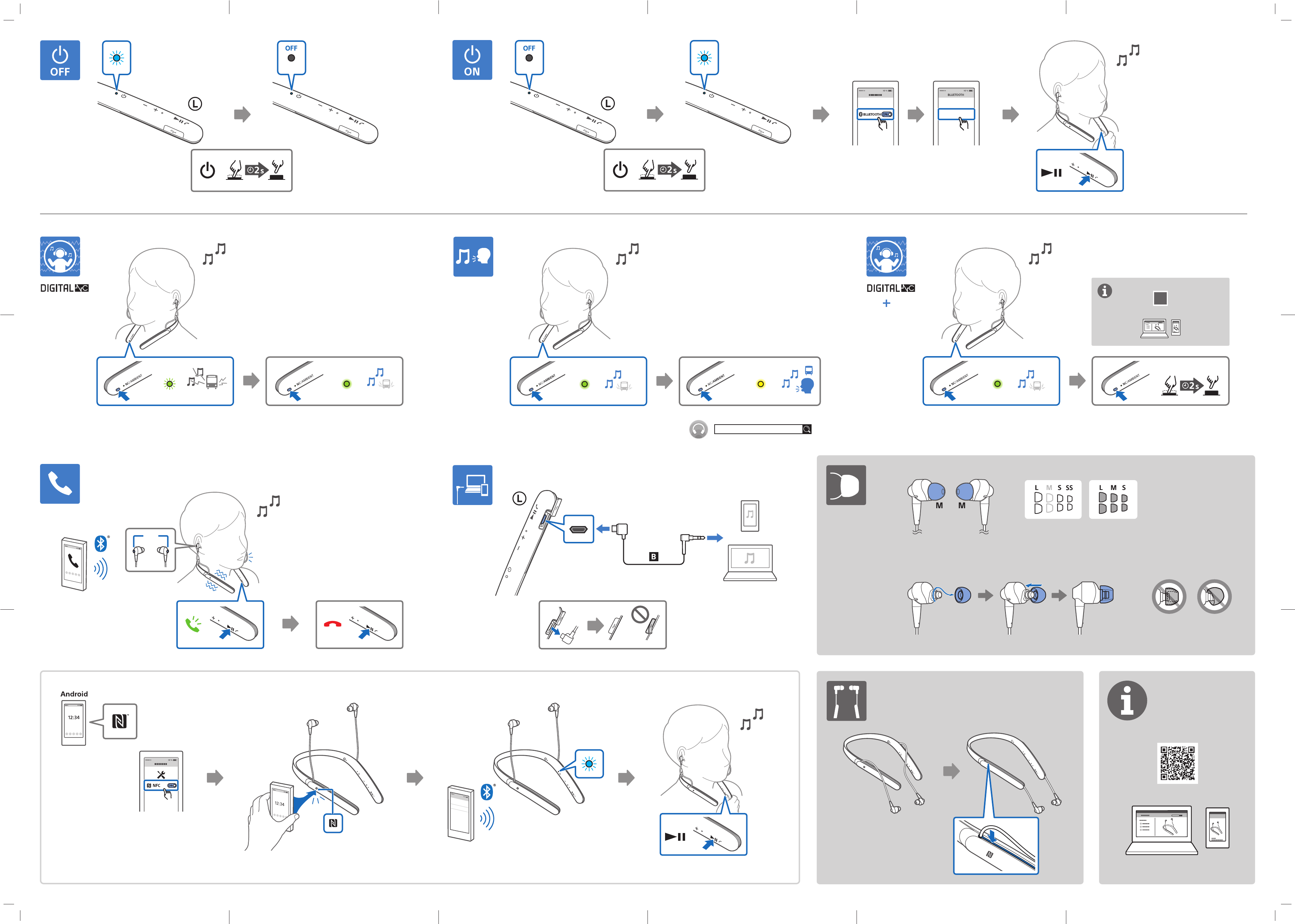

WI-1000X

NC ONNC OFF “Optimizer Start”

http://rd1.sony.net/help/mdr/wi1000x/h_zz/

Optimizer

NC ON

Sony Headphones Connect

AMBIENT ONNC ON

MIC

http://rd1.sony.net/help/mdr/wi1000x/h_zz/

WI-1000X

4-696-994-11(1)

English

FOR UNITED STATES CUSTOMERS.

NOT APPLICABLE IN CANADA,

INCLUDING IN THE PROVINCE OF

QUEBEC.

POUR LES CONSOMMATEURS AUX

ÉTATS-UNIS. NON APPLICABLE AU

CANADA, Y COMPRIS LA PROVINCE

DE QUÉBEC.

This device complies with Part 15 of the

FCC Rules. Operation is subject to the

following two conditions: (1) this device

may not cause harmful interference, and

(2) this device must accept any

interference received, including

interference that may cause undesired

operation.

You are cautioned that any changes or

modifications not expressly approved in

this manual could void your authority to

operate this equipment.

This equipment must not be co-located or

operated in conjunction with any other

antenna or transmitter.

Note

This equipment has been tested and

found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to

provide reasonable protection against

harmful interference in a residential

installation. This equipment generates,

uses and can radiate radio frequency

energy and, if not installed and used in

accordance with the instructions, may

cause harmful interference to radio

communications. However, there is no

guarantee that interference will not occur

in a particular installation. If this

equipment does cause harmful

interference to radio or television

reception, which can be determined by

turning the equipment off and on, the

user is encouraged to try to correct the

interference by one or more of the

following measures:

– Reorient or relocate the receiving

antenna.

– Increase the separation between the

equipment and receiver.

– Connect the equipment into an outlet

on a circuit different from that to which

the receiver is connected.

– Consult the dealer or an experienced

radio/TV technician for help.

This device complies with Industry Canada’s

licence-exempt RSSs. Operation is subject to

the following two conditions:

(1) This device may not cause interference;

and

(2) This device must accept any interference,

including interference that may cause

undesired operation of the device.

This equipment complies with FCC/IC

radiation exposure limits set forth for an

uncontrolled environment and meets the

FCC radio frequency (RF) Exposure Guidelines

and RSS-102 of the IC radio frequency (RF)

Exposure rules. This equipment has very low

levels of RF energy that is deemed to comply

without testing of specific absorption rate

(SAR).

The validity of the CE marking is restricted to

only those countries where it is legally

enforced, mainly in the countries EEA

(European Economic Area).

The LDAC™ name and logo is a trademark of

Sony Corporation.

The Bluetooth® word mark and logos are

registered trademarks owned by the

Bluetooth SIG, Inc. and any use of such

marks by Sony Corporation is under license.

The N-Mark is a trademark or registered

trademark of NFC Forum, Inc. in the United

States and in other countries.

Windows is a registered trademark or

trademark of Microsoft Corporation in the

United States and/or other countries.

Mac, OS X, iPhone and iPod touch are

trademarks of Apple Inc., registered in the

U.S. and other countries.

“Made for iPod” and “Made for iPhone” mean

that an electronic accessory has been

designed to connect specifically to iPod or

iPhone, respectively, and has been certified

by the developer to meet Apple performance

standards. Apple is not responsible for the

operation of this device or its compliance

with safety and regulatory standards. Please

note that the use of this accessory with iPod

or iPhone may affect wireless performance.

Qualcomm® is a trademark of Qualcomm

Incorporated, registered in the United States

and other countries, used with permission.

Qualcomm aptX™ audio is a trademark of

Qualcomm Technologies International, Ltd.,

registered in the United States and other

countries, used with permission.

Android is a trademark of Google Inc.

Other trademarks and trade names are those

of their respective owners.

Precautions

On BLUETOOTH communications

• BLUETOOTH wireless technology operates

within a range of about 10 m (30feet).

Maximum communication range may vary

depending on obstacles (human body,

metal, wall, etc.) or electromagnetic

environment.

• The antenna is built into the unit as

illustrated in the dotted line. The sensitivity

of the BLUETOOTH communications will

improve by turning the direction of the

built-in antenna to the connected

BLUETOOTH device. When obstacles are

between the antenna of the connected

device and the built-in antenna of this unit,

noise or audio dropout may occur, or

communications may be disabled.

• BLUETOOTH communications may be

disabled, or noise or audio dropout may

occur under the following conditions.

– There is a human body between the unit

and the BLUETOOTH device.

This situation may be improved by

placing the BLUETOOTH device facing

the antenna of the unit.

– There is an obstacle, such as metal or

wall, between the unit and the

BLUETOOTH device.

– A device using 2.4GHz frequency, such

as a Wi-Fi device, cordless telephone, or

microwave oven, is in use near this unit.

• Because BLUETOOTH devices and Wi-Fi

(IEEE802.11b/g/n) use the same frequency

(2.4 GHz), microwave interference may

occur resulting in noise or audio dropout

or communications being disabled if this

unit is used near a Wi-Fi device. In such a

case, perform the following.

– Use this unit at least 10m (30feet) away

from the Wi-Fi device.

– If this unit is used within 10m (30feet)

of a Wi-Fi device, turn off the Wi-Fi

device.

– Install this unit and the BLUETOOTH

device as near to each other as possible.

• Microwaves emitting from a BLUETOOTH

device may affect the operation of

electronic medical devices. Turn off this

unit and other BLUETOOTH devices in the

following locations, as it may cause an

accident:

– where inflammable gas is present, in a

hospital, or a petrol station

– near automatic doors or a fire alarm.

• When you use the unit on an airplane,

follow the instructions of cabin attendants

or ask the airline you fly with about

conditions for using the unit. If you do not

use the supplied headphone cable, radio

waves may affect instruments, causing risk

of accident due to malfunction. Be sure

that you use the supplied headphone

cable on an airplane.

• Due to the characteristic of the wireless

technology, the sound played on this unit

is delayed from the sound and music

played on the sending device. Therefore,

the image and sound may be misaligned

when viewing a movie or playing a game.

• This unit supports security capabilities that

comply with the BLUETOOTH standard to

provide a secure connection when the

BLUETOOTH wireless technology is used,

but security may not be enough

depending on the setting. Be careful when

communicating using BLUETOOTH wireless

technology.

• We do not take any responsibility for the

leakage of information during BLUETOOTH

communications.

• Connection with all BLUETOOTH devices

cannot be guaranteed.

– A device featuring BLUETOOTH function

is required to conform to the BLUETOOTH

standard specified by Bluetooth SIG, Inc.

and be authenticated.

– Even if the connected device conforms

to the above mentioned BLUETOOTH

standard, some devices may not be

connected or work correctly, depending

on the features or specifications of the

device.

– While talking on the phone hands free,

noise may occur, depending on the

device or communication environment.

• Depending on the device to be connected,

it may require some time to start

communications.

If sound skips frequently during

playback

• The situation may be improved by setting

the sound quality mode to “priority on

stable connection.” For details, refer to the

Help Guide.

• The situation may be improved by

changing the wireless playback quality

settings or fixing the wireless playback

mode to SBC on the transmitting device.

For details, refer to the operating

instructions supplied with the transmitting

device.

• If you are using a smartphone, the

situation may be improved by shutting

down unnecessary applications or

rebooting the smartphone.

On the use of calling apps for

smartphones and computers

• This unit supports normal incoming calls

only. Calling apps for smartphones and

computers are not supported.

On charging the unit

• This unit can be charged using USB only.

Personal computer with USB port is

required for charging.

• This unit cannot be turned on, nor can the

BLUETOOTH and noise canceling functions

be used, during charging.

• If you do not use the unit for a long time,

the rechargeable battery may not be able

to keep sufficient charge. The battery will

be able to keep a charge properly after

repeatedly discharging and charging

several times.

• If you store the unit for a long time, charge

the battery once every half year to prevent

over-discharge.

• If the length of time you can use the unit

became extremely short, the rechargeable

battery should be replaced with a new

one. Please contact your nearest Sony

dealer for a battery replacement.

Note on static electricity

• Static electricity accumulated in the body

may cause mild tingling in your ears. To

minimize the effect, wear clothes made

from natural materials.

If the unit does not operate properly

• Reset the unit.

Press the  and NC/AMBIENT buttons

simultaneously while charging. The unit

will be reset. Pairing information is not

deleted.

NC/AMBIENT



• If the problem persists even after the

resetting operation above, initialize the

unit as follows.

Disconnect the micro-USB cable from the

micro-USB port, turn off the unit, then hold

down the  and / buttons

simultaneously for more than 7 seconds.

The indicator (blue) flashes 4times, and

the unit is reset to the factory settings. All

pairing information is deleted.

• After the unit is initialized, it may not

connect to your iPhone or computer. In this

case, delete the pairing information of the

unit from the iPhone or computer, and

then pair them again.

What is noise canceling?

• The noise canceling circuit actually senses

outside noise with built-in microphones

and sends an equal-but-opposite

canceling signal to the unit.

– The noise canceling effect may not be

pronounced in a very quiet environment,

or some noise may be heard.

– Depending on how you wear the unit,

the noise canceling effect may vary or a

beeping sound (howling) may occur. In

these cases, take off the unit and put it

on again.

– The noise canceling function works for

noise in the low frequency band

primarily. Although noise is reduced, it is

not canceled completely.

– When you use the unit in a train or a car,

noise may occur depending on street

conditions.

– Mobile phones may cause interference

and noise. Should this occur, locate the

unit further away from the mobile

phone.

– Do not cover the microphones of the

unit with your hands. The noise

canceling function or the Ambient Sound

Mode may not work properly, or a

beeping sound (howling) may occur. In

these cases, take your hands off of the

microphones of the unit.

Microphones

Others

• When you use the unit as wired

headphones, use the supplied dedicated

headphone cable only. Make sure that the

dedicated headphone cable is firmly

inserted.

• Do not place this unit in a place exposed to

humidity, dust, soot or steam, or subject to

direct sunlight. Do not leave the unit in a

car for a long time. It may cause a

malfunction.

• Using the BLUETOOTH device may not

function on mobile phones, depending on

radio wave conditions and location where

the equipment is being used.

• High volume may affect your hearing.

• For traffic safety, do not use while driving

or cycling.

• Do not use the unit in places where it

would be dangerous if you are unable to

hear ambient sound, such as at railroad

crossings, train station platforms, and

construction sites.

• Do not put weight or pressure on this unit

as it may cause the unit to deform during

long storage.

• Do not subject the unit to excessive shock.

• Clean the unit with a soft dry cloth.

• Do not expose the unit to water. The unit is

not waterproof.

Remember to follow the precautions

below.

– Be careful not to drop the unit into a sink

or other container filled with water.

– Do not use the unit in humid locations or

bad weather, such as in the rain or snow.

– Do not get the unit wet.

If you touch the unit with wet hands, or

put the unit in a damp article of clothing,

the unit may get wet and this may cause

a malfunction of the unit.

• If you experience discomfort after using

the unit, stop using the unit immediately.

• Install the earbuds firmly. If an earbud

accidentally detaches and is left in your

ear, it may cause injury.

• Since children may swallow small parts

such as an earbud, keep the unit out of

reach of children.

• If you have any questions or problems

concerning this unit that are not covered in

this manual, please consult your nearest

Sony dealer.

About triple-comfort earbuds

• Supplied triple-comfort earbuds provide a

snug fit for effective attenuation of

ambient noise.

– Prolonged use of snugly fitting earbuds

may strain your ears. If you experience

discomfort, discontinue use.

– Do not pull only the foamed silicone

portion of the earbuds. If the foamed

silicone portion is separated from the

earbuds, the earbuds will not function.

– Do not subject the foamed silicone

portion to pressure over long periods, as

it may cause deformation.

– The varying sizes of the holes on the

foamed silicone portion have no effect

on the sound quality.

– You may hear a cracking noise in your

ears when wearing the earbuds. This is

not a malfunction.

– Foam materials deteriorate by long-term

and storage. Replace with new materials

if the deterioration hinders the original

function.

Optional replacement earbuds can be

ordered from your nearest authorized

Sony retailer or www.sony.com.

You are cautioned that any changes or

modifications not expressly approved in

this manual could void your authority to

operate this equipment.

Compatible

iPhone/iPod

models

You can use the unit with only the following

models. Update your iPhone or iPod to the

latest software before use.

• iPhone 7 Plus

• iPhone 7

• iPhone SE

• iPhone 6s Plus

• iPhone 6s

• iPhone 6 Plus

• iPhone 6

• iPhone 5s

• iPhone 5c

• iPhone 5

• iPod touch (6th generation)

(As of August 2017)

Specifications

General

Communication system: BLUETOOTH

Specification version 4.1

Output: BLUETOOTH Specification Power

Class 2

Maximum communication range: Line of

sight approx. 10 m (30 ft)1)

Frequency band: 2.4 GHz band (2.4000 GHz

- 2.4835 GHz)

Compatible BLUETOOTH profiles2):

A2DP (Advanced Audio Distribution

Profile)

AVRCP (Audio Video Remote Control

Profile)

HFP (Hands-free Profile)

HSP (Headset Profile)

Supported Codec3): SBC4) , AAC5) , LDAC, aptX,

aptX HD

Supported content protection method:

SCMS-T

Transmission range (A2DP):

20Hz - 20,000Hz (Sampling frequency

44.1kHz)

20Hz - 40,000Hz (Sampling frequency

LDAC 96kHz, 990kbps)

Included items:

Wireless noise canceling stereo

headset(1)

Micro-USB cable (approx. 50 cm (19 3/4

in.)) (1)

Dedicated headphone cable (approx.

1m (39 3/8 in.)) (1)

Carrying pouch (1)

Hybrid silicone rubber earbuds

(SS/S/M/L 2 each)

Triple-comfort earbuds (S/M/L 2 each)

Plug adaptor for airplane6) (1)

Reference Guide (this sheet) (1)

Operating Instructions (1)

Other documents (1 set)

1) The actual range will vary depending on

factors such as obstacles between

devices, magnetic fields around a

microwave oven, static electricity,

reception sensitivity, antenna’s

performance, operating system, software

application, etc.

2) BLUETOOTH standard profiles indicate the

purpose of BLUETOOTH communications

between devices.

3) Codec: Audio signal compression and

conversion format

4) Subband Codec

5) Advanced Audio Coding

6) Depending on the in-flight entertainment

services, it may not be supported.

Wireless noise

canceling stereo

headset

Power source:

DC 3.7 V: Built-in lithium-ion

rechargeable battery

DC 5 V: When charged using USB

Mass: Approx. 71 g (2.5 oz) (main unit

approx. 61 g (2.2 oz))

Operating temperature: 0 °C to 40 °C (32 °F

to 104 °F)

Usage hours:

When connecting via the BLUETOOTH

device

Music playback time:

Max. 10 hours (NC ON), Max. 13 hours

(NC OFF)

Communication time:

Max. 10 hours (NC ON), Max. 12 hours

(NC OFF)

Standby time:

Max. 17 hours (NC ON), Max.

100 hours (NC OFF)

When connecting via the headphone

cable with NC ON:

Max. 14 hours

Note: Usage hours may be shorter

depending on the Codec and the

conditions of use.

Charging time:

Approx. 3.5 hours

(About 70 minutes of music playback is

possible after 15 minutes charging.)

Note: Charging and usage hours may

be different depending on the

conditions of use.

Charging temperature: 5 °C to 35 °C (41 °F to

95 °F)

Receiver

Type: Closed, Hybrid

Driver unit: Hybrid

Frequency response: 3 Hz - 40,000 Hz

(JEITA) (when connecting via the
