Contents
User Manual
Device basics
8
9
10
4
1
5
2
7
3
6
1Charging/Notification light
2 NFC
3 Fingerprint sensor
4 Volume/Zoom key
5 Power key
6 Nano SIM/Memory card slot
7 Camera key
8 Charger/USB Type-C™ cable port
9 Tray 1 for SIM card 1
10 Tray 2 for SIM card 2 or memory card
To insert either two nano SIM cards or
a nano SIM card and a memory card
Using two SIM cards and a memory card at the same
time is not possible. Tray 2 allows you to use either a
second SIM card or an additional memory card. Do not
cut your SIM cards, as this may damage your device.
1Drag out tray 1 and tray 2.
2Place the main SIM card securely in tray 1, as shown in
the illustration.
3Place either the second SIM card or the memory card
securely in tray 2, as shown in the illustration.
4Gently push first tray 2, then tray 1, back into their slots
until they fit into place.
To turn on your device
It is recommended to charge the battery for at least 30
minutes before you turn on your device for the first time.
It is important to use the USB Type-C cable provided
when charging your device, as other types of USB cables
can damage your device.
1Press and hold down the power key until the device
vibrates.
2Wait a moment for the device to start.
To activate the screen
•Briefly press the power key .
Screen protection
Before using your device, remove the protection film by
pulling up on the protruding tab.
Screen covers and protectors may help you protect your
device against damage. We recommend you use only those
screen covers intended for your Xperia™ device. The use of
third party screen protection accessories may prevent your
device from working correctly by covering sensors, lenses,
speakers, or microphones and can invalidate the warranty.
Support for you
Use the Support app to find your device’s model name,
software information, help topics and support tools. Visit
support.sonymobile.com
from the Support app or any
browser for user guides, troubleshooting tips, support
forum and support contact information.
You can find support contact information in the Support
app even without a network connection. The Support
app is not available in all countries and regions.
To access the Support app
•Find and tap .
Warranty, SAR and usage guidelines
For information about warranty, SAR (Specific Absorption
Rate) and safety guidelines, please read the Important
information provided under Settings > System > About
phone > Legal information on your device.
Transferring contacts and content
For transferring contacts, messages, photos or other data
from an old device to your new device, we recommend that
you use the Xperia Transfer application.
Visit
https://www.sonymobile.com/xperiatransfer
for more
information.
To view the CE marking and the FCC ID
Sony Mobile
Communications Inc.
1Drag out tray 1 and tray 2.
2Drag out the label strips simultaneously, as shown in the
illustration. To see the full text of the EU declaration of
conformity, visit:
http://www.compliance.sony.de/
.
3To view the FCC ID, turn over your device. The FCC ID is
displayed on the other side of the label strips.
To view the regulatory compliance
mark
•Open the phone dialer, then enter *#07#.
Legal information
Publication number: 1311-7462.1
This Startup guide is published by Sony Mobile Communications Inc. or its local aliated company,
without any warranty. Improvements and changes to this Startup guide necessitated by typographical
errors, inaccuracies of current information, or improvements to programs and/or equipment, may be
made by Sony Mobile Communications Inc. at any time and without notice. Such changes will, however,
be incorporated into new editions of this Startup guide. All illustrations are for illustration only and may
not accurately depict the actual device.
See regulatory information such as the device CE marking in the relevant label tray in the device.
All product and company names mentioned herein are the trademarks or registered trademarks of their
respective owners. Any rights not expressly granted herein are reserved.
Visit
https://www.sonymobile.com/global-en/legal/
for more information.
Manufacturer: Sony Mobile Communications Inc., 4-12-3 Higashi-Shinagawa, Shinagawa-ku, Tokyo,
140-0002 Japan. For EU product compliance: Sony Belgium, bijkantoor van Sony Europe Limited, Da
Vincilaan 7-D1, 1935 Zaventem, Belgium.
© 2018 Sony Mobile Communications Inc. All rights reserved.
Supported frequency bands
Some frequency bands might be turned o in certain markets or by certain operators.
You can find your model number under Settings > System > About phone.
H4113
UMTS HSPA+ (Bands 1, 2, 5, 8) GSM GPRS/EDGE 850, 900, 1800, 1900 LTE (Bands 1, 2, 3, 5, 7, 8, 20, 38)
WLAN, 2.4G/5G, NFC
H4133
UMTS HSPA+ (Bands 1, 2, 5, 8) GSM GPRS/EDGE 850, 900, 1800, 1900 LTE (Bands 1, 2, 3, 5, 7, 8, 28, 38, 39,
40, 41M) WLAN, 2.4G/5G, NFC
GSM 850/900 : Power Class 4, DCS(1800)/PCS(1900) : Power Class 1, UMTS : Power Class 3,
LTE : Power Class 3, 2.4GHz<100mW, 5.15-5.35GHz<200mW, 5.47-5.725GHz<200mW, NFC 13.56MHz

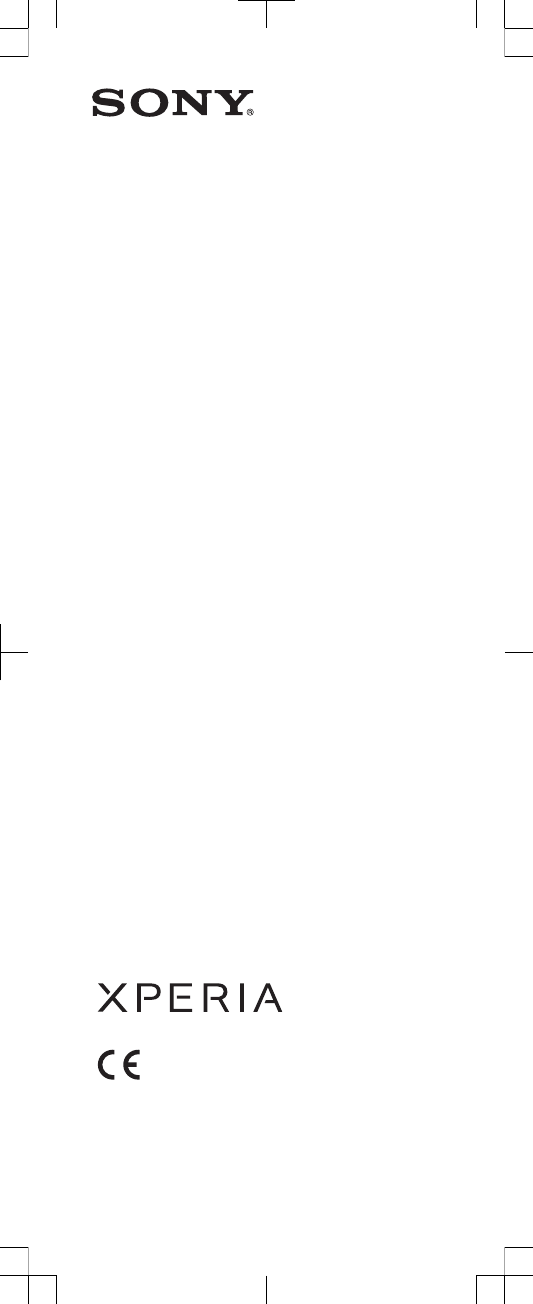

Startup guide
Xperia XA2
H4133/H4113
