Sony 33143E GSM/WCDMA/LTE Phone+Bluetooth, DTS/UNII a/b/g/n and NFC User Manual PY7 33143E Startup Guide

Sony Mobile Communications Inc GSM/WCDMA/LTE Phone+Bluetooth, DTS/UNII a/b/g/n and NFC PY7 33143E Startup Guide

PY7-33143E_Startup Guide

Device basics
7
6
3
1
2
5
4
1Charging/Notification light
2 NFC
3 Volume/Zoom key
4 Power key
5 Nano SIM/Memory card slot
6 Camera key
7 Charger/USB Type-C™ cable port
To insert the nano SIM card and the
memory card
Do not cut your SIM card, for example using a blade or
scissors, as this may damage your device.
1Using your fingernail, drag out the SIM card tray.
2Firmly place the SIM card in the correct orientation as
shown in the illustration.
3Insert the memory card in the correct orientation into the
memory card slot as shown in the illustration.
4Gently push the tray back into the slot until it fits into
place.
To turn on the device
It is important to use the USB Type-C™ cable (provided)
when charging your device as other types of USB cables
can damage your device. It is recommended to charge
the battery for at least 30 minutes before you turn on the
device for the first time.
1Press and hold down the power key until the device
vibrates.
2Wait a moment for the device to start.
To activate the screen
•Briefly press the power key .
Screen protection
Before using your device, remove the protection film by
pulling up on the protruding tab.
It is recommended to protect your device with a Sony
branded screen cover or a protector intended for your
Xperia™ model. The use of third party screen protection
accessories may prevent your device from working correctly
by covering sensors, lenses, speakers, or microphones and
can invalidate the warranty.
Support for you
Access our support website directly on your device or visit
support.sonymobile.com
with any supported browser.
Support options include User guides, downloadable content,
troubleshooting tips and contact information.
Even if you don’t have a network connection, you can
access support contact information on your device.
Depending on the country or region where you purchased
your device, you can find this information directly in the
Support application.
To access the Support application
1From your Home screen, tap .
2Find and tap .
Connect to the internet when using the Support
application for the best available support.
Warranty, SAR and usage guidelines
For information about warranty, SAR (Specific Absorption
Rate) and safety guidelines, please read the Important
information provided under Settings > About phone > Legal
information on your device.
Transferring contacts and content
If you need help to transfer contacts, messages, photos or
other data from an old device to your new device, we
recommend that you use the Xperia™ Transfer application.
Visit
www.sonymobile.com/xperiatransfer
for more
information.
To view the CE marking and the FCC ID
e
a
tions Inc.
shi-Shinagawa,
-
ku Tokyo,
a
pan
Sony Mobile
Communications Inc.
4-12-3 Higashi-Shinagawa,
Shinagawa-ku Tokyo,
140-0002 Japan
1Using your fingernail, drag out the nano SIM card tray.
2Remove the memory card from its slot.
3Drag out the label strips simultaneously, as shown in the
illustration. To see the full text of the EU declaration of
conformity, visit:
http://www.compliance.sony.de/
.
4To view the FCC ID, turn the device over. The FCC ID is
displayed on the other side of the label strips.
Make sure to drag both label strips simultaneously to avoid
tearing them.
To view the regulatory compliance mark
•Open the phone dialer, then enter *#07#.
Legal information
Publication number: 1307-2985.1
This Startup guide is published by Sony Mobile Communications Inc. or its local affiliated company, without
any warranty. Improvements and changes to this Startup guide necessitated by typographical errors,
inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony
Mobile Communications Inc. at any time and without notice. Such changes will, however, be incorporated
into new editions of this Startup guide. All illustrations are for illustration only and may not accurately depict
the actual device.
See regulatory information such as the device CE marking in the relevant label tray in the device.
All product and company names mentioned herein are the trademarks or registered trademarks of their
respective owners. Any rights not expressly granted herein are reserved. Visit
www.sonymobile.com/global-
en/legal/
for more information.
Manufacturer: Sony Mobile Communications Inc., 4-12-3 Higashi-Shinagawa, Shinagawa-ku, Tokyo,
140-0002 Japan. For EU product compliance: Sony Belgium, bijkantoor van Sony Europe Limited, Da
Vincilaan 7-D1, 1935 Zaventem, Belgium.
© 2017 Sony Mobile Communications Inc. All rights reserved.
Supported frequency bands
Some frequency bands might be turned off in certain markets or by certain operators.
G3221
UMTS HSPA+ (Bands 1, 2, 5, 8) GSM GPRS/EDGE (850, 900, 1800, 1900) LTE (Bands 1, 2, 3, 5, 7, 8, 20)
WLAN, 2.4G/5G, NFC
G3223
UMTS HSPA+ (Bands 1, 2, 4, 5, 8) GSM GPRS/EDGE (850, 900, 1800, 1900) LTE (Bands 2, 4, 5, 7, 12, 13,
17, 28, 29, 66) WLAN, 2.4G/5G, NFC

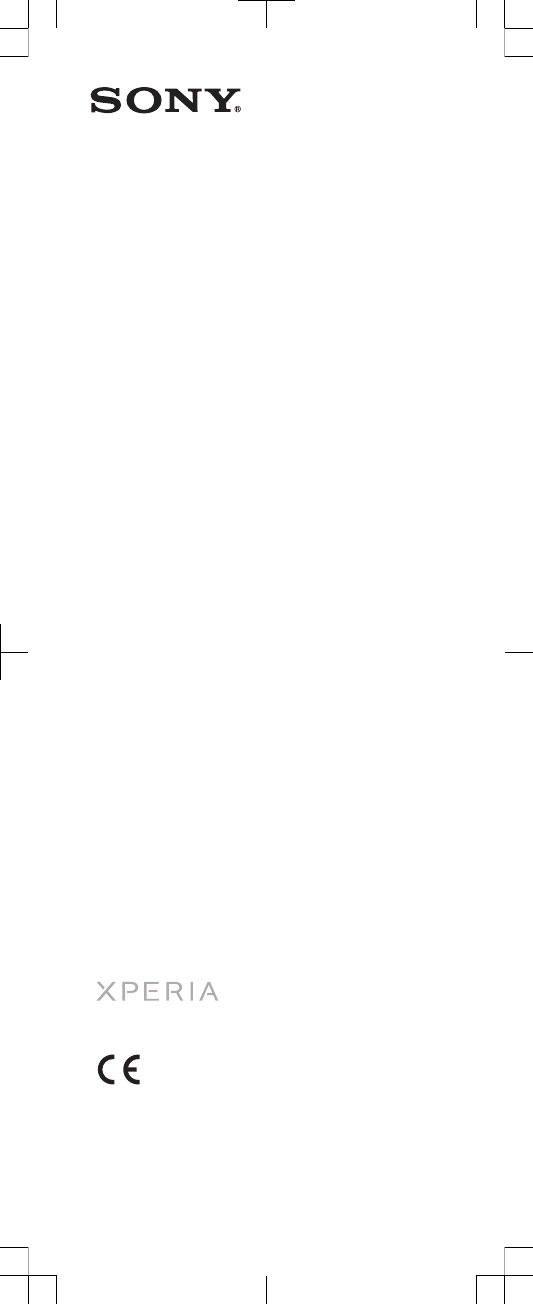

Startup guide
G3221/G3223
Sony Mobile Communications Inc.
4-12-3 Higashi-Shinagawa, Shinagawa-ku, Tokyo, 140-0002 Japan
1307-2985.1
