Sony 66475M GSM/WCDMA/LTE Phone with BT, DTS/UNII a/b/g/n/ac, GPS & NFC User Manual User Guide

Sony Mobile Communications Inc GSM/WCDMA/LTE Phone with BT, DTS/UNII a/b/g/n/ac, GPS & NFC User Guide

User_Guide

Device basics
SIM
microSD
2
1
3
4
6
5
7
8
9
1Charging/Notification light
2 Volume/Zoom key
3 Power key/Fingerprint sensor
4 NFC
5 Nano SIM/Memory card slot
6 Camera key
7 Charger/USB Type-C™ cable port
8 SIM card tray
9 Memory card tray
To insert a nano SIM card and a
memory card
SIM
microSD
Do not cut your SIM card, as this may damage your
device.
1Drag out the memory card tray and the SIM card tray.
2Place the SIM card securely in the SIM card tray, as
shown in the illustration.
3Place the memory card securely in the memory card tray,
as shown in the illustration.
4Gently push first the SIM card tray, then the memory card
tray, back into their slots until they fit into place.
To turn on the device
It is important to use the USB Type-C™ cable (provided)
when charging your device, as other types of USB
cables can damage your device. It is recommended to
charge the battery for at least 30 minutes before you turn
on the device for the first time.
1Press and hold down the power key until the device
vibrates.
2Wait a moment for the device to start.
To activate the screen
Briefly press the power key .
Screen protection
Before using your device, remove the protection film by
pulling up on the protruding tab.
It is recommended to protect your device with a Sony
branded screen cover or a protector intended for your
Xperia™ model. The use of third party screen protection
accessories may prevent your device from working correctly
by covering sensors, lenses, speakers, or microphones and
can invalidate the warranty.
Support for you
You can access our support website directly from your
device by visiting
support.sonymobile.com
to find user
guides, downloadable content, troubleshooting tips and
contact information.
Even if you don’t have a network connection, you can
access support contact information on your device.
Depending on the country or region where you purchased
your device, you can find this information using the
Support application.
To access the Support application
1From your Home screen, tap .
2Find and tap .
Connect to the internet when using the Support
application for the best available support.
Warranty, SAR and usage guidelines
For information about warranty, SAR (Specific Absorption
Rate) and safety guidelines, please read the Important
information provided under Settings > About phone > Legal
information on your device.
Transferring contacts and content
If you need help with transferring contacts, messages,
photos or other data from an old device to your new device,
we recommend that you use the Xperia™ Transfer
application. Visit
www.sonymobile.com/xperiatransfer
for
more information.
To view the CE marking and the FCC ID
1Drag out the memory card tray.
2Drag out the label strip in the same way.
To see the full text of the EU declaration of conformity,
visit:
http://www.compliance.sony.de/
To view the regulatory compliance mark
Open the phone dialer, then enter *#07#.
Legal information
Publication number: 1307-9307.1
This Startup guide is published by Sony Mobile Communications Inc. or its local affiliated company, without
any warranty. Improvements and changes to this Startup guide necessitated by typographical errors,
inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony
Mobile Communications Inc. at any time and without notice. Such changes will, however, be incorporated
into new editions of this Startup guide. All illustrations are for illustration only and may not accurately depict
the actual device.
See regulatory information such as the device CE marking in the relevant label tray in the device.
All product and company names mentioned herein are the trademarks or registered trademarks of their
respective owners. Any rights not expressly granted herein are reserved. Visit
www.sonymobile.com/global-
en/legal/
for more information.
Manufacturer: Sony Mobile Communications Inc., 4-12-3 Higashi-Shinagawa, Shinagawa-ku, Tokyo,
140-0002 Japan. For EU product compliance: Sony Belgium, bijkantoor van Sony Europe Limited, Da
Vincilaan 7-D1, 1935 Zaventem, Belgium.
© 2017 Sony Mobile Communications Inc. All rights reserved.
Supported frequency bands
Some frequency bands might be turned off in certain markets or by certain operators.
G8141
UMTS HSPA+ (Bands 1, 2, 4, 5, 6, 8, 19) GSM GPRS/EDGE 850, 900, 1800, 1900 LTE (Bands 1, 2, 3, 4, 5,
7, 8, 12, 13, 17, 19, 20, 26, 28, 29, 32, 38, 39, 40, 41) WLAN, 2.4G/5G, NFC
You can find your model number under Settings > About phone.

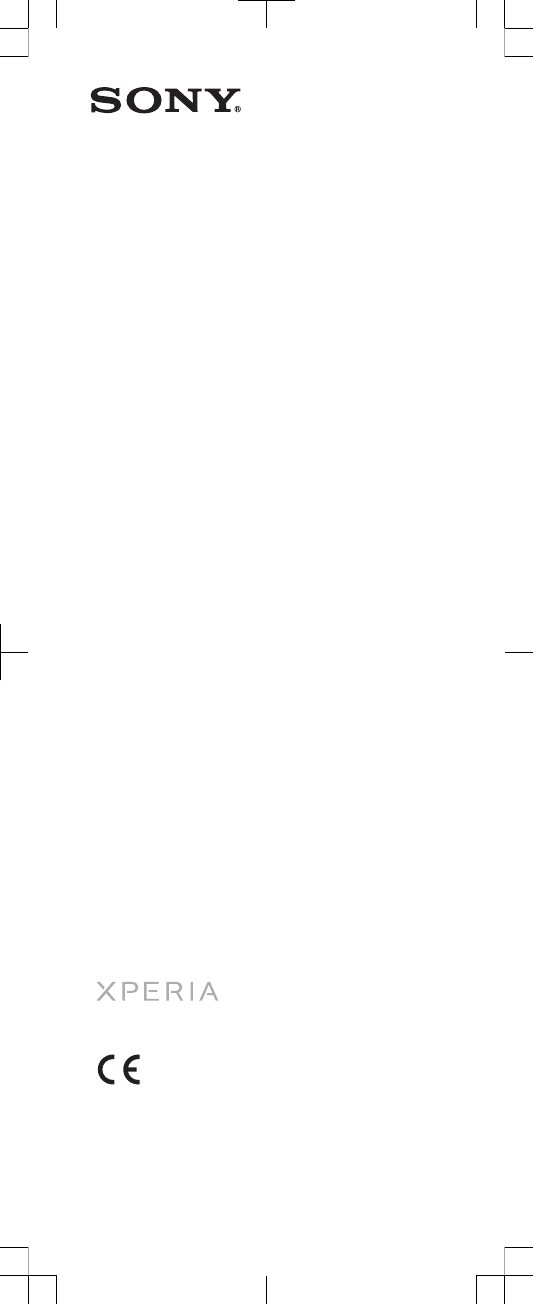

Startup guide
Xperia
G8141
Sony Mobile Communications Inc.
4-12-3 Higashi-Shinagawa, Shinagawa-ku, Tokyo, 140-0002 Japan
1307-9307.1
