J210-UG-EN.book Page 1 Tuesday, June 28, 2005 1:32 PM
1
Contents
Getting to know your phone . . . . . . . . . . . . . . . . . . . 4
Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Menu overview . . . . . . . . . . . . . . . . . . . . . . . . 11
Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Personalizing your phone . . . . . . . . . . . . . . . . . . . 38
Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
More features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Additional information . . . . . . . . . . . . . . . . . . . . . . 67
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
J210-UG-EN.book Page 1 Tuesday, June 28, 2005 1:32 PM
2
Sony Ericsson
GSM 900/1800/1900
This user guide is published by Sony Ericsson Mobile
Communications AB, without any warranty. Improvements
and changes to this user guide necessitated by
typographical errors, inaccuracies of current information,
or improvements to programs and/or equipment, may be
made by Sony Ericsson Mobile Communications AB at any
time and without notice. Such changes will, however, be
incorporated into new editions of this user guide.
All rights reserved.
© Sony Ericsson Mobile Communications AB, 2005
Publication number: AE/LZT 108 7897 R2A.
Please note:
Some of the services in this user guide are not supported by
all networks. This also applies to the GSM International
Emergency Number 112.
Please contact your network operator or service provider if
you are in doubt whether you can use a particular service
or not.
Please read the Guidelines for safe and efficient use and
the Limited warranty chapters before you use your mobile
phone.
T9™ Text Input is a trademark or a registered trademark of
Tegic Communications.
T9™ Text Input is licensed under one or more of the
following:
U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928,
and 6,011,554;
Canadian Pat. No. 1,331,057;
J210-UG-EN.book Page 2 Tuesday, June 28, 2005 1:32 PM
3
United Kingdom Pat. No. 2238414B;
Hong Kong Standard Pat. No. HK0940329;
Republic of Singapore Pat. No. 51383;
Euro. Pat. No. 0 842 463 (96927260.8) DE/DK, FI, FR, IT,
NL, PT, ES, SE, GB; and additional patents are pending
worldwide.
Your mobile phone has the capability to download, store
and forward additional content, e.g. ringtones. The use of
such content may be restricted or prohibited by rights of
third parties, including but not limited to restriction under
applicable copyright laws. You, and not Sony Ericsson, are
entirely responsible for additional content that you
download to or forward from your mobile phone. Prior to
your use of any additional content, please verify that your
intended use is properly licensed or is otherwise authorized.
Sony Ericsson does not guarantee the accuracy, integrity or
quality of any additional content or any other third party
content. Under no circumstances will Sony Ericsson be
liable in any way for your improper use of additional content
or other third party content.
Other product and company names may be the trademarks
of their respective owners.
Any rights not expressly granted herein are reserved.
J210-UG-EN.book Page 3 Tuesday, June 28, 2005 1:32 PM
4
Getting to know your phone
Navigation
key
YES and
NO keys
O
ption
k
ey
Infrared
port
J210-UG-EN.book Page 4 Tuesday, June 28, 2005 1:32 PM
5
Assembling your phone
Before you can use your phone you need to:
• Insert the SIM card.
• Attach and charge the battery.
User guide symbols
The following symbols appear in this user guide:
SIM card and battery information
The SIM (Subscriber Identity Module) card, which you get
from your network operator, contains information about your
subscription and phonebook. Always turn off the phone and
detach the charger before you insert or remove a SIM card.
} Use the navigation key to scroll and select.
% See also page.xx
Important
Note
This symbol indicates that a service or function is
network – or subscription-dependent. Because of this,
all menus may not be available in your phone. Please
consult your network operator for more information.
If you have been using a SIM card in another phone,
make sure that your information is saved to the SIM
card before you remove it from the other phone.
%17 Phonebook.
J210-UG-EN.book Page 5 Tuesday, June 28, 2005 1:32 PM
6

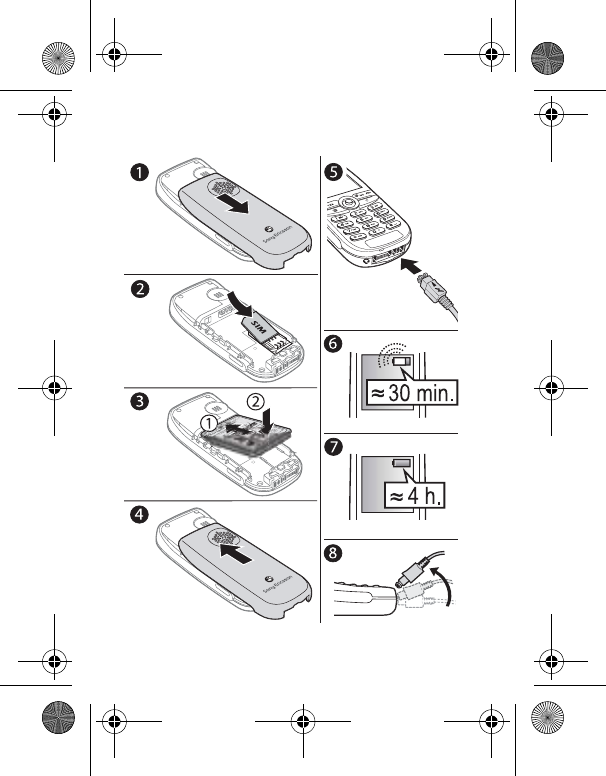

To insert the SIM card and charge the
battery
J210-UG-EN.book Page 6 Tuesday, June 28, 2005 1:32 PM
7
1Remove the battery cover as shown in the picture.
2Insert the SIM card. Make sure the SIM card is placed
under the silvery holders.
3Place the battery on the back of the phone with the label
side up and the connectors facing each other.
4Place the battery cover as shown in the picture and slide
it into place.
5Connect the charger to the phone at the flash symbol.
The flash symbol on the charger plug must face upwards.
6It may take up to 30 minutes before the battery icon
appears on the screen.
7Wait approximately 4 hours or until the battery icon
indicates that the battery is fully charged. If you do not
see the battery icon after this time, press any key to
activate the screen.
8Remove the charger by tilting the plug upwards.
PIN
You may need a PIN (Personal Identity Number) to activate
the services in your phone. Your PIN is provided by your
network operator.
If you make a mistake while entering your PIN, delete the
number by pressing .
You must reset the time and date when you remove the
battery.
If you enter the wrong PIN three times in a row, the
SIM card is blocked and the message PIN blocked
appears. To unblock it, you need to enter your PUK
(Personal Unblocking Key), %61 SIM card lock.
J210-UG-EN.book Page 7 Tuesday, June 28, 2005 1:32 PM
8
To turn the phone on and off
• Press and hold NO.
• Enter your PIN, if requested.
• Press and hold NO to turn off the phone.
To make and receive calls
• Enter the area code and phone number }YES to make the
call. }NO to end the call.
• When the phone rings }YES.
J210-UG-EN.book Page 8 Tuesday, June 28, 2005 1:32 PM
9
Icons
The following icons appear on the desktop and in standby.
Tells you the status of the battery.
Tells you the strength of the GSM network signal.
Calls – handling of call time, call cost information
and ongoing calls.
Internet services – gives you access to Internet
services.
My shortcuts – create your own menu for the
functions you use most often.
Fun & Games – games and applications.
Messaging – handling of text (SMS), picture
(MMS) and voice messages.
Organizer – calendar, events, alarm clock and other
extras.
Connectivity – networks and data communication
settings, receive items via infrared.
Phonebook – your personal phonebook.
Settings – personal settings including profiles,
display, language, time and locks.
J210-UG-EN.book Page 9 Tuesday, June 28, 2005 1:32 PM
10
Navigating the menus
The main menus are shown as icons on the desktop.
•Press (navigation key) to go to the desktop or to select
highlighted items.
•Press to move through the menus.
•Press NO to go back one level in the menus.
• Press and hold NO to return to standby.
Shortcuts
From standby, you can use to go directly to a
function.
To edit a standby shortcut
1} My shortcuts }YES and select an existing shortcut you
want to edit }YES .
2Scroll to and select a shortcut } YES.
J210-UG-EN.book Page 10 Tuesday, June 28, 2005 1:32 PM
11
Menu overview
1.Calls
Missed calls
Call list
Manage calls
Time and cost
Next call
Options
2.Internet services
Sony Ericsson
Bookmarks
Push inbox
Enter address
Resume
Select profile
Advanced
Options
3.My shortcuts
Navigation key up
Nav.key down
Navigation key left
Navigation key right
4.Fun & Games
Games
My pictures
More pictures
My sounds
More sounds
Themes
Composer
5.Messaging
Text message
Picture message
Call voicemail
Area info
Options
6.Organizer
Calendar
Alarms
Timer
Stopwatch
Calculator
7.Connectivity
Infrared port
GSM Networks
Data comm.
8.Phonebook
Find and call
Add number
Find and edit
Personal rings
Groups
Email addresses
Options
Memory status
Special numbers
9.Settings
Sounds & alerts
Profiles
Display
Language
Time and date
Locks
Handsfree
Status
Master reset
J210-UG-EN.book Page 11 Tuesday, June 28, 2005 1:32 PM
12
Phone language
Most SIM cards automatically set the language used in the
menu to the language of the country where you bought your
SIM card. If this is not the case, the predefined language
is English.
To change the phone language
1}Settings }YES }Language }YES }Menus }YES.
2Select a language }YES.
More options
Press to enter a list of options. There are different
alternatives in the list of options depending on where you are
in the menus.
Delete and edit items
Two ways to delete items
• Select an item and press .
• Select an item, press }Delete.
To edit items
Select an item, press }Edit.
You can always choose Automatic by pressing 8888
in standby mode.
You can always choose English by pressing 0000
in standby.
You can press instead of the YES key to select
an item.
J210-UG-EN.book Page 12 Tuesday, June 28, 2005 1:32 PM
13
Entering letters and characters
When writing messages and notes there are two ways to enter
letters and characters:
• Multitap text input
• T9™ Text Input
To enter letters using multitap input
• Press - until the desired character appears on the
screen.
• Press to shift between capital and lower-case letters.
• Press and hold - to enter numbers.
• Press to delete letters and numbers.
• Press for the most common punctuation marks.
• Press to add a space.
T9™ Text Input
The T9™ Text Input method uses a built-in dictionary to
recognize the most commonly used word for each sequence
of key presses. This way, you press each key only once, even
if the letter you want is not the first letter on the key.
To enter letters using T9 Text Input
1For example, if you want to write the word “Jane”, press
, , , .
2If the word shown is the one you want, press to
accept and add a space. To accept a word without adding
a space, press . If the word shown is not the one you
want, press or repeatedly to view alternative
words. Accept a word and add a space by pressing .
3Continue writing your message. To enter a full stop or
other punctuation marks, press and then or
repeatedly. Accept by pressing .
J210-UG-EN.book Page 13 Tuesday, June 28, 2005 1:32 PM
14
To switch between writing methods
Before, or while entering letters, press and hold to
switch between writing methods.
Options list
Press to enter a list of options that offers different
alternatives when writing a message.
J210-UG-EN.book Page 14 Tuesday, June 28, 2005 1:32 PM
15
Calling
Making and receiving calls
Before you can make or receive calls, you must turn on the
phone and be within range of a network, %8 To turn the
phone on and off.
If your subscription includes the Calling Line
Identification service and the caller’s number is identified,
the number is displayed. If you have saved the number in the
phonebook, the name and number are displayed. If the
number is a restricted number, Withheld is displayed.
To make a call
Enter the area code and phone number }YES to make the call.
}NO to end the call.
To re-dial a number
If the connection failed and Retry? is displayed }YES.
To answer or reject a call
}YES to answer a call. }NO to reject a call.
To change the speaker volume during a call
Press or .
To check your missed calls
1When Missed calls: is displayed, }YES to display the
missed calls.
2To call a number, scroll to the number }YES.
Do not hold the phone to your ear while waiting.
When the call is connected, the phone gives a
loud signal.
J210-UG-EN.book Page 15 Tuesday, June 28, 2005 1:32 PM
16
To make international calls
1Press and hold until a + sign appears on the screen.
2Enter the country code, area code (without the leading
zero) and phone number }YES.
Emergency calls
Your phone supports the international emergency numbers,
112, 911 and 08. These numbers can normally be used to
make an emergency call in any country, with or without a
SIM card inserted, if a GSM network that supports these
numbers is within range. Your network operator may have
saved additional local emergency numbers on the SIM card.
To make an emergency call
Enter, for example, 112 (the international emergency
number) }YES.
To view your local emergency numbers
}Phonebook }YES }Special numbers }YES }Emergency
nos. }YES.
Call list
The numbers of the last calls that you have made or received
are saved in the call list.
To call a number from the call list
}YES from standby and scroll to the name or number you
want to call }YES.
Some network operators may require that a SIM card
is inserted, and in some cases that the PIN has been
entered as well.
J210-UG-EN.book Page 16 Tuesday, June 28, 2005 1:32 PM
17
To clear the call list
}Calls }YES }Options }YES }Clear call list }YES.
Phonebook
Your phone has a phonebook in which you can save numbers
and accompanying names (an entry).
To save a number together with a name
1}Phonebook }YES }Add number }YES.
2Select Add new? or select any of the numbers from the
list by pressing YES.
3Enter the phone number that you want to save }YES.
4Enter a name that you want to associate with the phone
number }YES, %13 Entering letters and characters.
5}YES again to save the entry in the suggested position.
Pictures and personal rings
You can add a picture and a ringtone to phonebook entries.
To add a picture to a phonebook entry
1}Phonebook }YES }Picture }YES.
2}Add new? }YES.
3}YES to go to the phonebook }YES.
4This takes you to Pictures. Select a picture }YES.
To add a ringtone to a phonebook entry
1}Phonebook }YES }Personal rings }YES.
2}Add new? }YES.
3Press to go to the phonebook }YES.
4This takes you to Personal rings. Select a ringtone }YES.
J210-UG-EN.book Page 17 Tuesday, June 28, 2005 1:32 PM
18
To call a number saved in the phonebook
1}Phonebook }YES }Find and call }YES.
2Enter the name or the first letter of the name }YES.
3If the name displayed is not the one you want, press
or until you find the correct name and number.
4}YES to make the call.
Speed dialling
You can save the phone numbers that you wish to reach
easily in positions - in your phone.
To speed dial
From standby, enter the position number }YES.
Shortcuts to phonebook entries
When in standby, press and hold the keys - to find
an entry beginning with the first letter on that key, or the
closest following.
Ask to save
If Ask to save is on, you are asked if you want to save any
called or answered number that is not already saved in your
phonebook.
To turn the Ask to save function on or off
}Phonebook }YES }Options }YES }Ask to save }YES
select On or Off }YES.
Your subscription must support the Calling Line
Identification Service, if you want to save answered
numbers.
J210-UG-EN.book Page 18 Tuesday, June 28, 2005 1:32 PM
19
To edit an entry in the phonebook
1}Phonebook }YES }Find and edit }YES.
2Enter the name or the first letter of the name }YES.
3}YES to select the entry.
4}Edit }YES.
5When you have finished editing }YES to save your
changes.
To delete an entry from the phonebook
1}Phonebook }YES }Find and edit }YES.
2Enter the name or the first few letters of the name }YES.
When the entry you want to delete is highlighted }YES.
3}Delete }YES.
Sort order
You may change the sort order of your phonebook entries, so
that they are sorted according to their position number instead
of the name.
To choose a sort order
1}Phonebook }YES }Options }YES }Sort order }YES.
2Select a sort order }YES.
Phonebook memories
Phonebook entries are saved on your SIM card. The number
of entries you can save depends on your SIM card. You can
still access them if you use the card with another phone.
You can also save your entries in the phone memory when
all SIM positions are occupied.
J210-UG-EN.book Page 19 Tuesday, June 28, 2005 1:32 PM
20
Choosing where to save an entry
• To save the number in the position suggested }YES.
• To save the number in another position, press to
delete the position number, enter a new position number
}YES.
• To save the number in the phone memory, you first need to
know how many positions you have got on your SIM card.
You can check this in the Memory status menu.
To check the status of the memories
}Phonebook }YES }Memory status }YES.
Replacing entries
If you try to save a phone number in a position which already
contains a phone number, the message Replace? appears.
Press YES to replace the number or press NO if you do not
want to replace the old number.
To delete all entries from the phone memory
1}Phonebook }YES }Options }YES }Delete all }YES.
2}YES again. If you delete all entries from the phone
memory, the entries on your SIM card are not deleted.
Copy phonebook entries
You can copy phonebook entries between your phone
memory and the SIM card.
To copy entries to the SIM card
}Phonebook }YES }Options }YES }Copy all to SIM }YES.
To copy entries to the phone
}Phonebook }YES }Options }YES }Copy from SIM }YES.
J210-UG-EN.book Page 20 Tuesday, June 28, 2005 1:32 PM
21
Groups
You can create a group of phonebook entries. You can then
send a text message to all members of that group at the same
time %31 Text messages.
To create a new group
1}Phonebook }YES }Groups }YES }Add new? }YES.
2Enter a name for the group }YES.
3}Add new? }YES.
4Select an entry in your phonebook }YES.
5To add the next member, repeat steps 3 and 4.
6}NO to leave the menu.
To add a member to an existing group
Select the group you want }Edit }YES }Add new? }YES.
Voicemail
If your subscription includes an answering service, callers
can leave a voicemail message when you cannot answer
acall.
Calling your voicemail service
You can easily call your voicemail service by pressing and
holding , if you have saved your voicemail number in the
phone. You can get the number from your service provider.
To enter a voicemail number
}Messaging }YES }Options }YES }Voicemail no. }YES.
Call time
During a call, the duration of the call is shown in the display.
You can check the duration of your last call, outgoing calls
and the total time.
J210-UG-EN.book Page 21 Tuesday, June 28, 2005 1:32 PM
22
To check the call time and reset timer
1}Calls }YES }Time and cost }YES }Call timers }YES.
2Select an option }YES.
3Select Reset timers to reset the call time meter.
Call cost and cost information
Check with your network operator or service provider for
information about these services.
To check the call cost and reset cost meter
1}Calls }YES }Time and cost }YES }Call costs }YES.
2Select an option }YES.
3Select Clear total cost to reset the call cost meter.
Setting the call cost
You can use the tariff function to specify the price per call
unit. If you do not specify a price per call unit, the number of
call units is displayed.
To enter the price per call unit
1}Calls }YES }Time and cost }YES }Call costs }YES
}Set tariff }YES.
2Enter your PIN2 }YES.
3Select Change tariff }YES.
4Enter the code for the currency you want, (for example
GBP for Pounds Sterling) }YES.
5Enter the price per call unit }YES. To enter a decimal
point, press .
If you subscribe to cost information, you must enter
your PIN2 to clear the cost or time counter,
%61 Security for information about PIN2.
J210-UG-EN.book Page 22 Tuesday, June 28, 2005 1:32 PM
23
Credit limit for calls
You can enter a total amount of money that can be used for
making calls. When the amount reaches zero, no more calls
can be made. Please note that the credit limit is only an
estimated value.
To set a credit limit
1}Calls }YES }Time and cost }YES }Call costs }YES
}Set credit }YES.
2Enter your PIN2 }YES.
3Select Change }YES.
4Enter an amount }YES.
Diverting calls
If you cannot answer incoming voice or data calls, you can
divert them to another number.
For voice calls, you can choose between the following divert
alternatives:
•All line 1 calls – divert all line 1 calls.
•All line 2 calls – divert all line 2 calls.
•When busy – divert calls if you are already on the phone.
•Not reachable – divert calls if you are unreachable.
•No reply – divert calls that you do not answer within a
specified time limit (operator-dependent).
To turn on a call divert
1}Calls }YES }Manage calls }YES }Divert calls }YES.
2Select a call category and then a divert alternative }YES.
3Select Activate }YES.
When the Restrict calls function is on, some Divert calls
options cannot be activated.
J210-UG-EN.book Page 23 Tuesday, June 28, 2005 1:32 PM
24
4Enter the phone number to which you want your calls to
be diverted }YES, or retrieve it from the phonebook.
To turn off a call divert
1}Calls }YES }Manage calls }YES }Divert calls }YES.
2Select a divert alternative }Cancel.
To check the status of a call divert
1}Calls }YES }Manage calls }YES }Divert calls }YES.
2Select a call type }YES.
3Select the divert }YES }Get status }YES.
To check the status of all call diverts
}Calls }YES }Manage calls }YES }Divert calls }YES
}Check all }YES.
More than one call
You can handle more than one call simultaneously. For
example, you can put an ongoing call on hold, while you
make or answer a second call, and then switch between the
two calls. You cannot answer a third call without ending one
of the first two calls.
During a call the Ongoing call menu replaces the
Calls menu.
J210-UG-EN.book Page 24 Tuesday, June 28, 2005 1:32 PM
25
Call waiting service
If the call waiting service is activated, you hear a beep if you
receive a second call during an ongoing call.
To activate or deactivate the call waiting
service
}Calls }YES }Manage calls }YES }Call waiting }YES.
To make a second call
1}YES to put the ongoing call on hold. You can only put
one call on hold.
2Enter the number you want to call }YES, or retrieve a
number from the phonebook. To reach different options
press .
To receive a second call
• To answer the second call and put the ongoing call on hold
}Answer.
• To reject the second call and continue the ongoing call
}Busy.
• To answer the second call and to end the ongoing call
}Release&answer.
Handling two calls
When you have one ongoing call and one call on hold, you
can do the following:
•}YES to switch between the two calls.
•Press }Join calls to join the two calls into a
conference call.
•Press }Transfer call to connect the two calls. You are
disconnected from both calls.
•}NO to end the ongoing call }YES to retrieve the held call.
•}NO twice to end both calls.
J210-UG-EN.book Page 25 Tuesday, June 28, 2005 1:32 PM
26
Conference calls
You can have a joint conversation (conference call) with up
to five people. You can also put a conference on hold and
make another call.
Creating a conference call
To create a conference call, you must first have one ongoing
call and one call on hold.
To join the two calls into a conference call
Press }Join calls }YES.
To add a new participant
1}YES to put the conference call on hold.
2Call the next person you wish to include in the
conference call.
3Press }Join calls }YES. Repeat steps 1 to 3 to
include more participants.
To release a participant
1Press }Release part }YES.
2Select the participant }YES.
To end the conference call
}NO.
Having a private conversation
You can have a private conversation with one of the
participants and put the other participants on hold.
There may be additional charges for calls involving
multiple parties. Contact your service provider for
more information.
J210-UG-EN.book Page 26 Tuesday, June 28, 2005 1:32 PM
27
To start a private conversation
1Press }Extract part to select the participant that you
want to talk with.
2}Join calls to resume the conference call.
Restricted dialling
You can use the restrict calls service to restrict outgoing and
incoming calls. To use this service, you need a password
which you get from your service provider.
The following calls can be restricted:
•All outgoing – All outgoing calls.
•Outgoing intl – All outgoing international calls.
•Outg. intl roam – All outgoing international calls except to
your home country.
•All incoming – All incoming calls.
•Inc. when roam – All incoming calls when you are abroad
(when roaming).
To turn a call restriction on or off
1}Calls }YES }Manage calls }YES }Restrict calls
}YES.
2Select an option }YES.
3Select Activate or Cancel }YES.
4Enter your PIN }YES.
Fixed dialling
The fixed dialling function allows calls to be made only to
certain numbers saved on the SIM card.
If you divert incoming calls, you cannot activate some
Restrict calls options.
J210-UG-EN.book Page 27 Tuesday, June 28, 2005 1:32 PM
28
Fixed dialling requires a SIM card that allows fixed
numbers to be saved. The fixed numbers are protected by
your PIN2. You can save partial numbers or numbers with
question marks.
• Partial numbers: Saving 0123456 allows calls to be made
to all numbers starting with 0123456.
• Numbers with question marks: Saving 01234567?0,
allows calls to be made to numbers from 0123456700 to
0123456790. To enter a question mark, press and hold
.
To turn fixed dialling on or off
1}Phonebook }YES }Options }YES }Fixed dialling
}YES.
2Enter your PIN2 }YES.
3Select On or Off }YES.
To save a fixed number
1}Phonebook }YES }Special numbers }YES }Fixed
numbers }YES.
2}Add new? and enter the number }YES.
Closed user groups
The closed user group function is a way of lowering call
costs. On some networks it is cheaper to make calls within a
call group. You can save ten groups.
Calls to international emergency numbers can still be
made, even when the fixed dialling function is on.
J210-UG-EN.book Page 28 Tuesday, June 28, 2005 1:32 PM
29
To add a group
1}Calls }YES }Manage calls }YES }Closed groups
}YES }Edit list }YES.
2}Add new? }YES.
3Enter the name of the user group }YES.
4Enter the index number }YES. You get the index number
from your operator.
To activate a group
1}Calls }YES }Manage calls }YES }Closed groups
}YES }Edit list }YES.
2Select a group }YES.
3}Activate }YES. Calls can only be made within the
selected group.
To call outside a closed user group
}Calls }YES }Manage calls }YES }Closed groups }Open
calls }On.
Accept calls
With the accept calls service, you can choose to receive calls
only from certain numbers.
To add numbers to the accepted callers list
1}Calls }YES }Manage calls }YES }Accept calls }YES
}Accepted list }YES.
2}Add new? }YES.
3Select an option }YES.
4Select an entry }YES.
To select an accept option
}Calls }YES }Manage calls }YES }Accept calls }YES
}Accept options }YES select an option }YES.
J210-UG-EN.book Page 29 Tuesday, June 28, 2005 1:32 PM
30
Additional calling functions
Tone signals
You can use telephone banking services or control an
answering machine by sending tone signals (also known as
DTMF tones or touch tones) during a call.
To send and clear tones
• Press the number keys - , and .
• To clear the display after a call }NO.
Notepad
You can use the phone to make a note of a phone number
during a call. When you press the number keys, the person
you are talking to hears tone signals. To turn these tone
signals off during the call, press }Turn off tones }YES.
When you end the call, the number remains in the display.
To call the number }YES.
Showing or hiding your number
If your subscription supports CLIR (Calling Line
Identification Restriction), you can hide your phone number
when making a call.
To show or hide your phone number
1Enter the phone number you want to call.
2Press or }Calls }YES }Next call }YES.
3}Hide my number or Show my numb. }YES.
J210-UG-EN.book Page 30 Tuesday, June 28, 2005 1:32 PM
31
Messaging
Service numbers
You must have a service centre number before you can send a
text message. This number is provided by your operator. If it
is not saved on your SIM card, you must specify the number
yourself.
To check the number to your service centre
1}Messaging }YES }Text message }YES }Options
}YES }Service centres }YES. If no number is found
}Add new? }YES.
2Enter the number, including the international + sign and
country/region code }YES.
Text messages
You can use the SMS (Short Message Service) to send and
receive text messages. Text messages can contain pictures
and sound effects.
To send a text message
1}Messaging }YES }Text message }YES }Write new
}YES.
2Enter your message }YES, %13 Entering letters and
characters.
3Enter the recipient’s phone number or retrieve it from the
phonebook by pressing .
4}YES to send the message.
To insert an item in a text message
1}Messaging }YES }Text message }YES }Write new
}YES.
2Press to enter the option menu.
J210-UG-EN.book Page 31 Tuesday, June 28, 2005 1:32 PM
32
3Select Add symbol or Insert item }YES.
4Select Picture, Sound effect, Melody or Animation }YES.
5Select an object or symbol }YES. }YES again to
confirm.
Sending a text message to a group
You can send text messages to groups that you have specified
and saved in your phonebook, %21 Groups. You will be
charged for each group member.
To send a text message to a group
1}Messaging }YES }Text message }YES }Write new
}YES.
2Enter your message }YES.
3Press }Groups }YES.
4Select a group }YES.
Text formatting
You can change the style, size and alignment of the text in a
text message.
To format the text in a text message
1}Messaging }YES }Text message }YES }Write new
}YES.
2Write the text message.
3Press }Text format }YES.
4Select Text size, Text style, Alignment or New paragr.
}YES. Select a format }YES.
Text formatting only applies when Latin characters
are used.
J210-UG-EN.book Page 32 Tuesday, June 28, 2005 1:32 PM
33
Long messages
The maximum number of characters that a text message can
contain depends on the writing language. You can send a
longer message by linking two or more messages. You are
charged for the number of linked messages.
To turn long messages on
}Messaging }YES }Text message }YES }Options }YES
}Long messages }YES }On }YES.
Message options
You can set a default value for the message options below, or
you can turn on the Set on send option which means that you
choose the settings each time you send a message.
•Text message type – The phone supports different types of
messages. Your service provider may offer the facility of
converting a text message into a format (email, for
example) that suits the equipment that is going to receive
the message.
•Validity period – If your message cannot be delivered, your
service centre can save the message to send it later.
•Request reply – Include a reply request if you want the
recipient of your message to reply.
•Status request – Check if a message has been delivered.
To set a default message option
1}Messaging }YES }Text message }YES }Options
}YES.
2Select Text message type, Validity period, Request reply,
or Status request }YES.
Check with your service provider for the maximum
number of messages that can be linked.
J210-UG-EN.book Page 33 Tuesday, June 28, 2005 1:32 PM
34
3Select an option from the list }YES.
Templates
If you have one or more messages that you send often,
you can save these as templates.
To create a template
1}Messaging }YES }Text message }YES }Templates
}YES }Add new? }YES.
2Enter the message }YES to save the template.
To use a template
Select a template from the Templates list in the Messaging
menu, and proceed as described on %31 To send a text
message.
To check the number of sent messages
}Calls }YES }Time and cost }YES }Text msg counter
}YES }Show counter }YES.
To reset the message counter
}Calls }YES }Time and cost }YES }Text msg counter
}YES }Reset counter }YES.
Receiving a message
When you receive a message, press YES to read the message
now or NO to read the message later.
To reply to a message
1When you have read the message }YES.
2}Reply }YES.
3Select the message you want to send as a reply }YES.
You can choose between: Write new or Include this msg.
4Write your message }YES.
J210-UG-EN.book Page 34 Tuesday, June 28, 2005 1:32 PM
35
To forward a message
1When you have read the message }YES.
2}Forward }YES. Continue in the same way as when
sending a new text message.
To call a phone number found in a message
When the number is highlighted }YES.
To call the sender of the message
1When you have read the message }YES.
2}Call }YES.
To delete a message
When you have read the message }YES }Delete }YES.
Saving incoming messages
Text messages are automatically saved in the phone memory.
When the phone memory is full, they are automatically saved
on the SIM card. When both phone memory and SIM card
memory are full, you must delete messages to be able to
receive new messages. Messages that you have saved on the
SIM card can remain there until you have deleted them.
To save a message on the SIM card
When you have read the message }YES }Save on SIM }YES.
Picture messages
Picture messages can contain text, pictures and sounds. They
are sent via MMS (Multimedia Messaging Service) to a
mobile phone or via email. The sender and receiver of a
picture message must have a subscription that supports
MMS.
J210-UG-EN.book Page 35 Tuesday, June 28, 2005 1:32 PM
36
Before you start
Make sure you have the following settings:
• An address to your service centre.
• A specific WAP profile for multimedia messages.
To enter the service centre address
}Messaging }YES }Picture message }YES }Options }YES
}Message server }YES.
To select or enter settings for MMS
1}Messaging }YES }Picture message }YES }Options
}YES }Internet profile }YES.
2Select Select or Create new %51 To enter Internet
profile settings manually.
More options
You can set different options for sending and receiving
picture messages.
To select an option
}Messaging }YES }Picture message }YES }Options }YES.
To compose and send a picture message
1}Messaging }YES }Picture message }YES }Write new
}YES.
2Select from the submenus }YES.
3Enter the information you want to send }YES.
Contact your network operator to automatically
download settings or for more information. You can
also use the Phone setup on www.SonyEricsson.com/
support to get the settings you need. Choose region
and country, or Global Support Area, and enter your
product name.
J210-UG-EN.book Page 36 Tuesday, June 28, 2005 1:32 PM
37
4 }YES to add other items or more options.
5}Send message }YES. Enter the recipient’s phone
number or retrieve it from the phonebook by pressing
}YES.
To view a picture message
}YES. the message is automatically displayed. Press any key
to stop.
When you have viewed a picture message, you can use the
navigation key to scroll through the message again. When an
item is highlighted, press to save it in your phone.
When you have read the message, }Proceed, to select one
of the following options: Reply, Forward, Save template or
Delete. }NO to close the message.
Area information
Area information, for example, a local traffic report, is sent to
all subscribers in a certain network area. You cannot save
area messages.
To turn area information on or off
1}Messaging }YES }Area info }YES }Reception }YES.
2}On or Off }YES.
Cell information
The cell information channel is used by some network
operators for sending messages to their subscribers within a
certain network area.
To turn the cell information channel on or off
1}Messaging }YES }Area info }YES }Cell information
}YES.
2Select On or Off }YES.
J210-UG-EN.book Page 37 Tuesday, June 28, 2005 1:32 PM
38
Personalizing your phone
Themes
You can change the appearance of the display by using
themes. Your phone comes with a number of predefined
themes.
To select a theme
}Fun & Games }YES }Themes }YES.
To adjust the display contrast
}Settings }YES }Display }YES }Contrast }YES.
Pictures
Your phone comes with a number of pictures. All pictures are
saved in My pictures in the Fun & Games menu.
You can:
• Set a picture as a wallpaper when in standby mode.
• Assign a picture to an entry in the phonebook.
• Insert a picture in a picture message.
• Send a picture via the infrared port.
• Download a picture from the Internet.
Handling pictures
You can also add, delete or rename pictures in My pictures.
The number of pictures that can be saved depends on
available memory. File types supported are GIF, JPEG and
WBMP.
You cannot rename or delete predefined pictures.
J210-UG-EN.book Page 38 Tuesday, June 28, 2005 1:32 PM
39
To view your pictures
1}Fun & Games }YES }My pictures }YES.
2The pictures are shown in thumbnail view. To get a full
view }YES.
To select a picture as wallpaper
1}Settings }YES }Display }YES }Wallpaper }YES
}Select picture }YES.
2Select a picture }YES.
To turn the wallpaper on or off
}Settings }YES }Display }YES }Wallpaper }YES
}Activate, select YES or NO.
Exchanging pictures
You can send and receive pictures via the infrared port and in
picture messages. For more information on sending pictures
in messages, %31 Messaging.
To send a picture
1}Fun & Games }YES }My pictures }YES.
2Select a picture }YES. Press .
3}Send. Select a transfer method }YES.
Animations can only be viewed when inserting an item
in a text message, %31 To insert an item in a text
message.
You are not allowed to exchange copyright-protected
material.
J210-UG-EN.book Page 39 Tuesday, June 28, 2005 1:32 PM
40
To receive a picture via the infrared port
1From standby, press , scroll to Turn on infrared
}YES.
2When you receive the picture }YES to save it in My
pictures, %45 The infrared port.
To receive a picture via a message
When you receive a picture via a message, a new message
appears in your inbox. Highlight the picture in the message
by using the navigation key to select it, press }Save
picture to save it in My pictures.
Ringtones and melodies
Your phone comes with a number of standard and polyphonic
melodies which can be used as ringtones. You can create and
edit melodies, and send them to a friend in a text message.
You can also exchange melodies via the infrared port or
download new melodies from the Internet.
To select a ringtone
}Settings }YES }Sounds & alerts }YES }Ringtone }YES.
To set the ringtone volume
1}Settings }YES }Sounds & alerts }YES }Ring volume
}YES.
2Press or to decrease or increase the volume.
3}YES to save the setting.
You are not allowed to exchange copyright-protected
material.
J210-UG-EN.book Page 40 Tuesday, June 28, 2005 1:32 PM
41
To turn the ringtone on or off
Press or press and hold from standby, and select
Turn on silent or Turn off silent. All signals except the alarm
signal are turned off.
To compose your own ringtone
You can compose your own personal ringtones.
Options available when composing a ringtone are:
• Press a key to enter a note. Press and hold the key to make
it a long note.
• Press to raise the note one octave.
• Press once to raise the note one semitone.
• Press twice to lower the note one semitone.
• Press to remove notes.
To compose a ringtone
1}Fun & Games }YES }Composer }YES.
2Compose your ringtone using the options described
above.
3To listen to your ringtone }YES.
4Press YES again to save and name it, or NO to continue
composing.
Exchanging ringtones and melodies
You can send and receive a sound, ringtone or melody via the
infrared port, picture messages, or download it from the
Internet.
You cannot exchange a polyphonic melody via
text messages.
J210-UG-EN.book Page 41 Tuesday, June 28, 2005 1:32 PM
42
To send a melody
1}Fun & Games }YES }My sounds }YES.
2Select a melody and press .
3}Send }YES.
4Select a transfer method.
To receive a sound or melody via the infrared
port
1From standby, press }Turn on infrared }YES.
2When you receive the sound or melody }YES to save it
in My sounds.
Increasing ring
You can choose a ringtone that rises in steps from the lowest
volume to the highest, or you can choose a ringtone with a
constant volume.
To turn increasing ring On or Off
}Settings }YES }Sounds & alerts }YES }Increasing ring.
Select YES or NO.
Sounds & alerts
You can choose to be notified of an incoming call by the
buzzing of the vibrating alert. You can set the phone’s
vibrating alert to On, On if silent or Off.
From Sounds & alerts in the Settings menu, you can also
select:
•Message alert when messages are received.
•Key sound when using the keypad.
•Minute minder to beep after every minute during calls.
J210-UG-EN.book Page 42 Tuesday, June 28, 2005 1:32 PM
43
To set the vibrating alert
1}Settings }YES }Sounds & alerts }YES }Vibrating
alert }YES.
2Select the setting you want }YES.
Display light
The display light can be set to On or Automatic. Automatic is
the default setting for the display light and is designed to
optimize standby time. In automatic mode, the display light is
turned off a few seconds after you last press a key.
To activate the screen
Press from standby.
To set the display light
}Settings }YES }Display }YES }Light }YES.
To set the display contrast
}Settings }YES }Display }YES }Contrast }YES.
Time and date
To set the time
}Settings }YES }Time and date }YES }Set time }YES.
To set the time format
}Settings }YES }Time and date }YES }Time format }YES.
To set the date
}Settings }YES }Time and date }YES }Set date }YES.
If set to On, the display light consumes extra battery
power and reduces standby time.
J210-UG-EN.book Page 43 Tuesday, June 28, 2005 1:32 PM
44
To set the date format
}Settings }YES }Time and date }YES }Date format }YES.
Answering mode
When using a portable handsfree kit, you can choose to
answer a call by pressing any key (except the NO key), or
setting the phone to answer the call automatically.
To select answering mode
}Settings }YES }Handsfree }YES }Answering mode }YES.
My phone numbers
You can check your own phone number(s).
To check your phone number
}Phonebook }YES }Special numbers }YES }My numbers
}YES. If your number is not saved on your SIM card, you can
enter it yourself.
Profiles
Your phone has predefined profiles which are set to suit a
certain environment. You can rename or change these
profiles.
To select a profile
}Settings }YES }Profiles }YES }Select profile }YES.
To change a profile setting
1}Settings }YES }Profiles }YES }Edit profile }YES.
2Select a setting }YES.
3Change the profile settings }YES to confirm.
J210-UG-EN.book Page 44 Tuesday, June 28, 2005 1:32 PM
45
To rename a profile
}Settings }YES }Profiles }YES }Edit profile }YES }Profile
name }YES.
To reset all profiles
}Settings }YES }Profiles }YES }Reset profiles }YES.
Master reset
You can reset all the settings in the phone to the way they
were when you bought your phone by selecting Reset
settings.
If you also want to delete all phonebook entries, messages
and other personal data, select Reset all instead.
To reset the phone
1}Settings }YES }Master reset }YES.
2Select Reset settings or Reset all }YES.
3}YES to continue.
4Enter the phone lock code (0000 or a new code) }YES.
The infrared port
The infrared port can be used to transfer and exchange
information with another device equipped with an infrared
port.
If you select Reset all, content such as melodies and
pictures that you have downloaded, received or edited
is also deleted.
J210-UG-EN.book Page 45 Tuesday, June 28, 2005 1:32 PM
46
When used with certain functions, such as sending a
picture, the infrared port is automatically activated for a
short while.
The infrared port can be activated in the following ways:
• Press from standby }Turn on infrared }YES.
•}Connectivity }YES }Infrared port select an option }YES.
Infrared ports must be facing each other at a distance
of 20 to 30 cm when used.
J210-UG-EN.book Page 46 Tuesday, June 28, 2005 1:32 PM
47
Internet
Setting up the Internet
In order to use the Internet the following are required:
• A phone subscription that supports data transmission.
• Settings entered in your phone.
• You may also have to register as an Internet user with your
service provider or network operator.
Receiving settings in a text message
Your GSM network operator or Internet service provider may
be able to send your settings direct to your phone in a text
message (SMS).
Request settings from Sony Ericsson
Use a PC to go to www.SonyEricsson.com/support to request
that a text message with the settings be sent to your phone.
To install settings
When the message arrives, New settings received Install?
appears:
•Press YES to install the new settings. If settings already
exist in your phone you can either keep or replace them,
%48 Advanced setting information.
•Press NO to cancel installation.
After installation, %53 Using the Internet browser.
Set up with the wizard
If your phone is not set up for Internet, you can ask your
network operator or service provider to provide you with
Internet settings information. Then you can simply use the
wizard in your phone to help guide you through the
relevant settings.
J210-UG-EN.book Page 47 Tuesday, June 28, 2005 1:32 PM
48
To use the wizard for setting up Internet
1}Internet services }YES } homepage (for example
Sony Ericsson) }YES. The wizard now starts if no
settings exist.
2Enter and save settings when asked, press YES to
confirm.
Advanced setting information
Some advanced settings that are described in the following
texts may not be mandatory, please consult your network
operator or service provider for more information.
A data account includes connection settings for access to
a server at your service provider, for example via WAP or via
e-mail.
An Internet profile includes user settings that allow Web
browsing.
To use the Web browser, via an Internet service provider,
you need settings for a specific data account for Internet and
an Internet profile.
To send a text message (SMS) to an email address via your
network operator, you need to set an email gateway phone
number.
Data account settings
You can have several data accounts saved in your phone, with
different settings for different purposes. The main setting for
a data account is the Account type (connection method).
More information about setting up is available
in the Getting Started Guides at
www.SonyEricsson.com/support.
J210-UG-EN.book Page 48 Tuesday, June 28, 2005 1:32 PM
49
You can choose from GPRS data or GSM data account types.
If you want to change access type, you have to create a new
data account and select the access type you want to use.
GPRS
GPRS (General Packet Radio Service) allows fast and
efficient access where you can always be online. You need a
subscription that supports GPRS.
GPRS settings that are available:
•APN (Access point name address) – the address of the
external network you want to connect to, either an IP
address or a text string.
•Username – your username to log on to an external
network.
•Password – your password to log on to an external
network.
•Passwd request – if this setting is on, you are asked for a
password each time you log on to the external network.
•Allow calls (Preferred service) – if you want to be able to
accept incoming calls during a GPRS session, select
Automatic. If not, select GPRS only.
•IP address – the IP address that the phone uses when
communicating with the network. If you do not enter an
address, the network provides you with a temporary
IP address.
If there are no data account or Internet profile settings
in your phone, you can enter data account settings
when you enter Internet profile settings.
J210-UG-EN.book Page 49 Tuesday, June 28, 2005 1:32 PM
50
•DNS address – if the network does not provide the
IP address to the DNS server automatically, you may
enter it here.
•Advan. settings (Advanced settings) – these are optional.
Consult your network operator.
GSM
GSM settings include some settings that are similar to GPRS
settings and some that are GSM specific as follows:
•Phone number – the phone number of your Internet service
provider.
•Data rate – select the speed you want for the connection.
•Dial type – select Analogue or ISDN connection.
To create a data account manually
1}Connectivity }YES }Data comm. }YES }Data
accounts }YES }Add account? }YES.
2Select an account type for access and enter a name for
the data account.
3Enter the settings that you have received from your
network operator or service provider. }YES to confirm
each setting.
4Save? }YES.
To edit a data account
1}Connectivity }YES }Data comm. }YES }Data
accounts }YES.
2Select a data account }YES.
3}Edit.
4Select the setting you want to edit }YES. Edit the setting
}YES.
5Repeat step 4 for other settings you want to edit.
J210-UG-EN.book Page 50 Tuesday, June 28, 2005 1:32 PM
51
Preferred service
You can set GPRS or GSM as the preferred service.
To select preferred service
}Connectivity }YES }Data comm. }YES }Pref. service
}YES and select GPRS and GSM or GSM only }YES.
Internet profile settings
The Internet settings are stored in an Internet profile. In most
cases you only need to use one profile to access the Internet.
You set up and use additional Internet profiles, for
example, when accessing secure Internet sites. You then
simply switch between profiles when you need to change the
network connection.
Make sure you have a data account set up between your
phone and the Internet server, as described on %48 Data
account settings.
To enter Internet profile settings manually
1}Internet services }YES }Options }YES }Internet
profiles }YES.
2}Add profile? to add a new profile or select an existing
profile that you want to edit }YES.
To enter information in a new profile
When selecting Add profile? enter a name for the profile
}YES }Connect using: }YES, select the data account to be
used }YES and enter the IP address }YES. A list appears.
Scroll to Save? }YES.
J210-UG-EN.book Page 51 Tuesday, June 28, 2005 1:32 PM
52
To edit an existing profile
When selecting an existing profile, you can do the following:
•Rename – Change the name of the profile.
•Connect using – Select data account.
•IP address – WAP gateway server address.
•Advanced – More profile settings, see below.
•Delete – Remove the profile.
To use advanced profile settings
If you select Advanced you can do the following:
•Chg homepage – Enter the address of the site you want as
the homepage.
•Second account – Select an alternative data account, if the
first in Connect using fails.
•Username – Enter your username for the WAP gateway.
•Password – Enter your password for the WAP gateway.
•Security – See Internet security settings.
•Show pictures – View pictures while browsing.
Internet security
Your phone has support for secure browsing. Security for a
connection between a WAP gateway and an Internet service
provider is the responsibility of the service provider.
To turn on a secure connection
1}Internet services }YES }Options }YES }Internet
profiles }YES.
2Select the profile to be used }YES.
3}Advanced }YES }Security }YES.
4}On }YES.
J210-UG-EN.book Page 52 Tuesday, June 28, 2005 1:32 PM
53
Trusted certificates
To establish a secure connection when using certain Internet
services, for example banking or shopping, you need
certificates in your phone.
To check the certificates in your phone
}Internet services }YES }Options }YES }Common }YES
}Security }YES }Trusted certif. }YES.
Using the Internet browser
Settings may already be entered when you buy the phone.
Otherwise you can receive the settings from your network
operator or your service provider in a text message. You can
also use the Phone setup on www.SonyEricsson.com/support
to get the settings you need. Choose region and country, or
Global Support Area, and enter your product name.
Internet access
There are two ways to access the Internet:
• Direct access via the options key
• Access via the menu system
To access the Internet directly
Press and hold .
To access the Internet via the menus
}Internet services }YES. Select one of the following:
• Open your homepage, for example, Sony Ericsson.
• Go to one of your bookmarks. Select Bookmarks }YES.
• Enter the address of an Internet site. Select Enter address
}YES. New address? to enter a new address or select one
of the 10 latest entered addresses. When you enter an
address, the normal http:// prefix is not needed.
J210-UG-EN.book Page 53 Tuesday, June 28, 2005 1:32 PM
54
To stop browsing
• Press and hold NO or
•Press }Exit browser.
Options when browsing
When you have started browsing, you can reach different
browsing options by pressing .
The options menu is dynamic. Its content may vary
depending on which site you are visiting.
The options menu contains the following:
•Bookmarks – Add the site you are currently browsing to
your list of bookmarks, or see the list of bookmarks for the
current profile.
•Push inbox – Displays received push messages.
•Enter address – Enter the Internet address of a site you
want to visit.
•Save picture – Save a picture from the site.
•Send as text msg – Send a text message with a link to the
current Web page to another phone.
•Reload – Refresh the contents of the Web page.
•Exit browser – Disconnect and go to standby.
•Status – Display current status information, for example,
profile, access type, connection time, data rate, security,
address.
•Set as homepg – Set the current site as the homepage of
the Internet profile you are using.
Using bookmarks
You use bookmarks in your mobile phone just as you do with
a PC Internet browser. You can have up to 25 bookmarks.
J210-UG-EN.book Page 54 Tuesday, June 28, 2005 1:32 PM
55
To work with bookmarks
1}Internet services }YES }Bookmarks }YES.
2Select the bookmark you want to work with }.
3}Go to, Edit, Delete, Send as text msg, or Set as homepg
}YES.
Downloading
You can download, for example, pictures and ringtones from
Web sites directly to your phone.
To download from www.SonyEricsson.com
1}Internet services }YES }Bookmarks }YES
}Sony Ericsson }YES.
2Select what you want to download and follow the
instructions that appear }YES.
Stored information
The following information can be saved in your phone:
• Cache – improves memory efficiency.
• Passwords – improves server access efficiency.
• Cookies – improves site access efficiency.
It is advisable to clear any sensitive information about
previously visited Internet services.
To allow Internet information in your phone
1}Internet services }YES }Options }YES }Common
}YES.
2Select the information to allow }YES.
Make sure the file sizes do not exceed the free memory
in your phone, %63 Memory status for more
information.
J210-UG-EN.book Page 55 Tuesday, June 28, 2005 1:32 PM
56
To clear cache, password list, cookies or
push inbox
1}Internet services }YES }Advanced }YES.
2Select the information to be cleared }YES to confirm.
J210-UG-EN.book Page 56 Tuesday, June 28, 2005 1:32 PM
57
More features
Keypad lock
To lock the keypad
Press }Lock keypad }YES.
To unlock the keypad
Press }Unlock keypad? }YES.
Alarm clock
The alarm clock rings even if the phone is set to silent or
turned off.
To set an alarm
1}Organizer }YES }Alarms }YES }Alarm or Recurrent
alarm }YES.
2Enter the time }YES and day, if the alarm is recurrent, by
scrolling and pressing }YES.
To change the alarm time
1}Organizer }YES }Alarms }YES }Alarm }YES }New
time }YES.
2Press any key to turn the alarm signal off when it rings.
If you do not want the alarm to be repeated }YES.
To cancel the alarm
}Organizer }YES }Alarms }YES. Select Alarm or Recurrent
alarm }YES }Cancel }YES.
To select an alarm signal
}Settings }YES }Sounds & alerts }YES }Alarm signal
}YES.
J210-UG-EN.book Page 57 Tuesday, June 28, 2005 1:32 PM
58
Stopwatch
The stopwatch is turned off when you answer an incoming
call or when you exit the stopwatch menu.
To use the stopwatch
}Organizer }YES }Stopwatch }YES then press:
• to reset.
• to save up to nine lap times.
•YES to start, stop or re-start.
•NO to stop.
• or to check saved lap times.
Calculator
The phone has a built-in calculator, which can add, subtract,
divide and multiply.
To use the calculator
1}Organizer }YES }Calculator }YES.
2Enter digits with the keypad, then press:
• or to get ÷, x, -, +, a decimal point or %.
• to delete the figure.
•YES to calculate a result, equal to (=).
• to save to memory.
• to retrieve from memory.
Timer
The phone has a 24-hour timer. When the signal rings, press
any key to turn it off.
To set the timer
}Organizer }YES }Timer }YES.
J210-UG-EN.book Page 58 Tuesday, June 28, 2005 1:32 PM
59
Calendar
In the calendar you can add tasks for things that you have to
remember. The tasks can be edited or deleted.
To add a task
1}Organizer }YES }Calendar }YES.
2}Add task? }YES.
3Enter a description }YES.
4Enter the start/end dates and times }YES.
5}Continue? }YES.
6Set a reminder, if required, or press None to save.
To set the reminder
Select any of the predefined values or press Other reminder,
and enter the alarm date }YES and the alarm time }YES.
To view a task
1}Organizer }YES }Calendar }YES.
2Select View today, View all tasks, View week, or View
month }YES.
To delete a task
Scroll to the task that you want to delete, press .
To delete all tasks
}Organizer }YES }Calendar }YES }Delete all }YES.
To edit a task
1When the task is displayed }YES.
2}Edit }YES.
3Edit the task }YES, edit the date }YES, edit the reminder
}YES.
J210-UG-EN.book Page 59 Tuesday, June 28, 2005 1:32 PM
60
Games
Information and games controls is given in help texts for
each game.
To start a game
1}Fun & Games }YES }Games }YES.
2Select a game }YES.
3Select New game or Resume game }YES.
J210-UG-EN.book Page 60 Tuesday, June 28, 2005 1:32 PM
61
Security
SIM card lock
The SIM card lock protects your subscription, but not your
phone itself, from unauthorized use. If you change SIM
cards, the phone still works with the new SIM card.
PIN and PUK code
Most SIM cards are locked at the time of purchase. If the SIM
card lock is on, you have to enter a “PIN” (Personal Identity
Number) every time you turn on your phone.
If you enter your PIN incorrectly three times in a row,
the SIM card is blocked. This is indicated by the message PIN
blocked. To unblock it you need to enter your “PUK”
(Personal Unblocking Key). Your PIN and PUK are supplied
by your operator.
To unblock your SIM card
1PIN blocked appears.
2Enter your PUK }YES.
3Enter a new four- to eight-digit PIN }YES.
4Re-enter the new PIN to confirm }YES.
To edit your PIN
}Settings }YES }Locks }YES }SIM lock }YES }Change
PIN }YES. If the message Codes do not match appears, you
entered the new PIN incorrectly. If the message Wrong PIN
appears, followed by Old PIN:, you entered your old PIN
incorrectly.
J210-UG-EN.book Page 61 Tuesday, June 28, 2005 1:32 PM
62
PIN2
Certain services are protected by a second PIN.
To edit your PIN2
}Settings }YES }Locks }YES }SIM lock }YES }Change
PIN2 }YES.
To turn the SIM card lock on or off
1}Settings }YES }Locks }YES }SIM lock }YES
}Protection }YES.
2}On or Off }YES.
3Enter your PIN }YES.
Phone lock
The phone lock protects the phone against unauthorized use if
it is stolen and the SIM card is exchanged. It is not on when
you buy the phone. You can change the phone lock code
(0000) to any four- to eight-digit personal code. The phone
lock can be set to on, automatic or off.
Phone lock on
If the phone lock is on, the message Phone locked appears
each time you turn on the phone. You have to enter your code
followed by YES to use your phone.
Automatic
If the phone lock is set to automatic, you do not need to enter
your phone lock code until a different SIM card is inserted in
the phone.
The phone lock code must be entered to use Master
reset. %45 Master reset for more information.
J210-UG-EN.book Page 62 Tuesday, June 28, 2005 1:32 PM
63
To set the phone lock
1}Settings }YES }Locks }YES }Phone lock }YES
}Protection }YES.
2Select an alternative }YES.
3Enter the phone lock code }YES.
Editing the phone lock code
It is important that you remember your new code. If you
should forget it, you have to hand in your phone to your local
Sony Ericsson retailer.
To edit your phone lock code
}Settings }YES }Locks }YES }Phone lock }YES }Change
code }YES.
Memory status
Check for example, how many positions are left in your
phonebook or how much memory is used.
To check the memory of the phonebook
}Phonebook }YES }Memory status }YES.
To check the memory for pictures or sounds
1}Fun & Games }YES, select one of the menus }YES.
2Press }Memory status }YES.
To check memory for text messages
}Messaging }YES }Text message }YES }Text msg memory
}YES.
To delete saved files or information
Select a file or information, press }YES.
Please note that some factory default files and information
cannot be deleted.
J210-UG-EN.book Page 63 Tuesday, June 28, 2005 1:32 PM
64
Troubleshooting
This chapter lists some problems that you might encounter
while using your phone. Some problems require that you call
your service provider, but most of the problems you can
easily correct yourself.
The phone cannot be switched on
Recharge or replace the battery
%6 To insert the SIM card and charge the battery.
No indication of charging
When you start charging a battery that is empty or a battery
that has not been used for a long time, it may take up to
30 minutes before the battery icon appears in the display.
Menu language
If the display shows a language that you do not understand,
you can always set the following from standby:
Press 0000 for English menus.
Press 8888 for automatic, local menus.
Grey menu options
Grey text indicates a function that is temporarily unavailable,
for example, due to your subscription or due to a certain
setting which has not been turned on.
Since you cannot send pictures and sounds that are
copyright-protected, the Send menu is sometimes
unavailable.
J210-UG-EN.book Page 64 Tuesday, June 28, 2005 1:32 PM
65
Error messages
Insert SIM
There is no SIM card in the phone, it may need cleaning or
you may have inserted it incorrectly, %6 To insert the SIM
card and charge the battery.
Insert correct SIM card
The phone is set to work only with certain SIM cards. Insert
the correct SIM card.
Inactive SIM
The SIM card is not activated. Contact your network operator
for more information.
Emergency calls only
You are within range of a network, but you are not allowed to
use it. However, in an emergency, some operators allow you
to call, for example, the international emergency number 112,
%16 Emergency calls.
No network
There is no network within range or the received signal is too
weak. You have to move to get a signal that is strong enough.
Wrong PIN/Wrong PIN2
You have entered your PIN or PIN2 incorrectly. Enter the
correct PIN or PIN2, and press YES, %61 SIM card lock.
Codes do not match
When you want to change a security code (for example your
PIN) you have to confirm the new code by entering it again.
The two codes that you have entered do not match %61 SIM
card lock.
J210-UG-EN.book Page 65 Tuesday, June 28, 2005 1:32 PM
66
PIN blocked/PIN2 blocked
You have entered your PIN or PIN2 incorrectly three times in
a row. To unblock, %61 SIM card lock.
PUK blocked – contact operator
You entered your personal unblocking key code (PUK)
incorrectly 10 times in a row. Contact your network operator
or service provider.
Phone locked
The phone is locked. To unlock the phone, %62 Phone lock.
Phone lock code:
Your phone comes with the phone lock code, 0000. You can
change it to any four- to eight-digit code, %62 Phone lock.
Number not permitted
The fixed dialling function is on and the number you have
dialled is not on your fixed numbers list, %27 Fixed dialling.
J210-UG-EN.book Page 66 Tuesday, June 28, 2005 1:32 PM
67
Additional information
Sony Ericsson Consumer Web site
On www.SonyEricsson.com/support there is a section where
help and tips are only a few clicks away. Here you find the
latest software updates and tips on how to use your product
more efficiently.
Guidelines for Safe and Efficient Use
Please read this information before using your mobile
phone.
Recommendations
• Always treat your product with care and keep it in a
clean and dust-free place.
• Do not expose your product to liquid or moisture or humidity.
• Do not expose your product to extreme high or low
temperatures.
• Do not expose your product to open flames or lit
tobacco products.
• Do not drop, throw or try to bend your product.
• Do not paint your product.
• Do not use your product near medical equipment without
requesting permission.
• Do not use your product when in, or around aircraft, or areas
posted “turn off two-way radio”.
• Do not use your product in an area where a
potentially explosive atmosphere exists.
• Do not place your product or install wireless
equipment in the area above your car’s air bag.
• Do not attempt to disassemble your product. Only
Sony Ericsson authorised personnel should perform
service.
J210-UG-EN.book Page 67 Tuesday, June 28, 2005 1:32 PM
68
Antenna
Only use an antenna that has been specifically designed by Sony
Ericsson for your mobile phone. Use of unauthorised or modified
antennas could damage your mobile phone and may violate
regulations, causing loss of performance and SAR levels above the
recommended limits (see below).
Efficient use
Hold your mobile phone as you would any other phone. Do not cover
the top of the phone when in use, as this affects call quality and may
cause the phone to operate at a higher power level than needed, thus
shortening talk and standby times.
Radio frequency (RF) exposure and SAR
Your mobile phone is a low-power radio transmitter and receiver.
When it is turned on, it emits low levels of radio frequency energy
(also known as radio waves or radio frequency fields).
Governments around the world have adopted comprehensive
international safety guidelines, developed by scientific organizations,
e.g. ICNIRP (International Commission on Non-Ionizing Radiation
Protection) and IEEE (The Institute of Electrical and Electronics
Engineers Inc.) through periodic and thorough evaluation of scientific
studies. These guidelines establish permitted levels of radio wave
exposure for the general population. The levels include a safety
margin designed to assure the safety of all persons, regardless of age
and health, and to account for any variations in measurements.
Specific Absorption Rate (SAR) is the unit of measurement for the
amount of radio frequency energy absorbed by the body when using a
mobile phone. The SAR value is determined at the highest certified
power level in laboratory conditions, but the actual SAR level of the
mobile phone while operating can be well below this value.
This is because the mobile phone is designed to use the minimum
power required to reach the network.
Variations in SAR below the radio frequency exposure guidelines do
not mean that there are variations in safety. While there may be
differences in SAR levels among mobile phones, all Sony Ericsson
J210-UG-EN.book Page 68 Tuesday, June 28, 2005 1:32 PM
69
mobile phone models are designed to meet radio frequency exposure
guidelines.
Before a phone model is available for sale to the public, it must be
tested and certified to the FCC that it does not exceed the limit
established by the government-adopted requirement for safe
exposure. The tests are performed in positions and locations (that is,
at the ear and worn on the body) as required by the FCC for each
model. For body worn operation, this phone has been tested and
meets FCC RF exposure guidelines when the handset is positioned a
minimum of 15 mm from the body without any metal parts in the
vicinity of the phone or when used with the original Sony Ericsson
body worn accessory intended for this phone. Use of other
accessories may not ensure compliance with FCC RF exposure
guidelines.
A separate leaflet with SAR information for this mobile phone model is
included with the material that comes with this mobile phone. This
information can also be found, together with more information on
radio frequency exposure and SAR, on:
www.SonyEricsson.com.support
Driving
Please check if local laws and regulations restrict the use of mobile
phones while driving or require drivers to use handsfree solutions. We
recommend that you use only Ericsson or Sony Ericsson handsfree
solutions intended for use with your product. Please note that
because of possible interference to electronic equipment, some
vehicle manufacturers forbid the use of mobile phones in their
vehicles unless a handsfree kit with an external antenna supports the
installation.
Always give full attention to driving and pull off the road and park
before making or answering a call if driving conditions so require.
Personal medical devices
Mobile phones may affect the operation of cardiac pacemakers and
other implanted equipment. Please avoid placing the mobile phone
over the pacemaker, e.g. in your breast pocket. When using the
mobile phone, place it at the ear opposite the pacemaker. If a
J210-UG-EN.book Page 69 Tuesday, June 28, 2005 1:32 PM
70
minimum distance of 15 cm (6 inches) is kept between the mobile
phone and the pacemaker, the risk of interference is limited. If you
have any reason to suspect that interference is taking place,
immediately turn off your mobile phone. Contact your cardiologist for
more information.
For other medical devices, please consult the manufacturer of
the device.
CHILDREN
DO NOT ALLOW CHILDREN TO PLAY WITH YOUR
MOBILE PHONE OR ITS ACCESSORIES. THEY
COULD HURT THEMSELVES OR OTHERS, OR
COULD ACCIDENTALLY DAMAGE THE MOBILE
PHONE OR ACCESSORY. YOUR MOBILE PHONE
OR ITS ACCESSORY MAY CONTAIN SMALL PARTS THAT
COULD BE DETACHED AND CREATE A CHOKING HAZARD.
Disposal of Old Electrical &
Electronic Equipment
This symbol on the product or on its packaging indicates
that this product shall not be treated as household
waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for
the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. The recycling of
materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local
city office, your household waste disposal service or the shop where
you purchased the product.
Power supply
Connect the AC power adapter only to designated power sources as
marked on the product. Make sure the cord is positioned so that it will
not be subjected to damage or stress. To reduce risk of electric
shock, unplug the unit from any power source before attempting to
J210-UG-EN.book Page 70 Tuesday, June 28, 2005 1:32 PM
71
clean it. The AC power adapter must not be used outdoors or in damp
areas. Never alter the cord or plug. If the plug will not fit into the outlet,
have a proper outlet installed by a qualified electrician.
Emergency calls
Mobile phones operate using radio signals, which cannot guarantee
connection under all conditions. Therefore you should never rely
solely upon any mobile phone for essential communications (e.g.
medical emergencies).
Emergency calls may not be possible on all cellular networks or when
certain network services and/or mobile phone features are in use.
Check with your local service provider.
Battery use and care
We recommend that you fully charge the battery before you use your
mobile phone for the first time. The battery can only be charged in
temperatures between +5°C (+41°F) and +45°C (+113°F).
A new battery or one that has not been used for a long time could
have reduced capacity the first few times it is used.
The talk and standby times depend on the actual transmission
conditions when using the mobile phone. If the mobile phone is used
near a base station, less power is required and talk and standby times
are prolonged.
•Warning! May explode if disposed of in fire.
• Use only Ericsson or Sony Ericsson branded original batteries and
chargers intended for use with your mobile phone. Other chargers
may not charge sufficiently or may produce excessive heat. Using
other batteries and chargers could be dangerous.
• Do not expose the battery to liquid.
• Do not let the metal contacts on the battery touch another metal
object. This could short-circuit and damage the battery.
• Do not disassemble or modify the battery.
• Do not expose the battery to extreme temperatures,
never above +60°C (+140°F). For maximum battery
capacity, use the battery in room temperature.
• Turn off your mobile phone before removing
the battery.
J210-UG-EN.book Page 71 Tuesday, June 28, 2005 1:32 PM
72
• Keep out of children’s reach.
• Use the battery for the intended purpose only.
• Do not allow the battery to be put into the mouth.
Battery electrolytes may be toxic if swallowed.
Disposing of the battery
Please check local regulations for disposal of batteries
or call your local Sony Ericsson Call Center for
information.
The battery should never be placed in municipal waste.
Use a battery disposal facility if available.
End User Licence Agreement
This wireless device (“Device”) contains software owned by Sony
Ericsson Mobile Communications AB (“Sony Ericsson”) and its third
party suppliers and licensors (“Software”).
As user of this Device, Sony Ericsson grants you a non-exclusive,
non-transferable, non-assignable license to use the Software solely in
conjunction with the Device on which it is installed. Nothing herein
shall be construed as a sale of the Software to a user of this Device.
You shall not reproduce, modify, distribute, reverse engineer,
decompile, otherwise alter or use any other means to discover the
source code of the Software or any component of the Software. For
avoidance of doubt, you are at all times entitled to transfer all rights
and obligations to the Software to a third party, solely together with
the Device with which you received the Software, provided always
that such third party agrees in writing to be bound by these rules.
You are granted this license for a term of the useful life of this Device.
You can terminate this license by transferring all your rights to the
Device on which you have received the Software to a third party in
writing. If you fail to comply with any of the terms and conditions set
out in this license, it will terminate with immediate effect.
Sony Ericsson and its third party suppliers and licensors are the sole
and exclusive owner of and retain all rights, title and interest in and to
the Software. Sony Ericsson, and, to the extent that the Software
J210-UG-EN.book Page 72 Tuesday, June 28, 2005 1:32 PM
73
contains material or code of a third party, such third party, shall be
entitled third party beneficiaries of these terms.
The validity, construction and performance of this license shall be
governed by the laws of Sweden. The foregoing shall apply to the full
extent permitted by, when applicable, statutory consumer rights.
Limited Warranty
Sony Ericsson Mobile Communications AB, S-221 88 Lund, Sweden,
(Sony Ericsson), provides this Limited Warranty for your mobile
phone and original accessory delivered with your mobile phone
(hereinafter referred to as “Product”).
Should your Product need warranty service, please return it to the
dealer from whom it was purchased, or contact your local Sony
Ericsson Call Center (national rates may apply) or visit
www.SonyEricsson.com/support to get further information.
Our warranty
Subject to the conditions of this Limited Warranty, Sony Ericsson
warrants this Product to be free from defects in design, material and
workmanship at the time of its original purchase by a consumer, and
for a subsequent period of one (1) year.
What we will do
If, during the warranty period, this Product fails to operate under
normal use and service, due to defects in design, materials or
workmanship, Sony Ericsson authorised distributors or service
partners, in the country/region* where you purchased the Product,
will, at their option, either repair or replace the Product in accordance
with the terms and conditions stipulated herein.
Sony Ericsson and its service partners reserve the right to charge a
handling fee if a returned Product is found not to be under warranty
according to the conditions below.
Please note that some of your personal settings, downloads or other
information may be lost when your Sony Ericsson Product is repaired
or replaced. At present Sony Ericsson may be prevented by
applicable law, other regulation or technical restrictions from making a
J210-UG-EN.book Page 73 Tuesday, June 28, 2005 1:32 PM
74
backup copy of certain downloads. Sony Ericsson does not take any
responsibility for any lost information of any kind and will not
reimburse you for any such loss. You should always make backup
copies of all the information stored on your Sony Ericsson Product
such as downloads, calendar and contacts before handing in your
Sony Ericsson Product for repair or replacement.
Conditions
1The warranty is valid only if the original proof of purchase issued to
the original purchaser by an, for this Product, Sony Ericsson
authorised dealer, specifying the date of purchase and serial
number**, is presented with the Product to be repaired or
replaced. Sony Ericsson reserves the right to refuse warranty
service if this information has been removed or changed after the
original purchase of the Product from the dealer.
2If Sony Ericsson repairs or replaces the Product, the repaired or
replaced Product shall be warranted for the remaining time of the
original warranty period or for ninety (90) days from the date of
repair, whichever is longer. Repair or replacement may involve the
use of functionally equivalent reconditioned units. Replaced parts
or components will become the property of Sony Ericsson.
3This warranty does not cover any failure of the Product due to
normal wear and tear, or due to misuse, including but not limited to
use in other than the normal and customary manner, in
accordance with the Sony Ericsson instructions for use and
maintenance of the Product. Nor does this warranty cover any
failure of the Product due to accident, software or hardware
modification or adjustment, acts of God or damage resulting from
liquid. A rechargeable battery can be charged and discharged
hundreds of times. However, it will eventually wear out – this is not
a defect. When the talk-time or standby time is noticeably shorter,
it is time to replace your battery. Sony Ericsson recommends that
you use only batteries and chargers approved by Sony Ericsson.
Minor variations in display brightness and color may occur
between phones. There may be tiny bright or dark dots on the
display. These are called defective pixels and occur when
individual dots have malfunctioned and can not be adjusted. Two
J210-UG-EN.book Page 74 Tuesday, June 28, 2005 1:32 PM
75
defective pixels are deemed acceptable. Minor variations in
camera image appearance may occur between phones. This is
nothing uncommon and is not regarded as a defective camera
module.
4Since the cellular system on which the Product is to operate is
provided by a carrier independent from Sony Ericsson, Sony
Ericsson will not be responsible for the operation, availability,
coverage, services or range of that system.
5This warranty does not cover Product failures caused by
installations, modifications, or repair or opening of the Product
performed by a non-Sony Ericsson authorised person.
6The warranty does not cover Product failures which have been
caused by use of accessories or other peripheral devices which
are not Ericsson or Sony Ericsson branded original accessories
intended for use with the Product.
7Tampering with any of the seals on the Product will void
the warranty.
8THERE ARE NO EXPRESS WARRANTIES, WHETHER
WRITTEN OR ORAL, OTHER THAN THIS PRINTED LIMITED
WARRANTY. ALL IMPLIED WARRANTIES, INCLUDING
WITHOUT LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY. IN NO EVENT SHALL SONY ERICSSON
OR ITS LICENSORS BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY NATURE
WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST
PROFITS OR COMMERCIAL LOSS; TO THE FULL EXTENT
THOSE DAMAGES CAN BE DISCLAIMED BY LAW.
Some countries/states do not allow the exclusion or limitation of
incidental or consequential damages, or limitation of the duration of
implied warranties, so the preceding limitations or exclusions may not
apply to you.
The warranty provided does not affect the consumer’s statutory rights
under applicable legislation in force, nor the consumer’s rights against
the dealer arising from their sales / purchase contract.
J210-UG-EN.book Page 75 Tuesday, June 28, 2005 1:32 PM
76
*EUROPEAN UNION (EU)
If you have purchased your Product in an EU country you can have
your Product serviced, under the conditions set out above, within the
warranty period in any EU country where an identical Product is sold
by an authorised Sony Ericsson distributor. To find out if your Product
is sold in the EU country you are in, please call the local Sony
Ericsson Call Center. Please observe that certain services may not be
possible elsewhere than in the country of original purchase, for
example due to the fact that your Product may have an interior or
exterior which is different from equivalent models sold in other EU
countries. It may not be possible to repair SIM-locked Products.
** In some countries/regions additional information is requested. If so,
this is clearly shown on the valid proof of purchase.
FCC Statement
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
J210-UG-EN.book Page 76 Tuesday, June 28, 2005 1:32 PM
77
Declaration of Conformity
We, Sony Ericsson Mobile Communications AB of
Nya Vattentornet
S-221 88 Lund, Sweden
declare under our sole responsibility that our product
Sony Ericsson type AAB-1021062-BV
and in combination with our accessories, to which this declaration
relates is in conformity with the appropriate standards 3GPP TS
51.010-1, EN 301489-7, EN 60950, following the provisions of Radio
Equipment and Telecommunication Terminal Equipment directive 99/
5/EC with requirements covering EMC directive 89/336/EEC, and
Low Voltage directive 73/23/EEC.
We fulfil the requirements of the R&TTE Directive (99/5/EC).
Lund, May 2005
Hiroshi Yoshioka, Head of Product Business Unit GSM/UMTS
0682
J210-UG-EN.book Page 77 Tuesday, June 28, 2005 1:32 PM
78
Index
A
alarm clock 57
animations 39
answering mode 44
ask to save 18
assembling, phone 6
automatic redialling 15
B
battery
charging 7
inserting 7
use and care 71
buttons 8
C
calculator 58
calendar 59
call costs 21
credit limit 23
minute minder 42
call time 21
calling
from call list 16
calls
accept 29
answering 15
automatic redialling 15
diverting 23
emergency 16
fixed dialling 27
making 8, 15
missed 15
put on hold 24
receiving 8
restrict 27
charging, battery 7
codes
PIN 7
PUK 7
conference calls 26
connectors 8
contrast (display) 43
D
declaration of conformity 77
display
contrast 43
icons 9
light 43
downloading 55
J210-UG-EN.book Page 78 Tuesday, June 28, 2005 1:32 PM
79
E
emergency calls 16
emergency numbers 16
error messages 65
F
fixed dialling 27
G
games 60
memory status 63
GPRS 49
groups
closed user groups 28
conference calls 26
groups. see phonebook 21
GSM 50
GSM frequencies 2
H
handsfree 44
I
icons, in display 9
infrared port 45
Internet
bookmarks 54
downloading 55
options 54
security 52
setting up 47
K
key sound 42
keys 8
L
language
changing 12
in phone 12
locks
phone 62
SIM card 61
M
master reset 45
melodies, see ringtones 40
memory status 63
menus 10
messages. see text messages
minute minder 42
missed calls 15
my numbers 44
J210-UG-EN.book Page 79 Tuesday, June 28, 2005 1:32 PM
80
O
own number 44
P
personal ringtones 17
phone language 12
phone lock 62
phone overview 8
phonebook 17
ask to save 18
card memory 19
delete a phone number 19
edit a name 19
edit a phone number 19
groups 21
memory 19
memory status 63
phone memory 19
replacing entries 20
shortcuts 18
sort order 19
Picture message 35
pictures 38
animations 39
exchange 39
memory status 63
send 39
wallpaper 39
PIN
change 61
PIN2 62
profiles 44
PUK 61
R
redialling 15
reset 45
ringtones 40
S
safety guidelines 67
security
Internet 52
phone lock 62
SIM card 61
send a message 31
service centre 31
silent ringtone 41
SIM card
copy phonebook entries 20
inserting 7
lock 61
unblock 61
SMS. see text messages
speed dial 18
stopwatch 58
J210-UG-EN.book Page 80 Tuesday, June 28, 2005 1:32 PM
81
T
text messages
call phone number 35
delete 35
forward 35
insert item 31
memory status 63
options 33
reply 34
save 35
send 31
themes 38
memory status 63
time settings 43
U
unblocking
PIN 7
V
vibrating alert 43
voice mail 21
W
warranty 73
J210-UG-EN.book Page 81 Tuesday, June 28, 2005 1:32 PM
Sony Ericsson Mobile Communications AB
SE-221 88 Lund, Sweden
www.SonyEricsson.com
LZT 108 7897 R2A
Printed in China
J210-UG-EN.book Page 1 Tuesday, June 28, 2005 1:32 PM
