Sony A1032021 Licensed Transmitter User Manual Z310a UG

Sony Mobile Communications Inc Licensed Transmitter Z310a UG

Users Manual

1
Draft for Sony Ericsson Internal Use Only
Contents
Getting to know your phone . . . . . . . . . . . . . . . . . . 6
Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Imaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Entertainment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
More features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Important information . . . . . . . . . . . . . . . . . . . . . . 64
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
You can find support, information and content downloads
at www.sonyericsson.com/support.
1
Sony Ericsson
GSM 850/1800/1900
This User guide is published by Sony Ericsson Mobile
Communications AB or its local affiliated company, without any
warranty. Improvements and changes to this User guide
necessitated by typographical errors, inaccuracies of current
information, or improvements to programs and/or equipment, may
be made by Sony Ericsson Mobile Communications AB or its local
affiliated company at any time and without notice. Such changes
will, however, be incorporated into new editions of this User guide.
All rights reserved.
©Sony Ericsson Mobile Communications AB, 2006
Publication number: EN/LZT 108 9012 R1A
Please note: Some of the services in this User guide are not
supported by all networks. This also applies to the GSM
International Emergency Number 112.
Please contact your network operator or service provider if you are
in doubt whether you can use a particular service or not.
Please read the Guidelines for safe and efficient use and the Limited
warranty chapters before you use your phone.
All illustrations are for illustration only and may not accurately depict
the actual phone.
Your phone has the capability to download, store and forward
additional content, for example, ringtones. The use of such content
may be restricted or prohibited by rights of third parties, including
but not limited to restriction under applicable copyright laws. You,
and not Sony Ericsson, are entirely responsible for additional
content that you download to or forward from your phone. Prior to
your use of any additional content, please verify that your intended
use is properly licensed or is otherwise authorized. Sony Ericsson
does not guarantee the accuracy, integrity or quality of any
additional content or any other third party content. Under no
circumstances will Sony Ericsson be liable in any way for your
improper use of additional content or other third party content.
MusicDJ™ is a trademark or registered trademark of Sony Ericsson
Mobile Communications AB.
2
Bluetooth™ is a trademark or registered trademark of Bluetooth SIG
Inc.
T9™ Text Input is a trademark or a registered trademark of Tegic
Communications. T9™ Text Input is licensed under one or more of
the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480,
5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United
Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No.
HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0
842 463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and
additional patents are pending worldwide.
Java and all Java based trademarks and logos are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries. End-user license agreement for Sun™ Java™
JME™.
1Restrictions: Software is confidential copyrighted information of
Sun and title to all copies is retained by Sun and/or its licensors.
Customer shall not modify, decompile, disassemble, decrypt,
extract, or otherwise reverse engineer Software. Software may
not be leased, assigned, or sublicensed, in whole or in part.
2Export Regulations: Software, including technical data, is subject
to U.S. export control laws, including the U.S. Export
Administration Act and its associated regulations, and may be
subject to export or import regulations in other countries.
Customer agrees to comply strictly with all such regulations and
acknowledges that it has the responsibility to obtain licenses to
export, re-export, or import Software. Software may not be
downloaded, or otherwise exported or re-exported (i) into, or to a
national or resident of, Cuba, Iraq, Iran, North Korea, Libya,
Sudan, Syria (as such listing may be revised from time to time) or
any country to which the U.S. has embargoed goods; or (ii) to
anyone on the U.S. Treasury Department's list of Specially
Designated Nations or the U.S. Commerce Department's Table
of Denial Orders.
3Restricted Rights: Use, duplication or disclosure by the United
States government is subject to the restrictions as set forth in the
Rights in Technical Data and Computer Software Clauses in
3
DFARS 252.227-7013(c) (1) and FAR 52.227-19(c) (2) as
applicable.
Part of the software in this product is copyright © SyncML initiative
Ltd. (1999-2002). All rights reserved.
Other product and company names mentioned herein may be the
trademarks of their respective owners.
Any rights not expressly granted herein are reserved.
4
User guide symbols
The following instruction symbols appear in this User
guide:
} Use the navigation key to scroll and select % 14
Navigating the menus.
Press the navigation key center.
Press the navigation key up.
Press the navigation key down.
Press the navigation key to the left.
Press the navigation key to the right.
% See also page ...
Note
Indicates that a service or function is network- or
subscription-dependent. Because of this, all menus
may not be available in your phone. Consult your
network operator for more information.
5
Getting to know your phone
Charger and USB connector
Volume
buttons
Selection key
Back key
MEdia Net key
Navigation key
Selection key
C key
On/off key
Infrared port
Microphone
6
The icon display lights up when the phone is in silent
mode and shows information about new events and
battery charging. The external display shows
information such as time, service provider and signal
strength. Press a volume button to activate the
external display.
External
display
Camera lens
Icon display
7
jÉåì=çîÉêîáÉï
Mobile Email Messaging
Write New
Inbox
IM
Call Voicemail
Outbox
Drafts
Sent Messages
Saved Messages
Templates
Settings
Recent Calls**
All
Answered
Dialed
Missed
MEdia Net AT&T Mall Entertainment
Online Services
Games
MusicDJ™
Record Sound
My Stuff Address Book* Alarms
Camera Album
Ringtones
Pictures
Themes
Web Pages
Games
Applications
Other
`~ãÉê~ lêÖ~åáòÉê= Settings
8
Applications
Calendar
Tasks
Notes
Synchronization
Timer
Stopwatch
Calculator
Password Saver
General
Sounds & Alerts
Display
Calls
Connectivity
*Options when phone contacts are set to default. Options change
when SmartChip contacts are set to default.
**Use the navigation key to move across tabs in submenus. For more
information % 14 Navigating the menus.
9
Status bar icons
Icon Description
GSM network signal strength.
Battery status.
Battery charging, appears with battery status icon.
Missed an incoming call.
Call and messaging alerts off, alarm on.
Text message received.
Email message received.
Picture message received.
Ongoing call.
Calendar reminder.
Task reminder.
10
Assembling your phone
Insert the SmartChip and the battery to use your phone.
SmartChip
When you register as a subscriber with AT&T, you get a
SmartChip. The SmartChip keeps track of your phone
number, the services included in your subscription, and
your contacts information, among other things.
To insert SmartChip and battery
1Remove the battery cover.
2Insert the SmartChip into its holder with the contacts
facing down.
3Insert the battery with the label side up and the
connectors facing each other.
4Slide the battery cover into place.
Save contacts information on your SmartChip before
you remove it from another phone. Contacts may
have been saved in the phone memory.
11
To charge the battery
1Connect the charger plug to the phone and to the
electrical outlet. The flash symbol on the charger plug
must face upwards.
2It may take 30 minutes for the battery icon to appear on
the screen.
3Wait approximately 2.5 hours or until the battery icon
indicates a full charge.
4Remove the charger plug by tilting it upwards.
Some functions use more battery power than others
so that your phone need more frequent
charging.Talk time or standby time may become
shorter in time and you may need a new battery.
Only use Sony Ericsson-approved batteries. % 68
Battery.
≈ 30 min
≈ 2.5 h
12
PIN
You may need a PIN (Personal Identification Number) from
your network operator for your SmartChip. When you
enter the PIN, each digit appears as *, unless it starts with
emergency number digits, for example 112 or 911. This is
so you can make emergency calls without entering a PIN.
% 21 Emergency calls. Press to delete numbers.
To turn the phone on and off
1Press and hold to turn the phone on and off.
2Enter your SmartChip PIN, if requested.
3At first startup, select the language for phone menus.
4} Yes if you want the setup wizard to help you with
instructions and tips. You have now reached standby
and are ready to make and receive calls.
If you enter the wrong PIN three times in a row, the
SmartChip is blocked % 56 SmartChip lock.
13
Shut down menu
Use the shut down menu to turn off the phone, turn silent
mode on or activate a profile. For more information about
profiles % 53 Profiles.
To open the shut down menu
Press and select an option from the list.
Making calls
During an incoming call, the keypad and outer rim of the
phone light up % 44 Light effects.
To make and receive calls
•Enter an area code and phone number. } Call to make
the call. } End Call to end the call.
•When the phone rings } Answer to answer the call.
Help in your phone
Help and information are available in your phone at any
time.
To use the setup wizard
From standby select Menu } Settings } General } Setup
Wizard and select an option:
• Settings Download or
•Basic Setup or
• Tips and Tricks.
To view information about functions
Scroll to a function } Info if available.
14
Navigating the menus
The main menus are shown as icons. Some submenus
include tabs.
•Press the center of the navigation key to go to the
main menus from standby or to select menu items.
•Press , , or to scroll through menus and
tabs.
•Press to go back one level in the menus or to end
a function or application.
•Press and hold to return to standby.
•Press to select the options shown immediately
above these keys on the screen.
•Press to delete items.
•Scroll to a menu item } Info to get help on selected
features.
•} More to enter a list of options.
Shortcuts
From standby you can use the predefined shortcuts to go
directly to a function:
•Press to start the camera.
•Press to write a new text message.
•Press to add a new contact.
To edit a standby shortcut
1From standby select Menu } Settings } General }
Shortcuts.
15
2Select a shortcut you want to edit } Edit.
3Scroll to and select a function } Shortcut.
Activity menu
Use the activity menu to view and handle new events, and
access bookmarks and shortcuts.
To open the activity menu
Press and use and to select a tab.
Activity menu tabs
•New Events – such as missed calls and new messages.
•Running Apps – applications that are running in the
background.
•My Shortcuts – shortcuts you can add, delete and put
in a different order.
•MEdia Net – access the Internet and your bookmarks.
•If you want new events to appear as pop-up text
instead of in the activity menu, Menu } Settings }
General } New Events } Pop-up.
My Stuff
Files such as pictures, sounds, themes, games and
applications are saved in folders in the phone memory in
My Stuff. Unrecognized files are saved in the Other folder.
File information
If a file is protected, you may not be able to copy or send
it. View file information by highlighting the file } More }
Information.
To move or copy a file
1From standby select Menu } My Stuff. Select a folder
and scroll to a file } More } Manage File.
16
2Select Move or Copy.
3Select a folder or } New Folder.
4Name the folder } OK.
5} Paste.
To select several files
1From standby select Menu } My Stuff and select a file
} More } Mark.
2} Mark Several or } Mark All. To select files scroll and
} Mark or } Unmark.
To check memory status
From standby select Menu } My Stuff } More } Memory
Status.

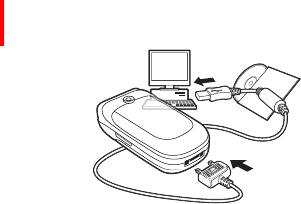

Transferring files
For more information % 51 Transferring files.
Languages
Select the language for phone menus and for writing.
To change the phone language
•From standby select Menu } Settings } General }
Language } Phone Language select a language.
•From standby press 0000 for English or press
8888 for Automatic language.
To select writing languages
1From standby select Menu } Settings } General }
Language } Writing Language.
2Scroll and } Mark to select languages } Save.
17
Entering letters
To enter letters using multitap text input
Scroll to a function where text input is possible, for
example, Menu } Messaging } Write New } Message.
•Press – until the desired character appears.
•Press to shift between capitals and lower-case
letters.
•Press and hold – to enter numbers.
•Press to delete letters and numbers.
•Press to add a space.
•Press for the most common punctuation marks.
•Press and hold to change writing method.
T9™ Text Input
The T9™ Text Input method uses a built-in dictionary to
recognize the most commonly used word for each
sequence of key presses. This way, you press each key
only once, even if the letter you want is not the first letter
on the key.
To enter letters using T9 Text Input
1Scroll to a function where text input is possible, for
example, Menu } Messaging } Write New } Message.
2For example, if you want to write the word “Jane”,
press , , , .
3If the word shown is not the one you want, press or
repeatedly to view alternative words. To accept a
word and add a space, press . To accept a word
without adding a space, press .
4Continue writing your message. To enter a punctuation
mark, press and then or repeatedly. Accept
and add a space by pressing .
18
To add words to the T9 Text Input dictionary
1While entering letters } More } Spell Word.
2Edit the word by using multitap input. Use and to
navigate between letters. To delete a character, press
. To delete the entire word, press and hold .
3When you have edited the word } Insert. The word is
added to the T9 Text Input dictionary. Next time you
enter this word using T9 Text Input, it appears as in the
alternative words.
To select another writing method
Press and hold to select another writing method.
Options when entering letters
} More to view options when entering letters.
19
Calling
Making and receiving calls
Turn on the phone and make sure that you are within
range of a network to make and receive calls % 12 To turn
the phone on and off.
•If your subscription includes a Calling Line Identification
service and the caller’s number is identified, the
number is displayed.
•If the number is saved in Address Book, details such as
the name, number, picture and light effect (if assigned)
are displayed.
•If the number is a restricted number, Withheld is
displayed.
To make a call
1Enter a phone number (with international country code
and area code, if applicable) } Call to make the call.
2Close the phone or } End Call to end the call.
To redial a number
If the connection failed, Retry? is displayed } Yes.
To answer a call
Open your phone or } Answer if your phone is already
open.
To reject a call
Close your phone, } Busy or press a volume button twice.
Do not hold the phone to your ear while waiting.
When a call connects, the phone gives a loud signal.
20
To change the ear speaker volume
During a call, press or to increase or decrease the
volume.
To select more options during a call
} More and select an option.
To turn off the microphone
Press and hold . To resume, press and hold
again.
To use the loudspeaker during a voice call
} More } Turn On Speaker or } Turn Off Speaker.
Missed calls
When you have missed a call, it appears in the activity
menu if New Events is set to Activity Menu. } Call to call
the missed number.
If New Events is set to Pop-up, Missed Calls: appears. }
Yes to view the missed calls in the call list now or } No to
do it later.% 15 Activity menu.
Call list
Information about the most recent calls is saved in the call
list.
To call a number from the call list
From standby } Recent Calls and select a tab. Scroll to a
name or number } Call.
To add a call list number to contacts
1From standby } Recent Calls from standby and select
a tab.
2Scroll to the number to add } More } Save Number.
3Select a contact to add the number to or } New
Contact.
21
Emergency calls
Your phone supports international emergency numbers,
for example, 911 and 112. These numbers can normally
be used to make an emergency call in any country, with or
without a SmartChip inserted, if a GSM network is within
range.
To make an emergency call
Enter, 112, for example } Call.
To view your local emergency numbers
From standby select Menu } Address Book } More }
Options } Special Numbers } Emergency Nos..
Address Book
To add a contact
1From standby select Menu } Address Book } New
Contact } Add.
2Select Name: } Add enter a name } OK.
3Select New Number: } Add enter a number } OK.
4For phone contacts only, select an option. Scroll
between tabs and select fields to enter more
information. To enter symbols such as @ } More } Add
Symbol and select a symbol } Insert. To save the
contact, } Save.
In some countries, other emergency numbers may
also be promoted. Your network operator may have
saved additional local emergency numbers on the
SmartChip.
Enter the + sign and country code with all numbers.
% 17 Entering letters.
22
To add a picture, light effect or a ringtone to a phone
contact
1From standby select Menu } Address Book and select
a contact.
2} More } Edit Contact.
3Use and to scroll to the relevant tab.
4} Picture, Ringtone or Light Effect } Add.
5Select a picture, sound or light effect } Save to save
the contact.
To set the default number for a phone contact
To set the first phone number to be displayed for a
contact, Menu } Address Book and scroll to the contact }
More } Default number and select a number.
To add your own business card
1From standby select Menu } Address Book } More }
Options } IM.
2Enter the information for your business card } Save.
To send your business card
From standby select Menu } Address Book } More }
Options } IM } Send My Card.
To set a birthday reminder for a contact
1From standby select Menu } Address Book and scroll
to the contact.
2} More } Edit Contact.
3Use to scroll to the relevant tab and select Birthday:
} Add.
4Set date and reminder } Save.
To call a phone contact
1From standby select Menu } Address Book. Scroll to,
or enter the first letters of the contact to call.
23
2Use and to select a number } Call.
To call a SmartChip contact
•If SmartChip contacts is default, Menu } Address
Book, scroll to or enter the first letters of a contact.
When the contact is highlighted } Call.
•If Phone Contacts is default, Menu } Address Book }
More } Options } SmartChip Contacts, scroll to, or
enter the first letters of a contact. When the contact is
highlighted } Call.
Managing contacts
You can select what contact information - Phone
Contacts or SmartChip contacts - is shown as default.
SmartChip contacts contain names and numbers only.
They are saved on the SmartChip. Phone Contacts can
contain names, numbers and personal information. They
are saved in the phone memory.
To select default contacts
1From standby select Menu } Address Book } More }
Options } Advanced } Default Contacts.
2Select Phone Contacts or SmartChip contacts.
To copy names and numbers to the SmartChip
1From standby select Menu } Address Book } More }
Options } Advanced } Copy to SmartChip.
2Select Copy all, Copy a contact or Copy a number.
When copying all contacts from the phone to the
SmartChip, all existing SmartChip information is
replaced.
24
To copy SmartChip contacts to phone contacts
1From standby select Menu } Address Book } More }
Options } Advanced } Copy from SmartChip.
2Select Copy All, Copy a Contact or Copy a Mumber.
To automatically save contacts to the SmartChip
1From standby select Menu } Address Book } More }
Options } Advanced } Auto Save on SmartChip.
2Select On.
To send contacts
•To send a selected contact, } More } Send Contact
and select a transfer method.
•To send all contacts, Menu } Address Book } More }
Options } Advanced } Send All Contacts and select a
transfer method.
To edit a phone contact
1From standby select Menu } Address Book and select
a contact } More } Edit Contact.
2Select a tab and edit the information } Save.
To edit a SmartChip contact
1If SmartChip contacts is default, Menu } Address
Book or if Phone Contacts is default, Menu } Address
Book } More } Options } SmartChip Contacts.
2Select the name and number to edit.
3} More } Edit Contact and edit the name and number.
To delete contacts
•To delete a selected contact, press .
•To delete all contacts, Menu } Address Book } More }
Options } Advanced } Delete all contacts } Yes and }
Yes. Names and numbers on the SmartChip are not
deleted.
25
To check memory status
From standby select Menu } Address Book } More }
Options } Advanced } Memory status.
Synchronizing contacts
For more information, % 46 Synchronizing.
Speed dialing
Save numbers in positions 1-9 to access them easily.
To set or replace speed dialing numbers
1From standby select Menu } Address Book } More }
Options } Speed Dial.
2Scroll to a position } Add or } More } Replace and
select a phone number.
To speed dial
From standby, enter a speed dial number (1-9) } Call.
Voicemail
If your subscription includes an answering service, callers
can leave a voice message when you cannot answer a
call.
To enter your voicemail number
Press and hold } Yes enter the number } OK. You
can get the number from your service provider.
To call your voicemail service
If you have entered your voicemail number, press and
hold .
The number of entries you can save in the phone or
on the SmartChip depends on the available memory.
26
To check your voicemail number
From standby select Menu } Messaging } Settings }
Voicemail Number.
Forwarding calls
Forward calls, for example, to an answering service.
To activate a call forward
1From standby select Menu } Settings } Calls }
Forward Calls.
2Select a call type and forward option } Activate.
3Enter the phone number to forward your calls to } OK,
or } Lookup to select a contact.
To deactivate a call forward
Scroll to the forward option } Deactivate.
To check all forward options
From standby select Menu } Settings } Calls } Forward
Calls } Check all.
More than one call
Handle more than one call simultaneously.
Call waiting service
When activated, you hear a beep if you receive a second
call.
To activate the call waiting service
From standby select Menu } Settings } Calls } Manage
Calls } Call Waiting } Activate.
To make a second call
} More } Hold to hold the ongoing call. Enter the number
to call } Call.
27
Receiving a second call
When you receive a second call, you can:
•} Answer and put the ongoing call on hold.
•} Busy to reject and continue the ongoing call.
•} Replace Actve Call to answer and to end the ongoing
call.
Handling two calls
If you have an ongoing call and a call on hold, you can:
•} More } Switch to switch between the two calls.
•} More } Join Calls to join the two calls.
•} More } Transfer Call to connect the two calls. You
are disconnected from both calls.
•} End Call } Yes to retrieve the held call.
•} End Call } No to end both calls.
You cannot answer a third call without ending one of the
first two calls or joining them into a conference call.
Conference calls
Start a conference call by joining an ongoing call and a call
on hold. Put the conference on hold and add up to five
participants or make another call.
To join the two calls into a conference call
} More } Join Calls.
To add a new participant
1} More } Hold to put the joined calls on hold.
2} More } Add Call and call the next person to add to
the call.
3} More } Join Calls.
Contact your network operator to check if this
function is supported.
28
4Repeat steps 1-3 to include more participants.
To release a participant
} More } Release part. and select the participant.
To have a private conversation
1} More } Talk to and select a participant.
2} More } Join Calls to resume the conference call.
My numbers
To check your phone numbers
} Address Book } Options } Special Numbers
} My Numbers and select one of the options.
Call time
During a call, the duration of the call is shown on the
screen. Check the duration of your last call, outgoing calls
and the total time.
To check the call time
From standby select Menu } Settings } Calls } Time &
Cost } Call Timers.
Tone signals
Use telephone banking services or control an answering
machine by sending tone signals during a call.
•To send the tones, press - , or .
•To clear the screen after the call is finished, press .
•To turn the tones on or off during a call, } More and
select Disable Tones or Enable Tones.
29
Notepad
Use the screen as a notepad to enter a phonenumber
during a call. When you end the call, the number remains
on the screen to call or save.
Showing or hiding your number
If your subscription supports Calling Line Identification
Restriction, you can hide your phone number when
making a call.
To always show or hide your phone number
1From standby select Menu } Settings } Calls } Show/
Hide My No..
2Select Show Number, Hide Number or Network
Default.
30
Messaging
Your phone supports various messaging services.
Contact your service provider about the services you can
use, or for more information see www.sonyericsson.com/
support.
Text and picture messaging
Text messages can contain pictures, videos, sound
effects, animations, and melodies. You can also create
and use templates for your messages.
When sending messages, the phone selects the best
method (as a text or picture messsage) for sending the
message.
Writing and sending messages
For information about entering letters % 18 Options when
entering letters.
To write and send a message
1From standby select Menu } Messaging } Write New
} Message.
2Enter text.
3Scroll to use toolbar options.
4Scroll or to select an option.
5When ready to send, select Continue.
6Select an option:
If there is no memory available, you must
delete messages or email messages before
you can receive new ones.
If you send a message to a group, you
will be charged for each member.
31
• Enter Email Addr. to send the message to an email
address.
• Enter Phone no. to send the message to a contact
not in the Address Book.
•Addr. Book Look-up to send the message to an
address.
To copy and paste text in a mesage
1When writing your message, select More } Copy &
Paste.
2Select Copy All or Mark & Copy.
3Scroll to and mark text in your message.
4Select More } Copy & Paste } Paste.
To set the message options
1From standby select Menu } Messaging } Settings }
the Message Settings tab.
2Scroll to and select and option.
Receiving text messages
You are notified when you receive a message. Received
messages are saved in the Inbox.
To view a message from standby
•If the activity menu is set, select View.
•If pop-up is set, follow the instructions on the screen.
To call a number in a message
•Select the phone number displayed in the message and
select Call.
Send options
You can request a read report or a delivery report. You
can also add more recipients to the message.
32
To select additional send options
1When the message is ready and a recipient is selected,
select More:
• Add Recipient to add another recipient.
• Edit Recipients to edit and add recipients.
• Edit Subject to edit the subject.
• Advanced for more send options.
2Scroll to an option and select Edit.
Templates for picture messages
Add a new template or use a pre-defined template.
To add a template
1From standby select Menu } Messaging } Templates
} the New Template.
2Select an option.
3Insert text. Press to add items.
4Select Save, enter a title and select OK.
Saving and deleting messages
Received messages are saved in the phone memory.
When the phone memory is full, delete messages or move
them to the SIM card.
To save a message on the SmartChip
1From standby select Menu } Messaging } Inbox }
Sent Messages or Drafts.
2Scroll to select the message to save.
3Select More } Save Message.
4Select Saved Messages.
To save an item in a message
1When reading a message, select the item.
2Select More } Use.
3Select an option.
33
To save several messages
1From standby select Menu } Messaging and select a
folder.
2Scroll to and select a message.
3Select More } Mark Several.
4Scroll to and select the messages.
5Select More } Saved Messages to save messages.
To close a text or picture message
•Press .
To delete a message
1From standby select Menu } Messaging.
2Select a folder.
3Select the message and press .
To delete several messages
1From standby select Menu } Messaging and select a
folder.
2Scroll to and select a message.
3Select More } Mark Several.
4Scroll to and select the messages.
5Select More } Delete Messages to delete messages.
Voice messages
Send and receive a sound recording as a voice message.
To record and send a voice message
1From standby select Menu } Messaging } Write New
} Voice Message.
2Record your message } Stop.
The sender and receiver must have subscriptions
supporting picture messaging.
34
3} Send to send the message.
4Select Enter Phone no. to enter the recipient’s number
or Addr. Book Look-up to retrieve a number or group
from Address Book, or select from the last used
recipients list. } Send.
Mobile Email
Check your Yahoo!™ Mail, MSN™ Hotmail, AOL™, AIM™
and SBC™ Yahoo! accounts quickly and easily.
Before using Mobile Email, make sure your Cingular
account supports a data plan and that you have your
email account settings available.
1From standby select Menu } Mobile Email.
2Select More to add, edit, or delete account settings.
3Select the provider you want to use. Follow the
prompts to enter your settings.
4Select Save. Your account is now ready to send and
receive email messages.
Receiving voice messages
When you receive an automatically downloaded voice
message, it appears in the activity menu.
If New Events is set to Pop-up, you are asked if you want
to listen to the voice message. } Yes to play the message
now or } No to play it later. Press to close the
message.
Instant Messaging (IM)
Connect and log in to the IM server to communicate online
with your family and friends. If your subscription supports
instant messaging and presence services, you can send
35
and receive messages and see contact status when they
are online.
To log in/out to your IM server
1From standby select Menu } Messaging } IM.
2Sign into the IM community you want to access.
To add a contact to the list
1From standby select Menu } Messaging } IM }
Buddies tab } More.
2Select a buddy to add.
To send a chat message from IM
1From standby select Menu } Messaging } IM }
Buddies tab } More.
2Select a buddy.
3Select Send IM.
4Type your message and select Send.
Status
Show your status to your contacts only or show it to all
users on the IM server.
To set status
1From standby select Menu } Messaging } IM } My
Status tab.
Contact your network operator for more
information.
The tab name varies depending on IM
community chosen.
You can also continue a chat
conversation from the Conversations tab.
36
2Select an option.
37
Imaging
Camera
Your phone has a digital camera to take pictures to save
or send. Use a picture as a screen saver, wallpaper or to
add to a contact.
To start the camera and take a picture
1Press or from standby select Menu } Camera=to
start the camera.
2} Capture to take a picture. All camera pictures are
saved in Menu } Camera Album.
3Press to take another picture.
4Press and hold to stop the camera.
You can edit the camera shortcut on the navigation
key % 14 To edit a standby shortcut.
38
To adjust brightness
Use the volume buttons to increase or decrease
brightness.
Camera options
When the camera is activated } More to view options:
•View All Pictures – view all camera pictures.
•Night Mode – enhance picture quality in poor lighting
conditions with longer exposure time.
• Self-Timer – a picture is taken a few seconds after you
press the camera button.
•Effects – select different effects for your picture.
•White Balance - adjust colors to lighting conditions.
Select from Auto, Daylight, Cloudy, Fluorescent or
Incandescent.
•Picture Quality – select Normal or Fine picture quality.
•Shutter Sound – select different shutter sounds.
Saving and sending pictures
When you have taken a picture it is saved in the Camera
Album. You can send the picture instantly in a picture
message. To exchange pictures using other transfer
methods % 39 Exchanging pictures.
Your personal blog
Publish your pictures on your personal Web page, called a
blog. The phone creates the blog for you.
If you take a picture of a strong light source such as
direct sunlight or a lamp in the background, the
screen may black out or the picture may be
distorted.
39
To blog a photo
1Take a photo } More } Blog This.
2Follow the instructions for first-time use.
3Add title and text } OK } Publish.
4You will receive a text message with your Web address
and log-in information.
Pictures
Your phone comes with one or more pictures that you can
delete to free memory. You can use a picture as a screen
saver, wallpaper, or to add to a phone contact % 22 To
add a picture, light effect or a ringtone to a phone contact.
You can send and receive pictures using a transfer
method. The number of pictures you can save depends on
the size of the files. The phone supports GIF, JPEG, PNG.
To view your pictures
1From standby select Menu } Camera Album. Pictures
are shown in thumbnail view.
2Select a picture } View.
To search camera pictures by time line
1From standby select Menu } Camera Album.
2} More } Timeline View to browse camera pictures
sorted by date.
Exchanging pictures
Exchange pictures with friends using one of the available
transfer methods. You may not be allowed to exchange
copyright-protected material. You can also transfer
pictures to a computer % 51 Transferring files.
Animations are handled like pictures.
40
To send a picture
1From standby select Menu } Camera Album.
2Select a picture } More } Send and select a transfer
method.
To receive and save a picture
•From a message containing the file, % 30 Messaging.
•Via another transfer method, make sure the transfer
method is activated and follow the instructions that
appear.
Screen saver and wallpaper
The screen saver is activated automatically when the
phone is idle for a few seconds. After a few more seconds
the screen saver changes to sleep mode to save power. If
you have a picture as wallpaper, this picture is shown in
standby mode.
To use a picture
1From standby select Menu } Camera Album and select
a picture.
2} More } Use As and select an option.
41
Entertainment
Ringtones, sounds and alerts
Your phone comes with melodies that can be used as
ringtones. You can exchange melodies by selecting a
transfer method. Certain non-supported sound files
cannot be used as ringtones. You may not be allowed to
exchange copyright-protected material.
To select a ringtone
From standby select Menu } Settings } Sounds & Alerts
} Ringtone.
To turn the ringtone on or off
From standby press and hold . All signals except the
alarm signal are turned on or off.
To set the ringtone volume
1From standby select Menu } Settings } Sounds &
Alerts } Ring Volume.
2Press or to decrease or increase } Save.
To set the vibrating alert
1From standby select Menu } Settings } Sounds &
Alerts } Vibrating Alert.
2Set this alert to On, On if in Silent or Off.
To set sounds and alerts options
From standby select Menu } Settings } Sounds & Alerts.
You can set:
•Light Effects— select a light effect to use.
•Increasing Ring — select an increasing ringtone.
•Message Alert – select message notification.
•Key Sound – select a key press sound.
42
Composing ringtone melodies
Use MusicDJ™ to compose and edit melodies to use as
ringtones.
To compose a melody
1From standby select Menu } Entertainment }
MusicDJ™.
2Select Insert, Copy and Paste blocks to compose. Use
, , or to move between the blocks. Press
to delete a block. }
More to view more options.
To edit a MusicDJ™ melody
From standby select Menu } My Stuff } Ringtones and
select a melody }
More } Edit.
To send and receive a melody
1From standby select Menu } My Stuff } Ringtones and
select a melody. }
More } Send and select a transfer
method.
2When you receive the melody, follow the instructions
that appear.
Sound recorder
Record your own memos to set as ringtones.
To start a sound recording
From standby select Menu } Entertainment } Record
Sound.
To listen to your recordings
1From standby select Menu } My Stuff } Ringtones and
select a recording.
You cannot send a polyphonic melody or an MP3 file
in a text message.
43
2}
Play to listen to the recording. Press or to go to
the previous or next recording. } Stop to stop
playback. }
More to view options.
Themes, light effects, games and
applications
Your phone comes with predefined themes, light effects
games and applications. You can download new content
to your phone. For more information, see
www.sonyericsson.com/support.
To set a theme
1From standby select Menu } My Stuff } Themes.
2Select a theme } Set.
To send a theme
1From standby select Menu } My Stuff } Themes,
select a theme } More } Send.
2Select a transfer method.
To receive and save a theme
When you receive the theme, follow the instructions that
appear.
Alternating themes
Your phone automatically switches themes between day
and night. This function is default in your phone and can
be deactivated.
To deactivate alternating themes
From standby select Menu } Settings } Display } Use
Night Theme } Off.
Unrecognized formats are saved in Other.
44
To select a day or night theme
1From standby select Menu } Settings } Display }
Night Theme or Day Theme.
2Select a theme } Set.
Light effects
Light effects notify you of an incoming call or a new
message by lighting up the keypad and outer rim of the
phone. You can also add light effects to contacts. Certain
light effects cannot be turned off such as those you see
when you open and close the the phone, or when you add
or remove an accessory.
To select a light effect for incoming calls
1From standby select Menu } Settings } Sounds &
Alerts } Light Effects } Call Light.
2Select a light effect.
Games and applications
To start and end a game
From standby select Menu } Entertainment } Games and
select a game. Press and hold to end a game.
To start and end an application
From standby select Menu } My Stuff } Applications and
select an application. Press and hold to end an
application.
Light effects may distract you when you drive. To
turn off light effects, go to Menu } Settings }
Sounds & Alerts } Light Effects } Preferences }
Off.
45
Connectivity
Using MEdia Net
Browse the Internet using HTTP (Hyper Text Transfer
Protocol).
To select an Internet profile
From standby select Menu } Settings } Connectivity }
Internet Settings } Internet Profiles and select a profile to
use.
To start browsing
From standby select Menu } MEdia Net, select a service
or } More for options.
To stop browsing
} More } Exit Browser.
Options when browsing
} More to view options. The menu contains the following
options but depends on the Web page you are visiting.
} Go To for options:
•MEdia Net – go to the pre-defined homepage.
•Bookmarks – create, use or edit bookmarks to Web
pages.
•Enter Address – enter the address of a Web page.
•Search Internet – use Google to search.
•History – list of previously visited Web pages.
• Saved Pages – list of your saved Web pages.
} Tools for options:
•Add Bookmark – add a new bookmark.
•Save Picture – save a picture.
•Save Page – save the current Web page.
46
•Refresh Page – refresh the current Web page.
•Send link – send a link to the current Web page.
• Make a Call – make a call when browsing the Internet.
} View for options:
•Full Screen – select normal or full screen.
•Text Only – select full content or text only.
•Zoom – zoom in or out on the Web page.
} Options – to enter settings for the browser.
} Exit Browser to disconnect.
Internet security
When using an Internet profile you can turn on security
settings in the phone.
Trusted certificates
Certain Internet services, such as banking, require
certificates in your phone. Your phone may contain
certificates when you buy it, or you can download new
certificates.
To check certificates in your phone
From standby select Menu } Settings } General }
Security } Certificates } Trusted Certificate.
Synchronizing
Synchronize contacts, appointments, tasks, notes and
bookmarks using one of the available transfer
methods.Visit www.sonyericsson.com/support to
download Sony Ericsson PC Suite software for
If you select an email address when browsing a Web
page, you can send a message to that address.
47
synchronization. You can also download the Getting
started guide for synchronization.
Synchronization with a computer
Install Sony Ericsson PC Suite software by downloading it
from www.sonyericsson.com/support. The software
includes help information.
Remote synchronization via Internet
Synchronize online via an Internet service.
To enter remote synchronization settings
1From standby select Menu } Organizer }
Synchronization and } Yes or New Account. Enter a
name for the new account } Continue.
2Enter the following settings:
• Server Address – server URL.
•Username – account username.
•Password – account password.
• Connection – select an Internet profile.
• Applications – mark applications to synchronize.
• App. Settings – select an application and enter a
database name, and if required, username and
password.
•Sync. Interval – set how often to synchronize.
• Remote Initiation – select to always accept, never
accept or always ask when starting from a service.
• Remote Security – enter server ID and password.
3} Save to save your new account.
To start remote synchronization
From standby select Menu } Organizer }
Synchronization, select an account } Start.
48
Bluetooth™ wireless technology
Bluetooth wireless technology makes wireless connection
to other Bluetooth devices, for example a Bluetooth
headset possible. You can:
•connect to several devices at the same time.
•synchronize information with other devices.
•exchange items.
Before you start
•Turn on the Bluetooth function to communicate with
other devices.
•Add Bluetooth devices to your phone to communicate
with.
To turn on Bluetooth wireless technology in your phone
From standby select Menu } Settings } Connectivity }
Bluetooth } Turn On.
To show or hide your phone
From standby select Menu } Settings } Connectivity }
Bluetooth } Visibility } Show Phone or Hide Phone.
The recommended maximum distance between two
Bluetooth devices is 33 feet or 10 meters, with no
solid objects in between.
Please check if local laws or regulations restrict the
use of Bluetooth wireless technology. If it is not
allowed, you must ensure that the Bluetooth function
is turned off.
If set to hide, other devices will not be able to
identify your phone via Bluetooth wireless
technology.
49
To pair a device with your phone
From standby select Menu } Settings } Connectivity }
Bluetooth } My Devices } New Device to search for
available devices. Select a device from the list. Enter a
passcode, if required.
To save power
From standby select Menu } Settings } Connectivity }
Bluetooth } Powersave } On.
To pair with a Bluetooth headset
1From standby select Menu } Settings } Connectivity }
Bluetooth } Handsfree.
2} Yes if you are adding a Bluetooth handsfree for the
first time or } My Handsfree } New Handsfree } Add if
you are pairing with another Bluetooth handsfree.
Ensure that your handsfree is ready to be paired.
Infrared port
The infrared port in your phone can be used to exchange
information with another device equipped with infrared.
To turn on the infrared port in your phone
From standby select Menu } Settings } Connectivity }
Infrared Port } On or } 10 Minutes to turn on for 10
minutes.
To connect two devices
1Turn on infrared in both devices.
This reduces power consumption when you use a
single Bluetooth device. Turn it off when using
several Bluetooth devices.
50
2Make sure the infrared port on your phone is facing the
infrared port on the other device with a maximum
distance of 20 cm.
USB cable
You may use a USB cable to exchange information
between your phone and a computer. A USB cable is sold
separately.
To start a USB connection
1Install the Sony Ericsson PC Suite software on your
computer. Download and install the PC Suite from
www.sonyericsson.com/support.
2Turn on your phone.
3Connect the USB cable to your phone and computer.
4Launch the Sony Ericsson PC Suite and use
applications it contains to transfer files, synchronize
and more.
To end a USB connection
Remove the USB cable from your phone and computer.
51
Transferring files
You can transfer pictures, sounds, and themes by using
one of the following transfer methods:
•Bluetooth % 48 Bluetooth™ wireless technology
•Infrared % 49 Infrared port
•USB cable % 50 USB cable
To transfer files using Bluetooth wireless technology or
infrared
1Select a file to transfer.
2} More } Send and select Via Bluetooth or Via
infrared.
You can also send files via email % 34 Mobile Email
or picture messages % 30 Text and picture
messaging.
52
More features
Time and date
Time and date are always displayed in standby.
To set the time and date
From standby select Menu } Settings } General } Time &
Date:
•To set time and time format, } Time and enter the time
} Format and select a format } Save.
•To set date and date format, } Date and enter the date
} Format and select a format } Save.
•To edit time zone, } Time Zone and select an option.
•To set daylight saving on or off, } Daylight Saving and
select an option.
•To set auto time zone, } Auto Time Zone and select
and option.
Alarm clock
The alarm rings even if the phone is in silent mode or
turned off.
To set and use an alarm
From standby select Menu } Alarms and select one of the
following options:
•To set an alarm, select an alarm in the list } Edit and set
a time } OK.
•To set a recurring alarm, } Recurrent:, select days }
Mark } Done.
•To select a signal, } Alarm Signal, select a sound }
Save.
•To turn the alarm signal off when it rings, press any key.
•To cancel an alarm, select an alarm } Turn Off.
53
Profiles
Your phone has predefined profiles that are set to suit a
certain environment. You can reset all profile settings to
the way they were set when you bought your phone.
To use profiles
From standby select Menu } Settings } General }
Profiles:
•Select a profile to use.
•To view and edit a profile, } More } View And Edit.
•To reset profiles, } More } Reset Profiles.
Brightness
To adjust the brightness of the screen
1From standby select Menu } Settings } Display }
Brightness.
2Press or to set a level } Save.
Calendar
Add, save, edit and set reminders for appointments.
Synchronize the calendar with a Web calendar or a
computer calendar. % 46 Synchronizing.
To add a new appointment
1From standby select Menu } Organizer } Calendar and
select a date } New appointment } Add.
2Enter the appointment details and } Save to confirm
the appointment.
You can also activate a profile from the shut down
menu % 13 Shut down menu.
54
To view an appointment
1From standby select Menu } Organizer } Calendar and
select a day.
2Select an appointment } View.
To view a calendar week
From standby select Menu } Organizer } Calendar }
More } View Week.
To set reminders options
1From standby select Menu } Organizer } Calendar }
More } Advanced } Reminders.
2Select an option. Select Always for a reminder to sound
even though the phone is turned off or in silent mode.
3When the reminder sounds:
•If New Events is set to Activity Menu, } View to
read the appointment.
•If New Events is set to Pop-up, } Yes to read the
appointment or } No to turn off the reminder % 15
Activity menu.
Navigating in your calendar
Use the navigation key to move between days or weeks.
Calendar settings
From standby select Menu } Organizer } Calendar }
More and select an option:
•View Week – view appointments of the week.
•New appointment – add a new appointment.
•Change date – go to another date in the calendar.
A reminder option set in the calendar also affects a
reminder option set in Tasks.
55
•Advanced – view options to find and set reminders or
select a start day for the week.
•Delete – delete appointments.
•Help – view help text for more calendar information.
To send an appointment
From standby select Menu } Organizer } Calendar and
select an appointment } More } Send and select a
transfer method.
Tasks
Add new tasks or use existing tasks as templates. You
can also set reminders for tasks.
To add a new task
1From standby select Menu } Organizer } Tasks } New
Task } Add.
2Select Task or Phone Call. Enter details and confirm
each entry.
To view a task
From standby select Menu } Organizer } Tasks and
select a task } View.
To set reminders
1From standby select Menu } Organizer } Tasks and
select a task } More } Reminders.
2Follow step 2 and 3 in % 54 To set reminders options.
To send a task
1From standby select Menu } Organizer } Tasks and
select a task for a certain day.
2} More } Send and select a transfer method.
A reminder option set in Tasks affects a reminder
option set in the calendar.
56
Notes
Make notes and save them in a list. You can also view
notes in standby.
To add a note
1From standby select Menu } Organizer } Notes } New
Note } Add.
2Enter the note } Save.
To edit notes
1From standby select Menu } Organizer } Notes and
select a note.
2} More } Edit and edit the note } Save.
Calculator
Use the calculator to add, subtract, divide and multiply.
From standby select Menu } Organizer } Calculator:
•To select ÷ x - + . % =, press or .
•To delete a figure, press .
SmartChip lock
The SmartChip lock protects your subscription from
unauthorized use. Most SIM cards are locked at time of
purchase. If the SmartChip lock is on, you have to enter a
PIN (Personal Identity Number) every time you turn on
your phone. If you enter your PIN incorrectly three times in
a row, the SmartChip is blocked and the message PIN
Blocked is displayed. To unblock it, you need to enter
your PUK (Personal Unblocking Key). Your PIN and PUK
are supplied by your network operator. You can edit your
PIN and select a new four- to eight-digit PIN.
To unblock your SmartChip
1When PIN Blocked is displayed, enter your PUK } OK.
57
2Enter a new four- to eight-digit PIN } OK. Re-enter the
new PIN to confirm } OK.
To edit your PIN
1From standby select Menu } Settings } General }
Security } Locks } SmartChip Protection } Change
PIN.
2Enter your PIN } OK.
3Enter a new four- to eight-digit PIN } OK. Re-enter the
new PIN to confirm } OK.
To turn the SmartChip lock on or off
1From standby select Menu } Settings } General }
Security } Locks } SmartChip Protection } Protection
and select On or Off.
2Enter your PIN } OK.
Phone lock
The phone lock protects the phone against unauthorized
use. You can change the phone lock code (0000) to any
four- to eight-digit personal code.
To unlock the phone
If the phone lock is on, enter your code } OK.
Automatic phone lock
If the phone lock is set to Automatic, you only need to
enter your phone lock code when you insert a different
SmartChip.
If the message Codes do not match appears when
you edit your PIN, the new PIN is entered incorrectly.
If the message Wrong PIN appears, followed by Old
PIN: you entered your old PIN incorrectly.
58
To set the phone lock
1From standby select Menu } Settings } General }
Security } Locks } Phone Protection } Protection.
2Select an option, enter your code } OK.
To edit your phone lock code
From standby select Menu } Settings } General }
Security } Locks } Phone Protection } Change Code.
Password Saver
You can save security codes, such as pincodes and
passwords.
Checkword and security
The checkword confirms that you have entered the correct
passcode. If the passcode is correct, the correct codes
are shown. If you enter the incorrect passcode, the
checkword and the codes that are shown are also
incorrect.
To open password saver for the first time
1From standby select Menu } Organizer } Password
Saver.
2Instructions appear } Continue.
3Enter a four-digit passcode } Continue.
4Re-enter the new passcode } Continue.
5Enter a checkword (maximum 15 characters) } Done.
To add a new password
1From standby select Menu } Organizer } Password
Saver and enter your passcode.
It is important that you remember your new code. If
you forget it, you have to take your phone to your
local Sony Ericsson retailer.
59
2Enter your passcode } Continue } New Code } Add.
3Enter a name associated with the code; for example,
the name of the credit card company } Continue.
4Enter the code } Done.
To change the passcode
1From standby select Menu } Organizer } Password
Saver.
2Enter your passcode } Continue } More } Change
Passcode.
3Enter your new passcode } Continue.
4Re-enter the new passcode } Continue.
5Enter a checkword } Done.
To reset password saver
1From standby select Menu } Organizer } Password
Saver.
2Enter a passcode } Continue } More } Reset.
3Reset Password Saver? appears } Yes. The password
saver is reset and all entries are cleared % 58 To open
password saver for the first time.
60
Troubleshooting
Some problems require you to call your service provider,
but you can correct most problems yourself. Before taking
your phone in for repair, copy your saved content and
information to another device, as it may be lost during
repair. For more support go to www.sonyericsson.com/
support.
Some menu options appear in grey
A service is not activated or your subscription does not
support the function. Contact your network operator.
The phone is working slowly
Delete unwanted content and then restart the phone.
No indication of charging
The battery is empty or has not been used for a long time.
It may take up to 30 minutes before the battery icon
appears on the screen.
The phone cannot be turned on
The battery is discharged % 11 To charge the battery.
Charging a non-Sony Ericsson battery
% 68 Battery.
The wrong menu language is shown
% 16 To change the phone language.
Master reset
Delete your settings and the content you have added/
edited.
61
To reset your phone
1From standby select Menu } Settings } General }
Master Reset.
2Select Reset Settings to delete your changes to
settings or Reset Device to delete your changes to
settings, all contacts, messages, personal data, and
content you have downloaded, received or edited. }
Continue.
Error messages
Insert SmartChip
Check that the SmartChip is inserted correctly. % 10 To
insert SmartChip and battery.
Insert correct SmartChip
Check that you are using the correct operator SmartChip
for your phone.
Emerg. Calls Only
You are within range of a network but are only allowed to
use it for emergency calls. Contact your network operator
to ensure you have the correct subscription.
No Netw. Coverage
There is no network within range. Contact your network
operator.
Wrong PIN/Wrong PIN2
You have entered your PIN or PIN2 incorrectly. Enter the
correct PIN or PIN2 } Yes % 56 SmartChip lock.
62
Codes do not match
To change a security code you have to confirm the new
code by entering it twice.
PIN Blocked/PIN2 Blocked
To unblock % 56 SmartChip lock.
PUK blocked
Contact your network operator.
Phone locked
The phone is locked. To unlock the phone % 57 Phone
lock.
Phone lock code:
The phone lock code is required % 57 Phone lock.
63
Important information
Sony Ericsson Consumer Web site
On www.sonyericsson.com/support is a support section
where help and tips are only a few clicks away. Here you
will find the latest computer software updates and tips on
how to use your product more efficiently.
Service and support
From now on you will have access to a portfolio of exclusive service
advantages such as:
•Global and local Web sites providing support
•A global network of Call Centers
•An extensive network of Sony Ericsson service partners
•A warranty period. Learn more about the warranty conditions in
this User guide
On www.sonyericsson.com, under the support section in the
language of your choice, you will find the latest support tools and
information, such as software updates, Knowledge base, Phone
setup and additional help when you require it.
For operator-specific services and features, please contact your
network operator for more information.
You can also contact our Call Centers. Use the phone number for
the nearest Call Center in the list below. If your country/region is not
represented in the list, please contact your local dealer. (The phone
numbers below were correct at the time of going to print. You can
always find the latest updates on www.sonyericsson.com.)
In the unlikely event that your product needs service, please contact
the dealer from whom it was purchased, or one of our service
partners. Save your proof of purchase, you will need it if you need to
claim warranty.You will be charged for a call to one of our Call
Centers according to national rates, including local taxes, unless the
phone number is a toll-free number.
64
CountryPhone Number/Email Address
Australia1-300 650 050
questions.AU@support.sonyericsson.com
Argentina800-333-7427
questions.AR@support.sonyericsson.com
Austria0810 200245
questions.AT@support.sonyericsson.com
Belgium02-7451611
questions.BE@support.sonyericsson.com
Brazil4001-0444
questions.BR@support.sonyericsson.com
Canada1-866-766-9374
questions.CA@support.sonyericsson.com
Central Africa+27 112589023
questions.CF@support.sonyericsson.com
Chile123-0020-0656
questions.CL@support.sonyericsson.com
China4008100000
questions.CN@support.sonyericsson.com
Colombia18009122135
questions.CO@support.sonyericsson.com
Croatia062 000 000
questions.HR@support.sonyericsson.com
Czech Republic844 550 055
questions.CZ@support.sonyericsson.com
Denmark33 31 28 28
questions.DK@support.sonyericsson.com
Finland09-299 2000
questions.FI@support.sonyericsson.com
France0 825 383 383
questions.FR@support.sonyericsson.com
Germany0180 534 2020
questions.DE@support.sonyericsson.com
65
Greece801-11-810-810
210-89 91919 (from phone)
questions.GR@support.sonyericsson.com
Hong Kong8203 8863
questions.HK@support.sonyericsson.com
Hungary+36 1 880 47 47
questions.HU@support.sonyericsson.com
India1800 11 1800 (Toll free number)
39011111 (from phone)
questions.IN@support.sonyericsson.com
Indonesia021-2701388
questions.ID@support.sonyericsson.com
Ireland1850 545 888
questions.IE@support.sonyericsson.com
Italy06 48895206
questions.IT@support.sonyericsson.com
Malaysia1-800-889900
questions.MY@support.sonyericsson.com
Mexico01 800 000 4722
(international toll-free number)
questions.MX@support.sonyericsson.com
Netherlands0900 899 8318
questions.NL@support.sonyericsson.com
New Zealand0800-100150
questions.NZ@support.sonyericsson.com
Norway815 00 840
questions.NO@support.sonyericsson.com
Philippines02-6351860
questions.PH@support.sonyericsson.com
Poland0 (prefix) 22 6916200
questions.PL@support.sonyericsson.com
Portugal808 204 466
questions.PT@support.sonyericsson.com
Romania(+4021) 401 0401
questions.RO@support.sonyericsson.com
66
Russia8(495) 787 0986
questions.RU@support.sonyericsson.com
Singapore67440733
questions.SG@support.sonyericsson.com
Slovakia02-5443 6443
questions.SK@support.sonyericsson.com
South Africa0861 632222
questions.ZA@support.sonyericsson.com
Spain902 180 576
questions.ES@support.sonyericsson.com
Sweden013-24 45 00
questions.SE@support.sonyericsson.com
Switzerland0848 824 040
questions.CH@support.sonyericsson.com
Taiwan02-25625511
questions.TW@support.sonyericsson.com
Thailand02-2483030
questions.TH@support.sonyericsson.com
Turkey0212 47 37 777
questions.TR@support.sonyericsson.com
Ukraine(+380) 44 590 1515
questions.UA@support.sonyericsson.com
United Arab Emirates43 919880
questions.AE@support.sonyericsson.com
United Kingdom08705 23 7237
questions.GB@support.sonyericsson.com
United States1-866-766-9374
questions.US@support.sonyericsson.com
Venezuela0-800-100-2250
questions.VE@support.sonyericsson.com
67
Guidelines for Safe and Efficient Use
Please read this information before using your phone.
These instructions are intended for your safety. Please
follow these guidelines. If the product has been
subject to any of the conditions listed below or you
have any doubt as to its proper function make sure
you have the product checked by a certified service
partner before charging or using it. Failure to do so might entail a
risk of product malfunction or even a potential hazard to your
health.
Recommendations for safe use of product ( phone,
battery, charger and other accessories)
•Always treat your product with care and keep it in a clean and
dust-free place.
•Warning! May explode if disposed of in fire.
•Do not expose your product to liquid or moisture or humidity.
•Do not expose your product to extremely high or
low temperatures. Do not expose the battery to
temperatures above +140°F (+60°C).
•Do not expose your product to open flames or lit
tobacco products.
•Do not drop, throw or try to bend your product.
•Do not paint your product.
•Do not attempt to disassemble or modify your
product. Only Sony Ericsson authorized personnel
should perform service.
•Do not close your product with an object inserted
between keypad and display; this may damage
your product.
•Do not use your product near medical equipment without
requesting permission from your treating physician or authorized
medical staff.
•Do not use your product when in, or around aircraft, or areas
showing the sign "turn off two-way radio".
68
•Do not use your product in an area where a
potentially explosive atmosphere exists.
•Do not place your product or install wireless
equipment in the area above an air bag in your car.
CHILDREN
KEEP OUT OF CHILDRENS REACH. DO NOT ALLOW
CHILDREN TO PLAY WITH YOUR PHONE OR ITS
ACCESSORIES. THEY COULD HURT THEMSELVES
OR OTHERS, OR COULD ACCIDENTALLY DAMAGE
THE PHONE OR ACCESSORY. YOUR PHONE OR ITS
ACCESSORY MAY CONTAIN SMALL PARTS THAT COULD
BECOME DETACHED AND CREATE A CHOKING HAZARD.
Power supply (Charger)
Connect the AC power adapter only to designated power sources
as marked on the product. Make sure the cord is positioned so that
it will not be subjected to damage or stress. To reduce risk of
electric shock, unplug the unit from any power source before
attempting to clean it. The AC power adapter must not be used
outdoors or in damp areas. Never alter the cord or plug. If the plug
does not fit into the outlet, have a proper outlet installed by a
qualified electrician.
Use only Sony Ericsson branded original chargers intended for use
with your phone. Other chargers may not be designed to the same
safety and performance standards.
Battery
We recommend that you fully charge the battery before you use
your phone for the first time. A new battery or one that has not been
used for a long time could have reduced capacity the first few times
it is used. The battery should only be charged in temperatures
between +5°C (+41°F) and +45°C (+113°F).
Use only Sony Ericsson branded original batteries intended for use
with your phone. Using other batteries and chargers could be
dangerous.
69
Talk and standby times depend on several different conditions such
as signal strength, operating temperature, application usage
patterns, features selected and voice or data transmissions when
the phone is being used.
Turn off your phone before removing the battery. Do not put the
battery into your mouth. Battery electrolytes may be toxic if
swallowed. Do not let the metal contacts on the battery touch
another metal object. Doing this could short-circuit and damage the
battery. Use the battery for the intended purpose only.
Personal medical devices
Phones may affect the operation of pacemakers and other
implanted equipment. Please avoid placing the phone over the
pacemaker, for example, in your breast pocket. When using the
phone, use it at the ear on the opposite side of the body to the
pacemaker. If a minimum distance of 15 cm (6 inches) is kept
between the phone and the pacemaker, the risk of interference is
limited. If you have any reason to suspect that interference is taking
place, immediately turn off your phone. Contact your cardiologist
for more information.
For other medical devices, please consult your physician and the
manufacturer of the device.
Driving
Please check if local laws and regulations restrict the use of phones
while driving or require drivers to use handsfree solutions. We
recommend that you use only Sony Ericsson handsfree solutions
intended for use with your product.
Please note that because of possible interference to electronic
equipment, some vehicle manufacturers forbid the use of phones in
their vehicles unless a handsfree kit with an external antenna has
been installed.
Always pay full attention to driving and pull off the road and park
before making or answering a call if driving conditions so require.
70
Emergency calls
Phones operate using radio signals, which cannot guarantee
connection in all conditions. You should therefore never rely solely
upon any phone for essential communications (for example, medical
emergencies).
Emergency calls may not be possible in all areas, on all cellular
networks, or when certain network services and/or phone features
are in use. Check with your local service provider.
Antenna
This phone contains a built-in antenna. Use of antenna devices not
marketed by Sony Ericsson specifically for this model could
damage your phone, reduce performance, and produce SAR levels
above the established limits (see below).
Efficient use
Hold your phone as you would any other phone. Do not cover the
top of the phone when it is in use, as this affects call quality and
may cause the phone to operate at a higher power level than
needed, thus shortening talk and standby times.
Radio frequency (RF) exposure and Specific
Absorption Rate (SAR)
Your phone is a low-power radio transmitter and receiver. When it is
turned on, it emits low levels of radio frequency energy (also known
as radio waves or radio frequency fields).
Governments around the world have adopted comprehensive
international safety guidelines, developed by scientific
organizations, for example, ICNIRP (International Commission on
Non-Ionizing Radiation Protection) and IEEE (The Institute of
Electrical and Electronics Engineers Inc.), through periodic and
thorough evaluation of scientific studies. These guidelines establish
permitted levels of radio wave exposure for the general population.
The levels include a safety margin designed to assure the safety of
71
all persons, regardless of age and health, and to account for any
variations in measurements.
Specific Absorption Rate (SAR) is the unit of measurement for the
amount of radio frequency energy absorbed by the body when
using a phone. The SAR value is determined at the highest certified
power level in laboratory conditions, but the actual SAR level of the
phone while it is operating can be well below this value. This is
because the phone is designed to use the minimum power required
to reach the network.
Variations in SAR below the radio frequency exposure guidelines do
not mean that there are variations in safety. While there may be
differences in SAR levels among phones, all Sony Ericsson phone
models are designed to meet radio frequency exposure guidelines.
For phones sold in the US, before a phone model is available for
sale to the public, it must be tested and certified by the Federal
Communications Commission (FCC) that it does not exceed the
limit established by the government-adopted requirement for safe
exposure. The tests are performed in positions and locations (that
is, at the ear and worn on the body) as required by the FCC for each
model. For body-worn operation, this phone has been tested and
meets FCC RF exposure guidelines when the handset is positioned
a minimum of 15 mm from the body without any metal parts in the
vicinity of the phone or when used with the original Sony Ericsson
accessory intended for this phone and worn on the body. Use of
other accessories may not ensure compliance with FCC RF
exposure guidelines.
A separate leaflet with SAR information about this phone model is
included with the material accompanying this phone. This
information can also be found, together with more information on
radio frequency exposure and SAR, on: www.sonyericsson.com/
health.
Accessible Solutions/Special Needs
For phones sold in the US, you can use your TTY terminal with your
Sony Ericsson phone (with the necessary accessory). For
information on Accessible Solutions for individuals with special
needs call the Sony Ericsson Special Needs Center on 877 878
72
1996 (TTY) or 877 207 2056 (voice), or visit the Sony Ericsson
Special Needs Center at www.sonyericsson-snc.com.
Disposal of old electrical & electronic
equipment
This symbol indicates that all electrical and electronic
equipment included shall not be treated as household
waste. Instead it shall be left at the appropriate
collection point for recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate
waste handling of this product. The recycling of materials will help
to conserve natural resources. For more detailed information about
recycling this product, please contact your local city office, your
household waste disposal service or the shop where you purchased
the product.
Disposing of the battery
Please check local regulations for disposal of batteries
or call your local Sony Ericsson Call Center for
information.
The battery should never be placed in municipal
waste. Use a battery disposal facility if available.
Protection of personal information
To safeguard your privacy and prevent information being accessible
to a third party, you should erase all personal data before selling or
disposing of the product. To delete personal data, perform a master
reset. DELETION OF MATERIAL FROM THE PHONE MEMORY
DOES NOT ENSURE THAT SAID INFORMATION CANNOT BE
RECOVERED BY A SUBSEQUENT USER. SONY ERICSSON DOES
NOT WARRANT AGAINST A SUBSEQUENT USER OF THE DEVICE
ACCESSING YOUR INFORMATION AND DOES NOT ASSUME ANY
RESPONSIBILITY FOR SUBSEQUENT DISCLOSURE OF SAID
INFORMATION EVEN IF A MASTER RESET HAS BEEN
73
PERFORMED. If you are concerned about such potential disclosure
retain your device or secure its permanent destruction.
Accessories
Sony Ericsson recommends use of Sony Ericsson original
accessories for safe and efficient use of its products. Use of third-
party accessories may decrease performance or pose a risk to your
health or safety.
LOUDNESS WARNING
Please adjust the audio volume cautiously when using third-party
audio accessories to avoid volume levels that may be harmful to
your hearing. Sony Ericsson does not test use of third-party audio
accessories with this phone. Sony Ericsson recommends using only
Sony Ericsson original audio accessories.
End User License Agreement
This wireless device, including without limitation any media
delivered with the device, ("Device") contains software owned by
Sony Ericsson Mobile Communications AB and its affiliated
companies ("Sony Ericsson") and its third party suppliers and
licensors ("Software").
As user of this Device, Sony Ericsson grants you a non-exclusive,
non-transferable, non-assignable license to use the Software solely
in conjunction with the Device on which it is installed and/or
delivered with. Nothing herein shall be construed as a sale of the
Software to a user of this Device.
You shall not reproduce, modify, distribute, reverse engineer,
decompile, otherwise alter or use any other means to discover the
source code of the Software or any component of the Software. For
avoidance of doubt, you are at all times entitled to transfer all rights
and obligations to the Software to a third party, solely together with
the Device with which you received the Software, provided always
that such third party agrees in writing to be bound by these rules.
You are granted this license for a term of the useful life of this
Device. You can terminate this license by transferring all your rights
74
to the Device on which you have received the Software to a third
party in writing. If you fail to comply with any of the terms and
conditions set out in this license, it will terminate with immediate
effect.
Sony Ericsson and its third party suppliers and licensors are the
sole and exclusive owner of and retain all rights, title and interest in
and to the Software. Sony Ericsson, and, to the extent that the
Software contains material or code of a third party, such third party,
shall be entitled third party beneficiaries of these terms.
The validity, construction and performance of this license shall be
governed by the laws of Sweden. The foregoing shall apply to the
full extent permitted by, when applicable, statutory consumer rights.
Limited Warranty
Sony Ericsson Mobile Communications AB, Nya Vattentornet, SE-
221 88 Lund, Sweden, (Sony Ericsson) or its local affiliated
company, provides this Limited Warranty for your phone and
original accessory delivered with your phone (hereinafter referred to
as "Product").
Should your Product need warranty service, please return it to the
dealer from whom it was purchased, or contact your local Sony
Ericsson Call Center (national rates may apply) or visit
www.SonyEricsson.com to get further information.
OUR WARRANTY
Subject to the conditions of this Limited Warranty, Sony Ericsson
warrants this Product to be free from defects in design, material and
workmanship at the time of its original purchase by a consumer.
This Limited Warranty will last for a period of one (1) year as from
the original date of purchase of the Product.
WHAT WE WILL DO
If, during the warranty period, this Product fails to operate under
normal use and service, due to defects in design, materials or
workmanship, Sony Ericsson authorized distributors or service
partners, in the country* where you purchased the Product, will, at
75
their option, either repair or replace the Product in accordance with
the terms and conditions stipulated herein.
Sony Ericsson and its service partners reserve the right to charge a
handling fee if a returned Product is found not to be under warranty
according to the conditions below.
Please note that some of your personal settings, downloads and
other information may be lost when your Sony Ericsson Product is
repaired or replaced. At present Sony Ericsson may be prevented
by applicable law, other regulation or technical restrictions from
making a backup copy of certain downloads. Sony Ericsson does
not take any responsibility for any lost information of any kind and
will not reimburse you for any such loss. You should always make
backup copies of all the information stored on your Sony Ericsson
Product such as downloads, calendar and contacts before handing
in your Sony Ericsson Product for repair or replacement.
CONDITIONS
1This Limited Warranty is valid only if the original proof of
purchase for this Product issued by a Sony Ericsson authorized
dealer specifying the date of purchase and serial number**, is
presented with the Product to be repaired or replaced. Sony
Ericsson reserves the right to refuse warranty service if this
information has been removed or changed after the original
purchase of the Product from the dealer.
2If Sony Ericsson repairs or replaces the Product, the repair for
the defect concerned, or the replaced Product shall be
warranted for the remaining time of the original warranty period
or for ninety (90) days from the date of repair, whichever is
longer. Repair or replacement may involve the use of functionally
equivalent reconditioned units. Replaced parts or components
will become the property of Sony Ericsson.
3This warranty does not cover any failure of the Product due to
normal tear and wear, or due to misuse, including but not limited
to use in other than the normal and customary manner, in
accordance with the Sony Ericsson instructions for use and
maintenance of the Product. Nor does this warranty cover any
failure of the Product due to accident, software or hardware
76
modification or adjustment, acts of God or damage resulting
from liquid. A rechargeable battery can be charged and
discharged more than a hundred times. However, it will
eventually wear out - this is not a defect and corresponds to
normal wear and tear. When the talk-time or standby time is
noticeably shorter, it is time to replace your battery. Sony
Ericsson recommends that you use only batteries and chargers
approved by Sony Ericsson. Minor variations in display
brightness and color may occur between the phones. There may
be tiny bright or dark dots on the display. These are called
defective pixels and occur when individual dots have
malfunctioned and can not be adjusted. Two defective pixels are
deemed acceptable. Minor variations in camera image
appearance may occur between phones. This is nothing
uncommon and is not regarded as a defective camera module.
4Since the cellular system on which the Product is to operate is
provided by a carrier independent from Sony Ericsson, Sony
Ericsson will not be responsible for the operation, availability,
coverage, services or range of that system.
5This warranty does not cover Product failures caused by
installations, modifications, or repair or opening of the Product
performed by a non-Sony Ericsson authorised person.
6The warranty does not cover Product failures which have been
caused by use of accessories or other peripheral devices which
are not Sony Ericsson branded original accessories intended for
use with the Product.
7Tampering with any of the seals on the Product will void the
warranty.
8THERE ARE NO EXPRESS WARRANTIES, WHETHER WRITTEN
OR ORAL, OTHER THAN THIS PRINTED LIMITED WARRANTY.
ALL IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED
WARRANTY. IN NO EVENT SHALL SONY ERICSSON OR ITS
LICENSORS BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY NATURE
77
WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST
PROFITS OR COMMERCIAL LOSS; TO THE FULL EXTENT
THOSE DAMAGES CAN BE DISCLAIMED BY LAW.
Some countries/states do not allow the exclusion or limitation of
incidental or consequential damages, or limitation of the duration
of implied warranties, so the preceding limitations or exclusions
may not apply to you.
The warranty provided does not affect the consumer's statutory
rights under applicable legislation in force, nor the consumer's
rights against the dealer arising from their sales / purchase
contract.
*GEOGRAPHICAL SCOPE OF THE WARRANTY
If you have purchased your Product in a country member of the
European Economic Area (EEA) or in Switzerland or the Republic of
Turkey, and such Product was intended for sale in the EEA or in
Switzerland or in Turkey, you can have your Product serviced in any
EEA country or in Switzerland or in Turkey, under the warranty
conditions prevailing in the country in which you require servicing,
provided that an identical Product is sold in such country by an
authorised Sony Ericsson distributor. To find out if your Product is
sold in the country you are in, please call the local Sony Ericsson
Call Center. Please observe that certain services may not be
possible elsewhere than in the country of original purchase, for
example due to the fact that your Product may have an interior or
exterior which is different from equivalent models sold in other
countries. Please note in addition that it may sometimes not be
possible to repair SIM-locked Products.
** In some countries/regions additional information (such as a valid
warranty card) may be requested.
78
FCC Statement
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Declaration of Conformity
We, Sony Ericsson Mobile Communications AB of
Nya Vattentornet
SE-221 88 Lund, Sweden
declare under our sole responsibility that our product
Sony Ericsson type AAB-1032021-BV
and in combination with our accessories, to which this declaration
relates is in conformity with the appropriate standards 3GPP TS
51.010-1, EN 301489-7, EN 300328, EN 301489-17, and EN 60950
following the provisions of, Radio Equipment and
Telecommunication Terminal Equipment directive 99/5/EC with
requirements covering EMC directive 89/336/EEC, and Low Voltage
directive 73/23/EEC
We fulfill the requirements of the R&TTE Directive (99/5/
EC).
Date, 2007
S
hoji Nemoto,
H
ead of Product Business Unit GSM/UMTS
79 Draft for Sony Ericsson Internal Use Only
Index
A
activity menu 16
alarm clock 53
answering service 26
applications 44
B
battery
charging 11, 12
use and care 69
birthday reminder 23
Bluetooth™ 49
C
calculator 57
calendar 54
call time 29
call waiting 27
calls
answering 20
emergency 22
hold 27
list 21
making 20
missed 21
phone contact 23
redial 20
SmartChip contact 24
two calls 28
camera 38
camera album 40
certificates 47
codes
PIN 13
PUK 63
conference calls 28
contacts 22
adding contacts 22
default contacts 24
delete 25
edit 25
synchronizing 47
D
date 53
declaration of conformity 79
E
email 35
emergency calls 22
F
file information 16
G
games 44
H
handsfree 50
help 14
I
instant messaging 35
internet 46
80
Draft for Sony Ericsson Internal Use Only
L
language
phone 17
writing 17
light effects 45
locks
phone lock 63
SmartChip 57
loudspeaker 21
M
media net 46
melodies 42
memory status
contacts 26
file manager 17
menus 15
messages
deleting 33
saving 33
saving and deleting 33
messaging 31
microphone, off/on 21
Mobile email 35
My numbers 29
N
navigation key 15
networks 20
notes 57
P
password saver 59
phone lock 58, 63
picture messages
templates 33
pictures 41
PIN 13, 57
PIN code
changing 58
entering 13
profiles 54
PUK 57, 63
R
reject a call 20
ringtones 42
S
safety guidelines 68
screen saver 41
security
checkword 59
Internet 47
password saver 59
SmartChip lock 57
Send options 32
sending
appointments 56
business card 23
contacts 25
melodies 43
pictures 40
ringtones 43
tasks 56
themes 44
81 Draft for Sony Ericsson Internal Use Only
settings
setup wizard 13
time and date 53
shortcuts 15
SmartChip
copying to/from 24, 25
inserting 11
lock 57
save automatically 25
unblocking 57
SMS 31–??
SOS numbers 22
speaker volume 21
standby 13
synchronizing 47–48
T
T9™ Text Input 18
tasks 56
templates 33
add a template 33
text and picture messaging
31–??
text input 18
themes 44
alternating 44
time 53
transfer method 52
Bluetooth 49
infrared 50
USB cable 51
transferring files 52
troubleshooting 61
turning on/off
Bluetooth 49
light effects 45
phone 13
phone lock 58
ringtones 42
SmartChip lock
protection
58
U
USB cable 51
V
vibrating alert 42
voicemail 26
volume
ear speaker 21
ringtone 42
W
warranty 74
Sony Ericsson Mobile Communications AB
SE-221 88 Lund, Sweden
www.sonyericsson.com
XX/LZT 000 0000P1A
Printed in XXXXXX

Navigation menu
