Sony A1042011 Licensed Transmitter User Manual J230A UG EN
Sony Mobile Communications Inc Licensed Transmitter J230A UG EN
Sony >
Exhibit 8 user manual
J230a
J230A-UG-EN.book Page 1 Tuesday, February 14, 2006 9:37 AM
J230A-UG-EN.book Page 2 Tuesday, February 14, 2006 9:37 AM
1
Contents
Getting to know your phone . . . . . . . . . . . . . . . . . . . 4
Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Menu overview . . . . . . . . . . . . . . . . . . . . . . . . 12
Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Personalizing your phone . . . . . . . . . . . . . . . . . . . 43
Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
More features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Additional information . . . . . . . . . . . . . . . . . . . . . . 72
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
J230A-UG-EN.book Page 1 Tuesday, February 14, 2006 9:37 AM
2
Sony Ericsson
GSM 850/1900
This user guide is published by Sony Ericsson Mobile
Communications AB, without any warranty. Improvements
and changes to this user guide necessitated by
typographical errors, inaccuracies of current information,
or improvements to programs and/or equipment, may be
made by Sony Ericsson Mobile Communications AB at any
time and without notice. Such changes will, however, be
incorporated into new editions of this user guide.
All rights reserved.
© Sony Ericsson Mobile Communications AB, 2006
Publication number: EN/LZT 108 8119 R1A
Please note:
Some of the services in this user guide are not supported by
all networks. This also applies to the GSM International
Emergency Number 112.
Please contact your network operator or service provider if
you are in doubt whether you can use a particular service
or not.
Please read the Guidelines for safe and efficient use and
the Limited warranty chapters before you use your mobile
phone.
T9™ Text Input is a trademark or a registered trademark of
Tegic Communications.
T9™ Text Input is licensed under one or more of the
following:
U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928,
and 6,011,554;
Canadian Pat. No. 1,331,057;
J230A-UG-EN.book Page 2 Tuesday, February 14, 2006 9:37 AM
3
United Kingdom Pat. No. 2238414B;
Hong Kong Standard Pat. No. HK0940329;
Republic of Singapore Pat. No. 51383;
Euro. Pat. No. 0 842 463 (96927260.8) DE/DK, FI, FR, IT,
NL, PT, ES, SE, GB; and additional patents are pending
worldwide.
Your mobile phone has the capability to download, store
and forward additional content, e.g. ringtones. The use of
such content may be restricted or prohibited by rights of
third parties, including but not limited to restriction under
applicable copyright laws. You, and not Sony Ericsson, are
entirely responsible for additional content that you
download to or forward from your mobile phone. Prior to
your use of any additional content, please verify that your
intended use is properly licensed or is otherwise authorized.
Sony Ericsson does not guarantee the accuracy, integrity or
quality of any additional content or any other third party
content. Under no circumstances will Sony Ericsson be
liable in any way for your improper use of additional content
or other third party content.
Other product and company names may be the trademarks
of their respective owners.
Sony Ericsson advises users to backup their personal data
information.
All illustrations are for illustration only and may not
accurately depict the actual phone.
Any rights not expressly granted herein are reserved.
J230A-UG-EN.book Page 3 Tuesday, February 14, 2006 9:37 AM
4
Getting to know your phone
No key
Power on/off
Navigation
key
Clear key
Option key
Yes key
J230A-UG-EN.book Page 4 Tuesday, February 14, 2006 9:37 AM
5
Assembling your phone
Before you can use your phone you need to:
• Insert the SIM card.
• Attach and charge the battery.
User guide symbols
The following symbols appear in this user guide:
SIM card and battery information
The SIM (Subscriber Identity Module) card, which you get
from your network operator, contains information about your
subscription and phonebook. Always turn off the phone and
detach the charger before you insert or remove a SIM card.
} Use the navigation key to scroll and select.
% See also page.xx
Important
Note
This symbol indicates that a service or function is
network – or subscription-dependent. Because of this,
all menus may not be available in your phone. Please
consult your network operator for more information.
If you have been using a SIM card in another phone,
make sure that your information is saved to the SIM
card before you remove it from the other phone.
%18 Phonebook.
J230A-UG-EN.book Page 5 Tuesday, February 14, 2006 9:37 AM
6

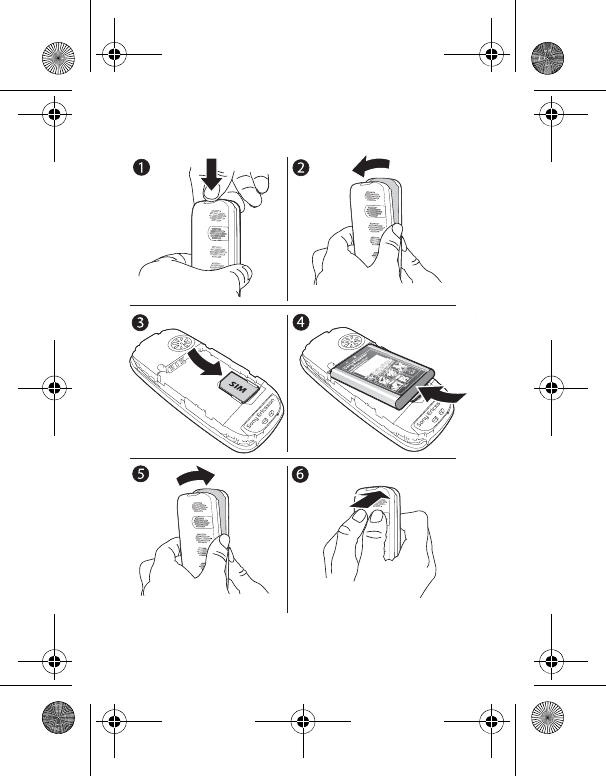

To insert the SIM card and battery
J230A-UG-EN.book Page 6 Tuesday, February 14, 2006 9:37 AM
7
1Press to release the cover as shown in the picture.
2Gently pull the cover away from the phone.
3Insert the SIM card. Make sure the SIM card is placed
under the silvery holders.
4Place the battery on the back of the phone with the label
side up and the connectors facing each other.
5Replace the cover as shown in the picture.
6Press to close the cover.
To charge the battery
1Connect the charger to the phone. The flash symbol on
the charger plug must face upwards.
2It may take up to 30 minutes before the battery icon
appears on the screen.
3Wait approximately 4 hours or until the battery icon
indicates that the battery is fully charged. If you do not
see the battery icon after this time, press any key to
activate the screen.
4Remove the charger by pulling it out.
The time and date are reset when you remove the
battery.
J230A-UG-EN.book Page 7 Tuesday, February 14, 2006 9:37 AM
8
PIN
You may need a PIN (Personal Identification Number) to
activate the services in your phone. Your PIN is provided by
your network operator.
If you make a mistake while entering your PIN, delete the
number by pressing .
To turn the phone on and off
• Press and hold .
• Enter your PIN, if requested.
• Press and hold to turn off the phone.
To make and receive calls
• Enter the area code and phone number }YES to make the
call.
•}NO to end the call.
• When the phone rings, }YES.
If you enter the wrong PIN three times in a row, the
SIM card is blocked and the message PIN blocked
appears. To unblock it, you need to enter your PUK
(Personal Unblocking Key), %65 SIM card lock.
J230A-UG-EN.book Page 8 Tuesday, February 14, 2006 9:37 AM
9
Icons
The following icons appear on the desktop and in the status
bar.
Tells you the status of the battery.
Tells you the strength of the GSM network signal.
Calls – Handling of call time, call cost information
and ongoing calls.
Internet services – Gives you access to Internet
services.
Alarms – Alarm clock and recurrent alarm.
Fun & Games – Games and applications.
Messaging – Handling of text (SMS), picture
(MMS) and voice messages.
Radio – Listen to the radio.
Organizer – Calendar, tasks, timer and other extras.
Phonebook – Your personal phonebook.
Settings – Personal settings including profiles,
display, language, connectivity, time and locks.
J230A-UG-EN.book Page 9 Tuesday, February 14, 2006 9:37 AM
10
Main menu view
Change the main menu view from multiple to single icons.
To change the main menu view
1}Settings }YES }Display }YES }Main menu view
}YES.
2Select Grid view or List view.
Navigating the menus
•Press (navigation key) to go to the desktop.
•Press to move through the menus.
•Press NO to go back one level in the menus.
• Press and hold NO to return to standby.
Shortcuts
From standby, you can use the navigation key to go directly
to a function.
• Press to play the radio.
• Press to enter the phonebook.
• Press to write a message.
• Press to set an alarm.
To create a shortcut
1}Settings }YES } My shortcuts }YES }Navigation key
right }YES.
2Scroll to and select a shortcut } YES.
J230A-UG-EN.book Page 10 Tuesday, February 14, 2006 9:37 AM
11
To access your shortcut, press .
J230A-UG-EN.book Page 11 Tuesday, February 14, 2006 9:37 AM
12
Menu overview
* Network- and subscription- dependent.
1.Calls
Missed calls
Call list
Manage calls
Time and cost
Switch to line 2*
Clear call list
2.Internet services
Sony Ericsson
Bookmarks
Enter address
Push inbox
Options
3.Alarms
Alarm
Recurrent alarm
4.Fun & Games
Games
My pictures
More pictures
My sounds
More sounds
Themes
Composer
5.Messaging
Text message
Picture message
Call voicemail
Options
6.Radio
7.Organizer
Calendar
Tasks
Timer
Stopwatch
Calculator
8.Phonebook
Find and call
Add number
Find and edit
Memory status
Options
9.Settings
Sounds & alerts
Time and date
Display
Profiles
Language
Locks
Handsfree
Connectivity
My shortcuts
Master reset
J230A-UG-EN.book Page 12 Tuesday, February 14, 2006 9:37 AM
13
Phone language
Most SIM cards automatically set the language used in the
menu to the language of the country where you bought your
SIM card. If this is not the case, the predefined language
is English.
To change the phone language
1}Settings }YES }Language }YES }Menus }YES.
2Select a language }YES.
More options
Press to enter a list of options. There are different
alternatives in the list of options depending on where you are
in the menus.
Delete and edit items
Two ways to delete items
• Select an item and press .
• Select an item, press }Delete.
To edit items
Select an item, press }Edit.
You can always choose Automatic by pressing 8888
in standby mode.
You can always choose English by pressing 0000
in standby.
You can press instead of the YES key to select an
item.
J230A-UG-EN.book Page 13 Tuesday, February 14, 2006 9:37 AM
14
Entering letters and characters
When writing messages and notes there are two ways to enter
letters and characters:
• Multitap text input
• T9™ Text Input
To enter letters using multitap input
• Press - until the desired character appears on the
screen.
• Press to shift between capital and lower-case letters.
• Press and hold - to enter numbers.
• Press to delete letters and numbers.
• Press for the most common punctuation marks.
• Press to add a space.
T9™ Text Input
The T9™ Text Input method uses a built-in dictionary to
recognize the most commonly used word for each sequence
of key presses. This way, you press each key only once, even
if the letter you want is not the first letter on the key.
To enter letters using T9 Text Input
1For example, if you want to write the word “Jane”, press
, , , .
2If the word shown is the one you want, press to
accept and add a space. To accept a word without adding
a space, press . If the word shown is not the one you
want, press or repeatedly to view alternative
words.
3Continue writing your message. To enter a full stop or
other punctuation marks, press and then or
repeatedly. Accept and add a space by pressing .
J230A-UG-EN.book Page 14 Tuesday, February 14, 2006 9:37 AM
15
To switch between writing methods
Before, or while entering letters, press and hold to
switch between writing methods.
Options list
Press to enter a list of options that offers different
alternatives when writing a message.
J230A-UG-EN.book Page 15 Tuesday, February 14, 2006 9:37 AM
16
Calling
Making and receiving calls
Before you can make or receive calls, you must turn on the
phone and be within range of a network, %8 To turn the
phone on and off.
If your subscription includes the Calling Line
Identification service and the caller’s number is identified,
the number is displayed. If you have saved the number in the
phonebook, the name and number are displayed. If the
number is a restricted number, Withheld is displayed.
To make a call
Enter the area code and phone number }YES to make the call.
}NO to end the call.
To re-dial a number
If the connection failed and Retry? is displayed }YES.
To answer or reject a call
}YES to answer a call. }NO to reject a call.
To change the speaker volume during a call
Press or to increase or decrease the speaker volume
during a call.
To use the loudspeaker during a call
Press }Turn on speaker or }Turn off speaker.
Do not hold the phone to your ear while waiting.
When the call is connected, the phone gives a
loud signal.
J230A-UG-EN.book Page 16 Tuesday, February 14, 2006 9:37 AM
17
To check your missed calls
1When Missed calls: is displayed, }YES to display the
missed calls.
2To call a number, scroll to the number }YES.
To make international calls
1Press and hold until a + sign appears on the screen.
2Enter the country code, area code (without the leading
zero) and phone number }YES.
Emergency calls
Your phone supports the international emergency numbers,
112, 911 and 08. These numbers can normally be used to
make an emergency call in any country, with or without a
SIM card inserted, if a GSM network that supports these
numbers is within range. Your network operator may have
saved additional local emergency numbers on the SIM card.
To make an emergency call
Enter, for example, 112 (the international emergency
number) }YES.
To view your local emergency numbers
}Phonebook }YES }Options }YES }Special numbers }YES
}Emergency nos. }YES.
Call list
The numbers of the last calls that you have made or received
are saved in the call list.
Some network operators may require that a SIM card
is inserted, and in some cases that the PIN has been
entered as well.
J230A-UG-EN.book Page 17 Tuesday, February 14, 2006 9:37 AM
18
To call a number from the call list
}YES from standby and scroll to the name or number you
want to call }YES.
To clear the call list
}Calls }YES }Clear call list }YES.
Phonebook
Your phone has a phonebook in which you can save numbers
and accompanying names (an entry).
To save a number together with a name
1}Phonebook }YES }Add number }YES.
2Select Add new? to enter the phone number that you
want to save, or select any numbers from the list by
pressing YES.
3Enter a name that you want to associate with the phone
number }YES, %14 Entering letters and characters.
4}YES again to save the entry in the suggested position.
Pictures and personal rings
You can add a picture and a ringtone to phonebook entries.
To add a picture to a phonebook entry
1}Phonebook }YES }Options }YES }Picture }YES.
2}Add new? }YES.
3}YES to go to the phonebook. Scroll to the phonebook
entry you want }YES.
4This takes you to Picture. Select a picture }YES.
J230A-UG-EN.book Page 18 Tuesday, February 14, 2006 9:37 AM
19
To add a ringtone to a phonebook entry
1}Phonebook }YES }Options }YES }Personal rings
}YES.
2}Add new? }YES.
3Press to go to the phonebook. Scroll to the
phonebook entry you want }YES.
4This takes you to Personal rings. Select a ringtone }YES.
To call a number saved in the phonebook
1}Phonebook }YES }Find and call }YES.
2Enter the name or the first letter of the name }YES.
3If the name displayed is not the one you want, press
or until you find the correct name and number.
4}YES to make the call.
Speed dialling
You can save the phone numbers that you wish to reach
easily in positions - in your phone.
To speed dial
From standby, enter the position number }YES.
Shortcuts to phonebook entries
When in standby, press and hold the keys - to find
an entry beginning with the first letter on that key, or the
closest following.
J230A-UG-EN.book Page 19 Tuesday, February 14, 2006 9:37 AM
20
Ask to save
If Ask to save is on, you are asked if you want to save any
called or answered number that is not already saved in your
phonebook.
To turn the Ask to save function on or off
}Phonebook }YES }Options }YES }Ask to save }YES
select On or Off }YES.
To edit an entry in the phonebook
1}Phonebook }YES }Find and edit }YES.
2Enter the name or the first letter of the name }YES.
3}YES to select the entry.
4}Edit }YES.
5When you have finished editing }YES to save your
changes.
To delete an entry from the phonebook
1}Phonebook }YES }Find and edit }YES.
2Enter the name or the first few letters of the name }YES.
When the entry you want to delete is highlighted }YES.
3}Delete }YES.
Sort order
You may change the sort order of your phonebook entries, so
that they are sorted according to their position number instead
of the name.
Your subscription must support the Calling Line
Identification Service, if you want to save answered
numbers.
J230A-UG-EN.book Page 20 Tuesday, February 14, 2006 9:37 AM
21
To choose a sort order
1}Phonebook }YES }Options }YES }Sort order }YES.
2Select a sort order }YES.
Phonebook memories
Phonebook entries are saved on your SIM card. The number
of entries you can save depends on your SIM card. You can
still access them if you use the card with another phone.
You can also save your entries in the phone memory when
all SIM positions are occupied.
Choosing where to save an entry
• To save the number in the position suggested }YES.
• To save the number in another position, press to
delete the position number, enter a new position number
}YES.
• To save the number in the phone memory, you first need to
know how many positions you have got on your SIM card.
You can check this in the Memory status menu.
To check the status of the memories
}Phonebook }YES }Memory status }YES.
Replacing entries
If you try to save a phone number in a position which already
contains a phone number, the message Replace? appears.
Press YES to replace the number or press NO if you do not
want to replace the old number.
J230A-UG-EN.book Page 21 Tuesday, February 14, 2006 9:37 AM
22
To delete all entries from the phone memory
1}Phonebook }YES }Options }YES }Delete all }YES
}YES.
2Enter the phone lock code (0000 or a new code) press
YES . If you delete all entries from the phone memory, the
entries on your SIM card are not deleted.
Copy phonebook entries
You can copy phonebook entries between your phone
memory and the SIM card.
To copy entries to the SIM card
}Phonebook }YES }Options }YES }Copy all to SIM }YES.
To copy entries to the phone
}Phonebook }YES }Options }YES }Copy from SIM }YES.
Groups
You can create a group of phonebook entries. You can then
send a text message to all members of that group at the same
time %33 Text messages.
To create a new group
1}Phonebook }YES }Options }YES }Groups }YES
}Add new? }YES.
2Enter a name for the group }YES.
3}Add new? }YES.
4Select an entry in your phonebook }YES.
5To add the next member, repeat steps 3 and 4.
6}NO to leave the menu.
J230A-UG-EN.book Page 22 Tuesday, February 14, 2006 9:37 AM
23
To add a member to an existing group
Select the group you want }YES }Edit }YES }Add new?
}YES.
Voicemail
If your subscription includes an answering service, callers
can leave a voicemail message when you cannot answer
acall.
Calling your voicemail service
You can easily call your voicemail service by pressing and
holding , if you have saved your voicemail number in the
phone. You can get the number from your service provider.
To enter a voicemail number
}Messaging }YES }Options }YES }Voicemail no. }YES.
Call time
During a call, the duration of the call is shown in the display.
You can check the duration of your last call, outgoing calls
and the total time.
To check the call time and reset timer
1}Calls }YES }Time and cost }YES }Call timers }YES.
2Select an option }YES.
3Select Reset timers to reset the call time meter.
J230A-UG-EN.book Page 23 Tuesday, February 14, 2006 9:37 AM
24
Call cost and cost information
Check with your network operator or service provider for
information about these services.
To check the call cost and reset cost meter
1}Calls }YES }Time and cost }YES }Call costs }YES.
2Select an option }YES.
3Select Clear total cost to reset the call cost meter.
Setting the call cost
You can use the tariff function to specify the price per call
unit. If you do not specify a price per call unit, the number of
call units is displayed.
To enter the price per call unit
1}Calls }YES }Time and cost }YES }Call costs }YES
}Set tariff }YES.
2Enter your PIN2 }YES.
3Select Change tariff }YES.
4Enter the code for the currency you want, (for example
GBP for Pounds Sterling) }YES.
5Enter the price per call unit }YES. To enter a decimal
point, press .
Credit limit for calls
You can enter a total amount of money that can be used for
making calls. When the amount reaches zero, no more calls
can be made. Please note that the credit limit is only an
estimated value.
If you subscribe to cost information, you must enter
your PIN2 to clear the cost or time counter,
%65 Security for information about PIN2.
J230A-UG-EN.book Page 24 Tuesday, February 14, 2006 9:37 AM
25
To set a credit limit
1}Calls }YES }Time and cost }YES }Call costs }YES
}Set credit }YES.
2Enter your PIN2 }YES.
3Select Change }YES.
4Enter an amount }YES.
Diverting calls
If you cannot answer incoming voice or data calls, you can
divert them to another number.
For voice calls, you can choose between the following divert
alternatives:
•All line 1 calls – Divert all line 1 calls.
•All line 2 calls – Divert all line 2 calls.
•When busy – Divert calls if you are already on the phone.
•Not reachable – Divert calls if you are unreachable.
•No reply – Divert calls that you do not answer within a
specified time limit (operator-dependent).
To turn on a call divert
1}Calls }YES }Manage calls }YES }Divert calls }YES.
2Select a call category and then a divert alternative }YES.
3Select Activate }YES.
4Enter the phone number to which you want your calls to
be diverted }YES, or retrieve it from the phonebook.
To turn off a call divert
1}Calls }YES }Manage calls }YES }Divert calls }YES.
2Select a divert alternative }Cancel.
When the Restrict calls function is on, some Divert calls
options cannot be activated.
J230A-UG-EN.book Page 25 Tuesday, February 14, 2006 9:37 AM
26
To check the status of a call divert
1}Calls }YES }Manage calls }YES }Divert calls }YES.
2Select a call type }YES.
3Select the divert }YES }Get status }YES.
To check the status of all call diverts
}Calls }YES }Manage calls }YES }Divert calls }YES
}Check all }YES.
More than one call
You can handle more than one call simultaneously. For
example, you can put an ongoing call on hold, while you
make or answer a second call, and then switch between the
two calls. You cannot answer a third call without ending one
of the first two calls.
Call waiting service
If the call waiting service is activated, you hear a beep if you
receive a second call during an ongoing call.
To activate or deactivate the call waiting
service
}Calls }YES }Manage calls }YES }Call waiting }YES
}Activate.
During a call the Ongoing call menu replaces the
Calls menu.
J230A-UG-EN.book Page 26 Tuesday, February 14, 2006 9:37 AM
27
To make a second call
1}YES to put the ongoing call on hold. You can only put
one call on hold.
2Enter the number you want to call }YES, or retrieve a
number from the phonebook. To reach different options
press .
To receive a second call
• To answer the second call and put the ongoing call on hold
}Answer.
• To reject the second call and continue the ongoing call
}Busy.
• To answer the second call and to end the ongoing call
}Release&answer.
Handling two calls
When you have one ongoing call and one call on hold, you
can do the following:
•}YES to switch between the two calls.
•Press }Join calls to join the two calls into a
conference call.
•Press }Transfer call to connect the two calls. You are
disconnected from both calls.
•}NO to end the ongoing call }YES to retrieve the held call.
•}NO twice to end both calls.
J230A-UG-EN.book Page 27 Tuesday, February 14, 2006 9:37 AM
28
Conference calls
You can have a joint conversation (conference call) with up
to five people. You can also put a conference on hold and
make another call.
Creating a conference call
To create a conference call, you must first have one ongoing
call and one call on hold.
To join the two calls into a conference call
Press }Join calls }YES.
To add a new participant
1}YES to put the conference call on hold.
2Call the next person you wish to include in the
conference call.
3Press }Join calls }YES. Repeat steps 1 to 3 to
include more participants.
To release a participant
1Press }Release part }YES.
2Select the participant }YES.
To end the conference call
}NO.
Having a private conversation
You can have a private conversation with one of the
participants and put the other participants on hold.
There may be additional charges for calls involving
multiple parties. Contact your service provider for
more information.
J230A-UG-EN.book Page 28 Tuesday, February 14, 2006 9:37 AM
29
To start a private conversation
1Press }Extract part to select the participant that you
want to talk with.
2Press }Join calls to resume the conference call.
Restricted dialling
You can use the restrict calls service to restrict outgoing and
incoming calls. To use this service, you need a password
which you get from your service provider.
The following calls can be restricted:
•All outgoing – All outgoing calls.
•Outgoing intl – All outgoing international calls.
•Outg. intl roam – All outgoing international calls except to
your home country.
•All incoming – All incoming calls.
•Inc. when roam – All incoming calls when you are abroad
(when roaming).
To turn a call restriction on or off
1}Calls }YES }Manage calls }YES }Restrict calls
}YES.
2Select an option }YES.
3Select Activate or Cancel }YES.
4Enter your PIN }YES.
Fixed dialling
The fixed dialling function allows calls to be made only to
certain numbers saved on the SIM card.
If you divert incoming calls, you cannot activate some
Restrict calls options.
J230A-UG-EN.book Page 29 Tuesday, February 14, 2006 9:37 AM
30
Fixed dialling requires a SIM card that allows fixed
numbers to be saved. The fixed numbers are protected by
your PIN2. You can save partial numbers or numbers with
question marks.
• Partial numbers: Saving 0123456 allows calls to be made
to all numbers starting with 0123456.
• Numbers with question marks: Saving 01234567?0,
allows calls to be made to numbers from 0123456700 to
0123456790. To enter a question mark, press and hold
.
To turn fixed dialling on or off
1}Phonebook }YES }Options }YES }Fixed dialling
}YES.
2Enter your PIN2 }YES.
3Select On or Off }YES.
To save a fixed number
1}Phonebook }YES }Options }YES }Special numbers
}YES }Fixed numbers }YES.
2}Add new? and enter the number }YES.
Closed user groups
The closed user group function is a way of lowering call
costs. On some networks it is cheaper to make calls within a
call group. You can save ten groups.
Calls to international emergency numbers can still be
made, even when the fixed dialling function is on.
J230A-UG-EN.book Page 30 Tuesday, February 14, 2006 9:37 AM
31
To add a group
1}Calls }YES }Manage calls }YES }Closed groups
}YES }Edit list }YES.
2}Add new? }YES.
3Enter the name of the user group }YES.
4Enter the index number }YES. You get the index number
from your operator.
To activate a group
1}Calls }YES }Manage calls }YES }Closed groups
}YES }Edit list }YES.
2Select a group }YES.
3}Activate }YES. Calls can only be made within the
selected group.
To call outside a closed user group
}Calls }YES }Manage calls }YES }Closed groups }Open
calls }On.
Accept calls
With the accept calls service, you can choose to receive calls
only from certain numbers.
To add numbers to the accepted callers list
1}Calls }YES }Manage calls }YES }Accept calls }YES
}Accepted list }YES.
2}Add new? }YES.
3Select an option }YES.
4Select an entry }YES.
To select an accept option
}Calls }YES }Manage calls }YES }Accept calls }YES
}Accept options }YES select an option }YES.
J230A-UG-EN.book Page 31 Tuesday, February 14, 2006 9:37 AM
32
Additional calling functions
Tone signals
You can use telephone banking services or control an
answering machine by sending tone signals (also known as
DTMF tones or touch tones) during a call.
To send and clear tones
• Press the number keys - , and .
• To clear the display after a call }NO.
Notepad
You can use the phone to make a note of a phone number
during a call. When you press the number keys, the person
you are talking to hears tone signals. To turn these tone
signals off during the call, press }Turn off tones }YES.
When you end the call, the number remains in the display.
To call the number }YES.
Showing or hiding your number
If your subscription supports CLIR (Calling Line
Identification Restriction), you can hide your phone number
when making a call.
To show or hide your phone number
1Enter the phone number you want to call, press .
2}Hide my number or Show my numb. }YES.
J230A-UG-EN.book Page 32 Tuesday, February 14, 2006 9:37 AM
33
Messaging
Service numbers
You must have a service centre number before you can send a
text message. This number is provided by your operator. If it
is not saved on your SIM card, you must specify the number
yourself.
To check the number to your service centre
1}Messaging }YES }Text message }YES }Options
}YES }Service centres }YES. If no number is found
}Add new? }YES.
2Enter the number, including the international + sign and
country/region code }YES.
Text messages
You can use the SMS (Short Message Service) to send and
receive text messages. Text messages can contain pictures
and sound effects.
To send a text message
1}Messaging }YES }Text message }YES }Write new
}YES.
2Enter your message }YES, %14 Entering letters and
characters.
3Enter the recipient’s phone number or retrieve it from the
phonebook by pressing .
4}YES to send the message.
To insert an item in a text message
1}Messaging }YES }Text message }YES }Write new
}YES.
2Press to enter the option menu.
J230A-UG-EN.book Page 33 Tuesday, February 14, 2006 9:37 AM
34
3Select Add symbol or Insert item }YES.
4Select Picture, Sound effect, Melody or Animation }YES.
5Select an object or symbol }YES. }YES again to
confirm.
Sending a text message to a group
You can send text messages to groups that you have specified
and saved in your phonebook, %22 Groups. You will be
charged for each group member.
To send a text message to a group
1}Messaging }YES }Text message }YES }Write new
}YES.
2Enter your message }YES.
3Press }Groups }YES.
4Select a group }YES.
Text formatting
You can change the style, size and alignment of the text in a
text message.
To format the text in a text message
1}Messaging }YES }Text message }YES }Write new
}YES.
2Write the text message.
3Press }Text format }YES.
4Select Text size, Text style, Alignment or New paragr.
}YES. Select a format }YES.
Text formatting only applies when Latin characters
are used.
J230A-UG-EN.book Page 34 Tuesday, February 14, 2006 9:37 AM
35
Long messages
The maximum number of characters that a text message can
contain depends on the writing language. You can send a
longer message by linking two or more messages. You are
charged for the number of linked messages.
To turn long messages on
}Messaging }YES }Text message }YES }Options }YES
}Long messages }YES }On }YES.
Message options
You can set a default value for the message options below, or
you can turn on the Set on send option which means that you
choose the settings each time you send a message.
•Text message type – The phone supports different types of
messages. Your service provider may offer the facility of
converting a text message into a format (email, for
example) that suits the equipment that is going to receive
the message.
•Validity period – If your message cannot be delivered, your
service centre can save the message to send it later.
•Request reply – Include a reply request if you want the
recipient of your message to reply.
•Status request – Check if a message has been delivered.
To set a default message option
1}Messaging }YES }Text message }YES }Options
}YES.
2Select Text message type, Validity period, Request reply,
or Status request }YES.
Check with your service provider for the maximum
number of messages that can be linked.
J230A-UG-EN.book Page 35 Tuesday, February 14, 2006 9:37 AM
36
3Select an option from the list }YES.
Templates
If you have one or more messages that you send often,
you can save these as templates.
To create a template
1}Messaging }YES }Text message }YES }Templates
}YES }Add new? }YES.
2Enter the message }YES to save the template.
To use a template
Select a template from the Templates list in the Messaging
menu, and proceed as described on %33 To send a text
message.
To check the number of sent messages
}Calls }YES }Time and cost }YES }Text msg counter
}YES }Show counter }YES.
To reset the message counter
}Calls }YES }Time and cost }YES }Text msg counter
}YES }Reset counter }YES.
Receiving a message
When you receive a message, press YES to read the message
now or NO to read the message later.
To reply to a message
1When you have read the message }YES.
2}Reply }YES.
3Select the message you want to send as a reply }YES.
You can choose between: Write new, Include this msg or
a template if available.
J230A-UG-EN.book Page 36 Tuesday, February 14, 2006 9:37 AM
37
4Write your message }YES.
To forward a message
1When you have read the message }YES.
2}Forward }YES. Continue in the same way as when
sending a new text message.
To call a phone number found in a message
When the number is highlighted }YES.
To call the sender of the message
1When you have read the message }YES.
2}Call }YES.
To delete a message
When you have read the message }YES }Delete }YES.
Saving incoming messages
Text messages are automatically saved in the phone memory.
When the phone memory is full, they are automatically saved
on the SIM card. When both phone memory and SIM card
memory are full, you must delete messages to be able to
receive new messages. Messages that you have saved on the
SIM card can remain there until you have deleted them.
To save a message on the SIM card
When you have read the message }YES }Save on SIM }YES.
J230A-UG-EN.book Page 37 Tuesday, February 14, 2006 9:37 AM
38
Picture messages
Picture messages can contain text, pictures and sounds. They
are sent via MMS (Multimedia Messaging Service) to a
mobile phone or via email. The sender and receiver of a
picture message must have a subscription that supports
MMS.
Before you start
Make sure you have the following settings:
• An address to your service centre.
• A specific WAP profile for multimedia messages.
To enter the service centre address
}Messaging }YES }Picture message }YES }Options }YES
}Message server }YES.
To select or enter settings for MMS
1}Messaging }YES }Picture message }YES }Options
}YES }Internet profile }YES.
2Select Select or Create new. %56 To enter Internet
profile settings manually.
More options
You can set different options for sending and receiving
picture messages.
Contact your network operator to automatically
download settings or for more information. You can
also use the Phone setup on www.SonyEricsson.com/
support to get the settings you need. Choose region
and country, then select Phone setup and your phone
model.
J230A-UG-EN.book Page 38 Tuesday, February 14, 2006 9:37 AM
39
To select an option
}Messaging }YES }Picture message }YES }Options }YES.
To write and send a picture message
1}Messaging }YES }Picture message }YES }Write new
}YES.
2Select from the submenus }YES.
3Enter the information you want to send }YES.
4}YES to add other items or more options.
5}Send message }YES. Enter the recipient’s phone
number or retrieve it from the phonebook by pressing
}YES.
To view a picture message
}YES. The message is automatically displayed. Press any key
to stop.
When you have viewed a picture message, you can use the
navigation key to scroll through the message again. When an
item is highlighted, press to save it in your phone.
When you have read the message, }Proceed, to select one
of the following options: View again, Information, Reply,
Reply all, Forward, Save template, Call or Delete. }NO to close
the message.
Area information
Area information, for example, a local traffic report, is sent to
all subscribers in a certain network area. You cannot save
area messages.
To turn area information on or off
1}Messaging }YES }Options }YES }Area info }YES
}Reception }YES.
2}On or Off }YES.
J230A-UG-EN.book Page 39 Tuesday, February 14, 2006 9:37 AM
40
Cell information
The cell information channel is used by some network
operators for sending messages to their subscribers within a
certain network area.
To turn the cell information channel on or off
1}Messaging }YES }Options }YES }Area info }YES
}Cell information }YES.
2Select On or Off }YES.
J230A-UG-EN.book Page 40 Tuesday, February 14, 2006 9:37 AM
41
Radio
To use the radio, you must connect the portable handsfree.
The handsfree works as an antenna.
To turn on the radio
Connect the portable handsfree to the phone }Radio.
To turn off the radio
Press and hold NO.
Radio control
When the radio is on:
• Press and hold or to find a channel.
• Press or to move 0.1 MHz along the FM band.
•Press or to increase or decrease the volume.
Saving radio channels
You can save up to 10 of your favourite radio channels.
To save a radio channel
1Press and hold or to find a channel.
2Press and hold - to save the channel in those
positions, (0 represents the number 10).
To select a radio channel
Press - to select a channel you have saved in
positions 1 to 10.
You must switch your phone on to use the FM radio.
Do not switch the phone on in areas where mobile
phones are prohibited, %76 Guidelines for Safe and
Efficient Use.
J230A-UG-EN.book Page 41 Tuesday, February 14, 2006 9:37 AM
42
More options
Press for the following options:
•Hide radio – Return to standby to use other functions
with the radio still playing.
•Channel presets – Press and hold a number key (0 to 9)
to save the current frequency to a preset channel.
•Turn on speaker – Send the sound through the
loudspeaker.
•Auto save – Automatically search for and save channels
in a list of channels. Previously saved channels will be
replaced.
•Set frequency – Enter a frequency manually. The figures
you enter will be automatically adjusted to valid
frequencies.
•Turn on Stereo – Turn stereo sound on.
•Tips and tricks – View a list of help texts.
While listening to the radio
If you minimize the radio display, you can listen to the radio
and use other functionality at the same time. For example,
you can make and receive calls and send messages.
To minimize the radio display
Press and select Hide radio.
Press to restore the radio display.
To turn the radio off when minimized
Press and select Turn off radio.
J230A-UG-EN.book Page 42 Tuesday, February 14, 2006 9:37 AM
43
Personalizing your phone
To change a Style-Up cover
1Press to release the back cover as shown in the picture.
2Pull the back cover away from the phone.
3Gently lift the release catch to remove the front cover.
4Make sure the keypad is in place, and gently press the
front cover on to the phone.
J230A-UG-EN.book Page 43 Tuesday, February 14, 2006 9:37 AM
44
Themes
You can change the appearance of the display by using
themes. Your phone comes with a number of predefined
themes.
To select a theme
}Fun & Games }YES }Themes }YES.
To adjust the display contrast
}Settings }YES }Display }YES }Contrast }YES.
Pictures
Your phone comes with a number of pictures. All pictures are
saved in My pictures in the Fun & Games menu.
You can:
• Set a picture as a wallpaper when in standby mode.
• Assign a picture to an entry in the phonebook.
• Insert a picture in a picture message.
• Download a picture from the Internet.
Handling pictures
You can also add, delete or rename pictures in My pictures.
The number of pictures that can be saved depends on
available memory. File types supported are GIF, JPEG and
WBMP.
You cannot rename or delete predefined pictures
J230A-UG-EN.book Page 44 Tuesday, February 14, 2006 9:37 AM
45
To view your pictures
1}Fun & Games }YES }My pictures }YES.
2The pictures are shown in thumbnail view. To get a full
view }YES.
To select a picture as wallpaper
1}Settings }YES }Display }YES }Wallpaper }YES
}Select picture }YES.
2Select a picture }YES.
To turn the wallpaper on or off
}Settings }YES }Display }YES }Wallpaper }YES
}Activate, select On or Off.
Exchanging pictures
You can send and receive pictures in picture messages. For
more information on sending pictures in messages,
%33 Messaging.
To send a picture
1}Fun & Games }YES }My pictures }YES.
2Select a picture }YES. Press .
3}Send }YES and write a message.
Animations can only be viewed when inserting an item
in a text message, %33 To insert an item in a text
message.
You are not allowed to exchange copyright-protected
material.
J230A-UG-EN.book Page 45 Tuesday, February 14, 2006 9:37 AM
46
To receive a picture via a message
When you receive a picture via a message, a new message
appears in your inbox. Highlight the picture in the message
by using the navigation key to select it, press }Save to
save it in My pictures.
Ringtones and melodies
Your phone comes with a number of standard and polyphonic
melodies which can be used as ringtones. You can create and
edit melodies, and send them to a friend in a text message.
You can also download new melodies from the Internet.
To select a ringtone
}Settings }YES }Sounds & alerts }YES }Ringtone }YES.
To set the ringtone volume
1}Settings }YES }Sounds & alerts }YES }Ring volume
}YES.
2Press or to decrease or increase the volume.
3}YES to save the setting.
To turn the ringtone on or off
There are two ways to turn on or off the ringtone:
•}Silent }YES }Turn on silent or Silent off? }YES.
• Press from standby, and select Turn on silent or Turn
off silent. All signals except the alarm signal and timer are
turned off.
To compose your own ringtone
You can compose your own personal ringtones.
You are not allowed to exchange copyright-protected
material.
J230A-UG-EN.book Page 46 Tuesday, February 14, 2006 9:37 AM
47
Options available when composing a ringtone are:
• Press a key to enter a note. Press and hold the key to make
it a long note.
• Press to raise the note one octave.
• Press once to raise the note one semitone.
• Press twice to lower the note one semitone.
• Press to remove notes.
To compose a ringtone
1}Fun & Games }YES }Composer }YES.
2Compose your ringtone using the options described
above.
3To listen to your ringtone }YES.
4Press YES again to save and name it, or NO to continue
composing.
Exchanging ringtones and melodies
You can send and receive a sound, ringtone or melody via
picture messages or download it from the Internet.
To send a melody
1}Fun & Games }YES }My sounds }YES.
2Select a melody and press .
3}Send }YES.
Increasing ring
You can choose a ringtone that rises in steps from the lowest
volume to the highest, or you can choose a ringtone with a
constant volume.
You cannot exchange a polyphonic melody via
text messages.
J230A-UG-EN.book Page 47 Tuesday, February 14, 2006 9:37 AM
48
To turn increasing ring on or off
}Settings }YES }Sounds & alerts }YES }Increasing ring.
Select On or Off.
Sounds & alerts
You can choose to be notified of an incoming call by the
buzzing of the vibrating alert. You can set the phone’s
vibrating alert to On, On if silent or Off.
From Sounds & alerts in the Settings menu, you can also
select:
•Message alert when messages are received.
•Key sound when using the keypad.
To set the vibrating alert
1}Settings }YES }Sounds & alerts }YES }Vibrating
alert }YES.
2Select the setting you want }YES.
Display light
The display light can be set to On or Automatic. Automatic is
the default setting for the display light and is designed to
optimize standby time. In automatic mode, the display light is
turned off a few seconds after you last press a key.
To activate the screen
Press from standby.
To set the display light
}Settings }YES }Display }YES }Light }YES.
If set to On, the display light consumes extra battery
power and reduces standby time.
J230A-UG-EN.book Page 48 Tuesday, February 14, 2006 9:37 AM
49
To set the display contrast
}Settings }YES }Display }YES }Contrast }YES.
Time and date
To set the time
}Settings }YES }Time and date }YES }Set time }YES.
To set the time format
}Settings }YES }Time and date }YES }Time format }YES.
To set the date
}Settings }YES }Time and date }YES }Set date }YES.
To set the date format
}Settings }YES }Time and date }YES }Date format }YES.
Answering mode
When using a portable handsfree kit, you can choose to
answer a call by pressing any key (except the NO key), or
setting the phone to answer the call automatically.
To select answering mode
}Settings }YES }Handsfree }YES }Answering mode }YES.
My phone numbers
You can check your own phone number(s).
To check your phone number
}Phonebook }YES }Options }Special numbers }YES }My
numbers }YES. If your number is not saved on your SIM
card, you can enter it yourself.
J230A-UG-EN.book Page 49 Tuesday, February 14, 2006 9:37 AM
50
Profiles
Your phone has predefined profiles which are set to suit a
certain environment. You can rename or change these
profiles.
To select a profile
}Settings }YES }Profiles }YES }Select profile }YES.
To change a profile setting
1}Settings }YES }Profiles }YES }Edit profile }YES.
2Select a setting }YES.
3Change the profile settings }YES to confirm.
To rename a profile
}Settings }YES }Profiles }YES }Edit profile }YES }Profile
name }YES.
To reset all profiles
}Settings }YES }Profiles }YES }Reset profiles }YES.
Master reset
You can reset all the settings in the phone to the way they
were when you bought your phone by selecting Reset
settings. If you also want to delete all phonebook entries,
messages and other personal data, select Reset all instead.
To reset the phone
1}Settings }YES }Master reset }YES.
2Select Reset settings or Reset all }YES.
If you select Reset all, content such as melodies and
pictures that you have downloaded, received or edited
is also deleted.
J230A-UG-EN.book Page 50 Tuesday, February 14, 2006 9:37 AM
51
3}YES to continue.
4Enter the phone lock code (0000 or a new code) }YES.
J230A-UG-EN.book Page 51 Tuesday, February 14, 2006 9:37 AM
52
Internet
Setting up the Internet
In order to use the Internet the following are required:
• A phone subscription that supports data transmission.
• Settings entered in your phone.
• You may also have to register as an Internet user with your
service provider or network operator.
Receiving settings in a text message
Your GSM network operator or Internet service provider may
be able to send your settings direct to your phone in a text
message (SMS).
Request settings from Sony Ericsson
Use a PC to go to www.SonyEricsson.com/support to request
that a text message with the settings be sent to your phone.
To install settings
When the message arrives, New settings received Install?
appears:
•Press YES to install the new settings. If settings already
exist in your phone you can either keep or replace them,
%53 Advanced setting information.
•Press
NO to cancel installation.
After installation, %58 Using the Internet browser.
More information about setting up is available in the
Getting Started Guides at www.SonyEricsson.com/
support.
J230A-UG-EN.book Page 52 Tuesday, February 14, 2006 9:37 AM
53
Set up with the wizard
If your phone is not set up for Internet, you can ask your
network operator or service provider to provide you with
Internet settings information. Then you can simply use the
wizard in your phone to help guide you through the relevant
settings.
To use the wizard for setting up Internet
1}Internet services }YES }homepage (for example
Sony Ericsson) }YES. The wizard now starts if no
settings exist.
2Enter and save settings when asked, press YES to
confirm.
Advanced setting information
Some advanced settings that are described in the following
texts may not be mandatory, please consult your network
operator or service provider for more information.
A data account includes connection settings for access to
a server at your service provider, for example via WAP or via
e-mail.
An Internet profile includes user settings that allow Web
browsing.
To use the Web browser, via an Internet service provider,
you need settings for a specific data account for Internet and
an Internet profile.
To send a text message (SMS) to an email address via your
network operator, you need to set an email gateway phone
number.
J230A-UG-EN.book Page 53 Tuesday, February 14, 2006 9:37 AM
54
Data account settings
You can have several data accounts saved in your phone,
with different settings for different purposes. The main
setting for a data account is the Account type (connection
method).
You can choose from GPRS data or GSM data account types.
If you want to change access type, you have to create a new
data account and select the access type you want to use.
GPRS
GPRS (General Packet Radio Service) allows fast and
efficient access where you can always be online. You need a
subscription that supports GPRS.
GPRS settings that are available:
•APN (Access point name address) – The address of the
external network you want to connect to, either an IP
address or a text string.
•Username – Your username to log on to an external
network.
•Password – Your password to log on to an external
network.
•Passwd request – If this setting is on, you are asked for a
password each time you log on to the external network.
•Allow calls (Preferred service) – If you want to be able to
accept incoming calls during a GPRS session, select
Automatic. If not, select GPRS only.
If there are no data account or Internet profile settings
in your phone, you can enter data account settings
when you enter Internet profile settings.
J230A-UG-EN.book Page 54 Tuesday, February 14, 2006 9:37 AM
55
•IP address – The IP address that the phone uses when
communicating with the network. If you do not enter an
address, the network provides you with a temporary IP
address.
•DNS address – If the network does not provide the
IP address to the DNS server automatically, you may enter
it here.
•Advan. settings (Advanced settings) – These are optional.
Consult your network operator.
GSM
GSM settings include some settings that are similar to GPRS
settings and some that are GSM specific as follows:
•Phone number – The phone number of your Internet
service provider.
•Data rate – Select the speed you want for the connection.
•Dial type – Select Analogue or ISDN connection.
To create a data account manually
1}Settings }Connectivity }YES }Data comm. }YES
}Data accounts }YES }Add account? }YES.
2Select an account type for access and enter a name for
the data account.
3Enter the settings that you have received from your
network operator or service provider. }YES to confirm
each setting.
4Save? }YES.
To edit a data account
1}Settings }Connectivity }YES }Data comm. }YES
}Data accounts }YES.
2Select a data account }YES.
3}Edit.
J230A-UG-EN.book Page 55 Tuesday, February 14, 2006 9:37 AM
56
4Select the setting you want to edit }YES. Edit the setting
}YES.
5Repeat step 4 for other settings you want to edit.
Preferred service
You can set GPRS or GSM as the preferred service.
To select preferred service
}Settings }Connectivity }YES }Data comm. }YES }Pref.
service }YES and select GPRS and GSM or GSM only }YES.
Internet profile settings
The Internet settings are stored in an Internet profile. In most
cases you only need to use one profile to access the Internet.
You set up and use additional Internet profiles, for
example, when accessing secure Internet sites. You then
simply switch between profiles when you need to change the
network connection.
Make sure you have a data account set up between your
phone and the Internet server, as described on %54 Data
account settings.
To enter Internet profile settings manually
1}Internet services }YES }Options }YES }Internet
profiles }YES.
2}Add profile? to add a new profile or select an existing
profile that you want to edit }YES.
To enter information in a new profile
When selecting Add profile? enter a name for the profile
}YES }Connect using: }YES, select the data account to be
used }YES and enter the IP address }YES. A list appears.
Scroll to Save? }YES.
J230A-UG-EN.book Page 56 Tuesday, February 14, 2006 9:37 AM
57
To edit an existing profile
When selecting an existing profile, you can do the following:
•Rename – Change the name of the profile.
•Connect using – Select data account.
•IP address – WAP gateway server address.
•Advanced – More profile settings, see below.
•Delete – Remove the profile.
To use advanced profile settings
If you select Advanced you can do the following:
•Chg homepage – Enter the address of the site you want as
the homepage.
•Second account – Select an alternative data account, if the
first in Connect using fails.
•Username – Enter your username for the WAP gateway.
•Password – Enter your password for the WAP gateway.
•Security – See Internet security settings.
•Show pictures – View pictures while browsing.
Internet security
Your phone has support for secure browsing. Security for a
connection between a WAP gateway and an Internet service
provider is the responsibility of the service provider.
To turn on a secure connection
1}Internet services }YES }Options }YES }Internet
profiles }YES.
2Select the profile to be used }YES.
3}Advanced }YES }Security }YES.
4}On }YES.
J230A-UG-EN.book Page 57 Tuesday, February 14, 2006 9:37 AM
58
Trusted certificates
To establish a secure connection when using certain Internet
services, for example banking or shopping, you need
certificates in your phone.
To check the certificates in your phone
}Internet services }YES }Options }YES }Advanced }YES
}Security }YES }Trusted certif. }YES.
Using the Internet browser
Settings may already be entered when you buy the phone.
Otherwise you can receive the settings from your network
operator or your service provider in a text message. You can
also use the Phone setup on www.SonyEricsson.com/support
to get the settings you need. Choose region and country, then
select Phone setup and your phone model.
Internet access
There are two ways to access the Internet:
• Direct access via the options key
• Access via the menu system
To access the Internet directly
Press and select Sony Ericsson.
To access the Internet via the menus
}Internet services }YES. Select one of the following:
• Open your homepage, for example, Sony Ericsson.
• Go to one of your bookmarks. Select Bookmarks }YES.
• Enter the address of an Internet site. Select Enter address
}YES. New address? to enter a new address or select one
of the 10 latest entered addresses. When you enter an
address, the normal http:// prefix is not needed.
J230A-UG-EN.book Page 58 Tuesday, February 14, 2006 9:37 AM
59
To stop browsing
• Press and hold NO or
•Press }Exit browser.
Options when browsing
When you have started browsing, you can reach different
browsing options by pressing .
The options menu is dynamic. Its content may vary
depending on which site you are visiting.
The options menu contains the following:
•Bookmarks – Add the site you are currently browsing to
your list of bookmarks, or see the list of bookmarks for the
current profile.
•Push inbox – Displays received push messages.
•Enter address – Enter the Internet address of a site you
want to visit.
•Save picture – Save a picture from the site.
•Send as text msg – Send a text message with a link to the
current Web page to another phone.
•Reload – Refresh the contents of the Web page.
•Exit browser – Disconnect and go to standby.
•Status – Display current status information, for example,
profile, access type, connection time, data rate, security,
address.
•Set as homepg – Set the current site as the homepage of
the Internet profile you are using.
Using bookmarks
You use bookmarks in your mobile phone just as you do with
a PC Internet browser. You can have up to 25 bookmarks.
J230A-UG-EN.book Page 59 Tuesday, February 14, 2006 9:37 AM
60
To work with bookmarks
1}Internet services }YES }Bookmarks }YES.
2Select the bookmark you want to work with }.
3}Go to, Edit, Delete, Send as text msg, or Set as homepg
}YES.
Downloading
You can download, for example, pictures and ringtones from
Web sites directly to your phone.
To download from www.SonyEricsson.com
1}Internet services }YES }Bookmarks }YES
}Sony Ericsson }YES.
2Select what you want to download and follow the
instructions that appear }YES.
Stored information
The following information can be saved in your phone:
• Cache – Improves memory efficiency.
• Passwords – Improves server access efficiency.
• Cookies – Improves site access efficiency.
It is advisable to clear any sensitive information about
previously visited Internet services.
To allow Internet information in your phone
1}Internet services }YES }Options }YES }Advanced
}YES.
2Select the information to allow }YES.
Make sure the file sizes do not exceed the free memory
in your phone, %67 Memory status for more
information.
J230A-UG-EN.book Page 60 Tuesday, February 14, 2006 9:37 AM
61
To clear cache, password list, cookies or
push inbox
1}Internet services }YES }Options }YES }Advanced
}YES.
2Select the information to be cleared }YES to confirm.
J230A-UG-EN.book Page 61 Tuesday, February 14, 2006 9:37 AM
62
More features
Alarm clock
The alarm clock rings even if the phone is set to silent or
turned off.
To set an alarm
1}Alarms }YES }Alarm or Recurrent alarm }YES.
2Enter the time }YES and day, if the alarm is recurrent, by
scrolling and pressing }YES.
To turn the alarm off
Press any key to turn the alarm signal off when it rings. If you
do not want the alarm to be repeated }YES.
To change the alarm time
}Alarms }YES }Alarm }YES } New time } YES.
To cancel the alarm
}Alarms }YES. Select Alarm or Recurrent alarm }YES
}Cancel }YES.
To select an alarm signal
}Settings }YES }Sounds & alerts }YES }Alarm signal
}YES.
Stopwatch
The stopwatch is turned off when you answer an incoming
call or when you exit the stopwatch menu.
To use the stopwatch
}Organizer }YES }Stopwatch }YES then press:
• to reset.
J230A-UG-EN.book Page 62 Tuesday, February 14, 2006 9:37 AM
63
• to save up to nine lap times.
•YES to start, stop or re-start.
•NO to stop.
• or to check saved lap times.
Calculator
The phone has a built-in calculator, which can add, subtract,
divide and multiply.
To use the calculator
1}Organizer }YES }Calculator }YES.
2Enter digits with the keypad, then press:
• or to get ÷, x, -, +, a decimal point or %.
• to delete the figure.
•YES to calculate a result, equal to (=).
• to save to memory.
• to retrieve from memory.
Timer
The phone has a timer that can be set to count down from 99
hours, 59 minutes, 59 seconds. When the signal rings, press
any key to turn it off.
To set the timer
}Organizer }YES }Timer }YES.
Calendar
In the calendar you can add tasks for things that you have to
remember. The tasks can be edited or deleted.
To add a task
1}Organizer }YES }Tasks }YES.
2}Add task? }YES.
J230A-UG-EN.book Page 63 Tuesday, February 14, 2006 9:37 AM
64
3Enter a description }YES.
4Set a reminder, if required, or }NO to save.
5Enter the start date and time }YES.
6}Continue? }YES.
To set the reminder
Select any of the predefined values or enter the alarm date
}YES and the alarm time }YES.
To view a task
1}Organizer }YES }Tasks }YES.
2Select View all tasks }YES.
To delete a task
Scroll to the task that you want to delete, press .
To delete all tasks
}Organizer }YES }Tasks }YES }Delete all }YES.
To edit a task
1When the task is displayed }YES }YES.
2}Edit }YES.
3Edit the task }YES, edit the reminder }YES, edit the time
and date }Continue.
Games
Information and games controls are given in help texts for
each game.
To start a game
1}Fun & Games }YES }Games }YES.
2Select a game }YES.
3Select New game or Resume game }YES.
J230A-UG-EN.book Page 64 Tuesday, February 14, 2006 9:37 AM
65
Security
Keypad lock
To lock the keypad
From standby, press and select Lock keypad.
To unlock the keypad
Press and then press .
SIM card lock
The SIM card lock protects your subscription, but not your
phone itself, from unauthorized use. If you change SIM
cards, the phone still works with the new SIM card.
PIN and PUK code
Most SIM cards are locked at the time of purchase. If the SIM
card lock is on, you have to enter a “PIN” (Personal
Identification Number) every time you turn on your phone.
If you enter your PIN incorrectly three times in a row,
the SIM card is blocked. This is indicated by the message PIN
blocked. To unblock it you need to enter your “PUK”
(Personal Unblocking Key). Your PIN and PUK are supplied
by your operator.
To unblock your SIM card
1PIN blocked appears.
2Enter your PUK }YES.
3Enter a new four- to eight-digit PIN }YES.
4Re-enter the new PIN to confirm }YES.
J230A-UG-EN.book Page 65 Tuesday, February 14, 2006 9:37 AM
66
To edit your PIN
}Settings }YES }Locks }YES }SIM lock }YES }Change
PIN }YES. If the message Codes do not match appears, you
entered the new PIN incorrectly. If the message Wrong PIN
appears, followed by Old PIN:, you entered your old PIN
incorrectly.
PIN2
Certain services are protected by a second PIN.
To edit your PIN2
}Settings }YES }Locks }YES }SIM lock }YES }Change
PIN2 }YES.
To turn the SIM card lock on or off
1}Settings }YES }Locks }YES }SIM lock }YES
}Protection }YES.
2}On or Off }YES.
3Enter your PIN }YES.
Phone lock
The phone lock protects the phone against unauthorized use if
it is stolen and the SIM card is exchanged. It is not on when
you buy the phone. You can change the phone lock code
(0000) to any four- to eight-digit personal code. The phone
lock can be set to on, automatic or off.
The phone lock code must be entered to use Master
reset. %50 Master reset for more information.
J230A-UG-EN.book Page 66 Tuesday, February 14, 2006 9:37 AM
67
Phone lock on
If the phone lock is on, the message Phone locked appears
each time you turn on the phone. You have to enter your code
followed by YES to use your phone.
Automatic
If the phone lock is set to automatic, you do not need to enter
your phone lock code until a different SIM card is inserted in
the phone.
To set the phone lock
1}Settings }YES }Locks }YES }Phone lock }YES
}Protection }YES.
2Select an alternative }YES.
3Enter the phone lock code }YES.
Editing the phone lock code
It is important that you remember your new code. If you
should forget it, you have to hand in your phone to your local
Sony Ericsson retailer.
To edit your phone lock code
}Settings }YES }Locks }YES }Phone lock }YES }Change
code }YES.
Memory status
Check for example, how many positions are left in your
phonebook or how much memory is used.
To check the memory of the phonebook
}Phonebook }YES }Memory status }YES.
J230A-UG-EN.book Page 67 Tuesday, February 14, 2006 9:37 AM
68
To check the memory for pictures or sounds
1}Fun & Games }YES, select one of the menus }YES.
2Press }Memory status }YES.
To check memory for text messages
}Messaging }YES }Text message }YES }Options }YES
}Memory status }YES.
To delete saved files or information
Select a file or information, press }YES. Please note that
some factory default files and information cannot be deleted.
J230A-UG-EN.book Page 68 Tuesday, February 14, 2006 9:37 AM
69
Troubleshooting
This chapter lists some problems that you might encounter
while using your phone. Some problems require that you call
your service provider, but most of the problems you can
easily correct yourself.
The phone cannot be switched on
Recharge or replace the battery
%6 To insert the SIM card and battery.
No indication of charging
When you start charging a battery that is empty or a battery
that has not been used for a long time, it may take up to 30
minutes before the battery icon appears in the display.
Menu language
If the display shows a language that you do not understand,
you can always set the following from standby:
Press 0000 for English menus.
Press 8888 for automatic, local menus.
Grey menu options
Grey text indicates a function that is temporarily unavailable,
for example, due to your subscription or due to a certain
setting which has not been turned on.
Since you cannot send pictures and sounds that are
copyright-protected, the Send menu is sometimes
unavailable.
J230A-UG-EN.book Page 69 Tuesday, February 14, 2006 9:37 AM
70
Error messages
Insert SIM
There is no SIM card in the phone, it may need cleaning or
you may have inserted it incorrectly, %6 To insert the SIM
card and battery.
Insert correct SIM card
The phone is set to work only with certain SIM cards. Insert
the correct SIM card.
Inactive SIM
The SIM card is not activated. Contact your network operator
for more information.
Emergency calls only
You are within range of a network, but you are not allowed to
use it. However, in an emergency, some operators allow you
to call, for example, the international emergency number 112,
%17 Emergency calls.
No network
There is no network within range or the received signal is too
weak. You have to move to get a signal that is strong enough.
Wrong PIN/Wrong PIN2
You have entered your PIN or PIN2 incorrectly. Enter the
correct PIN or PIN2, and press YES, %65 SIM card lock.
Codes do not match
When you want to change a security code (for example your
PIN) you have to confirm the new code by entering it again.
The two codes that you have entered do not match %65 SIM
card lock.
J230A-UG-EN.book Page 70 Tuesday, February 14, 2006 9:37 AM
71
PIN blocked/PIN2 blocked
You have entered your PIN or PIN2 incorrectly three times in
a row. To unblock, %65 SIM card lock.
PUK blocked – contact operator
You entered your personal unblocking key code (PUK)
incorrectly 10 times in a row. Contact your network operator
or service provider.
Phone locked
The phone is locked. To unlock the phone, %66 Phone lock.
Phone lock code
Your phone comes with the phone lock code, 0000. You can
change it to any four- to eight-digit code, %66 Phone lock.
Number not permitted
The fixed dialling function is on and the number you have
dialled is not on your fixed numbers list, %29 Fixed dialling.
J230A-UG-EN.book Page 71 Tuesday, February 14, 2006 9:37 AM
72
Additional information
Sony Ericsson Consumer Web site
On www.SonyEricsson.com/support there is a section where
help and tips are only a few clicks away. Here you find the
latest software updates and tips on how to use your product
more efficiently.
Service and support
From now on you will have access to a portfolio of exclusive service
advantages such as:
• Global and local websites providing support.
• A global network of Call Centers.
• An extensive network of Sony Ericsson service partners.
• A warranty period. Learn more about the warranty conditions in
this user guide.
On www.SonyEricsson.com, under the support section in the
language of your choice, you will find the latest support tools and
information, such as software updates, Knowledgebase, Phone setup
and additional help when you require it.
For operator-specific services and features, please contact your
network operator for more information.
You can also contact our Call Centers. See the phone number for the
nearest Call Center in the list below. If your country/region is not
represented in the list, please contact you local dealer. (The phone
numbers below were correct at the time of going to print. On
www.SonyEricsson.com you can always find the latest updates.)
In the unlikely event that your product needs service, please contact
the dealer from whom it was purchased or one of our service
partners. Save your original proof of purchase, you will need it if you
need to claim warranty.
For a call to one of our Call Centers you will be charged according to
national rates, including local taxes, unless the phone number is a
toll-free number.
J230A-UG-EN.book Page 72 Tuesday, February 14, 2006 9:37 AM
73
Australia 1-300 650 050
questions.AU@support.sonyericsson.com
Argentina 800-333-7427
questions.AR@support.sonyericsson.com
Austria 0810 200245
questions.AT@support.sonyericsson.com
Bel gi um 02- 74 51 61 1
questions.BE@support.sonyericsson.com
Brazil 4001-0444
questions.BR@support.sonyericsson.com
Canada 1-866-766-9374
questions.CA@support.sonyericsson.com
Central Africa +27 112589023
questions.CF@support.sonyericsson.com
Chile 123-0020-0656
questions.CL@support.sonyericsson.com
China 4008100000
questions.CN@support.sonyericsson.com
Colombia 18009122135
questions.CO@support.sonyericsson.com
Croatia 062 000 000
questions.HR@support.sonyericsson.com
Czech Republic 844 550 055
questions.CZ@support.sonyericsson.com
Denmark 33 31 28 28
questions.DK@support.sonyericsson.com
Finland 09-299 2000
questions.FI@support.sonyericsson.com
France 0 825 383 383
questions.FR@support.sonyericsson.com
Germany 0180 534 2020
questions.DE@support.sonyericsson.com
Greece 801-11-810-810
J230A-UG-EN.book Page 73 Tuesday, February 14, 2006 9:37 AM
74
210-89 91 919 (from mobile)
questions.GR@support.sonyericsson.com
Hong Kong 8203 8863
questions.HK@support.sonyericsson.com
Hungary 01 437 7300
questions.HU@support.sonyericsson.com
India 39011111
(Add STD code from a GSM connection)
questions.IN@support.sonyericsson.com
Indonesia 021-2701388
questions.ID@support.sonyericsson.com
Ireland 1850 545 888
questions.IE@support.sonyericsson.com
Italy 06 48895206
questions.IT@support.sonyericsson.com
Malaysia 03-78809800
questions.MY@support.sonyericsson.com
Mexico 001-95-888-821-8408
questions.MX@support.sonyericsson.com
Netherlands 0900 899 8318
questions.NL@support.sonyericsson.com
New Zealand 0800-100150
questions.NZ@support.sonyericsson.com
Norway 815 00 840
questions.NO@support.sonyericsson.com
Philippines 02-6351860
questions.PH@support.sonyericsson.com
Poland 0 (prefix) 22 6916200
questions.PL@support.sonyericsson.com
Portugal 808 204 466
questions.PT@support.sonyericsson.com
Romania (+4021) 401 0401
questions.RO@support.sonyericsson.com
J230A-UG-EN.book Page 74 Tuesday, February 14, 2006 9:37 AM
75
Russia 095 7870986
questions.RU@support.sonyericsson.com
Singapore 67440733
questions.SG@support.sonyericsson.com
Slovakia 02-5443 6443
questions.SK@support.sonyericsson.com
South Africa 0861 632222
questions.ZA@support.sonyericsson.com
Spain 902 180 576
questions.ES@support.sonyericsson.com
Sweden 013-24 45 00
questions.SE@support.sonyericsson.com
Switzerland 0848 824 040
questions.CH@support.sonyericsson.com
Taiwan 02-25625511
questions.TW@support.sonyericsson.com
Thailand 02-2483030
questions.TH@support.sonyericsson.com
Turkey 0212 47 37 777
questions.TR@support.sonyericsson.com
United Arab Emirates 43 919880
questions.AE@support.sonyericsson.com
United Kingdom 08705 23 7237
questions.GB@support.sonyericsson.com
United States 1-866-766-9374
questions.US@support.sonyericsson.com
Venezuela 0-800-100-2250
questions.VE@support.sonyericsson.com
J230A-UG-EN.book Page 75 Tuesday, February 14, 2006 9:37 AM
76
Guidelines for Safe and Efficient Use
Please read this information before using your mobile
phone.
These instructions are intended for your safety. Please
follow these guidelines. If the product has been subject
to any of the conditions listed below or you have any
doubt of the proper function make sure to have the
product checked by certified service partner before charging or using
it. Failure to do so might lead to risk for product malfunction or even a
potential hazard to your health.
Recommendations for safe use of product
(mobile phone, battery, charger and other
accessories)
• Always treat your product with care and keep it in a clean and
dust-free place.
•Warning! May explode if disposed of in fire.
• Do not expose your product to liquid or moisture or
humidity.
• Do not expose your product to extreme high or low
temperatures. Do not expose the battery to
temperatures above +60°C (+140°F).
• Do not expose your product to open flames or lit
tobacco products.
• Do not drop, throw or try to bend your product.
• Do not paint your product.
• Do not attempt to disassemble or modify your
product. Only Sony Ericsson authorised personnel
should perform service.
• Do not use your product near medical equipment
without requesting permission.
• Do not use your product when in, or around aircraft,
or areas posted “turn off two-way radio”.
• Do not use your product in an area where a
potentially explosive atmosphere exists.
• Do not place your product or install wireless equipment in the area
above your car’s air bag.
J230A-UG-EN.book Page 76 Tuesday, February 14, 2006 9:37 AM
77
CHILDREN
KEEP OUT OF CHILDRENS REACH. DO NOT ALLOW
CHILDREN TO PLAY WITH YOUR MOBILE PHONE
OR ITS ACCESSORIES. THEY COULD HURT
THEMSELVES OR OTHERS, OR COULD
ACCIDENTALLY DAMAGE THE MOBILE PHONE OR
ACCESSORY. YOUR MOBILE PHONE OR ITS
ACCESSORY MAY CONTAIN SMALL PARTS THAT COULD BE
DETACHED AND CREATE A CHOKING HAZARD.
Power supply (Charger)
Connect the AC power adapter only to designated power sources as
marked on the product. Make sure the cord is positioned so that it will
not be subjected to damage or stress. To reduce risk of electric
shock, unplug the unit from any power source before attempting to
clean it. The AC power adapter must not be used outdoors or in damp
areas. Never alter the cord or plug. If the plug will not fit into the outlet,
have a proper outlet installed by a qualified electrician.
Use only Sony Ericsson branded original chargers intended for use
with your mobile phone. Other chargers may not be designed to the
same safety and performance standards.
Battery
We recommend that you fully charge the battery before you use your
mobile phone for the first time. A new battery or one that has not been
used for a long time could have reduced capacity the first few times it
is used. The battery should only be charged in temperatures between
+5°C (+41°F) and +45°C (+113°F).
Use only Sony Ericsson branded original batteries intended for use
with your mobile phone. Using other batteries and chargers could be
dangerous.
The talk and standby times depend on several different conditions
such as signal strength, operating temperature, application usage
patterns, features selected and voice or data transmissions when
using the mobile phone.
J230A-UG-EN.book Page 77 Tuesday, February 14, 2006 9:37 AM
78
Turn off your mobile phone before removing the battery. Do not allow
the battery to be put into the mouth. Battery electrolytes may be toxic
if swallowed. Do not let the metal contacts on the battery touch
another metal object. This could short-circuit and damage the battery.
Use the battery for the intended purpose only.
Personal medical devices
Mobile phones may affect the operation of cardiac pacemakers and
other implanted equipment. Please avoid placing the mobile phone
over the pacemaker, e.g. in your breast pocket. When using the
mobile phone, place it at the ear opposite the pacemaker. If a
minimum distance of 15 cm (6 inches) is kept between the mobile
phone and the pacemaker, the risk of interference is limited. If you
have any reason to suspect that interference is taking place,
immediately turn off your mobile phone. Contact your cardiologist for
more information.
For other medical devices, please consult your physician and the
manufacturer of the device.
Driving
Please check if local laws and regulations restrict the use of mobile
phones while driving or require drivers to use handsfree solutions. We
recommend that you use only Sony Ericsson handsfree solutions
intended for use with your product.
Please note that because of possible interference to electronic
equipment, some vehicle manufacturers forbid the use of mobile
phones in their vehicles unless a handsfree kit with an external
antenna supports the installation.
Always give full attention to driving and pull off the road and park
before making or answering a call if driving conditions so require.
Emergency calls
Mobile phones operate using radio signals, which cannot guarantee
connection under all conditions. Therefore you should never rely
solely upon any mobile phone for essential communications (e.g.
medical emergencies).
J230A-UG-EN.book Page 78 Tuesday, February 14, 2006 9:37 AM
79
Emergency calls may not be possible in all areas, on all cellular
networks, or when certain network services and/or mobile phone
features are in use. Check with your local service provider.
Antenna
This phone contains a built in antenna. Use of antenna devices not
marketed by Sony Ericsson specifically for this model could damage
your mobile phone, reduce performance, and produce SAR levels
above the established limits (see below).
Efficient use
Hold your mobile phone as you would any other phone. Do not cover
the top of the phone when in use, as this affects call quality and may
cause the phone to operate at a higher power level than needed, thus
shortening talk and standby times.
Radio frequency (RF) exposure and SAR
Your mobile phone is a low-power radio transmitter and receiver.
When it is turned on, it emits low levels of radio frequency energy
(also known as radio waves or radio frequency fields).
Governments around the world have adopted comprehensive
international safety guidelines, developed by scientific organizations,
e.g. ICNIRP (International Commission on Non-Ionizing Radiation
Protection) and IEEE (The Institute of Electrical and Electronics
Engineers Inc.), through periodic and thorough evaluation of scientific
studies. These guidelines establish permitted levels of radio wave
exposure for the general population. The levels include a safety
margin designed to assure the safety of all persons, regardless of age
and health, and to account for any variations in measurements.
Specific Absorption Rate (SAR) is the unit of measurement for the
amount of radio frequency energy absorbed by the body when using a
mobile phone. The SAR value is determined at the highest certified
power level in laboratory conditions, but the actual SAR level of the
mobile phone while operating can be well below this value. This is
because the mobile phone is designed to use the minimum power
required to reach the network.
J230A-UG-EN.book Page 79 Tuesday, February 14, 2006 9:37 AM
80
Variations in SAR below the radio frequency exposure guidelines do
not mean that there are variations in safety. While there may be
differences in SAR levels among mobile phones, all Sony Ericsson
mobile phone models are designed to meet radio frequency exposure
guidelines.
For phones sold in the U.S., before a phone model is available for
sale to the public, it must be tested and certified to the FCC that it
does not exceed the limit established by the government-adopted
requirement for safe exposure. The tests are performed in positions
and locations (that is, at the ear and worn on the body) as required by
the FCC for each model. For body worn operation, this phone has
been tested and meets FCC RF exposure guidelines when the
handset is positioned a minimum of 15 mm from the body without any
metal parts in the vicinity of the phone or when used with the original
Sony Ericsson body worn accessory intended for this phone. Use of
other accessories may not ensure compliance with FCC RF exposure
guidelines.
A separate leaflet with SAR information for this mobile phone model is
included with the material that comes with this mobile phone. This
information can also be found, together with more information on
radio frequency exposure and SAR, on: www.sonyericsson.com.
Accessible Solutions/Special Needs
For phones sold in the U.S., you can use your TTY terminal with your
Sony Ericsson mobile phone (with the necessary accessory). For
information on Accessible Solutions for individuals with special needs
call the Sony Ericsson Special Needs Center at 877 878 1996 (TTY)
or 877 207 2056 (voice), or visit the Sony Ericsson Special Needs
Center at www.SonyEricsson-snc.com.
Disposal of old electrical &
electronic equipment
This symbol on the product or on its packaging indicates
that this product shall not be treated as household
waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of
J230A-UG-EN.book Page 80 Tuesday, February 14, 2006 9:37 AM
81
correctly, you will help prevent potential negative consequences for
the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. The recycling of
materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local
city office, your household waste disposal service or the shop where
you purchased the product.
Disposing of the battery
Please check local regulations for disposal of batteries
or call your local Sony Ericsson Call Center for
information.
The battery should never be placed in municipal waste.
Use a battery disposal facility if available.
End User Licence Agreement
This wireless device, including without limitation any media delivered
with the device, (“Device”) contains software owned by Sony Ericsson
Mobile Communications AB and its affiliated companies (“Sony
Ericsson”) and its third party suppliers and licensors (“Software”).
As user of this Device, Sony Ericsson grants you a non-exclusive,
non-transferable, non-assignable license to use the Software solely in
conjunction with the Device on which it is installed and/or delivered
with. Nothing herein shall be construed as a sale of the Software to a
user of this Device.
You shall not reproduce, modify, distribute, reverse engineer,
decompile, otherwise alter or use any other means to discover the
source code of the Software or any component of the Software. For
avoidance of doubt, you are at all times entitled to transfer all rights
and obligations to the Software to a third party, solely together with
the Device with which you received the Software, provided always
that such third party agrees in writing to be bound by these rules.
J230A-UG-EN.book Page 81 Tuesday, February 14, 2006 9:37 AM
82
You are granted this license for a term of the useful life of this Device.
You can terminate this license by transferring all your rights to the
Device on which you have received the Software to a third party in
writing. If you fail to comply with any of the terms and conditions set
out in this license, it will terminate with immediate effect.
Sony Ericsson and its third party suppliers and licensors are the sole
and exclusive owner of and retain all rights, title and interest in and to
the Software. Sony Ericsson, and, to the extent that the Software
contains material or code of a third party, such third party, shall be
entitled third party beneficiaries of these terms.
The validity, construction and performance of this license shall be
governed by the laws of Sweden. The foregoing shall apply to the full
extent permitted by, when applicable, statutory consumer rights.
Limited Warranty
Sony Ericsson Mobile Communications AB, S-221 88 Lund, Sweden,
(Sony Ericsson), provides this Limited Warranty for your mobile
phone and original accessory delivered with your mobile phone
(hereinafter referred to as “Product”).
Should your Product need warranty service, please return it to the
dealer from whom it was purchased, or contact your local Sony
Ericsson Call Center (national rates may apply) or visit
www.SonyEricsson.com to get further information.
Our warranty
Subject to the conditions of this Limited Warranty, Sony Ericsson
warrants this Product to be free from defects in design, material and
workmanship at the time of its original purchase by a consumer, and
for a subsequent period of one (1) year.
What we will do
If, during the warranty period, this Product fails to operate under
normal use and service, due to defects in design, materials or
workmanship, Sony Ericsson authorised distributors or service
J230A-UG-EN.book Page 82 Tuesday, February 14, 2006 9:37 AM
83
partners, in the country/region* where you purchased the Product,
will, at their option, either repair or replace the Product in accordance
with the terms and conditions stipulated herein.
Sony Ericsson and its service partners reserve the right to charge a
handling fee if a returned Product is found not to be under warranty
according to the conditions below.
Please note that some of your personal settings, downloads or other
information may be lost when your Sony Ericsson Product is repaired
or replaced. At present Sony Ericsson may be prevented by
applicable law, other regulation or technical restrictions from making a
backup copy of certain downloads. Sony Ericsson does not take any
responsibility for any lost information of any kind and will not
reimburse you for any such loss. You should always make backup
copies of all the information stored on your Sony Ericsson Product
such as downloads, calendar and contacts before handing in your
Sony Ericsson Product for repair or replacement.
Conditions
1The warranty is valid only if the original proof of purchase issued to
the original purchaser by a Sony Ericsson authorised dealer,
specifying the date of purchase and serial number**, for this
Product, is presented with the Product to be repaired or replaced.
Sony Ericsson reserves the right to refuse warranty service if this
information has been removed or changed after the original
purchase of the Product from the dealer.
2If Sony Ericsson repairs or replaces the Product, the repaired or
replaced Product shall be warranted for the remaining time of the
original warranty period or for ninety (90) days from the date of
repair, whichever is longer. Repair or replacement may involve the
use of functionally equivalent reconditioned units. Replaced parts
or components will become the property of Sony Ericsson.
3This warranty does not cover any failure of the Product due to
normal wear and tear, or due to misuse, including but not limited to
use in other than the normal and customary manner, in
accordance with the Sony Ericsson instructions for use and
maintenance of the Product. Nor does this warranty cover any
failure of the Product due to accident, software or hardware
J230A-UG-EN.book Page 83 Tuesday, February 14, 2006 9:37 AM
84
modification or adjustment, acts of God or damage resulting from
liquid. A rechargeable battery can be charged and discharged
hundreds of times. However, it will eventually wear out – this is
not a defect. When the talk-time or standby time is noticeably
shorter, it is time to replace your battery. Sony Ericsson
recommends that you use only batteries and chargers approved
by Sony Ericsson. Minor variations in display brightness and color
may occur between phones. There may be tiny bright or dark dots
on the display. These are called defective pixels and occur when
individual dots have malfunctioned and can not be adjusted. Two
defective pixels are deemed acceptable. Minor variations in
camera image appearance may occur between phones. This is
nothing uncommon and is not regarded as a defective camera
module.
4Since the cellular system on which the Product is to operate is
provided by a carrier independent from Sony Ericsson, Sony
Ericsson will not be responsible for the operation, availability,
coverage, services or range of that system.
5This warranty does not cover Product failures caused by
installations, modifications, or repair or opening of the Product
performed by a non-Sony Ericsson authorised person.
6The warranty does not cover Product failures which have been
caused by use of accessories or other peripheral devices which
are not Sony Ericsson branded original accessories intended for
use with the Product.
7Tampering with any of the seals on the Product will void the
warranty.
8THERE ARE NO EXPRESS WARRANTIES, WHETHER
WRITTEN OR ORAL, OTHER THAN THIS PRINTED LIMITED
WARRANTY. ALL IMPLIED WARRANTIES, INCLUDING
WITHOUT LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY. IN NO EVENT SHALL SONY ERICSSON
OR ITS LICENSORS BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY NATURE
J230A-UG-EN.book Page 84 Tuesday, February 14, 2006 9:37 AM
85
WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST
PROFITS OR COMMERCIAL LOSS; TO THE FULL EXTENT
THOSE DAMAGES CAN BE DISCLAIMED BY LAW.
Some countries/states do not allow the exclusion or limitation of
incidental or consequential damages, or limitation of the duration of
implied warranties, so the preceding limitations or exclusions may not
apply to you.
The warranty provided does not affect the consumer's statutory rights
under applicable legislation in force, nor the consumer’s rights against
the dealer arising from their sales / purchase contract.
*EUROPEAN UNION (EU)
If you have purchased your Product in an EU country you can have
your Product serviced, under the conditions set out above, within the
warranty period in any EU country where an identical Product is sold
by an authorised Sony Ericsson distributor. To find out if your Product
is sold in the EU country you are in, please call the local Sony
Ericsson Call Center. Please observe that certain services may not be
possible elsewhere than in the country of original purchase, for
example due to the fact that your Product may have an interior or
exterior which is different from equivalent models sold in other EU
countries. It may not be possible to repair SIM-locked Products.
** In some countries/regions additional information is requested. If so,
this is clearly shown on the valid proof of purchase.
FCC Statement
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) This device must accept any interference received, including
interference that may cause undesired operation.
J230A-UG-EN.book Page 85 Tuesday, February 14, 2006 9:37 AM
86
Index
A
alarm clock 62
answering mode 49
ask to save 20
assembling, phone 6
automatic redialling 17
B
battery
charging 7
inserting 7
C
calculator 63
calendar 63
call costs 23
credit limit 24
call time 23
calling
from call list 18
calls
accept 31
answering 16
automatic redialling 17
diverting 25
emergency 17
fixed dialling 29
making 8, 16
missed 16
put on hold 26
receiving 8
restrict 29
charging, battery 7
codes
PIN 8
PUK 8
conference calls 28
contrast (display) 49
D
display
contrast 49
icons 9
light 48
downloading 60
E
emergency calls 17
J230A-UG-EN.book Page 86 Tuesday, February 14, 2006 9:37 AM
87
emergency numbers 17
end user licence
agreement 81
error messages 70
F
fixed dialling 29
G
games 64
memory status 67
GPRS 54
groups
closed user groups 30
conference calls 28
groups. see phonebook 22
GSM 55
GSM frequencies 2
H
handsfree 49
I
icons, in display 9
Internet
bookmarks 59
downloading 60
options 59
security 57
setting up 52
K
key sound 48
keypad lock 65
L
language
changing 13
in phone 13
locks
phone 66
SIM card 65
M
Main menu view 10
master reset 50
melodies, see ringtones 46
memory status 67
messages. see text messages
missed calls 16
my numbers 49
J230A-UG-EN.book Page 87 Tuesday, February 14, 2006 9:37 AM
88
O
own number 49
P
personal ringtones 18
phone language 13
phone lock 66
phonebook 18
ask to save 20
card memory 21
delete a phone number 20
edit a name 20
edit a phone number 20
groups 22
memory 21
memory status 67
phone memory 21
replacing entries 21
shortcuts 19
sort order 20
picture messages 38
pictures 44
exchange 45
memory status 67
send 45
wallpaper 45
PIN
change 66
PIN2 66
profiles 50
PUK 65
R
radio 41
redialling 17
reset 50
ringtones 46
S
safety guidelines 76
saving
radio channels 41
security
Internet 57
phone lock 66
SIM card 65
send a message 33
service centre 33
shortcuts 10
silent ringtone 46
J230A-UG-EN.book Page 88 Tuesday, February 14, 2006 9:37 AM
89
SIM card
copy phonebook entries 22
inserting 7
lock 65
unblock 65
SMS. see text messages
speed dial 19
stopwatch 62
Style-Up cover 43
T
text messages
call phone number 37
delete 37
forward 37
insert item 33
memory status 67
options 35
reply 36
save 37
send 33
themes 44
memory status 67
time settings 49
U
unblocking
PIN 8
V
vibrating alert 48
voice mail 23
J230A-UG-EN.book Page 89 Tuesday, February 14, 2006 9:37 AM
90
J230A-UG-EN.book Page 90 Tuesday, February 14, 2006 9:37 AM
J230A-UG-EN.book Page 1 Tuesday, February 14, 2006 9:37 AM
Sony Ericsson Mobile Communications AB
SE-221 88 Lund, Sweden
www.SonyEricsson.com
EN/LZT 108 8118 R1A
Printed in China
J230A-UG-EN.book Page 2 Tuesday, February 14, 2006 9:37 AM
