08 user guide part 1

Contents

Getting started......................................................3

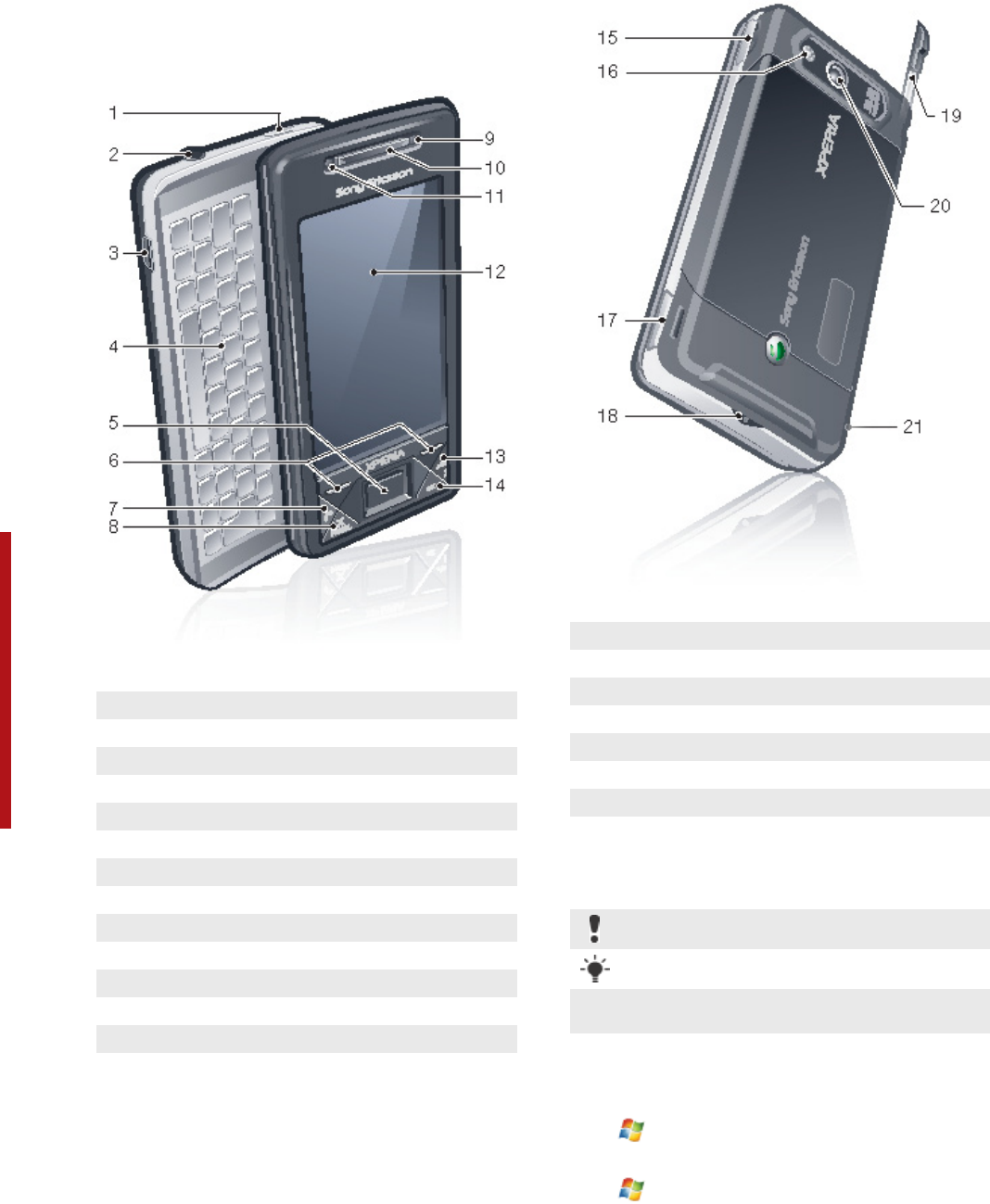

XPERIA™ X1 overview...............................................................3

Instruction symbols....................................................................3

Additional help...........................................................................3

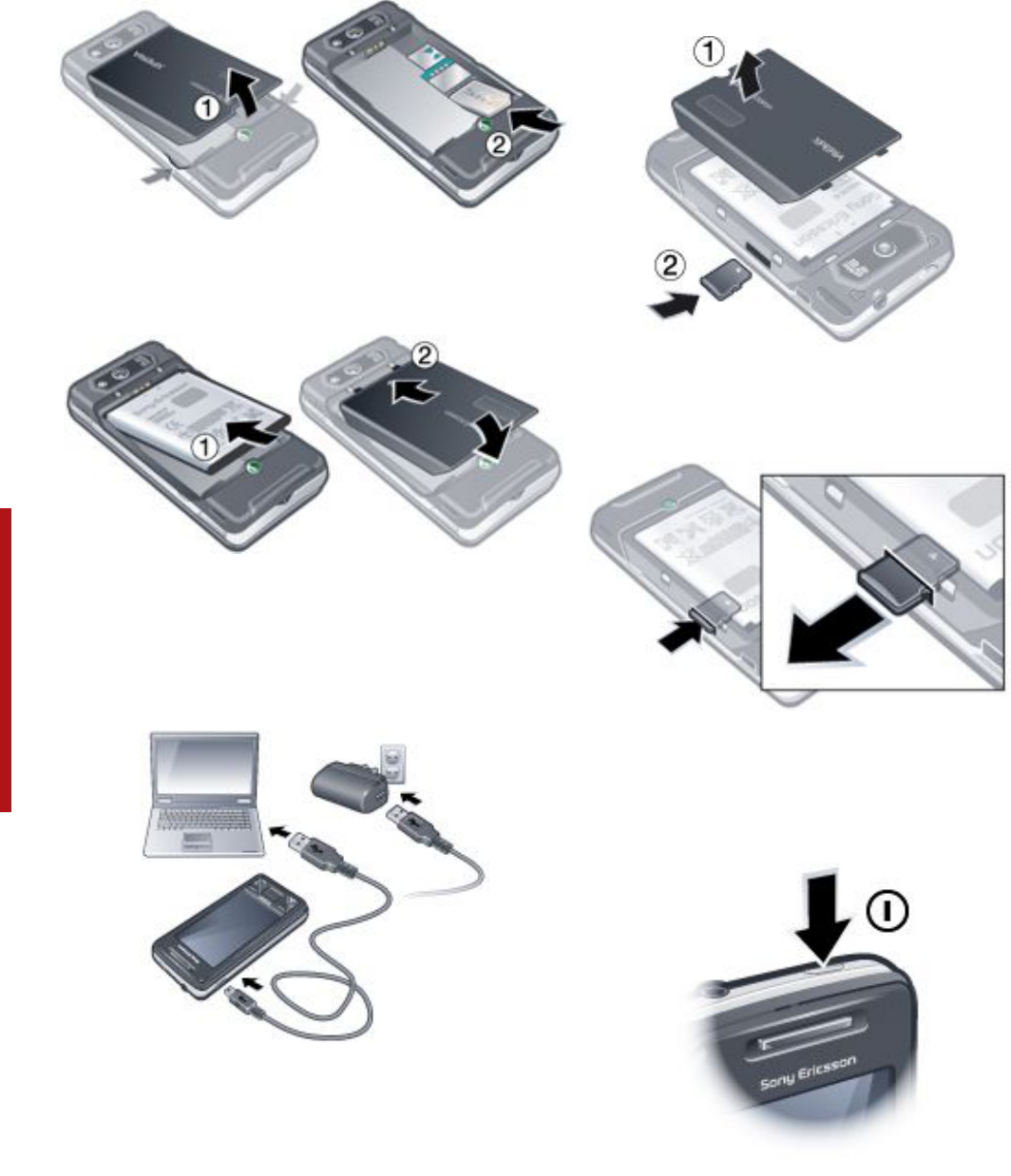

SIM card and battery..................................................................3

Charging the battery..................................................................4

Memory card..............................................................................4

Turning on and off......................................................................4

Navigating..................................................................................5

Closing an application................................................................5

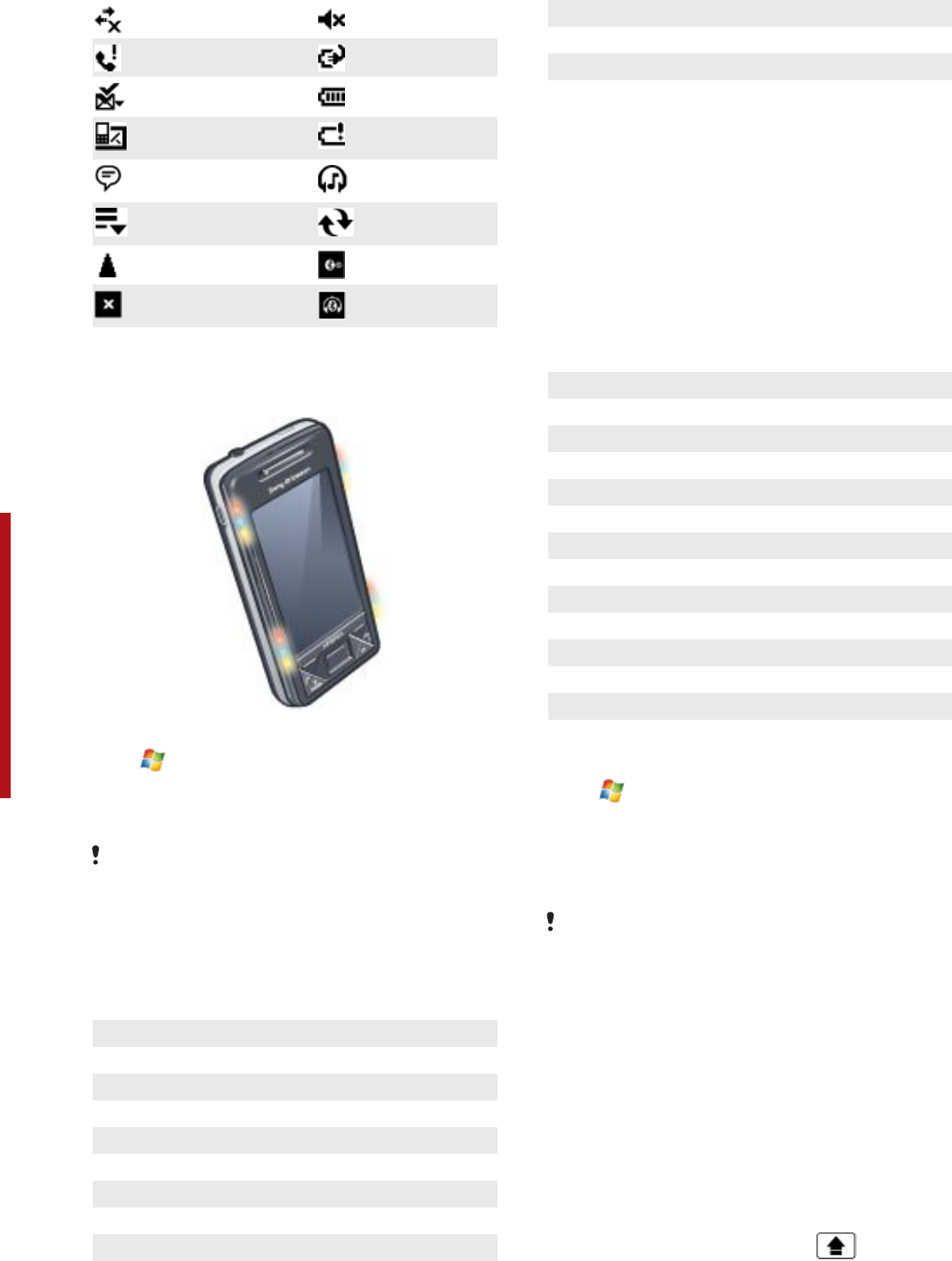

Status icons................................................................................5

Illuminations...............................................................................6

Entering information...................................................................6

Programs....................................................................................7

Settings......................................................................................7

Phone....................................................................9

Networks....................................................................................9

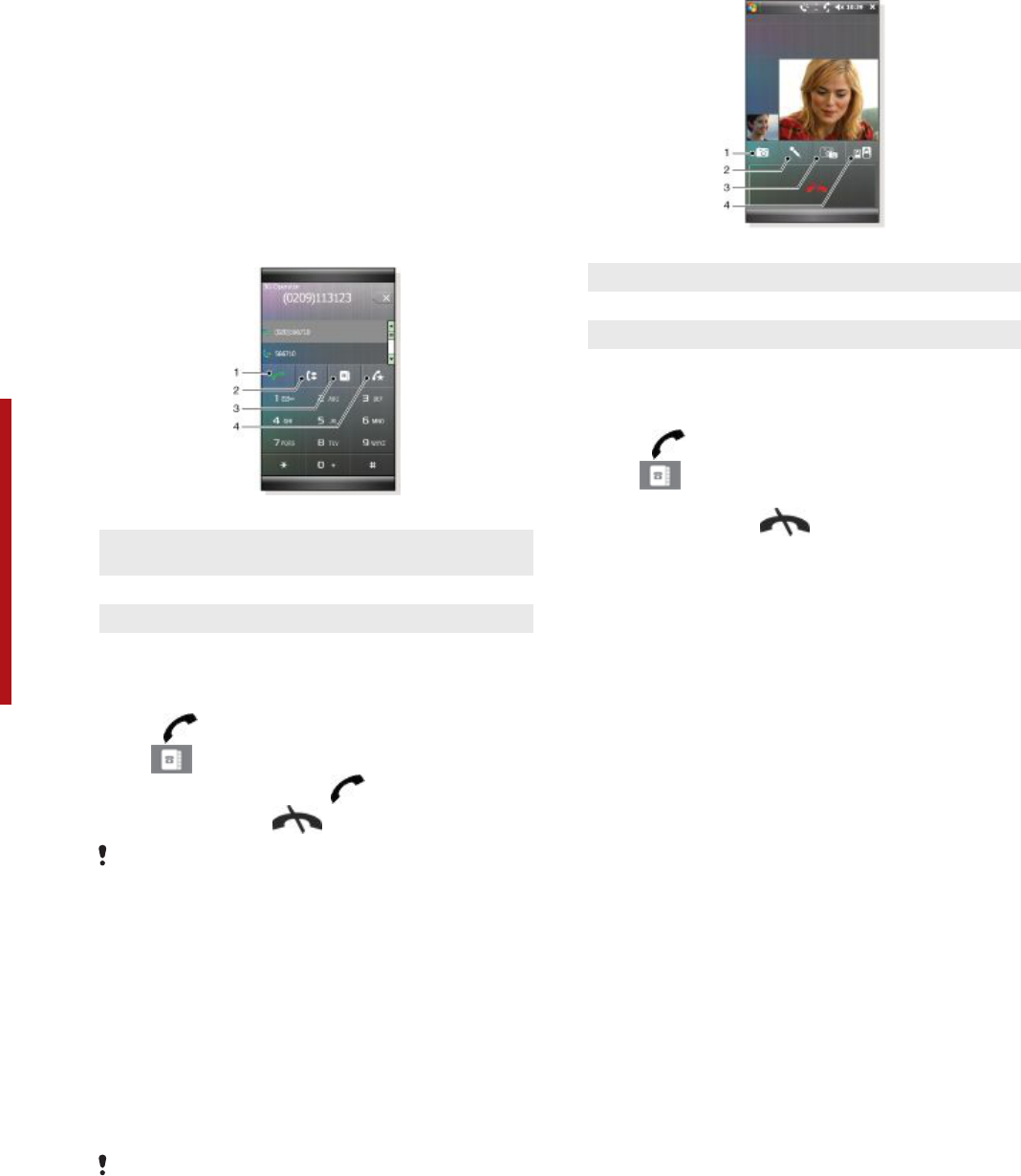

Making calls...............................................................................9

receiving calls.............................................................................9

Features.....................................................................................9

Setting up your phone........................................10

Basic settings...........................................................................10

Personalizing............................................................................10

Customizing Phone Settings and Services..............................10

Protecting the phone................................................................11

Other Settings..........................................................................11

Synchronizing......................................................12

Ways to synchronize................................................................12

Setting up synchronization.......................................................12

Starting synchronization...........................................................13

Synchronizing using a Bluetooth connection...........................13

Scheduled synchronization......................................................13

Changing which information is synchronized..........................13

Use Windows Mobile Device Center........................................13

Messaging...........................................................14

E-mail.......................................................................................14

SMS and MMS.........................................................................14

Browsing the Web...............................................16

Connecting to the Internet.......................................................16

Menu options...........................................................................16

Zooming...................................................................................16

Favorites...................................................................................16

Browsing previously visited Web pages..................................16

Personalizing............................................................................16

Web feeds ...............................................................................16

Calling while browsing.............................................................17

Getting connected..............................................17

Bluetooth™ technology............................................................17

Bluetooth™ modes..................................................................17

Bluetooth™ partnership...........................................................17

Connecting a Bluetooth™ handsfree or stereo headset..........18

Beaming information using a Bluetooth™ connection............18

Using your phone as a Bluetooth™ modem............................18

Wi-Fi/Wireless LAN..................................................................18

Windows Live Messenger........................................................19

GPS – Location-based services.........................19

Using the A-GPS......................................................................19

QuickGPS.................................................................................19

Google Maps™ for mobile.......................................................19

Wayfinder Navigator™.............................................................19

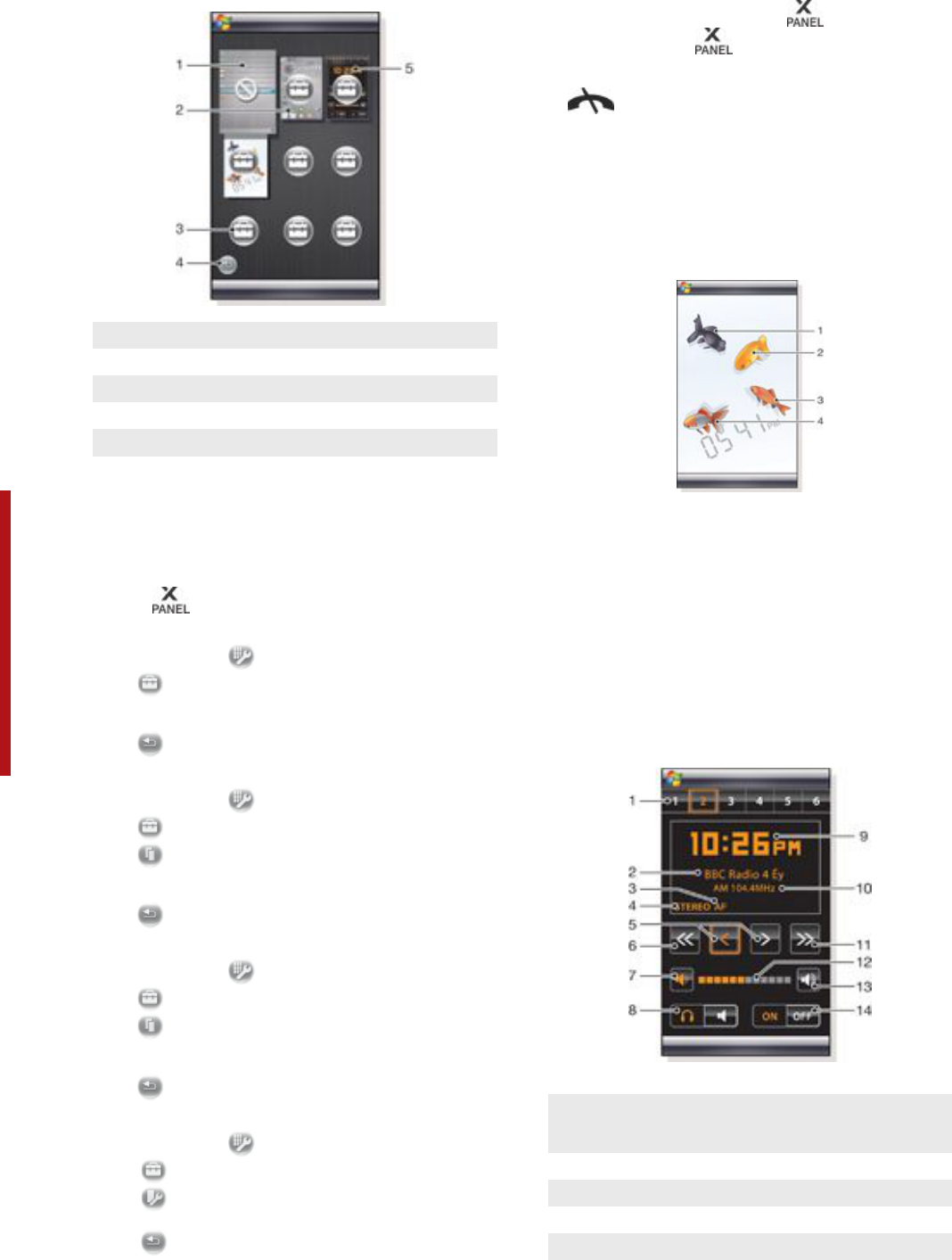

Panels..................................................................20

Portrait and landscape views...................................................20

Choosing panels......................................................................20

Managing panels......................................................................21

3D Fish panel...........................................................................21

XPERIA Radio panel.................................................................21

Sony Ericsson panel.................................................................22

Media Xperience panel.............................................................23

Google™ panel........................................................................23

Microsoft Today panel.............................................................24

Downloading new panels.........................................................24

Multimedia...........................................................25

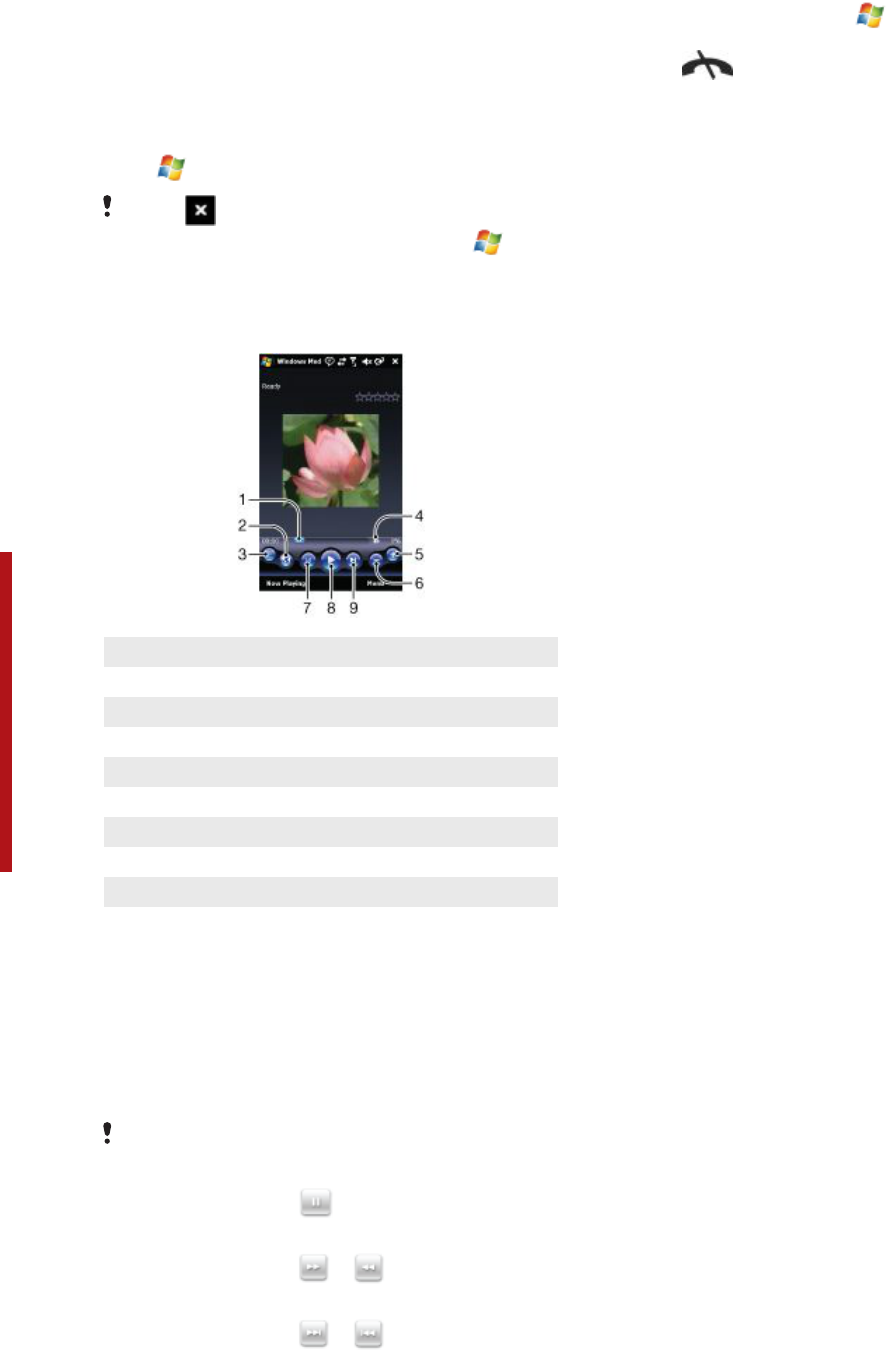

Windows Media® Player Mobile..............................................25

Using media files......................................................................25

Games......................................................................................25

Camera.....................................................................................25

Synchronizing music and video...............................................28

Transferring content.................................................................28

Important information.........................................29

Guidelines for safe and efficient use - addition........................29

Declaration of Conformity for X1..............................................29

Declaration of Conformity for X1a............................................29

FCC Statement.........................................................................29

Industry Canada Statement.....................................................30

Index....................................................................31

This is an Internet version of this publication. © Print only for private use.

This is a draft publication intended for internal use only.

Sony Ericsson X1/X1a

X1: GSM 850/900/1800/1900 & UMTS I/II/VIII

X1a: GSM 850/900/1800/1900 & UMTS I/II/V

This User guide is published by Sony Ericsson Mobile Communications AB or its local

affiliated company, without any warranty. Improvements and changes to this User

guide necessitated by typographical errors, inaccuracies of current information, or

improvements to programs and/or equipment, may be made by Sony Ericsson Mobile

Communications AB at any time and without notice. Such changes will, however, be

incorporated into new editions of this User guide.

©Sony Ericsson Mobile Communications AB, 2008

Publication number: 1215-1000.1

Please note:

Some of the services in this User guide are not supported by all networks. This also

applies to the GSM International Emergency Number 112.

Please contact your network operator or service provider if you are in doubt whether

you can use a particular service or not.

Please read the Important information before you use your mobile phone.

Your mobile phone has the capability to download, store and forward additional

content, e.g. ringtones. The use of such content may be restricted or prohibited by

rights of third parties, including but not limited to restriction under applicable copyright

laws. You, and not Sony Ericsson, are entirely responsible for additional content that

you download to or forward from your mobile phone. Prior to your use of any additional

content, please verify that your intended use is properly licensed or is otherwise

authorized. Sony Ericsson does not guarantee the accuracy, integrity or quality of any

additional content or any other third party content. Under no circumstances will

Sony Ericsson be liable in any way for your improper use of additional content or other

third party content.

Some GPS features use the Internet. Sony Ericsson does not warrant the accuracy of

any directional services including but not limited to turn-by-turn navigational services.

Export Regulations: This product, including any software or technical data contained

in or accompanying the product, may be subject to U.S. export control laws, including

the U.S. Export Administration Act and its associated regulations and the U.S.

sanctions programs administered by the U.S. Treasury Department's Office of Foreign

Assets Control, and may be additionally subject to export or import regulations in other

countries. The user and any possessor of the product agrees to comply strictly with

all such regulations and acknowledges that it is their responsibility to obtain any

required licenses to export, re-export, or import this product. Without limitation this

product, including any software contained therein, may not be downloaded, or

otherwise exported or re-exported (i) into, or to a national or resident of, or an entity

in, Cuba, Iraq, Iran, North Korea, Sudan, Syria (as such listing may be revised from

time to time) or any country to which the U.S. has embargoed goods; or (ii) to any

person or entity on the U.S. Treasury Department's list of Specially Designated

Nationals or (iii) any person or entity on any other export prohibition list that may be

maintained from time to time by the United States Government, including but not

limited to the U.S. Commerce Department's Denied Persons List or Entity List, or the

U.S. State Department's Nonproliferation Sanctions List.

Your phone supports international emergency numbers, for example, 112 and 911.

These numbers can normally be used to make emergency calls in any country, with or

without the SIM card inserted, if a 3G (UMTS) or GSM network is within range. In some

countries, other emergency numbers may also be promoted. Your network operator

may therefore have saved additional local emergency numbers on the SIM card.

Bluetooth and the Bluetooth logo are trademarks or registered trademarks of Bluetooth

SIG Inc. and any use of such mark by Sony Ericsson is under license.

Wi-Fi is a trademark or a registered trademark of the Wi-Fi Alliance.

The Liquid Identity logo, XPERIA and X Panel, are trademarks or registered trademarks

of Sony Ericsson Mobile Communications AB.

Sony is a trademark or registered trademark of Sony Corporation.

YouTube, Picasa, Gmail, Google™ and Google Maps™ are trademarks or registered

trademarks of Google, Inc.

Wayfinder and Wayfinder Navigator are trademarks or registered trademarks of

Wayfinder Systems AB.

Ericsson is a trademark or registered trademark of Telefonaktiebolaget LM Ericsson.

Microsoft, ActiveSync, Windows, the Windows logo, Windows Live, PowerPoint,

Excel, OneNote, Outlook, and Vista are registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft. Use or

distribution of such technology outside of this product is prohibited without a license

from Microsoft.

Content owners use Windows Media digital rights management technology (WMDRM)

to protect their intellectual property, including copyrights. This device uses WMDRM

software to access WMDRM-protected content. If the WMDRM software fails to

protect the content, content owners may ask Microsoft to revoke the software's ability

to use WMDRM to play or copy protected content. Revocation does not affect

unprotected content. When you download licenses for protected content, you agree

that Microsoft may include a revocation list with the licenses. Content owners may

require you to upgrade WMDRM to access their content. If you decline an upgrade,

you will not be able to access content that requires the upgrade.

This product is licensed under the MPEG-4 visual and AVC patent portfolio licenses

for the personal and non-commercial use of a consumer for (i) encoding video in

compliance with the MPEG-4 visual standard ("MPEG-4 video") or the AVC standard

("AVC video") and/or (ii) decoding MPEG- 4 or AVC video that was encoded by a

consumer engaged in a personal and non-commercial activity and/or was obtained

from a video provider licensed by MPEG LA to provide MPEG-4 and/or AVC video. No

license is granted or shall be implied for any other use. Additional information including

that relating to promotional, internal and commercial uses and licensing may be

obtained from MPEG LA, L.L.C. See http://www.mpegla.com. MPEG Layer-3 audio

decoding technology licensed from Fraunhofer IIS and Thomson.

Java, JavaScript and Java-based trademarks and logos are trademarks or registered

trademarks of Sun Microsystems, Inc. in the U.S. and other countries.

End-user license agreement for Sun Java Platform, Micro Edition.

1. Restrictions: Software is confidential copyrighted information of Sun and title to all

copies is retained by Sun and/or its licensors. Customer shall not modify, decompile,

disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may

not be leased, assigned, or sublicensed, in whole or in part.

2. Export Regulations: Software including technical data, is subject to U.S. export

control laws, including the U.S. Export Administration Act and its associated

regulations, and may be subject to export or import regulations in other countries.

Customer agrees to comply strictly with all such regulations and acknowledges that it

has the responsibility to obtain licenses to export, re-export, or import Software.

Software may not be downloaded, or otherwise exported or re-exported (i) into, or to

a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such

listing may be revised from time to time) or any country to which the U.S. has

embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of Specially

Designated Nations or the U.S. Commerce Department's Table of Denial Orders. 3.

Restricted rights: Use, duplication or disclosure by the United States government is

subject to the restrictions as set forth in the Rights in Technical Data and Computer

Software Clauses in DFARS 252.227-7013(c) (1) and FAR 52.227-19(c) (2) as

applicable.

Restricted Rights: Use, duplication or disclosure by the United States government is

subject to the restrictions as set forth in the Rights in Technical Data and Computer

Software Clauses in DFARS 252.227-7013(c) (1) (ii) and FAR 52.227-19(c) (2) as

applicable.

Other product and company names mentioned herein may be the trademarks of their

respective owners.

Any rights not expressly granted herein are reserved.

All illustrations are for illustration only and may not accurately depict the actual phone.

This User guide contains simulated screen images.

This is an Internet version of this publication. © Print only for private use.

This is a draft publication intended for internal use only.

Getting started

XPERIA™ X1 overview

1 Power key

2 3.5 mm headset connector

3 Connector for USB cable

4 Keyboard

5 Optical joystick/ENTER

6 Selection keys

7 Call key

8 XPERIA™ X1 panel key

9 Video call/front camera lens

10 Ear speaker

11 Light sensor

12 Touch screen

13 End call key

14 OK key

15 Volume key

16 Camera light

17 Camera key

18 Strap holder

19 Stylus

20 Camera lens

21 Loudspeaker

Instruction symbols

The following symbols appear in the User guide:

Note

Tip

>Tap items or use the navigation key or joystick to scroll

and select

Additional help

To use the help in the phone

•Tap > Help.

To use Getting started

•Tap > Programs > Getting started.

SIM card and battery

Before you start using the phone, you have to insert the SIM card

and the battery.

Getting started 3

This is an Internet version of this publication. © Print only for private use.

This is a draft publication intended for internal use only.

To insert SIM card

1Remove the battery cover.

2Slide the SIM card into its holder with the gold-colored

contacts facing down.

To insert the battery

1Insert the battery with the label side up and the connectors

facing each other.

2Slide the battery cover into place.

Charging the battery

The phone battery is partly charged when you buy it. You can

charge the phone in two ways.

To charge using the power adapter

•Connect the phone to a power outlet using the included USB

cable and the power adapter.

To charge using a computer

•Connect the phone to a USB port on your computer using the

included USB cable.

Memory card

To insert a memory card

1Remove the battery cover.

2Insert the memory card with the gold-colored contacts facing

down.

To remove a memory card

1Remove the battery cover.

2Press the edge of the memory card to release and remove it.

Turning on and off

To turn on the phone

1Press and hold down the power key until the phone starts.

2At first startup, a Quick Start wizard will guide you through the

initial settings.

To turn off the phone

1Press and hold the power key until a message appears.

2Tap Yes to turn off.

4Getting started

This is an Internet version of this publication. © Print only for private use.

This is a draft publication intended for internal use only.

To turn on sleep mode

•Press the power key to turn off the screen temporarily and

switch the phone to sleep mode.

To turn off sleep mode

•To activate the screen, press the power key. The phone is also

activated by opening the keyboard, or by receiving a call or a

message.

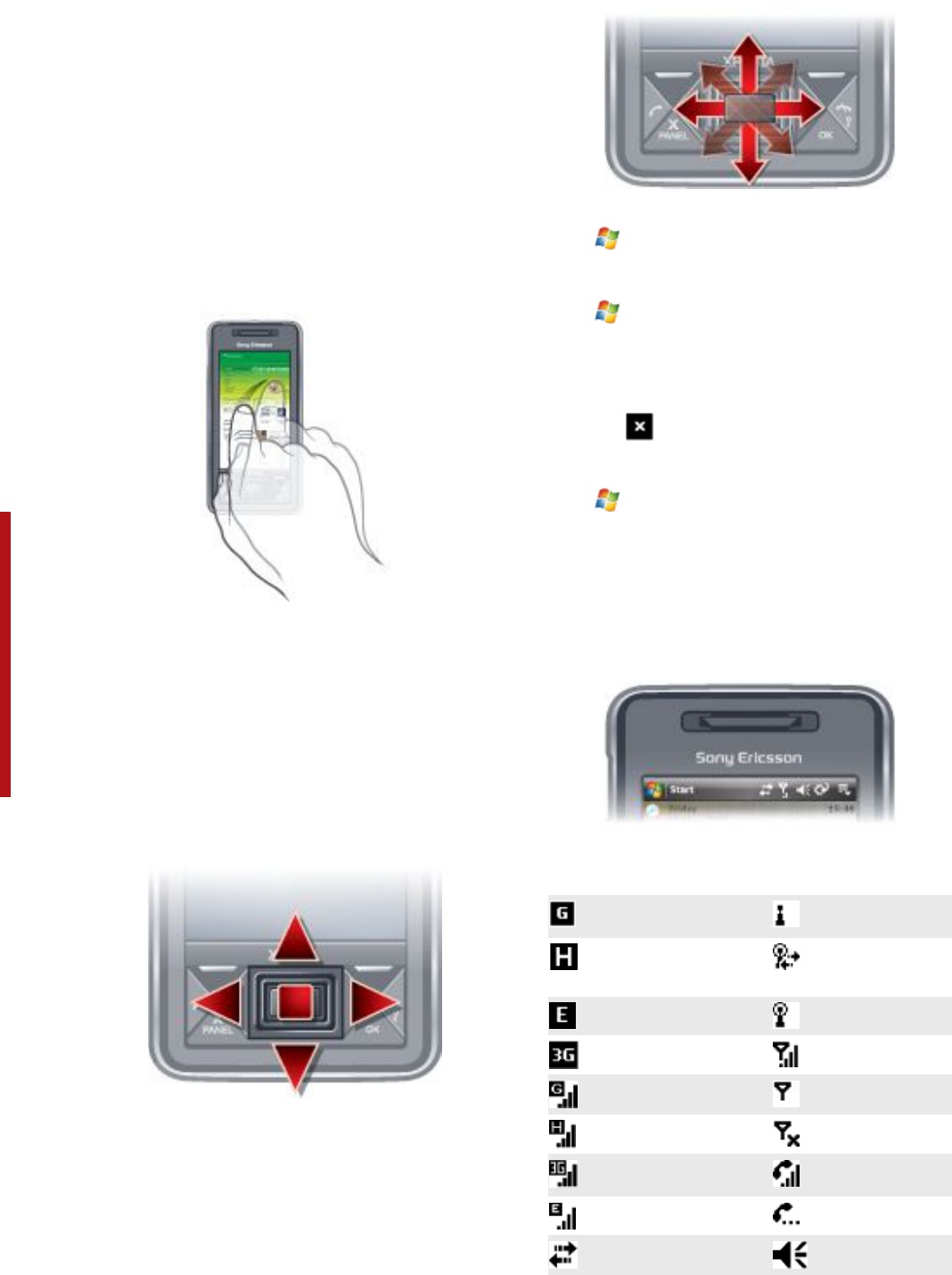

Navigating

You can use the following means to move around the screen:

•Using the touchscreen with the stylus or your finger

•Multi-directional navigation key

•Optical joystick

Using the touch screen

•To highlight or open an item, tap the item.

•To copy, rename or send a file, tap and hold down the file or

folder. Select the preferred action from the options dialog.

•To scroll, tap the screen and slide up or down. On some pages

you can also slide to the side.

•To stop the screen from scrolling, tap the screen.

•To pan a page, touch and hold on the screen, then drag your

finger.

•To pan continuously, drag your finger towards the outer limits

of a page and hold. Release your finger to stop panning.

Using the navigation key

To use the navigation key

•Press the navigation key left, right, up or down to move

around the screen. Press the center of the navigation key to

select an item.

Using the optical joystick

You can move the highlight in any direction by letting your finger

glide over the navigation key. In Internet Explorer, messaging and

contacts, you can use the optical joystick to scroll instead.

To turn on or off the optical joystick

1Tap > Settings > the System tab > Optical Joystick.

2Mark or unmark the Enable Optical Joystick check box.

To use scrolling instead of highlight

1Tap > Settings > the System tab > Optical Joystick.

2Mark the Enable the scroll function in Internet Explorer,

Messaging and Contacts check box.

Closing an application

If you press in any application window it closes the

application, for example, Windows Media® Player, Browser.

To change functionality of the "X" button

1Tap > Settings > System tab > Task Manager >

Button tab.

2Mark check box if you want to End progams by tapping and

holding "X".

Status icons

You can select an icon to get more information or to start an

application. Below is a short description of icons appearing in the

status bar.

The following status icons might appear on your screen:

GPRS available Wi-Fi function

enabled

HSDPA available Scanning for

available Wi-Fi

connection

EDGE available Wi-Fi connected

3G/UMTS available Signal strength

GPRS in use No signal

HSDPA in use Phone turned off

3G/UMTS in use Voice call in

progress

EDGE in use Call on hold

Connection is active Sound on

Getting started 5

This is an Internet version of this publication. © Print only for private use.

This is a draft publication intended for internal use only.

Connection is not active Sound off

Missed call Battery charging

New incoming MMS Battery full

New text message. SMS

notification of voice mail Battery critically low

Multiple notifications. Tap

to view all Bluetooth stereo

headset detected

Task manager Synchronization

ongoing

Roaming Bluetooth on

Stop running program Bluetooth headset

connected

Illuminations

You can set the four LEDs to notify events.

To set illuminations

•Tap > Settings > the System tab > Illumination.

To preview illumination

1Select an event.

2Tap Preview On.

Do not charge the phone while you are previewing illumination -

the charge illumination will be on and the preview function will not

work.

Illumination pattern for an event

All the illumination lights will flash on the same time, except when

the panel button is pressed, when the bottom left light will flash

only.

Event Color Pattern

Charging Mixed Slowly

Low battery Red Slowly

Panel (button pressed) Mixed Once

Panel (panel selected) Mixed Once

Missed call Mixed Two flashes slowly

Voicemail Mixed Two flashes slowly

Alarm /Calendar Violet Three flashes slowly

e-Mail received Violet Short flash slowly

SMS received Blue Short flash slowly

Instant message Blue Short flash slowly

Incoming call Green Three flashes slowly

MMS received Blue Short flash slowly

Boot up Mixed Once

Illumination events priority

A higher priority event will override lower priority ones. For

example, incoming call illumination will appear when receiving

incoming call (higher priority) while the battery is being charged

(lower priority).

After the higher priority event expires, an illumination for a lower

priority event may appear again. For example, charging

illumination will appear after the incoming call is answered, if

charging is still going on and any other priority event (for example

e-mail received, have not occurred).

Events in illumination priority, ascending priority order

Charging/Charge pending

Missed call

Voice mail

Low battery

Alarm /Calendar

Panel (button pressed)

Panel (button selected)

e-Mail received

SMS received

MMS received

Instant message

Incoming call

Start (boot up)

To change the illumination time

1Tap > Settings > Personal tab > Sounds &

Notifications > Notificationstab.

2From the Event box, select an event, for example Phone:

Missed call.

3Select Flash light for.

4From the Flash light for box, select the time you want the light

to flash.

Default illumination time are set to 5 minutes for the following

events:

•

Instant Messaging

•

Messaging: New MMS

•

Messaging: New SMS

•

Phone: Missed call

•

Phone: Voice mail

•

Reminders.

Entering information

To enter text and characters, you can use:

•the keyboard

•the on-screen keyboard

•handwriting recognition features such as Block Recognizer,

Letter Recognizer or Transcriber.

Using the keyboard

•To type lowercase letters, press the keys.

•To type a single uppercase letter, press and then press

the required letter key.

6Getting started

This is an Internet version of this publication. © Print only for private use.

This is a draft publication intended for internal use only.

•To use all uppercase letters, press twice. To change

back to all lowercase letters, press again.

•To type accented characters, press the letter key first, and

then press the until the required character appears.

•To enter a number or a symbol (in blue at the upper right of

some keys), press and then press the key.

•To use all number or symbol keys, press twice.

•To open the symbol pad, press .

•To verify entries or exit the program in use, press .

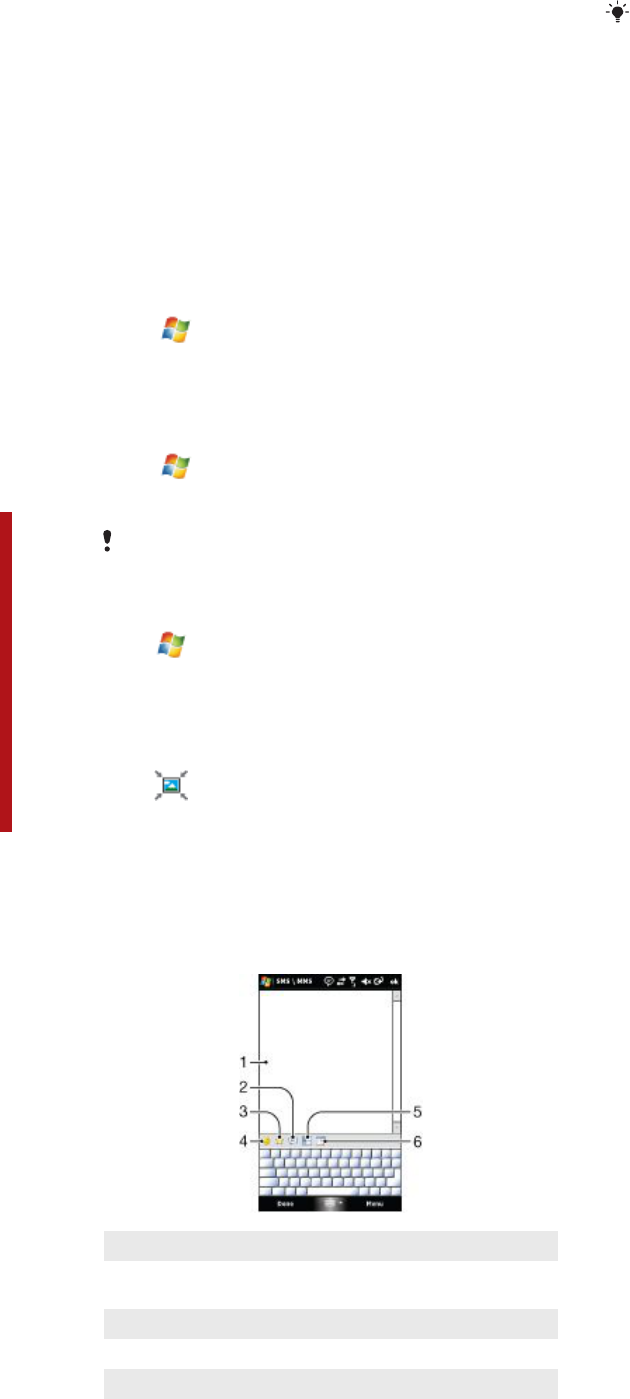

Using the on-screen keyboard

•In a program, tap at the bottom of the screen. If you

see a different input icon, tap the icon, tap to the right

of the input icon, and then tap Keyboard.

•To enter text and numbers, tap the keys on the on-screen

keyboard.

•To hide the on-screen keyboard, tap .

Using handwriting features

•In a program, tap an input icon at the bottom of the screen,

tap , and then tap a method.

•For help writing characters using Block Recognizer, Letter

Recognizer or Transcriber, tap the question mark near the

writing area.

Programs

The following programs can be found in your phone.

Programs in the Start Menu

Icon Description

Office Mobile – Use the complete suite of Microsoft®

Office applications for your phone.

Excel® Mobile – Create new

workbooks or view and edit Excel

workbooks.

OneNote® Mobile - Make notes

and gather information, all in one

place.

PowerPoint® Mobile – View

PowerPoint slides and

presentations.

Word Mobile – Create, view, and

edit Word documents.

Calendar – Keep track of your appointments and create

meeting requests.

Contacts – Keep track of your friends and colleagues.

Internet Explorer Mobile – Browse Web and WAP sites

as well as download new programs and files from the

Internet.

Messaging – Send and receive e-mails, text messages

and picture messages.

Phone – Make and receive calls, switch between calls,

and set up conference calling.

Help – See Help topics for the current screen or program.

Programs screen

Icon Description

Games – Play any of the four pre-installed games:

Astraware Sudoku, Bejeweled 2, Bubble Breaker and

Solitaire.

ActiveSync – Synchronize information between your

phone and a computer or the Exchange Server.

Adobe Reader LE – View PDF (Portable Document

Format) files in your phone.

Calculator – Perform basic calculations such as addition,

subtraction, multiplication, and division.

Calendar – Keep track of your appointments and create

meeting requests.

Comm Manager – Manage your phone’s connections

(including Wi-Fi and Bluetooth), turn off all connections

with Airplane Mode, turn the phone on or off, and enable

or disable the Direct Push function.

File Explorer – Organize and manage files in your phone.

Getting Started – Read how to manage basic functions

such as making a call and how to set up date & time, e-

mail, password, Bluetooth headset, background, ring

tone and how to transfer music. Tap on the links to

configure the settings for each area.

Google Maps – View your current location, find other

locations and calculate routes.

Handango InHand – Offers software and game

downloads for your phone.

Internet Sharing – Connect your phone to the Internet

using your phone data connection.

Java – Download and install Java applications, such as

games and tools, in your phone.

Messenger – This is the mobile version of Windows

Live™ Messenger.

Notes – Create handwritten or typed notes, drawings,

and voice recordings.

Opera – Opera Mobile browser that allows full HTML

browsing.

Pictures & Videos – View, organize and sort pictures,

animated GIFs and video files in your phone or a memory

card.

QuickGPS – Downloads satellite data over the Internet via

ActiveSync, Wi-Fi or GPRS to speed up the time for

determining your current GPS position.

Search – Search contacts, data, and other information in

your phone.

SIM Manager – Manage the contacts stored on your

USIM/SIM card. You can also copy USIM/SIM contents

to Contacts in your phone.

Streaming Media – Stream live or on-demand video.

Tasks – Keep track of your tasks.

Windows Live – Use this mobile version of Windows

Live™ to find information on the Web. Sign into your

Windows Live account to access your Live Mail

messages and send/receive instant messages in Live

Messenger.

Windows Media Player Mobile – Play back audio and

video files.

Settings

You can adjust the phone settings to suit the way you work.

Getting started 7

This is an Internet version of this publication. © Print only for private use.

This is a draft publication intended for internal use only.

To see all available settings

1Tap > Settings.

2Tap the Personal, System, and Connections tabs located at

the bottom of the screen and enter your settings.

Personal tab

Icon Description

Buttons – Assign a program or function to a hardware

button.

Input – Set options for each of the input methods.

Lock – Set a password for your phone.

Menus – Set what programs will appear in the Start menu.

Owner Information – Enter your personal information in

your phone.

Phone – Customize phone settings such as ringtone, set

a PIN number for your USIM/SIM card, and more.

Sounds & Notifications – Enable sounds for events,

notifications, and more, and set the type of notification for

different events.

Today – Customize the appearance and the information

to be displayed on the Today screen.

TTY – Allows you to type messages back and forth,

instead of talking and listening. A perfect alternative for

people who are deaf, hard of hearing, or speech-impaired

to use the telephone to communicate.

System tab

Icon Description

About – See basic information such as the Windows®

Mobile version and type of processor used in your phone.

You can also specify a name for your phone.

Certificates – See information about certificates that are

installed in your phone.

Clear Storage – Tap this icon only when you need to

remove all your data and files from the memory and reset

your phone to factory default settings.

Clock & Alarms – Set the phone clock to the date and

time of your locale or to a visiting time zone when you’re

traveling. Alarms can also be set at specified days and

times of a week.

Customer feedback – Make Windows® Mobile better by

participating in the Customer Experience Improvement

Program.

Device Information – See information about the firmware

version, hardware, identity and the Customer Info.

Encryption – Allow files on your memory card to be

encrypted. Encrypted files will be readable only in your

phone.

Error Reporting – Enable or disable the phone error

reporting function. When this function is enabled and a

program error occurs, technical data about the state of

the program and your phone will be logged in a text file

and delivered to Microsoft technical support if you

choose to send it.

External GPS – Set the appropriate GPS communication

ports, if required. You may need to do this when there are

programs in your phone that access GPS data or you

have connected a GPS receiver to your phone. See Help

for details.

Illumination – Enable or disable illumination for events

such as Charging, Low Battery, Missed call, Voicemail,

Alarm/Calendar, E-mail Received, Incoming Call and

more.

Key Lock – Lock the keys on your phone except for the

POWER key when the phone is in Sleep mode. This

ensures you will not switch the phone on by accident and

consume unnecessary power.

Managed Programs – See the installation history for

programs managed in your phone.

Memory – Check the phone memory allocation status

and memory card information. You can also stop

currently running programs.

Microphone AGC – Adjust the volume of your voice

automatically when you are recording.

Optical Joystick – Enable or disable the optical joystick,

enable cursor function on Internet Explorer, Messaging

and Contacts. Also set the sensitivity of the screen.

Power – Check the remaining battery power. You can

also set the timeout for turning off the display (switching

phone to Sleep mode) to conserve battery power.

Regional Settings – Set the regional configuration to use,

including the format for displaying numbers, currency,

date, and time in your phone.

Remove Programs – Remove programs you installed in

your phone.

Screen – Change the screen orientation, recalibrate the

screen, and change the screen text size.

Task Manager – Stop running programs and set the

button to end programs immediately when you tap

the button.

Windows Update – Link to the Microsoft Web site and

update Windows® Mobile in your phone with the latest

security patches or fixes.

Connections tab

Icon Description

Advanced Network – Make advanced settings for your

Network

Beam – Set your phone to receive incoming Bluetooth

beams.

Bluetooth – Turn Bluetooth on, set your phone to visible

mode and scan for other Bluetooth devices.

Comm Manager – Manage your phone connections

(including Wi-Fi, GPRS, Bluetooth, and ActiveSync), turn

the phone on or off, switch to ringer/vibration mode, and

enable or disable the Direct Push function.

Connection Setup – Configure your phone data

connections, such as GPRS, WAP, and MMS, based on

the detected or selected network operator.

Connections – Set up one or more types of modem

connections for your phone, such as phone dial-up,

GPRS and more, so your phone can connect to the

Internet or a private local network.

Domain Enroll – Enrolling in a domain will connect your

phone with company resources.

USB to PC – Set a USB serial connection between your

phone and computer when there are problems

connecting ActiveSync.

Wi-Fi – Scan for available wireless networks.

Wireless LAN – See information about the active wireless

network, and customize Wi-Fi settings.

8Getting started

This is an Internet version of this publication. © Print only for private use.

This is a draft publication intended for internal use only.

Phone

Networks

Network coverage

To make or receive a phone call your phone must be within range

of a network.

Network settings

You can set how your phone should choose an available network

when you are outside your operator coverage area.

To enter the network settings

1Press <HW Call key icon> and tap <Spanner icon>.

2Tap the <Network> tab and enter the settings.

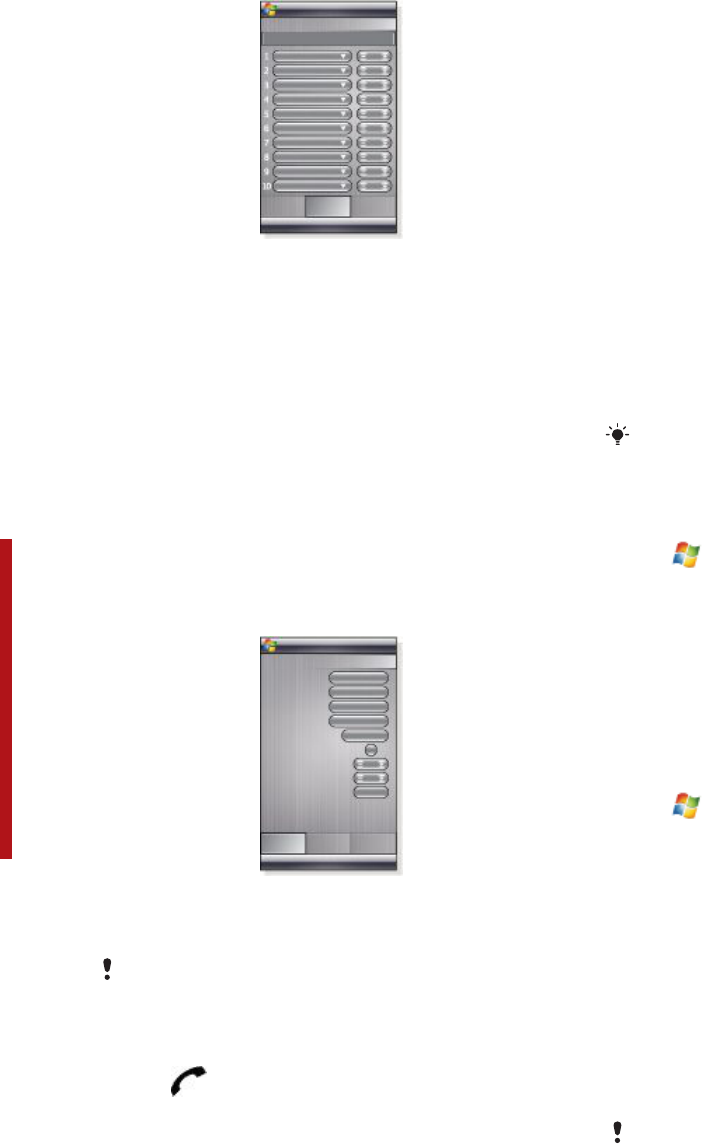

Making calls

Voice call

1Tap to call a number you dialled using the phone keypad, or

a highlighted contact.

2 Call History

3 Contacts

4 Speed dial

To make a voice call

1Press .

2Tap .

3Scroll to a contact, then press .

4To end the call, press .

Make sure you do not block the speaker with your hand when

using the speakerphone.

To make an international call

1Press <HW Call key icon>.

2Tap and hold down < 0+ icon> to get the international call

prefix.

3Enter the country/region code, area code (whithout the first

zero) and phone number.

4Tap <SW Call key icon>.

To make an emergency call

1Press <HW Call key icon>.

2To display the virtual keypad, if not displayed, tap<keypad

icon>.

3Dial the local emergency number, or look it up on the SIM

card, if available.

4Tap <SW Call key icon>.

Usually no SIM card or PIN code is required for emergency calls,

but this can be operator-dependent. Contact your operator for

more information.

To make a call from Contacts

1Open Contacts by tapping <Contacts icon> or by tapping

<Start> > <Contacts>.

2Scroll to the contact you want to call.

3Press <Lur icon>.

Video call

1 Camera on/off

2 Microphone on/off

3 Front (video) camera/Main camera

4 Switch views of how you and the other party are displayed.

To make a video call

1Press .

2Tap .

3Scroll to a contact, then tap Menu > Video Call.

4To end the call, press .

receiving calls

To answer a call

•Press <HW Call key icon>.

To reject a call with busy tone

•Press <HW End call key icon>.

Features

Conference call

You can start a conference call when you have an ongoing call

and one or several calls on hold, or an incoming call during an

ongoing call.

To set up a conference call

1Make a call.

2Put the call on hold and make a new call, or accept a new

incoming call.

3Tap Menu > Conference.

Phone 9

This is an Internet version of this publication. © Print only for private use.

This is a draft publication intended for internal use only.

Setting up your phone

Basic settings

Owner information

Having owner information displayed on the Today screen makes

it easier for someone to return your phone to you if it is lost.

To enter owner information

1Tap >Settings > Personal tab > Owner Information.

2On the Identification tab, enter your personal information.

If you don’t see owner information on the Today screen, tap

Settings

Personal

tab >

Today

. On the

Items

tab, mark

the

Owner Info

check box and select

To display owner information when the device is turned on

1Tap >Settings > Personal tab > Owner Information.

2On the Options tab, mark the Identification information

check box.

3If you want additional text displayed, tap the Notes tab and

enter the text (for instance: Reward if found).

4On the Options tab, mark the Notes check box then tap ok.

Time and date

To set time and date

•Tap > Settings > the System tab > Clock & Alarms > the

Time tab.

To set time and date for a different location

1Tap > Settings > System tab > Clock & Alarms > Time

tab.

2Tap Visiting.

3Select the correct time zone and change the time or date.

Regional settings

The style in which numbers, currency, dates, and times are

displayed is specified in regional settings.

To change regional settings

1Tap >Settings >System tab > Regional Settings.

2On the Region tab, select your region from the list.

3To customize settings further, tap the appropriate tabs and

select the desired options.

Changing region does not change the Operating System

language of your phone.

The region you select determines which options will be available

on the other tabs.

Personalizing

Personalizing the Today Screen

The Today screen shows your upcoming appointments, active

tasks, and information about incoming messages. You can

customize what to display on the Today screen.

To customize the Today screen

1Tap > Settings > Personal tab > Today.

2On the Appearance tab, select the desired theme for the

background of the Today screen.

3On the Items tab, select the items you want to appear on the

Today screen.

To change the order of items displayed on the Today screen, tap

the item, and tap

Move Up

Move Down

To use a custom background image

1Tap > Settings > Personal tab > Today.

2Mark the Use this picture as the background check box, and

tap Browse to view a list of your picture files.

3Tap the file name of the picture you want to use.

4Tap ok.

To set options for displaying appointments on the Today

screen

1Tap > Settings > Personal tab > Today.

2Tap the Items tab.

3Select Calendar and tap Options….

4Do any of the following:

•Select Next appointment to show only the next

appointment in your schedule, or Upcoming

appointments to show multiple appointments.

•Unmark the Display all day events check box if you do not

want to display all-day events.

To set options for displaying tasks on the Today screen

1Tap > Settings > Personal tab > Today.

2Tap the Items tab.

3Select Tasks and tap Options….

4Do any of the following:

•Under Display number of, mark check boxes for the type

of tasks you want to appear on the Today screen.

•In the Category list, select whether to display only tasks

assigned to a specific category or to display all tasks.

Customize the Start menu

You can choose which items appear in the Start menu.

To customize the Start menu

1Tap > Settings > Personal tab > Menus.

2Mark the check boxes of the items you want to appear in the

Start menu. You can select up to seven items.

Customizing Phone Settings and Services

You can customize phone settings, such as the ring type and

ringtone to be used for incoming calls, and the keypad tone to

be used when entering phone numbers. You can also set up your

device to use phone services such as Call Waiting, Call

Forwarding and more.

To access phone settings and services

•Tap > Settings > Personal tab > Phone.

Ringer settings

To change ring type and ring tone for an incoming call

1Tap > Settings > Personal tab > Sounds &

Notifications > Notifications tab.

2Select Ring type.

3Select Ring tone.

Keyboard tone

You can change the tone you hear when entering a phone

number on the keyboard. If set to Long tones, the tone is heard

continuously for as long as the number on the keyboard is

pressed. Use this setting if you are having trouble accomplishing

tasks that rely on tones from your phone such as accessing

messages from an answering machine. If set to Short tones, the

tone is heard only for one or two seconds. If set to Off, no tone

will be heard.

To set keyboard tone

1Tap > Settings > Personal tab > Phone > Phone tab.

2In the Keypad list, tap the option you want.

Phone services

Your phone can directly link to the mobile phone network, and

allow you to access and change the settings of various phone

services.. Phone services may include Call Forwarding, Call

Waiting, Voicemail and more. Contact your wireless service

provider to find out about the availability of phone services for

your phone.

10 Setting up your phone

This is an Internet version of this publication. © Print only for private use.

This is a draft publication intended for internal use only.

To access and change settings of phone services

1Tap > Settings > Personal tab > Phone > Services tab.

2Select the service you want to use, then tap Get Settings....

3Choose your desired options, then tap ok.

Networks

You can view which mobile phone networks are available and

arrange them in the order that you want your phone to access

them. For example, if your first preferred network is unavailable,

your phone will try to access your second preferred network.

To view available networks

1Tap > Settings > Personal tab > Phone > Network tab.

2Under Network selection, select Manual. The list of available

networks is then displayed.

To set preferred networks

1Tap > Settings > Personal tab > Phone > Network tab.

2Tap Set Networks and follow the instructions on the screen

to arrange the networks according to your preference.

3After arranging the networks in the preferred order, tap ok to

return to the Network tab.

4In the Network selection list, select Automatic.

5Tap ok.

Protecting the phone

You can protect the phone from unauthorized or accidental use

by activating locks.

To activate SIM card lock

1Tap > Settings > the Personal tab > Phone > the PIN/

PIN2 tab.

2Mark the Require PIN when phone is used check box.

3Tap ok.

Your PIN is supplied by your network operator.

To activate the phone lock

1Tap > Settings > the Personal tab > Lock.

2Mark the Prompt if device is unused for check box, and tap

a time.

3Select Password type, confirm the password and tap ok.

To use key lock

1Press the power button to turn off the screen temporarily and

switch the phone to sleep mode.

2To wake up the phone, press the power button. The phone is

also awakened by opening the keyboard, or by receiving a

call or a message.

Alternatively, you can lock the keys by pressing and holding

. To unlock the keys, tap Unlock.

IMEI number

Keep a copy of your IMEI (International Mobile Equipment

Identity) number in case your phone is stolen.

To view your IMEI number

1Press .

2Tap .

To encrypt data on your storage card

1On the Today screen, tap > Settings > System tab >

Encryption.

2Mark Encrypt files placed on a storage card check box.

•

Encrypted files can be read only on the phone that encrypted

them.

•

Encrypted files are opened just like other files, provided you

are using the phone that encrypted them. There is no separate

step for you to take to read these files.

If Encrypt files placed on storage cards is or was enabled before,

then backup all files from the storage card before using Clear

Storage, hard reset or updating the ROM system software.

Otherwise you will no longer be able to access the encrypted files

on the storage card. Use ActiveSync or Windows Mobile Device

Center to transfer files between your storage card and computer.

After the procedure, copy your files back to the storage card.

Other Settings

Phone name

The phone name is used to identify your phone in the following

situations:

•Synchronizing with a computer

•Connecting to a network

•Restoring information from a backup

If you synchronize multiple phones with the same computer, each

phone must have a unique name.

To change the phone name

1Tap > Settings > System tab > About.

2Tap the Device ID tab.

3Enter a name.

The phone name must begin with a letter, consist of letters from

A to Z, numbers from 0 to 9, and cannot contain spaces. Use the

underscore character to separate words.

Display settings

To increase or decrease the size of text on the screen

1Tap > Settings > System tab > Screen > Text Size tab.

2Move the slider to increase or decrease the text size.

Button settings

Your phone might come with programs already assigned to

hardware buttons. You can customize these buttons to open the

programs you use most, or to perform certain shortcuts.

To reassign programs or shortcuts to program buttons

1Tap > Settings > Personal tab > Buttons.

2A list of buttons and their current assignments are displayed

on the Program Buttons tab.

3Tap the button you want to reassign. To help you identify the

buttons, there are numbers and icons representing the

original function of the button.

4In the Assign a program box, tap the program or shortcut you

want to assign.

5Tap ok.

To reassign a program button for switching between

Portrait and Landscape modes

1Tap > Settings > Personal tab > Buttons.

2On the Program Buttons tab, in the Select a button box, tap

the button you want to reassign, for example Left key.

3In the Assign a program box, select Rotate Screen.

4Tap ok.

You can now use your left program button (hardware button) to

switch between Landscape and Portrait modes. Note that you

cannot use it to control corresponding software keys any more.

Word completion options

Word completion helps you enter text faster by suggesting words

as you enter letters using the hardware keyboard or input

methods. You can set the number of suggested words to display,

when to show the word list and more.

To set Word completion on

1Tap > Settings > Personal tab > Input > Word

Completion tab.

2Make sure the Suggest words when entering text check box

is marked.

3By default, the suggested word list appears whenever you

enter a space. To make the word list appear after letters are

entered, select the number of letters that you want to be

entered before displaying the word list.

Setting up your phone 11

This is an Internet version of this publication. © Print only for private use.

This is a draft publication intended for internal use only.

4The suggested word list shows up to four words by default.

You can change the number of words to display in the

suggested list.

5Make sure the Enable Auto Correct check box is marked if

you want mistyped words to be corrected automatically.

The word database learns and adds more words as you enter new

words during text entry. To delete the added words and reset the

database back to the default, tap Clear Stored Entries.

Alarms and notifications

To set an alarm

1Tap > Settings > System tab > Clock & Alarms >

Alarms tab.

2Tap <Description> and enter a name for the alarm.

3Tap the day of the week for the alarm. You can select multiple

days by tapping each desired day.

4Tap the time to open a clock and set the time for the alarm.

5Tap the alarm icon to specify the type of alarm you want. You

can choose a flashing light, a single sound, a repeating sound,

or vibration.

6If you choose to play a sound, tap the list next to the Play

sound check box and tap the sound you want.

To choose how to be notified about events or actions

1Tap > Settings > Personal tab > Sounds &

Notifications.

2On the Sounds tab, choose how you want to be notified by

marking the appropriate check boxes.

3On the Notifications tab, in Event, tap an event name and

choose how you want to be notified by marking the

appropriate check boxes. You can choose from several

options, such as a special sound, a message, or a flashing

light.

Synchronizing

Synchronizing your data is a way to always have your information

up to date and carry it with you in your phone, where ever you

go. You can synchronize the following types of information

between your computer and your phone:

•Microsoft® Outlook® information, such as Outlook e-mail,

contacts, calendar, tasks and notes.

•Media, such as photos, videos and music.

•Favorites, which is Web page bookmarks under Mobile

Favorites.

•Files, such as Microsoft® Office documents, pdf files and

more.

Before you can synchronize, you need to install and set up

synchronization software on your computer. What you should do

is depending on if you are using Windows XP or Windows Vista.

For more information see To set up synchronization on Windows

XP and To set up synchronization on Windows Vista.

To install ActiveSync

1Insert the software CD into the disc drive on your computer.

2ActiveSync is available in English and several other

languages. Select the desired language and click Next.

3Click Setup and Installation.

4Select the ActiveSync check box and click Install.

5Read the license terms and click Accept.

6When installation is complete, click Done.

7Finish the installation by clicking Close.

Ways to synchronize

After you have installed the synchronization software in your

computer, you can synchronize your phone with your computer

using one of the following methods:

•USB connection - When you connect the USB

cable between your phone and your computer,

the synchronization process starts automatically.

•Bluetooth connection - You must first set up a

Bluetooth partnership between your phone and

your computer before you can synchronize

information between them. For more information

about setting up a Bluetooth partnership, see

Bluetooth™ partnership. For information about

synchronizing through Bluetooth, see To

synchronize using a Bluetooth link.

•Wireless connection - Synchronize with an

Exchange server using ActiveSync or Windows

Mobile Device Center.

Try to synchronize frequently in order to keep information up-to-

date in both your phone and your computer.

Setting up synchronization

•If your computer uses Windows XP® or other compatible

Windows operating system, you should use Microsoft

ActiveSync® 4.5 or later. You can find Microsoft ActiveSync®

on the CD that comes with the phone.

•If your computer uses Windows Vista®, you should use

Windows® Mobile Device Center, which is part of Windows

Vista.

To set up synchronization on Windows XP

1Install Microsoft ActiveSync® on your computer from the CD

that comes with the phone.

2Connect the phone to your computer using the USB cable

that comes with the phone. The Synchronization Setup

Wizard automatically starts and guides you to create a

synchronization partnership.

3Click Next on your computer.

4To synchronize your phone with your computer, mark the

Synchronize directly with a server running Microsoft

Exchange check box and click Next.

5Select the information types that you want to synchronize,

then click Next.

6Click Finish.

12 Synchronizing

This is an Internet version of this publication. © Print only for private use.

This is a draft publication intended for internal use only.

To set up synchronization on Windows Vista

1Connect the phone to your computer using the USB cable

that comes with the phone.

2The Windows® Mobile Device Center automatically starts.

Click Set up your device.

3Select the information types that you want to synchronize.

4Type a name for the phone, and click Set Up.

Starting synchronization

To start synchronization from ActiveSync® on your

computer using USB

•Connect the phone to your computer using the USB cable

that comes with the phone. ActiveSync® automatically opens

and the synchronization starts.

To start synchronization from the phone

1Connect the phone to your computer using the USB cable

that comes with the phone.

2Phone: Tap > Programs > ActiveSync.

3Phone: Tap Sync.

To start synchronization from Windows® Mobile Device

Center on your computer

1Connect the phone to your computer using the USB cable

that comes with the phone.

2Computer: Click Start > All Programs > Windows Mobile

Device Center.

3Computer: Click at the lower left part of the Windows®

Mobile Device Center window.

Synchronizing using a Bluetooth connection

You can connect and synchronize your phone with your

computer using a Bluetooth connection.

Your computer must have a built-in Bluetooth functionality or have

it installed with a Bluetooth adapter or dongle

To synchronize using a Bluetooth link

1Set up Windows® Mobile Device Center or ActiveSync on

your computer. See Help in the phone for instructions.

2In your phone, tap > Programs > ActiveSync.

3Make sure the Bluetooth function in both your phone and your

computer is turned on and set to visible. For more information,

see To turn on Bluetooth™ functionality and make your phone

visible.

4Tap Menu > Connect via Bluetooth.

5If this is the first time you connect to this computer using a

Bluetooth link, you must first complete the Bluetooth wizard

in your phone and set up a Bluetooth partnership between

your phone and the computer. For more information, see

Bluetooth™ partnership.

To conserve battery power, turn off the Bluetooth function when

not in use.

Scheduled synchronization

Scheduled synchronization allows you to set specific times for

when your phone should connect and synchronize with the

Exchange server. This is an alternative to Direct Push, where all

changes and new items are immediately pushed from your phone

to your computer and from your computer to your phone.

With scheduled synchronization you can set a regular schedule

for synchronizing Outlook e-mails and other information. You can

set how often to synchronize during peak times (which usually

refer to your working hours) when e-mail volume is high, as well

as off-peak times when e-mail volume is low.

To set up scheduled synchronization

1Tap > Programs > ActiveSync.

2Tap Menu > Schedule.

3Select a time interval in the Peak times box for how frequently

you want to receive e-mail.

4Select a time interval in the Off-peak times box.

5Mark the Send/receive when I click Send.

6Tap Adjust peak times to fit your schedule to set the days

and hours that make up your peak and off-peak times.

To disable all scheduled synchronization, set the values in the

Peak times

box and the

Off-peak times

box to

Manually

Changing which information is synchronized

You can change the information types and the amount of

information to synchronize for each type either on your device or

your computer. Follow the steps below to change

synchronization settings on your device.

Before changing synchronization settings on your phone it must

be disconnected from your computer.

To change which information is synchronized

1Tap Start > Programs > ActiveSync.

2Tap Menu > Options.

3Select the check box for any items you want to synchronize.

4To change synchronization settings for an information type,

select it and tap Settings. This will allow you to set the

download size limit, specify the time period of information to

download and more.

Use Windows Mobile Device Center

In Windows Mobile Device Center you can do the following:

•Access synchronization settings to view and

change them.

•Tag and transfer photos from your phone to the

Photo Gallery on your Windows Vista PC.

•Synchronize music and video files using

Windows Media® Player. For more information,

see Windows Media® Player Mobile

•View documents and other files in your phone.

See Windows Mobile Device Center Help for more information.

To access synchronization settings using Windows Vista

1Click Start > All programs > Windows Mobile Device

Centeryour Windows Vista computer.

2Click Mobile Device Settings.

To tag and transfer photos from your phone

1Click Start > All Programs > Windows Mobile Device

Center on your Windows Vista computer.

2Click Pictures, Music and Video > _new pictures/video clips

are available for import. A wizard will guide you through the

process.

To synchronize music and video files using Windows Media

Player

1Click Start > All Programs > Windows Mobile Device

Center on your Windows Vista computer.

2Click Pictures, Music and Video > Add media to your device

from Windows Media Player. For more information, see

Windows Media® Player Mobile.

To view documents and files in your phone

1Click Start > All Programs > Windows Mobile Device

Center on your Windows Vista computer.

2Click File Management > Browse the content of your

device.

Synchronizing 13

This is an Internet version of this publication. © Print only for private use.

This is a draft publication intended for internal use only.

Messaging

Messaging is where your text messages (SMS), multimedia

messages (MMS), and e-mails are located. When you receive

new messages, you can open them from the Today screen.

Simply tap the type of message that you want to open.

To select a messaging account

1Tap > Messaging.

2From the account picker, select an account.

To select a messaging account from a message list

•Tap Menu > <Go To> to switch to other types of messaging

accounts.

To configure message account settings

•Tap Menu > Options on the account picker screen.

To configure message account settings from a message list

•Tap Menu > Tools > Options.

E-mail

You can get your e-mails in your phone. You may need the

following information from your network administrator:

•Server address

•Domain name

•User name and password

To set up Microsoft® Outlook® e-mail through Exchange

server

1Tap > Messaging > Setup E-mail.

2Enter your e-mail address and password, select Save

password option, then tap Next.

3Select Try to get the e-mail settings automatically from the

Internet, then tap Next.

4If automatic settings could not be found, select Exchange

server in the Your e-mail provider list, then tap Next.

5Tap Next again.

6Mark the Attempt to detect Exchange Server Settings

automatically check box, then tap Next.

7If server settings are not detected, enter them manually, then

tap Next.

8Enter your user name, password and domain, then tap Next.

9If prompted, enter the server address, then tap Next.

10 Select the data you want to sync, then tap Finish.

Some e-mail features depend on the Microsoft Exchange Server

version used in your company. Check with your network

administrator for the availability of these features.

To set up other types of e-mail accounts

1Tap > Messaging > Setup E-mail.

2Enter your e-mail address and password. Select Save

password option, then tap Next.

3Select Try to get the e-mail settings automatically from the

Internet, then tap Next.

4If automatic settings could not be found, select an option in

the Your e-mail provider list, then tap Next.

5Enter your name and account display name, then tap Next.

6If applicable enter incoming mail server address and account

type, then tap Next.

7Enter your user name and password for the e-mail account,

select Save password option, then tap Next.

8Tap Advanced Server Settings.

9Select Network connection, then tap Done.

10 Enter the outgoing mail server address, then tap Next.

11 Select an option of Automatic Send/Receive, then tap

Finish.

Handling e-mail messages

To check for new e-mail

1Tap > Messaging.

2Tap your e-mail account.

3Tap Menu > Send/Receive.

To view an attachment

1Tap > Messaging.

2Tap desired e-mail account.

3Tap desired e-mail.

4Tap the attachment to download.

5Tap the attachment again.

To write new e-mail

1Tap > Messaging.

2Tap desired e-mail account.

3Tap Menu > New.

4Enter the e-mail address manually or tap To: to add an

address from Contacts.

5Enter subject.

6Enter text.

7To add an attachment tap Menu > Insert, and then select an

option.

8Tap Send.

To reply to an e-mail message

1Tap > Messaging.

2Tap desired e-mail account.

3Tap desired e-mail.

4Tap Menu > Reply.

5Enter text, and then tap Send.

Direct push

Direct push technology enables you to receive new e-mails in

your phone as soon as they arrive in your inbox on the Exchange

server. This feature also works for items such as contacts,

calendar and tasks.

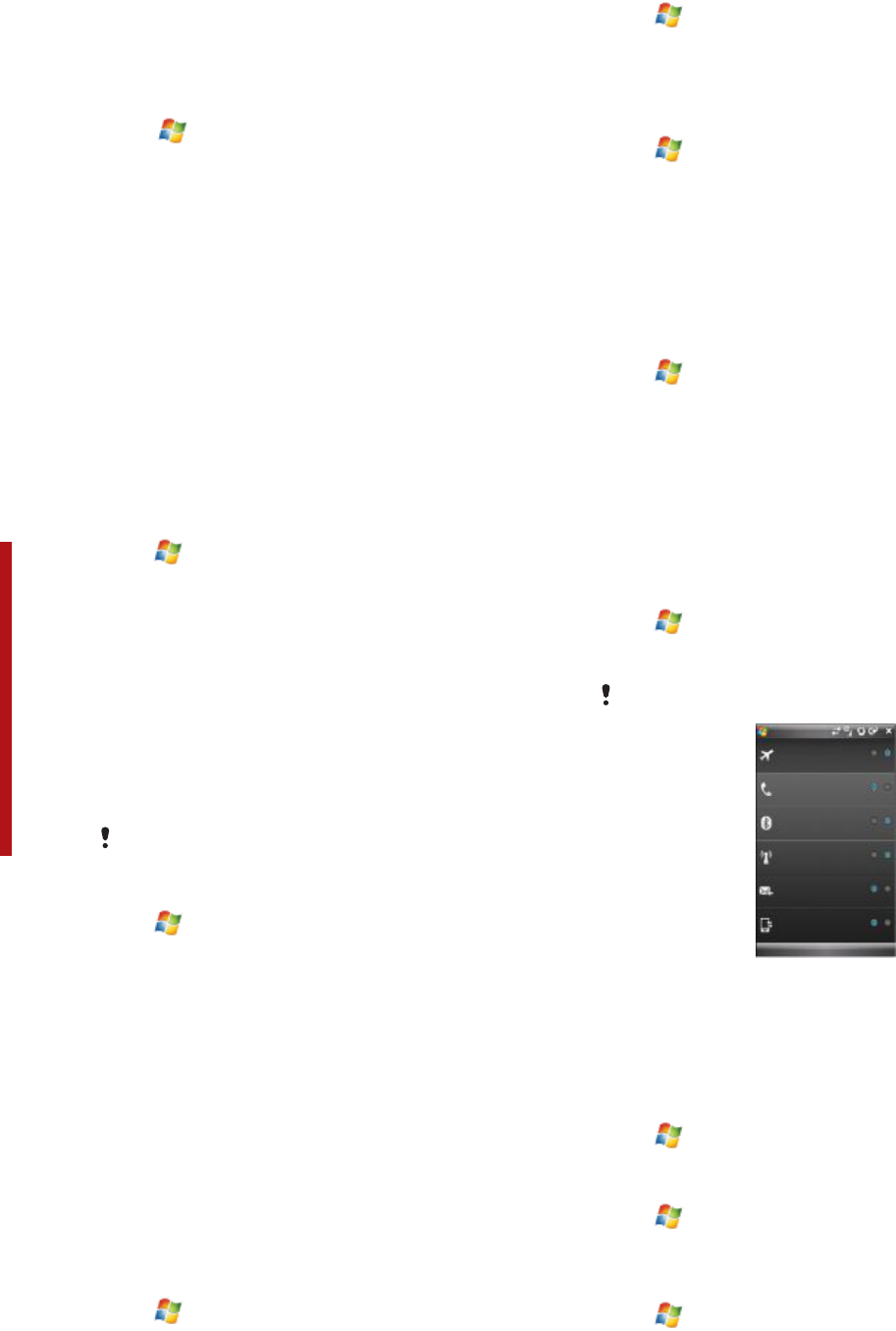

To turn on and off Direct push

1Tap > Settings > the Connections tab > Comm

Manager.

2Select an option for Microsoft Direct Push.

Frequent updates may be costly.

SMS and MMS

Before you use messaging you must have a service center

number. The number is supplied by your service provider and is

usually saved on the SIM card during the start-up. If not, contact

your operator.

To open an SMS or MMS

1Tap > Messaging > SMS / MMS.

2Tap desired SMS or MMS.

To navigate between folders

1Tap > Messaging > SMS / MMS.

2Tap Inbox.

3Tap the folder you want to open.

To create and send an SMS

1Tap > Messaging > SMS / MMS.

2Tap Menu > New > SMS.

3Enter the phone number manually or tap To: to add a phone

number from Contacts.

4Enter text.

14 Messaging

This is an Internet version of this publication. © Print only for private use.

This is a draft publication intended for internal use only.

5Tap Send.

To request a delivery notification while composing a new

message

1Tap Menu > Message Options....

2Select the Request message delivery notifications check

box.

To always receive a delivery notification

1In the text message list, tap Menu > Tools > Options.

2Tap SMS / MMS.

3Select the Request message delivery notifications check

box.

Receive text messages

Text messages are automatically received when the phone

function is turned on. When the phone is turned off, text

messages are held by your wireless service provider until the

next time the phone is turned on.

To copy text messages to the SIM card

1Tap Messaging > SMS / MMS.

2In the message list, select the text message you want to copy .

3In the conversation list, select the text message you want to

copy.

4Tap Menu > <Copy to SIM>.

To copy text messages from the SIM card

1Tap Messaging > SMS / MMS.

2In the message list, select the text message you want to copy.

3Tap <Copy to Phone>.

Text messages stored on your SIM card are automatically

displayed in the Inbox folder. Copying them to your device results

in duplicate messages in the Inbox folder when your SIM card is

in use.

To create and send an MMS

1Tap > Messaging > SMS / MMS.

2Tap Menu > New > MMS.

3Tap a template or tap Custom to open a blank picture

message.

4Enter the phone number manually or tap Menu > Add

recipient to add a number from Contacts or Call History.

5Enter a subject.

6Tap to insert a photo or a video clip.

7Tap Insert text here to enter text.

8Tap Insert audio to insert audio.

9Tap Send.

Adding text to an MMS message

When you tap Insert text here in your MMS message, an empty

screen appears where you can enter your text. You can insert the

following types of information:

1 Enter your own text

2 Choose from common words or phrases from the My Text

list

3 Include a Favorites link

4 Add an emoticon

5 Insert contact information

6 Insert calendar appointment

To edit or delete a phrase on the My Text list, tap and hold a string,

then tap Edit or Delete from the shortcut menu. To create and add

a new phrase to the list, tap New.

Messaging 15

This is an Internet version of this publication. © Print only for private use.

This is a draft publication intended for internal use only.

Browsing the Web

Connecting to the Internet

Connect to the Internet by using GPRS/HSPA or Wi-Fi. Before

connecting to the Internet by GPRS/HSPA you need settings

from your service provider. The settings are usually saved on the

SIM card during the start-up. If not, contact your operator.

To start browsing

1Tap > Internet Explorer.

2Enter the Web address in the address field, and then tap .

Menu options

Tap and hold the screen to open a menu with useful options.

Menu at the bottom of the screen provides you a lot of options

for Internet Explorer.

•<Zoom out> – View a lager part of the Web site

•<Home> – Open your start page

•<Address Bar> – Open a new Web site. Enter a

Web address in the highlighted address bar.

•Favorites... – Open a list with bookmarks to your

favorite web sites

•Add to favorites – Add a bookmark to an open

Web site to Favorites. You can also create sub

folders to organise your favorites.

•<Forward> – Return to the previously visited Web

page that you have left using the Back command

•<Refresh> – Reload the current Web site

•<View> – Open a sub menu and select how to

view the Web pages

•<Edit> – Cut, copy or paste selected text

•Tools – Open a sub menu where you can specify

settings for Internet Explorer.

View menu options

You can change the way that you view Web pages in Internet

Explorer to minimize scrolling and increase the page download

speed.

•Zoom level – Select a zoom level that suits the current Web

site.

•One column – Arranges the page into a column as wide as

the screen. This means you will rarely have to scroll

horizontally. This view usually downloads more quickly than

other views.

•Fit to screen – Maintains a layout similar to what you see on

a desktop computer. This makes items smaller and arranges

the page so you can see most of it without having to scroll

horizontally.

•Desktop – Keeps the same layout and size as a desktop

computer. This will require both horizontal and vertical

scrolling.

•Full screen – This hides the menu bar and status bar and uses

the whole screen to display the Web page.

•Show pictures – Clear this option to let the Web page

download quicker.

Tools menu options

The Tools menu contains useful settings and options for Internet

explorer.

•History – View a list of the recently opened Web

sites. Select a site in the list to open it.

•<Send Link> – Use one of the listed methods to

send a link to the current Web site to another

device

•<Properties> – View information of the current

Web site

•<Options> – Specify settings for Internet Explorer

•<General tab> – Set the Home page (start page)

and the default character set used by Internet

explorer.

•<Memory tab> – Release memory space by

setting for how long Web links should be saved

and by deleting saved Web files.

•<Security tab> – the security settings help you

to avoid insecure Web pages. Cookies are files

that Web pages store on your phone that give

you access to different services on a Web page.

Zooming

To zoom in and out in a Web page

1On a Web page, tap Menu > View > Zoom level.

2Select an option.

To pan a page, touch and hold the screen, then move your finger.

To change Web page display

1On a Web page, tap Menu > View.

2Select an option.

Favorites

You can create and edit Favorites as quick links to your favorite

Web pages.

To add a favorite Web page

1In Internet Explorer tap Menu > Add to favorites.

2Enter a name, address and select the folder it will be saved

in, and then tap Add.

To go to a favorite Web page

1In Internet Explorer tap Menu > Favorites....

2Tap a favorite in the list.

Browsing previously visited Web pages

You can view Web pages you have previously visited.

To browse previously visited Web pages

1In Internet Explorer tap Menu > Tools > History.

2Tap a page title in the list.

Personalizing

To change home page

1Browse to a Web page.

2Tap Menu > Tools > Options > the General tab.

3Tap Use current.

4Tap ok.

To clear history

1In Internet Explorer tap Menu > Tools > Options > the

Memory tab.

2Tap Clear History.

3Tap ok.

To clear cookies

1In Internet Explorer tap Menu > Tools > Options > the

Security tab.

2Tap Clear Cookies.

3Tap ok.

Web feeds

You can subscribe to and download frequently updated content

such as news using Web feeds. Web feeds are accessed through

Sony Ericsson panel.

16 Browsing the Web

This is an Internet version of this publication. © Print only for private use.

This is a draft publication intended for internal use only.

To add a Web feed

1In Internet Explorer browse to a Web page with Web feeds.

2Copy the URL by tapping and holding the URL, and then tap

Copy.

3Go to the Sony Ericsson panel.

4Tap Options > Web Feeds tab.

5Tap the next available position.

6Paste the URL into the address field at the top of the screen

by tapping and holding, and then tap Paste.

7Select the number of blocks for the Web feed. Each block

contains two rows.

8Tap ok.

To view Web feeds

1In the Sony Ericsson panel tap the desired Web feed.

2Choose the information you want to view, then tap Go to

Site.

To update Web feeds

•In the Sony Ericsson panel tap Update.

To schedule Web feeds update

1In the Sony Ericsson panel tap Options > General tab.

2Select an option in Web Feeds Update Time.

3Tap ok.

Frequent updates may be costly.

Calling while browsing

To make a call while browsing

•Press .

Getting connected

Bluetooth™ technology

Bluetooth™ technology enables wireless communication over

short distances. Devices with Bluetooth capabilities can

exchange information over a distance of about eight meters

without requiring a physical connection.

Bluetooth™ modes

Bluetooth™ functionality in your phone operates in three

different modes:

•On – Bluetooth functionality is turned on. Your phone can

detect other Bluetooth-enabled devices, but they cannot

detect your phone.

•Off – Bluetooth functionality is turned off. You can neither

send nor receive information over a Bluetooth link. Turn off

Bluetooth functionality when not in use to conserve battery

power, or in places where using a wireless device is

prohibited, such as on board an aircraft or in hospitals.

•Visible – Bluetooth functionality is turned on, and other

Bluetooth-enabled devices can detect your phone.

By default, Bluetooth functionality is turned off. To have it turned

on by default, turn it on, then immediately turn off your phone.

When you next time turn on your phone, Bluetooth functionality

is on.

To turn on Bluetooth™ functionality and make your phone

visible

1Tap > Settings > Connections tab > Bluetooth™ >

Mode tab.

2Mark the Turn on Bluetooth and Make this device visible to

other devices check boxes.

3Tap ok.

Bluetooth™ partnership

A Bluetooth™ partnership is a relationship you create between

your phone and another Bluetooth-enabled device in order to

exchange information in a secure manner.

To create a Bluetooth™ partnership

1Tap > Settings > Connections tab > Bluetooth™.

2On the Devices tab, tap Add new device. Your phone will

then search for other Bluetooth devices and display them in

the box.

3Tap the desired device name.

4Tap Next.

5Specify a passcode to establish a secure connection. The

passcode can be 1 to 16 characters.

6Tap Next.

7Wait for the paired device to accept the partnership. The

receiving party needs to enter the same passcode that you

specified.

8The name of the paired device is displayed. You may edit and

enter a new name for it.

9Mark the check boxes for the services you want to use from

the paired device.

10 Tap Finish.

Creating a Bluetooth partnership between two devices is a one-

time process. Once a partnership is created, the devices will

recognize each other automatically when they are close enough

and have the Bluetooth function on. There is thus no need to enter

the passcode again.

To accept a Bluetooth™ partnership

1Ensure that Bluetooth™ functionality is turned on and that

your phone is in visible mode.

2Tap Yes when prompted to establish a partnership with the

other device.

3Enter a passcode (the same passcode that is entered on the

device requesting the partnership) to establish a secure

connection. The passcode must be between 1 to 16

characters.

4Tap Next.

Getting connected 17

This is an Internet version of this publication. © Print only for private use.

This is a draft publication intended for internal use only.

5Tap Finish. You can now exchange information with the

paired device.

To rename a Bluetooth partnership, tap and hold the name of the

partnership on the

Devices

tab of the Bluetooth settings screen,

then tap

Edit

To delete a Bluetooth partnership, tap and hold the name of the

partnership on the

Devices

tab of the Bluetooth settings screen,

then tap

Delete

Connecting a Bluetooth™ handsfree or

stereo headset

For handsfree phone conversation, you can use a Bluetooth™

handsfree headset such as a car kit with your phone. Your phone

also supports A2DP (Advanced Audio Distribution Profile) which

means you can use a Bluetooth stereo headset for handsfree

phone conversations and for listening to stereo music.

To connect a Bluetooth™ handsfree or stereo headset

1Make sure that both your phone and the Bluetooth™ headset

are turned on and within close range, and that the headset is

visible. Refer to the manufacturer’s documentation to find out

how to set the headset in visible mode.

2Tap > Settings > Connections tab > Bluetooth.

3On the Devices tab, tap Add new device. Your phone will

then search for other Bluetooth devices and display them in

the box.

4Tap the name of the Bluetooth headset, then tap Next and

your phone will automatically pair with the Bluetooth headset.

5Make sure the Hands Free check box is marked. If your

headset is a stereo headset, also make sure Wireless

Stereo is marked.

6Tap Finish. While the Bluetooth stereo headset is connected,

the headset icon will appear on the title bar.

If a Bluetooth stereo headset is disconnected, turn on the headset

and repeat steps 1 to 3 above. Tap and hold the name of the

Bluetooth stereo headset and tap Set as Wireless Stereo.

Windows® Mobile will automatically try one of the preconfigured

passcodes (0000, 1111, 8888, 1234) to pair the Bluetooth headset

with the device. If this fails, you have to manually enter the

passcode delivered with your headset.

Beaming information using a Bluetooth™

connection

You can beam information, such as contacts, calendar items,

and tasks, as well as files from your phone to your computer or

to another Bluetooth™-enabled device.

If your computer does not have built-in Bluetooth capability, you

need to connect a Bluetooth adapter or dongle to your computer.

To receive all incoming beams in your phone

1Tap > Settings > Connections tab > Beam.

2Make sure the Receive all incoming beams check box is

marked.

To beam information to a computer

1Turn on Bluetooth™ functionality in your phone, and make the

phone visible. For more information, see To turn on

Bluetooth™ functionality and make your phone visible.

2Create a Bluetooth partnership, then enable your computer

to receive Bluetooth beams. If your computer has Windows

Vista or Windows XP SP2 and your computer’s Bluetooth

adapter is supported by your Windows version, do the

following:

1In your computer, open Bluetooth Devices from the

Control Panel, then click the Options tab.

2For Windows Vista, select Allow Bluetooth devices to find

this computer. For Windows XP SP2, select Turn

discovery on and Allow Bluetooth devices to connect to

this computer.

3Create a Bluetooth partnership between your phone and

computer. For more information, see Bluetooth™

partnership.

4In the Options tab of Bluetooth Devices, select Show the

Bluetooth icon in the notification area.

5To enable your computer to receive Bluetooth beams,

right-click the Bluetooth icon at the bottom-right of your

computer screen and select Receive a File.

3Now, you are ready to beam. In your phone, select an item to

beam. The item can be an appointment in your calendar, a

task, a contact card, or a file.

4To beam a contact, tap Menu > Send Contact > Beam. To

beam other types of information, tap Menu > Beam [type of

item].

5Tap the name of the device to which you want to beam.

6If you beam a calendar item, task, or contact to your computer

and it is not automatically added to Outlook, select File >

Import and Export in Outlook to import it.

The default folder on your computer where beamed items are

stored may be C:\Documents and Settings\your_username\My

Documents in Windows XP or C:\Users\your_username\My

Documents in Windows Vista.

Using your phone as a Bluetooth™ modem

Through a Bluetooth™ connection you can connect your phone

to a notebook or desktop computer and use the phone as a

modem for the computer.

If your computer does not have built-in Bluetooth capability, you

need to connect a Bluetooth adapter or dongle to your computer.

For your computer to use the Internet connection of your phone,

activate Internet Sharing in your phone, then set up a Bluetooth

Personal Area Network (PAN) between the computer and your

phone.

To activate Internet Sharing and set up a PAN

1In your phone, turn on Bluetooth™ functionality and set it to

visible mode.

2Initiate a Bluetooth partnership from your phone. For more

information, see To create a Bluetooth™ partnership.

3Tap > Programs > Accessories > Internet Sharing.

4Select Bluetooth PAN as the PC Connection.

5From the Network Connection list, select the name of the

connection that your phone uses to connect to the Internet.

6Tap Connect.

7In your computer, set up a Bluetooth Personal Area Network

(PAN) with your phone.

For Windows Vista:

1Click Start > Control Panel > Network and Internet >

Network and Sharing Center.

2Click Manage network connections and then under

Personal Area Network, double-click Bluetooth Network

Connection.

3In the Bluetooth Personal Area Network Devices dialog

box, select your phone, then click Connect.

For Windows XP SP2:

1Click Start > Control Panel > Network Connections.

2Under Personal Area Network, click Bluetooth Network

Connection.

3Under Network Tasks, click View Bluetooth network

devices.

4In the Bluetooth Personal Area Network Devices dialog

box, select your phone, then click Connect.

8On the Internet Sharing screen in your phone, check that your

computer has been successfully connected to the Internet

using your phone as a Bluetooth modem.

Wi-Fi/Wireless LAN

You can connect your phone to a wireless network to access the

Internet. You can connect at home (personal network) or in public

access zones (hot spots).

•Personal networks – usually protected. A pass phrase or a key

is required from the owner.

•Hot spots – usually unprotected but often requires you to log

on the operator's service before you get Internet access.

To connect to a wireless network

1In the Sony Ericsson panel tap .

2Select a network and tap OK.

18 Getting connected

This is an Internet version of this publication. © Print only for private use.

This is a draft publication intended for internal use only.

To turn on and off Wi-Fi

•In the Sony Ericsson panel tap or .

Using Wi-Fi consumes battery power. Turn off Wi-Fi when not in

use.

Wi-Fi can also be turned on and off in Comm Manager.

Settings

Some settings depend on the network configuration. Check with

the network administrator for information regarding settings.

To change settings

1Tap > Settings > the Connections tab > Wireless LAN.

2Enter new settings, and then tap ok.

Status icons

Wi-Fi enabled

Scanning for available Wi-Fi connection

Wi-Fi connected

To turn Airplane Mode on or off

•In the Sony Ericsson panel tap or .

Windows Live Messenger

Communicate online with Windows Live Messenger using your

existing Windows Live ID.

To set up Messenger

1Tap > Programs > Messenger.

2Tap Sign in and follow the instructions.

To sign in to Messenger

1Tap > Programs > Messenger.

2Tap Sign in.

To send an instant message

1Tap > Programs > Messenger.

2Select a contact in the list, then tap Send IM.

3Enter your message, then tap Send.

GPS – Location-based services

Your phone is equipped with an A-GPS receiver that uses

satellite signals to calculate your location.

Using the A-GPS

When you use features that require the A-GPS receiver to find

your location, make sure you have a clear view of the sky. If the

A-GPS receiver does not find your location after a few minutes,

move to another location.

QuickGPS

QuickGPS lets you download current satellite position and timing

information from a server instead of from the satellites. This help

speed up the time for determining GPS position.

To use QuickGPS

1Tap > Programs > QuickGPS.

2Tap Download.

Google Maps™ for mobile

Google Maps™ lets you view your current location, find other

locations and calculate routes.

When you start Google Maps your approximate location is shown

using information from nearby mobile base towers. When the

GPS receiver finds your location, the GPS location replaces the

approximate location.

To use Google Maps

•Tap > Programs > Google Maps.

To view help about Google Maps

•In Google Maps, tap Menu > Help.

Wayfinder Navigator™

Wayfinder Navigator™ takes you to your destination by voice

guides. Wayfinder Navigator can be installed from the CD that

comes with the phone or downloaded from the Internet.

To install Wayfinder

•Tap > Programs > Wayfinder.

To view help about Wayfinder

•In Wayfinder, tap Menu > Help.

GPS – Location-based services 19

This is an Internet version of this publication. © Print only for private use.

This is a draft publication intended for internal use only.

Panels

Panels are a new and exciting feature of the XPERIA X1. They are

one-touch access points to your favorite mobile experiences.

You can arrange them as you want and download new ones for

your phone at www.sonyericsson.com/fun.

Portrait and landscape views

Portrait views

Media Xperience

panel Sony Ericsson

panel Panel view

Landscape views

Media Xperience panel

Sony Ericsson panel

Panel view

The functions are the same for both portrait and landscape

views, and the panels will be explained in portrait view only.

Choosing panels

To open and close panel views

•Press .

Panel view

1 Panel.

2 Switch to card view.

3 Switch to setup view.

Card view

1 Switch to left handed card view and panel view.

20 Panels

This is a draft publication intended for internal use only.

Setup view

1 Position for fixed Microsoft Today panel.

2Position occupied by Sony Ericsson Panel 1, as an example.

3 Free position for a panel.

4 Return key.

5 Position occupied by XPERIA Radio Panel, as an example.

Managing panels

To open a panel

•In a panel or card view, tap the panel.

To close a panel

•Press .

To add a panel

1In panel view, tap .

2Tap in a free position.

3In the scroll list, tap the panel you want to use.

4Tap Select.

5Tap to return to panel view.

To replace a panel

1In panel view, tap .

2Tap of the panel you want to replace.

3Tap of the selected panel.

4In the list, tap the panel you want to use.

5Tap Select.

6Tap to return to panel view.

To remove a panel

1In panel view, tap .

2Tap of the panel you want to remove.

3Tap of the selected panel.

4In the list, tap the No Panel option.

5Tap Select.

6Tap to return to panel view.

To make settings, if this option is available

1In panel view, tap .

2Tap of the panel you want to set up.

3Tap .

4Make your settings and tap ok.

5Tap to return to panel view.

Switching between panels and applications

•In a panel or an application, press to go to panel view.

•In panel view, press to return to the most recently used

panel.

•In an application you started from the Start menu, press

to return to the most recently used panel.

3D Fish panel

This panel is an eye-catcher and provides some basic

information. By tapping the screen, you can influence the

behavior of the fish. There are three or four fish, depending on

the state of your phone. The time and date follow the default

Windows format setting. The fish will follow your finger and react

to screen taps.

1 Demekin. The fish’s color turns red when battery charge is

below 10% of full.

2 Ranchu. The fish’s color turns to gold when there is an

unread message.

3 Wakin. The fish’s color is silver when sound is off.

4 Ryukin. If this fish is present there is a missed call.

XPERIA Radio panel

With this panel directly on your desktop, you control the FM

radio.

1Preset stations. Six different radio channels can be stored.

A dot in the upper left corner of a key indicates an occupied

key.

2 Channel information.

3RDS indicator.

4 Stereo/mono indicator.

5 Fine tune. Touch to fine-adjust.

Panels 21

This is a draft publication intended for internal use only.

6 Seek downwards.

7 Volume down. Tap and hold to decrease gradually.

8 Audio output to either earphones or the phone built-in

loudspeaker.

9 Clock, 12 or 24 hours format.

10 Current radio channel frequency.

11 Seek upwards.

12 Volume level bar. Tap and drag to adjust volume.

13 Volume up. Tap and hold to increase gradually.

14 Power.

To store a current radio channel

1From the preset stations bar, tap a free key.

2Tap and hold the key for more than 3 seconds.

To make settings

1Press .

2Tap .

3Tap on the radio panel.

4Tap on the highlighted radio panel.

5Make your settings and tap ok.

6Tap to return to panel view.

RDS indicators

RDS stands for Radio Data System and makes it possible to

receive extra information during reception of ordinary radio

programs. AF stands for Alternative Frequency. The radio

retunes to a different frequency providing the same station when

the received radio signal becomes too weak.

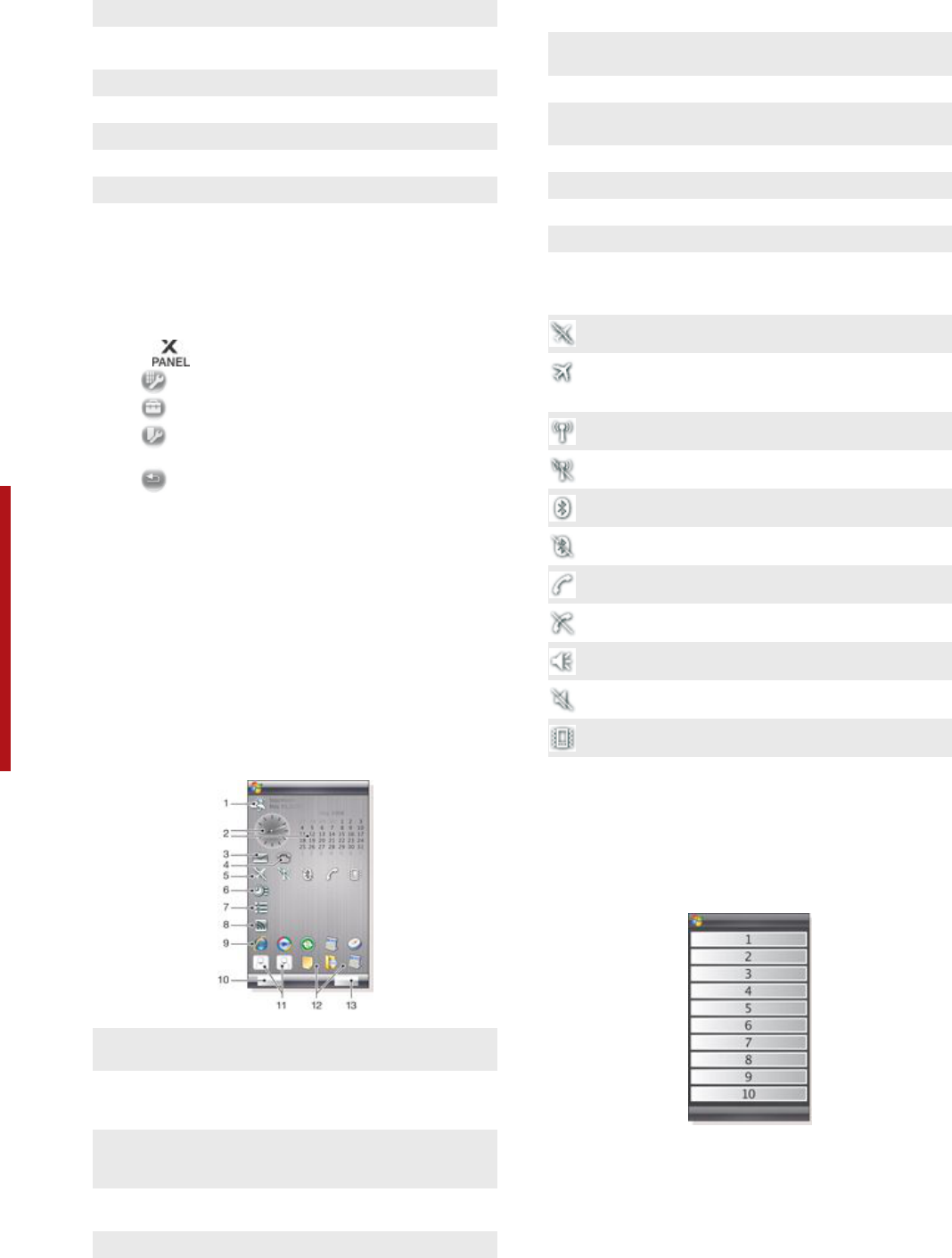

Sony Ericsson panel

This panel shows time, calendar, weather and useful shortcuts

to control your phone and to show its status. You can set up the

panel to suit your needs. The panel is composed by a number of

small applications, called widgets. By tapping a widget, you start

the underlying application. The panel illustration shows an

example of how a panel can be set up.

1 Weather, date and temperature. Reflects the first city (City

1) set up in Options.

2 Clock and calendar. Reflects the city set up in Options.

Date format follows what is set up in Windows. Tap the

clock or calendar to adjust settings.

3 Shortcut to Messaging. Lights up when a message has

been received. Also shows the number of unread

messages.

4 Shortcut to the call list. Lights up when a call has been

missed. Also shows the number of missed calls.

5 Connectivity buttons.

6 Appointments and shortcut to Calendar. Two

appointments can be shown for each block. Data is fetched

from Calendar.

7Tasks and shortcut to Tasks. Two tasks can be shown for

each block. Data is fetched from Tasks.

8Web Feeds reader. The set Web Feeds are shown

9 Shortcuts to set applications and recently used

applications.

10 Updates weather and Web Feeds.

11 Speed dialing entries.

12 Recently used applications.

13 Set up.

Connectivity buttons

Airplane Mode off

Airplane Mode on. Wi-Fi, Bluetooth™ and the phone

transmitter and receiver are switched off. Corresponding

icons are dimmed

Wi-Fi on

Wi-Fi off

Bluetooth on

Bluetooth off

Phone transmitter and receiver on

Phone transmitter and receiver off

Sound on

Sound off

Vibrating alert only

Design

The panel comprises ten blocks. You can use these blocks to

display widgets you choose. Some widgets take up more than

one block, and you can set up some widgets to appear in more

than one place

Blocks in portrait view

22 Panels

This is a draft publication intended for internal use only.

Blocks in landscape view

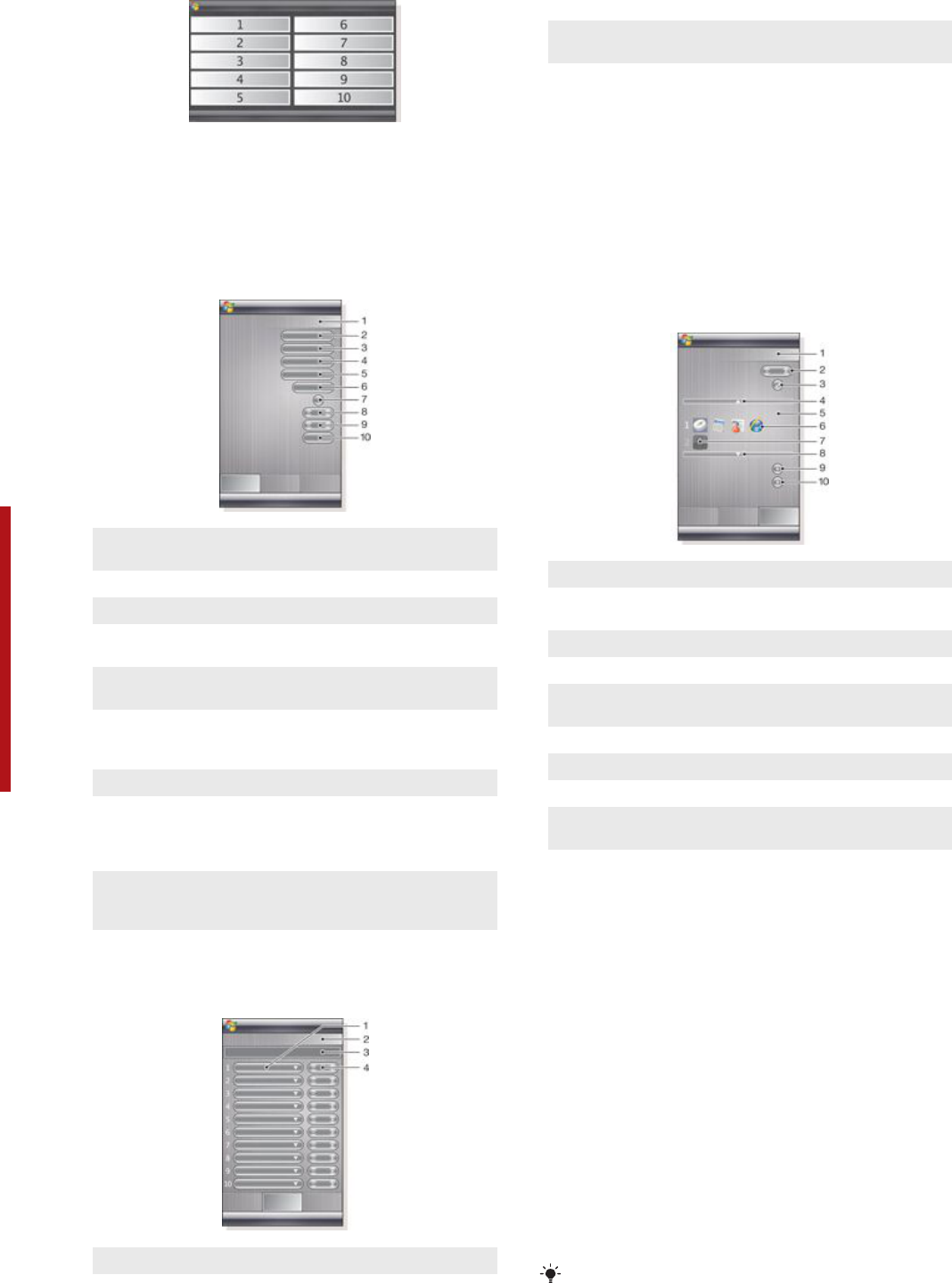

Setting up

To set up the Sony Ericsson panel

•Tap Options.

General tab

1 Blocks used. Red numbers mean too many blocks are set

up.

2Color. Color theme for the panel.

3Clock and Calendar. Clock and calendar layout.

4City 1. Tap to select from cities and countries. Select

daylight saving time manually.

5City 2. Tap to select from cities and countries. Select

daylight saving time manually.

6Web Feeds update time interval. Web Feeds are updated

when the phone has an Internet connection and when Sony

Ericsson Panel 1 or Sony Ericsson Panel 2 is being used.

7Connectivity Buttons.

8Appointments. Select number of blocks for appointments

to be shown. 1 block shows two appointments and 2 blocks

show four appointments. 0 means that the appointment

widget is not shown at all.

9Tasks. Select number of blocks for tasks to be shown. 1

block shows two tasks and 2 blocks show four tasks. 0

means that the tasks widget is not shown at all.

10 Temperature Scale. Celsius or Fahrenheit.

Web Feeds tab

1Position for Web feeds. Some are preset.

2 Blocks used.

3Box for entering Web feeds addresses (URLs). Tap and hold

to open a menu with options.

4 Select the number of blocks to be shown for Web feeds.

Each block shows two rows of a Web feed.

To set up a preset Web feed

1Tap a preset feed.

2Select number of blocks.

To set up a new Web feed

1Tap a position.

2Select Other.

3Enter the Web feeds address (URL).

4Select number of blocks.

Launcher tab

1 Blocks used

2 Select number of blocks for shortcuts to applications,

speed dialling entries and recently used programs.

3 Recently used programs.

4 Move focus upwards.

5 Icon area. Each block of icons is numbered. Highlight an

icon and then select it to open a menu with options.

6 Shortcuts to applications.

7 Speed dialing entries.

8 Move focus downwards.

9Sets shortcuts to files. The appropriate application will start

when the shortcut is tapped.

10 Sets speed dialing entries.

To set a shortcut to an application

1In the icon area, tap an empty position.

2Tap Set File Shortcut > +.

3Select the application file.

To set a speed dialling entry

1In the icon area, tap an empty position.

2Tap Set Speed Dial > +.

3Select an entry.

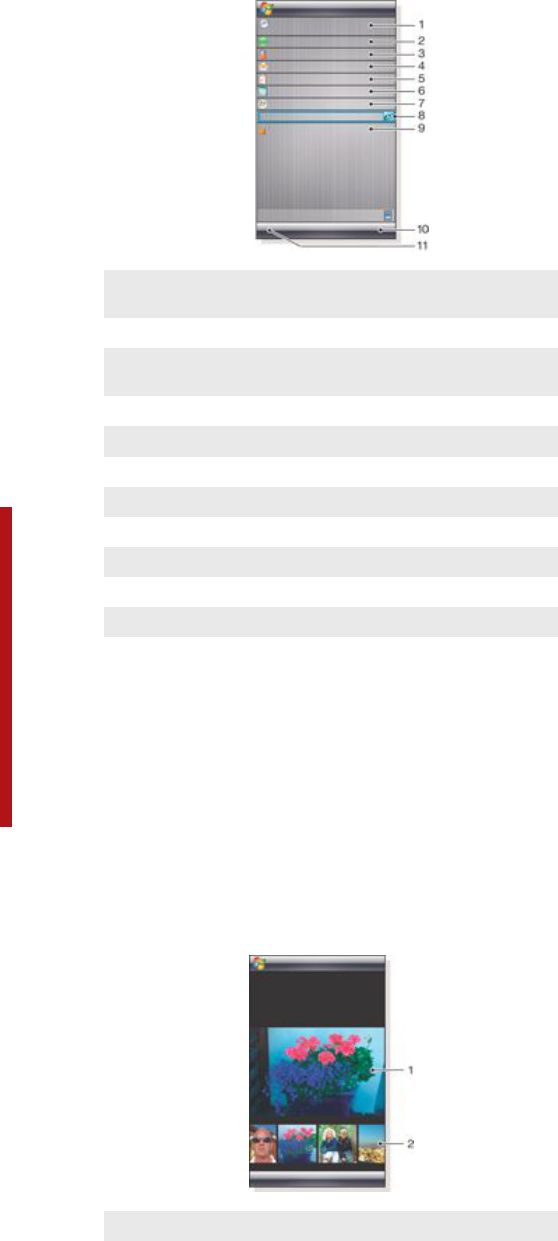

Media Xperience panel

With this panel, you can present various multimedia items, such

as photos, video clips, music and so on. You can use your finger

or the stylus to move between the different items. For more

information see Viewing photos and video clips.

Google™ panel

This panel enables search, maps, Picasa™, calendar and

Gmail™.

Due to configuration some of the panels may have to be

downloaded.

Panels 23

This is a draft publication intended for internal use only.

Microsoft Today panel

This panel shows useful information and shortcuts.

1Time and date. Shortcut to Settings > System tab Clock &

Alarms

2 Getting started.

3 Owner information. Shortcut to Settings > Personal tab

Owner Information.

4 Unread messages. Shortcut to Messaging.

5 Active tasks. Shortcut to Tasks.

6 Active appointments. Shortcut to Calendar.

7 Windows Live sign in.

8 Windows Live search.

9 Device-lock status.

10 Key to Contacts.

11 Key to Calendar.

Downloading new panels

To download a new panel with your phone

1In the Internet browser, tap the bookmark for the Sony

Ericsson offline Web page.

2Tap the link with the panel button.

3On the Fun & Downloads Web page, choose your panel.

To add a panel

•Follow the instructions in Choosing panels.

Slideshow panel

In the slideshow panel, you can show pictures you have taken

with the camera.

1 Selected picture.

2 Thumbnail carousel.

To move the carousel

•Slide to the right or left anywhere on the screen.

To select a picture

•In the carousel, tap a picture.

Picture storage

•In phone memory: \My Documents\My Pictures\Camera.

•On memory card: \Storage Card\DCIM.

24 Panels

This is a draft publication intended for internal use only.

Multimedia

Windows Media® Player Mobile

You can use Windows Media® Player Mobile to play digital audio

and video files stored in your phone or on a network, such as on

a Web site.

To open Windows Media Player Mobile

•Tap > Programs > Windows Media.

Tapping will close your Windows Media® Player. To change

the settings and let the music continue playing, tap >

Settings

System

tab >

Task Manager

Button

tab and mark

the

End progams by tapping and holding "X"

check box.

Windows Media® Controls

1 Tap and drag to jump to any part of the video or audio

2 Visit WindowsMedia.com

3 Full screen

4 Mute/Unmute

5 Increase Volume

6 Decrease Volume

7 Go to the beginning of the current file or to the previous file

8 Play/Pause

9 Go to the next file

Using media files

You can browse and use media files using the Media Xperience

panel. Media files in your My documents folder in the phone and

on the memory card will be listed in the Media Xperience panel.

To play music

1In the Media Xperience panel tap Music.

2Scroll by category.

3Tap a track to play it.

When you play WMA files, Windows Media Player is used

automatically.

To stop playing music

•In the music player, tap .

To fast forward and rewind

•In the music player, tap or .

To move between tracks

•In the music player, tap or .

To change the volume

•Press the volume key up or down.

To use the music player in the background

1When you listen to music, tap .

2Select an application.

3Press to return to the music player.

Playlists

You can create playlists to organize your music. Tracks can be

added to more than one playlist. Deleting a playlist, or a track

from a playlist, does not delete the track from the memory, just

the reference to the track.

To add a track to a playlist

1In the Media Xperience panel scroll to a track.

2Tap Menu > Add track to playlist.

3Tap a playlist.

To create a playlist

1In the media Xperience panel tap Music > Playlists > Create

new playlist.

2Enter a name and tapOk.

To add an album to a playlist

1In the Media Xperience panel scroll to an album.

2Tap Menu > Add album to playlist.

3Tap a playlist.

To add an artist to a playlist

1In the Media Xperience panel scroll to an artist.

2Tap Menu > Add artist to playlist.

3Tap a playlist.

To remove tracks from a playlist

1In the Media Xperience panel scroll to a track.

2Tap Menu > Remove from list.

Stereo portable handsfree

To use the handsfree

•Connect the portable handsfree. Music stops when you

receive a call and resumes when the call has ended.

Streaming media

When you open links to streaming media content, for example,

YouTube™, in Internet Explorer, the Streaming Media

application automatically opens and starts playing the content.

Games

To play a game

•In the Media Xperience panel tap Games and tap a game.

Camera

You can take photos and record video clips with audio using the

camera in the phone. You will find saved photos and video clips

in the Media Xperience panel under Pictures and Videos.

Multimedia 25

This is a draft publication intended for internal use only.

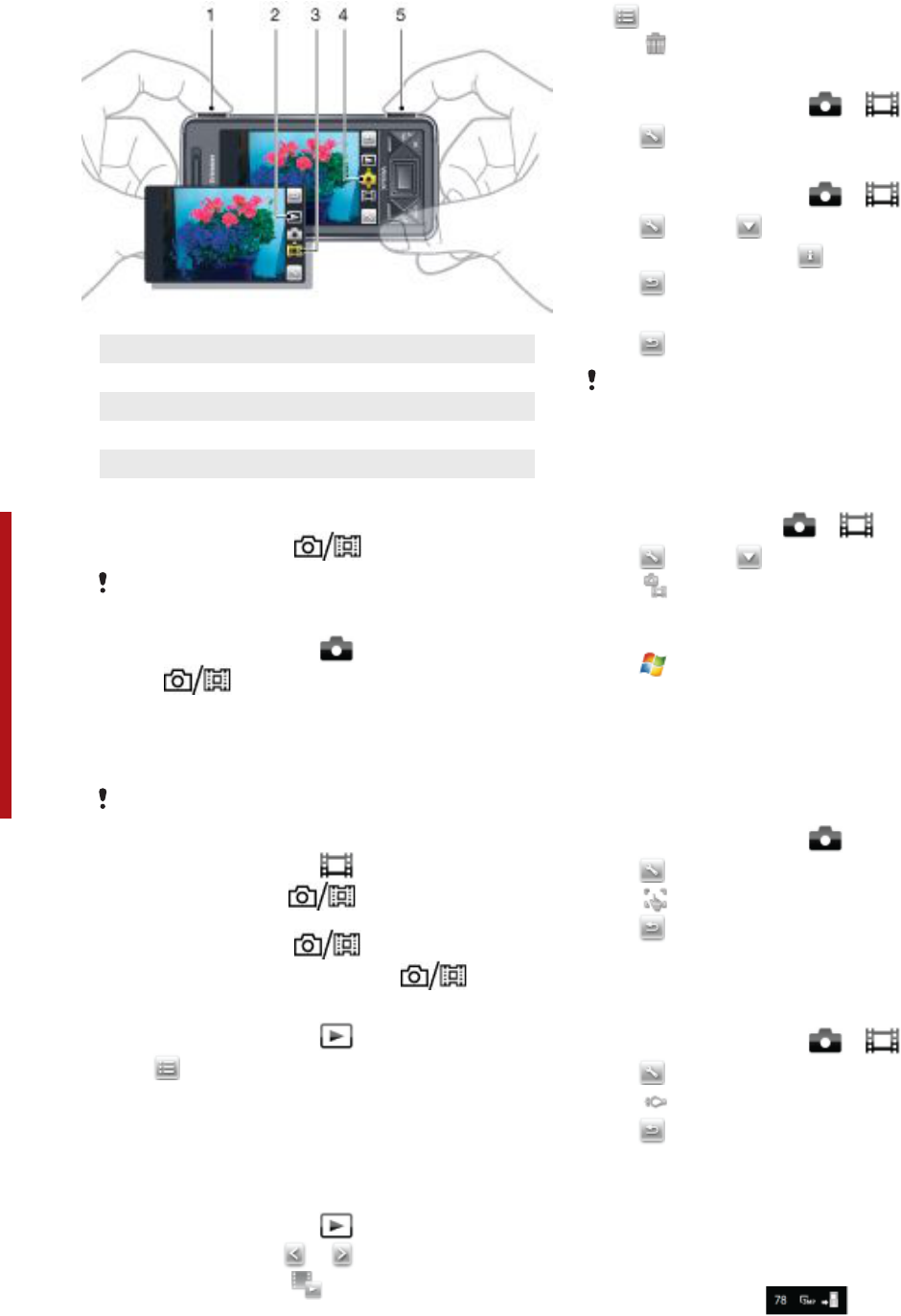

Using the camera

1 Zoom in or out

2 View photos and video clips

3 Video mode

4 Photo mode

5 Activate the camera/Take photos/Record video clips

To activate the camera

•Press the camera button .

Do not record with a strong light source in the background. Use

a support or the self-timer to avoid a blurred picture.

To take a photo

1Activate the camera and tap .

2Press halfway down to use auto focus.

3When the dot and focus frame are green, press fully down to

take the photo.

To use zoom

•Press the volume key up or down.

Zoom is only available when taking photos and with picture sizes

smaller than 3MP.

To record a video clip

1Activate the camera and tap .

2To use auto focus, press halfway down until the dot

and focus frame are green.

3To start recording, press fully down.

4To stop recording, press and hold down .

To send a photo or a video clip

1Activate the camera and tap .

2Tap .

3Select if you want to send your item by E-mail or Picture

message.

To adjust brightness

•When you use the camera or video recorder, press the

navigation key left or right to adjust brightness.

To view photos and videos

1Activate the camera and tap .

2Scroll to the item using or .

3To view a video clip, tap .

To delete a photo or a video clip

1When you have taken a photo or recorded a video clip, tap

2Tap .

To change settings

1Activate the camera and tap or .

2Tap and tap a button in the toolbar.

To view information about settings

1Activate the camera and tap or .

2Tap and then .

3Tap a setting and then tap .

4Tap to return.

To exit the camera

•Tap until you exit the camera.

The camera closes automatically if you do not use it for two

minutes.

Photo and video storage

You can save your photos and video clips either in the phone or

on the memory card.

To set storage location

1Activate the camera, tap or .

2Tap and then .

3Tap .

4Tap Save To and select an option.

To view files in File Explorer

1Tap > Programs > File Explorer.

2Select phone memory or memory card and then tap My

Pictures or My Videos folder.

More camera features

With touch focus you can set the desired focus location in the

viewfinder by tapping the screen before taking the photo.

To set touch focus

1Activate the camera and tap .

2Tap and then tap the Focus button in the toolbar.

3Tap .

4Tap to return to the viewfinder.

5Tap the screen to set focus. To reset focus, double-tap the

screen.

6Take the photo.

To turn on the light

1Activate the camera and tap or .

2Tap and then tap the Light button in the toolbar.

3Tap .

4Tap to return to the viewfinder.

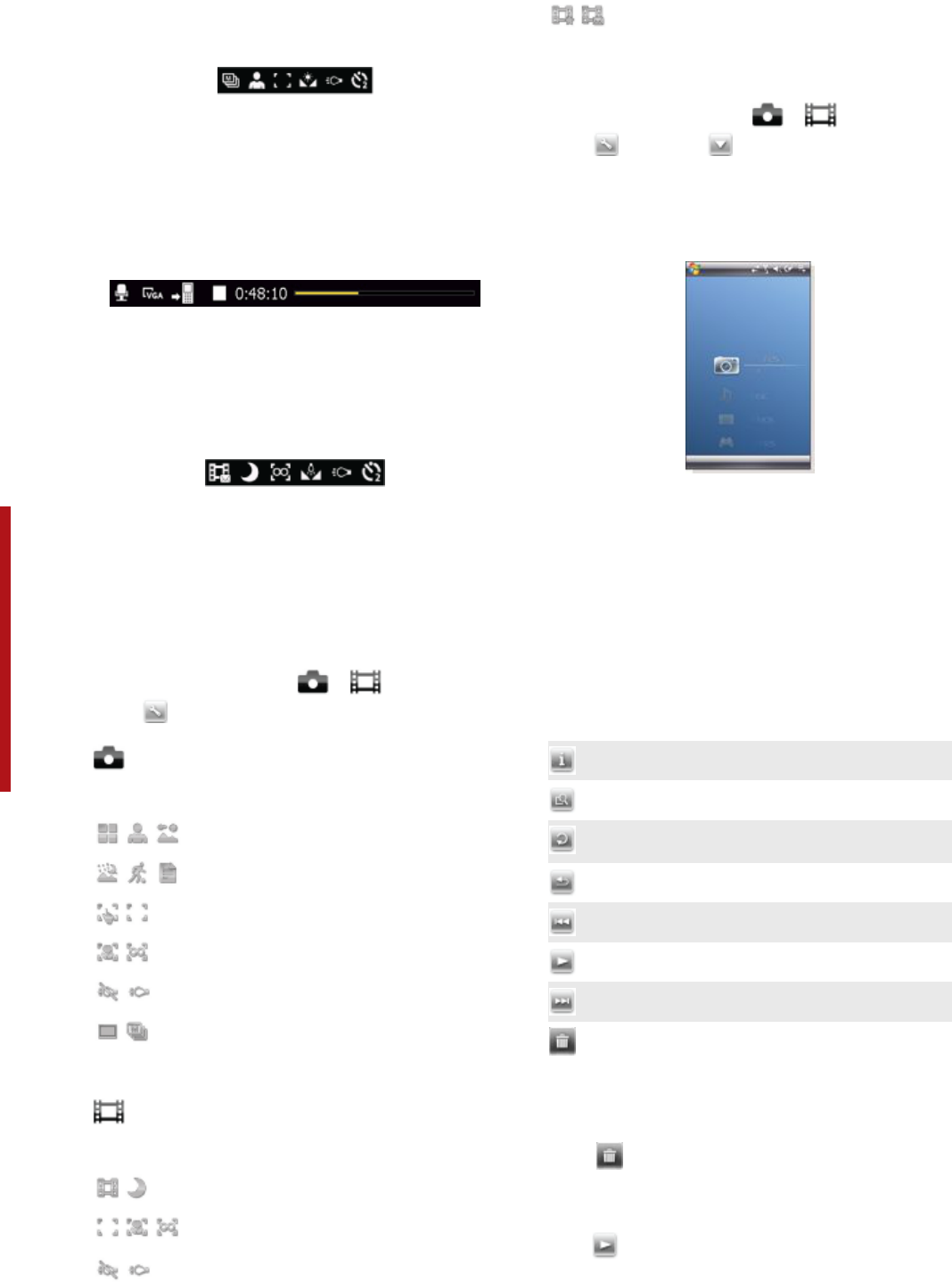

Camera viewfinder icons

In the camera viewfinder, icons show the current setting.

Photo camera viewfinder

The top bar displays:

•Remaining number of photos you can take

26 Multimedia

This is a draft publication intended for internal use only.

•Picture size (resolution)

•Where photos are saved (phone memory or memory card)

The bottom bar displays:

•Shoot mode

•Scenes

•Focus

•White balance

•Light

•Self-timer(2 or 10 seconds)

Video camera viewfinder

The top bar displays:

•Video recording sound on/off

•Where clips are saved (phone memory or memory card)

•Shoot mode

•Recording status

•Time remaining (when not recording) or recorded time (when

recording)

The bottom bar displays:

•Shoot mode

•Scenes

•Focus

•White balance

•Light

•Self-timer (2 or 10 seconds)

Overview of camera settings

To go to settings

1Activate the camera and tap or .

2Tap to view a menu for the most common settings.

Photo camera

Icon Description

Scenes. Predefined settings for common photo

situations, includes Auto, Portrait, Landscape,

Twilight, Sports and Document

Focus. Predefined focus settings, includes

Touch, Auto, Macro and Infinite

Light

Shoot mode. Take one photo at a time using

Normal, or take a sequence of photos using

Multi-shot

Video camera

Icon Description

Scenes. Auto or Night mode

Focus. Predefined focus settings, includes

Auto, Macro and Infinite

Light

Shoot mode. Normal or Picture message,

where clips are adjusted in length, size and

quality to fit in an MMS.

To enter more camera settings

1Activate the camera and tap or .

2Tap and then tap .

3Select General, Photo or Video, and enter the settings.

Viewing photos and video clips

You can view your photos and video clips using the Media

Xperience panel.

To view recently taken photos

1In the Media Xperience panel tap Pictures > Latest photos.

2Scroll through the photos.

To view photos chronologically

1In the Media Xperience panel tap Pictures > Camera album.

2View photos by month.

To view photos in the Media Xperience media player

1In the Media Xperience panel tap Pictures > Camera album.

2Tap a month and then a photo.

Photo media player toolbar

Icon Description

Information

Zoom

Rotate. Tap and hold the photo and rotate it. When you

release the photo, it snaps to the nearest 90 degree angle

Back to the previous menu

Previous picture

Start slideshow

Next picture

Delete photo

To delete a photo

1In the Media Xperience panel tap Pictures > Camera album.

2Highlight a photo.

3Tap to delete a photo.

To view a slideshow

1In the Media Xperience panel tap Pictures > Camera album.

2Tap a month and then a photo.

3Tap to start the slideshow.

Multimedia 27

This is a draft publication intended for internal use only.

To view video clips

1In the Media Xperience panel tap Videos.

2Tap the title of a video clip.

To delete a video clip

1In the Media Xperience panel tap Videos.

2Highlight the title of a video clip.

3Tap Menu > Delete video.

Viewing pictures

You can view pictures which were not taken by the phone

camera, but are in the My documents/My pictures folder or on

the memory card.

To view pictures

1In the Media Xperience panel tap Pictures > Pictures.

2Scroll to a picture and tap to view it in full size.

Synchronizing music and video

When you connect the phone to your computer via the USB

cable, media content, for example, MP3 files, are automatically

synchronized according to how you have set up the

synchronization. The Media Xperience panel lists media files

placed in the following locations in the phone:

•/My Documents/My Music/

•/My Documents/My Videos/

•the memory card

•/My Documents/My pictures

•/My Documents

You can synchronize media content placed in these locations

with your computer, and access it in the Media Xperience panel.

You have to set up the synchronization via Windows Media

Player on your computer, although you play music and videos

using the Media Xperience panel in the phone.

To set up synchronization

1Computer: Install Windows Media Player version 11 (works

on Windows XP or later).

2Computer: Set up synchronization as described in the

XPERIA™ X1 Getting started Quick guide. Make sure you

select the media items or information types you want to

synchronize.

3Phone: If you use ActiveSync, tap > Programs >

ActiveSync > Menu > Options, and select the Media box.

4Phone: Tap ok.

To synchronize music and video

1Computer: Open Windows Media Player, and connect the

phone to your computer using the USB cable.

2In the Device Setup Wizard, select Yes, search my computer

now (only if you have not searched for media on your

computer before).

3When you see the phone or memory card, click Finish.

4On the left panel of the Windows Media Player, right-click the

phone name/memory card, and then click Set up sync.

5In the Device Setup dialog box, select Sync this device

automatically.

6Select the playlist(s) you want to synchronize between your

computer and the phone, then click Add.

7Click Finish. Synchronizing starts.

The next time you connect your computer and the phone while

Windows Media Player is running, synchronization will start

automatically.

Transferring content

You can copy files between the phone and a computer.

•If your computer uses Windows XP® or other compatible

Windows operating systems, you should use Microsoft®

ActiveSync® 4.5 or later. You will find Microsoft®

ActiveSync® on the CD that comes with the phone.

•If your computer uses Windows Vista®, you should use

Windows® Mobile Device Center, which is part of Windows

Vista.

To copy files between the phone and a computer

1Connect the phone with the computer.

2Computer using Active Sync: Click Explore in ActiveSync.

Computer using Windows Mobile Device Center: Click File

Management > Browse the contents of your device.

3Computer: Copy files or folders between the devices using

standard Windows procedures.

28 Multimedia

This is a draft publication intended for internal use only.

Important information

Guidelines for safe and efficient use - addition

For optimal performance, use your Sony Ericsson Product in

temperatures between +14°F (-10°C) to +113°F (+45°C).

The battery should only be replaced with Sony Ericsson

approved batteries and they must be qualified to meet the IEEE

1725 standard.

Declaration of Conformity for X1

We, Sony Ericsson Mobile Communications AB of

Nya Vattentornet

SE-221 88 Lund, Sweden

declare under our sole responsibility that our product

Sony Ericsson type AAD-3880001-BV

and in combination with our accessories, to which this

declaration relates is in conformity with the appropriate

standards EN 301 511:V9.0.2, EN 301 908-1:V2.2.1, EN 301

908-2:V2.2.1, EN 300 328:V1.7.1, EN 300 440-1:V1.7.1, EN 300

440-2:V1.1.2, EN 301 489-7:V1.3.1, EN 301 489-17:V1.2.1, EN

301 489-24:V1.3.1, EN 301 489-3:V1.4.1, EN 60 950-1:2006

following the provisions of, Radio Equipment and

Telecommunication Terminal Equipment directive 1999/5/EC.

Lund, June 2008

Shoji Nemoto,

Head of Product Business Group GSM/UMTS

We fulfil the requirements of the R&TTE Directive (1999/5/EC).

Declaration of Conformity for X1a

We, Sony Ericsson Mobile Communications AB of

Nya Vattentornet

SE-221 88 Lund, Sweden

declare under our sole responsibility that our product

Sony Ericsson type AAD-3880002-BV

and in combination with our accessories, to which this

declaration relates is in conformity with the appropriate

standards EN 301 511:V9.0.2, EN 301 908-1:V2.2.1, EN 301

908-2:V2.2.1, EN 300 328:V1.7.1, EN 300 440-1:V1.7.1, EN 300

440-2:V1.1.2, EN 301 489-7:V1.3.1, EN 301 489-17:V1.2.1, EN

301 489-24:V1.3.1, EN 301 489-3:V1.4.1, EN 60 950-1:2006

following the provisions of, Radio Equipment and

Telecommunication Terminal Equipment directive 1999/5/EC.

Lund, June 2008

Shoji Nemoto,

Head of Product Business Group GSM/UMTS

We fulfil the requirements of the R&TTE Directive (1999/5/EC).

FCC Statement

This device complies with Part 15 of the FCC

rules. Operation is subject to the following two

conditions: (1) This device may not cause

harmful interference, and (2) This device must

accept any interference received, including

interference that may cause undesired operation.

Any change or modification not expressly approved by Sony

Ericsson may void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

Important information 29

This is a draft publication intended for internal use only.

guarantee that interference will not occur in a particular

installation.

If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for

help.

Industry Canada Statement

This device complies with RSS-210 of Industry Canada.

Operation is subject to the following two conditions: (1) this

device may not cause interference, and (2) this device must

accept any interference, including interference that may cause

undesired operation of the device.

This Class B digital apparatus complies with Canadian

ICES-003.

Cet appareil numérique de la classe B est conforme à la norme

NMB-003 du Canada.

30 Important information

This is a draft publication intended for internal use only.

Index

ActiveSync® ......................................................................... 12

Alarms .................................................................................. 12

Battery .................................................................................... 4

Bluetooth .............................................................................. 17

beaming information .................................................... 18

connecting a headset ................................................... 18

modem ......................................................................... 18

modes .......................................................................... 17

partnership ................................................................... 17

Calls ........................................................................................ 9

video call ........................................................................ 9

voice call ........................................................................ 9

Camera ................................................................................. 25

more features ............................................................... 26

settings ......................................................................... 27

storage ......................................................................... 26

using the camera .......................................................... 26

viewing ......................................................................... 27

Charging ................................................................................. 4

Direct push ........................................................................... 14

E-mail ................................................................................... 14

Games .................................................................................. 25

Google Maps™ .................................................................... 19

GPS ...................................................................................... 19

A-GPS .......................................................................... 19

QuickGPS ..................................................................... 19

Illuminations ........................................................................... 6

IMEI number ......................................................................... 11

Joystick .................................................................................. 5

Keyboard ................................................................................ 6

Memory card .......................................................................... 4

Messaging

e-mail ........................................................................... 14

SMS and MMS ............................................................. 14

Multimedia

camera ......................................................................... 25

games ........................................................................... 25

media files .................................................................... 25

streaming media ........................................................... 25

synchronizing music and video .................................... 28

transferring content ...................................................... 28

Windows Media® Player Mobile .................................. 25

Navigation key ........................................................................ 5

On/off ..................................................................................... 4

Panels ................................................................................... 20

choosing ....................................................................... 20

downloading new ......................................................... 24

managing ...................................................................... 21

Playlists ................................................................................ 25

scheduled

synchronization ............................................................ 13

SIM card ................................................................................. 4

Sleep mode ............................................................................ 5

SMS ...................................................................................... 14

Status icons ............................................................................ 5

Streaming media .................................................................. 25

Synchronizing ....................................................................... 12

setting up ..................................................................... 12

starting ......................................................................... 13

using a Bluetooth connection ...................................... 13

Touch screen .......................................................................... 5

Video call ................................................................................ 9

Voice call ................................................................................ 9

Wayfinder Navigator™ ......................................................... 19

Web

browsing previously visited Web pages ....................... 16

connecting .................................................................... 16

display options ............................................................. 16

favorites ........................................................................ 16

web feeds ..................................................................... 16

zooming ........................................................................ 16

Wi-Fi ..................................................................................... 18

Windows Live Messenger .................................................... 19

Windows Media® Player Mobile .......................................... 25

Word completion .................................................................. 11

Index 31

This is a draft publication intended for internal use only.
