Contents

Users Manual

1
This is the Internet version of the user’s guide. ©Print only for private use.
Contents
Getting started ................... 4
Assembly, SIM card, battery, turning
on, help, calls.
Getting to know the phone 8
Phone overview, icons, menus, enter-
ing letters, activity menu, file manager,
Memory Stick Micro™ (M2™).
Hearing Aid Compatibility 20
HAC information.
Calling ............................... 20
Calls, contacts, voice control, call
options.
Messaging ........................ 34
Text messaging, picture messaging,
voice messaging, email, My friends.
Imaging ............................. 46
Camera, pictures, PhotoDJ™.
Entertainment ................... 50
Handsfree, Walkman®, radio,
PlayNow™, MusicDJ™, VideoDJ™,
themes, games and more.
Fitness application .......... 60
Step counter, arm strap, laps, speed,
advanced calibration, fitness options.
Connectivity ..................... 67
Settings, using Internet, RSS,
synchronizing, Bluetooth™ device,
infrared, USB cable, update service.
More features ................... 79
Alarm clock, calendar, tasks, profiles,
time and date, SIM card lock, etc.
Troubleshooting ............... 85
Why doesn’t the phone work the way I
want it to?
Important information ...... 91
Sony Ericsson Consumer Web site,
service and support, safe and efficient
use, end user license agreement,
warranty, declaration of conformity.
Index ............................... 100
2This is the Internet version of the user’s guide. ©Print only for private use.
Sony Ericsson
GSM 850/1900
This User guide is published by Sony Ericsson,
without any warranty. Improvements and changes
to this User guide necessitated by typographical
errors, inaccuracies of current information, or
improvements to programs and/or equipment, may
be made by Sony Ericsson at any time and without
notice. Such changes will, however, be
incorporated into new editions of this User guide.
All rights reserved.
©Sony Ericsson Mobile Communications AB,
2006
Publication number: AE/LZT 123 8358 R2A
Please note:
Some of the services in this User guide are not
supported by all networks. This also applies to the
GSM International Emergency Numbers 911 and
112.
Please contact your network operator or service
provider if you are in doubt whether you can use a
particular service or not.
Please read the Guidelines for safe and efficient use
and the Limited warranty chapters before you use
your mobile phone.
Your mobile phone has the capability to download,
store and forward additional content, e.g.
ringtones. The use of such content may be
restricted or prohibited by rights of third parties,
including but not limited to restriction under
applicable copyright laws. You, and not Sony
Ericsson, are entirely responsible for additional
content that you download to or forward from your
mobile phone. Prior to your use of any additional
content, please verify that your intended use is
properly licensed or is otherwise authorized. Sony
Ericsson does not guarantee the accuracy, integrity
or quality of any additional content or any other
third party content. Under no circumstances will
Sony Ericsson be liable in any way for your
improper use of additional content or other third
party content.
Bluetooth™ is a trademark or registered trademark
of Bluetooth SIG Inc.
PlayNow, MusicDJ, PhotoDJ, VideoDJ, and
TrackID are trademarks or registered trademarks of
Sony Ericsson Mobile Communications AB.
Memory Stick Micro, M2 and WALKMAN are
trademarks or registered trademarks of Sony
Corporation.
WALKMAN® is a trademark of Sony Corporation.
Adobe™ and Photoshop™ are trademarks or
registered trademarks of Adobe Systems
incorporated in the United States and/or other
countries.
Microsoft, Windows and PowerPoint are either
registered trademarks or trademarks of Microsoft
Corporation in the U.S and other countries.
Mac OS is a trademark of Apple Computer, Inc.,
registered in the U.S. and other countries.
T9™ Text Input is a trademark or a registered
trademark of Tegic Communications. T9™ Text
Input is licensed under one or more of the
following: U.S. Pat. Nos. 5,818,437, 5,953,541,
5,187,480, 5,945,928, and 6,011,554; Canadian
Pat. No. 1,331,057, United Kingdom Pat. No.
2238414B; Hong Kong Standard Pat. No.
HK0940329; Republic of Singapore Pat. No. 51383;
Euro.Pat. No. 0 842 463(96927260.8) DE/DK, FI,
FR, IT, NL, PT, ES, SE, GB; and additional patents
are pending worldwide.
Smart-Fit Rendering is a trademark or registered
trademark of ACCESS CO., LTD. in Japan and
other countries.
Java and all Java based trademarks and logos are
trademarks or registered trademarks of Sun
Microsystems, Inc. in the U.S. and other countries.
End-user license agreement for Sun™ Java™
J2ME™.
3
This is the Internet version of the user’s guide. ©Print only for private use.
1Restrictions: Software is confidential copyrighted
information of Sun and title to all copies is retained
by Sun and/or its licensors. Customer shall not
modify, decompile, disassemble, decrypt, extract,
or otherwise reverse engineer Software. Software
may not be leased, assigned, or sublicensed, in
whole or in part.
2Export Regulations: Software, including technical
data, is subject to U.S. export control laws,
including the U.S. Export Administration Act and its
associated regulations, and may be subject to
export or import regulations in other countries.
Customer agrees to comply strictly with all such
regulations and acknowledges that it has the
responsibility to obtain licenses to export, re-
export, or import Software. Software may not be
downloaded, or otherwise exported or re-exported
(i) into, or to a national or resident of, Cuba, Iraq,
Iran, North Korea, Libya, Sudan, Syria (as such
listing may be revised from time to time) or any
country to which the U.S. has embargoed goods;
or (ii) to anyone on the U.S. Treasury Department's
list of Specially Designated Nations or the U.S.
Commerce Department's Table of Denial Orders.
3Restricted Rights: Use, duplication or disclosure by
the United States government is subject to the
restrictions as set forth in the Rights in Technical
Data and Computer Software Clauses in DFARS
252.227-7013(c) (1) (ii) and FAR 52.227-19(c) (2) as
applicable.
Part of the software in this product is copyright ©
SyncML initiative Ltd. (1999-2002). All rights
reserved.
Other product and company names mentioned
herein may be the trademarks of their respective
owners.
Any rights not expressly granted herein are
reserved.
All illustrations are for illustration only and may not
accurately depict the actual phone.
Instruction symbols
The following appear in the User
guide:
Note
A service or function is network-
or subscription-dependent.
Contact your network operator
for details.
%See also page...
}Use a selection or navigation
key to scroll and select % 12
Navigation.
Press the navigation key center.
Press the navigation key up.
Press the navigation key down.
Press the navigation key left.
Press the navigation key right.
4Getting started
This is the Internet version of the user’s guide. ©Print only for private use.
Getting started
Assembly, SIM card, battery, turning
on, help, calls.
More information and downloads are
available at www.sonyericsson.com/
support.
Assembly
To use your phone
1Insert the SIM card and the battery.
2Charge the battery.
3Turn on your phone.
SIM card
When you register as a subscriber with
a network operator, you get a SIM
(Subscriber Identity Module) card. The
SIM card contains a computer chip
that keeps track of items such as your
phone number, the services included
in your subscription, and names and
numbers in your contacts.
PIN
You may need a PIN (Personal Identity
Number) for your SIM card to start
your phone and activate services.
When you enter your PIN, each digit
appears as *, unless it starts with the
same digits as an emergency number,
for example 112 or 911. This allows for
emergency calls without entering a
PIN. Press to correct mistakes.
Battery
Some functions use more battery
power than others and may cause a
need for more frequent re-charging. If
talk time or standby time becomes
noticeably shorter, you may have to
replace the battery. Only use
approved batteries from Sony
Ericsson % 93 Battery.
Save contact information on your SIM
card before removing it from another
phone.
If you enter the wrong PIN three times in
a row, PIN Blocked appears. To unblock
it, you need to enter your PUK (Personal
Unblocking Key) % 83 SIM card lock.
5Getting started
This is the Internet version of the user’s guide. ©Print only for private use.

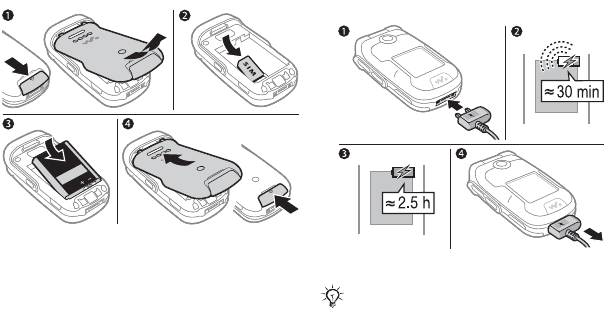

SIM card and battery
To insert SIM card and battery
1Remove the battery cover by sliding
the battery release latch down.
2Slide the SIM card into its holder with
the contacts facing down.
3Insert the battery with the label side up
and the connectors facing each other.
4Slide the battery cover into place.
To charge the battery
1Connect the charger plug to the phone
with the symbol facing upwards.
2It may take up to 30 minutes before
the battery icon appears.
3Wait approximately 2.5 hours or until
the battery icon indicates a full charge.
Press a key to activate the screen.
4Pull out the charger plug.
Do not connect the charger unless the
battery is inserted.
6Getting started
This is the Internet version of the user’s guide. ©Print only for private use.
Turning on your phone
Make sure the phone is charged and a
SIM card inserted before turning it on.
After turning on, use the setup wizard
to quickly and easily prepare for use.

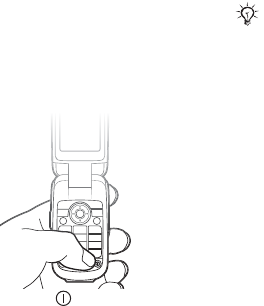

To turn on the phone
1Press and hold . The first start-up
may take a few minutes.
2Select to use the phone in:
Normal – full functionality or
Flight Mode – limited functionality
with network, FM radio, Bluetooth™
transceivers off % 7 Flight mode
menu.
3Enter your SIM card PIN, if requested.
4At first start-up, select the language
for your phone menus.
5} Yes for the setup wizard to help you.
6Follow instructions to complete setup.
Help in your phone
Help and information is available in
your phone at any time.
To use the setup wizard
} Settings } the General tab } Setup
Wizard and select an option:
Settings Download
Basic Setup
Tips and Tricks.
Settings Download
Automatically set up functions in your
phone that use the Internet; Internet,
picture messaging, email, My friends,
synchronization, update service, blog
and streaming.
You can use Settings Download if
your SIM supports the service, your
phone is connected to a network, it is
started in normal mode and does not
If predefined settings exist in your
phone, you may not need more settings.
If you use Settings Download, you must
accept to register the phone at Sony
Ericsson. A text message is sent. No
personal data will be transferred to or
processed by Sony Ericsson. Contact
your network operator or service pro-
vider for more information.
7Getting started
This is the Internet version of the user’s guide. ©Print only for private use.
already have predefined settings.
Settings Download starts
automatically when the phone turns
on the first time or from Settings } the
General tab } Setup Wizard }
Settings Download.
To view information about functions
Scroll to a function } More }
Information (if available).
To view the phone demonstration
} Entertainment } Demo Tour.
Flight mode menu
If you turn on the phone and Flight
Mode menu is activated, select from
Normal for full functionality or Flight
Mode with limited functionality. In
Flight Mode, network, radio and
Bluetooth transceivers are turned off
to prevent disturbance to sensitive
equipment.You can, for example, play
music or write a text message to send
later but not make calls in an airplane.
To view Flight mode menu options
} Settings and scroll to the General
tab } Flight Mode and select an
option.
Making and receiving calls
The phone must be in normal mode.
To make and receive calls
Enter a phone number (with
international prefix and area code if
applicable) } Call to make the call. }
End Call or close the flip to end the
call.
To receive a call
When the phone rings open the flip }
Answer or } Busy to reject the call.
To end a call
} End Call or close the flip.
Contact your network operator or serv-
ice provider for more information.
Follow onboard regulations and flight
crew instructions for use of electronic
devices.
8Getting to know the phone
This is the Internet version of the user’s guide. ©Print only for private use.
Getting to know the phone
Phone overview, icons, menus, entering letters, activity menu, file manager, Memory
Stick Micro™ (M2™).
Phone overview
Some icons on keys may differ.
18
19
20
21
13
14
15
16
17
9
10
11
12
6
7
8
1
2
3
4
5
9Getting to know the phone
This is the Internet version of the user’s guide. ©Print only for private use.
1Camera lens
2Screen
3Forward/next button
4Rewind/previous button
5Antenna
6Play/stop button
7Menu/toggle button
8Connector for charger, handsfree and USB cable
9Selection keys
10 Back Key
11 Internet Key
12 Walkman® key
13 Navigation key
14 Clear key
15 Activity menu key
16 Silent key
17 Power on/off button
18 Infrared port
19 Volume keys, camera zoom
20 Camera Button
21 Memory Stick Micro™ (M2™) slot
For more information % 12 Navigation
10 Getting to know the phone
This is the Internet version of the user’s guide. ©Print only for private use.
Menu overview
PlayNow™* Internet* Entertainment
Radio
Games
Video Player
VideoDJ™
PhotoDJ™
MusicDJ™
Remote Control
Record Sound
Demo Tour
Fitness Messaging WALKMAN
Running
Walking
Results
Settings
Write New
Inbox
Email
RSS Reader
Drafts
Outbox
Sent Messages
Saved Messages
My Friends*
Call Voicemail
Templates
Settings
Now Playing
Artists
Tracks
Playlists
File Manager** Contacts Camera
Camera Album
Music
Pictures
Videos
Themes
Web Pages
Games
Applications
Fitness
Other
New Contact
11Getting to know the phone
This is the Internet version of the user’s guide. ©Print only for private use.
Calls** Organizer
All Answered Dialed Missed
Alarms
Applications
Calendar
Tasks
Notes
Synchronization
Timer
Stopwatch
Calculator
Code Memo
Settings**
General
Profiles
HAC
Time & Date
Language
Update Service
Voice Control
New Events
Shortcuts
Flight Mode
Security
Setup Wizard
Phone Status
Master Reset
Sounds & Alerts
Ring Volume
Ringtone
Silent Mode
Increasing Ring
Vibrating Alert
Message Alert
Key Sound
Display
Wallpaper
Themes
Startup Screen
Screen Saver
Clock Size
Brightness
Edit Line Names*
Calls
Forward Calls
Manage Calls
Time & Cost*
Show/Hide My No.
Handsfree
Open to Answer
Switch to Line 2*
Connectivity*
Bluetooth
Infrared Port
USB
Synchronization
Device Mgmt.
Mobile Networks
Data Comm.
Internet Settings
Streaming Settings
Accessories
* Some menus are operator-, network- and subscription-dependent.
** Use the navigation key to move across tabs in submenus. For more information % 12 Navigation.
12 Getting to know the phone
This is the Internet version of the user’s guide. ©Print only for private use.
Navigation
The main menus are shown as icons.
Some submenus include tabs. Scroll
to a tab by pressing the navigation key
left or right and selecting an option.
Navigation keys
Navigation key -
Key
Go to the main menus or to select highlighted items.
Move through the menus and tabs.
Select options shown immediately above these keys on the screen.
Go back one level in the menus.
Press and hold to return to standby or to end a function.
Delete items, such as pictures, sounds and contacts.
During a call, press and hold to mute the microphone.
Open the browser.
Open the activity menu % 17 Activity menu.
Press and hold to call your voicemail service (if set).
- Press and hold any of these keys to reach a contact beginning with a
specific letter.
13Getting to know the phone
This is the Internet version of the user’s guide. ©Print only for private use.
- Press a number key and } Call to speed dial.
Turn off the ringtone when receiving a call.
Press and hold to set the phone to silent. The alarm signals even if
the phone is set to silent.
Press to enter a space when writing a message.
Press and hold to change the writing language when writing a
message.
Press to change letter case when writing a message.
Press and hold to toggle T9™ Text Input on and off when writing a
message.
} Info Find more information, explanations or tips about selected features,
menus or functions available in your phone % 6 Help in your phone.
} More Enter a list of options. There are different alternatives in the list of
options depending on where you are in the menus.
Minimize the Walkman® or fitness application.
Toggle between the Walkman® and fitness application when open.
Turn the Walkman on or off and pause play.
Resume/pause measuring in the fitness application.
Skip to the previous track when using the Walkman®.
Toggle view in the fitness application.
Skip to the next track when using the Walkman®.
Begin a new lap when using the fitness application
Open the Walkman®.
Press and hold to take a picture
14 Getting to know the phone
This is the Internet version of the user’s guide. ©Print only for private use.
Status bar
Some of the icons that may appear:
View status information in standby.
Increase the volume during a call, or when using the Walkman®.
Adjust the camera brightness.
Press and hold to go back one track.
Press twice to reject a call.
Press and hold to voice dial, alternatively say your magic word (if set)
% 27 Voice dialing.
Decrease the volume during a call, or when using the Walkman®.
Adjust the camera brightness.
Press and hold to go forward one track.
Press and hold to voice dial, alternatively say your magic word (if set)
% 27 Voice dialing.
Icon Description
GSM network signal strength.
EDGE is available.
GPRS is available.
Battery status.
Battery charging, appears with
battery status icon.
Missed incoming call.
Text message received.
Email message received.
Picture message received.
Voice message received.
Ongoing call.
Handsfree is connected.
Radio playing in the background.
Calendar reminder.
Task reminder.
Hearing Aid Compatibility (HAC)
mode.
15Getting to know the phone
This is the Internet version of the user’s guide. ©Print only for private use.
Shortcuts
Use keypad shortcuts to quickly go to
a menu, and you can use predefined
navigation key shortcuts to quickly
reach certain functions. Edit the
navigation key shortcuts to suit your
own needs.
Using keypad shortcuts
In standby, go to menus by pressing
and then enter the number of the
menu. Menu numbering starts from
the top left icon and moves across
and then down row by row, for
example, press for the fifth menu
item. For the tenth, eleventh and
twelfth items, press , and
respectively. To go back to
standby, press and hold or close
the flip.
Using navigation key shortcuts
In standby, go to a shortcuts menu or
function by pressing , , or .
To edit a navigation key shortcut
} Settings } General tab } Shortcuts
and select a shortcut } Edit.
Phone language
Select the language to use in the
phone menus or when writing text.
To change the phone language
} Settings } General tab } Language
} Phone Language. Select a
language.
In standby, you can also press:
8888 for automatic language.
0000 for English.
To select writing language
1} Settings } the General tab }
Language } Writing Language.
2Scroll to the language to use and mark
it. } Save to exit the menu.
Entering letters
Enter letters in one of the following
ways (text input methods), for
example, when writing messages:
Multitap text input
T9™ Text Input
To change the text input method
Before, or when entering letters, press
and hold to change the method.
Most SIM cards automatically set the
menu language to the country where you
bought your SIM card. If not, the prede-
fined language is English.
16 Getting to know the phone
This is the Internet version of the user’s guide. ©Print only for private use.
Options when entering letters
} More for options when writing a
message.
To enter letters using multitap input
Press - repeatedly until the
desired character appears.
Press to shift between capital
and lower-case letters.
Press and hold - to enter
numbers.
Press to delete letters or
numbers.
Press for the most common
punctuation marks.
Press to add a space.
T9™ Text Input
The T9 Text Input method uses a built-
in dictionary to recognize the most
commonly used word for each
sequence of key presses. This way,
you press each key only once, even if
the letter you want is not the first letter
on the key.
To enter letters using T9 Text Input
1To enter text, you have to be in a
function where text input is possible,
for example, } Messaging } Write
New } Text Message.
2For example, to write the word “Jane”,
press , , , .
3If the word shown is the one you want,
press to accept and add a
space. To accept a word without
adding a space, press . If the word
shown is not the one you want, press
or repeatedly to view alternative
words.
4Continue writing the message. To
enter a punctuation mark, press
and then or repeatedly, press
to accept and add a space.
To add words to the T9 Text Input
dictionary
1When entering letters } More } Spell
Word.
2Edit the word by using multitap input.
Use and to move the cursor
between the letters. To delete a
character, press . To delete the
entire word, press and hold .
When you have edited the word }
Insert. The word is added to the T9
Text Input dictionary. Next time you
enter this word using T9 Text Input, it
appears in alternative words.
Next word prediction
When writing a message, you can use
T9 Text Input to predict the next word,
if previously used in a sentence.
17Getting to know the phone
This is the Internet version of the user’s guide. ©Print only for private use.
To turn next word prediction on/off
When entering letters } More }
Writing Options } Next Word Pred.
To use next word prediction
When entering letters, press to
accept or continue.
Activity menu
You can open the activity menu
almost anywhere in the phone to view
and handle new events, and access
bookmarks and shortcuts.
To open and close the activity menu
Press .
Activity menu tabs
New Events – such as missed calls
and messages. When a new event
occurs, the tab appears. Press
to dismiss an event from the event
tab. New events can also be set to
appear as pop-up text instead, }
Settings } the General tab } New
Events } Popup.
Running Apps – applications that
are running in the background.
Select an application to return to it
or press to end it.
My Shortcuts – add, delete and
change the order of shortcuts.
When you select a shortcut and the
application opens, other programs
are closed or minimized.
Internet – your Internet bookmarks.
When you select a bookmark and
the browser opens, other programs
are closed or minimized.
File manager
Use the file manager to handle items
such as pictures, music, themes, Web
pages, games and applications saved
in the phone memory or on a Memory
Stick Micro™ (M2™) memory card.
Memory Stick Micro™ (M2™)
Your phone supports Memory Stick
Micro™ (M2™) memory card adding
more storage space to your phone to
save files containing pictures or
music, for example. It can also be
used as a portable memory card with
other compatible devices.
The phone and memory card are some-
times sold separately.
18 Getting to know the phone
This is the Internet version of the user’s guide. ©Print only for private use.
To insert and remove a memory card
1Open the cover and insert as shown
(with the contacts facing up).
2Press the edge to release and remove.
You can also move and copy files
between the phone, a computer and a
memory card. If you have a memory
card inserted, files are automatically
saved to it first and then to phone
memory.
If no memory stick is inserted, then all
the files are saved in the phone
memory. If all available memory is full,
you cannot save any files until some
content is removed.
Create subfolders to move or copy
files to. Games and applications can
be moved within the Games and
Applications folders and from the
phone memory to a memory card.
Unrecognized files are saved in the
Other folder. When handling files, you
can select several or all files in a folder
at the same time for all items except
Games and Applications.
File manager menu tabs
The file manager is divided into three
tabs, and icons are included to
indicate where the files are saved.
All Files – all content in the phone
memory and on a Memory Stick
Micro™ (M2™).
On Memory Stick – all content on a
Memory Stick Micro™ (M2™).
In Phone – all content in the phone
memory.
File information
View file information by highlighting it
} More } Information. Items that are
downloaded, or received using one of
the available transfer methods, may
be copyright-protected. If a file is
protected, you may not be able to
copy or send that file. A DRM-
protected file has a key symbol.
To use a file from the file manager
1} File Manager and open a folder.
2Scroll to a file } More for additional
options.
19Getting to know the phone
This is the Internet version of the user’s guide. ©Print only for private use.
To move or copy a file to memory
1} File Manager and select a folder.
2Scroll to a file } More } Manage File }
Move to move the file or } More }
Manage File } Copy to copy the file.
3Select to move or copy the file to
Phone or Memory Stick } Select.

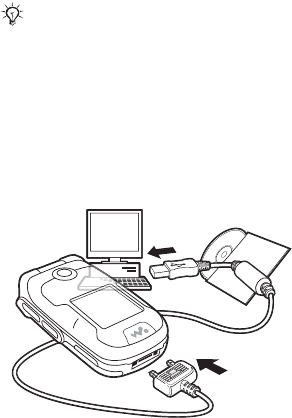

To move or copy files to a computer
You can transfer files to your
computer via Bluetooth wireless
technology, Infrared or USB cable % 67
Connectivity.
To create a subfolder
1} File Manager and open a folder.
2} More } New Folder and enter a
name for the folder.
3} OK to save the folder.
To select several files
1} File Manager and open a folder.
2} More } Mark } Mark Several.
3Scroll to select files } Mark or
Unmark.
To select all files in a folder
} File Manager and open a folder }
More } Mark } Mark All.
To delete a file or a subfolder from
the file manager
1} File Manager and open a folder.
2Scroll to a file } More } Delete.
Memory card options
Check memory status or format a
memory card to delete all information.
To use memory card options
} File Manager and select the On
Memory Stick tab } More for options.
20 Hearing Aid Compatibility
This is the Internet version of the user’s guide. ©Print only for private use.
Hearing Aid
Compatibility
HAC information.
Your phone is designed for Hearing
Aid Compatibility (HAC) and uses
many settings for optimized use with
hearing aids.
To choose HAC setting
Choose the setting in the phone to
match the setting in your hearing aid
before making or receiving calls in
HAC operation.
} Settings } the General tab } HAC
and choose an option:
T-coil Mode – optimize phone to
hearing aid set in T-coil mode.
Mic. Mode – optimize phone to
hearing aid set in Microphone
mode.
Off – turns off HAC operation.
Calling
Calls, contacts, voice control, call
options.
Making and receiving calls
Before you can make or receive any
calls, you must turn on your phone
and be within range of a network % 6
Turning on your phone.
Networks
When you turn on the phone, it
automatically selects your home
network if this is within range. If it is
not within range, you may use another
network, provided your network
operator has an agreement that allows
you to do so. This is called roaming.
Select the network to use, or you can
add a network to your preferred
networks. You can also change the
order in which networks are selected
during an automatic search.
To view available network options
} Settings } the Connectivity tab }
Mobile Networks.
Some network operators allow you to
switch networks manually, as
searching for unavailable networks
consumes battery power.
21Calling
This is the Internet version of the user’s guide. ©Print only for private use.
To switch networks
} Settings }the Connectivity tab }
Mobile Networks } Select Network.
For more information, contact your
network operator.
To make a call
1Enter a phone number (with
international country code and area
code, if applicable).
2} Call to make a voice call or } More
to view options.
3} End Call or close the flip to end the
call.
To make international calls
1Press until a + sign appears.
2Enter the country code, area code
(without the first zero) and phone
number } Call to make a voice call.
To re-dial a number
If a call connection fails and Retry?
appears } Yes.
To answer or reject a call
} Answer, open the flip, } Busy, or
press volume key up or down.
To turn off the microphone
1Press and hold .
2To resume the conversation press and
hold again.
To turn the loudspeaker on or off
during a voice call
} More } Turn On Speaker or Turn
Off Speaker.
To change the ear speaker volume
Press to increase or to
decrease the ear speaker volume
during a call.
Missed calls
When the activity menu is set to
default, missed calls appear in the
New Events tab in standby. If pop-up
is set to default Missed Calls: appears
in standby % 17 Activity menu.
You can call numbers from your contacts
and call list % 22 Contacts, and % 25
Call list. You can also use your voice to
make calls % 26 Voice control.
Do not hold the phone to your ear when
waiting. When the call connects, the
phone gives a loud signal, unless muted.
Do not hold the phone to your ear when
using the loudspeaker. This could dam-
age your hearing.
22 Calling
This is the Internet version of the user’s guide. ©Print only for private use.
To check missed calls from standby
If pop-up is set to default: } Calls and
use or to scroll to the Missed
tab. Scroll or to select a number
} Call to call.
If activity menu is set to default: Press
and use or to scroll to the
New Events tab and use or to
select a number } Call to call.
Emergency calls
Your phone supports international
emergency numbers, for example,
112, 911, or 08. These numbers can
normally be used to make emergency
calls in any country, with or without a
SIM card inserted, if a GSM network is
within range.
To make an emergency call
Enter 112 or 911 (the international
emergency numbers) } Call.
To view your local emergency
numbers
} Contacts } Options } Special
numbers } Emergency Nos..
Contacts
You can save your contact information
in the phone memory or on a SIM
card. The following is available:
You can choose which contact
information – Phone Contacts or SIM
Contacts – is shown as default.
For useful information and settings }
Contacts } Options.
Default contact
If Phone Contacts is selected as
default, your contacts show all the
information saved in Contacts. If you
select SIM Contacts as default, your
contacts show information depending
on the SIM card.
To select default contacts
1} Contacts } Options } Advanced }
Default Contacts.
2} Phone Contacts or SIM Contacts.
Phone contacts
Save contacts in the phone with
names, phone numbers and personal
information. You can also add pictures
and ringtones to contacts. Use , ,
and to scroll between tabs and
their information fields.
In some countries, other emergency
numbers may also be promoted. Your
network operator may therefore have
saved additional local emergency num-
bers on the SIM card.
23Calling
This is the Internet version of the user’s guide. ©Print only for private use.
To add a phone contact
1If Phone Contacts is selected as
default, } Contacts } New Contact }
Add.
2Enter the name } OK.
3Enter the number } OK.
4Select a number option.
5Scroll between tabs and select the
fields to add information. To enter
symbols such as @, } More } Add
Symbol and select a symbol } Insert.
6When all information is added } Save.
To delete a contact
1} Contacts and scroll to a contact.
2Press and select Yes.
To delete all phone contacts
} Contacts } Options } Advanced }
Delete all contacts } Select and }
Yes. Names and numbers on the SIM
card are not deleted.
SIM contacts
Save contacts on your SIM card.
To add a SIM contact
1If SIM Contacts is selected as default,
} Contacts } New Contact } Add.
2Enter the name } OK.
3Enter the number } OK and select a
number. Add more information, if
available } Save.
To automatically save names and
phone numbers on the SIM card
} Contacts } Options } Advanced }
Auto Save on SIM and select On.
Memory status
The number of contacts you can save
in the phone or on the SIM card
depends on available memory.
To view memory status
} Contacts } Options } Advanced }
Memory Status.
Using contacts
Contacts can be used in many ways.
Below you can see how to:
call phone and SIM contacts.
send phone contacts to another
device.
copy contacts to phone and SIM
card.
add a picture or a ringtone to a
phone contact.
edit contacts.
synchronize your contacts.
To call a phone contact
1} Contacts. Scroll to, or enter the first
letter or letters of the contact.
2When the contact is highlighted press
or to select a number } Call.
24 Calling
This is the Internet version of the user’s guide. ©Print only for private use.
To call a SIM contact
If SIM Contacts is default } Contacts
and when the contact is highlighted
press or to select a number }
Call.
If Phone Contacts is set as default }
Contacts } Options } SIM Contacts
and select the contact } Call.
To send a contact
} Contacts and select a contact }
More } Send Contact and select a
transfer method.
To send all contacts
} Contacts } Options } Advanced }
Send all Contacts and select a
transfer method.
To copy names and numbers to the
SIM card
1} Contacts } Options } Advanced }
Copy to SIM.
2Select one of the alternatives.
To copy names and numbers to
phone contacts
1} Contacts } Options } Advanced }
Copy from SIM.
2Select one of the alternatives.
To add a picture or ringtone sound to
a phone contact
1} Contacts and select the contact }
More } Edit Contact.
2Select the relevant tab and then select
Picture or Ringtone } Add.
3Select an option and an item } Save.
To edit a phone contact
1} Contacts and select a contact }
More } Edit Contact.
2Scroll to the relevant tab and select
the field to edit } Edit.
3Edit the information } Save.
To edit a SIM contact
1If SIM contacts is default } Contacts
and select the name and number to
edit. If phone contacts is default }
Contacts } Options } SIM Contacts
and select the name and number to
edit.
2} More } Edit Contact and edit the
name and number.
Synchronizing contacts
You can synchronize your contacts
with a contacts application on the
When copying all contacts from the
phone to the SIM card, all existing SIM
card information is replaced.
If your subscription supports Calling Line
Identification (CLI) service, you can
assign personal ringtones to contacts.
25Calling
This is the Internet version of the user’s guide. ©Print only for private use.
Web. For more information % 71
Synchronizing.
To save and restore contacts with a
memory card
} Contacts } Options } Advanced }
Back up to M.S. or Restore From
M.S..
To select the sort order for contacts
} Contacts } Options } Advanced }
Sort Order.
Call list
Information about most recent calls.
To call a number from the call list
1From standby } Calls and select a tab.
2Scroll to the name or number to call }
Call.
To add a call list number to contacts
1From standby, } Calls and select a
tab.
2Scroll to the number to add } More }
Save Number.
3} New Contact to create a new
contact, or select an existing contact
to add the number to.
To clear the call list
} Calls and select the All tab } More }
Delete All.
Speed dial with pictures
Save numbers in positions 1-9 in your
phone to access them easily. Speed
dial is dependent on your default
contacts % 22 Default contact, for
example, you can speed dial numbers
saved on the SIM card.
If you add contacts with pictures to
speed dial positions, the contact
pictures appear for easy reference %
24 To add a picture or ringtone sound
to a phone contact.
To edit speed dial numbers
1} Contacts } Options } Speed Dial.
2Scroll to the position } Add or } More
} Replace.
To speed dial
From standby, enter the position
number } Call.
Voicemail
If your subscription includes an
answering service, callers can leave a
voicemail message when you cannot
answer a call.
Contact your network operator for your
voicemail number or for more informa-
tion.
26 Calling
This is the Internet version of the user’s guide. ©Print only for private use.
To call your voicemail service
Press and hold . If you have not
entered a voicemail number, } Yes
and enter the number.
To edit your voicemail number
} Messaging } Settings } Voicemail
Number.
Voice control
Manage calls with your voice by
creating voice commands to:
Voice dial – call someone by saying
their name.
Activate voice control by using the
Magic Word, a word or sentence
you choose.
Answer and reject calls using Voice
Answer feature and a portable or
vehicle handsfree.
Before voice dialing
Verify the contacts you want to
record are included in your phone
contacts % 22 Contacts
Activate the voice dialing function
and record your voice commands.
An icon appears next to a phone
number that has a voice command.
Tips when recording and using voice
commands
If your phone cannot detect your voice
command, one of the following might
have happened:
You spoke too softly – try speaking
louder.
You held the phone too far away –
hold it as you do during a call.
The voice command was too short –
it should be around one second
long and more than one syllable.
You spoke too late or too soon –
speak immediately after the tone.
You did not record the voice
command when the handsfree was
attached – for voice control with a
handsfree kit, record when the
handsfree is attached.
You used another intonation – use
the same intonation as in the
recorded voice command.
To activate voice dialing and
record names
Record names using the phone,
portable handsfree, or Bluetooth™
handsfree.
1} Settings } the General tab } Voice
Control } Voice Dialing } Activate }
Yes } New Voice Cmd. and select a
contact.
27Calling
This is the Internet version of the user’s guide. ©Print only for private use.
2If the contact has more than one
number, use and to view the
numbers. Select the number to add
the voice command to. Record a voice
command such as “John mobile”.
3Instructions appear. Wait for the tone
and say the command to record. The
voice command is played back to you,
if the recording quality is acceptable.
4If the recording sounds OK to you }
Yes. If not } No and repeat step 3.
To record another voice command for
a contact } New Voice Cmd. } Add
again and repeat steps 2-4 above.
Caller name
Hear your recorded contact name
when you receive a call from that
contact.
To turn the caller name on or off
} Settings } the General tab } Voice
Control } Play Caller Name.
Voice dialing
Start voice dialing from standby using
the phone, a portable handsfree, a
Bluetooth headset or by saying your
magic word.
To voice dial from the phone
1From standby, press and hold one of
the volume keys.
2Wait for the tone and say a recorded
name, for example “John mobile”. The
name is played back to you and the
call is connected.
To voice dial with a handsfree
1From standby, press and hold the
handsfree button, or press the
Bluetooth headset button.
2Wait for the tone and say a recorded
name, for example “John mobile”. The
name is played back to you and the
call is connected.
The magic word
Record and use a voice command as
a magic word to activate voice control
without pressing any keys. The magic
word can only be used with a wired
portable or vehicle handsfree.
Magic word is not supported by Blue-
tooth™ devices.
Choose a long, unusual word or phrase
that can easily be distinguished from
ordinary background speech.
28 Calling
This is the Internet version of the user’s guide. ©Print only for private use.
To activate and record the magic
word
1Attach vehicle or wired portable
handsfree device.
2} Settings } the General tab } Voice
Control } Magic Word } Activate.
3Instructions appear. } Continue. Wait
for the tone and say the magic word.
4}Yes to accept or } No to record a
new magic word.
5Instructions appear. } Continue and
select the environments in which your
magic word is to be activated.
Voice answering
Answer or reject incoming calls by
using a previously recorded
command, when using a vehicle or
wired portable handsfree.
To activate voice answering and
record voice answer commands
1} Settings } the General tab } Voice
Control } Voice Answer } Activate.
2Instructions appear. } Continue. Wait
for the tone and say “Answer”.
3} Yes to accept or } No for a new
recording.
4Instructions appear } Continue. Wait
for the tone and say “Busy”.
5} Yes to accept or } No for a new
recording.
6Instructions appear. } Continue and
select the environments in which voice
answering is to be activated.
To answer or reject a call using voice
commands
When the phone rings, say:
“Answer” to connect the call.
“Busy” to reject the call.
To edit contact name commands
1} Contacts and scroll to a contact.
2} More } Edit Contact and scroll to
the relevant tab and follow the
instructions.
To edit voice commands
1} Settings } the General tab } Voice
Control } Voice Answer } Edit
Commands.
2Select a command } More } Replace.
3Wait for the tone and say the
command.
Bluetooth™ devices do not support
magic word.
You can use a WAV (16 kHz), EMY or IMY
file as a ringtone with voice answering %
56 Ringtones and melodies.
29Calling
This is the Internet version of the user’s guide. ©Print only for private use.
Forwarding calls
Forward calls, for example, to an
answering service.
Your phone has the following options:
Always Forward – all calls.
When Busy – if a call is ongoing.
Not Reachable – if turned off or
unreachable.
No Reply – if not answered in a
specified time.
To activate a call forward
1} Settings } the Calls tab } Forward
Calls.
2Select a call type and forward option }
Activate.
3Enter the phone number to forward
your calls to, or press Lookup to find a
contact } OK.
To deactivate a call forward
Scroll to the forward option }
Deactivate.
More than one call
Handle more than one call
simultaneously.
Call waiting service
When this is activated you hear a beep
if you receive a second call.
To activate or deactivate the call
waiting service
} Settings } the Calls tab } Manage
Calls } Call Waiting.
To make a second call
1} More } Hold to hold the ongoing
call.
2Enter the number to call } More }
Call.
Receiving a second voice call
When you receive a second call, you
can:
} Answer and put the ongoing call
on hold.
} Busy to reject and continue with
the ongoing call.
} Replace Actve Call to answer and
end the ongoing call.
Handling two voice calls
If you have calls ongoing and on hold,
you can:
} More } Switch to switch between
the two calls.
} More } Join Calls to join the two
calls.
When the restrict call function is acti-
vated, some forward call options are not
available. % 31 Restricted dialing.
30 Calling
This is the Internet version of the user’s guide. ©Print only for private use.
} More } Transfer Call to connect
the two calls. You are disconnected
from both calls, operator-
dependent.
} End Call and } Yes to retrieve the
call on hold.
} End Call and } No to end both
calls.
You cannot answer a third call without
ending one of the first two calls or
joining them into a conference call.
Conference calls
Start a conference call by joining an
ongoing call and a call on hold. You
then put the conference on hold and
add up to five participants, or can
make another call.
To join the two calls into a
conference call
} More } Join Calls.
To add a new participant
1} More } Hold to put the joined calls
on hold.
2} More } Add Call and call the next
person to add to the conference call.
3} More } Join Calls.
4Repeat steps 1-3 to add more
participants.
To release a participant
} More } Release Party and select
the participant to release from the
conference call.
To have a private conversation
1} More } Talk to and select the
participant to talk to.
2} More } Join Calls to resume the
conference call.
Two voice lines
Make separate calls with different
phone numbers if your subscription
supports alternate line service.
To select a line for outgoing calls
} Settings } the Calls tab. Select line
1 or 2.
To change the name of a line
} Settings and use or to scroll to
the Display tab } Edit Line Names.
Select the line to edit.
My numbers
View, add and edit your own phone
numbers.
There may be additional charges for calls
involving multiple parties, contact your
network operator for more information.
31Calling
This is the Internet version of the user’s guide. ©Print only for private use.
To check your phone numbers
} Contacts } More } Options }
Special numbers } My Numbers and
select one of the options.
Accept calls
Only receive calls from certain phone
numbers. If the forward calls option
When Busy is activated, calls are
forwarded.
To add numbers to the accepted
callers list
} Settings and use or to scroll to
the Calls tab } Manage Calls }
Accept Calls } Only from List } Edit }
Add. Select a contact or } Groups %
33 Groups.
To accept all calls
} Settings } the Calls tab } Manage
Calls } Accept Calls } All Callers.
Restricted dialing
Restrict outgoing and incoming calls.
A password from your service provider
is required.
The following calls can be restricted:
All Outgoing – all outgoing calls.
Outgoing Intl – all outgoing
international calls.
Outg Intl Roam – all outgoing
international calls except to your
home country.
All Incoming – all incoming calls.
Inc. Whn Roaming – all incoming
calls when you are abroad.
Deactivate All - cancels all call
restrictions % 20 Networks.
To activate or deactivate a call
restriction
1} Settings } the Calls tab } Manage
Calls } Restrict Calls. Select an
option.
2Select Activate or Deactivate, enter
your password } OK.
Fixed dialing
The fixed dialing function allows calls
to be made to certain numbers saved
on the SIM card. The fixed numbers
are protected by your PIN2.
Partial numbers can be saved. For
example, saving 0123456 allows calls
If you forward incoming calls, you cannot
activate some restrict calls options.
You can still call the international emer-
gency numbers, 112 or 911, even when
the fixed dialing function is activated.
32 Calling
This is the Internet version of the user’s guide. ©Print only for private use.
to be made to all numbers starting
with 0123456.
To activate or deactivate fixed dialing
1} Contacts } More } Options }
Special numbers } Fixed Dialing and
select Activate or Deactivate.
2Enter your PIN2 } OK and then } OK
again to confirm.
To save a fixed number
} Contacts } More } Options }
Special numbers } Fixed Dialing }
Fixed Numbers } New Number and
enter the information.
Call time and cost
During a call, the duration of the call is
shown. You can check the duration of
your last call, outgoing calls and the
total time of your calls.
To check the call time
} Settings and use or to scroll to
the Calls tab } Time & Cost } Call
Timers.
Additional calling functions
Tone signals
Use telephone banking services or
control an answering machine with
tone signals during a call.
To use tone signals
Press - , or to
send tones.
} More } Disable Tones or Enable
Tones to turn the tones on or off
during a call.
Press to clear the screen after a
call.
Notepad
Use the screen as a notepad to enter a
phone number during a call. When you
end the call, the number remains on
the screen for you to call or save in
your contacts.
To call or save from the notepad
} Call to call the number or
} More } Save Number and select a
contact to save the number to or
} More } New Contact to create a
new contact to save the number to.
When fixed dialing is activated, you may
not be allowed to view or manage any
phone numbers saved on the SIM card.
Disable tones prior to using the notepad
to prevent them from sounding during
the call. % 32 To use tone signals.
33Calling
This is the Internet version of the user’s guide. ©Print only for private use.
Showing or hiding your number
If your subscription supports the
Calling Line Identification Restriction
(CLIR) service, you can hide your
phone number when making a call.
To always show or hide your phone
number
1} Settings } the Calls tab } Show/
Hide My No..
2Select Show Number, Hide Number
or Netwrk Default.
Groups
Create a group of numbers and email
addresses to send messages to
several recipients at the same time %
34 Messaging. You can also use
groups (with numbers) when you
create accepted callers lists % 31
Accept calls.
To create a group of numbers and
email addresses
1} Contacts } Options } Groups }
New Group } Add.
2Enter a name for the group }
Continue.
3} New } Add to find and select a
contact number or email address.
4Repeat step 3 to add more numbers
or email addresses. } Done.
Business cards
Add your own business card as a
contact.
To add your own business card
} Contacts } Options } My Business
Card and add information for your
business card } Save.
To send your business card
} Contacts } Options } My Business
Card } Send my Card and select a
transfer method.
34 Messaging
This is the Internet version of the user’s guide. ©Print only for private use.
Messaging
Text messaging, picture messaging,
voice messaging, email, My friends.
Your phone supports various
messaging services. Please contact
your service provider about the
services you can use, or for more
information, visit
www.sonyericsson.com/support.
Text messaging (SMS)
Text messages can contain simple
pictures, sound effects, animations,
and melodies. You can also create
and use templates for your messages.
Before you start
The number to your service center is
supplied by your service provider and
is usually set on the SIM card. If not,
you can enter the number yourself.
To set a service center number
1} Messaging } Settings } Text
Message } Service Center. If the
service center number is saved on the
SIM card it is shown.
2If there is no number shown } Edit }
New ServiceCenter and enter the
number, including the international “+”
prefix and country/region code }
Save.
Sending text messages
For information about entering letters
% 15 Entering letters.
To write and send a text message
1} Messaging } Write New } Text
Message.
2Write your message } Continue. (You
can save a message for later in Drafts
by pressing } Save Message.)
3} Contacts Lookup to retrieve a
number or a group from Contacts, or
} Enter Email Addr (if email gateway
is setup) or select from last used
recipients or } Enter Phone No. and
enter a number, or } Send.
To copy and paste text in a message
1When writing your message } More }
Copy & Paste.
If you send a text message to a group,
you will be charged for each member.
To send a message to an email address,
you need to set an email gateway
number, } Messaging } Settings } Tex t
Message } Email Gateway. The number
is supplied by your service provider.
35Messaging
This is the Internet version of the user’s guide. ©Print only for private use.
2} Copy all or } Mark & Copy and use
the navigation key to scroll and mark
text in your message.
3} More } Copy & Paste } Paste.
To insert an item in a text message
1When writing your message } More }
Add Item.
2Select an option and then an item, for
example, a picture.
Receiving text messages
When you receive a text message, it
appears in the activity menu if New
Events is set to Activity Menu. } View
to read the message % 17 Activity
menu.
If New Events is set to Popup, you are
asked if you want to read the text
message. } Yes to read the message
or } No to read it later. When you have
read the text message } More for
options or press to close the
message.
To call a number in a text message
Select the phone number displayed in
the message, } Call.
Saving and deleting text messages
Received text messages are saved in
the phone memory. When the phone
memory is full, delete messages or
move them to the SIM card to be able
to receive new messages. Messages
saved on the SIM card remain until
they are deleted.
To save a message
1} Messaging } Inbox and select the
message to save.
2} More } Save Message.
3} Saved Messages to save on the
SIM card or } Templates to save the
message as a template in the phone.
To save an item in a text message
1When reading a message, select the
phone number, picture or Web
address to save } More.
2} Use (the phone number you have
selected appears) } Save Number to
save the phone number or } Save
Picture to save a picture or } Save
Bookmark to save a bookmark.
To delete a message
1} Messaging and select a folder.
You can convert your text message to a
picture message. When writing your
message } More } To Picture Msg. and
continue creating a picture message, %
37 Picture messaging (MMS).
36 Messaging
This is the Internet version of the user’s guide. ©Print only for private use.
2Select the message to delete and
press .
To save or delete several messages
1} Messaging and select a folder.
2Select a message } More } Delete All
Msgs. to delete all messages in the
folder or } Mark Several scroll and
select messages by pressing Mark or
Unmark.
3} More } Save Message to save
messages or } Delete Messages to
delete messages.
Long messages
The number of characters allowed in a
text message depends on the
language used for writing. You can
send a long message by linking two or
more messages. You are charged for
each of the messages linked in a long
message. The recipient may not
receive all parts of a long message at
the same time.
To turn long messages on
} Messaging } Settings } Text
Message } Max. Msg. Length } Max.
Available.
Templates for text messages
Add a new template or save a
message as a template in your phone
% 35 To save a message.
To add a template
1} Messaging } Templates } New
Template } Text.
2Insert text } OK.
3Enter a title } OK.
To use a template
1} Messaging } Templates select a
template } Use } Text Message.
2Add text or } Continue and select a
recipient to send the message to.
Message options
Set a default value for several
message options or choose the
settings each time you send a
message.
To set default text message options
} Messaging } Settings } Text
Message and select the options to
change.
To set message options for a specific
message
1When the message is written and a
recipient is selected } More }
Advanced.
Check with your service provider for the
maximum number of messages that can
be linked.
37Messaging
This is the Internet version of the user’s guide. ©Print only for private use.
2Select an option to change } Edit and
select a new setting } Done.
To check the delivery status of a sent
message
} Messaging } Sent Messages and
select a text message } View } More
} View Status.
Picture messaging (MMS)
Picture messages can contain text,
pictures, camera pictures, slides,
sound recordings, signatures and
attachments. You can send picture
messages to a mobile phone or an
email address.
Before you start
Both you and the recipient must have
subscriptions that support picture
messaging.
If no Internet profile or message server
exists, you can receive all the settings
for MMS automatically from your
network operator or from
www.sonyericsson.com/support.
Before sending a picture message,
you can check:
The address of your message server
and an Internet profile are set }
Messaging } Settings } Picture
Message } MMS Profile and select a
profile. } More } Edit } Message
Server and } More } Edit } Internet
Profile.
To create and send a picture
message
1} Messaging } Write New } Picture
Message. Use the navigation key to
scroll to a list of items (for example,
pictures and sounds), to add to your
message. Select an item.
2Use the navigation key to scroll to
additional items to add to the
message. For specific item options,
select the item } More again.
3When ready to send } Continue.
4} Enter Email Addr or } Enter Phone
No. or } Contacts Lookup to retrieve
a number or group in Contacts or
select from last used recipients }
Send.
To set default picture message
options
} Messaging } Settings } Picture
Message and select options to
change.
When writing and editing picture mes-
sages you can use the copy and paste
functionality % 34 To copy and paste
text in a message.
38 Messaging
This is the Internet version of the user’s guide. ©Print only for private use.
Additional send options
Request a read report, a delivery
report, and set a priority for a specific
message. You can also add more
recipients to the message.
To select additional send options
1When the message is created and a
recipient is selected } More.
2} Add Recipient to add another
recipient or } Edit Recipients to edit
and add recipients. } Edit Subject to
change the message subject or }
Advanced for more send options.
Receiving picture messages
Select how to download your picture
messages and how to save items that
you receive in picture messages.
To set automatic download
} Messaging } Settings } Picture
Message } Auto Download to view
and select one of the following:
Always – automatic download.
Ask in Roaming – ask to download
when not in home network.
Not in Roaming – do not download
when not in home network.
Always Ask – to download.
Off – new messages appear in the
Inbox. Select the message and }
View to download.
To receive picture messages
When you receive an automatically
downloaded picture message, it
appears in the activity menu if New
Events is set to Activity Menu. } View
to read the message.
If New Events is set to Popup, you are
asked if you want to read the picture
message, } Yes to read or play.
} Stop to stop playing or reading,
} Reply or
} More to view options.
Press to close the message.
To save an item in a picture message
When viewing a picture message }
More } Save Items and select an item
to save from the list that appears.
Delete picture messages
Picture messages are saved in the
phone memory. When phone memory
is full, you must delete messages to
be able to receive new messages.
Select a message and press to
delete.
Templates for picture messages
Add a new template or use a pre-
defined template.
39Messaging
This is the Internet version of the user’s guide. ©Print only for private use.
To add a template
1} Messaging } Templates } New
Template } Picture Message.
2To add new items (pictures, sounds,
and so on), use the navigation keys to
scroll to the options.
3} Save, enter a title } OK to save the
template.
To use a template
1} Messaging } Templates and select
a template from the list } Use to use
the template as it is or } More } Edit
Template to edit the template, } Save,
enter a title } OK to save the changes.
2} Continue and select a recipient to
send the message to or select a
template from the list } Use }
Continue if the template is edited.
3Select from Text Message, Picture
Message, or Email.
Voice messages
Send and receive a sound recording
as a voice message.
To record and send a voice message
1} Messaging } Write New } Voice
Message.
2Record your message. } Stop to end.
3} Send to send the message.
4} Enter Email Addr for an email
recipient or } Enter Phone No. for a
recipient phone number or } Contacts
Lookup for a number or group in
Contacts or select from last used
recipients } Send.
Receiving voice messages
When you receive an automatically
downloaded voice message, the voice
message appears in the activity menu
if New Events is set to Activity Menu.
} Play to listen to the message.
If New Events is set to Popup, you are
asked if you want to listen to the voice
message. } Yes to play the message
or } No if you want to play the
message later. When you have
listened to the voice message } More
to view a list of options. Press to
close the message.
Email
Read your email messages in your
phone at any time. Write a message,
attach a camera picture or sound
recording and send it to your friends
or colleagues. You can also reply to
and forward emails in your phone, just
as you can on your computer.
The sender and receiver must have a
subscription supporting picture messag-
ing.
40 Messaging
This is the Internet version of the user’s guide. ©Print only for private use.
The email address that you use on
your computer can also be used in
your phone. To do this, your phone
needs the same email settings as used
by your computer for email address.
To use your computer email address
in your phone, do one of the following:
Receive settings automatically
The easiest way is to have settings
sent directly to your phone. Use
Internet on your computer to go to
www.sonyericsson.com/support.
Enter settings manually
Ask your email provider for settings
information. An email provider is the
person or company who provided
your email address, for example,
your IT administrator at work or an
Internet provider, or
you may have a document at home
from your email provider with the
settings information, or
you may find the information in your
computer email program settings.
What information do I need?
The minimum you need is the
following:
Help in your phone
There are also setup instructions and
help information as you enter settings.
To enter email settings
1} Messaging } Email } Settings.
2After settings are entered, } Inbox }
More } Snd&Rec to access your
email.
When settings are entered, your
phone can connect to an email server
to send and receive email messages.
Setting types Examples
Email Address joe.smith@example
.com
Connection Type POP3 or IMAP4
Incoming Server mail.example.com
Username jsmith
Password zX123
Outgoing Server mail.example.com
There are many different email providers.
Their terminology and required informa-
tion may differ. Not all service providers
allow email access.
41Messaging
This is the Internet version of the user’s guide. ©Print only for private use.
For more information, contact your
email provider or see the User guide
with additional information at
www.sonyericsson.com/support.
To create an email account
1} Messaging } Email } Settings }
New Account } Add.
2Enter a name for the account } OK.
For help } Setup Instructions or press
to a setting } Info.
3Press to a setting and enter the
following minimum required settings:
Email Alert and select the alert
sound for new messages.
Connect Using and select a data
account (provided by your network
operator, } Info).
Email Address, enter your email
address.
Connection Type (POP3 or IMAP4).
Incoming Server, enter the server
name.
Username, enter the username for
the email account.
Password, enter the password for
the email account.
Outgoing Server, enter the server
name.
To enter advanced email account
settings (optional in most cases)
1} Messaging } Email } Settings.
2Select an account to edit } More }
Edit Account } Advanced Settings.
3Press to select and enter settings, if
required by your email provider, for
example, Check Interval.
To receive and read email messages
1} Messaging } Email } Inbox }
Send&Rec when the inbox is empty or
} Messaging } Email } Inbox } More
} Snd&Rec to download new
messages. This also sends any
messages in the outbox.
2Select a message in the inbox } View
to read it.
To write and send an email message
1} Messaging } Email } Write New.
2} Add to enter the recipient field }
Enter Email Addr to type an email
address } OK or } Contacts Lookup
to select a recipient from Contacts }
Select or select an email address from
last used recipients } Select.
3} Edit to enter the recipient field (after
one is added) to add more recipients
select To, Cc or Bcc and select
recipients to add. When you have
selected recipients } Done.
4Press to select the subject field,
type an email subject } OK. To edit
the subject } Edit.
42 Messaging
This is the Internet version of the user’s guide. ©Print only for private use.
5Press to select the text field, write
your message } OK. To edit the
message } Edit.
6Press to select the attachment
field. } Add and choose the
attachment type to add } Select to
select the attachment to add } Add to
add more attachments.
7} Continue } Send or More } Save in
Outbox to save and send later.
To save an email message
1} Messaging } Email } Inbox.
2Select a message } More } Save
Message } Saved Email.
To reply to an email message
1Select the message in the inbox to
reply to } More } Reply or open the
message } Reply.
2} Include Message to include the
original message in your reply or } No
to exclude the original message from
your reply.
3Write your message in the text field }
OK. To edit the message } Edit.
4} Continue } Send.
To view or save an attachment in an
email message
View a message } More }
Attachments } View to view the item
or Save to save the item.
Active email account
If you have several email accounts,
you can change which one is active.
To change the active email account
} Messaging } Email } Settings and
select an account.
Push email
Receive a notification in your phone
from your email server that you have
new email, if supported by your email
provider.
To turn on push email notification
When using send & receive, } Yes to
turn on, if required or
} Messaging } Email } Settings.
Select an account to edit } More }
Edit Account } Advanced Settings }
Push Email and select an option.
To delete an email message (POP3)
1} Messaging } Email } Inbox } More.
When writing and editing email mes-
sages you can use the copy and paste
functionality % 34 To copy and paste
text in a message.
43Messaging
This is the Internet version of the user’s guide. ©Print only for private use.
2} Mrk for Deletion or } Mark Several
} Mark or Unmark.
To delete an email message (IMAP4)
1} Messaging } Email } Inbox } More.
2} Mrk for Deletion or } Mark Several
} Mark or Unmark.
3} More } Clear Inbox to delete
messages.
My friends
Connect and log in to the My friends
server to communicate online with
your favorite friends. If your
subscription supports instant
messaging and presence services,
you can send and receive messages
and see contact status if online. If no
settings exist in your phone, you need
to enter server settings.
To enter server settings
1} Messaging } My Friends }
Configure.
2Add username, password, server
information and select an Internet
profile to use. This information is
supplied by your service provider.
To log in to your My friends server
} Messaging } My Friends } Log In.
To log out
} More } Log Out.
To add a contact to the list
} Messaging } My Friends } the
Contacts tab } More } Add Contact.
To send a chat message from My
friends
1} Messaging } My Friends } the
Contacts tab and select a contact
from the list.
2} Chat and type your message }
Send.
Status
Show your status to your contacts
only or show it to all users on the My
friends server.
To set status
1} Messaging } My Friends } More }
Settings and select Show My Status.
Marked messages will be deleted when
you next connect to your server.
All messages marked for deletion in the
phone and on the server will be deleted.
Contact your service provider for more
information.
You can also continue a chat conversa-
tion from the Conversations tab.
44 Messaging
This is the Internet version of the user’s guide. ©Print only for private use.
2} To All or Only to Contacts } Select.
To change your own status
} Messaging } My Friends } the My
Status tab and update your status
information. Use or to scroll
between status fields.
Chat group
A chat group can be started by your
service provider, by an individual My
friends user or by yourself. You can
save chat groups by saving a chat
invitation or by searching for a specific
chat group.
To start a chat group
1} Messaging } My Friends } the Chat
Groups tab } More } Add Chat Group
} New Chat Group.
2Select who to invite to the chat group
from your contacts list } Continue.
3Enter a short invitation text } Continue
} Send.
To add a chat group
1} Messaging } My Friends } the Chat
Groups tab } More } Add Chat
Group.
2} By Group ID to enter chat group ID
directly or } Search to search for a
chat group.
To save a conversation
} Messaging } My Friends } the
Conversations tab and open a
conversation } More } Save
Conversation.
To view a saved conversation
} Messaging } My Friends } the
Conversations tab } More } Saved
Conv..
To view watching users
} Messaging } My Friends } the
Contacts tab } More } Watching
Users. A list of users on the My friends
server watching your status
information appears.
To view or edit settings
} Messaging } My Friends } More }
Settings and select an option:
Show My Status:
Sort Contacts:
Chat alert:
Server settings:
Conversation history is preserved
between log out and log in to let you
return to chat messages from previous
conversations.
45Messaging
This is the Internet version of the user’s guide. ©Print only for private use.
Auto Login:
Allow Connection:
Area and cell information
Information messages may be sent to
network subscribers within a certain
area or cell.
To turn information on or off
} Messaging } Settings } Area Info }
Reception or Cell Information.
Contact your service provider for more
information.
46 Imaging
This is the Internet version of the user’s guide. ©Print only for private use.
Imaging
Camera, pictures, PhotoDJ™.
Camera and video recorder
Your phone has a digital camera
which also works as a digital video
recorder. You can take pictures,
record video clips, save and view
them and send them as email
attachments or in picture messages
via picture messaging.
Before you start
The receiving phone needs to support
data transmission and picture
messaging in order to receive and
show the picture or video clip.
Before you send a picture or video clip
using picture messaging make sure
you have set the address of your
message server for picture
messaging, % 37 Picture messaging
(MMS) and that Internet settings are
entered in your phone, % 67 Settings.
Before you send a picture or video clip
using email make sure you have
entered settings for a data account
and for an email account in your
phone, % 39 Email.
To take pictures and video clips
1Press and hold to start the
camera.
2Press again or press to take
the picture or start the video.
3To end video recording, press again.
To switch between video and photo
Press or .
If you try to record with a strong light
source such as direct sunlight or a lamp
in the background, the screen may black
out or the picture may be distorted.
47Imaging
This is the Internet version of the user’s guide. ©Print only for private use.
To use the zoom
Use the up and down navigation key
to zoom in and zoom out.
To adjust brightness
Use the volume keys to increase or
decrease brightness.
Camera and video options
When the camera or video is activated
} More for the following options:
View All Pictures (camera)
Shoot Mode (camera):
Normal – no frame.
Burst – take four pictures in rapid
succession.
Panorama – join several pictures
into one.
Frames – add a frame to your
picture.
Shoot Mode (video): For Picture Msg
or High-quality video.
Picture Size (camera) – select from:
2 MP (1600 x 1200)
1 MP (1280 x 960)
VGA (640 x 480)
Night Mode – adapt to poor lighting
conditions.
Self-Timer (camera) – take a picture a
few seconds after pressing the
camera button.
Effects –select from:
Off – no effect.
Black & White – no color.
Negative – reversed colors.
Sepia – brown tint.
White Balance – adjust colors to
lighting conditions. Select from Auto,
Daylight, Cloudy, Fluorescent or
Incandescent.
Picture Quality (camera): Normal or
Fine picture quality.
Turn Off Mic. (video) – set
microphone.
Shutter Sound (camera) – select
different shutter sounds.
Time and Date (camera) – add time
and date to a picture to appear as red
text in the lower right corner. View in
1:1 size or use zoom when viewing a
picture to see the text.
Reset File No. – reset the file number
counter.
Save To – select to save to Memory
Stick or Phone Memory.
Transferring pictures
Transfer to your computer
Using the USB cable, you can drag
and drop camera pictures to a
computer % 76 Transferring files using
the USB cable.
48 Imaging
This is the Internet version of the user’s guide. ©Print only for private use.
To further enhance and organize
camera pictures on a computer,
Windows® users can install Adobe™
Photoshop™ Album Starter Edition,
included on the CD with phone or visit
www.sonyericsson.com/support.
Blog on the Internet
Send pictures to publish in a blog if
your subscription supports it.
To send camera pictures to a blog
1When viewing a picture you have just
taken } More } To Blog.
2Follow the instructions that appear for
first-time use, for example, approve
terms and conditions.
3Add title and text } OK } Publish to
send a picture to your blog.
A text message is sent to your phone
with your Web address and log-in
information. You can forward the text
message for others to access your
Web page photos.
To visit a blog address in a contact
} Contacts and select a contact Web
address } Go to.
Pictures and video clips
View and use pictures and video clips.
Handling pictures
View, add, edit or delete pictures in
the file manager. The number of
pictures you can save depends on the
size of the pictures. File types
supported are, for example, GIF,
JPEG, WBMP, BMP, PNG and SVG-
Tiny.
To view and use pictures
1} File Manager } Pictures or Camera
Album.
2Select a picture } View or } More }
Use as and select an option.
To display pictures in a slide show
1} File Manager } Pictures and select
a picture.
2} View } More } Slide Show.
Using pictures
You can use a picture for several
purposes, for example, add it to a
contact, use it in the start-up screen,
or use it as a screen saver. The screen
saver is activated automatically when
Web services may require a separate
license agreement between you and the
service provider. In some locations,
additional regulations and/or charges
may apply. For more information, con-
tact your service provider.
49Imaging
This is the Internet version of the user’s guide. ©Print only for private use.
the phone has been in idle mode for a
few seconds. After a few more
seconds, the screen saver changes to
sleep mode, to save power. Press any
key on the keypad and the screen
turns on again. If you have a picture as
wallpaper, this picture is shown in
standby mode. You can select
wallpaper both for the screen and for
the external display.
PhotoDJ™
When editing pictures press and
to navigate the menus.
To edit and save a picture
1}File Manager }Pictures and scroll
to the picture you want }View.
2}More }Edit In PhotoDJ™. Some
pictures you have taken with the
camera can be edited.
3}More }Save Picture to save a
picture.
Exchanging pictures
You can exchange pictures using one
of the available transfer methods.
Please note that you are not allowed
to exchange some copyright-
protected material. For more
information on pictures in messages
% 34 Messaging.
To save a picture in a message
% 35 To save an item in a text
message or % 38 To save an item in a
picture message or % 42 To view or
save an attachment in an email
message.
Saving pictures and video clips
When you have taken a picture or
recorded a video clip, the phone saves
it in the phone memory or on a
Memory Stick Micro™ (M2™), if
inserted.
If the phone memory or Memory Stick
Micro™ (M2™) is full, you cannot save
any more pictures or video clips
unless you delete or move files % 17
File manager.
Sending pictures and video clips
When you have taken a picture or
recorded a video clip, you can send it
as a picture message if the file size
has not exceeded the limit. To
exchange pictures and video clips
using other transfer methods % 49
Exchanging pictures.
An animation of more than 1MB set as
wallpaper may affect performance.
50 Entertainment
This is the Internet version of the user’s guide. ©Print only for private use.
To send a saved picture
} File Manager } Pictures and scroll
to the picture you want. } More }
Send and select a transfer method.
To use more video clip or picture
options
Record a video clip or take a picture }
More and select an option, for
example, to take a new picture.
Transferring pictures to your
computer
Using the USB cable, you can drag
and drop camera pictures to a
computer % 76 Transferring files using
the USB cable.
Entertainment
Handsfree, Walkman®, radio,
PlayNow™, MusicDJ™, VideoDJ™,
themes, games and more.
Stereo portable handsfree
To use the handsfree
Connect the stereo portable handsfree
to your phone to use it for calls,
listening to music, or the radio. If you
receive a call and are playing music,
music stops for you to answer. Music
Some phones do not support pictures
sizes more than 160x120. On a compu-
ter, view size 2048x1536. Please adjust the audio volume cau-
tiously when using third-party audio
accessories to avoid volume levels that
may be harmful to your hearing. Sony
Ericsson does not test use of third-party
audio accessories with this mobile
phone. Sony Ericsson recommends
using only Sony Ericsson original audio
accessories.
51Entertainment
This is the Internet version of the user’s guide. ©Print only for private use.
resumes when the call is ended or
rejected.
Walkman® player
The Walkman® player supports a
variety of formats. The following file
types are supported: MP3, MP4, 3GP,
AAC, AAC+, AMR, IMY, EMY and
WAV (16 kHz maximum sample rate).
To transfer files with the provided
USB cable % 76 Transferring files
using the USB cable.
Walkman® player controls
Use the Walkman® with the phone
open or closed.
Phone closed
Press to turn the Walkman® on
or off.
Press to go to the next song.
Press to go to the previous song.
Press and hold or to fast
forward or rewind.
Press to minimize or maximize
Walkman®.
Phone open
Press to open or minimize the
Walkman® player during playback.
Press Stop to pause the playback.
Press Play to resume play.
Press to go to the next song.
Press to go to the previous song.
Press and hold or to fast forward
or rewind when playing songs.
Press or to view and scroll files
in the current playlist during playback.
Press Play to select a highlighted file
in a list.
When in Now Playing, press to
go to the Walkman® player browser.
Press and hold to exit.
To play music
1} WALKMAN. The Walkman® player
browser opens.
2Browse for songs by artist or track, or
in playlists. Select a list } Open.
3Highlight a title } Play.
Browsing files
Browse songs in lists:
Artists – lists songs on your phone
by artist name.
AMR files are only visible and possible to
play with the Walkman® player if they are
copyright protected. However, you can
listen to other AMR files, using the file
manager.
Your computer needs to have one of the
following operating systems to be able to
use Disc2Phone: Windows® 2000 SP3/
SP4, XP Home SP1/SP2 or XP Profes-
sional SP1/SP2.
52 Entertainment
This is the Internet version of the user’s guide. ©Print only for private use.
Tracks – lists all songs on your
phone by title.
Playlists – create or play your own
lists of songs.
Playlists
To organize the media files that are
saved in the File Manager, you can
create playlists. Files in a playlist can
be sorted by artist or title. You can
add a file to more than one playlist.
When you delete a playlist or a file
from the playlist, the actual song file is
not deleted from the memory, just the
playlist reference to it. You can still
add the file to another playlist.
To create a playlist
1} WALKMAN } Playlists } New
Playlist } Add. Enter a name } OK.
2Select from the files that are available
in the File Manager. You can add
several files at a time and you can also
add folders. All files in the selected
folders will be added to the playlist.
To add files to a playlist
1} WALKMAN } Playlists select a
playlist } Open } More } Add Media.
2Select from the files that are available
in the File Manager.
To remove files from a playlist
1} WALKMAN } Playlists select a
playlist } Open.
2Select the file and press .
To delete a playlist
} WALKMAN } Playlists select a
playlist and press .
Walkman® player options
} More for options:
Now Playing – go to the Now
Playing view.
Add Media add files or folders to
the playlist.
Information – view information
about the current file.
Sort by – sort by artist or title.
Delete – remove a file from the
playlist. In user-created playlists
only the reference to the file is
removed. In the Tracks list, the file
is permanently deleted from the
memory.
Minimize – minimize the Walkman®
player and return to standby with
the music still playing.
Rename – rename user-created
playlists.
Delete Playlist – delete user-
created playlists. Files are not
deleted from File Manager.
53Entertainment
This is the Internet version of the user’s guide. ©Print only for private use.
Play Mode – change the playback
order of songs. Select Shuffle to
play the playlist files in random
order, or Loop to restart the playlist
when the last file has been played.
Equalizer – change treble and bass
settings.
Stereo Widening – Turn on or off.
Send – send a song.
Online music
Listen to music by streaming them to
your phone from the Internet. If
settings are not already in your phone
% 67 Settings. For more information,
contact your network operator or visit
www.sonyericsson.com/support.
To select a data account for
streaming
} Settings } the Connectivity tab }
Streaming Settings and select the
data account to use.
To stream video and audio
1} Internet } More } Go to } Enter
Address.
2Enter or choose the address to a Web
page and select a link to stream from.
3Video files open in the Video player.
Music files open in the Media player.
To stream saved music and videos
} Internet } More } Go to }
Bookmarks.
Select a link to stream. Video files
open in the Video player. Music files
open in the Media player.
Transferring music
Disc2Phone computer software and
USB drivers are included on the CD
that comes with your phone. Use
Disc2Phone to transfer music from
CDs or your computer to your phone
memory or Memory Stick Micro™
(M2™) in your phone.
To install Disc2Phone
1Turn on your computer and insert the
CD that comes with your phone. The
CD starts automatically and the
installation window opens.
2Select a language and click OK.
3Click Install Disc2Phone and follow the
instructions. During installation, you
can choose to have a Disc2Phone icon
appear on the desktop.
To use Disc2Phone
1Connect your phone to a computer
with the USB cable that comes with
your phone % 76 Transferring files
using the USB cable.
54 Entertainment
This is the Internet version of the user’s guide. ©Print only for private use.
2Computer: If the Found New
Hardware Wizard appears, click
Cancel to exit the wizard.
3Phone: If your phone is turned off, it
automatically sets to File Transfer. If
your phone is turned on, } File
Transfer in the pop-up. Your phone
will turn off and prepare for file
transfer.
4Start Disc2Phone by double-clicking
the icon on the computer desktop or
through the Start menu.
5For details on transferring music,
please refer to Disc2Phone Help. Click
in the top right corner of the
Disc2Phone window.
6You can obtain CD information (artist,
track, etc.) via Disc2Phone if you are
connected to the Internet while
extracting music from a CD.
More information about moving files to
your phone is available at
www.sonyericsson.com/support.
Radio
Listen to FM radio with RDS (Radio
Data System) functionality. You must
connect the handsfree to your phone
as it works as an antenna. The radio
can also be used as an alarm signal %
79 Alarms.
To listen to the radio
Connect the handsfree to your phone
} Entertainment } Radio.
Radio control
Use the radio with the phone open or
closed.
} Entertainment } Radio } Search to
find a broadcasting frequency.
Press or to move 0.1MHz.
Press or to select preset
channels.
} More to view options.
Press to turn radio on or off.
Press to move tuner forward to
the next available station.
Do not remove the USB cable from the
phone or computer during transfer, as
this may corrupt the Memory Stick and
the phone memory. You cannot view the
transferred files in your phone until you
have removed the USB cable from the
phone.
For safe disconnection of the USB cable
in File Transfer mode, right-click on the
Removable Disk icon in Windows
Explorer and select Eject.
Do not use the phone in areas where
mobile phones are prohibited, % 94 Effi-
cient use.
55Entertainment
This is the Internet version of the user’s guide. ©Print only for private use.
Press to move tuner backward
to the next available station.
Press to minimize or maximize
the radio.
Saving radio channels
Save up to 20 preset channels.
To save radio channels
} Entertainment } Radio } More } Set
Frequency } Save or press and hold
- to save in positions 1 to
10.
To select radio channels
Use the navigation key or press -
to select a saved channel in
positions 1 to 10.
Radio options
} More for the following options:
Turn Off turn off the radio.
TrackID – Search the Web for the
artist, song name, and album
currently playing. Additional
charges may apply. Check with your
service provider for more
information.
Save – save the current frequency
in a position.
Channels – select, rename, replace
or delete a preset channel.
Auto Save – save tuned channels in
positions 1 to 20. Previously saved
channels are replaced.
Turn On Speaker – use the
loudspeakers.
Set Frequency – enter a frequency
manually. Press to go directly
to Set Frequency.
RDS – set options for alternative
frequency (AF) and station
information.
Turn On Mono – turn on mono
sound.
Minimize return to standby to use
other functions while listening.
PlayNow™
Listen to music before you purchase
and download it to your phone.
Before you start
If required settings are not in your
phone % 67 Settings.
This function is network- or operator-
dependent. Contact your network opera-
tor for information about your subscrip-
tion and PlayNow™. In some countries
you may be able to purchase music
tones from some of the world’s top musi-
cal artists.
This service is not available in all coun-
tries.
56 Entertainment
This is the Internet version of the user’s guide. ©Print only for private use.
To listen to PlayNow™ music
} PlayNow™ and select music from a
list.
Downloading from PlayNow™
The price appears when you select to
download and save a song. Your
phone bill or prepay card is debited
when a purchase is accepted. Terms
and conditions are also provided in
the phone kit.
To download a song
1When you have listened to a song
preview, you can agree to accept the
conditions } Yes to download or not.
2A text message is sent to confirm
payment and the file is made available
to download. Music is saved in File
Manager } Music.
Ringtones and melodies
You can exchange music, sounds and
tracks, for example, using one of the
available transfer methods.
To select a ringtone
} Settings } and scroll to the Sounds
& Alerts tab } Ringtone.
To turn the ringtone on or off
Press and hold from standby or }
Settings } the Sounds & Alerts tab for
more options. All signals except the
alarm signal are affected.
To set ringtone volume
1} Settings } and scroll to the Sounds
& Alerts tab } Ring Volume and press
or to decrease or increase the
volume.
2} Save.
To set the vibrating alert
} Settings } the Sounds & Alerts tab
} Vibrating Alert and select an option.
Sounds and alerts options
From Settings } the Sounds & Alerts
tab, you can also set:
Message Alert – select how to be
notified of an incoming message.
Key Sound – select what sound to
hear when you press the keys.
MusicDJ™
Compose and edit your own melodies
to use as ringtones. A melody consists
of four types of tracks – Drums,
Basses, Chords, and Accents. A track
contains a number of music blocks.
The blocks consist of prearranged
You are not allowed to exchange some
copyright-protected material. A pro-
tected file has a key symbol.
57Entertainment
This is the Internet version of the user’s guide. ©Print only for private use.
sounds with different characteristics.
The blocks are grouped into Intro,
Verse, Chorus, and Break. You
compose a melody by adding music
blocks to the tracks.
To compose a melody
1} Entertainment } MusicDJ™.
2} Insert, Copy or Paste blocks. Use
, , or to move between the
blocks. Press to delete a block. }
More to view more options.
To edit a MusicDJ™ melody
} File Manager } Music and select the
melody } More } Edit.
Exchanging MusicDJ™ melodies
Send and receive melodies using one
of the available transfer methods. You
are not allowed to exchange
copyright-protected material.
To send a melody
1} File Manager } Music and select a
melody.
2} More } Send and select a transfer
method.
To receive a melody via a transfer
method
Select a transfer method and follow
the instructions that appear.
VideoDJ™
Compose and edit your own video
clips by using video clips, pictures and
text. You can also use trim away parts
of a video clip to shorten it.
To create a video clip
1} Entertainment } VideoDJ™.
2} Add } Picture, Video Clip, Text or
Camera } Select.
3To add more items press } Add.
To edit a selected video clip
} Edit for options:
Trim – to shorten the video clip.
Add Text – to add text to the video
clip.
Delete – to remove the video clip.
Move – to move the video clip to
another position.
Copy – to copy and paste the video
clip.
To edit a selected picture
} Edit for options:
Duration – to select the display time
for the picture.
You cannot send a polyphonic melody or
an MP3 file in a text message.
58 Entertainment
This is the Internet version of the user’s guide. ©Print only for private use.
Delete – to remove the picture.
Move – to move the picture to
another position.
Copy – to copy and paste the
picture.
To edit a selected text
} Edit for options:
Edit Text – to change the text.
Colors – and select Background to
set background or Text Color to set
font color.
Duration – to select the display time
for the text.
Delete – to remove the text.
Move – to move the text to another
position.
Copy – to copy and paste the text.
VideoDJ™ options
} More for options:
Play – to view the video clip.
Send – to send the video clip.
Soundtrack – to add a soundtrack
to the video clip.
Transitions – to set transitions
between video clips, pictures and
text.
Save – to save the video clip.
Insert – to insert a new video clip,
picture or text.
New Video – to create a new video
clip.
To edit video clips in the file manager
1} File Manager } Videos } Open and
select file.
2} More } VideoDJ™ } Edit.
Sending video clips
You can send a video clip using one of
the available transfer methods. Short
video clips can be sent using picture
messaging. If a video clip is too long,
you can use the trim function to make
a video clip shorter.
To trim a video clip
1Select a video clip from the storyboard
} Edit } Trim.
2} Set to set the start point and } Start.
3} Set to set the end point and } End.
4Repeat steps 2 and 3 or } Done.
Sound recorder
With the sound recorder, you can
record, for example, a voice memo or
calls. Recorded sounds can also be
set as ringtones. Recording of a
conversation is stopped if a
participant ends the call. Recording of
59Entertainment
This is the Internet version of the user’s guide. ©Print only for private use.
all sounds stops automatically if you
receive a call.
To record a sound
1} Entertainment } Record Sound.
2Wait until you hear a tone. When the
recording starts, Recording and a
timer appear.
3} Save to end, } Play to listen or }
More for options: Record New, Send,
Rename, Delete, Recorded Sounds.
To listen to a recording
} File Manager } Music and select a
recording } Play or } Stop.
Games
Your phone contains several games.
You can also download games and
applications directly to the folders in
your phone. Help texts are available
for most games.
To start and end a game
1} Entertainment } Games, select
game } Select.
2Press and hold to end the game.
Applications
Download and run Java™
applications, for example, to use a
service. You can view information or
set different permission levels.
To download a Java application
1Visit www.sonyericsson.com/fun or
your service provider’s Web site for
Java games or applications.
2Select a game or an application and
download according the Web site
instructions.
3To accept the download, } Yes.
4} Minimize or Cancel during
download, if desired.
5Select the folder you want to save and
install the application in.
6Select Yes to begin installation or No
to abandon the installation.
To view options for Java
applications
1Highlight a game or application.
2} More for options:
Move to Folder – Move the
application to a different folder.
Move to M.S. – Transfer the
application to the memory stick.
In some countries or states it is required
by law that you inform the other person
before recording the call.
All options may not be available for all
applications.
60 Fitness application
This is the Internet version of the user’s guide. ©Print only for private use.
Delete – Delete the application.
Permissions – View or change the
permissions of the application.
Screen Size – Change the screen
size of the application. Some Java
applications are designed for a
specific screen size. For more
information, contact the application
vendor.
Screen Saver – Use the application
as a screen saver.
Information – View information
about the application.
Fitness application
Step counter, arm strap, laps, speed,
advanced calibration, fitness options.
Use the Fitness application to
enhance your everyday training. Keep
track of your personal performance
such as distance, speed, step count
and calories burnt.
Before you start
Phone must be correctly mounted on
your arm or on your hip to use all
functions in the Fitness application.
Mounting and releasing the phone
Mount the phone to your hip or arm by
using the included belt clip and
adjustable arm strap.
Release the phone from the belt clip
after finishing your training session.
Information provided by use of Fitness
applications is approximate. Sony Erics-
son makes no warranty of any kind with
respect to the accuracy of the Fitness
applications. Any serious health and fit-
ness concerns should be referred to a
health care professional.
61Fitness application
This is the Internet version of the user’s guide. ©Print only for private use.
To mount the phone to your arm
1Attach the belt clip to the arm strap by
sliding it until it clicks into place.
2Mount the arm strap to your arm.
3Place the phone in the holder of the
belt clip.
4Press the top of the phone against the
holder until it clicks into place.
To mount the phone to your hip
1Mount the belt clip to your belt or
waistband.
2Place the phone in the holder of the
belt clip.
3Press the top of the phone against the
holder until it clicks into place.
To release the phone from the belt
clip
1Press the catch on top of the belt clip
to release the phone from the holder.
2Remove the phone from the belt clip.
12
34
1 2 3
12
62 Fitness application
This is the Internet version of the user’s guide. ©Print only for private use.
Function keys
Walking
The walking function counts the
number of steps taken during the day
and calculates the total distance
covered. The step count icon ( )
indicates steps.
Turning the step count on or off
The step count is turned on by default
and tracks the number of steps when
the phone is closed.
To turn on the step count
} Fitness } Settings } Step Count }
On.
To turn off the step count
} Fitness } Settings } Step Count }
Off.
Resetting the step count
The step count automatically resets
every midnight % 83 Time and date.
You can also reset the step count
manually for the current day.
To reset the step count
} Fitness } Walking } Reset } Yes.
Running
The running function measures the
distance, time and speed of a session.
Get a higher accuracy on the distance
traveled by entering personal data or
calibrating the phone via advanced
calibration. Enable the calculation of
1New lap
2Toggle view
3Resume/pause measuring
4Toggle application
For more information on keys and
navigation, % 12 Navigation.
The step count function will only record
data when the phone is closed.
1
2
3
4The step counter does not begin record-
ing until you have run or walked for eight
continuous steps.
63Fitness application
This is the Internet version of the user’s guide. ©Print only for private use.
burned calories by entering personal
data % 65 Personal data.
Start a running session
Prepare to attach the phone to your
hip or arm before you start a running
session % 60 Mounting and releasing
the phone.
To start a running session
1} Fitness } Running } Start.
2Close the phone.
3Place the phone in the holder of the
belt clip.
4Press the top of the phone against the
holder until it clicks into place.
5Start running after the final countdown
sound.
Running session options
Use the following options after starting
a running session.
Press to begin a new lap.
Press to toggle between views in
the Fitness application.
Press to resume or pause the
Fitness application.
Press to toggle between active
applications and standby mode.
Press and hold to view help
texts.
Stop a running session
Release the phone from the belt clip
when you have finished a running
session % 60 Mounting and releasing
the phone.
To stop a running session
Open the phone and press Stop.
Options when the running session is
stopped:
} Results to view results for the
current session % 66 Results.
} Run again to start a new session.
Press to enter the main menu.
Press and hold to exit the Fitness
application and return to standby.
Training setup
The lap distance, lap time, number of
laps and speed limit can be set before
you run.
The running function will only record
data when the phone is closed.
You cannot add laps manually when Lap
Distance or Lap Time is set.
64 Fitness application
This is the Internet version of the user’s guide. ©Print only for private use.
Lap distance
Base your training session on a
specific lap distance to keep track of
the time spent per lap.
To set a lap distance
1} Fitness } Running } Setup } Lap
Distance.
2Select a predefined lap distance or }
Other to change a predefined value.
Lap time
Base your training session on a
specific time interval to keep track of
the distance covered per interval.
To set a lap time
1} Fitness } Running } Setup } Lap
Time.
2Select a predefined lap time or }
Other to change a predefined value.
Auto stop session
Set a number of laps after which the
training session automatically stops.
To set the auto stop session
1} Fitness } Running } Setup } Auto
Stop Session.
2Select a predefined number of laps or
} Other to change a predefined value.
Lower speed limit
Set a minimum speed limit. The phone
sounds if you are running slower than
the set lower speed limit.
To set a lower speed limit
1} Fitness } Running } Setup } Lower
Speed Limit.
2Select the predefined speed limit or }
Other to change the value.
Upper speed limit
Set a maximum speed limit. The
phone sounds if you are running faster
than the set upper speed limit.
To set an upper speed limit
1} Fitness } Running } Setup } Upper
Speed Limit.
2Select the predefined speed limit or }
Other to change the value.
Settings
Enter settings to personalize the
Fitness application.
Step count
% 62 Walking for information.
The distance unit can be set to Kilom-
eters or Miles % 65 Unit settings.
65Fitness application
This is the Internet version of the user’s guide. ©Print only for private use.
Sound
Turn the sound on or off in the Fitness
application. Other sounds will not be
affected.
To turn on the sound
} Fitness } Settings } Sound } On.
To turn off the sound
} Fitness } Settings } Sound } Off.
Show calories
Select to show or hide burnt calories.
To show calories
} Fitness } Settings } Show Calories
} On.
To hide calories
} Fitness } Settings } Show Calories
} Off.
Personal data
% 65 Personal data for information.
Advanced calibration
% 66 Advanced calibration for
information.
Unit settings
Set units for speed, distance and
calories.
To set distance unit
} Fitness } Settings } Unit Settings }
Distance Unit and select Kilometers
or Miles.
To set speed unit
} Fitness } Settings } Unit Settings }
Speed/Pace Unit and select a unit.
To set calorie unit
} Fitness } Settings } Unit Settings
} Calorie Unit and select kCalories or
kJoule.
Reset all data
Delete all results, training settings,
step count and personal information.
To reset all data
} Fitness } Settings } Reset All Data
} Yes } OK.
Personal data
Enter your personal data to be able to
show the calculation of burnt calories
% 65 Show calories.
To enter personal data
1} Fitness } Settings } Personal Data.
2} Height and select Meters or Feet.
You can listen to music even if the sound
in the Fitness application is turned off.
You must enter personal data to enable
the calorie display % 65 Personal data.
66 Fitness application
This is the Internet version of the user’s guide. ©Print only for private use.
3Enter your height and } OK.
4} Weight and select Kilograms,
Pounds or Stones, Pounds.
5Enter your weight and } OK.
6} Year of Birth.
7Enter your year of birth and } OK.
8} Gender and select Female or Male.
9} Save.
Results
View details for your saved training
results. The result of a training session
is saved in a chronological order.
View graphs and more details by using
the Java application % 66 Java™
application.
View walking results
View basic results such as total
number of steps and distance.
To view walking results
1} Fitness } Results and select a day.
2} Walking.
View session results
View detailed results from your
training sessions. Each training
session is saved in a date-distance
format. The first four digit represent
the month and day, and the last digits
the distance.
To view session results
1} Fitness } Results and select a day
2Select a session.
Advanced calibration
By calibrating the accelerometer of the
phone, more accurate measurements
are possible.
To calibrate the phone
1} Fitness } Settings } Adv.
Calibration.
2Close the phone.
3Walk a known distance (at least 100
meters).
4Open the phone.
5Enter the covered distance and press
OK.
Java application
The Java™ application gives you the
opportunity to view details for each
training session.
Start the Java application
Start the Java application from the
Fitness application or from the File
Manager.
You can also view details for each lap
within a session.
67Connectivity
This is the Internet version of the user’s guide. ©Print only for private use.
To start the Java application
} Fitness } Results } Advanced or }
File Manager } Applications.
To end the Java application
Press and hold and select End
Application.
Connectivity
Settings, using Internet, RSS,
synchronizing, Bluetooth™ device,
infrared, USB cable, update service.
Settings
Settings may already be entered when
you buy your phone. If not, make sure
you have a phone subscription that
supports data transfer (GPRS and
EGPRS).
You can download settings to your
phone for Internet browsing, email and
picture messaging. This can be done
via the setup wizard in your phone or
from a computer at
www.sonyericsson.com/support.
To download settings via your phone
} Settings } the General tab } Setup
Wizard } Settings Download and
follow the instructions that appear.
To download settings via a computer
1Browse to www.sonyericsson.com/
support.
2Select a region and a country.
3Select the Phone setup tab, and select
a phone model.
4Select which setting to download to
your phone.
68 Connectivity
This is the Internet version of the user’s guide. ©Print only for private use.
Using Internet
Use the Internet to access online
services for example, news and
banking, search and browse the Web.
To start browsing
} Internet and select a service such as
} More } Go to } Search Internet or
Enter Address to any Web page.
To view options
} Internet } More.
To stop browsing
} More } Exit Browser.
Options when browsing
} More to view options. The menu
contains the following but depends on
the Web page you are visiting:
} RSS Feeds – select the available
feeds for the Web page.
} Go to for the following:
Sony Ericsson – go to the pre-
defined homepage set for the
current profile.
Bookmarks – create, use or edit
bookmarks to Web pages.
Enter Address – enter the address
of a Web page.
Search Internet – use Google to
search.
History – list of previously visited
Web pages.
Saved Pages – list of your saved
Web pages.
} Tools for the following:
Add Bookmark – add a new
bookmark.
Save Picture – save a picture.
Save Page – save the current Web
page.
Refresh Page – refresh the current
Web page.
Send Link – send a link to the
current Web page.
Make a Call – make a call when
browsing the Internet. } More } End
Call to end the call and continue
browsing.
} View for the following:
Full Screen – select normal or full
screen.
Landscape – select landscape or
portrait screen.
For more information contact your net-
work operator or visit www.sonyerics-
son.com/support.
Full/normal are only available with por-
trait.
69Connectivity
This is the Internet version of the user’s guide. ©Print only for private use.
Text Only – select full content or
text only.
Zoom – zoom in or out on the Web
page.
Zoom To Normal – set zoom to
default.
} Options } the Browsing tab for:
Smart-Fit – adjust a Web site to the
screen.
Show Pictures – set on or off.
Show Animations – set on or off.
Play Sounds – set on or off.
Allow Cookies – set on or off.
Keypad Mode – select from:
Shortcuts for browser keys or
Access Keys for faster Web site
navigation, if available.
} Options }the Other tab for:
Clear Cookies
Clear Cache
Clear Passwords
Status – show connection info.
} Exit Browser to disconnect.
Using bookmarks
Use, create and edit bookmarks as
quick links to your favorite Web pages
for the browser.
To work with bookmarks
1} Internet } More } Go to }
Bookmarks and select a bookmark }
More.
2Select an option, such as sending a
bookmark as a text message.
Internet shortcuts
When using the Internet, you can use
keypad shortcuts to menu options.
To use Internet keypad shortcuts or
access keys
1When browsing, press and hold
to select Shortcuts or Access Keys.
2If you select Shortcuts, you can press
a key for a function as follows:
Key Shortcut
Bookmarks
Enter Address
Search Internet
History
Refresh Page
Forward
Page up
Not used
Page down - one at the time
70 Connectivity
This is the Internet version of the user’s guide. ©Print only for private use.
Downloading
Download files, for example, pictures,
themes, games and ringtones from
Web pages.
To download from the Sony Ericsson
Web page
1} Internet } More } Go to } Sony
Ericsson.
2Browse the Web page, select a file to
download and follow the instructions
that appear.
Internet profiles
You can select another Internet profile
if you have more than one.
To select an Internet profile for the
Internet browser
} Settings and use or to scroll to
the Connectivity tab } Internet
Settings } Internet Profiles and select
a profile.
Internet profile for Java applications
Some Java applications need to
connect to the Internet to receive
information, for example, games that
downloads new levels from a game
server.
Before you start
If settings are not in your phone % 67
Settings.
To select a profile for Java
} Settings } the Connectivity tab }
Internet Settings } Settings for Java
and select an Internet profile.
Saved information
When browsing, you can save the
following information:
Cookies – improve Web page
access efficiency.
Passwords – improve server access
efficiency.
To allow cookies
} Internet } More } Options } the
Browsing tab } Allow Cookies } On.
Full Screen or Landscape or
Normal Screen.
Zoom
Shortcuts
It is advisable to clear all sensitive infor-
mation from previously visited Internet
services. This is to avoid misuse of per-
sonal information if your phone is mis-
placed, lost or stolen.
71Connectivity
This is the Internet version of the user’s guide. ©Print only for private use.
To clear cookies, cache or
passwords
} Internet } More } Options } the
Other tab and select an option } Yes.
Internet security and certificates
Your phone supports secure
browsing. Certain Internet services,
such as banking, require certificates in
your phone. Your phone may already
contain certificates when you buy it or
you can download new certificates.
To check certificates in your phone
} Settings } the General tab }
Security } Certificates.
RSS reader
When browsing, you can receive
frequently updated content, such as
news headlines, as feeds via a Web
site. You can browse to a Web page to
add new feeds, if available. Really
Simple Syndication (RSS) options are
set via the RSS reader and shown in
the Internet browser.
To add new feeds for a Web page
When browsing } More } RSS Feeds.
To create a new feed
1} Messaging } RSS Reader } More }
New Feed.
2} Select from List or By Address and
enter the address.
To set and use RSS reader options
} Messaging } RSS Reader } More
and select an option.
Synchronizing
Synchronize phone contacts,
appointments, tasks and notes via
Bluetooth™ wireless technology, the
infrared port, Internet services or the
USB cable included with the phone.
Synchronization with a computer
Install synchronization software for
your computer found in the Sony
Ericsson PC Suite. The software may
be included with your phone or
downloaded from
www.sonyericsson.com/support. The
software includes help information.
Remote synchronization via Internet
Synchronize online via an Internet
service.
Before you start
If settings are not in your phone %
67 Settings.
Register a synchronization account
online.
72 Connectivity
This is the Internet version of the user’s guide. ©Print only for private use.
Enter remote synchronization
settings.
To enter remote synchronization
settings
1} Organizer } Synchronization } New
Account } Add to create a new
account.
2Enter a name for the new account }
Continue.
3Enter the following:
Server Address – server URL.
Username – account username.
Password – account password.
Connection – select an Internet
profile.
Applications – mark applications to
synchronize.
App. Settings – select an
application and enter a database
name, and if required, username
and password.
Sync. Interval – set how often to
synchronize.
Remote Initiation – select to always
accept, never accept or always ask
when starting synchronization from
a service.
Remote Security – insert a server ID
and a server password.
4} Save to save your new account.
To start remote synchronization
} Organizer } Synchronization and
select an account } Start.
Bluetooth™ wireless
technology
The Bluetooth™ function makes
wireless connection to other
Bluetooth™ devices possible. You
can:
connect to handsfree devices.
connect to stereo headsets.
connect to multiple Bluetooth™
devices at the same time.
connect to computers and access
the Internet.
synchronize information with
computers.
use remote control computer
applications.
use media viewer accessories.
exchange items.
play multiplayer games.
Before you start
Turn on the Bluetooth™ function to
communicate with other devices.
We recommend a range within 33 feet
(10 meters), with no solid objects in
between, for Bluetooth™ communica-
tion.
73Connectivity
This is the Internet version of the user’s guide. ©Print only for private use.
Add Bluetooth™ devices to your
phone to communicate with.
To turn the Bluetooth function on
} Settings } the Connectivity tab }
Bluetooth } Turn On.
Adding devices to your phone
Enter a passcode to set up a secure
link between your phone and the
device. Enter the same passcode on
the device when prompted. A device
with no user interface, such as a
handsfree, will have a predefined
passcode. Consult the device User
guide for more information.
To add a device to your phone
1} Settings } the Connectivity tab }
Bluetooth } My Devices } New
Device to search for available devices.
Make sure the other device is visible.
2Select a device from the list.
3Enter a passcode, if required.
To allow connection or edit your
device list
1} Settings } the Connectivity tab }
Bluetooth } My Devices and select a
device from the list.
2} More to view a list of options.
To add a Bluetooth handsfree
1} Settings } the Connectivity tab }
Bluetooth } Handsfree.
2} Yes if you are adding a Bluetooth™
device for the first time or } My
Handsfree } New Handsfree } Add if
you are adding another Bluetooth™
device. Ensure that your handsfree is
in the correct mode. Consult the
device User guide for more
information.
Power save
Turn on to reduce power consumption
by optimizing your phone for use with
a single Bluetooth™ device. Turn off
to connect with several Bluetooth™
devices at the same time.
Please check if local laws or regulations
restrict the use of Bluetooth wireless
technology. If Bluetooth wireless tech-
nology is not allowed, you must ensure
that the Bluetooth function is turned
off. The maximum allowed Bluetooth
radio output power in the phone is auto-
matically adjusted according to possible
local restrictions. This means range may
vary.
Make sure that the device you want to
add has the Bluetooth function acti-
vated and visible.
74 Connectivity
This is the Internet version of the user’s guide. ©Print only for private use.
To save power
} Settings } the Connectivity tab }
Bluetooth } Powersave } On.
Phone name
Enter a name for your phone to be
shown as when other devices find it.
To enter a phone name
} Settings } the Connectivity tab }
Bluetooth } Phone Name.
Visibility
Choose to make your phone visible to
other Bluetooth™ devices or not. If
your phone is set to hide, only devices
in } Settings } the Connectivity tab }
Bluetooth } My Devices are able to
find your phone via Bluetooth™
wireless technology.
To show or hide your phone
} Settings } the Connectivity tab }
Bluetooth } Visibility } Show Phone
or Hide Phone.
Exchanging items
Send or receive items using
Bluetooth™ wireless technology as
the transfer method. Choose a device
from the list of found devices.
To send an item
1Select an item, for example }
Contacts and select a contact.
2} More } Send Contact } Via
Bluetooth.
3Select the device to send the item to }
Select.
To receive an item
1} Settings } the Connectivity tab }
Bluetooth } Turn On.
2} Visibility } Show Phone.
3When you receive an item, follow the
instructions that appear.
Transferring sound
Transfer the sound for calls when
using a Bluetooth™ device.
You can also transfer the sound for
calls using the keypad or the
handsfree button as follows:
Press the handsfree button for sound
in handsfree.
Press a phone button or key (if set to
In Phone) for sound in phone.
Press any button (if set In Handsfree)
for the sound in handsfree.
To transfer sound when using a
Bluetoothhandsfree
During a call, } More } Transfer
Sound and select a device.
75Connectivity
This is the Internet version of the user’s guide. ©Print only for private use.
To change handsfree handling
1} Settings } the Connectivity tab }
Bluetooth } Handsfree } Incoming
Call.
2} In Phone to direct to the phone or }
In Handsfree to direct to the
handsfree.
Remote control
Use your phone as a remote control
device to control computer
applications such as a Music player or
Microsoft® PowerPoint®
presentations or devices that support
Bluetooth™ HID Profile.
To select remote control
1% 73 To add a device to your phone, if
required.
2} Entertainment } Remote Control.
3Select an application to use and the
computer or device to connect to.
File transfer
If your computer supports Bluetooth™
wireless technology, you can install
the Sony Ericsson PC Suite to
synchronize, transfer files, use the
phone as modem and more via
Bluetooth communication. Install the
Sony Ericsson PC Suite from the CD
that came with the phone or download
it at www.sonyericsson.com/support.
The PC Suite also includes help.
Infrared port
If your computer supports infrared,
you can install the Sony Ericsson PC
Suite on your computer to
synchronize, transfer files, use the
phone as modem and more via
infrared. Install the Sony Ericsson PC
Suite from the CD that came with the
phone or download it at
www.sonyericsson.com/support. The
PC Suite also includes help.
You can also use the infrared port as a
transfer method with compatible
devices, for example, to synchronize
calendar items % 71 Synchronizing.
To turn the infrared port on
} Settings } the Connectivity tab }
Infrared Port } On or } 10 Minutes to
turn on for 10 minutes.
To connect two devices
1Turn on infrared in both devices.
Your phone supports infrared speeds up
to 1 Mbps. When connecting to a com-
puter, refer to its user documentation.
76 Connectivity
This is the Internet version of the user’s guide. ©Print only for private use.
2Make sure the infrared port on your
phone is facing the infrared port on the
other device with a maximum distance
of 8 inches (20 cm).
To send an item using the infrared
port (for example a contact)
1Turn on infrared in both devices. }
Contacts and select a contact.
2} More } Send Contact } Via
infrared.
Transferring files using the
USB cable
Connect your phone to a computer,
via the USB cable, to use your phone
in one of the following: File Transfer or
Phone Mode.
File transfer
Drag and drop files between phone
and computer in Microsoft Windows
Explorer.
Use Sony Disc2Phone (music transfer)
or Adobe Photoshop Album Starter
Edition (picture transfer/storage).
These applications may come on a CD
with the phone or downloaded from
www.sonyericsson.com/support, and
can only be used with file transfer
mode.
To use file transfer mode
1Connect the USB cable to the phone
and the computer.
2Phone: Select File Transfer or }
Settings } the Connectivity tab } USB
} USB Connection } File Transfer.
The phone shuts down.
Only use the USB cable that comes with
the phone, and connect the USB cable
directly to your computer. Do not remove
the USB cable from the phone or com-
puter during file transfer as this may cor-
rupt the phone memory or a memory
card.
77Connectivity
This is the Internet version of the user’s guide. ©Print only for private use.
3Wait until your phone memory and
memory card, if inserted, appear as
external disks in Windows Explorer.
You can use:
Windows Explorer to drag and drop
files between phone and computer.
Sony Disc2Phone to transfer music
to your phone or memory card.
Adobe Photoshop Album Starter
Edition, to transfer and organize
your pictures on your computer.
To disconnect the USB cable safely
1When using file transfer mode, right-
click the removable disk icon in
Windows Explorer and select Eject.
2Remove the USB cable from your
phone.
Phone mode
Synchronize contacts and calendar,
transfer files, use the phone as
modem and more from your
computer. Applications supported in
phone mode include: Synchronization,
File manager and Mobile Networking
Wizard. For other applications, use the
file transfer mode. You need to install
and use Sony Ericsson PC Suite,
included on the CD that came with the
phone or visit www.sonyericsson.com/
support.
To use phone mode
1Computer: Install the Sony Ericsson
PC Suite from the CD that came with
your phone.
2Computer: Start PC Suite from Start/
Programs/Sony Ericsson/PC Suite.
3Connect the USB cable to the phone
and the computer.
4Phone: Select Phone Mode or }
Settings } the Connectivity tab } USB
} USB Connection } Phone Mode.
5Computer: Wait while Windows
installs the required drivers.
6Computer: When PC Suite has found
your phone you are notified.
All applications that you can use with
your connected phone are found in the
Sony Ericsson PC Suite.
Update service
Always keep your phone updated with
the latest software to improve
Your computer needs to have one of the
following operating systems to be able
to use this feature: Windows® 2000 with
SP3/SP4, Windows XP (Pro and Home)
with SP1/SP2. USB drivers are installed
automatically with the PC Suite software.
78 Connectivity
This is the Internet version of the user’s guide. ©Print only for private use.
performance. You do not lose
personal or phone information, for
example messages or settings during
an update.
There are two ways to update your
phone:
over the air via your phone
via the provided USB cable and an
Internet-connected computer.
Before you start
If required settings are not in your
phone % 67 Settings.
To use Update service over the air
1} Settings } the General tab } Update
Service.
2} Search for Update to search for the
latest available software. Start the
update process by following the
installation instructions, or } Software
Version to show the current software
in your phone, or } Reminder to set
when to search for new software.
To use Update service via a
computer
1Visit www.sonyericsson.com/support.
2Select a region and country.
3Enter the product name.
4Select Sony Ericsson Update Service
and follow the instructions.
The update service requires data access
(GPRS and EGPRS). Your operator will
provide you with a subscription with data
access and price information.
79More features
This is the Internet version of the user’s guide. ©Print only for private use.
More features
Alarm clock, calendar, tasks, profiles,
time and date, SIM card lock, etc.
Alarms
Set an alarm for a specific time or
specific days to recur on. You can set
the alarm signal as a sound or radio.
To use alarms
1} Organizer } Alarms and select an
alarm to set } Edit.
2Time: } Edit and set a time } OK.
Select more options, if required:
Recurrent: } Edit and set a day or
days } Mark } Done.
Alarm Signal: } Edit and select the
radio or a sound.
Press to edit text, pictures and
the silent mode for alarms.
3} Save.
To turn an alarm signal off when it
sounds
Press any key, if radio is selected as
alarm signal } Snooze. If you do not
want to repeat the alarm } Turn Off.
To cancel an alarm
} Organizer } Alarms and select an
alarm, } Turn Off.
Calendar
You can use the calendar to keep
track of important meetings. The
calendar can be synchronized with a
computer calendar or with a calendar
on the Web % 71 Synchronizing.
Appointments
Add new appointments or use existing
appointments as templates.
To add a new appointment
1} Organizer } Calendar and select a
date } Select } New Appointment }
Add.
2Select from the following options and
confirm each entry, if required:
General tab - Subject:, Start Time:,
Duration:, Reminder:, Start Date:.
Details tab - Location:,
Description:, All Day:, Recurrence:.
3} Save.
To view an appointment
1} Organizer } Calendar and select a
day (appointment days have bold
numbers).
2Select an appointment } View.
To view a calendar week
} Organizer } Calendar } More }
View Week.
80 More features
This is the Internet version of the user’s guide. ©Print only for private use.
To set when reminders should sound
1} Organizer } Calendar } More }
Advanced } Reminders.
2} Always for a reminder to sound even
when the phone is turned off or set to
silent. When the reminder sounds }
Yes to read the appointment or } No
to turn off the reminder. A reminders
option set in the calendar affects a
reminders option set in tasks.
Navigating in your calendar
Use the navigation key to move
between days or weeks. In the
monthly and weekly views, you can
also use the keypad as follows.
Calendar settings
} Organizer } Calendar } More to
select an option:
View Week – view the week’s
appointments.
New Appointment – add a new
appointment.
Change Date – go to another date
in the calendar.
Advanced – find an appointment,
set reminders or select a start day
for the week.
Delete – delete old or all
appointments.
Help – for more information.
Exchanging appointments
Exchange appointments using a
transfer method. You can also
synchronize appointments with a
computer % 71 Synchronizing.
To send an appointment
Select an appointment in the list for a
certain day } More } Send and select
a transfer method.
Tasks
Add new tasks or use existing tasks as
templates. You can also set reminders
for tasks.
To add a new task
1} Organizer } Tasks } New Task }
Add.
2} Task or Phone Call.
3Enter details and confirm each entry.
Today’s date
Back a week Next week
Back a month Next month
Back a year Next year
The maximum depends on the memory
available, as set in software.
81More features
This is the Internet version of the user’s guide. ©Print only for private use.
To view a task
} Organizer } Tasks and select a task
} View.
To set when reminders should sound
1} Organizer } Tasks and select a task
} More } Reminders.
2} Always for a reminder to sound even
when the phone is turned off or set to
silent. When the reminder sounds }
Yes to read the task, or to call the
phone number in a phone task. } No
to turn off the reminder. A reminders
option set in tasks affects a reminders
option set in the calendar.
Exchanging tasks
Exchange tasks using a transfer
method. You can also synchronize
tasks with a computer % 71
Synchronizing.
To send a task
Select a task in the list of tasks for a
certain day } More } Send and select
a transfer method.
Notes
Make notes and save them in a list.
You can also show a note in standby.
To add a note
} Organizer } Notes } New Note }
Add and enter the note } Save.
To edit notes
1} Organizer } Notes and a list
appears.
2Select a note } More and select an
option.
Exchanging notes
Exchange notes using one of the
available transfer methods. You can
also synchronize notes with a
computer % 71 Synchronizing.
To send a note
Select a note } More } Send and
select a transfer method.
Timer
Your phone has a timer. When the
signal rings, press any key to turn it off
or select Restart.
To set the timer
} Organizer } Timer and set the
hours, minutes and seconds for
countdown.
Stopwatch
Your phone has a stopwatch that can
save several laps. The stopwatch
The maximum depends on the memory
available, as set in software.
82 More features
This is the Internet version of the user’s guide. ©Print only for private use.
continues to run when you answer an
incoming call.
To use the stopwatch
1} Organizer } Stopwatch } Start.
2} Stop or } New Lap for a new lap
time.
3To reset the stopwatch } Stop }
Reset.
Calculator
The calculator can add, subtract,
divide and multiply.
To use the calculator
} Organizer } Calculator.
Press or to select ÷ x - + . %
=.
Press to delete the figure.
Press to enter a decimal point.
Code memo
Save security codes, such as for credit
cards, in the code memo. Set a
passcode to open the code memo.
Checkword and security
To confirm that you have entered the
correct passcode you must enter a
checkword.
When you enter your passcode to
open the code memo, the checkword
is shown briefly. If the passcode is
correct, the correct codes are shown.
If you enter the incorrect passcode,
the checkword and the codes that are
shown are also incorrect.
To open code memo for the first time
1} Organizer } Code Memo. A
message with instructions appears }
Continue.
2Enter a four-digit passcode }
Continue.
3Re-enter the new passcode to
confirm.
4Enter a checkword (maximum 15
characters) } Done. The checkword
can consist of both letters and
numbers.
To add a new code
1} Organizer } Code Memo and enter
your passcode } New Code } Add.
2Enter a name associated with the
code } Continue.
3Enter the code } Done.
To change the passcode
1} Organizer } Code Memo and enter
your passcode } More } Change
Passcode.
2Enter your new passcode } Continue.
3Re-enter the new passcode }
Continue.
83More features
This is the Internet version of the user’s guide. ©Print only for private use.
4Enter a checkword } Done.
Forgot your passcode?
If you forget your passcode, you must
reset the code memo.
To reset code memo
1} Organizer } Code Memo and enter
any passcode to access the code
memo. The checkword and codes that
are then shown are incorrect.
2} More } Reset.
3Reset code memo? appears } Yes.
The code memo is reset and all entries
are cleared. The next time you enter
the code memo, you must start at %
82 To open code memo for the first
time.
Profiles
Your phone has predefined profiles
that are set. Some, for example, ring
volume and other options may be
adjusted automatically to suit a certain
environment or an accessory. You can
reset all profile settings to how they
were set when you bought your
phone.
To select a profile
Press and select a profile or }
Settings } the General tab } Profiles
and select a profile.
To view and edit a profile
} Settings } the General tab }
Profiles } More } View And Edit.
To reset profiles
} Settings } the General tab }
Profiles } More } Reset Profiles.
Time and date
The time is always displayed in
standby.
To set the time } Settings } the
General tab } Time & Date } Time.
Enter the time } Save.
To set the time format } Format and
select an option.
To set the date and date format }
Settings } the General tab } Time &
Date } Date.
SIM card lock
The SIM card lock protects your
subscription, but not the phone itself,
from unauthorized use. If you change
SIM cards, your phone still works with
the new SIM card.
Most SIM cards are locked at the time
of purchase. If the SIM card lock is on,
you have to enter a PIN (Personal
You cannot rename the Normal profile.
84 More features
This is the Internet version of the user’s guide. ©Print only for private use.
Identity Number) every time you turn
on your phone.
If you enter your PIN incorrectly three
times in a row, the SIM card is
blocked. This is indicated by the
message PIN Blocked. To unblock it,
you need to enter your PUK (Personal
Unblocking Key). Your PIN and PUK
are supplied by your network
operator. You can edit your PIN and
select a new four- to eight-digit PIN.
To unblock your SIM card
1When PIN Blocked appears, enter
your PUK } OK.
2Enter a new four- to eight-digit PIN }
OK.
3Re-enter the new PIN to confirm } OK.
To edit your PIN
1} Settings } the General tab }
Security } Locks } SIM Protection }
Change PIN.
2Enter your PIN } OK.
3Enter a new four- to eight-digit PIN }
OK.
4Re-enter the new PIN to confirm } OK.
To turn the SIM card lock on or off
1} Settings } the General tab }
Security } Locks } SIM Protection }
} Protection and select On or Off.
2Enter your PIN } OK.
Phone lock
Protect your phone against
unauthorized use if it is stolen and the
SIM card is replaced. You can change
the phone lock code (0000) to any
four- to eight-digit personal code.
Automatic phone lock
If the phone lock is set to automatic,
you do not need to enter your phone
lock code until a different SIM card is
inserted in the phone.
To set the phone lock
1} Settings } the General tab }
Security } Locks } Phone Protection
} Protection and select an alternative.
2Enter the phone lock code } OK.
If the message Codes do not Match
appears when you edit your PIN, you
entered the new PIN incorrectly.
If the message Wrong PIN. appears, fol-
lowed by Old PIN:, you entered your old
PIN incorrectly.
It is important that you remember your
new code. If you forget it, you have to
take your phone to your local Sony Erics-
son retailer.
85Troubleshooting
This is the Internet version of the user’s guide. ©Print only for private use.
To unlock the phone
If the phone lock is on, enter your
code } OK.
To edit your phone lock code
} Settings } the General tab }
Security } Locks } Phone Protection
} Change Code.
Start-up screen
Select a start-up screen to appear
when you turn your phone on % 48
Using pictures.
To select a start-up screen
} Settings } the Display tab } Startup
Screen and select an option.
Brightness
Adjust the brightness of the screen.
To set the brightness
} Settings } the Display tab }
Brightness.
Troubleshooting
Why doesn’t the phone work the way I
want it to?
This chapter lists some problems that
you might encounter when using your
phone. Some problems require you to
call your network operator, but you
can easily correct most of the
problems yourself.
However, if you need to take your
phone in for repair, please note that
you may lose information and content
that you have saved in your phone.
You are advised to make a copy of
such information before taking your
phone in for repair.
For more support go to
www.sonyericsson.com/support.
I have problems with memory
capacity or the phone is working
slowly
Possible cause: The phone memory is
full or the memory contents are not
properly organized.
Solution: Restart your phone every
day to free memory and increase the
capacity of your phone.
You also have the option to do a
Master Reset. Some of the personal
86 Troubleshooting
This is the Internet version of the user’s guide. ©Print only for private use.
data and settings you have made will
be lost when you do this % 88 Master
reset.
No battery icon appears when I start
charging the phone
Possible cause: The battery is empty
or has not been used for a long time.
Solution: It may take up to 30 minutes
before the battery icon appears on the
screen.
Some menu options appear in grey
Possible cause: A service is not
activated or your subscription does
not support the function.
Solution: Contact your network
operator.
Possible cause: Since you cannot
send themes, pictures and sounds
that are copyright-protected, the Send
menu is sometimes unavailable.
I do not understand the language in
menus
Possible cause: The wrong language is
set in the phone.
Solution: Change the language % 15
Phone language.
I cannot turn on the phone
Possible cause: The battery is
discharged.
Solution: Recharge the battery % 4
Battery.
Solution: Turn the phone on with the
charger attached. If the phone starts,
restart the phone with no charger
attached.
I cannot charge the phone or battery
capacity is low
Possible cause: The charger is not
properly connected to the phone.
Solution: Make sure that the charger
connector clicks properly into place
when connected % 4 Battery.
Possible cause: The battery
connection is poor.
Solution: Remove the battery and
clean the connectors. You can use
one of the following lightly soaked in
alcohol; a soft brush, a cloth or a
cotton bud. Make sure that the battery
is completely dry before you put it
back. Check that the battery
connectors in the phone are not
damaged.
Possible cause: The battery is worn
out and needs to be replaced.
87Troubleshooting
This is the Internet version of the user’s guide. ©Print only for private use.
Solution: Try another battery and
charger for the same phone model, or
visit your retailer and ask them to
verify if the battery and charger are
working properly.
Solution: Make sure the battery is
inserted correctly % 5 To insert SIM
card and battery.
I cannot use SMS/text messages on
my phone
Possible cause: Settings are missing
or incorrect.
Solution: Contact your network
operator to find out the correct SMS
service center setting % 34 Text
messaging (SMS).
I cannot use MMS/picture messages
on my phone
Possible cause: Your subscription
does not include data capability.
Solution: Please contact your network
operator.
Possible cause: Settings are missing
or incorrect.
Solution: % 6 Help in your phone or go
to www.sonyericsson.com/support,
choose your phone model, then
choose Phone setup – MMS and
follow the instructions % 67 Settings.
I cannot use the Internet
Possible cause: Your subscription
does not include data capability.
Solution: Please contact your network
operator.
Possible cause: Internet settings are
missing or incorrect.
Solution: % 6 Help in your phone or go
to www.sonyericsson.com/support,
choose your phone model, then
choose “Phone setup – WAP” and
follow the instructions % 67 Settings.
The phone cannot be detected by
other users via Bluetooth™ wireless
technology
Possible cause: You have not turned
the Bluetooth™ function on.
Solution: Make sure that the
Bluetooth™ function is on and
visibility is set to show phone % 74 To
receive an item.
I cannot synchronize or transfer data
between my phone and my
computer, when using the USB cable
provided
Possible cause: The cable has not
been properly installed and detected
on your computer. The software that
88 Troubleshooting
This is the Internet version of the user’s guide. ©Print only for private use.
came with your phone has not been
properly installed on the computer.
Solution: Go to
www.sonyericsson.com/support,
choose your phone model, then
choose Product information - Getting
started. The guide Synchronizing the
phone with a computer contains
installation instructions and a
troubleshooting guide, that may assist
you in solving the problem.
Master reset
The changes that you have made to
settings and the content that you have
added or edited, will be deleted.
If you select Reset Settings, the
changes that you have made to
settings will be deleted.
If you select Reset All, in addition to
your changes to settings, all contacts,
messages, personal data, and content
that you have downloaded, received
or edited will also be deleted.
To reset the phone
1} Settings } the General tab } Master
Reset.
2} Reset Settings or } Reset All.
3When instructions appear } Continue.
Error messages
Insert SIM.
Possible cause: There is no SIM card
in the phone or you may have inserted
it incorrectly.
Solution: Insert a SIM card % 5 To
insert SIM card and battery.
Possible cause: The SIM card
connectors need cleaning.
Solution: Remove the SIM card and
clean it. Also check that the card is not
damaged so that you cannot connect
it to the phone connectors. In that
case, contact your network operator
to ask for a new SIM card.
Insert Correct SIM Card.
Possible cause: The phone is set to
only work with certain SIM cards.
Solution: Check if you are using the
correct operator SIM card for your
phone.
If you select Reset All, content such as
melodies and pictures that you have
downloaded, received or edited is also
deleted.
89Troubleshooting
This is the Internet version of the user’s guide. ©Print only for private use.
Wrong PIN./Wrong PIN2.
Possible cause: You have entered
your PIN or PIN2 incorrectly.
Solution: Enter the correct PIN or PIN2
} Yes % 83 SIM card lock.
PIN Blocked/PIN2 Blocked.
Possible cause: You have entered
your PIN or PIN2 code incorrectly
three times in a row.
Solution: To unblock % 83 SIM card
lock.
Codes do not Match
Possible cause: The two codes that
you have entered do not match.
Solution: When you want to change a
security code (for example your PIN)
you have to confirm the new code by
entering exactly the same code again.
% 83 SIM card lock.
No Nwk Coverage
Possible cause: Your phone is in flight
mode.
Solution: Restart the phone in normal
mode % 7 Flight mode menu.
Possible cause: Your phone is not
receiving any radio signal, or the
received signal is too weak.
Solution: Contact your network
operator and make sure that the
network has coverage where you are.
If so, search for a network.
Insert SIM.
Possible cause: The SIM card is not
working properly.
Solution: Insert your SIM card in
another phone. If you still get the same
or a similar message, please contact
your network operator.
Insert Correct SIM Card.
Possible cause: The phone is not
working properly.
Solution: Insert your SIM card in
another phone. If this works, it is
probably the phone that is causing the
problem. Please contact the nearest
Sony Ericsson service location.
Emerg. Calls Only
Possible cause: You are within range
of a network, but you are not allowed
to use it. However, in an emergency,
some network operators allow you to
call the international emergency
numbers, 112 or 911.
Solution: You have to move to get a
signal that is strong enough. Contact
90 Important information
This is the Internet version of the user’s guide. ©Print only for private use.
your network operator and make sure
you have the right subscription % 22
Emergency calls.
Phone Lock
Possible cause: The phone is locked.
Solution: To unlock the phone % 84
Phone lock.
Phone Lock Code:
Possible cause: The phone lock code
is required.
Solution: Enter a phone lock code.
Your phone has a default phone lock
code 0000 % 84 Phone lock.
PUK Blocked. Contact Operator.
Possible cause: You entered your
personal unblocking key code (PUK)
incorrectly 10 times in a row.
Solution: Contact your network
operator.
Charging - Non-standard battery.
Possible cause: The battery that you
are using is not a Sony Ericsson-
approved battery.
Solution: % 93 Battery.
Important information
Sony Ericsson Consumer Web site,
service and support, safe and efficient
use, end user license agreement,
warranty, declaration of conformity.
Sony Ericsson Consumer Web site
On www.sonyericsson.com/support is
a support section where help and tips
are only a few clicks away. Here you
will find the latest computer software
updates and tips on how to use your
product more efficiently.
Service and support
From now on you will have access to a portfolio of
exclusive service advantages such as:
Global and local Web sites providing support.
A global network of Call Centers.
An extensive network of Sony Ericsson service
partners.
Limited Manufacturer's Warranty. Learn more
about the warranty conditions in this user guide.
On www.sonyericsson.com, under the support
section in the language of your choice, you will find
the latest support tools and information, such as
software updates, Knowledge base, Phone setup
and additional help when you require it.
For operator-specific services and features, please
contact your network operator for more
information.
You can also contact our Call Centers. Use the
phone number for the nearest Call Center in the list
below. If your country/region is not represented in
the list, please contact your local dealer. (The
91Important information
This is the Internet version of the user’s guide. ©Print only for private use.
phone numbers below were correct at the time of
going to print. You can always find the latest
updates on www.sonyericsson.com.)
In the unlikely event that your product needs
service, please contact the dealer from whom it
was purchased, or one of our service partners.
Save your proof of purchase, you will need it if you
need to claim warranty.
You will be charged for a call to one of our Call
Centers according to national rates, including local
taxes, unless the phone number is a toll-free
number.
Country Phone number Email address
Argentina 800-333-7427 questions.AR@support.sonyericsson.com
Australia 1-300 650 050 questions.AU@support.sonyericsson.com
Austria 0810 200245 questions.AT@support.sonyericsson.com
Belgium 02-7451611 questions.BE@support.sonyericsson.com
Brazil 4001-0444 questions.BR@support.sonyericsson.com
Canada 1-866-766-9374 questions.CA@support.sonyericsson.com
Central Africa +27 112589023 questions.CF@support.sonyericsson.com
Chile 123-0020-0656 questions.CL@support.sonyericsson.com
China 4008100000 questions.CN@support.sonyericsson.com
Colombia 18009122135 questions.CO@support.sonyericsson.com
Croatia 062 000 000 questions.HR@support.sonyericsson.com
Czech Republic 844 550 055 questions.CZ@support.sonyericsson.com
Denmark 33 31 28 28 questions.DK@support.sonyericsson.com
Finland 09-299 2000 questions.FI@support.sonyericsson.com
France 0 825 383 383 questions.FR@support.sonyericsson.com
Germany 0180 534 2020 questions.DE@support.sonyericsson.com
Greece 801-11-810-810
210-89 91 919 (from mobile phone)
questions.GR@support.sonyericsson.com
Hong Kong 8203 8863 questions.HK@support.sonyericsson.com
Hungary +36 1 880 47 47 questions.HU@support.sonyericsson.com
India 1800 11 1800 (Toll free number)
39011111 (from mobile phone) questions.IN@support.sonyericsson.com
Indonesia 021-2701388 questions.ID@support.sonyericsson.com
Ireland 1850 545 888 questions.IE@support.sonyericsson.com
Italy 06 48895206 questions.IT@support.sonyericsson.com
Malaysia 1-800-889900 questions.MY@support.sonyericsson.com
Mexico 01 800 000 4722 (international toll free number)
questions.MX@support.sonyericsson.com
92 Important information
This is the Internet version of the user’s guide. ©Print only for private use.
Netherlands 0900 899 8318 questions.NL@support.sonyericsson.com
New Zealand 0800-100150 questions.NZ@support.sonyericsson.com
Norway 815 00 840 questions.NO@support.sonyericsson.com
Philippines 02-6351860 questions.PH@support.sonyericsson.com
Poland 0 (prefix) 22 6916200 questions.PL@support.sonyericsson.com
Portugal 808 204 466 questions.PT@support.sonyericsson.com
Romania (+4021) 401 0401 questions.RO@support.sonyericsson.com
Russia 8(495) 787 0986 questions.RU@support.sonyericsson.com
Singapore 67440733 questions.SG@support.sonyericsson.com
Slovakia 02-5443 6443 questions.SK@support.sonyericsson.com
South Africa 0861 632222 questions.ZA@support.sonyericsson.com
Spain 902 180 576 questions.ES@support.sonyericsson.com
Sweden 013-24 45 00 questions.SE@support.sonyericsson.com
Switzerland 0848 824 040 questions.CH@support.sonyericsson.com
Taiwan 02-25625511 questions.TW@support.sonyericsson.com
Thailand 02-2483030 questions.TH@support.sonyericsson.com
Turkey 0212 47 37 777 questions.TR@support.sonyericsson.com
Ukraine (+380) 44 590 1515 questions.UA@support.sonyericsson.com
United Arab Emirates 43 919880 questions.AE@support.sonyericsson.com
United Kingdom 08705 23 7237 questions.GB@support.sonyericsson.com
United States 1-866-766-9374 questions.US@support.sonyericsson.com
Venezuela 0-800-100-2250 questions.VE@support.sonyericsson.com
Guidelines for Safe and Efficient Use
Please read this information before
using your mobile phone.
These instructions are intended for
your safety. Please follow these
guidelines. If the product has been
subject to any of the conditions listed
below or you have any doubt as to its proper
function make sure you have the product checked
by a certified service partner before charging or
using it. Failure to do so might entail a risk of
product malfunction or even a potential hazard to
your health.
Recommendations for safe use of
product (mobile phone, battery,
charger and other accessories)
Always treat your product with care and keep it in a
clean and dust-free place.
Warning! May explode if disposed of in fire.
Do not expose your product to liquid or moisture or
humidity.
Do not expose your product to
extremely high or low temperatures.
Do not expose the battery to
temperatures above +60°C (+140°F).
Do not expose your product to open
flames or lit tobacco products.
Do not drop, throw or try to bend your product.
Do not paint your product.
93Important information
This is the Internet version of the user’s guide. ©Print only for private use.
Do not attempt to disassemble or
modify your product. Only Sony
Ericsson authorized personnel should
perform service.
Do not close your product with an
object inserted between keypad and
display; this may damage your product.
Do not use your product near medical equipment
without requesting permission from your treating
physician or authorized medical staff.
Do not use your product when in, or around
aircraft, or areas showing the sign “turn off two-way
radio”.
Do not use your product in an area
where a potentially explosive
atmosphere exists.
Do not place your product or install
wireless equipment in the area above
an air bag in your car.
CHILDREN
KEEP OUT OF CHILDRENS REACH.
DO NOT ALLOW CHILDREN TO PLAY
WITH YOUR MOBILE PHONE OR ITS
ACCESSORIES. THEY COULD HURT
THEMSELVES OR OTHERS, OR
COULD ACCIDENTALLY DAMAGE
THE MOBILE PHONE OR ACCESSORY. YOUR
MOBILE PHONE OR ITS ACCESSORY MAY
CONTAIN SMALL PARTS THAT COULD BECOME
DETACHED AND CREATE A CHOKING HAZARD.
Power supply (Charger)
Connect the AC power adapter only to designated
power sources as marked on the product. Make
sure the cord is positioned so that it will not be
subjected to damage or stress. To reduce risk of
electric shock, unplug the unit from any power
source before attempting to clean it. The AC power
adapter must not be used outdoors or in damp
areas. Never alter the cord or plug. If the plug does
not fit into the outlet, have a proper outlet installed
by a qualified electrician.
Use only Sony Ericsson branded original chargers
intended for use with your mobile phone. Other
chargers may not be designed to the same safety
and performance standards.
Battery
We recommend that you fully charge the battery
before you use your mobile phone for the first time.
A new battery or one that has not been used for a
long time could have reduced capacity the first few
times it is used. The battery should only be charged
in temperatures between +5°C (+41°F) and +45°C
(+113°F).
Use only Sony Ericsson branded original batteries
intended for use with your mobile phone. Using
other batteries and chargers could be dangerous.
Talk and standby times depend on several different
conditions such as signal strength, operating
temperature, application usage patterns, features
selected and voice or data transmissions when the
mobile phone is being used.
Turn off your mobile phone before removing the
battery. Do not put the battery into your mouth.
Battery electrolytes may be toxic if swallowed. Do
not let the metal contacts on the battery touch
another metal object. Doing this could short-circuit
and damage the battery. Use the battery for the
intended purpose only.
Personal medical devices
Mobile phones may affect the operation of
pacemakers and other implanted equipment.
Please avoid placing the mobile phone over the
pacemaker, e.g. in your breast pocket. When using
the mobile phone, use it at the ear on the opposite
side of the body to the pacemaker. If a minimum
distance of 15 cm (6 inches) is kept between the
mobile phone and the pacemaker, the risk of
interference is limited. If you have any reason to
94 Important information
This is the Internet version of the user’s guide. ©Print only for private use.
suspect that interference is taking place,
immediately turn off your mobile phone. Contact
your cardiologist for more information.
For other medical devices, please consult your
physician and the manufacturer of the device.
Driving
Please check if local laws and regulations restrict
the use of mobile phones while driving or require
drivers to use handsfree solutions. We recommend
that you use only Sony Ericsson handsfree
solutions intended for use with your product.
Please note that because of possible interference
to electronic equipment, some vehicle
manufacturers forbid the use of mobile phones in
their vehicles unless a handsfree kit with an
external antenna has been installed.
Always pay full attention to driving and pull off the
road and park before making or answering a call if
driving conditions so require.
Emergency calls
Mobile phones operate using radio signals, which
cannot guarantee connection in all conditions. You
should therefore never rely solely upon any mobile
phone for essential communications (e.g. medical
emergencies).
Emergency calls may not be possible in all areas,
on all cellular networks, or when certain network
services and/or mobile phone features are in use.
Check with your local service provider.
Antenna
This phone contains a built-in antenna. Use of
antenna devices not marketed by Sony Ericsson
specifically for this model could damage your
mobile phone, reduce performance, and produce
SAR levels above the established limits (see below).
Efficient use
Hold your mobile phone as you would any other
phone. Do not cover the top of the phone when it is
in use, as this affects call quality and may cause the
phone to operate at a higher power level than
needed, thus shortening talk and standby times.
Radio frequency (RF) exposure and
Specific Absorption Rate (SAR)
Your mobile phone is a low-power radio transmitter
and receiver. When it is turned on, it emits low
levels of radio frequency energy (also known as
radio waves or radio frequency fields).
Governments around the world have adopted
comprehensive international safety guidelines,
developed by scientific organizations, e.g. ICNIRP
(International Commission on Non-Ionizing
Radiation Protection) and IEEE (The Institute of
Electrical and Electronics Engineers Inc.), through
periodic and thorough evaluation of scientific
studies. These guidelines establish permitted levels
of radio wave exposure for the general population.
The levels include a safety margin designed to
assure the safety of all persons, regardless of age
and health, and to account for any variations in
measurements.
Specific Absorption Rate (SAR) is the unit of
measurement for the amount of radio frequency
energy absorbed by the body when using a mobile
phone. The SAR value is determined at the highest
certified power level in laboratory conditions, but
the actual SAR level of the mobile phone while it is
operating can be well below this value. This is
because the mobile phone is designed to use the
minimum power required to reach the network.
Variations in SAR below the radio frequency
exposure guidelines do not mean that there are
variations in safety. While there may be differences
in SAR levels among mobile phones, all Sony
Ericsson mobile phone models are designed to
meet radio frequency exposure guidelines.
95Important information
This is the Internet version of the user’s guide. ©Print only for private use.
For phones sold in the US, before a phone model is
available for sale to the public, it must be tested
and certified by the Federal Communications
Commission (FCC) that it does not exceed the limit
established by the government-adopted
requirement for safe exposure. The tests are
performed in positions and locations (that is, at the
ear and worn on the body) as required by the FCC
for each model. For body-worn operation, this
phone has been tested and meets FCC RF
exposure guidelines when the handset is
positioned a minimum of 15 mm from the body
without any metal parts in the vicinity of the phone
or when used with the original Sony Ericsson
accessory intended for this phone and worn on the
body. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines.
A separate leaflet with SAR information about this
mobile phone model is included with the material
accompanying this mobile phone. This information
can also be found, together with more information
on radio frequency exposure and SAR, on:
www.sonyericsson.com/health.
Accessible Solutions/Special Needs
For phones sold in the US, you can use your TTY
terminal with your Sony Ericsson mobile phone
(with the necessary accessory). For information on
Accessible Solutions for individuals with special
needs call the Sony Ericsson Special Needs Center
on 8778781996 (TTY) or 8772072056 (voice), or
visit the Sony Ericsson Special Needs Center at
www.sonyericsson-snc.com.
Hearing Aid Compatibility Rating
This model handset was designed to comply with
the requirements set forth in Section 20.19 of the
Federal Communication Commission's rules
governing hearing aid compatibility (HAC), for the
reduction of RF interference and magnetic coupling
(T-coil) to hearing aids. The Microphone (M) rating
and T-coil (T) rating is defined and labeled on the
handset box. Devices meeting HAC compliance
must have a minimum M3 and/or T3 rating or above
as defined in the ANSI Standard C63.19-2006. The
(M) rating refers to lower RF emissions levels of the
handset. The (T) rating refers to the magnetic
coupling between the handset and the T-coil
compatible hearing aid. Some hearing aids are also
provided an (M) rating, and are more immune than
others to interference. To determine the (M) rating
of your hearing aid, please contact your hearing
health professional. More information about digital
wireless devices and hearing aid compatibility can
be found at www.sonyericsson-snc.com.
Disposal of old electrical and
electronic equipment
This symbol indicates that all
electrical and electronic equipment
included shall not be treated as
household waste. Instead it shall be
left at the appropriate collection point
for recycling of electrical and
electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent
potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. The recycling of materials
will help to conserve natural resources. For more
detailed information about recycling this product,
please contact your local city office, your
household waste disposal service or the shop
where you purchased the product.
Disposing of the battery
Please check local regulations for
disposal of batteries or call your local
Sony Ericsson Call Center for
information.
96 Important information
This is the Internet version of the user’s guide. ©Print only for private use.
The battery should never be placed in municipal
waste. Use a battery disposal facility if available.
Memory Card
Your product comes complete with a removable
memory card. It is generally compatible with the
handset purchased but may not be compatible with
other devices or the capabilities of their memory
cards. Check other devices for compatibility before
purchase or use.
The memory card is formatted prior to shipping. To
reformat the memory card, use a compatible
device. Do not use the standard operating system
format when formatting the memory card on a PC.
For details, refer to the operating instructions of the
device or contact customer support.
WARNING:
If your device requires an adapter for insertion into
the handset or another device, do not insert the
card directly without the required adapter.
Precautions on Memory Card Use
Do not expose the memory card to moisture.
Do not touch terminal connections with your hand
or any metal object.
Do not strike, bend, or drop the memory card.
Do not attempt to disassemble or modify the
memory card.
Do not use or store the memory card in humid or
corrosive locations or in excessive heat such as a
closed car in summer, in direct sunlight or near a
heater, etc.
Do not press or bend the end of the memory card
adapter with excessive force.
Do not let dirt, dust, or foreign objects get into the
insert port of any memory card adapter.
Check you have inserted the memory card
correctly.
Insert the memory card as far as it will go into any
memory card adapter needed. The memory card
may not operate properly unless fully inserted.
We recommend that you make a backup copy of
important data. We are not responsible for any loss
or damage to content you store on the memory
card.
Recorded data may be damaged or lost when you
remove the memory card or memory card adapter,
turn off the power while formatting, reading or
writing data, or use the memory card in locations
subject to static electricity or high electrical field
emissions.
End User Licence Agreement
This wireless device, including without limitation
any media delivered with the device, (“Device”)
contains software owned by Sony Ericsson Mobile
Communications AB and its affiliated companies
(“Sony Ericsson”) and its third party suppliers and
licensors (“Software”).
As user of this Device, Sony Ericsson grants you a
non-exclusive, non-transferable, non-assignable
license to use the Software solely in conjunction
with the Device on which it is installed and/or
delivered with. Nothing herein shall be construed as
a sale of the Software to a user of this Device.
You shall not reproduce, modify, distribute, reverse
engineer, decompile, otherwise alter or use any
other means to discover the source code of the
Software or any component of the Software. For
avoidance of doubt, you are at all times entitled to
transfer all rights and obligations to the Software to
a third party, solely together with the Device with
which you received the Software, provided always
that such third party agrees in writing to be bound
by these rules.
You are granted this license for a term of the useful
life of this Device. You can terminate this license by
transferring all your rights to the Device on which
you have received the Software to a third party in
writing. If you fail to comply with any of the terms
and conditions set out in this license, it will
terminate with immediate effect.
97Important information
This is the Internet version of the user’s guide. ©Print only for private use.
Sony Ericsson and its third party suppliers and
licensors are the sole and exclusive owner of and
retain all rights, title and interest in and to the
Software. Sony Ericsson, and, to the extent that the
Software contains material or code of a third party,
such third party, shall be entitled third party
beneficiaries of these terms.
The validity, construction and performance of this
license shall be governed by the laws of Sweden.
The foregoing shall apply to the full extent
permitted by, when applicable, statutory consumer
rights.
Limited Warranty
Sony Ericsson provides this Limited Warranty for
your mobile phone and original accessory delivered
with your mobile phone (hereinafter referred to as
product).
Should your Product need warranty service, please
return it to the dealer from whom it was purchased,
or contact your local Sony Ericsson Call Center
(national rates may apply) or visit
www.sonyericsson.com to get further information.
OUR WARRANTY
Subject to the conditions of this Limited Warranty,
Sony Ericsson warrants this Product to be free from
defects in design, material and workmanship at the
time of its original purchase by a consumer, and for
a subsequent period of one (1) year.
WHAT WE WILL DO
If, during the warranty period, this Product fails to
operate under normal use and service, due to
defects in design, materials or workmanship, Sony
Ericsson authorised distributors or service partners,
in the country/region* where you purchased the
Product, will, at their option, either repair or replace
the Product in accordance with the terms and
conditions stipulated herein.
Sony Ericsson and its service partners reserve the
right to charge a handling fee if a returned Product
is found not to be under warranty according to the
conditions below.
Please note that some of your personal settings,
downloads or other information may be lost when
your Sony Ericsson Product is repaired or replaced.
At present Sony Ericsson may be prevented by
applicable law, other regulation or technical
restrictions from making a backup copy of certain
downloads. Sony Ericsson does not take any
responsibility for any lost information of any kind
and will not reimburse you for any such loss. You
should always make backup copies of all the
information stored on your Sony Ericsson Product
such as downloads, calendar and contacts before
handing in your Sony Ericsson Product for repair or
replacement.
CONDITIONS
1The warranty is valid only if the original proof of
purchase issued to the original purchaser by a
Sony Ericsson authorised dealer, specifying the
date of purchase and serial number**, for this
Product, is presented with the Product to be
repaired or replaced. Sony Ericsson reserves the
right to refuse warranty service if this information
has been removed or changed after the original
purchase of the Product from the dealer.
2If Sony Ericsson repairs or replaces the Product,
the repaired or replaced Product shall be warranted
for the remaining time of the original warranty
period or for ninety (90) days from the date of
repair, whichever is longer. Repair or replacement
may involve the use of functionally equivalent
reconditioned units. Replaced parts or components
will become the property of Sony Ericsson.
3This warranty does not cover any failure of the
Product due to normal wear and tear, or due to
misuse, including but not limited to use in other
than the normal and customary manner, in
accordance with the Sony Ericsson instructions for
98 Important information
This is the Internet version of the user’s guide. ©Print only for private use.
use and maintenance of the Product. Nor does this
warranty cover any failure of the Product due to
accident, software or hardware modification or
adjustment, acts of God or damage resulting from
liquid. A rechargeable battery can be charged and
discharged hundreds of times. However, it will
eventually wear out – this is not a defect. When the
talk-time or standby time is noticeably shorter, it is
time to replace your battery. Sony Ericsson
recommends that you use only batteries and
chargers approved by Sony Ericsson. Minor
variations in display brightness and color may
occur between phones. There may be tiny bright or
dark dots on the display. These are called defective
pixels and occur when individual dots have
malfunctioned and can not be adjusted. Two
defective pixels are deemed acceptable.Minor
variations in the appearance of the camera image
may occur between phones. This is not uncommon
in digital cameras and does not mean that the
camera is defective in any way.
4Since the cellular system on which the Product is to
operate is provided by a carrier independent from
Sony Ericsson, Sony Ericsson will not be
responsible for the operation, availability, coverage,
services or range of that system.
5This warranty does not cover Product failures
caused by installations, modifications, or repair or
opening of the Product performed by a non-Sony
Ericsson authorised person.
6The warranty does not cover Product failures which
have been caused by use of accessories or other
peripheral devices which are not Sony Ericsson
branded original accessories intended for use with
the Product.
7Tampering with any of the seals on the Product will
void the warranty.
8THERE ARE NO EXPRESS WARRANTIES,
WHETHER WRITTEN OR ORAL, OTHER THAN
THIS PRINTED LIMITED WARRANTY. ALL
IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY. IN NO
EVENT SHALL SONY ERICSSON OR ITS
LICENSORS BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY NATURE
WHATSOEVER, INCLUDING BUT NOT LIMITED
TO LOST PROFITS OR COMMERCIAL LOSS; TO
THE FULL EXTENT THOSE DAMAGES CAN BE
DISCLAIMED BY LAW. Some countries/states do
not allow the exclusion or limitation of incidental or
consequential damages, or limitation of the
duration of implied warranties, so the preceding
limitations or exclusions may not apply to you. The
warranty provided does not affect the consumer's
statutory rights under applicable legislation in
force, nor the consumers rights against the dealer
arising from their sales / purchase contract.
*EUROPEAN UNION (EU)
If you have purchased your Product in an EU
country you can have your Product serviced, under
the conditions set out above, within the warranty
period in any EU country where an identical
Product is sold by an authorised Sony Ericsson
distributor. To find out if your Product is sold in the
EU country you are in, please call the local Sony
Ericsson Call Center. Please observe that certain
services may not be possible elsewhere than in the
country of original purchase, for example due to the
fact that your Product may have an interior or
exterior which is different from equivalent models
sold in other EU countries. It may not be possible to
repair SIM-locked Products.
** In some countries/regions additional information
is requested. If so, this is clearly shown on the valid
proof of purchase.
99Important information
This is the Internet version of the user’s guide. ©Print only for private use.
FCC Statement
This device complies with Part 15 of
the FCC rules. Operation is subject to
the following two conditions: (1) This
device may not cause harmful
interference, and (2) This device must
accept any interference received, including
interference that may cause undesired operation.
100 Index
This is the Internet version of the user’s guide. ©Print only for private use.
Index
A
Activity menu ....................................... 17
alarms .................................................. 79
animation ............................................. 49
answering service ................................ 25
applications .......................................... 59
appointments ....................................... 79
automatic redialing .............................. 21
B
blog ...................................................... 48
Bluetooth™ wireless technology ......... 72
business cards ..................................... 33
buttons ............................................. 9, 12
C
calculator ............................................. 82
calendar ..........................................79–80
call forward .......................................... 29
call list .................................................. 25
call numbers in message ..................... 35
call time ................................................ 32
call waiting ........................................... 29
caller-specific ringtones ....................... 24
calls accepting ..................................... 31
answering and rejecting ............... 21
emergency ................................... 22
handling two calls .........................29
international ..................................21
making and receiving ................7, 21
making notes during .....................32
missed ..........................................21
putting on hold ..............................29
recording .......................................58
restricting ......................................31
camera ............................................46–50
code memo ...........................................82
conference calls ....................................30
contacts
adding phone contacts .................23
default contacts ............................22
groups of .......................................33
synchronizing ................................71
D
date .......................................................83
delivery status .......................................37
Disc2Phone
installing ........................................53
display, brightness ................................85
downloading files ..................................70
E
email ......................................................39
emergency numbers .............................22
entering letters ......................................16
101
Index
This is the Internet version of the user’s guide. ©Print only for private use.
F
file manager .......................................... 17
fitness application .......................... 60–66
fixed dialing .......................................... 31
FM radio ......................................... 54–55
G
games ................................................... 59
groups .................................................. 33
H
HAC ...................................................... 20
HAC Rating .......................................... 95
handsfree ............................. 9, 26, 27, 50
Bluetooth™ device ....................... 73
Hearing Aid Compatibility (HAC) .......... 20
help ........................................................ 6
hiding number ...................................... 33
I
icons ..................................................... 14
infrared port .......................................... 75
Internet
blog .............................................. 48
bookmarks ................................... 69
cookies and passwords ............... 70
profiles ......................................... 70
security and certificates ............... 71
settings ......................................... 67
K
keys .................................................. 9, 12
L
language ............................................... 86
lock phone ........................................... 84
SIM card ....................................... 83
long messages ..................................... 36
M
magic word .......................................... 27
memory status ..................................... 23
Memory Stick Micro™ (M2™) .............. 17
menu overview ..................................... 10
menus .................................................. 12
messages
area and cell information .............. 45
delivery status .............................. 37
email ............................................. 39
picture .......................................... 37
text ............................................... 34
voice ............................................. 39
microphone .......................................... 21
MMS See picture messages ................ 37
music
transferring ................................... 53
MusicDJ™ ............................................ 56
My friends ............................................ 43
my numbers ......................................... 30
102 Index
This is the Internet version of the user’s guide. ©Print only for private use.
N
navigating menus ................................. 12
networks .............................................. 20
notepad ................................................ 32
notes .................................................... 81
P
phone
assembly ........................................ 4
language ...................................... 15
lock .............................................. 84
phone overview ...................................... 8
PhotoDJ™ ............................................ 49
picture messages ................................. 37
pictures ...........................................48–50
edit ............................................... 49
PIN code
changing ...................................... 84
unblocking ..................................... 4
playlists ................................................ 52
PlayNow™ ........................................... 55
profiles ................................................. 83
PUK ............................................ 4, 83, 84
push email ............................................ 42
R
radio ................................................54–55
recording
video clips .................................... 46
remote control ...................................... 75
ringtones ...............................................56
RSS reader ............................................71
S
screen saver ..........................................48
sending
appointments and tasks ...............80
business cards ..............................33
melodies and ringtones ................57
notes .............................................81
pictures .........................................49
settings
display brightness .........................85
Internet ..........................................67
Java™ ...........................................70
setup wizard ............................................6
shortcuts ...............................................15
SIM card
contact numbers ...........................23
copying to/from ............................24
lock and unblock ..........................83
SMS See text messages .......................34
SOS See emergency numbers .............22
sound recorder .....................................58
sound, transferring and directing ..........74
speed dialing .........................................25
start-up screen ................................48, 85
stopwatch .............................................81
streaming media ...................................53
submenus .............................................12
103
Index
This is the Internet version of the user’s guide. ©Print only for private use.
synchronizing ................................. 71–72
T
T9™ Text Input .................................... 16
tasks ............................................... 80–81
templates ....................................... 36, 38
text messages ...................................... 34
time ...................................................... 83
timer ..................................................... 81
TrackID ................................................. 55
transfer method
Bluetooth™ device ....................... 72
infrared ......................................... 75
USB .............................................. 76
transferring
files ............................................... 76
music ............................................ 53
turning on/off
Bluetooth ...................................... 73
infrared port ................................. 75
phone lock ................................... 84
SIM lock protection ...................... 84
U
unblock SIM card ................................. 84
Update service ..................................... 77
V
video recorder ................................ 46–50
VideoDJ™ ............................................ 57
voice answering ................................... 28
voice control ....................................26–28
voice messages ................................... 39
voicemail .............................................. 25
volume
ear speaker .................................. 21
ringtone ........................................ 56
W
WALKMAN® player ........................51–53
wallpaper .............................................. 48
writing languages ................................. 15
Z
zoom .................................................... 47
Web page ..................................... 69

Navigation menu
