08 user manual

Contents

Contents Sony Ericsson W300i

Getting Started . . . . . . . . . . . . . . . . . . 4

Assembly, SIM card, battery, turning on,

startup menu.

Getting to know your phone . . . . . . . . 9

Phone overview, icons, menu overview, entering letters,

file manager.

Calling . . . . . . . . . . . . . . . . . . . . . . . . 18

Calls, contacts, voice control, call options.

Messaging . . . . . . . . . . . . . . . . . . . . . 30

Text messaging, picture messaging, voice messaging,

email, My Friends.

Imaging . . . . . . . . . . . . . . . . . . . . . . . 35

Camera, video recorder, pictures.

Entertainment . . . . . . . . . . . . . . . . . . 38

Walkman®, radio, PlayNow™, ringtones, MusicDJ™,

VideoDJ™, games and more.

Connectivity . . . . . . . . . . . . . . . . . . . . 46

Internet and email settings, synchronizing, Bluetooth,

infrared, USB cable, update service.

More features . . . . . . . . . . . . . . . . . . . 52

Alarm clock, calendar, tasks, profiles, time and date,

SIM card lock, etc.

Troubleshooting . . . . . . . . . . . . . . . . . 57

Why doesn’t the phone work the way I want?

Important information . . . . . . . . . . . . 59

Sony Ericsson Consumer Web site, service and support,

safe and efficient use, warranty, declaration of

conformity.

Index . . . . . . . . . . . . . . . . . . . . . . . . . 71

This is the Internet version of the user's guide. © Print only for private use.

Sony Ericsson

GSM 850/900/1800/1900

This user guide is published by Sony Ericsson,

without any warranty. Improvements and changes to

this user guide necessitated by typographical errors,

inaccuracies of current information, or improvements

to programs and/or equipment, may be made by

Sony Ericsson at any time and without notice. Such

changes will, however, be incorporated into new

editions of this user guide.

©Sony Ericsson Mobile Communications AB, 2005

Publication number: AE/LZT 123 xxxx PA1

Please note: Some of the services in this user guide

are not supported by all networks. This also applies

to the GSM International Emergency Number 112.

Please contact your network operator or service

provider if you are in doubt whether you can use

a particular service or not.

Please read the Guidelines for safe and efficient use

and the Limited warranty chapters before you use

your mobile phone.

Your mobile phone has the capability to download,

store and forward additional content, e.g. ringtones.

The use of such content may be restricted or

prohibited by rights of third parties, including but not

limited to restriction under applicable copyright laws.

You, and not Sony Ericsson, are entirely responsible

for additional content that you download to or forward

from your mobile phone. Prior to your use of any

additional content, please verify that your intended

use is properly licensed or is otherwise authorized.

Sony Ericsson does not guarantee the accuracy,

integrity or quality of any additional content or any

other third party content. Under no circumstances will

Sony Ericsson be liable in any way for your improper

use of additional content or other third party content.

QuickShare™, PlayNow™, MusicDJ™, PhotoDJ™

and VideoDJ™ are trademarks or registered

trademarks of Sony Ericsson Mobile

Communications AB.

The Bluetooth word mark and logos are owned by

the Bluetooth SIG, Inc. and any use of such marks

by Sony Ericsson is under license.

Memory Stick™ and Memory Stick Micro™ and

M2 are trademarks or registered trademarks of

Sony Corporation.

The Walkman® logo and symbol are registered

trademarks of Sony Corporation.

Microsoft, Windows and PowerPoint are either

registered trademarks or trademarks of Microsoft

Corporation in the U.S and other countries/regions.

Mac OS is a trademark of Apple Computer, Inc.,

registered in the U.S. and other countries.

This is the Internet version of the user's guide. © Print only for private use.

T9™ Text Input is a trademark or a registered

trademark of Tegic Communications.

T9™ Text Input is licensed under one or more of the

following: U.S. Pat. Nos. 5,818,437, 5,953,541,

5,187,480, 5,945,928, and 6,011,554; Canadian Pat.

No. 1,331,057, United Kingdom Pat. No. 2238414B;

Hong Kong Standard Pat. No. HK0940329;

Republic of Singapore Pat. No. 51383; Euro.Pat.

No. 0 842 463(96927260.8) DE/DK, FI, FR, IT, NL,

PT, ES, SE, GB; and additional patents are pending

worldwide.

Java and all Java based trademarks and logos are

trademarks or registered trademarks of Sun

Microsystems, Inc. in the U.S. and other countries.

End-user license agreement for Sun™ Java™ JME™.

1Restrictions: Software is confidential copyrighted

information of Sun and title to all copies is retained

by Sun and/or its licensors. Customer shall not

modify, decompile, disassemble, decrypt, extract,

or otherwise reverse engineer Software. Software

may not be leased, assigned, or sublicensed, in

whole or in part.

2Export Regulations: Software, including technical

data, is subject to U.S. export control laws,

including the U.S. Export Administration Act and

its associated regulations, and may be subject to

export or import regulations in other countries.

Customer agrees to comply strictly with all such

regulations and acknowledges that it has the

responsibility to obtain licenses to export,

re-export, or import Software. Software may not be

downloaded, or otherwise exported or re-exported

(i) into, or to a national or resident of, Cuba, Iraq,

Iran, North Korea, Libya, Sudan, Syria (as such

listing may be revised from time to time) or any

country to which the U.S. has embargoed goods;

or (ii) to anyone on the U.S. Treasury

Department's list of Specially Designated Nations

or the U.S. Commerce Department's Table of

Denial Orders.

3Restricted Rights: Use, duplication or disclosure

by the United States government is subject to the

restrictions as set forth in the Rights in Technical

Data and Computer Software Clauses

in DFARS 252.227-7013(c) (1) (ii)

and FAR 52.227-19(c) (2) as applicable.

SyncML initiative Ltd. (1999-2002). All rights

reserved.

Other product and company names mentioned herein

may be the trademarks of their respective owners.

Any rights not expressly granted herein are reserved.

This is the Internet version of the user's guide. © Print only for private use.

Getting Started

Assembly, SIM card, battery, turning on,

startup menu.

User guide symbols

The following instruction symbols appear in this

user guide:

Assembly

First insert the SIM card, then insert and charge the

battery to use your phone.

SIM card

When you register as a subscriber with a network

operator, you get a SIM (Subscriber Identity

Module) card. The SIM card contains a computer

chip that keeps track of your phone number, the

services included in your subscription, and names

and numbers in your contacts, among other things.

} Use the navigation key to scroll and select

% 10 Navigating the menus.

Press the navigation key center.

Press the navigation key up.

Press the navigation key down.

Press the navigation key to the left.

Press the navigation key to the right.

% See also page ...

Note

Indicates that a service or function is network- or

subscription-dependent. Because of this, all menus

may not be available in your phone. Consult your

network operator for more information.

Save contacts to your SIM card before you remove it

from another phone. Contacts may have been saved

in the phone memory % 19 Contacts.

This is the Internet version of the user's guide. © Print only for private use.

Getting Started

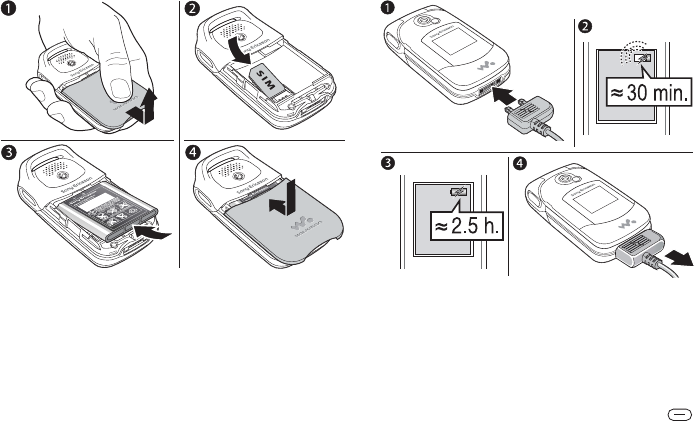

To insert the SIM card

1Slide the cover open and lift it off.

2Insert the SIM card. Make sure the SIM card is

placed under the silvery holders.

3Place the battery in the phone with the label

side up and the connectors facing each other.

4Place the cover on the phone and slide it into

place.

To charge the battery

1Connect the charger to the phone. The flash

symbol on the charger plug must face upwards.

2It may take 30 minutes for the battery icon to

appear.

3Wait approximately 2.5 hours or until the battery

icon indicates that the battery is fully charged.

For an indication of charging, press to

activate the screen.

4Remove the charger by pulling it out.

This is the Internet version of the user's guide. © Print only for private use.

Getting Started

Memory Stick Micro™ (M2™)

Use a memory card to store, for example, pictures.

If you use a memory card you can select to

automatically store all pictures on the card

% 35 Camera options.

To insert and remove the memory

card

1Slide the cover to open and lift it off.

2Insert the memory card in the slot.

3Press the edge of the memory card to release it

from the slot.

Talk-time or standby time may become noticeably

shorter due to wear and you may have to replace your

battery. Only use approved batteries from Sony Ericsson

% 63 Battery.

The Memory Stick Micro™ (M2™) media is generally

compatible with the Memory Stick™ reader contained

in this handset. The M2™ media may not be

compatible with all other devices or all features

of other devices with Memory Stick™ capabilities.

Operation of the M2™ media on any other product

is not guaranteed.

BKB 193 199/y rrr

S/N XXXXXXAABBCC yyWwww

BKB 193 199/y rrr

S/N XXXXXXAABBCC yyWwww

This is the Internet version of the user's guide. © Print only for private use.

Getting Started

You may need a PIN (Personal Identification

Number) from your network operator to activate

the services in your phone. Each PIN digit appears

as *, unless it starts with emergency number digits,

for example 112 or 911. The reason for this is to

always let you make emergency calls without

entering a PIN. % 19 Emergency calls. Press

to correct mistakes.

To turn the phone on and off

1Press and hold to turn on or off.

2Select whether you want to use the phone with

all functionality or the Walkman® player only

% 8 Startup menu.

3Enter your SIM card PIN, if you have one.

4At first start-up, select the language for phone

menus.

5} Yes if you want the setup wizard to help you

with instructions and tips or } No.

The setup wizard is also available in the menu

system, } Settings } General } Setup Wizard.

If you enter the wrong PIN three times in a row,

the SIM card is blocked % 55 SIM card lock.

This is the Internet version of the user's guide. © Print only for private use.

Getting Started

Startup menu

When the startup menu is activated, each time

you turn on the phone, you can select to listen to

music only, instead of using the phone with full

functionality. This means all transmitters of the

phone are turned off, preventing disturbance of

sensitive equipment, for example, in an airplane

or in a hospital. You cannot make calls, receive

calls, or send messages, etc. You can only use the

Walkman® player. If you have selected Music Only,

you can still receive calendar and task reminders,

and the alarm can still signal.

To deactivate the startup menu

1} Settings } the General } Startup Menu.

2Select Don’t Show.

To make and receive calls

Enter the area code and phone number } Call to

make the call. } End Call to end the call. When the

phone rings } Answer to answer the call. For more

information % 18 Making and receiving calls.

Stereo Handsfree Headset

Always follow regulations and any flight crew

instructions with respect to onboard use of electronic

devices.

You can still answer calls and use the microphone

when other compatible accessories are in use.

This is the Internet version of the user's guide. © Print only for private use.

Getting to know your phone

Getting to know your

phone

Phone overview, icons, menu overview, entering

letters, file manager.

910

1Play/Pause and Volume Key

2Left Selection Key

3Back Key

4Memory card

5Walkman® key

6Microphone

7Earpiece

8Infrared Port

9Right Selection Key

10 Navigation Key (quick camera access)

11 Clear Key

12 Power On/Off Key

13 Charger/USB Connection

This is the Internet version of the user's guide. © Print only for private use.

Getting to know your phone

Navigating the menus

The main menus are shown as icons on the desktop.

Some submenus include tabs that appear on the

screen.

• Press the navigation key in the center or in a

direction:

Press to go to the desktop or to select items.

Press , , or to move through menus

and tabs.

• Press to go back one level in the menus

or to end a function or application.

Press and hold to return to standby.

• Press to select the options shown

immediately above these keys on the screen.

• Press to delete items.

• Scroll to a menu item } Info to get help on

selected features.

•} More to enter a list of options.

Keys and Buttons

Press to delete items, such as

pictures, sounds and contacts.

During a call, press and hold to

mute the microphone.

Press to open or minimize the

Walkman player.

Press to activate the camera.

Press and hold to call your

voicemail service (if set).

- Press and hold any of these keys to

reach a contact beginning with a

specific letter.

Press multiple keys to quickly jump

to that specific contact.

- Press any of these keys and press

Call to speed dial.

This is the Internet version of the user's guide. © Print only for private use.

Getting to know your phone

Press to increase the volume during

a call, or when using the Walkman

player.

Press and hold to go forward or

back one track.

In standby, press to view status

information.

Quickly press twice to reject a call.

Press once to turn off the ringtone

when receiving a call.

Press and hold to voice dial,

alternatively say your magic word

(if set).

Press and hold to set the phone to

silent. The alarm signals even if the

phone is set to silent.

Press once to turn off the ringtone

when receiving a call.

} Info Get more information, explanations

or tips about selected features,

menus or functions available in

your phone. Scroll to a menu item

} Info.

} More Enter a list of options. There are

different alternatives in the list of

options depending on where you

are in the menus.

This is the Internet version of the user's guide. © Print only for private use.

Getting to know your phone

Menu overview

PlayNow™* Internet Services* Entertainment

Online services*

Games

VideoDJ™

PhotoDJ™

MusicDJ™

Remote Control

Record Sound

Demo Tour

Camera Messaging

Write New

Inbox

My Friends*

Call Voicemail

Drafts

Outbox

Sent Messages

Saved Messages

Templates

Settings

WALKMAN

File Manager***

All Files

In Phone

On Memory Stick

Contacts**

Options:

Speed Dial

My Business Card

Groups

SIM Contacts

Special Numbers

Advanced

New Contact

Radio

This is the Internet version of the user's guide. © Print only for private use.

Getting to know your phone

Calls*** All

Answered

Dialed

Missed

Organizer

Alarms

Calendar

Tasks

Notes

Calculator

Synchronization

Timer

Stopwatch

Applications

Code Memo

Settings

General Sounds & Alerts Display Calls Connectivity

Profiles

Time & Date

Language

Update Service

Voice Control

Shortcuts

Play/

Pause Button

Startup Menu

Locks

Setup Wizard

Tips and Tricks

Phone Status

Master Reset

Ring Volume

Ringtone

Silent mode

Increasing Ring

Vibrating Alert

Open Phone Snds

Message Alert

Key Sound

Wallpaper

Themes

Startup Screen

Screen Saver

Brightness

Sleep Mode Clock

Edit Line Names*

Forward Calls

Switch to Line 2*

Manage Calls

Time & Cost

Show/Hide My No.

Open to Answer

Handsfree

Bluetooth

Infrared Port

USB Connection

Synchronization

Device Mgmt.

Mobile Networks

Data Comm.

Internet Settings

Streaming Settings

Settings for Java™

Accessories

* Some menus are operator-, network- and subscription-dependent.

** Options when phone contacts are set to default, options change when SIM contacts are set to default.

*** Use the navigation key to move across tabs in submenus.

This is the Internet version of the user's guide. © Print only for private use.

Getting to know your phone

Status bar icons

Shortcuts

You can use keypad shortcuts to quickly go to a

menu, and you can use predefined navigation key

shortcuts to quickly reach certain functions. You

can edit the navigation key shortcuts to suit your

own needs.

Using keypad shortcuts

Enter the menus by pressing and then enter the

number of the menu to which you want to go. For

example, to reach the fifth menu item, press .

To reach the tenth, eleventh and twelfth menu items,

press , and respectively.

To go back to standby, press and hold .

Using navigation key shortcuts

In standby, press , , or to go to

a shortcuts menu, or directly to a function.

Icon Description

Tells you the strength of the GSM network

signal.

GPRS network is within range and can be used.

EDGE network is within range and can be used.

Tells you the status of the battery.

Tells you the status of the battery charging.

You have missed an incoming call.

You have received a voice message.

Call and messaging function alerts are off, alarm

is still on.

You have received a text message.

You have received an email message.

You have received a picture message.

You have an ongoing call.

You have an appointment reminder.

You have a task reminder.

The magic word is activated.

This is the Internet version of the user's guide. © Print only for private use.

Getting to know your phone

To edit a navigation key shortcut

} Settings } General } Shortcuts and select which

shortcut you want to edit } Edit.

Shut down menu

Use the shut down menu to shut down the phone,

turn on silent or activate a profile. For more

information about profiles % 52 Profiles.

To open the shut down menu

Press and select an option from the list.

File manager

Files such as pictures, videos, sounds, themes,

games and applications are saved in folders in the

phone memory. If you have a memory card inserted

you can save the files on the memory card.

Unrecognized files are saved in the Other folder.

File manager menu tabs

The file manager is divided into three tabs, and

icons indicate where the files are saved.

•All Files – all content in the phone and on the

memory card.

•In Phone – all content in the phone memory.

•On Memory Stick – all content on the memory

card.

File information

If a file is protected, you may not be able to copy or

send the file. View file information by highlighting

the file } More } Information.

To move or copy a file

1} File Manager. Select a folder and scroll to

a file } More } Manage Files.

2Select Move or Copy.

3} Memory Stick or } Phone Memory.

4Select a folder, or } New Folder name the folder

} OK.

5} Paste.

To select several files

1} File Manager and select a file } More } Mark.

2} Mark Several or } Mark All. To select files,

scroll and } Mark or } Unmark.

To check memory status

} File Manager } More } Memory Status.

Formatting the memory card

You can format a memory card if you want to delete

all information from it, or if it has been corrupted.

This is the Internet version of the user's guide. © Print only for private use.

Getting to know your phone

To format the memory card

} File Manager } More } Format M.S. } Yes and

enter your phone lock code. For more information

% 55 Phone lock.

Transferring files

For more information % 50 Transferring files.

Languages

Select the language for phone menus and for

writing.

To change the phone language

•} Settings } General } Language

} Phone Language, select a language.

• From standby, Press 0000 for English,

or press 8888 for Automatic language.

To select writing languages

1} Settings } General } Language

} Writing Language.

2Scroll and } Mark to select languages. } Save.

Entering letters

To enter letters using multitap text

input

• Press – until the desired character

appears.

• Press to shift between capitals and lower

case letters.

• Press and hold – to enter numbers.

• Press to delete letters and numbers.

• Press to add a space.

• Press for the most common punctuation

marks.

• Press and hold to change writing method.

T9™ Text Input

The T9™ Text Input method uses a built-in

dictionary to recognize the most commonly used

word for each sequence of key presses. This way,

you press each key only once, even if the letter

you want is not the first letter on the key.

This is the Internet version of the user's guide. © Print only for private use.

Getting to know your phone

To enter letters using T9 Text Input

1Scroll to a function where text input is possible,

for example, } Messaging } Write New

} Text Message.

2For example, if you want to write the word

“Jane”, press , , , .

3If the word shown is not the one you want,

press or repeatedly to view alternative

words. To accept a word and add a space, press

. To accept a word without adding a space,

press .

4Continue writing your message. To enter a

period or other punctuation marks, press

and then or repeatedly. Accept and add

a space by pressing .

To add words to the T9 Text Input

dictionary

1While entering letters } More } Spell Word.

2Edit the word by using multitap input.

Navigate between the letters with and .

To delete a character, press . To delete the

entire word, press and hold .

3When you have edited the word } Insert. The

word is added to the T9 Text Input dictionary.

Next time you enter this word using T9 Text

Input, it will appear as one of the alternative

words.

To select another writing method

Before, or while entering letters, press and hold

to select another writing method.

Options when entering letters

} More to view options when entering letters.

This is the Internet version of the user's guide. © Print only for private use.

Calling

Calls, contacts, voice control, call options.

Making and receiving calls

Turn on the phone and make sure that you are

within range of a network to make and receive calls

% 7 To turn the phone on and off. If your

subscription includes the Calling Line Identification

service and the caller’s number is identified, the

number is displayed. If the number is saved in

Contacts, the name, number, and picture are

displayed. If the number is a restricted number,

Withheld is displayed.

To make a call

Enter the phone number (with international country

code and area code, if applicable) } Call to make

the call. } End Call to end the call.

To redial a number

If the connection failed, Retry? is displayed } Yes.

To answer or reject a call

Open your phone or } Answer if your phone

is already open.

To reject a call

Close your phone, } Busy or quickly press twice

on the volume button.

To select more options during a call

} More and select an option.

To turn off the microphone

Press and hold . To resume, press and hold

again.

To use the loudspeaker during

a voice call

} More } Turn On Speaker or } Turn Off Speaker.

Call list

Information about the last calls is saved

in the call list.

To call a number from the call list

} Calls from standby and select a tab. Scroll

to a name or number you want to call } Call.

Do not hold the phone to your ear while waiting.

When a call connects, the phone gives a loud signal.

This is the Internet version of the user's guide. © Print only for private use.

Calling

To add a call list number to contacts

1} Calls from standby and select a tab. Scroll

to the number you want to add } More

} Save Number.

2Select a contact to add the number to or

} New Contact.

Emergency calls

Your phone supports the international emergency

numbers, for example, 112 and 911. These

numbers can normally be used to make an

emergency call in any country, with or without a

SIM card inserted, if a GSM network is in range.

To make an emergency call

Enter, for example, 112 } Call.

To view your local emergency

numbers

} Contacts } Options } Special Numbers

} Emergency Nos.

Contacts

Choose Phone Contacts for detailed information

saved in the phone memory or SIM Contacts for

names and numbers only on the SIM card.

To select default contacts

1} Contacts } Options } Advanced

} Default Contacts.

2Select Phone Contacts or SIM Contacts.

To add a contact

1} Contacts } New Contact } Add.

2Select Name: } Add enter the name } OK.

3Select New Number: } Add enter the number

} OK.

4For phone contacts only, select a number type.

Scroll between tabs and select fields to enter

more information. To enter symbols such as @

} More } Add Symbol and select the symbol

} Insert. To save the contact, } Save.

In some countries, other emergency numbers may also

be promoted. Your network operator may have saved

additional local emergency numbers on the SIM card.

Enter the + sign and country code with all numbers.

This is the Internet version of the user's guide. © Print only for private use.

Calling

To add a picture or a ringtone

to a contact

1} Contacts and select the contact } More

} Edit Contact.

2Select the relevant tab, then select Picture or

Ringtone } Add. Select a file and } Save.

To set the default number

for a contact

To set the phone number to be displayed first for

a contact, } Contacts and scroll to the contact

} More } Default Number and select a number.

To add your own business card

} Contacts } Options } My Business Card and

enter the information for your business card

} Save.

To send your business card

} Contacts } Options } My Business Card

} Send My Card.

To call a phone contact

} Contacts. Scroll to, or enter the first letters of the

contact you want to call. Use or to select a

number } Call.

To call a SIM contact

• If SIM Contacts is default, } Contacts select the

name and number from the list } Call.

• If Phone Contacts is default, } Contacts

} Options } SIM Contacts select the name and

number from the list } Call.

Managing contacts

Copy contacts to and from the phone memory and

the SIM card.

To copy names and numbers to the

SIM card

1} Contacts } Options } Advanced

} Copy to SIM.

2Select Copy All or Copy a Number.

To copy SIM contacts to phone

contacts

1} Contacts } Options } Advanced

} Copy from SIM.

2Select Copy All or Copy a Number.

When copying all contacts from the phone to the SIM

card, all existing SIM card information is replaced.

This is the Internet version of the user's guide. © Print only for private use.

Calling

To automatically save to the

SIM card

1} Contacts } Options } Advanced

} Auto Save on SIM.

2Select On.

To back up contacts on memory card

} Contacts } Options } Advanced

} Back Up To M.S. } Yes.

To restore contacts from

memory card

} Contacts } Options } Advanced

} Restore From M.S. } Yes } Yes.

To send contacts

• To send a selected contact, } More

} Send Contact and select a transfer method.

• To send all contacts, } Contacts } Options

} Advanced } Send All Contacts.

To edit a phone contact

1} Contacts and select a contact } More

} Edit Contact.

2Select a tab and edit the information } Save.

To edit a SIM contact

1If SIM Contacts is default, } Contacts or if

Phone Contacts is default, } Contacts

} Options } SIM Contacts.

2Select the name and number you want to edit.

3} More } Edit Contact and edit the name and

number.

To delete contacts

• To delete a selected contact, press .

• To delete all contacts, } Contacts } Options

} Advanced } Delete All Contacts } Yes and

} Yes. Names and numbers on the SIM card

are not deleted.

To check the memory status

} Contacts } Options } Advanced

} Memory Status.

Synchronizing contacts

For more information, % 47 Synchronizing.

The number of entries you can save in the phone or on

the SIM card depends on the available memory.

This is the Internet version of the user's guide. © Print only for private use.

Calling

Speed dialing

Save phone numbers that you want to reach easily

in positions 1-9 in your phone.

To set or replace speed dialing

numbers

1} Contacts } Options } Speed Dial.

2Scroll to a position } Add or Replace and select

a phone number.

To speed dial

From standby, enter a speed dial number (1-9) } Call.

Groups

Create a group of numbers and email addresses to

send messages to several recipients at the same time.

You can also use groups (with numbers) when you

create accepted callers lists.

To create a group of numbers and

email addresses

1} Contacts } Options } Groups } New Group

} Add.

2Enter a name for the group } Continue.

3New } Add to find and select a contact number.

4Repeat step 3 to add more numbers. } Done.

Voicemail

If your subscription includes an answering service,

callers can leave a voice message when you cannot

answer a call.

To enter your voicemail number

Press and hold } Yes enter the number } OK.

You get the number from your service provider.

To call your voicemail service

If you have entered your voicemail number, press

and hold .

To check your voicemail number

} Messaging } Settings } Voicemail Number.

Voice control

Manage calls with your voice by creating voice

commands to:

• Voice dial – call someone by saying the name.

• Activate voice control by saying a “magic word”.

• Answer and reject calls when using a handsfree.

This is the Internet version of the user's guide. © Print only for private use.

Calling

Before voice dialing

Activate the voice dialing function and record your

voice commands. An icon appears next to a phone

number that has a voice command.

To activate voice dialing and

record names

1} Settings } General } Voice Control

} Voice Dialing } Activate } Yes

} New Voice Cmd. and select a contact.

2If the contact has more than one number, use

and to view the numbers. Select the

number to add the voice command to. Record

a voice command such as “John mobile”.

3Instructions appear. Wait for the tone and say

the command that you want to record. The

voice command is played back to you.

4If the recording sounds ok } Yes. If not } No

and repeat step 3.

To record another voice command for a contact

} New Voice Cmd. } Add again and repeat steps 2-4

above.

Voice dialing tips

Follow these tips for recording voice commands.

If your phone cannot detect your voice command,

try re-recording by:

• recording the command in a quiet environment,

with minimal background noise.

• speaking loudly and clearly.

• holding the phone away from your face.

Caller name

Hear your recorded contact name when you receive

a call from that contact.

To turn the caller name on or off

} Settings } General } Voice Control

} Play Caller Name.

Voice dialing

Start voice dialing from standby using the phone,

a portable handsfree, a Bluetooth headset or by

saying your magic word.

This is the Internet version of the user's guide. © Print only for private use.

Calling

To make a call

1From standby, press and hold one of the volume

buttons.

2Wait for the tone and say a recorded name, for

example “John mobile”. The name is played

back to you and the call is connected.

To make a call with a handsfree

From standby, press and hold the handsfree button,

or press the Bluetooth headset button % 49 To add

a Bluetooth headset.

The magic word

Record and use a voice command as a magic word

to activate voice control without pressing any keys.

The magic word can only be used with a handsfree.

To activate and record the magic

word

1} Settings } General } Voice Control

} Magic Word } Activate.

2Instructions appear. } Continue. Wait for the

tone and say the magic word.

3} Yes to accept or } No for a new recording.

4Instructions appear. } Continue and select the

environments in which you want your magic

word to be activated.

Voice answering

Answer or reject incoming calls by using your voice,

when using a handsfree.

To activate voice answering and

record voice answer commands

1} Settings } General } Voice Control

} Voice Answer } Activate.

2Instructions appear. } Continue. Wait for the

tone and say “Answer”, or another word.

3} Yes to accept or } No for a new recording.

4Instructions appear } Continue. Wait for the

tone and say “Busy”, or another word.

5} Yes to accept or } No for a new recording.

6Instructions appear. } Continue and select

the environments in which you want voice

answering to be activated.

Choose a long, unusual word or phrase that can easily

be distinguished from ordinary background speech.

You can only use a MIDI, WAV (16 kHz), EMY or IMY

file as a ringtone with voice answering.

This is the Internet version of the user's guide. © Print only for private use.

Calling

To answer or reject a call using voice

commands

When the phone rings, say:

• “Answer” to connect the call or

• “Busy” to reject the call.

To edit your voice commands

} Contacts select the contact } More

} Edit Contact. Scroll to the relevant tab.

To re-record a voice command

1} Settings } General } Voice Control

} Voice Dialing } Edit Names.

2Select a command } More } Replace Voice.

3Wait for the tone and say the command.

Forwarding calls

Forward calls, for example, to an answering service.

To activate a call forward

1} Settings } Calls } Forward Calls.

2Select a call type and forward option } Activate.

3Enter the phone number to forward your calls

to } OK, or } Look up to select a contact.

To deactivate a call forward

Scroll to the forward option } Deactivate.

To check all forward options

} Settings } Calls } Forward Calls } Check All.

More than one call

Handle more than one call simultaneously.

Call waiting service

When activated, you hear a beep if you receive

a second call.

To activate the call waiting service

} Settings } Calls } Manage Calls } Call Waiting

} Activate.

To make a second call

} More } Hold to hold the ongoing call. Enter the

number you want to call } Call.

Receiving a second call

When you receive a second call, you can:

•} Answer and put the ongoing call on hold.

•} Busy to reject and continue the ongoing call.

•} Replace Active Call to answer and to end the

ongoing call.

When the Restrict calls function is activated, some

Forward calls options are not available.

This is the Internet version of the user's guide. © Print only for private use.

Calling

Handling two calls

If you have an ongoing call and a call on hold,

you can:

•} More } Switch to switch between the two calls.

•} More } Join Calls to join the two calls.

•} More } Transfer Call, to connect the two calls.

You are disconnected from both calls.

•} End Call } Yes to retrieve the held call.

•} End Call } No to end both calls (operator

dependent).

You cannot answer a third call without ending

one of the first two calls or joining them into

a conference call.

Conference calls

Start a conference call by joining an ongoing call

and a call on hold. Put the conference on hold to

call and add up to five participants or just to make

another call.

To join the two calls into

a conference call

} More } Join Calls.

To add a new participant

1} More } Hold to put the joined calls on hold.

2} More } Add Call and call the next person.

3} More } Join Calls.

4Repeat the procedure to include more

participants.

To release a participant

} More } Release Party and select the participant.

To have a private conversation

1} More } Talk to and select the participant.

2} More } Join Calls to resume

the conference call.

Two voice lines

Make separate calls with different phone numbers

if your subscription supports alternate line service.

To select a line

} Settings } Calls and select line 1 or 2.

To change the name of a line

1} Settings } Display } Edit Line Names and

select one of the lines to edit the name.

2} Join Calls to resume the conference call.

Contact your network operator to check if this

function is supported.

This is the Internet version of the user's guide. © Print only for private use.

Calling

Two voice lines

If you have a subscription that supports an alternate

line service, your phone may have two voice lines

with different phone numbers.

To select a line for outgoing calls

} Settings } Calls and select line 1 or 2.

To change the name of a line

} Settings } Display } Edit Line Names and select

one of the lines to edit the name.

My numbers

View, add and edit your own phone numbers.

To check your phone numbers

} Contacts } Options } Special Numbers

} My Numbers and select one of the options.

Accept calls

With the accept calls service, you can choose to

receive calls only from certain phone numbers. Other

calls are automatically rejected by a busy tone. If

the call forward option When Busy is activated, calls

are forwarded instead of rejected by a busy tone.

The phone numbers of calls you have rejected are

saved in the call list.

To add numbers to the accepted

callers list

1} Settings } Calls }Manage Calls

} Accept Calls } Only from List } Edit } Add.

Select a contact.

2To add a group of contacts to the accepted

callers list } Groups (requires that you have

created groups, % 22 Groups).

To accept all calls

} Settings } Calls } Manage Calls

} Accept Calls } All Callers.

Restricted dialing

You can use the restrict calls service to restrict

outgoing and incoming calls. You need a password

which you get from your service provider.

The following calls can be restricted:

•All Outgoing – All outgoing calls.

•Outgoing Intl. – All outgoing international calls.

•Outgoing Intl Roam – All outgoing international

calls except to your home country.

•All Incoming – All incoming calls.

•Inc. When Roaming – All incoming calls when

you are abroad (when roaming).

If you forward incoming calls, you cannot activate

some Restrict calls options.

This is the Internet version of the user's guide. © Print only for private use.

Calling

To activate or deactivate a call

restriction

1} Settings } Calls } Manage Calls

} Restrict Calls and select an option.

2Select Activate or Deactivate, enter your

password } OK.

Fixed dialing

The fixed dialing function allows calls to be made

only to certain numbers saved on the SIM card. The

fixed numbers are protected by your PIN2.

Partial numbers can be saved. For example, saving

0123456 allows calls to be made to all numbers

starting with 0123456.

To activate or deactivate fixed dialing

1} Contacts } Options } Special Numbers

} Fixed Dialing and select Activate or

Deactivate.

2Enter your PIN2 } OK and then } OK again to

confirm.

To save a fixed number

} Contacts } Options } Special Numbers

} Fixed Dialing } Fixed Numbers } New Number:

and enter the information.

Call time

During a call, the duration of the call is shown on

the screen. Check the duration of your last call,

outgoing calls and the total time.

To check the call time

} Settings } Calls } Time & Cost } Call Timers.

Closed user groups

If your network supports closed user groups, you

may be able to call at lower costs. You can save up

to ten groups. An index number is required from

your network operator.

To add a group

} Settings } Calls } Manage Calls } Closed Groups

} Edit List } New Group } Add. Enter the name of

the user group } Continue. Enter the index number

} Save.

You can still call the international emergency numbers

even when the fixed dialing function is activated.

When fixed dialing is activated, you cannot view

or manage any phone numbers that are saved

on the SIM card.

This is the Internet version of the user's guide. © Print only for private use.

Calling

To call outside a closed user group

} Settings } Calls } Manage Calls } Closed Groups

} Open Calls } On. To only call within the group

} Off.

Tone signals

Use telephone banking services or control an

answering machine by sending tone signals during

a call.

• To send the tones, press - , or .

• To clear the screen after the call is finished,

press .

• To turn the tones on or off during a call, } More

and select Disable Tones or Enable Tones.

Notepad

Note down a phone number during a call. When

you end the call, the number remains on the screen

to call or save.

Showing or hiding your

number

If your subscription supports the Calling Line

Identification Restriction, you can hide your phone

number when making a call.

To always show or hide your phone

number

1} Settings } Calls } Show/Hide My No.

2Select Show Number, Hide Number or

Network Default.

This is the Internet version of the user's guide. © Print only for private use.

Messaging

Text messaging, picture messaging, voice messaging,

email, My Friends.

Text messaging (SMS)

Text messages can contain simple pictures,

animations, melodies and sound effects.

Before you start

A service center number is provided by your network

operator to send and receive text messages. It may

already be saved on the SIM card or you can add

the number yourself.

To set the service center number

1} Messaging } Settings } Text Message

} Service Center. The number is shown if

it is saved on the SIM card.

2If there is no number } New ServiceCenter and

enter the number, including the international

“+” sign and country code } Save.

To write and send a text message

1} Messaging } Write New } Text Message.

2Write your message. To insert an item in your

message, } More } Add Item.

3} Continue. (To save the message for later,

press and } Yes to save in Drafts.)

4Select Enter Phone No. to enter the recipient’s

number, or Contacts Lookup to retrieve a

number or group from Contacts. You can also

select from the last used recipients list.

5To change the default options for your message,

for example request a read report, } More

} Advanced select an option } Edit and select

a setting } Done } Send.

Your phone supports various messaging services.

Contact your service provider about the services you

can use, or for more information see

www.sonyericsson.com/support.

If you send a message to a group, you are charged

for each member of that group.

If there is no memory available, you must delete

messages or emails before you can receive new

ones % 31 Long messages.

You can convert your text message to a picture

message. While writing } More } To Picture Msg.

This is the Internet version of the user's guide. © Print only for private use.

Messaging

To check the delivery status of a sent

message

} Messaging } Sent Messages and select a message

} View } More } Details.

To call a number in a message

Select the phone number displayed in the message,

} Call.

To save an item in a text message

1While reading a message, select the item } More.

2Select Use (the phone number you have selected

appears) to save a phone number, or Save Picture

to save a picture, or Save Bookmark to save a

Web address.

To save messages

• To save a selected message, } More

} Save Message } Saved Messages (SIM card)

or } Templates (phone).

• To save several messages in a folder, select a

message } More } Mark Several. Scroll and

} Mark to select messages. } More

} Save Messages.

To delete messages

• To delete a selected message, press .

• To delete several messages in a folder, select a

message } More select Delete all Msgs or

Mark Several. When marking several messages,

scroll and } Mark to select messages. } More

} Delete Messages.

Long messages

The number of characters allowed in a text message

depends the writing language. You can send a longer

message by linking two or more messages. You are

charged for each of the messages linked in a long

message. You may not receive all parts of a long

message at the same time.

To turn on long messages

} Messaging } Settings } Text Message

} Max. Msg. Length } Max. Available.

Check with your service provider for the maximum

number of messages that can be linked.

This is the Internet version of the user's guide. © Print only for private use.

Messaging

Picture messaging (MMS)

Picture messages can contain text, pictures, video

clips, camera pictures, sound recordings, and

signatures. They are sent via MMS (Multimedia

Messaging Service) to a mobile phone or via email.

Before you start

If settings are not already in your phone

% 46 Settings.

Creating and sending picture

messages

Select to write text and add pictures, sounds, videos,

more pages, a signature and attachments.

To create and send a picture

message

1} Messaging } Write New } Picture Msg.

2} More to add an item to the message. When

writing, } OK } More to insert an item.

3} More to add more items to the message.

When you are ready to send, continue as when

sending a text message % 30 To write and send a

text message.

To create your own signature for

picture messages

1} Messaging } Settings } Picture Message.

2} Signature } New Signature and create your

signature as a picture message.

To save an item in a picture message

1While reading a message, select the item } More.

2Select Use to save a phone number,

or Save Bookmark to save a Web address,

or Save Items to save, for example, a picture

or sound.

Automatic download

Select how to download your picture messages.

} Messaging } Settings } Picture Message

} Auto Download to select one of the following:

•Always – automatically download messages.

•Ask in roaming – ask to download other network

messages.

Sending and receiving phones must have subscriptions

that support picture messaging.

You have the same options for picture messages as for

text messages % 30 Text messaging (SMS).

This is the Internet version of the user's guide. © Print only for private use.

Messaging

•Not in Roaming – do not download other network

messages.

•Always Ask – ask to download messages.

•Off – new messages appear in the inbox as icons.

Select the message } View to download.

Voice messages

Send and receive a sound recording as a voice

message.

To record and send a voice message

1} Messaging } Write New } Voice Message.

2Record your message } Stop.

3} Send to send the message.

4Select Enter Email Addr. to enter an email

address, or Enter Phone No. to enter the

recipient’s number, or Contacts Lookup to

retrieve a number or group from Contacts,

or select from the last used recipients list.

} Send.

Connect to a POP3 or IMAP4 mail server to send

and receive email messages with your phone. You

can use the same email settings in your phone as in

your computer email program.

Before you start

If settings are not already in your phone

% 46 Settings.

To write and send an email message

1} Messaging } Email } Write New.

2} Add to enter the To: field. Select

Enter Email Addr. to enter an email address,

or Contacts Lookup to find an address in

Contacts. You can also select from the last

used recipients list.

3To add more recipients, select To, Cc or Bcc.

4When finished selecting recipients } Done.

5Write the subject } OK. Write the text } OK.

Sending and receiving phones must have subscriptions

that support picture messaging.

With a POP3 email account, messages are downloaded

to each computer or device used for access. With an

IMAP4 email account, messages can be kept on the

server.

This is the Internet version of the user's guide. © Print only for private use.

Messaging

6To add an attachment, } Add and select the

attachment } Done.

7} Continue. Select Send or More to view

options.

To receive and read email messages

1} Messaging } Email } Inbox.

2If the inbox is empty } Send&Rec. If the inbox

not is empty } More } Send & Receive.

3Select a message } View to read it.

To reply to an email message

1Open the email message } Reply.

2Select Write New or Include Message.

3Write your message } OK } Continue } Send.

To save an item or attachment

in an email message

• To save an email address, a phone number or a

Web address, select the item } More and select

to save the item.

• To save an attachment, select the message } More

} Attachments. Select the attachment } More and

select an option.

To delete email messages

• To delete a selected message, press .

• To delete several messages in a folder, select

a message } More } Mark Several. Scroll and

} Mark to select messages. } More

} Delete Messages. The marked messages are

deleted the next time you connect to your email

server.

My friends

For more information, contact your service provider

or see www.sonyericsson.com/support.

For IMAP4 users, } More } Clear Inbox and select

With Send & Rec. or No Send & Rec. to delete messages

the next time you connect to the server.

This is the Internet version of the user's guide. © Print only for private use.

Imaging

Camera, video recorder, pictures.

Camera and video recorder

Your phone has a digital camera which also works

as a digital video recorder. Take pictures and

record video clips to save, send or use. Use a

picture as a screen saver, wallpaper or for a contact.

To take pictures and record video clips

1Press from standby to start the camera.

2Press or to switch between video and

photo.

3} Capture to take a picture

} Record to start a video recording.

To use the zoom

Press and to zoom in and zoom out.

To adjust brightness

Use the volume button to increase or decrease

brightness.

Camera options

When the camera is activated } More to view

options:

•View All Clips (video).

•Shoot Mode (video) – select For Picture Msg

or High-Quality Video.

•Video Size – select Large 176x144

or Small 128x96.

•Night Mode – enhance picture or video quality in

poor lighting conditions with longer exposure time.

•Effects – select different effects for your picture

or video.

•View All Pictures (pictures).

If you try to record a strong light source such as direct

sunlight or a lamp, the screen may black out or the

picture may be distorted.

Zoom is not possible when picture size is set to Large

(1280x1024).

This is the Internet version of the user's guide. © Print only for private use.

Imaging

•Shoot Mode (pictures) – select Normal for no

frame, Panorama to combine a few pictures into

one wide picture, Frames to add a frame to your

picture, or Burst to take a few pictures in rapid

succession.

•Picture Size – select Large 640x480,

Medium 320x240, Small 160x120 or Extended (for

a digitally enlarged picture).

•Self-Timer (pictures) – the picture is taken a few

seconds after you press the camera button.

•Picture Quality – select Normal or Fine picture

quality.

•Shutter Sound (pictures) – select different shutter

sounds.

•Reset File Number (pictures) – reset the file

number counter for pictures stored on the

memory card.

•Save to – select Memory Stick or Phone Memory.

Saving and sending pictures and

video clips

When you have taken a picture or recorded a video

clip, it is saved in the phone memory or on the

memory card. You can send the picture or video

clip instantly in a picture message. To exchange

pictures and video clips using other transfer methods

% 37 Exchanging pictures and video clips.

Pictures and video clips

Your phone comes with one or more pictures and

video clips, which you can delete to free memory.

All pictures and videos are saved in File Manager.

You can use a picture as a screen saver, wallpaper,

or for a phone contact % 20 To add a picture or a

ringtone to a contact. You can send and receive

pictures and video clips using a transfer method.

The number of pictures or video clips that you

can save depends on the size of the files. There is

support for GIF, JPEG, WBMP, BMP, PNG,

SVG-Tiny, MP4 and 3GP.

To view your pictures and video clips

1} File Manager and select Pictures or Videos.

Pictures are shown in thumbnail.

2Select a picture or video clip } View.

3For video clips, } Play to start the video clip.

To search camera pictures

by time line

1} File Manager } Pictures } Camera Pictures.

2} More } Time Line Search. Now you can

browse the camera pictures, sorted by date

in a time line.

Animations are handled like pictures.

This is the Internet version of the user's guide. © Print only for private use.

Imaging

Exchanging pictures and video clips

Exchange pictures and video clips with friends using

one of the available transfer methods. You may not

be allowed to exchange copyright-protected material.

You can also transfer pictures and video clips to

a computer % 50 Transferring files.

To send a picture or video clip

1} File Manager and select Pictures or Videos.

2Select a picture or video clip } More } Send.

Select a transfer method.

To receive and save a picture or

video clip

• From a message containing the file,

% 30 Messaging.

• Via another transfer method, make sure the transfer

method is activated and follow the instructions

that appear.

Screen saver and wallpaper

The screen saver activates automatically when the

phone is idle for a few seconds. After a few more

seconds sleep mode activates, to save power. If you

have a picture as wallpaper, this picture is shown in

standby mode.

To use a picture

1} File Manager } Pictures and select a picture.

2} More } Use As and select an option.

PhotoDJ™ and VideoDJ™

Visit www.sonyericsson.com/support for information

on how to use PhotoDJ and VideoDJ in your phone.

This is the Internet version of the user's guide. © Print only for private use.

Entertainment

Walkman®, radio, PlayNow™, ringtones,

MusicDJ™, VideoDJ™, games and more.

Walkman® player

Play music and video clips that you download or

receive in a picture message or transfer from your

computer. The following file types are supported:

MP3, MP4, 3GP, AAC, AMR, MIDI, IMY, EMY

and WAV (16 kHz maximum sample rate). You

can also use streamed files that are 3GPP compatible.

Install, transfer and play music

Your phone works with the Disc2Phone computer

software, included on the CD that comes with the

phone. Use Disc2Phone to transfer music from

CDs or your computer. This way the music files

are transferred in an automatic Artist-Album-Title

order. Follow the procedures below to start using

the Walkman player.

To install the USB drivers

1Turn on your computer and insert the CD that

came with your phone into the CD drive of your

computer. If the PC Suite installation window

opens, simply close it as it is not needed here.

2Turn on your phone and connect the USB cable

to a USB port on the computer and to the phone.

The “Found New Hardware Wizards” starts on

the computer.

3Computer: Click Install the software

automatically and click Next.

4The wizard should find the USB software drivers

automatically. Click Finish.

5Repeat steps 3 and 4 until all five drivers are

installed.

To install Disc2Phone

1Turn on your computer and insert the CD that

came with your phone into the CD drive of your

computer. The CD starts automatically and the

installation window opens.

2Computer: Select a language and click OK.

3Computer: Click Install Disc2Phone and

follow the instructions on the screen. When the

installation is complete, the Disc2Phone icon

appears on the desktop of your computer.

AMR and MIDI files are only visible and possible to

play with the Walkman player if they are DRM-protected.

You can, however, listen to other AMR and MIDI files

using the file manager.

This is the Internet version of the user's guide. © Print only for private use.

Entertainment

To transfer music

1Make sure your phone is turned on and

connected to the computer with the USB cable.

2Computer: Double-click the Disc2Phone icon

on the computer desktop to open Disc2Phone.

3Computer: For details on transferring music,

please refer to Disc2Phone Help. Click in

the top right corner of Disc2Phone window.

4Computer: You can obtain CD information

(artist, track, etc.) via Disc2Phone if you are

connected to the Internet while extracting

music from a CD. You must also complete

registration before you start.

Music and video clips

Play music and video clips saved in your phone.

Information such as artist and songtitle will show

in the external display when the phone is closed.

To play music and videos

1} WALKMAN or . The Walkman player

opens.

2Browse for songs by artist or track, or in playlists.

You can also browse for video clips. Select a list

} Open.

3Highlight a title } Play.

Walkman player controls

• Press to open the Walkman player or to

minimize the Walkman player during playback.

• Press to pause the playback. Press again to

resume playing.

• Press to go forward to the next music track

or video clip.

• Press to go back to the previous music track

or video clip.

• Press and hold or to fast forward or

rewind when playing music tracks or video clips.

• Press or to scroll through the playlist

during playback. Files that are highlighted will

not be selected until you press Play.

• When a video clip is playing, press to play the

video in slow motion. To resume normal playback,

} Play.

You cannot view the transferred files in your phone

until you have removed the USB cable from the phone.

This is the Internet version of the user's guide. © Print only for private use.

Entertainment

• When a video clip is paused, press to play

the video one frame at a time.

• Press to go to the Walkman player when

in the Now Playing view.

• Press and hold to exit the Walkman player

when in the Now Playing view.

Play/pause button

Press to start or pause music. Choose between

using this button for the Walkman player or the

Radio, or the most recently used of these.

To change the play/pause button

setting

} Settings } General } Play/Pause Button

Browsing files

In the Walkman player, you can browse for music

and video content in lists:

•Artists – lists of all available artists.

•Tracks – lists all music files (not ringtones)

in your phone.

•Playlists – create or play your own lists of sound

files.

•Videos – lists all video clips in your phone.

Playlists

To organize the media files that are stored in the

File Manager, you can create playlists. Files in a

playlist can be sorted by artist, title or by the order

in which the files were added to the playlist. You

can add a file to more than one playlist.

When you delete a playlist or a file from the playlist,

it is not deleted permanently from the phone memory.

You can add the file to another playlist.

To create a playlist

1} WALKMAN } Playlists } New Playlist } Add

enter the name of the playlist } OK.

2Select among the files that are available in

the File Manager. You can add several files at

a time and you can also add folders. All music

files in the selected folders will be added to

the playlist.

To add files to a playlist

1} WALKMAN } Playlists select a playlist } Open

} More } Add Media.

2Select among the files that are available

in the File Manager.

This is the Internet version of the user's guide. © Print only for private use.

Entertainment

To remove files from a playlist

1} WALKMAN } Playlists select a playlist

} Open.

2Select the file and press .

To delete playlists

} WALKMAN } Playlists select a playlist

and press .

Walkman player options

} More for options:

•Now Playing – go to the Now Playing view.

•Add Media – add files or folders to the playlist.

•Sort – sort the playlist by artist, title or by the

order in which files were added to the playlist.

•Delete – remove a file from the playlist. In

playlists you have created, the file is only

removed from the playlist. In the Tracks list, the

file is permanently deleted from the memory.

•Rename – rename the playlist. You can only

rename user-created playlists.

•Delete Playlist – delete the playlist. Only the

playlist is deleted; the files are still listed in the

File Manager. You can only delete user-created

playlists.

•Information – view information about the current

track or video.

•Play Mode – change the playback order of songs

and videos. Select Shuffle to play the playlist files

in random order, or Loop to restart the playlist

when the last file has been played.

•Equalizer – change settings for treble and bass

when playing music in the Walkman player.

•Send – send a sound or video clip.

•Capture Frame – when a video clip is paused,

capture a picture from the video clip.

Online music and videos

View videos and listen to music by streaming them

to your phone from the Internet. If settings are not

already in your phone % 46 Settings. For more

information, contact your network operator or visit

www.sonyericsson.com/support.

To select a data account for streaming

} Settings } Connectivity } Streaming Settings

and select the data account to use.

This is the Internet version of the user's guide. © Print only for private use.

Entertainment

To stream video and audio

1} Internet Services } More } Enter Address.

2Enter or choose the address to a Web page and

select a link to stream from. The Walkman player

opens automatically when a link is selected.

To stream saved music and videos

1} Internet Services } More } Bookmarks.

2Select a link to stream. The Walkman player

opens and plays the music or video.

Radio

Listen to FM radio with RDS (Radio Data System)

functionality. You must connect the handsfree to

your phone as it works as an antenna. The radio can

also be used as an alarm signal % 52 Alarm clock.

To listen to the radio

Connect the handsfree to your phone } Radio.

Radio control

•Radio } Search to find a broadcasting frequency.

• Press or to move 0.1 MHz.

• Press or to select preset channels.

•} More to view options.

Saving radio channels

Save up to 20 preset channels.

To save radio channels

} Radio set frequency } More } Save or press and

hold - to save in positions 1 to 10.

To select radio channels

Use the navigation key or press -

to select a saved channel in positions 1 to 10.

Radio options

} More for the following options:

•Turn Off – turn off the radio.

•Minimize – return to standby to use other

functions while listening.

•Save – save the current frequency in a position.

•Channels – select, rename, replace or delete a

preset channel.

•Turn On Speaker – use the loudspeakers.

•Auto Save – save tuned channels in positions

1 to 20. Previously saved channels are replaced.

•Set Frequency – enter a frequency manually.

Press to go directly to Set Frequency.

•RDS – set options for alternative frequency (AF)

and station information.

•Turn On Mono – turn on mono sound.

This is the Internet version of the user's guide. © Print only for private use.

Entertainment

PlayNow™

Listen to music before you purchase and download

to your phone.

Before you start

If settings are not in your phone % 46 Settings.

To listen to PlayNow™ music

} PlayNow™ and select music from a list.

Downloading from PlayNow™

The total price appears when you select to download

and save a music file. Your phone bill or prepay

card is debited when a purchase is accepted. Terms

and conditions are also provided in the phone kit.

To download a music file

1When you have listened to a music file and

agreed to accept the conditions } Yes to

download.

2A text message is sent out to confirm payment

and the file is made available to download.

Music is saved in File Manager } Sounds.

Ringtones, melodies, sounds

and alerts

Your phone comes with melodies that can be used as

ringtones. You can exchange melodies by selecting

a transfer method. A sound file that cannot be set as

a ringtone is not supported or prohibited. You may

not be allowed to exchange copyright-protected

material.

To select a ringtone

} Settings } Sounds & Alerts } Ringtone.

To turn the ringtone on or off

Press and hold from standby. All signals

except the alarm signal are turned on or off.

This function is network- or operator-dependent.

Contact your network operator for information about

your subscription and PlayNow™. In some countries

you may be able to purchase music tones from some

of the world’s top musical artists.

This service is not available in all countries.

This is the Internet version of the user's guide. © Print only for private use.

Entertainment

To set the ringtone volume

} Settings } Sounds & Alerts } Ring Volume and

press or to decrease or increase } Save.

To set the vibrating alert

1} Settings } Sounds & Alerts } Vibrating Alert.

2Set this alert to On, On if in Silent or Off.

To set sounds and alerts options

} Settings } Sounds & Alerts, you can set:

•Message Alert – select message notification.

•Key Sound – select the key press sound.

Composing ringtone melodies

Compose and edit melodies to use as ringtones

using the MusicDJ™.

To compose a melody

} Entertainment } MusicDJ™ Choose to Insert,

Copy and Paste blocks to compose. Use , ,

or to move between the blocks. Press

to delete a block. } More to view more options.

To edit a previously created melody

} File Manager } Sounds and select a melody

} More } Edit.

To send and receive a melody

} File Manager } Sounds and select a melody.

} More } Send and select a transfer method. When

you receive the melody, follow the instructions that

appear.

Sound recorder

Record your own memos or calls which can be set

as ringtones.

To start a sound recording

} Entertainment } Record Sound.

To listen to your recordings

1} File Manager } Sounds and select a recording.

2} Play to listen to the recording. Press and

to go to the previous or next recording. } Stop

to stop playback. } More to view options.

You cannot send a polyphonic melody or an MP3 file

in a text message.

In some countries or states it is required by law that

you inform the other person before recording the call.

This is the Internet version of the user's guide. © Print only for private use.

Entertainment

Themes, games and

applications

Your phone comes with predefined themes,

games and applications. You can download new

content to your phone. For more information,

see www.sonyericsson.com/support.

To set a theme

} File Manager } Themes, select a theme } Set.

To send a theme

} File Manager } Themes, select a theme } More

} Send. Select a transfer method.

To receive and save a theme

When you receive the theme, follow the instructions

that appear.

To start and end a game

} Entertainment } Games, select a game } Select.

Press and hold to end the game.

To start and end an application

} File Manager } Applications, select an application

} Select. Press and hold to end the application.

To download a theme

} File Manager } Themes and scroll to a direct

link } Go To.

If settings are not already in your phone

% 46 Settings.

To download a game

} Entertainment } Games and scroll to a direct

link } Go To.

If settings are not already in your phone

% 46 Settings.

To download an application

} Internet Services } More } Go to } Bookmarks

and scroll to a direct link } Go To.

If settings are not already in your phone

% 46 Settings.

Unrecognized formats are saved in the Other folder.

This is the Internet version of the user's guide. © Print only for private use.

Connectivity

Internet and email settings, synchronizing,

Bluetooth, infrared, USB cable, update service.

Settings

Settings may already be entered when you buy your

phone. If not, contact your network operator, service

provider or visit www.sonyericsson.com/support

for more information.

In order to use the Internet, and send and receive

picture and email messages, you need the following:

• A phone subscription that supports data

transmission.

• Settings entered in your phone.

• You may also have to register as an Internet and

email user with your service provider or network

operator.

Entering settings

If the settings are not already entered in your phone,

you can:

• Receive settings in a message from your

network operator, service provider or visit

www.sonyericsson.com/support.

• Enter or edit settings yourself.

Using Internet

Browse the Internet using HTTP (Hyper Text

Transfer Protocol).

To select an Internet profile

} Settings } Connectivity } Internet Settings

} Internet Profiles and select a profile to use.

To start browsing

} Internet Services, select a service or } More for

options.

To stop browsing

} More } Exit Browser.

Options when browsing

} More to view options. The menu contains the

following options but it may depend on the Web

page you are visiting.

Before you start using the Internet, Messaging,

My Friends or PlayNow™, settings are required

in your phone.

If you select an email address when browsing a Web

page, you can send a message to that address.

This is the Internet version of the user's guide. © Print only for private use.

Connectivity

} Go To for options:

•Sony Ericsson – go to the pre-defined

homepage.

•Bookmarks – create, use or edit bookmarks.

•Enter Address – enter the address to a Web page.

•History – list of previously visited Web pages.

} Tools for options:

•Add Bookmark – add a new bookmark.

•Save Picture – save a picture.

•Save Page – save the current Web page.

•Refresh Page – refresh the current Web page.

•Send Link – send a link to the current Web page.

•Make a Call – make a call while browsing. } More

} End Call to end the call and continue browsing.

} View for options:

•Full Screen – select normal or full screen.

•Text Only – select full content or text only.

•Zoom – zoom in or out on the Web page.

} Zoom to Normal – set zoom to default.

} Advanced to enter settings for the browser.

} Exit Browser to disconnect and go to standby.

To work with bookmarks

} Internet Services } More } Go To } Bookmarks

and select a bookmark } More. Select an option.

Internet security

Secure browsing is supported. When using an

Internet profile you can turn on security in the

phone.

Trusted certificates

Certain Internet services, such as banking, require

certificates in your phone. Your phone may already

contain certificates when you buy it, or you can

download new certificates.

To check the certificates in your

phone

} Settings } Connectivity } Internet Settings

} Security } TrustedCertificates.

Synchronizing

Synchronize contacts, appointments, tasks and notes

via Bluetooth, the infrared port, Internet services or

a USB cable.

Visit www.sonyericsson.com/support to

download the software or Getting started guides

for synchronization.

This is the Internet version of the user's guide. © Print only for private use.

Connectivity

Synchronization with nearby devices

Install the computer synchronization by downloading

it from www.sonyericsson.com/support. The

software includes help information.

Remote synchronization via Internet

Synchronize online via an Internet service.

To enter the remote synchronization

settings

1} Organizer } Synchronization and } Yes or

New Account. Enter a name for the new account

} Continue.

2Enter the following settings:

•Server Address – server URL.

•Username – account username.

•Password – account password.

•Connection – select an Internet profile.

•Applications – mark applications to

synchronize.

•App. Settings – select an application and enter

a database name, and if required, username

and password.

•Sync. Interval – set how often to synchronize.

•Remote Initiation – select to always accept,

never accept or always ask when starting

from a service.

•Remote Security – enter server ID and

password.

3} Save to save your new account.

To start the remote synchronization

} Organizer } Synchronization, select an account

} Start.

Bluetooth™ wireless

technology

Bluetooth makes it possible to connect wirelessly

to other Bluetooth devices. You can:

• connect to several devices at the same time.

• synchronize information with other devices.

• use the remote control functionality.

• use a remote screen.

• exchange items and play multiplayer games.

The recommended maximum distance between two

Bluetooth devices is 33 feet (10 meters), with no solid

objects in between.

This is the Internet version of the user's guide. © Print only for private use.

Connectivity

Before you start

• Turn on Bluetooth to communicate with other

devices.

• Pair your phone with the Bluetooth devices that

you want to communicate with.

To turn on Bluetooth in your phone

} Settings } Connectivity } Bluetooth } Turn On.

To show or hide your phone

} Settings } Connectivity } Bluetooth } Visibility

} Show Phone or Hide Phone.

To add a device to your phone

} Settings } Connectivity } Bluetooth } My Devices

} New Device to search for available devices. Select

a device from the list. Enter a passcode (provided

with the headset), if required.

To save power

} Settings } Connectivity } Bluetooth } Powersave

} On.

To add a Bluetooth headset

1} Settings } Connectivity } Bluetooth

} Handsfree.

2} Yes if you are adding a Bluetooth handsfree

for the first time or } My Handsfree

} New Handsfree } Add if you are adding

another Bluetooth handsfree. Ensure that your

handsfree is prepared to be added.

Infrared port

The infrared port in your phone can be used to

exchange information with another device equipped

with infrared.

To turn on the infrared port in your

phone

} Settings } Connectivity } Infrared Port } On or

} 10 Minutes to turn on for 10 minutes.

Please check if local laws or regulations restrict the

use of Bluetooth. If Bluetooth is not allowed, you must

ensure that the Bluetooth function is turned off. The

maximum allowed Bluetooth radio output power in the

phone may be configured according to possible local

restrictions. This means that the maximum distance

may vary.

If set to hide, other devices will not be able to discover

your phone via Bluetooth.

This reduces power consumption when using a single

Bluetooth device. Turn it off when using several

Bluetooth devices.

This is the Internet version of the user's guide. © Print only for private use.

Connectivity

To connect two devices

Turn on infrared in both devices. Make sure the

infrared port on your phone is facing the infrared

port on the other device with a maximum distance

of 8 inches (20 cm).

USB cable

Use a USB cable and exchange information between

your phone and a computer.

To start a USB connection

Turn on your phone and connect the USB cable to

your phone and computer:

•File Transfer to browse files on the memory card

and on the phone memory. The phone will turn

off in this mode.

•Phone Mode to synchronize information with other

devices or use the phone as a modem. The phone

will remain on in this mode.

To end a USB connection

• When in File Transfer mode, exit the USB

connection on your computer by right-clicking

on the Removable disk icon in Windows

Explorer and select Eject. Then remove the

USB cable from your phone and computer.

• When in Phone Mode, remove the USB cable

from your phone and computer.

Transferring files

You can transfer pictures, videos, sounds, and themes

by using one of the following transfer methods:

• Bluetooth % 48 Bluetooth™ wireless technology

• Infrared % 49 Infrared port

• USB cable % 50 USB cable

To transfer files using Bluetooth

or infrared

1Select a file to transfer.

2} More } Send and select Via Bluetooth or

Via Infrared.

Do not remove the USB cable from the phone or

computer during file transfer as this may corrupt

the memory card and the phone memory.

You can also send files via email % 33 Email or

picture messages % 32 Picture messaging (MMS).

This is the Internet version of the user's guide. © Print only for private use.

Connectivity

To transfer files using the USB cable

1Prepare your phone for file transfer

% 50 To start a USB connection.

2Use drag-and-drop functionality in your

computer to transfer files between your

phone and the computer.

3End USB connection % 50 To end a USB

connection.

Update service

Download and install new software without

affecting the user data in your phone. Update your

phone over the air via your phone or online via

USB cable and an Internet-connected computer.

To use Update service over the air

1} Settings } General } Update Service.

2} Search For Update to search for the latest

available software. Start the update process

by following the installation instructions,

or } Software Version to display the current

software installed in your mobile phone,

or } Reminder to set when to search for new

software.

To use Update service online

1Visit www.sonyericsson.com/support.

2Select a region and country.

3Enter the product name.

4Select Sony Ericsson Update Service and

follow the instructions that appear.

The Update service requires data access (GPRS). Your

operator will provide you with a subscription with

data access and with price information.

This is the Internet version of the user's guide. © Print only for private use.

More features

Alarm clock, calendar, tasks, profiles, time and

date, SIM card lock, etc.

Time and date

Time and date are always displayed in standby.

To set the time and date

} Settings } General } Time & Date:

• To set time and time format, } Time enter the

time } Format select a format } Save.

• To set date and date format, } Date enter the date

} Format select a format } Save.

• To edit time zone, } Time Zone select an option.

• To set daylight saving on or off,

} Daylight Saving select an option.

• To set auto time zone, } Auto Time Zone select

and option.

Alarm clock

The alarm rings even if the phone is set to silent or

turned off.

To set and use an alarm

} Organizer } Alarms and select an option:

• To set an alarm, } Alarm set a time } Save.

• To set a recurrent alarm, } Recurrent Alarm set

a time } Continue select days Mark } Done.

• To select a signal, } Alarm Signal select a sound.

• To turn the alarm signal off when it rings, press

any key.

• To cancel an alarm, } Organizer } Alarm or

} Recurrent Alarm } Turn Off.

Profiles

Your phone has predefined profiles that are set to

suit a certain environment. You can reset all profile

settings to the way they were set when you bought

your phone.

To use profiles

} Settings } General } Profiles:

• Select a profile to use.

• To view and edit a profile, } More

} View And Edit.

• To reset profiles, } More } Reset Profiles.

You can also activate a profile from the shut down

menu % 15 Shut down menu.

This is the Internet version of the user's guide. © Print only for private use.

More features

Brightness

Adjust the brightness of the screen. } Settings

} Display } Brightness and press or to set

brightness level } Save.

Calendar

Add, save, edit and set reminders for appointments.

Synchronize the calendar with a web calendar

or a computer calendar. % 47 Synchronizing.

To add a new appointment

} Organizer } Calendar select a date

} New Appointment. } Add. Enter details

} Continue to confirm each entry. } Select

to confirm the appointment.

To view an appointment

} Organizer } Calendar and select a day.

Select an appointment } View.

To view a calendar week

} Organizer } Calendar } More } View Week.

To set reminders options

1} Organizer } Calendar } More } Advanced

} Reminders.

2Select an option. Select Always for a reminder

to sound even though the phone is turned off or

set to silent.

Navigating in your calendar

Use the navigation key to move between days

or weeks.

Calendar settings

} Organizer } Calendar } More and select an

option:

•View Week – view appointments of the week.

•New Appointment – add a new appointment.

•Change Date – go to another date in the calendar.

•Advanced – for options to find and set reminders

or select a start day for the week.

•Delete – delete appointments.

•Help – view help text for more calendar

information.

A reminder option set in the calendar affects

a reminder option set in tasks.

This is the Internet version of the user's guide. © Print only for private use.

More features

To send an appointment

} Organizer } Calendar and select an appointment

for a certain day } More } Send and select a transfer

method.

Tasks

Add new tasks or use existing tasks as templates.

You can also set reminders for tasks.

To add a new task

} Organizer } Tasks } New Task } Add. Select

Task or Phone Call. Enter details and confirm each

entry.

To view a task

} Organizer } Tasks and select a task } View.

To set reminders

1} Organizer } Tasks and select a task } More

} Reminders.

2Follow step 2 and 3 % 53 To set reminders

options.

To send a task

} Organizer } Tasks and select a task for a certain

day } More } Send and select a transfer method.

Notes

Make notes and save them in a list. You can also

show a note in standby.

To add a note

} Organizer } Notes } New Note } Add and enter

the note } Save.

To edit notes

} Organizer } Notes select a note } More and edit

the note } Save.

To send a note

} Organizer } Notes } and select a note } More

} Send and select a transfer method.

Calculator

Use the calculator to add, subtract, divide and

multiply.

} Organizer } Calculator:

• To select ÷ x - + . % =, press or .

• To delete a figure, press .

A reminder option set in tasks affects a reminder

option set in the calendar.

More features

SIM card lock

The SIM card lock protects your subscription from

unauthorized use. Most SIM cards are locked at the

time of purchase. If the SIM card lock is on, you

have to enter a PIN (Personal Identity Number)

every time you turn on your phone. If you enter

your PIN incorrectly three times in a row, the SIM

card is blocked and the message PIN Blocked is

displayed. To unblock it, you need to enter your

PUK (Personal Unblocking Key). Your PIN and

PUK are supplied by your network operator. You

can edit your PIN and select a new four- to eight-

digit PIN.

To unblock your SIM card

1When PIN Blocked is displayed, enter your PUK

} OK.

2Enter a new four- to eight-digit PIN } OK.

Re-enter the new PIN to confirm } OK.

To edit your PIN

1} Settings } General } Locks } SIM Lock

} Change PIN.

2Enter your PIN } OK.

3Enter a new four- to eight-digit PIN } OK.

Re-enter the new PIN to confirm } OK.

To turn the SIM card lock on or off

} Settings } General } Locks } SIM Lock

} Protection and select On or Off. Enter your PIN

} OK.

Phone lock

The phone lock protects the phone against

unauthorized use. You can change the phone lock

code (0000) to any four- to eight-digit personal code.

To unlock the phone

If the phone lock is on, enter your code } OK.

Automatic phone lock

If the phone lock is set to automatic, you only need

to enter your phone lock code when you insert a

different SIM card.

If the message Codes do not match appears when you

edit your PIN, the new PIN is entered incorrectly. If

the message Wrong PIN appears, followed by Old PIN:

you entered your old PIN incorrectly.

More features

To set the phone lock

} Settings } General } Locks } Phone Lock

} Protection and select an option. Enter the phone

lock code } OK.

To edit your phone lock code

} Settings } General } Locks } Phone Lock

} Change Code.

Code memo

Save security codes, such as for credit cards, in the

code memo. Set a passcode to open the code memo.

To confirm that you have entered the correct

passcode for the code memo, enter a checkword.

When you enter your passcode to open the code

memo, the checkword is shown for a short time.

If the passcode is correct, the correct codes are shown.

If you enter the incorrect passcode, the checkword

and the codes that are shown are also incorrect. If

you forgot your passcode you must reset the code

memo.

To open code memo for the first time

} Organizer } Code Memo. Instructions appear

} Continue. Enter a four-digit passcode } Continue.

Re-enter the new passcode } Continue. Enter

a checkword (maximum 15 characters) } Done.

To add a new code

} Organizer } Code Memo and enter your passcode

} Continue } New Code } Add. Enter a name

associated with the code, for example, the name of

the credit card company } Continue. Enter the code

} Done.

To change the passcode

} Organizer } Code Memo and enter your passcode

} Continue } More } Change Passcode. Enter your

new passcode } Continue. Re-enter the new passcode

} Continue. Enter a checkword } Done.

To reset code memo

} Organizer } Code Memo and enter your passcode

} Continue } More } Reset.

Reset Code Memo? appears } Yes. The code memo

is reset and all entries are cleared. The next time

you enter the code memo, you must start at

% 56 To open code memo for the first time.

It is important that you remember your new code. If

you forget it, you have to hand in your phone to your

local Sony Ericsson retailer.

Troubleshooting

Why doesn’t the phone work the way I want?

Some problems require that you call your service

provider, but most problems you can correct

yourself. Before handing your phone in for repair,

copy your saved content and information to another

device as it may be lost during repair. For more

support go to www.sonyericsson.com/support.

Grey menu options

The service may not be activated or your subscription

does not support the function. Contact your network

operator.

The phone is working slowly

Delete unwanted content and then restart the phone.

No indication of charging

The battery is empty or has not been used for a long

time. It may take up to 30 minutes before the battery

icon appears.

The phone cannot be turned on

The battery is discharged % 5 To charge the battery.

Charging a non Sony Ericsson battery

% 63 Battery.

The wrong menu language is shown

% 16 To change the phone language.

Master reset

Delete your settings and the content you have

added/edited.

To reset your phone

} Settings } General } Master Reset. Select

Reset Settings to delete your changes to settings

or Reset all to delete your changes to settings, all

contacts, messages, personal data, and content you

have downloaded, received or edited. } Continue.

Error messages

Insert SIM

Is the SIM card correctly inserted? % 5 To insert the

SIM card.

Insert correct SIM card

Are you using the correct operator SIM card for

your phone?

Troubleshooting

Emerg. calls only

You are within range of a network but not allowed

to use it, except for emergency calls. Contact your

network operator to ensure your subscription is

correct.

No netw. coverage

There is no network within range. Contact your

network operator to ensure that the network has

coverage.

Wrong PIN/Wrong PIN2

You have entered your PIN or PIN2 incorrectly.

Enter the correct PIN or PIN2 } Yes

% 55 SIM card lock.

Codes do not match

To change a security code you have to confirm the

new code by entering exactly the same code twice.

PIN blocked/PIN2 blocked

To unblock % 55 SIM card lock.

PUK blocked

Contact your network operator.

Phone locked

The phone is locked. To unlock the phone

% 55 Phone lock.

Phone lock code

The phone lock code is required % 55 Phone lock.

Important information

Sony Ericsson Consumer Web site, service and

support, safe and efficient use, warranty,

declaration of conformity.

Sony Ericsson Consumer

Web site

On www.sonyericsson.com/support there is a support

section where help and tips are only a few clicks

away. Here you find the latest computer software

updates and tips on how to use your product more

efficiently.

Service and support

From now on you will have access to a portfolio of

exclusive service advantages such as:

• Global and local websites providing support.

• A global network of Call Centers.

• An extensive network of Sony Ericsson service

partners.

• A warranty period. Learn more about the warranty

conditions in this user guide.

On www.sonyericsson.com, under the support

section in the language of your choice, you will find

the latest support tools and information, such as

software updates, Knowledgebase, Phone setup

and additional help when you require it.

For operator-specific services and features, please

contact your network operator for more information.

You can also contact our Call Centers. See the phone

number for the nearest Call Center in the list below.

If your country/region is not represented in the list,

please contact you local dealer. (The phone numbers

below were correct at the time of going to print. On

www.sonyericsson.com you can always find the

latest updates.)

In the unlikely event that your product needs service,

please contact the dealer from whom it was purchased

or one of our service partners. Save your original

proof of purchase, you will need it if you need to

claim warranty.

For a call to one of our Call Centers you will be

charged according to national rates, including local

taxes, unless the phone number is a toll-free number.

Australia 1-300 650 050

questions.AU@support.sonyericsson.com

Argentina 800-333-7427

questions.AR@support.sonyericsson.com

Austria 0810 200245

questions.AT@support.sonyericsson.com

Belgium 02-7451611

questions.BE@support.sonyericsson.com

Brazil 4001-0444

questions.BR@support.sonyericsson.com

Canada 1-866-766-9374

questions.CA@support.sonyericsson.com

Important information

Central Africa +27 112589023

questions.CF@support.sonyericsson.com

Chile 123-0020-0656

questions.CL@support.sonyericsson.com

China 4008100000

questions.CN@support.sonyericsson.com

Colombia 18009122135

questions.CO@support.sonyericsson.com

Croatia 062 000 000

questions.HR@support.sonyericsson.com

Czech Republic 844 550 055

questions.CZ@support.sonyericsson.com

Denmark 33 31 28 28

questions.DK@support.sonyericsson.com

Finland 09-299 2000

questions.FI@support.sonyericsson.com

France 0 825 383 383

questions.FR@support.sonyericsson.com

Germany 0180 534 2020

questions.DE@support.sonyericsson.com

Greece 801-11-810-810

210-89 91919 (from mobile)

questions.GR@support.sonyericsson.com

Hong Kong 8203 8863

questions.HK@support.sonyericsson.com

Hungary 06 1 437 7300

questions.HU@support.sonyericsson.com

India 39011111

(Add STD code from a GSM connection)

questions.IN@support.sonyericsson.com

Indonesia 021-2701388

questions.ID@support.sonyericsson.com

Ireland 1850 545 888

questions.IE@support.sonyericsson.com

Italy 06 48895206

questions.IT@support.sonyericsson.com

Malaysia 1-800-889900

questions.MY@support.sonyericsson.com

Mexico 01 800 000 4722

(national toll-free number)

questions.MX@support.sonyericsson.com

Netherlands 0900 899 8318

questions.NL@support.sonyericsson.com

New Zealand 0800-100150

questions.NZ@support.sonyericsson.com

Norway 815 00 840

questions.NO@support.sonyericsson.com

Philippines 02-6351860

questions.PH@support.sonyericsson.com

Poland 0 (prefix) 22 6916200

questions.PL@support.sonyericsson.com

Portugal 808 204 466

questions.PT@support.sonyericsson.com

Important information

Romania (+4021) 401 0401

questions.RO@support.sonyericsson.com

Russia 8(495) 787 0986

questions.RU@support.sonyericsson.com

Singapore 67440733

questions.SG@support.sonyericsson.com

Slovakia 02-5443 6443

questions.SK@support.sonyericsson.com

South Africa 0861 632222

questions.ZA@support.sonyericsson.com

Spain 902 180 576

questions.ES@support.sonyericsson.com

Sweden 013-24 45 00

questions.SE@support.sonyericsson.com

Switzerland 0848 824 040

questions.CH@support.sonyericsson.com

Taiwan 02-25625511

questions.TW@support.sonyericsson.com

Thailand 02-2483030

questions.TH@support.sonyericsson.com

Turkey 0212 47 37 777

questions.TR@support.sonyericsson.com

Ukraine (+380) 44 590 1515

questions.UA@support.sonyericsson.com

United Arab Emirates43 919880

questions.AE@support.sonyericsson.com

United Kingdom 08705 23 7237

questions.GB@support.sonyericsson.com

United States 1-866-766-9374

questions.US@support.sonyericsson.com

Venezuela 0-800-100-2250

questions.VE@support.sonyericsson.com

Guidelines for Safe and

Efficient Use

Please read this information before using

your mobile phone.

These instructions are intended for your

safety. Please follow these guidelines.

If the product has been subject to any of

the conditions listed below or you have any doubt of

the proper function make sure to have the product

checked by certified service partner before charging

or using it. Failure to do so might lead to risk for

product malfunction or even a potential hazard to

your health.

Recommendations for safe use of

product (mobile phone, battery,

charger and other accessories)

• Always treat your product with care and keep it

in a clean and dust-free place.

•Warning! May explode if disposed of in fire.

Important information

• Do not expose your product to liquid or moisture

or humidity.

• Do not expose your product to extreme

high or low temperatures. Do not expose

the battery to temperatures above +60°C

(+140°F).

• Do not expose your product to open

flames or lit tobacco products.

• Do not drop, throw or try to bend your product.

• Do not paint your product.

• Do not attempt to disassemble your

product. Only Sony Ericsson authorised

personnel should perform service.

• Do not close your product with an

object inserted between keypad and

display; this may damage your product

• Do not use your product near medical equipment

without requesting permission.

• Do not use your product when in, or around

aircraft, or areas posted “turn off two-way radio”.

• Do not use your product in an area

where a potentially explosive atmosphere

exists.

• Do not place your product or install

wireless equipment in the area above

your car's air bag.

CHILDREN

KEEP OUT OF CHILDRENS REACH.

DO NOT ALLOW CHILDREN TO PLAY

WITH YOUR MOBILE PHONE OR ITS

ACCESSORIES. THEY COULD HURT

THEMSELVES OR OTHERS, OR

COULD ACCIDENTALLY DAMAGE

THE MOBILE PHONE OR ACCESSORY. YOUR

MOBILE PHONE OR ITS ACCESSORY MAY

CONTAIN SMALL PARTS THAT COULD BE

DETACHED AND CREATE A CHOKING HAZARD.

Power supply (Charger)

Connect the AC power adapter only to designated

power sources as marked on the product. Make sure

the cord is positioned so that it will not be subjected

to damage or stress. To reduce risk of electric shock,

unplug the unit from any power source before

attempting to clean it. The AC power adapter must

not be used outdoors or in damp areas. Never alter

the cord or plug. If the plug will not fit into the outlet,

have a proper outlet installed by a qualified electrician.

Use only Sony Ericsson branded original chargers

intended for use with your mobile phone. Other

chargers may not be designed to the same safety

and performance standards.

Important information

Battery

We recommend that you fully charge the battery

before you use your mobile phone for the first time.

A new battery or one that has not been used for a

long time could have reduced capacity the first few

times it is used. The battery should only be charged

in temperatures between +5°C (+41°F) and +45°C

(+113°F).

Use only Sony Ericsson branded original batteries

intended for use with your mobile phone. Using other

batteries and chargers could be dangerous.

The talk and standby times depend on several

different conditions such as signal strength, operating

temperature, application usage patterns, features

selected and voice or data transmissions when using

the mobile phone.

Turn off your mobile phone before removing the

battery. Do not allow the battery to be put into the

mouth. Battery electrolytes may be toxic if swallowed.

Do not let the metal contacts on the battery touch

another metal object. This could short-circuit and

damage the battery. Use the battery for the intended

purpose only.

Personal medical devices

Mobile phones may affect the operation of cardiac

pacemakers and other implanted equipment. Please

avoid placing the mobile phone over the pacemaker,

e.g. in your breast pocket. When using the mobile

phone, place it at the ear opposite the pacemaker.

If a minimum distance of 15 cm (6 inches) is kept

between the mobile phone and the pacemaker, the

risk of interference is limited. If you have any reason

to suspect that interference is taking place, immediately

turn off your mobile phone. Contact your cardiologist

for more information.

For other medical devices, please consult your

physician and the manufacturer of the device.

Driving

Please check if local laws and regulations restrict the

use of mobile phones while driving or require drivers

to use handsfree solutions. We recommend that you

use only Sony Ericsson handsfree solutions intended

for use with your product.

Please note that because of possible interference to

electronic equipment, some vehicle manufacturers

forbid the use of mobile phones in their vehicles unless

a handsfree kit with an external antenna supports the

installation.

Always give full attention to driving and pull off the

road and park before making or answering a call if

driving conditions so require.

Important information

Emergency calls

Mobile phones operate using radio signals, which

cannot guarantee connection under all conditions.

Therefore you should never rely solely upon any

mobile phone for essential communications (e.g.

medical emergencies).

Emergency calls may not be possible in all areas,

on all cellular networks, or when certain network

services and/or mobile phone features are in use.

Check with your local service provider.

Antenna

This phone contains a built in antenna. Use of antenna

devices not marketed by Sony Ericsson specifically

for this model could damage your mobile phone,

reduce performance, and produce SAR levels above

the established limits (see below).

Efficient use

Hold your mobile phone as you would any other

phone. Do not cover the top of the phone when in

use, as this affects call quality and may cause the

phone to operate at a higher power level than

needed, thus shortening talk and standby times.

Radio frequency (RF) exposure and

SAR

Your mobile phone is a low-power radio transmitter

and receiver. When it is turned on, it emits low levels

of radio frequency energy (also known as radio

waves or radio frequency fields).

Governments around the world have adopted

comprehensive international safety guidelines,

developed by scientific organizations, e.g. ICNIRP

(International Commission on Non-Ionizing Radiation

Protection) and IEEE (The Institute of Electrical and

Electronics Engineers Inc.), through periodic and

thorough evaluation of scientific studies. These

guidelines establish permitted levels of radio wave

exposure for the general population. The levels

include a safety margin designed to assure the safety

of all persons, regardless of age and health, and to

account for any variations in measurements.

Specific Absorption Rate (SAR) is the unit of

measurement for the amount of radio frequency

energy absorbed by the body when using a mobile

phone. The SAR value is determined at the highest

certified power level in laboratory conditions, but the

actual SAR level of the mobile phone while operating

can be well below this value. This is because the

mobile phone is designed to use the minimum power

required to reach the network.

Important information

Variations in SAR below the radio frequency exposure

guidelines do not mean that there are variations in

safety. While there may be differences in SAR levels

among mobile phones, all Sony Ericsson mobile phone

models are designed to meet radio frequency exposure

guidelines.

For phones sold in the U.S., before a phone model is

available for sale to the public, it must be tested and

certified to the FCC that it does not exceed the limit

established by the government-adopted requirement

for safe exposure. The tests are performed in positions

and locations (that is, at the ear and worn on the body)

as required by the FCC for each model. For body worn

operation, this phone has been tested and meets

FCC RF exposure guidelines when the handset

is positioned a minimum of 15 mm from the body

without any metal parts in the vicinity of the phone

or when used with the original Sony Ericsson body

worn accessory intended for this phone. Use of other

accessories may not ensure compliance with FCC RF

exposure guidelines.

A separate leaflet with SAR information for this mobile

phone model is included with the material that comes

with this mobile phone. This information can also

be found, together with more information on radio

frequency exposure and SAR, on:

www.sonyericsson.com.

Accessible Solutions/Special Needs

For phones sold in the U.S., you can use your TTY

terminal with your Sony Ericsson mobile phone

(with the necessary accessory). For information

on Accessible Solutions for individuals with special

needs call the Sony Ericsson Special Needs Center

at 877 878 1996 (TTY) or 877 207 2056 (voice), or

visit the Sony Ericsson Special Needs Center at

www.SonyEricsson-snc.com.

Disposal of old electrical &

electronic equipment

This symbol on the product or on its

packaging indicates that this product

shall not be treated as household waste.

Instead it shall be handed over to the applicable

collection point for the recycling of electrical and

electronic equipment. By ensuring this product is

disposed of correctly, you will help prevent potential

negative consequences for the environment and

human health, which could otherwise be caused by

inappropriate waste handling of this product. The

recycling of materials will help to conserve natural

resources. For more detailed information about

recycling of this product, please contact your local

city office, your household waste disposal service

or the shop where you purchased the product.

Important information

Disposing of the battery

Please check local regulations for

disposal of batteries or call your local

Sony Ericsson Call Center for information.

The battery should never be placed in

municipal waste. Use a battery disposal facility

if available.

End User Licence Agreement

This wireless device, including without limitation any

media delivered with the device, (“Device”) contains

software owned by Sony Ericsson Mobile

Communications AB and its affiliated companies

(“Sony Ericsson”) and its third party suppliers and

licensors (“Software”).

As user of this Device, Sony Ericsson grants you

a non-exclusive, non-transferable, non-assignable

license to use the Software solely in conjunction with

the Device on which it is installed and/or delivered

with. Nothing herein shall be construed as a sale of

the Software to a user of this Device.

You shall not reproduce, modify, distribute, reverse

engineer, decompile, otherwise alter or use any other

means to discover the source code of the Software

or any component of the Software. For avoidance of

doubt, you are at all times entitled to transfer all rights

and obligations to the Software to a third party, solely

together with the Device with which you received the

Software, provided always that such third party agrees

in writing to be bound by these rules.

You are granted this license for a term of the useful

life of this Device. You can terminate this license by

transferring all your rights to the Device on which you

have received the Software to a third party in writing.

If you fail to comply with any of the terms and conditions

set out in this license, it will terminate with immediate

effect.

Sony Ericsson and its third party suppliers and

licensors are the sole and exclusive owner of

and retain all rights, title and interest in and to the

Software. Sony Ericsson, and, to the extent that

the Software contains material or code of a third

party, such third party, shall be entitled third party

beneficiaries of these terms.

The validity, construction and performance of this

license shall be governed by the laws of Sweden.

The foregoing shall apply to the full extent permitted

by, when applicable, statutory consumer rights

Limited Warranty

Sony Ericsson, provides this Limited Warranty for your

mobile phone and original accessory delivered with

your mobile phone (hereinafter referred to as “Product”).

Should your Product need warranty service, please

return it to the dealer from whom it was purchased,

or contact your local Sony Ericsson Call Center

(national rates may apply) or visit

www.sonyericsson.com to get further information.

Important information

Our warranty

Subject to the conditions of this Limited Warranty,

Sony Ericsson warrants this Product to be free from

defects in design, material and workmanship at the

time of its original purchase by a consumer, and for

a subsequent period of one (1) year.

What we will do

If, during the warranty period, this Product fails to

operate under normal use and service, due to defects

in design, materials or workmanship, Sony Ericsson

authorised distributors or service partners, in the

country/region* where you purchased the Product,

will, at their option, either repair or replace the

Product in accordance with the terms and conditions

stipulated herein.

Sony Ericsson and its service partners reserve the

right to charge a handling fee if a returned Product

is found not to be under warranty according to the

conditions below.

Please note that some of your personal settings,

downloads or other information may be lost when

your Sony Ericsson Product is repaired or replaced.

At present Sony Ericsson may be prevented by

applicable law, other regulation or technical restrictions

from making a backup copy of certain downloads.

Sony Ericsson does not take any responsibility for

any lost information of any kind and will not reimburse

you for any such loss. You should always make

backup copies of all the information stored on your

Sony Ericsson Product such as downloads, calendar

and contacts before handing in your Sony Ericsson

Product for repair or replacement.

Conditions

1The warranty is valid only if the original proof of

purchase issued to the original purchaser by a

Sony Ericsson authorised dealer, specifying the

date of purchase and serial number**, for this

Product, is presented with the Product to be

repaired or replaced. Sony Ericsson reserves the

right to refuse warranty service if this information

has been removed or changed after the original

purchase of the Product from the dealer.

2If Sony Ericsson repairs or replaces the Product,

the repaired or replaced Product shall be

warranted for the remaining time of the original

warranty period or for ninety (90) days from the

date of repair, whichever is longer. Repair or

replacement may involve the use of functionally

equivalent reconditioned units. Replaced parts

or components will become the property of

Sony Ericsson.

3This warranty does not cover any failure of the

Product due to normal wear and tear, or due to

misuse, including but not limited to use in other

than the normal and customary manner, in

Important information

accordance with the Sony Ericsson instructions

for use and maintenance of the Product. Nor does

this warranty cover any failure of the Product due

to accident, software or hardware modification or

adjustment, acts of God or damage resulting from

liquid.

A rechargeable battery can be charged and

discharged hundreds of times. However, it will

eventually wear out - this is not a defect. When

the talk-time or standby time is noticeably shorter,

it is time to replace your battery. Sony Ericsson

recommends that you use only batteries and

chargers approved by Sony Ericsson.

Minor variations in display brightness and color

may occur between phones. There may be tiny

bright or dark dots on the display. These are called

defective pixels and occur when individual dots

have malfunctioned and can not be adjusted.

Two defective pixels are deemed acceptable.

Minor variations in camera image appearance may

occur between phones. This is nothing uncommon

and is not regarded as a defective camera module.

4Since the cellular system on which the Product is to

operate is provided by a carrier independent from

Sony Ericsson, Sony Ericsson will not be responsible

for the operation, availability, coverage, services

or range of that system.

5This warranty does not cover Product failures

caused by installations, modifications, or repair

or opening of the Product performed by a non-

Sony Ericsson authorised person.

6The warranty does not cover Product failures which

have been caused by use of accessories or other

peripheral devices which are not Sony Ericsson

branded original accessories intended for use with

the Product.

7Tampering with any of the seals on the Product will

void the warranty.

8THERE ARE NO EXPRESS WARRANTIES,

WHETHER WRITTEN OR ORAL, OTHER THAN

THIS PRINTED LIMITED WARRANTY. ALL

IMPLIED WARRANTIES, INCLUDING WITHOUT

LIMITATION THE IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE, ARE LIMITED TO THE

DURATION OF THIS LIMITED WARRANTY. IN

NO EVENT SHALL SONY ERICSSON OR ITS

LICENSORS BE LIABLE FOR INCIDENTAL OR

CONSEQUENTIAL DAMAGES OF ANY NATURE

WHATSOEVER, INCLUDING BUT NOT LIMITED

TO LOST PROFITS OR COMMERCIAL LOSS;

TO THE FULL EXTENT THOSE DAMAGES CAN

BE DISCLAIMED BY LAW.

Important information

Some countries/states do not allow the exclusion or

limitation of incidental or consequential damages, or

limitation of the duration of implied warranties, so the

preceding limitations or exclusions may not apply to

you.

The warranty provided does not affect the consumer's

statutory rights under applicable legislation in force,

nor the consumer's rights against the dealer arising

from their sales / purchase contract.

*EUROPEAN UNION (EU)

If you have purchased your Product in an EU country

you can have your Product serviced, under the

conditions set out above, within the warranty period

in any EU country where an identical Product is sold

by an authorised Sony Ericsson distributor. To find

out if your Product is sold in the EU country you are

in, please call the local Sony Ericsson Call Center.

Please observe that certain services may not be

possible elsewhere than in the country of original

purchase, for example due to the fact that your

Product may have an interior or exterior which is

different from equivalent models sold in other EU

countries. It may not be possible to repair SIM-locked

Products.

** In some countries/regions additional information is

requested. If so, this is clearly shown on the valid proof

of purchase.

FCC Statement

This device complies with Part 15 of the

FCC rules. Operation is subject to the

following two conditions: (1) This device

may not cause harmful interference, and

(2) This device must accept any interference

received, including interference that may cause

undesired operation.

Important information

Declaration of Conformity

We, Sony Ericsson Mobile Communications AB of

Nya Vattentornet

S-221 88 Lund, Sweden

declare under our sole responsibility that our product

Sony Ericsson type AAF-1052033-BV

and in combination with our accessories, to which this

declaration relates is in conformity with the appropriate

standards 3GPP TS 51.010-1, EN 301489-7,

EN 300328, EN 301489-17, and EN 60950

following the provisions of, Radio Equipment and

Telecommunication Terminal Equipment directive

99/5/EC with requirements covering EMC directive

89/336/EEC, and Low Voltage directive 73/23/EEC

We fulfil the requirements of the R&TTE Directive

(99/5/EC).

Lund, May 2006

Shoji Nemoto,

Head of Product Business Unit GSM/UMTS

Index

adding

personal ringtones 20

pictures to contacts 20

alarm clock 52

answering service 22

applications 45

appointments 53

battery

charging 5

inserting 5

Bluetooth™ 48–49

buttons 10

calculator 54

call forward 25

call time 28

call waiting 25

calls

accept 27

answering and rejecting 18

emergency 19

hold 25

list 18

making 8, 18

receiving 8

recording 44

redial 18

restricting 27

two calls 26

camera 35–36

certificates 47

closed user groups 28

code memo 56

conference calls 26

contacts 19

edit 21

synchronizing 47

date 52

declaration of conformity 70

Disc2Phone 38

email 33

entering letters 16

file manager 15

fixed dialing 28

FM radio 42

games 45

groups 22

handsfree 49

hiding number 29

Index

icons 14

infrared port 49

instant messaging 30

Internet 46

keys and buttons 10

language 16, 57

locks

phone 55

SIM card 55

magic word 24

melodies 43

memory status

contacts 21

file manager 15

Memory Stick

formatting 15

insert and remove 6

menus 10, 12

messages

deleting 31

picture (MMS) 32

text 30

voice 33

microphone 18

music 39

MusicDJ 38

My friends 34

my numbers 27

navigation key 10

networks 18

notes 54

phone

assembly 4

language 16

overview 9

phone lock 55

PhotoDJ 37

picture messaging 32

pictures 20, 36–37

PIN code 7

entering 7

PlayNow™ 43

profiles 52

PUK 55

radio 42

recording

calls 44

sounds 44

video clips 35

reject a call 18

restricted dialing 27

ringtones 20

safety guidelines 61

screen saver 37

security

code memo 56

Internet 47

Index

sending

appointments 54

melodies 44

notes 54

pictures and video clips 36

ringtones 44

tasks 54

settings

connectivity 46

display brightness 53

email 33

remote sychronization 48

shortcuts 14

showing number 29

SIM card

copying to/from 20

save automatically 21

unblocking 55

sound recorder 44

T9™ Text Input 17

tasks 54

text input 16

themes 45

transferring files 50–51

TTY 65

turning on/off

phone 7

phone lock 55

ringtones 43

two voice lines 26, 27

unblock SIM card 55

USB cable 50

USB drivers 38

vibrating alert 44

video clips 36–37, 39

video recorder 35

VideoDJ 37

voice answering 24

voice control 22–25

voice dialing 23

voicemail 22

volume

ringtone 44

Walkman® 38

wallpaper 37

warranty 66

zoom 35

Sony AF052033 Licensed Transmitter User Manual

Sony Mobile Communications Inc Licensed Transmitter

08 user manual

Navigation menu

Namespaces

Views

Navigation
