Contents

08 user manual 2

61Connectivity
Java application screen size
Some Java applications are designed
for a specific screen size and may not
be able to adapt the application to the
screen. For more information, contact
the application vendor.
To set the screen size for a Java™
application
1} File Manager } Applications or
} Games.
2Select an application or a game
} More } Screen Size.
3Select an option, for example, User
Defined } Width and Height to edit
values.
Connectivity
Internet and email settings,
synchronizing, Bluetooth, infrared,
USB cable, update service.
Settings
Settings may already be entered when
you buy your phone. If not, make sure
you have a phone subscription that
supports data transfer (GPRS).
Download settings for Internet/WAP
browsing, email and MMS (picture
messaging) at
www.SonyEricsson.com/support
.
To download settings
1On your computer, browse to
www.SonyEricsson.com/support
.
2Select a region and a country or
Global support area.
3Select the
Phone setup
tab, and select
a phone model.
4Select which setting to download to
your phone.
Using Internet
Browse the Internet using HTTP
(Hyper Text Transfer Protocol).
For more information contact your
network operator or visit
www.SonyEricsson.com/support.
This is the Internet version of the user's guide. © Print only for private use.
62 Connectivity
To select an Internet profile
} Settings and use or to scroll to
the Connectivity tab } Internet
Settings } Internet Profiles and select
a profile to use.
To start browsing
} Internet Services and select a
service or } Internet Services } More
to view options.
To stop browsing
} More } Exit Browser.
Options when browsing
} More to view options. The menu
contains the following options but
may depend on the Web page you
are visiting:
} Go to for options:
•Sony Ericsson – go to the pre-
defined homepage set for the
current profile.
•Bookmarks – create, use or edit
bookmarks.
•Enter Address – enter the address
to a Web page.
•History – list of previously visited
Web pages.
} Tools for options:
•Add Bookmark – add a new
bookmark.
•Save Picture – save a picture.
•Save Page – save the current Web
page.
•Refresh Page – refresh the current
Web page.
•Send Link – send a link to the
current Web page.
•Make a Call – make a call while
browsing the Internet. } More } End
Call to end the call and continue
browsing.
} View for options:
•Full Screen – select normal or full
screen.
•Text Only – select full content or
text only.
•Zoom – zoom in or out on the Web
page.
•Zoom to Normal – set zoom to
default.
} Advanced to enter settings for the
browser.
} Exit Browser to disconnect and go
to standby.
Using bookmarks
Use, create and edit bookmarks for
the browser.
If you select an email address when
browsing a Web page, you can send
a message to that address.
This is the Internet version of the user's guide. © Print only for private use.
63Connectivity
To work with bookmarks
1} Internet Services } More } Go to
} Bookmarks and select a bookmark
} More.
2Select an option.
Downloading
Download files, for example, pictures,
themes, games and ringtones from
Web pages.
To download from the Sony Ericsson
Web page
1} Internet Services } Sony Ericsson.
2Browse the Web page, select a file to
download and follow the instructions
that appear.
Internet profile for Java™
applications
Some Java applications need to
connect to the Internet to receive
information, for example, games that
downloads new levels from a game
server.
Before you start
If settings are not in your phone
%
61 Settings
.
To select a profile for Java
} Settings } the Connectivity tab
} Settings for Java™ and select an
Internet profile.
Stored information
When browsing, you can save
information.
The following information can be saved:
•Cookies – improve Web page
access efficiency.
•Passwords – improve server access
efficiency.
To allow cookies
} Internet Services } More } Advanced
} the Browsing tab } Allow Cookies
} On.
To clear cookies
} Internet Services } More }
Advanced } the Other tab } Clear
Cookies } Yes.
To clear the password list
} Internet Services } More } Advanced
} the Other tab } Clear Passwords
} Yes.
It is advisable to clear all sensitive
information from previously visited
Internet services. This is to avoid misuse
of personal information if your phone is
misplaced, lost or stolen.
This is the Internet version of the user's guide. © Print only for private use.
64 Connectivity
Internet security
Trusted certificates
Certain Internet services, such as
banking, require certificates in your
phone. Your phone may already
contain certificates when you buy it
or you can download new certificates.
To check certificates in your phone
} Settings } the Connectivity tab
} Internet Settings } Security
} Trusted Cert.
Synchronizing
Synchronize phone contacts,
appointments, tasks and notes via

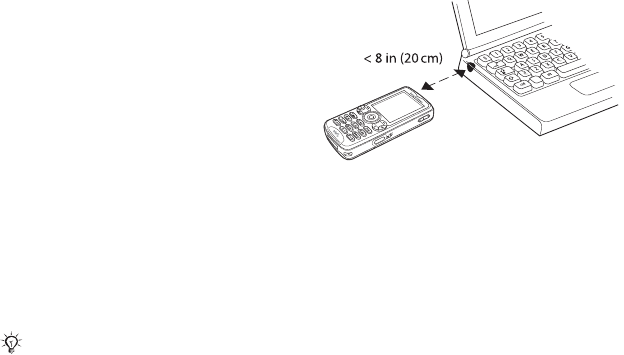

Bluetooth, the infrared port, Internet

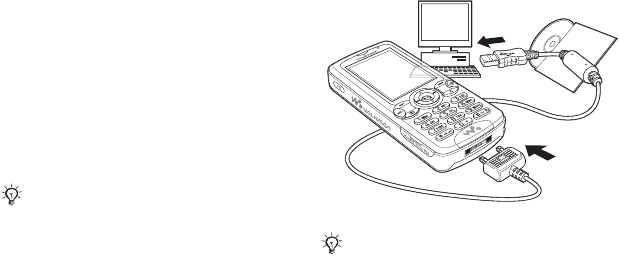

services or the USB cable included
with your phone.
Synchronization software for your
computer is found in the Sony
Ericsson PC Suite, which is available
on the CD that comes with your
phone. You can also visit
www.SonyEricsson.com/support
to
download the software or Getting
started guides for synchronization.
To select sort order for contacts
} Contacts } Options } Advanced
} Sort Order to select sorting by first
or last name.
Synchronization with nearby devices
Install the Sony Ericsson PC Suite
from the CD that comes with your
phone or download it from
www.SonyEricsson.com/support
. The
software includes help information.
Remote synchronization via Internet
Synchronize online via an Internet
service.
Before you start
•If settings are not in your phone
%
61 Settings
.
•Register a synchronization account
online.
•Enter remote synchronization
settings.
To enter remote synchronization
settings
1} Organizer } Synchronization
} New Account } Yes to create
a new account.
2Enter a name for the new account
} Continue.
Secure browsing is supported. When
using an Internet profile you can turn
on security in the phone.
This is the Internet version of the user's guide. © Print only for private use.
65Connectivity
3Enter the following:
•Server Address – server URL.
•Username – account username.
•Password – account password.
•Connection – select an Internet
profile.
•Applications – mark applications
to synchronize.
•App. Settings – select an application
and enter a database name, and if
required, username and password.
•Sync. Interval – set how often to
synchronize.
•Remote Initiation – select to always
accept, never accept or always ask
when starting from a service.
•Remote Security – insert a server ID
and a server password.
4} Save to save your new account.
To start remote synchronization
} Organizer } Synchronization and
select an account } Start.
Bluetooth™ wireless
technology
Bluetooth makes it possible to connect
wirelessly to other Bluetooth devices.
You can:
•connect to several devices at the
same time.
•synchronize information with other
devices.
•use the remote control functionality.
•use a remote screen.
•exchange items and play
multiplayer games.
Before you start
Learn more about Bluetooth and how
to use it by visiting
www.SonyEricsson.com/support
.
•Turn on Bluetooth to communicate
with other devices.
•Pair the Bluetooth devices with
your phone that you want to
communicate with.
We recommend a range within 33 feet
(10 meters), with no solid objects in
between, for Bluetooth communication.
This is the Internet version of the user's guide. © Print only for private use.
66 Connectivity
To turn Bluetooth on
} Settings } the Connectivity tab
} Bluetooth } Turn On.
Adding devices to your phone
Enter a passcode to set up a secure
link between your phone and the
device. Enter the same passcode on
the device when prompted. Devices
with no user interface, such as a
handsfree, will have a pre-defined
passcode. Consult the device user
guide for more information.
To add a device to your phone
1} Settings } the Connectivity tab
} Bluetooth } My Devices } New
Device to search for available devices.
2Select a device from the list.
3Enter a passcode, if required.
To organize your list of devices
1} Settings } the Connectivity tab
} Bluetooth } My Devices and select
a device from the list.
2} More to view a list of options.
Power save
Turn on to reduce power consumption
by optimizing your phone for use with
a single Bluetooth device. Turn off to
connect with several Bluetooth
devices at the same time.
To save power
} Settings } the Connectivity tab
} Bluetooth } Powersave } On.
Phone name
Enter a name for your phone to be
shown to other devices when found.
To enter a phone name
} Settings } the Connectivity tab
} Bluetooth } Phone Name.
Visibility
Choose to make your phone visible to
other Bluetooth devices or not. If set
to hide, other devices will not be able
to discover your phone via Bluetooth.
Please check if local laws or regulations
restrict the use of Bluetooth. If Bluetooth
is not allowed, you must ensure that the
Bluetooth function is turned off. The
maximum allowed Bluetooth radio output
power in the phone is automatically
adjusted according to possible local
restrictions. This means that the range
may vary.
Make sure that the device you want to
add has Bluetooth activated and visible.
This is the Internet version of the user's guide. © Print only for private use.
67Connectivity
To show or hide your phone
} Settings } the Connectivity tab
} Bluetooth } Visibility } Show Phone
or Hide Phone.
Exchanging items
Send or receive items using Bluetooth
as the transfer method. Choose a
device from the list of found devices.
To send an item
1Select an item, for example } Contacts
and select a contact.
2} More } Send Contact
} Via Bluetooth.
3Select the device to send the item to
} Select.
To receive an item
} Settings } the Connectivity tab
} Bluetooth } Turn On. Make sure the
phone is visible, %
67 To show or hide
your phone
. When you receive an item,
follow the instructions that appear.
To add a Bluetooth handsfree
1} Settings } the Connectivity tab
} Bluetooth } Handsfree.
2} Yes if you are adding a Bluetooth
handsfree for the first time or } My
Handsfree } New Handsfree } Add
if you are adding another Bluetooth
handsfree. Ensure that your handsfree
is in pairing mode. Consult the device
user guide for more information.
Transferring sound
Transfer the sound for calls when
using a Bluetooth handsfree. You can
also transfer the sound for calls using
the keypad.
To transfer sound when using a
handsfree
During a call, } More } Transfer
Sound and select a device.
Directing sound
Direct sound when answering a call
with the phone keypad or the
handsfree button.
To direct sound when answering
a call with a handsfree
1} Settings } the Connectivity tab
} Bluetooth } Handsfree } Incoming
Call.
2} In Phone to direct to the phone
or } In Handsfree to direct to the
handsfree.
Remote control
Use your phone as a remote control
device to control computer applications
such as a media player or Microsoft®
This is the Internet version of the user's guide. © Print only for private use.
68 Connectivity
PowerPoint® presentations. Your
computer must support Bluetooth
HID Profile.
To select remote control
1} Entertainment } Remote Control.
2Select an application to use and the
computer to connect to.
File transfer
Use a computer equipped with
Bluetooth to view and transfer files in
the file manager. Use drag-and-drop
functionality to:
•Transfer files between phone and
computer.
•Move and organize files.
•Delete files from the phone.
Infrared port
Use the infrared port as a transfer
method with compatible devices.
You can, for example, synchronize
calendar items %
64 Synchronizing
.
To turn the infrared port on
} Settings } the Connectivity tab
} Infrared Port } On or } 10 Minutes
to turn on for 10 minutes.
To connect two devices
1Turn on infrared in both devices.
2Make sure the infrared port on your
phone is facing the infrared port on the
other device with a maximum distance
of 8 inches (20 cm).
To send an item using the infrared
port (for example a contact)
1Turn on infrared in both devices.
} Contacts and select a contact.
2} More } Send Contact } Via Infrared.
When connecting to a computer, refer
to its user documentation. Make sure
that computer infrared speed is set to
115200 bps.
This is the Internet version of the user's guide. © Print only for private use.
69Connectivity
Transferring files using the
USB cable
When you connect your phone to a
computer using the USB cable, the
phone memory and Memory Stick
appear as drives or devices on the
computer. If you are a Windows user,
you can install the USB cable drivers
using the CD that comes with your
phone, %
69 To install and use the
USB cable
.
You can use the drag-and-drop
functionality in your computer to:
•Transfer files between your phone
and the computer.
•Move, delete and organize files in
the phone memory or on the
Memory Stick.
To install and use the USB cable
1Computer: Install the Sony Ericsson
PC Suite from the CD that comes with
your phone.
2Connect the USB cable to your phone
and the computer.
3Phone: In the pop-up } Phone Mode
to synchronize with the computer or
to use your phone as a modem. } File
Transfer to transfer music, pictures
and other files to your phone. The
phone will turn off in File Transfer
mode.
Only use the USB cable that comes with
the phone, and connect the USB cable
directly to your computer. Do not remove
the USB cable from the phone or
computer during file transfer, as this may
corrupt the Memory Stick and the phone
memory. You cannot view the transferred
files in your phone until you have
removed the USB cable from the phone.
Uninstall any previously used mobile
phone communication software, such
as synchronization software, from your
computer.
This is the Internet version of the user's guide. © Print only for private use.
70 Connectivity
4For safe disconnection of the USB
cable in File Transfer mode, right-click
on the Removable Disk icon in
Windows Explorer and select Eject.
5Remove the USB cable from your
phone.
Update service
Keep your phone updated with the
latest software. When a new software
version is available, you can download
and install it without affecting the user
data in your phone.
Choose one of the following methods
to update your phone:
•over the air via your phone or
•online via the provided USB cable
and an Internet-connected
computer.
Before you start
If settings are not in your phone
%
61 Settings
.
To use Update service over the air
1} Settings } the General tab } Update
Service.
2} Search for Update to search for the
latest available software. Start the
update process by following the
installation instructions, or } Software
Version to display the current software
installed in your mobile phone, or
} Reminder to set when to search
for new software.
To use Update service online
1Connect the USB cable to the
computer and the phone.
2Visit
www.SonyEricsson.com/support
.
3Select a region and country.
4Enter the product name.
5Select Sony Ericsson Update Service
and follow the instructions.
The Update service requires data access
(GPRS). Your operator will provide you
with a subscription with data access and
with price information.
This is the Internet version of the user's guide. © Print only for private use.
71More features
More features
Alarm clock, calendar, tasks, profiles,
time and date, SIM card lock, etc.
Alarm clock
Set an alarm for a specific time. You
can also set an alarm to recur on
specific days. The alarm signal is on
even if the phone is set to silent or
turned off.
To use alarms
} Organizer } Alarms and select an
option:
•} Alarm set a time } Save.
•} Recurrent Alarm. Set the time
and select days } Mark } Done.
•} Alarm Signal } Radio or Sounds.
To snooze or turn an alarm off
To turn the alarm signal off when it
sounds, press any key or } Snooze.
If you do not want the alarm to be
repeated } Turn Off.
To cancel an alarm
} Organizer } Alarms } Alarm
} Turn Off.
Calendar
You can use the calendar to keep
track of important meetings. The
calendar can be synchronized with a
computer calendar or with a calendar
on the Web %
64 Synchronizing
.
Appointments
Add new appointments or use existing
appointments as templates. You can
also set reminders for appointments.
To add a new appointment
1} Organizer } Calendar and select
a date } Select } New Appointment
} Add.
2Enter details and confirm each entry.
To view an appointment
1} Organizer } Calendar and select a
day (appointment days marked in bold).
2Select an appointment } View.
To view a calendar week
} Organizer } Calendar } More
} View Week.
To set when reminders should sound
1} Organizer } Calendar } More
} Advanced } Reminders.
If you choose Radio as the alarm signal,
please make sure that the handsfree is
connected to the phone.
This is the Internet version of the user's guide. © Print only for private use.
72 More features
2} Always for a reminder to sound even
when the phone is turned off or set to
silent. When the reminder sounds } Yes
to read the appointment or } No to turn
off the reminder. A reminders option
set in the calendar affects a reminders
option set in tasks.
Navigating in your calendar
Use the navigation key to move
between days or weeks. In the
monthly and weekly views, you can
also use the keypad as follows
.
Calendar settings
} Organizer } Calendar } More to
select an option:
•View Week – view appointments of
the week.
•New Appointment – add a new
appointment.
•Change Date – go to another date
in the calendar.
•Advanced – find, set reminders or
select a start day for the week.
•Delete – delete appointments.
Exchanging appointments
Exchange appointments using
a transfer method. You can also
synchronize appointments with
a computer %
64 Synchronizing
.
To send an appointment
Select an appointment in the list for a
certain day } More } Send and select
a transfer method.
Tasks
Add new tasks or use existing tasks as
templates. You can also set reminders
for tasks.
To add a new task
1} Organizer } Tasks } New Task
} Add.
2} Task or Phone Call.
3Enter details and confirm each entry.
To view a task
} Organizer } Tasks and select a task
} View.
To set when reminders should sound
1} Organizer } Tasks and select a task
} More } Reminders.
2} Always for a reminder to sound even
when the phone is turned off or set to
silent. When the reminder sounds } Yes
to read the task, or to call the phone
Today´s date
Back a week Next week
Back a month Next month
Back a year Next year
This is the Internet version of the user's guide. © Print only for private use.
73More features
number in a phone task. } No to turn
off the reminder. A reminders option
set in tasks affects a reminders option
set in the calendar.
Exchanging tasks
Exchange tasks using a transfer
method. You can also synchronize
tasks with a computer %
64
Synchronizing
.
To send a task
Select a task in the list of tasks for a
certain day } More } Send and select
a transfer method.
Notes
Make notes and save them in a list.
You can also show a note in standby.
To add a note
} Organizer } Notes } New Note
} Add and enter the note } Save.
To edit notes
1} Organizer } Notes and a list appears.
2Select a note } More and select an
option.
Exchanging notes
Exchange notes using a transfer
method. You can also synchronize
notes with a computer
%
64 Synchronizing
.
To send a note
Select a note } More } Send and
select a transfer method.
Timer
Your phone has a timer. When the
signal rings, press any key to turn
it off.
To set the timer
} Organizer } Timer and set the
hours, minutes and seconds for
countdown.
Stopwatch
Your phone has a stopwatch that can
save several laps. The stopwatch
continues to run when you answer
an incoming call.
To use the stopwatch
1} Organizer } Stopwatch } Start.
2} Stop or } New Lap if you want
a lap time.
3To reset the stopwatch } Reset.
This is the Internet version of the user's guide. © Print only for private use.
74 More features
Light
Use the light as a flash light in dimly lit
environments. The light can also be
used as an SOS signal.
To use the light
1} Organizer } Light.
2Choose between On for 1 Minute, On,
Off or SOS.
Calculator
The calculator can add, subtract,
divide and multiply.
To use the calculator
} Organizer } Calculator.
•Press or to select ÷ x - + . % =.
•Press to delete the figure.
•Press to enter a decimal point.
Code memo
Save security codes, such as for credit
cards, in the code memo. Set a
passcode to open the code memo.
Checkword and security
To confirm that you have entered the
correct passcode you must enter a
checkword.
When you enter your passcode to
open the code memo, the checkword
is shown for a short time. If the
passcode is correct, the correct codes
are shown. If you enter the incorrect
passcode, the checkword and the
codes that are shown are also
incorrect.
To open code memo for the first time
1} Organizer } Code Memo. A message
with instructions appears } Continue.
2Enter a four-digit passcode } Continue.
3Re-enter the new passcode to confirm.
4Enter a checkword (maximum
15 characters) } Done. The checkword
can consist of both letters and numbers.
To add a new code
1} Organizer } Code Memo and enter
your passcode } New Code } Add.
2Enter a name associated with the
code } Continue.
3Enter the code } Done.
Do not look directly at the camera light
diodes of the phone using a magnification
device. Failure to comply with this
warning may damage your eyes.
This is the Internet version of the user's guide. © Print only for private use.
75More features
To change the passcode
1} Organizer } Code Memo and enter
your passcode } More } Change
Passcode.
2Enter your new passcode } Continue.
3Re-enter the new passcode }
Continue.
4Enter a checkword } Done.
Forgot your passcode?
If you forget your passcode, you must
reset the code memo.
To reset code memo
1} Organizer } Code Memo and enter
any passcode to access the code
memo. The checkword and codes that
are then shown are incorrect.
2} More } Reset.
3Reset Code Memo? appears } Yes.
The code memo is reset and all entries
are cleared. The next time you enter
the code memo, you must start at
%
74 To open code memo for the first
time
.
Profiles
Your phone has predefined profiles that
are set to suit a certain environment.
You can reset all profile settings to the
way they were set when you bought
your phone.
To select a profile
} Settings } the General tab } Profiles
and select a profile.
To view and edit a profile
} Settings } the General tab } Profiles
} More } View and Edit.
To reset profiles
} Settings } the General tab } Profiles
} More } Reset Profiles.
Time and date
The time is always displayed in
standby.
•To set the time } Settings } the
General tab } Time & Date } Time.
Enter the time } Save.
•To set the time format } Format and
select an option.
•To set the date and date format
} Settings } the General tab
} Time & Date } Date.
SIM card lock
The SIM card lock protects your
subscription, but not the phone itself,
from unauthorized use. If you change
SIM cards, your phone still works with
the new SIM card.
You cannot rename the normal profile.
This is the Internet version of the user's guide. © Print only for private use.
76 More features
Most SIM cards are locked at the time
of purchase. If the SIM card lock is
on, you have to enter a PIN (Personal
Identity Number) every time you turn
on your phone.
If you enter your PIN incorrectly three
times in a row, the SIM card is blocked.
This is indicated by the message PIN
Blocked. To unblock it, you need to
enter your PUK (Personal Unblocking
Key). Your PIN and PUK are supplied
by your network operator. You can
edit your PIN and select a new four- to
eight-digit PIN.
To unblock your SIM card
1When PIN Blocked appears, enter
your PUK } OK.
2Enter a new four- to eight-digit PIN
} OK.
3Re-enter the new PIN to confirm } OK.
To edit your PIN
1} Settings } the General tab } Locks
} SIM Lock } Change PIN.
2Enter your PIN } OK.
3Enter a new four- to eight-digit PIN
} OK.
4Re-enter the new PIN to confirm } OK.
To turn the SIM card lock on or off
1} Settings } the General tab } Locks
} SIM Lock } Protection and select
On or Off.
2Enter your PIN } OK.
Phone lock
Protect your phone against
unauthorized use if it is stolen and
the SIM card is exchanged. You can
change the phone lock code (0000) to
any four- to eight-digit personal code.
Automatic phone lock
If the phone lock is set to automatic,
you do not need to enter your phone
lock code until a different SIM card is
inserted in the phone.
To set the phone lock
1} Settings } the General tab } Locks
} Phone Lock } Protection and select
an alternative.
2Enter the phone lock code } OK.
If the message
Codes Do Not Match
appears when you edit your PIN, you
entered the new PIN incorrectly.
If the message
Wrong PIN
appears,
followed by
Old PIN:
, you entered your
old PIN incorrectly.
It is important that you remember your
new code. If you should forget it, you
have to hand in your phone to your local
Sony Ericsson retailer.
This is the Internet version of the user's guide. © Print only for private use.
77More features
To unlock the phone
If the phone lock is on, enter your
code } OK.
To edit your phone lock code
} Settings } the General tab } Locks
} Phone Lock } Change Code.
Keypad lock
Lock the keypad to avoid dialing
a number by accident.
Automatic keylock
In standby, automatic keylock means
the keypad is locked a short while
after you last pressed a key.
To set the automatic keylock
} Settings } the General tab } Locks
} Automatic Keylock.
To lock the keypad manually
In standby, press } Lock Keys.
You can still answer an incoming call
and the keypad locks again after the
call. The keypad remains locked until
you unlock it manually. To unlock the
keypad manually, press } Unlock.
Start-up screen
You can select a start-up screen
that will appear when you turn your
phone on.
To select a start-up screen
} Settings } the Display tab
} Start-up Screen and select
an option.
Calls to the international emergency
number 112 can still be made, even
when the keypad is locked.
This is the Internet version of the user's guide. © Print only for private use.
78 Troubleshooting
Troubleshooting
Why doesn’t the phone work the way
I want?
This chapter lists some problems that
you might encounter while using your
phone. Some problems require you to
call your network operator, but you can
easily correct most of the problems
yourself.
However, if you need to hand in your
phone for repair, please note that you
may lose information and content that
you have saved in your phone. You
are advised to make a copy of such
information before handing your phone
in for repair.
For more support go to
www.SonyEricsson.com/support
.
I have problems with memory
capacity or the phone working slowly
Possible cause:
The phone memory
is full or the memory contents are not
organized properly.
Solution:
Restart your phone every
day to free memory and increase the
capacity of your phone.
You also have the option to do a
Master Reset. Some of your personal
data and settings you have made will
be lost when doing this %
81 Master
reset
.
No battery icon appears when I start
charging the phone
Possible cause:
The battery is empty
or has not been used for a long time.
Solution:
It may take up to 30 minutes
before the battery icon appears on the
screen.
Some menu options appear in grey
Possible cause:
A service is not
activated or your subscription does
not support the function.
Solution:
Contact your network
operator.
Possible cause:
Since you cannot
send themes, pictures and sounds
that are copyright protected, the Send
menu is sometimes unavailable.
This is the Internet version of the user's guide. © Print only for private use.
79Troubleshooting
I do not understand the language
in menus
Possible cause:
The wrong language
is set in the phone.
Solution:
Change the language
%
19 Phone language
.
I cannot turn on the phone
Possible cause:
The battery is
discharged.
Solution:
Recharge the battery
%
8 To charge the battery
.
Solution:
Turn the phone on with the
charger attached. If the phone starts,
restart the phone with no charger
attached.
I cannot charge the phone or battery
capacity is low
Possible cause:
The charger is not
properly connected to the phone.
Solution:
Make sure that the charger
connector clicks properly into place
when connected %
8 To charge the
battery
.
Possible cause:
The battery
connection is bad.
Solution:
Remove the battery and
clean the connectors. You can use a
soft brush, cloth or q-tip, soaked with
alcohol. Make sure that the battery is
completely dry before you put it back.
Check that the battery connectors in
the phone are undamaged.
Possible cause:
The battery is worn
out and needs to be replaced.
Solution:
Try another battery and
charger for the same phone model,
or visit your retailer and ask them to
verify if the battery and charger are
working properly.
The phone turns itself off
Possible cause:
The button has
been pushed unintentionally.
Solution:
Turn on the automatic key
lock, or lock the keypad manually
%
77 Keypad lock
.
Possible cause:
The battery
connection is bad.
Solution:
Make sure the battery is
inserted correctly %
7 To insert SIM
card and battery
.
This is the Internet version of the user's guide. © Print only for private use.
80 Troubleshooting
I cannot use SMS/text messages
on my phone
Possible cause:
Settings are missing
or incorrect.
Solution:
Contact your network
operator to find out the correct
SMS service center setting
%
35 Text messaging (SMS)
.
I cannot use MMS/picture messages
on my phone
Possible cause:
Your subscription
does not include data capability.
Solution:
Please contact your network
operator.
Possible cause:
Settings are missing
or incorrect.
Solution:
Go to
www.SonyEricsson.com/support
,
choose your phone model, then
choose “Phone setup – MMS” under
Software and setup and follow the
instructions %
61 Settings
.
I cannot use the Internet
Possible cause:
Your subscription
does not include data capability.
Solution:
Please contact your network
operator.
Possible cause:
Internet settings are
missing or incorrect.
Solution:
Go to
www.SonyEricsson.com/support
,
choose your phone model, then
choose “Phone setup – WAP” under
Software and setup and follow the
instructions %
61 Settings
.
The phone cannot be detected by
other users via Bluetooth
Possible cause:
You have not turned
Bluetooth on.
Solution:
Make sure that Bluetooth is
turned on and that your phone is visible
to other users %
67 To show or hide
your phone
.
I cannot synchronize or transfer data
between my phone and my
computer, when using the included
USB cable
Possible cause:
The cable has not
been properly detected and installed
on your computer.
The software that came with your
phone has not been properly installed
on the computer.
This is the Internet version of the user's guide. © Print only for private use.
81Troubleshooting
Solution:
Go to
www.SonyEricsson.com/support
,
choose your phone model, then
choose “Product information” -
“Getting started”. The guide
“Synchronizing the phone with
a computer” contains installation
instructions and a troubleshooting
guide, that may assist you in solving
the problem.
Master reset
The changes that you have made to
settings and the content that you have
added or edited, will be deleted.
If you select Reset Settings, the
changes that you have made to
settings will be deleted.
If you select Reset All, in addition to
your changes to settings, all contacts,
messages, personal data, and content
that you have downloaded, received
or edited will also be deleted.
To reset the phone
1} Settings } the General tab } Master
Reset.
2} Reset Settings or } Reset All.
3When instructions appear } Continue.
Error messages
Insert SIM
Possible cause:
There is no SIM card
in the phone or you may have inserted
it incorrectly.
Solution:
Insert a SIM card
%
7 To insert SIM card and battery
.
Possible cause:
The SIM card
connectors need cleaning.
Solution:
Remove the SIM card and
clean it. Also check that the card is not
damaged in a way that may prevent
connection to the phone connectors.
In that case, contact your network
operator for a new SIM card.
Insert Correct SIM Card
Possible cause:
The phone is set to
work only with certain SIM cards.
Solution:
Check if you are using the
correct operator SIM card for your
phone.
If you select
Reset All
, content such as
melodies and pictures that you have
downloaded, received or edited is also
deleted.
This is the Internet version of the user's guide. © Print only for private use.
82 Troubleshooting
Wrong PIN/Wrong PIN2
Possible cause:
You have entered your
PIN or PIN2 incorrectly.
Solution:
Enter the correct PIN or PIN2
} Yes %
75 SIM card lock
.
PIN Blocked/PIN2 Blocked
Possible cause:
You have entered
your PIN or PIN2 code incorrectly
three times in a row.
Solution:
To unblock %
75 SIM card
lock.
Codes Do Not Match
Possible cause:
The two codes that
you have entered do not match.
Solution:
When you want to change
a security code (for example your PIN)
you have to confirm the new code by
entering exactly the same code again.
%
75 SIM card lock.
No Netw. Coverage
Possible cause:
You r phone is not
receiving any radio signal, or the
received signal is too weak.
Solution:
Contact your network
operator and make sure that the
network has coverage where you
are. If so, try to do a new search.
Possible cause:
The SIM card is not
working properly.
Solution:
Insert your SIM card in
another phone. If you still get the same
or a similar message, please contact
your network operator.
Possible cause:
The phone is not
working properly.
Solution:
Insert your SIM card in
another phone. If this works, it is
probably the phone that is causing the
problem. Please contact the nearest
Sony Ericsson service location.
Emerg. Calls Only
Possible cause:
You are within range
of a network, but you are not allowed
to use it. However, in an emergency,
some network operators allow you
to call the international emergency
number 112.
Solution:
You have to move to get a
signal that is strong enough. Contact
your network operator and make sure
your subscription is ok %
24
Emergency calls.
This is the Internet version of the user's guide. © Print only for private use.
83Troubleshooting
Phone Lock
Possible cause:
The phone is locked.
Solution:
To unlock the phone
%
76 Phone lock.
Phone Lock Code:
Possible cause:
The phone lock code
is required.
Solution:
Enter the phone lock code.
Your phone comes with the default
phone lock code 0000 %
76 Phone
lock.
PUK Blocked
Possible cause:
You entered your
personal unblocking key code (PUK)
incorrectly 10 times in a row.
Solution:
Contact your network
operator.
Charging, Alien Battery
Possible cause:
The battery that you
are using is not a Sony Ericsson
approved battery.
Solution:
%
86 Battery
.
This is the Internet version of the user's guide. © Print only for private use.
84 Important information
Important information
Sony Ericsson Consumer Web site,
service and support, safe and efficient
use, end user licence agreement,
warranty, declaration of conformity.
Sony Ericsson Consumer Web site
On
www.SonyEricsson.com
there is
a support section where help and tips
are only a few clicks away. Here you
will find the latest computer software
updates and tips on how to use your
product more efficiently.
Service and support
From now on you will have access to a portfolio of
exclusive service advantages such as:
•Global and local websites providing support.
•A global network of Call Centers.
•An extensive network of Sony Ericsson service
partners.
•A warranty period. Learn more about the warranty
conditions in this user guide.
On
www.SonyEricsson.com
, under the support
section in the language of your choice, you will find
the latest support tools and information, such as
software updates, Knowledgebase, Phone setup
and additional help when you require it.
For operator-specific services and features, please
contact your network operator for more information.
You can also contact our Call Centers. See the
phone number for the nearest Call Center in the list
below. If your country/region is not represented in
the list, please contact you local dealer. (The phone
numbers below were correct at the time of going to
print. On
www.SonyEricsson.com
you can always
find the latest updates.)
In the unlikely event that your product needs
service, please contact the dealer from whom it
was purchased or one of our service partners. Save
your original proof of purchase, you will need it if
you need to claim warranty.
For a call to one of our Call Centers you will be
charged according to national rates, including local
taxes, unless the phone number is a toll-free number.
country phone number email adress
Australia 1-300 650 050 questions.AU@support.sonyericsson.com
Argentina 800-333-7427 questions.AR@support.sonyericsson.com
Austria 0810 200245 questions.AT@support.sonyericsson.com
Bangalore 080-57505555 question.IN@support.sonyericsson.com
Belgium 02-7451611 questions.BE@support.sonyericsson.com
Brazil 4001-0444 questions.BR@support.sonyericsson.com
Canada 1-866-766-9374 questions.CA@support.sonyericsson.com
Central Africa +27 112589023 questions.CF@support.sonyericsson.com
Chile 123-0020-0656 questions.CL@support.sonyericsson.com
China 4008100000 questions.CN@support.sonyericsson.com
Colombia 18009122135 questions.CO@support.sonyericsson.com
Croatia 062 000 000 questions.HR@support.sonyericsson.com
This is the Internet version of the user's guide. © Print only for private use.
85Important information
Czech Republic 844 550 055 questions.CZ@support.sonyericsson.com
Denmark 33 31 28 28 questions.DK@support.sonyericsson.com
Finland 09-299 2000 questions.FI@support.sonyericsson.com
France 0 825 383 383 questions.FR@support.sonyericsson.com
Germany 0180 534 2020 questions.DE@support.sonyericsson.com
Greece 801-11-810-810
210-89 91 919 (from mobile) questions.GR@support.sonyericsson.com
Hong Kong 8203 8863 questions.HK@support.sonyericsson.com
Hungary 01 437 7300 questions.HU@support.sonyericsson.com
India 39011111 (Add STD code when
dialing from a GSM connection) questions.IN@support.sonyericsson.com
Indonesia 021-2701388 questions.ID@support.sonyericsson.com
Ireland 1850 545 888 questions.IE@support.sonyericsson.com
Italy 06 48895206 questions.IT@support.sonyericsson.com
Malaysia 03-78809800 questions.MY@support.sonyericsson.com
Mexico 001-95-888-821-8408 questions.MX@support.sonyericsson.com
Mumbai 022-56995555 questions.IN@support.sonyericsson.com
Netherlands 0900 899 8318 questions.NL@support.sonyericsson.com
New Zealand 0800-100150 questions.NZ@support.sonyericsson.com
Norway 815 00 840 questions.NO@support.sonyericsson.com
Philippines 02-6351860 questions.PH@support.sonyericsson.com
Poland 0 (prefix) 22 6916200 questions.PL@support.sonyericsson.com
Portugal 808 204 466 questions.PT@support.sonyericsson.com
Romania (+4021) 401 0401 questions.RO@support.sonyericsson.com
Russia 095 7870986 questions.RU@support.sonyericsson.com
Singapore 67440733 questions.SG@support.sonyericsson.com
Slovakia 02-5443 6443 questions.SK@support.sonyericsson.com
South Africa 0861 632222 questions.ZA@support.sonyericsson.com
Spain 902 180 576 questions.ES@support.sonyericsson.com
Sweden 013-24 45 00 questions.SE@support.sonyericsson.com
Switzerland 0848 824 040 questions.CH@support.sonyericsson.com
Taiwan 02-25625511 questions.TW@support.sonyericsson.com
Thailand 02-2483030 questions.TH@support.sonyericsson.com
Turkey 0212 47 37 777 questions.TR@support.sonyericsson.com
United Arab Emirates 43 919880 questions.AE@support.sonyericsson.com
United Kingdom 08705 23 7237 questions.GB@support.sonyericsson.com
United States 1-866-766-9374 questions.US@support.sonyericsson.com
Venezuela 0-800-100-2250 questions.VE@support.sonyericsson.com
This is the Internet version of the user's guide. © Print only for private use.
86 Important information
Guidelines for Safe and
Efficient Use
Please read this information before
using your mobile phone.
These instructions are intended for
your safety. Please follow these
guidelines. If the product has been
subject to any of the conditions listed
bellow or you have any doubt of the proper function
make sure to have the product checked by certified
service partner before charging or using it. Failure
to do so might lead to risk for product malfunction
or even a potential hazard to your health.
Recommendations for safe use of
product (mobile phone, battery,
charger and other accessories)
•Always treat your product with care and keep it in
a clean and dust-free place.
•Warning! May explode if disposed of in fire.
•Do not expose your product to liquid or moisture or
humidity.
•Do not expose your product to
extreme high or low temperatures. Do
not expose the battery to
temperatures above +60°C (+140°F).
•Do not expose your product to open
flames or lit tobacco products.
•Do not drop, throw or try to bend your
product.
•Do not paint your product.
•Do not attempt to disassemble or
modify your product. Only Sony
Ericsson authorized personnel should
perform service.
•Do not use your product near medical equipment
without requesting permission.
•Do not use your product when in, or around
aircraft, or areas posted “turn off two-way radio”.
•Do not use your product in an area where a
potentially explosive atmosphere exists.
•Do not place your product or install
wireless equipment in the area above
your car's air bag.
CHILDREN
KEEP OUT OF CHILDRENS REACH.
DO NOT ALLOW CHILDREN TO PLAY
WITH YOUR MOBILE PHONE OR ITS
ACCESSORIES. THEY COULD HURT
THEMSELVES OR OTHERS, OR
COULD ACCIDENTALLY DAMAGE
THE MOBILE PHONE OR ACCESSORY. YOUR
MOBILE PHONE OR ITS ACCESSORY MAY
CONTAIN SMALL PARTS THAT COULD BE
DETACHED AND CREATE A CHOKING HAZARD.
Power supply (Charger)
Connect the AC power adapter only to designated
power sources as marked on the product. Make
sure the cord is positioned so that it will not be
subjected to damage or stress. To reduce risk of
electric shock, unplug the unit from any power
source before attempting to clean it. The AC power
adapter must not be used outdoors or in damp
areas. Never alter the cord or plug. If the plug will
not fit into the outlet, have a proper outlet installed
by a qualified electrician.
Use only Sony Ericsson branded original chargers
intended for use with your mobile phone. Other
chargers may not be designed to the same safety
and performance standards.
Battery
We recommend that you fully charge the battery
before you use your mobile phone for the first time.
A new battery or one that has not been used for a
long time could have reduced capacity the first few
times it is used. The battery should only be charged
in temperatures between +5°C (+41°F) and +45°C
(+113°F).
This is the Internet version of the user's guide. © Print only for private use.
87Important information
Use only Sony Ericsson branded original batteries
intended for use with your mobile phone. Using
other batteries and chargers could be dangerous.
The talk and standby times depend on several
different conditions such as signal strength,
operating temperature, application usage patterns,
features selected and voice or data transmissions
when using the mobile phone.
Turn off your mobile phone before removing the
battery. Do not allow the battery to be put into
the mouth. Battery electrolytes may be toxic if
swallowed. Do not let the metal contacts on the
battery touch another metal object. This could
short-circuit and damage the battery. Use the
battery for the intended purpose only.
Personal medical devices
Mobile phones may affect the operation of cardiac
pacemakers and other implanted equipment.
Please avoid placing the mobile phone over the
pacemaker, e.g. in your breast pocket. When using
the mobile phone, place it at the ear opposite the
pacemaker. If a minimum distance of 15 cm (6 inches)
is kept between the mobile phone and the
pacemaker, the risk of interference is limited.
If you have any reason to suspect that interference
is taking place, immediately turn off your mobile
phone. Contact your cardiologist for more
information.
For other medical devices, please consult your
physician and the manufacturer of the device.
Driving
Please check if local laws and regulations restrict
the use of mobile phones while driving or require
drivers to use handsfree solutions. We recommend
that you use only Sony Ericsson handsfree
solutions intended for use with your product.
Please note that because of possible interference
to electronic equipment, some vehicle
manufacturers forbid the use of mobile phones in
their vehicles unless a handsfree kit with an
external antenna supports the installation.
Always give full attention to driving and pull off the
road and park before making or answering a call if
driving conditions so require.
Emergency calls
Mobile phones operate using radio signals, which
cannot guarantee connection under all conditions.
Therefore you should never rely solely upon any
mobile phone for essential communications (e.g.
medical emergencies).
Emergency calls may not be possible in all areas,
on all cellular networks, or when certain network
services and/or mobile phone features are in use.
Check with your local service provider.
Antenna
This phone contains a built in antenna. Use of
antenna devices not marketed by Sony Ericsson
specifically for this model could damage your
mobile phone, reduce performance, and produce
SAR levels above the established limits (see below).
Efficient use
Hold your mobile phone as you would any other
phone. Do not cover the top of the phone when in
use, as this affects call quality and may cause the
phone to operate at a higher power level than
needed, thus shortening talk and standby times.
Radio frequency (RF) exposure and
SAR
Your mobile phone is a low-power radio transmitter
and receiver. When it is turned on, it emits low
levels of radio frequency energy (also known as
radio waves or radio frequency fields).
Governments around the world have adopted
comprehensive international safety guidelines,
developed by scientific organizations, e.g. ICNIRP
This is the Internet version of the user's guide. © Print only for private use.
88 Important information
(International Commission on Non-Ionizing
Radiation Protection) and IEEE (The Institute of
Electrical and Electronics Engineers Inc.), through
periodic and thorough evaluation of scientific
studies. These guidelines establish permitted levels
of radio wave exposure for the general population.
The levels include a safety margin designed to
assure the safety of all persons, regardless of age
and health, and to account for any variations in
measurements.
Specific Absorption Rate (SAR) is the unit of
measurement for the amount of radio frequency
energy absorbed by the body when using a mobile
phone. The SAR value is determined at the highest
certified power level in laboratory conditions, but
the actual SAR level of the mobile phone while
operating can be well below this value. This is
because the mobile phone is designed to use the
minimum power required to reach the network.
Variations in SAR below the radio frequency exposure
guidelines do not mean that there are variations in
safety. While there may be differences in SAR
levels among mobile phones, all Sony Ericsson
mobile phone models are designed to meet radio
frequency exposure guidelines.
For phones sold in the U.S., before a phone model
is available for sale to the public, it must be tested
and certified to the FCC that it does not exceed
the limit established by the government-adopted
requirement for safe exposure. The tests are
performed in positions and locations (that is, at
the ear and worn on the body) as required by the
FCC for each model. For body worn operation,
this phone has been tested and meets FCC RF
exposure guidelines when the handset is
positioned a minimum of 15 mm from the body
without any metal parts in the vicinity of the phone
or when used with the original Sony Ericsson body
worn accessory intended for this phone. Use of
other accessories may not ensure compliance with
FCC RF exposure guidelines.
A separate leaflet with SAR information for this
mobile phone model is included with the material
that comes with this mobile phone. This information
can also be found, together with more information
on radio frequency exposure and SAR, on:
www.SonyEricsson.com
.
Accessible Solutions/Special Needs
For phones sold in the U.S., you can use your TTY
terminal with your Sony Ericsson mobile phone
(with the necessary accessory). For information
on Accessible Solutions for individuals with special
needs call the Sony Ericsson Special Needs Center
at 877 878 1996 (TTY) or 877 207 2056 (voice), or
visit the Sony Ericsson Special Needs Center at
www.SonyEricsson-snc.com
.
Disposal of old electrical &
electronic equipment
This symbol on the product or on its
packaging indicates that this product
shall not be treated as household
waste. Instead it shall be handed over to the
applicable collection point for the recycling of
electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help
prevent potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. The recycling of materials
will help to conserve natural resources. For more
detailed information about recycling of this
product, please contact your local city office,
your household waste disposal service or the
shop where you purchased the product.
Disposing of the battery
Please check local regulations for
disposal of batteries or call your
local Sony Ericsson Call Center for
information.
This is the Internet version of the user's guide. © Print only for private use.
89Important information
The battery should never be placed in municipal
waste. Use a battery disposal facility if available.
End User Licence Agreement
This wireless device (“Device”) contains software
owned by Sony Ericsson Mobile Communications
AB (“Sony Ericsson”) and its affiliated companies
(“Sony Ericsson”) and its third party suppliers and
licensors (“Software”).
As user of this Device, Sony Ericsson grants you a
non-exclusive, non-transferable, non-assignable
license to use the Software solely in conjunction
with the Device on which it is installed. Nothing
herein shall be construed as a sale of the Software
to a user of this Device.
You shall not reproduce, modify, distribute, reverse
engineer, decompile, otherwise alter or use any
other means to discover the source code of the
Software or any component of the Software. For
avoidance of doubt, you are at all times entitled to
transfer all rights and obligations to the Software to
a third party, solely together with the Device with
which you received the Software, provided always
that such third party agrees in writing to be bound
by these rules.
You are granted this license for a term of the useful
life of this Device. You can terminate this license by
transferring all your rights to the Device on which
you have received the Software to a third party in
writing. If you fail to comply with any of the terms
and conditions set out in this license, it will
terminate with immediate effect.
Sony Ericsson and its third party suppliers and
licensors are the sole and exclusive owner of and
retain all rights, title and interest in and to the
Software. Sony Ericsson, and, to the extent that the
Software contains material or code of a third party,
such third party, shall be entitled third party
beneficiaries of these terms.
The validity, construction and performance of this
license shall be governed by the laws of Sweden.
The foregoing shall apply to the full extent permitted
by, when applicable, statutory consumer rights.
Limited Warranty
Sony Ericsson provides this Limited Warranty for
your mobile phone and original accessory delivered
with your mobile phone (hereinafter referred to as
“Product”).
Should your Product need warranty service, please
return it to the dealer from whom it was purchased,
or contact your local Sony Ericsson Call Center
(national rates may apply) or visit
www.SonyEricsson.com
to get further information.
Our warranty
Subject to the conditions of this Limited Warranty,
Sony Ericsson warrants this Product to be free from
defects in design, material and workmanship at the
time of its original purchase by a consumer, and for
a subsequent period of one (1) year.
What we will do
If, during the warranty period, this Product fails to
operate under normal use and service, due to defects
in design, materials or workmanship, Sony Ericsson
authorized distributors or service partners, in the
country/region* where you purchased the Product,
will, at their option, either repair or replace the
Product in accordance with the terms and conditions
stipulated herein.
Sony Ericsson and its service partners reserve the
right to charge a handling fee if a returned Product
is found not to be under warranty according to the
conditions below.
Please note that some of your personal settings,
downloads or other information may be lost when
your Sony Ericsson Product is repaired or replaced.
At present Sony Ericsson may be prevented by
applicable law, other regulation or technical
restrictions from making a backup copy of certain
This is the Internet version of the user's guide. © Print only for private use.
90 Important information
downloads. Sony Ericsson does not take any
responsibility for any lost information of any kind
and will not reimburse you for any such loss. You
should always make backup copies of all the
information stored on your Sony Ericsson Product
such as downloads, calendar and contacts before
handing in your Sony Ericsson Product for repair or
replacement.
Conditions
1The warranty is valid only if the original proof of
purchase issued to the original purchaser by a
Sony Ericsson authorized dealer, specifying the
date of purchase and serial number**, for this
product, is presented with the Product to be
repaired or replaced. Sony Ericsson reserves the
right to refuse warranty service if this information
has been removed or changed after the original
purchase of the Product from the dealer.
2If Sony Ericsson repairs or replaces the Product,
the repaired or replaced Product shall be warranted
for the remaining time of the original warranty
period or for ninety (90) days from the date of
repair, whichever is longer. Repair or replacement
may involve the use of functionally equivalent
reconditioned units. Replaced parts or components
will become the property of Sony Ericsson.
3This warranty does not cover any failure of the
Product due to normal wear and tear, or due to
misuse, including but not limited to use in other
than the normal and customary manner, in
accordance with the Sony Ericsson instructions
for use and maintenance of the Product. Nor does
this warranty cover any failure of the Product due
to accident, software or hardware modification or
adjustment, acts of God or damage resulting from
liquid. A rechargeable battery can be charged and
discharged hundreds of times. However, it will
eventually wear out – this is not a defect. When
the talk-time or standby time is noticeably shorter,
it is time to replace your battery. Sony Ericsson
recommends that you use only batteries and
chargers approved by Sony Ericsson.
Minor variations in display brightness and color
may occur between phones. There may be tiny,
bright or dark dots on the display. These are called
defective pixels and occur when individual dots
have malfunctioned and can not be adjusted.
Two defective pixels are deemed acceptable.
Minor variations in camera image appearance may
occur between phones. This is nothing uncommon
and is not regarded as a defective camera module.
4Since the cellular system on which the Product is to
operate is provided by a carrier independent from
Sony Ericsson, Sony Ericsson will not be responsible
for the operation, availability, coverage, services or
range of that system.
5This warranty does not cover Product failures caused
by installations, modifications, or repair or opening
of the Product performed by a non-Sony Ericsson
authorized person.
6The warranty does not cover Product failures which
have been caused by use of accessories or other
peripheral devices which are not Sony Ericsson
branded original accessories intended for use with
the Product.
7Tampering with any of the seals on the Product will
void the warranty.
8THERE ARE NO EXPRESS WARRANTIES,
WHETHER WRITTEN OR ORAL, OTHER THAN
THIS PRINTED LIMITED WARRANTY. ALL
IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY. IN
NO EVENT SHALL SONY ERICSSON OR ITS
LICENSORS BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY NATURE
WHATSOEVER, INCLUDING BUT NOT LIMITED
TO LOST PROFITS OR COMMERCIAL LOSS; TO
THE FULL EXTENT THOSE DAMAGES CAN BE
DISCLAIMED BY LAW.
This is the Internet version of the user's guide. © Print only for private use.
91Important information
Some countries/states do not allow the exclusion
or limitation of incidental or consequential damages,
or limitation of the duration of implied warranties,
so the preceding limitations or exclusions may
not apply to you.
The warranty provided does not affect the
consumer's statutory rights under applicable
legislation in force, nor the consumer’s rights
against the dealer arising from their sales/purchase
contract.
*EUROPEAN UNION (EU)
If you have purchased your Product in an EU
country you can have your Product serviced, under
the conditions set out above, within the warranty
period in any EU country where an identical
Product is sold by an authorized Sony Ericsson
distributor. To find out if your Product is sold in
the EU country you are in, please call the local
Sony Ericsson Call Center. Please observe that
certain services may not be possible elsewhere
than in the country of original purchase, for
example due to the fact that your Product may
have an interior or exterior which is different from
equivalent models sold in other EU countries. It
may not be possible to repair SIM-locked Products.
** In some countries/regions additional information
is requested. If so, this is clearly shown on the valid
proof of purchase.
FCC Statement
This device complies with Part 15 of
the FCC rules. Operation is subject to
the following two conditions: (1) This
device may not cause harmful interference,
and (2) This device must accept any interference
received, including interference that may cause
undesired operation.
Declaration of Conformity
We, Sony Ericsson Mobile Communications AB
of
Nya Vattentornet
S-221 88 Lund, Sweden
declare under our sole responsibility that our
product
Sony Ericsson type AAF-1052051-BV
and in combination with our accessories, to
which this declaration relates is in conformity
with the appropriate standards 3GPP TS 51.010-1,
EN 301489-7, EN 300328, EN 301489-17 and
EN 60950, following the provisions of, Radio
Equipment and Telecommunication Terminal
Equipment directive 99/5/EC with requirements
covering EMC directive 89/336/EEC, and Low
Voltage directive 73/23/EEC.
We fulfil the requirements of the R&TTE Directive
(99/5/EC).
Head of Product Business Unit GSM/UMTS
Shoji Nemoto,
Lund, November 2005
This is the Internet version of the user's guide. © Print only for private use.
92 Index
Index
A
Accessible Solutions ............................ 88
alarm clock ........................................... 71
answering service ................................ 28
applications .......................................... 60
appointments ....................................... 71
automatic redialing .............................. 23
B
battery
inserting and charging ................... 8
use and care ................................ 86
Bluetooth™ wireless technology ......... 65
business cards ..................................... 35
buttons
See
keys ................................. 16
C
calculator ............................................. 74
calendar ..........................................71–72
call forward .......................................... 30
call list .................................................. 27
call numbers in message ..................... 37
call time ................................................ 33
call waiting ........................................... 31
caller-specific ringtones ....................... 57
calls
accepting ..................................... 32
answering and rejecting ............... 23
emergency ....................................24
handling two calls .........................31
international ..................................23
making and receiving ..............11, 23
making notes during .....................34
missed ..........................................24
putting on hold ..............................31
recording .......................................59
restricting ......................................33
code memo ...........................................74
conference calls ....................................31
contacts
adding phone contacts .................25
default contacts ............................25
groups of .......................................34
synchronizing ................................64
D
date .......................................................75
declaration of conformity ......................91
delivery status .......................................38
Disc2Phone
installing ........................................51
display brightness .................................10
display, light sensor ..............................10
downloading files ..................................63
This is the Internet version of the user's guide. © Print only for private use.
93Index
E
effects, camera .................................... 48
email ............................................... 41–44
end user licence agreement ................. 89
entering letters
multitap input ............................... 19
T9™ Text Input ............................ 20
F
file manager .......................................... 21
fixed dialing .......................................... 33
G
games ................................................... 60
groups .................................................. 34
H
handsfree ....................................... 11, 67
help texts, in phone .............................. 16
hiding number ...................................... 34
I
icons ..................................................... 18
infrared port .......................................... 68
instant messaging
See
My friends ....... 44
Internet
bookmarks ................................... 62
cookies and passwords ............... 63
security and certificates ............... 64
settings ......................................... 61
K
keypad lock .......................................... 77
keys ...................................................... 16
L
language ............................................... 79
light ...................................................... 74
locks
SIM card ....................................... 75
long messages ..................................... 37
M
magic word .......................................... 29
memory status
phone contacts ............................ 25
SIM contacts ................................ 25
Memory Stick Duo™
formatting ..................................... 22
menu overview ..................................... 12
messages
area and cell information .............. 45
delivery status .............................. 38
email ............................................. 41
picture .......................................... 38
text ............................................... 35
voice ............................................. 41
microphone .......................................... 24
MMS
See
picture messages ................ 38
multitap input
entering letters ............................. 19
This is the Internet version of the user's guide. © Print only for private use.
94 Index
music
transfering .................................... 51
MusicDJ™ ............................................ 57
My friends ............................................ 44
my numbers ......................................... 32
N
navigating menus ................................. 16
networks .............................................. 23
notepad ................................................ 34
notes .................................................... 73
P
phone
assembly ........................................ 6
language ...................................... 19
Phone overview ........................... 12
photo light ............................................ 47
PhotoDJ™ ............................................ 59
picture messages ............................38–40
picture sizes ......................................... 47
pictures ...........................................48–49
edit ............................................... 59
screen saver ................................. 49
PIN code
changing ...................................... 76
unblocking ................................... 10
playlists ................................................ 54
PlayNow™ ........................................... 56
profiles ................................................. 75
PUK .......................................... 10, 75, 76
R
remote control .......................................67
ringtones .........................................56–57
S
safety guidelines ...................................86
screen saver ..........................................49
self-portrait ...........................................49
sending
appointments and tasks ...............72
business cards ..............................35
melodies and ringtones ................57
notes .............................................73
pictures .........................................49
themes ..........................................60
settings
email .............................................41
Internet ..........................................61
Java™ ...........................................63
setup wizard ..........................................10
shortcuts ...............................................18
SIM card
contact numbers ...........................25
copying to/from ............................26
lock and unblock ..........................75
SMS
See
text messages .......................35
SOS
See
emergency numbers .............24
sound recorder .....................................59
sound, transfering and directing ...........67
Special Needs .......................................88
This is the Internet version of the user's guide. © Print only for private use.
95Index
speed dialing ........................................ 27
start-up screen ............................... 49, 77
stopwatch ............................................ 73
streaming media ................................... 55
synchronizing ................................. 64–65
T
T9™ Text Input
add words .................................... 20
entering letters ............................. 20
tasks ............................................... 72–73
templates ....................................... 38, 40
text messages ................................ 35–38
themes ........................................... 59–60
time ...................................................... 75
timer ..................................................... 73
transfering
files ............................................... 69
music ............................................ 51
transferring
camera pictures ........................... 48
TTY ....................................................... 88
turning on/off
Bluetooth ...................................... 66
infrared port ................................. 68
phone lock ................................... 76
ringtone ........................................ 56
SIM lock protection ...................... 76
U
unblock SIM card ................................. 76
Update service ..................................... 70
USB drivers
installing ....................................... 69
V
video recorder ...................................... 50
VideoDJ™ ............................................ 58
voice answering ................................... 29
voice control ....................................28–30
voice dialing ......................................... 29
voice messages ................................... 41
voicemail .............................................. 28
volume
setting ringtone ............................ 56
volume, ear speaker ............................. 24
W
WALKMAN™ player ........................51–55
wallpaper .............................................. 49
WAP
See
Internet ................................. 61
warranty ............................................... 89
writing languages ................................. 19
Z
zoom
camera ......................................... 47
Web page ..................................... 62
This is the Internet version of the user's guide. © Print only for private use.

Navigation menu
