ON&r_ 4-178-243-11(1)

The software of this system may be updated in the future, To find out details on any

available updates, please visit: http://www,sony,com/bluraysupport/

_..l_:::Jm| B3"_IvE_v,o,o

SU/'_._ CI) IDIGITAL AUDIO TF_LJ _ IMasterAudio

http://www.sony.net/

Java

POWERED

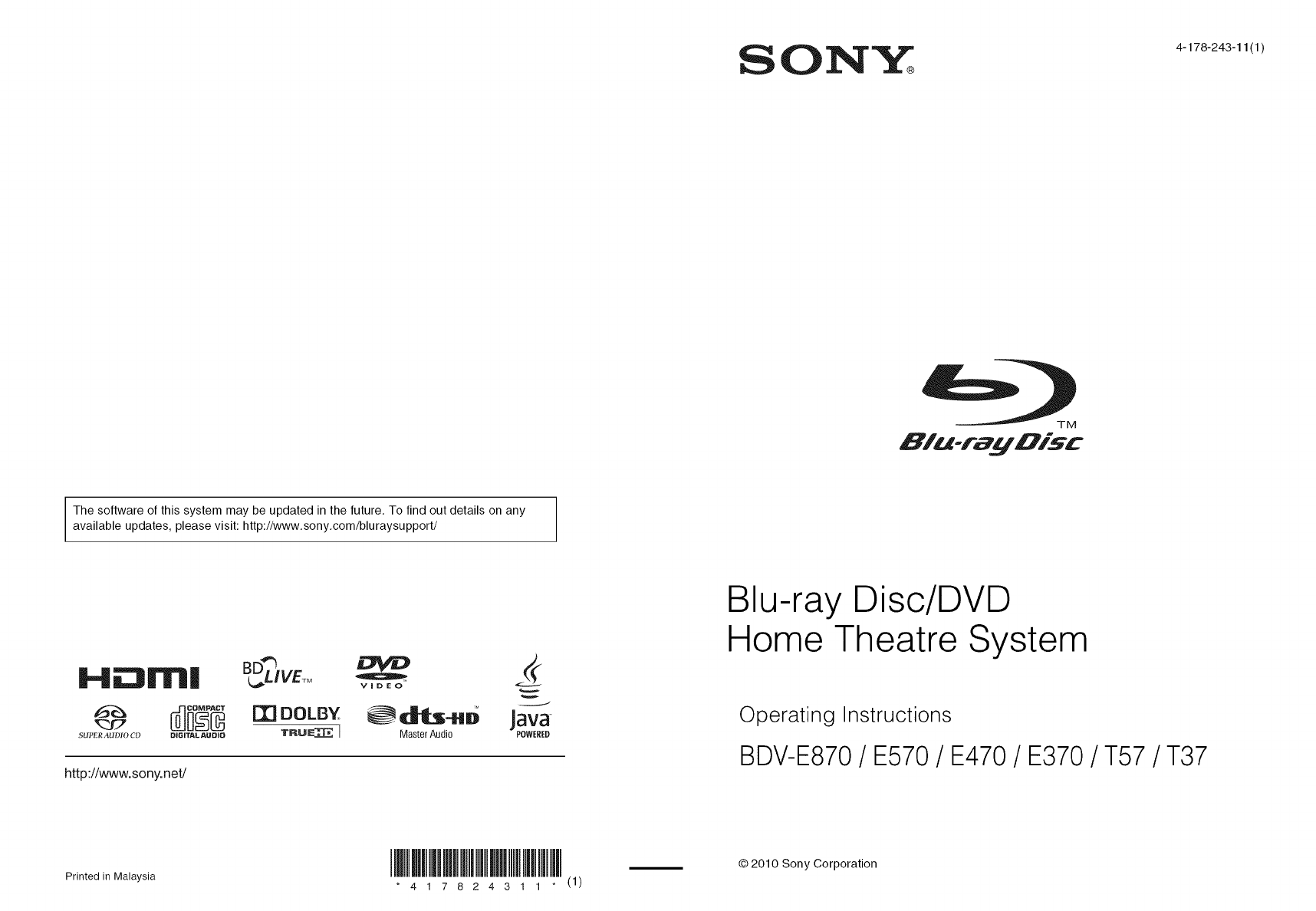

Blu-ray Disc/DVD

Home Theatre System

Operating Instructions

BDV-E870/E570 /E470 /E370 /T57 /T37

Printed in Malaysia * 4 1 7 8 2 4 3 1 1 * (1)

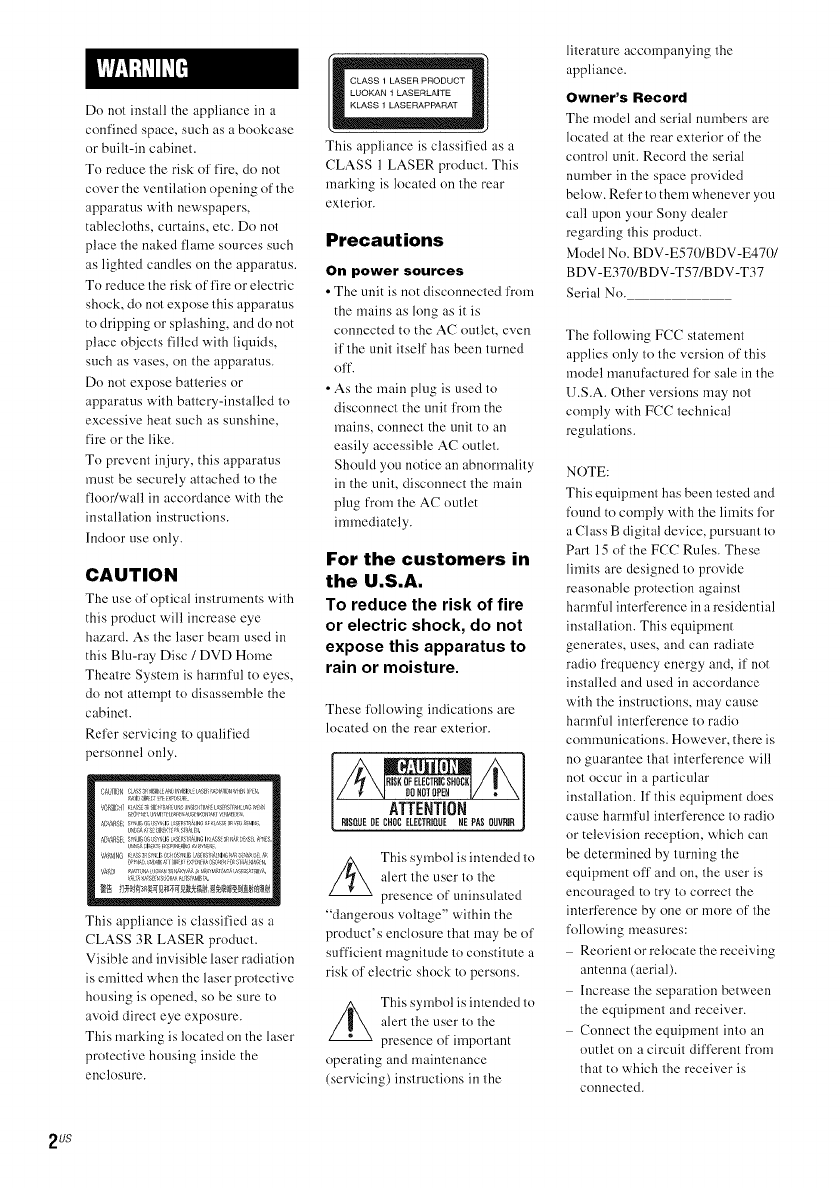

Do not install the appliance in a

confined space, such as a bookcase

or built-in cabinet.

To reduce the risk of' fire, do not

cover the ventilation opening of the

apparatus with newspapers,

tablecloths, curtains, etc. Do not

place the naked flame sources such

as lighted candles on the apparatus.

To reduce the risk of fire or electric

shock, do not expose this apparatus

to dripping or splashing, and do not

place objects filled with liquids,

such as vases, on the apparatus.

Do not expose batteries or

apparatus with battery-installed to

excessive heat such as sunshine,

fire or the like.

To prevent injury, this apparatus

must be securely attached to the

flooffwall in accordance with the

installation instructions.

Indoor use only.

CAUTION

The use of optical hlsiruments with

this product will increase eye

hazard. As the laser beam used in

this Blu-ray Disc /DVD Home

Theatre System is harnlful to eyes,

do not attempt to disassemble the

cabinet.

Refer servicing to qualified

!ersonnel only.

ObOTlOIgc Ass_{ ?1_ _4DIMSI _SEI _IIA I rlqBi0 E_4.

,_OR0iFktASS'SIC!,[ ONJxSl;!u_ L'_,FSTf_HJra'_fH

@'AS S_ Ig 0GJS_ IS ;4ggsJ_, Ir4c,_F :,_SEan, b 4 Ul ;.

u a,_ s _1 r_¢ tsn t_l,

DI s s_rds sus_rds SEISlaZlrlGI_L_SSslr-_r staf_

t'AINING K _S83S rl I: c os_rl I i_sgsSIi,L_lr_g_IV_ & _

Va0!

This appliance is classified as a

CLASS 3R LASER product.

Visible and invisible laser radiation

is entitled when the laser protective

housing is opened, so be sure to

avoid direct eye exposure.

This marking is located on the laser

prolective housing insMe the

enclosure.

_ICLASS 1 LASER PRODUCT

LUOKAN 1 LASERLAITE

This appliance is chtssified as a

CLASS 1 LASER product. This

marking is located on the rear

exterior.

Precautions

On power sources

•Tile unit is not disconnected from

the mains as long as it is

connected to the AC outlet, even

if' the unit itself has been turned

off.

• As the main plug is used to

disconnect the unit from the

maius, COllnect the Ullit to all

easily accessible AC outlet.

Should you notice an abnormality

in the unit, disconnect the main

plug from the AC outlet

immediately.

For the customers in

the U.S.A.

To reduce the risk of fire

or electric shock, do not

expose this apparatus to

rain or moisture.

These following indications are

located on the rear exterior.

This symbol is intended to

alert the user to the

presence of uninsulated

"dangerous voltage" within the

product's enclosure that may be of

sufficient magnitude to constitute a

risk of electric shock to persons.

//_ This symbol is intended to

alert the user to the

presence of important

operating and maintenance

(servicing) instructions in the

literature accompanying the

appliance.

Owner's Record

The model and serial numbers are

located at the rear exterior of the

control unit. Record the serial

number in the space provided

below. Refer to them whenever you

call upon your Sony dealer

regarding this product.

Model No. BDV-E570/BDV-E470/

BDV-E370/BDV-T57/BDV-T37

Serial No.

The following FCC statement

applies only to the version of this

model manufactured for sale in the

U.S.A. Other versions may not

comply with FCC technical

regulations.

NOTE:

This equipment has been tested and

found to comply with the limits for

a Class B digital device, pursuant to

Part 15 of the FCC Rules. These

linfits are designed to provide

reasonable protection against

harmful interference in a residential

installation. This equipment

generates, uses, and can radiate

radio frequency energy and, if not

installed and used in accordance

with the instructions, may cause

harmful interference to radio

communications. However, there is

no guarantee that interference will

not occur in a particular

installation. If this equipment does

cause harmful interference to radio

or television reception, which can

be determined by turning the

equipment o1"1"and on, the user is

encouraged to try to correct the

interl_rence by one or more of the

following measures:

Reorient or relocate the receiving

antenna (aerial).

Increase the separation between

the equipment and receiver.

Connect the equipment into an

outlet on a circuit different from

that to which the receiver is

connected.

2US

Consult the dealer or an

experienced radio/TV technician

%r help.

CAUTION

You am cautioned that any changes

or modifications not expressly

approved in this manual could void

your authority to operate this

equipment.

Important Safety

Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near

water.

6) Clean only with dry cloth.

7) Do not block any ventilation

openings. Install in accordance

with the manufacturer's

instructions.

8) Do not install near any heat

sources such as radiators, heat

registers, stoves, or other

apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety

purpose of the polarized or

grounding-type plug. A

polarized plug has two blades

with one wider than the other. A

grounding type plug has two

blades and a third grounding

prong. The wide blade or the

third prong am provided for

your safety. If the provided

plug does not fit into your

outlet, consult an electrician for

replacement of the obsolete

outlet.

10) Protect the power cord l}om

being walked on or pinched

particularly at plugs,

convenience receptacles, and

the point where they exit from

the apparatus.

11 ) Only use attachments/

accessories specified by the

manufacturer.

12) Use only with the cart, stand,

tripod, bracket, or table

specified by the manufacturer,

or sold with the apparatus.

When a cart is used, use caution

when moving the cart/

apparatus combination to avoid

injury from tip-over.

13) Unplug this apparatus during

lightning storms or when

unused for long periods of time.

14) Refer all servicing to qualified

service personnel. Servicing is

required when the apparatus

has been damaged in any way,

such as power-supply cord or

plug is damaged, liquid has

been spilled or objects have

fallen into the apparatus, the

apparatus has been exposed to

rain or moisture, does not

operate normally, or has been

dropped.

ENERGYSTAR ®

isaU.S, registered

mark.

AsanENERGY

STAR °_ partner,

Sony Corporation has determined

that this product meets the

ENERGY STAR _9 guidelines for

energy efficiency.

For the USB Wireless

LAN Adapter (UWA-

BR100) (BDV-E570/

BDV-T57 only)

Pursuant to FCC regulations, you

are cautioned that any changes or

modifications not expressly

approved in this mauual could void

your authority to operate this

equipment.

To prevent radio interference to the

licensed service, this device is

intended to be operated indoors and

away from windows to provide

maximum shielding. Equipment (or

its transmit antenna) that is

installed outdoors is subject to

licensing.

Only use Wireless LAN indoors

when using it with IEEE 802.1 la

(5 GHz).

High power radars are allocated as

primary users (meaning they have

priority) of 5250-5350 MHz and

5650-5850 MHz and these radars

could cause interli:rence and/or

damage to this device.

This device uses 5 GHz band for

wireless LAN communication and

the maximum gain of the antenna in

this device is 5 dBi.

This equipment complies with

FCC/IC radiation exposure limits

set l_)rlh for an uncontrolled

environment. This equipment

should be installed and operated

with minimum distance 20 cm

between the radiator and your body

(excluding extremities: hands,

wrists and feet).

This device and its antenna(s) must

not be co-located or operating with

any other antenna or transmitter

except Grant condition.

If you have any questions about this

product, contact Sony Customer

Information Service Center at 1-

800-222-7669 or visit http://

www.sony.com/on the Internet.

The telephone number below is for

FCC-related matters only.

Regulatory Information

3/is

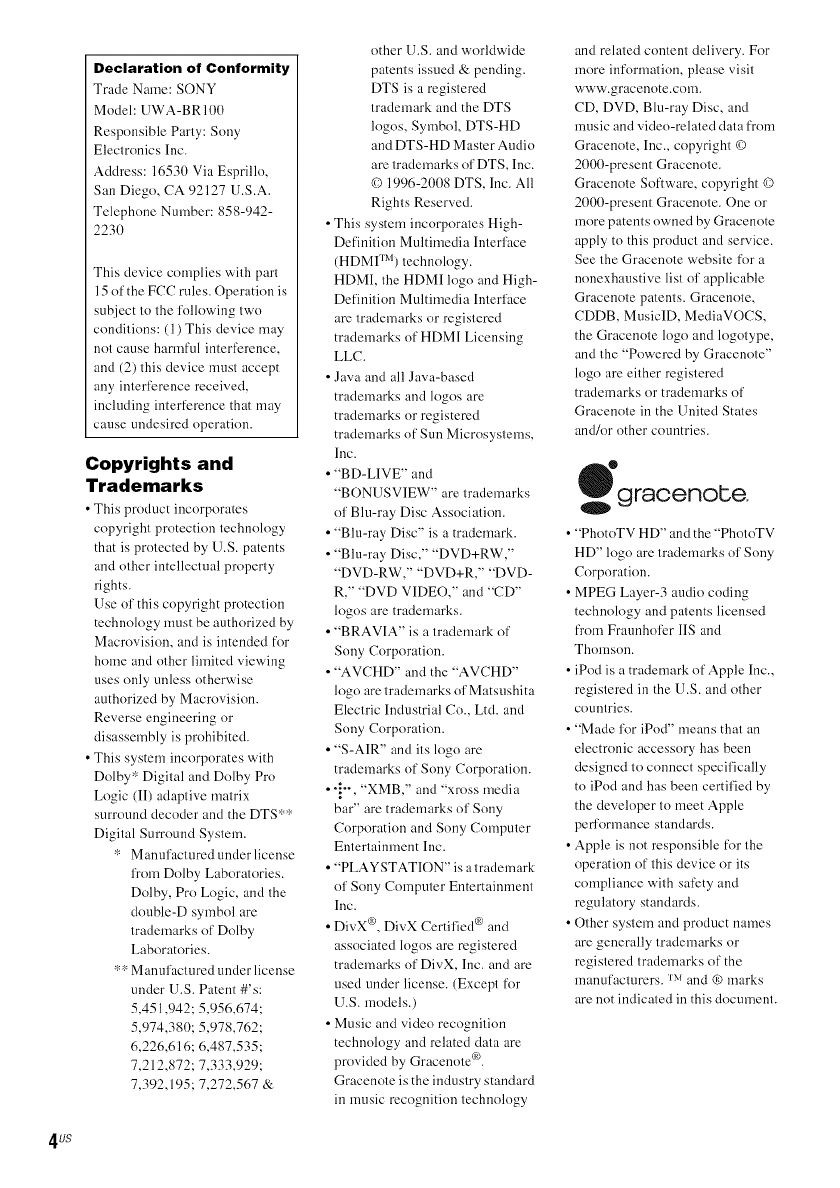

Declaration of Conformity

Trade Name: SONY

Model: UWA-BR100

Responsible Party: Sony

Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-

2230

This device complies with part

15 of the FCC rules. Operation is

subject to the following two

conditions: (1) This device may

not cause harmful interference,

and (2) this device must accept

any interl_rence received,

including interference that may

cause undesired operation.

Copyrights and

Trademarks

•This product incorporates

that is protected by U.S. patents

and other intellectual property

rights.

Use of this copyright protection

technology must be authorized by

Macrovision, and is intended for

home and other limited viewing

uses only unless otherwise

authorized by Macrovision.

Reverse engineering or

disassembly is prohibited.

• This system incorporates with

Dolby* Digital and Dolby Pro

Logic (II) adaptive matrix

surround decoder and the DTS**

Digital Surround System.

* Manufactured under license

from Dolby Laboratories.

Dolby, Pro Logic, and the

double-D symbol are

trademarks of Dolby

Laboratories.

** Manufactured under license

under U.S. Patent #'s:

5,451,942: 5,956,674;

5,974,380: 5,978,762:

6,226,616: 6,487,535:

7,212,872: 7,333,929;

7,392,195; 7,272,567 &

other U.S. and worldwide

patents issued & pending.

DTS is a registered

trademark and the DTS

logos, Symbol, DTS-HD

and DTS-HD Master Audio

are trademarks of DTS, Inc.

Rights Reserved.

• This system incorporates High-

Definition Multimedia Interface

(HDMI TM) technoh)gy.

HDMI, the HDMI logo and High-

Definiti(m Multimedia Interface

are trademarks or registered

trademarks of HDMI Licensing

LLC.

• Java and all Java-based

trademarks and logos are

trademarks or registered

trademarks of Sun Microsystems,

Inc.

•"BD-LIVE" and

"BONUSVIEW" are trademarks

of Blu-ray Disc Association.

•"Blu-ray Disc" is a trademark.

•"Blu-ray Disc," "DVD+RW,"

"DVD-RW," "DVD+R," "DVD-

R," "DVD VIDEO," and "CD"

logos are trademarks.

•"BRAVIA" is a trademark of

Sony Corporation.

• "AVCHD" and the "AVCHD"

logo are trademarks of M atsushita

Electric Industrial Co., Ltd. and

Sony Corporation.

• "S-AIR" and its h)go are

trademarks of Sony Corporation.

• "i"' "XMB," and "xross media

bar" are trademarks of Sony

Corporation and Sony Computer

Entertainment Inc.

• "PLAYSTATION" is a trademark

of Sony Computer Entertainment

Inc.

DivX_9, ®• DivX Certil'ied _ and

associated logos are registered

trademarks of DivX, Inc. and am

used under license. (Except for

U.S. models.)

• Music and vide() recognition

technology and related data are

provMed by Gracenole @.

Gracenote is the industry standard

in music recognition technology

and related content delivery. For

more information, please visit

www.gracenote.colil.

CD, DVD, Blu-ray Disc, and

music and video-related data from

2000-present Gracenote.

2000-present Gracenote. One or

more patents owned by Gracenote

apply to this product and service.

See the Gracenote website for a

nonexhaustive list of applicable

Gracenote patents. Gracenote,

CDDB, MusiclD, MediaVOCS,

the Gracenote logo and logotype,

and the "Powered by Gracenote"

logo are either registered

trademarks or trademarks of

Gracenote in the United States

andk)r other countries.

"gracenob.e

• "PhotoTV HD" and the "PhotoTV

HD" logo are trademarks of Sony

Corporation.

•MPEG Layer-3 audio coding

technology and patents licensed

from Fraunhol_r IIS and

Thomson.

• iPod is a trademark of Apple Inc.,

registered in the U.S. and other

countries.

• "Made for iPod" means that an

electronic accessory has been

designed to connect specifically

to iPod and has been certified by

the developer to meet Apple

perfommnce standards.

• Apple is not responsible for the

operation of this device or its

compliance with safety and

regulatory standards.

• Other system and product names

are generally trademarks or

registered trademarks of the

manufacturers. IM and @ marks

are not indicated in this document.

4US

AboutThese

Operating

Instructions

•The instructions in these

Operating Instructions

describe the controls on the

remote. Yon can also use the

controls on the unit if they

have the same or similar

names as those on the remote.

• In this manual, "disc" is used

as a general reference for

BDs, DVDs, Super Audio

CDs, or CDs unless otherwise

specified by the text or

illustrations.

• The instructions in this

manual are for BDV-E870,

BDV-E570, BDV-E470,

BDV-E370, BDV-T57, i.tnd

BDV-T37. BDV-E870 is the

model used for illustration

purposes. Any difference in

operation is clearly indicated

in the text, for example,

"BDV-E870."

• The items displayed on the

TV screen may vary

depending on the area.

• The default setting is

underlined.

• The system is compatible

with the S-AIR function,

which allows transmission of

sound between S-AIR

products wirelessly. For

details on the S-AIR function,

see "Using an S-AIR

Product" (page 42).

• Notes or instructions for the

surround amplifier, surround

back amplifier, or S-AIR

receiver in these Operating

Instructions refer only to

when the surround amplifier,

surround back amplifier, or

S-AIR receiver is used.

5/is

Table of Contents

About These Operating Instructions ....... 5

Unpacking ............................................... 7

Index to Parts and Control .................... 10

Getting Started

Step 1: Installing the System ....... 15

Step 2: Connecting the System ,,,22

Step 3: Performing the Easy

Setup ........................................ 28

Step 4: Selecting the Source ....... 29

Step 5: Enjoying Surround

Sound ....................................... 30

Playback

Playing a Disc ....................................... 32

Playing from a USB Device .................. 33

Enjoying an iPod ................................... 33

Playing via a Network ........................... 34

Available Options ................................. 35

Sound Adjustment

Selecting the Effect to Suit

the Source ....................................... 37

Selecting the Audio Format, Multilingual

Tracks, or Channel .......................... 37

Enjoying Multiplex Broadcast

Sound .............................................. 38

Using the Sound Effect ......................... 38

Tuner

Listening to the Radio ........................... 40

External Audio Device

Using an S-AIR Product ....................... 42

Other Operations

Using the Control for HDMI Function for

"BRAVIA" Sync ............................ 47

Calibrating the Appropriate Settings

Automatically ................................. 49

Setting the Speakers .............................. 50

Using the Sleep Timer .......................... 52

Deactivating the Buttons on

the Unit ........................................... 52

Controlling Your TV with the Supplied

Remote ............................................ 52

Saving Power in Standby Mode ............ 53

Settings and Adjustments

Using the Setup Display ....................... 54

[Network Update] ................................. 54

[Screen Settings] ................................... 54

[Audio Settings] .................................... 55

[BD/DVD Viewing Settings] ............... 56

[Parental Control Settings] ................... 57

[Music Settings] .................................... 57

[System Settings] .................................. 57

[Network Settings] ................................ 59

[Easy Setup] .......................................... 59

[Resetting] ............................................ 59

Additional Information

Precautions ........................................... 60

Notes about the Discs ........................... 61

Troubleshooting .................................... 62

Playable Discs ...................................... 69

Playable Types of Files ........................ 70

Supported Audio Formats ..................... 71

Video Output Resolution ...................... 71

Specifications ....................................... 72

Language Code List .............................. 74

Glossary ................................................ 75

Index ..................................................... 78

6us

Unpacking

BDV.E870

• Front speakers (2)

•Surround speakers (2)

• Center speaker (1)

• Subwoofer (1)

•FM wire antenna (aerial) (1)

•Speaker cords (3, blue/gray/

green)

•Video cord (1)

•Remote commander

(remote) (1)

oooo0 o oo0a0_

0oooot_n0%

0ooo0Q_uou

_O_OOOo ooOOO

•R6 (size AA) batteries (2)

• Calibration mic (1)

•Bases (2)

•Screws (6)

•Speaker-bottom covers (2)

• Operating Instructions

• Speaker Installation Guide

• Quick Setup Guide

• End user license agreement

• Easy Setup Disc (DVD)

7us

BDV.E570/BDV-E470/BDV-T57

•Front speakers (2)

• Surround speakers (2)

• Center speaker (1)

• FM wire antenna (aerial) (1)

• Speaker cords (6, white/red/

blue/graylgreenlpurple)

• Video cord (1)

• Subwoofer (1)

• Remote commander

(remote) (1)

oooo00 oooooo o]

_oooo _ c:::l 1

[ o oo 0 o0o_ooOOO _._

• R6 (size AA) batteries (2)

• Calibration mic (1)

• Operating Instructions

• Quick Setup Guide

• End user license agreement

• Easy Setup Disc (DVD)

For BDV-E570/BDV-T57

• USB Wireless LAN Adapter

(UWA BR 100)

• UWABR100 External

cable

For BDV.T57

• HDMI cable (1)

8us

BDV.E370/BDV-T37

• Front speakers (2)

• Surround speakers (2)

• Center speaker (1)

• Subwoofer (1

• Speaker cords (5, white/red/

blue/gray/green)

•Video cord (1)

• Remote commander

(remote) (1)

QoooO o ooo00 o ]

Qoooo c_3 }

_o0_oODo_ooooo _u

• R6 (size AA) batteries (2)

• Calibration mic (1)

• Operating Instructions

• Quick Setup Guide

• End user license agreement

For U.S. and Canadian

models

• Easy Setup Disc (DVD)

For BDV-E370 (Latin

American models only)/BDV-

T37

• HDMI cable (1)

•FM wire antenna (aerial) (1)

Insert two R6 (size AA) batteries (supplied) by matching the @ and @ ends on the batteries to the

markings inside the compartment.

9 us

Index to Parts and Control

For more information, refer to the pages indicated in parentheses.

½½

il! /

[]

I/_ (on/standby)

Turns on the trait, or sets it to standby mode.

Play operation buttons

_--(open/close) (page 32)

Opens or closes the disc tray.

(play)

Starts or re-starts playback (resume play).

Plays a slideshow when a disc containing

JPEG image files is inserted.

• (stop)

Stops playback and remembers the stop

point (resume point).

The resume point for a title/track is the last

point you played or the last photo for a

photo folder.

FUNCTION

Selects the playback source.

VOLUME +/-

Adjusts the system' s volume.

[] _ (USB) port (page 33)

Used t_r connecting a USB device.

[] Front panel display

[] [] (remote sensor)

[] Power indicator

Lights up while the system is turned on.

[] Disc tray (page 32)

10us

About the indications in the front panel display

[] Displays the current sound format. []

[] Lights upwhen outputting 1920 x

1080p/24 Hz video signals. []

[] Lights up when outputting 720p/1080i/

1080p video signals from the HDMI

OUT jack or 720p/1080i video signals

from the COMPONENT VIDEO OUT

jacks.

[] Lights up when the HDMI OUT jack is

correctly connected to an HDCP (High-

bandwidth Digital Content Protection)-

compliant device with HDMI or DVI

(Digital Visual Interface) input. []

[] Lights up when a station is received.

(Radio only) (page 40)

[] Lights up when stereo sound is

received. (Radio only) (page 40) []

[]

Flashes when the sleep timer is set.

(page 52)

S-AIR indicator (only when the wireless

transmitter (not supplied) is inserted

into the unit)

Lights up during wireless

transmission. Flashes when [Standby]

is set to [On] and the system is in

standby mode while wireless

transmission between the unit and

S-AIR receiver is not activated. (page

42)

Displays system's status such as

chapter, title, or track number, time

information, radio frequency, playing

status, surround setting, etc.

Lights up when repeat play is

activated.

Displays system's playing status.

Lights up when muting is on.

11u_

[] [] []

[] *_ (USB) port (page 33)

[] LAN (100) terminal (page 27)

[] COMPONENT VIDEO OUT jacks (page

23)

[] VIDEO OUT jack (page 23)

[] HDMI OUT jack (page 23)

[] EZW-T100 slot (page 42)

[] AUDIO (AUDIO IN L/R) jacks (page 25)

[] A.CAL MIC jack (pages 28, 49)

[] ANTENNA (FM COAXIAL 75_) jack

(page 26)

[] TV (DIGITAL IN OPTICAL) jack (page

24)

[] SAT/CABLE (DIGITAL IN COAXIAL)

jack (page 25)

[] SPEAKERS jacks (page 22)

* _ CAUTION

Please do not remove the screws unless you

are installing the EZW-T100.

12us

TOP MENU POP UP, MENL

FUNCTION SOUND MOD

©_©

PRESET-- REPLAY ADVANCE PRESET+

TUNING-- PLAY TUNING+

....

VOL TV VOL

MUTING T T

, []

Number 5, AUDIO, VOL +, aud _ buttous

have a tactile dot. Use the tactile dot as a

refereuce wheu operatiug the remote.

• _ : For TV operatious

(For details, see "Coutrolliug Your TV with

the Supplied Remote" (page 52).)

[] THEATER (page 48)

Switches to the optimum video mode for

watching movies automatically.

ONE-TOUCH PLAY (page 48)

Activates ()ne-Touch Play.

TV I/_ (on/standby) (page 52) {--?-v-}

Turns on the TV or sets it to standby mode.

I/(_ (on/standby) (pages 28, 40)

Turns on the system or sets it to standby

mode.

[] Number buttons (pages 41, 52)

Enters the title/chapter numbers, radio

fiequencies, etc.

AUDIO (pages 37, 38)

Selects the audio format/track.

SUBTITLE (page 56)

Selects the subtitle language when

multilingual subtitles are recorded on a BD-

ROM/DVD VIDEO.

D.TUNING (page 40)

Selects the radio fiequencies.

[] Color buttons (YELLOWIBLUEIREDI

GREEN)

Short cut keys for selecting items on some

BD menus (can also be used for Java

interactive operations on BDs).

[] TOP MENU

Opens or closes the BD's or DVD's Top

Menu.

POP UP/MENU

Opens or closes the BD-ROM's Pop-up

Menu, or the DVD' s menu.

OPTIONS (page 35)

Displays the options menu on the TV

screen.

RETURN

Returns to the previous display.

(-1'1"1,14-)

Moves the highlight to a displayed item.

@(ENTER)

Enters the selected item.

[] FUNCTION (pages 29, 40)

Selects the playback source.

HOME (pages 28, 40, 42, 49, 50, 54)

Enters or exits the system's home menu.

SOUND MODE (page 37)

Selects the sound mode.

13vs

[]

Playback operation buttons

See "Playback" (page 32).

I<</1_1_1 (previous/next)

Skip to the previous/next chapter, track, or

file.

_:_-/_,,_ (replay/advance)

Briefly replay the current scenes for 10

seconds./Briefly fast forwards the current

scenes for 15 seconds.

<</I=H_ (fast reverse/fast forward)

Fast reverse/fast t_rward the disc during

playback. Each time you press the button,

search speed changes.

Activates slow-motion play when pressed

t_r more than one second in pause mode.

Plays one frame at a time when pressed in

pause mode.

(Nay)

Starts or re-starts playback (resume play).

Plays a slideshow when a disc containing

JPEG image files is inserted.

II (pause)

Pauses or re-starts playback.

• (stop)

Stops playback and remembers the stop

point (resume point). The resume point for

a title/track is the last point you played or

the last photo for a photo folder.

Radio operation buttons

See "Tuner" (page 40).

PRESET +/-

TUNING +/-

MUTING

Turns off the sound temporarily.

VOL +/- (page 40)

Adjusts the volume.

TV VOL +/- |

Adjusts the TV volume.

TV INPUT |

Switches the TV' s input source between the

TV and other input sources.

[]

DISPLAY (pages 32, 34)

Displays the playback information on the

TV screen.

When the function is "TV" or "SAT/

CABLE" and digital signals are input via

the DIGITAL IN jack, displays the stream

information in the front panel display.

_--(open/close)

Opens or closes the disc tray.

SLEEP (page 52)

Sets the sleep timer.

SYSTEM MENU (pages 30, 36, 38, 40)

Enters the system menu.

FAVORITES

Displays the Internet contents added to the

Favorites List. You can save 18 favorite

Internet contents.

14us

Step 1: Installing the System

For the best possible surround sound, place all speakers at the same distance from the listening position

(I_). The distance can be between 0 to 23 feet (0.0 to 7.0 meters).

If you cannot place the center speaker and surround speakers at the same distance as (I_), place them

within 23 feet (7.0 meters) of the listening position.

Place the surround speakers to the rear of the listening position (Q).

The subwoofer can be placed anywhere in the room.

Subwoofer

Front left speaker (L) . .,----

//////_

Center speaker

Front right speaker (R)

O ,

@ @

Surround left speaker (L) ...... ......"Surround right speaker (R)

" ---. -. ........... f

•Use caution when placing the speakers and/or speaker stands attached to the speakers on aspecially treated (waxed,

oiled, polished, etc.) floor, as staining or discoloration may result.

• Do not lean or hang on a speaker, as it may fall down.

15us

To add the optional surround back speakers

You can enjoy 7.1 surround sound by purchasing the Wireless Surround Speaker Kit (WAHT-SBP2,

optional). The optional )roduct lineup differs depending on the area.

For the position of the surround back speakers, refer the illustration below (@).

Subwoofer Center speaker

Front left speaker (L) .--"_ '_ .........

Surround left

speaker (L)

,,_[

Surround back left speaker (L)

(optional) ...... .....

Front right speaker (R)

_ urround right

speaker (R)

/,'

Surround back right speaker (R)

(optional)

•To use the surround back speakers, set Surround Back (page 50) in Speaker Settings to [Yes] while performing

the Easy Setup (page 28).

Caution

•Contact a screw shop or installer regarding the wall material or screws to be used.

• Use screws that are suitable fi)r the wall material and strength. As a plaster board wall is especially fragile, attach

the screws securely to a beam and fasten them to the wall. Install the speakers on a vertical and flat wall where

reinfi)rcement is applied.

• Sony is not responsible for accidents or damage caused by improper installation, insufficient wall strength or

improper screw installation, natural calamity, etc.

Before installing the front speakers of BDV-E870 on a wall, you need to disassemble the speakers. You

can install the upper part of the speakers on a wall.

16 us

To disassemble the speaker

(Front speakers of BDV-E870 only)

1Disconnect the speaker cords from the speaker.

Rear of the speaker

Remove the screw (pre-installed) at the rear of the speaker.

This screw is used when reassembling the speaker. Be sure not to lose the screw.

Screw J

Rearof the speaker

Disassemble the speaker by lifting the upper part of the speaker.

Upperpa_

Lower part

Rear of the speaker

17us

Pull out the speaker cord from the bottom of the lower part of the speaker.

The removed speaker cord is used when installing the speaker on a wall.

Lower part of the speaker

Speaker cord

Remove the protection paper from the speaker-bottom cover, then attach the speaker-

bottom cover to the bottom of the upper part of the speaker.

Protection paper

Speaker-bottom cover

Bottom of the upper part of

the speaker

• When removing the protection paper, pull it ofl' via the section exposed by, the notch in the speaker-bottom cover.

Fully-disassembled illustration

Upper part of

the speaker

Lower part of

the speaker Speaker cord

Screw

18us

To install the speakers on a wall

Before installing the speakers on a wall, connect the speaker cord to the speaker.

Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with

the color tube to (_, and the speaker cord without the color tube to G.

Color tube

Front left speaker (L): White

Front right speaker (R): Red

Center speaker: Green

Surround left speaker (L): Blue

Surround right speaker (R): Gray

I Prepare screws (not supplied) that are suitable for the hole on the back of each speaker.

See the illustrations below.

i_ 4 mm (3/16 inch)

, ol

30 mm (1 3/16 inches)

Hole on the back of

the speaker

19us

2Fasten the screws to the wall.

BDV-E870

For the front speakers

BDV-E570/BDV-E470/BDV-

E370/BDV-T57/BDV-T37

For the center speaker

219 mm

For the center speaker

219 mm

8to 10

(11/32 to 13/32inch)

For the surround speakers

8 to 10 mmm[_

(11/32to 13/32inch,

For the other speakers

8 to 10 mm

(11/32to 13/32 inch)

20us

Hang the speakers on the screws.

Hole on the back of

the speaker

__i_i_ii_ii_!iii_i_iiiiii!!!!!_iiiiiiiiiiii!!!!_iiiiii_iiii!!!!!_iiiiiiiiii!!!!!_iiiiiiiiii!!!!!_iiiiiiiiii!!!!!_iiiiiiiiii!!!!!_iiiiiii_i

.........iiiiii_iiii!iiiiiiiiiiiiliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiili

Rear of the speaker

21us

Step 2: Connectingthe System

For connecting the system, read the information on the following pages.

Do not connect the AC power cord (mains lead) of the unit to a wall outlet (mains) until all the other

connections are lilade.

• When you connect another component with a volume control, turn down the volume of the other components to a

level where sound is not distorted.

The connector of the speaker cords and the color tube are color-coded depending on the type of speaker.

Connect the speaker cords to match the color of the SPEAKERS jacks of the unit.

Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with

the color tube to (_, and the speaker cord without the color tube to G. Do not catch the speaker cord

insulation (robber covering) in the speaker terminals.

To connect speaker cords to the unit

When connecting to the unit, insert the connector until it clicks.

Rear panel of the unit

G ray

(Surround right speaker (R))

Red

(Front right Purple

speaker (R)) (Subwoofer)

White

(Front left speaker (L))

Blue

(Surround left speaker (L))

Green

(Center speaker)

To connect speaker cords to the speaker

Color tube

ector (-)

Rear or bottom of the speaker

22us

This connection sends a video signal to the TV.

Depending on the jacks on your TV, select the connection method.

Rear panel of the unit

O Component video

cable (not supplied)

t_ Video cord (supplied)

To the component To the video input To the HDMI IN jack

video input jacks of jack of the TV. of the TV.

the TV.

* The HDMI cable is supplied with BDV-E370 (Latin American models), BDV-T57, and BDV-T37 only.

Method 1: HDMI cable (O) connection

If your TV has an HDMI jack, connect to the TV with an HDMI cable. Picture quality will be improved

compared to using the component video cable connection or the video cord connection.

When connecting with the HDMI cable, you need to select the type of output signal (page 55).

Method 2: Component video cable (Q) connection

If your TV does not have an HDMI jack, but has component vide() input jacks, connect to the TV with

a component video cable. Picture quality will be improved compared to using the video cord

connection.

When connecting with the component video cable, you need to select the type of output signal (page

55).

Method 3: Video cord (0) connection

If you do not have an HDMI cable or a component vide()cable, temporarily make this connection.

23vs

This connection sends an audio signal to the unit flom the TV. To listen to TV sound via the system,

perform this connection.

Rear panel of the unit

Digital optical cord (not

supplied)

To the digital optical out jack of

the TV.

With a digital audio connection, the system receives a Dolby Digital multiplex broadcast signal and

you can enjoy multiplex broadcast sound.

•When you connect the TV and the unit with an audio cord, see "Connecting the other components" (page 25).

About Audio Return Channel

If your TV is compatible with the Audio Return Channel function, an HDMI cable connection also

sends a digital audio signal from the TV. You do not need to make a separate audio connection t_r

listening to TV sound. For details of the Audio Return Channel function, see [Audio Return Channel]

(page 58).

• A digital optical cable connection has priority over the Audio Return Channel function via HDMI cable connection.

24u_

When you connect the system and other components to the TV, video signals from the system and the

components are sent to the TV, and audio signals flom the components are sent to the system as

follows.

Signal flow

_ _ :Video signal] _ :Audio signal

You can enjoy connected components via the system's speakers.

• VCR or digital satellite receiver, etc. (not supplied), which has a digital coaxial output jack: 0

• VCR, digital satellite receiver, PlayStation, or portable audio source, etc. (not supplied):

Rear panel of the unit • Digital coaxial cord

(not supplied)

O Audio cord

(not supplied)

Tothe digital coaxial outjack

of the VCR or digital satellite

receiver, etc.

To the audio out jacks of the VCR,

digital satellite receiver, PlayStation,

or portable audio source, etc.

25us

To connect the antenna (aerial)

_S__j _ Rear panel of the unit

FM wire antenna (aerial)

(supplied)

• Be sure to fully extend the FM wire antenna (aerial).

• After connecting the FM wire antenna (aerial), kee l) it as horizontal as possible.

• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the unit to an outdoor FM

antenna (aerial) as shown below.

Outdoor FM antenna (aerial) _.

26us

Wired Setup

Use a LAN cable to connect to the LAN (100)

terminal on the unit.

i _IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII12_l

LAN cable

Broadband ADSL modem/ Intemet

router cable modem

USB Wireless Setup

Use a wireless LAN via the USB Wireless LAN

Adapter (Sony UWA-BRI00* only) (supplied

with BDV-E570 and BDV-T57).

The USB Wireless LAN Adapter may not be

available in some regions/countries.

* As of January 2010.

Turn the unit offbefore connecting the

extension cable or inserting the USB Wireless

LAN Adapter. Alter inserting the USB Wireless

LAN Adapter to the base of the extension cable

and connecting the extension cable to the

(USB) port (fiont or rear), turn the unit on again.

LAN cable

USB

Wireless

LAN @

Adapter

Internet ADSL modem/ Wireless LAN

cable modem router

Wireless LAN Adapter and the wireless LAN router

closer to each other.

To set the network settings

For details, see [Network Settingsl (page 59)

and follow the on-screen instructions to

complete the setup.

About wireless LAN security

Since communication via the wireless LAN

function is established by radio waves, the

wireless signal may be susceptible to

interception. To protect wireless

communication, this system supports various

security functions. Be sure to correctly

configure the security settings in accordance

with your network environment.

No Security

Although you can easily make settings, anyone

can intercept wireless communication or intrude

into your wireless network, even without any

sophisticated tools. Keep in mind that there is a

risk of unauthorized access or interception of

data.

WEP

WEP applies security to communications to

prevent outsiders fiom intercepting

communications or intruding into your wireless

network. WEP is a legacy security technology

that enables older devices, which do not support

TKIP/AES, to be connected.

WPA-PSK (TK|P), WPA2-PSK (TKIP)

TKIP is a security technology developed to

correct for the deficiencies of WEP. TKIP

assures a higher security level than WEP.

WPA-PSK (AES), WPA2-PSK (AES)

AES is a security technology that uses an

advanced security method that is distinct fiom

WEP and TKIP.

AES assures a higher security level than WEP or

TKIP.

•The placement distance between the USB Wireless

LAN Adapter and your wireless LAN muter differs

depending on the usage environment. If the system

cannot connect to the network or the network

connection is unstable, move the USB Wireless LAN

Adapter to a difl_rent position or place the USB

27us

Step3: Performingthe

EasySetup

Before performing Step3

Make sure all connections are secure, and then

connect the AC power cord (mains lead).

Follow the Steps below to make the basic

adjustments for using the system.

Displayed items vary depending on the country

model.

•To use the optional surround back speakers, set

[Surround Back] in [Speaker Settings] to [Yes]

(page 50).

-- I/_

¢e/,i,/4./.+,@

C HOME

1Turn on the TV.

2Connect the calibration mic to the

A.CAL MIC ack on the rear panel.

Set up the calibration lilic fit ear level using

a tripod, etc. (not supplied). The t]'ont of

each speaker should face the calibration

mic, and there should be no obstruction

between the speakers and the calibration

mic.

Calibration mic

4Press I/_ on the unit.

Switch the input selector on your TV so

that the signal from the system

appears on the TV screen.

The Easy Setup Display for OSD language

selection appears.

EasySetup 0s0

Selectthe language 1o be displayed by this unit

( Eiiglish )

Francais

Espa_ol

Ponuqu_s

28us

5Perform the [Easy Setup]. Follow the

on-screen instructions to make the

basic settings using (--/,1,/4,/-),and @.

For details about [Auto Calibrationl

settings in [Easy Setupl, see "Calibrating

the Appropriate Settings Automatically"

(page 49).

To recall the Easy Setup Display

1Press HOME.

The home menn appears on the TV screen.

2 Press (--1-)to select _[Setup].

3 Press '1"14,to select [Easy Setup], then

press @.

4Press !4-) to select [Start], then press

®.

The Easy Setup Display appears.

Step4: Selectingthe

Source

You can select the playback source.

FUNCTION--

[ ?

]

Press FUNCTION repeatedly until the

desired function appears in the front panel

display.

Each time you press FUNCTION, the function

changes as follows.

"BD/DVD" --+"D. MEDIA" --+ "TUNER FM"

--+"TV" --+ "SAT/CABLE" --+ "AUDIO" --+

"BD/DVD" --+ ...

Function

"BD/DVD"

"D. MEDIA"

"TUNER FM"

"TV"

Source

Disc that is phtyed by the system

USB device, iPod, or BRAVIA

Internet Video

FM radio (page 40)

Component (TV, etc'.) that is

connected to the TV (DIGITAL

IN OPTICAL) jack on the rear

panel, or aTV compatible with the

Audio Return Channel function

that is connected to the HDM]

OUT jack on the rear panel

(page 24).

"SAT/CABLE" Component that is connected to

the SAT/CABLE (DIGITAL IN

COAXIAL) jack on the rear panel

(page 25)

"AUDIO" Component that is connected to

the AUDIO (AUDIO IN L/R)

jacks on the rear panel (page 25)

29us

Step 5: EnjoyingSurroundSound

Ariel performing the previous Steps and starting playback, you can easily enjoy surround sound. You

can also select pre-programmed surround settings that are tailored to different kinds of sound sources.

They bring the exciting and powerful sound of movie theaters into your home.

SYSTEM MENU

•1"/4-/÷, @ __

i ii!i i!

1Press SYSTEM MENU.

2 Press ,I,14,repeatedly until "SUR.SETTING" appears in the front panel display, then

press @or->.

3 Press '1"14,repeatedly until the surround setting you want appears in the front panel

display.

See the table below for surround sound setting descriptions.

4Press @.

The setting is made.

5 Press SYSTEM MENU.

The system menu turns oft:

About speaker output of each surround setting

The table below describes the options when you connect all the speakers to the unit.

The default setting is "A.F.D. MULTI."

Sound from Surround setting Effect

Depending on the source. "A.F.D. STD" The system discriminates the sound format of the source and

(AUTO FORMAT presents sound as it was mcorded/encoded.

D1RECT STANDARD)

30us

Sound from Surround setting

"A.F.D. MULTI"

(AUTO FORMAT

DIRECT MULTI)

"2CH STEREO"

Effect

• 2 channel source: The system simulates surround sound

from 2 channel sources and outputs sound from the 5.1

channel speakers by duplicating 2 channel source sound

across each speaker.

• Multi-channel source: The system outputs sound from the

speakers depending on the number of channels of the

source.

• 2 channel source: The system simulates surround sound

from 2 channel sources and outputs sound from the 5.1

channel speakers.

"PRO LOGIC" performs Dolby Pro Logic decoding.

"PLII MOVIE" performs Dolby Pro Logic II movie

mode decoding.

• Multi-channel source: The system outputs sound from the

speakers depending on the number of channels of the

source.

• 2 channel source: The system simulates surround sound

from 2 channel sources and produces 6.1 channel sound.

"NEO6 CIN" performs DTS Neo:6 Cinema mode

decoding.

"NEO6 MUS" performs DTS Neo:6 Music mode

decoding.

• Multi-channel source: The system outputs sound from the

speakers depending on the number of channels of the

source.

The system outputs the sound from the front speakers and

subwoofer regardless of sound format or number of channels.

Multi-channel surround formats are downmixed to 2

channels.

• When you select "A.F.D. MULTI," depending on the disc or source, the beginning of the sound may be cut off

while the optimum mode is automatically selected. To avoid cutting the sound, select "A.F.D. STD."

• When bilingual broadcast sound is input, "PRO LOGIC" and "PLII MOVIE" are not effective.

• Depending on the input stream, the surround settings may not be effective.

• When changing the surround setting while using the S-AIR receiver, sound from the S-AIR receiver may skip.

• When you play a Super Audio CD, surround settings are not activated.

• The system memorizes the last surround setting selected for each function.

Whenever you select a function such as "BD/DVD" or "TUNER FM," the surround setting that was last applied to

the function is automatically applied again. For example, if you select "BD/DVD" with "PRO LOGIC" as the

surround setting, then change to another function, and then return to "BD/DVD," "PRO LOGIC" will be applied

again.

31us

Playinga Disc

For playable discs, see "Playable Discs"

(page 69).

1Switch the input selector on your TV so

that the signal from the system

appears on your TV screen.

2 Press _--,and place a disc on the disc

tray.

3Press _--to close the disc tray.

O appears on the home menu and playback

starts.

If playback does not start automatically,

select O in the H [Videol, _ [Musicl, or

I_ [Photo] category, and press @.

Some BD-ROMs with "BD-LIVE Logo*" have

bonus content and other data that can be

downloaded for enjoyment.

* BDL_IVEM

1 Prepare for BONUSVIEW/BD-LIVE.

•Connect the unit to a network (page 27).

• Set [BD Internet Connection] to [Allow]

(page 56).

2 Insert a BD-ROM with BONUSVIEW/

BD-LIVE.

The operation method differs depending on

the disc. Refer to the operating instructions

of the disc.

Delete unnecessary data in internal memory or

USB memory. Select [Erase BD Datal in

[Videol to delete unnecessary data. If you

use USB memory as local storage, all saved data

in the [BUDA/BUDB1 folder is deleted.

You can check the playback information, etc.,

by pressing DISPLAY.

The displayed information differs depending on

the disc type and player status.

Example: when playing a BD-ROM

[] The currently selected angle

[] Title number or name

[] The currently selected audio setting

[] Available functions (_1_ angle, 9_) audio,

subtitle)

[] Playback information

Displays disc type, play mode, repeat type,

video codec, bit rate, playing status bar,

playing time, total time

[] Chapter number

[] Output resolution/Video frequency

32us

Playingfroma USB

Device

You can play video/music/photo files on the

connected USB device.

For playable types of files, see "Playable Types

of Files" (page 70).

1Connect the USB device to the -_

(USB) port on the unit.

Refer to the operating instructions of the

USB device before connecting.

USB device

2Press <--/->to select H[Video],

[Music], or _[Photo].

3 Press '1"/4,to select %[USB device

(front)] or [USB device (rear)], then

press @.

• Do not remove the USB device during

operation. To avoid data corruption or damage

to the USB device, turn the system off when

connecting or removing the USB device.

Enjoyingan iPod

You can enjoy the sound and charge the battery

of an iPod via the system.

Compatible iPod models

The compatible iPod models are as follows.

Update your iPod with the latest software before _-

using with the system.

iPod nano iPod touch

5th generation (video camera) 2nd generation

iPod nano

iPod classic 4th generation (video)

iPod nano iPod nano

iPod touch 3rd generation 2nd generation

1st generation (video) (aluminum)

Connect the iPod to the front .-_ (USB)

port on the unit with the iPod's USB

cable.

Press <--/->to select J'J [Music].

Press ,1,/4,to select B[iPod (front)],

then press @.

The sound fi'om the iPod is played on the

system.

You can operate the iPod using the buttons

on the remote.

For operation details, refer to the operating

instructions of the iPod.

33us

To operate the iPod using the

remote

You can operate the iPod using the buttons on

the remote. The following table shows an

example of buttons that can be used.

Playingvia a Network

Press Operation

D,'-, II Same operation as the D,'-/II button

of the iPod.

• Pause.

or _ Fast reverse or forward.

or _ Same operation as the _ or

buttons of the iPod.

DISPLAY, Same operation as the MENU button

RETURN, of the iPod.

t"/,I, Same operation as the Click Wheel

of the iPod.

@, ÷ Same operation as the Center button

of the iPod.

•The iPod is charged when connected to the system

while the system is turned on.

•You cannot transfer songs onto the iPod.

• Sony cannot accept responsibility in the event that

data recorded to iPod is lost or damaged when using

an iPod connected to this unit.

• This product has been designed specifically to work

with iPod and has been certified to meet Apple

performance standards.

• Do not remove the iPod during operation. To avoid

data corruption or damage to the iPod, turn the system

olY when connecting or removing the iPod.

BRAVIA Internet Video serves its a gateway

delivering the selected Internet content and a

variety of on-demand entertainment straight to

your unit.

1 Prepare for BRAVIA Internet Video.

Connect the unit to a network (page 27).

2 Press ÷/+ to select H[Video],

[Music], or i_1 [Photo].

3 Press t'/+ to select an Internet content

provider icon, then press @.

When the Internet content list hits not been

retrieved, it will be represented by an

unacquired icon or a new icon.

To use the control panel

The control panel appears when the vide() tile

starts playing. The displayed items may differ

depending on Internet content providers.

To display again, press DISPLAY.

[] Control display

_'ess (.-/q'/4,/-), or @ for playback operations.

[] Playing status bar

Status bar, cursor indicating the current

position, playing time, duration of the video

file

[]

The next video file name

The currently selected video file name and

rating

34us

Available Options

Various settings and playback operations are

available by pressing OPTIONS. The available

items differ depending on the situation.

Common options

Items

IPhtyback History

List]

[Search History]

[Search Contentsl

[Repeat Setting]

[Favorites List]

[Play/Stop]

[Play from begiuniug]

[Information Display]

[Add to Favorites]

[Remove from

Favorites]

Details

Displays titles/tracks in the

playback history of a

BD-ROM/DVD-ROM/music

CD using Gracenote

technology (except for BDV-

E370 (U.S. models)).

Searches for related

information based on

keywords from Gracenote via

the Information Display (only

for BDV-E370 (Latin

American models), and

BDV-E870).

Searches for BRAVIA

Intemet Video content based

on keywords from Gracenote

via the Information Display

(only for BDV-E370 (Lutin

American models), and

BDV-E870).

Sets the repeat play.

Displays the Favorites List.

Starts or stops playback.

Plays the item from the

begiuning.

Displays information on the

BD-ROM/DVD-ROM/music

CD by using Gracenote

technology (except for BDV-

E370 (U.S. models)).

Adds an Internet content to

the Favorites List.

Erases all Internet content

from the Favorites List.

H[Video] only

Items

[Vide() Settings]

Details

•[Picture Quality Mode]:

Selects the picture settings

for different lighting

environments.

• [FNR]: Reduces the random

noise appearing in the

picture.

• [BNR]: Reduces the

mosaic-like block noise in

the picture.

• [MNR]: Reduces minor

noise around the picture

outlines (mosquito noise).

[Play/Pause] Starts or pauses playback.

[Top Menu] Displays the BD's or DVD's

Top Menu.

[Menu/Popup Menu] Displays the BD-ROM's

Pop-up Menu or DVD's

lIlellu.

[Title Search] Searches for a title on BD-

ROMs/DVD VIDEOs and

starts playback from the

beginning.

[Chapter Search] Searches for a chapter and

starts playback from the

beginning.

[Angle] Switches to other viewing

angles when multi-angles are

recorded on BD-ROMs/DVD

VIDEOs.

[Photo] only

Items Details

[Slideshow] Starts :t slideshow.

[Slideshow Speed] Changes the slideshow speed.

[Slideshow Effect] Sets the effect when playing a

slideshow (only for BDV-

E370 (Latin American

models), and BDV-E870).

[Rotate Left] Rotates the photo

counterclockwise by

90 degrees.

[Rotate Right] Rotates the photo clockwise

by 90 degrees.

[View hnage] Displays the selected picture.

35u_

(A/V S YNC)

When the sound does not match the pictures on

the TV screen, you can adjust the delay between

the picture and sound.

1Press SYSTEM MENU.

Press I%1,repeatedly until "A/V SYNC"

appears in the front panel display, then

press @or->.

Press ,I,14,to adjust the delay between

the picture and sound.

You can adjust from 0 ms to 300 ms in 25

ms increments.

4Press @.

The settiug is made.

5Press SYSTEM MENU.

The system meuu turus oft:

•Depending on the input stream, AIV SYNC may not

be e[lective.

36us

Selecting the Effect to

Suit the Source

• When changing the sound mode while using the

S-AIR receiver, sound from the S-AIR receiver may

skip.

• When you play a Super Audio CD, this function does

l]Ot work.

You can select a suitable sound mode for movies

or music.

SOUND

_ b @ MODE

Press SOUND MODE repeatedly during

playback until thedesired mode appears in

the front panel display.

•"AUTO": The system selects "MOVIE" or

"MUSIC" automatically to produce the sound

effect depending on the disc or sound stream.

•"MOVIE": The system provides the sound for

nlovies.

• "MUSIC": The system provides the sound for

music.

• "SPORTS": The system adds reverberation for

sports programs.

• "NEWS": The system provides the sound for

voice programs, such its news.

• "GAME ROCK": The system provides the

sound for music/rhythm games.

• Depending on the disc or source, when you select

"AUTO," the beginning of the sound may be cut off

as the system selects the optimum mode

automatically. To avoid cutting the sound, select

other than "AUTO."

• Depending on the input stream, the sound mode may

not be effective.

Selecting the Audio

Format, Multilingual

Tracks, or Channel

When the system is playing a BD/DVD VIDE()

or DATA CD/DATA DVD (DivX video files*)

recorded in multiple audio formats (PCM,

Dolby Digital, MPEG audio, or DTS) or

multilingual tracks, you can change the audio

format or language.

With a CD, you can select the sound from the

right or left channel and listen to the sound of the

selected channel through both the right and left

speakers.

* Except for U.S. models.

AUDIO --

Press AUDIO repeatedly during playback to

select the desired audio signal.

The audio iuformatiou appears on the TV

screeu.

•BD/DVD VIDEO

Depending on the BD/DVD VIDEO, the choice

of language vltries.

When 4 digits are displayed, they indicate a

language code. See "Language Code List"

(page 74) to confirm which language the code

represents. When the slune language is

car)

€,.

O..

l=,

€,.

=_.

37us

displayed two or more times, the BD/DVD

VIDEO is recorded in multiple audio formats.

•DVD-VR

The types of sound tracks recorded on a disc are

displayed.

Example:

• [ b Stereo]

• [.b Stereo (Audiol)]

• [ b Stereo (Audio2)]

• [ab Main]

• [ b Subl

• [ J>Main/Sub]

•[,b Slereo (Audiol)1 and [.b Stere() (Audio2)] do not

appear when only one audio stream is recorded on the

disc.

•DATA CD (DivX video file)/DATA DVD

(DivX video file) (Except for U.S. models)

The choice of DATA CD or DATA DVD audio

signal formats differs, depending on the DivX

video file contained on the disc. The format

appears on the TV screen.

•CD/DATA CD (MP3 file)/DATA DVD (MP3

file)

•[b Stereo]: The standard stereo sound.

• [b I/L]: The sound of the left channel

(monaural).

• [ J_ 2/R]: The sound of the right channel

(monaural).

EnjoyingMultiplex

BroadcastSound

(DUAL MONO)

You can enjoy multiplex broadcast sound when

the system receives or plays a Dolby Digital

multiplex broadcast signal.

• To receive the Dolby Digital signal, you need to

connect a TV or other component to the unit with a

digital coaxial or optical cord (pages 24, 25). If your

TV is compatible with the Audio Return Channel

function (page 49), you can receive a Dolby Digital

signal via an HDM] cable.

::? i

Press AUDIO repeatedly until the desired

signal appears in the front panel display.

• "MAIN": Sound of the main language will be

output.

• "SUB": Sound of the sub language will be

output.

• "MAIN/SUB": Mixed sound of both the main

and sub languages will be output.

Usingthe SoundEffect

SYSTEM

MENU --°,ii,i,_,_,_ _:!i;;;_ii

O _17'7111)O

ii!':!i_,i!iii_ii'iii:'i_',iilii21!iiii_i_i,!,ii_!!i?

i;i;iil

You can enjoy sound effects or dialog, its you

would in a movie theater, even at low volume. It

is useful for watching movies at night.

1Press SYSTEM MENU.

38us

2 Press I"/4, repeatedly until "NIGHT

MODE" appears in the front panel

display, then press @or ->.

Press t"/4, to select a setting.

•"NIGHT ON": On.

• "NIGHT OFF": Oft:

4Press SYSTEM MENU.

The system menu turns off.

•When sound is output from the center speaker, this

effect is more pronounced, as speech (movie dialog,

etc.) is easy to hear. When sound is not output from

the center speaker, the system optimally adjusts the

volume.

You can reinforce bass flequencies.

1Press SYSTEM MENU.

Press t"/4, repeatedly until "D.BASS"

appears in the front panel display, then

press @or->.

Press t"/4, to select a setting.

• "D.BASS ON": On.

• "D.BASS OFF": Off.

Press SYSTEM MENU.

The system menu turns off.

39us

40us

Listening to the Radio

You cau eujoy radio souud with the system's

speakers.

SYSTEM

......_'_t NUm ber

2!_' _ _F buttons

:: D.TUNING

Current station

Current band and preset number

Press FUNCTION repeatedly until

"TUNER FM" appears in the front panel

display.

Select the radio station.

Automatic tuning

Press and hold TUNING +/- until the auto

scanning starts.

[Auto Tuningl appears on the TV screen.

Scanning stops when the system tunes in a

station.

To stop the automatic tuning manually,

press TUNING +/- or II.

Manual tuning

Press TUNING +/- repeatedly.

0 Adjust the volume by pressing

VOL +/-.

If an FM program is noisy

It"an FM program is noisy, you can select

monaural reception. There will be no stereo

effect, but reception will improve.

1 Press SYSTEM MENU.

2 Press ,1,14,repeatedly until "FM MODE"

appears in the front panel display.

TUNED ST

3Press @or-).

4Press '1"14,to select "MONO."

•"STERE()": Stere() reception.

• "MONO": Monaural reception.

5 Press SYSTEM MENU.

The system menu turns off.

To turn off the radio

Press I/@.

You can preset up to 20 stations. Betom tuning,

make sure to turn down the volume to minimum.

1 Press FUNCTION repeatedly until

"TUNER FM" appears in the front panel

display.

Press and hold TUNING +/- until the

auto scanning starts.

Scanning stops when the system tunes in a

station.

Press SYSTEM MENU.

Press '1"14,repeatedly until "MEMORY"

appears in the front panel display, then

press @or-).

A preset number appears in the fi'ont panel

display.

TUNED ST % _,

5 Press ,1%1,to select the preset number

you want.

TUNED ST %..!.._

;i iiii:i_ii_ii;:i !i o 'o

•You can select the preset number directly by

pressing the number buttons.

Press @.

"COMPLETE" appears in the front panel

display, and the station is stored.

Repeat Steps 2 to 6 to store other

stations.

Press SYSTEM MENU.

The system menu turns off.

To change the preset number

Select the desired preset number by pressing

PRESET +/-, then perform the procedure from

Step 3.

When you know the frequencies, you can select

radio stations by inputting the frequencies

directly.

1 Press FUNCTION repeatedly until

"TUNER FM" appears in the front panel

display.

3Press D.TUNING.

Press the number buttons to select the

frequencies.

4Press @.

¢D

Press FUNCTION repeatedly until

"TUNER FM" appears in the front panel

display.

The last received station is tuned in.

Press PRESET +/- repeatedly to select

the preset station.

The preset number and frequency appear on

the TV screen and front panel display.

Each time you press the button, the system

tunes in one preset station.

•You can selecl the presel station number directly

by pressing the number buttons.

41us

Usingan S-AIRProduct

When you purchase the S-AIR product, you

need to pert_nn the following settings to

activate wireless transmission.

About S-AIR products

There are two types of S-AIR product.

• S-AIR main unit (this unit): This is for

transmitting sound. You can use up to three

S-AIR main units. (The number of usable

S-AIR main units depends on the use

environment.)

• S-AIR sub unit: This is for receiving sound.

- Surround amplifier (optional): You

can enjoy surround speaker sound

wirelessly.

-S-AIR receiver (optional): You can

enjoy system sound in another room.

Room A S-AIR main unit

S-AIR sub unit v

(surround amplifier)

Room B

S-AIR sub unit

(S-AIR receiver)

(not supplied)

•When you insert the wireless transmitter/transceiver,

make sure that the AC power cord (mains lead) is not

connected to a wall outlet (mains).

• Do not touch the terminals of the wireless transmitter/

transceiver.

To insert the wireless transmitter

into the unit

1Remove the screws directly below the

z_ mark.

Rear of the unit

•Remove the screws that are indicated in the

illustration. Do not remove other screws.

Insert the wireless transmitter.

Rear of the unit

To make use of the S-AIR fuuctiou, you ueed to

iusert the wireless trausmitter iuto the uuit aud

the wireless trausceiver iuto the S-AIR sub uuit.

•Insert the wireless transmitter with the S-AIR

logo facing up.

• Insert the wireless transmitter so that the •

marks are aligned.

• Do not insert anything other than the wireless

transmitter into the EZW-TI00 slot.

42us

O Make sure to use the same screws to

secure the wireless transmitter.

Rear of the unit

•Do not use other screw's to l'asten the wireless

transmitter.

To insert the wireless

transceiver into the S-AIR sub

unit

For details on installing the wireless transceiver

into the S-AIR sub unit, such as a surround

amplifier or S-AIR receiver, see the operating

instructions of the S-AIR sub unit.

•When you change the S-AIR configuration, Sony

recommends that you perform [Auto Calibration].

For details, see "Calibratingthe Appropriate Settings

Automatically" (page 49).

For the surround amplifier

For the S-AIR receiver

Simply by matchiug the ID of the uuit aud the

S-AIR sub uuit, you cau activate wireless

trausmissiou.

To set the ID of the unit

1Press 1/(9 on the unit.

The system turus ou.

2 Press HOME.

The home meuu appears ou the TV screeu.

3 Press ÷/'-) to select _[Setup].

4Press ,P/I, to select [System Settings],

then press @.

5 Press ,P/I, to select [S-AIR Settings],

then press @.

The [S-AIR Settingsl display appears.

6 Press '1"/4,to select [ID], then press @.

7 Press '1"14,to select the desired ID.

You can select any ID (A, B, or C).

8PressG.

The setting is made.

Set the S-AIR sub unit to the same ID.

Wireless transmission is activated as

follows (example):

b _ 2'

...............

IDA IDA

To set the ID of the surround

amplifier

Refer to the operating instructions of the

surround amplifier.

To set the ID of the S-AIR

receiver

Refer to the operating instructions of the S-AIR

receiver.

To enjoy a 7,1 channel system

You can enjoy the more realistic surround sound

effect of 7.1 channels when you use the Wireless

Surround Speaker Kit (WAHT-SBP2, optional).

For details, refer to the operating instructions of

the Wireless Surround Speaker Kit.

In this case, set [Surround Backl in [Speaker

Settingsl to [Yesl (page 50).

-I

€,,,

¢D

43us

For the S-AIR receiver

You can enjoy the system's sound in another

room by using the S-AIR receiver.

1Press HOME.

The home menu appears on the TV screen.

Press <--/->to select w_ [Setup].

Press 'I"14'to select [System Settings],

then press @.

Press '1"/4,to select [S-AIR Settings],

then press @.

The [S-AIR Settiugsl display appears.

5 Press t"/4, to select [Mode], then press

®.

6 Press ,I,14,to select the desired setting.

•_: The S-AIR receiver outputs

sound according to functions set on the

unit.

•[Sepamtel: You can set the desired

function for the S-AIR receiver while unit

functions do not change.

7 Press @.

The setting is made.

8When you select [Separate] in Step 6,

press S-AIR CH on the S-AIR receiver

to select the function.

The S-AIR receiver's function changes as

follows.

"MAIN UNIT" --+ "TUNER FM" --+

"AUDIO" --* ...

To eujoy the same fuuctiou as the uuit,

select "MAIN UNIT."

Adjust the volume on the S-AIR

receiver.

For the S-AIR receiver

You can enjoy the S-AIR receiver while the unit

is in standby mode by setting [Standbyl to [Onl.

1Press HOME.

The home menu appears on the TV screen.

2 Press <--/->to select _[Setup].

Press 'I"14,to select [System Settings],

then press @.

Press ,I,/4, to select [S-AIR Settings],

then press @.

The IS-AIR Settiugs] display appears.

5 Press '1"14,to select [Standby], then

press @.

6 Press '1"14,to select the desired setting.

• [Onl: You can enjoy the S-AIR receiver

while the unit is in standby mode or turned

on. The power consumption during

standby mode increases.

• [Off]: You cannot enjoy the S-AIR

receiver while the unit is in standby mode.

Press @.

The setting is made.

•When you turn the system off while [Standby] is set

to [On], "S-AIR" flashes (when wireless transmission

between the unit and S-AIR receiver is not activated),

or lights up (when wireless transmission between the

unit and S-AIR receiver is activated) in the front

panel display.

44us

For the surround amplifier

For the S-AIR receiver

When using S-AIR products, neighbors may

also receive your system's sound if IDs are the

same, or you may receive sound fiom neighbors.

To prevent this, you can identity the unit with a

specific S-AIR sub unit by performing the

pairing operation.

When you perform pairing, wireless

transmission is activated between the paired

main unit and S-AIR sub unit only.

1Place the S-AIR sub unit that you want

to pair near the unit.

2Match the IDs of the unit and the S-AIR

sub unit.

•To set the ID of the unit, see "To set the ID

of the unit" (page 43).

• To set the ID of the surround amplifier,

refer to the operating instructions of the

surround amplifier.

• To set the ID of the S-AIR receiver, refer

to the operating instructions of the S-AIR

receiver.

3 Press HOME.

The home menu appears on the TV screen.

4Press <--/->to select _[Setup].

5 Press '1"14,to select [System Settings],

then press @.

6 Press '1"14,to select [S-AIR Settings],

then press @.

The [S-AIR Settings] display appears.

7 Press '1"/4,to select [Pairing], then

press @.

Start pairing of the S-AIR sub unit.

• For the surround amplifier

Refer to the operating instructions of the

surround amplifier.

•For the S-AIR receiver

Refer to the operating instructions of the

S-AIR receiver.

Press <--/->to select [Start], then press

®.

The unit starts pairing.

The PAIRING indicator of the surround

amplifier flashes when pairing starts.

When wireless transmission is activated,

the PAIRING indicator of the surround

amplifier turns on.

To cancel pairing, select [Cancel].

• Perform pairing within several minutes of Step

9. If'you do not, [Pairing failed. Retry,?] appears

on the TV screen. To continue pairing, select

[OK] and press @, then start again from Step 8.

To cancel pairing, select [Cancel].

To cancel pairing

Change the ID of the main and sub unit

(page 43).

For the surround amplifier

For the S-AIR receiver

If you use multiple wireless systems, such as

wireless LAN or Bluetooth, the transmission of

S-AIR signals or other wireless signals may be

unstable. In this case, the transmission may be

improved by changing the following [RF

Change] setting.

1Press HOME.

The home menu appears on the TV screen.

Press <--/->to select _[Setup].

3Press,1,/4,to select [System Settings],

then press @.

45us

Press ,1%1,to select [S-AIR Settings],

then press @.

The [S-AIR Settings] display appears.

Press ,I,/4, to select [RF Change], then

press @.

Press ,I,/4, to select the desired setting,

then press @.

• [Auto]: Normally select this. The system

changes [RF Change] to [Onl or [Offl

automatically.

• [Onl: The system transmits sound by

searching %r the better channel for

transmitting.

• [Off]: The system transmits sound by

fixing the channel for transmitting.

Press @.

The setting is made.

When you set [RF Change] to [Off],

select the ID so that wireless

transmission is most stable (page 43).

• In most cases, you will not need to change this

setting.

If [RF Change] is set to [Off], transmission

between the unit and S-AIR sub unit can be

performed using one of' the following channels.

S-AIR ID A: equivalent channel for IEEE

802.11 big channel 1

S-AIR ID B: equivalent channel for IEEE

802.11 b/g channel 6

S-AIR ID C: equivalent channel for IEEE

802.11 b/g channel 11

• The transmission may be improved by changing the

transmission channel (frequency) ol' the other

wireless system(s). For details, rel_r to the operating

instructions of the other wireless system(s).

46us

Usingthe Control for

HDMI Functionfor

"BRAVIA" Sync

This function is available on TVs with the

"BRAVIA" Sync function.

By connecting Sony components that are

compatible with the Control for HDMI function

with an HDMI cable, operation is simplified as

below:

- System Power Off (page 48)

- One-Touch Play (page 48)

- Theater Mode (page 48)

- System Audio Control (page 48)

- Volmne Limit (page 48)

- Audio Return Channel (page 49)

- Remote Easy Control (page 49)

- Language Follow (page 49)

Control for HDMI is a mutual control function

standard used by CEC (Consumer Electronics

Control) t%r HDMI (High-Definition

Multimedia Interface).

The Control for HDMI function will not work

when you connect this system to a component

which is not compatible with the Control for

HDMI function.

There are convenient buttons on the system' s

remote for operating the TV, such as

THEATER, ONE-TOUCH PLAY, and TV I/(_.

For details, see "Remote control" (page 13) and

refer to the operating instructions of the TV.

• Depending on the connected component, the Control

for HDMI fimction may not work. Relierto the

operating instructions supplied with the component.

• The Control fk)r HDMI function may not work if you

connect other than a Sony component, even if the

component is compatible with the Control lk)r HDMI

function.

(Control for HDMI -Easy Setting)

It"your TV is compatible with the Control for

HDMI - Easy Setting function, you can set the

system's [Control for HDMII function

automatically by setting the TV. For details,

refer to the operating instructions of the TV.

If the TV is not compatible with the Control for

HDMI - Easy Setting function, set the Control

for HDMI function of the system and TV

manually.

• For details on setting the TV, refer to the operating

instructions of the TV.

1Make sure that the system and the TV

are connected with an HDMI cable.

Turn on the TV and press I/(_ to turn on

the system.

Set the Control for HDMI function of the

system and TV.

The Control for HDMI function for the

system and TV is simultaneously set to on.

To set the [Control for HDMI]

function of the system to on/off

manually

1 Press HOME.

The home menu appears on the TV screen.

2Press ÷/+ to select _[Setup].

Press ,I,14,to select [System Settings],

then press @.

Press '1"14,to select [HDMI Settings],

then press @.

The [HDMI Settings[ display appears.

PressI'14, to select [Controlfor HDMI],

then press @.

¢D

::3

47us

6Press ,P/,I,to select the setting, then

press @.

•[Onl:On.

• [offl: oft:

(System Power Off)

When you turn the TV offby using the POWER

button on the TV' s remote or TV I/Q) on the

system's remote, the system turns off

automatically.

• This function depends on the settings of your TV. For

details, refer to the operating instructions of the TV.

(One-Touch Play)

Press ONE-TOUCH PLAY.

The system and your TV turn on, your TV's

input is set to the HDMI input to which the

system is connected, and the system starts

playing a disc automatically.

The System Audio Control function is also

activated automatically.

Also, when you insert a disc, One-Touch Play is

enabled. If One-Touch Play does not start (in the

case of inserting a disc that is not compatible

with the auto playback function), press

FUNCTION repeatedly to select "BD/DVD"

and press _ or ONE-TOUCH PLAY.

(Theater Mode)

Press THEATER.

If your TV is compatible with the Theater Mode,

you can enjoy optimal image and sound quality

suited for movies, and the System Audio Control

function is activated automatically.

(System Audio Control)

You can simplify operation to enjoy TV sound

via this system.

To use this function, connect the system and the

TV with an audio cord and an HDMI cable

(page 23).

You can use the System Audio Control function

as follows:

• When the system is turned on, TV sound can

be output fiom the speakers of the system.

• When TV sound is output from the speakers of

the system, you can change the output method

to the speakers of the TV via the TV menu.

• When TV sound is output fiom the speakers of

the system, you can adjust the volume and turn

offthe sound of the system using the TV

remote.

• While the TV is in PAP (picture and picture) mode,

the System Audio Control function will not work.

• Depending on the TV, when you adjust the unit's

volume, the volume level appears on the TV screen.

In this case, the volume level that appears on the TV

screen and the unit's front panel display may diflEr.

(Volume Limit)

When the System Audio Control function is

activated, loud sound may be output depending

on the volume level of the system. You can

prevent this by limiting the maximum level of

the volume. For details, see [Volume Limit]

(page 58).

48us

(Audio Return Channel)

The system can receive the digital audio signal

of the TV via an HDMI cable when your TV is

compatible with the Audio Return Channel

function. You can enjoy TV sound via the

system by using just one HDMI cable. For

details, see [Audio Return Channel] (page 58).

(Remote Easy Control)

You can control the basic functions of the

system via the TV remote when the system's

video output is displayed on the TV screen. For

details, refer to the operating instructions of the

TV.

Press HOME.

The home menu appears on the TV screen.

Press <--/->to select _[Setup].

Press,I,/4,to select [Audio Settings],

then press @.

Press 'P/4, to select [Auto Calibration],

then press @.

The confirmation display for [Auto

Calibrationl appears.

Connect the calibration mic to the

A.CAL MIC jack on the rear panel.

Set up the calibration mic fit ear level using

a tripod, etc. (not supplied). The fiont of

each speaker should face the calibration

mic, find there should be no obstruction

between the speakers find the calibration

mic.

¢0

(Language Follow)

When you change the language for the on-screen

display of the TV, the system's on-screen

display language is also changed after turning

the system off find on.

Calibrating the

AppropriateSettings

Automatically

[Auto Calibration]

D. C. A. C. (Digital Cinema Auto Calibration)

can set the appropriate surround sound

automatically.

• The system outputs a loud test sound when [Auto

Calibration] starts. You cannot turn the volume

down. Give consideration to children and neighbors.

Calibration mic

Press t'14, to select [OK].

To cancel, select [Cancell.

49us

Press @.

[Auto Calibration] starts.

The system adjusts the speaker settings

automatically.

Be quiet during the measurement.

• Before [Auto Calibration], make sure that the

surround amplifier turns on and you install the

surround amplifier in the appropriate location. If

you install the surround amplifier inan improper

locatiom such as another room, proper

measurement will not be obtained.

• When you use the Wireless Surround Speaker

Kit (WAHT-SBP2, optional) lk)rthe surround

back speakers (page 16),install the speakers in

appropriate location and turn the surround

amplifier on. To use the surround back speakers,

set [Surround Back] in [Speaker Settings] to

[Yes] (page 50)

Confirm the conclusions of [Auto

Calibration].

The speakers connected to the unit are listed

as [Yesl on the TV screen.

• ff measurement fails, follow the message then

retry [Auto Calibration].

• The measurement for [Subwoofcr] is always

[Yes] and [Speaker Settings] returns to the

default setting when you perform [Auto

Calibration].

Press t"/+ to select [OK] or [Cancel],

then press @.

• The measurement is OK.

Disconnect the calibration mic, then select

[OK1. The result is implemented.

•The measurement is not OK.

Follow the message, then select [OK1 to

retry.

• While the Auto Calibration function works:

do not turn off the power.

do not press any button.

do not change the volume.

do not change the function.

do not change the disc.

do not insert a disc.

do not disconnect the calibration mic.

Setting the Speakers

[Speaker Settings]

To obtain the best possible surround sound, set

connection of the speakers and their distance

from your listening position. Then use the test

tone to adjust the level and the balance of the

speakers to the same level.

1Press HOME.

The home menu appears on the TV screen.

Press 1"-1-)to select _[Setup].

Press ,1,14,to select [Audio Settings],

then press @.

Press '1"14,to select [Speaker Settings],

then press @.

The [Speaker Settingsl display appears.

Press ,I,/4, to select the item, then press

®.

Check the following settings.

•[Connection]

It you do not connect center or surround

speakers, set the parameters for [Center] and

[Surround]. Since the fiont speaker and

subwoofer settings are fixed, you cannot change

them.

When you use the Wireless Surround Speaker

Kit (WAHT-SBP2, optional) for the surround

back speakers (page 16), set [Surround Back]

also.

[Front]

[Yesl

[Center]

[Yesl: Normally select this.

[Non@ Select this if no center speaker is used.

[Surround]

[Yesl: Normally select this.

[Non@ Select this if no surround speaker is

used.

[Surround Back]

[Yesl: Select this it"surround back speakers are

used.

_: Select this if no surround back speakers

is used.

50u_

[Subwoofer]

[Yesl

•[Distance]

When you move the speakers, be sure to set the

parameters of the distance (I_) from the

listening position to the speakers.

You can set the parameters flom 0 to 23 feet (0.0

to 7.0 meters).

•You can change measurement unils (feet or meters)

by pressing the color button (RED).

•[Level]

You can adjust the sound level of the speakers.

You can set the parameters flom -6.0 dB to +6.0

dB. Be sure to set [Test Tonel to [Onl tk,r easy

adjustlilent.

The speakers in the illustration correspond to the

following:

@Center speaker

@Front left speaker (L)

@Front right speaker (R)

@Subwoofcr

(_)Surround left speaker (L)

(_)Surround right speaker (R)

(_)Surround back left speaker (L) (optional)

@Surround back right speaker (R) (optional)

_®

/:/

[Front Lefl/Rightl 10 ill3.0 m: Set the front

speaker distance.

[Centerl* 10 fl/3.0 nu Set the center speaker

distance.

[Surround Lefl/Rightl* 10 fi/3.0 m: Set the

surround speaker distance.

[Surround Back Left/Right 1" 10 fl/3.0 m: Set the

surround back speaker distance.

[Subwooferl 10 fl/3.0 m: Set the subwoofer

distance.

* This item _lppe_lrs when you set it to [Yes] in the

[Connection] setting.

•Depending on the input stream, IDistance] may not

be effective.

[Front Lefi/Rightl 0.0 dB: Set the flont speaker

level.

[Centerl* 0.0 dB: Set the center speaker level.

[Surround Lefl/Rightl* 0.0 dB: Set the surround

speaker level.

[Surround Back Lefl/Rightl* 0.0 dB: Set the

surround back speaker level.

[Subwoofer] 0.0 dB: Set the subwoofer level.

* This item appears when you set it to [Yes] in the

[Connection] sening.

•[Test Tone]

The speakers will emit a test tone to adjust

[Levell.

_: The test tone is not emitted flom the

speakers.

[On]: The test tone is emitted flom each speaker

in sequence while adjusting level. When you

select one of the [Speaker Settings] items, the

test tone is emitted flom each speaker in

sequence.

Adjust the sound level as follows.

1 Set [Test Tone] to [On].

Press ,I,14, to select [Level], then press

®.

Press '1"14,to select the desired speaker

type, then press @.

Press <.-/-)to select the left or right

speaker, then press '1"14,to adjust the

level.

Press @.

Repeat Steps 3 to 5.

Press RETURN.

The system returns to the previous display.

Press I'14, to select [Test Tone], then

press @.

51us

9 Press 'I'/4, to select [Off], then press

®.

• The test lone signals are not output from the HDMI

OUT jack.

•To adjust lhe volume of all the speakers at one time,

press VOL +/ .

Usingthe Sleep Timer

You can set the system to turn off at a preset

time, so you can fall asleep listening to music.

The time can be preset in intervals of 10

minutes.

Press SLEEP.

Each time you press SLEEP, the minutes display

(the remaining time) changes by 10 minutes.

When you set the sleep timer, "SLEEP" flashes

in the front panel display.

To check the remaining time

Press SLEEP ouce.

To change the remaining time

Press SLEEP repeatedly to select the desired

time.

Deactivatingthe Buttons

onthe Unit

(Child Lock)

You cau deactivate the buttous ou the uuit

(except for l/Q)) for preveutiug misoperatiou,

such its child mischief (child lock fuuctiou).

Press •on the unit for more than 5

seconds.

"CHILD LOCK" and "ON" appear in the front

panel display.

The child lock function is activated and the

buttons on the unit are locked. (You can operate

the system by using the remote.)

To caucel, press • t_r more thau 5 secouds so

that "CHILD LOCK" aud "OFF" appear iu the

fiout pauel display.

•When you operate lhe buttons on the unit while the

child lock l'unction is on, "CHILD LOCK" appears in

the l'ront panel display.

ControllingYourTVwith

the SuppliedRemote

By adjustiug the remote sigual, you cau coutrol

your TV with the supplied remote.

•When you replace the batteries of the remote, the

code number may reset itself to the default (SONY)

setting. Reset the appropriate code number.

Press and hold TV I/@ while entering your

TV's manufacturer's code (see the table)

using the number buttons. Then release TV

t/_.

If the setting is unsuccessful, the currently

registered code is not changed. Re-enter the

code number.

Code numbers of controllable

TVs

It more than one code number is listed, try

entering them one at a time until you find the

code that works with your TV.

Manufacturer Code number

SONY 01 (default)

SAMSUNG 02, 06

PANASONIC 05

LG 02

TOSHIBA 04

SHARP 03

52us

SavingPower in Standby

Mode

Check that the following settings are made:

- [Control for HDMI1 in [HDMI Settingsl is set

to [Offl (page 47).

- [Standbyl in IS-AIR Settingsl is set to [Offl

(page 44).

- [Quick Start Model is set to [Offl (page 58).

"13

¢D

53us

Usingthe Setup Display

You can make various adjustments of items such

as picture and sound.

Select _ (Setup) ou the home meuu wheu you

need to change the settings of the system.

The default settings are underlined.

• Playback settings stored in the disc take priority over

the Setup Display settings and not all the functions

described may work.

1Press HOME.

The home menu appears on the TV screen.

2Press (-4+ to select _ [Setup].

3Press ,1,/4,to select the setup category

icon to change, then press @.

Example: [Screeu Settiugs 1

setup

You cau setup the followiug optious.

leon Explanation

_ [Network Update] (page 54)

Updales the software of the

system.

_ [Screen Settings] (page 54)

Makes the screen settings

according to the type of

connecting .jacks.

Icon Explanation

_'1_ [Audio Settings] (page 55)

)) Makes the audio seltings

according to the type of

connecting jacks.

_'O [BD/DVD Viewing Settings]

(page 56)

Makes detailed settings for BD/

DVD playback.

@_ [Parental Control Settings]

(page 57)

Makes detailed settings for the

Parental Control function.

@_ [Music Settings] (page 57)

Makes detailed settings for

Super Audio CD playback.

@_ [System Settings] (page 57)

Makes the system-related

='_ settings.

_t_ [Network Settings] (page 59)

Makes detailed settings for

lnternet and network.

===d=L [Easy Setup] (page 59)

=,==_ Re-runs the Easy Setup to make

"1=2=3 the basic settings.

[Resetting] (page 59)

Resets the system to the factory

settings.

[Network Update]

You can update and improve the functions of the

system.

For information about update functions, refer to

the following website:

http://www.sony.com/bluraysupport/

[ScreenSettings]

•[TV Type]

[16:91:Select this when connecting to a wide-

screen TV or a TV with a wide-mode function.

[4:31:Select this when connecting to a 4:3

screen TV without a wide-mode function.

54us

•[Screen Format]

[Ordinal]: Select this when connecting to a TV

with a wide-mode function. Displays a 4:3

screen pictme in 16:9 aspect ratio even on a

wide-screen TV.

[Fixed Aspect Ratio]: Changes the picture size

to fit the screen size with the original picture

aspect ratio.

•[DVD Aspect Ratio]

[Letter Box]: Displays a wide picture with black

bands o=1the top and bottom.

[Pan & Scan]: Displays a full-height picture on

the entire screen, with trimmed sides.

•[Cinema Conversion Mode]

[Auto]: Normally select this. The unit

automatically detects whether the material is

video-based or fihn-based, and switches to the

appropriate conversion method.

[Video]: The conversion method suited for

video-based material will always be selected

regardless of the material.

•[Output Video Format]

[HDMII: Normally select [Autol. Select

[Original Resolution] to output the resolution

recorded on the disc. (When the resolution is

lower than SD resolution, it is scaled up to SD

resolution.)

[Component Video]: Select the resolution that

suits your TV.

_: Automatically sets the lowest

resolution.

•When connecting the HDMI OUT jack and other

vide() output jacks at the same time, select

[Component Video].

•If no picture appears when setling [HDMI] or

[Component Vide()] resolution, try, another resolution

setting.

•[BD/DVD-ROM 1080/24p Output]

[Autol: Outputs 1920 x 1080p/24 Hz video

signals only when connecting a 1080/24p-

compatible TV using the HDMI OUT jack.

[Off]: Select this when your TV is not

compatible with 1080/24p video signals.

•[YCbCr/RGB (HDMI)]

[Auto]: Automatically detects the type of

external device, and switches to the matching

color setting.

[YCbCr (4:2:2)]: Outputs YCbCr 4:2:2 video

signals.

[YCbCr (4:4:4)]: Outputs YCbCr 4:4:4 video

signals.

[RGB]: Select this when connecting to a device

with an HDCP-compliant DVI jack.

•[HDMI Deep Color Output]

[Auto]: Normally select this.

[12bitl, [10bitl: Outputs 12bit/l 0bit video

signals when the connected TV is compatible

with Deep Color.

[Off]: Select this when the picture is unstable or

colors appear unnatural.

•[Pause Mode] (BD/DVD VIDEO/DVD-R/

DVD-RW only)

[Autol: The picture, including subjects that

move dynamically, is output with no jitter.

Normally select this position.

[Frame]: The picture, including subjects that do

not move dynamically, is output in high

resolution.

[AudioSettings]

•[BD Audio MIX Setting]

[On]: Outputs the audio obtained by mixing the

interactive audio and secondary audio to the

primary audio.

€-

¢D

55 us

[Off[: Outputs the primary audio only. Select

this when outputting HD audio signals to an AV

receiver.

•[Audio DRC]

You can compress the dynamic range of the

sound track.

[Auto]: Performs playback at the dynamic range

specified by the disc (BD-ROM only).

[Off]: No compression of dynamic range.

[On]: The system reproduces the sound track

with the kind of dynamic range that the

recording engineer intended.

•[Attenuate - AUDIO]

Distortion may occur when you listen to a

component connected to the AUDIO (AUDIO

IN L/R) jacks. You can prevent distortion by

reducing the input level on the unit.

_: Atteuuates the iuput level. The output

level is changed.

[Off]: Normal input level.

•[Audio Output]

The system cannot output multi-channel sound

fiom both the HDMI OUT jack and system's

speakers simultaneously.

[S'peaker]: Outputs multi-channel sound from

the system's speakers only.

[Speaker + HDMI]: Outputs multi-channel

sound from the system' s speakers and 2-channel

linear PCM signals from the HDMI OUT jack.

[HDMI]: Outputs sound from the HDMI OUT

jack only. Sound format depends on the

connected component.

• When you set [Audio Output] to [HDMI], the

SOUND MODE, "D.BASS," "NIGHT MODE," and

"SIJR.SETTING" functions are disabled.

• When the System Audio Control function (page 48)

is activated, this setting may change automatically.

•[Sound Effect]

You can set the system's sound effects (SOUND

MODE, "D.BASS," "NIGHT MODE," and

"SUR.SETTING") to on/off.

[On]: Enables all of the system's sound effects.

The upper limit of sampling frequency is set to

48 kHz.

[Off]: The sound effects are disabled. Select this

when you do not want to set the upper limit of

sampling fiequency.

•[Speaker Settings]

To obtain the best possible surround sound, set

the speakers. For details, see "Setting the

Speakers" (page 50).

•[Auto Calibration]

You can calibrate the appropriate settings

automatically. For details, see "Calibrating the

Appropriate Settings Automatically" (page 49).

[BD/DVDViewing

Settings]

You can make detailed settings for BD/DVD

playback.

•[BD/DVD Menu]

You can select the default menu language for

BD-ROMs or DVD VIDEOs.

When you select [Select Language Code], the

display for entering the language code appears.

Enter the code for your language by referring to

"Language Code List" (page 74).

•[Audio]

You can select the default track language for

BD-ROMs or DVD VIDEOs.

When you select [Original], the language given

priority in the disc is selected.

When you select [Select Language Code], the

display for entering the language code appears.

Enter the code for your language by referring to

"Language Code List" (page 74).

•[Subtitle]

You can select the default subtitle language for

BD-ROMs or DVD VIDEOs.

When you select [Select Language Code], the

display for entering the language code appears.

56u_

Enter the code for your language by referring to

"Language Code List" (page 74).

•[BD Hybrid Disc Playback Layer]

[BD[: Plays BD layer.

[DVD/CD[: Plays DVD or CD layer.

•[BD Internet Connection]

[Allow]: Normally select this.

[Do not allow]: Prohibits Intemet connection.

•[BD Data Jack Selection]

[Internal memory]: Selects the internal memory

to store BD data.

[USB device (front)]: Selects the ._ (USB) port

on the fiont panel to store BD data.

[USB device (rear)]: Selects the ,_ (USB) port

on the rear panel to store BD data.

[ParentalControl

Settings]

•[Password]

Set or change the password for the Parental

Control function. A password allows you to set

a restriction on BD-ROM, DVD VIDEO, or

Internet video playback. If necessary, you can

differentiate the restriction levels for BD-ROMs

and DVD VIDEOs.

•[Parental Control Area Code]

Playback of some BD-ROMs or DVD VIDEOs

can be limited according to the geographic area.

Scenes may be blocked or replaced with

different scenes. Follow the on-screen

instructions and enter your four-digit password.

•[BD Parental Control]

Playback of some BD-ROMs can be limited

according to the age of the users. Scenes may be

blocked or replaced with different scenes.

Follow the on-screen instructions and enter your

four-digit password.

•[DVD Parental Control]

Playback of some DVD VIDEOs can be limited

according to a predetermined level such as the

age of the users. Scenes may be blocked or

replaced with different scenes. Follow the on-

screen instructions and enter your four-digit

password.

•[Internet Video Parental Control]

Playback of some Internet videos can be limited

according to the age of the users. Scenes may be

blocked or replaced with different scenes.

Follow the on-screen instructions and enter your

four-digit password.

•[Internet Video Unrated]

[Allow]: Allows the playback of unmted

Internet videos.

[Block]: Blocks the playback of unmted Internet

videos.

[Music Settings]

You can make detailed settings for Super Audio

CD playback.

•[Super Audio CD Playback Layer]

[Super Audio CD]: Plays the Super Audio CD

layer.

[CDI: Plays the CD layer.

•[Super Audio CD Playback Channel]

[DSD 2ch]: Plays the 2ch area.

[DSD Multi]: Plays the multi-channel area.

[SystemSettings]

You can make the system-related settings.

• [OSD]

You can select your language for the system on-

screen displays.

€-

¢D

57 us

•[S-AIR Settings]

You can set up the S-AIR settings. For details,

see "Using an S-AIR Product" (page 42).

[ID]: You can set the ID of the system.

[Pairingl: You can pair the system and S-AIR

sub unit, such as a surround amplifier or S-AIR

receiver.

[RF Chang@ If wireless transmission is

unstable, set this function.

[Model: You can enjoy the system's sound in

another rOOlil.

[Standbyl: You can enjoy the S-AIR receiver

while the unit is in standby mode.

•[Dimmer]

[Bri_zhtl:Bright lighting.

[Darkl: Low lighting.

•[HDMI Settings]

By connecting Sony components that are

compatible with the Control for HDMI function

with an HDMI cable, operation is simplified.

For details, see "Using the Control t_r HDMI

Function for "BRAVIA" Sync" (page 47).

[Control for HDMI1

You can set the [Control for HDMI1 function to

on/off.

[Onl: On. You can operate mutually between

components that are connected with an HDMI

cable.

[otfl: off

[Audio Return Channell

This function is available when you connect the

system and TV that is compatible with the Audio

Return Channel function.

[Autol: The system can receive the digital audio

signal of the TV automatically via an HDMI

cable.

[otfl: off

•This function is available only when IControl for

HDMI] is set to [On].

[Volume Limitl

When the System Audio Control (page 48) is

activated, loud sound may be output depending

on the volume level of the system. You can

prevent this by limiting the maximum level of

the volume when the System Audio Control

tunction activates.

[Level31: Maximum volume level is set to 10.

[Level2]: Maximum volume level is set to 15.

[Levelll: Maximum volume level is set to 20.

[otfl: off.

• This function is available only when [Control fl)r

HDMI] is set to IOn].

•[Quick Start Mode]

[On]: Shortens the startup time flom standby

mode. You can operate the system quickly after

turning it on.

[Off]: The default setting.

•[Auto Standby]

[Onl: Turns on the [Auto Standbyl function.

When you do not operate the system for about

30 minutes, the system enters standby mode

automatically.

[Off]: Turns offthe function.

•[Auto Display]

[Onl: Automatically displays information on thc

screen when changing the viewing titles, picture

modes, audio signals, etc.

[Off]: Displays information only when you

press DISPLAY.

• [Screen Saver]

[Onl: Turns on the screen saver function.

[Otfl: Off.

•[Software Update Notification]

_: Sets the system to iuform you of uewer

software version information (page 54).

[Otfl: Off.

•[Gracenote Settings]

(Except for BDV-E370 (U.S. models))

[Autol: Automatically downloads disc

information when you stop playback of the disc.

To download, the system must be connected to

the network.

58u_

[Mauuall: Dowuloads disc iuformatiou wheu

you select [Playback History Listl or

[hfformatiou Displayl iu the optious meuu.

•[DivX® VOD]

(Except for U.S. models)

You can display the registration or

deregistmtion code t_r this system, or deregister

this system after registration.

When the registration is disabled

[Registration Co&l: The registration code is

displayed.

[Deregistmtion Cod@ The deregistmtion code

is displayed. (This item can be selected only

after the registration code is displayed.)

When the registration is enabled

Press <--/->to select [OK] or [Cancel], then

press @.

[()K]: The device is deregistered and the

deregistmtion code is displayed.

[Cancell: The system returns to the previous

display.

For more iuformatiou, go to

http://www.divx.com ou the Iuteruet.

•[System Information]

You cau display the system's software versiou

iuformatiou aud the MAC address.

[NetworkSettings]

You cau make detailed settiugs for Iuteruet aud

uetwork.

For more iufonnatiou, go to

http://www.souy.com/bluraysupport/

•[Network Connection Diagnostics]

(Except for BDV-E370 (U.S. models))

You can run the network diagnostic to check it

the network connection has been made properly.

•[BD Remote Device Registration]

Registers your "BD remote" device.

•[Registered BD Remote Devices]

Displays a list of your registered "BD remote"

devices.

[EasySetup]

1-2-3

Re-ruus the Easy Setup to make the basic

settiugs. Follow the ou-screeu iustructious.

[Resetting]

•[Reset to Factory Default Settings]

You can reset the system settings to the factory

default by selecting the group of settings. All the

settings within the group will be reset.

•[Initialize Personal Information]

You cau erase your persoual iuformatiou stored

iu the system.

€-

¢D

•[Internet Settings]

Connect the system to the network beforehand.

For details, see "Connecting to the network"

(page 27).

[View Network Status]: Displays the current

network status.

[Wired Setup]: Select this when you connect to

a broadband router directly.

[USB Wireless Setup]: Select this when you use

a USB Wireless LAN Adapter.

59 us

Precautions

On safety

•To prevent fire or shock hazard, do not place objects

filled with liquids, such as vases, on the system, or

place the system near water, such as near a bathtub or

shower room. Should any solid object or liquid fall

into the cabinet, unplug the system and have it

checked by qualified personnel belk)m operating it

any further.

• Do not touch the AC power cord (mains lead) with

wet hands. Doing so may cause an electric shock.

On power sources

•Unplug the unit from the wall outlet (mains) if you do

not intend to use it for an extended period of time. To

disconnect the cord, pull it out by the plug, never by

the cord.

On placement

• Phtce the system in a location with adequate

ventilation to prevent heat build-up in the system.

• At high volmne, over long periods of time, the can net

becomes hot to the touch. This is not a malfuuction.

However, touching the cabinet should be avoided. Do

not place the system in a confined space where

ventilation is poor as this may cause overheating.

• Do not block the ventilation slots by putting anything

on the system. The system is equipped with a high

power amplil'ier. If the ventilation slots are blocked,

the system can overheat and malfunction.

• Do not place the system on surfaces (rugs, blankets,

etc.) or near materials (curtains, draperies) that may

block the ventilation slots.

• Do not install the system in a confined space, such as

a bookshelf or similar unit.

• Do not install the system near heat sources such as

radiators, air ducts, or in a place subject to direct

sunlight, excessive dust, mechanical vibration, or

shock.

• Do not install the system in an inclined posifion. It is

designed to be operated in a horizontal position only.

• Keep the system and discs away from components

with strong nlaguets, such as nlicrowave ()veils, or

large loudspeakers.

• Do not place heavy objects on the system.

• Do not place metal objects in front of the front paneh

They may limit reception of radio waves (BDV-

E570/BDV-T57 only).

• Do not place the system in a place where medical

equipment is in use. It may cause a malfunction of

medical equipmeut (BDV-E570/BDV-T57 only).

• If you use a pacemaker or other medical device,

consult your physician or the manufacturer of your

medical device before using the wireless LAN

function (BDV-E570/BDV-T57 only).

On operation

• If"the system is brought directly from a cold to a warm

locatiom or is placed in a very damp room, moisture

may condense on the lenses inside the unit. Should

this occur, the system may not operate properly. In

this case, remove the disc and leave the system turned

on for about half an hour until the moisture

evaporates.

• When you move the system, take out any disc. If you

do not, the disc may be damaged.

• If anything falls into the cabinet, unplug the unit and

have it checked by qualified personnel before

operating it any further.

On adjusting volume

• Do not turn up the volume while listening to a section

with very It)v, level inputs or no audio signals. If you

do, the speakers may be damaged when a peak level

section is suddenly played.

On cleaning

• Clean the cabinet, panel, and controls with a sofi cloth

slightly moistened with a mild detergent solution. Do

not use any type of abrasive pad, scouring powder or

solvent such as alcohol or benzine.

If you have any questions or problems concerning

your system, please consult your nearest Sony dealer.

On cleaning discs, disc/lens

cleaners

• Do not use cleaning discs or disc/lens cleaners

(including wet or spray types). These may cause

the apparatus to malfunction.

On replacement of parts

• In the events that this system is repaired, repaired

parts may be collected for reuse or recycling

purposes.

On your TV's color

• If"the speakers should cause the TV screen to have

color irregularity, turn off' the TV then turn it on after

15 to 30 minutes. If color irregularity should persist,

[)lace the speakers further away from the TV set.

60u_

IMPORTANT NOTICE

Caution: This system is capable of holding a still

video image or on-screen display image on your

television screen indefinitely. If you leave the still

video image or on-screen display image displayed

on your TV for an extended period of time you risk

permanent damage to your television screen.

Projection televisions am especially susceptible to

this.

On moving the system

•Before moving the system, make sure that there is no

disc inserted, and remove the AC power cord (mains

lead) from the wall outlet (mains).

Notesabout the Discs

On handling discs

•To keep the disc clean, handle the disc by its

edge. Do not touch the surface.

• Do not stick paper or tape on the disc.

• Do not expose the disc to direct sunlight or

heat sources such its hot air ducts, or leave it in

a car parked in direct sunlight its the

temperature may rise considerably inside the

car.

• Alter playing, store the disc in its case.

On cleaning

• Before playing, clean the disc with a cleaning

cloth.

Wipe the disc fiom the center out.

• Do uot use solveuts such its beuziue, thiuuer,

commercially available cleauers, or auti-static

spray iuteuded for viuyl LPs.

This system can only play a standard circular

disc. Using neither standard nor circular discs

(e.g., card, heart, or star shape) may cause a

malfunction.

Do uot use a disc that hits it commercially

available accessory attached, such its a label or

riug.

-,I

61us

Troubleshooting

If you experience any of the following difficulties while using the system, use this troubleshooting

guide to help remedy the problem before requesting repairs. Should any problem persist, consult your

nearest Sony dealer.

Note that if service personnel changes some parts during repair, these parts may be retained.

In the event of a problem with the S-AIR function, have a Sony dealer check the entire system together

(S-AIR main unit and sub unit).

Power

Symptom

The power is not turned on.

"PROTECTOR" and "PUSH

POWER" appear alternately in

the front panel display.

Problems and solutions

•Check that the AC power cord (mains lead) is connected securely.

Press I/(_) to turn off Ihe system, and check the folh)wing items alter

"STANDBY" disappears.

• Are the + and - speaker cords short-circuited?

• Are you using only the specified speakers'?

• Is anything blocking the ventilation holes of the system?

• After checking the above items and fixing any problems, turn on the system. If

the cause of the problem cannot be found even after checking all the above

items, consult your nearest Sony dealer.

General

Symptom Problems and solutions

The remote does not function. •The distance between the remote and the unit is too far.

•The batteries in the remote are weak.

• When you cannot perform menu operations via the front panel display, press

HOME on the remote.

The system does not work •Disconnect the AC power cord (mains lead) from the wall outlet (mains), then

normally, reconnect at'ler several minutes.


Symptom Problems and solutions

There is no picture. •Check the video connection (page 23).

•The unit is not connected to the correct TV input jack (page 23).

•The video input on the TV is not set so that you can view pictures from the

system.

• Check the output method on your system (page 23).

• The unit is connected to an input device that is not HDCP (High-bandwidth

Digital Content Protection) compliant ("HDMI" on the front panel does not

light up) (page 23).

• When playing a double-layer DVD, the video and audio may be momentarily

interrupted at the point where the layers switch.

• Press and hold II_ and V()LIJME on the unit flw more than 5 seconds to reset

the video output resolution to the lowest resolution.

No picture appears when the

video output resolution selected

in [Output Video Format] is

iucorrect.

62us

Symptom Problems and solutions

Vide() signals arc only output *Set [Output Video Format] in [Screen Settings] to [Component Vide()]

from the HDMI OUT jack when (page 55).

connectiug the HDMI OUT j ack

and other vide() output jacks at

the same time.

The dark area of the picture is too •Set [Picture Quality Mode] to [Standard] (default) (page 35).

dark/the bright area is too bright

or unnatural.

The picture is not output • Check the [Output Video Format] settings in [Screen Settings] (page 55).

correctly. • If the analog and digital signals are output at the same time, set [BD/DVD-

ROM 1080/2@ Output] in [Screen Settings] to [Offl (page 55).

• For BD-ROMs, check the [BD/DVD-ROM 1080/2@ Output] settings in

[Screen Settings] (page 55).

Picture noise appears. • The disc is dirty or flawed.

•If the picture output from your system goes through your VCR to get to your

TV, the copy-protection signal applied to some BD/DVD programs could affect

picture quality. If you still experience problems even when you connect your

unit directly to your TV, try connecting your unit to the other input jacks.

• The aspect ratio on the disc is fixed.Even though you set the aspect

ratio in [TV Type] of [Screen

Settings], the picture does not fill

the TV screen.

Color irregularity occurs on the

TV screen.

•If the speakers are used with a CRT-based TV or projector, install the speakers

at least 1.0 ft (0.3 meters) from the TV set.

• If the color irregularity persists, turn ofl' the TV set once, then turn it on after 15

to 30 minutes.

• Make sure that no magnetic object (magnetic latch on a TV stand, health care

device, toy, etc.) is placed near the speakers.

Sound

symptom

There is no sound.

Problems and solutions

•The speaker cord is not connected securely.

• Check the speaker settings (page 50).

•Fast li)rward or fast reverse is performed. Press _ to return to normal play

mode.

•Slow forward or freeze frame is performed. Press _ to return to normal play

lnode.

No sound is output from the •Set [Audio Output] to [HDMI] (page 56).

HDMI OUT jack.

The left and right sounds are •Check that the speakers and components are connected correctly and securely.

unbalanced or reversed.

There is no sound from the •Check the speaker connections and settings (pages 22, 50).

subwoofer.

-I

63us

Symptom

There is no digital sound l_om

the HDMI OIJTjack when using

the Audio Return Channel

function.

Problems and solutions

• Set [Control for HDMI] in [HDMI Settings] of [System Settings] to IOn]

(page 57). Also, set [Audio Return Channel] in [HDMI Settings] of [System

Settings] to [Auto] (page 57).

• Make sure that your TV is compatible with the Audio Return Channel function.

• Make sure that an HDMI cable is connected to a jack on your TV that is

compatible with the Audio Return Channel function.

• The sampling frequency of the input stream is more than 48 kHz.

The system does not output • Set [Audio Return Channel] in [HDMI Settings] of [System Settings] to [Off]

sound correctly when connected (page 49).

to a set-top box.

Severe hum or noise is heard. • Check that the connecting cords are away from a transformer or motor, and at

least 10 feet (3 meters) away from your TV set or a fluorescent light.

• Move your TV away from the audio components.

• Clean the disc.

The sound loses stereo effect • Select stere() sound by pressing AUDIO (page 37).

when you play a CD.

The surround effect is difficult to • Check the surround setting (page 30).

hear when you are playing a • Check the speaker connections and settings (pages 22, 50).

sound track of Dolby Digital, • Depending on the BD/DVD, the output signal may not be the entire 5.1 channel.

DTS, or MPEG audio. It may be monaural or stereo even if the sound track is recorded in Dolby

Digital or MPEG audio format.

The sound comes from the center • Depending on the disc, the sound may come from the center speaker only.

speaker only.

No sound is heard from the • Check the speaker connections and settings (pages 22, 50).

center speaker. • Check the surround setting (page 30).

• Depending on the source, the effect of the center speaker may be less

noticeable.

• A 2 channel source is being played.

No sound or only a very low- • Check the speaker connections and settings (pages 22, 50).

level sound is heard from the • Check the surround setting (page 30).

surround speakers. • Depending on the source, the effect of the surround speakers may be less

noticeable.

• A 2 channel source is being played.

The beginning of the sound is cut • Set the sound mode to "MOVIE" or "MUSIC" (page 37).

off. • Select "A.FD. STD" for "SUR.SETTING" (page 30).

The sound effects are disabled. • The effccts of SOUND MODE, "D.BASS," "NIGHT MODE," and

"SUR.SETTING" may be disabled depending on the input stream (page 56).

Distortion occurs in the sound of • Reduce the input level for the connected component by setting [Attenuate -

a connected component. AUDIO] (page 55).

Operation

Symptom Problems and solutions

Radio stations cannot be tuned •Check that the antenna (aerial) is connected securely. Adjust the antenua

in. (aerial) or connect an external antenna (aerial) if necessary.

• The signal strength of the stations is too weak (when tuning in with automatic

tuning). Use direct tuning.

64u_

Symptom

The disc does not play.

Problems and solutions

•You are attempting to phty a disc with a format that cannot be phtyed back by

this system (page 69).

• The region code on the BD/DVD does not match the system.

• Moisture has condensed inside the unit and may cause damage to the lenses.

Remove the disc and leave the unit turned on for about half an hour.

• The system cannot play a recorded disc that is not correctly finalized (page 69).

File names arc not displayed • The system can only display ISO 8859-1-compliant character formats. Other

correctly, character formats may be displayed differently.

• Depending on the writing software used, the input characters may be displayed

difl_rently.

A disc does not start playing • Resume play has been selected. Press OPTIONS and select [Play from

from the beginning, beginning], then press @.

• The title or BD/DVD menu automatically appears on the TV screen.

Playback does not start from the • The resume point may be cleared from memory depending on the disc when

resmne point where you last you open the disc tray.

stopped playing, you disconnect the USB device.

you play other content.

you turn oft" the unit.

The system starts playing the • The BD/DVD features an auto playback function.

disc automatically.

Playback stops automatically. • Some discs may contain an auto pause signal. While playing such a disc, the

system stops playback at the auto pause signah

You cannot perlk)rm some •Depending on the disc, you may not be able to perli:)rm some of the operations.

functions such as stop or search. Rel_r to the operating instructions supplied with the disc.

Messages do not appear on the • In the Setup Display, select the desired language lk)r the on-screen display in

TV screen in the language you [OSD] in [System Settings] (page 57).

wallt.

The language for the soundtrack/ •Try using the BD's or DVD's menu.

subtitle or angles cannot be • Multi-lingual tracks/subtitles or multi-angles arc not recorded on the BD or

changed. DVD being played.

• The BD or DVD prohibits the changing of the language for the sound track/

subtitle or angles.

The disc tray does not open and •Try the following: @ Press and hold _ and _ on the unit for more than 5

you cannot remove the disc even seconds to open the disc tray. @ Remove the disc. @ Disconnect the AC power

after you press _. cord (mains lead) from the wall outlet (mains), then reconnect after several

minutes.

A disc cannot be ejected and •Contact your Sony dealer or local authorized Sony service facility.

"TLK ON" appears in the front

panel display.

-,I

65 us

Symptom

The Control for HDMI function

does not work.

No sound is output from the

system and TV while using the

System Audio Control function.

Bonus contents or other data that

are contained in a BD-ROM

cannot be played.

A message indicating that the

internal memory does not have

enough space appears on the

screen.

The unit does not work and

"CHILD LOCK" appears in the

trout panel display when you

press any button on the unit.

The system menu does not work. • Press HOME on the remote.

BSB device

Symptom

The USB device is not

recognized.

Problems and solutions

• Set [Control for HDMI] in [HDMI Settings] of [System Settings] to IOn]

(page 57).

• Make sure that the connected component is compatible with the [Control for

HDMI] function.

• Check the connected component's setting for the Control for HDMI function.

Refer to the operating instructions supplied with the component.

• If you change the HDMI connection, connect and disconnect the AC power

cord (mains lead), or have a power failure, set [Control for HDMI] in [HDMI

Settings] of [System Settings] to [Off], then set [Control for HDMI] to IOn]

(page 57).

• For details, see "Using the Control for HDMI Function for "BRAVIA" Sync"

(page 47).

• Make sure that the connected TV is compatible with the System Audio Control

function.

• For details, see "Using the Control lk)r HDMI Function for "BRAVIA" Sync"

(page 47).

• Try, the following: (_) Remove the disc. @ Turn lhe syslem off. @ Remove and

reconnecl the USB device (page 33). (_) Turn the system on. (_) Insert the BD-

ROM with BONUSVIEW/BD-LIVE.

• Delete unnecessary data in internal memory or USB memory. Select [Erase BD

Dala] in H [VMeo] to delete unnecessary data. If you use USB memory as

local storage, all saved data in the [BUDA/BUDB] folder is deleted. Make sure

to backup any video/music/photo data in the [BUDA/BUDB] folder (page 32).

• Set the child lock function to off (page 52).

Problems and solutions

• Try, the l'ollowing: @ Turn the system oil'. @ Remove and reconnect the USB

device. @ Turn the system on.

• Make sure that the USB device is securely connected to the _ (USB) port.

• Check if the USB device or a cable is damaged.

• Check if the USB device is on.

• If the USB device is connected via a USB hub, disconnect it and connect the

USB device directly to the unit.

66us

S-AIR

Symptom

There is no sound from the

S-AIR sub unit, noise is heard

from the S-AIR sub unit, or

sound from the S-AIR sub unit

skips.

Problems and solutions

•If you use another S-AIR main unit, place it more than 25 feet (8 meters) away

from the unit.

• Place the S-AIR main unit and S-AIR sub unit closer together.

• Avoid use of equipment that generates electromagnetic energy, such as a

microwave oven.

• Place the S-AIR main unit and S-AIR sub unit away from other wireless

products.

• See "If wireless transmission is unstable" (page 45).

• Change the S-AIR ID settings of the S-AIR main unit and S-AIR sub unit.

• Turn ()ITthe system and S-AIR sub unit, then turn them on.

BRAVIA Internet Video

Symptom Problems and solutions

The picture/sound is poor/certain •Picture/sound quality may be poor depending on Internet content providers.

programs display with a loss of • Picture/sound quality may be improved by changing the connection speed.

detail, especially during fast- Sony recommends a connection speed of at least 2.5 Mbps for standard-

motion or dark scenes, definiti(m vide() and 10 Mbps for high-definition vide().

• Not all videos contain sound.

The picture is smalh •Press 4" to zoom in.

Network connection

Symptom Problems and solutions

The system cannot connect to the •Check the network connection (page 27) and the network settings (page 59).

network.

You cannot connect your PC to •The wireless settings of the router may change automatically if you use the Wi-

the Internet after [Wi-Fi Fi Protected Setup function before adjusting the settings of the router. In this

Protected Setup (WPS)] is case, change the wireless settings of your PC accordingly.

performed.

7(!11 canl)ot conl)ect the system

to your wireless LAN router.

The desired wireless router is not

detected even if [Scan] is

performed.

The message [A new software

version has beet) found on the

network. Per%tin update under

"Network Update."] appears on

the screen when turning the

system on.

• Check if the wireless LAN router is on.

• Depending on the usage environment, including the wall material, radio wave

reception conditions, or obstacles between the system and the wireless LAN

router, the possible comnmnication distance may be shortened. Move the

system and the wireless LAN router closer to each other.

• Devices that use a 2.4 GHz frequency band, such as a microwave, Bluetooth, or

digital cordless device, may interrupt the communication. Move the unit away

from such devices, or turn off such devices.

• Press RETURN to return to the previous screen, and try [Scan] again. If the

desired wireless router is still not detected, press RETURN to select [Manual

registration].

• See [Network Update] (page 54) to update the system to a newer sol(ware

version.

-I

67 us

USB Wireless LAN Adapter

(BDV-E570 and BDV.T57 only)

Symptom Problems and solutions

The system cannot connect to the •The distance between the unit and the wireless LAN router is too far (page 27).

network or the network •Change the USB Wireless LAN Adapter position.

connection is unstable.

Other

Symptom Problems and solutions

"Exxxx" appears in the front •Contact your nearest Sony dealer or local authorized Sony service facility and

panel disphty, give the error code.

Z_X appears without any •Contact your nearest Sony dealer or local authorized Sony service facility.

messages on the entire screen.

68u_

Playable Discs

Blu-ray Disc BD-ROM ])

BD-R/BD-RE 2)

DVD 3) DVD-ROM

DVD-R/DVD-RW

DVD+R/DVD+RW

CD 3) CD-DA (Music CD)

CD-ROM

CD-R/CD-RW

Super Audio CD

l)Since the Blu-ray Disc specifications are new and

evolving, some discs may not be playable depending

on the disc type and the version. Also, the audio

output differs depending on the source, connected

output jack, and selected audio settings.

2)BD-RE: Vet.2.1

BD-R: Ver.1.1, 1.2, 1.3 including organic pigment

type BD-R (LTH type)

BD-Rs recorded on a PC cannot be played if

postscripts are recordable.

_)A CD or DVD disc will not play if"it has not been

correctly finalized. For more information, mfcr to the

operating instructions supplied with the recording

device.

Discs that cannot be played

•BDs with cartridge

• DVD-RAMs

• HD DVDs

• DVD Audio discs

• PHOTO CDs

•Data part of CD-Extras

• VCDs/Super VCDs

• Audio material side on DualDiscs

• A disc recorded in a color system other than

NTSC, such its PAL (this system conforms to

the NTSC color system).

Notes on discs

This product is designed to playback discs that

contbrm to the Compact Disc (CD) standard.

DualDiscs and some music discs encoded with

conform to the Compact Disc (CD) standard.

Therefore, these discs may not be compatible

with this product.

Note on playback operations of a

BD/DVD

Some playback operations ofa BD/DVD may be

intentionally set by software producers. Since

this system plays a BD/DVD according to the

disc contents the software producers designed,

some playback features may not be available.

Note about double-layer BDs/

DVDs

The playback picture and sound may be

momentarily interrupted when the layers switch.

Region code (BD-ROM/DVD

VIDEO only)

Your system hits a region code printed on the

rear of the unit and will only play a BD-ROM/

DVD VIDEO (playback only) labeled with

identical region codes or _.

-,I

69us

Playable Types of Files

Video

File format Extensions

MPEG-I Video/PS l) ".mpg," ".mpeg," ".n(2ts,"

MPEG-2 Video/PS, TSI) ".rots"

DivX 2) ".avi," ".divx"

MPEG4/AVC 1) ".ink'<" ".rap4?' ".m4v,"

".l)(2t S," ".I)(ts"

WMV91 ) ".wmv," ".asl"

AVCHD 3)

Music

File format Extensions

MP3 (MPEG-I Audio ".rap3"

Layer IlI)

AAC 1)4) ".m4a"

WMA9 Standard 1)4) ".wma"

LPCM ".way"


File format Extensions

JPEG ".j pg," ".j peg," ".j pc"

l)The system does not play files encoded with DRM.

"J Canachan models only

ABOUT DIVX VIDE(-): DivX °9 is a digital video

l'(wmat created by DivX, Inc. This is an official DivX

Certified device that plays DivX video. Visit

www.divx.com for more infommtion and software

tools to convert your files into DivX vide().

ABOUT DIVX VIDEO-ON-DEMAND: This DivX

Certified °° device must be registered in order to play

DivX Video-on-Demand (VOD) content. To

generate the registration code, locate the DivX VOD

section in the device setup menu. Go to

vod.divx.com with this code to complete the

registration process and learn more about DivX

VOD.

::;)The system plays AVCHD-format files that are

recorded via a digital vide() camera, etc. To watch

AVCHD-format files, the disc with AVCHD-format

files on it must be finalized.

'*)The system does not play files encoded with

Lossless, etc.

•Some files may not play depending on the fl)rmat, the

encoding, or recording condition.

•Some files edited on a PC may not play.

• The system can recognize the following files or

folders in BDs, DVDs, CDs and USB devices:

up to folders in the 5th tree

up to 500 files in a single tree

• Some USB devices may not work with this system.

• The system can recognize Mass Storage Class (MSC)

devices (such as flash memory or an HDD) that are

FAT-compatible and non-partitioned, Still hnage

Capture Devices (SICDs), and 101-key keyboards

(front "_ (USB) port only).

• To avoid data corruption or damage to USB memory

or other devices, turn the system off before

connecting or removing USB memory or other

devices.

• The system may not play high bit rate vide() files from

a DATA CD smoothly. It is recommended to play

high bit rate vide() files using a DATA DVD.

70u_

SupportedAudioFormats

Audio formats supported by this system are as follows.

Format

LPCM2ch LPCM5.1ch, DolbyDigital Dolby DTS DTS-ES DTS-HD DTS-HD

Function LPCM7.1ch TrueHD, Discrete6.1, High Master

DolbyDigital DTS-ES Resolution Audio

Plus Matrix6.1, Audio

DTS96/24

"BD/DVD" 0 0 0 0 0 0 0 0

"SAT/CABLE" O O O

"mY"

(DIGITAL IN)

O: Supported _brmat.

: Unsupported format.

Video OutputResolution

Output resolutiou differs depeudiug ou the [Output Video Formatl settiug iu [Screeu Settiugsl

(page 54),

When [Output Video Format] is set to When [Output Video Format] is set to

[HDMI] [Component Video]

Resolution

setting VIDEO OUT COMPONENT HDMI OUT VIDEO OUT COMPONENT HDMI OUT

VIDEO OUT VIDEO OUT

jack jacks jack jack jacks jack

480i 480i 480i 480i 480i 480i 480i

480p 480i 480i 480p 480i 480p 480p

720p 480i 480i 720p 480i 720p # 720p _

1080i 480i 480i 1080i 480i 1080i _v l ()8()i #

1080p no picture no picture 1080p unselectable unselectable unselectable

# Protected contents on DVDs are output at 480p resolution.

When [Output Video Format] is set to [Video]

480i video siguals are output from the VIDE() OUT or COMPONENT VIDE() OUT jack, aud 480p

video siguals are output fiom the HDMI OUT jack.

.-,t

_=_..

71us

Specifications

Amplifier Section

U.S. models:

POWER OUTPUT AND TOTAL HARMONIC

DISTORTION:

(FTC)

Front L + Front R:

Other models:

POWER OUTPUT Crated)

Front L/Front R:

BDV-E370/BDV-T37:

With 3 ohms loads, both

channels driven, from 180

- 20,000 Hz: rated 60 watts

per channel minimum

RMS power, with no more

than 1cX total harmonic

distortion from 250 milli

watts to rated output.

108 W + 108 W (at 3 ohms,

1 kHz, ICXTHD)

POWER OUTPUT (reference)

Front L/Front R/Center/Surround L/Surround R:

142 W (per channel at 3

ohms, 1 kHz)

Subwoofcr: 140 W (at 3 ohms, 80 Hz)

BDV-E870/BDV-E570/BDV-E470/BDV-T57:

POWER OUTPUT (reference)

Front L/Front R/Center/Surround L/Surround R:

167 W (per channel at 3

ohms, 1 kHz)

Subwoofer: 165 W (at 3 ohms, 80 Hz)

Inputs (Analog)

AUDIO (AUDIO IN) Sensitivity: 450/250 mV

Inputs (Digital)

SAT/CABLE (COAXIAL), TV (OPTICAL)

Supported Ik)rmats: LPCM

2CH Cup to 48 kHz), Dolby

Digital, DTS

Video Section

Outputs

BD/DVD/Super Audio

Signal format system

USB Section

._ (USB) port:

VIDEO: 1 Vp-p 75 ohms

COMPONENT:

Y: 1 Vp-p 75 ohms

PB/Cn, PIUCI< 0.7 Vp-p

75 ohms

HDMI OUT: Type A (19

pin)

CD/CD System

NTSC

Type A (For connecting

USB memory, memory

card reader, digital still

Maximtlli1 current:

camera, and digital vide()

camera)

500 mA

LAN Section

LAN (100)terminal

Tuner Section

System

FM tuner section

Tuning range

North American models:

Other models:

Antenna (aerial)

Antenna (aerial) terminals

hltermediate frequency

Speakers

100BASE-TX Terminal

PLL quartz-locked digital

synthesizer

87.5 MHz - 108.0 MHz

(100 kHz step)

87.5 MHz - 108.0 MHz

(50 kHz step)

FM wire antenna (aerial)

75 ohms, unbalanced

10.7 MHz

Front/Surround (SS-TSB101) for BDV-E570/

BDV-E470/BDV-E370/BDV-T57/BDV-T37

Surround (SS-TSB101 ) for BDV-E870

Speaker system Full range Bass reflex

Speaker unit 55 mmx 80 mm (2 % in x

3 I/4 in) cone type

Rated impedance 3 ohms

Dimensions (approx.) 75 mmx 225 mmx 71 mm

(3 in x 8 7/s in x 2 v/s in)

(w/h/d)

Mass (approx.) 0.45 kg (1 lb)

Front (SS-TSB104) for BDV-E870

Speaker system Full range Bass reflex

Speaker unit 55 mmx 80 mm (2 %in x

3 I/4 in) cone type

Rated impedance 3 ohms

Dimensions (approx.) 75 mmx 610 mmx 70 mm

(3 inx24%inx27/sin)

(w/h/d) (wall-mounted

part)

251 mmx 1,205 mmx 251

mm (10 in x47 I/2 in x

10 in) (w/h/d) (whole

speaker)

Mass (approx.) 0.9 kg (2 lb) (wall-

mounted part)

2.7 kg (6 lb) (whole

speaker)

Center (SS-CTB101)

Speaker system Full range Acoustic

suspension

Speaker unit 30 mmx 60 mm (1 ;/l¢,in x

2 sis in) cone type

Rated impedance 3 ohms

72us

Dimensions (approx.) 290 mmx 49 mmx 49 mm

(11 1/2in x 1 15/u,in ×

1 15/l<.in) (w/h/d)

Mass (approx.) 0.28 kg (10 oz)

Subwoofer (SS-WSB101) for BDV-E870/

BDV-E370/BDV-T37

Speaker system

Speaker unit

Rated impedance

Dimensions (approx.)

Mass (approx.)

Subwoofer Bass reflex

160 mm (63/8 in) cone type

3 ohms

260 mm× 320 mm × 260

mm (10 I/4 in x 12 5/s in x

10 */4 in) (w/h/d)

5.2 kg (11 lb 8 oz)

Subwoofer (SS-WSB102) for BDV-E570/

BDV-E470/BDV-T57

Speaker system

Speaker unit

Rated impedance

Dimensions (approx.)

Mass (approx.)

General

Power requirements

Subwoofer Bass reflex

180 mm (7 % in) cone type

3 ohms

275 mm× 405 mm× 275

mm (10 718 in x 16 in x

10 718in) (w/h/d)

7.5 kg (16 lb 12 oz)

North American and Mexican models:

120 V AC, 60 Hz

Latin American models: 1 l0 V - 240 V AC,

50160 Hz

Power consumption On: 170 W

Standby: 0.3 W (at the

Power Saving mode)

Dimensions (approx.) 430 mmx 85 mmx 335

mm (17 iri x 3 318in x

13 */4 in) (w/h/d) incl.

projecting parts

Mass (approx.) 4.8 kg (10 lb 10 oz)

USB Wireless LAN Adapter (UWA-BR100)

for BDV-E570/BDV-T57

Standards Compliance: IEEE 802.1 I atblgln

Host Interface: USB 2.0

Security: 64/128 bit: WEP, WPA/

WPA2, WPS

Frequency and Channel*: 2.4 GHz - 2.4835 GHz

[CHI - 11]

5.15 GHz - 5.25 GHz

[CH36 - 481

5.25 GHz - 5.35 GHz

[CH52 - 641

5.47 GHz - 5.725 GHz

[CH100- 1401

5.725 GHz - 5.85 GHz

[CH149- 1651

Data Rate**: 802.1 la/g: 54, 48, 36, 24,

18, 12,9and6Mbps

802.11b:ll,5.5,2andl

Mbps

802.1 In: up to 300 Mbps

(40 MHz/spatial streams:

Power consumption: Tx: up to 500 mA

Mass (Approx.): USB Wireless LAN

Adapter: 27 g (1 oz)

Dimensions (Approx.) (w x h x d):

USB Wireless LAN

Adapter: 96 mm x 14 mm

x 27 mm (3 7/s in x 9/16in x

1 l/s in)

* The frequency and channel differ depending on the

area.

** The transmission speed differs depending on the

distance and number of obstructions between the

transmission products, the configuration of

products, the radio wave conditions, the line trafl'ic,

and the products that you use. The transmission may

also be cut off depending on the radio wave

conditions. The standard values of the transmission

speed are the theoretical maximum values for the

wireless standards. They arc not the actual speeds of

data trausmission.

Design and specifications are subject to change

without notice.

• Standby power consumption 0.3 W.

• Hah)genated flame retardants are not used in the

certain printed wiring boards.

• Over 85% power efficiency of amplifier block is

achieved with the full digital amplifier, S-Master.

-.I

73us

LanguageCodeList

The language spellings conform to the IS() 639:1988 (E/F) standard.

Code Language Code Language Code Language Code Language

1027 Afar

1028 Abkhazian

1032 Afrikaans

1039 Amharic

1044 Arabic

1045 Assamese

1051 Aymara

1052 Azerbaijani

1053 Bashkir

1057 Byelorussian

1059 Bulgarian

1060 Bihari

1061 Bislama

1066 Bengali;

Bangla

1067 Tibetan

1070 Breton

1079 Catalan

1093 Corsican

1097 Czech

1103 Welsh

1105 Danish

1109 German

1130 Bhutani

1142 Greek

1144 English

1145 Esperanto

1149 Spanish

1150 Estonian

1151 Basque

1157 Persian

1165 Finnish

1166 Fiji

1171 Faroese

1174 French

1181 Frisian

1183 Irish 1347 Maori 1507 Samoan

1186 Scots Gaelic 1349 Macedonian 1508 Shona

1194 Galician 1350 Malayalam 1509 Somali

1196 Guarani 1352 Mongolian 1511 Albanian

1203 Gujarati 1353 Moldavian 1512 Serbian

1209 Hausa 1356 Marathi 1513 Siswati

1217 Hindi 1357 Malay 1514 Sesotho

1226 Croatian 1358 Maltese 1515 Sundanese

1229 Hungarian 1363 Burmese 1516 Swedish

1233 Armenian 1365 Nauru 1517 Swahili

1235 Interlingua 1369 Nepali 1521 Tamil

1239 Interlingue 1376 Dutch 1525 Telugu

1245 Inupiak 1379 Norwegian 1527 Tajik

1248 Indonesian 1393 Occitan 1528 Thai

1253 Icelandic 1403 (Afan)Oromo 1529 Tigrinya

1254 Italian 1408 Oriya 1531 Turkmen

1257 Hebrew 1417 Punjabi 1532 Tagalog

1261 Japanese 1428 Polish 1534 Setswana

1269 Yiddish 1435 Pashto; Pushto 1535 Tonga

1283 Javanese 1436 Portuguese 1538 Turkish

1287 Georgian 1463 Quechua 1539 Tsonga

1297 Kazakh 1481 Rhaeto- 1540 Tatar

1298 Greenlandic Romance 1543 Twi

1299 Cambodian 1482 Kirundi 1557 Ukrainian

1300 Kannada 1483 Romanian 1564 Urdu

1301 Korean 1489 Russian 1572 Uzbek

1305 Kashmiri 1491 Kinyarwanda 1581 Vietnamese

1307 Kurdish 1495 Sanskrit 1587 VolapOk

1311 Kirghiz 1498 Sindhi 1613 Wolof

1313 Latin 1501 Sangho 1632 Xhosa

1326 Lingala 1502 Serbo-Croatian 1665 Yoruba

1327 Laothian 1503 Singhalese 1684 Chinese

1332 Lithuanian 1505 Slovak 1697 Zulu

1334 Latvian; Lettish 1506 Slovenian

1345 Malagasy 1703 Not specified

Code Area Code Area Code Area Code Area

2044 Argentina 2109 Germany 2376 Netherlands

2047 Australia 2200 Greece 2390 New Zealand

2046 Austria 2219 Hong Kong 2379 Norway

2057 Belgium 2248 India 2427 Pakistan

2070 Brazil 2238 Indonesia 2424 Philippines

2090 Chile 2239 Ireland 2428 Poland

2092 China 2254 Italy 2436 Portugal

2093 Colombia 2276 Japan 2489 Russia

2115 Denmark 2304 Korea 2501 Singapore

2165 Finland 2333 Luxembourg 2149 Spain

2174 France 2363 Malaysia 2499 Sweden

2362 Mexico 2086 Switzerland

2543 Taiwan

2528 Thailand

2184 United

Kingdom

74us

Glossary

AVCHD

The AVCHD t_rmat is a high-definition digital

video camera foni-lat used to record SD

(standard definition) or HD (high definition)

signals of either the 1080i specification* or the

720p specification** on DVDs, using efficient

data compression coding technology. The

MPEG-4 AVC/H.264 t_rmat is adopted to

compress video data, and the Dolby Digital or

Linear PCM system is used to compress audio

data. The MPEG-4 AVC/H.264 format is

capable of compressing images at higher

efficiency than that of the conventional image

compression format. The MPEG-4 AVC/H.264

format enables a high definition (HD) video

signal shot on a digital video camera recorder to

be recorded on DVD discs in the same way as it

would be for a standard definition (SD)

television signal.

* A high definition specification that utilizes 1080

effective scanning lines and the interlace format.

** A high definition specification that utilizes 720

effective scanning lines and the progressive format.

BD.J application

The BD-ROM format supports Java for

interactive functions.

"BD-J" offers content providers ahnost

unlimited functionality when creating

interactive BD-ROM titles.

BD-R

BD-R (Blu-ray Disc Recordable) is a

recordable, write-once Blu-ray Disc, available

in the same capacities as the BD below. Since

contents can be recorded and cannot be

overwritten, a BD-R can be used to archive

valuable data or store and distribute video

material.

BD-RE

BD-RE (Blu-my Disc Rewritable) is a

recordable and rewritable Blu-my Disc,

available in the same capacities as the BD

below. The re-recordable feature makes

extensive editing and time-shifting applications

possible.

BD-ROM

BD-ROMs (Blu-my Disc Read-Only Memory)

are commercially produced discs and are

available in the same capacities as the BD

below. Other than conventional movie and video

contents, these discs have enhanced features

such as interactive content, menu operations

using pop-up menus, selection of subtitle

display, and slideshow. Although a BD-ROM

may contain any form of data, most BD-ROM

discs will contain movies in High Definition

format, for playback on Blu-ray Disc/DVD

players.

Blu.ray Disc (BD)

A disc format developed for recording/playing

high-definition (HD) video (for HDTV, etc.),

and for storing large amounts of data. A single

layer Blu-my Disc holds up to 25 GB, and a

dual-layer Blu-my Disc holds up to 50 GB of

data.

Digital Cinema Auto Calibration

(D.C.A.C)

Digital Cinema Auto Calibration was developed

by Sony to automatically measure and adjust the

speaker settings to your listening environment in

a short period of time.

Dolby Digital

This movie theater sound format is more

advanced than Dolby Surround Pro Logic. In

this format, the surround speakers output stereo

sound with an expanded fiequency range, and a

subwoofer channel for deep bass is

independently provided. This t_rmat is also

called "5.1" with the subwoofer channel

designed its the 0.1 channel (since it functions

only when a deep bass effect is needed). All six

channels in this t_rmat are recorded separately

for superior channel separation. Furthermore,

since all the signals are processed digitally, less

signal degradation occurs.

Dolby Digital Plus

Developed as an extension to Dolby Digital, the

audio coding technology supports 7.1 multi-

channel surround sound.

O..

,...1.

::3

,,,,,k

75us

Dolby Pro Logic II

Dolby Pro Logic II creates five full-bandwidth

output channels fiom 2 channel sources. This is

done using an advanced, high-purity matrix

surround decoder that extracts the spatial

properties of the original recording without

adding any new sounds or tonal colorations.

•Movie mode

The Movie mode is for use with stereo television

shows and all programs encoded in Dolby

Surround. The result is enhanced sound field

directionality that approaches the quality of

discrete 5.1 -channel sound.

Dolby Surround Pro Logic

As one method of decoding Dolby Surround,

Dolby Surround Pro Logic produces four

channels fiom 2 channel sound. Compared with

the former Dolby Surround system, Dolby

Surround Pro Logic reproduces left-to-right

panning more naturally and localizes sounds

more precisely. To take full advantage of Dolby

Surround Pro Logic, you should have one pair of

surround speakers and a center speaker. The

surround speakers output monaural sound.

Dolby TrueHD

Dolby TrueHD is a lossless coding technology

that supports up to 8 channels of multi-channel

surround sound for the next generation of optical

discs. The reproduced sound is true to the

original source bit-for-bit.

DTS

Digital audio compression technology

developed by DTS, Inc. This technology

conforms to 5.l-channel surround. This format

includes a stereo rear channel and a discrete

subwoofer channel. DTS provides the same 5.1

discrete channels of high quality digital audio.

The good channel separation is realized due to

the all channel data being recorded discretely

and processed in digitally.

DTS.HD High Resolution Audio

Developed as an extension to DTS Digital

Surround format. It supports a maximum

sampling fiequency of 96 kHz, and 7.1 multi-

channel surround.

DTS-HD High Resolution Audio has a

maximum transmission rote of 6 Mbps, with

lossy compression.

DTS.HD Master Audio

DTS-HD Master Audio has a maximum

transmission rote of 24.5 Mbps, and uses

lossless compression, and DTS-HD Master

Audio corresponds to a maximum sampling

fiequency of 192 kHz, and maximum of 7. l ch.

HDMI (High.Definition Multimedia

Interface)

HDMI is an interface that supports both vide()

and audio on a single digital connection,

allowing you to enjoy high quality digital

picture and sound. The HDMI specification

supports HDCP (High-bandwidth Digital

Content Protection), a copy protection

technology that incorporates coding technology

for digital video signals.

Interlace format

(Interlaced scanning)

The Interlace format is the NTSC standard

method for displaying TV images at 30 frames

per second. Each fiame is scanned twice -

alternately between the even numbered scanning

lines and then odd numbered scanning lines, at

60 times per second.

LTH (Low to High)

LTH is a recording system that supports organic

pigment type BD-R.

Parental Control

A function of the BD/DVD to limit playback of

the disc by the age of the users according to the

limitation level in each country. The limitation

varies fiom disc to disc; when it is activated,

playback is completely prohibited, violent

scenes are skipped or replaced with other scenes

and so on.

PhotoTV HD

"PhotoTV HD" allows fBr highly-detailed

pictures, and photo-like expression of subtle

textures and colors. By connecting Sony

"PhotoTV HD" compatible devices using an

HDMI cable, a whole new world of photos can

be enjoyed in breathtaking Full HD quality. For

instance, the delicate texture of the human skin,

flowers, sand and waves can now be displayed

on a large screen in beautiful photo-like quality.

76us

Pop.up menu

An enhanced menu operation available on BD-

ROMs. The pop-up menu appears when POP

UP/MENU is pressed during playback, and can

be operated while playback is in progress.

Progressive format

(sequential scanning)

In contrast to the Interlace fonnat, the

progressive format can reproduce 50 - 60 fi'ames

per second by reproducing all scanning lines

(525 lines tbr the NTSC system). The overall

picture quality increases and still images, text

and horizontal lines appear sharper. This tbrmat

is compatible with the 525 or 625 progressive

format.

S-AIR

(Sony Audio Interactive Radio

frequency)

Recent times have seen the rapid spread of BD/

DVD media, digital broadcasting, and other

high-quality media.

To ensure that the subtle nuances of these high-

quality media are transmitted with no

deterioration, Sony has developed a technology

called "S-AIR" for the radio transmission of

digital audio signals with no compression, and

has incorporated this technology into the EZW-

RT 10/EZW-RT 10A/EZW-T 100.

This technology transfers digital audio signals

with no compression using the 2.4 GHz band

range of ISM band (Industrial, Scientific, and

Medical band), such as wireless LANs and

Bluetooth applications.

24p True Cinema

Movies shot with a fihn camera consist of 24

fiames per second.

Since conventional televisions (both CRT and

flat panels) display fiames either at 1/60 or 1/50

second intervals, the 24 fiames do not appear at

an even pace.

When connected to a TV with 24p capabilities,

the player displays each fiame at 1/24 second

intervals -- the same interval originally shot

with the fihn camera, thus faithfully reproducing

the original cinema image.

-,I

77us

78us

Index

Numerics

24p True Cinema 77

A/V SYNC 36

Attenuate - AUDIO 56

Audio 56

Audio DRC 56

Audio Output 56

Audio Return Channel 58

Audio Settings 55

Auto Calibration 49, 56

Auto Display 58

Auto Standby 58

AVCHD 75

BD Audio MIX Setting 55

BD Data Jack Selection 57

BD Hybrid Disc Playback

Layer 57

BD Internet Connection 57

BD Parental Control 57

BD Remote Device

Registration 59

BD/DVD Menu 56

BD/DVD Viewing Settings 56

BD/DVD-ROM 1080/24p

Output 55

BD-LIVE 32

BD-R 75

BD-RE 75

Blu-ray Disc 75

BONUSVIEW 32

BRAVIA Internet Video 34

CD 69

Child Lock 52

Cinema Conversion Mode 55

Control for HDM! 47, 58

D. C. A. C. (Digital Cinema

Auto Calibration) 49, 75

D.BASS 39

Dimmer 58

DivX® VOD 59

Dolby Digital 37, 75

Dolby Digital Plus 75

Dolby t5"o Logic II 76

Dolby Surround Pro Logic 76

Dolby TrueHD 76

DTS 37, 76

DTS-HD 76

DVD 69

DVD Aspect Ratio 55

DVD Parental Control 57

Easy Setup 28, 59

FM MODE 40

Front panel 10

Front panel display 11

Gracenote Settings 58

HDMI

YCbCr/RGB (HDMI) 55

HDMI (High-Definition

Multimedia Interface) 76

HDM! Deep Color Output 55

Initialize Personal Information

Interlace format 76

Internal memory 66

Internet content 34

Internet Settings 59

Internet Video Parental Control

Internet Video Unrated 57

Language Code List 74

LTH 76

Multiplex broadcast sound 38

Music Settings 57

Network Connection

Diagnostics 59

Network Settings 59

Network Update 54

NIGHT MODE 39

OSD 57

Output Video Format 55

Parental Control 76

Parental Control Area Code 57

Parental Control Settings 57

Password 57

Pause Mode 55

PhotoTV HD 76

Play information 32

Playable discs 69

tS"ogressive format 77

Quick Start Mode 58

Rear panel 12

Region code 69

Registered BD Remote Devices

Remote control 13

Reset to Factory Default

Settings 59

Resetting 59

S-AIR 42, 77

Mode 44

Pairing 45

RF Change 45

S-AIR receiver 42

Standby 44

S-AIR Settings 58

Screen Format 55

Screen Saver 58

Screen Settings 54

SLEEP 52

Slideshow 35

Sound Effect 56

Speaker Settings 50, 56

Connection 50

Distance 51

Level 51

Subtitle 56

Super Audio CD Playback

Channel 57

Super Audio CD Playback

Layer 57

Surroundamplifier42

SystemInformation59

SYSTEMMENU30,36,38,

Test Tone 51

TV Type 54

Update 54

USB 33

WE]P 27

WPA2-PSK (AES) 27

WPA2-PSK (TKIP) 27

WPA-PSK (AES) 27

WPA-PSK (TKIP) 27

79us

Sony BDV E370 User Manual DVD HOME THEATER SYSTEM Manuals And Guides L1003288

SONY DVD Systems Manual L1003288 SONY DVD Systems Owner's Manual, SONY DVD Systems installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
