Sony CSK003 CLIE Personal Entertainment Organizer w/ WLAN User Manual PEG TH55 Read This First Operating Instructions

Sony Corporation CLIE Personal Entertainment Organizer w/ WLAN PEG TH55 Read This First Operating Instructions

Users Manual

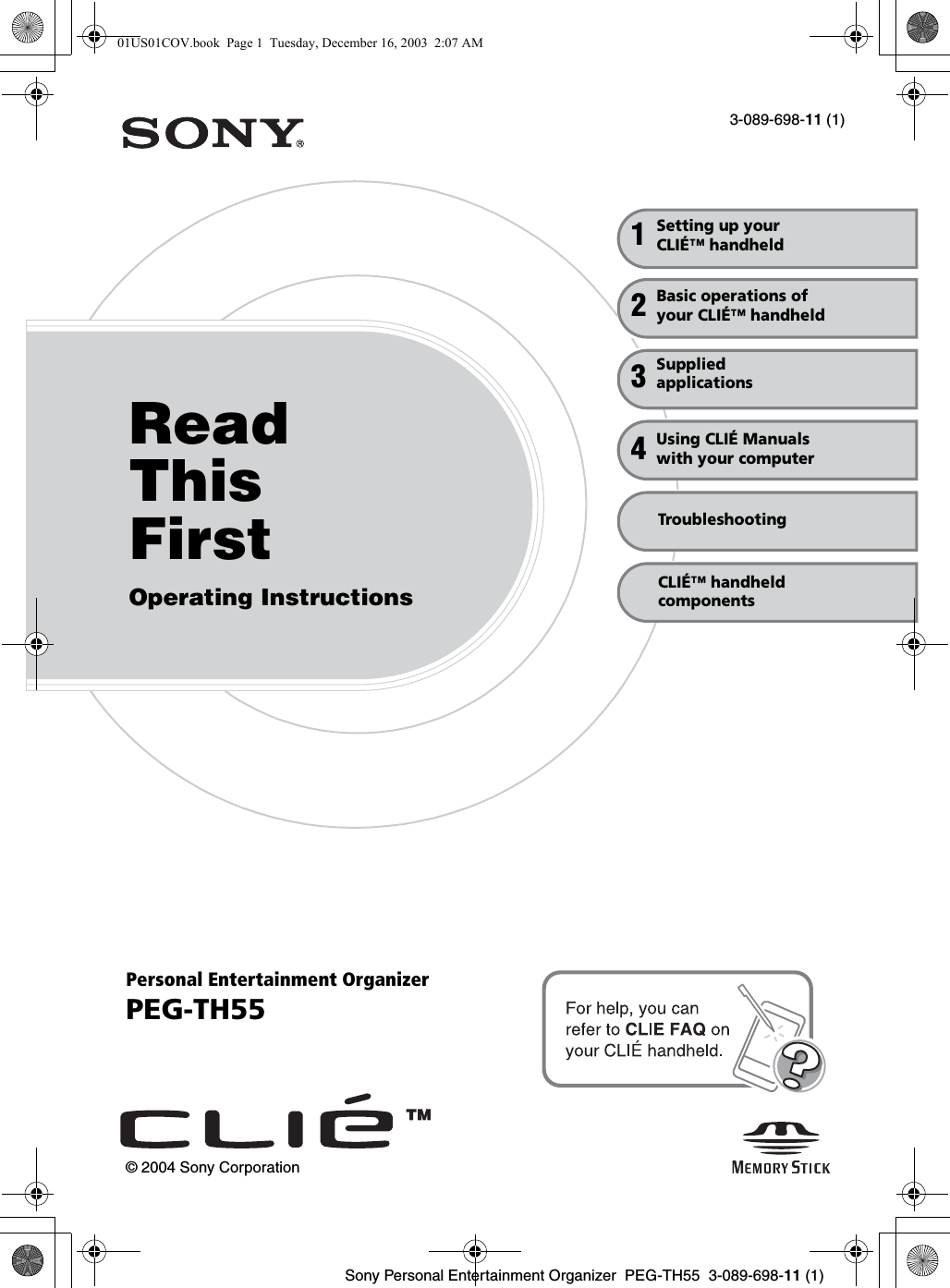

Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)3-089-698-11 (1)Personal Entertainment OrganizerPEG-TH55© 2004 Sony CorporationRead This FirstOperating InstructionsSetting up your CLIÉ™ handheldBasic operations of your CLIÉ™ handheld12TroubleshootingUsing CLIÉ Manuals with your computer4CLIÉ™ handheld componentsSuppliedapplications301US01COV.book Page 1 Tuesday, December 16, 2003 2:07 AM

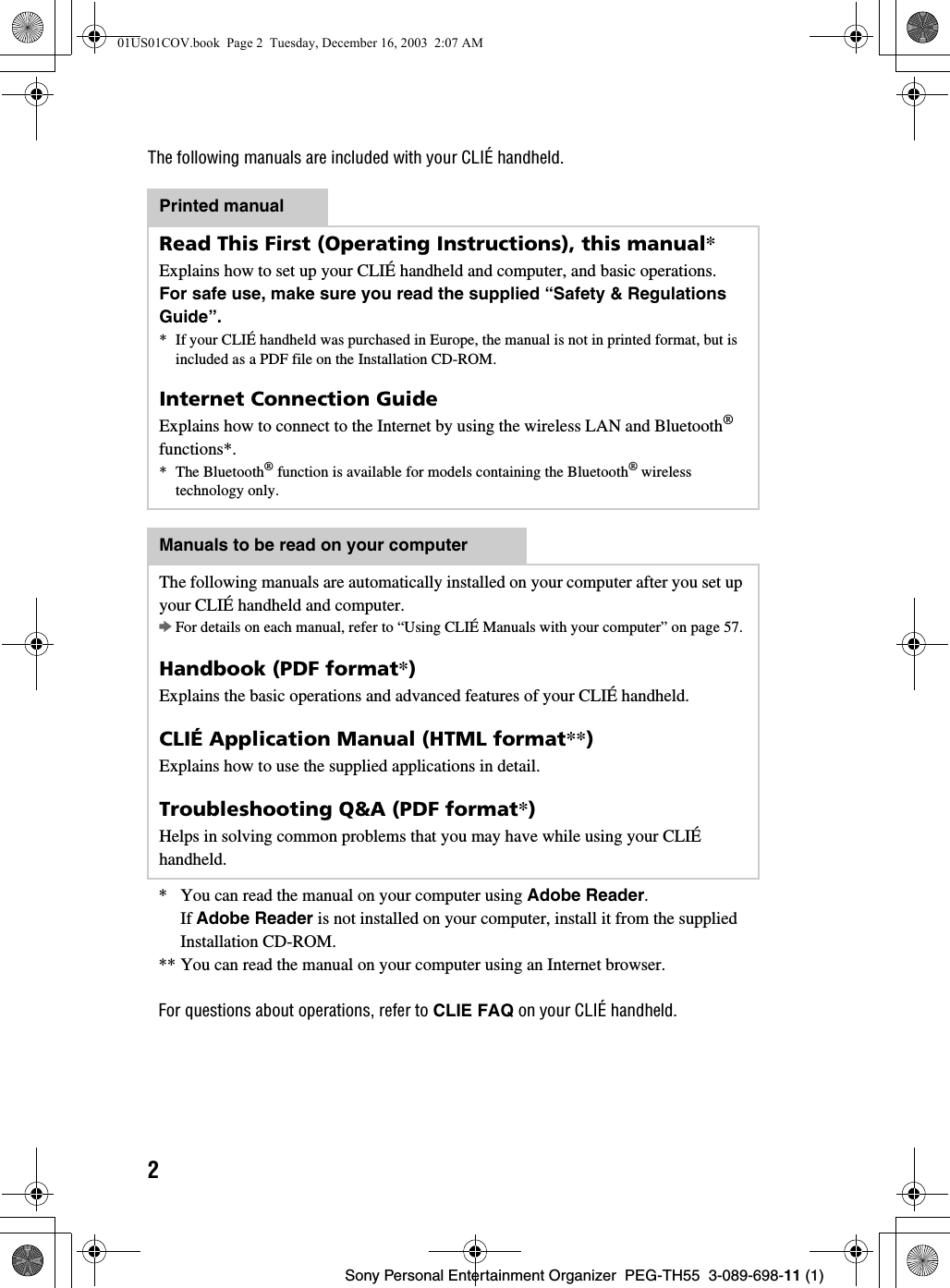

2Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)The following manuals are included with your CLIÉ handheld.* You can read the manual on your computer using Adobe Reader. If Adobe Reader is not installed on your computer, install it from the supplied Installation CD-ROM.** You can read the manual on your computer using an Internet browser. For questions about operations, refer to CLIE FAQ on your CLIÉ handheld.Printed manualRead This First (Operating Instructions), this manual*Explains how to set up your CLIÉ handheld and computer, and basic operations.For safe use, make sure you read the supplied “Safety & Regulations Guide”.* If your CLIÉ handheld was purchased in Europe, the manual is not in printed format, but is included as a PDF file on the Installation CD-ROM.Internet Connection GuideExplains how to connect to the Internet by using the wireless LAN and Bluetooth® functions*.* The Bluetooth® function is available for models containing the Bluetooth® wireless technology only.Manuals to be read on your computerThe following manuals are automatically installed on your computer after you set up your CLIÉ handheld and computer.bFor details on each manual, refer to “Using CLIÉ Manuals with your computer” on page 57. Handbook (PDF format*)Explains the basic operations and advanced features of your CLIÉ handheld.CLIÉ Application Manual (HTML format**)Explains how to use the supplied applications in detail.Troubleshooting Q&A (PDF format*)Helps in solving common problems that you may have while using your CLIÉ handheld.01US01COV.book Page 2 Tuesday, December 16, 2003 2:07 AM
3Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Before useCautionIN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING WITHOUT LIMITATION LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER’S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE.On the supplied software• Copyright laws prohibit reproducing the software or the software manual in whole or in part or renting the software without the permission of the copyright holder.• In no event will SONY be liable for any financial damage or loss of profits, including claims made by third parties, arising out of the use of the software supplied with this product. • In the event a problem occurs with this software as a result of defective manufacturing, SONY will replace it at SONY’s option or issue a refund. However, SONY bears no other responsibility. • The software provided with this product cannot be used with equipment other than that which it is designated for use with. • Please note that, due to continued efforts to improve quality, the software specifications may be changed without notice.• The software library incorporated in the CLIÉ handheld is based in part on the work of the Independent JPEG Group.NOTES• Sony does not support third party add-on applications. If you have a problem with a third party application, please contact the developer or publisher of that software.• The illustrations in this manual may differ from the actual software.• Explanations in this manual assume that you are familiar with basic operations of Windows®. For how to use your computer and operating system, please refer to their respective manuals.Program © 2004 Sony Corporation, © 2004 PalmSource, Inc., or its subsidiaries. All rights reserved.Documentation © 2004 Sony Corporation01US01COV.book Page 3 Tuesday, December 16, 2003 2:07 AM

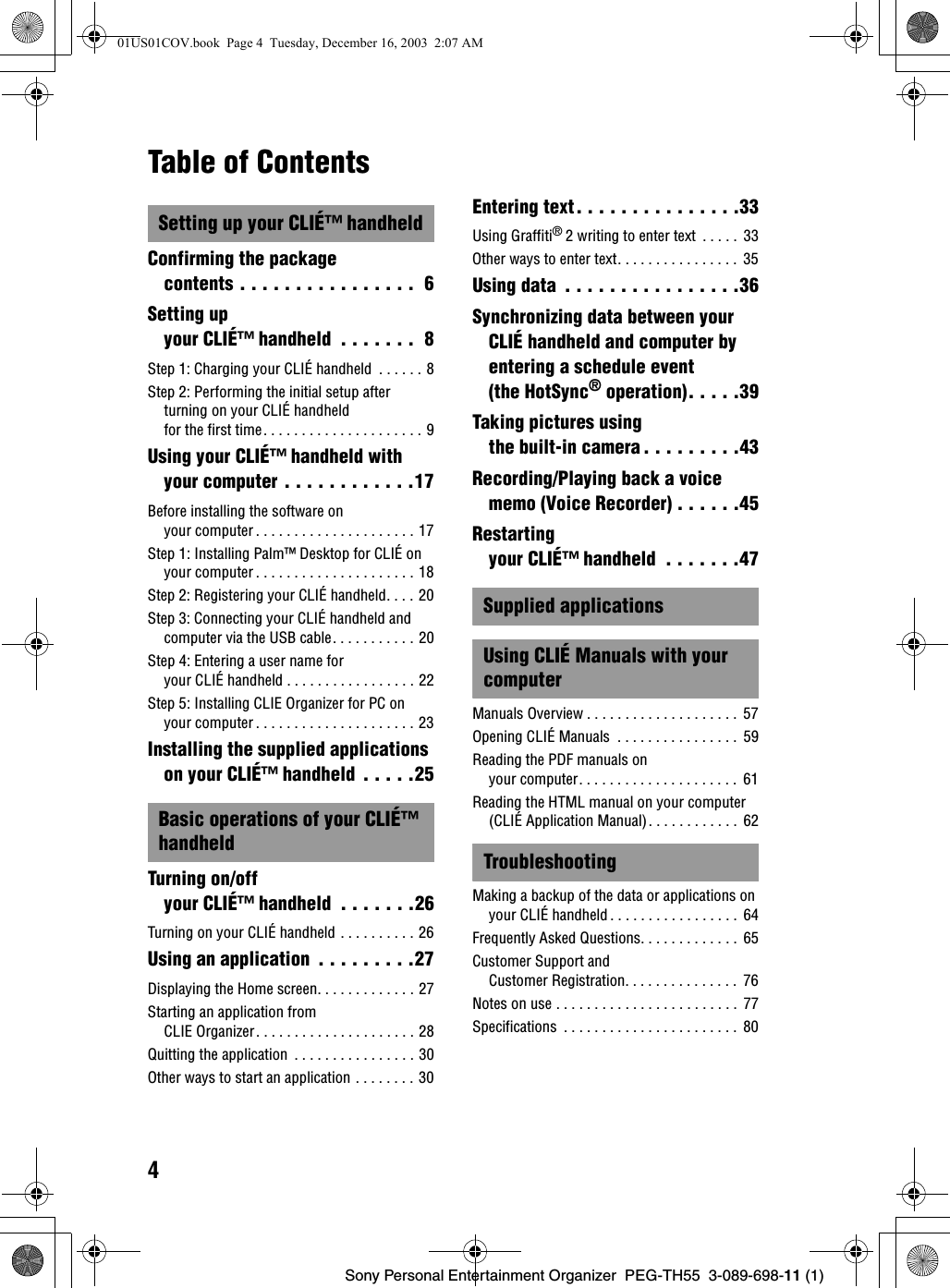

4Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Table of ContentsSetting up your CLIÉ™ handheldConfirming the package contents . . . . . . . . . . . . . . . . 6Setting up your CLIÉ™ handheld . . . . . . . 8Step 1: Charging your CLIÉ handheld . . . . . . 8Step 2: Performing the initial setup after turning on your CLIÉ handheld for the first time. . . . . . . . . . . . . . . . . . . . . 9Using your CLIÉ™ handheld with your computer . . . . . . . . . . . .17Before installing the software on your computer . . . . . . . . . . . . . . . . . . . . . 17Step 1: Installing Palm™ Desktop for CLIÉ on your computer . . . . . . . . . . . . . . . . . . . . . 18Step 2: Registering your CLIÉ handheld. . . . 20Step 3: Connecting your CLIÉ handheld and computer via the USB cable. . . . . . . . . . . 20Step 4: Entering a user name for your CLIÉ handheld . . . . . . . . . . . . . . . . . 22Step 5: Installing CLIE Organizer for PC on your computer . . . . . . . . . . . . . . . . . . . . . 23Installing the supplied applications on your CLIÉ™ handheld . . . . .25Basic operations of your CLIÉ™ handheldTurning on/off your CLIÉ™ handheld . . . . . . .26Turning on your CLIÉ handheld . . . . . . . . . . 26Using an application . . . . . . . . .27Displaying the Home screen. . . . . . . . . . . . . 27Starting an application from CLIE Organizer. . . . . . . . . . . . . . . . . . . . . 28Quitting the application . . . . . . . . . . . . . . . . 30Other ways to start an application . . . . . . . . 30Entering text. . . . . . . . . . . . . . .33Using Graffiti® 2 writing to enter text . . . . . 33Other ways to enter text. . . . . . . . . . . . . . . . 35Using data . . . . . . . . . . . . . . . .36Synchronizing data between your CLIÉ handheld and computer by entering a schedule event (the HotSync® operation). . . . .39Taking pictures using the built-in camera. . . . . . . . .43Recording/Playing back a voice memo (Voice Recorder) . . . . . .45Restarting your CLIÉ™ handheld . . . . . . .47Supplied applicationsUsing CLIÉ Manuals with your computerManuals Overview . . . . . . . . . . . . . . . . . . . . 57Opening CLIÉ Manuals . . . . . . . . . . . . . . . . 59Reading the PDF manuals on your computer. . . . . . . . . . . . . . . . . . . . . 61Reading the HTML manual on your computer (CLIÉ Application Manual). . . . . . . . . . . . 62TroubleshootingMaking a backup of the data or applications on your CLIÉ handheld . . . . . . . . . . . . . . . . . 64Frequently Asked Questions. . . . . . . . . . . . . 65Customer Support and Customer Registration. . . . . . . . . . . . . . . 76Notes on use . . . . . . . . . . . . . . . . . . . . . . . . 77Specifications . . . . . . . . . . . . . . . . . . . . . . . 8001US01COV.book Page 4 Tuesday, December 16, 2003 2:07 AM

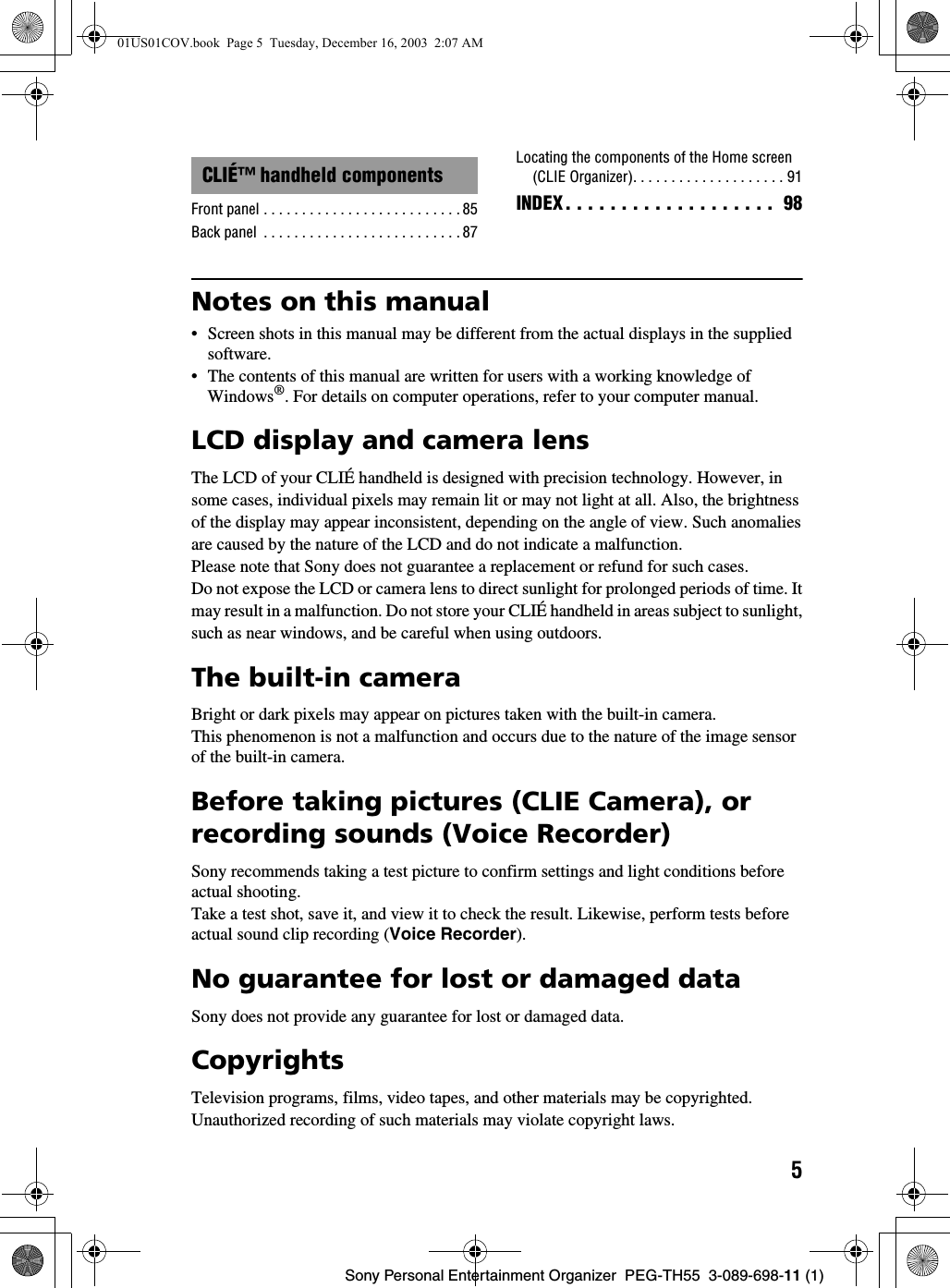

5Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)CLIÉ™ handheld componentsFront panel . . . . . . . . . . . . . . . . . . . . . . . . . .85Back panel . . . . . . . . . . . . . . . . . . . . . . . . . . 87Locating the components of the Home screen (CLIE Organizer). . . . . . . . . . . . . . . . . . . . 91INDEX. . . . . . . . . . . . . . . . . . . 98Notes on this manual• Screen shots in this manual may be different from the actual displays in the supplied software.• The contents of this manual are written for users with a working knowledge of Windows®. For details on computer operations, refer to your computer manual.LCD display and camera lensThe LCD of your CLIÉ handheld is designed with precision technology. However, insome cases, individual pixels may remain lit or may not light at all. Also, the brightnessof the display may appear inconsistent, depending on the angle of view. Such anomaliesare caused by the nature of the LCD and do not indicate a malfunction.Please note that Sony does not guarantee a replacement or refund for such cases.Do not expose the LCD or camera lens to direct sunlight for prolonged periods of time. Itmay result in a malfunction. Do not store your CLIÉ handheld in areas subject to sunlight,such as near windows, and be careful when using outdoors.The built-in cameraBright or dark pixels may appear on pictures taken with the built-in camera.This phenomenon is not a malfunction and occurs due to the nature of the image sensor of the built-in camera.Before taking pictures (CLIE Camera), or recording sounds (Voice Recorder)Sony recommends taking a test picture to confirm settings and light conditions before actual shooting.Take a test shot, save it, and view it to check the result. Likewise, perform tests before actual sound clip recording (Voice Recorder).No guarantee for lost or damaged dataSony does not provide any guarantee for lost or damaged data.CopyrightsTelevision programs, films, video tapes, and other materials may be copyrighted.Unauthorized recording of such materials may violate copyright laws.01US01COV.book Page 5 Tuesday, December 16, 2003 2:07 AM

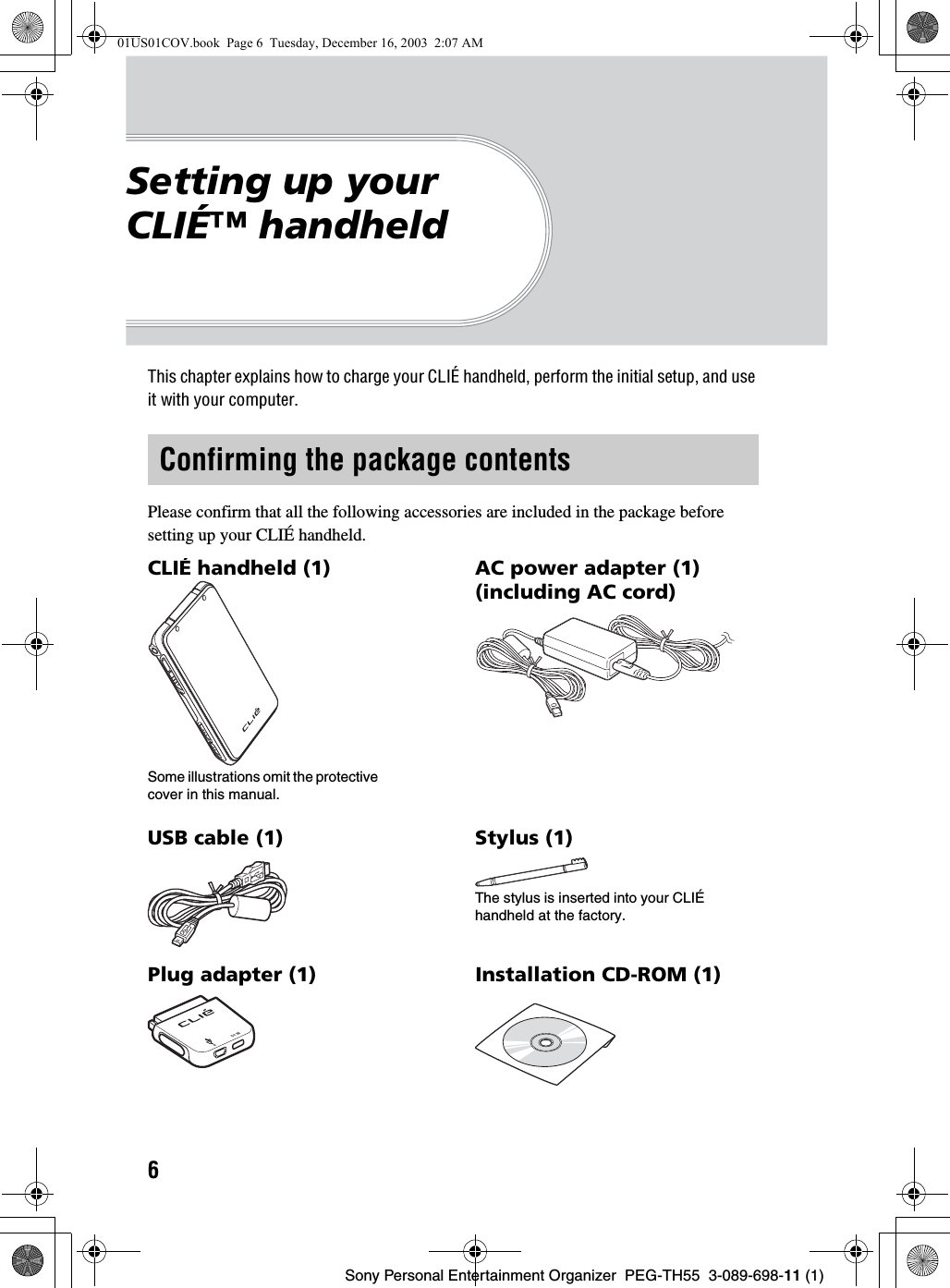

6Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Setting up your CLIÉ™ handheldThis chapter explains how to charge your CLIÉ handheld, perform the initial setup, and use it with your computer.Please confirm that all the following accessories are included in the package before setting up your CLIÉ handheld.Confirming the package contentsCLIÉ handheld (1) AC power adapter (1) (including AC cord)USB cable (1) Stylus (1)The stylus is inserted into your CLIÉ handheld at the factory.Plug adapter (1) Installation CD-ROM (1)Some illustrations omit the protective cover in this manual.01US01COV.book Page 6 Tuesday, December 16, 2003 2:07 AM

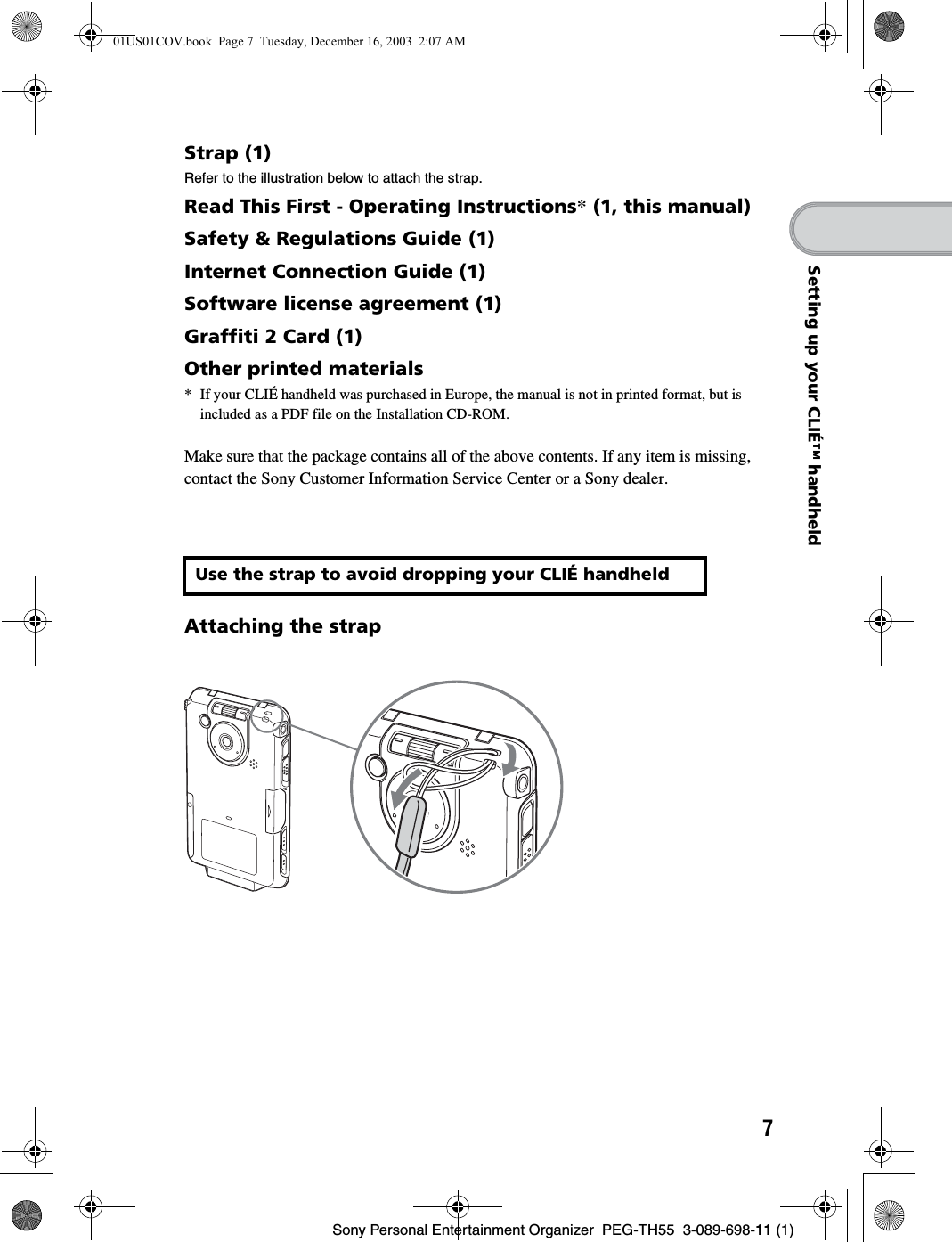

7Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Setting up your CLIÉ™ handheldStrap (1)Refer to the illustration below to attach the strap.Read This First - Operating Instructions* (1, this manual)Safety & Regulations Guide (1)Internet Connection Guide (1)Software license agreement (1)Graffiti 2 Card (1)Other printed materials* If your CLIÉ handheld was purchased in Europe, the manual is not in printed format, but is included as a PDF file on the Installation CD-ROM.Make sure that the package contains all of the above contents. If any item is missing, contact the Sony Customer Information Service Center or a Sony dealer.Attaching the strapUse the strap to avoid dropping your CLIÉ handheld01US01COV.book Page 7 Tuesday, December 16, 2003 2:07 AM

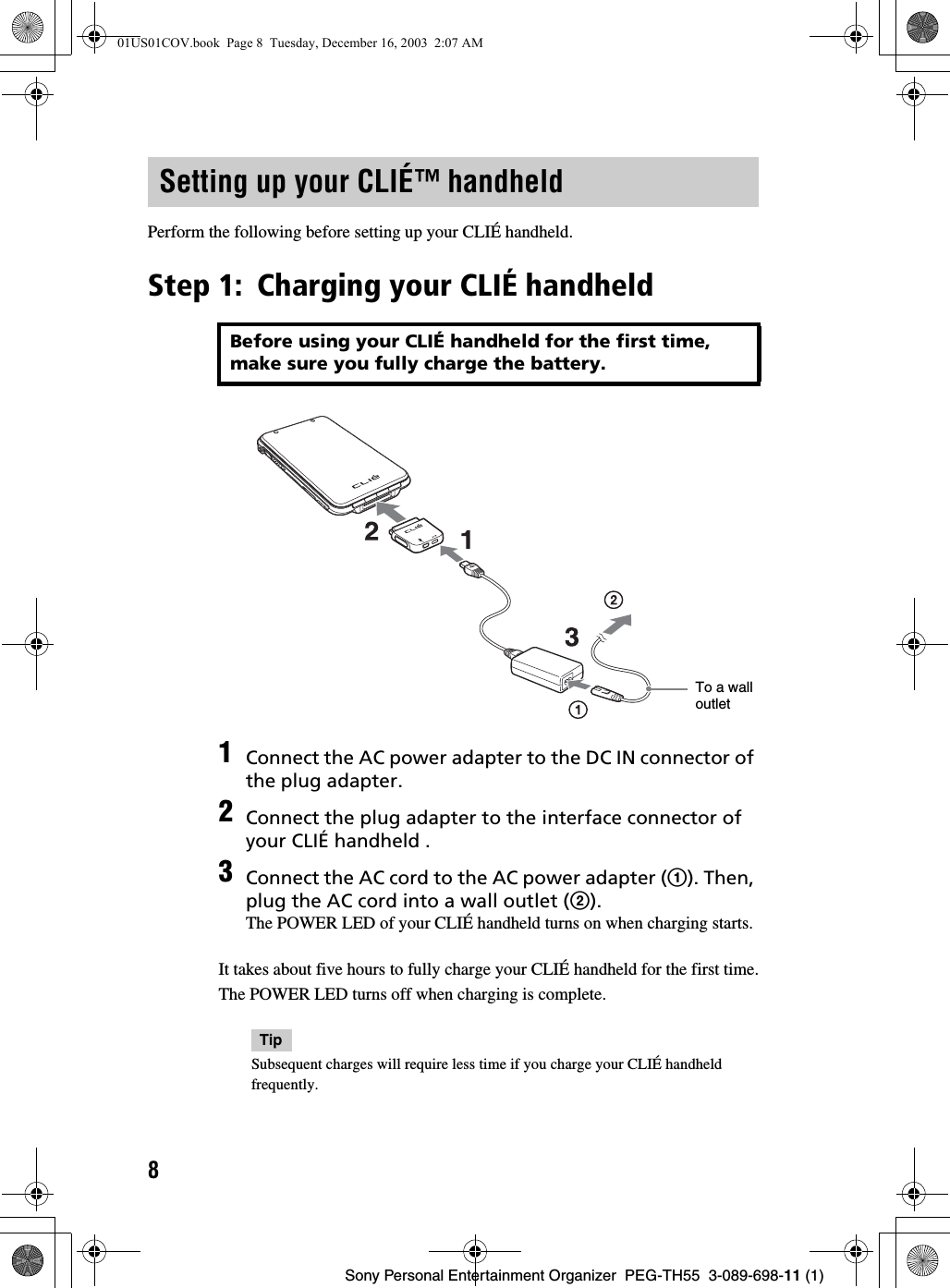

8Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Perform the following before setting up your CLIÉ handheld.Step 1: Charging your CLIÉ handheldIt takes about five hours to fully charge your CLIÉ handheld for the first time.The POWER LED turns off when charging is complete.TipSubsequent charges will require less time if you charge your CLIÉ handheld frequently.Setting up your CLIÉ™ handheldBefore using your CLIÉ handheld for the first time, make sure you fully charge the battery.1Connect the AC power adapter to the DC IN connector of the plug adapter.2Connect the plug adapter to the interface connector of your CLIÉ handheld .3Connect the AC cord to the AC power adapter (1). Then, plug the AC cord into a wall outlet (2).The POWER LED of your CLIÉ handheld turns on when charging starts.To a wall outlet01US01COV.book Page 8 Tuesday, December 16, 2003 2:07 AM

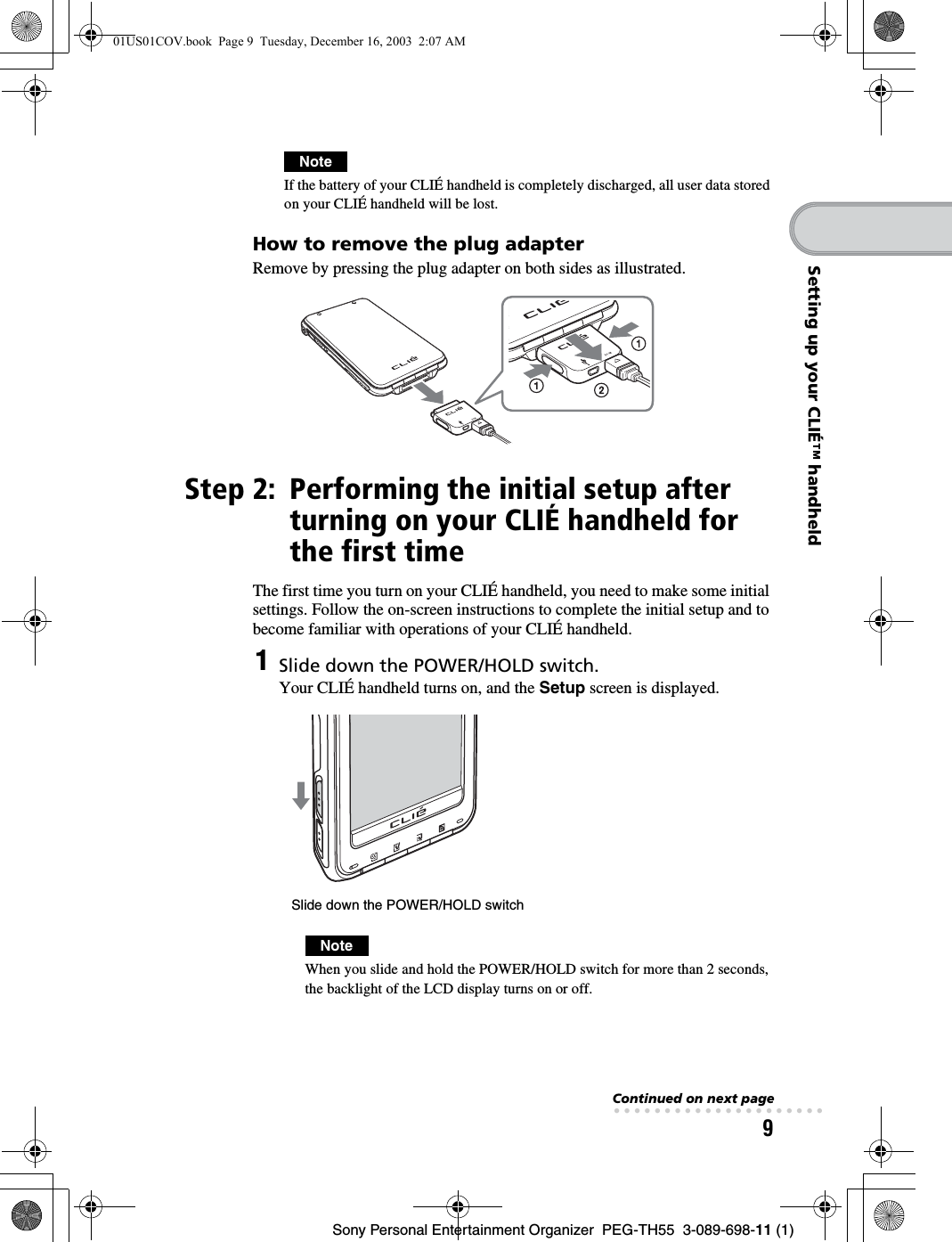

9Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Setting up your CLIÉ™ handheldNoteIf the battery of your CLIÉ handheld is completely discharged, all user data stored on your CLIÉ handheld will be lost.How to remove the plug adapterRemove by pressing the plug adapter on both sides as illustrated.Step 2: Performing the initial setup after turning on your CLIÉ handheld for the first timeThe first time you turn on your CLIÉ handheld, you need to make some initial settings. Follow the on-screen instructions to complete the initial setup and to become familiar with operations of your CLIÉ handheld.1Slide down the POWER/HOLD switch.Your CLIÉ handheld turns on, and the Setup screen is displayed.NoteWhen you slide and hold the POWER/HOLD switch for more than 2 seconds, the backlight of the LCD display turns on or off.Slide down the POWER/HOLD switchContinued on next page• • • • • • • • • • • • • • • • • • • • •01US01COV.book Page 9 Tuesday, December 16, 2003 2:07 AM

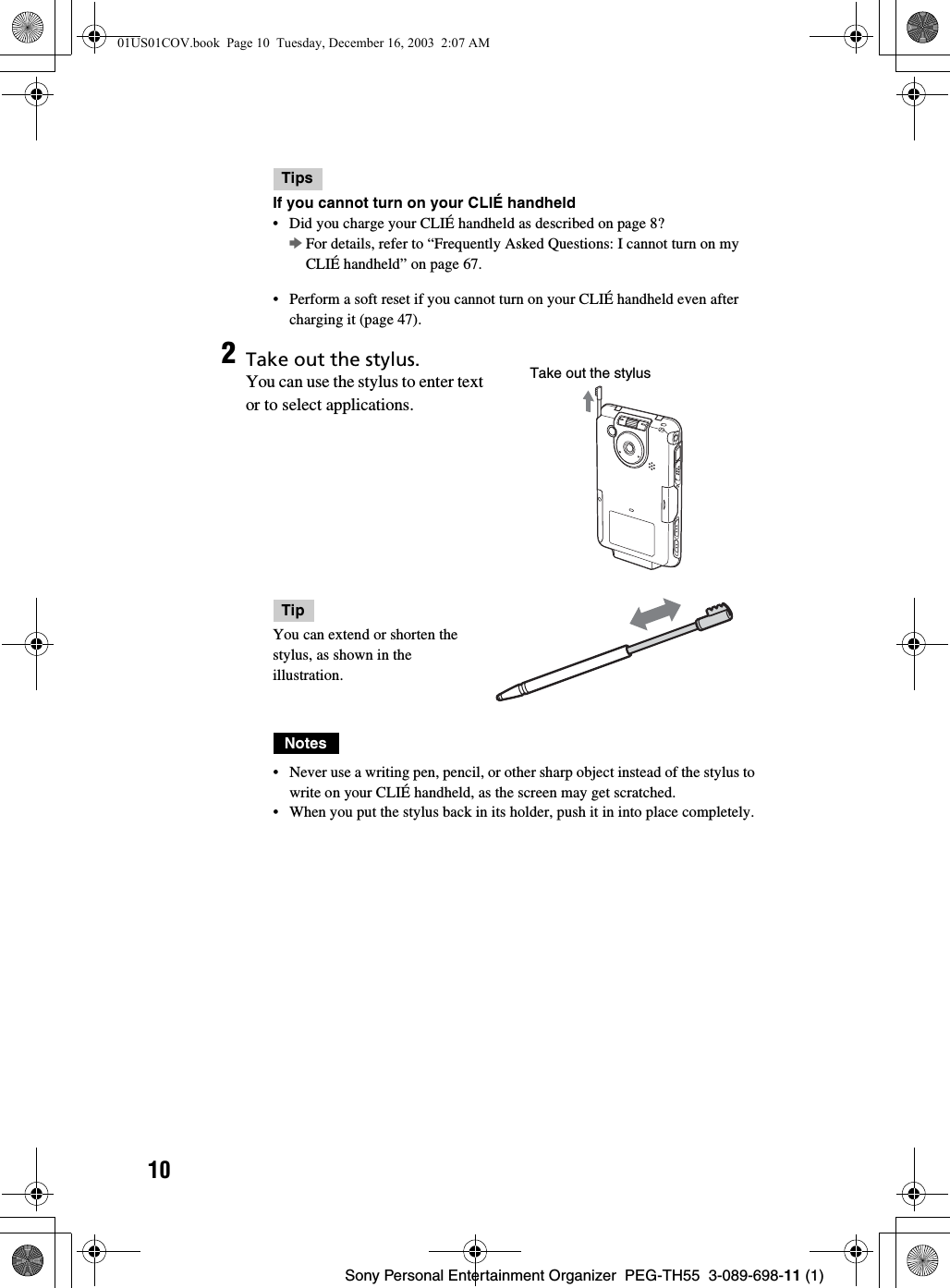

10Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)TipsIf you cannot turn on your CLIÉ handheld• Did you charge your CLIÉ handheld as described on page 8?bFor details, refer to “Frequently Asked Questions: I cannot turn on my CLIÉ handheld” on page 67.• Perform a soft reset if you cannot turn on your CLIÉ handheld even after charging it (page 47).2Take out the stylus.You can use the stylus to enter text or to select applications.TipYou can extend or shorten the stylus, as shown in the illustration.Notes• Never use a writing pen, pencil, or other sharp object instead of the stylus to write on your CLIÉ handheld, as the screen may get scratched.• When you put the stylus back in its holder, push it in into place completely.Take out the stylus01US01COV.book Page 10 Tuesday, December 16, 2003 2:07 AM

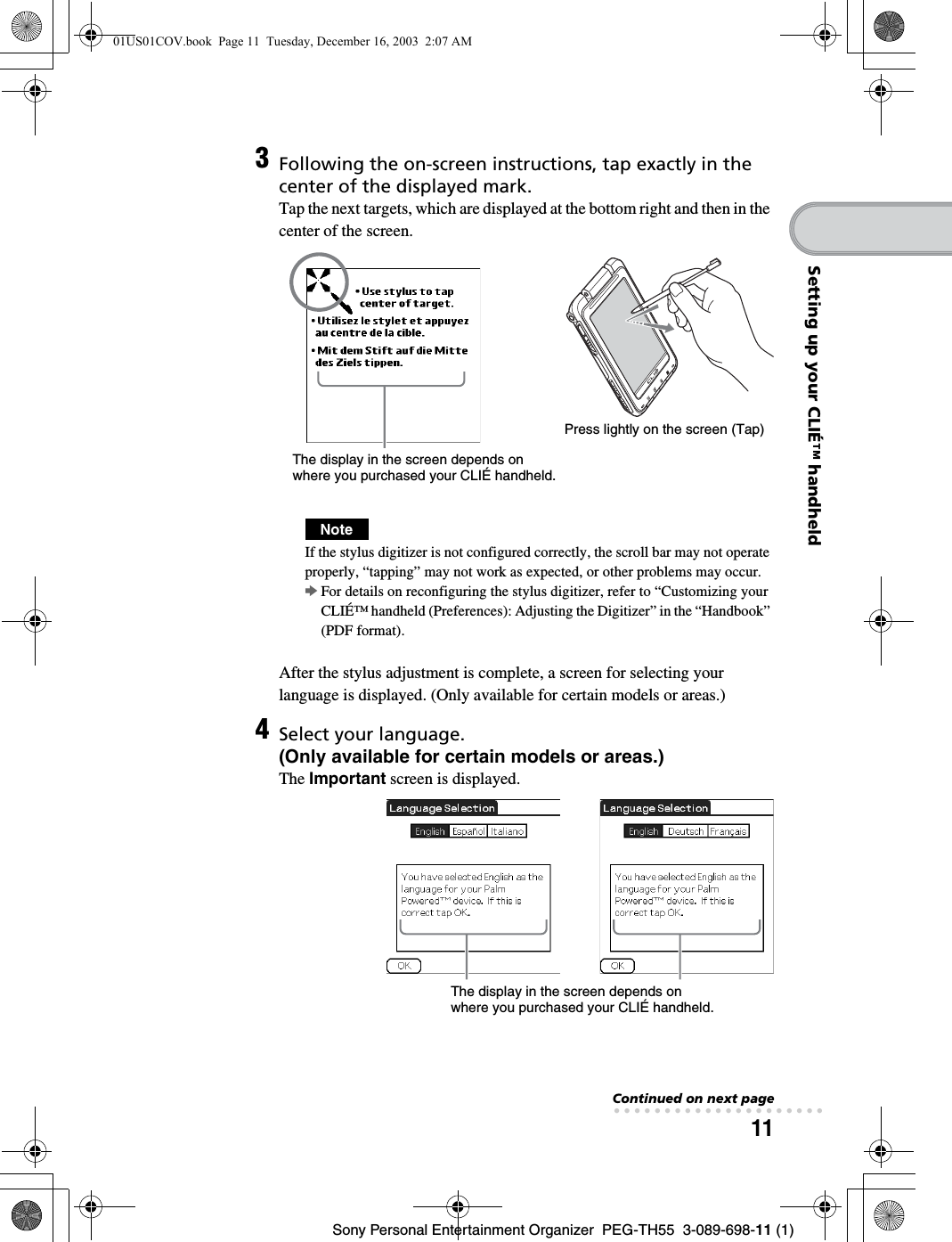

11Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Setting up your CLIÉ™ handheld3Following the on-screen instructions, tap exactly in the center of the displayed mark.Tap the next targets, which are displayed at the bottom right and then in the center of the screen.NoteIf the stylus digitizer is not configured correctly, the scroll bar may not operate properly, “tapping” may not work as expected, or other problems may occur. bFor details on reconfiguring the stylus digitizer, refer to “Customizing your CLIÉ™ handheld (Preferences): Adjusting the Digitizer” in the “Handbook” (PDF format).After the stylus adjustment is complete, a screen for selecting your language is displayed. (Only available for certain models or areas.)4Select your language. (Only available for certain models or areas.)The Important screen is displayed.Press lightly on the screen (Tap)The display in the screen depends on where you purchased your CLIÉ handheld.The display in the screen depends on where you purchased your CLIÉ handheld.Continued on next page• • • • • • • • • • • • • • • • • • • • •01US01COV.book Page 11 Tuesday, December 16, 2003 2:07 AM
12Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)5Click [Yes] to confirm. (Only available for certain models or areas.)6Tap the box next to [Set Time:].The Set Time dialog box is displayed.TipYou can reconfigure the date and time settings in the Preferences screen.bFor details, refer to “Customizing your CLIÉ™ handheld (Preferences): Setting up the Date & Time preferences” in the “Handbook” (PDF format).7Tap v or V to set the current time.Tap each box to set the hour and minute.8Tap [OK].The current time is set and the Setup screen is displayed.01US01COV.book Page 12 Tuesday, December 16, 2003 2:07 AM

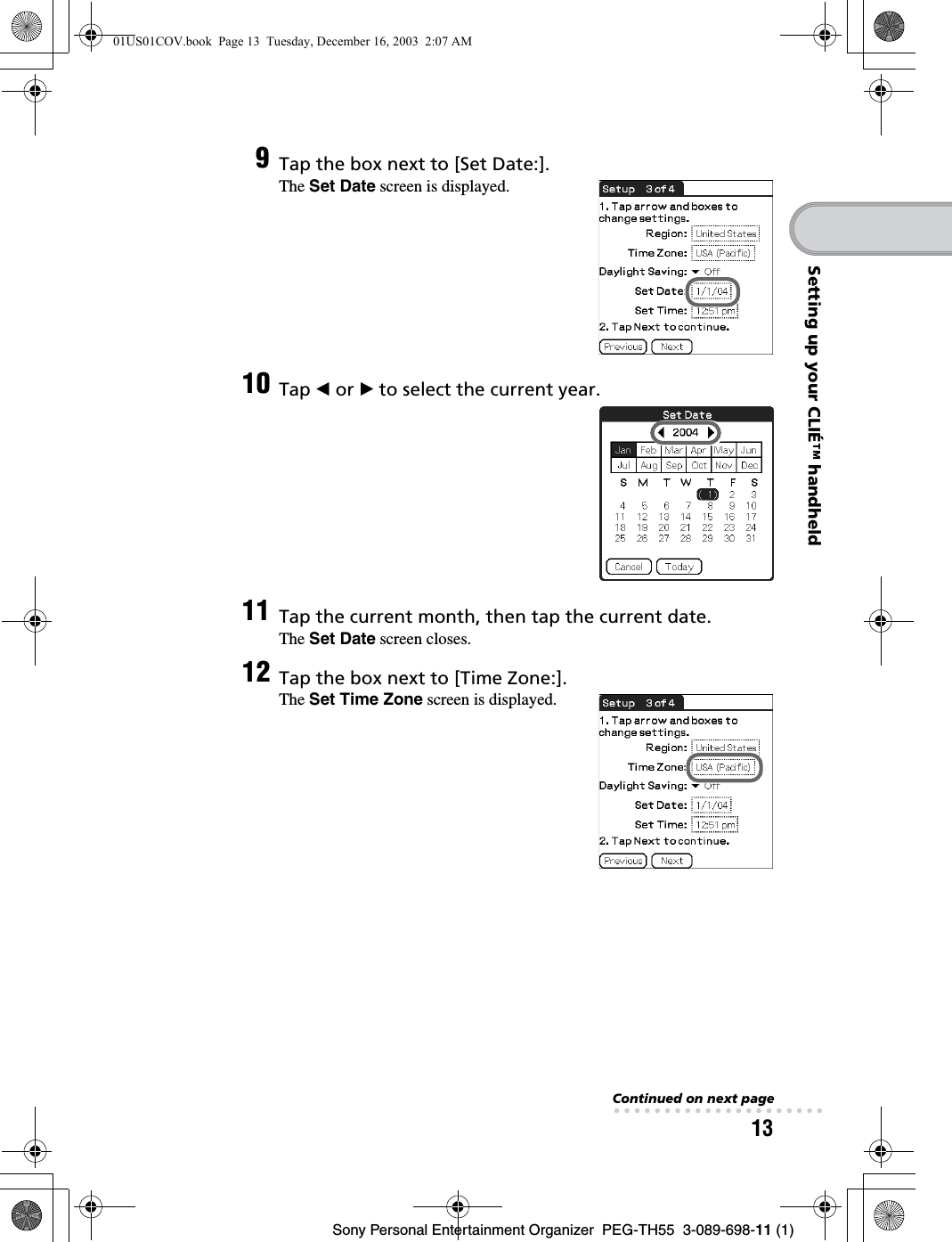

13Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Setting up your CLIÉ™ handheld9Tap the box next to [Set Date:].The Set Date screen is displayed.10 Tap b or B to select the current year.11 Tap the current month, then tap the current date.The Set Date screen closes.12 Tap the box next to [Time Zone:].The Set Time Zone screen is displayed.Continued on next page• • • • • • • • • • • • • • • • • • • • •01US01COV.book Page 13 Tuesday, December 16, 2003 2:07 AM

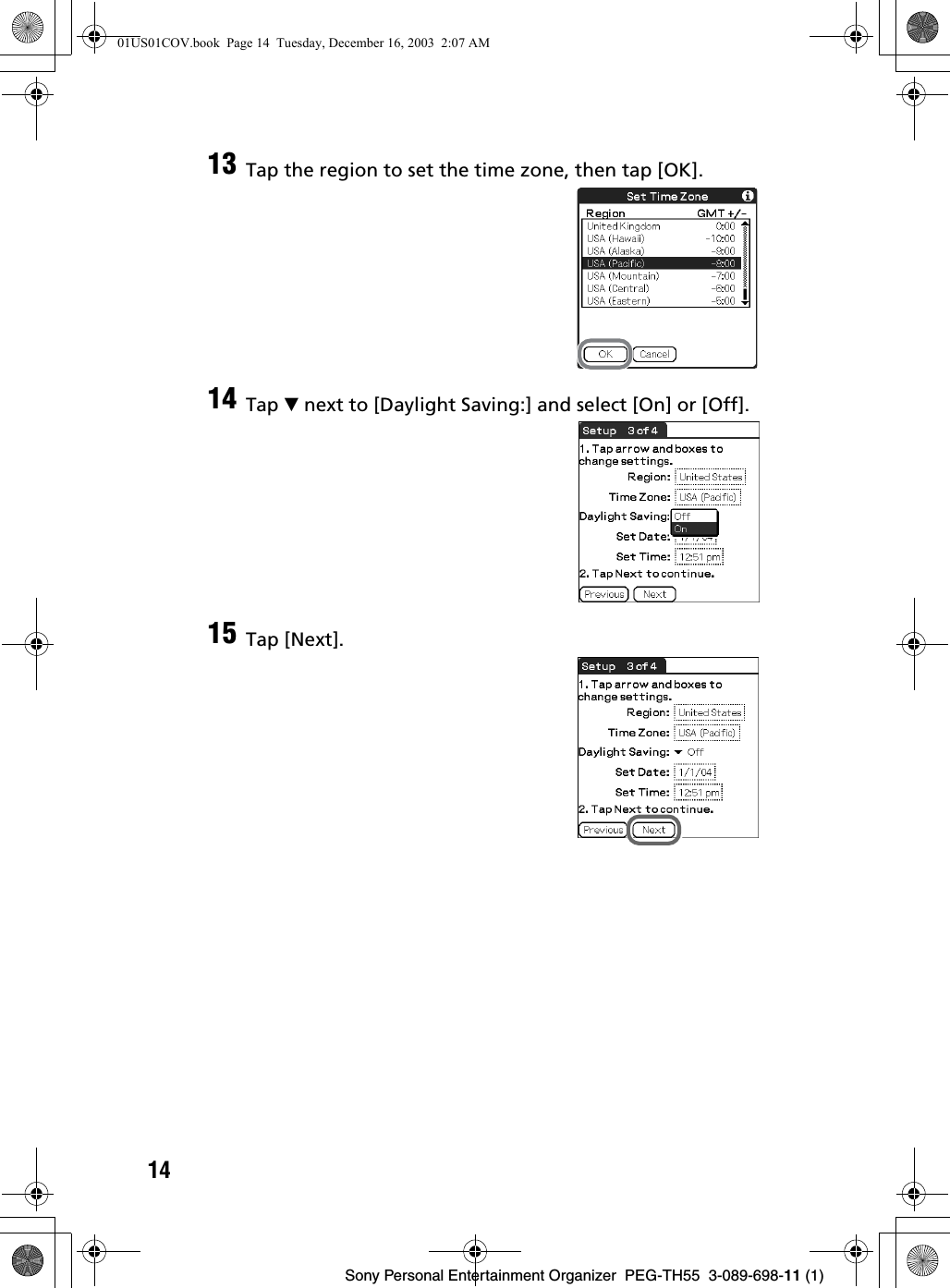

14Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)13 Tap the region to set the time zone, then tap [OK].14 Tap V next to [Daylight Saving:] and select [On] or [Off].15 Tap [Next].01US01COV.book Page 14 Tuesday, December 16, 2003 2:07 AM

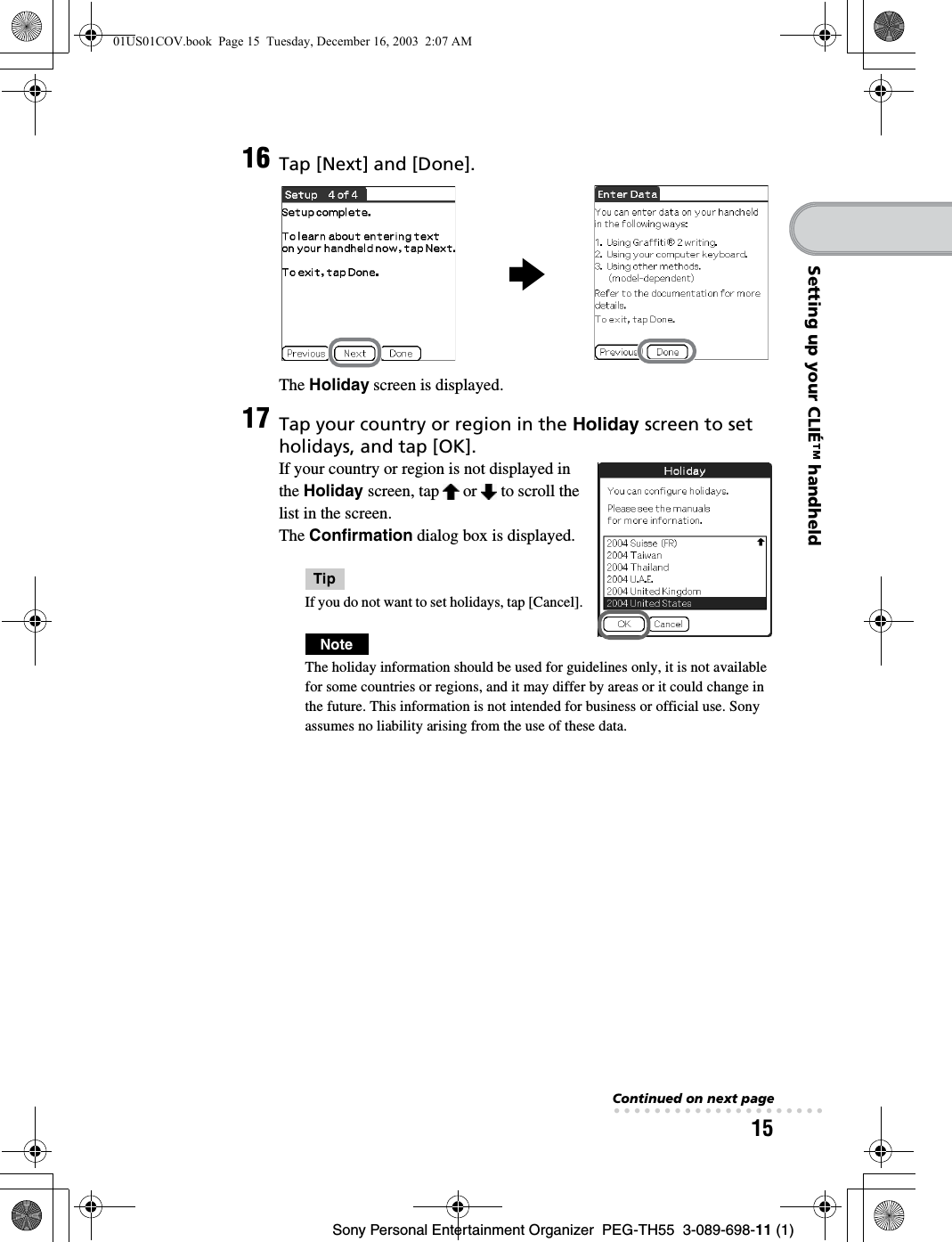

15Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Setting up your CLIÉ™ handheld16 Tap [Next] and [Done].The Holiday screen is displayed.17 Tap your country or region in the Holiday screen to set holidays, and tap [OK].If your country or region is not displayed in the Holiday screen, tap or to scroll the list in the screen.The Confirmation dialog box is displayed.TipIf you do not want to set holidays, tap [Cancel].NoteThe holiday information should be used for guidelines only, it is not available for some countries or regions, and it may differ by areas or it could change in the future. This information is not intended for business or official use. Sony assumes no liability arising from the use of these data.bContinued on next page• • • • • • • • • • • • • • • • • • • • •01US01COV.book Page 15 Tuesday, December 16, 2003 2:07 AM

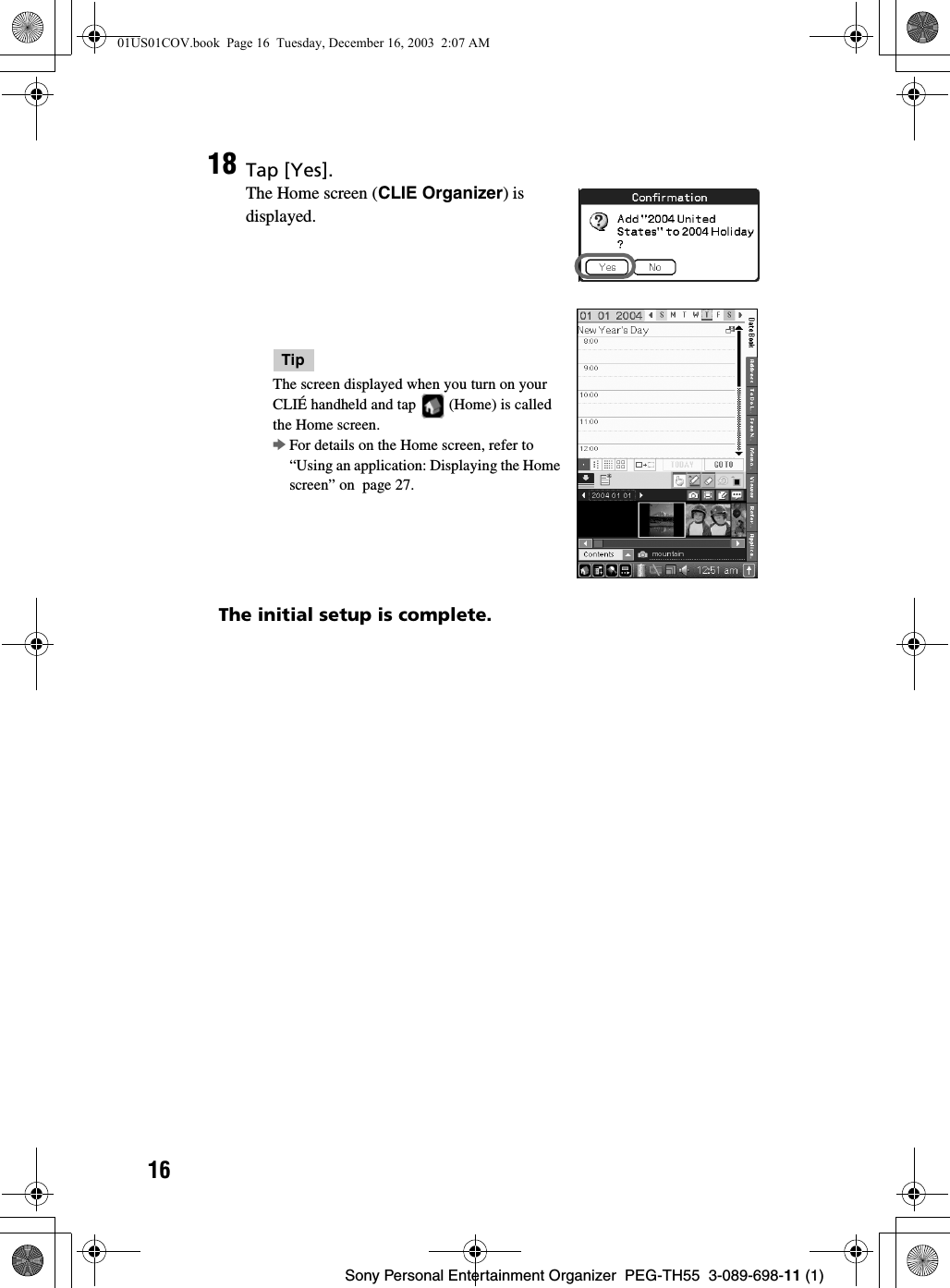

16Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)The initial setup is complete.18 Tap [Yes].The Home screen (CLIE Organizer) is displayed.TipThe screen displayed when you turn on your CLIÉ handheld and tap (Home) is called the Home screen.bFor details on the Home screen, refer to “Using an application: Displaying the Home screen” on page 27.01US01COV.book Page 16 Tuesday, December 16, 2003 2:07 AM

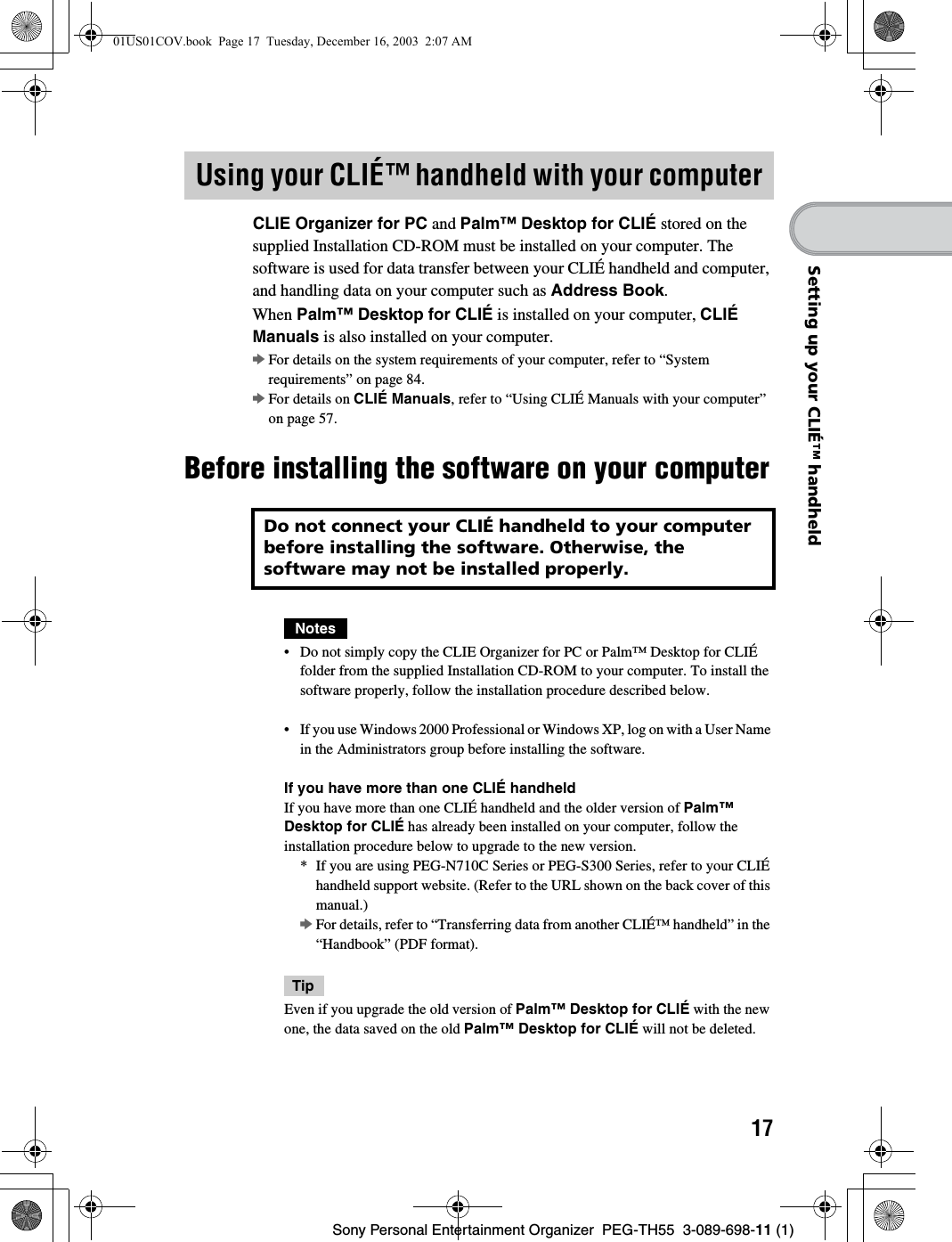

17Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Setting up your CLIÉ™ handheldCLIE Organizer for PC and Palm™ Desktop for CLIÉ stored on the supplied Installation CD-ROM must be installed on your computer. The software is used for data transfer between your CLIÉ handheld and computer, and handling data on your computer such as Address Book.When Palm™ Desktop for CLIÉ is installed on your computer, CLIÉ Manuals is also installed on your computer.bFor details on the system requirements of your computer, refer to “System requirements” on page 84.bFor details on CLIÉ Manuals, refer to “Using CLIÉ Manuals with your computer” on page 57.Before installing the software on your computerNotes• Do not simply copy the CLIE Organizer for PC or Palm™ Desktop for CLIÉ folder from the supplied Installation CD-ROM to your computer. To install the software properly, follow the installation procedure described below.• If you use Windows 2000 Professional or Windows XP, log on with a User Name in the Administrators group before installing the software.If you have more than one CLIÉ handheldIf you have more than one CLIÉ handheld and the older version of Palm™ Desktop for CLIÉ has already been installed on your computer, follow the installation procedure below to upgrade to the new version.* If you are using PEG-N710C Series or PEG-S300 Series, refer to your CLIÉ handheld support website. (Refer to the URL shown on the back cover of this manual.)bFor details, refer to “Transferring data from another CLIÉ™ handheld” in the “Handbook” (PDF format).TipEven if you upgrade the old version of Palm™ Desktop for CLIÉ with the new one, the data saved on the old Palm™ Desktop for CLIÉ will not be deleted.Using your CLIÉ™ handheld with your computerDo not connect your CLIÉ handheld to your computer before installing the software. Otherwise, the software may not be installed properly.01US01COV.book Page 17 Tuesday, December 16, 2003 2:07 AM
18Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Step 1: Installing Palm™ Desktop for CLIÉ on your computerPalm™ Desktop for CLIÉ is the software supplied with the Palm OS® device. You can synchronize data between your CLIÉ handheld and computer using Palm™ Desktop for CLIÉ. Make sure you install this before installing CLIE Organizer for PC (page 23).1Quit all applications running on Windows®.2Insert the supplied Installation CD-ROM into the CD-ROM drive of your computer.The Installation CD-ROM window is displayed.3Select your language.(Only available for certain models or areas.)4Click [Next] or [CLIÉ Basic], then click [Install] to install Palm™ Desktop for CLIÉ.The setup program starts and the InstallShield Wizard window is displayed.NoteIf you try to install Palm™ Desktop for CLIÉ when an older version of Palm™ Desktop for CLIÉ has already been installed on your computer, a dialog box appears on your computer window.Follow the instruction of the dialog box to install the new version of Palm™ Desktop for CLIE supplied with your CLIÉ handheld.5Click [Next].The InstallShield Wizard window for [Setup Type] is displayed.6Select the setup type, [Complete] or [Custom].When you select [Custom], you need to specify which software you want to install and where to be installed.The following steps explain when you select [Complete].7Click [Next].The InstallShield Wizard window for [Select User] is displayed.01US01COV.book Page 18 Tuesday, December 16, 2003 2:07 AM

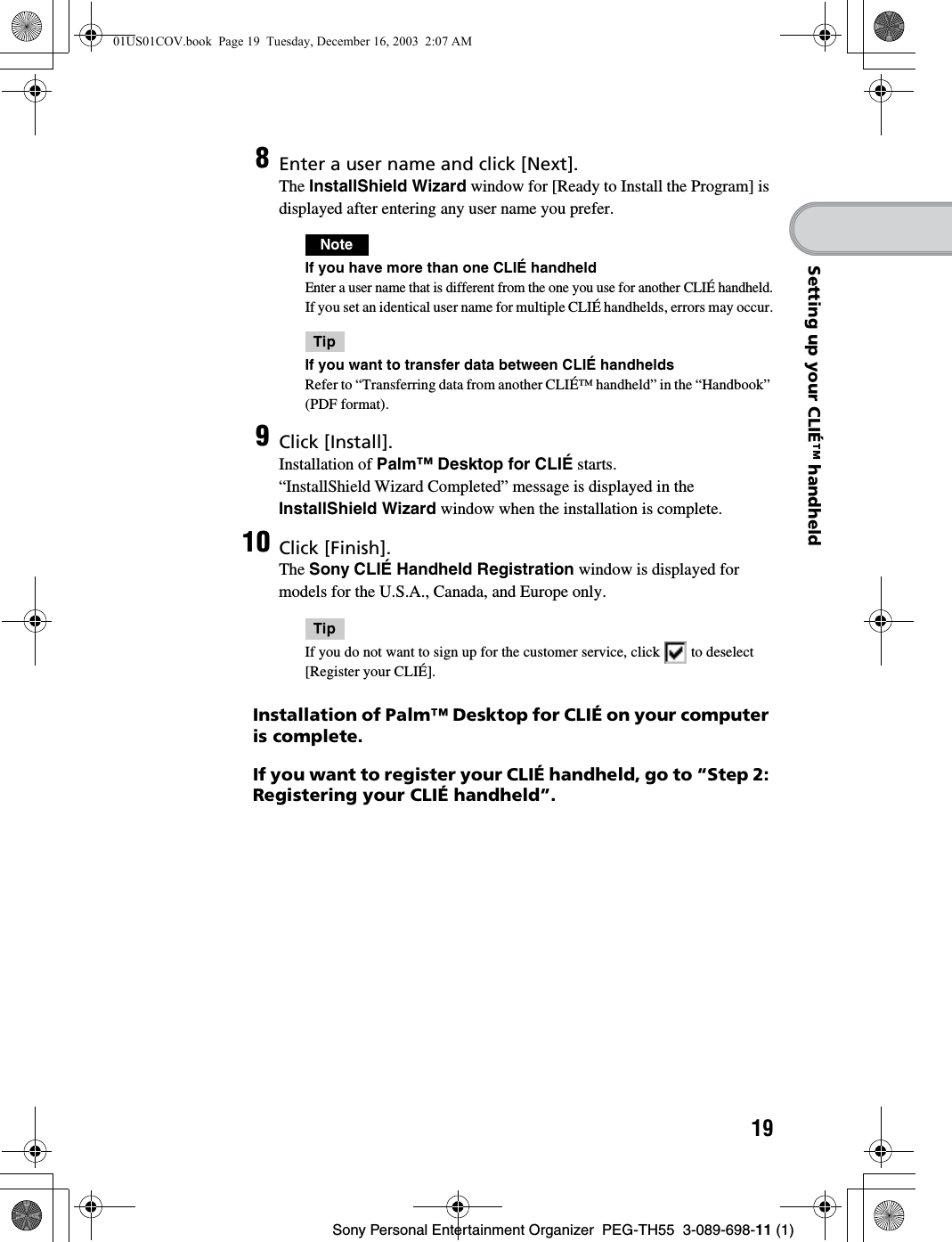

19Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Setting up your CLIÉ™ handheldInstallation of Palm™ Desktop for CLIÉ on your computer is complete.If you want to register your CLIÉ handheld, go to “Step 2: Registering your CLIÉ handheld”.8Enter a user name and click [Next].The InstallShield Wizard window for [Ready to Install the Program] is displayed after entering any user name you prefer.NoteIf you have more than one CLIÉ handheldEnter a user name that is different from the one you use for another CLIÉ handheld.If you set an identical user name for multiple CLIÉ handhelds, errors may occur.TipIf you want to transfer data between CLIÉ handheldsRefer to “Transferring data from another CLIÉ™ handheld” in the “Handbook” (PDF format).9Click [Install].Installation of Palm™ Desktop for CLIÉ starts.“InstallShield Wizard Completed” message is displayed in the InstallShield Wizard window when the installation is complete.10 Click [Finish].The Sony CLIÉ Handheld Registration window is displayed for models for the U.S.A., Canada, and Europe only.TipIf you do not want to sign up for the customer service, click to deselect [Register your CLIÉ].01US01COV.book Page 19 Tuesday, December 16, 2003 2:07 AM

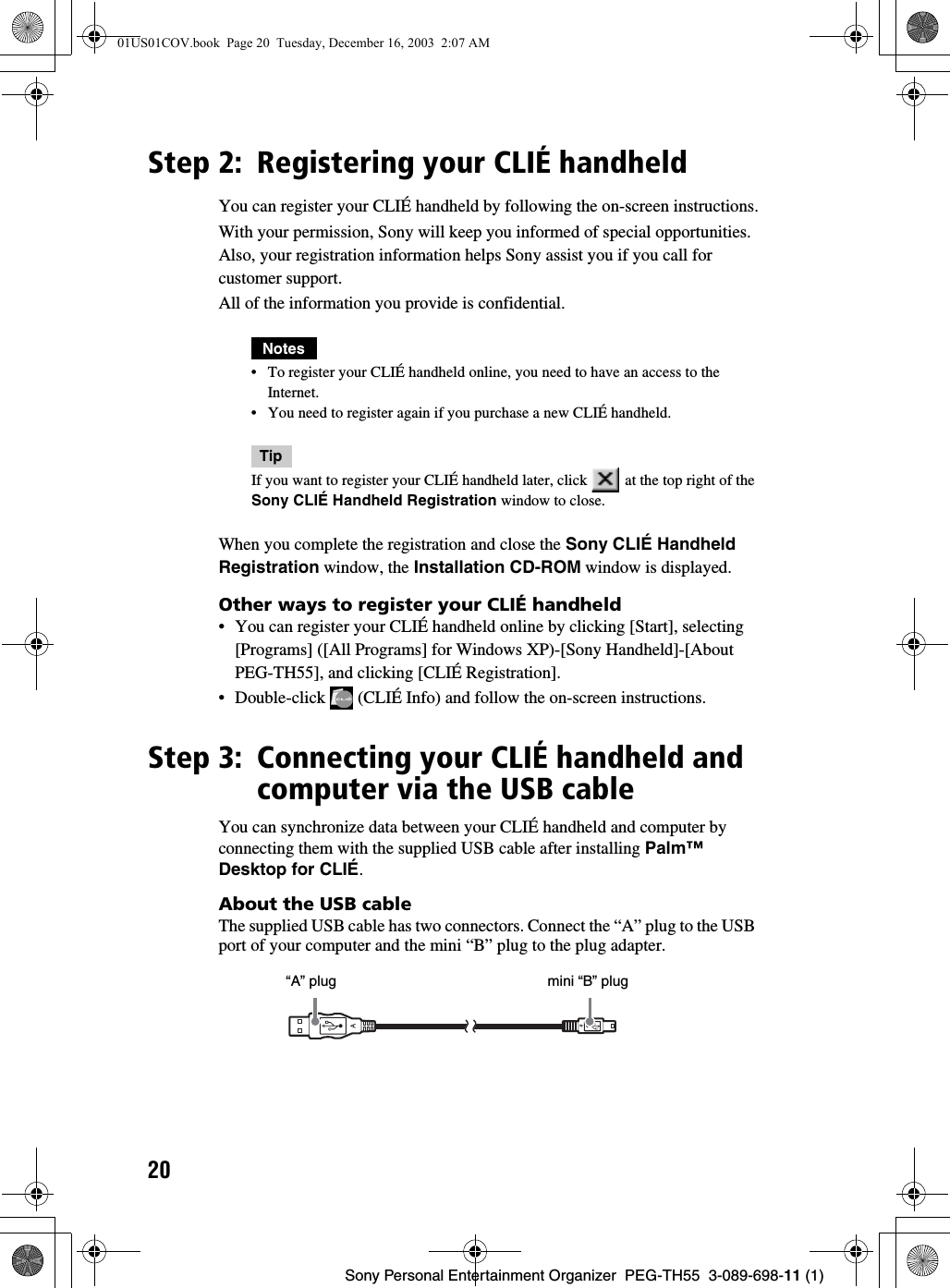

20Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Step 2: Registering your CLIÉ handheldYou can register your CLIÉ handheld by following the on-screen instructions.With your permission, Sony will keep you informed of special opportunities. Also, your registration information helps Sony assist you if you call for customer support. All of the information you provide is confidential.Notes• To register your CLIÉ handheld online, you need to have an access to the Internet.• You need to register again if you purchase a new CLIÉ handheld.Tip If you want to register your CLIÉ handheld later, click at the top right of the Sony CLIÉ Handheld Registration window to close.When you complete the registration and close the Sony CLIÉ Handheld Registration window, the Installation CD-ROM window is displayed.Other ways to register your CLIÉ handheld• You can register your CLIÉ handheld online by clicking [Start], selecting [Programs] ([All Programs] for Windows XP)-[Sony Handheld]-[About PEG-TH55], and clicking [CLIÉ Registration].• Double-click (CLIÉ Info) and follow the on-screen instructions.Step 3: Connecting your CLIÉ handheld and computer via the USB cableYou can synchronize data between your CLIÉ handheld and computer by connecting them with the supplied USB cable after installing Palm™ Desktop for CLIÉ.About the USB cableThe supplied USB cable has two connectors. Connect the “A” plug to the USB port of your computer and the mini “B” plug to the plug adapter. “A” plug mini “B” plug01US01COV.book Page 20 Tuesday, December 16, 2003 2:07 AM

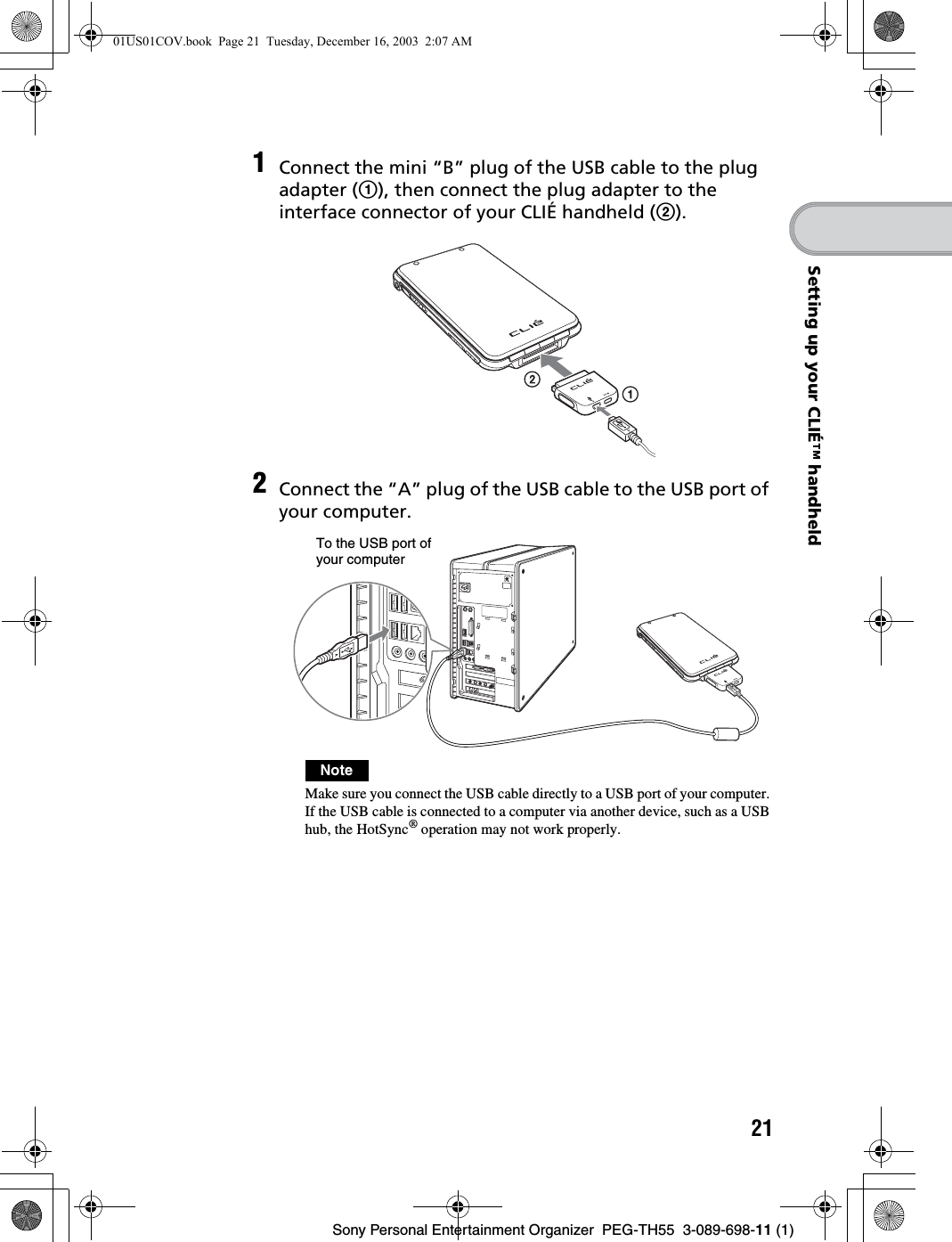

21Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Setting up your CLIÉ™ handheld1Connect the mini “B” plug of the USB cable to the plug adapter (1), then connect the plug adapter to the interface connector of your CLIÉ handheld (2).2Connect the “A” plug of the USB cable to the USB port of your computer.NoteMake sure you connect the USB cable directly to a USB port of your computer. If the USB cable is connected to a computer via another device, such as a USB hub, the HotSync® operation may not work properly.To the USB port of your computer01US01COV.book Page 21 Tuesday, December 16, 2003 2:07 AM

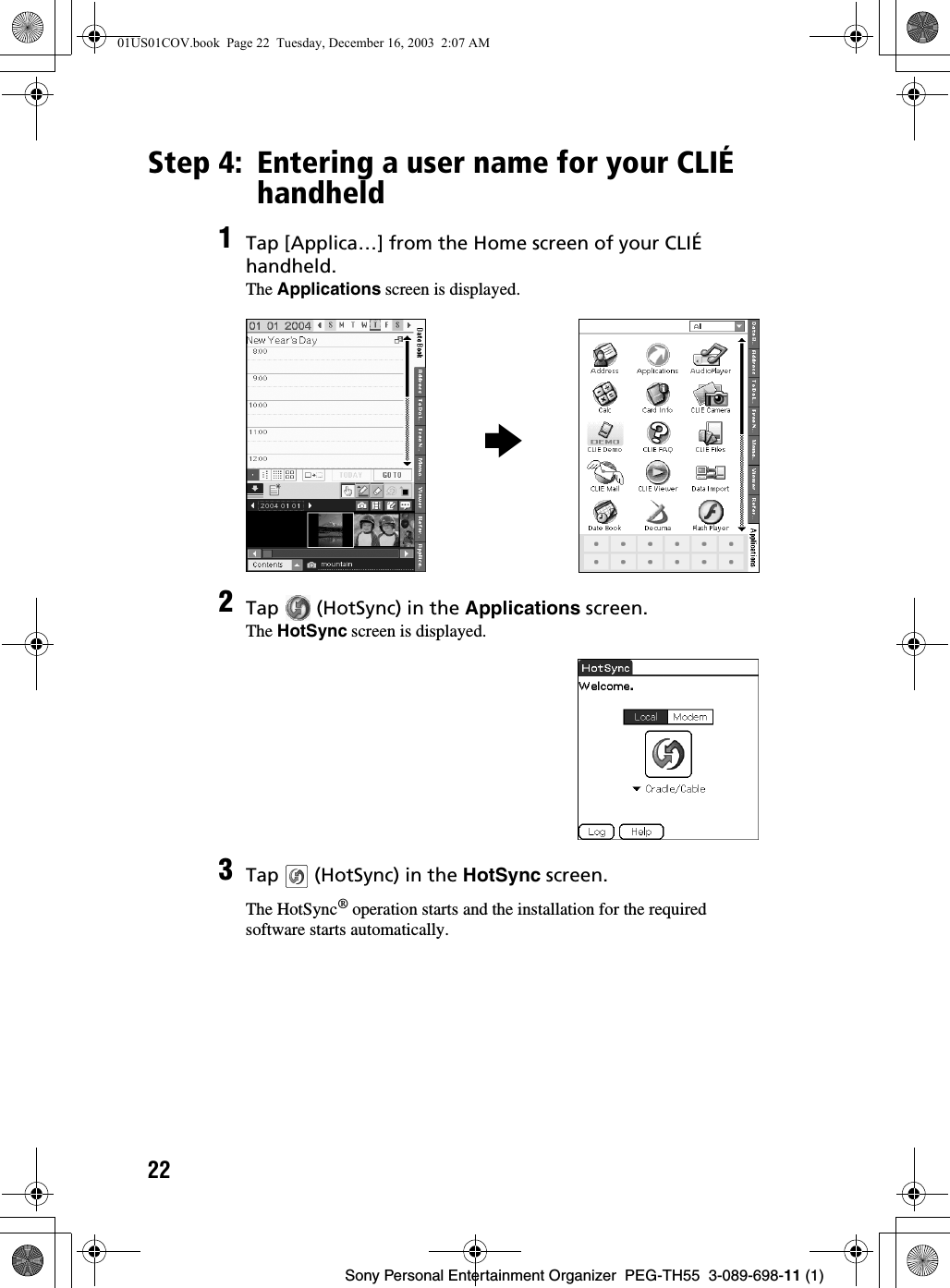

22Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Step 4: Entering a user name for your CLIÉ handheld1Tap [Applica…] from the Home screen of your CLIÉ handheld.The Applications screen is displayed.2Tap (HotSync) in the Applications screen.The HotSync screen is displayed.3Tap (HotSync) in the HotSync screen.The HotSync® operation starts and the installation for the required software starts automatically.b01US01COV.book Page 22 Tuesday, December 16, 2003 2:07 AM
23Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Setting up your CLIÉ™ handheldFollow the steps below to install CLIE Organizer for PC on your computer.Step 5: Installing CLIE Organizer for PC on your computerTo synchronize the data created on CLIE Organizer (a specific application to your CLIÉ handheld) between your CLIÉ handheld and computer, CLIE Organizer for PC must be installed on your computer.TipIf you want to assign the CLIE Launcher or Palm OS® Standard screen to the Home screen, and not using CLIE Organizer, you do not need to install CLIE Organizer for PC on your computer.bFor details on assigning the Home screen, refer to “CLIÉ handheld™ basic operations: Using the CLIE Launcher (or Using the Palm OS® Standard screen)” in the “Handbook” (PDF format).4Click [OK] when your user name is displayed in the Users window of your computer.A beep is heard from your CLIÉ handheld and the HotSync® operation starts.Your user name entered for CLIE Organizer for PC is also registered in your CLIÉ handheld.When the setup is complete, “HotSync operation complete.” will be displayed on your CLIÉ handheld.NoteIf you have more than one CLIÉ handheld, the user name for your old CLIÉ handheld may be displayed. In this case, select the user name you entered in step 8 in “Step 1: Installing Palm™ Desktop for CLIÉ on your compter” on page 18.1Click [Back] or [CLIÉ Basic], and click [Install] for CLIE Organizer for PC in the Installation CD-ROM window of your computer.2Click [Install] to install CLIE Organizer for PC.The setup program starts and the InstallShield Wizard window for CLIE Organizer for PC is displayed.3Click [Next].The InstallShield Wizard window for [Ready to Install the Program] is displayed.Continued on next page• • • • • • • • • • • • • • • • • • • • •01US01COV.book Page 23 Tuesday, December 16, 2003 2:07 AM
24Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Installation of CLIE Organizer for PC on your computer is complete.4Click [Install].Installation of CLIE Organizer for PC starts. “InstallShield Wizard Complete” message is displayed in the InstallShield Wizard window when the installation is complete.5Click [Finish].The Image Converter window is displayed. Image Converter is required to be installed to use CLIE Organizer for PC. Follow the on-screen instructions. The Installation CD-ROM window is displayed again after installing Image Converter.6Click [Finish] in the Installation CD-ROM window of your computer.01US01COV.book Page 24 Tuesday, December 16, 2003 2:07 AM

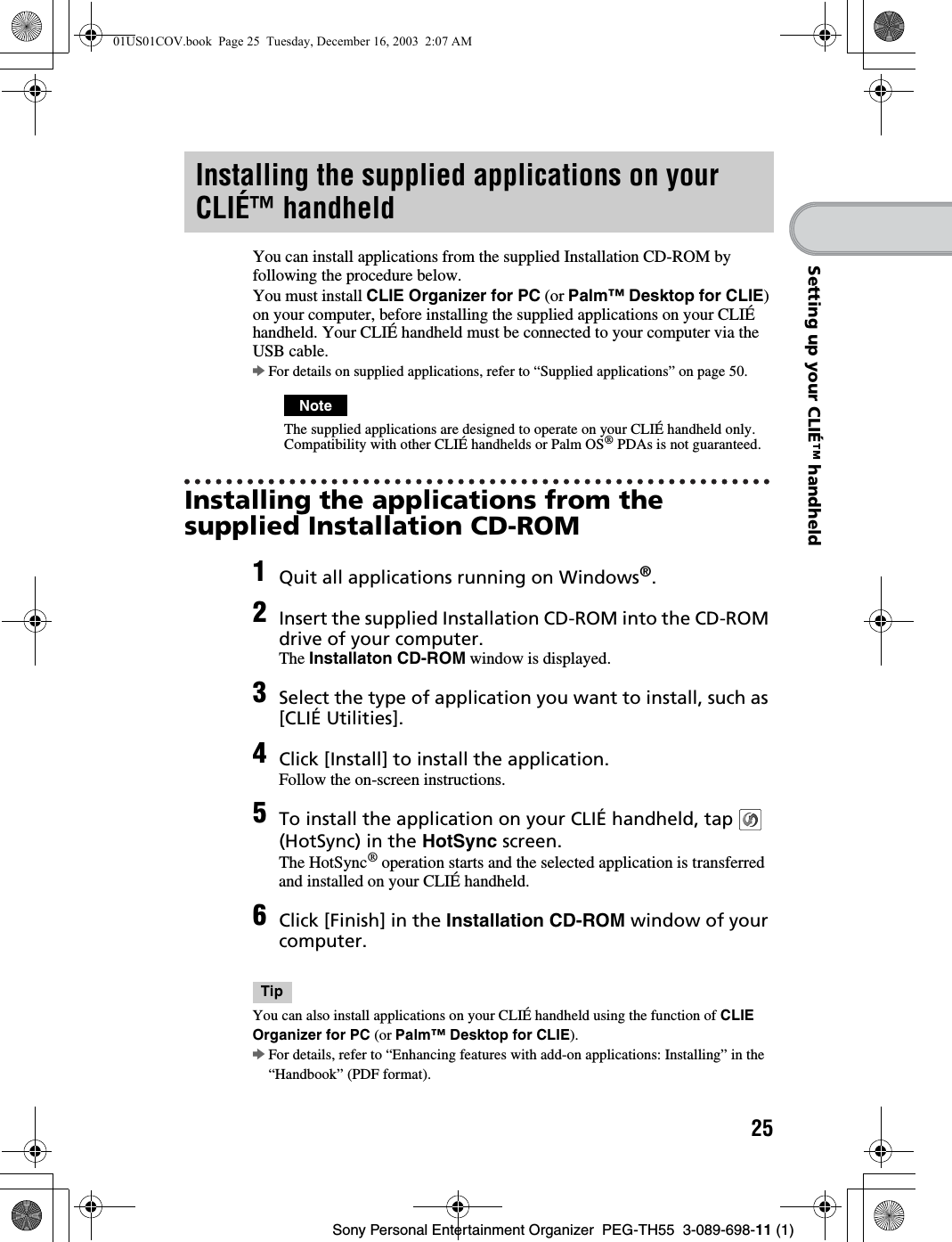

25Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Setting up your CLIÉ™ handheldYou can install applications from the supplied Installation CD-ROM by following the procedure below.You must install CLIE Organizer for PC (or Palm™ Desktop for CLIE) on your computer, before installing the supplied applications on your CLIÉ handheld. Your CLIÉ handheld must be connected to your computer via the USB cable.bFor details on supplied applications, refer to “Supplied applications” on page 50.NoteThe supplied applications are designed to operate on your CLIÉ handheld only. Compatibility with other CLIÉ handhelds or Palm OS® PDAs is not guaranteed.Installing the applications from the supplied Installation CD-ROMTipYou can also install applications on your CLIÉ handheld using the function of CLIE Organizer for PC (or Palm™ Desktop for CLIE).bFor details, refer to “Enhancing features with add-on applications: Installing” in the “Handbook” (PDF format).Installing the supplied applications on your CLIÉ™ handheld1Quit all applications running on Windows®.2Insert the supplied Installation CD-ROM into the CD-ROM drive of your computer.The Installaton CD-ROM window is displayed.3Select the type of application you want to install, such as [CLIÉ Utilities].4Click [Install] to install the application.Follow the on-screen instructions.5To install the application on your CLIÉ handheld, tap (HotSync) in the HotSync screen.The HotSync® operation starts and the selected application is transferred and installed on your CLIÉ handheld.6Click [Finish] in the Installation CD-ROM window of your computer.01US01COV.book Page 25 Tuesday, December 16, 2003 2:07 AM
26Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Basic operations of your CLIÉ™ handheldThis chapter explains how to turn on/off your CLIÉ handheld, start an application, enter text, synchronize with your computer, take a picture, and perform a reset.Turning on your CLIÉ handheldSlide down the POWER/HOLD switch.Your CLIÉ handheld turns on, and the last screen you viewed is displayed.Slide down the POWER/HOLD switch NoteWhen you slide and hold the POWER/HOLD switch for more than 2 seconds, the backlight of the LCD display turns on or off. TipIf you cannot turn on your CLIÉ handheldDid you fully charge your CLIÉ handheld?b For details, refer to “Frequently Asked Questions: I cannot turn on my CLIÉ handheld” on page 67.To turn off your CLIÉ handheldSlide down the POWER/HOLD switch again.Turning on/off your CLIÉ™ handheld01US01COV.book Page 26 Tuesday, December 16, 2003 2:07 AM

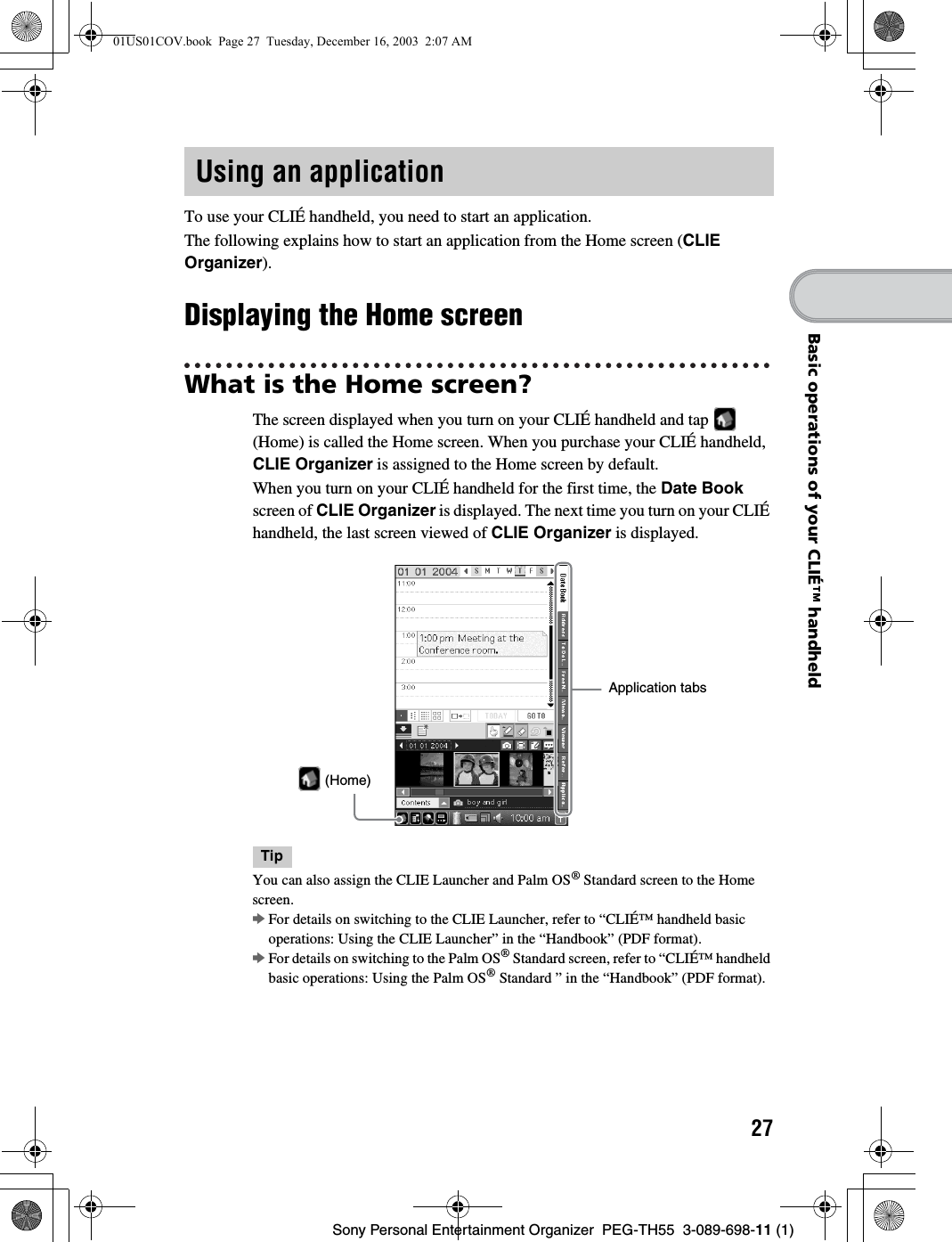

27Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Basic operations of your CLIÉ™ handheldTo use your CLIÉ handheld, you need to start an application.The following explains how to start an application from the Home screen (CLIE Organizer).Displaying the Home screenWhat is the Home screen?The screen displayed when you turn on your CLIÉ handheld and tap (Home) is called the Home screen. When you purchase your CLIÉ handheld, CLIE Organizer is assigned to the Home screen by default. When you turn on your CLIÉ handheld for the first time, the Date Book screen of CLIE Organizer is displayed. The next time you turn on your CLIÉ handheld, the last screen viewed of CLIE Organizer is displayed.TipYou can also assign the CLIE Launcher and Palm OS® Standard screen to the Home screen.bFor details on switching to the CLIE Launcher, refer to “CLIÉ™ handheld basic operations: Using the CLIE Launcher” in the “Handbook” (PDF format).bFor details on switching to the Palm OS® Standard screen, refer to “CLIÉ™ handheld basic operations: Using the Palm OS® Standard ” in the “Handbook” (PDF format).Using an applicationApplication tabs (Home)01US01COV.book Page 27 Tuesday, December 16, 2003 2:07 AM

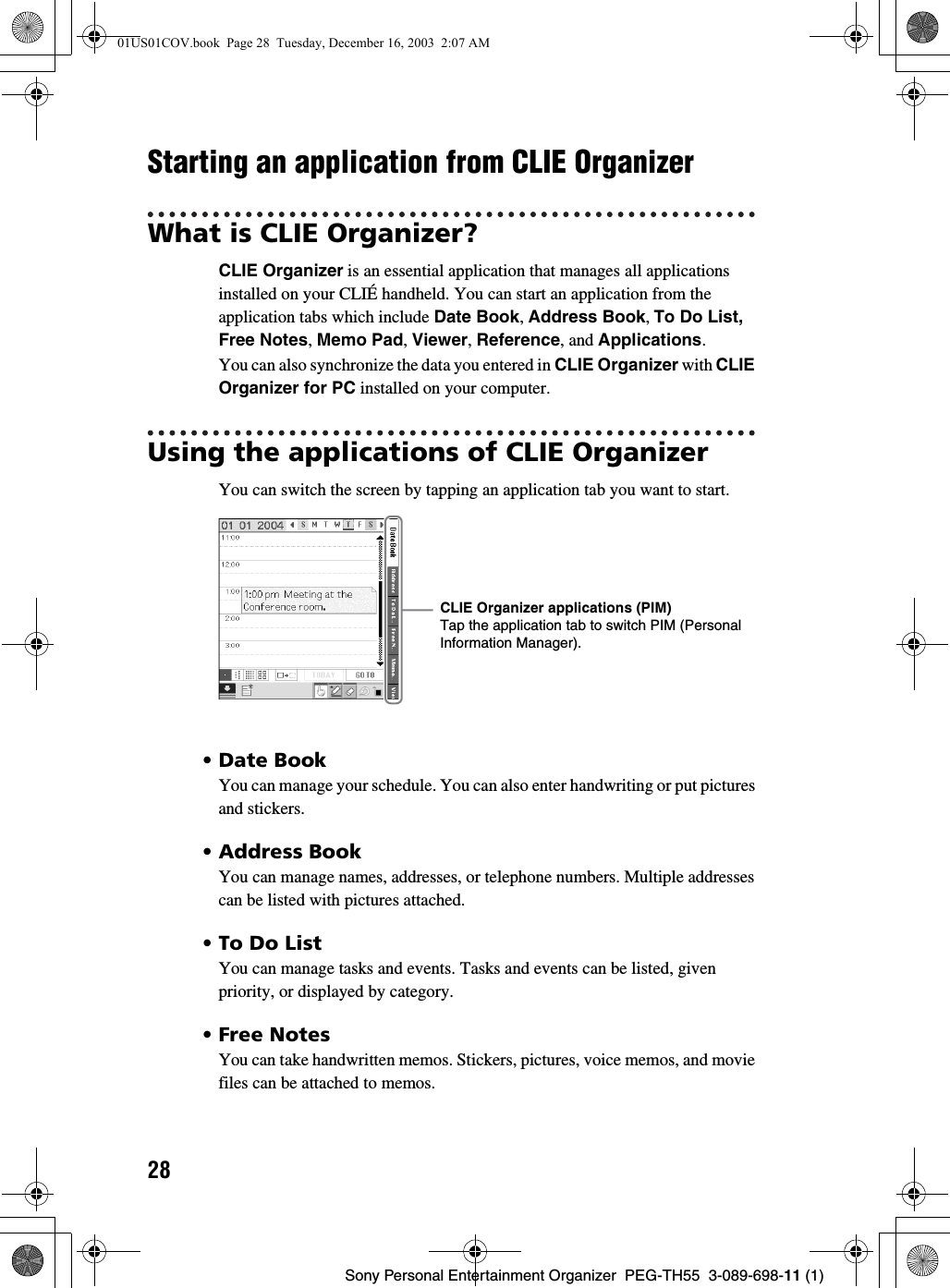

28Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Starting an application from CLIE OrganizerWhat is CLIE Organizer?CLIE Organizer is an essential application that manages all applications installed on your CLIÉ handheld. You can start an application from the application tabs which include Date Book, Address Book, To Do List, Free Notes, Memo Pad, Viewer, Reference, and Applications.You can also synchronize the data you entered in CLIE Organizer with CLIE Organizer for PC installed on your computer. Using the applications of CLIE OrganizerYou can switch the screen by tapping an application tab you want to start.• Date BookYou can manage your schedule. You can also enter handwriting or put pictures and stickers.• Address BookYou can manage names, addresses, or telephone numbers. Multiple addresses can be listed with pictures attached.•To Do ListYou can manage tasks and events. Tasks and events can be listed, given priority, or displayed by category.• Free Notes You can take handwritten memos. Stickers, pictures, voice memos, and movie files can be attached to memos.CLIE Organizer applications (PIM)Tap the application tab to switch PIM (Personal Information Manager).01US01COV.book Page 28 Tuesday, December 16, 2003 2:07 AM

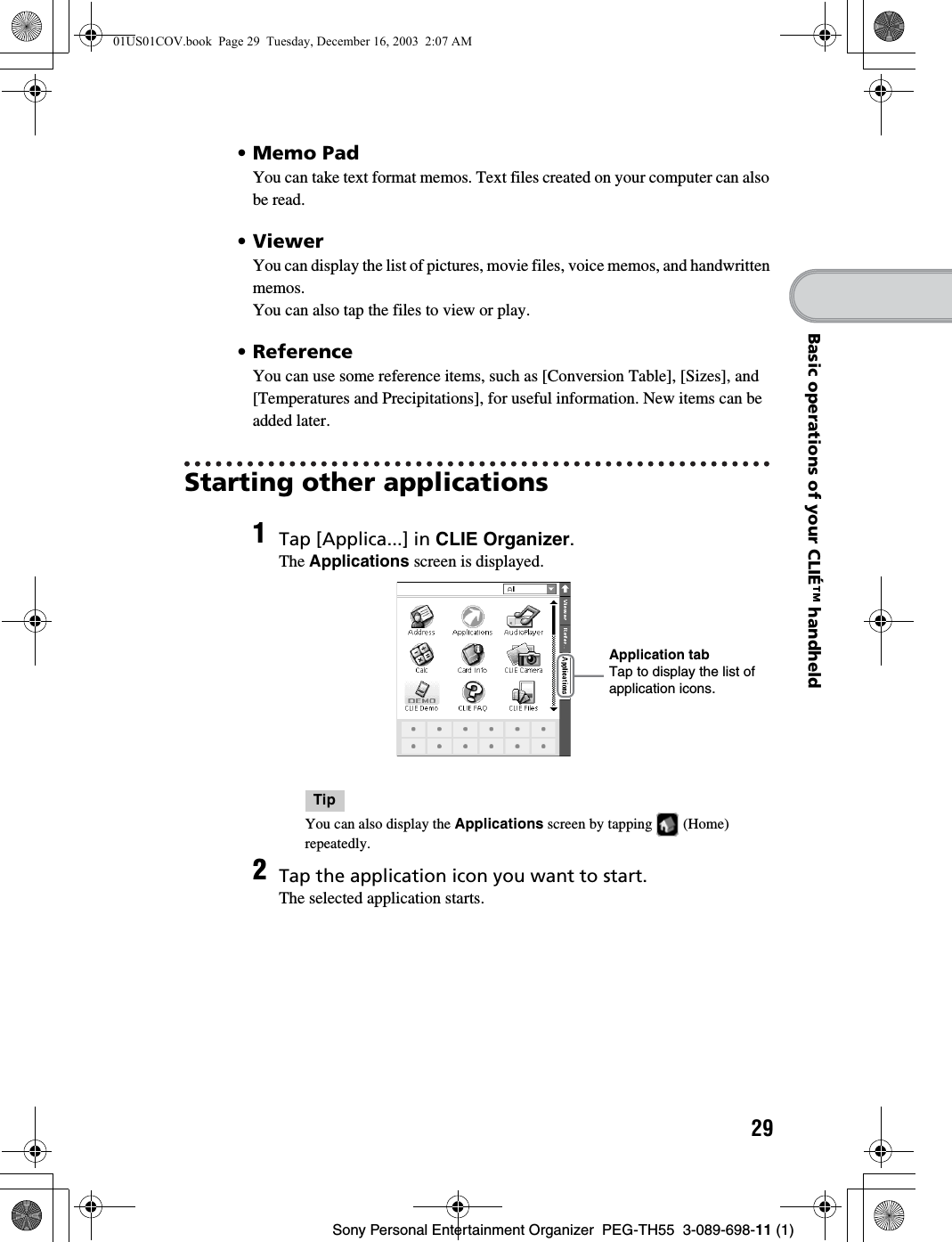

29Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Basic operations of your CLIÉ™ handheld•Memo PadYou can take text format memos. Text files created on your computer can also be read.•ViewerYou can display the list of pictures, movie files, voice memos, and handwritten memos. You can also tap the files to view or play.• ReferenceYou can use some reference items, such as [Conversion Table], [Sizes], and [Temperatures and Precipitations], for useful information. New items can be added later.Starting other applications1Tap [Applica...] in CLIE Organizer.The Applications screen is displayed.TipYou can also display the Applications screen by tapping (Home) repeatedly.2Tap the application icon you want to start.The selected application starts.Application tabTap to display the list of application icons.01US01COV.book Page 29 Tuesday, December 16, 2003 2:07 AM
30Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Quitting the applicationYou do not need to save data manually on your CLIÉ handheld as you do on a computer, although some applications require data be saved.bFor details, refer to the “CLIÉ Application Manual” (HTML format).To switch from one application to another, perform either of the following methods.Other ways to start an applicationYou can also start an application using the Jog Dial™ navigator, BACK button, or application buttons.Using the Jog Dial™ navigator and the BACK buttonHow to operateUse your index finger to operate the Jog Dial™ navigator and the BACK button on the back of your CLIÉ handheld while you are looking at the screen of your CLIÉ handheld.zTap a tab to start another applicaton.If you are using an application other than the applications of CLIE Organizer, return to the Home screen once and tap a tab.zPress the application button (page 32) to start another application. (Only the application that is assigned to the application button.)On the back of your CLIÉ handheldJog Dial™ navigatorBACK button01US01COV.book Page 30 Tuesday, December 16, 2003 2:07 AM

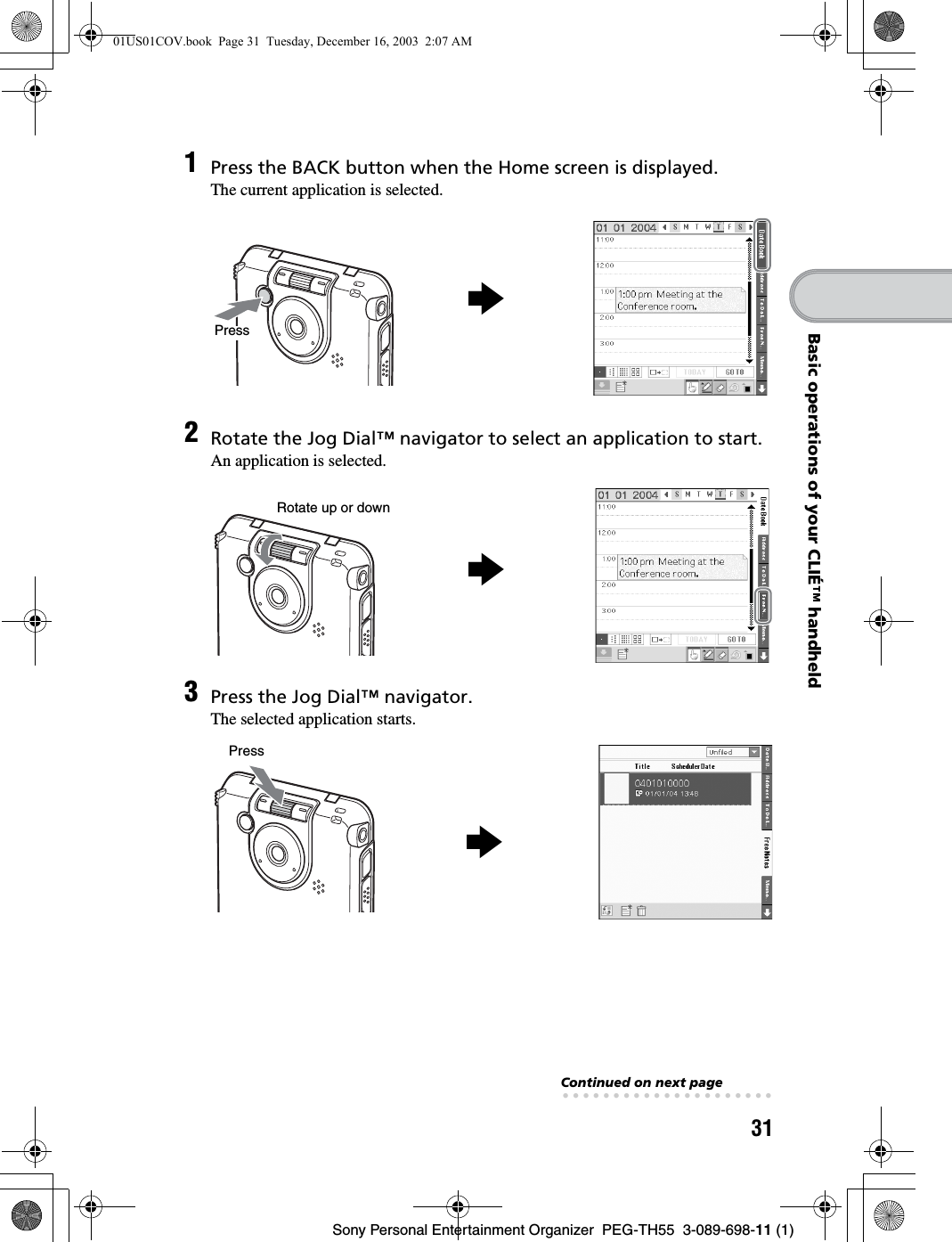

31Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Basic operations of your CLIÉ™ handheld1Press the BACK button when the Home screen is displayed.The current application is selected.2Rotate the Jog Dial™ navigator to select an application to start.An application is selected.3Press the Jog Dial™ navigator.The selected application starts.bPressbRotate up or downPressbContinued on next page• • • • • • • • • • • • • • • • • • • • •01US01COV.book Page 31 Tuesday, December 16, 2003 2:07 AM

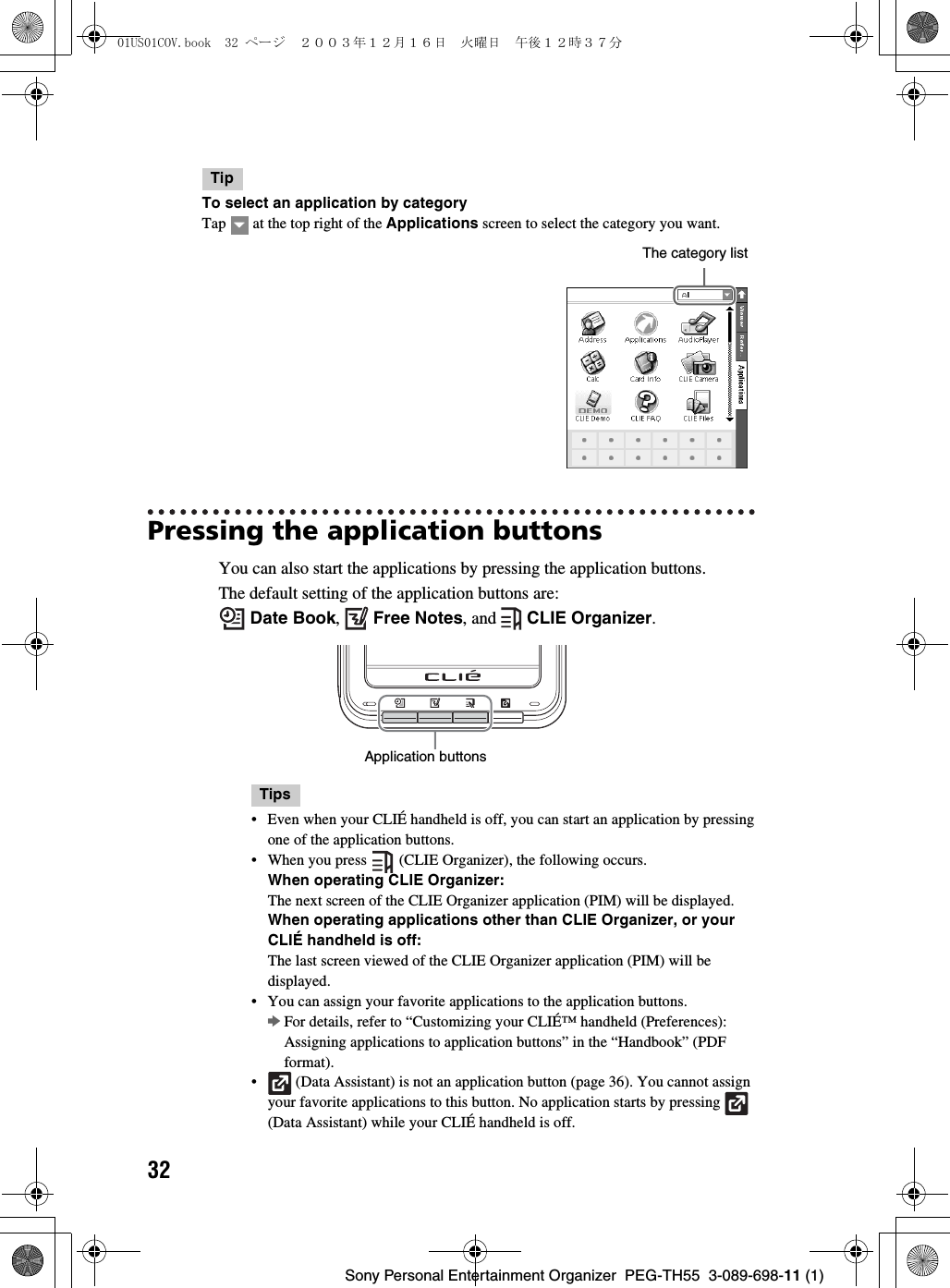

32Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Pressing the application buttonsYou can also start the applications by pressing the application buttons.The default setting of the application buttons are: Date Book, Free Notes, and CLIE Organizer.Tips• Even when your CLIÉ handheld is off, you can start an application by pressing one of the application buttons.• When you press (CLIE Organizer), the following occurs.When operating CLIE Organizer:The next screen of the CLIE Organizer application (PIM) will be displayed.When operating applications other than CLIE Organizer, or your CLIÉ handheld is off:The last screen viewed of the CLIE Organizer application (PIM) will be displayed.• You can assign your favorite applications to the application buttons.bFor details, refer to “Customizing your CLIÉ™ handheld (Preferences): Assigning applications to application buttons” in the “Handbook” (PDF format).• (Data Assistant) is not an application button (page 36). You cannot assign your favorite applications to this button. No application starts by pressing (Data Assistant) while your CLIÉ handheld is off.TipTo select an application by categoryTap at the top right of the Applications screen to select the category you want.The category listApplication buttons01US01COV.book 32 ページ ２００３年１２月１６日　火曜日　午後１２時３７分

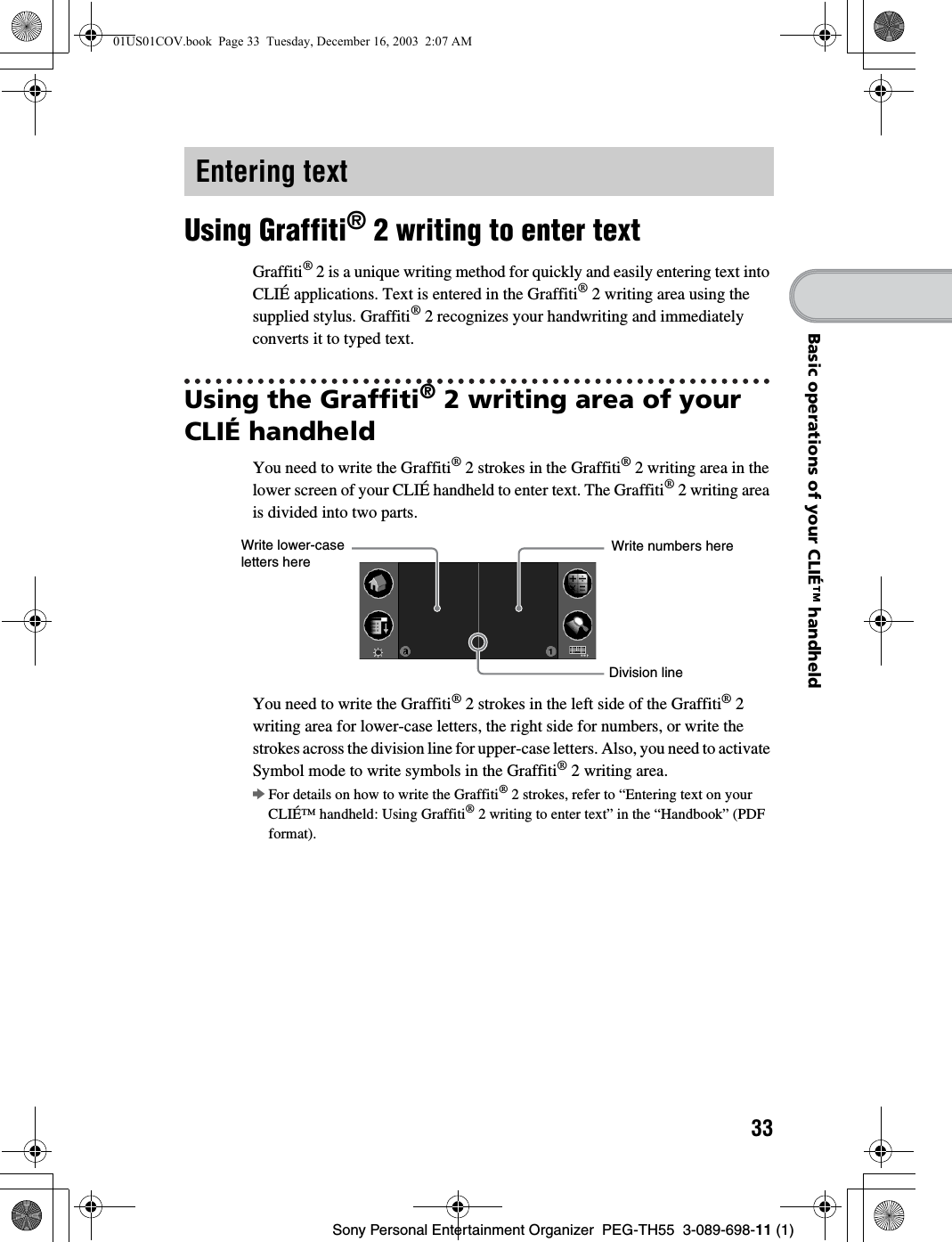

33Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Basic operations of your CLIÉ™ handheldUsing Graffiti® 2 writing to enter textGraffiti® 2 is a unique writing method for quickly and easily entering text into CLIÉ applications. Text is entered in the Graffiti® 2 writing area using the supplied stylus. Graffiti® 2 recognizes your handwriting and immediately converts it to typed text.Using the Graffiti® 2 writing area of your CLIÉ handheldYou need to write the Graffiti® 2 strokes in the Graffiti® 2 writing area in the lower screen of your CLIÉ handheld to enter text. The Graffiti® 2 writing area is divided into two parts. You need to write the Graffiti® 2 strokes in the left side of the Graffiti® 2 writing area for lower-case letters, the right side for numbers, or write the strokes across the division line for upper-case letters. Also, you need to activate Symbol mode to write symbols in the Graffiti® 2 writing area.bFor details on how to write the Graffiti® 2 strokes, refer to “Entering text on your CLIÉ™ handheld: Using Graffiti® 2 writing to enter text” in the “Handbook” (PDF format).Entering textWrite lower-case letters here Write numbers hereDivision line01US01COV.book Page 33 Tuesday, December 16, 2003 2:07 AM

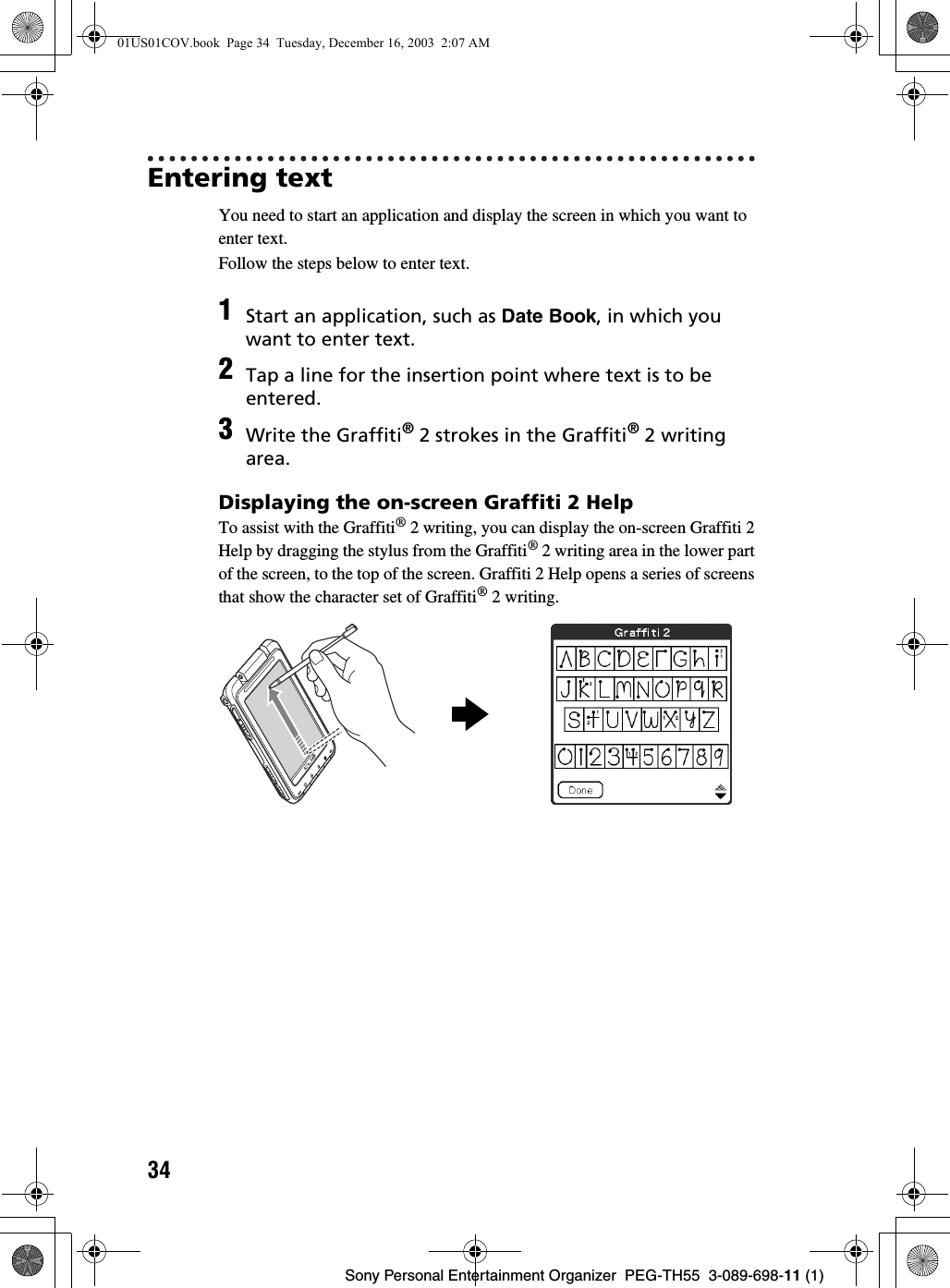

34Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Entering textYou need to start an application and display the screen in which you want to enter text.Follow the steps below to enter text.Displaying the on-screen Graffiti 2 HelpTo assist with the Graffiti® 2 writing, you can display the on-screen Graffiti 2 Help by dragging the stylus from the Graffiti® 2 writing area in the lower part of the screen, to the top of the screen. Graffiti 2 Help opens a series of screens that show the character set of Graffiti® 2 writing.1Start an application, such as Date Book, in which you want to enter text.2Tap a line for the insertion point where text is to be entered.3Write the Graffiti® 2 strokes in the Graffiti® 2 writing area.b01US01COV.book Page 34 Tuesday, December 16, 2003 2:07 AM

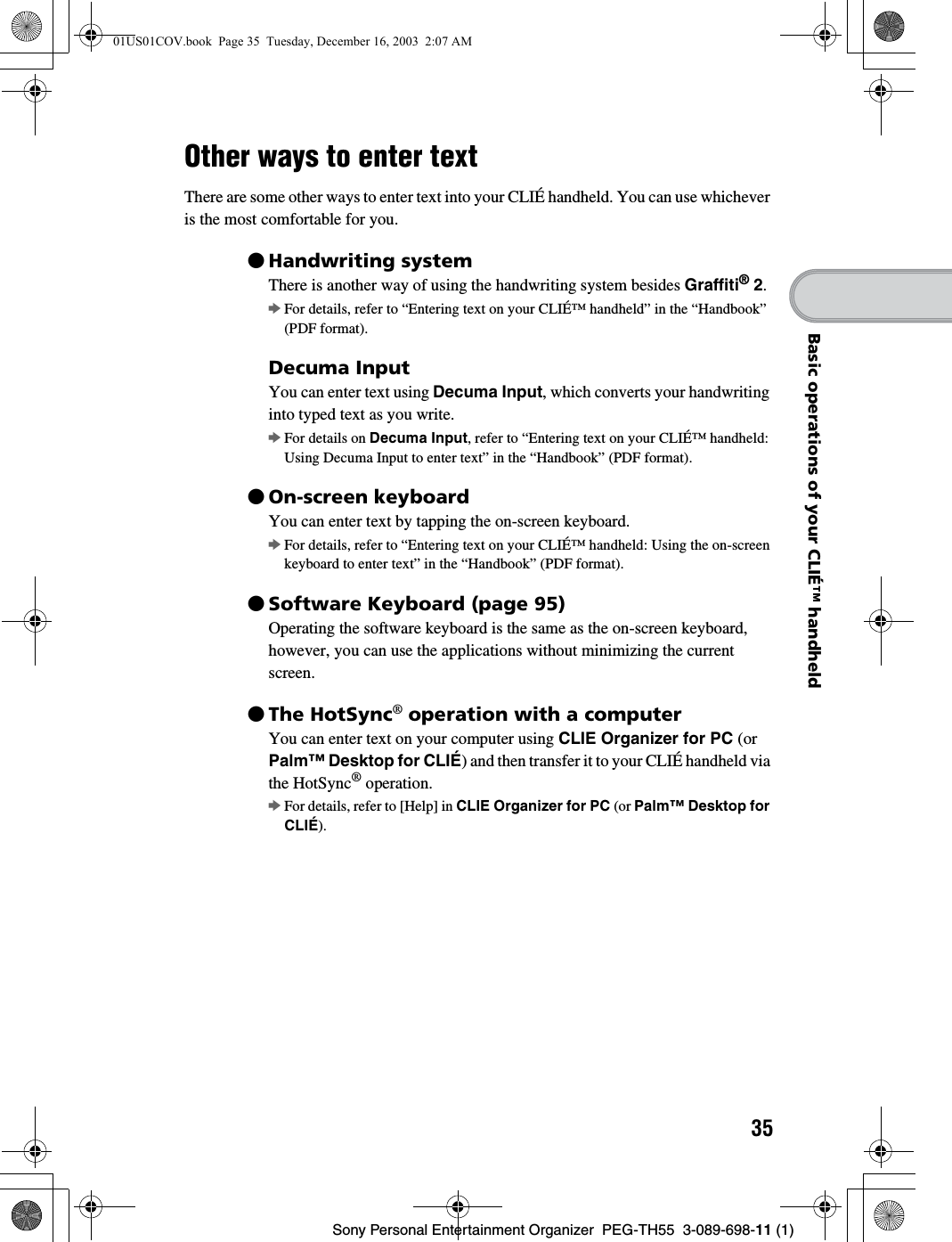

35Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Basic operations of your CLIÉ™ handheldOther ways to enter textThere are some other ways to enter text into your CLIÉ handheld. You can use whichever is the most comfortable for you.zHandwriting systemThere is another way of using the handwriting system besides Graffiti®2.bFor details, refer to “Entering text on your CLIÉ™ handheld” in the “Handbook” (PDF format).Decuma InputYou can enter text using Decuma Input, which converts your handwriting into typed text as you write.bFor details on Decuma Input, refer to “Entering text on your CLIÉ™ handheld: Using Decuma Input to enter text” in the “Handbook” (PDF format).zOn-screen keyboardYou can enter text by tapping the on-screen keyboard.bFor details, refer to “Entering text on your CLIÉ™ handheld: Using the on-screen keyboard to enter text” in the “Handbook” (PDF format).zSoftware Keyboard (page 95) Operating the software keyboard is the same as the on-screen keyboard, however, you can use the applications without minimizing the current screen.zThe HotSync® operation with a computerYou can enter text on your computer using CLIE Organizer for PC (or Palm™ Desktop for CLIÉ) and then transfer it to your CLIÉ handheld via the HotSync® operation.bFor details, refer to [Help] in CLIE Organizer for PC (or Palm™ Desktop for CLIÉ).01US01COV.book Page 35 Tuesday, December 16, 2003 2:07 AM

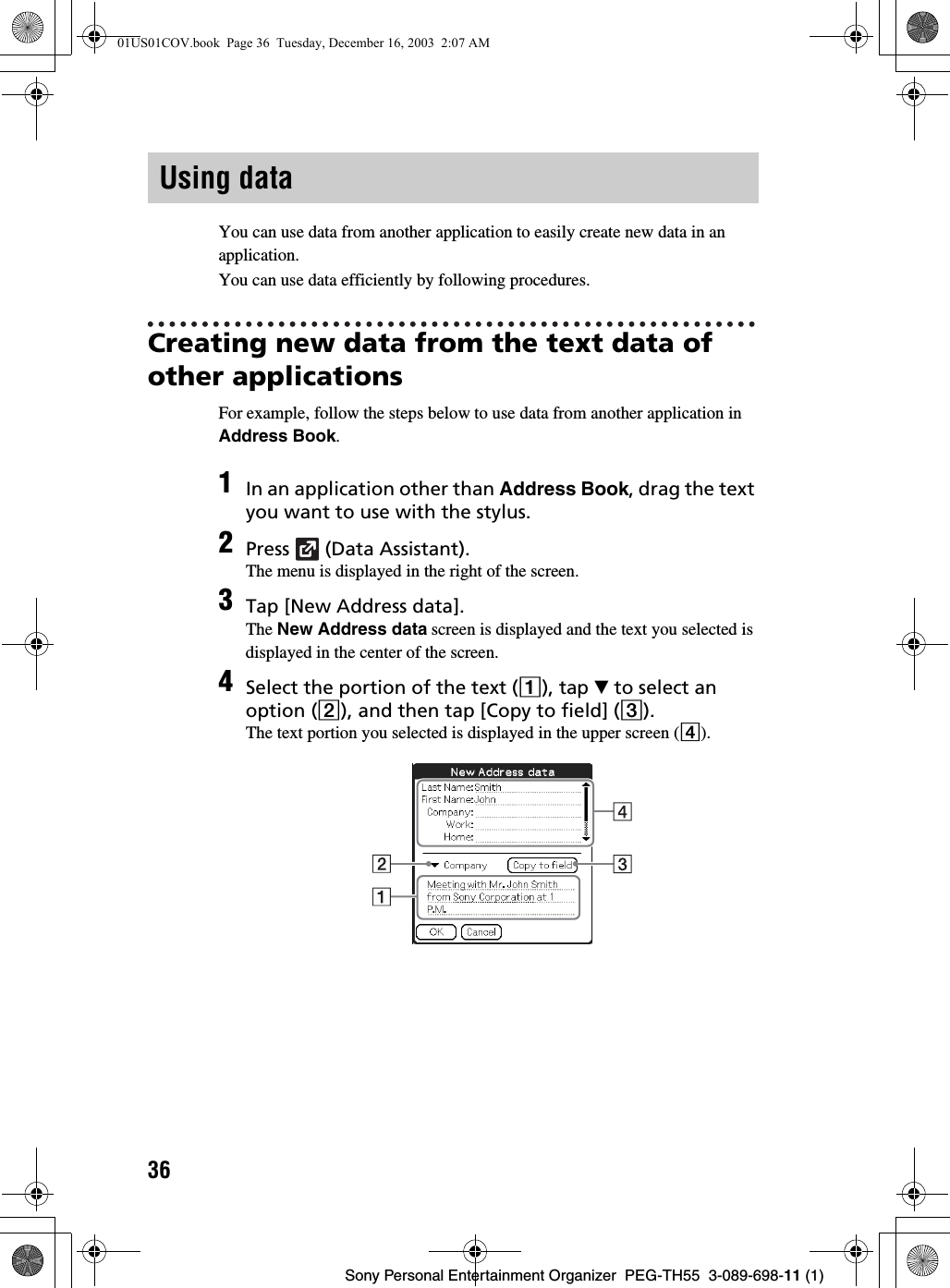

36Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)You can use data from another application to easily create new data in an application.You can use data efficiently by following procedures.Creating new data from the text data of other applicationsFor example, follow the steps below to use data from another application in Address Book.Using data1In an application other than Address Book, drag the text you want to use with the stylus.2Press (Data Assistant).The menu is displayed in the right of the screen.3Tap [New Address data].The New Address data screen is displayed and the text you selected is displayed in the center of the screen.4Select the portion of the text (1), tap V to select an option (2), and then tap [Copy to field] (3).The text portion you selected is displayed in the upper screen (4).01US01COV.book Page 36 Tuesday, December 16, 2003 2:07 AM

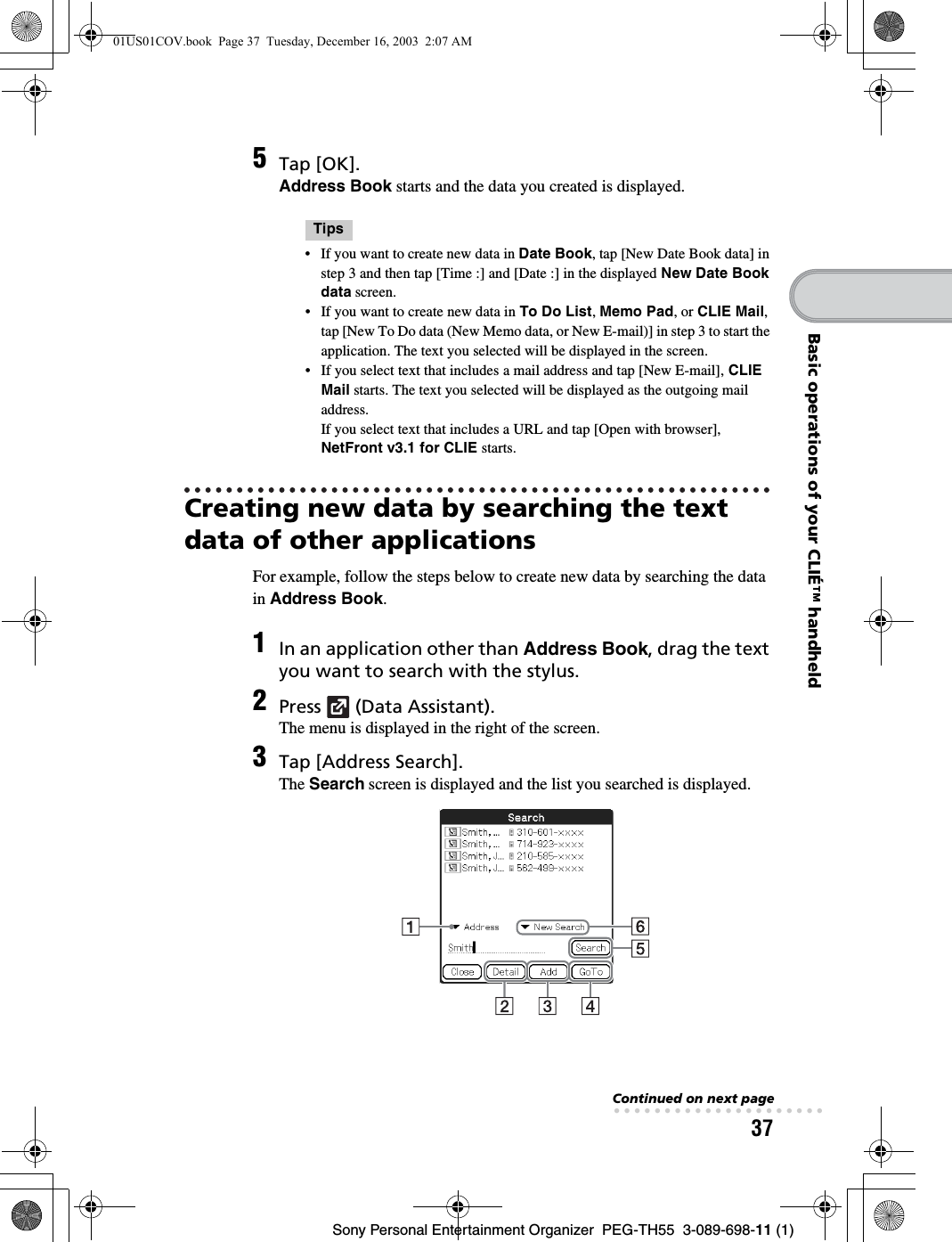

37Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Basic operations of your CLIÉ™ handheldCreating new data by searching the text data of other applicationsFor example, follow the steps below to create new data by searching the data in Address Book.5Tap [OK].Address Book starts and the data you created is displayed.Tips• If you want to create new data in Date Book, tap [New Date Book data] in step 3 and then tap [Time :] and [Date :] in the displayed New Date Book data screen.• If you want to create new data in To Do List, Memo Pad, or CLIE Mail, tap [New To Do data (New Memo data, or New E-mail)] in step 3 to start the application. The text you selected will be displayed in the screen.• If you select text that includes a mail address and tap [New E-mail], CLIE Mail starts. The text you selected will be displayed as the outgoing mail address.If you select text that includes a URL and tap [Open with browser], NetFront v3.1 for CLIE starts.1In an application other than Address Book, drag the text you want to search with the stylus.2Press (Data Assistant).The menu is displayed in the right of the screen.3Tap [Address Search].The Search screen is displayed and the list you searched is displayed.Continued on next page• • • • • • • • • • • • • • • • • • • • •01US01COV.book Page 37 Tuesday, December 16, 2003 2:07 AM

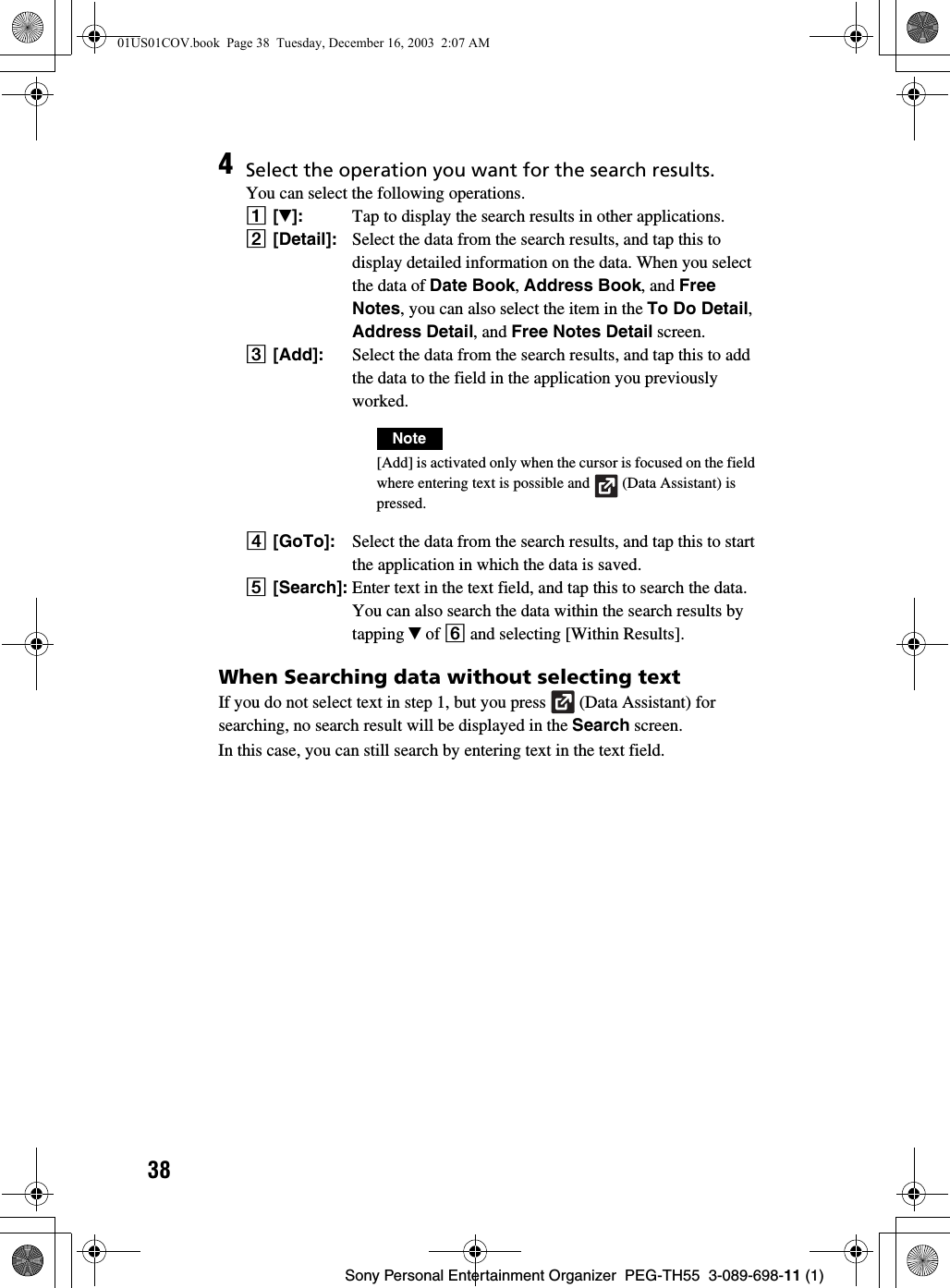

38Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)When Searching data without selecting textIf you do not select text in step 1, but you press (Data Assistant) for searching, no search result will be displayed in the Search screen.In this case, you can still search by entering text in the text field.4Select the operation you want for the search results.You can select the following operations.A[V]: Tap to display the search results in other applications.B[Detail]: Select the data from the search results, and tap this to display detailed information on the data. When you select the data of Date Book, Address Book, and Free Notes, you can also select the item in the To Do Detail, Address Detail, and Free Notes Detail screen.C[Add]: Select the data from the search results, and tap this to add the data to the field in the application you previously worked.Note[Add] is activated only when the cursor is focused on the field where entering text is possible and (Data Assistant) is pressed.D[GoTo]: Select the data from the search results, and tap this to start the application in which the data is saved.E[Search]: Enter text in the text field, and tap this to search the data.You can also search the data within the search results by tapping V of F and selecting [Within Results]. 01US01COV.book Page 38 Tuesday, December 16, 2003 2:07 AM

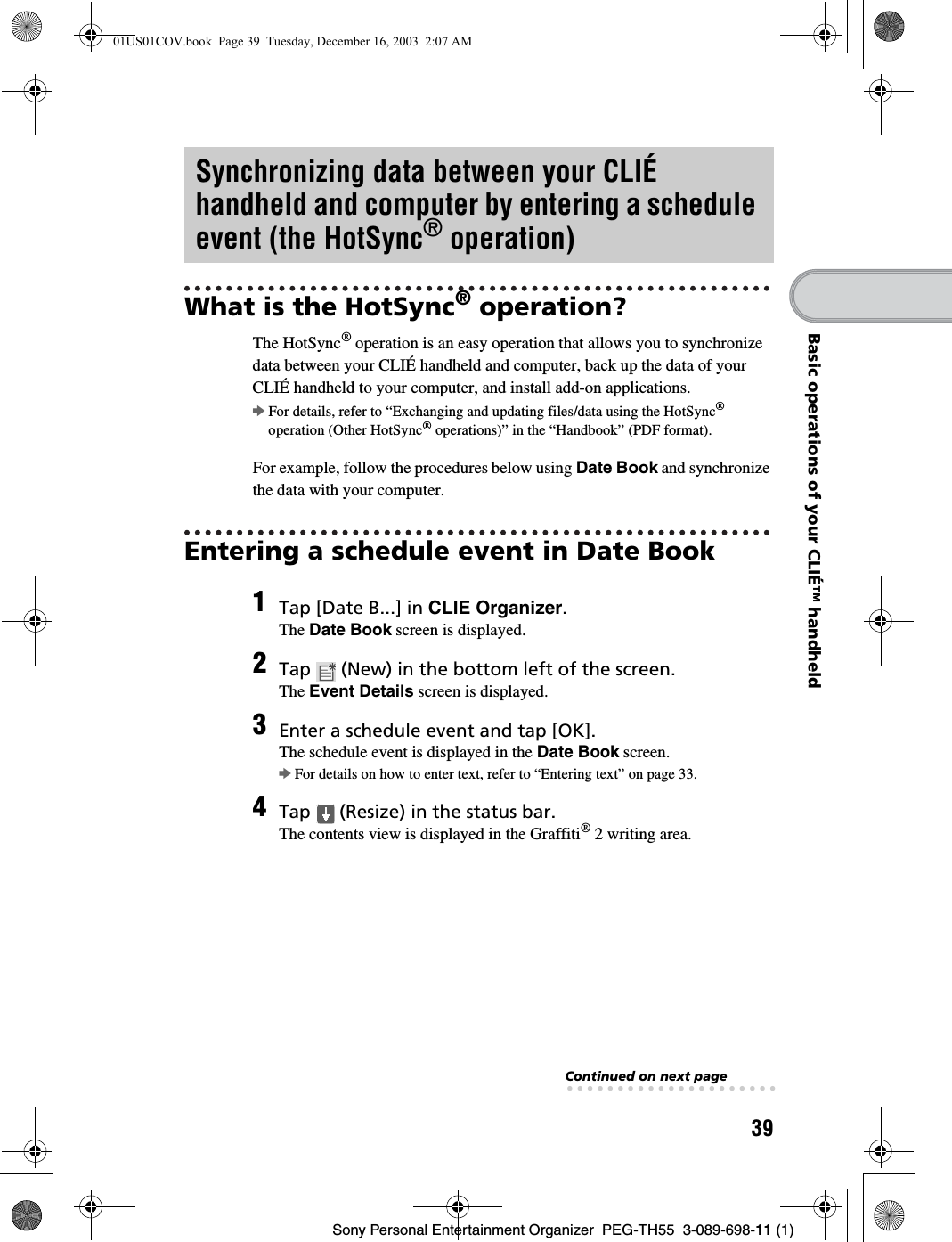

39Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Basic operations of your CLIÉ™ handheldWhat is the HotSync® operation?The HotSync® operation is an easy operation that allows you to synchronize data between your CLIÉ handheld and computer, back up the data of your CLIÉ handheld to your computer, and install add-on applications.bFor details, refer to “Exchanging and updating files/data using the HotSync® operation (Other HotSync® operations)” in the “Handbook” (PDF format).For example, follow the procedures below using Date Book and synchronize the data with your computer.Entering a schedule event in Date BookSynchronizing data between your CLIÉ handheld and computer by entering a schedule event (the HotSync® operation)1Tap [Date B...] in CLIE Organizer.The Date Book screen is displayed.2Tap (New) in the bottom left of the screen.The Event Details screen is displayed.3Enter a schedule event and tap [OK].The schedule event is displayed in the Date Book screen.bFor details on how to enter text, refer to “Entering text” on page 33.4Tap (Resize) in the status bar.The contents view is displayed in the Graffiti® 2 writing area.Continued on next page• • • • • • • • • • • • • • • • • • • • •01US01COV.book Page 39 Tuesday, December 16, 2003 2:07 AM

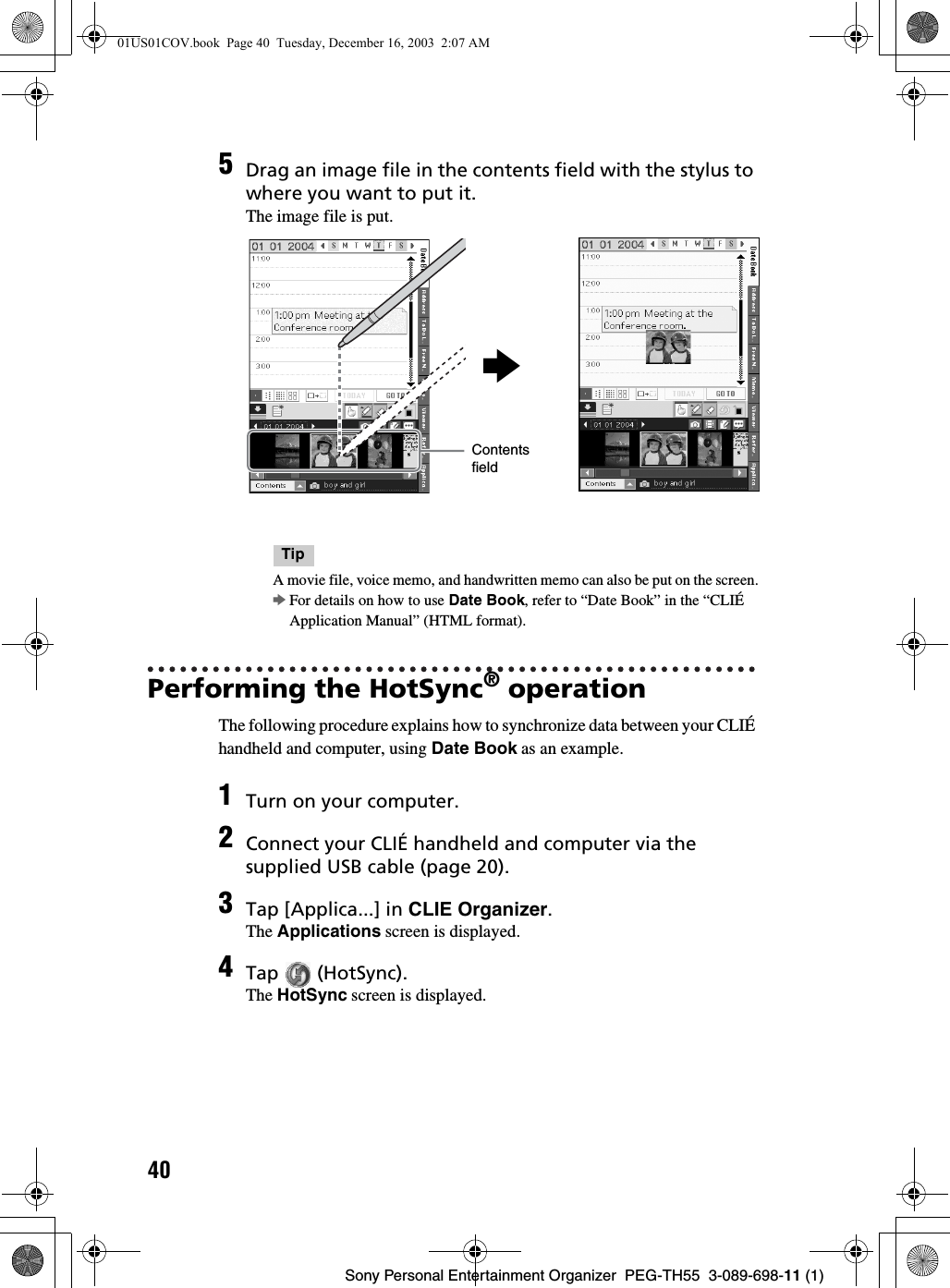

40Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Performing the HotSync® operationThe following procedure explains how to synchronize data between your CLIÉ handheld and computer, using Date Book as an example.5Drag an image file in the contents field with the stylus to where you want to put it.The image file is put.TipA movie file, voice memo, and handwritten memo can also be put on the screen.bFor details on how to use Date Book, refer to “Date Book” in the “CLIÉ Application Manual” (HTML format).1Turn on your computer.2Connect your CLIÉ handheld and computer via the supplied USB cable (page 20).3Tap [Applica...] in CLIE Organizer.The Applications screen is displayed.4Tap (HotSync).The HotSync screen is displayed.bContents field01US01COV.book Page 40 Tuesday, December 16, 2003 2:07 AM

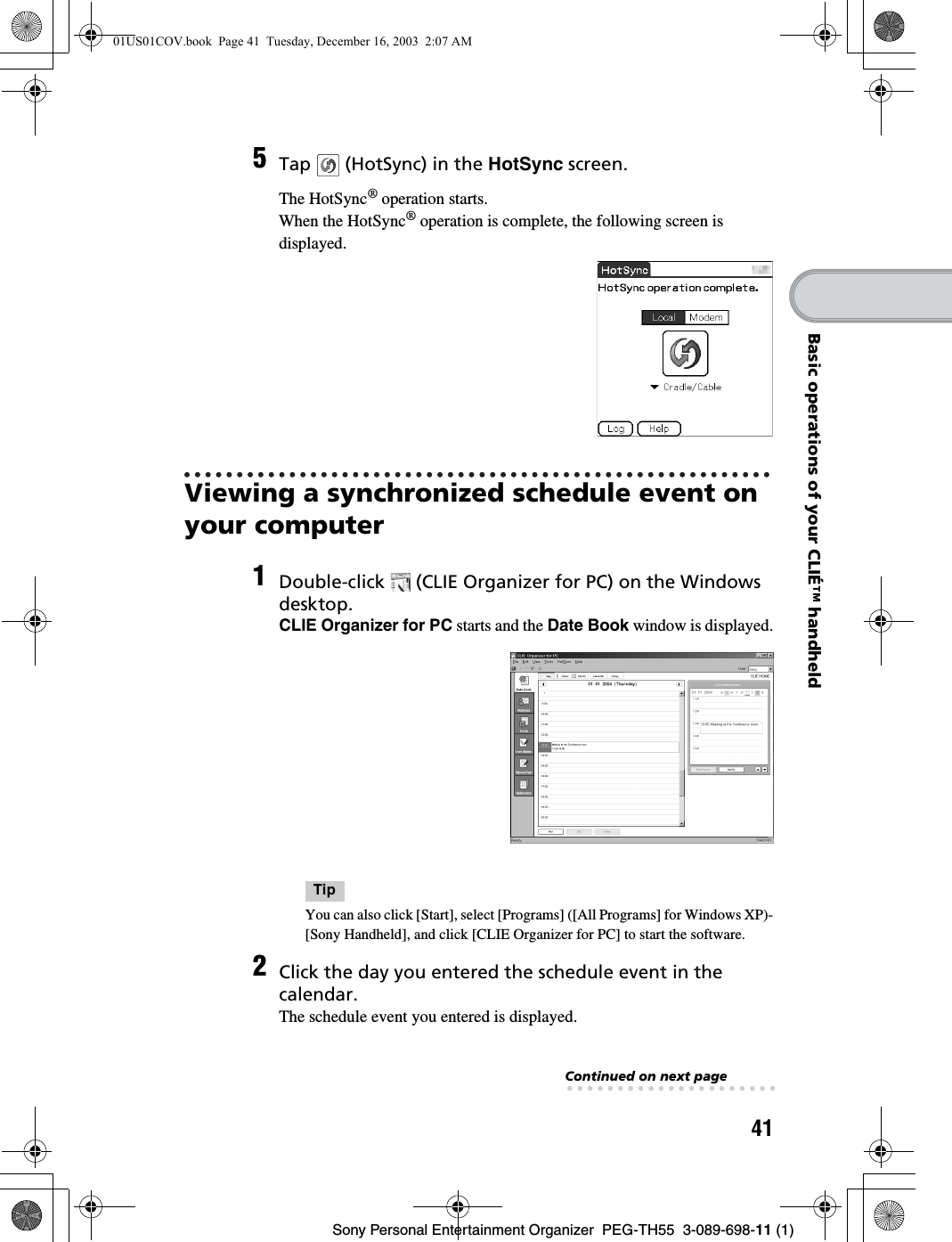

41Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Basic operations of your CLIÉ™ handheldViewing a synchronized schedule event on your computer5Tap (HotSync) in the HotSync screen.The HotSync® operation starts.When the HotSync® operation is complete, the following screen is displayed.1Double-click (CLIE Organizer for PC) on the Windows desktop.CLIE Organizer for PC starts and the Date Book window is displayed.TipYou can also click [Start], select [Programs] ([All Programs] for Windows XP)-[Sony Handheld], and click [CLIE Organizer for PC] to start the software. 2Click the day you entered the schedule event in the calendar.The schedule event you entered is displayed.Continued on next page• • • • • • • • • • • • • • • • • • • • •01US01COV.book Page 41 Tuesday, December 16, 2003 2:07 AM

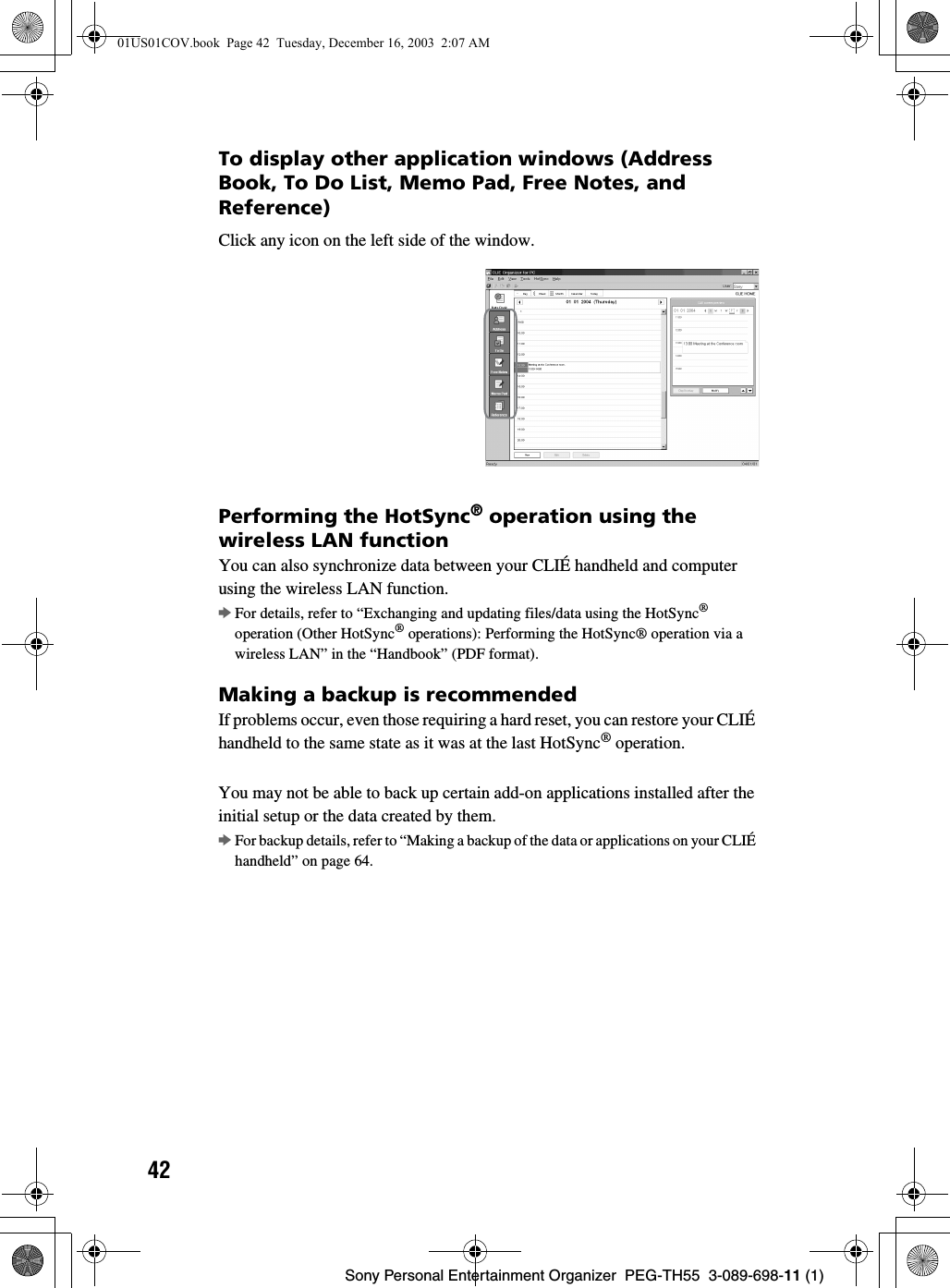

42Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)To display other application windows (Address Book, To Do List, Memo Pad, Free Notes, and Reference)Performing the HotSync® operation using the wireless LAN functionYou can also synchronize data between your CLIÉ handheld and computer using the wireless LAN function.bFor details, refer to “Exchanging and updating files/data using the HotSync® operation (Other HotSync® operations): Performing the HotSync® operation via a wireless LAN” in the “Handbook” (PDF format).Making a backup is recommendedIf problems occur, even those requiring a hard reset, you can restore your CLIÉ handheld to the same state as it was at the last HotSync® operation.You may not be able to back up certain add-on applications installed after the initial setup or the data created by them.bFor backup details, refer to “Making a backup of the data or applications on your CLIÉ handheld” on page 64.Click any icon on the left side of the window.01US01COV.book Page 42 Tuesday, December 16, 2003 2:07 AM

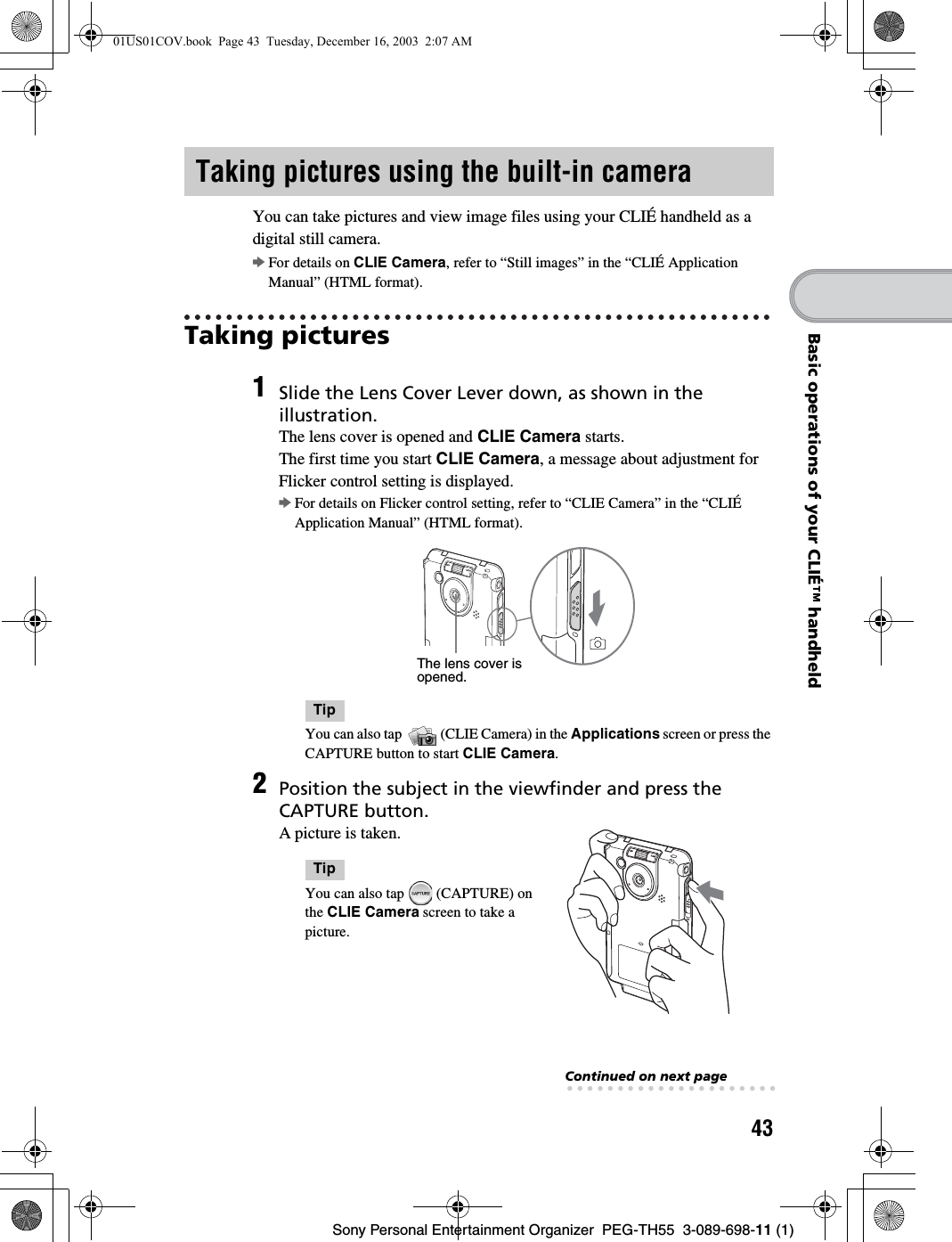

43Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Basic operations of your CLIÉ™ handheldYou can take pictures and view image files using your CLIÉ handheld as a digital still camera.bFor details on CLIE Camera, refer to “Still images” in the “CLIÉ Application Manual” (HTML format).Taking picturesTaking pictures using the built-in camera1Slide the Lens Cover Lever down, as shown in the illustration.The lens cover is opened and CLIE Camera starts.The first time you start CLIE Camera, a message about adjustment for Flicker control setting is displayed.bFor details on Flicker control setting, refer to “CLIE Camera” in the “CLIÉ Application Manual” (HTML format).TipYou can also tap (CLIE Camera) in the Applications screen or press the CAPTURE button to start CLIE Camera.2Position the subject in the viewfinder and press the CAPTURE button.A picture is taken.TipYou can also tap (CAPTURE) on the CLIE Camera screen to take a picture.The lens cover is opened.Continued on next page• • • • • • • • • • • • • • • • • • • • •01US01COV.book Page 43 Tuesday, December 16, 2003 2:07 AM
44Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Viewing picturesYou can view the last three pictures taken by tapping them in the Image Thumbnail Display below the CLIE Camera screen.TipIf the Decuma Input area or Graffiti® 2 writing area is displayed, tap (Resize) in the status bar to display the Image Thumbnail Display.You can view other taken pictures in CLIE Viewer by tapping (CLIE Viewer) on the CLIE Camera screen.bFor details on CLIE Viewer, refer to “CLIE Viewer” in the “CLIÉ Application Manual” (HTML format).3Slide the Lens Cover Lever up.The lens cover is closed.Notes• By taking pictures, hold your CLIÉ handheld firmly with both hands and press the CAPTURE button slowly.• After the CAPTURE button is pressed when the viewfinder blacks out, your CLIÉ handheld captures an image. At this moment, do not move your CLIÉ handheld, otherwise the picture will be blurred.• Your CLIÉ handheld is equipped with a flicker control feature. However, flicker may occur under certain conditions. To minimize flicker if it occurs, avoid using under fluorescent lighting.• Since the brightness and color of the screen are in adjustment for the first 2-3 seconds after starting CLIE Camera, be sure to check the image on-screen before shooting.01US01COV.book Page 44 Tuesday, December 16, 2003 2:07 AM

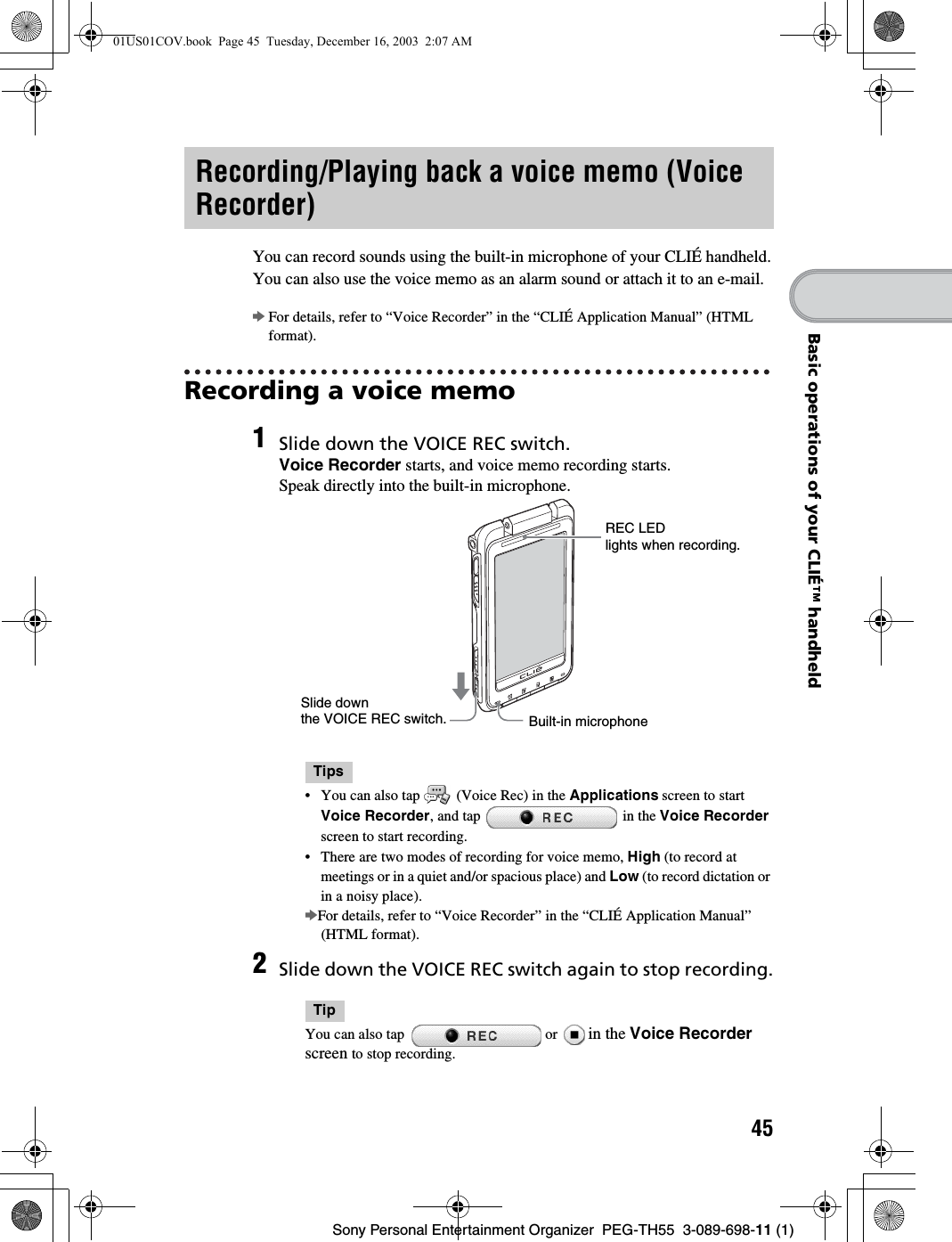

45Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Basic operations of your CLIÉ™ handheldYou can record sounds using the built-in microphone of your CLIÉ handheld.You can also use the voice memo as an alarm sound or attach it to an e-mail.bFor details, refer to “Voice Recorder” in the “CLIÉ Application Manual” (HTML format).Recording a voice memoRecording/Playing back a voice memo (Voice Recorder)1Slide down the VOICE REC switch.Voice Recorder starts, and voice memo recording starts. Speak directly into the built-in microphone.Tips• You can also tap (Voice Rec) in the Applications screen to start Voice Recorder, and tap in the Voice Recorder screen to start recording.• There are two modes of recording for voice memo, High (to record at meetings or in a quiet and/or spacious place) and Low (to record dictation or in a noisy place).bFor details, refer to “Voice Recorder” in the “CLIÉ Application Manual” (HTML format).2Slide down the VOICE REC switch again to stop recording.TipYou can also tap or in the Voice Recorder screen to stop recording.Slide down the VOICE REC switch.REC LED lights when recording.Built-in microphone01US01COV.book Page 45 Tuesday, December 16, 2003 2:07 AM

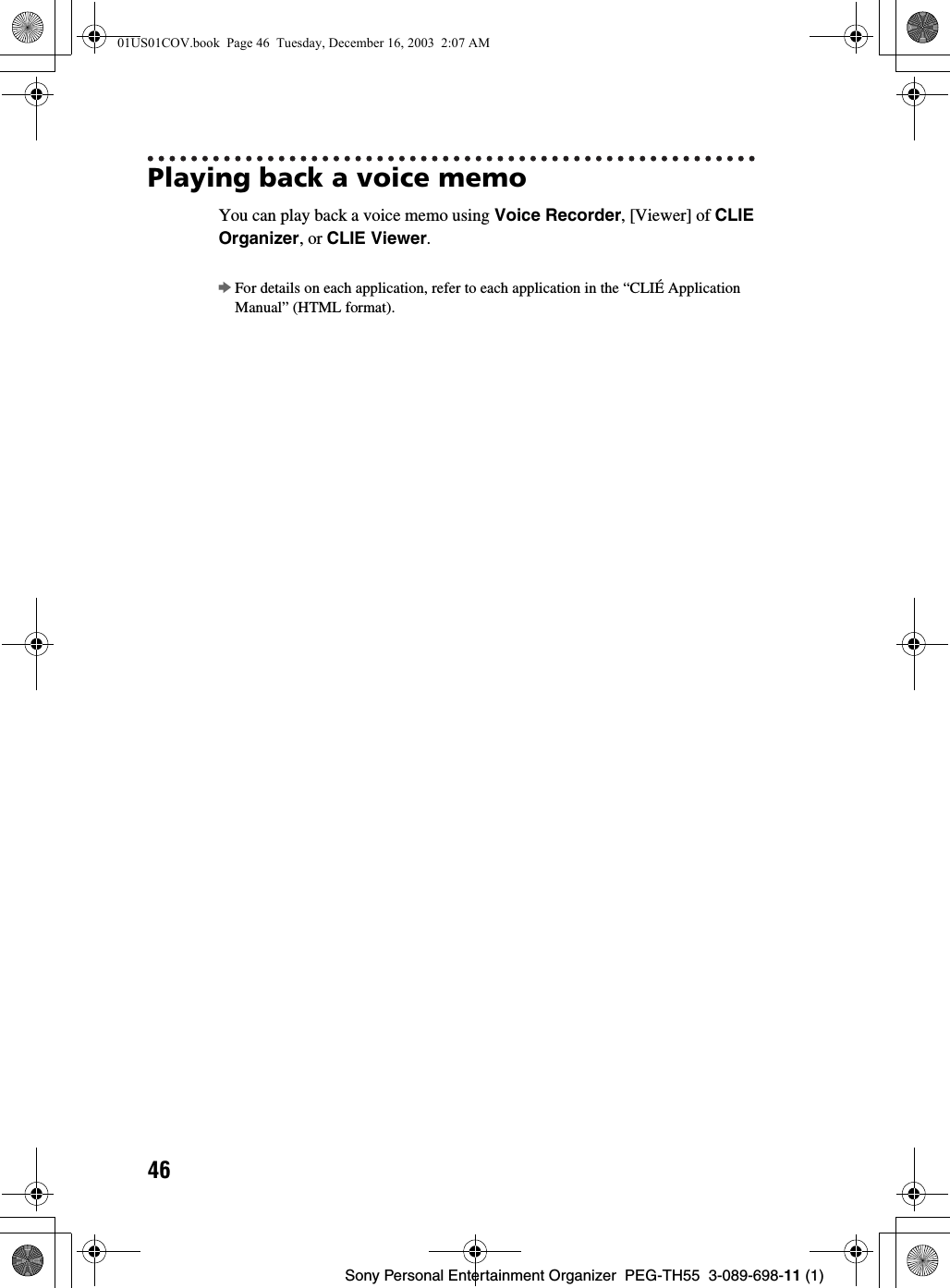

46Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Playing back a voice memoYou can play back a voice memo using Voice Recorder, [Viewer] of CLIE Organizer, or CLIE Viewer.bFor details on each application, refer to each application in the “CLIÉ Application Manual” (HTML format).01US01COV.book Page 46 Tuesday, December 16, 2003 2:07 AM

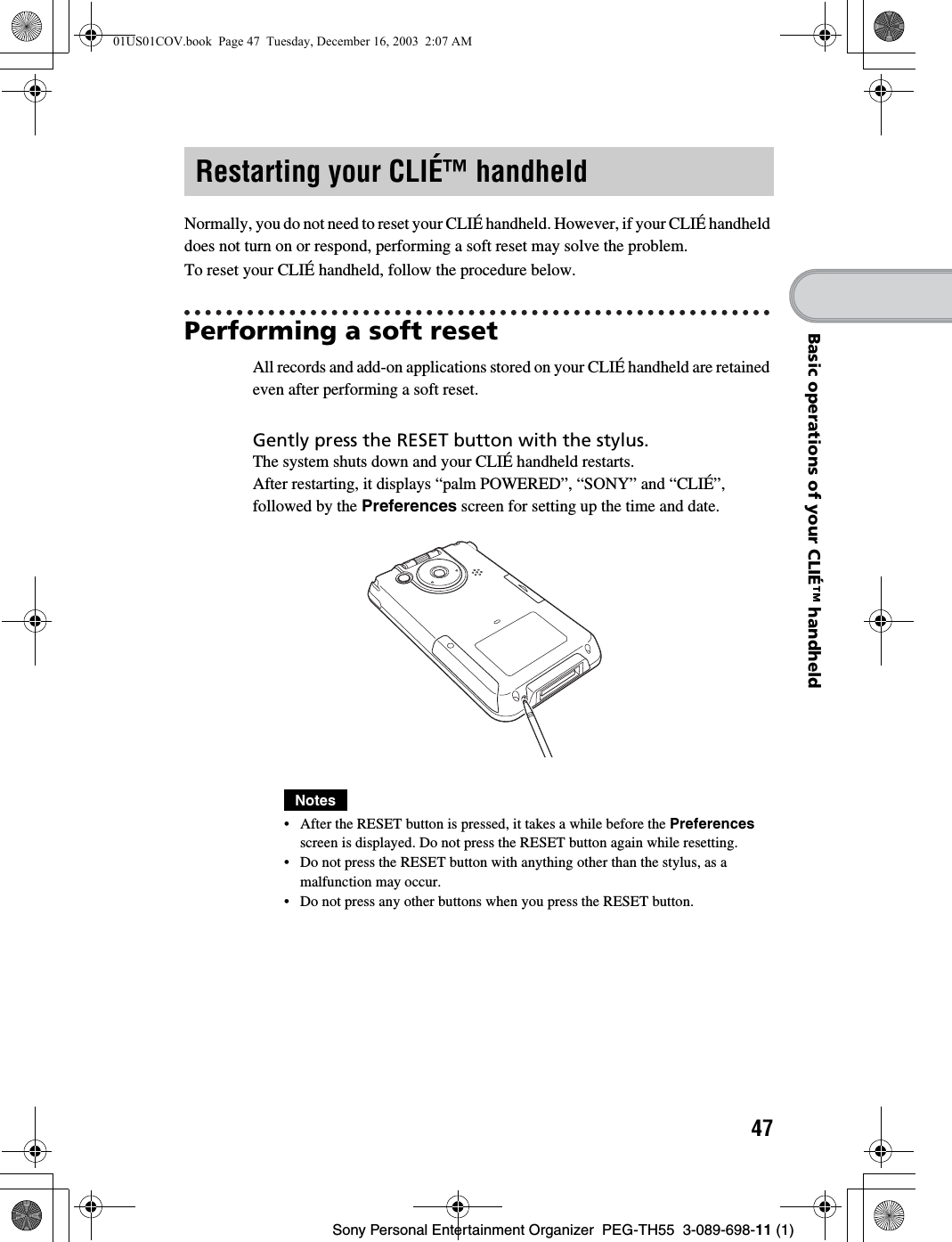

47Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Basic operations of your CLIÉ™ handheldNormally, you do not need to reset your CLIÉ handheld. However, if your CLIÉ handheld does not turn on or respond, performing a soft reset may solve the problem.To reset your CLIÉ handheld, follow the procedure below.Performing a soft resetAll records and add-on applications stored on your CLIÉ handheld are retained even after performing a soft reset.Notes• After the RESET button is pressed, it takes a while before the Preferences screen is displayed. Do not press the RESET button again while resetting.• Do not press the RESET button with anything other than the stylus, as a malfunction may occur.• Do not press any other buttons when you press the RESET button.Restarting your CLIÉ™ handheldGently press the RESET button with the stylus.The system shuts down and your CLIÉ handheld restarts.After restarting, it displays “palm POWERED”, “SONY” and “CLIÉ”, followed by the Preferences screen for setting up the time and date.01US01COV.book Page 47 Tuesday, December 16, 2003 2:07 AM
48Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Performing a hard resetIf a soft reset does not solve the problem, you may need to perform a hard reset to restart your CLIÉ handheld.Notes•All records and add-on applications stored on your CLIÉ handheld will be erased by performing a hard reset.• Perform a hard reset only if a soft reset does not solve the problem.However, you can restore the data if you have made a backup on your computer via the HotSync® operation*.* Note that some data cannot be backed up.bFor details, refer to “Backing up your CLIE™ handheld data and applications” in the “Handbook” (PDF format).1Slide down and hold the POWER/HOLD switch.2Press the RESET button gently with the stylus, and then release the stylus.NoteKeep the POWER/HOLD switch held down.3Wait for more than three seconds after the palm POWERED screen is displayed, and release the POWER/HOLD switch.The message “Erase all data?” is displayed.01US01COV.book Page 48 Tuesday, December 16, 2003 2:07 AM
49Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Basic operations of your CLIÉ™ handheldAfter restarting, your CLIÉ handheld displays “palm POWERED”, “SONY” and “CLIÉ”, followed by the SETUP screen. Refer to “Step 2: Performing the initial setup after turning on your CLIÉ handheld for the first time” on page 9 for the initial setup.After a hard reset, only the current date and time are retained. Formats, Preferences, and other controls revert to the factory settings.Notes• After the RESET button is pressed, it takes a while before the Setup screen is displayed. Do not press the RESET button again while resetting.• If (the Left button) is not pressed long enough, the hard reset may not be performed.• (Only available for certain models or areas.) In order to change the language setting that you have initially selected, you need to perform a hard reset.4Press (the Left button) on your CLIÉ handheld.The Left button is on the left side when the display of your CLIÉ handheld is face up.TipIf you want to cancel the hard reset, press any button other than (the Left button). The hard reset is performed.Press (the Left button)01US01COV.book Page 49 Tuesday, December 16, 2003 2:07 AM

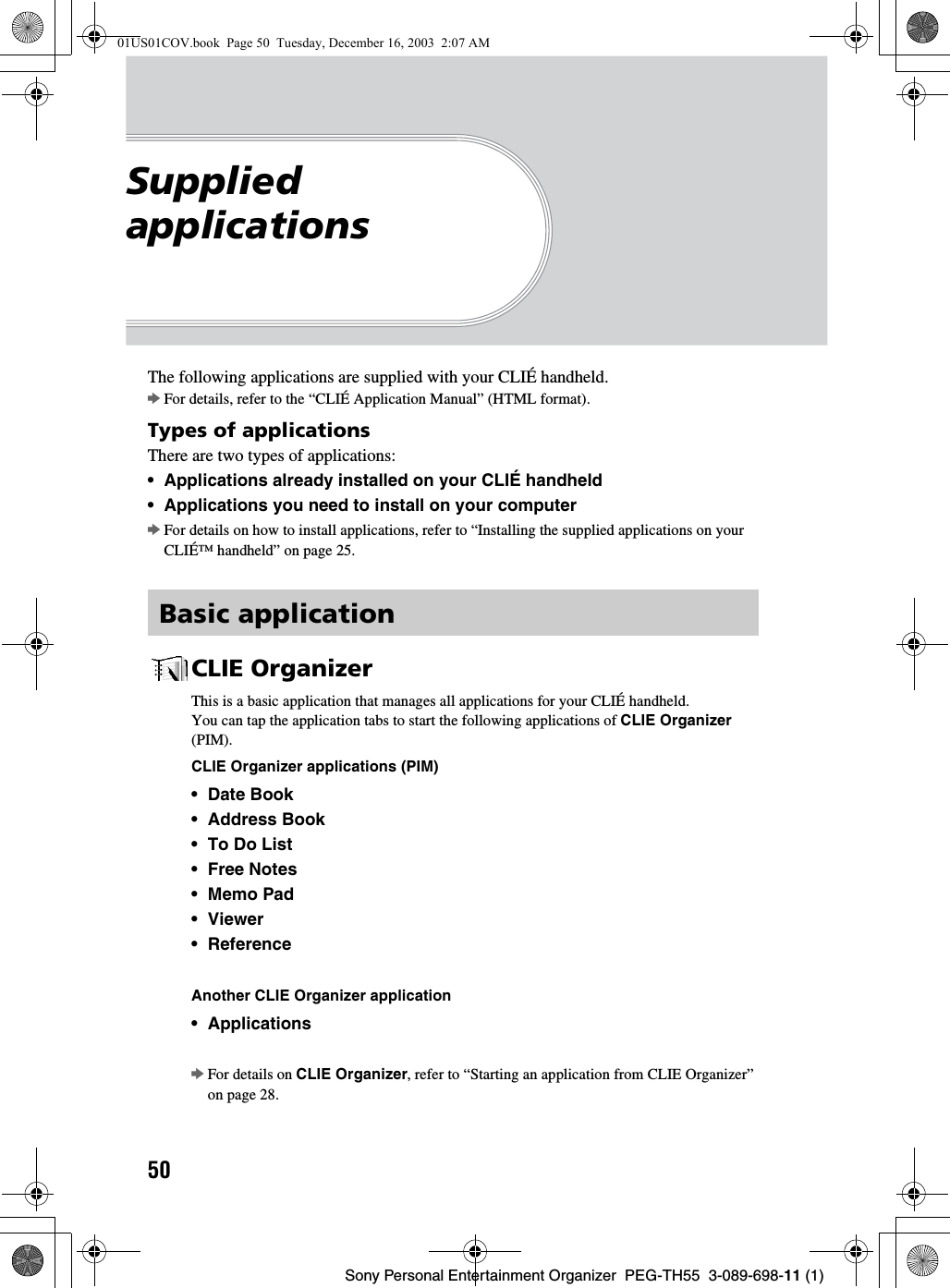

50Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Supplied applicationsThe following applications are supplied with your CLIÉ handheld.bFor details, refer to the “CLIÉ Application Manual” (HTML format).Types of applicationsThere are two types of applications:• Applications already installed on your CLIÉ handheld • Applications you need to install on your computerbFor details on how to install applications, refer to “Installing the supplied applications on your CLIÉ™ handheld” on page 25.CLIE OrganizerThis is a basic application that manages all applications for your CLIÉ handheld.You can tap the application tabs to start the following applications of CLIE Organizer (PIM).CLIE Organizer applications (PIM)• Date Book• Address Book• To Do List• Free Notes•Memo Pad•Viewer• ReferenceAnother CLIE Organizer application• ApplicationsbFor details on CLIE Organizer, refer to “Starting an application from CLIE Organizer” on page 28.Basic application01US01COV.book Page 50 Tuesday, December 16, 2003 2:07 AM

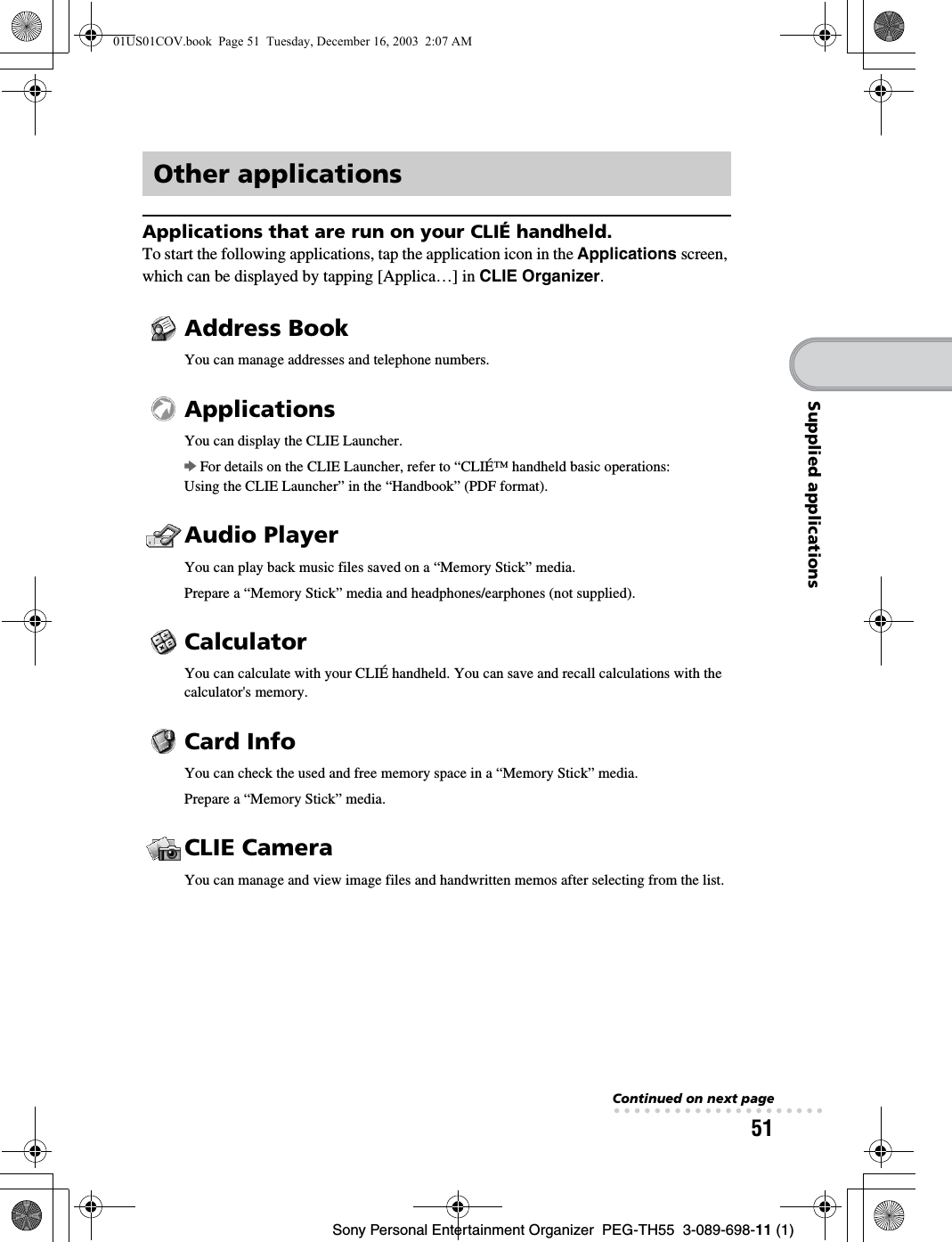

51Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Supplied applicationsApplications that are run on your CLIÉ handheld.To start the following applications, tap the application icon in the Applications screen, which can be displayed by tapping [Applica…] in CLIE Organizer.Address BookYou can manage addresses and telephone numbers.ApplicationsYou can display the CLIE Launcher.bFor details on the CLIE Launcher, refer to “CLIÉ™ handheld basic operations:Using the CLIE Launcher” in the “Handbook” (PDF format).Audio PlayerYou can play back music files saved on a “Memory Stick” media.Prepare a “Memory Stick” media and headphones/earphones (not supplied).CalculatorYou can calculate with your CLIÉ handheld. You can save and recall calculations with the calculator's memory.Card InfoYou can check the used and free memory space in a “Memory Stick” media.Prepare a “Memory Stick” media.CLIE CameraYou can manage and view image files and handwritten memos after selecting from the list.Other applicationsContinued on next page• • • • • • • • • • • • • • • • • • • • •01US01COV.book Page 51 Tuesday, December 16, 2003 2:07 AM

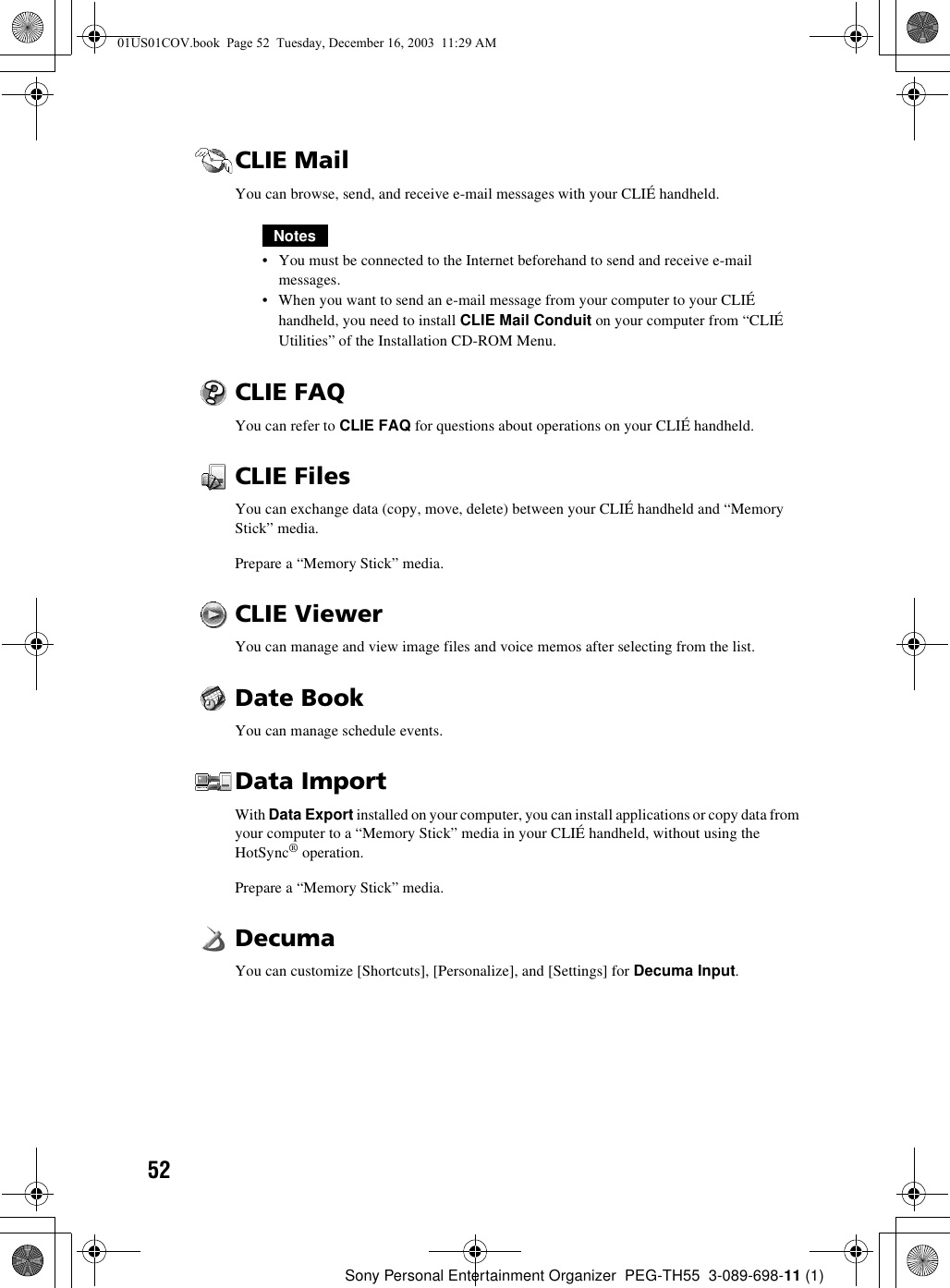

52Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)CLIE MailYou can browse, send, and receive e-mail messages with your CLIÉ handheld.Notes• You must be connected to the Internet beforehand to send and receive e-mail messages.• When you want to send an e-mail message from your computer to your CLIÉ handheld, you need to install CLIE Mail Conduit on your computer from “CLIÉ Utilities” of the Installation CD-ROM Menu.CLIE FAQYou can refer to CLIE FAQ for questions about operations on your CLIÉ handheld.CLIE FilesYou can exchange data (copy, move, delete) between your CLIÉ handheld and “Memory Stick” media.Prepare a “Memory Stick” media.CLIE ViewerYou can manage and view image files and voice memos after selecting from the list.Date BookYou can manage schedule events.Data ImportWith Data Export installed on your computer, you can install applications or copy data from your computer to a “Memory Stick” media in your CLIÉ handheld, without using the HotSync® operation.Prepare a “Memory Stick” media.DecumaYou can customize [Shortcuts], [Personalize], and [Settings] for Decuma Input.01US01COV.book Page 52 Tuesday, December 16, 2003 11:29 AM

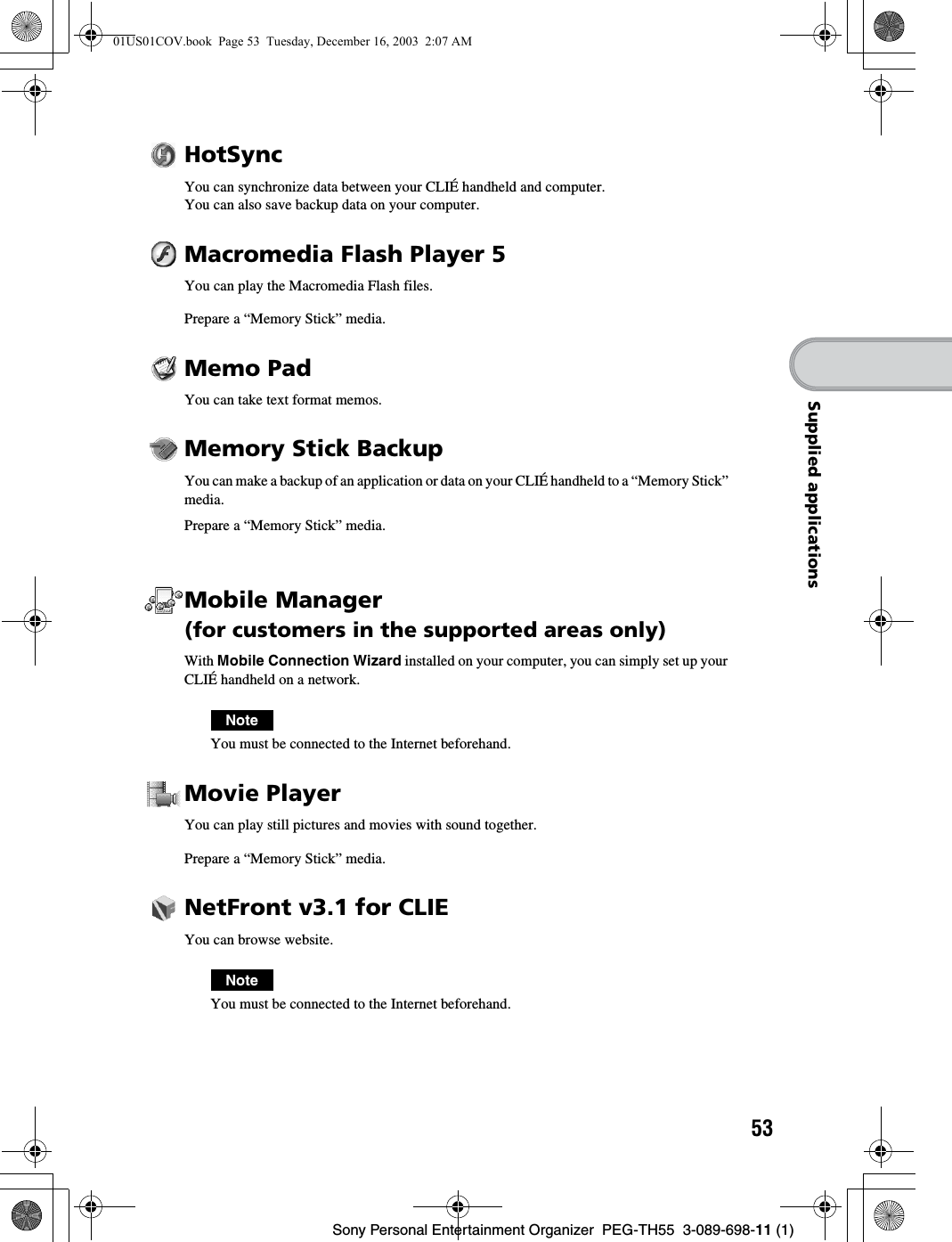

53Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Supplied applicationsHotSyncYou can synchronize data between your CLIÉ handheld and computer.You can also save backup data on your computer.Macromedia Flash Player 5You can play the Macromedia Flash files.Prepare a “Memory Stick” media.Memo PadYou can take text format memos.Memory Stick BackupYou can make a backup of an application or data on your CLIÉ handheld to a “Memory Stick” media.Prepare a “Memory Stick” media.Mobile Manager(for customers in the supported areas only)With Mobile Connection Wizard installed on your computer, you can simply set up your CLIÉ handheld on a network.NoteYou must be connected to the Internet beforehand.Movie PlayerYou can play still pictures and movies with sound together.Prepare a “Memory Stick” media.NetFront v3.1 for CLIEYou can browse website.NoteYou must be connected to the Internet beforehand.01US01COV.book Page 53 Tuesday, December 16, 2003 2:07 AM

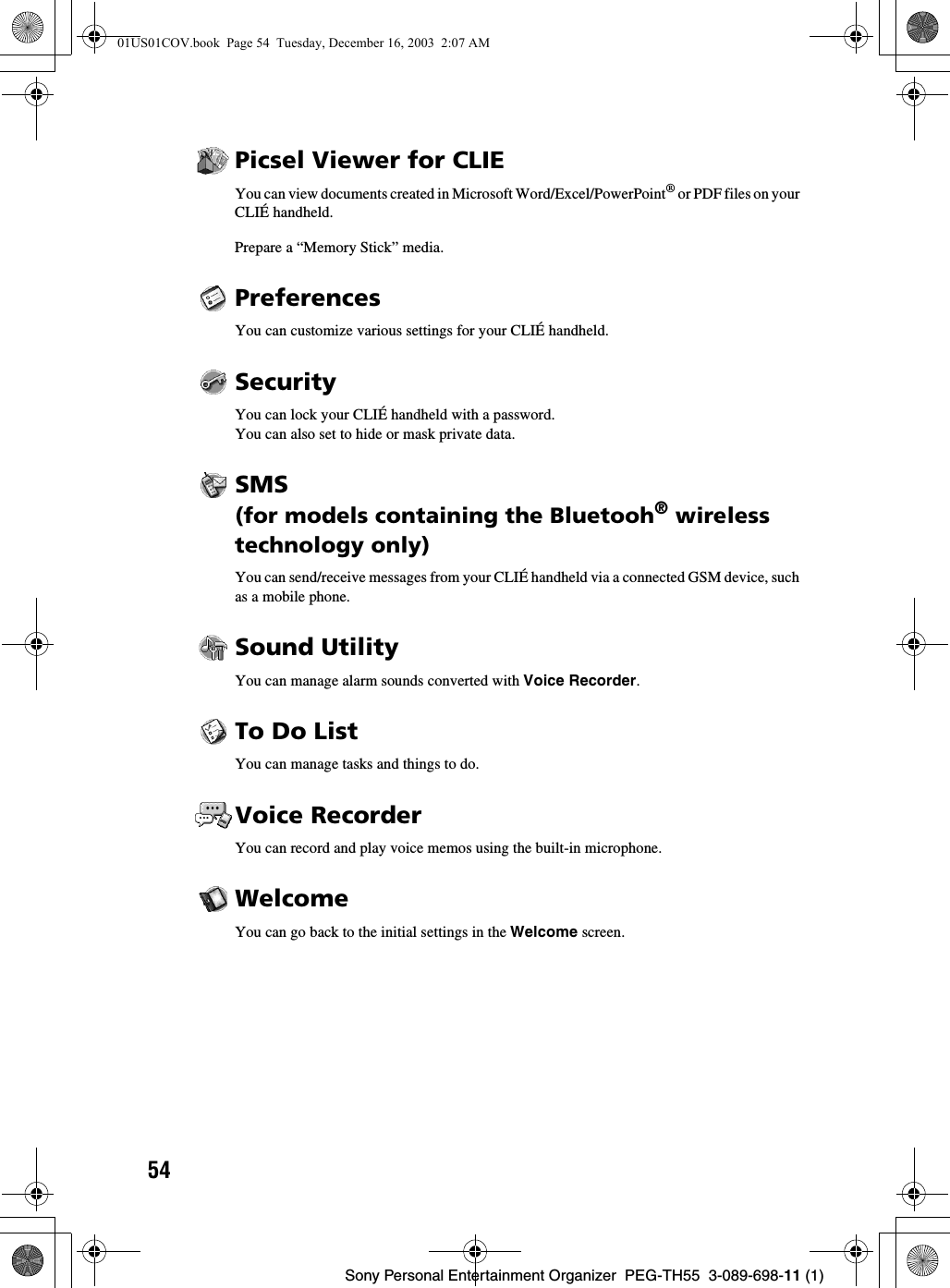

54Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Picsel Viewer for CLIEYou can view documents created in Microsoft Word/Excel/PowerPoint® or PDF files on your CLIÉ handheld.Prepare a “Memory Stick” media.PreferencesYou can customize various settings for your CLIÉ handheld. SecurityYou can lock your CLIÉ handheld with a password.You can also set to hide or mask private data.SMS(for models containing the Bluetooh® wireless technology only)You can send/receive messages from your CLIÉ handheld via a connected GSM device, such as a mobile phone.Sound UtilityYou can manage alarm sounds converted with Voice Recorder.To Do ListYou can manage tasks and things to do.Voice RecorderYou can record and play voice memos using the built-in microphone.WelcomeYou can go back to the initial settings in the Welcome screen. 01US01COV.book Page 54 Tuesday, December 16, 2003 2:07 AM

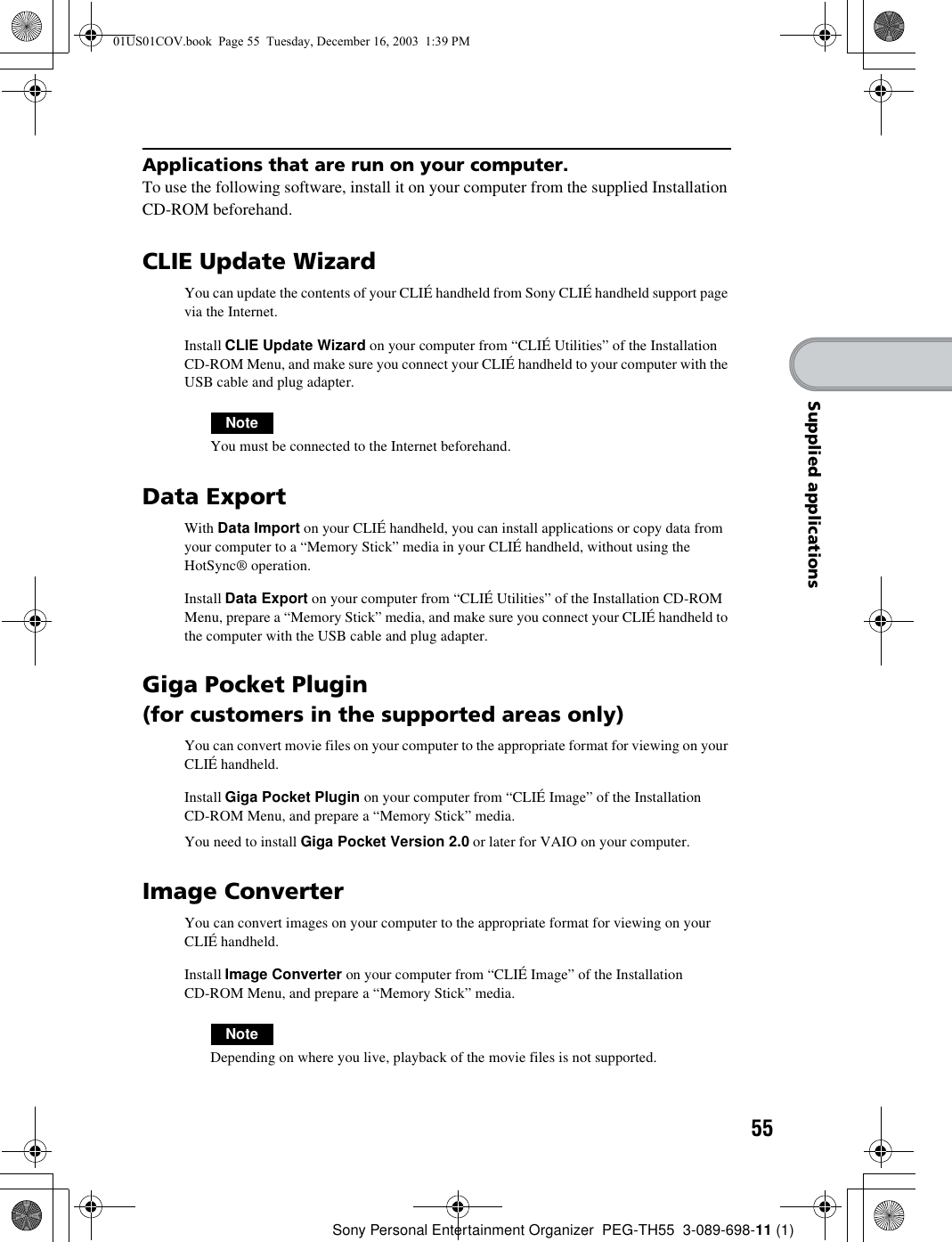

55Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Supplied applicationsApplications that are run on your computer.To use the following software, install it on your computer from the supplied Installation CD-ROM beforehand.CLIE Update WizardYou can update the contents of your CLIÉ handheld from Sony CLIÉ handheld support page via the Internet.Install CLIE Update Wizard on your computer from “CLIÉ Utilities” of the Installation CD-ROM Menu, and make sure you connect your CLIÉ handheld to your computer with the USB cable and plug adapter.NoteYou must be connected to the Internet beforehand.Data ExportWith Data Import on your CLIÉ handheld, you can install applications or copy data from your computer to a “Memory Stick” media in your CLIÉ handheld, without using the HotSync® operation.Install Data Export on your computer from “CLIÉ Utilities” of the Installation CD-ROM Menu, prepare a “Memory Stick” media, and make sure you connect your CLIÉ handheld to the computer with the USB cable and plug adapter.Giga Pocket Plugin(for customers in the supported areas only)You can convert movie files on your computer to the appropriate format for viewing on your CLIÉ handheld.Install Giga Pocket Plugin on your computer from “CLIÉ Image” of the Installation CD-ROM Menu, and prepare a “Memory Stick” media.You need to install Giga Pocket Version 2.0 or later for VAIO on your computer.Image ConverterYou can convert images on your computer to the appropriate format for viewing on your CLIÉ handheld.Install Image Converter on your computer from “CLIÉ Image” of the Installation CD-ROM Menu, and prepare a “Memory Stick” media.NoteDepending on where you live, playback of the movie files is not supported.01US01COV.book Page 55 Tuesday, December 16, 2003 1:39 PM

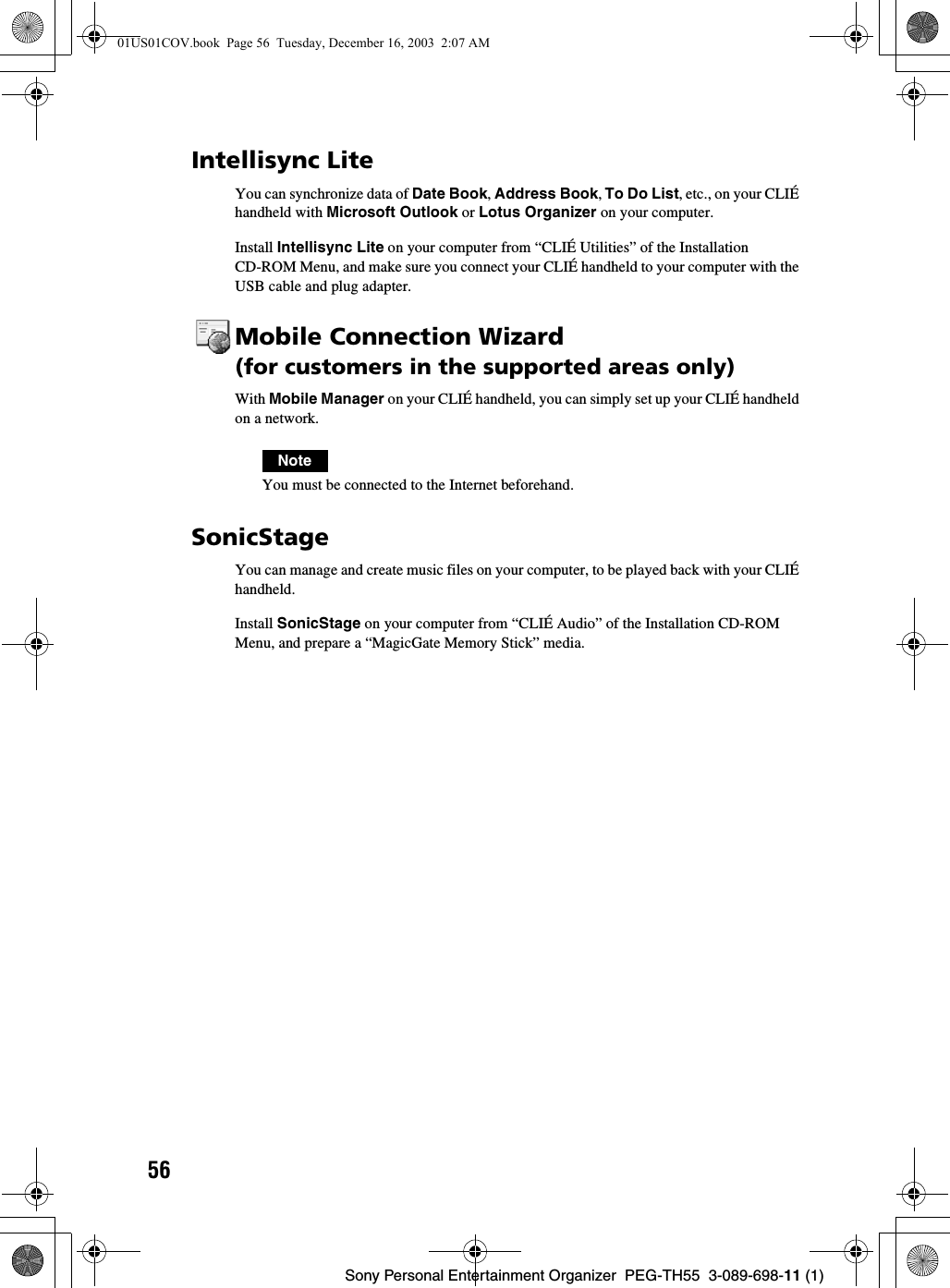

56Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Intellisync LiteYou can synchronize data of Date Book, Address Book, To Do List, etc., on your CLIÉ handheld with Microsoft Outlook or Lotus Organizer on your computer.Install Intellisync Lite on your computer from “CLIÉ Utilities” of the Installation CD-ROM Menu, and make sure you connect your CLIÉ handheld to your computer with the USB cable and plug adapter.Mobile Connection Wizard(for customers in the supported areas only)With Mobile Manager on your CLIÉ handheld, you can simply set up your CLIÉ handheld on a network.NoteYou must be connected to the Internet beforehand.SonicStageYou can manage and create music files on your computer, to be played back with your CLIÉ handheld.Install SonicStage on your computer from “CLIÉ Audio” of the Installation CD-ROM Menu, and prepare a “MagicGate Memory Stick” media.01US01COV.book Page 56 Tuesday, December 16, 2003 2:07 AM

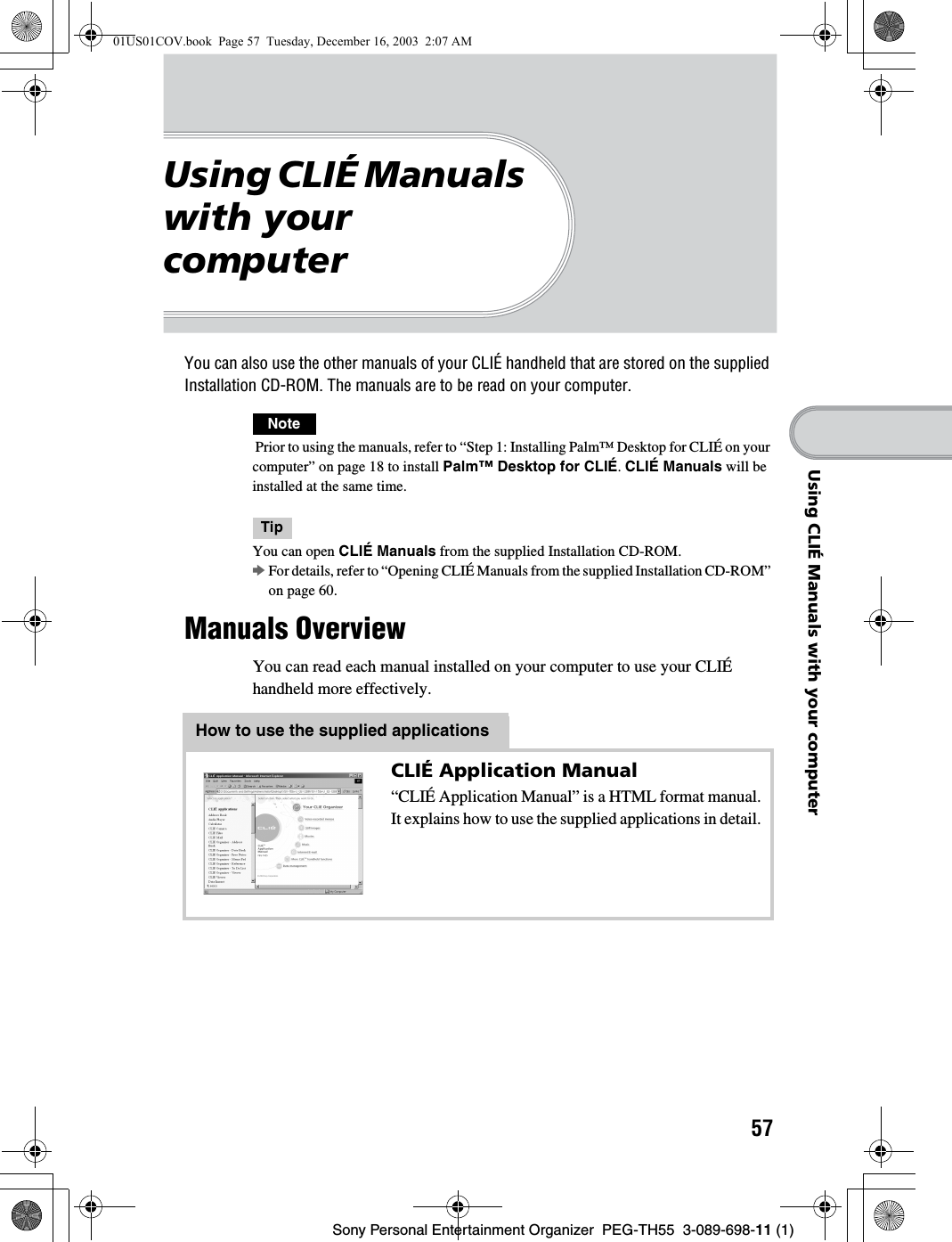

57Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Using CLIÉ Manuals with your computerUsing CLIÉ Manuals with your computerYou can also use the other manuals of your CLIÉ handheld that are stored on the supplied Installation CD-ROM. The manuals are to be read on your computer.Note Prior to using the manuals, refer to “Step 1: Installing Palm™ Desktop for CLIÉ on your computer” on page 18 to install Palm™ Desktop for CLIÉ. CLIÉ Manuals will be installed at the same time.TipYou can open CLIÉ Manuals from the supplied Installation CD-ROM.bFor details, refer to “Opening CLIÉ Manuals from the supplied Installation CD-ROM” on page 60.Manuals OverviewYou can read each manual installed on your computer to use your CLIÉ handheld more effectively.How to use the supplied applicationsCLIÉ Application Manual“CLIÉ Application Manual” is a HTML format manual.It explains how to use the supplied applications in detail.01US01COV.book Page 57 Tuesday, December 16, 2003 2:07 AM

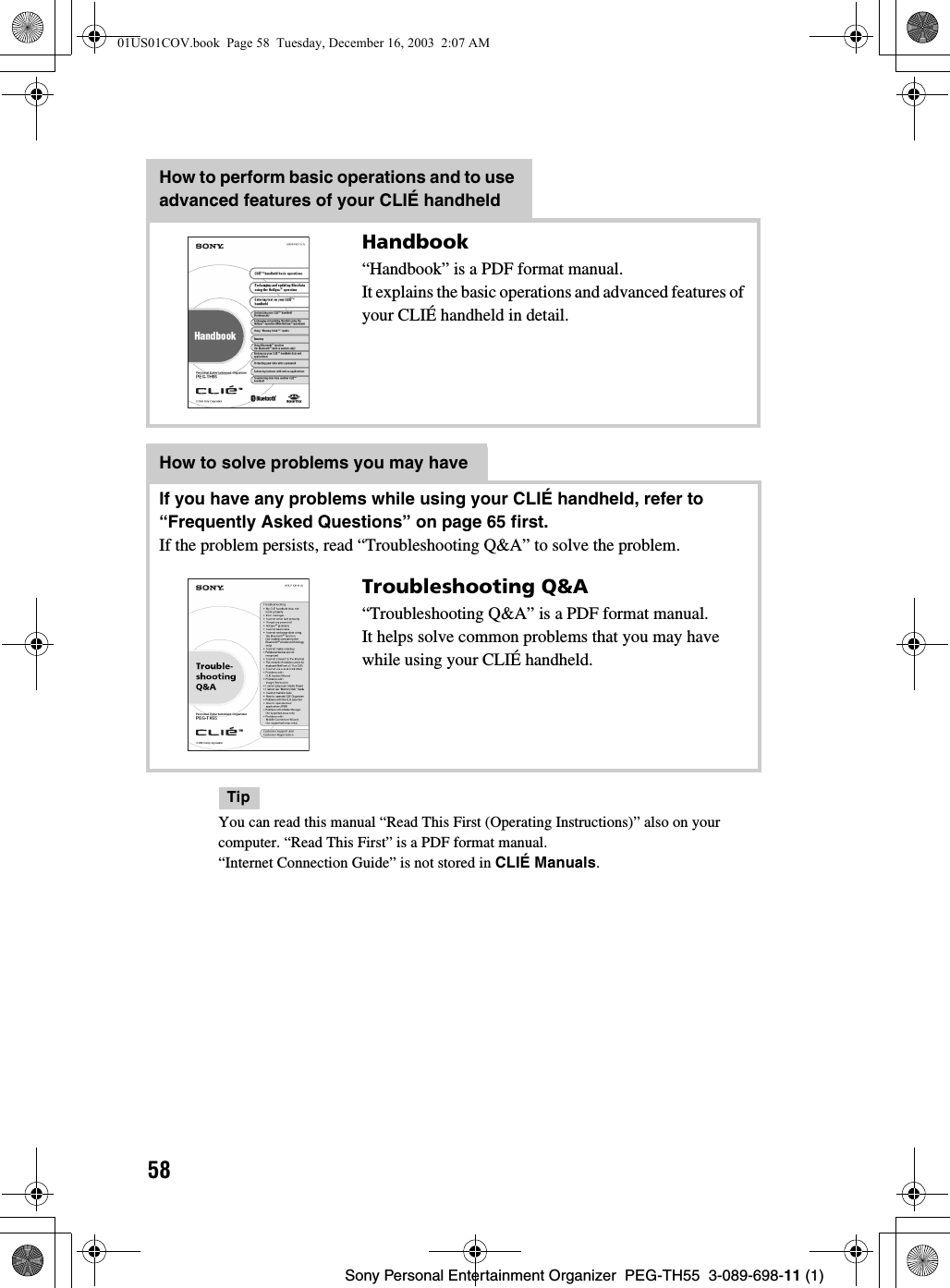

58Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)TipYou can read this manual “Read This First (Operating Instructions)” also on your computer. “Read This First” is a PDF format manual.“Internet Connection Guide” is not stored in CLIÉ Manuals.How to perform basic operations and to use advanced features of your CLIÉ handheldHandbook“Handbook” is a PDF format manual.It explains the basic operations and advanced features of your CLIÉ handheld in detail.How to solve problems you may haveIf you have any problems while using your CLIÉ handheld, refer to “Frequently Asked Questions” on page 65 first.If the problem persists, read “Troubleshooting Q&A” to solve the problem.Troubleshooting Q&A“Troubleshooting Q&A” is a PDF format manual.It helps solve common problems that you may have while using your CLIÉ handheld.01US01COV.book Page 58 Tuesday, December 16, 2003 2:07 AM
59Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Using CLIÉ Manuals with your computerOpening CLIÉ Manuals Follow the steps below to open CLIÉ Manuals.1Double-click (CLIÉ Manuals PEG-TH55) on the Windows desktop.The CLIÉ Application Guide PEG-TH55 window is displayed.TipYou can also click [Start], select [Programs] ([All Programs] for Windows XP)-[Sony Handheld]-[About PEG-TH55], and click [CLIÉ Manuals] to start CLIÉ Manuals.2Click the manual you want to read.The selected manual is displayed.NoteTo read the PDF manuals, Adobe Reader must be installed on your computer. If it is not installed on your computer, you can install it from the supplied Installation CD-ROM.bFor details on how to use PDF manuals or installation, refer to “Reading the PDF manuals on your computer” on page 61.01US01COV.book Page 59 Tuesday, December 16, 2003 2:07 AM

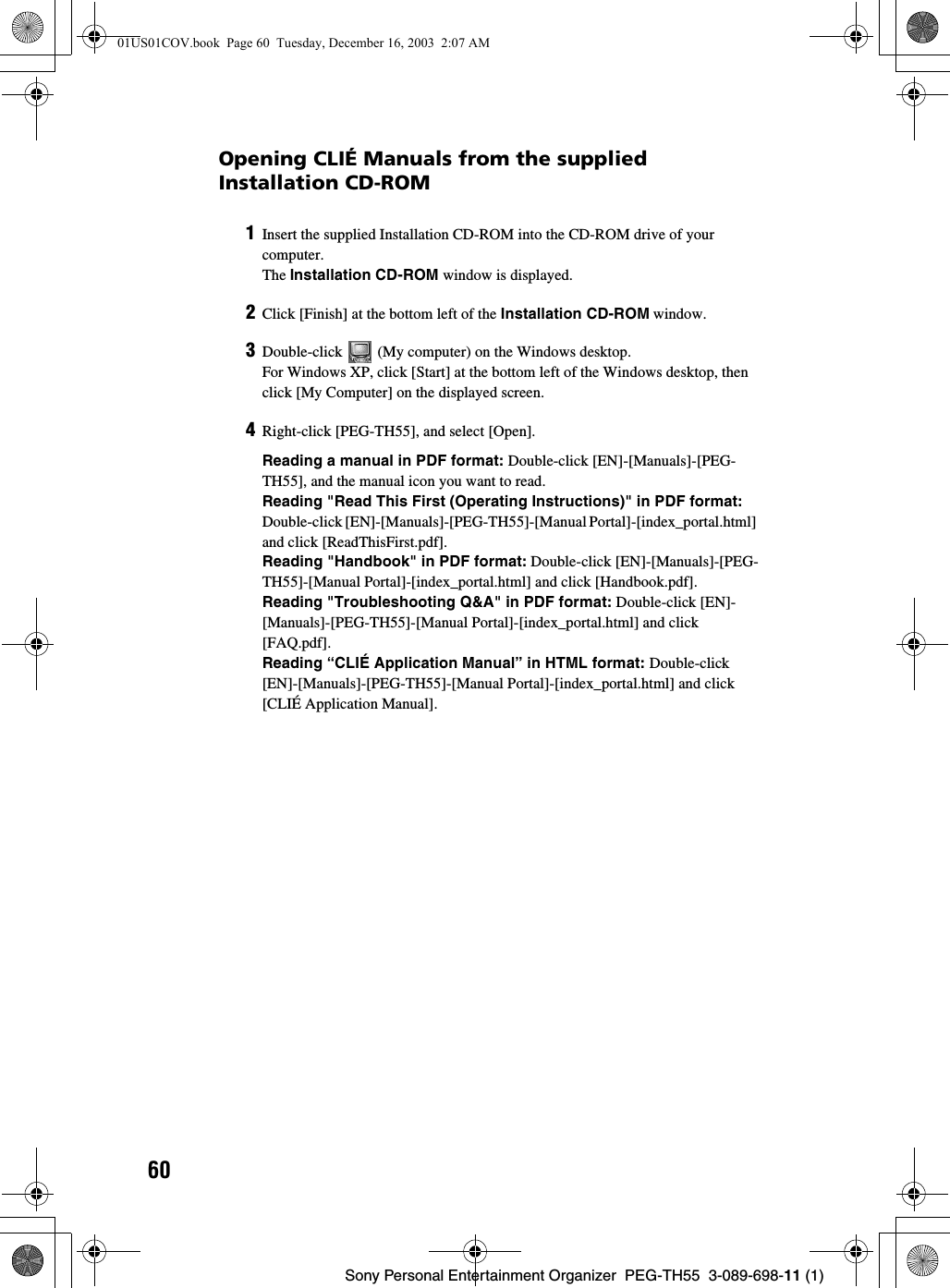

60Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Opening CLIÉ Manuals from the supplied Installation CD-ROM1Insert the supplied Installation CD-ROM into the CD-ROM drive of your computer.The Installation CD-ROM window is displayed.2Click [Finish] at the bottom left of the Installation CD-ROM window.3Double-click (My computer) on the Windows desktop.For Windows XP, click [Start] at the bottom left of the Windows desktop, then click [My Computer] on the displayed screen.4Right-click [PEG-TH55], and select [Open].Reading a manual in PDF format: Double-click [EN]-[Manuals]-[PEG-TH55], and the manual icon you want to read.Reading "Read This First (Operating Instructions)" in PDF format: Double-click [EN]-[Manuals]-[PEG-TH55]-[Manual Portal]-[index_portal.html] and click [ReadThisFirst.pdf].Reading "Handbook" in PDF format: Double-click [EN]-[Manuals]-[PEG-TH55]-[Manual Portal]-[index_portal.html] and click [Handbook.pdf].Reading "Troubleshooting Q&A" in PDF format: Double-click [EN]-[Manuals]-[PEG-TH55]-[Manual Portal]-[index_portal.html] and click [FAQ.pdf].Reading “CLIÉ Application Manual” in HTML format: Double-click [EN]-[Manuals]-[PEG-TH55]-[Manual Portal]-[index_portal.html] and click [CLIÉ Application Manual].01US01COV.book Page 60 Tuesday, December 16, 2003 2:07 AM

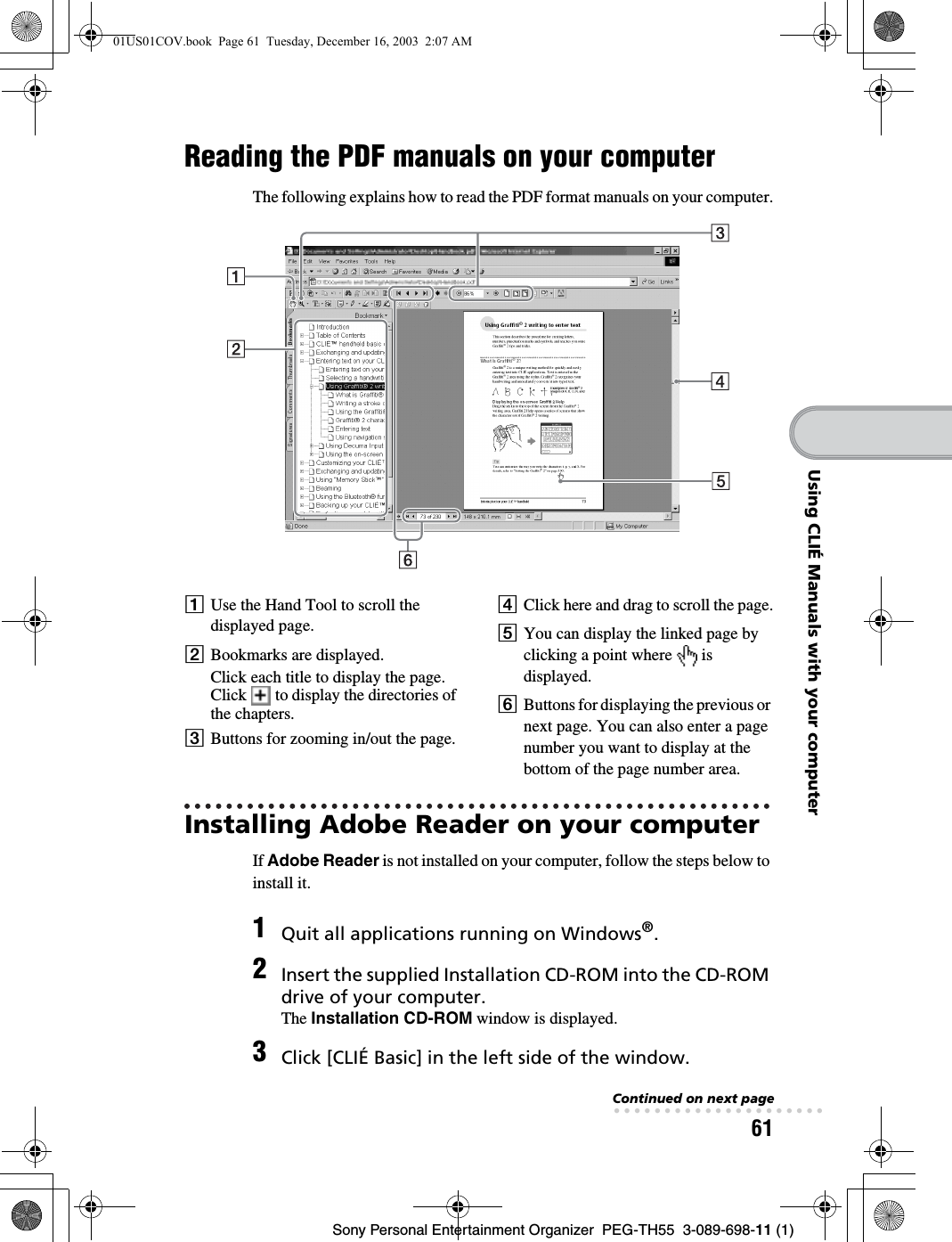

61Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Using CLIÉ Manuals with your computerReading the PDF manuals on your computerThe following explains how to read the PDF format manuals on your computer.Installing Adobe Reader on your computerIf Adobe Reader is not installed on your computer, follow the steps below to install it.AUse the Hand Tool to scroll the displayed page.BBookmarks are displayed.Click each title to display the page. Click to display the directories of the chapters.CButtons for zooming in/out the page.DClick here and drag to scroll the page.EYou can display the linked page by clicking a point where is displayed.FButtons for displaying the previous or next page. You can also enter a page number you want to display at the bottom of the page number area.1Quit all applications running on Windows®.2Insert the supplied Installation CD-ROM into the CD-ROM drive of your computer.The Installation CD-ROM window is displayed.3Click [CLIÉ Basic] in the left side of the window.Continued on next page• • • • • • • • • • • • • • • • • • • • •01US01COV.book Page 61 Tuesday, December 16, 2003 2:07 AM

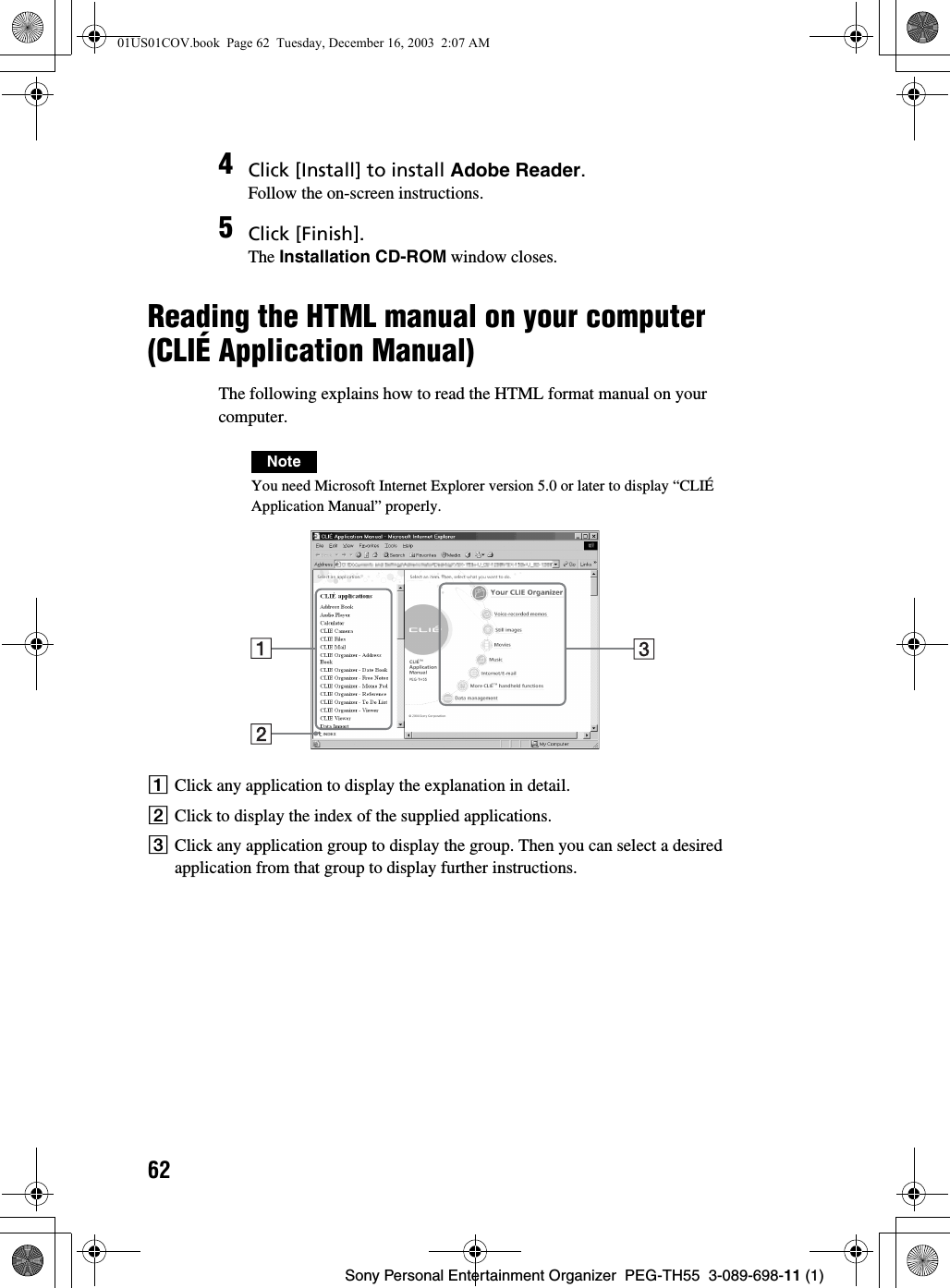

62Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Reading the HTML manual on your computer (CLIÉ Application Manual)The following explains how to read the HTML format manual on your computer.NoteYou need Microsoft Internet Explorer version 5.0 or later to display “CLIÉ Application Manual” properly.AClick any application to display the explanation in detail.BClick to display the index of the supplied applications.CClick any application group to display the group. Then you can select a desired application from that group to display further instructions.4Click [Install] to install Adobe Reader.Follow the on-screen instructions.5Click [Finish].The Installation CD-ROM window closes.01US01COV.book Page 62 Tuesday, December 16, 2003 2:07 AM

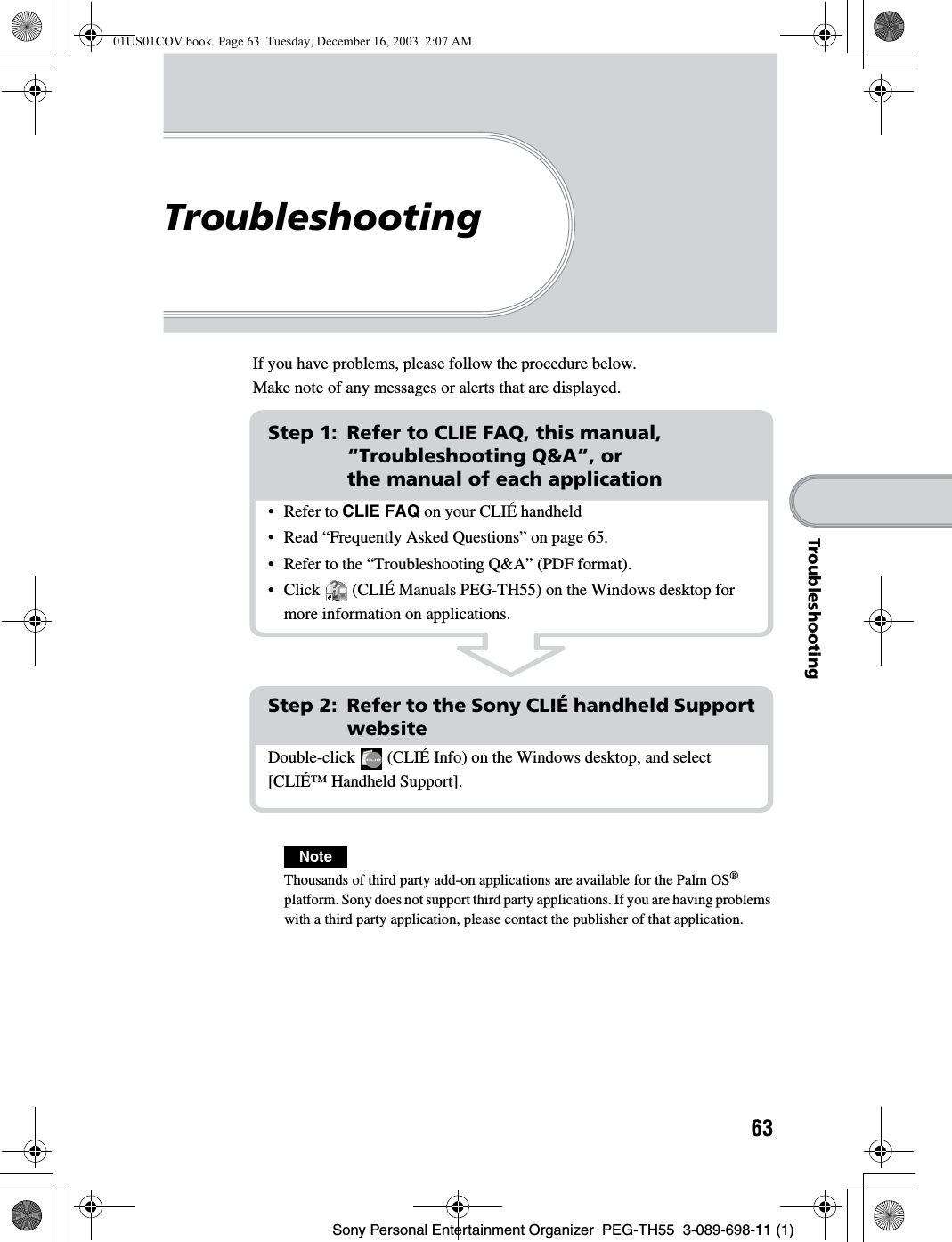

Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)63TroubleshootingTroubleshootingIf you have problems, please follow the procedure below.Make note of any messages or alerts that are displayed.NoteThousands of third party add-on applications are available for the Palm OS® platform. Sony does not support third party applications. If you are having problems with a third party application, please contact the publisher of that application.Step 1: Refer to CLIE FAQ, this manual, “Troubleshooting Q&A”, or the manual of each applicationStep 2: Refer to the Sony CLIÉ handheld Support websiteDouble-click (CLIÉ Info) on the Windows desktop, and select [CLIÉ™ Handheld Support].• Refer to CLIE FAQ on your CLIÉ handheld• Read “Frequently Asked Questions” on page 65.• Refer to the “Troubleshooting Q&A” (PDF format).• Click (CLIÉ Manuals PEG-TH55) on the Windows desktop for more information on applications.01US01COV.book Page 63 Tuesday, December 16, 2003 2:07 AM

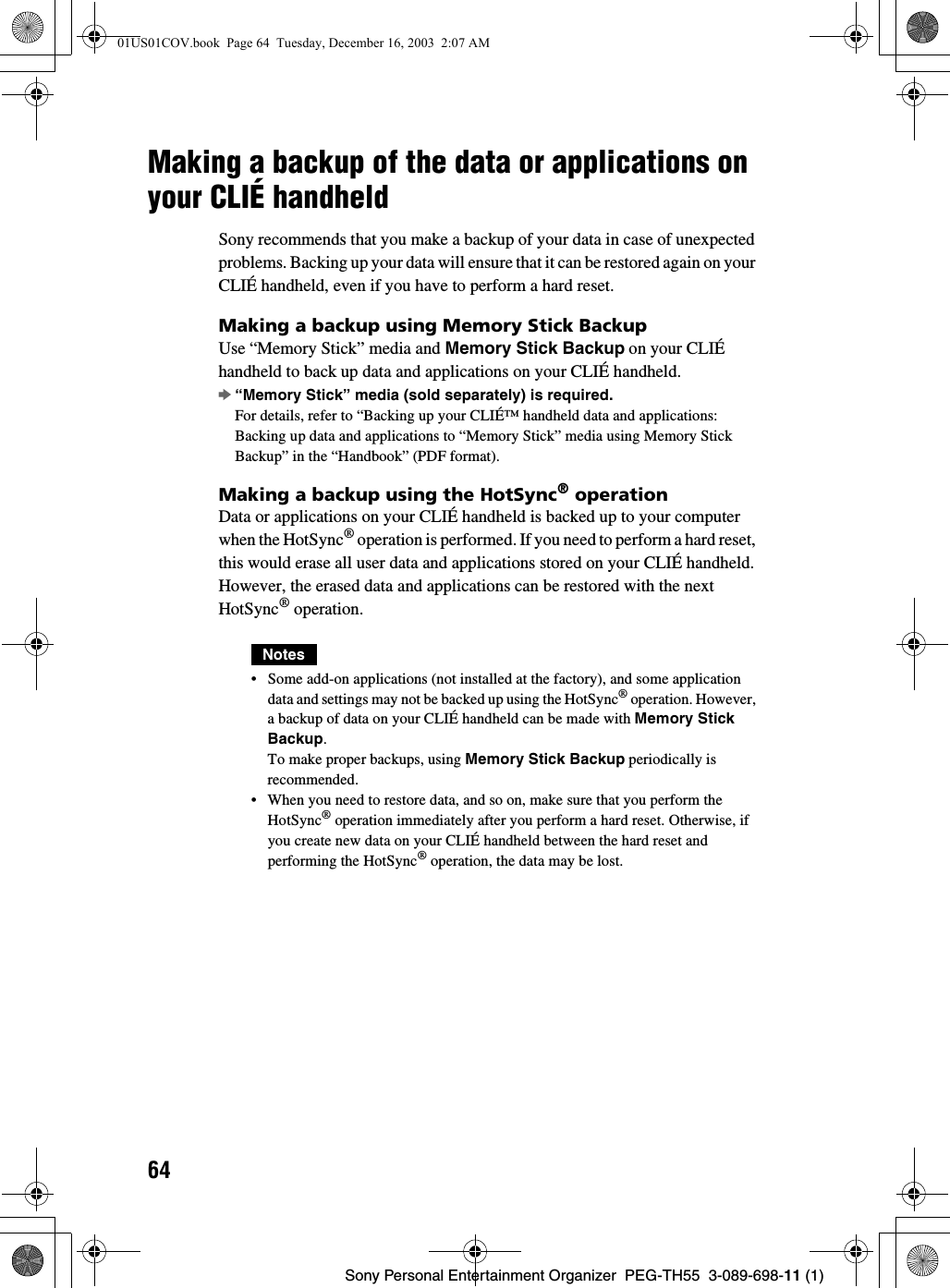

64Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Making a backup of the data or applications on your CLIÉ handheldSony recommends that you make a backup of your data in case of unexpected problems. Backing up your data will ensure that it can be restored again on your CLIÉ handheld, even if you have to perform a hard reset.Making a backup using Memory Stick BackupUse “Memory Stick” media and Memory Stick Backup on your CLIÉ handheld to back up data and applications on your CLIÉ handheld.b“Memory Stick” media (sold separately) is required.For details, refer to “Backing up your CLIÉ™ handheld data and applications: Backing up data and applications to “Memory Stick” media using Memory Stick Backup” in the “Handbook” (PDF format).Making a backup using the HotSync® operationData or applications on your CLIÉ handheld is backed up to your computer when the HotSync® operation is performed. If you need to perform a hard reset, this would erase all user data and applications stored on your CLIÉ handheld. However, the erased data and applications can be restored with the next HotSync® operation.Notes• Some add-on applications (not installed at the factory), and some application data and settings may not be backed up using the HotSync® operation. However, a backup of data on your CLIÉ handheld can be made with Memory Stick Backup.To make proper backups, using Memory Stick Backup periodically is recommended.• When you need to restore data, and so on, make sure that you perform the HotSync® operation immediately after you perform a hard reset. Otherwise, if you create new data on your CLIÉ handheld between the hard reset and performing the HotSync® operation, the data may be lost.01US01COV.book Page 64 Tuesday, December 16, 2003 2:07 AM
65Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)TroubleshootingFrequently Asked QuestionsIf the solutions mentioned in this section do not solve your problem, refer to the “Troubleshooting Q&A” (PDF format).My CLIÉ handheld does not work properly (page 67)• I cannot turn on my CLIÉ handheld• The screen is not displayed even though the POWER LED is on• My CLIÉ handheld does not respond• My CLIÉ handheld keeps turning itself off• My CLIÉ handheld does not produce any sounds• The backlight does not turn on when I adjust the brightness level• The LCD display cannot be viewed properly• Applications do not operate properly after a soft reset is performed• I cannot use the Jog Dial™ navigatorError messages (page 69)• An error message appears repeatedly• The message “Invalid process” appears when an application is startedI cannot enter text properly (page 70)• My CLIÉ handheld does not recognize handwritten characters (when using Graffiti® 2)• My CLIÉ handheld does not recognize handwritten characters (when using Decuma Input)The HotSync® problems (page 71)• I cannot perform the local HotSync® operation• I cannot start the HotSync® operation by tapping (HotSync) on the HotSync screen• I cannot cancel the HotSync® operation• It takes a long time to complete the HotSync® operation• Data cannot be synchronized with some applications using the HotSync® operation• I cannot back up some data using the HotSync® operationContinued on next page• • • • • • • • • • • • • • • • • • • • •01US01COV.book Page 65 Tuesday, December 16, 2003 2:07 AM

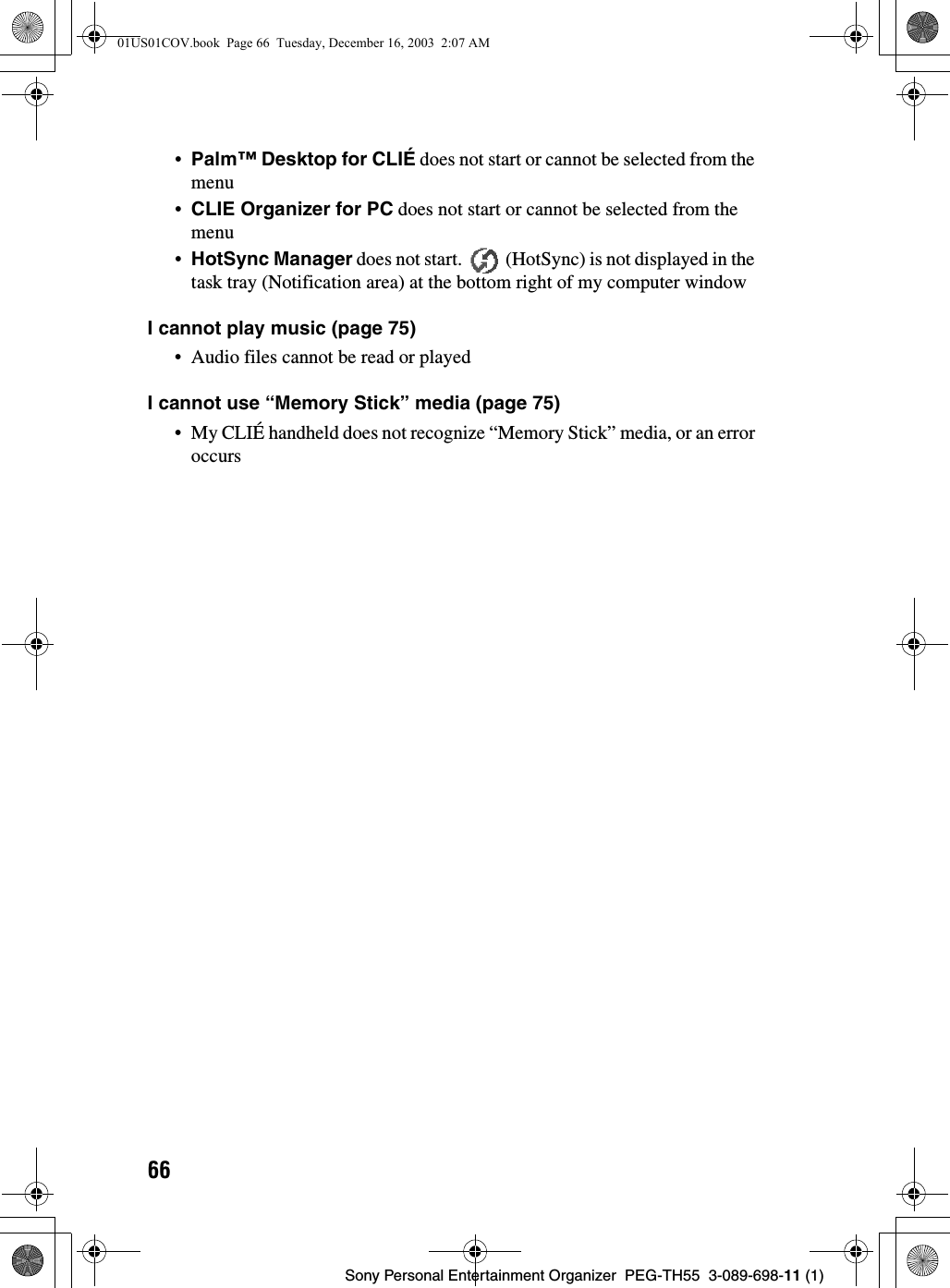

66Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)•Palm™ Desktop for CLIÉ does not start or cannot be selected from the menu•CLIE Organizer for PC does not start or cannot be selected from the menu•HotSync Manager does not start. (HotSync) is not displayed in the task tray (Notification area) at the bottom right of my computer windowI cannot play music (page 75)• Audio files cannot be read or playedI cannot use “Memory Stick” media (page 75)• My CLIÉ handheld does not recognize “Memory Stick” media, or an error occurs01US01COV.book Page 66 Tuesday, December 16, 2003 2:07 AM

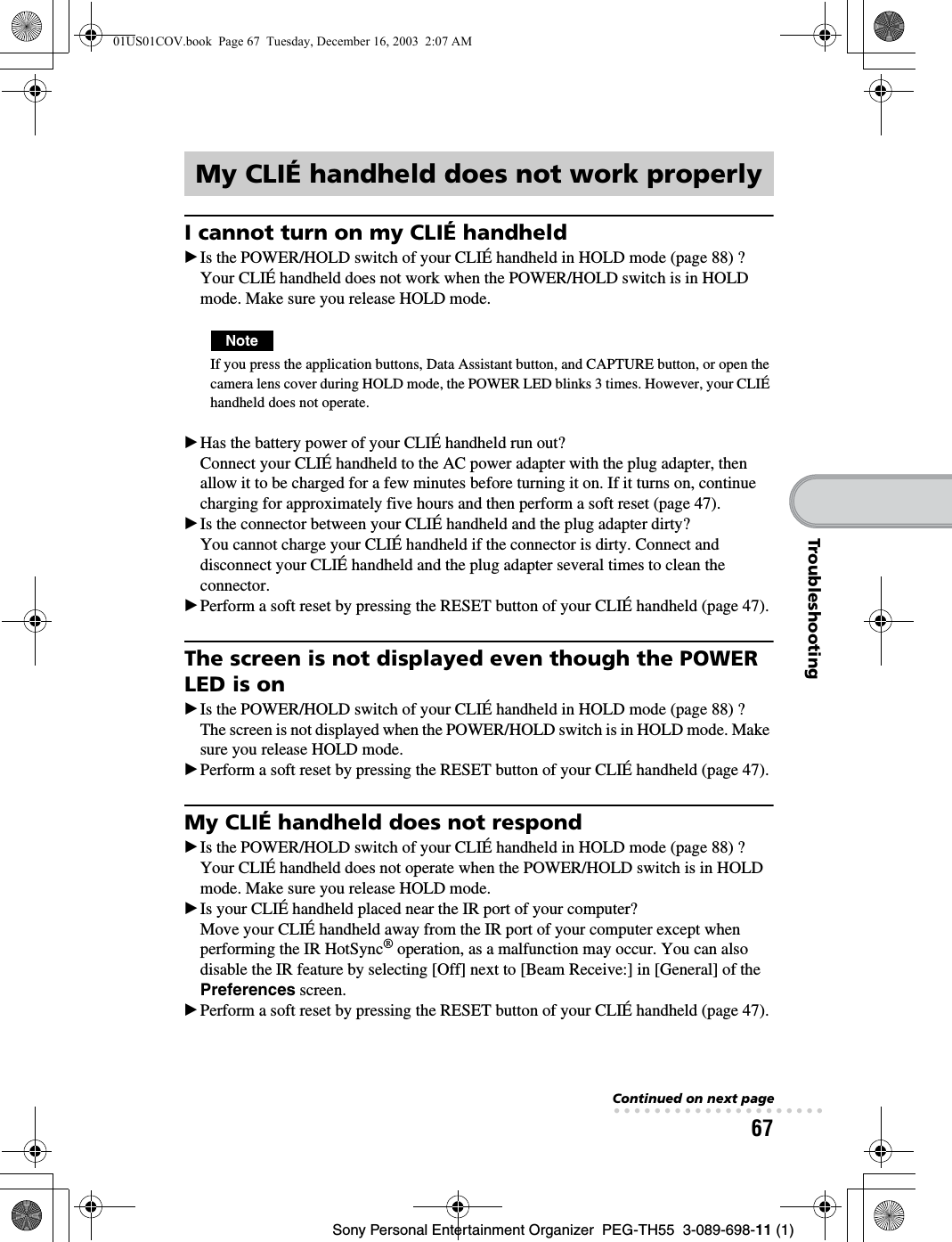

67Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)TroubleshootingI cannot turn on my CLIÉ handheldBIs the POWER/HOLD switch of your CLIÉ handheld in HOLD mode (page 88) ?Your CLIÉ handheld does not work when the POWER/HOLD switch is in HOLD mode. Make sure you release HOLD mode.NoteIf you press the application buttons, Data Assistant button, and CAPTURE button, or open the camera lens cover during HOLD mode, the POWER LED blinks 3 times. However, your CLIÉ handheld does not operate.BHas the battery power of your CLIÉ handheld run out?Connect your CLIÉ handheld to the AC power adapter with the plug adapter, then allow it to be charged for a few minutes before turning it on. If it turns on, continue charging for approximately five hours and then perform a soft reset (page 47).BIs the connector between your CLIÉ handheld and the plug adapter dirty?You cannot charge your CLIÉ handheld if the connector is dirty. Connect and disconnect your CLIÉ handheld and the plug adapter several times to clean the connector.BPerform a soft reset by pressing the RESET button of your CLIÉ handheld (page 47).The screen is not displayed even though the POWER LED is onBIs the POWER/HOLD switch of your CLIÉ handheld in HOLD mode (page 88) ?The screen is not displayed when the POWER/HOLD switch is in HOLD mode. Make sure you release HOLD mode.BPerform a soft reset by pressing the RESET button of your CLIÉ handheld (page 47).My CLIÉ handheld does not respondBIs the POWER/HOLD switch of your CLIÉ handheld in HOLD mode (page 88) ?Your CLIÉ handheld does not operate when the POWER/HOLD switch is in HOLD mode. Make sure you release HOLD mode.BIs your CLIÉ handheld placed near the IR port of your computer?Move your CLIÉ handheld away from the IR port of your computer except when performing the IR HotSync® operation, as a malfunction may occur. You can also disable the IR feature by selecting [Off] next to [Beam Receive:] in [General] of the Preferences screen.BPerform a soft reset by pressing the RESET button of your CLIÉ handheld (page 47).My CLIÉ handheld does not work properlyContinued on next page• • • • • • • • • • • • • • • • • • • • •01US01COV.book Page 67 Tuesday, December 16, 2003 2:07 AM

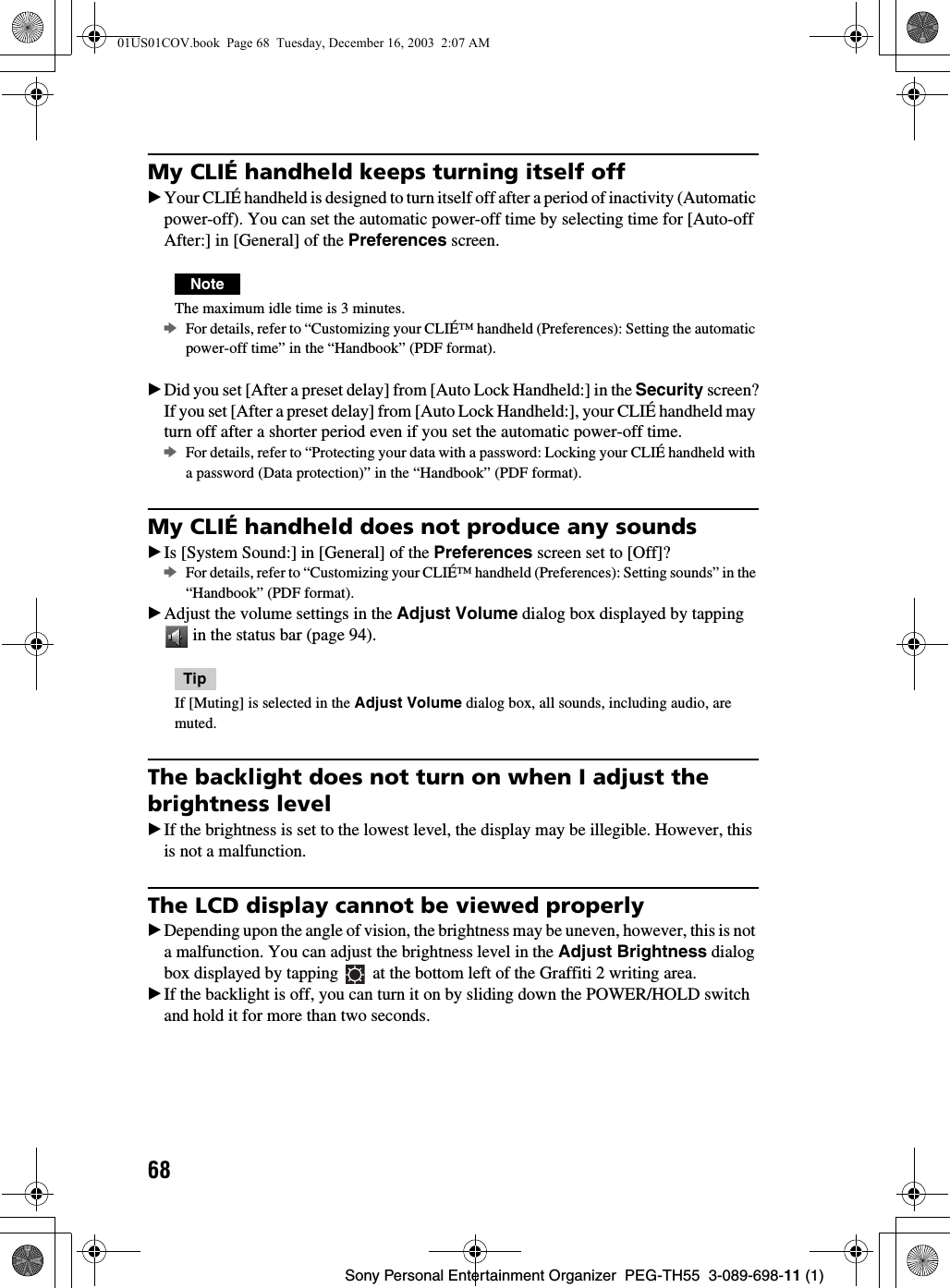

68Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)My CLIÉ handheld keeps turning itself offBYour CLIÉ handheld is designed to turn itself off after a period of inactivity (Automatic power-off). You can set the automatic power-off time by selecting time for [Auto-off After:] in [General] of the Preferences screen.NoteThe maximum idle time is 3 minutes.bFor details, refer to “Customizing your CLIÉ™ handheld (Preferences): Setting the automatic power-off time” in the “Handbook” (PDF format).BDid you set [After a preset delay] from [Auto Lock Handheld:] in the Security screen?If you set [After a preset delay] from [Auto Lock Handheld:], your CLIÉ handheld may turn off after a shorter period even if you set the automatic power-off time.bFor details, refer to “Protecting your data with a password: Locking your CLIÉ handheld with a password (Data protection)” in the “Handbook” (PDF format).My CLIÉ handheld does not produce any soundsBIs [System Sound:] in [General] of the Preferences screen set to [Off]?bFor details, refer to “Customizing your CLIÉ™ handheld (Preferences): Setting sounds” in the “Handbook” (PDF format).BAdjust the volume settings in the Adjust Volume dialog box displayed by tapping in the status bar (page 94).TipIf [Muting] is selected in the Adjust Volume dialog box, all sounds, including audio, are muted.The backlight does not turn on when I adjust the brightness levelBIf the brightness is set to the lowest level, the display may be illegible. However, this is not a malfunction.The LCD display cannot be viewed properlyBDepending upon the angle of vision, the brightness may be uneven, however, this is not a malfunction. You can adjust the brightness level in the Adjust Brightness dialog box displayed by tapping at the bottom left of the Graffiti 2 writing area.BIf the backlight is off, you can turn it on by sliding down the POWER/HOLD switch and hold it for more than two seconds.01US01COV.book Page 68 Tuesday, December 16, 2003 2:07 AM

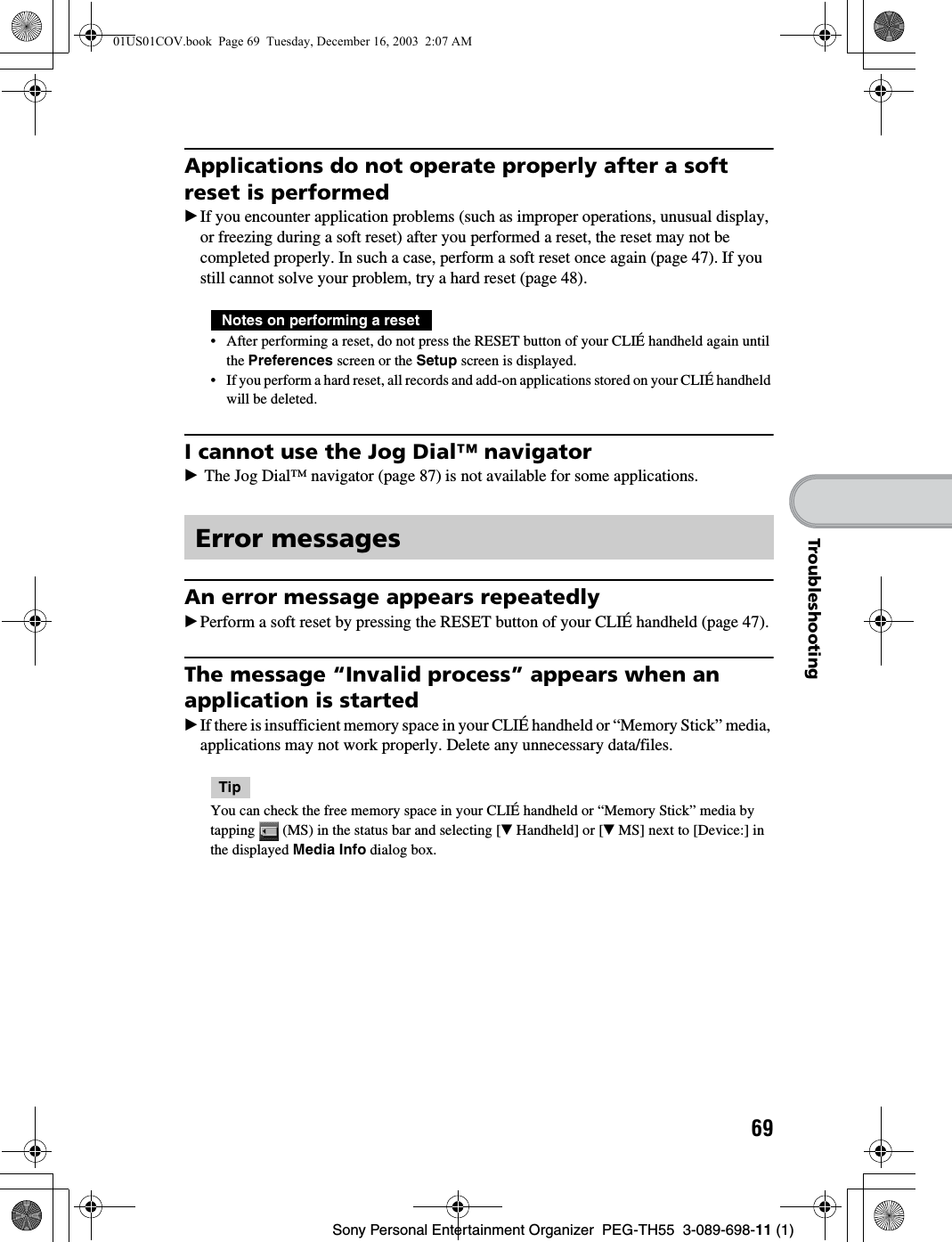

69Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)TroubleshootingApplications do not operate properly after a soft reset is performedBIf you encounter application problems (such as improper operations, unusual display, or freezing during a soft reset) after you performed a reset, the reset may not be completed properly. In such a case, perform a soft reset once again (page 47). If you still cannot solve your problem, try a hard reset (page 48).• After performing a reset, do not press the RESET button of your CLIÉ handheld again until the Preferences screen or the Setup screen is displayed.• If you perform a hard reset, all records and add-on applications stored on your CLIÉ handheld will be deleted.I cannot use the Jog Dial™ navigatorB The Jog Dial™ navigator (page 87) is not available for some applications.An error message appears repeatedlyBPerform a soft reset by pressing the RESET button of your CLIÉ handheld (page 47).The message “Invalid process” appears when an application is startedBIf there is insufficient memory space in your CLIÉ handheld or “Memory Stick” media, applications may not work properly. Delete any unnecessary data/files.TipYou can check the free memory space in your CLIÉ handheld or “Memory Stick” media by tapping (MS) in the status bar and selecting [V Handheld] or [V MS] next to [Device:] in the displayed Media Info dialog box.Error messagesNotes on performing a reset01US01COV.book Page 69 Tuesday, December 16, 2003 2:07 AM

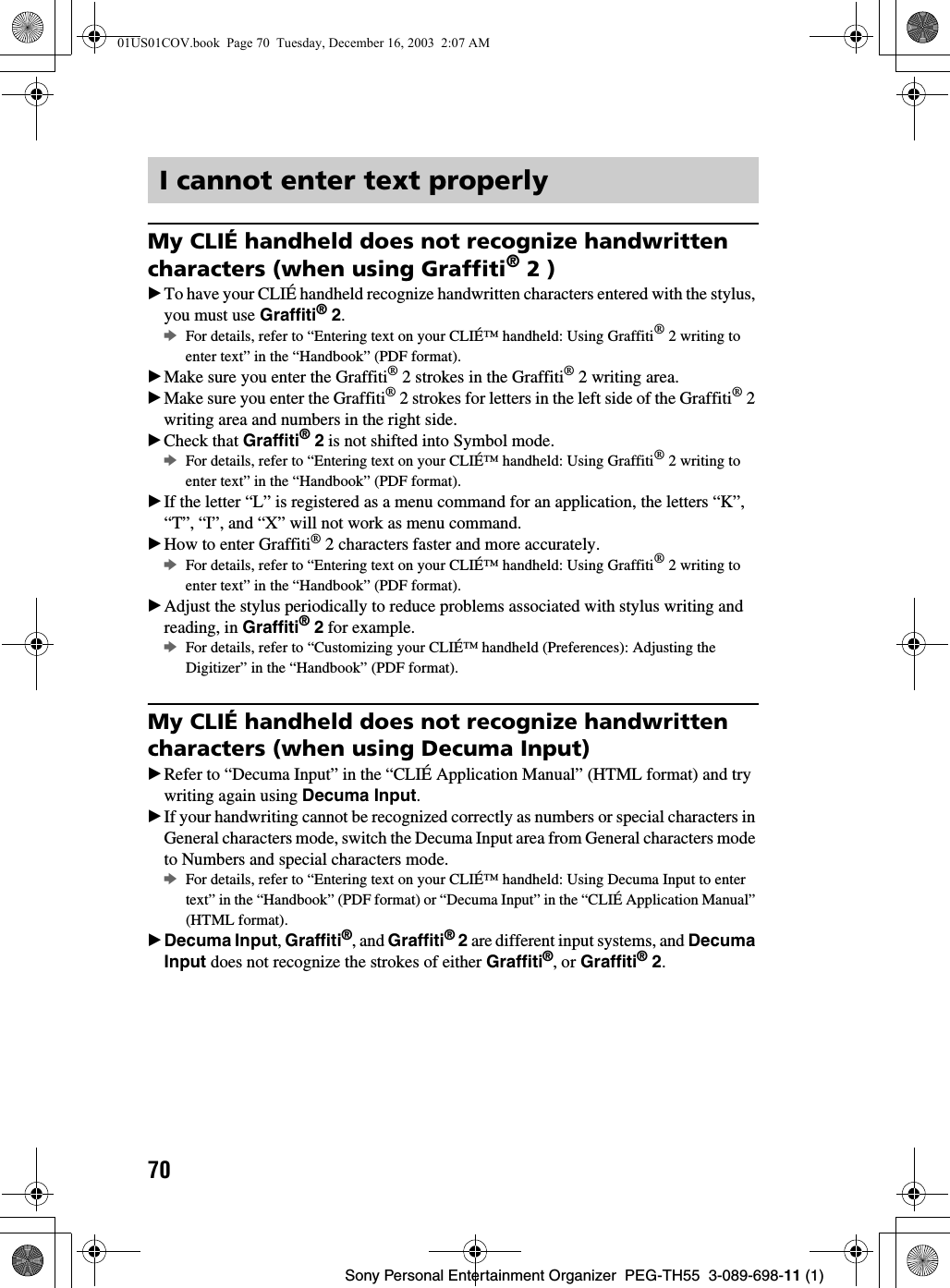

70Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)My CLIÉ handheld does not recognize handwritten characters (when using Graffiti® 2 )BTo have your CLIÉ handheld recognize handwritten characters entered with the stylus, you must use Graffiti® 2.bFor details, refer to “Entering text on your CLIÉ™ handheld: Using Graffiti® 2 writing to enter text” in the “Handbook” (PDF format).BMake sure you enter the Graffiti® 2 strokes in the Graffiti® 2 writing area.BMake sure you enter the Graffiti® 2 strokes for letters in the left side of the Graffiti® 2 writing area and numbers in the right side.BCheck that Graffiti® 2 is not shifted into Symbol mode.bFor details, refer to “Entering text on your CLIÉ™ handheld: Using Graffiti® 2 writing to enter text” in the “Handbook” (PDF format).BIf the letter “L” is registered as a menu command for an application, the letters “K”, “T”, “I”, and “X” will not work as menu command.BHow to enter Graffiti® 2 characters faster and more accurately.bFor details, refer to “Entering text on your CLIÉ™ handheld: Using Graffiti® 2 writing to enter text” in the “Handbook” (PDF format).BAdjust the stylus periodically to reduce problems associated with stylus writing and reading, in Graffiti® 2 for example.bFor details, refer to “Customizing your CLIÉ™ handheld (Preferences): Adjusting the Digitizer” in the “Handbook” (PDF format).My CLIÉ handheld does not recognize handwritten characters (when using Decuma Input)BRefer to “Decuma Input” in the “CLIÉ Application Manual” (HTML format) and try writing again using Decuma Input.BIf your handwriting cannot be recognized correctly as numbers or special characters in General characters mode, switch the Decuma Input area from General characters mode to Numbers and special characters mode.bFor details, refer to “Entering text on your CLIÉ™ handheld: Using Decuma Input to enter text” in the “Handbook” (PDF format) or “Decuma Input” in the “CLIÉ Application Manual” (HTML format).BDecuma Input, Graffiti®, and Graffiti® 2 are different input systems, and Decuma Input does not recognize the strokes of either Graffiti®, or Graffiti® 2.I cannot enter text properly01US01COV.book Page 70 Tuesday, December 16, 2003 2:07 AM

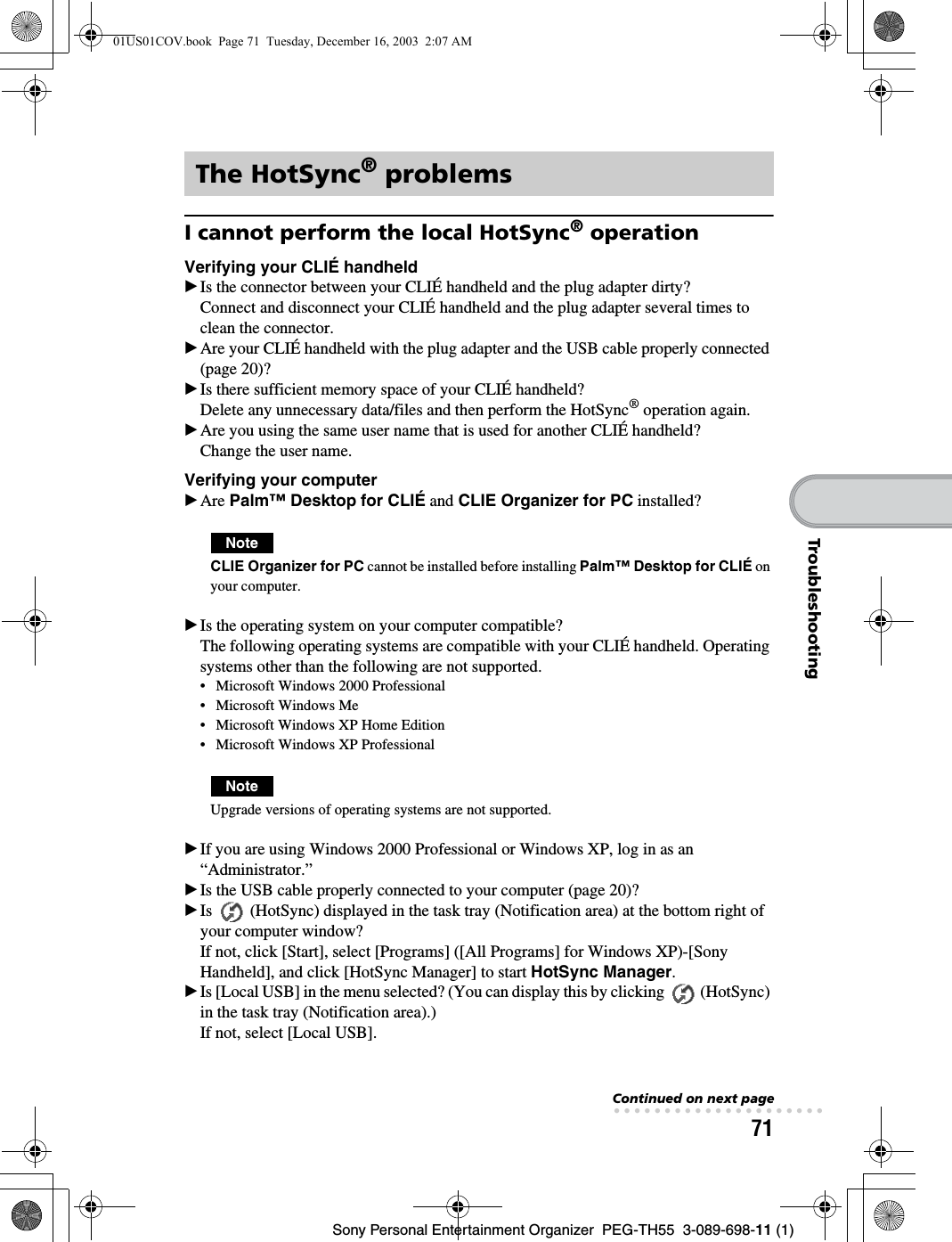

71Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)TroubleshootingI cannot perform the local HotSync® operationVerifying your CLIÉ handheldBIs the connector between your CLIÉ handheld and the plug adapter dirty?Connect and disconnect your CLIÉ handheld and the plug adapter several times to clean the connector.BAre your CLIÉ handheld with the plug adapter and the USB cable properly connected (page 20)?BIs there sufficient memory space of your CLIÉ handheld?Delete any unnecessary data/files and then perform the HotSync® operation again.BAre you using the same user name that is used for another CLIÉ handheld?Change the user name.Verifying your computerBAre Palm™ Desktop for CLIÉ and CLIE Organizer for PC installed?NoteCLIE Organizer for PC cannot be installed before installing Palm™ Desktop for CLIÉ on your computer.BIs the operating system on your computer compatible?The following operating systems are compatible with your CLIÉ handheld. Operating systems other than the following are not supported.• Microsoft Windows 2000 Professional• Microsoft Windows Me• Microsoft Windows XP Home Edition• Microsoft Windows XP ProfessionalNoteUpgrade versions of operating systems are not supported.BIf you are using Windows 2000 Professional or Windows XP, log in as an “Administrator.”BIs the USB cable properly connected to your computer (page 20)?BIs (HotSync) displayed in the task tray (Notification area) at the bottom right of your computer window?If not, click [Start], select [Programs] ([All Programs] for Windows XP)-[Sony Handheld], and click [HotSync Manager] to start HotSync Manager.BIs [Local USB] in the menu selected? (You can display this by clicking (HotSync) in the task tray (Notification area).)If not, select [Local USB].The HotSync® problemsContinued on next page• • • • • • • • • • • • • • • • • • • • •01US01COV.book Page 71 Tuesday, December 16, 2003 2:07 AM

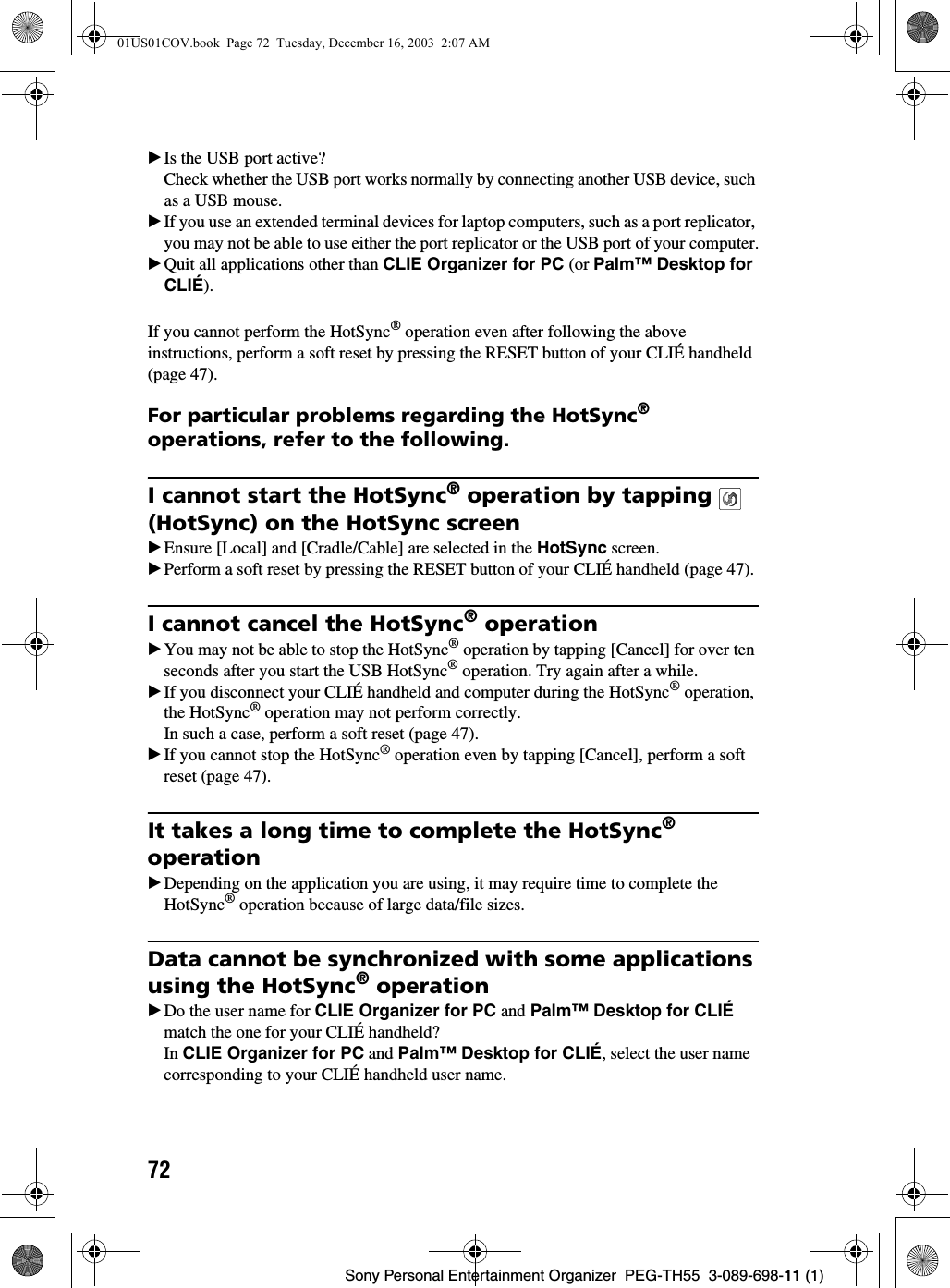

72Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)BIs the USB port active?Check whether the USB port works normally by connecting another USB device, such as a USB mouse.BIf you use an extended terminal devices for laptop computers, such as a port replicator, you may not be able to use either the port replicator or the USB port of your computer.BQuit all applications other than CLIE Organizer for PC (or Palm™ Desktop for CLIÉ).If you cannot perform the HotSync® operation even after following the above instructions, perform a soft reset by pressing the RESET button of your CLIÉ handheld (page 47).For particular problems regarding the HotSync® operations, refer to the following.I cannot start the HotSync® operation by tapping (HotSync) on the HotSync screenBEnsure [Local] and [Cradle/Cable] are selected in the HotSync screen.BPerform a soft reset by pressing the RESET button of your CLIÉ handheld (page 47).I cannot cancel the HotSync® operationBYou may not be able to stop the HotSync® operation by tapping [Cancel] for over ten seconds after you start the USB HotSync® operation. Try again after a while.BIf you disconnect your CLIÉ handheld and computer during the HotSync® operation, the HotSync® operation may not perform correctly.In such a case, perform a soft reset (page 47).BIf you cannot stop the HotSync® operation even by tapping [Cancel], perform a soft reset (page 47).It takes a long time to complete the HotSync® operationBDepending on the application you are using, it may require time to complete the HotSync® operation because of large data/file sizes.Data cannot be synchronized with some applications using the HotSync® operationBDo the user name for CLIE Organizer for PC and Palm™ Desktop for CLIÉ match the one for your CLIÉ handheld?In CLIE Organizer for PC and Palm™ Desktop for CLIÉ, select the user name corresponding to your CLIÉ handheld user name.01US01COV.book Page 72 Tuesday, December 16, 2003 2:07 AM

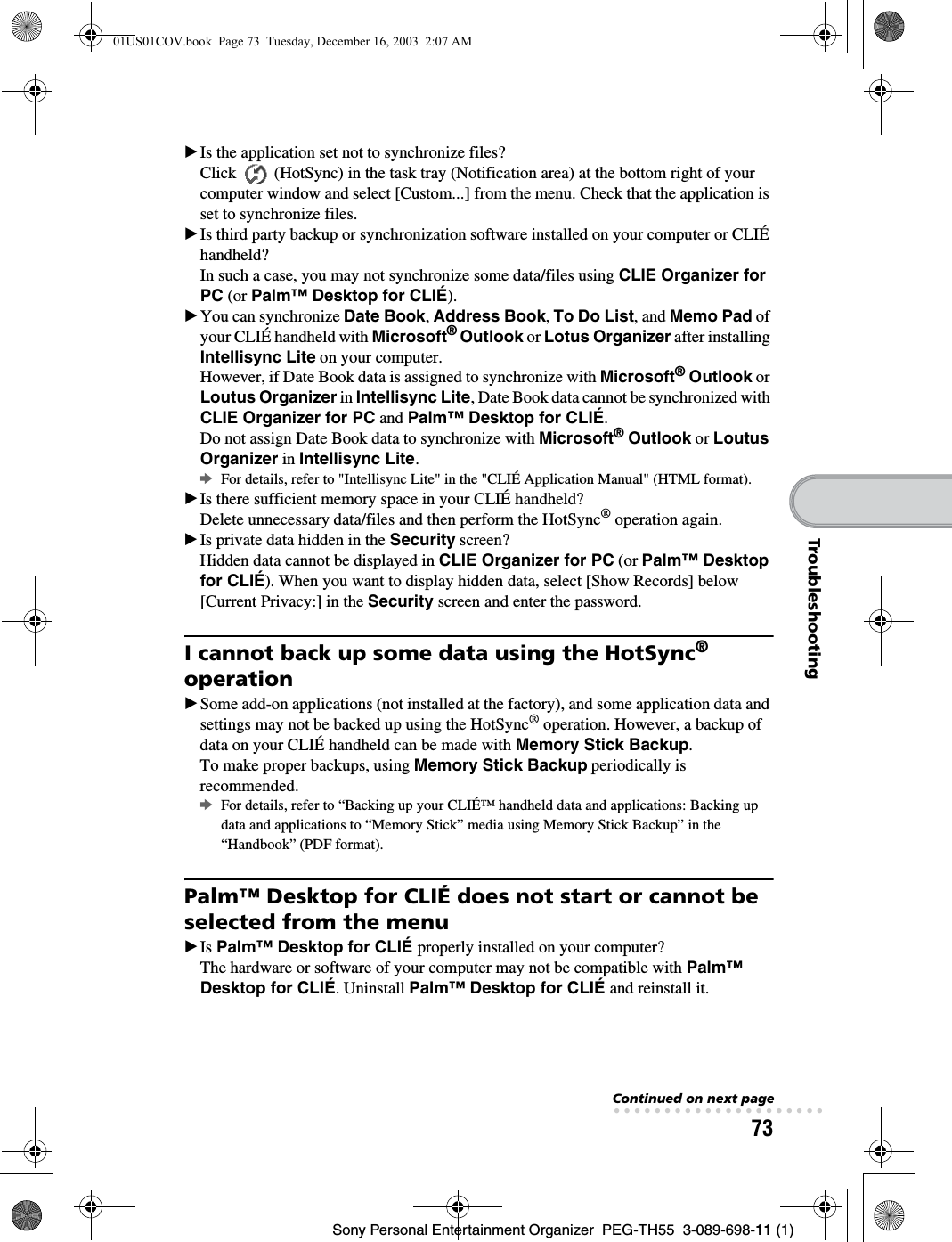

73Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)TroubleshootingBIs the application set not to synchronize files?Click (HotSync) in the task tray (Notification area) at the bottom right of your computer window and select [Custom...] from the menu. Check that the application is set to synchronize files. BIs third party backup or synchronization software installed on your computer or CLIÉ handheld?In such a case, you may not synchronize some data/files using CLIE Organizer for PC (or Palm™ Desktop for CLIÉ).BYou can synchronize Date Book, Address Book, To Do List, and Memo Pad of your CLIÉ handheld with Microsoft® Outlook or Lotus Organizer after installing Intellisync Lite on your computer.However, if Date Book data is assigned to synchronize with Microsoft® Outlook or Loutus Organizer in Intellisync Lite, Date Book data cannot be synchronized with CLIE Organizer for PC and Palm™ Desktop for CLIÉ.Do not assign Date Book data to synchronize with Microsoft® Outlook or Loutus Organizer in Intellisync Lite.bFor details, refer to "Intellisync Lite" in the "CLIÉ Application Manual" (HTML format).BIs there sufficient memory space in your CLIÉ handheld?Delete unnecessary data/files and then perform the HotSync® operation again.BIs private data hidden in the Security screen?Hidden data cannot be displayed in CLIE Organizer for PC (or Palm™ Desktop for CLIÉ). When you want to display hidden data, select [Show Records] below [Current Privacy:] in the Security screen and enter the password.I cannot back up some data using the HotSync® operationBSome add-on applications (not installed at the factory), and some application data and settings may not be backed up using the HotSync® operation. However, a backup of data on your CLIÉ handheld can be made with Memory Stick Backup.To make proper backups, using Memory Stick Backup periodically is recommended.bFor details, refer to “Backing up your CLIÉ™ handheld data and applications: Backing up data and applications to “Memory Stick” media using Memory Stick Backup” in the “Handbook” (PDF format).Palm™ Desktop for CLIÉ does not start or cannot be selected from the menuBIs Palm™ Desktop for CLIÉ properly installed on your computer?The hardware or software of your computer may not be compatible with Palm™ Desktop for CLIÉ. Uninstall Palm™ Desktop for CLIÉ and reinstall it.Continued on next page• • • • • • • • • • • • • • • • • • • • •01US01COV.book Page 73 Tuesday, December 16, 2003 2:07 AM

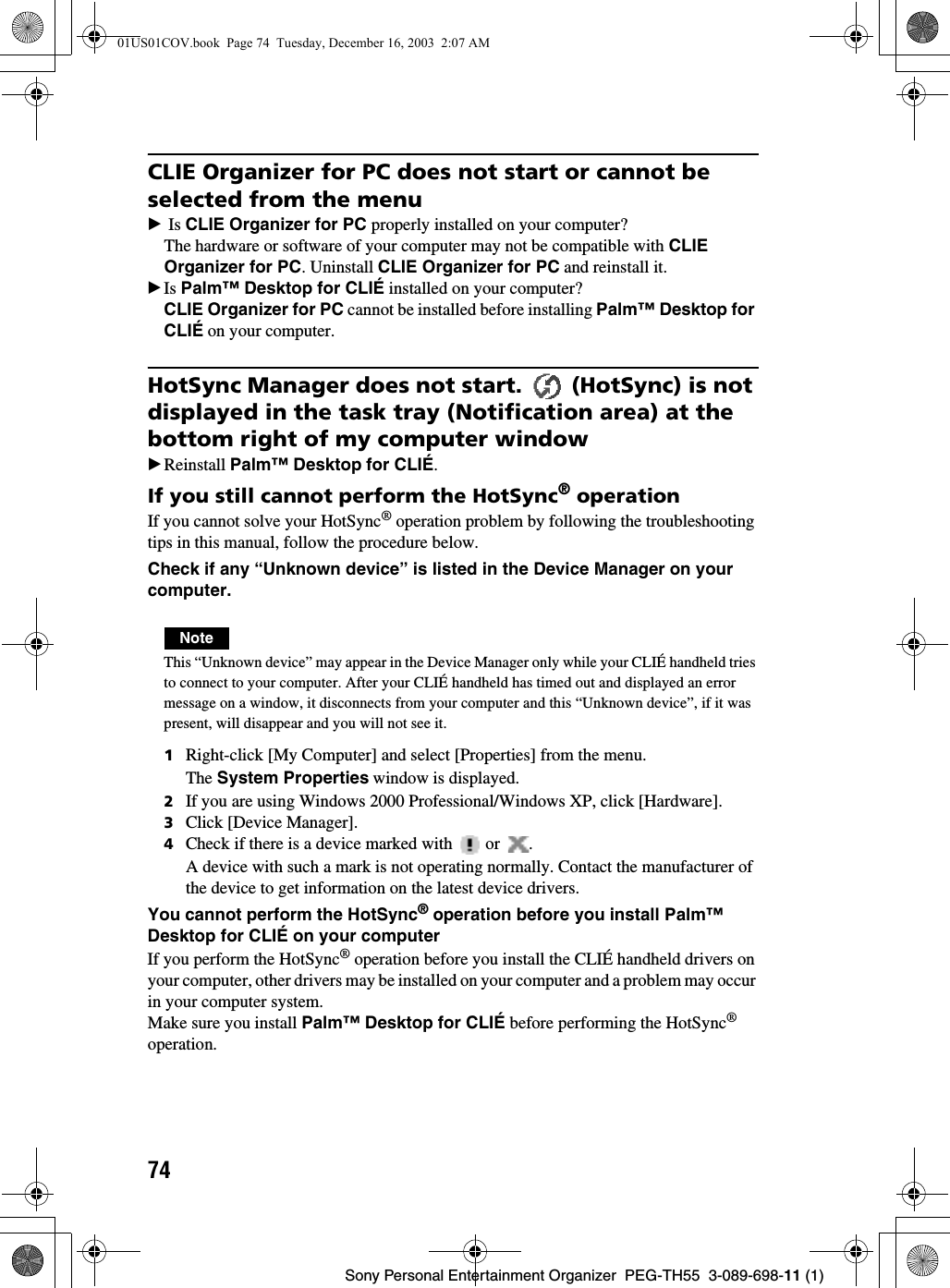

74Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)CLIE Organizer for PC does not start or cannot be selected from the menuB Is CLIE Organizer for PC properly installed on your computer?The hardware or software of your computer may not be compatible with CLIE Organizer for PC. Uninstall CLIE Organizer for PC and reinstall it.BIs Palm™ Desktop for CLIÉ installed on your computer?CLIE Organizer for PC cannot be installed before installing Palm™ Desktop for CLIÉ on your computer.HotSync Manager does not start. (HotSync) is not displayed in the task tray (Notification area) at the bottom right of my computer windowBReinstall Palm™ Desktop for CLIÉ.If you still cannot perform the HotSync® operationIf you cannot solve your HotSync® operation problem by following the troubleshooting tips in this manual, follow the procedure below.Check if any “Unknown device” is listed in the Device Manager on your computer.1Right-click [My Computer] and select [Properties] from the menu.The System Properties window is displayed.2If you are using Windows 2000 Professional/Windows XP, click [Hardware].3Click [Device Manager].4Check if there is a device marked with or .A device with such a mark is not operating normally. Contact the manufacturer of the device to get information on the latest device drivers.You cannot perform the HotSync® operation before you install Palm™ Desktop for CLIÉ on your computerIf you perform the HotSync® operation before you install the CLIÉ handheld drivers on your computer, other drivers may be installed on your computer and a problem may occur in your computer system. Make sure you install Palm™ Desktop for CLIÉ before performing the HotSync® operation.NoteThis “Unknown device” may appear in the Device Manager only while your CLIÉ handheld tries to connect to your computer. After your CLIÉ handheld has timed out and displayed an error message on a window, it disconnects from your computer and this “Unknown device”, if it was present, will disappear and you will not see it. 01US01COV.book Page 74 Tuesday, December 16, 2003 2:07 AM

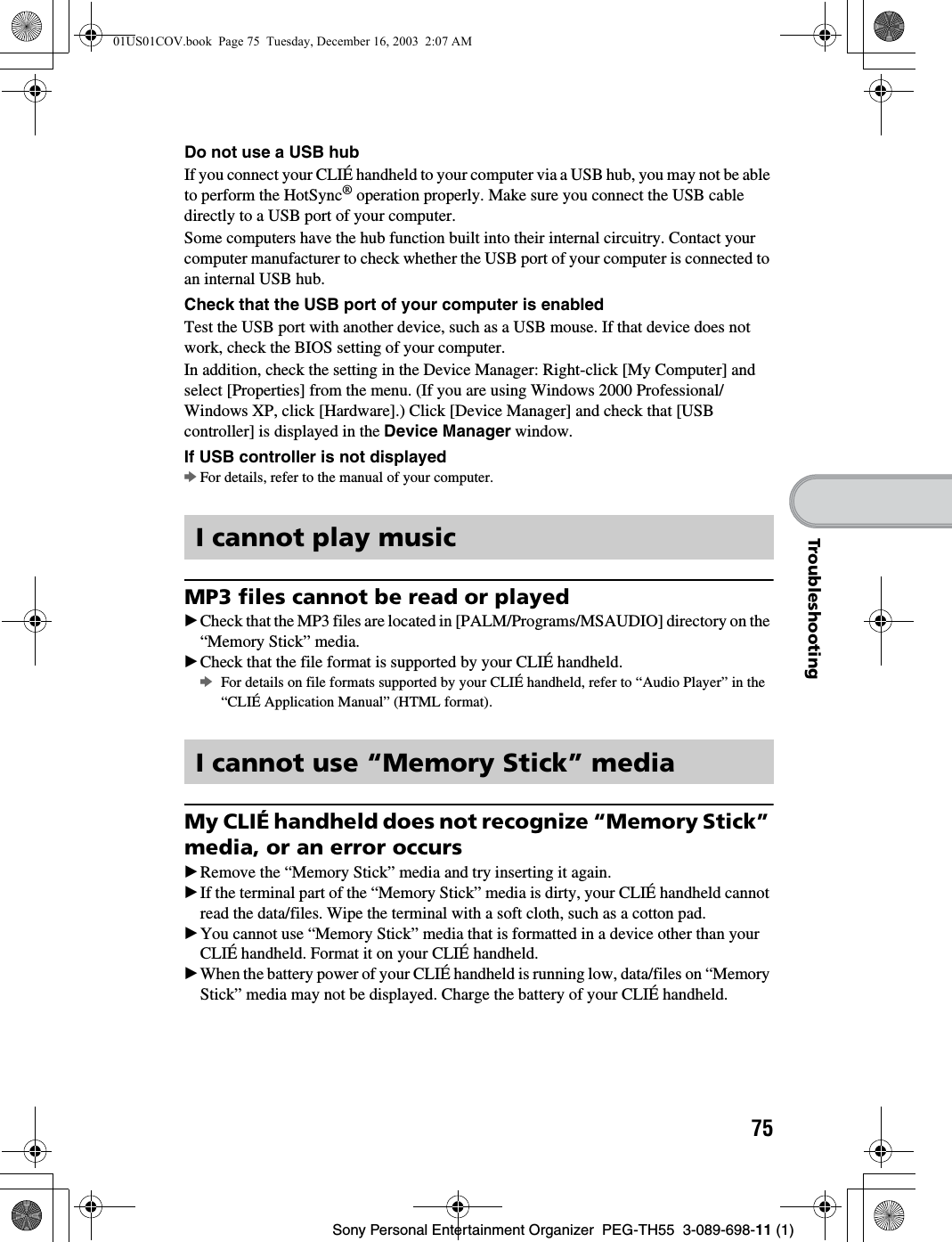

75Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)TroubleshootingDo not use a USB hubIf you connect your CLIÉ handheld to your computer via a USB hub, you may not be able to perform the HotSync® operation properly. Make sure you connect the USB cable directly to a USB port of your computer. Some computers have the hub function built into their internal circuitry. Contact your computer manufacturer to check whether the USB port of your computer is connected to an internal USB hub.Check that the USB port of your computer is enabledTest the USB port with another device, such as a USB mouse. If that device does not work, check the BIOS setting of your computer.In addition, check the setting in the Device Manager: Right-click [My Computer] and select [Properties] from the menu. (If you are using Windows 2000 Professional/Windows XP, click [Hardware].) Click [Device Manager] and check that [USB controller] is displayed in the Device Manager window.If USB controller is not displayedbFor details, refer to the manual of your computer.MP3 files cannot be read or playedBCheck that the MP3 files are located in [PALM/Programs/MSAUDIO] directory on the “Memory Stick” media.BCheck that the file format is supported by your CLIÉ handheld.bFor details on file formats supported by your CLIÉ handheld, refer to “Audio Player” in the “CLIÉ Application Manual” (HTML format).My CLIÉ handheld does not recognize “Memory Stick” media, or an error occursBRemove the “Memory Stick” media and try inserting it again.BIf the terminal part of the “Memory Stick” media is dirty, your CLIÉ handheld cannot read the data/files. Wipe the terminal with a soft cloth, such as a cotton pad.BYou cannot use “Memory Stick” media that is formatted in a device other than your CLIÉ handheld. Format it on your CLIÉ handheld.BWhen the battery power of your CLIÉ handheld is running low, data/files on “Memory Stick” media may not be displayed. Charge the battery of your CLIÉ handheld.I cannot play musicI cannot use “Memory Stick” media01US01COV.book Page 75 Tuesday, December 16, 2003 2:07 AM
76Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Customer Support and Customer Registration■For customer support information Double-click (CLIÉ Info) on the Windows desktop, and select [CLIÉ™ Handheld Support].■For online customer registration (For customers in the U.S.A. , Canada, and Europe only)Double-click (CLIÉ Info) on the Windows desktop, and select [Sony CLIÉ™ Registration].01US01COV.book Page 76 Tuesday, December 16, 2003 2:07 AM

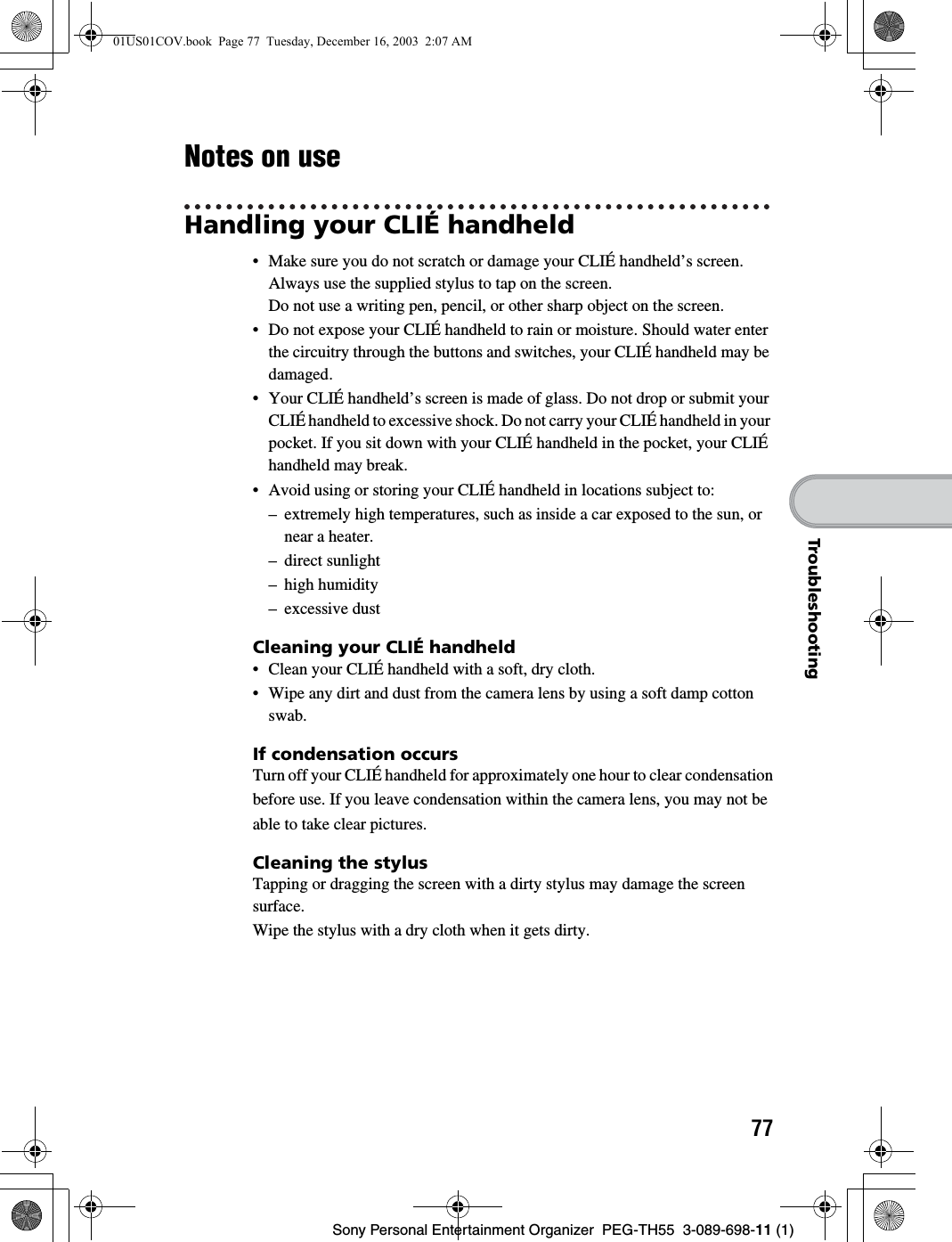

77Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)TroubleshootingNotes on useHandling your CLIÉ handheld• Make sure you do not scratch or damage your CLIÉ handheld’s screen. Always use the supplied stylus to tap on the screen.Do not use a writing pen, pencil, or other sharp object on the screen.• Do not expose your CLIÉ handheld to rain or moisture. Should water enter the circuitry through the buttons and switches, your CLIÉ handheld may be damaged.• Your CLIÉ handheld’s screen is made of glass. Do not drop or submit your CLIÉ handheld to excessive shock. Do not carry your CLIÉ handheld in your pocket. If you sit down with your CLIÉ handheld in the pocket, your CLIÉ handheld may break.• Avoid using or storing your CLIÉ handheld in locations subject to:– extremely high temperatures, such as inside a car exposed to the sun, or near a heater.– direct sunlight– high humidity– excessive dustCleaning your CLIÉ handheld• Clean your CLIÉ handheld with a soft, dry cloth.• Wipe any dirt and dust from the camera lens by using a soft damp cotton swab.If condensation occursTurn off your CLIÉ handheld for approximately one hour to clear condensationbefore use. If you leave condensation within the camera lens, you may not beable to take clear pictures.Cleaning the stylusTapping or dragging the screen with a dirty stylus may damage the screen surface.Wipe the stylus with a dry cloth when it gets dirty.01US01COV.book Page 77 Tuesday, December 16, 2003 2:07 AM

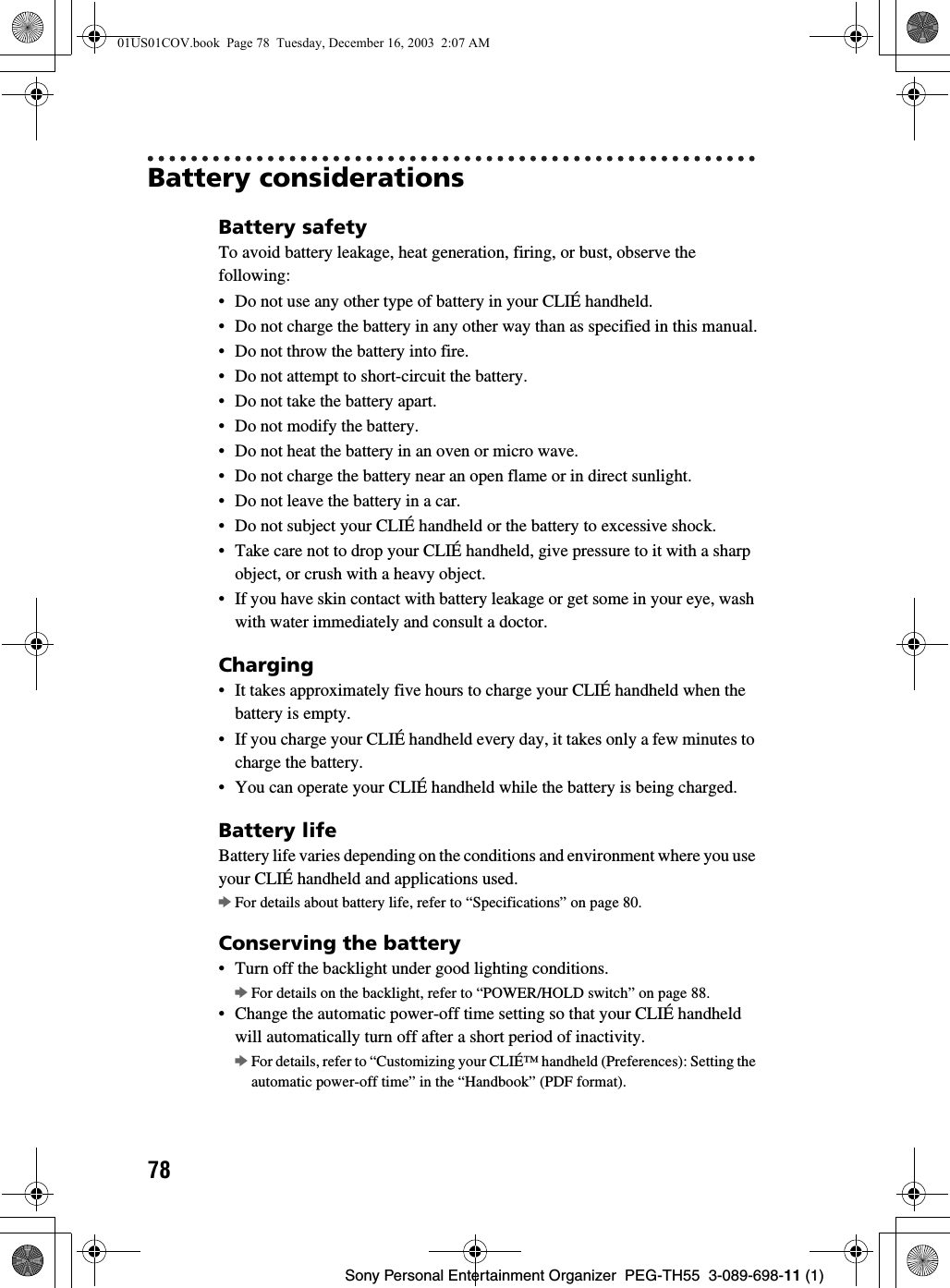

78Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Battery considerationsBattery safetyTo avoid battery leakage, heat generation, firing, or bust, observe the following:• Do not use any other type of battery in your CLIÉ handheld.• Do not charge the battery in any other way than as specified in this manual.• Do not throw the battery into fire.• Do not attempt to short-circuit the battery.• Do not take the battery apart.• Do not modify the battery.• Do not heat the battery in an oven or micro wave.• Do not charge the battery near an open flame or in direct sunlight.• Do not leave the battery in a car.• Do not subject your CLIÉ handheld or the battery to excessive shock.• Take care not to drop your CLIÉ handheld, give pressure to it with a sharp object, or crush with a heavy object.• If you have skin contact with battery leakage or get some in your eye, wash with water immediately and consult a doctor.Charging• It takes approximately five hours to charge your CLIÉ handheld when the battery is empty.• If you charge your CLIÉ handheld every day, it takes only a few minutes to charge the battery.• You can operate your CLIÉ handheld while the battery is being charged.Battery lifeBattery life varies depending on the conditions and environment where you use your CLIÉ handheld and applications used.bFor details about battery life, refer to “Specifications” on page 80.Conserving the battery• Turn off the backlight under good lighting conditions. bFor details on the backlight, refer to “POWER/HOLD switch” on page 88.• Change the automatic power-off time setting so that your CLIÉ handheld will automatically turn off after a short period of inactivity.bFor details, refer to “Customizing your CLIÉ™ handheld (Preferences): Setting the automatic power-off time” in the “Handbook” (PDF format).01US01COV.book Page 78 Tuesday, December 16, 2003 2:07 AM
79Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)TroubleshootingUsing peripheral devicesIf a low battery warning is displayed while using peripheral devices, charge your CLIÉ handheld immediately. If you continuously use it, it automatically turns off and cannot operate until you charge it.When the battery power gets low• When the battery power gets low, a warning message is displayed on the screen, “Memory Stick” media becomes inaccessible, and the backlight adjustment no longer operates. If this occurs, connect your CLIÉ handheld to wall outlet and perform the HotSync® operation.• If your CLIÉ handheld does not turn on when you slide down the POWER/HOLD switch, charge your CLIÉ handheld immediately.• The remaining battery indicator may not always reflect the actual battery power. To prevent loss of battery power, charge your CLIÉ handheld frequently.• You do not have to replace batteries. When battery power gets low, charge your CLIÉ handheld immediately. Never disassemble your CLIÉ handheld to take out the battery.Other informationYour CLIÉ handheld may get warm if turned on for long periods of time. This is not a malfunction.About replacing the batteryCAUTIONPlease contact with your nearest Sony dealer in connection with this product with problem.Do not let the remaining battery power indicator reach 0If you leave your CLIÉ handheld in an uncharged state (the remaining battery power indicator reaches 0 ), all user data stored on your CLIÉ handheld will be erased. To avoid this, you should charge your CLIÉ handheld frequently.01US01COV.book Page 79 Tuesday, December 16, 2003 2:07 AM

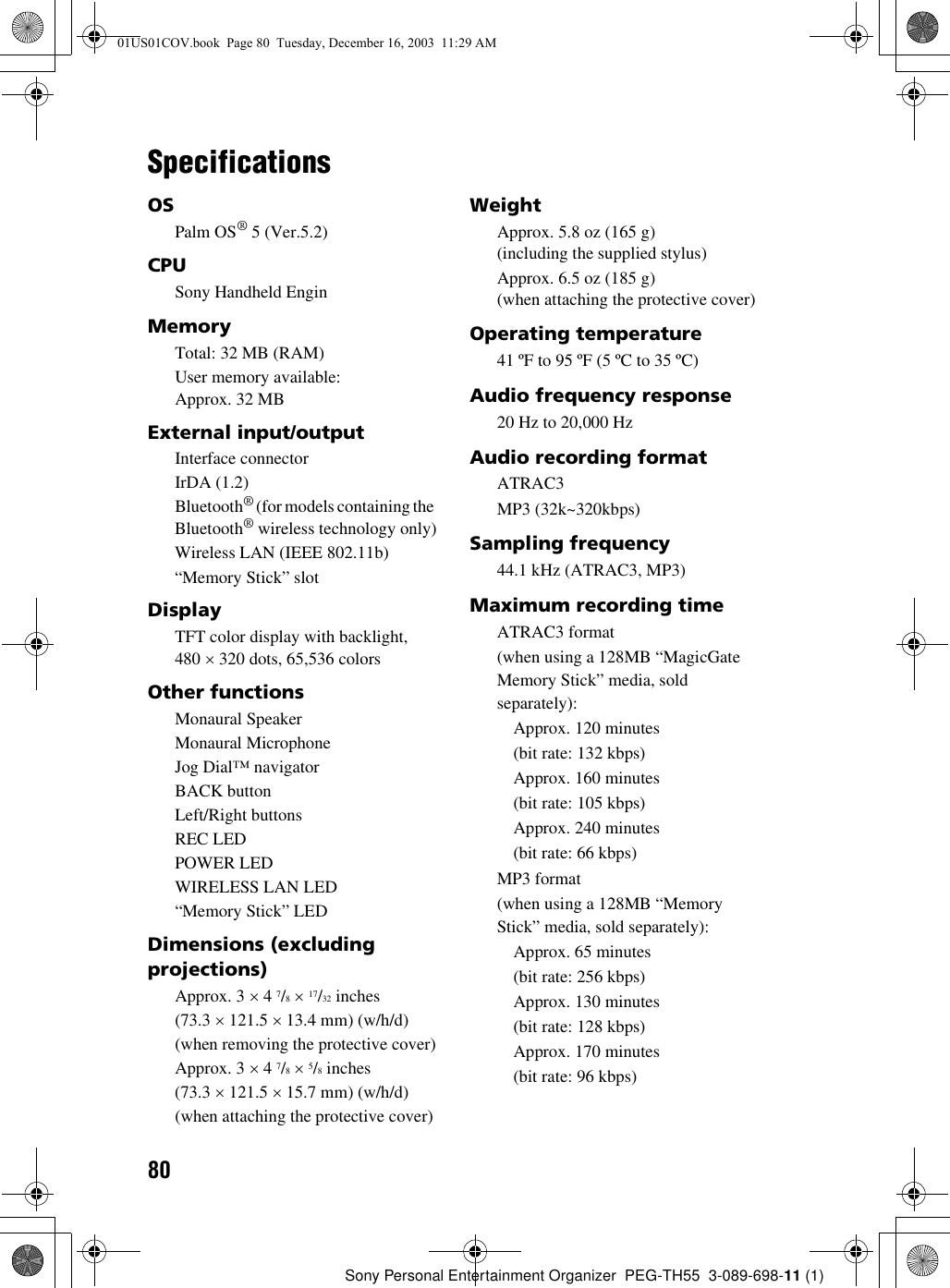

80Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)SpecificationsOSPalm OS® 5 (Ver.5.2)CPUSony Handheld EnginMemoryTotal: 32 MB (RAM)User memory available: Approx. 32 MBExternal input/outputInterface connectorIrDA (1.2)Bluetooth® (for models containing the Bluetooth® wireless technology only)Wireless LAN (IEEE 802.11b)“Memory Stick” slotDisplayTFT color display with backlight, 480 × 320 dots, 65,536 colorsOther functionsMonaural Speaker Monaural MicrophoneJog Dial™ navigatorBACK buttonLeft/Right buttonsREC LEDPOWER LEDWIRELESS LAN LED“Memory Stick” LEDDimensions (excluding projections)Approx. 3 × 4 7/8 × 17/32 inches(73.3 × 121.5 × 13.4 mm) (w/h/d)(when removing the protective cover)Approx. 3 × 4 7/8 × 5/8 inches(73.3 × 121.5 × 15.7 mm) (w/h/d)(when attaching the protective cover)WeightApprox. 5.8 oz (165 g)(including the supplied stylus)Approx. 6.5 oz (185 g)(when attaching the protective cover)Operating temperature41 ºF to 95 ºF (5 ºC to 35 ºC)Audio frequency response20 Hz to 20,000 HzAudio recording formatATRAC3MP3 (32k~320kbps)Sampling frequency44.1 kHz (ATRAC3, MP3)Maximum recording timeATRAC3 format(when using a 128MB “MagicGate Memory Stick” media, sold separately):Approx. 120 minutes(bit rate: 132 kbps)Approx. 160 minutes(bit rate: 105 kbps)Approx. 240 minutes(bit rate: 66 kbps)MP3 format(when using a 128MB “Memory Stick” media, sold separately):Approx. 65 minutes(bit rate: 256 kbps)Approx. 130 minutes(bit rate: 128 kbps)Approx. 170 minutes(bit rate: 96 kbps)01US01COV.book Page 80 Tuesday, December 16, 2003 11:29 AM
81Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)TroubleshootingVoice encoding/decoding formatIMA ADPCM (1ch, 4bit)SP mode (22 kHz)LP mode (8 kHz)Maximum audio recording time(when using a 128MB “Memory Stick” media, sold separately):SP mode: Approx. 190 minutesLP mode: Approx. 520 minutesOutputHeadphones/Earphones: Stereo mini-jackPicture size (when recording)640 × 480, 320 × 480(vertical frame), 320 × 240, 160 × 120 dotsFormats (when recording)Image file:JPEG (DCF) formatPicture size (when viewing)On the CLIÉ handheld displayImage file:320 × 480, 320 × 240,160 × 120 dotsMovie file:426 × 320, 320 × 240,160 × 112 dotsFormats (when viewing)Image file:JPEG (DCF) formatMovie file:QuickTime file format*, MPEG-1 (MPEG Movie)* The playback is only capable for the files created for Mobile Movie products.Maximum image file recording capacity(when using a 128MB “Memory Stick” media sold separately)640 × 480 dots:Approx. 1,000 files320 × 480 dots:Approx. 1,500 files320 × 240 dots:Approx. 2,000 files160 × 120 dots:Approx. 6,000 filesPower requirementsAC power adapter (supplied):DC 5.2 V (dedicated connector)(Use an appropriate AC cord from the supplied AC cords)Battery:Lithium-ion polymer batteryBattery lifeOperating PIMs (Personal Information Management applications):Approx. 15 days (when PIMs, such as Date Book, are operated for 30 minutes per day with the backlight off) Approx. 9 days (when PIMs, such as Date Book, are operated for 30 minutes per day with the backlight on*)Playing audio files (in continuous mode):Approx. 16 hours(when playing audio files in HOLD mode)Approx. 3 hours(when playing audio files not in HOLD mode and the backlight on*)Viewing movie files (in continuous mode):Approx. 5 hours(when viewing movie files with the backlight off)Continued on next page• • • • • • • • • • • • • • • • • • • • • • • • • • •01US01COV.book Page 81 Tuesday, December 16, 2003 11:29 AM

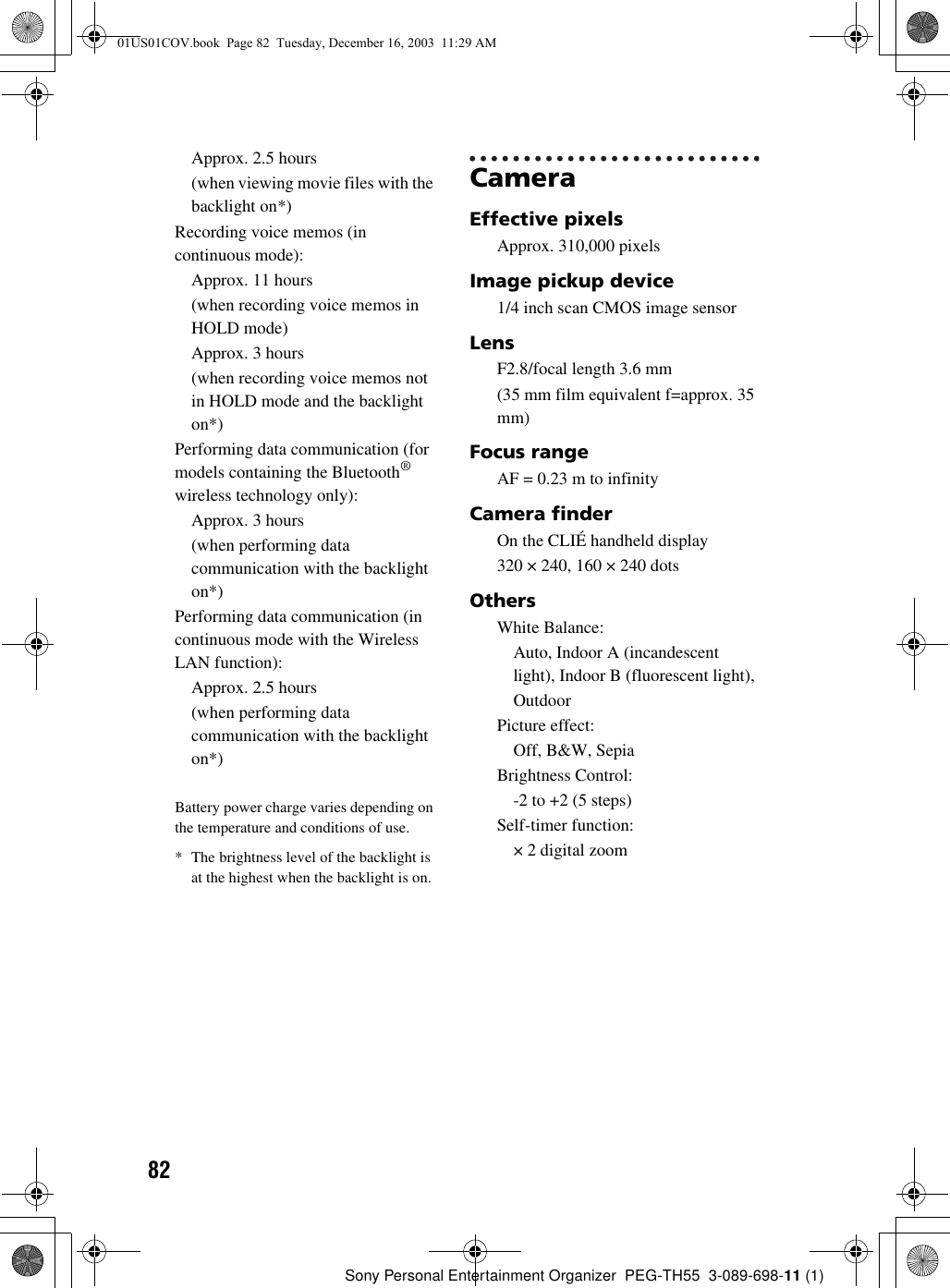

82Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Approx. 2.5 hours(when viewing movie files with the backlight on*)Recording voice memos (in continuous mode):Approx. 11 hours(when recording voice memos in HOLD mode)Approx. 3 hours(when recording voice memos not in HOLD mode and the backlight on*)Performing data communication (for models containing the Bluetooth® wireless technology only):Approx. 3 hours(when performing data communication with the backlight on*)Performing data communication (in continuous mode with the Wireless LAN function):Approx. 2.5 hours(when performing data communication with the backlight on*)Battery power charge varies depending on the temperature and conditions of use.* The brightness level of the backlight is at the highest when the backlight is on.CameraEffective pixelsApprox. 310,000 pixelsImage pickup device1/4 inch scan CMOS image sensorLensF2.8/focal length 3.6 mm(35 mm film equivalent f=approx. 35 mm)Focus rangeAF = 0.23 m to infinityCamera finderOn the CLIÉ handheld display320 × 240, 160 × 240 dotsOthersWhite Balance:Auto, Indoor A (incandescent light), Indoor B (fluorescent light),OutdoorPicture effect:Off, B&W, SepiaBrightness Control:-2 to +2 (5 steps)Self-timer function:× 2 digital zoom01US01COV.book Page 82 Tuesday, December 16, 2003 11:29 AM

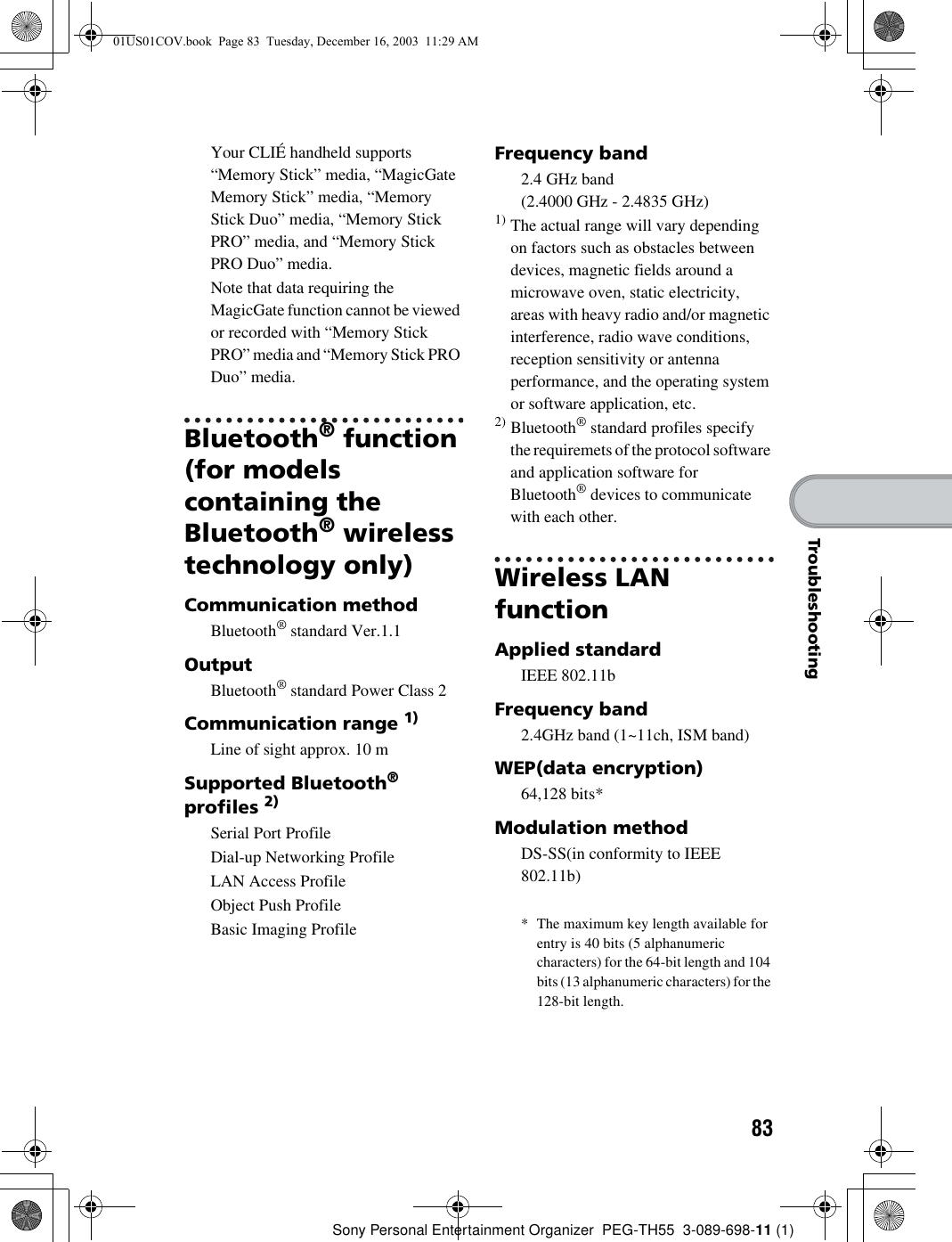

83Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)TroubleshootingYour CLIÉ handheld supports “Memory Stick” media, “MagicGate Memory Stick” media, “Memory Stick Duo” media, “Memory Stick PRO” media, and “Memory Stick PRO Duo” media.Note that data requiring the MagicGate function cannot be viewed or recorded with “Memory Stick PRO” media and “Memory Stick PRO Duo” media.Bluetooth® function(for models containing the Bluetooth® wireless technology only)Communication methodBluetooth® standard Ver.1.1OutputBluetooth® standard Power Class 2Communication range 1)Line of sight approx. 10 mSupported Bluetooth® profiles 2)Serial Port ProfileDial-up Networking ProfileLAN Access ProfileObject Push ProfileBasic Imaging ProfileFrequency band2.4 GHz band (2.4000 GHz - 2.4835 GHz)1) The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, areas with heavy radio and/or magnetic interference, radio wave conditions, reception sensitivity or antenna performance, and the operating system or software application, etc.2) Bluetooth® standard profiles specify the requiremets of the protocol software and application software for Bluetooth® devices to communicate with each other.Wireless LAN function Applied standardIEEE 802.11bFrequency band2.4GHz band (1~11ch, ISM band)WEP(data encryption)64,128 bits*Modulation methodDS-SS(in conformity to IEEE 802.11b)* The maximum key length available for entry is 40 bits (5 alphanumeric characters) for the 64-bit length and 104 bits (13 alphanumeric characters) for the 128-bit length.01US01COV.book Page 83 Tuesday, December 16, 2003 11:29 AM

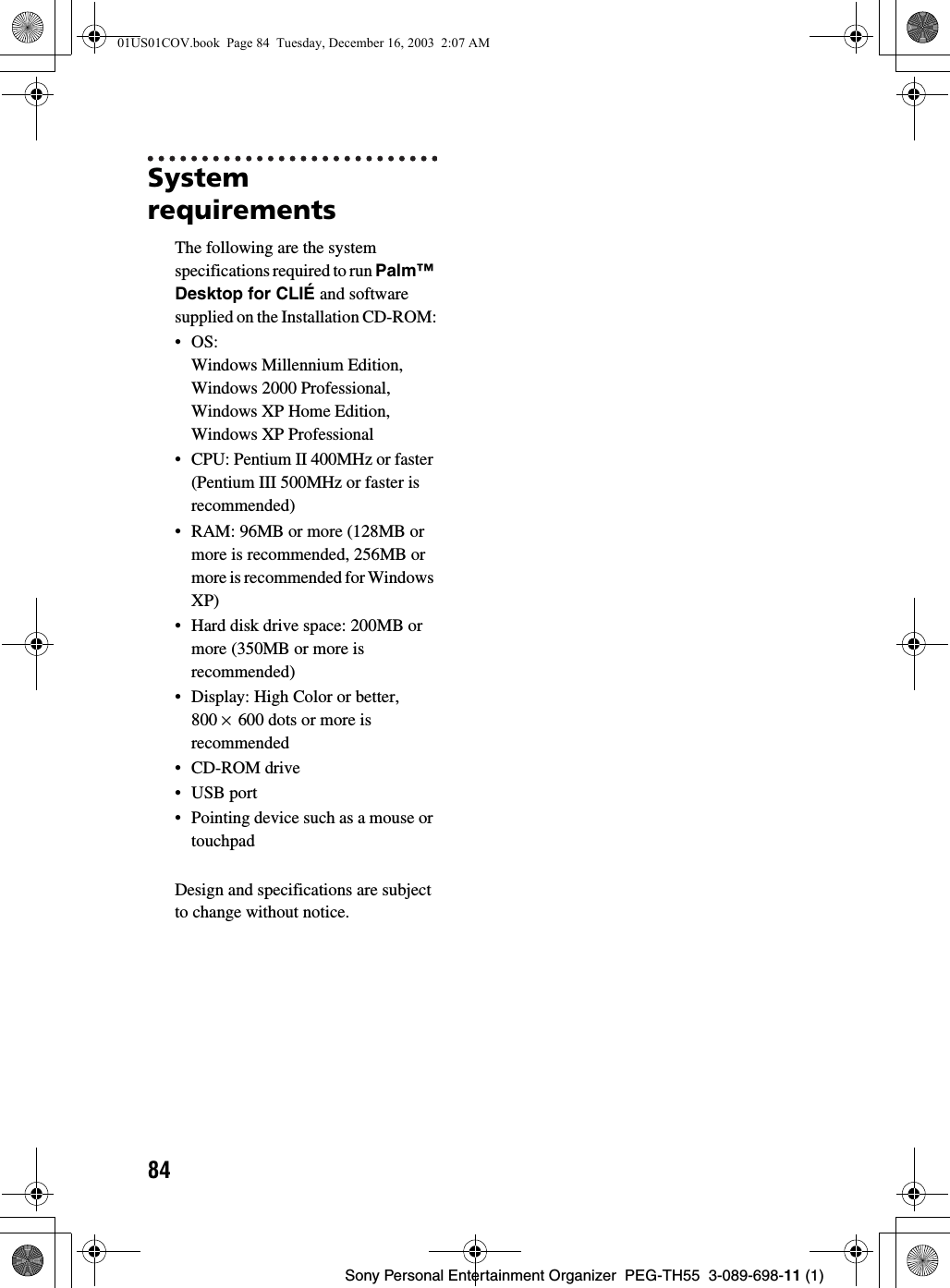

84Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)System requirementsThe following are the system specifications required to run Palm™ Desktop for CLIÉ and software supplied on the Installation CD-ROM:•OS: Windows Millennium Edition, Windows 2000 Professional, Windows XP Home Edition, Windows XP Professional• CPU: Pentium II 400MHz or faster (Pentium III 500MHz or faster is recommended)• RAM: 96MB or more (128MB or more is recommended, 256MB or more is recommended for Windows XP)• Hard disk drive space: 200MB or more (350MB or more is recommended)• Display: High Color or better, 800 ×600 dots or more is recommended•CD-ROM drive•USB port• Pointing device such as a mouse or touchpadDesign and specifications are subject to change without notice.01US01COV.book Page 84 Tuesday, December 16, 2003 2:07 AM
Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)85CLIÉ™ handheld componentsCLIÉ™ handheld componentsThis chapter explains each part of your CLIÉ handheld, the supplied accessories, and additional information.Front panelContinued on next page• • • • • • • • • • • • • • • • • • • •01US01COV.book Page 85 Tuesday, December 16, 2003 2:07 AM

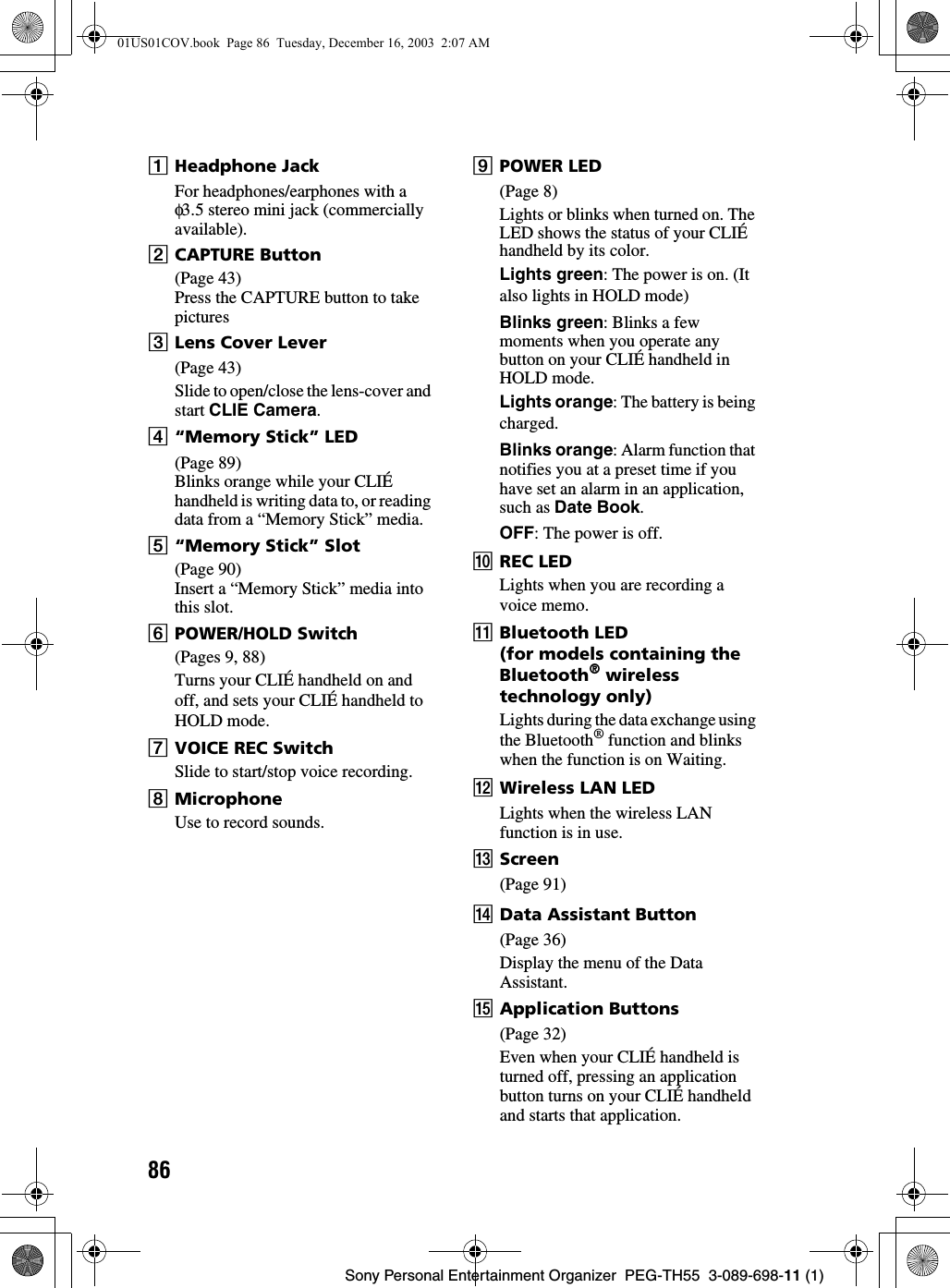

86Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)AHeadphone JackFor headphones/earphones with a φ3.5 stereo mini jack (commercially available).BCAPTURE Button(Page 43)Press the CAPTURE button to take picturesCLens Cover Lever(Page 43)Slide to open/close the lens-cover and start CLIE Camera.D“Memory Stick” LED(Page 89)Blinks orange while your CLIÉ handheld is writing data to, or reading data from a “Memory Stick” media.E“Memory Stick” Slot(Page 90)Insert a “Memory Stick” media into this slot.FPOWER/HOLD Switch(Pages 9, 88)Turns your CLIÉ handheld on and off, and sets your CLIÉ handheld to HOLD mode.GVOICE REC SwitchSlide to start/stop voice recording.HMicrophoneUse to record sounds.IPOWER LED(Page 8)Lights or blinks when turned on. The LED shows the status of your CLIÉ handheld by its color.Lights green: The power is on. (It also lights in HOLD mode)Blinks green: Blinks a few moments when you operate any button on your CLIÉ handheld in HOLD mode.Lights orange: The battery is being charged.Blinks orange: Alarm function that notifies you at a preset time if you have set an alarm in an application, such as Date Book.OFF: The power is off.JREC LEDLights when you are recording a voice memo.KBluetooth LED(for models containing the Bluetooth® wireless technology only)Lights during the data exchange using the Bluetooth® function and blinks when the function is on Waiting.LWireless LAN LEDLights when the wireless LAN function is in use.MScreen(Page 91)NData Assistant Button(Page 36)Display the menu of the Data Assistant.OApplication Buttons(Page 32)Even when your CLIÉ handheld is turned off, pressing an application button turns on your CLIÉ handheld and starts that application.01US01COV.book Page 86 Tuesday, December 16, 2003 2:07 AM

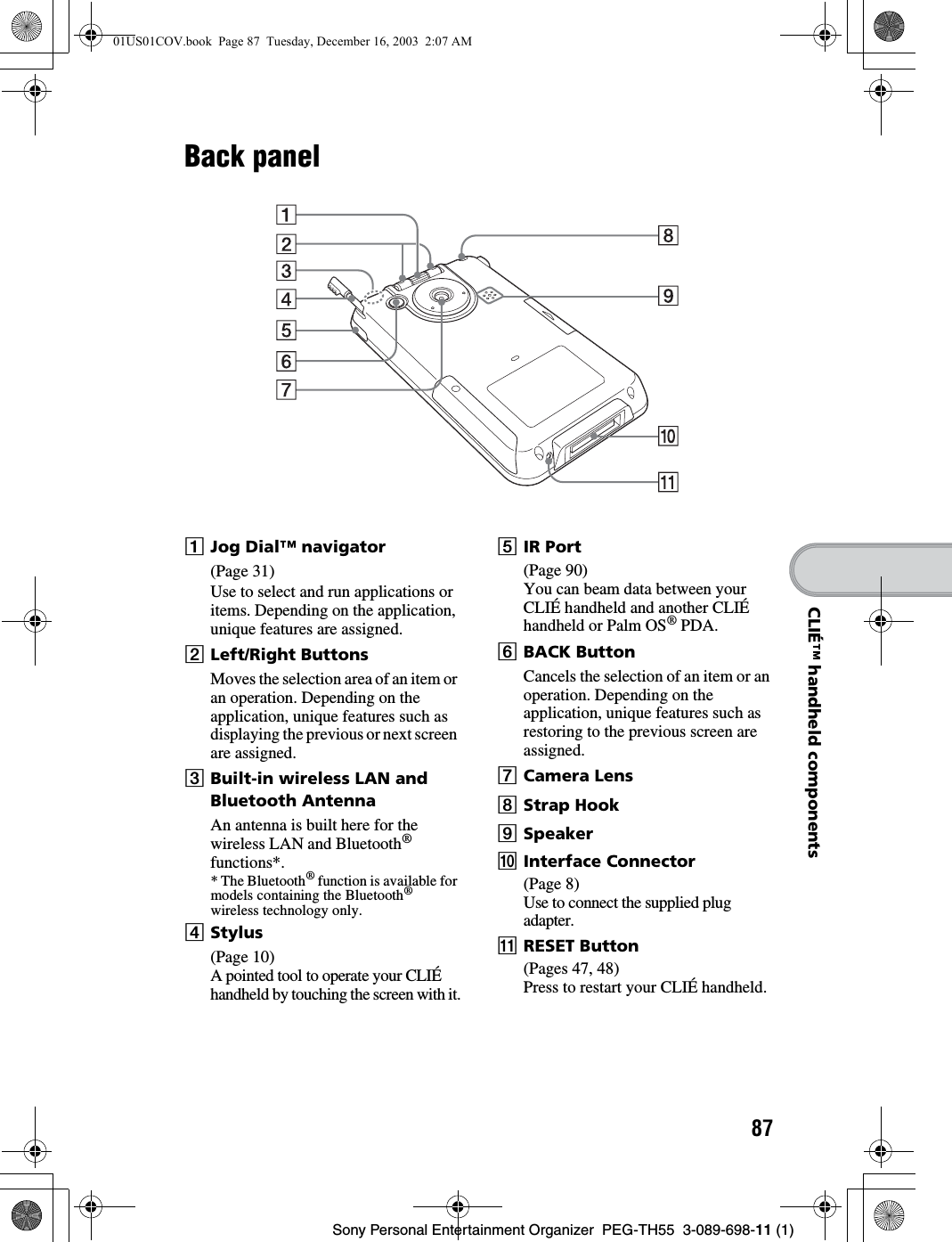

87Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)CLIÉ™ handheld componentsBack panelAJog Dial™ navigator(Page 31)Use to select and run applications or items. Depending on the application, unique features are assigned.BLeft/Right ButtonsMoves the selection area of an item or an operation. Depending on the application, unique features such as displaying the previous or next screen are assigned.CBuilt-in wireless LAN and Bluetooth AntennaAn antenna is built here for the wireless LAN and Bluetooth® functions*.* The Bluetooth® function is available for models containing the Bluetooth® wireless technology only.DStylus(Page 10)A pointed tool to operate your CLIÉ handheld by touching the screen with it.EIR Port(Page 90)You can beam data between your CLIÉ handheld and another CLIÉ handheld or Palm OS® PDA.FBACK ButtonCancels the selection of an item or an operation. Depending on the application, unique features such as restoring to the previous screen are assigned. GCamera LensHStrap HookISpeakerJInterface Connector(Page 8)Use to connect the supplied plug adapter.KRESET Button(Pages 47, 48)Press to restart your CLIÉ handheld.01US01COV.book Page 87 Tuesday, December 16, 2003 2:07 AM

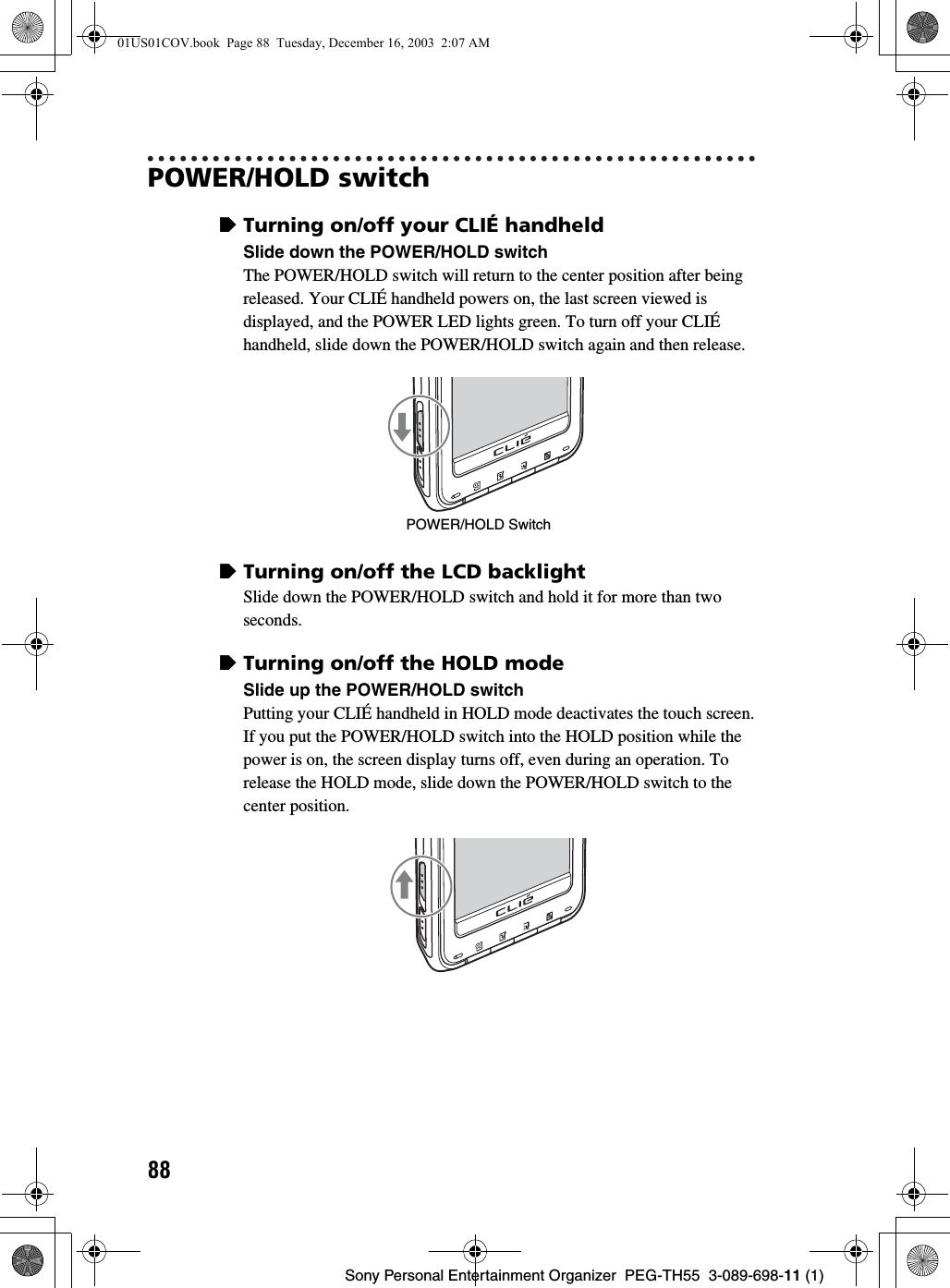

88Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)POWER/HOLD switchzTurning on/off your CLIÉ handheldSlide down the POWER/HOLD switchThe POWER/HOLD switch will return to the center position after being released. Your CLIÉ handheld powers on, the last screen viewed is displayed, and the POWER LED lights green. To turn off your CLIÉ handheld, slide down the POWER/HOLD switch again and then release.zTurning on/off the LCD backlightSlide down the POWER/HOLD switch and hold it for more than two seconds.zTurning on/off the HOLD modeSlide up the POWER/HOLD switchPutting your CLIÉ handheld in HOLD mode deactivates the touch screen. If you put the POWER/HOLD switch into the HOLD position while the power is on, the screen display turns off, even during an operation. To release the HOLD mode, slide down the POWER/HOLD switch to the center position.POWER/HOLD Switch01US01COV.book Page 88 Tuesday, December 16, 2003 2:07 AM

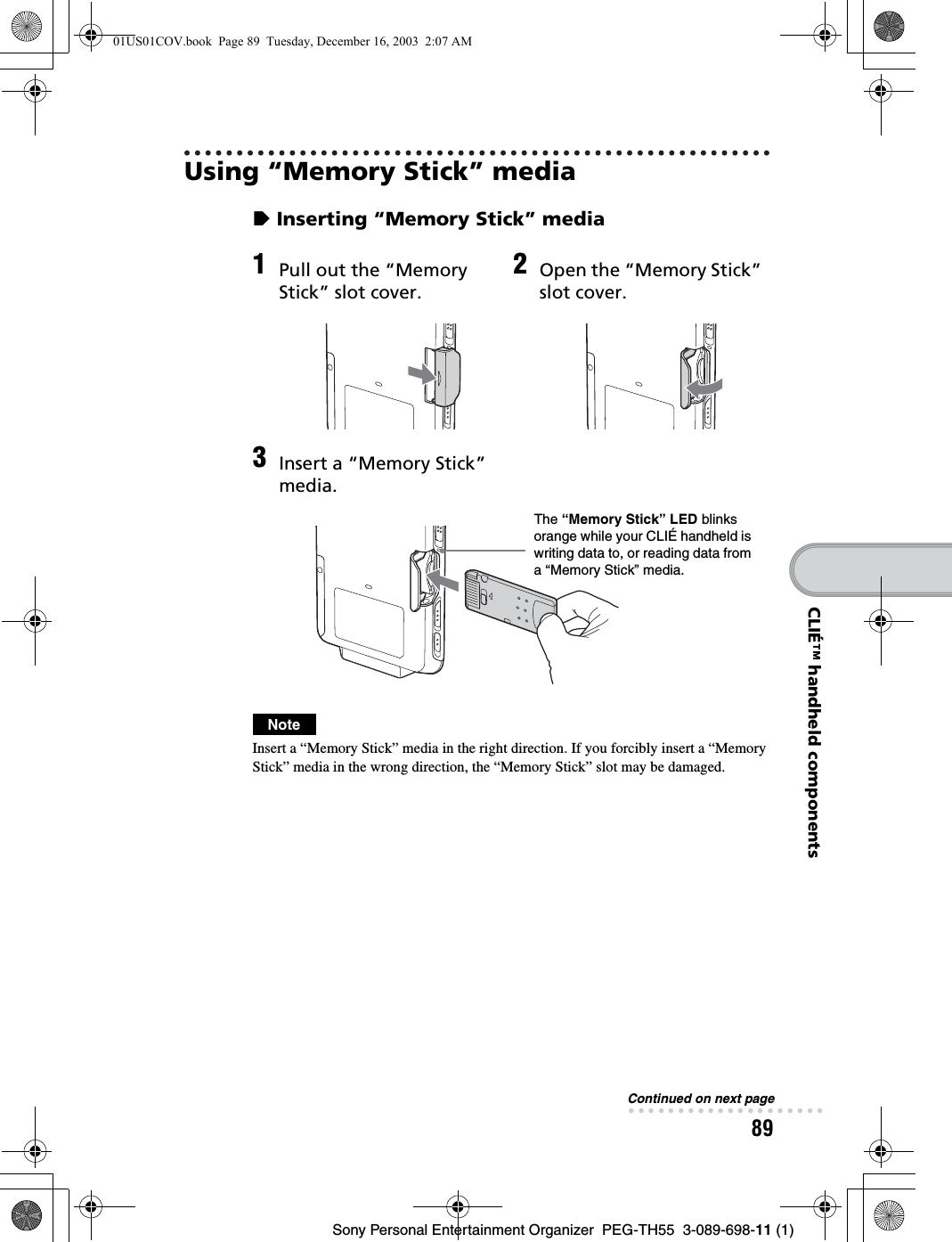

89Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)CLIÉ™ handheld componentsUsing “Memory Stick” mediazInserting “Memory Stick” mediaNoteInsert a “Memory Stick” media in the right direction. If you forcibly insert a “Memory Stick” media in the wrong direction, the “Memory Stick” slot may be damaged.1Pull out the “Memory Stick” slot cover.2Open the “Memory Stick” slot cover.3Insert a “Memory Stick” media.The “Memory Stick” LED blinks orange while your CLIÉ handheld is writing data to, or reading data from a “Memory Stick” media.Continued on next page• • • • • • • • • • • • • • • • • • • •01US01COV.book Page 89 Tuesday, December 16, 2003 2:07 AM
90Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)zRemoving “Memory Stick” mediaIR portYou can beam data or applications between your CLIÉ handheld and another CLIÉ handheld or Palm OS® PDA.bFor details, refer to “Beaming” in the “Handbook” (PDF format).NoteMake sure that your CLIÉ handheld is not writing data/files to, or reading data/files from a “Memory Stick” media before removing it. (The “Memory Stick” LED blinks when it is reading or writing data/files.) If you remove a “Memory Stick” media while the “Memory Stick” LED is blinking, recorded data/files may be deleted or damaged.bFor details on how to use “Memory Stick” media, refer to “Using “Memory Stick™” media” in the “Handbook” (PDF format).bPull “Memory Stick” media outPush “Memory Stick” media in*Move your CLIÉ handheld gradually to find the most sensitive direction.01US01COV.book Page 90 Tuesday, December 16, 2003 2:07 AM

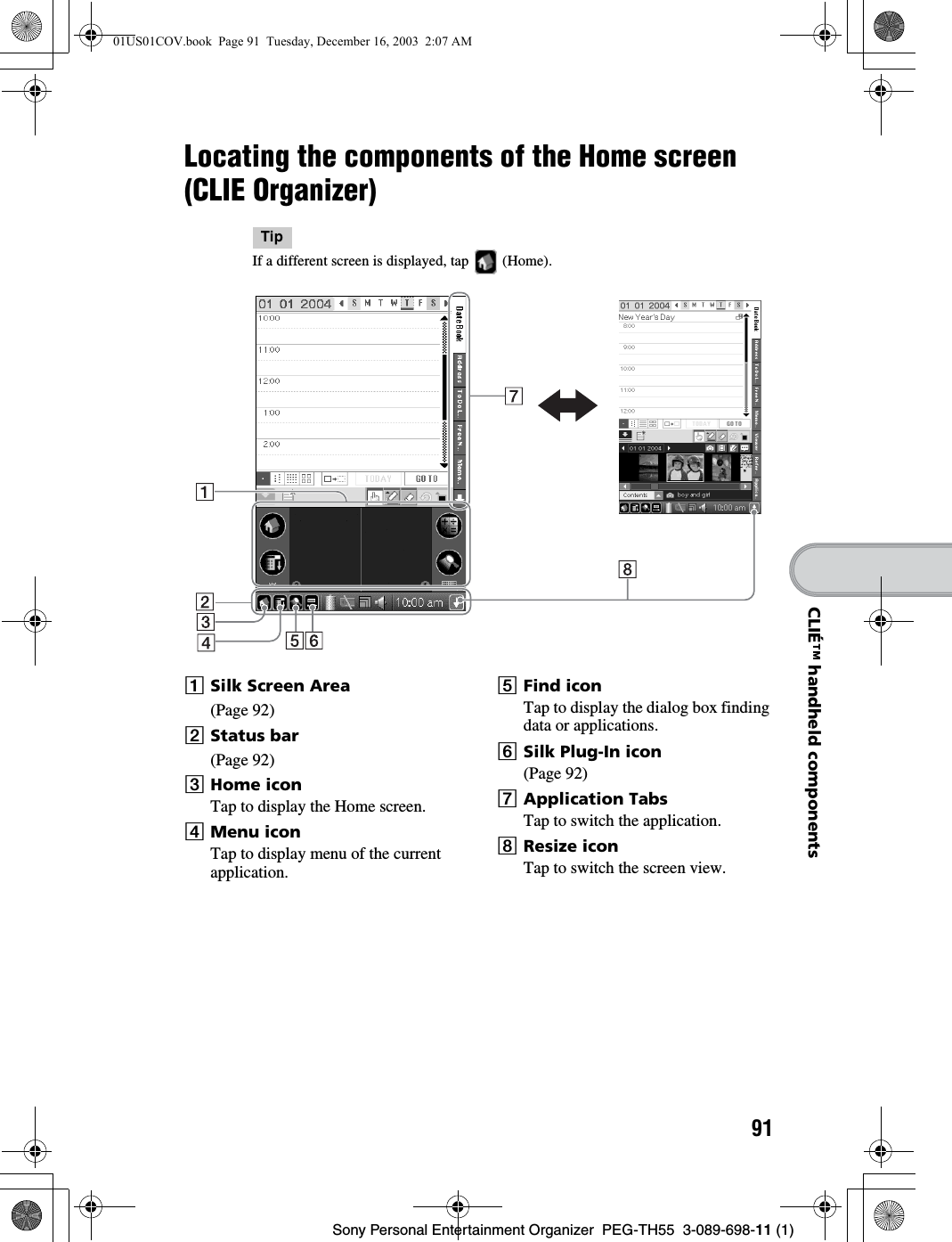

91Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)CLIÉ™ handheld componentsLocating the components of the Home screen (CLIE Organizer)TipIf a different screen is displayed, tap (Home).ASilk Screen Area(Page 92)BStatus bar(Page 92)CHome iconTap to display the Home screen.DMenu iconTap to display menu of the current application.EFind iconTap to display the dialog box finding data or applications.FSilk Plug-In icon(Page 92)GApplication TabsTap to switch the application.HResize iconTap to switch the screen view.01US01COV.book Page 91 Tuesday, December 16, 2003 2:07 AM

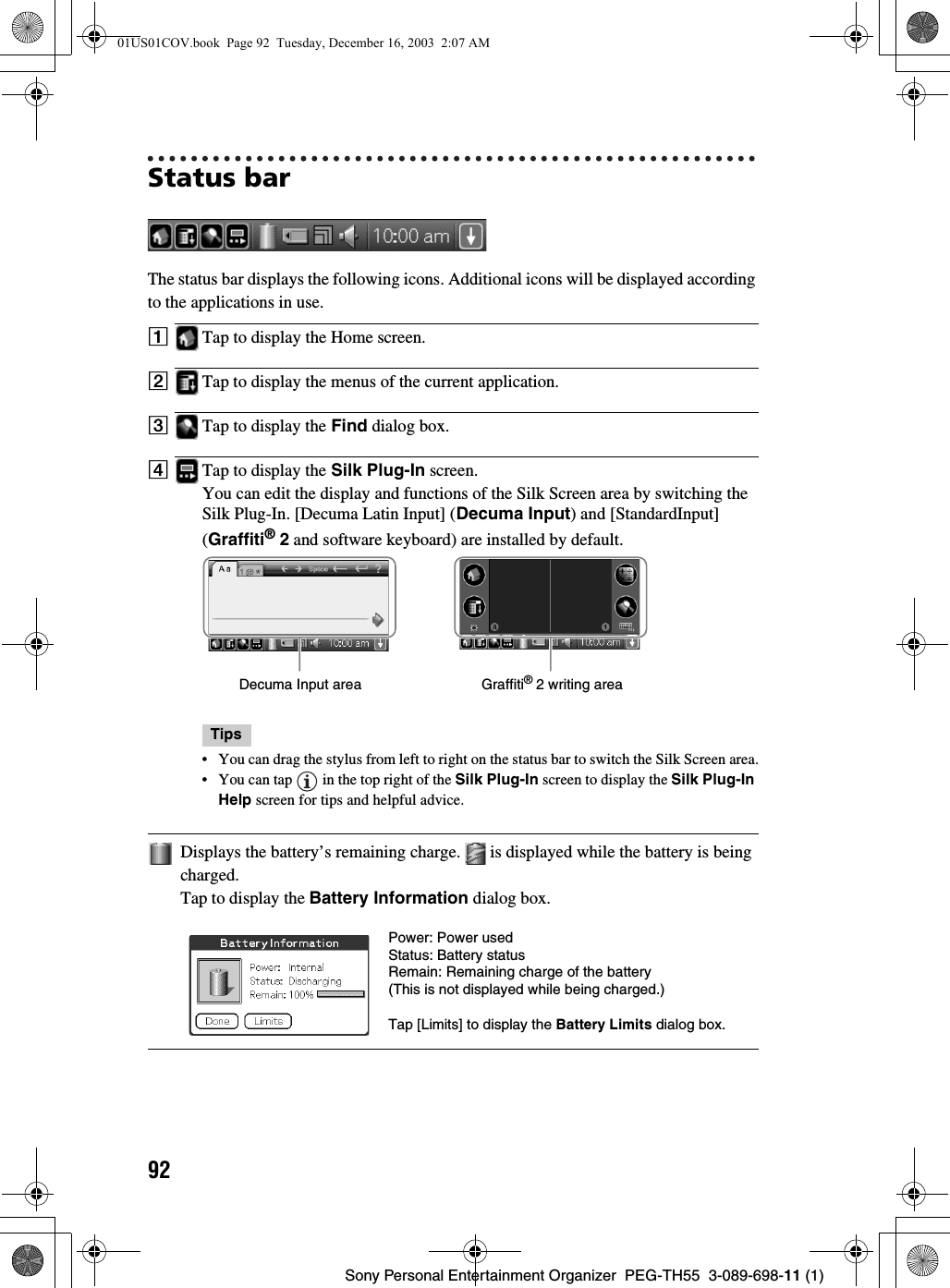

92Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Status barThe status bar displays the following icons. Additional icons will be displayed according to the applications in use.ATap to display the Home screen.BTap to display the menus of the current application.CTap to display the Find dialog box.DTap to display the Silk Plug-In screen.You can edit the display and functions of the Silk Screen area by switching the Silk Plug-In. [Decuma Latin Input] (Decuma Input) and [StandardInput] (Graffiti® 2 and software keyboard) are installed by default.Tips• You can drag the stylus from left to right on the status bar to switch the Silk Screen area.• You can tap in the top right of the Silk Plug-In screen to display the Silk Plug-In Help screen for tips and helpful advice.Displays the battery’s remaining charge. is displayed while the battery is being charged.Tap to display the Battery Information dialog box.Decuma Input area Graffiti® 2 writing areaPower: Power usedStatus: Battery statusRemain: Remaining charge of the battery(This is not displayed while being charged.)Tap [Limits] to display the Battery Limits dialog box.01US01COV.book Page 92 Tuesday, December 16, 2003 2:07 AM
93Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)CLIÉ™ handheld componentsEach icon indicates the information on the “Memory Stick” media inserted into your CLIÉ handheld. “Memory Stick” media is inserted. “Memory Stick” media is not inserted. “Memory Stick” media is write-protected. “Memory Stick” media is not read correctly. A “Memory Stick” compatible device is inserted.Tap the icon to display the Media Info dialog box when “Memory Stick” media is inserted.1Media typeYou can choose another device by tapping V next to [Device:].2Tap to display CLIE Files.3Tap to display Data Import.4Tap to display the Device Detail dialog box for information on the device or driver.From the Media Info dialog box, tap (Menu) and then tap [Preferences...] from [Option] to select operations for “Memory Stick” media.Tap to display the Wireless Info dialog box.(This is displayed when the wireless LAN function is used.)1Reception levelWhen connecting to the Internet via the wireless LAN, various reception levels are displayed as below. : off : 1-35% : 36-70% : 71-100%2SSIDThe currently used SSID of the wireless LAN access point is displayed.Continued on next page• • • • • • • • • • • • • • • • • • • •01US01COV.book Page 93 Tuesday, December 16, 2003 2:07 AM

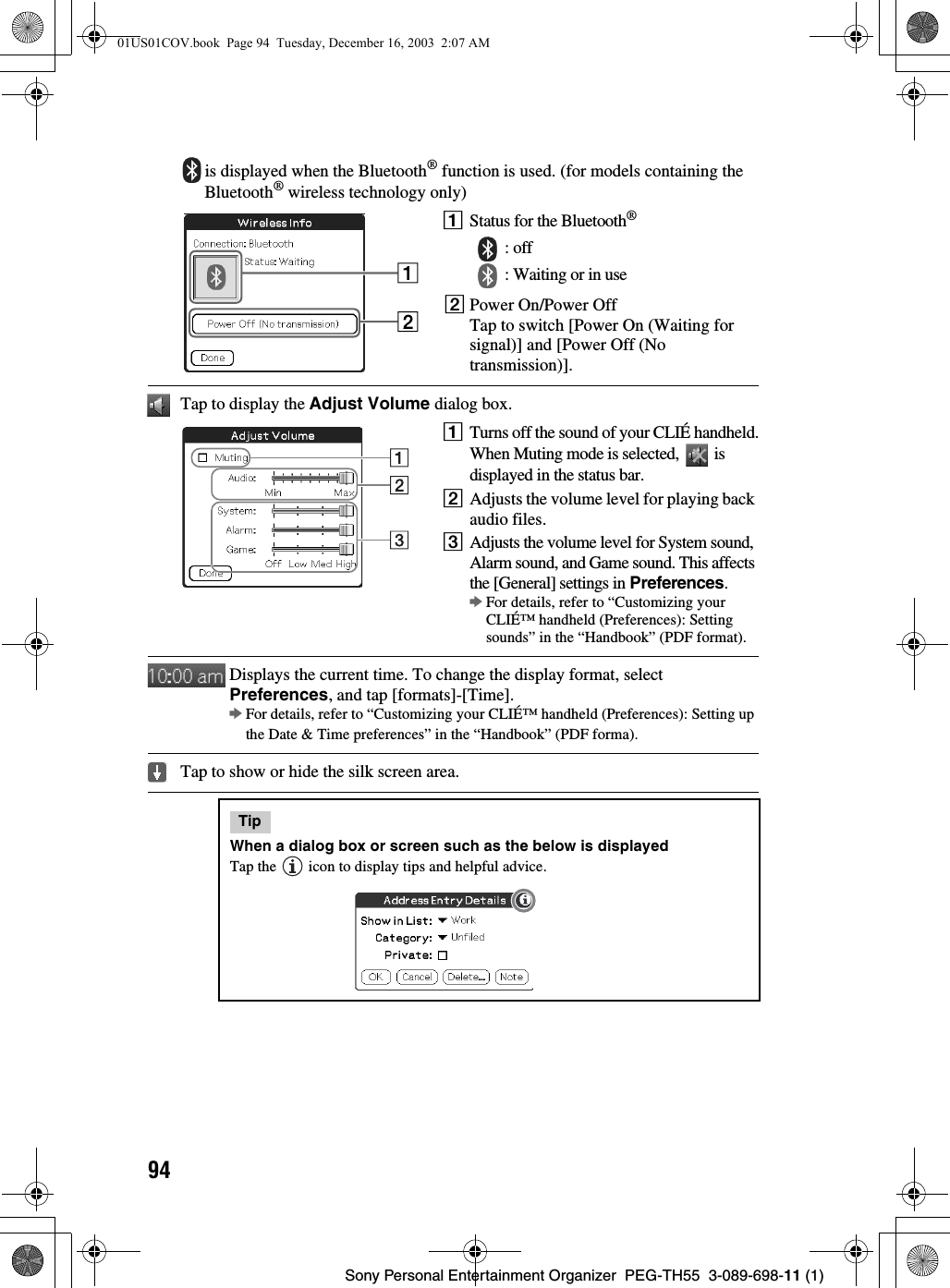

94Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)is displayed when the Bluetooth® function is used. (for models containing the Bluetooth® wireless technology only)1Status for the Bluetooth® : off : Waiting or in use2Power On/Power OffTap to switch [Power On (Waiting for signal)] and [Power Off (No transmission)].Tap to display the Adjust Volume dialog box.1Turns off the sound of your CLIÉ handheld.When Muting mode is selected, is displayed in the status bar.2Adjusts the volume level for playing back audio files.3Adjusts the volume level for System sound, Alarm sound, and Game sound. This affects the [General] settings in Preferences.bFor details, refer to “Customizing your CLIÉ™ handheld (Preferences): Setting sounds” in the “Handbook” (PDF format).Displays the current time. To change the display format, select Preferences, and tap [formats]-[Time].bFor details, refer to “Customizing your CLIÉ™ handheld (Preferences): Setting up the Date & Time preferences” in the “Handbook” (PDF forma). Tap to show or hide the silk screen area.TipWhen a dialog box or screen such as the below is displayedTap the icon to display tips and helpful advice.01US01COV.book Page 94 Tuesday, December 16, 2003 2:07 AM

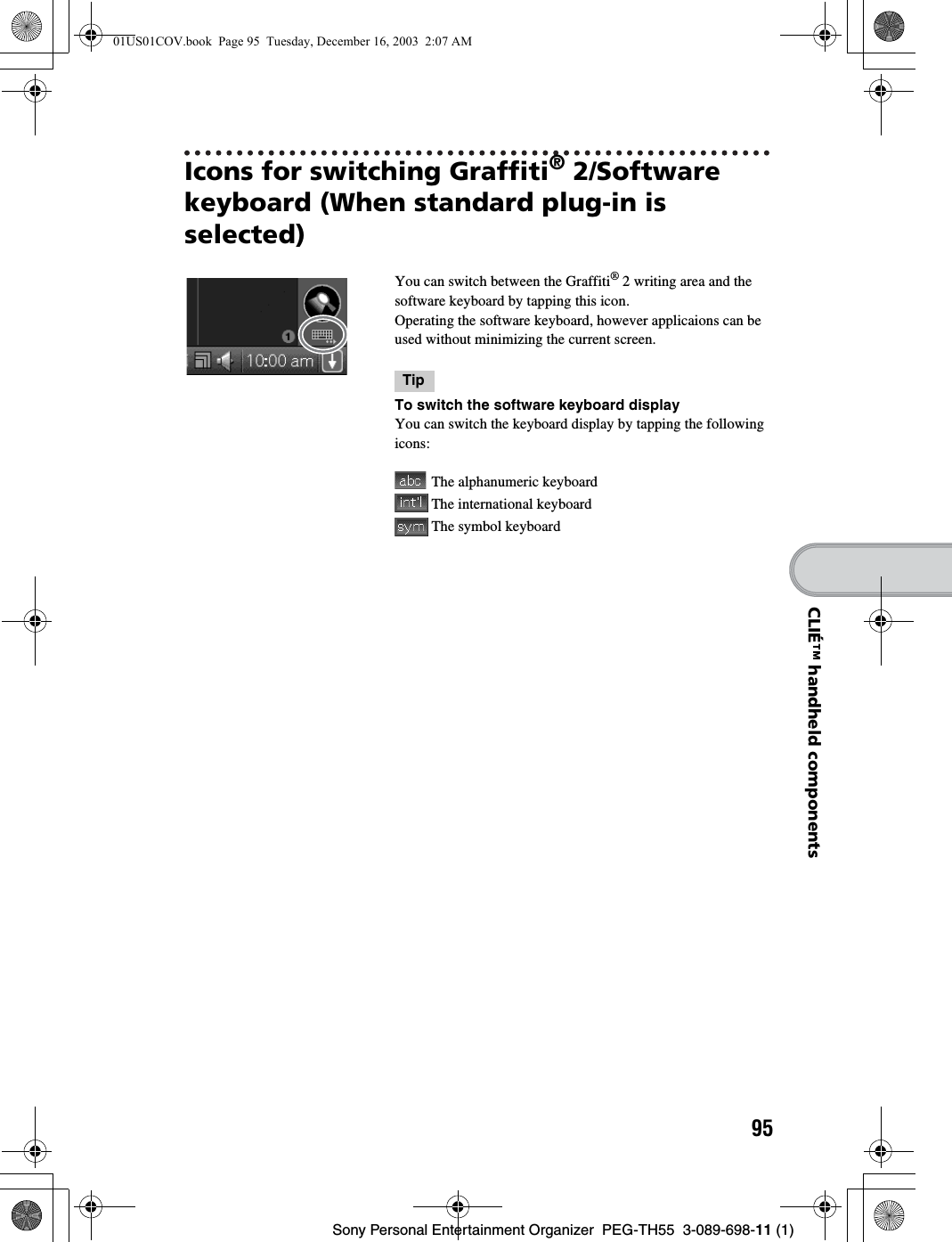

95Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)CLIÉ™ handheld componentsIcons for switching Graffiti® 2/Software keyboard (When standard plug-in is selected)You can switch between the Graffiti® 2 writing area and the software keyboard by tapping this icon.Operating the software keyboard, however applicaions can be used without minimizing the current screen.TipTo switch the software keyboard displayYou can switch the keyboard display by tapping the following icons:The alphanumeric keyboardThe international keyboardThe symbol keyboard01US01COV.book Page 95 Tuesday, December 16, 2003 2:07 AM

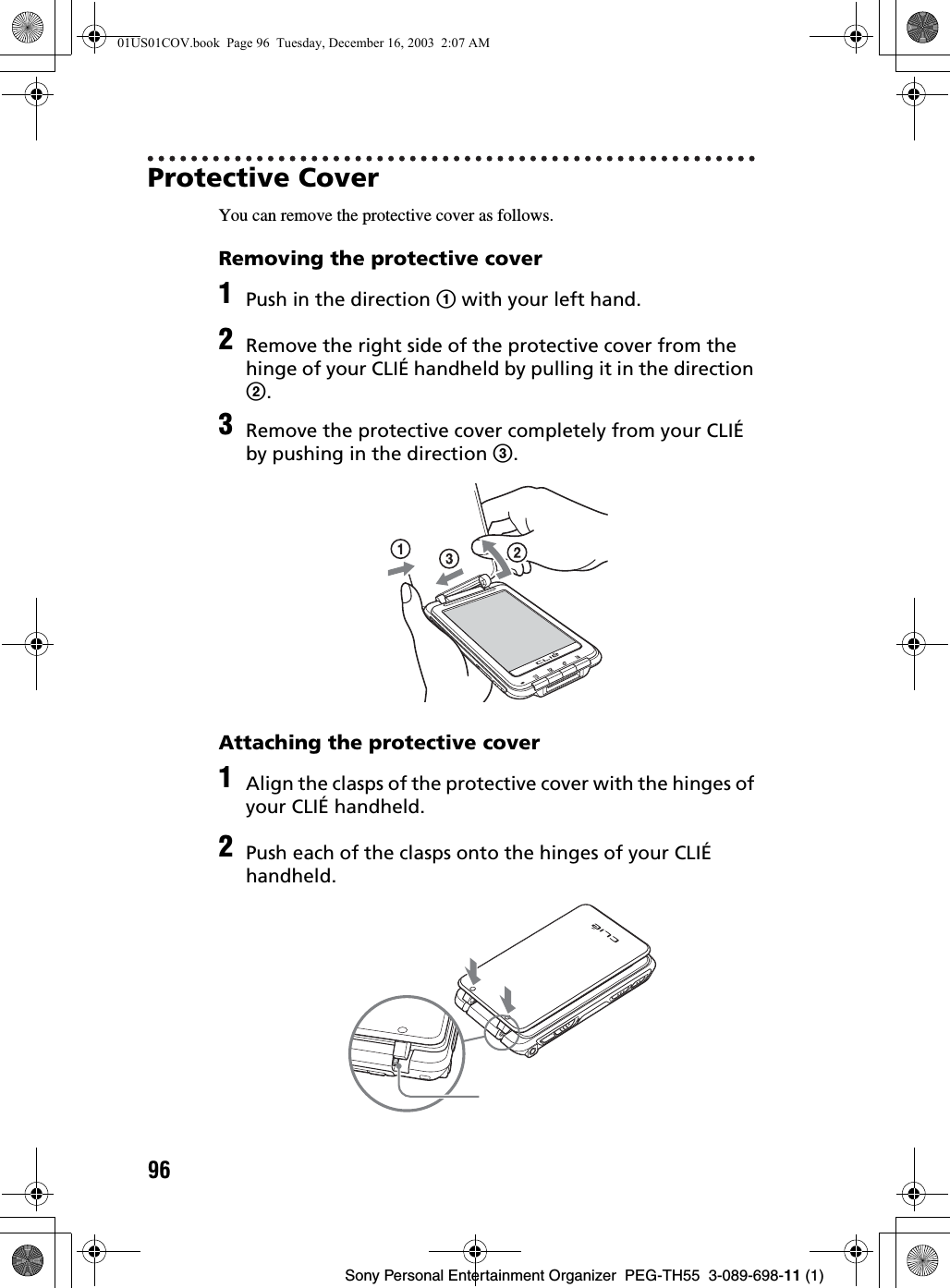

96Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)Protective CoverYou can remove the protective cover as follows.Removing the protective coverAttaching the protective cover1Push in the direction 1 with your left hand.2Remove the right side of the protective cover from the hinge of your CLIÉ handheld by pulling it in the direction 2.3Remove the protective cover completely from your CLIÉ by pushing in the direction 3.1Align the clasps of the protective cover with the hinges of your CLIÉ handheld.2Push each of the clasps onto the hinges of your CLIÉ handheld.01US01COV.book Page 96 Tuesday, December 16, 2003 2:07 AM

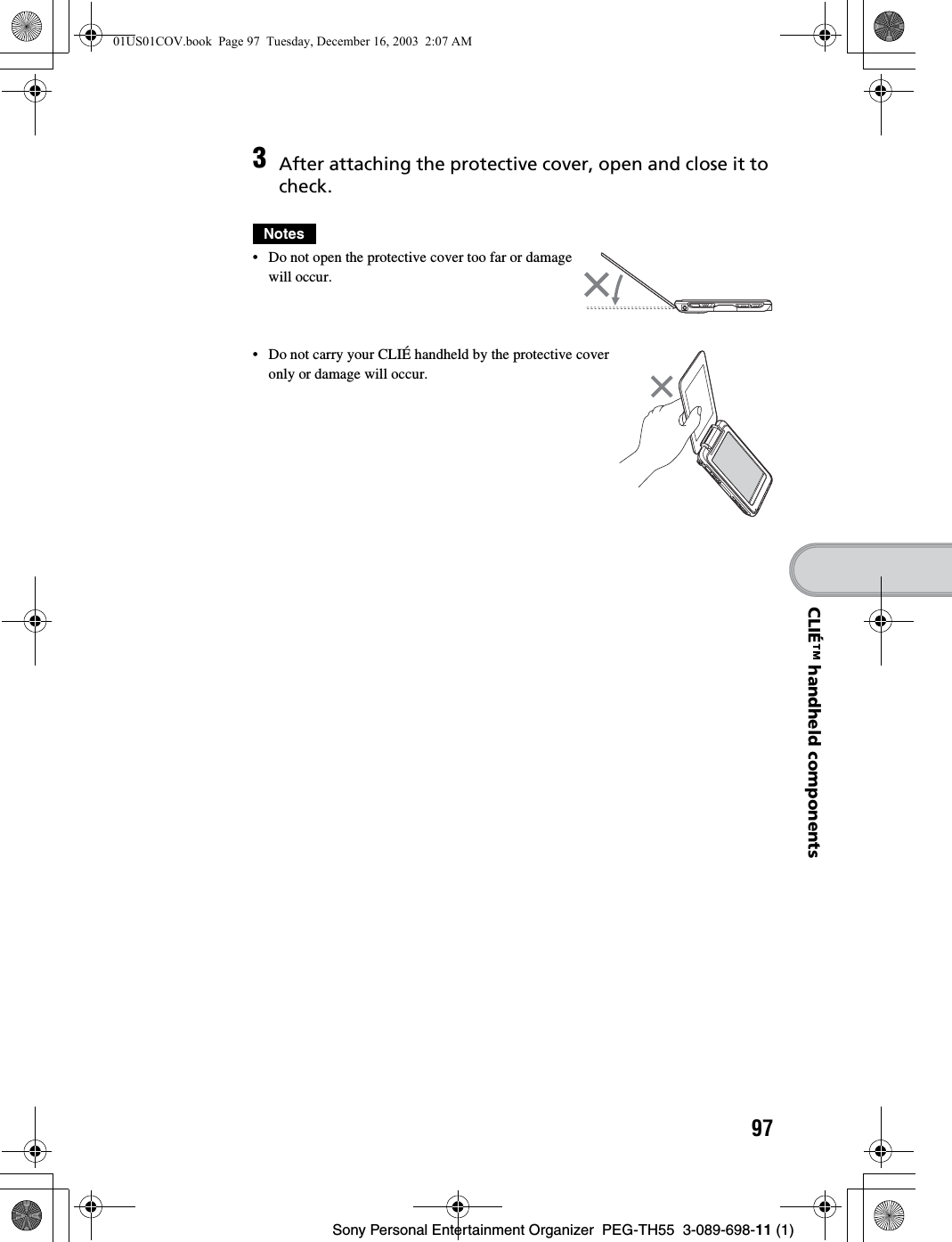

97Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)CLIÉ™ handheld componentsNotes• Do not open the protective cover too far or damage will occur.• Do not carry your CLIÉ handheld by the protective cover only or damage will occur.3After attaching the protective cover, open and close it to check.01US01COV.book Page 97 Tuesday, December 16, 2003 2:07 AM

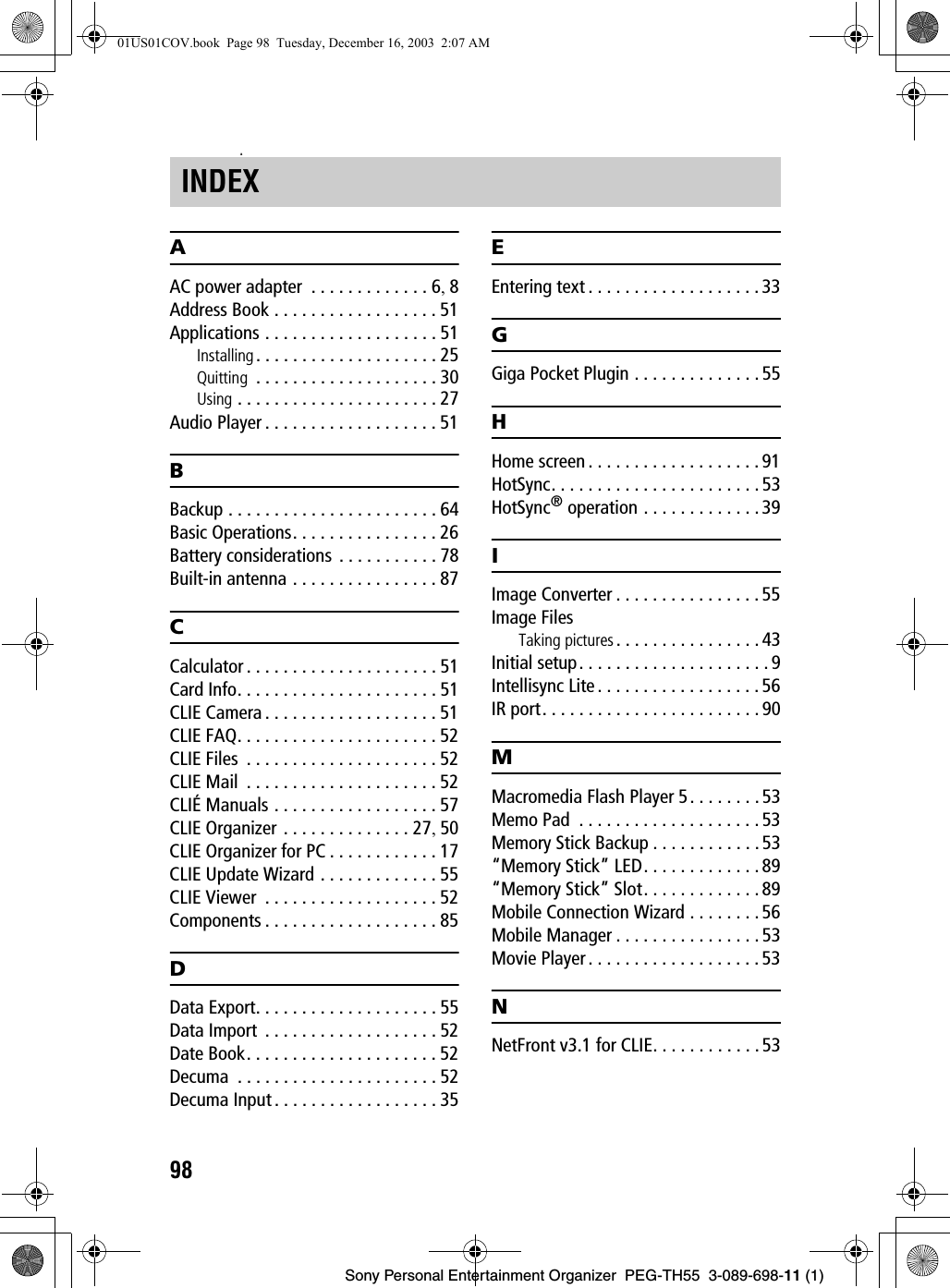

98Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)zAAC power adapter . . . . . . . . . . . . . 6, 8Address Book . . . . . . . . . . . . . . . . . . 51Applications . . . . . . . . . . . . . . . . . . . 51Installing . . . . . . . . . . . . . . . . . . . . 25Quitting . . . . . . . . . . . . . . . . . . . . 30Using . . . . . . . . . . . . . . . . . . . . . . 27Audio Player . . . . . . . . . . . . . . . . . . . 51BBackup . . . . . . . . . . . . . . . . . . . . . . . 64Basic Operations. . . . . . . . . . . . . . . . 26Battery considerations . . . . . . . . . . . 78Built-in antenna . . . . . . . . . . . . . . . . 87CCalculator . . . . . . . . . . . . . . . . . . . . . 51Card Info. . . . . . . . . . . . . . . . . . . . . . 51CLIE Camera . . . . . . . . . . . . . . . . . . . 51CLIE FAQ. . . . . . . . . . . . . . . . . . . . . . 52CLIE Files . . . . . . . . . . . . . . . . . . . . . 52CLIE Mail . . . . . . . . . . . . . . . . . . . . . 52CLIÉ Manuals . . . . . . . . . . . . . . . . . . 57CLIE Organizer . . . . . . . . . . . . . . 27, 50CLIE Organizer for PC . . . . . . . . . . . . 17CLIE Update Wizard . . . . . . . . . . . . . 55CLIE Viewer . . . . . . . . . . . . . . . . . . . 52Components . . . . . . . . . . . . . . . . . . . 85DData Export. . . . . . . . . . . . . . . . . . . . 55Data Import . . . . . . . . . . . . . . . . . . . 52Date Book. . . . . . . . . . . . . . . . . . . . . 52Decuma . . . . . . . . . . . . . . . . . . . . . . 52Decuma Input . . . . . . . . . . . . . . . . . . 35EEntering text . . . . . . . . . . . . . . . . . . . 33GGiga Pocket Plugin . . . . . . . . . . . . . . 55HHome screen . . . . . . . . . . . . . . . . . . .91HotSync. . . . . . . . . . . . . . . . . . . . . . . 53HotSync® operation . . . . . . . . . . . . .39IImage Converter . . . . . . . . . . . . . . . . 55Image FilesTaking pictures . . . . . . . . . . . . . . . . 43Initial setup. . . . . . . . . . . . . . . . . . . . . 9Intellisync Lite . . . . . . . . . . . . . . . . . . 56IR port. . . . . . . . . . . . . . . . . . . . . . . . 90MMacromedia Flash Player 5. . . . . . . . 53Memo Pad . . . . . . . . . . . . . . . . . . . . 53Memory Stick Backup . . . . . . . . . . . .53“Memory Stick” LED. . . . . . . . . . . . . 89“Memory Stick” Slot. . . . . . . . . . . . . 89Mobile Connection Wizard . . . . . . . . 56Mobile Manager . . . . . . . . . . . . . . . . 53Movie Player . . . . . . . . . . . . . . . . . . . 53NNetFront v3.1 for CLIE. . . . . . . . . . . . 53INDEX01US01COV.book Page 98 Tuesday, December 16, 2003 2:07 AM

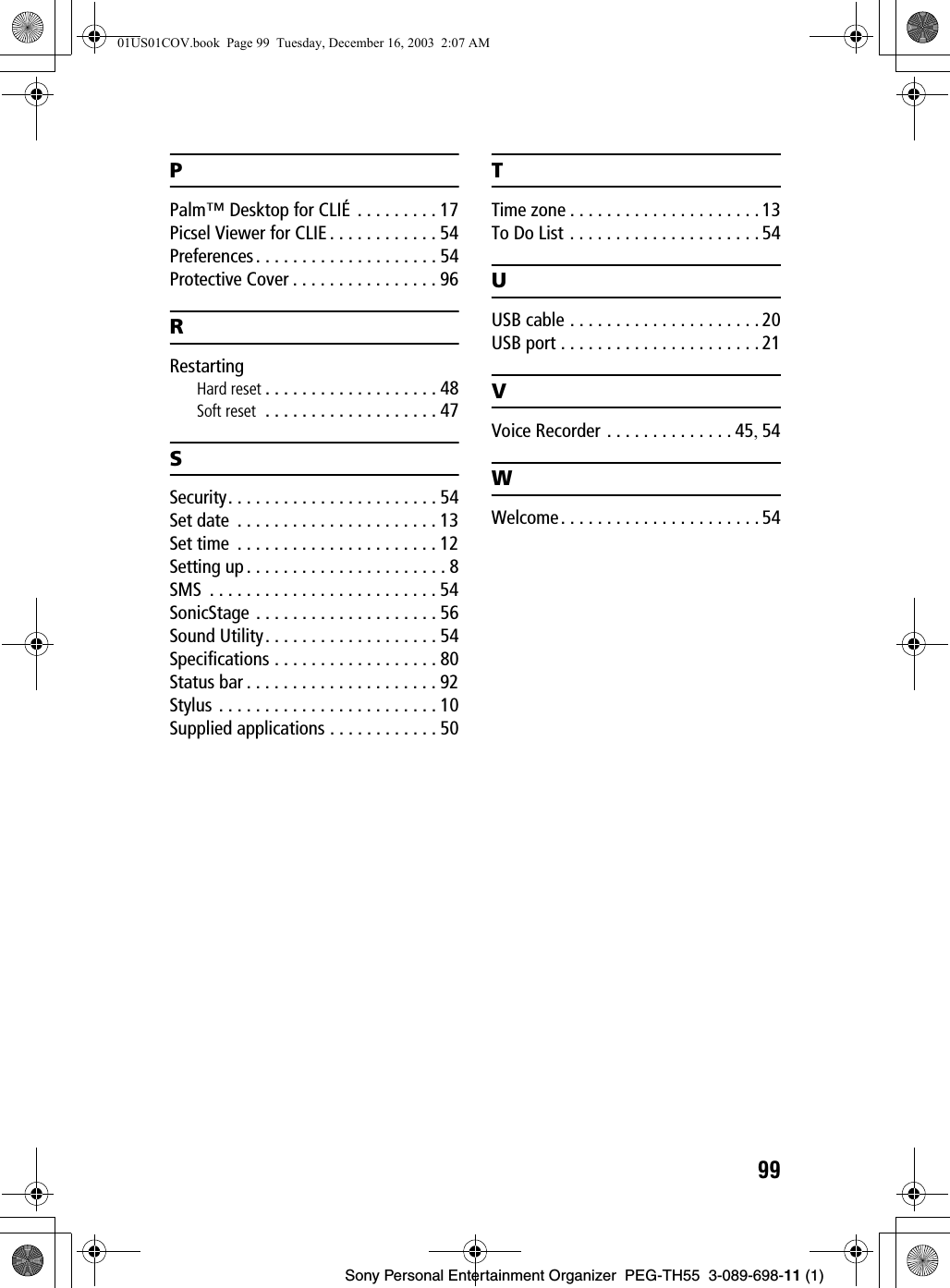

99Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)PPalm™ Desktop for CLIÉ . . . . . . . . . 17Picsel Viewer for CLIE . . . . . . . . . . . . 54Preferences. . . . . . . . . . . . . . . . . . . . 54Protective Cover . . . . . . . . . . . . . . . . 96RRestartingHard reset . . . . . . . . . . . . . . . . . . . 48Soft reset . . . . . . . . . . . . . . . . . . . 47SSecurity. . . . . . . . . . . . . . . . . . . . . . . 54Set date . . . . . . . . . . . . . . . . . . . . . . 13Set time . . . . . . . . . . . . . . . . . . . . . . 12Setting up . . . . . . . . . . . . . . . . . . . . . . 8SMS . . . . . . . . . . . . . . . . . . . . . . . . . 54SonicStage . . . . . . . . . . . . . . . . . . . . 56Sound Utility. . . . . . . . . . . . . . . . . . . 54Specifications . . . . . . . . . . . . . . . . . . 80Status bar . . . . . . . . . . . . . . . . . . . . . 92Stylus . . . . . . . . . . . . . . . . . . . . . . . . 10Supplied applications . . . . . . . . . . . . 50TTime zone . . . . . . . . . . . . . . . . . . . . . 13To Do List . . . . . . . . . . . . . . . . . . . . .54UUSB cable . . . . . . . . . . . . . . . . . . . . . 20USB port . . . . . . . . . . . . . . . . . . . . . . 21VVoice Recorder . . . . . . . . . . . . . . 45, 54WWelcome. . . . . . . . . . . . . . . . . . . . . . 5401US01COV.book Page 99 Tuesday, December 16, 2003 2:07 AM
Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)01US01COV.book Page 100 Tuesday, December 16, 2003 2:07 AM
Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)01US01COV.book Page 101 Tuesday, December 16, 2003 2:07 AM
Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)01US01COV.book Page 102 Tuesday, December 16, 2003 2:07 AM

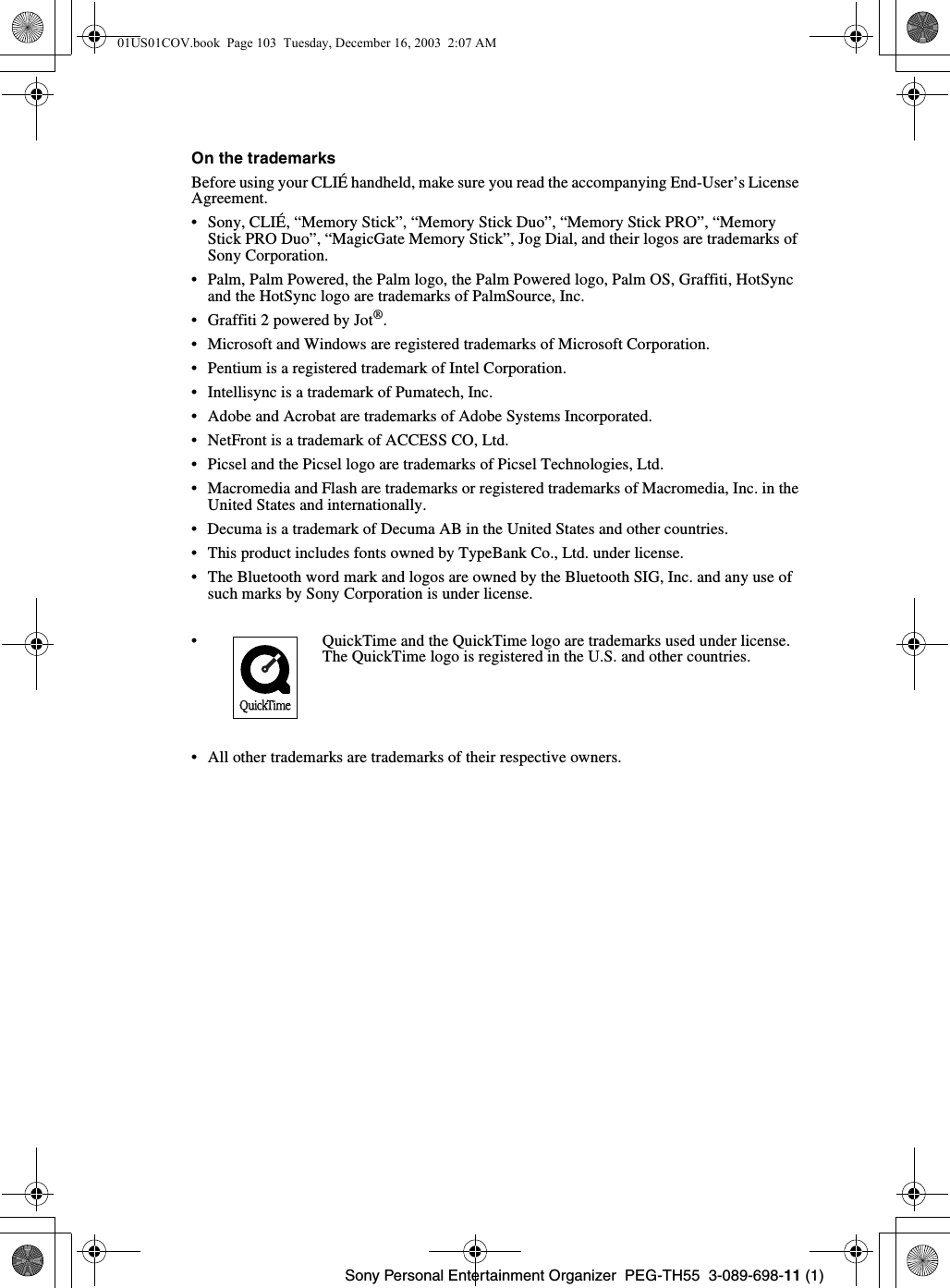

Sony Personal Entertainment Organizer PEG-TH55 3-089-698-11 (1)On the trademarksBefore using your CLIÉ handheld, make sure you read the accompanying End-User’s License Agreement.• Sony, CLIÉ, “Memory Stick”, “Memory Stick Duo”, “Memory Stick PRO”, “Memory Stick PRO Duo”, “MagicGate Memory Stick”, Jog Dial, and their logos are trademarks of Sony Corporation.• Palm, Palm Powered, the Palm logo, the Palm Powered logo, Palm OS, Graffiti, HotSync and the HotSync logo are trademarks of PalmSource, Inc.• Graffiti 2 powered by Jot®.• Microsoft and Windows are registered trademarks of Microsoft Corporation.• Pentium is a registered trademark of Intel Corporation.• Intellisync is a trademark of Pumatech, Inc.• Adobe and Acrobat are trademarks of Adobe Systems Incorporated.• NetFront is a trademark of ACCESS CO, Ltd.• Picsel and the Picsel logo are trademarks of Picsel Technologies, Ltd.• Macromedia and Flash are trademarks or registered trademarks of Macromedia, Inc. in the United States and internationally.• Decuma is a trademark of Decuma AB in the United States and other countries.• This product includes fonts owned by TypeBank Co., Ltd. under license.• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license.• All other trademarks are trademarks of their respective owners.• QuickTime and the QuickTime logo are trademarks used under license.The QuickTime logo is registered in the U.S. and other countries.01US01COV.book Page 103 Tuesday, December 16, 2003 2:07 AM

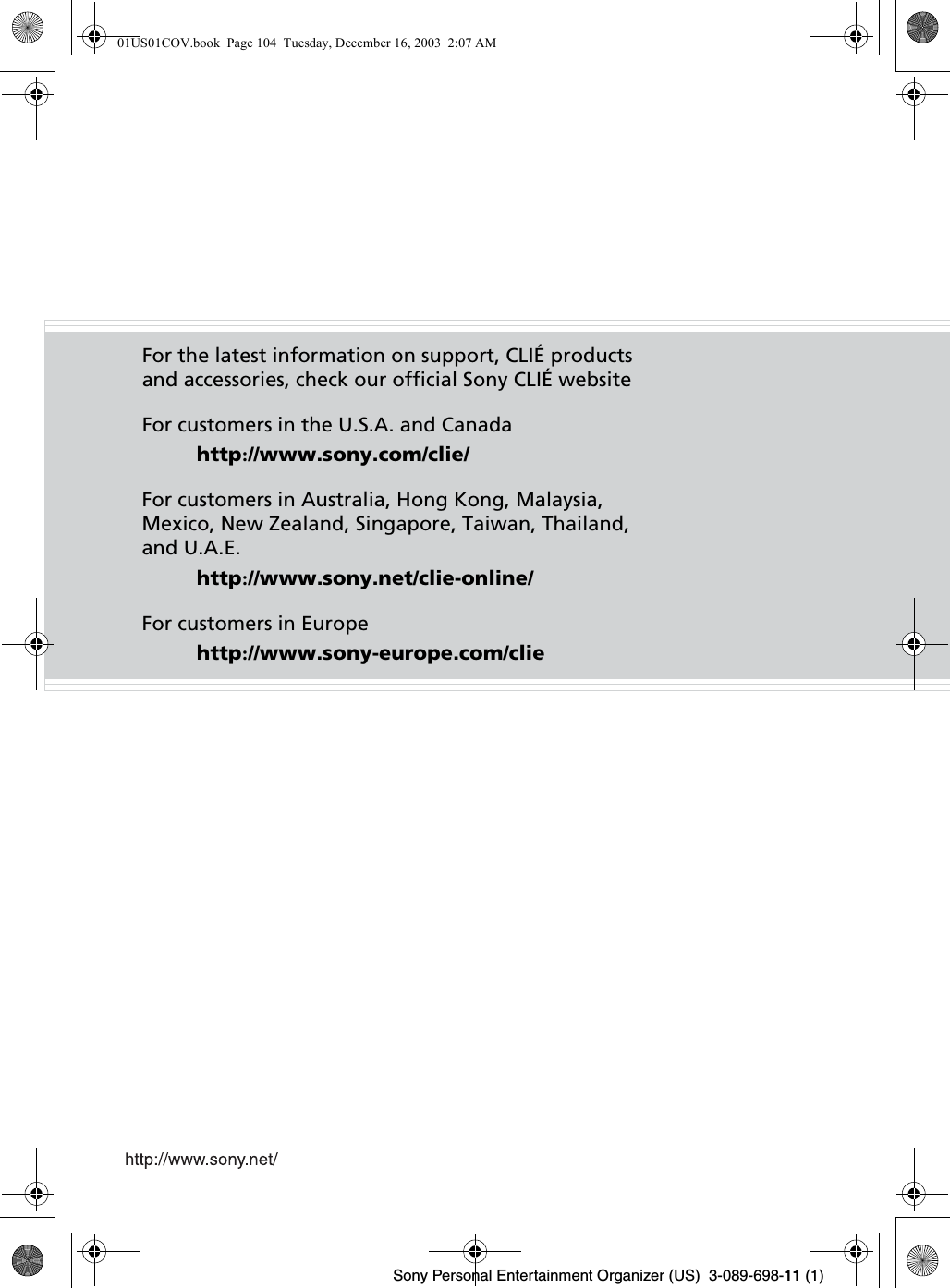

Sony Personal Entertainment Organizer (US) 3-089-698-11 (1)For the latest information on support, CLIÉ products and accessories, check our official Sony CLIÉ websiteFor customers in the U.S.A. and Canadahttp://www.sony.com/clie/For customers in Australia, Hong Kong, Malaysia, Mexico, New Zealand, Singapore, Taiwan, Thailand, and U.A.E.http://www.sony.net/clie-online/For customers in Europehttp://www.sony-europe.com/clie01US01COV.book Page 104 Tuesday, December 16, 2003 2:07 AM
