ON'_ 3-283-o31-11./

DVD Home Theatre

_System

Operating Instructions

DAV-HDX275 /HDX276 /HDX475

i..lli::3rln| ,,,,,,to,,,,ro_t

Twin Drive _u_waafer

02008 Sony Corporation

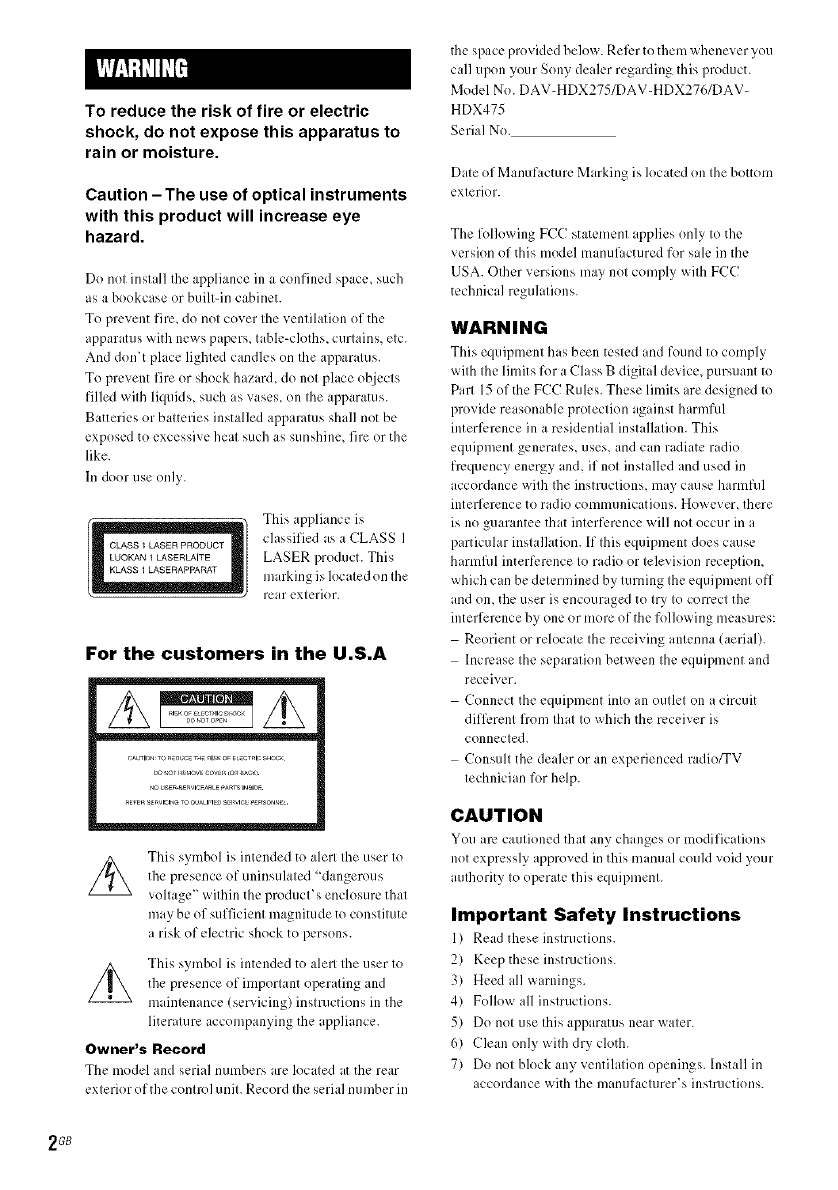

To reduce the risk of fire or electric

shock, do not expose this apparatus to

rain or moisture.

Caution - The use of optical instruments

with this product will increase eye

hazard.

Do not install the appliance in a confined space, such

as a bookcase or built-in cabinet.

To prevent fire, do not cover the ventilation of the

apparatus with news papers, table-cloths, curtains, etc.

And don't place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects

filled with liquids, such is vases, on the apparatus.

Batteries or batteries installed apparatus shall not be

exposed to excessive heat such as sunshine, fire or the

like.

hi door use only.

This appliance is

classified as a CLASS I

LASER product. This

marking is located on the

rear exterior.

This symbol is intended to alert the user to

the presence of uninsulated "dangerous

voltage" within the product's enclosure that

may be of sufficient magnitude to constitute

a risk of electric shock to persons.

This symbol is intended to alert the user to

the presence of important operating and

m dntenance (servicing) instructions in the

literature accompanying the appliance.

Owrlel'_s Recol'd

The model and serial numbers are located at the rear

exterior of the control unit. Record the serial number in

the space provided below. Reli:r to them whenever you

call upon your Sony dealer regarding this product.

Model No. DAV-HDX275/DAV-HDX276/DAV-

HDX475

Serial No.

Date of Manufacture Marking is located on the bottom

exterior.

The following ECC statement applies only to the

version of this model manufactured for sale in the

USA. Other versions may not comply with ECC

technical regulations.

WARNING

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of the ECC Rules. These limits are designed to

provide reasonable protection against harmful

interli:rence in a residential installation. This

equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with Ihe instructions, may cause harmful

interference to radio communications. However, there

is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmfid interference to radio or television reception,

which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna (aerial).

Increase the separation between the equipment and

receiver.

Connect the equipment into an outlet on a circuit

dilli..rent from that to which the receiver is

connected.

Consult the dealer or an experienced radio_V

technician for help.

CAUTION

You are cautioned that any changes or modifications

not expressly approved in this manual could void your

aulhority to operate this equipment.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all w,rnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in

accordance with the manufacturer's instr/ictions.

2GB

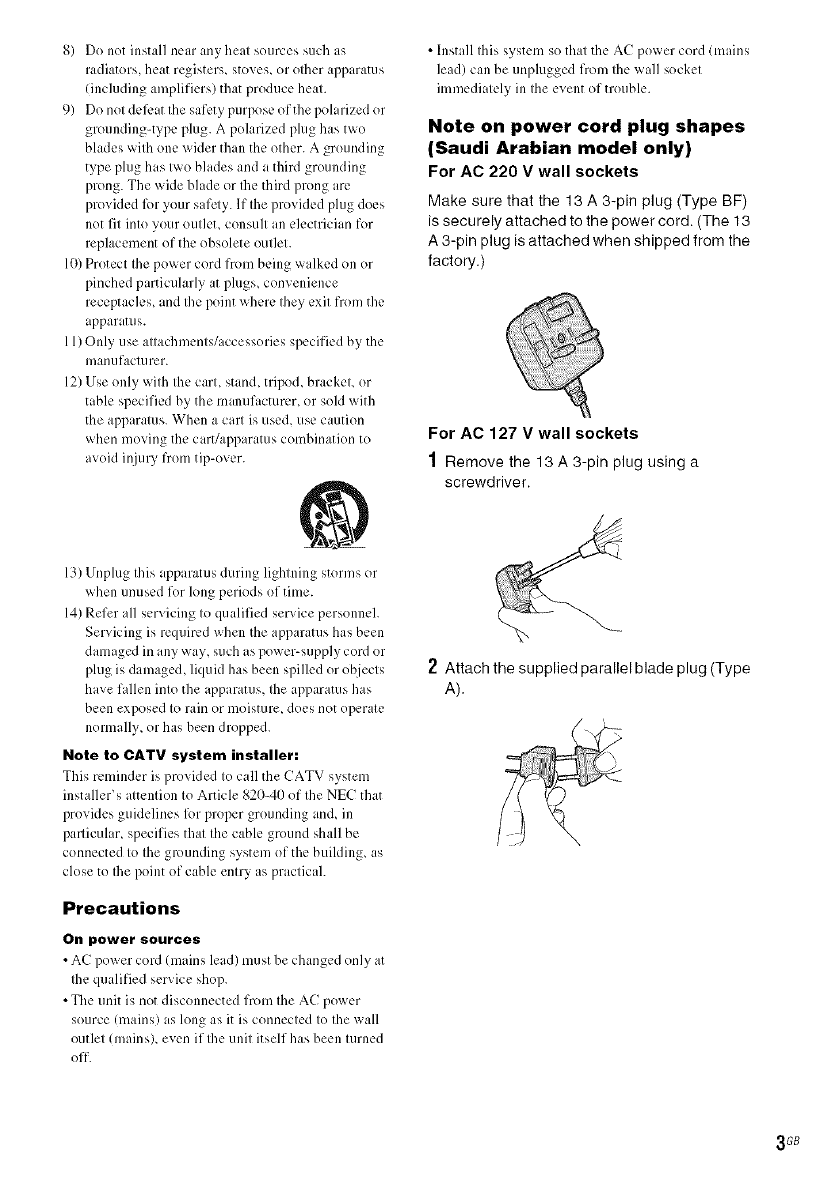

8) Do not install near any heat sources such :ks

radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9) Do not del\:at the safety purpose of the polarized or

grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding

type plug has two blades and a third grounding

prong. The wide blade or Ihe third prong are

provided lk)ryour safety. If the provided plug does

not fit into your outleL consult an electrician for

replacement of the obsolete outlet.

10)Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from the

apparatus

11)Only use attachments/accessories specified by the

manufacturer.

12)Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip over

• Install this system so that the AC power cord/mains

lead) can be unplugged from the wall socket

immediately in the event of trouble.

Note on power cord plug shapes

(Saudi Arabian model only)

For AC 220 V wall sockets

Make sure that the 13 A 3-pin plug (Type BF)

is securely attached to the power cord. (The 13

A 3-pin plug is attached when shipped from the

factory.)

For AC 127 V wall sockets

1Remove the 13 A 3-pin plug using a

screwdriver.

13)Unplug this apparatus during lightning storms or

when unused for long periods of time.

141Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has

been exposed to rain or moisture, does not operate

normally, or has been dropped.

Note to CATV system installer:

This reminder is 1)rovidedto call the CATV system

installer_s attention to Article g20-40 of the NEC that

provides guidelines lk)rproper grounding and, in

parlicular, specifies that the cable ground shall be

connected to the grounding system of the building, as

close to Ihe point of cable entry as practicah

Precautions

On power sources

•AC power cord (nladns lead) must be changed only at

the qualified service shop

• The unit is not disconnected from the AC power

source (mains) as long as it is connected to the wall

outlet ImainsX even if Ihe unit itself has been turned

off

2 Attach the supplied parallelblade plug (Type

A).

3GB

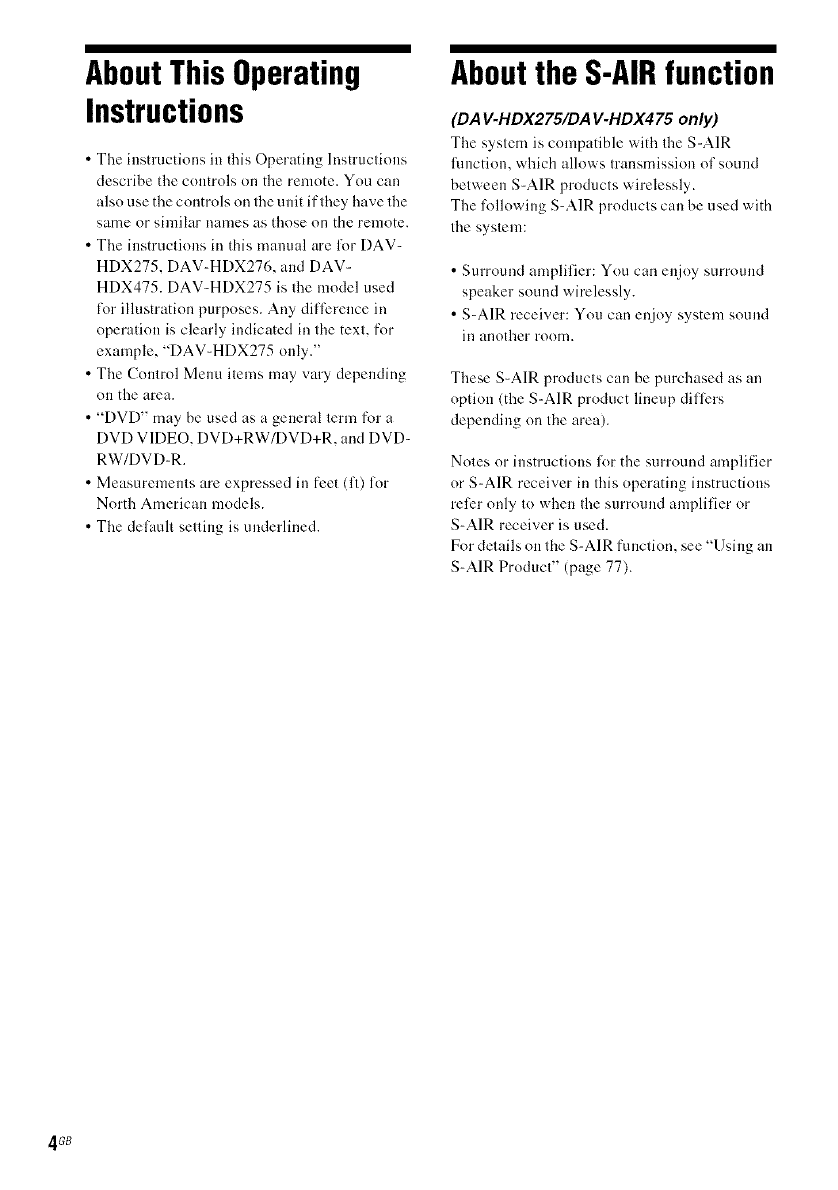

AboutThis Operating

Instructions

•The instructions in this Operating Instructions

describe tile controls on the remote. You can

also use the controls oil tileunit if they have tile

same or similar haines as those on the remote.

• Tile instructions in this manual are for DAV-

HDX275, DAV-HDX276, and DAV-

HDX475. DAV-HDX275 is the model used

t_)rillustration purposes. Any dilllzreuce in

operation is clearly indicated in the text, for

example, "DAV-HDX275 only."

• Tile Control Menu items may vary depending

OI1 the area.

• "DVD" may be used as a general term for a

DVD VIDEO, DVD+RW/DVD+R, and DVD-

RW/DVD-R.

• Measurements are expressed in feet (fl) for

North American models.

• Tile default setting is underlined.

Aboutthe S-AIRfunction

(DA V-HDX275/DA V-HDX475 only)

Tile system is compatible with tile S-AIR

lhnction, which allows transmission of sound

between S-AIR products wirelessly.

The l\>llowing S-AIR products can be used with

tile system:

• Surround amplifier: You can enjoy surroulM

speaker sound wirelessly.

• S-AIR receiver: You can enjoy system sound

ilI another room.

These S-AIR products can be purchased as an

option (the S-AIR product lineup difllzrs

depending on tile area).

Notes or instructions li_rthe surround amplifier

or S-AIR receiver ill this operating instructions

rellzronly to when tile surround amplifier or

S-AIR receiver is used.

For details on tile S-AIR function, see "Using an

S-AIR Product" (page 77).

4GB

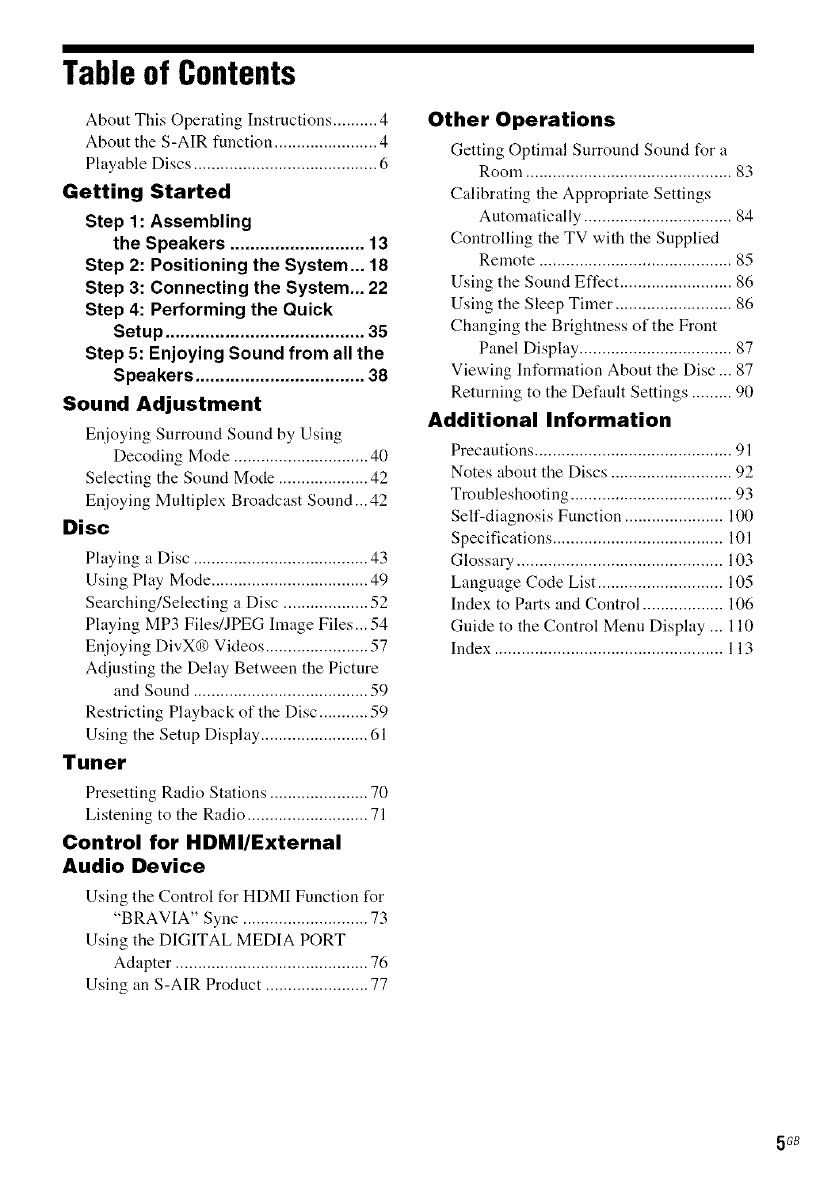

Table of Contents

About This Operating Instructions .......... 4

About the S-AIR function ....................... 4

Playable Discs ......................................... 6

Getting Started

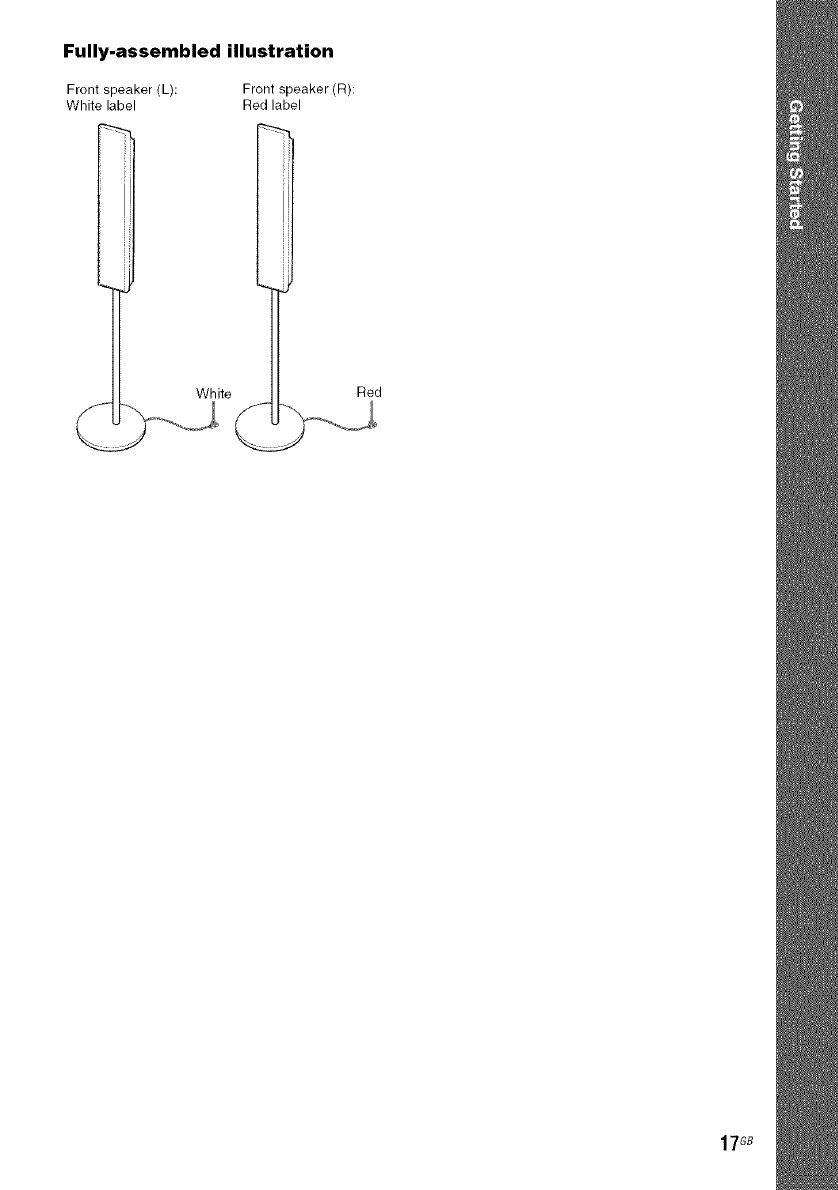

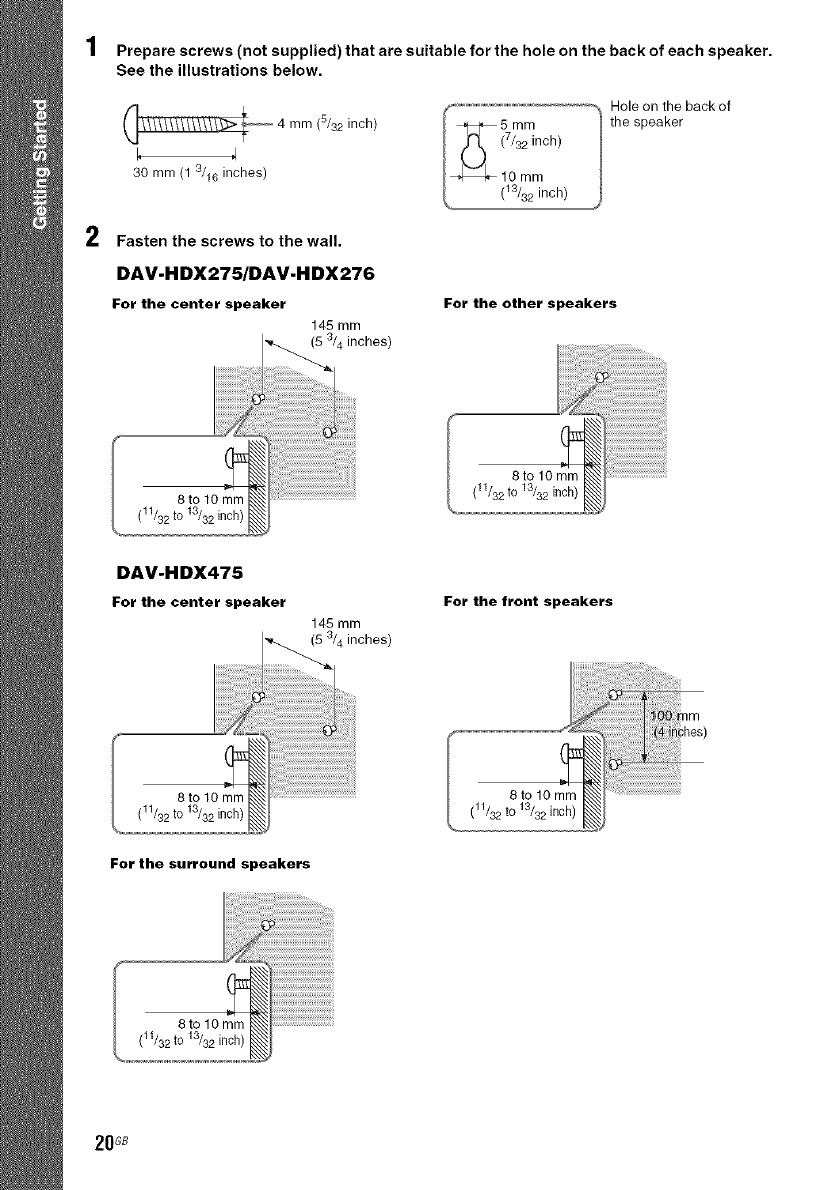

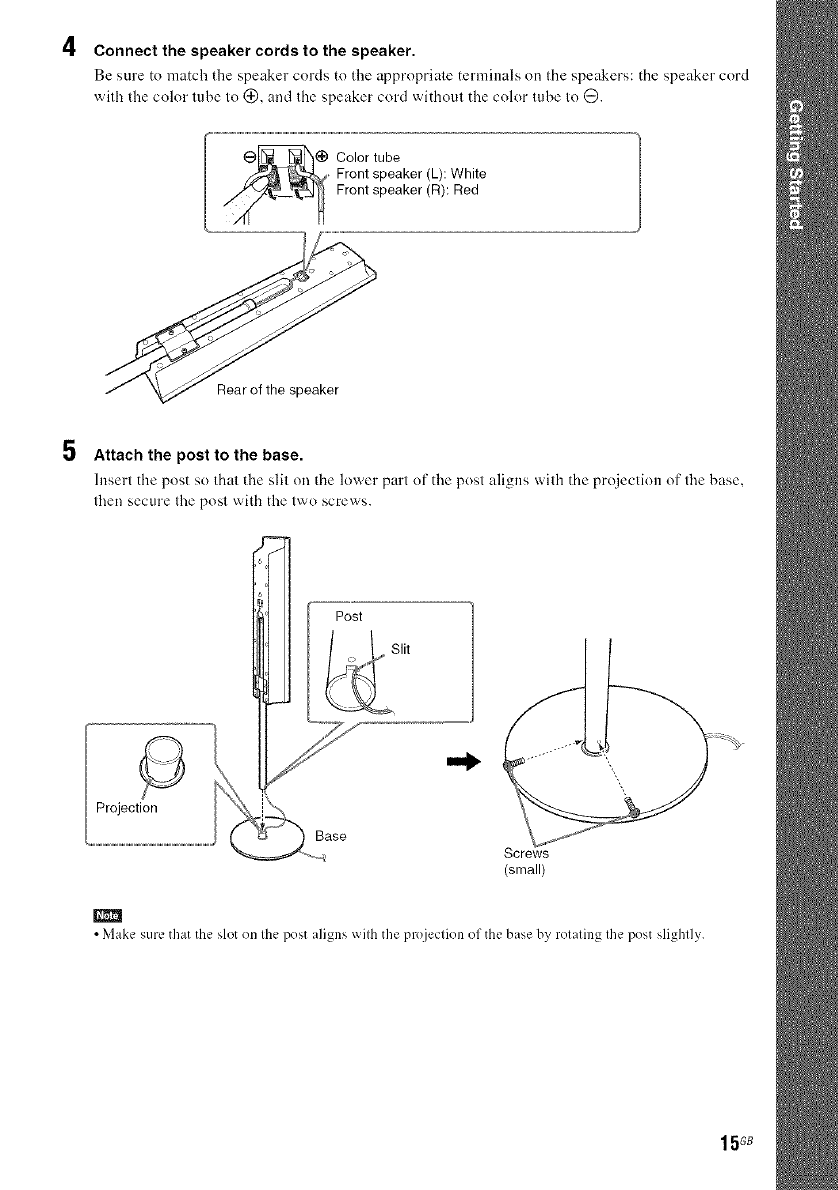

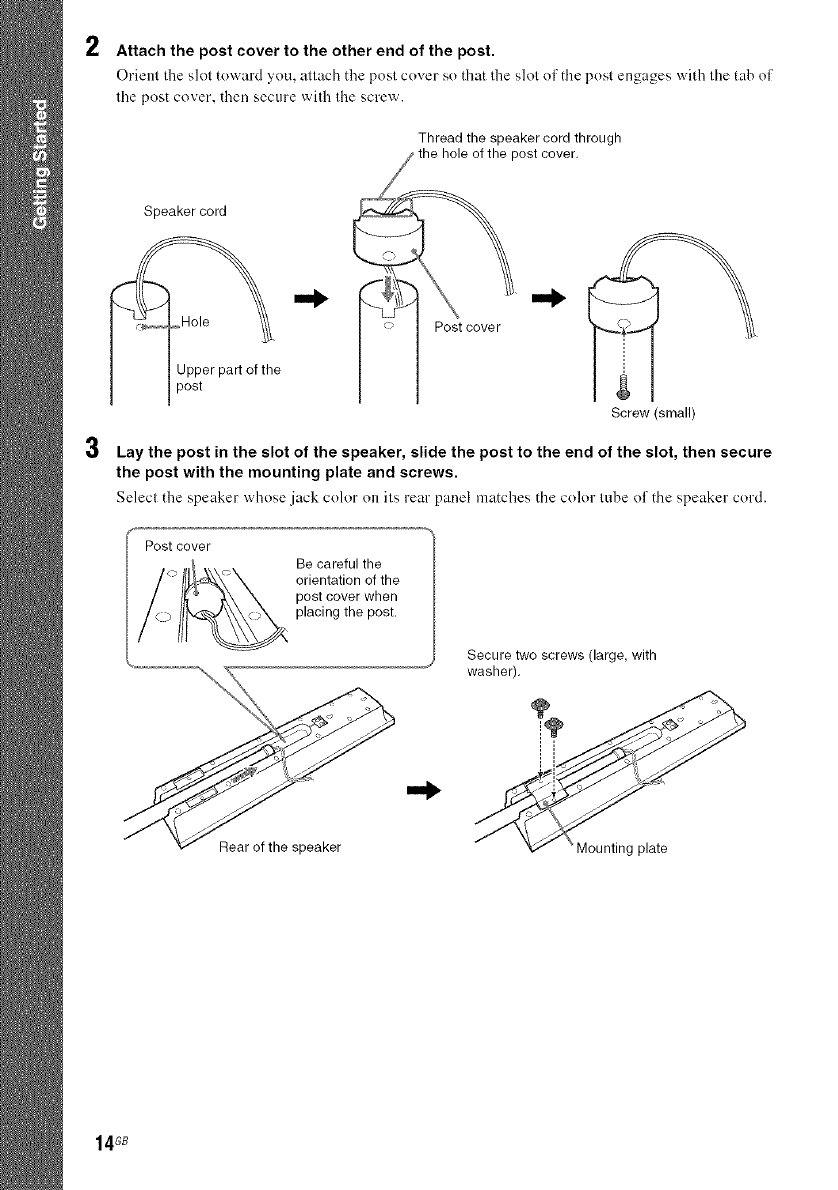

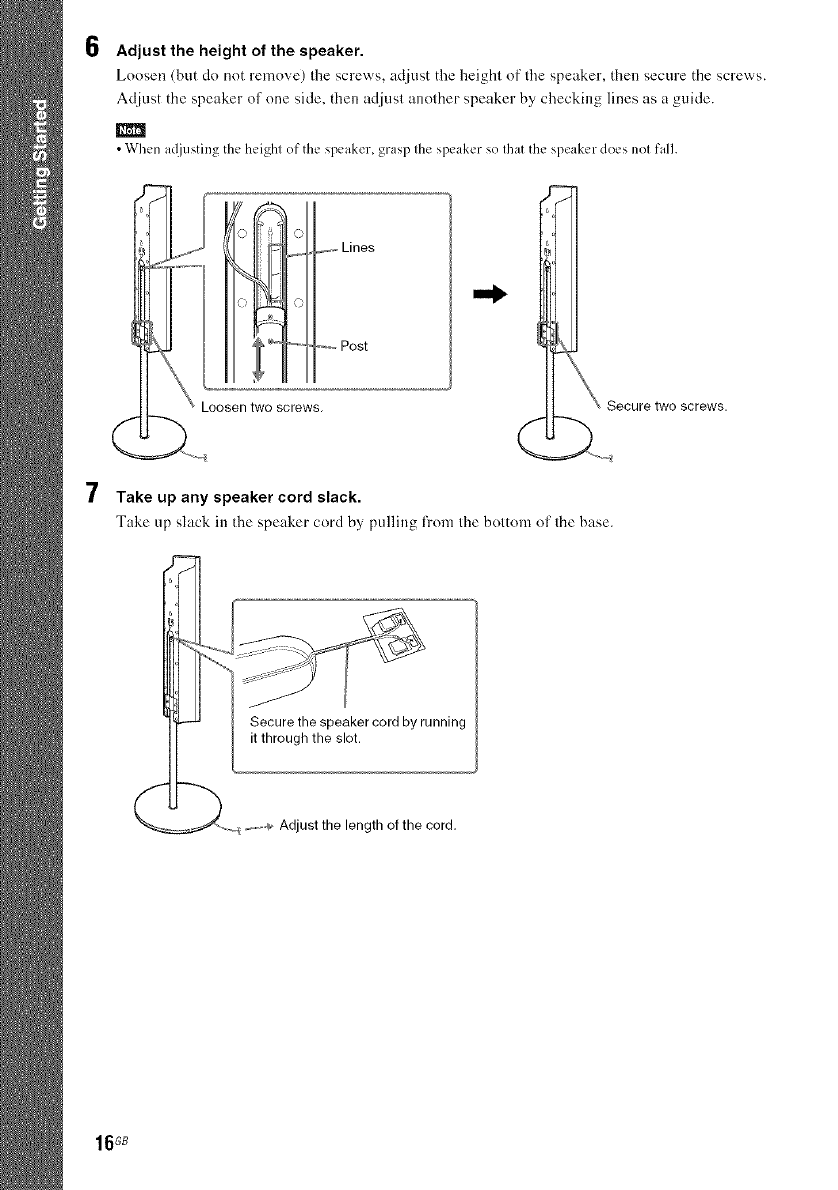

Step 1: Assembling

the Speakers ........................... 13

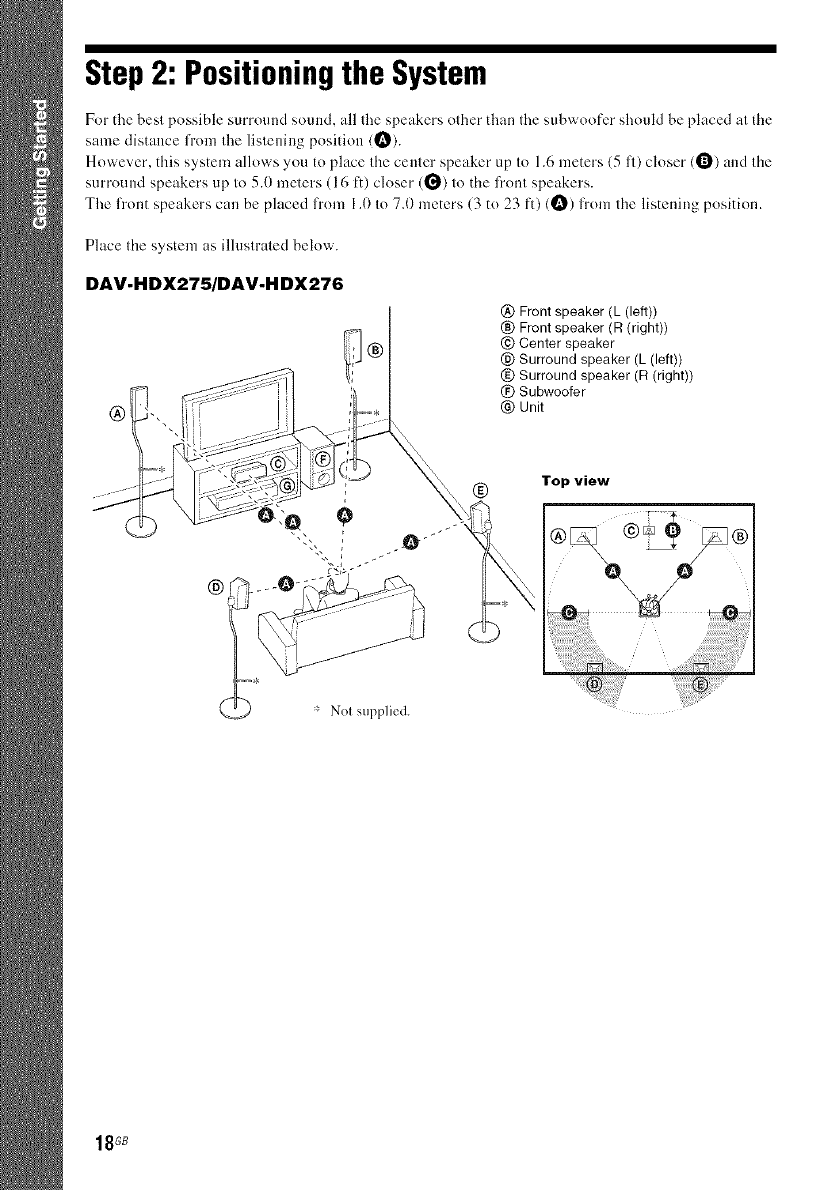

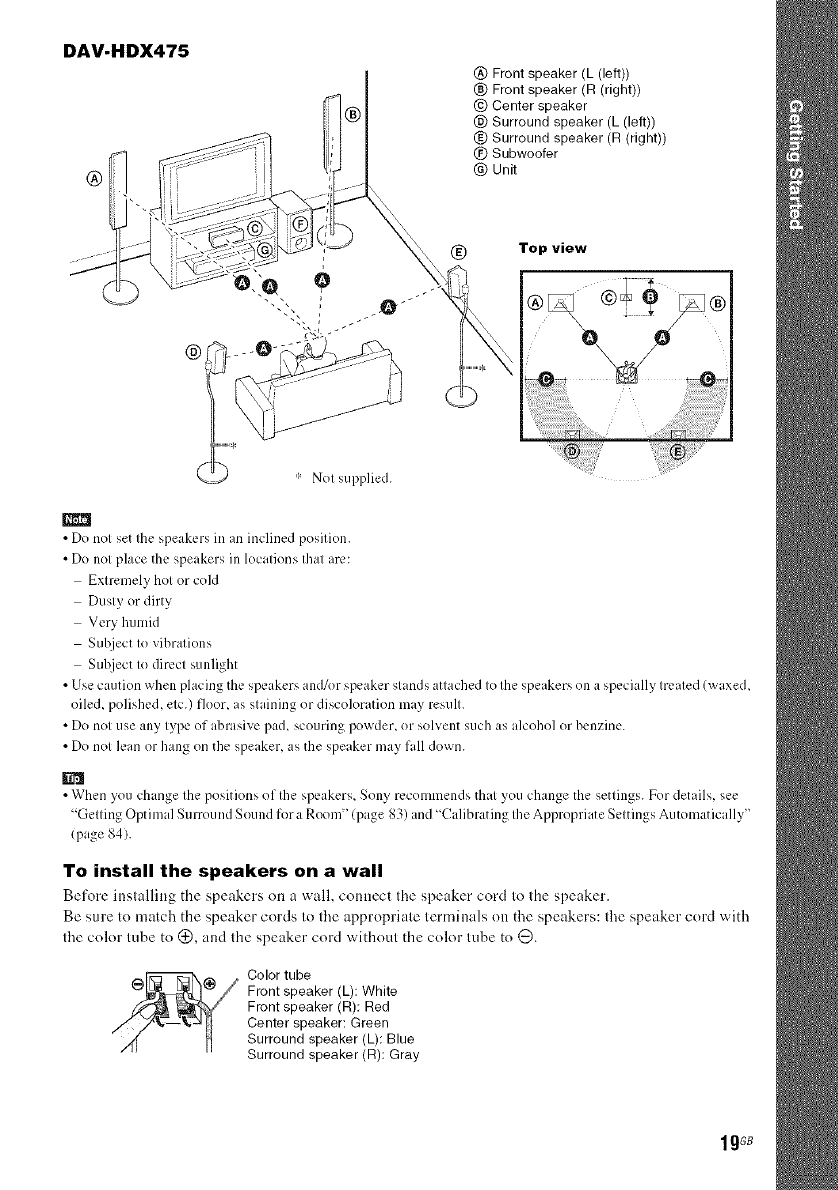

Step 2: Positioning the System... 18

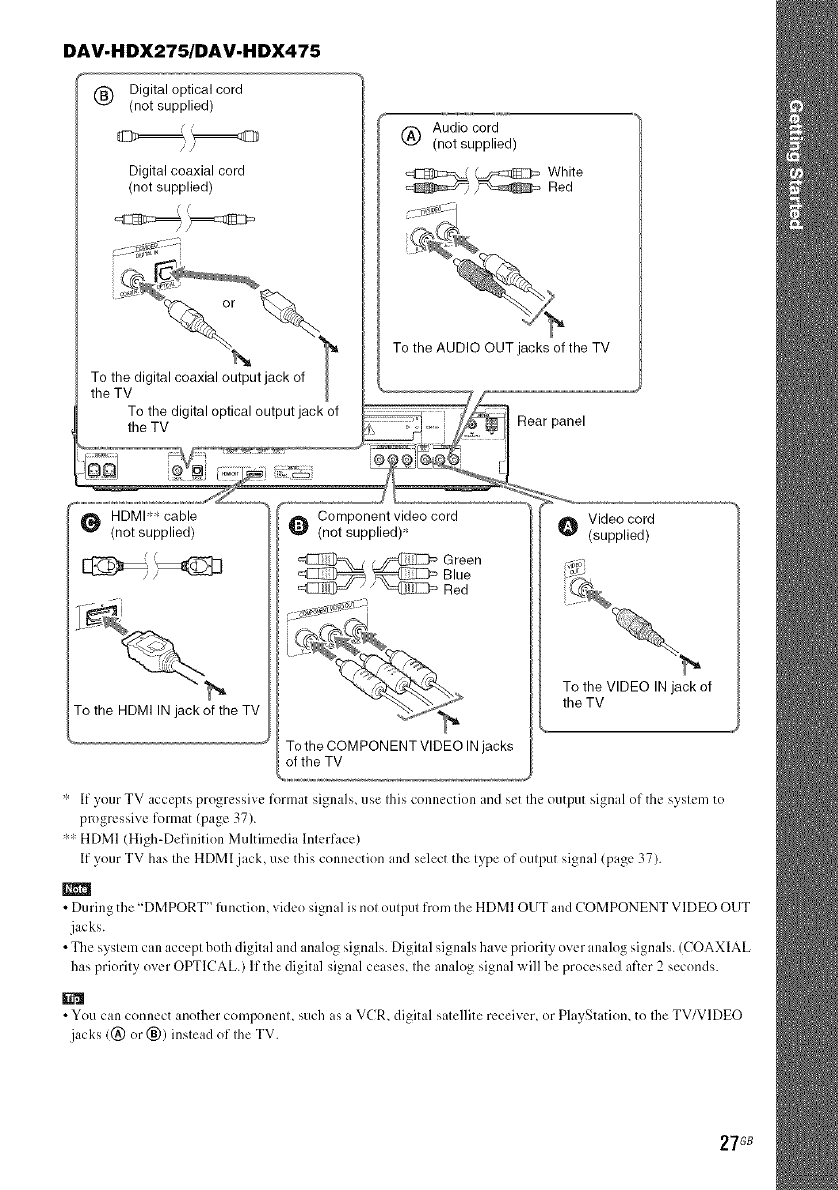

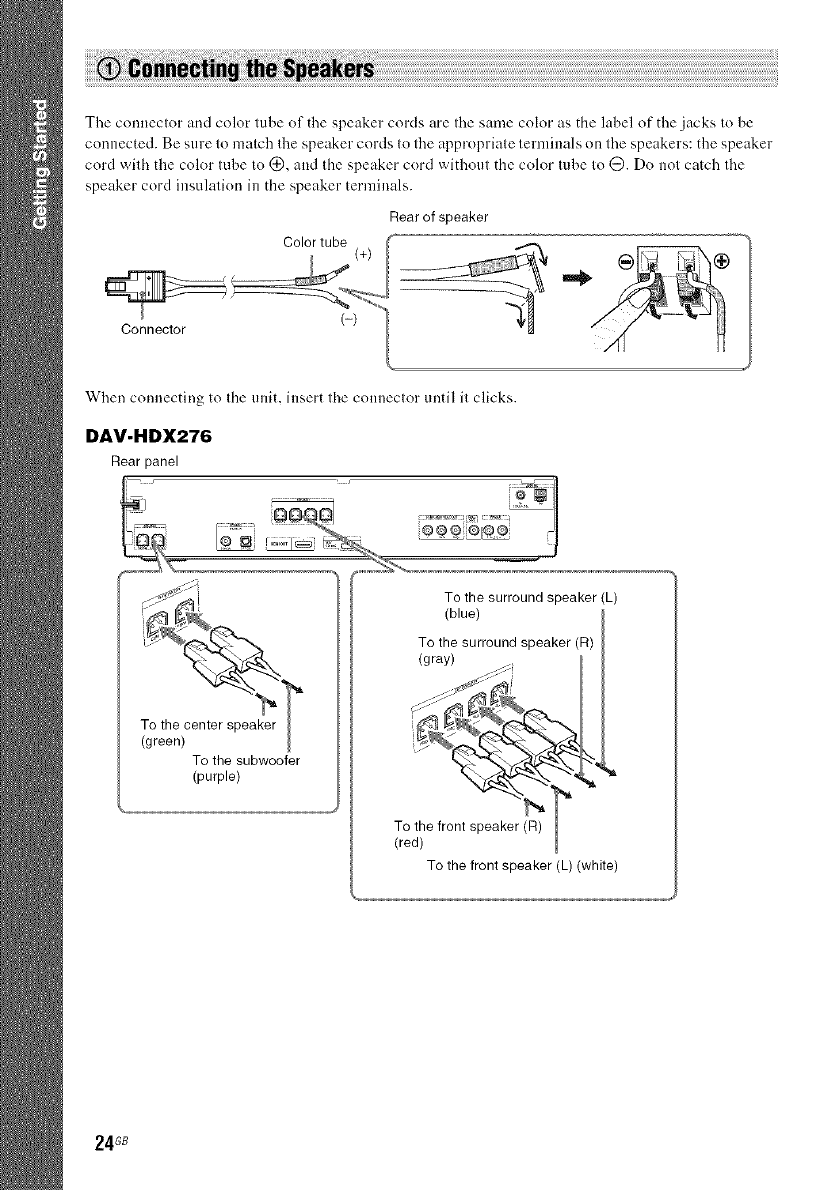

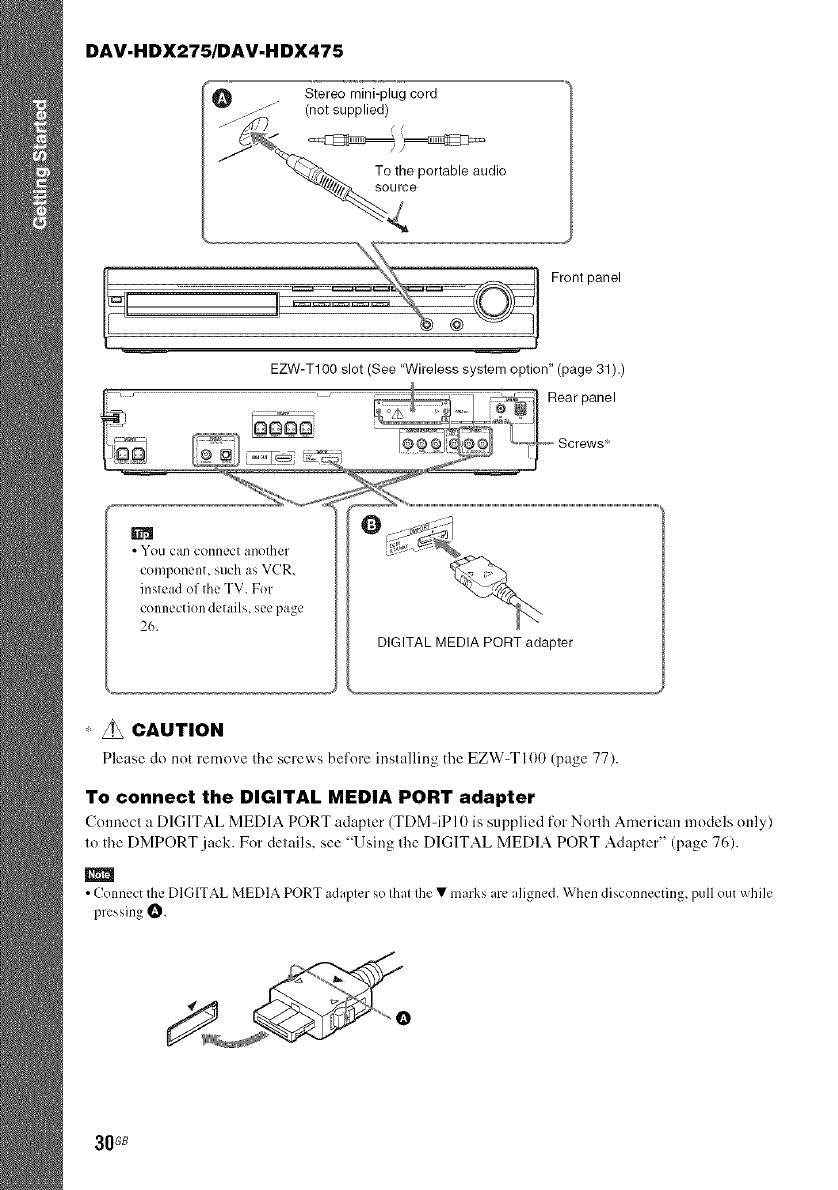

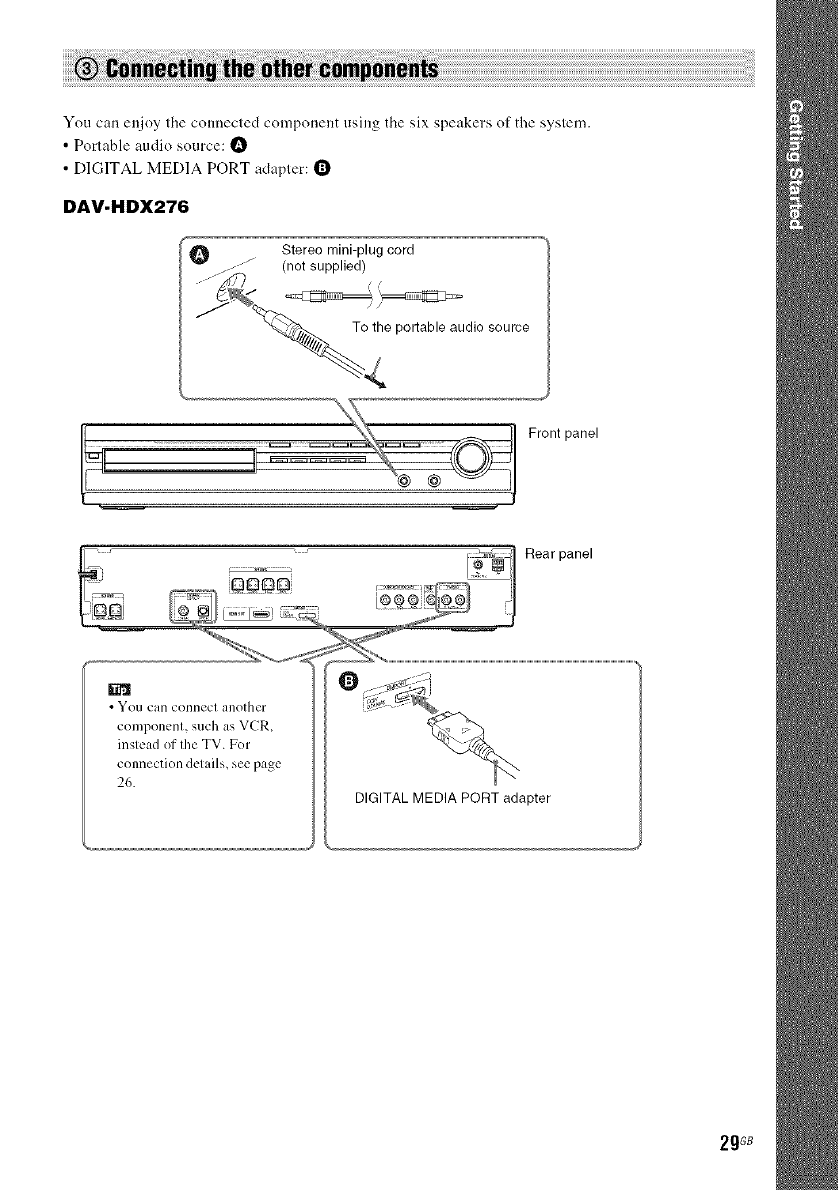

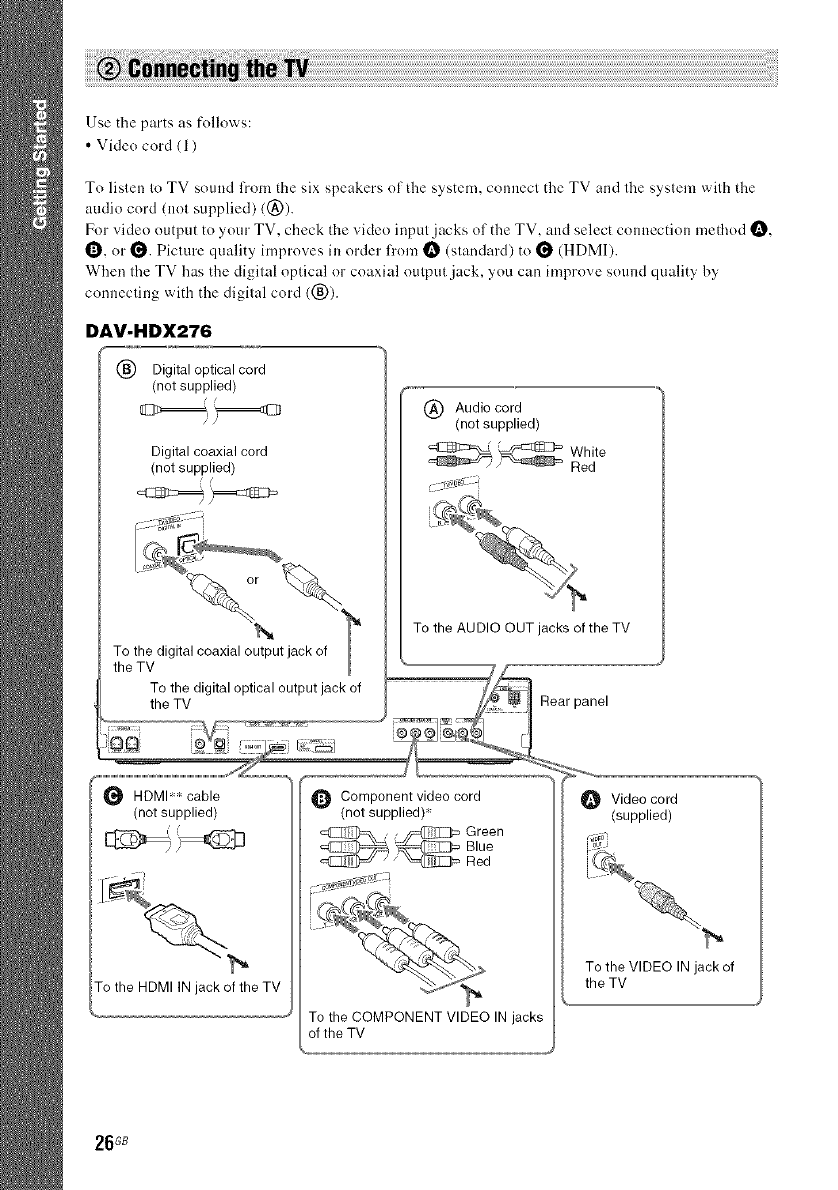

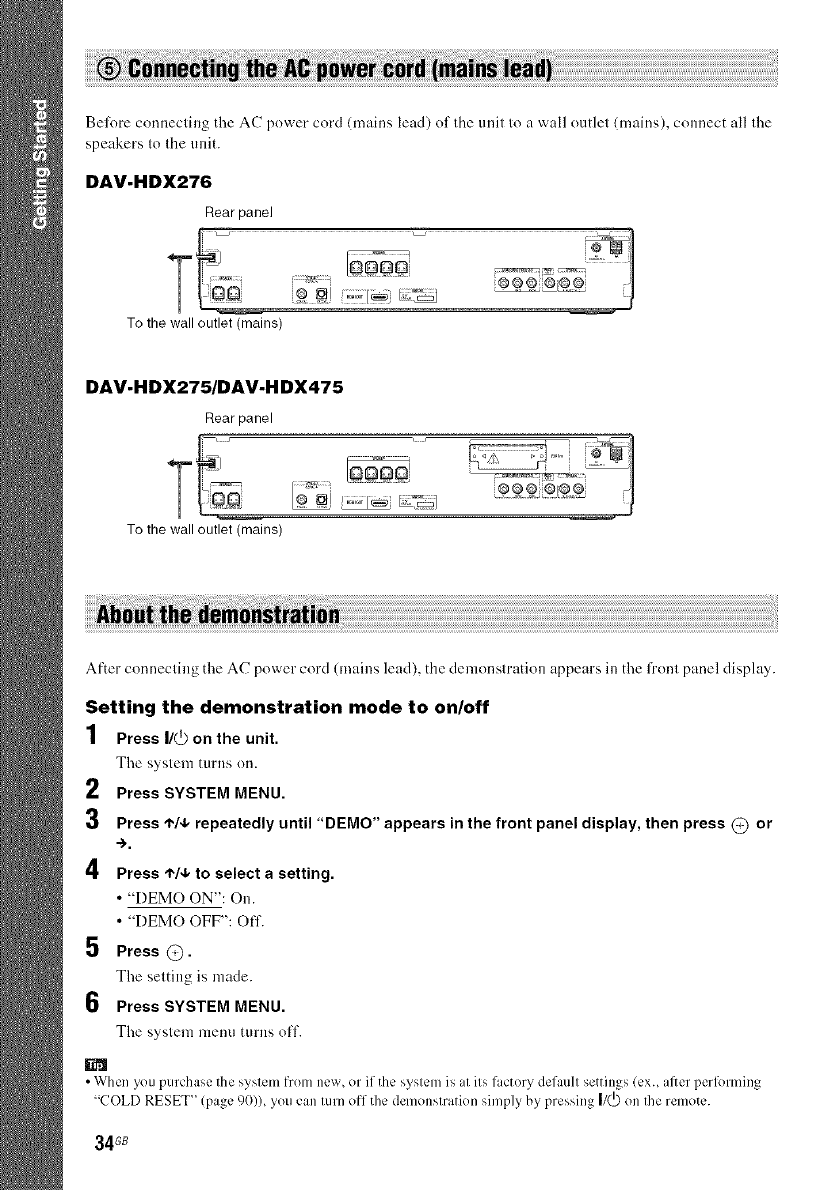

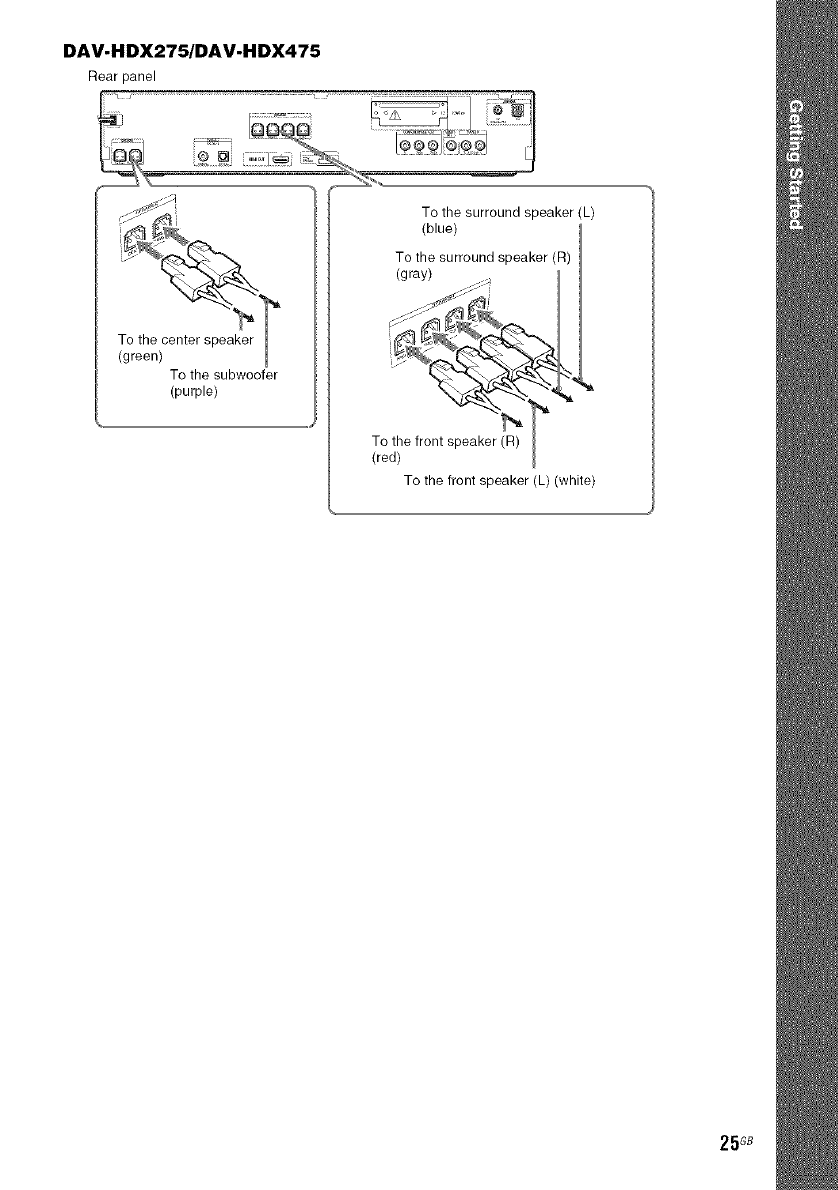

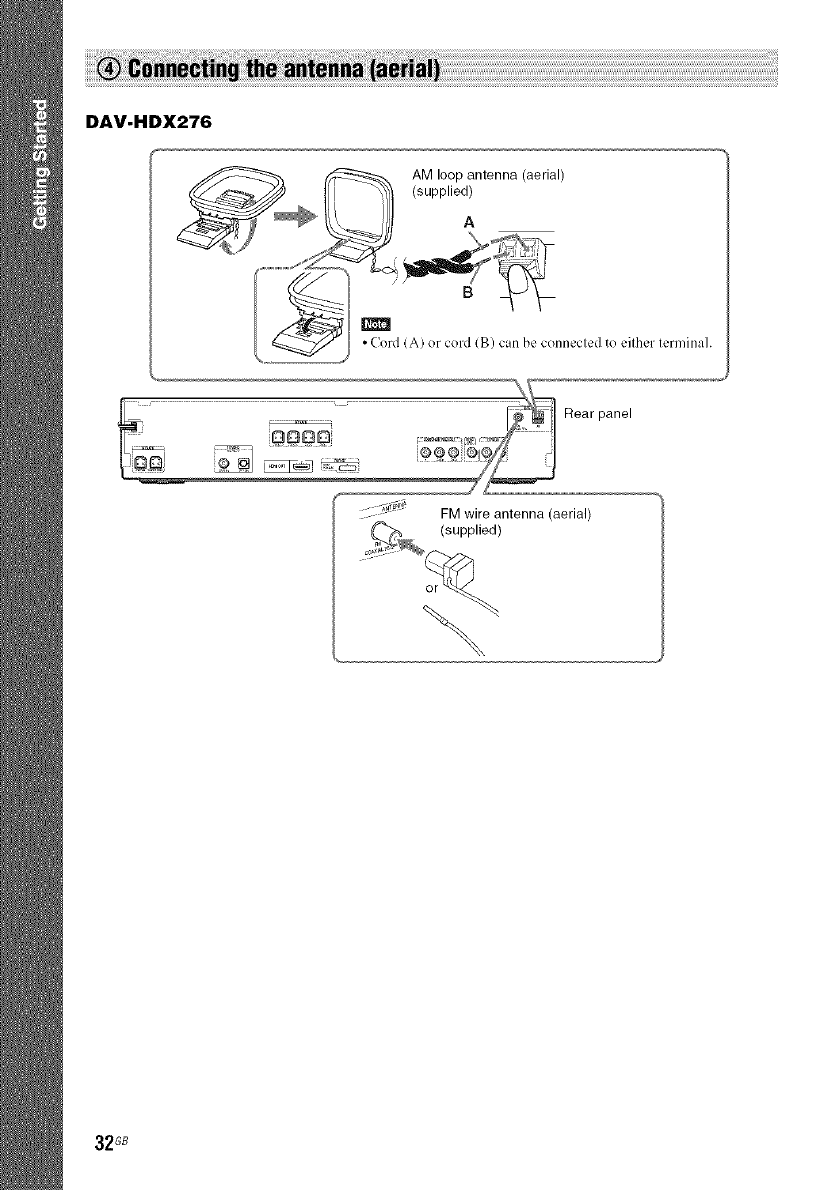

Step 3: Connecting the System... 22

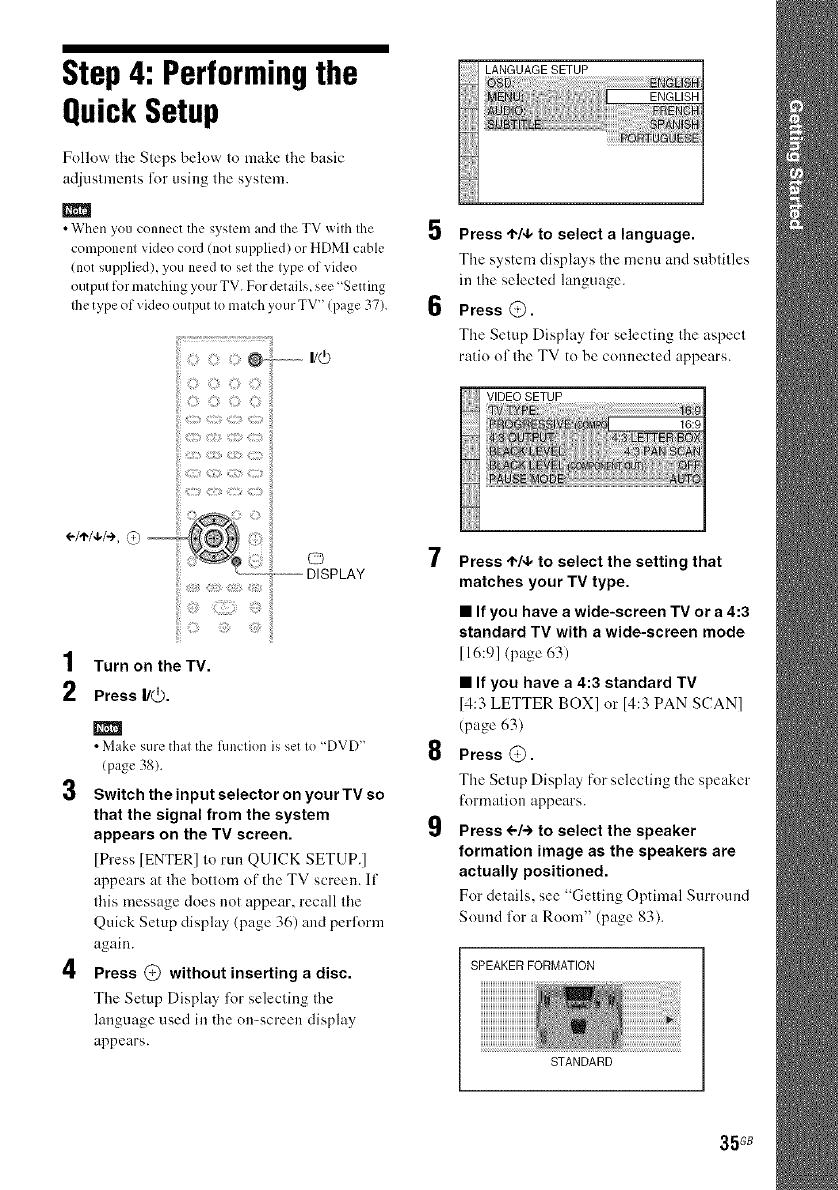

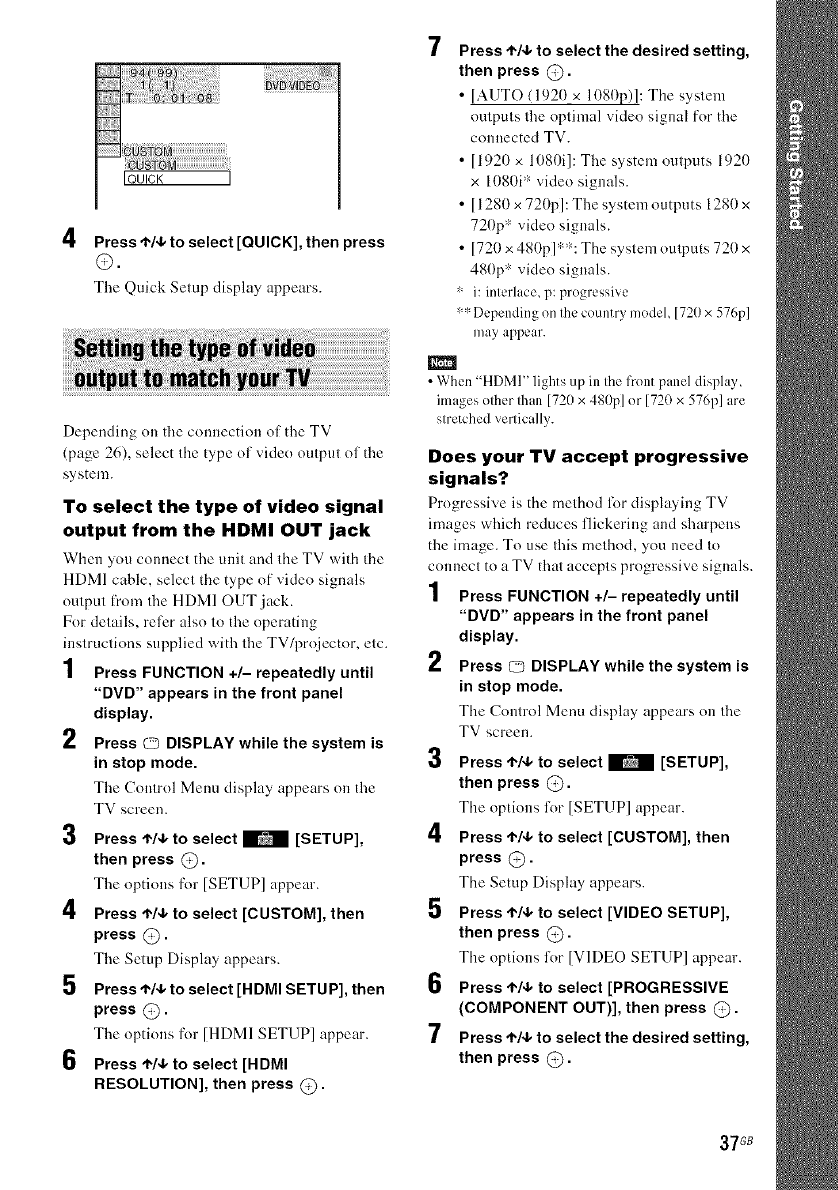

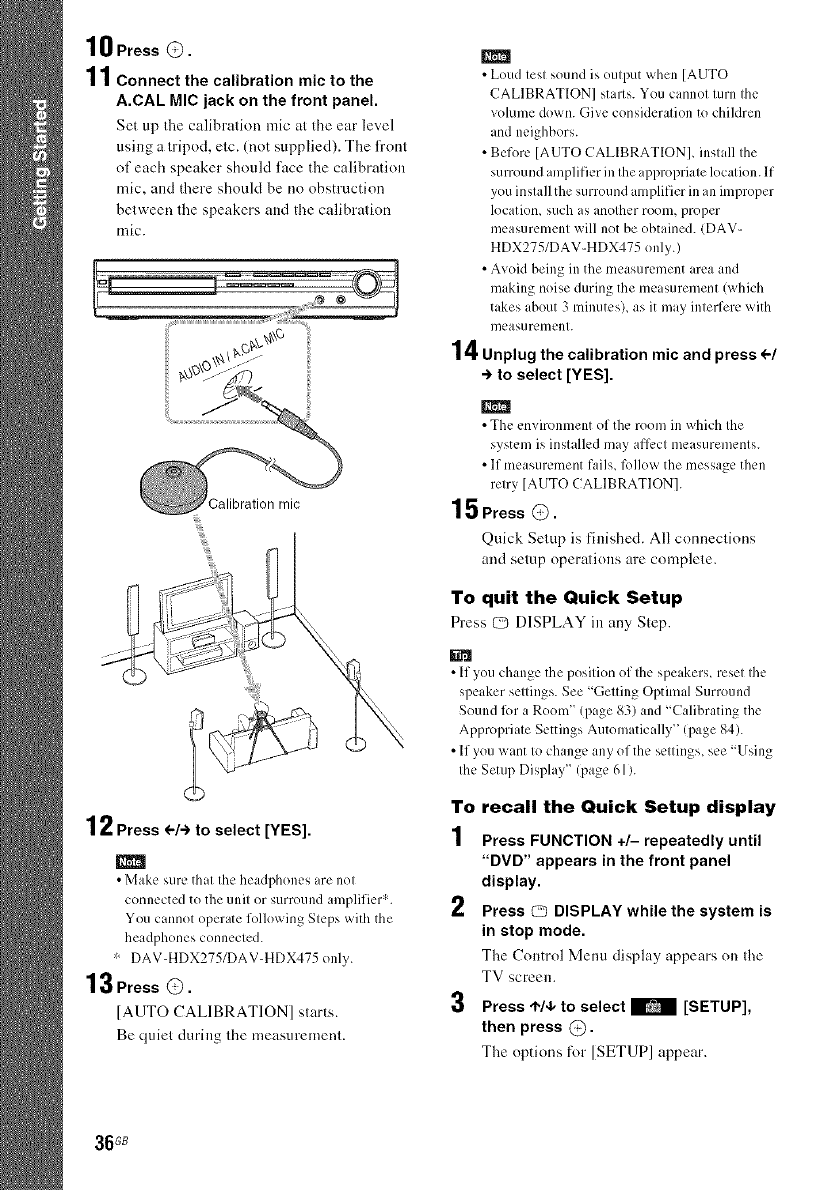

Step 4: Performing the Quick

Setup ........................................ 35

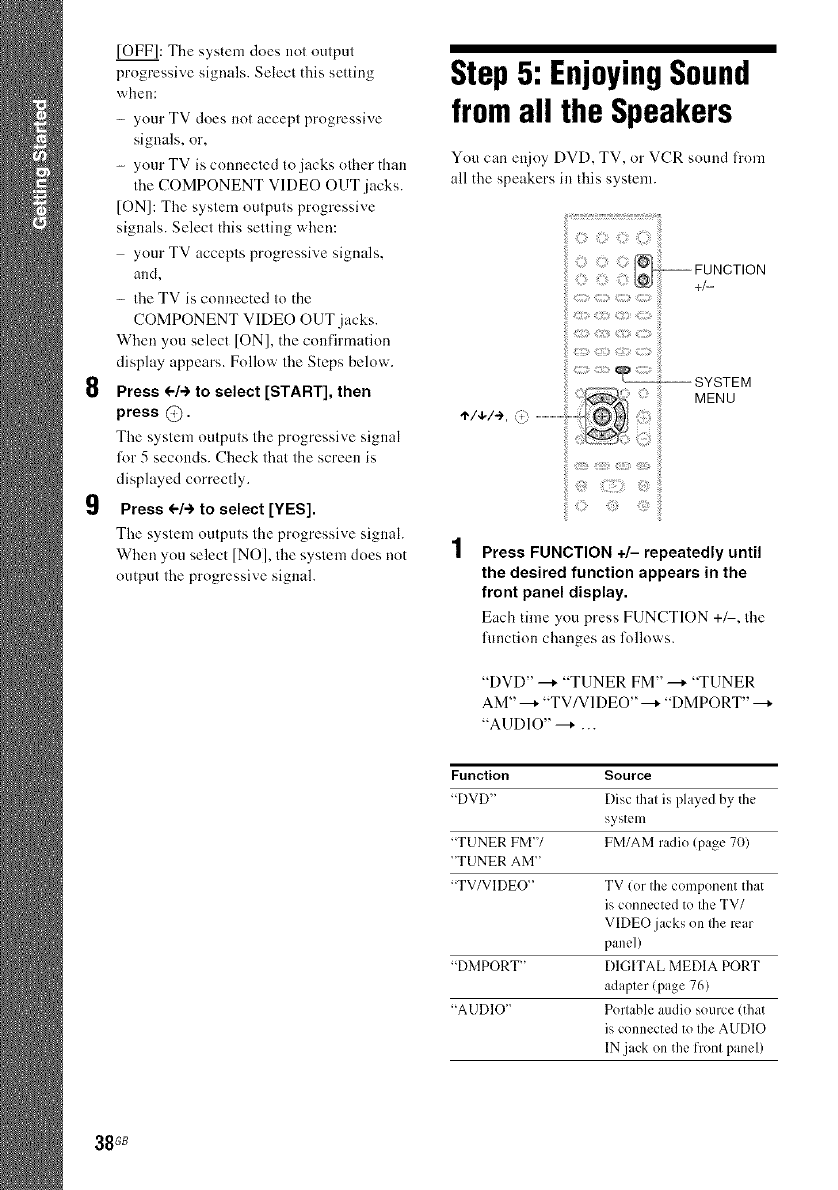

Step 5: Enjoying Sound from all the

Speakers .................................. 38

Sound Adjustment

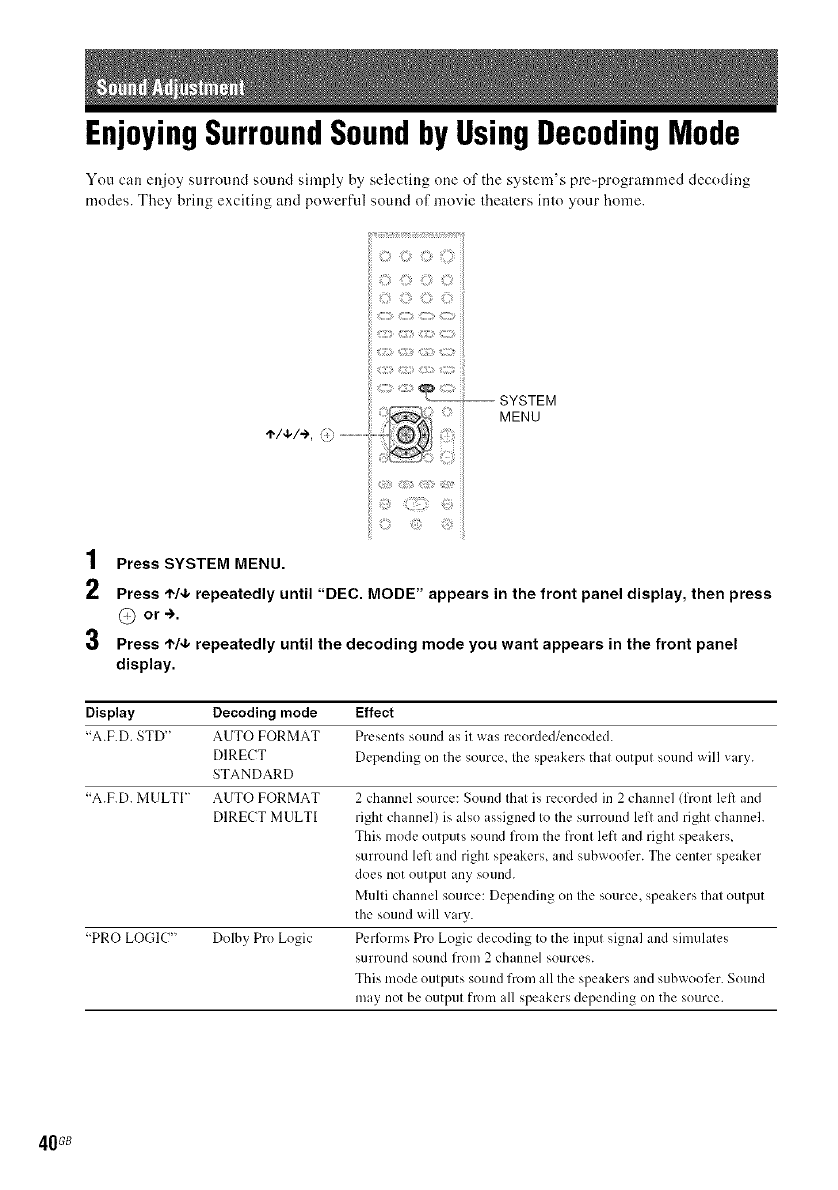

Enjoying Surround Sound by Using

Decoding Mode .............................. 40

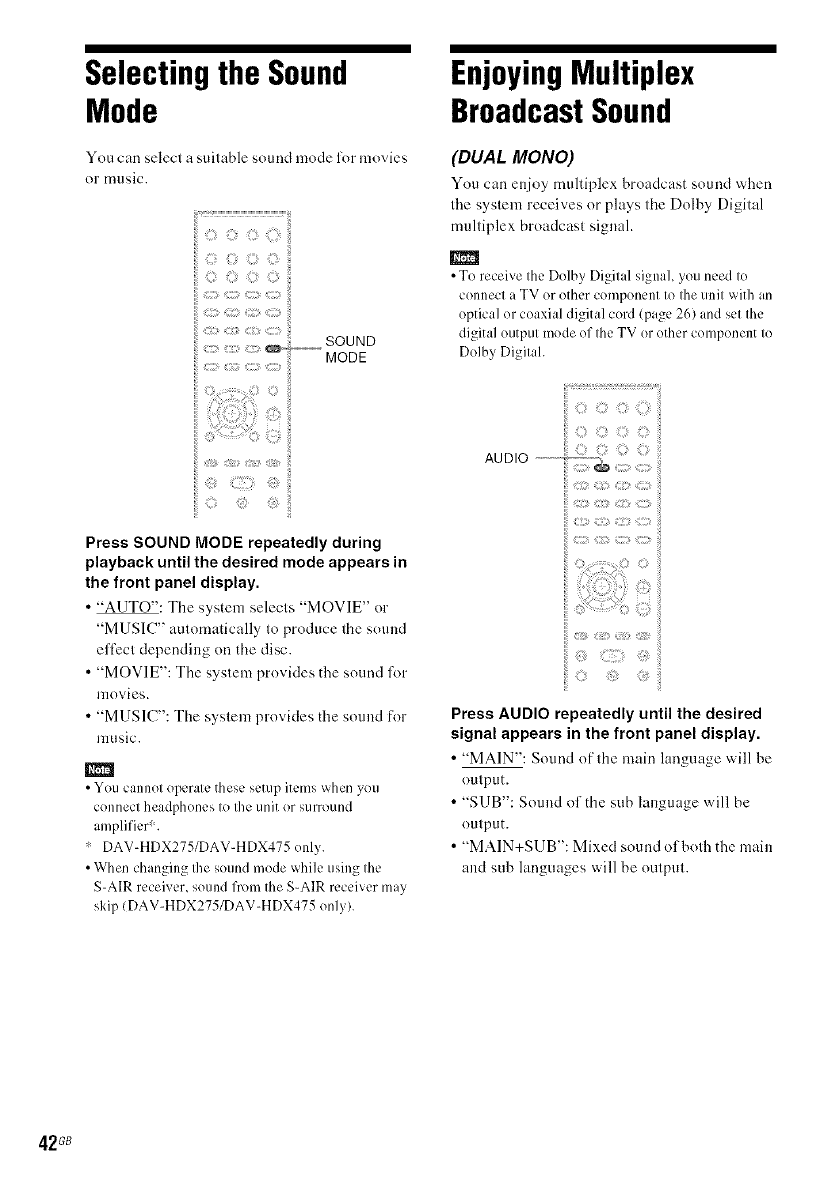

Selecting the Sound Mode .................... 42

Enjoying Multiplex Broadcast Sound...42

Disc

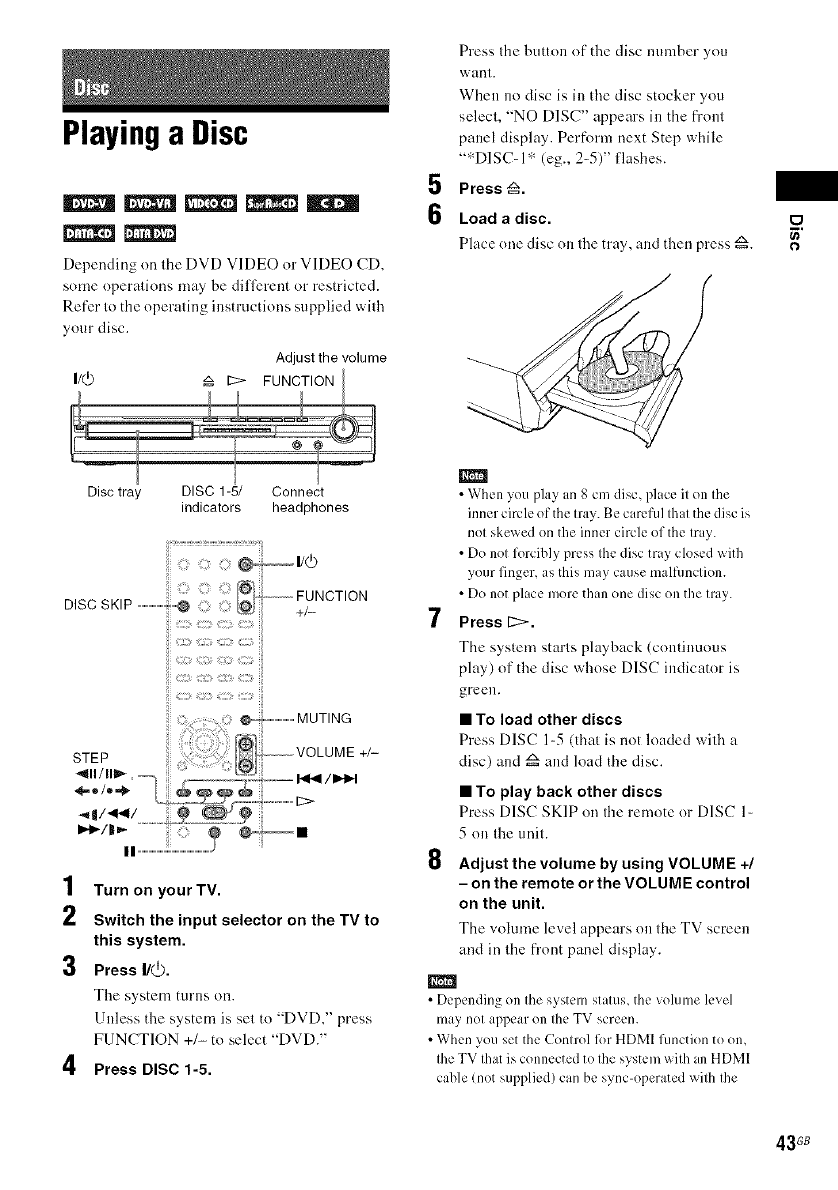

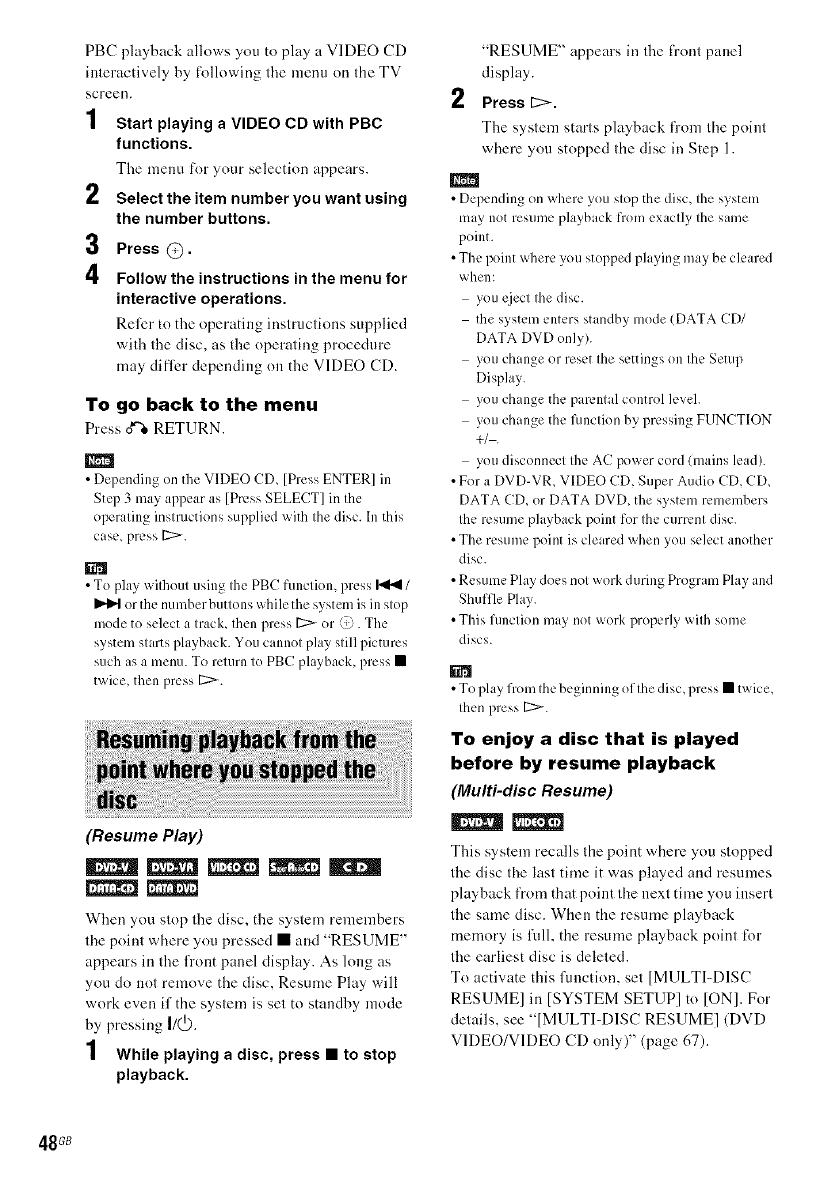

Playing a Disc ....................................... 43

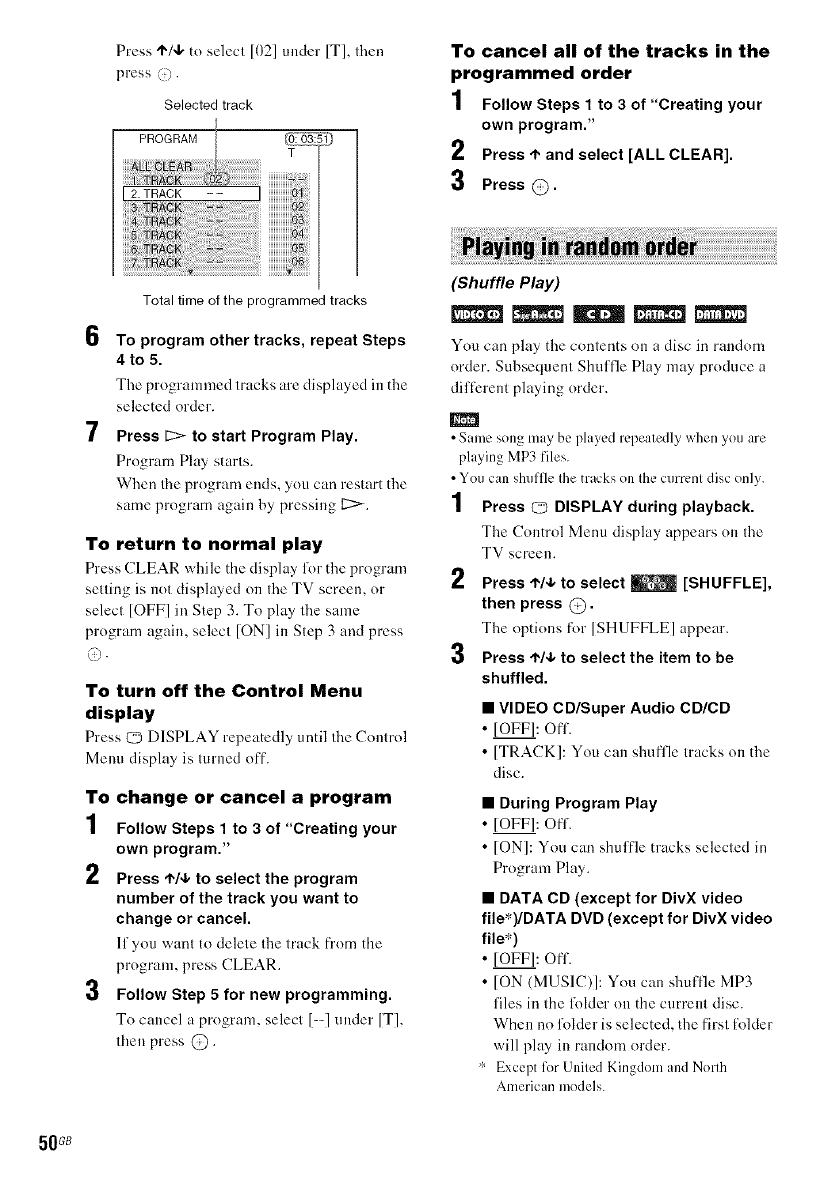

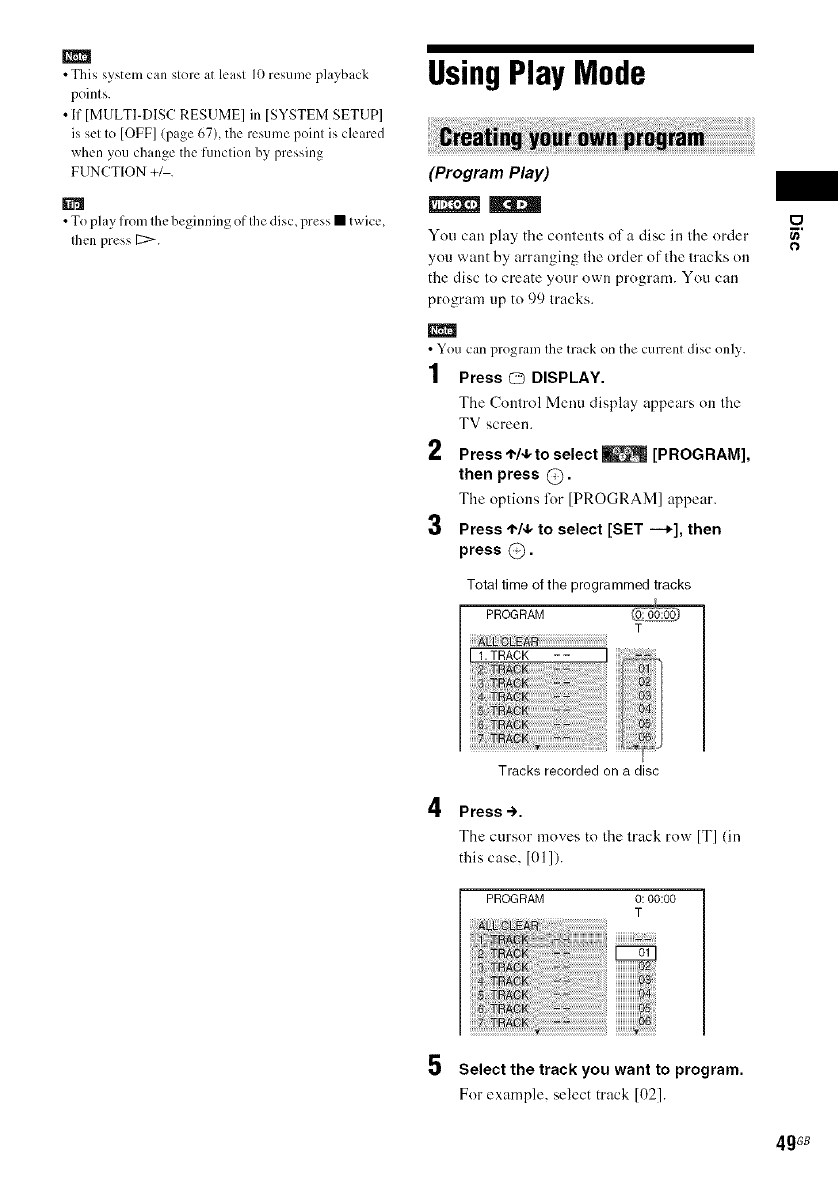

Using Play Mode ................................... 49

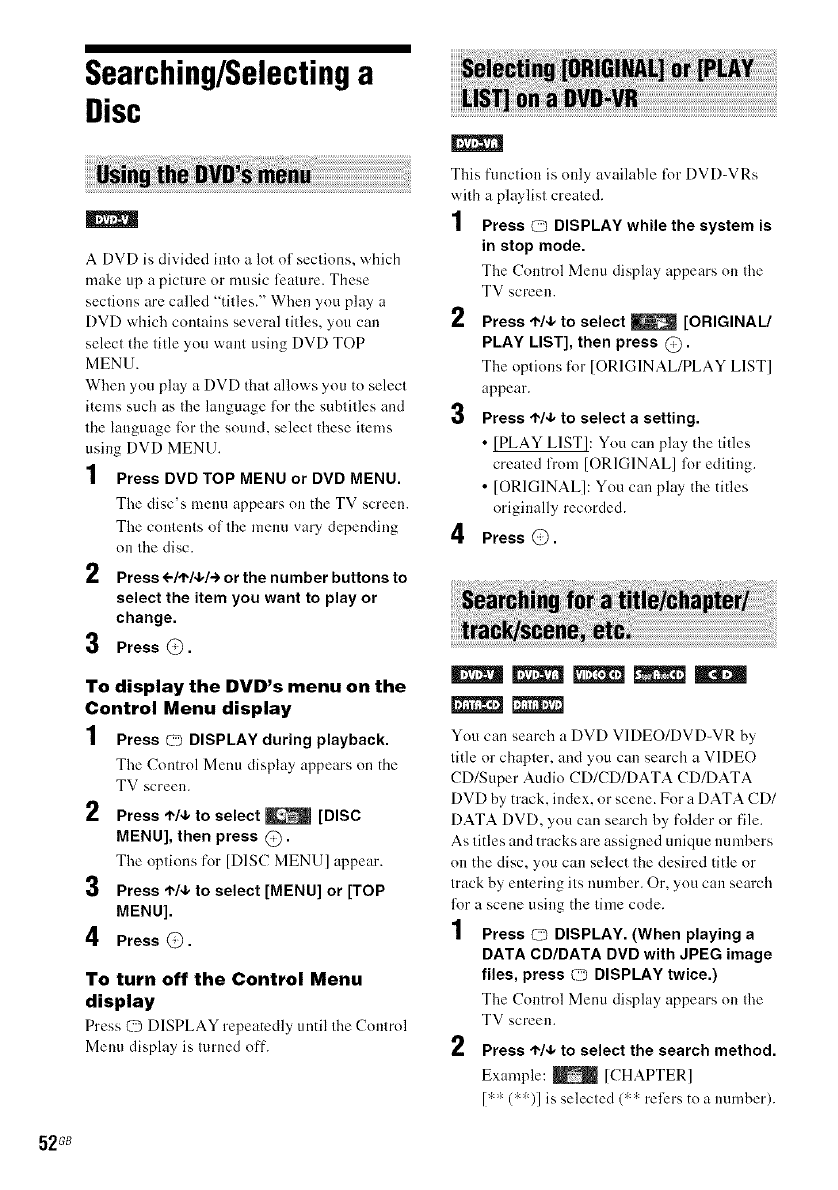

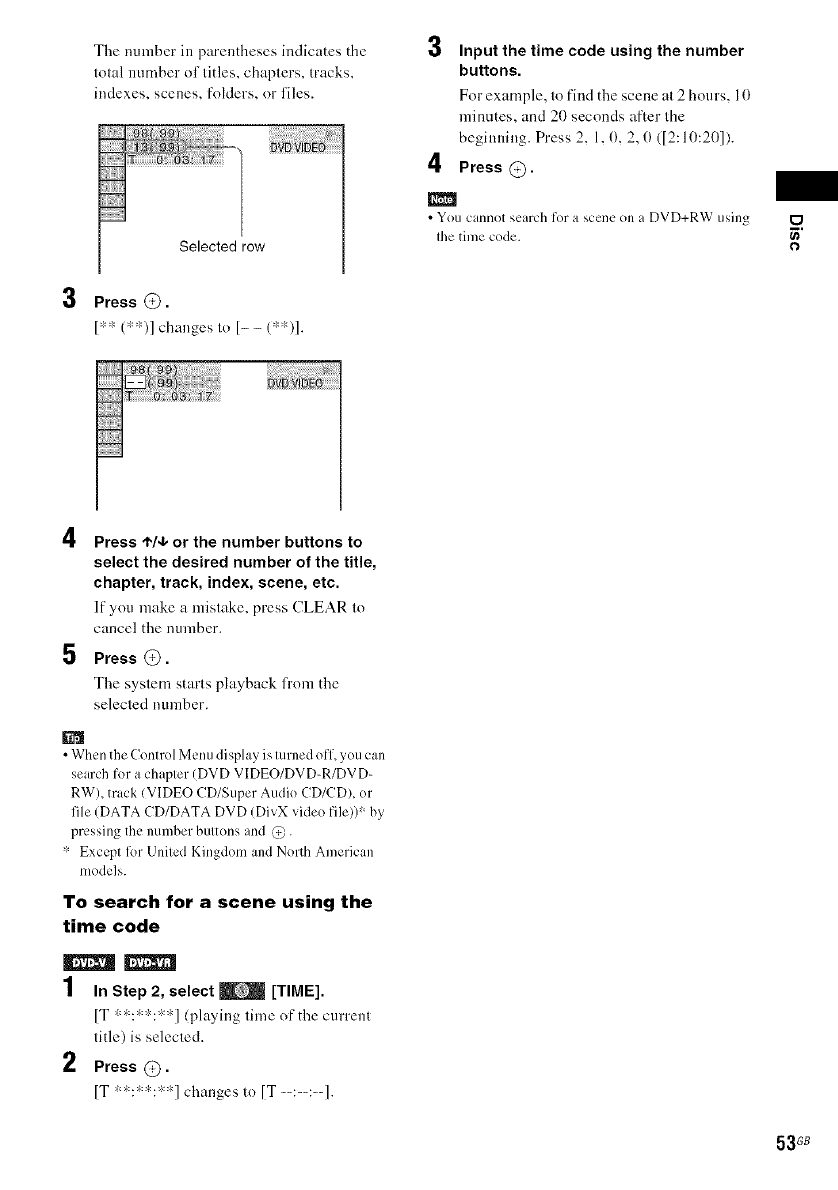

Searching/Selecting a Disc ................... 52

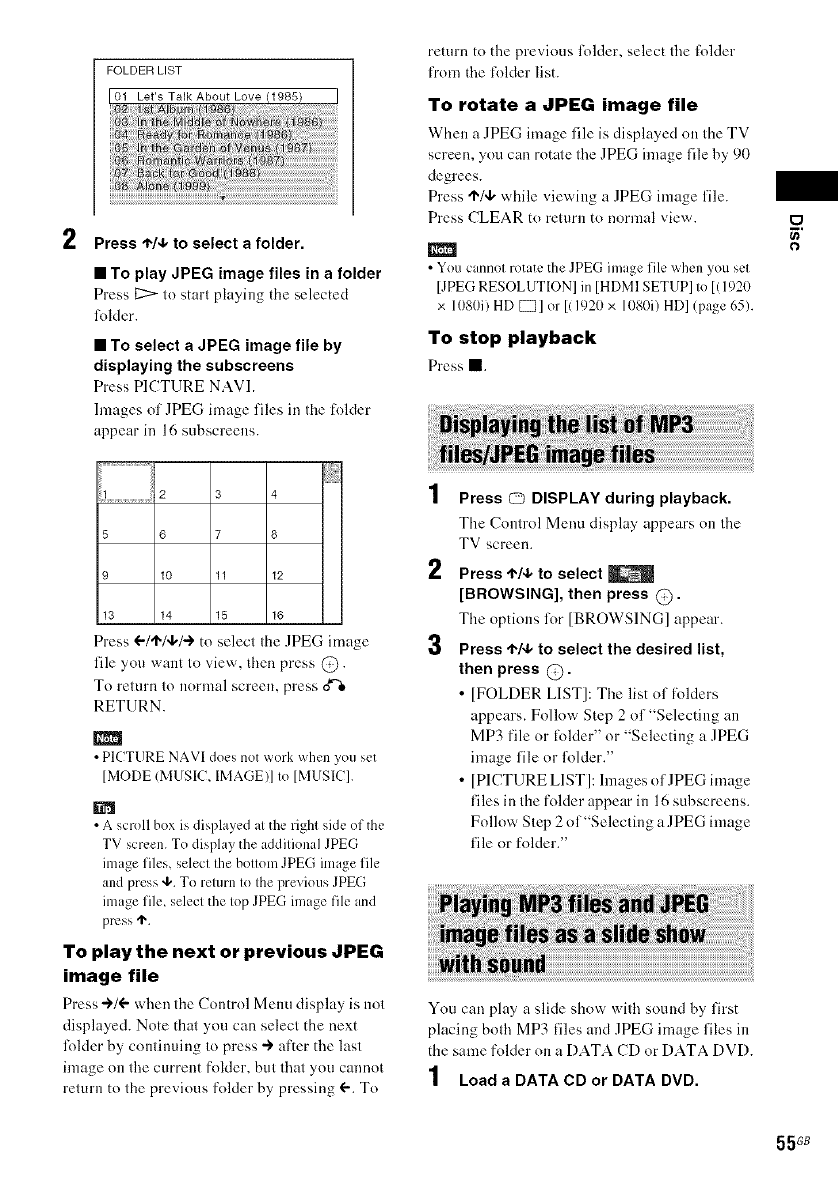

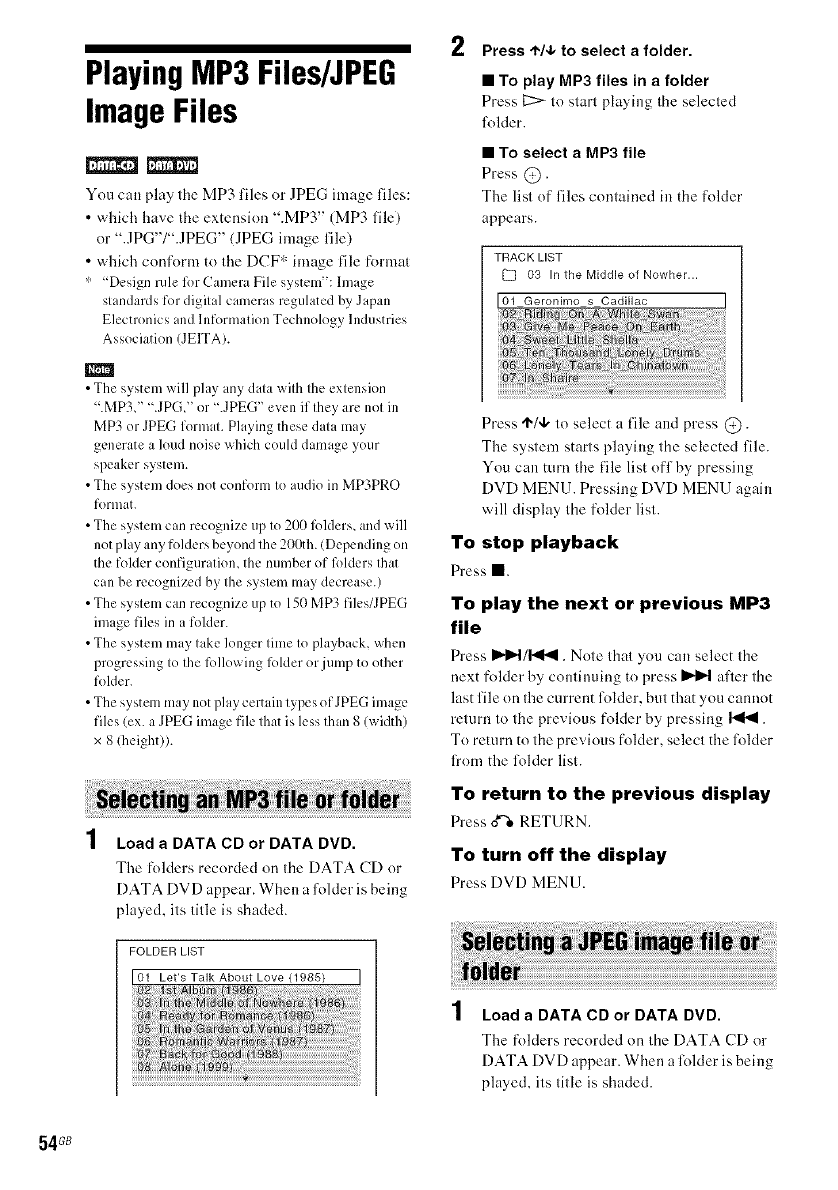

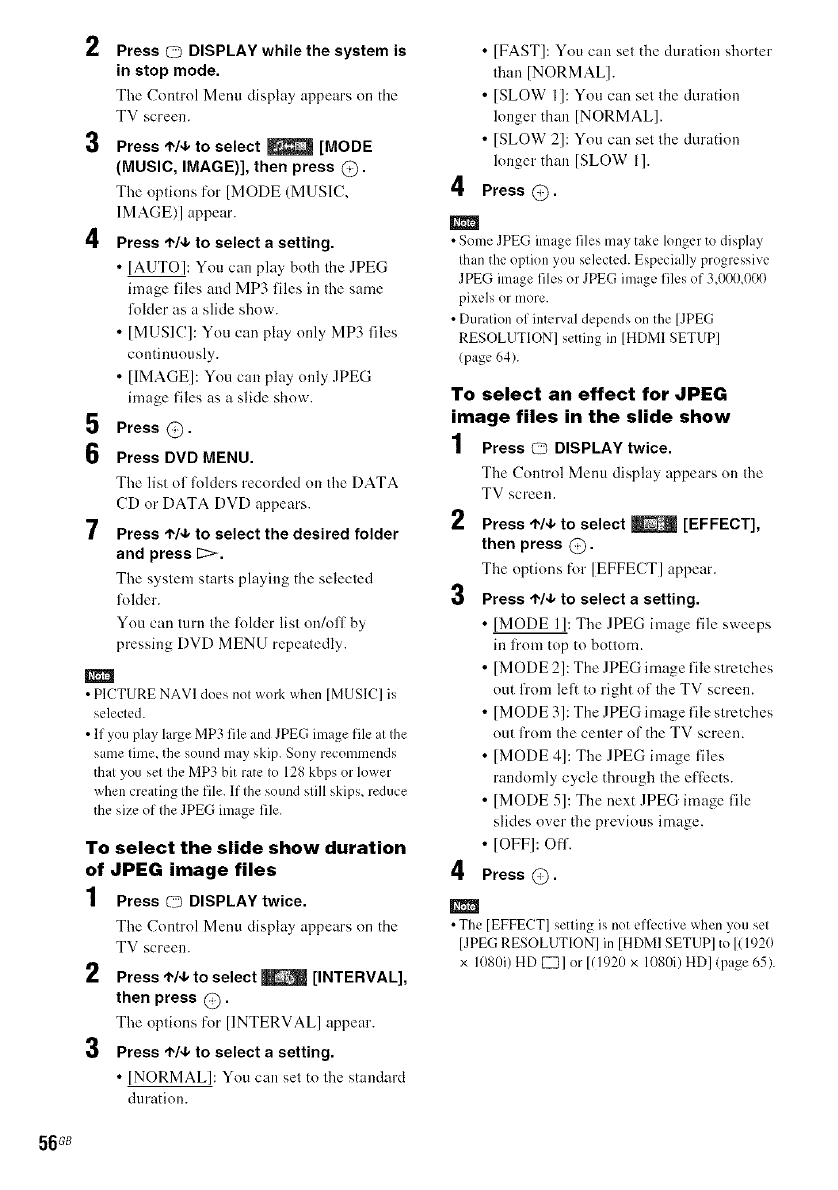

Playing MP3 Files!JPEG Image Files... 54

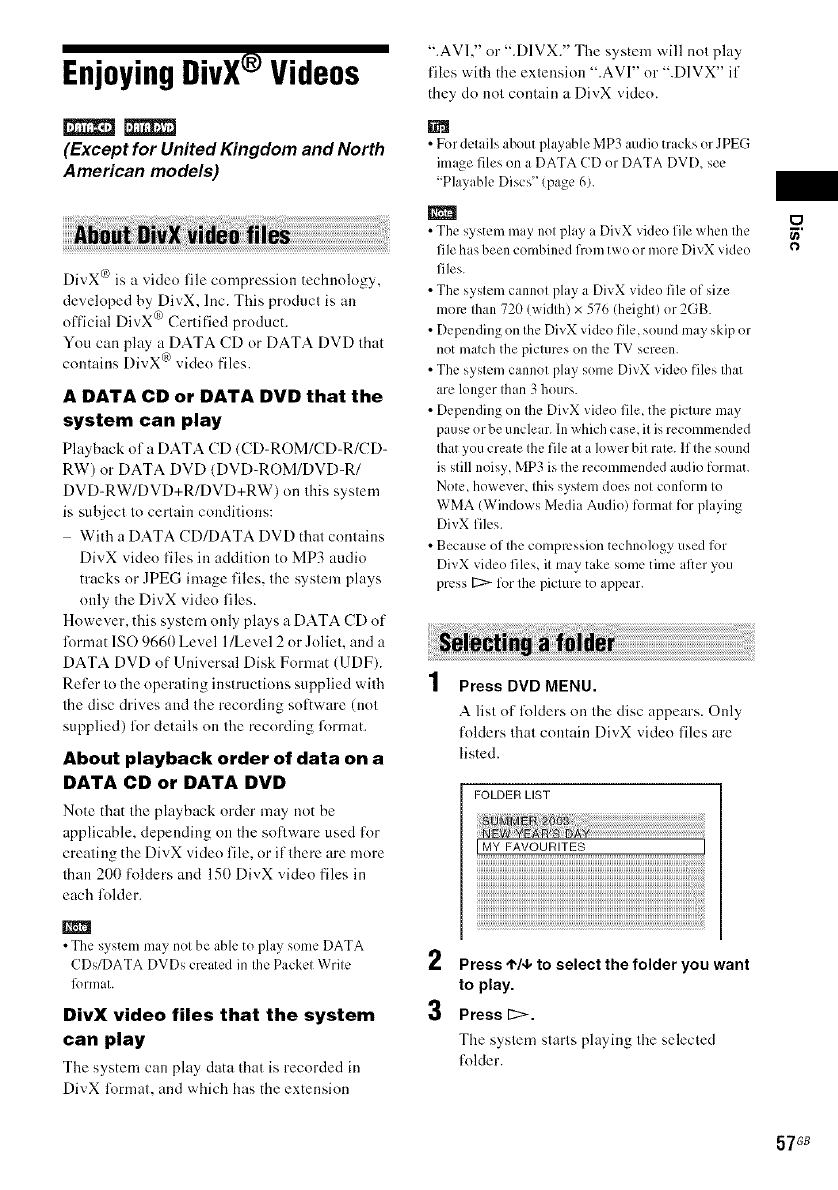

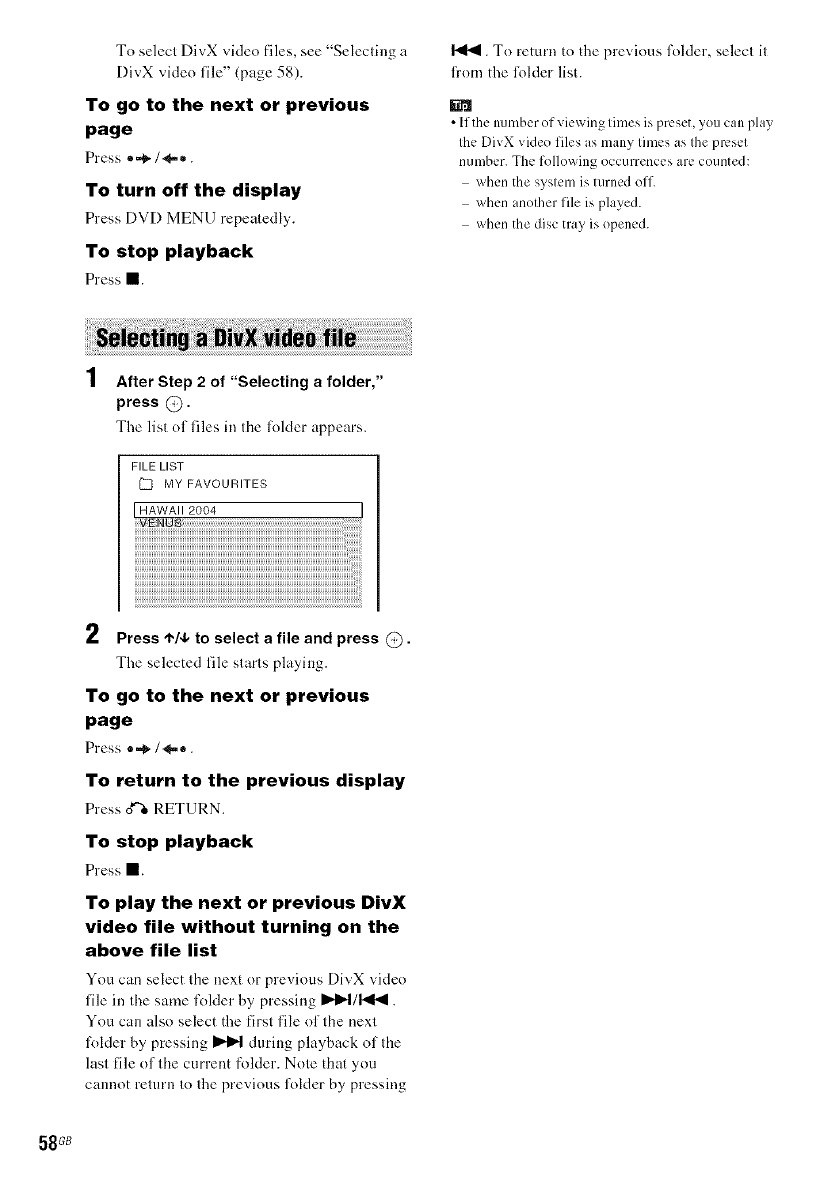

Enjoying DivXq_ Videos ....................... 57

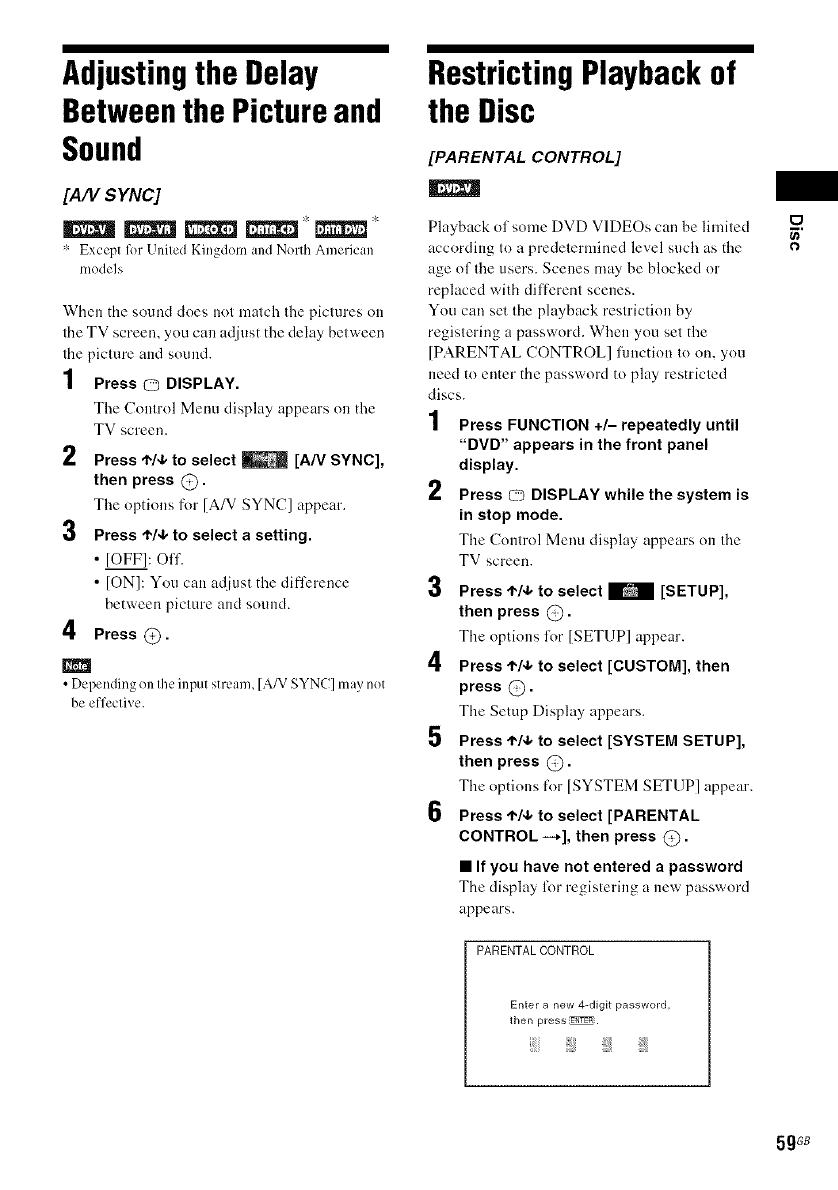

Adjusting the Delay Between the Picture

and Sound ....................................... 59

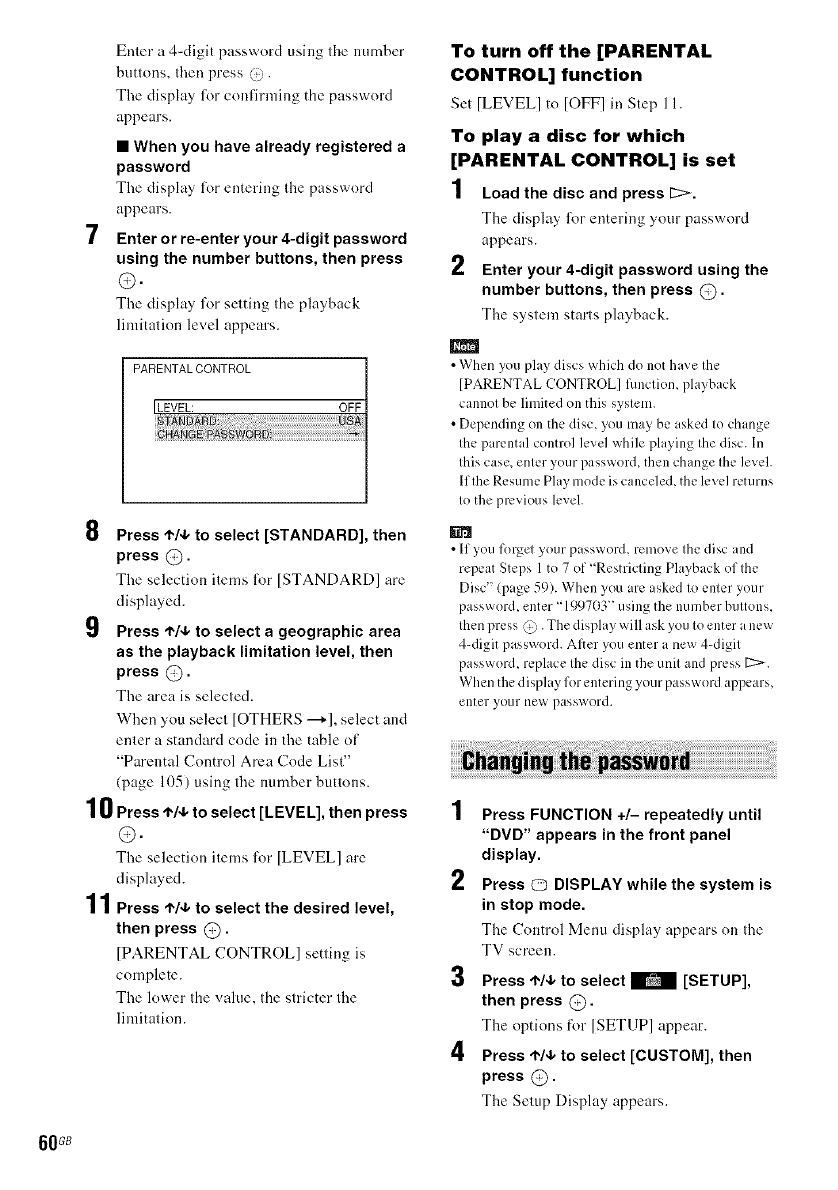

Restricting Playback of the Disc ........... 59

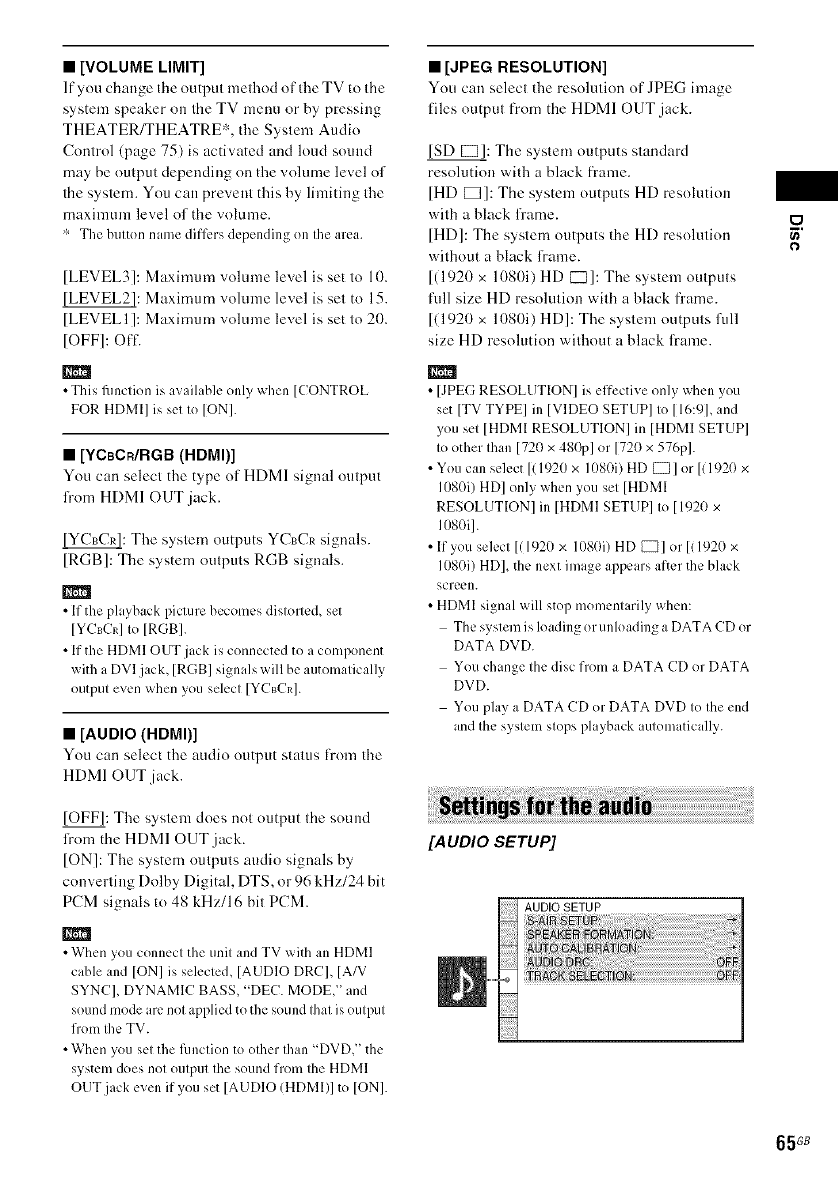

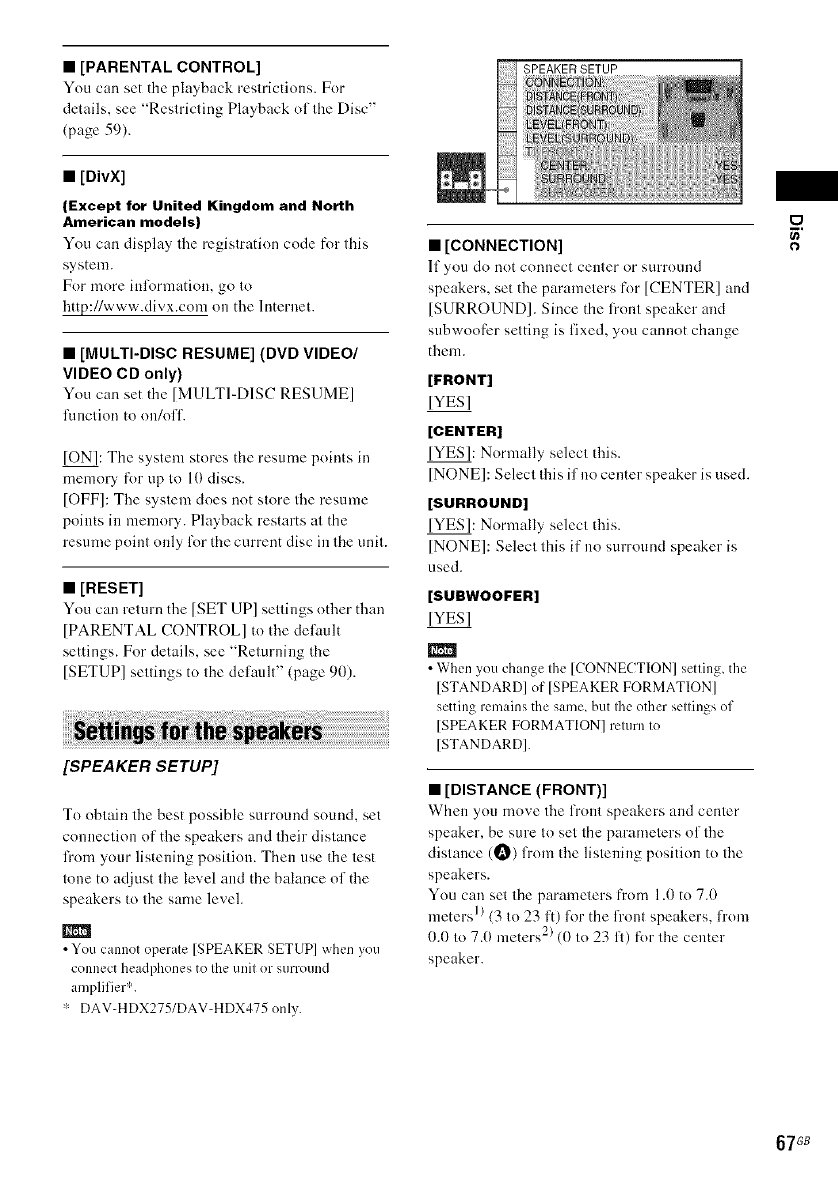

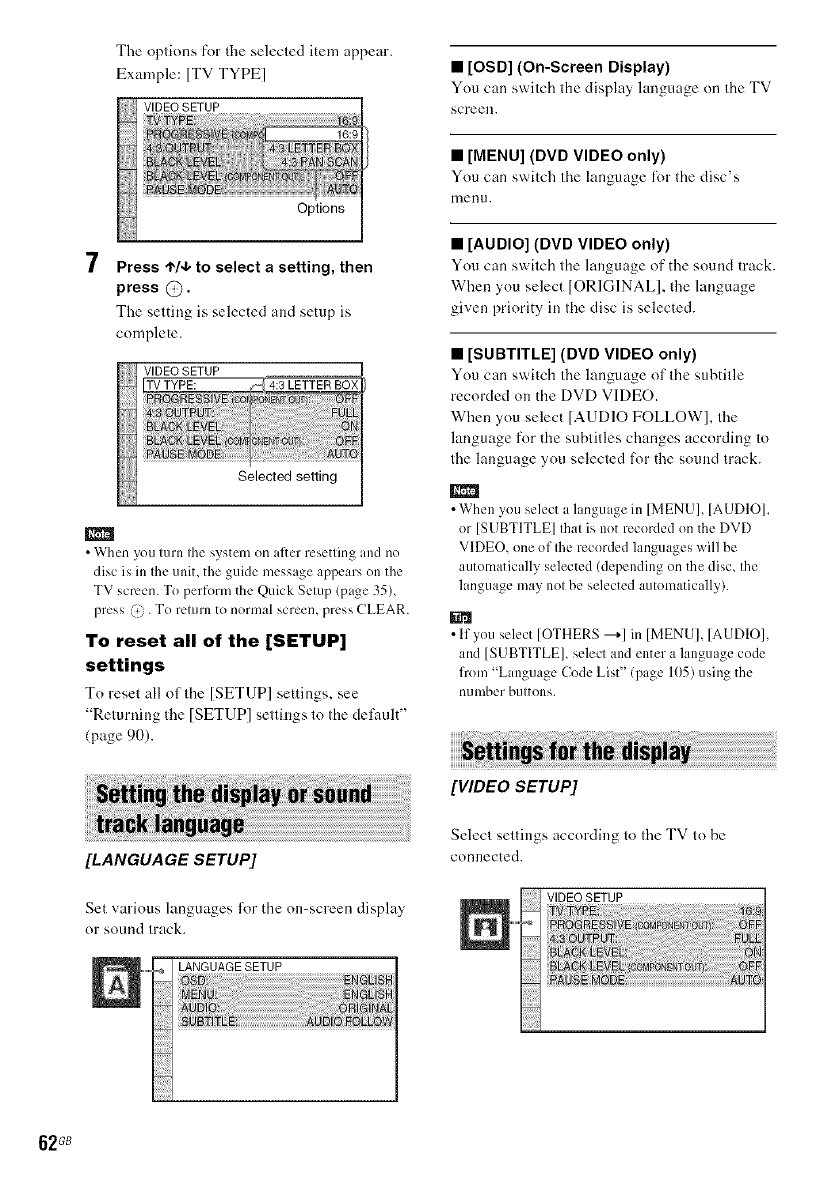

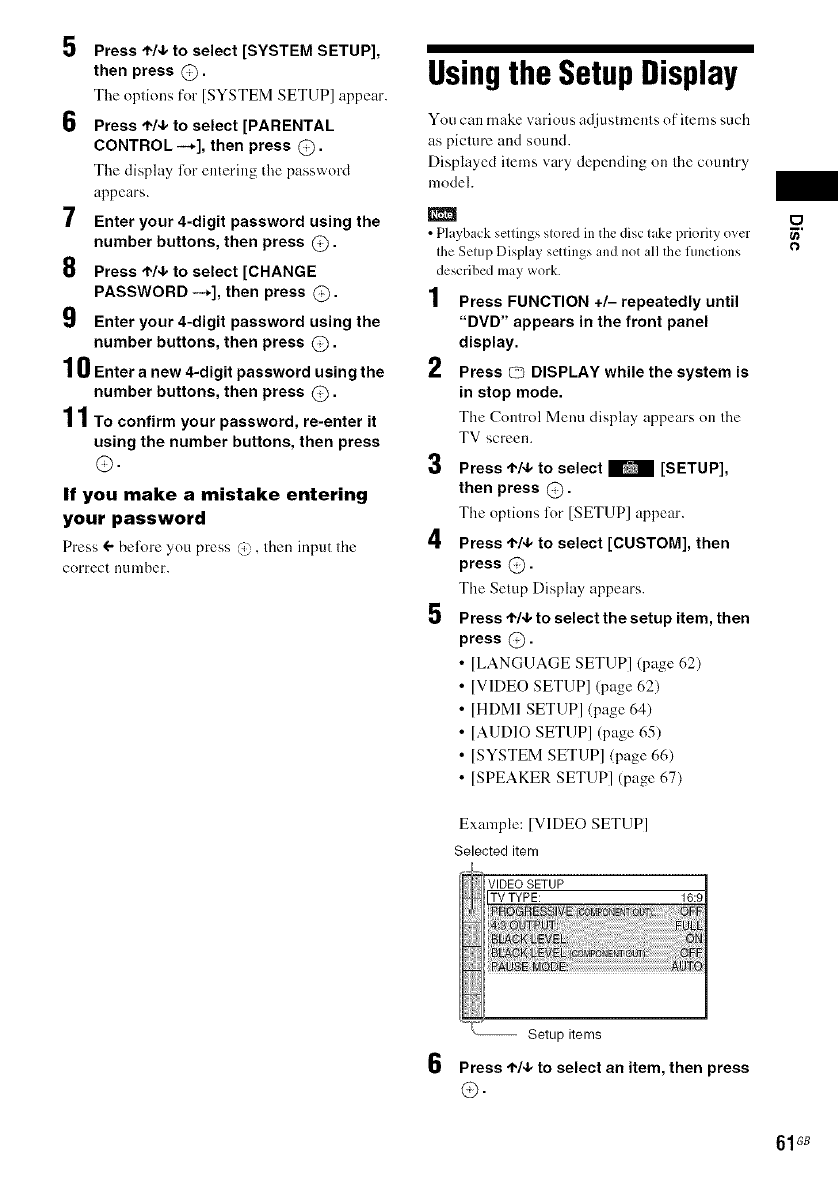

Using the Setup Display ........................ 61

Tuner

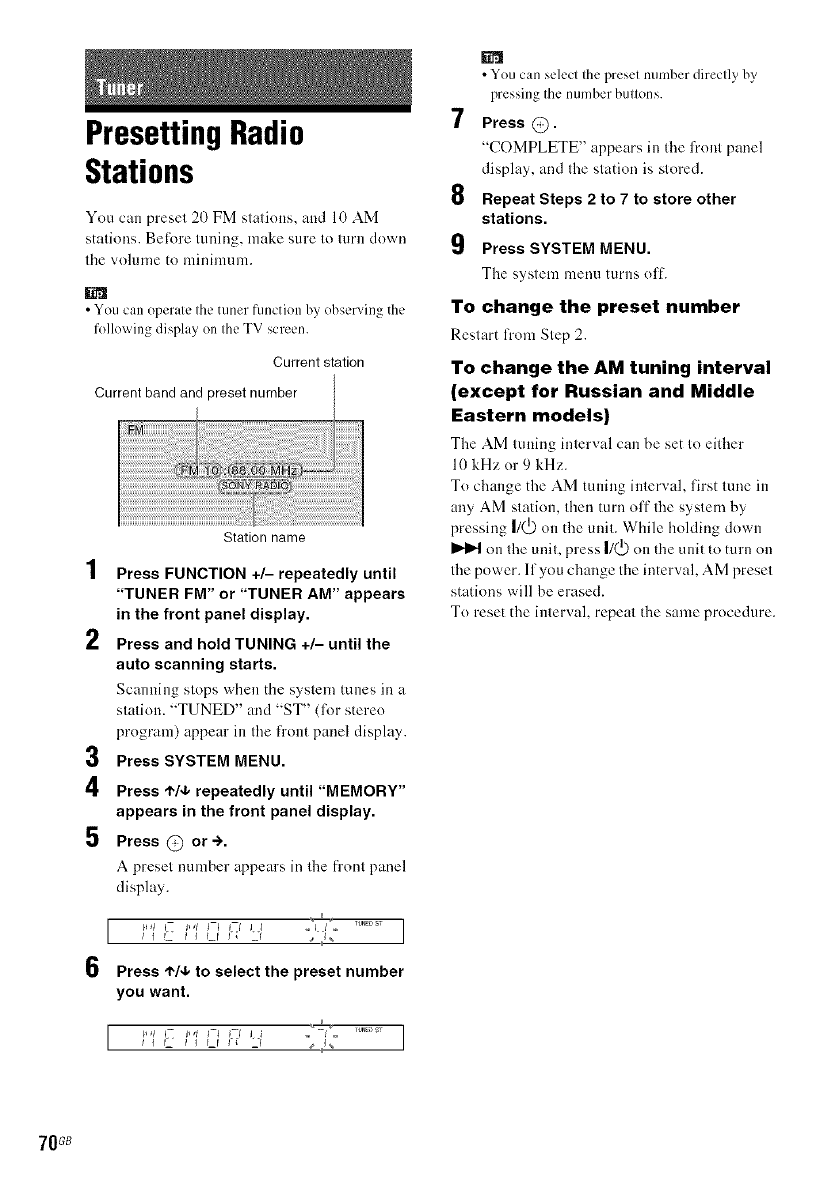

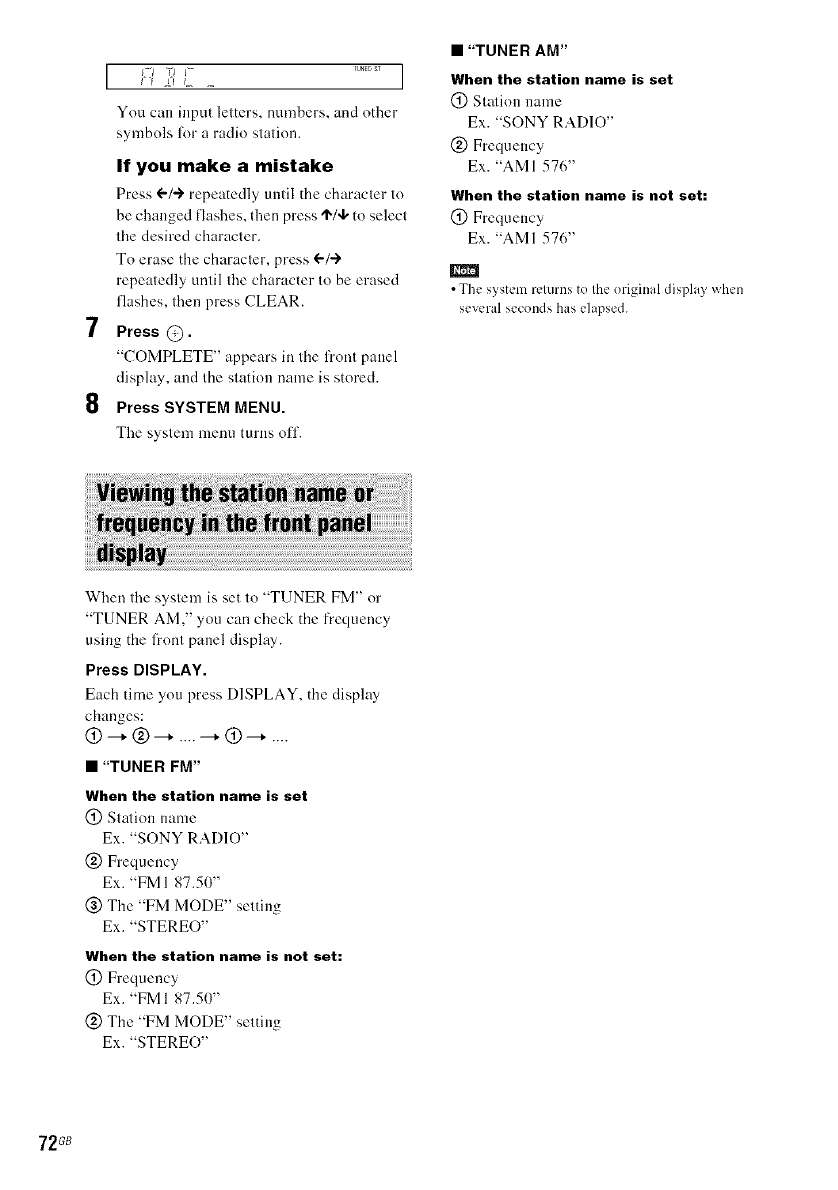

Presetting Radio Stations ...................... 70

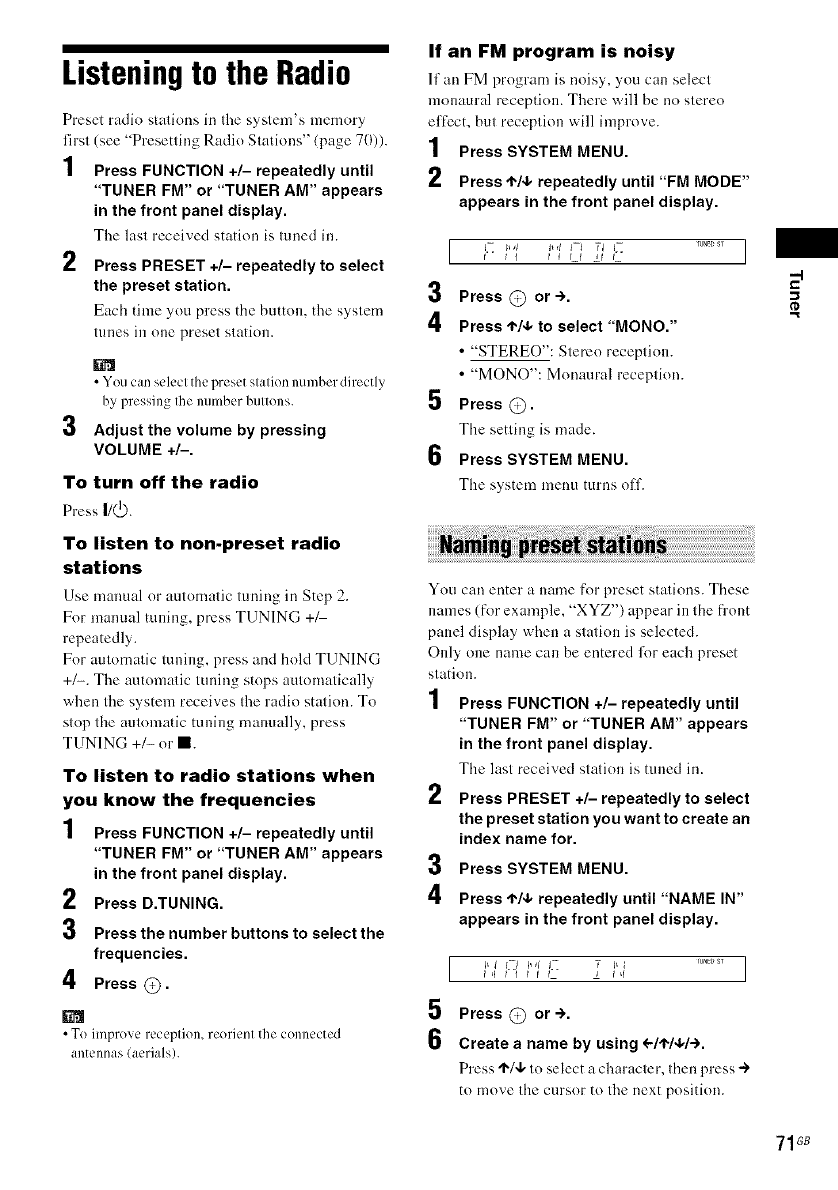

Listening to the Radio ........................... 71

Control for HDMl/External

Audio Device

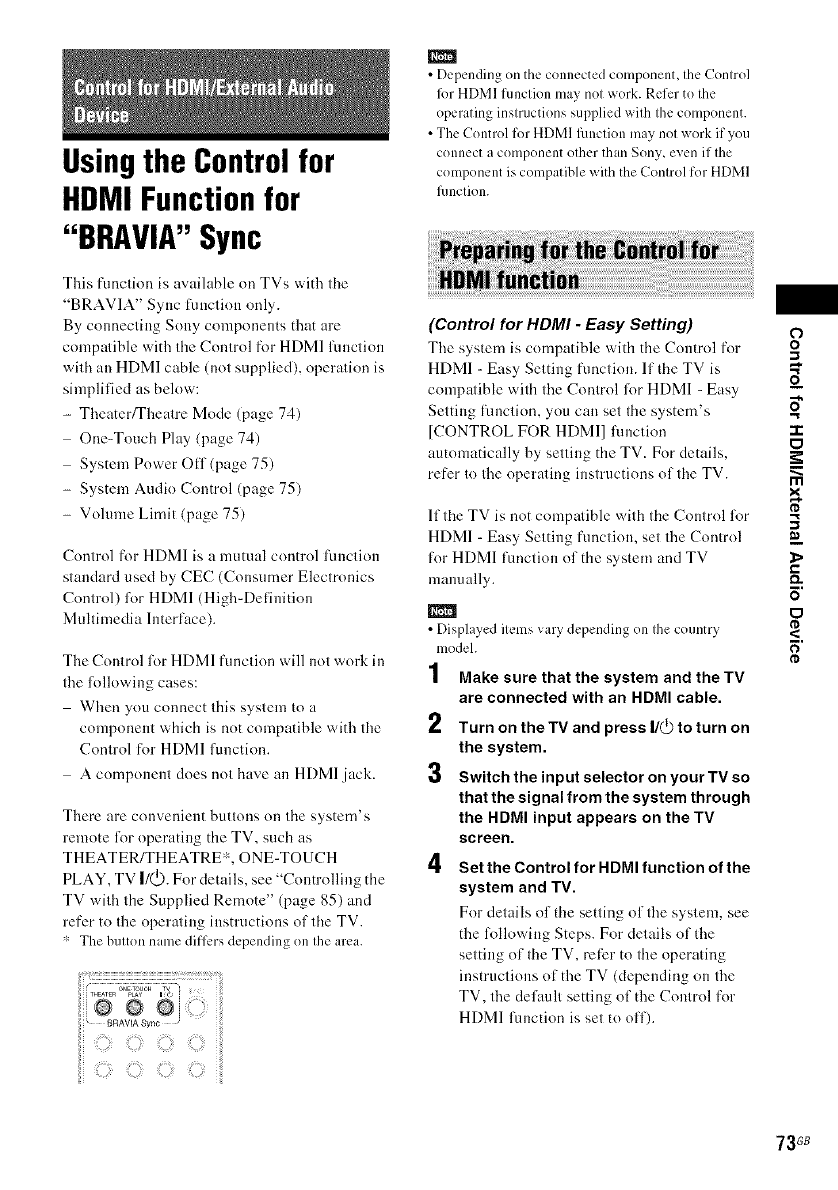

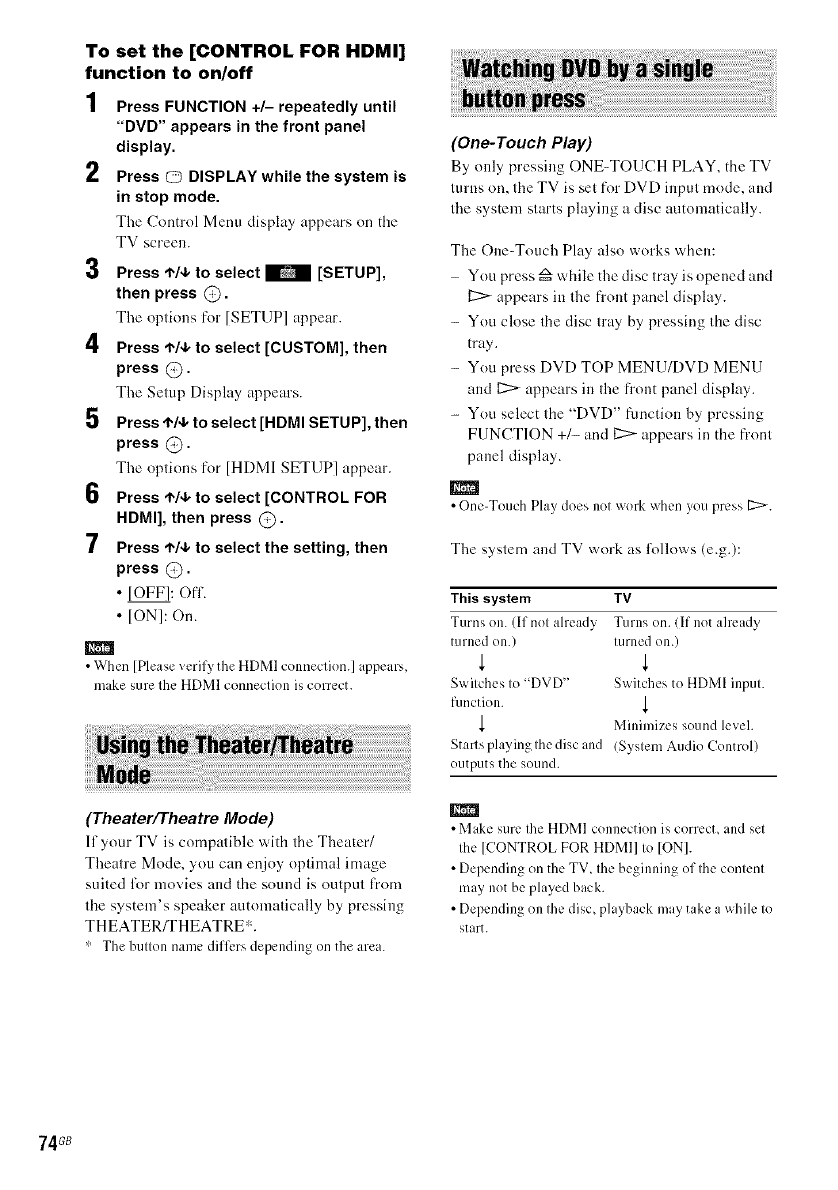

Using tile Control for HDMI Function for

"BRAVIA" Sync ............................ 73

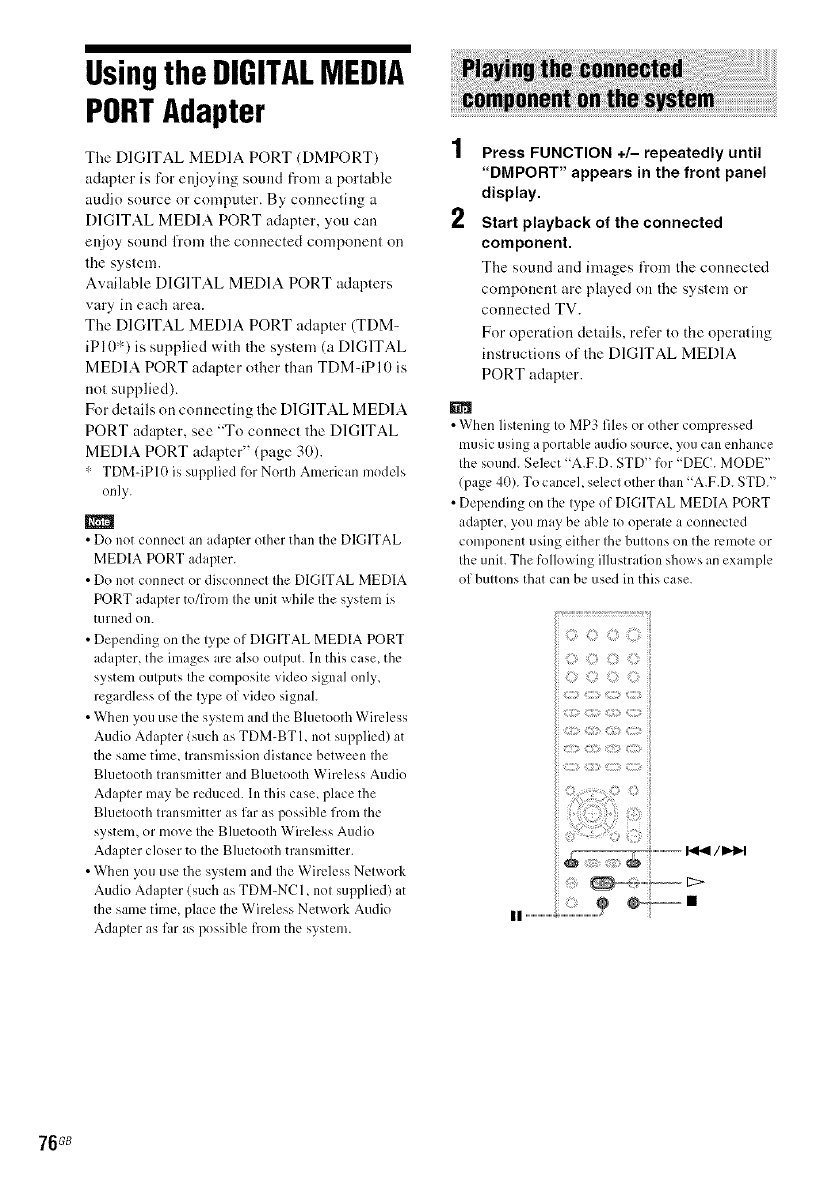

Using the DIGITAL MEDIA PORT

Adapter ........................................... 76

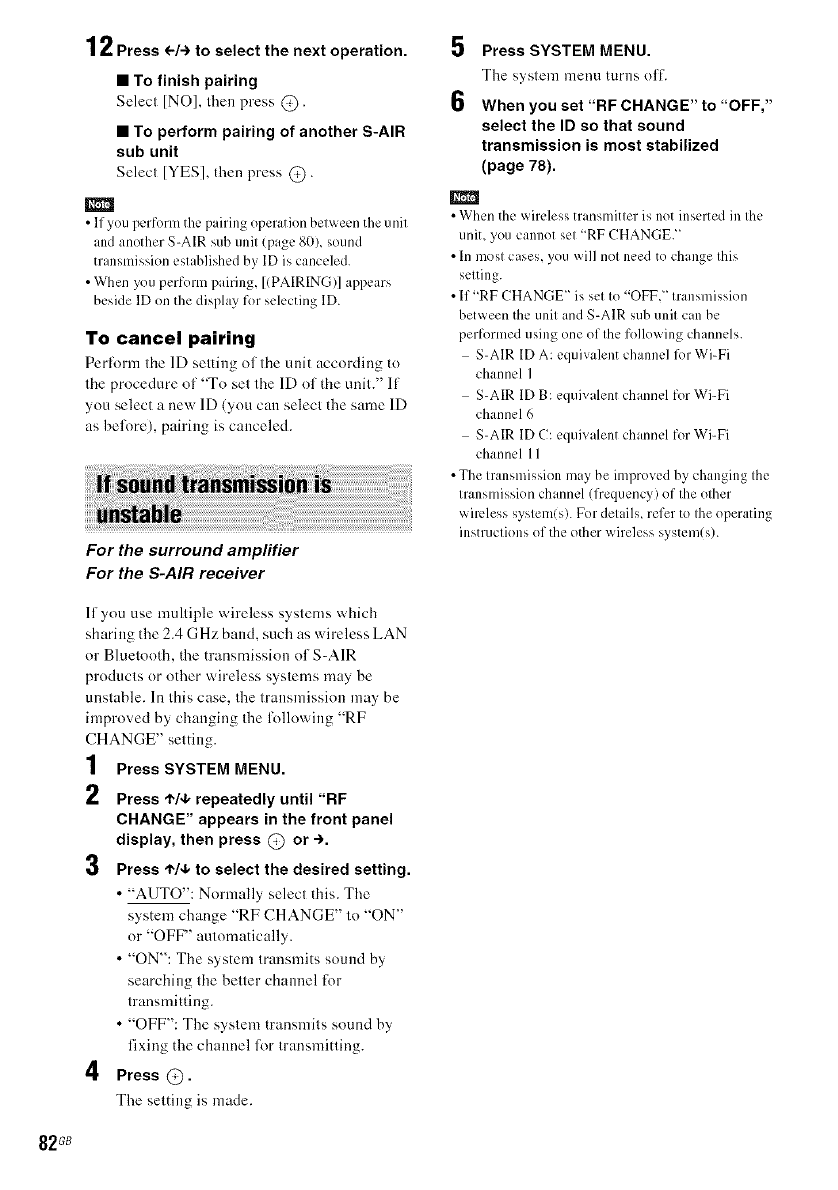

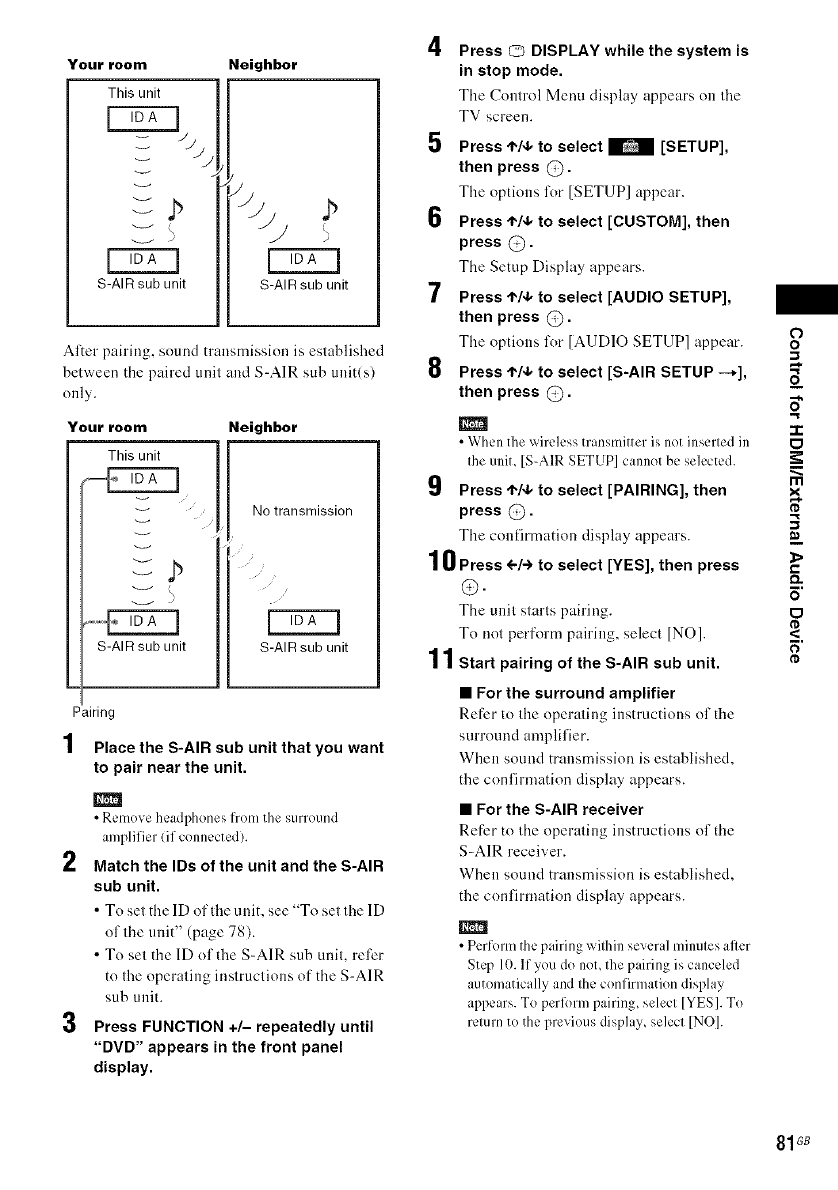

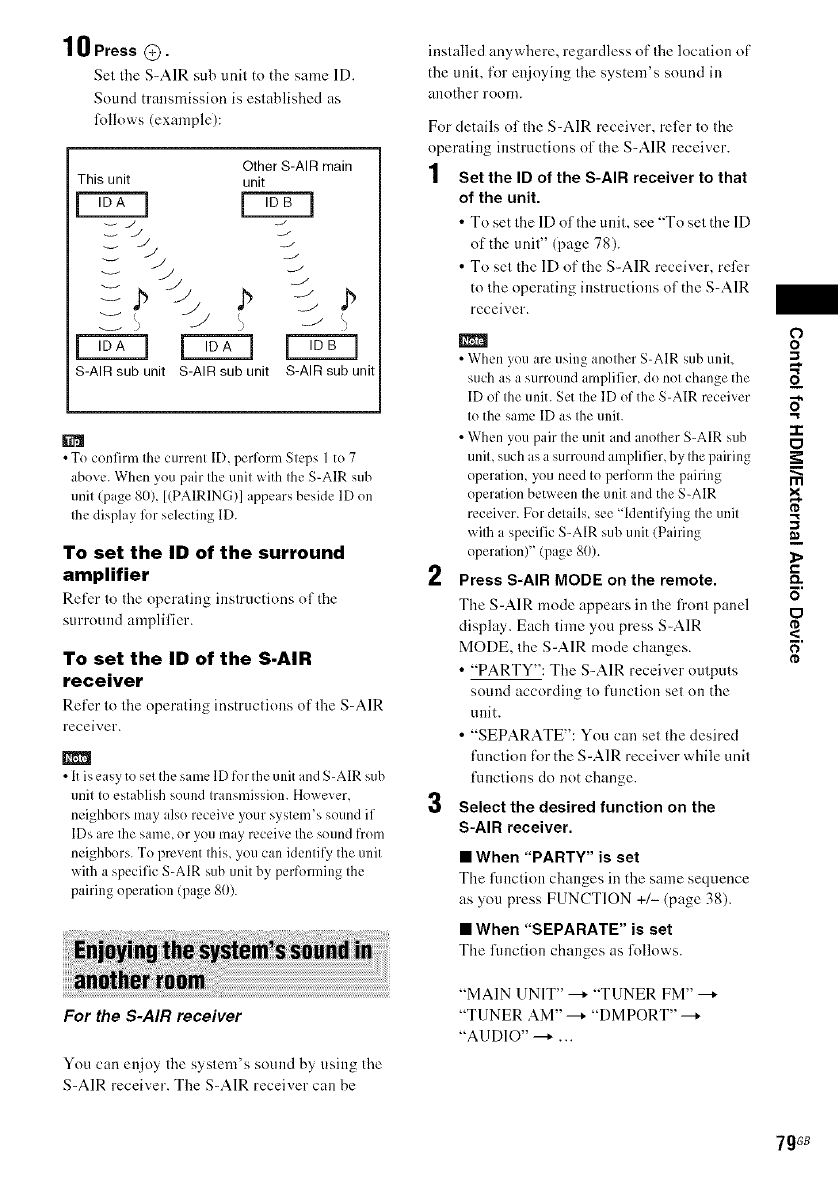

Using an S-AIR Product ....................... 77

Other Operations

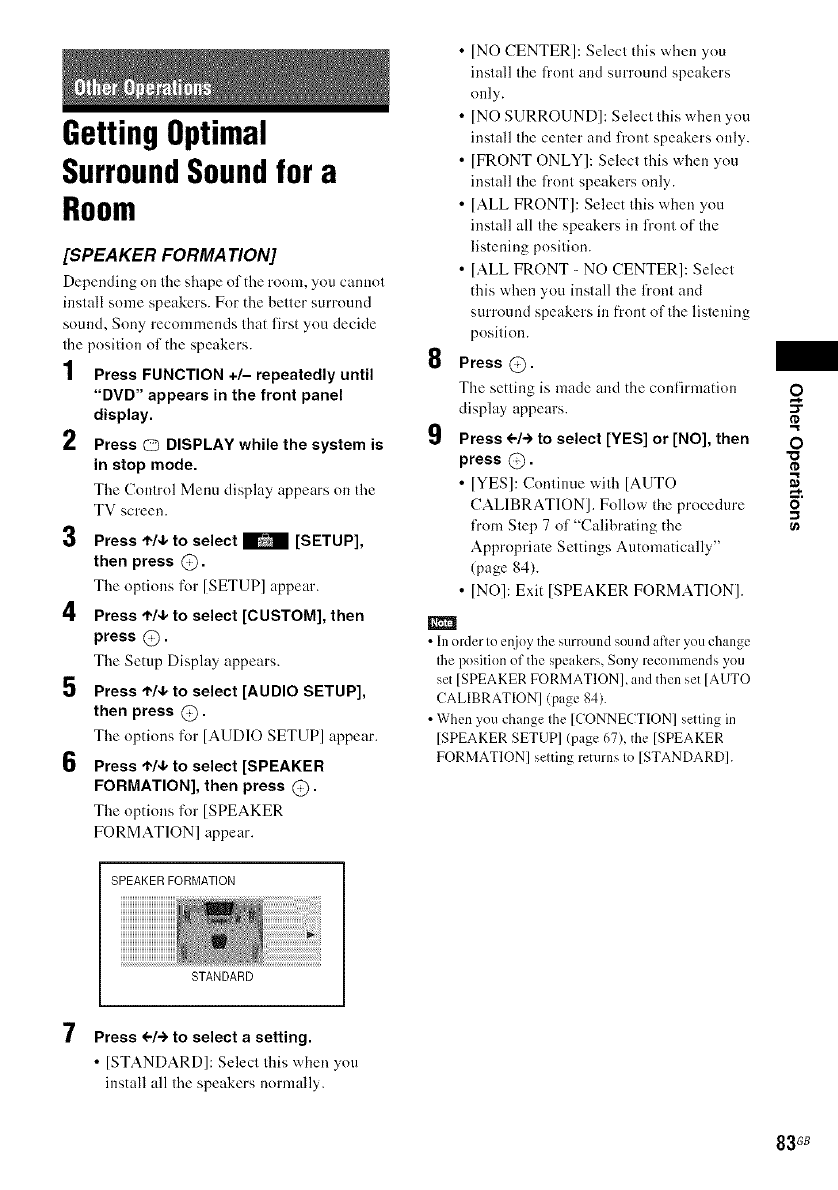

Getting Optimal Surround Sound for a

Room .............................................. 83

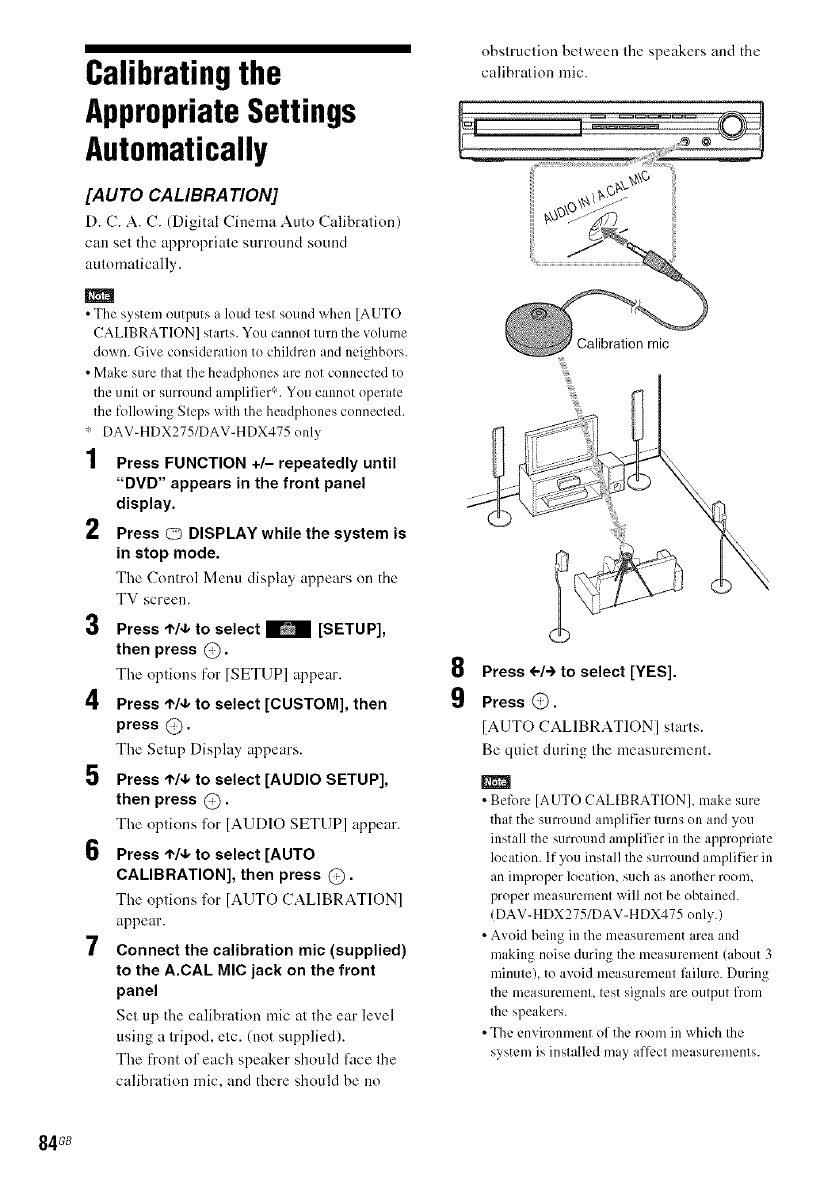

Calibrating the Appropriate Settings

Automatically ................................. 84

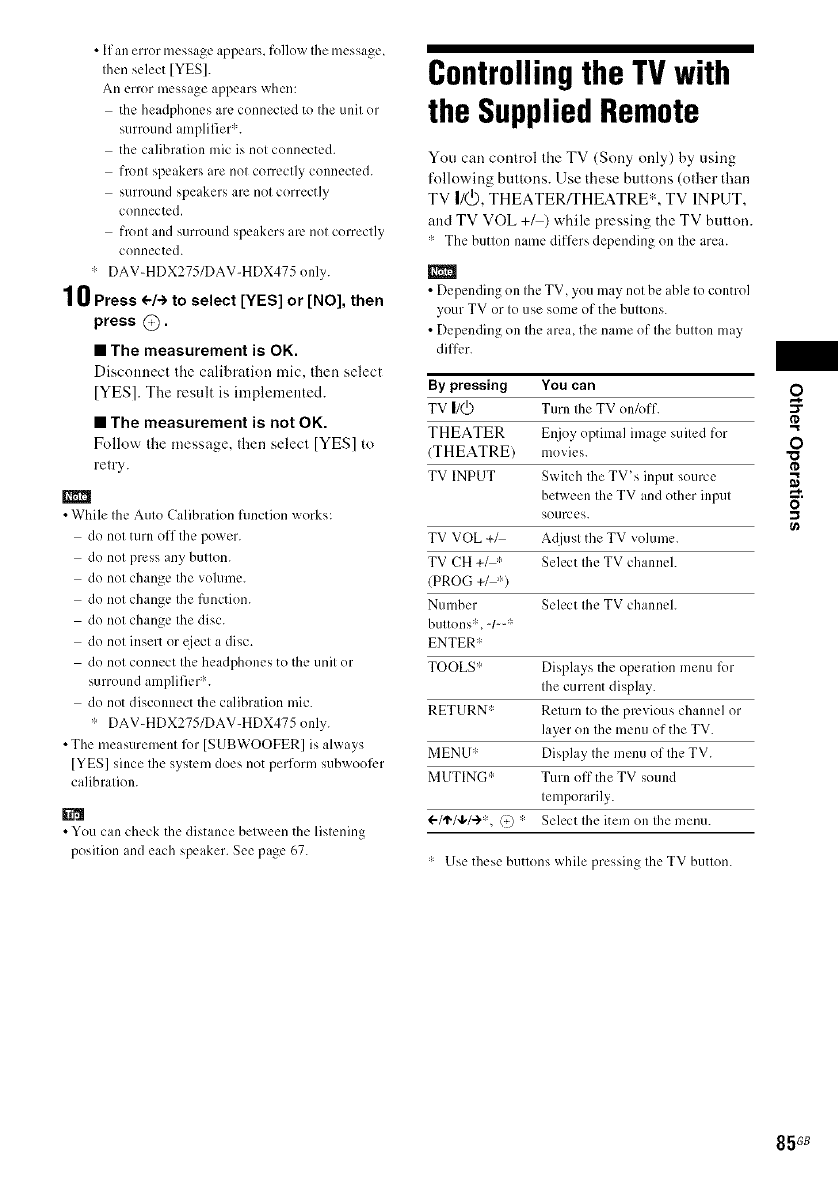

Controlling the TV with the Supplied

Remote ........................................... 85

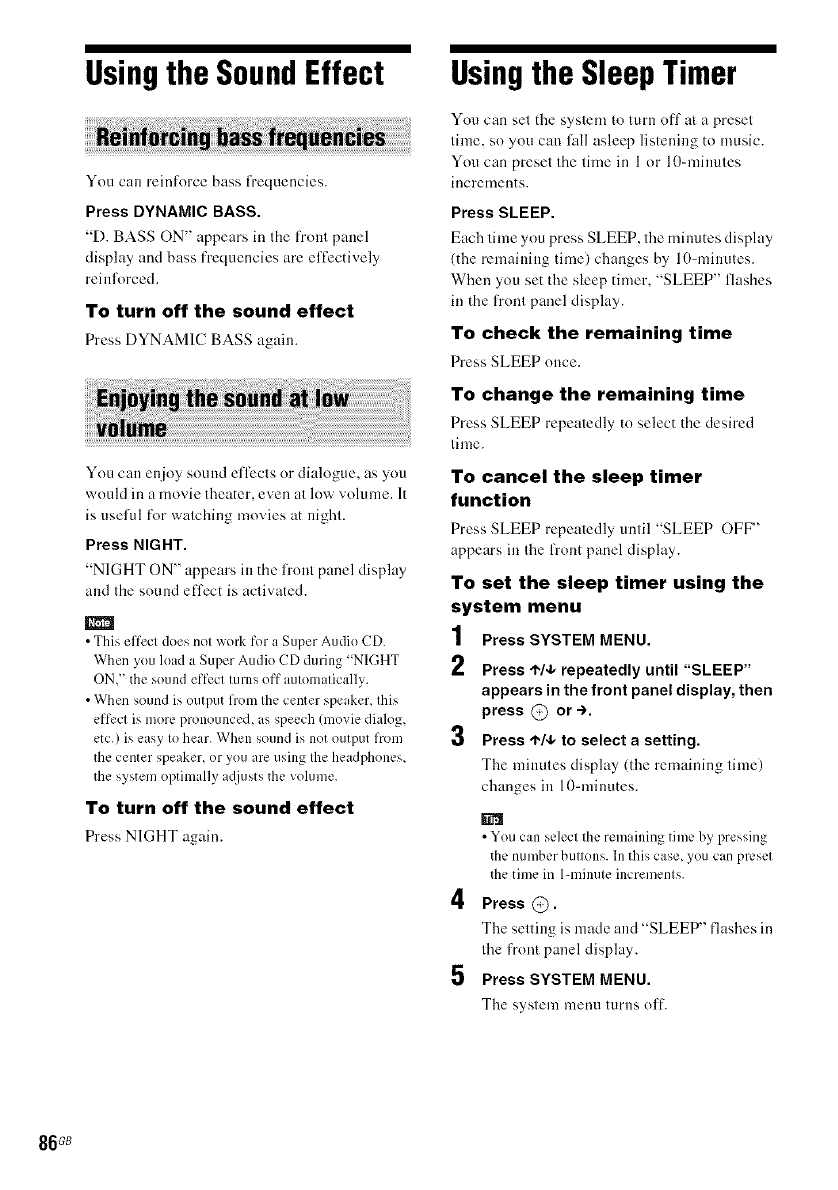

Using the Sound Effect ......................... 86

Using the Sleep Timer .......................... 86

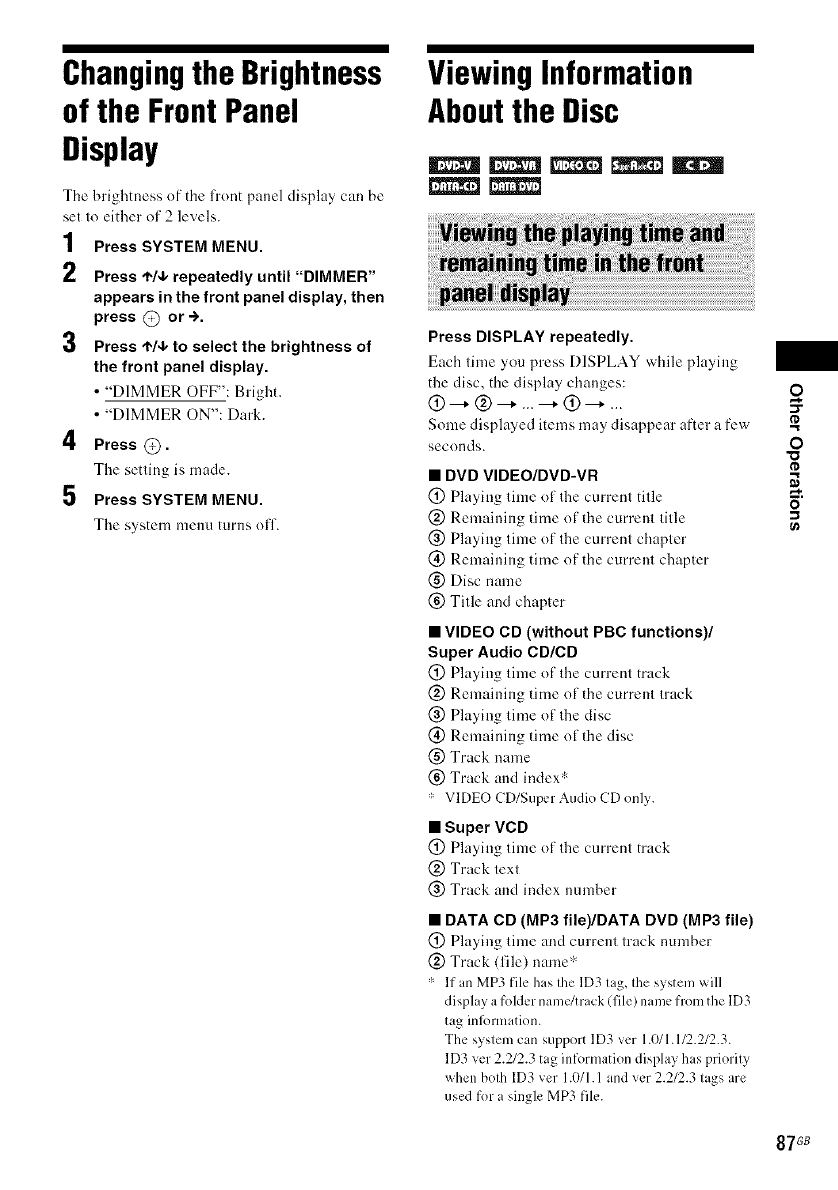

Changing the Brightness of the Front

Panel Display .................................. 87

Viewing Information About the Disc ... 87

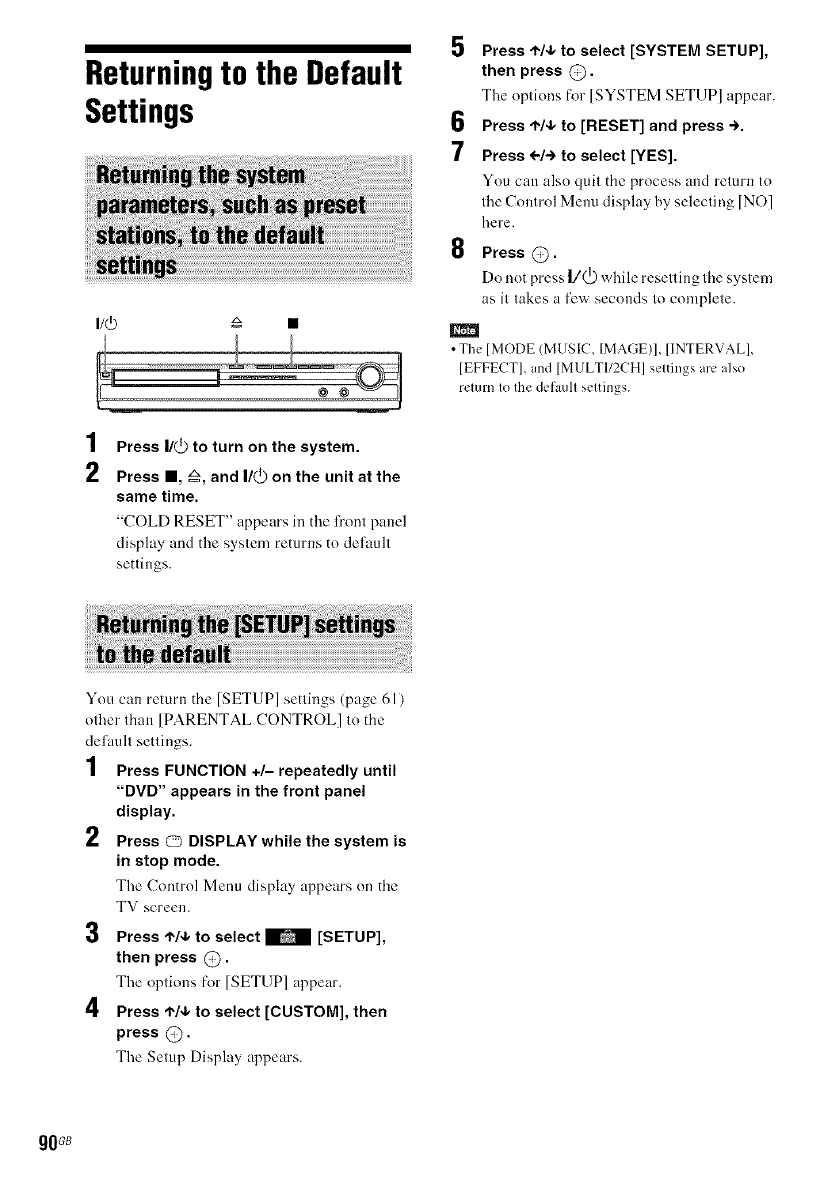

Returning to the Default Settings ......... 90

Additional Information

Precautions ............................................ 91

Notes about the Discs ........................... 92

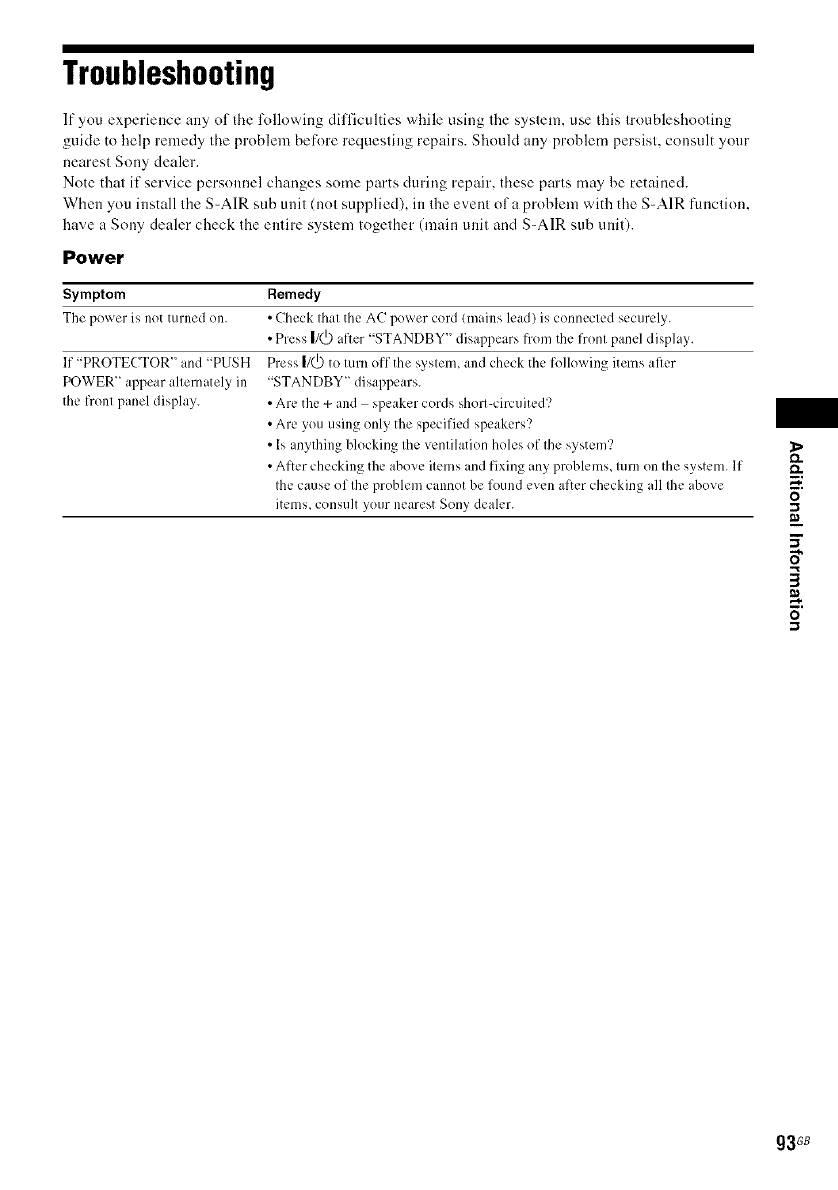

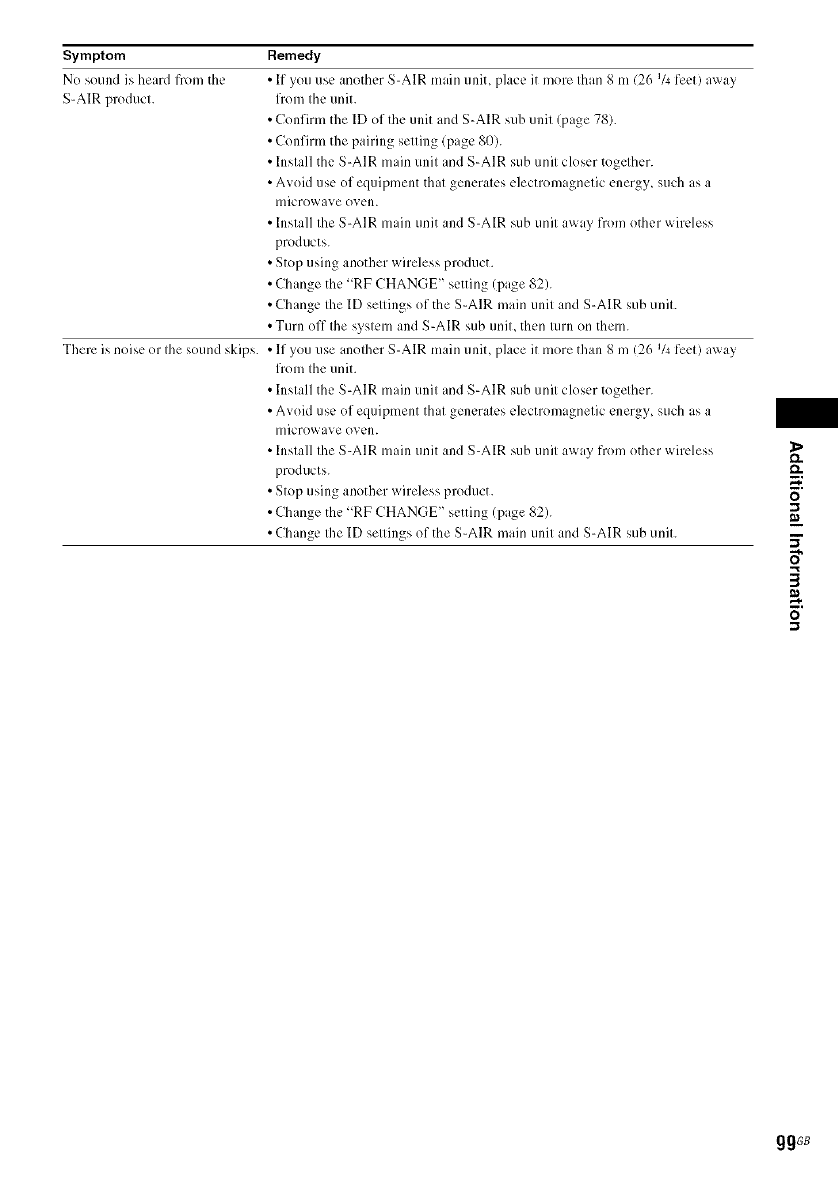

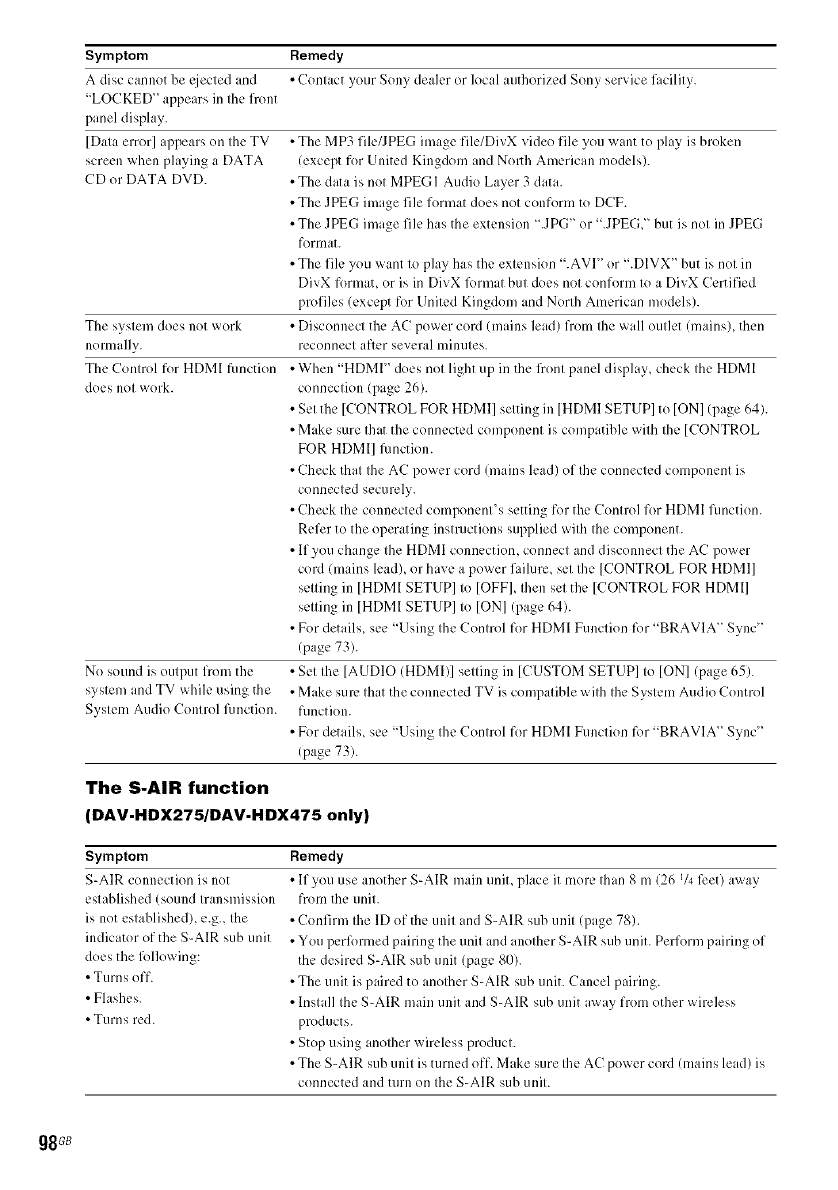

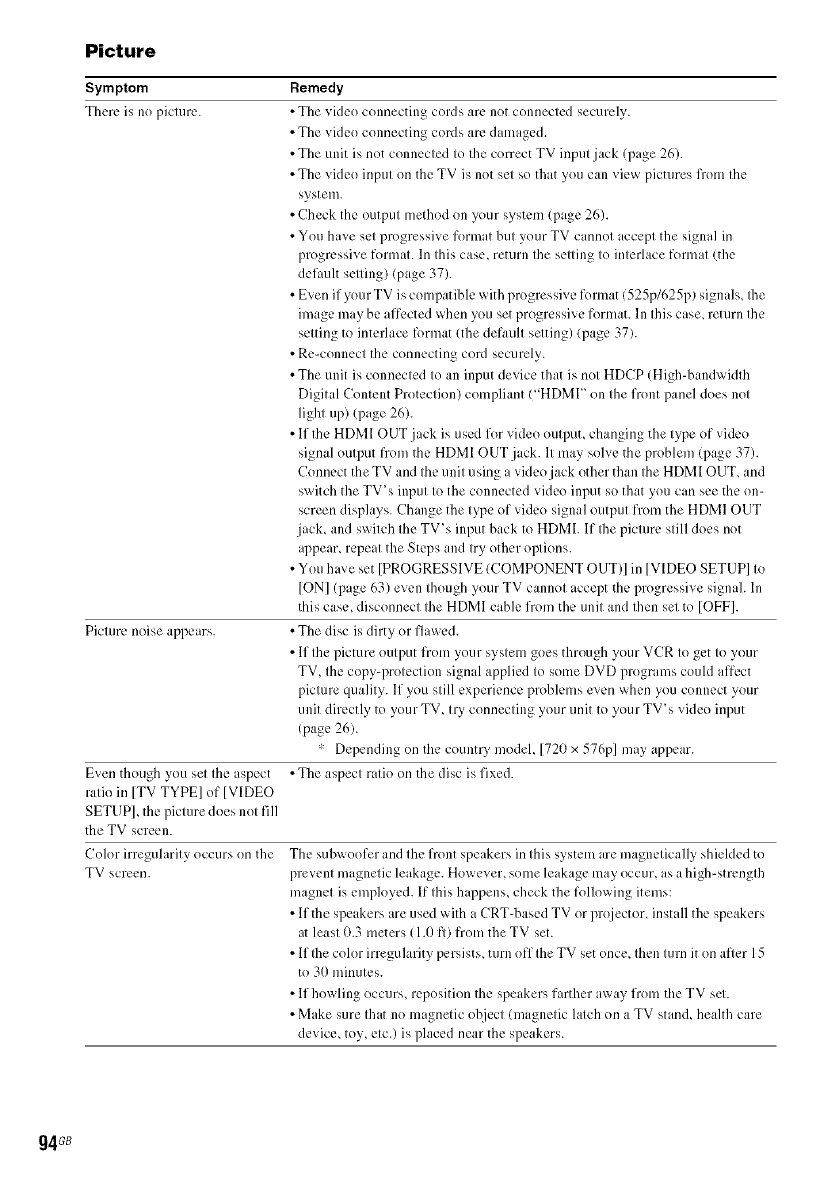

Troubleshooting .................................... 93

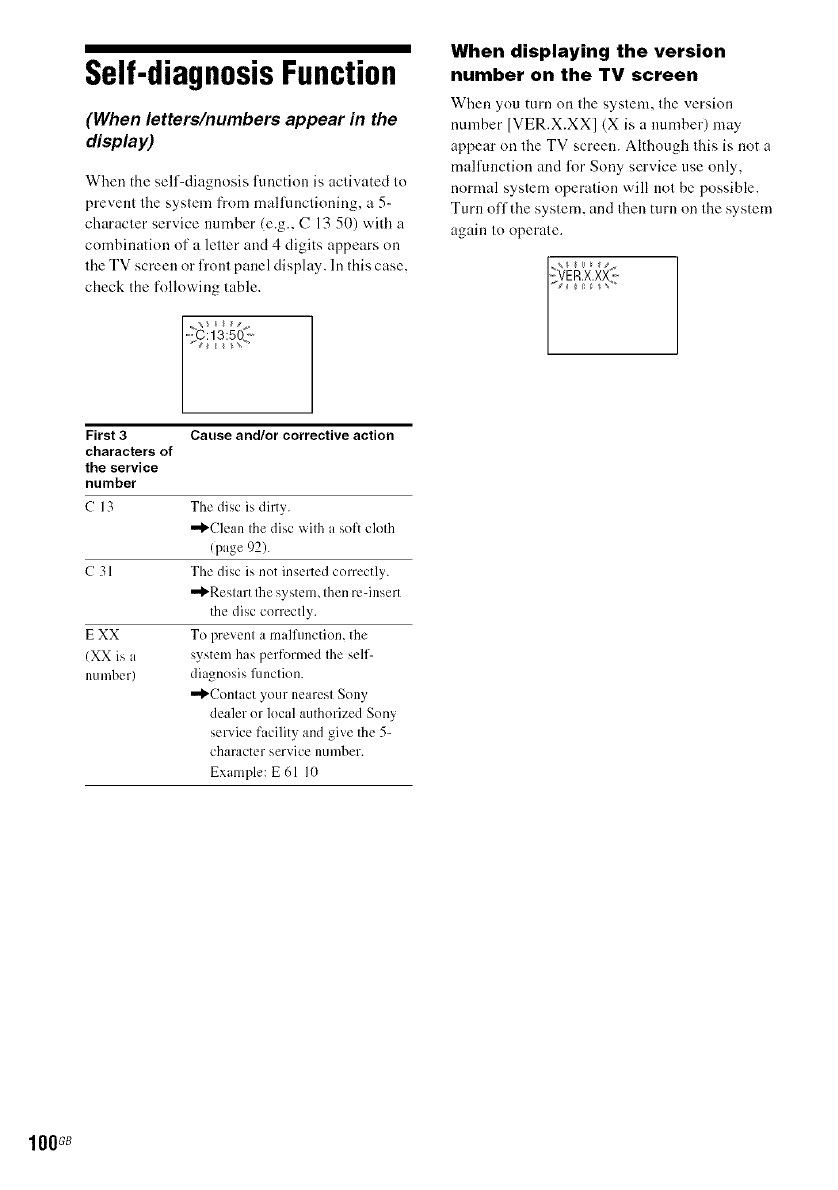

Self-diagnosis Function ...................... 100

Specifications ...................................... 101

Glossary .............................................. 103

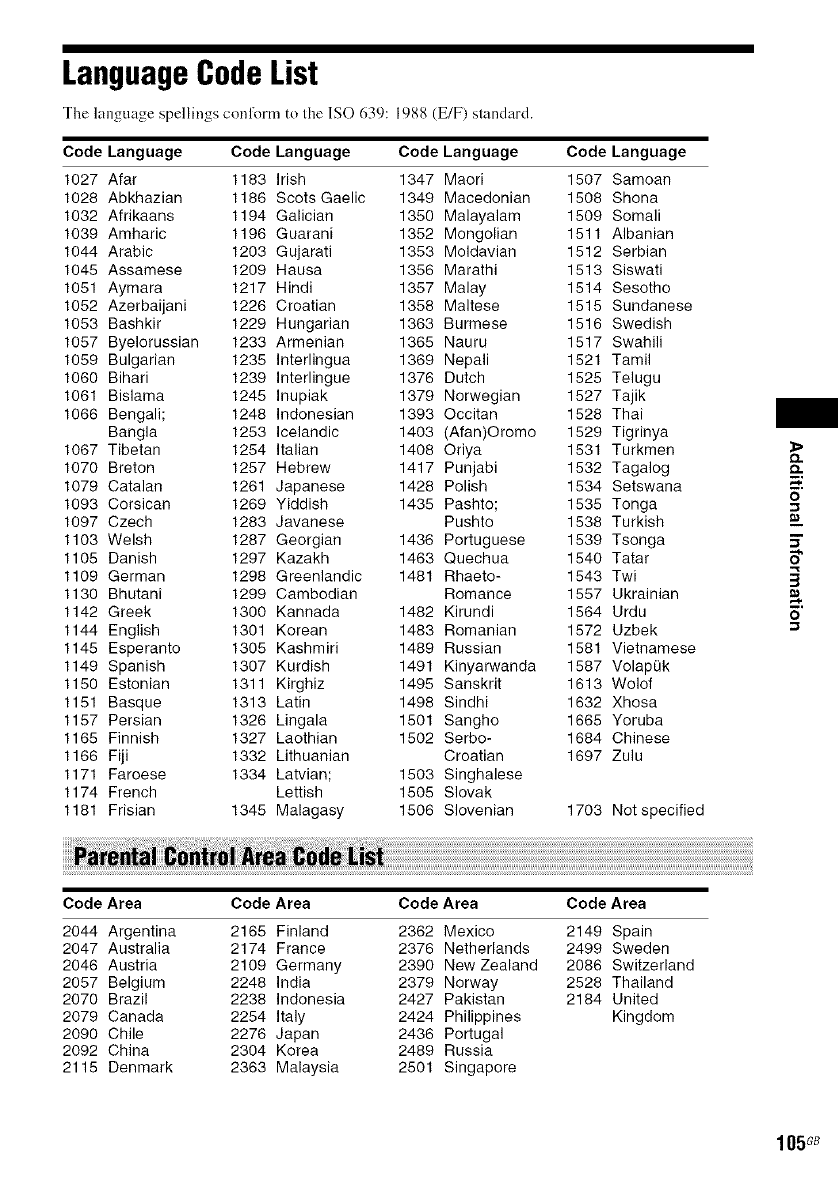

Language Code List ............................ 105

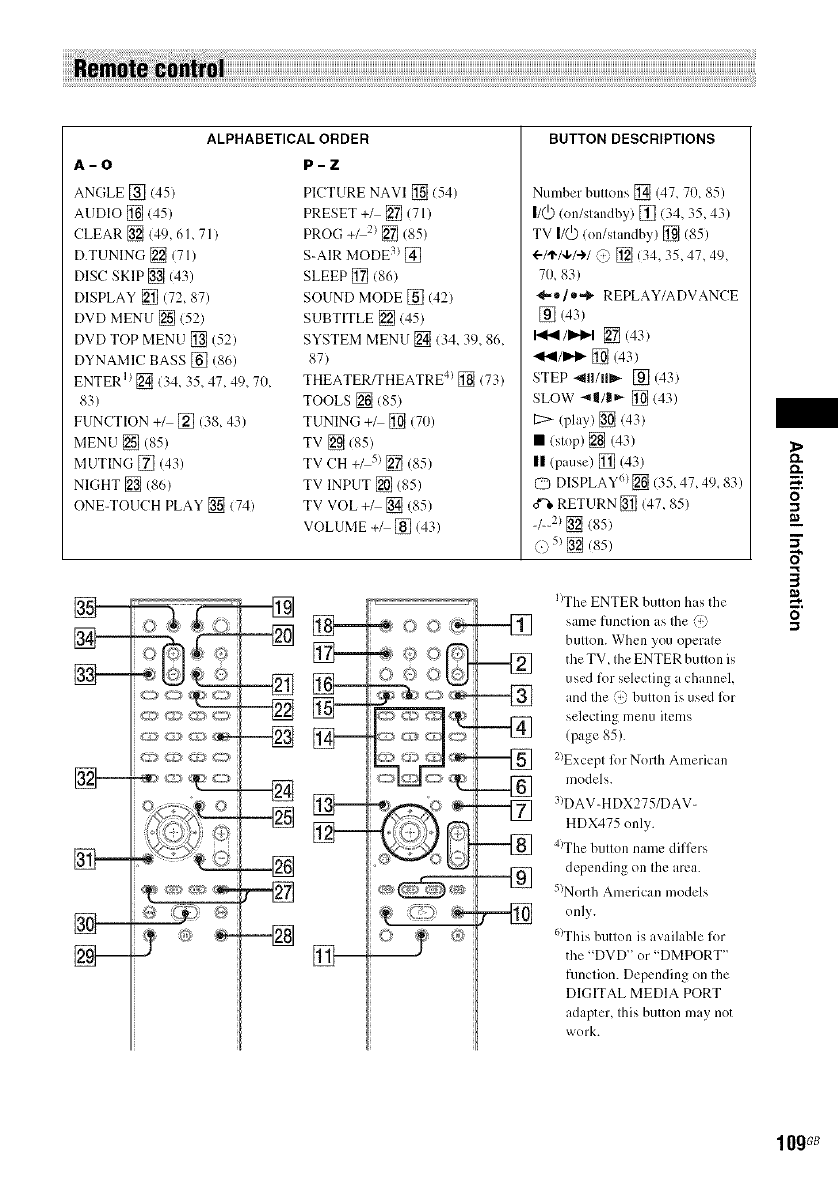

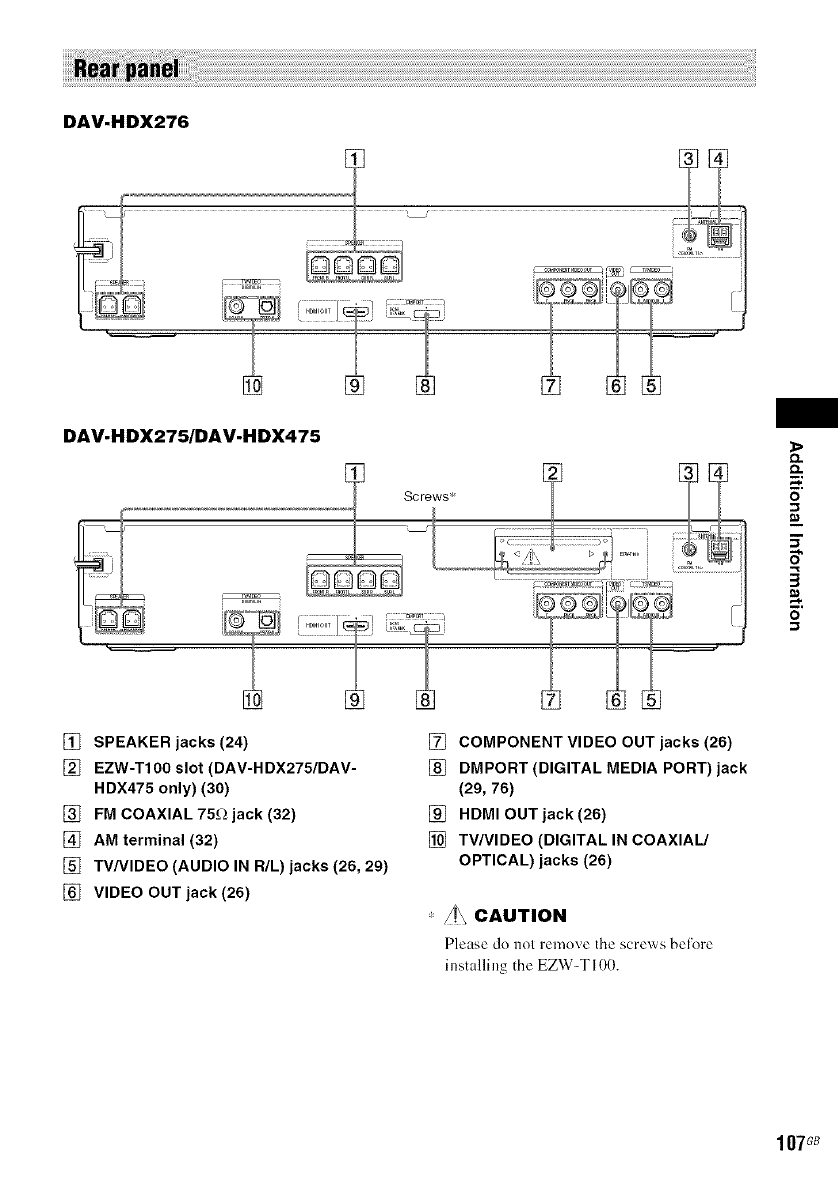

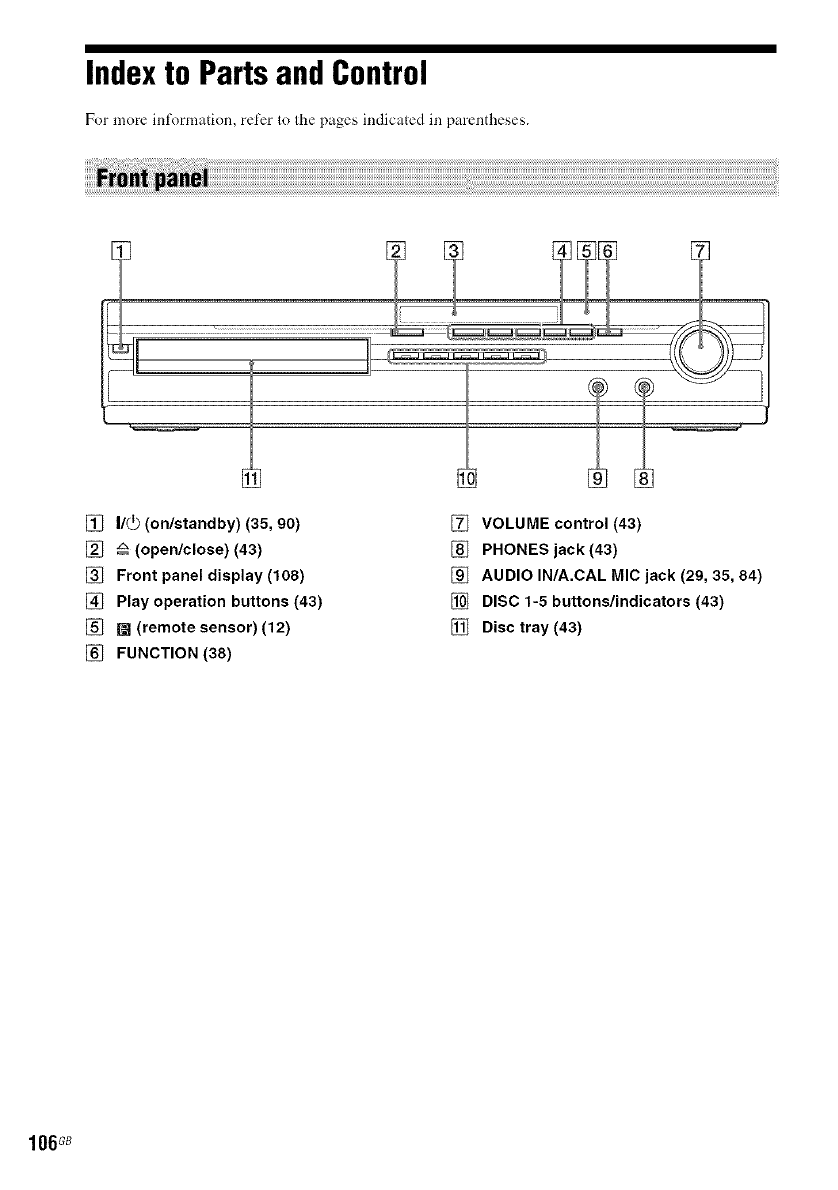

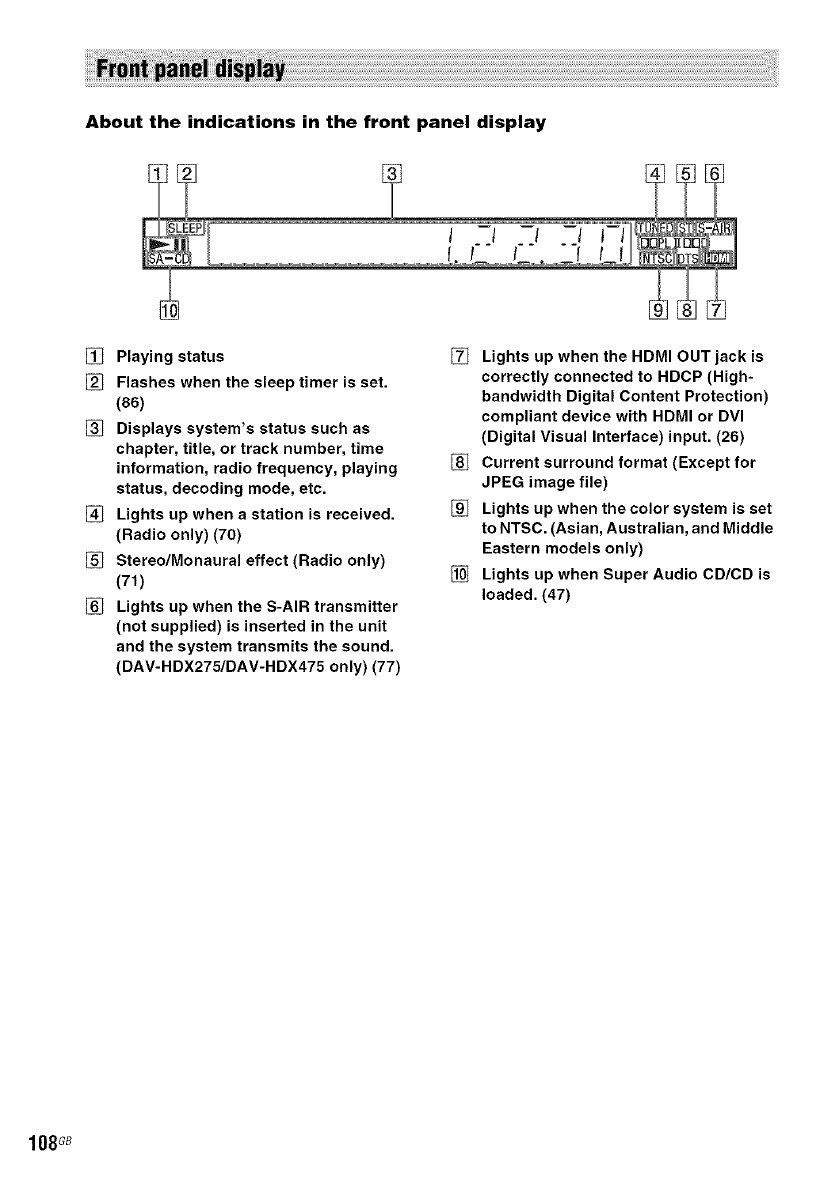

Index to Parts and Control .................. 106

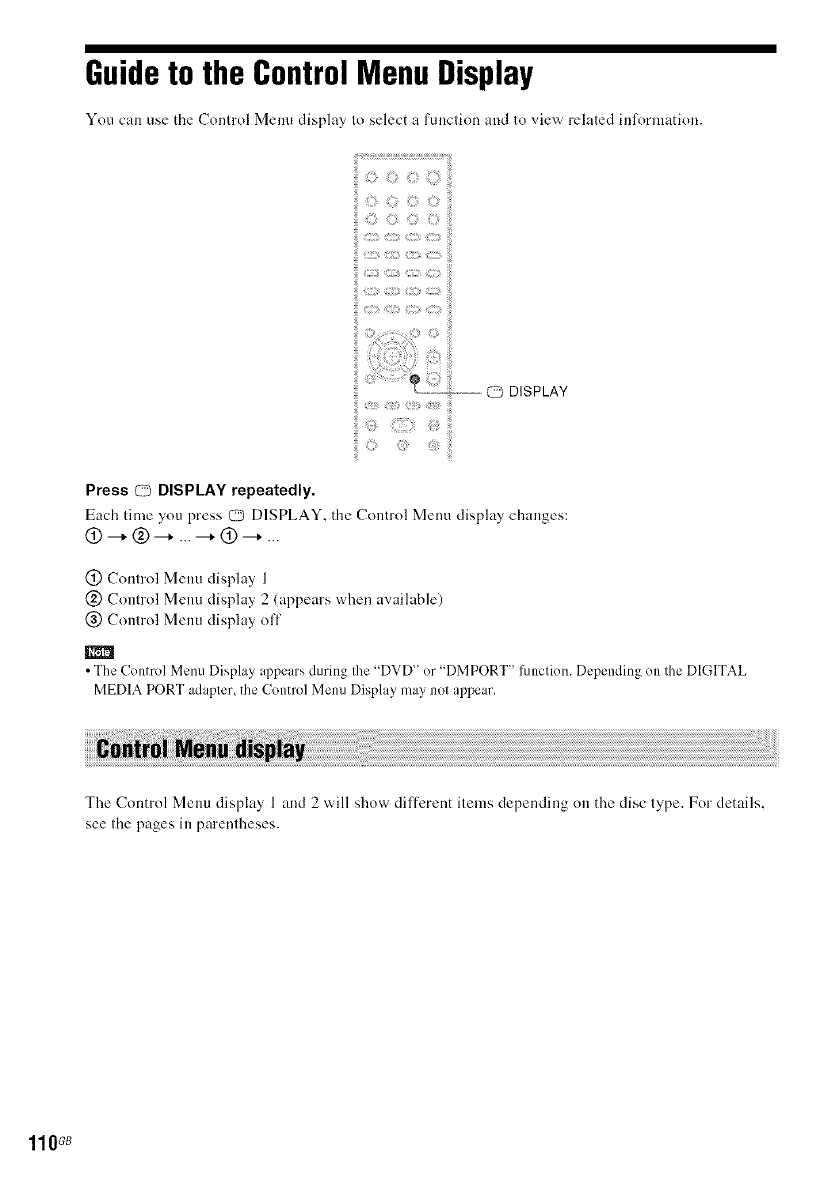

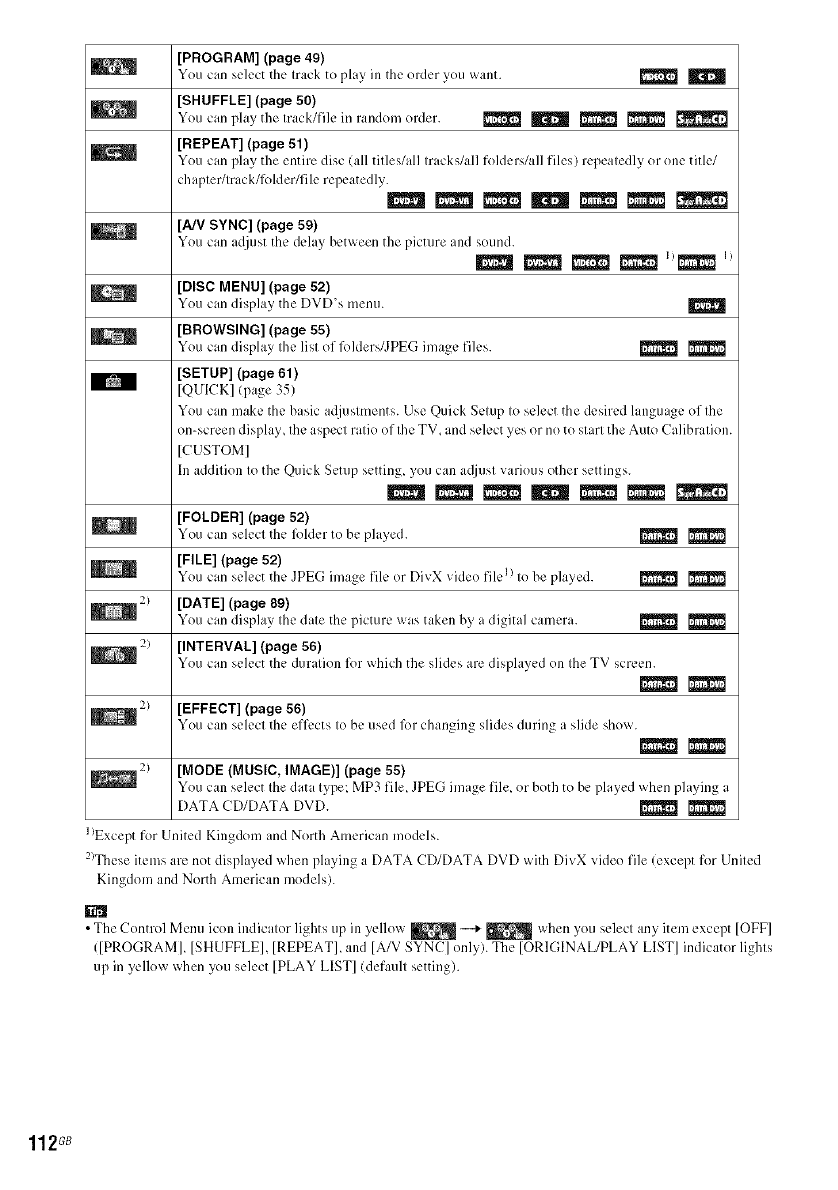

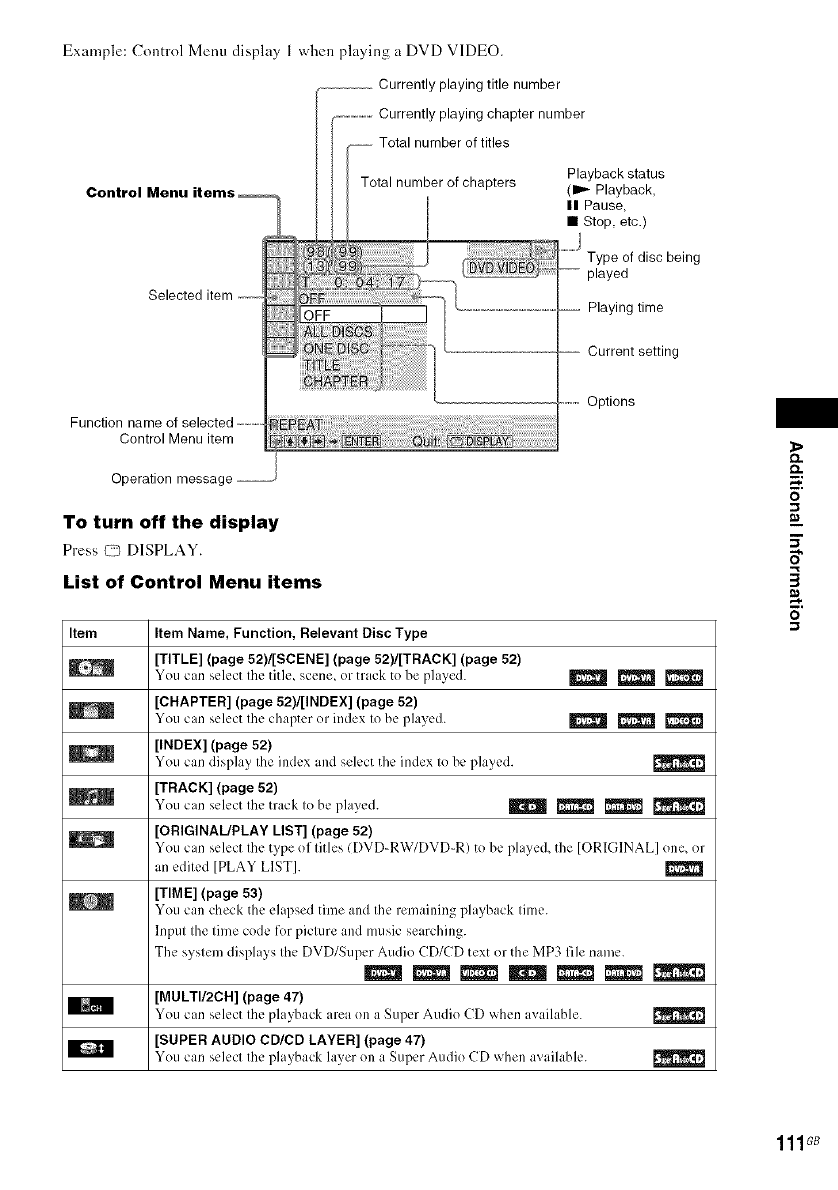

Guide to the Control Menu Display ... 110

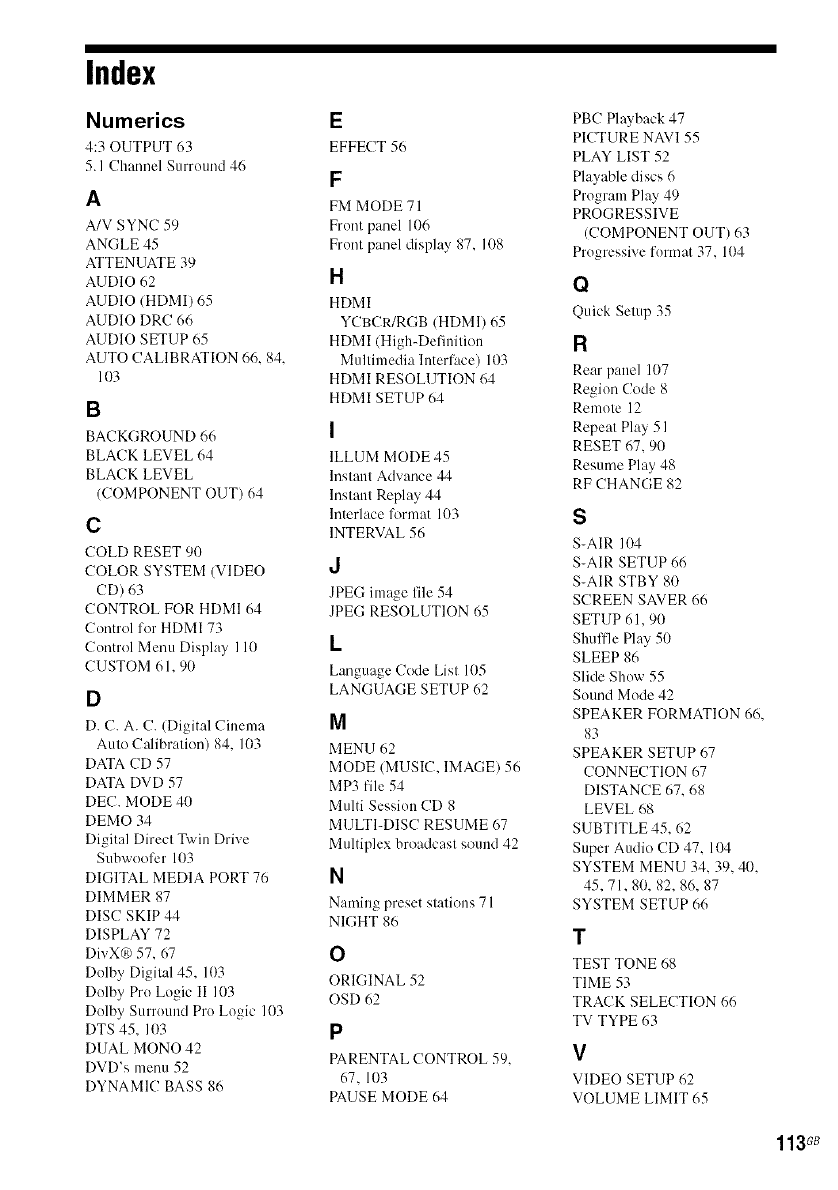

Index ................................................... 113

5GB

Playable Discs

Type Disc logo Characteristics Icon

DVD VIDEO •DVD VIDE()

•DVD-R/DVD-RW in DVD |

VIDEO formal or video mode

VIDEO • DVD+R/DVD+RW in DVD

_ VIDEO fornml

R RW

R4.7

OVO÷R DL

VR (Vide() *DVD-R/DVD-RW in VR (Video

Recording) mode _ _ Recording) mode (except for

_DVD-R DE)

R RW

R4.7

Super Audio CD _*Super Audio CD

SUPL'RAUDIO CD

VIDEO CD

DATA CD

DATA DVD

• VIDEO CD (Vet. 1.1 and 2.0 discs)

• Super VCD

•CD-R/CD-RW/CD-ROM in video

CD lk)lmal or Super VCD lk)lmal

• Audio CD

•CD-R/CD-RW in audio CD lk)lmal

•CD-R/CD-RW/CD-ROM in

DATA CD lk)lmal, conlaining MP3 |

files l)_JPEG image files 2), and

DivX video files 3)4)5), and

conforming to [SO q660 (_)Level 1/

Level 2, or Joliet (extended fonnat)

•DV D-ROM/DV D-R/DVD-RW/

DVD+R/DVD+RW in DATA

DVD format, containing MP3

files l), JPEG image files 2), and

DivX vide() files 3)4)5), and

conl\)rming to UDF (Universal

Disk Format)

1IMp 3 (MPEG 1 Audio Layer 3) is a slandard forlnat defined by ISO/MPEG which compresses audio data. MP3 files

liltlst be ill MPEGI Audio Layer 3 formal.

6GB

2!JPEG image files must conforn3 to the DCF image file lkmnat./DCF "Design rule lk)rCamera File system": hnage

standards for digital cameras regulated by Japan Electronics and Information Technology Industries Association

IJEITA).)

3!Except for United Kingdom and North American models.

4)DivX/k>ix a video file compression technology, developed by DivX, Inc.

5)DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

6!A logical format of files and lk_lderson CD-ROMs, defined by ISO (International Organization for

Standardization).

"DVD-RW," "DVD+RW," "DVD+R,'"'DVD VIDEO," and the "CD" logos are trademarks.

The system calmot play the following discs:

CD-ROM/CD-R/CD-RW other than those recorded in the formats listed on page 6

CD-ROM recorded in PHOTO CD l\)rmat

Data part of CD-Extra

CD Graphics disc

DVD Audio

DATA DVD that does not contain MP3 files, JPEG image files, or DivX video files a

Exceptfor UnitedKingdomand NorthAmericanmodels.

•DVI)-RAM

Also, the system cannot play the R_llowing discs:

• A DVD VIDEO with a difli:rent region code (page 8)

• A disc that has a non-standard shape (e.g., card, heart)

• A disc with paper or stickers on it

• A disc that has the adhesive of cellophane tape or a sticker still lefl on it

In some cases, CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW cannot he played on this system

due to the recording quality or physical condition of the disc, or the characteristics of the recording

device and authoring sol:ware.

The disc will not play if it has not been correctly finalized. For more intk_rmation, refer to the operating

instructions l\_r the recording device.

Note that some playback flmctions may m}t work with some DVD+RWs/DVD+Rs, even if they have

been correctly finalized. In this case, view tl_e disc by normal playback. Also some DATA CDs/DATA

DVDs created in Packet Write lormat cannot be played.

Music discs encoded with copyright protection technologies

This product is designed to play back discs that conl_arm to the Compact Disc (CD) standard.

Recently, various music discs encoded with copyright protection technologies are marketed by some

record companies. Please be aware that mnong those discs, there are some that do not contk)rm to the

CD standard and may not be playable by this product.

7GB

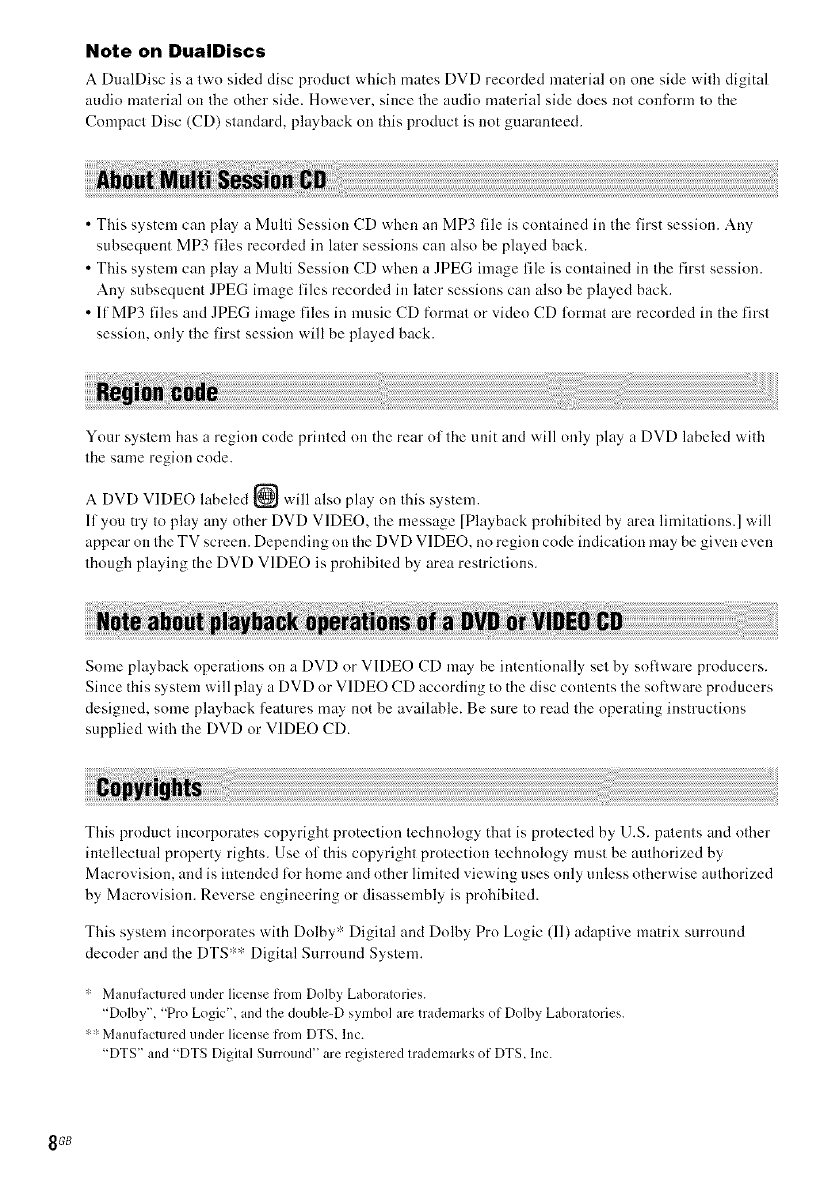

Note on DualDiscs

A DmdDisc is a two sided disc product which mates DVD recorded material on one side with digital

audio nmterial ou the other side. However. since the audio nmterial side does not conform to the

Compact Disc (CD) standard, playback on this product is not guaranteed.

•This system can play a Multi Sessiou CD when an MP3 file is contained in the first session. Any

subsequent MP3 files recorded in later sessions can also be played back.

•This system can play a Multi Sessiou CD when a JPEG image file is coutained in the first session.

Any subsequent JPEG image files recorded in later sessions can also be played back.

• If MP3 files aud JPEG image files in music CD fnrmat or video CD lbrmat are recorded in the first

session, only the first session will be played back.

Your system has a region code printed on the rear of the unit and will only play a DVD labeled with

the same region code.

A DVD VIDEO labeled @ will also play on Ihis system.

If you try to play any other DVD VIDEO, the message [Playback prohibited by area limitatious.] will

appear on the TV screen. Dependiug ou the DVD VIDEO, no region code indication nmy be given even

though playing the DVD VIDEO is prohibited by area restrictions.

Some playback operations ou a DVD or VIDEO CD may be intentionally set by software producers.

Since this system will play a DVD or VIDEO CD according to the disc coutents the software producers

designed, some playback features may not be available. Be sure to read the operating instructions

supplied with the DVD or VIDEO CD.

This product iucorpnrates copyright protection technology that is protected by U.S. patents and other

intellectual property rights. Use of this copyright protectiou technology must be authorized by

Macrovision, and is iuteuded lot home and other limited viewing uses only unless otherwise authorized

by Macrovisiou. Reverse engineering or disassembly is prohibited.

This system incorporates with Dolby* Digital and Dolby Pro Logic (11) adaptive matrix surround

decoder and the DTS ':>:_Digital Surrnund System.

" Manufactured under license fiom Dolby Laboratories.

"Dolby', "Pro Logic', and the double-D symbol are trademarks of Dolby Laboratories.

"" Manufactured under license fiom DTS, lnc.

"DTS" and "DTS Digital Surround" are registered trademarks of DTS, lnc.

8GB

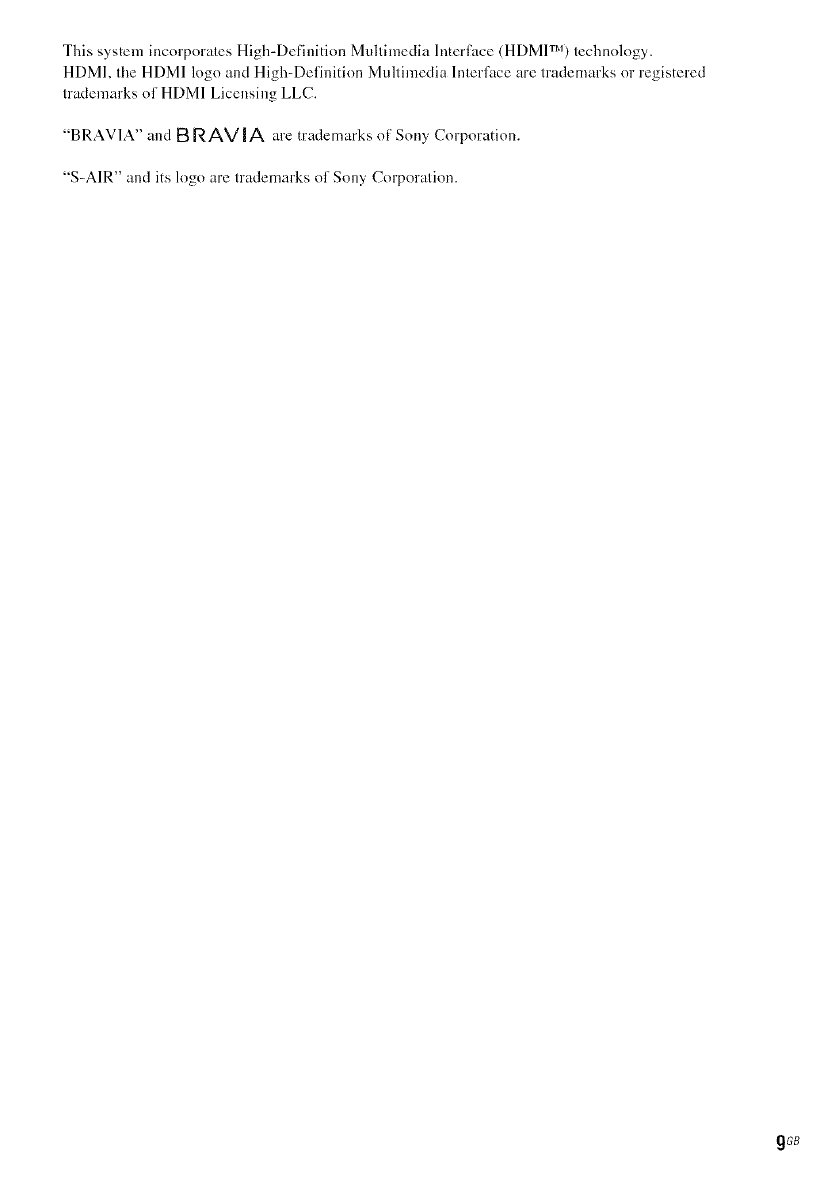

This system incorporates High-Definition Multimedia lntertktce (HDMI TM) technology.

HDMI, tile HDMI logo and High-Definition Multimedia lnterf_tce are trademarks or registered

trademarks of HDMI Licensing LLC.

"BRAV1A" and B R AVIA are trademarks ot' Sony Corporation.

"S-AIR" and its logo are trademarks of Sony Corporation.

gGB

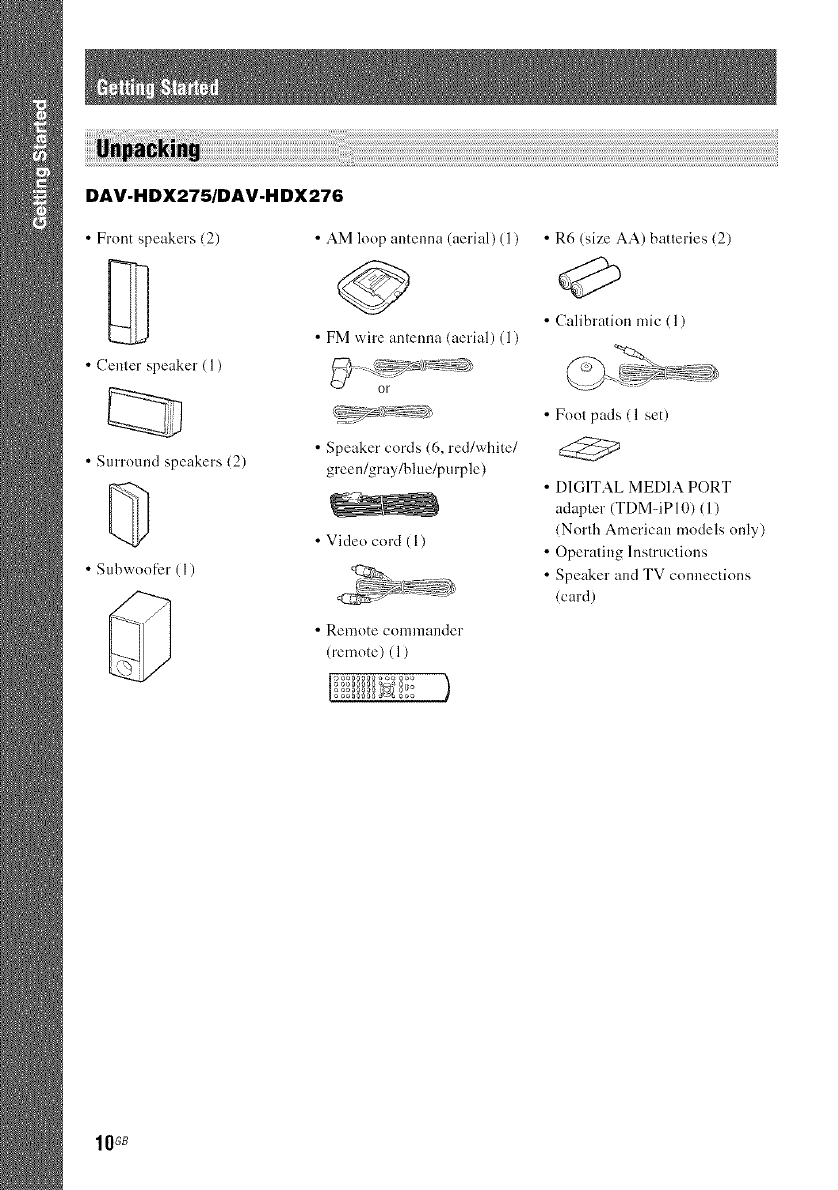

DAV-HDX275/DAV-H DX276

•Front speakers (2)

• Cenler speaker ( 1)

• Surround speakers (2)

• AM loop antenna (aerial) (1)

• FM wire antenna (aerial) (1)

• Speaker cords (6, red/white/

green/gray/blue/purple)

• Video cord (1)

• Stlbwoo[_21 ÷( [ )

• Remote conm3ander

(remote) (1)

)

• R6 (size AA) batleries (2)

• Calibration mic (1)

• Fool pads (1 set)

• DIGITAL MEDIA PORT

adapter (TDMqP 10) (1)

(North American models only)

• Operating Instructions

• Speaker and TV connections

(card)

10 GB

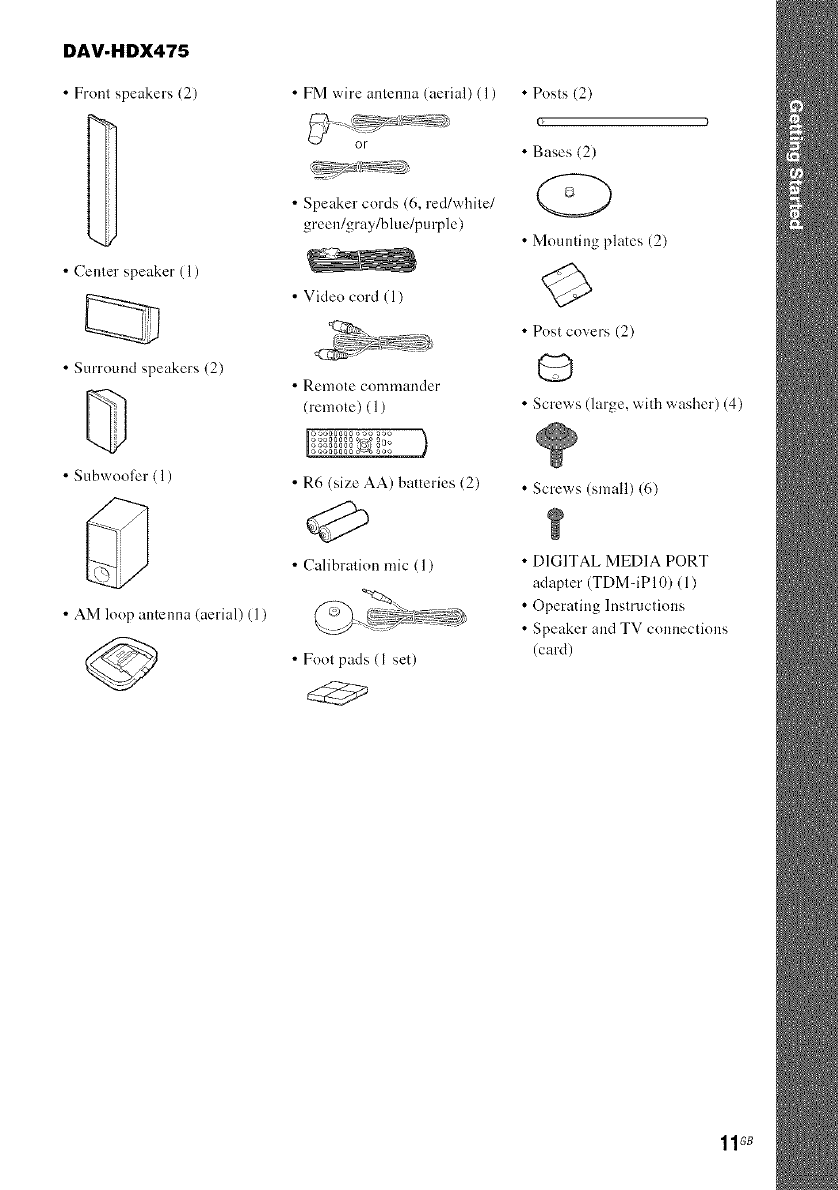

DAV-HDX475

•From speakers (2)

•Cenler speaker (l )

• Surround speakers (2)

• S[Ibwoofer ( ])

• AM loop antenna (aerial) (1)

•FM wire antenna (aerial) (1)

• Speaker cords (6, red/white/

green/gray/blue/pu rple)

• Video cord (1)

• Remote corllllrander

(remote) ( 1)

)

• R6 (size AA) batteries (2)

• Calibration mic ( 1)

•Fool pads (1 set)

• Posts (2)

• Bases (2)

•Mounting plates (2)

•Post covers (2)

• Screws (large. with washer) (4)

• Screws (small) (6)

• DIGITAL MEDIA PORT

adapter (TDM-iP 10) ( 1)

• Operating Instructions

• Speaker and TV conllectiolls

(card)

11GB

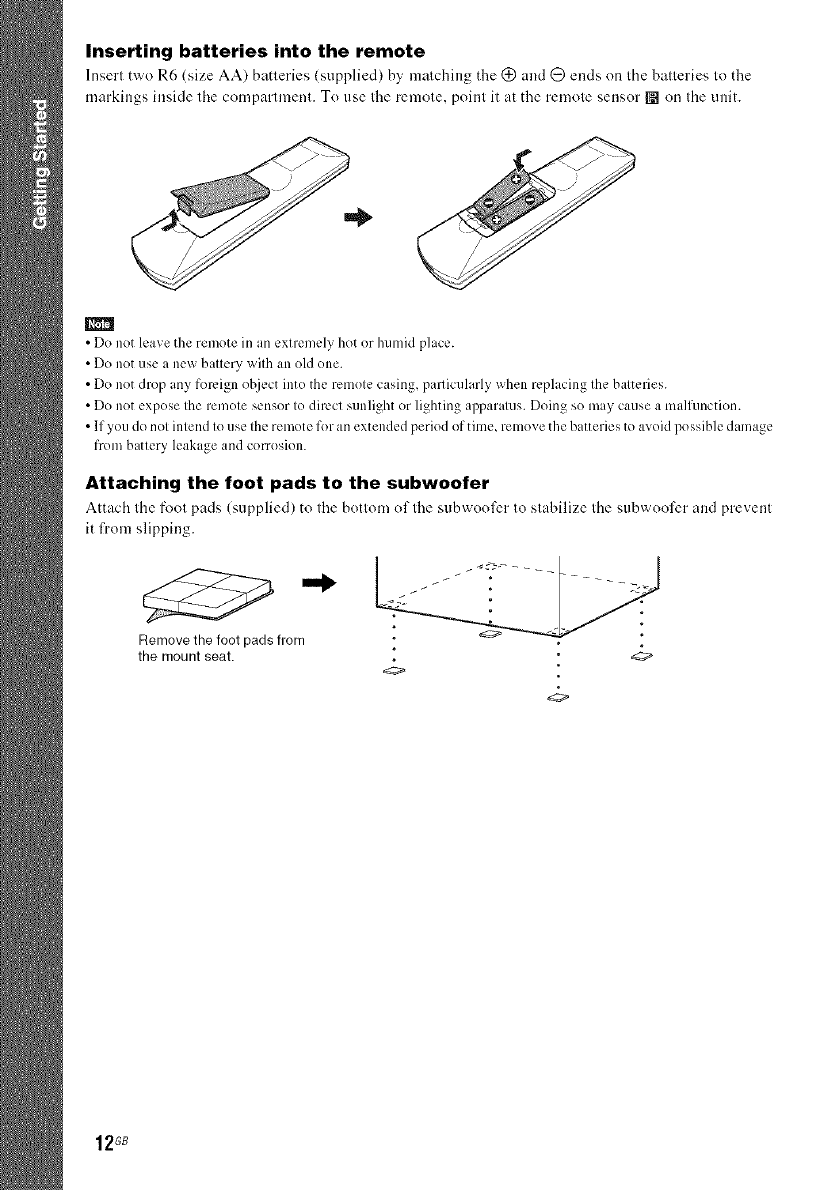

Insertingbatteries intothe remote

markings inside lhe comparlmenl. To use Ihe remole, poinl it at the remole sensor [] on Ihe unit.

•Do not leave the remote in an extremely hot or humid place.

•Do not use a new battery with an old one.

• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.

• Do not expose the remote sensor to direct sunlight or lighting al)paratus. Doing so may cause a malfunction.

• If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage

from battery leakage and corrosion.

Attaching the foot pads to the subwoofer

it from slipping.

Removethe foot padsfrom °

the mount seat. °

12GB

Step 1: Assemblingthe Speakers

(DA V-HDX475 only)

BeR_re connecting the speakers, attach the speaker stand to the speaker.

(For the ti"ont speakers)

Use the parts as IMlows:

Front speakers (2)

Speaker cords (2, red/white)

Posts (2)

Bases (2)

Mounting plates (2)

Post covers (2)

Screws (large, with washer) (4)

Screws (small) (6)

About how to connect the speaker cords to the SPEAKER jacks, see page 24.

• Spread a cloth on the floor to avoid damaging the floor when you assemble the speakers.

•You can use the speaker without the speaker stand by installing it on the wall (page 18).

I1Thread the speaker cord through the hole in the base and post.

The connector and color tube of the speaker cords are the same color as the label of the jacks to be

connected.

Use the speaker cords as l\_llows:

• Front speaker (L): White

• Front speaker (R): Red

Be cm'efid with the orientation of the post. Thread the speaker cord (and the speaker system cord)

into the end of the post that has two holes.

Speaker cord

Bottom of the base

Top of the base

Two holes

13G8

2Attach the post cover to the other end of the post.

Oricnl Ihc slot toward you, allach the post cover so that Ihc slot of the post engages with lhc tab of

lhe post cover, then secure wilh the screv,,r.

Thread the speaker cord through

hole of the post cover.

Speaker cord

Hole Post cover

Jpper part of the

post

Screw (small)

Lay the post in the slot of the speaker, slide the post to the end of the slot, then secure

the post with the mounting plate and screws.

Select the speuker whose jack color on its rear panel matches the color tube of the speaker cord.

Post cover

Be careful the

orientation of the

post cover when

placing the post.

Secure two screws (large, with

"--',_, washer).

Rear of the speaker Mounting plate

14 GB

4Connect the speaker cords to the speaker.

Be sure to match the speaker cords to the appropriate terminals on Ihe speakers: the speaker cord

with the color tube to (_), and Ihe speaker cord widloul the color (ube Io 0.

_ Color tube

Front speaker (L): White

Front speaker (R): Red

Rear of the speaker

5 Attach the post to the base.

lnserl the post so Ihal die slil on tile lower parl of the posl aligns wilh the projection of the base,

lben secure Ihe posl with the lwo screws.

Projection

Post

Slit

Base

Screws

(small)

• Make sure that the slot on Ihe post aligns wilh the projeclion of the base by rolaling Ihe post slighlly.

15GB

6Adjust the height of the speaker.

Loosen (but do not remove) the screws, adjust the height of the speaker, then secure the screws.

Adjust the speaker of one side. then adjust another speaker by checking lines as a guide.

•When a_liusting the height of the speaker, grasp the speaker so that the speaker does not fall.

r_ i 0 _ Lines

Post

screws.

7Take up any speaker cord slack.

Take up slack in the speaker cord by pulling fi'om the bottom of the base.

unnlng

it through the slot.

"_--_- _ _,,_ Adjust the lengthof the cord.

16GB

Fully-assembled illustration

Front speaker (L): Front speaker (R):

White label Red label

White Red

17GB

Step 2: Positioningthe System

For the best possible surround sound, all the speakers other than the subwoofcr should be placed at tile

same distance from the listening position (O).

However, this system allows you to place the center speaker up to 1.6 meters (5 fl) closer (1_) and the

surround speakers up to 5.0 meters (16 It) closer (_) to tile front speakers.

The front speakers can be placed from 1.0 to 7.1)meters (3 to 23 ft) (t_) li"omthe listening position.

Place file system as illuslraled below.

DAV-HDX275/DAV-H DX276

@Front speaker (L (left))

® Front speaker (R (right))

@ Center speaker

@ Surround speaker (L (left))

(g) Surround speaker (R (right))

(£) Subwoofer

@ Unit

* Nel supplied.

18G8

DAV-HDX475

® Front speaker (L (left))

® Front speaker (R (right))

® Center speaker

@ Surround speaker (L (left))

® Surround speaker (R (right))

(_) Subwoofer

® Unit

(_)I* I: Nol supplied.

•Do not set the speakers in an inclined position

•Do not place the speakers in locations that arc:

Extremely hot or cold

Dusty or dirty

Very humid

Suhject to vibrations

Sub.ject to direct sunlight

• Use caution when placing the speakers and/or speaker stands attached to the speakers on a specially treated (waxed,

oiled, polished, etc.) floor, as staining or discoloration may result.

• Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine.

• Do not lean or hang on the speaker, as the speaker may fall down.

• When you change the positions of Ihe speakers, Sony recommends that you change the settings. For details, see

"Getting Optimal Surround Sound for a Room" (page 83) and "Calibratingthe Appropriate Settings Automatically"

(page 84).

To install the speakers on a wall

Before installing the speakers on u wall, c(muect the speaker cord to the speaker.

Be sure to match the speaker cords to tire appropriate terminals on the speakers: the speaker cord with

the color tube to (_), and the speaker cord without the color tube to O.

Color tube

Front speaker (L): White

Front speaker (R): Red

Center speaker: Green

Surround speaker (L): Blue

Surround speaker (R): Gray

1gG8

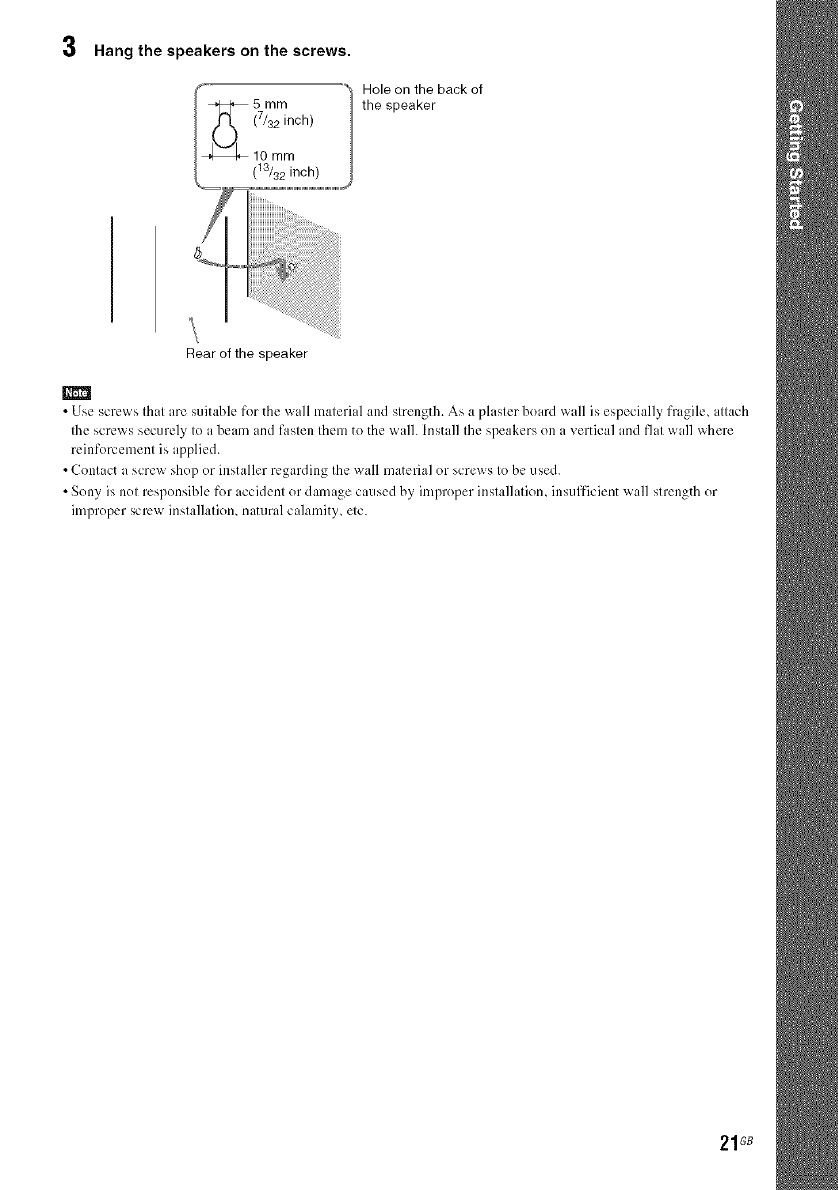

Prepare screws (not supplied) that are suitable for the hole on the back of each speaker.

See the illustrations below.

_4 mm inch)

(5/32

30 mm (1 3/16 inches)

Hole on the back of

the speaker

2Fasten the screws to the wall.

DAV-HDX275/DAV-H DX276

For the center speaker

145 mm

(5 3/4 inches)

For the other speakers

8 to 10 mm

(11/32to 13/32 inch)

8to lOmm

(11/32 tO13/32inch)

DAV-HDX475

For the center speaker

8to 10 mm_

(11/32to 13/32 inch) _

145 mm

5 3/4 inches)

For the surround speakers

For the front speakers

20G8

3 Hang the speakers on the screws.

5 mm

(7/32 inch)

10 mm

(13/32 inch)

.... i i iii i !iiiiii iiiiiiiiiiiii iiiiiiiiiiiii iiiiiiiiiiiii iiii i

Rear of the speaker

Hole on the back of

the speaker

• Use screws that :are suitable fer the wall material and strength. As a plaster board wall is especially fragile, attach

tile screws securely to a beam and fasten them to the walh Install the speakers on a vertical and fiat wall where

reinfemement is applied.

• Contact a screw shop or installer regarding the wall material or screws to be used.

• Sony is not responsible fer accident or damage caused by improper installation, insufficient wall strength or

improper screw installation, natural calamity, tic.

21G8

Step 3: Connectingthe System

See the connection diagram below, and read the additional inl\_rmation from (_ to (_ on tl_e lbllowing

pages.

• Be sure to make connections securely to avoid hum and noise.

• When you connect another component with a voltlme control, turn up the vohlme of the other components to a level

where sound is not distorted.

DAV-HDX275/DAV-H DX276

i!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!_i_i

22GB

DAV-HDX475

23G8

The connector and color tube of the speaker cords are tire same color as the label of the jacks to be

connected. Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker

cord wilh the color (ube to (_), and (lae speaker cord withoul the color lube (o @. Do nol catch lhe

speaker cord insulation in the speaker terminals.

Rearof speaker

When connecting to the unit, insert the connector until it clicks.

DAV-HDX276

Rear panel

To the subwoofer

(purple)

To the surround speaker (L)

(blue)

To the surround speaker (R)

(gray)

(red)

To the front speaker (L) (white)

24G8

DAV-HDX275/DAV-HDX475

Rear panel

To the subwoofer

(purple)

To the surround speaker (L)

(blue)

To the surround speaker (R)

(gray)

(red)

To the front speaker (L) (white)

25 GB

Use the parts as follows:

• Vide() cord (1)

To listee to TV sound from the six speakers of the system, connect the TV and the system with the

audio cord (not supplied) (@).

For vide(> output to your TV, check the vide(> input jacks of the TV. and select connection method O,

0, or _. Picture quality improves iu order l?'o,n _ (standard) to _ (HDMI).

When the TV has the digital optical or coaxial output jack, you can improve sound quality by

connecting with the digital cord ((_)).

DAV-HDX276

(_) Digital optical cord

(not supplied)

(_) Audio cord

(notsupplied)

Digital coaxial cord

(not supplied)

i gti_?U_k_o f

_th lhe_/Td°TV _ _ ;] Rear panel

....7,,:,:_ .....................................................,i_

HDMI*'_ cable _ Component video cord _ Video cord

(notsupplied) (not supplied)* _ (supplied)

_:_ _ ]_ GreenRedBlue

To the HDMI IN jack of the TV

To the COMPONENT VIDEO IN jacks

of the TV

To the VIDEO IN jack of

the TV

26G8

DAV-HDX275/DAV-H DX475

1_) Digital optical cord

(not supplied)

Digital coaxial cord

(not supplied)

(_) Audio cord

(not supplied)

_=_ WhiteRed

To the HDMI IN jack of the TV

Green

Blue

Red

To the COMPONENT VIDEO IN jacks

of the TV

To the VIDEO IN jack of

the TV

'_ if yeur TV accepts pregressive format signals, use this cennectien and set the eutput signal of the system te

pregrcssive format (page 37).

"" HDMI (High-Definitien Multimedia Interface)

If your TV has the HDMI jack, use this connection and select the type of output signal (page 37).

• During the"DMPORT" fimctien, video signal is not output frem the HDMI OUT and COMPONENT VIDEO OUT

.jacks.

• The system can accept beth digital and analog signals. Digital signals have priority ever analog signals. (COAXIAL

has priority ever OPTICAL.) If the digital signal ceases, the analog signal will be processed after 2 seconds.

• You can connect another cempenenl, such as a VCR, digital salellite receiver, er PlayStatien, te Ihe TV/VIDEO

jacks ((_) er (_)) inslead ef Ihe TV.

27GB

To changethe color system(PALor NTSC)(Asian,Australian,and

MiddleEasternmodelsonly)

Depending on the TV to be connected, you may be required to select either PAL or NTSC l\)r the color

system.

The initial setting of the system l_)rAustralian and Middle Eastern models is PAL.

The initial setting of the system for Asian models is NTSC.

1Turn off the system by pressing I/_.

2 Turn on the system by pressing I/_ while pressing II on the unit.

Each time you perl_)rm this operation, the color system toggles between PAL and NTSC.

"NTSC" lights tip ill the front panel display when the color system is set to NTSC.

28 GB

You can enjoy tile connected component using the six speakers of the system.

• Porlable audio source: t_

• DIGITAL MEDIA PORT adapler: 1_

DAV-HDX276

Stereo mini-plug cord

j- .... (not supplied)

To the portable audio source

Front panel

• You call connect another

component, such as VCR,

instead of the TV. For

connection details, see page

26.

DIGITAL MEDIA PORT adapter

2gGB

DAV-HDX275/DAV-H DX475

_'_ . Stereo mini-plug cord

j ..... (not supplied)

_ T2t_'ee portable audi°

Front panel

EZW-T100 slot (See "Wireless system option" (page 31).)

•Yeucan connect another

component, such as VCR,

instead ef the TV. Fer

connectiondetails,seepage

26.

DIGITAL MEDIA PORT adapter

* z_ CAUTION

Please do not remove the screws before installing the EZW-TI00 (page 77).

To connect the DIGITAL MEDIA PORT adapter

Connect a DIGITAL MEDIA PORT adapter (TDMqPI0 is supplied for North Americml models only)

to the DMPORT jack. Fordetails, see "Using the DIGITAL MEDIA PORT Adapter" (page 76).

lira

• Connectthe DIGITALMEDIAPORTadaptersothat the • marksare aligned.Whendiscennecting,pull eut while

pressing_.

30GB

Wireless system option

(DAV-HDX275/DAV-HDX475 only)

By using all S-AIR product (not supplied), you call enioy wireless performance by transmission from

the system. For details, see "Using an S-AIR Producl" (page 77) or refer Io Ihe operating instructions

of tile S-AIR product.

If your TV has multiple audio/video inputs

You can enjoy the sound with Ihe speakers of Ihe syslem through tile connected TV. Connect tile

COlllpOllents as follows.

VCR, digital satellite receiver

or PlayStation, etc.

VCR, digital satellite receiver

or PlayStation, etc.

:Signal flow

Select tile component on Ihe TV. For details, refer Io tile operating inslructions of the TV.

If tile TV does 11o{have multiple audio/video inputs, a swilcher will be necessary to receive tile sound

fI'OI_I nlol+e thall t_vo components.

31GB

DAV-HDX276

•Cerd (A) or cord (B) can be cennected to either terminaL

Rear panel

FM wire antenna (aerial)

32GB

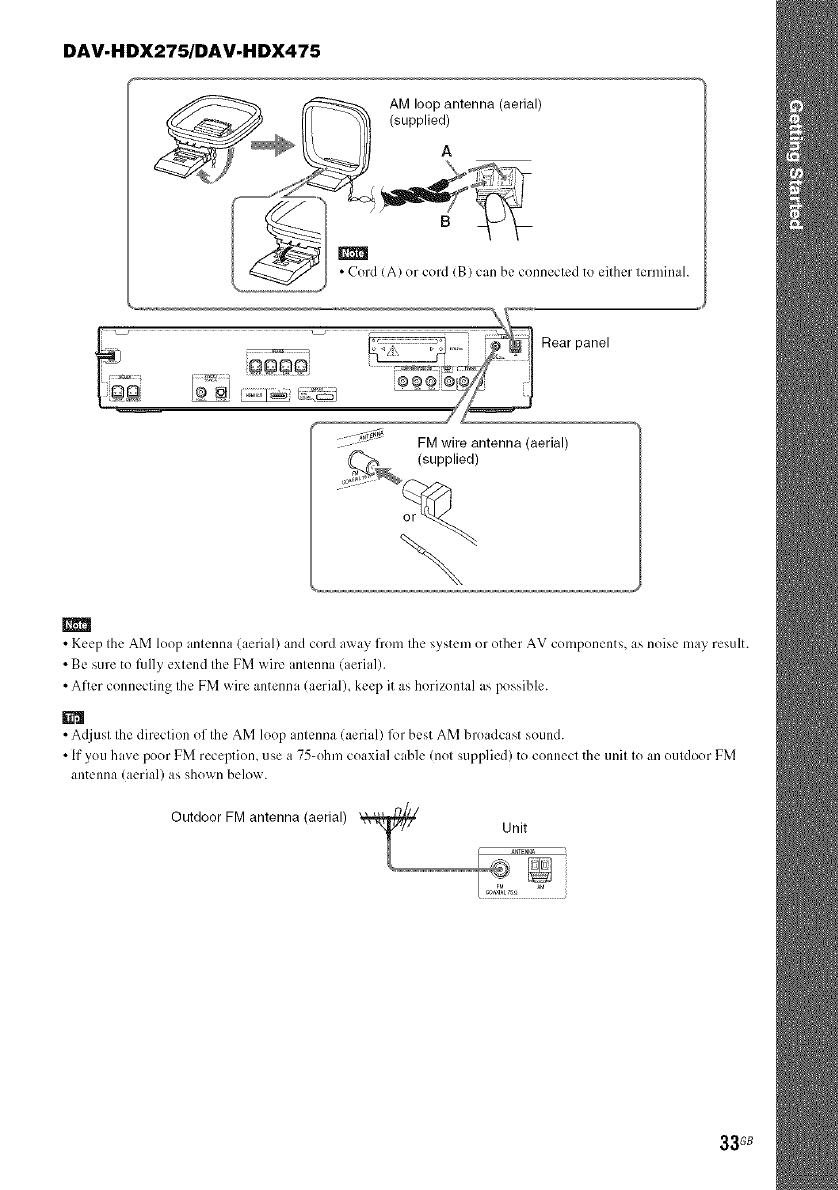

DAV-HDX275/DAV-HDX475

AM loop antenna (aerial)

•Cord (A) or cord (B) can be connected to either terminah

Rear panel

FM wire antenna (aerial)

• Keep the AM loop antenna (aerial) and cord away from the system or other AV components, as noise may result.

• Be sure to fidly extend the FM wire antenna (aerial).

• After connecting the FM wire antenna laerial), keep it as horizontal as possible.

• Adjust the direction of the AM loop antenna (aerial) fi)r best AM broadcast sound

• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the unit to an outdoor FM

antenna (aerial) as shown below.

Outdoor FM antenna (aerial) Unit

33G8

Before connecting the AC power cord (mains lead) of Ihe unil Io a wall outlel (mains), connect all tlle

speakers Io Ille unit.

DAV-HDX276

Rear panel

To thewall outlet (mains)

DAV-HDX275/DAV-H DX475

Rearpanel

To the wall outlet (mains)

After connecling the AC power cord (mains lead), the denmnslration appears in the fi'ont panel display.

Setting the demonstration mode to on/off

1Press I/_ on the unit.

The syslem turns on.

2 Press SYSTEM MENU.

3Press ,I,/4, repeatedly until "DEMO" appears in the front panel display, then press C) or

-).

4Press ,I,/4, to select a setting.

•"DEMO ON": On.

• "DEMO OFF": OtT.

5 Press @.

The selting is made.

6Press SYSTEM MENU.

The syslem menu turns olf.

•When you purchase lhe svslem from new or if lhe syslem is al ils f iclory defaull setlings (ex., after perl_)rming

"COLDRESET '_(page 90)), you can lurn off die demonslralion simply by pressing I/(_)on Ihe remote.

34G8

Step4: Performingthe

QuickSetup

Follow the Steps below to make the basic

adjustments li_r using tile system.

• When you connect the system and the TV with the

component video cord (not supplied) or HDMI cable

(not supplied), you need to set the type of video

output for matching your TV. For details, see "Setting

file type of video output to match your TV" (page 37).

I/(b

ill) i:? O

.... _ ............... DISPLAY

1Turn on the TV.

2 Press I/@.

• Make sure that the fimction is set to "DVD"

(page 38).

3 Switch the input selector on your TV so

that the signal from the system

appears on the TV screen.

[Press [ENTER] to run QUICK SETUP.]

appears at the bottom of the TV screen. If

this message does not appear, recall tile

Quick Setup display (page 36) and perli_)rm

again.

4Press @without inserting a disc.

The Setup Display for selecting the

language used in the on-screen display

appears.

i i!iii i!iiiiii iiii!i!'ANGUAGESETUP

Press ,1,/4, to select a language.

The system displays the menu and subtitles

ill the selected language.

Press @.

The Setup Display for selecting the aspect

ratio of the TV to be connected appears.

Press ,t,/4, to select the setting that

matches your TV type.

•If you have a wide-screen TV or a 4:3

standard TV with a wide-screen mode

116:91 (page 63)

•If you have a 4:3 standard TV

[4:3 LETTER BOX] or [4:3 PAN SCAN]

(page 63)

Press @.

The Setup Display for selecting the speaker

R)rmation appears.

Press ÷/+ to select the speaker

formation image as the speakers are

actually positioned.

For details, see "Getting Optimal Surround

Sound R)r a Room" (page 83).

SPEAKER FORMATION

STANDARD

35G8

10Press @.

11Connect the calibration mic to the

A.CAL MIC jack on the front panel.

Set up Ihe ca]ibralion mic al the ear level

using a Iripod, elc. (not supplied). The fronl

of each speaker should face file calibration

mic. and there should be no obstruction

belween fire speakers and the calibration

rllic.

Calibration mic

12Press ÷/-'> to select [YES].

•Make sure thai Ihe headphones are nol

connected to the unil or surround amplifier :r.

You cannot operate following Sleps with the

headphones connecled.

:r DAV-HDX275/DAV-HDX475 only.

13Press C).

[AUTO CALIBRATION] starts.

Be quiel durhlg lhe measurenlenl.

•Loud lesl sound is oulput when [AUTO

CALIBRATION] slarls. You cannol lurn Ihe

volume down. Give conskleralion to children

and neighbors.

• Before [AUTO CALIBRATION], inslall Ihe

surround amplifier in Ihe q_plopliale localion. If

you inslall the st]rlound amplifier ill an improper

location_ such as anolher rooln, proper

measuremenl will not be obtained. (DAV-

HDX275/DAV-HDX475 <till>,.)

•AvokI heing in the measurement irea and

miking noise during the measurement (which

takes about 3milllJtes), {Is it may imerfere with

II/easu relilenl.

14Unplug the calibration mic and press ÷/

-) to select [YES].

• The environment of the room in which the

system is inslalled may afl_.cl measuremenls.

• If measurement fails, R)IIowthe message then

relry [AUTO CALIBRATION].

15Press _.

Quick Setup is finished. All connections

and setup operations are complele.

To quit the Quick Setup

Press O DISPLAY in any Step.

•If you change the position of the speakers, reset the

speaker settings. See "Getting Optimal Surround

Sound fi)r a Room" (page 83) and "Calibrating the

Appropriate Settings Automatically" (page 84).

• If you want to change ally of the settings, see "Using

the Setup Display" (page 61).

recall the Quick Setup display

1Press FUNCTION +/- repeatedly until

"DVD" appears in the front panel

display.

2 Press GDISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press .I,/4, to select B [SETUP],

then press @.

The options for ISETUP] appem'.

36GB

[QUICK ]

4Press ¢,/,vto select [QUICK],then press

®.

Tile Quick Selup display appems.

Depending on the connection nf the TV

(page 26), select the type of video output of the

system.

To select the type of video signal

output from the HDMI OUT jack

When ynu connect the unit and the TV with the

HDMI cable, select tile type of video signals

output from the HDMI OUT jack.

For details, refer also tn the operating

instructions supplied with the TV/projector, etc.

1 Press FUNCTION +/- repeatedly until

"DVD" appears in the front panel

display.

2 Press C_ DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press 1'/4, to select B [SETUP],

then press @.

The options for [SETUP] appear.

4Press t'/4, to select [CUSTOM], then

press @.

The Setup Display appears.

5 Press €,/4,to select [HDMI SETUP], then

press @.

The options for [HDMI SETUP] appear.

6Press 1,/4, to select [HDMI

RESOLUTION], then press @.

7Press €,/4, to select the desired setting,

then press @.

•[AUTO ( 1920 x 1080p)]: The system

outputs the optimal vide() signal for the

connected TV.

• [1920 x 1080i]: The system nntputs 1920

x 1080i": video signals.

• [1280 x 720p]: The system outputs 1280 x

720p* vide() signals.

• [720 x 480p]": % The system outputs 720 x

480p* vide() signals.

" i: interlace, p: progressive

"* Depending on the country model, [720 x 576p]

may appear.

rr_

• When "HDMI" lights up in the front panel display,

images other than [720 x 4811p]or [720 x 576p] are

stretched vertically.

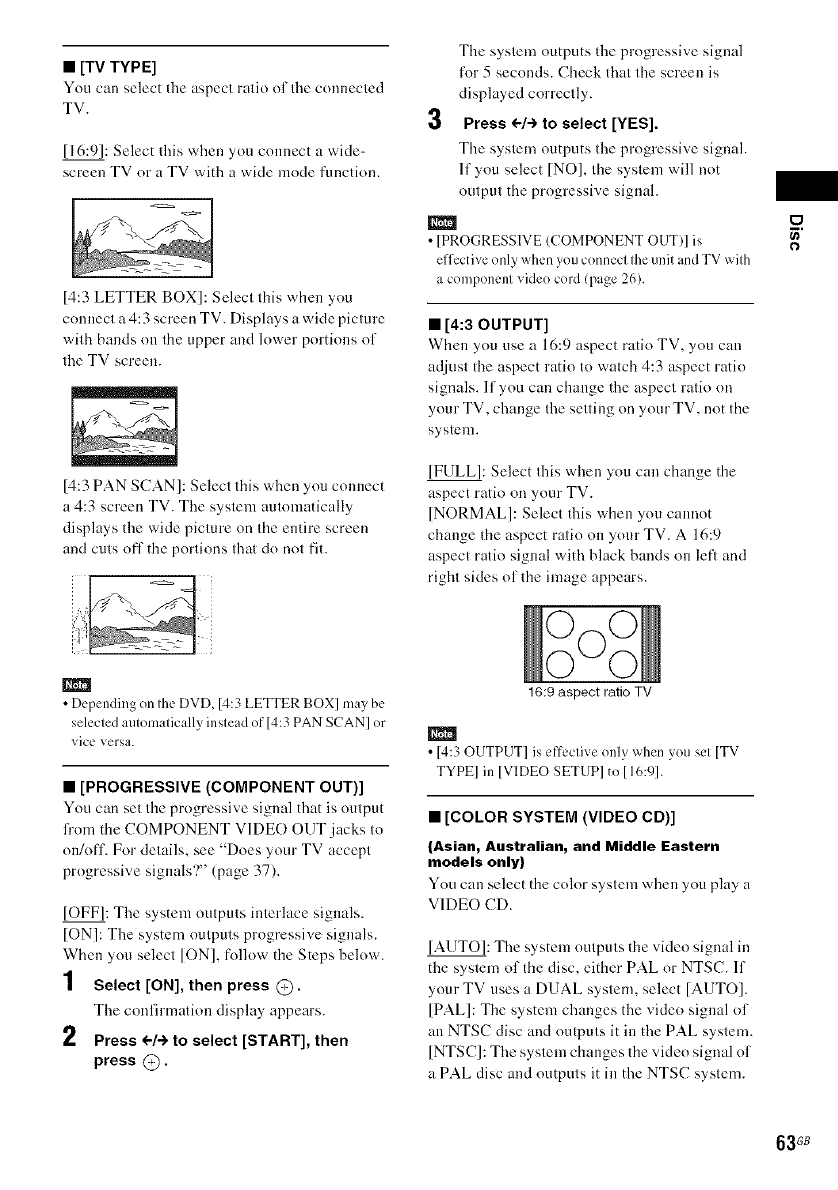

Does your TV accept progressive

signals?

Progressive is the method _r displaying TV

images which reduces flickering and sharpens

the image. To use this methnd, you need tn

connect to a TV that accepts progressive signals.

1Press FUNCTION +/- repeatedly until

"DVD" appears in the front panel

display.

2 Press ODISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press ,I,/4, to select I_ [SETUP],

then press @.

The nptions l\n" [SETUP] appear.

4Press ¢,/,V to select [CUSTOM], then

press @,

The Setup Display appears.

5 Press'1'/4, to select [VIDEO SETUP],

then press @,

The nptions l\n" [VIDEO SETUP] appear.

6Press t,/4, to select [PROGRESSIVE

[COMPONENT OUT)], then press @.

7 Press €,/4, to select the desired setting,

then press @.

37G8

[OFF]: The system does not output

progressive signals. Select this setting

when:

- your TV does not accept progressive

signals, or,

- your TV is connected to jacks other than

the COMPONENT VIDEO OUT jacks.

[ON]: The system outputs progressive

signals. Select this setting when:

your TV accepts progressive signals,

and,

- the TV is connected to the

COMPONENT VIDEO OUT jacks.

When you select [ON], the con['irmadon

display appears. Follow the Steps below.

Press ÷1+ to select [START], then

press Q.

The system outputs the progressive signal

l;ar 5 seconds. Check that the screen is

displayed correctly.

Press ÷/÷ to select [YES].

The system outputs the progressive signal.

When you select [NO], the system does not

output the progressive signal.

Step5: EnjoyingSound

fromall the Speakers

You can enjoy DVD, TV, or VCR sound lrom

all the speakers in this system.

i ,ilillii --:>NOS'ON

iii:::{> :iiii>i::}::i_:;::;i i

_ _YSTEM

•/4./+, (:)...............................

Press FUNCTION +/- repeatedly until

the desired function appears in the

front panel display.

Each time you press FUNCTI()N +_, the

function changes as l\_llows.

"DVD" ---+"TUNER FM" ---+"TUNER

AM" ---+"TV/V1DEO" ---+"DMPORT" ---+

"AUDIO" ---+ ...

Function Source

"DVD" Disc that is played by the

system

"TUNER FM'/ FM/AM radio (page 70)

"TUNER AM"

"TV/VIDEO" TV (or the component that

is connected to the TV/

VIDEO jacks on Ihe mar

panel)

"DMPORT" DIGITAL MEDIA PORT

adapter lpage 76)

"AUDIO" Portable audio source (that

is connected to the AUDIO

IN jack on the front panel)

38G8

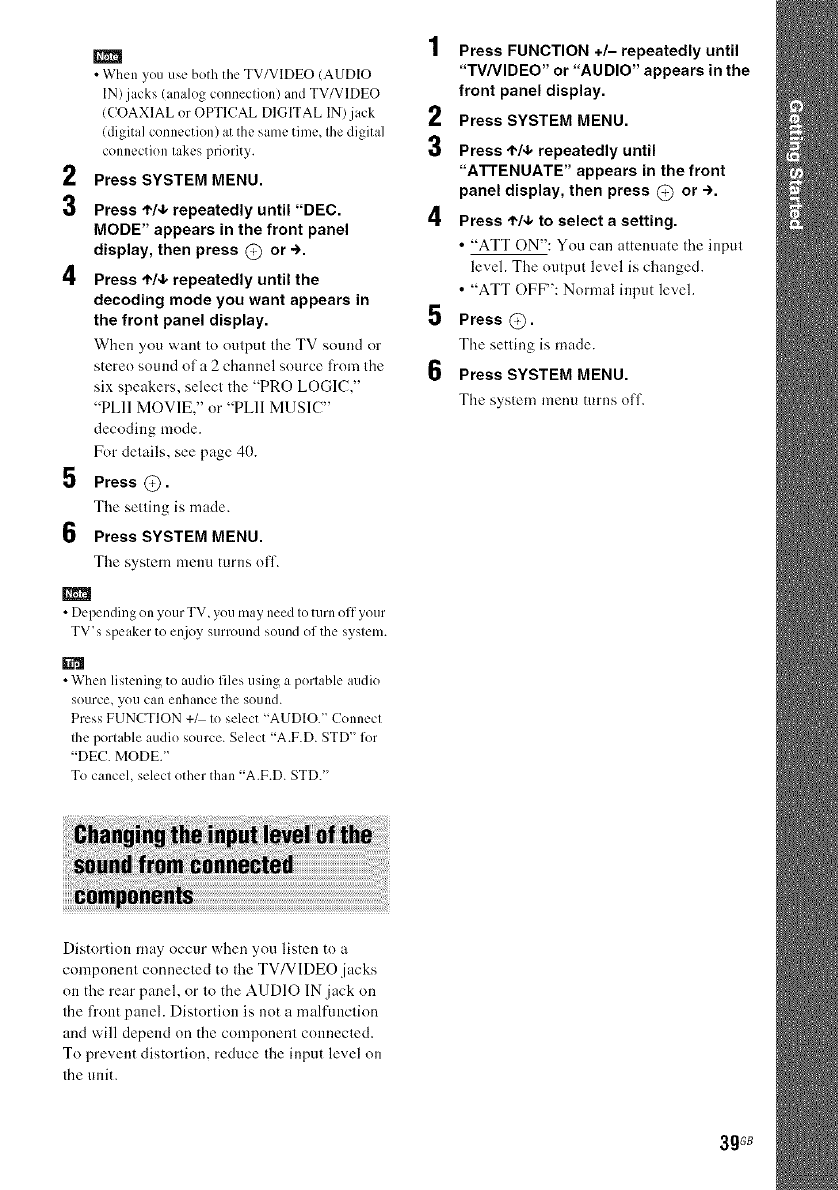

• When you use both the TV/VIDEO (AUDIO

IN) jacks (analog connection) and TV/VIDEO

(COAXIAL or OPTICAL DIGITAL IN) jack

(digital connection) at the same time, the digital

connection takes priority.

Press SYSTEM MENU.

Press ,t./4, repeatedly until "DEC.

MODE" appears in the front panel

display, then press @ or -.).

4Press t'/4, repeatedly until the

decoding mode you want appears in

the front panel display.

When you want 1o oulput lhe TV sound or

stere() sound ola 2 channel source from Ihe

six speakers, selecl the "PRO LOGIC."

"PLll MOV1E." or "PLll MUS1C"

decoding mode.

For delails, see page 4tL

5 Press @.

The setling is made.

6Press SYSTEM MENU.

The system menu turns off.

• Depending on your TV, )ou may need Io turn off your

TV's speaker to enjoy surround sound of the syslem.

• When listening to audio files using a portable audio

source, yotl can enhance the sound.

Press FUNCTION +/ Io select "AUDIO." Connecl

Ihe porlable audio source. Select "A.FD. STD" for

"DEC. MODE."

To cancel, select other thin "A.E.D. STD."

Press FUNCTION +/- repeatedly until

"TV/VlDEO" or "AUDIO" appears in the

front panel display.

Press SYSTEM MENU.

Press 'I'/.1, repeatedly until

"ATTENUATE" appears in the front

panel display, then press @ or -).

Press 'I'/4, to select a setting.

•"ATT ON": You can attenuate the input

level. The output level is changed.

• "ATT OFF": Normal input level.

Press @.

The setting is made.

Press SYSTEM MENU.

The system menu turns off.

Distortion may occur when you listen to a

component connected to the TV/V1DEO ,jacks

on the rear panel, or to the AUDIO 1N jack on

the front panel. Distortion is not _ malfnnction

and will depend on the component connected.

To prevent distortion, reduce the input level on

the unit.

3gG8

EnjoyingSurroundSoundby UsingDecodingMode

You can enjoy surround sound simply by selecting one of the system's pre-programmed decoding

modes. They bring exciting and powerful sound of movie lhealers inlo your home.

< ,

4 },

<, ):>

gC{

SYSTEM

Press SYSTEM MENU.

Press 't'/4, repeatedly until "DEC. MODE" appears in the front panel display, then press

or-.).

Press ,I,/.4,repeatedly until the decoding mode you want appears in the front panel

display.

Display Decoding mode Effect

"A.F.D. STD" AUTO FORMAT Presents sound as it was recorded/encoded.

DIRECT Depending on the source, the speakers that output sound will vary.

STANDARD

"A.F.D. MULTI" AUTO FORMAT 2 channel source: Sound that is recorded in 2 channel (front left and

DIRECT MULTI right channel) is also assigned to the surround left and right channeh

This mode outputs sound from the front left and right speakers,

surround left and right speakers, and subwoolL.r. The center speaker

does not output any sound.

Multi channel source: Depending on the source, speakers that output

the sound will vary.

PerR)rms Pro Logic decoding to the input signal and simulates

surround sound lron/2 channel sources.

This mode outl)uts sound from all the speakers and subwoofisr. SouM

may not be output from all speakers depeMing on the source.

"PRO LOGIC" Dolby Pro Logic

40 GB

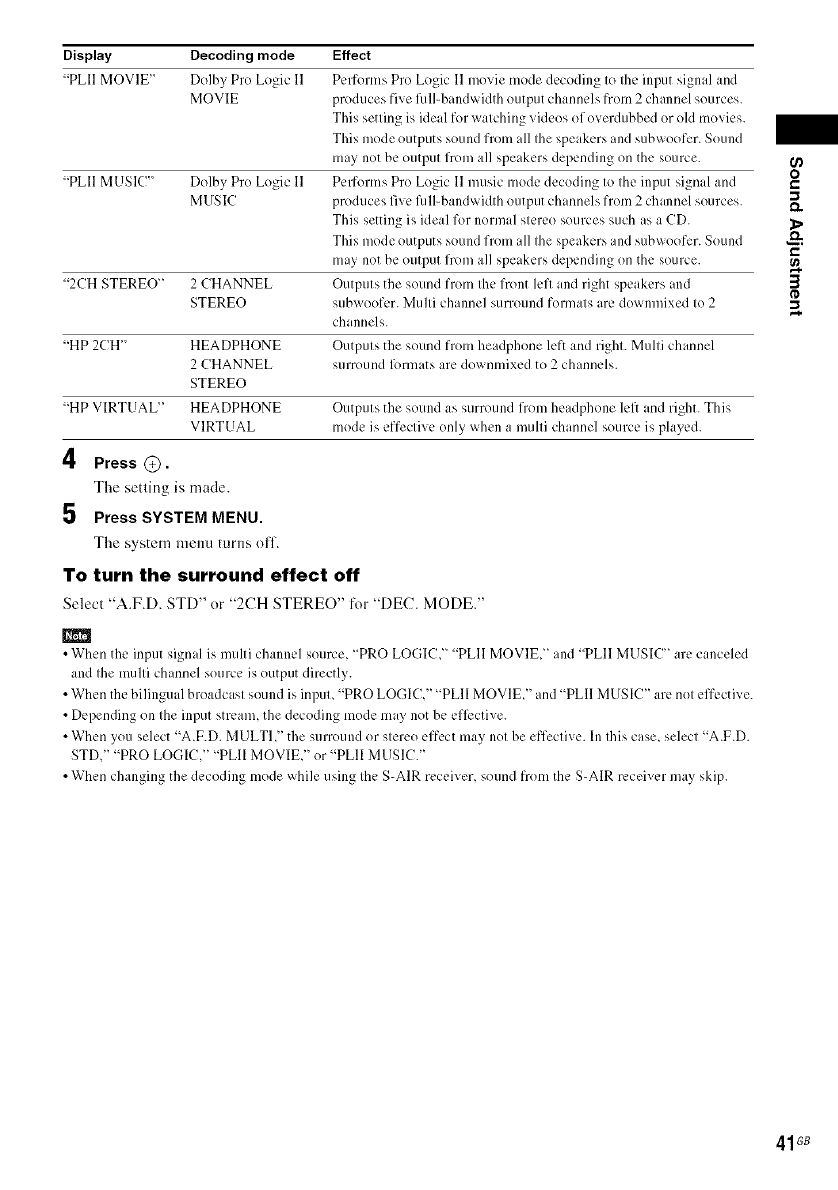

Display Decoding mode Effect

"PLIIMOVIE" Dolby Pro Logic 11 Performs Pro Logic 11movie mode decoding Io Ille inputsignal and

MOVIE produces five l_lll-bandwidth output channels from 2 channel sources.

This setting is ideal for watching videos of overdubbed or old movies.

This mode outputs sound from all Ihe speakers mdsubwoofer. Sound

may not be OUtl)Utfrom all speakers depending on the source.

"PLIIMUSIC" Dolby Pro Logic 11 Performs Pro Logic 11music mode decoding Io Ihe input signd and

MUSIC produces five l_fll-bandwidth output channels from 2 channel sources.

This setting is kleal for normal slereo sources such is a CD.

This mode outputs sound from dl Ihe speakers and subwoofer. Sound

ma) not be output from all speakers depending on the source.

"2CHSTEREO" 2 CHANNEL Outpuls the sound from Ihe front lefl and right speakers and

STEREO subwoofer. Mulli channel surround fOlll/als are downmixed Io 2

channels.

"HP 2CH" HEADPHONE Outpuls the sound from headphone left and right. Multi channel

2 CHANNEL surround l_)rmats are downmixed to 2 channels.

STEREO

"HP VIRTUAL" HEADPHONE Outpuls the sound as surround from headphone left and right. This

VIRTUAL mode is effeclive only when a multi channel source is phlyed.

4Press @.

The setting is made.

5 Press SYSTEM MENU.

The system n]el]u turl]s o11.

To turn the surround effect off

Select "A.F.D. ST[)" or "2CH STERE()" for "DEC. MODE."

•When the input signal is multi channel source, "PRO LOGIC," "PLIIMOVIE," and "PLIIMUSIC" are canceled

and the multi channel source is output directly.

• When the bilingual broadcast sound is input, "PRO LOGIC," "PLIIMOVIE," and "PLIIMUSIC" are not effective.

• Depending on the input stream, the decoding mode may not be efl_ctive.

• When you select "A.F.D. MULTI," the surround or stereo effect may not be effective. In this case, select "A.F.D.

STD," "PRO LOGIC," "PLIIMOVIE," or "PLIIMUSIC."

• When changing the decoding mode while using the S-AIR receiver, sound from the S-AIR receiver may skip.

e,,

41GB

Selecting the Sound

Mode

You can selecl a suilable sound mode for movies

O1" mUSiC.

:> :>

SOUND

MODE

Press SOUND MODE repeatedly during

playback until the desired mode appears in

the front panel display.

•"AUTO": The system selects "MOVIE" or

"MUSIC" automatically to produce the sotllld

efti:ct depending on the disc.

• "MOVIE": The system provides the sound l\_r

movies.

• "MUSIC": The system provides the sound for

II1tlSiC.

• You cannot operate these setup items when you

connect headphones to the unit or sum)und

amplifier".

" DAV-HDX275/DAV-HDX475 only.

• When changing Ihe sound mode while using the

S-AIR receiver_ sound from the S-AIR receiver may

skip (DAV-HDX275/DAV-HDX475 only/.

EnjoyingMultiplex

BroadcastSound

(DUAL MONO)

You can enjoy multiplex broadcast sound when

the system receives or plays the Dolby Digital

multiplex broadcast siglml.

• To receive the Dolby Digit ,1signal, you need to

connect a TV or other component to Ihe unit with an

optical or coaxial digital cord (page 26) and set the

digital output mode of the TV or other component to

Dolby Digital.

ii177:7¸111¸1111 7i¸

iii

Press AUDIO repeatedly until the desired

signal appears in the front panel display.

• "MAIN": Sound of the main language will be

output.

• "SUB": Sound of tile sub language will be

output.

• "MAIN+SUB": Mixed sound of both the main

and sub languages will be output.

42GB

Playing a Disc

Depending on the DVD VIDEO or VIDEO CD,

sorne operations may be different or restricted.

Refer to the operating instructions supplied with

your disc.

Adjust the volume

Press the button of the disc number you

want.

When no disc is in the disc stocker you

select, "NO DISC" appears in the front

panel display. Perform next Step while

"':DISC- 1": (eg., 2-5)" flashes.

Press _.

Load a disc.

Place one disc on the tray, and then press z_. o

Disc tray DISC 1-5/ Connect

indicators headphones

iii;:;i _/4>

iii i

iii; !!!i! FUNCTION

DISC SKIP ........................ _ +/_

C;;?_ ii

I Turn on yourTV.

2Switch the input selector on the TV to

this system.

3 Press I/@.

The system turns on.

Unless the system is set to "DV[)." press

FUNCTION +/- to select "DVD."

4Press DISC 1-5.

•When you play an 8 cm disc, place it on the

inner circle of the tray. Be carotid thlt the disc is

not skewed on the inner circle of the tray.

• Do not forcibly press the disc tray closed with

your finger, as this may cause malfilnction.

• Do not place more than one disc on the tray.

Press [_>.

The system starts playback (continuous

play) of the disc whose DISC indicator is

green.

•To load other discs

Press DISC 1-5 (that is not loaded with a

disc) and z_ and load the disc.

•To play back other discs

Press [)IS(-" SKIP on the remote or DISC 1-

5 on the unit.

Adjust the volume by using VOLUME +/

- on the remote or the VOLUME control

on the unit.

The volume level appears on the TV screen

and in the front panel display.

gtt_

• Depending on the system status, the volume level

may not appear on the TV screen.

• When you set the Control lbr HDMI function to on,

the TV that is connected to the system with an HDMI

cable lnot supplied/ can be sync-operated with the

43G8

system. For details, see "Using the Control for HDMI

Function for "BRAVIA" Sync" (page 73).

• The DISC I-5 indicators change their color as

follows:

Green: the disc is selected, or the disc is being

played back.

Off: there is no disc.

Orange: a disc is loaded ill the disc stocker but not

selected.

The indicator turns off if an unplayable disc is

inserted.

To turn the system off

Press |/(_) while the syslem is on. The system

enters standby mode.

To save power in standby mode

Press |1(_) while the system is on.

To enter power saving mode, make sure that the

system is in the following status.

- "DEMO" is sel to "OFF" (page 34).

[CONTROL FOR HDMI] is set to [OFF]

(page 73).

"S-AIR STBY" is set to "OFF" (page 8(1)

(DAV-HDX275/DAV-HDX475 only).

To use the headphones

Connect the headphones to PHONES jack on the

unit. The sound of the system is muted.

You can also connect the headphones to

PHONES jack on the surround amplifier. (The

sound of the system is muted.) (DAV-HDX275/

[)AV-HI)X475 only)

Other operations

To Press

Stop •

Pause II

Resume play after pause II or [2--

Go to the next chapter,

track, or scene ])

Go back to the _ twice ill a second.

preceding chapter, When you press _ once,

track, ( r scene you can go Io the beginning

of the current chapter,

track, or scene.

To Press

Turn off the sound MUTING.

temporarily To cancel, press it again or

VOLUME + to adjust the

so/Ind vohllne.

Change a disc while DISC SKIP

playing another disc

Play the desired disc DISC 1-5 on the unit.

directly

Stop play and remove DISC I-5 and =z_on the

the desired disc unit.

Locate a point quickly I_-/m_ or <11/',ql,_while

by playing a disc in fast playing a disc. Each time

forward or fast reverse you press I_'/m_ or <|1

(Scan) 112) _ during scan, the

playback speed changes.

To return to normal speed,

press [2--. Actual speeds

may difl_'r with some discs.

I_/| _'_ or _1|/'_1"_ 4)

while the system is in pause

mode. Each time you press

during Slow-motion Play,

the playback speed

changes. Two speeds are

available. To return to

normal playback speed,

press [2>.

STEP I1_,,-to go to the next

frame while the system ixin

pause mode. Press STEP

.,qlHto go to the preceding

frame while the system ixin

pause mode (DVD VIDEO/

DVD-R/DVD-RW only/.

To return to normal

playback, press [2--.

4=® (instant replay) during

playback.

o,,_ linstant advance)

during playback.

Watch frame by frame

(Slow-motion Play/_1

Play one frame at a time

(Freeze Frame) 3)5)6)

Replay the previous

scene 7)

Briefly fast forward the

current scene 81

l)Except for JPEG image files.

2YScanspeeds may differ wilh some discs.

3)DVD VIDEO, DVD-R, DVD-RW, VIDEO CD only.

4YExceplfor VIDEO CDs.

5)You cannot search for a still picture on a DVD-VR.

6)For a DATA CD/DATA DVD, this lhmctkm works

only R)r DivX video files (except for United

Kingdom and Norlh American models).

44G8

7)DVD VIDEO/DVD-RW/DVD-R only.

The button can be used except for DivX vide() files

(except lk)r United Kingdom and North American

models).

s)DVD VIDEO/DVD-RW/DVD-R/DVD+RW/

DVD+R only.

The button can be used except for DivX vide() files

(except for United Kingdom and North American

models).

•You may not be able to use the instant replay or

instant advance function with some scenes.

• Noise may come lron_ the disc changer when

changing discs or turning the system on/off.

However, this isjust noise produced by the operation

of the internal mechanisms and does not indicate a

mall]ruction.

To turn on/off the DISC 1-5

indicators' illumination

When you do not operate the system R_rmore

than 30 minutes, the illumination of the DIS(7 1-

5indicators starts automatically. You can turn

the illumination on/off.

1 Press SYSTEM MENU.

2 Press 'I"/4' repeatedly until "ILLUM

MODE" appears in the front panel

display, then press @or -.>.

3 Press 'I'/'1, to select a setting.

•"ILLUM ON': On.

•"ILLUM OFF": Off.

4Press @.

The setting is made.

5Press SYSTEM MENU.

The system ntenu turns otE

To change the angles

It"various angles (multi-angles) lot a scene are

recorded on a DVD VIDEO, you can change the

viewing angle.

Press ANGLE during playback to select the

desired angle.

• Depending on the DVD VIDEO, you may not be able

to change the angle even if multi-angles are recorded

on the DVD VIDEO.

To display the subtitles

* Except for United Kingdom and North American

models.

If subtitles are recorded on a disc, you can turn

the subtitles on/off during playback. If

multilingual subtitles are recorded on the disc.

you can change the subtitle language during

playback, or turn the subtitles on/ofT whenever

yOU wahl

Press SUBTITLE during playback to select

the desired subtitle language.

• Depending on the DVD VIDEO, you may not be able

to change the subtitles even if muhilingual subtitles

are recorded on the disc. You also may not be able to

turn them off.

• You can change the subtitles if the DivX video file

has an ".AVI"or ".DIVX" extension and contains

subtitle information within the same file (except for

United Kingdom and North American models/.

When the system is playing a DVD VIDEO or

DATA CD/DATA DVD (DivX video files '_)

recorded in multiple audio formats (PCM.

Dolby Digital, MPEG audio, or DTS), you can

change the audio format. If the DVD VIDEO is

recorded with multilingual tracks, you can also

change the language.

With a VIDEO CD, CD, DATA CD, or DATA

DVD, you can select the sound Dont the right or

left channel attd listen to the sound of the

selected channel through both the right and left

speakers.

You cannot change the sound lot a Super Audio

CD.

* Except for United Kingdom and North American

models.

45G8

Press AUDIO repeatedly during playback to

select the desired audio signal.

•DVD VIDEO

Depending on the DVD VIDEO, the choice of

language varies.

When 4 digits arc displayed, they indicate a

language code. See "Language Code List"

(page 105) to confirm which language the code

represents. When the same language is

displayed two or more times, the DVD VIDEO

is recorded in multiple audio formats.

•DVD-VR

Tile types of sound trucks recorded on u disc"are

displayed.

Example:

[l: MAIN] (main sound)

ll: SUB](sub sound)

l l: MAIN+SUB] (main and sub sonlld)

[2: MAIN]

12:SUB1

12: MAIN+SUB]

•12:MAIN], 12:SUB], and 12:MAIN+SUB] de net

appear when ene audio stream is rccerded en the disc.

•VIDEO CD/CD/DATA CD (MP3 fIle)/DATA

DVD (MP3 file)

•[STERE()]: Tile stundurd stereo sound.

•JilL]: The sound of the lel: channel

(monaural).

•[2/R]: Tile sound of the right channel

(monmlral).

•DATA CD (DivX video file)/DATA DVD

(DivX video file) (Except for United

Kingdom and North American models)

Tile choice of DATA CD or DATA DVD audio

signal l\)rmats diffi:r, depending on the DivX

vide() file contained on the disc. The lormat is

shown in the display.

•Super VCD

• 11:STERE()]: Tile stereo smmd of tiae audio

track 1.

• [ I:I/L]: The sound of the left chalmel of tile

audio track 1 (monaural).

• [1:21R]: The sound of the right channel of the

audio track 1 (monaural).

• [2:STEREO]: Tile stereo smmd of tl_e audio

track 2.

•I2:I/L]: The sound of the left channel of the

audio track 2 (monaural).

• [2:21R]: The sound of tile right channel of tile

audio track 2 (monaural).

• While the system is playing a Super VCD on which

the mdie track 2 is net recerde& no sound will come

eut when you select [2:STEREO], [2:I/L], er [2:21R].

" Except lbr United Kingdom and Nerth American

models.

If you press AUDIO repeatedly during

playback, the l\)rmat of the current audio signal

(PCM, Dolby Digital, DTS, etc.) appears as

shown below.

•DVD

Example:

Dolby Digital 5.1 chunnel

LFE (Low

Surround (UR) Frequency Effect)

Currently playing program format

Example:

Dolby Digital 3 chunnel

Surround

Front (L/R) (Monaural)

Currently playing program format

46GB

•DATA CD (DivX video file)/DATA DVD

(DivX video file) (Except for United

Kingdom and North American models)

Example:

MP3 audio

Bit rate

You can play the Super Audio CD (page 104) by

selecting the playback area.

To select a playback area on a 2

channel + MulU-channel Super

Audio CD

Some Super Audio CDs consist of a 2 channel

playback area and a multi-channel playback

area. You can select the playback area you want

to listen to.

1Press ODISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

2 Press ,I,/4, to select _[MULTI/

2CH], then press @.

The options for [MULT1/2CH] appear.

3Press ,I,/4, to select the desired setting

and press @.

•[MULTI]: You can play the multi-channel

playback area.

• [2CH]: You can play the 2channel

playback area.

•You cannot change the playback area during

playback.

To change a playback layer when

playing a hybrid Super Audio CD

Some Super Audio CDs consist of ml HD layer

and a CD layer. Yon can change the playback

layer yon want to listen to.

• When the Super Audio CD does not have Ihe HD

layer, you cannot select the playback layer.

1 Press ODISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

2 Press'1'14, to select _ [SUPER

AUDIO CD/CD LAYER], then press @.

•When the current layer is the CD

layer

[SUPER AUDIO CD] appears.

•When the current layer is the HD

layer

[CD] appears.

3 Press @to change the layer.

• [SUPER AUDIO CD]: You can play the

HD layer.

When the system is playing an HD layer,

"SA-CD" lights up in the front panel

display

• [CD]: Yon can play the CD layer.

When the system is playing a CD layer,

"CD" lights up in the front panel display.

• Each play mode flmction works only within the

selected layer or playback area.

• When you select a CD layer, you cannot change a

playback area.

• Super Audio CD audio signals arc not output from the

HDMI OUT jack.

(PBC Playback)

With PBC (Playback Control) functions, you

can enjoy simple interactive operations, search

fimctions, and other such operations.

47GB

PBC playback allows you to play a VIDEO CD

interactively by li)llowing the menu on the TV

screen.

1Start playing aVIDEO CD with PBC

functions.

The menu for your selection appears.

Select the item number you want using

the number buttons.

4Press @.

Follow the instructions in the menu for

interactive operations.

Reli:r to the operating instructions supplied

with the disc, as the operating procedttre

may difli:r depending on the VIDEO CD.

To go back to the menu

Press d% RETURN.

•Depending on the VIDEO CD, IPress ENTER[ in

Step 3 may appear as [Press SELECT] in the

operating instructions supplied with the disc. In this

case, press [2:>-.

•To play wifllout using the PBC fimction, press t'<'41/

or the number buttons while the system is in stop

mode to select a track, then press [2::--or @. The

system starts playback. You cannot play still pictures

such as a menu. To return to PBC playback, press •

twice, then press [2:>.

(Resume Play)

Wben you stop tbe disc, the system remembers

the point where you pressed •attd "RESUME"

appears in the front panel display. As long as

you do not remove the disc. Resume Play will

work even if the systent is set to standby mode

by pressing I/(_).

1While playing a disc, press •to stop

playback.

"RESUME" appears in the front panel

display.

2Press [2>.

The system starts playback fl'om the point

where you stopped the disc in Step 1.

• Depending on where you stop the disc, the system

may not resume playback hom exactly the same

point.

• The point where you stopped playing may be cleared

when:

you eject the disc.

the system enters standby mode (DATA CD/

DATA DVD only).

you change or reset the settings on the Setup

Display.

you change the parental control level.

you change the limction by pressing FUNCTION

+/.

you disconnect the AC power cord (mains lead).

•For a DVD-VR, VIDEO CD, Super Audio CD, CD,

DATA CD, or DATA DVD, the system remembers

the resume playback point for the current disc.

•The resume point is cleared when you select another

disc.

•Resume Play does not work during Program Play and

Shu file Play.

• This function may not work properly with some

discs.

• To play from the beginning of the disc, press • tv,'ice_

then press [2:>.

To enjoy a disc that is played

before by resume playback

(Multi-disc Resume)

This system recalls the point where you stopped

the disc the last time it was played and resumes

playback l?om that point the next time you insert

the stone disc. When the resunte playback

memory is full. the resume playback point R)r

the earliest disc is deleted.

To activate this function, set [MULTI-DISC

RESUME] in [SYSTEM SETUP] to [ON]. For

details, see "[MULTI-DISC RESUME] (DVD

V1DEO/V1DEO CD only)" (page 67).

48G8

• This system can store at least 10 resume playback

points.

• If [MULTI-DISC RESUMEI in [SYSTEM SETUPI

is set to [OFFI (page 67), the resume point is cleared

when you change the function by pressing

FUNCTION +_.

• To play from 1hebeginning of Ihe disc, press •twice,

Ihen press [2:>-.

UsingPlay Mode

(Program Play)

You can play the contents of a disc in the order

you want by arranging the order of the tracks on

the disc to create your own program. You can

program up to 99 tracks.

• You can program the track on the current disc only.

1Press ODISPLAY.

The Control Menu display appears on the

TV screen.

2Press 1'/4,to select _[PROGRAM],

then press @.

The options li_r [PROGRAM] appear.

3 Press ,1,/4,to select [SET --*], then

press @.

Total time of the programmed tracks

PROGRAM

I 1. TRACK --

Tracks recorded on a disc

4Press -.).

The cursor moves to Ille track row [T] (in

this case, [0l I).

PROGRAM O: 00:00

Select the track you want to program.

For example, select track [O2].

4gG8

Press "1"14,to select [02] under IT], then

press G).

Selected track

I 2.TRACK -- I

RA_:

Total time of the programmed tracks

To program other tracks, repeat Steps

4to5.

The programmed tracks are displayed in the

selected order.

Press E::> to start Program Play.

Program Play starts.

When the program ends, you can restart the

same program again by pressing I2:>.

To return to normal play

Press CLEAR while the display 1;.)1"the program

setting is not displayed on the TV screen, or

select [OFF] in Step 3. To play the same

program again, select [ON] in Step 3 and press

To turn off the Control Menu

display

Press U_'_DISPLAY repeatedly until the Contrel

Menu display is turned off.

To change or cancel a program

1Follow Steps 1to 3 of "Creating your

own program."

2 Press ,I,/4, to select the program

number of the track you want to

change or cancel.

If you want tO delete the track from the

program, press CLEAR.

3 Follow Step 5 for new programming.

Te cancel aprogram, select [--] under IT],

then press @.

To cancel all of the tracks in the

programmed order

1Follow Steps 1 to 3 of "Creating your

own program."

2Press ,t, and select [ALL CLEAR].

3Press @.

(Shuffle Play)

You can play the contents on a disc in random

order. Subsequent Shuffle Play may produce a

difli:reut playing order.

• Same song may be played repeatedly when you are

playing MP3 files.

• You can shuffle the tracks on the current disc only.

1Press ODISPLAY during playback.

The Control Menu display appears on the

TV screen.

2 Press 'I'14"to select _[SHUFFLE],

then press @.

The options fer [SHUFFLE] appear.

3 Press ,I,14,to select the item to be

shuffled,

•VIDEOCD/Super Audio CD/CD

• [OFF]:Off.

• [TRACK]: You can shuffle tracks on the

disc.

•During Program Play

•[OFF]: Off.

•[ON]: You can shuffle tracks selected in

Program Play.

•DATA CD (except for DivX video

file*)/DATA DVD (except for DivX video

file *)

•[OFF]: Off.

• [ON (MUSIC)]: You can shutlle MP3

files in the folder on the current disc.

When no l\)Ider is selected, the first R)lder

will play in random order.

" Except for United Kingdom and North

American models.

50G8

4Press (_.

Shuffle Play starts.

To return to normal play

Press CLEAR. or select [OFF] in Step 3.

To turn off the Control Menu

display

Press CO DISPLAY repeatedly until the Control

Menu display is turned off.

•You cannot use Shuffle Play with a VIDEO CD or

Super VCD with PBC playback.

(Repeat Play)

|||||

You can play the contents on a disc repeatedly.

You can use a combination of Shuffle Play or

Program Play modes.

1 Press ODISPLAY during playback.

The Control Menu display appears on the

TV screen.

2 Press ,Phi,to select _ [REPEAT],

then press @.

The options for [REPEAT] appear.

3Press t"/4, to select the item to be

repeated.

•DVD VIDEO/DVD-VR

• IOFF]: Off.

• [ALL DISCS]: You can repeat all of the

discs.

• [ONE D1SC]: You can repeat all of the

titles on the current disc. (When the

system is playing a DVD-VR. you can

repeat all of the titles of the selected type.)

• [TITLE]: You can repeat the current title

on a disc.

• [CHAPTER]: You can repeat the current

chapter.

•VIDEO CD/Super Audio CD/CD

• IOFF]: Off.

• [ALL DISCS]: You can repeat all of the

discs.

• [ONE DISC]: You can repeat all of the

tracks on the current disc.

• [TRACK]: You can repeat the current

track.

•DATA CD/DATA DVD

• IOFF]: Off.

• [ALL D1SCS]: You can repeat all of the

discs.

• [ONE DISC]: You can repeat all of the

tk)lders on the current disc.

• [FOLDER]: You can repeat the current

tMder.

• [TRACK] (MP3 files only): You can

repeat the current file.

• [FILE] (DivX video files only): You can

repeat the current file (except for United

Kingdom and North Anterican ntodels).

Press @.

The item is selected.

To return to normal play

Press CLEAR, or select [OFF] in Step 3.

To turn off the Control Menu

display

Press O DISPLAY repeatedly until the Control

Menu display is turned off'.

• You cannot use Repeat Play with a VIDEO CD or

Super VCD with PBC playback.

• When the system is playing a DATA CD/DATA

DVD which contains MP3 files and JPEG intage

files, andtheir playing time is not the same, the audio

sound will not match Ihe image.

• When [MODE (MUSIC, IMAGE)] is set to [IMAGE]

(page 55), you cannot select [TRACK].

51GB

Searching/Selecting a

Disc

A DVD is divided into a lot of sections, which

make up a picture or music lleature. These

sections are called "titles." When you play a

DVD which contains several titles, you can

select the title you want using DVD TOP

MENU.

When you play a DVD that allows you to select

items such as the language l\w the subtitles and

the language t_r the sound, select these items

using DVD MENU.

1Press DVD TOP MENU or DVD MENU.

The disc's menu appem's on the TV screen.

The contents of the menu vary depending

on the disc.

2Press <.11,14,1+or the number buttons to

select the item you want to play or

change.

3 Press @.

To display the DVD's menu on the

Control Menu display

1Press L_ DISPLAY during playback.

The Control Menu display appears on the

TV screen.

2Press 'I"/4,to select _[DISC

MENU], then press @.

The options for [DISC MENU] appear.

3Press t'14, to select [MENU] or [TOP

MENU].

4Press @.

To turn off the Control Menu

display

Press U2 DISPLAY repeatedly until the Control

Menu display is turned off.

This fnnctinn is only available tk_rDVD-VRs

with a playlist created.

1Press ODISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

2Press t,/4, to select _[ORIGINAL/

PLAY LIST], then press @.

The options lot [ORIGINAL/PLAY LIST]

appear.

3Press 'I'/4, to select a setting.

•[PLAY L1ST!: You can play the titles

created frnnl [ORIGINAL] for editing.

• [ORIGINAL]: You can plt_y the titles

originally recorded.

4Press @.

You can search a DVD VIDEO/DVD-VR by

title nr chapter, and you can search a VIDEO

CD/Super Audio CD/CD/DATA CD/DATA

DVD by track, index, or scene. For a DATA CD/

DATA DVD, you can search by fnlder or file.

As titles and tracks are assigned unique numbers

on the disc, you can select the desired title or

track by entering its number. Or, you can search

for a scene using the time code.

1Press @3DISPLAY. [When playing a

DATA CD/DATA DVD with JPEG image

files, press 0DISPLAY twice.)

The Control Menu display appears on the

TV screen.

2 Press t,/4, to select the search method.

Example: _ [CHAPTER]

[":': (': ':)1 is selected (':': reli_rs to a number).

52 GB

The nmnber in parentheses indicates the

lolal number of litles, chapters, tracks.

indexes, scenes, folders, <}1"liles.

Selected row

Press @.

[*_(*%1changesto I- - (*r%

0 Input the time code using the number

buttons.

For example, to find the scene at 2 hours. 10

minutes, and 20 seconds after the

beginning. Press 2. 1.0.2, 0 ([2:10:20]).

4Press @.

•You cannot search for a scene on a DVD+RW using

the time code. O

Press t,/4, or the number buttons to

select the desired number of the title,

chapter, track, index, scene, etc.

It"you make a mistake, press CLEAR to

cancel the number,

Press @.

The system starts playback from the

selected number.

•When the Control Menu display is turned off, you can

search for a chapter (DVD VIDEO/DVD-R/DVD-

RW), track (VIDEO CD/Super Audio CD/CD), or

file (DATA CD/DATA DVD (DivX video file))" by

pressing the number buttons and @.

" Except lbr United Kingdom and North American

models.

To search for a scene using the

time code

1In Step 2, select _[TIME].

[T ::r:: r:*:,_*] (playing lime of the current

title) is selecled.

2Press @.

[T r_r_:r_*:*.iq changes to [T --:--:--I.

53G8

Playing MP3 Files/JPEG

Image Files

You can play tile MP3 files or JPEG image files:

• which have lhe extension ".MP3" (MP3 file)

or ".JPG"/"JPEG" (JPEG image file)

• which conP.)rm to the DCF:: image file format

" "Design role R)rCamera File system": hnage

standards for digital cameras regulated by Japan

Electronics and Information Technology Industries

Association (JEITA).

• The system will play any data with the extension

".MP3," ".JPG,"or ".JPEG"even if they arc not in

MP3 or JPEG format. Playing these data may

generate a loud noise which could damage your

speaker system.

•The system does not conform to audio in MP3PRO

format.

• The system can recognize up to 2110R)lders, and will

notplay any folders beyond the 200th. (Depending on

the folder configuration, the number of R)lders that

can be recognized by the system may decrease.)

• The system can recognize up to 15(}MP3 files/JPEG

image files in a folder.

• The system may take longer time to playback, when

progressing to the R)llowing R)lder or jump to other

folder.

• The system may not play certain types of JPEG image

files (ex. a JPEG image file that is less than 8 (width)

x 8 (height)).

Load a DATA CD or DATA DVD.

The folders recorded on the DATA CD or

DATA DVD appeal'. When a l\qder is being

played, its title is shaded.

FOLDER LIST

Let's Talk About Love (1985/

Press ,t/q, to select a folder.

•To play MP3 files in afolder

Press _ to start playing the selected

Rqder.

•To select a MP3 file

Press @.

The list of files contained in the folder

appears.

TRACK LIST

[_ 03 In the Middle of Nowher...

Geronimo s Cadillac

Press 4"/,I,to select a file and press @.

The system starts playing the selected file.

You call turn tile file list off by pressing

DVD MENU. Pressing DVD MENU again

will display the folder list.

To stop playback

Press II.

To play the next or previous MP3

file

Press I_,,t/I,_. Note that you can select the

next f_llder by continuing to press _ afler the

last file on the current l\!lder, but that you cannot

return to the previous folder by pressing _.

To return to tile previous folder, select the lolder

li'om the R)lder list.

To return to the previous display

Press o*%RETURN.

To turn off the display

Press DVD MENU.

Load a DATA CD or DATA DVD.

The Rllders recorded on the DATA CD or

DATA DVD appear. When a lolder is being

played, its title is shaded.

54GB

FOLDER LIST

101 Let's Talk About Love (1985} I

2Press €q4, to select a folder.

•To play JPEG image files in afolder

Press _ to start playing the selected

fi)lder.

•To select a JPEG image file by

displaying the subscreens

Press PICTURE NAVI.

Images of JPEG image files ill tire fi)lder

appear in 16 subscreens.

! 234

5678

9 10 11 12

13 14 15 16

Press @/'I"/4,/.) to select the JPEG image

file you want to view. then press @.

To return to uormal screen, press o""e

RETURN.

•PICTURE NAVI does not work when you set

[MODE IMUSIC, IMAGE)] to [MUSIC].

•A scroll box is displayed :it the right side of the

TV screen. To display the additional JPEG

image files, select the botton_JPEG image file

and press ,I, To return to the previous JPEG

image file, select the top JPEG image file and

press '1".

To play the next or previous JPEG

image file

Press .)/@ when tire Control Menu display is not

displayed. Note that you can select the next

folder by continuing to press .) after the last

image on the current fi)lder, but that you cannot

return to the previous fi)lder by pressing @. To

return to the previous Rqder, select tile tkqder

li'om tile fi)lder list.

To rotate a JPEG image file

When a .1PEG iumge file is displayed on the TV

screen, you carl rotate tile JPEG image file by 90

degrees.

Press 'I'/,I, while viewing a JPEG image file.

Press CLEAR to return to normal view.

•You cannot rotatethe JPEG image file when you set

[JPEG RESOLUTION] in [HDMI SETUP] to [( 1920

x 1080i) HD [11 or 1(1920 x 1080i) HDI (page 65).

To stop playback

Press I.

Press GDISPLAY during playback.

The Control Menu display appears on tile

TV screen.

Press t,14, to select

[BROWSING], then press @.

The options l;ar [BROWSING] appear.

Press _./4, to select the desired list,

then press @.

•[FOLDER LIST]: The list of R)lders

appears. Follow Step 2 of "Selecting all

MP3 file or tMder" or "Selecting a JPEG

image file or l\)lder."

•[PICTURE LIST]: hnages of JPEG image

files ill the fi)lder appear ill 16 subscreens.

Follow Step 2 of"Selecting aJPEG image

file or folder."

You carl play a slide show with sound by first

placing both MP3 files and JPEG image files in

the same fi)lder on a DATA CD or DATA DVD.

1Load a DATA CD or DATA DVD.

55G8

2Press ODISPLAY while the system is

in stop mode.

The Control Mernt display appears on the

TV screen.

3 Press ,t,/4,to select _[MODE

(MUSIC, IMAGE)], then press C).

The npliorts fnr [MODE (MUSIC,

IMAGE)] appear.

4Press t,14, to select a setting.

• [AUTO]: Yon can play both the .1PEG

image files and MP3 liles in Ihe same

folder as a slide show.

• [MUSIC]: Ynu can play nnly MP3 liles

continuously.

• [IMAGE]: You can play only JPEG

in(age liles as a slide show.

5 Press @.

6Press DVD MENU.

The list nl folders recorded on the DATA

CD or DATA DVD appears.

7 Press i,14, to select the desired folder

and press [_>.

The systent starts playing the selecled

folder.

Ynu can turn the lk)lder list on/nff by

pressing DVD MENU repealedly.

• PICTURE NAVI does not work when [MUSIC] is

selected.

• If you play large MP3 file and JPEG image file at the

same time, the sound may skip. Sony recommends

that you set the MP3 bit rate to 128 kbps or lower

when creating the file. If the sound still skips, reduce

the size of the JPEG image file.

To select the slide show duration

of JPEG image files

1 Press C3 DISPLAY twice.

The Control Menu display appears on the

TV screen.

2 Press i,/,I, to select _ [INTERVAL],

then press @.

The options for [INTERVAL] appear.

3 Press ,t,/4,to select a setting.

• [NORMAL]: Yntt can set to the standaM

duration.

• [FAST]: Ynu can set the duration shorter

than [NORMAL].

•[SLOW I]: You can set the duration

longer than [NORMAL].

• [SLOW 2]: You can set the duration

longer than [SLOW l ].

4Press @.

• Some JPEG image files may take longer to display

than the option you selected. Especially progressive

JPEG image files or JPEG image files of 3,000,000

pixels or more.

• Duration of interval depends on the [JPEG

RESOLUTION] setting in [HDMI SETUP]

(page 64).

To select an effect for JPEG

image files in the slide show

1 Press ODISPLAY twice.

The Control Menu display appears on Ihe

TV screen.

2 Press 'I"/4,to select _ [EFFECT],

then press @.

The options for [EFFECT] appear.

3Press ,t,/4,to select a setting.

[MODE 11:The .1PEGimage file sweeps

in from top to bnttorn.

[MODE 21:The JPEG image file slretches

out from left tn right (9t"the TV screen.

[MODE 31:The JPEG inaage lile slretches

out from the center of the TV screen.

[MODE 4]: The JPEG image liles

randomly cycle thrnugh Ihe et'tbcts.

[MODE 5]: The next JPEG image file

slides nver the previotts image.

[OFFI: Off.

4Press @.

•The [EFFECT]settingis notcflk.ctivewhenyousel

[JPEGRESOLUTIONIin[HDMISETUP]to [(1920

x 1080i)HD [SIllor [(1920x 1080i)HDI(page65).

56G8

EnjoyingDivX®Videos

(Except for United Kingdom and North

American models)

DivX @is a vide() file compression technology,

developed by DivX, Inc. This product is art

official DivX ® Certified product.

You can play a DATA CD or DATA DYD that

contains DivX ® video files.

A DATA CD or DATA DVD that the

system can play

Playback of a DATA CD (CD-ROM/CD-R/CD-

RW) or DATA D'v'D (DVD-ROM/D\_D-R/

DVD=RW/DVD+R/DVD+RW) on this system

is subject to certain conditions:

With a DATA CD/DATA DVD that contains

DivX vide() files in addition to MP3 audio

tracks or JPEG image files, the system plays

only the DivX vide() files.

However, this system only plays a DATA CD of

lormat 1SO 9660 Level 1/Level 2 or Joliet, arrd a

DATA DVD of Universal Disk Format (UDF).

Refcr to the operating instructions supplied will)

the disc drives and the recording soRware (not

supplied) l\_r details on the recording format.

About playback order of data on a

DATA CD or DATA DVD

Note that the playback order may not be

applicable, depending on the software used tk)r

creating the DivX video file, or it there are more

than 200 R)lders and 150 DivX vide() files in

each flqder.

•The system may not be able to play some DATA

CDs/DATA DVDs created in the Packet Write

lk_rmat.

DivX video files that the system

can play

The system can play dlmt that is recorded in

DivX lormat, and which has the extension

".A¥I," r .DIYX." The system will not play

liles with the exlension ".AVI" or ".D1VX" if

they do not contain a DivX \'iden.

•For details about playable MP3 audio tracks or JPEG

image files on a DATA CD or DATA DVD, see

"Playable Discs" (page 6).

• The system may not play _ DivX vide() file when the

file has been combined from two or more DivX video

files.

• The system cannot play a DivX video file of size

morn than 720 (width) x 576 (height) or 2GB.

• Depending on the DivX video file, sound may skip or

not match the pictures on the T¥ screen.

• The system cannot play some DivX video files Ihat

are hmger than 3 hours.

• Depending on the DivX video file, the picture may

pause or be unclear. In which ca_,e,it is recommended

Ihat you create the file at alower bit rate. If the sound

is still noisy, MP3 is the recommended audio format.

Note, however, this syqem does not conform to

WMA (Windows Media Audio) format for playing

DivX files.

• Because of the compression technology used for

DivX video files, it )nay take some time afier you

press _ for tire picture to appear.

Press DVD MENU.

A list of folders on the disc appears. Only

folders that contain DivX vide() files are

listed.

FOLDER LIST

2Press'l'14, to select the folder you want

to play

3Press I;:>.

The system starts playing the selected

[older.

t:l

57G8

To select DivX video files, see "Selecting a

DivX video file" (page 58).

To go to the next or previous

page

Press ,,,_/_,*.

To turn off the display

Press DVD MENU repeatedly.

To stop playback

Press I.

. To return to the previous l\qder, select it

from the lkqder list.

•If the number of viewing times is preset, you can play

the DivX video files as many times as the preset

number. The following occurrences are counted:

when the system is turned off.

when another file is played.

when the disc tray is opened.

1After Step 2 of "Selecting a folder,"

press @.

The list of files in tire lolder appears.

FILE LIST

[_] MY FAVOURITES

I HAWAII 2004

2 Press ,I,/4, to select a file and press @.

The selected file starts playing.

To go to the next or previous

page

Press _=_/_,.,,.

To return to the previous display

Press o"%RETURN.

To stop playback

Press I.

To play the next or previous DivX

video file without turning on the

above file list

You can select the next or previous DivX video

file in the same fielder by pressing I_,t/1_.

You can also select the first file of the next

I\_Ider by pressing _ during playback of the

last file of tire current folder. Note that you

cannot return to the previous l\qder by pressing

58s_

Adjustingthe Delay

Betweenthe Pictureand

Sound

[A/V SYNC]

r, Except lk)rUnited Kingdom and North American

models

When the sound does nol malch Ihe piclures nu

lhe TV screen, you call adjust the delay belween

lhe piclure and sound.

1Press C_ DISPLAY.

The Control Menu display appears on the

TV screen.

2Press t"/4, to select |[A/V SYNC],

then press @.

The options for [A/V SYNC] appear.

3Press ,I,14,to select a setting.

•IOFFI: Olf.

•[ON]: You call adjust the difference

between piclure and souud.

4Press @.

rml

•Depending on Ihe input stream, [A/V SYNC] may not

be effective.

RestrictingPlaybackof

the Disc

[PARENTAL CONTROL]

Playback of some DVD VIDEOs can be limited

according to a predeternlined level such as the

age of the users. Scenes may be blncked nr

replaced with different scenes.

You can set the playback restriction by

registering a passwnrd. When you set the

[PARENTAL CONTROL] function tn on. you

need tn enter the password to play restricted

discs.

1Press FUNCTION +/- repeatedly until

"DVD" appears in the front panel

display.

2 Press QDISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press t'/4, to select B [SETUP],

then press @.

The options li_/r[SETUP] appear.

4Press'l"/4, to select [CUSTOM], then

press @.

The Setup Display appears.

5 Press t,/4, to select [SYSTEM SETUP],

then press @.

The options lot [SYSTEM SETUP] appear.

6Press ,I,/.1,to select [PARENTAL

CONTROL --+], then press @.

•If you have not entered a password

The display for registering a new password

appears.

PARENTALCONTROL

Enter a new 4-digit passwold,

lhen press_.

]][[ []i_ [ii_ [ii_

5gGB

Enter a 4=digit password using tire number

buttons, then press @.

The display R_r confirnfing tile password

appears.

•When you have already registered a

password

The display lor entering tile password

appears.

Enter or re-enter your 4-digit password

using the number buttons, then press

The display l\>r setting the playback

limitation level appears.

PARENTAL CONTROL 1

LEVEL: OFF

8Press 'I'/4, to select [STANDARD], then

press @.

The selection items for [STANDARD] are

displayed.

9 Press i'/4, to select a geographic area

as the playback limitation level, then

press @.

Tile area is selected.

When you select [OTHERS ---+], select and

enter a standard code ill the table of

"Parental Control Area Code List"

(page 105) using the number buttons.

10Press .14, to select [LEVEL], then press

Tile selection items for [LEVEL] are

displayed.

1 1 Press i,/4, to select the desired level,

then press @.

[PARENTAL CONTROL] setting is

complete.

The lower tile value, the stricter the

limitation.

To turn off the [PARENTAL

CONTROL] function

Set [LEVEL] to [OFF] in Step 11.

To play a disc for which

[PARENTAL CONTROL] is set

1 Load the disc and press L:>.

Tile display for entering your password

appears.

2 Enter your 4-digit password using the

number buttons, then press @.

The system starts playback.

• When you play discs which do not have the

[PARENTAL CONTROL] lhnction, playback

cannot be limited on this system.

• Depending on the disc, you may be asked to change

the p irental control level while playing the disc. In

this cas< enter your passwor& then change the level.

If the Resume Play mode is canceled, the level returns

to the previous level.

• If you forgcl your password, remove the disc and

repeat Steps 1to 7 of "Restricting Playback of the

Disc" (page 59). When you are asked to enter your

passwor& enter "199703" using the number buttons,

then press {.}. The display will ask you to enter a new

4-digit passwoM. After you enter a new 4-digit

passwor& replace the disc in the unit and press L;>.

When the display for entering your password appears,

enter your new password.

Press FUNCTION +/- repeatedly until

"DVD" appears in the front panel

display.

Press ODISPLAY while the system =s

in stop mode.

Tile Control Menu display appears on tile

TV screen.

Press 'I'14, to select B [SETUP],

then press @.

The options for [SETUP] appear.

Press 'I'14, to select [CUSTOM], then

press @.

The Setup Display appears.

60G8

5Press t,/,1, to select [SYSTEM SETUP],

then press @.

The options for [SYSTEM SETUP] appear.

6Press t"/.1,to select [PARENTAL

CONTROL --*], then press @.

Tile display lor entering the password

appears.

7 Enter your 4-digit password using the

number buttons, then press @.

8 Press i'/4, to select [CHANGE

PASSWORD -+], then press @.

9 Enter your 4-digit password using the

number buttons, then press @.

10Enter a new 4-digit password using the

number buttons, then press @.

11To confirm your password, re-enter it

using the number buttons, then press

If you make a mistake entering

your password

Press @bel\>re you press (.), then input the

correct nllnlber.

Usingthe Setup Display

You can make various adjustments of items such

as picture and sound.

Displayed items vary depending on the country

model.

• Playback settings stored in the disc take priority over

the Setup Display settings and net all the functions

described may work.

1 Press FUNCTION +/- repeatedly until

"DVD" appears in the front panel

display.

2 Press ODISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3 Press ,I,/4, to select _ [SETUP],

then press @.

The options li_r [SETUP] appear.

4Press't"/4, to select [CUSTOM], then

press @.

The Setup Display appears.

5 Press t,/4, to select the setup item, then

press @.

• [LANGUAGE SETUP] (page 62)

• [VIDEO SETUP] (page 62)

• [HDMI SETUP] (page 64)

• [AUDIO SETUP] (page 65)

• [SYSTEM SETUP] (page 66)

• [SPEAKER SETUP] (page 67)

Example: [VIDEO SETUP]

Selected item

VIDEO SETUP

TV TYPE:

--------- Setup items

6Press ,I,14,to select an item, then press

®.

61GB

The options for file selected item appear.

Exmnple: [TV TYPE]

,!iii JJV,0EOSETUP

Options

Press ,I,/4, to select a setting, then

press @.

The setting is selected and setup is

complete.

VIDEO SETUP

TV TYPE: 4:3 LETTER BOX

Selected setting

•When you turn the system on after resetting and no

disc is in the unit, the guide message appears on the

TV screen. To perform the Quick Setup (page 35),

press (.). To return to normal screem press CLEAR.

To reset all of the [SETUP]

settings

To reset all of the [SETUP] settings, see

"Returning the [SETUP] settings to the det?tult"

(page 90).

•[OSD] (On-Screen Display)

You can switch the display language on the TV

screen.

•[MENU] (DVD VIDEO only)

You can switch the language R_r the disc's

menu.

• [AUDIO] (DVD VIDEO only)

You can switch the language of the sound track.

When you select [ORIGINAL], the language

given priority in the disc is selected.

•[SUBTITLE] (DVD VIDEO only)

You can switch the language of the subtitle

recorded on the DVD VIDE().

When you select [AUDIO FOLLOW], the

language for the subtitles changes according to

the language you selected li_r the smmd track.

• When you select a language in [MENU], [AUDIOL

or [SUBTITLE] that is not recorded on the DVD

VIDEO, one of the recorded hmguages will be

automatically selected (depending on the disc, the

language may not be selected automatically).

• If you select [OTHERS --_l in [MEN U], [AUDIO],

and [SUBTITLEL select and enter a language code

from "Language Code List" (plge 105) using the

number buttons.

[LANGUAGE SETUP]

Set various hmguages for the on-screen display

or sound track.

LANGUAGE SETUP

[VIDEO SETUP]

Select settings according to the TV to he

connected.

VIDEO SETUP

62G8

• [TVTYPE]

You can select the aspect ratio of the connected

TV.

[I 6:9]: Select this when you connect a wide-

screen TV or a TV with a wide mode function.

[4:3 LETTER BOX]: Select this when you

connect a 4:3 screen TV. Displays a wide picture

with bands on the tipper and lower portions of

the TV screen.

[4:3 PAN SCAN Select this when you connect

a 4:3 screen TV. The system automatically

displays the wide picture on the entire screen

and cuts off the portions that do not fit.

The system outputs the progressive signal

l_,_r5 seconds. Check that the screen is

displayed correctly.

3 Press ÷/÷ to select [YES].

The system outputs the progressive signal.

If you select [NO], the system will not

output the progressive signal.

•]PROGRESSIVE (COMPONENT OUT)] is

effective only when you connect the unit and TV with

a component video cord (page 26).

•[4:3 OUTPUT]

When you use a 16:9 aspect ratio TV, you can

adjust the aspect ratio to watch 4:3 aspect ratio

signals. If you can change the aspect ratio on

your TV, change the setting on your TV, not the

system.

[FULL]: Select this when you can change the

aspect ratio on your TV.

[NORMAL]: Select this when you cannot

change the aspect ratio on your TV. A 16:9

aspect ratio signal with black bands on left and

right sides of the image appears.

• Depending on the DVD, 14:3LETTER BOX] may be

selected automatically instead of [4:3 PAN SCAN] or

vice versa.

•[PROGRESSIVE (COMPONENT OUT)]

You can set the progressive signal that is output

from the COMPONENT VIDE() OUT jacks to

on/off. For details, see "Does your TV accept

progressive signals?" ]page 37).

[OFF]: The system outputs interlace signals.

[ON]: The system outputs progressive signals.

When yon select [ON], follow the Steps below.

1Select [ON], then press @.

The confirmation display appears.

2 Press ÷/+ to select [START], then

press @.

16:9 aspect ratio TV

• [4:3 OUTPUT] is effective only when you set [TV

TYPE] in [VIDEO SETUP] to [16:%

•[COLOR SYSTEM (VIDEO CD)]

(Asian, Australian, and Middle Eastern

models only)

You can select the color system w'hen you play a

VIDEO CD.

[AUTO]: The system outputs the video signal in

the system of the disc, either PAL or NTSC. If

your TV uses a DUAL system, select [AUTO].

[PAL]: The system changes the video signal (if

an NTSC disc and outputs it in the PAL system.

[NTSC]: The system changes the video signal of

a PAL disc and outputs it in the NTSC system.

63G8

• You cannot change the color system of the disc itself.

• You can change the color system of this system

according to the connected TV (page 28).

•[BLACK LEVEL]

(North American, Mexican, and Latin

American models only)

You can select the black level (setup level) _r

tile vide() signals output from the jacks other

than COMPONENT VIDEO OUT/HDMI OUT.

[ONI: Tile standard level.

[OFF]: You can lower the standard black level.

Use tiffs when the picture becomes too white.

• [BLACK LEVEL (COMPONENT OUT)]

(North American, Mexican, and Latin

American models only)

You can select the black level (setup level) _)r

the vide() signals output from the

COMPONENT VIDEO OUT jacks.

You cannot select this and the setting is not

effective when the system outputs progressive

signal.

[OFF]: You can set the black level of the output

signal to the standard level.

[ON]: You can raise the standard black level.

Use tills when the picture becomes too black.

•[PAUSE MODE] (DVD VIDEO/DVD-R/

DVD-RWonly)

You can select the picture in pause mode.

[AUTO]: The picture, including suhjects that

move dynamically, is output with no jitter.

Normally select this position.

[FRAME]: The picture, including suhjects that

do not move dynamically, is output in high

resolution.

[HDMI SETUP]

HDMISETUP

•[HDMI RESOLUTION]

You can select the type of video signal thatis

output lbom the HDMI OUT jack. For details,

see "To select the type of vide()signal output

from the HDMI OUT jack" (page 37).

[AUTO ( 1920 x 1080p)]: The system outputs

the optimal video signal li)r the connected TV.

[1920 x 1080i]: The system outputs 1920 x

lI)8(ti* vide() signals.

[1280 x 720p]: The system outputs 1280 x

7211p* vide() signals.

[721) x 481tp]* ':: The system outputs 720 x

481)p'_ vide() signals.

" i: interlace, p: progressive

"" Depending on the count Umodel, 1720 x 576p] may

appear.

• [CONTROL FOR HDMI]

You can set the [CONTROL FOR HDMI]

function to on/olT. This function is available

wben you connect the system and TV with an

HDMI cable. Fordetails, see "Using the Control

lk_rHDMI Function l\)r "BRAV1A" Sync"

(page 73).

[OFF]: Off.

ION]: On. You can operate mutually between

components that are connected with an HDMI

cable.

• When you set to ION] without the HDMI connection

of the TV, [Please verify,the HDMI connection.I

appears and you cannot set to [ON].

64G8

•[VOLUME LIMIT]

If you change tile output method of the TV to the

system speaker on the TV menu or by pressing

THEATER/THEATRE*, the System Audio

Control (page 75) is activated and loud sound

may be output depending on the volume level of

the system. You can prevent this by limiting the

maximum level of tile volume.

" The button name diflL,rs depeMing on the area.

[LEVEL3]: Maximmn volume level is set to 10.

_: Maximum volmne level is set to 15.

[LEVEL1 ]: Maximum volume level is set to 20.

[OFFI: Off.

•This lhnction is available only when ICONTROL

FOR HDMI] is set to ION].

•[YCBCR/RGB (HDMI)]

You can select the type of HDMI signal output

fi'om HDMI OUT jack.

_: The system outputs YCBCR signals.

[RGB]: Tile system outputs RGB signals.

• If the playback picture becomes distolle& set

IYCB&] to IRGB].

• If the HDMI OUT jack is connected to a component

with a DVI jack, [RGB] signals will be automatically

output even when you select IYCBCR].

•[AUDIO (HDMI)]

You can select the audio output status {}÷mnthe

HDMI OUT jack.

[OFF]: The system does not output the sound

li'om the HDMI OUT jack.

[ON]: The system outputs audio signals by

converting Dolby Digital, DTS, or 96 kHz/24 bit

PCM signals to 48 kHz/16 bit PCM.

• When you connect the unit and TV with an HDMI

cable and IONI is selected, [AUDIO DRCI, IA/V

SYNC], DYNAMIC BASS, "DEC. MODE," and

sound mode are not applied to the sound that is output

from the TV.

• When you set the lhnction to other than "DVD," the

system does not output the sound from the HDMI

OUT jack even if you set [AUDIO (HDMI)I to tONI.

•[JPEG RESOLUTION]

You can select the resolution of JPEG image

files output Dom the HDMI OUT jack.

[SD [Z]]: The system outputs standard

resolution with a black Dame.

[HD F]]: The system outputs HI) resolution

with a black frame.

[HD]: The system outputs the HI) resolution

without a black flame.

[(1920 x 1080i) HI) Ell: Tile system outputs

lhll size HD resolution with a black flame.

[(1920 x 1080i) HD]: The system outputs full

size HI) resolution without a black frame.

•IJPEGRESOLUTION] is effective only when you

set ITV TYPE] in IVIDEO SETUP] to 116:9Land

you set IHDMI RESOLUTION] in IHDMI SETUP]

to other than 1720 x480p1 or 1720 x 576p1.

• You can select 1(1920 x 1080i) HD _ ] or 1(1920 x

1080i) HD] only when you set [HDMI

RESOLUTION] in [HDMI SETUP] to [1920 x

I/)80il.

• If you select 1(1920 x 1080i) H D _ ] or 1(1920 x

1080i) HD], the next image appears after the black

screen.

• HDMI signal will stop momentarily when:

The system is loading or unloading a DATA CD or

DATA DVD.

You change the disc from a DATA CD or DATA

DVD.

You play a DATA CD or DATA DVD to the end

and the system slops playback automatically.

[,4 UDIO SETUP]

AUDIO SETUP

¢}

65G8

•[S-AIR SETUP]

(DAV-HDX275/DAV-HDX475 only)

You cml set up the S-AIR setting. For details,

see "Using an S-AIR Product" (page 77).

[ID)

You call set the 1D of the system.

[PAIRING]

Ynu can pair the system and S-AIR sub unit.

such as surround amplifier or S-AIR receiver.

•This function is available only when tile S-AIR

transmitter (not supplied) is inserled into the unit.

•[SPEAKER FORMATION]

Yon call select the position of the speakers for

the better surround sound. For details, see

"Getting Optimal Surround Sound lot a Roonl"

(page 83).

•[AUTO CALIBRATION]

Yon can calibrate tile appropriate settings

autnnmtically. For details, see "Calibrating the

Appropriate Settings Automatically" (page 84).

•[AUDIO DRC](DVD VIDEO only)

You can compress the dynamic range of the

sound track. [AUDIO DRC] is useful for

watching movies at low volume late at night.

[OFF]: No compression of dynamic range.

[STANDARD]: The system reproduces tl_e

sound track with the kind of dynamic range that

the recording engineer intended.

[MAX]: The system compresses dynamic range

fully.

• [AUDIO DRC] works only fi)r Dolby Digital.

•[TRACK SELECTION] (DVD VIDEO only)

You can give the sound track which contains the

highest number of channels priority when you

play a DVD VIDEO ou which nmltiple audio

flarmats (PCM, DTS, Dolby Digital. or MPEG

audio) are recorded.

[OFF]: Off.

[AUTO]: The system selects the sound track

automatically according to the priority.

• When you set the item to [AUTO], the language may

change. The [TRACK SELECTION] setting has

higher priority than tile [AUDIOI settings in

]LANGUAGE SETUP] (page 62). (Depending on

the disc, this fimction may not work./

• IfPCM, DTS, Dolby Digital sound, and MPEG audio

have the same number of channels, the system selects

PCM, DTS, Dolby Digital sound, and MPEG audio ill

this order.

iii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii iii!

[SYSTEM SETUP]

SYSTEM SETUP

•[SCREEN SAVER]

You can reduce the display device damages

(ghosting). Press any button (e.g., [2:>button) to

cancel the screen saver.

[ON]: The screen saver image appears if you do

not operate the system for about 15 minutes.

[OFFI: Oil.

•[BACKGROUND]

You can select the background color or picture

on the TV screen.

[JACKET PICTURE]: The jacket picture (still

picture) appears, but nnly when the jacket

picture is already recorded on the disc (CD-

EXTRA, etc.). If tile disc does not contain a

jacket picture, tile [GRAPHICS] picture

appears.

[GRAPHICS]: A preset picture stored in the

system appears.

[BLUE]: The background is blue.

[BLACK]: Tile background is black.

66GB

• [PARENTAL CONTROL]

You can set the playback restrictions. For

details, see "Restricting Playback of the Disc"

(page 59).

•[DivX]

(Except for United Kingdom and North

American models)

You can display tbe registration code _r this

system.

For more inlimnation, go to

http://www.divx.com on the lnternet.

•[MULTI-DISC RESUME] (DVD VIDEO/

VIDEO CD only)

You can set the [MULTI-DISC RESUME

function to on/off.

[ON]: The system stores tile resume points Ill

memory for up to 10 discs.

[OFF]: Tbe system does not store tbe resume

points in memory. Playback restarts at the

resume point only for the current disc ill the unit.

• [RESET]

You can return the [SET UP] settings other than

[PARENTAL CONTROL] to the default

settings. For details, see "Returning the

[SETUP] settings to the det:ault" (page 90).

[SPEAKER SETUP]

To obtain tbe best possible surround sound, set

connection of the speakers and their distance

fi'om your listening position. Then use the test

tone to adjust tile level and the balance of the

speakers to the same level.

• You cannot operate [SPEAKER SETUP] when you

connect headphones to the unit or surround

amplifier"t

" DAV-HDX275/DAV-HDX475 only.

SPEAKER SETUP

• [CONNECTION]

If you do not connect center or surround

speakers, set the parameters for [CENTER] and

[SURROUND]. Since the l?ont speaker and

subwoo[i_r setting is fixed, you cannot change

them.

[FRONT]

[YES]

[CENTER]

[YES]: Normally select this.

[NONE]: Select this if no center speaker is used.

[SURROUND]

[YES]: Nommlly select this.

[NONE]: Select this if no surround speaker is

used.

[SUBWOOFER]

[YES]

• When you change the ICONNECTION] setting, the

[STANDARD] of [SPEAKER FORMATION]

setting remains the same, hut Ihe other settings of

[SPEAKER FORMATION] return to

[STANDARD].

• [DISTANCE (FRONT)]

When you move tbe front speakers and center

speaker, be sure to set the parameters of the

distance (t_) fi'om the listening position to the

speakers.

You can set the parameters from 1.0 to 7.0

meters I) (3 Io 23 It) for the flout speakers, from

0.0 to 7.0 meters 2) (0 to 23 it) fbr the center

speaker.

67G8

[L/R] 3.(t m/l 0 f13>: Set the front speaker

distance.

[CENTER] 3.0 m/10 f13:4): Set the center speaker

distance (up to 1.6 meters (5 ft) closer to the

front speakers).

]!0.9 to 6.9 meters fur North American models.

2)0.0 to 6.9 meters fur North American models.

3)When you perlkmn the Quick Setup (page 35), the

default settings are changed.

4)This item appears when you set [CENTER] to [YES]

in the [CONNECTION] setting.

•[DISTANCE (SURROUND)]

When you move the surround speakers, be sure

to set the parameters nf the distance (1_) from

the listening position to the speakers.

You can set the parameters from 0.0 to 7.1)

meters l) (0 to 23 It).

[L/R] 3.0 m/10 f12>3hSet the surround speaker

distance (up to 5.0 meters (16 It) closer to the

front speakers).

1}0.0to 6.9 meters fur Norlh American models.

2!When you perlkmn the Quick Setup (page 35), the

default settings are changed.

3!This item appears when you set [SURROUND] to

[YES] in the [CONNECTION] setting.

• If all front and surruund speakers are not placed at an

equal distance from your listening position, set the

distance according to the closest speaker.

• Do not place the surround speakers farther away from

your listening position than Ihe front speakers.

• Depending on the input stream, the [DISTANCE]

setting may not be effective.

•[LEVEL (FRONT)]

You can adjust the sound level nf the front

speakers, center speaker, and subwon[i:r. You

can set the parameters from 6.0 dB to +6.0 dB.

Be sure to set [TEST TONE] to [ON] lk)r easy

adjustnleut.

[L/R] 0.0 dB: Set the front speaker level.

[CENTER] 0.0 dB*: Set the center speaker

level.

[SUBWOOFER] +2.0 dB: Set the subwonfi:r

level.

" Thisitemapi_earswhenyou set [CENTER]to

[YES]inthe [CONNECTION]setting.

•[LEVEL (SURROUND)]

You can adjust the sound level nf the surround

speakers. You can set the parameter from 6.0

dB to +6.0 dB. Be sure to set [TEST TONE] to

[ON] for easy adjustment.

[L/R] 0.0 dB'_': Set the surround speaker level.

" This item appears when you set [SURROUND] to

[YES] in the [CONNECTION] setting.

•[TESTTONE]

The speakers will emit a test tone to adjust

[LEVEL (FRONT)] and [LEVEL

(SURROUND)].

[OFF]: The test tone is not emitted ffnm the

speakers.

68sB

[ON]: The test tone is emitted fl'onl each speaker

in sequence while adjusting level. When you

select one of the [SPEAKER SETUP] items, the

test tone is emitted fl'om each speaker in

sequence.

Adjust the sound level as follows.

I1Set the [TEST TONE] to [ON].

2Press <-/I,/4,/-> repeatedly to select the

desired speaker and the level.

3 Press @.

4 Repeat Steps 1 to 3.

5Press <-/t,/4,/+ repeatedly to set [TEST

TONE] to [OFF] after adjusting the

speaker level.

rr_t_

•The test tone signals are not output from the HDMI

OUT .jack.

• To a(!just the volume of all the speakers at one time,

turn the VOLUME comrol on the unit, or press

VOLUME +_ on the remote.

• To return to the default setting when changing a

setting_ select the item, then press CLEAR. Note that

only the [CONNECTION] setting does not return to

the default setting.

6gGB

Presetting Radio

Stations

You can preset 20 FM stations, and 10 AM

stations. Before tuning, make sure k) Itlrll down

tile volume to minimunl.

• You can operale Ihe tuner function by observing the

following display on Ihe TV screen.

Current station

Current band and preset number

Station name

Press FUNCTION +/- repeatedly until

"TUNER FM" or "TUNER AM" appears

in the front panel display.

Press and hold TUNING +/- until the

auto scanning starts.

Scanning stops when the system runes in a

station. "TUNED" and "ST" (R)r stereo

program) appear in tile front panel display.

Press SYSTEM MENU.

Press 'I'/4, repeatedly until "MEMORY"

appears in the front panel display.

Press @or ..).

A preset number appears in the front panel

display.

tfrj I I Lf t'; "jl

Press ,t,/4,to select the preset number

you want.

[,"'_Iz_1'i ,_,*-_]:_l,_:.

• You can select the preset number directly by

pressing the number buttons.

Press @.

"COMPLETE" appears in the front panel

display, and the station is stored.

Repeat Steps 2 to 7 to store other

stations.

Press SYSTEM MENU.

The system menu turns off.

To change the preset number

Restart from Step 2.

To change the AM tuning interval

(except for Russian and Middle

Eastern models)

The AM tuning interval can be set to either

10 kHz or 9 kHz.

To change the AM tuning interval, first tune in

any AM station, then turn off tile system by

pressing l/Q) on the unit. While holding down

on the unit, press I/Q.) on the unit to turn on

tile power. If you change the interval, AM preset

stations will be erased.

To reset the interval, repeat tile same procedure.

70 GB

Listeningto the Radio

Preset radio stations in the system's memory

first (see "Presetting Radio Stations" (page 70)).

1Press FUNCTION +/- repeatedly until

"TUNER FM" or "TUNER AM" appears

in the front panel display.

The last received station is tuned in.

Press PRESET +/- repeatedly to select

the preset station.

Each time ynu press the button, the system

tunes in one preset station.

• You can select the preset station number directly

by pressing Ihe number buttons.

Adjust the volume by pressing

VOLUME +/-.

To turn off the radio

PressI/V,

To listen to non-preset radio

stations

Use manual or automatic tuning in Step 2.

For manual tuning, press TUNING +_

repeatedly.

For automatic tuning, press and hold TUNING

+/-. The autonmtic tuning stops autnnmtically

when the system receives the radio station. To

stop the automatic tuning manually, press

TUNING +/- or I.

To listen to radio stations when

you know the frequencies

1Press FUNCTION +/- repeatedly until

"TUNER FM" or "TUNER AM" appears

in the front panel display.

2 Press D.TUNING.

3 Press the number buttons to select the

frequencies.

4Press @.

•To improve rcceplion, reoricnl the connected

antennas (aerials).

If an FM program is noisy

If an FM program is noisy, you can select

monaural reception. There will be no stereo

efti:ct, but reception will improve.

1Press SYSTEM MENU.

2 Press t,/,1, repeatedly until "FM MODE"

appears in the front panel display.

tI f tItf _f t

3Press @or e.

4 Press'l"/4, to select "MONO,"

•"STEREO": Stereo reception.

•"MONO": Monaural reception.

5 Press @.

The setting is made.

6Press SYSTEM MENU.

The system menu turns oil.

TU_Er_SI J

You can enter a name for preset stations. These

names (for example, "XYZ") appear in the front

panel display when a station is selected.

Only one name can be entered li}r each preset

station.

1Press FUNCTION +/- repeatedly until

"TUNER FM" or "TUNER AM" appears

in the front panel display.

The last received station is tuned in.

Press PRESET +/- repeatedly to select

the preset station you want to create an

index name for.

Press SYSTEM MENU.

Press t,14, repeatedly until "NAME IN"

appears in the front panel display.

lLI I_ I'I I__ _,_,,,''_ ........]

5 Press @or +.

6Create a name by using <-/t,/4,/-).

Press "1"/6.to select a characler, Ihen press "_

to move Ihe cursor to the next position.

71GB

tr 21 I

You can input letters, numbers, and other

symbols for a radio station.

If you make a mistake

Press (-/-) repeatedly until the character to

he changed flashes, then press '1"/4,to select

tire desired character.

To erase the character, press eel÷

repeatedly until the character to be erased

flashes, then press CLEAR.

Press @.

"COMPLETE" appears in tire front panel

display, arrd the station name is stored.

Press SYSTEM MENU.

The system menu turns off.

m"TUNERAM"

When the station name is set

@ Station name

Ex. "SONY RADIO"

@ Frequency

Ex. "AMI 576"

When the station name is not set:

@ Frequency

Ex. "AMI 576"

•The system returns to the original display when

several seconds has elapsed.

When the system is set to "TUNER PM" or

"TUNER AM," you can check the frequency

using the front panel display.

Press DISPLAY.

Each time you press DISPLAY, the display

changes:

(_)---+ @---+ .... --+ (_) --+ ....

• "TUNER FM"

When the station name is set

@ Station mune

Ex. "SONY RAD10"

@ Frequency

Ex. "FMI 87.50"

@ The "FM MODE" setting

Ex. "STEREO"

Whenthe station name is not set:

@ Frequency

Ex. "FMI 87.50"

@ The "FM MODE" setting

Ex. "STERE()"

72G8

Usingthe Controlfor

HDMI Function for

"BRAVIA" Sync

This fimction is available on TVs with the

"BRAVIA" Sync function only.

By connecting Sony components that are

compatible with the Control for HDMI limction

with an HDMI cable (not supplied), operation is

simplified as below:

- Theater/Theatre Mode (page 74)

One-Touch Play (page 74)

System Power Off (page 75)

- System Audio Control (page 75)

- Volume Limit (page 75)

Control fbr HDMI is a mutual control lhnction

standard used by CEC (Consumer Electronics

Control) l\_rHDMI (High-Delhfition

Multimedia lmerluce).

The Control lot HDMI 5ruction will not work in

the IMlowing cases:

Wheu you connect this system to a

component which is not compatible with the

Control [br HDMI function.

A component does not have an HDMI jack.

There are convenient huttons on the system's

remote l\w operating the TV, such as

THEATER/THEATRE*, ONE-TOUCH

PLAY, TV I1(_). For details, see "Controlling the

TV with the Supplied Remote" (page 85) and

refer to the operafi ng instructions of the TV.

" The button nm_e diflL.rs depeMing on the area.

k BRAVIA Syn¢

• Depending on the connected component, the Control

lbr HDMI filnction may not work. Refer to the

operating instructions supplied with the component.

• The Control for HDMI function may not work if you

connect a component other than Sony, even if the

component is compatible with the Conlrol for HDMI

ffmction.

(Control for HDMI -Easy Setting)

The system is compatible with the Control for

HDMI - Easy Setting function. If ttle TV is

compatible with the Control lor HDMI - Easy

Setting function, you can set the system's

[CONTROL FOR HDMI] function

automatically by setting the TV. For details,

refer to the operating instructions of the TV.

If the TV is not compatible with the Control l\>r

HDMI - Easy Setting function, set the Control

tbr HDMI fimction of the system and TV

malmally.

tr_

• Displayed items vary depending on the country

modeh

1Make sure that the system and the TV

are connected with an HDMI cable.

2Turn on the TV and press I/(D to turn on

the system.

3Switch the input selector on your TV so

that the signal from the system through

the HDMI input appears on the TV

screen.

4Set the Control for HDMI function of the

system and TV.

For details of tl_e setting of the system, see

the %llowing Steps. For details of the

setting of the TV, rcllzr to the operating

instructions of the TV (depending on the

TV, the default setting of the Control for

HDMI function is set to o11").

,,,I

"1"

-l

73G8

To set the [CONTROL FOR HDMI]

function to on/off

1 Press FUNCTION +/- repeatedly until

"DVD" appears in the front panel

display.

2 Press U2_DISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press 4"1,1,to select _ [SETUP],

then press @.

The options for [SETUP] appear.

4Press t'/4, to select [CUSTOM], then

press @.

The Setup Display appears.

5Press t'/4, to select [HDMI SETUP], then

press @.

Tile options for [HDMI SETUP] appear.

6Press ,I,/4, to select [CONTROL FOR

HDMI], then press @.

7 Press ,P/l, to select the setting, then

press @.

• [OFFI: Off.

•[ONI: On.

•When [Please verify the HDMI connection.] appears,

m&e sure the HDMI connection is correct.

(Theater/Theatre Mode)

If your TV is compatible with the Theater/

Theatre Mode, you can enjoy optimal image

suited l\_r movies and the sound is output l?om

the system's speaker automatically by pressing

THEATER/THEATRE":.

" The button name difli:rs depending on the area.

(One-Touch Play)

By only pressing ONE-TOUCH PLAY, the TV

turns on, the TV is set for DVD input mode. and

the system starts playing a disc automatically.

The One-Touch Play also works when:

You press z_ while the disc tray is opened and

I2:> appears in the front panel display.

- You close the disc tray by pressing the disc

tray.

- You press DVD TOP MENU/DVD MENU

and E::> appears in the front panel display.

- You select the "DVD" function by pressing

FUNCTION +/- and I2:> appears in the front

panel display.

• One-Touch Play does not work when you press [2::--.

The syslem and TV "workas follows (e.g.):

This system TV

Turns on. (If not already Turns on. (If not already

turned on.) turned on.)

Switches to "DVD" Switches to HDMI input.

function. J,

,_ Minimizes sound level.

Starts playing the disc aM (System Audio Control)

outputs the sound.

• Make sure the HDMI connection is correcL aM set

the [CONTROL FOR HDMI] to [ON].

• Depending on the TV, the beginning of the content

may not be played back.

• Depending on the disc, playback may take a while to

start.

74GB

(System Power Off)

When ynu turn tile TV off by using the POWER

bnltnn on the TV's remote or TV I/(J.)on the

system's remote, the system turns off

automatically.

• Before using the System Power Off lhnction, set the

flmction for TV power. For details, rclL,r to the

operating instructions of the TV.

• Depending on the status of the system (ex. while

other Ihan "DVD" or "TV/VIDEO" function, or

playing a CD), the system may not turn off

automatic dly.

(System Audio Control)

You can enjoy TV sound in this system by easy

operation.

To use this flmction, connect the system and the

TV with an audio cord (not supplied) and an

HDMI cable (not supplied) (page 26).

Depending on the TV, when you set the system

to the "TV/VIDEO" function, the System Audio

Control lunction is activated. TV sound is output

lixml the system speakers, and the volume of the

TV speakers is minimized amomatically.

You can use tl}eSystem Audio Control function

as follows:

• While you are watching the TV and the

flmction of the system is switched to "TV/

VIDEO." TV sound is output from the system

speakers automatically.

•You can control the system's volume by the

remote ot' the TV.

•lfyou turn the system off or set the fnnction of

the system to other than "TV/V1DEO." TV

sound is output from the TV speakers.

You can also operate the System Audio Control

lunction from the TV menu. For details, reli:r to

the operating instructions of the TV.

• If the TV is turned on before turning on the system,

TV sound will not he output for a moment.

• While the TV is in PAP (picture and picture) mode,

the System Audio Control flmction will not work.

When the TV exits PAP mode, the output method of

Ihe TV returns to the one before PAP mode.

• If you select a TV program during DVD playback

with the system, the "TV/VIDEO" flmction is

automatically set to output TV sound.

• When you activ iteOne-Touch Play during watching

TV, the System Audio Control function is activated

and the TV sound is muted.

• You can connect the system and the TV audio

digitally. For details, see (page 29).

(Volume Limit)

If you change the output method of the TV to the

system speaker on the TV menu or by pressing

THEATER': or THEATRE':. loud sound may be

output depending on the volume level ot' the

system. You can prevent this by limiting the

maximnm level of the volume. For details, see

"[VOLUME LIMIT]" (page 65).

,i: The button name differs depending on the area.

t")

-e

-l

D,.

75G8

Usingthe DIGITALMEDIA

PORTAdapter

The DIGITAL MEDIA PORT (DMPORT)

adapter is for enjoying sound from a portable

audio source or computer. By connecting a

DIGITAL MEDIA PORT adapter, you can

enjoy sound from tile connected component on

the system.

Available DIGITAL MEDIA PORT adapters

vary in each area.

The DIGITAL MEDIA PORT adapter (TDM-

iPl 0':) is supplied with the system (a DIGITAL

MEDIA PORT adapter other than TDMdPI0 is

not supplied).

For details on connecting the DIGITAL MEDIA

PORT adapter, see "To connect the DIGITAL

MEDIA PORT adapter" (page 30).

" TDM-iPI0 is supplied for North American models

only.

• Do not connect an Mapter other than the DIGITAL

MEDIA PORT adapter.

• Do not connect or disconnect the DIGITAL MEDIA

PORT adapter to/from the unit while the system is

turned (/11.

• Depending on the type of DIGITAL MEDIA PORT

adapter, the images arc also output. In this case, the

system outputs the composite video signal only,

regardless of the type of video signal.

• When you use the system and the Bluetooth Wireless

Audio Adapter (such as TDM-BT 1, not supplied) at

the same time, transmission distance between the

Bluetooth transmitter and Bluetooth Wireless Audio

Adapter may be reduced. In this case, place the

Bluclooth transmitter as fur as possible from the

system, or move the Bluetooth Wireless Audio

Adapter closer to the Bluetooth transmitter.

• When you use the system and Ibe Wireless Network

Audio Adapter (such as TDM-NC 1, not supplied) at

the same time, place the Wireless Network Audio

Adapter as fur as possible from the system.

Press FUNCTION +/- repeatedly until

"DMPORT" appears in the front panel

display.

Start playback of the connected

component.

The sound and im_ges from the connected

component are played on the system or

connected TV.

For operation details, refer to tile operating

instructions of the DIGITAL MEDIA

PORT adapter.

• When listening to MP3 files or other compressed

music using a port,ble audio source, you can enhance

the sound. Select "A.FD. STD" for "DEC. MODE"

(page 4(t). To cancel select other than "A.F.D. STD."

• Depending on the type of DIGITAL MEDIA PORT

adapter, you may be able to operate a connected

component using either the buttons on the remote or

the unit. The following illustration shows an example

of buttons that can be used in this case.

ii, ii

76G8

Usingan S-AIR Product

(DA V-HDX275/DA V-HDX475 only)

The unit is compatible with the S-AIR fnnction

(page 104), which allows sound transmission

between S-AIR products.

When yon pro'chase the S-AIR product, you

need to perti)rrn the l\>llnwing settings to

establish the sound transmission.

About S-AIR products

There are two types of S=AIR product.

• S-AIR main unit (this unit): This is for

transmitting sound. You can use up to three

S-AIR main unit. (The number of usable

S-AIR main unit depends on the use

environment.)

• S-AIR sub unit: This is for receiving sound.

Surround amplifier: You can enjoy

surround speaker sound wirelessly.

- S-AIR receiver: You can enjoy system

S()tllld in another ronln.

(

[======_ S-AIR sub unit

(S-AIR receiver)

S-AIR main unit

b .> j5

D...................................................................................................D

S-AIR sub unit

(surround amplifier)

To make use of the S-AIR tbnction, you need to

insert the wireless transmitter (not supplied) into

the unit and the wireless transceiver (not

supplied) into the S-AIR sub nnit.

• When you insert the wireless transmitter/transceiver,

make sure that the AC power cord/mains lead) is not

connected to a wall outlet (mains).

• Do not touch the terminals of the wireless transmitter/

transceiver.

To insert the wireless transmitter

into the unit

1Removethe screwsand detach the slot

cover.

Rear of the unit

Slot cover

• Remove the screws from the slot cover bearing

the caution mark. Do not remove other screws.

• The slot cover is no hmger necessary; however.

keep it after delaching.

Insert the wireless transmitter.

"t-

rll

77G8

Rearof the unit

QOQ_

• Insert the wireless transmitter with the S-AIR

logo facing up.

• Insert the wireless transmitter so that the •

marks are aligned.

• Do not insert other thin the wireless transmitter

into the EZW-T 100 slot.

Make sure to use the same screws to

secure the wireless transmitter.

Rear of the unit

"'-....

• Do nol LlSe olher screws Io fasten the wireless

tran sn/iller.

To insert the wireless

transceiver into the S-AIR sub

unit

For details on installing the wireless transceiver

into the S-AIR sub unit, such as a surround

amplifier or S-AIR receiver, see the operating

instructions of the S-AIR sub unit.

For the surround amplifier

For the S-AIR receiver

Simply by matching the ID of the unit and the

S-AIR sub unit, you can establish sound

transmission. You can use multiple S-AIR main

unit by setting a dit]i_rent 1D l\)r each

component.

To set the ID of the unit

1Press I/_ on the unit.

The syslern turns on.

2 Press FUNCTION +/- repeatedly until

"DVD" appears in the front panel

display.

3 Press GDISPLAY while the system is

in stop mode.

The Control Menu display appears on Ihe

TV screen.

4Press t"/4, to select B[SETUP],

then press @.

The options for [SETUP] appear.

5 Press 'I"14,to select [CUSTOM], then

press @.

Tire Selup Display appears.

6Press 't"/4, to select [AUDIO SETUP],

then press @.

The options for [AUDIO SETUP] appear.

7Press 't"/4, to select iS-AIR SETUP -_],

then press @.

• Vv'hcn Ihe wireless Iransmitlcr is nol insel-lcd ill

the unit, IS-AIR SETUP] cannot be selected.

8 Press 'I"14,to select [ID], then press @.

Press ,I,/4, to select the desired I D, then

press @.

You cun select any 1D (A, B, or C).

The conlirmalion display appears.

78GB

10 Press @.

Sel lhe S=AIR sub unil to the same ID.

Sound transmission is eslablished as

lk)llows (example):

Other S-AIR main

This unit unit

J_J

v j J

v @ J

S-AIR sub unit S-AIR sub unit S-AIR sub unit

•To confirm the current ID, perl\)rm Steps 1to 7

above. When you pairthe unit with the S-AIR sub

unit (page 8t/), [(PAIRING)] appears beside ID on

Ihe display lk)rselecting ID.

To set the ID of the surround

amplifier

Refer to the operating instructions of the

surround amplifier.

To set the ID of the S-AIR

receiver

Refer to tile operating instructions of tile S-AIR

receiver.

rr_

• It is easy to set the stole ID for the unit and S-AIR sub

unit to establish sound transmission. However,

neighbors may also receive your system's sound if

IDs are the same, or you may receive the sound from

neighbors. To prevent this, you can identify' the unit

with a specific S-AIR sub unit by performing the

pairing operation (page 80).

For the S-AIR receiver

You can enjoy file syslem's sound by using the

S-AIR receiver. The S-AIR receiver can be

inslalled anywhere, regardless nf Ihe localinu of

the unit. lnr enjoying lhe system's sound in

another room.

For details of the S-AIR receiver, reler to the

operating instructions of the S-AIR receiver.

1Set the ID of the S-AIR receiver to that

of the unit.

•To set tile ID of the unit. see "To set the 1D

of the unit" (page 78).

• To set the 1D of the S-AIR receiver, refer

to the operating instructions of the S-AIR

receiver.

• When you are using anolher S-AIR sub unil,

such as a surround unplifier, do nol change the O

ID of file unit. Set Ihe ID of the S-AIR receiver

Io the same ID as Ihe unil.

• When you pair Ihe unit and anolher S-AIR sub -r"

unil, such as a surround amplifier, by Ihe p dring

operation, you need Io perform Ihe paMng _1

operation between Ihe unit and the S-AIR

receiver. For delails, see "Identifying Ihe unil

wilh a specific S-AIR sub unit (PaMng _a

,,,o

operation)" (page 80). e.,

Press S-AIR MODE on the remote, a.

The S-AIR mode appears in Ihe fixml panel

display. Each lime you press S-AIR

MODE, Ihe S-AIR mode changes. N'

• "PARTY": Tile S-AIR receiver nutpms

sound according to function sel on the

unit.

• "SEPARATE": You curl sel the desired

funcliou for the S-AIR receiver while unil

fuuclions do not change.

Select the desired function on the

S-AIR receiver.

•When "PARTY" is set

The function changes in the same sequence

as you press FUNCTION +/- (page 38).

•When "SEPARATE" is set

The function changes us l\qlows.

"MAIN UNIT" ---+"TUNER FM" ---+

"TUNER AM" ---+"DMPORT" ---+

"AUDIO" ---+...

7gGB

To enjoy tile same fimction as the unit,

select "MAIN UNIT."

When "TUNER FM" or "TUNER AM" is

selected on tire unit, you call only select tire

same band for the tuner on tile S-AIR

receiver. Ill this case, when you select other

than "TUNER FM" or "TUNER AM" on

the unit, you can select any band li)r the

tuner on the S-AIR receiver.

Adjust the volume on the S-AIR

receiver.

• When the sound is other than 2 channel stereo, multi

channel sound is downmixed to 2 channeh

• The sound of tile S-AIR receiver may be cut off by

operation of the unit.

To control the system from the

S-AIR receiver

You can control the system from tile S-AIR

receiver by using the IMlowing buttons.

Press Operation

[2--, II, II Silare the same operations on the

/IIHIH remote and unit.

S-MR CH Change the flmction of the system.

For details, refer to the operating instructions of

tile S-AIR receiver.

•"ON": You can enjoy file S-AIR receiver

while the unit is in standby mode or turned

on.

• "OFF": You cannot enjoy the S=AIR

receiver while the unit is in standby mode.

The default setting differs depending on the

model.

4Press @.

The setting is made.

5 Press SYSTEM MENU.

The system menu turns off.

• When you set "S-AIR STBY" to "ON," the power

consumption during the standby mode increases.

• When you turn the system off while "S-AIR STBY"

is set to "ON," "S-AIR" flashes (when sound

transmission between the unit aM S-AIR receiver is

not established), or lights up (when sound

transmission between the unit and S-AIR receiver is

established) in the front panel display.

• If you turn the system off with the disc tray opened

while "S-AIR STBY" is set to "ON,"the disc tray

may not close automatically.

• When the wireless transmitter is not inserted in the

unit, you cannot set "S-AIR STBYY

•"S-AIR STBY" is set to "OFF" automatically when

the wireless transmitter is removed from the unit,

For the S-AIR receiver

You can enjoy the S-AIR receiver while the trait

is in standby mode by setting "S-AIR STBY" to

"ON 2'

Press SYSTEM MENU.

Press ,I,/4, repeatedly until "S-AIR

STBY" appears in the front panel

display, then press @or -).

Press t,/4, to select the desired setting.

For the surround ampHfier

For the S-AIR receiver

It is easy to set the same 1D for tile unit and an

S-AIR sub unit, such as a surround amplifier or

S-AIR receiver, to establish sound transmission.

However, neighbors may also receive your

system's sound if lDs are the same, or you may

receive the sound l¥om neighbors. To prevent

this, you can identify tile unit with a specific

S-AIR sub unit by performing tile pairing

operation.

When you perform pairing

Be_re pairing, sound transmission is

established by the 1D (example).

80G8

Neighbor

Your room

- 0

S-AIR sub unit

After pairing, snund transmission is eslablished

between the paired unit and S-AIR sub unit(s)

only.

Your room

This unit

S-AIR sub unit

Neighbor

No transmission

S-AIR sub unit

Pairing

Place the S-AIR sub unit that you want

to pair near the unit.

•Remove headphones fronl the surround

amplifier (if connected).

Match the IDs of the unit and the S-AIR

sub unit.

•To set the ID of the unit, see "To set the ID

nf the unit" (page 78).

• Tn set the 1D nfthe S-AIR sub unit. refer

to the operating instructions of the S-AIR

sub trait.

Press FUNCTION +/- repeatedly until

"DVD" appears in the front panel

display.

Press CO DISPLAY while the system is

in stop mode.

The Control Menu display appears on rite

TV screen.

5 Press ,P/,l, to select B [SETUP],

then press @.

The npdons fin" [SETUP] appear.

6Press'l"/4' to select [CUSTOM], then

press C).

The Setup Display appears.

7Press'1'/4" to select [AUDIO SETUP],

then press @.

The npdnns fin" [AUDIO SETUP] appear.

8 Press ,I'/4, to select [S-AIR SETUP --*],

then press @.

•When the _irclcss transmitter is not inserted in

the unit, IS-AIR SETUP] cannot be selected.

9 Press'P/4, to select [PAIRING], then

press @.

The confirmation display appears.

10Press ÷/") to select [YES], then press

The unit starts pairing.

Tn not perfnrm pairing, select [NO].

11Start pairing of the S-AIR sub unit.

•For the surround amplifier

Refi:r to the operating instructions nf the

surround amplifier.

When sound transmission is established,

the confimtation display appears.

•For the S-AIR receiver

Refi:r to the operating instructions nf the

S-AIR receiver.

When sound transmission is established,

the confirmation display appears.

• Perform the pairing within several minutes after

Step 10. If you do not, the pairing is canceled

automatically and the confirmation display

appears. To perR)rm pairing, select [YES]. To

return to the previous display, select INCl.

-I

81G8

12Press <,-/-.)to select the next operation.

• To finish pairing

Select [NO], then press @.

•To perform pairing of another S-AIR

sub unit

Select [YES], fllen press @.

• If you perform the pairing operation between the unit

and another S-AIR sub unit (page 80), sound

transmission established by ID is canceled.

• When you perform pairing, [IPAIRING)] appears

beside ID on the display for selecting ID.

To cancel pairing

Perform the ]D setting nfthe unit according to

the procedure of "To set the 1D of the unit." If

you select a new ID (you can select the same ID

as before), pairing is canceled.

For the surround amplifier

For the S-AIR receiver

Press SYSTEM MENU.

The system menu turns off.

When you set "RF CHANGE" to "OFF,"

select the ID so that sound

transmission is most stabilized

(page 78).

• When the wireless transmitler is not inserted in Ihc

unit, you canllo[ sel "RFCHANGE."

• In mosl cases, you will nol need to change Ihis

selling.

• If"RF CHANGE" is sel Io "OFF,"Iransmission

between the unil and S-AIR sub unil can be

performed using one of Ihe following channels.

S-AIR ID A: equivalent channel lk)rWi-Fi

channel I

S-AIR ID B: equivalent channel for Wi-Fi

channel 6

S-AIR ID C: equivalent channel for Wi-Fi

channel 11

• The Iransmission may be improved by,cllanging Ihe

Iransmission channel (lYequency) of Ihe olher

wireless syslem(s/. For delails, refer to Ihe operating

insmlclions of the other wireless systemls).

82 GB

If you use multiple wireless systems which

sharing tl_e2.4 GHz band, such as wireless LAN

or Bluetootb, the transmission of S-AIR

products or other wireless systems may be

unstable. In this case, the transmission may be

improved by changing the l\_llowing "RF

CHANGE" setting.

1Press SYSTEM MENU.

2Press ,I,14,repeatedly until "RF

CHANGE" appears in the front panel

display, then press @or -).

3Press ,I,/4, to select the desired setting.

•"AUTO": Normally selecl this. The

system change "RF CHANGE" to "ON"

or "OFF" automatically.

• "ON": The system transmits sound by

searching the belier channel tk_r

transmitting.

• "OFF": The syslem transmits sound by

lixing the channel 1"(/1÷Irausmitdug.

4Press @.

The setting is made.

Getting Optimal

SurroundSoundfor a

Room

[SPEAKER FORMATION]

Depending on the shape of tile roonL you cannot

install some speakers. For the better surround

sound, Sony recommends that first you decide

the position of the speakers.

1Press FUNCTION +/- repeatedly until

"DVD" appears in the front panel

display.

2 Press ODISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3 Press t"/4, to select B [SETUP],

then press @.

The options for [SETUP] appear.

4Press t'/4, to select [CUSTOM], then

press @.

The Setup Display appears.

5 Press t'/4, to select [AUDIO SETUP],

then press @.

The options for [AUDIO SETUP] appear.

6Press 1,/4, to select [SPEAKER

FORMATION], then press @.

The options for [SPEAKER

FORMATION] appear.

SPEAKER FORMATION

STANDARD

•[NO CENTER]: Select this whea you

install the lront and surround speakers

oldy.

• [NO SURROUND]: Select this when you

install Ille center and front speakers only.

• ]FRONT ONLY]: Selecl this when you

install Ille fi'ont speakers only.

• [ALL FRONT]: Select tlais when you

install all the speakers in front of the

listening posilion.

• [ALL FRONT - NO CENTER]: Select

this when you inslall tl_e front and

surround speakers in front offlae lislening

position.

8Press O"

The setting is made and the con finamtioll

display appears.

9Press ÷/÷ to select [YES] or [NO], then

press _.

• [YES]: Continue wilh [AUTO

CALIBRATIONI. Follow the procedure

from Step 7 ol "Calibrating the

Appropriate Settings Automatically"

(page 84).

• [NO]: Exit [SPEAKER FORMATION].

•[n order Io enjoy the surround sound afler you change

Ihe position of the speakers, Sony recommends you

set [SPEAKER FORMATION], and then set [AUTO

CALIBRATION ] (page 84).

• When you change Ihe [CONNECTION] setting in

[SPEAKER SETUP] !page 67), the [SPEAKER

FORMATION] selting returns Io [STANDARD].

7Press ÷1.+to select asetting.

•[STANDARD]: Select Ihis when you

install all the speakers normally.

83 GB

Calibrating the

Appropriate Settings

Automatically

[AUTO CALIBRATION]

D. C. A. C. (Digital Cinema Auto Calibration)

can set the appropriate surround sound

automatically.

• The system outputs a loud test sound when [AUTO

CALIBRATION] starts. You cannot turn the vohune

down. Give consideration to children and neighbors.

• Make sure that the headphones are not connected to

the unit or surround amplifier% You cannot operate

the following Steps with the headphones connected.

" DAV-HDX275/DAV-HDX475 only

1Press FUNCTION +/- repeatedly until

"DVD" appears in the front panel

display.

2 Press ODISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3 Press i,/4, to select _[SETUP],

then press @.

The options for [SETUP] appear.

4Press ,I,/4, to select [CUSTOM], then

press @.

The Setup Display appears.

5 Press ,I,/4, to select [AUDIO SETUP],

then press @.

The options lor [AUDIO SETUP] appear.

6Press ,I,/4, to select [AUTO

CALIBRATION], then press @.

The options lk)r [AUTO CALIBRATION]

appear.

7Connect the calibration mic (supplied)

to the A.CAL MIC jack on the front

panel

Set up the calihration mic at the ear level

using a tripod, etc. (not supplied).

The flout of each speaker should face the

calibration mic. and there should be no

obslruclion between the speakers and the

calibration mic.

9Press ÷/÷ to select [YES].

Press @.

[AUTO CALIBRATION] starts.

Be quiet during the measurement.

• Before [AUTO CALIBRATION], make sure

that the surround amplifier turns on and you

install the surround amplifier in the appropriate

location. If you install the surround amplifier in

all improper location, such as another FOOIII_

proper measurement will not be obtained.

(DAV-HDX275/DAV-HDX475 only.)

• Avoid being in the measurement ,rea and

making noise during the measurement (about 3

minute), to avoid measurement fi61ure. During

the measurcmenL test signals are output from

the speakers.

• The environment of the room in which the

system is installed may aflL,ct measurements.

84G8

• If an error message appears, follow the message,

then select [YESI.

All error message appears when:

the headphones are connected to the unit or

surround amplifier*.

the calibration mic is not connected.

front speakers are not correctly connected.

stlrround speakers are not correctly

connected.

front and surroLindspeakers arc not correctly

connected.

" DAV-HDX275/DAV-HDX475 only.

10Press ÷/+ to select [YES] or [NO], then

press @.

•The measurement is OK.

Disconnect the calibration mic, then select

[YES]. The result is implemented.

•The measurement is not OK.

Follow the message, then select [YES] to

retry.

• While the Auto Calibration function works:

do not turn off the power.

do not press any button.

do not change the volume.

do not change the function.

do not change the disc.

do not insert or eject a disc.

do not connect the headphones to the unit or

surround amplifier".

do not disconnect the calibration mic.

" DAV-HDX275/DAV-HDX475 only.

• The measurement R)rISUBWOOFER] is always

[YES] since the system does not perform subwooli:r

calibration.

• You can check the distance between the listening

position and each speaker. See page 67.

Controllingthe TVwith

the SuppliedRemote

You can control the TV (Sony only) by using

lollowing buttons. Use these buttons (other than

TV I1@, THEATER/THEATRE 'r:,TV INPUT,

and TV VOL +/-) while pressing the TV button.

* The button name differs depending on the area.

• Depending on the TV, you may not be able to control

your TV or to use some of the buttons.

• Depending on the area, the name of the button may

differ.

By pressing You can

TV I/(_ Turn the TV onk_ff.

THEATER Enjoy optimal im:,gc suited for

ITHEATRE) movies.

TV INPUT Switch the TV's input source

between the TV and other input

sources.

TV VOL +_ Adjust the TV volume.

TV CH +_" Select the TV channeh

IPROG +/ %

Number Select the TV cbanneh

ENTER"

TOOLS" Displays the operation menu R)r

the current display.

RETURN": Return to the previous channel or

layer on the menu of the TV.

MENU" Display the menu of the TV.

MUTING* Turn off the TV sound

temporarily.

_-I't'l,l,I-'__', @ "_ Select the item on the menu.

,i, Use these buttons while pressing the TV button.

85GB

Usingthe SoundEffect

You can rein[k)rce bass tYequencies.

Press DYNAMIC BASS.

"D. BASS ON" appears in tile front pm_el

display and bass t'requencies are efli:ctively

reinl\_rced.

To turn off the sound effect

Press DYNAMIC BASS again.

You can enjoy sound effects or dialogue, as you

would in a movie theater, even at low volmne. It

is useful for watching movies at night.

Press NIGHT.

"NIGHT ON" appears in the fi'ont panel display

and the sound effect is activated.

•This effect does not work for a Super Audio CD.

When you load a Super Audio CD during "NIGHT

ON," the sound effect turns off automatically.

• When sound is output from the center speaker, this

effect is morepronounced, as speech (movie dialog,

etc.) is easy to hear. When sound is not output from

the center speaker, or you are using Ihe headphones,

the system optimally a_{juststhe volume.

To turn off the sound effect

Press NIGHT again.

Usingthe Sleep Timer

You can set the system to turn off at a preset

time, so you can lhll asleep listening to music.

Yon can preset the time in 1 or lI)-mi]mtes

increments.

Press SLEEP.

Each time you press SLEEP, the minutes display

(the remaining time) changes by 10=minutes.

When you set the sleep timer, "SLEEP" flashes

in the [bont panel display.

To check the remaining time

Press SLEEP once.

To change the remaining time

Press SLEEP repeatedly to select the desired

time.

To cancel the sleep timer

function

Press SLEEP repeatedly until "SLEEP OFF"

appears in the front panel display.

To set the sleep timer using the

system menu

Press SYSTEM MENU.

Press €./4, repeatedly until "SLEEP"

appears in the front panel display, then

press @or-).

Press €./4, to select a setting.

The minutes display (the remaining time)

changes in 1I)=minutes.

•You can select the remaining time by pressing

the number buttons. In this case, you can preset

the time in l-minute increments.

Press @.

The setting is nlude and "SLEEP" flashes in

the front panel display.

Press SYSTEM MENU.

The system menu turns off.

86G8

Changingthe Brightness

of the Front Panel

Display

The brightness of the front panel display can be

set to either o12 levels.

Press SYSTEM MENU.

Press ,t,/4, repeatedly until "DIMMER"

appears in the front panel display, then

press @or-.).

Press ,t/q, to select the brightness of

the front panel display.

• "DIMMER OFF": Bright.

• "DIMMER ON": Dark.

4Press @.

The setting is made.

5 Press SYSTEM MENU.

The system menu turns off.

ViewingInformation

Aboutthe Disc

|||||

Press DISPLAY repeatedly.

Each time you press DISPLAY while playing

the disc, the display changes:

(_)--+ (2)--+ ...--+ (_)--+ ...

Some displayed items may disappear after a fcw

seconds.

• DVD VIDEO/DVD-VR

@ Playing time of the current title

@ Remaining time of' the current title

@ Playing time of' the current chapter

(_) Remaining time of' the current chapter

(_) Disc name

(_) Title and chapter

•VIDEO CD (without PBC functions)/

Super Audio CD/CD

@ Playing time of tire current track

@ Remaining time of the current track

@ Playing time of the disc

(_) Remaining time of the disc

(_) Track name

(_) Track and index':

,i, VIDEO CD/Super Audio CD only.

• Super VCD

@ Playing time of' the current track

@ Track text

@ Track and index number

•DATA CD IMP3 file)/DATA DVDIMP3 file)

@ Playing time and current track nmnber

@ Track (file) name*

,i, If an MP3 file has the ID3 rig, the system will

display a folder name/track (file) name from the ID3

tag inlkmnation.

The system can support ID3 ver 1.0/ 1.1/2.2/2.3.

ID3 ver 2.2/2.3 tag information display his priority

when both ID3 ver 1.0/1.1 and ver 2.2/2.3 tags are

used for a single MP3 file.

87GB

•DATA CD (DivX video file)/DATA DVD

(DivX video file) (Except for United

Kingdom and North American models)

(_) Playing time of the current file

(g) Current file name

(_) Current album and lile number

• The system can only display the first level of file

DVD/CD texL such as the disc name or title.

• lfa file name of the MP3 file cannot be displaye& "'"

will appe ir in the fi'ont panel display instead.

• The disc name or track name may not be displayed

depending on the text.

• Playing time of MP3 files and DivX video files '_may

not be displayed correctly.

" Except lk_rUnited Kingdom and North American

models.

• When the system is playing a VIDEO CD with PBC

functions, the playing time is displayed.

Press DISPLAY during playback.

The following display appears on the TV

screen.

_T 1: 01: 40)

Time information

Press DISPLAY repeatedly to change

the time information.

The display and the kinds of tinre that you

can check depend on the disc you are

playing.

•DVD VIDEO/DVD-VR

Playing time of the current title

Remaining time of the current title

Playing time of the current chapter

Remaining time of the current chapter

•VIDEO CD (with PBC functions)

Playing time of the current scene

•VIDEO CD (without PBC functions)/

Super Audio CD/CD

Playing tinre of the current track

•T- ':':: ':*

Remaining time of the current track

Playing time of the current disc

Remaining time of fire current disc

•DATA CD (MP3 file)/DATA DVD (MP3

file)

Playing time of the current track

•DATA CD (DivX video file)/DATA

DVD (DivX video file) (Except for United

Kingdom and North American models)

Playing time of the current file

rtg_l

• Characters/marks may not be displayed in some

hmguages.

• Depending on the type of disc being played, the

system can only display a limited number of

characters. Also, depending on the disc, not all text

characters will be displayed.

To check DVD/Super Audio CD/CD

text

Press DISPLAY repeatedly daring playhack to

display text recorded in tire DVD/Super Audio

CD/CD.

The DVD/Super Audio CD/CD text appears

only when text is recorded in fire disc. You

cannot change the text. If the disc does not

contain text, "NO TEXT" appears.

Dvorak/Tchaikovsky/NedPho/Kreizberg

[Adagio- A,leg ..... 'to 1

88G8

To check DATA CD/DATA DVD

(MP3 file/DivX video file 3)) text

By pressing DISPLAY while playing MP3 files

or DivX vide() files 3) on _ DATA CD/DATA

DVD, you can display the name of the lolder/

MP3 tile/DivX video file 3), and the audio bit

rate (the arnount of dala per second of the

current audio) on the TV screen.

Bit rate 1)

O: 13

_002 Remixes

Sou_ Suwivor rap versio_ I

Folder name 2/ MP3 F e2)/DivXvideo file 3/

Rame

1)Appears when:

playing an MP3 file on a 13ATA C13/13ATA 13V13.

playing a DivX vide() file that contains MP3 audio

signals on a DATA CD/DATA DVD (except %r

United Kingdom and Norlh American models).

2)lf an MP3 file has the ID3 tag, the system will display

a t_alder name/tRtck (file) name from the ID3 tag

in%rmation.

The system can support ID3 ver 1.0/I.1/2.2/2.3.

I133 vet 2.2/2.3 mg information di,_play ha_, priority

when beth I D3 ver 1.0/1.1 and vet 2.2/2.3 tags are

used for a single MP3 file.

3)Except for United Kingdom and Nollh American

models.

Date information

" "Exchangeable Image File Forma? ' is a di _ital

camera dnage l\)rmat defined by the Japan

Electronics and lnfimnation Technology Industries

Association (IEITA).

•Date i_ff;_rmaio_ i_, [MM/DD/YYYYI.

MM: Month

DD: Day

YYYY: Year

• Date information varies depending on the area.

I'D

You can check lhe dine information during

playback when the Exiff: tag is recorded in the

JPEG image file.

Press QDISPLAY twice during playback.

The Control Menu display appears on the TV

screen.

8gG8

Returningto the Default

Settings

2Press I/_ to turn on the system.

Press I, _, and I/_) on the unit at the

same time.

"COLD RESET" appears in tile front panel

display and the system returns to default

settings.

Press t,/4, to select [SYSTEM SETUP],

then press @.

The options for [SYSTEM SETUP] appear.

Press ,Phi,to [RESET] and press ->.

Press <-/-.>to select [YES].

You cm_ also quit the process and return to

the Control Menu display by selecting [NO]

here.

Press @.

Do nnt press I/(_) while resetting the systenl

as it takes a l_:w seconds to complete.

•The ]MODE (MUSIC, IMAGE)], [INTERVAL],

]EFFECT], and [MULTI/2CH] settings are also

return to the default settings.

You can return the [SETUP] settings (page 61)

other than [PARENTAL CONTROL] to the

default settings.

1Press FUNCTION +/- repeatedly until

"DVD" appears in the front panel

display.

2 Press QDISPLAY while the system is

in stop mode.

The Control Menu display appears on the

TV screen.

3Press ,I'/4, to select _ [SETUP],

then press (_.

The options for [SETUP] appear.

4Press t,/4, to select [CUSTOM], then

press @.

The Setup Display appears.

g0 GB

Precautions

On power sources

•Unplug the unit from the w all outlet/mains) if you do

not intend to use it for an extended period of time. To

disconnect the cord, pull it ()titby tile plug, never by

file cord.

On placement

• Place tile system in a location wilh adequate

ventilation to prevent heat build-up in the system.

• At high volume, over long periods of time, the cabinet

becomes hot to the touch. This is not, malfunction.

However, touching Ihe cabinet should be avoided. Do

not place the unit in a confined space where

ventilation is poor as this may cause overheating.

• Do not block the ventilation slots by putting anything

on the system. The system is equipped with a high

power unplifier. If the ventilation slots are blocked,

the unit call overheat and mall'unctkm.

• Do not place the unit on surfaces (rugs, blankets, etc.)

or near materials (curtains, draperies) that may bk)ck

the ventilation slots.

• Do not install the unit near heat sources such as

radiators, or air ducts, or in a place subject to direct

sunlight, excessive dust, mechanical vibration, or

shock.

• Do not install the unit in an inclined position. It is

designed to be operated in ahorizontal position only.

• Keep the unit and discs away from components with

strong magnets, such aS microwave ()veils, or large

loudspeakers.

• Do not place heavy objects on the unit.

On operation

• If the system is brought directly from a cold to a_AruFin

location, or is placed ill a very damp room, moisture

may condense on the lenses inside the control unit.

Should this occur, the system may not operate

properly. In this case, remove the disc and leave Ihe

system ttlrned on for about half an hour until the

moisture evaporates.

• When you move the system, take ()titany disc. If you

don't, the disc may be damaged.

• If anything falls into the cabincl, unplug die unit and

have it checked by qualified personnel before

operating it any lhrther.

On adjusting volume

• Do not turn u? tile volume _ hile listening to i section

with very low level inputs or no audio signals. If you

do, the speakers may be damaged when a peak level

section is suddenly played.

On cleaning

• Clean the cabinet, panel, andcontrols with ilsol'lc h)th

slightly moistened with i mild detergent solution. Do

not use any type of abrasive pad, scouring powder or

solvent such as alcohol or benzine.

If you have any questions or problems concerning

your system, please consult your nearest Sony dealer.

On cleaning discs, disc/lens

cleaners

• Do not use cleaning discs or disc/lens cleaners

(including wet or spray types). These may cause

the apparatus to malfunction.

On your TV's color

• If the s?eakers should cause the TV screen to huve

color irregularity, turn off the TV then turn it on after

15to 30 minutes. If color irregularity should persist,

place the speakers filrther away from the TV set.

IMPORTANT NOTICE

Caution: This system is capable of holding a still

video image or on-screen display image on your

television screen indefinitely. If you leave Ihe still

video image or on-screen display image displayed

on your TV for an extended perk)d of time you risk

permanent damage to your television screen.

Pr(_iectiontelevisions are especially susceptible to

this.

On moving the system

1Press FUNCTION repeatedly to select

"DVD."

_. Make sure that all discs are removed

from the unit.

3Press _and I/_ simultaneously.

"MECHA LOCK" and "UNPLUG"

appear alternately in the front panel

display after "STANDBY."

4Remove the AC power cord (mains

lead) from the wall outlet (mains).

91GB

Notesabout the Discs

On handling discs

•To keel, the disc clean, handle tile disc by its

edge. Do not touch the surface.

•Do not stick paper or tape on the disc.

• Do not expose the disc to direct sunlight or

heat sources such as hot air ducts, or leave it in

a car parked ill direct sunlight as the

temperature may rise considerably inside the

car.

• After playing, store the disc in its case.

On cleaning

• Before playing, clean tile disc with a cleaning

cloth.

Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner,

commercially available cleaners, or anti-static

spray intended l\_rvinyl LPs.

This system call only play back a standard

circular disc. Using neither standard nor circular

discs (e.g.. card, heart, or star shape) may cause

a mal['unction.

Do not use a disc that has a commercially

available accessory altached, such as a label or

ring.

g2G8

Troubleshooting

If you experience any of tile following difficulties while using the system, use this troubleshooting

guide to help remedy tile problem before requesting repairs. Should any problem persist, consult your

nearest Sony dealer.

Note that if service personnel changes some parts during repair, these parts may be retained.

When you install the S-AIR sub unit (not supplied), in the event of a problem with the S-AIR function.

have a Sony dealer check the entire system together (main trait and S-AIR sub unit).

Power

Symptom

The power is not turned on.

If "PROTECTOR"and "PUSH

POWER" appear alternately in

the front panel display.

Remedy

•Check that the AC power cord (mains lead) is connected securely.

•Press I/(_) after "STANDBY" disappears from the fronl panel disphly.

Press 11(_)to Inln off the sysleln, and check the following itelns after

"STANDBY" disappears.

•Are the + and speaker cords sholl-circuited?

• Are you using only the specified speakers?

• Is anything blocking the ventilation holes of the system?

• After checking the above items mdfixing any problems, turn on the system. If

the cause of the problem cannot be found even after checking all the above

items, consult your nearest Sony dealer.

D..

g3G8


Symptom

There is no picture.

Picture noise appears.

Even though you set the aspect

ratio in [TV TYPE] of ]VIDEO

SETUP], the picture does not fill

the TV screen

Color irregularity occurs on the

TV screen.

Remedy

•The vide() connecting cords arc,not connected securely.

• The vide() connecting cords are damaged.

• The unit is not connected to the correct TV input jack (page 26).

•The video input on the TV is not set so that you can view pictures from the

system.

• Check the output method on your system (page 26).

• You have set progressive format but your TV cannot accept the signal in

progressive format. In this case, return the setting to interlace format (the

default setting) (page 37).

• Even if your TV is compatible with progressive format 1525p/625p) signals, Ihe

image may be allk*ctedwhen you set progressive format. In this case, return the

setting to interlace format (the default setting) (page 37).

• Re-connect the connecting cord securely.

• The unit is connected to an input device that is not HDCP tHigh-bandwidth

Digital Content Protection) compliant I"HDMI" on the front panel does not

light up) (page 26).

• If the HDMI OUT jack is used for vide() output, changing the type of video

signal output ftom the HDMI OUT jack. It may solve the problem (page 37).

Connect the TV and the unit using a video jack other than the HDMI OUT, and

switch the TV's input to the connected video input so that you can see the on-

screen displays. Change the type of video signal output from the HDMI OUT

jack, and switch the TV's input back to HDMI. If Ihe picture still does not

appear, repeat the Steps and try other options.

• You have set [PROGRESSIVE (COMPONENT OUT)] in ]VIDEO SETUP] to

[ON] (page 63) even though your TV cannot accept the progressive signah In

this case, disconnect the HDMI cable from the unit and then set to [OFF].

• The disc is dirty or flawed.

•If the picture output from your system goes through your VCR to get to your

TV, the copy-protection signal applied to some DVD programs could all_.ct

picture quality. If you still experience problems even when you connect your

unit directly to your TV, try connecting your unit to your TV's vide() input

(page 26).

": Depending on the country model, [720 x 576p1 may appear.

• The aspect ratio on the disc is fixed.

The subwoofcr and the front speakers inthis system are magnetically shielded to

prevent magnetic leakage. However, some leakage may occur, as a high-strength

magnet is employed. If this happens, check the following items:

• If the speakers ,re used with a CRT-based TV or projector, install the speakers

at least (t.3 meters (l./) fl) from the TV set.

• If Ibe color irregularity persists, turn off the TV set once, then turn it on after 15

to 30 minutes.

• If howling occurs, reposition the speakers farther away from the TV set.

• Make sure that no magnetic object (magnetic latch on a TV stan& heahh care

device, toy, etc.) is placed near the speakers.

g4G8

Sound

Symptom

There is no sound.

Nosoundisoutput_omthe

HDMIOUTjack.

The left and right sounds are

unbalanced or reversed

There is no sound from the

subwoofer

Severe hum or noise is heard

Remedy

•The speaker cord is not connected securely.

• Press MUTING on the remote if "MUTING ON" is displayed in the front panel

display

• The system is in pause mode or in Slowmotion Play mode Press [2:> to return

to normal play mode

• Fast l_)rward or fast reverse is performed. Press [2:>- to return to normal play

mode.

• Check the speaker settings (page 67).

• Super Audio CD audio signals are not output from the HDMI OUT jack.

• The component connected to the HDMI OUT jack does not conform to the

audio signal format, in this case set [AUDIO/HDMI)] in [HDMI SETUP] to

[ON] (page 65)

• Set [AUDIO (HDMI)] in [HDMI SETUP] to ION] (page 65).

• The HDMI OUT jack is connected to a DV[ (Digital Visual Interface) device

IDVI (Digital Visual Interface)jacks do not accept audio signals).

• The HDMI OUT jack does not output Super Audio CD sound

• Try the lbllowing: (!) Turn the system off and on again (g) Turn the connected

component off and on again @ Disconnect and then connect the HDMI cable

again.

• Check that the speakers and components are connected correctly and securely.

• Check the speaker connections and settings (pages 24, 67).

• Select "AFD STD" lot 'DEC. MODE" lpage 40)

• Check that the speakers and components arc connected securely.

• Check that the connecting cords arc away from a translk)rmer or motor, and at

least 3 meters (lit It) away from your TV set or a fluorescent light.

• Move your TV away from file audio components

•The plugs and jacks are dirty Wipe them with a cloth slightly moistened with

alcohoh

• Clean the disc

The sound loses stereo effect •Set [AUDIO] to [STEREO] by pressing AUDIO (page 45).

when you play a VIDEO CD, a • Make sure the unit is connected properly.

CD, or an MP3 file.

The surround effect is difficult to • Make sure the "DEC. MODE" setting (page 40).

hear when you arc playing a • Check the speaker connections and settings (pages 24, 67).

sound track of Dolby Digital •Depending on the DVD, the oulput signal may not be the entire 5 1 channeh It

DTS or MPEG audio may be monaural or slereo even if Ihe sound track is recorded in Dolby Digilal

or MPEG audio format.

The sound comes from the center •Depending on the disc the sound may come from the center speaker only

speaker only

No sound is he,rd fi'om the •Check the speaker connections and settings (pages 24, 67).

center speaker •Make sure the "DEC MODE ' setting (page 40).

• Depending on the source, the elli:ct of the center speaker may be less

noticeable.

• A 2 channel source is being played.

g5GB

Symptom Remedy

No sound or only a very low- • Check the speaker connections and settings (pages 24, 67)

level sound is heard from the • Make sure the "DEC. MODE" setting (page 411)

surround speakers. •Depending on the source_ the effecl of Ihe surround speakers may be less

noticeable.

•A 2 channel source is being played

There is no sound from the • The sampling frequency of the input signal is morn Ihan 48 kHz.

DIGITAL IN COAXIAL/

OPTICAL jack.

Operation

Symptom Remedy

Radio stations cannot be tuned •Check that the antenna (aerial) is connected securely. A(liust the antenna

in. (aerial) or connect an external antenna (aerial) if necessary

• The signal strength of the stations is too weak (when tuning in with automatic

tuning). Use direct tuning.

• No stations have been preset or the preset stations have been cleared (when

tuning by scanning preset stations) Preset the stations (page 70).

• Press DISPLAY so that the frequency appears in the front panel display.

• Check the location of the AM loop antenna (aerial) and cord (page 32)

• There are obstacles between the remote and the unit.

• The distance between the remote and the unit is too far.

• The remote is not pointed at the remote sensor on the unit.

• The batteries in the remote are weak

• There is no disc inserted

• The disc is upside down.

Insert the disc with the playback side facing down.

• The disc is skewed on the disc tray.

• The system cannot play CD-ROMs, etc. (page 6)

• The region code on the DVD does not match the system

• Moisture has condensed inside the unit and may cause damage to the lenses.

Remove the disc and leave Ihe unit turned on for about half an hour

• The DATA CD is not recorded in the MP3 fonnat that conforms to ISO 966{}

Level l/Level 2, or Joliet

• The DATA DVD is not recorded in an MP3 format that conforms to UDF

(Universal Disk Format)

• The MP3 file does not have the extension "MP3"

• The data is not formatted in MP3 even though it has the extension ".MP3."

• The data is not MPEG I Audio Layer 3 data.

• The system cannot play audio tracks in MP3PRO format.

• The [MODE (MUSIC, IMAGE)] setting has been set to [IMAGE] (page 55)

• If you cannot change the [MODE (MUSIC, IMAGE)] setting, reqoad the disc

or turn the system off, then on.

• The DATA CD/DATA DVD contains a DivX video file (except for United

Kingdom and North American models)

Noise is heard on AM radio.

The remote does not l_mction.

The disc does not play

The MP3 file cannot be played

g6GB

Symptom

The JPEG image file cannot be

played.

Remedy

•The DATA CD is not recorded in a JPEG fi)rmat that confi)rms to ISO 9660

Level I/Level 2, or Joliet.

• The DATA DVD is not recorded in aJPEG format that conforms to UDF

(Universal Disk Format).

•It has an extension other than ".JPEG" or ".JPG."

•It is larger than 3,072 (width) x 2,048 (height) in n()rmal mode, or more than

2,000,00(1 pixels in Progressive JPEG image file which is mainly used on the

lnternet WEB site.

•It does not fit the TV screen (those images are reduced).

• The IMODE (MUSIC, IMAGE)] setting has been set to IMUSIC] (page 55).

• If you cannot change the [MODE (MUSIC, IMAGE)] setting, re-load the disc

or turn the system off, then on.

• The DATA CD/DATA DVD contains _ DivX vide() file (except fi)r United

Kingdom and North American models).

The MP3 files and JPEG image • [AUTO] has been selected in [MODE (MUSIC, IMAGE)] (page 55).

files starts playing

simu]taneo/isly.

The DivX vide() file cannot be • The file is not created in DivX format.

played (except for United • The file has an extension other than ".AVI" or ".DIVX."

Kingdom and North American • The DATA CD/DATA DVD is not created in a DivX fi)rnlat that conforms to

models). ISO 966(t Level l/Level 2 or, Joliet/UDF.

• The DivX vide() file is larger than 720 (width) x 576 (height).

The titles of folder/file/file name • The system can only display numbers and letters of the alphabets. Other

are not displayed correctly, characters are displayed as I'%

A disc does not start playing • Program Play, Shuffle Play, or Repeat Play has been selected.

fiom the beginning. Press CLEAR to cancel these fimctions befi)re playing a disc.

• Resume Play has been selected.

During stop, press • on the unit or the remote and then start playback

(page 48).

• The title, DVD or PBC menu automatically appears on the TV screen.

The system starts playing the • The DVD IL.aturcs an auto playback fimction.

disc automatically.

Playback stops automatically. • Some discs may contain an auto pause signal. While playing such a disc, the

system stops playback at the auto pause signah

You cannot perform some • Depending on the disc, you may not be ahle to perform some of the operations

fimctions such as stop, search, above. Refer to the operating instructions supplied with the disc.

Slow-motion Play, or Repeat

Play.

Messages do not appear on the • In the Setup Display, select the desired language for the on-screen display in

TV screen in the language you IOSDI under [LANGUAGE SETUPI (page 62).

want.

The language fi)r the sound track • Multilingual tracks arc not recorded on the DVD being played.

cannot be changed. • The DVD prohibits changing the language for the sound track.

The subtitle language cannot be • Muhilingual subtitles arc not recorded on the DVD being played.

changed. • The DVD prohibits changing the subtitles.

The subtitle cannot be turned off. • The DVD prohibits turning off subtitles.

The angles cannot be changed. • Multi-angles are not recorded on the DVD being played (page 45).

• The DVD prohibits changing the angles.

D..

g7G8

Symptom

A disc cannot be _jected and

"LOCKED"appears in the front

panel display.

]Data error] appears on the TV

screen when playing a DATA

CD or DATA DVD.

The system does not work

normally

The Control for HDMI Rmction

does not work

No sound is output from the

system and TV while using the

System Audio Control lhnction.

The S-AIR function

(DAV-HDX275/DAV-HDX475 only)

Remedy

•Contact your Sony dealer or local authorized Sony service fi,cility.

• The MP3 file/JPEG image file/DivX vide() file you want to play is broken

(except for United Kingdom and Nol_h American models).

• The data is not MPEG I Audio Layer 3 data.

• The JPEG image file format does not conform to DCF.

• The JPEG image file has the extension "JPG" or ".JPE(I,"but is not in JPEG

format.

• The file you want to play has the extension ".AVI"or ".DIVX"but is not in

DivX format, or is in DivX lk)rmat but does not conform to a DivX Certified

profiles (except for United Kingdom and North American models).

• Disconnect the AC power cord (mains lead) from the wall outlet (mainsL then

reconnect after several nlinl_ltes.

• When "HDMI"does not light up in the frontpanel display, check the HDMI

connection (page 26).

• Set the [CONTROL FOR HDMI] setting ill [HDMI SETUPI to [ONI (page 64).

• Make sure that the connected component is compatible with the [CONTROL

FOR HDMI] Rmction.

• Check that the AC power cord (mains lead) of the connected component is

connected securely.

• Check the connected component's setting for the Control for HDMI function.

Refer to the operating instructions supplied with the component.

• lfyou change the HDMI connection, connect and disconnect the AC power

cord (mains lead), or have a power failure, set the ]CONTROL FOR HDMI]

setting in [HDMI SETUPI to [OFFI, then set the [CONTROL FOR HDMII

setting in [HDMI SETUPI to [ONI (page 64).

• For details, see "Using the Control for HDMI Function R)r"BRAVIA" Sync"

(page 73).

• Set the ]AUDIO (HDMI)] setting ill [CUSTOM SETUP] to [ON] (page 65).

• Make sure that the connected TV is compatible with the System Audio Control

function.

• For details, see "Using the Control for HDMI Function R)r"BRAVIA" Sync"

(page 73).

Symptom

S-AIR connection is not

established (sound transmission

is not established), e.g., the

indicator of the S-AIR sub unit

does the l_)llowing:

•Turn s off.

•Flashes

• Turns red

Remedy

•lfyou use another S-AIR main unit, place it more than 8 m (26 J/4lieet)_JX_r_J),

from the unit.

• Confirm the ID of the unit and S-AIR sub unit (page 78).

• You performed pairing the unit and another S-AIR sub unit. Perform pairing of

the desired S-AIR sub unit (page 80).

• The unit is paired to another S-AIR sub unit. Cancel pairing.

• Install the S-AIR main unit and S-AIR sub unit away from other wireless

products.

• Stop using another wireless product.

• The S-AIR sub unit is turned off. Make sure the AC power cord (mains lead) is

connected and turn on the S-AIR sub unit.

g8 G8

Symptom

No sound is heard from the

S-AIR product.

There is noise or the sound skips.

Remedy

• If you use another S-AIR main unit, phlce it more than 8 m (26 74feet) a_ay

from the unit.

• Confirm the ID of the unit and S-AIR sub unit (page 78).

• Confirm the pairing setting (page 80).

• Install the S-AIR main unit and S-AIR sub unit closer together.

• Avoid use of equipment that generates electromagnetic energy, such as a

microwave ()veil.

• Install the S-AIR main unit and S-AIR sub unit away from other wireless

products.

• Stop using another wireless product.

• Change the "RF CHANGE" setting (page 82).

• Change the ID settings of the S-AIR main unit and S-AIR sub unit.

• Turn off the system and S=AIR sub uniL then tunl on them.

• If you use another S-AIR main unit, place it more than 8 m 126 7a feet) away

from the unit.

• Install the S-AIR main unit and S-AIR sub unit closer together.

• Avoid use of equipment that generates electromagnetic energy, such as a

microwave ()veil.

• Install the S-AIR main unit and S-AIR sub unit away from other wireless

products.

• Stop using another wireless product.

• Change the "RF CHANGE" setting (page 82).

• Change the ID settings of the S-AIR main unit and S-AIR sub unit.

ggG8

Self-diagnosis Function

(When letters/numbers appear in the

display)

When the self-diagnosis function is activated to

prevent the system from malfunctioning, a 5-

character service number (e.g., C 13 50) with a

combination of a letter and 4 digits appears on

tile TV screen or fi'ont panel display. In this case.

check the following table.

First 3

characters of

the service

number

C 13

C 31

EXX

(XX is a

number)

....;_:13:50 j

Cause and/or corrective action

The disc is dirty.

•,_Clean the disc with a soft cloth

(page 92).

The disc is not inserted correctly.

,,,,l_RestartIhe system, then re-insert

the disc correctly.

To prevent a malfunction, the

system has performed Ihe self-

diagnosis flmctkm.

,-,l_Contact your nearest Sony

dealer or local authorized Sony

service facility and give the 5-

character service number.

Example: E 61 I0

When displaying the version

number on the TV screen

When you turn on the system, the version

number [VER.X.XX] (X is a number) may

appear on the TV screen. Although this is not a

malftmction and lk_rSony service use only,

normal system operation will not be possible.

Turn off the system, and then turn on the system

again to operate.

k"VER.X.XX_

100G8

Specifications

AUDIO POWER SPECIFICATIONS

for the US model

POWER OUTPUT AND TOTAL HARMONIC

DISTORTION:

With 3 ohms loads, both

channels driven, ff()m 180

-20_000 Hz; rated 84 watts

per channel minimum

RMS power, with no more

thin 11.7% total harmonic

distortion from 250 milli

watts to rated output.

Amplifier Section

US models:

Surround mode (reference)

Other models:

Stere() mode Crated)

RMS output power

FLIFRICISL/SR*: 143watts

(per channel at 3 ohms, I

kHz, 10% THD)

Subwoofcr'_': 285 watts (at

1.5 ohms, 80 Hz, 10%

THD)

1(18 W +BIg W (at 3 ohms,

1 kHz, It/; THD)

Surround mode (reference) RMS output power

FL_R/C/SL/SR% 143

watts (per channel at 3

ohms, 1 kHz, 10% THD)

Subwoofcr":: 285 watts (at

1.5 ohms, 80 Hz, 10c/;

THD)

Dq)ending on the de( oding mode settin,V_ and the

SOIJIZ?_', th('R" /l_ay b( > tlo _olltld o11II)llt.

Inputs (Analog)

TV/VIDEO (AUDIO IN) Sensitivity: 450/250 mV

AUDIO IN Sensitivity: 250/I 25 mV

Inputs (Digital)

TV/VIDEO (COAXIAL IN/OPTICAL IN)

Impedance: 75 ohms/-

Outputs (Amdog)

Phones Accepts low- and high-

impedance headphones.

Super Audio CD/DVD System

Laser Semiconductor laser

(Super Audio CD/DVD: £

= 650 nm)

(CD: £ = 790 rim)

Emission duration:

continuous

Signal format system

North American models: NTSC

Other models:

Tuner Section

System

FM tuner section

Tuning range

Norlh American models:

Other models:

Antenna (aerial)

Antenna (aerial) terminals

Intermediate frequency

AM tuner section

Tuning range

NTSC_AL

PLL quartz-locked digital

synthesizer

87.5 MHz - 108.0 MHz

(100 kHz step)

87.5 MHz - 108.0 MHz 150

kHz step)

FM wire antenna (aerial)

75 ohms, unbahmced

10.7 MHz

North American, Mexican, and Latin American

models:

530 kHz - 1,710 kHz (with

the interval set at 10 kHz)

531 kHz- 1,710 kHz (with

the inlerval set at 9 kHz)

European, Russian, and Middle Eastern models: D.

531 kHz- 1_602kHz(with _.'

the interval set at 9 kHz) O"

Auslralian and New Zealand models: _

531 kHz- 1,710 kHz(with _-

the interval set at 9 kHz) _'_

530 kHz - 1,710 kHz (with

the inlerval set at 10 kHz)

Other models: 531 kHz - 1,602 kHz (with _'

the interval set at 9 kHz) ":

530 kHz - 1,610 kHz (with

the interval set at 10 kHz)

Antenna (aerial) AM loop antenna (aerial)

Intermediate frequency 450 kHz

Video Section

Outputs VIDEO: I Vp-p 75 ohms

COMPONENT:

Y: I Vp-p 75 ohms

PB/CB. PRICk:0.7 VDp

75 ohms

HDMI OUT: Type A 119

pin/

Speakers

Front (DAV-HDX275/DAV-HDX276) (SS-

TS81 )

Speaker system Full range Bass reflex,

Magnetically Shielded

Speaker unit 65 mm (2 51_in) cone type

Rated impedance 3 ohms

Dimensions (approx./ 103 mmx 225 mmx 82

mm (4 % ill X 8 ?Is ill X

3 %in) (w/h/d)

Mass (approx./ 0.7 kg (I lb 9 oz)

101G8

Front (DAV-HDX475)

Speaker systcnl

Speaker unit

Rated impedance

Dimensions (approx./

Mass (approx.)

Center (SS-CT80)

Speaker system

Speaker unit

Rated impedance

Dimensions (approx.)

Mass (approx.)

Surround (SS-TS80)

Speaker system

Speaker unit

Rated impedance

Dimensions (approx./

Mass (approx./

(SS-TS82)

Full range Bass reflex,

Magnetically Shielded

65 mm (2 5/8 in/cone type

3 ohms

108 mm x 540 mmx 78

mm (4 3/s in x 21 s/s in x

3 % in) (w/h/d)

290 mmx I,(M5 mm -

1,230 mm x 290 mm

111 V2in x41 74in-48 72

in x 11 */2in) (w/h/d) with

stand

1.2 kg (2 lb 11 oz)

2.9 kg (h lb 7 oz) with

stand

Full range Bass reflex,

Magnetically Shielded

65 mm 12 s/s in) cone type

3 ohms

265 mm x 93 mm x 71 mm

( 10 */2in x 33/4 in x 2 7/8in)

(w/h/d)

11.7 kg (1 lb 9 oz)

Full range Bass reflex,

Magnetically Shielded

65 mm (2 s/s in) cone type

3 ohms

103 mm x 164 mm x 82

mml4 % in x6 _hin x

3 74 in) (w/h/d)

1).6 kg (1 lb 6 oz)

Subwoofer (SS-WS82)

Speaker system

Speaker unit

Rated impedance

Dimensions (approx.)

Mass (approx.)

General

Po_ er requirements

North American models:

Other models:

Power consunlption

DAV-HDX275

DAV-HDX276

Subwoofcr Bass reflex

160 mm (6 s£ in/cone type

1.5 ohms

225 mmx 395 mm x 325

mm (8 7/s in x 15 s/s in x

12 7/s in) (w/h/d)

6.1 kg (14 lb 6 oz)

120 V AC, 60 Hz

220 V 240 V AC,

51)/60 Hz

On: 165W

Standby: 0.3 W lat the

Power Saving mode)

On: 160 W

Standby: 0.3 W (at the

Power Saving mode)

DAV-HDX475 On: 165 W

Standby: (1.3 W (at the

Power Saving mode)

Output voltage (DIGITAL MEDIA PORT)

DC 5 V

Output current IDIGITAL MEDIA PORT)

700 mA

Dimensions (approx./ 430 mmx 85 mm x 415

mm (17 in x3s/8 in x

16 s/s in) (w/h/d) inch

projecting parts

Mass (approx./ 5.2 kg (I 1 lb 8 oz)

Design md specifications arc subject to change

without notice.

• Standby power consumption 1).3 W.

• Halogenated flame retardants are not

used in the printed wiring boards.

• Over 85q power efficiency of

amplifier block is achieved wifll the

full digital amplifier, S-master.

102G8

Glossary

Digital Cinema Auto Calibration

Digital Cinema Auto Calihration was developed

by Sony to automatically measure and adjusts

the speaker settings to your listening

environment in a short period of time.

Digital Direct Twin Drive Subwoofer

Utilizing Sony proprietary S-master technology,

the Digital Direct Twin Drive Subwoofer

llzatures two S-master Digital Amplifiers that

provide dedicated power to a strategically

located subwoofcr tk)r astounding sound

perlk)rmance. Easy to set up, Digital Direct Twin

[)rive Subwoofcr provides a stable sound field

over a much larger listening area without having

to adjust frequency levels.

Dolby Digital

This movie theater sound l\)rmat is more

advanced than Dolby Surround Pro Logic. in

this lormat, tire surround speakers output stereo

sound with an expanded fi'equeucy range, and a

subwool'cr channel for deep bass is

independently provided. This format is also

called "5.1" with the subwoofer channel

designed as the 0.1 channel (since it limctions

only when a deep bass effect is needed). All six

channels in this [i)rmat are recorded separately

lot superior chmmel separation. Furthermore,

since all the signals are processed digitally, less

signal degradation occurs.

Dolby Pro Logic II

Dolby Pro Logic II creates five full-handwidttl

output channels from 2 channel sources. This is

done usiug an advanced, high-purity matrix

surround decoder that extracts the spatial

properties of the original recording without

adding any new sounds or tonal colorations.

•Movie mode

The Movie mode is {_)ruse with stere() television

shows and all programs encoded in Dolby

Surround. The result is enhanced souud field

directionality that approaches the quality of

discrete 5.1 =channel sound.

•Music mode

The Music mode is lor use with any stereo music

recordings, and provides a wide and deep sound

space.

Dolby Surround Pro Logic

As one method of decoding Dolby Surround,

Dolby Surround Pro Logic produces four

channels from 2 channel sound. Compared with

the l\)rmer Dolby Surround system, Dolby

Surround Pro Logic reproduces left-to-right

panning more naturally and localizes sounds

more precisely. To take fi_ll advantage of Dolby

Surround Pro Logic, you should have one pair of

surround speakers and a center speaker. The

surround speakers output nlonaural sound.

DTS

Digital audio compression technology

developed by DTS, Inc. This technology

conforms to 5.l-channel surround. Tiffs format

comprises of stere() rear channel and there is

discrete subwoofcr channel in this format. DTS

provides the same 5.1 discrete ctmnnels of high

quality digital audio. The good channel

separation is realized due to the all channel data

being recorded discretely and processed in

digitally.

HDMI (High-Definition Multimedia

Interface)

HDMI is an interface that supports both video

and audio on a single digital counectiou,

allowing you to enjoy high quality digital

picture and sound. The HDMI specification

supports HDCP (High=bandwidth Digital

Content Protection), a copy protection

technology that incorporates coding technology

for digital video signals.

Interlace format

(Interlaced scanning)

The Interlace limnat is the NTSC standard

method l\)r displaying TV images at 30 frames

per second. Each flame is scanned twice -

alternately between the even numbered scanning

lines and then odd numbered scanning lines, at

60 times per second.

Parental Control

A function of the DVD to limit playhack of the

disc by the age of the users according to the

limitation level in each country. The limitation

D..

103G8

104G8

varies fronl disc to disc: when it is activated,

playback is completely prohibited, violent

scenes are skipped or replaced with other scenes

alld so OU.

Progressive format

(sequential scanning)

]n contrast to tile ]nterlace l\trmat, the

progressive fi_rmat can reproduce 50 - 60 flames

per second by reproducing all scanning lines

(525 lines for tile NTSC system). The overall

picture quality increases and still images, text

and horizontal lines appear sharper. This format

is compatible with the 525 or 625 progressive

l\_rmat.

S-AIR

(Sony Audio Interactive Radio

frequency)

Recem times have seen tile rapid spread of DVD

media, Digital Broadcasting, and other high-

quality media.

To ensure that the subtle nuances of these high-

quality media are transmitted with no

deterioration, Sony has developed a technology

called "S-AIR" l\_r the radio transmission of

digital audio signals with no compression, and

has incorporated this technology into the EZW=

RT 1()/EZW-T 1(t0.

This technology transfers digital audio signals

with no compression using the 2.4 GHz band

range of 1SM band (Industrial, Scientific, and

Medical band), such as wireless LANs and

Bluetooth applications.

Super Audio CD

Super Audio CD is a new high-quality audio

disc standard where music is recorded ill the

DSD (Direct Stream Digital) format

(conventional CD is recorded in the PCM

l\_rmat). The DSD lormat, using a sampling

frequency 64 times higher than that of a

conventional CD, and with l-bit quantization,

achieves both a wide frequency range and a wide

dynamic range across tile audible frequency

range, and so provides music reproduction

extremely fuithfld to the original sound.

• Super Audio CD types

There are two types of discs, depending on tile

Super Audio CD layer and CD layer

combination.

•Super Audio CD layer: A high-density

signal layer for Super Audio CD

•CD layerlt: A layer that is readable by a

conventional CD player

Single layer disc

(a disc with a single Super Audio CD layer)

Audio CD

layer

Hybrid disc 2t

(a disc with a Super Audio CD layer and a CD layer)

layer 31

Super Audio CD

layer 3)

A Super Audio CD layer consists of the 2

channel area or tile multi-channel area.

• 2 channel area: All area ill which 2 channel

stereo tracks are recorded

•Multi-channel area: All area in which multi-

channel (up to 5.1 channels) tracks are

recorded

2 channelarea 4)

Multichannelarea 4) Super Audio CD

layer

l!Yeu can play the CD layer en a conventional CD

player.

2)Since beth layers are on one side, it is net necessary

to turn the disc ever.

3)Te select a layer, see "To change a playback layer

when playing a hybrid Super Audio CD" (page 47).

4)To select all arc& see "To select a playback area ell a

2 channel + Multi-channel Super Audio CD"

(page 47).

LanguageCodeList

The l_mguu_e spellings conl_rm to tile ISO 630: 1_,_ (E/F) standard.

Code Language Code Language Code Language Code Language

1027 Afar 1183 Irish 1347 Maod 1507 Samoan

1028 Abkhazian 1186 Scots Gaelic 1349 Macedonian 1508 Shona

1032 Afrikaans 1194 Galician 1350 Malayalam 1509 Somali

1039 Amharic 1196 Guarani 1352 Mongolian 1511 Albanian

1044 Arabic 1203 Gujarati 1353 Moldavian 1512 Serbian

1045 Assamese 1209 Hausa 1356 Marathi 1513 Siswati

1051 Aymara 1217 Hindi 1357 Malay 1514 Sesotho

1052 Azerbaijani 1226 Croatian 1358 Maltese 1515 Sundanese

1053 Bashkir 1229 Hungarian 1363 Burmese 1516 Swedish

1057 Byelorussian 1233 Armenian 1365 Nauru 1517 Swahili

1059 Bulgarian 1235 Interlingua 1369 Nepali 1521 Tamil

1060 Bihari 1239 Interlingue 1376 Dutch 1525 Telugu

1061 Bislama 1245 Inupiak 1379 Norwegian 1527 Tajik

1066 Bengali; 1248 Indonesian 1393 Occitan 1528 Thai

Bangla 1253 Icelandic 1403 (Afan)Oromo 1529 Tigrinya

1067 Tibetan 1254 Italian 1408 Oriya 1531 Turkmen

1070 Breton 1257 Hebrew 1417 Punjabi 1532 Tagalog

1079 Catalan 1261 Japanese 1428 Polish 1534 Setswana

1093 Corsican 1269 Yiddish 1435 Pashto; 1535 Tonga

1097 Czech 1283 Javanese Pushto 1538 Turkish

1103 Welsh 1287 Georgian 1436 Portuguese 1539 Tsonga

1105 Danish 1297 Kazakh 1463 Quechua 1540 Tatar

1109 German 1298 Greenlandic 1481 Rhaeto- 1543 Twi

1130 Bhutani 1299 Cambodian Romance 1557 Ukrainian

1142 Greek 1300 Kannada 1482 Kirundi 1564 Urdu

1144 English 1301 Korean 1483 Romanian 1572 Uzbek

1145 Esperanto 1305 Kashmiri 1489 Russian 1581 Vietnamese

1149 Spanish 1307 Kurdish 1491 Kinyarwanda 1587 Volap_Jk

1150 Estonian 1311 Kirghiz 1495 Sanskrit 1613 Wolof

1151 Basque 1313 Latin 1498 Sindhi 1632 Xhosa

1157 Persian 1326 Lingala 1501 Sangho 1665 Yoruba

1165 Finnish 1327 Laothian 1502 Serbo- 1684 Chinese

1166 Fiji 1332 Lithuanian Croatian 1697 Zulu

1171 Faroese 1334 Latvian; 1503 Singhalese

1174 French Lettish 1505 Slovak

1181 Frisian 1345 Malagasy 1506 Slovenian 1703 Not specified

Code Area Code Area Code Area Code Area

2044 Argentina 2165 Finland 2362 Mexico 2149 Spain

2047 Australia 2174 France 2376 Netherlands 2499 Sweden

2046 Austria 2109 Germany 2390 New Zealand 2086 Switzerland

2057 Belgium 2248 India 2379 Norway 2528 Thailand

2070 Brazil 2238 Indonesia 2427 Pakistan 2184 United

2079 Canada 2254 Italy 2424 Philippines Kingdom

2090 Chile 2276 Japan 2436 Portugal

2092 China 2304 Korea 2489 Russia

2115 Denmark 2363 Malaysia 2501 Singapore

105G8

Index to Parts and Control

For more intk_rmation, reli:r to the pages indicated in parentheses.

[] I/_ (on/standby) (35, 90)

[] _ (open/close) (43)

[] Front panel display (108)

[] Play operation buttons (43)

[] m (remote sensor) (12)

[] FUNCTION (38)

[] VOLUME control (43)

[] PHONES jack (43)

[] AUDIO IN/A.CAL MIC jack (29, 35, 84)

[] DISC 1-5 buttons/indicators (43)

[] Disc tray (43)

106G8

DAV-HDX276

DAV-HDX275/DAV-HDX475

[]

[] SPEAKER jacks (24)

[] EZW-T10O slot (DAV-H DX275/DAV-

HDX475 only) (30)

[] FM COAXIAL 75£_ jack (32)

[] AM terminal (32)

[] TVNIDEO (AUDIO IN R/L) jacks (26, 29)

[] VIDEO OUT jack (26)

[] COMPONENT VIDEO OUT jacks (26)

[] DMPORT (DIGITAL MEDIA PORT) jack

(29, 76)

[] RDMI OUT jack (26)

[] TV/VIDEO (DIGITAL IN COAXIAL/

OPTICAL) jacks (26)

'_'_CAUTION

Please do 11(',1remove tile scre',_s before

inst alling the EZW-T 100.

107G8

About the indications in the front panel display

[] Playing status

[] Flashes when the sleep timer is set.

(86)

[] Displays system's status such as

chapter, title, or track number, time

information, radio frequency, playing

status, decoding mode, etc.

[] Lights up when a station is received.

(Radio only) (70)

[] Stereo/Monaural effect (Radio only)

(71)

[] Lights up when the S-AIR transmitter

(not supplied) is inserted in the unit

and the system transmits the sound.

(DAV-HDX275/DAV-HDX475 only) (77)

[] Lights up when the HDMI OUT jack is

correctly connected to HDCP (High-

bandwidth Digital Content Protection)

compliant device with HDMI or DVI

(Digital Visual Interface) input. (26)

[] Current surround format (Except for

JPEG image file)

[] Lights up when the color system is set

to NTSC. (Asian, Australian, and Middle

Eastern models only)

[] Lights up when Super Audio CD/CD is

loaded. (47)

108G8

ALPHABETICAL ORDER

A-O

ANGLE [] (45)

AUDIO [] (45)

CLEAR [] (49, 61,71)

D.TUNING [] (71)

DISC SKIP[_ (43)

DISPLAY [] (72, 87)

DVD MENU [] (52)

DVD TOP MENU [] (52)

DYNAMIC BASS [] (86)

ENTER 1! [] (34, 35, 47, 49, 70,

83)

FUNCTION +/ [] (3& 43)

MENU [] (85)

MUTING [] (43)

NIGHT [] (86)

ONE-TOUCH PLAY [] (74)

P-Z

PICTURE NAVI [] (54)

PRESET +1 [] (71)

PROG +/ 2) [] (85)

S-AIR MODE 3) []

SLEEP [] (86)

SOUND MODE [] (42)

SUBTITLE [] (45)

SYSTEM MENU [] (34, 39, 86,

87)

THEATER_HEATRE 4) [] (73)

TOOLS [] (85)

TUNING +_ [] (70)

WV [] (855

TV CH +1 55[] (85)

TV INPUT [] (85)

TV VOL +_ [] (85)

VOLUME +_ [] (43)

BUTTON DESCRIPTIONS

Number buttons [] (47, 71L85)

I/(_)(on/standby) [] (34, 35, 43)

TV I/(D (on/standby) [] (85)

÷/q,l,l,l+l @ [] (34+35, 47, 49,

70, 83)

_e /o,,_ REPLAY/ADVANCE

[] (43)

I._ql/l_l [] (43)

",ql_/l_- [] (43)

STEP 411/111_[] (43)

SLOW -_l/I _ [] (43)

[2::--(play) [] (43)

• (stop) [] (43)

II (pause) [] (43)

O DISPLAY (') [] (35, 47, 49+83

RETURN[] (47, 85)

_/__2)[] (85)

(.) 5>[] (85)

N>---

N--

Nk---

i C_2 +ID, +YZ+++,Z>

i_;_ _ _/_y t++_¸

@-- +::G

i 77

----X] liThe ENTER button has the

same flmction as Ibe @

button. When you operate

the TV, the ENTER button is

used for selecting t channeh

and the ,_ button is used lk)r

selecting menu items

(page 85).

2)Except lk)r North American

models.

_)DAV-HDX275/DAV-

HDX475 only.

4)The button name dilli:rs

depending on the area.

5)North American models

only.

6)This button is available h_r

the "DVD" or "DMPORT"

function. Depending on the

DIGITAL MEDIA PORT

adapter, this button may not

work.

100+8

Guideto the Control Menu Display

You can use the Control Mem_display lo select a function and Io view relaled hffonnation.

< >

> !: _ 4

a { >

{ { (> {

q: 5

> < {

G DISPLAY

Press ODISPLAY repeatedly.

Each time you press O D1SPLAY, the Control Menu display changes:

(_)---_ (_)---_ ... ---_ (_) ---_ ..

(_) Control Menu display 1

(g) Conlrol Menu display 2 (appears when available)

(_) Con|rol Menu display ofl

•The ControlMenuDisplay appeus duringIhe"DVD"or "DMPORT"lkmcfion.Dependingon the DIGITAL

MEDL_.PORTad ipter,the ControlMenuDisplaymay notappear.

The Control Menu display 1 and 2 will show different ilems depending on the disc type. For details,

see Ihe pages in parentheses.

110G8

Example: Control Menu display 1 when playing a DVD VIDEO.

Currently playing title number

Currently playing chapter number

Total number of titles

Total number of chapters Playback status

Control Menu items (1_ Playback,

II Pause,

• Stop etc.)

Selected

)e of disc being

played

Playing time

Current setting

Function name

Control Menu item

Operation message

To turn off the display

Press Q DISPLAY.

List of Control Menu items

Options

Item Item Name, Function, Relevant Disc Type

[TITLE] (page 52)/[SCENE] (page 52)/[TRACK] (page 52)

You can select Ihc title, scene, or track to be played. _ _

[CHAPTER] (page 52)/[INDEX] (page 52)

You can select Ihc chapter or index Iobc pbtycd. _ _

[INDEX] [page 52)

You can display Ihc index and select the index Io be played.

[TRACK] (page 52)

You can select Ihc track Iobc played. _ _ _

[ORIGINAL/PLAY LIST] [page 52)

You can select the type of titles (DVD-RW/DVD-R) to be played, the IORIGINALI one, or

an ediled [PLAY LIST1.

[TIME] (page 53)

You can check the elapsed time and Ihc remaining playback lime.

lnput the time code for picture and music searching.

The system displays the DVD/Super Audio CD/CD text or the MP3 file name.

[MULTI/2CH] (page 47)

You can select Ihe playback area on a Super Audio CD when available.

[SUPER AUDIO CD/CD LAYER] (page 47)

You can select Ihc playback layer on a Sul)cr Audio CD when available.

111G8

[PROGRAM] (page 49)

You can sck'ct the Irack to play in the order you want. _

[SHUFFLE] (page 50)

You can playthe (rack/ilk' in random order. _ _ _ _

[REPEAT] (page 51)

You can play the entire disc (all titles/all tracks/all folders/all files) repeatedly (51one title/

ch apter/track/l_)lder/file repeatedly.

| [NV SYNC] (page 59)

You can a_!just the delay between the picture and sound.

[DISC MENU] (page 52)

You can display the DVD's menu.

[BROWSING] (page 55)

You can display Ihc lisl of l_slders/JPEG image files. _

[SETUP] (page 61)

[QUICK] (page 35)

You can make the basic adjustments. Use Quick Setup to select the desired language of the

on-screen display_ the aspect ratio of the TV, and select yes or no to start the Auto Calibration.

[CUSTOM]

In addition to the Quick Setup setting_ you can a_ljust various other settings.

[FOLDER] (page 52)

You can selccl the lksl(lcr to bc played. _

[FILE] (page 52)

You can select the JPEG image file or DivX video file II 1(5be pla) ed. _

[DATE] (page 89)

You can display Ihc dale the picture was taken by a digital cal/nera. _

[INTERVAL] (page 56)

_1 You can select the duralion 125rwhich the slides are disphlycd on Ihe TV screen.

2) [EFFECT] (page 56)

You can sclccl the efl_'ct s 1(5bc used l_sr changing slides during a slide show.

2} [MODE (MUSIC, IMAGE)] (page 55)

You can select Ihe data Ivpe MP3 file JPEG image file or both to bc played when playing a

DATA CD/DATA DVD. _

l)Except for United Kingdom and North American models.

2YThese items are not displayed when playing a DATA CD/DATA DVD with DivX video file (except for United

Kingdom and North American models).

• The Control Menu icon indicalor lights up in yellow _ -..+ _ when you selecl any item except [OFF]

([PROGRAM], [SHUFFLE], [REPEAT], and [A/V SYNC] only). The [ORIGINAL/PLAY LIST] indicator lights

up in yellow when you select [PLAY LIST] (default setting).

112G8

Index

Numerics

4:3 OUTPUT 63

5. I Channel Surround 46

A/V SYNC 59

ANGLE 45

ATTENUATE 39

AUDIO 62

AUDIO (HDMI) 65

AUDIO DRC 66

AUDIO SETUP 65

AUTO CALIBRATION 66, 8&

103

BACKGROUND 66

BLACK LEVEL 64

BLACK LEVEL

(COMPONENT OUT) 64

COLD RESET 90

COLOR SYSTEM (VIDEO

CD) 63

CONTROL FOR HDMI 64

Control for HDMI 73

Control Menu Display 110

CUSTOM 61, 90

D. C. A. C. (Digital Cinema

Auto Calibration) 84. 103

DATA CD 57

DATA DVD 57

DEC. MODE 40

DEMO 34

Digital Direct Twin Drive

Subwoofcr 103

DIGITAL MEDIA PORT 76

DIMMER 87

DIS(! SKIP 44

DISPLAY 72

DivX® 57, 67

Dolby Digital 45, 103

Dolby Pro Logic II 103

Dolby Surround Pro Logic 103

DTS 45. 103

DUAL MONO 42

DVD's menu 52

DYNAMIC BASS 86

EFFECT 56

FM MODE 71

Front panel 106

Front panel display 87, 108

HDMI

YCBCR/RGB (HDMI) 65

HDMI (High-Definition

Multimedia Interface) 103

HDMI RESOLUTION 64

HDMI SETUP 64

ILLUM MODE 45

Instant Advance 44

Instant Replay 44

Interlace format 103

INTERVAL 56

JPEG image file 54

JPEG RESOLUTION 65

Language Code List 105

LANGUAGE SETUP 62

MENU 62

MODE (MUSIC, IMAGE) 56

MP3 file 54

Multi Session CD 8

MULTI-DISC RESUME 67

Multiplex broadcast sound 42

Naming preset stations 71

NIGHT 86

ORIGINAL 52

OSD 62

PARENTAL CONTROL 59,

67, 103

PAUSE MODE 64

PBC Playback 47

PICTURE NAVI 55

PLAY LIST 52

Playable discs 6

Program Play 49

PROGRESSIVE

(COMPONENT OUT) 63

Progressive format 37. 104

Quick Setup 35

Rear panel 107

Region (!ode 8

Remote 12

Repeat Play 51

RESET 67, 90

Resume Play 48

RF CHANGE 82

S-AIR 104

S-AIR SETUP 66

S-AIR STBY 80

SCREEN SAVER 66

SETUP 61, 90

Shuffle Play 50

SLEEP 86

Slide Show 55

Sound Mode 42

SPEAKER FORMATION 66,

SPEAKER SETUP 67

CONNECTION 67

DISTANCE 67, 68

LEVEL 68

SUBTITLE 45, 62

Super Audio CD 47, I(M

SYSTEM MENU 34, 39, 40,

45, 71,80, 82, 86, 87

SYSTEM SETUP 66

TEST TONE 68

TIME 53

TRACK SELECTION 66

TV TYPE 63

VIDEO SETUP 62

VOLUME LIMIT 65

113G8

*328303111* (1)

Sony Corporation Printed in China http:/iwww.sony.net/

Sony DAV HDX275 User Manual DVD HOME THEATER SYSTEM Manuals And Guides L0803660

SONY DVD Systems Manual L0803660 SONY DVD Systems Owner's Manual, SONY DVD Systems installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
