2-190-827-12(1)

DVD Home Theatre

System

Operating Instructions

DAV-LF1

2GB

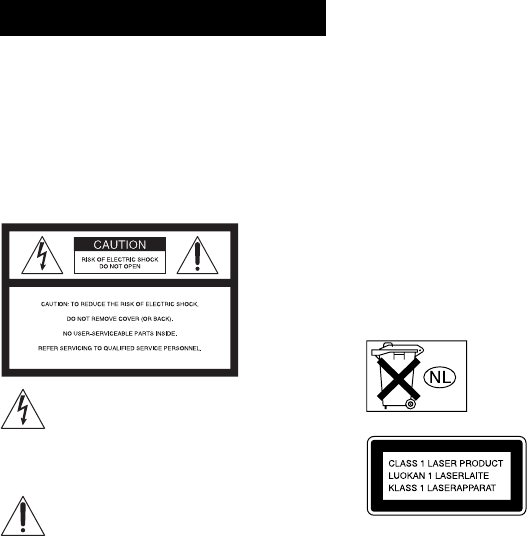

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

Caution – The use of optical instruments

with this product will increase eye

hazard.

For the customers in the U.S.A

This symbol is intended to alert the user to

the presence of uninsulated “dangerous

voltage” within the product’s enclosure that

may be of sufficient magnitude to constitute a risk of

electric shock to persons.

This symbol is intended to alert the user to

the presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

Owner’s Record

The model and serial numbers are located at the rear of

the unit. Record the serial number in the space

provided below. Refer to them whenever you call upon

your Sony dealer regarding this product.

Model No. DAV-LF1

Serial No.______________

CAUTION

You are cautioned that any changes or modifications

not expressly approved in this manual could void your

authority to operate this equipment.

Note to CATV system installer:

This reminder is provided to call the CATV system

installer’s attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be

connected to the grounding system of the building, as

close to the point of cable entry as practical.

For the customers in Canada

CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

Except for North American

models

Do not install the appliance in a confined space, such

as a bookcase or built-in cabinet.

To prevent fire, do not cover the ventilation of the

apparatus with news papers, table-cloths, curtains, etc.

And don’t place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects

filled with liquids, such as vases, on the apparatus.

Don’t throw away the battery with

general house waste, dispose of it

correctly as chemical waste.

This appliance is

classified as a CLASS 1

LASER product. The

label is located on the

rear of the control unit.

Precautions

Safety

• If anything falls into the cabinet, unplug the unit and

have it checked by qualified personnel before

operating it any further.

• The unit is not disconnected from the AC power

source (mains) as long as it is connected to the wall

outlet (mains), even if the unit itself has been turned

off.

• Unplug the unit from the wall outlet if you do not

intend to use it for an extended period of time. To

disconnect the cord, pull it out by the plug, never by

the cord.

Installing

• Allow adequate air circulation to prevent internal

heat build-up.

• Do not place the unit on surfaces (rugs, blankets, etc.)

or near materials (curtains, draperies) that may block

the ventilation slots.

• Do not install the unit near heat sources such as

radiators, or air ducts, or in a place subject to direct

sunlight, excessive dust, mechanical vibration, or

shock.

• Do not install the unit in an inclined position. It is

designed to be operated in a horizontal position only.

WARNING

3GB

• Keep the unit and discs away from equipment with

strong magnets, such as microwave ovens, or large

loudspeakers.

• Do not place heavy objects on the unit.

• If the unit is brought directly from a cold to a warm

location, moisture may condense inside the DVD

Home Theatre System and cause damage to the

lenses. When you first install the unit, or when you

move it from a cold to a warm location, wait for about

30 minutes before operating the unit.

ENERGY STAR® is a U.S.

registered mark.

As an ENERGY STAR® partner,

Sony Corporation has determined

that this product meets the

ENERGY STAR® guidelines for

energy efficiency.

Thank you for purchasing Sony DVD Home

Theatre System. Before operating this system,

please read this manual thoroughly and retain it

for future reference.

On power sources

AC power cord (mains lead) must be changed only at

the qualified service shop.

On placement

• Place the system in a location with adequate

ventilation to prevent heat build-up in the system.

• At high volume, over long periods of time, the cabinet

becomes hot to the touch. This is not a malfunction.

However, touching the cabinet should be avoided. Do

not place the unit in a confined space where

ventilation is poor as this may cause overheating.

• Do not block the cooling fan or ventilation slots by

putting anything on the system. Also, do not place the

system on a soft surface such as a rug that might block

the ventilation holes on the bottom. The system is

equipped with a high power amplifier. If the cooling

fan or ventilation slots are blocked, the unit can

overheat and malfunction.

• Do not place the system in a location near heat

sources, or in a place subject to direct sunlight,

excessive dust, or mechanical shock.

On operation

• If the system is brought directly from a cold to a warm

location, or is placed in a very damp room, moisture

may condense on the lenses inside the system. Should

this occur, the system may not operate properly. In

this case, remove the disc and leave the system turned

on for about half an hour until the moisture

evaporates.

• When you move the system, take out any disc. If you

don’t, the disc may be damaged.

• For power saving purposes, set the system to standby

mode by pressing the "/1 button (the standby

indicator lights up). To turn off the system

completely, remove the AC power cord (mains lead)

from the wall outlet (mains).

• Do not carry the system while it is turned on.

Welcome!

Precautions

continued

4GB

On adjusting volume

Do not turn up the volume while listening to a section

with very low level inputs or no audio signals. If you

do, the speakers may be damaged when a peak level

section is suddenly played.

On cleaning

Clean the cabinet, panel, and controls with a soft cloth

slightly moistened with a mild detergent solution. Do

not use any type of abrasive pad, scouring powder or

solvent such as alcohol or benzine.

If you have any questions or problems concerning your

system, please consult your nearest Sony dealer.

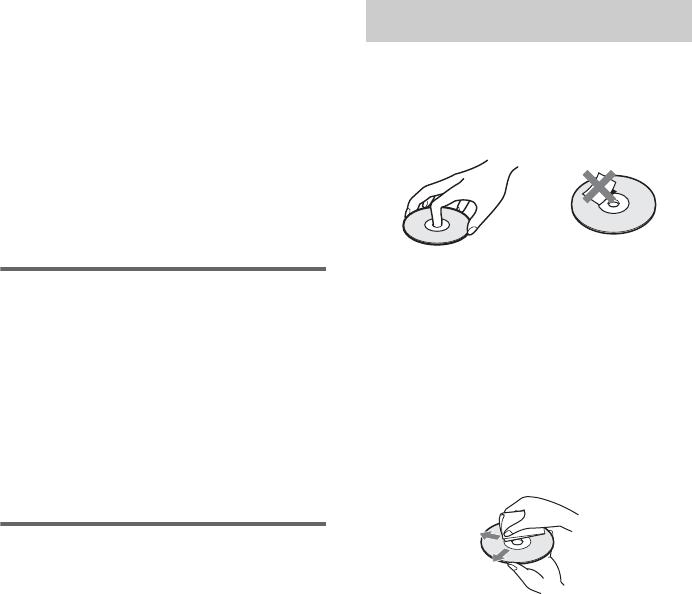

On cleaning discs

Do not use a commercially available CD/DVD

cleaning disc. It may cause a malfunction.

On your TV’s color

If the speakers should cause the TV screen to have

color irregularity, turn off the TV at once then turn it

on after 15 to 30 minutes. If color irregularity should

persist, place the speakers farther away from the set.

On moving the system

When you carry the system, use the following

procedure to protect the inner mechanism.

1Make sure that a disc is removed from the

system.

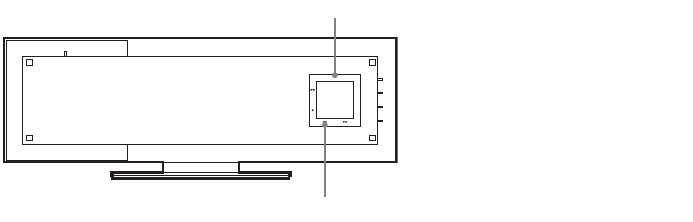

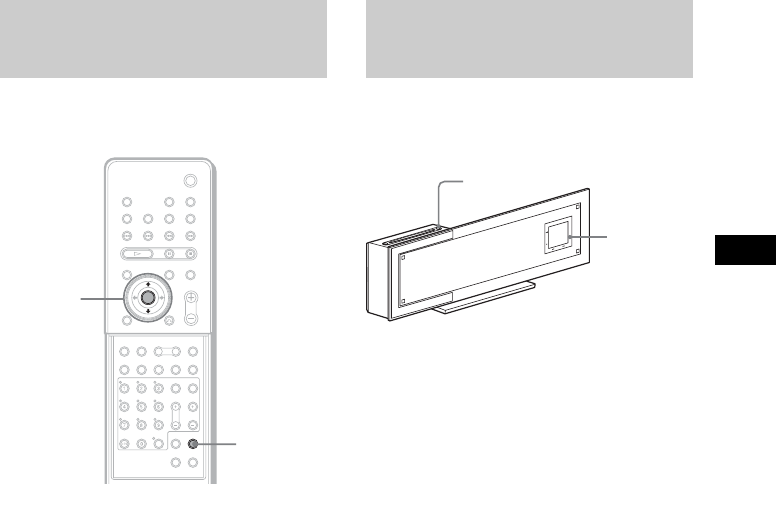

2Press FUNCTION on the remote or touch

the Touch Panel (page 43) repeatedly to

select “DVD.”

3Touch the Touch Panel Sensor .

(page 43) and Z of the control unit

simultaneously for a few seconds until the

front panel display changes to “Mecha

Lock.” If some messages other than “Mecha

Lock” appear, ignore them.

To cancel, press "/1.

4Remove the AC power cord (mains lead)

from the wall outlet (mains).

Note

Do not handle the clear plastic panel when you move

or operate the control unit as it may break.

IMPORTANT NOTICE

Caution: This system is capable of holding a still

video image or on-screen display image on your

television screen indefinitely. If you leave the still

video image or on-screen display image displayed

on your TV for an extended period of time you risk

permanent damage to your television screen.

Projection televisions are especially susceptible to

this.

5GB

Welcome!................................................3

Precautions..............................................3

About This Manual .................................7

This System Can Play the Following

Discs .................................................7

Terms for Discs.......................................7

Notes about Discs ...................................9

Guide to the Control Menu Display......10

Getting Started

Unpacking .............................................12

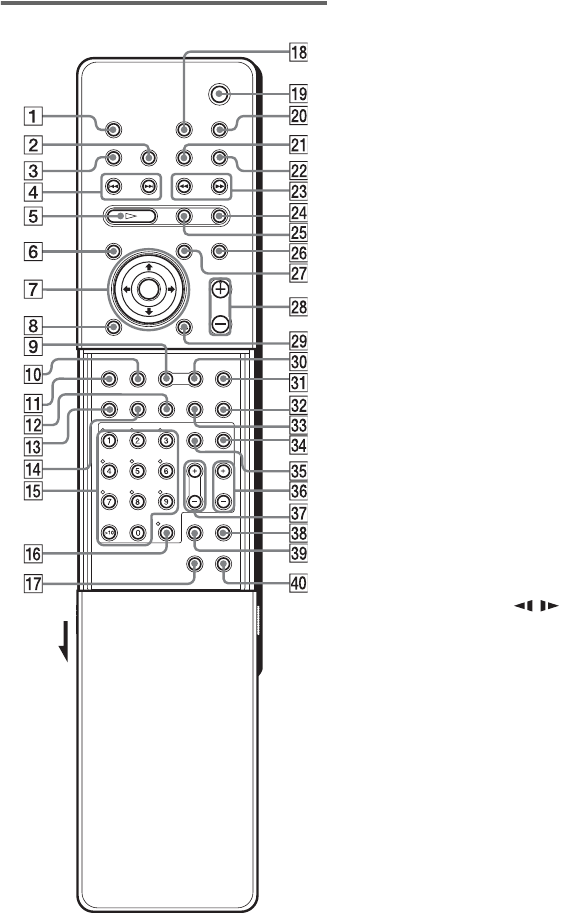

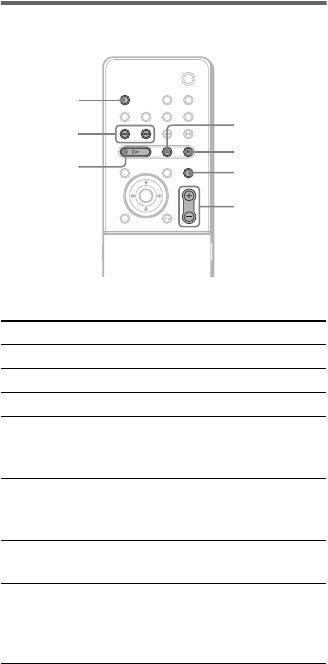

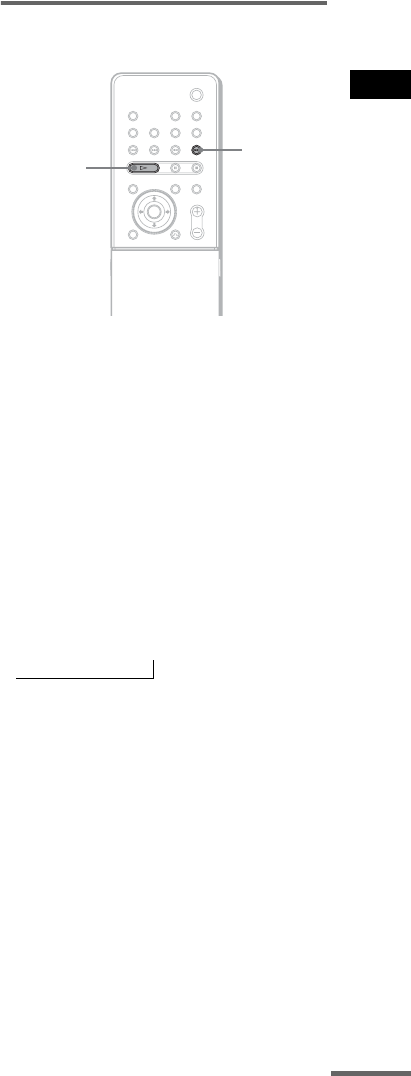

Using the Remote..................................13

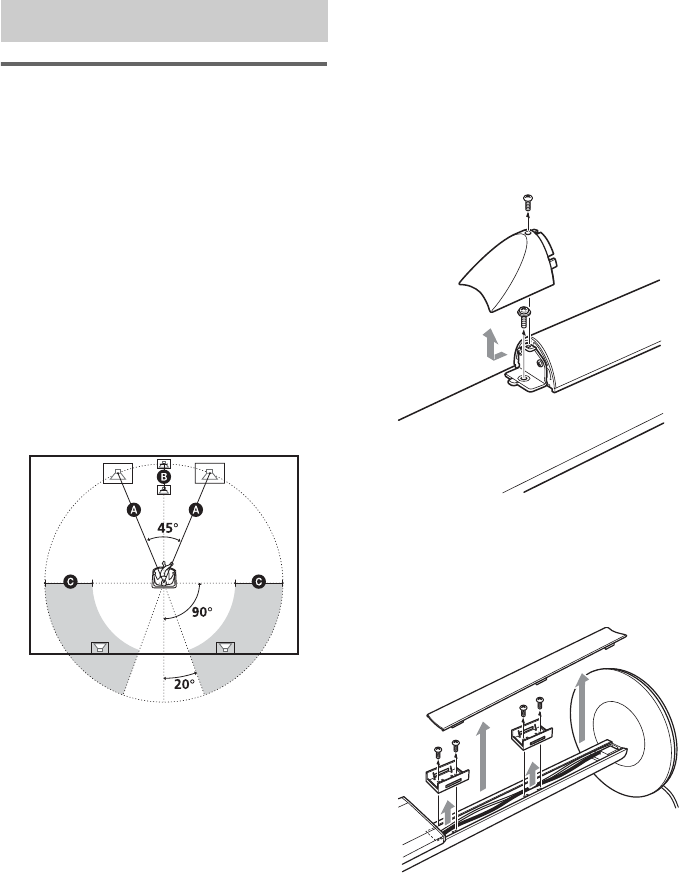

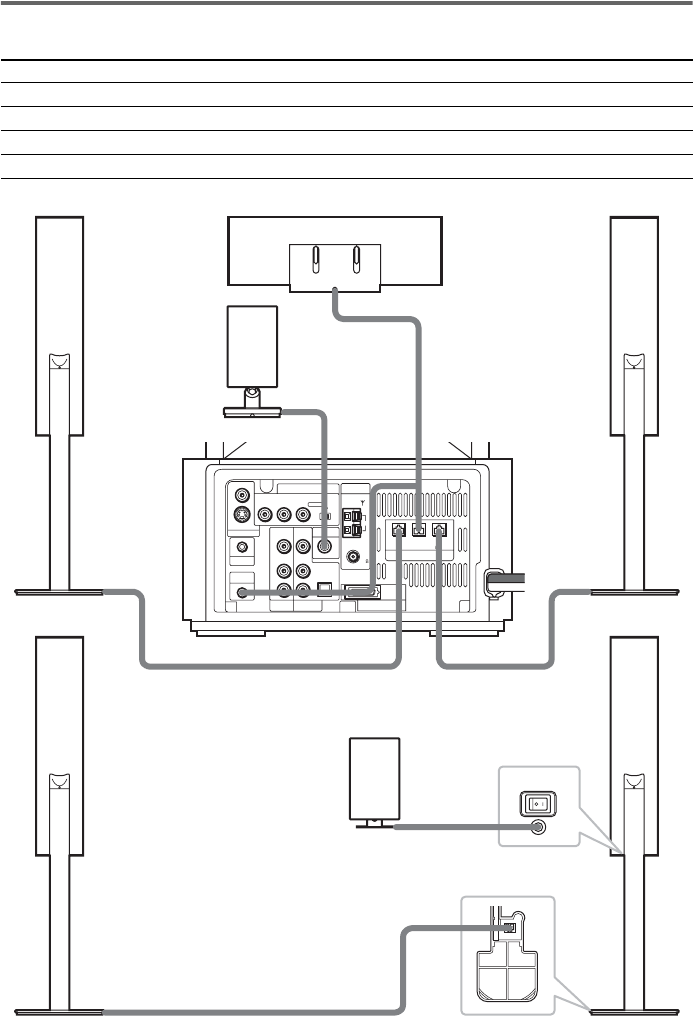

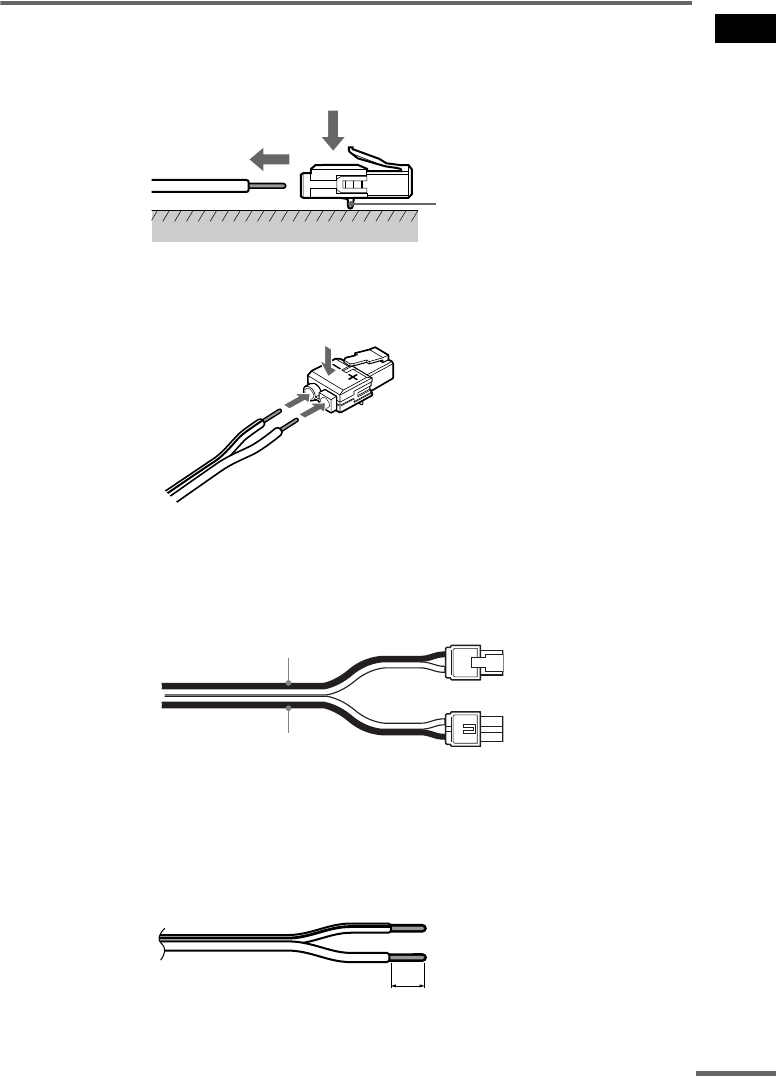

Step 1: Speaker System Hookup...........15

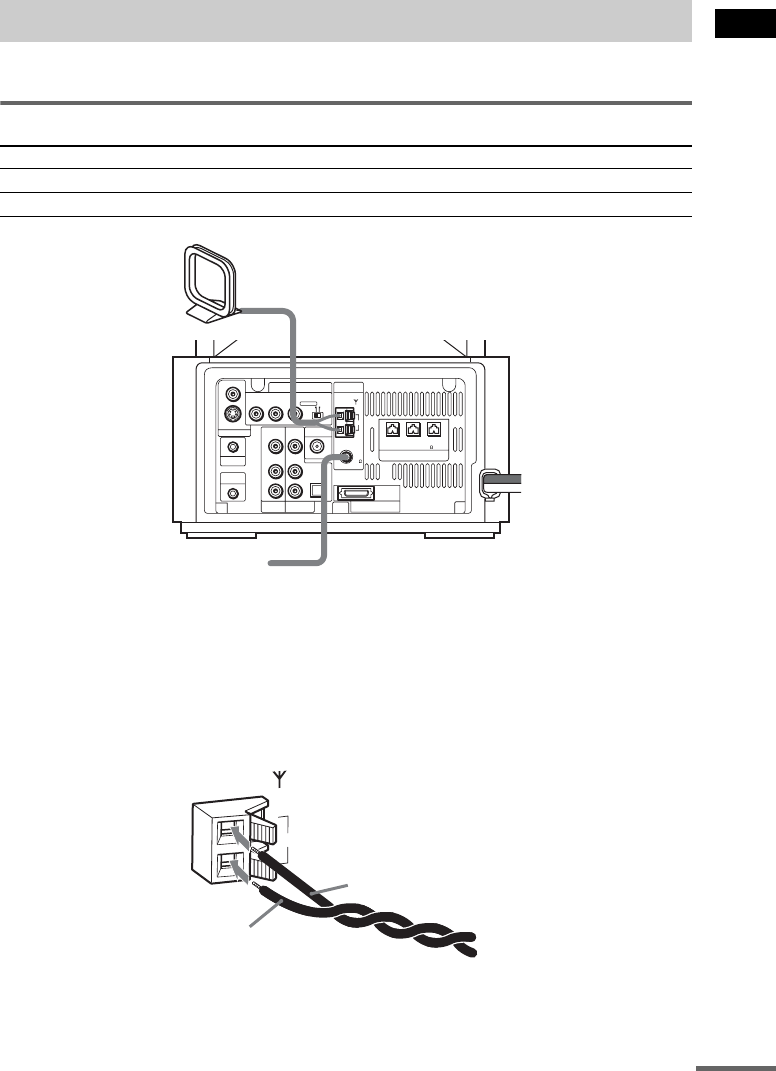

Step 2: Antenna (aerial) Hookups.........23

Step 3: TV and Video Component

Hookups..........................................25

Step 4: Connecting the AC Power Cords

(Mains Leads) and Powering On ....30

Step 5: Adjusting the Wireless

System ............................................31

Step 6: Performing the Quick Setup .....36

Speaker Setup........................................38

Playing Discs

Playing Discs ........................................41

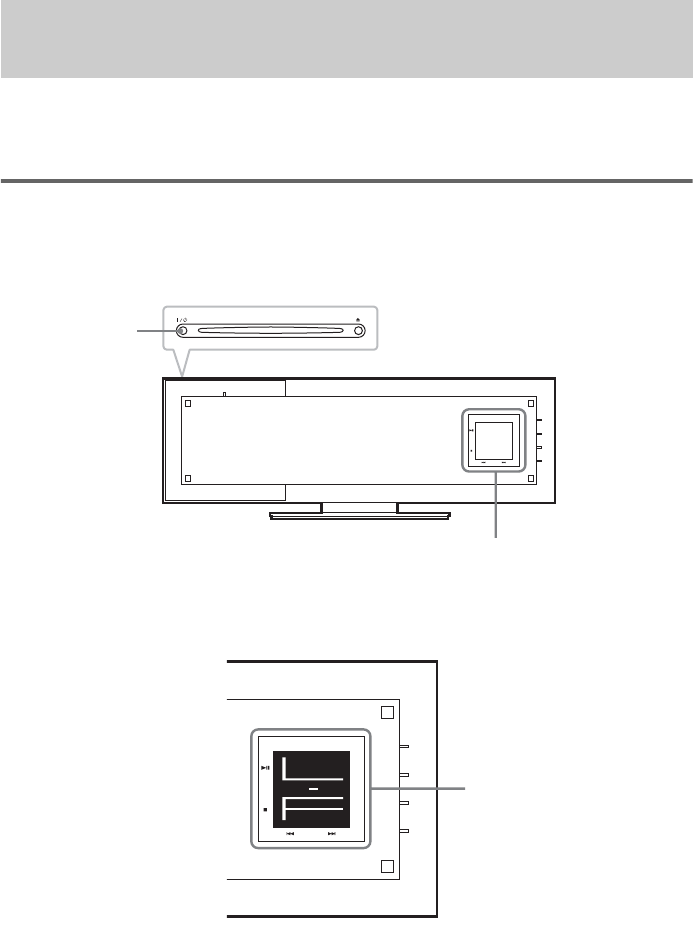

Operating by the Touch Panel

Sensor .............................................43

Resuming Playback from the Point Where

You Stopped the Disc.....................44

(Resume Play)

Using the DVD’s Menu ........................45

Playing VIDEO CDs with PBC Functions

(Ver. 2.0).........................................45

(PBC Playback)

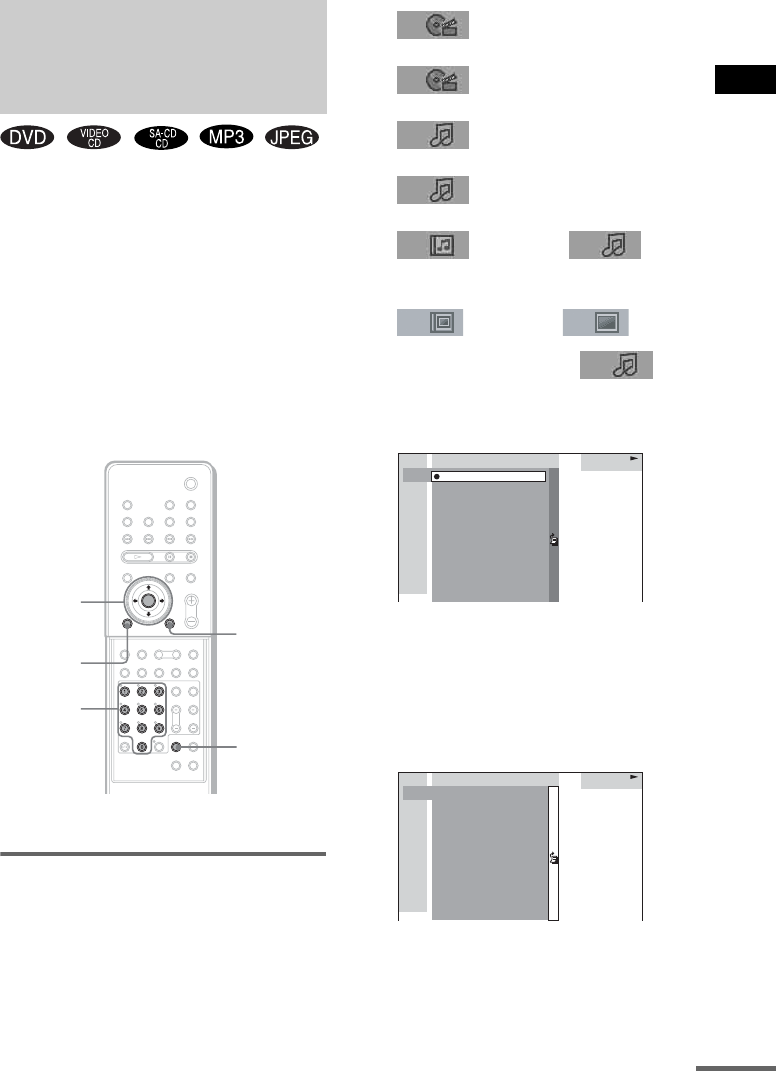

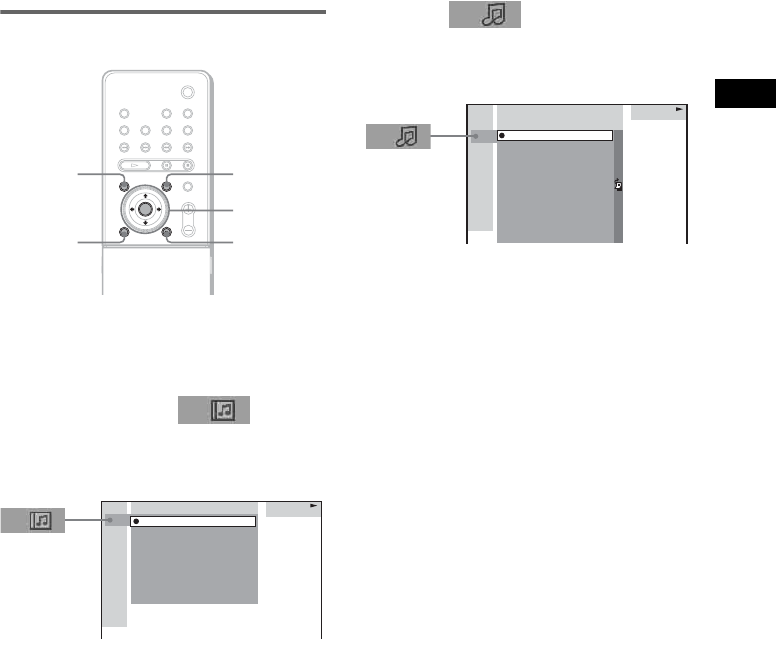

Playing an MP3 Audio Track ...............46

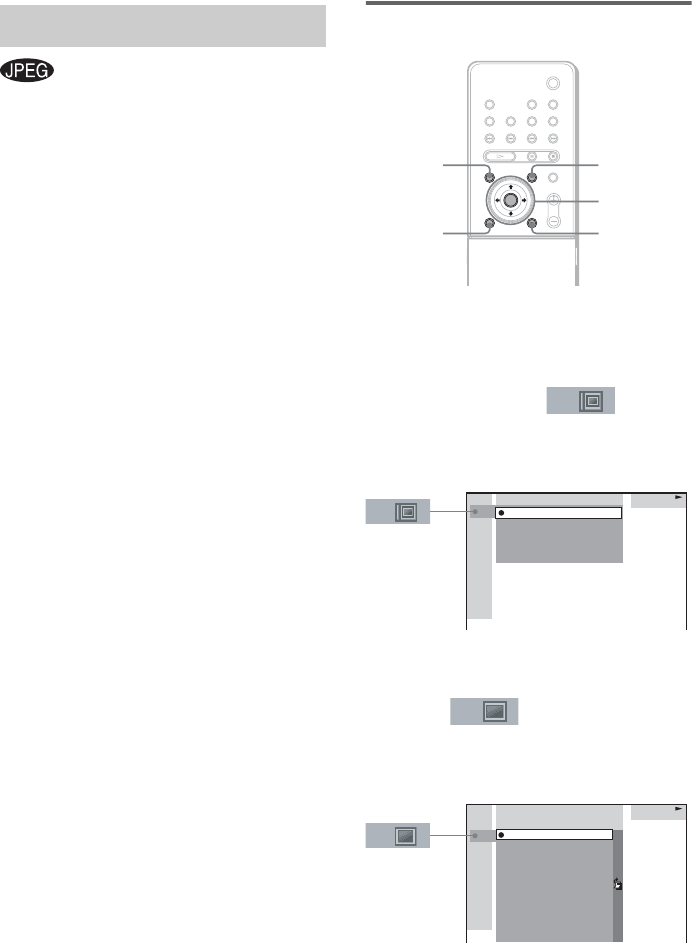

Playing JPEG Image Files ....................48

Creating Your Own Program................50

(Program Play)

Playing in Random Order .....................52

(Shuffle Play)

Playing Repeatedly ...............................53

(Repeat Play)

Searching for a Particular Point on

a Disc..............................................54

(Scan, Slow-motion Play)

Searching for a Title/Chapter/Track/

Index/Album/File ........................... 55

Viewing Disc Information.................... 57

Sound Adjustments

Changing the Sound.............................. 62

Enjoying Surround Sound .................... 64

Using the Sound Effect......................... 68

Using Various Additional

Functions

Changing the Angles ............................ 69

Displaying Subtitles.............................. 70

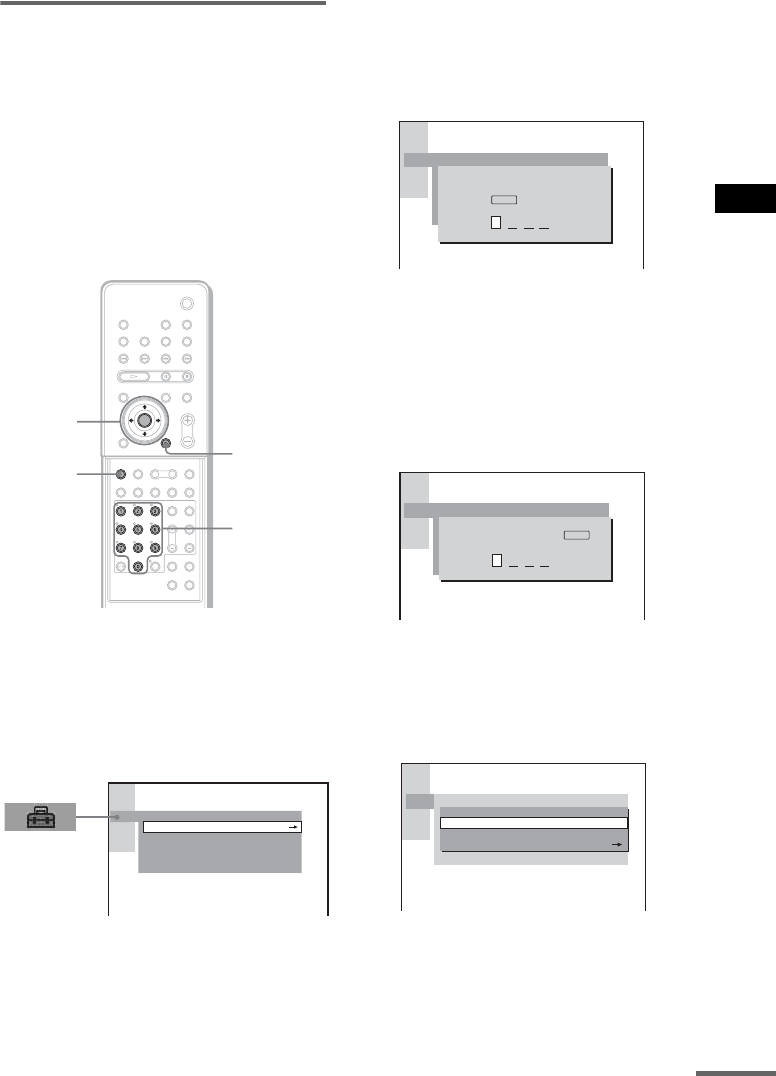

Locking Discs....................................... 71

(CUSTOM PARENTAL

CONTROL, PARENTAL

CONTROL)

Other Operations

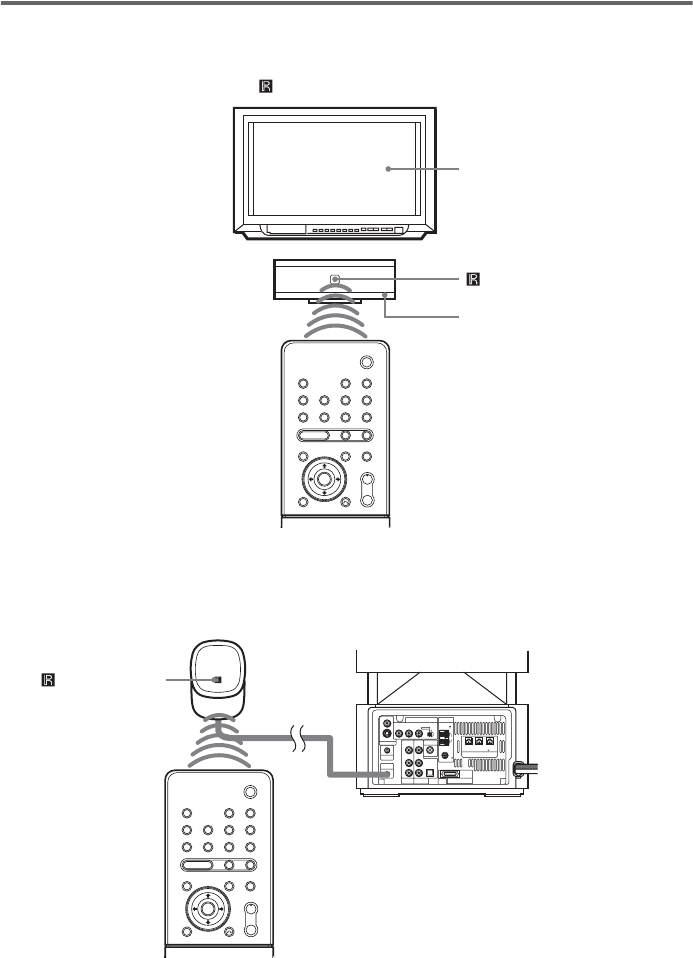

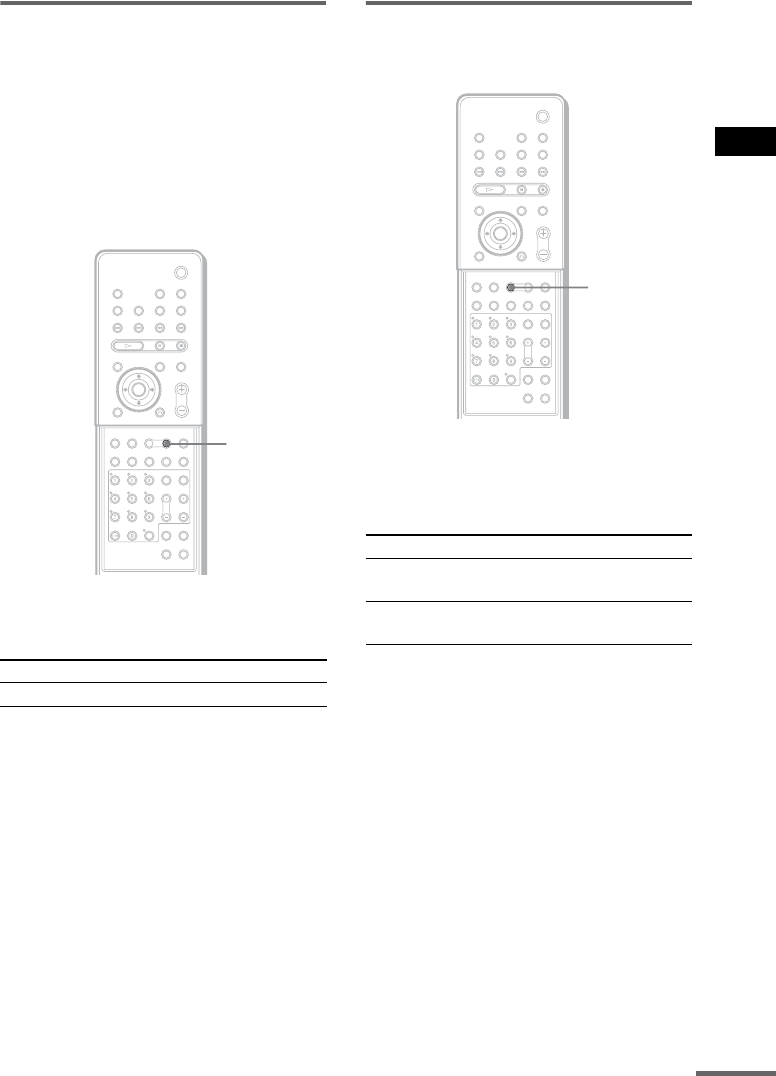

Controlling TV with the Supplied

Remote ........................................... 76

Using the SONY TV DIRECT

Function.......................................... 78

Using the Video or Other Units............ 80

Enjoying Multiplex Broadcast Sound

(Dual Mono)................................... 80

Enjoying the Radio............................... 81

Using the Sleep Timer.......................... 84

Changing the Brightness of the Front

Panel Display.................................. 85

Returning to the Default Settings ......... 85

Table of Contents

continued

6GB

Settings and Adjustments

Using the Setup Display........................86

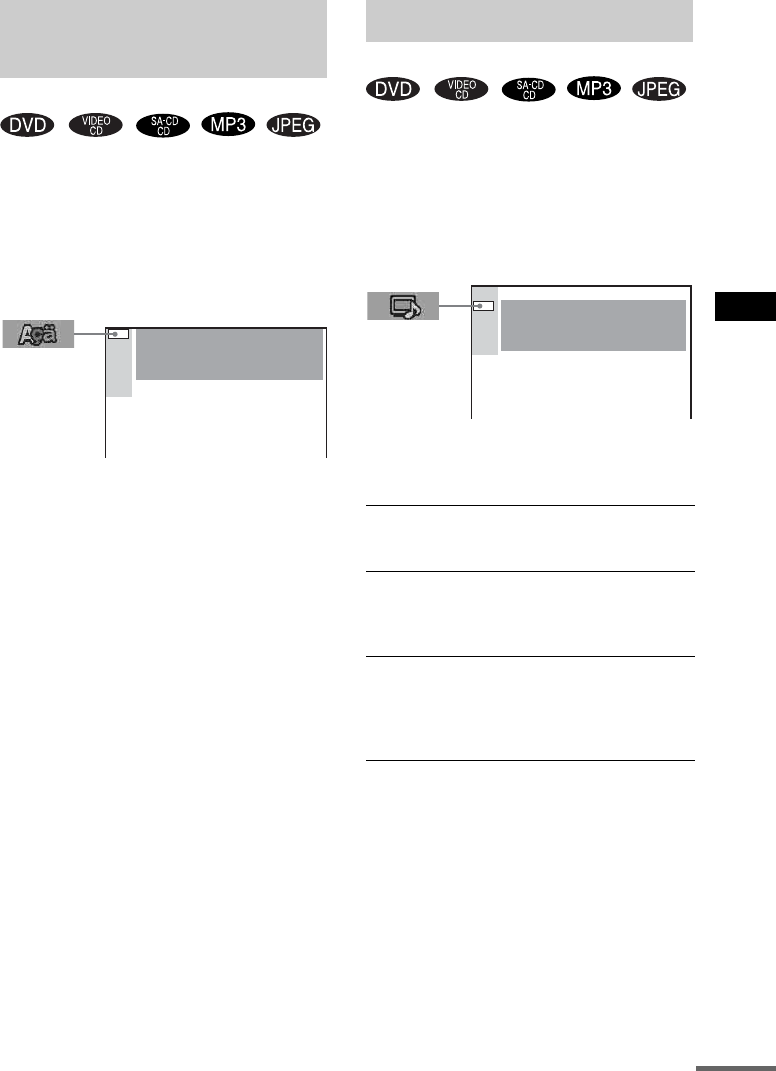

Setting the Display or Sound Track

Language ........................................87

(LANGUAGE SETUP)

Settings for the Display.........................87

(SCREEN SETUP)

Custom Settings ....................................89

(CUSTOM SETUP)

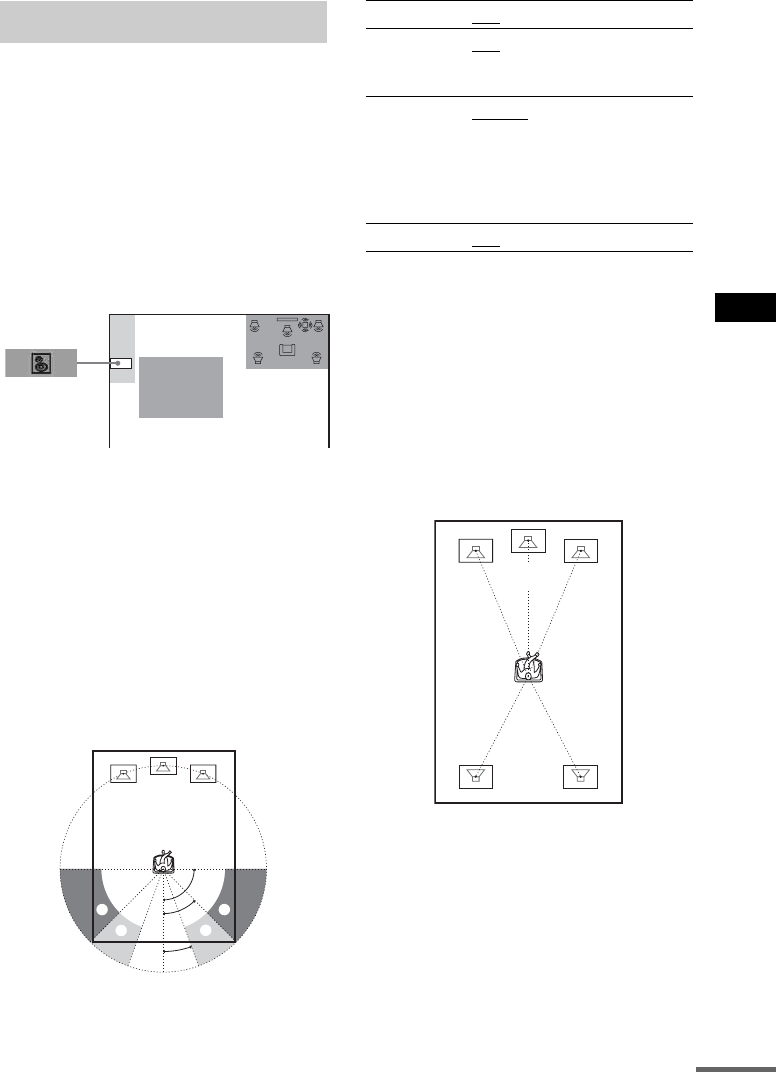

Settings for the Speakers.......................91

(SPEAKER SETUP)

Quick Setup and Resetting the

System ............................................96

(SETUP)

Additional Information

Troubleshooting....................................97

Specifications......................................100

Glossary ..............................................102

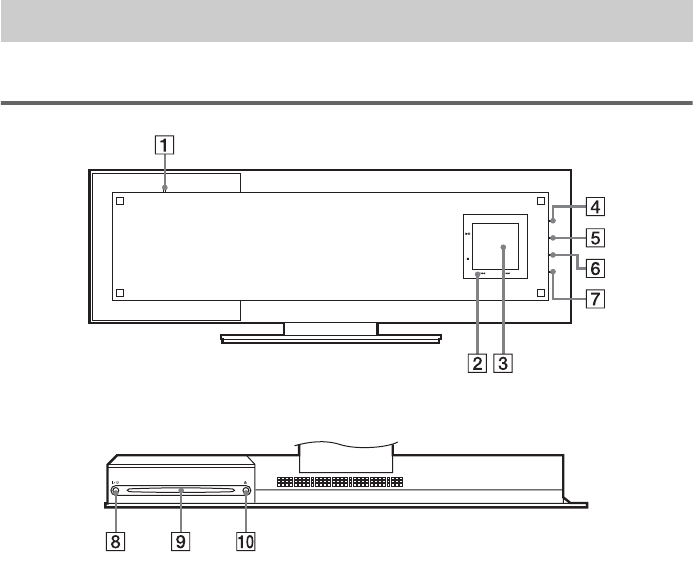

Index to Parts and Controls.................106

Language Code List............................111

DVD Setup Menu List ........................112

AMP Menu List ..................................114

Index ...................................................115

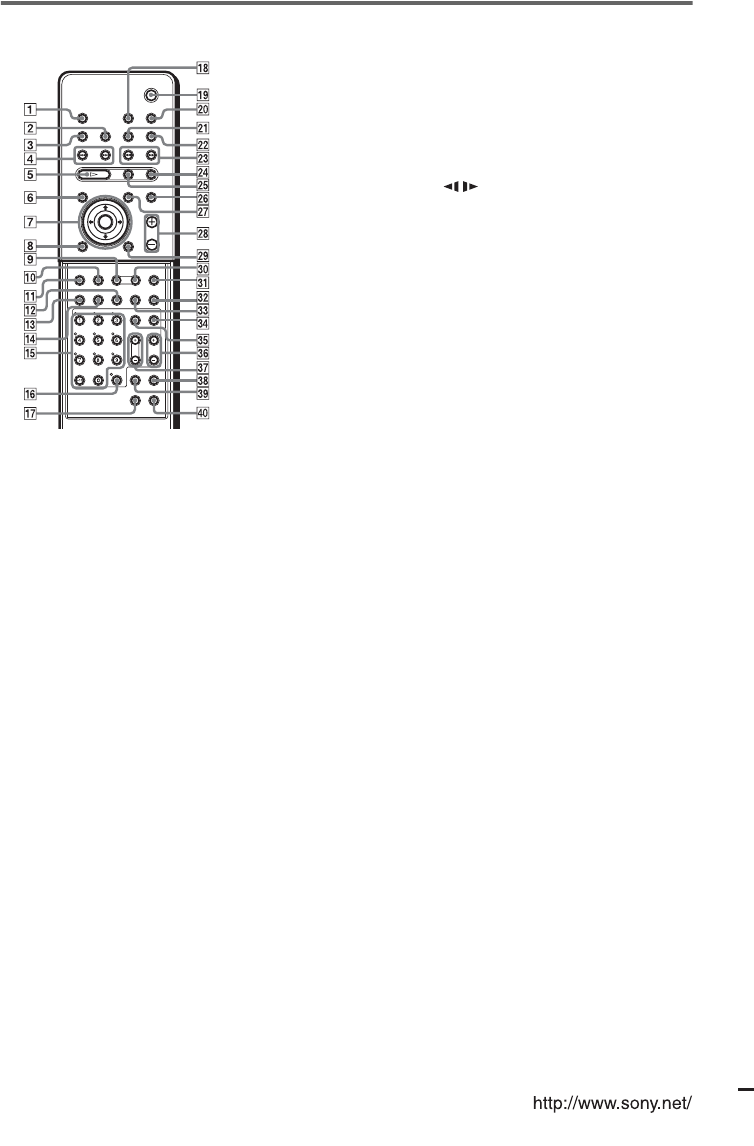

Quick Reference for Remote

Commander ......................Back cover

7GB

• The OSD (on-screen display) may vary

depending on the country model.

• The instructions in this manual describe the

controls on the remote. You can also use the

controls on the system if they have the same or

similar names as those on the remote.

• The following symbols are used in this

manual.

* MP3 (MPEG1 Audio Layer 3) is a standard format

defined by ISO/MPEG which compresses audio data.

The “DVD VIDEO” logo is a trademark.

•Title

The longest section of a picture or music

feature on a DVD, movie, etc., in video

software, or the entire album in audio

software.

•Chapter

Section of a picture or a music piece that is

smaller than titles. A title is composed of

several chapters. Depending on the disc, no

chapters may be recorded.

•Album

Section of a music piece or an image on a data

CD containing MP3 audio tracks or JPEG

files.

•Track

Section of a picture or a music piece on a

VIDEO CD, Super Audio CD, CD, or MP3.

•Index (Super Audio CD, CD) / Video

Index (VIDEO CD)

A number that divides a track into sections to

easily locate the point you want on a VIDEO

CD, Super Audio CD, or CD. Depending on

the disc, no indexes may be recorded.

•Scene

On a VIDEO CD with PBC functions

(page 45), the menu screens, moving pictures

and still pictures are divided into sections

called “scenes.”

•File

Section of a picture on a data CD containing

JPEG image files.

About This Manual

Symbol Meaning

Functions available for DVD

VIDEOs, DVD-Rs/DVD-RWs in

video mode, and DVD+Rs/

DVD+RWs

Functions available in VIDEO CD

mode

Functions available in CD mode

Functions available in Super Audio

CD and Audio CD mode

Functions available for MP3* audio

tracks

Functions available for JPEG files

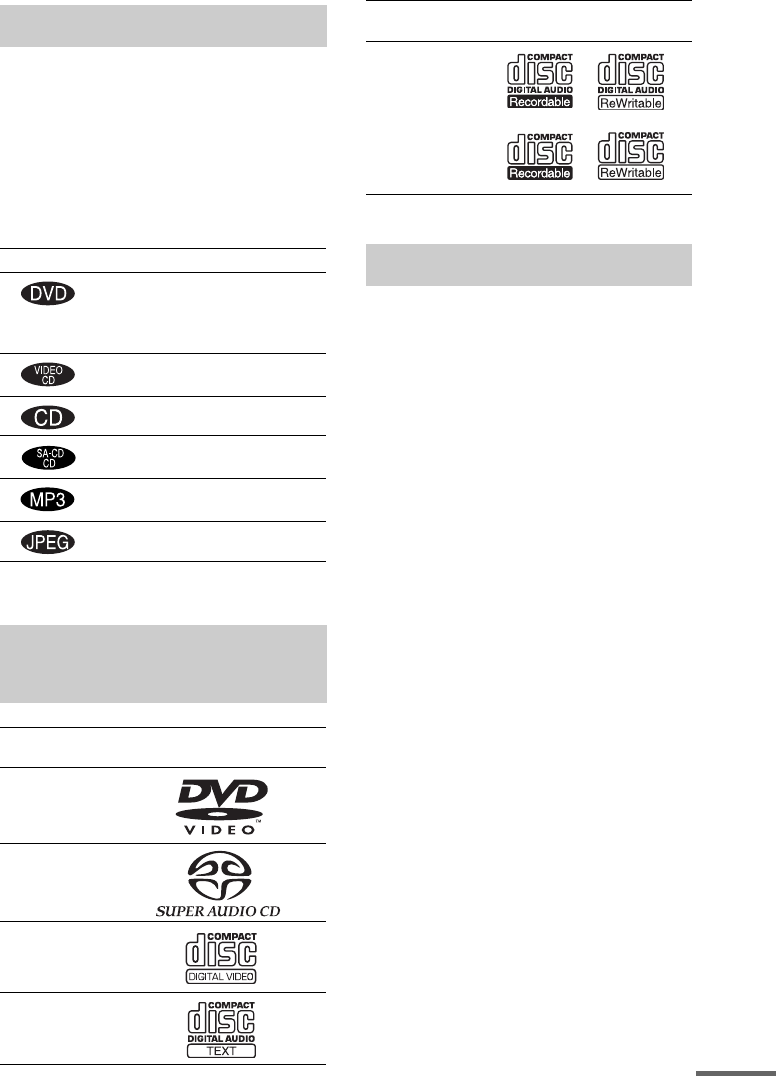

This System Can Play the

Following Discs

Format of

discs Disc logo

DVD VIDEO

Super Audio

VIDEO CD

Audio CD

CD-R/CD-RW

(audio data)

(MP3 files)

(JPEG files)

Terms for Discs

Format of

discs Disc logo

continued

8GB

Note on PBC (Playback Control)

(VIDEO CDs)

This system conforms to Ver. 1.1 and Ver. 2.0 of

VIDEO CD standards. You can enjoy two kinds

of playback depending on the disc type.

About Multi Session CD

• This system can play Multi Session CDs when

an MP3 audio track is contained in the first

session. Any subsequent MP3 audio tracks

recorded in later sessions can also be played

back.

• This system can play Multi Session CDs when

a JPEG image file is contained in the first

session. Any subsequent JPEG image files

recorded in later sessions can also be played

back.

• If audio tracks and images in music CD format

or video CD format are recorded in the first

session, only the first session will be played

back.

Region code

Your system has a region code printed on the

back of the unit and will only play DVDs labeled

with the same region code.

DVDs labeled will also play on this system.

If you try to play any other DVD, the message

[Playback prohibited by area limitations.] will

appear on the TV screen. Depending on the

DVD, no region code indication may be given

even though playing the DVD is prohibited by

area restrictions.

Examples of discs that the

system cannot play

The system cannot play the following discs:

• CD-ROMs (except for extension “.MP3,”

“.JPG,” or “.JPEG”)

• CD-Rs/CD-RWs other than those recorded in

the following formats:

– audio CD format

– video CD format

– MP3/JPEG format that conforms to

ISO9660* Level 1/Level 2, or its extended

format, Joliet

• Data part of CD-Extras

• DVD-ROMs

• DVD Audio discs

• DVD-RAMs

• Progressive JPEG file

* A logical format of files and folders on CD-ROMs,

defined by ISO (International Organization for

standardization)

Do not load the following discs:

• A DVD with a different region code (page 8,

104).

• A disc that is neither standard nor circular

(e.g., card, heart, or star shape).

• A disc with paper or stickers on it.

• A disc that has adhesive or cellophane tape still

left on it.

Disc type You can

VIDEO CDs

without PBC

functions

(Ver. 1.1 discs)

Enjoy video playback (moving

pictures) as well as music.

VIDEO CDs

with PBC

functions

(Ver. 2.0 discs)

Play interactive software using

menu screens displayed on the

TV screen (PBC Playback), in

addition to the video playback

functions of Ver. 1.1 discs.

Moreover, you can play high-

resolution still pictures, if they

are included on the disc.

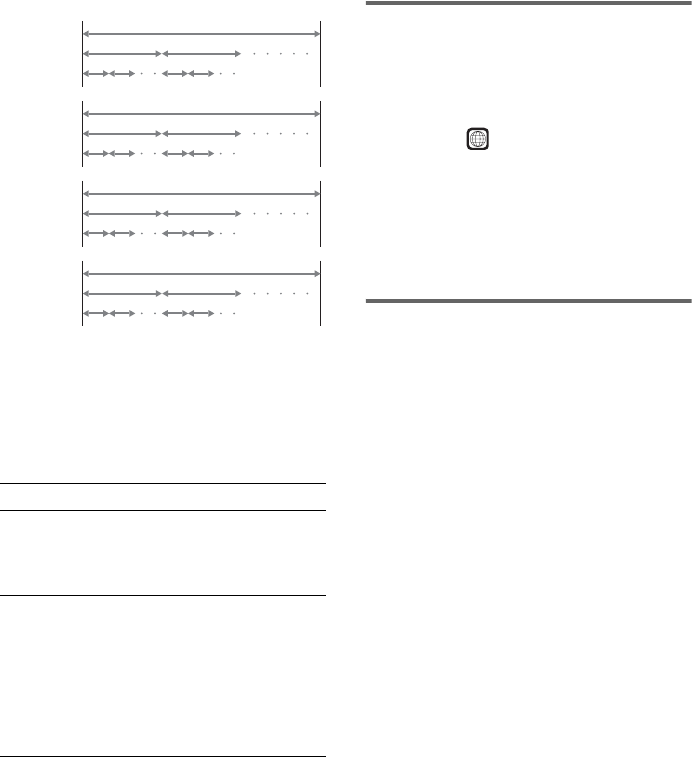

DVD

structure

VIDEO

CD, Super

Audio CD,

or CD

structure

MP3

structure

Disc

Title

Chapter

Track

Index

Album

Track

JPEG

structure

Disc

Album

File

ALL

9GB

Notes about CD-R/CD-RW/DVD-R/DVD-RW/

DVD+R/DVD+RW

In some cases, CD-R/CD-RW/DVD-R/DVD-RW/

DVD+R/DVD+RW cannot be played on this player

due to the recording quality or physical condition of the

disc, or the characteristics of the recording device and

authoring software.

The disc will not play if it has not been correctly

finalized. For more information, see the operating

instructions for the recording device.

Note that discs created in the Packet Write format

cannot be played.

Music discs encoded with copyright protection

technologies

This product is designed to play back discs that

conform to the Compact Disc (CD) standard.

Recently, various music discs encoded with copyright

protection technologies are marketed by some record

companies. Please be aware that among those discs,

there are some that do not conform to the CD standard

and may not be playable by this product.

Note on playback operations

of DVDs and VIDEO CDs

Some playback operations of DVDs and VIDEO

CDs may be intentionally set by software

producers. Since this system plays DVDs and

VIDEO CDs according to the disc contents the

software producers designed, some playback

features may not be available. Also, refer to the

instructions supplied with the DVDs or VIDEO

CDs.

Copyrights

This product incorporates copyright protection

technology that is protected by U.S. patents and

other intellectual property rights. Use of this

authorized by Macrovision, and is intended for

home and other limited viewing uses only unless

otherwise authorized by Macrovision. Reverse

engineering or disassembly is prohibited.

This system incorporates with Dolby* Digital

and Dolby Pro Logic (II) adaptive matrix

surround decoder and the DTS** Digital

Surround System.

* Manufactured under license from Dolby

Laboratories.

“Dolby”, “Pro Logic”, and the double-D symbol are

trademarks of Dolby Laboratories.

**Manufactured under license from Digital Theater

Systems, Inc.

“DTS”, “DTS-ES”, and “DTS Digital Surround”

are trademarks of Digital Theater Systems, Inc.

On handling discs

• To keep the disc clean, handle the disc by its

edge. Do not touch the surface.

• Do not stick paper or tape on the disc.

• Do not expose the disc to direct sunlight or

heat sources such as hot air ducts, or leave it in

a car parked in direct sunlight as the

temperature may rise considerably inside the

car.

• After playing, store the disc in its case.

On cleaning

• Before playing, clean the disc with a cleaning

cloth.

Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner,

commercially available cleaners, or anti-static

spray intended for vinyl LPs.

This system can only play back a standard

circular disc. Using neither standard nor circular

discs (e.g., card, heart, or star shape) may cause

a malfunction.

Do not use a disc that has a commercially

available accessory attached, such as a label or

ring.

Notes about Discs

10GB

Use the Control Menu to select a function that you would like to use. The Control Menu display appears

when the DVD DISPLAY button is pressed. For details, refer to the page in parentheses.

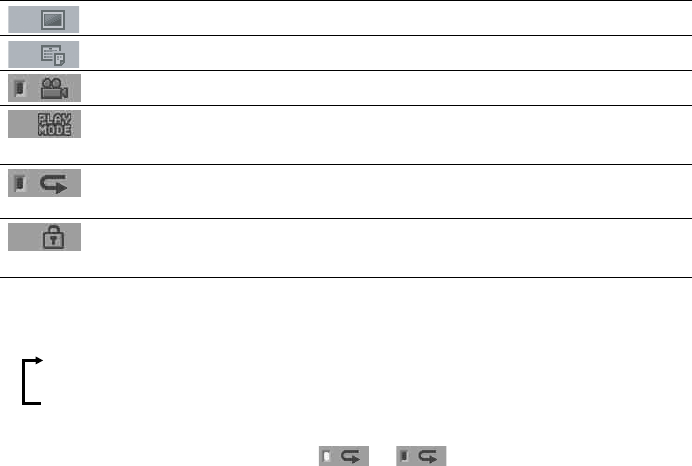

List of Control Menu Items

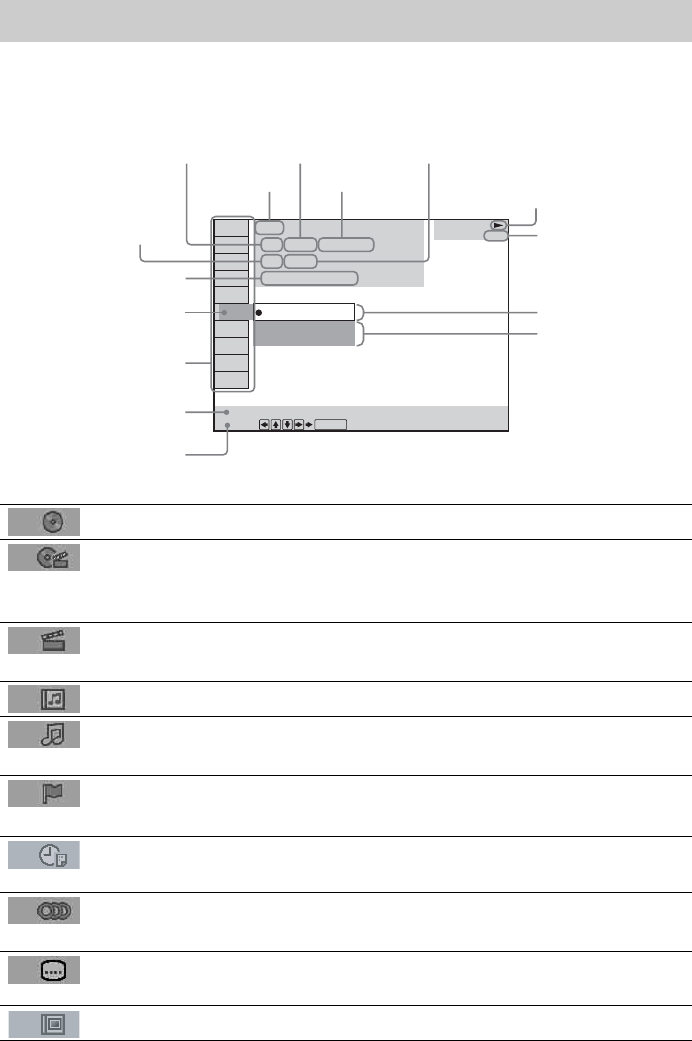

Guide to the Control Menu Display

DISC Displays the disc name or the disc type inserted into the system.

TITLE (DVD only) (page 55)/

SCENE (only VIDEO CD in PBC playback) /

TRACK (VIDEO CD only) (page 55)

Selects the title (DVD) or the track (VIDEO CD) to be played.

Displays the scene (VIDEO CD in PBC playback).

CHAPTER (DVD only) (page 56)/

INDEX (VIDEO CD only) (page 56)

Selects the chapter (DVD) or the index (VIDEO CD) to be

played.

ALBUM (MP3 only) (page 47, 55) Selects the album (MP3) to be played.

TRACK (Super Audio CD/CD/

MP3 only) (page 47, 55)

Selects the track (Super Audio CD/CD/MP3) to be played.

INDEX (Super Audio CD/CD only)

(page 56)

Displays the index and selects the index (Super Audio CD) to

be played.

TIME (page 56) Checks the elapsed time and the remaining playback time.

Inputs the time code for picture and music searching.

AUDIO (DVD/VIDEO CD/Super

Audio CD/CD/MP3 only) (page 62)

Changes the audio setting.

SUBTITLE (DVD only) (page 70) Displays the subtitles.

Changes the subtitle language.

ALBUM (JPEG only) (page 48) Selects the album (JPEG) to be played.

2: FRENCH

3: SPANISH

1: ENGLISH

Select:

SUBTITLE

DVD

1 2 ( 2 7 ) TITLE 12

1 8 ( 3 4 )

1 : 3 2 : 5 5

ENTER

Currently playing title number (VIDEO

CD/Super Audio CD/CD: track number)

Playing time

Currently playing chapter

number (VIDEO CD/Super

Audio CD/CD: index number)

Icon of selected

Control Menu item

Control Menu items

Function name of selected

Control Menu item

Operation message

Disc name or

disc type

Total number of

titles or tracks

recorded

Currently playing

title name

Total number of chapters or indexes recorded

Playback status

(NPlayback, XPause, xStop, etc.)

Type of disc being

played back

Current setting

Options

11GB

Tips

• Each time you press DVD DISPLAY, the Control Menu display changes as follows:

The Control Menu items vary, depending on the disc.

• The Control Menu icon indicator lights up in green t unless you set the [REPEAT] setting to

[OFF].

• The [ANGLE] indicator lights up in green when multiple angles are recorded on the disc.

FILE (JPEG only) (page 48) Selects the file (JPEG) to be played.

DATE (JPEG only) (page 61) Displays the date information.

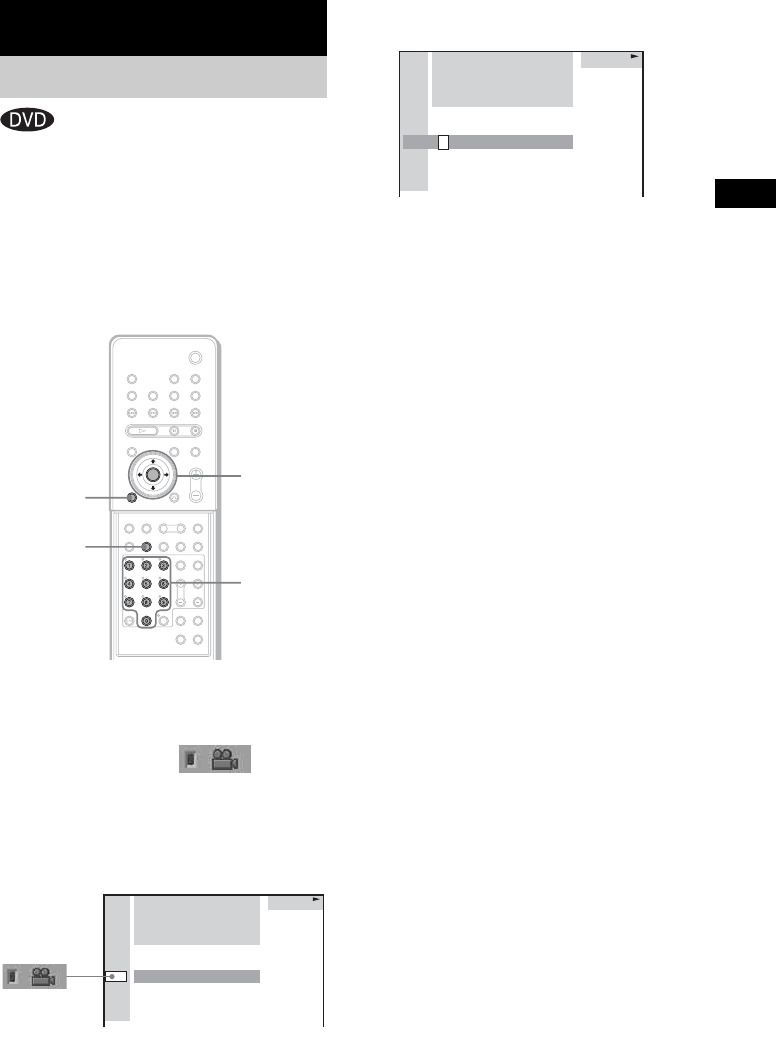

ANGLE (DVD only) (page 69) Changes the angle.

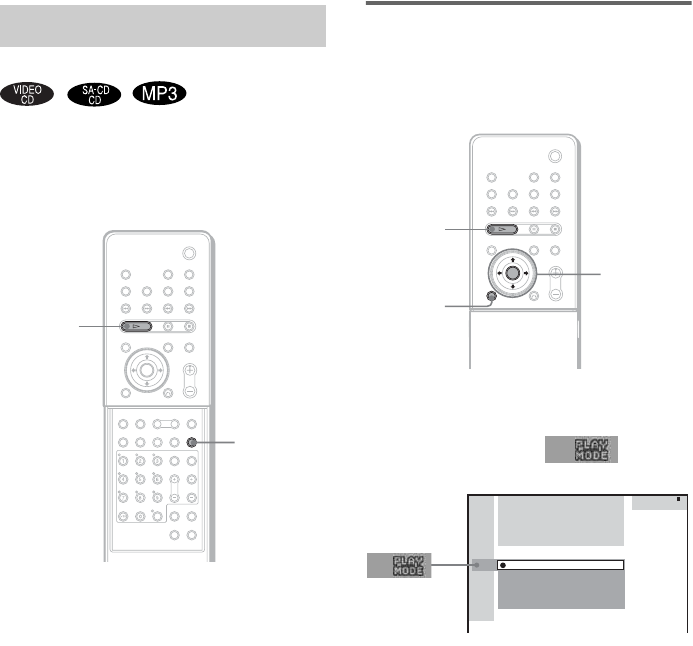

PLAYMODE (VIDEO CD/Super

Audio CD/CD/MP3/JPEG only) (page 52)

Selects the play mode.

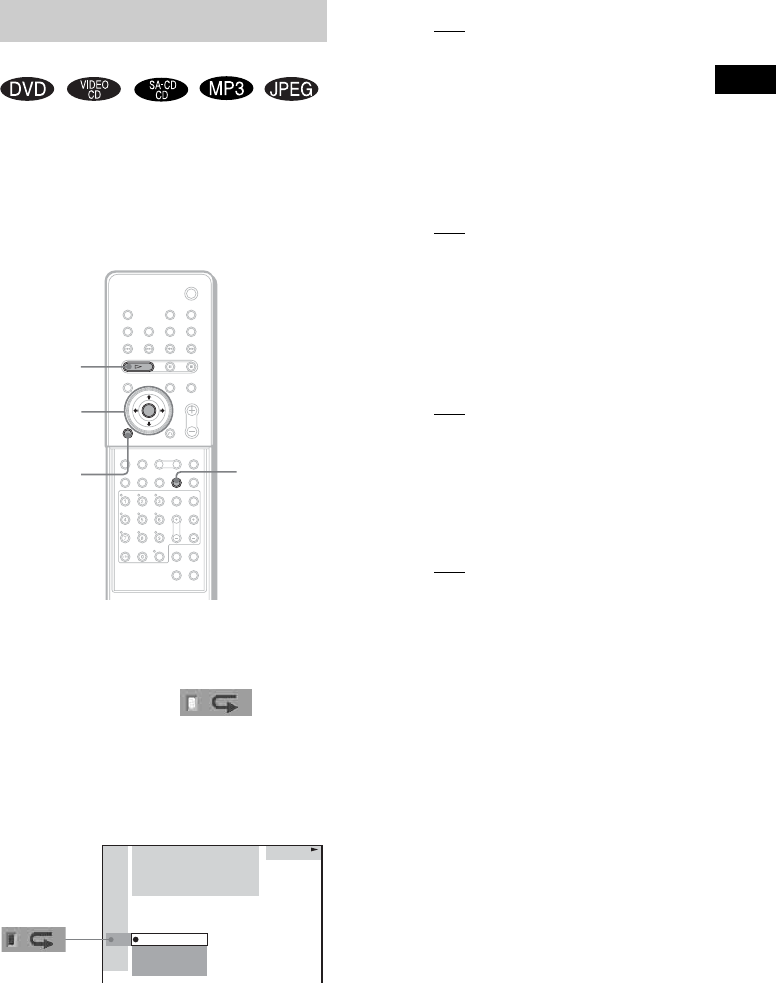

REPEAT (page 53) Plays the entire disc (all titles/all tracks), one title/chapter/

track/album, or contents of program repeatedly.

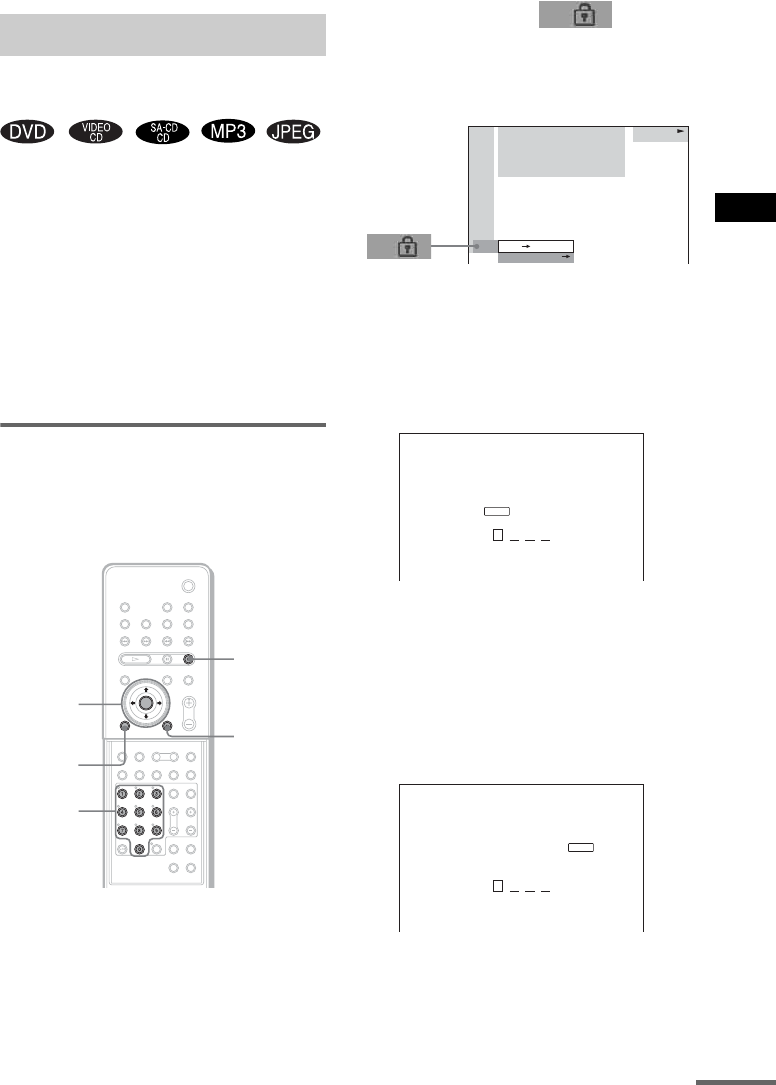

CUSTOM PARENTAL

CONTROL (page 71)

Sets the disc to prohibit playing.

Control Menu display

Control Menu display off

12GB

Check that you have the following items:

• Speakers (5)

• Subwoofer (1)

• Control unit (1)

• IR transmittera) (1)

• IR receivera)b) (1)

• IR receiver standb) (1)

• External receiver (1)

• Cover (S) (4)

• Cleaning cloth for the front panel (80 mm × 80 mm) (3.9 inches × 3.9 inches) (1)

• AM loop antenna (aerial) (1)

• FM wire antenna (aerial) (1)

•Video cord (1)

• Remote Commander (remote) RM-SP320 (1)

• Size AAA (R03) batteries (2)

• Operating Instructions

• Speakers - Connection and Installation (card) (1)

a) The cords of the IR transmitter and IR receiver are for this system only. You cannot use a commercially available

extension cord.

b) Used when the IR receiver of the surround speaker (L) cannot receive infrared ray because of the position. For

details, see “Using the IR receiver” (page 33).

Getting Started

Unpacking

Getting Started

13GB

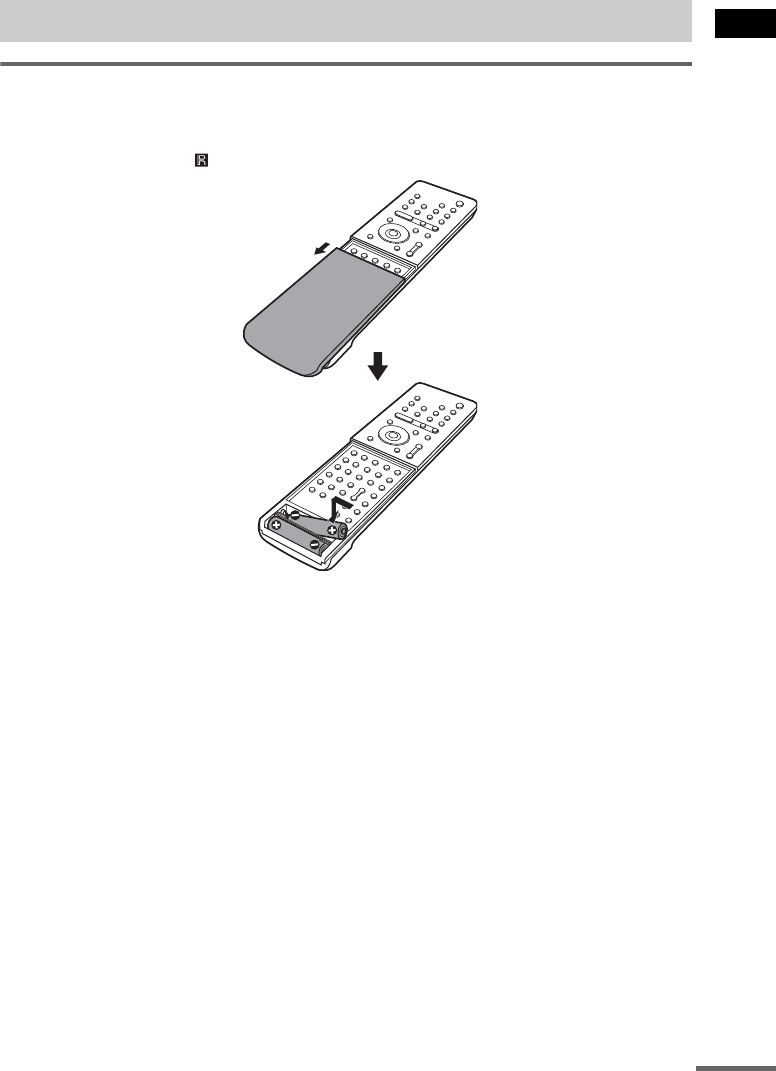

Inserting batteries into the remote

You can control the system using the supplied remote. Insert two size AAA (R03) batteries by matching

the 3 and # ends on the batteries to the markings inside the compartment. When using the remote,

point it at the remote sensor on the center speaker.

Notes

• Do not leave the remote in an extremely hot or humid place.

• Do not use a new battery with an old one.

• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.

• Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so may cause a

malfunction.

• If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage

from battery leakage and corrosion.

Using the Remote

Remove the cover.

continued

14GB

About the remote sensor

Using the center speaker

Point the remote at the remote sensor on the center speaker.

Without using the center speaker

Point the remote at the remote sensor on the external receiver. Connect the external receiver to the

REMOTE CONTROL jack of the subwoofer (page 109).

Center Speaker

(remote sensor)

VIDEO

PHONES

REMOTE

CONTROL

OPTICAL

DIGITAL IN

SCAN SELECT

INTERLACESELECTABLE

VIDEO

S VIDEO (DVD ONLY)

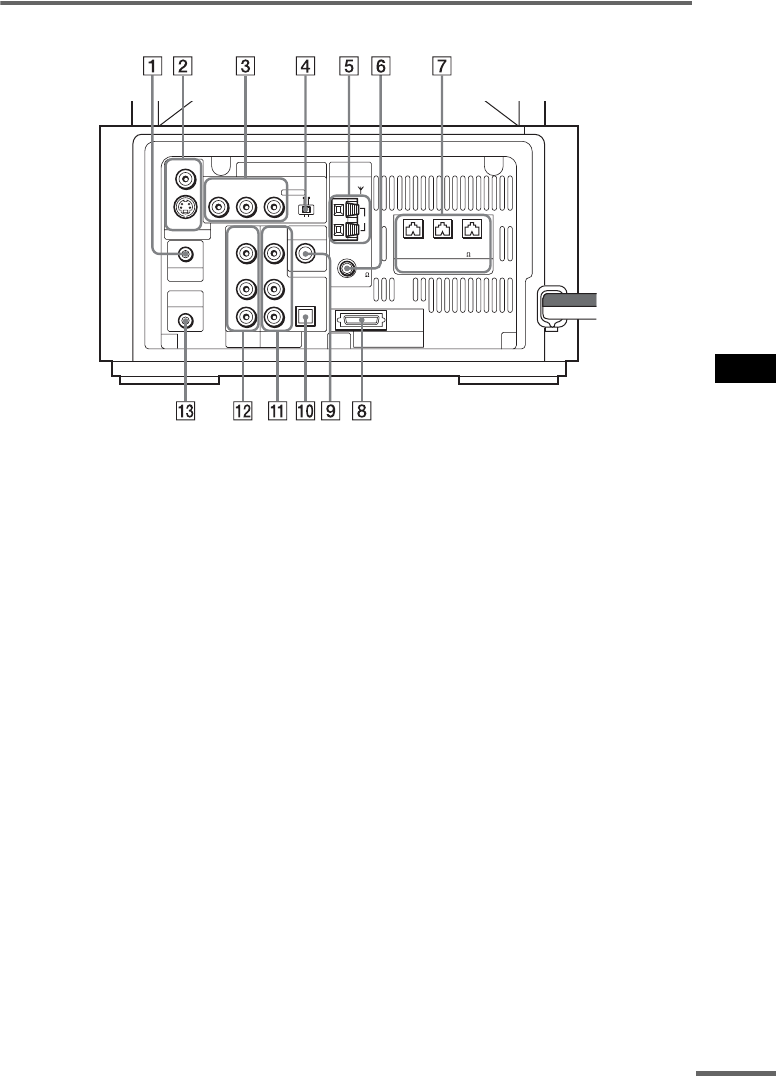

VIDEO DIR-T1

COAXIAL

AUDIO

FRONT R CENTER FRONT L

COMPONENT VIDEO OUT ANTENNA

IMPEDANCE USE 4

SPEAKER

SAT

SYSYTEM CONNECTOR

VIDEO

MONITOR OUTPUT

Subwoofer

(remote sensor)

Getting Started

15GB

Connect the supplied speaker system using the supplied speaker cords by matching the colors of the

jacks to those of the cords. Do not connect any speakers other than those supplied with this system.

To obtain the best possible surround sound, specify the speaker parameters (distance, level, etc.) on

page 40.

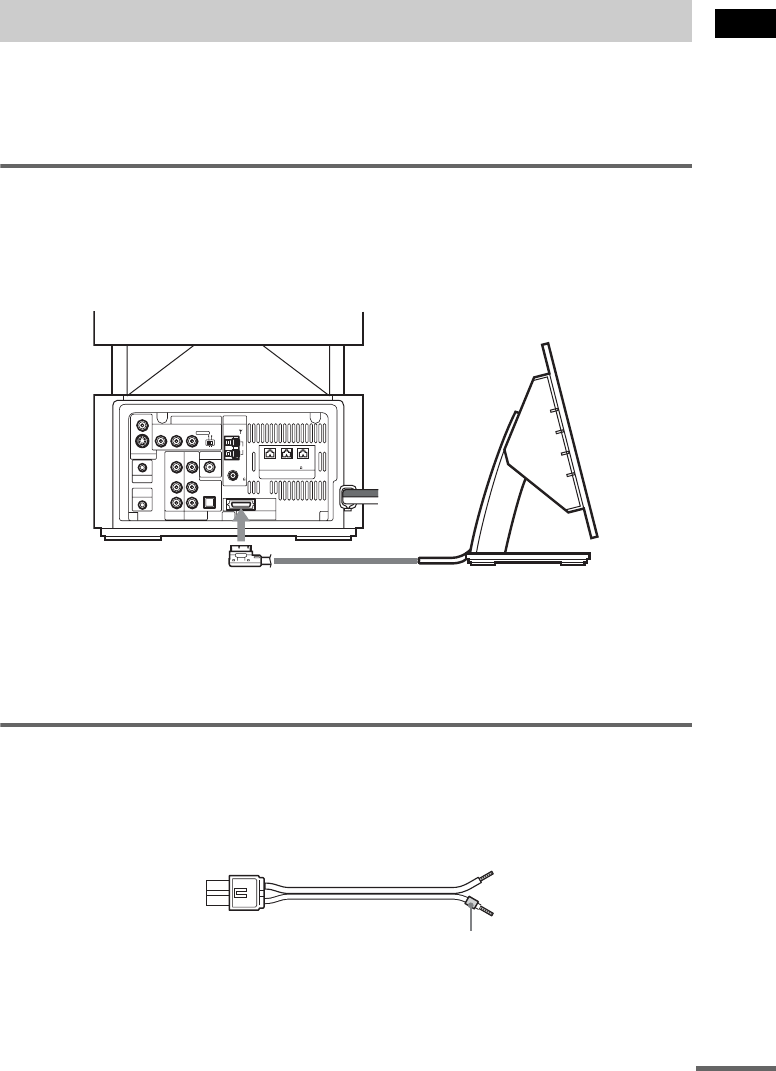

Connecting the subwoofer

Connect the system connector of the control unit to the SYSTEM CONNECTOR jack of the

subwoofer.

To insert the plug of the SYSTEM CONNECTOR cord, press and hold both sides of the plug.

Notes

• Do not handle the clear plastic panel when you move or operate the control unit as it may break.

• Before connecting/disconnecting the SYSTEM CONNECTOR cord, make sure the AC power cord (mains lead) is

disconnected from the wall outlet (mains).

Required cords

Speaker cords

The connector and the color tube of the speaker cords are the same color as the label of the jacks to be

connected.

Step 1: Speaker System Hookup

VIDEO

PHONES

REMOTE

CONTROL

OPTICAL

DIGITAL IN

SCAN SELECT

INTERLACESELECTABLE

VIDEO

S VIDEO (DVD ONLY)

VIDEO DIR-T1

COAXIAL

AUDIO

FRONT R CENTER FRONT L

COMPONENT VIDEO OUT ANTENNA

IMPEDANCE USE 4

SPEAKER

SAT

SYSYTEM CONNECTOR

VIDEO

MONITOR OUTPUT

Subwoofer

SYSTEM CONNECTOR cord Control unit

(–)

(+)

color tube

(+)

(–)

continued

16GB

Required equipments for the wireless system

IR transmitter

Transmits the sound by the infrared signals. Connect it to the system.

Surround speaker (L)

The surround speaker (L) incorporates the IR receiver, which receives the sound from the IR

transmitter and sends it to the surround speaker (R).

Connect the surround speaker (R).

POWER

DIR-R3

IR receiver

Getting Started

17GB

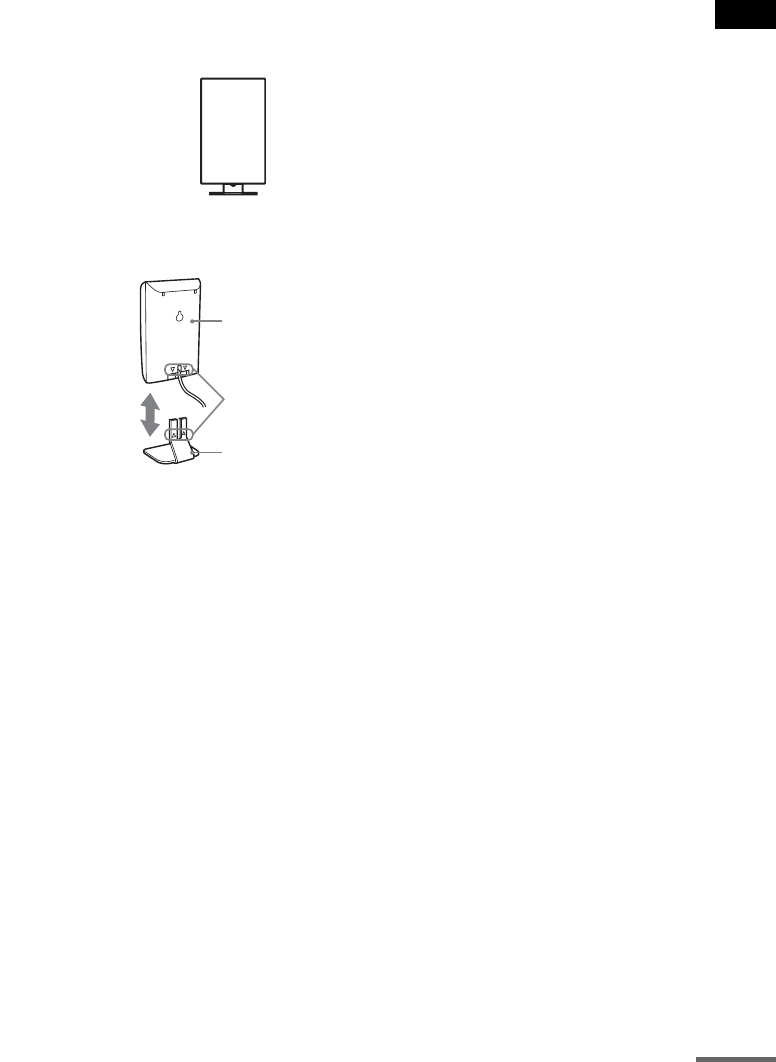

IR receiver

Used when the IR receiver of the surround speaker (L) cannot receive infrared signals because of the

position. Connect to the surround speaker (L). For details, see “Using the IR receiver” (page 33).

When using the IR receiver stand, attach the stand so that both delta marks on the IR receiver and stand

are aligned.

Note

When you connect the IR receiver to the surround speaker (L), it takes priority over the IR receiver of the surround

speaker (L).

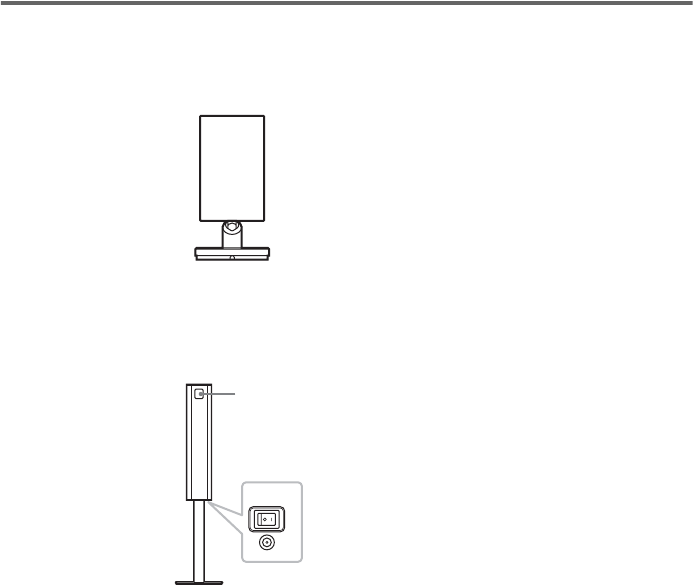

IR receiver

IR receiver stand

Delta marks

continued

18GB

Terminals for connecting the speakers

Connect the To the

Front speakers SPEAKER FRONT L (white) and R (red) jacks of the system

Center speaker SPEAKER CENTER (green) jack and REMOTE CONTROL jack of the system

Surround speaker (R) SPEAKER SURR R (gray) jack of the surround speaker (L)

IR transmitter DIR-T1 (pink) jack of the system

VIDEO

PHONES

REMOTE

CONTROL

OPTICAL

DIGITAL IN

SCAN SELECT

INTERLACESELECTABLE

VIDEO

S VIDEO (DVD ONLY)

VIDEO DIR-T1

COAXIAL

AUDIO

FRONT R CENTER FRONT L

COMPONENT VIDEO OUT ANTENNA

IMPEDANCE USE 4

SPEAKER

SAT

SYSYTEM CONNECTOR

VIDEO

MONITOR OUTPUT

POWER

DIR-R3

Front speaker (R)

Center speaker

Front speaker (L)

Surround

speaker (R)

Subwoofer

Surround

speaker (L)

with IR receiver

IR transmitter

IR receiver

Use when you do not

use the IR receiver of

the surround speaker

(L) (page 33).

Getting Started

19GB

Tip

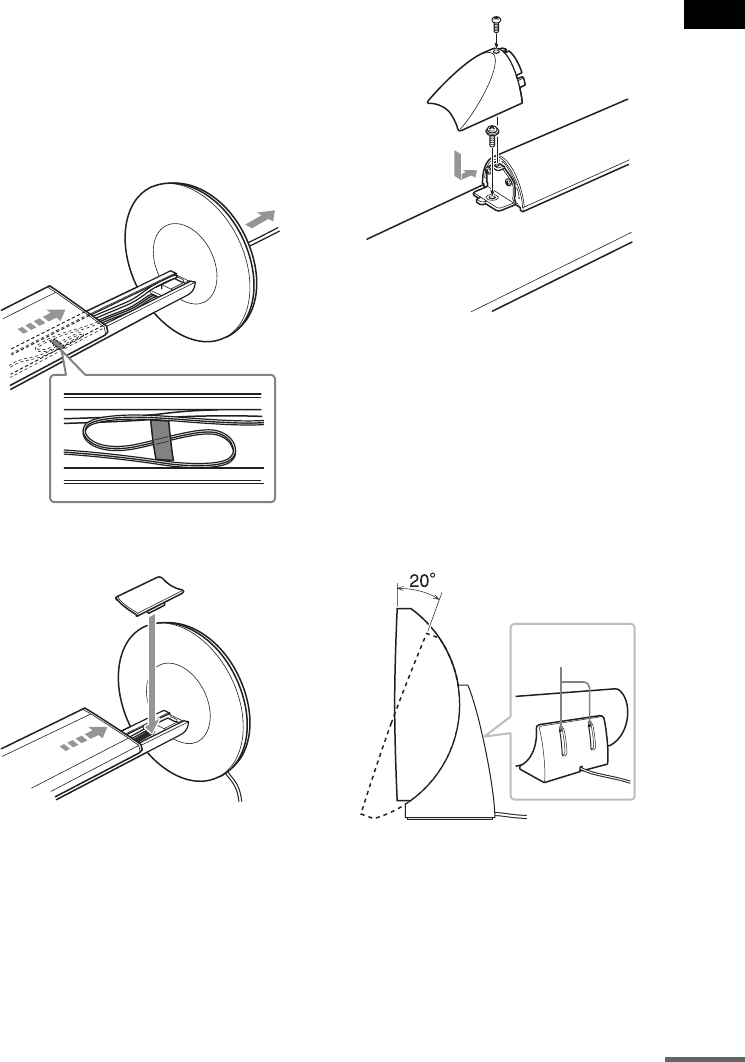

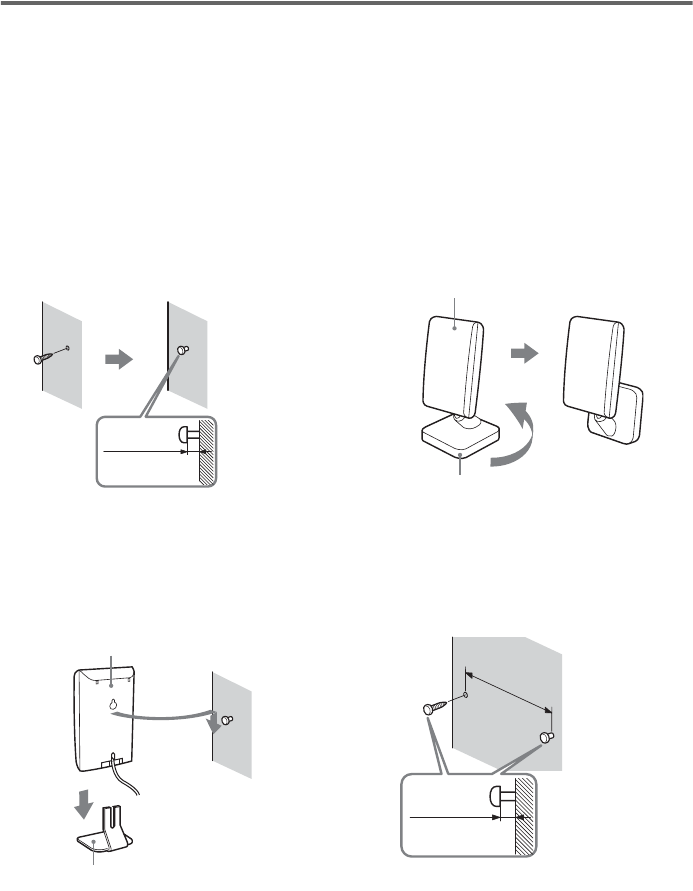

You can install the front speakers and the surround speakers on a wall using the optional kit (not supplied).

Notes on placing speakers

• Do not set the speakers in an inclined position.

• Do not place the speakers in locations that are:

– Extremely hot or cold

– Dusty or dirty

– Very humid

– Subject to vibrations

– Subject to direct sunlight

• Use caution when placing the subwoofer or tall speakers on a specially treated (waxed, oiled, polished, etc.) floor,

as staining or discoloration may result.

• Do not lean or hang on the speaker, as the speaker may fall down.

Notes on placing IR transmitter and surround speaker (L) (or IR receiver)

• Do not install the surround speaker (L) (or IR receiver) in a place exposed to direct sunlight or strong light such as

an incandescent lamp.

• The cords of the IR transmitter and IR receiver are for this system only. You cannot use a commercially available

extension cord.

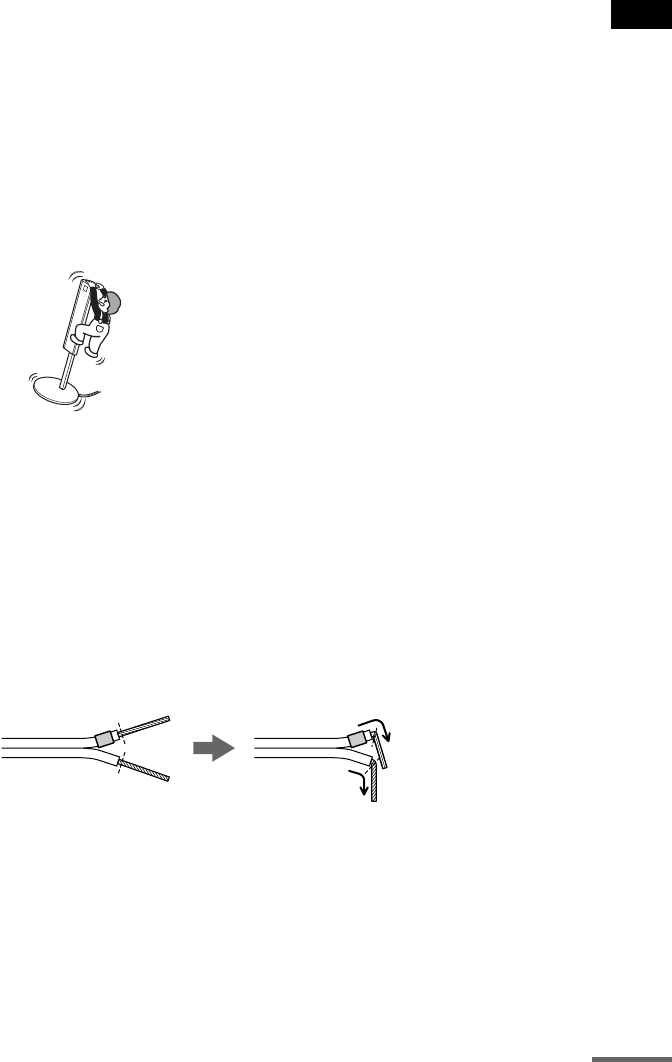

Tip for the surround speaker (L)

You can swap the surround speaker (L) and (R) positions, depending on the wall outlet and speaker layout (page 31).

Note

Do not catch the speaker cable insulation in the SPEAKER jack.

Tip

Connect the speaker cable after bending the speaker wire at the end of the insulation. This prevents the speaker cable

from being caught in the SPEAKER jack.

continued

20GB

To avoid short-circuiting the speakers

Short-circuiting of the speakers may damage the system. To prevent this, be sure to follow these

precautions when connecting the speakers. Make sure the bare wire of each speaker cord does not touch

another speaker jack or the bare wire of another speaker cord.

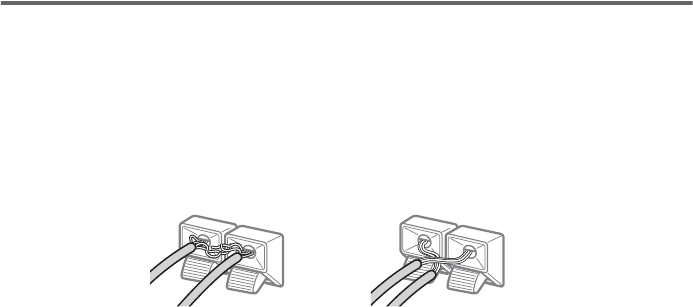

Examples of poor conditions of the speaker cord

After connecting all the components, speakers, and AC power cord (mains lead), output a test tone to

check that all the speakers are connected correctly. For details on outputting a test tone, see page 92.

If no sound is heard from a speaker while outputting a test tone, or a test tone is output from a speaker

other than the one currently displayed in the front panel display, the speaker may be short-circuited. If

this happens, check the speaker connection again.

Notes

• Be sure to match the speaker cord to the appropriate terminal on the components: 3 to 3, and # to #. If the cords

are reversed, the sound will lack bass and may be distorted.

• If you connect the speaker cord incorrectly or turn up the volume in a state of a short circuit, the standby indicator

flashes and the system enters standby mode. In this case, disconnect and then reconnect the AC power cord (mains

lead) from the wall outlet (mains), and then turn the system on.

Stripped speaker cord is

touching another speaker

terminal.

Stripped cords are touching

each other due to excessive

removal of insulation.

Getting Started

21GB

To change the speaker cables

If you want to use a different speaker cable, you can detach the plug for attachment to another cable.

Detaching

With the catcher facing down, press and hold the plug down against a flat surface and remove the cords

from plug.

Attaching

While pressing the plug down against a flat surface, insert the new speaker cords.

Note that the cord marked with a line should be attached to the minus (-) side of the plug.

Notes

• Be careful not to damage the surface you use (desk, etc.) when attaching/detaching the speaker cords.

• When using the subwoofer cord, note that the two outside black cords or the cords marked with letters are negative.

• If you connect the subwoofer cord incorrectly or turn up the volume in a state of a short circuit, the standby indicator

flashes and the system enters standby mode. In this case, disconnect and then reconnect the AC power cord (mains

lead) from the wall outlet (mains), and then turn the system on.

Tips

• You can use any commercially sold speaker cable of gauge cord AWG #18 - AWG #22.

• Before attaching a new cable, strip off 10 mm (13/32 in.) of its insulation and twist the bare wires of both cords.

Catcher

(–)

(+)

(–)

(+)

(–)

10 mm

continued

22GB

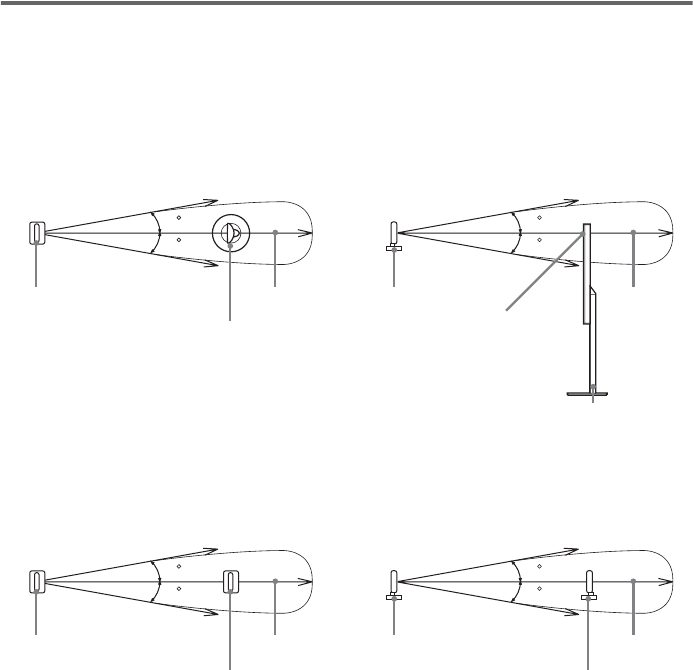

About the wireless system

This wireless system adopts the Digital Infrared Audio Transmission system (page 102). The following

diagram indicates the infrared transmission area (the range that the infrared rays can reach).

When using the IR receiver of the surround speaker (L)

When using the IR receiver

Notes

• Do not install the surround speaker (L) (or IR receiver) in a place exposed to direct sunlight or strong light such as

an incandescent lamp.

• Do not use the surround speaker (L) (or IR receiver) that is not supplied with the system.

Infrared signal

IR transmitter

Infrared signal

IR transmitter

Surround speaker (L)

Approx. 10m (33 ft) Approx. 10m

(33 ft)

Top view Side view

Surround speaker (L)

IR receiver

Infrared signal

IR transmitter

Infrared signal

IR transmitter

IR receiver

Approx. 10m (33 ft) Approx. 10m

(33 ft)

Top view Side view

Getting Started

23GB

Connect the supplied AM/FM antennas (aerials) for listening to the radio.

Terminals for connecting the antennas (aerials)

Notes

• To prevent noise pickup, keep the AM loop antenna (aerial) away from the system and other components.

• Be sure to fully extend the FM wire antenna (aerial).

• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.

Tip

When you connect the supplied AM loop antenna (aerial), the cord (A) and the cord (B) can be connected in either

terminal.

Step 2: Antenna (aerial) Hookups

Connect the To the

AM loop antenna (aerial) AM terminals

FM wire antenna (aerial) FM 75Ω COAXIAL jack

VIDEO

PHONES

REMOTE

CONTROL

OPTICAL

DIGITAL IN

SCAN SELECT

INTERLACESELECTABLE

VIDEO

S VIDEO (DVD ONLY)

VIDEO DIR-T1

COAXIAL

AUDIO

FRONT R CENTER FRONT L

COMPONENT VIDEO OUT ANTENNA

IMPEDANCE USE 4

SPEAKER

SAT

SYSYTEM CONNECTOR

VIDEO

MONITOR OUTPUT

AM loop antenna (aerial)

FM wire antenna (aerial)

continued

24GB

Tip

If you have poor FM reception, use a 75-ohms coaxial cable (not supplied) to connect the system to an outdoor

FM antenna (aerial) as shown below.

COAXIAL

ANTENNA

Outdoor FM

antenna (aerial)

System

Getting Started

25GB

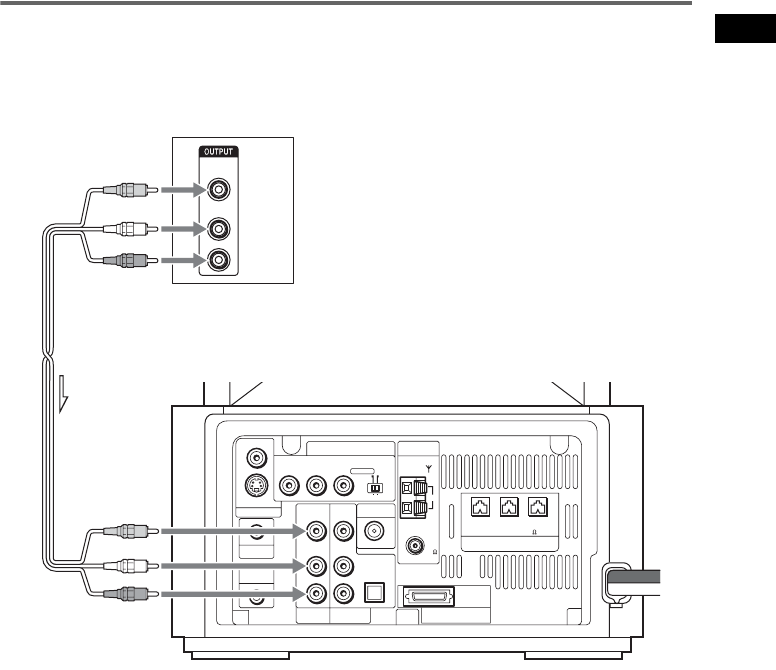

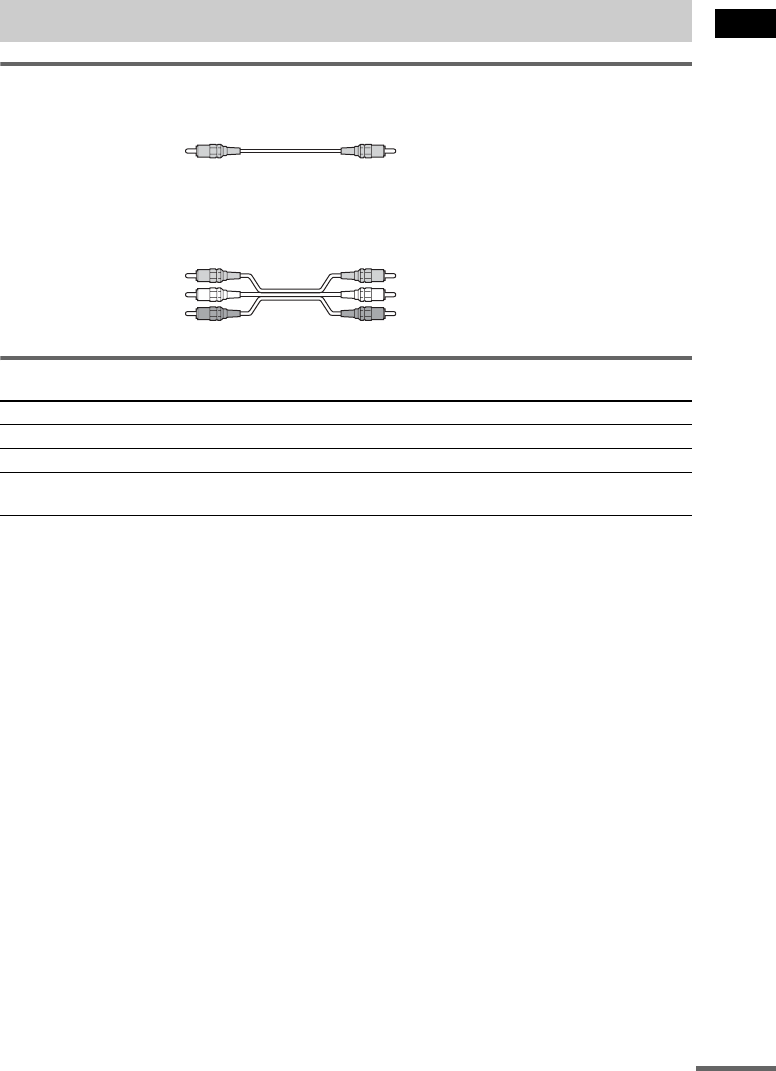

Required cords

Video cord for connecting a TV

Audio/video cords (not supplied)

When connecting a cord, be sure to match the color-coded sleeves to the appropriate jacks on the

components.

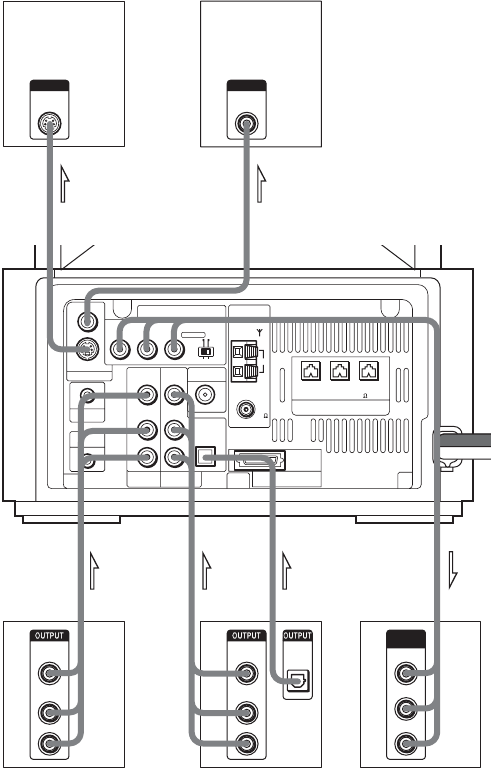

Terminals for connecting video components

Notes

• The video signal is output as below:

– When [COMPONENT OUT] is set to [INTERLACE] in [SCREEN SETUP] (page 88) (default)

The video signal is output from the S VIDEO and VIDEO jacks of MONITOR OUT.

– When [COMPONENT OUT] is set to [PROGRESSIVE] in [SCREEN SETUP] (page 88)

The video signal is output from the COMPONENT VIDEO OUT jacks only.

• When you connect a VCR or digital satellite receiver to the VIDEO/SAT jacks of this system, change the function

to VIDEO or SAT (page 80).

Tips

• When using the S video jack instead of the video jacks, your TV monitor must also be connected via an S video

jack. S video signals are on a separate bus from the video signals and will not be output through the video jacks.

• When using the COMPONENT VIDEO OUT jacks (Y, PB/CB, PR/CR) instead of the video jacks, your TV monitor

must also be connected via COMPONENT VIDEO OUT jacks (Y, PB/CB, PR/CR). If your TV accepts progressive

format signals, you must use this connection and set [COMPONENT OUT] to [PROGRESSIVE] in [SCREEN

SETUP] (page 88).

Step 3: TV and Video Component Hookups

Connect the To the

TV (VIDEO IN) MONITOR OUT (VIDEO) jack

VCR (VIDEO/AUDIO OUT) VIDEO (VIDEO IN/AUDIO IN (L/R)) jacks

Digital satellite receiver

(VIDEO/AUDIO OUT)

SAT (VIDEO IN/AUDIO IN (L/R)) jacks

Yellow

White (L/audio)

Red (R/audio)

Yellow (Video)

continued

26GB

Notes

• Make connections securely to prevent unwanted noise.

• Refer to the instructions supplied with the TV.

• The system cannot output an audio signal to the connected TV. Only the audio signal of the TV is output from the

system speakers.

If you connect a digital satellite receiver with an OPTICAL OUT jack

The digital satellite receiver can be connected to the SAT OPTICAL DIGITAL IN jack instead of the

SAT AUDIO IN (L/R) jacks of the system.

The system can accept both the digital and analogue signals. Digital signals have priority over analogue

signals. If the digital signal ceases, the analogue signal will be processed after 2 seconds.

VIDEO

PHONES

REMOTE

CONTROL

OPTICAL

DIGITAL IN

PB/CBPR/CRSCAN SELECT

INTERLACESELECTABLE

VIDEO

S VIDEO (DVD ONLY)

VIDEO DIR-T1

COAXIAL

AUDIO

FRONT R CENTER FRONT L

COMPONENT VIDEO OUT ANTENNA

IMPEDANCE USE 4

SPEAKER

SAT

SYSYTEM CONNECTOR

VIDEO

MONITOR OUTPUT

AUDIO

OUT

VIDEO

OUT

S VIDEO

IN VIDEO

PB/CB

PR/CR

AUDIO

OUT

VIDEO

OUT

COMPONENT

VIDEO IN

INPUTINPUT

OPTICAL

DIGITAL

OUT

OUTOUT IN

VCR Digital satellite receiver or

PlayStation 2 etc.

TV with S VIDEO IN jack

TV with COMPONENT

VIDEO IN jack

Getting Started

27GB

If you connect a digital satellite receiver without an OPTICAL OUT jack

Connect the digital satellite receiver to the SAT AUDIO IN (L/R) jacks only of the system.

To listen to the game machine (e.g., PlayStation 2) sound by using the

system

Connect the audio output jacks of the game machine to the SAT AUDIO IN (L/R) jacks of the system

with the audio cords (not supplied).

To change the color system (PAL or NTSC)*

* Asian and Saudi Arabian models only.

Depending on the TV to be connected, you may be required to select either PAL or NTSC of the

system.

The initial setting of the system for Saudi Arabian models is PAL.

The initial setting of the system for Asian models is NTSC.

If the color system of the TV is PAL

To set the system to PAL from NTSC:

1Press AMP MENU.

2Press X/x repeatedly until “Customize” appears in the front panel display, then press ENTER or

The system enters the Customize Menu mode.

3Press X/x repeatedly until “Color System Change” appears in the front panel display, then press

ENTER or c.

“Color System Change No” is displayed.

4Press X/x to select “Color System Change Yes”.

5Press ENTER.

Note

When the function is DVD, it takes a while until the images on the TV appears.

If the color system of the TV is NTSC

Do the same operation above to set the system to NTSC from PAL.

When connecting to a standard 4:3 screen TV

Depending on the disc, the image may not fit your TV screen.

If you want to change the aspect ratio, please refer to page 87.

Does your TV accept progressive signals?

Progressive is the method for displaying TV images which reduces flickering, and sharpens the image.

To display using this method, you need to connect to a TV that accepts progressive signals and set the

output signal of COMPONENT VIDEO OUT to the progressive format. For details, see “To set to

[PROGRESSIVE]” on page 88.

continued

28GB

If your TV does not accept progressive signals and progressive format

is set by mistake

The image may not appear, or will appear distorted. In this case, return the setting to interlace format.

1Touch the Touch Panel Sensor FUNCTION repeatedly until “DVD” appears in the front panel

display.

2While holding down the Touch Panel Sensor ., touch the Touch Panel Sensor FUNCTION.

The output signal is changed to interlace format.

VOL.

FUNCTION

Getting Started

29GB

Output the TV or VCR sound from the speakers

1Connect audio cords.

Connect the AUDIO OUT (L/R) jacks of TV or VCR to the VIDEO (AUDIO IN L/R) jacks of this

subwoofer with audio cords.

* AUDIO OUT (L/R) jacks

If your TV does not have AUDIO OUT (L/R) jacks, you cannot output the TV sound from the speakers of this

subwoofer.

2Change the mode of this system.

Press FUNCTION repeatedly to select “VIDEO.”

Note

Be sure to make the connections securely to avoid hum and noise. If using the VIDEO jack distorts the sound,

reconnect the TV or VCR to SAT.

Tip

When you want to output the TV sound or stereo sound of a 2 channel source from the 6 speakers, select any sound

field other than “Auto Format Direct Auto” or “2Channel Stereo” (page 64).

VIDEO

PHONES

REMOTE

CONTROL

OPTICAL

DIGITAL IN

PB/CBPR/CRSCAN SELECT

INTERLACESELECTABLE

VIDEO

S VIDEO (DVD ONLY)

VIDEO DIR-T1

COAXIAL

AUDIO

FRONT R CENTER FRONT L

COMPONENT VIDEO OUT ANTENNA

IMPEDANCE USE 4

SPEAKER

SAT

SYSYTEM CONNECTOR

VIDEO

MONITOR OUTPUT

AUDIO

OUT

VIDEO

OUT

TV or VCR

30GB

Before connecting the AC power cords (mains leads) of the subwoofer and the surround speaker (L) to

a wall outlet (mains), connect the front and center speakers to the subwoofer and surround speaker (R)

to the surround speaker (L) (see page 18).

Powering the control unit on

After powering the control unit on, initialization begins. During initialization, do not touch the front

panel display.

Press "/1 on the control unit or the remote, or insert a disc to turn the system on.

Note

During initialization, an animation appears on the front panel display for about 5 seconds. Each time

the system turns on, initialization begins.

Step 4: Connecting the AC Power Cords (Mains Leads) and

Powering On

VOL.

FUNCTION

Front panel display

"/1

VOL.

FUNCTION

Front panel display

Getting Started

31GB

After connecting the speakers, IR transmitter,

and the AC power cords (mains leads), adjust

the wireless system for good transmission.

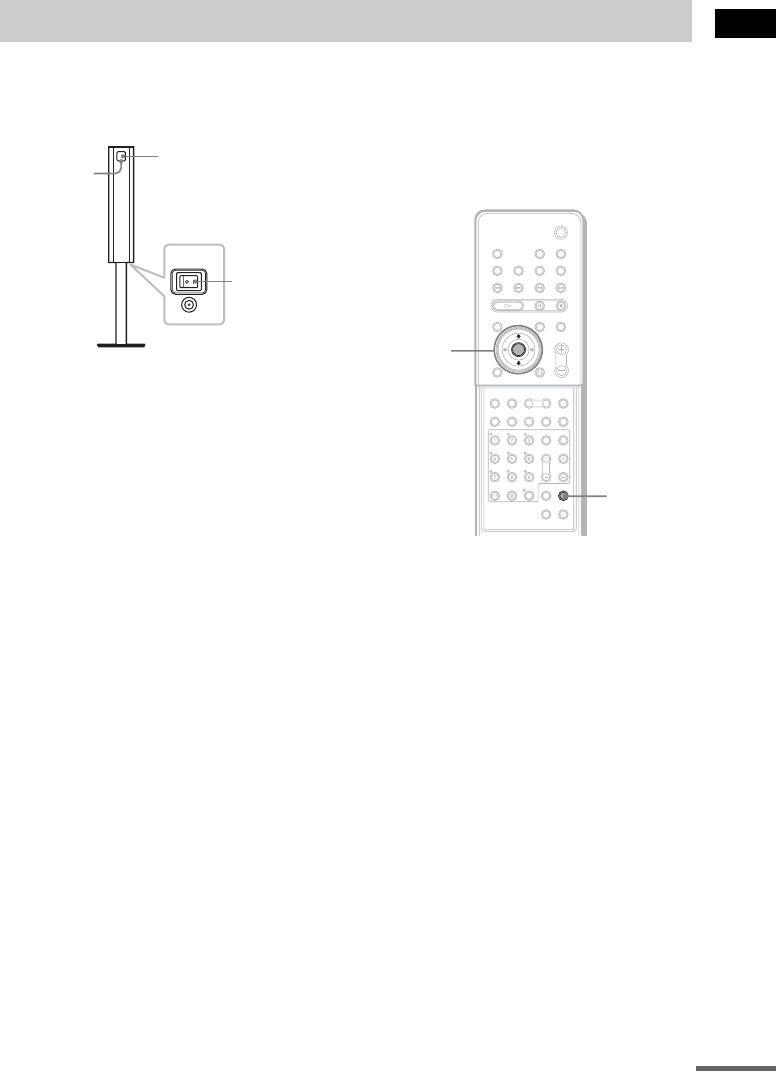

1Press POWER on the surround

speaker (L) to turn on.

The system and surround speaker (L) turn

on and the POWER/ON LINE indicator

turns red.

2Orient the IR transmitter and the IR

receiver of the surround speaker (L) to

face each other.

Adjust the position until the POWER/ON

LINE indicator turns green.

Tip

The IR transmitter is movable for easy reorientation.

Notes

• Make sure that there is no obstruction such as a

person or object between the IR transmitter and the IR

receiver of the surround speaker (L). Otherwise, the

sound from the surround speakers may be interrupted.

• If the POWER/ON LINE indicator turns red, the

transmission is incomplete. Adjust the position of the

IR transmitter and surround speaker (L) until the

POWER/ON LINE indicator turns green.

• If the POWER/ON LINE indicator flashes in red, the

IR receiver of the surround speaker (L) is receiving an

infrared signal from another Sony’s wireless product.

Move the IR transmitter and/or the surround speaker

(L) so that the POWER/ON LINE indicator turns

green.

When placing the surround

speaker (L) in the (R) position

Depending on the location of the wall outlet

(mains), you can also place the surround speaker

(L) (with the IR receiver) in the (R) position if

necessary.

1Press AMP MENU.

2Press X/x repeatedly until “Customize”

appears in the front panel display, then

press ENTER or c.

The system enters the Customize Menu

mode.

3Press X/x repeatedly until “Surround

Speaker Reverse” appears in the front

panel display, then press ENTER or c.

4Press X/x repeatedly until the item you

want to set appears in the front panel

display.

xReverse Off SL SR (default)

Sets the surround speaker (L) (with the IR

receiver) in the (L) position.

xReverse On SR SL

Sets the surround speaker (L) (with the IR

receiver) in the (R) position.

5Press AMP MENU.

Turns off the AMP menu.

Step 5: Adjusting the Wireless System

POWER

DIR-R3

IR receiver

POWER

POWER/

ON LINE

indicator

AMP MENU

C/X/x/c/

ENTER

With cover opened.

continued

32GB

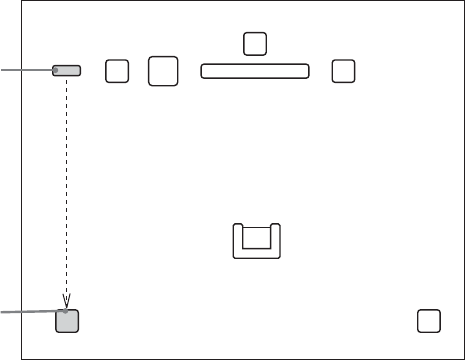

Example for installation

Position the IR transmitter and surround speaker (L) as illustrated.

Install the IR transmitter and IR receiver of the surround speaker (L) in direct line with each other, and

adjust the orientation of the IR transmitter and surround speaker (L) until the POWER/ON LINE

indicator turns green.

Listening position

Front

speaker (L) Front

speaker (R)

Center speaker

Surround

speaker (L) Surround

speaker (R)

Subwoofer

IR transmitter

IR receiver of the

surround speaker

Top view

Getting Started

33GB

Using the IR receiver

Depending on the speaker layout (i.e. when placing the surround speaker (L) toward the listening

position, etc.), or when there is an obstruction, such as a person or object between the IR transmitter

and the IR receiver of the surround speaker (L), you can use the external IR receiver (supplied) instead.

The IR receiver is compact and easy to install.

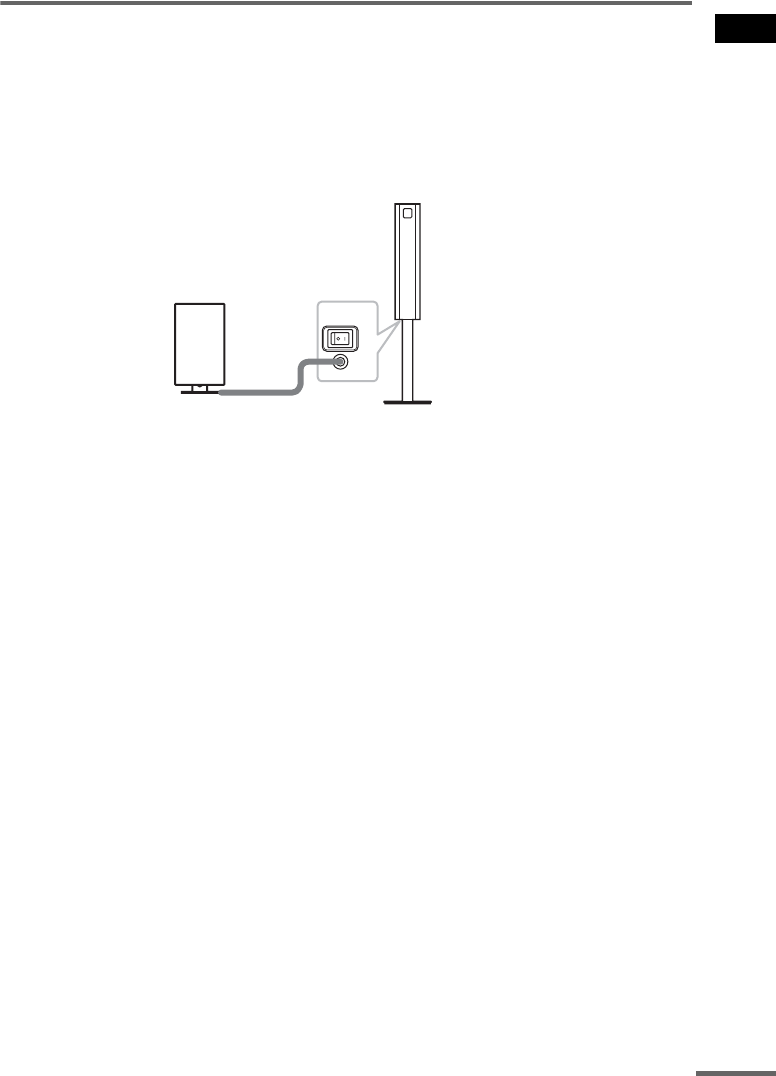

To connect the IR receiver

Connect the cord of the IR receiver to the DIR-R3 jack of the surround speaker (L).

Notes

• After connecting, the IR receiver is activated and the IR receiver of the surround speaker (L) is not activated

automatically.

• When using the IR receiver, install it following the guidelines of the IR receiver of the surround speaker (L).

POWER

DIR-R3

IR receiver

continued

34GB

Hanging the IR transmitter and IR receiver on a wall

You can hang the IR transmitter and IR receiver on a wall when:

– there is an obstruction between the IR transmitter and the IR receiver.

– people often pass between the IR transmitter and the IR receiver.

When hanging both the IR transmitter and IR receiver, adjust the position of the IR transmitter after

deciding the position of the IR receiver.

To hang the IR receiver on a wall

1Install a commercially available screw

in the wall so that it protrudes 4 mm

(0.19 inches).

2Detach the IR receiver stand and hang

it via hole on the rear side of the IR

receiver on the screw.

Make sure that the IR receiver does not

move after installation.

Tip

When reattaching the IR receiver stand to the IR

receiver, attach the stand so that both delta marks on

the IR receiver and stand are aligned (page 17).

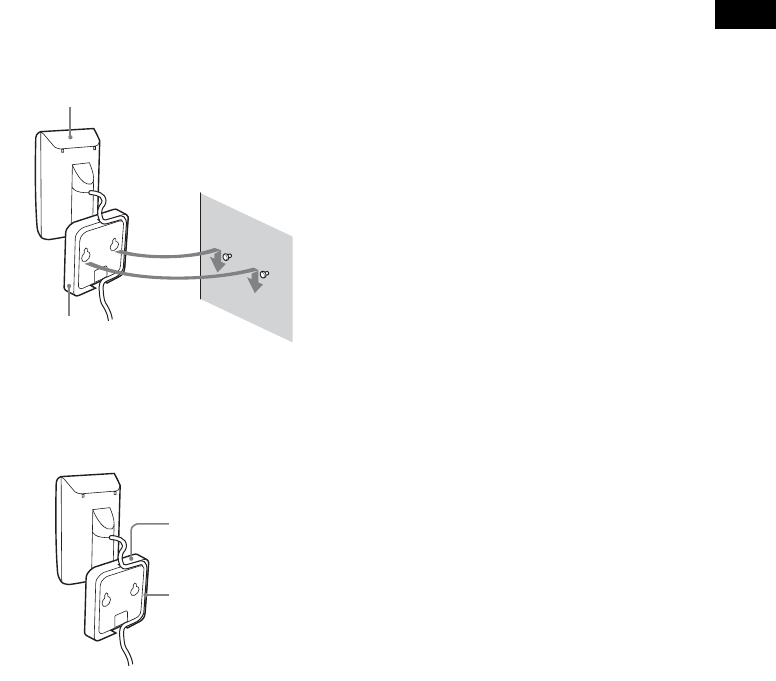

To hang the IR transmitter on a

wall

1Rotate the stand of the IR transmitter.

2Install 2 commercially available screws

in the wall so that it protrudes 4 mm

(0.19 inches).

Install the screws 30 mm (1.46 inches)

apart.

4 mm

(0.19 inches)

IR receiver

IR receiver stand

Stand

IR transmitter

30 mm

(1.46 inches)

4 mm

(0.19 inches)

Getting Started

35GB

3Hang the IR transmitter via hole on the

bottom of the stand on the screw.

Make sure that the IR transmitter does not

move after installation.

Tip

You can store the cords in the troughs in the bottom of

the stand.

Notes

• Use screws suitable for the material and strength of

the wall.

• Do not install the IR transmitter or IR receiver to a

wall of low strength.

• Sony is not liable for any damage or accident incurred

by incorrect installation (i.e. low strength wall, etc.),

incorrect use of this product, or natural disaster.

• When connecting/disconnecting cords, detach the IR

transmitter or IR receiver from the wall first.

IR transmitter

Stand

Troughs

Stand

36GB

After completing the first 4 steps, make initial settings using the Quick Setup. You can set the initial

setting of [LANGUAGE SETUP], [ROOM SIZE], [LISTENING POSITION], and [TV TYPE] step by

step.

After performing the Quick Setup, the system is ready for playing back of movies, music CDs, etc. To

perform further speakers settings, see “Settings for the Speakers” on page 91.

How to use the Quick Setup

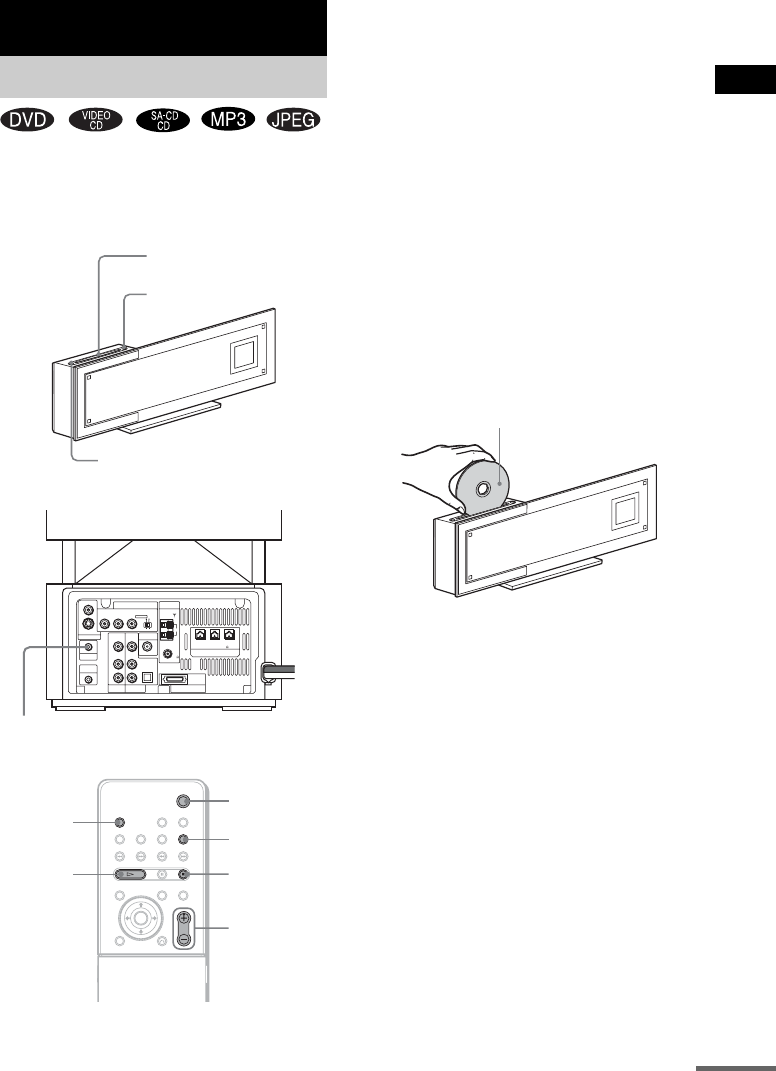

1Turn on your TV.

2Switch the input selector on the TV to

this system.

3Press "/1.

4Press FUNCTION to select “DVD.”

The guide message appears on the TV

screen.

Note

When a disc is in the system, the guide message

does not appear on the TV screen.

5Press ENTER.

[LANGUAGE SETUP] appears.

Notes

• The selectable language is different depending

on the area.

• The language you select in [LANGUAGE

SETUP] is also used for [OSD], [DVD MENU],

and [SUBTITLE] (page 87).

• Depending on the area, [Others t] appears on

the language list. In this case, you can select the

desired language for [DVD MENU] and

[SUBTITLE] from the “Language Code List”

(page 111). Select [Others t] using X/x, then

press ENTER.

6Select a language using X/x, then

press ENTER. (When you select a

language from the language code list,

select the code number using the

number buttons, then press ENTER.)

Setting is selected and [ROOM SIZE]

appears.

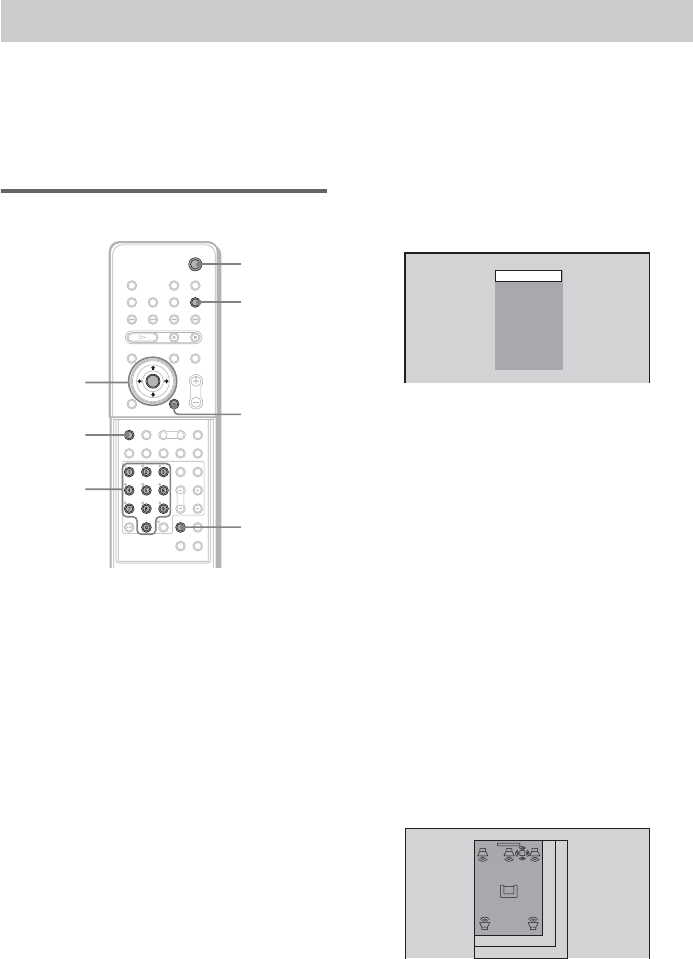

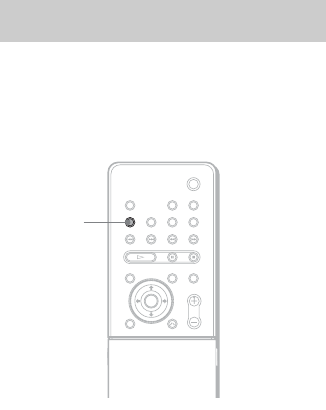

Step 6: Performing the Quick Setup

"/1

O RETURN

DVD

SETUP

C/X/x/c/

ENTER

CLEAR

With cover opened.

FUNCTION

Number

buttons

LANGUAGE SETUP

FRANÇAIS

DEUTSCH

ESPAÑOL

ITALIANO

DANSK

NEDERLANDS

SVENSKA

PORTUGUÉS

SUOMI

ENGLISH

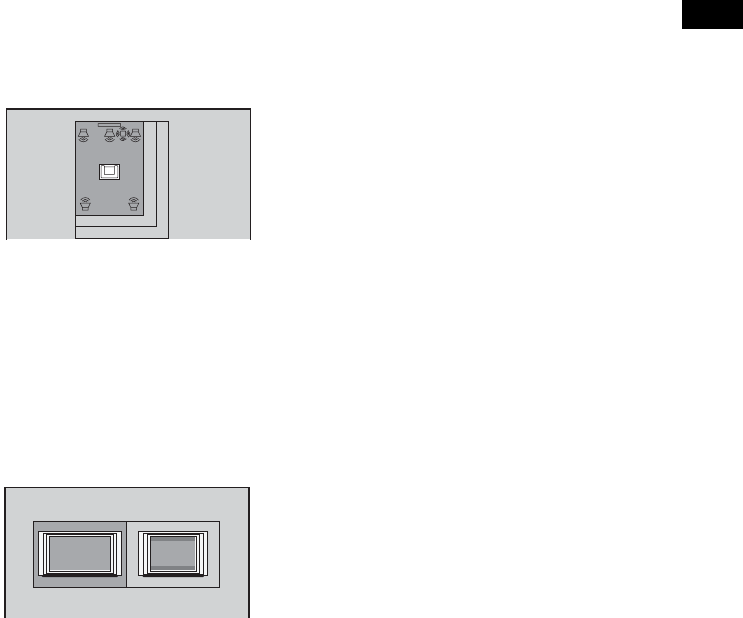

ROOM SIZE

SMALL

FRONT:

SURROUND:

1 . 6 m

Getting Started

37GB

7Select a suitable room size from

[SMALL], [MEDIUM], or [LARGE] using

X/x, then press ENTER.

Setting is selected and [LISTENING

POSITION] appears.

The [LISTENING POSITION] number you

can select varies, depending on the [ROOM

SIZE] setting.

[SMALL]: Three positions

[MEDIUM]: Four positions

[LARGE]: Five positions

8Select a suitable listening position

using X/x, then press ENTER.

Setting is selected and [TV TYPE] appears.

9Select the TV type to connect to the

system using C/c, then press ENTER.

The Quick Setup is complete.

When the Quick Setup is completed, the

settings are saved and the guide message

will not appear the next time you turn on the

system.

If you make a mistake

Press O RETURN, then select the item again.

To quit the Quick Setup

Press DVD SETUP in any step.

Notes

• When you press CLEAR in guide message, the

message disappears. When you need to change

settings, select [QUICK] from [SETUP] in Setup

Display (page 96).

• When you select [4:3] in [TV TYPE], [4:3 LETTER

BOX] is selected (page 87).

• The distance and level of each speaker will be set

automatically according to the selection of [ROOM

SIZE] and [LISTENING POSITION] (page 91).

• If you want to change each setting, see “Using the

Setup Display” on page 86.

• The illustrations displayed for [ROOM SIZE] and

[LISTENING POSITION] are only examples and

may differ from the actual room size and layout.

The settings for [SPEAKER SETUP] (page 91) do

not appear on these displays.

LISTENING POSITION

FRONT:

SURROUND:

1 . 6 m

TV TYPE

4 : 316 : 9

38GB

Positioning the speakers

For the best possible surround sound, all the

speakers other than the subwoofer should be the

same distance from the listening position (A).

However, this system allows you to place the

center speaker up to 1.6 metersa) closer (B) and

the surround speakers up to 4.6 metersb) closer

The front speakers can be placed from 1.0 to

7.0 metersc) (A) from the listening position.

North American numerical equivalents:

a) 5 feet (1.5 meters)

b) 15 feet (4.5 meters)

c) 3 to 23 feet (0.9 to 6.9 meters)

Place speakers as illustrated below

Note

Do not place the center and surround speakers farther

away from the listening position than the front

speakers.

Adjusting the height of the front

speakers and the surround

speakers

When adjusting the speaker height, lay the

speaker horizontal and have plenty of soft

cushioning around it to prevent damage in the

event that the speaker should fall.

1Remove the back cover.

2Remove the cover and the two inner

stoppers. (Although there are three

stoppers inside the pole, note that the

stopper close to the plate should stay

attached.)

Speaker Setup

e.g., the surround

speaker (L)

Getting Started

39GB

3Adjust the speaker slowly with the

attached tape in place to prevent the

speaker cord (and the AC power cord

(mains lead) of the surround speaker

(L)) from being pinched between the

speaker and the pole.

Do not pull the speaker cord too strongly, or

the speaker cord will separate from the

speaker.

4Attach the cover (S) and slide the

speaker until it stops.

5Attach the back cover.

Notes

• To prevent the speaker falling, keep the speaker

horizontal while adjusting the height.

• If you take off the speaker cord, slide the speaker

contrary in step 3. Next, unfasten the stopper and

remove the speaker. Then attach the speaker cord and

adjust the height of the speaker.

Adjusting the angle of the center

speaker

You can set the angle by adjusting the screws.

Tip

You can install the front speakers and the surround

speakers on a wall using the optional kit (not supplied).

e.g., the surround

speaker (L)

e.g., the surround

speaker (L)

Screws

continued

40GB

About magnetically shielded

speakers (to prevent color

irregularity occurring on the TV

screen)

The subwoofer in this system is magnetically

shielded to prevent magnetic leakage. However,

some leakage may occur, as a high-strength

magnet is employed. If the subwoofer is used

with a CRT-based TV or projector, install the

subwoofer at least 0.3 meter (1ft) from the TV

set. If it is installed too close, color irregularity

may occur on the screen. If color irregularity

occurs, turn off the TV set once, then turn it on

after 15 to 30 minutes. If color irregularity

occurs again, place the subwoofer farther away

from the TV set. If color irregularity still occurs

after performing the above, make sure that no

magnetic object is placed near the subwoofer.

Color irregularity may occur as a result of

interaction between the subwoofer and the

magnetic object.

Examples of possible sources of magnetic

interference include: magnetic latches on a TV

stand, etc., healthcare devices, toys, etc.

Specifying the speaker

parameters

To obtain the best possible surround sound, first

specify the distance of the speakers from your

listening position, then set the level and balance.

Use the test tone to adjust the speaker level and

balance to the same level.

Select [SPEAKER SETUP] in the setup display.

For details, see “Settings for the Speakers”

(page 91).

Playing Discs

41GB

Depending on the DVD or VIDEO CD, some

operations may be different or restricted.

Refer to the operation details supplied with your

disc.

1Turn on your TV.

2Switch the input selector on the TV to

this system.

3Press "/1 on the system.

The system turns on.

Unlees the mode of the system is set to

“DVD,” press FUNCTION on the remote

or touch the Touch Panel Sensor (page 43)

to select “DVD.”

“No Disc” appears in the front panel display

and the system is ready for loading the disc.

4Load a disc.

Push the disc into the disc slot until the disc

is pulled in automatically.

The disc is drawn into the system

automatically and “Reading” appears in the

front panel display.

5Press H on the remote or touch the

Touch Panel Sensor (page 43).

The system starts playback (continuous

play).

Adjust the volume on the remote or the

Touch Panel Sensor (page 43).

After following Step 5

Depending on the disc, a menu may appear on

the TV screen. You can play the disc

interactively by following the instructions on the

menu. (DVD: page 45), (VIDEO CD: page 45).

To remove the disc

Press Z. Remove the disc after it is ejected from

the system. “No Disc” appears in the front panel

display.

Playing Discs

VIDEO

PHONES

REMOTE

CONTROL

OPTICAL

DIGITAL IN

SCAN SELECT

INTERLACESELECTABLE

VIDEO

S VIDEO (DVD ONLY)

VIDEO DIR-T1

COAXIAL

AUDIO

FRONT R CENTER FRONT L

COMPONENT VIDEO OUT ANTENNA

IMPEDANCE USE 4

SPEAKER

SAT

SYSYTEM CONNECTOR

VIDEO

MONITOR OUTPUT

"/1

Standby indicator

"/1

Disc slot

FUNCTION

Connect headphones

Adjust the

volume

Labeled side facing to the front

continued

42GB

To turn on the system

Press "/1 on the system. The system turns on. In

standby mode, the system also turns on by

loading a disc.

To turn off the system

Press "/1. The system enters standby mode and

the standby indicator lights up in red. To turn off

the system completely, remove the AC power

cord (mains lead) from the wall outlet (mains).

While playing a disc, do not turn off the system

by pressing "/1. Doing so may cancel the menu

settings. When you turn off the system, first

press x to stop playback and then press "/1.

To save the power in standby

mode

Press "/1 while the system turns on (the standby

indicator on the system lights up).

To cancel standby mode

Press "/1 once.

Additional operations

* You cannot pause during JPEG playback.

Notes

• If there is no disc in the system, “No Disc” appears on

the front panel display.

• If DVD playback is paused for approximately one

hour, the system automatically turns off.

Tip

If a DVD has more than two titles, you cannot go to the

next title or go back to the preceding title by pressing

. or >. These buttons work only within a single

title. If you want to go to the next title or go back to

preceding title, press DVD TOP MENU or DVD

MENU and then select the title you want to go to from

the control menu.

To Press

Stop x

Pause* X

Resume play after pause X or H

Go to the next chapter,

track, scene, or file in

continuous play mode

Go back to the preceding

chapter, track, scene, or file

in continuous play mode

Stop play and remove the

disc

Mute the sound MUTING. To cancel

muting, press it again

or VOL + to adjust the

sound volume.

./>

VOL +/–

MUTING

Playing Discs

43GB

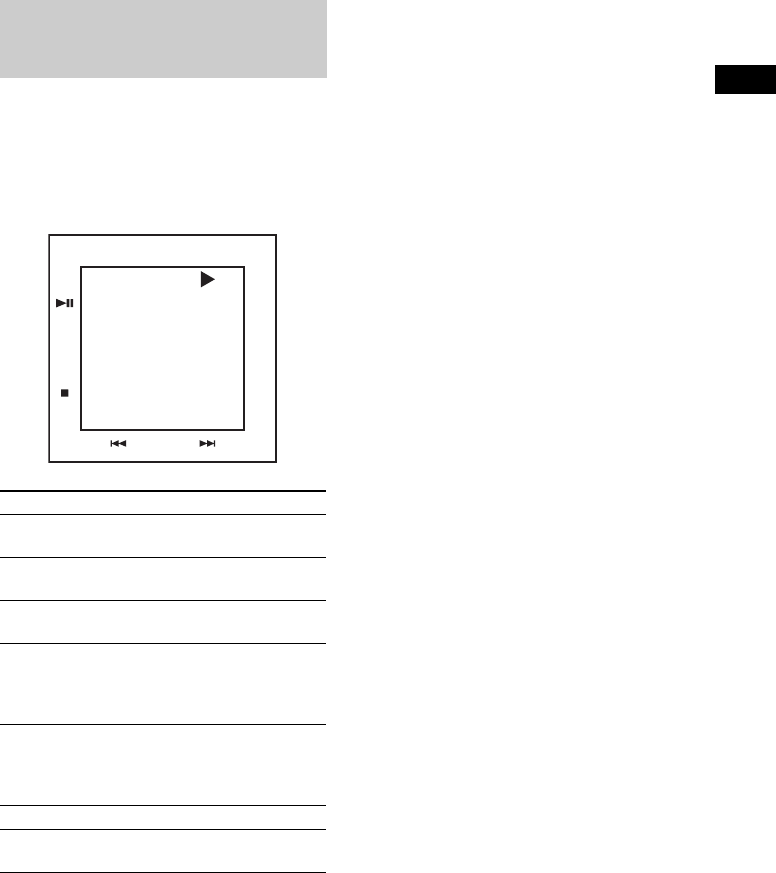

You can also operate the system by touching the

Touch Panel Sensor on the control unit. Before

using the Touch Panel Sensor, perform steps 1 to

4 in “Playing Discs” (page 41) or steps 1 to 8 in

“Presetting Radio Stations” (page 81).

* When you touch the Touch Panel Sensor

FUNCTION on the volume adjustment display or

selection display, the display returns to the normal

display of each selected function.

Each time you touch the Touch Panel Sensor

FUNCTION, the mode of the system changes in the

following sequence:

FM t AM t VIDEO t SAT t TV t DVD

t FM...

Notes

• Do not handle the clear plastic panel when you move

or operate the control unit as it may break.

• Do not use any type of abrasive pad, scouring powder

or solvent such as benzine, acetone, or alcohol as

surface damage may occur.

Operating by the Touch

Panel Sensor

To Touch

Go to the function selection

display

FUNCTION*

Go to the volume adjustment

display/Turn up the volume

VOL. +

Go to the volume adjustment

display/Turn down the volume

VOL. –

Go to the selection display/Go to

the next chapter, track, scene, file

in continuous play mode, or preset

radio station

Go to the selection display/Go to

the preceding chapter, track,

scene, file in continuous play

mode, or preset radio station

Stop the disc x

Play the disc/Pause the disc/

Resume play after pause the disc

VOL.

FUNCTION

DVD

0.01.11

TITLE

Normal display

44GB

When you stop a disc, the system remembers the

point where you pressed x and “Resume”

appears in the front panel display. As long as

you do not remove the disc, Resume Play will

work even if the system enters standby mode by

pressing "/1.

1While playing a disc, press x to stop

playback.

“Resume” appears in the front panel

display, so you can restart the disc from the

point where you stopped the disc.

If “Resume” does not appear, Resume Play

is not available.

2Press H.

The system starts playback from the point

where you stopped the disc in Step 1.

Notes

• You cannot perform Resume Play during Shuffle

Play or Program Play.

• Depending on where you stop the disc, the system

may not resume playback from exactly the same

point.

• The point where you stopped playing is cleared if:

– you change the play mode.

– you change the setting on the Setup Menu.

Tip

To play from the beginning of the disc, press x twice,

then press H.

Resuming Playback from

the Point Where You

Stopped the Disc

(Resume Play)

Playing Discs

45GB

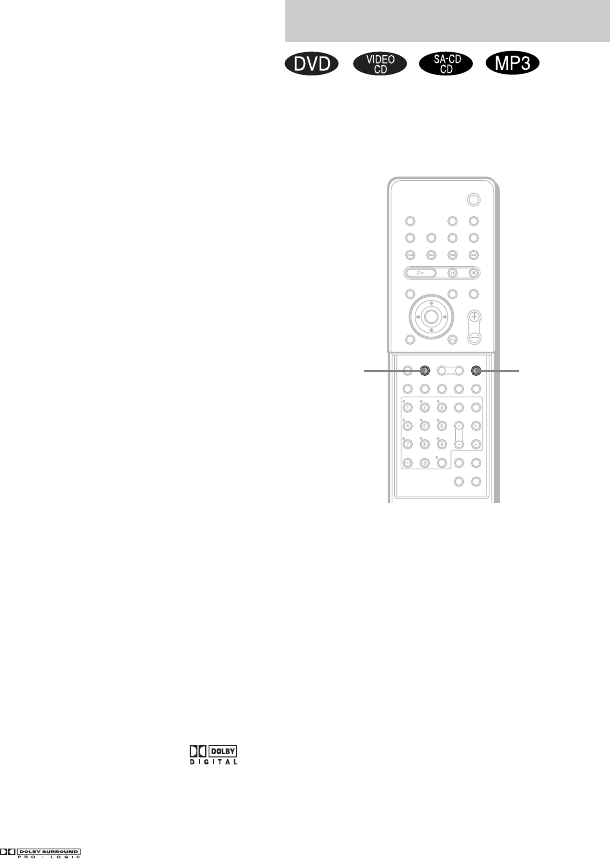

A DVD is divided into a lot of sections, which

make up a picture or music feature. These

sections are called “titles.” When you play a

DVD which contains several titles, you can

select the title you want using DVD TOP

MENU/ALBUM–.

When you play DVDs that allow you to select

items such as the subtitle language and sound

language, select these items using DVD MENU/

ALBUM+.

1Press DVD TOP MENU/ALBUM– or DVD

MENU/ALBUM+.

The disc’s menu appears on the TV screen.

The contents of the menu vary from disc to

disc.

2Press C/X/x/c or the number buttons to

select the item you want to play or

change.

3Press ENTER.

Note

If the DVD top menu or a DVD menu is displayed

during DVD playback for approximately one hour, the

system automatically turns off.

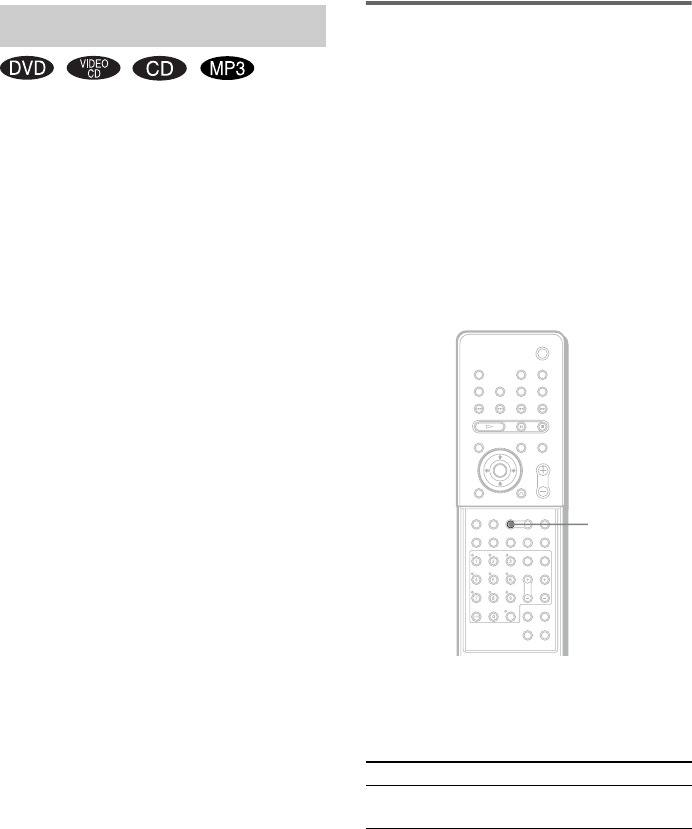

With PBC (Playback Control) functions, you

can enjoy simple interactive operations, search

functions, and other such operations.

PBC playback allows you to play VIDEO CDs

interactively by following the menu on the TV

screen.

1Start playing a VIDEO CD with PBC

functions.

The menu for your selection appears.

2Select the item number you want by

pressing X/x or the number buttons.

3Press ENTER.

4Follow the instructions in the menu for

interactive operations.

Refer to the operation details supplied with

the disc, as the operating procedure may

differ, depending on the VIDEO CD.

To go back to the menu

Press O RETURN.

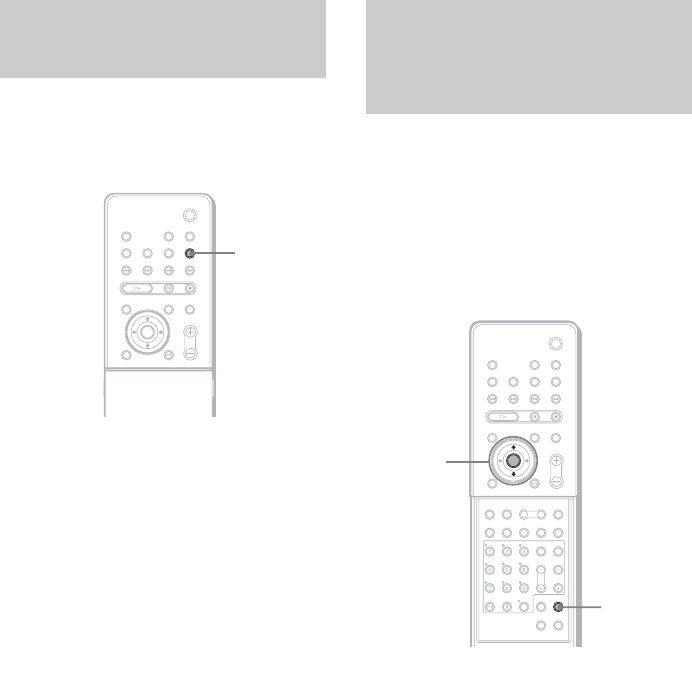

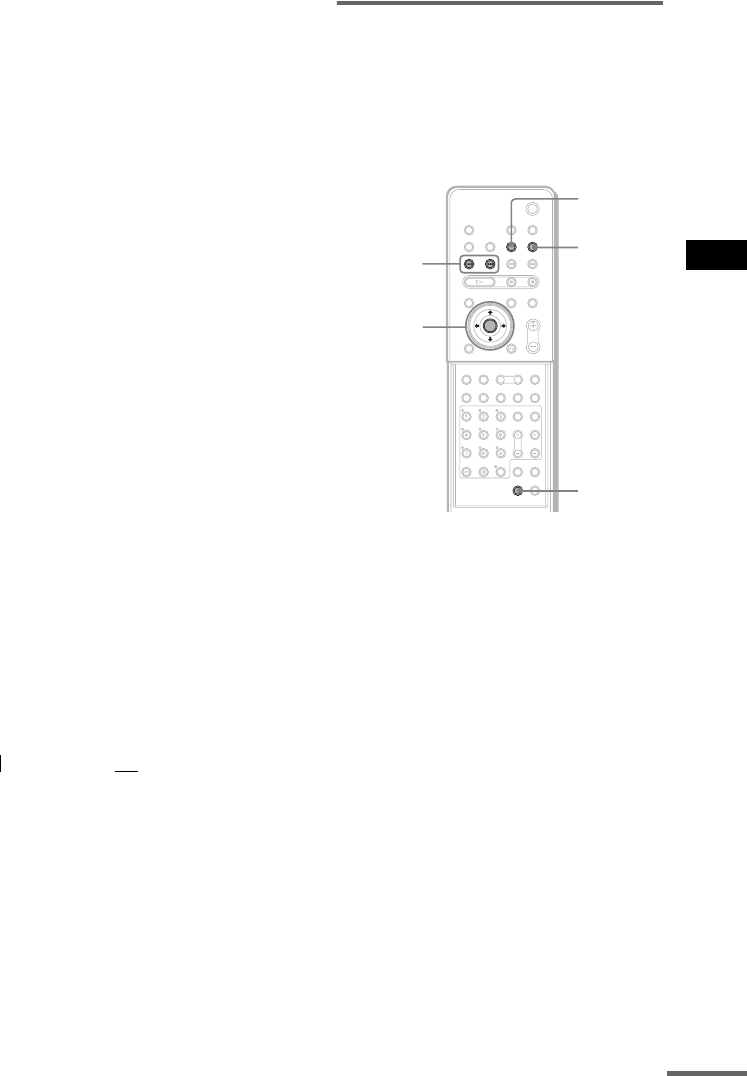

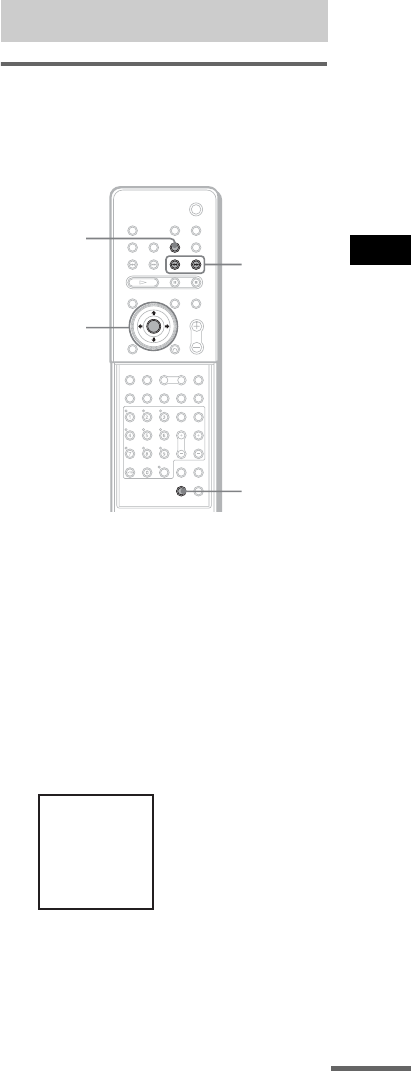

Using the DVD’s Menu

DVD MENU/

ALBUM+

Number

buttons

DVD TOP

MENU/

ALBUM–

C/X/x/c/

ENTER

With cover opened.

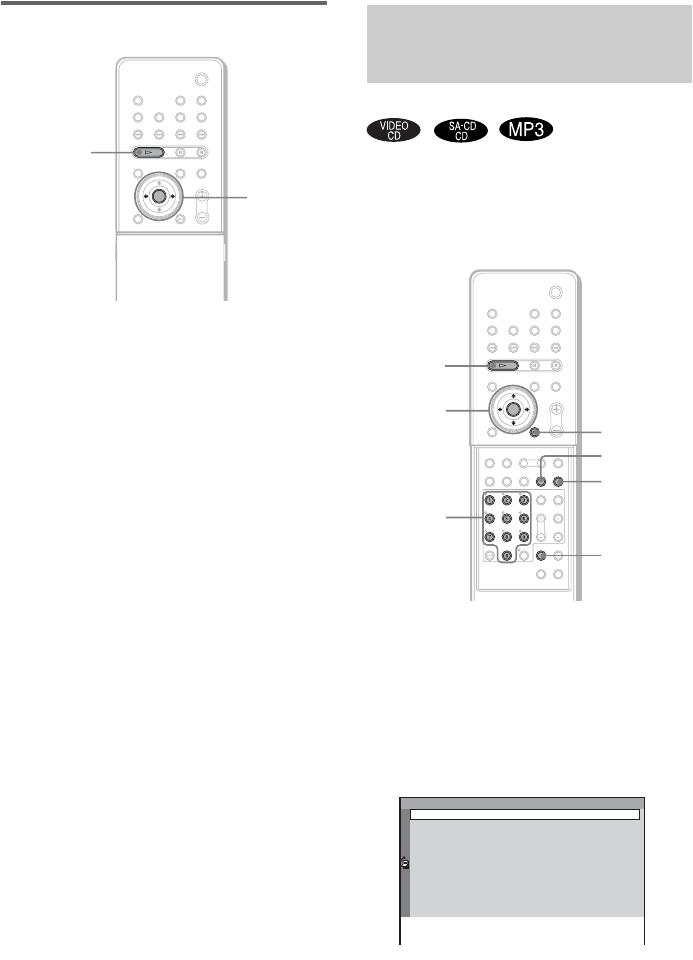

Playing VIDEO CDs with

PBC Functions (Ver. 2.0)

(PBC Playback)

O RETURN

Number

buttons

./>

X/x/

ENTER

With cover opened.

continued

46GB

Notes

• Depending on the VIDEO CD, the menu does not

appear in Step 1.

• Depending on the VIDEO CD, “Press ENTER” in

Step 3 may appear as “Press SELECT” in the

instructions supplied with the disc. In this case, press

Tip

To play without using PBC, press ./> or the

number buttons while the system is stopped to select a

track, then press H or ENTER.

“Play without PBC” appears on the TV screen and the

system starts continuous play. You cannot play still

pictures such as a menu. To return to PBC playback,

press x twice, then press H.

You can play MP3 audio tracks on CD-ROMs,

CD-Rs, or CD-RWs. However, the discs must be

recorded according to ISO9660 level 1, level 2,

or Joliet format for the system to recognize the

tracks. You can also play discs recorded in Multi

Session. See the instructions of the CD-R/RW

device or recording software (not supplied) for

details on the recording format.

1Load a data disc recorded in MP3 into

the system.

2Press H.

The system starts to play the first MP3

audio track in the first album on the disc.

Notes

• The system can play MP3 (MPEG1 Audio Layer3)

audio. The system cannot play audio tracks in

MP3PRO format.

• This system can play Multi Session CDs when an

MP3 audio track is located in the first session. Any

subsequent MP3 audio tracks, recorded in the later

sessions, can also be played back.

• Maximum number of albums on a disc: 99 (The

maximum number of MP3 audio tracks that can be

contained on an album is 250.)

• An album that does not include an MP3 audio track is

skipped.

• If you put the extension “.MP3” to data not in MP3

format, the system cannot recognize the data properly

and will generate a loud noise which could damage

your speaker system.

• If the system cannot play MP3, set [DATA CD

PRIORITY] to [MP3] in the [CUSTOM SETUP]

setting (page 90).

• The system can play to a depth of 8 directories,

including a root directory.

Playing an MP3 Audio

Track

Playing Discs

47GB

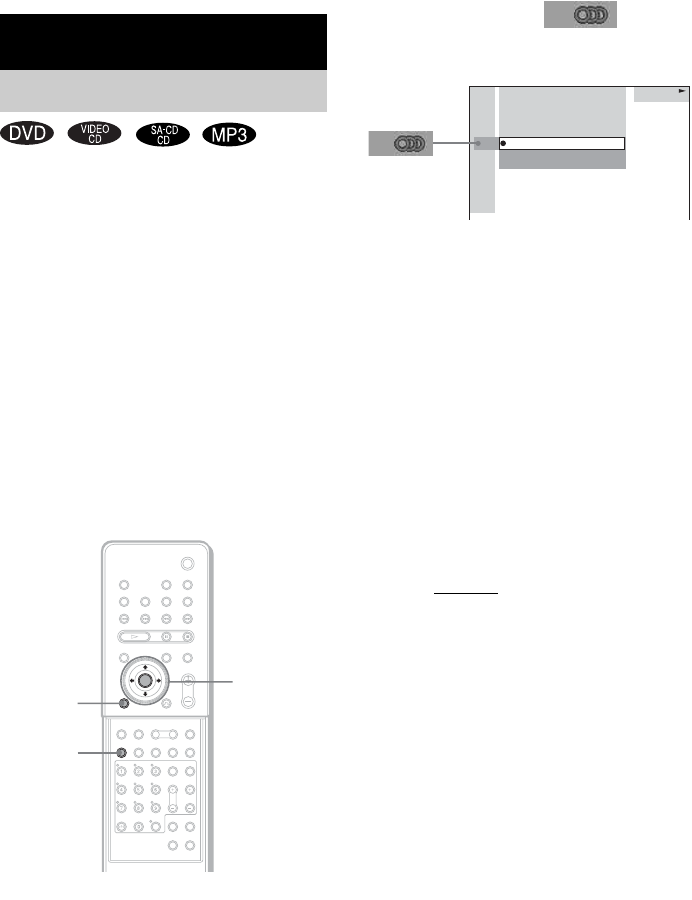

Selecting an album and track

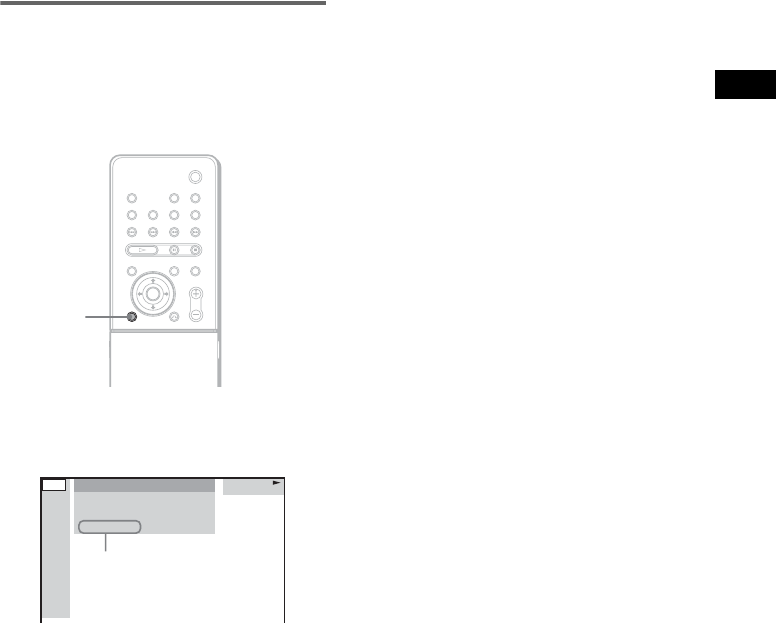

1Press DVD DISPLAY.

The Control Menu and name of the MP3

data disc appears.

2Press X/x to select (ALBUM)

then press ENTER or c.

The list of albums contained in the disc

appears.

3Select an album you want to play using

X/x and press ENTER.

4Select (TRACK) using X/x

and press ENTER.

The list of tracks contained in the current

album appears.

When the list of all tracks or albums cannot

be displayed on the window, the jump bar

appears. Press c to select the jump bar icon,

and then scroll the jump bar to display the

rest of the list using X/x. Press C or

O RETURN to return to the track or the

album list.

5Select a track using X/x and press

ENTER.

The selected track starts playing.

To return to the previous display

Press O RETURN or C.

To turn off the display

Press DVD DISPLAY.

Notes

• Only alphabetical letters and numbers can be used for

album or track names. Anything else is displayed as

“ ”.

• If the MP3 file you play back has an ID3 tag, the ID3

tag information is displayed as a track name.

• ID3 tag applies only to version 1.

• If an MP3 file of VBR (variable bit rate) is played,

indicated elapsed time may be different from the

actual time.

• Until playing the disc or selecting an album in step 2,

album name is displayed as “**ALBUM” (** refers

to a number) in the Control Menu, after which the

album name is displayed.

Tip

When an MP3 data disc is inserted, you can select an

album using the DVD MENU/ALBUM+ or DVD TOP

MENU/ALBUM– on the remote.

O RETURN

DVD

DISPLAY

DVD TOP

MENU/

ALBUM–

DVD MENU/

ALBUM+

C/X/x/c/

ENTER

MP3

ROCK BEST HIT

KARAOKE

JAZZ

R&B

MY FAVORITE SONGS

CLASSICAL

SALSA OF CUBA

BOSSANOVA

HOME TOWN

ROCK BEST HIT MP3

10.

11.

TAKE IT EASY

VIEW POINT

MY CHILDREN

DANCING

GOOD TASTE

DESTINATION

PLACE-KICK

PORT TOWER

STANDARD

MARATHON

HIGHWAY1.

48GB

You can play JPEG image files on CD-ROMs,

CD-Rs, or CD-RWs. However, the discs must be

recorded according to ISO9660 level 1, level 2

or Joliet format for the system to recognize the

files. You can also play discs recorded in Multi

Session. See the instructions of the CD-R/RW

device or recording software (not supplied) for

details on the recording format.

1Load a data disc recorded in JPEG into

the system.

2Press H.

The system starts to play the first JPEG

image file in the first album on the disc.

Notes

• The system can play the extension “.JPG” or

“.JPEG.”

• The system can play Multi Session CDs.

• An album that does not include a JPEG file is

skipped.

• If the system cannot play JPEG, set [DATA CD

PRIORITY] to [JPEG] in the [CUSTOM SETUP]

setting (page 90).

• A JPEG image file of a length or width of more than

4,720 dots cannot be played.

• A JPEG image file with a high width to length ratio

cannot be displayed.

• Some CD-Rs or CD-RWs cannot be played on this

system depending on file format.

• The system can play to a depth of 8 directories,

including a root directory.

• Progressive JPEG image files cannot be played on

this system.

• Maximum number of albums on a disc: 99

(The maximum number of JPEG image files that can

be contained on an album is 250.)

Tip

When you go to the next file or to go back to the

previous file, press . or >.

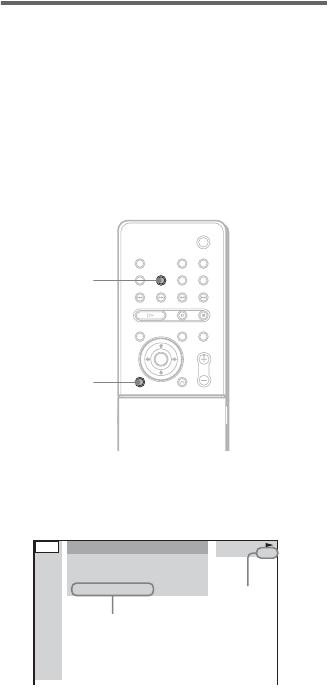

Selecting an album and file

1Press DVD DISPLAY.

The Control Menu and name of the JPEG

data disc appears.

2Press X/x to select (ALBUM)

then press ENTER or c.

The list of albums contained in the disc

appears.

3Select an album you want to play using

X/x and press ENTER.

4Select (FILE) using X/x and

press ENTER.

The list of files contained in the current

album appears.

Playing JPEG Image Files

O RETURN

DVD

DISPLAY

DVD TOP

MENU/

ALBUM–

DVD MENU/

ALBUM+

C/X/x/c/

ENTER

JPEG

FAMILY

FLOWER

GARDEN

TRAIN

CAR

MOUNTAIN

FAMILY JPEG

10.

11.

TRAVEL

BIRTHDAY

CELEBRATION

CHRISTMAS

MOM

BASEBALL

DAD

FRIEND

DRIVE

PARTY

HAPPY1.

Playing Discs

49GB

When the list of all files or albums cannot

be displayed on the window, the jump bar

appears. Press c to select the jump bar icon,

and then scroll the jump bar to display the

rest of the list using X/x. Press C or

O RETURN to return to the file or the

album list.

5Select a file using X/x and press

ENTER.

The selected file starts playing.

To return to the previous display

Press O RETURN or C.

To turn off the display

Press DVD DISPLAY.

Notes

• Only alphabetical letters and numbers can be used for

album or file names. Anything else is displayed as “ ”.

• Until playing the disc or selecting an album in step 2,

album name is displayed as “**ALBUM” (** refers

to a number) in the Control Menu, after which the

album name is displayed.

Tip

When a JPEG data disc is inserted, you can select an

album using the DVD MENU/ALBUM+ or DVD TOP

MENU/ALBUM- on the remote.

Enjoying Slide show on a

JPEG data disc

1Press M while displaying a JPEG

image.

Slide show starts from the current image.

2Press H when you want to exit Slide

show.

Return to normal play from the current

image.

To change the interval time of

Slide show

Each time you press M during Slide show, the

interval time changes. With each press, the

indication changes as follows:

The 3M interval time is faster than 2M.

Note

Slide show can play in only one direction.

1M t 2M t 3M

continued

50GB

To rotate the current image

Rotate the current image using C/c.

Each time you press c, the image turns

clockwise by 90º.

Each time you press C, the image turns

counterclockwise by 90º.

Note

You cannot rotate the image during Slide show. Press

H to return to normal play before this operation.

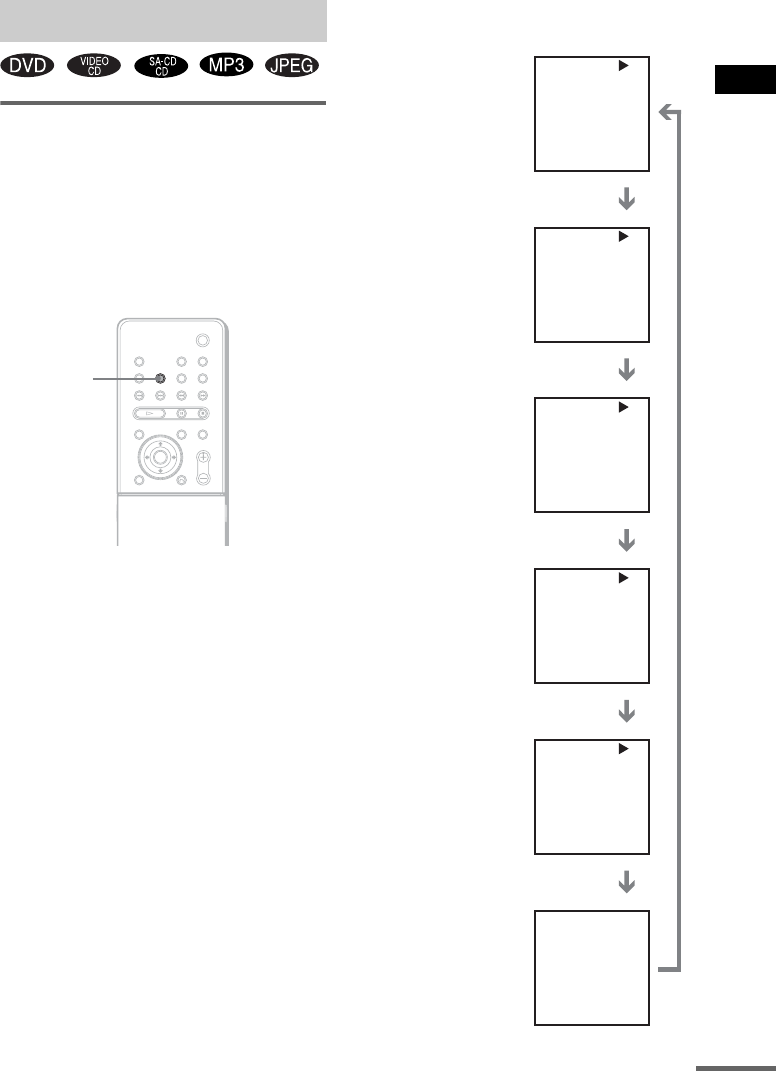

You can play the contents of a disc in the order

you want by arranging the order of the tracks or

albums on the disc to create your own program.

You can program up to 25 tracks or albums.

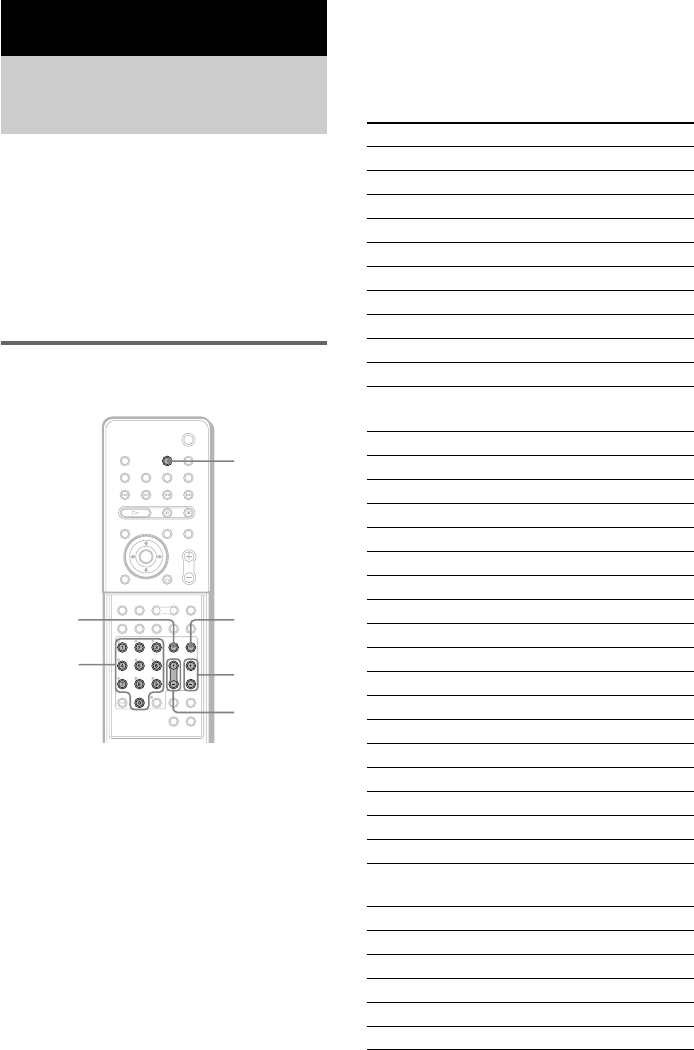

1In stop mode, press PLAY MODE

repeatedly until “PGM” appears in the

front panel display.

The Program Menu appears on the TV

screen.

For example, select a track on an MP3 disc.

C/c

Creating Your Own

Program

(Program Play)

Number

buttons

CLEAR

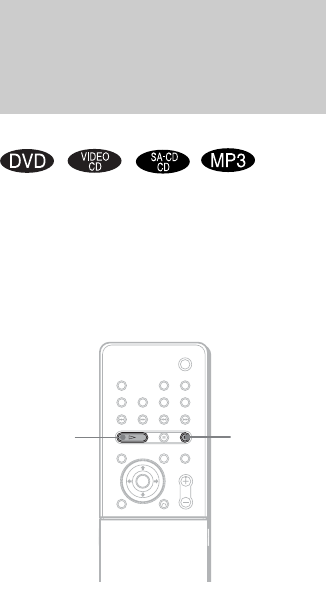

PLAY

MODE

REPEAT

O RETURN

C/X/x/c/

ENTER

With cover opened.

Program Total Time - - : - -

Playing Discs

51GB

To check the tracks or albums that you have

already created once, press C to select the

jump bar icon, and then scroll the jump bar

to display the rest of the list using X/x.

Press c or O RETURN to return to the

track list.

You can select the jump bar icon only if

there are more than 9 programmed tracks or

albums.

2Press c.

The cursor moves to the track (in this case,

“1”). Before programming the MP3 tracks,

it is required to select the album.

To select a track that is not displayed on the

window, press c to select the jump bar icon,

and then scroll the jump bar to display the

rest of the list using X/x. Press C or

O RETURN to return to the track list.

You can select the jump bar icon only if

there are more than 9 tracks.

3Select the track you want to program.

For example, select track “7.”

4Press X/x or the number buttons to

select “7” then press ENTER.

5To program other tracks, repeat Steps

2 to 4.

The programmed tracks are displayed in the

selected order.

6Press H to start Program Play.

Program Play begins.

When the program ends, you can restart the

same program again by pressing H.

To return to normal play

In stop mode, press PLAY MODE repeatedly

until “PGM” disappears from the front panel

display.

Other Operations

Notes

• Program Play function is not available for DVDs and

JPEG.

• When you remove the disc, Program Play is canceled

and the program you created is cleared.

• When you program MP3 tracks, “- - : - -” is displayed

as the total time of the programmed tracks.

Tip

You can perform Repeat Play of programmed tracks.

Press REPEAT, or set [REPEAT] to [ALL] in the

Control Menu display during Program Play (page 53).

Program

Total Time - - : - -

2 ALBUM

Album

3 ALBUM

4 ALBUM

5 ALBUM

1 ALBUM

Track

ALL TRACKS

TRACK9

TRACK8

TRACK7

TRACK6

TRACK5

TRACK4

TRACK3

TRACK2

TRACK1

Program

Total Time - - : - -

2 ALBUM

Album

3 ALBUM

4 ALBUM

5 ALBUM

1 ALBUM

Track

ALL TRACKS

TRACK9

TRACK8

TRACK7

TRACK6

TRACK5

TRACK4

TRACK3

TRACK2

TRACK1

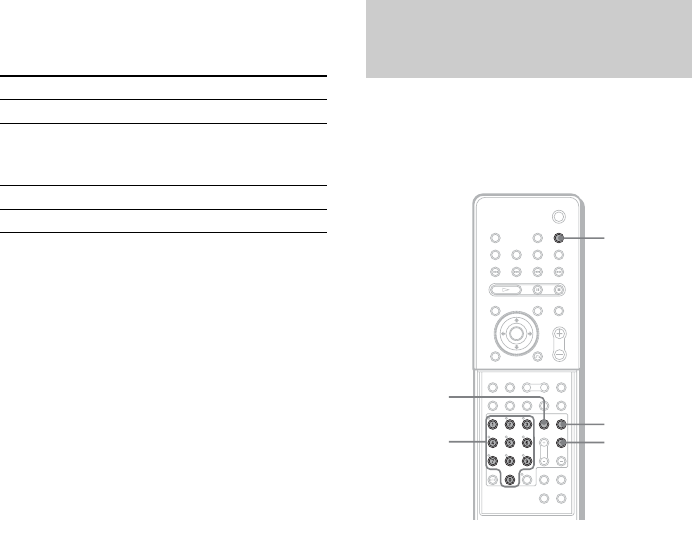

To Do this

Turn off the

Program Menu

In stop mode, press PLAY MODE

to turn off the Program Menu.

Cancel the

programmed

order

Press CLEAR in Step 5, and the

last program is canceled one by

one.

Program Total Time - - : - -

1ALBUM 1 TRACK 7

Total time of the programmed

tracks (except MP3)

52GB

You can have the system “shuffle” tracks and

play them in random order. Subsequent

“shuffling” will produce a different playing

order.

1In stop mode, press PLAY MODE

repeatedly until “SHUF” appears in the

front panel display.

When you play an MP3 disc, you can play

all tracks in albums in random order.

For details on album shuffle, see page 52.

2Press H.

To return to normal play

In stop mode, press PLAY MODE repeatedly

until “SHUF” disappears from the front panel

display (SHUFFLE canceled). The same applies

to cancel SHUFFLE (ALBUM).

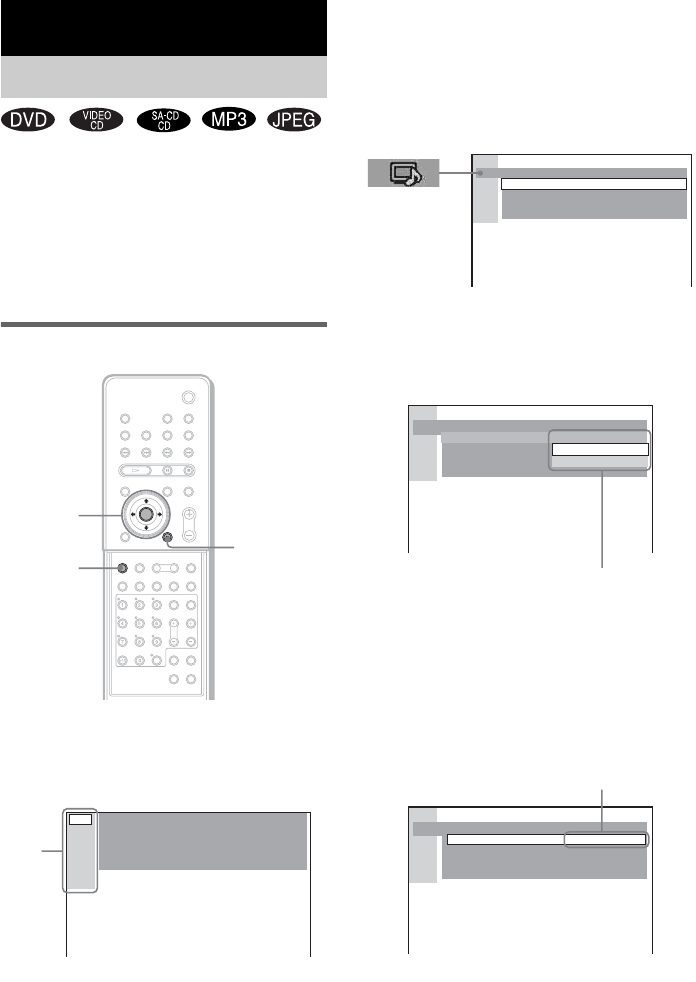

Setting the shuffle mode in

the Control Menu

You can select either normal shuffle or album

shuffle (MP3 only).

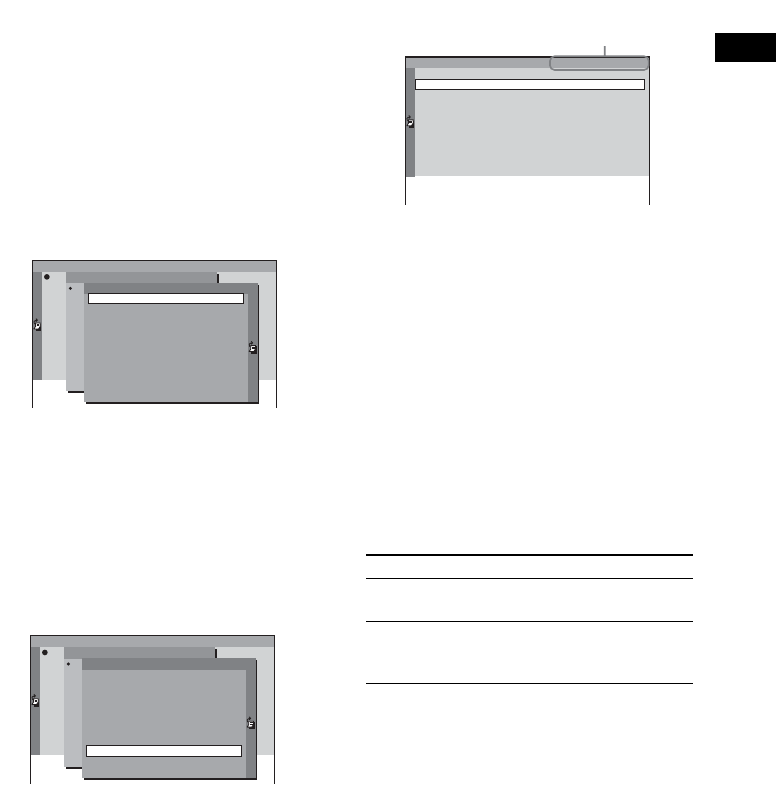

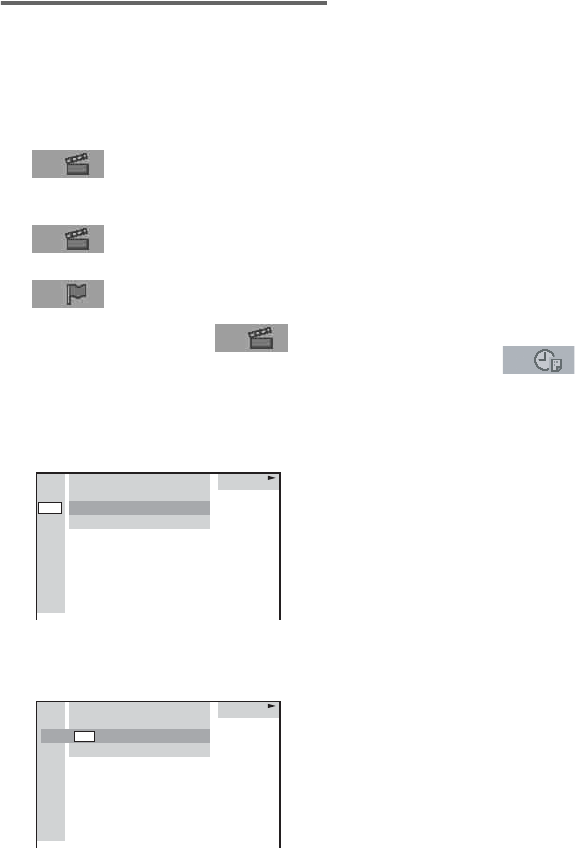

1Press DVD DISPLAY.

The Control Menu appears.

2Press X/x to select (PLAY

MODE), then press ENTER or c.

3Select [SHUFFLE] or [SHUFFLE

(ALBUM)] using X/x and press ENTER.

[SHUFFLE]: Plays tracks on the disc in

random order.

[SHUFFLE (ALBUM)]: Plays tracks from

selected album in random order.

4Press H.

The selected Shuffle Play begins.

Note

Shuffle Play is cancelled when you eject the disc. The

play mode changes in the following sequence:

SHUFFLE t CONTINUE

SHUFFLE (ALBUM) t CONTINUE (ALBUM)

Playing in Random Order

(Shuffle Play)

PLAY

MODE

With cover opened.

DVD

DISPLAY

C/X/x/c/

ENTER

( 1 5 )

MP3

CONTINUE

CONTINUE(ALBUM)

SHUFFLE(ALBUM)

PROGRAM

SHUFFLE

HOME TOWN

ROCK BEST HIT

Playing Discs

53GB

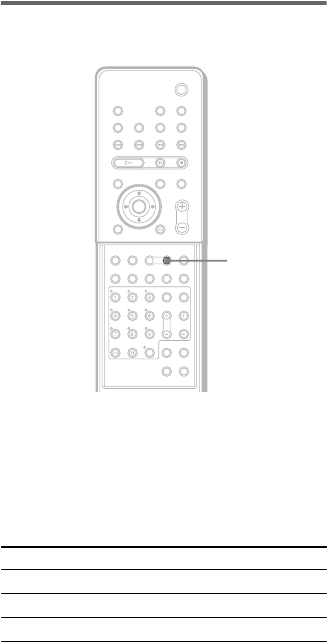

You can play all the titles/tracks/files or a single

title/chapter/track on a disc.

In Shuffle or Program Play mode, the system

repeats tracks in shuffled or programmed order.

You cannot perform Repeat Play during PBC

playback of VIDEO CDs (page 45).

1Press DVD DISPLAY.

The Control Menu appears.

2Press X/x to select

(REPEAT), then press ENTER or c.

If you do not select [OFF], the [REPEAT]

indicator lights in green.

3Select the Repeat Play setting, then

press ENTER.

xWhen playing a DVD

•OFF: does not play repeatedly.

• ALL: repeats all the titles.

• TITLE: repeats the current title on the

disc.

• CHAPTER: repeats the current

chapter.

xWhen playing a VIDEO CD/Super

Audio CD/CD/MP3, and when Program

Play is set to OFF

•OFF: does not play repeatedly.

• ALL: repeats all the tracks on the disc,

or repeats the current album (only

when CONTINUE (ALBUM) or

SHUFFLE (ALBUM) in the play

mode is selected).

• TRACK: repeats the current track.

xWhen playing a JPEG

•OFF: does not play repeatedly.

• ALL: repeats all the files on the disc

(when CONTINUE is selected in the

play mode), or repeats the current

album (when CONTINUE (ALBUM)

is selected in the play mode).

xWhen Program Play is set to ON

•OFF: does not play repeatedly.

• ALL: repeats Program Play.

Notes

• Depending on the DVD disc, Repeat Play does not

work.

• Repeat Play is canceled when you eject the disc.

• If [ALL] is selected, Repeat Play is limited to 5 times.

Tips

• You can set Repeat Play during stop mode.

After selecting the [REPEAT] item, press H.

The system starts Repeat Play.

• You can quickly display the [REPEAT] status.

Press REPEAT on the remote.

• You can perform Repeat Play for DVD titles that

contain chapters.

Playing Repeatedly

(Repeat Play)

DVD

DISPLAY REPEAT

C/X/x/c/

ENTER

With cover opened.

DVD

1 2 ( 2 7 ) TITLE12

1 8 ( 3 4 )

1 : 3 2 : 5 5

ALL

TITLE

CHAPTER

OFF

54GB

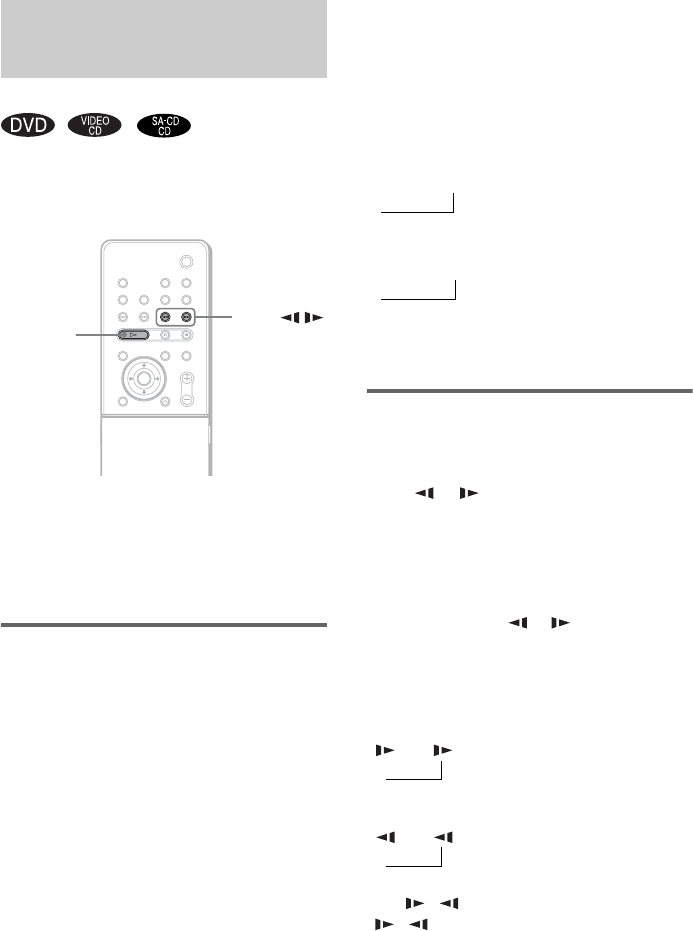

You can locate a particular point on a disc

quickly by monitoring the picture or by playing

back slowly.

Notes

• Depending on the DVD/VIDEO CD, you may not be

able to perform some of the operations described.

• During Scan or Slow-motion Play, no sound is

output.

Locating a point quickly by

playing a disc in fast forward

or fast reverse (Scan)

1Press m or M while playing a disc.

2When you find the point you want,

press H to return to normal speed.

To change the scan speed (DVD/

VIDEO CD only)

Each time you press m or M during scan, the

playback speed changes. Two speeds are

available. With each press, the indication

changes as follows:

The 2M/2m playback speed is faster than

1M/1m.

Watching frame by frame

(Slow-motion Play)

(DVD/VIDEO CD only)

Press or when the system is in the

pause mode.

To return to normal speed, press H.

To change the speed of Slow-

motion Play

Each time you press or during Slow-

motion Play, the playback speed changes. Two

speeds are available. With each press, the

indication changes as follows:

The 2 /2 playback speed is slower than

1/1.

Searching for a Particular

Point on a Disc

(Scan, Slow-motion Play)

SLOW /

m/M

Playback direction

1M t 2M

Opposite direction

1m t 2m

Playback direction

2 t 1

Opposite direction (DVD only)

2 t 1

Playing Discs

55GB

You can search a title (DVD), chapter (DVD),

track (CD, VIDEO CD, Super Audio CD, MP3),

index (VIDEO CD, Super Audio CD), album

(MP3, JPEG), and file (JPEG). As titles, tracks

albums and files are assigned unique names on

the disc, you can select the desired one from the

Control Menu. Also chapters and indexes are

assigned unique numbers on the disc, so you

select the desired one by entering its number. Or

you can search a particular point using the time

code (TIME SEARCH).

You cannot search a scene of a VIDEO CD

(when the PBC function is on).

Searching for a title/track/

album/file

1Press DVD DISPLAY.

The Control Menu appears.

2Press X/x to select the search method,

then press ENTER or c.

xWhen playing a DVD

(TITLE)

xWhen playing a VIDEO CD

(TRACK)

xWhen playing a Super Audio CD

(TRACK)

xWhen playing a CD

(TRACK)

xWhen playing an MP3

(ALBUM) or

(TRACK)

xWhen displaying a JPEG file

(ALBUM) or (FILE)

Example: when you select

(TRACK)

The list of tracks contained in the disc

appears.

When the list of all tracks or albums cannot

be displayed on the window, the jump bar

appears. Press c to select the jump bar icon,

and then scroll the jump bar to display the

rest of the list using X/x. Press C or

O RETURN to return to the track or the

album list.

3Press X/x to select the desired track,

then press ENTER.

The system starts playback from the

selected track.

Searching for a Title/

Chapter/Track/Index/

Album/File

CLEAR

Number

buttons

DVD

DISPLAY

O RETURN

C/X/x/c/

ENTER

With cover opened.

11.

10.

12.

HIGHWAY1.

STANDARD

VIEW POINT

MY CHILDREN

DANCING

GOOD TASTE

DESTINATION

PORT TOWER

TAKE IT EASY

PLACE-KICK

LADY

MARATHON

20.

13.

14.

15.

16.

17.

19.

21.

18.

NO NAME

STAY

BAD

BEAUTIFUL

HOLD.ME

FIRST TIME

OUR EARTH

SWEETEST

22.KISS ME

BLUE SKY

23.

24.FIRE

ANGEL

continued

56GB

Searching for a chapter/index

1Press DVD DISPLAY.

The Control Menu appears.

2Press X/x to select the search method.

xWhen playing a DVD

(CHAPTER)

xWhen playing a VIDEO CD (without

PBC functions)

(INDEX)

xWhen playing a Super Audio CD

(INDEX)

Example: when you select

(CHAPTER)

“** (**)” is selected (** refers to a

number).

The number in parentheses indicates the

total number of chapters or indexes.

3Press ENTER or c.

“** (**)” changes to “-- (**).”

4Press X/x or the number buttons to

select the chapter or index number you

want to search.

If you make a mistake

Cancel the number by pressing CLEAR,

then select another number.

5Press ENTER.

The system starts playback from the

selected number.

Note

When you play a VIDEO CD with PBC functions, the

index search function does not work.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the

Control Menu is turned off.

To search for a particular point

using the time code (TIME

SEARCH)

Example: If you search for the playing time of

the current title on a DVD

1In Step 2, select (TIME).

“T **:**:**” (playing time of the current title)

is selected.

2Press ENTER or c.

“T--:--:--” appears above “T**:**:**.”

3Input the time code using the number

buttons, then press ENTER.

For example, to find a desired point at 2

hours, 10 minutes, and 20 seconds after the

beginning, just enter “2:10:20.”

Notes

• The title, chapter or track number displayed is the

same number recorded on the disc.

• The time search function does not work on a VIDEO

CD (when the PBC function is on).

• If you play a DVD, input the playing time of the

current title using the time code. If you play a CD,

Super Audio CD, VIDEO CD, or MP3, input the

playing time of the current track using the time code.

Tip

You can change the display to show playing time or

remaining time. For details, see “Checking the Playing

Time and Remaining Time” (page 60).

DVD

1 2 ( 2 7 ) TITLE12

1 8 ( 3 4 )

1 : 3 2 : 5 5

DVD

1 2 ( 2 7 ) TITLE12

1 : 3 2 : 5 5

– – ( 3 4 )

Playing Discs

57GB

Viewing the playing time and

remaining time in the front

panel display

You can check disc information, such as the

remaining time, total number of titles in a DVD,

or tracks in a Super Audio CD, CD, VIDEO CD,

or MP3, using the front panel display

(page 107).

Press DISPLAY.

Each time you press DISPLAY while playing

the disc, the display changes as shown in the

charts.

When playing back a DVD

Viewing Disc Information

DISPLAY

Playing time and number of the current title

Remaining time and

number of the current title

Playing time and number

of the current chapter

Title name

DVD

0.01.11

TITLE

DVD

-1.48.21

TITLE

DVD

0.01.42

CHAP

DVD

-0.08.21

CHAP

DVD

SONY

TITLE

DVD

Current function

Remaining time and number

of the current chapter

continued

58GB

When playing back a VIDEO CD

(without PBC functions), Super

Audio CD or CD

When playing back an MP3

ALBM

0.59

TRK

ALBM

-4.02

TRK

ALBM

1.42

ALBM

-44.41

ALBM

SONY

TRK

C D

Playing time and current track number

Remaining time and current

track number

Playing time of the disc

Remaining time of the disc

Track name and current track

number

Current function

MP3

0.28

TRK

MP3

-2.20

TRK

MP3

SONY

TRK

MP3

SONY ROCK

ALBM

MP3

Playing time and current track number

Remaining time and current

track number

Current function

Album (folder) name

Track (file) name

Playing Discs

59GB

When playing back a JPEG

Notes

• Depending on the type of disc being played and the

playing mode, the disc information may not be

displayed.

• ID3 tag applies only to version 1.

• If the MP3 file you play back has an ID3 tag, the ID3

tag information is displayed as a track (file) name.

• Only alphabetical letters and numbers can be used for

album, track, or file names. Anything else is

displayed as “ ”.

• In the following case, elapsed playing time and

current track remaining time may not be displayed

accurately.

– when an MP3 file of VBR (variable bit rate) is

played.

Tips

• When playing VIDEO CDs with PBC functions, only

the playing time of the scene is displayed.

• The playing time and remaining time of the current

chapter, title, track, scene, or disc will also appear on

your TV screen. See the following section “Checking

the Playing Time and Remaining Time” for details on

how to read this information.

JPEG

ALBM

4 FILE

JPEG

ALBM

SONY

FILE

JPEG

ALBM

SONY ROCK

ALBM

JPEG

Current file number

File name

Current function

lbum (folder) name

continued

60GB

Checking the Playing Time

and Remaining Time

You can check the playing time and remaining

time of the current title, chapter, or track, and the

total playing time or remaining time of the disc.

You can also check the DVD/CD/Super Audio

CD text and MP3 folder name/file name/ID3 tag

(only song title) recorded on the disc.

1Press DVD DISPLAY during playback.

The Control Menu appears.

2Press DISPLAY repeatedly to change

the time information.

The display and the kinds of time that you

can check depend on the disc you are

playing.

xWhen playing a DVD

• T **:**:**

Playing time of the current title

• T–**:**:**

Remaining time of the current title

• C **:**:**

Playing time of the current chapter

• C–**:**:**

Remaining time of the current chapter

• **:**:**

Playing time of the menu or current

title without a chapter

xWhen playing a VIDEO CD (with PBC

functions)

• **:**

Playing time of the current scene

xWhen playing a VIDEO CD (without

PBC functions), Super Audio CD or CD

•T **:**

Playing time of the current track

• T–**:**

Remaining time of the current track

•D **:**

Playing time of the current disc

• D–**:**

Remaining time of the current disc

xWhen playing an MP3

•T **:**

Playing time of the current track

• T–**:**

Remaining time of the current track

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the

Control Menu is turned off.

Notes

• Only alphabetical letters and numbers can be

displayed.

• Depending on the type of disc being played, the

system can only display a limited number of

characters. Also, depending on the disc, not all text

characters will be displayed.

DISPLAY

DVD

DISPLAY

DVD

1 2 ( 2 7 ) TITLE12

1 8 ( 3 4 )

1 : 3 2 : 5 5

DVD

Time information

Disc type

Playing Discs

61GB

Checking the date

information (JPEG only)

You can check the date information during

playback when the Exif* tag is recorded in the

JPEG image data.

Press DVD DISPLAY during playback.

The Control Menu appears.

* “Exchangeable Image File Format” is a digital

camera image format defined by the Japan

Electronics and Information Technology Industries

Association (JEITA).

Note

If there is no date information or data is damaged on

the disc, the system cannot display the date

information.

Tip

You can change the date information order in [JPEG

DATE] of [CUSTOM SETUP] (page 90).

DVD

DISPLAY

MOUNTAIN

FAMILY

1 ( 2 0 ) BIRTHDAY

01 / 01/ 2004

JPEG

Date information

62GB

If a DVD is recorded with multilingual tracks,

you can select the language you want while

playing the DVD.

If the DVD is recorded in multiple audio formats

(PCM, Dolby Digital, MPEG audio, or DTS),

you can select the audio format you want while

playing the DVD.

With stereo CDs, VIDEO CDs, or MP3, you can

select the sound from the right or left channel

and listen to the sound of the selected channel

through both the right and left speakers (in this

case, the sound loses its stereo effect). For

example, when playing a disc containing a song

with the vocals on the right channel and the

instruments on the left channel, you can select

the left channel and hear only the instruments

from both speakers.

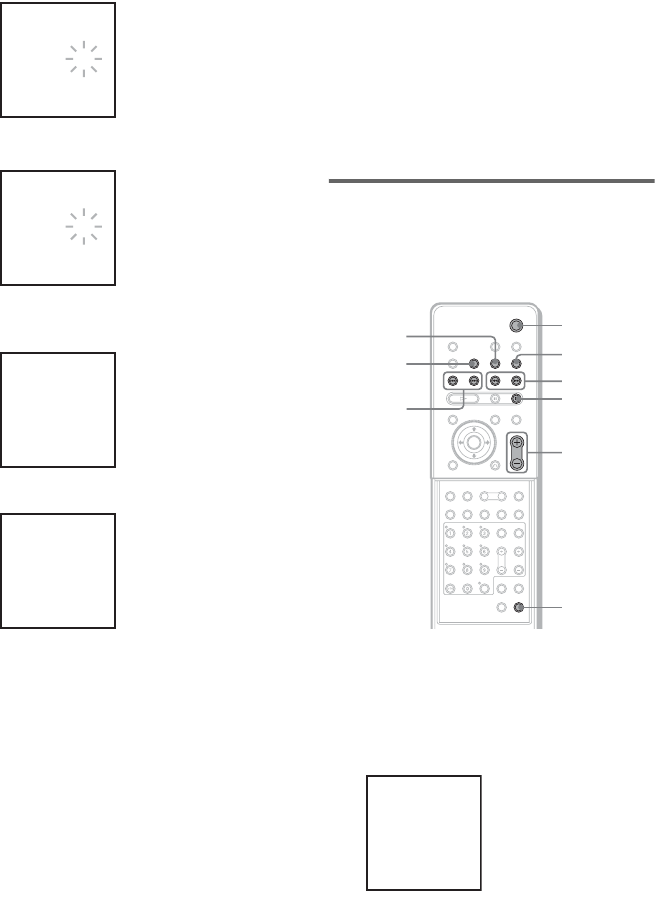

1Press DVD DISPLAY during playback.

The Control Menu is displayed.

2Press X/x to select (AUDIO),

then press ENTER or c.

The options for AUDIO appear.

3Press X/x to select the desired audio

signal.

xWhen playing a DVD

Depending on the DVD, the choice of

language varies.

When 4 digits are displayed, they represent

the language code. Refer to the language

code list on page 111 to see which language

the code represents. When the same

language is displayed two or more times,

the DVD is recorded in multiple audio

formats.

xWhen playing a VIDEO CD, CD, or

MP3

The default setting is underlined.

• STEREO: The standard stereo sound

• 1/L: The sound of the left channel

(monaural)

• 2/R: The sound of the right channel

(monaural)

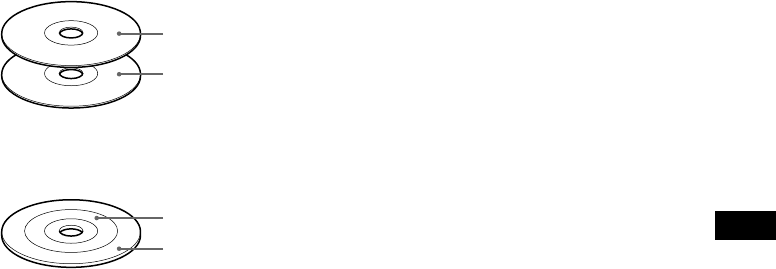

xWhen playing a Super Audio CD

In stop mode, depending on the Super

Audio CD, the choice of settings varies.

• MULTI: The disc has a multi-channel

playback area.

• 2CH: The disc has a 2 channel

playback area.

• CD: When you want to play the disc as

a conventional CD.

Sound Adjustments

Changing the Sound

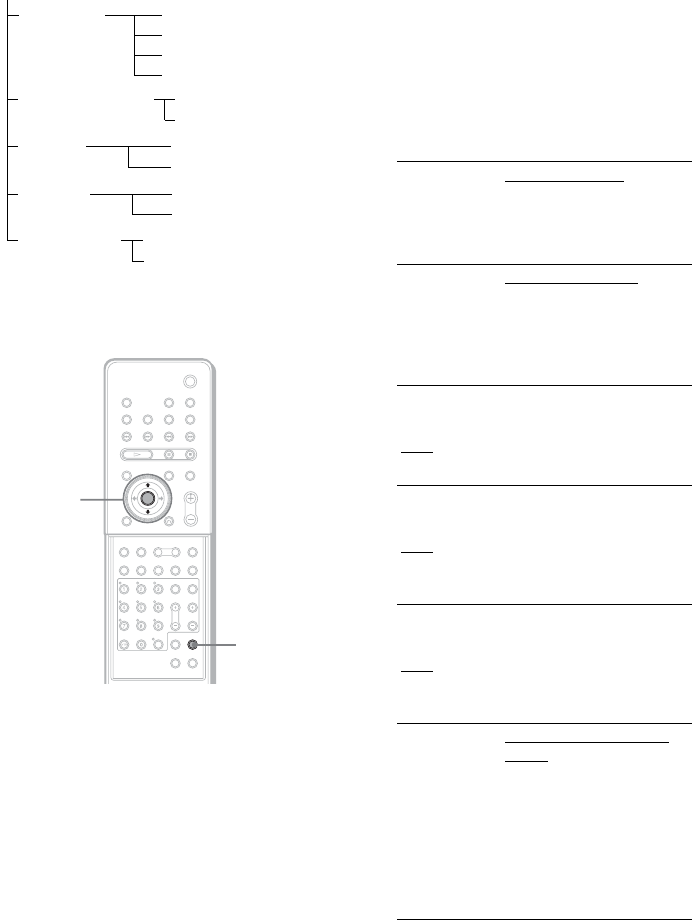

AUDIO

DVD

DISPLAY

C/X/x/c/

ENTER

With cover opened.

DVD

1 2 ( 2 7 ) TITLE12

1 8 ( 3 4 )

1 : 3 2 : 5 5

DVD

2: FRENCH

3: SPANISH

1: ENGLISH

Sound Adjustments

63GB

Notes

• Not all discs give you the three choices above

when in Super Audio CD playback. It all

depends on the layer configuration of the Super

Audio CD to be played.

• When playing a Super Audio CD in the 2

channel playback area or the 2 CHANNEL

STEREO mode, the POWER/ON LINE

indicator of the surround amplifier turns red.

4Press ENTER.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the

Control Menu is turned off.

Notes

• For discs not in multiple audio format, you cannot

change the sound.

• During DVD playback, the sound may change

automatically.

Tip

You can select [AUDIO] directly by pressing AUDIO.

Each time you press the button, the item changes.

Displaying the audio

information of the disc

(DVD only)

When you select [AUDIO], the channels being

played are displayed on the screen.

For example, in Dolby Digital format, multiple

signals ranging from monaural to 5.1 channel

signals can be recorded on a DVD. Depending

on the DVD, the number of recorded channels

may differ.

* [PCM], [MPEG], [DTS], or [DOLBY

DIGITAL] is displayed.

For [DOLBY DIGITAL], the channels in the

playing track are displayed numerically as

follows:

For Dolby Digital 5.1 ch:

The display examples are as

follows:

•PCM (stereo)

• Dolby Surround

• Dolby Digital 5.1ch

•DTS

Tips

• When the signal contains surround signal

components such as LS, RS, or S, the surround effect

is enhanced.

• If you play MPEG AUDIO sound tracks, the system

outputs PCM (stereo) signals.

DVD

1 2 ( 2 7 ) TITLE12

1 8 ( 3 4 )

1 : 3 2 : 5 5

DOLBY DIGITAL 3/2.1

PROGRAM FORMAT

DVD

1: ENGLISH

Current audio format*

DOLBY DIGITAL

3 / 2 . 1

Surround component 2

Front component 2 +

Center component 1 LFE (Low Frequency

Effect) component 1

PCM 48kHz 24bit

PROGRAM FORMAT

DOLBY SURROUND

DOLBY DIGITAL 2/0

PROGRAM FORMAT

DOLBY DIGITAL 3/2.1

PROGRAM FORMAT

DTS 3/2.1

PROGRAM FORMAT

64GB

You can take advantage of surround sound

simply by selecting one of system’s pre-

programmed sound fields. They bring the

exciting and powerful sound of movie theaters

into your home.

To select sound field, press AUTO FORMAT

DIRECT or MODE on the remote repeatedly

until the sound field you want appears in the

front panel display.

Tip

When you want to output the TV sound or stereo sound

of a 2 channel source from the 6 speakers of the system,

select a sound field other than “Auto Format Direct

Auto” or “2 Channel Stereo”.

Automatic decoding of the

audio input signal (AUTO

FORMAT DIRECT AUTO)

The auto decoding function automatically

detects the type of audio signal being input

(Dolby Digital, DTS, or standard 2 channel

stereo) and performs the proper decoding if

necessary. This mode presents the sound as it

was recorded/encoded, without adding any

effects (e.g. reverberation).

However, if there are no low frequency signals

(Dolby Digital LFE, etc.), it will generate a low

frequency signal for output to the subwoofer.

Press AUTO FORMAT DIRECT repeatedly

until “Auto Format Direct Auto” appears in

the front panel display.

Enjoying Surround Sound

Sound field Display

AUTO FORMAT DIRECT

AUTO

Auto Format Direct

Auto

AUTO FORMA

DIRECT

With cover opened.

Sound Adjustments

65GB

Using only the front speaker

and subwoofer (2 CHANNEL

STEREO)

This mode outputs the sound from the front left

and right speakers and subwoofer. Standard two

channel (stereo) sources completely bypass the

sound field processing. Multi channel surround

formats are downmixed to two channels.

This allows you to play any source using only

the front left and right speakers and subwoofer.

Press MODE repeatedly until “2Channel

Stereo” appears in the front panel display.

Selecting a sound field (AUTO

FORMAT DIRECT button)

Press AUTO FORMAT DIRECT repeatedly

until the sound field you want appears in

the front panel display.

xAUTO FORMAT DIRECT PRO LOGICII

MOVIE/MUSIC

Dolby Pro LogicII produces five full-bandwidth

output channels from two-channel sources. This

is done using an advanced, high-purity matrix

surround decoder that extracts the spatial

properties of the original recording without

adding any new sounds or tonal colorations.

Sound field Display

2 CHANNEL STEREO 2Channel Stereo

MODE

With cover opened.

Sound field Display

AUTO FORMAT DIRECT

PRO LOGIC II MOVIE

Pro Logic II Movie

AUTO FORMAT DIRECT

PRO LOGIC II MUSIC

Pro Logic II Music

AUTO FORMA

DIRECT

With cover opened.

continued

66GB

Notes

• When the input signal is a multi-chanel source, PRO

LOGIC II MOVIE/MUSIC is canceled and the multi-

channel source is output directly.

• This system is not compatible with the DTS 96/24

decoding function. When you play the DTS 96/24

disc, the system plays it as a normal disc.

• When you play the disc with D.C.S. sound by

CINEMA STUDIO EX or SPORTS, the Pro Logic II

indicator lights up. In this case, the sound is being

decoded by ProLogic.

Selecting a sound field (MODE

button)

Press MODE repeatedly until the sound

field you want appears in the front panel

display.

For movie

*Use DCS Technology

About DCS (Digital Cinema Sound)

In collaboration with Sony Pictures

Entertainment, Sony measured the sound

environment of their studios and integrated the

data of the measurement and Sony’s own DSP

(Digital Signal Processor) technology to

develop “Digital Cinema Sound.” “Digital

Cinema Sound” simulates in a home theater an

ideal movie theater sound environment based on

the preference of the movie director.

xCINEMA STUDIO EX A (Cinema Studio

EX A)

Reproduces the sound characteristics of the

Sony Pictures Entertainment “Cary Grant

Theater” cinema production studio. This is a

standard mode, great for watching most any type

of movie.

Sound field Display

CINEMA STUDIO EX A Cinema Studio EX A*

CINEMA STUDIO EX B Cinema Studio EX B*

CINEMA STUDIO EX C Cinema Studio EX C*

MODE

With cover opened.

Sound Adjustments

67GB

xCINEMA STUDIO EX B (Cinema Studio

EX B)

Reproduces the sound characteristics of the

Sony Pictures Entertainment “Kim Novak

Theater” cinema production studio. This mode

is ideal for watching science-fiction or action

movies with lots of sound effects.

xCINEMA STUDIO EX C (Cinema Studio

EX C)

Reproduces the sound characteristics of the

Sony Pictures Entertainment scoring stage. This

mode is ideal for watching musicals or classic

films where music is featured in the soundtrack.

About Cinema Studio EX

Cinema Studio EX is ideal for enjoying the

movie software encoded with multi channel

format, such as the Dolby Digital DVD. This

mode reproduces the sound characteristics of

Sony Pictures Entertainment’s studios.

Cinema Studio EX consists of the following

three elements.

• Virtual Multi Dimension

Creates 5 sets of virtual speakers surrounding

the listener from a single pair of actual

surround speakers.

• Screen Depth Matching

In a movie theater, sound seems to come from

inside the image reflected on the movie screen.

This element creates the same sensation in

your listening room by shifting the sound of

the front speakers “into” the screen.

• Cinema Studio Reverberation

Reproduces the reverberations peculiar to a

movie theater. Cinema Studio EX is the

integrated mode which operates these

elements simultaneously.

Notes

• The virtual speaker effect may cause increased noise

in the playback signal.

• When listening with sound fields that employ virtual

speakers, you will not be able to hear any sound

coming directly from the surround speakers.

For music or others

xHALL (Hall)

Reproduces the acoustics of a rectangular

concert hall.

xJAZZ CLUB (Jazz club)

Reproduces the acoustics of a jazz club.

xLIVE CONCERT (Live concert)

Reproduces the acoustics of a 300-seat live

concert.

xGAME (Game)

Obtains maximum audio impact from video

game software.

xSPORTS (Sports)

Simulates the arena or stadium sound.

xMONO MOVIE (Mono movie)

Reproduces mono sound that is good for old

movies.

When using headphones

xHEADPHONE 2CH

This mode outputs the sound from the

headphone L/R. Standard 2 channel (stereo)

sources completely bypass the sound field

processing. Multi channel surround formats are

downmixed to two channels.

xHEADPHONE THEATER

This mode outputs the sound as surround from

headphone L/R.

Sound field Display

HALL Hall

JAZZ CLUB Jazz Club

LIVE CONCERT Live Concert

GAME Game

SPORTS Sports

MONO MOVIE Mono Movie

Sound field Display

HEADPHONE 2CH Head Phone 2Channel

HEADPHONE THEATER Head Phone Theater

continued

68GB

To turn the surround effect off

Press AUTO FORMAT DIRECT repeatedly

until “Auto Format Direct Auto” appears in the

front panel display.

When connecting the headphones to the

PHONES jack

Press AUTO FORMAT DIRECT or MODE

repeatedly until “Head Phone 2Channel”

appears in the front panel display.

Notes

• This function is unavailable when playing Super

Audio CDs and when the input stream is dts 2048

frame.

• When you play a Super Audio CD (Direct Stream

Digital), the sound field changes to “Auto Format

Direct Auto” automatically.

• This system is not compatible with the DTS 96/24

decoding function. When you play the DTS 96/24

disc, the system plays it as a normal disc.

Tips

• When you want to output the TV sound or stereo

sound of a 2 channel source from the 6 or 7 speakers,

select any sound field other than “Auto Format Direct

Auto” or “2Channel Stereo.”

• The system memorizes the last sound field selected

for each function mode.

Whenever you select a function such as DVD or

TUNER, the sound field that was last applied to

function is automatically applied again. For example,

if you listen to DVD with HALL as the sound field,

then change to another function, and then return to

DVD, HALL will be applied again. With the tuner,

sound fields are memorized separately for all preset

stations.

• You can identify the encoding format of program

software by looking at its packaging.

– Dolby Digital discs are labeled with the

logo.

– DTS-ES encoded programs are marked with

DTS-ES.

– Dolby Surround encoded programs are labeled

with the logo.

– DTS Digital Surround discs are marked with DTS.

This system provides you with 2 types of sound

effect, simply by pressing a button. Choose the

sound to suit your needs.

Press NIGHT MODE or DSGX on the

remote.

The sound effect is activated.

xNIGHT MODE

In this mode, you can enjoy sound effects or

dialogue, as you would in a movie theater, even

at low volume. It is useful for watching movies

at night.

xDSGX

With DSGX on, bass frequencies are effectively

reinforced.

To turn off the sound effect

Press NIGHT MODE or DSGX again.

Notes

• When you connect headphones to the system, the

DSGX function does not work.

• These two types of sound effect cannot be activated

at the same time.

• Depending on the input stream, the DSGX function

may not be effective.

Using the Sound Effect

DSGX NIGHT

MODE

With cover opened.

Using Various Additional Functions

69GB

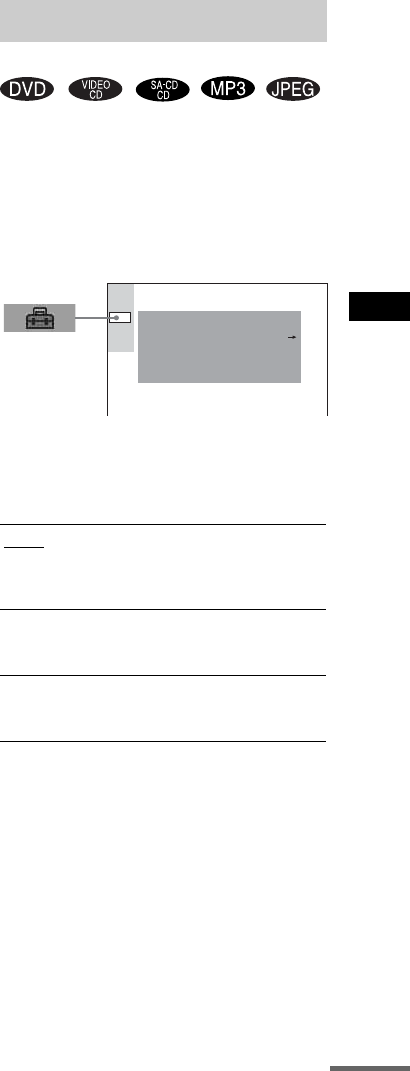

If various angles (multi-angles) for a scene are

recorded on a DVD, you can change the viewing

angle.

For example, while playing a scene of a train in

motion, you can display the view from either the

front of the train, the left window of the train, or

from the right window without having the train’s

movement interrupted.

1Press DVD DISPLAY during playback.

The Control Menu appears.

2Press X/x to select (ANGLE).

The angle number appears.

The number in parentheses indicates the

total number of angles. The [ANGLE]

indicator lights up in green when angles are

recorded on the disc.

3Press ENTER or c.

The angle number changes to “-.”

4Select the angle number using the

number buttons or X/x, then press

ENTER.

The angle is changed to the selected angle.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the

Control Menu is turned off.

Note

Depending on the DVD, you may not be able to change

the angles, even if multi-angles are recorded on the

DVD.

Tip

You can select the angle directly by pressing ANGLE.

Each time you press the button, the angle changes.

Using Various Additional Functions

Changing the Angles

Number

Buttons

ANGLE

DVD

DISPLAY

C/X/x/c/

ENTER

With cover opened.

DVD

1 2 ( 2 7 ) TITLE12

1 8 ( 3 4 )

1 : 3 2 : 5 5

DVD

( 9 )

DVD

1 2 ( 2 7 ) TITLE12

1 8 ( 3 4 )

1 : 3 2 : 5 5

DVD

– ( 9 )

70GB

If subtitles are recorded on a disc, you can turn

the subtitles on or off while playing. If

multilingual subtitles are recorded on the disc,

you can change the subtitle language while

playing, or turn the subtitles on or off whenever

you want. You can select the language you want

to practice, for example, turn on the subtitles for

better understanding.

1Press DVD DISPLAY during playback.

The Control Menu appears.

2Press X/x to select

(SUBTITLE), then press ENTER or c.

The options for [SUBTITLE] appear.

3Press X/x to select the language.

Depending on the DVD, the choice of

language varies.

When 4 digits are displayed, they indicate

the language code. Refer to the language

code list on page 111 to see which language

the code represents.

4Press ENTER.

To cancel the [SUBTITLE] setting

Select [OFF] in Step 3.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the

Control Menu is turned off.

Note

Depending on the DVD, you may not be able to change

the subtitles, even if multilingual subtitles are recorded

on it.

Tip

You can select subtitles directly by pressing

SUBTITLE. Each time you press the button, the

language changes.

Displaying Subtitles

SUBTITLE

DVD

DISPLAY C/X/x/c/

ENTER

With cover opened.

1: ENGLISH

2: FRENCH

3: SPANISH

DVD

OFF

DVD

1 2 ( 2 7 ) TITLE12

1 8 ( 3 4 )

1 : 3 2 : 5 5

Using Various Additional Functions

71GB

You can set two kinds of playback restrictions

for a disc.

• Custom Parental Control

You can set the playback restrictions so that

the system will not play inappropriate discs.

• Parental Control

Playback of some DVDs can be limited

according to a predetermined level, such as the

age of the viewer.

The same password is used for both Parental

Control and Custom Parental Control.

Custom Parental Control

You can set the same Custom Parental Control

password for up to 25 discs. If you set a 26th

disc, the playback restriction of the disc for

which you first set the password is canceled.

1Insert the disc you want to lock.

If the disc is playing, press x to stop

playback.

2In stop mode, press DVD DISPLAY.

The Control Menu appears.

3Press X/x to select (CUSTOM

PARENTAL CONTROL), then press

ENTER or c.

[CUSTOM PARENTAL CONTROL] is

selected.

4Press X/x to select [ON t], then press

ENTER.

xIf you have not entered a password

yet

The display for registering a new password

appears.

Enter a 4-digit password by using the

number buttons, then press ENTER.

The display for confirming the password

appears.

xIf you have already registered a

password

The display for entering the password

appears.

Locking Discs

(CUSTOM PARENTAL CONTROL,

PARENTAL CONTROL)

Number

buttons

DVD

DISPLAY

O RETURN

C/X/x/c/

ENTER

With cover opened.

DVD

1 2 ( 2 7 ) TITLE12

1 8 ( 3 4 )

1 : 3 2 : 5 5

DVD

PASSWORD

CUSTOM PARENTAL CONTROL

Enter a new 4-digit password,

then press .

ENTER

CUSTOM PARENTAL CONTROL

Enter password, then press .

ENTER

continued

72GB

5Enter your 4-digit password by using

the number buttons, then press

ENTER.

[Custom parental control is set.] appears

and the screen returns to the Control Menu

display.

If you make a mistake entering your

password

Press C before you press ENTER and input

the correct number.

If you make a mistake

Press O RETURN, then start from Step 3

again.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the

Control Menu is turned off.

To turn off the Custom Parental

Control function

1In Step 4, select [OFF t], then press

ENTER.

2Enter your 4-digit password using the

number buttons, then press ENTER.

To change the password

1In Step 4, press X/x to select [PASSWORD

t], then press ENTER.

The display for entering the password

appears.

2Enter your 4-digit password using the

number buttons, then press ENTER.

3Enter a new 4-digit password using the

number buttons, then press ENTER.

4To confirm your password, re-enter it using

the number buttons, then press ENTER.

Playing the disc for which

Custom Parental Control is

set

1Insert the disc for which Custom

Parental Control is set.

The [CUSTOM PARENTAL CONTROL]

display appears.

2Enter your 4-digit password using the

number buttons, then press ENTER.

The system is ready for playback.

Notes

• When you change the layer or area in a Super Audio

CD which has Custom Parental Control set, the

display for entering the password may appear.

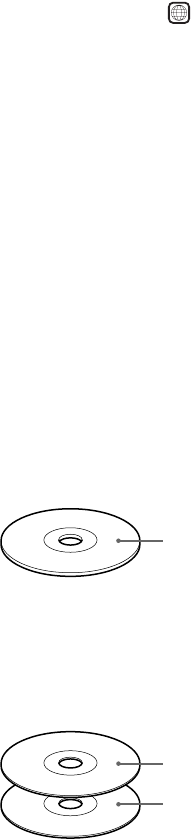

• When you set the Custom Parental Control password

for a Hybrid Super Audio CD, the Custom Parental

Control setting only works for the current layer.

Tip

If you forget your password, enter the 6-digit number

“199703” using the number buttons when the

[CUSTOM PARENTAL CONTROL] display asks

you for your password, then press ENTER. The display

will ask you to enter a new 4-digit password.

CUSTOM PARENTAL CONTROL

Custom parental control is already

set. To play, enter your password

and press .

ENTER

Using Various Additional Functions

73GB

Limiting playback for children

(Parental Control)

(DVD only)

Playback of some DVDs can be limited

according to a predetermined level, such as the

age of the viewer. The “Parental Control”

function allows you to set a playback limitation

level.

A scene that is limited is not played, or it is

replaced by a different scene.

1In stop mode, press DVD SETUP.

The Setup Display appears.

2Press X/x to select [CUSTOM SETUP],

then press ENTER or c.

[CUSTOM SETUP] is displayed.

3Press X/x to select [PARENTAL

CONTROL t], then press ENTER or c.

xIf you have not entered a password

The display for registering a new password

appears.

Enter a 4-digit password using the number

buttons, then press ENTER.

The display for confirming the password

appears.

xWhen you have already registered a

password

The display for entering the password

appears.

4Enter your password using the number

buttons, then press ENTER.

The display for setting the playback

limitation level and changing the password

appears.

Number

buttons

DVD

SETUP

O RETURN

C/X/x/c/

ENTER

With cover opened.

OFFTRACK SELECTION

MP3DATA CD PRIORITY: MM/DD/YYYYJPEG DATE:

OFFAUDIO DRC:

CUSTOM SETUP

PARENTAL CONTROL

CUSTOM SETUP

PARENTAL CONTROL

Enter a new 4-digit password,

then press

ENTER

CUSTOM SETUP

PARENTAL CONTROL

Enter password, then press .

ENTER

CUSTOM SETUP

STANDARD:

CHANGE PASSWORD USA

LEVEL: OFF

PARENTAL CONTROL

continued

74GB

5Press X/x to select [STANDARD], then

press ENTER or c.

The selection items for [STANDARD] are

displayed.

6Press X/x to select a geographic area

as the playback limitation level, then

press ENTER.

The area is selected.

If you select [OTHERS t], select and

enter the standard code in the table on

page 75 using the number buttons.

7Press X/x to select [LEVEL], then press

ENTER or c.

The selection items for [LEVEL] are

displayed.

8Select the level you want using X/x,

then press ENTER.

The Parental Control setting is complete.

The lower the value, the more strict the

limitation.

If you make a mistake

Press O RETURN or C to go back to the

previous screen.

To turn off the Setup Display

Press DVD SETUP repeatedly until the Setup

Display is turned off.

To turn off the Parental Control

function and play the DVD after

entering your password

Set [LEVEL] to [OFF] in Step 8.

To change the password

1In Step 5, select [CHANGE PASSWORD

t] using x, then press ENTER or c.

The display for entering the password

appears.

2Follow Step 3 to enter a new password.

PARENTAL CONTROL

LEVEL:

STANDARD:

CHANGE PASSWORD

OFF

CUSTOM SETUP

OTHERS

USA

CUSTOM SETUP

PARENTAL CONTROL

STANDARD:

CHANGE PASSWORD

OFFLEVEL:

NC17

PG13

CUSTOM SETUP

PARENTAL CONTROL

STANDARD:

CHANGE PASSWORD USA

PG134:LEVEL:

Using Various Additional Functions

75GB

Playing the disc for which

Parental Control is set

1Insert the disc and press H.

The [PARENTAL CONTROL] display

appears.

2Enter your 4-digit password using the

number buttons, then press ENTER.

The system starts playback.

Notes

• If you play a DVD which does not have the Parental

Control function, playback cannot be limited on this

system.

• Depending on the DVD, you may be asked to change

the Parental Control level while playing the disc. In

this case, enter your password, then change the level.

If the Resume Play mode is canceled, the level returns

to the original level.

Tip

If you forget your password, remove the disc and

repeat Step 1 to 3 of “Limiting playback for children.”

When you are asked to enter your password, enter

“199703” using the number buttons, then press

ENTER. The display will ask you to enter a new 4-digit

password. After you enter a new 4-digit password in

Step 3, replace the disc in the system and press H.

When the [PARENTAL CONTROL] display appears,

enter your new password.

Area Code

Standard Code number

Argentina 2044

Australia 2047

Austria 2046

Belgium 2057

Brazil 2070

Canada 2079

Chile 2090

China 2092

Denmark 2115

Finland 2165

France 2174

Germany 2109

Hong Kong 2219

India 2248

Indonesia 2238

Italy 2254

Japan 2276

Korea 2304

Malaysia 2363

Mexico 2362

Netherlands 2376

New Zealand 2390

Norway 2379

Pakistan 2427

Philippines 2424

Portugal 2436

Russia 2489

Singapore 2501

Spain 2149

Sweden 2499

Switzerland 2086

Taiwan 2543

Thailand 2528

United Kingdom 2184

76GB

By adjusting the remote signal, you can control

your TV with the supplied remote.

Notes

• If you enter a new code number, the code number

previously entered will be erased.

• When you replace the batteries of the remote, the

code number may reset itself to the default (SONY)

setting. Reset the appropriate code number.

Controlling TVs with the

remote

Press and hold TV [/1 while entering your

TV’s manufacturer’s code (see the table)

using the number buttons. Then release TV

[/1.

When you successfully set the manufacturer’s

code, the TV button flashes twice slowly. If the

setting is unsuccessful, the TV button flashes

five times quickly.

Code numbers of controllable TVs

If more than one code number is listed, try

entering them one at a time until you find the one

that works with your TV.

Other Operations

Controlling TV with the

Supplied Remote

TV CH +/–

TV/VIDEO

Number

buttons

TV VOL +/–

TV ?/1

TV button

With cover opened.

Manufacturer Code number

SONY 001

Admiral 012, 016, 039

AIWA 001, 007, 008

AKAI 002, 010, 027

AOC 002

Bell&Howell 016, 039

Bestar 027

Blaupunkt 052, 053

Blue sky 027

Brandt 045

Broksonic

(Brocsonic)

002

Bush 006, 027

Clatronic 027

Croslex 034

CURTIS-MATHES 002, 046

DAEWOO 002, 003, 004, 005, 006, 027

Daytron 020

Deccacolour 037

DUAL 027

EMERSON 002, 020

Ferguson 035, 042, 045

First line 010, 027

FISHER 009, 010

FUJITSU 055

FUNAI 054

Fraba 027

General Electric 002, 012, 049

Goodmans 006, 027, 045

GRUNDIG 038, 052, 053

HITACHI 002, 013, 014, 015, 020, 021,

027

Inno-Hit 027

Irradio 027

ITT/NOKIA 025, 026

JC Penny 002, 012

JVC 018, 019

Kendo 027

Other Operations

77GB

Kiton 027

KTV 002, 020

LG/Goldstar 002, 020, 027, 028, 038

LOEWE 027, 028, 038

LXI(Sears) 002, 009, 012, 034, 046

MAGNAVOX 002, 020, 027, 034

MARANTZ 022

Mark 027

Matsui 010, 052, 053

Medion 027

Mitsubishi/MGA 002, 021, 022

NEC 002, 020, 023, 024, 048

NEI 027

NOKIA 025, 026

Nokia Oceanic 026

Nordmende 035, 042

Okano 027

ORION 007

PANASONIC 049, 050, 051

Philco 002, 004, 015, 020, 034

PHILIPS 013, 027, 034

Phoenix 027

PIONEER 029, 030, 031, 046, 049

Portland 002

Provision 027

PYE 027

QUASAR 039, 049

Radio 027

RADIO SHACK 002, 012, 022

Radiola 034

RCA/PROSCAN 002, 012, 032, 033

SABA 035, 041, 042, 043, 045

SAMSUNG 002, 013, 020, 027, 028, 036,

037, 038

SANYO 009, 010, 011

Schneider 027

SCOTT 002

SHARP 020, 039, 040

SIEMENS 052

Signature 016, 039, 040

Sinudyne 027

Supertech 027

Supervision 027

Manufacturer Code number

SYLVANIA 002, 034

TaTung 027

TEAC 027

Techimagen 027

TELEFUNKEN 035, 041, 042, 043, 044, 045

THOMSON 035, 041, 043, 045

Thorn 027

TOSHIBA 039, 046, 047, 048

Universum 027

Vestel 027

Videch 002, 015

W.W.House 027

WARDS 002, 020

Watson 027

ZENITH 016, 017

Manufacturer Code number

continued

78GB

Controlling the TV

You can control your TV using the buttons

below.

Using the number buttons for

controlling the TV

When you set the remote to the TV mode, you

can use the number buttons for controlling the

TV.

Press the TV button.

The TV button turns red and the remote is set to

the TV mode. You can select the TV channels by

using the number buttons.

>10 is for selecting the channel number greater

than 10.

To cancel the TV mode, press the TV button

again.

Notes

• Depending on the TV, you may not be able to control

your TV or to use some of the buttons above.

• The TV button turns off when you do not operate the

remote for 10 seconds.

Tip

Depending on the TV manufacture, the following

method also works. Press >10, then the number. (For

example, for channel 25, press >10, then 2 and 5.)

SONY TV DIRECT allows you to turn on your

SONY TV and this system, change the system

mode to “DVD,” and then switch the TV’s input

source you set with one button push.

Preparation

system.

Press and hold TV/VIDEO while entering

the code for the TV’s input source to

connect this system (see table below)

using the number buttons.

The TV’s input source is selected.

When you successfully set the TV’s input source

code, the TV button flashes twice slowly. If the

setting is unsuccessful, the TV button flashes

five times quickly.

By pressing You can

TV [/1Turn the TV on or off.

TV/VIDEO Switch the TV’s input source

between the TV and other input

sources.

TV VOL +/– Adjust the TV volume.

TV CH +/– Select the TV channel.

Using the SONY TV DIRECT

Function

TV CH +

TV/VIDEO

Number

buttons

With cover opened.

SONY TV

DIRECT

TV button

Other Operations

79GB

* Except for North American models.

Operation

Point the remote to the direction of TV and this

system, then press SONY TV DIRECT once.

While transmitting the code from the remote, the

TV button flashes.

If this function does not work, change the

transmit time. The transmit time varies

depending on the TV.

To change the transmit time

Press and hold TV CH + while entering the

code for transmit time (see table below) using

the number buttons.

The transmit time from the remote is selected.

If you successfully set the transmit time code,

the TV button flashes twice slowly. If the setting

is unsuccessful, the TV button flashes five times

quickly.

Notes

• This function is only for SONY TV series.

• If distance between TV and this system is too far, this

function may not work. Install the system near the

TV.

• Keep the remote pointed in the direction of the TV

and this system while the TV button is flashing.

By pressing Number TV’s input source

TV/VIDEO 0 No input source

(Default)

1VIDEO1

2VIDEO2

3VIDEO3

4VIDEO4

5VIDEO5

6VIDEO6

7* COMPONENT1

INPUT

8* COMPONENT2

INPUT

By pressing Number Transmit time

TV CH+ 1 0.5 (Default)

31.5

52.5

73.5

80GB

You can use VCRs or other units connected to

the VIDEO or SAT jacks. Refer to the operation

manual supplied with the unit for further

information on the operation.

Press FUNCTION repeatedly until VIDEO or

SAT that you connected the unit to appears

in the front panel display.

Each time you press FUNCTION, the mode of

the system changes in the following sequence.

FM t AM t VIDEO t SAT t DVD t

FM...

You can enjoy multiplex broadcast sound when

the system receive the AC-3 multiplex broadcast

signal.

Note

To receive the AC-3 signal, you need to connect a

digital satellite tuner to the system with an OPTICAL

cable (page 26) and set the digital output mode of the

digital satellite tuner to AAC.

1Press AMP MENU.

2Press x/X repeatedly until

“Customize” appears in the front

panel display, then press ENTER or c.

The system enters the Customize Menu

mode.

3Press x/X repeatedly until “Dual

Mono” appears in the front panel

display, then press ENTER or c.

4Press x/X to select the sound you

want.

xDual Mono Main

Main sound is output from the left and right

speakers.

Using the Video or Other

Units

FUNCTION

Enjoying Multiplex

Broadcast Sound

(Dual Mono)

AMP MENU

C/X/x/c/

ENTER

With cover opened.

Other Operations

81GB

xDual Mono Sub

Sub sound is output from the left and right

speakers.

xDual Mono Main/Sub

Main sound is output from the left speaker

and Sub sound is output from the right

speaker.

xDual Mono Main+Sub

Main sound and Sub sound are output from

the left and right speakers.

5Press AMP MENU.

Turns off the AMP menu.

Note

Dual Mono is activated when you select SAT function

with an OPTICAL cable connected.

Presetting Radio Stations

You can preset 20 FM stations, and 10 AM

stations. Before tuning, make sure to turn down

the volume to minimum.

1Press TUNER/BAND repeatedly until

the band you want appears in the front

panel display.

Each time you press TUNER/BAND, the

band toggles between AM and FM.

2Press and hold TUNING + or – until

scanning starts, then release.

Scanning stops when the system tunes in a

station. “TUNED” appears in the front

panel display.

3Press TUNER MENU.

4Press C/c/x/X repeatedly until

“Memory ?” appears in the front panel

display.

Enjoying the Radio

TUNER/

BAND TUNING –/+

With cover opened.

C/X/x/c/

ENTER

TUNER

TUNED

108.0MHz

continued

82GB

5Press ENTER.

A preset number appears in the front panel

display.

6Press C/c/x/X to select the preset

number you want.

7Press ENTER.

The station is stored.

8Repeat 1 to 7 to store other stations.

To change the preset number

Restart from step 1.

To change the AM tuning interval

1Press FUNCTION repeatedly until “AM”

appears in the front panel display, then

press TUNER MENU.

2Press X/x/C/c repeatedly until “AM Step

Change ?” appears in the front panel

display.

3Press ENTER.

“AM Step Change **K” is displayed

(** refers to 9 or 10).

4Select 9 or 10 using X/x, then press

ENTER.

“Really ? No” is displayed.

5Select “Really ? Yes” using X/x, then press

ENTER.

“Complete” is displayed for a few seconds.

Then the standby indicator flashes and the

system turns off.

6Press ?/1.

AM step is changed and AM preset stations

are erased.

Listening to the Radio

Preset radio stations in the system’s memory

first (see “Presetting Radio Stations” on

page 81).

1Press FUNCTION repeatedly until “FM”

or “AM” appears in the front panel

display.

The last received station is tuned in.

Memory

108.0MHz

FM 4

Memory

108.0MHz

FM 7

Complete

FM 7

TUNED

108.0MHz

FM MODE

PRESET

–/+

TUNING –/+

FUNCTION

VOL +/–

"/1

DISPLAY

With cover opened.

TUNER/

BAND

FM 7

TUNED

108.0MHz

Other Operations

83GB

2Press PRESET + or – repeatedly to

select the preset station you want.

Each time you press the button, the system

tunes in one preset station.

Each time you press TUNER/BAND, the

band toggles between AM and FM.

3Adjust the volume by pressing

VOL +/–.

To turn off the radio

Press "/1.

To listen to non-preset radio

stations

Use manual or automatic tuning in Step 2.

For manual tuning, press TUNING + or – on the

remote repeatedly.

For automatic tuning, press and hold TUNING +

or – on the remote.

Press x when you stop the automatic tuning.

Tips

• If an FM program is noisy, press FM MODE on the

remote so that “MONO” appears in the front panel

display. There will be no stereo effect, but the

reception will improve. Press the button again to

restore the stereo effect.

• To improve reception, reorient the supplied antennas

(aerials).

To check the frequency

Press DISPLAY repeatedly.

Each time you press DISPLAY, the front panel

display changes as follows:

* This is displayed if you have entered a name for a

preset station (page 83).

Naming Preset Stations

You can enter a name of up to 8 characters for

preset stations. These names (for example,

“XYZ”) appear in the system’s front panel

display when a station is selected.

Note that no more than one name can be entered

for each preset station.

1Press FUNCTION repeatedly until “FM”

or “AM” appears in the front panel

display.

Each time you press TUNER/BAND, the

band toggles between AM and FM.

The last station you received is tuned in.

Each time you press FUNCTION, the mode

of the system changes in the following

sequence:

FM t AM t VIDEO t SAT t DVD

t FM...

2Press PRESET+ or – repeatedly to

select the preset station you want to

create an index name for.

3Press TUNER MENU.

4Press C/c repeatedly until “Name In?”

appears in the front panel display.

5Press ENTER.

index name of the station*,

frequency, and preset number

t FM (or AM) R

PRESET

–/+

C/X/x/c/

ENTER

FUNCTION

With cover opened.

TUNER/

BAND

TUNER

continued

84GB

6Create an index name by using the

cursor buttons:

Press X/x to select a character, then press c

to move the cursor to the next position.

If you make a mistake

Press C/c repeatedly until the character to

be changed flashes, then press X/x to select

the desired character. Capital letters,

numbers, and other symbols can be input

for a radio station name.

7Press ENTER.

The station name is stored.

You can set the system to turn off at a preset

time, so you can fall asleep listening to music.

You can preset the time in 10 minutes

decrements.

Press SLEEP.

Each time you press this button, the minutes

display (the remaining time) changes as follows:

When you choose Sleep Auto

The system turns off when the current disc

finishes playback (up to 240 minutes). The

system turns off if you manually stop playing a

disc.

“Sleep Auto” mode works only with functions

such as DVD that is selected before setting to

“Sleep Auto.”

To check the remaining time

Press SLEEP once. You cannot check the

remaining time if you select “Sleep Auto.”

To change the remaining time

Press SLEEP repeatedly to select the desired

time.

To cancel the Sleep Timer

function

Press SLEEP repeatedly until “Sleep Off”

appears in the front panel display.

Using the Sleep Timer

SLEEP

Sleep Auto

Sleep 90min

80min

70min

Sleep Off T 10min ..... 50min T 60min

Other Operations

85GB

You can change the brightness of the front panel

display by two steps.

1Press AMP MENU.

2Press x/X repeatedly until

“Customize” appears in the front

panel display, then press ENTER or c.

The system enters the Customize Menu

mode.

3Press x/X repeatedly until “Dimmer”

appears in the front panel display, then

press ENTER or c.

4Press x/X to select the brightness of

the front panel display.

5Press AMP MENU.

Turns off the AMP menu.

You can return the system parameters such as

speaker settings and preset stations, to the

default settings.

Press and hold Touch Panel Sensor VOL. –

(page 43) and Z simultaneously for a few

seconds.

“Cold Reset” appears in the front panel display

and the default settings are returned.

Changing the Brightness

of the Front Panel Display

AMP MENU

C/X/x/c/

ENTER

With cover opened.

Returning to the Default

Settings

VOL.

FUNCTION

Touch

Panel

Sensor

VOL. –

86GB

By using the Setup Display, you can make

various adjustments to items, such as picture and

sound. You can also set the subtitle language

and the Setup Display, among other things. For

details on each Setup Display item, see page 87-

93. For an overall list of Setup Display items,

see page 112.

How to use the Setup Display

1In stop mode, press DVD SETUP.

The Setup Display appears.

2Press X/x to select the setup item from

the displayed list: [LANGUAGE

SETUP], [SCREEN SETUP], [CUSTOM

SETUP], [SPEAKER SETUP], and

[SETUP]. Then press ENTER or c.

The selected Setup item appears.

Example: [SCREEN SETUP]

3Select an item using X/x, then press

ENTER or c.

The options for the selected item appear.

Example: [TV TYPE]

Press C or O RETURN to return to setup

items.

4Select a setting using X/x, then press

ENTER.

The setting is selected and setup is

complete.

Example: [4:3 PAN SCAN]

To turn off the Setup Display

Press DVD SETUP repeatedly until the Setup

Display is turned off.

Settings and Adjustments

Using the Setup Display

DVD

SETUP

C/X/x/c/

ENTER

O RETURN

With cover opened.

LANGUAGE SETUP

OSD :

DVD MENU :

AUDIO :

SUBTITLE :

ENGLISH

Main

item

SCREEN SETUP

SCREEN SAVER:

BACKGROUND:

COMPONENT OUT:

JACKET PICTURE

INTERLACE

16:9TV TYPE:

SCREEN SETUP

SCREEN SAVER:

BACKGROUND:

COMPONENT OUT:

TV TYPE: 4:3 LETTER BOX

4:3 PAN SCAN

16:9

Options

SCREEN SETUP

SCREEN SAVER:

BACKGROUND:

COMPONENT OUT:

JACKET PICTURE

INTERLACE

TV TYPE: 4:3 PAN SCAN

Selected setting

Settings and Adjustments

87GB

[LANGUAGE SETUP] allows you to set

various languages for the on-screen display or

sound track.

Select [LANGUAGE SETUP] in the Setup

Display. For details on using the display, see

“Using the Setup Display” (page 86).

xOSD (On-Screen Display)

Selects the display language on the screen.

Select the language from the displayed list.

xDVD MENU (DVD only)

Selects the desired language for the DVD menu.

Select the language from the displayed list.

xAUDIO (DVD only)

Selects the language of the sound track.

Select the language from the displayed list.

xSUBTITLE (DVD only)

Selects the language of the subtitle.

Select the language from the displayed list.

Note

If you select a language that is not recorded on the

DVD, one of the recorded languages will be

automatically selected (except for [OSD]).

Tip

If you select [OTHERS t] in [DVD MENU],

[AUDIO], or [SUBTITLE], select and enter the

language code from the list using the number buttons

(page 111).

After you have made a selection, the language code (4

digits) is displayed the next time you select [OTHERS

t].

Choose settings according to the TV to be

connected.

Select [SCREEN SETUP] in the Setup Display.

For details on using the display, see “Using the

Setup Display” (page 86).

The default settings are underlined.

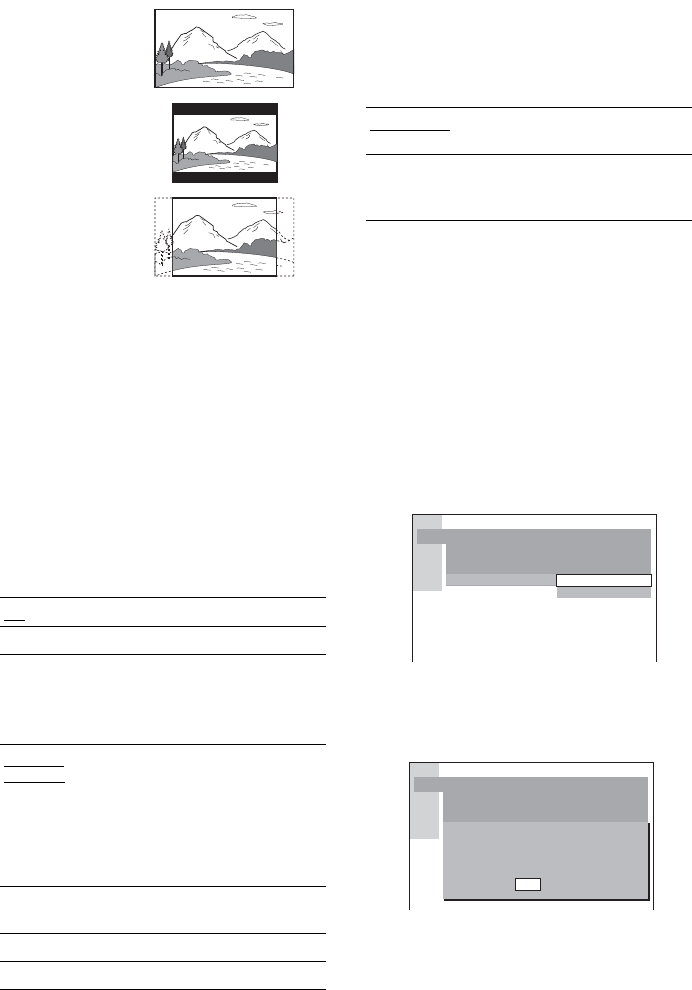

xTV TYPE (DVD only)

Selects the aspect ratio of the connected TV (4:3

standard or wide).

The default settings vary, depending on the

country model.

Setting the Display or

Sound Track Language

(LANGUAGE SETUP)

LANGUAGE SETUP

OSD :

DVD MENU :

AUDIO :

SUBTITLE :

ENGLISH

Settings for the Display

(SCREEN SETUP)

16:9 Select this if you connect a wide-

screen TV or a TV with a wide

mode function.

4:3

LETTER

BOX

Select this if you connect a 4:3

screen TV. Displays a wide picture

with bands on the upper and lower

portions of the screen.

4:3

PAN SCAN Select this if you connect a 4:3

screen TV. Automatically displays

the wide picture on the entire

screen and cuts off the portions

that do not fit.

SCREEN SETUP

SCREEN SAVER:

BACKGROUND:

COMPONENT OUT:

JACKET PICTURE

INTERLACE

TV TYPE: 16:9

continued

88GB

Note

Depending on the DVD, [4:3 LETTER BOX] may be

selected automatically instead of [4:3 PAN SCAN] or

vice versa.

xSCREEN SAVER

Turns the screen saver on and off. The screen

saver image appears when you leave the system

in pause or stop mode for 15 minutes, or when

you playback a CD, a Super Audio CD, an MP3,

or JPEG file (except during the slide show) for

more than 15 minutes. The screen saver will

help prevent your display device from becoming

damaged (afterimage). Press H to turn off the

screen saver.

xBACKGROUND

Selects the background color or picture on the

TV screen in stop mode or while playing a CD.

xCOMPONENT OUT

This will change the type of signal output from

the COMPONENT VIDEO OUT jacks on the

system. See page 104, 104 for more information

about the different types.

Notes

• Unless the COMPONENT VIDEO OUTPUT/SCAN

SELECT switch on the rear panel of the subwoofer is

set to SELECTABLE, you cannot select the above

setting.

• [PROGRESSIVE] does not work for PAL signals.

Even if you set [COMPONENT OUT] to

[PROGRESSIVE], the output signal is automatically

switched to interlace format for PAL signals.

To set to [PROGRESSIVE]

1Select [COMPONENT OUT] in [SCREEN

SETUP] using X/x, then press ENTER.

2Select [PROGRESSIVE] using X/x, then

press ENTER.

The display for confirming appears.

3Select [YES] using X/x, then press ENTER.

The type of output signal changes to progressive

format.

ON Turns on the screen saver.

OFF Turns off the screen saver.

JACKET

PICTURE The jacket picture (still picture)

appears in the background, but

only if a jacket picture is already

recorded on the disc (CD-

EXTRA, etc.). If the disc does not

contain a jacket picture, the

[GRAPHICS 1] picture appears.

GRAPHICS 1-5 A preset picture stored in the

system appears in the background.

BLUE The background color is blue.

BLACK The background color is black.

16:9

4:3 LETTER BOX

4:3 PAN SCAN

INTERLACE Select this when you connect to a

standard (interlace format) TV.

PROGRESSIVE Select this when you have a TV

that can accept progressive

signals.

SCREEN SETUP

SCREEN SAVER:

BACKGROUND:

TV TYPE:

PROGRESSIVE

JACKET PICTURE

INTERLACE

16:9

COMPONENT OUT:

SCREEN SETUP

SCREEN SAVER:

BACKGROUND:

TV TYPE:

JACKET PICTURE

16:9

YES

Does your TV accept progressive

signals?

COMPONENT OUT:

Settings and Adjustments

89GB

Notes

• If your TV accepts progressive signals, connect

COMPONENT VIDEO OUT of the system to the TV

using a component video cord (not supplied), and set

progressive format.

• When [PROGRESSIVE] is selected in [SCREEN

SETUP], no signal is output from the MONITOR

OUT jacks.

• If you set [COMPONENT OUT] in [SCREEN

SETUP] to [PROGRESSIVE] even though your TV

cannot accept the signal in progressive format,

picture noise may appears. In this case, return the

setting to interlace format (page 28).

• The display for confirming does not appears when

you select [INTERLACE].

Allows setting up Parental Control and other

settings.

Select [CUSTOM SETUP] in the Setup Display.

For details on using the display, see “Using the

Setup Display” (page 86).

The default settings are underlined.

xVCD COLOR SYSTEM (Asian and Saudi

Arabian models only)

Select the color system when you play a VIDEO

CD.

Notes

• You cannot change the color system of the disc itself.

• On Asian and Australian models, you can change the

color system of this unit according to the connected

TV (page 27).

xPARENTAL CONTROL t (DVD only)

Sets a password and playback limitation level

for DVDs with playback limitation for children.

For details, see “Limiting playback for children

(Parental Control) (DVD only)” (page 73).

Custom Settings

(CUSTOM SETUP)

AUTO Outputs the video signal in the

system of the disc, either PAL or

NTSC. If your TV uses a DUAL

system, select AUTO.

PAL Changes the video signal of an

NTSC disc and outputs it in the

PAL system.

NTSC Changes the video signal of a PAL

disc and outputs it in the NTSC

system.

CUSTOM SETUP

OFF

PARENTAL CONTROL

TRACK SELECTION

MP3DATA CD PRIORITY: MM/DD/YYYYJPEG DATE:

OFFAUDIO DRC:

VCD COLOR SYSTEM

continued

90GB

xTRACK SELECTION (DVD only)

Gives the sound track having the highest number

of channels priority when you play a DVD on

which multiple audio formats (PCM, MPEG

audio, DTS, or Dolby Digital format) are

recorded.

Notes

• When you set the item to [AUTO], the language may

change. The [TRACK SELECTION] setting has

higher priority than the [AUDIO] settings in

[LANGUAGE SETUP] (page 87).

• If PCM, DTS, MPEG audio, and Dolby Digital sound

tracks have the same number of channels, the system

selects PCM, DTS, Dolby Digital, and MPEG audio

sound tracks in this order.

• Depending on the DVD, the audio channel with

priority may be predetermined. In this case, you

cannot give priority to the DTS, Dolby Digital, or

MPEG audio format by selecting [AUTO].

xAUDIO DRC*

Narrows the dynamic range of the sound track.

Useful for watching movies at low volume late

at night.

* Dynamic Range Compression

Note

AUDIO DRC only applies to Dolby Digital sources.

xDATA CD PRIORITY (MP3, JPEG only)

Set priority data you want to play, when you

play a DATA CD (CD-ROM/CD-R/CD-RW)

containing MP3 audio tracks and JPEG image

files.

xJPEG DATE

Change the date information order of a JPEG

image in the Control Menu.

YYYY: Year

MM: Month

DD: Day

OFF No priority given.

AUTO Priority given.

OFF No compression of dynamic

range.

ON Reproduces the sound track with

the kind of dynamic range that the

recording engineer intended.

MP3 If an MP3 file exists on a disc, the

system recognises the disc as an

“MP3 Disc.” If only JPEG files

exist on the disc, the system

recognises the disc as a “JPEG

Disc.”

JPEG If a JPEG file exists on a disc, the

system recognises the disc as a

“JPEG Disc.” If only MP3 files

exist on the disc, the system

recognises the disc as an “MP3

Disc.”

MM/DD/YYYY

YYYY/MM/DD

DD/MM/YYYY

YYYY/DD/MM

Settings and Adjustments

91GB

To obtain the best possible surround sound, set

for the size of the speakers you have connected

and their distance from your listening position.

Then use the test tone to adjust the level and the

balance of the speakers to the same level.

Select [SPEAKER SETUP] in the Setup

Display. For details, see “Using the Setup

Display” (page 86).

The default settings are underlined.

To return to the default setting

when changing a setting

Select the item, then press CLEAR.

xSIZE

If you do not connect center or surround

speakers, or move the surround speakers, set the

parameters for [CENTER] and [SURROUND]

and specify the surround speaker position and

height. Since the front speaker and subwoofer

settings are fixed, you cannot change them.

Notes

• When you select an item, the sound cuts off for a

moment.

• Depending on the settings of other speakers,

subwoofer may be excessive.

xDISTANCE

The default distance setting for the speakers in

relation to the listening position is shown below.

When you set the distance using the Quick Setup

(page 36), the settings is automatically

displayed.

Settings for the Speakers

(SPEAKER SETUP)

SPEAKER SETUP

DISTANCE:

TEST TONE:

SIZE:

BALANCE:

LEVEL:

45 AA

Position diagram

FRONT YES

CENTER YES: Normally select this.

NONE: Select this if no center

speaker is used.

SURROUND BEHIND: Select this if surround

speakers are located in section B.

SIDE: Select this if surround

speakers are located in section A.

NONE: Select this if no surround

speaker is used.

SUBWOOFER YES

1.6m

(5.2ft) 1.6m

(5.2ft)

1.6m

(5.2ft) 1.6m

(5.2ft)

1.6m

(5.2ft)

continued

92GB

Be sure to change the value in the Setup Display

when you move the speakers.

* When you perform the Quick Setup (page 36), the

default settings are changed.

Notes

• When you set the distance, the sound cuts off for a

moment.

• If all front and surround speakers are not placed at an

equal distance from your listening position, set the

distance according to the closest speaker.

• Do not place the surround speakers farther away from

your listening position than the front speakers.

• Depending on the input stream, the [DISTANCE]

setting may not be effective.

xLEVEL

You can vary the level of each speaker as

follows. Be sure to set [TEST TONE] to [ON]

for easy adjustment.

* When you perform the Quick Setup (page 36), the

default settings are changed.

xBALANCE

You can vary the balance of the left and right

speakers as follows. Be sure to set [TEST

TONE] to [ON] for easy adjustment.

To adjust the volume of all the

speakers at one time

Use the VOL control on the control unit, or press

VOL +/–.

xTEST TONE

The speakers will emit a test tone to adjust

[LEVEL] and [BALANCE].

FRONT

1.6 m*

(5.2 ft)

Front speaker distance from the

listening position can be set in 0.2

meter (0.6 ft) increments from 1.0 to

7.0 meters (3.3 to 23 ft).

CENTER

1.6 m*

(5.2 ft)

(appears when

you set

[CENTER] to

[YES] in the

[SIZE] setting.)

Center speaker distance can be moved

up to 1.6 meters (5.2 ft) closer to the

listening position from the front

speaker distance, in 0.2 meter (0.6 ft)

increments.

SURROUND

1.6 m*

(5.2 ft)

(appears except

when you set

[SURROUND]

to [NONE] in

the [SIZE]

setting.)

Surround speaker distance can be

moved up to 4.6 meters (15 ft) closer

to the listening position from the front

speaker distance, in 0.2 meter (0.6 ft)

increments.

CENTER

0 dB*

(appears when

you set

[CENTER] to

[YES] in the

[SIZE] setting.)

Adjusts the level of the center

speaker (–6 dB to +6 dB, 1 dB

increments).

SURROUND

LEFT 0 dB*

SURROUND

RIGHT 0 dB*

(appears except

when you set

[SURROUND] to

[NONE] in the

[SIZE] setting.)

Adjusts the level of the surround

speakers (–6 dB to +6 dB, 1 dB

increments).

SUBWOOFER

+4 dB*Adjusts the level of the subwoofer

(–6 dB to +6 dB, 1 dB increments).

FRONT

(CENTER) Adjusts the balance between the front

left and right speakers.

The center position is shown as

“---.” (You can adjust from the center 6

steps to left or right.)

OFF The test tone is not emitted from the

speakers.

ON The test tone is emitted from both left and

right speakers simultaneously while

adjusting balance. When you select one of

the [SPEAKER SETUP] items, the test

tone is emitted from each speaker in

sequence.

Settings and Adjustments

93GB

Adjusting the speaker

balance and level by using the

test tone

1Press DVD SETUP in stop mode.

The Setup Display appears.

2Press X/x repeatedly to select

[SPEAKER SETUP], then press ENTER

or c.

3Press X/x repeatedly to select [TEST

TONE], then press ENTER or c.

4Press X/x repeatedly to select [ON],

then press ENTER.

You will hear the test tone from each

speaker in sequence.

5From your listening position, adjust the

value of [BALANCE] and [LEVEL] using

C/X/x/c.

When selecting [BALANCE], the test tone

is emitted from both left and right speakers

simultaneously.

When selecting [LEVEL], the test tone is

emitted from only the speaker which you

are adjusting.

6Press ENTER when you have finished

making adjustments.

7Press X/x repeatedly to select [TEST

TONE], then press ENTER.

8Press X/x repeatedly to select [OFF],

then press ENTER.

Note

When you adjust the speaker settings, the sound cuts

off for a moment.

Tip

To adjust the balance or the level without listening to

the test tone, select [BALANCE] or [LEVEL] in step 3

and press ENTER. Then adjust the balance or level

using X/x and press ENTER.

Setting the speakers by using

the front panel display on the

system

You can set the speakers by using the AMP

menu that is displayed in the front panel display.

AMP menu list

Speaker Setup

Center Speaker

Surround Speaker

Front Speaker Distance

Center Speaker Distance*

Center Speaker Yes

Surround Speaker

Yes

Level

Test Tone

Front Balance

Test Tone On

Test Tone Off

6 steps left of right

Center Level*–6 dB - +6 dB

Surround Left Level*–6 dB - +6 dB

Surround Right Level*

Audio D.R.C. On

Surround Speaker Distance*

Audio D.R.C.

Center Speaker No

Surround Speaker

Position Behind

Sub Woofer Level –6 dB - +6 dB

* This setting appears when you set the

corresponding speaker to “Yes” in “Speaker

Setup.”

Surround Speaker

1.0 m - 7.0 m

(3.3 to 23 ft)

1.0 m - 7.0 m

(3.3 to 23 ft)

1.0 m - 7.0 m

(3.3 to 23 ft)

Surround Speaker

Position*

Surround Speaker

Position Side

–6 dB - +6 dB

Audio D.R.C. Off

continued

94GB

1Press AMP MENU.

2Press X/x repeatedly until the item you

want to set appears in the front panel

display.

xSpeaker Setup

Sets the speaker size, distance, and place.

xLevel

Sets the balance and level of the each

speaker, and turns on/off the test tone.

3Press ENTER or c.

4Press X/x to select the desired item,

then press ENTER or c.

To set the item, press X/x, then press

ENTER or AMP MENU.

You can set the following items. The

default settings are underlined.

Note

While a DVD is being played, Speaker Setup and

Dual Mono cannot be set.

xSpaker Setup

a) When you perform the Quick Setup (page 36),

the default settings are changed.

b) This setting appears when you set the

corresponding speaker to “Yes” in “Speaker

Setup” (page 94).

Customize

Dimmer Dimmer Off

Dimmer On

Dual Mono Dual Mono Main

Dual Mono Sub

Dual Mono Main/Sub

Dual Mono Main+Sub

Surround Speaker

Reverse*

Reverse Off SL SR

Reverse On SR SL

* This setting appears when you set “Surround

Speaker” to “Surround Speaker Yes” in

“Speaker Setup.”

Lip Sync Lip Sync Off

Lip Sync On

Color System

Change

Color System Change No

Color System Change Yes

AMP MENU

C/X/x/c/

ENTER

With cover opened.

Center

Speaker Center Speaker Yes: Select

this if you use a center

speaker.

Center Speaker No: Select this

if no center speaker is used.

Surround

Speaker Surround Speaker Yes: Select

this if you use surround

speakers.

Surround Speaker No: Select

this if no surround speaker is

used.

Front

Speaker

Distance

1.6ma) (5.2 ft)

Front speaker distance from

the listening position can be

set in 0.2 meter (0.6 ft)

increments from 1.0 to 7.0

meters (3.3 to 23 ft).

Center

Speaker

Distanceb)

1.6ma) (5.2 ft)

Center speaker distance can

be moved up to 1.6 meters

(5.2 ft) closer to the listening

position from the front

speaker distance, in 0.2 meter

(0.6 ft) increments.

Surround

Speaker

Distanceb)

1.6ma) (5.2 ft)

Surround speaker distance

can be moved up to 4.6 meters

(15 ft) closer to the listening

position from the front

speaker distance, in 0.2 meter

(0.6 ft) increments.

Surround

Speaker

Positionb)

Surround Speaker Position

Behind: Select this if surround

speakers are located in the

back area of the listening

position.

Surround Speaker Position

Side: Select this if surround

speakers are located in the

side area of the listening

position.

Settings and Adjustments

95GB

xLevel

a) When you perform the Quick Setup (page 36),

the default settings are changed.

b) This setting appears when you set the

corresponding speaker to “Yes” in “Speaker

Setup” (page 94).

xCustomize

* This setting appears when you set “Surround

Speaker” to “Surround Speaker Yes” in

“Speaker Setup.”

Test Tone Test Tone Off: The test tone is

not emitted from the speakers.

Test Tone On: The test tone is

emitted from both left and

right speakers simultaneously

while adjusting balance. When

you select one of the “Level”

items, the test tone is emitted

from each speaker in

sequence.

Front

Balance

Adjusts the balance between

the front left and right

speakers. (You can adjust from

the center 6 steps left (L6) or

right (R6).)

Center

Levelb)

0a)

Adjusts the level of the center

speaker (–6 dB to +6 dB, 1 dB

increments).

Surround

Left Levelb)

0a)

Adjusts the left level of the

surround speaker (–6 dB to +6

dB, 1 dB increments).

Surround

Right Levelb)

0a)

Adjusts the right level of the

surround speaker (–6 dB to +6

dB, 1 dB increments).

SubWoofer

Level

+4a)

Adjusts the level of the

subwoofer (–6 dB to +6 dB, 1

dB increments).

Audio D.R.C.

Audio D.R.C. Off: No

compression of dynamic

range.

Audio D.R.C. On: Reproduces

the sound track with the kind

of dynamic range that the

recording engineer intended.

Dual Mono Dual Mono Main

Dual Mono Sub

Dual Mono Main/Sub

Dual Mono Main+Sub

For details, see “Enjoying

Multiplex Broadcast Sound

(Dual Mono)” on page 80.

Surround

Speaker

Reverse*

Reverse Off SL SR

Reverse On SR SL

For details, see “When placing

the surround speaker (L) in the

(R) position” on page 31.

Dimmer Dimmer Off

Dimmer On

For details, see “Changing the

Brightness of the Front Panel

Display” on page 85.

Lip Sync Lip Sync Off

Lip Sync On: Adjusts any

difference between sound and

picture. When the sound field

(MODE) or Head Phone

Theater is activated, Lip Sync

is not effective. Depending on

the input stream, Lip Sync

may not be effective.

Color

System

Change

Color System Change No

Color System Change Yes

For details, see “If the color

system of the TV is PAL” on

page 27.

96GB

Select [SETUP] in the setup display.

For details, see “Using the Setup Display”

(page 86).

xQUICK

Normally, when you turn the system on for the

first time or after resetting the system, the guide

message appears on the TV screen and you can

perform the Quick Setup. If you canceled the

Quick Setup and you want to perform the Quick

Setup again, operate on this screen.

See “How to use the Quick Setup” on page 36.

Note

After performing the Quick Setup, the settings of

following items are changed.

– [OSD], [DVD MENU], and [SUBTITLE] in

[LANGUAGE SETUP]

– [DISTANCE] and [LEVEL] in [SPEAKER SETUP]

– [TV TYPE] in [SCREEN SETUP]

xRESET

You can reset the system.

After you select [RESET] and press ENTER,

select [YES] to reset the settings (it takes a few

seconds to complete). Select [NO] and press

ENTER to cancel. Do not press "/1, when

resetting the system.

Notes

• When you select [RESET], all the settings return to

the default.

• When you turn the system on after resetting, the guide

message appears on the TV screen. To perform the

Quick Setup (page 36), press ENTER, to return to

normal screen, press CLEAR.

Quick Setup and Resetting

the System

(SETUP)

SETUP

RESET

QUICK

Additional Information

97GB

If you experience any of the following

difficulties while using the system, use this

troubleshooting guide to help remedy the

problem before requesting repairs. Should any

problem persist, consult your nearest Sony

dealer.

Power

The power is not turned on.

• Check that the AC power cord (mains lead) is

connected securely.

The standby indicator flashes.

Immediately unplug the power cord and check the

following items.

• Are the + and – speaker cords short-circuited?

• Are you using only the specified speakers?

• Is anything blocking the ventilation holes on the

top of the system?

• Is the subwoofer connected incorrectly?

After checking the above items and fixing any

problems, connect the power cord again and turn on

the system. If the indicator still flashes, or if the

cause of the problem cannot be found even after

checking all the above items, consult your nearest

Sony dealer.

The POWER/ON LINE indicator does not turn

on.

• The + and – speaker cords are short-circuited. In

this case, disconnect the AC power cord (mains

lead) of the surround speaker (L) from the wall

outlet (mains), reconnect, and then turn the

surround speaker (L) on.


There is no picture.

• The video connecting cords are not connected

securely.

• The video connecting cords are damaged.

• The system is not connected to the correct TV

input jack (page 25).

• The video input on the TV is not set so that you

can view pictures from the system.

• You have set [COMPONENT OUT] in [SCREEN

SETUP] to [PROGRESSIVE] even though your

TV cannot accept the signal in progressive format.

In this case, set the COMPONENT VIDEO

OUTPUT/SCAN SELECT switch on the rear

panel of the subwoofer to INTERLACE. Then set

[COMPONENT OUT] to [INTERLACE] after

you can see the TV screen correctly, and reset the

COMPONENT VIDEO OUTPUT/SCAN

SELECT switch to SELECTABLE.

• You have set [COMPONENT OUT] in [SCREEN

SETUP] to [PROGRESSIVE] even though your

TV cannot accept the signal in progressive format.

In this case, return the setting to interlace format

(page 28).

• Even if your TV is compatible with progressive

format (480p) signals, the image may be affected

when you set [COMPONENT OUT] to

[PROGRESSIVE]. In this case, set

[COMPONENT OUT] to [INTERLACE]

(page 88).

• When [PROGRESSIVE] is selected in [SCREEN

SETUP], no signal is output from the MONITOR

OUT or S VIDEO OUT jacks.

Picture noise appears.

• The disc is dirty or flawed.

• If the picture output from your system goes

through your VCR to get to your TV, the copy-

protection signal applied to some DVD programs

could affect picture quality. If you still experience

problems even when you connect your system

directly to your TV, try connecting your system to

your TV’s S video input (page 25).

Even though you set the aspect ratio in [TV

TYPE] of [SCREEN SETUP], the picture does

not fill the screen.

• The aspect ratio on the disc is fixed.

The picture is black and white.

• Depending on the TV, the picture on the screen

becomes black and white when you play a disc

recorded in the NTSC color system.

Sound

There is no sound.

• The speaker cord is not connected securely.

• Press MUTING on the remote if “Muting” is

displayed in the front panel display.

• The system is in pause mode or in Slow-motion

Play mode. Press H to return to normal play

mode.

• Fast forward or fast reverse is performed. Press

H to return to normal play mode.

Additional Information

Troubleshooting

continued

98GB

• Check the speaker settings (pages 38, 91).

The left and right sounds are unbalanced or

reversed.

• Check that the speakers and components are

connected correctly and securely.

• Adjust the balance parameter in the [BALANCE]

menu (page 92).

• Make sure the “Surround Speaker Reverse”

setting in the AMP menu is appropriate (page 31).

There is no sound from the subwoofer.

• Check the speaker connections and settings (pages

38, 91).

• Set the sound field to “Auto Format Direct Auto”

(page 64).

Severe hum or noise is heard.

• Check that the speakers and components are

connected securely.

• Check that the connecting cords are away from a

transformer or motor, and at least 3 meters (10 ft)

away from your TV set or a fluorescent light.

• Move your TV away from the audio components.

• The plugs and jacks are dirty. Wipe them with a

cloth slightly moistened with alcohol.

• Clean the disc.

The sound loses stereo effect when you play a

VIDEO CD, a CD, or an MP3.

• Set [AUDIO] to [STEREO] in the Control Menu

display (page 62).

• Make sure the system is connected appropriately.

The surround effect is difficult to hear when

you are playing a Dolby Digital, DTS, or MPEG

audio sound track.

• Make sure the sound field function is on

(page 64).

• Check the speaker connections and settings (pages

38, 91).

• Depending on the DVD, the output signal may not

be the entire 5.1 channel. It may be monaural or

stereo even if the sound track is recorded in Dolby

Digital or MPEG audio format.

The sound comes from the center speaker

only.

• Depending on the disc, the sound may come from

the center speaker only.

No sound is heard from the center speaker.

• Check the speaker connections and settings.

• Make sure the sound field function is on

(page 64).

• Depending on the source, the effect of the center

speaker may be less noticeable.

No sound or only a very low-level sound is

heard from the surround speakers.

• Check the speaker connections and settings.

• Make sure the sound field function is on

(page 64).

• Select a sound field containing the word “Cinema

Studio EX” (page 66).

• Depending on the source, the effect of the

surround speakers may be less noticeable.

• Wireless setting of the surround speaker is not

correct (page 31).

• The plasma display may interfere with

transmission, in which case, adjust the position of

the IR transmitter and IR receiver of the surround

speaker (L) (or IR receiver) (page 31).

• Do not install the surround speaker (L) (or IR

receiver) in a place exposed to direct sunlight or

strong light such as an incandescent lamp.

• Clean the surface of the IR transmitter and IR

receiver of the surround speaker (L) (or IR

receiver).

Operation

Radio stations cannot be tuned in.

• Check that the antennas (aerials) are connected

securely. Adjust the antennas (aerials) or connect

an external antenna (aerial) if necessary.

• The signal strength of the stations is too weak

(when tuning in with automatic tuning). Use direct

tuning.

• No stations have been preset or the preset stations

have been cleared (when tuning by scanning

preset stations). Preset the stations (page 81).

• Press DISPLAY so that the frequency appears in

the display.

The remote does not function.

• There are obstacles between the remote and the

system.

• The distance between the remote and the system is

too far.

• The remote is not pointed at the remote sensor on

the system.

• The batteries in the remote are weak.

The POWER/ON LINE indicator momentarily

turns red.

• When playing an MP3 or DVD disc, or when

changing a disc, the indicator momentarily turns

red. This is not a malfunction.

Additional Information

99GB

The POWER/ON LINE indicator flashes in red.

• Move the wireless system away from any other

nearby wireless system(s).

• Point the IR transmitter at the IR receiver of the

surround speaker (L) (or IR receiver).

The disc does not play.

• There is no disc inserted.

• The disc is upside down.

Insert the disc with the playback side facing down

on the disc tray.

• The disc is skewed in the system.

• The system cannot play CD-ROMs, etc. (page 8).

• The region code on the DVD does not match the

system.

• Moisture has condensed inside the system.

Remove the disc and leave the system turned on

for about half an hour (page 2).

The MP3 audio track cannot be played.

• The DATA CD is not recorded in an MP3 format

that conforms to ISO9660 Level 1/ Level 2 or

Joliet.

• The MP3 audio track does not have the extension

“.MP3.”

• The data is not formatted in MP3 even though it

has the extension “.MP3.”

• The system can only play MP3 (MPEG1 Audio

Layer3) audio.

• Set [DATA CD PRIORITY] to [MP3] in the

[CUSTOM SETUP] setting (page 90).

• Directory level is more than 8.

• The disc contains more than 99 albums (the

maximum number of MP3 audio tracks that can be

contained on an album is 250).

The title of the MP3 audio album or track is not

correctly displayed.

• The system can only display alphabetical letters

and numbers. Other characters are displayed as

“”.

The display for entering the password does

not appear for Super Audio CD, even though

Custom Parental Control is set.

• Custom Parental Control is set for different layers

of a Super Audio CD.

The JPEG image file cannot be played.

• The DATA CD is not recorded in an JPEG format

that conforms to ISO9660 Level 1/ Level 2 or

Joliet.

• The JPEG image file does not have the extension

“.JPG” or “.JPEG.”

• The data is not formatted in JPEG even though it

has the extension “.JPG” or “.JPEG.”

• Image length or width is more than 4720 dots.

• Set [DATA CD PRIORITY] to [JPEG] in the

[CUSTOM SETUP] setting (page 90).

• Directory level is more than 8.

• You cannot play the Progressive JPEG files.

• A JPEG image file with a high width to length

ratio cannot be played.

• The disc contains more than 99 albums (the

maximum number of JPEG image files that can be

contained on an album is 250).

The title of the JPEG album or file is not

correctly displayed.

• The system can only display alphabetical letters

and numbers. Other characters are displayed as

“”.

A disc does not start playing from the

beginning.

• Program Play, Shuffle Play, or Repeat Play has

been selected (pages 50, 52, 53).

• Resume Play has been selected.

During stop, press x on the system or the remote

and then start playback (page 44).

• The title, DVD or PBC menu automatically

appears on the TV screen.

The system starts playing the disc

automatically.

• The DVD features an auto playback function.

Playback stops automatically.

• Some discs may contain an auto pause signal.

While playing such a disc, the system stops

playback at the auto pause signal.

The system turns off during DVD playback.

• If approximately one hour passes with DVD

playback paused or with the DVD top menu or a

DVD menu displayed during DVD playback, the

system automatically turns off.

You cannot perform some functions such as

Stop, Search, Slow-motion Play, Repeat Play,

Shuffle Play, or Program Play.

• Depending on the disc, you may not be able to

perform some of the operations above. See the

operating manual that came with the disc.

Messages do not appear on the screen in the

language you want.

• In the Setup Display, select the desired language

for the on-screen display in [OSD] under

[LANGUAGE SETUP] (page 87).

continued

100GB

The language for the sound track cannot be

changed.

• Multilingual tracks are not recorded on the DVD

being played.

• The DVD prohibits changing the language for the

sound track.

The subtitle language cannot be changed.

• Multilingual subtitles are not recorded on the

DVD being played.

• The DVD prohibits changing the subtitles.

The subtitle cannot be turned off.

• The DVD prohibits turning off subtitles.

The angles cannot be changed.

• Multi-angles are not recorded on the DVD being

played (page 69).

• The DVD prohibits changing the angles.

A disc cannot be ejected and “Locked”

appears in the front panel display.

• Contact your Sony dealer or local authorized Sony

service facility.

“Cannot Lock” appears in the front panel

display.

• Turn the power off and then on again by pressing

[/1 on the system, then perform “On moving the

system” (page 4). If “Cannot Lock” still appears

in the front panel display, contact your Sony

dealer or local authorized Sony service facility.

The system does not work normally.

• Disconnect the AC power cord (mains lead) from

the wall outlet (mains), then reconnect after

several minutes.

The Touch Panel Sensor does not work

normally.

• Disconnect the AC power cord (mains lead) from

the wall outlet (mains), then reconnect after

several minutes and allow the control unit to

initialize (page 30).

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND

TOTAL HARMONIC

DISTORTION: With 4 ohm loads, both

channels driven, from

200 – 20,000 Hz; rated

65 watts per channel

minimum RMS power,

with no more than 0.7 %

total harmonic distortion

from 250 milli watts to

rated output.

Amplifier section

Stereo mode (rated) 86 W + 86 W (4 ohms at

1 kHz, THD 10 %)

Surround mode Front: 86 W (each)

(reference) (with SS-TSLF1)

music power output Center*: 86 W

(with SS-CTLF1)

Surround (R)*: 86 W

(with SS-TSLF1W)

Surround (L): 86 W

(with SA-TSLF1)

Subwoofer*: 85 W × 2

(with SA-WSLF1)

* Depending on the sound field settings and the source,

there may be no sound output.

Inputs VIDEO/TV/SAT:

Sensitivity: 300 mV

Impedance: 50 kilohms

Phones Accepts low-and high-

impedance headphones.

Super Audio CD/DVD system

Laser Semiconductor laser

(Super Audio CD/DVD: λ

= 650 nm)

(CD: λ = 780 nm)

Emission duration:

continuous

Signal format system

North America,

Latin America: NTSC

Other regions: NTSC, PAL

Specifications

Additional Information

101GB

Frequency response (at 2 CH STEREO mode)

DVD (PCM): 2 Hz to 22

kHz (±1.0 dB)

CD: 2 Hz to 20 kHz (±1.0

dB)

Harmonic distortion Less than 0.03 %

Tuner section

System PLL quartz-locked digital

synthesizer system

FM tuner section

Tuning range 87.5 – 108.0 MHz (50 kHz

step)

Antenna (aerial) FM wire antenna (aerial)

Antenna (aerial) terminals

75 ohms, unbalanced

Intermediate frequency 10.7 MHz

AM tuner section

Tuning range

Middle Easten models: 531 – 1,602 kHz (with the

interval set at 9 kHz)

Other models: 531 – 1,602 kHz (with the

interval set at 9 kHz)

530 – 1,710 kHz (with the

interval set at 10 kHz)

Antenna (aerial) AM loop antenna (aerial)

Intermediate frequency 450 kHz

Video section

Outputs Video: Vp-p 75 ohms

S video:

Y: 1 Vp-p 75 ohms

C: 0.286 Vp-p 75 ohms

COMPONENT:

Y: 1 Vp-p 75 ohms

PB/CB, PR/CR: 0.7 Vp-p

75 ohms

Inputs Video: 1 Vp-p 75 ohms

Speakers

Front (L) (R)/Surround (R)

Speaker system Front (L) (R)

Two-way Closed box

Surround (R)

Two-way Bass reflex

Speaker unit 100 mm (4 inches) dia.

cone type,

25 mm (1 inch) dia.

balance-dome-type

tweeter

Rated impedance 4 ohms

Dimensions (approx.) 300 × 1205 × 300 mm

(11 7/8 × 47 1/2 × 11 7/8

inches) (w/h/d)

Mass (approx.) Front (L) (R): 5.8 kg

(12 lb 13 oz)

Surround (R): 5.4 kg

(11 lb 15 oz)

Center

Speaker system Two-way Closed box

Speaker unit 100 mm (4 inches) dia.

cone type, 25 mm (1 inch)

dia. balance-dome-type

tweeter

Rated impedance 4 ohms

Dimensions (approx.) 470 × 170 × 81 mm

(18 5/8 × 6 3/4 × 3 1/4

inches) (w/h/d)

Mass (approx.) 2.5 kg (5 lb 9 oz)

Surround (L)

Speaker system Two-way Bass reflex

Speaker unit 100 (4 inches) mm dia.

cone type, 25 (1 inch) mm

dia. balance-dome-type

tweeter

Rated impedance 4 ohms

Dimensions (approx.) 300 × 1205 × 300 mm

(11 7/8 × 47 1/2 × 11 7/8

inches) (w/h/d)

Mass (approx.) 6.5 kg (14 lb 6 oz)

Subwoofer

Speaker system Bass reflex

Speaker unit 180 mm (7 1/8 inches) dia.

cone type

Rated impedance 4 ohms × 2

Dimensions (approx.) 241 × 606 × 241 mm

(9 1/2 × 23 7/8 × 9 1/2

inches) (w/h/d)

Mass (approx.) 14 kg (30 lb 14 oz)

Power requirements

North American and

Mexican models: 120 V AC, 60 Hz

Taiwan model: 120 V AC, 50/60 Hz

Other models: 220-240 V AC, 50/60 Hz

Power consumption 120 W

0.3 W (at the Power Saving

mode)

Control unit

Dimensions (approx.) 568 × 200 × 120 mm

(22 3/8 × 7 7/8 × 4 3/4

inches) (w/h/d) incl.

projecting parts

Mass (approx.) 4.7 kg (10 lb 6 oz)

continued

102GB

Surround speaker (L)

Power requirements

North American and

Mexican models: 120 V AC, 60 Hz

Taiwan model: 120 V AC, 50/60 Hz

Other models: 220-240 V AC, 50/60 Hz

Power consumption 45 W (220-240 V AC)

Supplied accessories See page 12.

Design and specifications are subject to change

without notice.

Album

Section of a music piece or an image on a data

CD containing MP3 audio tracks or JPEG files.

Chapter

Subdivision of a title on a DVD. A title is

composed of several chapters.

Digital Cinema Sound (DCS)

This is the generic name of the surround sound

produced by digital signal processing

technology developed by Sony. Unlike previous

surround sound fields mainly directed at the

reproduction of music, Digital Cinema Sound is

designed specifically for the enjoyment of

movies.

Digital Infrared Audio Transmission

Recent times have been witness to the rapid

spread of DVDs, Digital Broadcasting Satellite

Receiver and other high-quality media. In order

to ensure that the subtle nuances endowed by

these high-quality media would be transmitted

with no accompanying deterioration, Sony

developed a technology called “Digital Infrared

Audio Transmission” for the infrared

transmission of digital audio signals using no

compression, and it introduced it into the DAV-

LF1.

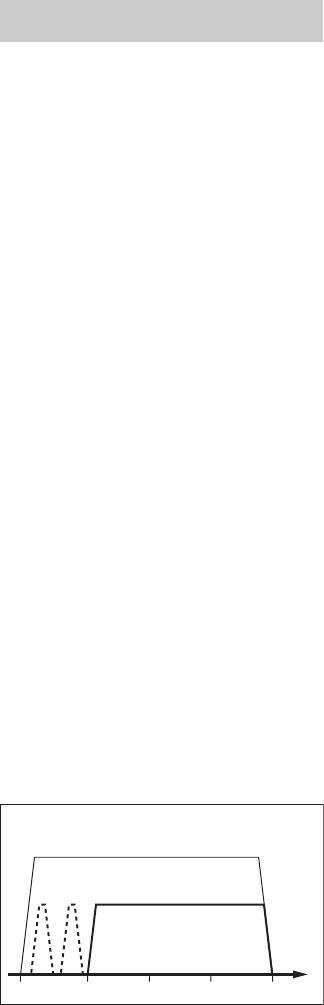

This technology transfers digital audio signals

using no compression inside the subcarrier

frequency band allocated by the IEC

(International Electronic Committee) and

JEITA (Japan Electronics and Information

Technology Industries Association) for hi-fi

audio transmission applications. (See Fig. 1)

Glossary

5432 6[MHz]

Analog

transmission

Digital transmission (Digital

infrared Audio Transmission)

Fig. 1 Signal spectrum for digital infrared audio

transmission

Additional Information

103GB

Dolby Digital

This movie theater sound format is more

advanced than Dolby Surround Pro Logic. In

this format, the surround speakers output stereo

sound with an expanded frequency range, and a

subwoofer channel for deep bass is

independently provided. This format is also

called “5.1,” with the subwoofer channel

designated as the 0.1 channel (since it functions

only when a deep bass effect is needed). All six

channels in this format are recorded separately

for superior channel separation. Furthermore,

since all the signals are processed digitally, less

signal degradation occurs.

Dolby Digital EX

An enhanced compatible format of Dolby

Digital 5.1, developed by Dolby Laboratories

and Lucasfilm THX, which can be used for

6.1(three surround speakers) channel playback,

using matrix encoding.

Dolby Pro Logic II

Dolby Pro Logic II creates five full-bandwidth

output channels from two-channel sources. This

is done using an advanced, high-purity matrix

surround decoder that extracts the spatial

properties of the original recording without

adding any new sounds or tonal colorations.

xMovie mode

The Movie mode is for use with stereo television

shows and all programs encoded in Dolby

Surround. The result is enhanced sound field

directionality that approaches the quality of

discrete 5.1-channel sound.

xMusic mode

The Music mode is for use with any stereo music

recordings, and provides a wide and deep sound

space.

Dolby Surround Pro Logic

As one method of decoding Dolby Surround,

Dolby Surround Pro Logic produces four

channels from two-channel sound. Compared

with the former Dolby Surround system, Dolby

Surround Pro Logic reproduces left-to-right

panning more naturally and localizes sounds

more precisely. To take full advantage of Dolby

Surround Pro Logic, you should have one pair of

surround speakers and a center speaker. The

surround speakers output monaural sound.

DTS

Digital audio compression technology

developed by Digital Theater Systems, Inc. This

technology conforms to 5.1-channel surround.

This format comprises of stereo rear channels

and a discrete subwoofer channel. DTS provides

the same 5.1 discrete channels of high quality

digital audio. The good channel separation is

realized due to all channel data being recorded

discretely and processed digitally.

DVD

A disc that contains up to 8 hours of moving

pictures even though its diameter is the same as

a CD.

The data capacity of a single-layer and single-

sided DVD, at 4.7 GB (Giga Byte), is 7 times

that of a CD. Furthermore, the data capacity of a

dual-layer and single-sided DVD is 8.5 GB, a

single-layer and double-sided DVD 9.4 GB, and

a dual-layer and double-sided DVD 17 GB.

The picture data uses the MPEG 2 format, one of

a worldwide standard of digital compression

technology. The picture data is compressed to

about 1/40 of its original size. DVD also uses

variable rate coding technology that processes

allocated data according to the status of the

picture.

The audio data is recorded in Dolby Digital as

well as in PCM, allowing you to enjoy more

realistic audio presence.

Furthermore, various advanced functions such

as the multi-angle, multilingual, and Parental

Control functions are provided with the DVD.

File

Section of a picture on a data CD containing

JPEG image files.

Film based software, Video based

software

DVDs can be classified as Film based or Video

based software. Film based DVDs contain the

same images (24 frames per second) that are

shown at movie theaters. Video based DVDs,

such as television dramas or sit-coms, displays

images at 30 frames (or 60 fields) per second.

continued

104GB

Index (Super Audio CD, CD)/Video

Index (VIDEO CD)

A number that divides a track into sections to

easily locate the point you want on a VIDEO

CD, Super Audio CD, or CD. Depending on the

disc, no indexes may be recorded.

Interlace format

(Interlaced scanning)

The Interlace format is the NTSC standard

method for displaying TV images at 30 frames

per second. Each frame is scanned twice -

alternately between the even numbered scanning

lines and then odd numbered scanning lines, at

60 times per second.

Multi-angle function

Various angles of a scene, or viewpoints of the

video camera are recorded on some DVDs.

Multilingual function

Several languages for the sound or subtitles in a

picture are recorded on some DVDs.

Parental Control

A function of the DVD to limit playback of the

disc by the age of the users according to the

limitation level in each country. The limitation

varies from disc to disc; when it is activated,

playback is completely prohibited, violent

scenes are skipped or replaced with other scenes

and so on.

Playback Control (PBC)

Signals encoded on VIDEO CDs (Version 2.0)

to control playback.

By using menu screens recorded on VIDEO

CDs with PBC functions, you can enjoy playing

simple interactive programs, programs with

search functions, and so on.

Progressive format

(sequential scanning)

In contrast to the Interlace format, the

progressive format can reproduce 60 frames per

second by reproducing all scanning lines (525

lines for the NTSC system). The overall picture

quality increases and still images, text and

horizontal lines appear sharper. This format is

compatible with the 525 progressive format.

Region Code

This system is used to protect copyrights. A

region number is allocated on each DVD system

or DVD disc according to the sales region. Each

region code is shown on the system as well as on

the disc packaging. The system can play the

discs that match its region code. The system can

also play discs with the “ ” mark. Even when

the region code is not shown on the DVD, the

region limit may still be activated.

Scene

On a VIDEO CD with PBC (playback control)

functions, the menu screens, moving pictures

and still pictures are divided into sections called

“scenes.”

Super Audio CD

A Super Audio CD disc can reproduce sounds

that are extremely faithful to the original sound

by use of DSD (Direct Stream Digital)

technology. This technology utilizes a sampling

frequency of 2.8224 MHz, which is 64 times that

of a conventional CD, and 1-bit quantization that

enables the disc to hold 4 times the amount of

information that a standard PCM format CD can

hold. Super Audio CDs are divided into the

following types.

• Super Audio CD (single layer disc)

This disc consists of a single HD layer*.

* High density signal layer for the Super Audio CD

• Super Audio CD (dual layer disc)

This disc consists of dual HD layers and is

capable of extended play over long periods.

Also, as the dual layer disc consists of dual HD

layers on one side only, you do not have to turn

the disc over during playback.

ALL

HD (high density) layer

HD layer

Additional Information

105GB

• Super Audio CD + CD (Hybrid disc)

This disc consists of an HD layer and a CD

layer. Also, as the dual layers are on one side

only, you do not have to turn the disc over

during playback. You can play this CD layer

using a conventional CD player.

• 2 channel + Multi-channel Super Audio CD

This disc consists of a 2 channel playback area

and a multi-channel playback area.

Title

The longest section of a picture or music feature

on a DVD, movie, etc., in video software, or the

entire album in audio software.

Track

Section of a picture or a music piece on a Super

Audio CD, CD, VIDEO CD or MP3. An album

is composed of several tracks (MP3 only).

VIDEO CD

A compact disc that contains moving pictures.

The picture data uses the MPEG 1 format, one of

a worldwide standard of digital compression

technology. The picture data is compressed to

about 1/140 of its original size. Consequently, a

12 cm VIDEO CD can contain up to 74 minutes

of moving pictures.

VIDEO CDs also contain compact audio data.

Sounds outside the range of human hearing are

compressed while sounds we can hear are not

compressed. VIDEO CDs can hold 6 times the

audio information of conventional audio CDs.

There are 2 versions of VIDEO CDs.

• Version 1.1: You can play only moving

pictures and sounds.

• Version 2.0: You can play high-resolution still

pictures and enjoy PBC functions.

This system conforms to both versions.

CD layer

HD layer

2 channel playback area

Multi-channel playback

area

106GB

For more information, refer to the pages indicated in parentheses.

Front Panel

Top Panel

ADISC indicator*

BTouch Panel Sensor (43)

CFront panel display (107)

DDOLBY DIGITAL indicator*

EDTS indicator*

FDOLBY PRO LOGIC II indicator*

GD.C.S. indicator*

* Lights up when activated.

H[/1 (power) switch/standby indicator

(41)

IDisc slot (41)

JZ (eject) (41)

Index to Parts and Controls

VOL.

FUNCTION

Additional Information

107GB

Front Panel Display

When playing back a DVD

When playing back a Super Audio CD, CD, VIDEO CD (without PBC

functions), or MP3

DVD

REP1

0.01.11

TITLE

Playing status

Current title

number

Playing time

Current mode

SA-CD

PBC

MULTI

28.51

TRK

PBC playback

(VIDEO CD only)

Playing time

Playing status

Current track number

MULTI channel playback area

(Super Audio CD only)

Playing disc

continued

108GB

When listening to the radio

When playing back a JPEG file

FM 10

MONO

108.0

MHz

Preset number

Current band

Current station

Monaural/Stereo effect

JPEG

ALBM

FILE

Current file

number

Playing statusPlaying status

Additional Information

109GB

Subwoofer (Rear Panel)

APHONES jack (41)

BMONITOR OUTPUT (VIDEO/S VIDEO)

jacks (25)

CCOMPONENT VIDEO OUT jacks (25)

DCOMPONENT VIDEO OUT/SCAN

SELECT switch (88)

EAM terminals (23)

FFM 75Ω COAXIAL jack (23)

GSPEAKER jacks (18)

HSYSTEM CONNECTOR jack (15)

IDIR-T1 jack (18)

JSAT OPTICAL DIGITAL IN jack (26)

KSAT (VIDEO IN/AUDIO IN (L/R)) jacks

(25)

LVIDEO (VIDEO IN/AUDIO IN (L/R)) jacks

(25)

MREMOTE CONTROL jack (18)

VIDEO

PHONES

REMOTE

CONTROL

OPTICAL

DIGITAL IN

SCAN SELECT

INTERLACESELECTABLE

VIDEO

S VIDEO (DVD ONLY)

VIDEO DIR-T1

COAXIAL

AUDIO

FRONT R CENTER FRONT L

COMPONENT VIDEO OUT ANTENNA

IMPEDANCE USE 4

SPEAKER

SAT

SYSYTEM CONNECTOR

VIDEO

MONITOR OUTPUT

continued

110GB

Remote

Note

This remote control glows in the dark. However,

before glowing, the remote must be exposed to light for

awhile.

AZ (eject) (41, 42)

BDISPLAY (57, 60, 82)

CSLEEP (84)

D./>, PRESET –/+ (42, 45, 82, 83)

EH (play) (42, 44, 49, 50, 53, 54)

FDVD TOP MENU/ALBUM– (45, 47, 48)

GC/X/x/c/ENTER (36, 45, 45, 47, 48, 50,

50, 52, 53, 55, 62, 69, 70, 71, 73, 81, 83,

85, 86, 93)

HDVD DISPLAY (47, 48, 52, 53, 55, 60, 61,

62, 69, 70, 71)

IAUTO FORMAT DIRECT (64, 65)

JDSGX (68)

KDVD SETUP (36, 73, 86)

LSUBTITLE (70)

MAUDIO (62)

NANGLE (69)

ONumber buttons (45, 45, 50, 55, 69, 71,

73, 76, 78)

PENTER

QTUNER MENU (81, 83)

RTV [/1 (on/standby) (76)

S"/1 (standby) (36, 41, 82)

TSONY TV DIRECT (78)

UTUNER/BAND (81, 82, 83)

VFUNCTION (41, 80, 82, 83)

Wm/M/SLOW / , TUNING –/+ (49,

54, 81, 82)

Xx (stop) (42, 44, 45, 71, 82)

YX (pause) (42)

ZMUTING (42)

wj DVD MENU/ALBUM+ (45, 47, 48)

wk VOL +/– (42, 82)

wl O RETURN (45, 47, 48, 50, 55, 71, 73,

86)

e; MODE (65, 66)

ea NIGHT MODE (68)

es PLAY MODE (50, 52)

ed REPEAT (50, 53)

ef TV (76, 78)

eg TV/VIDEO (76, 78)

eh TV CH +/– (76, 78)

ej TV VOL +/– (76)

ek AMP MENU (31, 80, 85, 93)

el CLEAR (36, 50, 55)

r; FM MODE (82)

Open the cover.

Additional Information

111GB

The language spellings conform to the ISO 639: 1988 (E/F) standard.

Language Code List

1245 Inupiak

1248 Indonesian

1253 Icelandic

1254 Italian

1257 Hebrew

1261 Japanese

1269 Yiddish

1283 Javanese

1287 Georgian

1297 Kazakh

1298 Greenlandic

1299 Cambodian

1300 Kannada

1301 Korean

1305 Kashmiri

1307 Kurdish

1311 Kirghiz

1313 Latin

1326 Lingala

1327 Laothian

1332 Lithuanian

1334 Latvian; Lettish

1345 Malagasy

1347 Maori

1349 Macedonian

1350 Malayalam

1352 Mongolian

1353 Moldavian

1356 Marathi

1357 Malay

1358 Maltese

1363 Burmese

1365 Nauru

1369 Nepali

1376 Dutch

1379 Norwegian

1393 Occitan

1403 (Afan) Oromo

1408 Oriya

1417 Punjabi

1428 Polish

1435 Pashto; Pushto

1436 Portuguese

1463 Quechua

1481 Rhaeto-Romance

1482 Kirundi

1483 Romanian

1027 Afar

1028 Abkhazian

1032 Afrikaans

1039 Amharic

1044 Arabic

1045 Assamese

1051 Aymara

1052 Azerbaijani

1053 Bashkir

1057 Byelorussian

1059 Bulgarian

1060 Bihari

1061 Bislama

1066 Bengali; Bangla

1067 Tibetan

1070 Breton

1079 Catalan

1093 Corsican

1097 Czech

1103 Welsh

1105 Danish

1109 German

1130 Bhutani

1142 Greek

1144 English

1145 Esperanto

1149 Spanish

1150 Estonian

1151 Basque

1157 Persian

1165 Finnish

1166 Fiji

1171 Faroese

1174 French

1181 Frisian

1183 Irish

1186 Scots Gaelic

1194 Galician

1196 Guarani

1203 Gujarati

1209 Hausa

1217 Hindi

1226 Croatian

1229 Hungarian

1233 Armenian

1235 Interlingua

1239 Interlin

1489 Russian

1491 Kinyarwanda

1495 Sanskrit

1498 Sindhi

1501 Sangho

1502 Serbo-Croatian

1503 Singhalese

1505 Slovak

1506 Slovenian

1507 Samoan

1508 Shona

1509 Somali

1511 Albanian

1512 Serbian

1513 Siswati

1514 Sesotho

1515 Sundanese

1516 Swedish

1517 Swahili

1521 Tamil

1525 Telugu

1527 Tajik

1528 Thai

1529 Tigrinya

1531 Turkmen

1532 Tagalog

1534 Setswana

1535 Tonga

1538 Turkish

1539 Tsonga

1540 Tatar

1543 Twi

1557 Ukrainian

1564 Urdu

1572 Uzbek

1581 Vietnamese

1587 Volap k

1613 Wolof

1632 Xhosa

1665 Yoruba

1684 Chinese

1697 Zulu

1703 Not specified

Code Language Code Language Code Language

112GB

You can set the following items with the DVD Setup menu.

The order of the displayed items may be different from the actual display.

DVD Setup Menu List

LANGUAGE SETUP

OSD

DVD MENU

AUDIO

SUBTITLE

(Selects the language

you want to use from the

displayed language list.)

(Selects the language

you want to use from the

displayed language list.)

(Selects the language

you want to use from the

displayed language list.)

(Selects the language

you want to use from the

displayed language list.)

SCREEN SETUP

TV TYPE*

SCREEN SAVER

BACKGROUND

COMPONENT OUT

16:9

4:3 LETTER

4:3 PAN SCAN

OFF


GRAPHICS 1

BLUE

BLACK

JACKET

INTERLACE

PROGRESSIVE

BOX

GRAPHICS 2

GRAPHICS 3

GRAPHICS 4

GRAPHICS 5

YES

CUSTOM SETUP

VCD COLOR

SYSTEM*

PARENTAL

CONTROL

TRACK

SELECTION

AUTO

PAL

NTSC

OFF

7. NC17

STANDARD

6. R

4. PG13

3. PG

1. G

USA

OTHERSt

CHANGE PASSWORD

LEVEL

OFFOFF

AUTO

*) Only for Asian and Saudi

Arabian models.

AUDIO

DRC

OFF

DATA CD

PRIORITY

MP3

JPEG

JPEG DATE MM/DD/YYYY

YYYY/MM/DD

DD/MM/YYYY

YYYY/DD/MM

*) The default settings vary, depending on the

country model.

Additional Information

113GB

SPEAKER SETUP

SIZE

DISTANCE

FRONT

CENTER

SURROUND

YES

NONE

BEHIND

SUBWOOFER

YES

FRONT 1.0m – 7.0m

(3.3 to 23 ft)

CENTER 1.0m – 7.0m*

(3.3 to 23 ft)

SURROUND 1.0m – 7.0m*

(3.3 to 23 ft)

LEVEL CENTER

SURROUND

RIGHT

–6 dB – +6 dB

SUBWOOFER –6 dB – +6 dB

BALANCE FRONT

6 steps left or right

TEST

TONE

OFF

SETUP

QUICK

SURROUND

LEFT

–6 dB – +6 dB

RESET

SIDE

NONE

YES

* The setting range changes depending on

the front speaker setting (page 91).

114GB

You can set the following items with AMP MENU on the remote.

AMP Menu List

* The setting range changes depending on

the front speaker setting (page 93).

Speaker Setup

Center Speaker

Surround Speaker

Front Speaker Distance

Center Speaker Distance

Center Speaker Yes

Surround Speaker

Yes

Surround Speaker Distance

Center Speaker No

Surround Speaker

Position Behind

Surround Speaker

1.0 m - 7.0 m*

(3.3 to 23 ft)

1.0 m - 7.0 m*

(3.3 to 23 ft)

1.0 m - 7.0 m

(3.3 to 23 ft)

Surround Speaker

Position

Surround Speaker

Position Side

Level

Test Tone

Front Balance

Test Tone On

Test Tone Off

6 steps left of right

Center Level –6 dB - +6 dB

Surround Left Level –6 dB - +6 dB

Surround Right Level

Audio D.R.C. On

Audio D.R.C.

Sub Woofer Level –6 dB - +6 dB

–6 dB - +6 dB

Audio D.R.C. Off

Customize

Dimmer Dimmer Off

Dimmer On

Dual Mono Dual Mono Main

Dual Mono Sub

Dual Mono Main/Sub

Dual Mono Main+Sub

Surround Speaker

Reverse*

Reverse Off SL SR

Reverse On SR SL

Lip Sync Lip Sync Off

Lip Sync On

Color System

Change

Color System Change No

Color System Change Yes

Additional Information

115GB

Numerics

16:9 87

4:3 LETTER BOX 87

4:3 PAN SCAN 87

ALBUM 47, 55

Album 7, 102

ANGLE 69

Antenna (aerial) Hookups 23

AUDIO 62, 87

AUDIO DRC 90

BACKGROUND 88

BALANCE 92

CHAPTER 56

Chapter 7, 102

COMPONENT OUT 88

Continuous play

CD/VIDEO CD/Super Audio

CD/DVD/MP3 41

Control Menu 10

CUSTOM PARENTAL

CONTROL 71

CUSTOM SETUP 89

DATA CD PRIORITY 90

Digital Cinema Sound 102

Digital Infrared Audio

Transmission 102

DIMMER 85

DISPLAY 57

DISTANCE 91

Dolby Digital 103

Dolby Digital EX 103

Dolby Pro Logic II 103

Dolby Surround Pro Logic 103

DSGX 68

DTS 103

Dual Mono 80

DVD 103

DVD MENU 87

Fast forward 54

Fast reverse 54

File 7, 103

Front Panel 106

Front panel display 107

Handling discs 9

INDEX 56

Index 7, 104

INTERLACE 104

JPEG 48

JPEG DATE 90

LANGUAGE SETUP 87

LEVEL 92

Listening to the Radio 82

MP3 46

Multi-angle function 69, 104

Multilingual function 62, 104

MUTING 42

NIGHT MODE 68

On-screen display

Control Menu display 10

OSD 87

PARENTAL CONTROL 73, 89,

104

PBC Playback 45, 104

PLAY MODE 50, 52

Preset Station 81

Program Play 50

PROGRESSIVE 104

Radio 82

Rear Panel 109

Region Code 8, 104

Remote 76, 110

REPEAT 53

Resume Play 44

S VIDEO 25

Scan 54

SCENE 10

Scene 7, 104

SCREEN SAVER 88

SCREEN SETUP 87

Setup Display 86

SHUFFLE 52

Shuffle Play 52

SIZE 91

SLEEP 84

Slide show 49

Slow-motion 54

Sound Field 64

SPEAKER SETUP 91

Speaker System Hookup 15

SUBTITLE 70, 87

Super Audio CD 104

TEST TONE 92

TIME SEARCH 56

TITLE 55

Title 7, 105

TRACK 55

Track 7, 47, 105

TRACK SELECTION 90

Troubleshooting 97

TV and Video Component

Hookups 25

TV TYPE 87

Usable discs 7

VCD COLOR SYSTEM 89

VIDEO CD 105

Wireless system 22, 31

Index

Sony Corporation Printed in Malaysia

Quick Reference for Remote Commander

Note

The remote control of the unit employs command signals in

common with other Sony DVD products.

Thus, depending on the button, other Sony DVD products may

respond.

AEjects the disc.

BSwitches the item displayed on the front panel

display.

CSets the system to turn off at a preset time.

D./>: Press to go to the next chapter or track

or to go back to the previous chapter or track.

PRESET –/+: Scan all preset stations.

EPlays a disc.

FDisplays the title menu on the TV screen.

MP3/JPEG: Selects albums.

GSelect and execute the items or settings.

HDisplays the Control Menu display on the TV

screen to set or adjust the items.

ISelect the sound field.

JBass sound is effectively reinforced.

KDisplays the setup display on the TV screen to set

or adjust the items.

LChanges the subtitle.

MChanges the sound.

NChanges the angles when playing a DVD.

OSelect the items of settings. TV: Select channel

numbers.*

PExecutes the items or settings.

QPress to store a preset station. Activates the name

function.

RTurns the TV on and off.

STurns on and off the power of the system.

TTurns the SONY TV and the system on and

changes the TV’s input source.

USelects AM or FM band.

VSelects the component you want to use.

Wm/M (SCAN): Locate a point while

monitoring the picture while playing a disc.

SLOW /: Play a disc in slow motion in the

pause mode.

TUNING –/+: Scan all available radio stations.

XStops playing a disc.

YPauses playing a disc.

ZMutes the sound.

wj Displays the DVD menu on the TV screen.

MP3/JPEG: Selects albums.

wk Adjust the SYSTEM volume.

wl Press to return to the previously selected screen,

etc.

e; Select the sound field.

ea Makes sound clear at low volume.

es Selects program or shuffle play mode.

ed Displays the repeat status.

ef Sets the remote to TV mode.

Normal mode: Turns off.

TV mode: Turns in red.

eg Changes the input mode of the TV.

eh Select the TV Channel.

ej Adjust the TV volume.

ek Sets the speaker parameter and changes the

brightness of the front panel display by two steps.

el Press to cancel the programmed track, etc.

r; Switches monaural or stereo of FM stereo

reception.

* Depending on the TV manufacture, the following method

also works. Press >10, then the number. (For example, for

channel 25, press >10, then 2 and 5.)

With cover opened.
