Sony DDA-2004 Bluetooth Headset User Manual Gonzo HBH GV435 HBH products folded

Draft for Sony Ericsson Internal Use Only

Bluetooth™

Headset

HBH-GV435

English

Language

Gonzo_HBH-GV435_HBH_products_folded.fm Page 1 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

2

Bluetooth™

Headset

HBH-GV435

User Guide

FCC statement

This device complies with part 15 of the FCC rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) This device must accept any interference

received, including interference that may cause undesired operation.

Sony Ericsson HBH-GV435

This manual is published by Sony Ericsson Mobile Communications

AB, without any warranty. Improvements and changes to this manual

necessitated by typographical errors, inaccuracies of current

information, or improvements to programs and/or equipment, may be

made by Sony Ericsson Mobile Communications AB at any time and

without notice. Such changes will, however, be incorporated into new

©Sony Ericsson Mobile Communications AB, 2005

Publication number: LZT 108 7851/x P3A

Some of the services in this manual are not supported by all networks.

This also applies to the GSM International Emergency Number 112.

Contact your network operator or service provider if you are in doubt

whether you can use a particular service or not.

The Bluetooth word mark and logos are owned by the Bluetooth SIG,

Inc. and any use of such marks by Sony Ericsson is under license.

This product is leadfree and halogenfree.

Gonzo_HBH-GV435_HBH_products_folded.fm Page 2 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

3

Introduction

Bluetooth™ Headset HBH-GV435

The Bluetooth™ Headset HBH-GV435 can be connected

to any device with Bluetooth wireless technology that

supports the handsfree or headset profile. This user guide

focuses on usage with a Sony Ericsson mobile phone.

Bluetooth™ Headset HBH-GV435

The Bluetooth™ Headset HBH-GV435 can be connected

to any device with Bluetooth wireless technology that

supports the handsfree or headset profile. This user guide

focuses on usage with a Sony Ericsson mobile phone.

Bluetooth™ Headset HBH-GV435

The Bluetooth™ Headset HBH-GV435 can be connected

to any device with Bluetooth wireless technology that

supports the handsfree or headset profile. This user guide

focuses on usage with a Sony Ericsson mobile phone.

Bluetooth™ Headset HBH-GV435

The Bluetooth™ Headset HBH-GV435 can be connected

to any device with Bluetooth wireless technology that

supports the handsfree or headset profile. This user guide

focuses on usage with a Sony Ericsson mobile phone.

Gonzo_HBH-GV435_HBH_products_folded.fm Page 3 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

4

Increase volume

Call handling button

Decrease volume

Indicator light

Microphone

Power button

Gonzo_HBH-GV435_HBH_products_folded.fm Page 4 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

5

Speaker

Charging connector

Gonzo_HBH-GV435_HBH_products_folded.fm Page 5 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

6

User Guide symbols

Press and release

Press twice within 1/2 second

Press and hold

Press and hold simultaneously

Steady red light

Steady green light

Gonzo_HBH-GV435_HBH_products_folded.fm Page 6 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

7

User Guide symbols (continued)

First time use: Charge approximately 8 hours.

Red flash

Green flash

Beep tone

Ring signal

Gonzo_HBH-GV435_HBH_products_folded.fm Page 7 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

8

Getting started

Charging

Fully charged

Charging

Battery needs charging

Gonzo_HBH-GV435_HBH_products_folded.fm Page 8 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

9

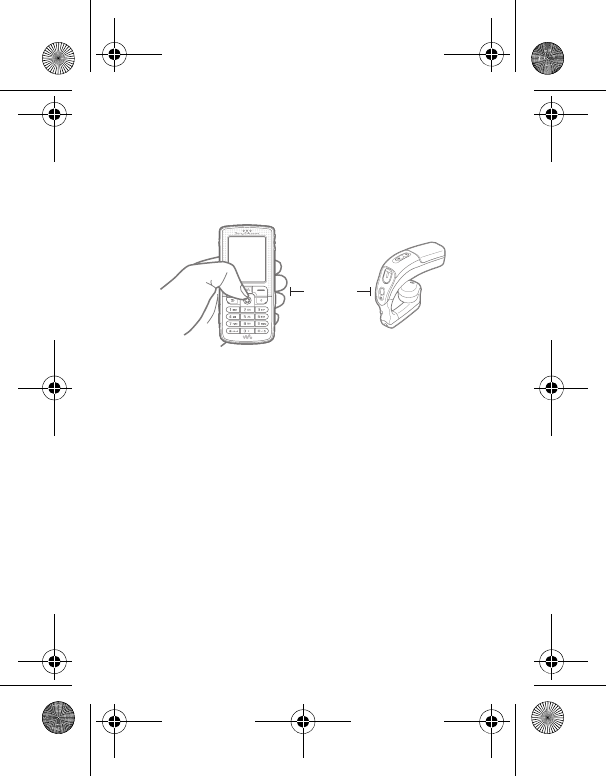

Adding the headset to the phone

Before you can use your Bluetooth headset with your

phone it has to be added once to the phone. Follow the

instructions from the phone user guide on how to turn on

Bluetooth in your phone.

1. Turn on Bluetooth in your phone.

2. Turn on Bluetooth visibility in your phone. This makes

your phone visible to other Bluetooth devices.

3. Prepare your headset according to page 14.

4. If your phone supports auto pairing, press YES when

Add device? appears in your phone to complete the

procedure. If not, continue with step 5.

20 cm

Gonzo_HBH-GV435_HBH_products_folded.fm Page 9 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

10

5. Prepare your phone according to the phone’s

user guide on how to add a Bluetooth device.

Please note that for some phones you may need

to enter a passcode. The headset passcode is 0000.

After you have added the headset to the phone, it will

automatically connect to the phone as soon as it is turned

on and within range.

Before you can use your Bluetooth headset with your

phone it has to be added once to the phone. Follow the

instructions from the phone user guide on how to turn on

Bluetooth in your phone.

1. Turn on Bluetooth in your phone.

2. Turn on Bluetooth visibility in your phone. This makes

your phone visible to other Bluetooth devices.

3. Prepare your headset according to page 14.

The headset beeps and flashes green when successfully added

Gonzo_HBH-GV435_HBH_products_folded.fm Page 10 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

11

4. If your phone supports auto pairing, press YES

when Add device? appears in your phone to

complete the procedure. If not, continue with step

5.

5. Prepare your phone according to the phone’s user guide

on how to add a Bluetooth device. Please note that for

some phones you may need to enter a passcode. The

headset passcode is 0000.

After you have added the headset to the phone, it will

automatically connect to the phone as soon as it is turned

on and within range.

Before you can use your Bluetooth headset with your

phone it has to be added once to the phone. Follow the

instructions from the phone user guide on how to turn on

Bluetooth in your phone.

1. Turn on Bluetooth in your phone.

2. Turn on Bluetooth visibility in your phone. This makes

your phone visible to other Bluetooth devices.

The headset beeps and flashes green when successfully added

Gonzo_HBH-GV435_HBH_products_folded.fm Page 11 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

12

3. Prepare your headset according to page 14.

4. If your phone supports auto pairing, press YES

when Add device? appears in your phone to complete

the procedure. If not, continue with step 5.

5. Prepare your phone according to the phone’s user guide

on how to add a Bluetooth device. Please note that for

some phones you may need to enter a passcode. The

headset passcode is 0000.

After you have added the headset to the phone, it will

automatically connect to the phone as soon as it is turned

on and within range.

Before you can use your Bluetooth headset with your

phone it has to be added once to the phone. Follow the

The headset beeps and flashes green when successfully added

Gonzo_HBH-GV435_HBH_products_folded.fm Page 12 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

13

instructions from the phone user guide on how to

turn on Bluetooth in your phone.

1. Turn on Bluetooth in your phone.

2. Turn on Bluetooth visibility in your phone. This makes

your phone visible to other Bluetooth devices.

3. Prepare your headset according to page 14.

4. If your phone supports auto pairing, press YES when

Add device? appears in your phone to complete the

procedure. If not, continue with step 5.

5. Prepare your phone according to the phone’s user guide

on how to add a Bluetooth device. Please note that for

some phones you may need to enter a passcode. The

headset passcode is 0000.

After you have added the headset to the phone, it will

automatically connect to the phone as soon as it is turned

on and within range.

The headset beeps and flashes green when successfully added

Gonzo_HBH-GV435_HBH_products_folded.fm Page 13 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

14

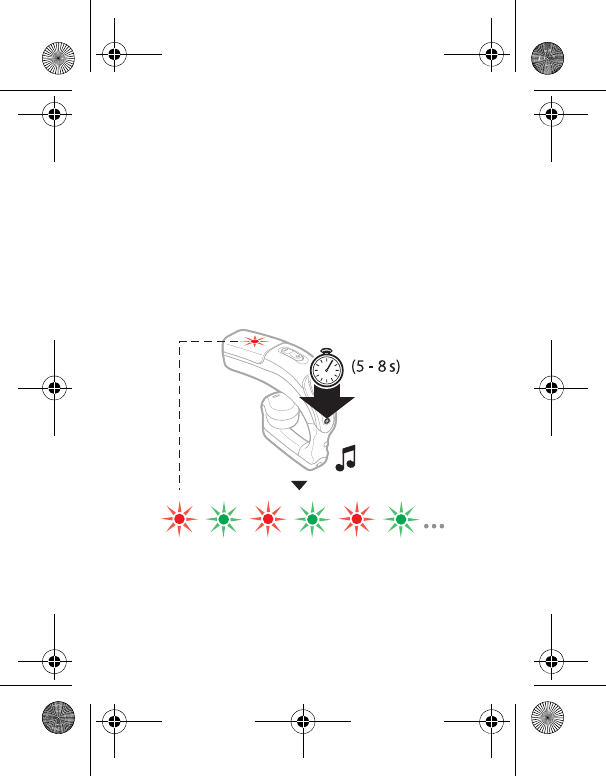

Prepare the headset

Make sure the headset is turned off (see p.17).

Make sure the indicator light flashes red/green

Gonzo_HBH-GV435_HBH_products_folded.fm Page 14 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

15

Range

Putting the headset on

Optimal performance

Limited performance

Gonzo_HBH-GV435_HBH_products_folded.fm Page 15 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

16

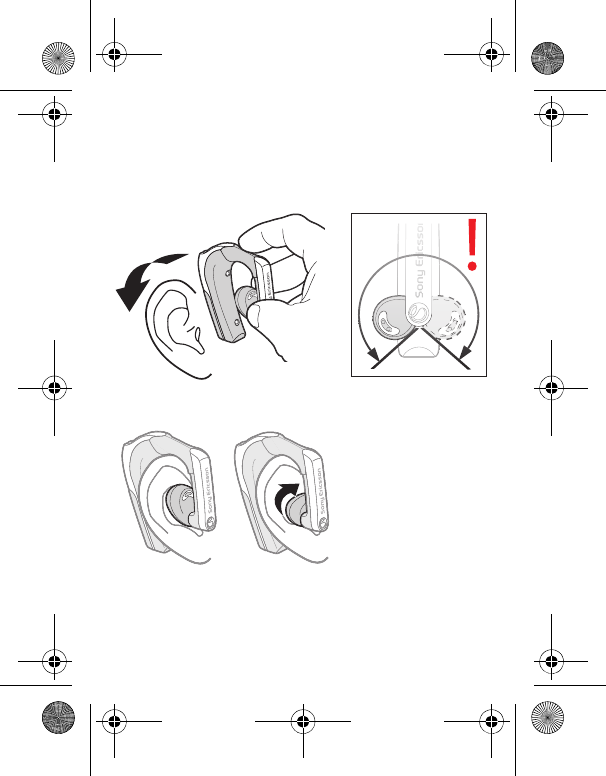

Putting the headset on

Make sure you twist the speaker round into your ear.

Left and right ear use

Gonzo_HBH-GV435_HBH_products_folded.fm Page 16 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

17

Calling

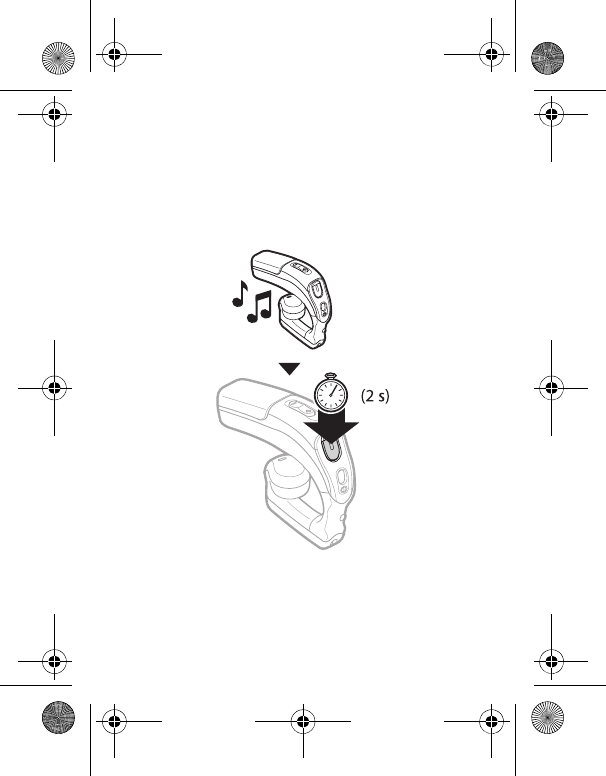

Turning the headset on (and off)

(5 s)

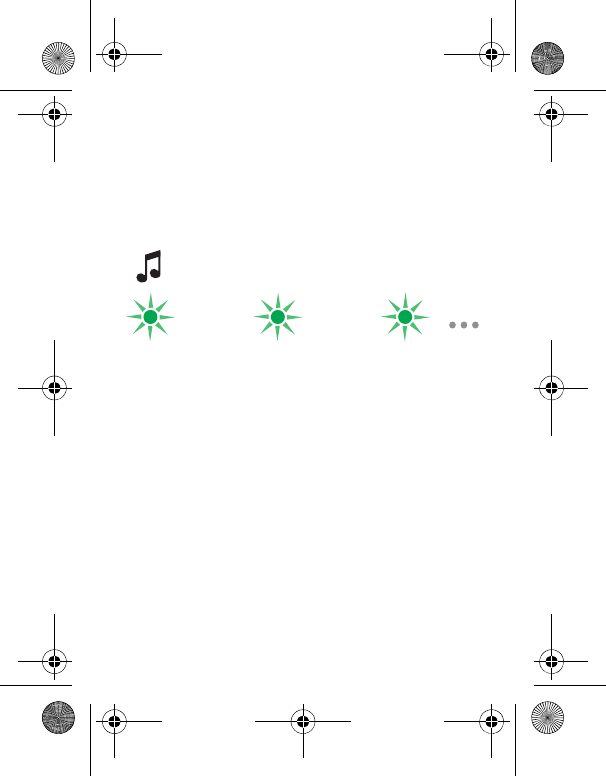

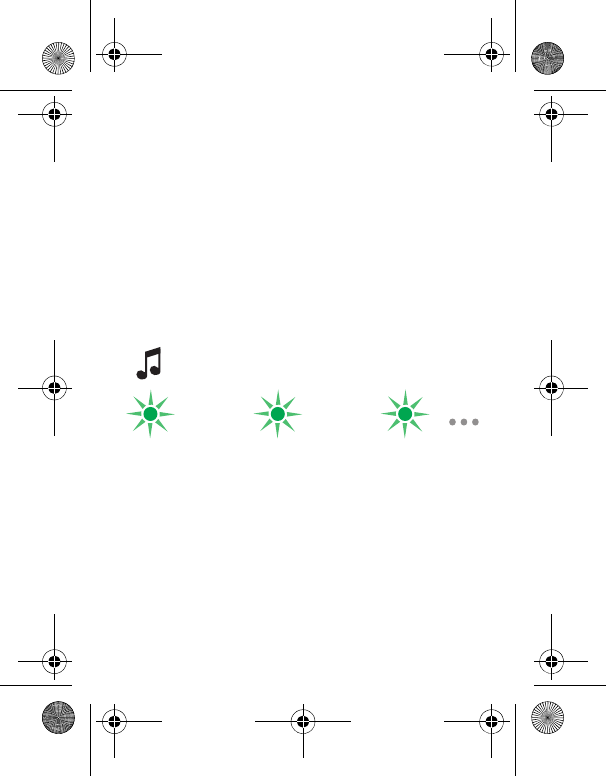

Indicator light when headset is on

Gonzo_HBH-GV435_HBH_products_folded.fm Page 17 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

Sony Ericsson Mobile Communications AB

SE-221 88 Lund, Sweden

www.SonyEricsson.com

LZT 108 7851/x P3A

Printed in XXXX

Gonzo_HBH-GV435_HBH_products_folded.fm Page 18 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

19

Answering a call

Gonzo_HBH-GV435_HBH_products_folded.fm Page 19 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

20

Making a call

Gonzo_HBH-GV435_HBH_products_folded.fm Page 20 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

21

Using voice commands

Voice commands, such as dial, redial, answer and reject,

can be very useful when you are using the headset. For

more information on voice commands, and if your phone

supports it, refer to the phone user guide.

Voice commands, such as dial, redial, answer and reject,

can be very useful when you are using the headset. For

more information on voice commands, and if your phone

supports it, refer to the phone user guide.

Voice commands, such as dial, redial, answer and reject,

can be very useful when you are using the headset. For

more information on voice commands, and if your phone

supports it, refer to the phone user guide.

Voice commands, such as dial, redial, answer and reject,

can be very useful when you are using the headset. For

more information on voice commands, and if your phone

supports it, refer to the phone user guide.

Gonzo_HBH-GV435_HBH_products_folded.fm Page 21 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

22

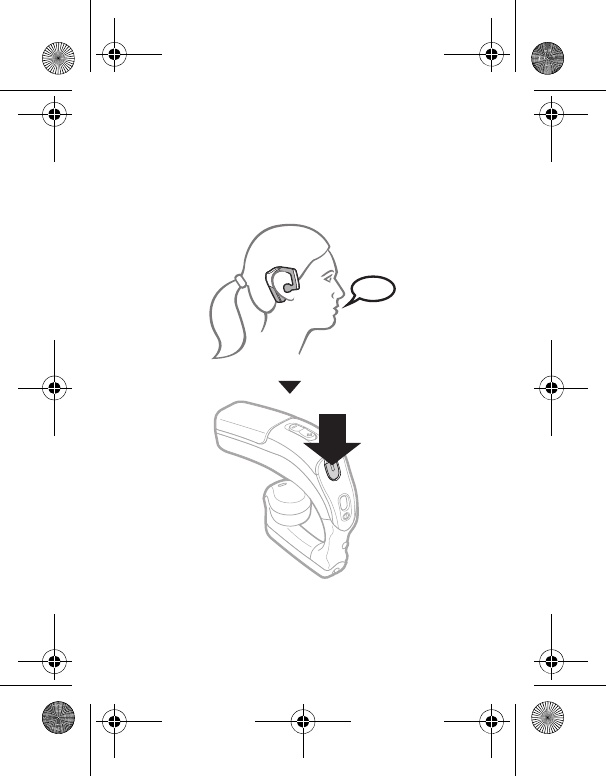

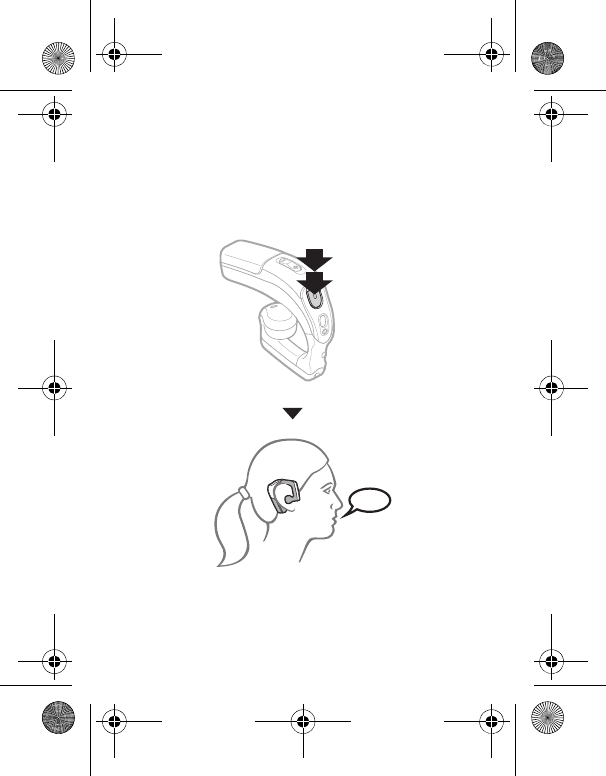

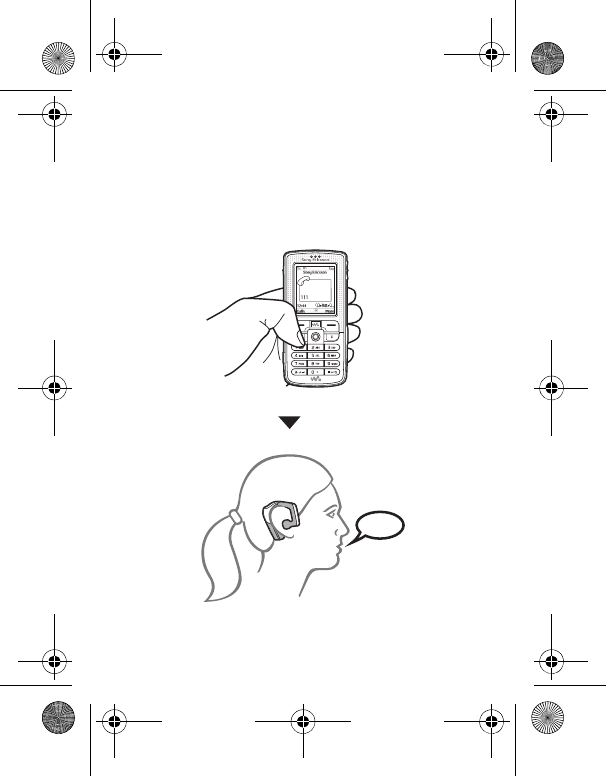

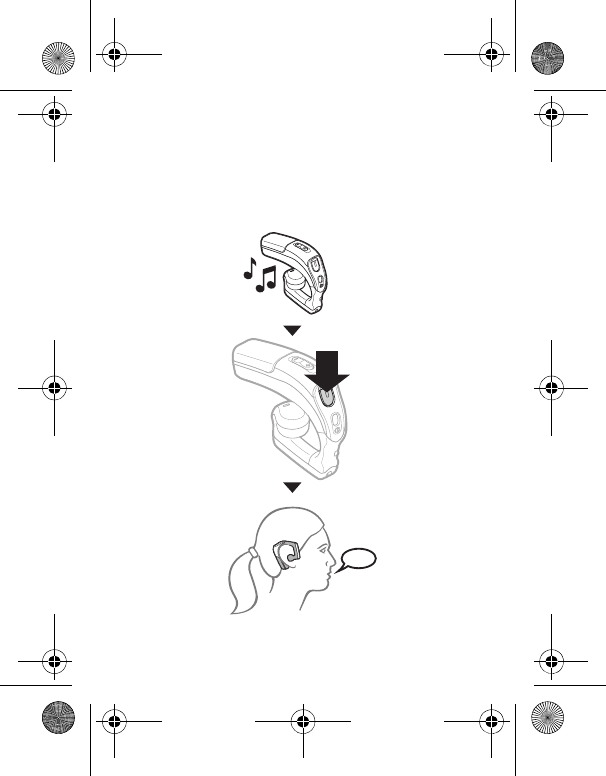

Making a call using voice commands

Gonzo_HBH-GV435_HBH_products_folded.fm Page 22 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

23

Redialling

Gonzo_HBH-GV435_HBH_products_folded.fm Page 23 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

24

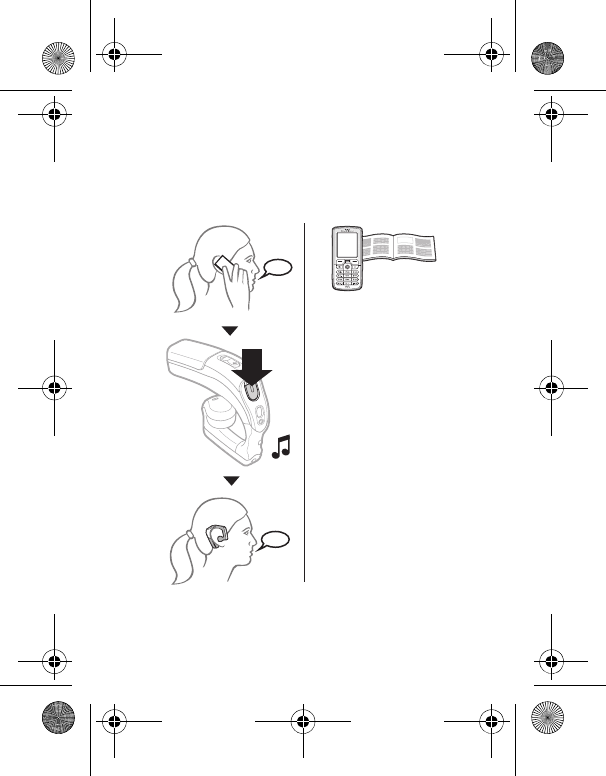

Transferring sound

To transfer from headset

to phone, refer to the

phone user guide.

To transfer from headset

to phone, refer to the

phone user guide.

To transfer from headset

to phone, refer to the

phone user guide.

To transfer from headset

to phone, refer to the

phone user guide.

Gonzo_HBH-GV435_HBH_products_folded.fm Page 24 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

25

Ending a call

Gonzo_HBH-GV435_HBH_products_folded.fm Page 25 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

26

Rejecting a call

Gonzo_HBH-GV435_HBH_products_folded.fm Page 26 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

27

Battery status

Gonzo_HBH-GV435_HBH_products_folded.fm Page 27 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

28

Turning the microphone off (and on)

Muting feature of the microphone

Gonzo_HBH-GV435_HBH_products_folded.fm Page 28 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

29

Settings

Adjusting speaker volume

Gonzo_HBH-GV435_HBH_products_folded.fm Page 29 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

30

Master reset

Prepare your headset according to page 14.

)s

8

(

Gonzo_HBH-GV435_HBH_products_folded.fm Page 30 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

31

Attaching strap

Gonzo_HBH-GV435_HBH_products_folded.fm Page 31 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

32

Troubleshooting

No connection between headset and phone

Make sure the headset is charged and within range of the

phone. Check or redo the Bluetooth settings in the

phone. Try to pair the headset again (see p.9).

For more information on Bluetooth and pairing, go to

www.sonyericsson.com/learnabout

The headset is automatically switched off

•The battery is too low. The indicator light on the headset

flashes red and you hear a low beep.

•The headset switches off if you do not add it to the phone

within 10 minutes.

Unexpected behaviour

Reset the headset (see p.30).

Battery capacity

A battery that has been infrequently used, or a new one,

could have reduced capacity. It may need to be recharged

a number of times.

Redial does not work

If the call list in the phone is empty you cannot use the

redial function.

Gonzo_HBH-GV435_HBH_products_folded.fm Page 32 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

33

Voice commands

Make sure that voice commands are enabled and

recorded in your phone before you start using

them.

No connection between headset and phone

Make sure the headset is charged and within range of the

phone. Check or redo the Bluetooth settings in the

phone.Try to pair the headset again (see p.9).

For more information on Bluetooth and pairing, go to

www.sonyericsson.com/learnabout

The headset is automatically switched off

•The battery is too low. The indicator light on the headset

flashes red and you hear a low beep.

•The headset switches off if you do not add it to the phone

within 10 minutes.

Unexpected behaviour

Reset the headset (see p.30).

Battery capacity

A battery that has been infrequently used, or a new one,

could have reduced capacity. It may need to be recharged

a number of times.

Redial does not work

If the call list in the phone is empty you cannot use the

redial function.

Voice commands

Make sure that voice commands are enabled and

recorded in your phone before you start using them.

Gonzo_HBH-GV435_HBH_products_folded.fm Page 33 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

34

No connection between headset and phone

Make sure the headset is charged and within

range of the phone. Check or redo the Bluetooth

settings in the phone. Try to pair the headset again (see

p.9).

For more information on Bluetooth and pairing, go to

www.sonyericsson.com/learnabout

The headset is automatically switched off

•The battery is too low. The indicator light on the headset

flashes red and you hear a low beep.

•The headset switches off if you do not add it to the phone

within 10 minutes.

Unexpected behaviour

Reset the headset (see p.30).

Battery capacity

A battery that has been infrequently used, or a new one,

could have reduced capacity. It may need to be recharged

a number of times.

Redial does not work

If the call list in the phone is empty you cannot use the

redial function.

Voice commands

Make sure that voice commands are enabled and

recorded in your phone before you start using them.

Gonzo_HBH-GV435_HBH_products_folded.fm Page 34 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

35

No connection between headset and phone

Make sure the headset is charged and within

range of the phone. Check or redo the Bluetooth

settings in the phone. Try to pair the headset again (see

p.9).

For more information on Bluetooth and pairing, go to

www.sonyericsson.com/learnabout

The headset is automatically switched off

•The battery is too low. The indicator light on the headset

flashes red and you hear a low beep.

•The headset switches off if you do not add it to the phone

within 10 minutes.

Unexpected behaviour

Reset the headset (see p.30).

Battery capacity

A battery that has been infrequently used, or a new one,

could have reduced capacity. It may need to be recharged

a number of times.

Redial does not work

If the call list in the phone is empty you cannot use the

redial function.

Voice commands

Make sure that voice commands are enabled and

recorded in your phone before you start using them.

www.sonyericsson.com/support/

Gonzo_HBH-GV435_HBH_products_folded.fm Page 35 Wednesday, January 18, 2006 10:11 AM

Draft for Sony Ericsson Internal Use Only

36

Declaration of conformity

We, Sony Ericsson Mobile Communications AB

of

Nya Vattentornet

221 88 Lund, Sweden

declare under our sole responsibility that our product

Sony Ericsson type DDA-0002004

to which this declaration relates is in conformity with the

appropriate standards EN 300 328, EN 301 489-17, EN

301 489-7 and EN 60950 following the provisions of

Radio Equipment and Telecommunication Equipment

directive 1999/5/EC with requirements covering

EMC directive 89/336/EEC and Low Voltage directive

73/23/EEC.

Lund, December 2005

Ulf Persson, Head of Product Business Unit Accessories

We fulfill the R&TTE Directive.

Gonzo_HBH-GV435_HBH_products_folded.fm Page 36 Wednesday, January 18, 2006 10:11 AM

Sony DDA-2004 Bluetooth Headset User Manual Gonzo HBH GV435 HBH products folded

Sony Mobile Communications Inc Bluetooth Headset Gonzo HBH GV435 HBH products folded

Exhibit 8 user manual

Navigation menu

Namespaces

Views

Navigation
