Sony DDA-2015 Bluetooth speaker User Manual Pebble UG A7 folded
Sony Mobile Communications Inc Bluetooth speaker Pebble UG A7 folded
Sony >
08 user manual
Sony Ericsson Mobile Communications AB
SE-221 88 Lund, Sweden
Language 2
uuuuJuuuuKmN`
mêáåíÉÇ=áå=`çìåíêó
User guide
English
Language
Language
Language
Language 1
Bluetooth™ portable speaker MBS-100
With the Bluetooth™ portable speaker MBS-100 you
can enjoy wireless stereo audio from a phone or other
Bluetooth device, such as a computer or a portable
music player. When you receive or make a call, the
music automatically pauses and starts playing again
when the call ends. Your phone or other device should
support the following Bluetooth profiles:
•Bluetooth Advanced Audio Distribution.
•Bluetooth Audio/Video Remote Control.

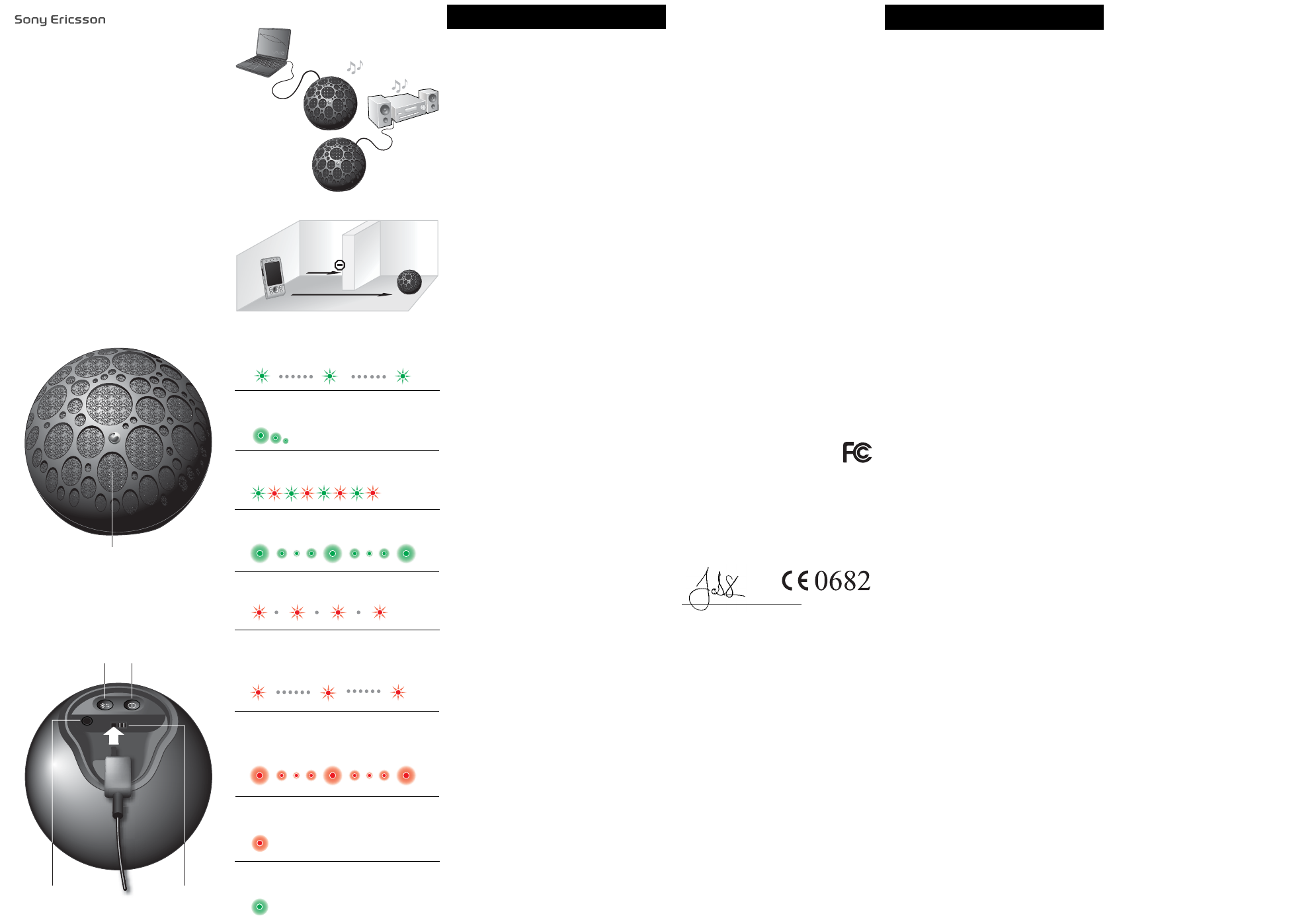

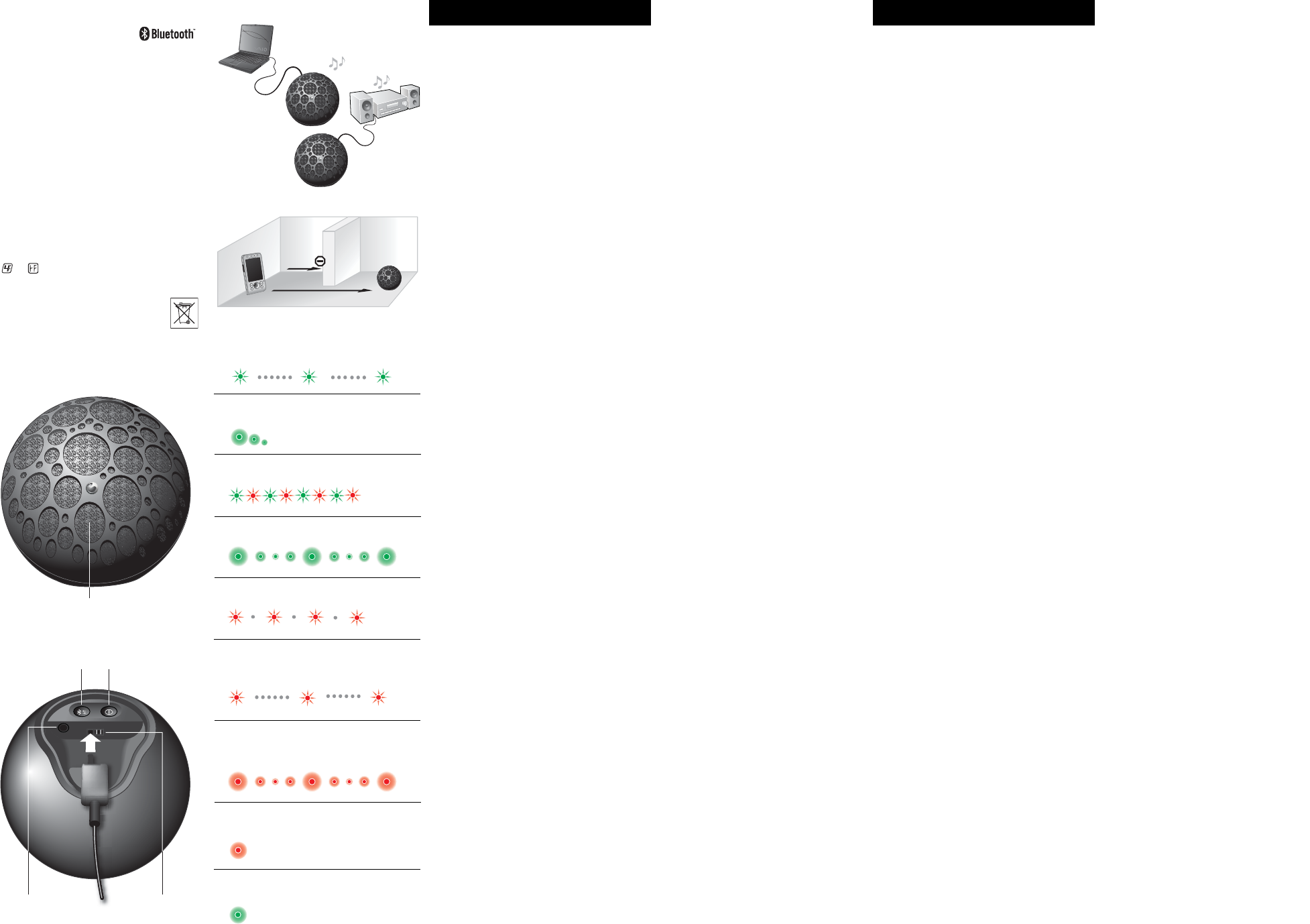

Product overview
Before using the speaker, see picture 1 for a product
overview.
Charging
Before using your speaker for the first time, charge it
with the supplied charger for 4 hours.
Turning the speaker on and off
To turn on the speaker
1. When the speaker is off, press the power key.
2. The speaker indicates power on. See picture 4.
To turn off the speaker
1. When the speaker is on, press the power key. See
picture 1.
2. The speaker indicates power off. See picture 4.
Pairing the speaker
Before you can use your speaker with your phone it
has to be paired with the phone. Follow the
instructions in your phone User guide on how to turn
on Bluetooth in the phone.
See your phone User guide on how to pair a
Bluetooth device. If required, the speakers passcode
is 0000.
Note: When you power on the speaker for the first time,
it will automatically enter pairing mode.
To pair the speaker with the phone
1. Turn on Bluetooth in the phone.
2. Place the phone within 20 cm from the speaker.
3. Make sure the speaker is turned on. Press and hold
down the Bluetooth key. See picture 1.
4. The speaker enters idle mode and flashes green
when successfully paired. See picture 4.
Note: The speaker enters idle mode if you do not pair it
with the phone within 10 minutes.
Range
When you have paired the speaker with your phone,
you can listen to music as long as the speaker is
turned on and within 10 metres (33 feet) of the phone,
with no solid objects in between.
Objects, walls and greater distance than five metres
(16.5 feet) can affect the sound. See picture 3.
Listening to music
To listen to music
1. Start the media player in your phone to listen to
music. If needed, follow the instructions from the
phone User guide to select the music receiver.
2. The speaker indicates music mode. See picture 4.
Note: The music can only be controlled from the music
source.
Adjusting volume
To adjust speaker volume
•The volume can only be adjusted from the music
source. Follow the instructions from the source User
guide.
Connecting to music equipment
To connect the speaker to other music
equipment
•Connect other portable media players to line-in. See
picture 2.
•Connect the speaker to other music equipment with
line-out. See picture 2.
Note: The speaker exits pairing mode when the line-in
cable is connected.
Battery
When the battery is too low, the indicator light
flashes red. If you do not charge the speaker, it
automatically turns off.
Troubleshooting
Unexpected behaviour
•Reset the speaker if it behaves unexpectedly.
To reset the speaker
1. Power on the speaker
2. Press and hold the Bluetooth key to enter the pairing
mode. The speaker starts to flash green and red.
3. Simultaneously press and hold both power key and
Bluetooth key.
4. The speaker automatically turns off when the master
reset is done.
The speaker is automatically turned off
1. The battery is too low. The indicator light on the
speaker flashes red.
2. A battery that has been infrequently used or a new
one, could have reduced capacity. It may need to be
recharged a number of times.
No connection to the speaker
1. Make sure the speaker is charged and within range
of the phone.
2. Check or redo the Bluetooth settings in the phone.
See Pairing the speaker.
Reconnecting the speaker with the phone
To reconnect the speaker to the phone
1. Start the media player in your phone to listen to
music. If needed, follow the instructions from the
phone User guide to select the music receiver.
2. Press the Bluetooth key. The speaker reconnects to
the last paired phone.
3. The speaker indicates music mode. See picture 4.
Pairing the speaker again or with another
phone
To pair again or with another phone
1. Make sure the speaker is turned on.
1. Repeat the instruction for how to pair the speaker
with a phone. See To pair the speaker with the
phone.
2. 5 different streaming devices can be paired to
speaker simultaneously. If a sixth device is paired to
the speaker, it replaces the first device that has been
paired to the speaker.
No sound in the connected music equipment
•Disconnect/connect the line-out connector
FCC statement
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) This device must accept any interference
received, including interference that may cause
undesired operation.
Declaration of conformity MBS-100
We, Sony Ericsson Mobile Communications AB of
Nya Vattentornet
221 88 Lund, Sweden
declare under our sole responsibility that our product
Sony Ericsson type DDA-0002015
to which this declaration relates is in conformity with the appropriate
standards EN 300 328:V1.7.1, EN 301 489-17:V1.2.1, EN 301 489-
7:V1.3.1 and EN 60950-1:2006 following the provisions of Radio
Equipment and Telecommunication Equipment directive 1999/5/EC.
Lund, September 2007
Jacob Sten, Head of Product Business Unit Accessories
We fulfill the R&TTE Directive.
We fulfill the R&TTE Directive.
1
Bluetooth key
Bluetooth key
On/off key
On/off key
Power connector
Power connector
Line-in/line-out
Line-in/line-out
Indicator light
Indicator light
2
3
4
10m
The speaker is in pairing mode.
The speaker is in pairing mode.
The speaker is powered on and in idle mode.
The speaker is powered on and in idle mode.
The speaker is in music mode.
The speaker is in music mode.
The battery is low
The battery is low
The battery is charging in power off mode.
The battery is charging in power off mode.
The battery charging is ready in power off mode.
The battery charging is ready in power off mode.
The speaker is powered on and in idle mode
with low battery or charging.
The speaker is powered on and in idle mode
with low battery or charging.
The battery charging is ready in power off mode.
The battery charging is ready in power off mode.
The speaker is in music mode. The battery is low or
charging.
The speaker is in music mode. The battery is low or
charging.
MBS-100
Sony Ericsson Mobile Communications AB
SE-221 88 Lund, Sweden
Language 4
uuuuJuuuuKmN`
mêáåíÉÇ=áå=`çìåíêó
Language 3Bluetooth™ portable speaker MBS-100
User guide
User guide
User guide
User guide
Sony Ericsson MBS-100
This User guide is published by Sony Ericsson Mobile
Communications AB, without any warranty. Improvements and
changes to this User guide necessitated by typographical errors,
inaccuracies of current information, or improvements to programs
and/or equipment, may be made by Sony Ericsson Mobile
Communications AB at any time and without notice. Such changes
will, however, be incorporated into new editions of this User guide. All
rights reserved.
©Sony Ericsson Mobile Communications AB, 2007
Publication number: XXXX-XXXX.P1C
Some of the services in this User guide are not supported by all
networks. This also applies to the GSM International Emergency
Number 112. Contact your network operator or service provider if you
are in doubt whether you can use a particular service or not.
The Bluetooth word mark and logos are owned by the Bluetooth SIG,
Inc. and any use of such marks by Sony Ericsson is under license.
Sony is a trademark or registered trademark of Sony Coporation.
Ericsson is a trademark or registered trademark of
Telefonaktiebolaget LM Ericsson.
Disposal of old electrical and electronic equipment
This symbol indicates that all electrical and electronic
equipment included shall not be treated as household
waste. Instead it shall be left at the appropriate collection
point for recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the
environment and human health, which could otherwise
be caused by inappropriate waste handling of this product. The
recycling of materials will help to conserve natural resources. For
more detailed information about recycling this product, please contact
your local city office, your household waste disposal service or the
shop where you purchased the product.
1
This product is leadfree and halogenfree.
Indicator light
Bluetooth key
Bluetooth key
On/off key
On/off key
Power connector
Power connector
Line-in/line-out
Line-in/line-out
2
3
4
10m
The speaker is in pairing mode.
The speaker is in pairing mode.
The speaker is powered on and in idle mode.
The speaker is powered on and in idle mode.
The speaker is in music mode.
The speaker is in music mode.
The battery is low
The battery is low
The battery is charging in power off mode.
The battery is charging in power off mode.
The battery charging is ready in power off mode.
The battery charging is ready in power off mode.
The speaker is powered on and in idle mode
with low battery.
The speaker is powered on and in idle mode
with low battery.
The battery charging is ready in power off mode.
The battery charging is ready in power off mode.
The speaker is in music mode. The battery is low or
charging.
The speaker is in music mode. The battery is low or
charging.
