Operating Instructions

Manual de instrucciones

DVP-FX950

Portable

CD/DVD Player

WARNING

To reduce the risk of fire or

electric shock, do not

expose this apparatus to

rain or moisture.

To avoid electrical shock,

do not open the cabinet.

Refer servicing to qualified

personnel only.

The AC power cord must be

changed only at a qualified

service shop.

Batteries or batteries

installed apparatus shall

not be exposed to

excessive heat such as

sunshine, fire or the like.

CAUTION

The use of optical instruments

with this product will increase

eye hazard. As the laser beam

used in this CD/DVD player is

harmful to eyes, do not attempt to

disassemble the cabinet.

Refer servicing to qualified

personnel only.

This label is located on the

bottom of the unit.

This symbol is

intended to alert the

user to the presence

of uninsulated

“dangerous

voltage” within the product’s

enclosure that may be of

sufficient magnitude to constitute

a risk of electric shock to

persons.

This symbol is

intended to alert the

user to the presence

of important

operating and

maintenance (servicing)

instructions in the literature

accompanying the appliance.

Precautions

• Install this system so that the

AC power cord can be

unplugged from the wall socket

immediately in the event of

trouble.

• The player is not disconnected

from the AC power source as

long as it is connected to the

wall outlet, even if the player

itself has been turned off.

• To prevent fire or shock

hazard, do not place objects

filled with liquids, such as

vases, on the apparatus.

For customers in the U.S.A

Owner’s Record

The model and serial numbers are

located at the bottom of the unit.

Record the serial number in the

space provided below. Refer to

them whenever you call upon your

Sony dealer regarding this product.

Model No. DVP-FX950

Serial No.______________

CAUTION

You are cautioned that any

changes or modifications not

expressly approved in this

manual could void your authority

to operate this equipment.

This equipment has been tested

and found to comply with the

limits for a Class B digital

device, pursuant to Part 15 of the

FCC Rules. These limits are

designed to provide reasonable

protection against harmful

interference in a residential

installation. This equipment

generates, uses, and can radiate

radio frequency energy and, if

not installed and used in

accordance with the instructions,

may cause harmful interference

to radio communications.

However, there is no guarantee

that interference will not occur in

a particular installation. If this

equipment does cause harmful

interference to radio or television

reception, which can be

determined by turning the

equipment off and on, the user is

encouraged to try to correct the

interference by one or more of

the following measures:

– Reorient or relocate the

receiving antenna.

– Increase the separation

between the equipment and

receiver.

– Connect the equipment into an

outlet on a circuit different

from that to which the receiver

is connected.

– Consult the dealer or an

experienced radio/TV

technician for help.

IMPORTANT SAFETY

INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus

near water.

6) Clean only with dry cloth.

7) Do not block any

ventilation openings.

Install in accordance with

the manufacturer’s

instructions.

8) Do not install near any heat

sources such as radiators,

heat registers, stoves, or

other apparatus (including

amplifiers) that produce

heat.

9) Do not defeat the safety

purpose of the polarized or

grounding-type plug. A

polarized plug has two

blades with one wider than

the other. A grounding type

plug has two blades and a

third grounding prong. The

wide blade or the third

prong are provided for

your safety. If the provided

plug does not fit into your

outlet, consult an

electrician for replacement

of the obsolete outlet.

10) Protect the power cord

from being walked on or

pinched particularly at

plugs, convenience

receptacles, and the point

where they exit from the

apparatus.

11) Only use attachments/

accessories specified by

the manufacturer.

12) Use only with the cart,

stand, tripod, bracket, or

table specified by the

manufacturer, or sold with

the apparatus. When a cart

is used, use caution when

moving the cart/apparatus

combination to avoid

injury from tip-over.

13) Unplug this apparatus

during lightning storms or

when unused for long

periods of time.

14) Refer all servicing to

qualified service

personnel. Servicing is

required when the

apparatus has been

damaged in any way, such

as power-supply cord or

plug is damaged, liquid has

been spilled or objects

have fallen into the

apparatus, the apparatus

has been exposed to rain or

moisture, does not operate

normally, or has been

dropped.

RECYCLING LITHIUM-

ION BATTERIES

Lithium-Ion

batteries are

recyclable.

You can help

preserve our

environment by

returning your used rechargeable

batteries to the collection and

recycling location nearest you.

For more information regarding

recycling of rechargeable

batteries, call toll free

1-800-822-8837, or visit

http://www.rbrc.org/

Caution: Do not handle damaged

or leaking Lithium-Ion batteries.

If you have any questions or

problems concerning your

player, please consult your

nearest Sony dealer.

Copyrights and

trademarks

• This product incorporates

technology that is protected by

U.S. patents and other

intellectual property rights.

Use of this copyright

protection technology must be

authorized by Macrovision,

and is intended for home and

other limited viewing uses only

unless otherwise authorized by

Macrovision. Reverse

engineering or disassembly is

prohibited.

• Manufactured under license

from Dolby Laboratories.

Dolby and the double-D

symbol are trademarks of

Dolby Laboratories.

• “DVD+RW,” “DVD-RW,”

“DVD+R,” “DVD+R DL,”

“DVD-R,” “DVD VIDEO,”

and “CD” logos are

trademarks.

• MPEG Layer-3 audio coding

technology and patents

licensed from Fraunhofer IIS

and Thomson.

About this manual

• In this manual, “disc” is used as

a general reference for the

DVDs or CDs unless otherwise

specified by the text or

illustrations.

• Icons, such as , listed at

the top of each explanation

indicate what kind of media

can be used with the function

being explained.

For details, see “Playable

Media” (page 27).

• NEED-to-know information

(to prevent incorrect operation)

is listed under the b icon.

NICE-to-know information

(tips and other useful

information) is listed under the

z icon.

IMPORTANT NOTICE

Caution: This player is capable

of holding a still video image

or on-screen display image on

your television screen

indefinitely. If you leave the

still video image or on-screen

display image displayed on

your TV for an extended period

of time you risk permanent

damage to your television

screen. Plasma display panel

televisions and projection

televisions are susceptible to

this.

Table of Contents

WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Guide to Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Rotating and Folding Down the LCD Panel . . . . . . . . . . . . . . . . . . . . . 8

Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Checking the Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Charging the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Using the Car Battery Adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Connecting to Other Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Playing Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Playing MP3 and JPEG Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Adjusting the Picture Size and Quality . . . . . . . . . . . . . . . . . . . . . . . . 18

Settings and Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Using the Setup Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Playable Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Guide to Parts and

Controls

For more information, see the pages

indicated in parentheses.

Player

Buttons B C D and E (but not C/X/x/

c/ENTER) can be operated with a single

touch.

The VOL+ and N (play) buttons have a

tactile dot. Use the tactile dot as a reference

when operating the player.

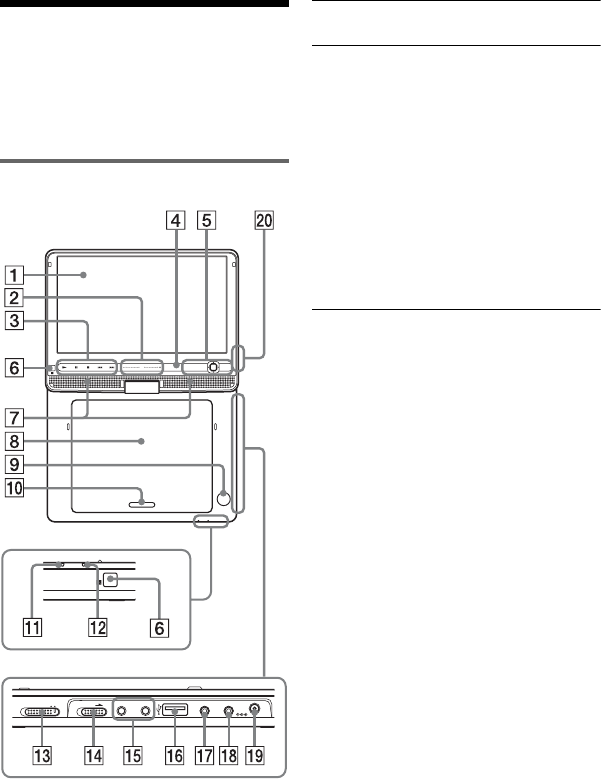

ALCD panel (page 8)

BVOL (sound volume) +/–

Adjusts the volume.

Operate with a single touch of + or –

on the player. You can also adjust the

volume by sliding your finger along

the touch slider. Sliding toward + from

center increases volume; sliding

toward – from center decreases

volume. (The same operation in “LCD

Mode” can be used to adjust the

picture quality level. See page 18.)

CN (play) (page 13)

Starts or re-starts playback.

X (pause) (page 13)

Pauses or re-starts playback.

x (stop) (page 13)

Stops playback.

. (previous)

Skips to the beginning of the current

chapter/track/scene.

To go to the beginning of the previous

chapter/track/scene, press twice.

> (next)

Skips to the next chapter/track/scene.

CHARGEPOWER

HOLD PHONES AUDIO VIDEO DC IN

9.5V

POWER OFF ON

IN/

OUT

IN/

OUT

PUSH CLOSE

OPEN

OPTIONSDISPLAY RETURNMENU

VOL

,continued

DDISPLAY

Displays the playback information.

• When playing a DVD: Displays the

playback information and changes

the playback mode. See page 15.

• When playing a CD: Each time you

press the button, the time

information switches.

EMENU

• When playing a DVD: Displays the

menu.

• When playing a CD: Each time you

press the button, switches Repeat

Play, Random Play, and Play.

• When playing a JPEG file: Displays

the list of thumbnails and plays a

slideshow. See page 16.

RETURN

Returns to the previous display.

C/X/x/c

Moves the highlight to select a

displayed item.

• When playing a DVD or CD: C/c on

the player works as the same as m/

M on the remote.

Center button (ENTER)

Enters the selected item.

• When playing a DVD or CD:

ENTER on the player works as the

same as N.

OPTIONS

Displays the menu for adjusting the

LCD screen (page 18) and using the

setup display (page 19).

F (remote sensor)

When operating by the remote, point it

at the remote sensor .

GSpeaker

HDisc Lid (page 13)

IOPEN button (page 13)

Opens the disc lid.

JPUSH CLOSE (page 13)

Closes the disc lid.

KPOWER indicator (page 13)

LCHARGE indicator (page 10)

MPOWER switch (page 13)

Turns the player on or off.

NHOLD switch

To avoid accidental button operation

of the player, set the HOLD switch to

the direction of the arrow.

All the buttons on the player are

locked, while the buttons on the

remote remain operable.

OPHONES (headphone) jack A, B

PUSB jack (type A) (page 17)

Connect a USB device to this jack.

QAUDIO IN/OUT jack (page 12)

RVIDEO IN/OUT jack (page 12)

SDC IN 9.5V jack (page 10, 11)

Connect the AC power adaptor or car

battery adaptor.

TINPUT SELECT button (page 12)

Each time you press the button, the

LCD screen image switches as

follows:

• Disc mode (default): When playing

an inserted disc.

• USB mode: When playing DATA

files on a connected USB device.

Appears “USB” on the LCD screen

when you select this mode.

• Line In mode: When inputting a

playback signal from connected A/V

equipment. Appears “Line In” on the

LCD screen when you select this

mode.

Remote

The VOL +, number 5, N and AUDIO

buttons have a tactile dot. Use the tactile

dot as a reference when operating the

player.

UNumber buttons

Enters the title/chapter numbers, etc.

• When playing a DVD VIDEO or

CD: Search directly by entering the

title/chapter/track number using the

number buttons, and press ENTER.

To switch a title or chapter, press C/

CLEAR button

Clears the entry field.

VTOP MENU button

• When playing a DVD VIDEO:

Displays the top menu.

• When playing a DVD VR: Switches

between “Original” and “Play List”

on the disc created Playlist. During

playback, you cannot switch. Press

x twice, and press TOP MENU.

WREPLAY/ ADVANCE

buttons

Replays the scene/briefly fast forward

the current scene (DVD only).

Xm/M (scan/slow)

buttons

Fast reverses/ fast forwards when

pressed during playback. Press

repeatedly to change the speed.

• When playing a DVD: Slow

reverses/ slow forwards when

pressed during pause. Press

repeatedly to change the speed.

YANGLE button

Changes the angle. When “ ”

(Angle Mark) appears, you can change

angles. Depending on the disc, you

may not be able to change the angle.

(DVD VIDEO only)

,continued

AUDIO button

Changes the audio signal.

• When playing a DVD VIDEO: Each

time you press the button, the

language of the sound track

switches. Depending on the disc, the

choice of language varies.

• When playing a DVD VR: Each time

you press the button, the type of

sound tracks recorded on a disc

switches between main, sub and

main/sub sound.

• When playing a CD: Each time you

press the button, the mode switches

between stereo and monaural (left/

right).

SUBTITLE button

Changes the subtitle. Each time you

press the button, the subtitle switches.

Depending on the disc, the choice of

language varies. (DVD only)

Rotating and Folding

Down the LCD Panel

Open the LCD panel to the vertical

position, then slowly rotate it 180 degrees

in the direction indicated by the arrow

(clockwise).

After rotating the LCD panel 180 degrees

clockwise, push the LCD panel down onto

the main body of the player. In this

position the panel is facing up.

To return the LCD panel to its original

position

Open the LCD panel to the vertical

position and rotate the LCD panel counter-

clockwise slowly.

• Do not rotate the LCD panel over 180 degrees.

In addition, do not rotate in the opposite

direction. Doing so will break the LCD panel.

• Return the LCD panel to its original positions

after use, so the LCD panel will not be

damaged by sudden shocks or rough treatment.

• Do not rotate the LCD panel while keeping it

closed or out of vertical. It may scratch the

player.

Preparations

Checking the

Accessories

Check that you have the following items:

• Battery pack (NP-FX110) (1)

• AC power adaptor (1)

• Car battery adaptor (1)

• Audio/video cord (mini plug × 2 y

phono plug × 3) (1)

• Remote (1)

• Size AA (R6) batteries (2)

Preparing the remote

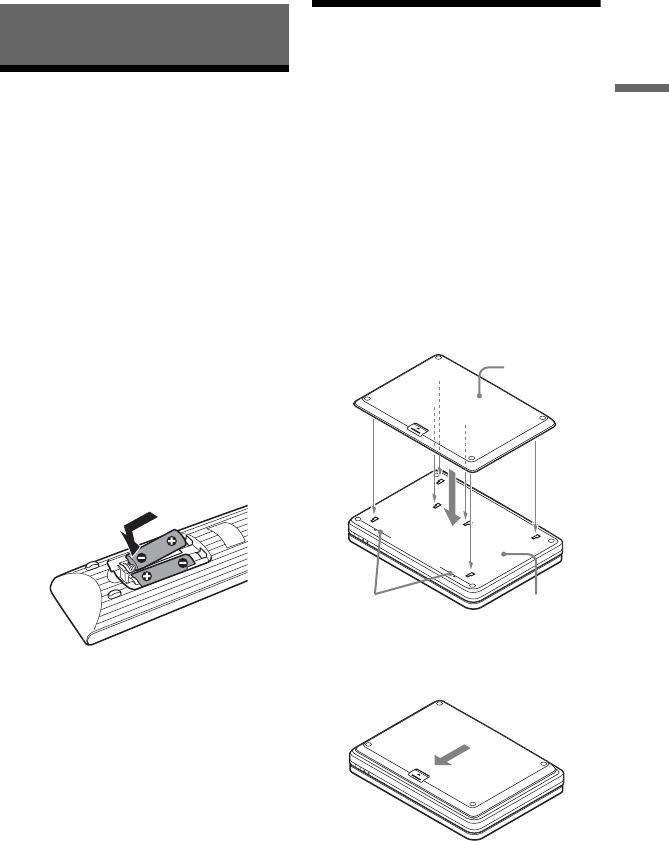

Insert two Size AA (R6) batteries by

matching the 3 and # ends on the

batteries to the markings inside the

compartment.

Charging the Battery

Pack

Charge the battery pack (supplied) before

using the player for the first time, or when

the battery is depleted.

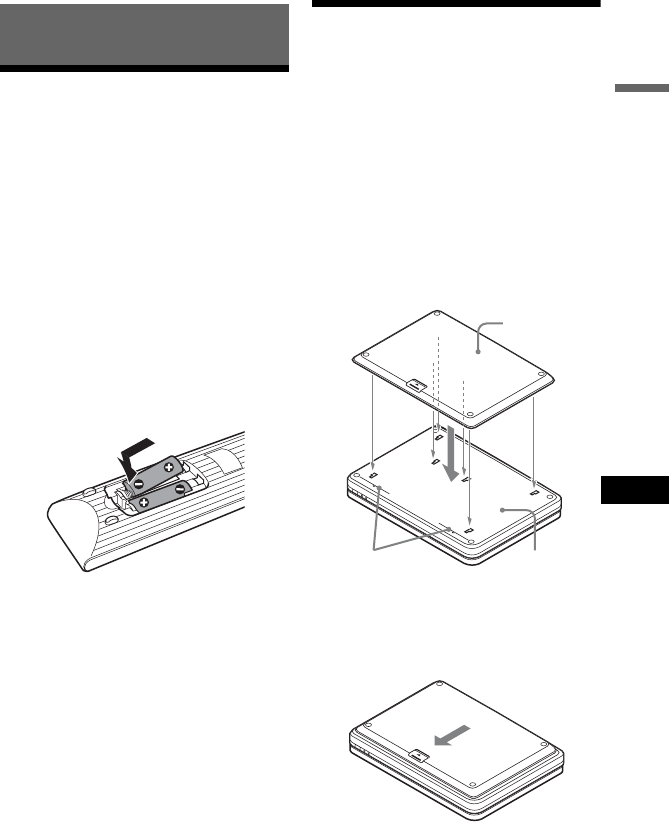

1Attach the battery pack to the

player.

Align the battery pack with the lines

on the bottom of the player.

Engage the hooks of the battery pack

into the holes on the bottom of the

player.

Slide the battery pack in the direction

of the arrow until it clicks into place.

Bottom of the

player

Battery pack

Attachment

reference marks

,continued

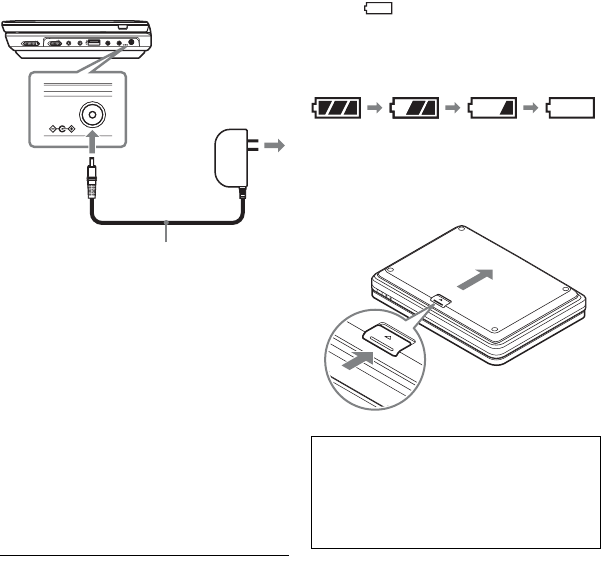

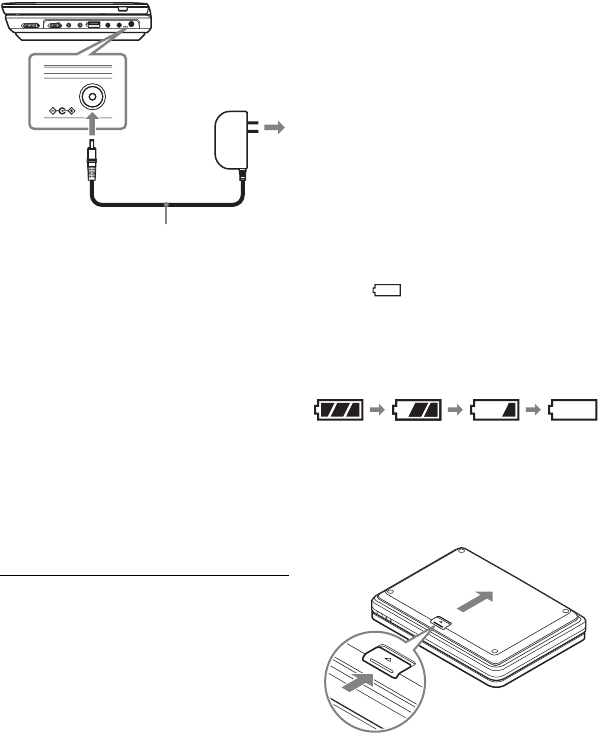

2Connect the AC power adaptor.

When charging begins, the CHARGE

indicator lights up in orange.

When charging ends, the CHARGE

indicator lights off.

Disconnect the AC power adaptor.

If the POWER indicator lights up instead of the

CHARGE indicator, the POWER switch is set to

“ON.” Set the POWER switch to “OFF,” and

make sure that the CHARGE indicator lights up.

Charge the battery in an ambient temperature of

between 5°C (41°F) to 35°C (95°F).

Charging time and playing time

Charging time: approx. 6 hours

Playing time: approx. 7.5 hours

Times indicated are under the following

conditions:

– Moderate temperature (20°C (68°F))

– Headphone use

– Backlight set to minimum

Depending on the ambient temperature or

battery pack condition, charging time may be

longer, or playing time may be reduced.

To check the battery level

When the player is stopped, the battery

indicator is displayed. When the battery is

empty, is displayed or the CHARGE

indicator flashes. Set the POWER switch

to “OFF,” connect the AC power adaptor,

and recharge the battery.

To remove the battery pack

Push the release knob and slide the battery

pack in the direction of the arrow.

INPUT SELECT

HOLD PHONES AUDIO VIDEO DC IN

9.5V

POWER OFF ON

IN/

OUT

IN/

OUT

DC IN

9.5V

AC power Adaptor

(supplied)

To a wall

outlet

CAUTION

Danger of explosion if battery is incorrectly

replaced.

Replace only with the same or equivalent

type.

Full Empty

Release knob

Preparations

Using the Car Battery

Adaptor

The car battery adaptor (supplied) is for a

12V car battery, negative earth (do not use

it with a 24V car battery, positive earth).

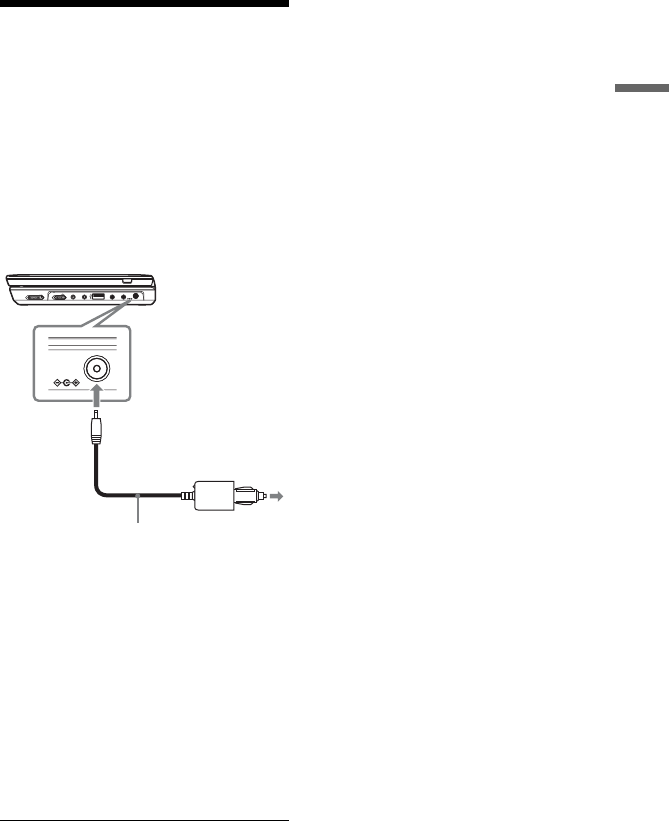

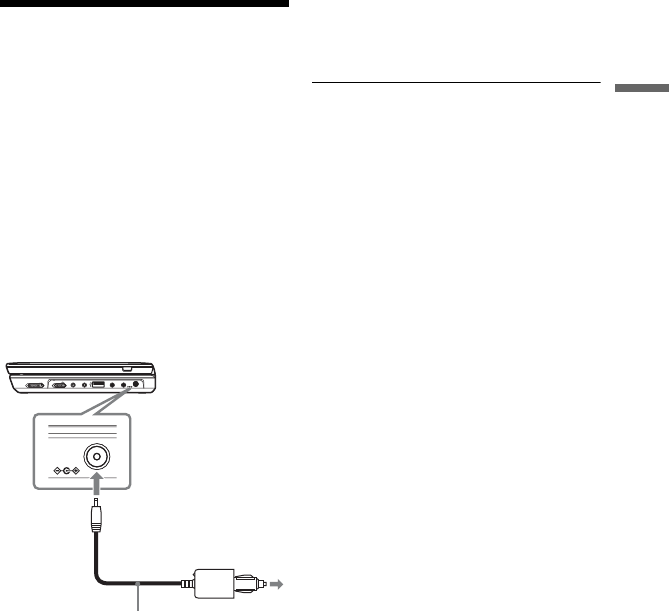

1Start the engine.

2Connect the car battery adaptor.

3Turn on the player.

• The driver should not connect or disconnect

the car battery adaptor while driving.

• Arrange the cord so as not to interfere with the

driver. Also, do not place the LCD panel where

the driver can watch.

• Clean the cigarette lighter socket. If it is dirty,

it may cause contact failure or malfunction.

• Use the car battery adaptor with the car engine

running. If it is used with the car engine off, the

car battery may become depleted.

After using the player in a car

1Turn off the player.

2Disconnect the car battery adaptor.

3Turn off the engine.

• Do not disconnect the car battery adaptor or

turn off the car engine before you turn off the

player. Doing so may damage the player.

• Disconnect the car battery adaptor after use. If

it is left connected, the car battery may become

depleted.

• Do not leave the player or accessories in the

car.

INPUT SELECT

HOLD PHONES AUDIO VIDEO DC IN

9.5V

POWER OFF ON

IN/

OUT

IN/

OUT

DC IN

9.5V

To cigarette

lighter socket

Car battery adaptor (supplied)

Connecting to Other

Equipment

By connecting the player to your TV or

other equipment, you can increase your

viewing options.

• Refer to the instructions supplied with the

equipment to be connected.

• Before connecting, turn off the player and the

equipment to be connected, then unplug from

their wall sockets.

Enjoying images on a

connected TV

1Connect the player to your TV or

monitor using the audio/video cord

(supplied).

• When you play back a disc after enjoying

images by “Line In” or “USB,” press INPUT

SELECT repeatedly to select the disc mode.

See page 7.

• The player can connect to an AV amplifier in

the same way as a TV. Although connecting is

the same as a TV, the yellow plug of the audio/

video cord is not used.

Enjoying images on other

equipment

1Connect the player to your video

player or camcorder using the

audio/video cord (supplied).

2Turn on the player and press INPUT

SELECT repeatedly to select “Line

In.”

INPUT SELECT

HOLD PHONES AUDIO VIDEO DC IN

9.5V

POWER OFF ON

IN/

OUT

IN/

OUT

AUDIO VIDEO

IN/

OUT

IN/

OUT

To AUDIO/

VIDEO input

jacks of a TV or

monitor

Audio/video cord

(supplied)

INPUT SELECT

HOLD PHONES AUDIO VIDEO DC IN

9.5V

POWER OFF ON

IN/

OUT

IN/

OUT

AUDIO VIDEO

IN/

OUT

IN/

OUT

Audio/video cord

(supplied)

To AUDIO/

VIDEO output

jacks of a

video player or

camcorder

INPUT SELECT

Playback

Playing Discs

Depending on the disc, some operations

may be different or restricted. Refer to the

operating instructions supplied with the

disc.

Connect the AC power adaptor or attach

the battery pack.

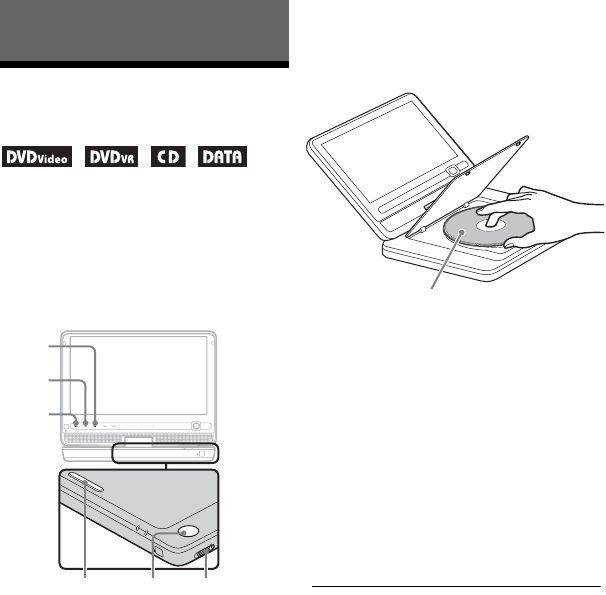

1Open the LCD panel.

2Slide the POWER switch to

“ON.”

The player turns on and the POWER

indicator lights up in green.

3Press OPEN to open the disc lid.

4Insert the disc to be played.

Place with the playback side down and

push gently until it clicks.

5Push the PUSH CLOSE on the

disc lid to shut the disc lid.

6Press N.

The player starts playback.

Depending on the disc, a menu may

appear. Press C/X/x/c to select the

item, and press ENTER.

To stop playback

Press x.

To pause playback

Press X.

When you play back a disc after enjoying images

by “Line In” or “USB,” press INPUT SELECT

repeatedly to select the disc mode. See page 7.

• Discs created on DVD recorders must be

correctly finalized to play on the player. For

more information about finalizing, refer to the

operating instructions supplied with the DVD

recorder.

• The disc may be still spinning when the disc lid

is opened. Wait until the spinning stops before

removing the disc.

CHARGEPOWER

OPTIONSDISPLAY RETURNMENU

VOL

POWEROFFON

OPEN

PUSH CLOSE

CHARGE

POWER

OPENPUSH CLOSE POWER

Playback side facing down

,continued

To resume playback from the point

where you stopped the disc (Resume

Play)

When you press N again after you stop

playback, the player starts playback from

the point when you pressed x.

• To play from the beginning of the disc, press

x twice, and press N.

• When turning power on again after power off,

resume play starts automatically.

• Depending on the stop point, Resume play

may not start from exactly the same point.

• The resume point is cleared when:

– you open the disc lid.

– you press INPUT SELECT.

– you disconnect the adaptor or remove the

battery pack before turning off the player.

Notes on the screen saver

• A screen saver image appears when you

leave the player in pause or stop mode

without operation for more than 15

minutes. The image disappears when you

press N. For the setup of “Screen

Saver,” see page 20.

• The player goes to standby, 15 minutes

after starting the screen saver function.

Press N to come out of standby mode.

About various playback operations

* DVD VIDEO only

To Operation

Change the LCD

picture size

Press OPTIONS to

select “LCD Mode”

(page 18).

Display the DVD

Press MENU (page 6)

or TOP MENU

(page 7).

Check the DVD

playback

information

Press DISPLAY

(page 15).

Play DVDs*

repeatedly

(Repeat Play)

Press DISPLAY to

select “Repeat”

(page 15).

Play DVDs in

fast reverse or

fast forward

(Scan Play)

Press C/c repeatedly on

the player to select the

speed (page 6).

Switch between

original and

Playlist in DVD

(VR mode)

Press TOP MENU

repeatedly (page 7).

Change the CD

playback

information

Press DISPLAY

repeatedly (page 6).

Play CDs

repeatedly

(Repeat Play)

Press MENU

repeatedly (page 6).

Play CDs

randomly

(Random Play)

Press MENU

repeatedly (page 6).

Play CDs in fast

reverse or fast

forward

(Scan Play)

Press C/c repeatedly on

the player to select the

speed (page 6).

Playback

Using the Playback

Information Display

While playing a DVD, you can check the

current playback information. The

playback information display also allows

you to set a title/chapter or change sound/

subtitle, and so on.

When entering the numbers, operate the

number buttons on the remote.

1Press DISPLAY while playing a

DVD.

The current playback information

appears.

Example: When playing a DVD

VIDEO

* When a DVD (VR mode) is played, “PL”

(playlist) or “ORG” (original) is displayed

next to the title number.

2Press X/x to select items and press

ENTER.

• Title: Select the title number by

pressing X/x or number buttons.

• Chapter: Select the chapter number

by pressing X/x or number buttons.

• Audio: Select the sound by pressing

X/x.

• Subtitle: Select the subtitle by

pressing X/x.

• Angle: Select the angle by pressing

X/x.

• T.Time: Time appears while playing

a title. “00:00:00” will appear by

pressing ENTER. Enter the desired

time code by pressing the number

buttons.

• C.Time: Time appears while playing

a chapter. “00:00:00” will appear by

pressing ENTER. Enter the desired

time code by pressing the number

buttons.

• Repeat: Select “ Chapter,” “

Title,” “ All,” or “Off” by

pressing X/x.

• A-B Repeat: Select “Set” by pressing

X/x, and press ENTER. Select point

A and point B by pressing ENTER.

• Time Disp.: “Title Elapsed” is

displayed. Select “Title Elapsed,”

“Title Remain,” “Chapter Elapsed,”

or “Chapter Remain” by pressing X/

3Press ENTER.

To turn off the display

Press DISPLAY or RETURN.

Depending on the disc, you may not be able to

set some items.

Title

Chapter

Audio

Subtitle

02/07

03/20

01 5.1CH D English

01 English

Title Elapsed 00:12:01

Current playback information*Items

Elapsed or remaining time

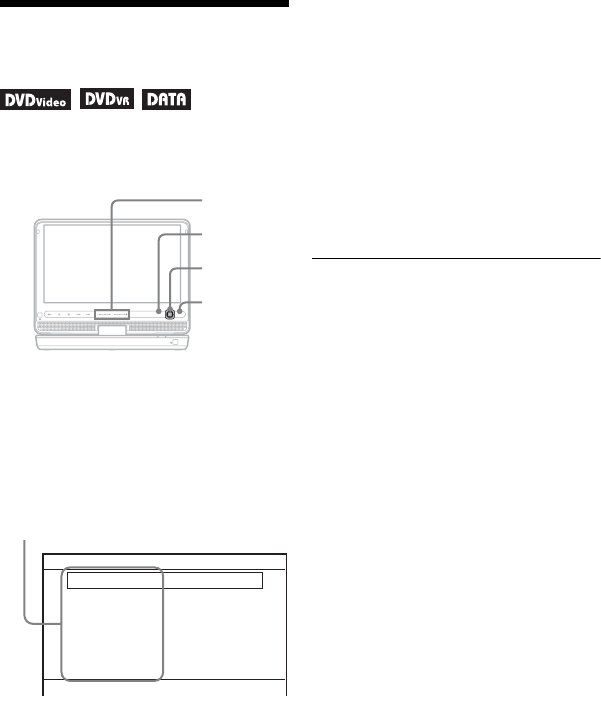

Playing MP3 and JPEG

Files

You can play MP3 and JPEG files. For

details on playable files, see “Playable

Media” (page 27).

When you set a DATA media, a list of

albums appears.

DATA CDs recorded in KODAK Picture

CD format automatically start playing

when inserted.

1Press X/x to select the album,

and press ENTER.

The list of files in the album appears.

Example: The list of MP3 files

• To go to the next or previous page,

press > or ..

• To return to the list of albums, press

X/x to select and press ENTER.

2Press X/x to select the file, and

press ENTER.

Playback starts from the selected file.

To go to the next or previous file

Press > or ..

To stop playback

Press x.

The display will return to the list of files.

To pause playback (MP3 only)

Press X.

To restart playback, press X again.

Depending on the file, playback may take time to

start or may not be able to start. For details on

playable files, see “Playable Media” (page 27).

Selecting a JPEG file

To rotate a JPEG image

Press C/X/x/c while viewing the image

file. Rotate every file.

c: Rotates the image 90 degrees

clockwise.

C: Rotates the image 90 degrees counter

clockwise.

X: Reverses the image vertically (up and

down).

x: Reverses the image horizontally (left

and right).

To display the list of thumbnails

Press MENU.

The image files in the album appear in 12

sub-screens.

CHARGEPOWER

OPTIONSDISPLAY RETURNMENU

VOL

C/X/x/c

ENTER

./>

. .

MY BEST

Dir:001

01 Stardust

BEST3

03 Wing

02 Fire

BEST HITS

Playback

• To go to the previous or next list of

thumbnails, select “bPrev” or

“NextB” at the bottom of the screen,

and press ENTER.

• To exit the list of thumbnails, press

MENU.

Playing a Slide Show

1Press MENU.

The list of thumbnails appears.

2Press C/X/x/c to select “Slide

Show” at the bottom of the screen,

and press ENTER.

A slideshow starts.

To stop slideshow

Press x to return to the list of files.

Press MENU to return to the list of

thumbnails.

To pause slideshow

Press X.

Playing data on a USB device

You can play back DATA files on a USB

device.

1Press INPUT SELECT repeatedly to

select “USB.”

2Connect a USB device to the USB

jack.

To disconnect a USB device

1Press INPUT SELECT to deselect

“USB.”

2Disconnect the USB device.

About supported Sony USB devices

The following Sony USB Memory Stick

reader/writer and USB flash drive “Micro

Vault” are supported: MSAC-US40,

USM-J series, USM-JX series, USM-J/B

series, USM-L series, and USM-LX series.

• Do not disconnect the USB device while its

access indicator is flashing. Doing so may

cause data corruption or loss of data.

• USB devices which can connect to the player

are flash memory and multiple card readers.

Other devices (digital still camera, USB hub,

etc.) cannot be connected. When an

unsupported device is connected, an error

message appears.

1234

5678

910

Slide Show

11 12

Prev Next

POWEROFFON

OPEN

HOLDPHONESAUDIOVIDEO

IN/

OUT

IN/

OUT

DC IN

9.5V

OPTIONS

DISPLAY

RETURN

INPUT SELECT

INPUT

SELECT

USB deviceUSB jack

,continued

Adjusting the Picture

Size and Quality

You can adjust the picture displayed on the

LCD screen.

1Press OPTIONS.

The menu display appears.

2Press X/x to select “LCD

Mode” and press ENTER.

The “LCD Mode” display appears.

3Press X/x to select items and

press ENTER.

• LCD Aspect: Change the picture size.

Select “Normal,” “Full” or “Zoom” by

pressing

• Backlight: Adjust the brightness by

pressing C

c or VOL +/–*2.

• Contrast: Adjust the difference

between light and dark areas by

pressing C

c or VOL +/–*2.

• Hue: Adjust the red and green color

balance by pressing

C/c

or VOL +/–

• Color: Adjust the richness of colors

by pressing C

c or VOL +/–*2.

• Default: Return all settings to the

factory defaults.

4Press ENTER.

*1In “Normal,” pictures are displayed in their

original configuration, retaining the aspect

ratio. 4:3 pictures are displayed with black

bands on both sides of the screen. 4:3 letter

box pictures are displayed with bands on all

sides of the screen.

In “Full,” pictures are adjusted to fill the

entire screen. 16:9 pictures are displayed in

their original configuration. (Black band

recorded in a 16:9 picture cannot be erased.)

4:3 pictures appear stretched.

In “Zoom,” 4:3 pictures are displayed full

width. The upper and lower areas of the

picture will be slightly cut.

*2Operate with a single touch of + or – on the

player. You can also adjust the level by

sliding your finger along the touch slider. For

VOL +/–, see page 5.

To turn off the menu display

Press OPTIONS or RETURN twice.

Depending on the disc, the screen size you can

select differs.

CHARGEPOWER

OPTIONSDISPLAY RETURNMENU

VOL

C/X/x/c

ENTER

OPTIONS

RETURN

VOL +/–

LCD Mode

Contrast :

LCD Aspect :

Hue :

Backlight : 10

Full

10Color :

Default

items

Settings and Adjustments

Using the Setup Display

By using the setup display, you can make

various settings to items such as picture

and sound.

Some discs have stored playback settings,

which take priority.

1Press OPTIONS when the player

is in stop mode.

The menu display appears.

During Resume Play, you cannot use

the setup display. Press x twice to

clear Resume Play, and press

OPTIONS.

2Press X/x to select “Setup,”

and press ENTER.

The setup display appears.

3Press X/x to select the setup

category and press ENTER.

: General Setup (page 19)

Makes the player-related settings.

: Audio Setup (page 20)

Makes the audio settings according to

playback conditions.

: Language Setup (page 20)

Makes the language settings for the

on-screen display or sound track.

: Parental Control (page 21)

Sets the parental control limit.

4Select and adjust each of the

following items by pressing X/x

and ENTER.

To turn off the setup display

Press OPTIONS or RETURN twice.

General Setup

The default settings are underlined.

◆TV Display (DVD only)

Selects the aspect ratio of the connected

TV.

CHARGEPOWER

OPTIONSDISPLAY RETURNMENU

VOL

C/X/x/c

ENTER

OPTIONS

RETURN

General Setup

TV Display :

Angle Mark :

16 : 9

OnScreen Saver :

Default

setup category items

4:3

Pan Scan

Select this when you connect

a 4:3 screen TV.

Automatically displays a

wide picture on the entire

screen and cuts off the

portions that do not fit.

4:3

Letter Box

Select this when you connect

a 4:3 screen TV. Displays a

wide picture with bands on

the upper and lower portions

of the screen.

16:9 Select this when you connect

a wide-screen TV or a TV

with a wide mode function.

,continued

Depending on the disc, “4:3 Letter Box” may be

selected automatically instead of “4:3 Pan Scan”

or vice versa.

◆Angle Mark (DVD VIDEO only)

Displays the angle mark when you can change

the viewing angles during playback of DVDs

recorded with multi-angles.

◆Screen Saver

The screen saver image appears when you

leave the player in pause or stop mode for

15 minutes. The screen saver will help

prevent your display equipment from

becoming damaged (ghosting). Press N

to turn off the screen saver.

◆Default

Each function returns to its original factory

settings. Note that all of your settings will

be lost.

Audio Setup

The default setting is underlined.

◆Audio DRC (Dynamic Range Control)

(DVD only)

Makes the sound clear when the volume is

turned down when playing a DVD that

conforms to “Audio DRC.”

Language Setup

◆OSD (On-Screen Display)

Switches the display language on the

screen.

◆Disc Menu (DVD VIDEO only)

Switches the language for the disc’s menu.

When you select “Original,” the language

given priority in the disc is selected.

◆Subtitle (DVD VIDEO only)

Switches the subtitle language.

When you select “Off,” no subtitle is

displayed.

◆Audio (DVD VIDEO only)

Switches the language of the sound track.

When you select “Original,” the language

given priority in the disc is selected.

If you select a language in “Disc Menu,”

“Subtitle,” or “Audio” that is not recorded on the

disc, one of the recorded languages will be

automatically selected.

On Display the angle mark.

Off Hide the angle mark.

On Activates the screen saver

function.

Off Deactivates the screen saver

function.

16:9

4:3 Letter Box

4:3 Pan Scan

Standard Standard sound.

TV Mode Makes low sounds clear even

if you turn the volume down.

Wide Range Gives you the feeling of

being at a live performance.

Settings and Adjustments

Parental Control

You can limit playback of a DVD that has

the parental control function.

When you operate this setting, use the

remote.

◆Password (DVD VIDEO only)

Enter or change a password. Set the

password for the parental control function.

Enter your 4-digit password using the

number buttons on the remote.

To change the password

1Press X/x to select “Password,” and

press ENTER.

2Check “Change” is selected and press

ENTER.

The display for entering the password

appears.

3Enter your current password in “Old

Password,” your new password in

“New Password” and “Verify

Password,” and press ENTER.

If you make a mistake entering your

password

Press CLEAR, or press C to return one by

one before pressing ENTER in step 3, and

re-enter the password.

If you forget your password

Enter “1369” in “Old Password,” and enter your

new password in “New Password” and “Verify

Password.”

◆Parental Control (DVD VIDEO only)

Set the limitation level. The lower the

value, the stricter the limitation.

To set the parental control, you need to set

the password first.

To set the parental control (limited

playback)

1Press X/x to select “Parental Control,”

and press ENTER.

2Press X/x to select the limitation level,

and press ENTER. The lower the

value, the stricter the limitation.

The display for entering the password

appears.

3Enter your password, and press

ENTER.

To play a disc for which Parental

Control is set

Insert the disc and press N. The display

for entering your password appears. Enter

your password using the number buttons

on the remote, and press ENTER.

• When you play discs which do not have the

Parental Control function, playback cannot be

limited on the player.

• Depending on the disc, you may be asked to

change the parental control level while playing

the disc. In this case, enter your password, then

change the level. If the Resume Play mode is

canceled, the level returns to the previous

level.

Parental Control

Verify Password

Old Password

New Password

Parental Control

Password

Additional Information

Troubleshooting

If you experience any of the following

difficulties while using the player, use this

troubleshooting guide to help remedy the

problem before requesting repairs. Should

any problem persist, consult your nearest

Sony dealer.

Power

The power is not turned on.

,Check that the AC power adaptor is

connected securely (page 9).

,Check that the battery pack is attached

securely (page 9).

,Check that the battery pack is sufficiently

charged (page 10).

The battery pack cannot be charged.

,You cannot charge the battery pack when

power is turned on. Set the POWER

switch to “OFF” (page 9).


There is no picture/picture noise

appears.

,The disc is dirty or flawed (page 26).

,The brightness is set at minimum. Adjust

the brightness of the LCD (page 18).

,When “USB” or “Line In” is displayed,

press INPUT SELECT repeatedly to

select the disc mode (page 7).

The black points appear and the red,

blue, green points remain on the LCD.

,This is a structural property of the LCD

and not malfunction.

Sound

There is no sound.

,The player is in pause mode or in slow

play mode.

,The player is in fast forward or fast

reverse mode.

The sound volume is low.

,The sound volume is low on some

DVDs. The sound volume may improve

if you set “Audio DRC” in “Audio

Setup” to “TV Mode” (page 20).

Operation

Nothing happens when buttons are

pressed.

The HOLD switch is set in the direction of

the arrow (

page 6

The disc does not play.

,If the disc is turned over, a “No Disc” or

“Cannot play this disc.” message

appears. Insert the disc with the playback

side facing down (page 13).

,The disc is not set until it clicks

(page 13).

,The disc that cannot be played is

inserted. Check the region code matches

the player, and that the disc has been

finalized (page 27).

,When “USB” or “Line In” is displayed,

press INPUT SELECT repeatedly to

select the disc mode (page 7).

,Parental Control has been set. Change

the setting (page 21).

,Moisture has condensed inside the player

(

page 25

)

The player starts and stops playing the

disc automatically.

,The disc features an auto playback

function.

,While playing discs with an auto pause

signal, the player stops playback at the

Additional Information

auto pause signal.

The disc does not start playing from the

beginning.

,Repeat Play or Random Play is selected

(page 14).

,Resume play has taken effect (page 14).

,The Playlist of the created disc is

automatically played. To play original

titles, press TOP MENU to set

“Original” (page 7).

Playback may take time to start.

,Playback may take time to start in DVD

(VR mode).

Playback freezes.

,When the playback layer of a DVD+R

DL/-R DL disc changes, playback may

freeze.

The subtitles disappear.

,When you change playback speed, or

skip scenes during playback, the subtitles

may disappear temporarily.

“ ” appears and the player does not

function according to the button.

,Depending on the disc, you may not be

able to perform certain operations. Refer

to the operating instructions supplied

with the disc.

“Copyright Lock” appears and the

screen turns blue when playing a DVD

(VR mode) disc.

,Images taken from digital broadcasts,

etc., may contain copy protection signals,

such as complete copy protection signals,

single copy signals, and restriction-free

signals. When images that contain copy

protection signals are played, a blue

screen may appear instead of the images.

It may take a while when looking for

playable images. (For player that cannot

play images that contain a copy

protection only.)

C/c does not work on menu display.

,Depending on the disc, you may not be

able to use C/c on the player for the disc

menu. In this case, use C/c on the

remote.

The remote does not function.

,Batteries in the remote are weak.

,There are obstacles between the remote

and the player.

,The distance between the remote and the

player is too far.

,The remote is not pointed at the remote

sensor on the player.

,Direct sunlight or strong illumination is

striking the remote sensor.

,When the AUDIO/SUBTITLE/ANGLE

buttons do not work, select and operate it

from the DVD menu.

The MP3 or JPEG file cannot be played

(page 28).

,The file format does not conform.

,The extension does not conform.

,The file is damaged.

,The file size is too large.

The file or album names are not

displayed correctly.

,The player can only display numbers and

alphabet. Other characters are displayed

as “*” (page 28).

The player does not operate properly or

the power does not turn off.

,When static electricity, etc., causes the

player to operate abnormally, set the

POWER switch to “OFF” and disconnect

the adaptor and remove the battery pack.

,continued

Hookup

There is no picture or sound on the

connected equipment.

,Re-connect the connecting cord securely

(page 12).

,The connecting cord is damaged.

,Check the setting of a connected TV or

amplifier.

,When “USB” or “Line In” is displayed,

press INPUT SELECT repeatedly to

select the disc mode (page 7).

There is no picture or sound from a

connected equipment.

,Press INPUT SELECT to select “Line

In” (page 12).

USB

The player does not recognize a USB

device connected to the player.

,Re-connect the USB device securely

(page 17).

,The USB device is damaged.

,Press INPUT SELECT repeatedly to

select “USB” (page 17).

Precautions

Road safety

Do not use the monitor unit and

headphones while driving, cycling, or

operating any motorized vehicle. Doing so

may create a traffic hazard and is illegal in

some areas. It can also be potentially

dangerous to play your headsets at high

volume while walking, especially at

pedestrian crossings. You should exercise

extreme caution or discontinue use in

potentially hazardous situations.

On safety

Should any solid object or liquid fall into

the cabinet, unplug the player and have it

checked by qualified personnel before

operating it any further.

On power sources

• If you are not going to use the player for

a long time, be sure to disconnect the

player from the wall outlet. To

disconnect the AC power adaptor, grasp

the plug itself; never pull the cord.

• Do not touch the AC power adaptor with

wet hands. Doing so may cause shock

hazard.

• Use a commercially available AC plug

adaptor, if necessary, depending on the

design of the wall outlet.

• Do not connect the AC power adaptor to

a traveler’s electric transformer, which

may generate heat and cause a

malfunction.

Wall

outlet

AC plug adaptor

(not supplied)

AC power adaptor

(supplied)

Additional Information

On temperature increases

Heat may build up inside the player during

charging or if it is being used for a long

time. This is not a malfunction.

On placement

• Do not place the player in a confined

space such as a bookshelf or similar unit.

• Do not cover the ventilation of the player

with newspapers, tablecloths, curtains,

etc. And do not place the player on a soft

surface, such as a rug.

• Do not place the player and adaptors in a

location near heat sources, or in a place

subject to direct sunlight, excessive dust,

sand, moisture, rain, or mechanical

shock, or in a car with its windows

closed.

• Do not place the player in an inclined

position. It is designed to be operated in

a horizontal position only.

• Keep the player and discs away from

equipment with strong magnet, such as

microwave ovens, or large loudspeakers.

• Do not drop or apply strong shock.

Do not place heavy objects on the player

and accessories.

On operation

• If the player is brought directly from a

cold to a warm location, or is placed in a

very damp room, moisture may condense

on the lenses inside the player. Should

this occur, the player may not operate

properly. In this case, remove the disc

and leave the player for about half an

hour until the moisture evaporates. Wipe

off moisture attached to the LCD surface

with tissue etc. Turn on the power again

later.

• Keep the lens on the player clean and do

not touch it. Touching the lens may

damage the lens and cause the player to

malfunction. Leave the disc lid closed

except when you insert or remove discs.

• Turn off the power before disconnecting

the AC power adaptor, the car battery

adaptor or the battery pack. Failure to do

so may cause a malfunction.

On Liquid Crystal Display

• Although manufactured with high

precision technology, the LCD may

occasionally display dots of various

colors. That is not a malfunction.

• Do not place or drop any object onto the

LCD surface. Also, do not apply pressure

from hands or elbows.

• Do not damage the LCD surface with a

sharp edged tool.

On battery pack

• Certain countries may regulate disposal

of the battery used to power this product.

Please consult with your local authority.

• Because of the battery’s limited life, its

capacity gradually deteriorates over time

and repeated use. Purchase a new one

when the battery holds about only half

the normal period.

• The battery may not be charged to its

fullest capacity when charged for the first

time, or when it has not been used for a

long time. The capacity recovers after

being charged and discharged several

times.

• Do not leave the battery pack in a car or

direct sunlight, where temperature goes

up above 60 ºC (140°F).

• Do not expose to water.

• Avoid short-circuiting the battery

connecting jacks with metal objects such

as a necklace.

• Make sure dust or sand does not enter the

battery connecting jacks and the guide

holes located on the bottom of the player.

On AC power adaptor and car battery

adaptor

• Use the supplied adaptors for the player,

as other adaptors may cause a

malfunction.

• Do not disassemble or reverse-engineer.

,continued

• Do not touch the metal parts, as it may

cause a short and damage the adaptors,

especially if touched by other metal

objects.

On adjusting volume

Do not turn up the volume while listening

to a section with very low level inputs or

no audio signals. If you do, the speakers

may be damaged when a peak level section

is played.

On headphones

• Preventing hearing damage: Avoid using

headphones at high volumes. Hearing

experts advice against continuous, loud,

and extended play. If you experience a

ringing in your ears, reduce the volume

or discontinue use.

• Showing consideration for others: Keep

the volume at a moderate level. This will

allow you to hear outside sounds and still

be considerate to the people around you.

On cleaning

• Clean the cabinet, panel, and controls

with a soft cloth slightly moistened with

a mild detergent solution. Do not use any

type of abrasive pad, scouring powder or

solvent such as alcohol or benzine.

• Wipe the LCD surface with the soft dry

cloth lightly. To prevent dirt buildup,

wipe it frequently.

Do not wipe the LCD surface with a wet

cloth. If water enters, a malfunction may

result.

• If picture/sound is distorted, the lens may

be covered with dust. In this case, use a

commercially-available blower brush for

camera lenses to clean the lens.

Avoid touching the lens directly during

cleaning.

On cleaning discs, disc/lens cleaners

Do not use cleaning discs or disc/lens

cleaners (including wet or spray types).

These may cause the apparatus to

malfunction.

Notes About the Discs

• To keep the disc clean, handle the disc by

its edge. Do not touch the surface.

• Do not expose the disc to direct sunlight

or heat sources such as hot air ducts, or

leave it in a car parked in direct sunlight

as the temperature may rise considerably

inside the car.

• After playing, store the disc in its case.

• Clean the disc with a cleaning cloth.

Wipe the disc from the center out.

• Do not use solvents such as benzine,

thinner, disc/lens cleaners, or anti-static

spray intended for vinyl LPs.

• If you have printed the disc’s label, dry

the label before playing.

• Do not use the following discs:

– A disc that has a non-standard shape

(e.g., card, heart).

– A disc with a label or sticker on it.

– A disc that has cellophane tape or

sticker adhesive on it.

Additional Information

Playable Media

•Notes about recordable media

Some recordable media cannot be played on

the player due to the recording quality or

physical condition of the media, or the

characteristics of the recording device and

authoring software.

The disc will not play if it has not been

correctly finalized. For more information,

refer to the operating instructions for the

recording device. Note that some playback

functions may not work with some

DVD+RWs/+Rs/+R DLs, even if they have

been correctly finalized. In this case, view the

disc by normal playback.

•For player that cannot play images that

contain a copy protection only

Images in DVD (VR mode) with CPRM*

protection may not be played if they contain a

copy protection signal. “Copyright Lock”

appears.

* CPRM (Content Protection for Recordable

Media) is a coding technology that protects

the copyright of images.

Type Disc Logo Icon Characteristics

DVD

• Commercial DVD

• DVD+RWs/DVD+Rs/

DVD+R DLs in +VR

mode

• DVD-RWs/DVD-Rs/

DVD-R DLs in video

mode

DVD-RWs/DVD-Rs/DVD-

R DLs in VR (Video

Recording) mode

•Music CDs

• CD-Rs/CD-RWs in music

CD format

DATA disc or

USB —

DATA CD/DATA DVD or

USB devices containing

MP3 or JPEG files.

,continued

Notes on MP3 and JPEG files

The player can play the following files:

• MP3 files with the extension “.mp3”*1.

• JPEG files with the extension “.jpg”*2.

• JPEG image files that conform to the

DCF (Design rule for Camera File

system) image file format.

• DATA CDs must be recorded according

to ISO 9660 Level 1, or its extended

format, Joliet.

• DATA DVDs must be recorded

according to UDF (Universal Disk

Format).

*1Files in mp3PRO format cannot be played.

*2Files with the extension “.jpe” or “.jpeg” can

be played by changing the extension to “.jpg.”

• To play a complex hierarchy of folders may

take some time. Create albums as follows:

– The number of hierarchies in the media

should be no more than two.

– The number of albums in the media should

be 50 or less.

– The number of files in one album should be

100 or less.

– The total number of albums and files in the

media should be 600 or less.

• The player plays the files in an album in the

order the media was recorded.

• The player will play any file in the above table,

even if the file format differs. Playing such

data may generate noise that can result in

speaker damage.

• Some DATA discs created in Packet Write

format cannot be played.

• Some DATA discs created in multiple sessions

may not be playable.

• Some JPEG files cannot be played.

• The player cannot play the JPEG file that is

larger than 3078 (width) x 2048 (height) in

normal mode, or larger than 2000 (width) x

1200 (height) in progressive JPEG. (Some

progressive JPEG files cannot be displayed

even if the size is within this specified

capacity.)

• The player can display a file or album name up

to 14 characters. Special character appears as

“*.”

• The player can display only the currently

playing album name.

• Playback information of some files may not be

displayed correctly.

Notes on commercial discs

Region code

It is the system that is used to protect

copyrights. The region code is shown on

the DVD VIDEO packages according to

the region of sale. DVD VIDEOs labeled

“ALL” or “1” will play on the player.

DVD playback operations

Some playback operations of DVDs may

be intentionally set by software producers.

Since the player plays DVDs according to

the disc contents the software producers

designed, some playback features may not

be available. Also, refer to the instructions

supplied with the DVDs.

Notes on discs

This product is designed to playback discs

that conform to the Compact Disc (CD)

standard.

DualDiscs and some music discs encoded

with copyright protection technologies do

not conform to the Compact Disc (CD)

standard. Therefore, these discs may not be

compatible with this product.

ALL

Additional Information

Specifications

System

Laser: Semiconductor laser

Signal format system: NTSC

Inputs/Outputs

VIDEO (video input/output):

Minijack

AUDIO (audio input/output):

Stereo minijack

PHONES (headphones) A/B:

Stereo minijack

USB: USB jack Type A (For connecting USB

memory)

Liquid Crystal Display

Panel size: 9 inches wide (diagonal)

Driving system: TFT active matrix

Resolution: 800 × 480 (effective pixel rate:

more than 99.99%)

General

Power requirements:

DC 9.5 V (AC power Adaptor/Car battery

adaptor)

DC 7.4 V (Battery pack)

Power consumption (DVD VIDEO Playback):

6.5 W (when used with a headphone)

Dimensions (approx.):

227 × 34.4 × 170.8 mm (9 × 1 3/8 ×

63/4 inches) (width/height/depth) incl.

projecting parts

Mass (approx.): 880 g (1.94 lbs)

Operating temperature: 5°C to 35 °C (41°F to

95°F)

Operating humidity: 25 % to 80 %

AC Power Adaptor: 110-240 V AC, 50/60 Hz

Car Battery Adaptor: 12 V DC

Supplied accessories

See page 9.

Specifications and design are subject to change

without notice.

Index

Numerics

16:9

4:3 Letter Box

4:3 Pan Scan

Angle Mark

7, 20

Audio

8, 20

Audio DRC

Audio Setup

13, 27

Charging time and playing time

DATA

16, 27

Disc Menu

DVD

13, 27

General Setup

JPEG

16, 28

Language Setup

LCD Aspect

LCD Mode

MP3

16, 28

OSD (On-Screen Display)

Parental Control

Password

Playable Media

Playback Information Display

Random Play

Region code

Repeat Play

Resume Play

Screen Saver

14, 20

Setup

Slide Show

Subtitle

8, 20

Troubleshooting

TV Display

USB

2ES

Índice

Este manual explica los preparativos y el funcionamiento básico del reproductor portátil

de CD/DVD. Para obtener más información, consulte el Manual de Instrucciones en

inglés.

Preparativos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Control de accesorios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Carga de la batería . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Uso del adaptador para batería de automóvil . . . . . . . . . . . . . . . . . . . 5

Reproducción . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Reproducción de discos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Rotación y plegado del panel LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3ES

Preparativos

Control de accesorios

Compruebe que dispone de los siguientes

elementos:

• Batería (NP-FX110) (1)

• Adaptador de alimentación de CA (1)

• Adaptador para batería de automóvil (1)

• Cable de audio/video (clavija mini × 2

y clavija fono × 3) (1)

• Control remoto (1)

• Pilas R6 (tamaño AA) (2)

Preparación del control remoto

Inserte dos pilas AA (R6) de manera tal

que los extremos 3 y # con coincidan las

marcas del interior del compartimiento.

Carga de la batería

Cargue la batería (suministrada) antes de

utilizar el reproductor por primera vez o

cuando la batería esté agotada.

1Sujete la batería al reproductor.

Alinee la batería con las líneas

ubicadas en la parte inferior del

reproductor.

Ubique los ganchos de la batería en los

orificios ubicados en la parte inferior

del reproductor.

Deslice la batería en la dirección que

indica la flecha hasta que se ajuste con

un clic.

Base del

reproductor

Batería

Marcas de referencia

para la conexión

,continúa

4ES

2Conecte el adaptador de

alimentación de CA.

Cuando comienza el proceso de carga,

se enciende la luz naranja del

indicador CHARGE.

Cuando termina el proceso de carga, el

indicador CHARGE se apaga.

Desconecte el adaptador de

alimentación de CA.

Si se enciende el indicador POWER en vez del

indicador CHARGE, el interruptor POWER está

ubicado en “ON”. Ubique el interruptor POWER

en “OFF” y asegúrese de que el indicador

CHARGE se encienda.

Cargue la batería a una temperatura ambiente de

entre 5 °C (41 °F) y 35 °C (95 °F).

Tiempo de carga y tiempo de

reproducción

Tiempo de carga: aproximadamente 6

horas

Tiempo de reproducción:

aproximadamente 7.5 horas

Los tiempos indicados dependen de las

siguientes condiciones:

– Temperatura normal (20 °C (68 °F))

– Uso de auriculares

– Configuración del ajuste de luz de fondo al

mínimo

El tiempo de carga puede ser mayor o el tiempo

de reproducción puede reducirse, según el estado

de la batería y la temperatura ambiente.

Para controlar el nivel de batería

El indicador de batería se muestra cuando

el reproductor está detenido.

Cuando la batería esté vacía, aparecerá el

símbolo o el indicador CHARGE

parpadeará. Coloque el interruptor

POWER en “OFF”, conecte el adaptador

de alimentación de CA y recargue la

batería.

Para retirar la batería

Empuje la lengüeta de liberación y deslice

la batería en la dirección que indica la

flecha.

INPUT SELECT

HOLD PHONES AUDIO VIDEO DC IN

9.5V

POWER OFF ON

IN/

OUT

IN/

OUT

DC IN

9.5V

Adaptador de alimentación

de CA (suministrado)

Al tomacorriente

Completo Agotado

Lengüeta de liberación

5ES

Preparativos

Uso del adaptador para

batería de automóvil

El adaptador para batería de automóvil

(suministrado) está diseñado para una

batería de automóvil de 12 V, con

conexión a tierra negativa (no lo utilice con

baterías de automóvil de 24 V y conexión

a tierra positiva).

1Arranque el motor.

2Conecte el adaptador para

batería de automóvil.

3Encienda el reproductor.

• El conductor no debe conectar ni desconectar

el adaptador para batería de automóvil

mientras conduce.

• Arregle el cable de manera que no moleste al

conductor. Además, no coloque el panel LCD

donde el conductor pueda verlo.

• Limpie el enchufe del encendedor de

cigarrillos. Si está sucio, puede causar fallas en

el contacto o el funcionamiento.

• Use el adaptador para batería de automóvil con

el motor del vehículo en funcionamiento. Si se

utiliza con el motor del vehículo apagado, la

batería del automóvil puede agotarse.

Después de usar el reproductor en el

vehículo

1Apague el reproductor.

2Desconecte el adaptador para batería

de automóvil.

3Apague el motor.

• No desconecte el adaptador para batería de

automóvil ni apague el motor del vehículo

antes de que haya apagado el reproductor. De

lo contrario, puede dañar el reproductor.

• Desconecte el adaptador para batería de

automóvil después de usarlo. Si lo deja

conectado, la batería del automóvil puede

agotarse.

• No deje el reproductor ni los accesorios en el

auto.

INPUT SELECT

HOLD PHONES AUDIO VIDEO DC IN

9.5V

POWER OFF ON

IN/

OUT

IN/

OUT

DC IN

9.5V

Al enchufe del

encendedor de

cigarrillos

Adaptador para batería de

automóvil (suministrado)

6ES

Reproducción

Reproducción de

discos

De acuerdo con el disco, algunas

operaciones pueden ser diferentes o estar

restringidas. Consulte las instrucciones de

operación proporcionadas con el disco.

Conecte el adaptador de alimentación de

CA o la batería.

1Abra el panel LCD.

2Deslice el interruptor POWER a

“ON”.

El reproductor se enciende y el

indicador POWER se muestra verde.

3Presione OPEN para abrir la

tapa del disco.

4Inserte el disco a reproducir.

Ubíquelo con la cara de reproducción

hacia abajo y empuje suavemente

hasta que se ajuste con un clic.

5Presione el PUSH CLOSE en la

tapa del disco para cerrarla.

6Presione N.

El reproductor comienza la

reproducción.

De acuerdo con el disco, puede

aparecer un menú. Presione C/X/x/c

para seleccionar el elemento y

presione ENTER.

Para detener la reproducción

Presione x.

Para poner en pausa la reproducción

Presione X.

Al reproducir un disco después de observar las

imágenes mediante “Entrada De Linea” o

“USB”, pulse INPUT SELECT.

CHARGEPOWER

OPTIONSDISPLAY RETURNMENU

VOL

POWEROFFON

OPEN

PUSH CLOSE

CHARGE

POWER

OPENPUSH CLOSE POWER

La cara de reproducción

debe mirar hacia abajo

Reproducción

7ES

• Los discos creados en grabadoras de DVD

deben finalizarse correctamente para

reproducirlos en este reproductor. Para más

información sobre la finalización, consulte las

instrucciones de operación suministradas con

la grabadora de DVD.

• El disco todavía puede estar girando al abrir la

tapa del disco. Espere hasta que el disco se

detenga antes de retirarlo.

Para reanudar la reproducción desde

donde detuvo el disco (Reanudar

reproducción)

Cuando vuelve a presionar N después de

detener la reproducción, el reproductor

comienza con la reproducción desde donde

presionó x.

• Para iniciar la reproducción desde el principio

del disco, presione x dos veces y luego N.

• Al encender nuevamente el reproductor

después de apagarlo, la reproducción se

reanuda automáticamente.

• Dependiendo del lugar donde se detuvo, la

reproducción puede no comenzar desde

exactamente el mismo punto.

• El punto donde detuvo la reproducción se

borra cuando:

– usted abre la tapa del disco.

– presiona INPUT SELECT.

– desconecte el adaptador o retire la batería

antes de desactivar el reproductor.

Notas sobre el salva pantalla

• Un salva pantalla aparece cuando deja el

reproductor en modo detenido o en pausa

sin funcionar durante más de 15 minutos.

La imagen desaparece cuando usted

presiona N.

• El reproductor queda en modo de espera

durante 15 minutos después de comenzar

la función de salva pantalla. Presione N

para salir del modo de espera.

Información sobre varias operaciones

de reproducción

Para Operación

Cambiar el

tamaño de la

imagen LCD

Presione OPTIONS

para seleccionar “Modo

LCD”.

Mostrar el menú

del DVD

Presione MENU o TOP

MENU.

Verificar la

información de

reproducción del

DVD

Presione DISPLAY.

Reproducir un

DVD*

repetidamente

(Repetir

reproducción)

Presione DISPLAY

para seleccionar

“Repetir”.

Reproducir el

DVD en

retroceso o

avance rápido

(Reproducción

rápida)

Presione C/c

repetidamente en el

reproductor para

seleccionar la

velocidad.

Alternar entre

original y Lista

de reproducción

en DVD (modo

VR)

Presione TOP MENU

repetidamente.

Cambiar la

información de

reproducción del

Presione DISPLAY

repetidamente.

Reproducir un

repetidamente

(Repetir

reproducción)

Presione MENU

repetidamente.

Reproducir un

CD en forma

aleatoria

(Reproducción

aleatoria)

Presione MENU

repetidamente.

,continúa

8ES

* DVD VIDEO solamente

Rotación y plegado del

panel LCD

Abra el panel LCD en la posición vertical

y luego rótelo lentamente 180 grados

siguiendo la dirección que indica la flecha

(en sentido de las agujas del reloj).

Después de rotar el panel LCD 180 grados

en sentido horario, empuje el panel LCD

hacia abajo sobre la carcasa del

reproductor. En esta posición, el panel

queda mirando hacia arriba.

Para volver a colocar el panel LCD en su

posición original

Abra el panel LCD en la posición vertical

y rótelo lentamente en sentido antihorario.

• No rote el panel LCD más de 180 grados.

Además, no lo rote en la dirección contraria. Si

lo hace, el panel LCD se romperá.

• Coloque el panel LCD nuevamente en su

posición original después de usarlo para que

éste no se dañe por sacudidas violentas o un

tratamiento similar.

• No rote el panel LCD cuando esté cerrado o en

otra posición que no sea vertical. Podría rayar

el reproductor.

Reproducir el CD

en retroceso o

avance rápido

(Reproducción

rápida)

Presione C/c

repetidamente en el

reproductor para

seleccionar la

velocidad.

Para Operación

Sony Corporation Printed in China

4-169-963-11(1)

Sony DVP FX950 User Manual To The 335d532b B1b5 4633 88c0 1918aa6b8c11

Navigation menu

Versions of this User Manual:

Views

Navigation
