SON_Jt; 3.oo__o,2.1,/,i

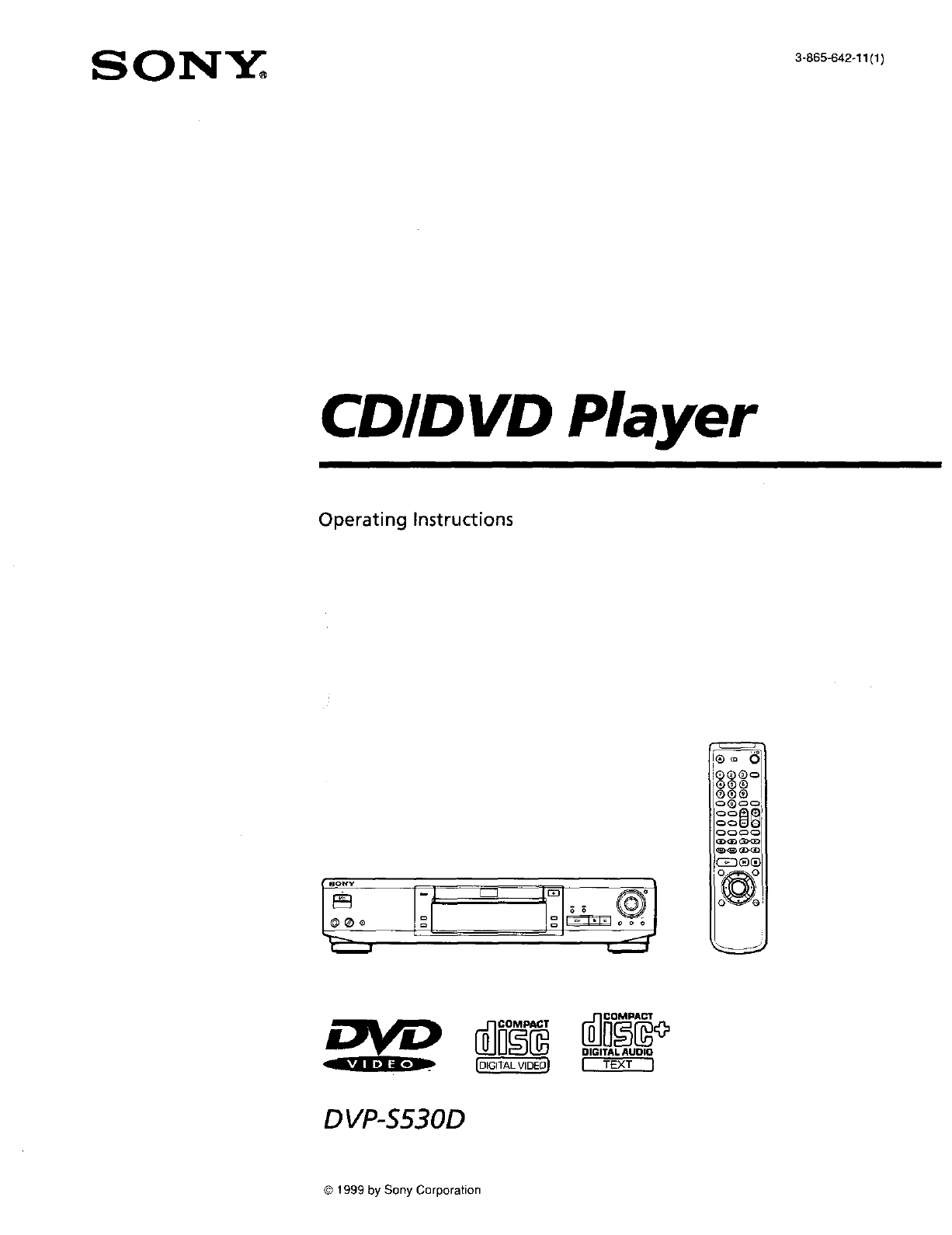

CD/D VD Player

Operating Instructions

r 1

®_ 0

®®

QD_

(_D®®

(DIGITALVIDEO) ( TEXT ]

D VP-S530D

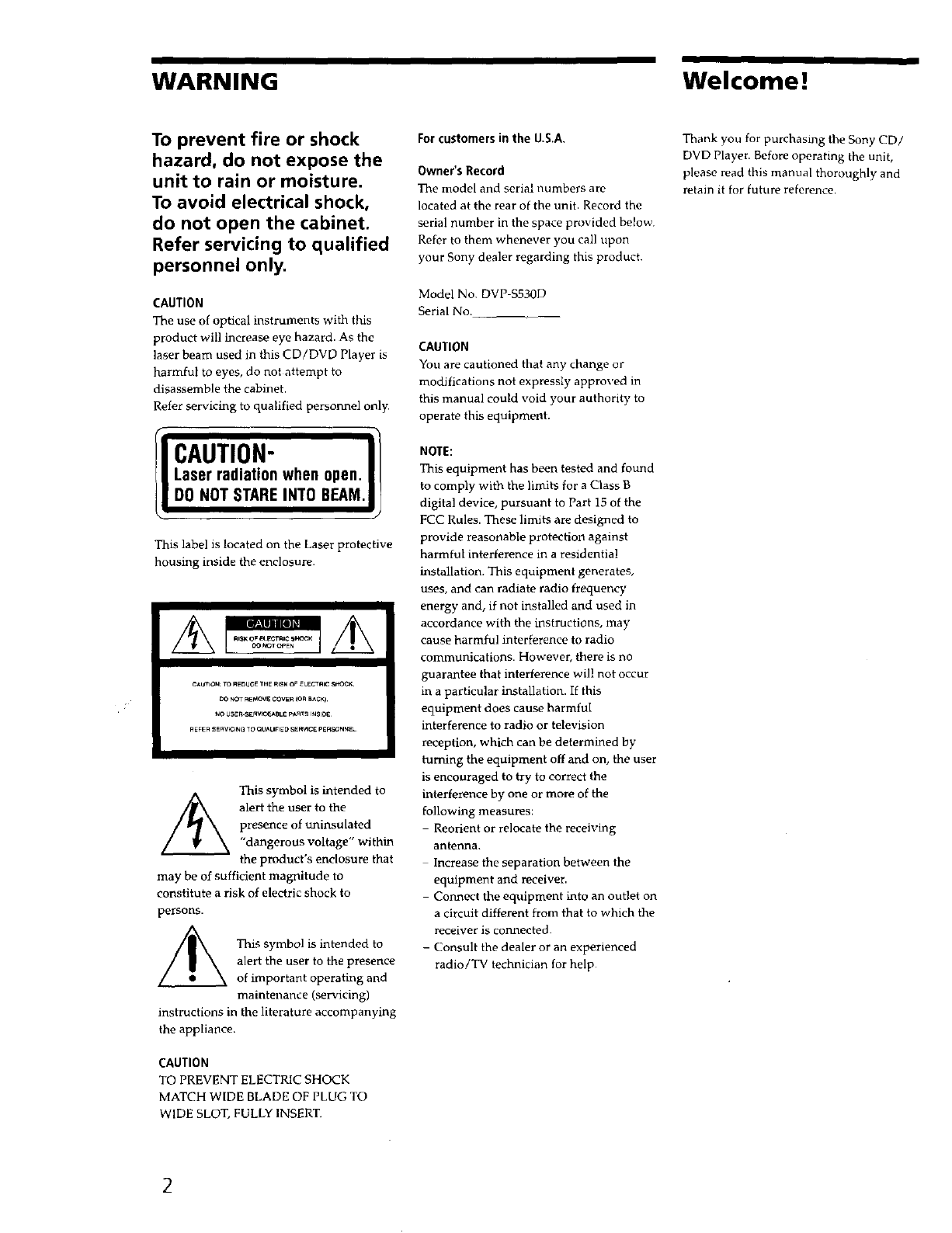

WARNING Welcome!

To prevent fire or shock

hazard, do not expose the

unit to rain or moisture.

To avoid electrical shock,

do not open the cabinet.

Refer servicing to qualified

personnel only.

CAUTION

The use of optical instruments with this

product will increase eye hazard. As the

laser beam used in this CD/DVD Player is

harmful to eyes, do not attempt to

disassemble the cabinet.

Refer servicing to qualified personnel only.

]c,u,,0,

Laserradiationwhenopen.

DO NOT STARE INTO BEAM.It

This label is located on the Laser protective

housing inside the enclosure.

CAUTION¸TO REDUCETHE RISKOr ELECTriC S_X_CK

OO hOT Re_OVE COVER (OR _¢K L

REFER_RV_qN_ TO QUALIFIED SERWCE PERSONNEL

This symbol is intended to

//_ alert the user to the

presence of uninsulated

"dangerous voltage" within

the product's enclosure that

may be of sufficient magnitude to

constitute a risk of electric shock to

This symbol is intended to

alert the user to the presence

of important operating and

maintenance (servicing)

instructions in the literature accompanying

the appliance.

CAUTION

TO PREVENT ELECTRIC SHOCK

MATCH WIDE BLADE OF PLUG TO

WIDE SLOT, FULLY INSERT.

For customers in the U.S,A.

Owner's Record

The model and serial numbers are

located at the rear of the unit. Record the

serial number in the space provided below.

Refer to them whenever you call upon

your Sony dealer regarding this product.

Model No. DVP-S530D

Serial No.

CAUTION

You are cautioned that any change or

modifications not expressly approved in

this manual could void your authority to

operate this equipment.

NOTE:

This equipment has been tested and found

to comply with the limits for a Class B

digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to

provide reasonable protection against

harmtul interference in a residential

installation. This equipment generates,

uses, and can radiate radio frequency

energy and, if not installed and used in

accordance with the instructions, may

cause harmful interference to radio

communications. However, there is no

guarantee that interference will not occur

in a particular installation. If this

equipment does cause harmful

interference to radio or television

reception, which can be determined by

turning the equipment off and on, the user

is encouraged to try to correct the

interference by one or more of the

following measures:

- Reorient or relocate the receiving

anterma.

Increase the separation between the

equipment and receiver.

- Connect the equipment into an outlet on

acircuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced

radio/TV technician for help.

Thank you for purchasing the Sony CD/

DVD Player. Before operating the unit,

please read this manual thoroughly and

retain it for future reference.

TABLE OF CONTENTS

About This Manual 4

This Player Can Play the Following Discs

Precautions 6

Noteson Discs 6

Getting Started 7

Unpacking 7

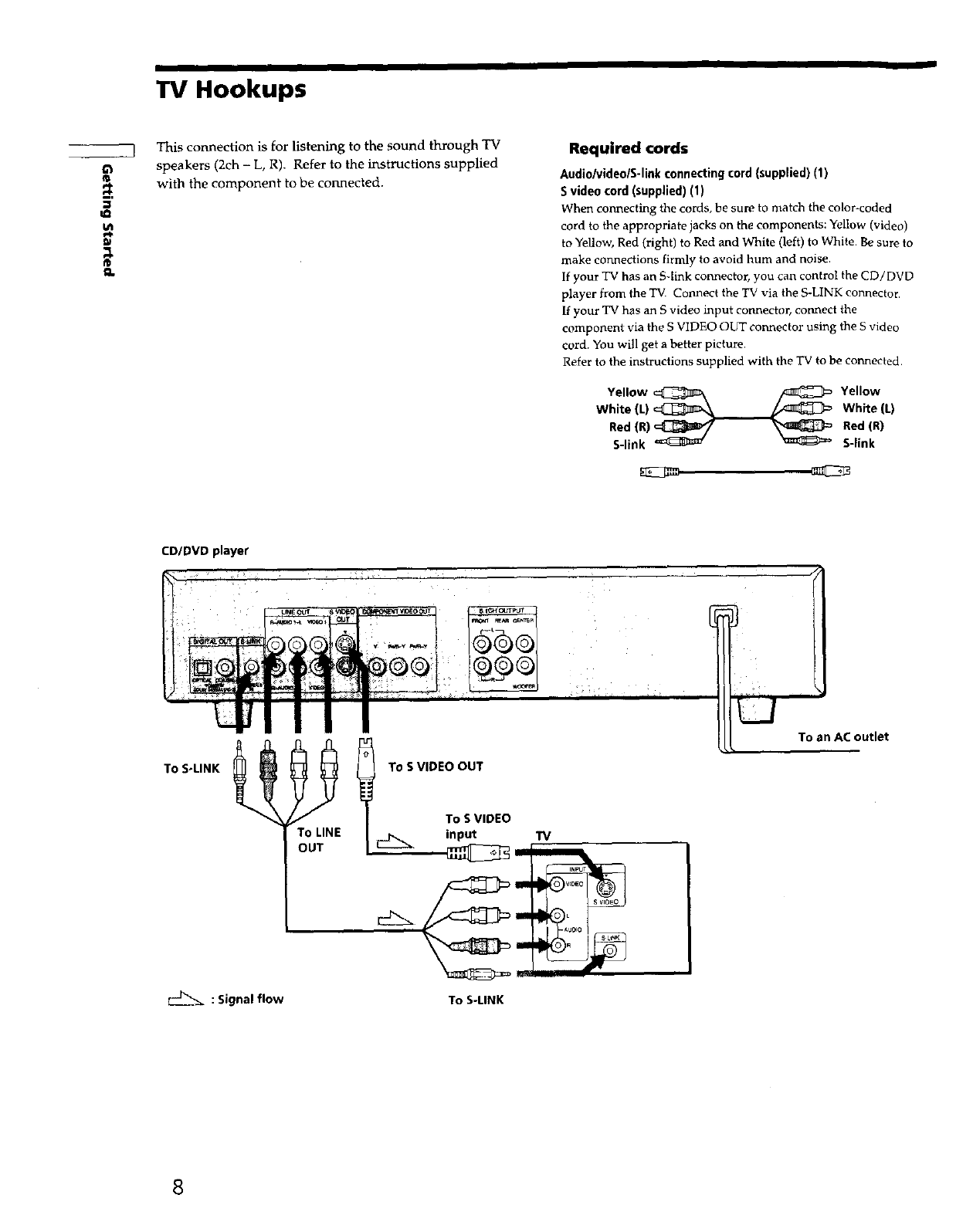

TV Hookups 8

Receiver (Amplifier) Hookups 10

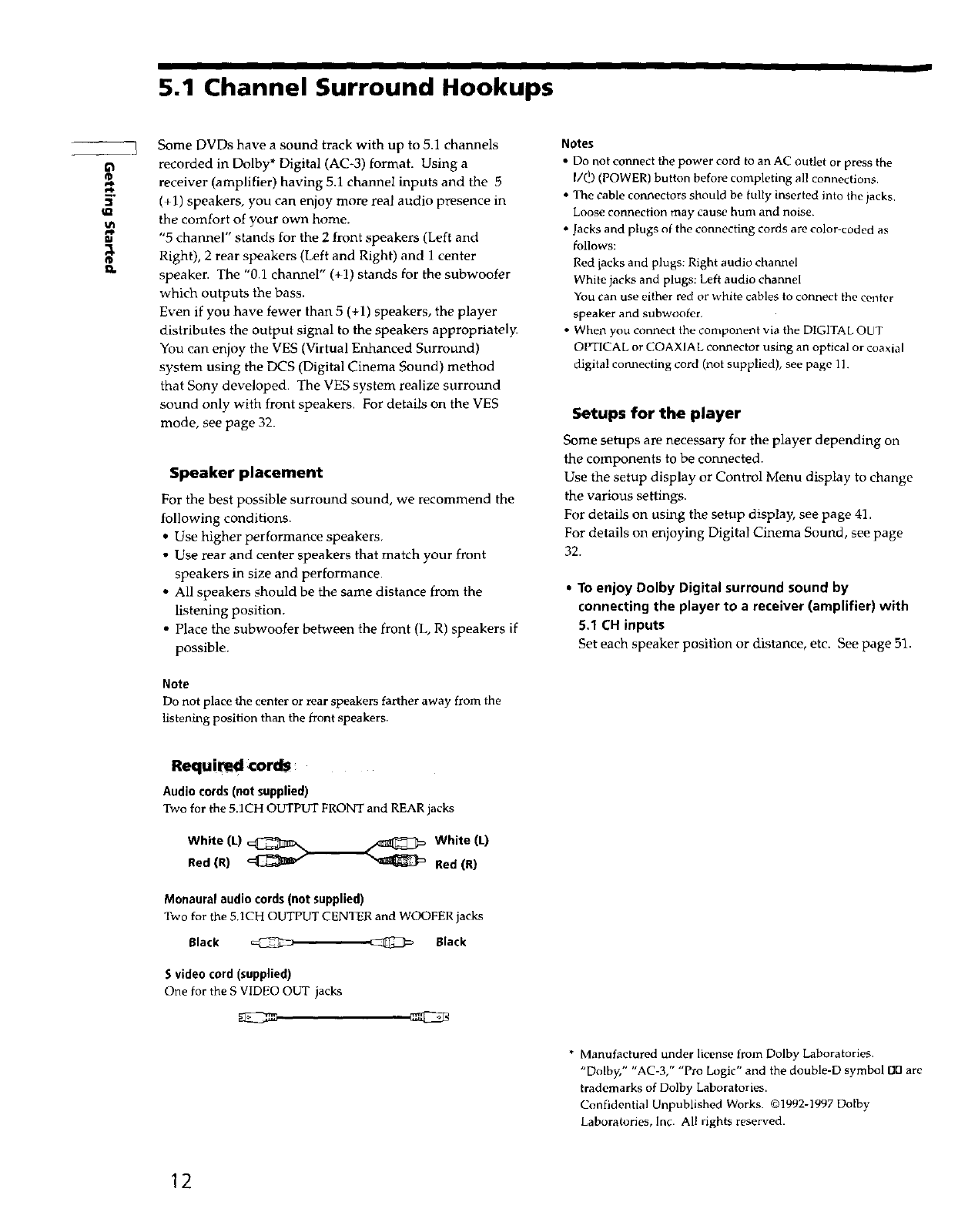

5.1 Channel Surround Hookups 12

Selecting the Language for On-Screen Display 14

Playing Discs 15

Playing at Various Speeds/Frame by Frame 17

Resuming Playback from the Point Where You

Stopped the Disc (Resume Play) 18

Using the Menu for Each DVD 19

Playing VIDEO CDs with PBC Functions (PBC

Playback) 20

Using the Front Panel Display 21

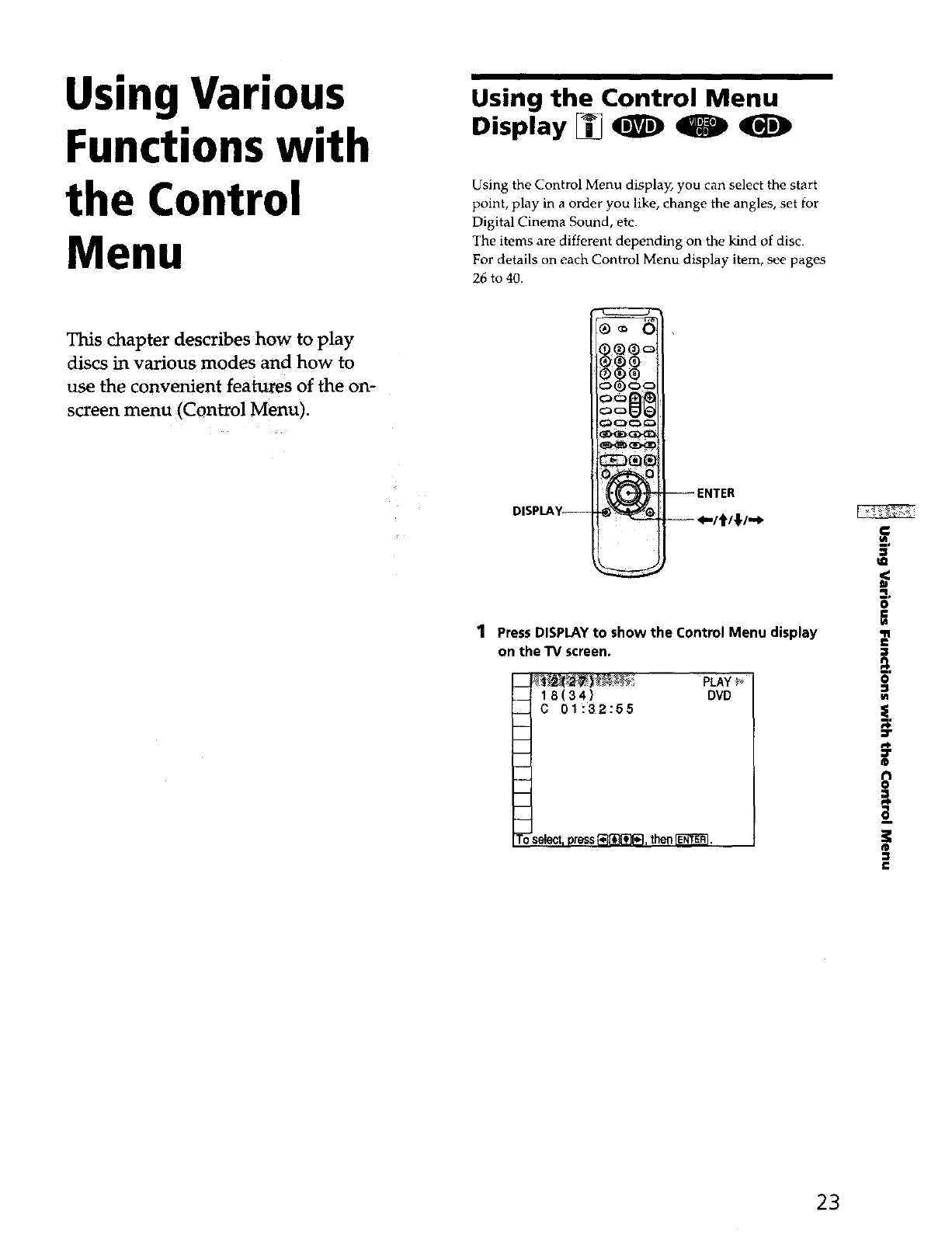

Using Various Functions with the

Control Menu 23

Using the Control Menu Display 23

Control Menu Item List 25

Searching for the Title/Chapter/Track/Index/Scene

Checking the Playing Time and Remaining

Time 27

Selecting a Start Point Using the Time Code 27

Checking the Information of the Disc 28

Changing the Sounds 29

Displaying the Subtitles 30

Changing the Angles 31

Setting for Digital Cinema Sound 32

Creating Your Own Program (Program Play) 34

Playing in Random Order (Shuffle Play) 36

Playing Repeatedly (Repeat Play) 37

Repeating a Specific Portion (A_-+B Repeat) 37

Checking the Play Information 39

Settings and Adjustments 41

Using the Setup Display 41

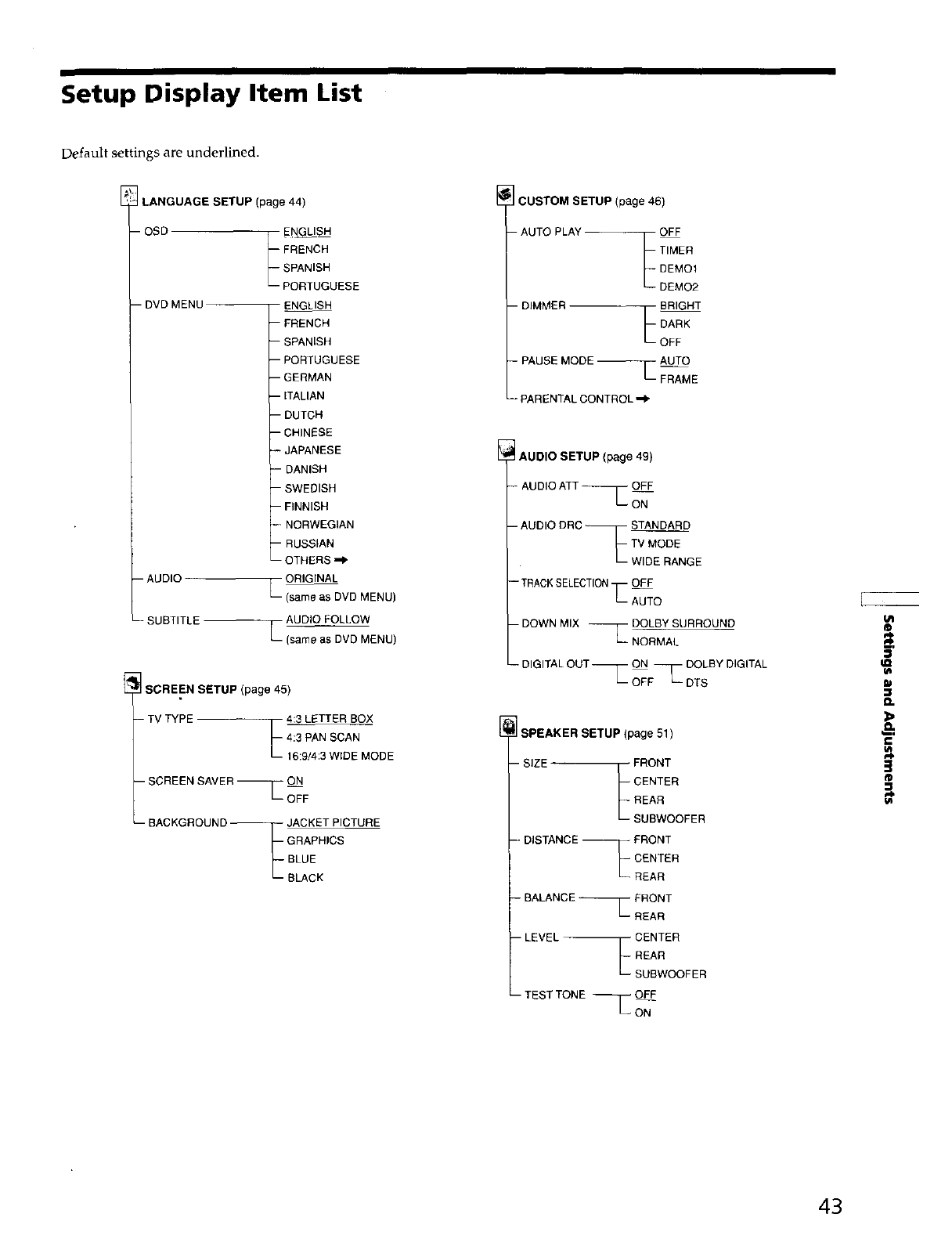

Setup Display Item List 43

Setting the Language for Display and Sound

(LANGUAGE SETUP) 44

Settings for Display (SCREEN SETUP) 45

Custom Settings (CUSTOM SETUP) 46

Settings for Sound (AUDIO SETUP) 49

Speaker Set Up 51

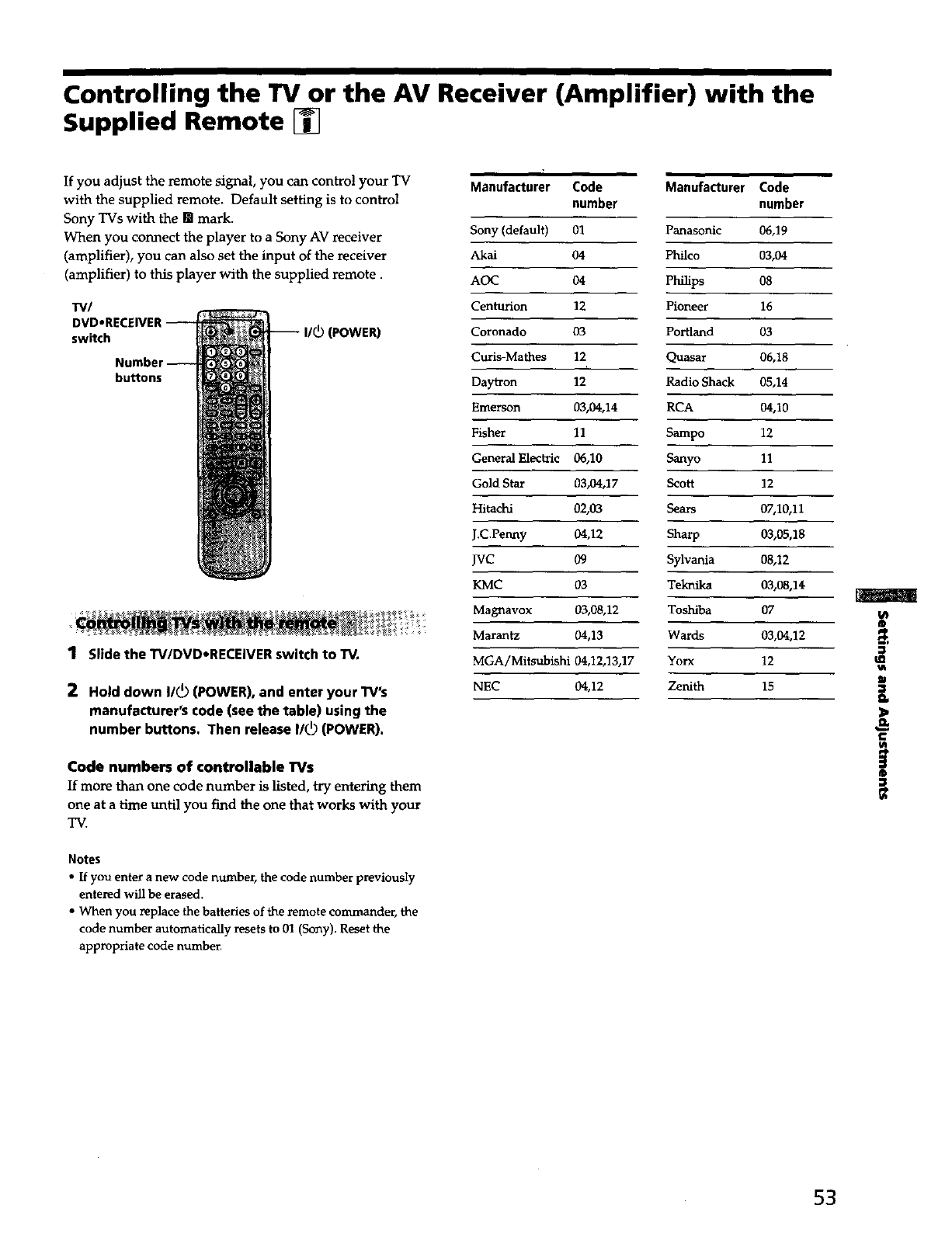

Controlling the TV or the AV Receiver (Amplifier)

with the Supplied Remote 53

Additional Information

Troubleshooting 55

Self-diagnosis Function 58

Specifications 59

Glossary 60

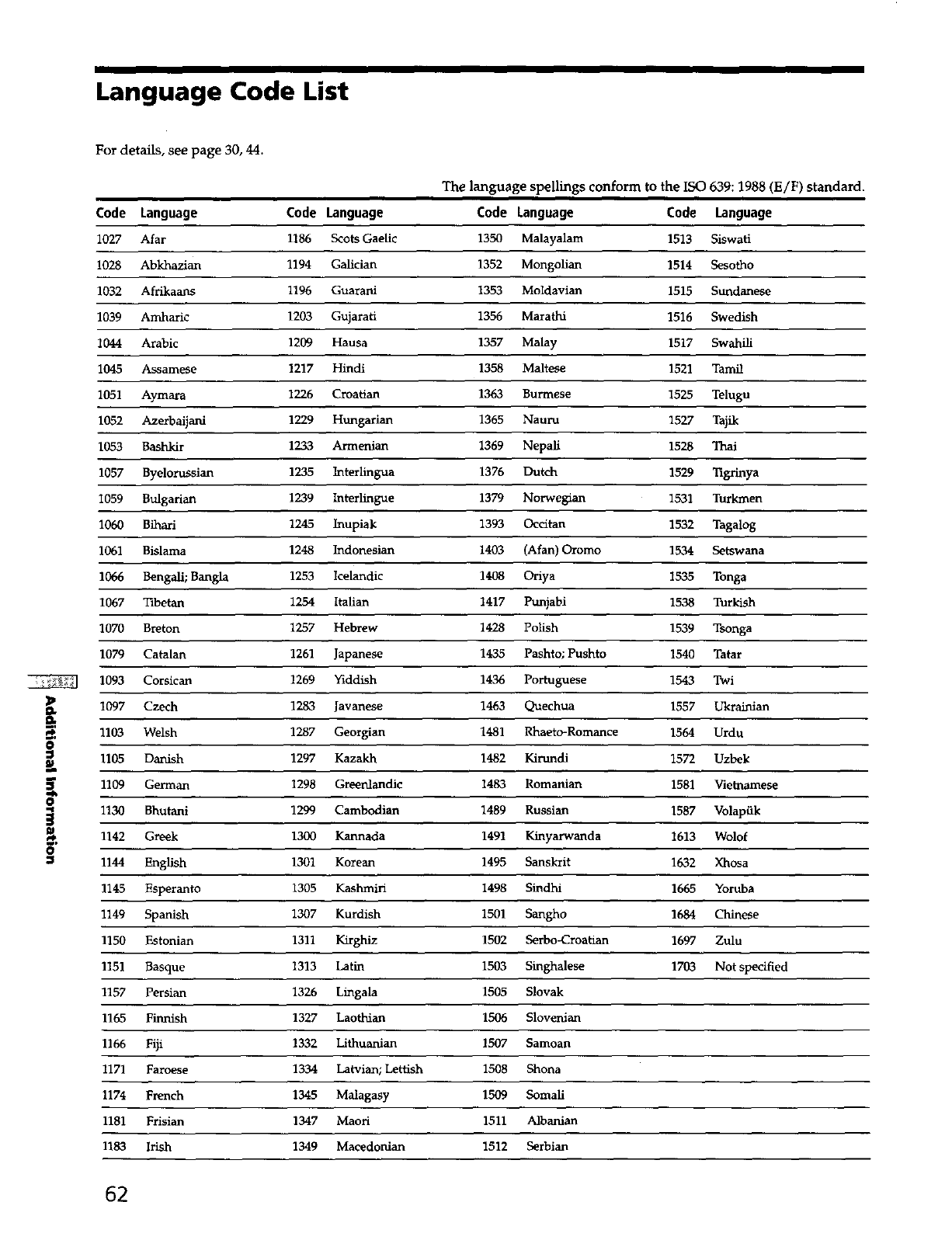

Language Code List 62

Index to Parts and Controls 63

Index 66

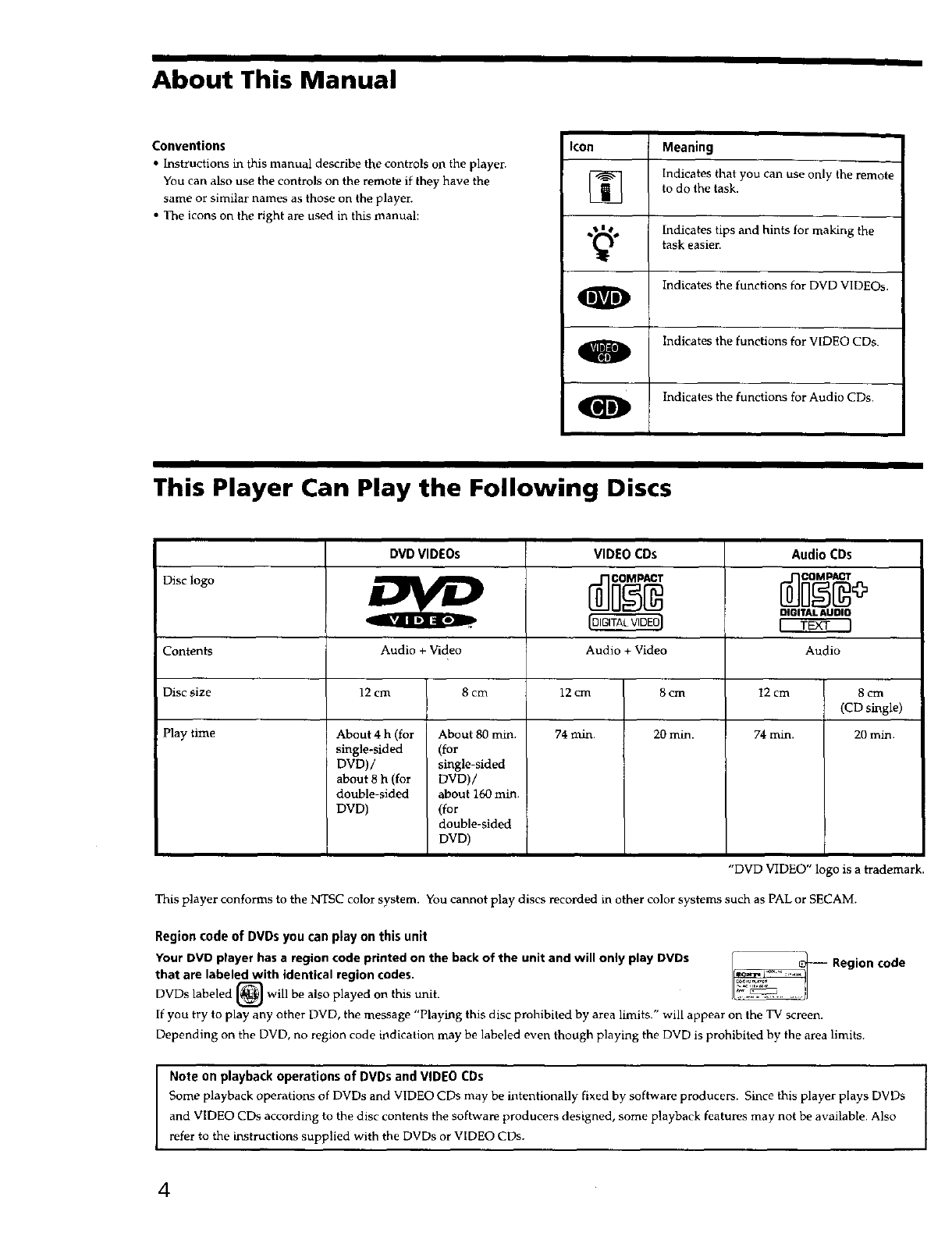

About This Manual

Conventions

•Instructions in this manual describe the controls on the player.

You can also use the controls on the remote if they have the

same or similar names as those on the player.

•The icons on the right are used in this manual:

Icon Meaning

[] Indicates that you can use only the remote

to do the task.

_._._% Indicates tips and hints for making the

task easier.

O Indicates the functions for DVD VIDEOs.

O Indicates the functions for VIDEO CDs.

O Indicates the functions for Audio CDs.

This Player Can Play the Following Discs

Disc logo

Contents

Disc size

Play time

DVD VIDEOs

L fD

Audio + Video

12 cm 8 cm

About 4 h (for About 80 min.

sIngle-sided (for

DVD)/ sIngle-sided

about 8 h (for DVD)/

double-sided about 160 mIn.

DVD) (for

double-sided

DVD)

VIDEO CDs

Audio + Video

Audio CDs

DIGITAL AUDIO

I TEXT I

Audio

12 cm 8cm 12 cm 8 cm

(CD single)

74 rain. 20 min. 74 min. 20 min.

"DVD VIDEO" logo is a trademark.

This player conforms to the NTSC color system. You cannot play discs recorded in other color systems such as PAL or SECAM.

Region code of DVDs you can play on this unit

Your DVD player has a region code printed on the back of the unit and will only play DVDs _ _-- Region code

that are labeled with identical region codes. _1

DVDs labeled J@Jwill be also played on this unit.

If you try to play any other DVD, the message "Playing this disc prohibited by area limits." will appear on the TV screen.

Depending on the DVD, no region code indication may be labeled even though playing the DVD is prohibited by the area limits.

J Note on playback operations of DVDs and VIDEO CDs I

Some playback operations of DVDs and VIDEO CDs may be intentionally fixed by software producers. Since this player plays DVDs

and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also

refer to the instructions supplied with the DVDs or VIDEO CDs.

Terms for discs

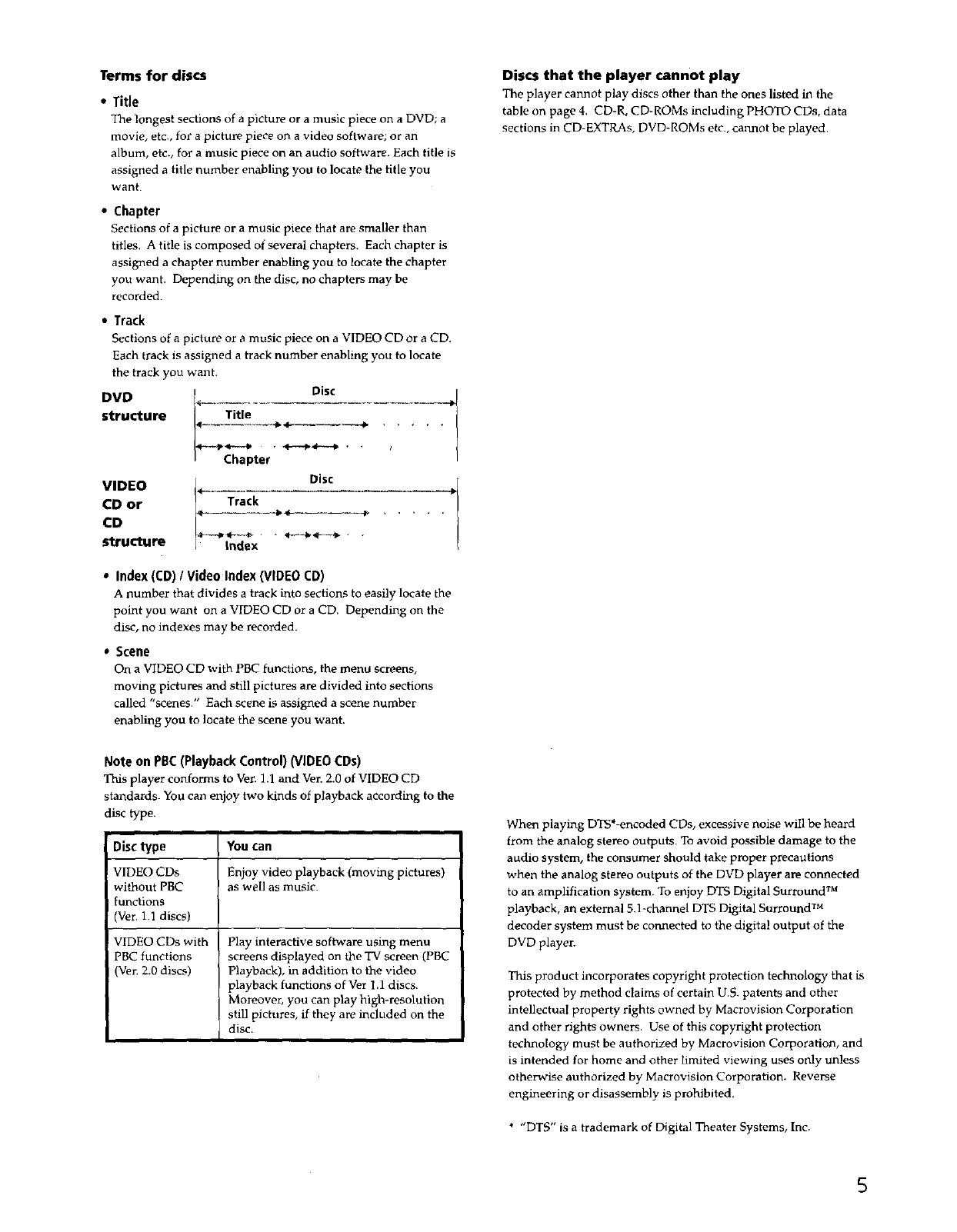

• Title

"[he longest sections of a picture or a music piece on a DVD; a

movie, etc., for a picture piece on a video software; or an

album, etc., for a music piece on an audio software. Each title is

assigned a title number enabling you to locate the title you

want.

•Chapter

Sections of a picture or a music piece that are smaller than

titles. A title is composed of several chapters. Each chapter is

assigned a chapter number enabling you to locate the chapter

you want. Depending on the disc, no chapters may be

recorded.

•Track

Sections of a picture or a music piece on a VIDEO CD or a CD.

Each track is assigned a track number enabling you to locate

the track you want.

structure Title

ter

structureCDVIDEOcDor _I_ _--*Track, _÷ Disc _ _ __

_-'-_lndex _-_-_

• Index (CD) /Video Index (VIDEO CD)

Anumber that divides a track into sections to easily locate the

point you want on a VIDEO CD or a CD. Depending on the

disc, no indexes may be recorded.

•Scene

On a VIDEO CD with PBC functions, the menu screens,

moving pictures and still pictures are divided into sections

called "scenes." Each scene is assigned a scene number

enabling you to locate the scene you want•

Note on PBC (Playback Control) (VIDEO CDs)

This player conforms to Vet. 1.1 and Ver. 2.0 of VIDEO CD

standards. You can enjoy two kinds of playback according to the

disc type.

Disc type You can

VIDEO CDs Enjoy video playback (moving pictures)

without PBC as well as music.

functions

(Vet. 1.1 discs)

VIDEO CDs with

PBC functions

(Ven 2.0 discs)

Play interactive software using menu

screens displayed on the TV screen (PBC

Playback), in addition to the video

playback functions of Ver 1.1 discs.

Moreover, you can play high-resolution

still pictures, if they are included on the

disc.

Discs that the player cannot play

The player cannot play discs other than the ones listed in the

table on page 4. CD-R, CD-ROMs including PHOTO CDs. data

sections in CD-EXTRAs, DVD-ROMs etc., cannot be played.

When playing DTS*-encoded CDs, excessive noise will be heard

from the analog stereo outputs. To avoid possible damage to the

audio system, the consumer should take proper precautions

when the analog stereo outputs of the DVD player are connected

to an amplification system. To enjoy DTS Digital Surround TM

playback, an external 5.1-channel DTS Digital Surround TM

decoder system must be connected to the digital output of the

DVD player.

This product incorporates copyright protection technology that is

protected by method claims of certain U.S. patents and other

intellectual property rights owned by Macrovision Corporation

and other rights owners. Use of this copyright protection

technology must be authorized by Macrovision Corporation, and

is intended for home and other limited viewing uses only unless

otherwise authorized by Macrovision Corporation. Reverse

engineering or disassembly is prohibited.

*"DTS" is a trademark of Digital Theater Systems, Inc.

Precautions

On safety

•Caution -The use of optical instruments with this

product will increase eye hazard.

• Should any solid object or liquid fall into the cabinet,

unplug the player and have it checked by qualified

personnel before operating it any further.

On power sources

• The player is not disconnected from the AC power

source (mains) as long as it is connected to the wall

outlet, even if the player itself has been turned off.

• If you are not going to use the player for a long time, be

sure to disconnect the player from the wall outlet. To

disconnect the AC power cord (mains lead), grasp the

plug itself; never pull the cord.

• Should the AC power cord (mains lead) need to be

changed, have it done at a qualified service shop only.

On placement

• Place the player in a location with adequate ventilation

to prevent heat build-up in the player.

• Do not place the player on a soft surface such as a rug

that might block the ventilation holes on the bottom.

• Do not place the player in a location near heat sources,

or in a place subject to direct sunlight, excessive dust or

mechanical shock.

On operation

• If the player is brought directly from a cold to a warm

location, or is placed in a very damp room, moisture

may condense on the lenses inside the player. Should

this occur, the player may not operate properly. In this

case, remove the disc and leave the player turned on for

about half an hour until the moisture evaporates.

On adjusting volume

• Do not turn up the volume while listening to aportion

with very low level inputs or no audio signals. If you

do, the speakers may be damaged when a peak level

portion is played.

On cleaning

•Clean the cabinet, panel and controls with a soft cloth

slightly moistened with a mild detergent solution. Do

not use any type of abrasive pad, scouring powder or

solvent such as alcohol or benzine.

If you have any questions or problems concerning your

player, please consult your nearest Sony dealer.

IMPORTANT NOTICE

Caution: The enclosed DVD player is capable of

holding a still video image or On screen display

image on your television screen indefinitely. If you

leave the still video image or On screen display image

displayed on your TV for an extended period of time

you risk permanent damage to your television screen.

Projection televisions are very susceptible.

Notes on Discs

On handling discs

•To keep the disc clean, handle the disc by its edge. Do

not touch the surface.

• Do not stick paper or tape on the disc.

If there is glue (or a similar substance) on the disc,

remove the glue completely before using the disc.

•Do not expose the disc to direct sunlight or heat sources

such as hot air ducts, or leave it in a car parked in direct

sunlight as there can be considerable rise in temperature

inside the car.

• After playing, store the disc in its case.

On cleaning

• Before playing, clean the disc with a cleaning cloth.

Wipe the disc from the center out.

•Do not use solvents such as benzine, thinner,

commercially available cleaners or anti-static spray

intended for vinyl LPs.

Getting

Started

This section describes how to hook up

the CD/DVD player to a TV (with

audio/video input jacks) and/or an

AV receiver (amplifier). You cannot

connect this player to a TV which

does not have a video input

connector. Be sure to turn off the

power of each component before

making the connections.

Unpacking

Check that you have the following items:

• Audio/video/S-link connecting cord (1)

• S video cord (1)

• Remote commander (remote) RMT-D108A (1)

•Size AA (R6) batteries (2)

Inserting batteries into the remote

You can control the player using the supplied remote.

Insert two Size AA (R6) batteries by matching the + and -

on the batteries. When using the remote, point it at the

remote sensor [] on the player.

_a.

_fl

"(_" You can control TVs and AV receivers using the supplied

remote

See page 53.

Notes

• Do not leave the remote in an extremely hot or humid place,

• Do not drop any foreign object into the remote casing,

particularly when replacing the batteries.

• Do not expose the remote sensor to direct sunlight or lighting

apparatuses. Doing so may cause a malfunction.

• If you will not use the remote for an extended period of time,

remove the batteries to avoid possible damage from battery

leakage and corrosion.

TVHookups

.=.

¢k

This connection is for listening to the sound through TV

speakers (2ch - L, R). Refer to the instructions supplied

with the component to be connected.

Required cords

Audio/video/S-link connecting cord (supplied) (1)

S video cord (supplied) (1)

When connecting the cords, be sure to match the color-coded

cord to the appropriate jacks on the components: Yellow (video)

to Yellow, Red (right) to Red and White (left) to White. Be sure to

make connections firmly to avoid hum and noise.

If your TV has an S*link connector, you can control the CD/DVD

player from the TV. Connect the TV via the S-LINK connector.

If your TV has an S video input connector, connect the

component via the S VIDEO OUT connector using the S video

cord. You will get a better picture.

Refer to the instructions supplied with the TV to be connected.

Yellow _ _ Yellow

White (L) _White (L)

S-link

CD/DVD player

: Signal flow

To LINE

OUT

To SVIDEO OUT

To S VIDEO

input "IV

To S-LINK

To an AC outlet

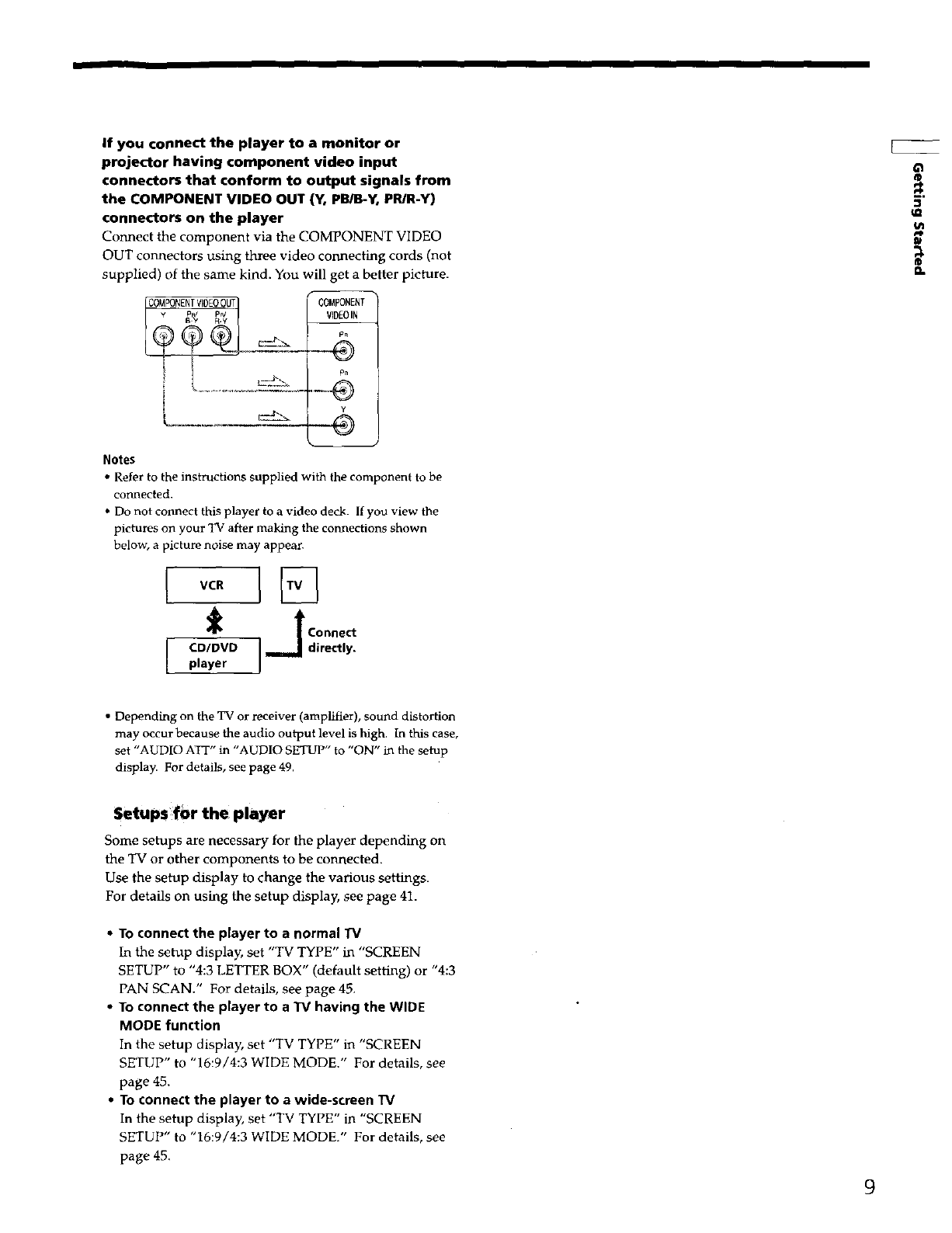

If you connect the player to a monitor or

projector having component video input

connectors that conform to output signals from

the COMPONENT VIDEO OUT (Y0 PB/B-Y, PR/R-Y)

connectors on the player

Connect the component via the COMPONENT VIDEO

OUT connectors using three video connecting cords (not

supplied) of the same kind. You will get a better picture.

Notes

COMPONENT

VDEOIN

--Q

• Refer to the instructions supplied with the component to be

cormected.

• Do not connect this player to a video deck. If you view the

pictures on your TV after making the connections shown

below, a picture noise may appear.

j Connect

CD/DVD directly.

player

•Depending on the TV or receiver (amplifier), sound distortion

may occur because the audio output level is high, In this case,

set "AUDIO AT]" in "AUDIO SETUP" to "ON" in the setup

display. For details, see page 49.

Setups for the player

Some setups are necessary for the player depending on

the TV or other components to be connected.

Use the setup display to change the various setffmgs.

For details on using the setup display, see page 41.

• To connect the player to a normal "IV

In the setup display, set "TV TYPE" in "SCREEN

SETUP" to "4:3 LETTER BOX" (default setting) or "4:3

PAN SCAN." For details, see page 45.

•To connect the player to a "IV having the WIDE

MODE function

In the setup display, set "TV TYPE" in "SCREEN

SETUP" to "16:9/4:3 WIDE MODE." For details, see

page 45.

•TOconnect the player to a wide-screen "IV

In the setup display, set "TV TYPE" in "SCREEN

SETUP" to "16:9/4:3 WIDE MODE." For details, see

page 45.

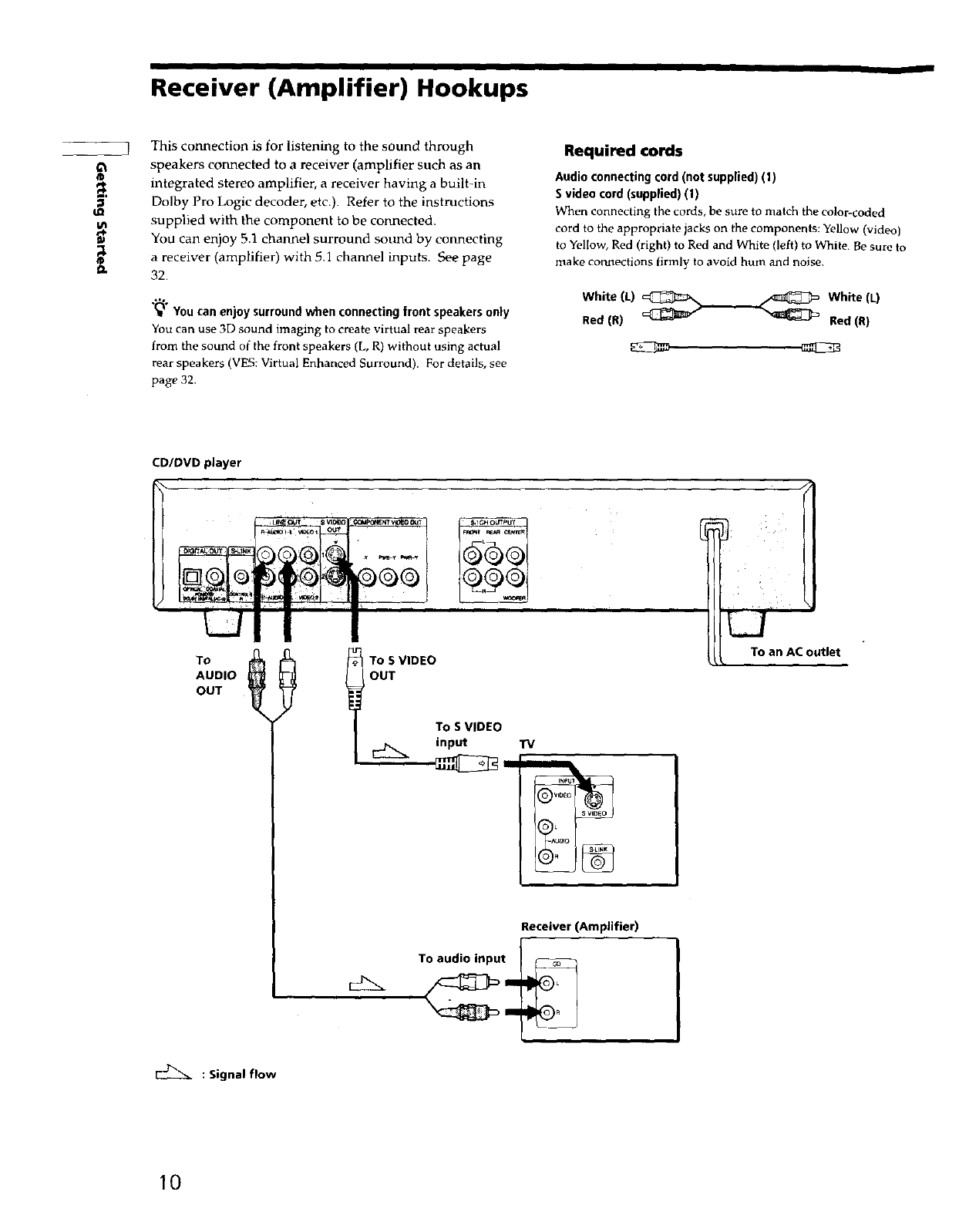

Receiver (Amplifier) Hookups

¢D

This connection is for listening to the sound through

speakers connected to a receiver (amplifier such as an

integrated stereo amplifier, a receiver having a built-in

Dolby Pro Logic decoder, etc.). Refer to the instructions

supplied with the component to be connected.

You can enjoy 5.1 chamxel surround sound by connecting

areceiver (amplifier) with 5.1 channel inputs. See page

32.

"_" You can enjoy surround when connecting front speakers only

You can use 3D sound imaging to create virtual rear speakers

from the sound of the front speakers (L, R) without using actual

rear speakers (VES: Virtual Enhanced Surround). For details, see

page 32.

Required cords

Audio connecting cord (not supplied) (1)

S video cord (supplied) (1)

When connecting the cords, be sure to match the color-coded

cord to the appropriate jacks on the components: Yellow (video)

to Yellow, Red (right) to Red and White (left) to White. Be sure to

make connections firmly to avoid hum and noise.

white (L) _White (L)

Red (R) __ Red (R)

CD/DVD player

: Signal flow

To S VIDEO

OUT

To S VIDEO

input "IV

Receiver (Amplifier)

TO audio input / _

If you have a digital component such as a

receiver (amplifier) with a digital connector, DAT

or MD

Connect the component via the DIGITAL OUT OPTICAL or

COAXIAL connector using an optical or coaxial digital

connecting cord (not supplied).

When you play a DVD, set "DIGITAL OUT" in "AUDIO SETUP"

to "ON" and then set "DOLBY DIGITAL" to "D-PCM," and

"DTS _ to "OFF" in the setup display (page 49).

==When using an optical digital connecting cord

Optical digital connecting cord

(not supplied)

Take off the cap and plug in the optical digital connecting cord.

CD/DVD player

_ DIGITAL_N

DOLBV DIG TAL (_ 3) j

Receiver (Amplifier)

with a digital

connector, MD deck,

DAT deck, etc.

IIIWhen using a coaxial digital connecting cord

Coaxial digital connecting cord

(not supplied)

CD/DVD player

OPTICAL COk,XI,_

OOLBYOIGITALIAC31 J _ _

Receiver (Amplifier)

with a digital

connector, MD deck,

DAT deck, etc.

Notes

•Refer to the instructions supplied with the component to be

connected.

•You cannot make digital audio recordings of discs recorded in

multi-channel surround format directly using an MD deck or

DAT deck.

When you make the connections above, do not set

"DOLBY DIGITAL" to "DOLBY DIGITAL," and "DTS" to

"ON." If you do, a loud noise will suddenly come out

from the speakers, affecting your ears or causing the

speakers to be damaged.

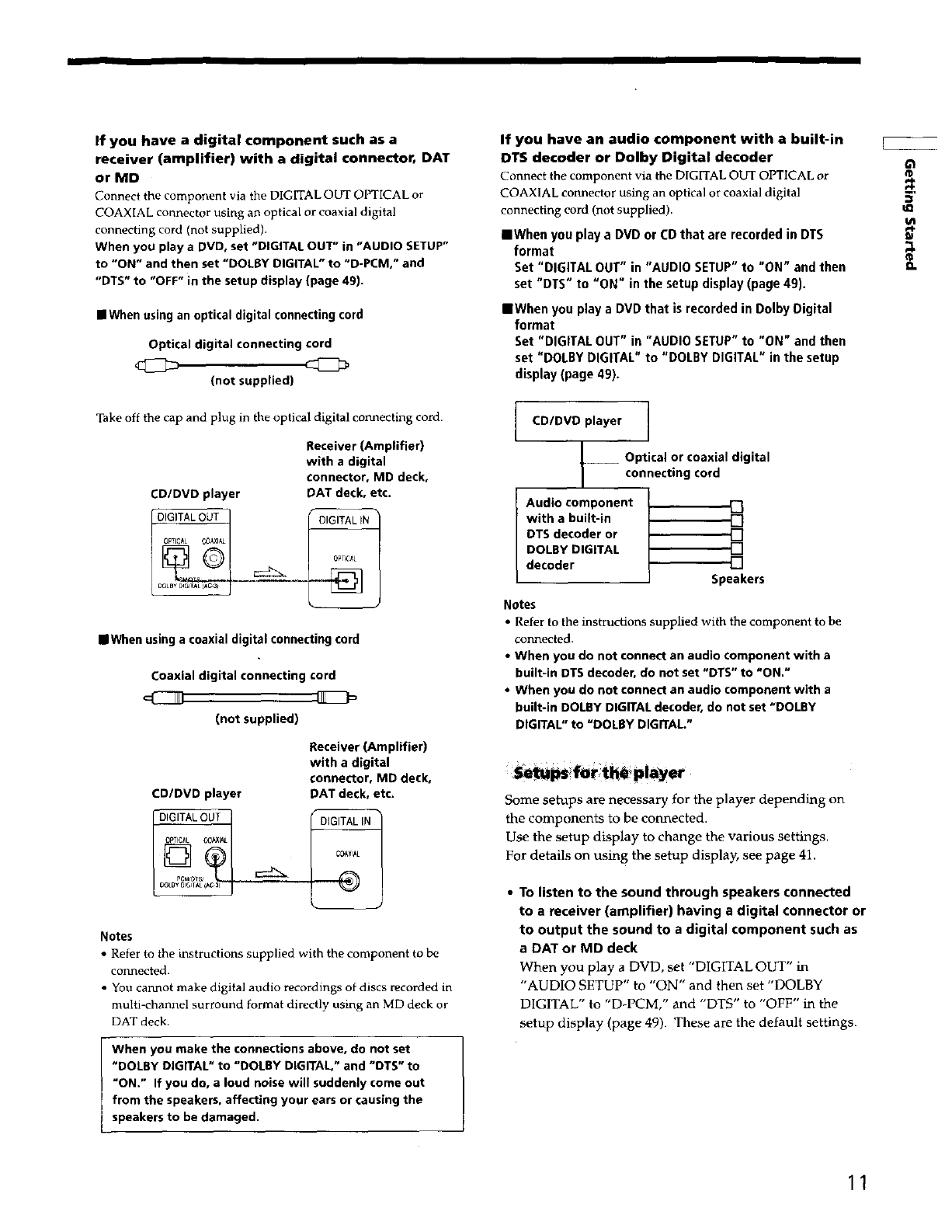

If you have an audio component with a built-in

DTS decoder or Dolby Digital decoder

Connect the component via the DIGITAL OUT OPTICAL or

COAXIAL connector using an optical or coaxial digital

connecting cord (not supplied).

IlWhen you play a DVD or CD that are recorded in DTS

format

Set "DIGITAL OUT" in "AUDIO SETUP"to "ON" and then

set "DTS" to "ON" in the setup display (page 49).

IlWhen you play a DVDthat is recordedin Dolby Digital

format

Set "DIGITAL OUT" in "AUDIO SETUP"to "ON" and then

set "DOLBYDIGITAL" to "DOLBY DIGITAL" in the setup

display (page 49).

CD/DVD player

t ......... Optical or coaxial digital

connecting cord

Audio component _

with a built-in I

DTS decoder or _]

DOLBY DIGITAL []

decoder []

Speakers

Notes

• Refer to the instructions supplied with the component to be

connected.

•When you do not connect an audio component with a

builtqn DTS decoder, do not set "DTS" to "ON."

•When you do not connect an audio component with a

built-in DOLBY DIGITAL decoder, do not set "DOLBY

DIGITAL" to "DOLBY DIGITAL."

Some setups are necessary for the player depending on

the components to be connected.

Use the setup display to change the various settings.

For details on using the setup display, see page 41.

•To listen to the sound through speakers connected

to a receiver (amplifier) having a digital connector or

to output the sound to a digital component such as

aDAT or MD deck

When you play a DVD, set "DIGITAL OUT" in

"AUDIO SETUP" to "ON" and then set "DOLBY

DIGITAL" to "D-PCM," and "DTS" to "OFF" in the

setup display (page 49). These are the default settings.

5.1 Channel Surround Hookups

Some DVDs have a sound track with up to 5.1 channels

recorded in Dolby* Digital (AC-3) format. Using a

receiver (amplifier) having 5.1 channel inputs and the 5

(+1) speakers, you can enjoy more real audio presence in

the comfort of your own home.

"5 channel" stands for the 2 front speakers (Left and

Right), 2 rear speakers (Left and Right) and 1center

speaker. The "0.1 channel" (+1) stands for the subwoofer

which outputs the bass.

Even if you have fewer than 5 (+1) speakers, the player

distributes the output signal to the speakers appropriately.

You can enjoy the VES (Virtual Enhanced Surround)

system using the DCS (Digital Cinema Sound) method

that Sony developed. The VES system realize surround

sound only with front speakers. For details on the VES

mode, see page 32.

Speaker placement

For the best possible surround sound, we recommend the

following conditions.

• Use higher performance speakers.

•Use rear and center speakers that match your front

speakers in size and performance.

• All speakers should be the same distance from the

listening position.

• Place the subwoofer between the front (L, R) speakers if

possible.

Note

Do not place the center or rear speakers farther away from the

listening position than the front speakers.

Notes

•Do not connect the power cord to an AC outlet or press the

I/_ (POWER) button before completing all connections.

• The cable connectors should be fully inserted into the iacks.

Loose cormection may cause hum and noise.

• Jacks and plugs of the connecting cords are color-coded as

follows:

Red iacks and plugs: Right audio charmel

White jacks and plugs: Left audio channel

You can use either red or white cables to connect the center

speaker and subwoofer.

• When you connect the component via the DIGITAL OUT

OPTICAL or COAXIAL cormector using an optical or coaxial

digital connecting cord (not supplied), see page 11.

Setups for the player

Some setups are necessary for the player depending on

the components to be connected.

Use the setup display or Control Menu display to change

the various settings.

For details on using the setup display, see page 41.

For details on enjoying Digital Cinema Sound, see page

32.

•TOenjoy Dolby Digital surround sound by

connecting the player to a receiver (amplifier) with

5,1 CH inputs

Set each speaker position or distance, etc. See page 51.

Required cords ....

Audio cords (not supplied)

Two for the 5.1CH OUTPUT FRONT and REAR jacks

White (L) _White (L)

Red (R) _ _ Red (R)

Monaural audio cords (not supplied)

Two for the 5.1CH OUTPUT CENTER and WOOFER jacks

Black _, Black

$ video cord (supplied)

One for the S VIDEO OUT jacks

* Manufactured under license from Dolby Laboratories,

"Dolby," "AC-3," "Pro Logic" and the double-D symbol 0[3 are

trademarks of Dolby Laboratories.

Confidential Unpublished Works. O1992-1997 Dolby

.=.

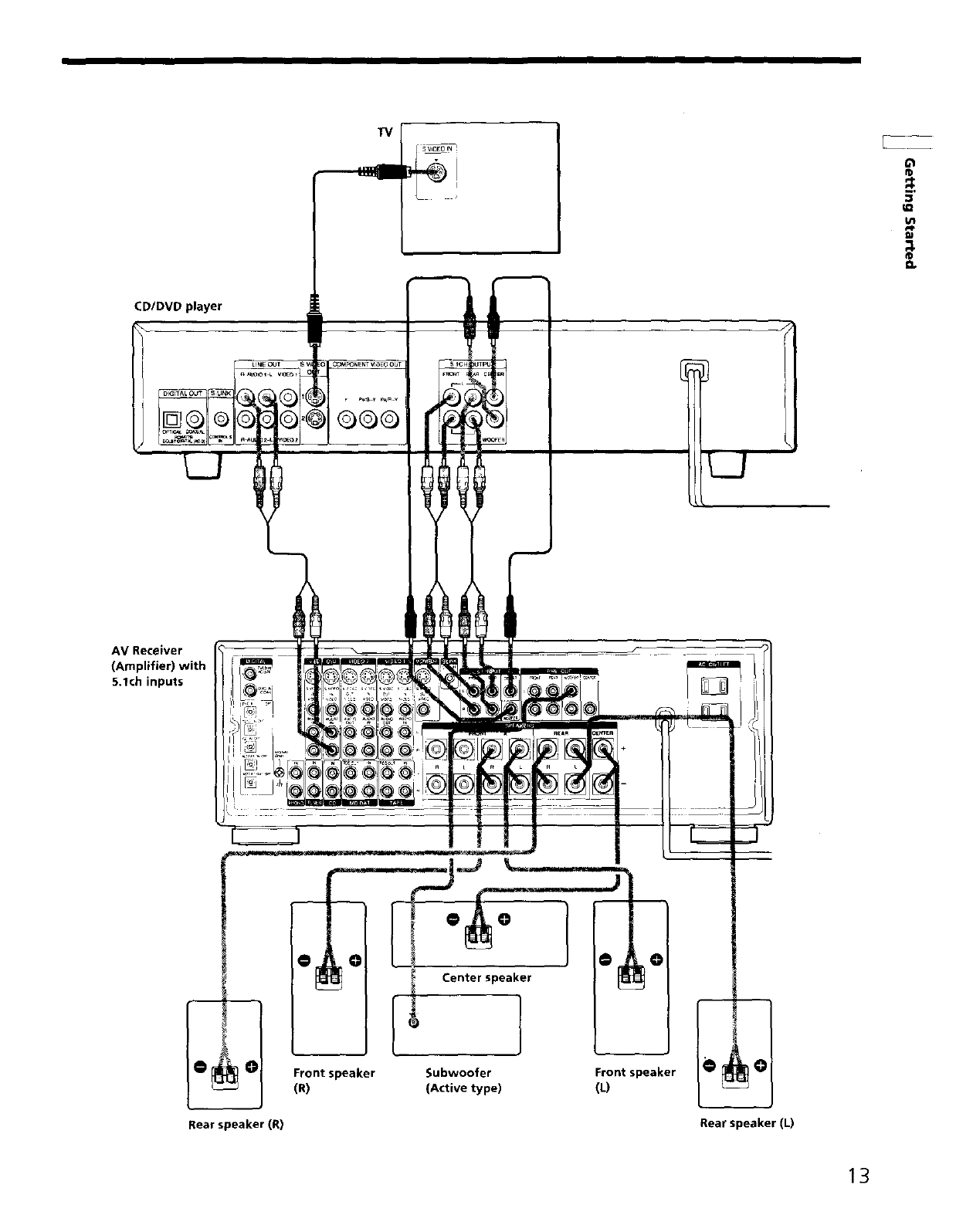

CD/DVD player

AV Receiver

(Amplifier) with

5.1ch inputs

Rearspeaker(R)

Subwoofer

(Active type)

Frontspeaker

(L)

Rear speaker (L)

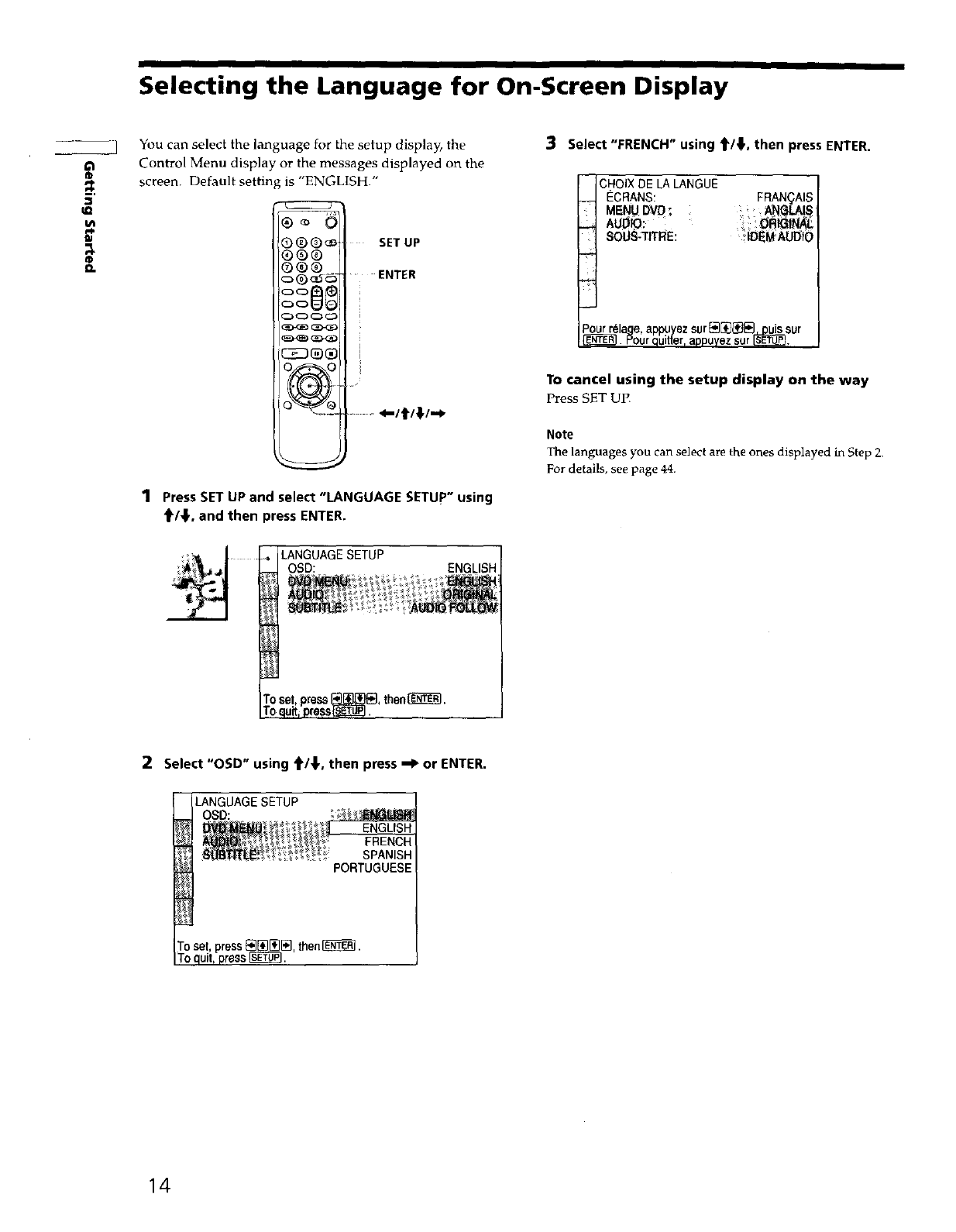

Selecting the Language for On-Screen Display

You can select the language for the setup display, the

Control Menu display or the messages displayed on the

screen. Default setting is "ENGLISH."

®®

(o) GD _

_®®1

SET UP

ENTER

-4=/t/4/_

1Press SET UP and select "LANGUAGE SETUp" using

_'/,!_, and then press ENTER.

LANGUAGE SETUP

OSD: ENGLISH

3 Select "FRENCH" using t/_, then press ENTER.

CHOIXDELA LANGUE

ECRANS:

,SOUS;TfTRE:

-,-'H

FRAN_AIS

: I_NAI;

IDEMAUDfO

Pourr_laae,appuyezsur_,_ssur

_. Poorouitter,appuyezsarSETI_Z_L

To cancel using the setup display on the way

Press SET UP.

Note

The languages you can select are the ones displayed in Step 2

For details, see page 44.

To set press[_, then[_.

TOquiti press_1.

2Select "OSD" using '1=/,I,,then press -IP or ENTER.

ENGLISH

SPANISH

PORTUGUESE

1"oset,press{_[_[_ then[_.

Toqu t_press_.

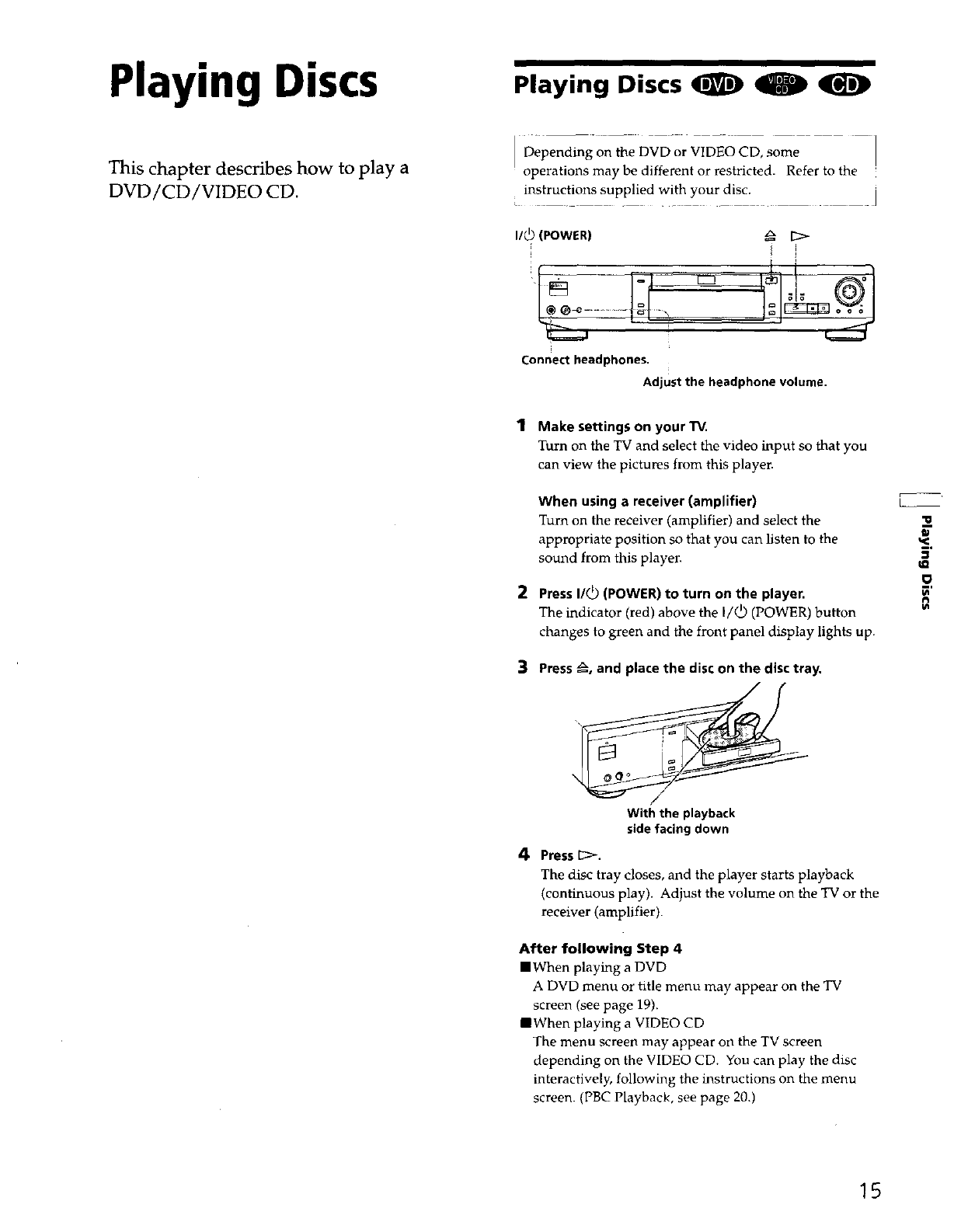

Playing Discs

This chapter describes how to play a

DVD/CD/VIDEO CD.

Playing Discs 0

I Dependin_g on the DVD°or VIDEO CD, some - --

operations may be different or restricted. Refer to the

instructions supplied with your disc.

II_ (POWER) _[_

4' °

Connect headphones.

Adjust the headphone volume.

1 Make settings on your TV.

Turn on the TV and select the video input so that you

can view the pictures from this player.

When using a receiver (amplifier)

Turn on the receiver (amplifier) and select the

appropriate position so that you can listen to the

sound from this player.

Press I/(_) (POWER) to turn on the player.

The indicator (red) above the I/_) (POWER) button

changes to green and the front panel display lights up.

3Press_, and place the disc on the disc tray.

With the playback

sidefacing down

4 Press[_.

The disc tray closes, and the player starts playback

(continuous play). Adjust the volume on the TV or the

receiver (amplifier).

After following Step 4

mWhen playing a DVD

A DVD menu or title menu may appear on the TV

screen (see page 19)+

mWhen playing a VIDEO CD

The menu screen may appear on the TV screen

depending on the VIDEO CD+ You can play the disc

interactively, following the instructions on the menu

screen. (PBC Playback, see page 20+)

Playing Discs

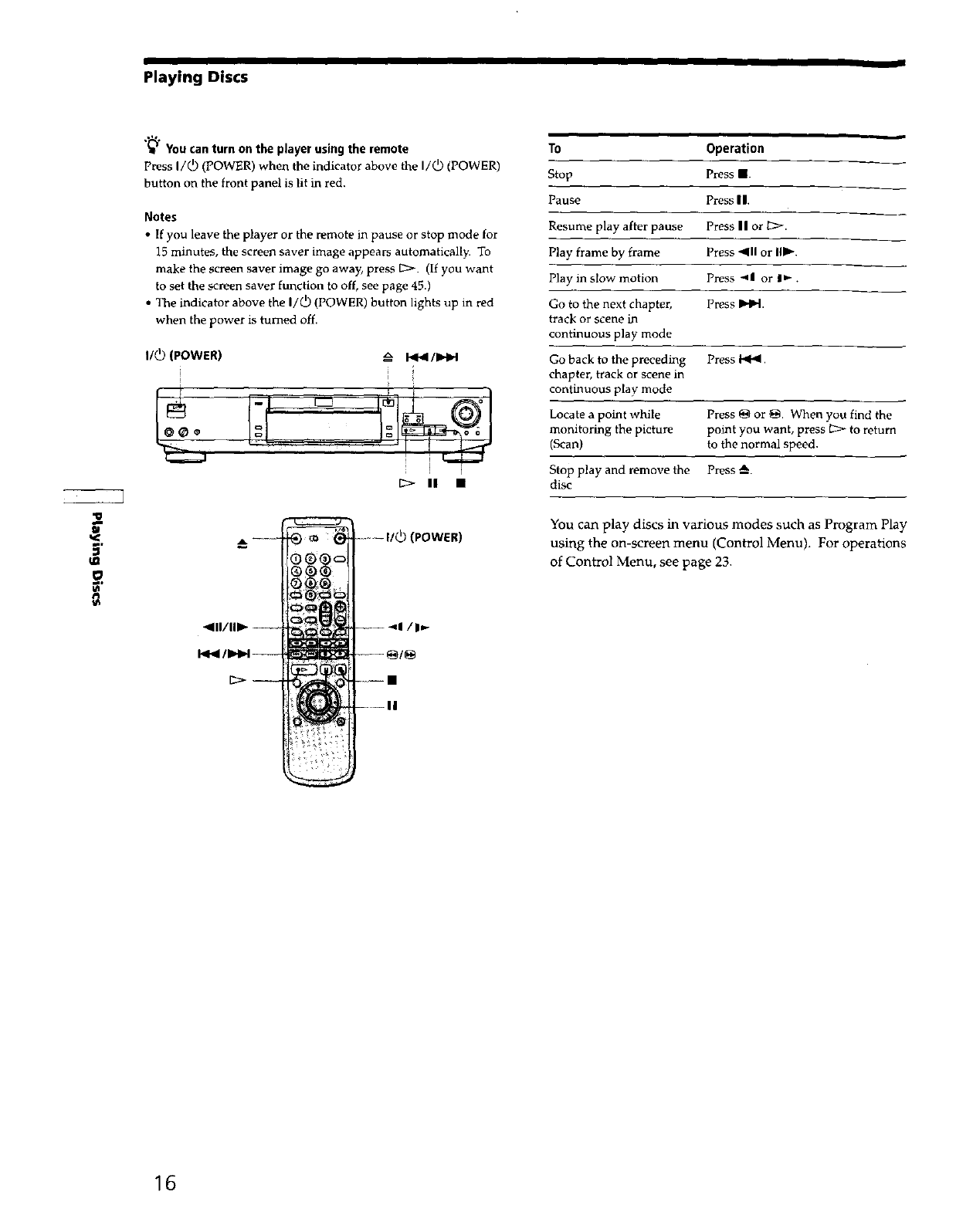

"_ You can turn on the player using the remote

Press I/_ (POWER) when tile indicator above the I/_ (POWER)

button on the front panel is lit in red,

Notes

•If you leave the player or the remote in pause or stop mode for

15 minutes, the screen saver image appears automatically. To

make the screen saver image go away, press [_-. (If you want

to set the screen saver function to off, see page 45.)

•The indicator above the I/_) (POWER) button lights up in red

when the power is turned off.

I/(_ (POWER) _I_I_111_I_I

.a&. ----

I_1_1/1_1 --

...... I/_ (POWER)

_Jx_

L--II

To Operation

Stop Press I.

Pause Press I|.

Resume play after pause Press | | or _>-.

Play frame by frame Press _111or II1_.

Play in slow motion Press "11 or I_.

Go to the next chapter, Press _P4.

track or scene in

continuous play mode

Go back to the preceding Press bqb(.

chapter, track or scene in

continuous play mode

Locate a point while Press _ or @. When you find the

monitoring the picture point you want, press _>_ to return

(Scan) to the normal speed.

Stop play and remove the Press _.

disc

You can play discs in various modes such as Program Hay

using the on-screen menu (Control Menu). For operations

of Control Menu, see page 23.

I/I

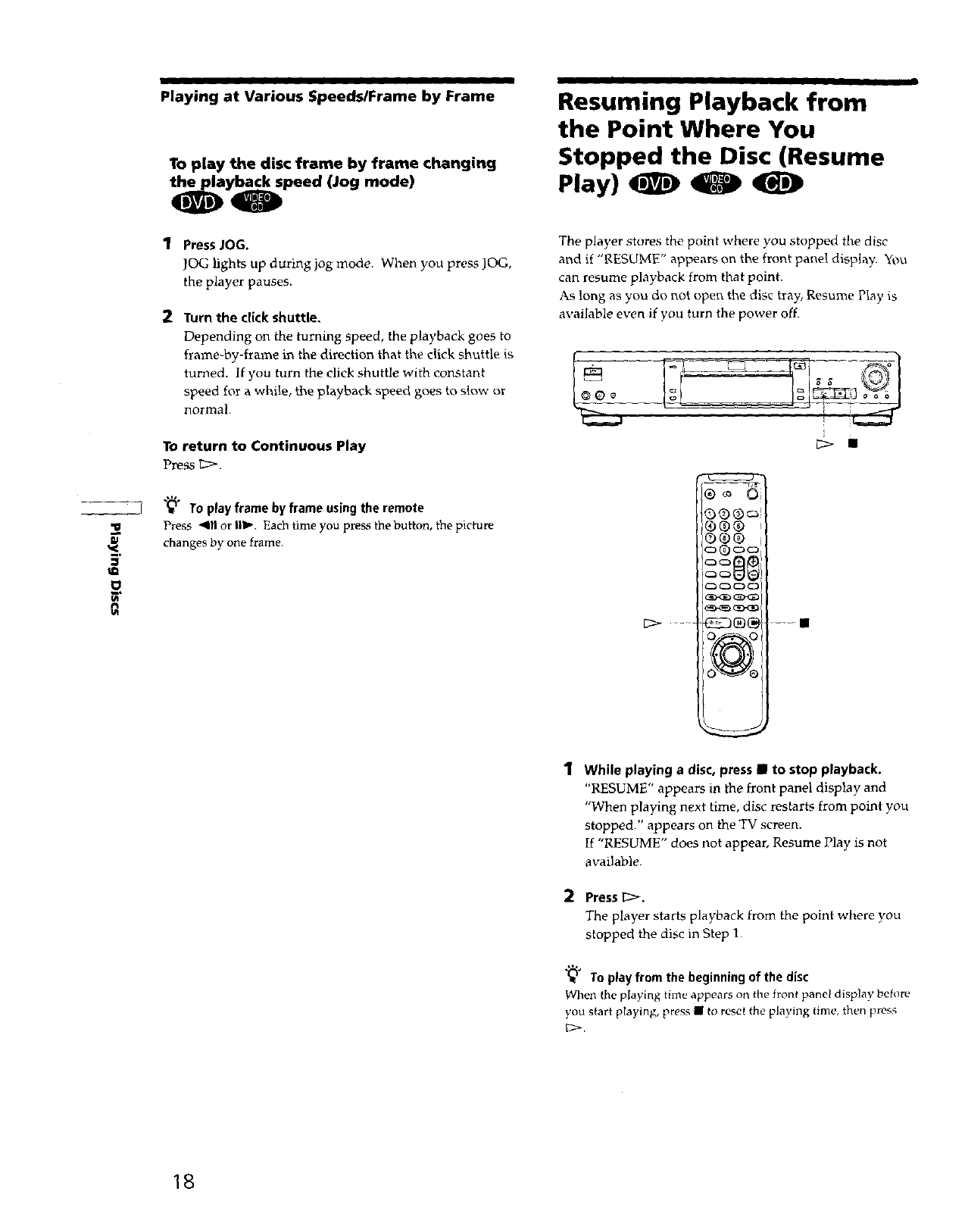

Playing at Various Speeds/Frame by Frame

To play the disc frame by frame changing

_y_peed (Jog mode)

1PressJOG.

JOG lights up during jog mode. When you press JOG,

the player pauses.

2Turn the click shuttle.

Depending on the turning speed, the playback goes to

frame-by-frame in the direction that the click shuttle is

turned. If you turn the click shuttle with constant

speed for a while, the playback speed goes to slow or

normal.

To return to Continuous Play

Press _-.

_'_" TO play frame by frame using the remote

Press 41| or ll_. Each time you press the button, the picture

changes by one frame.

Resuming Playback from

the Point Where You

Stopped the Disc (Resume

Play) 0 0

The player stores the point where you stopped the disc

and if "RESUME" appears on the front panel display. You

can resume playback from that point.

As long as you do not open the disc tray, Resume Play is

available even if you turn the power off.

While playing adisc, press •to stop playback.

"RESUME" appears in the front panel display and

"When playing next time, disc restarts from point you

stopped." appears on the TV screen.

If "RESUME" does not appear, Resume Play is not

available.

2Press _:_.

The player starts playback from the point where you

stopped the disc in Step 1.

"_" To play from the beginning of the disc

When the playing time appears on the front panel display before

you start playing, press • to reset the playing time, then press

I2:_.

Notes

• Resume Play may not be available depending on the DVD.

• Resume Play is not available in Shuffle or Program Play mode.

• Depending on where you stopped the disc, the player may

resume playback from a different point.

• The point where you stopped playing is cleared when:

-you open or close the disc tray

you disconnect the AC power cord

- you change the play mode

-you start playback after selecting a title, chapter or track

- you change the settings of "OSD," "DVD MENU,"

"AUDIO" or "SUBTITLE" in "LANGUAGE SETUP" in the

setup display and "AUDIO" or "SUBTITLE" in the Control

Menu display

- you change the settings of "TV TYPE" in "SCREEN SETUP"

in the setup display

- you change the settings of "PARENTAL CONTROL" in

"CUSTOM SETUP" in the setup display

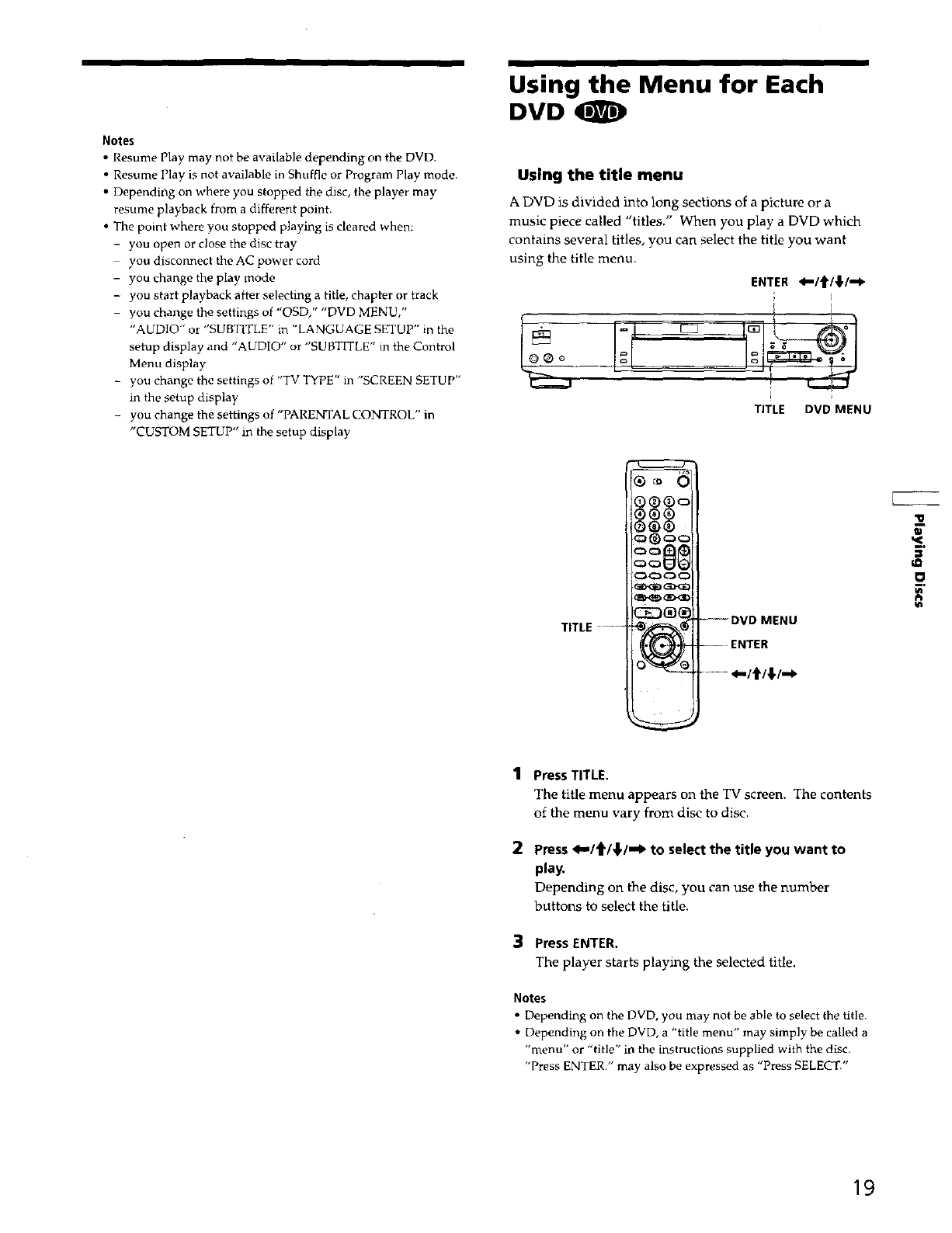

Using the Menu for Each

DVD

@Go

Using the title menu

A DVD is divided into long sections of a picture or a

music piece called "titles." When you play a DVD which

contains several titles, you can select the title you want

using the title menu.

ENTER 4t--/f/_l,/--b

TITLE DVD MENU

TITLE ........

® ®

®. .® ----= DVD MENU

---- ENTER

--- *=/f/_t/..#

PressTITLE.

The title menu appears on the TV screen. The contents

of the menu vary from disc to disc.

Press _,=/_'/_/=b to select the title you want to

play.

Depending on the disc, you can use the number

buttons to select the title.

3 PressENTER.

The player starts playing the selected title.

Notes

•Depending on the DVD, you may not be able to select the title.

• Depending on the DVD, a "title menu" may simply be called a

"menu" or "title" iF, the instructions supplied with the disc.

"Press ENTER." may also be expressed as "Press SELECT."

Using the Menu for Each DVD

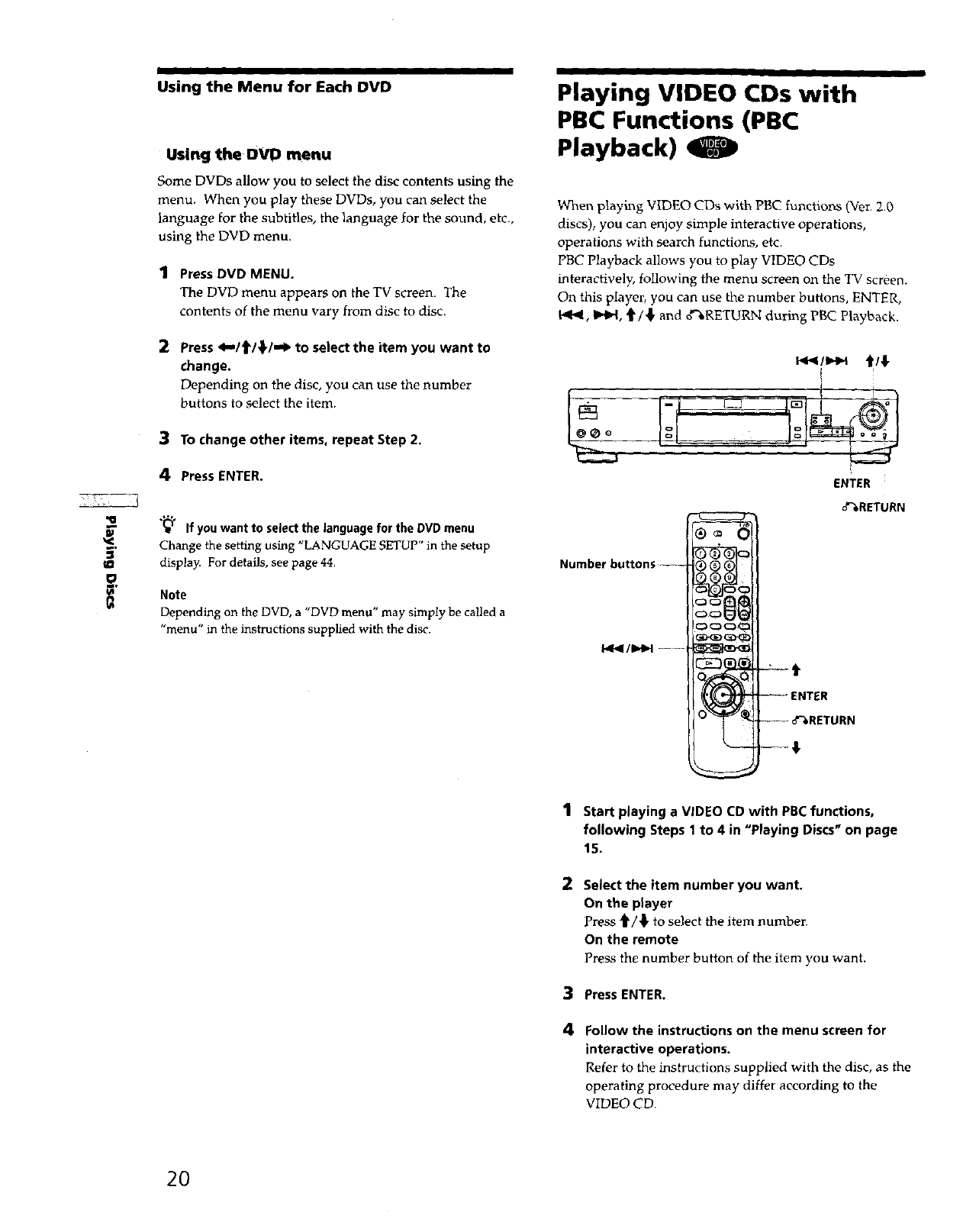

Using the DVD menu

Some DVDs allow you to select the disc contents using the

menu. When you play these DVDs, you can select the

language for the subtitles, the language for the sound, etc.,

using the DVD menu.

I Press DVD MENU.

The DVD menu appears on the TV screen. The

contents of the menu vary from disc to disc.

2 Press <l,,/t/,I,/=b to select the item you want to

change.

Depending on the disc, you can use the number

buttons to select the item.

3To change other items, repeat Step 2.

4Press ENTER.

"_'_ If you want to select the language for the DVD menu

Change the setting using "LANGUAGE SETUP" in the setup

display. For details, see page 44,

Note

Depending on the DVD, a "DVD menu" may simply be called a

"menu" in the instructions supplied with the disc.

Playing VIDEO CDs with

PBC Functions (PBC

Playback) 0

When playing VIDEO CDs with PBC functions (Vet. 2.0

discs), you can enjoy simple interactive operations,

operations with search functions, etc.

PBC Playback allows you to play VIDEO CDs

interaetively, following the menu screen on the TV screen.

On this player, you can use the number buttons, ENTER,

t,_l, I_H, _/_ and 8%RETURN during PBC Playback.

ENTER

_:_RETURN

Number buttons ........

I_<1/b4H -- -o-

c_QC;

_- ENTER

1 Start playing a VIDEO CD with PBCfunctions,

following Steps 1 to 4 in "Playing Discs" on page

15.

2Select the item number you want.

On the player

Press _/_1, to select the item number.

On the remote

Press the number button of the item you want.

3Press ENTER.

4Follow the instructions on the menu screen for

interactive operations.

Refer to the instructions supplied with the disc, as the

operating procedure may differ according to the

VIDEO CD.

Going back to the menu screen

Press o_RETURN, I<<1, or IblH.

.,I,÷

When playing VIDEO CDs with PBCfunctions

PBC playback starts automatically.

.*l,÷

I_ To cancel PBC playback of a VIDEO CD with PBC functions

and play the disc in Continuous Play mode

There are two ways.

•Before you start playing, select the track you want using _ or

IH_l, then press ENTER or _::>.

•Before you start playing, select the track number using the

number buttons on the remote, then press ENTER or 1:::>.

"Play without PBC" appears on the TV screen and the player

starts Continuous Pla3a You cannot play still pictures such as a

menu screen.

To return to PBC playback, press • twice then press 1_>.

Note

Depending on the VIDEO CD, "Press ENTER." in Step 3 may be

expressed as "Press SELECT." m the instructions supplied with

the disc.

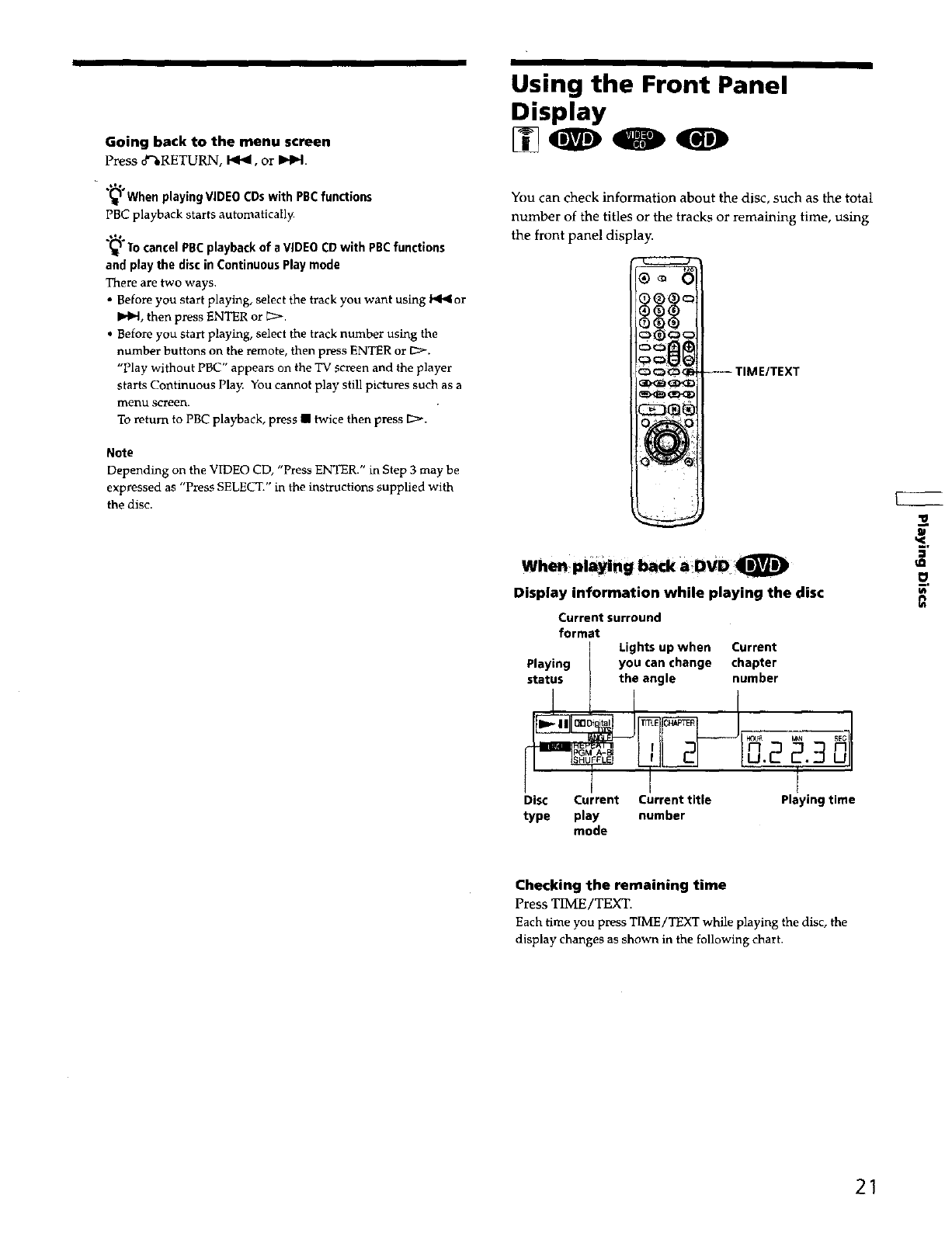

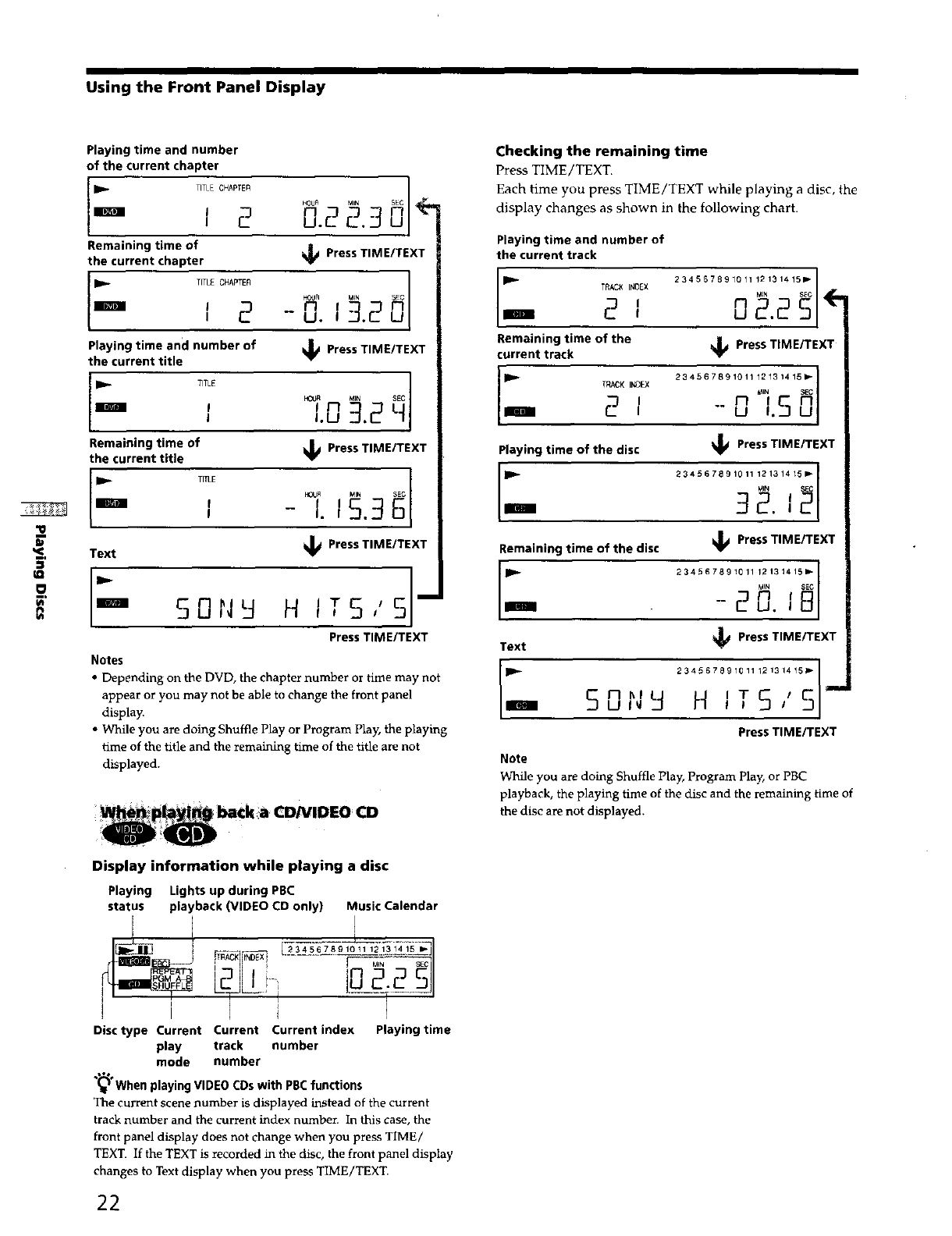

Using the Front Panel

Display

You can check information about the disc, such as the total

number of the titles or the tracks or remaining time, using

the front panel display.

----TIME/TEXT

Display information while playing the disc

Current surround

format

Lights up when Current

Playing you can change chapter

status the angle number

_H 'ta' _ M_ SE_I

Disc Current Current title Playing time

type play number

mode

_o.

Checking the remaining time

Press TIME/TEXT.

Each time you press TIME/TEXT while playing the disc, the

display changes as shown in the following chart.

Using the Front Panel Display

Playing time and number

of the current chapter

TTLECHA",0

HOUR MIN

, 2 0.2 2.3

Remaining time of

the current chapter _ Press TIME/TEXT

TTLE POJR

, 2 -0, J .

Playing time and number of _Press TIME/TEXT

the current title

NC_R MIN SEC

' I 9

Remaining time of _Press TIME/TEXT

the current title

t_J_

' -I.t

I ,

Text _Press TIME/TEXT

Press TIME/TEXT

Notes

•Depending on the DVD, the chapter number or time may not

appear or you may not be able to change the front panel

display.

• While you are doing Shuffle Play or Program Play, the playing

time of the title and the remaining time of the title are not

displayed.

_backa CDNIDEO CD

Checking the remaining time

Press TIME/TEXT.

Each time you press TIME/TEXT while playing a disc, the

display changes as shown in the following chart.

Playing time and number of

the current track

TRACK INDEX

-- 21

Remaining time of the

current track

I-

Playing time of the disc

Remaining time of the disc

234567891011121314151_

02.25

_Press TIME/TEXT

23456789101112131415_

t_lN _C

--0 I_50

_Press TIME/TEXT

2 .67oo,o,,,:3,4;5:

32.,2

Text

_Press TIME/TEXT

23456789101112131415_

MIN SEC

-20 113

Press TIME/TEXT

Note

While you are doing Shuffle Play, Program Play, or PBC

playback, the playing time of the disc and the remaining time of

the disc are not displayed.

Display information while playing a disc

Playing Lights up during PBC

status playback (VIDEO CD only) Music Calendar

I I

23456789101112131415 Iw-J

Disc type Current Current Current Index Playing time

play track number

mode number

(_ When playing VIDEO CDswith PBC functions

The current scene number is displayed instead of the current

track number and the current index number. In this case, the

front panel display does not change when you press TIME/

TEXT. If the TEXT is recorded in the disc, the front panel display

changes to Text display when you press TIME/TEXT.

Using Various Using the Control Menu

Functions with Display [] _ 0 (J_J)

the Control

Using the Control Menu display, you can select the start

point, play in a order you like, change the angles, set for

Digital Cinema Sound, etc.

The items are different depending on the kind of disc.

For details on each Control Menu display item, see pages

26 to 40.

This chapter describes how to play

discs in various modes and how to

use the convenient features of the on-

screen menu (Control Menu).

DISPLAy---

1Press DISPLAY to show the Control Menu display

on the TV screen.

___

_ 18(34)

_ C 01:32:55

1=cselect,press_]_, then!_N'T_.

PLAY

DVD

€

"11

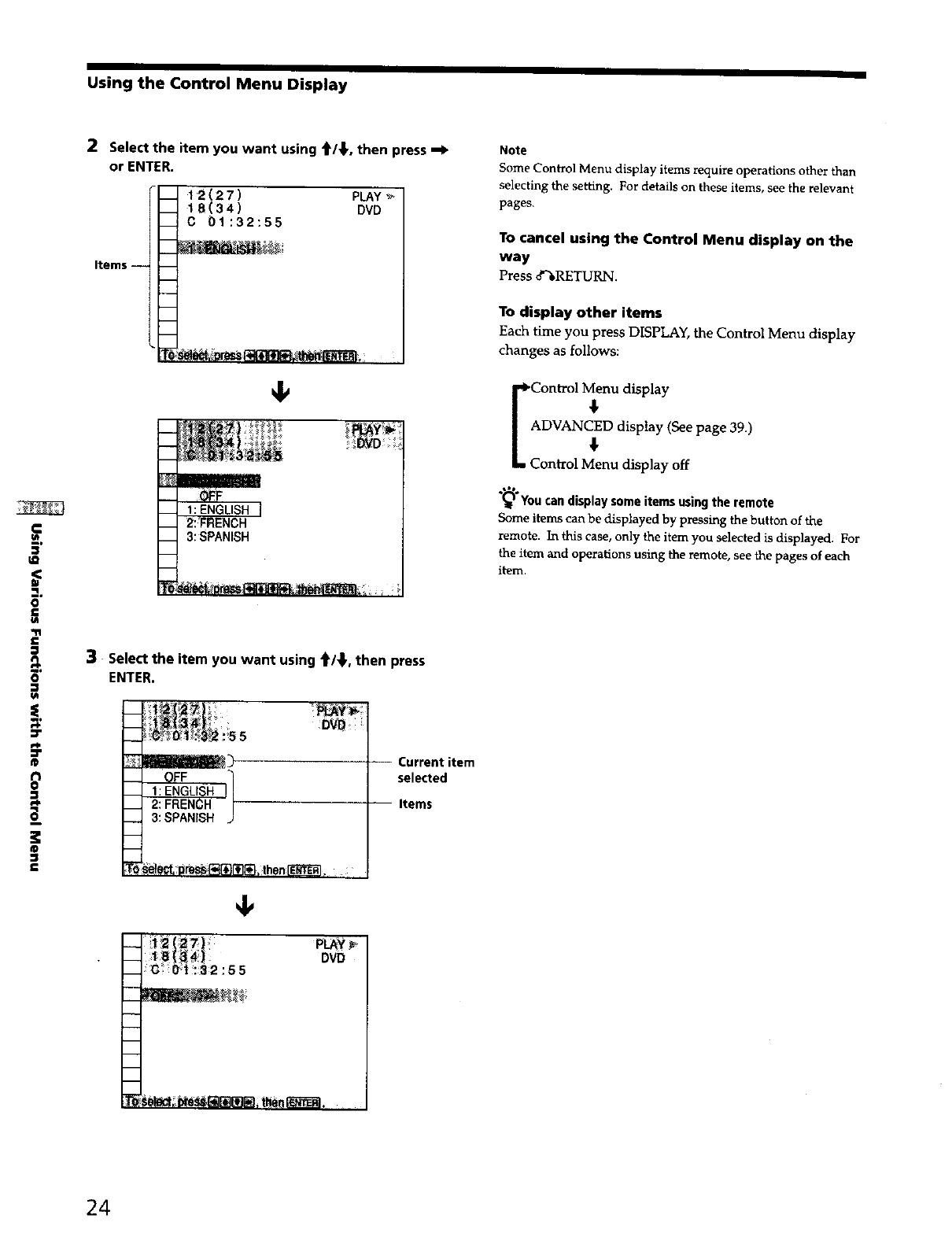

Using the Control Menu Display

€

2 Select the item you want using _/_,, then press ,-b

or ENTER.

12(27) PLAY_

18( 34 ) DVD

C 01:32:55

Items --

2_FRENCH

__ 3: SPANISH

3 Select the item you want using _/_, then press

ENTER.

selected

Items

_0_t:32:55

Note

Some Control Menu display items require operations other than

selecting the setting. For details on these items, see the relevant

pages.

To cancel using the Control Menu display on the

way

Press 8%RETURN.

To display other items

Each time you press DISPLAY, the Control Menu display

changes as follows:

Control _enu display

You can display some items using the remote

Some items can be displayed by pressing the button of the

remote. In this case, only the item you selected is displayed. For

the item and operations using the remote, see the pages of each

item.

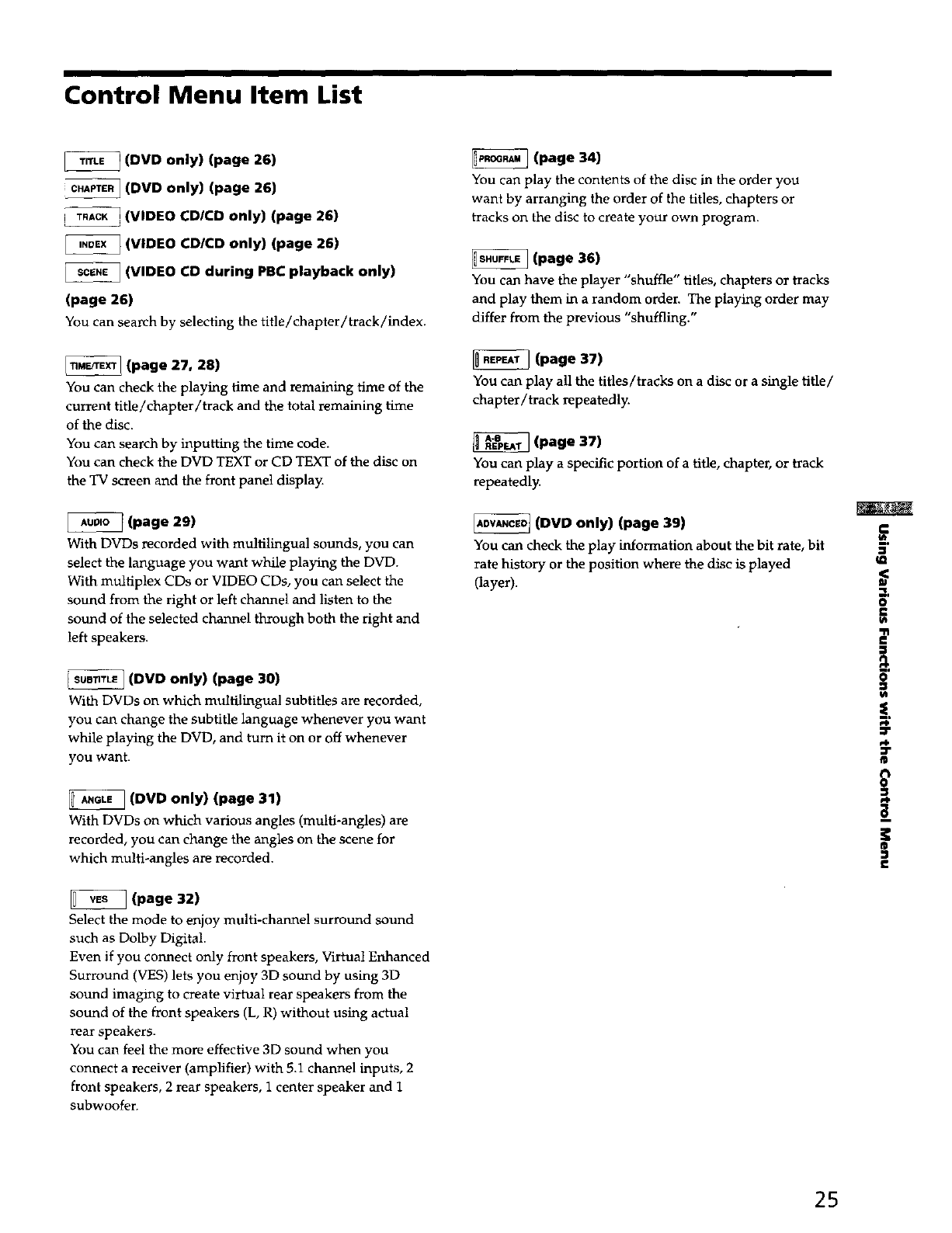

Control Menu Item List

(DVD only) (page 26)

CHAPTER1(DVD only) (page 26)

_(VIDEO CDICD only) (page 26)

(VIDEO CD/CD only) (page 26)

_e__e_ (VIDEO CD during PBC playback only)

(page 26)

You can search by selecting the title/chapter/track/index.

(page 27, 28)

You can check the playing time and remaining time of the

current title/chapter/track and the total remaining time

of the disc.

You can search by inputting the time code.

You can check the DVD TEXT or CD TEXT of the disc on

the TV screen and the front panel display.

(page 29)

With DVDs recorded with multilingual sounds, you can

select the language you want while playing the DVD.

With multiplex CDs or VIDEO CDs, you can select the

sound from the right or left channel and listen to the

sound of the selected channel through both the right and

left speakers.

(DVD only) (page 30)

With DVDs on which mulfilingual subtitles are recorded,

you can change the subtitle language wher[ever you want

while playing the DVD, and turn it on or off whenever

you want.

(DVD only) (page 31)

With DVDs on which various angles (multi-angles) are

recorded, you can change the angles on the scene for

which multi-angles are recorded.

(page 32)

Select the mode to enjoy multi-channel surround sound

such as Dolby Digital.

Even if you connect only front speakers, Virtual Enhanced

Surround (VES) lets you enjoy 3D sound by using 3D

sound imaging to create virtual rear speakers from the

sound of the front speakers (L, R) without using actual

rear speakers.

You can feel the more effective 3D sound when you

connect a receiver (amplifier) with 5.1 channel inputs, 2

front speakers, 2 rear speakers, 1 center speaker and 1

subwoofer.

(page 34)

You can play the contents of the disc in the order you

want by arranging the order of the titles, chapters or

tracks on the disc to create your own program.

(page 36)

You can have the player "shuffle" titles, chapters or tracks

and play them in a random order. The playing order may

differ from the previous "shuffling."

(page 37)

You can play all the titles/tracks on a disc or a single title/

chapter/track repeatedly.

(page 37)

You can play a specific portion of atitle, chapter, or track

repeatedly.

(DVD only) (page 39)

You can check the play information about the bit rate, bit

rate history or the position where the disc is played

(layer).

€

'ml,

€

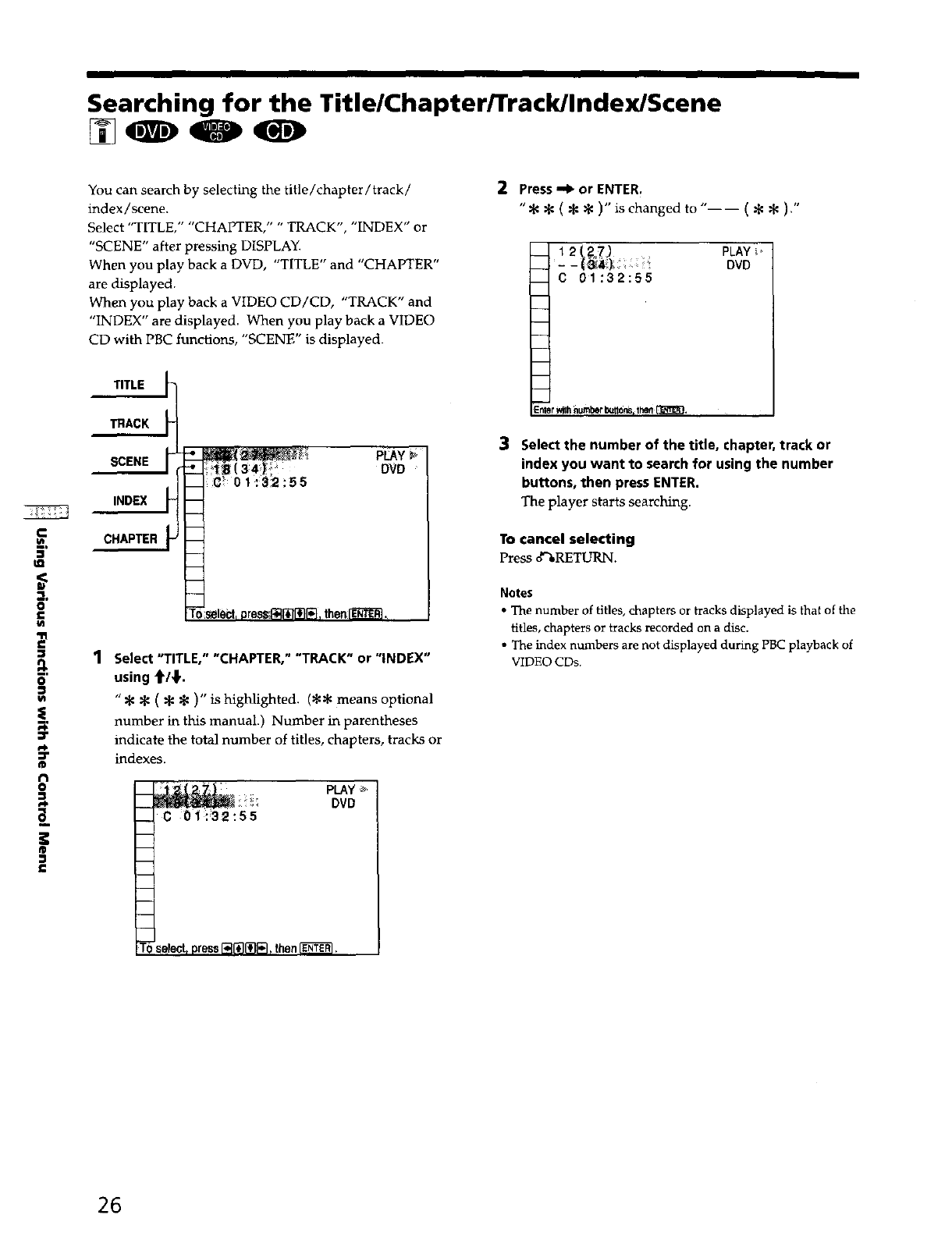

Searching for the TitlelChapter/Track/Index/Scene

You can search by selecting the title/chapter/track/

index/scene.

Select "TITLE," "CHAPTER," "TRACK", "INDEX" or

"SCENE" after pressing DISPLAY.

When you play back a DVD, "TITLE" and "CHAPTER"

are displayed.

When you play back a VIDEO CD/CD, "TRACK" and

"INDEX" are displayed. When you play back a VIDEO

CD with PBC functions, "SCENE" is displayed.

_TLE J_

TRACK

SCENE J-

INDEX

01:312:55

T'O_Iecl, pr_l_]_l, thenlE-R]1_.

PLAY

DVD

1Select "TITLE," "CHAPTER," "TRACK" or "INDEX"

using tf/'l'.

"__(_ _ )" is highlighted. (_:# means optional

number in this manual.) Number in parentheses

indicate the total number of titles, chapters, tracks or

indexes.

C 0i:32:55

_elect,Dress[_[_[_], then_.

PLAY

DVD

2Press-,_ or ENTER.

"_ q_ ( _ :g )" is changed to "-- -- ( _ _ )."

tt2 (2o7_ PLAY

--(_)_ :DVD

C 01:32:55

---4

E-_terw_lh_umberb_tonsTthen[_.

3Select the number of the title, chapter, track or

index you want to search for using the number

buttons, then press ENTER.

The player starts searching.

To cancel selecting

Press o_RETURN.

Notes

•The number of titles, chapters or tracks displayed is that of the

titles, chapters or tracks recorded on a disc.

• The index numbers are not displayed during PBC playback of

VIDEO CDs.

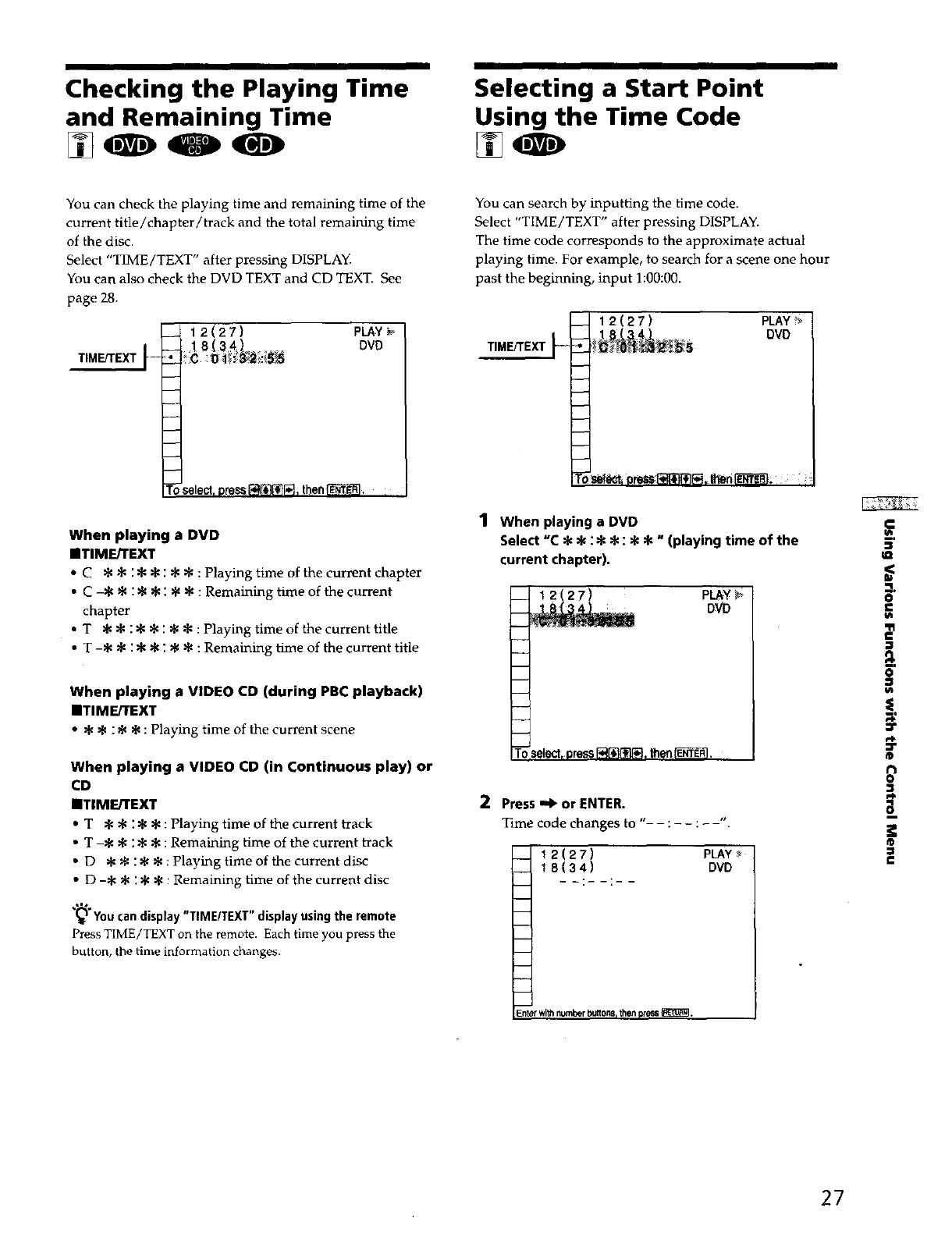

Checking the Playing Time

and Remaining Time

Selecting a Start Point

Using the Time Code

You can check the playing time and remaining time of the

current title/chapter/track and the total remaining time

of the disc.

Select "TIME/TEXT" after pressing DISPLAY.

You can also check the DVD TEXT and CD TEXT. See

page 28.

TIMErrEXT J-

_12(27) PLAY_

,18(341 DVD

To'select,press[]_]_, then_.

When playing aDVD

IITIMF./TEXT

•Cq¢_€:q¢_:__:P]aying time of the current chapter

• C -_ •: • • : _ • : Remaining time of the current

chapter

•T • • : • • : • • : Playing time of the current title

• T -_ @ : • @; • • : Remaining time of the current title

When playing aVIDEO CD (during PBC playback)

IIITIMErrEXT

• _ _ :• _ : Playing time of the current scene

When playing a VIDEO CD (in Continuous play) or

mTIMErrEXT

•T :_ _ : _ _ : Playing time of the current track

• T -@ _ : _ @ : Remaining time of the current track

• D _ _ :_ _ : Playing time of the current disc

• D -q_ _ : @_ : Remaining time of the current disc

,"% .ir . .

(_ Youcandisplay"TIME/TEXT displayusingthe remote

Press TIME/TEXT on the remote. Each time you press the

button, the time information changes.

You can search by inputting the time code.

Select "TIME/TEXT" after pressing DISPLAY.

The time code corresponds to the approximate actual

playing time. For example, to search for a scene one hour

past the beginning, input 1:00:00.

12(27) PLAY_

DVD

1When playing a DVD

Select "C • • : # :t=: :t: :_ "(playing time of the _

current chapter). =<

-j.

Tc ;elect,pressL_f'ti'_. lhen_. t'l

2 Press ,,b or ENTER.

Time code changes to "- -: : ".

12(27)

18(34)

E_ter with n_er buttons= then press_.

PLAY_

DVD

Selecting a Start Point Using the Time Code

3 Input the time code using the number buttons,

then press ENTER.

The player starts searching.

To cancel inputting

Press o_-_I_TUP3_.

,,1%

(_ Youcandisplay"TIME/TEXT"displayusingthe remote

Press TIME/TEXT on the remote.

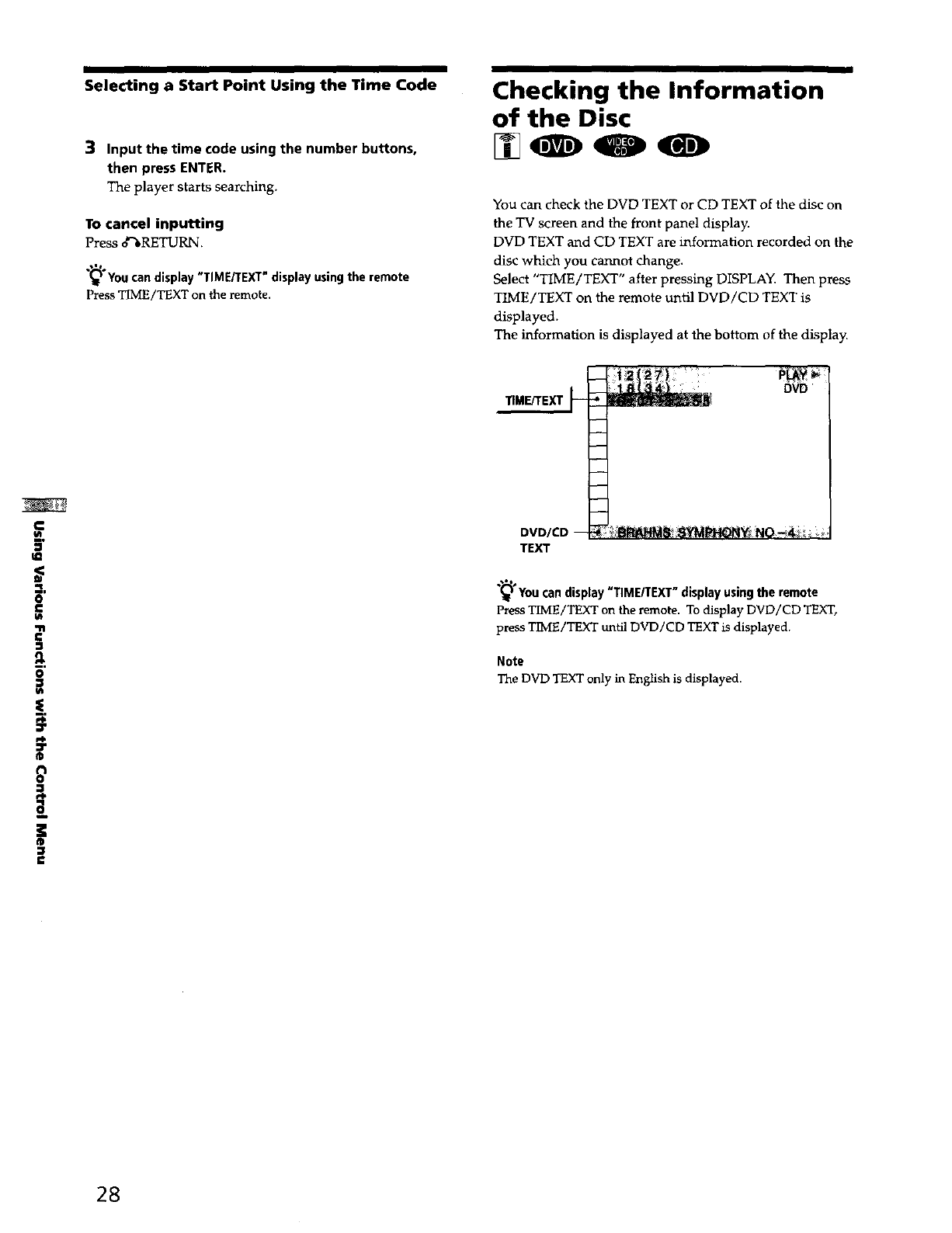

Checking the Information

of the Disc

You can check the DVD TEXT or CD TEXT of the disc on

the TV screen and the front panel display.

DVD TEXT and CD TEXT are information recorded on the

disc which you cannot change.

Select "TIME/TEXT" after pressing DISPLAY. Then press

TIME/TEXT on the remote until DVD/CD TEXT is

displayed.

The information is displayed at the bottom of the display.

"_" You can display "TIME/TEXT" display using the remote

Press TIME/TEXT on the remote. To display DVD/CD TEXT,

press TIME/TEXT until DVD/CD TEXT is displayed.

Note

The DVD TEXT only in English is displayed.

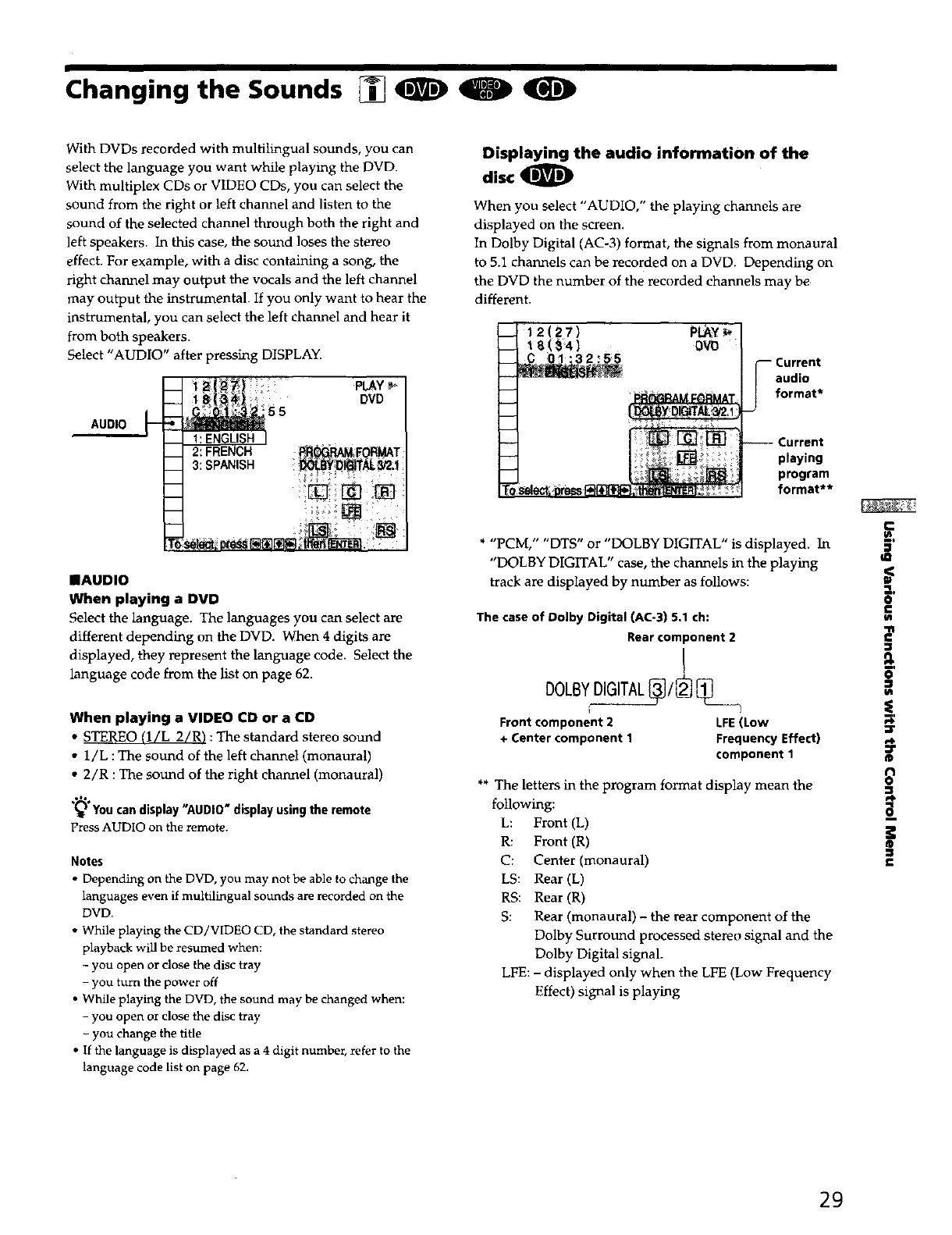

Changing the Sounds [] ( Ji) O

With DVDs recorded with multilingual sounds, you can

select the language you want while playing the DVD.

With multiplex CDs or VIDEO CDs, you can select the

sound from the right or left channel and listen to the

sound of the selected channel through both the right and

left speakers. In this case, the sound loses the stereo

effect. For example, with a disc containing a song, the

right channel may output the vocals and the left channel

may output the instrumental. If you only want to hear the

instrumental, you can select the left channel and hear it

from both speakers.

Select "AUDIO" after pressing DISPLAY.

1: ENGLISH I

_ 2: FRENCH _FORMAT

3:SPAN,SH

mAUDIO

When playing a DVD

Select the language. The languages you can select are

different depending on the DVD. When 4 digits are

displayed, they represent the language code. Select the

language code from the list on page 62.

When playing a VIDEO CD or a CD

• STEREO (1/L 2/R) :The standard stereosound

• 1/L :The sound of the left channel (monaural)

• 2/R : The sound of the right channel (monaural)

,tl,p

(_ Youcandisplay"AUDIO"displayusingthe remote

Press AUDIO on the remote.

Notes

• Depending on the DVD, you may not be able to change the

languages even if multilingual sounds are recorded on the

DVD.

• While playing the CD/VIDEO CD, the standard stereo

playback will be resumed when:

- you open or close the disc tray

- you turn the power off

• While playing the DVD, the sound may be changed when:

- you open or close the disc tray

-you change the title

• If the language is displayed as a 4 digit number, refer to the

language code list on page 62.

Displaying the audio information of the

discO

When you select "AUDIO," the playing channels are

displayed on the screen.

In Dolby Digital (AC-3) format, the signals from monaural

to 5.1 channels can be recorded on a DVD. Depending on

the DVD the number of the recorded channels may be

different.

q12(27)

-- 1 8(_4)

audio

format*

Current

playing

program

format**

* "PCM," "DTS" or "DOLBY DIGITAL" is displayed. In

"DOLBY DIGITAL" case, the channels in the playing

track are displayed by number as follows:

The caseof Dolby Digital (AC-3) 5,1 ch:

Rearcomponent 2

Front component 2 LFE(Low

+ Center component 1 Frequency Effect)

component 1

** The letters in the program format display mean the

following:

L: Front (L)

R: Front (R)

C: Center (monaural)

LS: Rear (L)

RS: Rear (R)

S: Rear (monaural) - the rear component of the

Dolby Surround processed stereo signal and the

Dolby Digital signal.

LFE: - displayed only when the LFE (Low Frequency

Effect) signal is playing

€

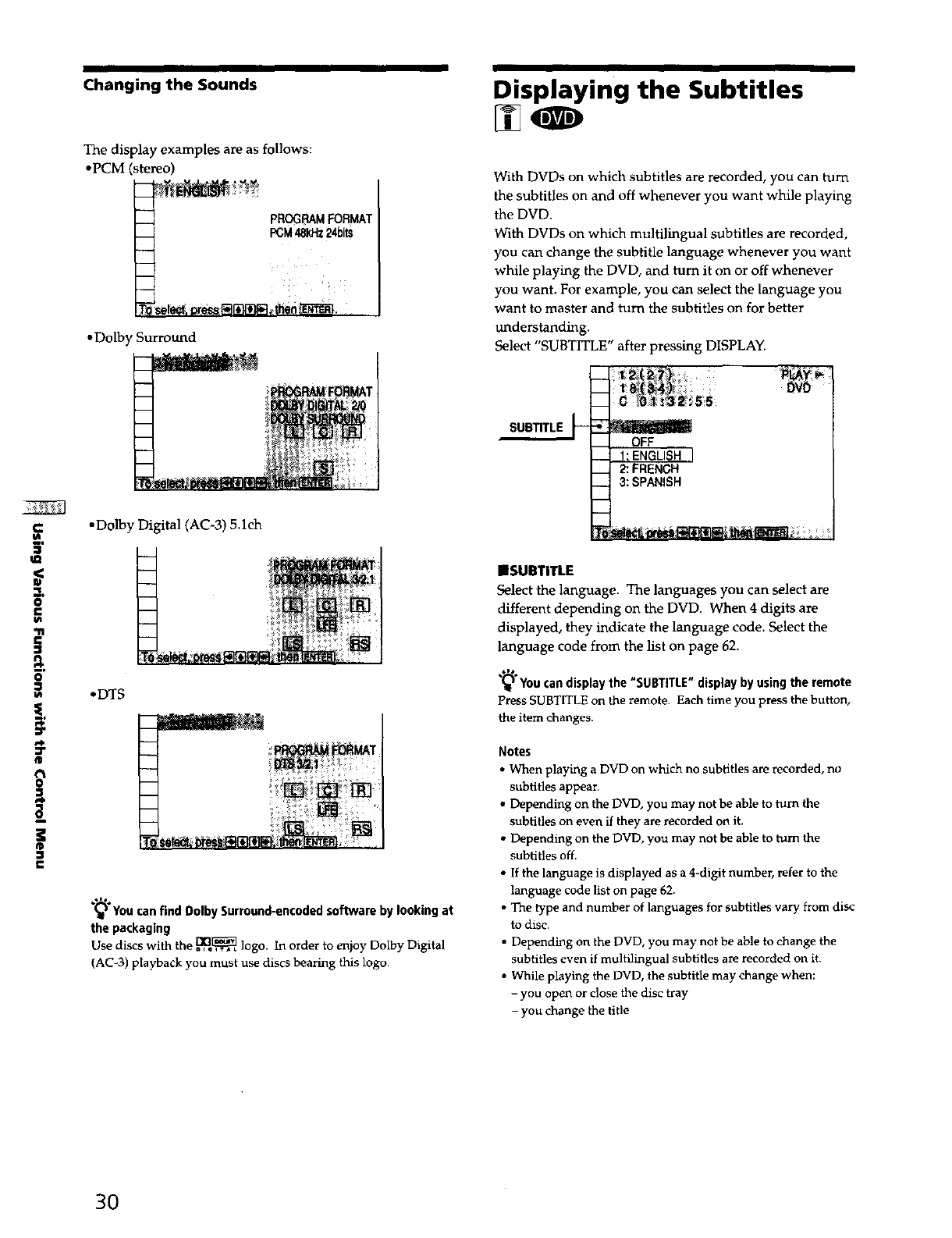

Changing the Sounds

The display examples are as follows:

•PCM (stereo)

PROGRAMFORMAT

PCM481d,.Iz24bits

oDolby Surround

,,Dolby Digital (AC-3) 5.1ch

°DTS

You can find Dolby Surround-encoded software by looking at

the packaging

Use discs with the _3,+._[_A_ logo. In order to enjoy Dolby Digital

(AC-3) playback you must use discs bearing this logo.

Displaying the Subtitles

With DVDs on which subtitles are recorded, you can turn

the subtitles on and off whenever you want while playing

the DVD.

With DVDs on which multilingual subtitles are recorded,

you can change the subtitle language whenever you want

while playing the DVD, and turn it on or off whenever

you want. For example, you can select the language you

want to master and turn the subtitles on for better

understanding.

Select "SUBTITLE" after pressing DISPLAY.

__ OFF

2: FRENCH

__ 3: SPANISH

IISUBTITLE

Select the language. The languages you can select are

different depending on the DVD. When 4 digits are

displayed, they indicate the language code. Select the

language code from the list on page 62.

(_ You can display the "SUBTITLE" display by using the remote

Press SUBTITLE on the remote. Each time you press the button,

the item changes.

Notes

• When playing aDVD on which no subtitles are recorded, no

subtitles appear.

• Depending on the DVD, you may not be able to turn the

subtitles on even if they are recorded on it.

• Depending on the DVD, you may not be able to turn the

subtitles off.

• If the language is displayed as a 4-digit number, refer to the

language code list on page 62.

•The type and number of languages for subtitles vary from disc

to disc.

• Depending on the DVD, you may not be able to change the

subtitles even if multilingual subtitles are recorded on it.

• While playing the DVD, the subtitle may change when:

- you open or close the disc tray

- you change the Erie

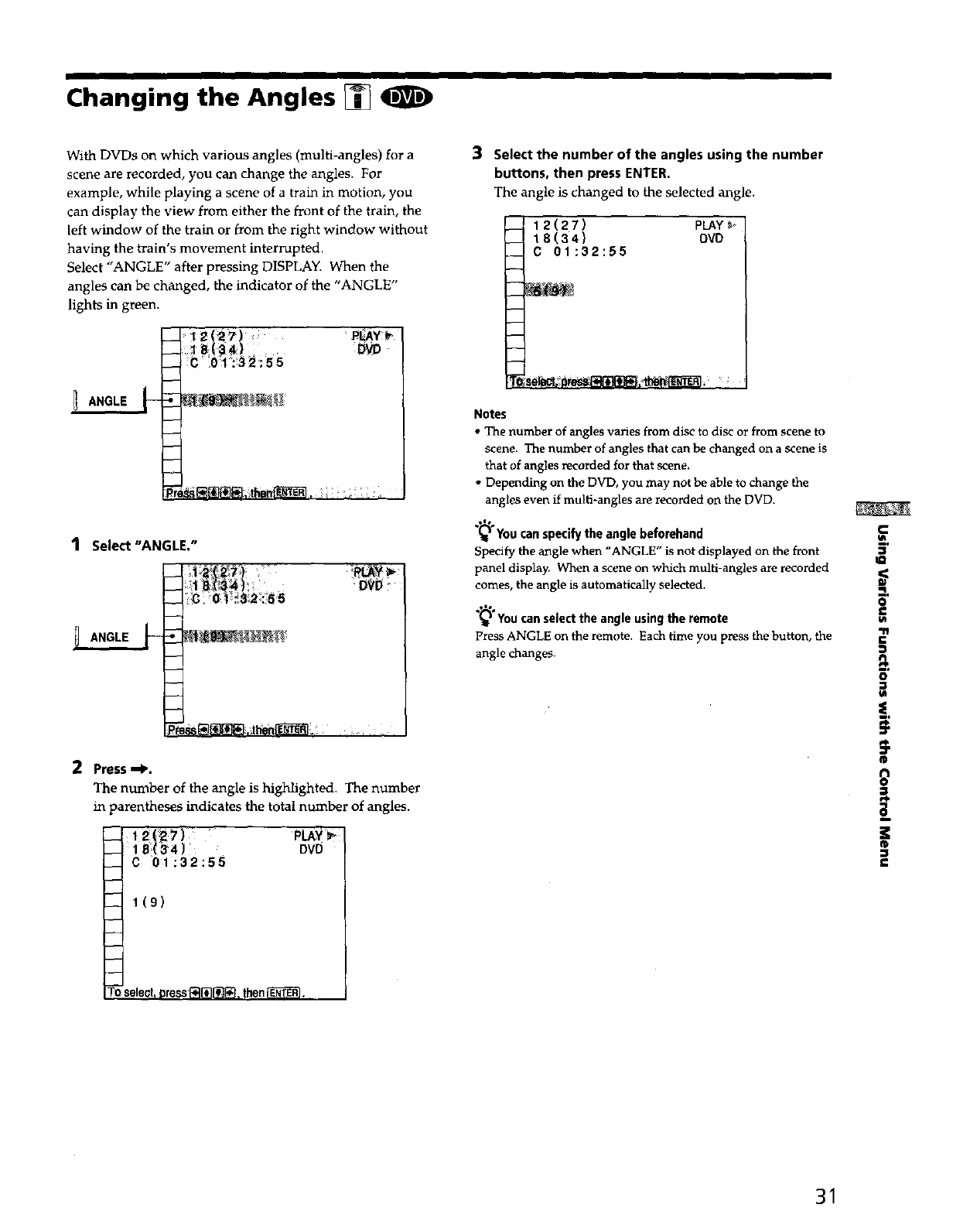

Changing the Angles

With DVDs on which various angles (multi-angles) for a

scene are recorded, you can change the angles. For

example, while playing a scene of a train in motion, you

can display the view from either the front of the train, the

left window of the train or from the right window without

having the train's movement interrupted.

Select "ANGLE" after pressing DISPLAY. When the

angles can be changed, the indicator of the "ANGLE"

lights in green.

C0 t%3_: 55

ANGLE

_ _[]_,_t_,

1 Select"ANGLE,"

0_ S'o2;:;55 OV_

2Press =._.

The number of the angle is highlighted. The number

in parentheses indicates the total number of angles.

18{34

C 01:32:55

.__ 1 (9)

To'sele_,press[_(_, then

PLATY

DVD

3 Select the number of the angles using the number

buttons, then press ENTER.

The angle is changed to the selected angle.

_12(27) PLAY_

_18(34) OVD

__ C 01:32:55

Notes

•The number of angles varies from disc to disc or from scene to

scene. The number of angles that can be changed on a scene is

that of anglesrecorded for that scene.

•Depending on the DVD, you may not be able to change the

angles even ff mulE-angles a_ recorded onthe DVD.

Youcanspecifythe angle beforehand

Specify the aI_glewhen "ANGLE" is not displayed on the front

panel display. When a scene on which multi-angles are recorded

comes, the angle is automatically selected.

(_ Youcanselectthe angleusingthe remote

Press ANGLE on the remote. Each time you press the button, the

angle changes.

}

I I

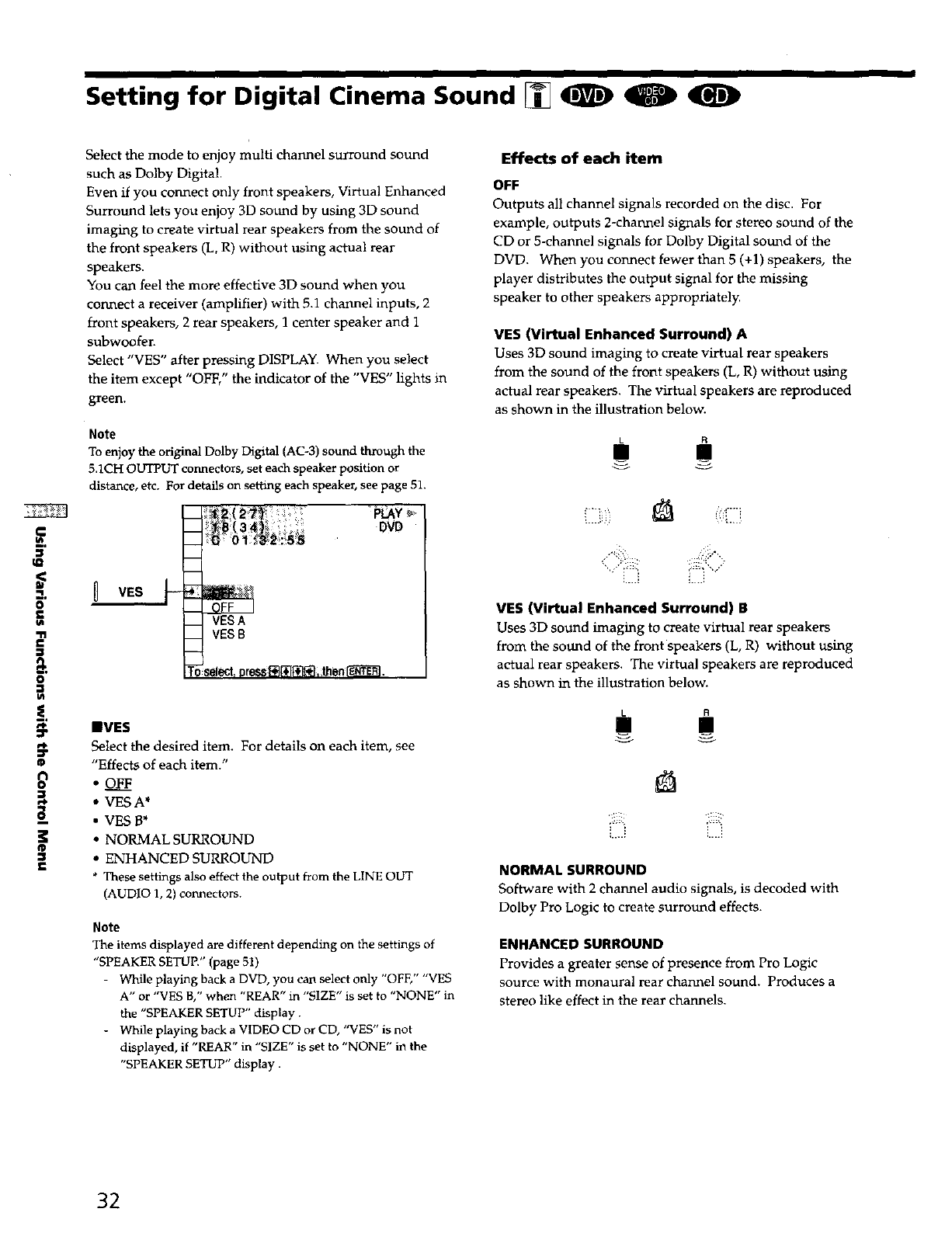

Setting for Digital Cinema Sound [] (B)

tfl

-II

Select the mode to enjoy multi channel surround sound

such as Dolby Digital.

Even if you connect only front speakers, Virtual Enhanced

Surround lets you enjoy 3D sound by using 3D sound

imaging to create virtual rear speakers from the sound of

the front speakers (L, R) without using actual rear

speakers.

You can feel the more effective 3D sound when you

connect a receiver (amplifier) with 5.1 channel inputs, 2

front speakers, 2 rear speakers, 1 center speaker and 1

subwoofer.

Select "VES" after pressing DISPLAY. When you select

the item except "OFF," the indicator of the "VES" lights in

green.

Note

To enjoy the original Dolby Digital (AC-3) sound through the

5.1CH OUTPUT connectors, set each speaker position or

distance, etc. For details on setting each speaker, see page 51.

/_(2_ PLAY

01 _2:55

__ VES A

__ VES B

lIVES

Select the desired item. For details on each item, see

"Effects of each item."

• OF__FF

• VES A*

• VES B*

• NORMAL SURROUND

• ENHANCED SURROUND

*These settings also effect the output from the LINE OUT

(AUDIO 1,2) connectors.

Note

The items displayed are different depending on the settings of

"SPEAKER SETUP." (page 51)

- While playing back a DVD, you can select only "OFF," "VES

A" or "VES B," when "REAR" in "SIZE" is set to "NONE" in

the "SPEAKER SETUP" display.

- While playing back a VIDEO CD or CD, "VES" is not

displayed, if "REAR" in "SIZE" is set to "NONE" in the

"SPEAKER SETUp" display.

Effects of each item

OFF

Outputs all channel signals recorded on the disc. For

example, outputs 2-channel signals for stereo sound of the

CD or 5-channel signals for Dolby Digital sound of the

DVD. When you connect fewer than 5 (+1) speakers, the

player distributes the output signal for the missing

speaker to other speakers appropriately.

VES (Virtual Enhanced Surround) A

Uses 3D sound imaging to create virtual rear speakers

from the sound of the front speakers (L, R) without using

actual rear speakers. The virtual speakers are reproduced

as shown in the illustration below.

L R

[] []

......•!iii......

VES (Virtual Enhanced Surround) B

Uses 3D sound imaging to create virtual rear speakers

from the sound of the front speakers (L, R) without using

actual rear speakers. The virtual speakers are reproduced

as shown in the illustration below.

L R

NORMAL SURROUND

Software with 2 channel audio signals, is decoded with

Dolby Pro Logic to create surround effects.

ENHANCED SURROUND

Provides a greater sense of presence from Pro Logic

source with monaural rear channel sound. Produces a

stereo like effect in the rear channels.

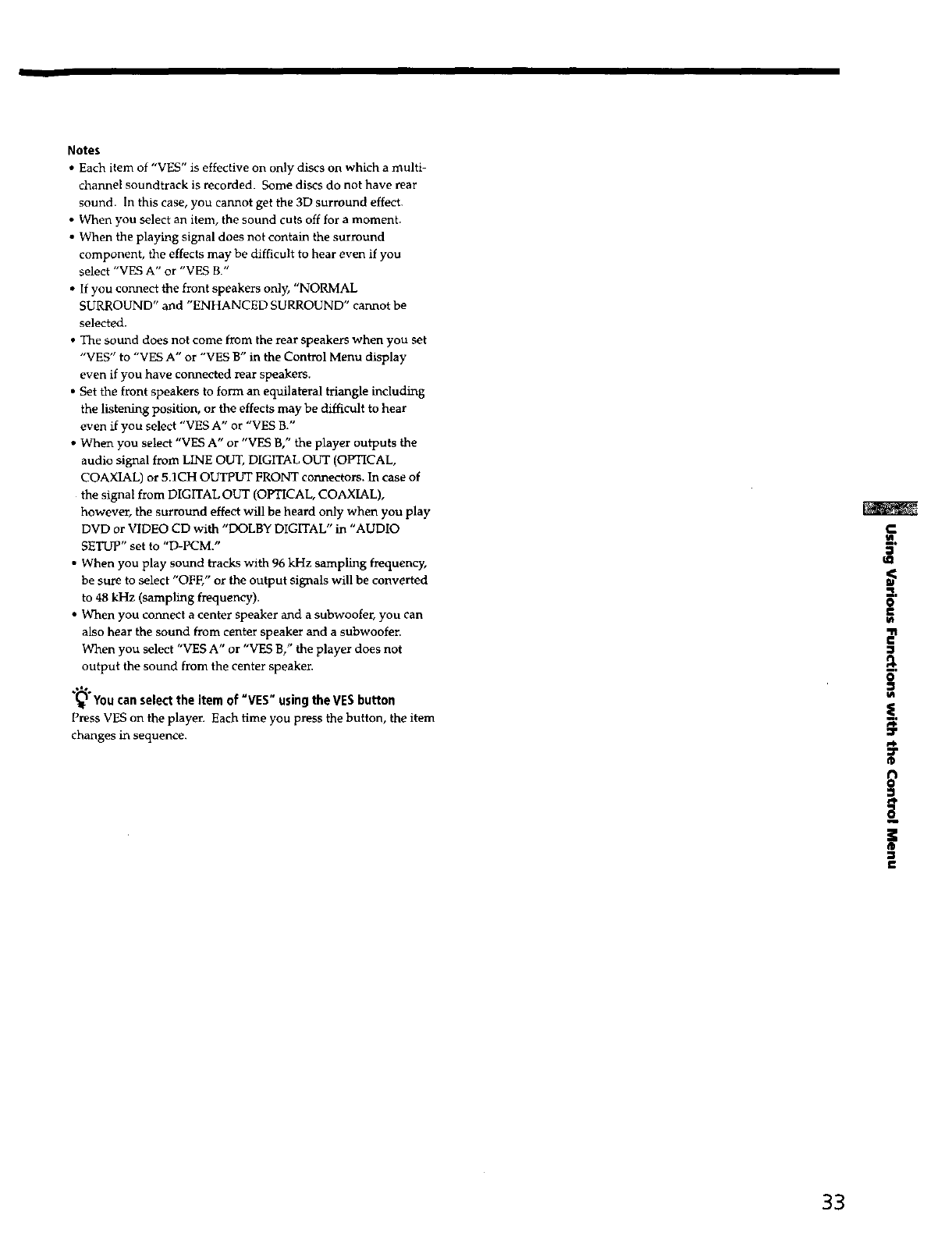

Notes

•Each item of "VES" is effective on only discs on which a multi-

channel soundtrack is recorded. Some discs do not have rear

sound. In this case, you cannot get the 3D surround effect.

• When you select an item, the sound cuts off for a moment.

• When the playing signal does not contain the surround

component, the effects may be difficult to hear even if you

select "VES A" or "VES B."

• If you connect the front speakers only, "NORMAL

SURROUND" and "ENHANCED SURROUND" cannot be

selected.

• The sound does not come from the rear speakers when you set

"VES" to "VES A" or "VES B" in the Control Menu display

even if you have connected rear speakers.

• Set the front speakers to form an equilateral Vriangle including

the listening position, or the effects may be difficult to hear

even if you select "VES A" or "VES B."

• When you select "VES A" or "VES B," the player outputs the

audio signal from LINE oUT, DIGITAL OUT (OPTICAL,

COAXIAL) or 5.1CH OUTPUT FRONT connectors. In case of

the signal from DIGITAL OUT (OPTICAL, COAXIAL),

however, the surround effect will be heard only when you play

DVD or VIDEO CD with "DOLBY DIGITAL" in "AUDIO

SETUP" set to "D-PCM."

• When you play sound tracks with 96 kHz sampling frequency,

be sure to select "OFF," or the output signals will be converted

to 48 kHz (sampling frequency).

• When you connect a center speaker and a subwoofer, you can

also hear the sound from center speaker and a subwoofen

When you select "VES A" or "VES B," the player does not

output the sound from the center speaker.

.,I,.

_' You can select the item of "VES" using the VES button

Press VES on the player. Each time you press the button, the item

changes in sequence.

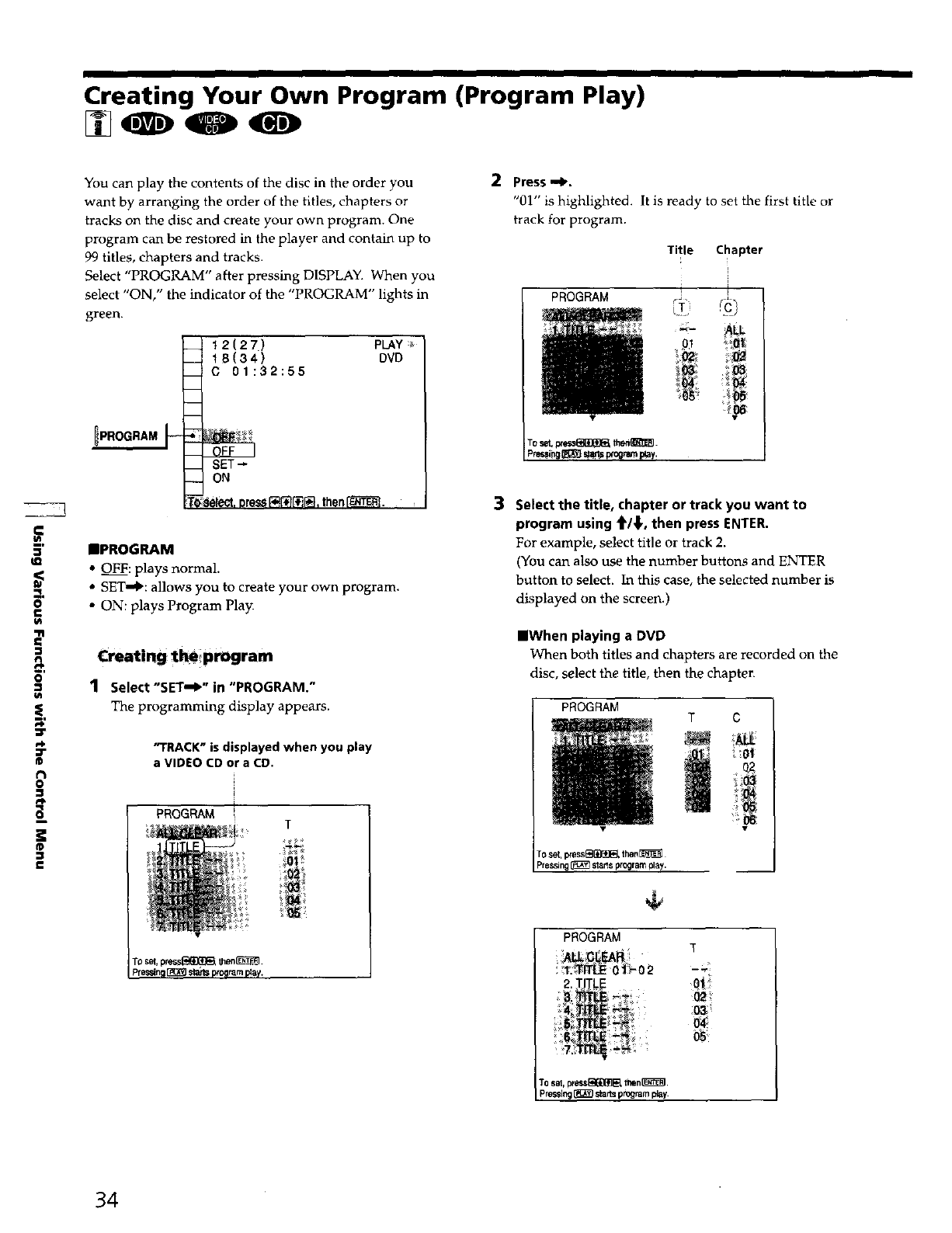

Creating Your Own Program (Program Play)

You can play the contents of the disc in the order you

want by arranging the order of the titles, chapters or

tracks on the disc and create your own program. One

program can be restored in the player and contain up to

99 titles, chapters and tracks.

Select "PROGRAM" after pressing DISPLAY. When you

select "ON," the indicator of the "PROGRAM" lights in

green.

t 2 (27) PLAY

18(34) DVD

C01:32:55

SET _"

2Press ,,,Iv.

"01" is highlighted. It is ready to set the first title or

track for program.

Title Chapter

PROGRAM

TO set. pre=s_B_ th_IB_E_.

€

=I"

€I

_eK=ct,presS1_1_1"_. thenI'_1_.

==PROGRAM

• OFF: plays normal.

• SET,,_: allows you to create your own program.

• ON: plays Program Play.

_ating t_ program

1 Select"SET=W'in "PROGRAM."

The programming display appears.

"TRACK" is displayed when you play

a VIDEO CD or a CD.

To set,pr_ then_.

PreSsir_[_ $_s j_o_ramJ_ay.

3Select the title, chapter or track you want to

program using _/_,, then press ENTER.

For example, select title or track 2.

(You can also use the number buttons and ENTER

button to select. In this case, the selected number is

displayed on the screen.)

==When playing aDVD

When both titles and chapters are recorded on the

disc, select the title, then the chapter.

PROGRAM T C

TO set, press_]_ then

Presmng_star_sprogram_lay.

PROGRAM

TOsot, _S$_(_]_, tllen_]

Pressing 0_ starts programI_ay.

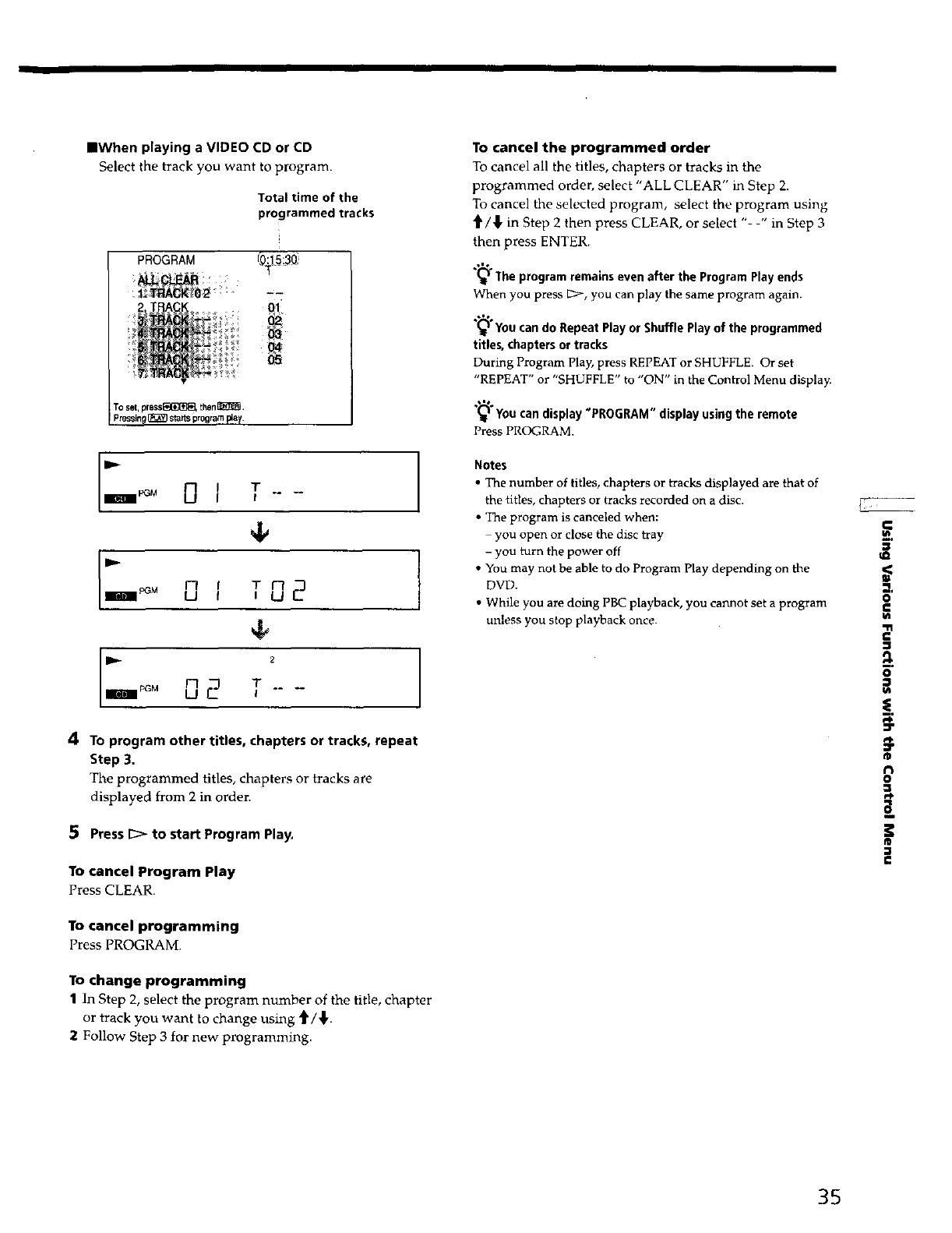

IlWhen playing a VIDEO CD or CD

Select the track you want to program.

Total time of the

programmed tracks

PROGRAM _15i3@

To set,press_(]D_ then_.

Pressing_3 star_programI_ay.

0 T--

L+M 0 T02

[02 T---

4 To program other titles, chapters or tracks, repeat

Step 3.

The programmed titles, chapters or tracks are

displayed from 2 in order.

5Press _to start Program Play.

To cancel Program Play

Press CLEAR.

To cancel programming

Press PROGRAM.

To change programming

1In Step 2, select the program number of the title, chapter

or track you want to change using _/,I,.

2Follow Step 3 for new programming.

To cancel the programmed order

To cancel all the titles, chapters or tracks in the

programmed order, select "ALL CLEAR" in Step 2.

To cancel file selected program, select the program using

_/'1, in Step 2 then press CLEAR, or select "- -" in Step 3

then press ENTER.

,w,

(_°The programremainsevenafter the ProgramPlayends

When you press _, you can play the same program again.

.-1,o

(_ YOUcando Repeat Playor ShufflePlayof the programmed

titles,chaptersor tracks

During Program Play, press REPEAT or SHUFFLE. Or set

"REPEAT" or "SHUFFLE" to "ON" in the Control Menu display.

Youcandisplay"PROGRAM"displayusingthe remote

Press PROGRAM.

Notes

• The number of titles, chapters or tracks displayed are that of

the titles, chapters or tracks recorded on a disc.

• The program is canceled when:

you open or close the disc tray

- you turn the power off

• You may not be able to do Program Play depending on the

DVD.

• While you are doing PBC playback, you cannot set a program

unless you stop playback once. i

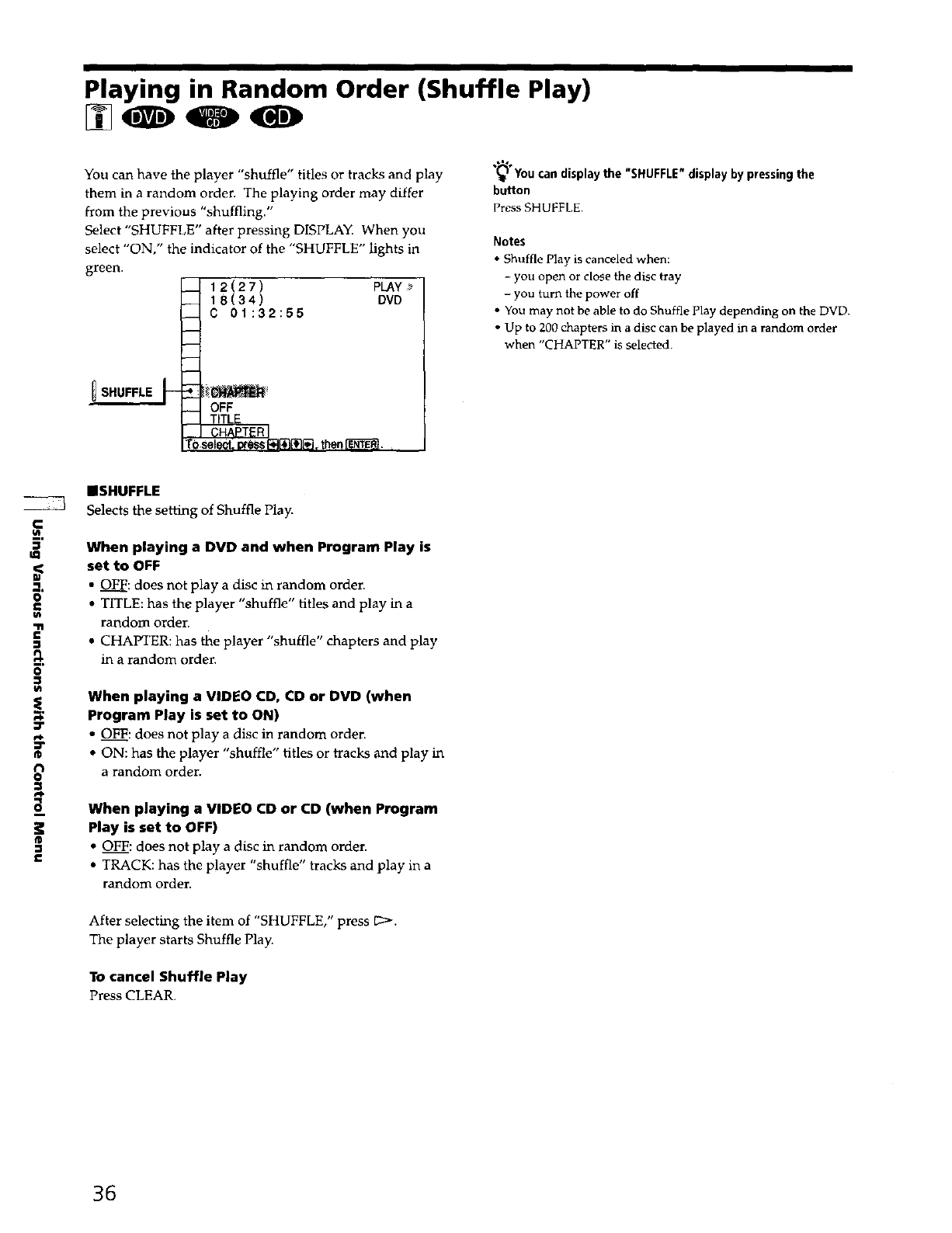

Playing in Random Order (Shuffle Play)

You can have the player "shuffle" titles or tracks and play

them in a random order. The playing order may differ

from the previous "shuffling."

Select "SHUFFLE" after pressing DISPLAY. When you

select "ON," the indicator of the "SHUFFLE" lights in

green.

__ 12(271 PLAY

_ 18(34) DVD

_C01:32:55

SHUFF, J- __ OFF

Youcandisplaythe "SHUFFLE"displayby pressingthe

button

Press SHUFFLE.

Notes

•Shuffle Play is canceled when:

-you open or close the disc tray

- you turn the power off

• You may not be able to do Shuffle Play depending on the DVD.

• Up to 200 chapters in a disc can be played in a random order

when "CHAPTER" is selected.

"14

'11

-i

==SHUFFLE

Selects the setting of Shuffle Play.

When playing a DVD and when Program Play is

set to OFF

• OFF: does not play a disc in random order.

• TITLE: has the player "shuffle" titles and play in a

random order.

• CHAPTER: has the player "shuffle" chapters and play

in a random order.

When playing a VIDEO CD, CD or DVD (when

Program Play is set to ON)

• OFF: does not play a disc in random order.

• ON: has the player "shuffle" titles or tracks and play in

a random order.

When playing a VIDEO CD or CD (when Program

Play is set to OFF)

• OFF: does not play a disc in random order.

• TRACK: has the player "shuffle" tracks and play in a

random order.

After selecting the item of "SHUFFLE," press C:>.

The player starts Shuffle Play.

To cancel Shuffle Play

Press CLEAR.

Playing Repeatedly

(Repeat Play) Repeating a Specific

Portion Repeat)

You can play all the titles/tracks on a disc or a single title/

chapter/track.

In Shuffle or Program Play mode, the player repeats the

titles or tracks in the shuffled or programmed order.

You cannot do Repeat Play during PBC playback of

VIDEO CDs (page 20).

You may not he able to do Repeat Play depending on the

DVD.

Select "REPEAT" after pressing DISPLAY. When you

select "ON," the indicator of the "REPEAT" lights in

green.

PLAY

DVD

_REPEAT

mREPEAT

Selects thesettingofRepeatPla_

When playing a DVD and when Program Play and

Shuffle Play are set to OFF

•OFF: does not play repeatedly.

• DISC: repeats all the titles.

• TITLE: repeats the current title on a disc.

• CHAPTER: repeats the current chapter.

When playing a VIDEO CDICD and when Program

Play and Shuffle Play are set to OFF

• OFF: does not play repeatedly.

• DISC: repeats all the tracks on a disc.

• TRACK: repeats the current track

When Program Play or Shuffle Play is set to ON

•OFF: does not play repeatedly.

•ON: repeats Program Play or Shuffle Play.

To cancel Repeat Play

Press CLEAR.

Youcandisplaythe "REPEAT"displayby pressingthe button

Press REPEAT.

Note

Repeat play is canceled when you turn the power off.

You can play a specific portion of a title, chapter, track

repeatedly. This is useful when you want to memorize

lyrics.

During PBC Playback of VIDEO CDs (page 20), this

function is available only while playing moving pictures.

You may not be able to do A*---B Repeat Play depending

on the DVD.

Select "A-B REPEAT" after pressing DISPLAY. During

A*---_BRepeat Play, the indicator of the "A-B REPEAT"

lights in green.

A-B

_12(27) PLAY>

i 8(34) DVD

__ C 01:32:55

'_ _lSCt,press_]Fil_. the__

IIA-B REPEAT

• SET"_': sets the A and B points.

• OFF: does not play a specific portion of a title/chapter/

track repeatedly.

•'l t

€

PI.

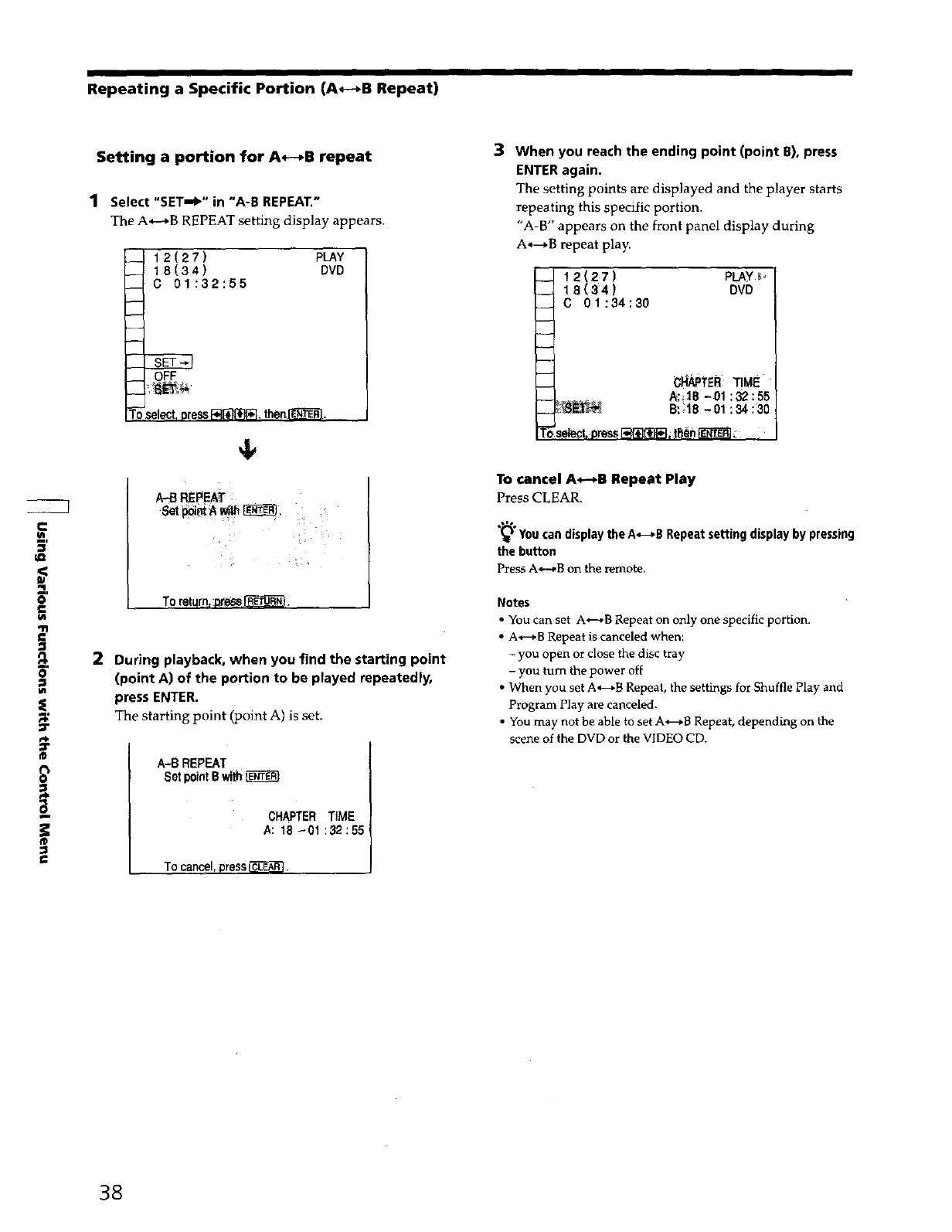

Repeating a Specific Portion (A*-*B Repeat)

}

...<

Setting a portion for Ae-*B repeat

Select "SET_i_" in "A-B REPEAT."

The A_-_B REPEAT setting display appears.

_ 12(27) pLAY

__ 18(34) DVD

__ C 01:32:55

OFF

_'o ;elect,preSs_, then_.

Toreturn,_ess _.

2 During playback, when you find the starting point

(point A) of the portion to be played repeatedly,

press ENTER.

The starting point (point A) is set.

A-B REPEAT

SetPointBwith

CHAPTER TIME

A: 18 -01:32:55

Tocancel_presscl_.

3When you reach the ending point (point B), press

ENTER again.

The setting points are displayed and the player starts

repeating this specific portion.

"A-B" appears on the front panel display during

A*---_Brepeat play.

_ 12(27) PLAY_

_ 18(34) DVD

_C 01:34:30

_PTER TIME

_A:18 -01:32:55

_B: t8.01:34:30

select._ress[_; ]h_ F_ _

To cancel A_--_B Repeat Play

Press CLEAR.

(_ Youcandisplaythe A_B Repeatsettingdisplaybypressing

the button

Press A_-*B on the remote.

Notes

•You can set A_-.._B Repeat on only one specific portion.

• A,---_B Repeat is canceled when:

- you open or close the disc tray

- you turn the power off

• When you set A*---,B Repeat, the settings for Shuffle Play and

Program Play are canceled.

• You may not be able to set A*---_B Repeat, depending on the

scene of the DVD or the VIDEO CD.

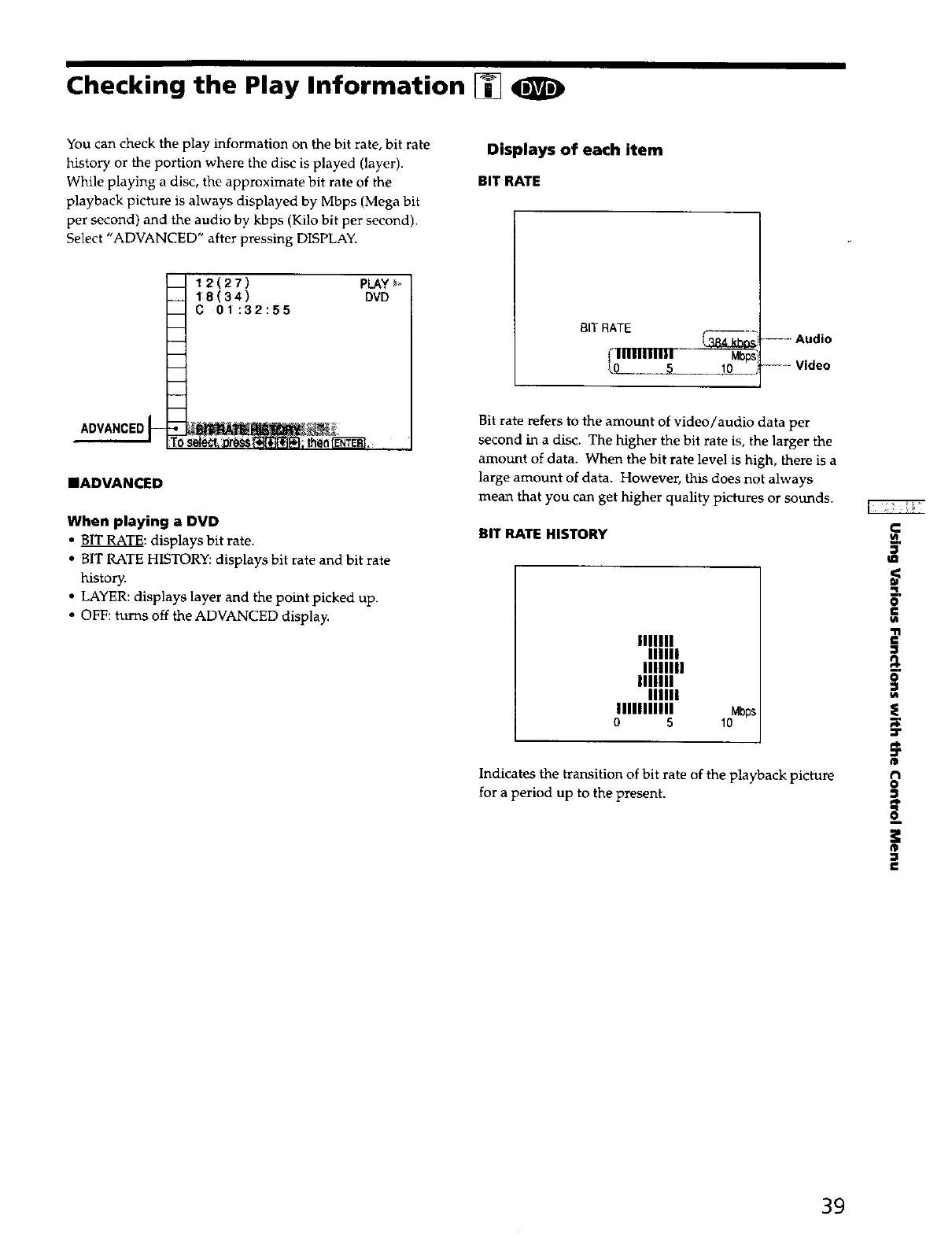

Checking the Play Information []

You can check the play information on the bit rate, bit rate

history or the portion where the disc is played (layer).

While playing a disc, the approximate bit rate of the

playback picture is always displayed by Mbps (Mega bit

per second) and the audio by kbps (Kilo bit per second).

Select "ADVANCED" after pressing DISPLAY.

12(27) PLAY+

18(34) DVD

C 01:32:55

1ADVANCED

When playing a DVD

• BIT RATE: displays bit rate.

• BIT RATE HISTORY: displays bit rate and bit rate

history.

• LAYER: displays layer and the point picked up.

• OFF: turns off the ADVANCED display.

Displays of each item

BIT RATE

BIT RATE ....,udio

...... Video

Bit rate refers to the amount of video/audio data per

second in a disc. The higher the bit rate is, the larger the

amount of data. When the bit rate level is high, there is a

large amount of data. However, this does not always

mean that you can get higher quality pictures or sounds.

BIT RATE HISTORY

IIIIIII

Inlll

IIIIIIII

IIIIIII

IIIIII

IIIIIIIIIII 10Mbps

0 5

Indicates the transition of bit rate of the playback picture

for a period up to the present.

Checking the Play Information

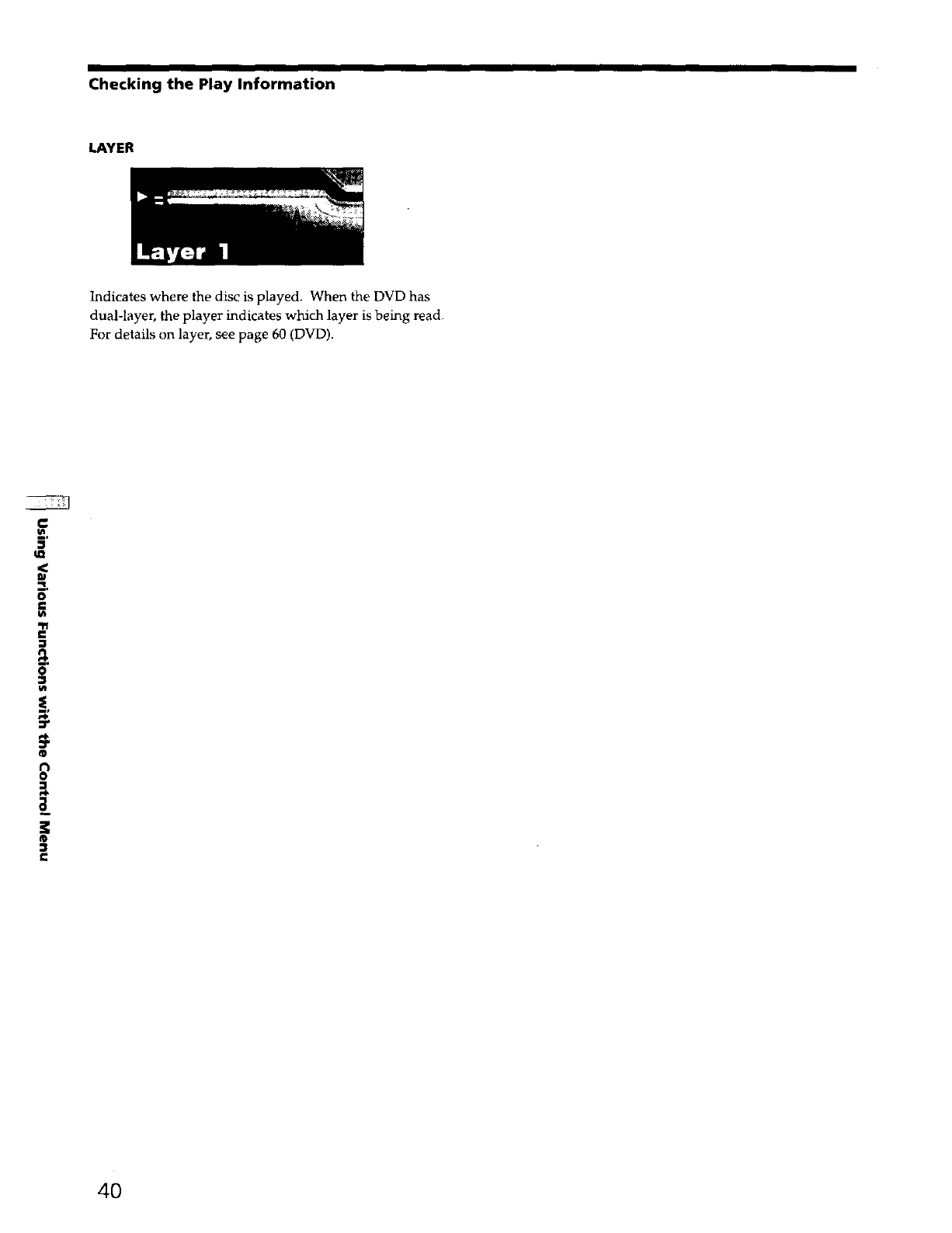

LAYER

Indicates where the disc is played, When the DVD has

dual-layer, the player indicates which layer is being read.

For details on layer, see page 60 (DVD).

qI w

€

-i

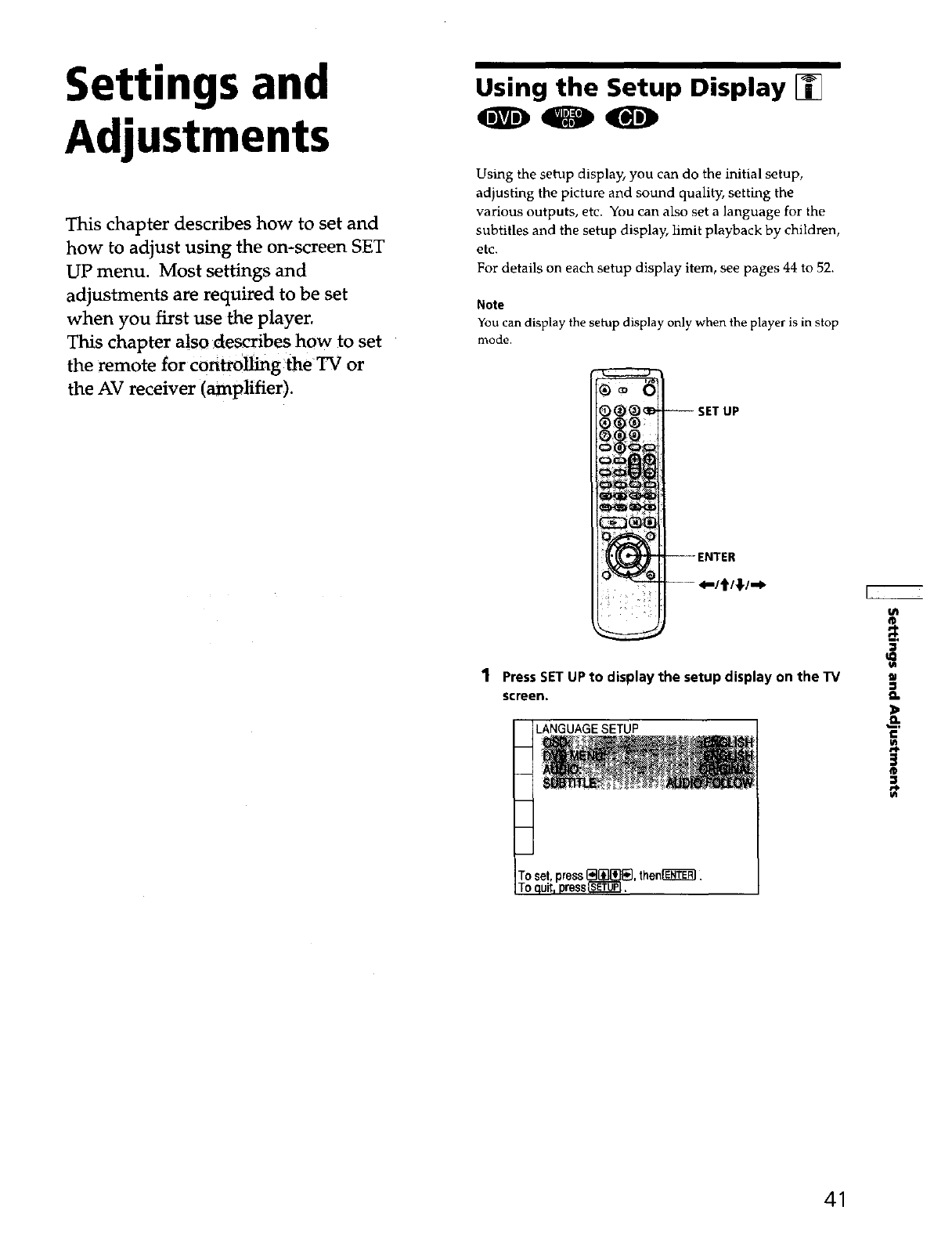

Settings and

Adjustments

This chapter describes how to set and

how to adjust using the on-screen SET

UP menu. Most settings and

adjustments are required to be set

when you first use the player.

This chapter also describes how to set

the remote for contr0Uing the TV or

the AV receiver (amplifier).

Using the Setup Display []

Using the setup display, you can do the initial setup,

adjusting the picture and sound quality, setting the

various outputs, etc. You can also set a language for the

subtitles and the setup display, limit playback by children,

etc.

For details on each setup display item, see pages 44 to 52.

Note

You can display the setup display only when the player is in stop

mode.

ET UP

1PressSET UP to display the setup display on the "IV

screen.

LANGUAGE SETUP

then_.

€

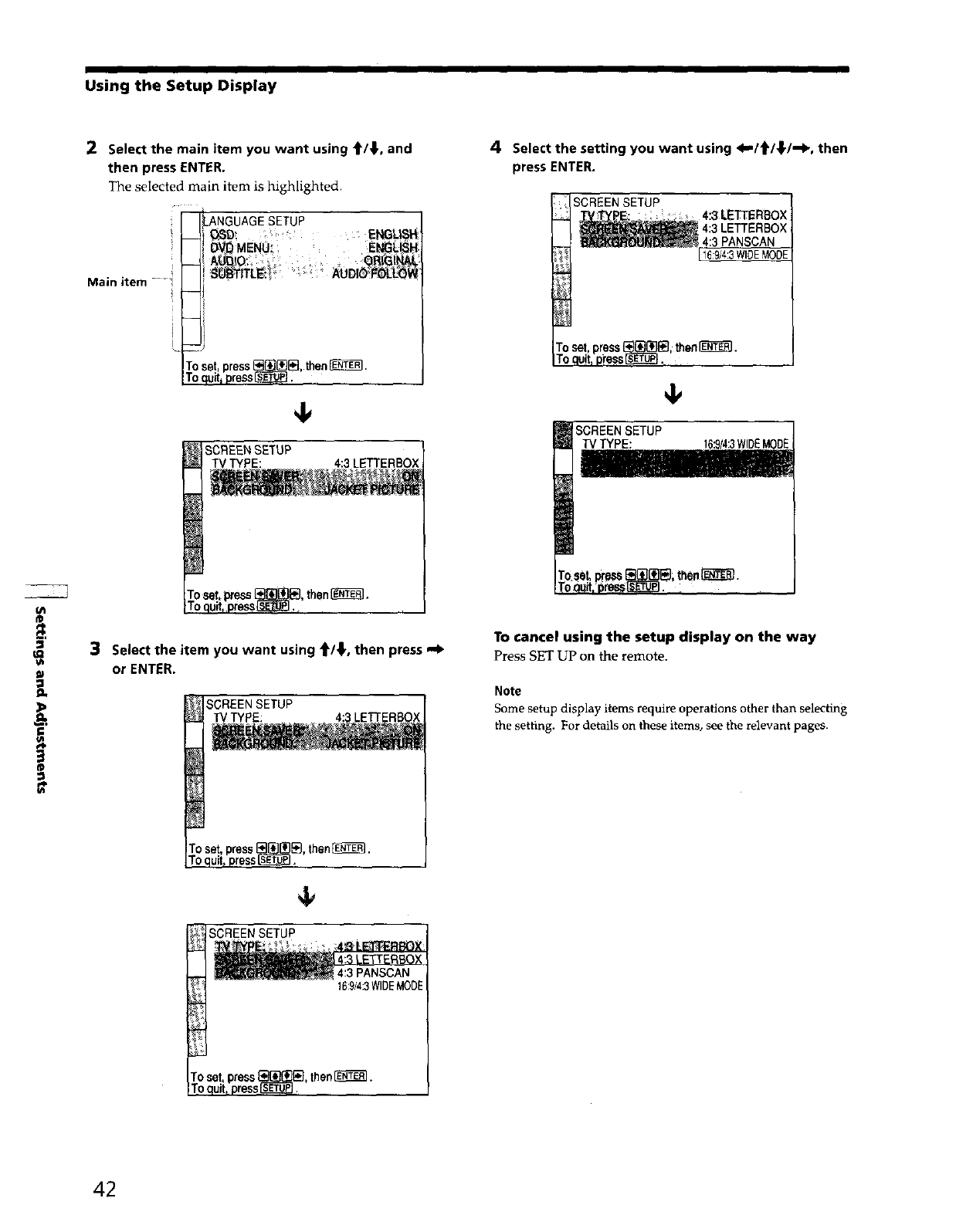

Using the Setup Display

2 Select the main item you want using _1"/t', and

then press ENTER.

The selected main item is highlighted.

/_ANGUAGESETUP

mMENU E_US_

Main item -"

To set, press_[_, then_.

To quiti press_L_J_J.

SCREEN SETUP

TV TYPE: 4:3 LETTERBOX

4Select the setting you want using "(_1_1_1"_, then

press ENTER.

SCREEN SETUP

WTYPE:

I#t

°.::

TOset press_then[_,

Toquit,pressL_&I_L_J,_,,

3Select the item you want using #/_. then press _i)

or ENTER.

SCREENSETUP

re set, press_, then _.

ro quit, press_.

SCREEN SETUP i

16:9/4:3WIDEMODEI

oset press _J_ then_.

oquitrpressS_L_,

To cancel using the setup display on the way

Press SET UP on the remote.

Note

Some setup display items require operations other than selecting

the setting. For details on these items, see the relevant pages.

Setup Display Item List

Default settings are underlined.

_LANGUAGE SETUP (page 44)

OSD

•DVD MENU

- AUDIO

- SUBTITLE

t NGLISH

FRENCH

SPANISH

PORTUGUESE

ENGLISH

FRENCH

SPANISH

PORTUGUESE

GERMAN

-- ITALIAN

-- DUTCH

-- CHINESE

-- JAPANESE

-- DANISH

-- SWEDISH

-- FINNISH

-- NORWEGIAN

-- RUSSIAN

-- OTHERS

ORIGINAL

[-- (same as DVD MENU)

_ AUDIO FOLLOW

(same as DVD MENU)

_SCREEN SETUP (page 45)

-- TV TYPE 4:3 LETTER BOX

16:9/4:3 WIDE MODE

-- SCREEN SAVER ON

BACKGROUND --r JACKET PICTURE

GRAPHICS

BLUE

BLACK

_ CUSTOM SETUP (page 46)

-AUTO PLAY -- OFF

_ TIMER

DEMO1

DEMO2

- DIMMER ]-- BRIGHT

LDARK

OFF

- PAUSE MODE AUTO

PARENTAL CONTROL

_AUDIO SETUP (page 49)

- AUDIO ATT OFF

-AUDIO DRC -_ STANDARD

LTV MODE

WIDE RANGE

-- TRACK SELECTION OFF

-- DOWN MIX _ DOLBY SURROUND

-- DIGITAL OUT ON DOLBY DIGITAL

OFF DTS

_SPEAKER SETUP (page 51)

SIZE q- FRONT

I ENTER

REAR

SUBWOOFER

DISTANCE-- FRONT

CENTER

REAR

-- BALANCE FRONT

_REAR

-LEVEL _CENTERREAR

SUBWOOFER

TEST TONE _]_ _NF

€

PI,

pl,

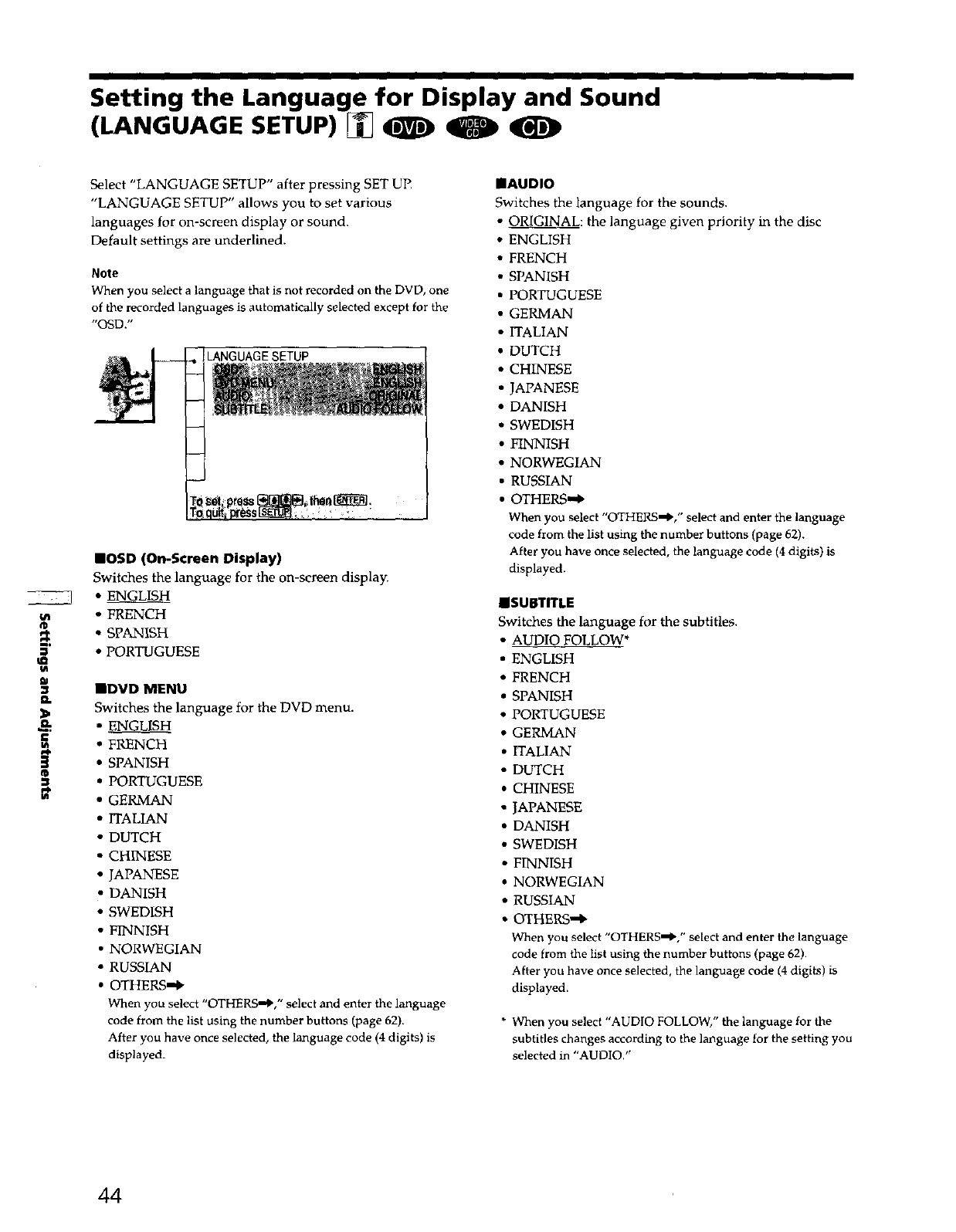

Setting the Language for Display and Sound

(LANGUAGE SETUP) O O

Select "LANGUAGE SETUP" after pressing SET UP

"LANGUAGE SETUP" allows you to set various

languages for on-screen display or sound.

Default settings are underlined.

Note

When you select a language that is not recorded on the DVD, one

of the recorded languages is automatically selected except for the

"OSD."

iOSD (On-Screen Display)

Switches the language for the on-screen display.

• ENGLISH

• FRENCH

• SPANISH

• PORTUGUESE

iDVD MENU

Switches the language for the DVD menu.

• ENGLISH

• FRENCH

• SPANISH

• PORTUGUESE

• GERMAN

• ITALIAN

• DUTCH

• CHINESE

• JAPANESE

• DANISH

• SWEDISH

• FINNISH

• NORWEGIAN

• RUSSIAN

• OTHERS-,_"

When you select "OTHERS-_," select and enter the language

code from the list using the number buttons (page 62).

After you have once selected, the language code (4 digits) is

displayed.

IIIAUDIO

Switches the language for the sounds.

• ORIGINAL: the language given priority in the disc

• ENGLISH

• FRENCH

• SPANISH

• PORTUGUESE

• GERMAN

• ITALIAN

• DUTCH

• CHINESE

• JAPANESE

• DANISH

• SWEDISH

• FLNNISH

• NORWEGIAN

• RUSSIAN

• OTHERS,,_.

When you select "OTHERS'_/' select and enter the language

code from the list using the number buttons (page 62).

After you have once selected, the language code (4 digits) is

displayed.

iSUBTITLE

Switches the language for the subtitles.

• AUDIO FOLLOW*

• ENGLISH

• FRENCH

• SPANISH

• PORTUGUESE

•GERMAN

• ITALIAN

• DUTCH

• CHINESE

• JAPANESE

• DANISH

• SWEDISH

• FINNISH

• NORWEGIAN

• RUSSIAN

• OTHERS"_

When you select "OTHERS--I_," select and enter the language

code from the list using the number buttons (page 62).

After you have once selected, the language code (4 digits) is

displayed,

* When you select "AUDIO FOLLOW," the language for the

subtitles changes according to the language for the setting you

selected in "AUDIO."

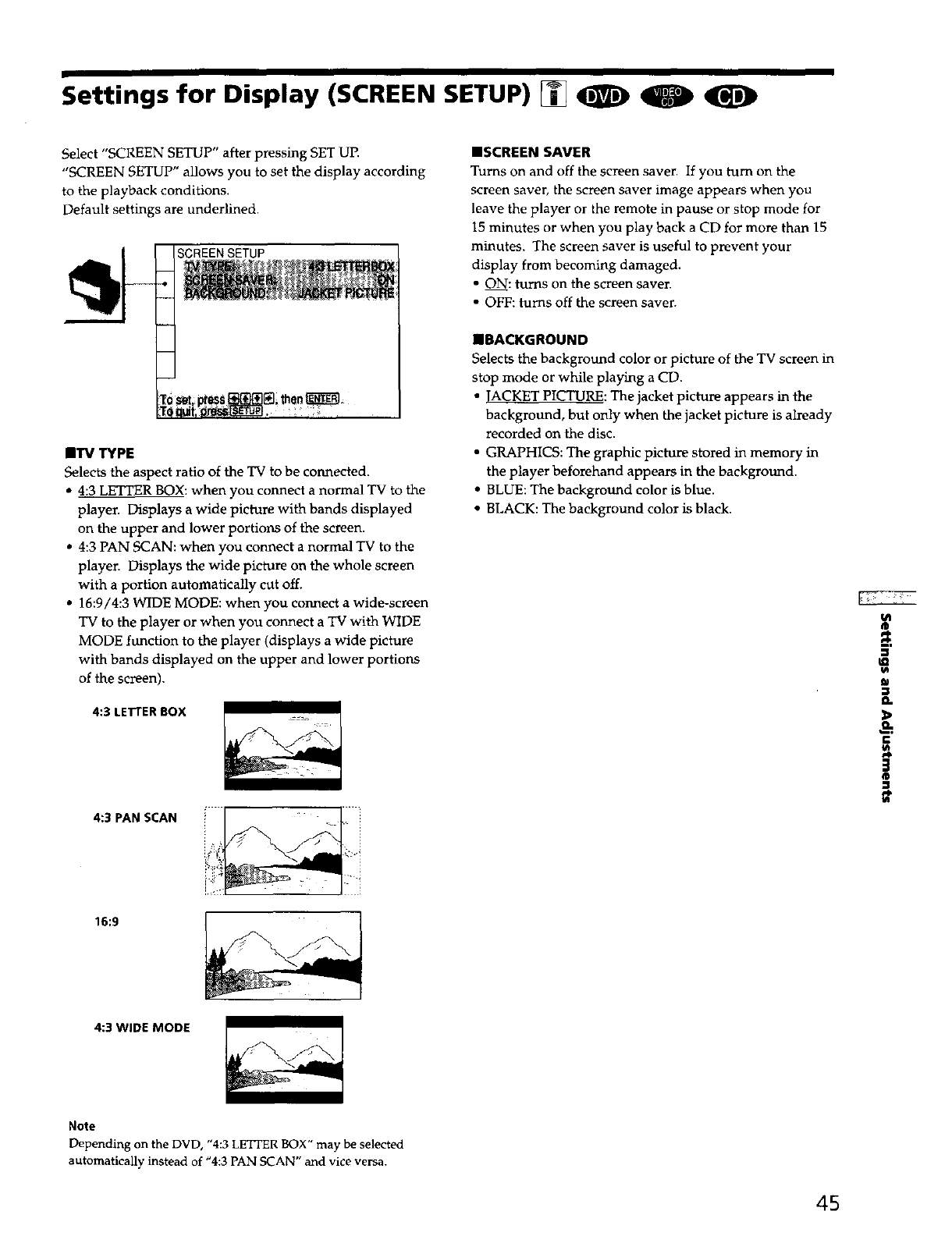

Settings for Display (SCREEN SETUP) []

Select "SCREEN SETUP" after pressing SET UI_

"SCREEN SETUP" allows you to set the display according

to the playback conditions.

Default settings are underlined.

SCREEN SETUP

IITV TYPE

Selects the aspect ratio of the TV to be connected.

• 4:3 LETTER BOX: when you connect a normal TV to the

playen Displays a wide picture with bands displayed

on the upper and lower portions of the screen.

• 4:3 PAN SCAN: when you connect a normal TV to the

playen Displays the wide picture on the whole screen

with a portion automatically cut off.

• 16:9/4:3 WIDE MODE: when you connect a wide-screen

TV to the player or when you connect a TV with WIDE

MODE function to the player (displays a wide picture

with bands displayed on the upper and lower portions

of the screen).

4:3 LETTER BOX

4:3 PAN SCAN

16:9

4:3 WIDE MODE

IISCREEN SAVER

Turns on and off the screen saver• If you turn on the

screen saver, the screen saver image appears when you

leave the player or the remote in pause or stop mode for

15 minutes or when you play back a CD for more than 15

minutes. The screen saver is useful to prevent your

display from becoming damaged.

• ON: turns on the screen saver.

• OFF: turns off the screen saver.

NBACKGROUND

Selects the background color or picture of the TV screen in

stop mode or while playing a CD.

• IACKET PICTURE: The jacket picture appears in the

background, but only when the jacket picture is already

recorded on the disc.

• GRAPHICS: The graphic picture stored in memory in

the player beforehand appears in the background.

• BLUE: The background color is blue.

• BLACK: The background color is black.

_a.

Note

Depending on the DVD, "4:3 LETTER BOX" may be selected

automatically instead of "4:3 PAN SCAN" and vice versa.

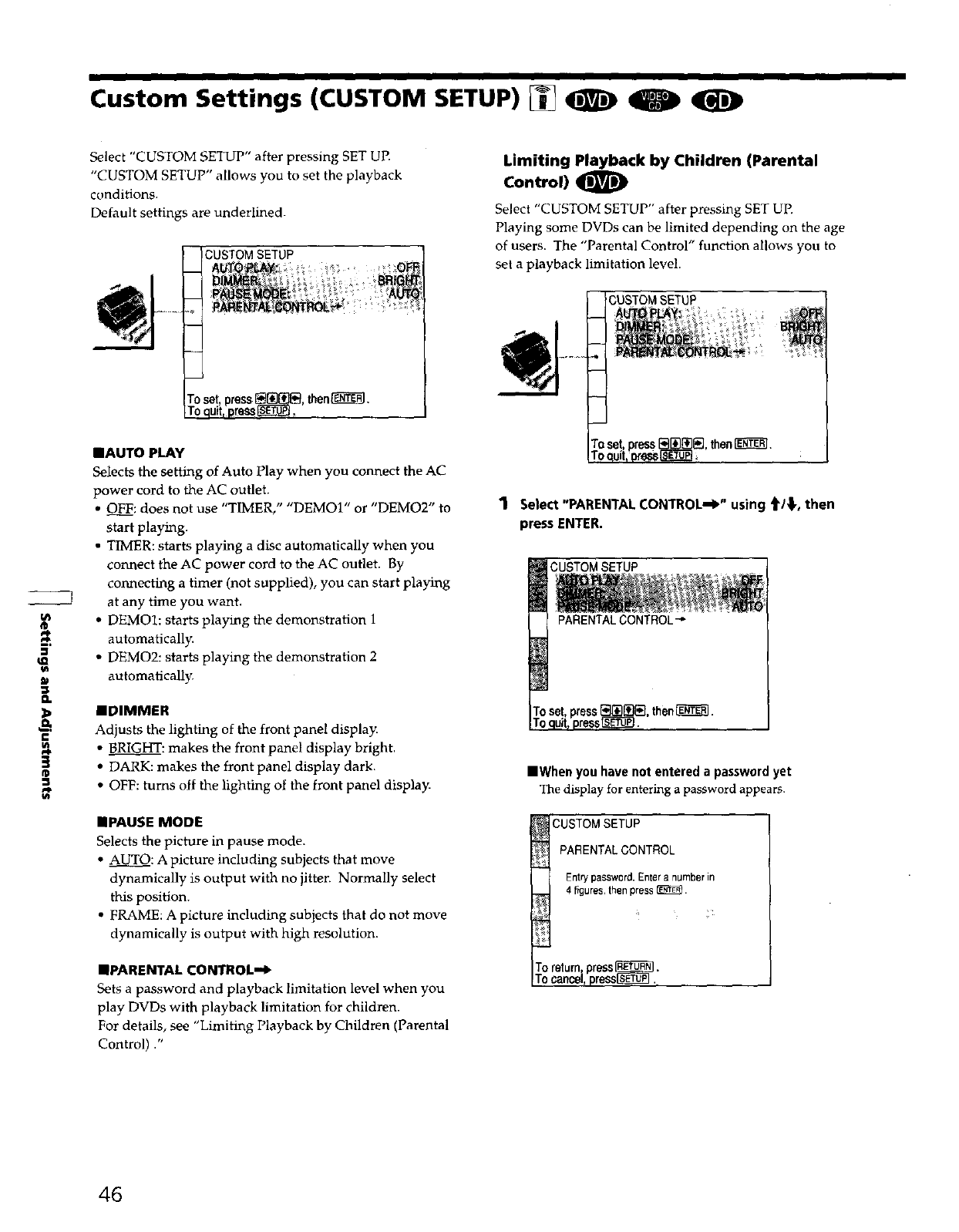

Custom Settings (CUSTOM SETUP) O

Ifl

Select "CUSTOM SETUP" after pressing SET UI_

"CUSTOM SETUP" allows you to set the playback

conditions.

Default settings are underlined.

CUSTOM SETUP

lhen_.

mAUTO PLAY

Selects the setting of Auto Play when you connect the AC

power cord to the AC outlet.

•OFF: does not use "TIMER," "DEMOI" or "DEMO2" to

start playing.

• TIMER: starts playing a disc automatically when you

connect the AC power cord to the AC outlet. By

connecting a timer (not supplied), you can start playing

at any time you want.

• DEMOI: starts playing the demonstration 1

automatically.

• DEMO2: starts playing the demonstration 2

automatically.

NDIMMER

Adjusts the lighting of the front panel display.

• BRIGHT: makes the front panel display bright.

• DARK: makes the front panel display dark.

• OFF: turns off the lighting of the front panel display.

NPAUSE MODE

Selects the picture in pause mode.

• AUTO: A picture including subjects that move

dynamically is output with no jitter. Normally select

this position.

• FRAME: A picture including subjects that do not move

dynamically is output with high resolution.

NPARENTAL CONTROL-I_

Sets a password and playback limitation level when you

play DVDs with playback limitation for children.

For details, see "Limiting Playback by Children (Parental

Control) ."

Limiting Playback by Children (Parental

Control) O

Select "CUSTOM SETUP" after pressing SET UI_

Playing some DVDs can be limited depending on the age

of users. The "Parental Control" function allows you to

set a playback limitation level.

CUSTOMSETUP

,then_.

1Select "PARENTAL CONTROL_." using _1"/_,,then

press ENTER.

Toset,press_, then_.

Toquit_press_. ..

mWhen you have not entered a passwordyet

The display for entering a password appears.

CUSTOMSETUP

PARENTALCONTROL

Entry password. Enter a number in

4 figures, then Press [_.

Toreturn, pre._ _.

TOcancel,pressE___.

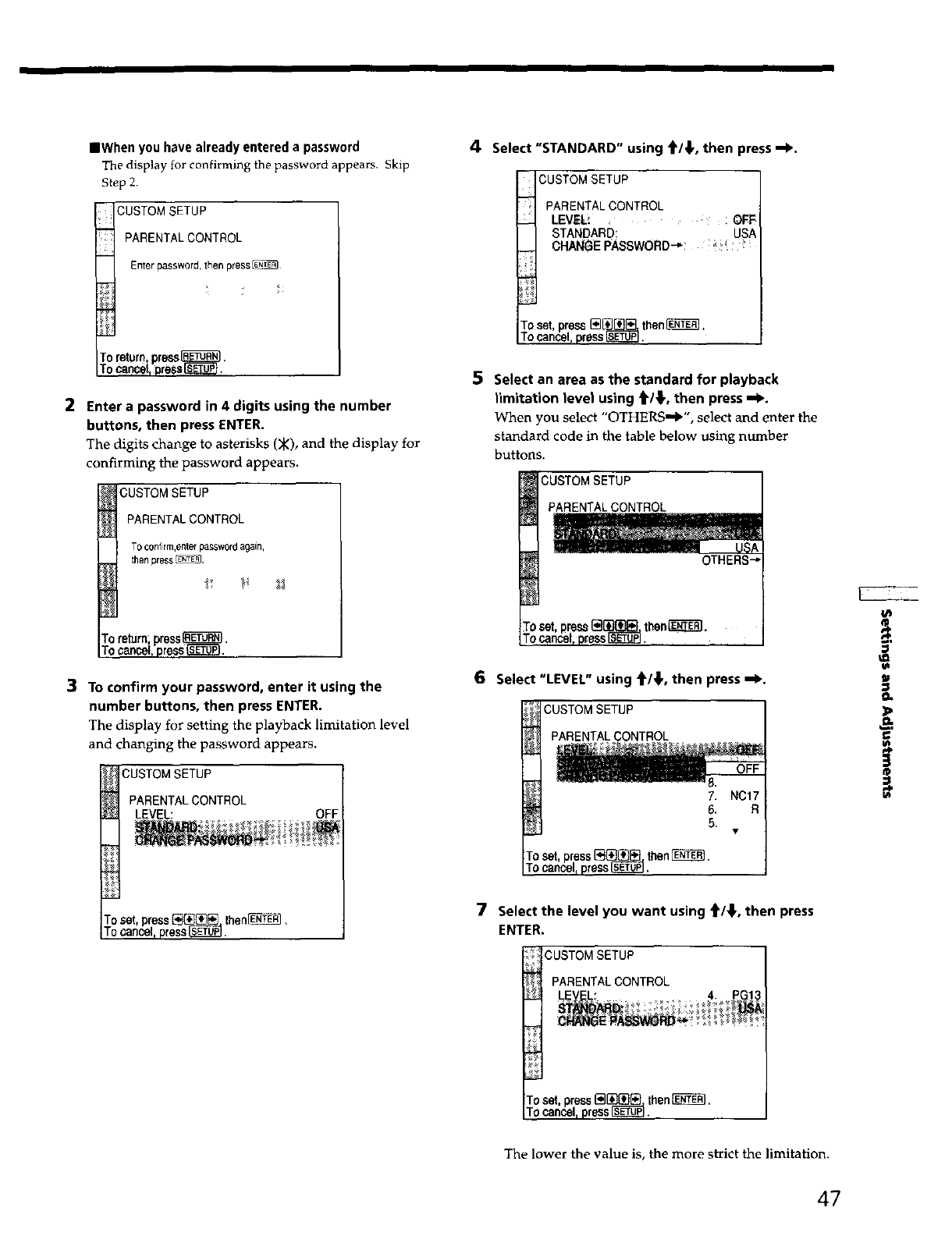

IlWhen you have already entered a password

The display for confirming the password appears. Skip

Step 2.

'CUSTOMSETUP

PARENTALCONTROL

Enterpassword, thenpress_

Toreturn,press_.

To Cancel,prer_ sEl&ELt,_J,

2Enter a password in 4digits using the number

buttons, then press ENTER.

The digits change to asterisks (_), and the display for

confirming the password appears.

CUSTOM SETUP

PARENTALCONTROL

TOconfirm,enterpassword again,

then press_,

3 To confirm your password, enter it using the

number buttons, then press ENTER.

The display for setting the playback limitation level

and changing the password appears.

OFF

4Select "STANDARD" using f/,I,, then press --b.

CUSTOMSETUP

PARENTALCONTROL

_-_ LEMELi

STANDARD: USA

___ CHANGEPASSWORD_: !_i_: ?

Toset, press[_[__,_ then_.

Tocancel,press_.

5 Select an area as the standard for playback

1imitation level using t'/4i,, then press _,.

When you select "OTHERS-Ib", select and enter the

standard code in the table below using number

buttons.

CUSTOMSETUP ]

PARENTALCONTROL

TOset,prese[_[_ then_. I

TOcance,pressS_L_._J. I

6 Select "LEVEL" using fill,, then press =i_.

7Select the level you want using _/_l,, then press

ENTER.

CUSTOM SETUP

PARENTALCONTROL 1

then_.

The lower the value is, the more strict the limitation.

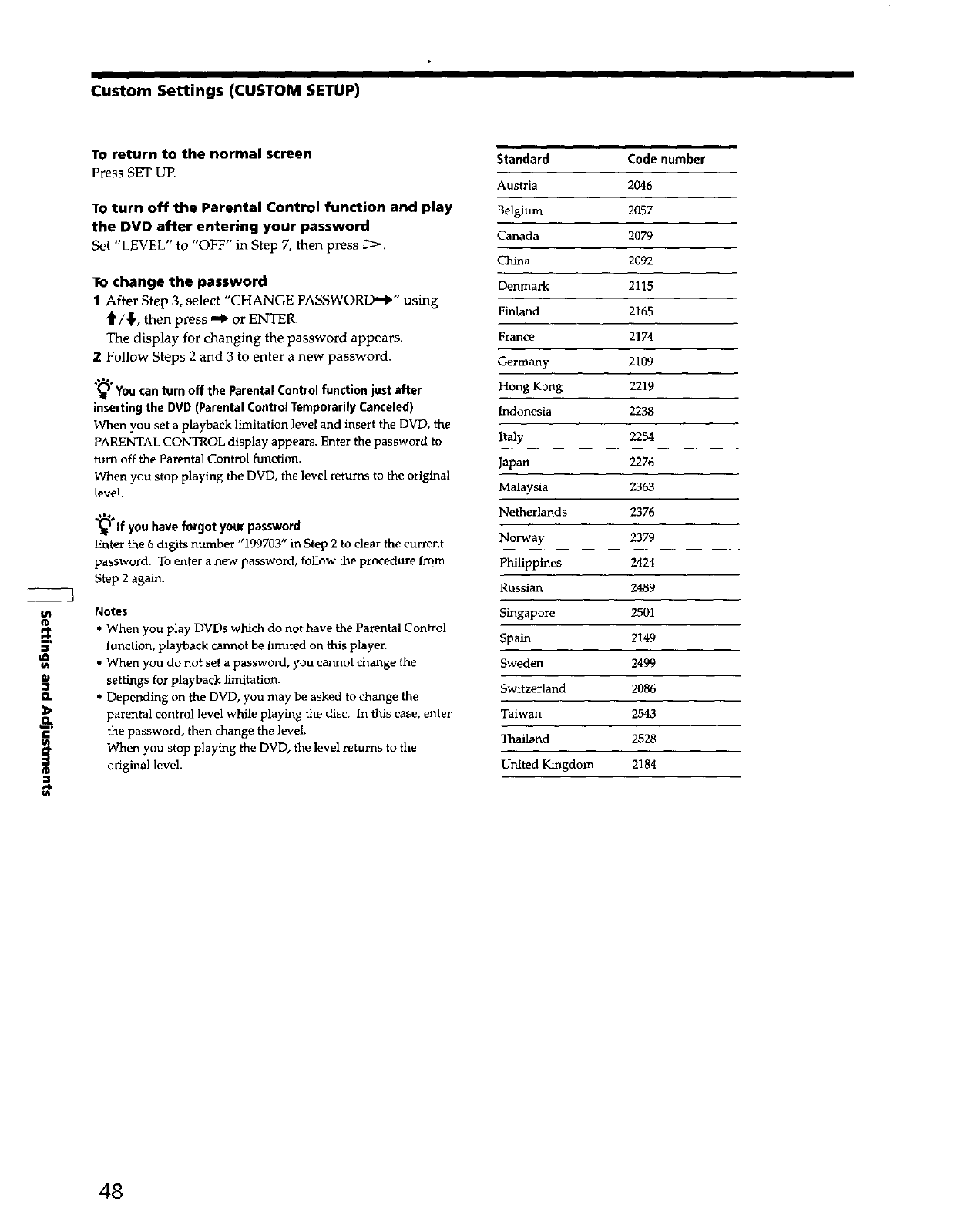

Custom Settings (CUSTOM SETUP)

€

To return to the normal screen

Press SET UE

To turn off the Parental Control function and play

the DVD after entering your password

Set "LEVEL" to "OFF" in Step 7, then press C>.

To change the password

1After Step 3, select "CHANGE PASSWORD,.,O'" using

t/,}, then press =,b or ENTER.

The display for changing the password appears.

2Follow Steps 2 and 3 to enter a new password.

,'1% . ,

You can turn off the Parental Control function just after

inserting the DVD (Parental Control Temporarily Canceled)

When you set a playback limitation level and insert the DVD, the

PARENTAL CONTROL display appears. Enter the password to

turn off the Parental Control function.

When you stop playing the DVD, the level returns to the original

Jevel.

If you have forgot your password

Enter the 6 digits number "199703" in Step 2 to clear the current

password. To enter anew password, follow the procedure from

Step 2 again.

Notes

• When you play DVDs which do not have the Parental Control

function, playback cannot be limited on this playen

• When you do not set a password, you cannot change the

settings for playback limitation.

• Depending on the DVD, you may be asked to change the

parental control level while playing the disc. In this case, enter

the password, then change the level.

When you stop playing the DVD, the level returns to the

original level.

Standard Code number

Austria 2046

Belgium 2057

Canada 2079

China 2092

Denmark 2115

Finland 2165

France 2174

Germany 2109

Hong Kong 2219

Indonesia 2238

italy 2254

Japan 2276

Malaysia 2363

Netherlands 2376

Norway 2379

Philippines 2424

Russian 2489

Singapore 2501

Spain 2149

Sweden 2499

Switzerland 2086

Taiwan 2543

Thailand 2528

United Kingdom 2184

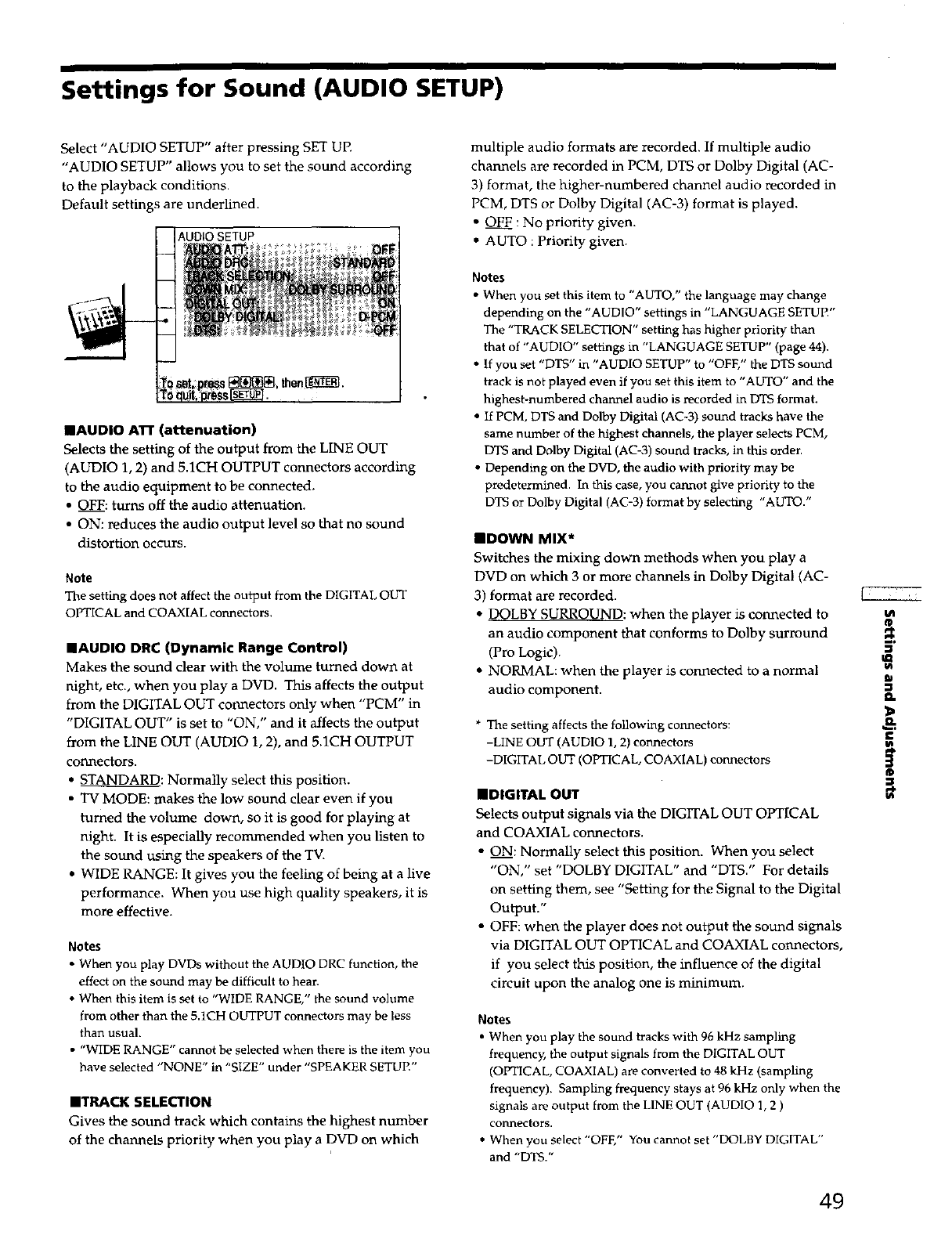

Settings for Sound (AUDIO SETUP)

Select "AUDIO SETUP" after pressing SET UP.

"AUDIO SETUP" allows you to set the sound according

to the playback conditions.

Default settings are underlined.

NAUDIO Al"r (attenuation)

Selects the setting of the output from the LINE OUT

(AUDIO 1, 2) and 5.1CH OUTPUT connectors according

to the audio equipment to be connected.

• OF__F:turns off the audio attenuation.

• ON: reduces the audio output level so that no sound

distortion occurs.

Note

The setting does not affect the output from the DIGITAL OUT

OPTICAL and COAXIAL connectors,

NAUDIO DRC (Dynamic Range Control)

Makes the sound clear with the volume turned down at

night, etc., when you play aDVD. This affects the output

from the DIGITAL OUT cot'_nectors only when "PCM" in

"DIGITAL OUT" is set to "ON," and it affects the output

from the LINE OUT (AUDIO 1, 2), and 5.1CH OUTPUT

connectors.

• STANDARD: Normally select this position.

•TV MODE: makes the low sound clear even if you

turned the volume down, so it is good for playing at

night. It is especially recommended when you listen to

the sound using the speakers of the TV.

• WIDE RANGE: It gives you the feeling of being at a live

performance. When you use high quality speakers, it is

more effective.

Notes

•When you play DVDs without the AUDIO DRC function, the

effect on the sound may be difficult to hear.

• When this item is set to "WIDE RANGE," the sound volume

from other than the S.1CH OUTPUT connectors may be less

than usual.

• "WIDE RANGE" cannot he selected when there is the item you

have selected "NONE" in "SIZE" under "SPEAKER SETUP."

iTRACK SELECTION

Gives the sound track which contains the highest number

of the channels priority when you play a DVD on which

multiple audio formats are recorded. If multiple audio

channels are recorded in PCM, DTS or Dolby Digital (AC-

3) format, the higher-numbered channel audio recorded in

PCM, DTS or Dolby Digital (AC-3) format is played.

• OFF : No priority given.

• AUTO : Priority given.

Notes

•When you set this item to "AUTO," the language may change

depending on the "AUDIO" settings in "LANGUAGE SETUW'

The "TRACK SELECTION" setting has higher priority than

that of "AUDIO" settings in "LANGUAGE SETUP" (page 44).

•If you set "DTS" in "AUDIO SETUP" to "OFF," the DIS sound

track is not played even if you set this item to "AUTO" and the

highest-numbered channel audio is recorded in DTS format.

• If PCM, DTS and Dolby Digital (AC-3) sound tracks have the

same number of the highest channels, the player selects PCM,

DTS and Dolby Digital (AC-3) sound tracks, in this orden

• Depending on the DVD, the audio with priority may be

predetermined. In this case, you cannot give priority to the

DIS or Dolby Digital (AC-3) format by selecting "AU'I_."

IIDOWN MIX*

Switches the mixing down methods when you play a

DVD on which 3 or more channels in Dolby Digital (AC-

3) format are recorded.

• DOLBY SURROUND: when the player is connected to

an audio component that conforms to Dolby surround

(Pro Logic).

• NORMAL: when the player is connected to a normal

audio component.

* The setting affects the following connectors:

-LINE OUT (AUDIO 1, 2) connectors

-DIGITAL OUT (OPTICAL, COAXIAL) connectors

NDIGITAL OUT

Selects output signals via the DIGITAL OUT OPTICAL

and COAXIAL connectors.

•ON: Normally select this position. When you select

"ON," set "DOLBY DIGITAL" and "DTS." For details

on setting them, see "Setting for the Signal to the Digital

Output."

• OFF: when the player does not output the sound signals

via DIGITAL OUT OPTICAL and COAXIAL connectors,

if you select this position, the influence of the digital

circuit upon the analog one is minimum.

Notes

•When you play the sound tracks with 96 kHz sampling

frequency, the output signals from the DIGITAL OUT

(OPTICAL, COAXIAL) are converted to 48 kHz (sampling

frequency). Sampling frequency stays at 96 kHz only when the

signals are output from the LINE OUT (AUDIO 1, 2 )

connectors.

• When you select "OFF," You cannot set "DOLBY DIGITAL"

and "DTS."

Settings for Sound (AUDIO SETUP)

¢L

€

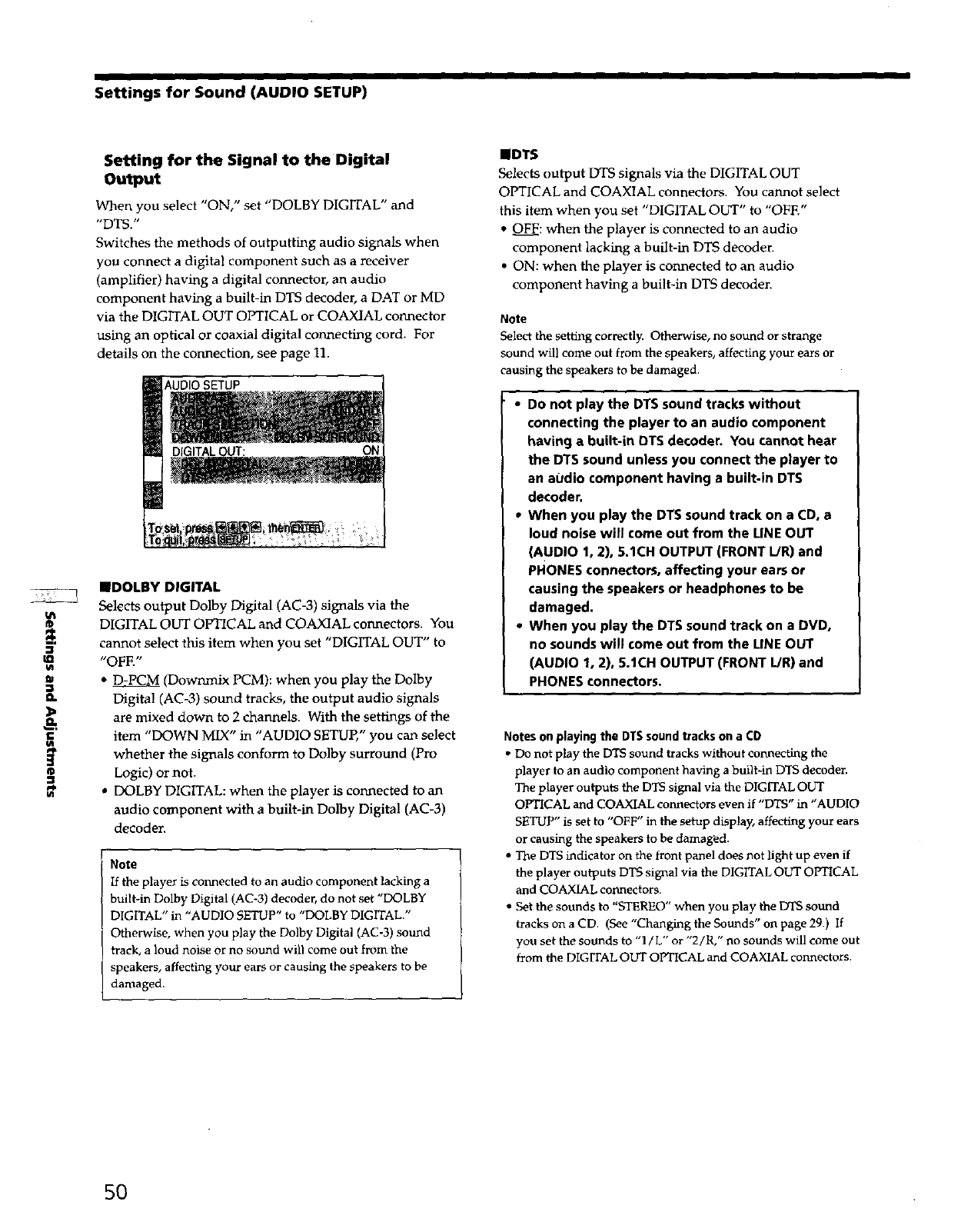

Setting for the Signal to the Digital

Output

When you select "ON," set "DOLBY DIGITAL" and

"DTS."

Switches the methods of outputting audio signals when

you connect a digital component such as a receiver

(amplifier) having a digital connector, an audio

component having a built-in DTS decoder, a DAT or MD

via the DIGITAL OUT OPTICAL or COAXIAL connector

using an optical or coaxial digital connecting cord. For

details on the connection, see page 11.

AUDIO SETUP

o_I_:_: .......... I

IIDOLBY DIGITAL

Selects output Dolby Digital (AC-3) signals via the

DIGITAL OUT OPTICAL and COAXIAL connectors. You

cannot select this item when you set "DIGITAL OUT" to

"OFF."

• D-PCM (Downmix PCM): when you play the Dolby

Digital (AC-3) sound tracks, the output audio signals

are mixed down to 2 channels. With the settings of the

item "DOWN MIX" in "AUDIO SETUP," you can select

whether the signals conform to Dolby surround (Pro

Logic) or not.

•DOLBY DIGITAL: when the player is connected to an

audio component with a built-in Dolby Digital (AC-3)

decoden

Note

If the player is connected to an audio component lacking a

built-in Dolby Digital (AC-3) decoder, do not set "DOLBY

DIGITAL" in "AUDIO SETUP" to "DOLBY DIGITAL."

Otherwise, when you play the Dolby Digital (AC-3) sound

track, a loud noise or no sound will come out from the

speakers, affecting your ears or causing the speakers to be

damaged.

IIDTS

Selects output DTS signals via the DIGITAL OUT

OPTICAL and COAXIAL connectors. You cannot select

this item when you set "DIGITAL OUT" to "OFF."

• O_QL_:when the player is connected to an audio

component lacking a built-in DTS decoden

• ON: when the player is connected to an audio

component having a built-in DTS decoder.

Note

Select the setting correctly. Otherwise, no sound or strange

sound will come out from the speakers, affecting your ears or

causing the speakers to be damaged.

•Do not play the DTS sound tracks without

connecting the player to an audio component

having a built-in DTS decoder. You cannot hear

the DTS sound unless you connect the player to

an audio component having a built-in DTS

decoder.

*When you play the DTS sound track on a CD, a

loud noise will come out from the LINE OUT

(AUDIO 1, 2), S.1CH OUTPUT (FRONT IJR) and

PHONES connectors, affecting your ears or

causing the speakers or headphones to be

damaged.

•When you play the DTS sound track on a DVD,

no sounds will come out from the LINE OUT

(AUDIO 1, 2), 5.1CH OUTPUT (FRONT L/R) and

PHONES connectors.

Notes on playing the DTS sound tracks on a CD

•Do not play the DTS sound tracks without connecting the

player to an audio component having a built-in DTS decoder.

The player outputs the DTS signal via the DIGITAL OUT

OPTICAL and COAXIAL connectors even if "DTS" in "AUDIO

SETUP" is set to "OFF" in the setup display, affecting your ears

or causing the speakers to be damaged.

• The DTS indicator on the front panel does not light up even if

the player outputs DTS signal via the DIGITAL OUT OPTICAL

and COAXIAL connectors.

• Set the sounds to "STEREO" when you play the DTS sound

tracks on a CD. (See "Changing the Sounds" on page 29.) If

you set the sounds to "1/L" or "2/R," no sounds will come out

from the DIGITAL OUT OPTICAL and COAXIAL connectors.

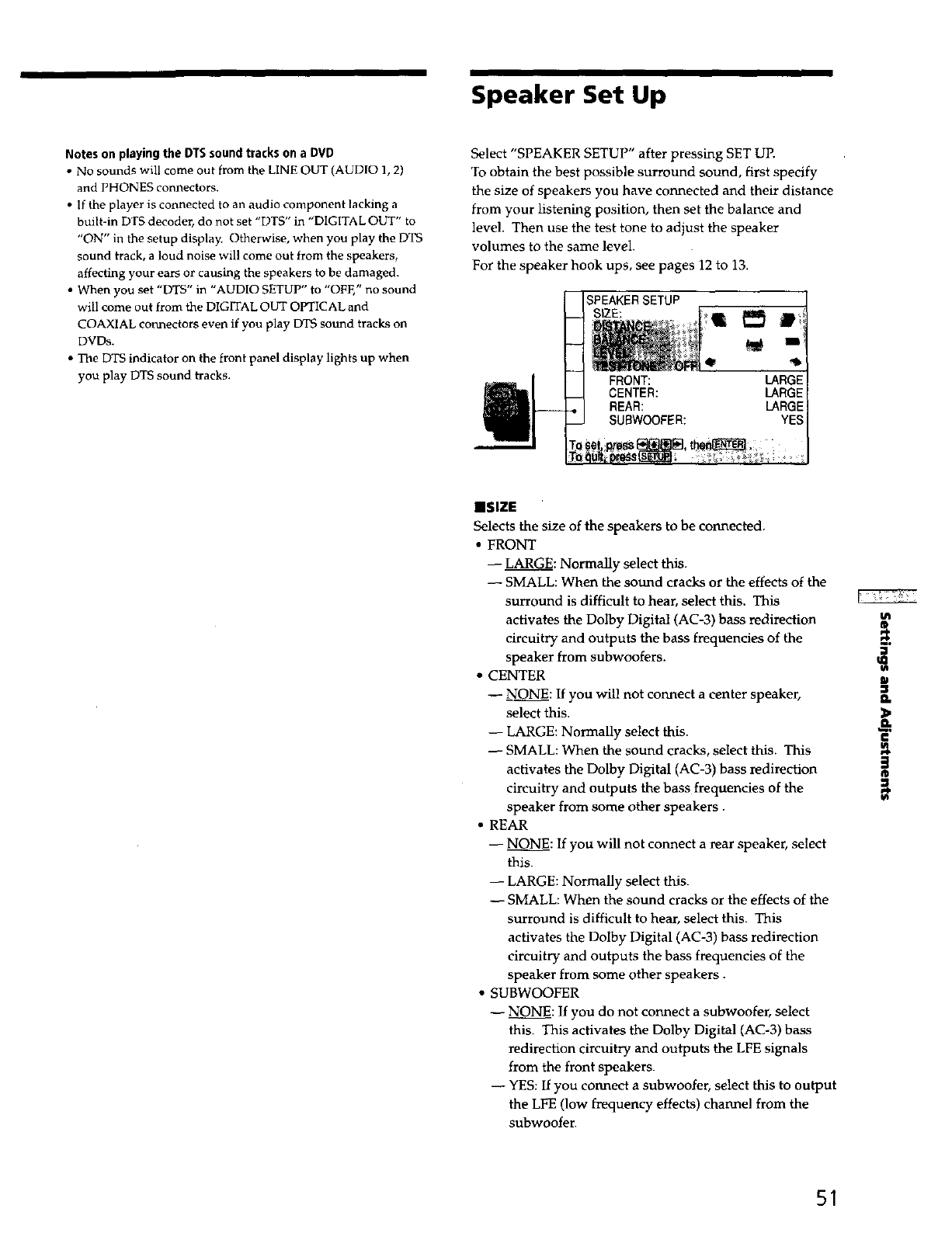

Speaker Set Up

Notes on playing the DTS sound tracks on a DVD

• No sounds will come out from the LINE OUT (AUDIO 1, 2)

and PHONES connectors.

• If the player is connected to an audio component lacking a

built-in DTS decoder, do not set "DTS" in "DIGITAL OUT" to

"ON" in the setup display. Otherwise, when you play the DTS

sound track, aloud noise will come out from the speakers,

affecting your ears or causing the speakers to be damaged.

• When you set "DTS" in "AUDIO SETUP" to "OFE" no sound

will come out from the DIGITAL OUT OPTICAL and

COAXIAL connectors even if you play DTS sound tracks on

DVDs.

• The DTS indicator on the front panel display lights up when

you play DTS sound tracks.

Select "SPEAKER SETUP" after pressing SET UP.

To obtain the best possible surround sound, first specify

the size of speakers you have connected and their distance

from your listening position, then set the balance and

level. Then use the test tone to adjust the speaker

volumes to the same level.

For the speaker hook ups, see pages 12 to 13.

SPEAKERSETUP

sizE: I

FRONT: LARGE

CENTER: LARGE

REAR: LARGE

SUBWOOFER: YES

IISIZE

Selects the size of the speakers to be connected.

•FRONT

-- LARGE: Normally select this.

-- SMALL: When the sound cracks or the effects of the

surround is difficult to hear, select this. This

activates the Dolby Digital (AC-3) bass redirection

circuitry and outputs the bass frequencies of the

speaker from subwoofers.

• CENTER

-- NONE: If you will not connect a center speaker,

select this.

-- LARGE: Normally select this.

-- SMALL: When the sound cracks, select this. This

activates the Dolby Digital (AC-3) bass redirection

circuitry and outputs the bass frequencies of the

speaker from some other speakers.

• REAR

-- NONE: If you will not connect a rear speaker, select

this.

-- LARGE: Normally select this.

-- SMALL: When the sound cracks or the effects of the

surround is difficult to hear, select this. This

activates the Dolby Digital (AC-3) bass redirection

circuitry and outputs the bass frequencies of the

speaker from some other speakers.

• SUBWOOFER

-- NONE: If you do not connect a subwoofer, select

this. This activates the Dolby Digital (AC-3) bass

redirection circuitry and outputs the LFE signals

from the front speakers.

-- YES: If you connect a subwoofer, select this to output

the LFE (low frequency effects) channel from the

subwoofer.

€

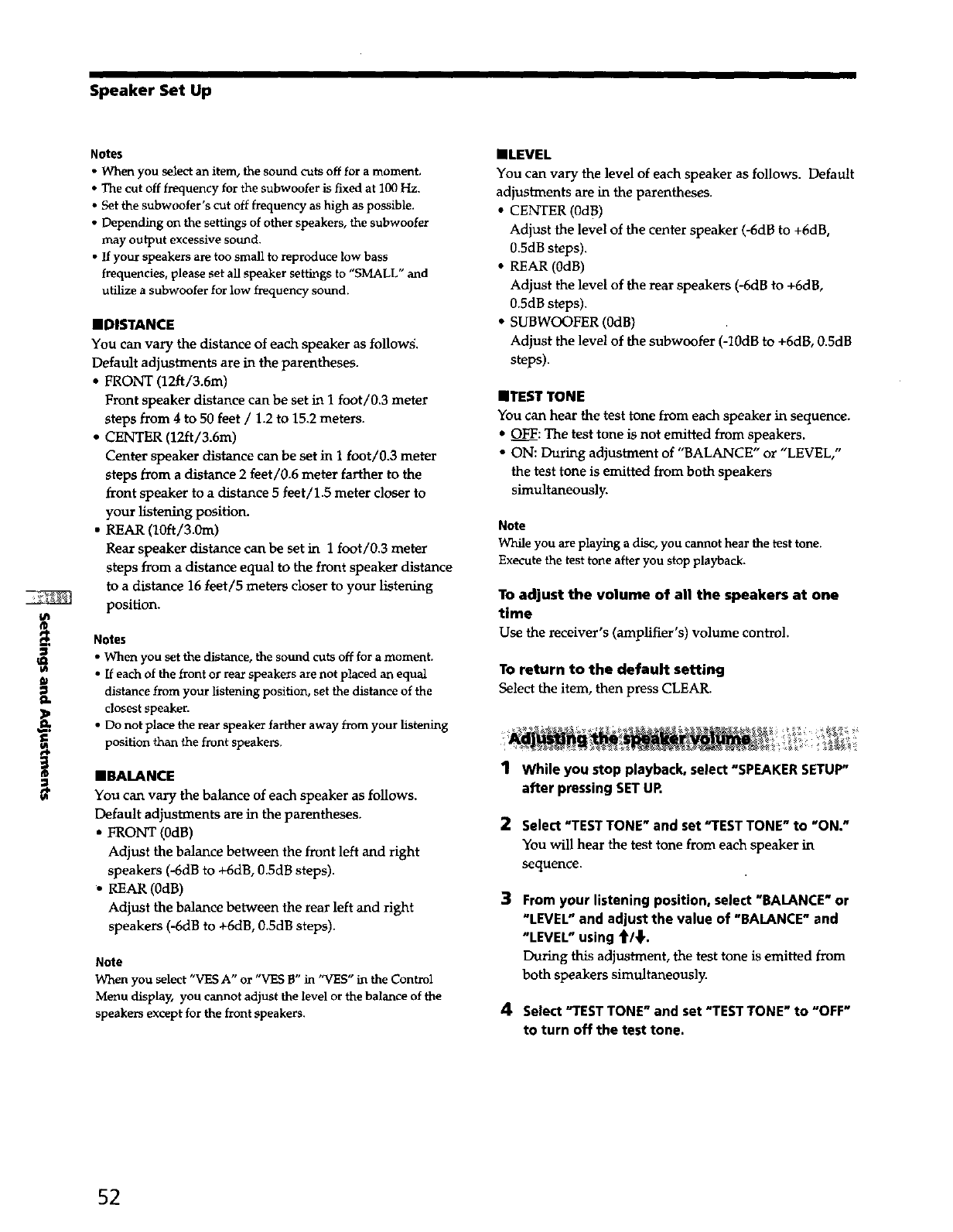

Speaker Set Up

Notes

•When you select an item, the sound cuts off for a moment,

• The cut off frequency for the subwoofer is fixed at 100 Hz.

• Set the subwooler's cut off frequency as high as possible.

• Depending on the settings of other speakers, the subwooter

may output excessive sound.

•It your speakers are too small to reproduce low bass

frequencies, please set all speaker settings to "SMALL" and

utilize a subwoofer for low frequency sound.

1DISTANCE

You can vary the distance of each speaker as followK

Default adjustments are in the parentheses.

•FRONT (12ft/3.6m)

Front speaker distance can be set in I foot/0.3 meter

steps from 4 to 50 feet /1.2 to 15.2 meters.

•CENTER (12ft/3.6m)

Center speaker distance can be set in 1 foot/0.3 meter

steps from a distance 2 feet/0.6 meter farther to the

front speaker to a distance 5 feet/1.5 meter closer to

your listening po_ltion.

•REAR (10ft/3.0m)

Rear speaker distance can be set in I foot/0.3 meter

steps from a distance equal to the front speaker distance

to a distance 16 feet/5 meters closer to your listening

position.

Notes

•When you set the distance, the sound cuts off for a moment.

•If each of the front or rear speakers are not placed an equal

distance from your listening position, set the distance of the

closest speaker.

•Do not place the rear speaker farther away from your listening

position than the front speakers.

1BALANCE

You can vary the balance of each speaker as follows.

Default adjustments are in the parentheses.

•FRONT (0dB)

Adjust the balance between the front left and right

speakers (-6dB to +6dB, 0.5dB steps).

•REAR (0dB)

Adjust the balance between the rear left and right

speakers (-6dB to +6dB, 0.5dB steps).

Note

When you select "VES A" or "VES B" in "VES" in the Control

Menu display, you cannot adjust the level or the balance of the

speakers except for the front speakers.

IILEVEL

You can vary the level of each speaker as follows. Default

adjustments are in the parentheses.

•CENTER (0dB)

Adjust the level of the center speaker (-6dB to +6dB,

0.5dB steps).

•REAR (0dB)

Adjust the level of the rear speakers (-6dB to +6dB,

0.5dB steps).

•SUBWOOFER (0dB)

Adjust the level of the subwoofer (-10dB to +6dB, 0.5dB

steps).

IITEST TONE

You can hear the test tone from each speaker in sequence.

•OFF: The test tone is not emitted from speakers.

• ON: During adjustment of "BALANCE" or "LEVEL,"

the test tone is emitted from both speakers

simultaneously.

Note

While you are playing a disc, you cannot hear the test tone.

Execute the test tone after you stop playback.

To adjust the volume of all the speakers at one

time

Use the receiver's (amplifier's) volume control.

To return to the default setting

Select the item, then press CLEAR.

1 While you stop playback, select "SPEAKER SETUP"

after pressing SET UR

2 Select"TESTTONE"andset'TESTTONE"to'ON."

You will hear the test tone from each speaker in

sequence.

3From your listening position, select "BALANCE" or

"LEVEL" and adjust the value of "BALANCE" and

"LEVEL" using 4"/_,.

During this adjustment, the test tone is emitted from

both speakers simultaneously.

4 Select'TESTTONE"andset"TESTTONE"to"OFF"

to turn off the test tone.

Controlling the TV or the AV Receiver (Amplifier) with the

Supplied Remote []

If you adjust the remote signal, you can contro! your TV

with the supplied remote. Default setting is to control

Sony TVs with the [] mark.

When you connect the player to a Sony AV receiver

(amplifier), you can also set the input of the receiver

(amplifier) to this player with the supplied remote.

DVD,RECEIVER --

switch

Number --

buttons

-- I/_ (POWER)

1 Slide the TV/DVD.RECEIVER switch to "IV.

2 Hold down I/(_ (POWER), and enter your "W's

manufacturer's code (see the table) using the

number buttons. Then release I/d_ (POWER).

Code numbers of controllable TVs

If more than one code number is listed, try entering them

one at a time until you find the one that works with your

TV.

Manufacturer Code Manufacturer Code

number number

Sony (default) 01 Panasonic 06,19

Akai 04 PEllco 03,04

AOC 04 Philips 08

Centurion 12 Pioneer 16

Coronado 03 Portland 03

Curis-Mathes 12 Quasar 06,18

Daytron 12 Radio Shack 05,14

Emerson 03,04,14 RCA 04,10

Fisher 11 Sampo 12

General Electric 06,10 Sanyo 11

Gold Star 03,04,17 Scott 12

Hitachi 02,03 Sears 07,10,11

J.C.Penny 04,12 Sharp 03,05,18

JVC 09 Sylvania 08,12

KMC 03 Teknika 03,08,14

Magnavox 03,08,12 Toshiba 07

Marantz 04,13 Wards 03,04,12

MGA/Mitsubishi 04,12,13,17 Yorx 12

NEC 04,12 Zenith 15

t/t

-t

Notes

• If you enter a new code number, the code number previously

entered will be erased.

•When you replace the batteries of the remote commander, the

code number automatically resets to 01 (Sony). Reset the

appropriate code number.

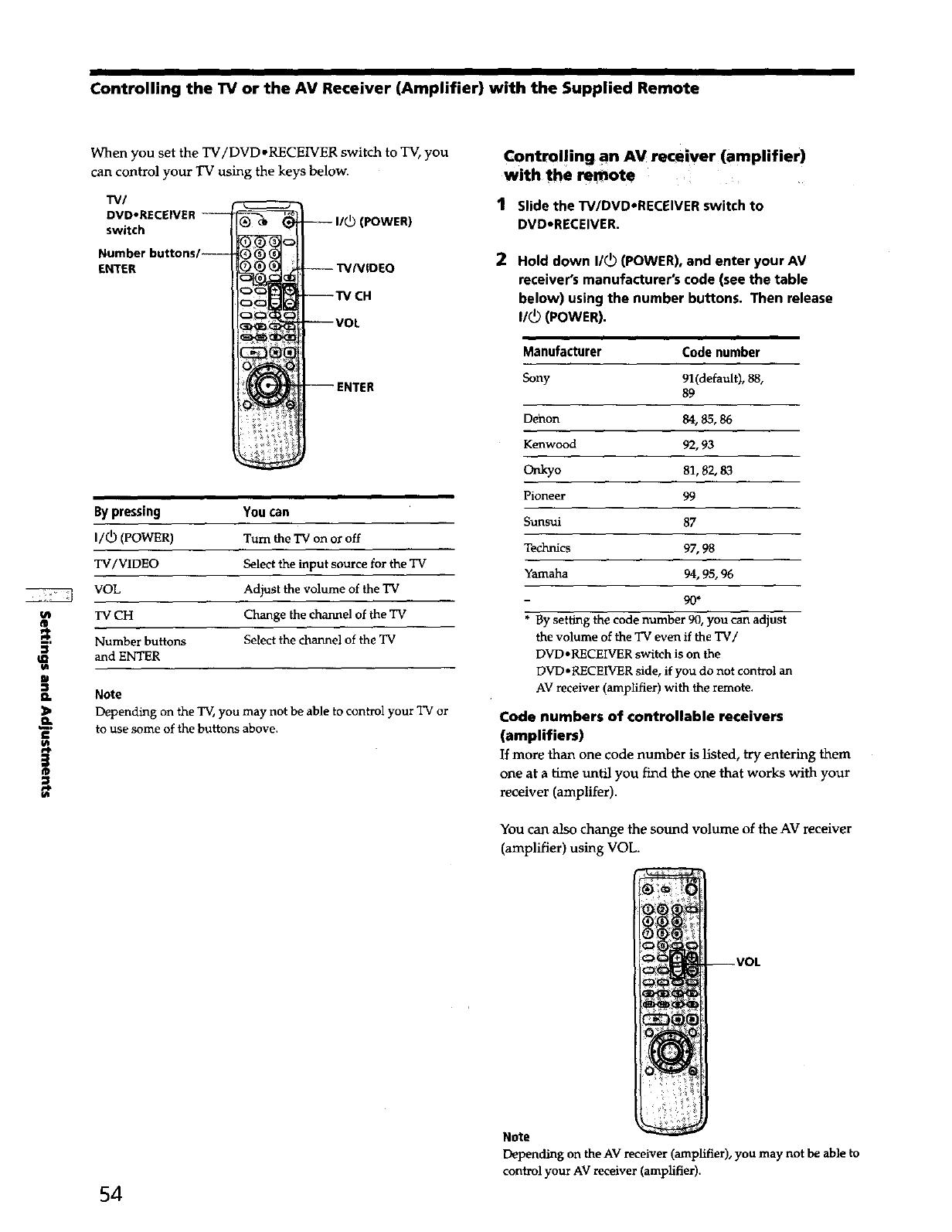

Controlling the TV or the AV Receiver (Amplifier) with the Supplied Remote

When you set the TV/DVD,RECEIVER switch to TV, you

can control your TV using the keys below.

TV/

DVDeRECEIVER

switch

ENTER

Controlling an AV receiver (amplifier)

with the remote

By pressing You ran

I/_ (POWER) Turn the TV on or off

TV/VIDEO Select the input source for the TV

VOL Adjust the volume of the TV

TV CH Change the channel of the TV

Number buttons Select the channel of the TV

and ENTER

Note

Depending on the TV, you may not be able to control your TV or

to use some of the buttons above,

1 Slide the TV/DVD,RECEIVER switch to

POWER) DVD,RECEIVER.

2Hold down I/_ (POWER), and enter your AV

receiver's manufacturer's code (see the table

below) using the number buttons. Then release

I/(_) (POWER).

Manufacturer Code number

Sony 91(default), 88,

Denon 84, 85, 86

Kenwood 92, 93

Onkyo 81, 82, 83

Pioneer 99

Sunsui 87

Technics 97, 98

Yamaha 94, 95, 96

- 90*

* By setting the code number 90, you can adjust

the volume of the TV even if the TV/

DVD.RECEIVER switch is on the

DVD°RECEIVER side, if you do not control an

AV receiver (amplifier) with the remote.

Code numbers of controllable receivers

(amplifiers)

If more than one code number is listed, try entering them

one at a time until you find the one that works with your

receiver (amplifer).

You can also change the sound volume of the AV receiver

(amplifier) using VOL.

Note

Depending on the AV receiver (amplifier), you may not be able to

control your AV receiver (amplifier).

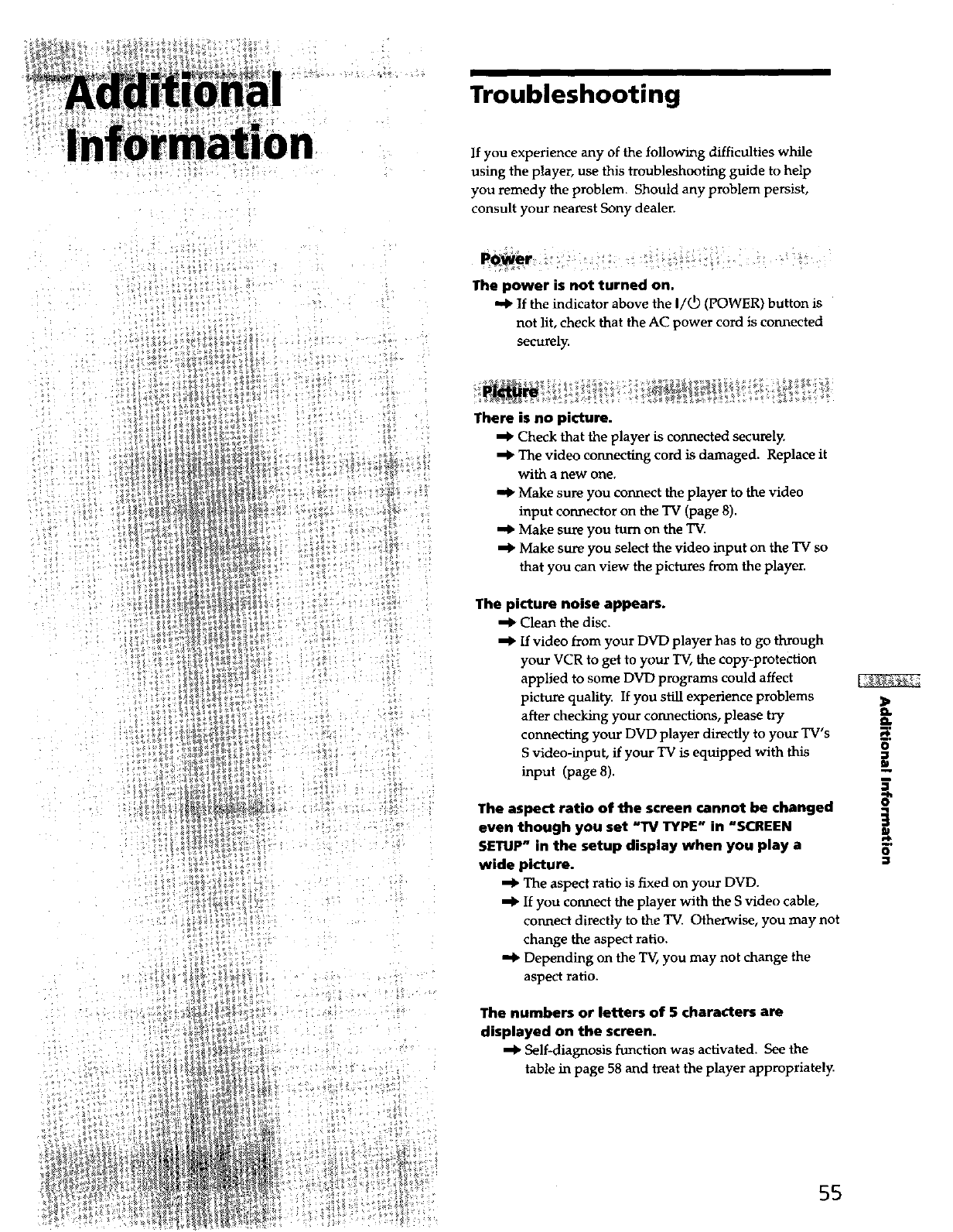

Troubleshooting

If you experience any of the following difficulties while

using the player, use this troubleshooting guide to help

you remedy the problem. Should any problem persist,

consult your nearest Sony dealer.

The power is not turned on.

If the indicator above the I/_ (POWER) button is

not lit, check that the AC power cord is connected

S_CUre[y.

There is no picture.

Check that the player is connected securely.

The video connecting cord is damaged. Replace it

with a new one.

,_ Make sure you connect the player to the video

input connector on the TV (page 8).

,,_ Make sure you turn on the TV.

,,_ Make sure you select the video input on the TV so

that you can view the pictures from the player.

The picture noise appears.

Clean the disc.

If video from your DVD player has to go through

your VCR to get to your TV, the copy-protection

applied to some DVD programs could affect

picture quality. If you stiU experience problems

after checking your connections, please try

connecting your DVD player directly to your TV's

S video-input, if your TV is equipped with this

input (page 8).

The aspect ratio of the screen (annot be changed

even though you set "TV TYPE" in "SCREEN

SETUP" in the setup display when you play a

wide picture.

The aspect ratio is fixed on your DVD.

,,_ If you connect the player with the S video cable,

connect directly to the TV. Otherwise, you may not

change the aspect ratio.

-I_ Depending on the TV, you may not change the

aspect ratio.

The numbers or letters of S characters are

displayed on the screen.

Self-diagnosis function was activated. See the

table in page 58 and treat the player appropriately.

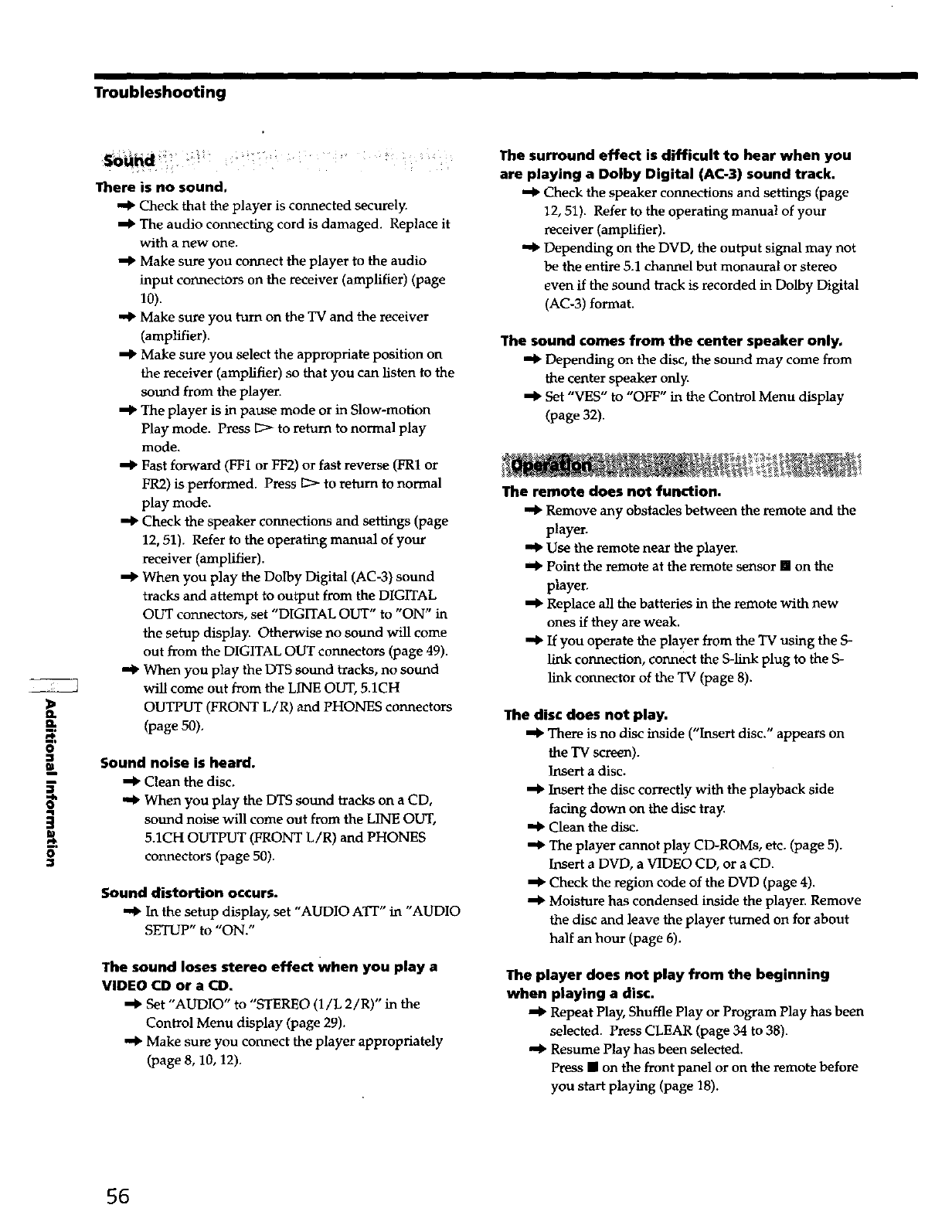

Troubleshooting

There is no sound.

,_ Check that the player is connected securely.

-._ The audio connecting cord is damaged. Replace it

with a new one.

•,_ Make sure you connect the player to the audio

input connectors on the receiver (amplifier) (page

10).

Make sure you turn on the TV and the receiver

(amplifier).

Make sure you select the appropriate position on

the receiver (amplifier) so that you can listen to the

sound from the player.

The player is in pause mode or in Slow-motion

Play mode. Press _to return to normal play

mode.

Past forward (FF1 or FF2) or fast reverse (FR1 or

FR2) is performed. Press [_ to return to normal

play mode.

•,_ Check the speaker connections and settings (page

12, 51). Refer to the operating manual of your

receiver (amplifier).

,,_ When you play the Dolby Digital (AC-3) sound

tracks and attempt to output from the DIGITAL

OUT connectors, set "DIGITAL OUT" to "ON" in

the setup display. Otherwise no sound will come

out from the DIGITAL OUT connectors (page 49).

When you play the DTS sound tracks, no sound

will come out from the LINE OUT, 5.1CH

OUTPUT (FRONT L/R) and PHONES connectors

(page 50).

Sound noise is heard.

Clean the disc.

,,_ When you play the DTS sound tracks on a CD,

sound noise will come out from the LINE OUT,

5.1CH OUTPUT (FRONT L/R) and PHONES

connectors (page 50).

Sound distortion occurs.

In the setup display, set "AUDIO ATr" in "AUDIO

SETUP" to "ON."

The sound loses stereo effect when you play a

VIDEO CD or a CD.

Set "AUDIO" to "STEREO (1/L 2/R)" in the

Control Menu display (page 29).

•,,#"Make sure you connect the player appropriately

(page 8, 10, 12).

The surround effect is difficult to hear when you

are playing a Dolby Digital (AC-3) sound track.

Check the speaker connections and settings (page

12, 51). Refer to the operating manual of your

receiver (amplifier).

",#" Depending on the DVD, the output signal may not

be the entire 5.1 channel but monaural or stereo

even if the sound track is recorded in Dolby Digital

(AC-3) format.

The sound comes from the center speaker only.

"_ Depending on the disc, the sound may come from

the center speaker only.

"_ Set "VES" to "OFF" in the Control Menu display

(page 32).

The remote does not function.

Remove any obstacles between the remote and the

player.

Use the remote near the player.

"_ Point the remote at the remote sensor •on the

player.

Replace all the batteries in the remote with new

ones if they are weak.

,,_ If you operate the player from the TV u_mg the S-

link connection, connect the S-link plug to the S-

link connector of the TV (page 8).

The disc does not play.

,,_ There is no disc inside ("Insert disc." appears on

the TV screen).

Insert a disc.

,,_ Insert the disc correctly with the playback side

facing down on the disc tray.

-I_ Clean the disc.

--_. The player cannot play CD-ROMs, etc. (page 5).

Insert a DVD, a VIDEO CD, or a CD.

Check the region code of the DVD (page 4).

Moisture has condensed inside the player. Remove

the disc and leave the player turned on for about

half an hour (page 6).

The player does not play from the beginning

when playing a disc.

Repeat Play, Shuffle Play or Program Play has been

selected. Press CLEAR (page 34 to 38).

-,#"Resume Play has been selected.

Press •on the front panel or on the remote before

you start playing (page 18).

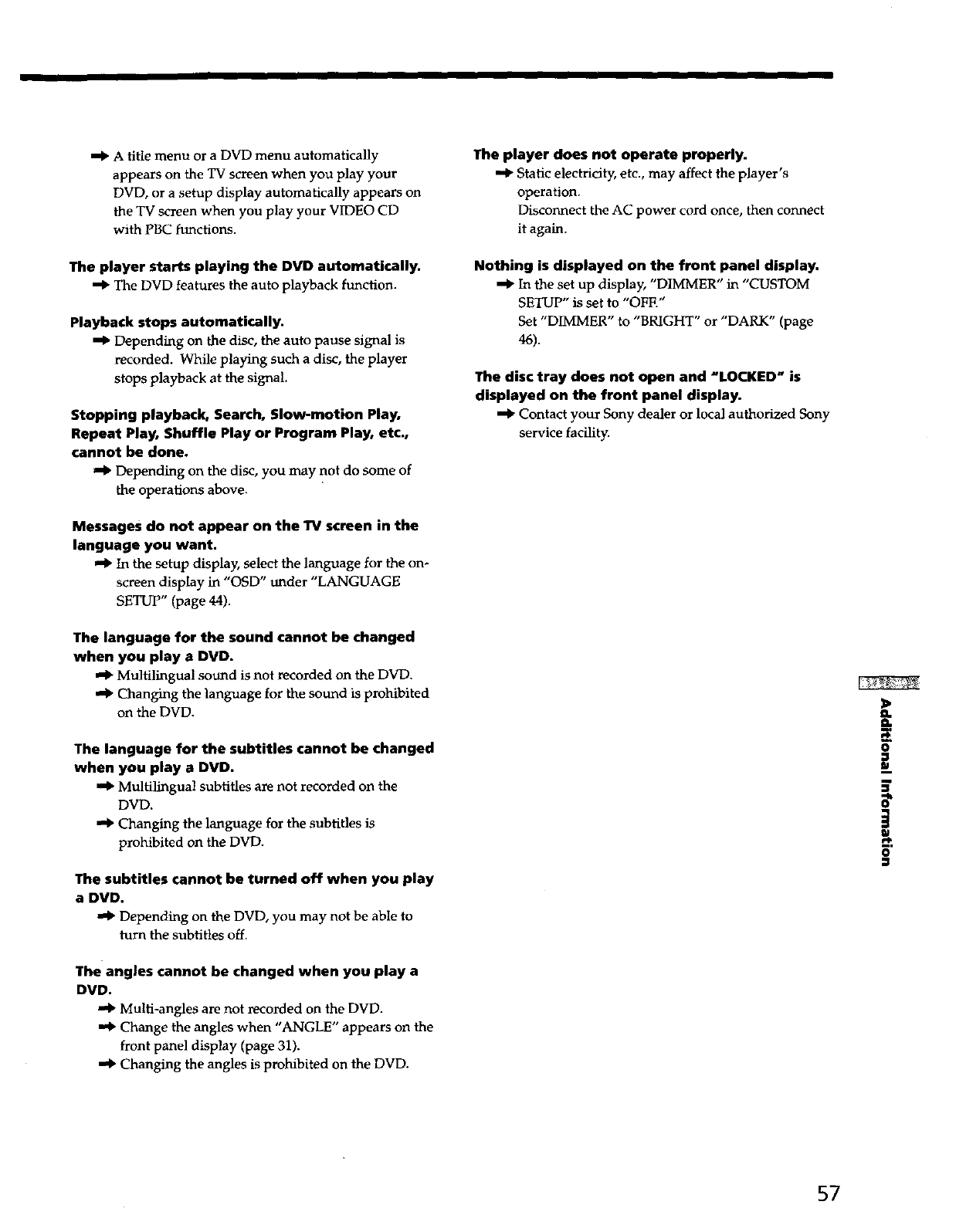

"1" A title menu or a DVD menu automatically

appears on the TV screen when you play your

DVD, or a setup display automatically appears on

the TV screen when you play your VIDEO CD

with PBC functions.

The player starts playing the DVD automatically.

-I_ The DVD features the auto playback function.

Playback stops automatically.

"_ Depending on the disc, the auto pause signal is

recorded. While playing such a disc, the player

stops playback at the signal.

Stopping playback, Search, Slow-motion Play,

Repeat Play, Shuffle Play or Program Play, etc.,

cannot be done.

•._ Depending on the disc, you may not do some of

the operations above.

Messages do not appear on the TV screen in the

language you want.

In the setup display, select the language for the on-

screen display in "OSD" under "LANGUAGE

SETUP" (page 44).

The language for the sound cannot be changed

when you play a DVD.

Multilingual sound is not recorded on the DVD.

Changing the language for the sound is prohibited

on the DVD.

The language for the subtitles cannot be changed

when you play a DVD.

'_ Multilingual subtitles are not recorded on the

DVD.

Changing the language for the subtitles is

prohibited on the DVD.

The subtitles cannot be turned off when you play

a DVD.

Depending on the DVD, you may not be able to

turn the subtitles off.

The angles cannot be changed when you play a

DVD.

Multi-angles are not recorded on the DVD.

•'_ Change the angles when "ANGLE" appears on the

front panel display (page 31).

,,_ Changing the angles is prohibited on the DVD.

The player does not operate properly.

Static electricity, etc., may affect the player's

operation.

Disconnect the AC power cord once, then connect

it again.

Nothing is displayed on the front panel display.

-I_ In the set up display, "DIMMER" in "CUSTOM

SETUP" is set to "OFF."

Set "DIMMER" to "BRIGHT" or "DARK" (page

46).

The disc tray does not open and "LOCKED uis

displayed on the front panel display.

•,_ Contact your Sony dealer or local authorized Sony

service facility.

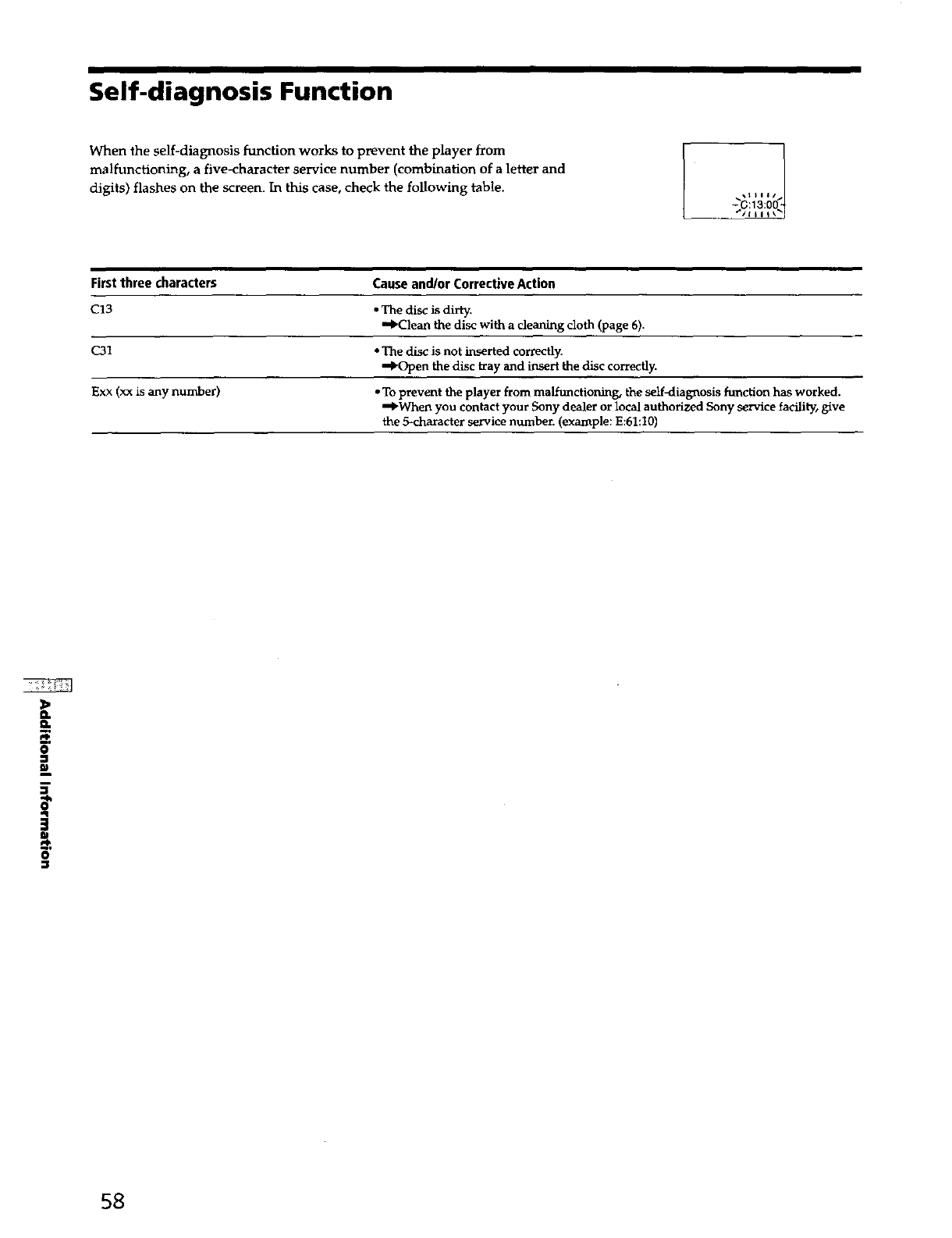

Self-diagnosis Function

When the self-diagnosis function works to prevent the player from

malfunctioning, a five_haracter service number (combination of a letter and

digits) flashes on the screen. In this case, check the following table. • t_lJs !

-_(_:13:00

First three characters Cause and/or Corrective Action

C13 •The disc is dirty.

ml_Clean the disc with a cleaning cloth (page 6).

C31 • The disc is not inserted correctly.

=_Open the disc t_ay and insert the disc correctly.

Exx (xx is any number) • To prevent the player from malfunctioning, the self_tiag_osis function has worked.

_When you contact your Sony dealer or local authorized Sony service facility, give

the 5-character service number. (example: E:61:10)

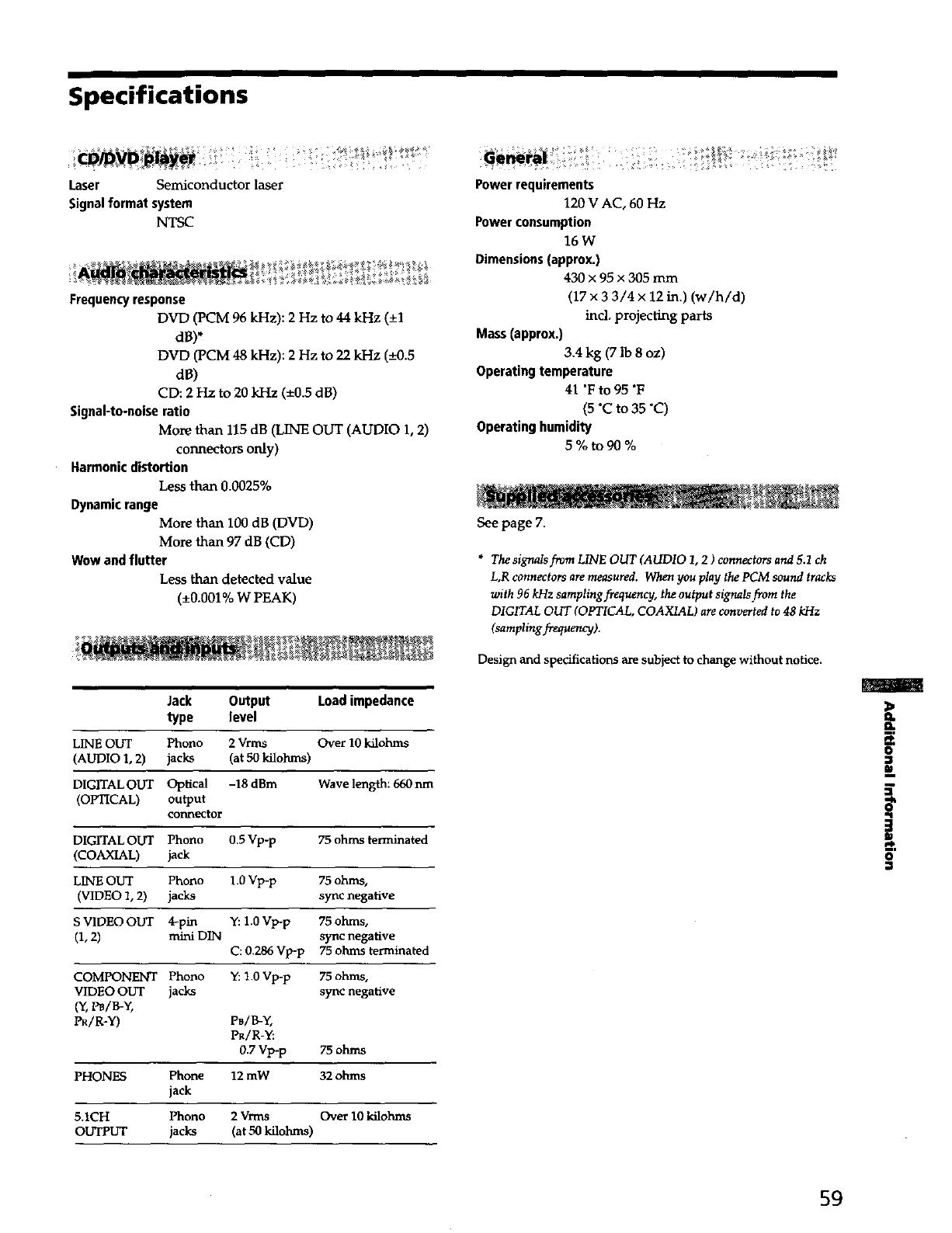

Specifications

Laser Semiconductor laser

Signalformat system

NTSC

Frequencyresponse

DVD (PCM 96 kHz): 2Hz to 44 kHz (_+1

d13)*

DVD (PCM 48 kHz): 2 Hz to 22 kHz (-+0.5

d_)

CD: 2Hz to 20 kHz (-+0.5 dB)

Signal-to-noiseratio

More than 115 dB (LINE OUT (AUDIO 1, 2)

connectors only)

Harmonicdistortion

Less than 0.0025%

Dynamicrange

More than 100 dB (DVD)

More than 97 dB (CD)

Wow and flutter

Less than detected value

(±0.001% W PEAK)

Power requirements

120 V AC, 60 Hz

Power consumption

16 W

Dimensions(approx.)

430 x95 x305 mm

(17 x 3 3/4 x12 in.) (w/h/d)

incl, projecting parts

Mass(approx.)

3.4 kg (7 Ib 8 oz)

Operating temperature

41 °F to 95 "F

(5 °C to 35 °C)

Operating humidity

5%to90%

See page 7.

*The signals from LINE OUT (AUDIO 1, 2) connectors and 5.1 ch

L,R connectors are measured. When you play the PCM sound tracks

with 96 kHz sampling frequency, the output signals from the

DIGITAL OUT (OPTICAL, COAXIAL) are converted to 48 kHz

(sampling frequency).

Design and specifications are subject to change without notice.

Jack Output Load impedance

type level

LINE OUT Phono 2Vrms Over 10 kilohms

(AUDIO 1, 2) jacks (at 50 kilolxms)

DIGrrAL OUT Optical -18 dBm Wave length: 660 nm

(OPTICAL) output

connector

DIGITAL OUT Phono 0.5 Vp-p 75 ohms terminated

(COAXIAL) jack

LINE OUT Phono 1.0 Vp-p 75 ohms,

(VIDEO 1, 2) jacks sy_c negative

S VIDEO OUT 4-pin Y: 1.0 Vp-p 75 ohms,

(1, 2) mini DIN syrtc negative

C: 0.286 Vp-p 75 ohms terminated

COMPONENT Phono Y: 1.0 Vp-p 75 ohms,

VIDEO OUT jacks sync negative

(% P_/B-¥,

PR/R-Y) Pe/B-Y,

I_/R-Y:

0.7 Vp-p 75 ohms

PHONES Phone 12 mW 32 ohms

jack

5.1CH Phono 2 Vrms Over 10 kilohms

OUTPUT jacks (at 50 kilohms)

}

Glossary

Bit rate (page 39)

Value indicating the amount of video data compressed in

a DVD per second. The unit is Mbps (Mega bit per

second). 1 Mbps indicates that the data per second is

1,000,000 bits. The higher the bit rate is, the larger the

amount of data. However, this does not always mean that

you can get higher quality pictures.

Chapter (page S)

Sections of a picture or a music piece on a DVD that are

smaller than titles. A title is composed of several chapters.

Each chapter is assigned a chapter number enabling you

to locate the chapter you want.

Digital Cinema Sound (DCS) (page 32)

The general name of technology that Sony developed to

enjoy the surround sound in a home. To enjoy the

surround sound of a movie theater in the comfort of your

own home, it simulates the sound not in a concert hall as

usual but in a movie editing studio. This player adopts

VES (Virtual Enhanced Surround) system from various

DCS programs. The VES system can create the sound

image of virtual rear speakers from the sound of the front

speakers (L, R) without using actual rear speakers.

Dolby Digital (AC-3) (page 12, 29)

Digital audio compression technology that the Dolby

Laboratories Corporation developed. This technology

conforms to 5.1-channel surround sound. The rear

channel is stereo and there is discrete subwoofer channel

in this format. Dolby Digital provides the same 5.1

discrete channels of high quality digital audio found in

Dolby Digital Cinema audio systems. The good channel

separation is realized because the all channel data is

recorded discrete and processed in digital.

Dolby Pro Logic (page 32, 49)

Audio signal processing technology that Dolby

Laboratories Corporation developed for surround sound.

When the input signal has the surround component, the

Pro Logic process outputs the front, center and rear

signals. The rear channel is monaural.

DTS (page 50)

Digital audio compression technology that the Digital

Theater Systems, Inc. developed. This technology

conforms to 5.1-channel surround. The rear channel is

stereo and there is discrete subwoofer channel in this

format. DTS provides the same 5.1 discrete channels of

high quality digital audio found in DTS audio systems.

The good channel separation is realized because the all

channel data is recorded discrete and processed in digital.

DVD (page 4)

A disc that contains up to 8 hours of moving pictures even

though its diameter is the same as a CD.

The data capacity of a single-layer and single-sided DVD,

at 4.7 GB (Giga Byte), is 7times that of a CD.

Furthermore, the data capacity of a dual-layer and single-

sided DVD is 8.5 GB, a single-layer and double-sided

DVD 9.4 GB, and a dua!-layer and double-sided DVD 17

GB.

The picture data uses the MPEG 2 format, one of the

worldwide standards of digital compression technology.

The picture data is compressed to about 1/40 of its

original size. The DVD also uses the variable rate coding

technology that changes the data to be allocated according

to the status of the picture.

The audio data is recorded in Dolby Digital (AC-3) as well

as in PCM, allowing you to enjoy more real audio

presence.

Furthermore, various advanced functions such as the

multi-angle, multilingnal, and Parental Control functions

are provided with the DVD.

Multi-angle function (page 31)

Various angles, or viewpoints of the video camera, for a

scene are recorded on some DVDs.

Multilingual function (page 14, 30, 44)

Several languages for the sound or subtitles in a picture

are recorded on some DVDs.

Parental Control (page 46)

Afunction of the DVD to limit playback of the disc by the

age of the users according to the limitation leve] in each

country. The limitation varies from disc to disc; when it

is activated, playback is completely prohibited, violent

scenes are skipped or replaced with other scenes and so

On.

Playback Control (PBC) (page 20)

Signals encoded on VIDEO CDs (Version 2.0) to control

playback.

By using menu screens recorded on VIDEO CDs with PBC

functions, you can enjoy playing simple interactive

programs, programs with search functions, and so on.

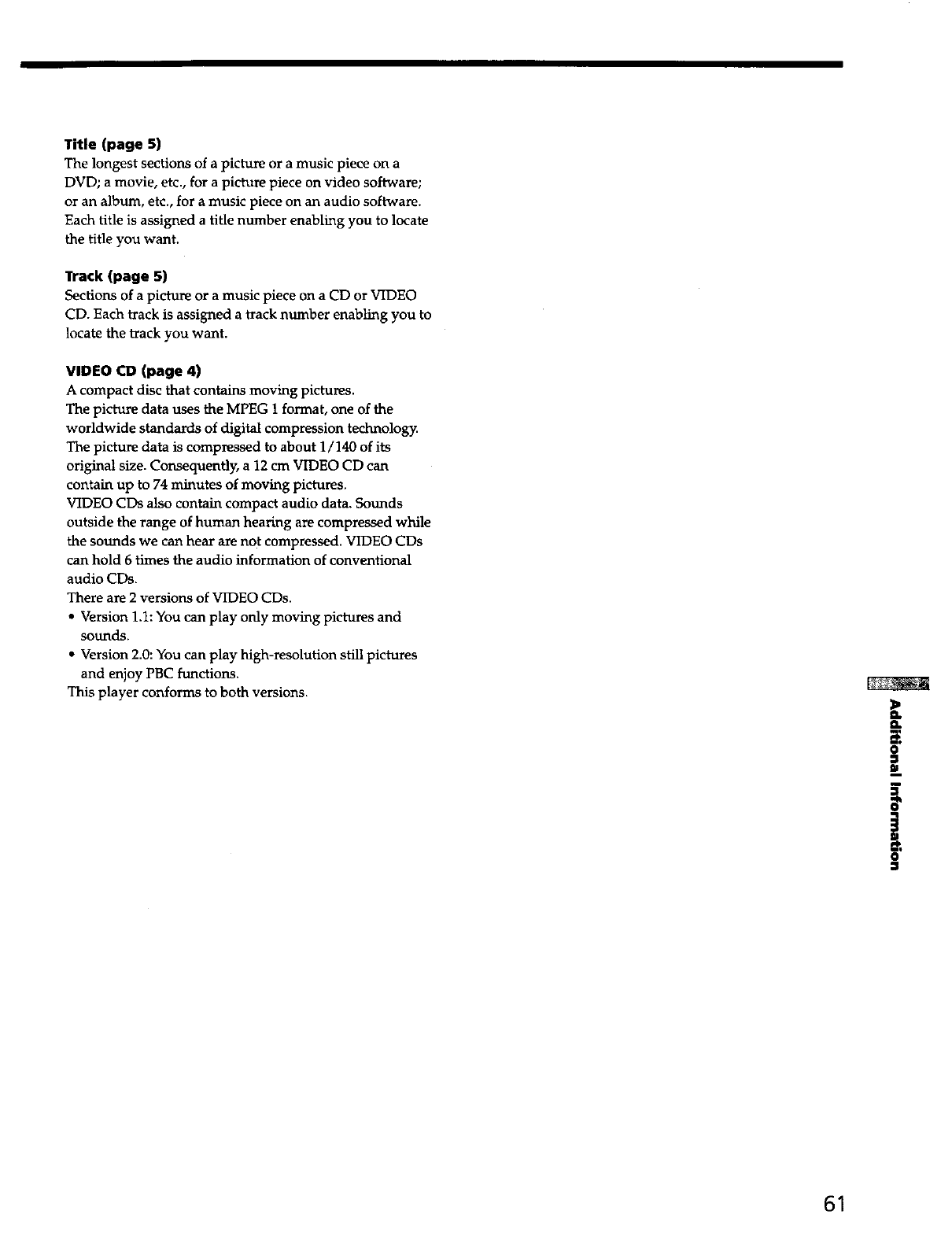

Title (page 5)

The longest sections of a picture or a music piece on a

DVD; a movie, etc., for a picture piece on video software;

or an album, etc., for a music piece on an audio software.

Each title is assigned a title number enabling you to locate

the title you want.

Track (page 5)

Sections of a picture or amusic piece on a CD or VIDEO

CD. Each track is assigned a track number enabling you to

locate the track you want.

VIDEO CD (page 4)

A compact disc that contains moving pictures.

The picture data uses the MPEG Iformat, one of the

worldwide standards of digital compression technology.

The picture data is compressed to about 1/140 of its

original size. Consequently, a 12 cm VIDEO CD can

contain up to 74 minutes of moving pictures.

VIDEO CDs also contain compact audio data. Sounds

outside the range of human hearing are compressed while

the sounds we can hear are not compressed. VIDEO CDs

can hold 6 times the audio information of conventional

audio CDs.

There are 2 versions of VIDEO CDs.

•Version 1.1: You can play only moving pictures and

sounds.

• Version 2.0: You can play high-resolution still pictures

and enjoy PBC functions.

This player conforms to both versions.

Language Code List

For details, see page 30, 44.

The language spellings conform to the ISO 639:1988 (E/F) standard.

Code Language Code Language Code Language Code Language

1027 Afar 1186 Scots Gaelic 1350 Malayalam 1513 Siswati

1028 Abkhazian 1194 Galician 1352 Mongolian 1514 Sesotho

1032 Afrikaans 1196 Guarani 1353 Moldavian 1515 Sundanese

1039 Amharic 1203 Gujarati 1356 Marathi 1516 Swedish

1044 Arabic 1209 Hausa 1357 Malay 1517 Swahili

1045 Assamese 1217 Hindi 1358 Maltese 1521 Tamil

1051 Aymara 1226 Croatian 1363 Burmese 1525 Telugu

1052 Azerbaijani 1229 Hungarian 1365 Nauru 1527 Tajik

1053 Bashkir 12.33 Armenian 1369 Nepali 1528 Thai

1057 Byelorussian 1235 Interlingua 1376 Dutch 1529 'ngrinya

1059 Bulgarian 1239 Interlingue 1379 Norwegian 1531 Turkmen

1060 Bihari 1245 Inupiak 1393 Occitan 1532 Tagalog

1061 Bislama 1248 Indonesian 1403 (Afan) Oromo 1534 Setswana

1066 Bengali; Bangla 1253 Icelandic 1408 Oriya 1535 Tonga

1067 Tibetan 1254 Italian 1417 Punjalii 1538 Turkish

1070 Breton 1257 Hebrew 1428 Polish 1539 Tsonga

1079 Catalan 1261 Japanese 1435 Pashtn; Pushto 1540 Tatar

1093 Corsican 1269 Yiddish 1436 Portuguese 1543 Twi

1097 Czech 1283 Javanese 1463 Quechua 1557 Ukrainian

1103 Welsh 1287 Georgian 1481 Rhaeto-Romance 1564 Urdu

1105 Danish 1297 Kazakh 1482 Kirundi 1572 Uzbek

1109 German 1298 Greenlandic 1483 Romanian 1581 Vietnamese

1130 Bhutani 1299 Cambodian 1489 Russian 1587 Volaplik

1142 Greek 1300 Kannada 1491 Kinyarwanda 1613 Wolof

1144 English 1301 Korean 1495 Sanskrit 1632 Xhosa

114,5 Esperanto 1305 Kashmiri 1498 Sindhi 1665 Yoruba

1149 Spanish 1307 Kurdish 1501 Sangho 1684 Chinese

1150 Estonian 1311 Kirghiz 1502 Serbo_f2roatian 1697 Zulu

1151 Basque 1313 Latin 1503 Singhalese 1703 Not specified

1157 Persian 1326 Lingala 1505 Slovak

1165 Finnish 1327 Laothian 1506 Slovenian

1166 Fiji 1332 Lithuanian 1507 Samoan

1171 Faroese 1334 Latvian; Lettish 1508 Shona

1174 French 1345 Malagasy 1509 Somali

1181 Frisian 1347 Maori 1511 Albanian

1183 Irish 1349 Macedonian 1512 Serbian

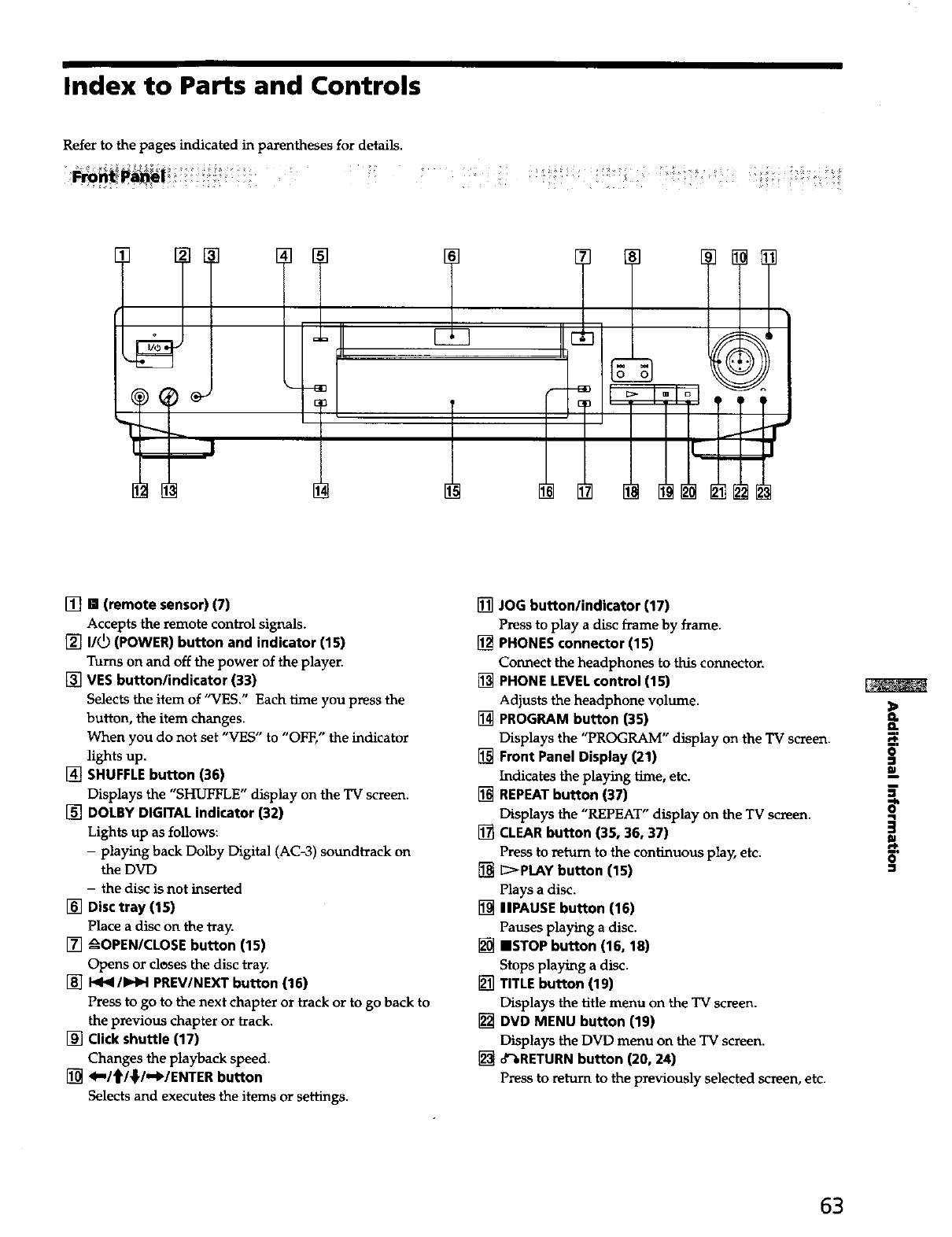

Index to Parts and Controls

Refer to the pages indicated in parentheses for details.

. ....

[] [] (remote sensor) (7)

Accepts the remote control signals.

[] I/_ (POWER) button and indicator (15)

Turns on and off the power of the player.

[] VES button/indicator (33)

Selects the item of "VES." Each time you press the

button, the item changes.

When you do not set "VES" to "OFF," the indicator

lights up.

[] SHUFFLE button (36)

Displays the "SHUFFLE" display on the TV screen.

[] DOLBY DIGITAL indicator (32)

Lights up as follows:

-playing back Dolby Digital (AC-3) soundtrack on

the DVD

-the disc is not inserted

[] Disc tray (15)

Place a disc on the tray.

[] _OPEN/CLOSE button (15)

Opens or closes the disc tray.

[] 1_141/1_1_1PREV/NEXT button (16)

Press to go to the next chapter or track or to go back to

the previous chapter or track.

[] Click shuttle (17)

Changes the playback speed.

[] 4-1_I_I,._IENTER button

Selects and executes the items or settings.

[] JOG button/indicator (17)

Press to play adisc frame by frame.

[] PHONES connector (15)

Connect the headphones to this connector.

[] PHONE LEVEL control (15)

Adjusts the headphone volume.

[] PROGRAM button (35)

Displays the "PROGRAM" display on the TV screen.

[] Front Panel Display (21)

Indicates the playing time, etc.

[] REPEAT button (37)

Displays the "REPEAT" display on the TV screen.

[] CLEAR button (35, 36, 37)

Press to return to the continuous play, etc.

[] [::>PLAY button (15)

Plays adisc.

[] IIPAUSE button (16)

Pauses playing a disc.

[] []STOP button (16, 18)

Stops playing a disc.

[] TITLE button (19)

Displays the title menu on the TV screen.

[] DVD MENU button (19)

Displays the DVD menu on the TV screen.

[] d%RETURN button (20, 24)

Press to return to the previously selected screen, etc.

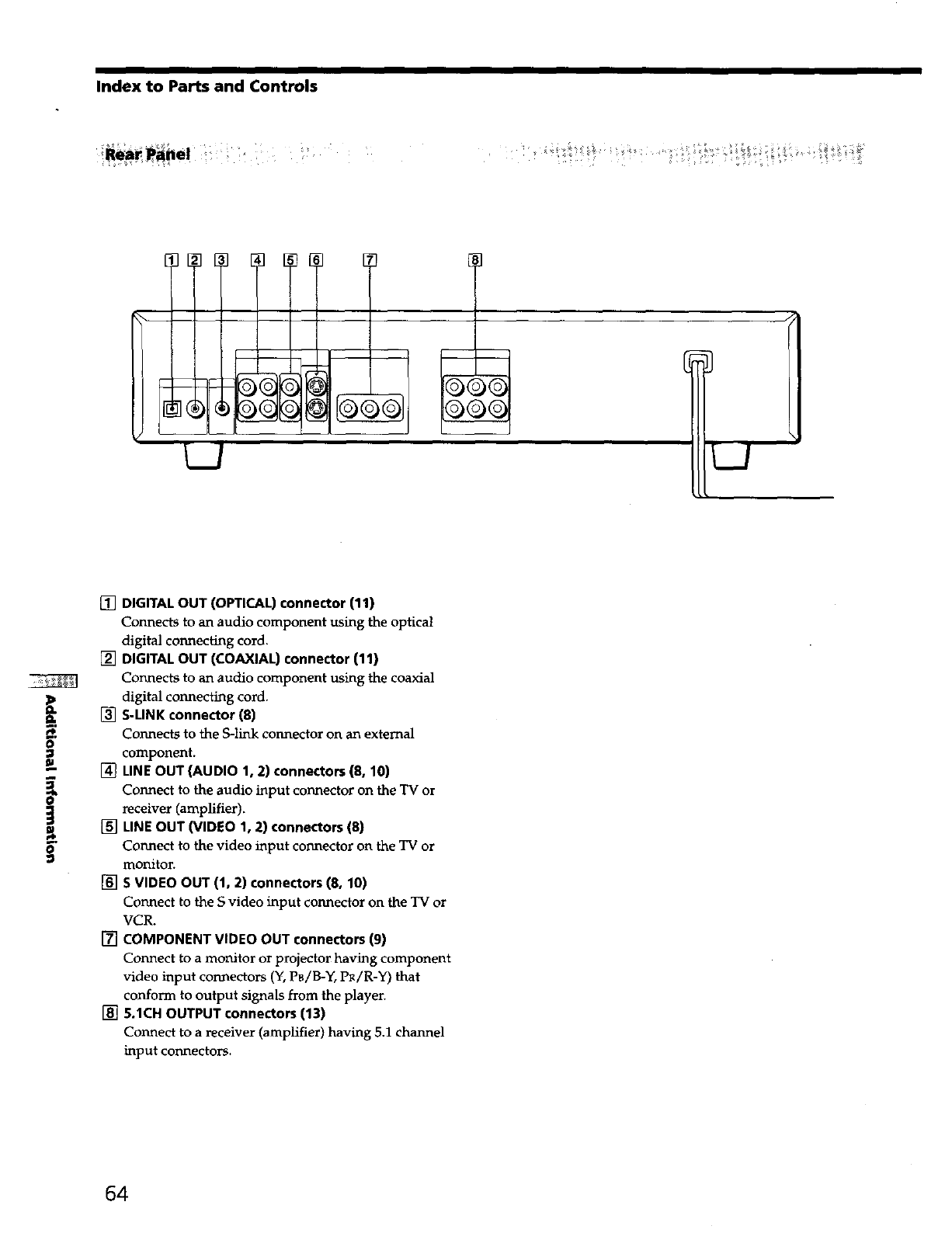

Index to Parts and Controls

Rear__,hel .....

[] DIGITAL OUT (OPTICAL) connector (11)

Connects to an audio component using the optical

digital connecting cord.

[] DIGITAL OUT (COAXIAL) connector (11)

Connects to an audio component using the coaxial

digital connecting cord.

[] S-LINK connector (8)

Connects to the S-link connector on an external

component.

[] LINE OUT (AUDIO 1, 2) connectors (8, 10)

Connect to the audio input connector on the TV or

receiver (amplifier).

[] LINE OUT (VIDEO 1, 2) connectors (8)

Connect to the video input connector on the TV or

monitor.

[] S VIDEO OUT (1, 2) connectors (8, 10)

Connect to the S video input connector on the TV or

VCR.

[] COMPONENT VIDEO OUT connectors (9)

Connect to a monitor or projector having component

video input connectors (Y, PB/B-Y, Pg/R-Y) that

conform to output signals from the player.

[] 5.1CH OUTPUT connectors (13)

Connect to a receiver (amplifier) having 5.1 channel

input cox_ectoI_.

[]

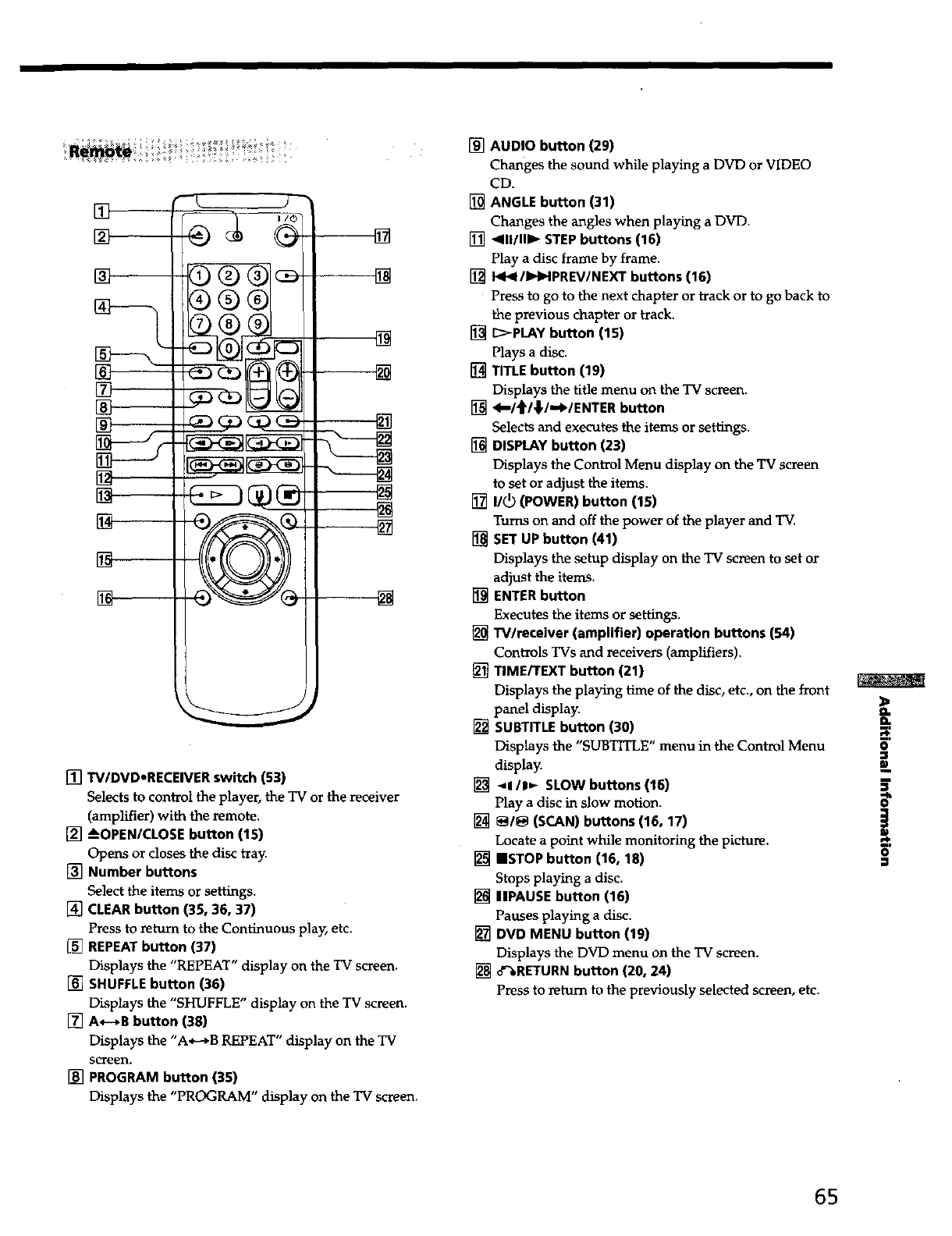

[] TV/DVD,RECEIVER switch (53)

Selectsto control the player, the TV or the receiver

(amplifier) with the remote.

[] _OPEN/CLOSE button (15)

Opens or closesthe disc tray.

[] Number buttons

Select the items or settings.

[] CLEAR button (35, 36, 37)

Press to return to the Continuous play, etc.

[] REPEAT button (37)

Displays the "REPEAT" display on the TV screen.

[] SHUFFLE button (36)

Displays the "SHUFFLE" display on the TV screen.

[] A*---*B button (38)

Displays the "A*--_B REPEAT" display on the TV

screen.

[] PROGRAM button (35)

Displays the "PROGRAM" display on the TV screen.

[] AUDIO button (29)

Changes the sound while playing a DVD or VIDEO

CD.

[] ANGLE button (31)

Changes the angles when playing a DVD.

[] <1111111_STEP buttons (16)

Play adisc frame by frame.

[] blI<I/Wa.iPREV/NEXT buttons (16)

Press to go to the next chapter or track or to go back to

the previous chapter or track.

[] [_>PLAY button (15)

Plays a disc.

[] TITLE button (19)

Displays the title menu on the TV screen.

[] _/_'/_I,/,,t./ENTER button

Selects and executes the items or settings.

[] DISPLAY button (23)

Displays the Control Menu display on the TV screen

to set or adjust the items.

[] I/(J) (POWER) button (lS)

Turns on and off the power of the player and TV.

[] SET UP button (41)

Displays the setup display on the TV screen to set or

adjust the items.

[] ENTER button

Executes the items or settings.

[] TV/receiver (amplifier) operation buttons (54)

Controls TVs and receivers (amplifiers).

[] TIME/TEXT button (21)

Displays the playing t_ne of the disc, etc., on the front

panel display.

[] SUBTITLE bu_on (30) _,

Displays the SUBTITLE" menu in the Control Menu _'

display.

[] -4111.- SLOW buttons (16)

Play a disc in slow motion. £

[] _1@ (SCAN) buttons (16, 17) :::1

Locate apoint while monitoring the picture.

[] IISTOP button (16, 18) _'

Stops playing a disc.

[] IIPAUSE button (16)

Pauses playing adisc.

[] DVD MENU button (19)

Displays the DVD menu on the TV screen.

[] o_RETURN button (20, 24)

Press to return to the previously selected screen, etc.

Index

Numerics F, G Shuffle Play 36

4:3 LETTER BOX 45 Fast Forward 17 SIZE 51

4:3 PAN SCAN 45 Fast Reverse 17 Slow-motion Play 16, 17

4:3 WIDE MODE 45 Front panel display 21 SPEAKER SETUP 51

5.1 Channel Surround 12, 32 Speakers

16:9 45 Ha I, J, K hookup 13

Handling discs 6 set up 51

AHi-speed search 17 SUBTITLE 30

A-B REPEAT 37 Hooking up 8, 10, 12 T

A4---*BRepeat 37 INDEX 26

Angle 31 TEST TONE 52

ANGLE 31 L TIME/TEXT 21

AUDIO 29, 44 LANGUAGE SETUP 44 Title 5, 26, 61

AUDIO ATT 49 LETTER BOX 45 TITLE 26

AUDIO DRC 49 LEVEL 52 Title menu 19

AUDIO SETUP 49 Locating Track 5, 26, 61

TRACK 26

AUTO PLAY 46 a specific point 16

by observing the TV TRACK SELECTION 49

Bscreen 17 Troubleshooting 55

BACKGROUND 45 TVTYPE 45

BALANCE 52 M, N, O U

Batteries 7 On-screen display Usable discs 4

Control Menu display 23

C Setup display 41 V, W, X, Y, Z

CD 15 OSD 44

Chapter 5,26 VES 32

CHAPTER 26 p, Q VIDEO CD 15

COMPONENT VIDEO OUT 9 PAN SCAN 45 VIRTUAL SURROUND 32

Connecting 8, 10, 12 PARENTAL CONTROL 46

iContinuous play PBC functions 20

CD/VIDEO CD PBC Playback 20, 60

DVD 15 15 PRO LOGIC 32, 49

Control Menu display 23 PROGRAM 34

SETUP Program Play 34

CUSTOM 46

D,E R

mDIGITAL OUT 49 Remote 7, 53

o Digital output 11, 49 REPEAT 37

3DIMMER 46 Resume Play 18

Display

Control Menu display 23 S

Front panel display 21 S video output 8, 10

Setup display 41 Scene 5

DISTANCE 52 SCENE 26

Dolby Digital (AC-3) 12, 29 SCREEN SAVER 45

DTS 50 SCREEN SETUP 45

DVD 15 Searching. See Locating.

DVD MENU 20, 44 Setup display 41

SHUFFLE 36

Sony Corporation Printed in Japan

SonyOline http:/hNww.worid.sony,corn/

Printed on recycled paper

Sony DVP S530D User Manual CD/DVD SYSTEM Manuals And Guides L9120117

SONY DVD Systems Manual L9120117 SONY DVD Systems Owner's Manual, SONY DVD Systems installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
