Sony F1041011 GSM 850/1900 PCMCIA card User Manual
Sony Mobile Communications Inc GSM 850/1900 PCMCIA card
Sony >
Exhibit 8 User Manual
GC82
Sony Ericsson EDGE PC Card Modem GC82
User’s Guide
2 Contents
Content
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Hardware Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Software Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Services Available Over the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
GC82 Hardware Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installing the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Start Using GC82 Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

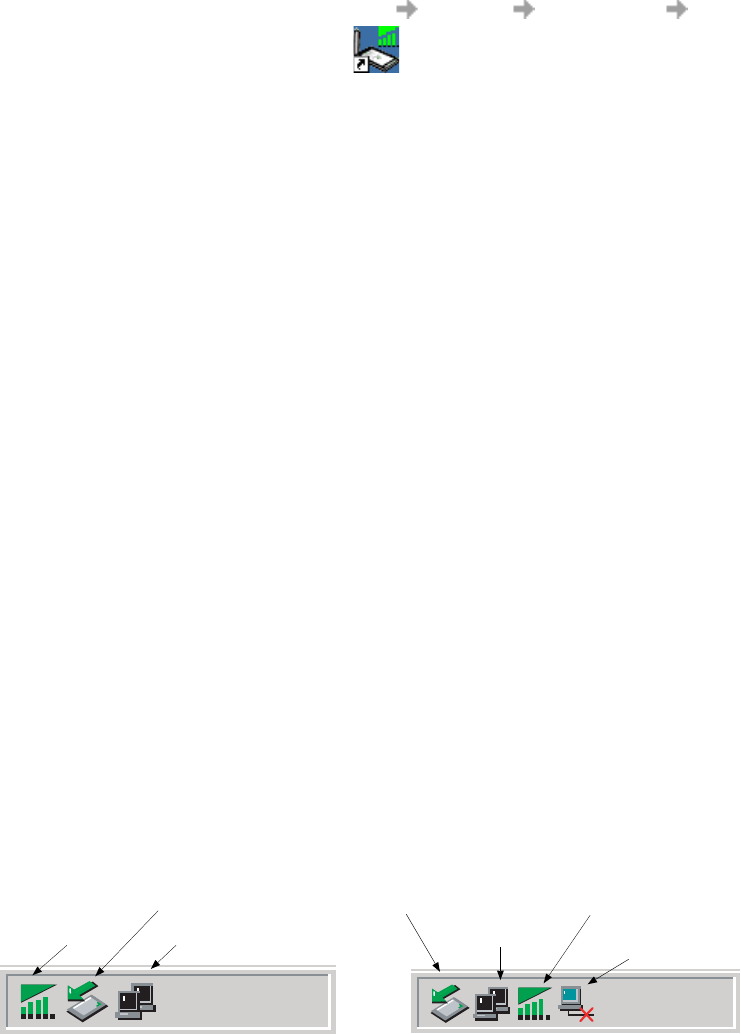

GC82 Manager Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

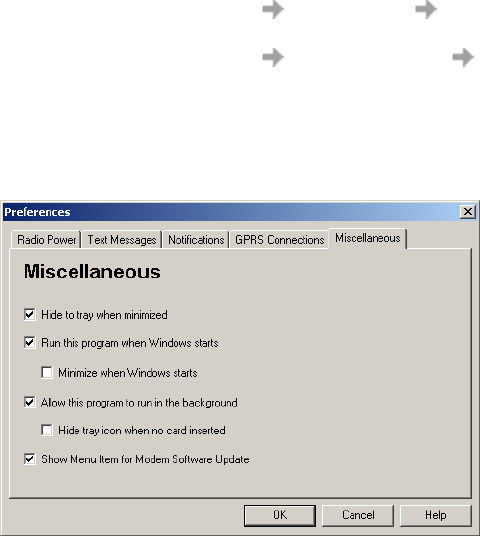

GC82 Manager Preferences. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Class 0 SMS Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Windows Log on Using GPRS/EDGE Dial-up Connection . . . . . . . . . . . . . 19

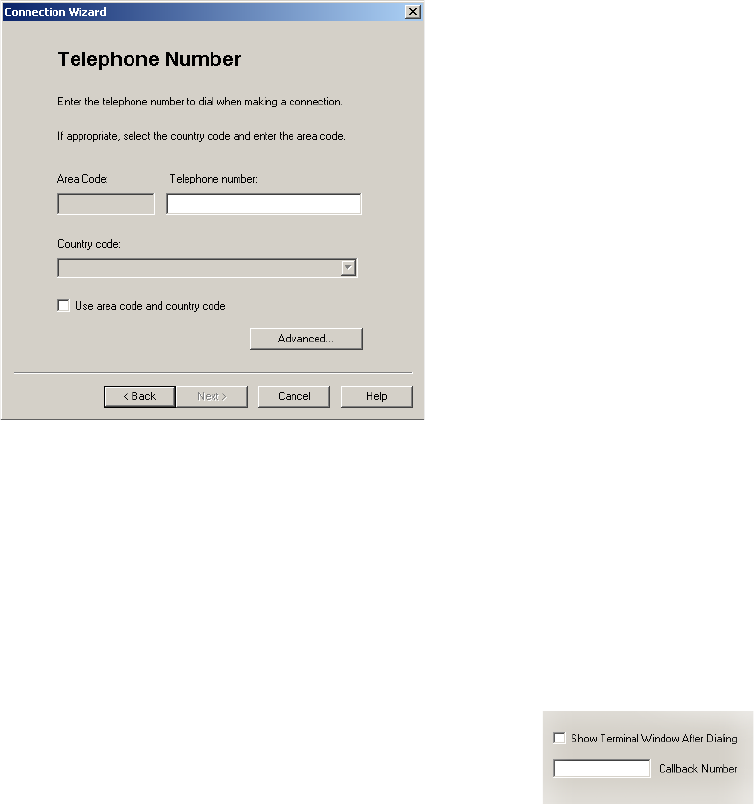

Create a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
GPRS Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
CSD Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
TCP/IP Optimisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Modify a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Delete a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Using your Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Browse the Internet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Send and Receive emails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

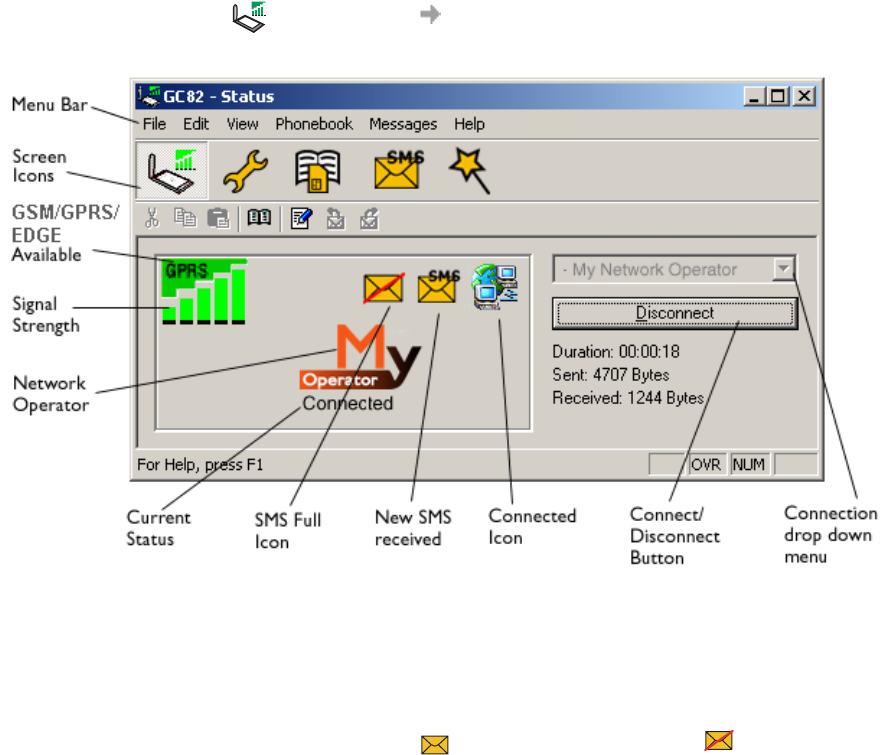

GC82 Manager Status Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

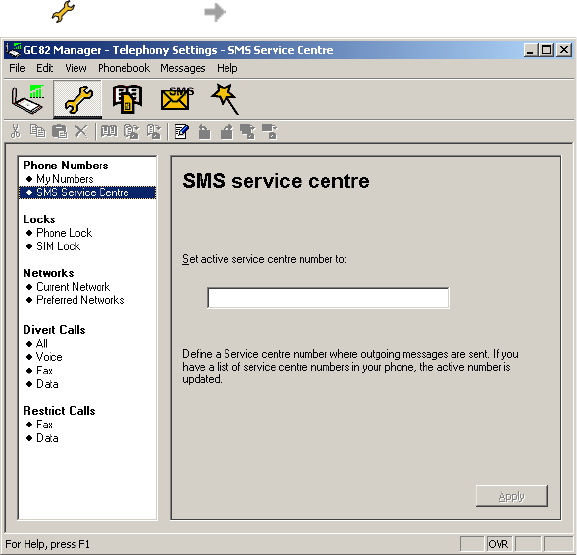

GC82 Manager Telephony Settings Screen. . . . . . . . . . . . . . . . . 27
Phone Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Networks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Divert Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Restrict Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

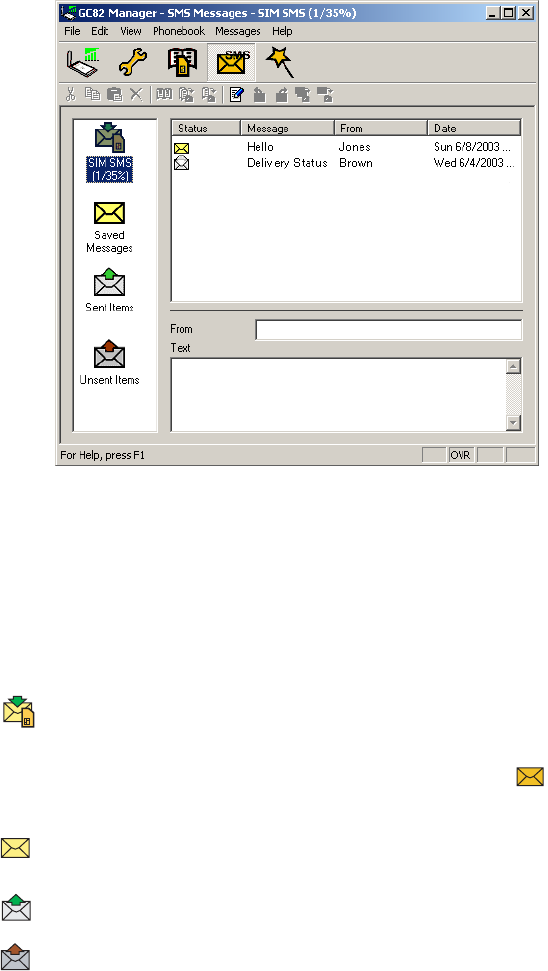

GC82 Manager SMS Messages Screen . . . . . . . . . . . . . . . . . . . . 34
SMS Manager Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
GC82 Manager Phone Book Screen . . . . . . . . . . . . . . . . . . . . . . . 38
The Phone Book Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Phone Book Functionality. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Contents 3
GC82 Manager Online Services Screen . . . . . . . . . . . . . . . . . . . . 42
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
GC82 Manager Icon Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Software Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
SIM Card Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Additional Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Sony Ericsson Support Web Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
License Agreement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Term . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Limitation of liability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Disputes and Governing Law . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
FCC Statement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Appendix A - Connection Parameters . . . . . . . . . . . . . . . . . . . . . 61
General Connection Parameters for CSD and GPRS . . . . . . . . . . . . . . . . 61
CSD Specific Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
4 Contents
Sony Ericsson Edge PC Card Modem GC82
First edition (October 2003)
This manual is published by Sony Ericsson Mobile Communications AB, without any
warranty. Improvements and changes to this manual necessitated by typographical errors,
inaccuracies of current information, or improvements to programs and/or equipment,
may be made by Sony Ericsson at any time and without notice. Such changes will, however,
be incorporated into new editions of this manual.
This manual is copyrighted work of Sony Ericsson Mobile Communications AB, Sweden.
The programs referred to herein are copyrighted and trademarked works of Sony Ericsson
Mobile Communications AB, Sweden. Reproduction in whole or in part, including utilization
in machines capable of reproduction or retrieval, without the express written permission
of the copyright holders is prohibited. Reverse engineering is also prohibited.
All other product or service names mentioned in this manual are trademarks of their
respective companies.
All rights reserved.
Sony Ericsson Mobile Communications AB, 2003
Publication number: EN/LZT 123 7639 R1A
Introduction 5
Introduction
Congratulations and thank you for buying the Sony Ericsson Edge PC Card Modem GC82. The
GC82 is a standard size type II PC card for GSM/GPRS/EDGE at 850 and 1900 MHz, enabling
laptop users to have mobile access to the internet or corporate network with flexibility and high
speed, including ‘always online’ capability via GPRS/EDGE. The GC82 is very simple to install and
use; the software provided allows you to select the best data service available so that the GC82 is
always available for data transfer.
The GC82 enables your laptop PC to:
• Browse the Internet
• Send and receive e-mails
• Receive information services in real time
• Access files, databases and discussion groups
• Send and receive SMS text messages
• Edit SIM card entries
Note:
Before using your GC82 you MUST read Important Information on page 48.

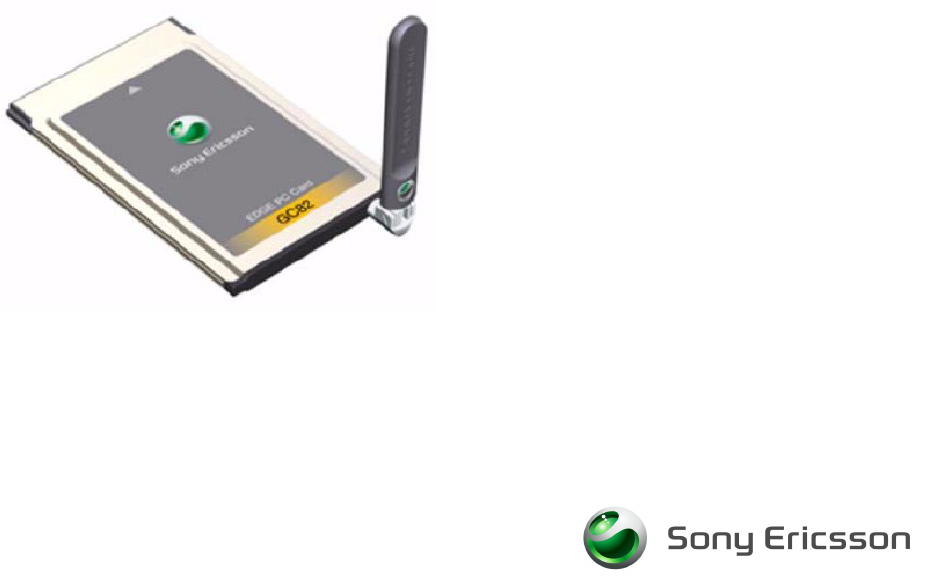

Hardware Overview
The GC82 is a standard type II PC card. The card is standard length and only the antenna protrudes
outside the PC card slot.
The amount of power drawn from the laptop battery is dependant upon a number of factors including
status, distance to the base station and number of timeslots used. See Technical Specifications on
page 51 for a general guide to power consumption.

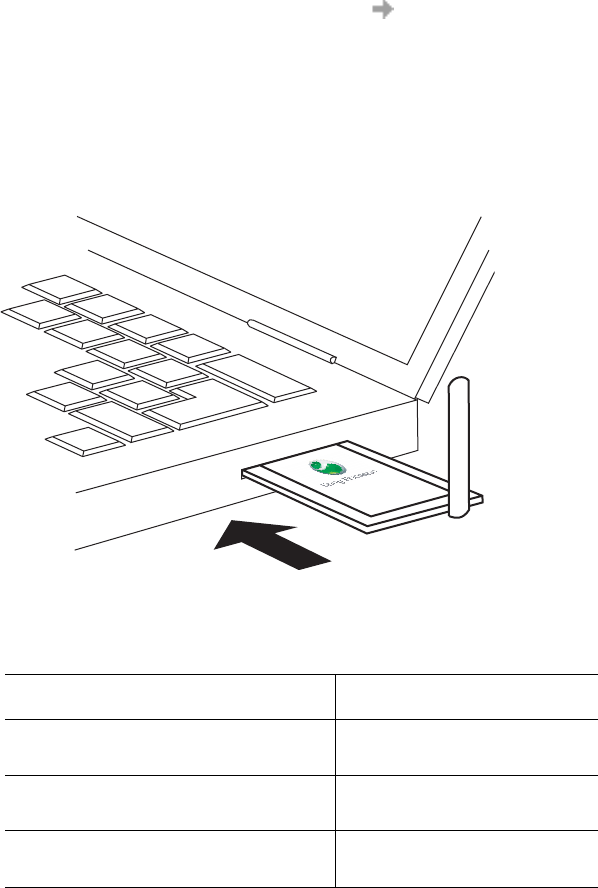

Before you can start using the GC82 you need to put the hardware together. You will also need a SIM
card.

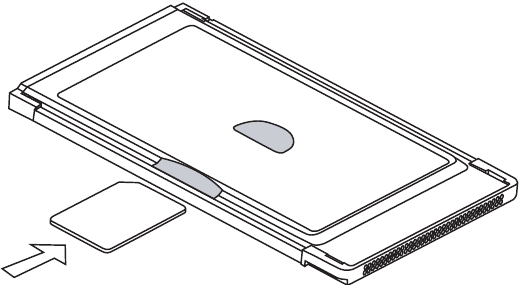

SIM Card
When you subscribe to a mobile network operator, you are issued with a SIM card (Subscriber
Identity Module card). The SIM contains your personal subscriber data. You need a SIM
to use GC82.
6 Introduction
Software Overview
GC82 Manager
You can use the GC82 Manager to:
• Display GC82 status information
• Create or modify connection settings
• Connect to the Internet or a corporate network
• Manage GC82 settings
• Manage SIM card and PC phone books
• Send and receive SMS messages
Using the GC82 with your Applications
Data Programs
You can use the GC82 as a modem to provide Intranet/Internet connectivity for a wide range
of applications.
Fax Programs
You can use the GC82 as a fax provided you have the correct software, e.g. Microsoft Fax
(Windows 2000 and XP).
Documentation
The GC82’s documentation is designed to enhance your understanding of its capabilities.
The following guides are provided:
• A printed Quick Start Guide aimed at getting you operational as quickly as possible.
• An online User’s Guide (this document) containing a comprehensive description of the GC82
functionality. You can read the guide on the computer screen or print it on to either European
A4 or American Letter sized paper.
The User’s Guide is located on GC82 CD-ROM as Adobe Acrobat PDF files. The GC82 CD-ROM
also contains Adobe Acrobat Reader® which you can install if necessary.
Illustrations
The illustrations in this manual were obtained using the GC82 on a Microsoft Windows® 2000
operating system. The dialogs that appear on your PC may differ depending on the version
of Windows® in use.
Getting Started 7
Getting Started
Checklist
Make sure the following items are in the box when you unpack it:
• Protective case for storing the GC82 and its antenna
• GC82 PC Card
• Antenna
• Quick Start Guide
•CD-ROM
The CD contains; drivers, software, documentation and a readme file.
System Requirements
This section lists the network subscriptions, hardware and software requirements for running
the GC82 PC Card.
Network and Subscription
The network subscription you use in conjunction with your GC82 depends on the subscriptions your
network operator can provide. Contact your network operator or service provider to make sure the
options you require are available. Make sure that data options are included in your subscription,
as these are usually optional services.
Note:
Mobile operators often provide a number of connectivity options via GPRS such as WAP and
Internet, so check that the Internet or VPN service you require is enabled for your subscription.
The functionality of the different subscriptions available from networks operators are
discussed below:
Circuit Switched Data (CSD)
CSD is the original GSM network data transfer method, used in the past for WAP. Almost all GSM
networks have this capability at 9.6 kbps. It is possible for the network to upgrade the speed
to 14.4 kbps. The GC82 operates at this higher speed where available.
General Packet Radio Service (GPRS)
GPRS is a new network connection which provides “always on” mobility. The connection set up
is fast and, once connected, applications may send and receive data whenever required. In today’s
GPRS networks, the GC82 receives data at speeds up to 53.6 kbps and transmits at speeds
up to 26.8 kbps.
Enhanced Data Rates for Global Evolution (EDGE)
EDGE enhances GPRS by increasing data throughput by a factor of 3. GPRS networks enhanced
with EDGE are often referred to as E-GPRS (Enhanced GPRS) networks. EDGE provides the
“always on” capability of GPRS but with greater speed. EDGE technology is transparent, simply
8 Getting Started
make a GPRS connection as usual and benefit from the increase in speed where EDGE is available
in a network.
Short Message Service (SMS)
The PC can send and receive SMS text messages using the SMS Messages screen in the GC82
Manager, see GC82 Manager SMS Messages Screen on page 34, for more details.
Hardware
You will need:
• A PC that has the minimum specification recommended by Microsoft to run the version
of Windows® installed on it.
• A 16 bit type II PC Card slot.
• Sony Ericsson Edge PC Card Modem GC82
• a SIM card
Software
You will need:
•Windows
® 98SE, Me, 2000 (SP2) or XP.
• Sony Ericsson GC82 Manager CD-ROM.
Services Available Over the Internet
The Sony Ericsson web site contains support to facilitate easy communications and rapid information
retrieval, wherever you are. It gives you access to on-line customer services, on-line user manuals,
software downloads, and useful information. The address is:
http://www.SonyEricsson.com/support
Sony Ericsson’s home page address is:
http://www.SonyEricsson.com
Installation 9
Installation
The GC82 Manager CD-ROM contains the software required to operate your GC82. The software
is simple to set up and operate, but before you begin you will need to make sure that the services
you require are included on your SIM card subscription. For an explanation of the services that are
available see Network and Subscription on page 7. Contact the organization that supplied you with
your SIM card and request that the specific services (EDGE, GPRS, CSD or SMS) you require are
added to your subscription.
The CD-ROM contains the following software:
• GC82 Manager
• User Documentation
•On-line Help
• ReadMe text file containing the latest information about the GC82
GC82 Hardware Set Up
1. Collect your GC82 card, antenna and SIM card together.
2. Insert your SIM card into the slot on the back of GC82, with the gold contacts facing downwards
Note:
The cut corner of the SIM card must be placed into the PC card as demonstrated below,
the gold contacts should face downwards.
3. Connect the antenna to the end of the GC82.
If the antenna is obstructing your use of the keyboard you can turn it to a horizontal position and still
connect to the network.
If you want to use your other PC card port remove the GC82 whilst you insert the other card. See Safe
Removal of the GC82 on page 13 for more details.
When GC82 isn't in use it is recommended that you store it in the protective carrier box provided.
The unit, especially the antenna could be damaged if it remains in PC.
10 Installation
,PSRUWDQW
Do not insert the card into the laptop until you have installed the software from the CD-ROM.
Simply cancel the New Hardware wizard if the card is accidentally inserted prior to software
installation.
Installing the Software
1. Insert the GC82 Manager CD-ROM in your CD drive.
After a few seconds a Sony Ericsson splash screen is displayed.
Note:
If the CD-ROM does not autorun, select Start Run and type D:\Setup.exe into the Run
dialog. (Where D is your CD drive.)
2. The Choose Language dialog opens. Click on the drop down list and select the installation
language for your GC82 Software. Click OK.
3. The InstallShield Wizard for Sony Ericsson GC82 Manager opens; follow the instructions
on screen. When installation is complete click Finish.
4. Insert the GC82 PC Card. Make sure the GC82 is fully inserted.
5. After a few seconds, the New Hardware Wizard opens and installs the necessary drivers onto
your PC from the GC82 CD. The wizard may require you to locate a specific driver file. If this
happens a dialog opens, click Browse and select:
In the above table D is referred to as your CD drive.
Component GC82 CD-ROM Location
EDGE/GPRS Drivers on a
Windows 98SE machine D:\Driver\Driver98
EDGE/GPRS Drivers on a
Windows ME machine D:\Driver\DriverME
EDGE/GPRS Drivers on a
Windows 2000/XP machine D:\Driver\Driver2k
GPRS PC Card Modem
GC82
Installation 11
Note:
When installing on Windows 98SE, Windows may prompt for the original Windows 98
CD-ROM to be inserted. If the CD-ROM is not inserted when requested, Windows will
subsequently reboot with error messages relating to missing files. Therefore, it is strongly
recommended that the Windows 98SE CD-ROM is available before installation starts.
6. Select the driver file requested by the Wizard and click Open. The Hardware Wizard finishes the
installation.
Note:
If you are prompted to reboot the laptop during software installation, you may find that the
GC82 Manager attempts to start before all of the drivers are installed. The scenario is that the
New Hardware Wizard is still busy installing the 3 device drivers, the GC82 Manager splash
screen appears, followed by a warning dialog saying ”You must have a GC82 Wireless Modem
installed to run this application. Please install a GC82 Wireless Modem and try again”. Click
OK. Wait for the New Hardware Wizard to complete, rebooting the laptop if required, then start
the PC Card Manager using the icon on the desktop or via Programs Sony Ericsson
PC Card Manager.
7. Select Programs Sony Ericsson GC82 Manager to start using your GC82.
8. The GC82 and GC82 Manager are ready for use.
12 Start Using GC82 Manager
Start Using GC82 Manager
1. To start GC82 Manager select Start Programs Sony Ericsson GC82 Manager
or select your desktop shortcut .
2. If requested, enter your SIM Card/Phone Lock PIN and click OK. It is only necessary to enter
the PIN number once during a PC session.
You are allowed three attempts to enter the correct PIN code. If you fail to enter the SIM PIN
correctly it is blocked and if you fail to enter the Phone Lock PIN correctly your GC82 is locked.
Contact your network operator for an unblock code (PUK). Enter the unblock code into the Card
Blocked dialog and enter a new PIN code and confirm it.
To set the SIM Card PIN and Phone Lock PIN, see Locks on page 28.
3. The Radio dialog opens, select the required state for your GC82 radio transmission.
See GC82 Manager Preferences on page 15 for more details.
4. The GC82 Manager opens, displaying the Status screen. Connectivity details are displayed
on this screen, the current signal strength and GPRS availability should be listed. See GC82
Manager Status Screen on page 25, for more details.
5. The GC82 Manager Icon is displayed in the system tray of your PC.
GC82 Manager Icon
The GC82 Manager Icon shows the current status of the GC82, which is typically the current network
signal strength and the GSM/GPRS/EDGE service status, similar to a mobile phone display. If you
right click on the GC82 Manager Icon a menu is displayed, see The GC82 Manager Icon Menus
on page 14 for details on the menu options.
Place your mouse cursor over the GC82 Manager Icon to display text indicating:
• GSM or GPRS/EDGE Service availability
•Network name
• Connection information
Three standard Windows® operating system icons also appear in the system tray when the GC82
is inserted in your PC and connected. They are the Sony Ericsson Wireless WAN Adapter icon,
Dial-up Networking icon and the PC card icon.
2:07 PM
1:07 PM
GC82
PC Card icon
Sony Ericsson Wireless WAN
GC82 Manager Icon
PC Card icon
Sony Ericsson Wireless WAN
Dial-up
Adapter icon (disconnected)
Adapter icon (connected)
Networking icon
Manager Icon
Start Using GC82 Manager 13
•Making Windows Network Connections Visible
The Windows connection icons, displayed in the system tray, normally disappear once a
connection is made. This means that you may not necessarily see a icon corresponding to each
of the icons for your GPRS/EDGE and CSD.
To make a icon visible, follow the steps described below.
• Right click the appropriate icon and select Open Network Connections. Alternatively
select Start Settings Network Connections.
• A dialog opens displaying all the network and dial-up connections available on your PC.
Right click the one you want to edit.
• Click the Show icon in taskbar when connected box. Click OK to close the dialog.
When you have an active connection use your mouse to hover over the icon to view
connectivity details.
•PC Card icon
Indicates that a PC card is present and allows the user to see certain properties and also
to stop/remove the card.
Safe Removal of the GC82
You must stop the GC82 before attempting to remove it.
1. Close any active GC82 Networking Connections.
2. Exit GC82 Manager.
3. Click on the PC Card icon. A list of currently connected PC Cards is displayed. Select Stop
Sony Ericsson GC82 Wireless Card.
4. A dialog is displayed telling you it is safe to remove the card.
5. The GC82 PC card can now be removed safely.
,PSRUWDQW
Incorrect removal of the GC82 can damage the card.
GC82 Manager Icon Status
The GC82 Manager Icon icon displays the status of the GC82 network connection.
Radio is set to off or the GC82 Manager has disconnected the GC82
The radio transmitter is enabled, but there is no GSM or GPRS service available
The GC82 has GSM service and indicates a signal strength of 3 out of 5 bars.
CSD, SMS and fax may be used, provided these are supported by the
subscription. GPRS/EDGE is not available
The GC82 has GSM and GPRS service
GC82 Manager is waiting for the GC82 Card to be inserted.
14 Start Using GC82 Manager
The GC82 Manager Icon Menus
Right click one of the following icons to see the GC82 GPRS/EDGE menu options.
Note:
Some of these menu options are disabled, depending on the current state of the GC82.
Note:
EDGE capability is not indicated by the GC82 GPRS/EDGE icons.
The GC82 Manager Icon menu options are described below.
Open GC82 Manager
Select Open GC82 Manager or double click on the GC82 Manager icon to open the GC82 Manager.
Radio Status
This menu option is dynamic. It monitors the current state of the GC82 radio transmitter and gives
you the option to switch to the opposite state, for example, if your GC82 Radio transmitter is on the
menu option reads Turn Radio Off.
You can also set the status of the radio transmitter by selecting Turn Radio On/Off in the
GC82 Manager File menu.
Connect/Disconnect
If you are currently disconnected the menu gives you the option to connect to the most recently used
GC82 connection. If you are connected the menu gives you the option to disconnect.
Help
Opens the GC82 Manager Online Help. You can also launch the Online Help from the GC82 Manager
Help Menu. Pressing F1 in any of the GC82 Manager dialogs opens the relevant help screen.
About
Displays a dialog that contains GC82 Manager software information.
Hide to Tray
Select the Hide to Tray option to visually close GC82 Manager leaving only the GC82 Manager
Icon visible in the system tray. Use the Open GC82 Manager to view the software again.
Exit
Closes the GC82 Manager application, the GC82 Manager Icon will remain in the system tray if you
have set it to run in the background. See GC82 Manager Preferences below for more details.
or
or
or
The GC82 GPRS/EDGE menu is displayed.
Open GC82 Manager
Turn Radio Off
Connect to MyGPRSservice
Help
About GC82 Manager
Hide to tray
Exit
Start Using GC82 Manager 15
GC82 Manager Preferences
You can change the general behavior of the GC82 Manager by selecting specific options in the
Preferences... dialog.
1. Select Preferences... in the File menu. The Preferences dialog opens, the Radio Power tab
is displayed.
Radio Power Tab
You can use this tab to manage the state of the radio transmitter.
Enable Radio immediately
when card inserted You should normally leave this checkbox turned off.
When enabled, the Windows driver turns the radio
transmitter on when the card is inserted and leaves
it enabled even when the card is not in use. You should
check this option if your Windows logon requires you to log
on using a dial-up connection, see Windows Log on Using
GPRS/EDGE Dial-up Connection on page 19 for more
details. When you click OK to activate this option the
GC82 Manager displays the following dialog.
When this option is selected, the GC82 Manager radio
power startup and shutdown choices are disabled.
16 Start Using GC82 Manager
The radio mode you specify at GC82 Manager start-up appears selected on the Radio tab.
Text Messaging Tab
You can use this tab to enable reception of specific message classes from the SMS Cell Broadcast
service and to set the SMS received audio alarm to on or off. Select the radio buttons to activate
the options.
Example of SMS Cell Broadcast message types:
To enter multiple SMS Cell Broadcast message types separate each entry with a comma,
for example, 000, 034, 076.
Note:
SMS Cell Broadcast message types are network operator specific. Contact your network
operator for more details.
This screen also allows you to set a validity period for the SMS messages that you are sending.
If your message can not be delivered, for example, if the recipient hasn’t inserted their GC82,
the validity period tells your service centre how long to keep trying to send the message.
On When the GC82 Manager is running in radio on mode
it is registered to the network and connections can
be made and SMS sent and received. The radio can
be enabled in several ways;
• Select Radio On when the GC82 Manager starts.
• Specify the required radio state in
Preferences Radio Power.
See GC82 Manager Preferences on page 15 for
more details.
Off Radio Off indicates that the GC82 will not register to the
mobile network. You may perform non-communication
related activities such as phone book maintenance, but
you must turn on the radio in order to make a connection
or to send/receive SMS.
Ask Me Triggers a dialog to be displayed every time the PC
is turned on. The dialog asks you if the radio transmitter
should be turned on or off during the active PC session.
This is also called Aeroplane mode, because it prevents
the radio transmitter automatically turning on. This is
a useful feature in areas where radio transmitters are
not allowed; aircrafts, hospitals or blasting areas.
Your GC82 is set to Ask by default.
Turn Radio Off At shutdown the radio is turned off.
Reset card Turns the radio off and resets the card.
Code: Cell Broadcast Message
000 Index
010 News Flashes
020 Hospitals
030 Long-distance road reports
040 Weather
Start Using GC82 Manager 17
Notifications Tab
Click the Notifications tab. You can decide if you want to display a splash screen every time GC82
Manager is opened or closed and a program end confirmation box. Select the radio buttons to activate
the options.
GPRS Connection Tab
Establish GPRS connection at startup
Select this option to automatically connect to your chosen network when GC82 Manager is started.
GC82 Manager waits until GPRS is registered and then it establishes the specified GPRS connection.
Simply select the name of the connection to be established from the drop down list.
To automatically connect when you start or restart your PC see the example below. If you need
to connect at Windows log on see Windows Log on Using GPRS/EDGE Dial-up Connection
on page 19.
Example: If you want your GC82 to be available and a GPRS internet connection
to be automatically established when you boot your laptop:
- Set Preferences Miscellaneous Run this program when
Windows Starts
- Set Preferences GPRS Connection Establish GPRS Connection
At Startup and select the GPRS connection required.
Miscellaneous Tab
Click the Miscellaneous tab.
18 Start Using GC82 Manager
•Hide to tray when minimized
If enabled, when the GC82 Manager is minimized, it removes any window from the taskbar,
and only shows the small icon in the system tray. To re-open the main window, double-click
the tray icon, or select open from the icon menu.
•Run this program when Windows starts
If enabled, the GC82 Manager starts when Windows is started. If a GC82 PC Card is detected,
the GC82 Manager runs. If not, the program closes (and runs in the background if permitted).
When used with Establish GPRS connection at startup, this allows a GPRS session to be
automatically connected when the user logs on, see Windows Log on Using GPRS/EDGE Dial-
up Connection on page 19 for more details.
•Minimize when Windows starts
If enabled, the GC82 Manager starts when a user logs on to Windows, it appears as an icon in
the task bar only. If a GC82 PC Card is detected, the GC82 Manager runs and connects. If not,
the program closes (and runs in the background if permitted).
•Allow this program to run in the background
If enabled, the GC82 Manager runs in the background, waiting for a GC82 PC Card to be inserted.
When the card is detected, the GC82 Manager automatically opens and begins normal operations.
When the close box, or File Exit is selected, the GC82 Manager closes but does not exit.
It releases control of the card, so it may be stopped and removed, and runs in the background.
You can start the program again from the Start menu, double-clicking the system tray icon,
or by re-inserting the GC82 PC Card.
You can stop GC82 Manager running in the background by right clicking on the PC screen and
selecting Exit.
If you attempt to start GC82 Manager with no GC82 Card inserted a warning dialog is displayed,
informing you that the GC82 PC Card is not present, and GC82 Manager switches back
to background mode.
•Hide tray icon when no card inserted
If this option is selected, GC82 Manager runs in background mode, the GC82 Manager icon
is not displayed in the system tray. If the card is inserted, the icon reappears and the GC82
Manager is started.
•Show menu item for Modem Software Update
If this option is checked, a File Modem Software Update... menu item is enabled. Selecting
this menu command prepares the modem to receive a software update from the Sony Ericsson
Update Service. More information about this service can be found at
http://www.sonyericsson.com/updateservice/GC82/.
Examples: If you want to activate your GC82 when the laptop is booted, so that it is ready
to make a connection and send/receive SMS:
- Set Preferences Miscellaneous Run this program when Windows
Starts.
If you want your GC82 to be available and a GPRS internet connection
to be automatically established when you boot your laptop:
- Set Preferences Miscellaneous Run this program when Windows
Starts.
- Set Preferences GPRS Connections Establish GPRS Connection
At Startup.
- Select the GPRS connection required.
If you remove the GC82 during usage and want it to be automatically reactivated
when you re-insert it:
- Set Preferences Miscellaneous Allow this program to run in the
background.
Start Using GC82 Manager 19
Note: If you have Establish GPRS connection at Startup set, then the connection
will also be automatically established when you insert the card.
If you want to start the laptop with the GC82 removed and have it automatically
activated when it is later inserted:
- Set Preferences Miscellaneous Run this program when Windows
Starts.
- Set Preferences Miscellaneous Allow this program to run in the
background.
Class 0 SMS Messages
Class 0 messages contain current information and are replaced frequently, for example, traffic
reports. The GC82 will display any messages that are sent out whilst it is registered on a network.
Windows Log on Using GPRS/EDGE Dial-up Connection
The GC82 PC Card supports the Windows Log on using dial-up connection feature.
To log on to Windows using a dial-up connection the GC82 PC Card must be inserted and the radio
enabled before you log on. To enable the radio prior to logon, select Enable radio immediately
when card inserted checkbox on the Radio Power preferences tab, see Radio Power Tab
on page 15 for more details.
,PSRUWDQW
Never start your PC in this mode if you are in a location where mobile devices shouldn’t
be used, for example, on an aeroplane, in hospital or near a blast site.
Only check this option if you need to log on to a Windows Domain via a wireless dial-up connection.
This will permit the GC82 to register with the network and establish a connection when the Windows
logon screen is displayed.
Note:
It is not possible to display network status or signal strength during the Windows logon
procedure, so you should allow enough time for the GC82 to find and register with the wireless
network prior to attempting to log on.
The dial-up connections available to the Windows Logon must have been created by a user account
with Administrator privilege and designated For all users. This must be done using the Windows
Network Connection Wizard, because the GC82 Manager can only create connections for the
current user ID.
Normally the Windows Logon using dial-up connection will be using a CSD session to a corporate
network, so that the logon credentials can be validated by a Windows Domain Server.
There may be special circumstances where a GPRS dial-up connection is required for logon.
To create a GPRS dial-up connection, follow these steps:
1. Create the Windows dial-up connection using the Windows Network Connection Wizard.
For the telephone number, use *99***3#.
2. Set the GPRS context parameters in the GC82 PC Card using the following AT commands.
Type the AT Commands into the Windows Hyperterminal program.
AT+CGDCONT=3,“IP”,“<AccessPointName>”,“”,0,0
20 Start Using GC82 Manager
where <AccessPointName> is the name of the special GPRS access point for your corporate
GPRS service.
Note:
In this example, we used GPRS Context 3. There are 10 possible contexts supported
by the GC82 PC Card (1..10). Context ID 2 is reserved for use by connections created
by the GC82 Manager.
Refer to the GC82 PC Card AT Command Manual or contact your service provider for further
assistance.
Create a Connection 21
Create a Connection
1. Click or select View Connection Wizard. The Connection Wizard opens.
2. Select the radio button next to Create a new connection, enter a name, for example ‘My
Connection’, click Next.
Note:
Your connection name should not exceed 16 characters for it to be fully visible in GC82 Manager.
3. The Type of Connection screen opens. From here you select the type of connection you require:
• For GPRS/EDGE see steps 4 to 8
• For CSD see steps 9 to 12
GPRS Connection
4. Select GPRS/EDGE. Select your Network Operator from the Choose Network drop down list.
If your Network Operator isn’t listed selected <Other>. Click Next.
See Network and Subscription on page 7 for more information on GPRS.
Note:
Type the first letter of the Network Operator you require into the field to list all the operators that
start with that letter.
5. The Access Point Name dialog opens. Your Network Operator’s Access Point Name or Names
(APNs) are displayed, select the APN you want to use. If no APNs are listed contact your
Network Operator and ask them to supply an APN.
6. To modify the selected APN’s settings, Click Advanced.... See Appendix A - Connection
Parameters on page 61, for descriptions of the updateable parameters in the Advanced dialog.
Click Apply to save any changes before closing the dialog. Click Next.
Note:
Your connection will automatically switch to EDGE when the network is available, allowing your
PC Card to work at faster speeds.
7. If you have a logon for your service provider, enter you User ID and Password into the specific
fields. If you don’t need a username and password to connect leave the fields blank. Click Next.
Note:
Some versions of Windows® deliberately change the number of asterisks that represent
a password and place asterisks in the password field when the password is blank in order
to make the display secure.
8. Click Finish to create your connection or Back to review your settings.
22 Create a Connection
CSD Connection
9. Select CSD. Select your service provider from the Choose Network drop down list. If your
service provider isn’t listed select <Other>. Click Next.
10. If you selected a Network Operator from the Choose Network drop down list, the telephone
number screen should be automatically filled in.
If you selected <Other> from the Choose Network drop down list; enter the number you need
to dial to connect to your Network Operator in the Telephone Number field; include your
country and area code. Ensure Use Area Code and Country Code is de-selected.
Note:
Contact your Network Operator for a telephone number if necessary.
11. Click Advanced.... you can specify your preferred CSD network connection speed from the
drop down list and the method you want to use to connect to the network, on the Speed tab of
the Advanced dialog. Click Next.
Note:
If you are unsure which speed to choose from the Speed tab, start with Analogue 9600,
and check to see if it works. Once your connection works on Analog, you can try the V110/V120
settings to see if faster speeds are available. V110/V120 also connects faster than analog. When
roaming you may need to repeat this procedure to adapt your settings to the capability of the
local network operator.
12. Select the Options tab in the Advanced dialog to specify
a callback number, if required. Callback is a service that allows
the call direction to be reversed. If you want to watch the progress
of a callback in a terminal window click the Show Terminal
Window After Dialing box.
See Appendix A - Connection Parameters on page 61,
for descriptions of the updateable parameters in the Advanced dialog. Click Apply to save
any changes before closing the dialog.
Create a Connection 23
13. If you need a User ID and Password to logon to your service provider enter them into the
specific fields. If you don’t need a username and password leave the fields blank. Click Next.
Note:
Some versions of Windows® deliberately change the number of asterisks that represent
a password and place asterisks in the password field when the password is blank in order
to make the display secure.
14. Click Finish to create your connection or Back to review your settings.
TCP/IP Optimisation
To take full advantage of the high bandwidth of the GC82, the TCP/IP packet size should be changed
from the default Windows setting of 16k for Windows 2000, or 64k for Windows XP. Sony Ericsson
recommends a TCP/IP packet size of 52k for optimum performance with the PC Card.
The Windows Registry parameter to be changed is ‘TCPwindowsize’, at the registry location:
HKEY_Local_Machine\System\CurrentControlSet\Services\Tcpip\Parameters\
The required ‘TCPwindowsize’ entry is:
HKLM\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\
However, a PC that has not previously had its TCP/IP packet size changed from the original default
value will not have a ‘TCPwindowsize’ parameter entry, and thus a new entry must be created.
Caution!
This setting affects all network adapters in the PC and therefore should only be changed by
experienced users.
:DUQLQJ
Make a backup of the registry before making any changes.
Modify a Connection
1. Select Modify a Connection. The Select a Connection drop down menu is activated.
Click on the menu and select the connection you want to modify.
2. Click Next.
3. Change settings as required.
Delete a Connection
1. Select Delete a Connection. The Select a Connection drop down menu is activated.
Click on the menu and select the connection you want to delete.
2. Click Next. The Success screen is displayed. Click Finish to close the Connection Wizard.
24 Create a Connection
Using your Connection
To Connect
1. Open GC82 Manager.
2. If requested enter your SIM Card PIN and click OK. The Status screen is displayed.
3. Select the connection you require from the drop down list and click Connect.
To disconnect an active connection
1. Click Disconnect on the Status screen.
The GC82 Manager ends the connection.
Alternatively:
Right click on the GC82 Manager icon in the system tray and select Disconnect.
Note:
You can also use the Preferences dialog to set up auto connection when the GC82 Manager is
opened. See GC82 Manager Preferences on page 15 for more details.
Browse the Internet
You can connect to the Internet using a CSD or GPRS/EDGE connection:
1. Open your preferred connection from the Status screen. See Using your Connection above for
details on opening a connection.
2. Start your Internet browser. You are online and can browse the Internet.
Send and Receive emails
You will need an email program installed on your PC in order to send and receive emails. You can
send and receive emails using a CSD or GPRS/EDGE connection:
1. Open your preferred connection from the Status screen. See Connection on page 26 for details
on opening a connection.
2. Start your email program. You are online and can send and receive emails.
GC82 Manager Status Screen 25
GC82 Manager Status Screen
The Status Screen is displayed when GC82 Manager opens. You can also open the Status screen
by clicking or selecting View Status.
The Status screen shows detailed SIM card and network status information.
The left side of the screen shows graphical icons, representing:
• Receive signal strength
• GPRS/EDGE service status
• Unread SMS Text Message status (or SIM Full indication ). See GC82 Manager
SMS Messages Screen on page 34 for more details.
• Connection status
The left side of the screen also displays:
• The current Network Status, e.g. searching, radio off
• The connection progress messages
The right side of the Status screen displays connection details. When a connection is established,
the connection statistics (duration, bytes transmitted, bytes received) are displayed and updated
at regular intervals.
Note:
Statistics display is not supported on Window 98(SE) or Me platforms. To view statistic data
when using these operating systems hover your mouse cursor over the standard Windows Dial-
up Networking icon.
SMS
26 GC82 Manager Status Screen
Connection
To connect, cancel or disconnect a GPRS/EDGE or CSD data session
use the Connect/Disconnect drop down menu. The menu displays all the
connections you have defined, so you can quickly select the required
connection.
The Control button, located underneath the drop down menu, changes it’s
appearance depending on the state of the GC82 connection. The button
allows you to:
• Initiate a connection (Connect)
• Cancel connection attempt (Cancel)
•Disconnect (Hang-up) an existing session
To create a connection see Create a Connection on page 21.
Note:
You can also launch or terminate a CSD dialup networking sessions directly from the Windows
Network Connections icon.
GC82 Manager Telephony Settings Screen 27
GC82 Manager Telephony Settings Screen
The Telephony Settings screen allows you view and change the GSM settings of the GC82.
The functions of the Telephony Settings screen are very similar to the settings that you have access
to via a mobile phone’s display.
Note:
Your GC82 has to be connected to your computer to make changes to the settings.
1. Click or select View Telephony Settings.
The window is divided into two areas: the navigation area on the left and the information area
on the right.
When you have selected a setting in the navigation area, GC82 Manager retrieves the current setting
information from the GC82 and displays the information in the right area.
Phone Numbers
My numbers
You can list all your own numbers here. The numbers are for personal reference only and have
no operational effect on the GC82.
Voice line 1 and 2:
The voice number or numbers issued with your SIM card that you use for normal voice calls.
If you have line 2 (alternate line service) enter in the Voice Line 2 number field.
28 GC82 Manager Telephony Settings Screen
Data:
The number used to make a data call to the GC82 (Mobile Terminated).
Fax:
The number used to send a fax to the GC82.
Click Apply when you have finished, to transfer the changes back to your GC82. This may take
a few seconds.
SMS Service Centre
When you send a text message it goes to your operator’s service centre, they then forward it to the
correct recipient. The SMS service centre is identified by a telephone number.
Note:
The SMS Service Centre number is normally read automatically from your SIM card.
To Set or change the service centre address:
1. Enter your operator’s service centre phone number in the Number text box.
2. Click Apply to transfer the setting to your GC82.
Locks
Phone lock
The phone lock protects the GC82 against unauthorized use if it is stolen and used with another
SIM card. Phone Lock is not activated when you buy the GC82.
You can use this screen to change the default security code (0000) to any four to eight digit
personalized code.
You can set the Phone Lock Status to one of the following states:
•On - A brief message Phone lock is displayed each time you turn on the computer. The Enter
phone lock code dialog opens. Enter your code into the dialog and click OK.
•Off - The GC82 is not locked.
•Automatic - If the Automatic setting is selected, the message Phone lock only appears when
a different SIM card is inserted into the GC82. After the security code has been entered
correctly, the GC82 can be used with the new SIM card.
Note:
The Phone Lock code has four to eight digits and is shown as asterisks upon entry in the dialog.
To Change the Phone Lock code:
1. Click .
2. The Change the Phone Lock Code dialog opens. Make the required changes and click OK.
3. Click Apply when you have finished, to transfer the changes back to your GC82. This may take
a few seconds.
Change Phone Code
GC82 Manager Telephony Settings Screen 29
SIM lock
Some SIM cards are protected with a PIN (Personal Identity Number) at the time of purchase.
If the SIM card lock is activated, you have to enter the PIN every time you turn on your PC and open
GC82 Manager. If you enter your PIN incorrectly three times in succession, the SIM card is blocked
and you need a PUK code, from your network operator, to unblock the SIM card.
• To activate the SIM card lock, select the On radio button.
Caution!
Only activate the SIM card lock if you know the PIN code.
• To cancel the SIM card lock, select the Off radio button.
Note:
You have to use your PIN code to turn the SIM card lock off.
To Change the PIN Code:
1. Click .
2. Enter your old PIN code, followed by your new four to eight digit PIN code. Confirm the new
code by entering it again.
3. Click OK.
Note:
The SIM card lock only protects your subscription and not your GC82 from unauthorized use.
If you change your SIM card, the GC82 will still work with a new SIM card.
4. Click Apply when you have finished to transfer the changes back to your GC82. This may take
a few seconds.
Networks
Current Network
You can select which network you want to use by going to Networks and then choosing
Current Network.
Searching for the available networks:
•Click Retrieve, the current network appears in the box with all the other currently available
networks.
The available networks will fall into one of the following three categories:
• The home network.
• Available networks, networks that your home mobile operator has a roaming agreement with.
• Forbidden networks, you can’t use these networks except for emergency calls. If your home
network and a forbidden network come to an agreement that allows you to use the forbidden
network, you can select this network even though it is forbidden.
Change Pin Code...
30 GC82 Manager Telephony Settings Screen
Choosing another network:
1. Uncheck Automatically choose a network for me.
2. Select the network that you want to use.
3. Click Apply to transfer the setting to your GC82.
The message Please wait appears briefly on the screen. If you are not allowed to use the network that
you have chosen, Forbidden is displayed.
Note:
GPRS is commonly available in GSM networks, but fewer roaming agreements are in place.
You may therefore need to explicitly select one of the available networks in order to use GPRS
when abroad. Check with your home operator to find out which networks are GPRS roaming
partners in the country or region in which you want to roam.
Preferred (network)
A list of preferred networks is stored on the SIM card. This is typically set up by your mobile
operator as part of SIM manufacture. Preferred roaming partners are placed in the list so that you
have the greatest range of available services when roaming. When the home network is not available,
the GC82 will check the available networks against the preferred network list and select the one
placed highest. Automatic network selection must be enabled.
If you want to add a new network:
1. Click Add, a new dialog with all the networks known to the GC82 appears on the screen.
2. Select the network that you want to add and click OK.
3. Click Apply to transfer the setting to your GC82 SIM card.
If you want to delete a network from the list:
1. Select the network that you want to delete.
2. Click Remove.
3. Click Apply to transfer the setting to your GC82 SIM card.
If you want to re-arrange the order of the networks listed:
1. Select the network that you want to move.
2. Click the Move Up or Move Down arrows to rearrange the order.
3. Click Apply to transfer the setting to your GC82 SIM card.
Note:
If the list of preferred networks is full, the Add button is disabled (grey).
Divert Calls
Note:
The GC82 does not make or answer voice calls. The divert function enables you to send
a voice call to an alternative number where it can be answered. For example, the mobile
network voicemail service. However you can make and answer fax and data calls, providing
you have appropriate software on your PC to handle them.
GC82 Manager Telephony Settings Screen 31
All
If you want to make certain that all your incoming calls are taken care of when you cannot answer
them, you can use the Call divert service to divert them to another number that can handle the types
of calls you expect to receive.
Note:
The Call divert service may not be available on all networks.
Selecting a call divert setting:
1. To obtain your current call divert settings from the network, click Retrieve.
2. Make your changes by identifying when you want to divert your incoming calls. You can select
from four different diversion options:
–Always: this diverts all incoming calls to the phone number that you have entered in the
text box
– When busy: for example, on CSD calls
–No reply
–Not reachable: for example, when your phone is turned off
3. If you know which number to divert your calls to, then type the number in the text box next
to the divert option you have chosen.
Or
Click to choose a phone number from your phone book.
4. Click Apply, to transfer your new settings to your GC82. This may take a few seconds.
Your call divert setting has now been stored in the network.
Voice
You can use the Call divert service to divert your voice calls to another phone number.
Note:
The Call divert service may not be available on all networks.
Selecting a call divert setting:
1. To obtain your current call divert settings from the network, click Retrieve.
2. Make your changes and select in which situation you want to divert your incoming calls.
You can select from four different diversion options:
–Always: this diverts all incoming calls to the phone number that you have entered in the
text box
– When busy
–No reply
–Not reachable: for example, when your phone is turned off
3. If you know which phone number to divert your calls to, type the number in the text box next
to the divert option you have chosen.
Or
Click to choose a phone number from your phone book.
4. Click Apply to transfer them to your GC82. This may take a few seconds.
Your Line 1 divert setting has now been stored in the network.
32 GC82 Manager Telephony Settings Screen
Fax
If you want to route your incoming fax calls to another number, you can use the Call divert service.
Note:
The Call divert service may not be available on all networks. Also, if you are using the
Call restricting function, this may influence Call divert.
Selecting a fax divert setting:
1. To obtain your current fax divert settings from the network, click Retrieve.
2. Select Always if you want to divert all the incoming calls to a specific phone number.
3. If you know which phone number to divert your calls to, type the number in the text box next
to Always.
Or
Click to choose a phone number from your phone book.
4. Click Apply to transfer your settings to your GC82. This may take a few seconds.
Your fax divert setting has now been stored in the network.
Data
If you want to route your incoming data calls to another number, you can use the Call divert service.
Note:
The Call divert service may not be available on all networks. Also, if you are using the
Call restricting function, this may influence Call divert.
Selecting a data divert setting:
1. To obtain your current data divert settings from the network, click Retrieve.
2. Select Always if you want to divert all the incoming calls to a specific phone number.
3. Select the Always check box and enter the destination number or click to choose a phone
number from your phone book. Click OK.
4. Click Apply to transfer your settings to your GC82. This may take a few seconds.
Your data divert setting has now been stored in the network.
Restrict Calls
Restricting a certain type of call means that this type of call cannot be made to or from your GC82.
You can restrict different types of outgoing and incoming calls.
The following call types can be restricted:
• all outgoing calls.
• all outgoing international calls.
• all outgoing international calls except to your own country.
• all incoming calls.
• all incoming calls when you are abroad (when roaming).
A password, issued with your subscription, is required to turn a call restrict on or off.
Contact your network operator for further information.
GC82 Manager Telephony Settings Screen 33
Restricting Fax and Data Calls
To Change the call restrict status for fax and data calls:
1. To get your current call restrict settings from the network, click Retrieve.
2. Tick the boxes next to the call types that you want to restrict.
Only select one outgoing and one incoming option.
3. When you have finished, click Apply.
4. Type your restriction password into the dialog and click OK.
Your call restrict settings have now been changed and stored in the network.
34 GC82 Manager SMS Messages Screen
GC82 Manager SMS Messages Screen
The GC82 Manager’s SMS Messages screen enables you to view, compose, edit, save, copy, delete,
reply or forward SMS messages from your GC82 to other mobile devices.
Note:
To use Message functionality SMS must be included in your subscription, contact your network
operator for more details.
The SMS Messages screen is split in to a left and right area.
The left area displays the folders; SIM SMS, Saved Messages, Sent Items and Unsent Items.
The right area displays the contents of the selected folder. The top half of the right pane displays
a list of received messages, sorted by date and the bottom half of the screen displays the content of a
selected messages, this is referred to as the Information View.
The folders and their names are static, you can not change them.
Click to display the contents of the SIM Inbox. When GC82 Manager is opened any
new SMS in the SIM Inbox are uploaded to the PC automatically.
A status flag indicates whether a message is read or unread.
If a new SMS arrives when the GC82 Manager is open is displayed on the
Status screen and the SMS audio sound is played, if enabled in the Setting dialog.
See GC82 Manager Preferences on page 15.
If you want to keep an SMS, use the copy or move menu options to place it in the
Saved folder. Click on the folder icon to display the contents of the Saved folder.
A copy of each SMS that you have sent is stored in this folder. Click on the folder icon
to display them.
Any composed messages that have not been sent are displayed when you click
on this icon.
SMS stored in this folder can be edited or sent when the GC82 is connected. Any SMS
that fail during transmission are also stored here, you can resend them at any time.
SMS
GC82 Manager SMS Messages Screen 35
Each time the SMS Messages screen receives a new SMS message from the SIM it checks the status
of the SIM Inbox. If the SIM Inbox is full, a SIM Full icon is displayed in the left pane of the screen,
see SIM Inbox is Full: on page 37.
Note:
For all the SMS Messages screen menu options to operate the GC82 must be registered
successfully on a network. You must have a GSM signal to Send SMS, the button is disabled
(grey) if you don’t have a signal.
Class 0 messages
If you receive a Class 0 message, it will appear in a pop-up dialog, which you can save or dismiss.
If you choose to save the message it will be stored in you Saved Messages folder.
SMS Manager Functionality
To Send an SMS:
1. Select Create New Message... from the Messages menu or click .
2. The New Message dialog opens.
3. Enter the recipient’s mobile phone number in the To: field or select a number from a phone
book by clicking Lookup...
To send an SMS to multiple numbers, hold down Ctrl when selecting the numbers from the
phone book.
4. Type your message into the Message: field.
5. If required you can click the Calculate SMS blocks to see how many SMSs your message will
be split into. Also you can check the Request Status Report to get confirmation when the SMS
arrives at its destination (if this service is supported by your network).
6. Click Send to send the SMS or Cancel to close the dialog without sending the SMS.
To Edit a Message:
When you are working with a message, you can edit the text by cutting, copying and pasting.
Moving Text:
1. Select the text you want to move, the text can be in another PC application.
2. Select Cut from the Edit menu or Ctrl and X on the keyboard.
3. Place the cursor where you want to insert the text and select Paste from the Edit menu or Ctrl
and V on the keyboard.
Note:
If you want to copy text, select Copy (Ctrl and C) from the Edit menu instead of Cut (Ctrl and X).
36 GC82 Manager SMS Messages Screen
Reply to an SMS:
1. Select the folder where the message is located.
2. From the list, select the message you want to reply. The contents of the message are displayed in
the information view.
3. Select Reply in the Messages menu. A dialogue appears. The To: field is automatically filled
in and the original message is displayed in the Message: field.
4. If required you can click the Calculate SMS blocks to see how many SMSs your message will
be split into. Also you can check the Request Status Report to get confirmation when the SMS
arrives at its destination.
5. Type your reply and click Send.
To Forward an SMS:
1. Select the folder where the message is located.
2. From the list, select the message you want to forward. The contents of the message are displayed
in the information view.
3. Select Forward in the Messages menu or click (forward icon), a dialogue opens.
4. Enter the phone number in the To: field or click Lookup... to select a number from a phone book.
To send an SMS to multiple numbers, hold down Ctrl when selecting the numbers from the
phone book.
5. If required you can click the Calculate SMS blocks to see how many SMSs your message will
be split into. Also you can check the Request Status Report to get confirmation when the SMS
arrives at its destination.
6. Click Send.
Delete an SMS:
1. Select the folder where the message is located.
2. From the list, select the message you want to delete. The contents of the message are displayed
in the information view.
3. Select Delete from the Edit menu, or press the Delete button on your keyboard.
4. A confirmation message box opens, click Yes to delete the message.
Note:
To delete all messages, click Select All from the Edit menu before you select Delete.
Folder Management:
Sorting SMS:
1. Select the folder where the messages you want to sort are located.
2. Click the Date column heading to sort the SMS in ascending or descending date order.
GC82 Manager SMS Messages Screen 37
Moving SMS:
1. Select the folder where the message you want to move is located.
2. From the list, select the message. The contents of the message are displayed in the
information view.
3. Click Move to from the Messages menu. A progress dialog is displayed informing you that the
SIM card is being updated.
4. The selected message is moved.
Note:
To move all messages, click Select All from the Edit menu before you select Move to.
Copy an SMS:
1. Select the folder where the message you want to copy is located.
2. From the list, select the message. The contents of the message are displayed in the
information view.
3. Click Copy to from the Messages menu. A progress dialog is displayed informing you that the
SIM card is being updated.
4. The selected message is copied.
Note:
To copy all messages, click Select All from the Edit menu before you select Copy to.
SIM Inbox is Full:
When the GC82 Manager detects the SIM SMS storage is full, it displays on the Status screen
and in the SMS Messages screen. You must move or delete some SMS from the SIM Inbox to free
storage space so that you can continue receiving new SMS from the network. To do this you
can either:
• Move your SMS from SIM SMS to Saved Messages
• Right click on an SMS in SIM SMS and select delete.
38 GC82 Manager Phone Book Screen
GC82 Manager Phone Book Screen
The GC82 Manager Phone Book screen helps you to organize your GC82’s SIM Phone Book.

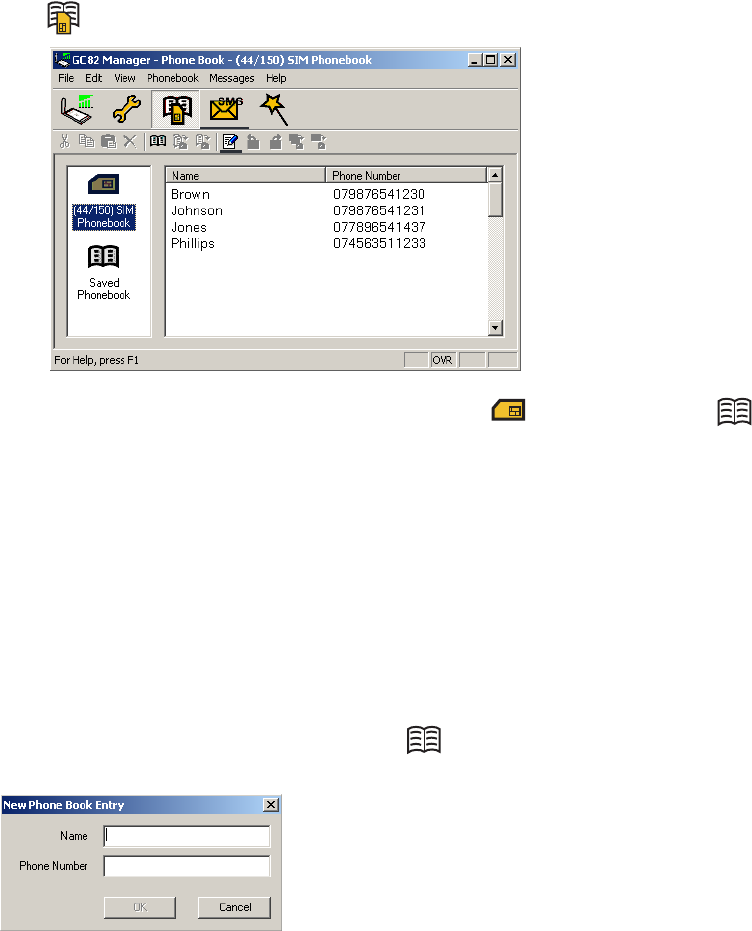

The Phone Book Screen
A SIM Phone Book can easily become disorganized; you can use the Phone Book screen to manage
your SIM Phone Book entries.
You can add new numbers, edit existing numbers, export and import entries.
1. Click to display the Phone Book screen.
2. Icons appear in the left pane representing the SIM Phone Book and Saved Phone Book .
You can manage your Phone Book entries by copying entries to the SIM Phone Book or the
Saved Phone Book.
3. Click on the icon to display the Phone Book entries in the right pane.
Note:
Your GC82 must be inserted to display this information.
Phone Book Functionality
To Add a Number:
1. Select Add New in the Phone Book menu or click on the toolbar or key Ctrl and N.
2. The New Phone Book Entry dialog opens.
GC82 Manager Phone Book Screen 39
3. Enter the name and phone number.
4. Click OK to save the entry or Cancel to close the dialog.
Note:
Phone Book numbers are limited to 20 digits (including +) and names are limited
to 18 alphanumeric characters.
New entries are added to the next available SIM index position.
To Modify a number:
1. Select the number you want to modify.
2. Select Modify... in the Phone Book menu.
3. The Edit Phone Book Entry dialog opens.
4. The fields in the dialog display the current entry’s name and number.
5. Edit the information.
6. Click OK to save the entry or Cancel to close the dialog
If the modified entry is in the SIM Phone Book the changes are automatically sent to the SIM.
To Find Entries:
1. Select Find in the Phone Book menu or key Ctrl and F.
2. The Find dialog opens. Enter the text or number you want to search for in the Look for field.
The entry can be complete or incomplete.
3. Click Find. The GC82 Manager searches both Phone Books, when a match is found
it is displayed in the right pane. Click Find Next to search again.
4. Click Close when you have finished searching.
To Copy an Entry:
1. Select an entry from the SIM Phone Book or the Saved Phone Book.
2. Select Copy To in the Phone Book menu. The Copy To option is followed by the name of the
Phone Book you haven’t selected the entry from.
3. A duplicate entry is made in the specified Phone Book. The new entry is assigned the next
available position in the destination Phone Book.
To Move an Entry:
1. Select an entry.
2. Select Move To in the Phone Book menu. The Move To option is followed by the name of the
Phone Book you haven’t selected the entry from.
3. The entry is moved from its current Phone Book and placed in the selected one. The new entry
is assigned the next available position in the destination Phone Book.
40 GC82 Manager Phone Book Screen

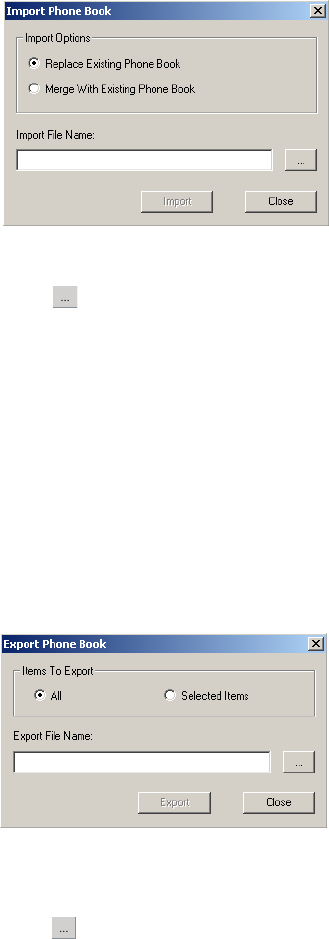

To Import an Entry or Phone Book:
1. Select Import from the Phone Book menu.
2. Select the Replace Existing Phone Book or Merge with existing Phone Book radio button.
3. Click and browse to find the file you want to import.
Note:
The file must be a text file in comma separated value (CSV) format. Any invalid lines or files
will be ignored.
4. Click OK in the browse dialog. The path and file name are displayed in the Import File
Name field.
5. Click Import to complete the import procedure.
To Export an Entry or Phone Book:
1. Highlight the entries or open the Phone Book you want to export.
2. Select Export from the Phone Book menu.
3. Select All to export the entire Phone Book or Selected Items to export the highlighted entries.
4. Type a name for the file into the Export File Name field.
5. Click and identify the save location.
Note:
The file will be saved as a text file in comma separated value (CSV) format.
6. Click OK in the browse dialog. The path and file name are displayed in the Export File
Name field.
7. Click Export to complete the procedure.
GC82 Manager Phone Book Screen 41
Delete a number
1. Select the number that you want to delete.
2. Select Delete, from the Edit menu.
3. A confirmation dialog opens, click Yes to delete the number.
Note:
If you want to delete all numbers, select Select All from the Edit menu before clicking Delete.
To Send a New SMS Message:
1. Select an entry from a Phone Book.
2. Select Create New Message from the Messages menu.
3. A new SMS Message dialog is opened and pre-addressed with the selected entries details.
42 GC82 Manager Online Services Screen
GC82 Manager Online Services Screen
Online Services is a customized service offered by a network operators. This service is network or
subscription dependant. The Online Services screen provides a mechanism that allows applications
that exist on the SIM to interact and operate with the GC82. Typical services offered by network
operators include:
•sports scores
•news
• financial data
• horoscopes
• interactive text game messages
Online Services are placed on your SIM card by your operator. GC82 Manager detects if these
services are on the SIM card and displays the if they are.

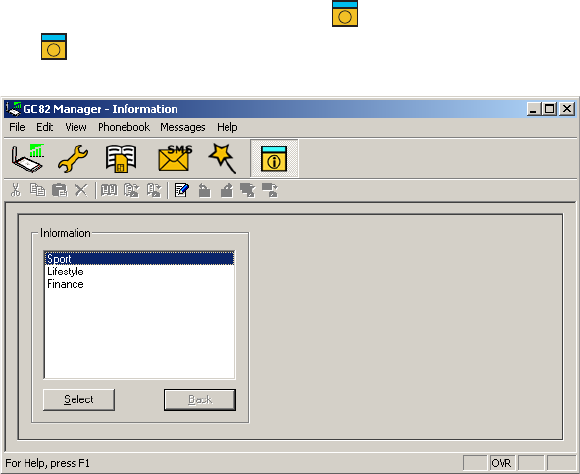

1. Click to display the Online services screen. You can also select to display the Online
Services screen from the View menu.
The screen displays a menu of the online services offered by your network operator.
Click on the category you require and click Select.
More detailed choices are sometimes displayed, if necessary select the required option and
click Select.
The response may take various forms, depending on the network operator. For example, the news
headlines might be sent as an SMS, which will be delivered to the SMS inbox.
Online Services menus are sometimes used to provide a list of voice-based services such as directory
enquiries. If one of these is selected, you will not be connected because the GC82 does not support
voice calls.
Note:
Contact your operator to find out which services are available for your account.
i
i
Troubleshooting 43
Troubleshooting
This chapter lists some problems that you might encounter while using your GC82. Some problems
require you to contact your service provider, but most of the problems you can easily correct yourself.
GC82 Manager Icon Errors
Software Errors
Error Messages
General
appears
in the task bar Indicates that the Radio is turned off. Right click the CMI,
select Radio Settings from the sub menu, select On.
appears
in the task bar Indicates that the GC82 cannot find a network, there is no network
within range or the received signal is too weak. You have to move
to get a stronger signal.
A signal is
present but you
can’t connect
to the GPRS
network
Indicates that a GSM network is present, but no GPRS service
is available. This can be caused by; no GPRS service in the area,
you are trying to roam on a network for which no GPRS roaming
agreement exists or there is a temporary fault on the network.
Contact your network operator for more details.
appears
in the task bar GC82 isn’t present, please insert.
Grey menu
options in the
software
applications
Grey text indicates a function that is temporarily unavailable,
for example due to your subscription or due to a certain setting
which has not been turned on.
Modem not
responding....
Error
Check the radio is turned on.
Dial-Up fails Try to connect again.
44 Troubleshooting
SIM Card Errors
Error Codes
Windows® 98
Wrong PIN/
Wrong PIN2 You have entered your PIN or PIN2 incorrectly. Enter the correct
PIN or PIN2, and click OK. See SIM lock on page 29
Codes do not
match When you want to change a security code (for example your PIN)
you have to confirm the new code by entering it again. This error
occurs when the two codes, that you have entered do not match.
See Phone lock on page 28.
PIN blocked/
PIN2 blocked You have entered your PIN or PIN2 incorrectly three times
in succession. To unblock, see SIM lock on page 29.
PUK blocked –
contact operator You have entered your personal unblocking key code (PUK)
incorrectly 10 times in succession. Contact your network operator
or service provider.
Error 619:
The port is
disconnected
during dial-up
An ISDN mode (V110 or V120) has been selected when creating
a connection, but is not supported by the network.
Select Analogue mode when creating the connection in the
Connection Wizard.
Error 629:
The port was
disconnected
by the remote
machine during
dial-up
Telephony settings are set to pulse dialling, change to tone dialling.
Check the dialling settings for the current location (In Control
Panel Phone and Modem Option Dialling Rules
Location Edit) and change the Dial using setting to tone,
or (if Pulse is a necessity), create a new location called GC82
Anywhere and set the dialling to Tone. GC82 anywhere location
should then be used whenever you use the GC82.
Error 630:
The port was
disconnected
due to hardware
failure during
dial-up
A Dial-up networking connection is already connected.
Close the connected dial-up and try again.
Error 645:
Internal
authentication
error during
dial-up
Incorrect APN or CID selected for network.
Modify your Dial-up Connection, see Create a Connection on page
21 for more details. Make sure that the APN file contains the name
of the access point your network operator is using. See the support
section on www.SonyEricsson.com site for a full list of network
operator APNs.
Error 650: The
Remote Access
server is not
responding
during dial-up
Incorrect User ID and/or password. Re enter correctly.
Troubleshooting 45
Windows® 2000
Error 678:
Computer you
are dialling is
not responding
during dial-up
Either: Service is not supported by SIM (usually for CSD) or the
computer is not answering.
1 Check SIM settings with your service provider if necessary,
2 Make sure that the server you are dialling is OK,
3 Make sure that Analogue mode has not been selected with
57.6kbps data rate (V110 or V120 mode must be selected
and supported by the network)
Error 720:
No PPP control
protocols
configured
during dial-up
The service is not supported by the SIM, usually appears when
you are trying to connect to GPRS Internet. Contact service
provider to enable GPRS Internet access on SIM card
Error 619: The
port is
disconnected
during dial-up
An ISDN mode (V110 or V120) has been selected when creating
a connection, but is not supported by the network.
Select Analogue mode when creating the connection in the
Connection Wizard.
Error 678:
Computer you
are dialling is
not responding
during dial-up
Either: Service is not supported by SIM (usually for CSD) or the
computer is not answering.
1 Check SIM settings with your service provider if necessary.
2 Make sure that the server you are dialling is OK.
3 Make sure that Analogue mode has not been selected with
57.6 kbps data rate (V110 or V120 mode must be selected
and supported by the network).
Error 691:
Access denied,
user name and
password
incorrect on the
domain during
dial-up
The domain name entry is incorrect.
Correct the domain name entry or delete if not required.
Error 718:
The card was
unable to dial
during dial-up
This error indicates a PPP conversation started, but it was
terminated because the remote server did not respond within
an appropriate time. This can be caused by poor line quality
or a problem with the server (ISP). This error can occur when
your modem has connected to the ISP and has sent a username
and password, but there is no response from the server.
Wait a few minutes and try again
46 Troubleshooting
All Windows® Operating Systems
Error 734: The PPP link
control protocol was
terminated during dial-up
The APN entry is incorrect, the signal is weak or the
connection is lost whilst dialling.
See the support section on www.SonyEricsson.com
site for a full list of network operator APNs.
Error 678: Computer
you are dialing is not
responding during dial-up
Either: Service is not supported by SIM (usually for CSD)
or the computer is not answering.
Check SIM settings with your service provider if necessary.
Make sure that the server you are dialing is OK.
If you are unsure which speed to choose from the Speed
tab, start with Analogue 9600, and check to see if it works.
Once your connection works on Analog, you can try the
V110/V120 settings to see if faster speeds are available.
V110/V120 also connects faster than analog. When
roaming you may need to repeat this procedure to adapt
your settings to the capability of the local network operator.
Connection Failed
or Activation Failed.
Please contact your
Service Provider.
No specific reason for failure is available. Wait a few
minutes and try again. If you continue to get this error
check your connection settings or call your service provider
for help.
Connection Failed. Invalid
APN. Please check and
enter the APN again.
The APN entry is incorrect, the signal is weak or the
connection is lost whilst dialing. See the support section
on www.SonyEricsson.com site for a list of network
operator APNs or contact your service provider.
Connection Failed. Invalid
User Name or Password.
Please check and enter the
User Name and/or
Password in your
connection profile.
Choose to modify your connection in the Connection
Wizard. Go to the User ID screen and re enter the User
Name and Password given to you by your service provider.
If you were not supplied with a User Name and Password
leave the fields blank. Contact your service provider if you
continue to have problems.
Connection Failed. Invalid
Profile. Please check and
re-enter your connection
profile information, and
try again. If the problem
continues please contact
your Service Provider.
Your service provider doesn’t recognise you. Check the
setting you have entered to create your connection. If you
still get the error contact your service provider and check
you have GPRS Internet enabled on your subscription and
then setting you should enter to create a connection.
Disconnected from
Network You have been disconnected from the network. Wait a few
minutes and try again. If the problem persists contact your
service provider.
Connection failed.
Temporary Network
problem.
Please try again. If the
problem continues please
contact your Service
Provider.
This error indicates a PPP conversation started, but it was
terminated because the remote server did not respond
within an appropriate time. This can be caused by poor line
quality or a problem with the server (ISP). This error can
occur when your modem has connected to the ISP and has
sent a username and password, but there is no response
from the server.
Wait a few minutes and try again
Troubleshooting 47
Connection Failed.
Not authorised to access
network. Please contact
your Service Provider.
Your service provider doesn’t think your authorised to
access their network. Check the setting you have entered
to create your connection. If you still get the error contact
your service provider and check your subscription.
Connection Failed.
SIM is invalid for GPRS
service. Please contact
your Service Provider.
Contact your service provider and request the GPRS
Internet subscription is activated for your SIM.
Connection Failed. Access
to network not allowed.
Please contact your
Service Provider.
Your service provider is not allowing you to access their
network. Check the setting you have entered to create your
connection. If you still get the error contact your service
provider and check your subscription.
Connection Failed.
Roaming not allowed.
Please contact your
Service Provider.
Contact your service provider to get your roaming
activated.
Connection Failed. Please
try again. If the problem
continues please contact
your Service Provider.
You couldn’t connect to the network. Wait a few minutes
and try again. If the problem persists contact your service
provider.
Connection Failed. Service
not supported. Please try
again. If the problem
continues please contact
your Service Provider.
Your service provider is not allowing you to access their
network. Contact your service provider and check you have
the subscriptions required activated for your SIM.
Connection Failed.
Network Problem. Please
try again. If the problem
continues please contact
your Service Provider.
You couldn’t connect to the network. Wait a few minutes
and try again. If the problem persists contact your service
provider.
48 Additional Information
Additional Information
Sony Ericsson Support Web Site
At www.SonyEricsson.com/support you can find help and tips in a few clicks. The support site
gives you access to:
• the latest software updates
• tips on how to use your GC82 efficiently
• function guides
• additional help
Important Information
Please read this information before using your GC82.
Recommendations
• Always treat your product with care and keep it in a clean and dust-free place.
• Do not expose your product to liquid, moisture or humidity.
• Do not expose your product to extreme high or low temperatures.
• Do not expose your product to open flames or lit tobacco products.
• Do not drop, throw or try to bend your product.
• Do not paint your product.
• Do not attempt to disassemble your product. Only Sony Ericsson authorized personnel should
perform service.
• Do not remove the SIM
Antenna
Only use an antenna that has been specifically designed by Sony Ericsson for your GC82.
Use of unauthorized or modified antennas could damage your GC82.
Children
Do NOT allow children to play with your GC82. They could hurt themselves or others, or could
accidentally damage the GC82. Your GC82 may contain small parts that could be detached and
create a choking hazard.
Disposing of the Product
Your GC82 should not be placed in municipal waste. Please check local regulations for disposal
of electronic products.
Electronic Devices
Most modern electronic equipment, for example equipment in hospitals and cars, is shielded from
RF energy. However, certain electronic equipment is not, therefore:
Do not use your GC82 near medical equipment without requesting permission.
The GC82 may affect the operation of some implanted cardiac pacemakers and other medically
implanted equipment. Pacemaker patients should be aware that the use of a GC82 very close to a
pacemaker might cause the device to malfunction. Avoid placing the GC82 over the pacemaker. If
a minimum distance of 15 cm (6’’ inches) is kept between the GC82 and the pacemaker, the risk of
interference is limited. If you have any reason to suspect that interference is taking place,
immediately turn off your GC82. Contact your cardiologist for more information.
If you use any other personal medical device, consult the manufacturer of your device to determine
if it is adequately shielded from external RF energy.
Turn your GC82 off in any facility where posted notices so require.
Aircraft
You MUST remove your GC82 before boarding any aircraft.
To prevent interference with communication systems and abide by the law, you must not use your
GC82 while the plane is in the air.
Do not use it on the ground without permission from the crew.
Blasting Areas
Turn off your GC82 when in a blasting area or in areas posted turn off two-way radio to avoid
interfering with blasting operations. Construction crews often use remote control RF devices to set
off explosives.
Explosive Atmospheres
Turn off your GC82 when in any area with a potentially explosive atmosphere. It is rare, but your
GC82 could generate sparks. Sparks in such areas could cause an explosion or fire resulting in
bodily injury or even death.
Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They
include fuelling areas, below deck on boats, fuel or chemical transfer or storage facilities, and areas
where the air contains chemicals or particles, such as grain, dust, or metal powders.
Do not transport or store flammable gas, liquid, or explosives in the compartment of your vehicle,
which contains your GC82 and accessories.
Inserting and removing the SIM card – precautions against electrostatic discharge (ESD)
Do not touch the SIM card connectors. As a precaution, always make sure that the GC82 is already
in your hand before you insert or remove the SIM card.
Radio wave exposure and Specific Absorption Rate (SAR) information
This PC card modem is a low-power radio transmitter and receiver. When it is turned on, it emits
low levels of radio frequency energy (also known as radio waves or radio frequency fields).
Governments around the world have adopted comprehensive international safety guidelines,
developed by scientific organizations, e.g. ICNIRP (International Commission on Non-Ionizing
Radiation Protection) and IEEE (The Institute of Electrical and Electronics Engineers Inc.), through
periodic and thorough evaluation of scientific studies. These guidelines establish permitted levels
Additional Information 49
of radio wave exposure for the general population. The levels include a safety margin designed to
assure the safety of all persons, regardless of age and health, and to account for any variations in
measurements.
Specific Absorption Rate (SAR) is the unit of measurement for the amount of radio frequency
energy absorbed by the body when using a low-power radio transceiver designed for body worn or
head held use. The SAR value is determined at the highest certified power level in laboratory
conditions, but the actual SAR level of the low-power radio transceiver while operating can be well
below this value. This is because the low-power radio transceiver is designed to use the minimum
power required to reach the network.
Variations in SAR below the radio frequency exposure guidelines do not mean that there are
variations in safety. While there may be differences in SAR levels among PC card modems, all
Sony Ericsson PC card modem models are designed to meet radio frequency exposure guidelines.
Before a PC card modem is available for sale to the public, it must be tested and certified to the
FCC that it does not exceed the limit established by the government-adopted requirement for safe
exposure. The tests are performed in positions and locations as required by the FCC for each model.
For body worn operation, this PC card modem has been tested and meets FCC RF exposure
guidelines for fixed and mobile use when the PC card modem is installed in a PCMCIA card slot of
a standard Laptop PC with the original antenna.
Sony Ericsson has not measured, and makes no representation about, the body worn SAR levels
when the modem card is used in any portable host equipment or when any changes to the original
product has been made.
50 Additional Information
Additional Information 51
Technical Specifications
Exterior Description
Ambient Temperatures
Electrical Characteristics
Product name GC82
System GSM 850
GSM 1900
Services supported CSD, GPRS/EDGE, SMS, Fax
Speech services are not supported
SIM Card Small plug-in card, 3V type
SIM Lock supported
Regular (non-GPRS-aware) and GPRS-aware SIMs
supported
Type Number 6130201-BV
Size PC Card Type II, 16 bit
85.6 mm long x 54.0mm wide x 5.0 mm thick
Weight 38g including antenna, excluding SIM card
Battery Powered via the PC card slot i.e. uses laptop battery
Antenna 50 ohm interface; Antenna supplied
Operating -10 to 55 degrees C
Storage -20 to 65 degrees C
Supported Voltages 3.3V ± 10%
Nominal Operating Voltage 3.6V
Standby Current 4.2mA
Standby Power Consumption (no PDP context
active) 13.86mW
Idle current (9/2 multiframe paging period)
(PDP context active) 5.0mA/7.6mA
Idle power (9/2 multiframe) 16.5mW/25mW
Maximum Current 800mA
Maximum Power Consumption 1W
52 Additional Information
Operating System Support
GSM Performance and technical characteristics
GSM Features Supported
Supported Operating
Systems Microsoft Windows 98 (SE)
Microsoft Windows Me
Microsoft Windows 2000 (SP2)
Microsoft Windows XP
Minimum PC
Specification Processor size as recommended by Microsoft for the
version of Windows® in use
PC Card slot
30 MB free disk space
Dimension GSM 850 GSM 1900
Frequency Range TX: 824 – 849 MHz
RX: 869 – 894 MHz TX: 1850 – 1910 MHz
RX: 1930 – 1990 MHz
Channel Spacing 200 kHz 200 kHz
Number of Channels 124 Carriers * 8 (TDMA) 299 Carriers * 8 (TDMA)
Modulation GMSK/8-PSK GMSK/8-PSK
Power Classes Class 4 (2W) for GSM/
GPRS and EGPRS/MCS
1-4 (GMSK);
Class E2 (0.5W) for
EGPRS/MCS 5-9 (8-PSK)
Class 1 (1W) for GSM/GPRS
and EGPRS/MCS 1-4
(GMSK);
Class E2 (0.4W) for EGPRS/
MCS 5-9 (8-PSK)
Transmitter Output
Impedance 50Ω50Ω
Transmitter
Spurious Emission According to GSM
specification According to GSM
specification
ME SIM Lock Yes
SIM Application
Toolkit Class 2 without call control.
Support is provided via AT commands
USSD Support is provided via AT commands; No MMI is provided
Speech Coding Not applicable (GC82 does not support speech services)
Additional Information 53
CSD technical data
GPRS technical data
Standards AT commands industry standard ETSI 07.05, 07.07 and
07.10, V.25ter command set supported
CSD Data Rates 9.6 kbps or 14.4 kbps depending on the GSM network
Compression MNP5 (Increases data rate up to 2x depending on data type)
V.42bis (Increases data rate up to 4x depending on data type)
GSM network support required for compression
Error Correction End to End MNP2 and LAPM (V.42)
RLP
Requires GSM Network support
GSM/ISDN According to V.110 and V.120
GPRS Specification
SMG SMG31bis
Data Rates Multislot class 10 supported (see table below).
Coding schemes: CS-1, CS-2, CS-3 and CS-4
Mode of Operation Class B (attaches to both GSM and GPRS at the same time;
data connection is established using CS (CSD/fax) or GPRS)
The user may select CSD or GPRS modes via Dial-Up
Networking configurations in Windows
Attach Modes GPRS Attach
GPRS Detach
Combined Attach (CS+GPRS) (CCCH)
Combined Detach (CCCH)
Combined Attach (CS+GPRS) (PCCCH)
Combined Detach (PCCCH)
Network modes Network Mode 1
Network Mode 2
Network Mode 3
R Reference Point Physical layer: RS232 virtual COM port
Authentication mechanisms PAP and CHAP supported
IP Connectivity PDP type IP is supported
IPv4, terminated in Windows® DUN
SMS over GPRS Mobile Originated and Mobile Terminated
QoS Support for all 4 classes.
QoS Negotiation.
54 Additional Information
GPRS Maximum Data Rates
Speed achieved depends on the Coding Scheme supported by the GSM Network. The speeds given
are maximums, Sony Ericsson cannot guarantee how fast your network will operate.
Data rate is the payload per slot, header plus data.
EDGE Technical Data
PDP Context Up to 10 PDP context details are stored in GC82 memory.
PDP Context description edited via supplied Wizard or AT
command.
Number of parallel PDP Context activated (both MO and
MT):1
Number of PDP Context with traffic in parallel:1
PDP Context modification (e.g. QoS renegotiation).
Network initiated PDP Context modification.
Network initiated PDP Context deactivation.
Collision of MS and Network initiated PDP Context activation.
SIM Support for GPRS aware as well as non-GPRS-aware SIMs
Compression TCP/IP Header Compression
V42bis
GPRS Encryption GEA1
GPRS Frequency
Hopping Supported
GPRS IP allocation Dynamic
Static
CS-1
9.05 kbps CS-2
13.4 kbps CS-3
15.6 kbps CS-4
21.4 kbps
4 + 1 RX 36.2 53.6 62.4 85.6
TX 9.05 13.4 15.6 21.4
3 + 2 RX 27.15 40.2 46.8 64.2
TX 18.1 26.8 31.2 42.8
Modulation Coding
Schemes MCS-1 to MCS-9
EDGE features Link Adaptation
Incremental Redundancy
Additional Information 55
EDGE Maximum Data Rates
Speed achieved depends on the Coding Scheme supported by the GSM Network. The speeds given
are maximums, Sony Ericsson cannot guarantee how fast your network will operate.
Data rate is the payload per slot, header plus data.
SMS Technical Data
4 + 1 3 + 2
Coding
Scheme Data Rate
per slot Rx Tx Rx Tx
MCS-1 10.60 42.40 10.60 31.80 21.20
MCS-2 13.00 52.00 13.00 39.00 26.00
MCS-3 16.60 66.40 16.60 49.80 33.20
MCS-4 19.40 77.60 19.40 58.20 38.80
MCS-5 24.05 96.20 24.05 72.15 48.10
MCS-6 31.25 125.00 31.25 93.75 62.50
MCS-7 47.45 189.80 47.45 142.35 94.90
MCS-8 57.05 228.20 57.05 171.15 114.10
MCS-9 61.85 247.40 61.85 185.55 123.70
Concatenated SMS Yes.
SMS Cell Broadcast Supported in GC82 Manager and by AT Commands
(excluding Cell ID)
SMS Immediate
Display Supported in GC82 Manager and by AT Commands.
SMS interface GC82 Manager, Communications Suite, pocket PC
Suite.
AT Command
56 Additional Information
Software Upgrade
Fax Technical Data
Supported Languages
PC Card software
upgrade Via secure internet download (Sony Ericsson Update
Service) or at a Sony Ericsson Service Points.
PC Communications
Suite upgrade Internet download
Machine groups Class 2, Group 3 and 4
Speed 9.6kbps
Verified applications Microsoft Fax (Windows 200 and XP; may require installing),
Symantec and Winfax PRO 10 (not supplied).
Quick Start Guide
PC Software
User’s Guide (PDF)
English (EN)
Canadian French (FR)
Spanish (ES)
AT Commands
Manual English
Additional Information 57
License Agreement
License
Any use of the enclosed compact disc, diskette or any other media including upgrades thereof (“the
Software”) shall be in accordance with the below stated license terms and conditions. By opening
the sealed Software package and/or using the Software you agree to be bound by the terms and
conditions stated below. These terms and conditions are binding and create a legal obligation (the
“License Agreement”) between you (the “Licensee”) and Sony Ericsson Mobile Communications
AB (the “Vendor”).
The Software licensed hereunder may be delivered in an inseparable package also containing other
software programs than this particular Software (e.g. bundled with other software). As a safeguard
you should not in any way use the other software programs before reading the specific license terms
and conditions of such other software.
License
You are hereby granted a non-transferable, non-exclusive right to use (“License”) the Software.
You may only (a) use this Software on one single computer at a time; (b) physically transfer the
Software from one computer to another if the Software is used only on one computer at a time
and provided you remove any copies of the Software from the computer from which the Software
is being transferred and/or on which it was originally used; (c) if necessary, make copies of the
Software solely for purposes of backup. The copyright notice must always be reproduced and
included on a label on any backup copy.
You may not according to the EC Council Directive of May 14, 1991 on the legal protection
of computer programs (91/250/EEG) (the “Software Directive”) distribute any copy of this Software
or its documentation to others; nor modify, rent, lease or grant any rights to this Software whatsoever
to another person or entity. In addition, you may not translate, reverse engineer, decompile,
disassemble, reproduce or otherwise alter or modify the Software, its source code, documentation
nor disclose any information designated as confidential or proprietary at the time of disclosure or,
information which by its nature, is confidential or proprietary.
Term
Your License remains effective from the date of your cash receipt/proof of payment until terminated.
You can terminate your License at any time by destroying the Software together with all copies
of the Software in whichever form they may be. Your License will automatically terminate without
prior notice if you fail to comply with any term or condition of this Agreement. In the event of
termination of your License you must immediately destroy all copies of the Software in whichever
form they may be.
Limited Warranty
Vendor warrants the media on which the Software is provided, to be free from defects in materials
and workmanship under normal use for ninety (90) days after the date of your cash receipt/proof
of payment. The Vendor's and its suppliers' entire liability and your exclusive remedy under this
warranty will at Vendor's option be (and provided you return the Software to an authorized reseller/
supplier together with a copy of your cash receipt/proof of payment), to replace the disc(s)/
diskette(s) or refund the purchase price and terminate this Agreement including the License.
58 Additional Information
Except for the above express limited warranties, Vendor and its suppliers do not provide nor do you
receive any warranties or conditions whether express, implied, statutory or otherwise and Vendor
and its suppliers specifically disclaim any implied warranties of satisfactory quality and/or fitness
for a particular purpose. If your jurisdiction does not allow limitations on implied warranties
to consumers, the above limitation may not apply to you.
Vendor does not warrant that your use of the Software will be uninterrupted or error free. You assume
full responsibility for the selection of this Software and your selected hardware and for the Software
and hardware together achieving your intended results, as well as for any installation or use
of or result obtained from the Software.
Intended use
The Software shall be used in accordance with the instructions and for its intended use and purpose
only. The Software or part thereof may not be used in e.g. life support systems, nuclear facility
applications, nor for the purposes of missile technology, chemical or biologized industry, flight
navigation or communication of air, ground support equipment or other similar business or for any
other purpose where any failure by the Software to perform may result in personal injury, death,
damage to tangibles or the environment.
Limitation of liability
In no event shall Vendor or its suppliers be liable for any indirect or consequential losses or damages
whatsoever irrespective of the cause for such losses or damages, including loss of data, loss of
business profits or revenue, or any business interruption arising out of the use of or inability to use
this Software. Vendor and its suppliers’ total liability under this Agreement shall be limited to the
amount actually paid by Licensee for the Software.
Disputes and Governing Law
The validity, construction and performance of this Agreement shall be governed by the laws
of Sweden. All disputes, differences or questions between the parties with respect to any matter
arising out of or relating to this Agreement shall be finally settled under the Rules of Conciliation
and Arbitration of the International Chamber of Commerce, in Stockholm, by three (3) arbitrators
appointed in accordance with the said Rules. The proceeding shall be conducted in the English
language.
FCC Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) The device must accept any interference received, including interference that may cause
undesired operation.
GC82:
FCC-ID: PY7F1041011
IC: 4170B- F1041011
Additional Information 59
This page is left blank intentionally.
60 Additional Information
Appendix A - Connection Parameters 61
Appendix A - Connection Parameters
General Connection Parameters for CSD and GPRS
Required Useful information
Telephone
number or
Access Point
Name (APN)
Number you need to dial to reach your service provider. Use the full
number including country code and area code, e.g. +46 33 555 2525.
Or
The APN server resource to contact, for example,
Interent.operator.net - to connect to the Internet via the mobile operator’s
or your corporate Intranet via a VPN
Bearer
capability:
CSD or GPRS?
You will need to know the bearer capability provided by your service
provider, so you can select the appropriate option during set up.
CSD Network
Speed If you intend to create connections via CSD contact your network operator
and check the supported speeds.
Username The username your service provider gave you when the account was set
up. Some dial-up accounts do not require a Username, in this case leave
the field blank.
Password Password associated with the username, given to you by the service
provider. Some dial-up accounts do not require a Password, in this case
leave the field blank.
IP assignment:
Server / Static An ‘address’ that the service provider knows you by and uses to route
information to and from your GC82. Your IP address will either be:
Server - assigned by the service provider when you connect.
Static - assigned once by the service provider or the IT Manager.
If your IP address is Static you must enter it into Own IP address fields
which is available when you select Details in the Connection APN dialog.
DNS
assignment:
Server / Static
This tells the GC82 where to find the service provider’s DNS Service.
DNS translates addresses such as www.sonyericsson.com to the numeric
IP address so that the information can be accessed.
Like IP assignment above, the DNS can be static or allocated by the
service provider when you connect. If static is selected additional fields
need to be completed containing the static information.
Own IP address Only required if the IP assignment is static.
Format example: 123.9.45.3.
Do not enter any leading 0s when typing in IP address.
Primary DNS Only required if the DNS assignment is static.
Format example:123.9.45.2
Secondary DNS Only required if the DNS assignment is static.
Format example: 123.9.45.1
Access Point
Name (APN) If the APN is set to default you will have to enter the name of the access
point your network operator is using.
62 Appendix A - Connection Parameters
CSD Specific Parameters
* Only available with ISDN V.110 or V.120 connection mode.
Required Useful information
Preferred
Connection
Speed (bits/s)
Select your preferred network connection speed from the drop down
list provided:
9600, 14400, 19200, 28800, 38400, 43200* or 57600*
Connection
Mode Select the method you want to use to connect to the network from the
options provided:
analogue, ISDN V.110 or ISDN V.120
Compression Use to speed up data transfer. You can select to Enable Data
Compression and Header Compression.
Callback
Number Enter the number the a callback should be made to. You can only use
Callback if you are connecting to a source that gives permission for
callbacks to be made, for example your company server.
Glossary 63
Glossary
Bearer
Path over which data flows. Specifically in CSD the type
of telephony link from the GSM network to the server -
V PSTN or ISDN.
bps
Bits per second - rate of data flow.
COM Port
Defines a serial/RS-232 port within the Windows®
environment. May be physical (COM1 port on the rear
of the PC) or virtual (COM5 port communicating with
a PC card modem)
CS
Circuit Switched. Connection from A to B which has
a fixed bandwidth and is maintained over a period
of time, for example a voice telephone call.
CS-1 to CS-4
Coding Scheme. Determines the data rate per timeslot
in GPRS.
CSD
Circuit Switched Data. CSD is a GSM service providing
a CS data connection at a rate of 9.6 or 14.4 kbps.
DUN
Dial-Up Networking.
EDGE
Enhanced Data rates for Global Evolution.
e-GSM
Extended GSM. New frequencies specified by the
European Radio Communications Committee (ERC)
for GSM use when additional spectrum is needed
(Network-dependent). It allows operators to transmit
and receive just outside GSM’s core 900 frequency
band. This extension gives increased network capability.
ETSI
European Telecommunications Standards Institute.
www.etsi.org
GGSN
Gateway GPRS Support Node
GPRS
General Packet Radio Services.
GSM
Global System for Mobile Communications. GSM is the
world’s most widely-used digital mobile phone system,
now operating in over 160 countries around the world.
GSM 900
The GSM system family includes GSM 900, GSM 1800
and GSM 1900. There are different phases of roll-out for
the GSM system and GSM phones are either phase 1
or phase 2 compliant.
GSM 1800
Also known as DCS 1800 or PCN, this is a GSM digital
network working on a frequency of 1800 MHz. It is used
in Europe and Asia-Pacific.
GSM 1900
Also known as PCS. Refers to a GSM system running
in the 1900MHz band. Used in the USA and Canada,
for instance.
HTML
HyperText Markup Language.
HTTP
HyperText Transfer Protocol.
ISDN
Integrated Services Digital Network. Can provide
circuit-switched data connections in multiples
of 64 kbps.
ISP
Internet Service Provider.
kbps
Kilobits per second - rate of data flow.
64 Glossary
LAN
Local Area Network.
ME
Mobile Equipment.
MO
Mobile Origination. For example, an SMS message sent
from a mobile terminal.
MMI
Man-Machine Interface.
MS
Mobile Station.
MT
Mobile Termination.
PC
Personal Computer.
PCS
Personal Communications Services, often used
to describe GSM1900 networks.
PC Card
A card having physical and electrical characteristics
specified by PCMCIA providing extra functionality
when inserted into a laptop PC. Typical examples are
modems and network cards. Type refers to the thickness
of the card. The GC82 is type II.
PCMCIA
Personal Computer Memory Card International
Association – defines specifications for PC Cards.
www.pcmcia.org
PDP
Packet Data Protocol.
Phone book
A memory in the SIM card where phone numbers can
be stored and accessed by name or position.
PSTN
Public Switched Telephone Network, for example
ordinary analogue phone line for speech and/or
computer modem.
RADIUS
Remote Access Dial-In Service. Facility at the ISP
or corporation to manage remote data connections.
RX
Receive
SC
Service Centre (for SMS).
Service Provider
A company that provides services and subscriptions
to GC82 users.
SIM card
Subscriber Identity Module card – a card that must be
inserted in any GSM-based mobile terminal. It contains
subscriber details, security information and memory for
a personal directory of numbers. The card can be a small
plug-in type or credit card-sized, but both types have the
same functions. The GC82 uses the small plug-in card.
SMS
Short Message Service. Allows messages
of up to 160 characters to be sent and received via
the network operator's message centre to a GC82.
TCP/IP
Transmission Control Protocol/Internet Protocol.
TCP/IPv4
TCP/IP Version 4. Most widely implemented form
of TCP/IP today having a 4 byte address format such
as 212.161.127.136.
TE
Terminal Equipment. Generic term for GSM terminals
such as phones and PC cards.
Terminal Adaptor
Generic term for the equipment terminating a digital
comms line such as an ISDN2 line. The GC82
is a Terminal Adaptor since it interfaces to GSM
digital data services.
Glossary 65
TLS
Transport Layer Security. Used by Web browsers,
for example.
TX
Transmit
Type II
Refers to thickness of a PC Card as defined in the
specification from PCMCIA.
URL
Uniform Resource Locator.
USSD
Unstructured Supplementary Services Data.
Narrow-band GSM data service. For example entering
*79*1234# might return the stock price for stock 1234.
V.110
ETSI standard for data over an ISDN circuit.
V.120
ETSI standard for data over an ISDN circuit.
VPN
Virtual Private Network.
WWW
World Wide Web.
XML
Extensible Markup Language
66 Index
Index
A
Assembling the Unit 9
C
Circuit Switched Data (CSD) 7
Connection Details 26
CSD technical data 53
D
Deleting a SMS 36
Documentation 6
E
EDGE Technical Data 54
Enhanced Data Rates for Global Evolution (EDGE) 7
Exporting a Phonebook 40
G
GC82 Manager 6
GC82 Manager Icon 12
GC82 Manager Status Screen 25
General Packet Radio Service (GPRS) 7
GPRS Maximum Data Rates 54, 55
GPRS technical data 53
GSM Features Supported 52
GSM Performance 52
H
Hardware Overview 5
SIM Card 5
I
Importing a Phonebook 40
Installation 9
Internet services 8
L
Locks 28
N
Network and Subscription 7
Circuit Switched Data (CSD) 7
General Packet Radio Service (GPRS) 7
Short Message Service (SMS) 8
O
Operating System Support 52
P
Phone Numbers 27
R
Radio Status 14
S
Sending a New SMS Message 41
Sending an SMS 35
Short Message Service (SMS) 8
SMS Technical Data 55
Software installation 10
Software Overview 6
GC82 Manager 6
Using the GC82 with your Applications 6
System Requirements
Network and Subscription 7
T
Telephony Settings 27
Locks 28
W
Wireless Connection information
Status 13
Wireless Connection Information Menu
Connect 14
Exit 14
Help 14
Open 14
Radio Status 14
Working with Phonebooks 38
