Exhibit 8 User Manual updated

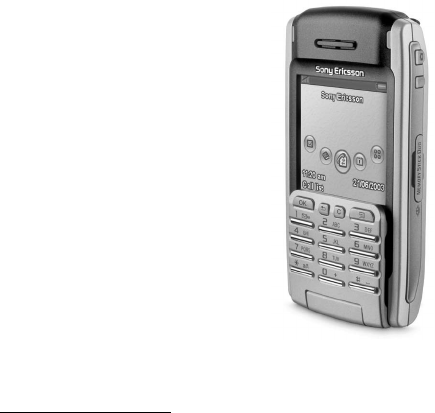

P900
User Guide

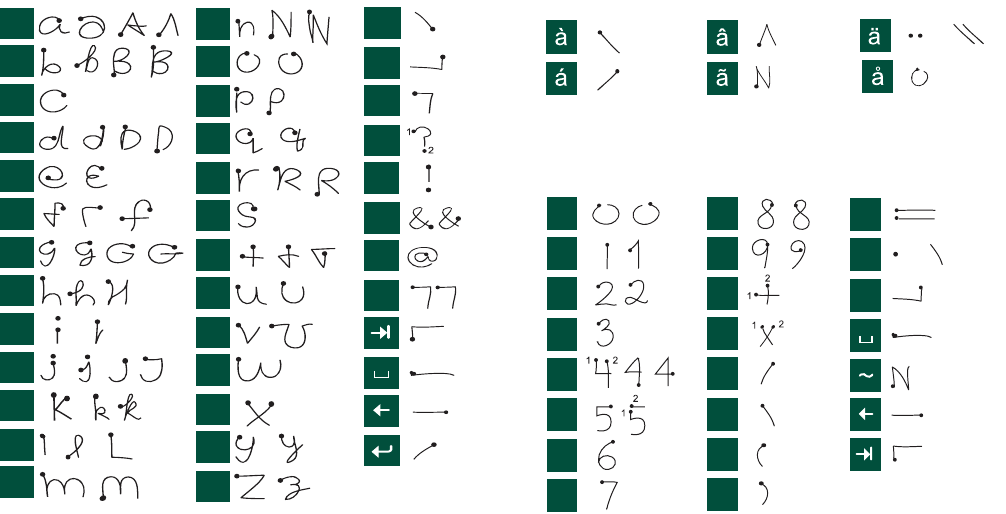

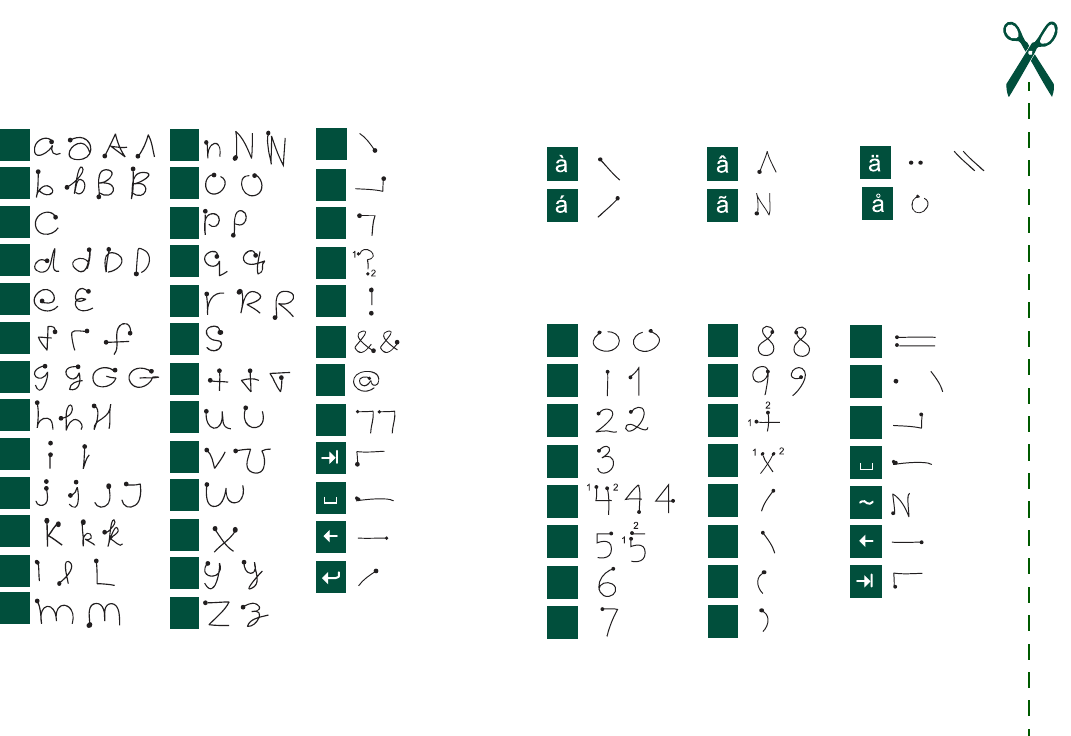

Letters
Lowercase letters are written below the arrow and uppercase
letters in line with the arrow.
Note Start each stroke at the dotted end.
Accented letters
Write the character as described above, then write the accent
above the arrow. Other such characters, for example, ö and ü,
follow the same principle.
Note Start each stroke at the dotted end.
Numbers
Numbers are written above the arrow.
Note Start each stroke at the dotted end.
a
b
c
d
e
f
g
h
k
l
m
n
o
p
q
r
s
t
u
v
y
z
w
x12
i
j
1
1
1
1
1
1
2
1
2
2
2
22
2
,
.
«
?
!
&
@
"
or
0
1
2
3
4
5
6
7
8
9
,
.
*
or
+
*
/
\
(
)
=
3
Contents
OVERVIEW
Introduction................................................................. 8
Getting to know your P900......................................... 9
P900 package...................................................................... 9
P900 overview .................................................................. 10
SIM card ........................................................................... 11
Battery .............................................................................. 11
Care instructions............................................................... 12
First time startup............................................................... 13
Turning your P900 on and off .......................................... 13
Importing phone book entries........................................... 13
Operational modes............................................................ 14
Flip closed mode .............................................................. 15
Flip open mode ................................................................. 16
Flip removed..................................................................... 16
Screen areas ...................................................................... 17
Jog Dial ............................................................................ 18
Keypad functions ............................................................. 19
Indicators and status bar icons.......................................... 20
Memory Stick® Duo™ .................................................... 21

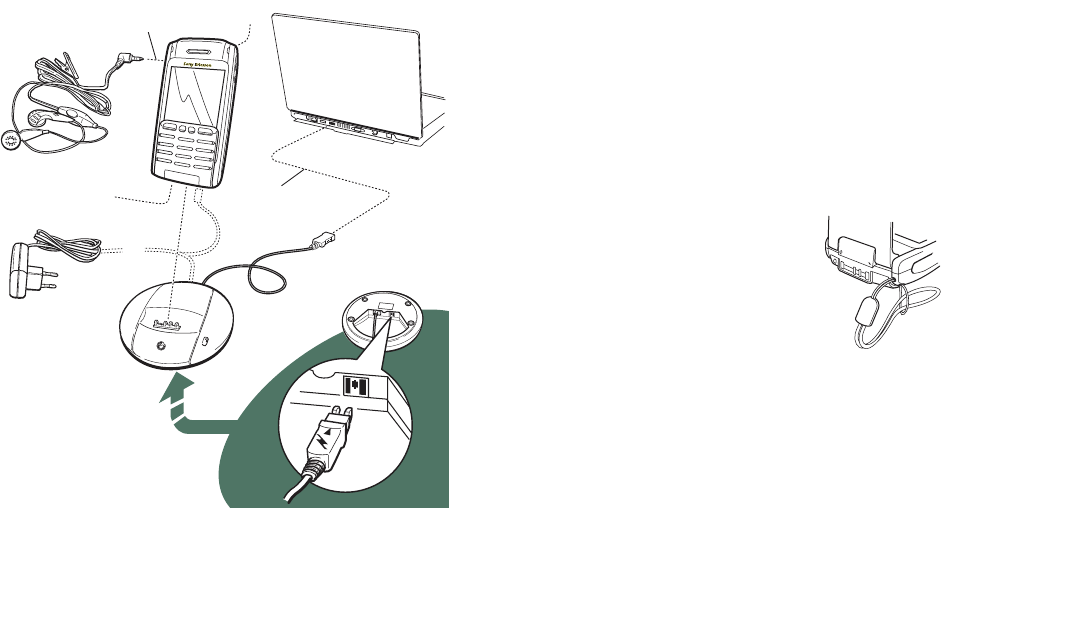

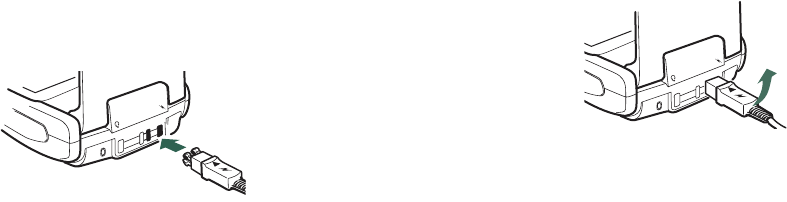

Connecting the accessories............................................... 23
Services............................................................................. 24
Applications - overview.................................................... 24
General functions.............................................................. 27
Entering text..................................................................... 31
P900 locks........................................................................ 35
Phone.......................................................................... 38
Call handling with the Flip closed ................................... 38
Call handling with the Flip open...................................... 41
Handling two or more calls.............................................. 44
Call list and call log ......................................................... 45
Hints and smart functions ................................................ 46
Preferences....................................................................... 50
MEDIA
CommuniCorder....................................................... 56
Recording video clips ...................................................... 56
Taking pictures ................................................................ 58
Camera settings................................................................ 59

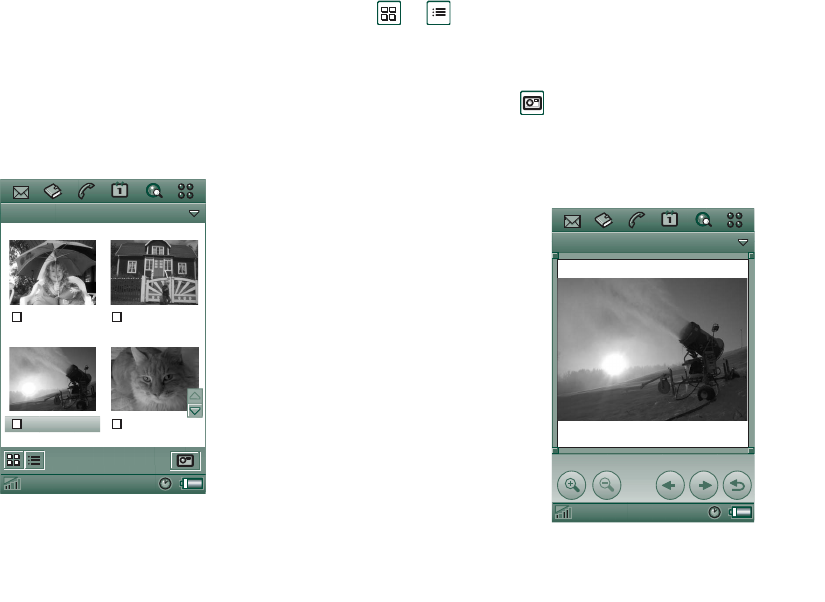

Pictures and Image editor........................................ 61
Pictures ............................................................................ 61
Image editor ..................................................................... 63
Video player .............................................................. 65
Video clips ....................................................................... 65
Streaming ......................................................................... 67
Preferences....................................................................... 68
4
Music player............................................................... 69
Playing sound files............................................................ 69
Managing sound files........................................................ 70
Internet....................................................................... 73
Using the browser view .................................................... 74
Using the bookmark view................................................. 77
Preferences........................................................................ 79
Games......................................................................... 81
Chess................................................................................. 81
Solitaire............................................................................. 81
BUSINESS
Messaging................................................................... 83
Folders in Messaging........................................................ 84
The accounts in Messaging............................................... 85
Handling text messages .................................................... 85
Handling multimedia messages ........................................ 86
Handling emails................................................................ 89
More about messaging...................................................... 92
Contacts...................................................................... 95
Using Contacts with the Flip closed................................. 95
Using Contacts with the Flip open.................................... 97
Creating and editing contacts............................................ 98
Managing contacts.......................................................... 100
Making an owner card .................................................... 100
Preferences...................................................................... 101
Calendar .................................................................. 102
Creating calendar entries................................................ 102
Managing calendar entries ............................................. 103
Sending and receiving calendar entries.......................... 104
Preferences..................................................................... 104
Tasks ........................................................................ 105
Creating task entries....................................................... 105
Managing task entries .................................................... 106
Moving task entries........................................................ 106
Sending and receiving task entries................................. 107
Preferences..................................................................... 107
Jotter ........................................................................ 108
Creating and editing notes ............................................. 108

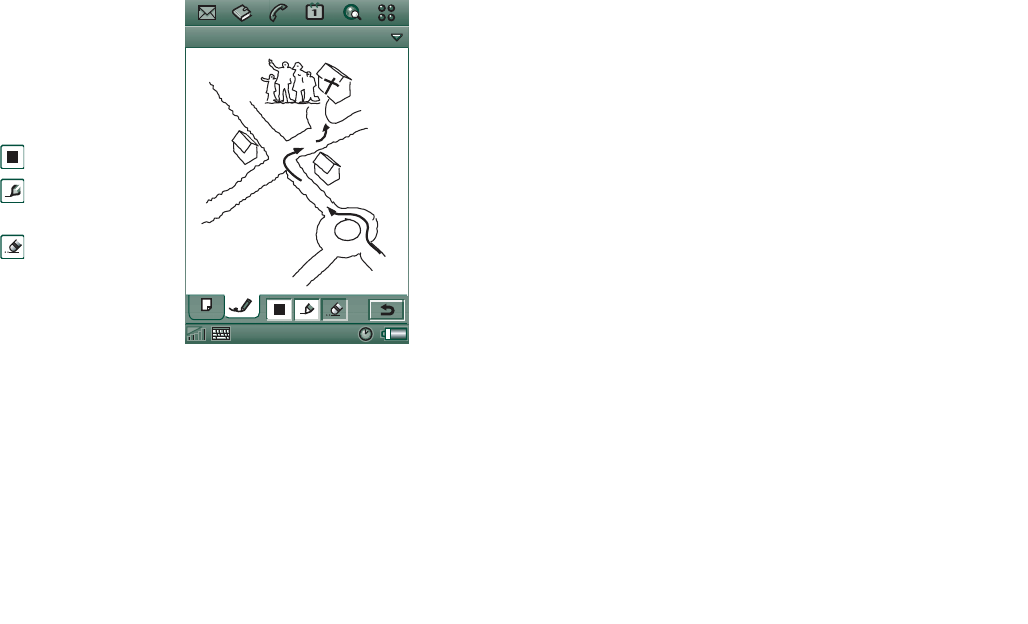

Drawing pictures............................................................ 109
Managing notes.............................................................. 109
Sending and receiving notes .......................................... 109
TOOLS
Sound recorder........................................................ 110
Making sound recordings............................................... 110
Using sound recordings as ringtones ............................. 111
Sending sound recordings.............................................. 111
Calculator ................................................................ 112
Time.......................................................................... 113
Setting time and date...................................................... 113
Specifying workdays...................................................... 114
5
Setting locations ............................................................. 114
Setting number formats .................................................. 114
Setting alarms ................................................................. 115
Viewer....................................................................... 116
Common viewer functions.............................................. 116
Viewing Word documents.............................................. 117
Viewing Excel spreadsheets ........................................... 117
Viewing PowerPoint presentations and PDFs................ 118
File manager ............................................................ 119
Online services......................................................... 121
ADVANCED FUNCTIONS
PC Suite and multimedia for P900 ........................ 122
PC Suite for P900 ........................................................... 122
Multimedia for P900....................................................... 123
Installing applications............................................. 124
Installing applications on your P900 .............................. 124
Removing applications from your P900......................... 126

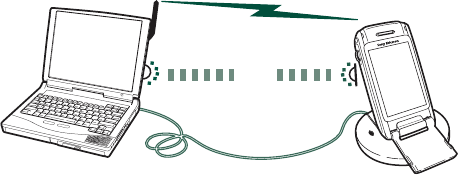

Connecting to other devices.................................... 127
Connection via SyncStation............................................ 127
Connection via the Infrared port..................................... 128
Connection via Bluetooth wireless technology .............. 129
Synchronization and backup.................................. 132
Local synchronization..................................................... 132
Remote synchronization ................................................. 133
Backing up data ............................................................. 134
Restoring data ................................................................ 135
SETTINGS
Personalizing your P900......................................... 136
Themes........................................................................... 136
Changing your application shortcuts ............................. 136
Setting a wallpaper picture ............................................ 136
Setting a screensaver...................................................... 136
Adding images to your Contacts.................................... 137
Ringtones ....................................................................... 137
Alarm tones and sound notification............................... 138
Control panel........................................................... 139
The Device tab
Application shortcuts ..................................................... 139
Display........................................................................... 139
Flight mode.................................................................... 140
International................................................................... 141
Locks.............................................................................. 141
Sounds and alerts ........................................................... 141
Text input....................................................................... 143
Themes........................................................................... 143
Time & date ................................................................... 143
User greeting.................................................................. 144
The Connections tab
Bluetooth........................................................................ 145
Cable .............................................................................. 146
6
GSM Networks ............................................................... 146
Infrared ........................................................................... 146
Internet accounts............................................................. 147
Messaging accounts........................................................ 151
WAP accounts ................................................................ 156
The Other tab
Certificate manager......................................................... 157
Flip removed................................................................... 158
Format disk ..................................................................... 158
IP security manager ........................................................ 159
Language selection ......................................................... 159
Master reset..................................................................... 159
Secure tokens.................................................................. 160
Storage manager ............................................................. 160
WIM PIN settings........................................................... 161
Getting started with Internet and Messaging....... 163
Introduction..................................................................... 163
Automatically set up service provider and messaging ... 164
Manually set up the service provider.............................. 164
Manually set up Messaging ............................................ 165
Setting up WAP accounts ............................................... 166
Using your P900 as a modem ......................................... 166
GPRS - connection information...................................... 168
REFERENCE
Troubleshooting ...................................................... 170
Guidelines for safe and efficient use...................... 174
Limited warranty............................................................ 176
FCC Statement ............................................................... 178
Environmental information............................................ 178
Declaration of Conformity............................................. 178
Terms and definitions............................................. 179
Technical data ......................................................... 187
Index......................................................................... 190
7
Sony Ericsson P900
User Guide
Second edition (November 2003)
This User Guide is published by Sony Ericsson Mobile Communications AB,
without any warranty. Improvements and changes to this User Guide necessitated
by typographical errors, inaccuracies of current information, or improvements to
programs and/or equipment, may be made by Sony Ericsson Mobile
Communications AB at any time and without notice. Such changes will, however,
be incorporated into new editions of this User Guide.
©Sony Ericsson Mobile Communications AB, 2003. All rights reserved.
Publication number: AE/LZT 108 6634 R1B
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any
use of such marks by Sony Ericsson is under license.
This product contain QuickView Plus and Outside In which are © 1992-2002
Stellent Chicago Inc. All rights reserved.
QuickView Plus and Outside In are trademarks or registered trademarks of Stellent
Chicago Inc.
Symbian and all Symbian-based marks and logos are trademarks of Symbian
Limited.
Memory Stick® Duo™ is a trademark of Sony, its parent and/or its affiliates.
Beatnik is a trademark of Beatnik, Inc.
Java™ and all Java-based trademarks and logos are trademarks or registered
trademarks of Sun Microsystems, Inc. in the U.S. and other countries.
Other product and company names mentioned herein may be the trademarks of
their respective owners.
Copyright © SyncML initiative Ltd. (1999-2002). All rights reserved.
Portions of software © PacketVideo Corporation (USA) 1999, 2002. PacketVideo,
pvPlayer and the PacketVideo logo are trademarks of PacketVideo Corporation.
All rights reserved.
This product contains software copyright © Beatnik, Inc.
1996-2002.
End-user license agreement for Sun™ Java™ J2ME™:
1. Restrictions: Software is confidential copyrighted information of Sun and title to
all copies is retained by Sun and/or its licensors. Customer shall not modify,
decompile, disassemble, decrypt, extract, or otherwise reverse-engineer Software.
Software may not be leased, assigned, or sublicensed, in whole or in part.
2. Export Regulations: Software, including technical data, is subject to U.S. export
control laws, including the U.S. Export Administration Act and its associated
regulations, and may be subject to export or import regulations in other countries.
The Customer agrees to comply strictly with all such regulations and
acknowledges that it has the responsibility to obtain licenses to export, re-export,
or import Software. Software may not be downloaded, or otherwise exported or re-
exported (i) into, or to a national or resident of, Cuba, Iraq, Iran, North Korea,
Libya, Sudan, Syria (as such listing may be revised from time to time) or any
country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S.
Treasury Department's list of Specially Designated Nations or the U.S. Commerce
Department's Table of Denial Orders.
3. Restricted Rights: Use, duplication or disclosure by the United States
government is subject to the restrictions as set forth in the Rights in Technical Data
and Computer Software Clauses in DFARS 252.227-7013(c) (1) (ii) and FAR
52.227-19(c) (2) as applicable.
Any rights not expressly granted herein are reserved.
Note Some of the services in this User Guide are not supported by all networks.
This also applies to the GSM International Emergency Number 112. Please contact
your network operator or service provider if you are in doubt whether you can use
a particular service or not.
Important
Your cellphone has the capability to load, store and forward additional content, e.g.
ring tone melodies. The use of such content may be restricted or prohibited by
rights of third parties, including but not limited to restriction under applicable
copyright laws. You, and not Sony Ericsson, are entirely responsible for additional
content that you download to or forward from your cellphone. Prior to your use of
any additional content, please verify that your intended use is properly licensed or
is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity
or quality of any additional content or any other third-party content. Under no
circumstances will Sony Ericsson be liable in any way for your improper use of
additional content or other third party content.
8Introduction
OVERVIEW
Introduction
For ease of reference, the ‘Getting to know your P900’ chapter
provides a quick overview of the main functions of the phone,
shortcuts and general information.
Your P900 combines advanced business and entertainment
features in one intuitive device.
Its integrated camera lets you take pictures and record video
wherever you are and use them in a wide range of applications.
The pictures can be used in the Picture Phone Book, where they
can be used to identify callers.
MMS (Multimedia Messaging Service) allows you to send and
receive messages that include pictures, sound, text and voice
notes.
The P900 features advanced entertainment functionality that
offers high-quality MP3 music and widescreen format video
clips and 3D games. New content can be downloaded quickly
and easily from Web sites or transferred to the phone via
Bluetooth™ Wireless Technology, an infrared port or a cable.
Extra memory is available via the Memory Stick® Duo™, which
also serves as a convenient way to exchange content and
applications such as Java™ games.
The P900 can be used as a corporate phone with Ericsson
MD110® and Business Phone® exchanges.
The P900 also contains an organizer,
which includes contacts, a calendar,
notes and email, all of which can be
quickly and efficiently synchronized
with a PC. The email application
supports attachments. Viewers let you
read documents in various formats,
such as Microsoft® Word, Excel and
PowerPoint.
The complete P900 documentation
consists of the following parts:
• Quick Guide
•User Guide
• Instruction for removing the Flip
• Help texts in the P900
• Complementary information on the Internet, refer to
www.SonyEricsson.com
• Information on the
PC Suite for P900
CD
Getting to know your P900 9
Getting to know your P900
P900 package
Note The design of the charger varies according to the market.
Note If your package does not include all the listed items above,
please contact your retailer.
Note Before you can use your P900, you must insert the SIM
card, and insert and charge the battery. Always detach the
charger before inserting or removing the SIM card.
B
C
A
D
E
F
H
J
K
M
P900
L
G
AP900 with stylus
BBattery
CTravel charger
DSyncStation
EStereo headset
FProtective bag and strap
GExtra stylus
HCover and tool set - Flip replacement
JMemory Stick Duo
KMemory Stick Duo adapter
LUser documentation package
M 2 CDs, PC Suite for P900 and Multimedia for P900
10 Getting to know your P900
P900 overview
AIndicator light for Bluetooth wireless technology (blue)
BScreen
CFlip (in open position)
DIndicator light for network and battery (green/red)
ECommuniCorder activation and shutter release
FInternet button for activation of the browser
GSlot for Sony Memory Stick Duo
A
B
C
D
F
G
E
AStylus
BExternal antenna connector
CCommuniCorder
DBattery compartment
EConnector for accessories and charger
FConnector for stereo headset
GJog Dial
HInfrared port
IOn/Off button
AF
G
H
I
E
D
B
C
Getting to know your P900 11
SIM card
When you register as a subscriber
with a network operator, you receive a
SIM (Subscriber Identity Module)
card. The SIM card contains a
computer chip that keeps track of your
phone number, the services included
in your subscription and your phone
book information, among other things.
A PIN (Personal Identity Number)
code is supplied with the SIM card
from your operator and must be
entered when switching on your P900.
Open the battery cover and insert the
SIM card as shown in the picture.
Some subscriptions are limited to call
only predefined numbers, so-called Fixed Dialing Numbers
(FDN). To avoid problems when traveling abroad, these
predefined numbers should be defined as international numbers
starting with +, for example +4613244500. In order to speed up
calling while at home, the same numbers can also be added in
the national number format, for example 013244500.
For more information. see ‘Copying contacts to and from the
SIM card’ on page 100.
Battery
Before using your P900 for the first time, charge the battery
provided for at least 4 hours. Use the supplied charger. See
‘Charging the battery’ on page 12.
Insertion and removal
To insert the battery
1. Ensure that the Flip is closed.
2. Remove the battery cover by
sliding it downward.
3. Place the battery in the
battery compartment and
close the cover.
To remove the battery
1. Ensure that your P900 is
turned off.
Note It is important to always turn off your P900 before
removing the battery. Failure to do so can result in loss of
information.
2. Remove the battery cover by sliding it downward.
3. Use your fingernail at the lower lefthand edge of the battery
to gently lift the lower edge of the battery outward.
4. Remove the battery.
12 Getting to know your P900
Charging the battery
• When the battery needs to be charged, the phone beeps. The
indicator light (on the top of your P900) flashes red and a
battery low message appears on the screen.
• The battery can be charged at any time. The P900's
performance is not affected. However, using your P900 while
charging increases the charging time.
To charge the battery
The P900 can be charged either when it is switched on or off.
1. Make sure the battery is inserted in your P900 and the cover
is closed.
2. Connect the charger to
the P900 at the base of
the phone by the flash
symbol. The charger
plug flash symbol must
face upward.
3. Connect the charger to
the mains.
Charging is indicated by the battery meter on the screen pulsing
continuously, and the indicator at the top of the P900 showing a
steady red light (or green, if the P900 is switched on).
See also ‘Battery Use and Care’ on page 176.
Tip You can also use other battery chargers that have been
supplied with other Sony Ericsson phones using the same
connector plug, for example, T68i or T300.
Note When the battery is completely discharged, or new, it may
take up to 30 minutes before the battery charging icon appears
on the screen.
4. Wait approximately 4 hours or until the battery meter on the
screen is full and the indicator on the top of the P900 shows a
steady green light.
5. Remove the charger by tilting
the plug upward.
Care instructions
Your P900 is a highly sophisticated electronic device. To get the
most out of it, please ensure that you follow this advice:
• Keep the P900 in its protective bag when not using it.
• Only clean the screen using a commercial glass screen
cleaner sprayed on a cloth.
• Only tap the screen using the stylus provided.
Getting to know your P900 13
First time startup
Please read ‘Guidelines for safe and efficient use’ on page 174
before you start using your P900.
When you start your P900 for the first time
1. Press the
On
/
Off
button to turn on your P900, keeping the Flip
closed. The language selection dialog opens.
2. Select a language from the list. Read more about selecting a
language in ‘Language selection’ on page 159.
3. When you have selected a language, the phone turns off.
4. Open the Flip. Press the
On
/
Off
button again. The
Setup Wizard
starts automatically and guides you through the essential
settings. These include date and time settings, and
information on Jog Dial, text entry, and the status bar. Follow
the onscreen instructions.
5. The
Power menu
opens. Select
Phone on.
6. When the dialog box appears, enter your PIN and press
. Press to delete a digit.
Turning your P900 on and off
By default, the
Power menu
prompts you to choose normal
operation or
Flight mode
every time you press the
On
/
Off
button.
These settings can be turned off. See ‘To use the Power menu’
on page 47.
In
Flight mode
the phone and Bluetooth functions are switched
off, but you can still use the other functions. Set your P900 to
Flight mode
in locations where the use of cellphones is
prohibited. You can also use
Flight mode
if you want to use the
other functions but do not want to receive incoming calls.
Importing phone book entries
You may want to import existing contact information from
another phone into your P900. This can be done in several ways:
• Beam the phone book entries from the other phone by
infrared or Bluetooth wireless technology and save the set to
Contacts
. See ‘Creating and editing contacts’ on page 98.
• Synchronize the SIM and the internal memory on the other
phone with one of the PC PIM applications supported by
your P900. Then you can synchronize this information with
Contacts
.
Note When you synchronize
Contacts
with your PC PIM
application, the SIM information will not be synchronized. You
might get two versions of the same contact. See
‘Synchronization and backup’ on page 132.
• Phone book entries stored on your SIM card are accessible
through
Contacts
. Select
SIM
in the folders menu to the
right in the menu bar to see the list of entries in your SIM
14 Getting to know your P900
phone book. These entries can be imported to
Contacts
.
See ‘Copying contacts to and from the SIM card’ on
page 100.
Operational modes
The P900 works in different operational modes:
Flip closed
With the keypad Flip closed, the P900 can be used like a
conventional cellphone using the keypad to dial and Jog Dial to
navigate. For more information, please see ‘Jog Dial’ on
page 18 and ‘Keypad functions’ on page 19.
You can open the Flip at any time to continue working. Many
more functions are available when the Flip is open.
Flip open
When the Flip is open, the large touchscreen is revealed. You
use the stylus to tap the screen to navigate and enter data. There
is also a handwriting recognition feature, so you can use the
stylus to write on the screen.
Jog Dial provides further navigation and selection capabilities.
Closing the Flip generally ends an activity and saves the data.
Multimedia phone calls and data sessions will, however,
continue.
Flip removed
The Flip can also be removed, which makes the organizer
applications easier to access. When the Flip is removed, the
P900 works in Flip open operational mode.
Note Turn off the P900 before you remove the flip to avoid
damaging your phone.
Getting to know your P900 15
Flip closed mode
Standby view
The standby view shows shortcuts to the most commonly used
applications. Choose which shortcuts you want to use in
standby. See ‘Personalizing your P900’ on page 136.
Selecting and starting applications
Rotate Jog Dial to select an application. Press Jog Dial or
to start the application.
Tip When view is selected, it is also possible to start an
application by pressing its specific number.
Closing applications
The current application automatically closes and the data is
saved when you return to the standby view or switch to another
application. To return to standby, press and hold or press Jog
Dial backward.
Options menu
Press
or press Jog Dial forward to open the standby
options menu to get access to keylock, battery status, missed
calls and more.
Sony Ericsson
Sony Ericsson
Call list
Call list
11:20am 21/06/2004
11:20am 21/06/2004
CommuniCorder
Music player
Messages
Contacts
Calendar
Tasks
Jotter
1
2
3
4
5
6
7
8
Sound recorder
9Connections
Applications
CommuniCorder
Music player
Messaging
Contacts
Calendar
Tasks
Jotter
1
2
3
4
5
6
7
8
Sound recorder
Applications
C
D
E
B
A
OK
C
OK
C
AShortcut to Messaging application
BShortcut to Contacts application
CShortcut to Call list application
DShortcut to Calendar application
EShows all applications available in Flip closed mode
16 Getting to know your P900
Flip open mode
You can change the shortcuts A-E. See ‘Changing your
application shortcuts’ on page 136.
Navigation
When the Flip is open, the application shortcut icons shown in
the Flip closed mode move to the top row in the Flip open
screen. You navigate by using the stylus and tapping selected
items and by using Jog Dial, see ‘Jog Dial’ on page 18.
Flip removed
You can use your P900 without the physical Flip. When the Flip
is removed, the P900 works in Flip open mode.
To remove and attach the Flip, refer to the separate instructions.
Note Please note that Sony Ericsson does not accept any
liability for lost parts or product defects resulting from any
disassembly or modification of the product.
CommuniCorder
Pictures
Video
Music player
Internet
Messages
Contacts
Phone
Calendar
Tasks
Jotter
Sound recorder
Calculator
Time
Viewer
Remote Sync
Online services
Control panel
Demo
GPRS data log
Chess
Solitaire
CommuniCorder
Pictures
Video
Music player
Internet
Messages
Contacts
Phone
Calendar
Tasks
Jotter
Control panel
Calculator
Applications View All
A
BCDE
F
File manager
i
AShortcut to Messaging application
BShortcut to Contacts application
CShortcut to Phone application
DShortcut to Calendar application
EShortcut to Internet application
FShows all applications available in Flip open mode
Getting to know your P900 17
Virtual flip
When the virtual flip is enabled, is shown on the status bar
when the virtual flip is open. Select to ‘close’ the virtual
flip.
When the virtual flip is closed, the virtual flip keypad is shown.
Select to ‘open’ the virtual flip.
You must activate the virtual flip, when you have removed the
Flip keypad, by tapping the
Enable virtual flip
checkbox in
Control Panel > Device > Flip removed.
Screen areas
When the Flip is closed, you use the keyboard and Jog Dial.
When the Flip is open, the screen is touch-sensitive. The screen
is divided into a number of areas: see the figure and table below.
E
F
C
B
John Smith
+4613244500 (h)
11:03
End call
Chat Edit
I
n
t
e
r
n
e
t
E
di
t
A
B
C
D
E
Sony Ericsson
Sony Ericsson P900
Item Description
A Application
picker
Displays six icons for quick and easy access to the
most common applications. These can be customized.
B Menu bar Usually contains two menus on the left, and a folder
menu on the right. The two lefthand menus contain:
• the application menu, whose name is always the
same as the application. It contains the system
services used by most applications, such as
Find
,
Send as
, and
Delete
.
• The edit menus contain editing items such as
Cut
,
Copy
,
Paste
,
Zoom
,
Preferences
and
Help.
In Flip open, the menu bar shows the function of the
key.
C Application
area
Applications use this central area of the screen to
display the essential information.
Many of the built-in applications are based on two
standard view layouts: a list view and a detail view.
D Button bar An application view displays a button bar that
contains useful controls and shortcuts. Not all
application views require a button bar.
E Status bar Displays device status information such as: signal
strength, battery and device information, settings for
sounds and time, onscreen keyboard, as well as
temporary indicators such as missed calls and unread
messages.
F Title bar Displays the name of the active application.
18 Getting to know your P900
Jog Dial
Action Function
Rotate Jog Dial (up) Scrolls items in a list up / to the left,
increases volume during a call, moves
back a page when playing a
multimedia message.
Rotate Jog Dial (down) Scrolls items in a list down / to the
right, decreases volume during a call,
moves forward a page when playing a
multimedia message.
Press Jog Dial (inward) Selects a highlighted item, dials
selected phone numbers. Generally the
same action as in Flip closed.
Press Jog Dial (backward) Goes back to the previous screen,
dismisses dialogs, and sends a busy
signal to the calling party when you
receive a call. It will not end a call.
Always the same action as in Flip
closed and in Flip open.
Press Jog Dial (forward) Flip closed: brings up the Options
menu. Press and hold takes you to the
Applications list.
Flip open: toggles the Application,
Edit and Category menus. Press and
hold takes you to the Application
launcher.
Up
Down
Inward
ForwardBackward
Getting to know your P900 19
Keypad functions
Key Function
OK Enter selected function, indicated on the
display above the key.
BACK
• Return to previous menu.
• Reject an incoming call.
• Press and hold to return to Standby.
CLEAR
• Delete entered characters/digits from the screen
one by one.
• Press and hold to delete an entire row of entered
characters/digits.
• Delete an entry from Contacts, Calendar, Tasks,
Sound Recorder, and Messaging.
• Press and hold to disconnect the microphone
(mute function) when a call is in progress.
• Mute the ring signal during an incoming call.
• Pause/play the ringtone when the Music player is
open.
• Press and hold to put the P900 into silent mode,
when in the standby view.
OPTIONS
• Open the menu with different options for different
applications.
• Press and hold to open Applications.
STAR
• Enter the character
*
.
• Press and hold to enter a
p
(pause) character.
• Press to switch between different input modes
(Abc, 123 ... ). This is useful when writing SMS
messages or similar texts.
• Press and hold to toggle between T9 and multitap.
HASH
• Enter the character #.
• Press and hold to see a list with special characters.
• Terminate the input of PIN and security codes.
• Retrieve a phone number from the SIM card
phone book. Enter the number of the memory
position and then press .
- NUMERIC KEYS
• Enter the digits 0 to 9.
• Enter associated characters or perform associated
functions. See ‘Shortcuts’ on page 40.
• Press and hold digits 1 to 9 to open Contacts.
Key Function
20 Getting to know your P900
Indicators and status bar icons
These icons appear in the Flip closed standby screen or in the
status bar when the Flip is open. When the Flip is open, you can
often tap the icons to get more detailed information or start an
application.
Icon Function
Signal strength, GPRS status
Battery strength
Bluetooth on
Bluetooth discoverable
Infrared on
GPRS active
GPRS data transfer in progress
Ongoing data call
Ongoing call
Missed call
Forward all calls notification
Calls screened
SMS notification
MMS notification
Email notification
SMS overflow
Time
Time, alarm set
Keylock
Magic word
Keyboard
Multimedia volume
Speakerphone
Muted microphone
Silent mode
Home network
Voicemail notification
Icon Function
Getting to know your P900 21
Memory Stick
®
Duo™
The Memory Stick Duo provides a convenient way of increasing
the storage space in your P900. You can save still images, video
clips, music, and voice recordings as well as computer data and
applications on a Memory Stick Duo and use it to store or
transfer the contents for many different purposes. These include:
• Storing backup copies of important files.
• Storing media for personalizing your P900.
• Storing media for use when composing MMS messages.
• Storing installation files for new applications.
• Transferring data between the P900 and a PC or Mac.
• Providing storage for third-party applications.
To insert the Memory Stick Duo
1. Open the cover for the Memory
Stick Duo slot.
2. Insert the Memory Stick Duo in
the slot, with the connector side
toward the back (see picture).
Make sure it is securely inserted.
A click should be heard.
Note Insert the Memory Stick Duo
correctly to avoid damaging your
P900 or the Memory Stick Duo.
The Memory Stick Duo supplied with the P900 may or may not
be a version that contains the lock function. Remember, you can
overwrite existing files without the lock function.
To remove the Memory Stick Duo
Press the edge of the Memory Stick Duo using your fingernail or
the stylus to release it. You hear a click as it jumps out of the
slot.
Note Be careful when removing the Memory Stick Duo to avoid
dropping it.
Renaming a Memory Stick Duo
You can rename a Memory Stick Duo to give it a name that is
meaningful to you. The name you set will be shown in the
divider between internal and external storage in the folder menu.
See ‘Folders’ on page 27. There are two ways to rename a
Memory Stick Duo:
• Select
Control Panel > Other > Format disk
and tap
Rename
.
See ‘Format disk’ on page 158.
• Select
File manager > File > Format disk
and tap
Rename
.
Renaming will not erase any data.
Copying and moving data
For information on how to copy and move data to and from the
Memory Stick Duo, refer to ‘Folders’ on page 27.
SONY
Memory Stick Duo
8
MB
22 Getting to know your P900
Reformatting a Memory Stick Duo
If you need to reformat a Memory Stick Duo, select
Control
Panel > Other > Format disk
, or select
File manager > File > Format
disk
. When you reformat a disk, you delete all the information
on it, including any applications that you may have installed.
Sharing data with other devices
Your P900 uses the shorter memory stick variant, Memory Stick
Duo.
Memory Stick Duo Adapter
Use the Memory Stick Duo adapter when using your Memory
Stick Duo in a device equipped with a regular-sized Memory
Stick, for example a personal computer. Insert your Memory
Stick Duo according to the picture on the adapter.
Warning! Do not insert a Memory Stick Duo adapter without a
Memory Stick Duo into a Memory Stick slot. This may damage
the product. Always insert the adapter in the slot with the
connector end (marked with a triangle) first.
Compatibility
The P900 defines its own folder structure on a Memory Stick.
Each application has its own set of folders. A folder created in
one application is not visible in another.
Other devices must access the same folder structure to interact
with the P900 files. If you are using a PC, this is easily done by
browsing to the required folder on the Memory Stick.
Memory Stick-enabled devices which do not allow you to
browse and manage a folder structure may not be able to share
data directly with the applications in your P900 (for example,
Memory Stick-enabled digital cameras). However, the File
Manager can access these files and move them into the correct
folders for use by the applications. When your P900 is
connected to your PC, you also have access to the P900 folder
structure as well as other Memory Stick Duo content in
My P900
.
Personal computer support
Both PCs and Apple computers may be enabled for Memory
Stick use via built-in Memory Stick slots, Floppy Disk adapters,
PC card adapters, and Memory Stick-enabled mouses. (Memory
Stick Duo Adapter required.)
For more information about the Sony Memory Stick, visit
www.memorystick.com.
Getting to know your P900 23
Connecting the accessories
The wrist strap is threaded
through the holes next to the
connector at the bottom of the
P900.
E
B
∆
A
AThe travel charger is connected to the desk stand or to the P900.
Note The design of the charger varies according to the market.
BThe USB connector from the desk stand is connected to a PC.
CThe headset is connected to the P900.
DOther accessories can be connected to the connector at the base of
the P900.
EA car holder can be connected to the antenna connector at the rear.
Note Remove the plastic plug before connecting the P900 to the
car holder.
24 Getting to know your P900
Services
You need the following services to use the P900 functions:
Please consult your network operator and Internet service
provider for more information about the services available to
you.
Applications - overview
You can start applications in different ways. Select icons in the
standby view (Flip closed) and in the application picker (Flip
open) to start the most important ones. Select to list all
applications.
Demo application
The Demo application shows some of the most common
functions in your P900.
You can uninstall the demo application and also reinstall it from
the
Multimedia for P900
CD. See ‘Removing applications from
your P900’ on page 126 for how to uninstall the demo
application and ‘Installing applications on your P900’ on
page 124 for how to reinstall it.
To start the demo
1. Select the Applications icon .
2. Select the Demo icon .
The demo starts.
To stop the demo
Tap the screen or rotate Jog Dial to stop the demo.
The demo also stops when any other dialog is opened.
Note When the Flip is open, an incoming text or MMS message
will not stop the demo.
The Demo application can be launched also when the P900 is
started without a SIM card inserted. When the P900 asks you to
insert the SIM card, just press OK. If the Flip is closed, open it.
Phone
This is the cellphone application. When the Flip is opened,
select to start it.
To use... You need...
phone services GSM subscription
text messaging (SMS) GSM subscription
multimedia messaging (MMS) MMS account, GSM data subscription
email email account, GSM data subscription
Internet Internet account, WAP account (only
for WAP 1.x services), GSM data
subscription
data communication GSM data subscription
Getting to know your P900 25
Call list
The call list displays the most recent calls, either outgoing,
incoming or missed. In Flip closed, press Jog Dial or to
call the selected entry. To view the call list when the Flip is
open, open
Phone
and
select the
call list view by tapping the
icon.
CommuniCorder
For taking video clips and still pictures. In CommuniCorder
view, the screen becomes a viewfinder. Press the
CommuniCorder button or Jog Dial to start recording or take a
photo. Alternatively tap the red button at the bottom of the
screen.
Pictures (Flip open only)
Manages your pictures. You can take pictures with
CommuniCorder, or receive them via email, Bluetooth wireless
technology and infrared communication. Download via the
Internet browser, or transfer them from your PC. With the image
editor, you can also edit your pictures.
Video (Flip open only)
Plays video clips. You can record video with CommuniCorder,
download them from the Web or transfer them from your PC.
You can stream video and audio from the Web
Music player
Plays music tracks and other audio files. You can download
them from the Web or transfer them from your PC. The player
supports the most common sound formats. You can save music
tracks on the Memory Stick Duo.
Internet (Flip open only)
The Internet browser can access both Web and WAP pages. It
can also download images, video clips, audio files, and Java
applications.
Messaging
You can read, create, send and delete text (SMS), multimedia
(MMS) and email messages in this view.
Contacts
Displays a list of your contacts. Select a contact to view
associated contact data.
Calendar
The Calendar view displays entries for the current day. Use Jog
Dial to get more information about a selected entry or to change
days.
Tasks
Keeps track of your tasks. Set due date, alarm, priority, and so
on, for all your tasks and let your P900 remind you in time.
26 Getting to know your P900
Jotter
Displays a list of stored entries. In detailed view, the complete
entry is displayed.
Control panel (Flip open only)
Contains all settings that are systemwide and affect more than
one application. This is the main view to use when initially
setting up your P900.
Note Settings for Flight mode and P900 locks are located under
Control panel > Device
Calculator (Flip open only)
A standard 10-digit calculator. You can add, subtract, multiply,
divide, calculate square roots and percentages.
Sound recorder
You can use your P900 as a sound recorder.
Time (Flip open only)
Shows time and date. You can set your current location and
another. You can also set different alarms.
Viewer (Flip open only)
Use it to view various types of documents: for example,
Microsoft® Word, Excel, Power Point, Adobe® Acrobat®
(PDF files).
File manager (Flip open only)
You can handle the content and organization of media, both in
the P900 and on the Memory Stick Duo
Remote Sync (Flip open only)
Performs over-the-air synchronization. Using GPRS, the P900
can be continuously connected to the remote synchronization
server. Remote Sync works equally well over CSD or HSCSD.
Online services
Your service provider may offer different services, for example,
weather forecasts, financial information or newsletters. Contact
your service provider for more information.
GPRS data log (Flip open only)
A list of GPRS Internet accounts. Open an account to view your
logged GPRS traffic, including your costs. The P900 creates a
new data log when a connection to an account is created.
Connections (Flip closed only)
Configure the way you communicate with your PC or other
devices. Select between infrared, Bluetooth wireless technology
and cable. In the cable menu, you can also select whether the
P900 synchronizes with a PC or acts as a wireless modem.
i
Getting to know your P900 27
General functions
Application launcher views
In Flip open, the P900 can present the applications in two ways:
• List view (small icons appear in one column)
• Icon view (large icons appear in two columns)
Folders
Folders are used to organize information, for example contacts,
jotter entries, or task lists. You might want to organize your
contacts in business and personal folders.
Folders are also used when managing files of different types on
your P900 and Memory Stick Duo. You might want to move or
copy sound files into a sound track folder to store on a Memory
Stick Duo.
As you may notice, if you connect your P900 to a PC and view
the contents of your P900 in
My P900
, it is easier to get an
overview of a folder and file structure on a large screen than on
a handheld device. If you make it a habit to set up specific
folders to suit your needs and use them to categorize all your
information, working with it becomes easy.
Each application has its own set of folders. A folder created in
one application is not visible in another.
For each application there is a default
Unfiled
folder. Since there
is no way of seeing on your P900 whether a file in an
Unfiled
folder is located on your P900 or on a Memory Stick, we
recommend that you move files to your own folders as soon as
possible.
Every item created in an application is always assigned to a
single folder, by default the same folder as displayed in the list
view.
In list view, the folder menu is used to organize your entries. In
detail view, the folder menu allows you to change the folder of
the current item.
Using the folder menu
In the applications that use folders, you can see the folder menu
to the right in the menu bar.
When a Memory Stick Duo is available in the P900, the folders
on it are shown in the folder menu under the divider. If you
rename the disk (see ‘Renaming a Memory Stick Duo’ on
page 21), the divider will show the new name.
In list view, there is a superfolder called
All,
which, when
selected, displays items from all folders (in
Contacts
, the
All
folder does not display the entries in the SIM phone book).
All
is
the default value in list views and when an application is first
launched.
28 Getting to know your P900
Use the
Edit Folders
menu item to:
• Rename a folder, or move a folder to or from Memory Stick
Duo. Select the folder you want to move or rename, tap
Edit
,
type the name of the new folder, and select a
Location
from
the list. Tap
Done
.
•To
Add
a new folder. Tap
Add
, enter a folder
Name
and select a
Location
from the list
.
Tap
Done
.
•To
Delete
a folder. Select the folder you want to delete and tap
Delete
. A folder can only be deleted if it is empty. Not all
folders can be deleted.
To copy all the files in a folder to another folder
1. Open the folder in list view, and select
Copy to
in the
main
application menu; for example
Audio
or
.
2. Select the destination
Folder
from the list and select
Copy.
To move a file from one folder to another
Open the file in detail view. In the folder menu, select the
destination folder.
To copy a file to another folder
1. Open the file in detail view. In the folder menu, select the
destination folder. Select
Copy to
in the
main application
menu; for example
Audio
or
.
2. Select the destination
Folder
from the list and tap
Copy.
Tip To delete multiple files in an application, you can use
Storage manager. See ‘Deleting or copying general files’ on
page 161.
Managing your files
Using the File Manager, you can handle the content and
organization of media, both in the P900 and on the Memory
Stick Duo. See ‘File manager’ on page 119.
You can also use the Storage Manager in the Control Panel. See
‘Storage manager’ on page 160.
Zooming
You can change the size of the screen fonts. Choose between
Small, Medium or Large. From the menu bar, tap
Edit > Zoom.
Automatic saving
When you work in an application and leave it, your work is
automatically saved.
Find
The Find function searches through all the items stored in an
application. The standard
Find
dialog contains a single text edit
box with two buttons,
Find
and
Cancel
. Selecting
Find
starts the
search, while
Cancel
closes the
Find
dialog.
Getting to know your P900 29
In some applications, for example Messaging, Find may be
more complicated:
• The size of each message is so large that you may want to
restrict the search to the current message only.
• Folders are potentially more significant, so you may want to
restrict the search to the current folder only.
Sorting your files
You can sort the files you have stored in your P900. By sorting
your files, you choose in which order you want the files to be
displayed on the screen. You can choose between sorting by, for
example, type, size, date, or name.
Note Sort is not included in all applications.
Sending and receiving items
From many applications, it is possible to exchange items like
appointments, contacts and images.
To send an item using Send as
1. Enter the
Send as
menu in the specific application.
2. Depending on the application and item, you can choose
between the following transfer methods:
• Text message (using SMS): The P900 will create a new text
message. Add the phone number of the recipient and tap
Send
.
• Email: the P900 will create a new message with the item
included as an attachment. Complete with address and
subject, and tap
Send
.
• Multimedia message (using MMS): the P900 will create a
new message with the item included as an attachment.
Complete the message and tap
Send
.
• Infrared: align the infrared port of the P900 with the infrared
port of the other device. Select
Send
.
Progress messages on
screen will tell you when the information has been
transferred.
• Bluetooth wireless technology: the P900 will search the local
area for paired devices. These will be presented in a list.
Select a device to which the item is to be sent and select
Send
. Progress messages will tell you when the information
has been transferred.
Tip The other devices must have Bluetooth wireless technology
enabled. You can select
Refresh
to perform a new search if, for
example, a destination device was not enabled at first.
To handle items received in email and multimedia messages
1. Tap the notification icon , or
open
Messaging
and select MMS or an email inbox.
2. Open the message.
30 Getting to know your P900
3. Select the attachments tab.
4. Select the required attachment. The attachment or a summary
of the attachment will be displayed.
5. Select
Save
to save the item. You may optionally display the
received item within the related application.
See ‘Messaging’ on page 83 for more information.
To receive beamed items
1. Ensure that infrared or Bluetooth wireless technology is
activated.
2. For infrared, ensure that the infrared ports are aligned.
3. The received item will be notified by a dialog box listing the
item(s) received.
4. Select
View
to view and save the item to the related
application. Select
Done
and any unsaved items will be
automatically saved for you in the
Beamed
inbox in
Messaging.
Methods for storing data
Your P900 can store data in different ways:
• Internal memory. Up to 16 MB of capacity for storing
pictures, messages, music, applications, and so on,
depending on applications in use.
• Memory Stick Duo (expansion memory).
• Several other expansion memory alternatives on the market.
• Pictures on Sony Image Station on the Web:
– For Europe: http://www.sonystyle-imaging.com
– For Japan: http://www.imagestation.jp
– For USA: http://www.imagestation.com
• SIM card, for phone numbers and associated names. See
‘Copying contacts to and from the SIM card’ on page 100.
Getting help
From the menu bar tap
Edit > Help
to get to the P900 help system.
The help system uses two views:
• The Topics view shows all available topics, for example both
specific application topics and general topics.
• The Detail view presents the title and text of a single topic.
The Topics view allows you to select a topic, which opens the
detail view/text view and displays the selected topic. You can
also set the zoom level and exit the Help system.
In many dialog boxes you can select the Help icon in the
upper right corner.
Getting to know your P900 31
Settings
For settings that are application-specific, tap
Edit > Preferences
in
the application menu bar. For generic settings, go to
Control
Panel
.
Entering text
Entering text with the Flip closed
With the Flip closed, you use the keypad keys to enter text, for
example, when writing a text message. When you press a key, a
pre-edit box with the different characters on that key is shown in
the title area:
If the same key is pressed again, the next character in the pre-
edit box will be selected.
The key deletes the character to the left of the cursor. If
continuously pressed, the key deletes several characters and
then whole words.
Types of text input
There are four text input types:
• Abc – initial uppercase letter, the rest lowercase. Default for
each new text edit field.
• 123 – numeric entry only
• ABC – uppercase entry
• abc – lowercase entry
When you are editing text you can:
• Press and select
Text options > Input type
to select text
input type.
• Press to switch between the input types in text edit
mode.
Inserting symbols
When you are editing text you can press and, depending
on the application, choose
Add symbol
or
Text > Add symbol
to
select an item from the symbol selector table. Use Jog Dial to
select the row and press . Then scroll within the row to
select a symbol and press .
T9® text input
You can use T9 text input when writing, for example text
messages and email. The T9 text input method uses a built-in
dictionary to recognize the most commonly used word for each
sequence of key presses. This way, you press each key only
once, even when the letter you want is not the first letter on the
key. Press and hold to change input method.
The following example shows how to start writing a text.
To enter letters using T9 text input
1. Select, for example,
Messaging > Create SMS
.
32 Getting to know your P900
2. For example, if you want to write the word ‘Jane’, press
.
During text entry, a suggestion list with word candidates are
presented. The most frequently used word is highlighted.
3. If the word is the word you want:
– Press to accept and add a space.
(To accept a word without adding a space, press .)
If the word is not the one you want:
– Scroll up or down with Jog Dial to view alternative words
(candidates). Press to accept the word and add a
space.
If you do not find the word you want:
– Press to go to a list of options.
– Select
Text options > Spell word
.
– Edit the word using multitap text input and press
Yes
.The
word is added to the user dictionary. The next time you
enter the word, it will appear as one of the alternative
words.
4. Continue writing your message.
Press to enter a full stop. To enter other punctuation
marks, press and use Jog Dial.
If you press and select
Text options
when writing, you get a
list of options:
•
Spell word
, to edit the entered word.
•
My words
, to view the user dictionary.
•
Language
, to change language.
•
Show suggestion list
/
Hide suggestion list
, to switch the
candidates window on and off.
•
Use T9
/
Use multitap
, to switch between T9 text input and
multitap text input
•
Add symbol
, adds symbols and punctuation marks.
•
Input type
, changes the text input type between
Abc
,
abc
,
ABC
and
123
.
•
Copy all
/
Paste
, to copy all text to the clipboard, and for
pasting the copied text to the place of the text cursor.
Entering text with the Flip open
There are two ways of entering text with the Flip open:
• Use the onscreen keyboard located at the bottom of the
screen.
• Write directly on the screen using the stylus.
Getting to know your P900 33
Onscreen keyboard
When you need to edit text,
tap the keyboard icon in the
status bar and then select
characters. Tap
Done
when
ready.
At the bottom left of the
keyboard you can choose
between three keyboard
layouts with different
character sets.
abc
- standard characters
àëó
- international characters
123
- numeric characters and
currencies
The current input field is shown to the left in the top bar of the
keyboard. Tap the arrows or rotate Jog Dial to change the input
field. The keyboard top bar also contains a drop-down menu
with
Cut
,
Copy
and
Paste.
When copying or cutting, the text must
be selected first.
Handwriting recognition
Handwriting recognition
translates stylus gestures
into letters, digits or
other characters, and
displays these characters
as text. Handwriting
recognition is only active
in places where text can
be input.
The text mode screen is
split into an upper and a
lower part, by an arrow
in the middle of the right
edge. Write lowercase
letters below the arrow
and uppercase letters in
line with it. Write digits
above the arrow.
Mark text by putting the stylus on the text, wait a moment, and
drag the stylus over the text.
Note Most letters can be written using different stroke styles.
See the tables below. The style does not determine case. The
position on the screen decides case.
Chat Edit
Calendar Edit Unfiled
Weekly meeting
Type Appointment
The agenda for...
1234567890
qwe r t yu i op
a
cap
abc 123aeo
sd fgh j k l
zxcvbnm.
,?@
Done
Description
Weekly meeting
Chat Edit
Contacts Edit Unfiled
First name
Last name
Job title
Phone (w)
Phone (h)
Mobile (w)
Ring tone Default Rin...
Email (w)
Fax (w)
Web
Jane
Jones
Graphic Desig
34 Getting to know your P900
Letters
Lowercase letters are written below the arrow and uppercase
letters in line with the arrow.
Note Start each stroke at the dotted end.
Accented letters
Write the character as described above, then write the accent
above the arrow. Other such characters, for example, ö and ü,
follow the same principle.
Note Start each stroke at the dotted end.
Numbers
Numbers are written above the arrow.
Note Start each stroke at the dotted end.
a
b
c
d
e
f
g
h
k
l
m
n
o
p
q
r
s
t
u
v
y
z
w
x
12
i
j
1
1
1
1
1
1
2
1
2
2
2
22
2
,
.
«
?
!
&
@
"
or
0
1
2
3
4
5
6
7
8
9
,
.
*
or
+
*
/
\
(
)
=
Getting to know your P900 35
Extended characters
To write symbols and characters that are not shown in these
tables, please consult the Extended characters section of the
Handwriting recognition help topic in your phone.
P900 locks
Use the SIM card lock and the device lock to protect your SIM
card and your P900 from unauthorized use. Use the keylock to
prevent the keys from being accidentally pressed.
Note You can usually make an emergency call without
unlocking the P900.
SIM card lock
The SIM card lock protects your SIM card, not the P900, against
unauthorized use. It is unlocked by the PIN and PUK codes
which you receive from your service provider.
You can choose to have to unlock the SIM card every time you
turn the P900 on, or to have the SIM card unlocked.
Your PIN (Personal Identification Number) code consists of four
to eight digits. If you activate the SIM card lock, the P900 will
ask for the PIN code every time you turn it on. You unlock the
SIM card by entering the PIN code.
To activate the SIM card lock
1. Select
Control panel
> Device > Locks.
2. Select a lock option.
3. Select
Done
.
An error message informs you if a wrong PIN code has been
entered. Usually, the SIM card will be blocked after three wrong
attempts (the number of attempts is SIM card-dependent), and
you need to enter the PUK code to unblock it.
The PUK code consists of eight digits. When you have entered
the right PUK code you must enter a new PIN code. You have
ten attempts to enter the PUK code. If all ten attempts fail, the
SIM card will be disabled and you need to contact your network
operator.
You cannot change the PUK code.
PIN2
Some functions on the SIM card can be protected by a
secondary code feature. Some SIM cards do not have a PIN2
lock.
The PIN2 lock cannot be deactivated. The code can be changed
by a user who knows the old code.
Device lock
The device lock protects your P900 and the data in it against
unauthorized use.
36 Getting to know your P900
If the device lock is set to
When SIM changed
, it means that the
P900 is not normally locked. However, if the SIM has been
changed, the P900 asks you to enter the code to unlock the P900
before you can use it. This means that if someone steals your
P900 and puts another SIM card into it, they will not be able to
use it.
Note Your operator can block your SIM, if you report that your
phone has been stolen.
The device lock is not on when you buy your P900. You can
change the device lock code to any four to eight digit personal
code.
The default device lock code is 0000.
To activate the device lock
1. Select
Control panel
> Device > Locks.
2. Select a lock option.
3. Select
Done
.
You can choose to have the P900 locked every time you turn it
on, locked when the SIM card has been changed, or unlocked.
It is also possible to use the device lock in combination with the
screen saver. Just mark the checkbox
Control panel > Device >
Display > Screen > Screen saver device lock
to have the device lock
activated when the screen saver goes on.
Note When using the screen saving device lock, make sure you
have set the device lock to activate at Power on. Otherwise your
P900 will be unprotected after Power on, until the screen saver
goes on.
Change code
To change a code
1. Select
Control panel
> Device > Locks.
2. Select Change Codes.
3. Select the code you want to change.
4. First enter the old code, then the new one. (To ensure that
you have typed the new code correctly you have to enter it
twice.)
Automatic keylock
This option locks the keys on your P900. This is to protect the
device if the keys are accidentally pressed. When this setting is
active, the Flip closed keypad will automatically lock after a
period of inactivity.
To activate or change the keylock
Select
Control panel
> Device > Locks.
To unlock the keys
Select
> .
Getting to know your P900 37
Screen lock
This option locks the screen of your P900. This is to protect the
device if the screen is accidentally pressed in Flip open mode or
with the Flip removed. When this setting is active, the screen
will automatically become locked after a period of inactivity.
To activate or change the screen lock
1. Select
> Settings
.
2. Select a lock time or
Off
.
To lock the screen
Select
> Lock screen
.
To unlock the screen
Push Jog Dial
Forward > Inward
or
Backward > Inward
.
38 Phone
Phone
The P900 is a fully featured cellphone with complete integration
with the other functions of the device, including applications
from developers outside Sony Ericsson, so-called third-party
applications.
The phone includes useful features such as:
• personalized ringtones.
• Picture phone book
• Quick access back to the entry in Contacts, making it easy to
try an alternative number or send an email if the contact is
unavailable or busy.
• Voice dialing – make a call by speaking the contact’s name.
• Voice answer – an incoming call may be answered or sent a
busy signal, using the words recorded for ‘answer’ and
‘busy’.
• Access to other applications while talking on the phone.
• Office hands-free (speakerphone) which is enabled when the
Flip is open, making it easy to access applications such as
Calendar and Jotter while talking.
• Flight mode, which enables the P900 to be used as a PDA in
situations where radio transmitters may not be used. The
GSM and Bluetooth transmitters (and receivers) are switched
off.
With the Flip closed, you can access most of the functions using
Jog Dial and the keypad. More advanced tasks, such as handling
conference calls or using other applications during a call, are
best handled with the Flip open.
The P900 supports Customer Service Profile (CSP). This means
that some options may be hidden, depending on your
subscription.
Call handling with the Flip
closed
With the Flip closed, you can use either the keypad or Jog Dial
to handle calls.
Outgoing calls
To make a call
Enter the phone number on the keypad and press Jog Dial or
press .
• Press to delete a typed character. Press and hold to
delete all characters
.
• Press and hold to insert the international call prefix
+
.
Phone 39
• Press and select
Hide my number
, if you do not want to
reveal your phone number to the party you are calling. Select
Show my number
, if you want to show it.
If a call is not successfully connected, the P900 can be set to
automatically retry to connect the call. When a retry is
successful, the P900 alerts you with a single ringtone.
To make an emergency call
Enter the emergency number on the keypad and press Jog Dial
or press .
Usually, but not always, no SIM card or PIN code is required for
emergency calls and you are able to make the call as long as the
available network allows and you have coverage from a GSM
network. Check with your local provider to find out if
emergency calls are possible without a SIM card, and which
emergency call numbers are supported.
To make a call using Speed dial
Speed dial is a fast way to call one of your special speed dial
numbers. See ‘Set up speed dial numbers’ on page 46.
1. Select the key corresponding to the number of the speed dial
contact.
The speed dial name is shown above the key. If a
picture is attached to the speed dial, the picture is also shown.
2. Press .
To make a call using the Call list
1. Select on the standby screen.
2. Press Jog Dial or .
3. Scroll the list by rotating Jog Dial and select an entry.
4. Press Jog Dial or .
To make a call using the Contact list
1. Select on the standby screen.
2. Press Jog Dial or .
3. Scroll the list by rotating Jog Dial and select a contact.
4. Scroll by rotating Jog Dial and select the desired number.
5. Press Jog Dial or .
For more information, see ‘Contacts’ on page 95.
To make a call using voice control
1. There are three ways to use the voice recognition function.
– Press and hold Jog Dial.
– Press and hold .
– Say the ‘Magic word’.
– Press the call button on the headset.
When the Magic word function is activated, the icon
appears on the status bar.
40 Phone
2. When you hear a short tone, speak the voice command linked
to the number you want to call. See ‘To record a voice
command’ on page 51. The P900 connects you with the
matching contact.
You can use voice control when the P900 is handheld, used with
a hands-free set (car or portable), or with a Bluetooth wireless
technology headset. Magic word cannot be used together with a
Bluetooth wireless technology headset.
For more information, see ‘Voice control’ on page 50.
To end a call
Press , or press Jog Dial.
Shortcuts
• Press and hold to dial your voicemail. With the Flip
open, select
Phone > Call voicemail
.
See ‘Voicemail’ on page 53 on how to set up voicemail.
• Press any of the keys from to followed by
to call a speed dial number.
• Press twice to call the last dialed number.
• Press and hold any of the keys from to to open
your Contact list. Press again to reach the next letter.
Additional key presses add letters to your search.
• Press any digit followed by to reach a phone number
in the SIM phone book.
• Press for the last dialed number.
Incoming calls
When you receive a call, the name of the caller is displayed if
the calling party is in Contacts. If there is an associated picture,
it is also shown in a small or large version. See ‘Incoming call
picture’ on page 50.
To handle an incoming call
You can press to answer the call or answer by voice
control, see ‘Voice control’ on page 50.
You can press to reject a call and press to silence the
ringtone.
An incoming call brings up the following options:
•
1 Answer
– Answer the call.
•
2 Send Busy
– Reject the call. The calling party hears a busy
signal and the call is logged as a rejected call.
•
3 Mute
– Silence the ringtone. The calling party will not
notice that you have silenced the call. The call is logged as a
missed call.
If a large picture of the caller fills the screen, you can use Jog
Dial to get the menu with the options above.
Phone 41
Options during or after a call
Use Jog Dial to change the phone volume during a call.
Press to get a list of call handling options. The list varies
according to the situation. Options that concern two or more
active calls are described in ‘Handling two or more calls’ on
page 44.
•
End call
– End the active call.
•
Hold call/retrieve call
– Put the active call on hold /retrieve the
held call. This is useful if you want to make a new call during
a call.
•
Add to contacts
– Create a new Contacts entry if the phone
number of the active call is known, and not already stored in
Contacts.
•
Show contact
– Display the entry in Contacts, if any, that
corresponds to the phone number of the active call.
•
Transfer sound
– Transfer the call to a Bluetooth wireless
technology headset.
•
Turn On/Off tones
– You can send DTMF tones with the
keypad, ‘Controlling tone-based services’ on page 47.
•
Microphone mute On/Off
– Turn the microphone on or off.
•
Copy number
– Copy a phone number for exchange with other
text fields or applications.
•
Paste number
– Paste a copied number into a field.
•
Speakerphone On/Off
– You can use the P900 as a
speakerphone. See ‘Speakerphone’ on page 46.
•
Applications
– Open another application, and, for example,
paste a copied phone number into a Jotter entry.
Press and hold to mute the microphone. Press again to
reactivate the microphone.
Call handling with the Flip open
You use the stylus and the virtual keypad to handle calls with the
Flip open.
Outgoing calls
To make a call
1. Select in the application picker. The Speed dial view is
opened.
2. Tap on the button bar.
3. Enter the digits with the virtual keypad and tap on the
right of the keypad, or press Jog Dial inward.
To delete a typed character - select . If you do not want to
show your phone number to the party you are calling, select
Phone > Hide my number
after you have entered the digits.
Select
Show my number
, if you want to show it.
42 Phone
If a call is not successfully connected, the P900 can be set to
automatically retry to connect the call. When a retry is
successful, the P900 alerts you with a single ringtone.
To make a call using Speed
dial
Speed dial is a fast way to call
one of your special speed dial
numbers. See ‘Set up speed
dial numbers’ on page 46. This
is the default phone view.
1. Select on the button
bar.
2. Use Jog Dial or tap with the
stylus to select an entry.
To make a call using the Call
list
1. Select from the button
bar.
2. Select an entry by rotating Jog Dial and pressing it inward.
You can also tap the entry using the stylus.
3. Select .
Note Calling from the Call list is only possible in Compact
mode,
Edit > Compact mode
.
To make a call using the Contact list
1. Select in the application picker.
2. Select an entry by rotating Jog Dial and pressing it inward.
3. Select a phone number by rotating Jog Dial.
4. Press Jog Dial inward.
You can also tap the contact and/or number using the stylus.
To make a call using voice control
1. There are three ways to use the voice recognition function.
– Press and hold Jog Dial.
– Speak the Magic word.
– Press the call button on the headset.
When the Magic word function is activated, the icon
appears on the status bar.
2. When you hear a short tone, speak the voice command
connected to the number you want to call. See ‘To record a
voice command’ on page 51. The P900 connects you with the
matching contact.
You can use voice control when the P900 is handheld, used with
a hands-free set (car or portable), or with a Bluetooth wireless
technology headset. The magic word cannot be used together
with a Bluetooth wireless technology headset.
For more information, see ‘Voice control’ on page 50.
Chat Edit
Phone Edit
Sony Ericsson
Sony Ericsson
8 9
John Sandra Susan(w)
Mike Julia(h) Robert
Elizabeth Empty Empty
1 2 3
4 5 6
7
Phone 43
To end a call
Select
End call
, or press Jog Dial.
Incoming calls
When you receive a call, if the calling party is found in
Contacts, the name of the caller is displayed. If there is a picture,
it is also shown in a small or large version. See ‘Incoming call
picture’ on page 50.
To handle an incoming call
Use the screen buttons to select what to do.
•
Answer
– Answer the call.
•
Send Busy
– Reject the call. The calling party hears a busy
signal, and the call is logged as a rejected call.
•
Mute
– Silence the ringtone. The calling party will not notice
that you have silenced the call. The call is logged as a missed
call.
You can also answer by voice control, see ‘Voice control’ on
page 50.
Options during or after a call
There are several options available, depending on the situation.
You can access some of them using the screen buttons, by
tapping the field with the calling party details, or on the menus.
Options that concern two or more active calls are described in
‘Handling two or more calls’ on page 44.
•
End call
– End the active call.
•
Hold call/retrieve call
– Put the active call on hold/retrieve the
held call.
•
Add to contacts
– Create a new Contacts entry. This option
appears automatically after a call if the phone number of the
call is known, and not already stored in Contacts. See ‘Add to
contacts’ on page 51.
•
Show contact
– Display the entry in Contacts, if any, that
corresponds to the phone number of the active call.
•
Zoom in/out
– Enlarge/reduce the view.
•
Copy number
– Copy a phone number for exchange with other
text fields or applications.
•
Paste number
– Paste a copied number into a field
Tap to make the following adjustments:
•
Call volume
– Adjust the volume in the phone. This is easier to
do with Jog Dial.
•
Silent mode
– All audible ringtones are turned off.
•
Speakerphone
– Activate the P900 as a speakerphone.
•
Mute microphone
– Turn the microphone on or off.
44 Phone
Handling two or more calls
During a call, you can make a second call, or answer an
incoming call. The ongoing call is put on hold and the new call
becomes active. The held call is shown with a grey background.
If someone calls when a call is on hold, you will be asked if you
want to release the held call and answer the incoming call.
When an active call is finished, you are asked to retrieve the
held call. If you do not respond within a few seconds, the held
call is also finished.
To make and handle a new call during a call
1. During a call, make a second
call, or answer an incoming
call.
2. Press to get a list of
call handling options with
the Flip closed. With the
Flip open, choose options by
tapping the screen buttons,
by tapping the field with the
calling party details, or
selecting from the menus.
–
End active call
– End the
active call, the held call
becomes active.
–
Switch calls
– Switch between the active and held call.
–
Join calls
– Join the two calls for a conference call.
–
Transfer calls
– Connect the held call to the active call and
disconnect yourself from the call.
–
Release all
– End both calls.
–
Show contact
– Display the entry in Contacts, if any, that
corresponds to the phone number of the active call.
Conference calls
A conference call can be started
when you have an active call
and a held call.
The conference call view is
automatically displayed
whenever a party has been
added to the conference.
If an incoming call is answered
during a conference call, the
conference call is put on hold.
Note Conference calls are only
available if they are supported
by your subscription.
Chat Edit
Phone Edit
John Smith
11
:
03
End active call
Switch calls
Join calls
Anne Jones (w)
0123456789012(h)
0123456789012(h)
Chat Edit
Phone Edit
John Smith
Tom Clark
11:03
Ann Jones
(w)
1
(w)
(h)
End conference
Hold conference
Hide parties
2
3
Phone 45
To start a conference call
With one active call and one held call, tap the
Join calls
button,
or select
Phone > Join calls
from the menu.
To add a new conference party
1. During a conference call, tap on the button bar and make
a new call.
2. Select
Join calls
.
To manage a conference call
Use the screen buttons:
•
End conference
– End the conference for all parties.
•
Hold conference
– Put the conference on hold. The other
parties can still talk to each other.
•
Show / Hide parties
– Switch between the standard call control
view and conference call view.
To speak privately to a specific conference party
Tap a party in the list to get the following options:
•
Extract
– Make the selected party the active call, the rest of
the parties are put on hold.
•
Release
– End the conference call for the selected party.
Call list and call log
The Call list shows calls made, received, rejected, or missed.
The log keeps track of date, time, length, and cost information
(if available) for each call.
The List view of the call log shows the calls in order with the
most recent call at the top.
To view the Call list with the Flip closed:
1. Press .
2. Select
Call list
.
or
1. Select on the standby screen to open the Call list.
2. Press and select which calls in the list you want to
display.
The currently selected view is not shown in the options menu.
Tip With the Flip closed you can press once to view the
call list. Press twice to call the last number used in the P900.
To view the Call list with the Flip open:
1. In the Phone application, select from the button bar.
2. Select a listed call to see more detailed information about it.
46 Phone
To delete calls from the Call list
• To delete all calls, select
Phone > Delete all calls.
• To delete old calls, select
Phone > Delete entries older than >
Enter a date
> Delete
• To delete one call, open the detailed view on the call
> Phone
> Delete this entry.
Hints and smart functions
Speakerphone
If you open the Flip during a call, the speakerphone function is
activated and the volume increases. This lets you continue the
conversation while using other functions of the P900.
Close the Flip or tap to switch off the speakerphone.
Note The speakerphone does not work while the phone is in
silent mode.
Warning! The volume may be uncomfortably loud at the
higher volume levels if the phone is close to your ear. Exposure
to excessive volume may damage hearing.
Silent mode
In silent mode, all sound ringtones and sound alarm signals are
turned off. When the Flip is closed, press and select
Turn
on silent
to put the phone in silent mode. Press and select
Turn off silent
to turn off silent mode. When the Flip is open, tap
the sounds icon on the status bar to open a dialog where you can
toggle silent mode on or off.
The vibrating alert still works in silent mode if not deactivated.
Set up speed dial numbers
Speed dial is a fast way to call one of nine selected phone
numbers. The view contains nine speed dial positions. Each
speed dial entry consists of a picture or an icon, and a name or a
number. The names, numbers and pictures shown in the Speed
dial view are derived from the Contacts application, see
‘Contacts’ on page 95. If the contact has a picture stored then
this picture is used. A default icon is used if the contact does not
have a stored picture.
To set a Speed dial number
1. Select from the button bar.
2. Select an empty position.
3. Select the desired contact.
4. Select
Done
.
Phone 47
To edit or delete a Speed dial number
1. Select , on the button bar.
2. Select
Edit > Edit speed dial
.
3. Select the contact to edit or delete.
4. To change the name, enter the new name.
To delete a contact, tap
Delete.
5. Select
Done
.
Flight mode
In flight mode, the radio function is turned off so that it does not
disturb sensitive equipment, for instance in an airplane hospital.
You cannot make and receive calls, but most of the other
functions in the P900 are available.
Note The phone and other communication functions must never
be used in an aircraft unless otherwise instructed by the aircraft
personnel. If the use of equipment without a radio transmitter is
permitted, you can turn on the flight mode on the product. Doing
so turns off the radio function.
You can set a ‘Power menu’ to ask you if you want to start the
P900 in normal mode or flight mode each time you turn on the
P900. See ‘Flight mode’ on page 140 on how to activate this
function.
To use the Power menu
The Power menu has the following options:
•
Phone on
– Start the P900 in the normal way.
•
Flight mode
– Start the P900 in flight mode.
•
Power off
– Turn the P900 off.
To toggle flight mode on and off when Power menu is selected
1. Press the On/Off button.
2. On the Power menu, select the option you want.
3. Press Jog Dial, , or tap
Done
.
To toggle flight mode on or off
1. Select
Control panel > Device > Flight mode.
2. Select
Flight mode
.
3. Select
Flight mode now / Phone on now
.
4. Tap
Done
.
Controlling tone-based services
You can use your P900 to control phone banking services or
other tone-based services that use DTMF (Dual-Tone
Multifrequency).
The P900 provides different ways of sending tones during a call:
• Pressing keypad keys during an active call.
48 Phone
• Including a tone sequence in the call setup. After the phone
number, but before the digits, press and hold to insert
a pause, represented by the character
p
. Then press your
digits. Finally make the call by pressing .
• Program digit sequences
into a Contact card for the
service. Each digit
sequence to be sent as
tones must begin with
pc
.
Once your call to the
service has been
established and you want
to send one of your
preprogrammed digit
sequences, choose
Show
contact
on the Phone menu
to get to the Contact card
with the tone sequences.
Note It is not advisable to
program any personal codes
into your P900, in case your phone is stolen or lost.
Support for TTY
Teletype (TTY) accessory, text phone, is an aid for people with
speech impairments.
To use the TTY device together with the P900
1. Connect the TTY device to the accessories connector at the
base of the P900.
2. In Phone, go to
Edit > Preferences > TTY Accessory
and select
the checkbox to set the P900 into TTY mode.
Refer to the TTY device user manual to find out how to use the
device. It may be necessary to use an adapter between the TTY
device and the P900.
You can still make normal calls with the P900 in TTY mode, but
other accessories such as hands-free will not work properly.
Do not open the Flip during a TTY call. This will impair the
quality of the connection.
Note Support for voice carryover (VCO) and hearing carryover
(HCO) is handled through the TTY device and not through the
phone.
Support for ALS
Alternate line service (ALS) allows you to have more than one
line, and more than one phone number, to one SIM subscription.
If you are not subscribed to ALS, these dialogs and settings are
hidden.
Using ALS, you can select the line to be used for outgoing calls.
You can use the first line for any function, while the second line
may be used for speech only.
Chat Edit
Contacts Edit Unfiled
Bank
+4613244500 p1#1234567890
p10#0#34#56789 (w)
p30#1234#56 (w)
p10#1#567890123 (w)
p20#123456789 (w)
Phone 49
Incoming calls can be received on both lines at any time. The
name of the line is shown and the ringtone defined for the line is
used.
To select a line for outgoing calls
The preset line is shown by the icon on the status bar. If you
want to use the other line:
• With the Flip closed, press and select
Switch to line 1
or
Switch to line 2
depending on the previously preset line.
• With the Flip open, tap and select
Switch to line 1
or
Switch
to line 2
depending on the previously preset line.
Corporate phone services in P900
The P900 can be used as a corporate phone in an Ericsson
MD110® or Business Phone® PBX, if this is equipped for
mobile extensions.
To place calls to colleagues, use the internal extension numbers.
When dialing an external number, you do not need to dial the
external line prefix; it is added automatically. Dial the
switchboard operator or corporate voicemail as from any other
corporate phone.
It is recommended that when storing numbers in Contacts you
use the international number format, starting with
+
. This also
allows you to use the Contact card when you do not use the
PBX, when you are abroad, and when you are sending SMS or
MMS messages.
If you know what numbers and codes your PBX accepts, you
can send these without the phone manipulating them. Start any
number or command with a
p
. This is done by pressing and
holding the key. When storing such a number on a
Contact card, it should be stored with a leading
p
, and a
command (to the PBX or for example to a phone bank) with a
leading
pc
.
When using it at home, the call is still dialed as an internal call
via the PBX.
Note When traveling abroad, use your phone as a normal GSM
phone, by clicking the PBX status bar icon and set the calling
card to Off.
2
50 Phone
Incoming calls via the PBX may
be routed to the P900 as well as
to your fixed extension, and you
can answer with either phone.
During a call, the P900 can
activate PBX features, such as
making a new call, conference
calls, inquiry calls, and callback.
When the phone is idle, click the
status bar PBX icon
>
Command
to send other
commands to the PBX, such as
In meeting until..., Course, or
Business trip.
Your PBX administrator controls call routing, feature buttons
and commands in your phone via the settings file.
Preferences
In this menu, you can change the settings for the phone options.
(Settings on your P900 that are systemwide and affect more than
one application are made from the Control panel, see ‘Control
panel’ on page 139).
To set the phone preferences
1. Select
Phone > Edit > Preferences.
2. Select the item to set up.
Incoming call picture
If an incoming caller has a picture stored in contacts, it is
displayed on the screen. Select the checkbox to show a large
version of the picture over the whole screen.
Voice control
The voice control option lets you manage calls using your voice.
With Voice answer you can use words recorded for ‘answer’ and
‘busy’ to answer or send a busy signal to an incoming call. With
Voice dialing, you can make a call by speaking the contact’s
name.
Speak a ‘magic word’ and then the name of the person you want
to call, and the P900 attempts to call the person. Instead of the
magic word, you can also press and hold Jog Dial or press the
hands-free set call button.
Note The magic word is not supported by the Bluetooth
headset/car kit in the P900. Instead of the magic word, push the
button on the Bluetooth headset. After a confirmation tone, you
should speak the name.
The magic word ensures that the P900 will not call somebody
whose name has just been mentioned by chance.
•
Voice dialing
– Select
On
or
Off
.
Chat Edit
Phone Edit
John Smith
+44274555140 (w)
02:00
PBX call
New call
Call back
Conference
End call
PBX
PBX
PBX
P
B
X
...
Phone 51
•
Magic word
– Select the cases where you want to use the
magic word when you use voice dialing. You must, however,
record a magic word before you can decide to use it. Using
the magic word increases battery drain.
•
Voice answer
– Select
On
or
Off
. Tap
On
if you want to answer
or reject incoming calls by voice commands. You must first
record voice commands for Answer and Busy.
•
Play caller name
– If you have recorded a name for a person in
Contacts, the P900 will tell you the person’s name when he
or she calls you. This is useful when using your P900
together with a hands-free.
•
Voice commands
– A list of the voice commands. A balloon
means that a voice command is recorded for the command.
To record a voice command
1. Select one of the options,
Magic word
,
Answer
, or
Busy
and tap
Record
.
2. Speak the magic word, the answer command or the busy
command after the tone.
If you are recording a magic word, make sure that you
choose a long unusual word, which can easily be
distinguished from ordinary background speech.
3. Select
Play
to check the quality of your recording.
4. Select
Done
to exit.
You are advised to record voice commands in a quiet
environment to maximize recognition.You must also select
voice commands carefully, so they are not activated by mistake
by environment sounds.
To record voice commands for individual contacts, see
‘Creating and editing contacts’ on page 98.
Add to contacts
This is a function for adding called and calling parties to
Contacts
. After a call has ended, if the phone number is not
already stored in the
Contacts
, you are asked if you would like to
add it.
Set the function
On
or
Off
.
Hands-free
Specify how to manage calls when the P900 is used with a
hands-free kit connected.
•
Answering mode
– Select the option you want.
–
Normal
– Answer calls as normal.
–
Any key
– Press any key (except ) on the keypad to
answer.
–
After 5 seconds
– P900 answers automatically after five
seconds.
52 Phone
You can also select to use a Bluetooth headset as the preferred
sound device. See ‘Pairing’ on page 129 for information on how
to establish connection with the headset.
•
Bluetooth: Preferred sound device
– Select the option you want.
–
Phone
– Use the keypad to manage incoming and outgoing
calls.
–
Headset
– Use the headset or the keypad to manage
incoming and outgoing calls.
Forward calls
You can forward incoming calls to another number if for any
reason you are unable to answer them.
To forward calls
1. Select the type of call you want to forward.
2. Specify the phone number you want to forward to.
3. Select
Done
.
The settings are stored in the network. Tap
Refresh
to receive the
current settings.
Tip Normally the data/fax options should not be changed.
Accepted callers
You can specify who should be able to call you. All other callers
will be rejected. Your options are:
•
All callers
– Everybody can phone you.
•
Listed callers only
– Only people on the
Accepted callers
list can
phone you.
•
Contacts
– Only people in your
Contacts
address book can
phone you.
•
Speed dial list
– Only people in your
Speed dial
list can phone
you.
•
No one
– No one can phone you.
To add a contact to the Accepted Caller list
1. Select
Add new.
2. Select
Lookup
and chose a contact, or write the name and
number of the contact.
3. Select
Done
.
Call waiting
Use these setting to control how the P900 handles incoming
calls during an already ongoing call.
•
On
– You will be alerted by incoming calls.
•
Off
– The P900 sends a busy signal to the calling party.
Phone 53
Restrict calls
You can set restrictions for calls made from or to your P900.
You can, for example, prevent it from being used for long-
distance calls.
To restrict incoming calls
1. Select the
Incoming
tab.
2. Set restrictions for:
– All incoming calls.
– Incoming calls when roaming. Use this to avoid costs for
incoming calls when traveling abroad.
To restrict outgoing calls
1. Select the
Outgoing
tab.
2. Set restrictions for:
– All outgoing calls.
– Outgoing international calls.
– Outgoing international calls except to your home country.
Voicemail
For easy voicemail access, enter the number of the voicemail of
your operator.
With the Flip closed, press and hold to call this number.
With the Flip open, select
Phone > Call voicemail
.
Calling cards
Calling cards are used together with some phone services. These
settings specify how P900 handles calling cards. Most Calling
card settings are protected by the Device lock, see ‘Device lock’
on page 35.
–
Calling card mode
– Select how to use calling cards.
–
Calling cards
– A list of your calling cards.
–
Selected card
– Select which of your calling cards you want
to use.
Please consult your calling card operator for more details.
To create a new calling card account
Select
New
and enter the account information.
•
Access
tab:
–
Name
– Enter a name for the calling card account.
–
Access number
– Enter the phone number of the calling card
server.
–
Verification code
– Enter the verification code.
–
International prefix
– Enter the international prefix used in
your country.
•
Set up
tab:
54 Phone
–
Sending order
–
Number then code
means that the P900 first
sends the phone number you have started to call, and then
sends the verification number.
Code then number
means the
opposite order.
–
Delay for number/code
– Set a time delay between the
moment the calling card answers the call and the P900
starts sending tones.
Some international calling card services instruct their users to
select a language by pressing a digit. When using the P900
calling card feature, you can insert such a digit in one of these
places:
• Immediately after the access number, but preceded by a
pause sign,
p
.
• In the verification code.
• In the phone number that is dialed.
Corporate phone services
Corporate phone services are set up using the calling cards
setting.
To set up corporate phone services
You set up corporate phone services by importing a .pbx type
settings file. This file can be received via email, stored on the
Memory Stick or downloaded from the Internet.
Note Make sure the file is authentic before you import it.
1. Place the file in the
Document > Unfiled
area of the P900 or the
Memory Stick.
2. Select
Edit > Preferences > Calling cards
.
3. Tap
Import
.
4. Select the settings file and tap
Import
.
5. Select the card among the imported cards in the
Selected card
control.
6. Activate the card by setting the Calling Card Mode to either
Always use calling card
or
Prompt before call
.
TTY Accessory
Select the checkbox when you want to use the P900 together
with a TTY accessory. Teletype (TTY) accessory, text phone, is
an aid for deaf and speech-impaired people.
AoC - Call meter settings
Advice of Charge allows you to keep track of the cost of calls
and to stop the P900 from making chargeable calls when a
certain credit limit has been exceeded. The Advice of Charge
option only appears in the list if it is supported by your current
subscription.
If the credit is limited, a
Low credit
warning is displayed, when
there are approximately thirty seconds of credit left.
Phone 55
When the credit runs out,
Credit expired
is displayed and ongoing,
chargeable calls are stopped.
Please refer to the onboard help for detailed information about
Call meter settings.
Note PIN2 is required from your network operator for storing
any changes you make to the Call meter settings.
Not all networks provide charging information to the phone
during a call. If your network provides this service and your
subscription is for Advice of Charge Charging, you cannot make
or receive any chargeable calls if you are roaming in a network
that does not provide charging information. This restriction does
not apply when your subscription is for Advice of Charge
Information. You cannot change the type of subscription from
your phone settings. Please consult your operator for more
details.
ALS settings
If the user is not subscribed to ALS, these dialogs and settings
are hidden.
Some of the phone settings are used on a per-line basis. In most
cases, the settings displayed apply to the selected line. This is
then indicated in the dialog title bar. In other cases, the lines
correspond to separate settings or tabs in the dialogs.
To set the line tags
1. Select the
ALS settings
dialog.
2. Edit the names for line 1 and 2.
3. Tap
Done
.
56 CommuniCorder
MEDIA
CommuniCorder
With the built-in CommuniCorder camera, you can record video
clips and take pictures, view them on your phone screen and
send them directly to friends or colleagues via multimedia
messaging. You can also send the video clips and pictures you
have saved in your P900 via messaging, infrared
communication or Bluetooth wireless technology, for example
to a PC. It is also possible to exchange video clips and pictures
between the P900 and the Web.
The pictures in your P900 can be set as wallpaper or they can be
added to the contacts in your phone book. See ‘Personalizing
your P900’ on page 136 to find out more about using pictures.
A button on the camera activates the
CommuniCorder application and acts as the
shutter release when taking pictures.
Jog Dial is used to set the CommuniCorder working mode:
Recording video clips
You can record a video clip with the Flip open as well as closed.
To record a video clip
1. Press the camera button to activate the CommuniCorder
application.
2. If required, rotate Jog Dial to the Video mode or Message
video if the video clip is to be sent in an MMS.
3. Press again to start recording. The status indicator flashes red
during the recording.
4. Press Jog Dial to stop recording. The video clip is
automatically saved in
Video
.
You can also press Jog Dial, or, when the Flip is open, tap the
capture button at the bottom of the screen to record a
video clip.
Video camera Video Automatic setting
Still camera Auto Automatic setting
Still camera Night Set for dark environment
Still camera Indoor Set for indoor light
Still camera Outdoor Set for outdoor light
Still camera Message
Set for picture size 160x120
pixels
Video camera Message
video
Set for video clips to be
appended to messages
CommuniCorder 57
By default, the video clips you record are stored internally in the
Unfiled
folder. Tap the folder menu to the right in the menu bar to
change the storage location to another location, for example, on
a Memory Stick Duo. See ‘Folders’ on page 27 for more
information on using folders.
To send a video clip you have just recorded in Flip closed, select
Send as MMS
from the Flip closed context menu. In Flip open, tap
.
Note Most operators only accept video clips of 10 seconds
length or 95 KB size.Use the Message video mode, or the Video
limit setting in Video mode to limit the file size.
Open the Flip to access the full range of CommuniCorder
settings. With the Flip open, the CommuniCorder is activated by
selecting
>
.
To delete the last video clip
1. Select
CommuniCorder > Delete clip
.
2. Confirm the delete operation.
To delete a video clip you have just recorded in Flip closed,
select
Delete
from the Flip closed context menu.
To manage video clips, tap to go directly to
Video player
. See
‘Video player’ on page 65 for more information.
Delay timer
The CommuniCorder has a delay timer with a delay of 1-25
seconds. The delay time is the time between the moment you
activate the shutter release and the moment when the recording
starts.
To set the delay time
1. Tap
CommuniCorder > Preferences.
2. Tap and set the desired delay time
To record video with delay timer
1. Tap
CommuniCorder > Delay timer.
2. Press the camera button. The timer beeps for the set time and
a timer icon is shown before the recording is started.
When the delay timer is set, you will see the timer status icon
. Tap
CommuniCorder > Delay timer
to deactivate the timer.
Video status
Above the viewfinder, you will find the video status. Icons show
whether the CommuniCorder is ready or busy, video quality, and
audio quality. A number indicates how much time you have left.
The calculation is based on the current settings plus available
space on the storage location you have selected (internal or the
Memory Stick Duo).
58 CommuniCorder
Taking pictures
You can take a picture with the Flip open as well as closed.
To take a picture
1. Press the camera button to activate the CommuniCorder
application.
2. If required, rotate Jog Dial to the desired mode.
3. Press again to capture the image on the screen. The picture is
automatically saved in
Pictures
.
You can also press Jog Dial, the button, or when the Flip
is open, tap the capture button at the bottom of the screen
to take a picture.
By default the pictures you take are stored internally in the
Unfiled
folder. Tap the folder menu to the right in the menu bar to
change the storage location to another location, for example, on
a Memory Stick Duo. See ‘Folders’ on page 27 for more
information on using folders.
To send a picture you have just taken in Flip closed, select
Send
as MMS
from the Flip closed context menu. In Flip open, tap
.
Open the Flip to access the full range of CommuniCorder
settings. With the Flip open, you activate the CommuniCorder
by selecting
>
or pressing the camera button .
To view the last picture
1. Select
CommuniCorder > View picture
.
2. Select
Done
to return.
To delete the last picture
1. Select
CommuniCorder > Delete picture
.
2. Select
Delete
.
3. Select
Delete
to delete the picture.
To delete a picture you have just taken in Flip closed, select
Delete
from the Flip closed context menu.
To manage or edit the picture, tap to go directly to
Pictures
.
See also ‘Pictures and Image editor’ on page 61.
Delay timer
The CommuniCorder has a delay timer with a delay of 1-25
seconds. The delay time is the time between the moment you
activate the shutter release and the moment when the picture is
taken.
To set the delay time and the picture freeze time
1. Tap
CommuniCorder > Preferences.
2. Tap and set the desired delay time.
CommuniCorder 59
In this dialog box, you can also set the picture freeze time. This
specifies the time the picture stays unchanged on the screen after
you have taken it.
To take a picture with delay timer
1. Select
>
.
2. Tap
CommuniCorder > Delay timer.
3. Press the camera button. The timer beeps for the set time and
a timer icon is shown before the picture is taken.
When the delay timer is set, you will see the timer status icon
. Tap
CommuniCorder > Delay timer
to deactivate the timer.
Image status
Above the viewfinder, you will find the image status. Icons
show whether the CommuniCorder is ready or busy, delay timer
status, picture size and picture quality. A number indicates how
many pictures you have left. The calculation is based on the
current settings plus available space on the storage location you
have selected (internal or the Memory Stick Duo).
Camera settings
You may want to change some of these settings, if, for example,
you are taking a picture in daylight or in dark surroundings. You
can also select what resolution, size and quality, you want for
the pictures you take.
Note Depending on the mode you are using, some settings may
be fixed (and not user-adjustable).
To change preferences for the camera
1. Tap
CommuniCorder
> Preferences
.
2. Select the setting you want to change:
The icons in the upper right corner of the main view reflects the
quality and size settings of the pictures and video clips and also
the sound quality of video clips.
Move the slider to change the brightness of the picture.
Move the slider to change the contrast.
Turn the backlight On when the light behind the subject is
brighter than the light in front of the subject.
Turn the flicker-free function On to reduce the effects of
flicker, for example from fluorescent light.
Choose white balance according to the lighting conditions
you are in when taking the picture.
For pictures, select quality and size. The picture sizes,
640x480, 320x240 and 160x120, are displayed in pixels.
For video, select quality for video and audio.
Larger size and higher quality require more memory.
Choose delay time and freeze time for the still camera, and
delay time and Video limit for video.
60 CommuniCorder
To restore the default CommuniCorder preferences
1. Tap
CommuniCorder
>
Preferences
.
2. Tap
Default
.
3. Tap
Yes
.
Pictures and Image editor 61
Pictures and Image editor
In Pictures, you can manage all of the pictures saved on your
P900. The pictures can be taken using the CommuniCorder,
received via email, Bluetooth wireless technology or infrared
communication, downloaded via the browser or transferred
from your PC via a cable. Your P900 supports JPEG, GIF, PNG,
WBMP and BMP picture formats. In the Image editor, you can
perform basic editing of your pictures.
Pictures
The pictures can be sent in
multimedia messages, added to
the contacts in your phone book,
or used as a wallpaper image and
screensaver.
Thumbnail view
The thumbnail view provides an
overview of all the pictures
stored on your P900. You can
search for specific pictures and
sort your pictures by name, date,
size or type.
Move between the pictures with the arrow buttons or Jog Dial.
Change between a thumbnail view and a list view of the pictures
by tapping or .
At the bottom of the screen, you can see how many pictures you
have saved in your P900.
Tip To take a new picture, tap to go to the
CommuniCorder
.
To sort the pictures
Tap
Edit
to choose how to sort the pictures in your folders.
Detail view
Tap a picture to go to Detail view.
In Detail view, you can rename
your pictures and sort them into
folders. This makes it easier for
you to keep track of your pictures.
To rename a picture
1. Select
Pictures
>
Rename picture
.
2. Enter a picture name
>
Done
.
Note Two or more pictures
cannot have the same name.
Chat Edit
Pictures Edit All
Brioney At home
Mont Blanc 309F0003
12 pictures (890Kb)
Chat Edit
Pictures Edit Photos
Snow 10:15am,21/06/04
62 Pictures and Image editor
Tip Use the
Folder
function to organize your pictures. Read
more about organizing files in ‘Folders’ on page 27.
At the bottom of the screen, you can see the picture information,
for example, the size of the picture and the date the picture was
taken.
‘Actual size’ means each pixel of the image is displayed on one
pixel of the screen, so a 640x480 image will be displayed with
scroll bars as it is larger than the display area.
Use and or Jog Dial to move between the pictures in the
current folder. takes you back to the thumbnail or list view.
Sending and receiving pictures
You can send pictures to other phones or to a PC via multimedia
messaging, IR or Bluetooth – use
Pictures > Send as
. See
‘Sending and receiving items’ on page 29. You can also save
pictures that you have received via email and in multimedia
messages. See ‘Incoming multimedia messages’ on page 86 and
‘Receiving attachments’ on page 91.
Note Pictures with Forward lock cannot be sent further.
Zooming pictures, widescreen and full
screen
From the detail view of the picture, you can:
• Tap to zoom in.
• Tap and drag the zoomed picture to view specific details in
the picture.
• Tap to zoom out.
• Select
Edit > Preferences
and specify the picture orientation in
widescreen.
• Tap a picture to display it over the whole screen. Tap it again
to go back.
• Rotate Jog Dial to browse the pictures in widescreen and full
screen views.
Deleting, moving, and copying
From the detail view of the picture you can:
• Select
Pictures > Delete picture
to delete it.
• Select
Pictures
> Copy picture
to copy the picture to a clipboard
so that you can paste it into an item in another application.
• Select
Pictures
> Copy to
to copy the picture to another folder
(internal or on a Memory Stick Duo). See ‘Folders’ on
page 27 for more information.
• Use the folders menu to move a picture to another folder
(internal or on a Memory Stick Duo). See ‘Folders’ on
page 27 for more information.
Pictures and Image editor 63
To copy, delete or move multiple pictures
• In the thumbnail and list views, select the pictures you want
to delete, move or copy, by selecting the checkboxes beside
the picture names. Then select
Pictures >
the command you
want.
• To delete, you can also use the Storage Manager found in the
Control panel. For more information, refer to ‘Folders’ on
page 27.
Image editor
Using the Image editor, you
can edit your pictures.
You can crop and resize the
pictures. You can also rotate
the pictures by 90° at a time.
You can also write and draw
on them, using different
colors.
To start the Image editor
From a picture opened in
Pictures
, select
Edit > Edit
.
Editing pictures
Editing is controlled from the toolbar below the picture. Tapping
the tool icons will bring up a palette with choices:
You can save the edited image by selecting
Image editor > Done
.
You can copy and paste by selecting
Edit > Copy
and
Edit > Paste
.
You can only copy and paste whole pictures.
If you make an error when editing the picture, you can undo the
last by
Edit > Undo
. You can also undo all actions since the
picture was saved, by selecting
Edit > Undo all
.
Image editor Edit
Zoom in
Zoom out
Select color Select one of the 16 colors
Select pen Select one of the 4 pen sizes
Select
drawing tool
Select one of the tools:
- Pen for freehand drawing
- Undo last action
- Undo all actions
- Add text
- Crop picture
- Resize picture
Select rotation Select rotation counter-clockwise or clockwise
64 Pictures and Image editor
To zoom in and out
• Tap to zoom in.
• Tap and drag the zoomed picture to view specific details in
the picture.
• Tap to zoom out.
•Select
Edit > Zoom
, and select between
Fit to screen
and
Full
size
.
To draw on a picture
1. If desired, tap and select the desired color.
2. If desired, tap and select the desired pen size.
3. Tap and select the pen tool .
4. Draw with the stylus on the picture.
To add text to a picture
1. Tap and select the text tool .
2. Tap the place where the text should be put on the picture.
3. Enter the text in the text field.
4. If required, change the text properties, using the choices on
the text, style and colors tabs.
5. Tap
Done
to place the text on the picture.
• You can move the text on the picture by tapping and dragging
on the text.
• You can return to the text editor by tapping on the text item.
Note As soon as you tap outside the text item, the text is merged
with the picture and cannot be edited or moved.
To crop a picture
1. Tap and select the cropping tool .
A frame with 8 handles is placed around the picture.
2. Tap and drag one of the handles to define how the picture
should be cropped.
3. Tap anywhere, except on the handles, to crop the picture.
To resize a picture
1. Tap and select the resizing tool .
A frame with 4 handles is placed around the picture.
2. Tap and drag one of the handles to define the new size of the
picture.
When you lift the stylus, the picture will be resized.
Sony Image Station
You can exchange pictures between your P900 and Sony Image
Station on the Web. Use the browser in your P900 to go to the
relevant Web site and sign up:
• For Europe: http://www.sonystyle-imaging.com
• For Japan: http://www.imagestation.jp
• For USA: http://www.imagestation.com
Video player 65
Video player
You can play video content that is recorded with the
CommuniCorder, stored in your P900 or streamed. You can also
play audio-only material encapsulated within an MPEG file or
streamed. You can download video clips from a Web site or
transfer from a PC via a cable, or from a Memory Stick Duo.
You can also exchange video clips with other phones or PCs via
infrared communication, Bluetooth wireless technology or
multimedia messaging.
You do not have to download a complete video clip to be able to
view it. You can use the streaming function and view the video
clip from the Web site where it is located. The video clip is
played with only a short time delay.
The video player supports files in the MPEG-4 file format, for
example name.mp4.
You can store video clips both internally and externally. You can
also copy them between the internal memory and the Memory
Stick Duo. See ‘Folders’ on page 27.
To adjust the volume
Rotate the Jog Dial up to increase the volume, and down to
decrease the volume.
Video clips
A video clip is a short video sequence.
Playing video clips
The Video player opens in the list view. In this view, you get an
overview of all the MPEG-4 video clips in your P900. You can
search for specific video clips, zoom the video clip names and
sort them by name, date, or size. At the bottom of the screen,
you can see how many video clips you have saved in your P900.
To view a video clip
1. Select
>
.
2. Select a video clip in the list.
Warning! The volume may be uncomfortably loud at the
higher volume levels if the phone is close to your ear, or if you
are using the stereo headset. Exposure to excessive volume
levels may damage hearing.
While a video clip plays, tap the screen to display the video clip
in widescreen. Tap the screen again to go back. Specify the
screen orientation in
Edit > Preferences > Display
.
66 Video player
To copy, delete or move multiple video clips
• In the list view, select the video clips you want to delete,
move or copy, by selecting the checkboxes beside the picture
names. Then select
Video >
the command you want.
• To delete you can also use the Storage manager located in the
Control panel. For more information, refer to ‘Folders’ on
page 27.
To sort the video clips
Select
Edit
and choose how you want to sort the video clips in
the current folder.
To record a clip using the CommuniCorder
Press the camera button or select to activate the
CommuniCorder application. takes you back to the list
view.
Managing video clips
The detail view is intended for managing one clip at a time. You
can play and pause the clip by tapping and , and stop by
tapping .
The slider under the video area shows the current play position
within the clip. Tap and drag the slider to move to another
position in the clip.
In this view you can send,
rename, delete or move your
video clips. Only the video
clips saved in your P900 or
on the Memory Stick Duo
(that is not streamed) can be
handled in the detail view.
To rename a video clip
1. Select
Video
>
Rename clip
.
2. Enter a video clip name
>
Done
.
Two or more video clips
cannot have the same
name.
Tip Use the
Folder
function
to organize all your video clips.
To copy the current video clip to another folder, select
Video >
Copy to
, then
select a folder from the list.
To view the video clip information
Select
Video > Info
.
To delete a video clip
1. Select the video clip you want to delete.
2. Select
Video > Delete clip
.
Chat Edit
Video Edit All
Playing
0:09
Diving in the ocean
Video player 67
Saving video clips
When you play video clips you have received via email or
multimedia messaging, or downloaded to your P900 from the
Web, the viewer detail view is automatically launched. From the
viewer detail view, you can then save the video clip to your
P900.
To save a video clip from another application
1. Select the video clip you want to save.
2. Select
Video > Save clip
.
3. Select the folder you want to save the video clip in
> Save
.
Sending and receiving video clips
You can send and receive video clips using
Video > Send as
. See
‘Sending and receiving items’ on page 29.
Streaming
Streaming is a data transfer method making multimedia
available in real time. You can, for example, listen to audio and
watch video almost at the same time as it is sent.
The data in the file is divided into small packets that are sent in a
continuous flow, a stream.You can then begin viewing the file
from the beginning as the rest of the packets are sent. The short
delay at the start is to enable a small amount of data to be
buffered.
Your P900 can receive streaming multimedia.
Applications
Streaming applications can be classified into on-demand and
live applications.
Examples of on-demand applications are:
• Streaming of music.
• Streaming of news (video and audio).
• Streaming of movie trailers.
• Streaming and download of video.
• Live streaming of music or video (broadcast).
How to connect to a streaming service
• If you know the URL of the streaming service:
1. Select
Video > Open location
.
2. Enter the URL of the streaming service, or select a service
from the drop-down list.
3. Tap
Done
.
68 Video player
• If you do not know the URL of the streaming service:
1. Open Internet and browse to the site where the service is.
2. Select the item you want to play, for example a video.
The site server will download part of the video to the P900
buffer memory. This will take a short while. When the buffer
memory is filled, the Video player will open the detail view,
described above, and play the video seamlessly.
Preferences
When you view a video clip in full-screen mode, you can select
the orientation of the picture
To change the orientation of the picture in full-screen mode
1. Select
Edit > Preferences
.
2. Select the
Display
tab.
3. Tap
Left handed
or
Right handed
orientation
> Done
.
When you view a video clip from a Web site, using the
streaming function, a media buffer is used to provide a steady
flow of data. Increasing the size of the media buffer may
improve the playback of the video clip.
To change the media buffer size
1. Select
Edit > Preferences
.
2. Select the
Buffering
tab.
3. Select
Custom setting
and move the slider left or right
> Done
.
When you download a video clip to your P900, it is saved in the
download cache memory. When this memory is full, you have to
empty it to be able to download new video clips to your P900.
To clear the download cache
1. Select
Edit > Preferences
.
2. Select the
Buffering
tab.
3. Select
Clear cache > Done
.
When you view a video clip from a Web site, you may have to
set the proxy settings.
To change the proxy settings
1. Select
Edit > Preferences
.
2. Select the
Proxy
tab.
• If the proxy settings configured in the control panel are to be
used, tap
Automatic configuration
.
• If manual settings are to be used, enter the relevant
information.
Music player 69
Music player
Your P900 has mobile music in the form of a stereo music
player. With the music player you can listen to single music
tracks or entire folders containing tracks. You can download
tracks to your P900 from a PC, the Web or a Memory Stick Duo,
and create different folders with tracks. Your P900 supports a
number of different sound files, including the popular MP3
format. See ‘Technical data’ on page 187 for more information
on supported file types.
You can store sound files both internally and on the Memory
Stick Duo. You can also copy them between the internal
memory and the Memory Stick Duo. See ‘Folders’ on page 27.
When you receive a phone call while listening, playback will be
paused. When you end the call, you must navigate back to the
Music application to restart playing.
Tip To listen to more music, you can store music on several
Memory Stick Duos and carry them with you.
Playing sound files
You can play MP3 music both in Flip closed and in Flip open. In
Flip closed, with Jog Dial, select , select
Music player
, and
select the track you want to play. Press to find other
commands.
If you navigate to the standby screen while you play music, you
can press to pause. Press it again to play.
If you launch another application, the music will still play. If this
application requires dedicated audio, playback will be paused.
Jog Dial control
Rotate Jog Dial to select a sound track. Press it inward to play.
Press it again to stop.
To adjust the volume
Rotate Jog Dial up to increase the volume, and down to decrease
the volume.
Warning! The volume may be uncomfortably loud at the
higher volume levels if the phone is close to your ear, or if you
are using the stereo headset. Exposure to excessive volume
levels may damage hearing.
70 Music player
Track-folder view
This view is intended for
playing entire folders of MP3
files. In the track folder view,
you can
Play, Pause,
and
Stop
the playback of
the current folder, and see the
duration of the track.
Selecting a track and tapping
will play the selected
track and all the following
tracks in the folder. Use the
slider to move forward and
backward in the track. Select
Music > Manage tracks
to move
to the file list view.
Loop and random
With the loop function you can decide if you want to listen to
the tracks in the current folder only once, or if you want to loop
them until you manually stop the playback. Select the random
function to play the tracks randomly.
To loop a list
Select
Music > Loop
.
To play a list randomly
Select
Music > Random
.
Managing sound files
File list view
In the file list view, you can
see how many tracks are in
the current folder. Tapping a
filename will open the detail
view, and allow you to play
and manage that file.
To copy, delete or move
multiple files, select the files
you want to delete, move or
copy, by selecting the
checkboxes beside the
filenames. Then select
Music >
the command you want.
To delete you can also use the
Storage manager found in the
Control panel. For more information, refer to ‘Folders’ on
page 27.
Tap to move directly to the track folder view.
Music Edit All
Sony Ericsson
0:00/3:35
Aeroplane
Beautiful Night
Rooster
Song for you
Sony Ericsson theme
Standing Still
Music Edit All
Aeroplane
Beautiful Night
Rooster
Song for you
Sony Ericsson theme
Standing Still
Stuck with You...
Walk on
8 tracks (6806 KB)
Music player 71
Detail view
The detail view is intended for managing one file at a time. Tap
a filename to open the detail view. You can also play and pause
the file by tapping and .
In the detail view you can move tracks between your different
folders using the folder function, or rename or delete them.
The detail view displays the
name of the track, the artist’s
name, the album title, the
track number, the copyright
year, the sound file type and
the duration of the track.
Note The amount of
information displayed
depends on how much
information is available on
the sound file.
Move between the tracks in
the current folder using the
and buttons.
To rename a track
1. Select
Music > Rename track
.
2. Enter a track name and tap
Done
.
Two or more tracks cannot have the same name.
To delete a track from the P900
1. Select
Music > Delete track
.
2. Select
Yes
.
Viewer
If you play sound tracks remotely, for example music on an
Internet site, a view similar to the Detail view displays. The
commands you find in this view are similar to those in the Detail
view.
Managing track folders
In the track folder view, the Music player plays the MP3 files of
the selected folder. (With one exception, the
All
folder. If you
select this folder, all MP3 files in all music folders will be
played.) Using the folder function you can create new folders
for sound tracks. You can create folders on the Memory Stick
Duo. You can also use several Memory Stick Duos for your
music, for example.
In any Music player view, you can create a new folder using the
Edit Folders
command in the
Folder Menu
. Then you move or copy
your sound files to the new folder. You can add more folders
with sounds as long as there is memory available. You can also
sort the files using commands in the
Edit
menu.
Music Edit Unfiled
Artist:
Album:
Filename:
Date and Size:
Duration:
0:00
Aeroplane
Aeroplane
6:02pm, 21/06/04 2107KB
3:35
72 Music player
Preferences
You can select whether you want all types of sound files to be
displayed in the file list view, or if you want to display only a
certain type of sound file.
To select sound file types
1. Select
Edit > Preferences
from the file list view.
2. Check the boxes next to the sound files you want to include
in the track folders and tap
Done
.
Saving sound files
When you receive sound files in other applications, such as
email and multimedia messages, you activate the viewer in your
P900. From the viewer, you can then save the sound file
to your P900.
To save a track from another application
1. Tap
Save
or select
Music
and tap
Save
.
2. Select the folder you want to save the track in and tap
Save
.
Sending and receiving sound files
You can send and receive sound files using
Send as
. See
‘Sending and receiving items’ on page 29.
Note You can send WAV and AMR sound files in multimedia
messages, and MP3 and AU sound files as attachments to
multimedia messages.
Internet 73
Internet
You use
Internet
, the P900 browser, to:
• Connect to the Internet to view and access Web and WAP
pages.
• Receive and view Push messages from your WAP service
provider.
• Download Java applications, images and audio.
The browser can open Web pages that use Javascript or frames,
but functions that use Javascript in the Web page will not work
properly.
You can save bookmarks to viewed pages, to be able to access
them easily. You can also save pages in the P900 for offline
viewing.
The browser uses folders for categorizing information. The
folders used are bookmarks, saved pages, signed documents,
and Push messages.
Push messages is a service that gives you notifications about, for
example, weather forecasts, sport results, and stock quotes. The
notification is sent to you as a message that contains a WAP link
to the site with the information you subscribe to.
Before you can use Internet, you need to set up an Internet
account in the
Control panel
. If you intend to use certain WAP
services, it might be necessary to set up a WAP account in the
Control panel
as well. See ‘Getting started with Internet and
Messaging’ on page 163.
To start the browser
• Start the browser by:
– pressing the Internet button.
– selecting in the application picker.
– selecting in the application launcher .
– selecting a URL in another application.
Note If required, you must enter your username and password
to log into your Internet account.
While opening a page, the P900 might not receive incoming
calls. However, when the page is properly opened you can
receive a call and the page will still be open.
The application has two views:
Browser view The base view of the application, where you can
view Web and WAP pages.
Bookmarks
view
A list view where you can save shortcuts:
• to Web and WAP sites on the Internet
• to locally stored pages
• to documents digitally signed by you.
74 Internet
Using the browser view
The P900 can display
the Web page in normal
view or full-screen
view. Use the Internet
button to change
between the views. In
full-screen view, press
Jog Dial short forward
to display a menu with
the most frequently
used commands.
Browser view options
• Internet menu
–
Open page
– Enter the URL, or select from the drop-down
list.
–
Add to bookmarks
– Enter the name of the bookmark and
select the folder to save it in.
–
Save page
– Enter the name of the page and select the folder
to save it in.
–
Send as
– Send the current URL via text or multimedia
message, email, Infrared, or Bluetooth wireless
technology.
–
Find
– Enter text and search for the text in the page.
–
Find next
– Search for the next occurrence of the search text.
–
Scan text
– Go to the area populated with the greatest
amount of text.
–
Reload page
– Reload the page.
–
Load all images
– Load all images of the page.
–
Page information
– Show the page information.
–
Bookmarks
– Open the bookmark view.
•Edit menu
–
Cut
– Cut out the marked information from an input field.
–
Copy
– Copy the marked information.
–
Copy all
– Copy all information on the page.
–
Paste
– Paste the copied text into the selected field.
AInternet menu.
BEdit menu.
CGo to the next page.
DGo to the previous page.
EShift between the browser view and the bookmarks view.
FDisconnect or get information about the connection.
GGo to the home page.
HStop loading the page.
JA secure connection is established.
KProgress bar, shows the loading progress.
0:03
Chat Edit
Internet Edit
A
H
J
G
B
C
D
E
F
K
Sony Ericsson
Sony Ericsson P900
Internet 75
–
Full screen
– Expand the browser view.
–
Zoom
– Select zoom level: Small, Medium or Large.
–
Preferences
– Set the preferences of the browser.
–
Help
– View help on Internet.
• Internet button
–
Full screen
– When you have opened an Internet page, press
the Internet button to display the page in full screen.
–
Normal browser view
– Press the Internet button again to go
back.
•
Handles on the screen
– The browser will outline a Web page
as you are used to seeing it on your PC. Use the handles on
the screen to scroll:
–
Scroll up and down
– Tap the handle to the right of the screen
and drag it up or down.
–
Scroll left and right
– Tap the handle at the bottom of the
screen and drag it to the left or to the right.
•Jog Dial
–
Scroll up and down
– When you have opened an Internet
page, rotate Jog Dial to scroll up and down.
–
Short forward
– In Normal view, change between the Internet
and the Edit menus. In full screen view, show a menu with
the most frequently used commands.
–
Scan text function
– Press Jog Dial inward to scan the page
for text. The screen will navigate to the area populated
with the greatest amount of text. Repeat the operation to
find the next most populated area.
Context-sensitive menus
The context-sensitive menu is opened when you keep the stylus
pressed on a link or a picture.
• Text link and picture link
–
Open link
– Open the active link.
–
Link information
– Show information on the link.
–
Add to bookmarks
– Add the active link URL to the
bookmark list.
• Loaded picture (with or without link)
–
Save image
– Save the picture in the P900.
–
Copy image
– Copy the picture to the clipboard.
–
View image
– View the picture adapted to the screen
(enlarged or reduced).
–
Send image as
– Send the picture as text or multimedia
message, email, infrared, or Bluetooth wireless
technology.
• Not loaded picture (with or without link)
–
Load image
– Load the picture.
• Voice call link
–
Call
– Place a call according to the link.
76 Internet
–
New SMS
– Send an SMS message according to the link.
–
New MMS
– Send an MMS message according to the link.
–
New contact
– Create a contact with the link information.
• Mail to link
–
New email
– Send an email according to the link.
–
New MMS
– Send an MMS message according to the link.
–
New contact
– Create a contact with the link information.
Icons within a page
Picture not loaded (can be loaded manually).
Damaged picture (not possible to load).
Note If images are not loaded, select the picture icons
or select
Internet > Load all images.
To open a specific Web page
1. Select
Internet > Open page.
2. Enter the page URL or select a previously viewed page from
the drop-down list.
3. Select
Open.
To navigate through recently opened pages
1. Select to move back to previously viewed pages.
2. Select to move forward again.
To save a page for offline browsing
1. Select
Internet > Save page
.
2. Change the page name, if required, and select a folder to save
it in.
3. Select
Done.
To create a bookmark to the open page
1. Select
Internet > Add to bookmarks.
2. Change the bookmark name, if required, and select a folder
to save it in.
3. Select
Done.
To download and upload files, for example, applications
• When you select a link to a downloadable file, for example,
applications, images and so on, information on the file is
displayed.
Select
Yes
to start the download.
• When you select a link for uploading a file, a form for
submitting the file is displayed.
Select the file, then select
Yes
to start the upload.
To view information on the open page
1. Select
Internet > Page information
.
2. Select the
Content
tab to view the page information.
Internet 77
3. Select the
Connection
tab to view information on the
connection.
4. Select the Certificates button to view the information on:
– Server
– User
To disconnect from the Internet
1. Select the connection icon (HSCSD/CSD or GPRS )
in the status bar.
2. Select
Disconnect
from the popup menu
3. The dialog
Do you want to disconnect, Yes/No
appears.
4. Select
Yes
.
WIM Access
When the browser requires access to the WIM card, for
example, when establishing a secure connection, you have to
enter the correct PIN. For more information, please contact your
service provider or IT department.
Signing documents
You have to enter the signing PIN each time a signing operation
is going to be performed.
User authentication request
Whenever a user authentication is requested, you have the
possibility either to select a certificate and confirm the user
authentication, to select to continue anonymously or to cancel
the connection.
If
Connect anonymously
has been set, the browser will instead
automatically try to connect anonymously.
Using the bookmark view
AFolder menu.
BEdit menu.
CInternet menu.
DSelect an icon to view
information on the
bookmark.
EChecked bookmarks
can be deleted from
the Internet menu.
FSelect the bookmark
text to open the page.
GSelect to go to the
home page.
HShift between browser
and bookmarks views.
Chat Edit
Internet Edit All
Search Internet
My home page
News
Webmail
Project home
711 time table
CSS fonts
C
B
D
E
F
H
A
G
SonyEricsson
78 Internet
Bookmark view options
• Internet menu
–
Open page
– Enter the URL, or select from the drop-down
list.
–
New bookmark
– Enter the URL, the name of the bookmark
and select the folder to save it in.
–
Delete
– Delete the selected bookmark.
•Edit menu
–
Edit
– Edit the selected bookmark.
–
Sort on date / name
– Sort the entries. (Available for Push
messages and Signed documents only.)
–
Zoom
– Select zoom level: Small, Medium or Large.
–
Preferences
– Set the preferences of the browser.
–
Help
– Open the help for Internet.
• Folders menu
–
All
– Show all contacts in the list.
–
Bookmarks
– Show all bookmarks.
–
Saved pages
– Show all saved pages.
–
Unfiled
– Show the bookmarks that are not in a folder.
–
Edit folders
– Categorize your contacts into folders
(business, personal and so on).
The contents in the Folders menu can change depending on the
pages and bookmarks stored in the P900.
Icons
Bookmark
Saved page
Push message from the WAP service provider
Signed document
To open a bookmark
1. Select the bookmark text.
2. The bookmarked item is opened.
To view bookmark information
1. Select the checkbox of the preferred bookmark.
2. Select
Edit > Edit
.
Information on the bookmark is shown. From the
information screen you can:
– Edit the bookmark.
– Delete the bookmark.
– Send the bookmark as email, SMS message, Bluetooth
wireless technology, infrared, or MMS message.
To delete several bookmarks
1. Select the checkbox of the bookmarks to delete.
2. Select
Internet > Delete.
3. Select
Yes
to confirm.
Internet 79
Preferences
The browser is initially set up to work, but you have to set up
your own account. A simple way of setting up an Internet
account is to use the Web configurator at
www.SonyEricsson.com. See also ‘Internet accounts’ on
page 147 for more information.
The easiest way to set up Internet and WAP accounts is to ask
your Internet service provider to send you an auto setup message
containing the required setup information. The accounts will
then be set up automatically on your P900. To guarantee the
integrity of the settings, a PIN may be used.
For security reasons, some WAP pages and services, for
example online banking, can only be accessed from a particular
WAP account. See ‘WAP accounts’ on page 156 for more
information.
Note Proxy settings for MMS messages, and for a WAP gateway
should be set in the WAP account. Other proxy settings should
be set in the Internet account.
To set up the browser
1. Select
Edit > Preferences
.
2. Perform the setup according to the following:
Basic settings
– Enter the URL for the page to be shown when the browser
is started from the Internet button; either a page stored in
the P900 or a page on the Internet.
– Select the WAP account to be used when the home page is
loaded. The accounts are set up in the control panel.
– Select whether a new page should be displayed over the
whole screen.
– Select whether you want to use a vertical scroll bar to scroll
the pages up and down. Otherwise you can use Jog Dial.
– Select whether images should be loaded. If images are not
loaded, the page will be loaded faster. Nonloaded images
can be loaded manually when viewing the page.
– Select whether sounds should be played when the page is
opened.
– Select whether animations should be played when the page
is opened.
Security settings
– Select whether you want to save signed documents.
– Select whether you want to connect without giving away
your identity.
– Select whether you want to connect using the WIM card.
– Select whether you want to allow cookies.
80 Internet
Advanced settings
– Select whether you want to be able to receive messages
from your WAP service provider.
– Select whether you want to automatically open the URL in
WAP Push messages.
– Select whether you want to remove out-of-date messages
automatically.
– Select a sound that notifies you when a Push message
arrives.
– Set the size of the cache memory. The cache is the part of
the memory where viewed pages are stored. Stored pages
will load faster when you visit them again.
– Select
Clear history
to empty the list of pages visited and
cookies stored.
– Select
Clear cache
to empty the cache memory.
Games 81
Games
There are two preinstalled games in your P900. Traditional
Chess and the card game Solitaire.
More games are available on the
Multimedia for P900
CD in your
original P900 box. You can also install games from other
developers, see ‘Installing applications’ on page 124.
Chess
You can play Chess against the P900, or against another P900
user via SMS.
Please read the help texts for detailed information on how to set
up and play Chess.
To start a new game
1. Select
Chess > New game
to initiate a game.
2. Enter details as desired in the
New game
dialog. You can
return to these details later.
–
Name
– Give the game a name so you can return to it later if
you have to interrupt it.
–
Notes
– Write a note about the game.
–
You play
– Choose to play white or black.
–
Against
– Select the skill level of your opponent.
–
Played
– Select whether you want to play locally against
your P900 or against another P900 user.
3. Tap
Play
to start the game.
To play Chess
1. Select the piece you want to move.
The square where it is standing is now marked with a
triangle.
2. Select the square you want to move the piece to, and the
piece will move to it.
Closing the Flip closes the game temporarily and saves the
session status. Your opponent will be sent an end-of-game text
message.
Solitaire
Solitaire is a card game played with a standard deck of 52 cards
and up to 4 Jokers.
The purpose of Solitaire is to remove all the cards from the piles
to the layout card whilst scoring as many points as possible.
82 Games
Points are awarded for playing pile cards and bonus points are
awarded for unbroken, ascending or descending runs of four or
more rank cards.
When you cannot play any more cards and cards still remain in
the piles, the game is over. If all the pile cards are removed,
bonus points are awarded, and the hand is won. You are then
challenged to play a Hi/Low game to acquire more bonus points.
After the challenge, the game continues and a new hand is dealt
with one less Joker.
Rules
When the game starts, 35 cards are dealt from the deck into
7 piles of 5 cards. A further card is then dealt face up from the
layout card.
• Cards can only be played from the bottom of the piles.
• To play a pile card, it must have a face value of one more or
one less than the layout card.
• Aces are low and may not be played onto kings. Jokers can
be played onto any card, and any card can be played onto a
joker.
Play Solitaire
Solitaire is only available with the Flip open.
1. Select the icon for Solitaire.
The game will either start with a new game or with the layout
for an earlier, interrupted game. (The game data are saved on
return to desktop, when the Flip is closed or when the battery
is low.)
2. Select the card you want to move and it will be highlighted.
3. Select the card to which you would like to move the
higlighted card.
To restart the game during a game
Select Solitaire > New game.
To undo/redo a move
Select Edit > Undo move / Redo move.
Messaging 83
BUSINESS
Messaging
With
Messaging,
you can create, send, and receive different
types of messages:
You also use
Messaging
to receive:
• Area Information messages.These are text messages
broadcast to all subscribers in a network area, for example,
local road reports or local taxi phone numbers. (Area
Information services are not available from all operators).
• BIO (Bearer-Independent Object) messages. There are
different types of messages:
– Setup (email, Internet, WAP accounts).
– Email notifications.
– Files for exchanging electronic business cards (vCard) and
calendar information (vCal).
• Auto setup files for OTA (Over-The-Air) configuration.
• Beamed messages. These are files received via infrared or
Bluetooth wireless technology.
The different types of messages are handled by separate
messaging accounts. Select
Control panel > Connections >
Messaging accounts
to see the details of the messaging accounts
on your P900.
You can have any number of email accounts - a typical
configuration will be one business and one personal account.
When you set up a synchronization with your PC, an account for
synchronized emails is automatically created on your P900.
With the Flip closed, text and multimedia messages can be sent
and received using Jog Dial and the keypad. More advanced
tasks, however, are best handled with the Flip open.
SMS (Short Message Service) messages are text
messages sent and received via the network operator's
message center. When a text message has pictures,
sounds, ringtones and animations inserted, it becomes
an EMS (Enhanced Message Service).
MMS (Multimedia Message Service) messages.
A multimedia message can contain text, graphics,
animations, photographic images, audio clips and
ringtones.
Email messages. Your P900’s mail client supports POP3
and IMAP4 mail servers, MIME attachments and
SMTP for sending mail.
84 Messaging
Before using Messaging
Before you can send and receive any messages (except for
SMS), you need to set up the necessary accounts.
A simple way of setting up an Internet or email account is to ask
your service provider to send you a message that contains the
required information to create an account automatically on your
P900. You can also use the Web configurator on
www.SonyEricsson.com. Received auto-configuration messages
are stored in the
Auto setup
inbox.
See ‘Getting started with Internet and Messaging’ on page 163.
Folders in Messaging
Messaging accounts can have the following folders:
Inbox
,
Outbox
,
Draft
and
Sent
.
Inbox
The Inbox contains received messages. You can reply to,
forward, and delete messages, but not edit them.
Outbox
Outbox contains messages that are ready to be sent. If you are
creating several emails, and not using GPRS, you can reduce
connection time by saving them to
Outbox
and then connect and
send them all at the same time.
To save an email message to the Outbox
1. After composing your message, select
Send.
2. Select
Save to outbox.
Messages that you send from an email synchronization account
are always saved to
Outbox
and sent from your PC after your
next synchronization.
Draft
Draft contains messages that are not ready to be sent.
To store a new message in Draft
Create the message and exit without selecting
Send
.
To move a message from the Outbox to Draft
Open the Outbox message list and select
Message > Move
to Draft
.
Sent
Sent contains messages you have sent from your P900.
Tip Regularly delete old messages from your
Sent
folder,
especially those with attachments, to clear storage space.
Messaging 85
The accounts in Messaging
When you open Messaging, a list of your accounts appears.
The top items in the list,
Create SMS,
and
Create MMS,
are
shortcuts for directly creating new text messages (SMS or
EMS).
An asterisk next to an account indicates that a message has
arrived since you last opened the accounts inbox.
Handling text messages
A text message is sent via SMS (Short Message Service). It can
contain up to 160 characters (70 characters if you use non-Latin
characters). If you create a longer message, it will be sent as two
(or more) separate messages (concatenated), but usually
received as one message. If you add pictures, sounds and other
items to your message, it becomes an EMS message.
Text messages can be sent to one or more people, and you can
request a delivery report when your text messages have been
delivered to the recipients. The delivery report arrives on your
P900 as a text message.
If you leave the message before sending it, it will automatically
be stored in the
Draft
folder (unless you edit a message which
was already located in the Outbox).
To write and send a text message
1. In
Messaging
select
Create SMS
.
(You can also select
SMS >
tap
Message > New
.)
2. Enter the recipient’s number or select
To
and select recipient
or recipients from your contact list and select
Done.
3. Write your message.
4. Go to the address tab and specify whether you want a
delivery report or not.
5. Tap
Send.
To add an EMS item to your text message
Use the icons at the bottom of the screen to select the type of
item you wish to add.
• Tap to insert one of the smileys that appears.
• Tap to insert a picture or an animation. The last used
picture or animation appears.
– Tap
More
to get more animations to use.
– Tap
New
to draw a picture of your own.
• Tap to insert a sound. The last used sounds appear.
– Tap
More
to get more sounds to use.
• Tap to write bold text.
• Tap to change the size of the text you write.
a
a
A
A
86 Messaging
To format the text in the message using EMS features
1. Highlight the text you want to format.
2. Tap
Edit > Format text.
3. Tap
General
tab to change the
Alignment
and
Font
.
4. Tap
Style
tab to check the character style checkboxes: bold,
italic, underline, or strikethrough.
5. Select
Done
.
You can also use the icons and described above.
To save a received EMS item
1. Tap the item.
2. Select
Edit > Save object
.
Handling multimedia messages
MMS (Multimedia Messaging Service) messages can include
real pictures, animations and sound, organized like a slide
presentation with time-based playback control. Composing a
multimedia message is like building a small slide presentation.
A typical page will consist of a picture, some text and sound.
Refer to Technical data, section ‘MMS’ on page 189 for
supported file types that you can add.
You can take a picture with the CommuniCorder and send it as a
multimedia message using the
Send as
command from Pictures.
Multimedia messages can be sent to a phone or an email
account.
How a recipient receives an MMS you send depends on your
MMS service and how the receiving phone complies with MMS
specifications:
• Compliant and conformant phones can receive pictures of
size 160x120 pixels.
• Compliant and nonconformant phones can receive pictures
of almost any size.
• Partly compliant phones can read the message on the
Internet, using WAP.
• Noncompliant phones will receive an SMS notification.
Incoming multimedia messages
To play a received multimedia message
• Open the MMS inbox and select the new message.
The first time a multimedia message is opened, it plays
automatically. The next time you open the message, you can
play it by pressing the Play Button (Flip open) or by selecting
Play
from the menu (Flip closed).
a
a
A
A
Messaging 87
To forward an MMS
1. Open the message.
2. From the
Message
menu, select
Forward
.
3. On the address tab, select
To
and enter the recipient’s
phone number or email address.
4. Select
Send
.
To store a received MMS item, for example a picture
1. Open the message.
2. Select the picture you want to save.
3. Select
Save picture
or select
Edit > Save picture
.
4. Select the storage location.
5. Select
Save
.
You can store items both internally and externally. You can also
copy them between the internal memory and the Memory Stick
Duo. See ‘Folders’ on page 27.
Creating and sending multimedia messages
To create a new multimedia message
1. In
Messaging
select
Create MMS
.
(You can also select
MMS
> Message > New
. or open an existing message and select
Message > New
).
2. From the
Select template
dialog, tap the name of the template
you want and tap
Select
. The
Blank
template will open a blank
message.
3. The first page of the new message is now displayed. Select
an item from the menu that appears. Tap to open the
menu if it does not open automatically
.
If you select
Add
scribble
the Image editor presents a white background onto
which manual graphics can be added. This includes controls
for pen, crop, color, scale, rotate and pen width.
4. Tap again to add text,
audio or voice to the page.
Tap the page to return to
it.
5. Tap if you want to
change the time this page
should be shown. The
default time is 5 seconds.
6. Select
Edit > background
color
to give the message a
background color.
7. Tap to add a new page
to the multimedia
message in which you can
insert items.
8. Select
Edit > Page order
to
change the page order in the message.
Chat Edit
Message Edit Draft
1/1
Send
2
Add image
Add scribble
Add text
Add audio
Add voice
Paste
88 Messaging
To enter the recipient’s phone number
1. Select the address tab.
2. Select
To
and select the recipient from Contacts.
or:
Select the line beside
To
and enter the recipient’s phone
number or email address.
To insert an attachment
1. While creating your multimedia message, select the
attachment tab, select
Add
.
2. Select the type of attachment you want to add.
3. Select the attachment.
To send the multimedia message
Tap
Send
.
Preferences to a multimedia message
Select
Edit > Preferences
to set the preferences to a multimedia
message. The following settings are available:
•
Hide number
– Prevent your phone number from being
displayed on the recipient’s phone.
•
Read report
– Request a receipt when the recipient has open
your message.
•
Delivery report
– Request a receipt when the message has been
delivered to the recipient’s phone.
Editing multimedia messages
Here you can see the first
page with an inserted
picture.
To delete, replace or edit an
inserted item
Select the inserted item and
select an action.
While editing an image you
can add scribble, resize, crop
or rotate your image. To undo
your changes, select
Edit >
Undo
all.
Note If you have accepted
changes by selecting Done,
you will not be able to undo
them.
To edit item time
For each item in a page, it is possible to set the time when the
item appears and how long it is displayed or played.
1. Select the item so it is highlighted
2. Select
Edit time
Chat Edit
Message Edit Draft
1/1
Send
5
Edit image
Edit time
Delete
Copy
Messaging 89
3. Set the
Start time
, which is the number of seconds before the
item appears after the start of the page. The default is 0,
meaning show or play immediately.
4. The default
Duration
is for the item to continue for the
remaining duration of the page. To change this, uncheck
Page
time
and change the duration to the required value in seconds.
Start time + duration cannot exceed total page time.
You can also tap , or select
Edit > Page time
to see the time
settings for all items in a page. Tap the time bar to adjust the
time settings for each item.
To add or delete a template
• To make a template from a message, select
Save as template,
give the template a name, and tap
Done
.
• To delete a template, tap the name of the template you want
in the
Select template
dialog and tap
Delete
.
To set the download method for receiving multimedia
messages, manual or automatic
•In
Control panel,
select
Connections > Messaging accounts >
MMS > Automatic.
–
Off
means that only headers will be downloaded and can be
viewed.
–
Home only
means the same as for
On
below, but is only valid
in your home country.
–
On
means that the multimedia message is downloaded and
can be read like any other message. There is no
intermediate step.
Handling emails
Writing emails
To write a new email
Select an email account and select
Message > New
.
If you leave the message before sending it, it will automatically
be stored in the
Draft
folder (unless you edit a message which
was already located in the Outbox).
To mark an email as urgent
On the address tab, select
High
in the
Priority
list.
To enter addresses from Contacts when writing an email
1. Select
To:
2. In the
Select contact
dialog select the checkbox for each entry
you want to send the email to.
3. Select
Done
.
Tip To enter several addresses manually (without using
Contacts) in a text message, multimedia message or in an email:
enter a comma between each address.
90 Messaging
Sending email
To send an email message
Select
Send > Send
immediately
.
If your P900 is connected to the Internet when you send an
email, it will be sent immediately, and your P900 will remain
connected to the Internet. If not, your P900 will connect to the
Internet and then send the email.
Tip If you are creating several emails, and not using GPRS, you
can reduce the connection time by saving them to the
Outbox
and
then connecting and sending them all at the same time.
To save an email message and send it later
Select
Send >
Save to Outbox
.
To move an email message from Outbox to Draft
In your list of Outbox messages, tap to the left of the email (a
tick appears), and select
Message > Move to draft
.
If you leave the message before sending it, it will automatically
be stored in the
Draft
folder (unless it was created in the Outbox).
Adding attachments
To attach an entry to an email message
1. On the attachment tab, select
Add.
2. Select the type of attachment you want to add, and select the
item.
‘Send as’ email
You can send the entry you are viewing as an attachment to a
new email from the following applications:
Music player,
Video, Viewer, Internet, Calendar, Contacts,
Tasks, Jotter, Sound recorder,
and
Pictures.
To attach a Calendar entry to an email message
1. Open the entry in Calendar and select
Calendar > Send As.
2. Select
Email > Done.
3. Complete the email message and select
Send
.
To attach a Contact to an email message
1. Open the contact details for the contact you wish to send and
select
Contacts > Send as.
2. Select
Email > Done.
3. Complete the email message and select
Send
.
Receiving email
Emails must be retrieved from the email server on the Internet or
at your office. This can be done manually using the
Get & send
function or automatically by requesting the P900 to check for
new email at certain times.
When you forward an email, you can choose whether or not to
forward the attachment. Large attachments increase the size of
an email and consequently the connection time needed to send
it.
Messaging 91
Receiving attachments
Any attachments to an email message are displayed on the
tab. The icon next to an attachment in the list identifies the
type of attachment.
To view an attachment you need a viewer for that type of
file.Your P900 comes with preinstalled viewers for Microsoft
Word, Excel, PowerPoint and Adobe Acrobat (PDF) files. More
viewers are available on the
Multimedia for P900
CD.
To save an attachment, for example a picture
1. Open the email message and select the tab.
2. Tap the attachment, which opens the Pictures application.
3. Select
Pictures > Save
.
4. Select the location where you want to store the message.
5. Select
Save
.
You can store items both internally and externally. You can also
copy them between the internal memory and the Memory Stick
Duo. See ‘Folders’ on page 27.
Reply with history
If messages is set up to reply with history, the original message
is included when you reply to it, see ‘Messaging accounts’ on
page 151.
Downloading
You can choose not to download large emails and receive just a
header instead. A header contains the subject line, sender’s
details, and date, but not the full message.
To specify a size limit for email, above which you only receive
a header
1. Select
Control panel > Connections > Messaging accounts >
Email (select the email account) > Edit.
2. Select
Inbox.
3. Select an option from the
Download
list.
In your list of messages, headers are denoted by .
To download the full message
1. In your list of messages, select the header.
2. Select
Get & Send
.
To download a series of messages
1. In your list of messages, select the checkbox to the left of
each entry (a checkmark appears).
2. Select
Get & Send
.
Note If you delete a header, or a whole message, the message
will no longer be visible in your message list.
92 Messaging
Downloading emails automatically
You can schedule your email messages to be downloaded
automatically at certain times.
To download your emails automatically
1. In Control Panel, select
Connections >
Messaging accounts >
Email.
2. Select the required email account and select
Edit.
3. Select
Inbox > Schedule.
4. Set the time or interval for the scheduled download and
select
Done
.
Disconnecting and connecting
If your P900 is already connected to the Internet when you send
an email, it will remain connected after sending it. If your P900
is not connected before sending an email, it will connect and
send the message.
Note You can send text messages when connected to the
Internet. If your connection is CSD or HSCSD, it must be
disconnected before you can make or receive a phone call.
If your connection is GPRS, it can be suspended to enable a
phone call to be made or received. You may need to repeat the
data activity (Web page retrieval, get email) after the call has
ended.
If your P900 cannot connect to the email account, automatic
download will fail, and will be displayed next to the email
account.
A scheduled download will fail if your P900 is engaged in a
voice call. It may fail if it is connected to another ISP, that is,
through a different Internet account than specified for the email
account.
If email messages are not downloaded because a scheduled
download fails, they will be downloaded during the next
successful connection.
More about messaging
Finding messages
In both the list of accounts and list of messages,
Find
searches
through the subject lines, senders’ details, the text of the
message, and dates.
In an open message, Find searches through the text of the
message and highlights the text it finds.
You can only search through email messages that have been
fully downloaded.
Messaging 93
Get and send
To get and send messages for a specific account
1. Select
Messaging
.
2. Select the desired account (MMS or email, for example).
3. Select
Get&send.
To get and send messages for all your accounts
1. Select
Messaging
.
2. Select
Message > Get&send.
Any unsent messages in your
Outbox
will now be sent, and new messages not yet
downloaded will be downloaded to your P900.
Note If the email account is set up to access the mail server
through a Secure access connection (see ‘Secure tokens’ on
page 160), you must have the Flip open when you use
Get&send
.
If the Flip is closed, you will see an error message.
Saving contact details
When you receive a message, you can save the contact details of
the person who sent you the message.
To save the sender’s details
On the message’s address tab, select
From
.
Note If you save an address from an email synchronized from
your company PC, the corporate version of the address, rather
than the full Internet email address, will be saved to Contacts. If
the corporate version of the address is not an Internet address
(for example, an X.400 address, or just the sender's name), you
can use it to send emails from your synchronized account, but
you cannot use it in emails that you send directly from your
P900.
Connecting and disconnecting from the
Internet
To disconnect from the Internet
1. Select the connection icon (HSCSD/CSD or GPRS )
on the status bar.
2. Select
Disconnect
from the popup menu
3. The dialog
Do you want to disconnect, Yes/No
appears.
4. Select
Yes
.
If your service provider or network is
unavailable
Sometimes a message cannot be sent because your P900 cannot
connect to a network. Please check that the Messaging Account
and Internet Account information in the Control Panel is correct.
94 Messaging
If you have both GPRS and Dialup Internet accounts, try
sending the email message using an account of the other type.
GPRS Internet accounts use the GPRS network and Dialup
Internet accounts use the GSM network.
Synchronized emails
When you set up a synchronization with your PC, an account for
synchronized email messages is automatically created on your
P900 and indicated by . You can have more than one account
for synchronized emails. If you send an email as PC mail, the
mail will be sent via the PC when you have synchronized your
P900 with the PC.
If you set up a POP or IMAP account which accesses the same
mail server, the two accounts will contain the same messages.
Note that there is no connection between the accounts; the
copies in each account are separate.
Area information
Area information messages are text messages that are sent to all
subscribers in a certain network area, for example, a local traffic
report. When you receive an area information message, the
message automatically appears on the screen. When you dismiss
the information, it will be stored in the
Area info
Inbox until it is
replaced by a new message received on the same channel.
Please consult your service provider for more information about
the availability of area information services and area
information channel numbering. See ‘‘Area tab’ on page 155 for
more information.
Contacts 95
Contacts
Contacts is like an address book, in which you can store names,
phone numbers, email addresses and other useful information,
including photographs.
The information stored in the SIM is also accessible. SIM
entries can be copied to Contacts and Contacts entries can be
copied to the SIM. Some SIM cards have Information numbers
and Service numbers stored on the SIM card by the operator.
These numbers are useful for service and information, and are
accessible from the SIM within Contacts.
You can synchronize the contents in Contacts with one of the
PIM applications in your PC supported by the P900. See
‘Synchronization and backup’ on page 132.
Using Contacts with the Flip
closed
With the Flip closed, you can make calls and send text or
multimedia messages.
Contacts has two views when the Flip is closed:
Menus
In both list view and detail view, you can use to access
some of the P900’s contact functions. The options vary
depending on the situation.
Menu options in list view
•
SIM
– Display the contacts of the SIM card.
•
Send owner card
– Send your owner card (See ‘Making an
owner card’ on page 100) via infrared or Bluetooth wireless
technology.
•
Find
– Search for a specific contact.
•
Undo delete
– Restore the last deleted contact. Will appear
only if there is something to undo.
•
# Applications
– Access the application list view.
Menu options in detail view
Menu options in detail view: (availability depends on the type of
contact detail, for example phone number, that is highlighted.)
•
Send MMS
– Send a multimedia message to the active contact
•
Send SMS
– Send a text message to the active contact.
•
Call
– Call the active contact.
List view An alphabetical list of contacts. The list view is the
starting point for finding a contact.
Detail view The details for a contact.
96 Contacts
•
Send as
– Send the active contact using infrared or Bluetooth
wireless technology.
•
Delete contact
– Delete the active contact.
•
# Applications
– Will access the application list view.
Menu options in SIM
•
View all
– Switch to Contacts list.
•
Service numbers
– Display the service numbers on the SIM
card. This option is only displayed if there are service
numbers stored on the SIM card.
•
Information numbers
– As for service numbers above.
•
Find
– Search for a specific contact.
•
# Applications
– Will access the application list view.
Selecting a contact with the Flip closed
To select a contact
1. Select .
2. Then either:
– Scroll down to the desired contact.
– Press a number key. The first contact corresponding to the
first letter of the key appears. To search further, continue
to enter the letters with the keys.
– Select
Find
from the menu and search for the contact.
3. Select a contact and press the Jog Dial or press to open
the detail view for a contact.
To return to the list view, press .
Note To make a call to a contact in the SIM, select
SIM
from the
options menu. If there are service numbers or information
numbers stored on the SIM card, you can also access them.
To make a call
1. Select a phone number.
2. Press the Jog Dial or press .
or
1. Select a phone number.
2. Select
Call
from the
options menu.
To send a text message
1. Select a phone number.
2. Select
Send SMS
from the
options menu.
To send a multimedia message
1. Select a phone number.
2. Select
Send MMS
from the
options menu.
Contacts 97
To add a contact
You can create a new contact using information from a recently
received voice call or message. See also ‘Add to contacts’ on
page 51.
1. Select
Yes
when asked to add to contacts.
2. Enter contact name and edit the number, if required.
To delete a contact
1. Select the contact.
2. Select
Delete contact
from the
options menu.
• To restore a deleted contact, select
Undo delete
from the
options menu.
Using Contacts with the Flip
open
Open the Flip and tap or select
Contacts
in the Application
launcher to open Contacts.
Contacts has three views when the Flip is open:
Tabs at the bottom of the list view provide a fast way to locate
information. To highlight the first entry that begins with the first
letter on a tab, select the tab once. To highlight the first entry
that begins with the next letter on the tab, select the tab again,
and again for the third letter on the tab.
Making a call with the Flip open
To open Contacts
Tap or select
Contacts
in the Application launcher .
To make a call
1. If required, change folder from the
Folders
menu.
2. Scroll down to the desired contact.
If the contact list is long, first select a tab at the bottom of the
view.
3. Select the contact to display the contact details.
4. Depending on what you want to do, select according to the
following:
– Select or or the phone number to make a call.
– Select or the email address to send an email.
List view An alphabetical list of contacts. The list view is the
starting point for finding a contact.
Detail view The details for a contact.
Edit view Contact details, displayed in a way that allows you
to add and change the information.
abc def ghi jkl mno pqr stu v-z
98 Contacts
– Select or the URL to open a Web page.
– Select to send a multimedia message.
– Select to send a text message.
Using service and information numbers
To call an Information number or Service number on the SIM
card
1. Select
SIM
in the folders menu.
2. Select
Contacts > Information numbers / Service numbers
and
select a phone number or select a subcategory and then a
phone number.
3. Select
Call
.
Creating and editing contacts
You can sort the contacts according to first name, last name or
company. The contact entries can also be filtered by folder, such
as
Business
or
Personal
.
To create a new contact
1. Select
Contacts > New
.
2. Enter the desired information. When applicable, select from
the drop-down menus.
To add a field to a contact
1. Select the contact.
2. Select
Edit > Edit contact.
3. Select
Edit > Add field.
4. Select the field to be added from the drop-down list.
5. Select
Add.
To add a DTMF tone sequence
1. Select a field and set it to
Phone (h)
.
Add a new field if necessary.
2. Enter a
p
and then the tone digits. Enter a
p
to insert a pause.
It is necessary to start the tone sequence with a p so the
phone recognizes it as a tone sequence.
To send a DTMF tone sequence during a call
1. During a call, open the contact’s detail view.
2. Tap at the tone sequence.
Read more about DTMF tones in ‘Controlling tone-based
services’ on page 47.
To add a voice dial command
Contacts with a voice dial command are shown in
Voice
commands
in the folders menu.
1. Select at the bottom of the screen.
2. Select a number.
Contacts 99
3. Tap the
Record
button and record a voice command after the
tone.
4. Tap
Play
to check the quality of the recording.
• To remove a voice command, select the
Del
button.
To add a note to a contact
1. Select .
2. Enter the text.
3. If you do not want the note to be included when you send,
beam, or synchronize the contact, select the
Private
checkbox.
To add a photo or other picture to a contact
1. Select the photo view tab .
2. Tap the picture space.
3. If required, change folder.
4. Select the picture to use.
5. Tap the
Select
button.
• To change a picture, select the picture and select
Replace
image.
• To remove a picture, select the picture and select
Delete image.
To personalize the ringtone for a contact
Contacts with a personalized ringtone are shown in
Personal ring
type
in the folders menu.
1. Against
Ringtone
, select
Find sound
from the drop-down
menu.
2. If required, change folder.
3. Select the required sound.
4. Tap and to preview the sound.
5. Tap
Select
to set this sound for the contact.
Note The selected ringtone will only be played if the network
provides a CLI (Caller Line Identification) to enable the contact
to be identified, otherwise the Default Melody will be played.
Note If the ring melody selected for this contact is later deleted
or moved, the Default Melody will be played.
To change the details of a contact
1. Select a contact.
2. Select
Edit > Edit contact
, or tap the tab.
3. Change the desired information. When applicable, select
from the drop-down menus.
To delete a contact
1. Select the contact.
2. Select
Contacts > Delete
contact.
To create or edit a contact on the SIM card
1. Select
SIM
from the
Folders
menu.
2. Create or edit the contact as described above.
All options are, however, not available for the SIM card
contacts.
100 Contacts
Managing contacts
You can use
Contacts manager
to move contacts between the
folders, send contacts as a Vcard to another device, or to delete
them. You can also send or delete contacts on the SIM card with
the
Contacts manager
.
See ‘Sending and receiving items’ on page 29 for information
about how to receive contacts from another device.
To move, send or delete a contact
1. Select
Contacts > Contacts manager
.
2. Select the contacts you want to manage.
(If required, change the folder from the
Folders
menu.
Selecting
All
will show all the contacts from all the folders
except the SIM. Clicking the
Select all
checkbox will select all
the contacts in the current folder.)
3. Select
Send / Move / Delete
.
4. Follow the instructions, for example, select a folder or a
sending method.
5. Tap
Done
or
Yes
to confirm the action.
To search for an entry containing specific text
1. Select
Contacts > Find.
2. Enter the text string you wish to search for.
3. Select either
In all fields
or
In Names & Company
and tap
Find.
4. When the search is complete, all results will be displayed.
Note Searching is not case-sensitive and you do not have to
enter an entire word to locate a matching entry.
Copying contacts to and from the SIM card
You can also copy information between the contacts list and the
SIM card.
To copy contacts from the SIM card
1. Select
SIM
in the folders menu to the right in the menu bar.
2. Select
Edit > Copy all to Contacts
for copying all SIM entries
or
Tap a SIM entry to open it and select
Edit > Copy to Contacts
to
copy the selected SIM entry.
To copy contacts to the SIM card
1. Select a contact.
2. Select
Edit > Copy to SIM card
.
3. If the contact has multiple phone numbers, select the number
to copy.
4. Select
Done
.
Making an owner card
You can create an electronic business card, containing your
contact details, including notes and a photo. You can then send
this card to another device.
Contacts 101
To create your owner card
1. Select
Contacts > New
and enter your details.
2. Select
Contacts > Set as owner card
.
Tip You can also create an owner card by viewing the detail
view of a contact and selecting the menu option
Set as owner card
.
To send your owner card
1. Open the list view, then select
Contacts > Send owner card
.
2. Send the card using
Send as
.
Read more about sending items in ‘Sending and receiving items’
on page 29.
To view or edit your owner card
•Select
Contacts > View owner card
.
Preferences
Contacts tab
To sort the contact list and show the preferred phone number
1. Select
Edit > Preferences
.
2. Select the desired sorting option (first name, last name or
company) and tap
Done.
3. If you want a phone number to be shown next to the name in
list view, select
Show preferred phone number
.
If no preferred number has been set up for the contact, the
first phone number will be used.
4. Select
Done.
To change the preferred phone number
1. Select a contact.
2. Select
Edit > Edit contact
.
3. Select
Edit > Show in list.
4. Select the number to be shown from the list.
5. Tap
Done.
Note If no number appears, ensure that
Show preferred phone
number
is checked in preferences.
102 Calendar
Calendar
The Calendar function helps you keep track of appointments and
events, and you can also set reminder alarms for the entries. A
reminder is denoted by a .
Different views
You can see your Calendar entries in three views with the Flip
open: Day, Week and Month. With the Flip closed, you will see
the Day view.
To change view in Flip open
• Tap to display the Day view.
• Tap to display the Week view.
• Tap to display the Month view.
• Tap to navigate to the present day on the displayed view.
If you tap an entry in week view, the subject and time for that
entry are shown.
To navigate backward or forward in the current view
Tap the left and right arrows on the button bar at the bottom of
the screen. You can also rotate the Jog Dial.
To navigate to a specific date in the current view
Tap the day, week or month heading at the top of the display to
show a calendar popup in which you can select a specific date.
Creating calendar entries
To create a new calendar entry
1. Select
Calendar > New
and enter a short description of the
entry. This is the description you see in the calendar.
2. Tap
Unfiled
(the folder menu) on the menu bar and select a
folder to store the entry in.
3. Continue to enter information for the items on the detail
page.
–
Type
- Specify if the entry is an appointment, reminder or
all-day event.
–
Date
- Select the date to get a calendar where you can set a
date for the entry.
–
Time
- Set start and end time for the entry.
–
Location
- Specify a location or select a location you have
used before.
–
Alarm
- Select the checkbox if you want your P900 to alert
you about the entry with a sound. Select the time and date
that appears for your settings.
–
Repeat
- Specify if you want to repeat the entry or not. Read
more about this below.
Calendar 103
–
Private
- Select the checkbox to prevent the item from being
viewed by others than yourself if you synchronize your
calendar with, for example, your PC.
4. Select the note page tab to write a note for this entry.
5. Select to save and close the entry.
You should delete old entries regularly to free up memory.
To create recurring entries
1. When the entry is open, select
Repeat
.
– Set repeating to
Daily
,
Weekly
,
Monthly by date
,
Monthly by day
,
Yearly by date
or
Yearly by day
.
–
Interval
- Specify how often the event will happen, for
example, by selecting
Weekly
and
Interval 2
means that the
event will recur every two weeks on the specified day.
–
Forever/Until
- Set the time limit for the alarm or select
forever.
2.
Select days
- Weekly repeated events can be set to occur twice
or more in one week. For example, eating lunch with a friend
Tuesday and Friday every week.
Note You cannot repeat All-Day Events
To edit an entry
1. Open the entry by tapping it on the calendar.
2. Make the changes according to the instructions above.
Managing calendar entries
To find a certain entry
1. Select
Calendar > Find
.
2. Enter a search word on the menu that appears.
3. Select where to search (
Everywhere, Future, Past
).
4. Select
Find
. A result list is then displayed.
5. Select an entry on the result list to open it.
To delete an entry
Open the entry and select
Calendar > Delete entry
.
A deleted entry may be restored with
Edit > Undo delete
.
To delete all entries in a period of time
1. Select
Calendar > Delete entries
.
2. Select the time period and select
Done
. All entries from that
time period are deleted from the Calendar.
Note Repeated entries will not be deleted.
To copy, cut or paste an entry
1. Open the entry.
2. Select
Edit > Copy entry/ Cut entry.
3. Go to the day where you want to place the entry.
4. Select
Paste entry.
104 Calendar
To move a Calendar item to Tasks
1. Open the entry and select
Calendar > Move to Tasks
.
2. The entry is moved, not copied.
If you move an entry with an alarm, the alarm will also sound in
Tasks.
To cut or copy Calendar entries to the Tasks application
1. Open the entry and select
Edit > Cut entry
or
Copy entry.
2. Open Tasks.
3. Select
Edit > Paste entry.
Sending and receiving calendar
entries
You can send and receive calendar entries using
Send as
. See
‘Sending and receiving items’ on page 29.
Preferences
You can customize the calendar views and alarm settings to suit
your own needs.
To customize the calendar view, General tab
1. Select
Edit
> Preferences.
2. Select the
General
tab, and fill in the required details.
To customize the alarm settings
1. Select
Edit > Preferences.
2. Select the
Alarm
tab.
Now, you can change the
Alarm precedes event by
setting - the
length of time before an entry that the alarm goes off.
To assign colors to your entries using the folders
1. In Calendar, select the folders menu to the right on the menu
bar and select
Edit folders.
2. Select a folder and select
Edit
or create a new folder by
selecting
Add
.
3. Select the color box and select color for that folder and select
Done
.
Entries in a folder with a specific color appear in that color in
Day and Week views (but not in Month view) so that you can
see the pattern of events in your diary. Reminders appear as
whatever the folder color.
Saving changes
If you leave Calendar while editing an entry, your changes are
saved automatically.
Tasks 105
Tasks
With the Tasks function, you can make a list of things you need
to do. The folders help you to separate different types of
activities.
You can move entries between Tasks and the Calendar, which is
useful when you come to schedule a Tasks entry. You can also
send an entry via text message, infrared, Bluetooth wireless
technology, multimedia message or email.
Creating task entries
The Tasks list shows a short description of the task. Select a task
to see its full information.
A task entry consists of two pages. One detail page where you
set the properties for the task, and one page where you can add
notes.
To create a new task entry
1. Select
Tasks > New
and enter a short description of the task.
This is the description you see in the task list.
2. Select
Unfiled
(the folder menu) on the menu bar and select a
folder to store the task in.
3. Continue to enter information for the items on the detail
page.
–
Completed
– Select the checkbox when the task is done.This
can also be done directly in the Tasks list.
–
Priority
– Set a priority for the task. You can sort the tasks
by priority.
–
Due date
– Select the checkbox to set a deadline for the task.
Select the date that appears to get a calendar where you
can set a due date.
–
Alarm
– Select the checkbox if you want your P900 to alert
you about the task. Select the time and date that appears
for your settings.
–
Private
– Select the checkbox to prevent the task from being
visible by others, when synchronized with shared
calendars or tasks in other devices, for example your PC.
4. Select the note page tab to write a note for this entry.
5. Select to save and close the task.
Note Delete will delete the whole task entry.
To edit an entry
1. Open the entry by tapping it in the Tasks list.
2. Make the changes according to the instructions above.
106 Tasks
Managing task entries
To open an existing entry
Select the entry in the Tasks list.
To mark an entry as completed
Select the checkbox to the left of the entry in the Tasks list.
To sort the entries
Select
Edit > Sort on priority
or
Sort on date
.
To find a certain entry
1. Select
Tasks > Find
.
2. Enter a search word.
3. Select the folder to search in or use the default value
All folders
.
4. Select
Find
. A result list is then displayed.
5. Select an entry on the result list to open it.
To make a copy of an entry or paste an entry
1. Open a task and select
Edit > Copy entry.
2. In list view, select
Edit > Paste entry.
To delete an entry
Open the entry in the Tasks list and then select
Delete
.
To restore a deleted entry
Select
Edit > Undo delete.
To delete all completed entries
In your Tasks list, select
Tasks > Delete completed
.
Note When you delete All Completed Entries, they are deleted
permanently and cannot be restored.
Moving task entries
To move an entry to the Calendar
• Open the entry and select
Tasks > Move to Calendar.
The entry
is moved, not copied.
To copy a task entry to Calendar
1. Open the entry and select
Edit > Copy entry
.
2. Open Calendar.
3. Enter the day you wish the task to appear.
4. Select
Edit > Paste entry
in Calendar.
Note If you move or copy an entry to the Calendar, it will lose
the priority it was assigned in Tasks.
Tasks 107
If you do not set a due date for the tasks entry, the current date
will be used for the new Calendar entry. If you move or copy an
entry with an alarm, the alarm will also be moved to the
Calendar.
Sending and receiving task
entries
You can send and receive task entries using
Send as
. See
‘Sending and receiving items’ on page 29.
Preferences
Select
Edit > Preferences
to alter the settings. The following
settings are available.
–
Display due dates
– Select whether or not to display them in
the Tasks list.
–
Display completed
– Select whether or not to display them in
the Tasks list. This will not delete the completed tasks.
108 Jotter
Jotter
The Jotter works as a notepad where you can write notes and
draw pictures. The folders help you to separate different types of
notes.
A Jotter entry consists of two pages. One text page and one
drawing page. With the Flip closed, you can read and edit your
notes, but you cannot view or edit pictures.
When opening Jotter you see a list of entered notes, with the
first words of each text note. Select a note to see its full
information or edit it.
Creating and editing notes
To create a new note
1. Open Jotter and select Jotter >New.
The new note automatically starts as a text note. Select to
get bold text and to create a bulleted list.
2. Select
Unfiled
(the folder menu) on the menu bar and select a
folder to store the jotter in.
3. Select the drawing page tab to draw a sketch for this note.
4. Select to save and close the note.
To edit a note while working with it
• For text, select
Edit > Revert.
The text returns to its original state. All changes are lost.
• For sketches, select
Edit > Undo.
This choice removes your last pen stroke. If you change your
mind, select
Edit > Redo
.
To create a new note from text or sketches copied from another
application
Open the list of notes and select
Edit > Paste
.
Note If you paste a sketch over an existing sketch, the existing
sketch is deleted.
Create a note with the Flip closed (text only)
1. Select Applications >Jotter with the Flip closed.
2. If you have previous notes stored, these are now listed. Use
the Jog Dial to select a previous note in order to open it.
3. Press if you want to create a new note. Select
New
.
Insert your text by using the keypad.
Edit a note with the Flip closed
1. Select Applications >Jotter with the Flip closed.
2. Use the Jog Dial to select a previous note in order to open it.
3. Press . Select
Edit
. Insert your text using the keypad.
A
Jotter 109
Drawing pictures
You can draw with different
nib widths and colors. The
main window is the ‘paper’
where you may draw with
your stylus in the same way
as you draw with an ordinary
pen.
Select to change color.
Select to change the
virtual nib.
Select to activate the
eraser. Tap the eraser again to
reactivate the pen.
All jotter files (both text and
drawings) are automatically
stored in the P900. The list
view is presented to you as soon as you start the Jotter
application.
Managing notes
To delete a note
1. Select the note in the notes list.
The note opens.
2. Select
Jotter > Delete note
.
Sending and receiving notes
You can send and receive notes using
Send as
. See ‘Sending and
receiving items’ on page 29.
Note Selecting Send as SMS sends the text only.
Jotter Edit Unfiled
110 Sound recorder
TOOLS
Sound recorder
In Sound recorder, you can record and listen to your own sound
recordings. You can also send your recordings to other devices
via Bluetooth wireless technology, infrared communication,
email or multimedia message, and use a sound recording as a
ringtone.
Each memo is identified with the date and time it was recorded
and its position in the list of sound recordings.
Making sound recordings
To record and save a sound recording
1. Select
>
> New
.
A new sound recording is created.
2. Select
and start recording after the beep.
3. Select to finish the recording.
The new sound recording is automatically saved in the list of
sound recordings with the current date and time.
To append to a previous sound recording
1. Select the required recording.
2. Select
and start recording after the beep.
3. Select to finish the recording.
Key functions
To delete a sound recording
1. Select a sound recording you want to delete.
2. Select
Delete >
Yes
.
Select... To...
start recording a sound.
listen to the current sound recording.
stop the current sound recording.
go to the previous sound recording in the list.
go to the next sound recording in the list.
Sound recorder 111
Using sound recordings as
ringtones
You can set a sound recording as a ringtone.Your sound
recordings appear in the list of sounds that can be selected as
ringtones. They take the form
voicenote
and a number, for
example
voicenote1470
.
To set a sound recording as ringtone, see ‘Sounds and alerts’ on
page 141.
Sending sound recordings
You can send Sound recorder recordings via Bluetooth wireless
technology, infrared communication, email or multimedia
message.
To send a sound recording
1. Select
Sound recorder > Send as
.
2. Select how you want to send the sound recording. See ‘To
send an item using Send as’ on page 29 for more
information.
Note All other sound media on your P900 is handled via the
Music player
application. You can send sound items from
Music player
and all received sound items are played using
Music
player
.
112 Calculator
Calculator
The Calculator is a standard 12-digit calculator. You can add,
subtract, multiply, divide, calculate square roots and
percentages. It also has a memory function.
To use the calculator
1. Select
>
.
2. Enter the calculations by tapping the digits.
All calculations, except percentage calculations, are performed
as they are entered, for example: 5+5x5=50, not 30.
Percentage calculations are performed backward. To calculate,
for example, 10% of 50, enter 50x10%. The result is displayed
when you tap the %-key.
Key functions
You can copy and paste values to and from other applications by
selecting
Calculator
>
Copy
or
Paste
.
Values stored in the memory are retained while using other
applications.
mr
Tap once to retrieve a value from the memory and enter it
into the screen.
Tap twice to clear the memory.
m+
Tap once to store an entered value in the memory.
If you already have entered a value in the memory, tap once
to add the value on the screen to the value in the memory.
m-
Tap once to subtract the entered value from the value in the
memory. The memory is adjusted but not displayed.
Tap once to delete the last digit you entered.
C
Tap once to reset the screen to 0.
Time 113
Time
The time and date are always displayed on the Flip closed
standby screen. You can customize the display of times and
dates throughout your P900. You can set your current location
and another location of your choice. It is also possible to set
three different alarms.
Setting time and date
To set the current time and date
1. Select
>
.
2. Tap the clock, or select
Time > Set time & date
, to view the
current time and date settings.
3. Tap the Date box, then use the arrows to set the current year
and month. Then select the current day.
4. Tap
Summertime
, then select the checkbox next to the zone
that currently has summertime and tap
Done
. This is only
required if you are currently in a country/region with
summertime.
5. Tap the time box, then tap the upper half of the hour or
minute box to increase the number displayed, or the lower
half to decrease the number.
Use the
am
/
pm
box to togle between am and pm. (This is only
possible if you use the 12-hour time format.)
Confirm by tapping outside the time picker.
6. Select
Done
.
Format
You can specify how you want the time and date to be displayed
on the screen, and if you want to use the 12- or 24-hour time
format.
To set the time and date display format
1. Select
>
.
2. Tap the clock, or select
Time > Set time & date
, to view the
current time and date settings.
3. Select
Format
.
4. Tap the Date Format box and select a format.
5. Tap the Date Separator box and select a separator.
6. Select a
Time format
.
7. Tap the Time separator box and select a separator.
8. Select
Done
.
114 Time
Specifying workdays
You can specify what days you work, if, for example, you want
to set an alarm that sounds only on workdays. You can also
specify the first day of your week to customize the display of
both Week and Month views in Calendar.
To specify your workdays
1. Select
>
.
2. Tap the clock, or select
Time > Set time & date
, to view the
current time and date settings.
3. Select
Workdays
.
4. Select the checkboxes next to the days you normally work.
5. Select
First day of week
and select a day.
6. Tap
Done
.
Setting locations
Specify the country/region and city you are currently in. The
city you select will be displayed next to the clock in Time.
If you are away from home, for example traveling in another
country/region, it can be useful to know what the time is in your
home country/region as well as the country/region you are in.
The city you select as Other City will be displayed below the
clock in Time.
To set the locations
1. Select
> .
2. Tap
Time > Set location
.
3. Tap the Current Country/Region box and select the country/
region where you are located at that moment.
4. Tap the Current City box and select the city you are in at that
moment. If the city you are in is not listed, select the city
closest to you.
5. Tap the Other Country/Region box and choose a country/
region.
6. Tap the Other City box and choose a city.
7. Tap
Done
.
Setting number formats
You can choose how you want the measurements and numbers
in your P900 to be displayed in all your applications. Distances
can be displayed using the imperial or metric system, and
different punctuation marks can be used as separators.
To set the number details
1. Select
> .
2. Select
Time > Set location
.
3. Select
Numbers
.
Time 115
4. Choose separators and symbol positions from the drop-down
lists. You can tap the keyboard icon to find currency
symbols.
5. Tap
Done
.
Setting alarms
You can set up to three different alarms on your P900. You can
choose to activate one of the preset alarms, or set a new alarm
with your own definitions.
You can choose to set a silent alarm, where only a message is
displayed when it goes off, or you can set an audible alert.
Alarms requires that the P900 is turned on. If you want to get
alarms in an environment where radio transmitters are not
permitted, you can set the P900 to flight mode, see ‘Flight
mode’ on page 47.
Note If you have connected a stereo headset to the P900, the
alarm will only be heard in the headset.
To activate an existing alarm
• Select the checkbox in the alarm slot. is displayed on the
status bar on the screen.
To set a new alarm
1. Select
>
.
2. Select one of the alarm slots.
3. Select
Time
and choose at what time you want the alarm to go
off. Confirm by tapping outside the time picker.
4. Select
When
and choose how often you want the alarm to go
off:
–
Once
The alarm will go off once only, at a time more than
24 hours from now but within the next eight days.
–
Next 24 hours
Within the next 24 hours.
–
Daily
Every day at the specified time.
–
Weekly
Every week at the specified time.
–
Workdays
Every workday at the specified time.
5. Select
Alarm sound
and select a sound.
6. Select
Message
and select a preset message or write a new
one.
7. Tap
Done
.
8. Ensure that the checkbox next to the alarm is selected.
When the alarm goes off, select
Snooze
to postpone the alarm for
five minutes or
Silence
to turn off the alarm sound. To turn off
the alarm completely, tap
Done
.
116 Viewer
Viewer
With Viewer, you can view Microsoft Word, Excel, and
PowerPoint documents as well as Adobe Acrobat (PDF)
documents.
Support for additional file types can be installed from the
Multimedia for P900
CD.
When the Flip is open Viewer has two views:
Viewer is also started automatically when selecting and opening
attachments to messages. The required view is selected based on
the type of attachment.
To save documents to another location (internal or on the
Memory Stick Duo), you use folders; see ‘Folders’ on page 27.
The functions available vary according to the document type.
General functions are similar between the document types and
are therefore described first.
Common viewer functions
To open a document from an email or Web page
Select the document link.
The document viewer is started, showing the detail view of the
document.
To save the document in the P900
1. Select
Document > Save
from the menu.
2. Select where to save the document and select
Save
.
To open a document from the list view
1. Select the Application launcher icon .
2. Select the Document viewer icon .
3. If required, change the folder.
4. Scroll to the desired file and select the filename.
The document is shown in the Detail view.
To save the document in a different location
1. Select
Edit > Copy to
from the menu.
2. Select where to save the document and select
Save
.
List view An alphabetical list of files, for selecting a file to
view.
Detail view The contents of a file, for viewing and manipulating
the file.
Viewer 117
Viewing Word documents
To copy text from the document
1. Select the text to be copied. To select all text in the
document, select
Edit > Select all.
2. Select
Edit > Copy.
The text is put into the clipboard and a message is displayed.
To search for a text in the document
1. Select
Document > Find
from the menu.
2. Enter the text to search for.
3. Select find.
4. If required, select
Document > Find next.
5. To clear the highlighted search hits, select
Document > Clear
search hits.
To change the document view
1. To display the document as formatted text without pictures,
wrapped to the screen size, select
Edit > Draft view
.
2. To display the document as formatted text including pictures,
wrapped to the screen size, select
Edit > Normal view.
3. To display the complete layout of the document, select
Edit >
Page view.
Viewing Excel spreadsheets
To copy text from the document
1. Select the text to be copied. To select all text in the
document, select
Edit > Select all.
2. Select
Edit > Copy.
The text is put into the clipboard and a message is displayed.
Note Data copied from a spreadsheet cannot be pasted into the
Calculator application if they include non-numeric values (such
as currency symbols or formatting characters).
To search for text in the document
1. Select
Spreadsheet > Find
from the menu.
2. Enter the text to search for.
3. Select find.
4. If required, select
Spreadsheet > Find next.
5. To clear the highlighted search hits, select
Spreadsheet > Clear
search hits.
To switch between draft view and complete layout
Select
Edit > Draft view
.
To show/hide the spreadsheet grid lines
Select
Edit > Show gridlines.
118 Viewer
To show/hide the spreadsheet headings
Select
Edit > Show headings.
To navigate in the workbook
1. To go to the next sheet in the workbook, select
Edit > Next
sheet
.
2. To go to the previous sheet in the workbook, select
Edit >
Previous sheet.
Viewing PowerPoint
presentations and PDFs
To search for text in the document
1. Select
Drawing > Find
from the menu.
2. Enter the text to search for.
3. Select find.
4. If required, select
Drawing > Find next.
5. To clear the highlighted search hits, select
Drawing > Clear
search hits.
To navigate in a multipage presentation/PDF
1. To go to the next slide in the presentation, select
Edit > Next
slide
.
2. To go to the previous slide in the presentation or page in the
PDF, select
Edit > Previous slide.
File manager 119
File manager
With the
File manager,
you can view, rename, copy, move, and
delete files and folders on the P900. You can also add folders,
send files and rename and format the Memory Stick Duo.
Initially, the root view is shown, with the subfolders:
•
Audio
, where all audio files are stored.
•
Document
, where different document files are stored.
•
, where all images, pictures as well as drawings, are
stored.
•
Other
, where all files not applicable for the other folders are
stored.
•
Video
, where all video clips are stored.
Using the folder menu, you can select between the internal
storage and the external storage, that is, the Memory Stick Duo.
The file path area at the top of the window shows the path to the
shown folder.
Note There is an important distinction between
External media
and
External other
.
External other
lets you view folders that have
been placed on the memory card by other equipment, such as
digital cameras. This is the only place where these folders can
be viewed.
From the file manager, it is possible to reach the Control Panel
Storage Manager, see ‘Storage manager’ on page 160. You can
also format the Memory Stick Duo, see ‘Reformatting a Memory
Stick Duo’ on page 22.
To move within the folder structure
• To move up in the hierarchy - tap the top folder.
• To view the contents of a folder or a file - tap the top folder.
Folders are opened in the file manager, while other files are
opened in the applicable application.
To add a folder
1. Select
File > New folder
.
2. Type a folder name and tap
Done
.
To copy or move one or more folders or files
1. Select the folders or files to handle.
2. Select the required activity from the
File
menu.
3. Select the destination and tap
Done
.
120 File manager
To delete one or more folders or files
Note Only empty folders can be deleted.
1. Select the folders or files to delete.
2. Select
File > Delete
.
3. Tap
Delete
.
To change properties for one or more folders or files
1. Select the folders or files to change.
2. Select
File > Properties
.
3. Change the properties as required.
4. Tap
Done
.
Online services 121
Online services
Online services is a customized service offered by a network
operator. This function is network- or subscription-dependent.
Online services provides a mechanism that allows applications
that exist on the SIM to interact and operate with the P900. It
may provide services ranging from weather forecasts to the
latest stock price information.
Online service are placed on your SIM card by your operator.
Note Contact your operator to find out which services are
available for your account.
Note If this service is available on your SIM, the Online
services application will appear in the application list under a
name defined by the SIM provider. However, the icon used to
represent the Online services application will not change.
i
i
122 PC Suite and multimedia for P900
ADVANCED FUNCTIONS
PC Suite and multimedia for P900
PC Suite for P900
The
PC Suite for P900
CD delivered with your P900 contains a set
of useful applications to install applications and manage your
P900:
•
Synchronization
– Synchronization of Calendar, Notes,
Contacts and Tasks against MS Outlook, Lotus Notes and
Lotus Organizer.
•
Backup and Restore
– Make backup copies of your data via
SyncStation.
•
File Manager
– Transfer files (images, documents, music) via
Windows Explorer between your P900 and PC.
•
Install software
– Install applications in the P900.
•
Download Language
– Change the language of the P900.
•
Dialup Networking Wizard
– Wizard for GPRS and HSCSD
settings for using your P900 as a modem.
•
User Guide
– Manual for your P900.
•
Quick Guide
– Quick Guide for your P900.
•
Drivers
– Drivers for modem and the USB cable connected
SyncStation.
Refer to the online help for each specific application.
Installation of the PC Suite for P900
The
PC Suite for P900
programs can be used with Windows ME,
98, 2000 and XP.
When inserting the CD in the PC, a start menu is automatically
shown. Select language and then start the
PC Suite for P900 Setup
.
Follow the instructions in the installation wizard.
If the start menu is not automatically shown, use the
Run
command in the Windows
Start
menu to start
Start.exe
from your
CD drive.
By default the
PC Suite for P900
is accessed from
Start menu >
Programs > Sony Ericsson > P900.
The
Setup
application also can be used later to add or delete
components.
You can download the latest PC Suite software from
www.SonyEricsson.com/support
PC Suite and multimedia for P900 123
Multimedia for P900
The
Multimedia for P900
CD contains a number of applications
and files to be installed in, or downloaded to, your P900 and
used together with its applications.
• Games.
• Audio files.
• Pictures.
• Video clips.
• MMS templates.
Opening the Multimedia CD for P900
When you insert the CD in the PC, a start menu opens
automatically. Select an item from the menu and follow the
instructions on the PC screen.
If the start menu is not displayed automatically, use the
Run
command in the Windows
Start
menu to start
CDBrowser.exe
from
your CD drive.
124 Installing applications
Installing applications
It is possible to install new applications in your P900. These
applications can be obtained in several ways, for example:
• from the Internet.
•from a CD.
• from a Memory Stick Duo.
• as an email attachment.
• from other devices.
There are two types of installation files for applications:
• SIS (Symbian Standard Installation) made for P900 or other
Sony Ericsson devices.
• MIDP JAR (Mobile Information Device Profile Java
Archive).
Note SIS and JAR files are installation packages containing one
or several files.
This chapter also applies to other types of software to install, for
example, system components and add-ons.
Applications from developers outside Sony Ericsson, so-called
third-party developers, might be able to be installed in the P900.
Applications which are not approved by Sony Ericsson are not
guaranteed to work correctly or securely, and users install them
at their own risk. Product failures caused by applications not
approved or made for Sony Ericsson will not be covered by your
warranty.
Installing applications on your
P900
Installation file security
Installation files in SIS format are typically used for installation
of Epoc or PersonalJava ™ applications or other content into the
P900 file system.The vendor who prepared the SIS file decides
where in the file system the various content of the SIS file will
be installed. This means that you need to decide if you trust that
the SIS file does not contain harmful content. If you know for
sure who produced the SIS file then you can take an installation
decision based on what you know about that vendor. Your P900
supports cryptographic verification of vendor identity.
During installation the P900 verifies a digital signature and
certificate in the SIS file against a root certificate in the phone.
Successful verification means that you can trust who produced
the SIS file and that the content has not been modified after it
was created. If the SIS file does not contain a digital signature,
Installing applications 125
you will be given a warning about the problem, but you can still
decide to proceed with installation at your own risk. In general,
it is recommended that you install only from SIS files where the
vendor identity and file integrity can be verified.
Note Installation of uncertified applications may cause your
system to crash and all your data will then be lost.
MIDP applications run in a protected environment with no
access to sensitive information, so no signatures are required for
MIDP JAR files.
From a PC
PC Suite for P900
must be installed in your PC and the P900 must
be connected to the PC via SyncStation, infrared, or Bluetooth
wireless technology in order to install applications from your
PC.
Installing applications from your PC
1. Connect your P900 to the PC via SyncStation, infrared or
Bluetooth wireless technology. When connected, an icon is
shown in the status area to the right in the taskbar on the PC.
2. Start the PC software
Install Software
and select the
application (.sis file) to install.
3. Confirm to install the application in the P900.
4. Select the target drive (phone memory or Memory Stick
Duo).
Download to the P900 begins.
5. Installation starts when the download is complete.
From the P900
Program packages, for example, games, can also be downloaded
to your P900 from the Internet or from a Memory Stick Duo.
When downloading a file from the Internet, the installation will
start automatically when the file is completely downloaded to
your P900. The procedure below describes installation of
application packages already in the P900 but not yet installed.
See ‘To download and upload files, for example, applications’
on page 76 for information about how to download files from
the Internet.
Installing applications in the P900
1. Select .
2. From the menu, select
Applications > Install
.
3. Select the software from the list.
4. Select
Install.
If the software is certified, an information
dialog will be shown with the name of the software, version
and supplier. Select
Install
again.
5. Now, depending on the software, you may be prompted to
replace a previous installation, select language, memory
location and select other installation options.
6. Installation is complete. Select
Done
.
126 Installing applications
Removing applications from
your P900
It is sometimes necessary to remove installed applications and
user data to free up memory.
Removing applications in the P900
1. Select .
2. From the menu, select
Applications > Uninstall
.
3. Select the application to be uninstalled.
4. Select
Uninstall
.
5. Tap
Yes
to confirm.
6. Select
Done
.
Tip See also ‘Master reset’ on page 159 and ‘Storage manager’
on page 160 in
Control Panel
for more options regarding removal
of applications and user data.
Some removed applications could be reinstalled from the PC
Suit for the P900 and the multimedia CD.
Connecting to other devices 127
Connecting to other devices
Your P900 can be connected to other devices with similar
interfaces such as PCs, other P900s and handheld computers.
The connection can be made via:
• Bluetooth wireless technology (not in conjunction with
Windows 98)
•Cable
• Infrared (IrDA)
Once it has been connected, you can perform various tasks,
depending on what type of connection you have selected, such
as:
• Using a cordless headset (Bluetooth wireless technology)
• Sending and receiving files via (infrared, Bluetooth wireless
technology) – ‘beaming’
• Making Backup/Restore and Synchronization of your data
and file transfer. (Cable, infrared and Bluetooth wireless
technology)
• Using the P900 as a modem for Dialup Networking. (Cable,
infrared and Bluetooth wireless technology)
PC connectivity software
Your P900 is delivered with a CD,
PC Suite for P900
. This
software must be installed on the PC you want to connect to. See
‘Installing applications’ on page 124 for more information. You
do not need to install the
PC Suite for P900
if you only want to
perform beaming with the PC or use a cordless headset.
Connection via SyncStation
Connect the SyncStation to your PC with the USB cable. A
wizard helps you install the USB cable for the first time. The
PC
Suite for P900
CD contains the required software.
Put your P900 in the SyncStation. A new wizard starts to help
you connect your P900, if this is the first time you have done it.
appears in the status area to the right on the taskbar when
the P900 is connected.
When connecting via cable, the P900 can be set to PC Connect
mode or Modem mode. The setting is made in
Control panel >
Connections > Cable
, see ‘Cable’ on page 146.
Set the P900 in
PC connect mode
for
• Synchronization
• Software installation
128 Connecting to other devices
• Backup and restore
Set the P900 in
Modem mode
when using
• P900 as a modem
• Dialup networking wizard
You should disable the USB cable connection in these three
cases. In your PC select
Start > Settings > Control Panel > Phone
Monitor Options > COM Ports
and disable the COM port to
which the cable is connected.
Sony Ericsson Update Service
Sony Ericsson Update Service (SEUS), is a way for end-users to
update their phone's firmware on their own, using an SEMC
desk stand and any Internet-connected PC (preferably via
broadband).
To update the P900's firmware
1. Connect the desk stand to your PC.
2. Visit the Sony Ericsson customer support Web site.
3. Download and run the SEUS application.
Detailed instructions on how to proceed with the update
sequence are displayed. You can also make a backup of the
P900.
Connection via the Infrared port
When connecting via the infrared port, make sure that both
devices are placed within one meter of each other and that the
infrared ports have a free line of sight between them.
Both your P900 and the device you connect to must have their
infrared ports activated before communication can begin.
To activate the infrared port on the P900
1. Go to
Control panel > Connections > Infrared
.
2. Set the P900 to
PC connect
or
Modem
as required.
3. Set the port state to
On
or
On for 10 minutes.
You can also change the infrared port state with the Flip closed,
using the
Connections
application.
To activate the infrared port on the PC
1. Right-click in the status area to the right on the taskbar.
2. Select
Properties
3. Select the Infrared checkbox
4. Click
Close
.
Note Clear the Infrared checkbox when ready.
Connecting to other devices 129
Send and receive
You can send items via the infrared port, beam, in any
application if there is a
Send as
command. To send, select
Infrared
. If you receive a beamed item, a dialog box appears with
two options.
View
or
Done
.
View
opens the associated application
which shows the item;
Done
saves it in the
Beamed
folder in
Messaging
.
Connection via Bluetooth
wireless technology
You can connect your P900 to other products equipped with
Bluetooth wireless technology, for example PCs or other
cellphones, and exchange data. Since Bluetooth wireless
technology is radio-based, there is no need for a free line of
sight between transmitting and receiving devices. This means
that your P900 can remain in your pocket while communicating.
However, objects located between transmitting and receiving
devices may weaken the signal.
Connection to another device can be performed at a range of up
to 10 meters. Obstructions between the transmitting devices will
affect the performance. For all tasks, except beaming, it is
necessary that you first set up a permanent and trusted
relationship between your P900 and the other device. This
process is called pairing. (Other documentation may refer to it
as bonding.) The paired devices are remembered by your P900
even after you have turned it off, so you do not need to repeat
the process for every connection to those devices. The reason
for pairing is to simplify future connections and make them
secure; only paired devices can connect to your P900.
Activating Bluetooth wireless technology
Activate Bluetooth wireless technology on your P900 in
Control
panel > Connections > Bluetooth > Settings
.
Set
Operation mode
to
On
,
and set if your P900 should be
Visible by other devices
or not. See
‘Bluetooth’ on page 145 for more information on Bluetooth
wireless technology settings.
The Bluetooth wireless technology operation mode can also be
changed with the Flip closed, using the
Connections
application.
When the Bluetooth wireless technology is activated,
appears on the screen and the left indicator on top of your P900
flashes blue.
Pairing
To make your P900 initiate pairing with another device, such
as a headset
1. In
Control panel > Connections> Bluetooth > Settings
, set
Operation
mode
to
On.
2. Set the other device to be on or discoverable.
3. In the
Devices
tab, tap
Add
. Your P900 searches for all devices
within range and lists them.
130 Connecting to other devices
– All enabled devices that are visible to others within range
are shown with their name and icon. You can use
Show:
to
restrict the list to one category (only PCs, for example).
– Paired devices within range are shown in regular text.
– Nonpaired devices within range are shown with their
names in italics.
– Devices that are within range but unknown are shown with
a preset name.
4. Select the device you want your P900 to pair with, and enter
a passcode when requested. When the passcode is accepted,
the pairing process is complete; see ‘Passcodes’ on
page 131.
5. If, in the future, you want to allow a paired device to connect
to your P900 without your explicit approval of each
connection, you should select
Control panel > Connections >
Bluetooth > Devices,
then select a device and the checkbox
Allow to connect without confirmation
.
To make another device initiate pairing with your P900
1. In
Control panel > Connections > Bluetooth > Settings
, set
Operation mode
to
On
.
2. Follow the other device’s manual to initiate pairing.
3. When asked for a passcode, enter the same on both devices.
4. If, in the future, you want to allow a paired device to connect
to your P900 without your explicit approval of each
connection, you should select
Control panel > Connections >
Bluetooth > Devices,
select a device and the checkbox
Allow to
connect without confirmation
.
Tip You can change the name of a paired device. When you pair
with other Bluetooth wireless technology-enabled phones, it is
very useful to include the user's name as part of the device
name. This will make it very easy to beam information to the
desired recipient.
To make a headphone initiate pairing with your P900
1. Check that the device you want to pair with your P900:
– Is switched on and within range.
– Has its Bluetooth functionality activated and is in visible
mode.
2. In
Control panel > Connections > Bluetooth > Settings
, set
Operation mode
to
On
.
3. Follow the headphone’s manual to initiate pairing on the
headphone.
4. In the
Devices
tab, tap
Add
. Your P900 searches for all devices
within range and lists them.
5. When asked for a passcode, enter the headphone’s passcode
on your P900.
Connecting to other devices 131
6. If, in the future, you want to allow the headphone to connect
to your P900 without your explicit approval of each
connection, you should select
Control panel > Connections >
Bluetooth > Devices
, select the headphone and the checkbox
Allow to connect without confirmation
.
To remove a paired device from your P900
Select a device in the list and select
Remove
.
Passcodes
Passcodes ensure that the device you pair with really is the
device you think it is. A passcode is a set of numbers and/or
letters (at least four characters) that you agree to exchange with
the owner of the other device. Simply agree a passcode with the
other user and enter the same code into both devices when
requested. The actual code is up to you; the important thing is
that you both enter the same code. Accessories like headsets
often have a default passcode, usually ‘0000’; see the specific
user guide.
Send and receive
You can send items via Bluetooth wireless technology in any
application that has a
Send as
command. To send, select
Bluetooth
. If you receive an item via Bluetooth wireless
technology, a dialog box appears with two options:
View
or
Done
.
View
opens the associated application which shows the item;
Done
saves it in the
Beamed
folder in
Messaging
.
Bluetooth share
You can make it possible for other users to transfer items from
your P900. To make an item accessible, select
Send as > Bluetooth
Shared
. The item is then copied to the
Shared
folder, accessible
by other users. When a user requests to access your
Shared
folder, a request dialog is shown, where you can
Accept
or
Reject
the transfer.
132 Synchronization and backup
Synchronization and backup
With
PC Suite for P900
installed in your PC, your P900 can
synchronize with the following PC applications, also called
Personal Information Managers (PIMs):
• Lotus® Organizer® 5 & 6
• Lotus® Notes® 5.0, 6
• Microsoft® Outlook® 98, 2000, 2002
Synchronization is divided into local and remote. Local
synchronization is performed directly to a connected PC, while
remote synchronization is done over the air with a remote
server, for example, on a corporate network.
The manual describes the easiest way to perform the tasks, but
you can also perform most of them by selecting
Start > Programs >
Sony Ericsson > P900
on the PC and then select the desired
command.
Refer to the online help find in
Help
in the menu bar in the PC
software to get more information about synchronization and
backup.
Note If you have imported SIM phone book entries into
Contacts
in your P900, these entries will not be synchronized with the
corresponding entries in your PC when synchronizing your
P900 and PC. You will instead get duplicates on your P900.
Local synchronization
Local synchronization is performed with either cable, infrared
or Bluetooth wireless technology. The functionality is the same.
Email, Contacts, Calendar, Tasks, and Jotter notes (only text)
can be synchronized locally.
Local synchronization settings
Local synchronization is initiated from the PC and all settings
are made in the P900 PC software (included on the
PC Suite for
P900
CD).
Bluetooth
Cable
IrDA
Synchronization and backup 133
The easiest way to synchronize is to set the Synchronization to
automatically perform a synchronization every time your P900
is connected.
To perform the synchronization settings
In the PC, click on in the status area to the right in the
taskbar on the PC and select
Sync Station Settings
.
A dialog appears where you can make the synchronization
settings. Click
Help
in the dialog to get more information about
the settings.
Making a local synchronization
To make an automatic synchronization
1. Connect your P900 via SyncStation, infrared or Bluetooth
wireless technology. For more information, see ‘Connecting
to other devices’ on page 127.
2. Synchronization starts automatically.
3. After a short time, the PC application you want to
synchronize with might ask you to allow the P900 access to
it. Answer
Yes
and the synchronization continues.
To make a manual synchronization
1. Connect your P900 via cable, infrared or Bluetooth wireless
technology. For more information, see ‘Connecting to other
devices’ on page 127.
2. In the PC, click on on the PC taskbar and select
Synchronize
.
The synchronization starts.
3. After a short time, the PC application you want to
synchronize with might ask you to allow the P900 access to
it. Answer
Yes
and the synchronization continues.
Remote synchronization
Remote synchronization takes place over the air and is the ideal
way to keep the P900 up-to-date while on the move. Using
GPRS, the P900 can be continuously connected to the remote
synchronization server.
GPRS, HSCSD
or CSD
PIM Application
Sync Server
Firewall
Internet/Intranet
134 Synchronization and backup
Synchronization services may be offered by mobile operators,
third-party service providers and as added capability to
corporate PIM applications.
Contacts, Calendar, and Tasks can be synchronized remotely.
Remote synchronization settings
To configure the remote synchronization server
In
Applications,
select
Remote Sync > Edit > Preferences
and fill
in the following parameters:
– Server address
– Username
– Password
You might also need to fill in whether to use transport login
under the Protocol tab. Contact your corporate information
services help desk or your service provider for information on
these parameters.
You also need to have at least one configured Internet account
that remote sync can use to connect, see ‘Internet accounts’ on
page 147.
To select items to synchronize
1. In Remote Sync, select one item in the list you want to be
synchronized.
2. Select the
Enable task
checkbox.
3. Fill in the
Task name
or leave default.
4. Fill in the
Server database
(contact your corporate
information services help desk or your service provider).
5. The item you selected to be synchronized is now above the
divider in the list. (Disabled items are below the divider.)
• Repeat for other items.
Making a remote synchronization
Open
Applications > Remote Sync
and tap the
Sync
button.
When ready, the
Task status
column shows today's date for all
successfully synchronized items.
Backing up data
You can use the
P900 Backup and Restore
PC software to back up
the contents stored in your P900 to your computer. Keeping
backups of your P900 contents on your computer means that
you have a separate copy of the contents of the P900, which can
be restored into the P900. Backups should be made on a regular
basis. See the online help for
P900 Backup and Restore
for more
information on how to use the application.
Note All user data will be deleted when the P900 software is
upgraded by a Service Partner. Always back up your data before
handing over the P900 for upgrading, so that you can restore it
afterwards
Synchronization and backup 135
Preconditions
The
PC Suite for P900
must be installed on the PC and the P900
must be connected to the PC via a cable.
Note Backup and restore does not work via infrared or
Bluetooth wireless technology.
Performing a backup
To make a backup
1. Turn on your P900 and connect it to the PC via cable.
2. In the PC, click on on the PC taskbar and select
Back up
and restore
.
3. Select your P900 in the menu that appears. Several P900s can
be backed up to the same PC.
4. Select
Backup
and select what to back up: P900 and/or
Memory Stick.
5. Click
Yes
and follow the instructions in the PC and in the
P900.
6. The backup is complete.
Restoring data
Lost data or accidentally deleted information in your P900 can
be restored from an earlier backup. A backup from the phone
can only be restored to the phone, and a backup from a Memory
Stick can only be restored to a Memory Stick.
To restore a backup
1. Turn on your P900 and connect it to the PC via a cable.
2. In the PC, click on on the PC taskbar and select
Back up
and restore
.
3. Select your P900 in the menu that appears. Several P900s can
be backed up to the same PC.
4. Select one of the backups in the list of previously saved
backups and click
Restore
.
5. Click
Yes
and follow the instructions on the PC and on the
P900.
6. The restore is complete.
Note Everything in your P900 will be overwritten by the chosen
backup. Once you have clicked Yes to start the restore, you
cannot cancel the procedure.
Note If you have used your Secure Tokens (Secure Access files)
since you made your backup, you must reconfigure these. If you
restore another P900, you must reconfigure your Secure Tokens.
For more information see ‘Secure tokens’ on page 160.
136 Personalizing your P900
SETTINGS
Personalizing your P900
There are a number of ways you can give your P900 a personal
touch and change its settings to suit your requirements.
Themes
Themes control the color of screen and text, the icons, and the
wallpaper picture. Sound themes control the notification alerts.
Four themes are preloaded in the P900. Extra themes can be
found on the Multimedia for P900 CD.
To change the theme, select
Control panel > Device > Themes
,
see ‘Themes’ on page 143
.
Changing your application
shortcuts
You can change and rearrange the five shortcuts to applications,
shown in the standby screen when the Flip is closed, and the five
first shortcuts in the Application picker area in Flip open (not
the Application launcher ). The Flip closed shortcuts can
even be hidden, if you wish.
Setting a wallpaper picture
You can change the background image (wallpaper) for the
standby screen in
Control panel > Device > Display.
You can use
any image stored internally or on a Memory Stick Duo.
Tip More wallpaper images can be found on the Multimedia
P900 CD, delivered with your P900.
You can obtain suitable wallpaper picture files by downloading,
MMS, beaming using Bluetooth or infrared, or transferring them
using a cable from your PC.
Wallpaper picture images are 208 x 144 pixels and the picture
can be seen on the standby screen. (Any selected picture will be
scaled to fit the screen.)The images can be in JPEG, GIF, BMP,
WBMP, MBM or PNG format.
Setting a screensaver
You can set a screensaver picture to be displayed after a period
of inactivity. See ‘Display’ on page 139. Keylock and device
lock may be used in combination with the screensaver. When
you press a key or touch the screen, you will be prompted to
activate keys and/or enter the device lock code.
Personalizing your P900 137
The images can be in JPEG, GIF (including animated), BMP,
WBMP, MBM or PNG format. The image format for the screen
saver is 208 x 320 pixels.
Note Using animated GIF uses more power.
Adding images to your
Contacts
You can store a picture with
each entry in Contacts. See
‘Creating and editing
contacts’ on page 98.
Pictures are easily taken
using the CommuniCorder
(see ‘CommuniCorder’ on
page 56), though of course
other images can be used.
If your network operator
provides a CLI (Caller Line Identification) service, your P900
can display the contact’s picture together with the other
information when an incoming call is received with a CLI
matching that contact. (Not all numbers can be displayed.) The
contact’s picture is also displayed when you make a call to that
person.
To select the contact’s picture size
1. Select
Phone > Edit >Preferences > Incoming call picture
.
2. Select the
Show large popup picture for incoming calls
checkbox.
3. Tap
Done
.
Ringtones
Your P900 can play both iMelody format and polyphonic
ringtones in WAV, AU, AMR, MIDI, RMF, and MP3 sound file
formats. When you select a ringtone, your P900 will scan the
internal and Memory Stick storage and present you with a list of
ringtones in these formats. Recordings you have made using
Sound Recorder can also be selected.
Ringtones can be added by downloading them from the Web,
beaming using infrared or Bluetooth wireless technology file
transfer from a PC or using a Memory Stick. Extra ringtones can
be found on the Multimedia for P900 CD-ROM. You can add as
many ringtones as desired, subject only to available storage
space.
Tip Sound Recorder recordings are listed as voicenote and a
number, for example voicenote1470.
A ringtone may be selected for an entry in Contacts, so that the
caller can be identified by the ringtone that is played. See ‘To
personalize the ringtone for a contact’ on page 99.
J
ohn
S
m
i
t
h
+
4613244500
(
h
)
11
:
03
E
nd
ca
ll
138 Personalizing your P900
Note The mobile network must provide the CLI (Caller Line
Identification) of the caller to enable the contact to be identified.
You may change the default ringtone that is played in all other
cases. To do this, see ‘Sounds and alerts’ on page 141.
Note If your P900 finds that you have renamed, moved or
deleted a ringtone, it will play the default instead.
Note If you use an audio file as ringtone, it will be played using
the Multimedia volume setting. The ring volume setting will not
effect the sound volume.
Alarm tones and sound
notification
You can choose different sounds for alarms and notifications in
these applications:
Note If you use an audio file as alarm or notification signal, it
will be played using the Multimedia volume setting. The ring
volume setting will not effect the sound volume.
Time
See ‘Setting alarms’ on page 115.
Calendar
Set a sound for reminder alerts, see ‘Preferences’
on page 104).
Tasks
Set a sound for reminder alarms. See ‘Preferences’
on page 107.
Messaging
Set a different sound for each type of message as
notification of a new message:
See ‘Sounds and alerts’ on page 141.
Control panel 139
Control panel
The Control Panel is the location for all the main settings on
your P900 that are systemwide and affect more than one
application. This is the main place to go to initially set up your
P900, and to change settings at any point thereafter. To access it,
select
Applications > Control Panel
.
Tip You can find settings that apply to a single application in
the
Preferences
menu of the application, for example:
Phone > Edit
> Preferences, CommuniCorder > CommuniCorder > Preferences,
Internet > Edit > Preferences.
The sections below describe the settings available for each of
the default items in the
Control panel.
T
HE
D
EVICE
TAB
The device tab contains settings related to the behavior of your
P900 device itself.
Application shortcuts
Use this dialog to configure the application shortcuts shown in
the Flip closed
Standby
view, and the
Application picker
shortcuts
in the Flip open mode. See ‘Standby view’ on page 15 and
‘Navigation’ on page 16. You can change the five shortcuts
shown. If you feel that the Flip closed shortcuts obscure your
wallpaper, you can choose to hide them when you do not need
them.
To change an application shortcut
1. In the
Application shortcuts
dialog, select the
Flip open
or
Flip
closed
tab depending on the shortcuts you intend to change.
2. Select the icon you wish to change. The name of the
application is shown in the
Set Application
pick list.
3. Choose the application you want to replace it with from the
list.
To hide the Flip closed application shortcuts when your P900
is inactive
Clear the
Shortcuts always displayed
checkbox.
Display
Use the
Display
settings to control the screen and power
functions of your P900.
Wallpaper tab
You can set a picture to be the wallpaper for the standby screen.
140 Control panel
1. Select if the Flip closed or Flip open wallpaper should be
changed.
2. Tap the image showing the current picture.
3. Browse to see picture files available on your P900.
4. Select a picture and tap
Select
.
Read more about wallpaper in ‘Personalizing your P900’ on
page 136.
Screen tab
You can set a picture to be the screensaver.
1. Select a picture for the screensaver.
2. Set the activation time for the screensaver.
If you select the
screensaver device lock
checkbox, the device lock
will activate when the delay runs out. Read more about the
device lock in ‘Device lock’ on page 35.
If you set a time for the
Automatic input lock
, the keyboard lock
will activate when the time runs out. Read more about the
automatic keylock in ‘Automatic keylock’ on page 36.
Power tab
You can set the screen light settings for in-car use and handheld
use.
You can set if the power save should switch off the screen, blank
the screen or show a clock on the screen. You can also set the
power save time between 1 and 30 minutes.
If you set times for both screensaver and power saver, the power
saver time will commence after the screensaver is displayed.
Flight mode
In Flight mode, the radio function is turned off. You cannot
make and receive calls but most of the other functions in the
P900 are available.
Use these settings to turn Flight mode on or off and also to
activate the
Power menu. When activated, the Power menu will
ask you if you want to start the P900 in normal mode or Flight
mode each time you turn on the P900. Also, when you press the
On/Off button when your P900 is on, the Power menu will ask
you if you want to turn off the P900, or switch to another mode.
Auto
The light switches on when you tap the screen, press a key,
or receive an incoming call
On
Light is always on
Off
Light is always off
Control panel 141
To activate the Power menu
Select the
Prompt me...
checkbox and tap
Done
.
To cancel the selection of Power menu
Clear the
Prompt me...
checkbox and tap
Done
.
International
Use these settings to set the locations shown in
Time,
as well
as the units for distances, numeric separators, and how currency
values should be shown. There are two tabs:
Locations
and
Numbers.
On the Locations tab
•Set
Current country/region
and
Current city
to your current
location.
•Set
Other country/region
and
Other city
to an alternative
location (for example, your home location if you are abroad).
If the city you want is not listed, select another city in the
desired timezone.
On the Numbers tab
Set the decimal separator and thousands separator you desire.
Locks
Locks contains options for activating the locks on the device,
the SIM card and the keys on the keypad, and for changing the
lock codes, see ‘P900 locks’ on page 35.
Sounds and alerts
Use these settings to control sounds and alerts of your P900.
•
Calls tab
– Sets ringtones and volume.
•
Messages tab
– Sets notification alerts for messages.
•
Other tab
– Sets button and screen clicks, reminders, alarms,
and other notifications.
You can choose to use any sound recording or audio file. You can
select ringtones stored on your local storage or on a Memory
Stick. If the selected file is later deleted or moved, the Default
Melody will be played instead.
Note If you use an audio file as a ringtone, alarm or
notification signal, it will be played using the Multimedia
volume setting. The ring volume setting does not affect the
sound volume.
To listen to the selected ringtone or alert
1. Tap the icon to listen to the signal.
2. Tap it again to stop playback.
142 Control panel
To change the default ringtone or alert
1. Tap the drop-down menu.
2. Select Default Melody for the P900 default or Find Melody
to select a new one.
3. If required, change the folder.
4. Select the required sound
5. Tap and to preview the sound.
6. Tap
Select
to set this sound.
Warning! The volume may be uncomfortably loud at the
higher volume levels if the phone is close to your ear. Exposure
to excessive volume may damage hearing.
Note To set the vibrating alert, silent mode, or the
speakerphone, or to mute the microphone, tap the volume icon
on the status bar.
Calls tab
These settings set incoming call alerts. For more information,
see ‘Ringtones’ on page 137.
You may personalize the ringtones further for individual
contacts; see ‘To change the details of a contact’ on page 99.
•
Ring (voice)
– Select a ringtone for incoming voice calls.
•
Ring (data)
– Select a ringtone for incoming data calls.
•
Ring volume
– Set the preferred sound level for handheld,
hands-free and in-car use.
•
Increasing ring
– Select the checkbox to use increasing
ringtones. This disables the other volume settings.
Messages tab
These settings set messaging alerts.
•
Display notification message
– Select the checkbox to receive
notification of a received message.
•
SMS
– Select an alert for received SMS messages.
•
Email
– Select an alert for received Email messages.
•
MMS
– Select an alert for received MMS messages.
•
Area info
– Select an alert for received area information
messages.
•
Auto setup
– Select an alert for auto setup messages.
Other tab
These settings set button and screen clicks, reminders, alarms,
and other notifications.
•
Button clicks
– Select the sound used when you press a key on
the keypad.
•
Screen taps
– Select the sound used when you tap the screen.
Control panel 143
•
Reminder
– Select an alert to be played for reminders.
•
Voice messages
– Select an alert to be played for voice
messages.
•
Default alarm sound
– Select the default alarm sound.
Text input
There are several standard ways of entering text in your P900.
See ‘Entering text with the Flip closed’ on page 31 and
‘Entering text with the Flip open’ on page 32.
Use the settings on the
Primary
,
Alternative
and
Flip Closed
tabs to
set methods for entering text in your P900.
If you load other text input software, select it and adjust its
settings here.
Themes
You can set the look of the user interface by changing the theme.
• To change the theme, select a theme from the list. The picture
shows the Flip closed standby wallpaper. Tap
Select
.
• To change the sound, select from the drop-down list. Tap the
trumpet to listen to the sound. Tap again to stop playback.
• To send a theme, select the theme and tap
Send as
.
• To delete a theme, select the theme and tap
Delete
.
Time & date
Adjusting the time and date here sets these throughout your
P900.
The dialog has three tabs. You can set:
Note These settings are also available in the
Time
application.
Primary
The method that you select here is activated
automatically when you need to enter text into your
P900.
Alternative
The method that you select here is activated if you
tap at the bottom of the screen.
Flip closed
The method that you select here is activated when you
need to enter text with the Flip closed.
Time & date
The current time and date. Here you can also turn
Summertime (daylight saving time) on or off for your
location.
Format
Specify how you want the time and date to be displayed
on the screen.
Workdays
Specify the days in your working week.
144 Control panel
Time & date tab
To set the current date
1. On the
Time & date
tab, select the date. A calendar view opens.
Tap the arrows to set the current year and month.
2. Select the current date.
To set the current time
1. On the
Time & date
tab, select the time. Select the upper half of
the hour or minute box to increase the number displayed, or
the lower half to decrease the number.
2. Select the
am
/
pm
box.
This is only possible if you use the 12-hour time format.
3. Confirm by tapping outside the time picker.
If the locations you have set under
Control panel >
International
are in a country/region that currently has
summertime (daylight saving time), you can adjust the time and
date.
To turn daylight saving time on
1. On the
Time &date
tab, select
Summertime,
select the
checkboxes for the zones that currently have daylight saving
time.
2. Select
Done
.
Format tab
You can specify how you want the time and date to be displayed
on the screen, and if you want to use the 12-hour (am/pm) or 24-
hour time format.
To set the time and date display format
1. Select
Date format
and choose a format.
2. Select
Date separator
and choose a separator.
3. Select a
Time format
.
4. Select
Time separator
choose a separator.
5. Select
Done
.
Workdays tab
You can specify what days you work, if, for example, you want
to set an alarm that sounds only on workdays. You can also
specify the first day of your week to customize the display of
both Week and Month views in Calendar.
User greeting
Your P900 can show a user greeting on the standby screen when
you turn it on. Use this dialog to turn this function on or off. You
can define your own user greeting text (up to 32 characters).
Control panel 145
T
HE
C
ONNECTIONS
TAB
The connections tab contains settings related to how your P900
communicates with other devices.
Bluetooth
Bluetooth wireless technology uses radio waves to enable
wireless connections between your P900 and other Bluetooth-
enabled devices. This method of linking works well at a range of
up to 10 meters. Obstructions between the transmitting devices
will have an effect on the performance. Read more about
connecting to other devices using Bluetooth wireless technology
in ‘Connection via Bluetooth wireless technology’ on page 129.
Bluetooth
settings are shown on two tabs:
Tip You will probably find that the preset name of your P900,
and of devices you pair it with, are not very meaningful or easily
recognizable. It is a good idea to change these names to
something more useful. The name you choose for your P900
appears on any devices you pair it with.
See ‘Pairing’ on page 129 for instructions on how to connect to
another device using Bluetooth wireless technology.
Security
On the
Settings
tab, you can set the Bluetooth security-related
settings of your P900.
Settings
• A device name for your P900.
• Bluetooth on or off.
• If it should be visible to other Bluetooth-equipped
devices.
Devices
A list of all the Bluetooth-enabled devices that your
P900 is paired (bonded) with.
• To change the name of a device, and to allow for
connection without confirmation, select the name from
the list.
• To remove a device from the list, select the name and
select
Remove
.
• To locate other devices in the vicinity, and add them to
the list, tap
Add
.
Bluetooth on
All Bluetooth wireless technology functionality from
your P900 works. Visibility according to the
Visible
to other devices
setting.
Set Bluetooth to
Off
if you do not use Bluetooth,
which will decrease battery drain. Bluetooth will be
automatically switched on if you use
Send as >
Bluetooth
from the applications
Visible to
other devices
Yes: All Bluetooth wireless technology functionality
from your P900 works.
No: All Bluetooth wireless technology functionality
from your P900 works, but you cannot receive
beamed items, and other devices cannot initiate
pairing with your P900. You cannot use your P900 as
a modem, it is not possible to connect from a PC and
voice dialing from a headset is not possible.
146 Control panel
Cable
Use
Cable
to set the cable connection mode and the connection
parameters used when communicating through your P900's
cable port.
• Set the cable connection mode. Please note that you must set
the mode to
Modem
when using the P900 as a modem and
when using the DUN (Dialup Networking) Wizard.
• Set the baud rate, parity, number of stop bits, character length
and type of flow control required for the connection. When
connecting your P900 via the desk stand to a USB port on
your PC, use the following (default) settings:
Tip You can set the cable connection mode when the Flip is
closed by selecting
Applications >
Connections
>
Cable.
GSM Networks
This option lets you choose what network to use when roaming
outside of your operator’s area. Select whether you want to
search for a new network or use a preferred one. You can also
make a list of preferred networks.
•
Search mode
– Select between automatic or manual search for
a network.
•
Select network
– Tap the button to access a list of available
networks.
•
New search
– Tap the button to search for available networks.
•
Preferred list
– Show the networks that your P900 will search
for when you are roaming outside of your home network.
Note Your operator may not allow you to access all available
networks.
To add a network to the preferred list
1. Tap
Add network
.
2. Select a network from the displayed list.
3. Select a position in the Preferred list and tap
Done
.
Infrared
Use this setting to control the state of the infrared port of your
P900.
Baud rate
460800
Parity
None
Stop bits
1
Character length
8
Flow control
CTS/RTS
Control panel 147
Set the infrared status to
PC connect
or
Modem
, as required.
You can set it
Off
,
On
or
On for 10 minutes.
Read more about
connecting to other devices using infrared in ‘Connection via
the Infrared port’ on page 128.
Internet accounts
You access the Internet using an Internet Service Provider (ISP),
which supplies you with account details including: a username,
a password, and the phone number or Web site address that your
P900 automatically uses to access the Internet. You need to set
up an Internet account before you can:
• Access Web pages and download multimedia messages.
• Set up an email account to send and receive email messages.
Tip A simple way of setting up an Internet account is to ask
your service provider to send you a message containing the
required information to create an account automatically on your
P900.
There are three types of Internet account:
The dialog has two tabs:
Accounts
and
Other.
Accounts tab
The Internet accounts dialog lists all the Internet accounts that
have been set up on your P900.
You can add a
New
account to the list and
Edit
or
Delete
an
existing account.
Dialup
: For Dialup (CSD, Circuit-Switched Data)
connections, you are charged for the length of
time you are connected to the Internet.
High-Speed Dialup
: For High-Speed Dialup (HSCSD, High-Speed
Circuit-Switched Data) connections, you are
charged for the length of time you are
connected but you can increase the connection
speed so information is transferred faster.
The service must be included in your
subscription, and billing rates from your
network operator may increase as you increase
the connection speed.
GPRS
: For a GPRS connection, you are charged for the
amount of information you view, download, or
send.
148 Control panel
If you want to select an Internet account every time you connect
to the Internet, select the
Show connection
dialog checkbox. This
may be useful if you use different Internet accounts for
Internet
and
Messaging
.
Whenever you connect to the Internet, your
Preferred
account is
the account that your P900 prompts you to use.
To create a new Internet account
1. On the
Accounts
tab, select
New
.
2. Give the account a name. This will be the name displayed in
your list of accounts. (In dialogs that appear while a
connection is being established, the text
-GPRS
is
automatically added to the names of GPRS accounts.)
3. Choose the
Connection type
for the type of account that you
want to create, GPRS or Dialup.
4. Continue entering settings as required. These will differ
depending on the type of account: GPRS, Dialup or High-
Speed Dialup:
New GPRS account
For some accounts, you may need to enter advanced settings,
provided by your ISP. Select
Advanced
and enter settings on the
tabs as described below
GPRS Advanced tabs
Server Username and password
Normally, you do not have to enter a username and
password when you connect to a GPRS account.
However, some service providers may require you to
enter these details.
If you select the
Username and password required
checkbox, but do not enter a username and password,
you will be prompted to enter these when the P900
connects.
Address
Enter the Internet address of your access point. This
address is supplied by your service provider.
Control panel 149
New Dialup or High-Speed Dialup account
Your Internet Service Provider (ISP) supplies you with your
Username
, your
Password
, and their
Phone number
, which your
P900 dials to connect to the Internet. If you have a High-Speed
Log in
The settings on this tab deal with IP and DNS
addresses.
The DNS address uniquely identifies your Internet
Service Provider (ISP)'s computers, which your P900
uses to connect to the Internet. Your P900 can
normally retrieve these addresses automatically from
most ISPs.
If, after setting up an Internet account, you cannot
connect to the Internet and you suspect these
addresses are incorrect, ask your ISP for their
primary and secondary DNS addresses.
An IP address consists of four 3-digit boxes, and the
valid input is between 000 and 256 in each box.
Proxy
A proxy server is a computer connected between
your P900 and the computer you communicate with.
This arrangement can be used for connections to
Remote Sync servers, or within a company network.
If this setting is needed, your company's Information
Services department or Remote Sync provider must
give you instructions.
Other
If your ISP supports Point-to-Point Protocol (PPP)
extensions, you can select the
Enable PPP extensions
checkbox. PPP extensions allow your P900 to
provide features such as encryption, which increases
the security of your Internet connection.
GPRS Advanced tabs
Authentication
is used by some network operators to
identify the cellphone connecting to their GPRS
network. There are different methods, or protocols,
for doing this.
Normal
: PAP (Password Authentication Protocol).
The user's username and password are transmitted
over the network in an unencrypted format.
Secure
: CHAP (Challenge Handshake
Authentication Protocol). The user's username and
password are never transmitted over the network.
None
: No authentication is required by the network
operator.
QoS
Check with your network operator before changing
any of the QoS (Quality of Service) settings.
If your operator supports the use of
Header
compression
, selecting
On
can speed up your
connection.
The settings
Precedence
,
Delay
,
Peak rate
, and
Mean
Rate
are all by default set to
Subscribed
, which
means that your operators default QoS (Quality of
Service) values will apply.
Reliability
is set as
Class 3
by default.
GPRS Advanced tabs
150 Control panel
Dialup account with your network operator, you can increase the
speed of your connection by making settings on the
Speed
tab
under
Advanced
.
Tip To avoid having to change the phone number when you
travel abroad: enter the international dialing prefix (for
example '+') and the appropriate country code for your ISP.
For some accounts, you may also need to make advanced
settings.
Select
Advanced
and enter settings on the tabs as described
below
Dialup and High-Speed Dialup Advanced tabs
Log in
The settings on this tab deal with IP and DNS addresses.
For an explanation of these settings, see
Log in
in the
‘GPRS Advanced tabs’ on page 148.
Script
As an alternative to entering your username and password
to access the Internet, you may need to use a login script
stored on your P900. Although uncommon, scripts may
be required by your Internet Service Provider (ISP).
Select the
Use login script
checkbox and enter the script
text in the
Script editor
If you select the checkbox
Plain text authentication
(required by some ISPs), the security of your connection
will decrease during the connection process. Once you
are connected, the security of your connection will be
restored.
Select the checkbox
Post connect terminal
if:
• The login script of the account that you are setting up
requires that you input certain information or you will
need to respond to prompts from the Internet account.
You are connecting to a Dialup account that uses Secure
Access generated by a separate smart card or password
generator.
Proxy
For an explanation of these settings, see
Proxy
in the
‘GPRS Advanced tabs’ on page 148.
Speed
You can only increase the speed of your connection if you
have a High-Speed Dialup account with your network
operator.
Secure
To enable secure access for this Internet account, you
must link it to a vendor-associated Secure Token in this
dialog:
1. Select the Enable secure access checkbox.
To create or delete Secure Tokens on your P900, select
Control panel > Other >Secure tokens
.
2. Select the vendor and token names of the Secure Token
that you want to link to this account from the drop-down
lists.
Other
If your Internet Service Provider (ISP) supports Point-to-
Point Protocol (PPP) extensions, you can select the
Enable PPP extensions
checkbox. PPP extensions allow
your P900 to provide features such as encryption, which
increases the security of your Internet connection.
Dialup and High-Speed Dialup Advanced tabs
Control panel 151
To edit an Internet account
1. On the
Accounts
tab, select the account from the list.
2. Select
Edit
.
3. Change your settings as desired.
4. Select
Done
.
Note If you change the
Connection type,
all account data for that
account will be deleted.
To delete an Internet account
1. On the
Accounts
tab, select the account in the list.
2. Select
Delete
.
3. Select
Done
.
Other tab
You can use the
Dialup timeout
and
GPRS timeout
settings to set up
your P900 to disconnect automatically from the Internet if you
are not using it. The connection is ended after the period you
specify has lapsed.
Preferred Mode (bearer preference)
Please note that your P900 can be used for either voice (or GSM
data) calls or transferring GPRS data, but not both at the same
time. It may, however, still be connected to GPRS. As an
example, during GPRS data transfer (Icon: ), your P900 may
not receive incoming calls. As soon as the transfer stops
(Icon: ) incoming calls will be accepted.
Setting the
Preferred Mode
lets you select how you want to use
your P900:
• Select
GPRS only
if you do not want to be disturbed by
incoming phone calls while browsing the Web. All incoming
voice (and GSM data) calls are rejected. If you disconnect
from the Internet, incoming calls can be received. Outgoing
calls are possible, except during data transfers. This mode is
useful if you are using sensitive Internet services, such as
banking.
• If you select
GSM only
, your P900 will not be connected to the
GPRS network. If you choose to download email or browse
the Web, your P900 will connect to GPRS only as long as is
needed for the data connection.
• If you select
Automatic
, your P900 will let you answer
incoming GSM calls while retaining normal GPRS
functionality. A GPRS data connection will be temporarily
interrupted by a voice call.
Messaging accounts
The
Messaging
application can handle many different types
of messages, but you must first set up accounts and make
settings as described below.
152 Control panel
The Messaging accounts dialog has four tabs, one for each type
of messaging account:
Tip A simple way of setting up an email or multimedia message
account is to ask your service provider to send you a message
containing the information required to create an account
automatically on your P900.
Read more about the different types of messages in ‘Messaging’
on page 83.
Email tab
The
Email
tab shows a list of the email accounts on your
P900.You can add a
New
account to the list and
Edit
or
Delete
an
existing account.
You can select one of your email accounts as
Preferred.
This will
be the email account that your P900 uses when you use
Send as
to send an entry as an email directly from one of your P900
applications
To create a new email account
1. On the
Email
tab, select
New.
2. Enter the following settings on the tabs:
Email
You can have any number of email accounts. To receive
and send email, you must first set up an Internet account
(if one is not already set up). See ‘Internet accounts’ on
page 147.
SMS
You can only have one SMS (Short Message Service)
account.The settings on this tab also apply to EMS
(Extended Message Service) messages.
MMS
You can only have one MMS (Multimedia Messaging
Service) account. To receive MMS messages, you must
first set up Internet and WAP accounts (if they are not
already set up). See‘Internet accounts’ on page 147.
Area
You can only have one
Area info
account. The number of
Area Information channels you can subscribe to is limited
by the storage of your SIM.
Email account basic tab settings
Account name
This is the name you give to your email account.
Your name
This name appears on your outgoing email
messages.
Email address
Your Internet Service Provider (ISP) supplies you
with your email address.
Connection type
Select POP3 or IMAP. POP3 is most common.
Internet account
Select the Internet account to access your email
messages.
Control panel 153
To edit an email account
1. On the
Email
tab, select the account in the list.
2. Select
Edit
.
3. Change your settings as desired.
4. Select
Done
.
Email account Inbox tab settings
Username
Password
Incoming server
address
Your Internet Service Provider (ISP) supplies you
with your username and password, and its
incoming server address, which identifies the
computer where your incoming email messages
are stored.
Download
If you want to limit the data traffic, you can choose
to receive
Just headers
(the sender, subject, and
date only) or set a size limit (if a message is larger
than the
emails smaller than
limit, only the headers
are downloaded). You can download the complete
message later.
Schedule
Select
Schedule
to schedule automatic
downloading of your incoming email messages.
Messages waiting in your
Outbox
will not be sent
at the same time.
Email account Outbox tab settings
Outgoing server
address
Your Internet Service Provider (ISP) supplies you
with its Outgoing server address, which identifies
the computer through which your outgoing email
messages are sent.
Use SMTP
authentication
Some SMTP servers might also require
authentication when sending email. In that case,
select the checkbox
Use SMTP authentication
and
enter your
Username
and
Password
.
Use Inbox login
details
If the SMTP server accepts using your Inbox login
information for authentication, select the checkbox
Use Inbox login details
.
Email account Advanced tab settings
Secure
connections
Your Internet Service Provider (ISP) will tell you
whether you can use either a
Secure connection
or
Secure password authentication
.
Outgoing mail
port
Normally 25. Do not change unless your ISP
instructs you to do so.
Use MIME
encoding
MIME encoding is a standard that allows nontext
information (for example graphics) and accented
characters to be sent in email messages. If you do
not wish to
Use MIME encoding
, clear the
checkbox.
Incoming mail
port
Normally 110. Do not change unless your ISP
instructs you to.
Secure
password
authentication
A secure connection means that all information
(including your username, password, and all
messages) is encrypted to maximize security while
you are connected to the Internet. In contrast,
secure password authentication means that only
your password is encrypted.
154 Control panel
To delete an email account
1. On the
Email
tab, select the account in the list.
2. Select
Delete
.
3. Select
Done
.
SMS tab
Use these settings to set up text message and EMS messaging:
Tip If you send and receive text messages in several countries,
you can avoid having to change the service center address when
you travel abroad by entering the international dialing prefix
(for example '+') and the appropriate country code for your
network operator.
MMS tab
Use these settings to set up multimedia messaging:
Messaging accounts SMS tab settings
SMS Service
center address
The
Service center address
is the phone number
where your text messages are stored. It is normally
imported from the SIM card, but if that fails, your
network operator can provide you with the service
center address.
Character Set
Your network operator may also specify the
Character Set
.
Messages stored
for
You can set a time limit after which text messages
are deleted from the network by selecting a value
in the
Messages stored for
list.
Connection type
Specify if you prefer to use GPRS or GSM
connection, as directed by your network operator.
Messaging accounts MMS tab settings
Service center
address
The Service center address is the URL of the server
on which your multimedia messages are stored. Your
MMS service provider or your network operator can
provide you with the service center address.
WAP accounts
Specify which of your configured WAP accounts
you wish to use.
• WAP accounts are created in
Control panel >
Connections > WAP accounts
Automatic
Select between:
•
Home only
- messages are downloaded
automatically when you are connected to your
home network.
•
On
- messages are also downloaded automatically
when you are roaming outside your home network
•
Off
- automatic download is off, you will receive
notifications of incoming messages and have to
download them manually.
Download size
and
Smaller than
Set whether or not to have a size limit for incoming
messages:
•
No restrictions
- the size of the incoming messages
does not matter, all messages will be received.
•
Less than
- messages smaller than the limit will be
received; larger messages may not be received.
Control panel 155
Advanced settings
Select
Advanced
to make settings about how your P900 will send
and receive multimedia messages.
Area tab
On the Area tab, you make settings related to Cell Broadcast
Services. These include both Area Information and Cell
Information services. The availability of Cell and Area
Information Services is operator-dependent.
Your network may broadcast the area code as cell information.
Your P900 can to display it below the network name in the Flip
closed standby view.
MMS Advanced settings tabs
Send
The values you give these settings will be default for all
multimedia messages that you send. You can of course
choose other values for an individual message in
Messaging.
You can set the
Validity period
for your messages, that is,
how long they should be available to the recipient.
Maximum
is the default.
You can give your messages a
Priority
of
Low
,
Normal
(default) or
High
.
You can set a level of
Conformance
for the multimedia
messages that you send to make sure that they will be
played back correctly on different products.
If checked, a warning message is displayed whenever you
add a nonconformant item to a multimedia message. You
have the option to send anyway.
Select the checkboxes to provide the function you want:
Hide number
prevents the sent message from showing your
number.
Read report
requests a read notification from recipients of
your messages.
Delivery report
requests a delivery notification from
recipients of your messages.
Reply with history
includes the original with your reply.
Receive
These settings apply to multimedia messages that you
receive.
Select the
Play full screen
checkbox, when you want to
play MMS messages in full-screen mode.
Select the checkboxes to send a notification message to the
sender when a message is:
• Delivered to you:
Allow delivery notification
• Read by you:
Allow read notification
You can filter reception of incoming messages by message
class (
Advertisements
,
Information, and Anonymous
senders
) as well messages from senders listed in Contacts.
Selecting a checkbox will filter out messages of that
category.
To receive multimedia messages only from senders listed
in your Contacts, select all other checkboxes and clear the
checkbox for
Anonymous senders.
MMS Advanced settings tabs
156 Control panel
Area Information is a type of text message that is sent to all
subscribers in a certain network area, for example a local traffic
report.
To enable Cell Information
Select the
Cell information
checkbox
To turn Area Information on
1. Check the
Area information
checkbox. Received messages will
automatically be stored, and displayed in the list when
dismissed.
2. The list shows all the channels that you have defined on your
P900. The checkbox for each channel shows if it is on
(checked, ready to receive messages) or off (cleared, not
active):
To add a new channel
1. Select
New
.
2. Enter the number of the new channel in the New Channel
dialog. Channel numbers can be from 0 to 999. If there are
too many channels defined,
New
will be disabled and you will
see a message:
Maximum channels on SIM
.
Channel numbering is operator-dependent. Please consult
your network operator for information.
To turn a channel on or off
Select the channel in the list and check the checkbox. To turn it
off, clear the checkbox.
To delete a channel
Select
Delete
. Since deleting a channel cannot be undone, you
will be asked to confirm the deletion. Deleting the channel will
also delete any stored Area Information messages for that
channel in your Area Info Inbox.
WAP accounts
Use these settings to set up and manage WAP accounts on your
P900.
WAP accounts are intended for multimedia messages and for
accessing the Internet through a WAP gateway. (Such gateways
make use of proxy port 9200-9203.) All other proxy settings
should be included in your Internet accounts.
For security reasons, some WAP pages and services, for
example online banking, can only be accessed from a particular
WAP account.
The dialog has two tabs:
Basic
and
Preferred.
Basic tab
The dialog displays a list of all the WAP accounts on your P900.
You can add a
New
account to the list and
Edit
or
Delete
an
existing account.
Control panel 157
Note You access WAP pages through an Internet Service
Provider (ISP) so, when you create a WAP account, you must
choose one of your existing Internet accounts or first create a
new one.
To create a new WAP account
1. Enter the name of the WAP account.
2. Select the Internet account you want to use.
Preferred
indicates the account set as preferred in the Internet setup.
3. If you are going to use a WAP gateway or a proxy, select the
Use proxy
checkbox.
4. Enter the
IP Address
of the gateway or proxy.
5. Enter the
Port address
of the gateway or proxy.
For a WAP gateway use:
– 9201 for a normal connection.
– 9203 for a secure encrypted connection.
• If the gateway/proxy requires
Username
and
Password
, which
is very unusual, fill in the last two fields in the dialog.
Preferred tab
Select the checkbox to set a preferred WAP account. It will be
used when you use the
Open page
command in the
Internet
application and when a page is opened from another P900
application.
If you do not set a preferred WAP account, the preferred Internet
account will be used when connecting to the Internet.
T
HE
O
THER
TAB
The other tab contains all settings that are not related to the
device or connections. This is also where settings from system
components and add-ons, developed by third-party developers,
can be found.
Certificate manager
Digital certificates ensure that the Web or WAP pages you visit,
or any software you install, really are created by the person you
expect.
Certificates may be present on the pages you view or the
software you download. Your P900 compares these certificates
with a set of certificates stored in
Certificate manager
to ensure the
authenticity of the page or software. If the certificates do not
match, your P900 informs you, and gives you the following
choices:
• Prevent the page being loaded or the software being installed.
• Continue at your own risk.
The certificates on your P900 have been created and issued by
an independent organization that ensures their authenticity.
158 Control panel
Security information
Security information is displayed when
Certificate manager
cannot be sure of the origin of the page or software. For
example, security information will be displayed if:
• The certificate on a page has expired.
• The identity of a software manufacturer cannot be verified.
Security information is also displayed when a certificate on your
P900 has:
• Expired.
• Been revoked by the independent organization that issued it.
Adding and deleting certificates
Your P900 handles certificates automatically so, most of the
time, you can browse the Internet securely without using
Certificate manager
. If you do need to add or delete a certificate,
you will usually be informed by your network operator or
system administrator. You should delete a certificate from
Certificate manager
if you are informed, or suspect, that:
• The certificate does not belong to the person who supplied it.
• The certificate was issued incorrectly by the independent
organization that created it.
Type of certificate
The type can be either
User
or
Certificate Authority
.
•
User
certificates contain your identity. This type of certificate
is used when the server asks for client authentication. The
client application requests you to identify yourself by
choosing a user certificate.
•
Certificate Authority
certificates contain server details. This
type of certificate is handled by your P900 when the server
only requires server authentication. This means that your
identity remains anonymous.
Flip removed
This dialog lets you enable the use of the Virtual flip when the
flip of your P900 has been removed, see ‘Virtual flip’ on
page 17.
Format disk
This dialog primarily lets you rename and format any Memory
Stick Duo that you install in your P900. Your P900 comes with
one Memory Stick Duo.
Control panel 159
When you format a disk, you delete all the information on it,
including any applications that you may have installed. You also
delete all information placed on it by other devices (these
folders are hidden except in File Manager).
IP security manager
The IP security manager displays stored policies and only one
policy may be activated at a time.This is used for secure
connections over the Internet, typically to a corporate intranet. If
necessary, your company information services department will
supply the necessary information.
There are two types of passwords required:
•IP security password: is to be set when activating the very
first policy, that is, this password is only set once, but it is
possible to change it later at any time by tapping the
Password button.
•Activation password: is required when a policy is activated
for the first time and the supplier of the policy gives this.
Language selection
Use this list of all languages stored on your P900 to change the
language. The highlighted entry is the language presently in use.
You can delete all languages except English.
To conserve storage space, only a limited set of languages is
loaded on your P900 at delivery. When you select one of the
languages from the list, the unused languages in the set are
deleted from the memory of your P900. You can, at any time,
use the
Download Language
utility on the
PC suite for P900
CD to
load and delete languages.The utility will guide you through
downloading the language from your PC or the Internet.
When you have selected a new language, you must turn the
P900 off and then on again for the change to take effect.
Master reset
Use
Master reset
to reset your P900.
Note All user data, as well as preinstalled media files and
application data files (including, for example, wallpapers,
ringtones and pictures), will be deleted and settings will be set
to the state they were, after you selected the language. The
selected local language is restored.
If you have backed up your user data, you can restore it from the
backup, see ‘Restoring data’ on page 135.
You can restore media files and application data files from the
Multimedia for P900 CD, or from the Web.
If you want to keep installed applications, clear the
Delete user
installed applications
checkbox.
160 Control panel
Secure tokens
If you need access to a network that requires secure access
(often known as ‘strong authentication’), for example a
corporate intranet, you can set up the Internet account you use to
log into that network to use secure access and generate the
required one-time password when you make the connection.
Your P900 supports the following secure access systems:
• SecureID from RSA
• SafeWord from Secure Computing
It is also possible to add other access systems through third-
party software.
If you have a separate device or application that requires one-
time passwords according to one of these systems, you do not
need a separate hardware token generator (Hard Token). Your
P900 can generate passwords that are not associated with an
Internet account.
You manage secure access in your P900 using Secure Tokens.
Each token is associated with one vendor/system and may be
associated with one or more Internet accounts (or none, when
you use your P900 as a Hard Token). You can configure as many
tokens as needed.
Tip Dialog details when using secure access are vendor, system
and network-specific. You should contact the administrator of
the network you wish to access to obtain the correct
information.
Storage manager
The list shows the applications on your P900 and the space they
occupy. Tapping the
Files
button lets you manage general files
stored internally on the P900 or on a Memory Stick Duo.
Deleting information from applications
To delete information from an application, select an application
in the list. This application is then displayed. Delete the old or
unwanted entries or information.
Here are some maintenance tips for different applications:
• Delete any unwanted recordings as even short ones occupy a
lot of space.
•In
Messaging
, delete any old messages from your Inbox
or Sent folders.
•In
Calendar
, delete all entries in a specified time period by
selecting
Calendar > Delete entries
in your list of entries.
•In
Tasks
, delete all completed entries by selecting
Tasks > Delete completed
in your list of entries.
Control panel 161
• Throughout your P900, use folders as you create and receive
information to speed up maintenance later.
Deleting or copying general files
Tap
Files
to see lists of all stored general file types on your P900
and the Memory Stick Duo. You can copy files to a specified
folder, delete unwanted files, and launch the appropriate
application to view or play a file in the list.
To delete files or copy files between folders
1. Select
Files.
2. Select the
Type
of file to move or delete.
3. Select the
Location
folder.
4. Tap one or more checkboxes to select the files to copy or
delete.
5. To copy files, tap
Copy
and select the destination folder.
To delete files, tap
Delete.
You will be asked to confirm.
Uninstalling applications
If you uninstall an application, you can always reinstall it if you
want to use it later.
To uninstall applications
1. Select
Uninstall.
A list of applications that can be uninstalled is shown.
2. Select the application to uninstall.
3. Select
Uninstall.
Note You cannot uninstall the standard applications that came
with your P900.
WIM PIN settings
WIM (WAP Identity Module) is used for performing security
functions, especially to store and process information required
for user identification and authentication. It is a tamper-resistant
store for private keys, certificates and other items that may
require a PIN for access or modification.
The
WIM management
dialog consists of a PIN selection list and a
WIM items list.
You can select a PIN from the PIN selection list. The WIM
items list changes content dynamically, displaying only the keys
that are protected by the selected PIN and also have an
associated certificate. Other keys that are protected by the
selected PIN but do not have an associated certificate are not
shown in the WIM item list. This is the case when WIM PIN
(PIN-G) is selected.
Note The PIN-G applies to the whole WIM and any items that
do not have a different PIN. This means that no specific items on
the WIM are linked to PIN-G.
You can change the status of a PIN:
162 Control panel
•Enable PIN A PIN code that is enabled is requested for
authorization of an operation. To proceed with the operation,
you must enter the PIN code.
•Disable PIN A PIN code that is disabled is not requested to
authorize an operation to proceed.
To change the PIN code
1. Select the PIN you want to change from the choice list.
2. Select
Change PIN
.
If a PIN code has been blocked, you must unblock it before it
can be used again. Select the PIN and select
Change PIN
.
Getting started with Internet and Messaging 163
Getting started with Internet and Messaging
Introduction
Before you can use
Internet
and
Messaging
to access the
Internet and send or receive messages, you must make some
user-specific settings in the
Control Panel
.
Service provider
You will need a service provider to connect your P900 to the
network.The service provider could be:
• An Internet Service Provider (ISP) that connects you to the
Internet.
• An access point provided by your network operator.
• A private service provider such as your company or bank.
You will need to enter specific service provider details into your
P900 to set up an Internet account. It can hold the details of
multiple service providers, for example, you may have separate
Internet and corporate accounts.
Your network operator or retailer may have preinstalled
services; check with them.
Connection type
When your P900 connects to a service provider, it will use a
GSM or GPRS network provided by a network operator. Many
network operators offer both GPRS and GSM services.
The connection type defines which network your account uses
to connect to the Internet. GPRS Internet accounts use the GPRS
network, and Dialup Internet accounts use the GSM network.
GPRS
If your network operator supports GPRS, a GPRS Internet
account allows you to:
• Remain permanently connected to the Internet without being
charged for connection time. With a GPRS account, you are
charged for the amount of information you view, download
or send while connected to the Internet. Consult your
operator for details of your subscription.
• Avoid having to reconnect to the Internet if the connection is
interrupted.
Dialup
For both Dialup and High-Speed Dialup accounts, you are
charged for the length of time you are connected. If your
network operator supports them, you can increase your
connection speed (at a cost) by setting up a high-speed account.
164 Getting started with Internet and Messaging
Automatically set up service
provider and messaging
The easiest way to set up your P900 is automatically, through
your service provider.
For
Messaging
settings, your P900 supports the automatic
setup of:
• email accounts
• MMS message (Multimedia Messaging Service) settings.
Check your service provider's Web site for information or
contact their support desk and inquire about automatic remote
configuration of ISP (Internet Service Provider) settings, email
and MMS message settings.
If remote configuration is possible, they will send you the auto-
configuration messages required via an SMS message.
Settings valid for your network operator and one or more of
these services may also be available through the phone
configurator utility at www.SonyEricsson.com
To check that your SMS messaging settings are correct
1. Select
Control panel > Connections > Messaging accounts >
SMS.
2. Check the information, for example the address of the service
center.
Accepting new Internet or Messaging
settings
New configuration messages will appear in the
Auto setup
account
inbox of
Messaging.
(Configuration messages for
email accounts will, however, be found in your
SMS message
inbox.)
When an auto setup message appears, select it.
A dialog with a brief text and operator message appears on the
screen. You can accept the new settings or leave the message in
the inbox
.
If the name of the new account is the same as that of an existing
account, you can choose to create a new account with the same
name or replace the existing account.
Note Never accept remote configuration messages if you are
not expecting them or are unsure where they have come from.
Manually set up the service
provider
As an alternative to setting up an Internet account automatically,
you can enter the settings manually from
Control panel >
Connections > Internet accounts.
Getting started with Internet and Messaging 165
First collect all the information you require. You can obtain this
information from your ISP (Internet Service Provider), or if you
are connecting to a corporate network, your information
services department.
All settings are described in ‘Internet accounts’ on page 147.
To set up a new account, follow the steps under ‘To create a new
Internet account’ on page 148.
Manually set up Messaging
As an alternative to setting up
Messaging
automatically, you can
enter the settings for the messaging services you want to use
yourself from
Control panel > Connections > Messaging
accounts
.
First collect all the information you require. You can obtain this
information from the following sources:
• If your network operator offers an email service, you can get
the necessary details from them.
• Your Internet Service Provider.
• Your information services manager, if you connect to the
corporate network to access your work email account.
• Your network operator, in the case of SMS message and Cell
Broadcast Services.
The dialog has four tabs, one for each type of messaging
service:
email
The provider of your email service, or for a corporate
account, your information services manager, can provide
you with the necessary details.
All settings are described in ‘Email tab’ on page 152.
To set up a new account, follow the steps under ‘To create
a new email account’ on page 152.
SMS
message
Short Message Service
The necessary settings are usually provided on your SIM
card.
All settings are described in ‘SMS tab’ on page 154.
MMS
message
Multimedia Messaging Service
Your MMS messaging provider will be able to provide you
with the necessary information.
Before you set up MMS messaging, you need to set up an
Internet account in
Control panel > Connections > Internet
accounts
and a WAP account in
Control panel >
Connections > WAP accounts
All settings are described in ‘MMS tab’ on page 154.
Area
Cell Broadcast Service: Area and Cell information
Your network operator will be able to inform you if these
services are available.
All settings are described in ‘Area tab’ on page 155.
166 Getting started with Internet and Messaging
Setting up WAP accounts
A WAP account (sometimes called a WAP profile) defines a
service provider and gateway that should be used when making
a connection to WAP services. You also need a WAP account
when you use MMS message (Multimedia Messaging Service).
The WAP gateway sits between your P900 and the WAP site
coding and decoding information. You can set up details of more
than one gateway if necessary, for example one for your MMS
messaging, one to access corporate data over WAP, and another
to access your bank's WAP service.
The easiest way to set up a WAP account on your P900 is
automatically, via your service provider. Check your service
provider's Web site for information or contact their support desk
and ask about automatic setup. You can also find more
information, and settings for many operators on:
http://www.SonyEricsson.com/support.
Note You access WAP pages through an Internet Service
Provider (ISP) so, when you create a WAP account, you must
select one of your existing Internet accounts or first create a
new one.
Manually set up a WAP account
Instead of setting up a WAP account automatically, you can
enter the settings manually from
Control panel > Connections >
WAP accounts
.
First collect all the information you require. You can obtain this
information from the WAP service provider, or if you are
connecting to a corporate network, your information services
manager.
All settings are described in ‘WAP accounts’ on page 156.
To set up a new account, follow the steps under ‘To create a new
WAP account’ on page 157.
Using your P900 as a modem
Your P900 contains a complete GSM/GPRS modem, so you can
use it to connect your PC to the Internet or corporate
intranet.Your P900 appears to the laptop like a normal modem.
You link the laptop to your P900 using Bluetooth wireless
technology, infrared, or cable (USB or serial).The connection
over the air can be by any of the bearers that your P900
supports:
•GPRS
• HSCSD (High-speed Circuit-Switched Data)
• CSD (Circuit-Switched Data).
A Windows® modem driver file and a PC utility, the
Dialup
Networking Wizard,
is provided on your
PC Suite for P900
CD. The
wizard will help you configure DUN (Dialup Networking)
entries on your PC for GPRS and HSCSD connections.
Getting started with Internet and Messaging 167
Once paired with a Bluetooth-enabled laptop, your P900 is
ready to make a connection to the Internet or corporate network.
Because Bluetooth is wireless and requires no line-of-sight
alignment, you can place the laptop in a comfortable position
and let your P900 remain in your pocket, briefcase, or even be
placed up to 10 meters away.
If you wish to use an infrared link, the range is typically up to 1
meter. The two infrared ports must be kept in line of sight, at an
angle of no more than approximately 30 degrees.
The Dialup Networking Wizard
The wizard simplifies the creation of GPRS DUN connections
by setting the proper values in the PC DUN entry and linking the
entry to one of the GPRS configurations in your P900. You can
also view and modify the GPRS settings in the P900.
For HSCSD DUN entries, it updates the modem settings such
that the specified data rate and type of bearer (ISDN / Analog)
will be used when you make a DUN connection.
You can view or change the DUN entries created with the
wizard using the standard Windows® DUN user interface.
The Dialup Networking Wizard software included in the
PC Suite
for P900
must be installed in your PC and your P900 must be
connected to the PC via cable, infrared or Bluetooth wireless
technology. See ‘Connecting to other devices’ on page 127.
Ensure you have any information concerning, for example,
phone numbers, names of servers or domains, that the server
that you want to connect to may require.
To set up a GPRS or HSCSD (High-Speed Circuit-Switched
Data) connection using the Dialup Networking Wizard
1. Start the
Dialup Networking Wizard
from the Sony Ericsson
folder on the Start menu on your PC.
2. Choose Create a new Dialup connection.
3. Follow the instructions in the wizard.
To edit a previously created DUN entry
1. Start the
Dialup Networking Wizard
from the Sony Ericsson
folder on the Start menu on your PC.
2. Modify a Dialup connection.
3. Select the desired connection from the list.
4. Follow the instructions in the wizard.
To define P900 as a modem
To set up a CSD (GSM Data) or HSCSD connection, you will
need to manually install your P900 as a modem.
To set up a Dialup entry for CSD or HSCSD
1. On the PC, open the Control Panel.
2. Choose to install a new modem.
168 Getting started with Internet and Messaging
3. Select your P900 as the modem.
4. Select the port to which the P900 is connected.
5. Confirm the selection. A new DUN connection is created.
Connecting
To connect using a DUN entry created by the wizard
1. If you are connecting by cable, set your P900 to
Modem
cable
connection mode; see ‘Cable’ on page 146.
2. Use any conventional method to make a connection:
– Click the Desktop shortcut created by the wizard.
– Select the entry from within the system DUN folder.
– Run an application that has built-in support for using DUN
entries (for example, a browser or email client).
GPRS - connection information
Icons on the status bar give you an overview of the information
on data connection calls.
A combined signal strength and GPRS signal icon provides
information on the GPRS service status. The GPRS connection
status appears above the signal strength icon. There are three
states for the icon, unavailable , available and
attached .
The HSCSD/CSD and GPRS icons are displayed during
a data connection. Where GPRS is suspended, for example, the
GPRS suspended state is indicated by a combined icon .
There are three states for the GPRS icon: Active ,
active transferring data (alternates between and )
and suspended . Any data transfer either received or sent
activates the GPRS active icon for 5 seconds.
Connection information
When you select the data connection icon, during an active data
connection, a menu appears with the options
Information
and
Disconnect
.
• Select
Information
to view information on the connection.
• Select
Disconnect
to end the connection.
GPRS status information
When the signal strength icon is selected, network, GPRS status
information and, if applicable, GPRS error text appear.
GPRS data log
A new GPRS data log entry is created when a GPRS account
establishes a connection for the first time. It does not wait for
transfer data. If there is an existing data log associated with the
current GPRS connection, it is updated.
Getting started with Internet and Messaging 169
The GPRS data log shows a list of GPRS Internet accounts.
Where one account is active or suspended, the relevant status
icon is displayed to the left of the account.
To view information on an account
1. Select an account in the list.
2. Information on the account is shown. The data log is updated
dynamically.
Buttons allow you to delete or reset the current data. These
buttons are disabled during an active or suspended
connection.
To delete the log for an account
1. Select an account in the list.
2. Select
GPRS data log > Delete
.
To reset the log for an account
1. Select an account from the list.
2. Select
GPRS data log > Reset
.
To delete or reset the logs of several accounts
1. Select the checkboxes of the accounts in the list to be deleted
or reset.
2. Select
GPRS data log > Reset
or
GPRS data log > Delete
.
Session data
When the connection is deactivated, for example when the
current Internet account is disconnected, the total data sent and
received in the last session is displayed.
The information is displayed for a couple of seconds. To dismiss
the information when the Flip is closed, press .
170 Troubleshooting
REFERENCE
Troubleshooting
This chapter consists of a selection of suggestions for solving
possible problems with your P900. If this does not help, please
try the Solution Finder on www.SonyEricsson.com/support.
There you can also find other information that can be helpful.
Startup problems
The P900 will
not start
• Handheld phone: recharge or replace the battery.
• Ensure the contacts on the battery and charger are
clean and avoid charging the battery in extreme
temperatures.
• Vehicle Hands-free: check that the P900 is
properly inserted into the holder and check the
fuse in the fuse holder (connected to the battery
cable).
Lock problems
Insert card • Ensure a SIM card is activated and inserted into
your P900. See ‘SIM card’ on page 11.
Blocked SIM
card
If your PIN is entered incorrectly three times in a
row, the SIM card will be blocked. You can
unblock it by using your PUK. See ‘SIM card lock’
on page 35.
Device lock Phone locked is displayed followed by the prompt
Enter lock code
.
Your P900 is locked to prevent unauthorized use.
To unlock the P900:
• Enter your device lock code, 0000 by default,
then press or .
Key symbol The keypad is locked to prevent unintentional key
action.
Press followed by to unlock the
keys.
Indicator light
Flashes red This indicates that the battery is running low and
soon needs recharging or replacing with a spare.
• With Vehicle Hands-free (VHF) equipment,
Ensure the following are inserted or connected:
your P900 and its holder, the fuse in the fuse
holder, and/or the external antenna.
Does not flash If the indicator light at the top of your P900 does
not flash and no network is displayed, there is no
network within range. See ‘Phone does not work’
on page 171.
Troubleshooting 171
Communication problems
Phone does not
work
• The received signal can be too weak, possibly
because you are being shielded from the signal.
Check your display signal strength indicator.
Move outdoors or up from the ground to obtain a
sufficiently strong signal.
• Ensure the P900 is not set in Flight mode.
• Your P900 might be busy sending or receiving
data or email.
• Check the settings for forwarding or restricting
calls. See ‘Forward calls’ on page 52, ‘Accepted
callers’ on page 52 and ‘Restrict calls’ on
page 53.
• If
Emergency calls only
is displayed on the
screen, you are not allowed to use the network
within range. You can, however, usually make an
emergency call using the emergency number.
• If
No network
is displayed on the screen, you are
in an area that is not covered by a network or the
received signal is too weak.
Cannot hear
incoming call
• Increase the ringtone volume.
• Increase the ringtone volume.
The person I
talk to has
problems
hearing what I
say
• Ensure you do not cover the microphone when
you talk. You find the microphone at the bottom,
next to the connector.
• You could be almost outside the network range.
The sound improves with a better network
connection.
Cannot use
WAP
• Your subscription does not include WAP. Check
with your service provider.
• The settings are not correct. Enter new settings.
Contact you service provider or visit
www.SonyEricsson.com/support and use the
WAP configurator.
Cannot send or
receive SMS or
MMS
• Your subscription does not include SMS or
MMS. Check with your service provider.
• Check with you service provider that you have
entered the correct Service Center phone
number.
• Check the settings in the Control panel. Contact
you service provider or visit
www.SonyEricsson.com/support and use the
MMS configurator.
• Ensure Flight mode is deactivated.
• Phone memory might be full. Delete some
pictures or music, for example.
172 Troubleshooting
Fax calls Your P900 does not support fax transmission. Even
if your operator subscription supports fax
transmission, fax calls will be rejected. However,
they can be forwarded to another number such as
the office fax number, see ‘Forward calls’ on
page 52 for more information.
• Ensure potential fax callers do not try to send a
fax to your P900, as they can experience a
number of retries before the fax transmission is
stopped.
Problems connecting to a PC or another device
Not possible to
establish
connection
using cable
• Ensure the Sync Station and cable is correctly
connected to the PC.
• Ensure the correct COM port on the PC is
enabled. Right-click the P900 link symbol on the
PC taskbar, and select Properties. Select the
USB COM port.
• Uninstall
PC suite for P900
. Connect the Sync
Station with the P900 to the PC. Reinstall
PC
suite for P900
, following the installation
procedure thoroughly.
• Check for
PC suite for P900
updates on
www.SonyEricsson.com/support. If you find a
new version of the program, download it and
install it instead of the old one.
Cannot transfer
pictures
Place the P900 in the Sync Station. In the PC, open
My P900 and browse through the P900 file system
to find the picture.
Cannot transfer
items with
Bluetooth
wireless
technology
• Ensure Bluetooth wireless technology is
activated.
• Ensure the devices are in range with each other.
Maximum range is 10 meters.
Cannot
establish
connection with
a Bluetooth
wireless
technology
handset or
hands-free
• Ensure the devices are correctly paired. See
‘Connection via Bluetooth wireless technology’
on page 129.
• Ensure the handset or hands-free is charged.
• Ensure the devices are within range of each other.
Memory full
When your P900 has no more space available to
save or store information, a message is displayed.
You must then free up memory to ensure the
proper functioning of the P900.
• Ensure regular backups are made with
Communications Suite to reduce the risk of lost
or corrupted information.
Storage
manager
• Use the storage manager to move items from the
P900 internal memory to a Memory Stick Duo,
or remove items from the P900 memory.
Troubleshooting 173
To start the storage manager
• Select
Applications > Control
panel > Device > Storage manager.
• A list of all applications and their memory
requirements is shown.
• See ‘Deleting or copying general files’ on
page 161 and ‘Deleting information from
applications’ on page 160.
Information in
applications
Use the applications to remove unused or old items
from the P900 internal memory:
WAP history or bookmarks.
• Messages.
• Contacts.
• Call logs.
• Calendar tasks or appointments.
• Jotter notes.
Miscellaneous
Cannot save on
Memory Stick
Duo
• You might have a Memory Stick Duo with a lock
switch. Move the switch in the other direction.
• The Memory Stick Duo might be full. Delete
some files from it.
Cannot change
language except
to the language
I selected when
I first started
• The first time you start the P900, you select a
language. All other languages are then deleted, in
order to free up memory. You can find all
languages on the
PC suite for P900
CD. From the
CD, you can install the language you want.
Applications
stop responding
• Close the Flip and open it again.
• Turn off the P900 and turn it on again.
• Remove the battery, wait about 10 seconds, then
reinsert it.
• Phone memory might be full. Delete some
pictures or music, for example.
• If the problem continues, do a master reset. See
‘Master reset’ on page 159. All data will be lost.
System failure In the case of a system failure, your P900 will flash
an animated warning. To recover, please restart the
P900 like this:
• Press and hold the On/Off button for at least 10
seconds to turn the P900 off.
• Restart as normal: Press the On/Off button to turn
on your P900.
174 Guidelines for safe and efficient use
Guidelines for safe and efficient use
Please read this information before using your mobile phone.
Note Important: to avoid hearing impairment, answer call or lower volume before
placing this product to your ear.
Recommendations
• Always treat your product with care and keep it in a clean and dust-free place.
• Do not expose your product to liquid or moisture or humidity.
• Do not expose your product to extreme high or low temperatures.
• Do not expose your product to open flames or lit tobacco products.
• Do not drop, throw or try to bend your product.
• Do not paint your product.
• Do not use your product near medical equipment without requesting permission.
• Do not use your product when in, or around aircraft, or areas posted ‘turn off
two-way radio’.
• Do not use your product in an area where a potentially explosive atmosphere
exists.
• Do not place your product or install wireless equipment in the area above your
car’s airbag.
• Do not attempt to disassemble your product. Only Sony Ericsson authorized
personnel should perform any service.
Antenna
Only use an antenna that has been specifically designed by Sony Ericsson for your
mobile phone. Use of unauthorized or modified antennas could damage your
mobile phone and may violate regulations, causing loss of performance and SAR
levels above the recommended limits (see below).
Efficient use
Hold your mobile phone as you would any other phone. Do not cover the top of the
phone when in use, as this affects call quality and may cause the phone to operate
at a higher power level than needed, thus shortening talk and standby times.
Radio Frequency (RF) Exposure and SAR
Your mobile phone is a low-power radio transmitter and receiver. When it is turned
on, it emits low levels of radio frequency energy (also known as radio waves or
radio frequency fields).
Governments around the world have adopted comprehensive international safety
guidelines, developed by scientific organizations, e.g. ICNIRP (International Com-
mission on Non-Ionizing Radiation Protection) and IEEE (The Institute of Electri-
cal and Electronics Engineers Inc.), through periodic and thorough evaluation of
scientific studies. These guidelines establish permitted levels of radio wave expo-
sure for the general population. The levels include a safety margin designed to
assure the safety of all persons, regardless of age and health, and to account for any
variations in measurements.
Specific Absorption Rate (SAR) is the unit of measurement for the amount of radio
frequency energy absorbed by the body when using a mobile phone. The SAR
value is determined at the highest certified power level in laboratory conditions,
but the actual SAR level of the mobile phone while operating can be well below
this value. This is because the mobile phone is designed to use the minimum power
required to reach the network.
Variations in SAR below the radio frequency exposure guidelines do not mean that
there are variations in safety. While there may be differences in SAR levels among
mobile phones, all Sony Ericsson mobile phone models are designed to meet radio
frequency exposure guidelines.
Before a phone model is available for sale to the public, it must be tested and certi-
fied to the FCC that it does not exceed the limit established by the government-
adopted requirement for safe exposure. The tests are performed in positions and
locations (that is, at the ear and worn on the body) as required by the FCC for each
model. For body worn operation, this phone has been tested and meets FCC RF
exposure guidelines when the handset is positioned a minimum of 15 mm from the
body without any metal parts in the vicinity of the phone or when used with the
original Sony Ericsson body worn accessory intended for this phone. Use of other
accessories may not ensure compliance with FCC RF exposure guidelines.
A separate leaflet with SAR information for this mobile phone model is included
with the material that comes with this mobile phone. This information can also be
found, together with more information on radio frequency exposure and SAR, on
www.SonyEricsson.com.
Guidelines for safe and efficient use 175
Driving
Please check if local laws and regulations restrict the use of mobile phones while
driving or require drivers to use handsfree solutions. We recommend that you use
only Ericsson or Sony Ericsson handsfree solutions intended for use with your
product. Please note that because of possible interference with other equipment,
some vehicle manufacturers forbid the use of mobile phones in their vehicles
unless a handsfree kit with an external antenna supports the installation.
Always give full attention to driving and pull off the road and park before making
or answering a call if driving conditions so require.
Personal Medical Devices
Mobile phones may affect the operation of cardiac pacemakers and other
implanted equipment. Please avoid placing the mobile phone over the pacemaker,
e.g. in your breast pocket. When using the mobile phone, place it at the ear oppo-
site the pacemaker. If a minimum distance of 15 cm (6 inches) is kept between the
mobile phone and the pacemaker, the risk of interference is limited. If you have
any reason to suspect that interference is taking place, immediately turn off your
mobile phone. Contact your cardiologist for more information.
For other medical devices, please consult the manufacturer of the device.
Children
DO NOT ALLOW CHILDREN TO PLAY WITH YOUR MOBILE PHONE OR
ITS ACCESSORIES. THEY COULD HURT THEMSELVES OR OTHERS, OR
COULD ACCIDENTALLY DAMAGE THE MOBILE PHONE OR ACCESSO-
RIES. YOUR MOBILE PHONE AND ITS ACCESSORIES MAY CONTAIN
SMALL PARTS THAT COULD BE DETACHED AND CREATE A CHOKING
HAZARD.
Disposing of the Product
Your mobile phone should not be placed in municipal waste. Please check local
regulations for disposal of electronic products.
Power Supply
Connect the AC power adapter only to designated power sources as marked on the
product. Make sure the cord is positioned so that it will not be subjected to damage
or stress. To reduce the risk of electric shock, unplug the unit from any power
source before attempting to clean it. The AC power adapter must not be used out-
doors or in damp areas. Never alter the cord or plug. If the plug will not fit into the
outlet, have a proper outlet installed by a qualified electrician.
Emergency Calls
Mobile phones operate using radio signals, which cannot guarantee connection
under all conditions. Therefore you should never rely solely upon any mobile
phone for essential communications (e.g. medical emergencies).
Emergency calls may not be possible on all cellular networks or when certain net-
work services and/or mobile phone features are in use. Check with your local ser-
vice provider.
Emergency Response Center Location Technology.
Using wireless technology to help find you in case of an emergency is a goal
shared by the entire wireless industry, local phone companies and the emergency
response centers. Your phone may support an emergency positioning system being
implemented by some service providers. But the complexity of mobile communi-
cation technology, combined with related implementation technologies, means that
your wireless carrier, the local phone companies, and emergency response centers
all have a role to play in implementing this capability.
So even if your phone supports this technology and even if the locating features
works in one area there is no guarantee that it will work in all areas for all calls to
emergency response centers. Always review with an emergency response center all
location data you have, including intersecting streets, as well as any landmarks, to
assist in locating you.
Sony Ericsson is committed to continuing to work with the entire communications
industry to improve location features for emergency response.
Sony Ericsson is not liable for any service(s) including operation, coverage, or
range of the network services provided by network carriers independent of Sony
Ericsson.
176 Guidelines for safe and efficient use
Battery Use and Care
We recommend that you fully charge the battery before you use your mobile phone
for the first time. The battery can only be charged in temperatures between +5°C
(+41°F) and +45°C (+113°F).
A new battery or one that has not been used for a long time could have reduced
capacity the first few times it is used.
The talk and standby times depend on the actual transmission conditions when
using the mobile phone. If the mobile phone is used near a base station, less power
is required and talk and standby times are prolonged.
•Warning! May explode if disposed of in fire.
• Use only Ericsson or Sony Ericsson branded original batteries and
chargers intended for use with your mobile phone. Other
chargers may not charge sufficiently or may produce excessive
heat. Using other batteries and chargers could be dangerous.
• Do not expose the battery to liquid.
• Do not let the metal contacts on the battery touch another metal
object. This could short-circuit and damage the battery.
• Do not disassemble or modify the battery.
• Do not expose the battery to extreme temperatures, and never
above +60°C (+140°F). For maximum battery capacity, use the
battery in room temperature.
• Turn off your mobile phone before removing the battery.
• Keep out of the reach of children.
• Use the battery for the intended purpose only.
• Do not allow the battery to be put into the mouth. Battery
electrolytes may be toxic if swallowed.
Disposing of the product.
Please check local regulations for disposal of batteries or call your
local Sony Ericsson Customer Care Center for information.
The battery should never be placed in municipal waste. Use a bat-
tery disposal facility if available.
Limited warranty
Sony Ericsson Mobile Communications AB, S-221 88 Lund, Sweden, (Sony Eric-
sson), provides this Limited Warranty for your mobile phone and original acces-
sory delivered with your mobile phone (hereinafter referred to as "Product").
Should your Product need warranty service, please return it to the dealer from
whom it was purchased, or contact your local Sony Ericsson Customer Care Center
(national rates may apply) or visit www.SonyEricsson.com to obtain further infor-
mation.
Our warranty
Subject to the conditions of this Limited Warranty, Sony Ericsson warrants this
Product to be free from defects in design, material and workmanship at the time of
its original purchase by a consumer, and for a subsequent period of one (1) year.
What we will do
If, during the warranty period, this Product fails to operate under normal use and
service, due to defects in design, materials or workmanship, Sony Ericsson author-
ized distributors or service partners, in the country/region* where you purchased
the Product, will, at their option, either repair or replace the Product in accordance
with the terms and conditions stipulated herein.
Sony Ericsson and its service partners reserve the right to charge a handling fee if a
returned Product is found not to be under warranty according to the conditions
below.
Please note that your personal settings/downloads might be lost when the Product
is repaired or replaced.
Conditions
1. The warranty is valid only if the original proof of purchase issued to the original
purchaser by a dealer authorized by Sony Ericsson for this Product, specifying
the date of purchase and serial number**, is presented with the Product to be
repaired or replaced. Sony Ericsson reserves the right to refuse warranty
service if this information has been removed or changed after the original
purchase of the Product from the dealer.
Guidelines for safe and efficient use 177
2. If Sony Ericsson repairs or replaces the Product, the repaired or replaced
Product shall be warranted for the remaining time of the original warranty
period or for ninety (90) days from the date of repair, whichever is longer.
Repair or replacement may involve the use of functionally equivalent
reconditioned units. Replaced parts or components will become the property of
Sony Ericsson.
3. This warranty does not cover any failure of the Product due to normal wear and
tear, or due to misuse, including but not limited to use in other than the normal
and customary manner, in accordance with the Sony Ericsson instructions for
use and maintenance of the Product. Nor does this warranty cover any failure
of the Product due to accident, software or hardware modification or
adjustment, acts of God or damage resulting from liquid.
4. Since the cellular system on which the Product is to operate is provided by a
carrier independent from Sony Ericsson, Sony Ericsson will not be responsible
for the operation, availability, coverage, services or range of that system.
5. This warranty does not cover Product failures caused by installations,
modifications, or repair or opening of the Product performed by a non-Sony
Ericsson authorized person.
6. The warranty does not cover Product failures which have been caused by use of
accessories or other peripheral devices which are not Ericsson or Sony
Ericsson branded original accessories intended for use with the Product.
7. Tampering with any of the seals on the Product will void the warranty.
8. THERE ARE NO EXPRESS WARRANTIES, WHETHER WRITTEN OR
ORAL, OTHER THAN THIS PRINTED LIMITED WARRANTY. ALL
IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY. IN NO EVENT SHALL SONY ERICSSON OR ITS
LICENSORS BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES OF ANY NATURE WHATSOEVER, INCLUDING BUT NOT
LIMITED TO LOST PROFITS OR COMMERCIAL LOSS, TO THE FULL
EXTENT THOSE DAMAGES CAN BE DISCLAIMED BY LAW.
Some countries/states do not allow the exclusion or limitation of incidental or con-
sequential damages, or limitation of the duration of implied warranties, so the pre-
ceding limitations or exclusions may not apply to you.
The warranty provided does not affect the consumer's statutory rights under appli-
cable legislation in force, nor the consumer's rights against the dealer arising from
their sales/purchase contract.
* European Union (EU)
If you have purchased your Product in an EU country you can have your Product
serviced, under the conditions set out above, within the warranty period in any EU
country where an identical Product is sold by an authorized Sony Ericsson distrib-
utor. To find out if your Product is sold in the EU country you are in, please call the
local Sony Ericsson Customer Care Center. Please observe that certain services
may not be possible anywhere other than in the country of original purchase, for
example due to the fact that your Product may have an interior or exterior which is
different from equivalent models sold in other EU countries. It may not be possible
to repair SIM-locked Products.
** In some countries/regions additional information is requested. If so, this is
clearly shown on the valid proof of purchase.
178 Guidelines for safe and efficient use
FCC Statement
This device complies with Part 15 of the FCC rules. Operation is sub-
ject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Environmental information
•Halogenated flame retardants are not used in cabinets or the
printed wiring board of the phone.
• Power consumption of charger during standby < 0.3W.
For more environmental information, look at the Environmental Declaration for
P900 at www.SonyEricsson.com
Declaration of Conformity
We, Sony Ericsson Mobile Communications AB of
Nya Vattentornet
S-221 88 Lund, Sweden
declare under our sole responsibility that our product
Sony Ericsson type FAB 1021011-BV and FAB 1021011-CN
and in combination with our accessories, to which this declaration relates is in con-
formity with the appropriate standards 3GPP TS 51.010-1, EN 301489-7,
EN 300328, EN 300826 and EN 60950, following the provisions of, Radio Equip-
ment and Telecommunication Terminal Equipment directive 99/5/EC with require-
ments covering EMC directive 89/336/EEC, and Low Voltage directive 73/23/
EEC.
We fulfil the requirements of the R&TTE Directive (99/5/EC).
Kista, October 2003
Place & date of issue 0682
Hiroshi Yoshioka, Head of Product Business Unit GSM/UMTS
Terms and definitions 179
Terms and definitions
AU
Format for audio data files .AU files have the suffix .au
Bearer
Path over which data flows. Specifically in CSD and HSCSD,
the type of phone link from the GSM network to the server –
PSTN or ISDN.
Bluetooth
Bluetooth wireless technology is a secure, fast radio connection
technology. It is a computing and telecommunications industry
specification that describes how cellphones, computers, and
personal digital assistants (PDAs) can easily interconnect with
each other and with home and business phones and computers
using a short-range wireless connection.
BMP
Microsoft Windows Bitmap. A graphics format defined by
Microsoft supporting 1, 4, 8 or 24-bit color depth. No
compression, so file size can be large.
Bookmark
A URL and header/title stored in the phone, enabling the user to
go directly to a Web or WAP page.
bps
Bits per second – rate of data flow.
cHTML
A version of HTML optimized for small devices.
CLI
Caller Line Identification. Shows the number of the person
calling you in your cellphone display. Your P900 will also
display the name and photograph of the caller if they are in
Contacts. You can then make an informed choice as to whether
or not to take the call. Bear in mind that not all numbers can be
displayed. To use this service, it must be supported by your
network.
COM Port
Defines a serial/RS-232 port within the Windows environment.
CS
Circuit-Switched. Connection from A to B which has a fixed
bandwidth and is maintained over a period of time, for example
a voice phone call.
CSD
Circuit-Switched Data. CSD is a GSM service providing a CS
data connection at a rate of 9.6 or 14.4 kbps.
180 Terms and definitions
CSS
Cascading Stylesheet. A feature of browsers.
DTMF
Dual-Tone Multifrequency. A method of coding digits as a
combination of two audible tones.
DUN
Dialup Networking. The dialup networking capability in
Windows.
e-GSM
Extended GSM. New frequencies specified by the European
Radio Communications Committee (ERC) for GSM use when
additional spectrum is needed (network-dependent). It allows
operators to transmit and receive just outside GSM's core
900MHz frequency band. This extension gives increased
network capability.
EMS
Enhanced Messaging Service. An extension of SMS enabling
pictures, animations, sound and text formatting to be added to
text messages.
FCC
Federal Communications Commission. US government agency
which regulates radio communications.
GIF
Graphics Interchange Format. Format for storing images that
also supports animated images. Highly compressed by limiting
the color palette to 16 or 256 colors. It is one of the two most
common file formats for graphic images on the Web. The other
is JPEG.
GPRS
General Packet Radio Services. A radio technology for GSM
networks that adds packet-switching protocols, shorter setup
time for ISP connections, and the possibility of charging by the
amount of data sent rather than by connection time. GPRS
promises to support flexible data transmission rates typically up
to 20 or 30 kbps (with a theoretical maximum of 171.2 kbps), as
well as continuous connection to the network.
GSM
Global System for Mobile Communications. GSM is the world's
most widely-used digital cellphone system, now operating in
over 160 countries around the world.
GSM 900
The GSM system family includes GSM 900, GSM 1800 and
GSM 1900. GSM 900 refers to GSM working on a frequency of
900 MHz.
Terms and definitions 181
GSM 1800
Also known as DCS 1800 or PCN, this is a GSM digital network
working at a frequency of 1800 MHz. It is used in Europe and
Asia-Pacific.
GSM 1900
Also known as PCS. Refers to a GSM system running in the
1900 MHz band. Used for example in the USA and Canada.
HSCSD
High-Speed Circuit-Switched Data (HSCSD) is circuit-switched
wireless data transmission for mobile users at data rates of up to
64 kbps.
HTML
Hypertext Markup Language is the set of markup symbols or
codes inserted in a file intended for display on a Web browser
page. The markup tells the Web browser how to display a Web
page's words and images.
HTTP
HyperText Transfer Protocol. The communications protocol
used to connect to servers on the World Wide Web. Its primary
function is to establish a connection with a Web server and
transmit HTML pages to the client browser.
IMAP4
Internet Message Access Protocol (the latest version is IMAP4)
is a standard client/server protocol for accessing email from
your local server. The email is received and held for you by your
IMAP server. You (or your client email receiver) can view just
the heading and the sender of the letter and then decide whether
to download the mail.
IrDA
The Infrared Data Association is dedicated to developing
standards for wireless, infrared transmission systems between
devices. With IrDA ports, a device such as your P900 can
exchange data with other devices without a cable connection.
IrDA requires line-of-sight transmission.
ISDN
Integrated Services Digital Network. Communication protocol
offered by phone companies that permits phone networks to
carry data, voice, and other source traffic. Selecting ISDN for
CSD/HSCSD connections provides quicker call setup.
ISP
Internet Service Provider. An organization that provides access
to the Internet.
JFIF
JPEG File Interchange Format.
182 Terms and definitions
JPEG
Joint Photographic Experts Group, best known for the .JPG
format for still image compression.
MBM
Multiple Bit Map. Symbian OS bitmap format.
MeT
Mobile Electronic Transactions. An initiative founded by
Ericsson, Nokia and Motorola to establish a secure and
consistent framework for mobile transactions.
MIDI
MIDI (Musical Instrument Digital Interface) is a protocol
designed for recording and playback of music on digital
synthesizers that is supported by many brands of personal
computer sound cards.
MIME
Multipurpose Internet Mail Extensions. A protocol defining
how messages are sent on the Internet. For example, MIME is
used to describe how attachments are encoded and what type of
data they contain.
MMS
Multimedia Messaging Service. Logical extension of SMS and
EMS. MMS defines a service enabling sound, images and video
to be combined into multimedia messages. It supports photo
quality pictures, and sounds in WAV, MIDI, AMR, or Melodies
format.
MP3
MPEG-1 Audio Layer-3 is a standard technology and format for
compression a sound sequence into a very small file (about one-
twelfth the size of the original file) while almost preserving the
original level of sound quality when it is played.
MPEG-4
The Moving Picture Experts Group, develops standards for
digital video and digital audio compression. It operates under
the auspices of the International Organization for
Standardization (ISO). MPEG-4 goes far beyond compression
methods. Instead of treating the data as continuous streams,
MPEG-4 deals with audio/video items that can be manipulated
independently, allowing for interaction with the coded data and
providing flexibility in editing. MPEG-4 supports a wide range
of audio and video modes and transmission speeds.
OS
Operating System, such as Symbian OS, Linux, Microsoft
Windows.
Terms and definitions 183
OTA
Over-The-Air. A technology for transmission and reception of
application related configuration information in a wireless
communications system.
PC
Personal Computer.
PCS
Personal Communications Services, often used to describe GSM
1900 networks.
PDA
Personal Digital Assistant. A handheld computer having
functions such as an address book, calendar, etc.
PDF
Portable Document Format. A format created by Adobe for
storing and distributing documents.
Phone book
A memory in the SIM card where phone numbers can be stored
and accessed by name or position.
PIM
Personal Information Management. Generic term for
applications such as Contacts, Calendar, Tasks, etc.
PIN
A PIN is a personal identification number. PINs are commonly
assigned to bank customers for use with automatic cash
dispensers. They are also used, sometimes with a security token,
for individual access to computer networks or other secure
systems.
PNG
Portable Network Graphics. Format for storing images on file
with data compression but without lowering of quality (loss of
information).
POP3
Post Office Protocol 3 is a standard client-server protocol for
receiving email. The email is received and held for you by your
POP server. Periodically, the P900 Messaging application can
check your mailbox on the server and download any emails.
Protocol
In information technology, a protocol is the special set of rules
that end points in a telecommunication connection use when
they communicate. Protocols exist at several levels in a
telecommunication connection.
QQVGA
Quarter Quarter VGA, 160 x 120 pixels.
184 Terms and definitions
QVGA
Quarter VGA size, typically refers to a portrait-oriented screen
240 pixels wide x 320 pixels high.
RS232
A standard for serial transmission between computers and
peripheral devices
SC
Service Center (for SMS).
Service Provider
A company that provides services and subscriptions to
cellphone users.
SGML
A generic markup language for representing documents.
SIM
A SIM (Subscriber Identity Module) card is a ‘smart card’,
inserted into GSM phones, that contains your phone account
information. SIM cards can also be programmed to display
custom menus for personalized services, for instance to assist
operators in providing mobile e-commerce applications.
SMIL
Synchronized Multimedia Integration Language. Used by MMS
to describe how media items are to be played.
SMS
Short Message Service. Allows messages of up to 160
characters to be sent and received via the network operator's
message center to a cellphone.
SMTP
Simple Mail Transfer Protocol. Protocol used to send email
from an email client via an SMTP server.
SWIM
A SWIM card is a SIM card containing a WIM.
SyncML
SyncML is a universal protocol for data synchronization,
developed by the SyncML Initiative Ltd.
TCP/IP
Transmission Control Protocol/Internet Protocol. TCP/IP is the
basic communication language or protocol of the Internet. It can
also be used as a communications protocol in a private network
(either an intranet or an extranet).
TLS
Transport Layer Security. Used by Web browsers, for example.
URL
Uniform Resource Locator. Points to a service or information on
the Internet, for example: http://www.SonyEricsson.com
Terms and definitions 185
USB
Universal Serial Bus. A plug-and-play interface between a
computer and add-on devices (such as audio players, joysticks,
keyboards, phones, scanners, and printers). With USB, a new
device can be added to your computer without having to add an
adapter card or even having to turn the computer off.
USSD
Unstructured Supplementary Services Data. Narrowband GSM
data service. For example, entering *79*1234# might return the
stock price for stock 1234.
vCal; vCalendar
vCalendar defines a transport and platform-independent format
for exchanging calendar and scheduling information for use in
PIMs/PDAs and group schedulers. vCalendar is specified by
IETF.
vCard
vCard automates the exchange of personal information typically
found on a traditional business card, for use in applications such
as Web mail, voicemail, Web browsers, phone applications, call
centers, video conferencing, PIMs /PDAs, pagers, fax, office
equipment, and smart cards. vCard is specified by IETF.
VGA
Video Graphics Array. Graphics standard introduced by IBM,
with a resolution of 640 x 480 pixels.
VPN
Virtual Private Network. A private network that is configured
within a public network. A VPN appear as private national or
international network to the customer, but physically shares a
backbone trunk with other customers. VPNs enjoy the security
of a private network via access control and encryption, while
taking advantage of the economies of scale and built-in
management facilities of large public networks. Today, there is
tremendous interest in VPNs on the Internet, especially due to
the constant threat of hacker attacks.
WAP
Wireless Application Protocol is a specification for a set of
communication protocols to standardize the way that wireless
devices, such as cellphones and radio transceivers, can be used
for Internet access, including email, the Web and newsgroups.
WAV
A Wave file is an audio file format, created by Microsoft, that
has become a standard PC audio file format for everything from
system and game sounds to CD-quality audio. A Wave file is
identified by a file name extension WAV (.wav).
WBXML
Wireless Binary Extensible Markup Language.
186 Terms and definitions
WIM
The Wireless Identity Module is a data module for electronic
identity certificates. It can contain both trusted and client
certificates, private keys and algorithms needed for WTLS
handshaking, encryption, decryption, and signature generation.
The WIM module can be placed on a SIM card, called a SWIM
card.
WML
Wireless Markup Language. A markup language used for
authoring services, fulfilling the same purpose as HyperText
Markup Language (HTML) on the World Wide Web (WWW).
In contrast to HTML, WML is designed to fit small handheld
devices.
WTLS
Wireless Transport Layer Security. Part of WAP, WTLS
provides privacy, data integrity and authentication at the
transport layer level between two applications.
W3C
The main standards body for the WWW.
xHTML
Extensible Hypertext Markup Language. A reformulation of
HTML 4.01 in XML. Being XML, means that XHTML can be
viewed, edited, and validated with standard XML tools. At the
same time, it operates as well as or better than HTML 4 in
existing HTML 4-conformant user agents.
XML
Extensible Markup Language. An initiative from the W3C
defining an ‘extremely simple’ dialect of SGML suitable for use
on the WWW.
Technical data 187
Technical data
General Screen
Third-party application support
Bluetooth wireless technology
Product P900 standard version, Latin character set
Size 115 x 57 x 24 mm
Weight 150 grams with battery and Flip.
System and power class E-GSM 900 Class 4
GSM 1800 Class 1
GSM 1900 Class 1
Antenna Built in
Speech coding HR, FR, EFR supported where available,
for high speech quality.
SIM Card Small plug-in card, 3V or 5V type
Operating system Symbian OS v7.0 with UIQ v2.1 user
interface and applications environment
Processor ARM 9
Internal User storage For settings, user data (for example images,
contacts, messages) and third-party
applications: up to 16 MB
Additional storage Memory Stick Duo, up to 128 MB
supported. 32 MB Memory stick Duo
supplied, plus adapter.
Operating temperature –15° to +55° C
Screen type TFT
Screen size Flip closed: 208 x 208 pixels, 40 x 40 mm
Flip open: 208 x 320 pixels, 40 x 61 mm
Pixel size 0.192 x 0.192 mm, or 132 ppi (pixels per inch)
Color resolution 16-bit (65k colors)
Screen surface Touch-sensitive
Illumination Variable intensity backlight
SDKs C++, PersonalJava PJAE 1.1.1a, J2ME MIDP 2.0
/ CLDC HI 1.0 with JSR 120 and JSR 82 (partly),
AppForge Microsoft Visual Basic v6
Load formats C++ or Java applications in Symbian SIS format.
MIDP installation (JAR/JAD) from browser or
connected PC.
Security Support for signed applications.
Bluetooth compatibility
statement
This product is manufactured to comply
with the Bluetooth specification 1.1.
Coverage area Up to 10 meters (33 feet)
188 Technical data
Infrared transceiver
GPRS maximum data rates (kbps)
Speed achieved depends on the Coding Scheme supported by
the GSM Network.
HSCSD maximum data rates (kbps)
Phone
Integrated CommuniCorder
Pictures (image viewer)
Video player
Music player
Data transmission rate Max speed between phone and IrDA
device (that is a PC or another phone)
SIR: up to 115,200 bps
CS-1
9.05 kbps CS-2
13.4 kbps CS-3
15.6 kbps CS-4
21.4 kbps
4 + 1 Rx 36.2 53.6 62.4 85.6
Tx 9.05 13.4 15.6 21.4
9.6 kbps per time slot 14.4 kbps per time slot
2 + 1 Rx 19.2 28.8
Tx 9.6 14.4
Personal
ringtones -
supported
formats
Sound clips as personal ringtones and default
ringtone:
MP3, AMR, AU, iMelody, MIDI, RMF (Beatnik)
and WAV.
Picture size 640 x 480 pixels (VGA)
320 x 240 pixels (QVGA)
160 x 120 pixels (QQVGA)
176 x 144 pixels (QCIF)
Color depth 24 bit (16 million colors)
Storage format Still pictures: JPEG/JFIF, 3 quality (compression)
levels, user-selectable.
Video: MPEG4 video with AMR sound.
Formats JPEG, BMP, GIF (including animated), PNG, WBMP
Sharing via Infrared, Bluetooth wireless technology, MMS
message, email, PC file transfer, Memory Stick
File Format .MP4 (MPEG4), 3GP
File format .MP3, WAV, AU, AMR and G-MIDI level 1 with
24 voices polyphony, RMF, iMelody
Technical data 189
Integrated browser
SMS
MMS
EMS
Email
Document viewer
Note The preinstalled viewer for Microsoft Word documents
cannot be used to view files in Rich Text format (.RTF) A
separate viewer must be installed to view these files.
Markup languages HTML 3.2 (excluding features not relevant to a
small-screen device)
WML 1.3
WBXML
xHTML Basic
xHTML Mobile Profile
cHTML
WAP version 2.0
Scripting Compiled WML scripts
Stylesheets WCSS
Images WBMP, GIF (including animated), JPEG
Security WTLS Class 1, 2, 3
TLS/SSL
WIM WIM interface including SIM-WIM (SWIM)
Cache 15 - 120K user-configurable; 30K default.
Bearer GSM and GPRS
Concatenated Up to 255 messages
Image formats GIF (including animated), JPG, BMP, WBMP,
PNG
Audio formats AMR, AU, iMelody, MIDI, WAV
Video formats MP4
Supported items Sounds, melodies, pictures, animations
Incoming mail server support POP3, IMAP4
Outgoing mail server support SMTP
Content coding MIME-compliant
Security SMTP authentication, SSL-encrypted
IMAP4 and SMTP
Attachments Receiving and sending
Preinstalled viewers Microsoft® Word
Microsoft® Excel
Microsoft® Powerpoint®
Adobe® Acrobat® (PDF)
Supplied on CD-
ROM
Support for additional file types can be
installed from the Multimedia for P900 CD.
190 Index
Index
A
Accented letters
- handwriting 2, 34
Accepted callers 52
Accessories 23
Add to contacts 51
Alarm tones 138
Alarms 115
ALS
- settings 55
- support 48
Antenna 174
AoC - Call meter settings 54
Application shortcuts 136
Applications
- flip closed 15
- installing 124
- overview 24
- removing 126, 161
Area information 155
Attachments 90
B
Background picture 136
Backing up data 134
Battery
- charging 12
- information 176
- inserting 11
- removing 11
Bluetooth wireless
technology 129, 145
- Bluetooth share 131
- headphone 130
- pairing 129
- passcodes 131
Bookmarks 77
Browser view 74
Browsing the internet 73
C
Cable 146
Calculator 112
Calendar 102
- creating entries 102
- managing entries 103
- preferences 104
- sending and receiving
entries 104
Call costs 54
Call list 45
Call waiting 52
Calling cards 53
Calls
- answering 40, 43
- conference 44
- diverting 52
- emergency 39
- flip closed 38
- flip open 41
- incoming 43
- international 38
- making 38, 41
- options 41, 43
- preferences 50
- rejecting 40, 43
- restricting 53
- retrying
automatically 42
- speed dialing 42
- two or more 44
- voice control 50
Camera
- recording video clips 56
- settings 59
- taking pictures 58
Care instructions 174
Cell information 155
Certificate manager 157
Chess 81
Conference calls 44
Connecting
- via Bluetooth wireless
technology 129
- via infrared port 128
- via SyncStation 127
Connection type 163
Connectivity software 127
Contacts 95
- adding images 137
- creating and managing
contacts 98
- to add a contact 97
- to delete a contact 97
Control panel 139
Corporate phone services 49
- setup 54
D
Data backup 134
Data restore 135
Data storage 30
Index 191
Date settings 113
Demo application 24
Device lock 35, 170
Dialup Networking
Wizard 167
Disk formatting 157
Display 139
Disposing of the battery 176
Diverting calls 52
Documents
- viewing 117
Drawing pictures 109
Driving 175
DTMF 47
- turning on 41
E
Efficient use 174
Email 83, 89, 152
Emergency calls 39
EMS 85
Entering text
- flip closed 31
- flip open 32
- handwriting 33
Extended characters
- handwriting 35
F
File manager 119
Find 28
First time start-up 13
Flight mode 47
Flip
- virtual 17
Flip closed 15
Flip open 16
Folders 27
Folders in Messaging 84
Formatting disks 157
G
Games 81
General functions 27
Getting help 30
GPRS 163, 168
H
Hands-free 51
Handwriting recognition 33
- accented letters 2, 34
- extended characters 35
- letters 2, 34
- numbers 2, 34
I
Icons 20
Image editor 63
Image status 59
Importing phone book
entries 13
Incoming call picture 50
Incoming calls 43
Increasing ring 142
Indicator light 170
Indicators 20
Infrared 128, 146
Inserting symbols 31
Installing applications 124
International calls 38
International settings 141
Internet 73
- accounts 147
- bookmarks 77
- browser view 74
- browsing 73
- signing documents 77
- user authentication
request 77
Introduction to P900 8
IP security manager 157
J
Jog Dial 18
Jotter 108
- creating and editing
notes 108
- drawing pictures 109
- managing notes 109
- sending and receiving
notes 109
K
Key functions 112
Key lock 36
Keyboard 33
Keypad functions 19
L
Languages 159
Letters
- handwriting 2, 34
Local synchronization 132
Locations 114
Lock problems 170
Locks 35
- device 35
- key lock 36
- SIM card 35
M
Making a call 96
Master reset 159
Media buffer 68
192 Index
Medical Devices 175
Memory Stick Duo 21
- adapter 22
- formatting 157
Messaging 83
- accounts 85, 151
- attachments 90
- email 89
- folders 84
- MMS 86
- multimedia
messages 86
- SMS 85
- text messages 85
MMS 83, 154
Mobile music 69
Modem 166
Multimedia for P900 123
Multimedia messages 83, 86
Music player 69
N
Navigation 16
Networks 146
Notes 108
- creating and editing 108
- managing 109
- sending and
receiving 109
Numbers
- formats 114
- handwriting 2, 34
O
Off 13
On 13
Online services 121
On-screen keyboard 33
Operational modes 14
Options menu 15
Owner card 100
P
P900 Locks 35
P900 overview 10
P900 package 9
PC connectivity
software 127
PC Suite for P900 122
PDF files
- viewing 118
Personalizing your P900 136
Phone book
- importing entries 13
Pictures 61
- drawing 109
- sending and
receiving 62
- taking 58
- viewing 61
PIN 35
PIN2 35
Powerpoint presentations
- viewing 118
PUK 35
R
Radio Frequency 174
Recording sounds 110
Remote synchronization 133
Removing applications 126
Restoring data 135
Restricting calls 53
Retry to call 42
Ring signals 137
Ring volume 142
S
SAR 174
Screen areas 17
Screensaver 136
Secure tokens 160
Security information 158
Self-timer - picture 58
Self-timer - video 57
Send as 29
Sending notes 109
Service provider 163
Services 24
Settings 31
Setup Wizard 13
Shortcuts 161
Silent mode 46
SIM card 11
SIM card lock 35
SMS 83, 85, 154
Solitaire 81
Sony Ericsson Update
Service (SEUS) 128
Sony Image Station 64
Sound files
- loop 70
- managing 70
- playing 69
Sound notification 138
Sound recorder 110
Sound recordings 110
- sending and
receiving 111
- using as ring
signals 111
Sounds and alerts 141
Speakerphone 46
Index 193
Speed dial
- making a call 42
- set-up 46
Spreadsheets
- viewing 117
Standby view 15
Start-up 13
Storage manager 160, 172
Storing data 30
Streaming 67
Symbols 31
Synchronization
- local 132
- remote 133
T
T9® text input 31
Tasks 105
Technical data 187
Text input 31, 141
Text messages 85
Themes 136
Time 113
- alarms 115
- locations 114
- number formats 114
- settings 113
- workdays 114
Time & date settings 157
Tone based services 47
Touchscreen lock 37
Transfer items with
Send As 29
Troubleshooting 170
TTY settings 54
TTY support 48
Turning on and off 13
U
Uninstalling applications
126, 161
User greeting 143
V
Video 56
Video clips
- downloading 68
- managing 66
- playing 65
- saving 67
- sending and
receiving 67
Video status 57
Viewer 116
Viewing
- documents 117
- PDF files 118
- powerpoint
presentations 118
- spreadsheets 117
Virtual flip 17
Voice control 50
Voicemail 53
Volume
- changing 41
W
Wallpaper 136
WAP accounts 156
Warranty 176
WIM management 161
Z
Zooming 28
