08 user manual
1
Draft for Sony Ericsson Internal Use Only
Congratulations on your purchase of the Sony
Ericsson M610i. Enjoy the fast touchscreen, efficient
email tools, and high-speed Internet on the go. In
addition to your pre-installed multimedia content, a lot
more is waiting for you at www.sonyericsson.com/fun.
Also check out the Sony Ericsson Application
Shop at www.sonyericsson.com/applicationshop and
learn how to get the most out of your M610i.
And if you register at www.sonyericsson.com/register,
you get an exclusive offer. Go now and don’t miss out.
2
Draft for Sony Ericsson Internal Use Only
Added dimensions – Accessories
from Sony Ericsson
Bluetooth™ Car Speakerphone
HCB-120
A handsfree solution with caller display. For
use in the car, office or home.
Bluetooth™ Headset HBH-PV705
A powerful Bluetooth™ headset with a
compact design.
Desk Stand CDS-65
Your phone’s best assistant: connect a
USB cable, charger and portable
handsfree.
The full range of accessories may not be available in every
market. For more information visit www.sonyericsson.com/accessories.
3
Draft for Sony Ericsson Internal Use Only
Contents
Getting started ................... 5
Getting to know the
phone ................................ 10
Calling ............................... 20
Messaging ........................ 26
Imaging ............................. 32
Entertainment ................... 34
Connectivity ...................... 40
More features ................... 45
Important information ...... 48
Index ................................. 58
Sony Ericsson
UMTS 2100 GSM 900/1800/1900
This user guide is published by Sony Ericsson
Mobile Communications AB or its local affiliated
company, without any warranty. Improvements and
changes to this user guide necessitated by
typographical errors, inaccuracies of current
information, or improvements to programs and/or
equipment, may be made by Sony Ericsson Mobile
Communications AB or its local affiliated company
at any time and without notice. Such changes will,
however, be incorporated into new editions of this
user guide.
All rights reserved.
©Sony Ericsson Mobile Communications AB,
2007
Publication number: EN/LZT 162 xxx PA1
Please note:
Some of the services in this user guide are not
supported by all networks. This also applies to the
GSM International Emergency Number 112.
Please contact your network operator or service
provider if you are in doubt whether you can use a
particular service or not.
Please read the Guidelines for safe and efficient use
and the Limited warranty chapters before you use
your mobile phone.
Your mobile phone has the capability to download,
store and forward additional content, for example,
ringtones. The use of such content may be
restricted or prohibited by rights of third parties,
including but not limited to restriction under
applicable copyright laws. You, and not Sony
Ericsson, are entirely responsible for additional
content that you download to or forward from your
mobile phone. Prior to your use of any additional
content, please verify that your intended use is
properly licensed or is otherwise authorized. Sony
Ericsson does not guarantee the accuracy, integrity
or quality of any additional content or any other
third party content. Under no circumstances will
Sony Ericsson be liable in any way for your
improper use of additional content or other third
party content.
The marble logo, BestPic, PlayNow, TrackID,
MusicDJ, PhotoDJ and VideoDJ are trademarks or
registered trademarks of Sony Ericsson Mobile
Communications AB.
4
Draft for Sony Ericsson Internal Use Only
Sony, Cyber-shot, Memory Stick Micro and M2 are
trademarks or registered trademarks of Sony
Corporation. Ericsson is a trademark or registered
trademark of Telefonaktiebolaget LM Ericsson.
Bluetooth™ is a trademark or registered trademark
of Bluetooth SIG Inc.
Real is a trademark or a registered trademark of
RealNetworks, Inc. RealPlayer® for Mobile is
included under license from RealNetworks, Inc.
Copyright 1995-2004, RealNetworks, Inc. All rights
reserved.
Adobe® Photoshop® Album Starter Edition is a
registered trademark of Adobe Systems
Incorporated.
Microsoft, Windows and PowerPoint are either
registered trademarks or trademarks of Microsoft
Corporation in the U.S and other countries.
Mac OS is a trademark of Apple Computer, Inc.,
registered in the U.S. and other countries.
T9™ Text Input is a trademark or a registered
trademark of Tegic Communications. T9™ Text
Input is licensed under one or more of the
following: U.S. Pat. Nos. 5,818,437, 5,953,541,
5,187,480, 5,945,928, and 6,011,554; Canadian
Pat. No. 1,331,057, United Kingdom Pat. No.
2238414B; Hong Kong Standard Pat. No.
HK0940329; Republic of Singapore Pat. No. 51383;
Euro.Pat. No. 0 842 463(96927260.8) DE/DK, FI,
FR, IT, NL, PT, ES, SE, GB; and additional patents
are pending worldwide.
Smart-Fit Rendering is a trademark or registered
trademark of ACCESS CO. LTD. in Japan and other
countries.
Java and all Java based trademarks and logos are
trademarks or registered trademarks of Sun
Microsystems, Inc. in the U.S. and other countries.
End-user license agreement for Sun™ Java™
J2ME™.
1 Restrictions: Software is confidential copyrighted
information of Sun and title to all copies is retained
by Sun and/or its licensors. Customer shall not
modify, decompile, disassemble, decrypt, extract,
or otherwise reverse engineer Software. Software
may not be leased, assigned, or sublicensed, in
whole or in part.
2 Export Regulations: Software, including technical
data, is subject to U.S. export control laws,
including the U.S. Export Administration Act and its
associated regulations, and may be subject to
export or import regulations in other countries.
Customers agree to comply strictly with all such
regulations and acknowledges that it has the
responsibility to obtain licenses to export, re-
export, or import Software. Software may not be
downloaded, or otherwise exported or re-exported
(i) into, or to a national or resident of, Cuba, Iraq,
Iran, North Korea, Libya, Sudan, Syria (as such
listing may be revised from time to time) or any
country to which the U.S. has embargoed goods;
or (ii) to anyone on the U.S. Treasury Department's
list of Specially Designated Nations or the U.S.
Commerce Department's Table of Denial Orders.
3 Restricted Rights: Use, duplication or disclosure by
the United States government is subject to the
restrictions as set forth in the Rights in Technical
Data and Computer Software Clauses in DFARS
252.227-7013(c) (1) (ii) and FAR 52.227-19(c) (2) as
applicable.
Other product and company names mentioned
herein may be the trademarks of their respective
owners.
Any rights not expressly granted herein are
reserved.
All illustrations are for guidance only and may not
accurately depict the actual phone.
5Getting started
Draft for Sony Ericsson Internal Use Only
Getting started
Welcome
Thank you for purchasing the
Sony Ericsson X123, the 3G
messaging phone.
Before you start to use your new
phone please read the information in
the Getting started chapter carefully.
Instruction symbols
The following appear in the user guide:
Additional help
The complete user documentation for
your phone consists of:
•User guide – an overview of your
phone with the information needed
to get you started.
•Help in the phone – your phone has
built-in help. In most applications
Help is available in the More menu.
•Web guide - an up-to-date User
guide with step-by-step instructions
and additional information on
features available in you phone. You
can access the Web guide from
your computer at
www.sonyericsson.com/support. If
you have an Internet connection set
up in your phone you can also
access the Web guide from the Web
browser in your phone.
To access the Web guide from your
phone
1 From Standby select Main menu >
Multimedia > Web.
2Select More > Bookmarks > Web
Guide.
Note
Tip
A service or function is network-
or subscription-dependent.
Contact your network operator
for details.
Accessing the Web guide from your
phone might involve some costs
depending on the Internet connection
used. Please contact your network
operator for more information.
6Getting started
Draft for Sony Ericsson Internal Use Only
Package If your package does not include all
the listed items then contact your
retailer.
Phone overview
1Phone
2Charger
3 Stereo portable handsfree
4 Battery
5 USB cable
6 Extra stylus
7 Documentation package
8 CD with Sony Ericsson PC
Suite for Smartphones
1
2
34
5
6
7
8
1 On/off button
2 Screen
3 Dual function keyboard
4Memory Stick™ slot
5 Shortcut button
6 Antenna connector
7Indicator light
1
2
3
4
5
6
87 9
11
10
12
13
7Getting started
Draft for Sony Ericsson Internal Use Only
Before using your phone
Battery
You need to charge the battery when
the indicator light on the base of the
phone flashes red or when the low
battery message appears on the
screen.
To insert the battery
1 Open the battery cover by pressing
slightly on the upper part and sliding it
down the phone.
2 Insert the battery.
3 Slide the cover back onto the phone.
To charge the battery
1 Make sure the battery is inserted.
2 Connect the charger to the phone.
3 Connect the charger to the mains.
SIM card
You receive a SIM (Subscriber Identity
Module) card when you register with a
network operator. The SIM card keeps
track of your phone number, the
services included in your subscription
and phonebook information. A PIN
code is supplied with the SIM card
and must be entered, if requested,
when you turn on your phone for the
first time.
8 Connector for charger and
accessories
9Microphone
10 Back button
11 Jog Dial
12 Loudspeaker
13 Stylus
A green indicator light on the base of the
phone is turned on during charging. If
the phone is off during charging, a red
indicator light will be turned on.
8Getting started
Draft for Sony Ericsson Internal Use Only
To insert the SIM card
1 Detach the charger (if connected).
2 Open the battery cover by pressing
slightly on the upper part and sliding it
down the phone.
3 Remove the battery (if it is in place).
4 Insert the SIM card into the SIM card
holder.
5 Insert the battery.
6 Slide the cover back onto the phone.
IMEI number
IMEI (International Mobile Equipment
Identifier) is a 15-digit number. Your
operator can use the IMEI number to
enable a complete barring of your
phone if it is stolen. The number is
printed at the bottom of the battery
compartment. You can also view the
number on the phone display.
To view the IMEI number in your
phone
•From Standby enter *#06#.
Care instructions
•Use a moist cloth when you clean the
screen.
•Only use the stylus provided, or your
fingertips, to tap the screen.
For detailed care instructions, see
“Recommendations for safe use of
product (mobile phone, battery,
charger and other accessories)”
on page 50.
First time start-up
Before you use your phone, see
“Guidelines for Safe and Efficient Use”
on page 50.
To switch on your phone
1 Press and hold down the On/off
button.
2 Select Phone on.
3 Select a language.
4 Enter your PIN, if requested.
Before you can use your phone you need
to insert the SIM card, and insert and
charge the battery.
9Getting started
Draft for Sony Ericsson Internal Use Only
5 Select Done.
Wizards
There are wizards available to help
you set up your phone.
•Setup wizard - helps you to enter
some basic settings for your phone.
The wizard starts the first time you
use your phone or you can find it in
Main menu > Control panel > Other
> Setup wizard.
•Internet wizard - automatically
downloads settings for Internet and
MMS. The wizard starts the first
time you use your phone or you can
find it in Main menu > Control panel
> Connections > Internet wizard.
•Email wizard - helps you to set up
an email acount in your phone. You
can find it in Main menu > Control
panel > Messaging > Email wizard.
If you make a mistake when you enter
your PIN code, you can delete the
number by pressing . If you enter the
wrong PIN code three times in a row, the
SIM card is blocked. To unblock it, you
need to enter the PUK code supplied
with your SIM card.
If your phone is locked to an operator,
Internet settings may be pre-set and the
Internet wizard will not start when you
use your phone for the first time.
10Getting to know the phone
Draft for Sony Ericsson Internal Use Only
Getting to know the
phone
Turning the phone on and off
Your phone has two modes of
operation:
•Phone on- full functionality.
•Flight mode - limited functionality
with network and radio functions
switched off.
You can use flight mode where mobile
phones are prohibited, such as in
hospitals and aircrafts.
To turn on the phone in phone mode
1 Press and hold down the On/off
button.
2 Select Phone on.
To turn on the phone in flight mode
1 Press and hold down the On/off
button.
2 Select Flight mode.
To turn off the phone
1 Press and hold down the On/off
button.
2 Select Power off.
The screen
The screen is touch-sensitive. You can
use the stylus or your fingertips to
select items.
1 Status bar, containing status
icons
2 Status bar menu
3 Touch options bar
2
1
3
Notes
EditSave More
11 Getting to know the phone
Draft for Sony Ericsson Internal Use Only
Navigation
To navigate menus and select items,
you can use the Jog Dial, Back button,
stylus, keyboard navigation keys,
touch options and your fingertips.
Jog Dial
You can rotate the
Jog Dial to scroll lists
up and down, adjust
sound volume. You
can press the Jog
Dial to select a
highlighted item.
Back button
You can press to return to the
previous screen or menu. You can
press and hold down to return
to Standby or lock and unlock the
keyboard from Standby.
Stylus
You can tap the screen with the stylus
to navigate and select items or to pan
multimedia pictures.
Finding the applications
Standby
Standby is the starting point for a
number of tasks and is displayed
whenever you turn on your phone. You
can change the view of Standby in
Main menu > Control panel > Device
> Standby application to:
•Activity menu – show the Today
view and shortcuts which you can
set to reach the applications you
use most frequently.
•None – show an enlarged view of
the clock.
Main menu
All the applications in your phone can
be found in Main menu . You can
select to view the applications in Main
menu in a grid or a list.
To access applications in Main menu
•Select , or if Standby application is
set to None, tap Menu.
Using the applications
To start an application
•Select the application icon with the
stylus or your fingertips, or rotate the
Jog Dial to highlight it and press the
Jog Dial.
Up
Inwards
Down
Back
button
The Standby applications can be
operator-dependent.
12Getting to know the phone
Draft for Sony Ericsson Internal Use Only
To leave an application without
closing it
•Switch to another application using
the Task manager. See Task manager
on page 9.
To close an application
•Press and hold . All data is
saved.
Task manager
Task manager helps you switch
between applications. Leaving an
application via Task manager rather
than closing it, lets you return to the
the application in the state that you left
it. This is useful, for example, when
cutting and pasting text from one
application to another.
To switch to another application
1Tap in the status bar or select
More > Task manager.
2 Select the Recent tab.
3 Select the application and select
Switch.
Status bar
The status bar on top of the screen
contains icons that indicate the status
of the current settings and activities.
Status bar icons
You can select an icon to get more
information or to start an application.
Icon Function
3G Available
Battery strength
Bluetooth headset connected
Bluetooth activated
Current line selection
(Alternative Line Service
available on the SIM card)
Divert all calls notification
Email notification
Flight mode
Internet connection activated
(flashes when data is
transferred)
Keylock activated
Missed call notification
MMS notification
Muted microphone
Predictive text activated
13 Getting to know the phone
Draft for Sony Ericsson Internal Use Only
Status bar menu
You can use the status bar menu to
quickly access extra settings:
•New call, SMS, MMS and more
•Connections
•Volume
•Time
•Keylock
To access the Status bar menu
•Select in the status bar.
Importing phone book entries
You can import contact information
by:
•Copying phonebook entries stored
on your SIM card.
•Transferring phonebook entries
from a computer application using
the synchronize function.
•Transferring phonebook entries
from another phone using
Bluetooth™ wireless technology.
Ring volume set to zero
Signal strength in phone
mode, GPRS available
Silent mode
SMS notification
SMS overflow
Speakerphone activated
Status bar menu
Task manager
Voicemail notification
Wireless LAN activated and
connected
Wireless LAN activated but
not connected
14Getting to know the phone
Draft for Sony Ericsson Internal Use Only
Main menu overview
Multimedia Control panel Entertainment
Web
More applications
RSS feeds
PlayNow™
Picture gallery
Call settings
Connections
Device
Messaging
Security
Other
Music player
FM radio
Video
Online media
MusicDJ™
Sound recorder
Vijay Singh Pro Golf 3D
QuadraPop
Demo
Phone Messaging Calendar
Phone
Call log
Speed contacts
Call voice mail
Create new message
Inbox
Outbox
Drafts
Sent
SIM
Office Contacts Tools*
Quickoffice
Pdf+
Notes
Tasks
File manager
Connections mgr
Remote sync
Calculator
Converter
Stopwatch
Time
Timer
* Some menus are operator-, network- and subscription-dependent.
15 Getting to know the phone
Draft for Sony Ericsson Internal Use Only
Memory Stick Micro™ (M2™)
A Memory Stick can be used as extra
storage space for pictures, music,
applications, and so forth. You can
rename and format a Memory Stick.
You can also transfer data to and from
a Memory Stick.
To insert a Memory Stick
1Open the cover.
2 Insert the Memory
Stick in the slot.
To remove a
Memory Stick
1Open the cover.
2 Press the edge of the Memory Stick
inwards and then release it.
Connecting accessories
To connect an accessory
•Connect the accessory to the base of
your phone.
Key lock
To lock the keyboard
1 From Standby press .
2Select Lock keys.
To unlock the keyboard
1 From Standby press .
2Select Unlock.
For more information about phone
locks, see Control panel in the Web
guide.
Do not remove a Memory Stick during
file transfer. This may cause the phone to
hang or it can corrupt the file system on
the Memory Stick.
Tilt the plug upwards when you
disconnect the accessory.
16Getting to know the phone
Draft for Sony Ericsson Internal Use Only
Sound
To set the ear speaker volume during
a phone call
•Rotate the Jog Dial.
To set the multimedia volume
1 Select > Volume > Multimedia.
2 Rotate the Jog Dial.
To set the volume for ringtone, alarm
and message alerts
1 Select > Volume.
2 Select the corresponding slider.
3 Rotate the Jog Dial.
To set the phone to silent
1 Select > Volume.
2 Mark the Silent mode check box.
Transfer sound
During an ongoing call or when
listening to, for example, Music player
you can transfer the sound to a
connected accessory such as a
Bluetooth headset.
To transfer sound
1 Select > Volume.
2 Select More > Transfer sound.
Update software
When an improved software version
for your phone is introduced, you can
update your phone using the Sony
Ericsson Update Service on
www.sonyericsson.com/support. The
Web page has further instructions and
will guide you through the process.
Text entry
Text can be entered in several
different ways. The dual function
keyboard works as a standard
keyboard. The on-screen keyboard
appears when selecting . You can
also use the stylus to write directly on
the screen.
Dual function keyboard
Each key has several characters and
symbols printed on them. The
characters are located on the lower
part of the key. In Standby the
keyboard is in number entry mode.
The characters are accessed by
pressing the left or right side of the
key. By pressing you access the
From Standby you can press and hold
to switch silent mode on or off.
Choosing a new language in the phone
will also automatically change the
behaviour of the keyboard to that
language.
17 Getting to know the phone
Draft for Sony Ericsson Internal Use Only
characters or symbols on the top of
the key.
Additional characters associated with
the pressed character will be shown in
the pre-edit box at top of the screen.
To use the dual function keyboard
•Press the keys below the screen.
On-screen keyboard
The on-screen keyboard enables you
to select the characters and symbols
with the stylus. The on-screen
keyboard can be set to different
languages.
To use the on-screen keyboard
•Select the on-screen keyboard symbol
located in the status bar.
To change language of the on-screen
keyboard
•Select > Setup and select a
language.

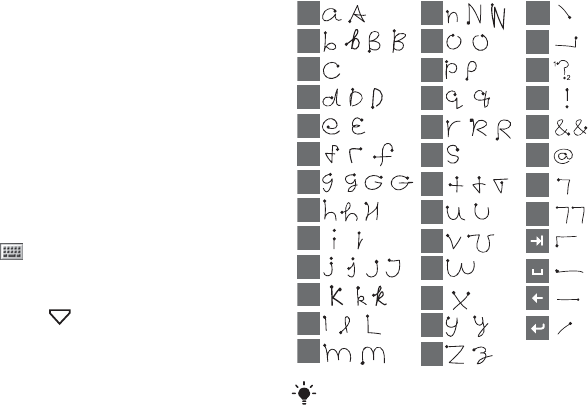

Handwriting recognition
Handwriting recognition translates
stylus gestures written directly on the
screen into letters, numbers or other
characters, and displays these
characters as text. Handwriting
recognition is only active in places
where text can be entered.
To write letters
•Write lower case letters below the
arrow and upper case letters in line
with the arrow.
Start each stroke at the dotted end.
a
b
c
d
e
f
g
h
k
l
m
n
o
p
q
r
s
t
u
v
y
z
w
x
12
i
j
1
1
1
1
1
1
2
1
2
2
2
22
2
,
.
?
!
&
@
"
'
18Getting to know the phone
Draft for Sony Ericsson Internal Use Only
To write numbers
•Write numbers above the arrow.
To write accented letters
1 Write the basic letter.
2 Write the accent above the arrow to
form the accented letter.
Predictive text
You can use text prediction in all text
entry methods. The primary word or
next word suggestion is presented
where you are writing, additional
suggestions are presented in a pre-
edit box at the top of the screen.
To turn predictive text on
1 Select More > Text options.
2 Mark the check box to enable
enhanced text prediction in the status
bar.
To change 1st and 2nd dictionary
languages for text prediction
1 Select More > Text options and mark
the Predictive text check box.
2 Select 1st language or 2nd language.
3 Select language in the list.
4 Select Save.
Edit text
In the More menu you will find text
editing functions like copying, cutting
and pasting.
To highlight the text with the stylus
•Hold the stylus at the end of the text
for a short while then drag the stylus
across the text.
Text options
You can build your own dictionary
using My words, add symbols and
change text options in the More menu.
0
1
3
4
5
6
7
8
9
,
.
+
*
/
\
(
)
=
2
S
Some text editing functions are available
only when the text is highlighted.
19 Getting to know the phone
Draft for Sony Ericsson Internal Use Only
To add words to My words dictionary
1 Select More > Text options > My
words.
2 Select Add.
3 Write the new word and select Done.
4 Select Save.
To add a symbol
1 Select More > Text options > Add
symbol to launch the symbols and
punctuation marks table.
2 Select the symbol you want to add.
To switch auto capitalization on
1 Select More > Text options.
2 Mark the check box to switch auto
capitalization on.
20Calling
Draft for Sony Ericsson Internal Use Only
Calling
Networks
Network coverage
To make or receive a phone call your
phone must be within range of a
network.
Home network
When you turn your phone on, it
automatically selects your home
network if it is within range.
Roaming
If your home network is not within
range, you may use another network
that is accepted by your operator. This
is called roaming.
Network settings
You can set how your phone should
choose an available network when you
are outside your operator’s coverage
area. From Standby you find the
settings in Main menu > Control panel
> Connections > Mobile networks.
Making a call
To make a call from Standby
•Enter a phone number (including the
area number) from the keyboard and
select Call.
To make an international call
1 From standby, press and hold to
get the international call prefix.
2 Enter the country/region code, area
code (without the first zero) and phone
number.
3 Select Call.
To delete characters when dialling
•When entering a number you can
delete characters by pressing .
Hide or show your phone number
When calling, you can choose in the
More menu whether to show or hide
your phone number to the called
party.
Speed dial
You can save up to nine of your
contacts as Speed contacts. This
means that you can call them using
abbreviated numbers (numbers 1 – 9).
To set a speed contact (number)
1 From Standby select Main menu >
Phone > Speed contacts.
21 Calling
Draft for Sony Ericsson Internal Use Only
2 Scroll to an empty position and press
the Jog Dial.
3 Select a contact in the list and select
Save.
To make a call to a speed contact
1 From Standby press one of the keys 1
to 9 that corresponds to the stored
speed contact.
2 Select Call.
To make an emergency call
1 From Standby, enter the emergency
number on the keyboard.
2 Select Call.
Local SOS numbers
When dialling, you can find local SOS
numbers in the More menu.
Receiving a call
To answer a call
•Select Yes and start speaking.
To reject a call with busy tone
•When you receive a call, select No.
Reject a call with SMS
This feature means that you can reject
a call by sending a pre-defined SMS
text message to the caller. Before you
use it, make the settings from Standby
in Main menu > Control panel > Call
settings > Reject with SMS.
Reject a call and set a reminder
This feature means that you will be
asked to set a follow-up reminder
every time you reject a call. Before you
use it, make the settings fromStandby
in Main menu > Control panel > Call
settings > Flag call.
To enable the speakerphone
•During a call, select More >
Speakerphone on.
To mute the microphone (shortcut)
•When you have answered a call, press
and hold .
To un-mute the microphone
(shortcut)
•When the microphone is muted, press
.
Handling two or more calls
You can handle multiple calls at the
same time:
Usually no SIM card or PIN code is
required for emergency calls, but this
can be operator-dependant. Contact
your operator for more information.
22Calling
Draft for Sony Ericsson Internal Use Only
•Put an ongoing call on hold and
start a new one, or answer an
incoming call.
•Start a conference call during an
ongoing call (operator-dependent).
•Extract one party in a conference
call for a private talk and put the
conference on hold.
•Retrieve a held call, or end it.
Conference call
You can start a conference call if you
have one active call and one on hold.
The maximum number of conference
parties is five.
To make a conference call
1 Make a call and select Hold.
2 Repeat the above step for the desired
number of parties.
3 Select More > Start conference call.
Video calls
When you make a video call, you can
see the person you are talking to on
the screen. By using Video phone you
can:
•Explore the application in Demo mode
(off-line).
•Zoom the outgoing video.
•Show both incoming and outgoing
video.
Making a video call
Before you make a video call make
sure that:
•Both you and the called party have 3G
SIM cards and 3G phones.
•A 3G network is available.
To make a video call from the
application
1 Select Video phone.
2 Enter the phone number and select
OK.
To make a video call from stand by
1 Enter the number on the keypad and
select Video call.
Receiving a video call
The front camera is switched on by
default when you accept a video call.
Call log
You can find call information, such as
the type of call, time, date, phone
number and call length, in Main menu
> Phone > Call log. You can also
This function is network- or operator-
dependent. The service may not always
be available in all countries or when you
are roaming. Please contact your
operator for information about your
subscription and video calls.
23 Calling
Draft for Sony Ericsson Internal Use Only
make a call or a call note directly from
this application.
Handsfree
If you connect a handsfree or a
Bluetooth™ headset to your phone,
you will need to set how to answer an
incoming call. From Standby select
Main menu > Control panel > Call
settings > Handsfree.
More features
Some other features that your phone
offers are:
•Accept calls – caller filter.
•Add to contacts – add contact data
from the last call.
•ALS – line settings, if your SIM card
supports two lines.
•Call meter – service to keep track of
the call costs.
•Calling cards – calling via a calling
card server.
•Call waiting – call waiting alert
option.
•Divert calls – divert calls option.
•Fixed numbers – only special
numbers can be called.
•My number – option to save your
own number.
•Restrict calls – options to set
roaming and international call
restrictions.
•TTY Accessory – use of a teletype
writer.
•Voicemail – “answering machine”.
•Voice control – you can call and
answer with voice commands.
Using contacts
To make a call using Contacts
1 From Standby select Main menu >
Contacts and scroll to the desired
contact.
2 Press the Jog Dial to open the entry.
3 Scroll to the desired phone number
and press the Jog Dial.
To find service numbers on the SIM
card
1 From Standby select Main menu >
Contacts.
2Selct More > View folder > SIM >
More > Service numbers.
Many of these features are operator-
dependent and may not be available. For
more information about these, and other
features, see Phone, Contacts and
Control panel in the Web guide.
24Calling
Draft for Sony Ericsson Internal Use Only
Creating contacts
To create a new contact
1 From Standby select Main menu >
Contacts > More > New contact.
2 You can enter contact data on four
tabs.
3 Select Save.
Editing contacts
To add a field to a contact
1 From Standby select Main menu >
Contacts.
2 Scroll to the desired contact and press
the Jog Dial.
3 Select More > Edit contact.
4 Select More > Add field and mark a
field
5 Select Add.
To edit a contact on the SIM card
1 From Standby select Main menu >
Contacts.
2 Select More > View folder > SIM.
3 Scroll to a contact and press the Jog
Dial.
4 Select More > Edit contact.
To add a stored picture to a contact
1 From Standby select Main menu >
Contacts > select a contact.
2 Select More > Edit contact.
3Scroll to the Picture field and press
the Jog Dial.
4Choose Select and scroll to a picture
you want to add.
5Choose Select > Save > Save.
To add a personal ringtone to a
contact
1 From Standby select Main menu >
Contacts and scroll to the desired
contact.
2 Press the Jog Dial to open the entry.
3 Select the audio tab .
4 Select the ringtone drop-down menu >
select Find sound.
5 Scroll to the sound you want to add.
6Choose Select.
7 Select More > Save.
Managing contacts
To copy a contact to another folder
1 From Standby select Main menu >
Contacts and scroll to a contact.
If you save your contacts’ phone
numbers in the international number
format, starting with +, you can call
directly from Contacts when you are
abroad.
25 Calling
Draft for Sony Ericsson Internal Use Only
2 Select More > Add to and select
desired folder.
To delete a contact
1 From Standby select Main menu >
Contacts > and scroll to a contact.
2 Select More > Delete.
To copy contacts to the SIM card
1 From Standby select Main menu >
Contacts.
2 Mark the desired entries in Contacts.
3 Select More > Add to > SIM.
To copy contacts from the SIM card
1 From Standby select Main menu >
Contacts.
2 Select More > View folder > SIM to
open the SIM card.
3 Mark the desired entries.
4 Select More > Copy to contacts.
26Messaging
Draft for Sony Ericsson Internal Use Only
Messaging
Before you use Messaging
Before you can send or receive any
messages (except for SMS text
messages) you need to set up the
necessary accounts. You can use the
Internet and Email wizards provided in
the phone to download settings or do
this manually. See the Help in the
phone or Setting up Internet, email
and MMS in the Web guide.
Messages
You can create, send, and receive
different types of messages:
You can also receive:
Folders
The different types of messages are
handled by different accounts. The
default account, Messages, handles
all messages except email messages.
Email messages are handled by email
accounts you create yourself. All
accounts consist of a number of
folders. You can switch between
folders by selecting the arrow icon
beside the folder name:
•Inbox in Messages – contains all
received messages except email
messages. In Control panel >
Device > Sound & alerts >
Message alerts you can set how
you will be notified when a message
is received.
•Inbox in an email account –
contains the received email
messages for that particular
account.
SMS (Short Message Service)
- text messages
MMS (Multimedia Message
Service) - can include text,
pictures and sound
Email messages
Beamed messages via
Bluetooth
Auto setup files for
configuring Internet, email
and MMS
Area information messages
such as local road reports
27 Messaging
Draft for Sony Ericsson Internal Use Only
•Outbox – contains messages ready
to be sent.
•Drafts – contains messages that are
not ready to be sent. When you are
creating a message, and exit the
message before sending it, you will
be asked if you want to save it. If
you select Yes, the message will
automatically be stored in this
folder.
•Sent – contains sent messages.
•SIM – a folder located on your SIM
card.
SMS
A message can contain up to 160
characters. Longer messages will be
sent as two or more separate
messages (concatenated), but will
usually be received as one message.
You can add smileys, pictures and
sounds to your messages.
To create and send an SMS
1 From Standby select or Main
menu > Messaging.
2 Select Create > SMS.
3 Highlight To: and write the telephone
number of the recipient or select To:
> Select contact and browse to your
contact.
4 Write the message and select Send.
MMS
Multimedia messages can include
pictures, video clips, animations and
sound, organized like a slide
presentation with time-based control
of playback.
If the sending or receiving of
messages is interrupted, the sending
or receiving will resume when it is
possible, without losing information.
Before you use MMS
Before you can send and receive
multimedia messages you need to
download MMS settings. You can use
the Internet wizard available in the
phone in Main menu > Control panel
> Connections > Internet wizard or, if
your operator is not supported by this
wizard, do this manually. See the Help
in the phone or Setting up Internet,
email and MMS in the Web guide.
28Messaging
Draft for Sony Ericsson Internal Use Only
An overview of MMS
To create and send an MMS
1 From Standby select or Main
menu > Messaging.
2 Select Create > MMS.
3 Adding picture, text and sound as
desired.
4 Select and fill in the recipient’s
details. To send a message to several
recipients, type a comma between
each address.
5 Select Done.
6 Select More > Send.
To read an MMS
•Select the new message.
1 Menu options. You can select
a template or what you want
to add to the message, for
example a picture or sound. (If
the menu is not open, select
Add.)
2Entry field (on the detail tab)
where you can create your
message
3 Playback buttons
4New page icon
5 Time view icon. Opens a view
where you can adjust when
and for how long your added
items will be shown
MMS
Select Close
1/1 1KB5
Select template
Text
Scribble
Sound
Video
Record sound
2
1
34
5
6
76 Attachments tab. The tab is
only visible if Creation mode
in Main Menu > Control panel
> Messaging > MMS
accounts > More >
Advanced settings is set to
Free or Warning.
7 Address tab for the recipient
and other details
The first time you open the message it
plays automatically. After that, you have
to use the playback buttons to play it.
29 Messaging
Draft for Sony Ericsson Internal Use Only
Email
Before you use email
To use email you require an Internet
account and to download the
necessary email settings.You can use
the Email wizard available in the phone
under Main menu >Tools > Control
panel > Messaging > Email wizard or,
if your operator is not supported by
this wizard, do this manually. See the
Help in the phone or Setting up
Internet, email and MMS chapter in
the Web guide.
Sending email messages
You can create email messages from
each email account.
To create and send an email
message
1 From Standby select or Main
menu > Messaging > your email
account.
2 Select New.
3 Highlight To: and write the telephone
number of the recipient or select To:
> Select contact and browse to your
contact. To send a message to several
recipients, type a comma between
each address.
4 Select Subject: and enter details.
5 Write your message and select Done.
6Select Send. You will have the option
to send the message immediately, or
to save it to Outbox.
Receiving email
Email messages are downloaded from
the email server on the Internet or at
your office. You can download your
email manually or set when your
phone should check for new email.
To download email messages
manually
•From Standby select or Main
menu > Messaging > your email
account > More > Get & send.
To download messages
automatically
1 From Standby select Main menu >
Control panel > Messaging > Email
accounts.
2Select your email account > More >
Scheduled download.
3 Mark the Schedule download check
box and enter the times when you
would like to download email
messages.
4Select Save.
For IMAP accounts you can also
select Push email and have new
emails pushed to your phone.
30Messaging
Draft for Sony Ericsson Internal Use Only
To forward an email message
1From your email account in
Messaging scroll to the message you
wish to forward.
2 Select More > Forward.
Viewing messages
You can choose not to receive large
messages and only to receive a
header.
To download headers
1 From Standby select Main menu >
Control panel > Messaging > > Email
accounts > your email account.
2 Select the Inbox tab.
3 Select Just headers from Download
restrictions.
4 Select Save.
To fit the text to the width of the
screen
1 From Standby select or Main
menu > Messaging > your email
account.
2 Scroll to and select a message.
3 Select More > Settings > Always fit
screen.
Viewing attachments
To view an attachment you need a
viewer for that type of file. Your phone
comes with pre-installed viewers for
Microsoft® Word®, Excel®,
PowerPoint®, and Adobe® Acrobat®
files.
More about Messaging
Deleting email
You can delete a message both locally
and on your email server. When you
delete it locally, the message body
and attachments are deleted but the
heading remains. You can download
the message again later with the Get &
send option. When you delete the
message on your server, it is deleted
both in your phone and on your server.
To find a message
1 From Standby select or Main
menu > Messaging.
2 Select More > Find message to
search through the subject lines,
sender details and the text of the
message.
Large attachments increase the size of
an email and the connection time
needed to send it. It is possible to
choose whether to forward the
attachment.
In an open message, Find searches
through the message.
31 Messaging
Draft for Sony Ericsson Internal Use Only
Saving contact details
When you receive a message, you can
save the contact details of the person
who sent the message.
To save a recipient’s contact details
1 Select the sender’s name or email
address in the details tab or From: in
the address tab.
2 Select Add to Contacts.
Disconnecting from the Internet
If your phone is already connected to
the Internet when you send an email
message or an MMS message it
remains connected after sending.
To disconnect from the Internet
1 Select the connection icon, for
example , in the status bar.
2 In Connections manager, tick the
check box for your connection.
3 Select Close.
Invitations
If you receive an invitation to an
appointment via an email message,
and you accept, your calendar will be
updated automatically. You can also
reply to and forward an invitation.
Push email
You can install a push email
application on your phone. With push
email, email messages received in
your ordinary mailbox will
automatically be sent to your phone.
You can send messages from your
phone, and also use Calendar and
Contacts as if you were using the
ordinary email application in your
computer. Please consult your email
service provider for further details.
To set Push email
1 From Standby select Main menu >
Control panel > Messaging > Email
accounts > your email account.
2 Select the Basic tab.
3Select IMAP Connection type:.
4 Mark the Push email check box.
5 In Email accounts select More >
Always On push email.
6 Mark the Always On check box.
7Select Save.
32Imaging
Draft for Sony Ericsson Internal Use Only
Imaging
Camera
Your phone has a digital camera that
also works as a video clip recorder.
You can take pictures, record video
clips, store them on a Memory Stick or
in phone memory, view them and send
them directly as an MMS message.
You can also send pictures and clips.
You can activate the camera in two
ways:
•Open the lens cover.
•Press the camera button.
Business card scanner
With Business card scanner you can
scan a business card that is handed to
you, and add the contact details to
your contacts.
To scan a business card
1 Select Office > Business card
scanner.
2 Select Capture or tap the large central
Business card scanner icon to start
the camera.
3 Hold the business card in front of the
camera and take a picture of the card.
A few camera settings are available.
The picture is displayed in the
Business card scanner application.
4 If the picture is good enough you can
choose either to process it as a
contact entry or to leave it and
process it later.
When you process the picture of a
business card, most of the text will be
displayed in appropriate fields in the
contact entries.
Picture gallery
In Picture gallery you can view, send
and use pictures saved in your phone
or on a Memory Stick.
To use a picture
1 From Standby select Main menu >
Multimedia > Picture gallery.
2 Select a picture.
3 Select More > Use as.
4 Select an option.
To show pictures as a slide show
1 From Standby select Main menu >
Multimedia > Picture gallery.
2 Browse to the folder containing the
pictures.
33 Imaging
Draft for Sony Ericsson Internal Use Only
3 Select More > Slideshow > Slideshow
settings to, for example, set transition
effects and add a soundtrack.
4 Select More > Slideshow > Start
slideshow.
Remote screen
You can use a compatible Bluetooth™
accessory to view pictures on a
remote screen such as a TV. For a list
of compatible accessories go to
www.sonyericsson.com/support.
To send pictures to a remote screen
1 From Standby select Main menu >
Multimedia > Picture gallery.
2 Select More > Use as and mark
Remote screen.
3 Select the Bluetooth™ accessory from
the list.
4 Open a picture. It will automatically be
sent to the remote screen.
Picture editor
Using Picture editor, you can crop,
rotate and resize images. You can add
layers with clipart and frames. There
are tools for drawing on the image
using the stylus, as well as a text tool
for formatting and inserting text into
the image. There are also filters for
effects and picture correction.
To edit a picture
1 From Standby select Main menu >
Multimedia > Picture gallery.
2 Select a picture.
3Select More > Edit picture.
4Select More > Help to read more
about the features and how to use
them.
When you insert a picture in an MMS
message you can open Picture editor
from there.
34Entertainment
Draft for Sony Ericsson Internal Use Only
Entertainment
PlayNow™
PlayNow™ is an entertainment
download service. You can preview
content before purchase.
Before you use PlayNow™
To use PlayNow™ you need an
Internet connection. See Setting up
Internet, email and MMS in the Web
guide.
Previewing content
When you select content from
PlayNow™ a preview sample is
automatically downloaded and played.
To preview PlayNow™ content
1 From Standby select Main menu >
Multimedia > PlayNow™.
2 Select the song you wish to preview.
Purchasing content
When purchasing content from
PlayNow™, your phone bill or prepay
card will be debited the amount
specified in the Purchase dialog. A
text message is sent to you to confirm
payment.
To purchase PlayNow™ content
•When you have previewed a song,
select Yes in the Purchase dialog.
FM radio
To listen to the radio you need to
insert the handsfree, since the radio
uses the handsfree cable as antenna.
However, you can still listen to the
sound through the speaker.
To listen to the radio
1 Connect the handsfree to the phone.
2 From Standby select Main menu >
Entertainment > FM radio.
To automatically find and store radio
channels
3 Select Main menu > Entertainment >
FM radio > More > Auto store.
To transfer the sound to the speaker
•When FM radio is open select and
select Speaker.
To minimize the radio
•When FM radio is open select
Minimize. The radio will continue
playing in the background.
This service is network- or operator-
dependent. Contact your network
operator for information about your
subscription and PlayNow™.
This service is not available in all
countries.
35 Entertainment
Draft for Sony Ericsson Internal Use Only
To return to the radio
•Select in the status bar.
Tuning and memory presets
To search for radio channels
•When FM radio is open select or
.
To tune manually
1 When FM radio is open select More >
Set frequency.
2 Enter the frequency using the keys, or
tune using the Jog Dial.
3 You can also select and hold or
to change the frequency in 0.1 MHz
steps.
To store a memory preset
1 When FM radio is open tune to the
desired channel and select More >
Save.
2 Select a preset number between 1 and
20 and select Insert.
To recall a memory preset
1 When FM radio is open select Presets.
2 Scroll to the desired channel and
press the Jog Dial.
RDS (Radio Data System)
The RDS functionality lets you set the
radio to automatically switch to a
channel when it is broadcasting a
Traffic announcement, , or
News announcement, . The
radio can also re-tune to the
Alternative frequency that gives
the best reception for the station you
have selected.
To access RDS settings
•When FM radio is open select More >
Settings > RDS options.
TrackID™
You can use TrackID™ to find out the
name of a song. The phone records a
short sample of the music and sends
the information to the TrackID™
database. If a match is found you will
see the name of the artist, the album
and the title of the song after a few
seconds. The TrackID™ service is
free, but your service provider may
charge for the data traffic.
You can use presets 1 to 10 by pressing
to and . Press and hold to
store, press briefly to recall.
This service is network- or operator-
dependent. Contact your network
operator for information about your
subscription, TrackID™ and costs.
36Entertainment
Draft for Sony Ericsson Internal Use Only
Before you use TrackID™
To use TrackID™ you need an Internet
connection. See Setting up Internet,
email and MMS in the Web guide.
To identify a song on the radio
•When the radio is open, select More >
TrackID™.
To identify a song with the Sound
recorder
1 From Standby select Main menu >
Entertainment > Sound recorder.
2 Hold the phone close to the sound
source and select TrackID™.
Music player
Music player supports formats such
as MP3, WMA, WAV, AAC, AAC+ and
eAAC+.
The first time you open Music player,
or when you have transferred new
tracks to the phone, you need to
perform an update for the tracks to
appear in Music player.
To scan your phone and Memory
Stick for music
•From Standby select Main menu >
Entertainment > Music player > More
> Update music.
To play music
1 From Standby select Main menu >
Entertainment > Music player.
2 Browse for a track by Album, Artist or
Playlist.
3 Scroll to the desired track and press
the Jog Dial.
Playback controls
To adjust the volume
•Rotate the Jog Dial.
To minimize the Music player
•When the Music player is open select
More > Minimize. The music will
continue to play. To return to the
Music player, tap in the status bar.
Play
Pause
Stop
Skip to previous track
Skip to next track
Loop the current collection
Open the Equalizer
When you are not in playback view, for
example, when the Music player is
minimized, tap and select Volume.
37 Entertainment
Draft for Sony Ericsson Internal Use Only
Playlists
A playlist describes which tracks to
play and in which order. The playlist
only contains links to the tracks, so
when you remove tracks from the
playlist, the actual sound files are not
deleted.
To create a playlist
•From Standby select Main menu >
Entertainment > Music player >
Playlists > New playlist.
To add songs to a playlist
1 Select one ore more tracks.
2 Select More > Manage > Add to
playlist.
Preferences
To set Music player preferences
1 From Standby select Main menu >
Entertainment > Music player > More
> Settings > Preferences.
2 Select Help to read more about the
different options.
Video
With Video, you can watch clips
stored on your phone as well as
streaming content from the Internet.
Video can play MPEG-4, H.263,
H.264, WMV9 and Real Video formats.
To play a video clip
1 From Standby select Main menu >
Entertainment > Video.
2 Navigate to the clip you want to
watch.
3 Press the Jog Dial.
To play streaming video
1 From Standby select Main menu >
Entertainment > Video > More >
Open link.
2 Enter the address to the streaming
content.
3Select Open.
Playback controls
To move within a video clip
•Tap on the progress bar.
To switch to full screen view
•Tap the screen in the video playback
area.
Bookmarks
You can set a bookmark in a video
clip, and resume viewing from that
position at a later time.
To watch streaming video you need an
Internet connection. See Setting up
Internet, email and MMS in the Web
guide.
38Entertainment
Draft for Sony Ericsson Internal Use Only
To set a bookmark
•From playback view, select More >
Bookmark > Save position.
To resume playback from a
bookmark
1 Select a video clip.
2 Select Resume.
Web
The Web browser supports both
frames and JavaScript™. You can
switch between portrait and
landscape view, and change from
normal to full screen presentation.
Before you use Web
To use Web you need an Internet
connection. See Setting up Internet,
email and MMS in the Web guide.
To start the Web browser
•From Standby select Main menu >
Multimedia > Web.
Navigation
All navigation commands and settings
are available from the More menu. The
most common operations are also
available as keyboard shortcuts.
Press and then one of these keys
to:
Key Function
Go to Web page
Open the bookmarks list
Close the current page
Go to the homepage
Switch between loading and
not loading pictures
Switch between normal and
Full screen display
Switch to the next page
Open the Configuration menu
Add a bookmark for the
current page
Find (on the Internet or on the
current page)
Go to the top or bottom of the
page
Stop or Reload the current
page
39 Entertainment
Draft for Sony Ericsson Internal Use Only
Settings
To switch to landscape view
•With Web open select More >
Settings and mark the Landscape
check box.
To exit landscape view
•Select > Settings and unmark the
Landscape check box.
RSS feeds
RSS (Really Simple Syndication) feeds
allow you to see when Web sites have
added new content. You can, for
example, get the latest headlines
without having to visit the Web site.
You can add feeds directly in the RSS
reader. An easier way, however, is to
add feeds from within the Web
browser.
Before you use RSS feeds
To use RSS feeds you need an
Internet connection. See Setting up
Internet, email and MMS in the Web
guide.
To subscribe to an RSS feed
1 From Standby select Main menu >
Multimedia > RSS Feeds.
2Select More > Add feed and enter the
address to the feed.
3 Select a folder to add the feed to.
To subscribe to an RSS feed from the
Web browser
1 From Standby select Main menu >
Multimedia > Web.
2 Navigate to a page that contains RSS
feeds.
3Select More > Current page > RSS
feeds.
4 Select a feed and which folder to add
it to.
To view an RSS feed
1 From Standby select Main menu >
Multimedia > RSS Feeds.
2 Select a feed and select Open.
40Connectivity
Draft for Sony Ericsson Internal Use Only
Connectivity
Bluetooth™ wireless
technology
To turn on Bluetooth™ connection
1 From Standby select Main menu >
Control panel > Connections >
Bluetooth.
2 Select the Settings tab and mark
the Bluetooth on check box.
Pairing
For all tasks, except for a single file
transfer, it is necessary to set up a
permanent and trusted relationship
between your phone and the other
device. This is called pairing (or
bonding).
To pair with another Bluetooth™
device
1 From Standby select Main menu >
Control panel > Connections >
Bluetooth.
2 Select the Devices tab > New
device.
3 Select the device in the list.
4 If you are asked to, enter the
passcode (also called passkey).
Infrared port
When you connect your phone to
another device using an infrared link,
the ports of both devices have to be
within one metre from each other, in
line of sight, and at an angle of no
more than about 30 degrees.
Sending and receiving files
From any application with a Send as
option, you can send a file over the
infrared port. To send a file, select
Send as > IR in the More menu.
When the transfer of a file sent to your
phone is complete you will find the file
in the Messaging application in the
Messages inbox.
Wireless LAN (WLAN)
You can use the WLAN function in
your phone to access the Internet if
you are within range of a WLAN
network. The type of WLAN network
will decide what type of WLAN
account your phone will use.
Never point an active infrared port at
somebody’s eye, or at the port of other
infrared devices than the one you are
connecting to.
41 Connectivity
Draft for Sony Ericsson Internal Use Only
WLAN network types
•Hot spot –a temporary account is
automatically created.
•Not configured network –the network
is un-known to your phone. You will
be prompted to set up an account.
•Configured network –an account that
you have previously set up will be
used.
To activate your phone for WLAN
1 From Standby select Main menu >
Control panel > Connections >WLAN.
2 Select More > Enable WLAN.
To search for available WLAN
networks
1 From Standby select Main menu >
Control panel > Connections >
WLAN.
2 Select Scan.
Available WLAN networks
Networks found when scanning are
listed with icons indicating network
quality and type:
To set up a WLAN account
1 From Standby select Control panel >
Connections > WLAN.
2Select More > New account.
3 Enter required setup data and save.
Connections manager
Connections manager lets you view
and close all open Internet
connections. You can also view and
reset logs for both open and closed
connections.
To open connections manager
•From Standby select Main menu >
Tools > Connections mgr.
To reset logs
1 From Standby select Main menu >
Tools > Connections mgr.
2 Select the log you want to reset.
3Select More > Reset log.
In France you are you are only allowed to
use WLAN indoors.
Quality indicator
Your phone has an account
for this configured network
A secure network, requiring
encryption key(s) for access.
For more information about WLAN and
account setup, see Web Guide and Help
texts in the phone
42Connectivity
Draft for Sony Ericsson Internal Use Only
Connecting to other devices
You can exchange information
between your phone and another
device using a Bluetooth device or a
USB cable. You can:
•Send a file.
•Use a Bluetooth headset in a phone
call.
•Synchronize calendar events and
contacts with your computer.
•Back up phone data to a computer.
•Use your phone as a computer
modem.
Transfer files using the USB
cable
With the USB cable you can transfer
files between your phone and a
computer.
Before connecting the USB cable
Install the Sony Ericsson PC Suite for
Smartphones on the computer, before
connecting the USB cable to the
computer. The software is included on
the CD that comes with your phone or
go to www.sonyericsson.com/
support.
File transfer
With your phone set into file transfer
mode you can drag and drop files
between the phone and the computer
in Microsoft Windows Explorer. You
can also use the Sony Disc2Phone
and Adobe Photoshop Album SE
computer applications to transfer
music and image files. The
applications are available on the CD
that comes with your phone or can be
downloaded from
www.sonyericsson.com/support.
To use the file transfer mode
1 Connect the USB cable to the phone
and the computer.
2Phone: Select File transfer.
3Computer: Wait until your phone
memory and memory card, if inserted,
appear as external disks in Windows
Explorer.
4 Use Windows Explorer, Sony
Disc2Phone or Adobe Photoshop
Album Starter Edition to transfer files.
Do not remove the USB cable from the
phone or computer during file transfer as
this may cause a loss of your data.
43 Connectivity
Draft for Sony Ericsson Internal Use Only
To disconnect the USB cable safely
using file transfer mode
1Computer: Right-click on the
removable disk icon in Windows
Explorer.
2Computer: Select Eject.
3 Remove the USB cable from your
phone.
Phone mode
With phone mode you can use your
your computer to synchronize
contacts and calendar, transfer files,
use the phone as modem and more.
Applications supported in phone
mode are:
•Synchronization
•File manager
•Mobile Networking Wizard
For other applications, use the file
transfer mode.
To use the phone mode
1Computer: Install the Sony Ericsson
PC Suite for Smartphones before
connecting the USB cable to the
computer.
2Computer: Start PC Suite for
Smartphones.
3 Connect the USB Cable to the phone
and the computer.
4Phone: Select Phone mode.
5Computer: Wait while Windows
installs the required drivers.
Computer modem
Through the Sony Ericsson PC Suite
for Smartphones, a computer can use
your phone as a modem for
connecting to the Internet. For more
information see Connecting to other
devices in the Web guide.
PC Suite
The PC Suite for Smartphones
software is delivered with your phone
on a CD. You can use it for many
things, such as synchronizing your
phone with a computer and making
backups of phone data, see PC Suite
in the Web guide.
Synchronization
To synchronize your phone using the
PC suite for Smartphones
1 Connect your phone to the computer
with the USB cable.
All applications that you can use with
your connected phone are found in the
Sony Ericsson PC Suite for
Smartphones.
44Connectivity
Draft for Sony Ericsson Internal Use Only
2Phone: Select Phone mode on the
phone.
3Computer: Select Start/Programs/
Sony Ericsson/Sony Ericsson PC Suite
for Smartphones. The application
starts.
4 Wait until your phone is connected
which it is when the Synchronize now
button lights green.
5Computer: Click Synchronise now.
Wap push
To set up your phone to handle
incoming Wap push messages
1 From Standby select Main menu >
Control panel > Messaging > WAP
push.
2 Select Automatically to receive Wap
push service loading messages
without being prompted.
Certificate manager and Java
certificates
Digital certificates are used to verify
the origin of the Web pages you visit
or any software you install.
To view user and CA certificates in
your phone.
•From Standby select Main menu >
Control panel > Security > Certificate
manager.
45 More features
Draft for Sony Ericsson Internal Use Only
More features
Managing files and
applications
File manager
With File manager you can view,
rename, copy, move and delete files
and folders on the phone memory and
on Memory Sticks. The File manager
view is displayed in two tabs. tab
for the phone memory and tab for
the Memory Stick.
To open File manager
•From Standby select Main menu >
Tools > File manager.
Protected files
Downloaded or received files may be
copyright-protected. Copyright-
protection may prevent content from
being copied, modified or transferred.
If a file is copyright protected, or if a
license has expired or is unavailable,
is displayed next to the file name.
Format disk
Memory Sticks are normally formatted
the first time they are inserted in the
phone.
To format a Memory Stick
From Standby select Main menu >
Tools > File manager > More >
Device > Format Memory Stick >
Format.
Installing applications
To install an application
1 From Standby select Main menu >
Control panel > Other > Install.
2 Select the application and select
Details to view information about the
certificate.
3 If the certificate details are OK, select
Install and follow the instructions in
the phone. The application will be
installed in Tools folder.
All information on the Memory Stick will
be deleted during formatting.
Do not remove a Memory Stick during
formatting.
Install applications and other content
you use often, for example, ringtones in
the phone memory. The Memory Stick is
sometimes unavailable when the phone
is connected to a computer.
46More features
Draft for Sony Ericsson Internal Use Only
To remove an application
1 From Standby select Main menu >
Control panel > Other > Uninstall.
2 Select the application and select
Uninstall.
Master reset
To reset the phone
1 From Standby select Main menu >
Control panel > Other > Master reset.
2 If you want to keep installed
applications, unmark Delete user
installed applications.
3 Select Delete.
4 Select Yes.
5 Enter the phone lock code and select
Yes.
Shortcut button
The shortcut button opens the phone
browser. It can also be set to open:
•Main menu
•Music player
•Sound recorder
•Standby
•Task manager
To personalize the shortcut button
•From Standby select Main menu >
Control panel > Device > Shortcut
button.
Power save
To save power, you can set the
display to go blank after a period of
inactivity.
To enable power save
1 From Standby select Main menu >
Control panel > Device > Backlight.
2 Mark the Power save enabled check
box.
Screen saver
You can use a picture, or several
pictures in a slideshow, as screen
saver.
In Main menu > Multimedia > More
applications you will find links to
additional applications for your phone.
Some of them are free of charge or free
to try out.
All user data, as well as preinstalled
media files (including, for example,
backgrounds, ringtones and pictures),
will be deleted and factory settings
restored.
If you back up your user data using the
Sony Ericsson PC Suite for
Smartphones, you can restore it after a
master reset.
47 More features
Draft for Sony Ericsson Internal Use Only
To set a screen saver
1 From Standby select Main menu >
Control panel > Device > Screen
saver.
Select Help to read more about the
options.
48Important information
Draft for Sony Ericsson Internal Use Only
Important information
Sony Ericsson Consumer Web site
On www.sonyericsson.com/support
there is a support section where help
and tips are only a few clicks away.
Here you will find the latest computer
software updates and tips on how to
use your product more efficiently.
Service and support
From now on you will have access to a portfolio of
exclusive service advantages such as:
• Global and local websites providing support.
• A global network of Call Centers.
• An extensive network of Sony Ericsson service
partners.
• A warranty period. Learn more about the warranty
conditions in this user guide.
On www.sonyericsson.com, under the support
section in the language of your choice, you will find
the latest support tools and information, such as
software updates, Knowledge base, phone setup
and additional help when you require it.
For operator-specific services and features, please
contact your network operator for more
information.
You can also contact our Call Centers. See the
phone number for the nearest Call Center in the list
below. If your country/region is not represented in
the list, please contact your local dealer. (The
phone numbers below were correct at the time of
going to print. On www.sonyericsson.com you can
always find the latest updates.
In the unlikely event that your product needs
service please contact the dealer from whom it was
purchased or one of our service partners. Save
your original proof of purchase, you will need it if
you need to claim warranty.
For a call to one of our Call Centers you will be
charged according to national rates, including local
taxes, unless the phone number is a toll-free
number.
Country Phone number Email address
Argentina 800-333-7427 questions.AR@support.sonyericsson.com
Australia 1-300 650 050 questions.AU@support.sonyericsson.com
Austria 0810 200245 questions.AT@support.sonyericsson.com
Belgium 02-7451611 questions.BE@support.sonyericsson.com
Brazil 4001-0444 questions.BR@support.sonyericsson.com
Canada 1-866-766-9374 questions.CA@support.sonyericsson.com
Central Africa +27 112589023 questions.CF@support.sonyericsson.com
Chile 123-0020-0656 questions.CL@support.sonyericsson.com
China 4008100000 questions.CN@support.sonyericsson.com
Colombia 18009122135 questions.CO@support.sonyericsson.com
Croatia 062 000 000 questions.HR@support.sonyericsson.com
Czech Republic 844 550 055 questions.CZ@support.sonyericsson.com
Denmark 33 31 28 28 questions.DK@support.sonyericsson.com
Finland 09-299 2000 questions.FI@support.sonyericsson.com
49 Important information
Draft for Sony Ericsson Internal Use Only
France 0 825 383 383 questions.FR@support.sonyericsson.com
Germany 0180 534 2020 questions.DE@support.sonyericsson.com
Greece 801-11-810-810 questions.GR@support.sonyericsson.com
210-89 91 919 (from mobile)
Hong Kong 8203 8863 questions.HK@support.sonyericsson.com
Hungary +36 1 880 4747 questions.HU@support.sonyericsson.com
India 1800 11 1800 (toll free number) questions.IN@support.sonyericsson.com
39011111 (from mobile phone)
Indonesia 021-2701388 questions.ID@support.sonyericsson.com
Ireland 1850 545 888 questions.IE@support.sonyericsson.com
Italy 06 48895206 questions.IT@support.sonyericsson.com
Lithuania 8 700 55030 questions.LT@support.sonyericsson.com
Malaysia 1-800-889900 questions.MY@support.sonyericsson.com
Mexico 001-95-888-821-8408 questions.MX@support.sonyericsson.com
Netherlands 0900 899 8318 questions.NL@support.sonyericsson.com
New Zealand 0800-100150 questions.NZ@support.sonyericsson.com
Norway 815 00 840 questions.NO@support.sonyericsson.com
Pakistan 111 22 55 73 questions.PK@support.sonyericsson.com
Outside Karachi: (92-21) 111 22 55 73
Philippines +63 (02) 7891860 questions.PH@support.sonyericsson.com
Poland 0 (prefix) 22 6916200 questions.PL@support.sonyericsson.com
Portugal 808 204 466 questions.PT@support.sonyericsson.com
Romania (+4021) 401 0401 questions.RO@support.sonyericsson.com
Russia 8(495) 787 0986 questions.RU@support.sonyericsson.com
Singapore 67440733 questions.SG@support.sonyericsson.com
Slovakia 02-5443 6443 questions.SK@support.sonyericsson.com
South Africa 0861 632222 questions.ZA@support.sonyericsson.com
Spain 902 180 576 questions.ES@support.sonyericsson.com
Sweden 013-24 45 00 questions.SE@support.sonyericsson.com
Switzerland 0848 824 040 questions.CH@support.sonyericsson.com
Taiwan 02-25625511 questions.TW@support.sonyericsson.com
Thailand 02-2483030 questions.TH@support.sonyericsson.com
Turkey 0212 47 37 777 questions.TR@support.sonyericsson.com
Ukraine (+380) 44 590 1515 questions.UA@support.sonyericsson.com
United Arab Emirates 43 919880 questions.AE@support.sonyericsson.com
United Kingdom 08705 23 7237 questions.GB@support.sonyericsson.com
United States 1-866-766-9374 questions.US@support.sonyericsson.com
50Important information
Draft for Sony Ericsson Internal Use Only
Venezuela 0-800-100-2250 questions.VE@support.sonyericsson.com
Guidelines for Safe and Efficient Use
Please read this information before
using your mobile phone.
These instructions are intended for
your safety. Please follow these
guidelines. If the product has been
subject to any of the conditions listed
below or you have any doubt as to its proper
function make sure you have the product checked
by a certified service partner before charging or
using it. Failure to do so might entail a risk of
product malfunction or even a potential hazard to
your health.
Recommendations for safe use of
product (mobile phone, battery,
charger and other accessories)
• Always treat your product with care and keep it in a
clean and dust-free place.
• Warning! May explode if disposed of in fire.
• Do not expose your product to liquid or moisture or
humidity.
• Do not expose your product to
extremely high or low temperatures.
Do not expose the battery to
temperatures above +60°C (+140°F).
• Do not expose your product to open
flames or lit tobacco products.
• Do not drop, throw or try to bend your product.
• Do not paint your product.
• Do not attempt to disassemble or
modify your product. Only Sony
Ericsson authorized personnel should
perform service.
• Do not use your product near medical
equipment without requesting
permission from your treating physician or
authorized medical staff.
• Do not use your product when in, or around
aircraft, or areas showing the sign “turn off two-way
radio”.
• Do not use your product in an area
where a potentially explosive
atmosphere exists.
• Do not place your product or install
wireless equipment in the area above
an air bag in your car.
CHILDREN
KEEP OUT OF CHILDRENS REACH.
DO NOT ALLOW CHILDREN TO PLAY
WITH YOUR MOBILE PHONE OR ITS
ACCESSORIES. THEY COULD HURT
THEMSELVES OR OTHERS, OR COULD
ACCIDENTALLY DAMAGE THE MOBILE PHONE
OR ACCESSORY. YOUR MOBILE PHONE OR ITS
ACCESSORY MAY CONTAIN SMALL PARTS THAT
COULD BECOME DETACHED AND CREATE A
CHOKING HAZARD.
Power supply (Charger)
Connect the AC power adapter only to designated
power sources as marked on the product. Make
sure the cord is positioned so that it will not be
subjected to damage or stress. To reduce risk of
electric shock, unplug the unit from any power
source before attempting to clean it. The AC power
adapter must not be used outdoors or in damp
areas. Never alter the cord or plug. If the plug does
not fit into the outlet, have a proper outlet installed
by a qualified electrician.
Use only Sony Ericsson branded original chargers
intended for use with your mobile phone. Other
chargers may not be designed to the same safety
and performance standards.
51 Important information
Draft for Sony Ericsson Internal Use Only
Battery
We recommend that you fully charge the battery
before you use your mobile phone for the first time.
A new battery or one that has not been used for a
long time could have reduced capacity the first few
times it is used. The battery should only be charged
in temperatures between +5°C (+41°F) and +45°C
(+113°F).
Use only Sony Ericsson branded original batteries
intended for use with your mobile phone. Using
other batteries and chargers could be dangerous.
Talk and standby times depend on several different
conditions such as signal strength, operating
temperature, application usage patterns, features
selected and voice or data transmissions when the
mobile phone is being used.
Turn off your mobile phone before removing the
battery. Do not put the battery into your mouth.
Battery electrolytes may be toxic if swallowed. Do
not let the metal contacts on the battery touch
another metal object. Doing this could short-circuit
and damage the battery. Use the battery for the
intended purpose only.
Personal medical devices
Mobile phones may affect the operation of
pacemakers and other implanted equipment.
Please avoid placing the mobile phone over the
pacemaker, e.g. in your breast pocket. When using
the mobile phone, use it at the ear on the opposite
side of the body to the pacemaker. If a minimum
distance of 15 cm (6 inches) is kept between the
mobile phone and the pacemaker, the risk of
interference is limited. If you have any reason to
suspect that interference is taking place,
immediately turn off your mobile phone. Contact
your cardiologist for more information.
For other medical devices, please consult your
physician and the manufacturer of the device.
Driving
Please check if local laws and regulations restrict
the use of mobile phones while driving or require
drivers to use handsfree solutions. We recommend
that you use only Sony Ericsson handsfree
solutions intended for use with your product.
Please note that because of possible interference
to electronic equipment, some vehicle
manufacturers forbid the use of mobile phones in
their vehicles unless a handsfree kit with an
external antenna has been installed.
Always pay full attention to driving and pull off the
road and park before making or answering a call if
driving conditions so require.
Emergency calls
Mobile phones operate using radio signals, which
cannot guarantee connection in all conditions. You
should therefore never rely solely upon any mobile
phone for essential communications (e.g. medical
emergencies).
Emergency calls may not be possible in all areas,
on all cellular networks, or when certain network
services and/or mobile phone features are in use.
Check with your local service provider.
Antenna
This phone contains a built-in antenna. Use of
antenna devices not marketed by Sony Ericsson
specifically for this model could damage your
mobile phone, reduce performance, and produce
SAR levels above the established limits (see below).
Efficient use
Hold your mobile phone as you would any other
phone. Do not cover the top of the phone when it is
in use, as this affects call quality and may cause the
phone to operate at a higher power level than
needed, thus shortening talk and standby times.
52Important information
Draft for Sony Ericsson Internal Use Only
Radio frequency (RF) exposure and
Specific Absorption Rate (SAR)
Your mobile phone is a low-power radio transmitter
and receiver. When it is turned on, it emits low
levels of radio frequency energy (also known as
radio waves or radio frequency fields).
Governments around the world have adopted
comprehensive international safety guidelines,
developed by scientific organizations, e.g. ICNIRP
(International Commission on Non-Ionizing
Radiation Protection) and IEEE (The Institute of
Electrical and Electronics Engineers Inc.), through
periodic and thorough evaluation of scientific
studies. These guidelines establish permitted levels
of radio wave exposure for the general population.
The levels include a safety margin designed to
assure the safety of all persons, regardless of age
and health, and to account for any variations in
measurements.
Specific Absorption Rate (SAR) is the unit of
measurement for the amount of radio frequency
energy absorbed by the body when using a mobile
phone. The SAR value is determined at the highest
certified power level in laboratory conditions, but
the actual SAR level of the mobile phone while it is
operating can be well below this value. This is
because the mobile phone is designed to use the
minimum power required to reach the network.
Variations in SAR below the radio frequency
exposure guidelines do not mean that there are
variations in safety. While there may be differences
in SAR levels among mobile phones, all Sony
Ericsson mobile phone models are designed to
meet radio frequency exposure guidelines.
For phones sold in the US, before a phone model is
available for sale to the public, it must be tested
and certified by the Federal Communications
Commission (FCC) that it does not exceed the limit
established by the government-adopted
requirement for safe exposure. The tests are
performed in positions and locations (that is, at the
ear and worn on the body) as required by the FCC
for each model. For body-worn operation, this
phone has been tested and meets FCC RF
exposure guidelines when the handset is
positioned a minimum of 15 mm from the body
without any metal parts in the vicinity of the phone
or when used with the original Sony Ericsson
accessory intended for this phone and worn on the
body. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines.
A separate leaflet with SAR information about this
mobile phone model is included with the material
accompanying this mobile phone. This information
can also be found, together with more information
on radio frequency exposure and SAR, at
www.sonyericsson.com/health.
Accessible Solutions/Special Needs
For phones sold in the US, you can use your TTY
terminal with your Sony Ericsson mobile phone
(with the necessary accessory). For information on
Accessible Solutions for individuals with special
needs call the Sony Ericsson Special Needs Center
on 877 878 1996 (TTY) or 877 207 2056 (voice), or
visit the Sony Ericsson Special Needs Center at
www.sonyericsson-snc.com.
Disposal of old electrical
and electronic equipment
This symbol indicates that all
electrical and electronic equipment
included shall not be treated as
household waste. Instead it shall be left at the
appropriate collection point for recycling of
electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help
prevent potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. The recycling of materials
will help to conserve natural resources. For more
53 Important information
Draft for Sony Ericsson Internal Use Only
detailed information about recycling this product,
please contact your local city office, your
household waste disposal service or the shop
where you purchased the product.
Disposing of the battery
Please check local regulations for
disposal of batteries or call your local
Sony Ericsson Call Center for
information.
The battery should never be placed in municipal
waste. Use a battery disposal facility if available.
Memory card
Your phone is equipped with a memory card
reader. Check memory card compatibility before
purchase or use.
Memory cards are generally formatted prior to
shipping. To reformat the memory card, use a
compatible device. Do not use the standard
operating system format when formatting the
memory card on a PC. For details, refer to the
operating instructions of the memory card or
contact customer support.
WARNING:
If the memory card requires an adapter for insertion
into the phone or another device, do not insert the
memory card directly without the required adapter.
Precautions on memory card use:
• Do not expose the memory card to moisture.
• Do not touch terminal connections with your hand
or any metal object.
• Do not strike, bend, or drop the memory card.
• Do not attempt to disassemble or modify the
memory card.
• Do not use or store the memory card in humid or
corrosive locations or in excessive heat such as a
closed car in summer, in direct sunlight or near a
heater, etc.
• Do not press or bend the end of the memory card
adapter with excessive force.
• Do not let dirt, dust, or foreign objects get into the
insert port of any memory card adapter.
• Check you have inserted the memory card
correctly.
• Insert the memory card as far as it will go into any
memory card adapter needed. The memory card
may not operate properly unless fully inserted.
• We recommend that you make a backup copy of
important data. We are not responsible for any loss
or damage to content you store on the memory
card.
• Recorded data may be damaged or lost when you
remove the memory card or memory card adapter,
turn off the power while formatting, reading or
writing data, or use the memory card in locations
subject to static electricity or high electrical field
emissions.
Protection of personal information
To safeguard your privacy and prevent information
being accessible to a third party, you should erase
all personal data before selling or disposing of the
product. To delete personal data, perform a master
reset and remove the memory card. DELETION OF
MATERIAL FROM THE PHONE MEMORY DOES
NOT ENSURE THAT SAID INFORMATION
CANNOT BE RECOVERED BY A SUBSEQUENT
USER. SONY ERICSSON DOES NOT WARRANT
AGAINST A SUBSEQUENT USER OF THE DEVICE
ACCESSING YOUR INFORMATION AND DOES
NOT ASSUME ANY RESPONSIBILITY FOR
SUBSEQUENT DISCLOSURE OF SAID
INFORMATION EVEN IF A MASTER RESET HAS
BEEN PERFORMED. If you are concerned about
such potential disclosure retain your device or
secure its permanent destruction.
Accessories
Sony Ericsson recommends use of Sony Ericsson
original accessories for safe and efficient use of its
products. Use of third-party accessories may
54Important information
Draft for Sony Ericsson Internal Use Only
decrease performance or pose a risk to your health
or safety.
LOUDNESS WARNING:
Please adjust the audio volume cautiously when
using third-party audio accessories to avoid
volume levels that may be harmful to your hearing.
Sony Ericsson does not test use of third-party
audio accessories with this mobile phone. Sony
Ericsson recommends using only Sony Ericsson
original audio accessories.
End User Licence Agreement
This wireless device, including without limitation
any media delivered with the device, (“Device”)
contains software owned by Sony Ericsson Mobile
Communications AB and its affiliated companies
(“Sony Ericsson”) and its third party suppliers and
licensors (“Software”).
As user of this Device, Sony Ericsson grants you a
non-exclusive, non-transferable, non-assignable
license to use the Software solely in conjunction
with the Device on which it is installed and/or
delivered with. Nothing herein shall be construed as
a sale of the Software to a user of this Device.
You shall not reproduce, modify, distribute, reverse
engineer, decompile, otherwise alter or use any
other means to discover the source code of the
Software or any component of the Software. For
avoidance of doubt, you are at all times entitled to
transfer all rights and obligations to the Software to
a third party, solely together with the Device with
which you received the Software, provided always
that such third party agrees in writing to be bound
by these rules.
You are granted this license for a term of the useful
life of this Device. You can terminate this license by
transferring all your rights to the Device on which
you have received the Software to a third party in
writing. If you fail to comply with any of the terms
and conditions set out in this license, it will
terminate with immediate effect.
Sony Ericsson and its third party suppliers and
licensors are the sole and exclusive owner of and
retain all rights, title and interest in and to the
Software. Sony Ericsson, and, to the extent that the
Software contains material or code of a third party,
such third party, shall be entitled third party
beneficiaries of these terms.
The validity, construction and performance of this
license shall be governed by the laws of Sweden.
The foregoing shall apply to the full extent
permitted by, when applicable, statutory consumer
rights.
Limited Warranty
Sony Ericsson Mobile Communications AB, Nya
Vattentornet, SE-221 88 Lund, Sweden, (Sony
Ericsson) or its local affiliated company, provides
this Limited Warranty for your mobile phone and
original accessory delivered with your mobile
phone (hereinafter referred to as “Product”).
Should your Product need warranty service, please
return it to the dealer from whom it was purchased,
or contact your local Sony Ericsson Call Center
(national rates may apply) or visit
www.SonyEricsson.com to get further information.
OUR WARRANTY
Subject to the conditions of this Limited Warranty,
Sony Ericsson warrants this Product to be free from
defects in design, material and workmanship at the
time of its original purchase by a consumer. This
Limited Warranty will last for a period of one (1)
year as from the original date of purchase of the
Product.
WHAT WE WILL DO
If, during the warranty period, this Product fails to
operate under normal use and service, due to
defects in design, materials or workmanship, Sony
Ericsson authorized distributors or service partners,
in the country* where you purchased the Product,
55 Important information
Draft for Sony Ericsson Internal Use Only
will, at their option, either repair or replace the
Product in accordance with the terms and
conditions stipulated herein.
Sony Ericsson and its service partners reserve the
right to charge a handling fee if a returned Product
is found not to be under warranty according to the
conditions below.
Please note that some of your personal settings,
downloads and other information may be lost when
your Sony Ericsson Product is repaired or replaced.
At present Sony Ericsson may be prevented by
applicable law, other regulation or technical
restrictions from making a backup copy of certain
downloads. Sony Ericsson does not take any
responsibility for any lost information of any kind
and will not reimburse you for any such loss. You
should always make backup copies of all the
information stored on your Sony Ericsson Product
such as downloads, calendar and contacts before
handing in your Sony Ericsson Product for repair or
replacement.
CONDITIONS
1 This Limited Warranty is valid only if the original
proof of purchase for this Product issued by a Sony
Ericsson authorized dealer specifying the date of
purchase and serial number**, is presented with the
Product to be repaired or replaced. Sony Ericsson
reserves the right to refuse warranty service if this
information has been removed or changed after the
original purchase of the Product from the dealer.
2 If Sony Ericsson repairs or replaces the Product,
the repair for the defect concerned, or the replaced
Product shall be warranted for the remaining time
of the original warranty period or for ninety (90)
days from the date of repair, whichever is longer.
Repair or replacement may involve the use of
functionally equivalent reconditioned units.
Replaced parts or components will become the
property of Sony Ericsson.
3 This warranty does not cover any failure of the
Product due to normal tear and wear, or due to
misuse, including but not limited to use in other
than the normal and customary manner, in
accordance with the Sony Ericsson instructions for
use and maintenance of the Product. Nor does this
warranty cover any failure of the Product due to
accident, software or hardware modification or
adjustment, acts of God or damage resulting from
liquid.
A rechargeable battery can be charged and
discharged more than a hundred times. However, it
will eventually wear out – this is not a defect and
corresponds to normal wear and tear. When the
talk-time or standby time is noticeably shorter, it is
time to replace your battery. Sony Ericsson
recommends that you use only batteries and
chargers approved by Sony Ericsson.
Minor variations in display brightness and colour
may occur between the phones. There may be tiny
bright or dark dots on the display. These are called
defective pixels and occur when individual dots
have malfunctioned and can not be adjusted. Two
defective pixels are deemed acceptable.
Minor variations in camera image appearance may
occur between phones. This is nothing uncommon
and is not regarded as a defective camera module.
4 Since the cellular system on which the Product is to
operate is provided by a carrier independent from
Sony Ericsson, Sony Ericsson will not be
responsible for the operation, availability, coverage,
services or range of that system.
5 This warranty does not cover Product failures
caused by installations, modifications, or repair or
opening of the Product performed by a non-Sony
Ericsson authorised person.
6 The warranty does not cover Product failures which
have been caused by use of accessories or other
peripheral devices which are not Sony Ericsson
branded original accessories intended for use with
the Product.
7 Tampering with any of the seals on the Product will
void the warranty.
56Important information
Draft for Sony Ericsson Internal Use Only
8 THERE ARE NO EXPRESS WARRANTIES,
WHETHER WRITTEN OR ORAL, OTHER THAN
THIS PRINTED LIMITED WARRANTY. ALL
IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY. IN NO
EVENT SHALL SONY ERICSSON OR ITS
LICENSORS BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY NATURE
WHATSOEVER, INCLUDING BUT NOT LIMITED
TO LOST PROFITS OR COMMERCIAL LOSS; TO
THE FULL EXTENT THOSE DAMAGES CAN BE
DISCLAIMED BY LAW.
Some countries/states do not allow the exclusion
or limitation of incidental or consequential
damages, or limitation of the duration of implied
warranties, so the preceding limitations or
exclusions may not apply to you.
The warranty provided does not affect the
consumer's statutory rights under applicable
legislation in force, nor the consumer’s rights
against the dealer arising from their sales /
purchase contract.
*GEOGRAPHICAL SCOPE OF THE
WARRANTY
If you have purchased your Product in a country
member of the European Economic Area (EEA) or in
Switzerland or the Republic of Turkey, and such
Product was intended for sale in the EEA or in
Switzerland or in Turkey, you can have your
Product serviced in any EEA country or in
Switzerland or in Turkey, under the warranty
conditions prevailing in the country in which you
require servicing, provided that an identical
Product is sold in such country by an authorised
Sony Ericsson distributor. To find out if your
Product is sold in the country you are in, please call
the local Sony Ericsson Call Center. Please observe
that certain services may not be possible elsewhere
than in the country of original purchase, for
example due to the fact that your Product may
have an interior or exterior which is different from
equivalent models sold in other countries. Please
note in addition that it may sometimes not be
possible to repair SIM-locked Products.
** In some countries/regions additional information
(such as a valid warranty card) may be requested.
FCC Statement
This device complies with Part 15 of
the FCC rules. Operation is subject to
the following two conditions:
(1) This device may not cause
harmful interference, and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
Bluetooth wireless technology
Bluetooth™ Qualified Design ID is B011112.
57 Important information
Draft for Sony Ericsson Internal Use Only
Declaration of Conformity
We, Sony Ericsson Mobile Communications AB of
Nya Vattentornet
SE-221 88 Lund, Sweden
declare under our sole responsibility that our
product
Sony Ericsson type FAD-3022015-BV
and in combination with our accessories, to which
this declaration relates is in conformity with the
appropriate standards 3GPP TS 51.010-1,
EN 301908-1, EN 301489-7, EN 301489-24,
EN 300328, EN 301489-17 and EN 60950,
following the provisions of, Radio Equipment and
Telecommunication Terminal Equipment Directive
99/5/EC with requirements covering EMC Directive
89/336/EEC, and Low Voltage Directive
73/23/EEC.
We fulfil the requirements of the R&TTE Directive
(99/5/EC).
Lund, February 2007
Shoji Nemoto,
Head of Product Business Group GSM/UMTS
58Index
Draft for Sony Ericsson Internal Use Only
Index
A
Auto capitalization ................................19
B
Back button ..........................................11
Backup of phone data ..........................43
Battery ....................................................7
Bluetooth™ wireless technology ..........40
pairing ...........................................40
Business card scanner .........................32
C
Call log ..................................................22
Calls
conference call .............................22
emergency ....................................21
international ..................................20
speed dial .....................................20
Camera .................................................32
Certificates ............................................44
Connections manager ..........................41
Contacts ...............................................23
E
Email .....................................................29
push email ....................................31
F
File manager .........................................45
Flight mode ...........................................10
FM radio ...............................................34
Folders in messaging ............................26
H
Handsfree settings ................................23
Handwriting recognition .......................17
I
IMEI number ...........................................8
Infrared port ..........................................40
Installing applications ...........................45
J
Jog Dial .................................................11
K
Key lock ................................................15
Keyboard ..............................................16
M
Main menu ............................................11
overview .......................................14
Master reset ..........................................46
Memory Stick ........................................15
Messaging ............................................26
59 Index
Draft for Sony Ericsson Internal Use Only
folders .......................................... 26
MMS ..................................................... 27
Music player ......................................... 36
playlists ........................................ 37
My words dictionary ............................. 19
N
Navigation ............................................ 11
O
On/off ................................................... 10
P
PC Suite ............................................... 43
Phone overview ...................................... 6
Picture editor ........................................ 33
Picture gallery ....................................... 32
Playlists ................................................ 37
PlayNow™ ............................................ 34
Power save ........................................... 46
Predictive text ...................................... 18
Protected files ...................................... 45
Push email ............................................ 31
R
Remote screen ..................................... 33
RSS feeds ............................................ 39
S
Screen .................................................. 10
Screen saver ........................................ 46
Shortcut button .................................... 46
SIM card ................................................. 7
Slide show ............................................ 32
SMS ...................................................... 27
Sound ................................................... 16
Standby ................................................ 11
Status bar ............................................. 12
Streaming video ................................... 37
Synchronization .................................... 43
T
Task manager ....................................... 12
Telephony features ............................... 23
Text ...................................................... 16
TrackID™ ............................................. 35
Transferring
files ............................................... 42
USB .............................................. 42
U
Update software ................................... 16
V
Video .................................................... 37
streaming ..................................... 37
Video calls ............................................ 22
Volume ................................................. 16
60Index
Draft for Sony Ericsson Internal Use Only
W
Wap push ..............................................44
Web browser ........................................38
Wizards ...................................................9
WLAN (Wireless LAN) ...........................40
