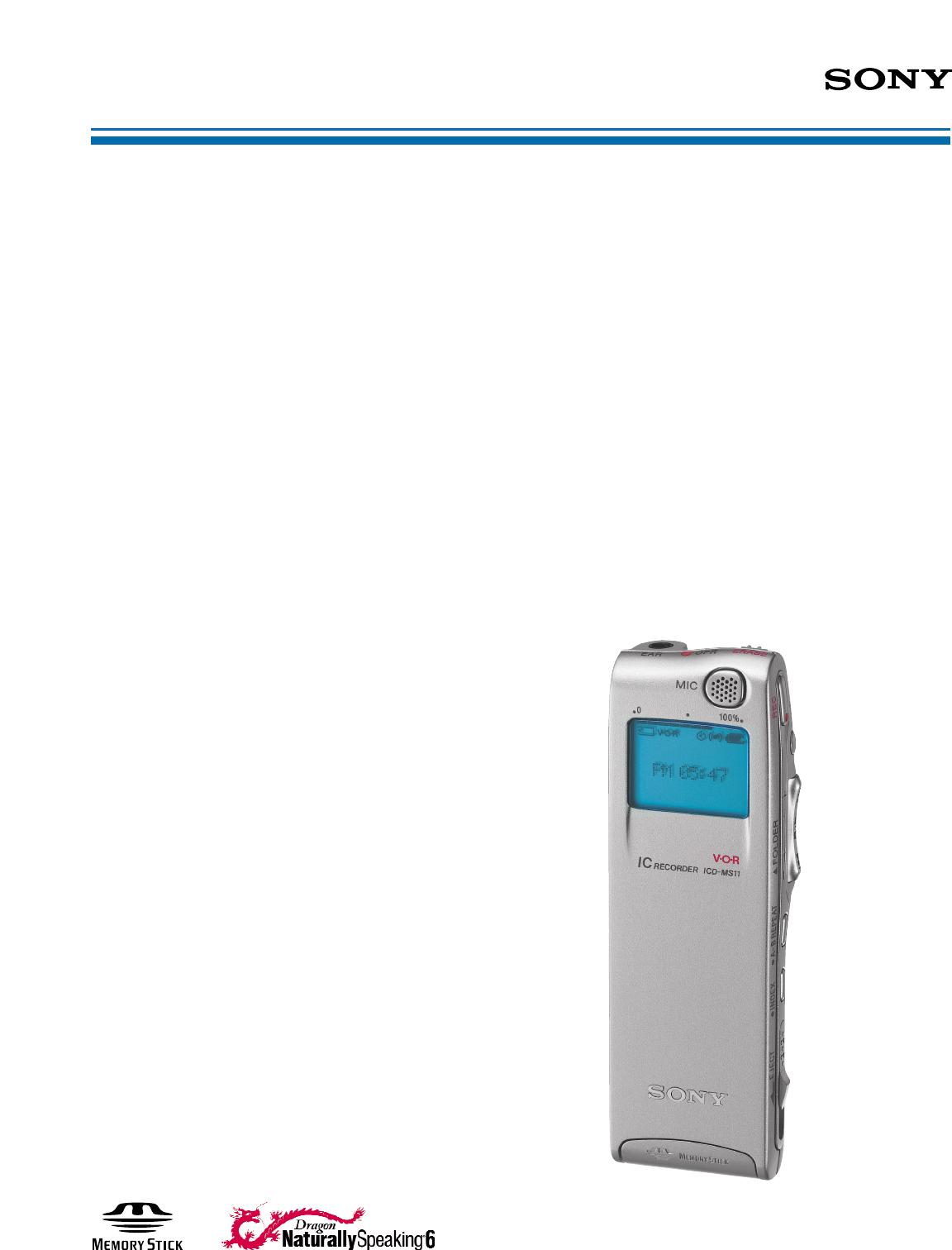

ICD-MS515
Memory Stick®Portable Digital Dictating Machine
▲USES REMOVABLE MEMORY STICK®MEDIA
▲UP TO 171 MINUTES RECORDING TIME WITH SUPPLIED 8MB MEMORY STICK
▲COMPATIBLE WITH USB CONNECTIVITY FOR EASY PC CONNECTION
• INCLUDES DRAGON NATURALLY SPEAKING™PREFERRED VOICE TO PRINT SOFTWARE VER. 6.0
◗HIGH QUALITY SOUND—“NEW LPEC™ CODEC”—16KHZ SAMPLING RATE
◗DIGITAL PITCH/PLAYBACK SPEED CONTROL
◗VOICE E-MAIL FUNCTION
• NEW SLIM STYLE DESIGN
• EASY TO USE PLAYBACK/EDIT FUNCTION
• UP TO 340 PERSONALLY NAMED MESSAGE FILES AND 965 MESSAGES
• FULL FUNCTION LCD DISPLAY
• ONE BUTTON PLAY FROM RECORD
• INCREMENTAL REWIND (EASY SEARCH)
• ADVANCED DIGITAL VOR (VOICE OPERATED RECORDING)
• BUILT-IN MICROPHONE
• BUILT-IN PLAYBACK SPEAKER
• RECORD-PAUSE FUNCTION
• ADD-RECORDING FUNCTION
• BATTERY STRENGTH LED
• HOLD SWITCH
• HI/LO MIC SENSITIVITY
• EARPHONE AND EXTERNAL MICROPHONE JACKS
• LED OPERATION INDICATORS (RECORD/PLAY)
▲STEP-UP FEATURE ◗NEW FEATURE
ICD-MS515
Sony Electronics Inc • 1 Sony Drive, Park Ridge, New Jersey 07656 • www.sony.com Printed in USA 2/2002
features
▲
USES REMOVABLE MEMORY STICK®MEDIA
records all dictation on small,
compact, high capacity Memory Stick® media cards, and allows recorded
cards to be readily distributed for processing; different Memory Stick
cards in capacities from 8MB to 256MB can be inserted into the unit for
different applications
▲
UP TO 171 MINUTES RECORDING TIME WITH SUPPLIED 8MB MEMORY
STICK
offers the option of more than an hour (64 min) of super high
quality sound in SP mode with 16kHz sampling, and 2
1
⁄
2
hours (150
minutes) of high quality sound recording with 8kHz sampling rate
▲
INCLUDES USB CONNECTIVITY FOR EASY PC CONNECTION
via USB
port on a PC
• COMPATIBLE WITH DRAGON NATURALLY SPEAKING™PREFERRED VOICE
TO PRINT SOFTWARE Ver. 6.0
to convert your recorded files into text
◗
HIGH QUALITY SOUND—“NEW LPEC™CODEC”
with extended frequency
response ensures excellent recorded sound clarity
• DIGITAL PITCH/PLAYBACK SPEED CONTROL
allows recordings to be
heard at slower than normal speeds to facilitate transcribing or editing,
or faster than normal to move quickly to a desired portion
◗
VOICE E-MAIL FUNCTION
lets you easily send audible e-mail with the
attached files
• NEW SLIM STYLE DESIGN
only one-half inch thick, with Record and
Pause controls located on the side of the unit for easy operation; fits
neatly into a shirt pocket
• EASY TO USE PLAYBACK/EDIT FUNCTION
lets you begin playback with
the press of a button, then edit the recordings with equal ease
• UP TO 340 PERSONALLY NAMED MESSAGE FILES AND 965 MESSAGES
on
each Memory Stick media card provides ability to organize message folders
by type, such as Sales Letters, Customer Service Replies, Memos, Action
Items, Personal, and more, offering the ultimate in efficiency and versatility
• FULL FUNCTION LCD DISPLAY
shows number of messages recorded,
recording length, date, time, and battery power remaining
• ONE BUTTON PLAY FROM RECORD
lets you switch from Recording
mode to Play mode with one finger
• INCREMENTAL REWIND (EASY SEARCH)
is the equivalent of tape Fast
Rewind but without returning all the way to the beginning of each
recording, to help locate specific passages
• ADVANCED DIGITAL VOR (VOICE OPERATED RECORDING)
stops the
recording during silent pauses, saving valuable recording time, then
begins recording again without missing a single syllable thanks to the
digital buffer
• BUILT-IN MICROPHONE
for extra convenience, eliminates the need for
an external microphone
• BUILT-IN PLAYBACK SPEAKER
for monitoring playback of recordings
• RECORD-PAUSE FUNCTION
temporarily stops recording to allow for
pauses in dictation or to provide time for reference to documents, then
resumes where recording was stopped, at the press of a button
• ADD-RECORDING FUNCTION
allows you to insert and add additional
information to any message without affecting the original
• BATTERY STRENGTH LCD
provides a visible signal when battery
strength is low
• HOLD SWITCH
prevents accidental operation or changes to settings
while carrying the unit in pocket or briefcase
• HI/LO MIC SENSITIVITY
enables the unit to record different situations,
from group meeting to individuals, more effectively
• EARPHONE AND EXTERNAL MICROPHONE JACKS
allows listening
through earphones for privacy or transcription and allows connection of
an external microphone for special recording applications
• LED OPERATION INDICATORS (RECORD/PLAY)
indicates Red when unit
is recording, Green when in playback mode
specifications
RECORDING MEDIA:
Flash Memory (Memory Stick)
SPEAKER:
29
⁄
32
" (23mm) dia.
INPUT:
External mic jack
OUTPUT:
Earphone mini jack
USB Port
Memory Stick slot
POWER REQUIREMENTS:
DC 3V with “AAA” x 2 battery
BATTERY LIFE:
Play: 12 hours (SP/LP mode)
Record: 10 hours (SP mode) 12 hours (LP mode)
DIMENSIONS (WHD):
1
3
⁄
8
" x 4
1
⁄
8
" x
23
⁄
32
" (34.4 x 106.3 x 18mm)
WEIGHT:
2
5
⁄
8
oz (75g) with battery/Memory Stick
SUPPLIED ACCESSORIES:
8MB Memory Stick Media Card, PC Download
software, “AAA” Battery x 2, Carrying case, Earphone, USB Cable
©2002 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved.
Sony, LPEC and Memory Stick are trademarks of Sony. Windows is a trademark of Microsoft
Corporation. Dragon Systems and Dragon Naturally Speaking are trademarks of ScanSoft, Inc.
Features and specifications are subject to change without notice. Non-metric weights and measures
are approximate.
