3-241-786-12 (1)

IC Recorder

ICD-MS515

Operating Instructions

2GB

For the customers in the United States

Owner’s Record

The model number is located at the rear panel and the serial number is located inside

the battery compartment. Record the serial number in the space provided below. Refer

to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. ICD-MS515 Serial No.

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this

manual could void your authority to operate this equipment.

For “Memory Stick”

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

If you have any questions about this product, you may call:

Sony Direct Response Center 1-(800)-222-7669

or write to:

Sony Direct Response Center 12451 Gateway Blvd. Fort Myerts, Florida 33913

Declaration of Conformity

Trade Name: SONY

Model No.: ICD-MS515

Responsible Party: Sony Electronics Inc.

Address: 680 Kinderkamack Road, Oradell NJ 07649 U.S.A.

Telephone No.: 201-930-6972

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.

The CE mark on the unit is valid only for products

marketed in the European Union.

3GB

Notice for users

may not be reproduced, translated or reduced to any machine readable form without

prior written approval from Sony Corporation.

IN NO EVENT SHALL SONY CORPORATION BE LIABLE FOR ANY INCIDENTAL,

CONSEQUENTIAL OR SPECIAL DAMAGES, WHETHER BASED ON TORT,

CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH

THIS MANUAL, THE SOFTWARE OR OTHER INFORMATION CONTAINED

HEREIN OR THE USE THEREOF.

Sony Corporation reserves the right to make any modification to this manual or the

information contained herein at any time without notice.

The software described herein may also be governed by the terms of a separate user

license agreement.

Trademarks

• “Memory Stick“ and are trademarks of Sony Corporation.

• “MagicGate Memory Stick“ and are trademarks of Sony Corporation.

• “LPEC” is the trademark of Sony Corporation.

• IBM and PC/AT are registered trademarks of International Business Machines

Corporation.

• Microsoft, Windows and Outlook are trademarks of Microsoft Corporation,

registered in the U.S.A. and other countries.

• Apple and Macintosh are trademarks of Apple Computer Inc., registered in the

U.S.A. and other countries.

• Pentium is a registered trademark of Intel Corporation.

• Dragon Systems, L&H, and NaturallySpeaking are registered trademarks of L&H in

the United States and/or other countries.

• All other trademarks and registered trademarks are trademarks or registered

trademarks of their respective holders. Furthermore, “™” and “®” are not

mentioned in each case in this manual.

The Memory Stick Voice Editor uses software modules as shown below:

Microsoft® DirectX® Media Runtime

Information

IN NO EVENT SHALL SELLER BE LIABLE FOR ANY DIRECT, INCIDENTAL OR

CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES

RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY

PRODUCT.

4GB

Table of Contents

Before You Begin

What is the Memory Stick IC recorder? ............................................................. 6

What is “Memory Stick“ ? .................................................................................... 7

Features ................................................................................................................... 9

Getting Started

Step 1: Installing the Batteries ........................................................................... 10

Step 2: Setting the Clock .................................................................................... 12

Step 3: Inserting a “Memory Stick“ into the IC Recorder ............................. 14

Basic Operations

Recording Messages ............................................................................................ 16

Other Operations ......................................................................................... 18

Playing Back Messages ....................................................................................... 21

Other Operations ......................................................................................... 22

Erasing Messages ................................................................................................ 25

Erasing Messages one by one .................................................................... 25

Erasing All Messages in a Folder .............................................................. 27

Various Ways of Playback

Adjusting the Playback Speed — DPC (Digital Pitch Control) .................... 28

Adding a Bookmark ............................................................................................ 29

Playing Back the Specified Section Repeatedly — A-B Repeat .................... 30

Editing Messages

Adding a Recording ............................................................................................ 31

Adding a Recording to a Previously Recorded Message ...................... 31

Adding an Overwrite Recording during Playback ................................ 32

Dividing a Message into Two/Combining Messages — Index Function ... 33

Dividing a Message by Adding an Index ................................................ 33

Combining Messages by Erasing the Index ............................................ 35

Adding / Deleting Folders ................................................................................ 37

Adding Folders ............................................................................................ 37

Deleting Folders .......................................................................................... 38

Moving Messages to a Different Folder ........................................................... 39

Adding Priority Mark(s)— Priority Mark Function ....................................... 40

Adding Priority Mark(s) in the Stop Mode ............................................. 40

Adding Priority Mark(s) during Playback .............................................. 41

5GB

Labeling Folders or Messages — Folder/Message/User Name .................. 42

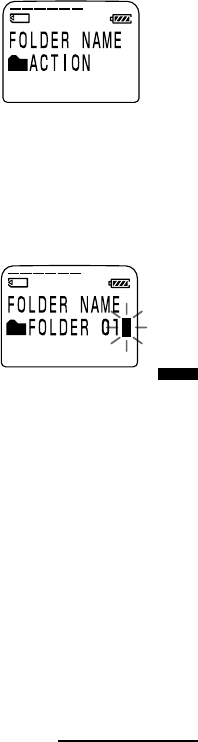

Labeling Folders .......................................................................................... 42

Labeling Messages ...................................................................................... 44

Setting the User Name ................................................................................ 45

Entering Characters .................................................................................... 46

Other Functions

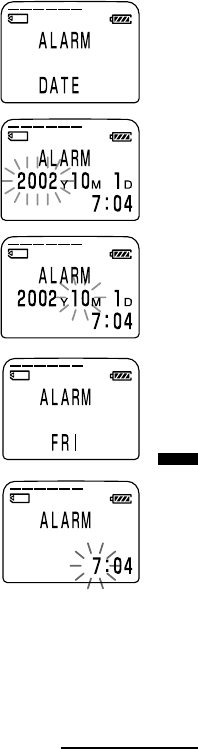

Playing Back a Message at a Desired Time with an Alarm ........................... 48

Preventing Accidental Operation — HOLD function .................................... 52

Selecting the Display Mode ............................................................................... 53

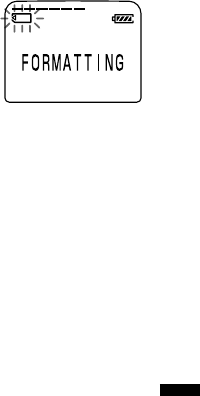

Formatting a “Memory Stick“ ........................................................................... 56

Changing the Settings — MENU ...................................................................... 58

Operating the Menu .................................................................................... 58

Menu Items .................................................................................................. 59

”Memory Stick Voice Editor“ Software Operations

Overview of the Software .................................................................................. 61

What You Can Do with the “Memory Stick Voice Editor“ Software ... 61

About the File Formats ............................................................................... 63

About the “Memory Stick” Folder Structures......................................... 65

System Requirements ................................................................................. 66

Installing the software ........................................................................................ 68

Transferring the “Memory Stick” data onto your computer ........................ 70

Connecting the IC Recorder to your Computer...................................... 70

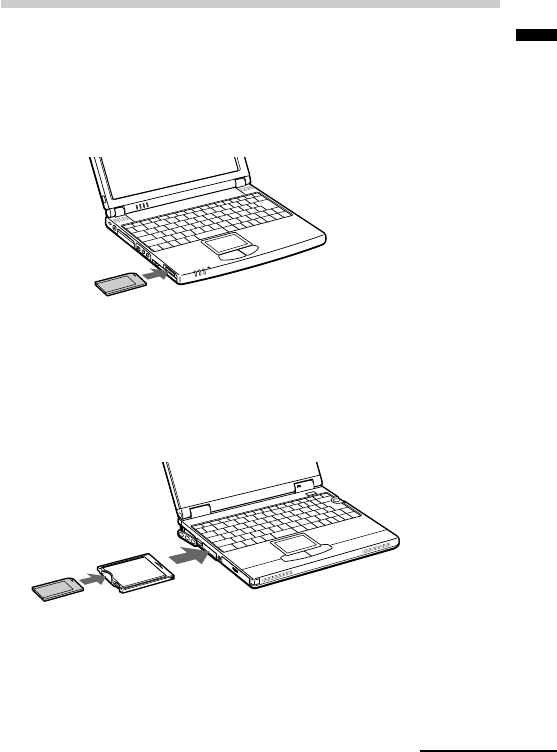

Inserting a “Memory Stick“ to your Computer ...................................... 71

Starting the software ........................................................................................... 73

Starting/Exiting the Software ................................................................... 73

Using Online Help Files of the Software ................................................. 75

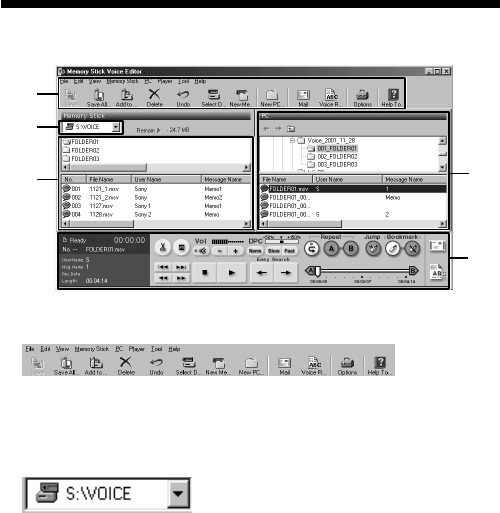

Names and Functions of the Main Window .................................................... 76

Additional Information

Precautions ........................................................................................................... 79

Troubleshooting ................................................................................................... 81

Error messages of the IC Recorder ............................................................ 86

System Limitations ...................................................................................... 88

Specifications ....................................................................................................... 90

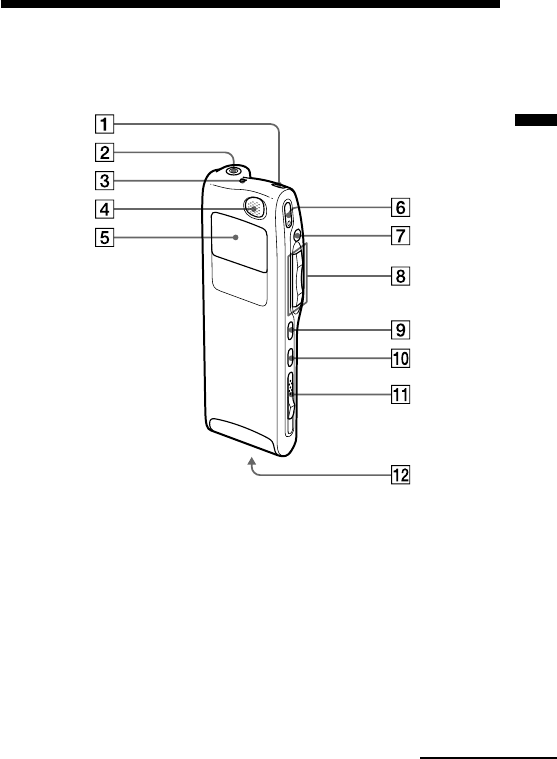

Index to Parts and Controls ............................................................................... 91

Index ...................................................................................................................... 94

Notes

• The illustrations in this manual may differ from the actual software.

• Explanations in this manual assume that you are familiar with basic

operations of Windows. For how to use your computer and operating system,

please refer to the respective manuals.

6GB

BBefore You Begin

What is the Memory Stick IC recorder?

The Memory Stick IC recorder enables you to record and play back oral

messages recorded on a “Memory Stick”.

z Recording

When a new message is recorded, it is automatically added after the last

recorded messages.

Unlike with tape recorders, you do not need to worry about recording

over previously recorded messages by mistake.

Since you do not need to search for the end of the last recording, you can

start recording quickly whenever you wish.

z Playback

Unlike with tape recorders, you do not need to rewind the tape. With this

IC recorder, you can quickly locate the message you want to play back.

Reviewing the current recording is also very easy.

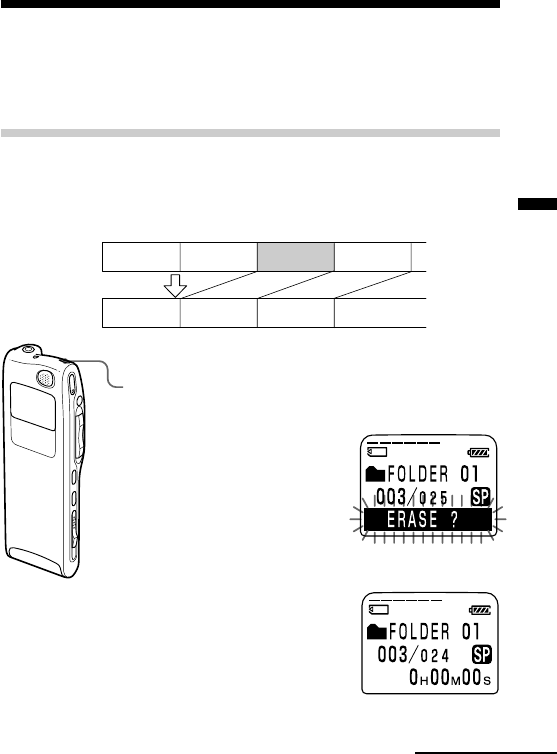

z Erasing

You can quickly erase unwanted messages with an easy operation. When a

message is erased, the next message automatically advances, leaving no

blank space.

Meet Mr. Brown at

2 p.m. tomorrow.

11:30, November 1 12:00, November 1 10:00, November 2

Don’t forget

to call Mary Make remittance

at ABC bank

9:00, November 4

Send a card to

Miss Smith

Message 1 Message 2 Message 3

Message 1 Message 2 Message 3 Message 4

Message 4

Before

Erase Message 3

After

Remaining messages

are renumbered.

Message 1 Message 2 Message 5

Message 4Message 1 Message 2 Message 3

Message 3

Blank space

7GB

What is “Memory Stick“ ?

z What is “Memory Stick“?

“Memory Stick“ is a new compact, portable and versatile IC recording

medium with a data capacity that exceeds a floppy disk. “Memory Stick“

is specially designed for exchanging and sharing digital data among

“Memory Stick“ compatible products. Because it is removable, “Memory

Stick“ can also used for external data storage.

One “Memory Stick“ can be used to save and use images recorded by

another unit as well as the voice messages using this unit.

The type of “Memory Stick“ you can use with this IC Recorder

You can also use other “Memory Stick“ instead of the supplied “Memory

Stick.“ The maximum recording time varies depending on the capacity of

the “Memory Stick“.

You can also use “MagicGate (MG) Memory Stick“ the same as “Memory

Stick“.

Note

“MagicGate“ is a copyright protection technology that uses an encryption

technology. This unit does not support the MagicGate standard, therefore,

recorded data using this unit is not subject to the protection of copyrights by

MagicGate.

z Maximum recording time of a “Memory Stick“*

Mode** 4MB 8MB 16MB 32MB 64MB 128MB

SP 30 min. 64 min. 130 min. 264 min. 532 min. 1,067 min.

LP 82 min. 171 min. 347 min. 705 min. 1,418 min. 2,846 min.

(min.: minutes)

* When using each “Memory Stick“ for use with ICD-MS515 only and by the

initial setting with three folders.

**The initial setting is SP mode.

The amount may change depending on use. For more information, see

page 88.

Before You Begin

8GB

z On file format

This unit compresses voice data in “Memory Stick“ voice format (MSV

LPEC format: extension .msv). Voice data is saved in a VOICE folder in the

“Memory Stick“ together with message list (MSF) files that control voice

data information (for example, the order of voice messages).

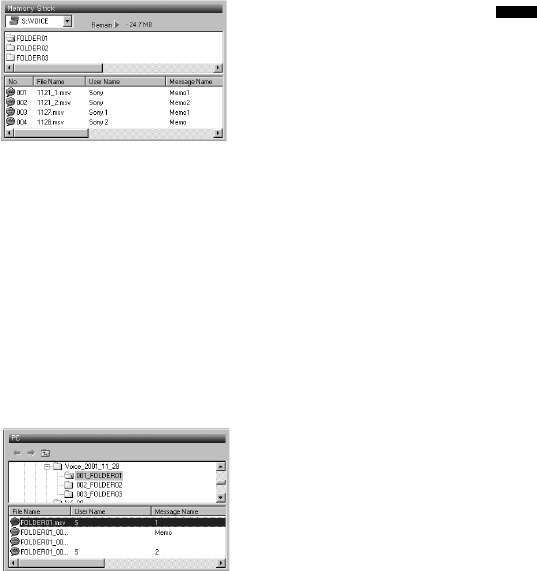

You can play back and edit voice messages recorded on a “Memory Stick“

on a computer using the supplied “Memory Stick Voice Editor 2“ software.

See page 63 for details.

Note

When you connect the “Memory Stick“ to your computer, you can check the

contents using Windows Explorer. But use the supplied “Memory Stick Voice

Editor 2“ software to play back and edit messages.

z Notes on using a “Memory Stick“

• Recorded data may be lost or damaged in the following situations:

–If you remove the "Memory Stick", turn the power off, or detach the

battery for replacement when accessing.

– If you use the "Memory Stick" near static electricity or electrical noise.

•We recommend backing up important data.

z About formatting of a “Memory Stick“

The supplied “Memory Stick“ is already formatted in FAT format. Use

“Memory Stick“ compatible devices to format a “Memory Stick“. To

format using this unit, see page 56.

Note

If you format the “Memory Stick“ using the computer, further operation with

this unit is not guaranteed.

Backup recommendations

To avoid potential risk of data loss caused by accidental operation, damage

of the “Memory Stick“, or malfunction of the IC recorder, we recommend

that you save a backup copy of your recorded messages on a tape recorder

or to a computer, etc.

You can transfer and save the messages in the “Memory Stick“ to your

computer using the supplied “Memory Stick Voice Editor“ software.

9GB

Before You Begin

Features

•Long recording time capability (page 7)

• Additional folders can be created to organize messages (page 37)

•Labeling folders and messages (page 42)

• Various record, playback, and edit functions

Cue/Review function (page 23)

You can quickly search for the desired parts during playback using the cue or

review function.

Easy search function (page 24)

You can quickly search for the point (10 seconds ahead or 3 seconds back) and

start playback.

Overwrite and additional recording function (page 31)

You can overwrite after the desired point on a recorded message or add a new

recording to a previously recorded message.

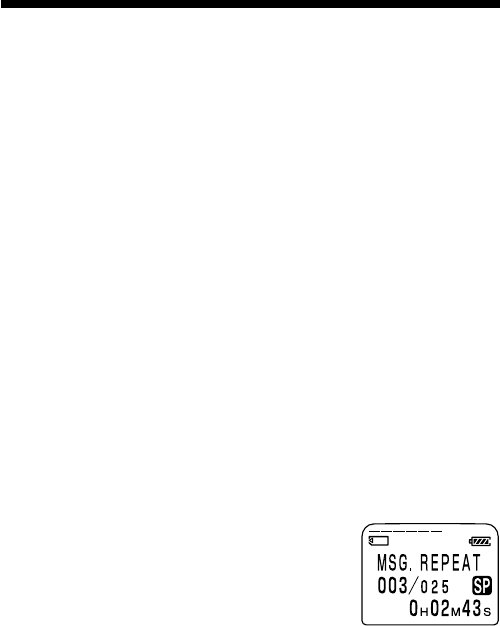

Repeat play function (pages 24, 30)

This unit can play back one message or the selected section repeatedly.

Playback speed control (DPC: Digital Pitch Control) (page 28)

You can play back messages rapidly or slowly in natural digitally-processed

tone.

Bookmark function (page 29)

You can add a bookmark in a message so that you can easily find the point

and start playback.

Alarm function (page 48)

You can start playing back a desired message with an alarm on a desired date

and time.

Index function (page 33)

You can divide a message into two and combine messages.

Priority Mark function (page 40)

You can add priority marks. Messages can be sorted in order of the number of

priority marks.

Advanced VOR function (page 59)

•The supplied “Memory Stick Voice Editor“ software (page 61)

You can transfer the messages recorded in “Memory Stick“ to the computer

with the supplied “Memory Stick Voice Editor“ software*.

* For Windows® XP Home Edition/XP Professional/2000 Professional/Me/98

10GB

BGetting Started

Step 1: Installing the Batteries

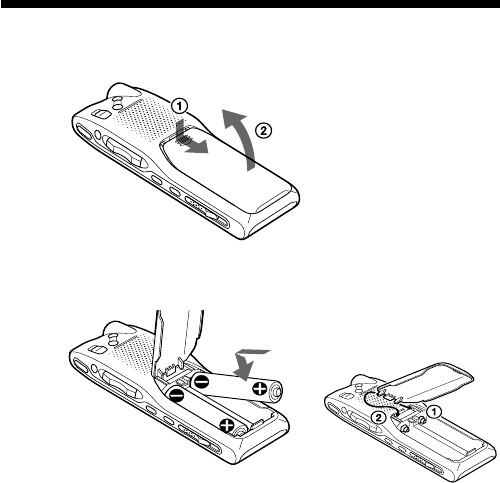

1Slide and lift the battery compartment lid.

2Insert two LR03 (size AAA) alkaline batteries with correct

polarity, and close the lid.

If the battery compartment lid is

accidentally detached, attach it

as illustrated.

Clock setting display appears when you insert batteries for the first time,

or when you insert batteries after the unit has been without batteries for a

certain period of time. Please refer to Steps 2 to 4 in “Step 2: Setting the

Clock” on pages 12 and 13 to set the date and time.

11GB

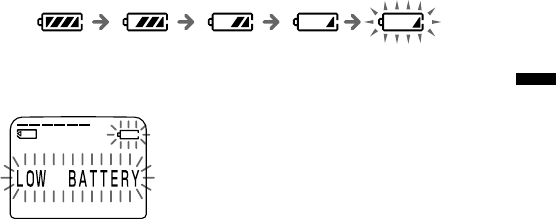

Replacing the batteries

The battery indicator on the display window shows the battery condition.

When “LOW BATTERY” is displayed, replace the batteries with new ones.

Battery life*

With continuous use, approx. 10 hours (SP)/12 hours (LP) of recording or

approx. 12 hours (SP/LP) of playback is possible.

* Using Sony alkaline batteries LR03 (SG)

* When playing back through the internal speaker with VOL control at around 4

The battery life may shorten depending on the operation of the unit.

Notes

•Do not use manganese batteries for this unit.

•When you replace the batteries, insert the new ones within 3 minutes after you

removed the exhausted ones. Otherwise, the display may show the clock

setting display or incorrect date and time when you re-insert the batteries. In

this case, set the date and time again.

The recorded messages and alarm setting, however, will remain.

•When replacing the batteries, be sure to replace both batteries with new ones.

•Do not charge dry batteries.

•When you are not going to use the unit for a long time, remove the batteries to

prevent damage from battery leakage and corrosion.

Getting Started

New

batteries

Weak

batteries

Batteries are exhausted.

The unit will stop operation.

12GB

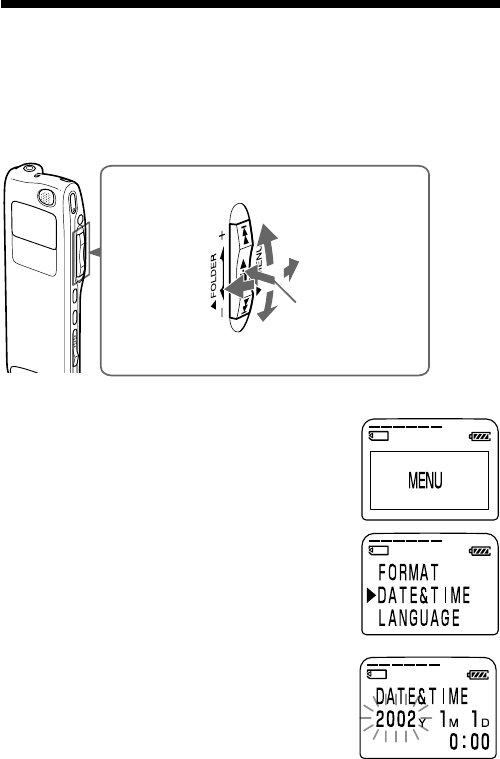

Jog lever

Press the

center

Press up

Press down

Step 2: Setting the Clock

You need to set the clock to use the alarm function or record the date and

time.

Clock setting display appears when you insert battery for the first time, or

when you insert battery after the unit has been without battery for a

certain period of time. In this case, proceed from step 4.

1Turn the jog lever toward MENU.

The menu mode will be displayed in the

display window.

2Press the jog lever up (>) four times

to select “DATE&TIME”.

3Press the jog lever (x•B).

The date and time setting window is

displayed. The year digits will flash.

Turn

toward

Turn

toward

FOLDER

13GB

Getting Started

4Set the date and time.

1Press the jog lever up or down (>/

.)to select the digits of the year.

2Press the jog lever (x•B).

The month digits will flash.

3Set the month, day, and the time in

sequence, then press the jog lever

(x•B).

The menu mode will be displayed again.

5Turn the jog lever toward MENU.

The window will return to normal display.

To display the current time

Press x STOP button during the sleep display mode (page 53).

The current time will be displayed for three seconds.

14GB

Step 3: Inserting a “Memory Stick“ into

the IC Recorder

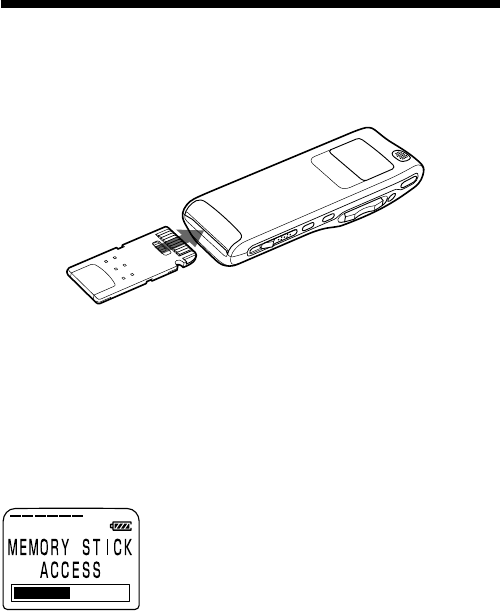

Insert a “Memory Stick“ into the Memory Stick slot with the terminal side

facing up as shown below.

Notes

•Make sure to insert the “Memory Stick“ firmly.

•Do not insert a “Memory Stick“ in a different direction. It may cause

malfunction of the unit.

After inserting a “Memory Stick“

The following display will appear. If you insert a “Memory Stick“ for the

first time after purchasing or one with no data, three folders (FOLDER 01,

FOLDER 02, FOLDER 03) will be made in the “Memory Stick“

automatically.

Note

The unit is accessing while “ACCESS“ appears in the display window or the

OPR indicator flashes in orange. While accessing, do not remove the “Memory

Stick“, batteries, or the AC adaptor. Doing so may damage the data.

15GB

About write-protect of a “Memory Stick“

You cannot record or erase data when the write-protect switch on the

“Memory Stick” is set to “LOCK“.

Removing the “Memory Stick“

Slide the EJECT lever in the direction of the arrow and remove the

“Memory Stick“ from the slot as shown below.

Write-protect switch

EJECT lever

Getting Started

16GB

e.g. Message 1 Message 2 Blank space

Newly recorded message

Folder name

(page 42)

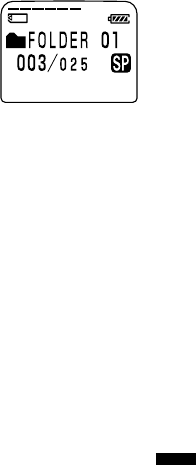

1Turn the jog lever toward FOLDER.

The folder is selected.

2Press the jog lever up or down (>/

.) to display the folder in which

you wish to record messages.

BBasic Operations

Recording Messages

Since a newly recorded message is automatically added behind the last

recorded message, you can press zREC/REC PAUSE to start recording

quickly without searching for the end of the last recording.

Notes

• The maximum recording time and the number of messages you can make

varies depending on the conditions or capacity of the “Memory Stick“ (page

7).

• Before making a long recording, be sure to insert new batteries and check the

battery indicator (page 11).

Select the folder.

3Press the jog lever (x•B) again to select the folder.

To add a new folder, see page 37.

Basic Operations

17GB

Start recording.

21Press zREC/REC PAUSE button.

You do not need to keep pressing

zREC/REC PAUSE while recording.

2Speak into the built-in microphone.

Note on recording

Noise may be recorded if an object, such as your

finger, etc., accidentally rubs or scratches the

unit during recording.

OPR

indicator

(lights in

red during

recording) Remaining memory indication

Press xx

xSTOP.

The unit stops at the beginning of the current recording.

If you do not change the folder after you stop recording,

the next time you record you will record in the same

folder.

Note

While the OPR indicator flashes or lights in orange or

red, do not remove the “Memory Stick“, or batteries.

Doing so may damage the data.

Recording

mode

indication

Counter display

(The display selected with the DISPLAY in

the menu (page 53) appears.)

Current

message

number

built-in microphone

Microphone

sensitivity

indication

Stop recording.

Continued

18GB

Recording Messages (continued)

Other Operations

To pause recording

To Do this

pause recording* Press zREC/REC PAUSE.

During recording pause, the OPR indicator

flashes in red and “PAUSE”flashes in the

display window.

release pause and Press zREC/REC PAUSE again.

resume recording Recording resumes from that point.

(To stop recording after pausing

recording, press xSTOP.)

* 1 hour after you pause recording, recording pause is automatically released

and the unit goes into the stop mode.

To review the current recording instantly

Press the jog lever (x•B) during recording. Recording stops and playback

starts from the beginning of the message just recorded.

To review during recording

If you press the jog lever down (.) during recording, recording stops

and you can search backwards while listening to fast playback sound.

After you release the jog lever, playback starts from that point.

You can also do this operation during recording pause.

However, you cannot hear the sound during review in this case.

Adding a recording

To add a recording to a previously recorded message or to add an

overwrite recording during playback, see pages 31 and 32.

Basic Operations

19GB

Starting Recording Automatically in Response to the Sound

— Advanced VOR function

When the VOR (voice operated recording) function is set to on in the

menu, recording starts when the recorder detects sound and stops when

no sound is heard.

When you record messages with VOR set to ON, the recording pauses

when no sound is detected, and “VOR REC PAUSE” appears in the

display window. You can change the VOR setting with the menu during

recording (page 59).

Note

VOR function is affected by the sound around you. Set the MIC SENS to either

H or L according to the recording conditions. If recording is not satisfactory

after you have changed the microphone sensitivity, or for important recording,

set the VOR to OFF.

To select the recording mode (SP/LP)

You can select the recording mode by setting MODE in the menu (page

60). LP mode is suitable for long time recording as a meeting. But if you

wish to record for better tone quality, then SP mode is suitable for this

purpose. (Usually, SP mode is suitable for recording.)

To select the microphone sensitivity

You can select the microphone sensitivity by setting the MIC SENS in the

menu to H (high) or L (low) according the recording conditions (page 59).

You can change the MIC SENS setting with the menu during recording.

To monitor the recording

Connect the supplied earphone to the EAR jack. You can adjust the volume

with VOL +/– , but the recording level is fixed.

Note

If you turn up the volume excessively or place the earphone near the

microphone while monitoring recording, the microphone may pick up the

sound from the earphone, causing acoustic feedback (howling sound).

Continued

20GB

Recording Messages (continued)

Recording with an external microphone or from other

equipment

Connect a plug-in-power type microphone or other equipment to the MIC

(PLUG IN POWER) jack.

When you connect an external microphone, the built-in microphone is

automatically cut off. When a plug-in-power type microphone is

connected, power is automatically supplied to the microphone from the IC

recorder.

Remaining memory indication

During recording, the remaining memory indicator decreases one by one.

You can check the remaining recording time by changing to the remaining

time display mode (page 53).

If the “Memory Stick” contains files other than sound data, the amount of

those files is subtracted from the remaining memory amount. To check the

remaining recording time, use the menu to switch the display mode to the

remaining time. You can switch the display mode during recording.

When the remaining recording time reaches 5 minutes, the remaining

memory indication flashes. When the remaining time reaches 1 minute, the

remaining time indication will flash in the display window regardless of

the display mode (page 53). When the memory is full, recording

automatically stops and “NO MEMORY SPACE” will flash in the display

window with an alarm sound. To continue recording, first erase some of

the messages (page 25).

Remaining memory

indication

Remaining time

indication

Basic Operations

21GB

Playing Back Messages

When playing back a previously recorded message, start from Step 1.

When playing back a message you have just finished recording, start from

Step 3.

Select the folder.

1Turn the jog lever toward FOLDER.

The folder is selected.

2Press the jog lever up or down (>/

.) to display the folder containing

the message you want to play back.

3Press the jog lever (x•B) again to

select the folder.

Folder name

(page 42)

Select the message number.

Selected message number

The number of

message in a folder

Press the jog lever up or down (>/.) to display

the desired message number.

Press up (>): for next message number.

Press down (.): for previous message number.

Counter display (The display

selected with the DISPLAY

in the menu (page 53) appears.)

Continued

22GB

Playing Back Messages (continued)

Start playback.

OPR indicator

(lights in green during playback)

EAR jack

1Press the jog lever (x•B).

2Adjust the volume with VOL +/– .

After playing back one message, the unit stops at the beginning of the next

message.

When the last message in a folder has been played back, the unit stops at

the beginning of the last message.

For private listening

Connect an earphone or headphones (not supplied) to the EAR jack. The built-in

speaker will be automatically disconnected. If you plug in headphones, you will

get monaural output from both left and right channels.

Other Operations

To stop playback

To Do this

stop at the beginning of Press xSTOP.

the current message

stop at the current position Press the jog lever (x•B).

(Playback Pause function)* To resume playback from that point,

press the jog lever (x•B) again.

* After an hour, the unit goes into the stop mode at the current position.

Basic Operations

23GB

Other operations

To Do this

go back to the beginning Press the jog lever down (.)

of the current message** once.***

go back to previous Press the jog lever down (.)

messages repeatedly.*** (During stop mode,

keep the button pressed to go back

the messages continuously.)

skip to the next message** Press the jog lever up (>) once.***

skip to the succeeding messages Press the jog lever up (>)

repeatedly.***

** If you have set a bookmark on the message, the unit stops at the bookmark.

*** These operations are for when EASY-S is set to OFF. For operations when

EASY-S is set to ON, see page 59.

Playing back a message rapidly or slowly — DPC (Digital

Pitch Control)

You can adjust the playback speed with the DPC in the menu (page 28).

When you set the playback speed faster or slower of the normal speed,

“FAST PLAY” or “SLOW PLAY” flashes three times. You can change the

setting during playback.

Playing back all messages in a folder continuously

— Continuous Play

You can select the continuous play mode with the CONT. in the menu

(page 59). When you set CONT. to ON, you can play back all messages in

a folder continuously. You can change the setting during playback.

Searching forward/backward during playback (Cue/Review)

•To search forward: Keep pressing the jog lever up (>) during

playback and release it at the point you wish to resume playback.

•To search backward: Keep pressing the jog lever down (.) during

playback and release it at the point you wish to resume playback.

The unit searches at slow speed (unit of 4 seconds) with playback sound. It

is useful to check one word forward or behind. Then, if you keep pressing

the jog lever up or down, the unit starts to search at higher speed. During

cue/review, the counter will be displayed, regardless of the display mode

setting (page 53).

You can cue/review during playback pause. Press the jog lever up or

down and release it at the point you want to resume playback pause.

Continued

24GB

Playing Back Messages (continued)

1 Tip

When fast playback is done to the end of the last message, “MSG. END” flashes

for 3 seconds and the OPR indicator lights up in green. (You cannot hear the

playback sound.)

If you keep pressing the jog lever down (.) while “MSG.END” is flashing,

the messages are played back rapidly, and normal playback will start at the

point you release the button. When “MSG. END” stops flashing and the OPR

indicator goes off, the unit will stop at the beginning of the last message.

If the last message is long and you wish to start playback at a later part of the

message, keep pressing the jog lever up (>) to go to the end of the message

and then press the jog lever down (.) while “MSG.END” is flashing to go

back to the desired point .

(For messages other than the last one, go to the beginning of the next message

and play backward to the desired point.)

Locating quickly the point you wish to start playback (Easy

Search)

When EASY-S is set to ON (page 59) in the menu, you can quickly locate

the point you wish to start playback by pressing the jog lever up or down

(>/.) repeatedly during playback or playback pause.

You can go back approx. 3 seconds by pressing the jog lever down (.)

once, or advance approx. 10 seconds by pressing the jog lever up (>)

once. This function is useful when locating a desired point in a long

recording.

Playing back a message repeatedly — Repeat Play

During playback, press the jog lever (x•B) for

more than one second.

“MSG.REPEAT“ will be displayed and the selected

message will be played back repeatedly.

To resume normal playback, press the jog lever

(x•B) again. To stop playback, press xSTOP.

Playing back the specified section repeatedly — A-B Repeat

You can specify the start (A) and end (B) points and play back the specified

section repeatedly (page 30).

Basic Operations

25GB

Erasing Messages

You can erase the recorded messages one by one or all messages in a folder

at a time.

Note that once a recording has been erased, you cannot retrieve it.

Erasing Messages one by one

When a message is erased, the remaining messages will advance and

renumbered so that there will be no space between messages.

Erase Message 3

Message 1 Message 2 Message 3 Message 4

Before erasing

After erasing

Remaining messages are renumbered.

Message 1 Message 4 Message 5Message 2 Message 3

1 Press the ERASE button while playing back the

message you want to erase or press the ERASE

button for more than 1 second during stop mode.

A beep will sound and the

message number and

“ERASE?” will flash while the

first and last 5 seconds of the

message are played back 10

times.

2 Press the ERASE button while the message is being

played back.

The message is erased and the

remaining messages will be

renumbered. (For example, if you

erase Message 3, Message 4 will

be renumbered as Message 3.

When erasing is completed, the

unit will stop at the beginning of

the following message.)

Continued

26GB

Erasing Messages (continued)

To cancel erasing

Press xSTOP before step 2.

To erase other messages

Repeat steps 1 and 2.

To erase a message partially

First divide the message by adding an index (see page 33) and then follow

the steps on page 25 to erase the message.

Note

An error message will be displayed in the display window when you cannot

erase a message. For more information, see “Troubleshooting“ (page 81).

Basic Operations

27GB

Erasing All Messages in a Folder

You can erase all recorded messages in a folder, but the folder itself will not be

deleted. If you want to delete a folder, see page 38.

ERASE

xSTOP

1Select the folder containing the messages you

want to erase.

For more information see Step 1 of

“Recording Messages“ (page 16).

2While pressing xSTOP, press ERASE for more

than 1 second.

“ERASE ALL?” will flash for 10 seconds.

3While the display is flashing, press ERASE.

To cancel erasing

Press xSTOP before step 3.

Notes

• While “ERASE ALL“ is displayed in the display

window or the OPR indicator flashes in orange, do not

remove the “Memory Stick“, batteries, or the AC

adaptor. This may damage the data.

• An error message will appear in the display window

when you cannot erase all messages in a folder. For

more information, see “Troubleshooting“ (page 81).

28GB

BVarious Ways of Playback

Adjusting the Playback Speed — DPC

(Digital Pitch Control)

You can adjust the speed of the playback between twice the normal speed

(+100%) and half the normal speed (–50%). The message is played back in

natural tone thanks to the digital processing function. You can change the

playback speed during playback.

Jog lever (>/./x•B/

MENU)

1Turn the jog lever toward MENU to display the menu mode.

2Press the jog lever up or down (>/

.) to select “DPC”, then press the

jog lever (x•B).

The DPC setting mode will be displayed.

3Set the playback speed.

1Press the jog lever up or down (>/.)

to select “ON”, and then press the jog lever

(x•B).

2Press the jog lever up or down (>/.)

to set the playback speed:

• Slow play (down to –50% by 5%): Press

down (.).

• Fast play (up to +100% by 10%): Press up

(>).

3Press the jog lever (x•B).

4Press the jog lever toward MENU to exit the menu mode.

To resume normal playback

Select “OFF” and press the job lever (x•B) in step 2.

Various Ways of Playback

29GB

Adding a Bookmark

You can add a bookmark at a point in a message, so that you can access the

point quickly by pressing the jog lever up or down (>/.) and start

playback.

During playback or stop, press INDEX/BOOKMARK

for more than 1 second.

A bookmark is added and the bookmark

indicator ( ) flashes 3 times.

To start playback at the bookmark

Press the jog lever up or down (>/.) during stop so that the

bookmark indicator flashes 3 times. Then press the jog lever (x•B).

To delete the bookmark

1In stop mode, press the jog lever up or down (>/.) to display

the number of the message with the bookmark you wish to delete.

2While pressing INDEX/BOOKMARK, press ERASE for more than 1

second.

3Press ERASE while the bookmark indicator and “ERASE MARK?” are

flashing.

Notes on adding/erasing index

• You can add only one bookmark in each message.

• If you add a bookmark, a previously added bookmark is deleted

automatically.

xSTOP

INDEX/BOOKMARK

ERASE

Jog lever (>/./

x•B)

30GB

Playing Back the Specified Section

Repeatedly — A-B Repeat

While playing back a message, you can set the start (A) and end (B) points

for a section you wish to play repeatedly.

1During playback, press A-B REPEAT/

PRIORITY briefly.

The starting point (A) of the section you

wish to play repeatedly is set. “A-B B?”

flashes.

2During playback, press A-B REPEAT/

PRIORITY briefly.

The finishing point (B) of the section is set.

“A-B” is displayed and the specified section

is played back repeatedly.

To resume normal playback

Press the jog lever (x•B).

To stop A-B Repeat playback

Press xSTOP.

Notes

• You cannot set A-B Repeat for a section that overlaps two or more messages.

• If you do not set the finishing point (B), the finishing point is automatically set

at the end (or the beginning) of the message.

A-B REPEAT/PRIORITY

Jog lever (>/./x•B)

Editing Messages

31GB

BEditing Messages

Adding a Recording

Adding a Recording to a Previously Recorded Message

You can add a recording to the message being played back.

The added recording will be placed after the current message and counted

as a part of the message.

1During playback, press z REC/REC

PAUSE for more than 1 second.

The “ADD REC” flashes three times on the

display window. The OPR indicator will

turn red.

The new recording will be added at the end

of the current message.

2Press zREC/REC PAUSE or xSTOP to stop the recording.

During playback

of Message 3

After adding

a recording

Message 3 Message 4

Meeting at 2 o’clock

on December 1.

at Conference

room A

Added recording

Message 3 Message 4

xSTOP

zREC/REC PAUSE

Built-in microphone

OPR indicator

Continued

32GB

Adding a Recording (continued)

Adding an Overwrite Recording during Playback

You can add an overwrite recording after the selected point in a recorded

message. The part of the message after the selected point is deleted.

1During playback, press zREC/REC

PAUSE briefly.

“OVERWRITE?” flashes on the display

window and the OPR indicator flashes in

red.

2Press zREC/REC PAUSE to start recording.

“REC” is displayed and the OPR indicator turns red.

3Press xSTOP to stop the recording.

Notes

•The added message will be recorded in the same recording mode (SP or LP;

see page 60) as the original message, regardless of the current recording mode

setting.

•You cannot overwrite if the remaining memory of the “Memory Stick“ is not

long enough. For more information, see “Troubleshooting“ (page 81).

The deleted part of

Message 2

Added overwrite recording in Message 2

Message 3

Message 2

Message 3

Message 4

The starting point of an overwrite recording

Message 2

Editing Messages

33GB

Dividing a Message into Two/

Combining Messages — Index Function

You can divide a message by adding an index, or combine messages by

erasing the index.

While recording/playing back messages, you can add an index (see

below). In stop mode, you can erase the index (see page 35).

Dividing a Message by Adding an Index

You can add an index to a message during recording or playback.

By dividing a message, you can easily find the point you want to play back

when you make a long recording such as a meeting.

When you add an index, the message numbers will increase as follows.

xSTOP

INDEX/BOOKMARK

ERASE

Before adding

an index

After adding

an index

Jog lever (>/.)

The message

numbers

increase.

The first item on

the agenda is...

We will now

proceed to the

next subject.

An index is added.

Message 3Message 2Message 1

Message 1 Message 2 Message 3 Message 4

Continued

34GB

Message 1 Message 3

Message 2

An index is added.

Recording continues.

Dividing a Message into Two/Combining

Messages — Index Function (continued)

To mark an index during recording

While recording a message, press INDEX/

BOOKMARK at the point you want to divide.

The new message number is added at the point

you pressed INDEX/BOOKMARK button, and

“ADD INDEX“ flashes three times. The message

will be divided in two messages; however, the

messages will be recorded without a break.

1 Tip

You can add an index during recording pause (page 18).

To add an index during playback

While playing back a message, press INDEX/

BOOKMARK at the point you want to divide.

The message is divided in two and the new

message number flashes three times.

An index mark is added and the following index

numbers will increase by one.

To play the message you marked with an index

Press the jog lever up or down (>/.) to display the message number

as the divided messages each have message numbers.

To play the divided messages continuously

Select “ON” for “CONT.” in the menu as described in “Changing the

Settings” on page 59.

Editing Messages

35GB

Notes

• You need a certain amount of space in the “Memory Stick“ to add an index.

For more information, see “System Limitations“ on page 88.

• You cannot add an index when “INDEX FULL“ appears in the display

window. Erase some messages before adding an index. For more information,

see “System Limitations“ on page 88.

• The recorded date and time of the latter part of the divided message by

adding an index, is the same as that (the starting date and time of recording)

of the divided message.

• If you add an index to a labeled message that was divided, the other part of the

divided message will have the same message name.

• If you add an index to a message with priority mark(s), priority mark(s) will

be added to both parts of the divided message.

•If you add an index to the point the bookmark is specified, the bookmark is

erased.

Combining Messages by Erasing the Index

You can combine two messages into one by erasing the index.

In stop mode, follow the steps below:

1Press the jog lever up or down (>/.) to display the

number of the second of the two messages you want to

combine.

Message 1 Message 2 Message 3 Message 4

Message 1 Message 2 Message 3 The message numbers

decrease.

An index is erased.

Continued

36GB

Dividing a Message into Two/Combining

Messages — Index Function (continued)

2While pressing INDEX/BOOKMARK,

press ERASE for more than 1 second.

“ERASE INDEX?” will flash for 10 seconds.

3Press ERASE while the display is flashing.

The two messages are combined into one and the messages will be

renumbered as in the illustration above.

To cancel erasing

Press xSTOP before step 3.

Notes

•After combining messages by erasing an index, the latter message’s alarm

setting, priority mark(s) and bookmark will be deleted.

•If a bookmark has been added to the message, the above steps first delete the

bookmark (page 29). Repeat the steps to erase the index.

•Due to the recording system of an IC recorder, you may not be able to add or

delete an index in some cases (pages 87 and 88).

•Depending on the file format of the message, you may not be able to add or

delete an index (pages 87 and 88).

Editing Messages

37GB

Adding / Deleting Folders

By default setting, there are three folders: “FOLDER 01“, “FOLDER 02“,

and “FOLDER 03“. You can add folders as you like. You can also delete

unnecessary folders.

Note

The maximum number of folders you can add varies depending on the capacity

of a “Memory Stick“ or using conditions. “FOLDER FULL“ is displayed in the

display window when you cannot add any folder because of the system

limitations of the IC recorder (page 88).

Adding Folders

1Turn the jog lever toward MENU.

The menu mode will be displayed.

2Press the jog lever up or down (>/.) to select “NEW

FOLDER”, and then press the jog lever (x•B).

The new folder creation window will be displayed.

3Press the jog lever up or down (>/

.) to select “YES”, and then press

the jog lever (x•B).

“NEW FOLDER” will flash three times on

the display and a folder will be added.

xSTOP

ERASE

Jog lever (>/./MENU)

Continued

38GB

Adding / Deleting Folders (continued)

About added folder names

The new folder is labeled automatically with double figures or letter like

“FOLDER 04“ or “FOLDER AB“. If there is a missing number or letter

among the folder names, the new one is labeled using the missing number

or letters automatically.

You can change the folder name as you like (page 42).

Deleting Folders

You can only delete a folder that has no recorded messages.

1Select the folder you want to delete.

For information on selecting a folder, see step 1 of "Recording

Messages" on page 16.

Note

You cannot delete a folder that has some recorded messages. First, erase all

messages in the folder (see page 27) or move them (see the next page).

2Press ERASE for more than 1 second

while pressing xSTOP.

“ERASE FOLDER?” will flash for 10 seconds

on the display.

3Press ERASE while the display is flashing.

The folder will be deleted.

To cancel deleting

Press xSTOP before step 3.

Notes

• You cannot delete the last folder left in a “Memory Stick“.

• After deleting a folder, the name of other folders are not changed. If “FOLDER

03” is erased, the name of “FOLDER 04” will remain the same.

Editing Messages

39GB

Moving Messages to a Different Folder

You can move the recorded messages to another folder.

Example: Moving Message 3 in Folder A to Folder C

1Play back the message you want to move.

2Turn the jog lever toward FOLDER.

The first and last 5 seconds of the message

will be played back 10 times, while “MOVE

MSG.” is displayed and flashes and the

destination folder with a black background.

3Press the jog lever up or down (>/

.) to select the folder you want to

move the message into, and then press

the jog lever (x•B).

The message is moved in the destination

folder. Messages are sorted in order of the

recorded date and time or the number of the

priority marks in the folder.

To cancel moving the message(s)

Press xSTOP before step 3.

Note

The move function does not duplicate a message in another folder. When you

move a message to another folder, the one in the previous folder will be deleted.

xSTOP

Jog lever (FOLDER/>/

./x•B)

The destination

folder

The folder with the

message you want to

move

40GB

Adding Priority Mark(s)

— Priority Mark Function

Usually the recorded messages are lined up in the order of recording.

By adding priority marks (v) to important messages, you can renumber

the messages in the order of their priority. There are four levels, “vvv”

(the most important), “vv”, “v”, and no priority mark. You can add

priority marks both in the stop mode and in playback mode.

Adding Priority Mark(s) in the Stop Mode

1Select the message you want to mark.

2Press A-B REPEAT/PRIORITY for more

than 1 second.

“v” and “PRIORITY” will flash on the

display window.

3Press A-B REPEAT/PRIORITY repeatedly to select the number

of priority mark(s) (v) while “PRIORITY“ is flashing.

The setting is finished when the priority mark(s) (v) light(s) steadily in

the display window and the messages are renumbered.

xSTOP

A-B REPEAT/PRIORITY Jog lever (FOLDER/>/

./x•B)

Editing Messages

41GB

Adding Priority Mark(s) during Playback

1Press A-B REPEAT/PRIORITY button for

more than 1 second during playback of

the message you want to mark.

“v” and “PRIORITY” will flash on the

display window while the first and last 5

seconds of the message is played back 10

times.

2Press A-B REPEAT/PRIORITY repeatedly or press the jog lever

up or down (>/.) to select the number of priority

mark(s) (v).

3Press the jog lever (x•B) to fix the setting.

The setting is finished and the messages will be renumbered.

Messages with priority mark(s)

Messages are sorted in order of the number of priority mark(s) (v) in a

folder. Messages without a priority mark are moved behind the messages

with priority mark(s).

1 Tip

If there are over 2 messages with the same number of priority marks in a folder,

these messages are sorted by the recorded date and time (The oldest one comes

first).

e.g. When there are 3 messages in a folder

Note

You can also add priority mark(s) using the supplied “Memory Stick Voice

Editor“ software. But messages are not sorted in order of the number of the

priority marks unless you sorted by the number of priority marks using the

software.

Message 1 Message 2 Message 3

42GB

Labeling Folders or Messages

— Folder/Message/User Name

You can label folders, messages, or the user name of the messages

yourself.

1 Tip

You can also label folder or messages using the supplied “Memory Stick Voice

Editor“ software. For more information, see online help.

Labeling Folders

Folders have been labeled automatically like "FOLDER 03", but you can

label folders as you like by using template names or creating on your own.

1Turn the jog lever toward MENU.

The menu mode will be displayed.

2Press the jog lever up or down (>/

.) to select “FOLDER NAME“, and

then press the jog lever (x•B).

The folder name input window will be

displayed.

3Press the jog lever up or down (>/

.) to select “TEMPLATES“ or

“ALPHABET“, and press the jog lever

(x•B).

xSTOP

Jog lever (FOLDER/>/

./x•B)

Editing Messages

43GB

4Set the folder name.

To select a folder name from templates:

Press the jog lever up or down (>/.) to

select a template name and press the jog

lever (x•B) to set the name.

Registered template names

ACTION, SCHEDULE, MEETING, OFFICE, HOME, MEMO,

REPORT, SPEECH, INTERVIEW, TRAVEL, PERSONAL, PLACE,

SHOP LIST, CLASS, MESSAGE, EXPENSE

1 Longer folder names

You can change the folder name selected from the templates later by the

method to enter characters.

To enter characters:

You can enter up to 44 characters to label a

folder.

The cursor flashes after the last character of

the current folder name. You can add after

the current name or change it.

To enter and replace characters, see page 46.

5Press the jog lever (x•B) for more than one second to fix the

name.

6Turn the jog lever toward MENU to exit the menu mode.

The window will return to normal display.

1 Longer folder names

The display window can display up to 10 characters only.

If the name is more than 10 characters, it can be read by scrolling in the display

window when the folder name is selected (see step 1 on page 16 or 21).

The name cannot be scrolled in other display windows.

1 To cancel labeling

Press xSTOP.

Continued

44GB

Labeling Folders or Messages — Folder/Message/

User Name (continued)

Labeling Messages

Messages are not labeled automatically, but you can label messages

yourself.

1Turn the jog lever toward MENU.

The menu mode window will be displayed.

2Press the jog lever up or down (>/

.) to select “MSG. NAME“, and then

press the jog lever (x•B).

The message name input window will be

displayed.

3Enter characters.

You can enter up to 254 characters to label a

message.

To enter and replace characters, see page 46.

4Press the jog lever (x•B) for more than

one second to fix the name.

5Turn the jog lever toward MENU to

exit the menu mode.

The window will return to normal display.

1 Longer message names

The display window can display up to 10 characters only.

If the name is longer, it can be scrolled when changing display modes or during

playback of the message.

1 To cancel labeling

Press xSTOP.

Editing Messages

45GB

Setting the User Name

By setting the IC recorder user name, you can automatically add the user

name to a recorded message. When the message is displayed in the

“Memory Stick Voice Editor” software, the user name specified here is

displayed as “User Name”.

Note

The user name is not displayed on the IC recorder.

1Turn the jog lever toward MENU.

The menu mode window will be displayed.

2Press the jog lever up or down (>/

.) to select “USER NAME“, and then

press the jog lever (x•B).

The user name input window will be

displayed.

3Enter characters.

You can enter up to 20 characters for a user

name.

To enter and replace characters, see page 46.

4Press the jog lever (x•B) for more than

one second to fix the name.

5Turn the jog lever toward MENU to

exit the menu mode.

The window will return to normal display.

1 To cancel setting the user name

Press xSTOP.

Continued

46GB

Labeling Folders or Messages — Folder/Message/

User Name (continued)

Entering Characters

Follow the steps below when the display prompts to enter characters

(when the cursor is flashing in step 4 for labeling a folder on pages 43, or in

step 3 for labeling a message and changing the user name on pages 44 and

45 ).

To enter characters

1Press the jog lever up or down (>/.) to select the desired

character.

See the order of character sets on the next page.

2Press the jog lever (x•B) briefly to fix.

The cursor moves to the next.

3Repeat steps 1 and 2 to enter other characters.

To replace characters

When you make a mistake in entering a character or when you want to

change the name, enter again after all characters have been deleted by

pressing ERASE for more than one second or replace some of the

characters as follows.

1Place the cursor at the character you want to change.

To move the cursor back (to the left), press INDEX/BOOKMARK

briefly.

To move the cursor forward (to the right), press the jog lever (x•B)

briefly.

2Press the jog lever up or down (>/.) to select the desired

character.

To delete a character and close up the space, place the cursor at the

character you want to delete and press ERASE briefly.

3Press the jog lever (x•B) to move the cursor forward and repeat steps

1 and 2 to change other characters.

Note

You cannot insert a character into a name. You must simply replace all the

characters following the character you want to insert.

Editing Messages

47GB

Using the jog lever and buttons when labeling a folder /

message

Do this To do

Press the jog lever (x•B) briefly Set a character (The cursor moves

the next).

Press the jog lever (x•B) Set the name

for more than 1 second (Finishing entering the name).

Press the jog lever up (>) briefly Select characters (move to the next).

Press the jog lever up (>) Select characters

for more than 1 second (move to the next quickly).

Press the jog lever down (.) Select characters (return to the

briefly previous).

Press the jog lever down (.) Select characters

for more than 1 second (return to the previous quickly).

Turn the jog lever toward Change the character set.

FOLDER briefly

Press ERASE briefly Erase a character.

Press ERASE for more than 1 second Erase all characters.

Press INDEX/BOOKMARK briefly The cursor moves back to the left.

Press INDEX/BOOKMARK The cursor moves back to the left

for more than 1 second quickly.

Character sets

Order Characters

1 (Capital letters) A B C D ~ X Y Z

2 (Symbol 1) ' , / : (space)

3 (Small letters) a b c d ~ x y z

4 (Symbol 1) ' , / : (space)

5 (Numbers) 0 1 2 ~ 8 9

6 (Symbol 2) ! # $ % & ( ) * . ;

< = > ? @ _ ‘ + - ' , / : (space)

48GB

BOther Functions

Playing Back a Message at a Desired

Time with an Alarm

You can sound an alarm and start playback of a selected message at a desired

time.

You can use this function to remind you of the date and time of a meeting,

etc. You can have the message played back at a specified date, once every

week, or the same time everyday.

You can also sound the alarm without playing back a message.

1Select the message you want to play back.

For more information about selecting the

desired message, see step 1 and 2 of “Playing

Back Messages“ on page 21.

2Enter the alarm setting mode.

1Press the jog lever toward MENU.

The menu mode will be displayed in the

display window.

2Press the jog lever up or down (>/

.) to select “ALARM”.

3Press the jog lever (x•B).

The alarm setting mode will be

displayed in the display window.

4Press the jog lever up or down (>/

.) to select “ON”.

If “ON” has already been selected,

follow the next steps.

Jog lever (>/./x•B/

MENU)

xSTOP

Other Functions

49GB

5Press the jog lever (x•B).

“DATE” will be displayed in the display

window.

3Set the alarm date and time.

To play back on a desired date

1Press the jog lever (x•B) while

“DATE” is displayed.

The year digits will flash.

2Press the jog lever up or down (>/

.) to select the year digits and press

the jog lever (x•B).

The month digits will flash.

3Set the month, day, and the time in

sequence, then press the jog lever

(x•B).

To play back once a week

1Press the jog lever up or down (>/

.) to select the day of the week

(“SUN” for Sunday to “FRI” for Friday).

2Press the jog lever (x•B).

The hour digits will flash.

3Press the jog lever up or down (>/

.) to select the hour digits, and press

the jog lever (x•B).

The minute digit will flash.

4Press the jog lever up or down (>/

.) to select the minute digits, and

press the jog lever (x•B).

Continued

50GB

Playing Back a Message at a Desired Time with an

Alarm (continued)

To play back at the same time every day

1Press the jog lever up or down (>/

.) to select “DAILY”.

2Press the jog lever (x•B).

The hour digits will flash.

3Press the jog lever up or down (>/

.) to select the hour digits, and press

the jog lever (x•B).

The minute digit will flash.

4Press the jog lever up or down (>/

.) to select the minute digits, and

press the jog lever (x•B).

4Select the alarm sound.

1Press the jog lever up or down (>/

.) to select “BEEP & PLAY” or

“BEEP ONLY”.

2Press the jog lever (x•B).

5Press the jog lever toward MENU to

exit the menu mode.

The display returns to the normal display.

“,” is displayed when the message having

an alarm setting is selected.

When the set date and time comes

At the set time, the alarm will sound for about 10 seconds and the selected

message will be played back (If you have selected “BEEP ONLY“ in step 4,

only the alarm will sound).

During alarm playback, “ALARM” will flash in the display window.

When the playback ends, the unit will stop automatically at the beginning

of that message.

To listen to the same message again

Press the jog lever (x•B). The same message will be played back from the

beginning.

Other Functions

51GB

To cancel the alarm setting before the playback starts

Press xSTOP while the alarm sound is heard. You can stop even when the

HOLD function is activated.

Notes

• If the alarm time comes while another message is being played back with an

alarm, the playback stops and the new message will be played back.

• If the alarm time comes during recording, the alarm will sound after the recording

is finished. “,” will flash when the alarm time comes.

• If more than one alarm time comes during recording, only the first message will

be played back.

• When the alarm time comes when the unit is in the menu mode, alarm will sound

and the menu mode will be cancelled.

• If you erase the message you set the alarm for, the alarm setting will be cancelled.

• If you add an index to the message you set the alarm for, alarm setting remains

on only the first part of the divided message.

• If you erase the index on the message you set the alarm for, the alarm setting of

the latter message will be cancelled.

• You can adjust the playback volume with VOL +/–.

• If the alarm time comes during erasing, the alarm will sound after the erasing is

finished.

• Alarm setting will not be cancelled when the alarm playback finishes. To cancel

alarm setting, see below.

To check the alarm setting

Follow steps 1 and 2 on page 48 after selecting the alarm setting. The alarm

date and time will be displayed in the display window.

To cancel the alarm setting or change the alarm time

1Select the message you set the alarm for, and

press the jog lever toward MENU.

2Press the jog lever up or down (>/.) to

select “ALARM“ and press the jog lever

(x•B).

The current alarm setting is displayed.

3To cancel the alarm setting: Press the jog lever up or down (>/

.) to select “OFF” and press the jog lever (x•B).

To change the alarm date and time: Press the jog lever (x•B).

When the alarm date is displayed, follow steps 3 to 5 on pages 49 and

50 to change the alarm date and time.

4Press the jog lever toward MENU to exit the menu mode.

52GB

Preventing Accidental Operation —

HOLD function

Slide the HOLD switch in the direction of the arrow. “HOLD” will flash

three times, indicating that all the functions of the buttons are locked.

When the HOLD function is activated during stop, all the display will be

turned off after “HOLD” flashes three times.

To cancel the HOLD function, simply slide the HOLD switch in the

opposite direction.

Note

When the HOLD function is activated during recording, cancel the HOLD

function first to stop recording.

1 Tip

Even if the HOLD function is activated, you can stop the alarm playback. To

stop the alarm or playback, press xSTOP. (You cannot stop usual playback.)

HOLD switch

Other Functions

53GB

Selecting the Display Mode

You can select the display mode for stop, recording and playback modes.

1Turn the jog lever toward MENU.

The menu mode will be displayed.

2Press the jog lever up or down (>/

.) to select “DISPLAY”, and then

press the jog lever (x•B).

The display setting window will be displayed.

3Press the jog lever up or down (>/

.) to select the display mode.

You can select the display from the

following:

ELAPSE TIME (counter)

Elapsed playback/recording time of one

message.

REMAIN TIME (remaining time)

In the playback mode: The remaining time indication of the message.

In the stop and recording mode: The remaining recording time

indication.

Jog lever (>/./x•B/

MENU)

xSTOP

During playback During recording

or stop

Continued

54GB

Selecting the Display Mode (continued)

REC DATE (recorded date)

The date the current message was recorded.

(If the clock has not been set, “----Y--M--D”

will be displayed.)

REC TIME (recorded date and time)

The date and time the current message was

recorded. (If the clock has not been set, “--

M--D--:--” will be displayed.)

Only the starting time of the recorded

message is displayed. The displayed time

does not advance during the recording.

CODEC (file format)

The file format of the current message (LPEC

or ADPCM)

MSG.NAME (message name)

The message name will be displayed in the

display window.

If the message has no name, the message

name will not be displayed in the display

window.

1 Longer message names

A message name with more than 10 characters

will be displayed with the scroll function.

4Press the jog lever (x•B).

5Turn the jog lever toward MENU to exit the menu mode.

Other Functions

55GB

On Sleep display mode

If the unit is left unused for more than 3 seconds

in the stop mode, the display will turn to sleep

display mode as shown to the right, regardless of

the display mode setting.

To display the current time

Press xSTOP button during the sleep display mode. The current time will

be displayed for 3 seconds in the display window.

56GB

Formatting a “Memory Stick“

You can format a “Memory Stick“ using the Memory Stick IC Recorder.

Formatting will delete all data recorded in the “Memory Stick“ including

images and other data. Before formatting, check the data in the “Memory

Stick“.

Because a commercially available “Memory Stick“ has already been

formatted at the factory, you do not need to format a “Memory Stick“

before the first use.

The supplied “Memory Stick“ has also already been formatted.

1Turn the jog lever toward MENU.

The menu mode will be displayed in the display window.

2Press the jog lever up or down (>/

.) to select “FORMAT.”

3Press the jog lever (x•B).

The formatting window will be displayed.

4Press the jog lever up or down (>/

.) to select "YES".

Jog lever (>/./x•B/

MENU)

Other Functions

57GB

5Press the jog lever (x•B).

“OK?” will be displayed in the display window.

6Press the jog lever (x•B) again.

Formatting starts.

“FORMATTING” will be displayed on the

display.

After formatting, the display in step 2 will

appear in the display window.

7Press the jog lever toward MENU to exit the menu mode.

The window will return to normal display.

After formatting, three folders are automatically made in the “Memory

Stick“ (This is the same after inserting a “Memory Stick“ for the first

time.)

To cancel formatting

Select “NO“ in the step 4 or press xSTOP while “OK ?“ is displayed in

step 5.

Note

You cannot format when the write-protect switch on the “Memory Stick“ is set

to “LOCK”.

58GB

Changing the Settings — MENU

Operating the Menu

During stop, playback or recording, you can use the menu to change the

operation modes in playback and recording, display mode, or other

settings. Display the menu and change the settings as follows:

1Turn the jog lever toward MENU.

The menu mode will be displayed.

2Press the jog lever up or down (>/.) to select the menu

item for which you want to change setting.

The “Menu items” on the next page will be displayed. During

playback and recording, the menu items to be displayed are limited.

3Press the jog lever (x•B).

The setting mode of the selected menu item will be displayed.

4Press the jog lever up or down (>/.) to select the setting

that you want to set, and then press the jog lever (x•B).

The setting will be changed. For the settings, refer to the “Menu

items” on the next page.

5Turn the jog lever toward MENU to exit the menu mode.

The window will return to normal display.

Other Functions

59GB

Menu Items

Menu items Settings (*: Initial setting)

MIC SENS H *(high): To record at meetings or in a quiet

and/or spacious place.

L (low): To record dictation or in a noisy place.

VOR ON: The VOR (Voice Operated Recording)

function is activated. Recording starts when the

unit detects sound and stops when no sound is

heard, eliminating recording from soundless

period.

OFF*: The VOR function is disabled. Normal

recording operation is selected.

NEW FOLDER Displays the window to add a new folder (YES/

NO*). See page 37.

FOLDER NAME Displays the window to change a folder name.

See page 42.

MSG.NAME Displays the window to change the message

name. See page 44.

USER NAME Displays the window to change the IC recorder

user name. See page 45.

DPC Displays the window to set the playback speed

(ON/OFF*). See page 28.

CONT. ON: You can play back all messages in a folder

continuously.

OFF*: Playback stops at the end of each message.

EASY-S ON: You can go back for approx. 3 seconds by

pressing the jog lever down (.), or advance for

approx. 10 seconds by pressing the jog lever up

(>).

OFF*: You can go back or forward the messages

by pressing the jog lever down or up (./>).

Continued

60GB

Changing the Settings — MENU (continued)

Menu items Settings (*: Initial setting)

BEEP ON*: A beep will sound to indicate that operation has

been accepted.

OFF: No beep sound will be heard except for the

alarm.

ALARM Displays the window to set the alarm (ON/OFF*).

See page 48.

FORMAT Displays the window to format a ”Memory Stick”

(YES/NO*). See page 56.

SET DATE Displays the window to set the clock. See page 12.

DISPLAY Displays the window to change the display mode.

See page 53.

MODE SP*: You can record with better sound.

LP: You can record for longer time.

For the maximum recording time, see page 7.

1 When no “Memory Stick” is inserted

“NEW FOLDER”, “FOLDER NAME”, “MSG. NAME”, “ALARM“, “FORMAT“

and “DISPLAY” menu items will not be displayed in the menu mode.

1 During playback

You can change settings for “DPC”, “CONT.”, and “DISPLAY“ menu items

only.

1 During recording

You can change settings for “MIC SENS”, “VOR”, and “DISPLAY“ menu items

only.

”Memory Stick Voice Editor“ Software Operations

61GB

Record

messages

on the

IC recorder

Transfer

messages

Record

messages

on the

IC Recorder

Remove the

“Memory Stick“

Play back

or edit

transferred

messages

Play back

or edit

transferred

messages

Continued

B”Memory Stick Voice Editor“ Software

Operations

Overview of the Software

What You Can Do with the “Memory Stick Voice

Editor“ Software

“Memory Stick Voice Editor“ software allows you to transfer the messages

to your display monitor, to save them on your computer’s hard disk, and

to play back and edit them.

Transferring the messages recorded on the IC recorder to

your computer

You can transfer the messages to your computer and save them onto your

computer’s hard disk with either of the following methods:

•Removing the “Memory Stick“ from the IC recorder and inserting it to

your computer

•Connection the USB connectors of the IC recorder and your computer

62GB

Overview of the Software (continued)

Saving the messages on your computer’s hard disk

You can save the messages in the “Memory Stick“ on your computer's

hard disk. You can save them as the following file formats.

• MSV (Memory Stick Voice LPEC) file

• MSV (Memory Stick Voice ADPCM) file

• DVF (Digital Voice) file

• WAV file (8-/16-bit)

Viewing, playing, or editing the messages on your

computer

In the “Memory Stick Voice Editor” window, you can do the following:

•You can display the list of messages contained in the Memory Stick and

in your computer’s hard disk.

•The message can be played back through computer‘s speakers. In

addition to the normal playback, you can also enjoy various ways of

playback.

•You can edit messages: renaming messages or folders, changing the

priority or alarm settings, dividing/combining messages, or sending a

voice e-mail. You can also convert the file format of a PC message.

Transferring messages back to the “Memory Stick“ for

playing back with the IC recorder

The messages saved in your computer or sound files (MSV, DVF, WAV, or

MP3 files) received with an e-mail message can be added to the “Memory

Stick“ as MSV files, which can be played back on the IC recorder.

”Memory Stick Voice Editor“ Software Operations

63GB

Continued

About the File Formats

The “Memory Stick Voice Editor 2” can handle the following file formats.

You can save them on your computer’s hard disk, play them back, edit

them, or attach them to an e-mail. The file formats can also be converted

into each other (some file conversion is not possible.).

MSV(LPEC) file (Memory Stick Voice file/file extension: *.msv )

The MSV(LPEC) file is a sound file format used in recording messages on

this unit. The sound data is compressed so that the size of the data is

relatively small. You can edit and play back the MSV(LPEC) files on the

“Memory Stick Voice Editor 2”, write them on the “Memory Stick” to be

restored and played back on this unit.

MSV(ADPCM) file (Memory Stick Voice file/file extension: *.msv)

The MSV(ADPCM) file is a sound file format used in recording messages

on the Memory Stick IC recorder ICD-MS1. You can play back and edit the

MSV(ADPCM) files on the “Memory Stick Voice Editor”.

On this unit, the MSV(ADPCM) files can only be played back. (No edition

is possible.) On the “Memory Stick Voice Editor 2”, an MSV (ADPCM) file

can be converted into an MSV (LPEC) file and can be written on the

“Memory Stick” to be played back and edited on this unit.

DVF file (Digital Voice File/file extension: *.dvf)

The DVF file is a sound file format used in recording messages on the Sony

ICD-BP Series IC recorder equipped with a USB port. You can edit and

play back the DVF files on both the “Memory Stick Voice Editor” and the

Digital Voice Editor.

On the “Memory Stick Voice Editor 2”, a DVF file can be converted into an

MSV(LPEC) file and can be written on the “Memory Stick” to be played

back on this unit.

64GB

Overview of the Software (continued)

WAV file (8/11/16kHz, 8/16 bit, monaural/44.1kHz, 16 bit,

stereo wav file/file extension: *.wav)

The WAV file is a PCM 8/11/16kHz, 8/16 bit monaural, or 44.1kHz 16 bit

stereo sound file used in recorded sound in standard Windows application

software. You can play back a WAV file on the “Memory Stick Voice

Editor” and on Windows software such as the “Sound Recorder”.

On the “Memory Stick Voice Editor 2”, a 11/16/44.1kHz WAV file can be

converted into an MSV(LPEC, SP) and an 8 kHz WAV file can be

converted into an MSV (LPEC, LP) file. They can be written on the

“Memory Stick” to be played back on this unit.

ICS file (Sony IC recorder Sound file/file extension: *.ics)

The ICS file is Sony's original sound file format used in recording

messages on the IC recorder ICD-R100/R200. The “Memory Stick Voice

Editor 2” does not support an ICS file. To use an ICS file with the

“Memory Stick Voice Editor 2”, use the software compatible with the ICS

file format such as “Sony ICD-PCLINK software” to convert an ICS file

into a WAV file.

MP3 file (MP3 file/file extension: *.mp3 )

The MP3 file, short for MPEG-1 Layer 3 (Moving Pictures Expert Group),

stores digital audio such as sounds or songs and is commonly used to

distribute it over internet. The file is compressed with little loss in sound

quality. You can play back an MP3 using an MP3 player.

On the “Memory Stick Voice Editor 2,” an MP3 file can be viewed in the

PC message list, played back and attached to an e-mail message. To view

an MP3 file, select and check [View MP3 Files] from the [View] menu. You

can also convert an MP3 file into an MSV file and add to the “Memory

Stick.” For details, see the software online help.

”Memory Stick Voice Editor“ Software Operations

65GB

About the “Memory Stick” Folder Structures

The “Memory Stick“ contains the following folder structures with the

VOICE folder as the root folder.

VOICE folder

The VOICE folder is to control messages properly both in the “Memory

Stick Voice Editor” and the Memory Stick IC recorder.

When you insert a “Memory Stick” without the VOICE folder into your

computer for the first time, the initial settings are performed and three

message folders named "FOLDER 01," "FOLDER 02," and "FOLDER 03" are

created. A message folder contains message files (*.msv).

Message list file

The message list file (Msglist.msf) describes and controls the VOICE folder

structure, message and folder names, the number of messages contained in

each message folder, the priority and alarm settings, and other file and

folder information. A backup file (Msglistb.msf) is also saved.

Notes

• Windows Explorer can also view the folder structures of a “Memory Stick” in

the same way, but never edit, move, copy, or delete messages in Explorer's

window.

• Folder and files names indicated in Windows Explorer are different from the

actual folder and message names (page 42).

“Memory Stick“ drive

VOICE folder

Message folders

Message files

Message list files

Continued

66GB

Overview of the software (continued)

Note on formatting a “Memory Stick”

To initialize a “Memory Stick”, make sure to use “FORMAT” menu of this unit.

For details, see page 56.

System Requirements

Your computer and system software must meet the following minimum

requirements.

•IBM PC/AT or compatible

–CPU: 266MHz Pentium® II processor or higher

–RAM: 64MB or more

–Hard disk space: 70MB or more depending on the size and number

of sound files you store.

–CD-ROM drive

–USB port

–Sound board: Sound Blaster 16 compatible

–Display: High color (16 bits) or more and 800 x 480 dots or more

•OS: Microsoft® Windows® XP Home Edition/XP Professional/2000

Professional/Millennium Edition/98/98 Second Edition standard

installation (You cannot use this software with Windows® 95 or

Windows® NT.)

Notes

•You cannot use the software with a Macintosh machine.

•A handmade computer, a computer whose operating system is installed or

upgraded by the user, or a computer with multi-boot operating environment

are not supported.

• If you do not connect your IC recorder to your computer via USB connectors,

you need a computer with a “Memory Stick“ slot or optional “Memory Stick“

adaptors as shown below to transfer the “Memory Stick” data to your

computer:

–PC Card Adaptor for Memory Stick (MSAC-PC2N)

–Memory Stick Reader/Writer (MSAC-US1/MSAC-US5)

Depending on the adaptors, more system requirements may be needed. We

do not recommend the use of a floppy disk adaptor for “Memory Stick”.

”Memory Stick Voice Editor“ Software Operations

67GB

Note on transcribing a message

When you use Dragon NaturallySpeaking® speech-recognition software to

transcribe a message, your computer must also meet the system requirements

that the Dragon NaturallySpeaking requires. For details, see “Guide for Voice

Recognition”.

Note on sending a voice e-mail

When you use Microsoft® Outlook Express 5.0/5.5/6.0 to send a voice e-mail of

a message, your computer must also meet the system requirements that the

Outlook Express requires.

68GB

Installing the software

Install “Memory Stick Voice Editor“ software in your computer’s hard

disk.

Notes

•When installing or uninstalling the software in Windows® 2000 Professional,

make sure to log on Windows as the user name of “Administrator. ”

•When installing or uninstalling the software in Windows® XP Professional/

Home Edition, log on as a user name with the “Computer administrator”user

account. (To find if the user name has a “Comptuer administrator” user

account, open the “User Accounts” from the “Control Panel” and refer to the

section beneath the user name being displayed.

•After installing, the Microsoft DirectX module is also installed depending the

operation system of your computer. This module is not deleted after

uninstalling the software.

1Turn on your computer and start up Windows.

Notes

•Be sure to close all running programs before installing the “Memory

Stick Voice Editor“ software.

•When a previous version of the “Memory Stick Voice Editor” software

has already been installed, installing a newer version automatically

remove the previous version. (Messages are not removed.)

2Insert the supplied CD-ROM into the CD-ROM drive.

The installer starts up automatically and the following window appears.

If the installer does not start up, double click [MSVE Setup.exe] in the

[English] folder.

”Memory Stick Voice Editor“ Software Operations

69GB

3Follow the displayed instructions.

When the [Restart] dialog box appears, click [OK] to restart the

computer.

Now the installation is completed.

Uninstalling the software

When you wish to uninstall the software, follow the steps below.

1Click [Start] and select [Programs], [Sony Memory Stick Voice

Editor 2.0] and then [Uninstall].

The uninstaller starts up.

2Follow the displayed instructions.

Note

If you wish to move the software to another drive or directory after it is

installed, you need to uninstall the software and then reinstall it. The software

does not work properly if you just move the files.

1 Tips

•You can also start up the uninstaller by clicking [Start] and then selecting

[Settings], [Control Panel], and [Add/Remove Programs].

•Uninstallation does not remove the message files.

70GB

To IC recorder

USB connector

Connecting

cable (supplied)

To USB

connector of

your computer

Transferring the “Memory Stick” data

onto your computer

You can transfer the Memory Stick data onto your computer either by

connecting the IC recorder to the computer or inserting the Memory Stick

into the computer.

Connecting the IC Recorder to your Computer

Use the USB connecting cable supplied with the IC recorder to connect the

USB connectors of the IC recorder and your computer.

The IC recorder is recognized by the computer as soon as the cable is

connected. You can connect or disconnect the cable when the IC recorder

and the computer are turned on or off.

Notes

•Be sure to install the “Memory Stick Voice Editor” software before connecting

the IC recorder to your computer.

•Do not connect more than two USB devices to your computer. Normal

operation will not be guaranteed.

•

Use of this IC recorder with a USB hub or a USB extension cable is not guaranteed.

•A malfunction may occur depending on the USB devices connected at any one

time.

•Before connecting the IC recorder to the computer, check the remaining

battery power of the IC recorder (more than one segment of the battery

indicator “”should be on) . If the batteries are exhausted, communication

between the IC recorder and the computer may not succeed.

•When you connect the IC recorder to the computer, make sure that the IC

recorder is in the stop mode.

•We recommend you disconnect the cable from the computer when you do not

use the “Memory Stick Voice Editor”.

”Memory Stick Voice Editor“ Software Operations

71GB

Continued

Inserting a “Memory Stick“ to your Computer

Remove the “Memory Stick“ from the IC recorder and insert it to your

computer by using either of the following methods:

If your computer has a “Memory Stick” slot

Insert the “Memory Stick“ directly into the slot.

If your computer does not have a “Memory Stick” slot

Use either of the adaptors below to insert the “Memory Stick“ to your

computer. In either case, you need to install the driver for the adaptor.

For details, refer to the instruction manual of the adaptor you use.

•Using the Sony PC Card Adaptor MSAC-PC2N

Insert the “Memory Stick“ into the PC Card Adaptor. Then insert the PC

Card Adaptor into the PC card slot of your computer.

Note

When using the PC Card Adaptor, make sure to release the LOCK switch of

the “Memory Stick“.

72GB

Transferring the “Memory Stick” data onto your

computer (continued)

•Using the USB-compatible Sony Memory Stick Reader/Writer MSAC-

US1 or MSAC-US5

Connect the Memory Stick Reader/Writer to the USB port of your

computer with the supplied cable. Insert the “Memory Stick” into the

Memory Stick Reader/Writer.

”Memory Stick Voice Editor“ Software Operations

73GB

Starting the software

Starting/Exiting the Software

1Turn on your computer and start Windows.

2Connect the IC recorder to your computer or remove the

“Memory Stick“ from your IC recorder and insert it to your

computer (pages 70 and 71).

3Click [Start], and select [Programs], [Sony Memory Stick Voice

Editor 2.0] and then [Memory Stick Voice Editor].

The “Memory Stick Voice Editor“ starts up. The splash window

appears, and after loading the message list file the following main

window is displayed.

Note

If the setting of the display of Windows is set to “Large Font“, the main

window appears different from the above one. It is recommended to set

“Small Font“ in the setting of the display. To change the setting, refer to

the instruction manual of Microsoft Windows.

Continued

74GB

Starting the software (continued)

The first time you start the software or when a “Memory

Stick“ drive is not found

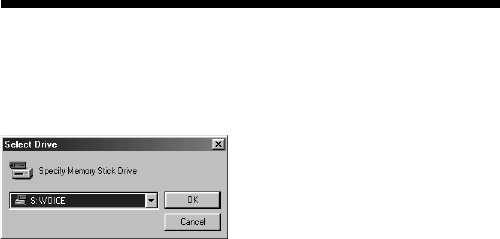

After the splash window, the following dialog box for specifying the

“Memory Stick“ drive is displayed.

Select the “Memory Stick“ drive from the drop-down list and click [OK].

The message folders of the selected drive’s VOICE folder are displayed in

the folder list box.

Notes

•The drive letter for the “Memory Stick“ differs depending on your computer’s

settings or environment.

•If a new “Memory Stick“ is inserted in the specified drive or you specify the

drive without the VOICE folder, the dialog box used to inform you that no

Message Folder exists in the specified drive “#” and ask you to create the new

Message Folder is displayed. Click [Yes] to make the initial setting of the

“Memory Stick“ and display the main window. Click [Cancel] to display the

[Select Drive] dialog box.

• Before starting the “Memory Stick Voice Editor“, make sure to connect the IC

recorder to your computer or insert the “Memory Stick“ into your computer.

When you do after the “Memory Stick Voice Editor“ is started, the “Memory

Stick“ drive cannot be recognized.

• Before disconnecting the IC recorder or removing the “Memory Stick“ from

your computer, make sure to exit the “Memory Stick Voice Editor“.

Otherwise, data may be damaged.

To quit the “Memory Stick Voice Editor“

Click the close button in the right corner of the window or [Exit] from the

[File] menu.

”Memory Stick Voice Editor“ Software Operations

75GB

Using Online Help Files of the Software

For details on how to use the “Memory Stick Voice Editor” software, refer

to the online Help files.

1 Tip

For the latest information, refer to the “readme.txt” file. To open the file,

click [Start], [Programs], [Sony Memory Stick Voice Editor 2.0], and then

[ReadMe].

There are three ways to open online Help file:

•Click [Start], [Programs], [Sony Memory Stick Voice Editor 2.0], and then

[Help].

•After starting up the software, select [Help Topics] in the [Help] menu.

•After starting up the software, click (Help topics) in the Toolbar.

To search from the table of contents in the Help files

•Double-click to display the titles of the contents.

•Double-click to display the explanations.

To search with a key word

Click [Key word] in the search dialog box in the Help topics. The list of key

words is displayed.

Input the key word or scroll the list of key words.

To display the explanations of the key word, select the key word from the

list and click [Find].

Notes

•From the [Help] menu, or in the Toolbar, you can open English Help files

only.

•Help files in your language may not be supplied with this software.

76GB

Names and Functions of the Main Window

1Menu bar/Toolbar

You can access and execute the menu commands from the menu bar.

The toolbar contains the buttons for common menu command tasks,

providing quick way to do tasks. For the details, see the online help.

2 Drive box

Select the desired drive from the drop-down list. Message folders in the

VOICE folder in the selected drive are shown in the Memory Stick

folder list.

”Memory Stick Voice Editor“ Software Operations

77GB

3 “Memory Stick” message pane

In the folder list beneath the drive box, message folders in the VOICE

folder of the drive you selected in the drive box 2 are displayed. Click

the desired folder from the list, so that the messages in the selected

folder are displayed in the message list beneath the folder list.

The messages are displayed with the relevant information: message

number, file name, user name, message name, recorded date, length,

priority setting, bookmark setting, alarm setting, Codec, and recording

mode (SP or LP).

Note

The remaining recording time displayed in the IC recorder may differ from that

displayed in the Memory Stick Voice Editor, which is not malfunction. This is

because the IC recorder displays the remaining time after subtracting the

memory amount required for its system.

4 PC message pane

In the upper folder tree pane, the drives and folders are displayed in

tree. Click the desired drive and folder in the folder tree pane, so that

the messages in the selected folder are displayed in the message list

beneath the folder tree pane.

The messages are displayed with the relevant information: file name,

user name, message name, recorded date, length, priority setting,

bookmark setting, Codec, and recording mode (SP or LP).

78GB

Volume adjustment buttons

Counter, message status and

information, recording time

indication

Divide/combine buttons Repeat play buttons

Bookmark buttons

Playback operation buttons (Cue/

Review/Skip/Backward/Stop/Play/

Easy Search)

Playback Slider

Mail and voice

recognition buttons

Names and Functions of the Main Window

(continued)

5 Player pane

This pane controls playback operations. The information of the

“Memory Stick“ and the message being played back is displayed. For

details, see the online help.

DPC buttons

Additional Information

79GB

BAdditional Information

Precautions

On power

Operate the unit only on 3 V DC. Use two size AAA (LR03) alkaline

batteries.

On safety

Do not operate the unit while driving, cycling or operating any motorized

vehicle.

On handling

• Do not leave the unit in a location near heat sources, or in a place subject

to direct sunlight, excessive dust or mechanical shock.

• Should any solid object or liquid fall into the unit, remove the batteries

and have the unit checked by qualified personnel before operating it any

further.

Keep personal credit cards using magnetic coding or spring-wound

watches, etc., away from the unit to prevent possible damage from

the magnet used in the speaker.

On noise

• Noise may be heard when the unit is placed near an AC power source, a

fluorescent lamp or a mobile phone during recording or playback.

• Noise may be recorded when an object, such as your finger, etc., rubs or

scratches the unit during recording.

On maintenance

To clean the exterior, use a soft cloth slightly moistened in water. Do not

use alcohol, benzine or thinner.

Continued

80GB

Precautions (continued)

On using a “Memory Stick“

•Do not touch or allow metallic objects to come into contact with the metal

parts of the connecting section.

•Stick the label supplied for the “Memory Stick” only on the labeling

position. Do not use any other labels.

•Do not bend, drop or apply strong shock to the "Memory Stick".

•Do not disassemble or modify the "Memory Stick".

•Do not let the "Memory Stick" get wet.

•Do not use or keep the "Memory Stick" in locations that are:

– Extremely hot such as in a car parked in the sun

– Under direct sunlight

– Very humid or subject to corrosive gases

•When you carry or store a "Memory Stick", put it in its case.

Data backup

After the repair, recorded data sometimes will be deleted. Back up important

data regularly to avoid losing the data.

If you have any questions or problems concerning your unit, please

consult your nearest Sony dealer.

Should a problem occur with the unit with the “Memory Stick“ inserted,

take it to your nearest Sony dealer without removing the “Memory Stick“.

This will allow the problem to be resolved more quickly.

Backup recommendations

To avoid potential risk of data loss caused by accidental operation or

malfunction of the IC recorder, we recommend that you save a backup

copy of your recorded messages on a tape recorder or to a computer,

etc.

Additional Information

81GB

Troubleshooting

Before taking the unit for repair, check the following sections. Should any

problem persist after you have made these checks, consult your nearest

Sony dealer.

IC Recorder

Symptom

The unit does not

operate.

No sound comes

from the speaker.

You cannot start

recording.

You cannot erase a

message.

Remedy

•The batteries have been inserted with incorrect

polarity (page 10).

•The batteries are weak.

•The buttons are locked with the HOLD switch

(page 52). (If you press any button, “HOLD”

will flash three times.)

•The earphone or headphones are plugged in.

•The volume is turned down completely.

•The “Memory Stick” is full. Erase some of the

messages. See page 25.

•There is no “Memory Stick” inserted.

•The write-protect switch on the inserted

“Memory Stick is set to “LOCK” (page 15).

•999 messages have been recorded in the

selected file. Select another file or erase some

of the messages. See page 25.

•The write-protect switch on the inserted

“Memory Stick“ is set to “LOCK” (page 15).

•The message or the folder which contains the

message is set to “Read-only“ in the computer.

Open the data in a “Memory Stick“ using

Windows Explorer and remove the check for

“Read-only“ under “Properties“.

•You cannot erase other formatted (except MSV

file format) data using the unit.

Continued

82GB

Troubleshooting (continued)

Symptom

You cannot erase all

messages in a folder.

You cannot

overwrite.

Noise is heard.

Recording level is

low.

Recording is

interrupted.

Recording level is

unstable (when

recording music, etc.)

Remedy

•The write-protect switch on the inserted

“Memory Stick“ is set to “LOCK” (page 15).

•The folder or the message in the folder is set to

“Read-only“ in the computer. Open data in a

“Memory Stick“ using Windows Explorer and

remove the check for “Read-only“ under

“Properties“.

•The remaining memory is too short. The

overwritten part will be deleted after the

overwriting part finishes recording. Therefore,

you can only overwrite within the remaining

recording time.

•You cannot overwrite an MSV (ADPCM) file

recorded with the IC recorder ICD-MS1.

•An object, such as your finger, etc., accidentally

rubbed or scratched the unit during recording

so that noise was recorded.

•The unit was placed near an AC power source,

a fluorescent lamp or a mobile phone during

recording or playback.

•Plug of the connected microphone was dirty

when recording. Clean the plug.

•Earphone/headphones plug is dirty. Clean the

plug.

•MIC SENS is set to “L”. Display the menu and

set MIC SENS to “H” (page 59).

•The advanced VOR function is activated.

Display the menu and set VOR to “OFF”

(page 59).

•This unit is designed to automatically adjust

the recording level when recording meetings,

etc., and is not suitable for music recording.

Additional Information

83GB

Symptom

Playback speed is

too fast or too slow.

“--:--” is displayed.

“--Y--M--D” or ” --:--”

is displayed on the

REC DATE display.

There are fewer

menu items in the

menu mode.

A character in a

folder or message

name is displayed as

“s“.

Messages are not

sorted in order of the

number of priority

marks in a folder.

The remaining time

displayed in the

display window is

shorter than that

displayed in the

supplied “Memory

Stick Voice Editor“

software.

The unit does not

operate correctly.

Please note that recorded messages may be erased during service or repair

work.

Remedy

•The playback speed is adjusted in DPC.

Display the menu and adjust the speed in DPC

again (page 28).

•You have not set the clock (page 12).

•The date of recording will not be displayed if

you recorded the message when the clock was

not set.

•There are some menu items which are not

displayed because a “Memory Stick“ is not

inserted (page 60).

•The unit cannot support and display some

characters which are entered using the

supplied “Memory Stick Voice Editor“

software.

•Unless you sort messages using the supplied

“Memory Stick Voice Editor“ software,

messages are sorted in the unit the same as the

setting in the computer. Sort again in the order

of the number of priority marks in the

computer using the supplied “Memory Stick

Voice Editor“ software.

•The unit requires a certain amount of memory

for system operation. That amount is

subtracted from the remaining time, which is

the reason for the difference.

•Take out the batteries and insert them again

(page10).

84GB

Troubleshooting (continued)

“Memory Stick Voice Editor” Software

Symptom

“Memory Stick Voice

Editor“ software

cannot be installed.

Messages recorded

using the IC recorder

cannot be transferred

to the computer./The

software does not

operate correctly.

Messages cannot be

played back.

Playback sound is

interrupted.

Saved message files

cannot be played back

or edited.

Remedy

•The free disk or memory space on the

computer is too small. Check the hard disk

and memory space.

•The “Memory Stick“ is not recognized. Quit

the software and reinsert the “Memory

Stick“, and then restart the software. The

software can only recognize the “Memory

Stick“ inserted before the startup.

•When you connect the IC recorder to the USB

port of your computer, check the connection

as follows:

– When using an external USB hub, connect

the IC recorder directly to the computer.

– Disconnect and then connect the cable with

the IC recorder.

– When your computer is equipped with

multiple USB ports, connect the IC recorder

to another USB port.

•Check that the “Memory Stick“ adaptor is

connected correctly. For more information,

see the instruction manual of the adaptor.

•No sound board is installed.

•No speaker is built-in or connected to the

computer.

•Sound is muted.

•When you choose the floppy disk drive,

playback sound is sometimes interrupted.

•You cannot play back a message whose file

format the Memory Stick Voice Editor does

not support. Depending on the file format,

you cannot use part of editorial features of

the Memory Stick Voice Editor.

Additional Information

85GB

Symptom

Playback sound

volume is too low.

Counter or slider

moves incorrectly.

There is noise.

Operation is slow

when there are many

messages.

Display does not

work during saving,

adding, or deleting of

messages.

It takes too long to

convert a file format.

The Software ‘hangs’

when “Memory Stick

Voice Editor“

Software starts up.

Remedy

•Turn up the volume on the computer. (Refer

to the instruction manual of the computer.)

•This happens when you play back messages

in the computer to which you added/

deleted an index, overwrote, or added a

recording. Save a message in MSV (LPEC)

file format in the hard disk first, and then

add it to the “Memory Stick“.

•Regardless of the length of the recording

time, when the total number of messages is

large the operation becomes slower.

•It takes more time to copy or delete long

messages. After completing operations, the

display works normally.

•The time required for file conversion

becomes longer as the file size is bigger.

•There may be conflict between the software

and other driver or application.

• The message list file may be broken. Delete

the message list file (Msglistb.msf) in the

VOICE folder on the Explorer window, and

then restart the software.

If the problem persists, delete “Msglist.msf“

file. If you delete “Msglist.msf“ file, the

information of messages (for example, order

of folders, folder names, priority setting,

alarm setting) will be deleted (except

message names).

• Check if the write-protect switch of the

“Memory Stick“ is set to the “LOCK“

position when you use the PC card adaptor.

86GB

Troubleshooting (continued)

Error messages of the IC Recorder

Error message

“MEMORY

STICK ERROR“

“NO MEMORY

STICK“

“UNKNOWN

DATA“

“ACCESS

ERROR“

“FORMAT

ERROR”

MEMORY

STICK

LOCKED“

“FILE

PROTECTED“

Cause/Remedy

•Insert the “Memory Stick“ again. After inserting,

if this message is displayed again, the inserted

“Memory Stick“ may be out of order.

•Insert the “Memory Stick“ again if already

inserted.

•The unit cannot play or erase the selected

message because the file type is different.

•If the write-protect switch is set to “LOCK“ (page

15), release the switch and insert the “Memory

Stick“ again. If this is displayed again, the

inserted “Memory Stick“ needs to be formatted

(page 56). Back up the data in the computer after

checking the contents.

•You cannot use the “Memory Stick” formatted

with other devices . Use the FORMAT in the

menu to format the “Memory Stick”.

•The write-protect switch on the inserted Memory

Stick is set to “LOCK“ (page 15). You cannot

record, edit or format in this condition. Slide the

switch to the left and insert again.

•Messages have been set to “Read-only“ in the

computer. You cannot edit or erase messages and

folders including these “Read-only“ messages.

Remove the check for “Read-only“ under

“Properties“ of files that are opened by Windows

Explorer.

Additional Information

87GB

Error message

“FOLDER

PROTECTED“

“LOW

BATTERY“

“INDEX FULL“

“FOLDER

FULL“

“INVALID

FUNCTION IN

ADPCM”

For the error messages of the “Memory Stick Voice Editor”, please refer to

the online Help files.

Cause/Remedy

•Folders have been set to “Read-only“ in the

computer. You cannot edit, erase, add messages,

or move messages in these “Read-only“ folders.

Remove the check for “Read-only“ under

“Properties“ of folders that are opened by

Windows Explorer.

•Batteries are weak. Replace batteries with new

ones.

•Because there are over 999 messages in the

folders or the remaining memory of the Memory

Stick is short, it is impossible to add an index.

Erase some messages before adding.

•Because the remaining memory of the “Memory

Stick“ is short, it is impossible to add a folder.

Erase some folders or messages before adding.

•You cannot use part of editorial features of this

unit for an MSV (ADPCM) file message.

88GB

Troubleshooting (continued)

System Limitations

There are some system limitations of the unit. Troubles as mentioned

below are not malfunctions of the unit.

Symptom

You cannot record

messages up to the

maximum

recording time.

You cannot add an

index while

recording/playing

a message.

You cannot erase

the index.

You cannot add a

folder.

Cause/Remedy

•If you record messages in a mixture of SP and

LP modes, the recordable time varies from the

maximum SP mode recording time to the

maximum LP recording time.

•There may be other formatted data (for

example, images) in the inserted “Memory

Stick“.

•Due to the minimum recording unit, if the

length of each message cannot be divided by

the minimum recording unit, the remaining

recording time may decrease by more than the

total length of the messages.

•The maximum recording time varies depending

on the number of folders or messages.

•Remaining memory of the inserted “Memory

Stick“ is too short to add. If the amount of

remaining memory is shorter than that of the

minimum recording unit, you cannot add an

index.

•You cannot add an index in a folder which has

over 999 messages.

•You cannot erase an index to combine different

recording mode (SP/LP) messages.

•Remaining memory of the inserted “Memory

Stick“ is too short to add. If the amount of

remaining memory is shorter than that of the

minimum recording unit, you cannot add a

folder.

Additional Information

89GB

About the minimum recording unit

For recording a message or adding an index or a folder, the time of the

minimum recording unit is needed. Although the actual recording time of

a message may be less than that of the minimum recording unit, the time

of the message is counted as a minimum recording unit.

If the remaining recording time of the inserted “Memory Stick“ is less than

that of the minimum recording unit, you cannot add an index or a folder in

the “Memory Stick“.

The minimum recording unit

Capacity of the SP mode LP mode

“Memory Stick“

4 MB 4 seconds 11 seconds

8 MB 4 seconds 11 seconds

16 MB 8 seconds 22 seconds

32 MB 8 seconds 22 seconds

64 MB 8 seconds 22 seconds

128 MB 8 seconds 22 seconds

About the maximum recording time and the maximum

number of messages or folders

A “Memory Stick“ saves not only recorded messages but also the

information about indexes and the number of folders. Therefore, as the

number of messages or folders increases, the amount of memory in the

“Memory Stick“ decreases.

The maximum recording time and the number of messages or folders

varies depending on this.

However, only in the case that you recorded up to the maximum recording

time, you can add up to two indexes. This means you can divide a message

into three parts and delete the unnecessary part in the message that was

recorded up to the maximum recording time.

90GB

Specifications

Recording media “Memory Stick“, Monaural recording

Recording time See page 7.

Frequency response SP: 250 Hz - 7,300 Hz

LP: 250 Hz - 3,500 Hz

Speaker approx. 23 mm (29/32 in.) dia.

Power output 200 mW

Input/Output • Earphone jack (minijack) for 8 - 300 ohms

earphone/headphones

• Microphone jack (minijack, monaural)

Plug in power

Minimum input level: 0.7 mV 3 kilohms or

lower impedance microphone

• USB connector

Playback speed control +100% to -50% (DPC)

Power requirements Two size AAA (LR03) alkaline batteries: 3 V DC

Dimensions 34.4 x 106.3 x 18 mm (1 3/8 x 4 1/4 x 23/32 in.)

(w/h/d) (not incl. projecting parts and controls)

Mass 75 g (2.7 oz) (incl. batteries and a “Memory Stick“)

Supplied accessories “Memory Stick“ x 1

“Memory Stick Voice Editor“ (CD-ROM) x 1

Earphones x 1

USB connecting cable x 1

Carrying case x 1

LR03 (size AAA) alkaline batteries x 2

Optional accessories Monaural ear receiver MDR-EX17/Stereo ear

receiver MDR-EX70/Active speaker SRS-T77/

Electret condenser microphone ECM-DM5P,

ECM-T115, ECM-Z60 (zoom microphone)/

Connecting cable RK-G64/Memory Stick MSA-8AN

(8 MB), MSA-16AN (16 MB), MSA-32AN (32 MB),

MSA-64AN (64 MB), MSA-128AN (128 MB)/

PC Card Adaptor for Memory Stick MSAC-PC2N/

USB-compatible Memory Stick

Reader/Writer

MSAC-US1A/MSAC-US5

Your dealer may not handle some of the above listed optional accessories.

Please ask the dealer for detailed information.

Design and specifications are subject to change without notice.

Additional Information

91GB

1ERASE button (25)

2EAR (earphone) jack (19, 22)

3OPR (operation) indicator

(17, 22)

4Built-in microphone (17, 31)

5Display window (93)

6zREC (record) /REC

PAUSE button (17, 31)

7xSTOP button (17, 22, 27)

Index to Parts and Controls

8Jog lever

FOLDER/MENU/

.(review/fast backward)/

> (cue/fast forward)/

x• B (play/stop•enter) (12,

16, 21, 28, 58)

9INDEX/BOOKMARK

button (29, 33)

0A-B REPEAT/PRIORITY

button (30, 40)

qa EJECT lever (15)

qs Memory Stick slot (14)

Refer to the pages indicated in parentheses for details.

Front

Continued

92GB

Index to Parts and Controls (continued)

Rear

qd HOLD switch (52)

qf Speaker

qg VOL (volume) +/– buttons

(22)

qh Slit for the supplied

handstrap

qj MIC (PLUG IN POWER)

jack (20)

qk USB connector (70)

ql Battery compartment (10)

Additional Information

93GB

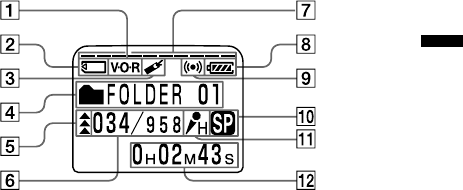

Display window

VOR (voice operated

recording) indicator (19, 59)

“Memory Stick” indicator

3Bookmark indicator (29)

Folder indication (

indication /Messages, etc.)

(16, 21)

5Priority marks (40)

6Selected message number

(17, 21)/Mode indication of

the menu (ON, OFF, etc.)

(59, 60)

7Remaining memory

indicator (20)

8Remaining battery indicator

(11)

9Alarm indicator (48)

Recording mode indication (60)

qa MIC SENS (microphone

sensitivity) indication

(59)

qs Counter /Remaining time

indication /Recording date

and time indication /

Current time indication

(53)

Note

The effect of the back light of the

display window may be reduced

in a bright location.

94GB

Index

A-B repeat ...................................... 30

Accidental operation .................... 52

Add, bookmark ............................. 29

Add, index ..................................... 33

Add, recording .............................. 31

Advanced VOR ....................... 19, 59

ADPCM .......................................... 63

Alarm.............................................. 48

Battery ............................................ 10

Beep .......................................... 50, 60

Bookmark ....................................... 29

Built-in microphone ..................... 17

CD-ROM ........................................ 68

Clock setting .................................. 12

Connecting computer .................. 70

Connecting external microphone .....

Continuous playback ....... 23, 34, 59

Counter display ............................ 53

Cue .................................................. 23

Display window ........................... 93

Display mode ................................ 53

DPC ................................................. 28

DVF file .......................................... 63

Easy search .................................... 24

Entering characters ....................... 46

Erase, index ................................... 35

Erase, messages ............................. 25

Error messages .............................. 86

External microphone .................... 20

F, G

File formats .................................... 63

Folder, adding/deleting .............. 37

Folder, selecting ...................... 16, 21

Folder name ................................... 42

Hold ................................................ 52

I, J, K

ICS file ............................................ 64

Index ............................................... 33

Install .............................................. 68

Labeling, folders ........................... 42

Labeling, message......................... 44

LP mode ......................................... 60

LPEC ............................................... 63

Additional Information

95GB

M, N

Main window ................................ 76

Memory Stick, inserting .............. 14

Memory Stick, folder structure ... 65

Memory Stick, formatting ........... 56

Memory Stick Voice Editor ......... 61

Memory Stick message pane....... 77

Menu............................................... 58

Message, erasing ........................... 25

Message, move .............................. 39

Message, playing back ................. 21

Message, recording....................... 16

Message number ..................... 17, 21

Microphone, built-in .................... 17

Microphone, external ................... 20

Microphone, connecting .............. 20

Microphone sensitivity ................ 19

Move ............................................... 39

MSV file .......................................... 63

Overwrite recording ..................... 32

P, Q

PC message pane .......................... 77

PC card adaptor ............................ 71

Personal computer ........................ 70

Play back continuously .... 23, 34, 59

Playback ......................................... 21

Playback speed .............................. 28

Player pane .................................... 78

Plug in power ................................ 20

Priority mark ................................. 40

Recorded date ............................... 54

Recording ....................................... 16

Recording mode............................ 60

Remaining memory ...................... 20

Remaining recording time........... 53

Repeat play .................................... 24

Review ............................................ 23

Search backward/forward .......... 23

SP mode ......................................... 60

Start the software .......................... 73

System limitations ........................ 88

Transfer the data

to the computer ............................. 70

Uninstall ......................................... 69

USB connector ......................... 61, 70

User name ...................................... 45

Voice folder ................................... 65

Volume control ............................. 22

VOR .......................................... 19, 59

W, X, Y, Z

WAV file ........................................ 64

Sony Corporation Printed in Japan

Printed on 100% recycled

paper using VOC (Volatile

Organic Compound)-free

vegetable oil based ink.

Sony ICD MS515 User Manual Operating Instructions (primary Manual) ICDMS515

ICD-MS515 ICDMS515

Navigation menu

Versions of this User Manual:

Views

Navigation
